Genex Telecom GR2000 GMRS UHF Transceiver User Manual GR2000Manual

Genex Telecom Co., Ltd. GMRS UHF Transceiver GR2000Manual

Contents

users manual

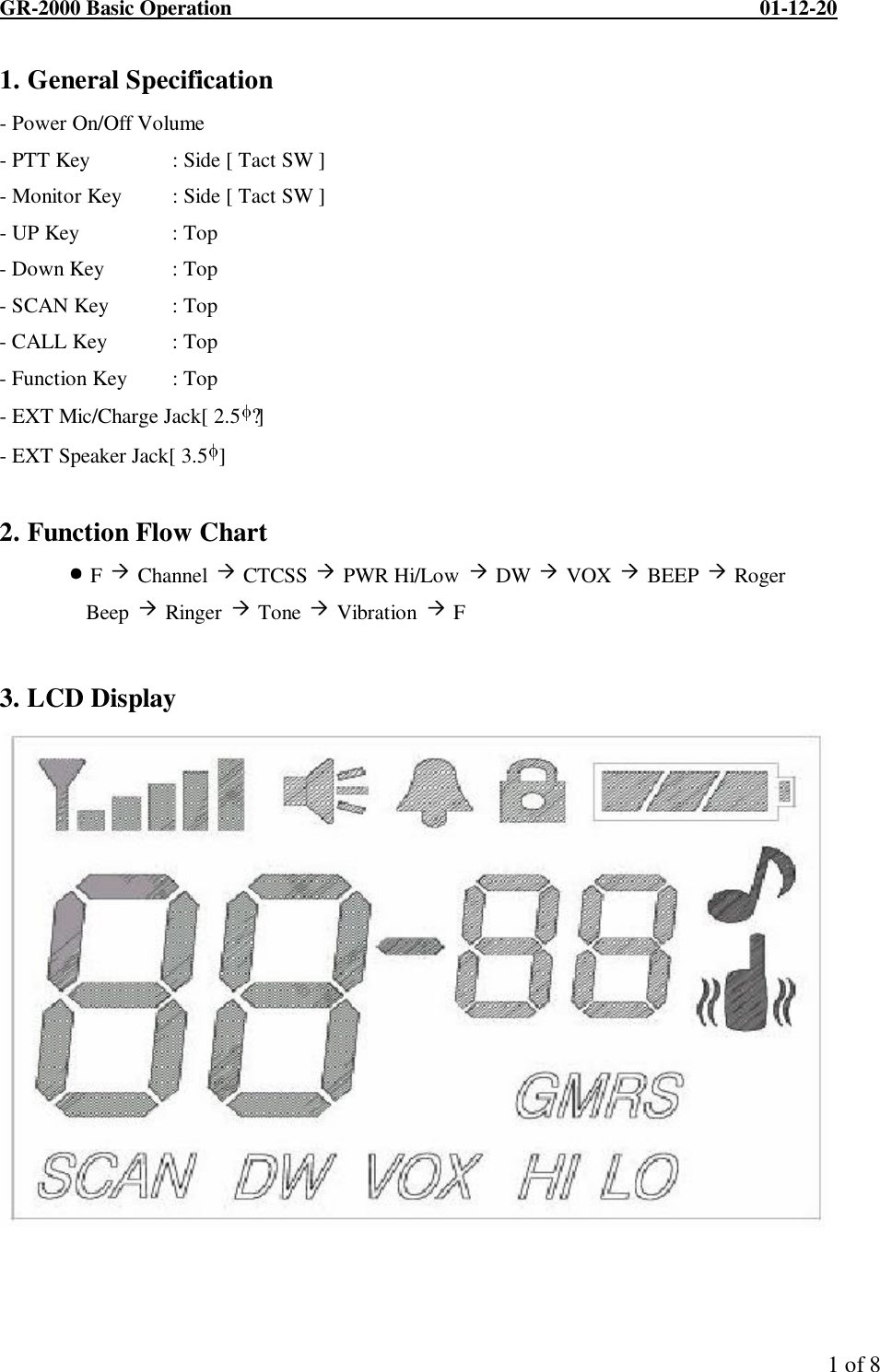

GR-2000 Basic Operation 01-12-20 1 of 8 1. General Specification - Power On/Off Volume - PTT Key : Side [ Tact SW ] - Monitor Key : Side [ Tact SW ] - UP Key : Top - Down Key : Top - SCAN Key : Top - CALL Key : Top - Function Key : Top - EXT Mic/Charge Jack[ 2.5 ?] - EXT Speaker Jack[ 3.5 ] 2. Function Flow Chart F Channel CTCSS PWR Hi/Low DW VOX BEEP Roger Beep Ringer Tone Vibration F 3. LCD Display

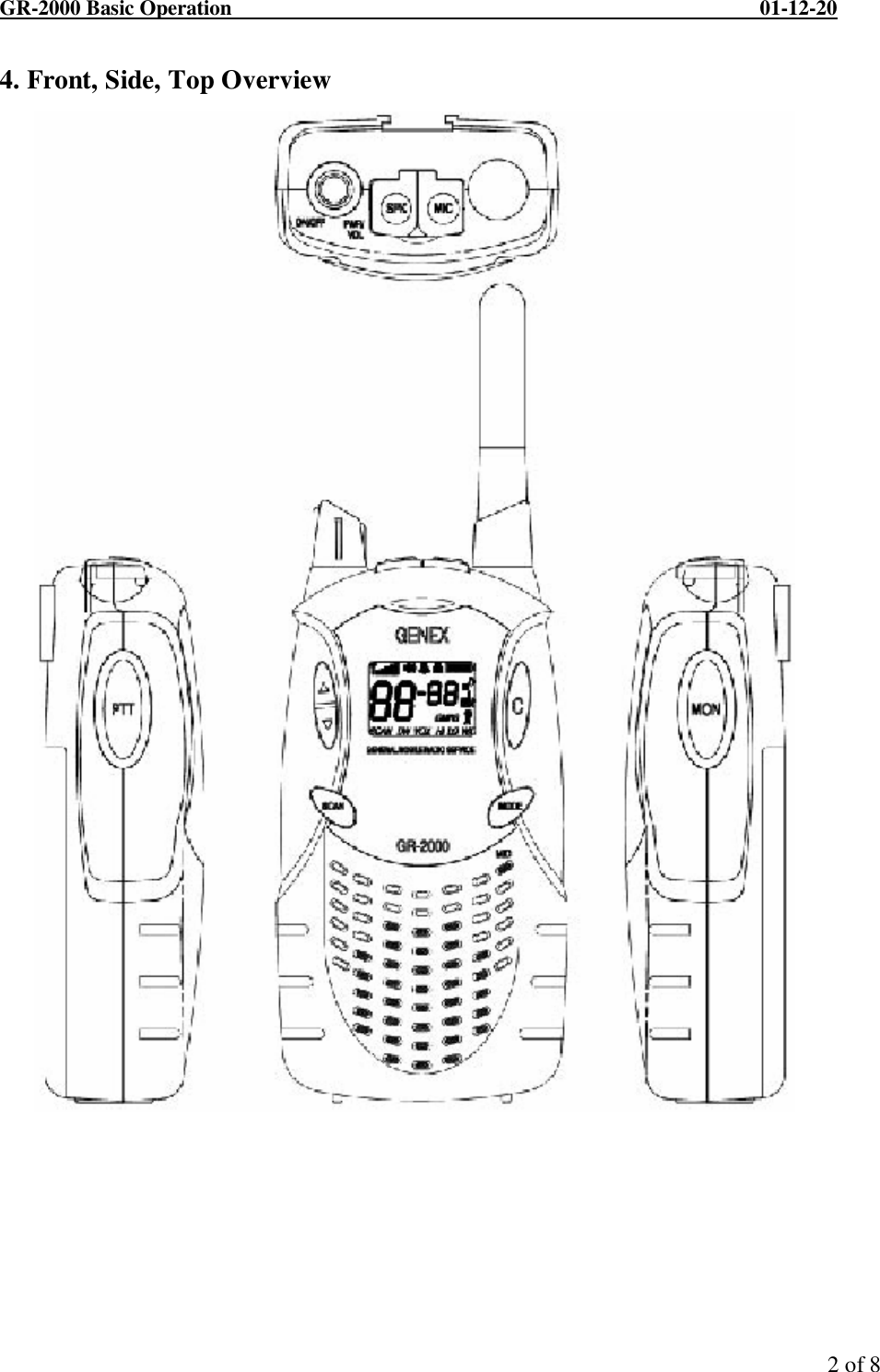

GR-2000 Basic Operation 01-12-20 2 of 8 4. Front, Side, Top Overview

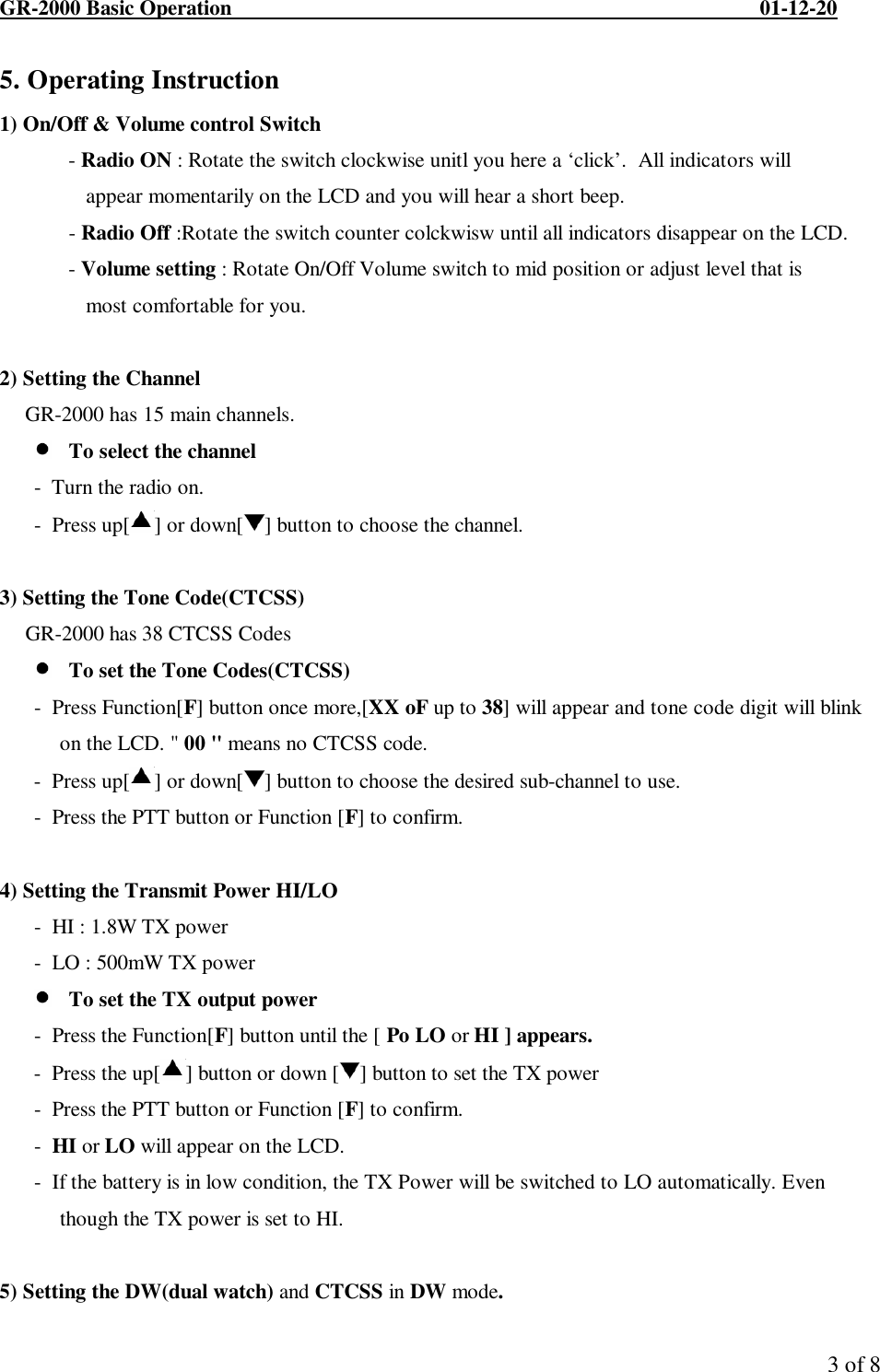

GR-2000 Basic Operation 01-12-20 3 of 8 5. Operating Instruction 1) On/Off & Volume control Switch - Radio ON : Rotate the switch clockwise unitl you here a ‘click’. All indicators will appear momentarily on the LCD and you will hear a short beep. - Radio Off :Rotate the switch counter colckwisw until all indicators disappear on the LCD. - Volume setting : Rotate On/Off Volume switch to mid position or adjust level that is most comfortable for you. 2) Setting the Channel GR-2000 has 15 main channels. To select the channel - Turn the radio on. - Press up[ ] or down[ ] button to choose the channel. 3) Setting the Tone Code(CTCSS) GR-2000 has 38 CTCSS Codes To set the Tone Codes(CTCSS) - Press Function[F] button once more,[XX oF up to 38] will appear and tone code digit will blink on the LCD. " 00 " means no CTCSS code. - Press up[ ] or down[ ] button to choose the desired sub-channel to use. - Press the PTT button or Function [F] to confirm. 4) Setting the Transmit Power HI/LO - HI : 1.8W TX power - LO : 500mW TX power To set the TX output power - Press the Function[F] button until the [ Po LO or HI ] appears. - Press the up[ ] button or down [ ] button to set the TX power - Press the PTT button or Function [F] to confirm. - HI or LO will appear on the LCD. - If the battery is in low condition, the TX Power will be switched to LO automatically. Even though the TX power is set to HI. 5) Setting the DW(dual watch) and CTCSS in DW mode.

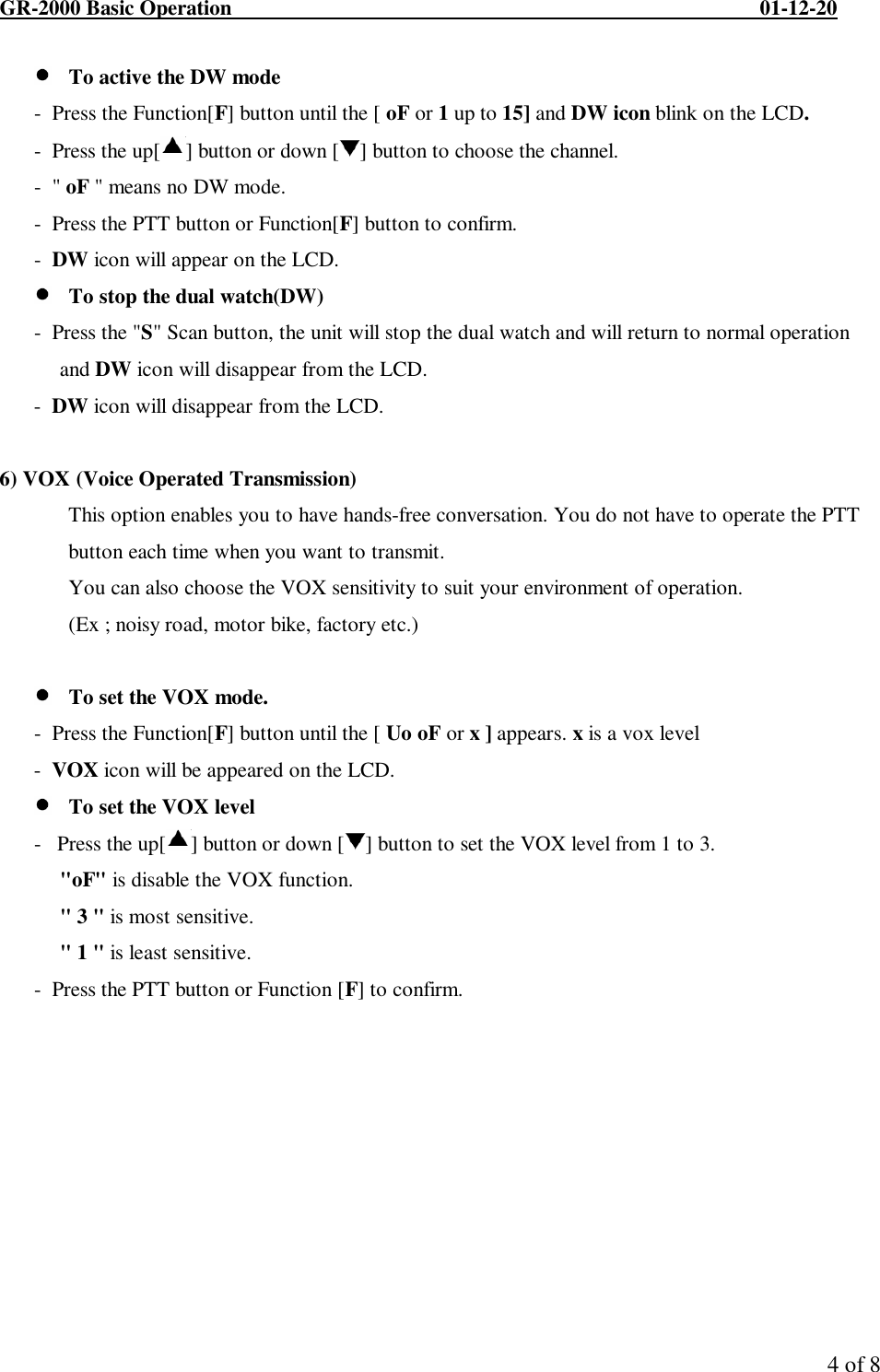

GR-2000 Basic Operation 01-12-20 4 of 8 To active the DW mode - Press the Function[F] button until the [ oF or 1 up to 15] and DW icon blink on the LCD. - Press the up[ ] button or down [ ] button to choose the channel. - " oF " means no DW mode. - Press the PTT button or Function[F] button to confirm. - DW icon will appear on the LCD. To stop the dual watch(DW) - Press the "S" Scan button, the unit will stop the dual watch and will return to normal operation and DW icon will disappear from the LCD. - DW icon will disappear from the LCD. 6) VOX (Voice Operated Transmission) This option enables you to have hands-free conversation. You do not have to operate the PTT button each time when you want to transmit. You can also choose the VOX sensitivity to suit your environment of operation. (Ex ; noisy road, motor bike, factory etc.) To set the VOX mode. - Press the Function[F] button until the [ Uo oF or x ] appears. x is a vox level - VOX icon will be appeared on the LCD. To set the VOX level - Press the up[ ] button or down [ ] button to set the VOX level from 1 to 3. "oF" is disable the VOX function. " 3 " is most sensitive. " 1 " is least sensitive. - Press the PTT button or Function [F] to confirm.

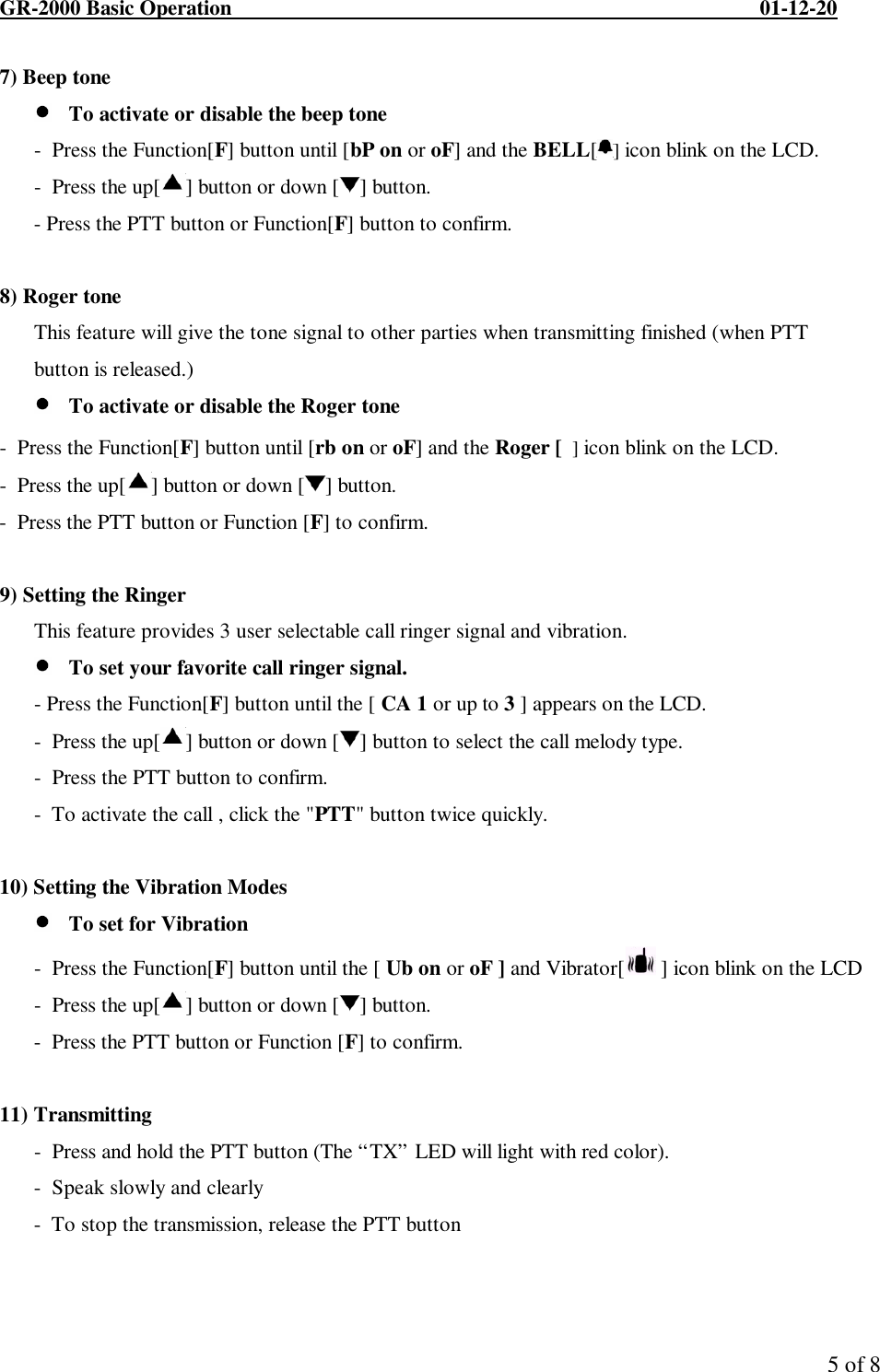

GR-2000 Basic Operation 01-12-20 5 of 8 7) Beep tone To activate or disable the beep tone - Press the Function[F] button until [bP on or oF] and the BELL[] icon blink on the LCD. - Press the up[ ] button or down [ ] button. - Press the PTT button or Function[F] button to confirm. 8) Roger tone This feature will give the tone signal to other parties when transmitting finished (when PTT button is released.) To activate or disable the Roger tone - Press the Function[F] button until [rb on or oF] and the Roger [ ] icon blink on the LCD. - Press the up[ ] button or down [ ] button. - Press the PTT button or Function [F] to confirm. 9) Setting the Ringer This feature provides 3 user selectable call ringer signal and vibration. To set your favorite call ringer signal. - Press the Function[F] button until the [ CA 1 or up to 3 ] appears on the LCD. - Press the up[ ] button or down [ ] button to select the call melody type. - Press the PTT button to confirm. - To activate the call , click the "PTT" button twice quickly. 10) Setting the Vibration Modes To set for Vibration - Press the Function[F] button until the [ Ub on or oF ] and Vibrator[ ] icon blink on the LCD - Press the up[ ] button or down [ ] button. - Press the PTT button or Function [F] to confirm. 11) Transmitting - Press and hold the PTT button (The “TX” LED will light with red color). - Speak slowly and clearly - To stop the transmission, release the PTT button

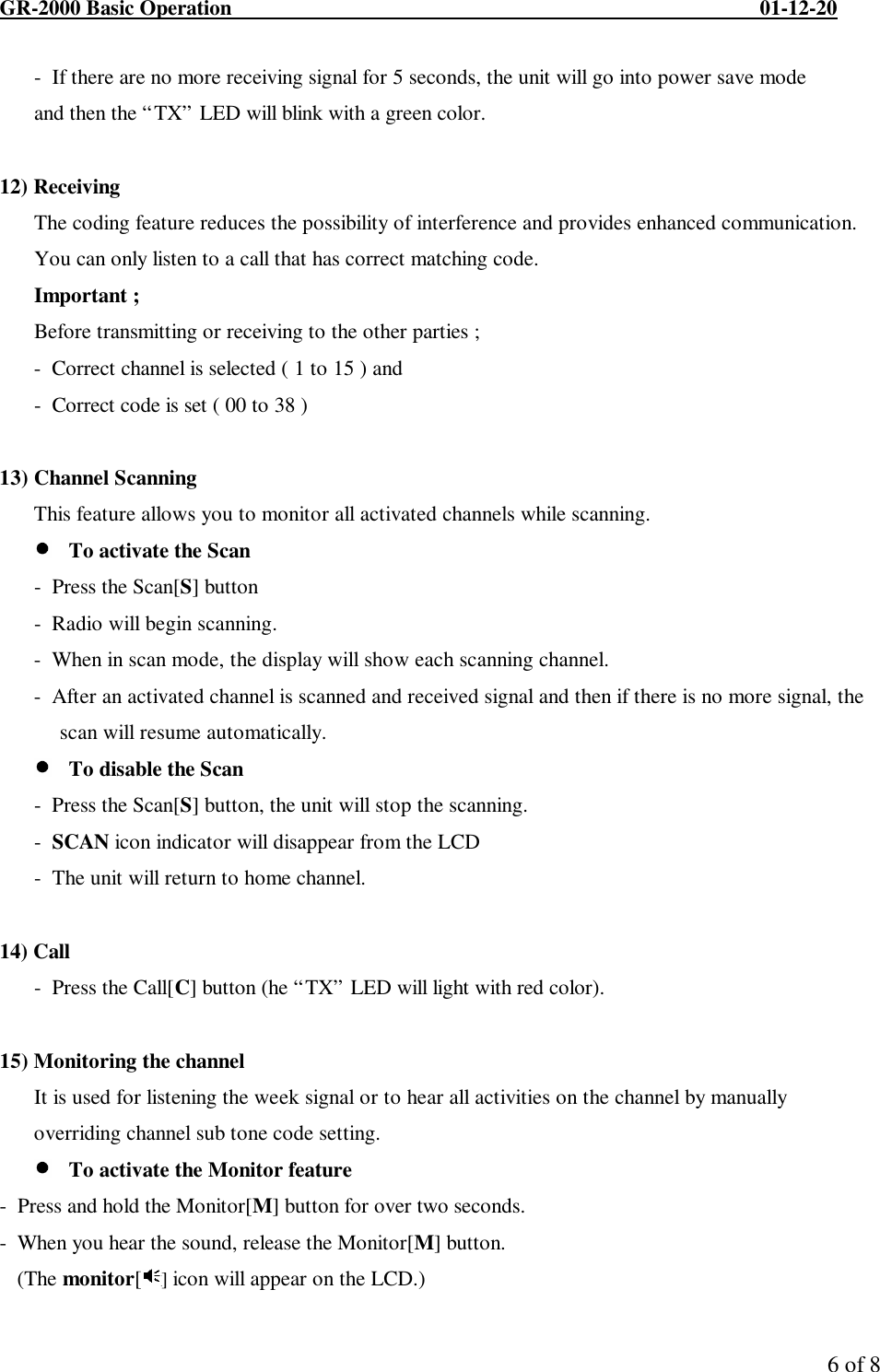

GR-2000 Basic Operation 01-12-20 6 of 8 - If there are no more receiving signal for 5 seconds, the unit will go into power save mode and then the “TX” LED will blink with a green color. 12) Receiving The coding feature reduces the possibility of interference and provides enhanced communication. You can only listen to a call that has correct matching code. Important ; Before transmitting or receiving to the other parties ; - Correct channel is selected ( 1 to 15 ) and - Correct code is set ( 00 to 38 ) 13) Channel Scanning This feature allows you to monitor all activated channels while scanning. To activate the Scan - Press the Scan[S] button - Radio will begin scanning. - When in scan mode, the display will show each scanning channel. - After an activated channel is scanned and received signal and then if there is no more signal, the scan will resume automatically. To disable the Scan - Press the Scan[S] button, the unit will stop the scanning. - SCAN icon indicator will disappear from the LCD - The unit will return to home channel. 14) Call - Press the Call[C] button (he “TX” LED will light with red color). 15) Monitoring the channel It is used for listening the week signal or to hear all activities on the channel by manually overriding channel sub tone code setting. To activate the Monitor feature - Press and hold the Monitor[M] button for over two seconds. - When you hear the sound, release the Monitor[M] button. (The monitor[] icon will appear on the LCD.)
GR-2000 Basic Operation 01-12-20 7 of 8 To disable the Monitor feature - Press and hold the Monitor[M] button for over two seconds. (The monitor[] icon will disappear on the LCD.) 16) Backlight Backlight is used to improve the display visibility in dark condition. To activate the Backlight - Press and hold the Monitor[M] button in a moment. To disable the Backlight - Press and hold the Monitor[M] button in a moment once again. 17) Keypad Lock The lock function is to avoid the accidental changes to channel with other radio settings. All buttons will be locked except the Power, PTT and monitor button. To lock the keypad - Press and hold down the Scan[SC] button for over 2 seconds. - Keypad will lock.( LOCK[ ] icon will appear on the LCD) To unlock the keypad - Press and hold down the Scan[SC] button for over 2 seconds. - Keypad will unlock. ( LOCK[ ] icon will disappear on the LCD) 18) Battery status indicator The Battery[ ] icon will blink when the radio is in low battery power. Charge the rechargeable battery or replace the batteries. - Full battery - Battery[ ] icon is not displayed. - Low battery - Battery[ ] icon is displayed. - Low battery warning – Battery[ ] icon will blinking. 19) External charger socket MIC socket can be used for the charging purpose. It should use the recommended rechargeable battery and wall charger.

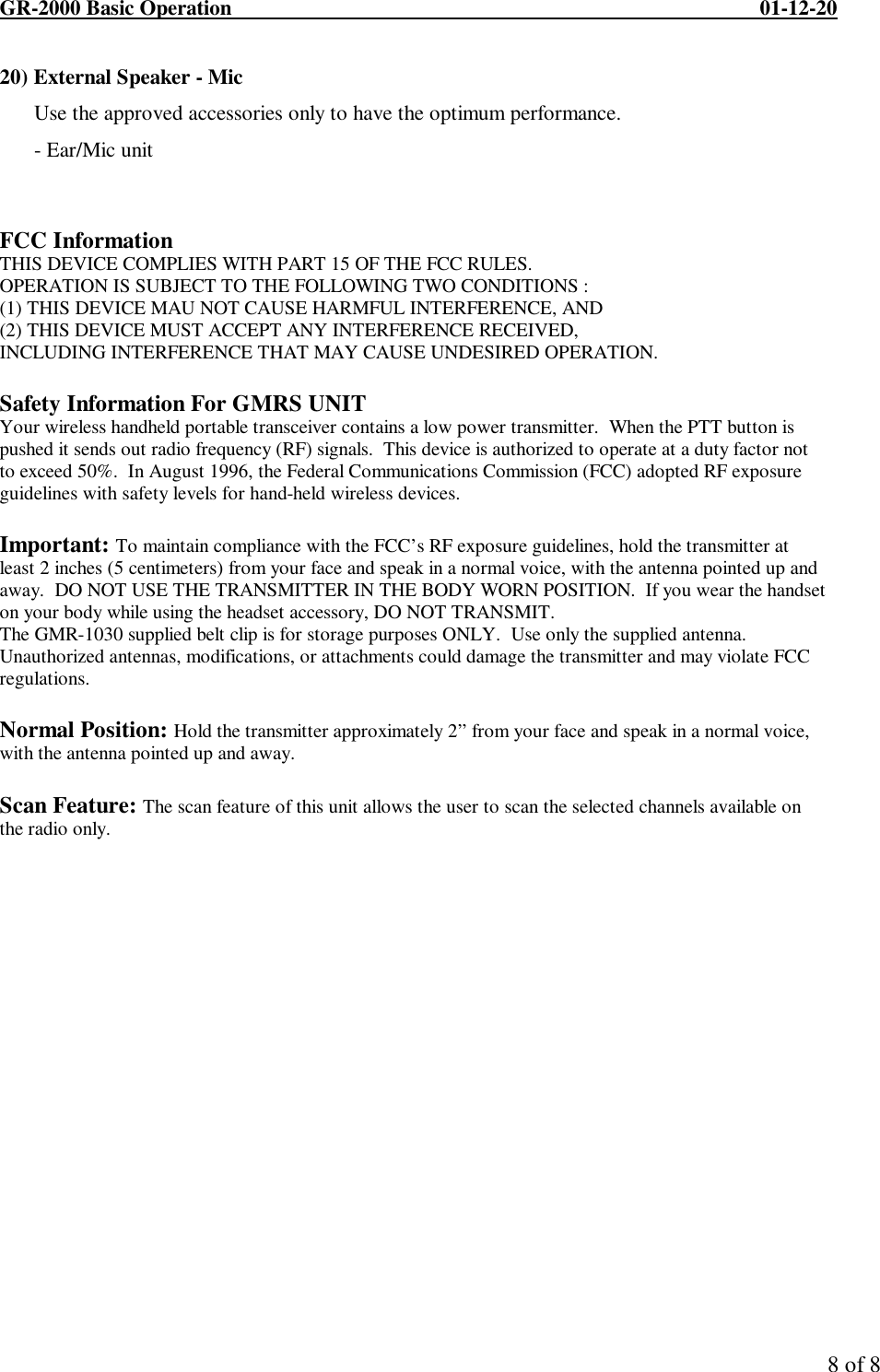

GR-2000 Basic Operation 01-12-20 8 of 8 20) External Speaker - Mic Use the approved accessories only to have the optimum performance. - Ear/Mic unit FCC Information THIS DEVICE COMPLIES WITH PART 15 OF THE FCC RULES. OPERATION IS SUBJECT TO THE FOLLOWING TWO CONDITIONS : (1) THIS DEVICE MAU NOT CAUSE HARMFUL INTERFERENCE, AND (2) THIS DEVICE MUST ACCEPT ANY INTERFERENCE RECEIVED, INCLUDING INTERFERENCE THAT MAY CAUSE UNDESIRED OPERATION. Safety Information For GMRS UNIT Your wireless handheld portable transceiver contains a low power transmitter. When the PTT button is pushed it sends out radio frequency (RF) signals. This device is authorized to operate at a duty factor not to exceed 50%. In August 1996, the Federal Communications Commission (FCC) adopted RF exposure guidelines with safety levels for hand-held wireless devices. Important: To maintain compliance with the FCC’s RF exposure guidelines, hold the transmitter at least 2 inches (5 centimeters) from your face and speak in a normal voice, with the antenna pointed up and away. DO NOT USE THE TRANSMITTER IN THE BODY WORN POSITION. If you wear the handset on your body while using the headset accessory, DO NOT TRANSMIT. The GMR-1030 supplied belt clip is for storage purposes ONLY. Use only the supplied antenna. Unauthorized antennas, modifications, or attachments could damage the transmitter and may violate FCC regulations. Normal Position: Hold the transmitter approximately 2” from your face and speak in a normal voice, with the antenna pointed up and away. Scan Feature: The scan feature of this unit allows the user to scan the selected channels available on the radio only.
