Genex Telecom MK1996 GMRS/FRS UHF Transceiver User Manual MK1996Man

Genex Telecom Co., Ltd. GMRS/FRS UHF Transceiver MK1996Man

Contents

users manual

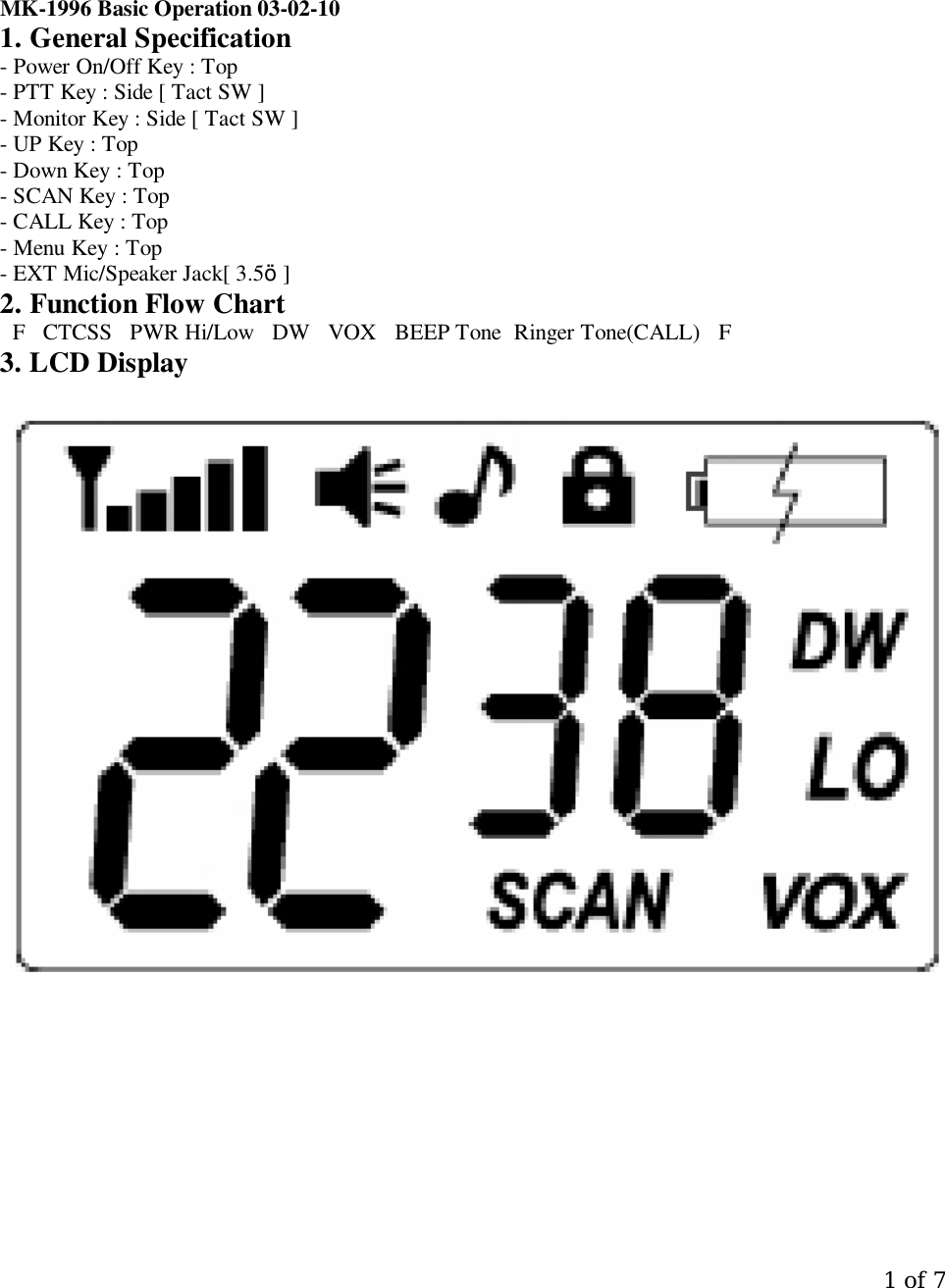

 MK-1996 Basic Operation 03-02-10 1. General Specification - Power On/Off Key : Top - PTT Key : Side [ Tact SW ] - Monitor Key : Side [ Tact SW ] - UP Key : Top - Down Key : Top - SCAN Key : Top - CALL Key : Top - Menu Key : Top - EXT Mic/Speaker Jack[ 3.5ö ] 2. Function Flow Chart   F   CTCSS   PWR Hi/Low   DW   VOX   BEEP Tone  Ringer Tone(CALL)   F 3. LCD Display              1 of 7

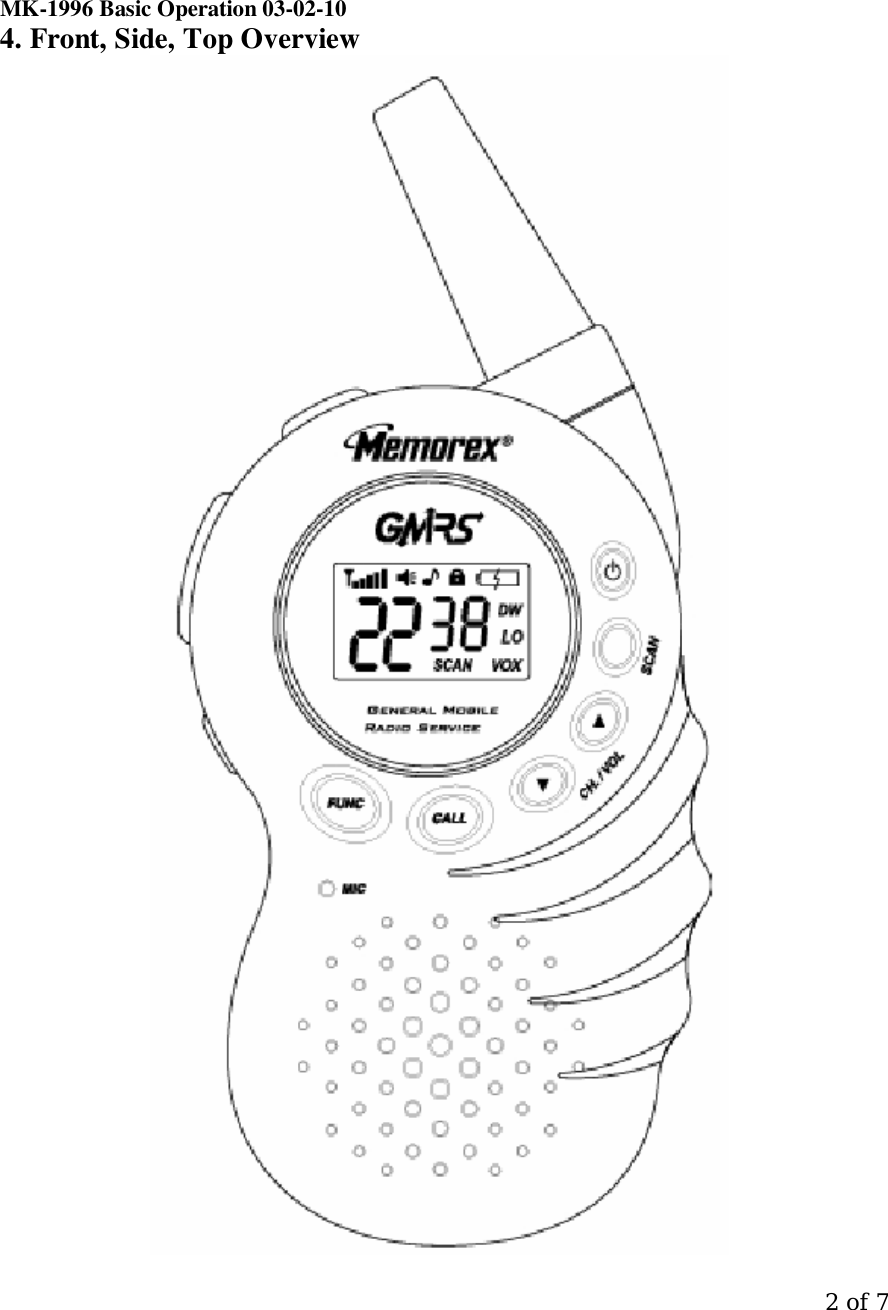

 MK-1996 Basic Operation 03-02-10 4. Front, Side, Top Overview              2 of 7
  MK-1996 Basic Operation 03-02-10 5. Operating Instruction 1) On/Off & Volume control Switch - Radio ON : Press and hold down the Power[P] button for over 1seconds. All indicators will appear momentarily on the LCD and you will hear short beep sound. - Radio Off : Press and hold down the Power[P] button for over 2seconds until all indicators Disappear on the LCD. - Volume setting : Press up[•£] or down[•¥] button to choose the adjust level that is most Comfortable for you. 2) Setting the Channel MK-1996 has 22 main channels.   To select the channel - Turn the radio on - Press up[•£] or down[•¥] button to choose the channel. 3) Setting the Tone Code(CTCSS) MK-1996 has 38 CTCSS Codes   To set the Tone Codes(CTCSS) - Press Function[F] button once more,[XX oF up to 38] will appear and tone code digit will blink on the LCD. " oF " means no CTCSS code. - Press up[•£] or down[•¥] button to choose the desired sub-channel to use. - Press the PTT button or Function[F] button to confirm. 4) Setting the Transmit Power HI/LO - HI : 1.6W TX power (ERP) - LO : 500mW TX power   To set the TX output power - Press the Function[menu] button until the [ Po LO or HI ] appears. - Press the up[•£] button or down [•¥] button to set the TX power - Press the PTT button or Function[menu] button to confirm. - HI or LO will appear on the LCD. - If the battery is in low condition, the TX Power will be switched to LO automatically. - Even though the TX power is set to HI. 5) Setting the DW(dual watch) and CTCSS in DW mode.   To active the DW mode - Press the Function[menu ] button until the [ oF or 1 up to 22] and DW icon blink on the LCD. - Press the up[•£] button or down [•¥] button to choose the channel. - " oF " means no DW mode.                        3 of 7

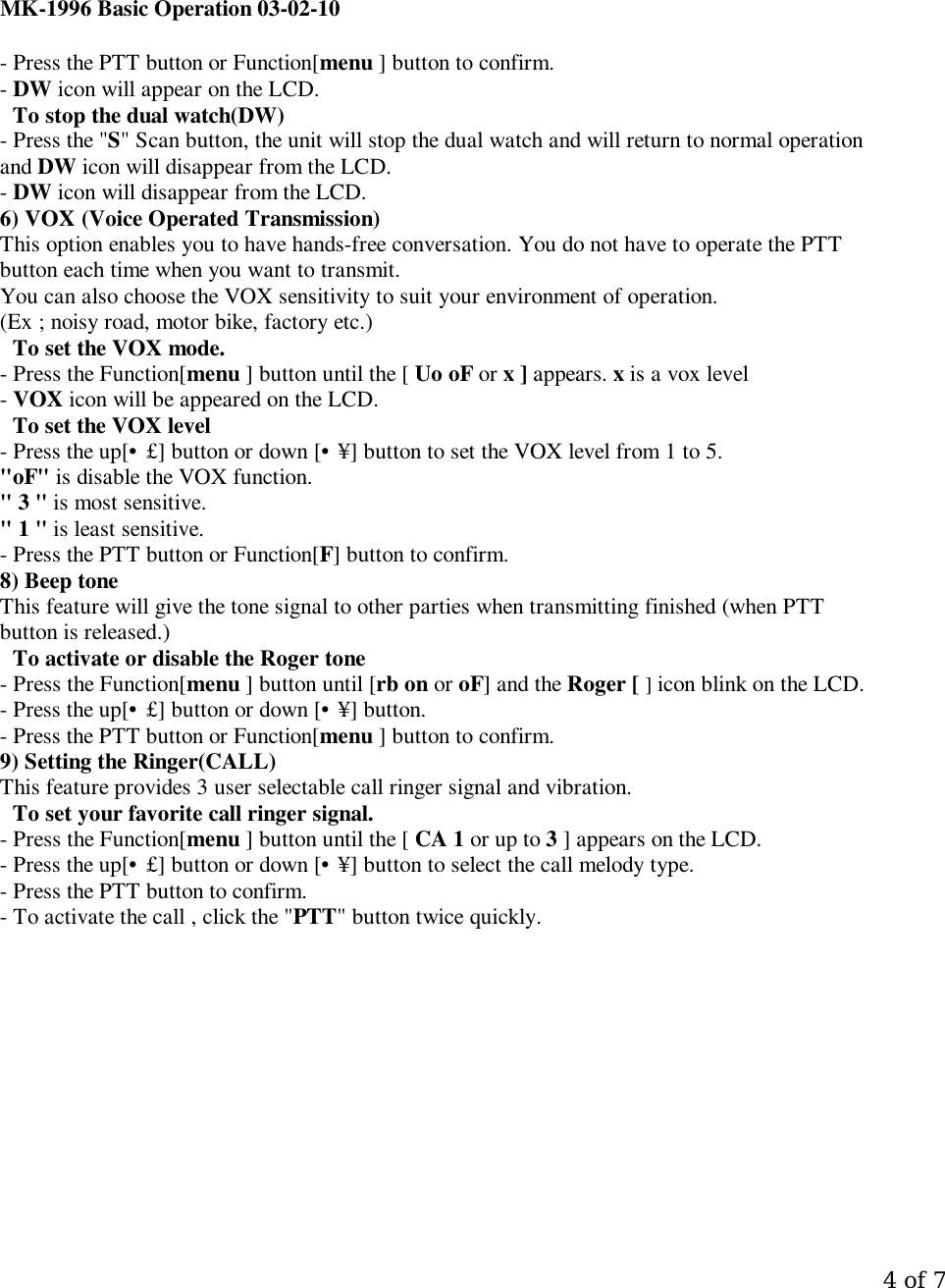

 MK-1996 Basic Operation 03-02-10  - Press the PTT button or Function[menu ] button to confirm. - DW icon will appear on the LCD.   To stop the dual watch(DW) - Press the "S" Scan button, the unit will stop the dual watch and will return to normal operation and DW icon will disappear from the LCD. - DW icon will disappear from the LCD. 6) VOX (Voice Operated Transmission) This option enables you to have hands-free conversation. You do not have to operate the PTT button each time when you want to transmit. You can also choose the VOX sensitivity to suit your environment of operation. (Ex ; noisy road, motor bike, factory etc.)   To set the VOX mode. - Press the Function[menu ] button until the [ Uo oF or x ] appears. x is a vox level - VOX icon will be appeared on the LCD.   To set the VOX level - Press the up[•£] button or down [•¥] button to set the VOX level from 1 to 5. "oF" is disable the VOX function. " 3 " is most sensitive. " 1 " is least sensitive. - Press the PTT button or Function[F] button to confirm. 8) Beep tone This feature will give the tone signal to other parties when transmitting finished (when PTT button is released.)   To activate or disable the Roger tone - Press the Function[menu ] button until [rb on or oF] and the Roger [ ] icon blink on the LCD. - Press the up[•£] button or down [•¥] button. - Press the PTT button or Function[menu ] button to confirm. 9) Setting the Ringer(CALL) This feature provides 3 user selectable call ringer signal and vibration.   To set your favorite call ringer signal. - Press the Function[menu ] button until the [ CA 1 or up to 3 ] appears on the LCD. - Press the up[•£] button or down [•¥] button to select the call melody type. - Press the PTT button to confirm. - To activate the call , click the "PTT" button twice quickly.              4 of 7

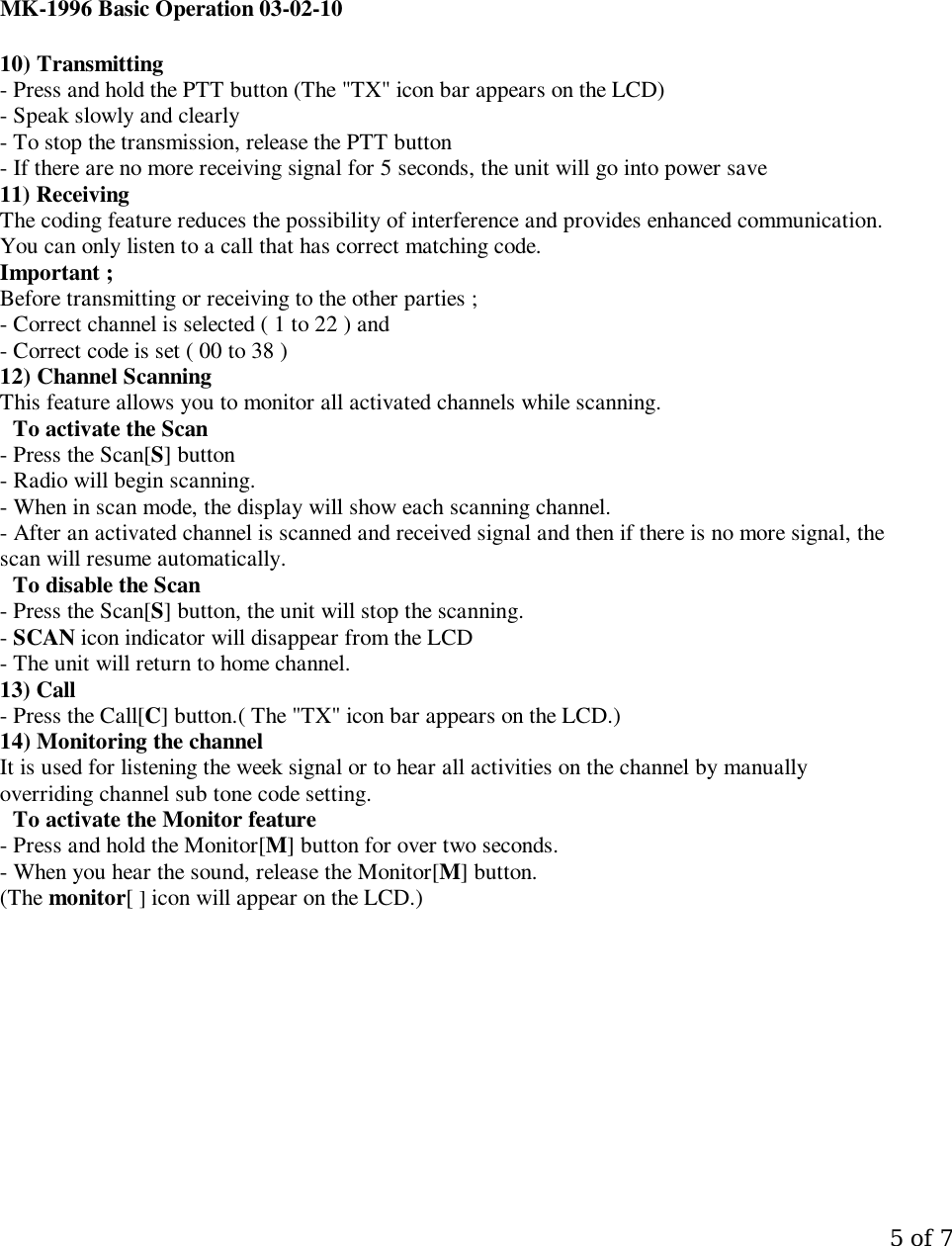

  MK-1996 Basic Operation 03-02-10  10) Transmitting - Press and hold the PTT button (The "TX" icon bar appears on the LCD) - Speak slowly and clearly - To stop the transmission, release the PTT button - If there are no more receiving signal for 5 seconds, the unit will go into power save 11) Receiving The coding feature reduces the possibility of interference and provides enhanced communication. You can only listen to a call that has correct matching code. Important ; Before transmitting or receiving to the other parties ; - Correct channel is selected ( 1 to 22 ) and - Correct code is set ( 00 to 38 ) 12) Channel Scanning This feature allows you to monitor all activated channels while scanning.   To activate the Scan - Press the Scan[S] button - Radio will begin scanning. - When in scan mode, the display will show each scanning channel. - After an activated channel is scanned and received signal and then if there is no more signal, the scan will resume automatically.   To disable the Scan - Press the Scan[S] button, the unit will stop the scanning. - SCAN icon indicator will disappear from the LCD - The unit will return to home channel. 13) Call - Press the Call[C] button.( The "TX" icon bar appears on the LCD.) 14) Monitoring the channel It is used for listening the week signal or to hear all activities on the channel by manually overriding channel sub tone code setting.   To activate the Monitor feature - Press and hold the Monitor[M] button for over two seconds. - When you hear the sound, release the Monitor[M] button. (The monitor[ ] icon will appear on the LCD.)             5 of 7

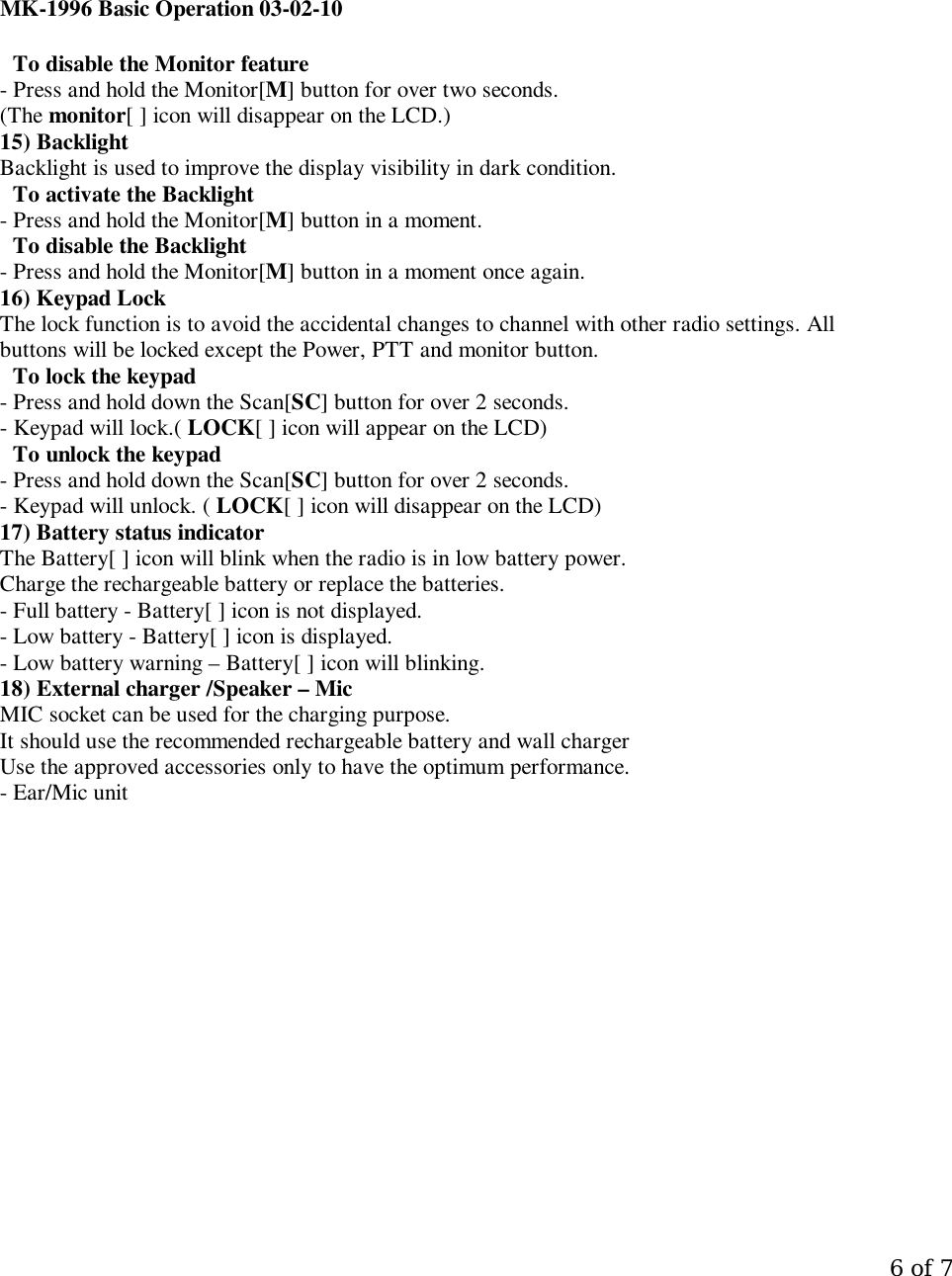

 MK-1996 Basic Operation 03-02-10    To disable the Monitor feature - Press and hold the Monitor[M] button for over two seconds. (The monitor[ ] icon will disappear on the LCD.) 15) Backlight Backlight is used to improve the display visibility in dark condition.   To activate the Backlight - Press and hold the Monitor[M] button in a moment.   To disable the Backlight - Press and hold the Monitor[M] button in a moment once again. 16) Keypad Lock The lock function is to avoid the accidental changes to channel with other radio settings. All buttons will be locked except the Power, PTT and monitor button.   To lock the keypad - Press and hold down the Scan[SC] button for over 2 seconds. - Keypad will lock.( LOCK[ ] icon will appear on the LCD)   To unlock the keypad - Press and hold down the Scan[SC] button for over 2 seconds. - Keypad will unlock. ( LOCK[ ] icon will disappear on the LCD) 17) Battery status indicator The Battery[ ] icon will blink when the radio is in low battery power. Charge the rechargeable battery or replace the batteries. - Full battery - Battery[ ] icon is not displayed. - Low battery - Battery[ ] icon is displayed. - Low battery warning – Battery[ ] icon will blinking. 18) External charger /Speaker – Mic MIC socket can be used for the charging purpose. It should use the recommended rechargeable battery and wall charger Use the approved accessories only to have the optimum performance. - Ear/Mic unit                 6 of 7
   GMRS / FRS Frequency Chart Channel Frequency (MHz) Use Power Channel Frequency (MHz) Use Power 1  462.5625  FRS/GMRS High/low 12  467.6625  FRS/GMRS Low 2  462.5875  FRS/GMRS High/low 13  467.6875  FRS/GMRS Low 3  462.6125  FRS/GMRS High/low 14  467.7125  FRS/GMRS Low 4  462.6375  FRS/GMRS High/low 15  462.5500  GMRS High/low 5  462.6625  FRS/GMRS High/low 16  462.5750  GMRS High/low 6  462.6875  FRS/GMRS High/low 17  462.6000  GMRS High/low 7  462.7125  FRS/GMRS High/low 18  462.6250  GMRS High/low 8  467.5625  FRS/GMRS Low  19  462.6500  GMRS High/low 9  467.5875  FRS/GMRS Low  20  462.6750  GMRS High/low 10  467.6125  FRS/GMRS Low  21  462.7000  GMRS High/low 11  467.6375  FRS/GMRS Low  22  462.7250  GMRS High/low Note: Channels 1 through 14 are shared with FRS radios.  Operation in the FRS band without a FCC license is restricted to low power transmit (0.5 watts).  The GMRS radios require the user to place the unit in low power mode for FRS operation.  The GMRS unit will automatically select low transmit power when FRS channels 8-14 are selected.       7 of 7
