Genexis T24W1 Home Gateway User Manual

Genexis B.V. Home Gateway

User Manual.pdf

Quick Installation GuideLive!Titanium-20 series

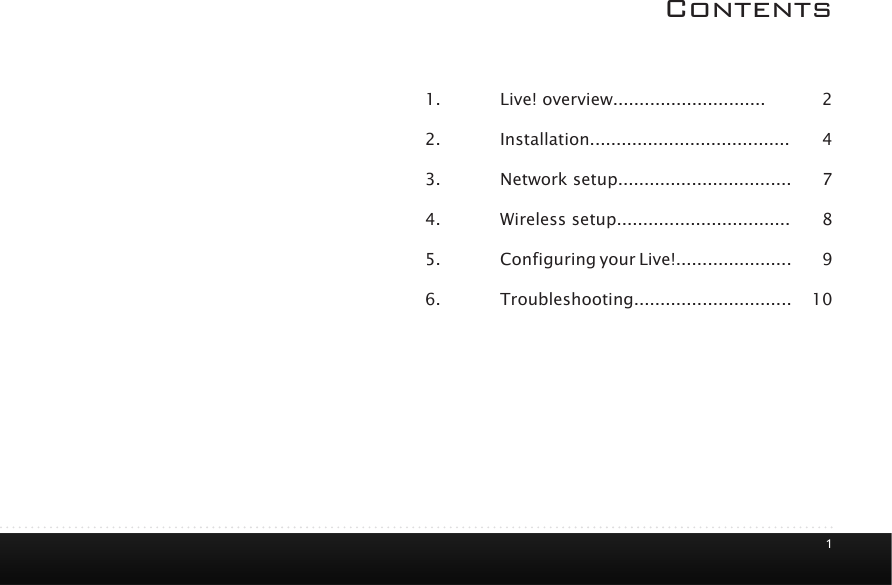

1Contents1. Live! overview.............................2. Installation......................................3. Network setup.................................4. Wireless setup.................................5. Configuring your Live!......................6. Troubleshooting..............................2478910
21. Live! overviewUser interfacesDescription1 Live! Ethernet LAN ports2 Live! Telephony ports3 Live! USB 2.0 port4 Reset button (recessed hole)5 WPS button6 Element power port7 Universe CATV connector8 Hybrid Interface connectorDepending on your specific product type, port configuration may differ.34758126

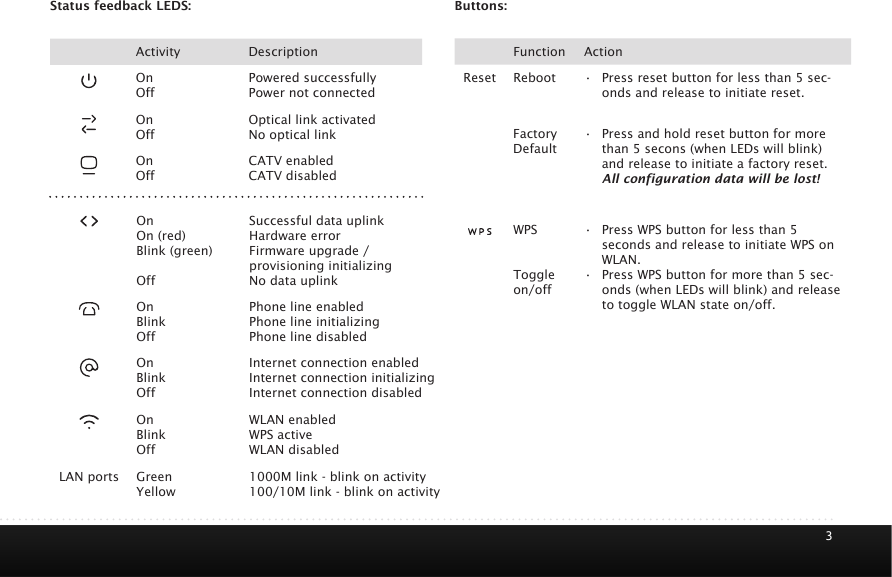

3Status feedback LEDS:Activity DescriptionOnOffPowered successfully Power not connectedOnOffOptical link activatedNo optical linkOnOffCATV enabledCATV disabledOnOn (red)Blink (green)OffSuccessful data uplinkHardware errorFirmware upgrade / provisioning initializingNo data uplinkOnBlinkOffPhone line enabledPhone line initializingPhone line disabledOnBlinkOffInternet connection enabledInternet connection initializingInternet connection disabledOnBlinkOffWLAN enabledWPS activeWLAN disabledLAN ports Green Yellow1000M link - blink on activity 100/10M link - blink on activityButtons:Function ActionReset Reboot • Press reset button for less than 5 sec-onds and release to initiate reset.FactoryDefault• Press and hold reset button for more than 5 secons (when LEDs will blink) and release to initiate a factory reset. All configuration data will be lost!WPSToggle on/off• Press WPS button for less than 5 seconds and release to initiate WPS on WLAN.• Press WPS button for more than 5 sec-onds (when LEDs will blink) and release to toggle WLAN state on/off.
42. InstallationStep 1: Installing the Hybrid Live!Click the Hybrid Live! module on the Hybrid Element, as shown in the picture. Note: Proper installation does not require excessive force. Step 2: Powering the deviceConnect the 12V plug of the supplied adapter to the Hybrid Element and connect the adapter to a power socket. The unit will now start up. During the start-up sequence the LEDs are on, other LEDs may blink. When the start-up sequence has finished the following LEDs should be on: . The complete start-up sequence may take several minutes.12Click!
5Step 3: Connecting your computerConnect your computer to one of the Ethernet LAN ports on the Hybrid Live!, using an Ethernet cable with a RJ-45 connector. Your provider can tell you which ports to use. Note: refer to section “fixed network setup” if your connection is not working directly from the start. Step 4: Connecting your telephoneThis step is only relevant if the Hybrid Live! has voice ports.A standard analog telephone handset can be connected to the active voice ports, using a RJ-11 cable. The LED indicates if voice is enabled and operating correctly. Your provider can tell you which ports to use.

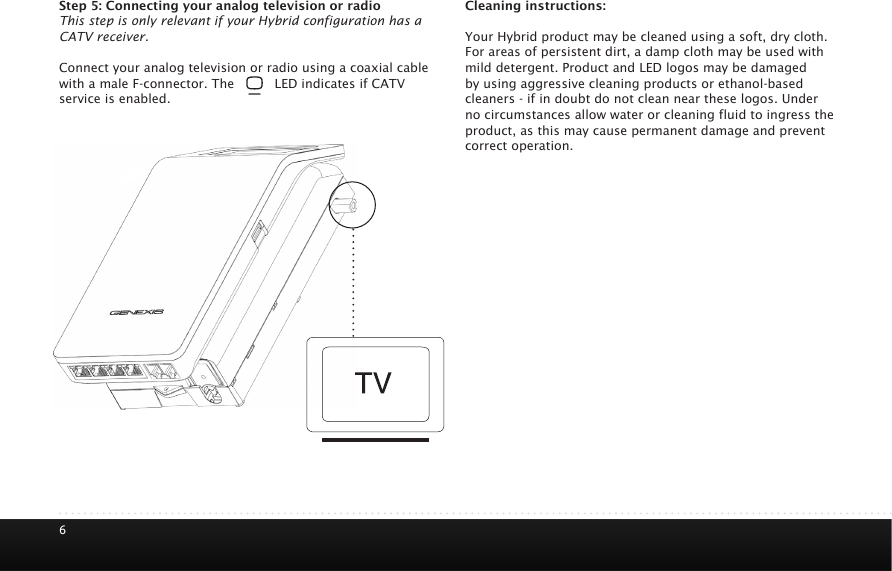

6Step 5: Connecting your analog television or radioThis step is only relevant if your Hybrid configuration has a CATV receiver. Connect your analog television or radio using a coaxial cable with a male F-connector. The LED indicates if CATV service is enabled. Cleaning instructions:Your Hybrid product may be cleaned using a soft, dry cloth. For areas of persistent dirt, a damp cloth may be used with mild detergent. Product and LED logos may be damaged by using aggressive cleaning products or ethanol-based cleaners - if in doubt do not clean near these logos. Under no circumstances allow water or cleaning fluid to ingress the product, as this may cause permanent damage and prevent correct operation.
7Step 1:Open the web browser on your computer and check if your connection is working. If your connection is working, you can skip step 2 and 3.Step 2: (Instructions for Windows Vista / Windows 7; for other operating systems please contact your service provider)• On your computer, go to “Start” at the bottom left corner and click on “Control Panel”.• The Control Panel window will appear. Click on “View Network Status and Tasks” at the “Network and Internet” category.• The Network and Sharing Centre will appear: • For Windows Vista: Click on “Manage network connections” at the top left hand corner. • For Windows 7: Click on “Change adapter settings” at the top left hand corner.• Right click on the correct “Local Area Connection” by identifying the correct network card and click “Properties”.• Select “Internet Protocol Version 4 (TCP/IPv4)”. Click on “Properties”• Select “Obtain an IP address automatically”, and “Obtain DNS server address automatically”. Save the settings by clicking “OK”, and close the window by clicking “OK” or “Close”.Step 3:Open your web browser and check if your connection is working. If your connection is not working, please refer to the troubleshooting section.3. network setup

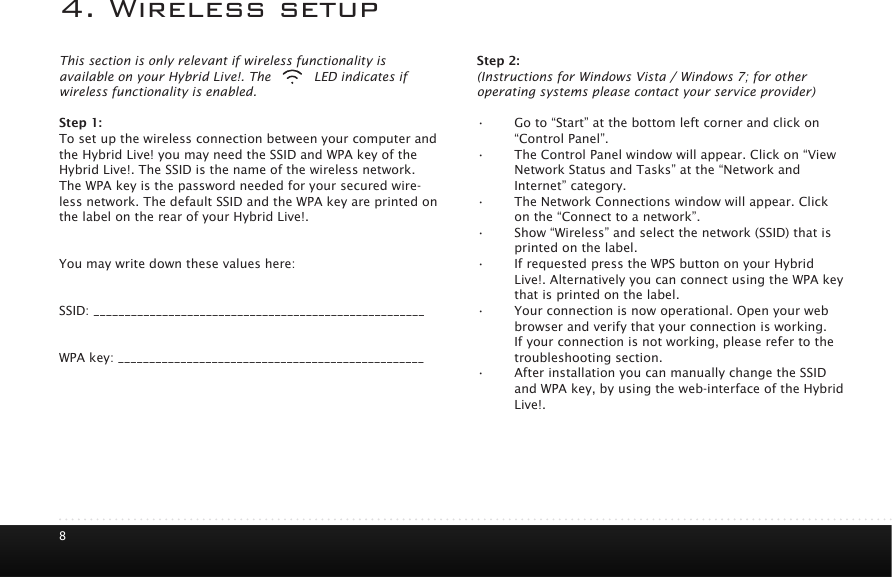

84. Wireless setupThis section is only relevant if wireless functionality is available on your Hybrid Live!. The LED indicates if wireless functionality is enabled.Step 1:To set up the wireless connection between your computer and the Hybrid Live! you may need the SSID and WPA key of the Hybrid Live!. The SSID is the name of the wireless network. The WPA key is the password needed for your secured wire-less network. The default SSID and the WPA key are printed on the label on the rear of your Hybrid Live!. You may write down these values here:SSID: _____________________________________________________WPA key: _________________________________________________Step 2:(Instructions for Windows Vista / Windows 7; for other operating systems please contact your service provider)• Go to “Start” at the bottom left corner and click on “Control Panel”.• The Control Panel window will appear. Click on “View Network Status and Tasks” at the “Network and Internet” category.• The Network Connections window will appear. Click on the “Connect to a network”.• Show “Wireless” and select the network (SSID) that is printed on the label.• If requested press the WPS button on your Hybrid Live!. Alternatively you can connect using the WPA key that is printed on the label.• Your connection is now operational. Open your web browser and verify that your connection is working. If your connection is not working, please refer to the troubleshooting section. • After installation you can manually change the SSID and WPA key, by using the web-interface of the Hybrid Live!.

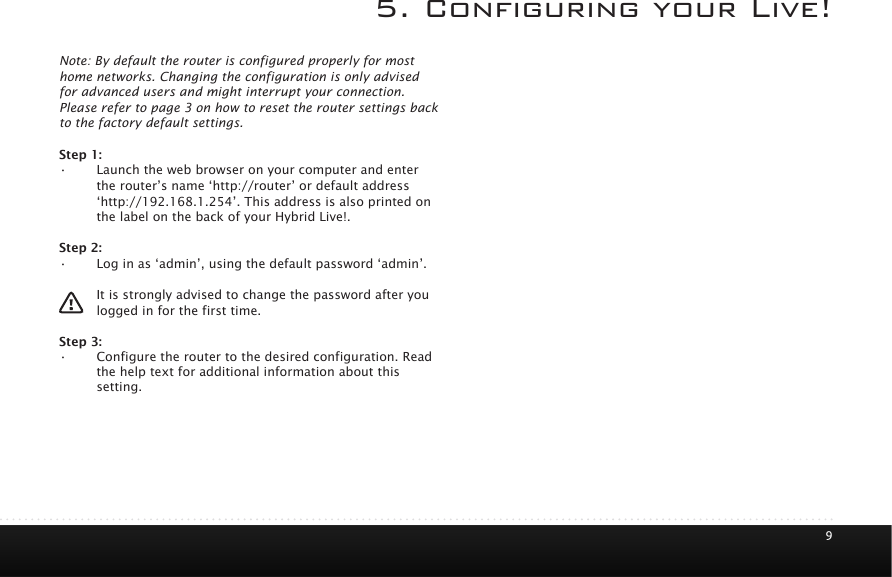

95. Conguring your Live!Note: By default the router is configured properly for most home networks. Changing the configuration is only advised for advanced users and might interrupt your connection. Please refer to page 3 on how to reset the router settings back to the factory default settings. Step 1: • Launch the web browser on your computer and enter the router’s name ‘http://router’ or default address ‘http://192.168.1.254’. This address is also printed on the label on the back of your Hybrid Live!.Step 2:• Log in as ‘admin’, using the default password ‘admin’.It is strongly advised to change the password after you logged in for the first time. Step 3:• Configure the router to the desired configuration. Read the help text for additional information about this setting.

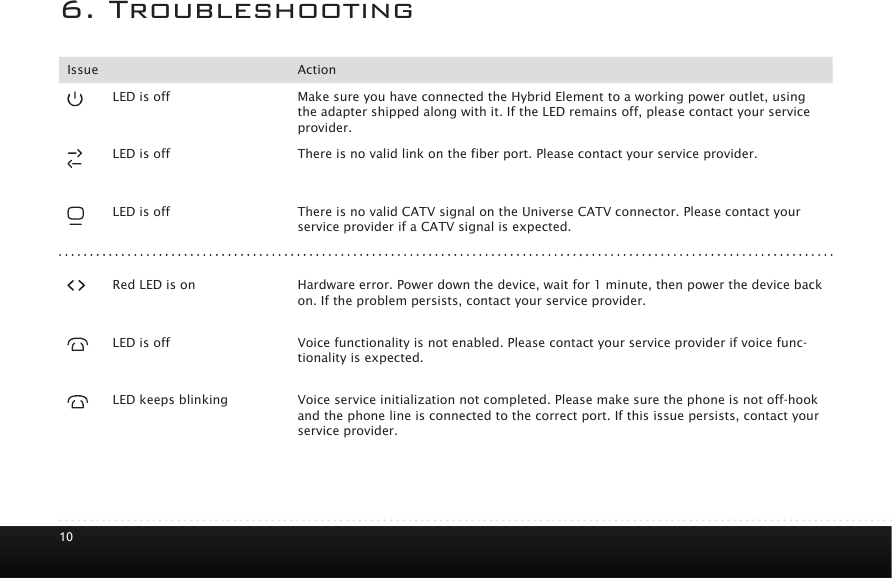

106. TroubleshootingIssue Action LED is off Make sure you have connected the Hybrid Element to a working power outlet, using the adapter shipped along with it. If the LED remains off, please contact your service provider. LED is off There is no valid link on the fiber port. Please contact your service provider.LED is off There is no valid CATV signal on the Universe CATV connector. Please contact your service provider if a CATV signal is expected. Red LED is on Hardware error. Power down the device, wait for 1 minute, then power the device back on. If the problem persists, contact your service provider. LED is off Voice functionality is not enabled. Please contact your service provider if voice func-tionality is expected. LED keeps blinking Voice service initialization not completed. Please make sure the phone is not off-hook and the phone line is connected to the correct port. If this issue persists, contact your service provider.

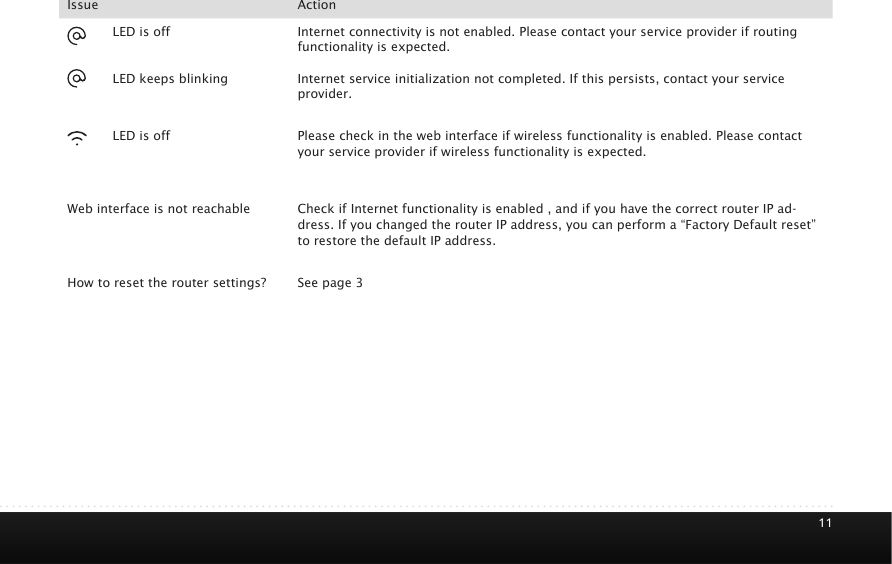

11Issue Action LED is off LED keeps blinkingInternet connectivity is not enabled. Please contact your service provider if routing functionality is expected.Internet service initialization not completed. If this persists, contact your service provider. LED is off Please check in the web interface if wireless functionality is enabled. Please contact your service provider if wireless functionality is expected.Web interface is not reachable Check if Internet functionality is enabled , and if you have the correct router IP ad-dress. If you changed the router IP address, you can perform a “Factory Default reset” to restore the default IP address.How to reset the router settings? See page 3

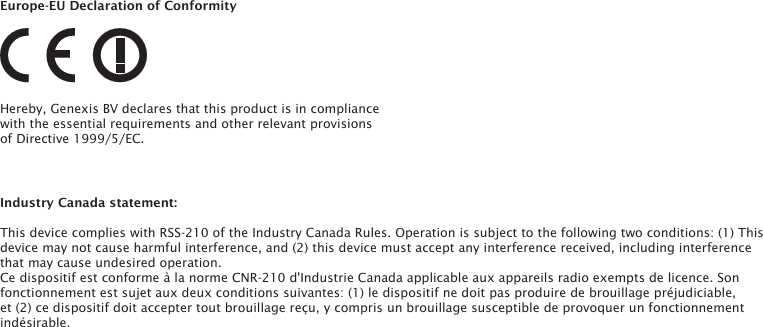

Europe-EU Declaration of ConformityHereby, Genexis BV declares that this product is in compliance with the essential requirements and other relevant provisions of Directive 1999/5/EC.Industry Canada statement:This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable.

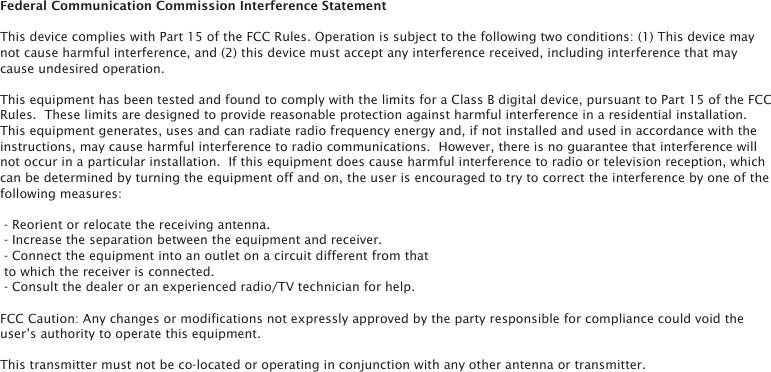

Federal Communication Commission Interference Statement This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one of the following measures: - Reorient or relocate the receiving antenna. - Increase the separation between the equipment and receiver. - Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. - Consult the dealer or an experienced radio/TV technician for help. FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate this equipment. This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter.

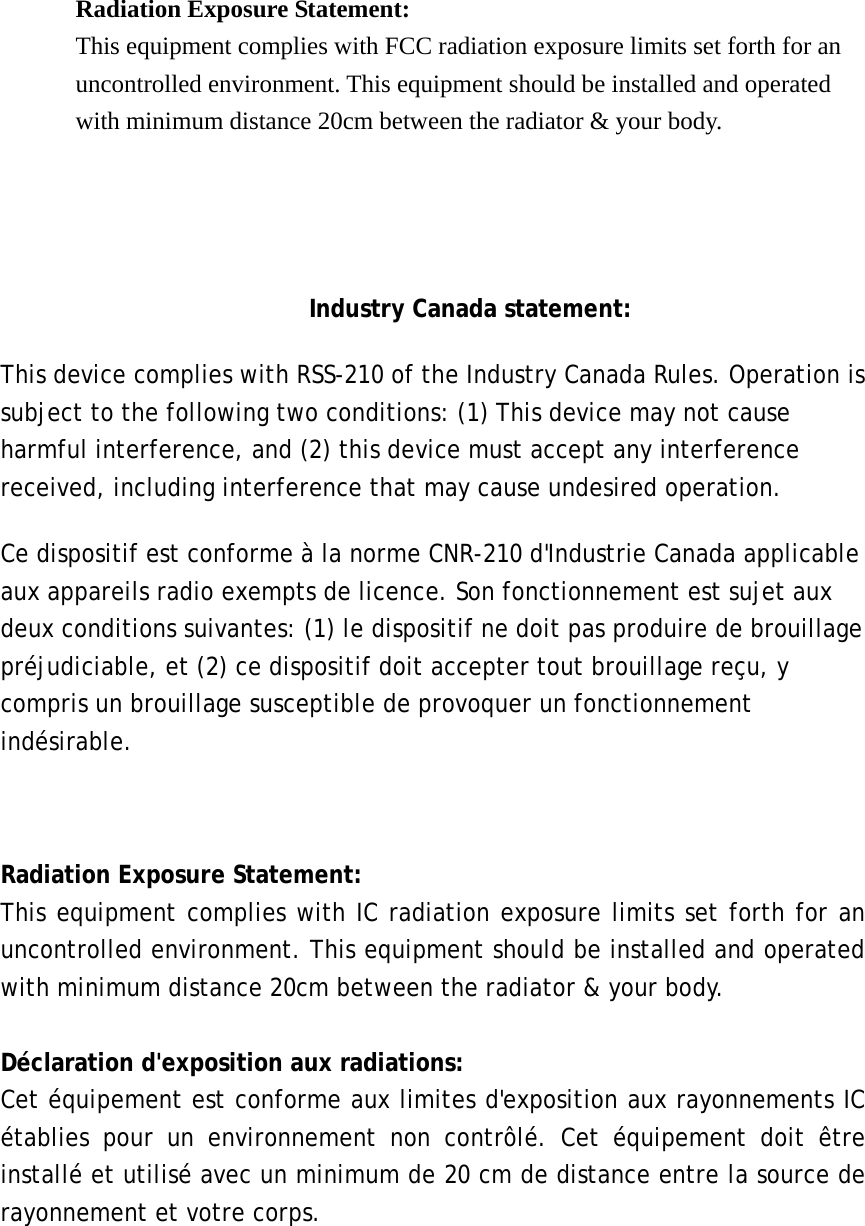

Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Industry Canada statement: This device complies with RSS-210 of the Industry Canada Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. Ce dispositif est conforme à la norme CNR-210 d'Industrie Canada applicable aux appareils radio exempts de licence. Son fonctionnement est sujet aux deux conditions suivantes: (1) le dispositif ne doit pas produire de brouillage préjudiciable, et (2) ce dispositif doit accepter tout brouillage reçu, y compris un brouillage susceptible de provoquer un fonctionnement indésirable. Radiation Exposure Statement: This equipment complies with IC radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. Déclaration d'exposition aux radiations: Cet équipement est conforme aux limites d'exposition aux rayonnements IC établies pour un environnement non contrôlé. Cet équipement doit être installé et utilisé avec un minimum de 20 cm de distance entre la source de rayonnement et votre corps.
Copyright © Genexis 2014 rev.2
