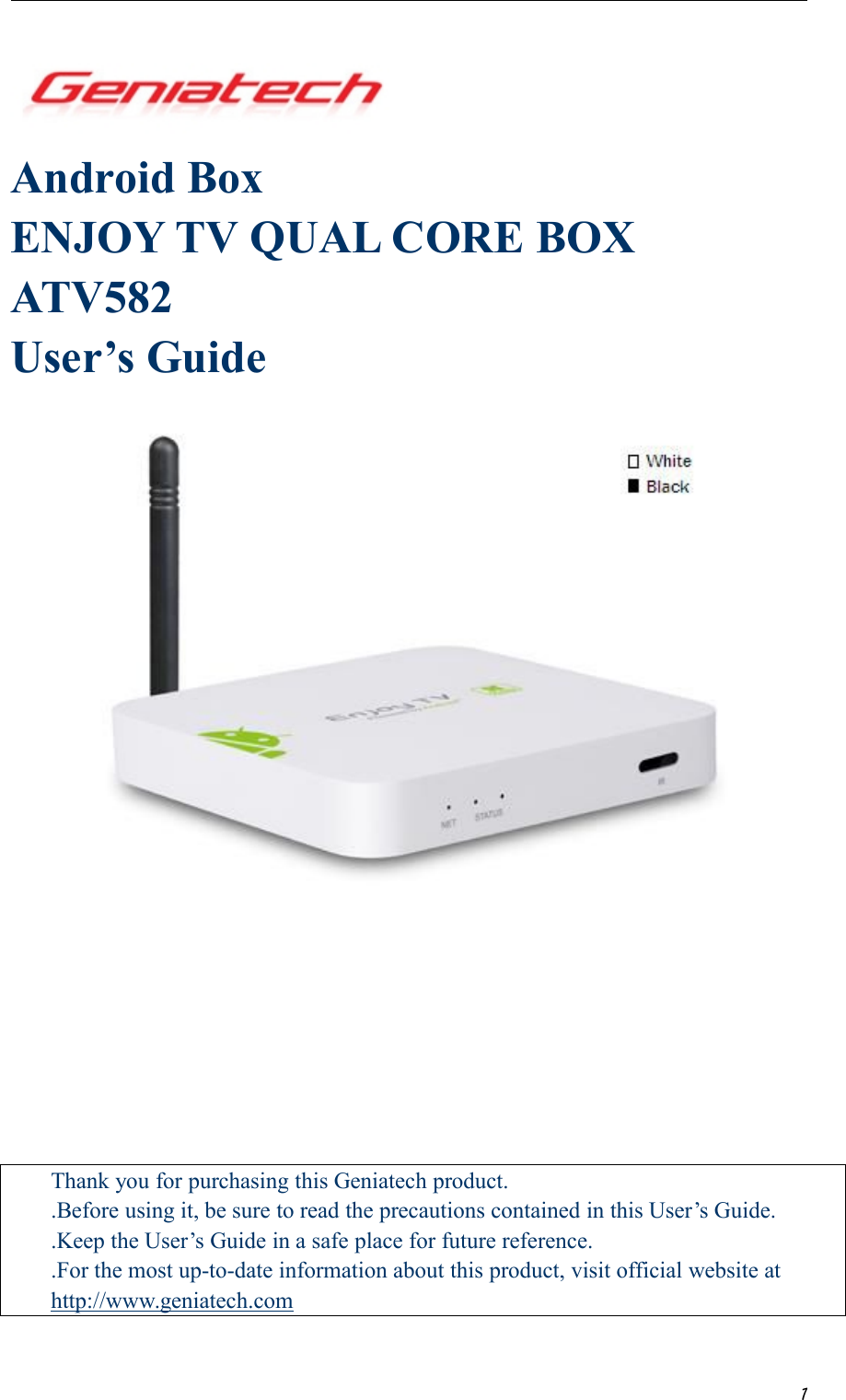

1Android BoxENJOY TV QUAL CORE BOXATV582User’s GuideThank you for purchasing this Geniatech product..Before using it, be sure to read the precautions contained in this User’s Guide..Keep the User’s Guide in a safe place for future reference..For the most up-to-date information about this product, visit official website athttp://www.geniatech.com

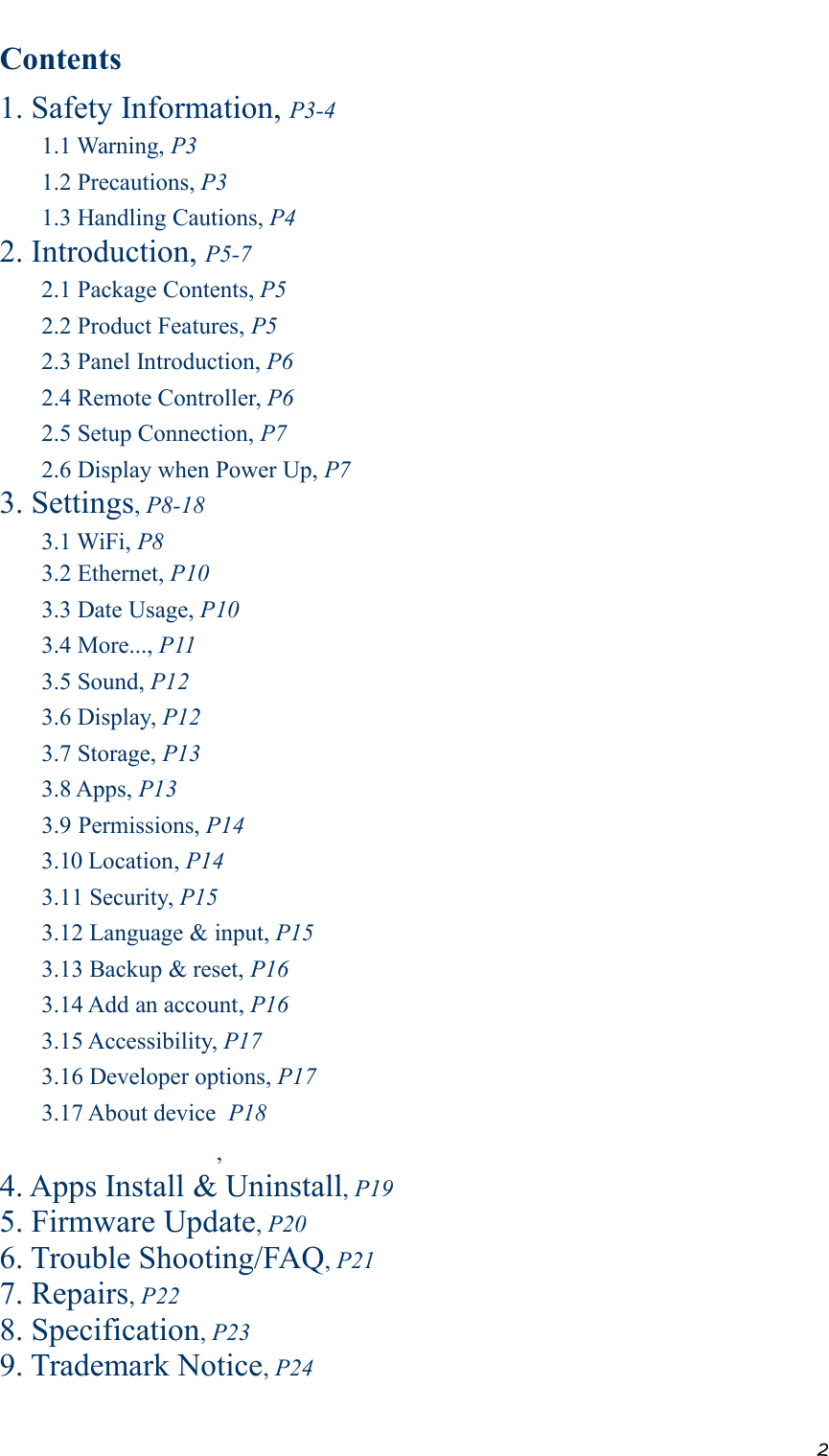

2Contents1. Safety Information, P3-41.1 Warning, P31.2 Precautions, P31.3 Handling Cautions, P42. Introduction, P5-72.1 Package Contents, P52.2 Product Features, P52.3 Panel Introduction, P62.4 Remote Controller, P62.5 Setup Connection, P72.6 Display when Power Up, P73. Settings,P8-183.1 WiFi, P83.2 Ethernet, P103.3 Date Usage, P103.4 More..., P113.5 Sound, P123.6 Display, P123.7 Storage, P133.8 Apps, P133.9Permissions, P143.10 Location, P143.11 Security, P153.12 Language & input, P153.13 Backup & reset, P163.14 Add an account, P163.15 Accessibility, P173.16 Developer options, P173.17 About device,P184. Apps Install & Uninstall,P195. Firmware Update,P206. Trouble Shooting/FAQ,P217. Repairs,P228. Specification,P239. Trademark Notice,P24

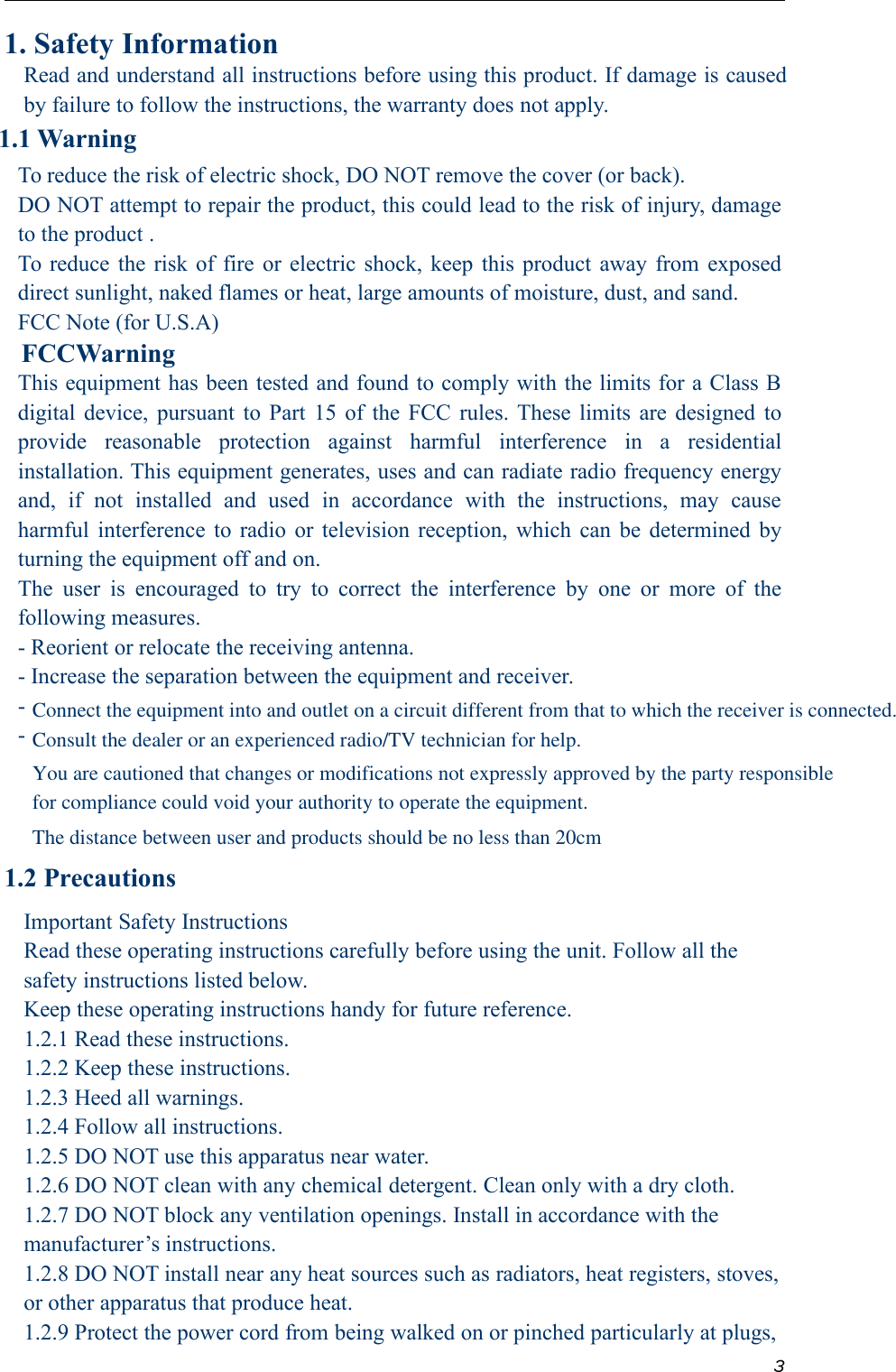

31. Safety InformationRead and understand all instructions before using this product. If damage is causedby failure to follow the instructions, the warranty does not apply.1.1 WarningTo reduce the risk of electric shock, DO NOT remove the cover (or back).DO NOT attempt to repair the product, this could lead to the risk of injury, damageto the product .To reduce the risk of fire or electric shock, keep this product away from exposeddirect sunlight, naked flames or heat, large amounts of moisture, dust, and sand.FCC Note (for U.S.A)This equipment has been tested and found to comply with the limits for a Class Bdigital device, pursuant to Part 15 of the FCC rules. These limits are designed toprovide reasonable protection against harmful interference in a residentialinstallation. This equipment generates, uses and can radiate radio frequency energyand, if not installed and used in accordance with the instructions, may causeharmful interference to radio or television reception, which can be determined byturning the equipment off and on.The user is encouraged to try to correct the interference by one or more of thefollowing measures.- Reorient or relocate the receiving antenna.- Increase the separation between the equipment and receiver.--1.2 PrecautionsImportant Safety InstructionsRead these operating instructions carefully before using the unit. Follow all thesafety instructions listed below.Keep these operating instructions handy for future reference.1.2.1 Read these instructions.1.2.2 Keep these instructions.1.2.3 Heed all warnings.1.2.4 Follow all instructions.1.2.5 DO NOT use this apparatus near water.1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.1.2.7 DO NOT block any ventilation openings. Install in accordance with themanufacturer’s instructions.1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves,or other apparatus that produce heat.1.2.9 Protect the power cord from being walked on or pinched particularly at plugs,Connect the equipment into and outlet on a circuit different from that to which the receiver is connected.Consult the dealer or an experienced radio/TV technician for help.You are cautioned that changes or modifications not expressly approved by the party responsible for compliance could void your authority to operate the equipment.The distance between user and products should be no less than 20cmFCCWarning

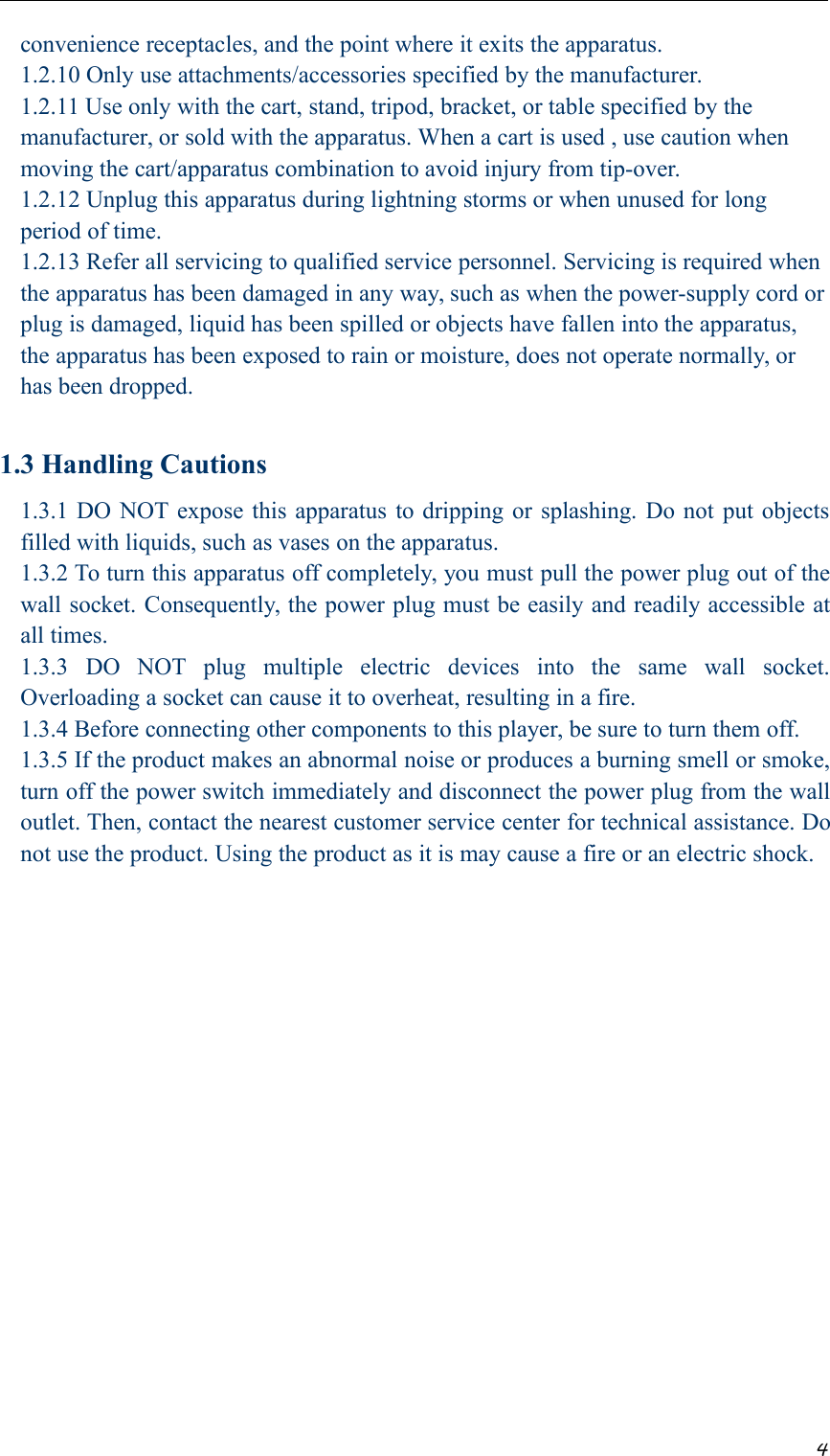

4convenience receptacles, and the point where it exits the apparatus.1.2.10 Only use attachments/accessories specified by the manufacturer.1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by themanufacturer, or sold with the apparatus. When a cart is used , use caution whenmoving the cart/apparatus combination to avoid injury from tip-over.1.2.12 Unplug this apparatus during lightning storms or when unused for longperiod of time.1.2.13 Refer all servicing to qualified service personnel. Servicing is required whenthe apparatus has been damaged in any way, such as when the power-supply cord orplug is damaged, liquid has been spilled or objects have fallen into the apparatus,the apparatus has been exposed to rain or moisture, does not operate normally, orhas been dropped.1.3 Handling Cautions1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objectsfilled with liquids, such as vases on the apparatus.1.3.2 To turn this apparatus off completely, you must pull the power plug out of thewall socket. Consequently, the power plug must be easily and readily accessible atall times.1.3.3 DO NOT plug multiple electric devices into the same wall socket.Overloading a socket can cause it to overheat, resulting in a fire.1.3.4 Before connecting other components to this player, be sure to turn them off.1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke,turn off the power switch immediately and disconnect the power plug from the walloutlet. Then, contact the nearest customer service center for technical assistance. Donot use the product. Using the product as it is may cause a fire or an electric shock.

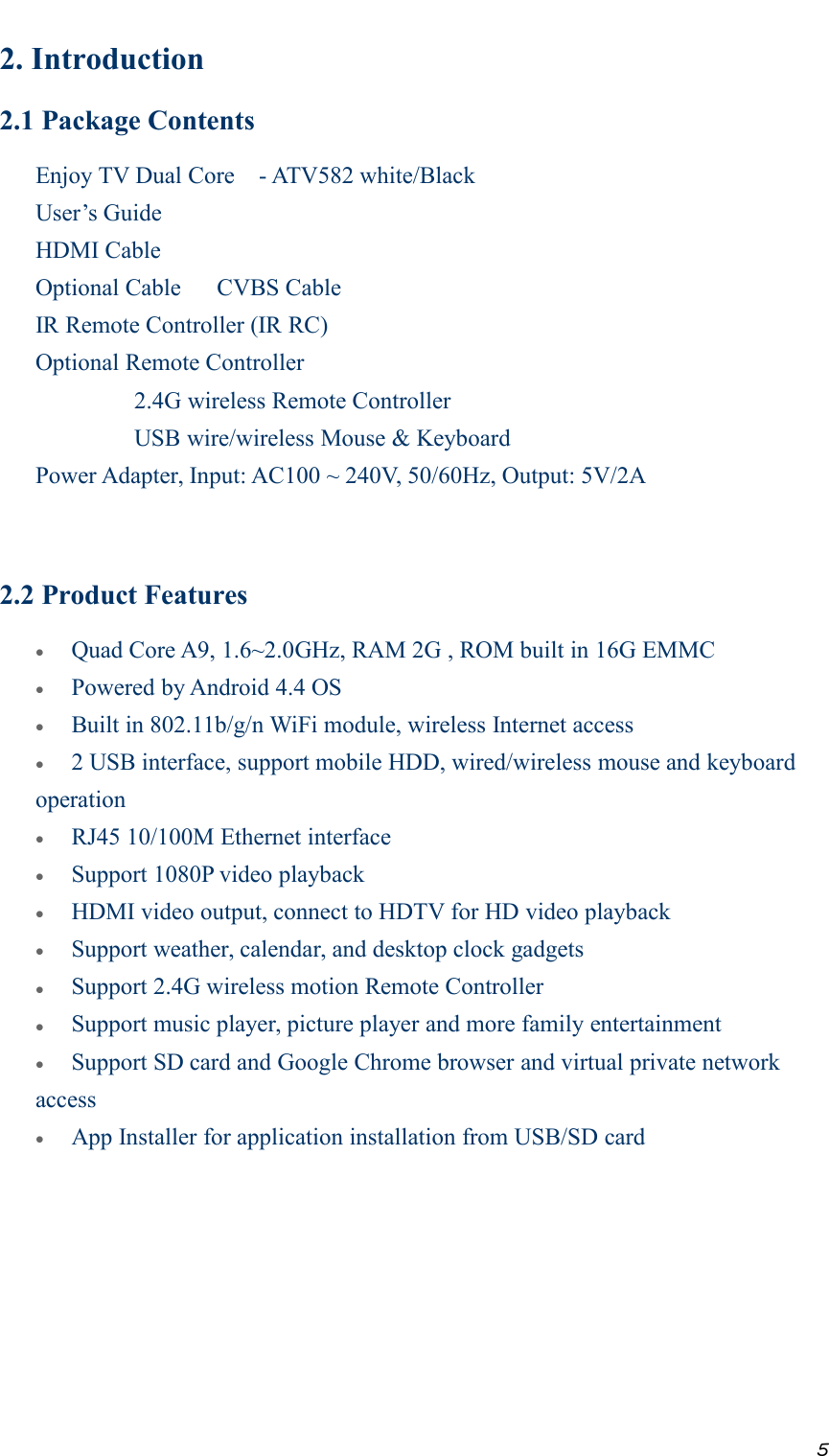

52. Introduction2.1 Package ContentsEnjoy TV Dual Core - ATV582 white/BlackUser’s GuideHDMI CableOptional Cable CVBS CableIR Remote Controller (IR RC)Optional Remote Controller2.4G wireless Remote ControllerUSB wire/wireless Mouse & KeyboardPower Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V/2A2.2 Product FeaturesQuad Core A9, 1.6~2.0GHz, RAM 2G , ROM built in 16G EMMCPowered by Android 4.4 OSBuilt in 802.11b/g/n WiFi module, wireless Internet access2 USB interface, support mobile HDD, wired/wireless mouse and keyboardoperationRJ45 10/100M Ethernet interfaceSupport 1080P video playbackHDMI video output, connect to HDTV for HD video playbackSupport weather, calendar, and desktop clock gadgetsSupport 2.4G wireless motion Remote ControllerSupport music player, picture player and more family entertainmentSupport SD card and Google Chrome browser and virtual private networkaccessApp Installer for application installation from USB/SD card

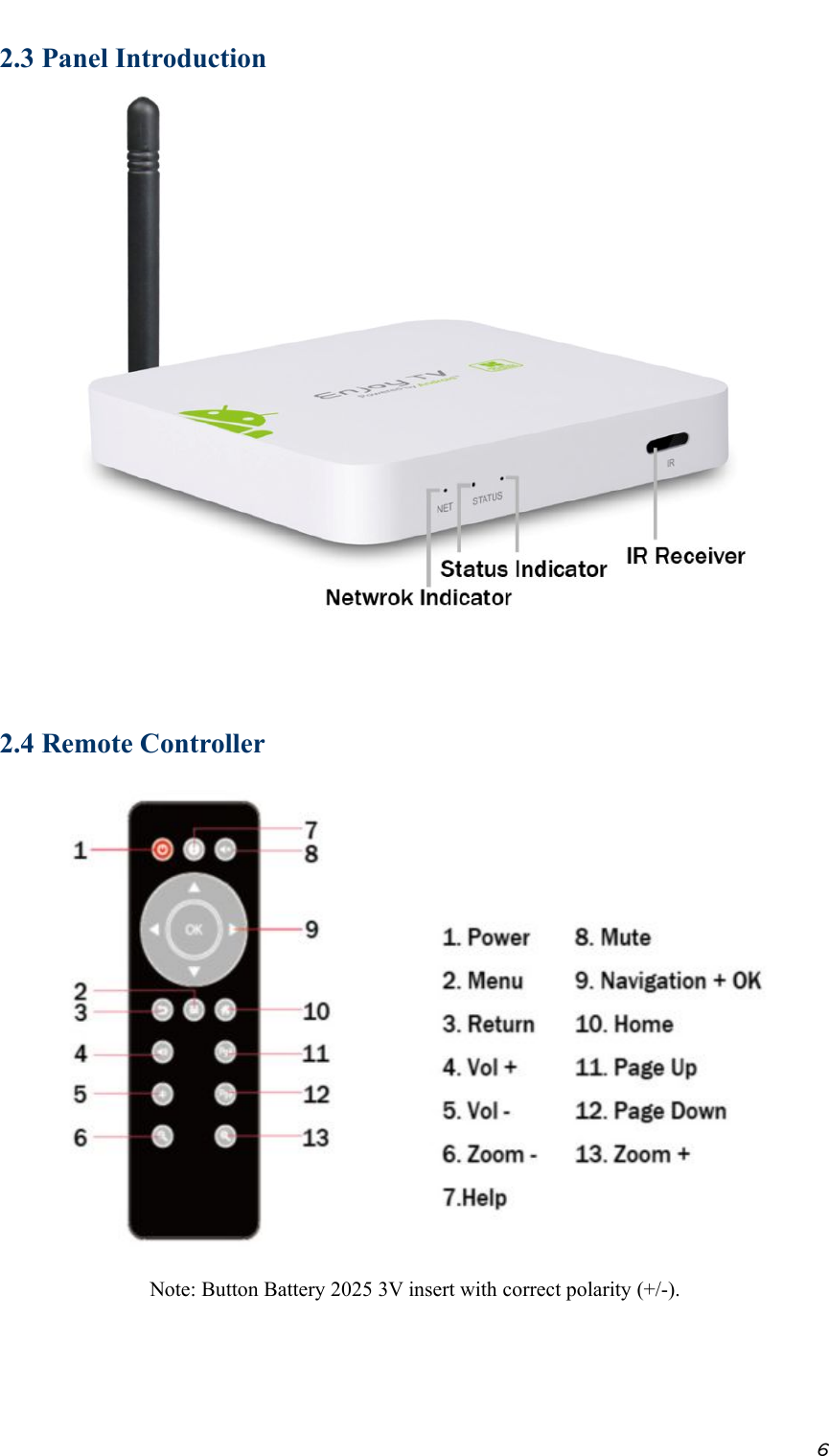

62.3 Panel Introduction2.4 Remote ControllerNote: Button Battery 2025 3V insert with correct polarity (+/-).

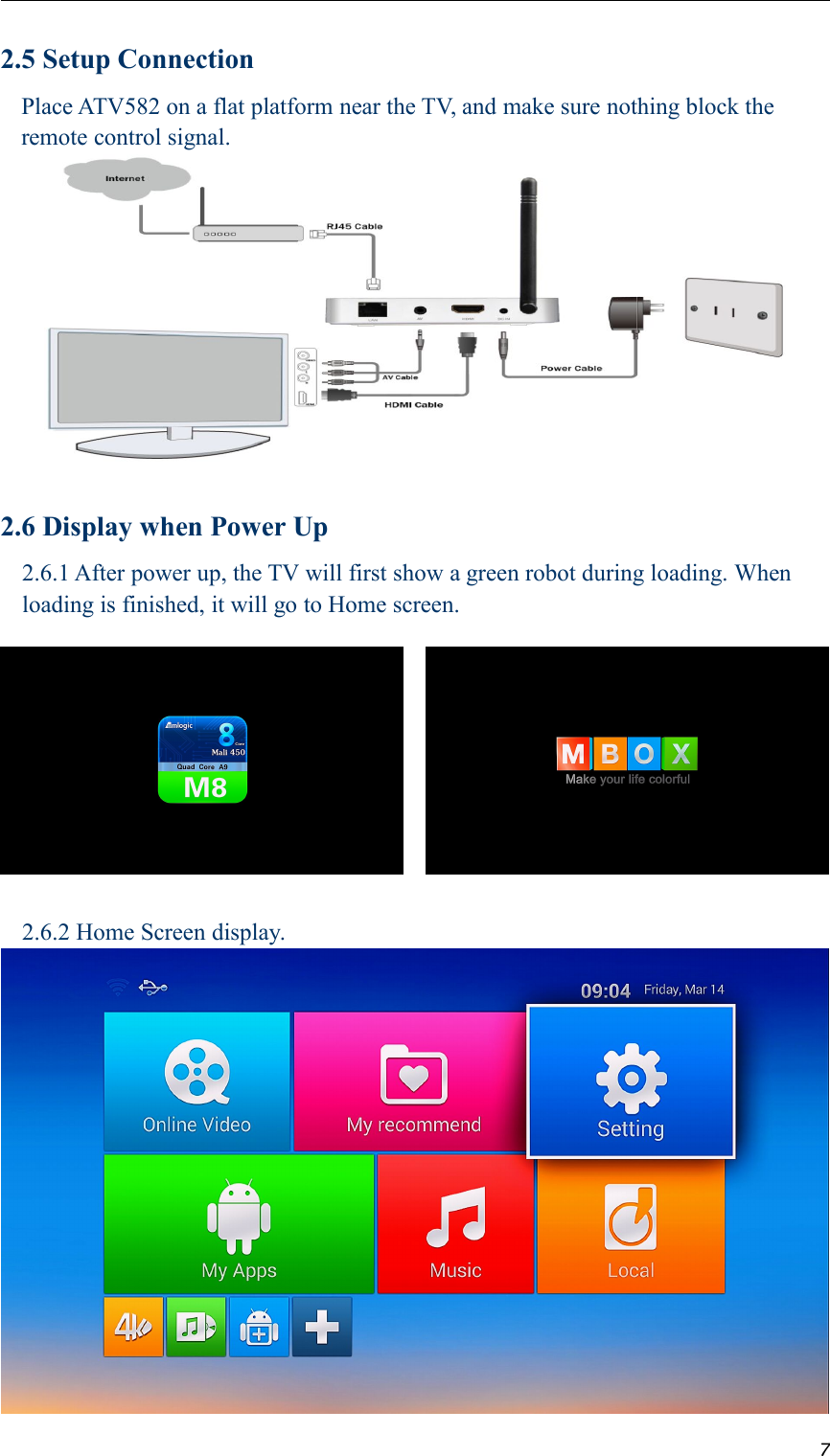

72.5 Setup ConnectionPlace ATV582 on a flat platform near the TV, and make sure nothing block theremote control signal.2.6 Display when Power Up2.6.1 After power up, the TV will first show a green robot during loading. Whenloading is finished, it will go to Home screen.2.6.2 Home Screen display.

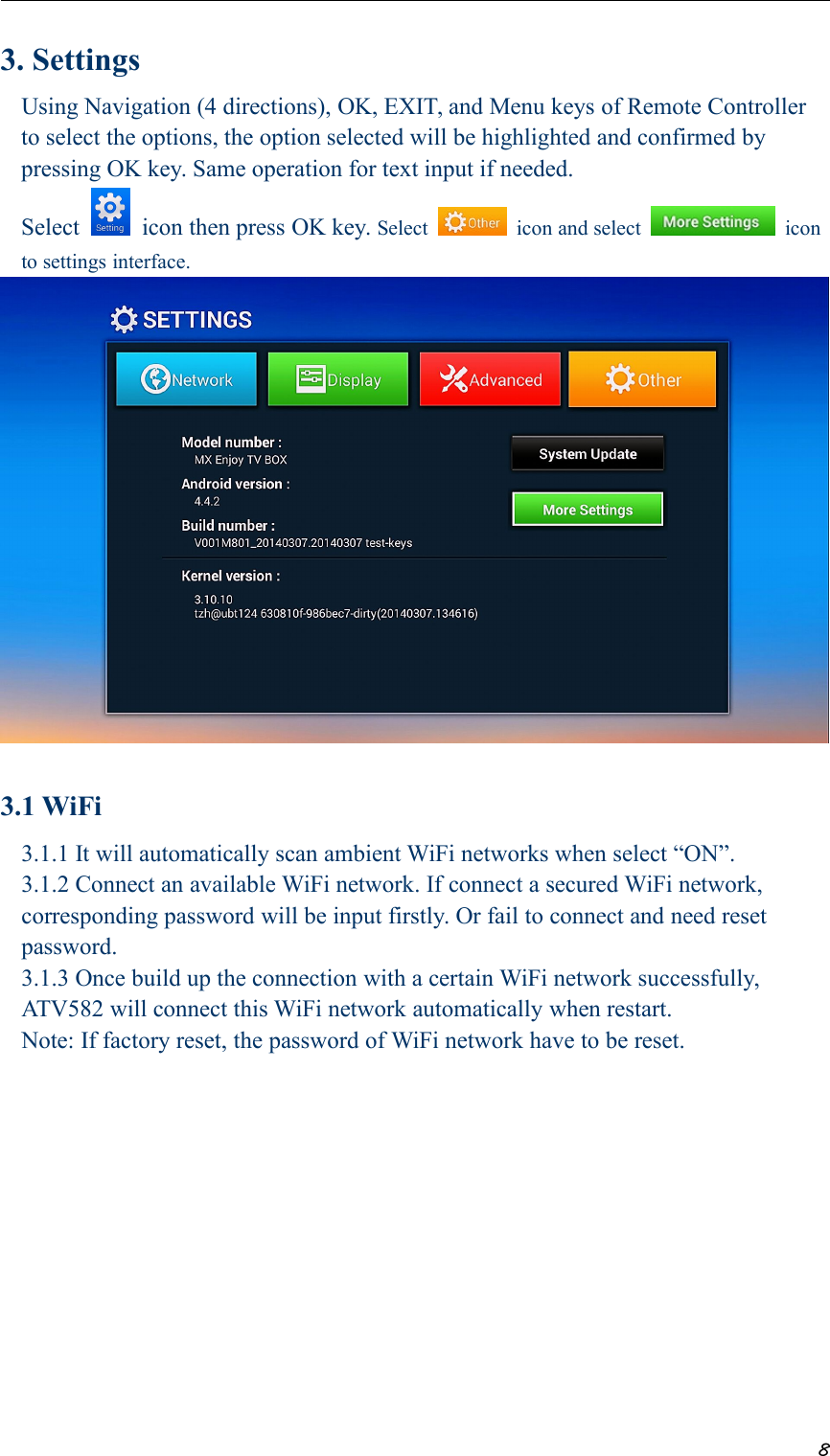

83. SettingsUsing Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controllerto select the options, the option selected will be highlighted and confirmed bypressing OK key. Same operation for text input if needed.Select icon then press OK key. Select icon and select iconto settings interface.3.1 WiFi3.1.1 It will automatically scan ambient WiFi networks when select “ON”.3.1.2 Connect an available WiFi network. If connect a secured WiFi network,corresponding password will be input firstly. Or fail to connect and need resetpassword.3.1.3 Once build up the connection with a certain WiFi network successfully,ATV582 will connect this WiFi network automatically when restart.Note: If factory reset, the password of WiFi network have to be reset.
9

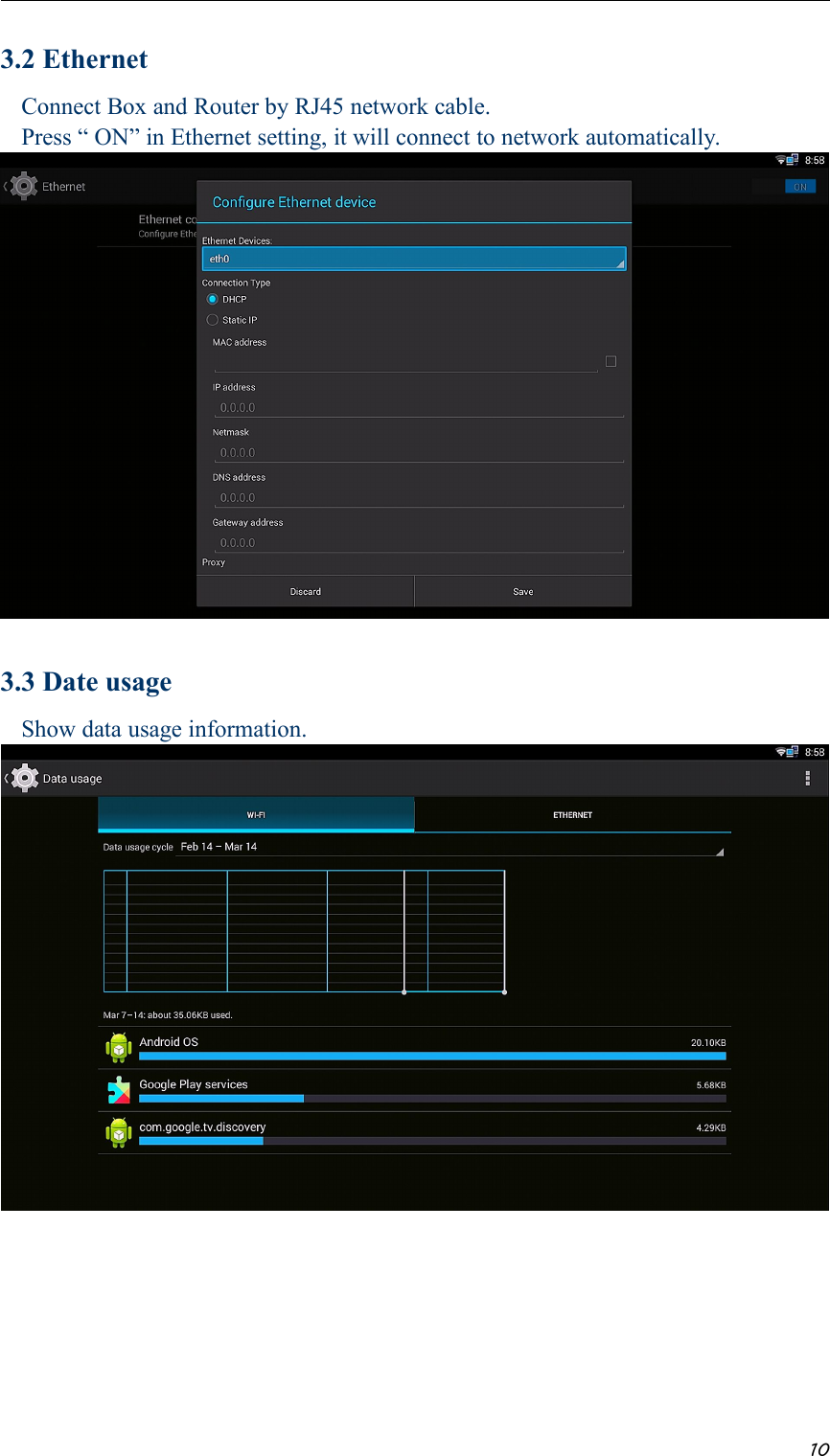

103.2 EthernetConnect Box and Router by RJ45 network cable.Press “ ON” in Ethernet setting, it will connect to network automatically.3.3 Date usageShow data usage information.

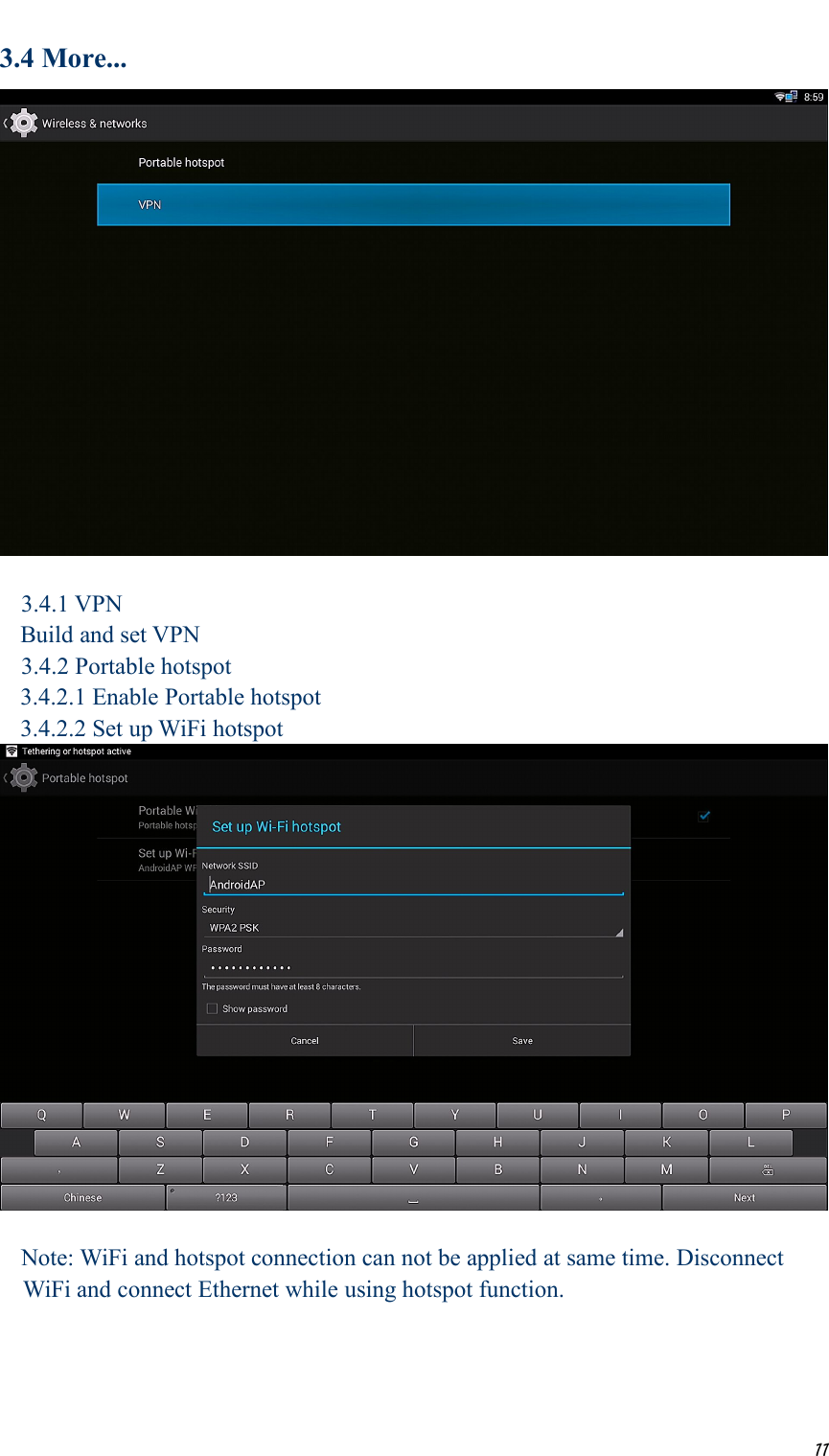

113.4 More...3.4.1 VPNBuild and set VPN3.4.2 Portable hotspot3.4.2.1 Enable Portable hotspot3.4.2.2 Set up WiFi hotspotNote: WiFi and hotspot connection can not be applied at same time. DisconnectWiFi and connect Ethernet while using hotspot function.

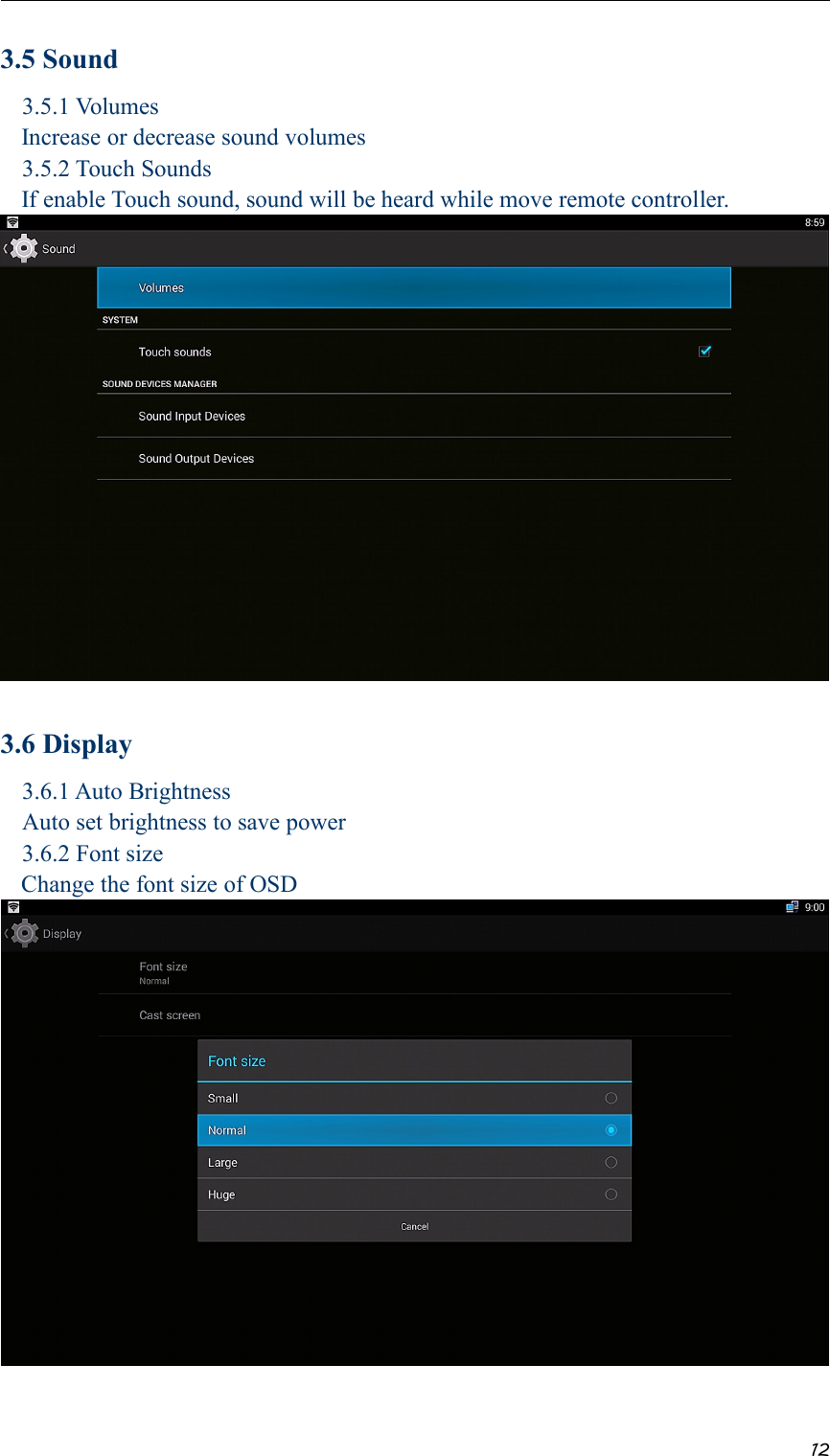

123.5 Sound3.5.1 VolumesIncrease or decrease sound volumes3.5.2 Touch SoundsIf enable Touch sound, sound will be heard while move remote controller.3.6 Display3.6.1 Auto BrightnessAuto set brightness to save power3.6.2 Font sizeChange the font size of OSD

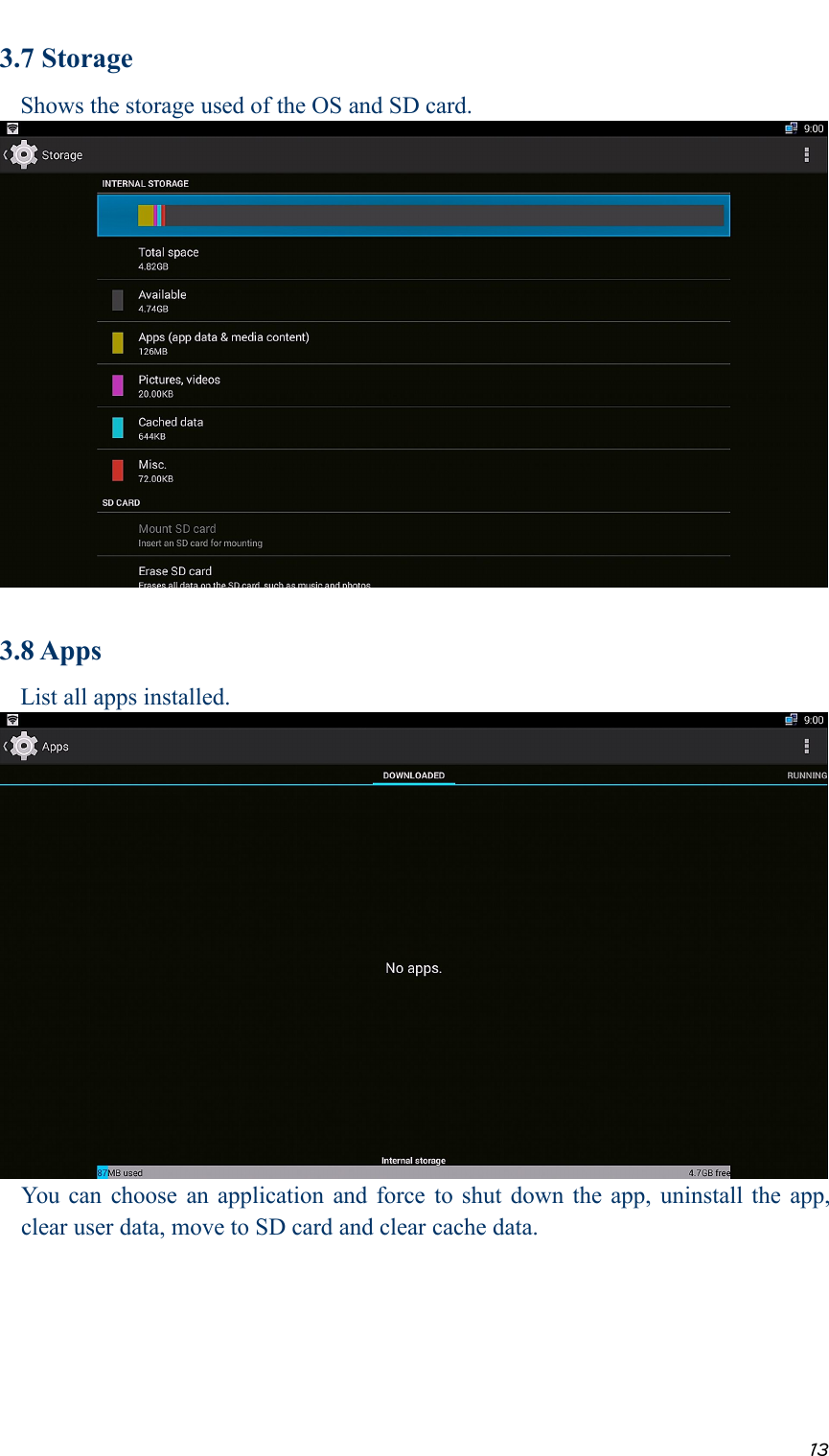

133.7 StorageShows the storage used of the OS and SD card.3.8 AppsList all apps installed.You can choose an application and force to shut down the app, uninstall the app,clear user data, move to SD card and clear cache data.
143.9 Permissions3.10 Location

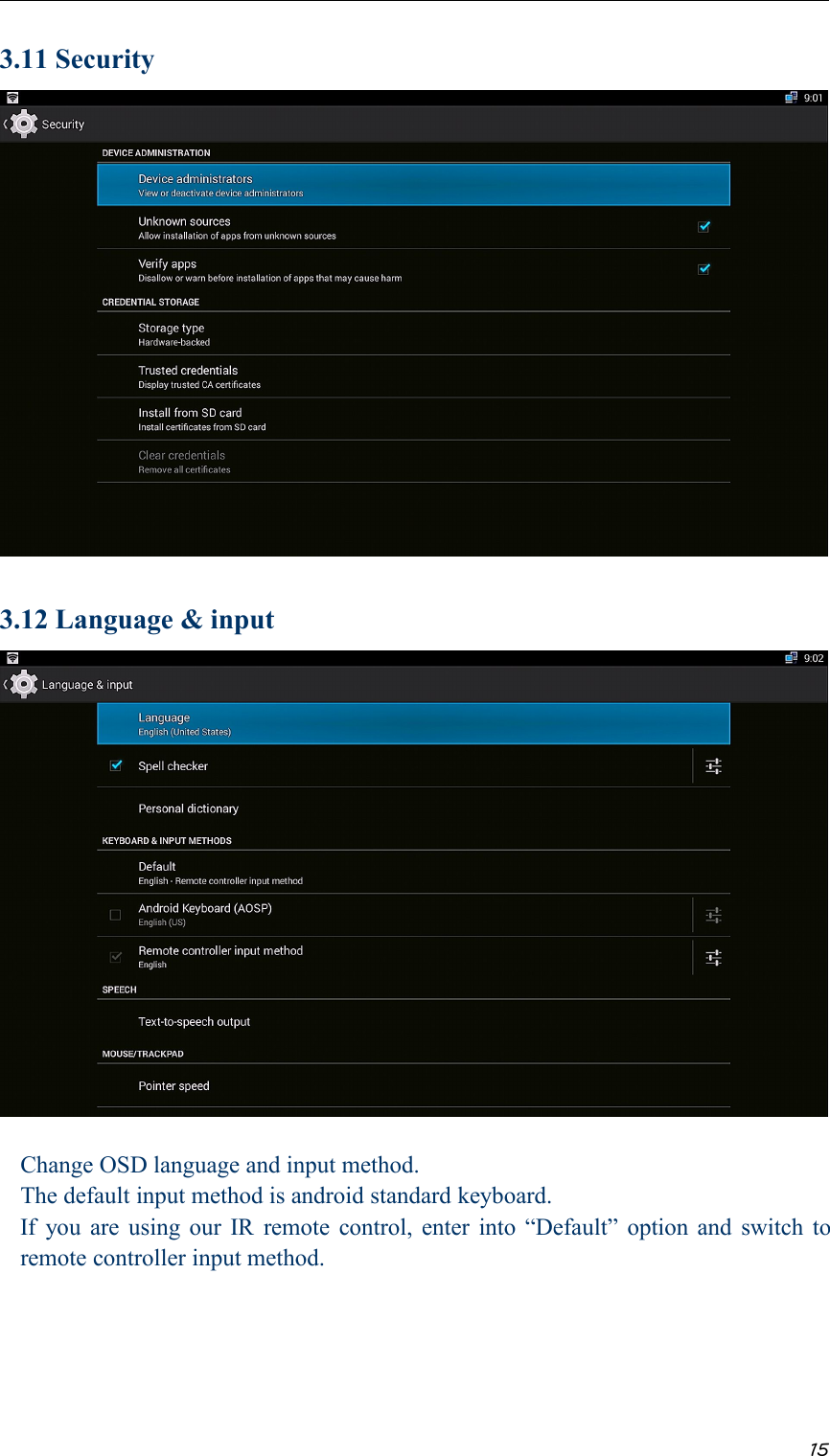

153.11 Security3.12 Language & inputChange OSD language and input method.The default input method is android standard keyboard.If you are using our IR remote control, enter into “Default” option and switch toremote controller input method.

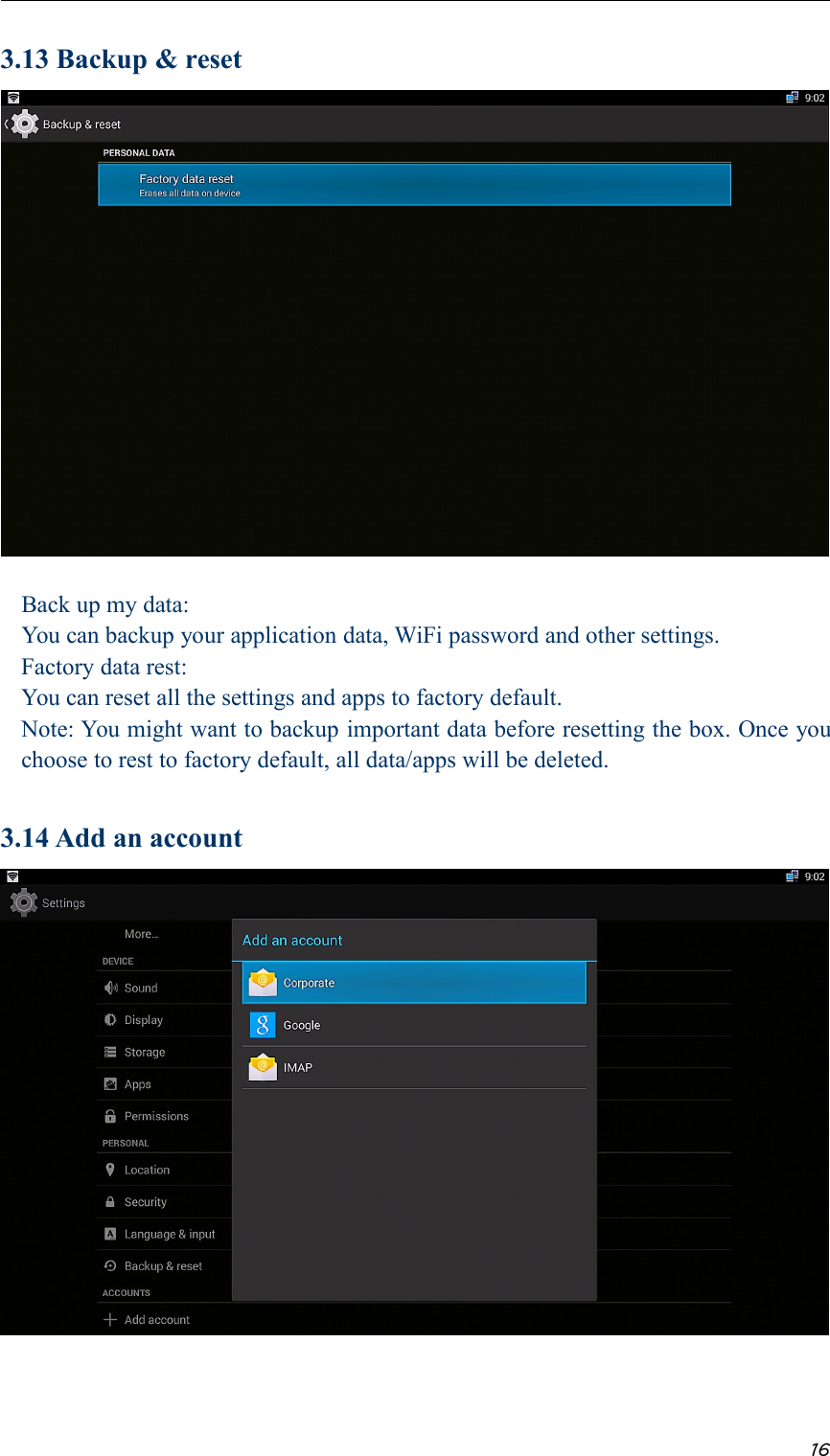

163.13 Backup & resetBack up my data:You can backup your application data, WiFi password and other settings.Factory data rest:You can reset all the settings and apps to factory default.Note: You might want to backup important data before resetting the box. Once youchoose to rest to factory default, all data/apps will be deleted.3.14 Add an account

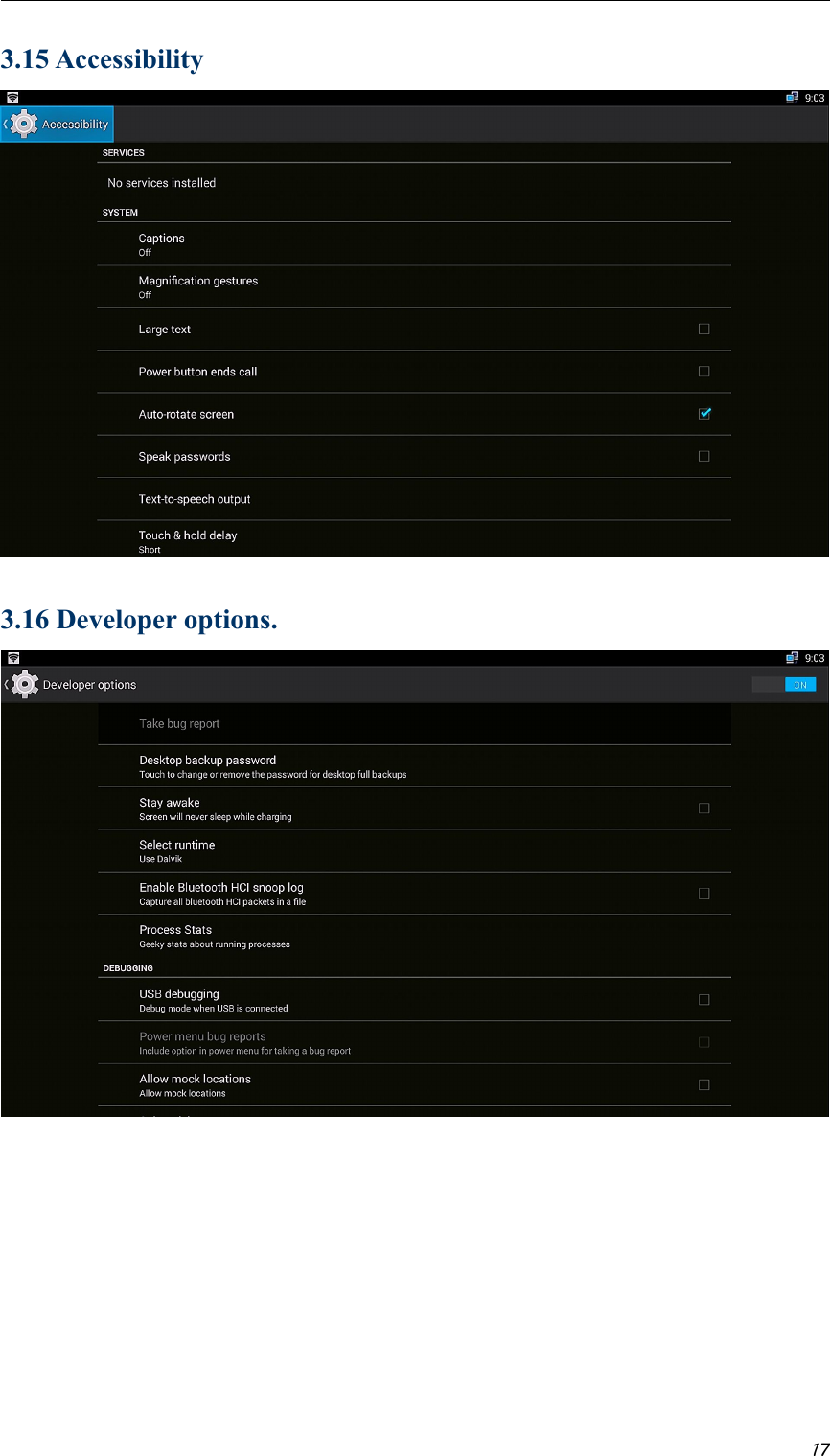

173.15 Accessibility3.16 Developer options.

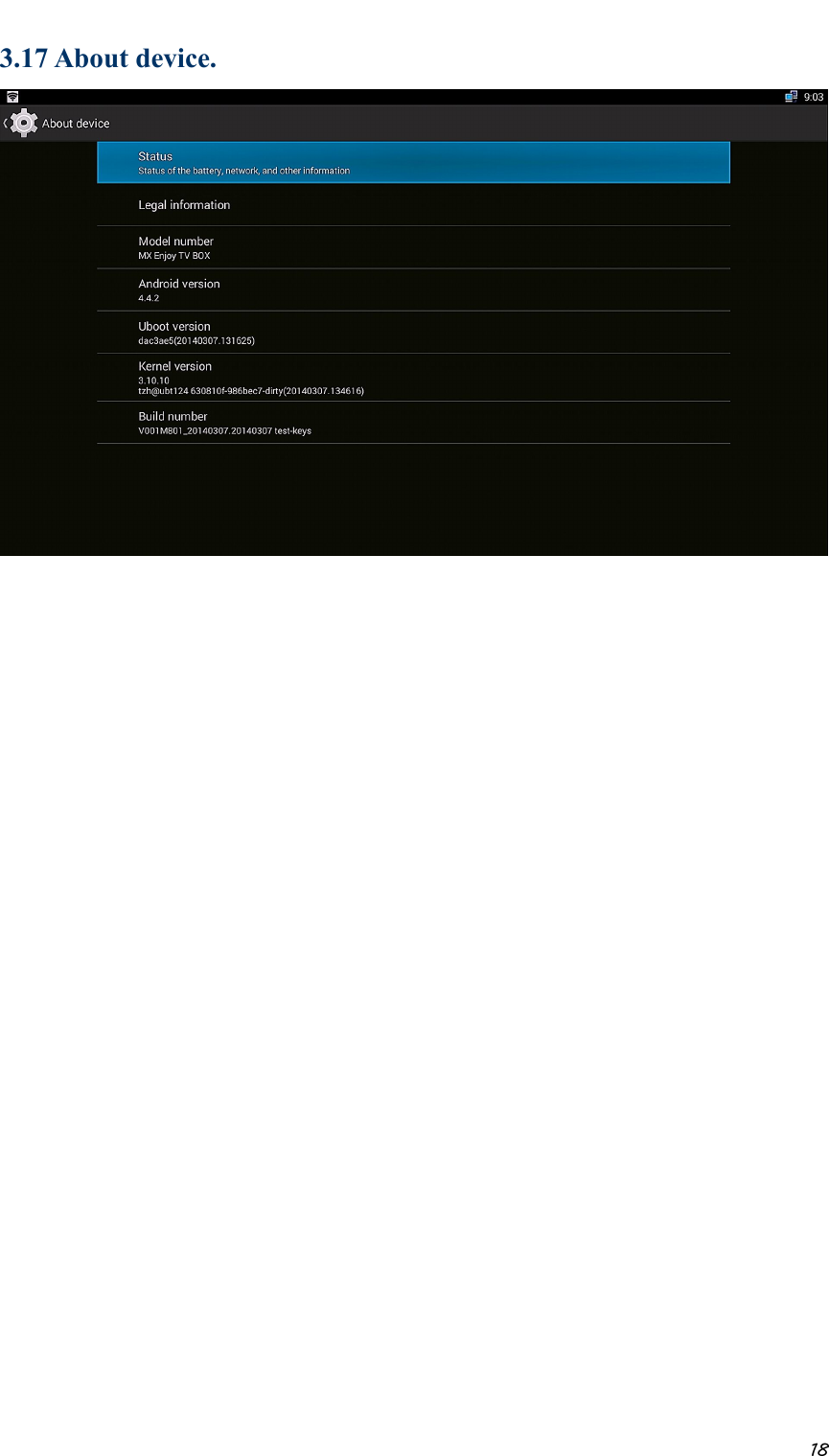

183.17 About device.

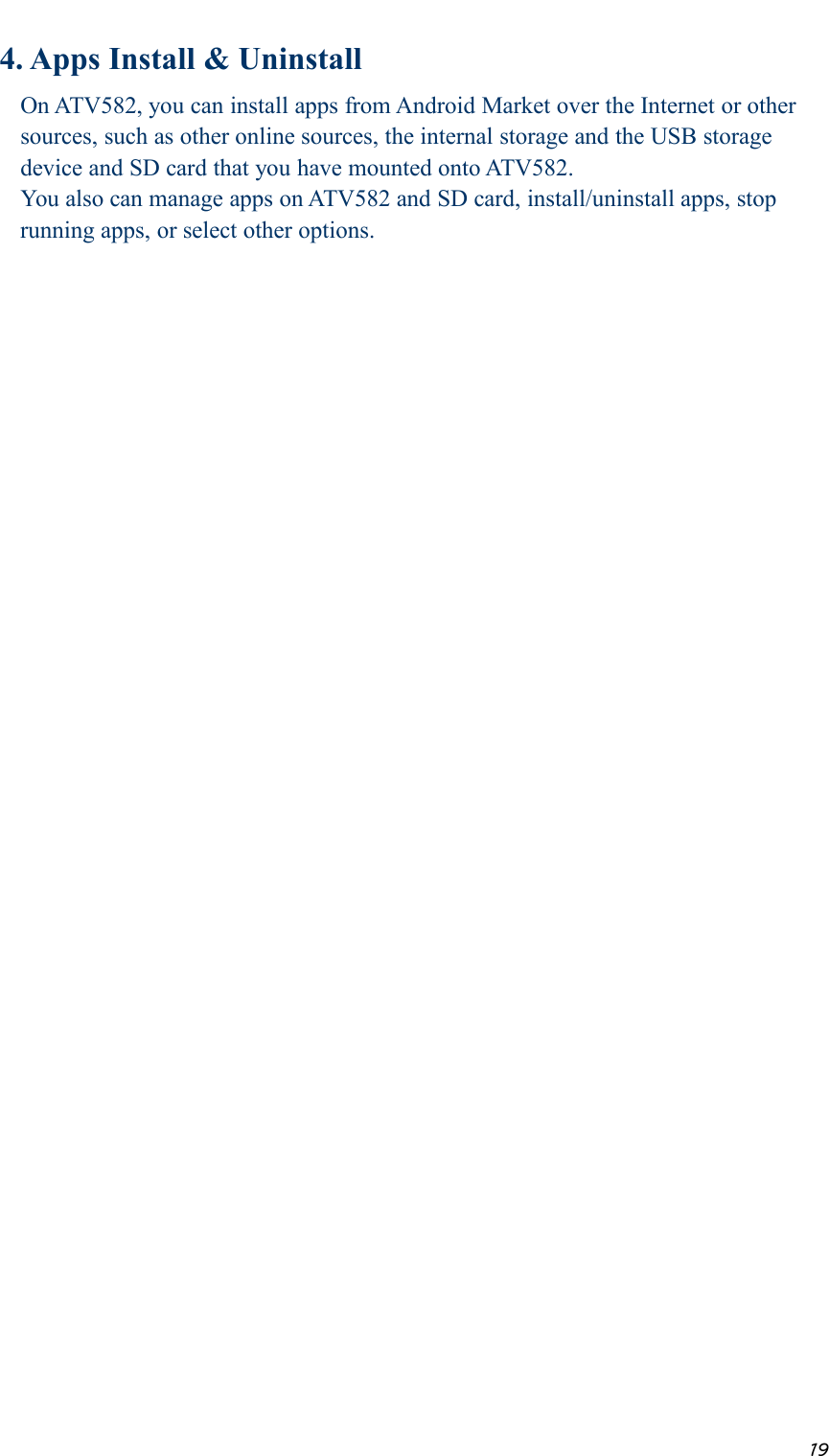

194. Apps Install & UninstallOn ATV582, you can install apps from Android Market over the Internet or othersources, such as other online sources, the internal storage and the USB storagedevice and SD card that you have mounted onto ATV582.You also can manage apps on ATV582 and SD card, install/uninstall apps, stoprunning apps, or select other options.

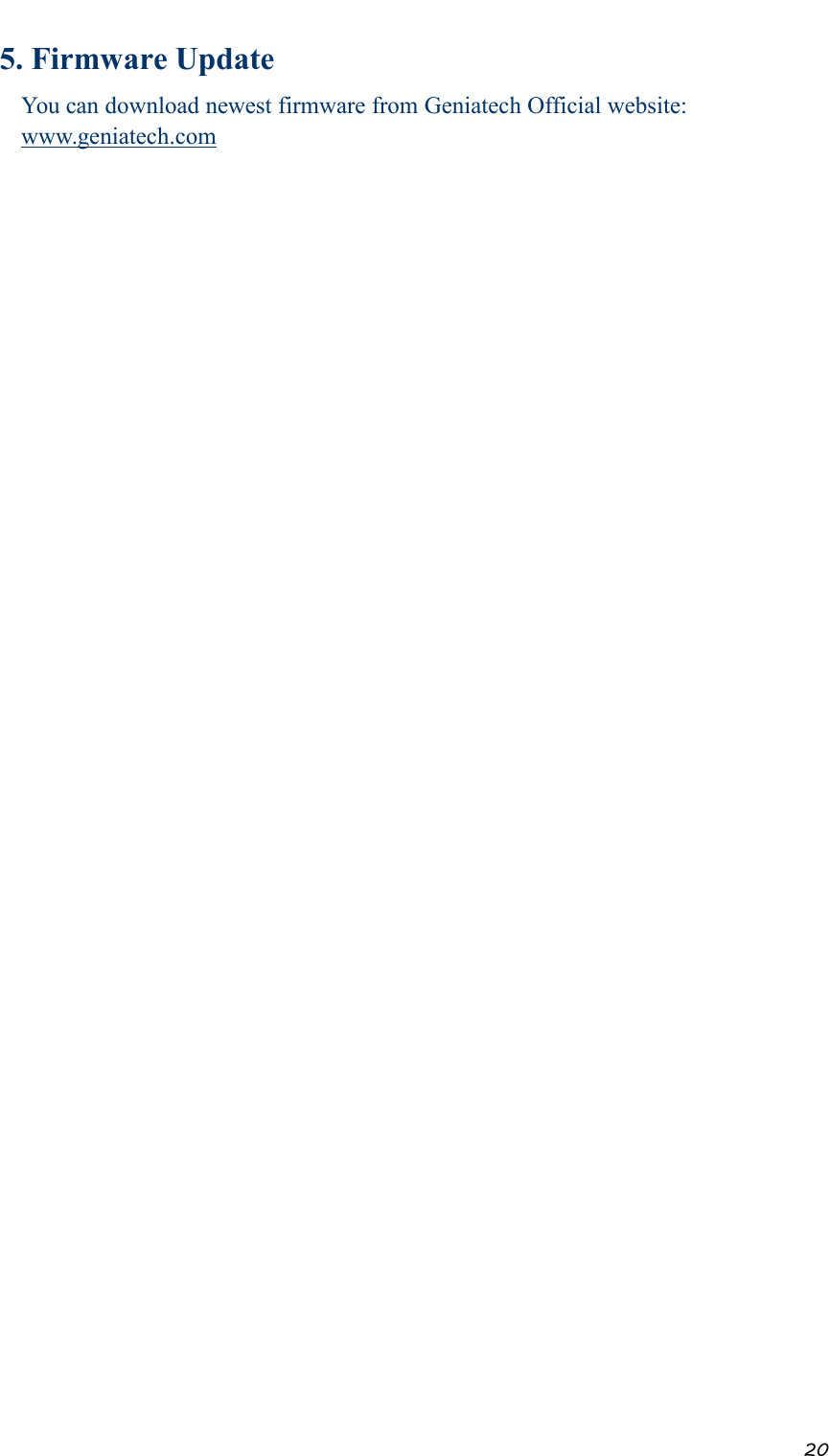

205. Firmware UpdateYou can download newest firmware from Geniatech Official website:www.geniatech.com

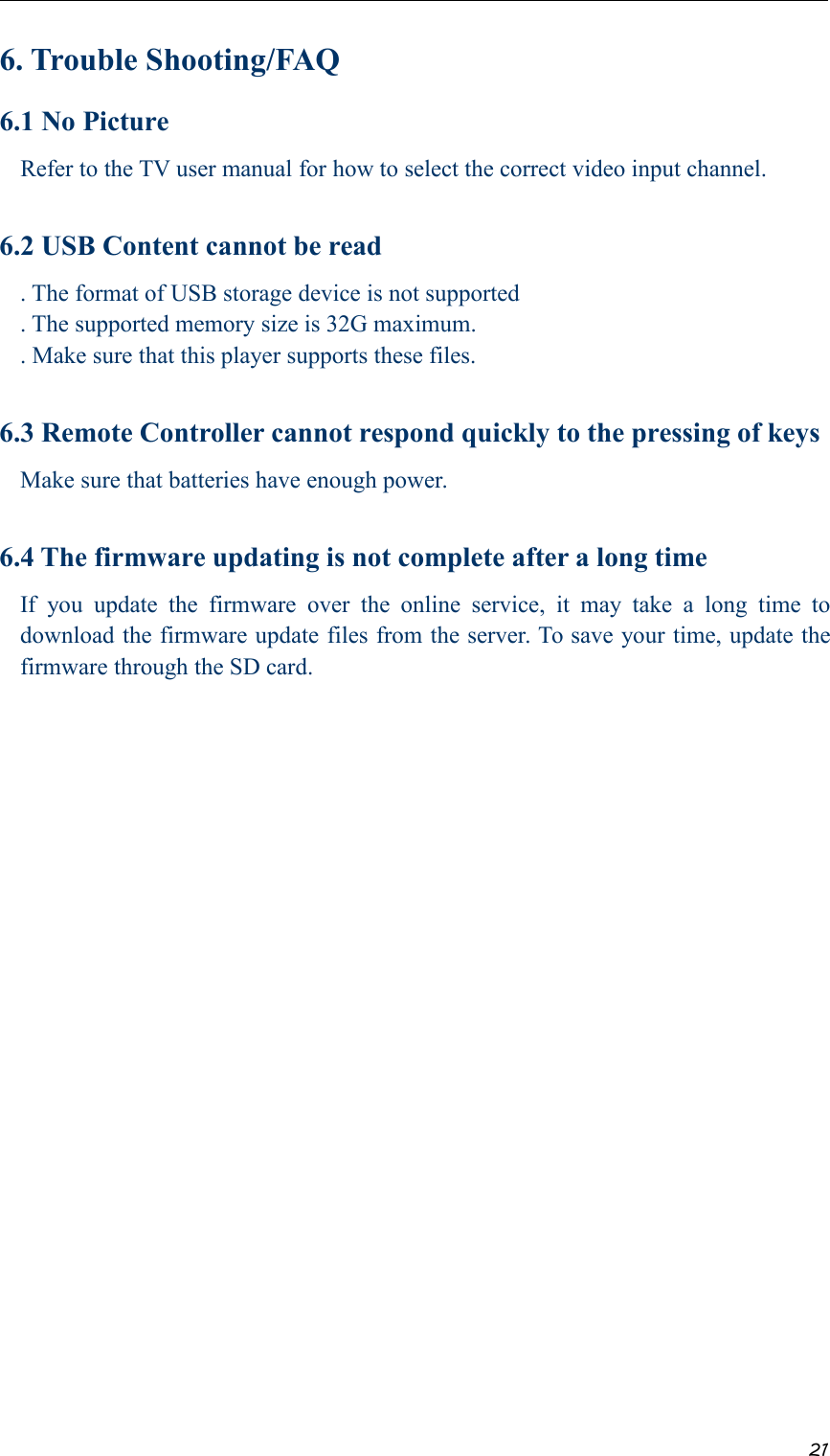

216. Trouble Shooting/FAQ6.1 No PictureRefer to the TV user manual for how to select the correct video input channel.6.2 USB Content cannot be read. The format of USB storage device is not supported. The supported memory size is 32G maximum.. Make sure that this player supports these files.6.3 Remote Controller cannot respond quickly to the pressing of keysMake sure that batteries have enough power.6.4 The firmware updating is not complete after a long timeIf you update the firmware over the online service, it may take a long time todownload the firmware update files from the server. To save your time, update thefirmware through the SD card.

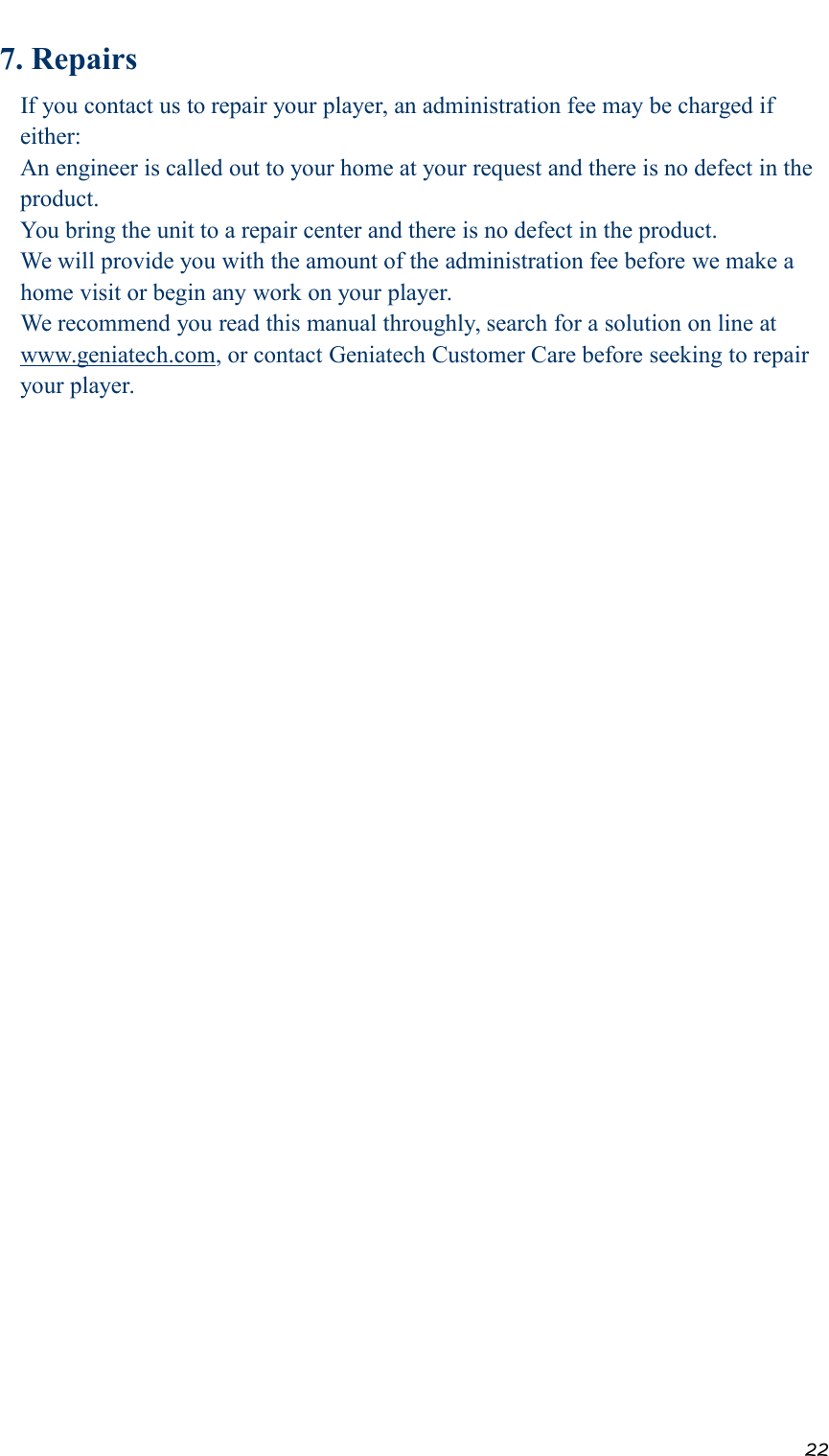

227. RepairsIf you contact us to repair your player, an administration fee may be charged ifeither:An engineer is called out to your home at your request and there is no defect in theproduct.You bring the unit to a repair center and there is no defect in the product.We will provide you with the amount of the administration fee before we make ahome visit or begin any work on your player.We recommend you read this manual throughly, search for a solution on line atwww.geniatech.com, or contact Geniatech Customer Care before seeking to repairyour player.

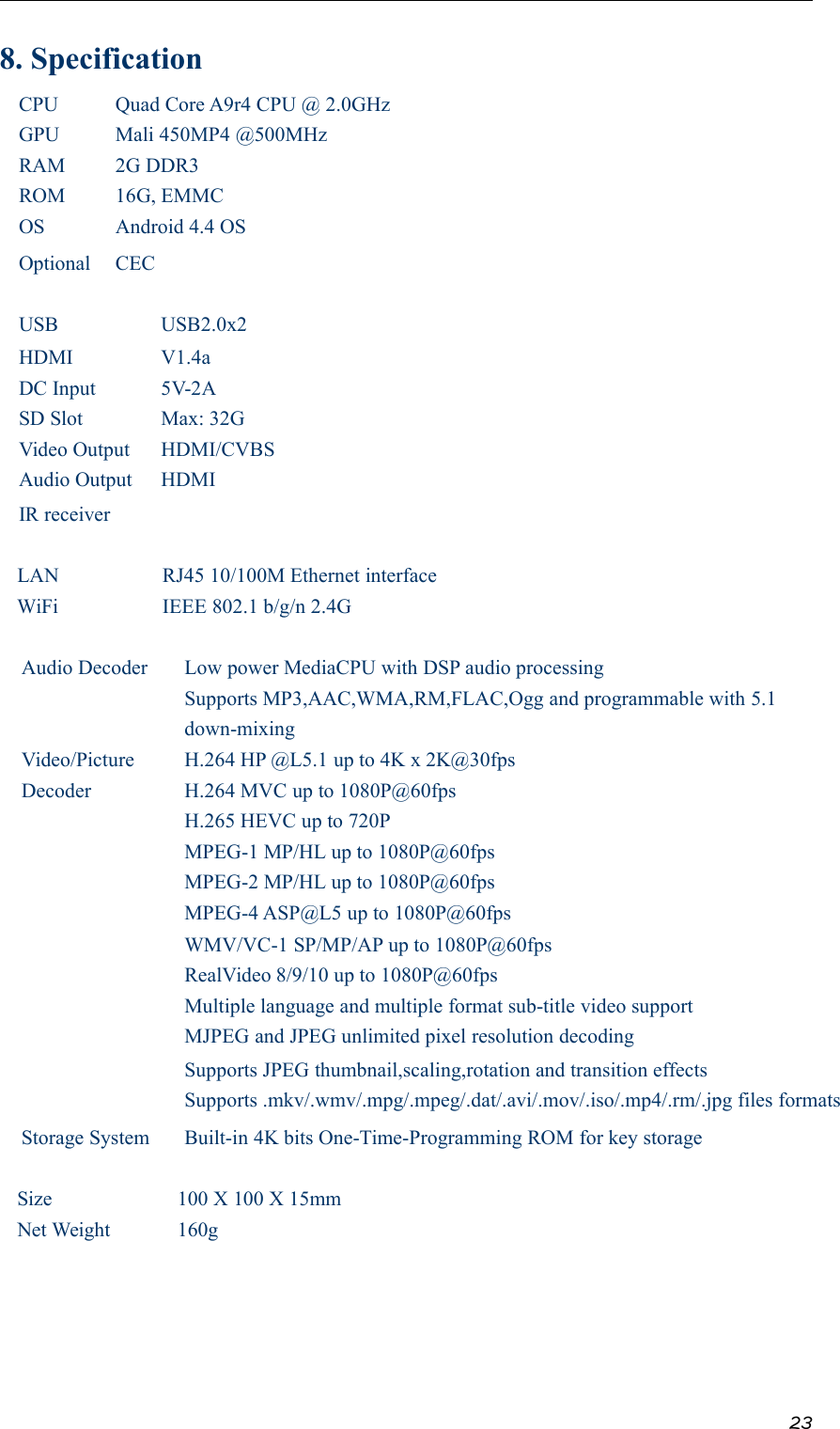

238. SpecificationCPU Quad Core A9r4 CPU @ 2.0GHzGPU Mali 450MP4 @500MHzRAM 2G DDR3ROM 16G, EMMCOS Android 4.4 OSOptional CECUSB USB2.0x2HDMI V1.4aDC Input 5V-2ASD Slot Max: 32GVideo Output HDMI/CVBSAudio Output HDMIIR receiverLAN RJ45 10/100M Ethernet interfaceWiFi IEEE 802.1 b/g/n 2.4GAudio Decoder Low power MediaCPU with DSP audio processingSupports MP3,AAC,WMA,RM,FLAC,Ogg and programmable with 5.1down-mixingVideo/PictureDecoderH.264 HP @L5.1 up to 4K x 2K@30fpsH.264 MVC up to 1080P@60fpsH.265 HEVC up to 720PMPEG-1 MP/HL up to 1080P@60fpsMPEG-2 MP/HL up to 1080P@60fpsMPEG-4 ASP@L5 up to 1080P@60fpsWMV/VC-1 SP/MP/AP up to 1080P@60fpsRealVideo 8/9/10 up to 1080P@60fpsMultiple language and multiple format sub-title video supportMJPEG and JPEG unlimited pixel resolution decodingSupports JPEG thumbnail,scaling,rotation and transition effectsSupports .mkv/.wmv/.mpg/.mpeg/.dat/.avi/.mov/.iso/.mp4/.rm/.jpg files formatsStorage System Built-in 4K bits One-Time-Programming ROM for key storageSize 100 X 100 X 15mmNet Weight 160g

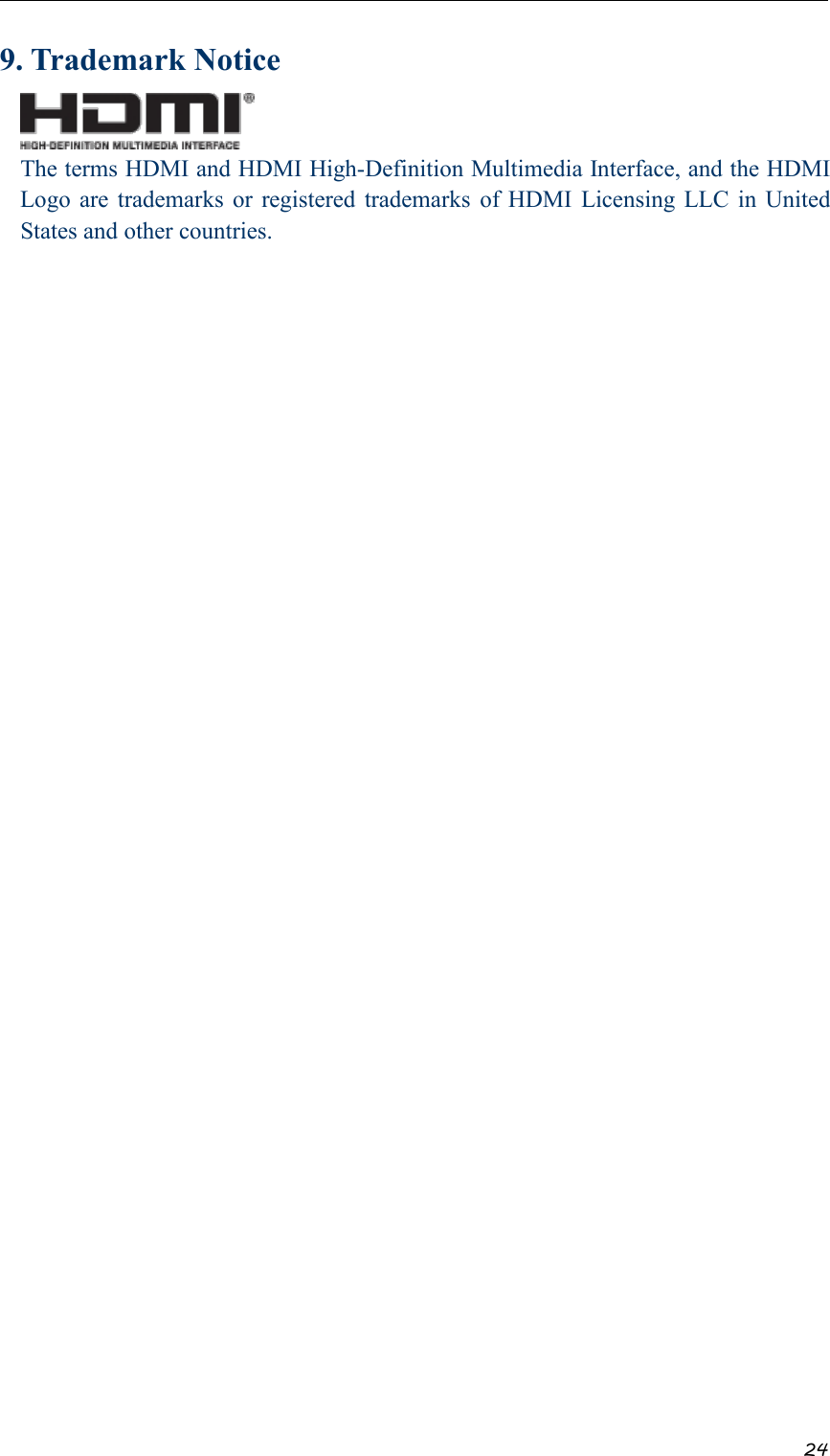

249. Trademark NoticeThe terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMILogo are trademarks or registered trademarks of HDMI Licensing LLC in UnitedStates and other countries.
