Geniatech 15V8M1K Enjoy TV User Manual Contents
Shenzhen Geniatech INC.,LTD. Enjoy TV Contents
User manual
1
Enjoy TV
ENJOY TV Dual Core Box
User’s Guide
2
1. Safety Information
Read and understand all instructions before using this product. If damage is caused by
failure to follow the instructions, the warranty does not apply.
1.1 Warning.
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio or television reception, which can be determined by
turning the equipment off and on.
The user is encouraged to try to correct the interference by one or more of the
following measures.
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
--Connect the equipment into and outlet on a circuit different from that to which the
receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
You are cautioned that changes or modifications not expressly approved by the party
responsible for compliance could void your authority to operate the equipment.
The distance between user and products should be no less than 20cm
1.2 Precautions
Important Safety Instructions
Read these operating instructions carefully before using the unit. Follow all the safety
instructions listed below.
Keep these operating instructions handy for future reference.
1.2.1 Read these instructions.
1.2.2 Keep these instructions.
1.2.3 Heed all warnings.
1.2.4 Follow all instructions.
1.2.5 DO NOT use this apparatus near water.
1.2.6 DO NOT clean with any chemical detergent. Clean only with a dry cloth.
1.2.7 DO NOT block any ventilation openings. Install in accordance with the
manufacturer’s instructions.
1.2.8 DO NOT install near any heat sources such as radiators, heat registers, stoves, or
other apparatus that produce heat.
1.2.9 Protect the power cord from being walked on or pinched particularly at plugs,
convenience receptacles, and the point where it exits the apparatus.
3
1.2.10 Only use attachments/accessories specified by the manufacturer.
1.2.11 Use only with the cart, stand, tripod, bracket, or table specified by the
manufacturer, or sold with the apparatus. When a cart is used , use caution when
moving the cart/apparatus combination to avoid injury from tip-over.
1.2.12 Unplug this apparatus during lightning storms or when unused for long period
of time.
1.2.13 Refer all servicing to qualified service personnel. Servicing is required when
the apparatus has been damaged in any way, such as when the power-supply cord or
plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the
apparatus has been exposed to rain or moisture, does not operate normally, or has
been dropped.
1.3 Handling Cautions
1.3.1 DO NOT expose this apparatus to dripping or splashing. Do not put objects
filled with liquids, such as vases on the apparatus.
1.3.2 To turn this apparatus off completely, you must pull the power plug out of the
wall socket. Consequently, the power plug must be easily and readily accessible at all
times.
1.3.3 DO NOT plug multiple electric devices into the same wall socket. Overloading
a socket can cause it to overheat, resulting in a fire.
1.3.4 Before connecting other components to this player, be sure to turn them off.
1.3.5 If the product makes an abnormal noise or produces a burning smell or smoke,
turn off the power switch immediately and disconnect the power plug from the wall
outlet. Then, contact the nearest customer service center for technical assistance. Do
not use the product. Using the product as it is may cause a fire or an electric shock.
4
2. Introduction
2.1 Package Contents
Enjoy TV Dual Core Box - ST1615
User’s Guide
HDMI Cable
AV Cable
IR Remote Controller (IR RC)
Power Adapter, Input: AC100 ~ 240V, 50/60Hz, Output: 5V, 2A
2.2 Product Features
HDMI input support
ARM CORTEX A9 x 2, 1.5GHz, RAM is 1G,built in 2G-32G flash memory
Support Dual Band
Powered by Android 4.2 OS
Built in 802.11b/g/n WIFI module, wireless Internet access
USB interface, support mobile HDD, wired/wireless mouse and keyboard
RJ45 10/100M Ethernet interface
Support 1080P video playback
HDMI video output, connect to HDTV for HD video playback
Support weather, calendar, and desktop clock gadgets
Support Flash Player 10.2 for hardware decoding, Flash 11.1 for software
decoding ,play back online video
Support music player, picture player and more family entertainment
Support SD card, 4 USB ports and Google Chrome browser and virtual private
network access
App Installer for application installation from USB/SD card
5

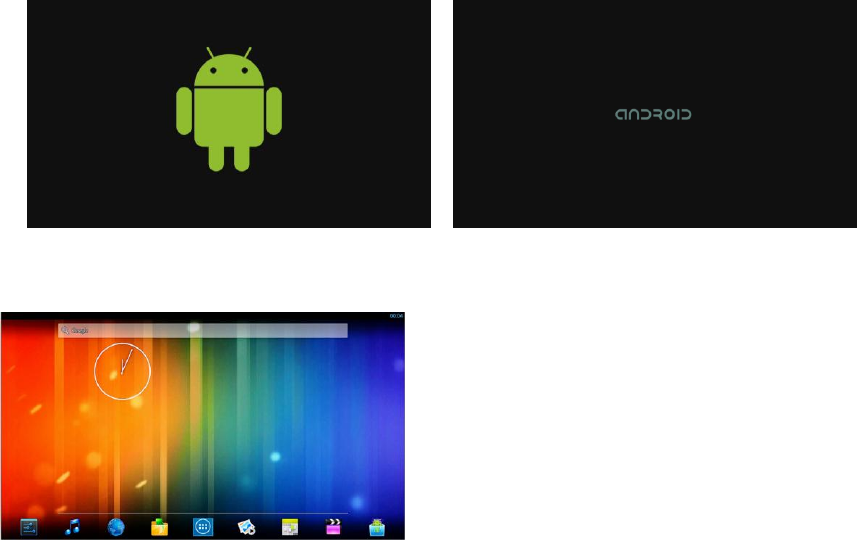

Display when Power Up
2.6.1 After power up, the TV will first show a green robot then change to “android”
logo during loading. When loading is finished, it will go to Home screen.
2.6.2 Home Screen display.
6
3. Settings
Using Navigation (4 directions), OK, EXIT, and Menu keys of Remote Controller to
select the options, the option selected will be highlighted and confirmed by pressing
OK key. Same operation for text input if needed.
Select icon then press OK key.

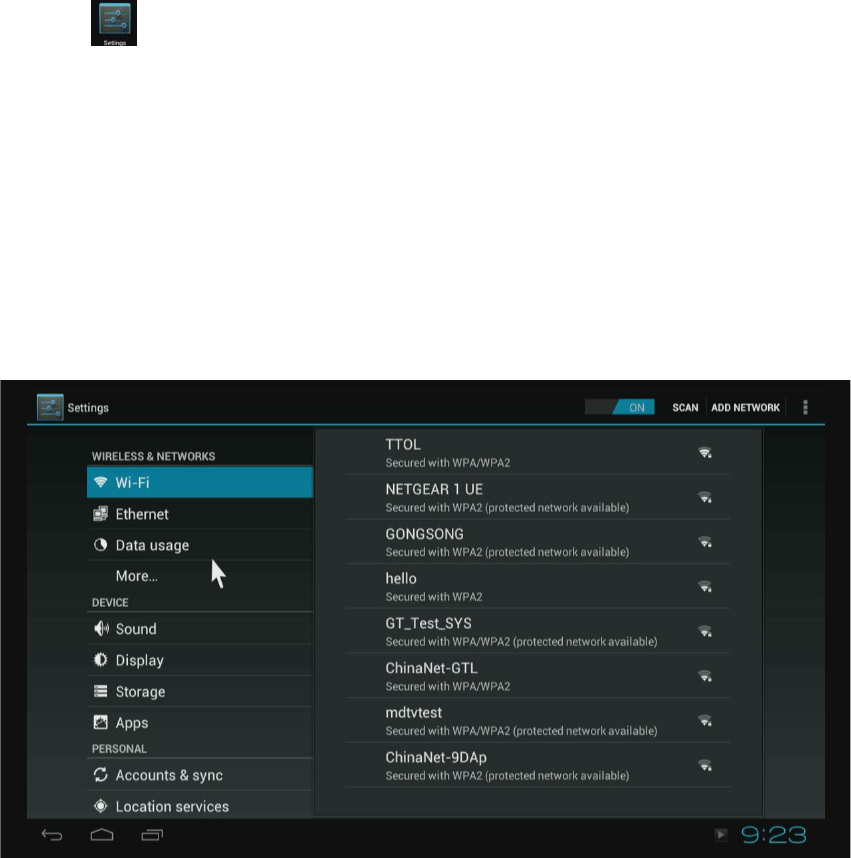

3.1 WiFi
3.1.1 It will automatically scan ambient WiFi networks when select “ON”.
3.1.2 Connect an available WiFi network. If connect a secured WiFi network,
corresponding password will be input firstly. Or fail to connect and need reset
password.
3.1.3 Once build up the connection with a certain WiFi network successfully, it will
connect this WiFi network automatically when restart.
Note: If factory reset, the password of WiFi network have to be reset.
3.2 Ethernet
Connect Box and Router by RJ45 network cable.
Press “ ON” in Ethernet setting, it will connect to network automatically.
7

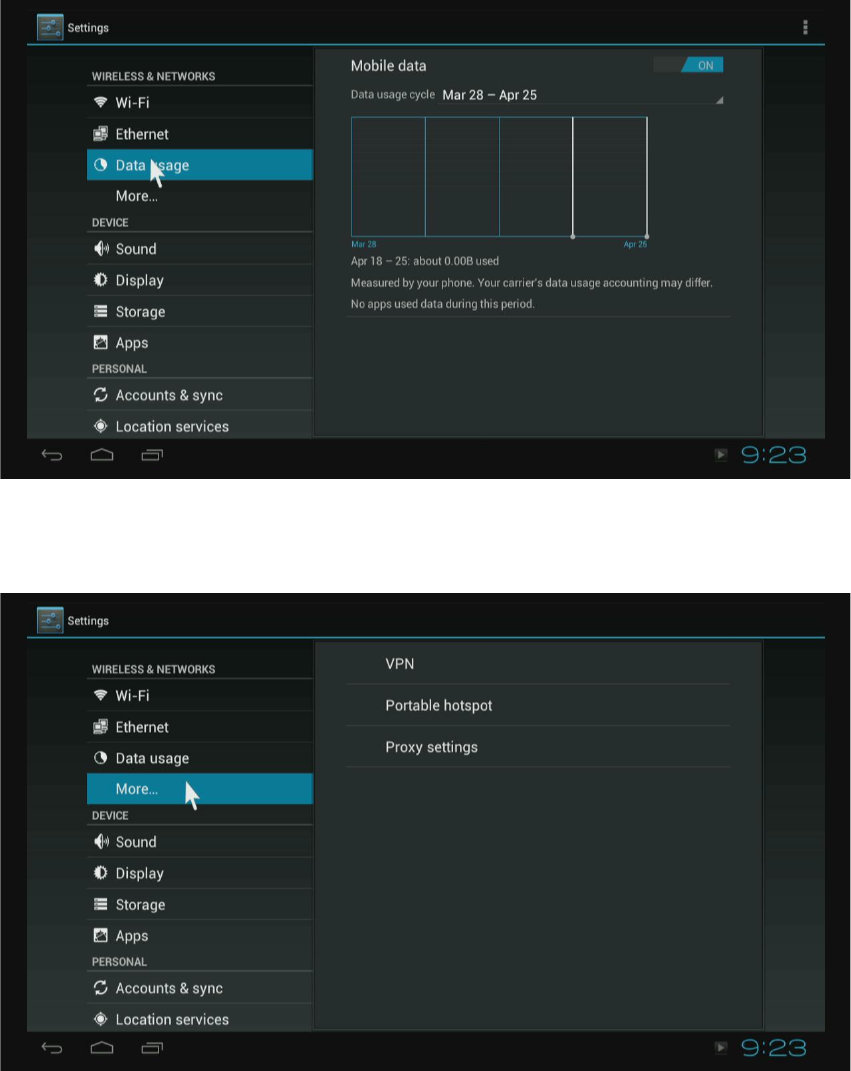

3.3 Date usage
Show data usage information.
3.4 More...
3.4.1 VPN
Build and set VPN
8
3.4.2 Tethering & Portable hotspot
3.4.3 Proxy settings
Setup proxy server

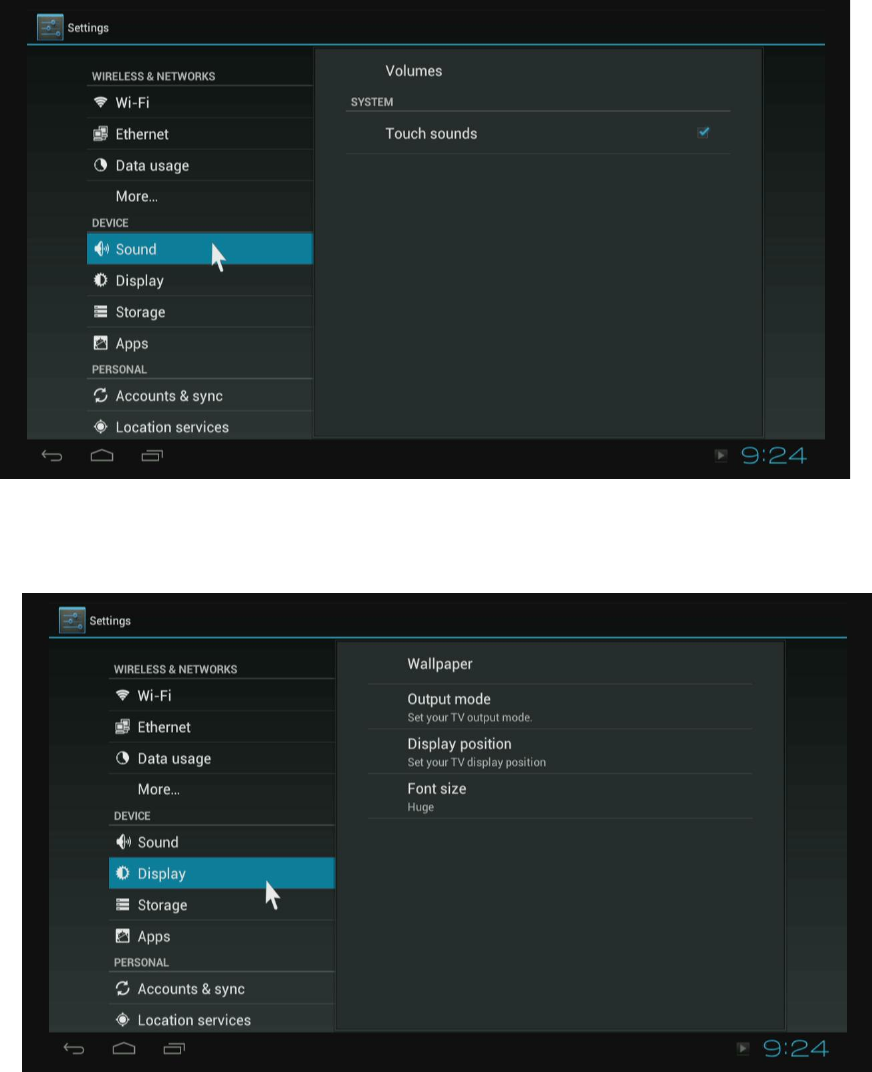

3.5 Sound
3.6 Display

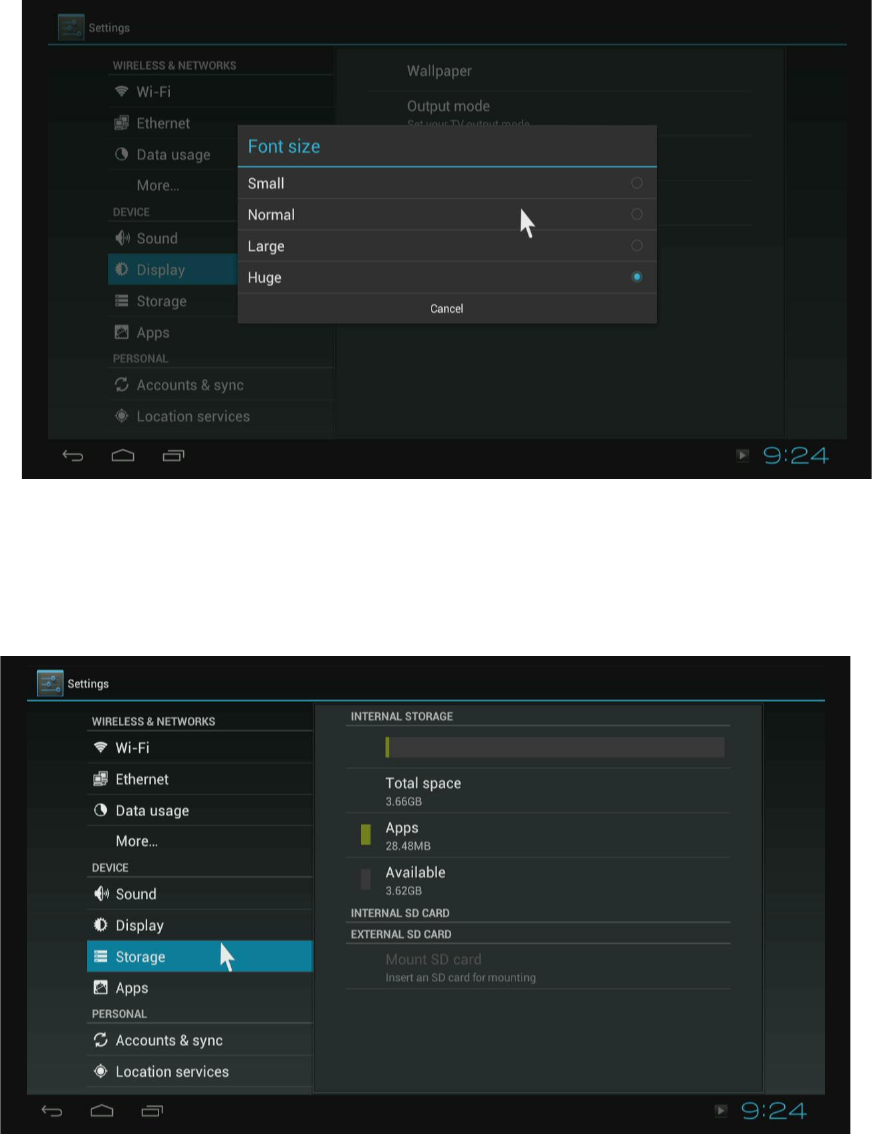

3.6.1 Font size
9
Change the font size of OSD
3.6.2 Wireless display
3.7 Storage
Shows the storage used of the OS and SD card.

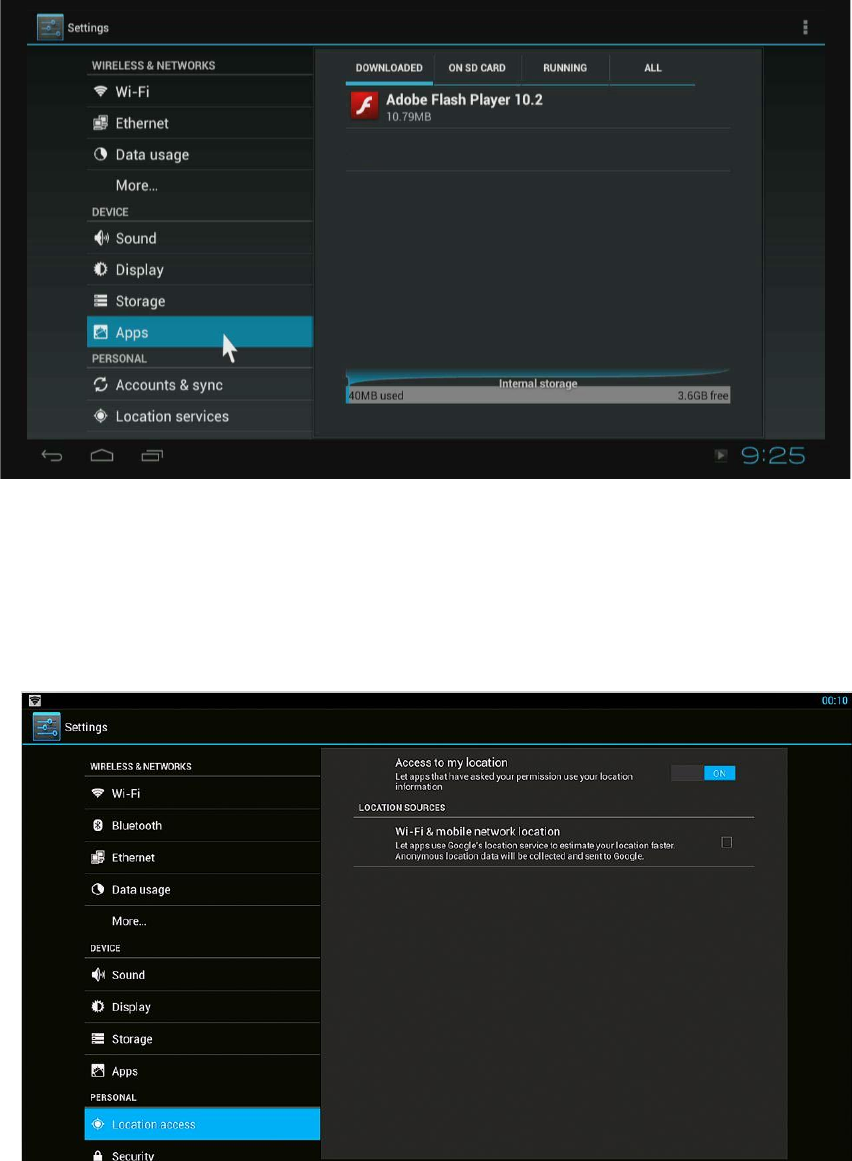

3.8 Apps
List all apps installed.
10
You can choose an application and force to shut down the app, uninstall the app, clear
user data, move to SD card and clear cache data.
3.9 Location access
11

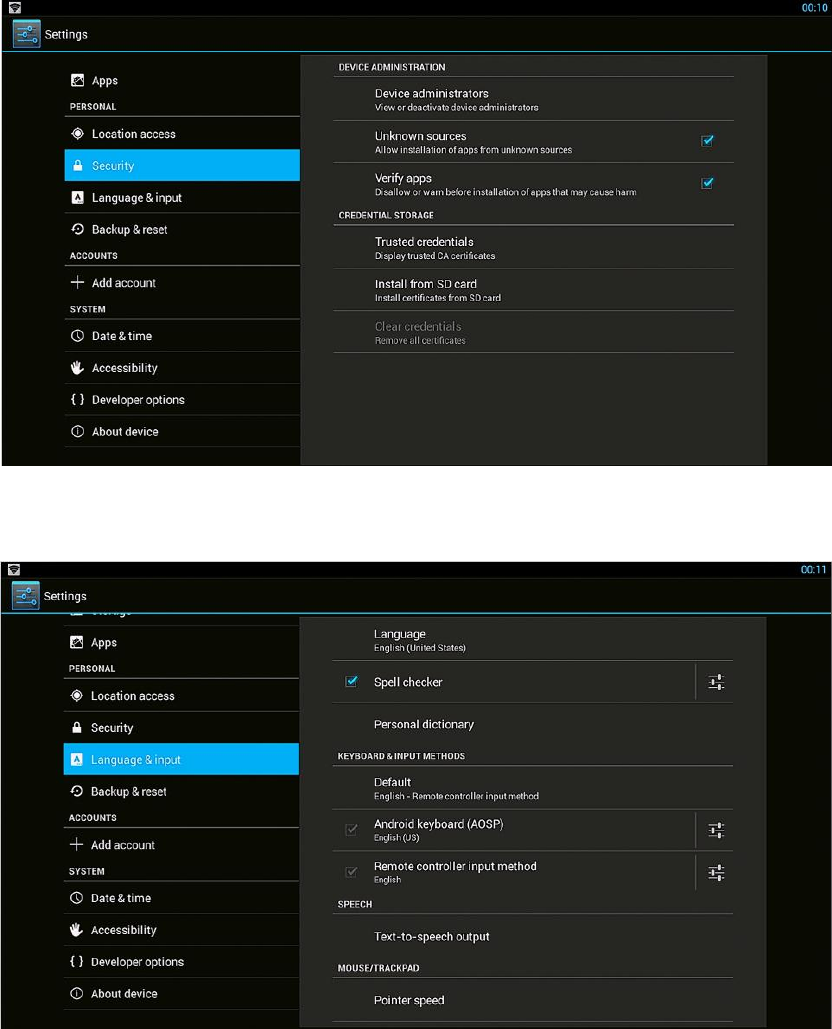

3.10 Security
3.11 Language & input
Change OSD language and input method.
The default input method is android standard keyboard.
If you are using our IR remote control, enter into “Default” option and switch to
remote controller input method.
12
3.12 Backup & reset
Back up my data:
You can backup your application data, WiFi password and other settings.
Factory data rest:
You can reset all the settings and apps to factory default.
Note: You might want to backup important data before resetting the box. Once you
choose to rest to factory default, all data/apps will be deleted.
3.13 Add account
13

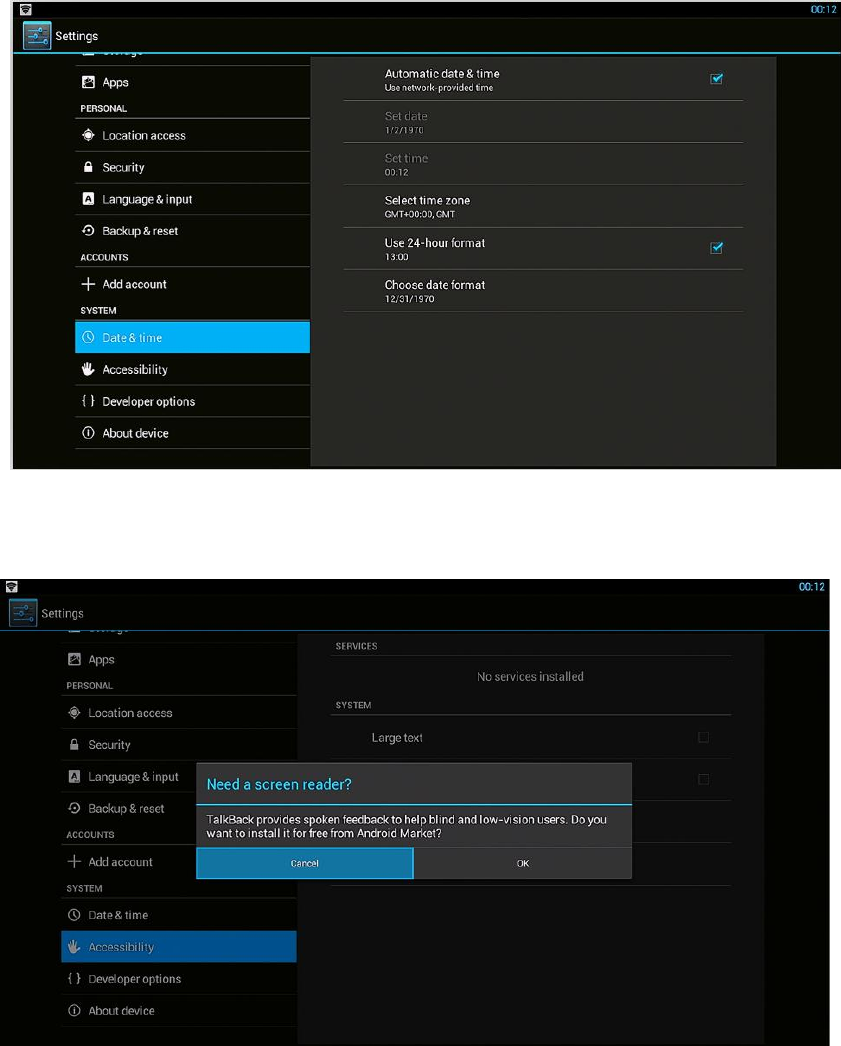

3.14 Date & Time
Set date, time, time zone and time format
3.15 Accessibility
14

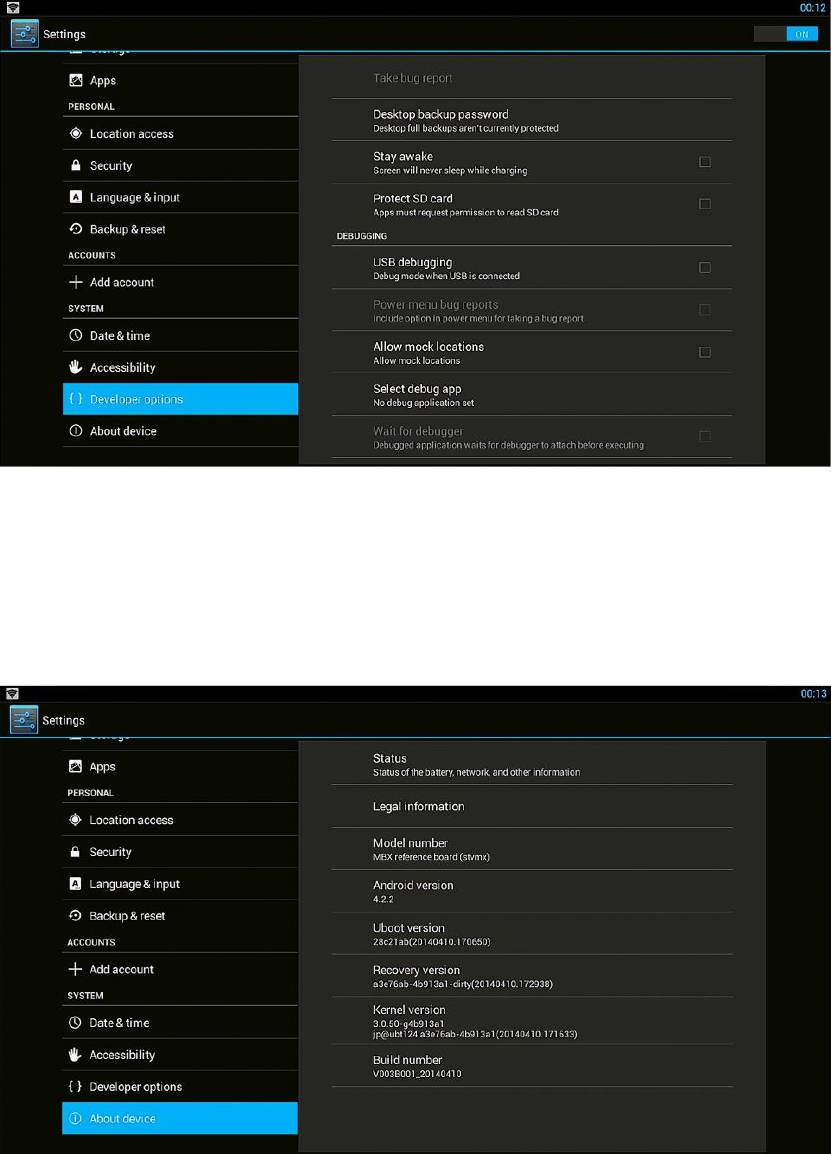

3.16 Developer options
If user want to do some debugging on box by ADB, enable USB debugging, you will
get ADB function by Ethernet or WiFi network.
3.17 About device.
Firmware version under build number.
15
4. Apps Install & Uninstall
On ST1615, you can install apps from Android Market over the Internet or other
sources, such as other online sources, the internal storage and the USB storage device
and SD card that you have mounted onto ST1615.
You also can manage apps on ST1615 and SD card, install/uninstall apps, stop
running apps, or select other options.
17
6. Trouble Shooting/FAQ
6.1 No Picture
Refer to the TV user manual for how to select the correct video input channel.
6.2 USB Content cannot be read
. The format of USB storage device is not supported
. The supported memory size is 32G maximum.
. Make sure that this player supports these files.
6.3 Remote Controller cannot respond quickly to the pressing of keys
Make sure that batteries have enough power.
6.4 The firmware updating is not complete after a long time
If you update the firmware over the online service, it may take a long time to
download the firmware update files from the server. To save your time, update the
firmware through the SD card.
18
7. Repairs
If you contact us to repair your player, an administration fee may be charged if either:
An engineer is called out to your home at your request and there is no defect in the
product.
You bring the unit to a repair center and there is no defect in the product.
We will provide you with the amount of the administration fee before we make a
home visit or begin any work on your player.
We recommend you read this manual throughly, search for a solution on line at
www.geniatech.com, or contact Geniatech Customer Care before seeking to repair
your player.
19
8. Specification
CPU
Dual core ARM CORTEX A9 1.5GHz,3D engine
GPU
Mali 400MP2 @400MHz
RAM
1G DDR3
ROM
4G, built in 2G-32G Flash memory(optional)
OS
Android 4.2 OS
Optional
CEC
USB
4×external USB HOST and 1×Micro USB
DC Input
12V-1.5A
SD Slot
Max: 32G
Video Output
HDMI/CVBS/YPbPr
Audio Output
HDMI/RCA/Coaxial/Optical
IR receiver
LAN
RJ45 10/100M Ethernet interface
WiFi
IEEE 802.1 1B/G/N wireless Internet access
Audio Decoder
MPEG
MP1, MP2, MP3
WMA
WMA Ver: 4, 4.1, 7, 8, 9 WMA Pro
Others
WAV, OGG, OGA, FLAC, ALAC, Ape, AAC, M4A, AC3,DTS,RM
Video Decoder
Max. Performance:1920x1080p @ 30fps
MPEG
DAT, MPEG, MPG, MPE
MPEG2
MPEG, MPE, MPG, M2V, ISD, TS, VOB
MPEG4
AVI, MOV, MP4, MKV, 3GP, 3GPP, FLC
Divx
Divx 3, 4, 5(AVI)，Xvid(AVI)
H.264
AVI, MOV, MP4, MKV, TS, M2TS, M3TS, M4TS, M5TS, MTS, M4V,
FLV
H.263
AVI, FLV, 3GP, 3GPP, MOV, MP4, 3G2
VC1
AVI, TS
WMV
WMV, AVI
Memory limitation, 8000x8000 pixels
Movie Subtitle
Font Sub-title
ASS, SMI, SRT, SSA , TXT
Image Sub-title
idx/sub
Storage System
FAT16, FAT32, EXT2, EXT3, NTFS
Size
161 X 131X 39mm
Net Weight
450g
20
9. Trademark Notice
The terms HDMI and HDMI High-Definition Multimedia Interface, and the HDMI
Logo are trademarks or registered trademarks of HDMI Licensing LLC in United
States and other countries.
