Check your ceiling where the power

head of your new unit will be mounted.

Plan how you will be mounting the power head.

It is possible that ceiling joists may not be in the

position needed with respect to the garage door

operator. It may be necessary to add an

additional bracket and fasteners (not included

with your new door operator kit).

You need a 110-120 Volt power supply

available. The outlet should be no more than 3

feet from the power head once it is mounted. (The

cord is 4 ft. in length.) SEE WARNING BELOW.

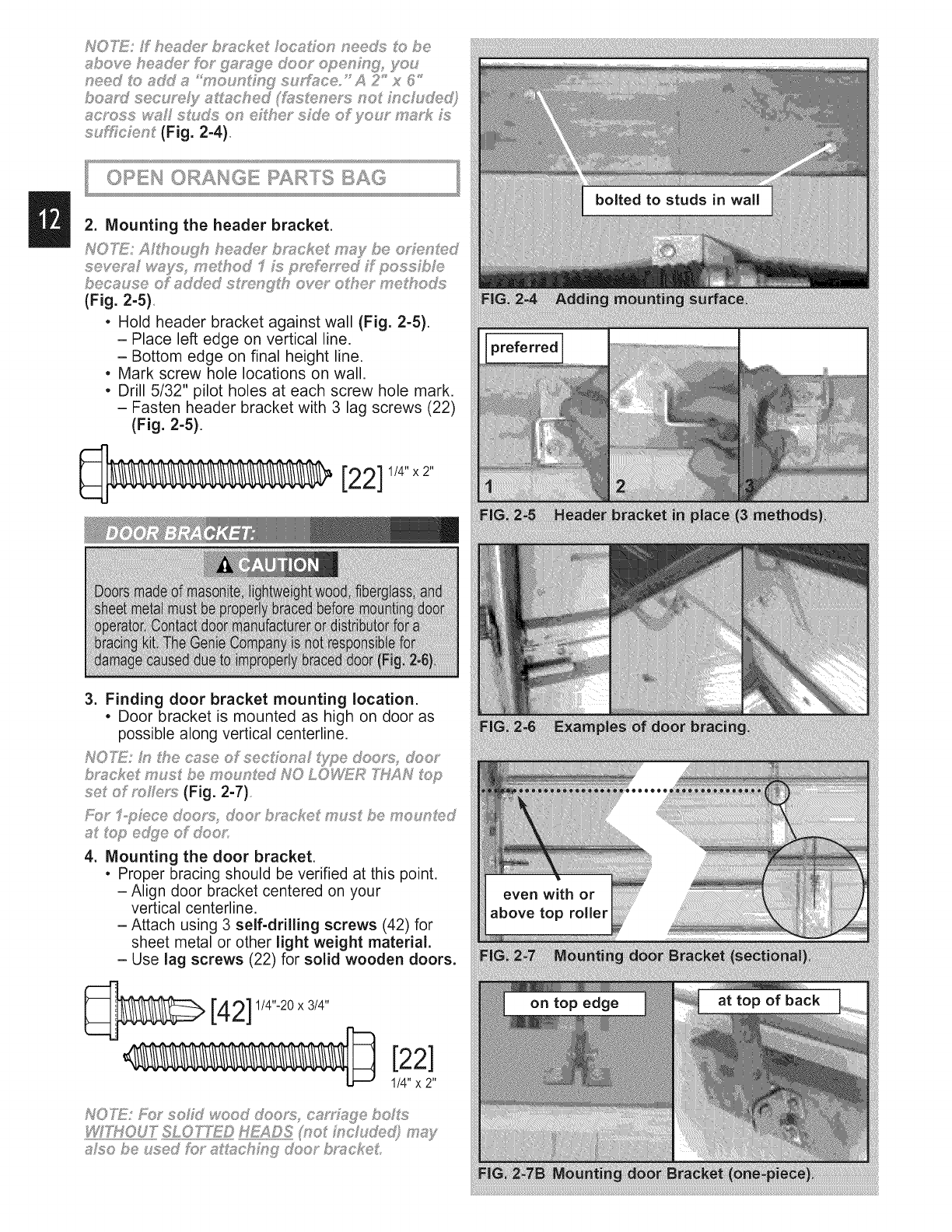

Check the wall directly above the garage

door. The door operator's header bracket

must be securely fastened to this wall. Insure

that the structure will provide a strong mounting

location.

Check to see if the mounting location

for the Safe-T-Beam ® System "STB" is

clear from obstruction and has a wood

surface available for attaching the "STB"

brackets. The brackets may be attached to

concrete if necessary but extra tools and special

fasteners (not supplied) will be required.

as<_flsb/@ tthrx>u£h you_" Iota[ Gen/® D®a @,:

Is your garage door made of

light-weight steel, aluminum, fiberglass

or glass panels? Additional support bracing

must be added to these type doors. If this is the

case, please contact the door distributor or

manufacturer so that they can furnish you with a

"bracing kit."

To avoid damage to your door and/or

operator, make sure you disable any door

locks prior to installing your operator.

Insure that your door is properly balanced

and moving freely. SEE WARNING BELOW.

(NOT SHOWN) If your garage does not have

a separate entry door, you should consider

an emergency release kit (GER-2) for installation on

your garage door. See page B at the center of this

manual.

48" POWER

120V GROUNDED

OUTLET

EXTENSION

TYPICAL

SUPPORT

BRACKET

TORSION SPRING'

ADDED

HEADER BRACKET

MOUNTING BOARD

BRACES

SECTmONAL DOOR I-PmECE DOOR

SECTION......................................... PAGE

PRE-INSTALLATIONCHECKS.......................... 2-3

OPERATORFEATURES................................. 4

SAFETYFEATURES.................................... 4

TOOLSRECOMMENDED................................ 5

PARTSIDENTIFICATION.............................. 5-7

SAFETYINFORMATION................................. 7

OPERATOR.............................................

1 ASSEMBLY.................................... 8-10

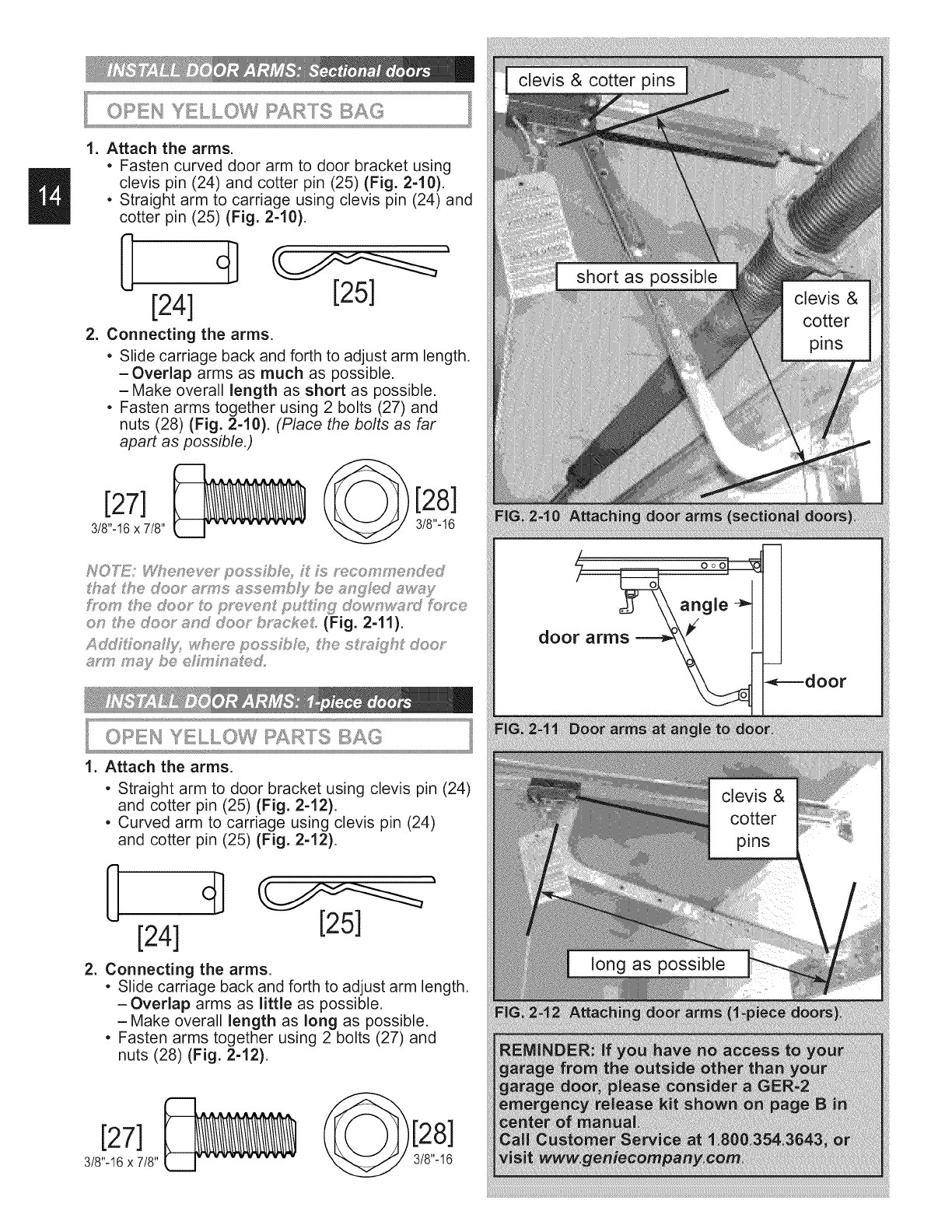

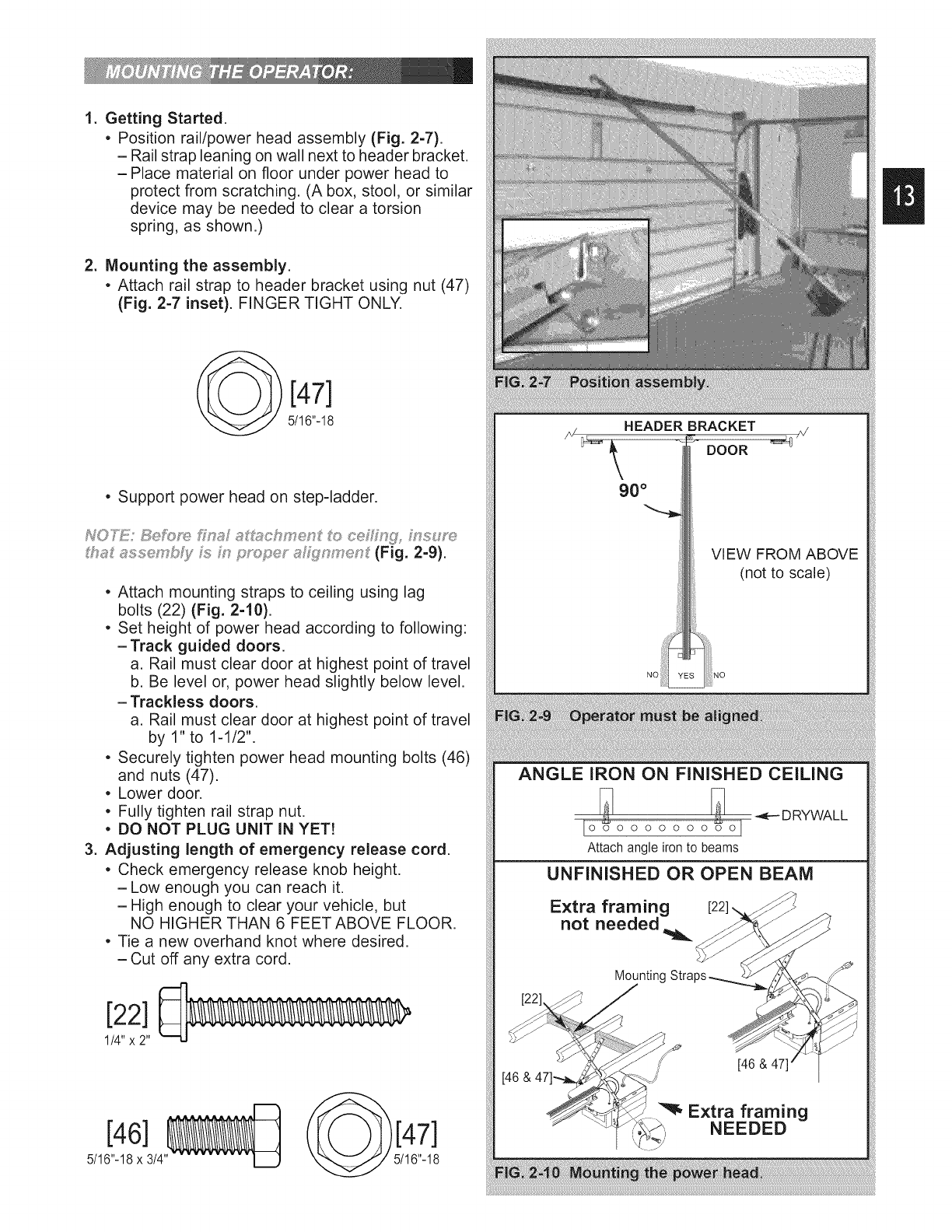

2 INSTALLATION................................ 11-14

ELECTRICALINSTALLATION......................... 15-18

3 SAFE-T-BEAM®SYSTEMINSTALLATION.......... 15-16

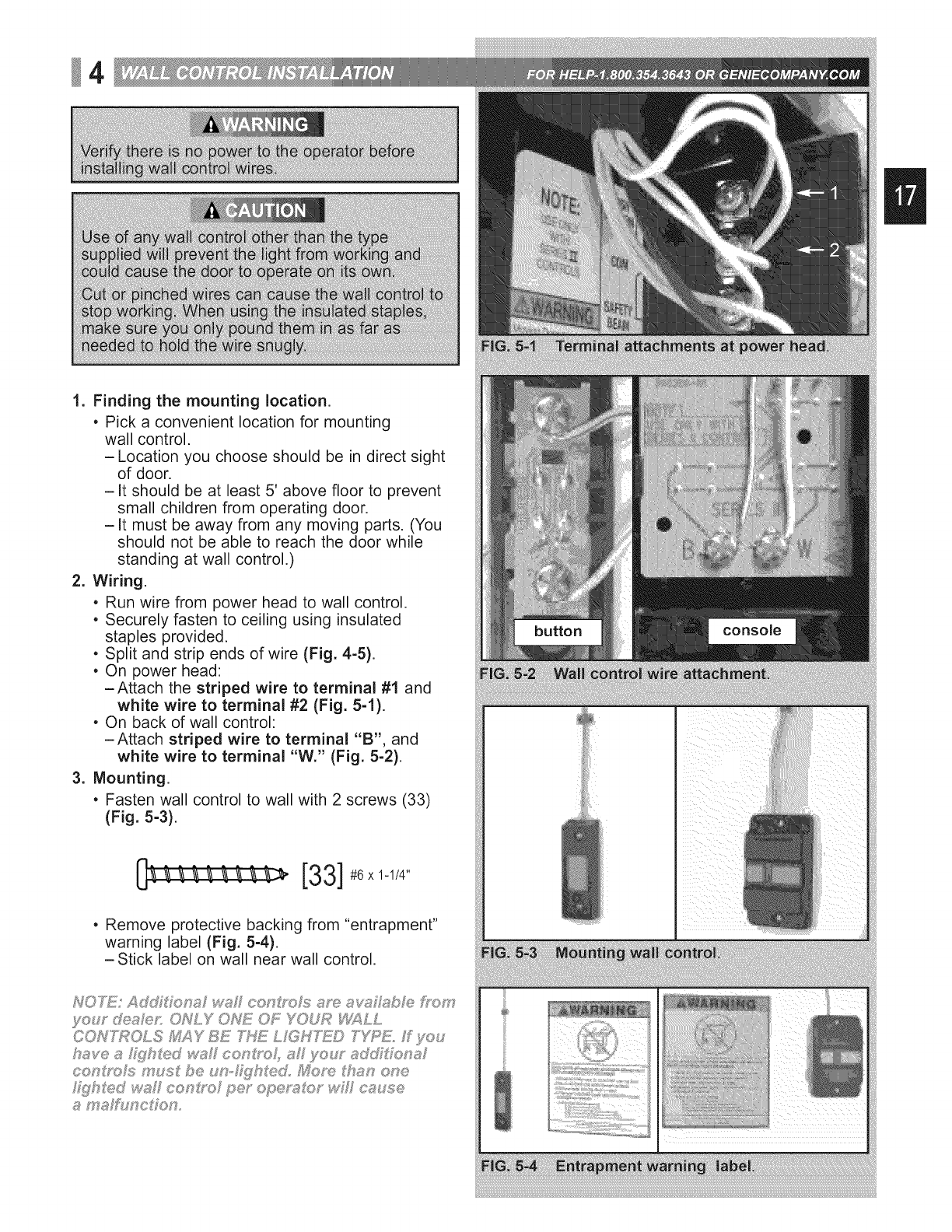

4 WALLCONTROLINSTALLATION.................... 17

INTELLICODE ®Roiling Code Security System.

An electronic rolling code system that enhances the security of

the door operator by continuously changing the access code

each time the remote control is used. The door operator

responds to each new code only once. An access code copied

from a working system and tried again will not control the door

operator.

INTELLICODE ®1, 2 or 3-Button Remote Control (included

with some models).

Operates 1, 2 or 3 garage doors from car.

Lighted Wall Button*.

Operates door operator from inside garage.

Lighted Wall Console* (included with some models).

Security vacation lock switch disables all controls. LED

Indicator shows whether system is locked or unlocked. Makes

console easy to find in dark. Controls door operator from inside

garage. Independent light control allows convenient manual

control of the automatic lighting system.

5CONNECTOPERATORTOPOWER................. 18 NOTE: Your garage door operator may not come with all above

ADJUSTMENTS.................................... 19-21 items included as standard equipment.

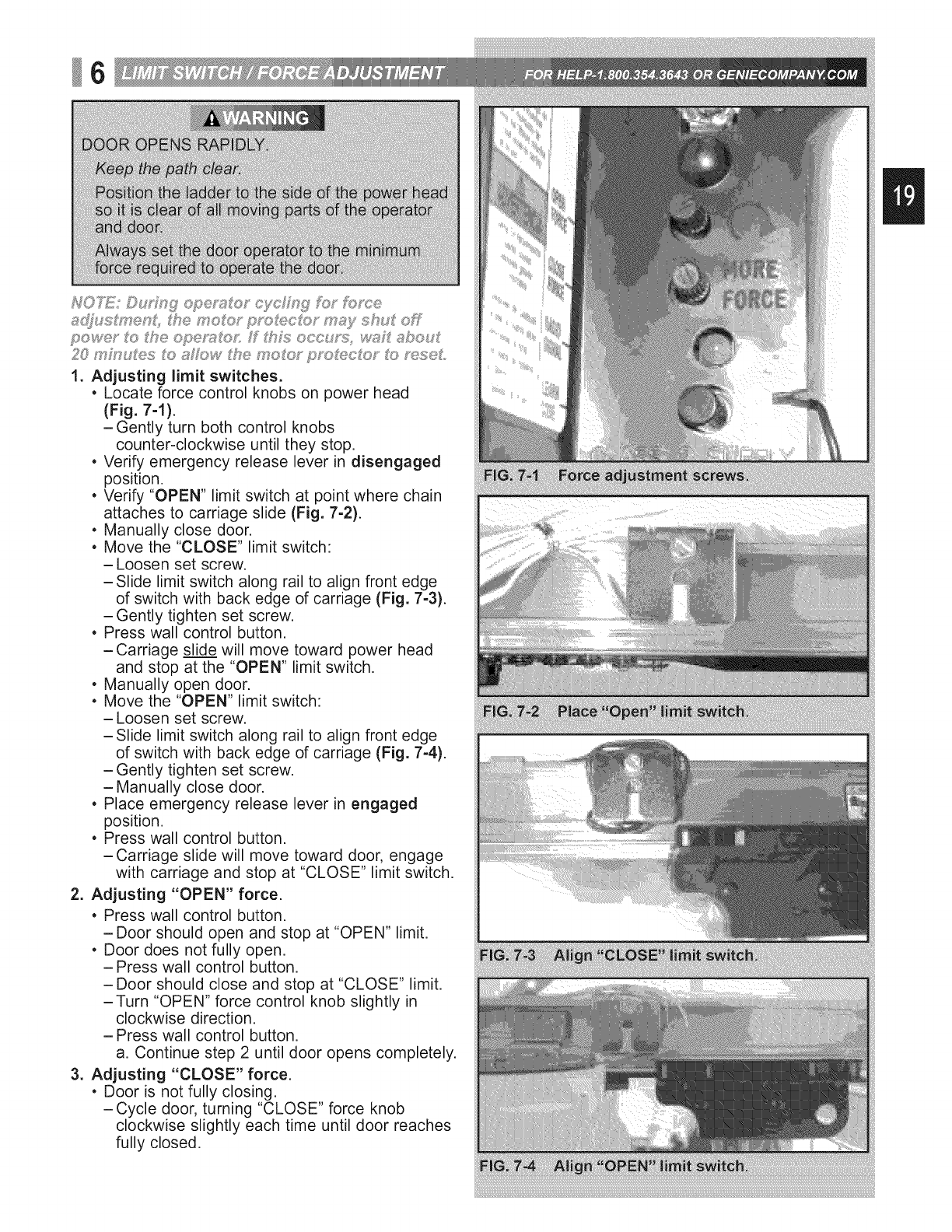

6 LIMITSWITCHES&FORCEADJUSTMENT........... 19.

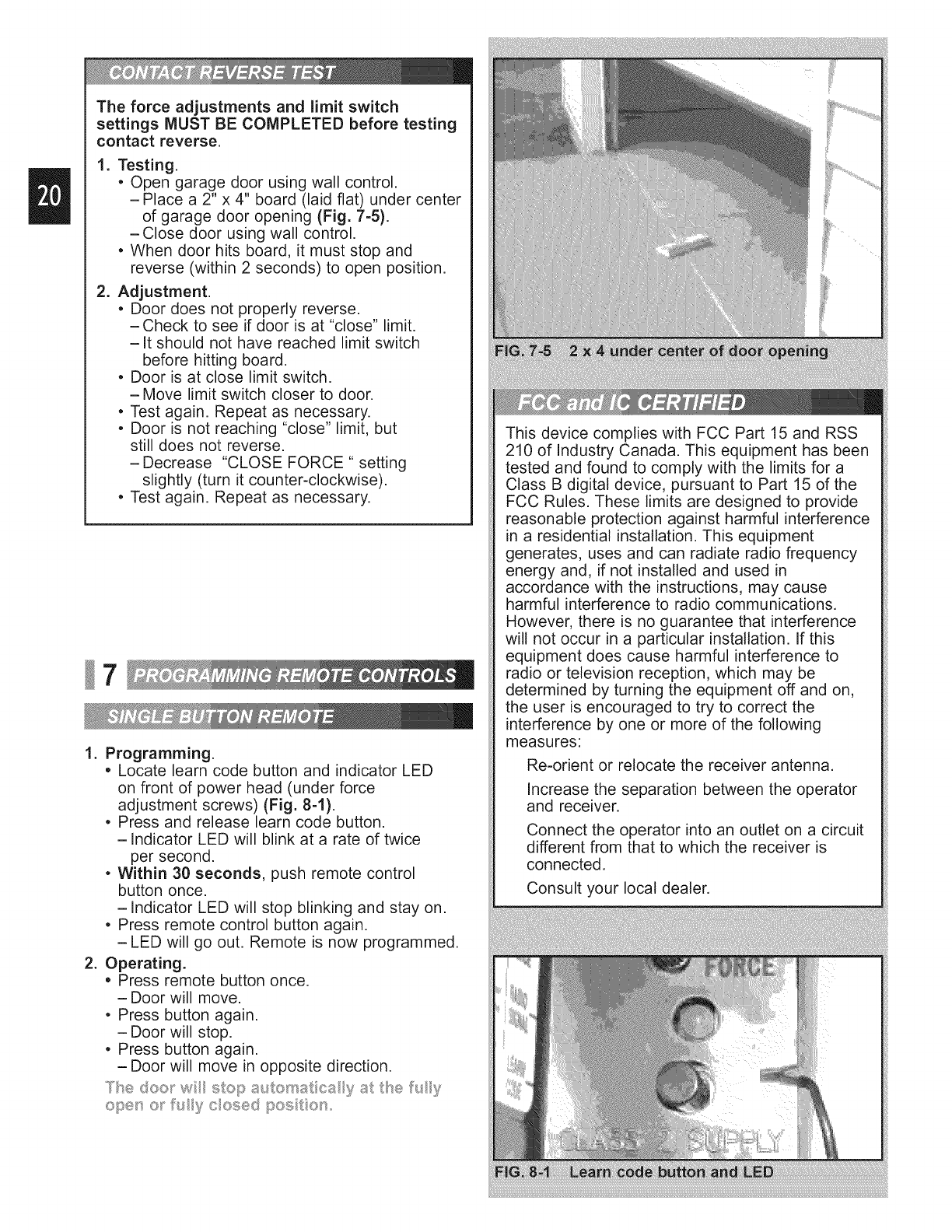

CONTACTREVERSE............................. 20

7PROGRAMMINGREMOTECONTROLS........... 20-21

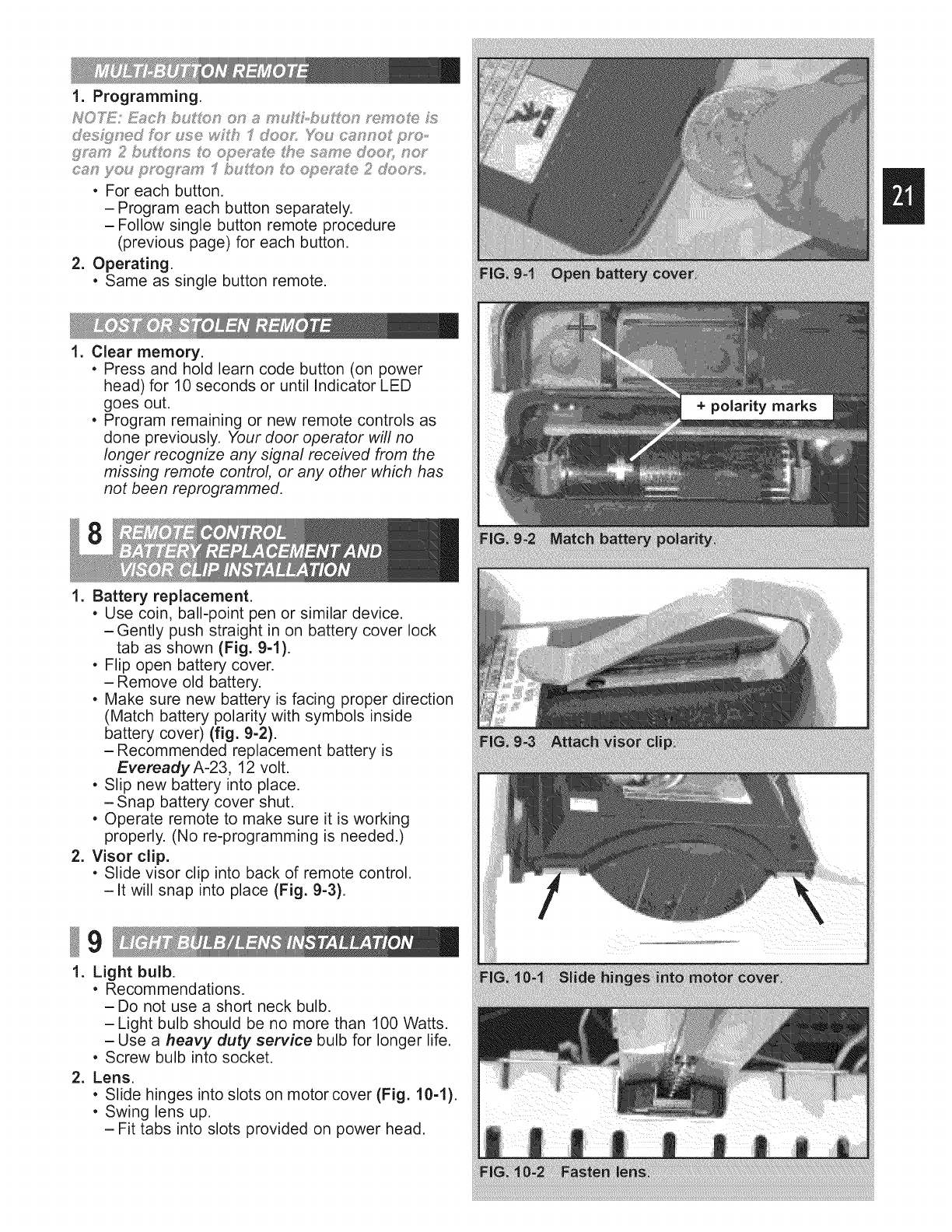

8 BATTERY/VISORCLIPINSTALLATION............... 21

9 LIGHTBULBANDLENSINSTALLATION.............. 21

SAFETYINSTRUCT!ONS............................... 22

MAINTENANCE&TROUBLESHOOTING............... 22-24

SAFE-T-BEAM®................................. 22

OPERATOR/RADIO.............................. 23

WIRINGDIAGRAM............................... 24

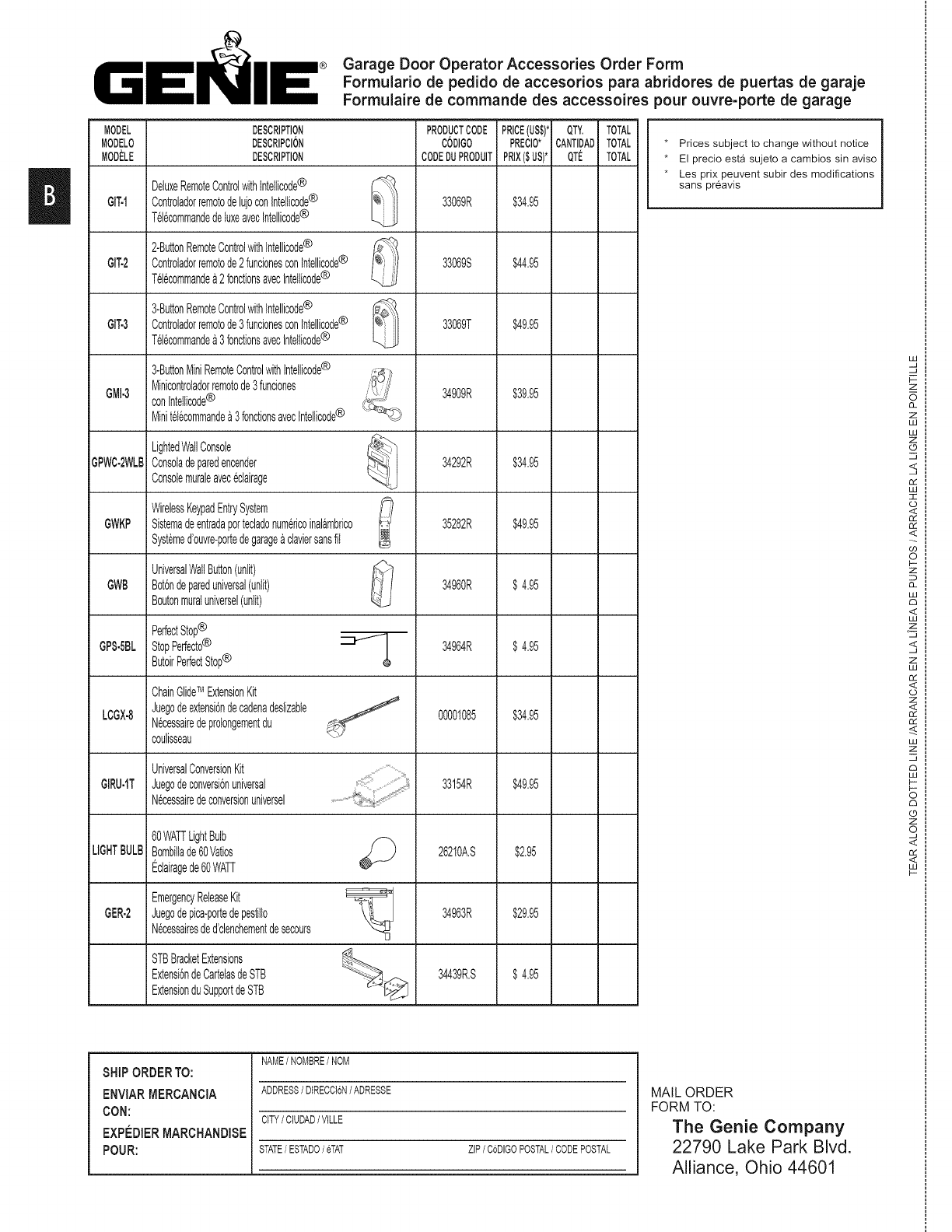

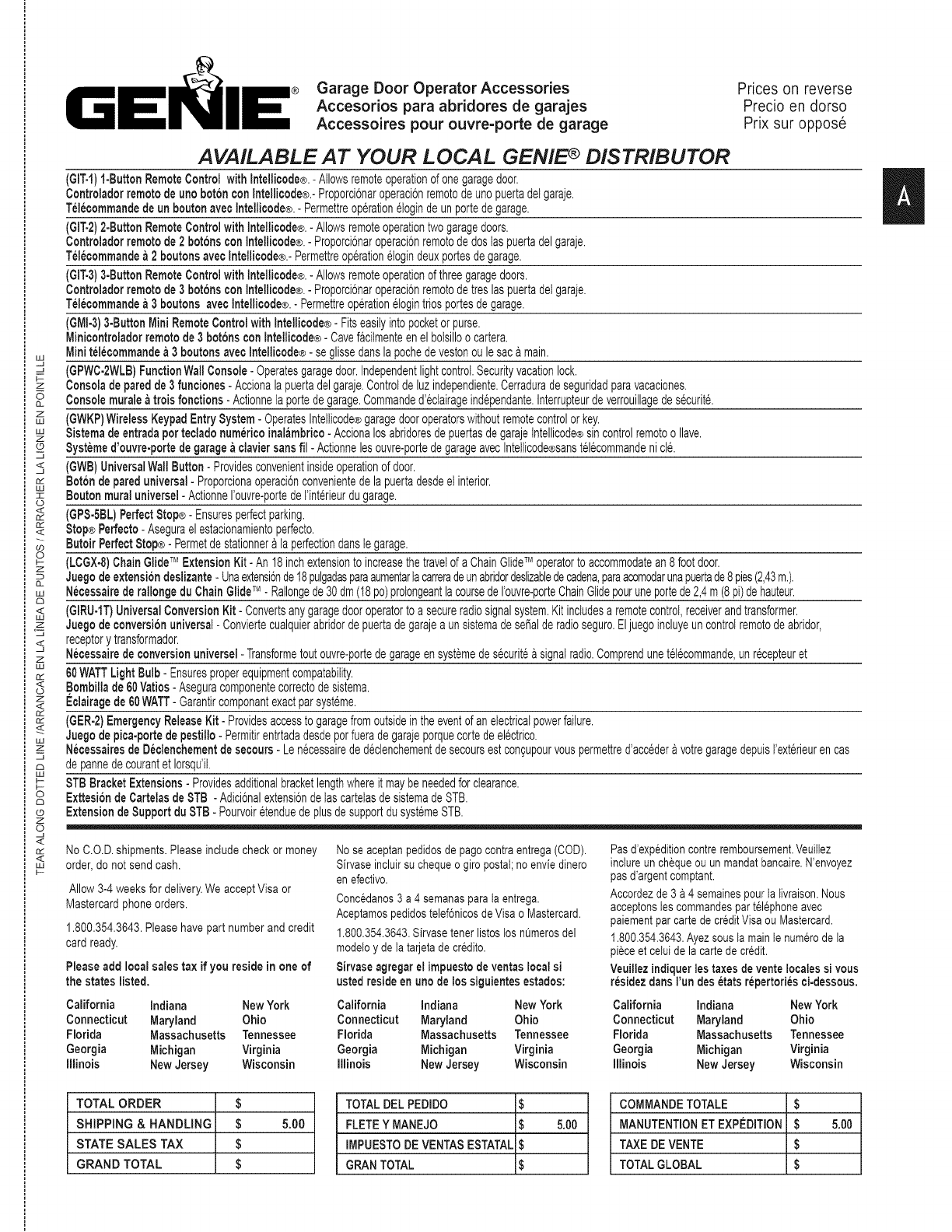

ACCESSORIES...................................... A-B

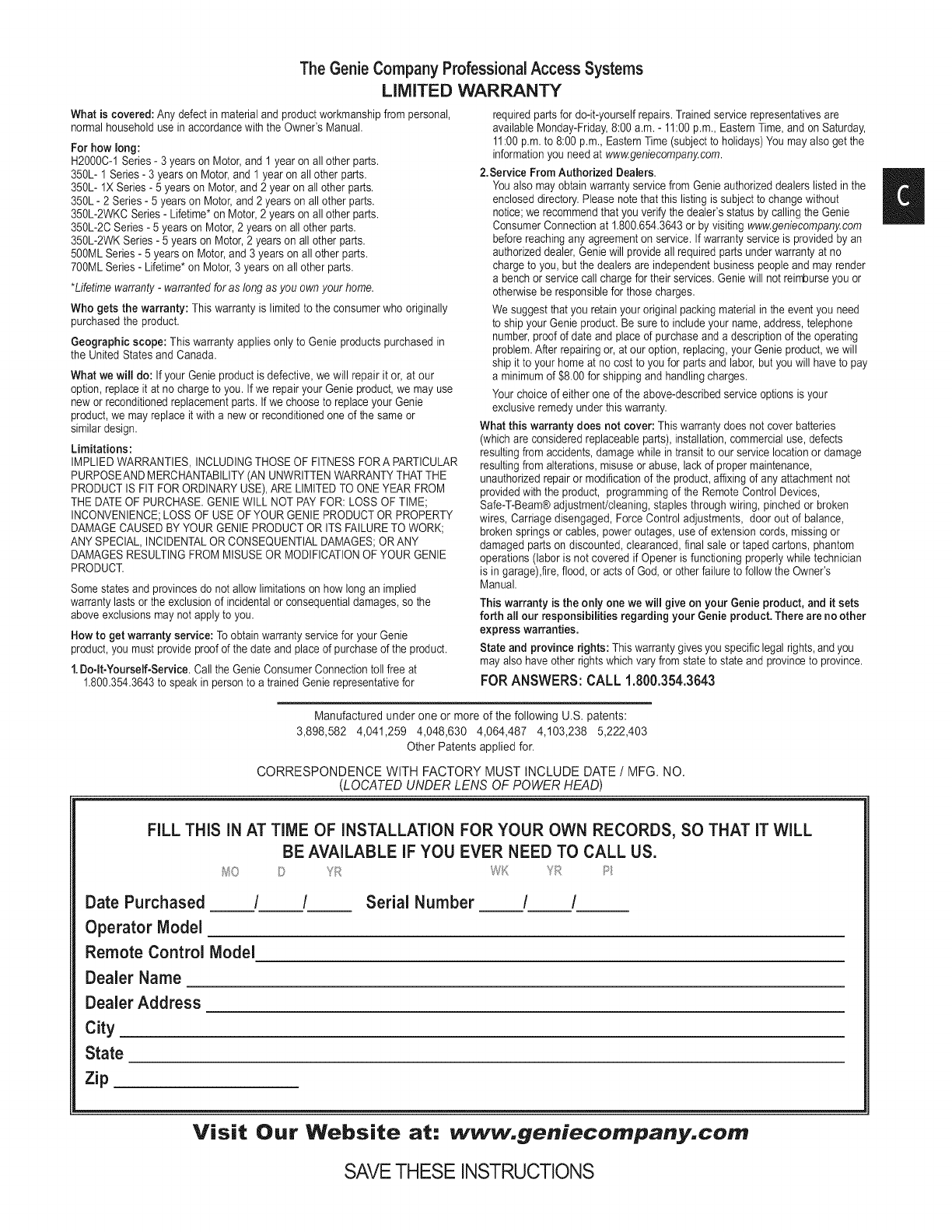

WARRANTY.......................................... C

Safe-T-Beam ®(STB) Non-Contact Reversing System**.

Puts an invisible beam across the door opening. The door stops

and reverses to the full open position if anything passes

through the beam. Red and green LED indicators provide a self

diagnostic code if an operational problem exits.

Safe-T-Reverse ®Contact Reversing System.

Automatically stops and reverses a closing door within 2

seconds of contact with an object.

Safe-T-Stop ®Timed Reversed System.

Automatically opens a closing door if it fails to close completely

within 30 seconds.

Force Guard ®Control.

Features adjustable open and close force settings. For

maximum safety, these must be set to the minimum force

required to fully open and close the door.

Relay Monitoring System.

Automatically stops and reverses a closing door if the closing

relay malfunctions.

Watch Dog ®Monitoring System.

Automatically stops and reverses a closing door if the

Safe-T-Beam System** has an operational problem.

Automatic Lighting System.

One bulb lighting supplies up to 100 Watts of light for safer

evening exits and entries. Turns on when door _sactivated and

automatically turns off 5 minutes later.

Manual Emergency Release.

Manually releases door from door operator. Use during a power

failure or other emergency to allow manual opening and closing

of door.

Step ladder

Drill

5/32" DrillBit

Ratchet

7/16"and 9/16"

Sockets

Pencil

Tape measure

Carpenter's level

Phillipsscrewdriver

Adjustable wrench

Wire strippers ii

#6 x 1-1t4" Pan (32)

Head Phillips

Screw Wall console

#6 x 1-1/4" Pan

Head Phillips

Screw Wall button

Safety Brochure

#10-16 x 1-1t4"

Machine Screw

Source STB Sensor STB

(Red LED) (Green LED)

oRI

Single-button Multi-button

remote control remote control

,&WARNING

Entrapment Warning

Label

Wire

lnsu_taple

STB Bracket

[9]

Bolt - 1/4"-20 x 5/8"

[10]

Nut - 1/4'L20

[24]C,evispin

[22]

Lag screw - 1/4" x 2"

[25]Cotter0in

[27]

Bolt - 3/8"-16 x 7/8"

[28]

Nut - 3/8"-16

[39]

Screw - #8-32 x 1"

[46]

Bolt - 5/16"-18 x 3/4"

[41]Wirec'i0

[42]

Self-drilling Screw

1/4'L20x 3/4"

[47]

Nut - 5/16"-18

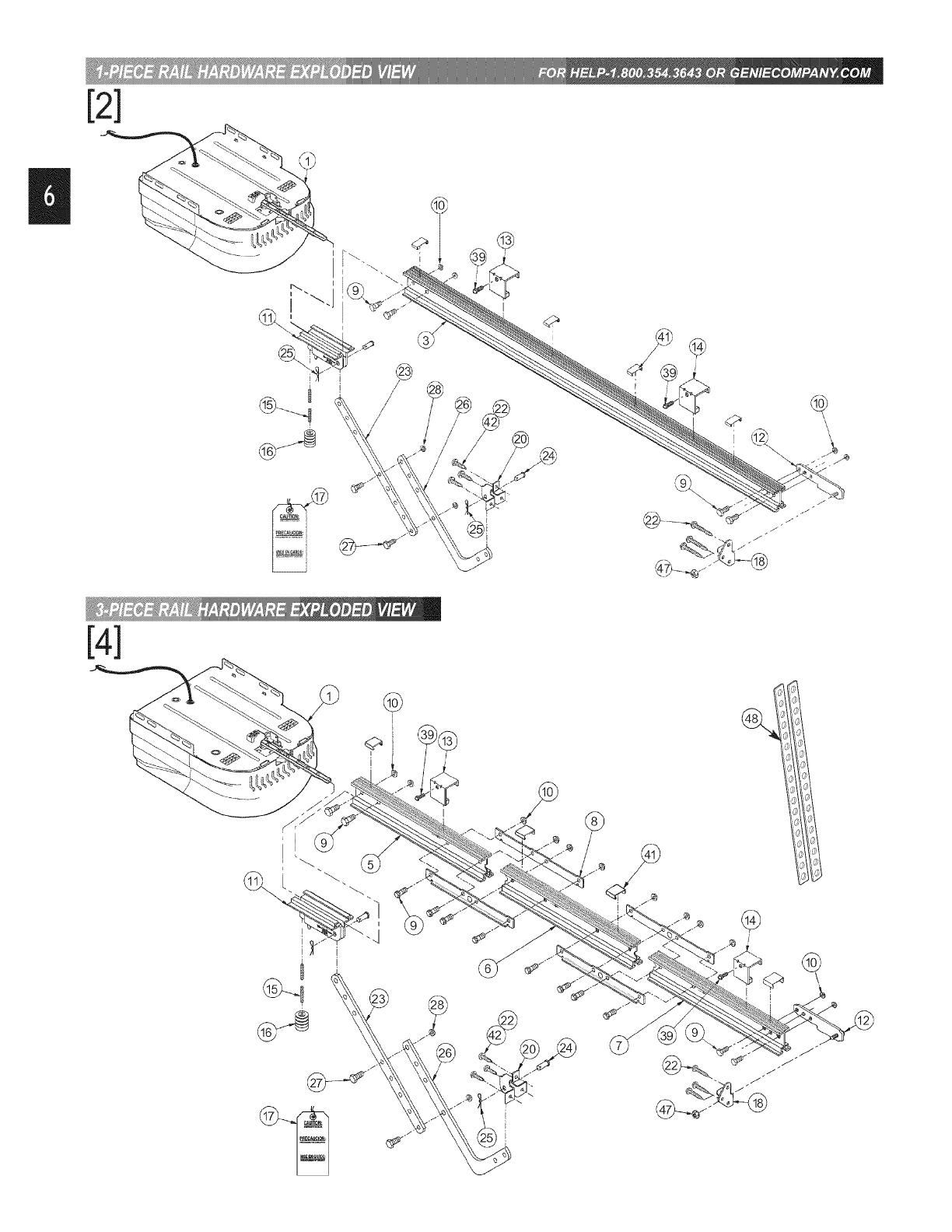

ItemPartName NumberRequired

1 pc,rail 3 pc,rail

Powerheadassembly(box) 1 1

Railassembly(1-piece#box) 1

Rail(1-piece)(box) 1

Railassembly(3-piece)(items5,6,7)(box) 1

Firstrailsection(box) 1

Middlerailsection(box) 1

Endrailsection(box) 1

Railclamp(bluebag) 4

1/4"-20x 5/8"hexheadbolt(blueba@) 4 12

10 1/4"-20hexflangenut(bluebag) 4 12

11 Carriageassembly(box) 1 1

12 Railstrap(bluebag) 1 1

13 LimitswitchOPEN(whitewire)(greenbag) 1 1

14 LimitswitchCLOSE(brownwire)(greenbag) 1 1

15 Releasecord(greenbag) 1 1

16 Releaseknob(greenbag) 1 1

17 Emergencyreleasetag(greenbag) 1 1

18 Headerbracket(orangebag) 1 1

!0 Doorbracket(orangebag) 1 1

!2 1/4"x2"lagscrew(orangebag) 8 8

!3 Straightdoorarm(box) 1 1

!4 Clevispin(yellowbag) 2 2

!5 Cotterpin(yellowbag) 2 2

!6 Curveddoorarm(box) 1 1

!7 3/8"-16x 7/8"hexheadbolt(yellowbag) 2 2

!8 3/8"-16hexflangenut(yellowbag) 2 2

!9 Wire(box) 1 1

30 Insulatedstaple(redbag) varies/modelvaries/model

31 Wallbutton(redbag) varies/modelvaries/model

32 Wallconsole(box) varies/modelvaries/model

33 No.6x 1-1/4"panheadphillipsscrew(redbag) varies/modelvaries/model

34 EntrapmentWARNINGlabel(manual) 1 1

35 Safe-T-Beam(STB)sensor(greenLEa)(box) 1 1

36 Safe-T-Beam(STB)source(redLEa)(box) 1 1

37 Safe-T-Beam(STB)bracket(yellowbag) 2 2

38 Remoteoperator(box) varies/modelvaries/model

39 #8-32x 1"machinescrew(greenbag) 2 2

_0 Safety&maintenanceguide(manual) 1 1

H Wireclip(greenbag) varies/modelvaries/model

$2 1/4"-20x 3/4"self-drillingscrew(orangebag) 3 3

N #10-16x1-1/4"phillipshexheadscrew(yellowbag) 4 4

_6 5/16"-18x 3/4"hexheadbolt(orangebag) 3 3

$7 5/16"-18hexflangenut(orangebag) 4 4

$8 MountingStraps(box) 2

1] Power Head Assembly

Item PartName

I Powerheadassembly

1A Cover(byseries/model)

IB Frontpanelassembly

1D Motorparts

1E Circuitboardassembly

1F Capacitor(byseries/model)

1G Optowheel(notshown)

IH Carriageslide

lJ Chain

Item PartName

IK Circuitboardbracket

1L Drivemodule

1M Terminalstrip

1N No.8x 3/4"hexwasherheadscrew

IP Shockabsorptionstopn(notshow_

1Q Motormountbracket(notshown)

1X Chassis

49 Lens

OVERVIEW OF

POTENTIAL HAZARDS

Garagedoors are large, heavy objectsthat movewith the helpof springs under

high tension and electric motors.Since movingobjects, springs under tension,

and electric motors can cause injuries, your safety and the safety of others

dependon the owner or user of this system to read, understand and implement

the information in this manual. If you have questions or do not understandthe

informationpresented,contactThe GenieCompany or an authorizedGenie Dealer.

In this section and those that follow,the words Danger, Warning, and Caution

are usedto emphasize important safety information.The word:

DANGER means that severe injury or death will resultfrom failure to follow

instructions.

_. WARNING means that severe injury or death can result from failure to follow

instructions.

£i. CAUTION means that property damageor injury can resultfrom failure to

follow instructions.

Theword/_2Oi'Eis used to indicate importantsteps to be followed or

importantconsiderations.

POTENTIAL

HAZARD PREVENTION

Keeppeopleclearof openingwhile door is

mowng.

Do Not allow childrento playwith thedoor

operator.

Do Not operatea doorthatjams or one

that hasa brokenspring.

ELECTRICAL

SHOCK

HiGH

SPRING

TENSION

Turnoff powerbeforeremovingoperator

cover.

Whenreplacingcover makesurewires

arenot pinchedor nearmovingparts.

Operatormustbe properlygrounded.

iiiiiiiiii!iiiii!ii i iii!iiii!!i!iii!!iii!

De Net try to remove,repairoradjust

springsoranythingto which door spring

partsarefastened,such as,wood blocks,

steel brackets,cables orother like items.

Repairsandadjustmentsmust be madeby

a trainedprofessionalservicetechnician

usingpropertoolsandinstructions.

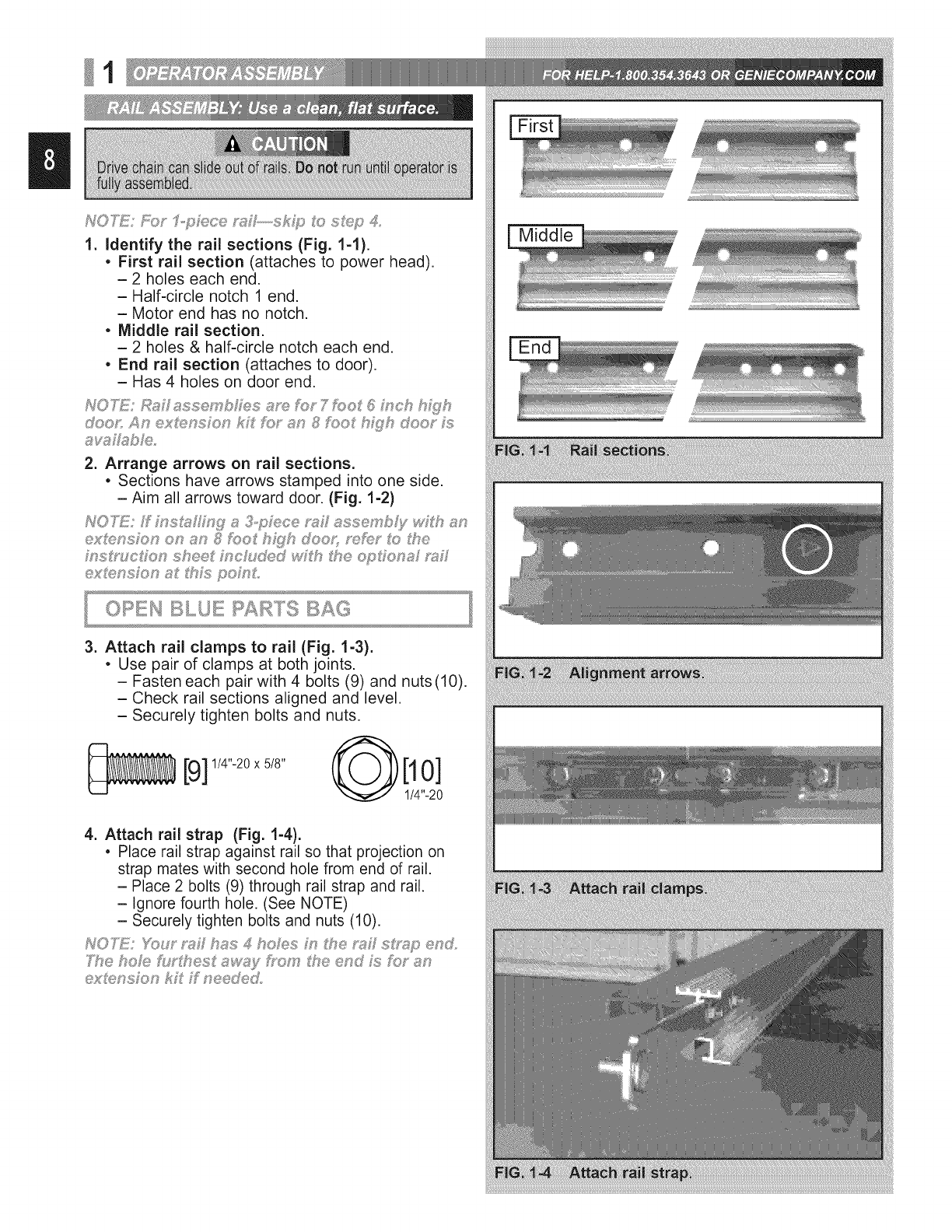

1. Identify the rai! sections (Fig. 1-1).

• First rail section (attaches to power head).

- 2 holes each end.

- Half-circle notch 1 end.

- Motor end has no notch.

• Middle rail section.

- 2 holes & half-circle notch each end.

• End rail section (attaches to door).

- Has 4 holes on door end.

2. Arrange arrows on rail sections.

• Sections have arrows stamped into one side.

- Aim all arrows toward door. (Fig. 1-2)

ex_ensFon on an _ foot h_yh doox_ _f_;_ t_f:_the

Middle

3. Attach rail clamps to rail (Fig. 1-3).

• Use pair of clamps at both joints.

- Fasten each pair with 4 bolts (9) and nuts(10).

- Check rail sections aligned and level.

- Securely tighten bolts and nuts.

[9] 114''-20x 518" @[10] 1/4"-20

4. Attach rail strap (Fig. 1-4).

• Place rail strap against rail so that projection on

strap mates with second hole from end of rail.

- Place 2 bolts (9) through rail strap and rail.

- Ignore fourth hole. (See NOTE)

- Securely tighten bolts and nuts (10).

cxUf:,nsFon kF Ffneede&

5. Slip carriage into carriage slot of rail.

•Flip the rail assembly up side down.

•Place emergency release lever in "release"

position (See below).

- Check arrow on the side of carriage points

toward door end of rail.

- Slide carriage into rail at power head end

(Fig. 1-5).

- Flip rail assembly right-side up.

6. Attach rail to power head.

* Place rail in front of power head with rail strap at

opposite end.

* Support door end of rail (rail strap) at about same

height as power head.

- Check if magnet is in place (Fig. 1-6 inset). Insert

carriage slide into rail (Fig. 1-6). (Carriage slide is

long straight piece attached to chain.)

- Pull rail toward you as you feed chain into it.

(Fig. 1-6). When the end of the rail is within

about 2 chain links of the power head, you can

then push it the rest of the way. (It is a snug fit.)

- Securely fasten with 2 bolts (9) and nuts (10)

(Fig. 1-7).

9] 1/4"-20 x 5/8" [10]

1/4"-20

7. Attach emergency release cord, knob and tag.

* Tie overhand knot in 1 end of cord. Tighten knot.

(FIG. 1-8 inset A).

- Slip opposite (no knot) end through knob.

- Slip through hole in emergency release lever

(Fig. 1-8).

- Tie overhand knot in this end also. Tighten knot,

8. Attach emergency release tag.

*Attach to hole in emergency release using metal

twist tie on tag. (Fig. 1-8 inset B).

Lever in release position.

Boverhand knot ]

g. Attach limit switches.

2 switches included, "CLOSE" limit switch (brown

wire) and "OPEN" limit switch (white wire)

(Fig. 1-10).

• Turn set screws (39) into threaded holes, just

enough so screw stays in place. (Fig. 1-10).

[39]#8_32xi,,

Point arrow on top "CLOSE" limit switch toward

door end of rail.

- Place "CLOSE" limit switch (Brown wire) on rail

about 12" from rail strap (Fig. 1-11).

- Gently tighten set screw enough to keep switch

from moving.

Point arrow on top "OPEN" limit switch toward

door end of rail.

- Place "OPEN" limit switch (white wire) on rail

where chain attaches to carriage slide. (Near

the power head.)

- Gently tighten set screw enough to keep switch

from moving.

10.Attach limit switch wires.

•Uncoil limit switch wires.

-Place into channels located along top of rail.

-Run wires back to power head through hole in top

of power head (Fig. 1-12).

-Use wire clips to hold wires in place (Fig. 1-13).

[41]

•Attach limit switch wires to terminals on power

head (Fig. 1-14).

-White wire ("OPEN") to terminals #4 and #5.

- Brown wire ("CLOSE") to terminals #5 and #6.

•Bundle extra wire and lay it on top of power head

(Fig. 1-14 inset).

2iMPORTANT

Toreducetheriskofsevereinjuryordeath:

1. READAND FOLLOWALL SAFETY, INSTALLATIONAND

OPERATIONINSTRUCTIONS.If you have questions or

do not understand an instruction, call The Genie

Company or an authorized Genie Dealer.

2. Do Not install operator on an improperly balanced door.

An improperly balanced door could cause severe injury.

Repairs and adjustments to cables, spring assembly, and

other hardware must be made by a professionally trained

service technician using proper tools and instructions.

3. Remove all ropes and disable all locks connected to the

door before installing operator.

4. Install door operator 7 feet or more above floor. Mount

emergency release knob 6 feet above floor.

5. Do Not connect the operator to the source of power

until instructed to do so.

6. Locate the control button:

. Within sight of door.

. At minimum height of 5 feet above the highest floor

level, so small children cannot reach it.

. Away from all moving parts of the door.

7. Install the Entrapment WARNING Label next to the wall

button or wall console. Install the emergency release

tag on, or next to, the emergency release.

8. The operator must reverse when the door contacts a

1-1/2 inch high object on the floor at the center of the

doorway. This is the size of a 2" x 4" board laid flat.

=Finding header bracket mounting location.

•Close garage door.

-Use a pencil.

a. Mark center of garage door (one-half overall

width) with 6" vertical line at top edge of door.

b. Continue this line on wall above door for

about !2" (Fig. 2-1).

•Raise garage door until top edge of door

reaches its maximum height (Fig. 2-2).

•Place door at highest point.

- Measure height from top edge of door to floor.

• Close door again.

• Mark height measurement on wall above door.

- Make your mark across vertical line

made earlier.

,Marking final height.

TI"_E2 P _s_'__'_'_vlc__::_',OtC _'_:_J',,s #*'_:_DOOR

Sect ons d®o_s,,_,_ave _oe_s on each sde w_c_ _de

One,,,F;*ece do®_s,_sw ve on a%e sp_ s9 oaded

nnges as the doo_ opens a_d coses

• For secdona! - add 2-1/2" to height mark

just made on wall. This is location for

header bracket.

2-?_/;;__ aboye s@_;,?£ or shah and mau£ 8hTsheath

,, For one-piece - add 6"- 12" to your height mark

just made on the wall. This is location for

header bracket.

NO7_iF; fhe_-_oq;)b;"scke ocs_Fo_*_needs obe

_;_bovehesde;' fb;' !is_'_!_!_i'ech::_o openh, W you

£;,oud seco_,e@ _sched i'@s_one;'s no h_c/ @d}

_;_c;'oss w_d/suo%; o_ eF he, sM_, of;/o mu£ £_

s f?Ycien (Fig. 2-4)

2. Mounting the header bracket.

seye_x,_ w_ys, mehod _I M pmM_,"_d f_ poss b _

bec_se of _d@d s_,ng_h ore;' o_he me hodxs

(Fig, 2-5)

•Hold header bracket against wall (Fig. 2-5).

- Place left edge on vertical line.

- Bottom edge on final height line.

• Mark screw hole locations on wall.

• Drill 5/32" pilot holes at each screw hole mark.

- Fasten header bracket with 3 lag screws (22)

(Fig. 2-5).

[22]1/4" x2"

3. Finding door bracket mounting location.

• Door bracket is mounted as high on door as

possible along vertical centerline.

b_'_cke mus be moun_s_d NO LOWFZ£ N _op

set of _s_e_s (Fig. 2-7)

_ @ e@e oF @us

4. Mounting the door bracket.

•Proper bracing should be verified at this point,

- Align door bracket centered on your

vertical centerline.

-Attach using 3 self-drilling screws (42) for

sheet metal or other light weight material.

- Use lag screws (22) for solid wooden doors.

[42] 1/4"-20x3/4"

[22]

1/4"x 2"

NO'h_: F;OY'sohaJ wood do@'s c_' ,,_s£ebosLs

X/YYHOUT"SLOTXE© H£A©S pso{ ;_,s*cudis@ m#_y

atso be used fbr a _:_sch#'_!_doo_" b_s!_ceL

1. GettingStarted.

• Positionrail/powerheadassembly(Fig.2-7).

- Railstrapleaningonwallnexttoheaderbracket.

-Place materialonfloorunderpowerheadto

protectfromscratching.(Abox,stool,orsimilar

devicemaybeneededto cleara torsion

spring,asshown.)

2, Mountingthe assembly.

• Attachrail strapto headerbracketusingnut(47)

(Fig.2-7inset).FINGERTIGHTONLY.

[47]

5/16"-18

• Support power head on step-ladder.

NO}_1Y Beh:_ye £_a,_ s SxJ_ch£en {to ceh£ng, msu_'e

tha£ asse _,Ls,_}/h m phspe_ a_V{i_n_'en£(Fig. 2-9).

• Attach mounting straps to ceiling using lag

bolts (22) (Fig. 2-10).

• Set height of power head according to following:

- Track guided doors.

a. Rail must clear door at highest point of travel

b. Be level or, power head slightly below level.

- Trackless doors.

a. Rail must clear door at highest point of travel

by 1" to 1-1/2".

• Securely tighten power head mounting bolts (46)

and nuts (47).

• Lower door.

• Fully tighten rail strap nut.

• DO NOT PLUG UNIT IN YET!

3. Adjusting length of emergency release cord.

• Check emergency release knob height.

-Low enough you can reach it.

-High enough to clear your vehicle, but

NO HIGHER THAN 6 FEET ABOVE FLOOR.

• Tie a new overhand knot where desired.

-Cut off any extra cord.

[22]

I/4" x2"

[46]

5/16"-18x 3/4

JHEADER BRACKET

DOOR

90 °

VIEW FROM ABOVE

(not to scale)

ANGLE IRON ON FINISHED CEILING

_ _ DRYWALL

[o ooooooo oj

Attach angle iron to beams

UNFINISHED OR OPEN BEAM

Extra framing

not needed

Mounting

[46 & [46 &

_, Extra framing

NEEDED

OPEH YELLOW RTS BAG

1. Attach the arms.

•Fasten curved door arm to door bracket using

clevis pin (24) and cotter pin (25) (Fig. 2-10).

•Straight arm to carriage using clevis pin (24) and

cotter pin (25) (Fig. 2-10).

[24] [25]

2. Connecting the arms.

•Slide carriage back and forth to adjust arm length.

-Overlap arms as much as possible.

- Make overall length as short as possible.

•Fasten arms together using 2 bolts (27) and

nuts (28) (Fig. 2-10). (Place the bolts as far

apart as possible,)

[27]

3/8"-16 x 7/8"

1. Attach the arms.

• Straight arm to door bracket using clevis pin (24)

and cotter pin (25) (Fig. 2-12).

• Curved arm to carriage using clevis pin (24)

and cotter pin (25) (Fig. 2-12).

[24] [25]

2. Connecting the arms.

• Slide carriage back and forth to adjust arm length.

-Overlap arms as little as possible.

-Make overall length as long as possible.

• Fasten arms together using 2 bolts (27) and

nuts (28) (Fig. 2-12).

[27]

3/8"-16 x 7/8"

[28]

3/8"-16

h_O_TE"%h....

1. Mounting brackets.

•Mark both sides of garage door frame or wall 5"

above floor. (Fig. 3-1).

•Hold bracket against door frame or wall.

- Check if brackets extend out from wall far

enough, so tongue of bracket is beyond door,

tracks or any door hardware.

-if not:

a. "STB" bracket extensions are available

at local dealer.

b. Blocks of wood, etc. may be substituted for

extensions.

•Center bracket on your mark (Fig. 3-2).

•Fasten each with 2 screws (44) (Fig. 3-2).

[44] #10-16 x 1-1/4"

2. Mounting "STB" source and sensor.

• If garage has only one garage door.

- Determine which side of garage receives most

direct sunlight (Fig. 3-4).

-Red LED should always be on sunny side

whenever possible (Fig. 3-4).

• For multiple doors.

-Preventing crossed signals is critical.

-Place source and sensor modules on adjacent

doors facing in opposite directions (Fig. 3-4).

• Slide source/sensor onto tongue of bracket until

it clicks into place (Fig. 3-3).

3. Wiring.

• Route wire (29) using either method shown

(Fig. 3-5).

• Wires along rail are held in place with wire clips.

[41]

-Wires can be slipped under the wire clips

already in place.

Source

Dashed Line = striped wire

Solid Line = white wire

_'lPower

U Head

Source

r- .i

Sensor

Power

Head

......i_:!:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;iii_:!:iii:iiii_i;ii:iii:iiii_i;iii_:!:iii:iiii_i;iii_:!:iiiii_i;ii!_

3. Wiring (cont').

• Securely fasten wires to wall as you go.

-Use insulated staples (included).

[30]

-Staples should be snug only.

•Make wire attachments at "STB's."

-Splitting and stripping wire ends to be

connected as shown (Fig. 3-6).

-Loosen terminal screws.

-Insert wire under flat plate and tighten screw.

It does not matter which wire, white or

striped, goes on which terminal (Fig. 3-7).

•Make wire attachments at power head.

-"STB's" are connected to terminals #2 and #3

on power head (Fig. 3-8).

4. Check the following.

•Insure that no part of door or its hardware is

in path between lenses of source and sensor.

•Insure that tops of lenses are between 5"-6"

above the floor (Fig. 3-9). The brackets are

flexible, and can be adjusted slightly if needed.

pedo_ry ed [_Joyu:_ng connecd®n _ e_:_c#fcs

powe_ °(_,;eep_._ge"I_;}, O0 hIOT PLUG t_d ';_7S

1. Finding the mounting location.

• Pick a convenient location for mounting

wall control.

-Location you choose should be in direct sight

of door.

-It should be at least 5' above floor to prevent

small children from operating door.

-It must be away from any moving parts. (You

should not be able to reach the door while

standing at wall control.)

2. Wiring.

• Run wire from power head to wall control.

• Securely fasten to ceiling using insulated

staples provided.

• Split and strip ends of wire (Fig. 4-5).

• On power head:

-Attach the striped wire to terminal #1 and

white wire to terminal #2 (Fig. 5-1).

• On back of wall control:

-Attach striped wire to terminal "B", and

white wire to terminal "W." (Fig. 5-2).

3. Mounting.

•Fasten wall control to wall with 2 screws (33)

(Fig. 5-3).

[33] #6xi-1/4"

•Remove protective backing from "entrapment"

warning label (Fig. 5-4).

-Stick label on wall near wall control.

1. Plug the operator into aproperly grounded

electrical outlet.

2. Check Safe-T-Beam® alignment (Fig. 6-3).

1. instructions for electrician.

•Remove power from circuit.

•Remove motor cover (Fig. 6-1).

-Removing hex head screw located in center

on bottom of cover.

-Slide cover down and off.

•Remove and throw away existing power cord.

•Remove 7/8" knockout plug (Fig. 6-2).

-install a suitable entrance bushing.

•Connect permanent wiring to power head.

- White to white/black to black /ground to green,

-Use only UL recognized wire nuts.

•Wires inside power head must be at least 6"

in length.

• Replace motor cover and re-energize

the circuit.

2. Check Safe-T-Beam® alignment (Fig. 6-3).

NOT_!: _7e OenFe Co£ p_:_ny;s_no f"espo_,_s/;Ise

m@penden_ eh;_,c_,fc_n,

To correct the problem -- the brackets are

flexible and can be adjusted slightly to bring

the system into alignment.

When the STB's are in alignment the red

LED will stop blinking and stay on.

NO'}q_:;:©u_<;gopen_}_®_"cl,,,chW hhyfouc'®

_j ,fsm en< _he _' o_oY p<o_x,:<_c_o_may shu of 7

p®we_ °_o he ope_s_ ®s # _hh}soccu_,_, wv}_F_hou

20 _'ffmAes _o _/;ow _he motoJ," pm_ec_o_ _o mseL

1. Adjusting limit switches,

• Locate force control knobs on power head

(Fig, 7-1).

-Gently turn both control knobs

counter-clockwise until they stop.

• Verify emergency release lever in disengaged

position.

• Verify "OPEN" limit switch at point where chain

attaches to carriage slide (Fig. 7-2).

• Manually close door.

• Move the "CLOSE" limit switch:

-Loosen set screw.

-Slide limit switch along rail to align front edge

of switch with back edge of carriage (Fig. 7-3).

-Gently tighten set screw.

• Press wall control button.

-Carriage slide will move toward power head

and stop at the "OPEN" limit switch.

• Manually open door.

• Move the "OPEN" limit switch:

-Loosen set screw.

-Slide limit switch along rail to align front edge

of switch with back edge of carriage (Fig. 7-4).

-Gently tighten set screw.

-Manually close door.

• Place emergency release lever in engaged

position.

• Press wall control button.

-Carriage slide will move toward door, engage

with carriage and stop at "CLOSE" limit switch.

2. Adjusting "OPEN" force.

• Press wall control button.

- Door should open and stop at "OPEN" limit.

• Door does not fully open.

-Press wall control button.

- Door should close and stop at "CLOSE" limit.

-Turn "OPEN" force control knob slightly in

clockwise direction.

-Press wall control button.

a. Continue step 2 until door opens completely.

3. Adjusting "CLOSE" force.

• Door is not fully closing.

-Cycle door, turning "CLOSE" force knob

clockwise slightly each time until door reaches

fully closed.

The force adjustments and limit switch

settings MUST BE COMPLETED before testing

contact reverse.

1. Testing.

•Open garage door using wall control.

- Place a 2" x 4" board (laid flat) under center

of garage door opening (Fig. 7-5).

-Close door using wall control.

• When door hits board, it must stop and

reverse (within 2 seconds) to open position.

2. Adjustment.

• Door does not properly reverse.

-Check to see if door is at "close" limit.

-It should not have reached limit switch

before hitting board.

• Door is at close limit switch.

- Move limit switch closer to door.

• Test again. Repeat as necessary.

• Door is not reaching "close" limit, but

still does not reverse.

-Decrease "CLOSE FORCE" setting

slightly (turn it counter-clockwise).

• Test again. Repeat as necessary.

1. Programming.

o Locate learn code button and indicator LED

on front of power head (under force

adjustment screws) (Fig. 8-1).

• Press and release learn code button.

-Indicator LED will blink at a rate of twice

per second.

• Within 30 seconds, push remote control

button once.

-Indicator LED will stop blinking and stay on.

• Press remote control button again.

-LED will go out. Remote is now programmed.

2. Operating.

Press remote button once.

- Door will move.

• Press button again.

- Door will stop.

• Press button again.

-Door will move in opposite direction.

_lh_::_d®o__w stop ;:_.tom_t c_ y ;:stth_ ft. y

®pe_®_fl. ycosedpost®_

This device complies with FCC Part 15 and RSS

210 of Industry Canada. This equipment has been

tested and found to comply with the limits for a

Class B digital device, pursuant to Part 15 of the

FCC Rules. These limits are designed to provide

reasonable protection against harmful interference

in a residential installation. This equipment

generates, uses and can radiate radio frequency

energy and, if not installed and used in

accordance with the instructions, may cause

harmful interference to radio communications.

However, there is no guarantee that interference

will not occur in a particular installation. If this

equipment does cause harmful interference to

radio or television reception, which may be

determined by turning the equipment off and on,

the user is encouraged to try to correct the

interference by one or more of the following

measures:

Re-orient or relocate the receiver antenna.

Increase the separation between the operator

and receiver.

Connect the operator into an outlet on a circuit

different from that to which the receiver is

connected.

Consult your local dealer.

1. Programming.

• Foreachbutton.

-Program eachbuttonseparately.

- Followsinglebuttonremoteprocedure

(previouspage)for eachbutton.

2. Operating.

• Sameassinglebuttonremote.

1. Clearmemory.

• Pressandholdlearncodebutton(on power

head) for 10 seconds or until Indicator LED

goes out.

• Program remaining or new remote controls as

done previously. Your door operator will no

longer recognize any signal received from the

missing remote control, or any other which has

not been reprogrammed.

1. Battery replacement.

• Use coin, ball-point pen or similar device.

-Gently push straight in on battery cover lock

tab as shown (Fig. 9-1).

• Flip open battery cover.

-Remove old battery.

• Make sure new battery is facing proper direction

(Match battery polarity with symbols inside

battery cover) (fig. 9-2).

-Recommended replacement battery is

Eveready A-23, 12 volt.

• Slip new battery into place.

-Snap battery cover shut.

• Operate remote to make sure it is working

properly. (No re-programming is needed.)

2. Visor clip.

• Slide visor clip into back of remote control.

-It will snap into place (Fig, 9-3).

1. Light bulb.

• Recommendations.

-Do not use a short neck bulb.

-Light bulb should be no more than 100 Watts.

- Use a heavy duty service bulb for longer life.

• Screw bulb into socket.

2. Lens.

•Slide hinges into slots on motor cover (Fig. 10-1).

•Swing lens up.

- Fit tabs into slots provided on power head.

iMPORTANT SAFETY iNSTRUCTiONS

Toreducethe riskofsevereinjuryordeath:

READ AND FOLLOW ALL INSTRUCTIONS.

Never let children operate or play with the door controls. Keep the remote control away from children.

Always keep the moving door in sight and away from people and objects until the door is completely

closed. NO ONE SHOULD CROSS THE PATH OF THE MOVING DOOR.

NEVER GO UNDER A STOPPED, PARTIALLY OPEN DOOR.

Test operator monthly. The door MUST reverse on contact with a 11/2" high object (or a 2" x 4" board

laid flat) at the center of the doorway on the floor. After adjusting either the force or the limit of travel,

retest the door Opener. Failure to adjust the Opener properly may cause severe injury or death.

When possible, use the emergency release only when the door is closed. Use caution when using this

release with the door open. Weak or broken springs are capable of increasing the rate of door closure

and increasing the risk of severe injury or death.

KEEP DOORS PROPERLY BALANCED. See Owner's Manual. An improperly balanced door increases

the risk of severe injury or death. Have a qualified service person make repairs to cables, spring

assemblies, and other hardware.

SAVE THESE I STRUCTIO S.

.Door springs and hardware.

• Do not operate garage door automatically or

manually if springs are broken.

- CONTACT A PROFESSIONAL FOR SERVICE,

2. Door balance.

• Close the door.

• Pull emergency release knob down to release

door from carriage assembly.

• Raise door manually approximately 3 feet.

- Door should stay in that position or close

very slowly.

- If door moves quickly, HAVE DOOR SERVICED

BY A PROFESSIONAL,

•Close the door.

•Pull emergency release knob toward power

head to place release lever in engaged position.

- Operate door using remote.

- Door will re-attach itself to carriage assembly.

3. Contact reverse.

•Place a 2"x 4" board laid flat on floor.

- In center of garage door opening.

•Close door by using wall button or

remote control.

- Door fails to reverse on contact with board see

Section 7 "CONTACT REVERSE."

- Operator still fails CONTACT A

SERVICE PROFESSIONAL.

.Safe-T-Beam® System.

•Use Self-Diagnostic STB system Troubleshooting

information to maintain safe operation (Below).

Use This Guide To Correct Problems With Door Operator.

If These Solutions Do Not Work,

Call Customer Service at 1.800.35.GENIE

SOURCE SENSOR INDICATED REQUIRED

RED LED GREEN LED CONDITION ACTION

O ON el ON NORMAL OPERATION NONEREQUIRED

O OFF v('_ OFF 1.POWERHEADNOT 1.CHECKBREAKERS,

POWERED FUSES, PLUGS

2. WIRING FROM 2. CHECK WIRING FOR

POWER HEAD BAD OBVIOUS SHORTS

O OFF _ ON 1.WIRINGTO 1.CHECKWlRING

SOURCEMISSING

OR BAD 2. REMOVE POWER

2. POWER HASBEEN AND REAPPLY

INTERRUPTED

el I_ O _ ON I.BEAM NOT ALIGNED I.CHECKALIGNMENT

2.BEAM OBSTRUCTED 2.CHECK FOR

2 BLINKS,PAUSE OBSTRUCTION

(REPEAT) 3.SENSOR DEFECTIVE 3.CALL GUST. SERV.

_ O O OFF 1.WIRETOSENSOR 1.CHECKWIRING

MISSING OR BAD

2 BLINKS, PAUSE 2. SENSOR DEFECTIVE 2. CALL GUST. SERV.

(REPEAT)

_O O ON I.SENSORRECEIVING I1ATTEMPTTO

INTERFERENCE DETERMINE SOURCE

3 BLINKS,PAUSE OF INTERFERENCE

(REPEAT) 2.CALL GUST.SERV.

OOOOO _ ON 1.SOURCENOT 1.CALLCUST.SERV.

SENDING PULSES

4 BLINKS, PAUSE 2. SOURCE DEFECTIVE 2. CALL GUST. SERV.

(REPEAT)

NOTE: IF OPERATING PROBLEM EXISTS, THE DOOR CAN BE CLOSED IF YOU:

"DISCONNECT THE STB SYSTEM FROM THE OPERATOR

"HOLD WALL CONTROL BUTTON DOWN UNTIL DOOR IS CLOSED

(REMOTE CONTROL & WIRELESS KEYPAD WILL NOT WORK WITHOUT STB)

For Answers: CALL CUSTOMER SERVICE at 1.800.35.GENIE

Usewallcontrolsuppliedwithoperator.Any otherwallcontrolcancause

theoperatorto operateunexpectedlyand lightnotto work.

Operator does

not run from

wall control.

•Checklockswitchonwall console.

•Checkpowersource.

- Pluga lampinto outletusedfor power

headIf lampworks,powersourceis OK.

- If not,checkfuseor circuitbreaker.

• Poweris OK.

-Checkconnectionsat powerhead

terminals.

-Checkconnectionsat wall control.

• Checkwiresto ensuretheyare not cut.

Staplescancut insulationand shortwires.If

wire is cut, replaceit.

Door starts up,

but stops before

it's completely

open.

Operator runs,

but door does

not move.

• Besuredoor,operator,andspringsarein

goodrepair,properlylubricatedandbalanced

(Seemaintenancesection).

• Check"OPEN"limitswitchsetting

(Seesectionm).

• Check"OPENFORCE"adjustment

(Seesectionm).

•Makesure carriageis engagedto

carriageslide.

- Placecarriageleverin lockposition.

• Checkforceadjustment(SeesectionB).

Dooroperatorwill NOTrun morethan

30 secondseachway if doordoes

not move.

Door operator

starts for

no reason.

Door starts down,

then stops before

it'sclosed.

Doorstarts

down, then stops

and goes

back up.

Door will only

run closed.

Door will only

run open

• Wasa remotecontrollostor stolen?

Eraseall remotecontrolcodesfrom

receivermemoryandreprogram

(Seesectionm).

•Buttonstuckonwall control.

•CheckCLOSElimitswitchsetting

(Seesectionm).

•Wiresshorted.

•CheckCONTACTREVERSE

(SeesectionI1_).

•Check"STB"systemfor beamobstruction

or misalignmentof lenses(SeesectionEl).

•Check"STB"diagnosticcode.

•Check"CLOSEFORCE"adjustment

(SeesectionI11).

•CheckOPENlimitswitchfor shortand

properwiring.

•Check"OPENFORCE"adjustment

(SeesectionIml).

•Checkdoorconditionanddoorspring.

•Check"STB"system(Seeself-diagnostic

"STB"TroubleshootingChart).

• CheckCLOSElimitswitchfor shortand

properwiring.

• Check"CLOSEFORCE"adjustment

(SeesectionD).

Remote control

has less than

25 feet

operatingrange.

Operator works

from wall

control, but

not from

remote control.

Noisy operation.

Safe-T-Beam®

system

malfunction

•Relocateremotecontrolinsidecar.

•Pointremotecontrolat garagedoor.

• Replacebattery(SeesectionI_1).

• Repositiondooroperatorantenna.

• DONOTattemptto retuneremotecontrols.

•Programremotecontrolcodeinto

receivermemory.(SeesectionIQ).

• Replaceremotecontrolbatterywithgood

one.(Seesectionm).

• Besureallfastenersaretight.

• Besuredoorand operatoris ingoodrepair,

properlylubricatedandbalanced(See

monthlymaintenancesection).

Ifan operationalproblemexists,andoperator

will not runclosed.Theoperatorcan beforced

to closeas follows(SeesectionEl).

• Disconnectthe "STB"systemfrom

theoperator.

•Holdthewall controlbuttondownuntildooris

completelyclosed.

Useself-diagnostic"STB"systemTroubleshooting

informationto maintainsafeoperation.

Lights will not go •Disconnectandreconnectwiresonwallcontrol

out (Seesectionm).

•Checkwiring.

•Incompatiblewall control.

If you have any questions, please do not hesitate to

contact customer service at:

1.800.354.3643

!1 /

TRANSMITTER COMPLIANCE STATEMENT

Transmitters comply with all United States and Canadian legal requirements as of the date of manufacture. No warranty is made

that they comply with all legal requirements of any other jurisdiction. If transmitters are to be used in another country, the importer

must determine compliance with any local laws and regulations which may differ from United States and Canadian requirements

prior to use.

Los transmisores cumplen con todas las reglamentaciones legales de los Estados Unidos y del Canada, en la fecha de fabricaci6n.

Ninguna garantJa se da que cumplan con todas las reglamentaciones legales de ninguna otra jurisdicci6n. SJlos transmJsores se

van a utiNzar en otto pais, el importador debe determinar si cumplen con las reglamentaciones y leyes locales que puedan ser

diferentes a las reglamentaciones de los Estados Unidos y del Canad& antes de usar los mismos.

Les emetteurs sont conformes a la reglementation am@icaine et canadienne a compter de leur date de fabrication. Aucune garantie

n'est stipulee indiquant qu'ils sont conformes a toutes les prescriptions juridiques d'autres autorites. Si les emetteurs sont utiNses

dans d'autres pays, il incombe a I'importateur d'en determiner leur conformite aux lois et regles locales pouvant diff@er de celles

des Etats-Unis et du Canada avant toute utilisation desdits emetteurs.

Sendeger_ite entsprechen allen gesetzlichen Bestimmungen in den USA und Kanada zum Zeitpunkt der Herstellung. Wir

Obernehmen keine Gew_hrleistung for die Einhaltung aller gesetzlichen Bestimmungen in anderen L_indern. Sollen Sendeger_ite in

anderen L_ndern eingesetzt werden, so muss der Importeur vor dem Gebrauch sichersteNen, dass die Sendeger_te auch solchen

Iokalen Bestimmungen entsprechen, welche von den Bestimmungen der USA und Kanadas abweichen.

A_nlE-I--_ ° nl_,Z[ttlL[q _011_,t;Ct1_MS_[_9_ISltOI_[L--o-?-.q&[Ott[[[_[Ot_LIE[. 21El-ct--_-__ _-_°1 _-_ _od p_¥,tf_o_l[q_[ot

........... 7-_-_ _x_ ,tfod_10tl_;tt nl_,_[_'tIL[EI--?-[£I,°,_t[gA_ E[_XI,_

GEI IE: Garage Door Operator Accessories

Accesorios para abridores de garajes

Accessoires pour ouvre-porte de garage

Prices on reverse

Precio en dorso

Prix sur oppose

AVAILABLE AT YOUR LOCAL GENIE ¢DISTRIBUTOR

(GIT-1)1-ButtonRemoteControlwithIntellicode®.- Allowsremoteoperationofonegaragedoor.

Controladorremotode uricbotchconIntellicode®.-Proporcionaroperacionremotodeunopuertadelgaraje.

Telecommandedeun boutonavecIntellicode®.-Permettreoperationelogindeunportedegarage.

(GIT-2)2-ButtonRemoteControlwith Intellicode®.- Allowsremoteoperationtwogaragedoors.

Controladorremotode2boronsconIntellicode®.- ProporciGnaroperacionremotodedoslaspuertadelgaraje.

Telecommandea2boutonsavecIntellicode®.-Permettreoperationelogindeuxportesdegarage.

(611"-3)3-ButtonRemoteControlwith Intellicode®.-Allowsremoteoperationof threegaragedoors.

Controladorremotode 3boronsconIntellicode®.- ProporciGnaroperacionremotodetreslaspuertadetgaraje.

Telecommandea3boutonsavecIntellicode®.-Permettreoperationetogintriosportesdegarage.

(GMI.3)3-ButtonMiniRemoteControlwithIntellicode®-Fitseasilyintopocketorpurse.

Minicontroladorremotode3 boronsconIntellicode®-Cavefacilmenteen elbolsilloo cartera.

Minitelecommandea 3boutonsavecIntellicode®- seglissedartslapochedevestonoulesacamain.

___ (GPWC-2WLB)FunctionWallConsole-Operatesgaragedoor.Independentlightcontrol.Securityvacationlock.

zConsoladeparedde3 rune!ones- Accionalapuertadelgaraje.Controideluzindependiente.Cerraduradeseguridadparavacaciones.

Consolemuraleatroisfonctions- Actionneiaportedegarage.Commanded'eclairageindependante.Interrupteurdeverrouillagedesecurit&

uJZ (GWKP)WirelessKeypadEntrySystem-OperatesIntellicode®garagedooroperatorswithoutremotecontrolorkey.

_: Sistemadeentradaportecladohumor!coinalambrico- AccionalosabridoresdepuertasdegarajeIntellicode®sincontrolremotoo Ilave.

_Systemed'ouvre-portedegarageaclaviersansfil- Actionnelesouvre-portedegarageavecIntellicode®sanstelGcommandenict&

<, (GWB)UniversalWallButton-Providesconvenientinsideoperationofdoor.

_: Botchdepareduniversal-ProporcionaoperaciGnconvenientedelapuertadesdeeiinterior.

z Boutonmuraluniversel-ActionneI'ouvre-portede!'inter!ourdugarage.

_< (GPS-SBL)PerfectStop®-Ensuresperfectparking.

_: Stop®Perfecto-Aseguraelestacionamientoperfecto.

8utoirPerfectStop®-Permetde stationnera iaperfectiondansiegarage.

o (LCGXo8)ChainGlideTM ExtensionKit- An18inchextensiontoincreasethetravelofa ChainGlideTM operatorto accommodatean8footdoor.

ZJuegodeextensiGndeslizante- Unaextensionde18pulgadasparaaumentarlacarreradeunabridordeslizabledecadena,paraacomodarunapuertade8pies(2,43m.).

uJ NecessairederallongeduChainGlide;M-Rallongede30dm(18pc)prolongeantlacoursedeIbuvre-porteChainGlidepouruneportede2,4m(8pi)dehauteur.

w< (GIRU-1T)UniversalConversionKit- Convertsanygaragedooroperatortoa secureradiosignalsystem.Kitincludesa remotecontrol,receiverandtransformer.

z Juegodeconversionuniversal-Conviertecualquierabridordepuertadegarajea unsistemadeserialderadioseguro.Eljuegoincluyeuncontrolremotodeabridor,

< receptorytransformador.

zNecessairedeconversionuniversel- Transformetoutouvre-portede garageensystemedesecurit6a signalradio.ComprendunetelGcommande,unrecepteuret

_: 60WATTLightBulb- Ensuresproperequipmentcompatability.

o< Bombillade60Vatios-Aseguracomponentecorrectodesistema.

zEclairagede60WATT-Garantircomponantexactparsysteme.

_: (GER-2)EmergencyReleaseKit- Providesaccessto garagefromoutsideintheeventof anelectricalpowerfailure.

Juegodepica-portedepestillo- Permitirentrtadadesdeporfueradegarajeporquecortedeelectrico.

zNecessairesdeDeclenchementdesecours- Lenecessairededeclenchementdesecoursestco%upourvouspermettred'accedera votregaragedepuisI'exterieurencas

depannedecourantet Iorsqu'il.

___ STBBracketExtensions-Providesadditionalbracketlengthwhereit maybeneededforclearance.

o Exttesibnde CartelasdeSTB - AdicionalextensiondelascartelasdesistemadeSTB.

co ExtensiondeSupportduSTB- PourvoiretenduedeplusdesupportdusystemeSTB.

<No C.O.D.shipments. Please include check or money

order, do not send cash.

Allow 3-4 weeks for delivery.We acceptVisa or

Mastercardphone orders.

1.800.354.3643.Please have part number and credit

card ready.

Please add local sales tax ifyou reside in one of

the states listed.

No se aceptanpedidosde pagocontraentrega (COD).

Sirvaseincluirsu cheque o giro postal;no envie dinero

en efectivo.

Concedanos3 a 4 semanaspara la entrega.

Aceptamospod!dostelefGnicosde Visa o Mastercard.

1.800.354.3643.Sirvasetenor listos los nOmerosdel

modeloy de la tarjetade credito.

8irvase agregar el impuestodeventaslocalsi

usted reside enuric de lossiguientes estados:

Pasd_expeditioncontreremboursement.Veuillez

inclureun chequeou un mandatbancaire.N'envoyez

pasd_argentcomptant.

Accordezde 3 a 4 semaines pour la livraison.Nous

acceptonsles commandospartelephoneavec

paiementpar carte de creditVisa ou Mastercard.

1.800.354.3843.Ayezsous ta mainle numerode la

piece et celuide la carte de credit.

Veuillez indiquerlostaxes de vente localessi vous

residezdartsI'un des_tats repertoriesci-dessous,

California indiana NewYork California indiana New York California indiana New York

Connecticut Maryland Ohio Connecticut Maryland Ohio Connecticut Maryland Ohio

Florida Massachusetts Tennessee Florida Massachusetts Tennessee Florida Massachusetts Tennessee

Georgia Michigan Virginia Georgia Michigan Virginia Georgia Michigan Virginia

Illinois New Jersey Wisconsin Illinois New Jersey Wisconsin Illinois New Jersey Wisconsin

TOTAL ORDER $

SHIPPING & HANDLING $ &O0

STATE SALES TAX $

GRAND TOTAL $

TOTAL DEL PEDIDO $

FLETE Y MANEJO $ 5.00

IMPUESTODE VENTAS ESTATAL $

GRAN TOTAL $

COMMANDE TOTALE $

MANUTENTIONET EXPEDITION $ 5.00

TAXE DE VENTE $

TOTAL GLOBAL $

MODEL

MODELO

MODELE

GIT-I

GIT-2

GIT-3

GMI-3

GPWC-2WLB

GWKP

GWB

GPS-5BL

LCGX-8

GIRU-IT

LIGHTBULB

DESCRIPTION

DESCRIPCION

DESCRIPTION

Garage Door Operator Accessories Order Form

Formulario de pedido de accesorios para abridores de puertas de garaje

Formulaire de commande des accessoires pour ouvre-porte de garage

DeluxeRemoteControlwithtntellicode®

iControladorremotodelujoconIntellicode®

iTel6commandedeluxeavecIntellicode®

i2-ButtonRemoteControlwithIntellicode®

iControladorremotode2funcionesconIntellicode®

iTel6commandea2fonctionsavecIntellicode®

i3-ButtonRemoteControlwithIntellicode®

iControladorremotode3funcionesconIntellicode®

iTel6commandea3fonctionsavecIntellicode®

i3-ButtonMiniRemoteControlwithtntellicode®

Minicontroladorremotede3funciones

iconIntellicode®

Minitel6commandea3fonctionsavectntellicode®

LightedWallConsole

iCons@deparedencender

Consolemuraleavececlairage

iWirelessKeypadEntrySystem

iSistemadeentradapottecladonumericoinalambrico

Systemed'ouvre-portedegarageaclaviersansfil

UniversalWallButton(unlit)

Bot6ndepareduniversal(unlit)

aoutonmuraluniversel(unlit)

PerfectStop®

iStopPerfecto®

ButoirPerfectStop®

ChainGlideT_'_ExtensionKit

Juegodeextensi6ndecadenadeslizable

N@essairedeprolongementdu

coulisseau

UniversalConversionKit

jJuegodeconversi6nuniversal

Necessairedeconversionuniversel

i60WATTLightBulb

Bombillade60Vatios

Eclairagede60WATT

EmergencyReleaseKit

jJuegodepica-portedepestillo

Necessairesded'clenchementdesecours

PRODUCTCODE PRICE(US$)* QTY, TOTAL

CODIGO PRECIO*CANTIDADTOTAL

CODEDUPRODUITPRIX($US)* QTE TOTAL

33069R $34.95

33069S $44.95

33069T $49.95

34909R $39.95

34292R $34.95

35282R $49.95

34960R $ 4.95

34964R $ 4.95

00001085 $34.95

33154R $49.95

26210A.S $2,95

GER-2 34963R $29.95

STBBracketExtensions

Extensi6ndeCartelasdeSTB 34439R.S $ 4.95

ExtensionduSupportdeSTB

Prices subject to change without notice I

El precio est& sujeto a cambios sin aviso I

Les prix, peuvent subir des modifications I

sans preavls j

-q,

F-

LIJ

if2

123

SHiPORDERTO:

ENVIARMERCANCIA

CON:

EXPCDIERMARCHANDISE

POUR:

NAME/NOMBRE/NOM

ADDRESS/DIRECCI6N/ADRESSE

CITY/ClUDAD/VILLE

STATE/ESTADO/eTAT ZIP/CoDIGOPOSTAL/CODEPOSTAL

MAIL ORDER

FORM TO:

The Genie Company

22790 Lake Park Blvd.

Alliance, Ohio 44601

TheGenie CompanyProfessionalAccess Systems

LiMiTED WARRANTY

What is covered:Any defect in materialand productworkmanshipfrom personal,

normal householduse inaccordancewith the Owner's Manual.

For how long:

H2000C-1 Series - 3 years on Motor,and 1 year on all other parts.

350L- 1 Series - 3 years on Motor,and 1 year on all other parts.

350L- 1XSeries - 5 years on Motor, and 2 year on all other parts.

350L - 2 Series - 5 yearson Motor,and 2 yearson all other parts.

350L-2WKCSeries - Lifetime*on Motor, 2 years on all other parts.

350L-2C Series - 5 yearson Motor,2 yearson all other parts.

350L-2WKSeries - 5 yearson Motor,2 yearson all other parts.

500MLSeries - 5 years on Motor, and 3 years on all other parts.

700MLSeries - Lifetime*on Motor,3 years on all other parts.

*Lifetimewarranty- warrantedfor as long as you own your home.

Who gets the warranty: This warranty is limited to the consumer who originally

purchased the product.

Geographic scope: This warrantyappliesonly to Genie products purchased in

the UnitedStates and Canada.

Whatwe will do: If your Genieproduct is defective, we will repair it or, at our

option,replaceit at no chargeto you. Ifwe repairyour Genie product,we may use

new or reconditionedreplacementparts. If wechoose to replaceyour Genie

product,we may replaceit with a new or reconditionedone of the sameor

similardesign.

Limitations:

IMPLIEDWARRANTIES, INCLUDINGTHOSE OF FITNESSFORA PARTICULAR

PURPOSEANDMERCHANTABILITY(ANUNWRITTENWARRANTYTHATTHE

PRODUCT IS FIT FOR ORDINARYUSE),ARE LIMITEDTO ONEYEAR FROM

THE DATEOF PURCHASE.GENIE WILL NOT PAY FOR: LOSS OF TIME;

INCONVENIENCE;LOSS OF USE OFYOUR GENIE PRODUCTOR PROPERTY

DAMAGECAUSED BYYOUR GENIE PRODUCTOR ITS FAILURETO WORK;

ANY SPECIAL,INCIDENTALOR CONSEQUENTIALDAMAGES;ORANY

DAMAGESRESULTINGFROM MISUSEOR MODIFICATIONOF YOUR GENIE

PRODUCT.

Some statesand provincesdo not allow limitationson how longan implied

warranty lasts or the exclusionof incidentalor consequential damages,so the

aboveexclusions may not apply to you.

How to get warranty service: Toobtain warranty servicefor your Genie

product,you must provideproof ofthe date and place of purchaseof the product.

1.Do-it-Yourself-Service.Call the Genie ConsumerConnectiontoll free at

1.800.354.3643to speak in personto a trained Genie representativefor

required partsfor do-it-yourselfrepairs.Trainedservice representativesare

available Monday-Friday,8:00 a.m.- 11:00p.m., Eastern Time,and on Saturday,

11:00p.m.to 8:00 p.m., Eastern Time (subjectto holidays) Youmay also get the

informationyou need at www.geniecompany.com.

2.Service FromAuthorized Dealers.

Youalso mayobtain warranty servicefrom Genie authorizeddealers listed inthe

enclosed directory.Pleasenote that this listing is subject to change without

notice;we recommend that you verify the dealer'sstatus by callingthe Genie

ConsumerConnectionat 1.800.654.3643or by visiting www.geniecompany.com

before reaching any agreementon service. If warranty service is providedby an

authorizeddealer, Geniewill provide all required parts underwarranty at no

chargeto you, but the dealers are independentbusinesspeople and mayrender

a benchor servicecall chargefor their services. Geniewill not reimburseyou or

otherwise be responsiblefor thosecharges.

We suggestthat you retain your original packingmaterialin the eventyou need

to ship your Genie product.Be sure to includeyour name,address, telephone

number,proofof date and place dpurchaseand a description of the operating

problem.After repairingor, at our option, replacing,your Genie product,we will

ship it to your home at no cost to youfor parts and labor, but youwill have to pay

a minimumof $8.00 for shippingand handlingcharges.

Your choiceof either one of the above-describedserviceoptions is your

exclusiveremedy under this warranty.

What this warranty does not cover: This warranty doesnot cover batteries

(whichare consideredreplaceableparts),installation,commercial use,defects

resultingfrom accidents,damagewhile in transit to our servicelocation or damage

resultingfrom alterations,misuseor abuse, lackdpropermaintenance,

unauthorizedrepair or modificationof the product,affixing of any attachment not

providedwith the product, programmingof the Remote ControlDevices,

Safe-T-Beam®adjustmentlcleaning, staplesthrough wiring, pinched or broken

wires, Carriage disengaged,Force Controladjustments, door out of balance,

broken springs or cables, poweroutages, useof extension cords, missing or

damaged parts on discounted, clearanced,final sale or taped cartons, phantom

operations (labor is not covered if Opener is functioning properlywhile technician

is in garage),fire,flood, or acts of God, or otherfailure to follow the Owner's

Manual.

This warrantyis the only one we will give on your Genie product, and itsets

forth all our responsibilities regarding your Genie product. There are no other

express warranties.

State and province rights: Thiswarranty givesyou specificlegal rights, andyou

may also have other rightswhich vary from state to state and provinceto province.

FORANSWERS:CALL 1.800.354.3643

Manufactured under one or more of the following U.S. patents:

3,898,582 4,041,259 4,048,630 4,064,487 4,103,238 5,222,403

Other Patents applied for.

CORRESPONDENCE WITH FACTORY MUST INCLUDE DATE /MFG. NO.

(LOCATED UNDER LENS OF POWER HEAD)

FILL THIS IN AT TIME OF INSTALLATION FOR YOUR OWN RECORDS, SO THAT IT WILL

BE AVAILABLE IF YOU EVER NEED TO CALL US.

Date Purchased /

Operator Model

Remote Control Model

Dealer Name

Dealer Address

City

State

Zip

Serial Number / /

Visit Our Website at: www.geniecompany.com

SAVETHESE INSTRUCTIONS

Genie GCG350 User Manual AC CHAINDRIVE GDO Manuals And Guides L0910363

GENIE Garage Door Opener Manual L0910363 GENIE Garage Door Opener Owner's Manual, GENIE Garage Door Opener installation guides

Navigation menu

Versions of this User Manual:

Views

Navigation
