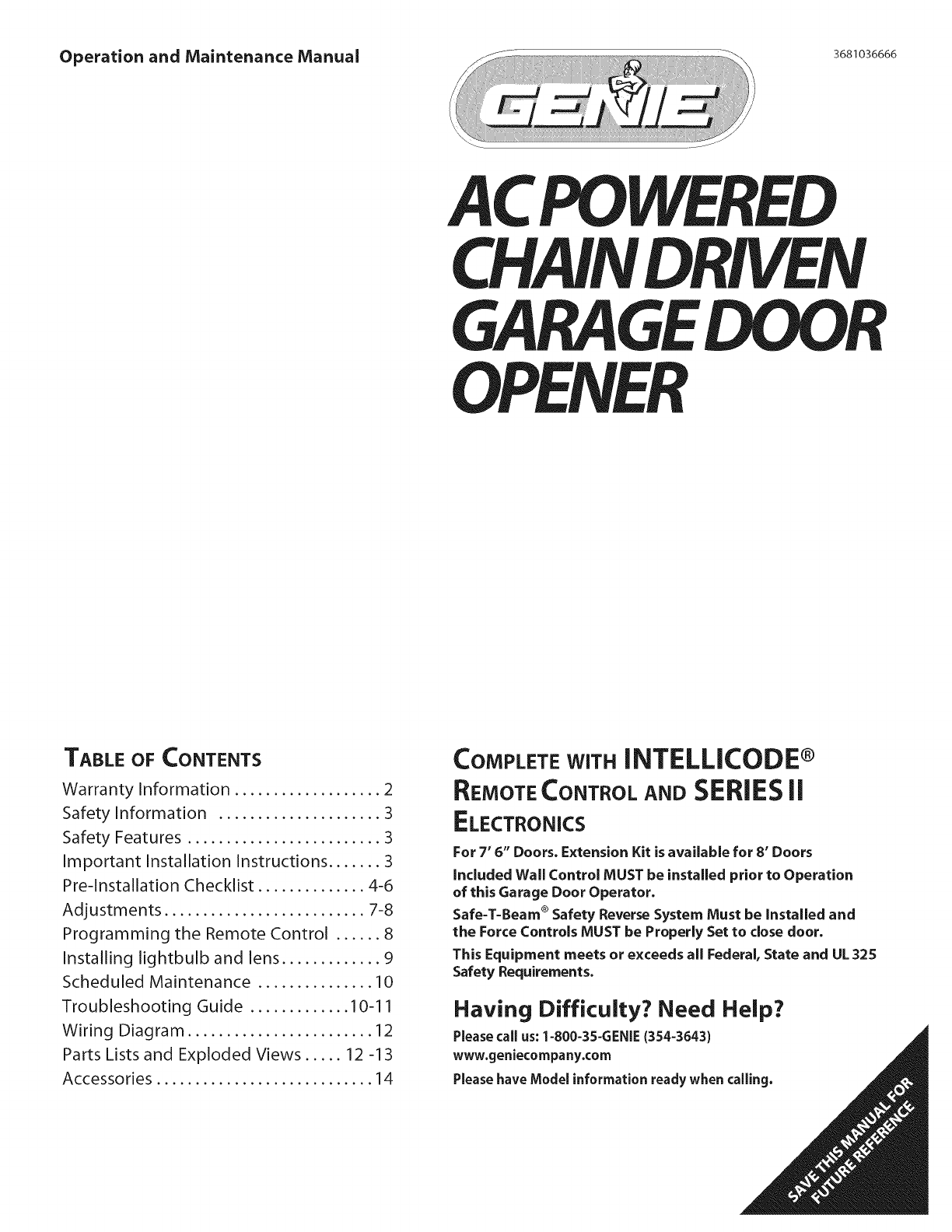

Operation and Maintenance Manual 3681036666
GARAGE
TABLE OF CONTENTS
Warranty Information ................... 2
Safety Information ..................... 3
Safety Features ......................... 3
Important Installation Instructions ....... 3
Pre-lnstallation Checklist .............. 4-6
Adjustments .......................... 7-8
Programming the Remote Control ...... 8
Installing lightbulb and lens ............. 9
Scheduled Maintenance ............... 10
Troubleshooting Guide ............. 10-11
Wiring Diagram ........................ 12
Parts Lists and Exploded Views ..... 12 -13
Accessories ............................ 14
COMPLETE WiTH INTELLICODE ®
REMOTE CONTROL AND SERIESII
ELECTRONICS
For 7' 6" Doors. Extension Kit is available for 8' Doors
Included Wall Control MUST be installed prior to Operation
of this Garage Door Operator.
Safe-T-Beam ®Safety Reverse System Must be installed and
the Force Controls MUST be Properly Set to close door.
This Equipment meets or exceeds all Federal, State and UL 325
Safety Requirements.
Having Difficulty? Need Help?
Please call us:1-800-35-GENIE (354-3643)
www.geniecompany.com
Please have Model information ready when calling.

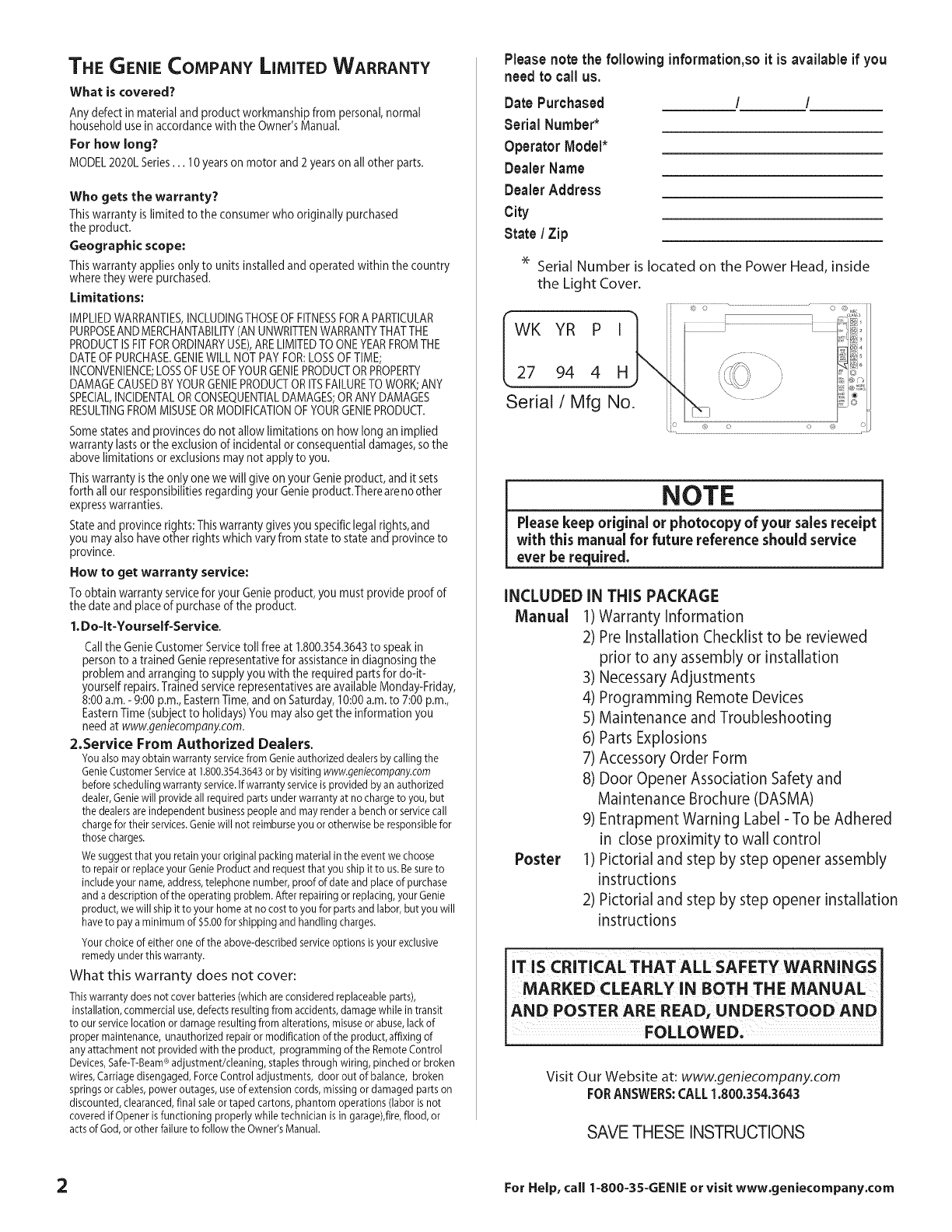

THE GENIE COMPANY LiMiTED WARRANTY
What is covered?
Any defect in material and product workmanship from personal, normal
household usein accordance with the Owner's Manual.
For how long?
MODEL 2020LSeries... 10yearson motor and 2 yearson all other parts.
Who gets the warranty?
This warranty islimited to the consumer who originally purchased
the product.
Geographic scope:
This warranty applies only to units installed and operated within the country
where they were purchased.
Limitations:
IMPLIEDWARRANTIES,INCLUDINGTHOSEOF FITNESSFORA PARTICULAR
PURPOSEANDMERCHANTABILITY(AN UNWRITTENWARRANTYTHATTHE
PRODUCTISFITFORORDINARYUSE),ARELIMITEDTO ONEYEARFROMTHE
DATEOF PURCHASE.GENIEWILL NOT PAY FOR:LOSSOF TIME;
INCONVENIENCE;LOSSOF USEOF YOURGENIEPRODUCTORPROPERTY
DAMAGECAUSEDBYYOURGENIEPRODUCTORITSFAILURETO WORK;ANY
SPECIAL,INCIDENTALORCONSEQUENTIALDAMAGES;OR ANYDAMAGES
RESULTINGFROMMISUSEORMODIFICATIONOFYOURGENIEPRODUCT.
Some states and provinces do not allow limitations on how long an implied
warranty lasts or the exclusion of incidental or consequential damages, so the
above limitations or exclusions may not apply to you.
This warranty is the only one we will give on your Genie product, and it sets
forth all our responsibilities regarding your Genie product.There are no other
express warranties.
State and province rights: This warranty gives you specific legal rights, and
you may also haveother rights which vary from state to state andprovince to
province.
How to get warranty service:
To obtain warranty servicefor your Genie product, you must provide proof of
the date and place of purchase of the product.
1. Do=it-Yourself-Service.
Callthe Genie Customer Servicetoll free at 1.800.354.3643to speak in
person to a trained Genie representative for assistance in diagnosing the
problem and arranging to supply you with the required parts for do-it-
yourself repairs.Trained service representatives are available Monday-Friday,
8:00 a.m.- 9:00 p.m., EasternTime, and on Saturday, 10:00a.m. to 7:00 p.m.,
EasternTime (subject to holidays) You may also get the information you
need at www.geniecompany.com.
2.Service From Authorized Dealers.
YoualsomayobtainwarrantyservicefromGenieauthorizeddealersbycallingthe
GenieCustomerServiceat 1.800.354.3643or byvisitingwww.geniecompony.com
beforeschedulingwarrantyservice.If warrantyserviceis providedbyan authorized
dealer,Geniewill provideallrequiredpartsunderwarrantyat no chargeto you,but
the dealersareindependentbusinesspeopleandmayrendera benchor servicecall
chargefortheir services.Geniewill not reimburseyouorotherwiseberesponsiblefor
thosecharges.
Wesuggestthat youretainyouroriginalpackingmaterialin theeventwechoose
to repairor replaceyour GenieProductand requestthat youshipit to us.Besureto
includeyour name,address,telephonenumber,proofof dateand placeof purchase
and adescriptionof the operating problem.After repairingorreplacing,yourGenie
product,we will ship it to yourhomeat no costto youfor partsand labor,but youwill
haveto paya minimumof $S.00for shippingand handlingcharges.
Yourchoiceof eitheroneof the above-describedserviceoptionsisyour exclusive
remedyunderthis warranty.
What this warranty does not cover:
Thiswarrantydoesnotcoverbatteries(whichareconsideredreplaceableparts),
installation,commercialuse,defectsresultingfromaccidents,damagewhileintransit
to ourservicelocationordamageresultingfromalterations,misuseorabuse,lackof
propermaintenance,unauthorizedrepairor modificationof the product,affixingof
anyattachmentnot providedwith the product, programmingof the RemoteControl
Devices,Safe-T-Beam®adjustment/cleaning,staplesthrough wiring, pinchedor broken
wires,Carriagedisengaged,ForceControladjustments,doorout of balance,broken
springsor cables,poweroutages,useof extensioncords,missingordamagedpartson
discounted,clearanced,final saleor tapedcartons,phantomoperations(labor is not
coveredif Openerisfunctioning properlywhiletechnicianis in garage),fire,flood,or
actsof God,orother failureto follow the Owner'sManual.
Pleasenote the following information,soit is availableif you
needto call us.
Date Purchased / /
Serial Number*
Operator Model*
Dealer Name
DealerAddress
City
State /Zip
eeSerial Number is located on the Power Head, inside
the Light Cover.
WK YR P I'_
Serial/Mfg No.
NOTE
Pleasekeep original or photocopy of your sales receipt
with this manual for future reference shouldservice
ever be required.
INCLUDED IN THIS PACKAGE
Manual 1)Warranty Information
2) Pre Installation Checklist to be reviewed
prior to any assembly or installation
3) Necessary Adjustments
4) Programming Remote Devices
5) Maintenance and Troubleshooting
6) Parts Explosions
7) Accessory Order Form
8) Door Opener Association Safety and
Maintenance Brochure (DASMA)
9) Entrapment Warning Label- To be Adhered
in close proximity to wall control
Poster 1) Pictorial and step by step opener assembly
instructions
2) Pictorial and step by step opener installation
instructions
MARKED CLEARLY IN BOTH THE MANUAL
lAND POSTER ARE READ, UNDERSTOOD AND
FOLLOWED;
Visit Our Website at: www.geniecompany.com
FORANSWERS:CALL1.800.354.3643
SAVE THESE INSTRUCTIONS
2For Help, call 1=800-3S-GENIE or visit www.geniecompany.com

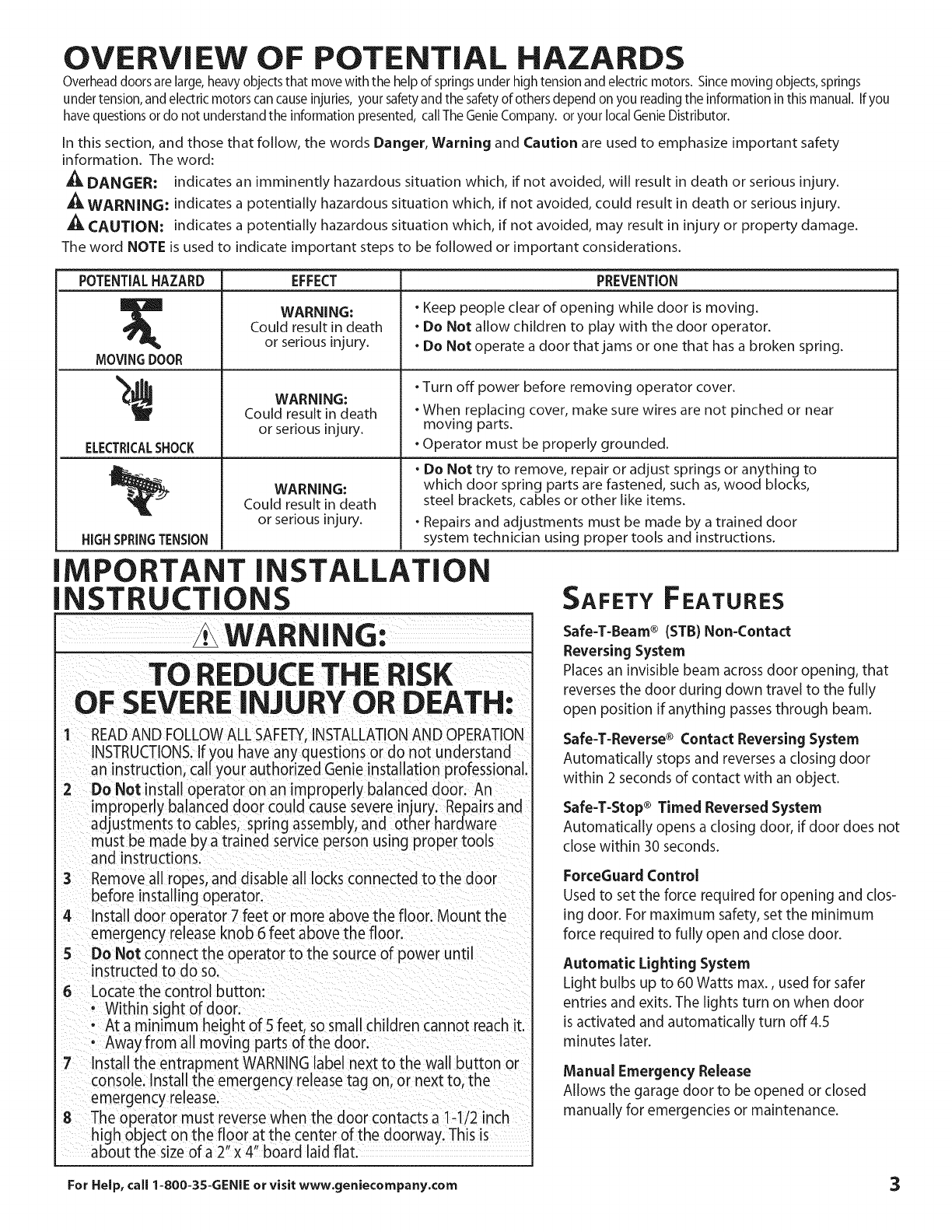

OVERVIEW OF POTENTIAL HAZARDS
Overhead doors are large,heavy objects that move with the help of springs under high tension and electric motors. Sincemoving objects, springs
under tension, and electric motors cancauseinjuries, your safetyand the safety of others depend on you reading the information in this manual. If you
havequestions or do not understand the information presented, callThe Genie Company. or your local GenieDistributor.
In this section, and those that follow, the words Danger, Warning and Caution are used to emphasize important safety
information. The word:
DANGER: indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING: indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION: indicates a potentially hazardous situation which, if not avoided, may result in injury or property damage.
The word NOTE is used to indicate important steps to be followed or important considerations.
POTENTIAL HAZARD
MOVING DOOR
ELECTRICALSHOCK
HIGH SPRINGTENSION
EFFECT PREVENTION
WARNING: . Keep people clear of opening while door is moving.
Could result in death o Do Not allow children to play with the door operator.
or serious injury, oDo Not operate a door that jams or one that has a broken spring.
WARNING:
Could result in death
or serious injury.
WARNING:
Could result in death
or serious injury.
oTurn off power before removing operator cover.
oWhen replacing cover, make sure wires are not pinched or near
moving parts.
oOperator must be properly grounded.
. Do Not try to remove, repair or adjust springs or anything to
which door spring parts are fastened, such as, wood blocks,
steel brackets, cables or other like items.
oRepairs and adjustments must be made by a trained door
system technician using proper tools and instructions.
MPORTANT INSTALLATION
NSTRUCTIONS
WARN ING:
TO REDUCE THI RISK
OF SEVERE INJURY OR DEATH:
1 READAND FOLLOWALL SAFETY,INSTALLATIONAND OPERATION
INSTRUCTIONS.If you have any questions or do not understand
an instruction, call your authorized Genie installation professional.
2 Do Not install operator on an improperly balanced door. An
improperly balanced door could cause severe injury. Repairs and
adjustments to cables, spring assembly, and other hardware
must be made by a trained service person using proper tools
and instructions.
3 Remove all ropes, and disable all locks connected to the door
before installing operator.
4 Install door operator 7 feet or more above the floor. Mount the
emergency release knob 6 feet above the floor.
5 Do Not connect the operator to the source of power until
instructed to do so.
6 Locatethe control button:
•Within s!ght of door.
•At a minimum height of Sfeet, so small children cannot reach it.
•Awayfrom all moving parts of the door.
7Install the entrapment WARNING label next to the wall button or
console. Install the emergency release tag on, or next to, the
emergency release.
8The operator must reverse when the door contacts a 1-1/2 inch
high object on the floor at the center of the doorway. This is
about the size ofa 2 x 4 board aid fat.
SAFETY FEATURES
Safe-T-Beam® (STB) Non-Contact
Reversing System
Placesan invisiblebeam across door opening, that
reverses the door during down travel to the fully
open position if anything passesthrough beam.
Safe-T-Reverse®Contact Reversing System
Automatically stops and reverses a closing door
within 2 seconds of contact with an object.
Safe-T-Stop®Timed Reversed System
Automatically opens a closing door, if door does not
close within 30 seconds.
ForceGuard Control
Used to set the force required for opening and clos-
ing door. For maximum safety, set the minimum
force required to fully open and close door.
Automatic Lighting System
Light bulbs up to 60 Watts max., used for safer
entries and exits. The lights turn on when door
isactivated and automatically turn off 4.5
minutes later.
Manual Emergency Release
Allows the garage door to be opened or closed
manually for emergencies or maintenance.
For Help, {all 1-800-35-GENIE or visit www.geniecompany.com :3

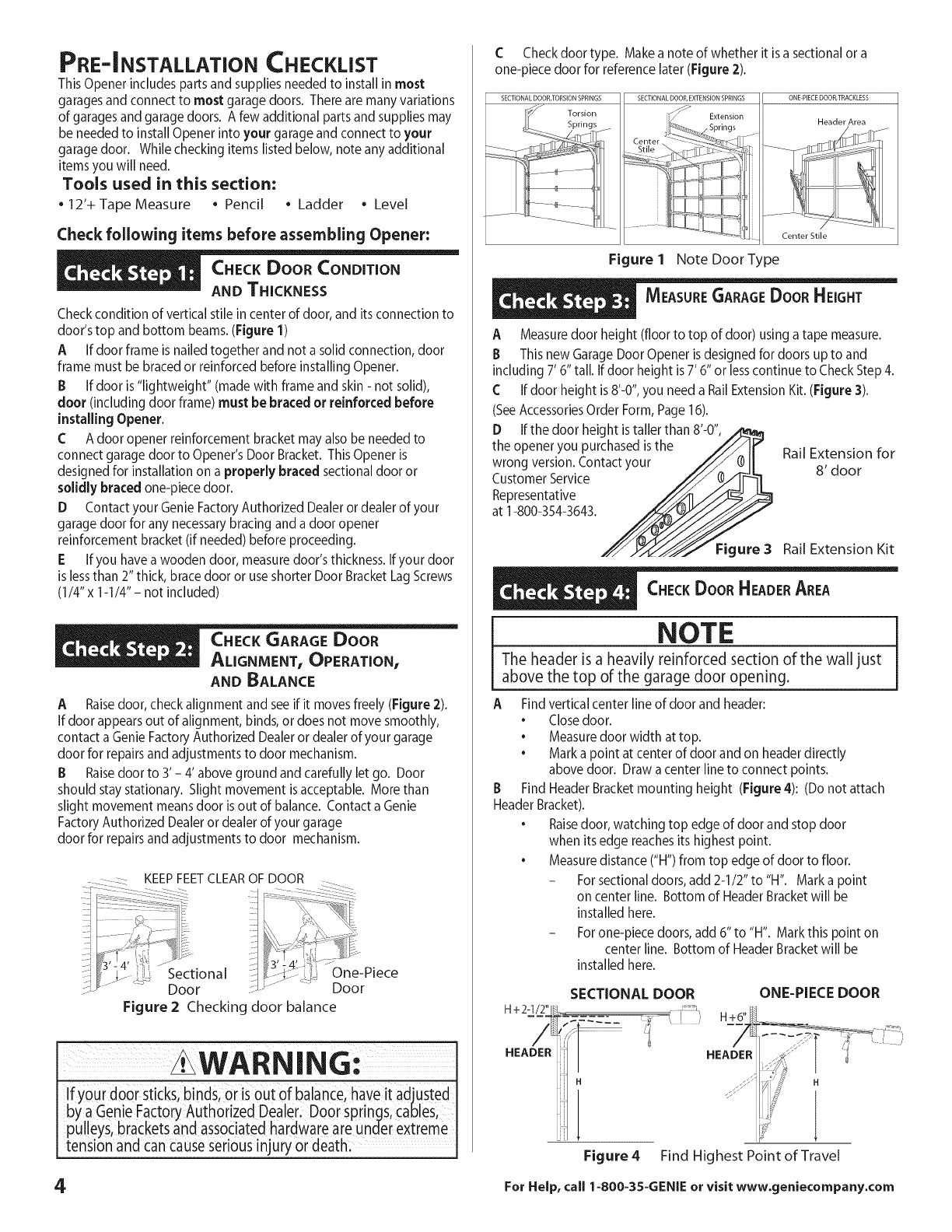

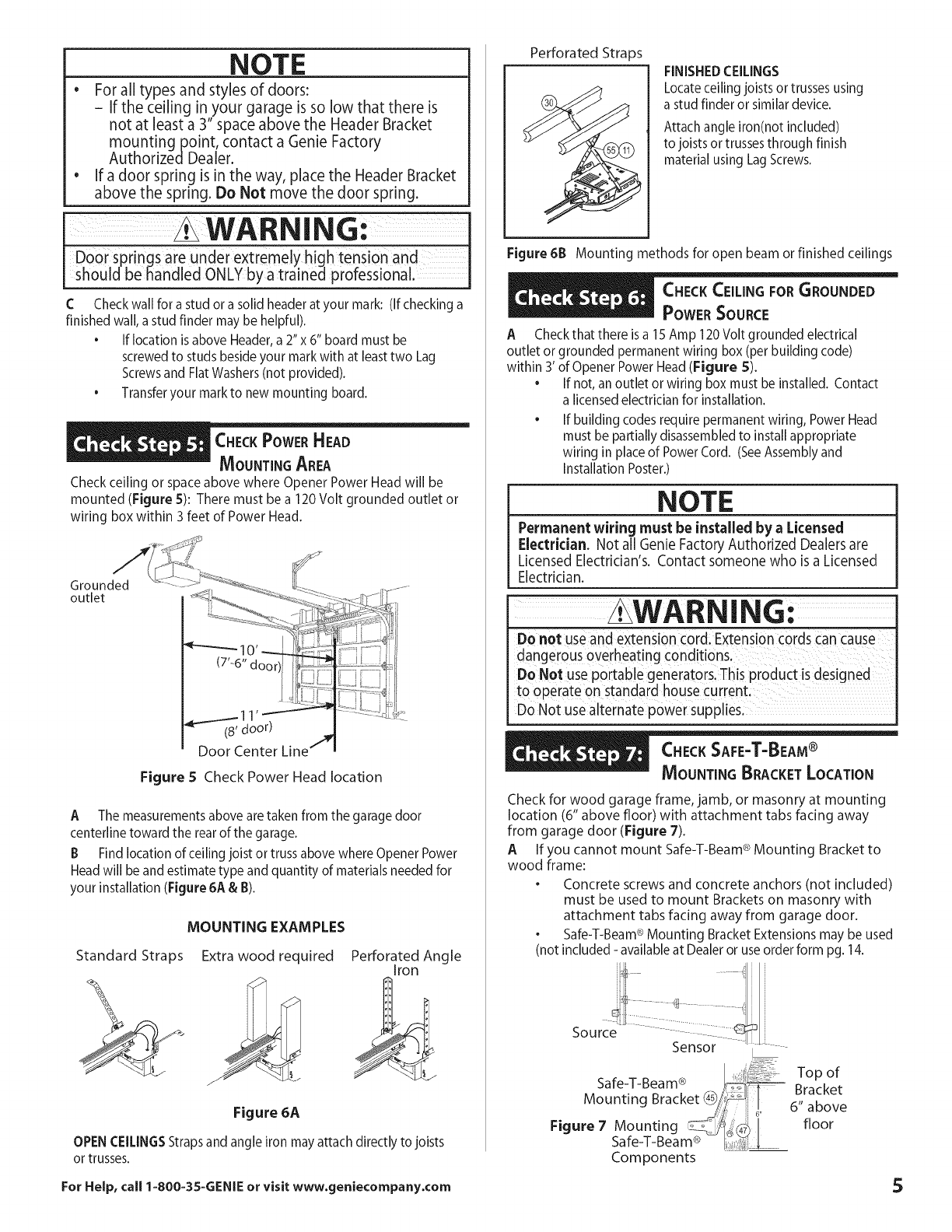

PRE=INSTALLATION CHECKLIST
This Opener includes parts and supplies needed to install in most
garages and connect to most garage doors. There are many variations
of garages and garage doors. A few additional parts and supplies may
be needed to install Opener into your garage and connect to your
garage door. While checking items listed below, note any additional
items you will need.
Tools used in this section:
•12% Tape Measure •Pencil •Ladder •Level
Check following items before assembling Opener:
Check condition of vertical stile in center of door, and its connection to
door's top and bottom beams. (Figure 1)
AIf door frame is nailed together and not a solid connection, door
frame must be braced or reinforced before installing Opener.
B If door is "lightweight" (made with frame and skin - not solid),
door (including door frame) must be braced or reinforced before
installing Opener.
CA door opener reinforcement bracket may also be needed to
connect garage door to Opener's Door Bracket. This Opener is
designed for installation on a properly braced sectional door or
solidly braced one-piece door.
DContact your Genie Factory Authorized Dealer or dealer of your
garage door for any necessarybracing and a door opener
reinforcement bracket (if needed) before proceeding.
E If you have a wooden door, measuredoor's thickness. If your door
is lessthan 2" thick, brace door or useshorter Door Bracket LagScrews
(1/4" x 1-1/4"- not included)
AND BALANCE
ARaisedoor, check alignment and seeif it moves freely (Figure 2).
If door appears out of alignment, binds, or does not move smoothly,
contact a Genie Factory Authorized Dealer or dealer of your garage
door for repairs and adjustments to door mechanism.
B Raisedoor to 3' - 4' above ground and carefully let go. Door
should stay stationary. Slight movement is acceptable. More than
slight movement meansdoor is out of balance. Contact a Genie
Factory Authorized Dealer or dealer of your garage
door for repairs and adjustments to door mechanism.
....::::-:::::: KEEP FEET CLEAR OF DOOR
One-Piece
Door
Figure 2 Checking door balance
WARNING:
Ifyour door sticks, binds, or is out of balance, have it adjusted
by a Genie Factory Authorized Dealer. Door springs, cables,
pulleys, brackets and associatedhardware are under extreme
tension and can cause seriousinjury or death.
4
C Check door type. Makeanoteofwhetheritisasectionalora
one-piece door for reference later (Figure 2).
SECTIONAL DOOR,TORSION SPRINGS SECTIONAL DOOR, EXTENSION SPRINGS ONEPIECEDOOR,TRACKLESS
Header Area
Center Stile
Figure 1 Note Door Type
AMeasuredoor height (floor to top of door) using a tape measure.
B This new Garage Door Opener is designed for doors up to and
including 7' 6" tall. If door height is7' 6" or lesscontinue to Check Step 4.
C If door height is 8'-0", you need a Rail Extension Kit. (Figure 3).
(SeeAccessoriesOrder Form, Page 16).
DIf the door height is taller than 8'-0",
the opener you purchased isthe Rail Extension for
wrong version. Contact 8' door
Customer Service
Representative
at 1-800-354-3643.
Figure 3 Rail Extension Kit
NOTE
The header is a heavily reinforced section of the wall just
above the top of the garage door opening.
AFind vertical center line of door and header:
•Close door.
•Measuredoor width at top.
•Marka point at center of door and on header directly
above door. Draw a center line to connect points.
B Find Header Bracketmounting height (Figure 4): (Do not attach
Header Bracket).
•Raisedoor, watching top edge of door and stop door
when its edge reachesits highest point.
•Measuredistance ("H") from top edge of door to floor.
- Forsectional doors, add 2-1/2" to "H". Mark a point
on center line. Bottom of Header Bracket will be
installed here.
- Forone-piece doors, add 6" to "H". Mark this point on
center line. Bottom of Header Bracketwill be
installed here.
SECTIONAL DOOR
H÷2_J=2_......
H
ONE-PIECE DOOR
Figure 4 Find Highest Point of Travel
ForHelp,call 1-800-3S-GENIEorvisit www.geniecompany.com
NOTE
• For all types and styles of doors:
- If the ceiling in your garage is so low that there is
not at least a 3" space above the Header Bracket
mountingpoint, contact a Genie Factory
AuthorizedDealer.
• If a door spring is in the way, place the Header Bracket
above the spring. Do Not move the door spring.
WARNING:
Door springs are under extremely high tension and
shou d be hand ed ONLYby atrained professiona.
C Check wall for a stud or a solid headerat your mark: (If checking a
finished wall, a stud finder may be helpful).
• If location is above Header,a 2"x 6" board must be
screwed to studs beside your mark with at least two Lag
Screwsand Flat Washers(not provided).
• Transfer your markto new mounting board.
Check ceiling or space above where Opener Power Head will be
mounted (Figure 5): There must be a 120Volt grounded outlet or
wiring box within 3 feet of Power Head.
Grounded
outlet
1
(8' door)
Door Center Line
Figure S Check Power Head location
A The measurements above are taken from the garage door
centerline toward the rear of the garage.
B Find location of ceiling joist or truss above where Opener Power
Head will beand estimate type and quantity of materials needed for
your installation (Figure 6A & B).
MOUNTING EXAMPLES
Standard Straps Extra wood required Perforated Angle
Iron
Figure 6A
OPENCEILINGSStrapsand angle iron may attach directly to joists
or trusses.
For Help, call 1=800=35=GENIEor visit www.geniecompany.com
Perforated Straps FINISHEDCEILINGS
Locateceilingjoistsortrussesusing
astudfinderorsimilardevice.
Attach angle iron(not included)
to joists or trusses through finish
material using LagScrews.
Figure 6B Mounting methods for open beam or finished ceilings
POWERSOURCE
A Check that there is a 15 Amp 120 Volt grounded electrical
outlet or grounded permanent wiring box (per building code)
within 3' of Opener Power Head(Figure S).
• If not, an outlet or wiring box must be installed. Contact
a licensed electrician for installation.
If building codes require permanent wiring, Power Head
must be partially disassembled to install appropriate
wiring in place of Power Cord. (SeeAssembly and
Installation Poster.)
NOTE
Permanent wiring must be installed by a Licensed
Electrician. Not all Genie Factory Authorized Dealers are
Licensed Electrician's. Contact someone who is a Licensed
Electrician.
WARNING:
Do not use and extension cordi Extension cords Can cause
dangerous overheating COnditions:
Do NOt Use p0rtable generat0rs: This pr0duct isdesigned
to operate on standard house current;
DoNot use alternate power supplies.
MOU_ lJ.......... n .......,......NNTINGBRACKET LOCATIO
Check for wood garage frame, jamb, or masonry at mounting
location (6" above floor) with attachment tabs facing away
from garage door (Figure 7).
A If you cannot mount Safe-T-Beam ® Mounting Bracket to
wood frame:
.Concrete screws and concrete anchors (not included)
must be used to mount Brackets on masonry with
attachment tabs facing away from garage door.
Safe-T-Beam®Mounting Bracket Extensions may be used
(not included - available at Dealer or useorder form pg. 14.
I
_i_ /...........: Topof
Safe-T-Beam ® Bracket
Mounting Bracket@/_ /6"
_i _rr above
Figure 7 Mounting I floor
Safe-T-Bea _ ......
Components
5

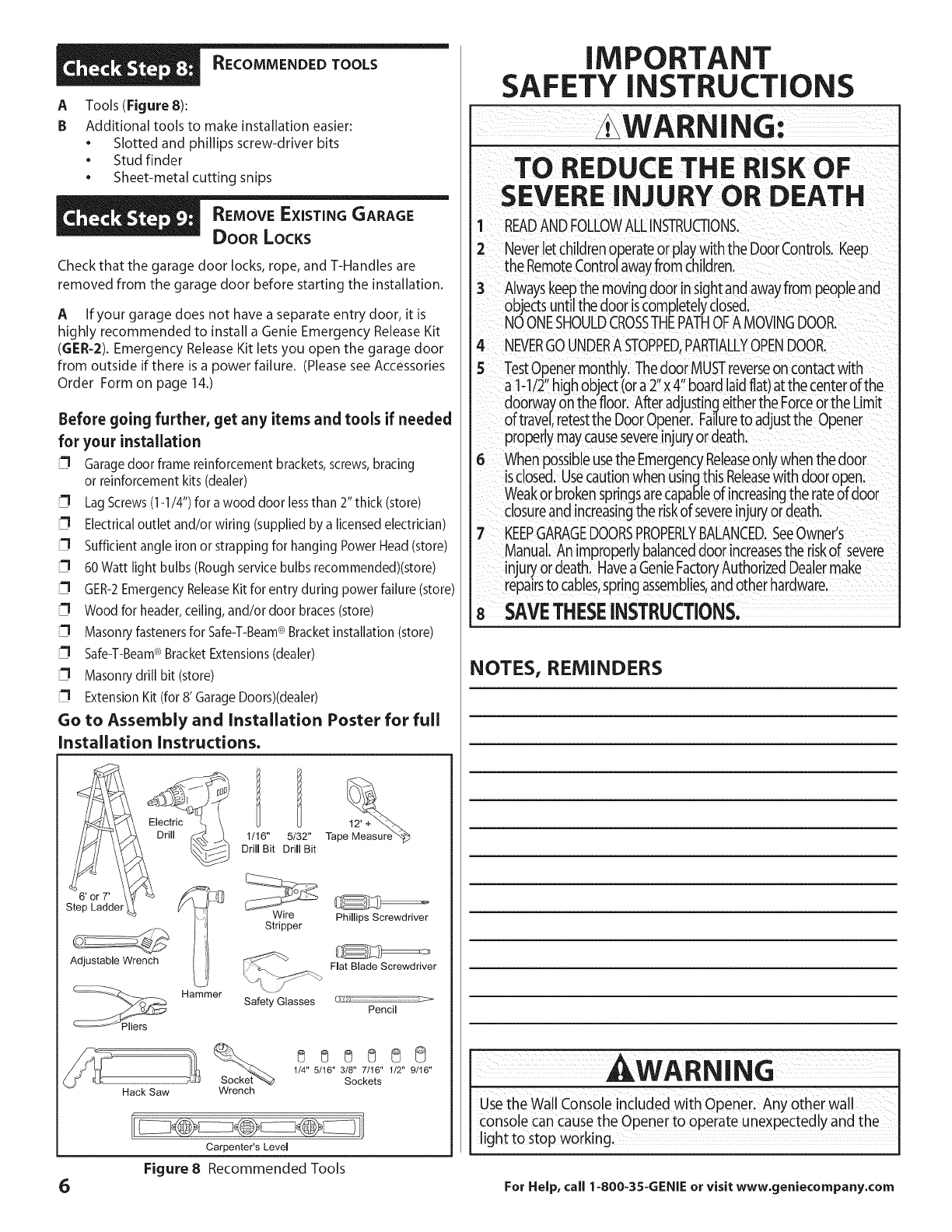

ATools(FigureS):
B Additional tools to make installation easier:
• Slotted and phillips screw-driver bits
• Stud finder
• Sheet-metal cutting snips
Check that the garage door locks, rope, and T-Handles are
removed from the garage door before starting the installation.
AIf your garage does not have a separate entry door, it is
highly recommended to install a Genie Emergency Release Kit
(GER-2). Emergency Release Kit lets you open the garage door
from outside if there is a power failure. (Please see Accessories
Order Form on page 14.)
Before going further, get any items and tools if needed
for your installation
Garage door frame reinforcement brackets, screws, bracing
or reinforcement kits (dealer)
Lag Screws(1-1/4") for a wood door lessthan 2" thick (store)
Electrical outlet and/or wiring (supplied by a licensed electrician)
Sufficient angle iron or strapping for hanging Power Head(store)
60 Watt light bulbs (Rough service bulbs recommended)(store)
GER-2Emergency ReleaseKit for entry during power failure (store)
Wood for header, ceiling, and/or door braces(store)
®
Masonry fasteners for Safe-T-Beam Bracket installation (store)
Safe-T-Beam®Bracket Extensions(dealer)
Masonry drill bit (store)
Extension Kit (for 8' Garage Doors)(dealer)
Go to Assembly and Installation Poster for full
Installation Instructions.
Adjustable Wrench
Hammer
1t16" 5/32" Tape Measure'_
Drill Bit Drill Bit
Wire
Stripper
Safety Glasses
Phillips Screwdriver
Flat Blade Screwdriver
CF i_ ::: :: ....................
Pencil
Hack Saw Wrench
1/4" 5/I6" 3/8" 7/16" 1/2" 9/16"
Sockets
6
Carpenter's Level
Figure 8 Recommended Tools
IMPORTANT
SAFETY INSTRUCTIONS
!LWARNING:
TO REDUCE THE RISK OF
SEVERE iNJURY OR DEATH
1 READANDFOLLOWALLINSTRUCTIONS.
2 Neverlet childrenoperateor playwith the DoorControls.Keep
the RemoteControlawayfrom Children.
3 Alwayskeepthe movingdoor insightand awayfrom peopleand
objectsuntil the door iscompletelyclosed.
NOONESHOULDCROSSTHEPATHOFA MOVINGDOOR.
4 NEVERGOUNDERA STOPPED,PARTIALLYOPENDOOR.
5TestOpenermonthly. The,door MUSTreverseon contactwith
a 1-1/2 highobject (ora 2 x4 boardlaidflat)atthe centerofthe
doorwayonthe floor. Afteradjustingeitherthe Forceorthe Limit
of travel,retestthe DoorOpener Failureto adjustthe Opener
properly maycausesevereinjury ordeath.
6Whenpossibleusethe EmergencyReleaseony when the door
isclosed. Usecautionwhen usingthis Releasewith dooropen.
Weakor brokenspringsarecapableof increasingthe rateof door
closureand increasingthe riskof severeinjury ordeath,
7KEEPGARAGEDOORSPROPERLYBALANCED.SeeOwner's
Manual.An improperlybalanceddoor increasesthe riskof severe
injury ordeath. HaveaGenieFactoryAuthorizedDealermake
repairsto cables,springassemblies,andother hardware,
8SAVETHESEINSTRUCTIONS.
NOTES, REMINDERS
AWARNING
use the Wall Console induded_ith opener:Any, other wall
console can causethe Opener to operate unexPectedly and the
light to stop working. 1
For Help, call 1-800-35-GENIE or visit www.geniecompany.com
_DJUSTMENTS
SET LIMIT SWITCHES AND
FORCECONTROLS
Coarse Setting of Limit Switches
ASetting Close Limit Switch
. Check that Carriage Assembly is disengaged.
. With garage door fully closed, slide Close Limit Switch
until it is aligned with the center of the
Carriage Assembly.
. Tighten Set Screw. Do Not over-tighten.
B Setting Open Limit Switch
. Manually open garage door to full open position.
. Slide Open Limit Switch until it is aligned with the center
of the Carriage Assembly.
. Tighten Set Screw. Do not over-tighten.
. Re-engage Carriage Assembly.
Setting Force Controls and Final Adjustment of
Limit Switches
i, The garage door opens rapidlyi and Cancause serious
: injury or deathl
; Keep the path Clear:
'Position the ladde[ to the Side of the Power Head Soit iS
Clear ofall moving parts ofthe Opener and the door,
Set the dooi Opener to use the minimum force needed
to open the door.
CLOSE ADJUSTMENT
On front panel of Power Head find adjusting screw
marked "CLOSE" (Figure 9).
•Gently turn screw counterclockwise until it stops.
- Very little force is required to turn adjusting screw.
•Press Wall Console to close garage door.
- Observe if door stops at "CLOSE" limit switch.
If door is fully closed--adjustment is finished.
Go to "OPEN" Adjustment.
- If door stops but is not fully closed,
a. Measure distance between bottom of door
and floor.
b. Move "CLOSE" Limit Switch that same distance
toward door.
- If door stops and/or reverses before reaching the
"CLOSE" Limit Switch
a. Slightly increase CLOSEForce setting (clockwise).
- If door reverses after contacting floor, move Limit
Switch toward Power Head.
- If door fails to move, check Safe-T-Beam ® System. See
Troubleshooting Section, pages 10 and 11.
A
o
NOTE
•Little effort isrequiredto turn the ForceAdjusting Knobs.
•If the door stops moving while opening or closing, adjust the
Open Forceor CloseForceControls slightly clockwise (to
slightly increasethe force) and retry the step.
•The Open Forceand CloseForceControls are to be setto the
minimum force necessaryto ensure the door smoothly opens
and closescompletely.
•Ensurethe CarriageAssemblyis engaged and is between the
two Limit Switches before operating the Opener.
The garaged0oi Opensrapidly;and can causeSeiOus
injury Ordeath:
Keepthe path clear:
Positionthe ladder to the side Ofthe Power Head so it
is €earof al! mo_ing parts of the Opener and the door
i; Set the door opener to usethe minimum force needed
to open the door:
IB OPEN ADJUSTMENT
•On front panel of Power Head find adjusting
screw marked "OPEN" (Figure 9).
•Gently turn screw counterclockwise until it stops.
- Very little force is required to turn
adjusting screw.
•Press Wall Console to open garage door.
- Observe if door stops at "OPEN" limit switch.
If door is fully open--adjustment is finished.
- If door stops but is not fully open,
a. Measure distance between bottom of
door and top of door opening.
b. Move"OPEN" Limit Switch that same
distance toward Power Head.
- If door stops before reaching the "OPEN"
Limit Switch
a. Slightly increase OPEN Force
setting (clockwise).
- If door fails to move, see Troubleshooting
Section, pages 10 & 11.
C Run Door Opener
•Cycle opener a few times to double check
settings. Repeat adjustment steps as necessary.
OPEN
FORCE ...
LOCATED
UNDER
LIGHT
COVER
CLOSE /
FORCE
CLASS 2 SUPPLY
18-30 VOLTS
Figure 9 Making Force Adjustments
(Located Lower Right Corner).
For Help, call 1-800-35=GENIE or visit www.geniecompany.com 7

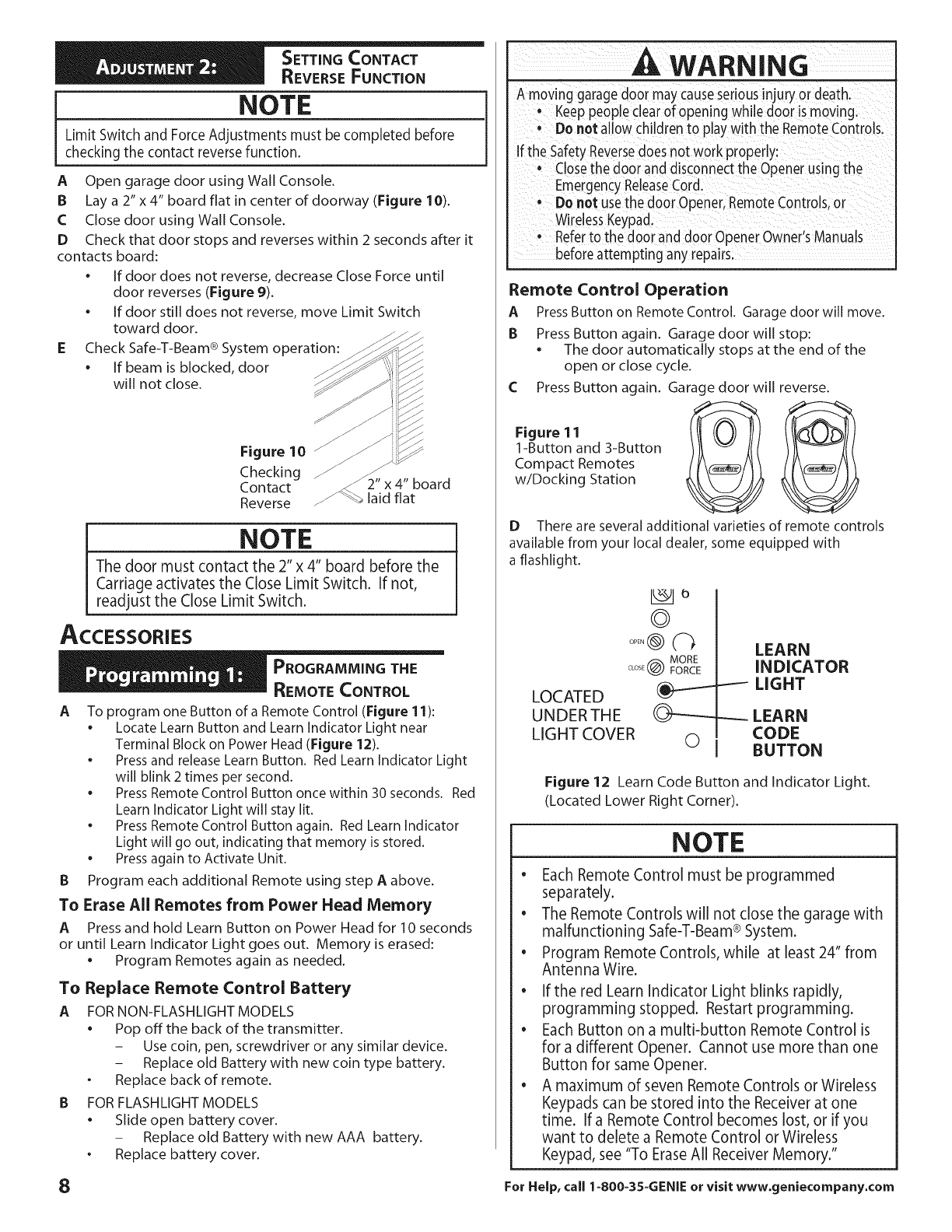

SETTING CONTACT
REVERSEFUNCTION
NOTE
Limit Switch and ForceAdjustments must be completed before
checking the contact reversefunction.
AOpen garage door using Wall Console.
B Lay a 2" x 4" board flat in center of doorway (Figure 10).
CClose door using Wall Console.
DCheck that door stops and reverses within 2 seconds after it
contacts board:
•If door does not reverse, decrease Close Force until
door reverses (Figure 9).
•If door still does not reverse, move Limit Switch
toward door.
E Check Safe-T-Beam ®System operation:
•If beam is blocked, door
will not close.
Figure 10 F
Checking _J 2" x 4" board
Contact /J_-_ laid flat
Reverse
NOTE
The door must contact the 2" x 4" board before the
Carriage activates the Close Limit Switch. If not,
readjust the Close Limit Switch.
ACCESSORIES
PROGRAMMING THE
REMOTE CONTROL
ATo program one Button of a Remote Control (Figure 11):
•Locate Learn Button and Learn Indicator Light near
Terminal Block on Power Head (Figure 12).
•Press and release Learn Button. Red Learn Indicator Light
will blink 2 times per second.
•Press Remote Control Button once within 30 seconds. Red
Learn Indicator Light will stay lit.
•Press Remote Control Button again. Red Learn Indicator
Light will go out, indicating that memory is stored.
•Press again to Activate Unit.
B Program each additional Remote using step Aabove.
To Erase All Remotes from Power Head Memory
APress and hold Learn Button on Power Head for 10 seconds
or until Learn Indicator Light goes out. Memory is erased:
•Program Remotes again as needed.
To Replace Remote Control Battery
AFOR NON-FLASHLIGHTMODELS
•Pop off the back of the transmitter.
- Use coin, pen, screwdriver or any similar device.
- Replace old Battery with new coin type battery.
o Replace back of remote.
BFOR FLASHLIGHT MODELS
•Slide open battery cover.
- Replace old Battery with new AAA battery.
o Replace battery cover.
AWARNING
Amoving garagedoor maycauseserious njury or death.
--_ Keeppeopleclearof openingwhile door is moving.
Do not allow children to play with the RemoteControls,
Ifthe SafetyReversedoesnot work properly:
" Closethe door anddisconnectthe Openerusingthe
EmergencyReleaseCord.
,Donot usethe door Opener,RemoteControls,or
WirelessKeypad.
• Referto the door anddoor 0 penerOwner'sManuals
beforeattempting any repairs.
Remote Control Operation
A
B
Figure 1 1
1-Button and 3-Button
Compact Remotes
w/Docking Station
Press Button on Remote Control. Garage door will move.
Press Button again. Garage door will stop:
•The door automatically stops at the end of the
open or close cycle.
Press Button again. Garage door will reverse.
D There are several additional varieties of remote controls
available from your local dealer, some equipped with
a flashlight.
LOCATED
UNDERTHE
LIGHT COVER
_b
©
....@(h
CLOSE@ MOREFORCE
©
LEARN
INDICATOR
_-- LIGHT
---- LEARN
CODE
BUTTON
Figure 12 Learn Code Button and Indicator Light.
(Located Lower Right Corner).
NOTE
eEach Remote Control must be programmed
separately.
• The Remote Controls will not close the garage with
malfunctioning Safe-T-Beam® System.
• Program Remote Controls, while at least 24" from
Antenna Wire.
• If the red Learn Indicator Light blinks rapidly,
programming stopped. Restart programming.
• Each Button on a multi-button Remote Control is
for a different Opener. Cannot use more than one
Button for same Opener.
• A maximum of seven Remote Controls or Wireless
Keypads can be stored into the Receiver at one
time. If a Remote Control becomes lost, or if you
want to delete a Remote Control or Wireless
Keypad, see "To EraseAll Receiver Memory."
8 For Help, call 1-800-3S-GENIE or visit www.geniecompany.com

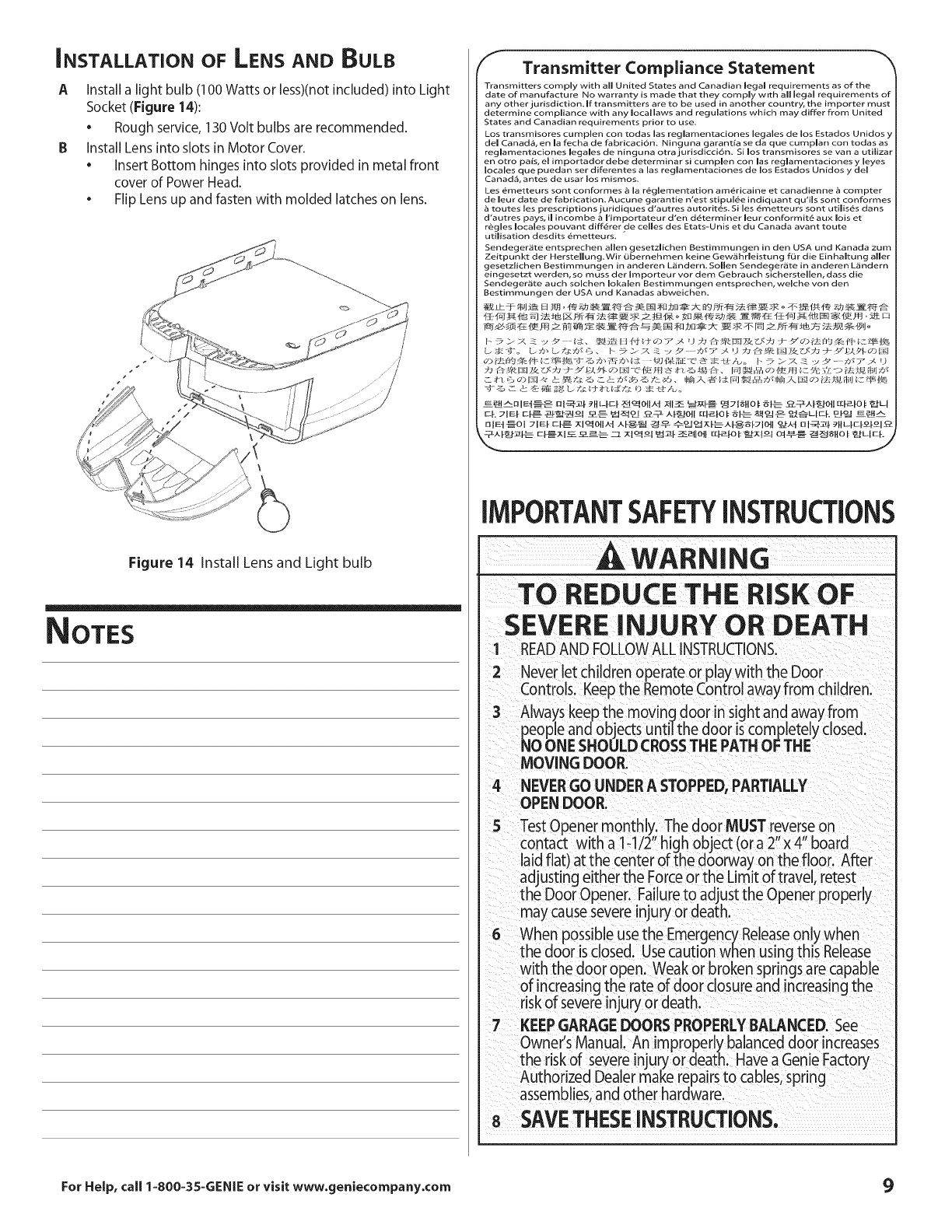

iNSTALLATiON OF LENSAND BULB
AInstall a light bulb (1O0Watts or less)(not included) into Light
Socket (Figure 14):
•Rough service, 130 Volt bulbs are recommended.
BInstall Lens into slots in Motor Cover.
•Insert Bottom hinges into slots provided in metal front
cover of Power Head.
•Flip Lens up and fasten with molded latches on lens.
Figure 14 Install Lens and Light bulb
NOTES
Transmitter Compliance Statement
Transmitters comply with all United States and Canadian legal requirements as of the
date of manufacture No warranty is made that they comply with all legal requirements of
any other jurisdiction.If transmitters are to be used in another country, the importer must
determine compliance with any local laws and regulations which may differ from United
States and Canadian requirements prior to use.
Los transmisores cumplen con todas las reglamentaciones [egales de los Estados Unidos y
del Canad&, en [a fecha de fabricaci6n. Ninguna garantfa se da que cumplan con todas as
reglamentaciones legales de ninguna otra jurisdicci6n. Si los transmisores se van a utilizar
en otro pals, el importador debe determinar si cumplen con las reglamentaciones y [eyes
locales que puedan ser diferentes a las reglamentaciones de los Estados Unidos y del
Canad& antes de usar los mismos.
Les emetteurs sont conformes _ la reglementation am_ricaine et canadienne _ compter
de leur date de fabrication. Aucune garantie n'est stipul6e indiquant qu'ils sont conformes
routes [es prescriptions juridiques d'autres autorit_s. Si les _metteurs sont utilis_s dans
d'autres pays, i[ incombe a I'importateur d'en d_terminer leur conformit_ aux lois et
regles locales pouvant diff_rer de celes des Etats-Unis et du Canada avant toute
utilisation desdits _metteur£
Sendeger_ite entsprechen allen gesetzlichen Bestimmungen in den USA und Kanada zum
Zeitpunkt der Herstellung,Wir Obernehmen keine Gew_ihrleistung for die Einhaltung aller
gesetzlichen Bestimmungen in anderen Lindem. Sollen Sendegerite in anderen L_ndem
eingesetzt werden, so muss der Importeur vor dem Gebrauch sicherstellen, dass die
Sendeger_te auch solchen Iokalen Bestimmungen entsprechen, wekhe yon den
Bestimmungen der USA und Kanadas abweichen.
nlF+-t iOl 71El Ef-_--_ xlgqlAt +,"-f&_-I _-,'q:>- _-_°_;q_i,q_SFTlO_l o_,,ti _lq_t _HI-F.F_P--IS_
F&_,_I _l-@_Cl_____ :::z _Cl c" I _'_f __allOtl [qe-l-oi: _;q°l o:i _ z_oHof
IMPORTANTSAFETYINSTRUCTIONS
WARNING--
TO REDUCE THE RISK OF
SEVERE INJURY OR DEATH
1 READAND FOLLOWALLINSTRUCTIONS.
2 Never let children operate or play w th the Doo_
Controls. Keepthe Remote Control away from children.
3 Always keep the moving door in sight and away from
people and objects until the door iscompletely closed.
NO ONE SHOULD CROSSTHE PATH OF THE
MOVING DOOR.
4 NEVERGO UNDERA STOPPED,PARTIALLY
OPEN DOOR.
5Test Opener monthly,. The door MUST reverse on
contact with a 1-1/2 high object (ora 2 x 4 board
laid flat) at the center of the doorway on the floor. After
adjusting either the Forceor the Limit of travel, retest
the Door Opener. Failureto adjust the Opener properly
may causesevere injury or death,
8 When possibleusethe EmergencyReleaseonly when
the door isc osed. Usecaution when using this Reease
with the dooropen. Weakor brokenspringsare capable
of increasingthe rateof door closureand increasingthe
riskof severeinjuryor death.
7 KEEPGARAGEDOORS PROPERLYBALANCED. See
Owner's Manual. An improperly balanced door increases
the risk of severe injuryor death. Havea Genie Factory
Authorized Dealer make repairs to cables,spring
assemblies,and other hardware.
8 SAVETHESEINSTRUCTIONS.
For Help, call 1-800-3S-GENIE or visit www.genie¢ompany.com

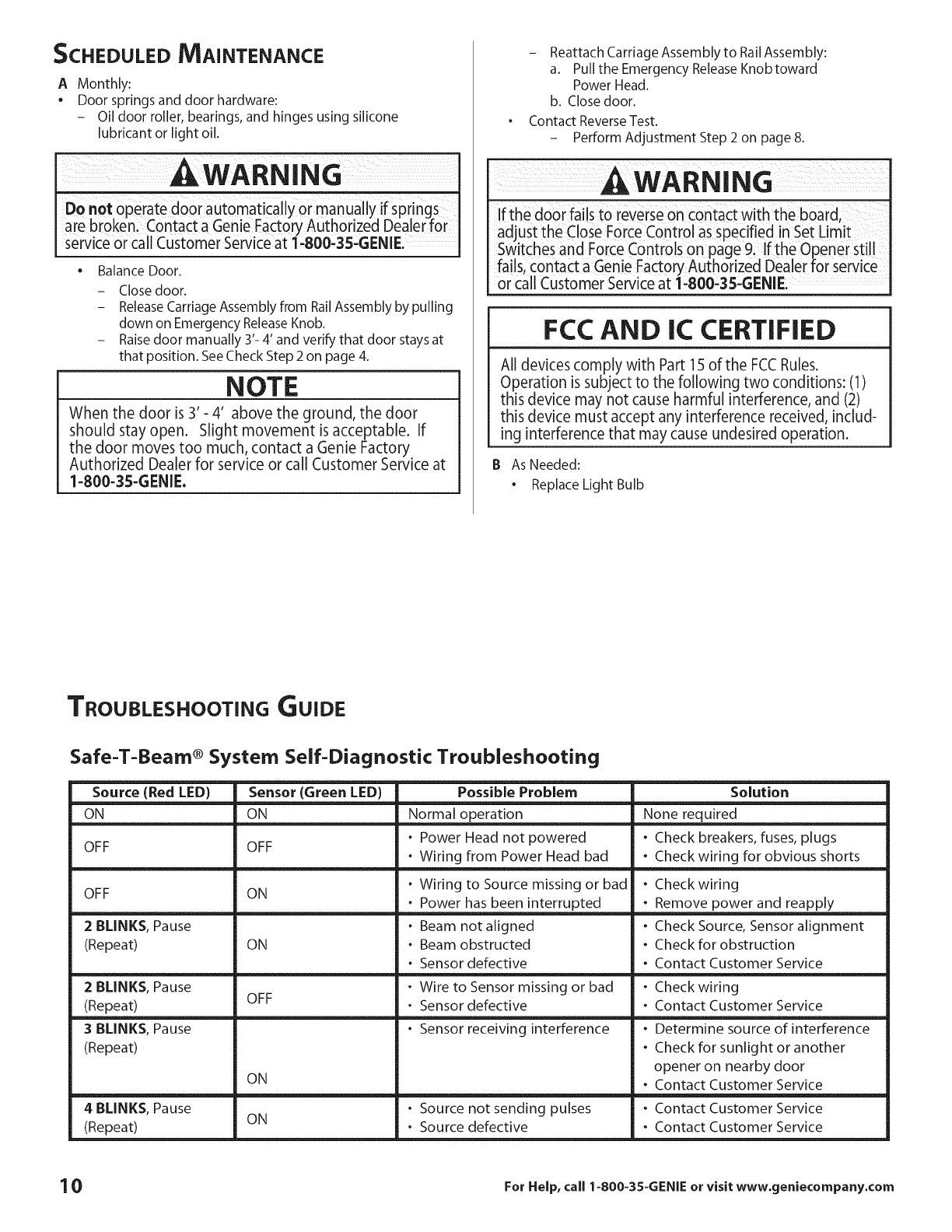

SCHEDULED MAINTENANCE
A
o
Monthly:
Door springs and door hardware:
- Oil door roller, bearings, and hinges using silicone
lubricant or light oil.
AWARNIN J
--Do not operate door auto atiCally 0r man_al/y if Springs
are broken, Contact a Genie Fact0ry Authorized Dealer for
service or call Customer Service at 1,800,35'GENIE. !
•Balance Door.
- Close door.
- ReleaseCarriage Assembly from RailAssembly by pulling
down on Emergency Release Knob.
- Raisedoor manually 3'- 4' and verify that door stays at
that position. See Check Step 2 on page 4.
NOTE
When the door is 3'- 4' above the ground, the door
should stay open. Slight movement isacceptable. If
the door moves too much, contact a Genie Factory
Authorized Dealer for service or call Customer Service at
1=800=35=GENIE.
Reattach Carriage Assembly to Rail Assembly:
a. Pull the Emergency Release Knobtoward
Power Head.
b. Close door.
Contact Reverse Test,
- Perform Adjustment Step 2 on page 8.
AWARNING
Ifthe door fails to reverse on contact with the board,
adjust the Close Force Control as specified in Set Limit
Switches and Force Controls on page 9. If the Opener still
fails, contact a Genie Factory Authorized Dealer for service
or call Customer Service at 1-800-35-GENIE.
FCC AND IC CERTIFIED
All devices comply with Part 15 of the FCCRules.
Operation is subject to the following two conditions: (1)
this device may not cause harmful interference,and (2)
this device must accept any interference received, includ-
ing interference that may cause undesired operation.
B As Needed:
•Replace Light Bulb

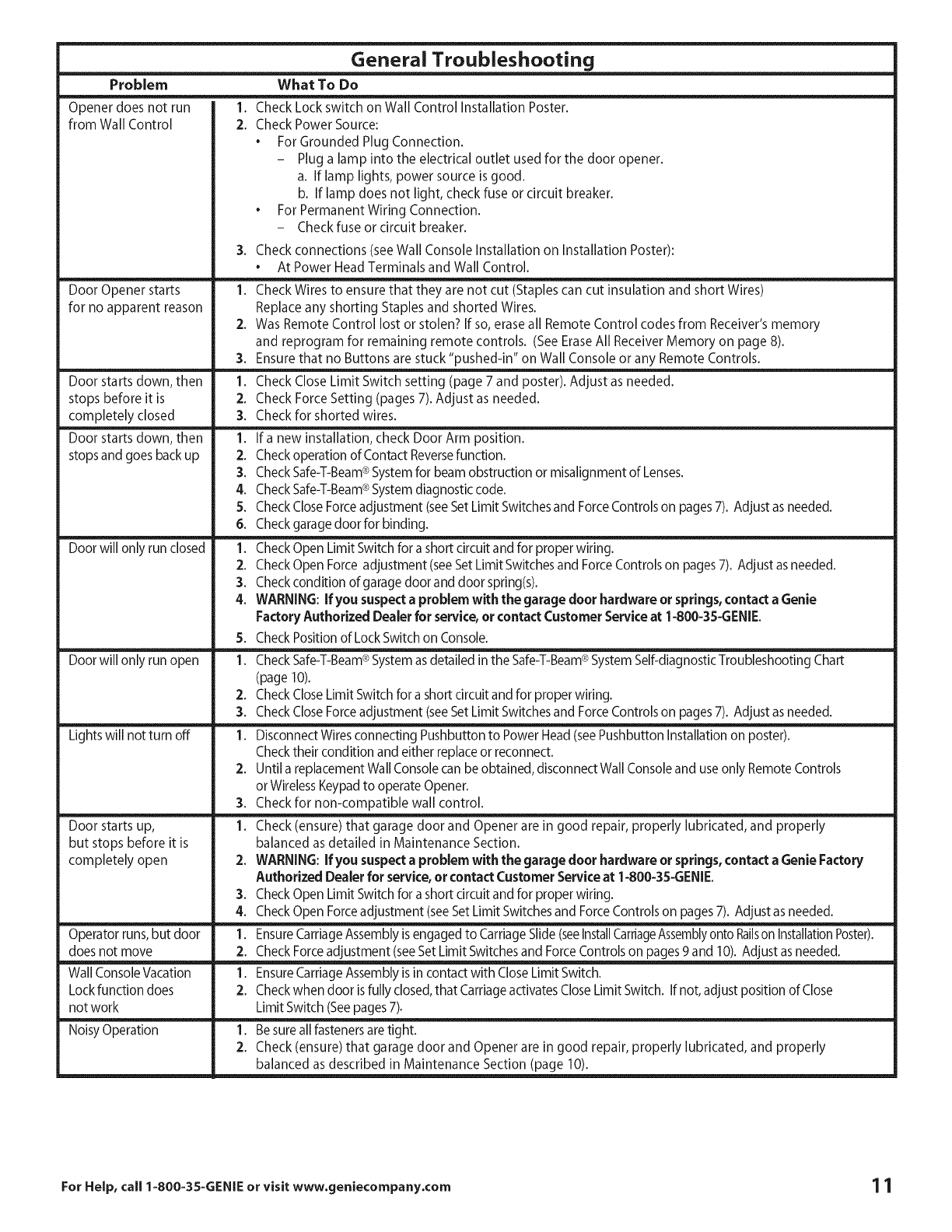

TROUBLESHOOTING GUIDE
Safe=T=Beam ®System Self=Diagnostic Troubleshooting
Source (Red LED)
ON
OFF
OFF
2BLINKS, Pause
(Repeat)
2 BLINKS, Pause
(Repeat)
3BLINKS, Pause
(Repeat)
4 BLINKS, Pause
(Repeat)
Sensor (Green LED)
ON
OFF
ON
ON
OFF
ON
ON
Possible Problem
Normal operation
o Power Head not powered
oWiring from Power Head bad
o Wiring to Source missing or bad
o Power has been interrupted
o Beam not aligned
o Beam obstructed
o Sensor defective
oWire to Sensor missing or bad
oSensor defective
oSensor receiving interference
.Source not sending pulses
.Source defective
Solution
None required
.Check breakers, fuses, plugs
.Check wiring for obvious shorts
.Check wiring
.Remove power and reapply
.Check Source, Sensor alignment
.Check for obstruction
.Contact Customer Service
oCheck wiring
oContact Customer Service
oDetermine source of interference
oCheck for sunlight or another
opener on nearby door
.Contact Customer Service
oContact Customer Service
.Contact Customer Service
10 For Help, call 1=800-35-GENIE or visit www.geniecompany.com
Problem
Openerdoesnot run
from WallControl
Door Opener starts
for no apparent reason
Door starts down, then
stops before it is
completely closed
Door starts down, then
stops and goes backup
Door will only run closed
Doorwill onlyrunopen
Lights will not turn off
Door startsup,
but stops beforeit is
completelyopen
Operator runs,but door
does not move
Wall ConsoleVacation
Lockfunction does
not work
Noisy Operation
General Troubleshooting
What To Do
1. Check Lock switch on Wall Control Installation Poster.
2. Check Power Source:
•For Grounded Plug Connection.
- Plug a lamp into the electrical outlet used for the door opener.
a. If lamp lights, power source is good.
b. If lamp does not light, check fuse or circuit breaker.
•For Permanent Wiring Connection.
- Check fuse or circuit breaker.
3. Check connections (see Wall Console Installation on Installation Poster):
•At Power Head Terminals and Wall Control.
1. Check Wires to ensure that they are not cut (Staples can cut insulation and short Wires)
Replace any shorting Staples and shorted Wires.
2. Was Remote Control lost or stolen? If so, erase all Remote Control codes from Receiver's memory
and reprogram for remaining remote controls. (See EraseAll Receiver Memory on page 8).
3. Ensure that no Buttons are stuck "pushed-in" on Wall Console or any Remote Controls.
1. Check Close Limit Switch setting (page 7 and poster). Adjust as needed.
2. Check Force Setting (pages 7).Adjust as needed.
3. Check for shorted wires.
1. Ifa new installation, check Door Arm position.
2. Check operation of Contact Reversefunction.
3. Check Safe-T-Beam®Systemfor beam obstruction or misalignment of Lenses.
4. Check Safe-T-Beam®System diagnostic code.
5. Check CloseForceadjustment (seeSet Limit Switchesand Force Controls on pages7). Adjust as needed.
6. Check garage door for binding.
1. Check Open Limit Switch for a short circuit and for proper wiring.
2. Check Open Force adjustment (seeSet Limit Switches and ForceControls on pages 7). Adjust as needed.
3. Check condition of garage door and door spring(s).
4. WARNING: If you suspectaproblem with the garage door hardware or springs,contact aGenie
FactoryAuthorized Dealer for service,or contact Customer Serviceat 1-800-35-GENIE.
5. CheckPosition of LockSwitch on Console.
1. CheckSafe-T-Beam®Systemas detailed in the Safe-T-Beam® System Self-diagnosticTroubleshooting Chart
(page 10).
2. CheckCloseLimit Switch for a short circuitand for proper wiring.
3. CheckCloseForceadjustment (seeSet Limit Switchesand Force Controlson pages 7). Adjust asneeded.
1. Disconnect Wires connectingPushbutton to Power Head(seePushbutton Installation on poster).
Checktheir conditionand either replaceor reconnect.
2. Until a replacement Wall Consolecanbe obtained, disconnect Wall Consoleand use only Remote Controls
or Wireless Keypadto operate Opener.
3. Checkfor non-compatible wall control.
1. Check(ensure) that garage door and Opener are in good repair, properly lubricated, and properly
balanced as detailed in Maintenance Section.
2. WARNING: If you suspectaproblem with the garage door hardware or springs,contact aGenie Factory
Authorized Dealer for service, orcontact Customer Serviceat 1-800-3S-GENIE.
3. CheckOpen Limit Switch for a short circuitand for proper wiring.
4. CheckOpen Forceadjustment (seeSetLimit Switchesand ForceControlson pages 7). Adjust as needed.
1. EnsureCarriageAssembly is engaged to CarriageSlide(seeInstallCarriageAssemblyonto RailsonInstallationPoster).
2. CheckForceadjustment (seeSet Limit Switchesand Force Controlson pages 9 and 10). Adjust as needed.
1. EnsureCarriageAssembly isin contactwith CloseLimit Switch.
2. Checkwhen door isfully closed,that Carriageactivates CloseLimit Switch. If not, adjust position of Close
Limit Switch (Seepages 7).
1. Be sure all fastenersare tight.
2. Check(ensure) that garage door and Opener are in good repair, properly lubricated, and properly
balanced as described in Maintenance Section (page 10).
For Help, call 1-800-35-GENIE or visit www.geniecompany.com 11

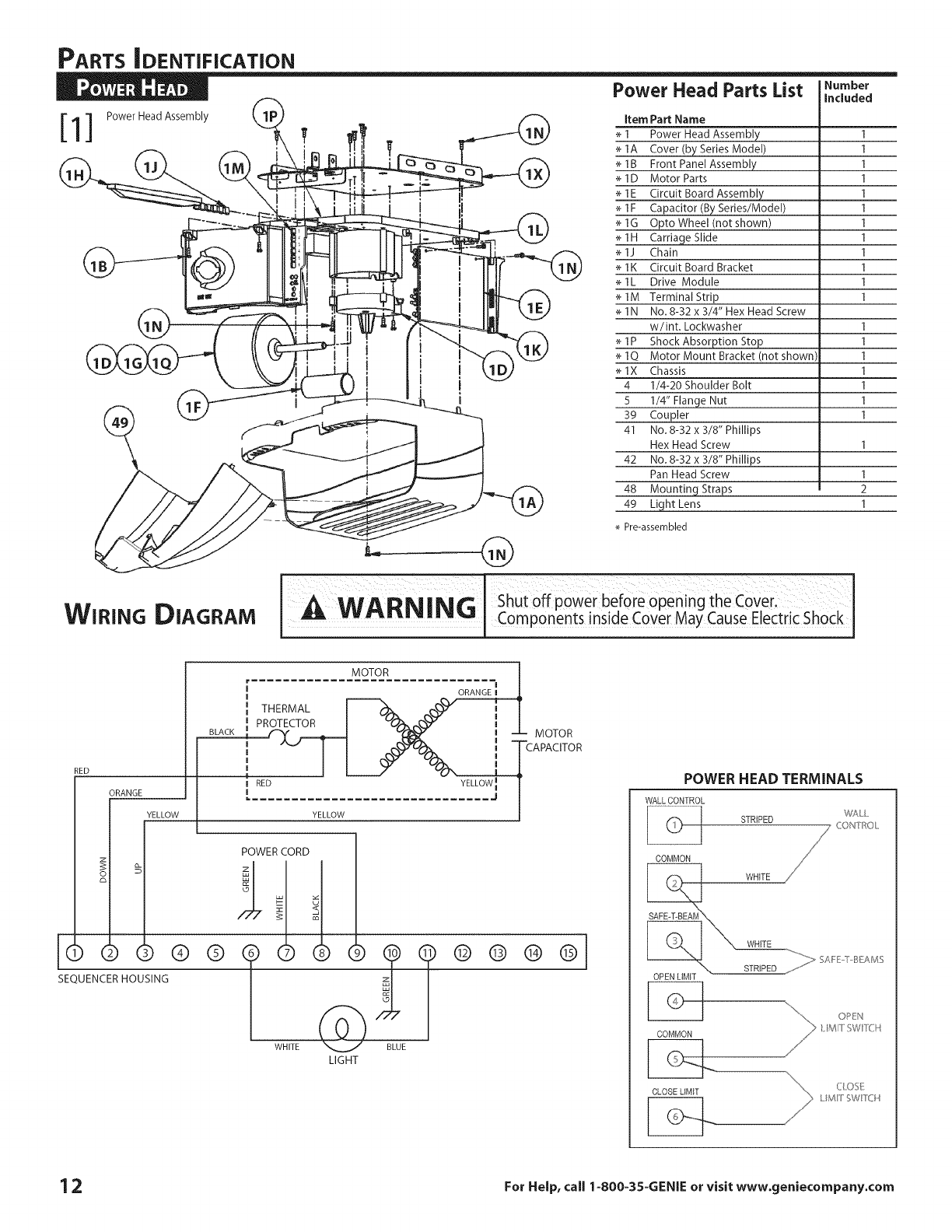

PARTS iDENTIFICATION
Head List Number
Power Parts _.auded
[1] Power Head Assembly Item Part Name
.1 Power Head Assembly 1
*1A Cover (by Series Model) 1
*1B Front Panel Assembly 1
*1D Motor Parts 1
*1E Circuit Board Assembhz 1
*1F Capacitor (By Series/Model) 1
1G Opto Wheel (not shown) 1
*1H Carriage Slide 1
*1J Chain 1
1K Circuit Board Bracket 1
*1L Drive Module 1
* 1M Terminal Strip 1
* 1N No. 8-32 x 3/4" Hex Head Screw
w/int. Lockwasher 1
1P Shock Absorption Stop 1
*1Q Motor Mount Bracket (not shown', 1
1X Chassis 1
4 1/4-20 Shoulder Bolt 1
5 1/4" Flange Nut 1
39 Coupler 1
41 No. 8-32 x 3/8" Phillips
Hex Head Screw 1
42 No. 8-32 x 3/8" Phillips
Pan Head Screw 1
48 Mountinq Straps 2
49 Light Lens 1
* Pre-assembled
WIRING DIAGFIAM [ A Shut 0ff Cower bef0re 0penilg the cdver:[Components inside Cover May Cause Electric Shock J
RED
ORANGE
2
SEQUENCER HOUSING
, M°L°R.
I I
,_,_
I THERMAL _ _i:Y I [
] PROTECTOR [ "_ ,,,,,(::_ i [
BLACK '_ _'_/ I _ MOTOR
i I
;RED YELLOW',
ij
J
POWER CORD
YELLOW YELLOW
z
/_7 _
®®®o6®®®@®®®
WHITE BLUE
LIGHT
POWERHEAD TERMINALS
WALLCONTROL
OPENLIMIT
COMMON
OPIN
IIM] SWITCH
(JO'l
CLOSELIMIT
[_. LMIT SWTCH
12 For Help, call 1-800-35-GENIE or visit www.geniecompany.com

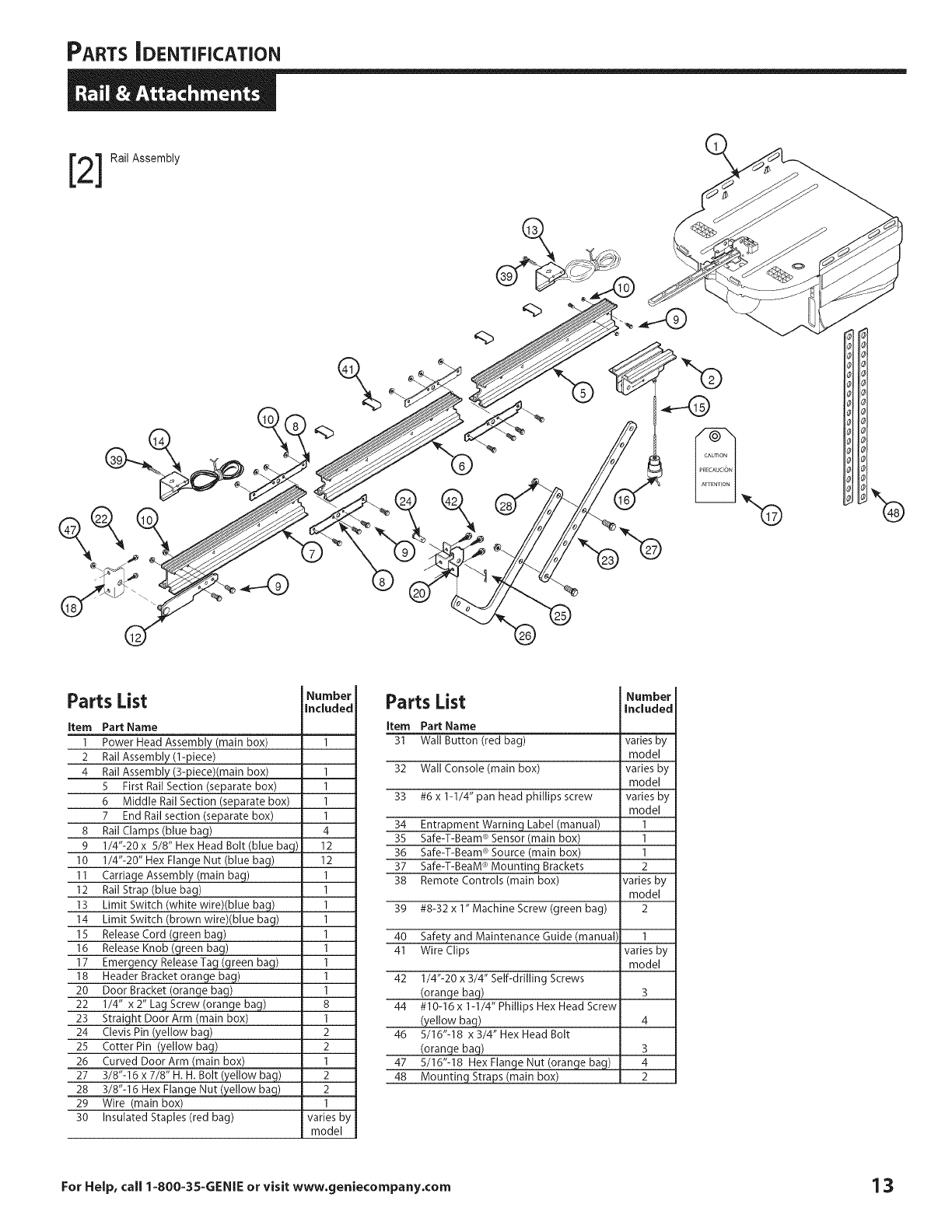

PARTS iDENTIFICATION
[2]Rail Assembly
\
Parts List
item Part Name
1 Power Head Assembly (main box)
2 RailAssembly (1-piece)
4 RailAssembly_3:piece)(main box)
5 First RailSection (separate box)
6 Middle RailSection (separate box)
7 End Railsection (separate box)
8 RailClamps (blue bag)
9 1/4"-20x 5/8" HexHead Bolt (blue bag)
10 1/4"-20" Hex Flange Nut (blue bag)
11 Carriage Assembly (main bag)
12 RailStrap (blue bag)
13 Limit Switch (white wire)(blue bag)
14 Limit Switch (brown wire)(blue bag)
15 ReleaseCord (green bag)
16 ReleaseKnob (green bag)
17 Emergency ReleaseTag (green bag)
18 Header Bracket orange bag)
20 Door Bracket (orange bag)
22 1/4" x 2" Lag Screw (orange bag)
23 Straight Door Arm (main box)
24 ClevisPin (yellow bag)
25 Cotter Pin (yellow bag)
26 Curved Door Arm (main box)
27 3/8"-16 x 7/8" H.H.Bolt (yellow bag)
28 3/8"-16 Hex Nan e Nut ( ellow ba )
29 Wire (main box)
30 Insulated Staples(red bag)
m1
I
I
I
I
4
12
12
I
I
I
I
I
I
I
I
I
8
I
2
2
I
2
2
I
variesby
model
Parts List
item Part Name
31 Wall Button (red bag)
32 Wall Console (main box)
33 #6 x 1-1/4" pan head phillips screw
34 Entrapment Warning Label (manual)
35 Safe-T-Beam®Sensor (main box)
36 Safe-T-Beam®Source (main box)
37 Safe-T-BeaM®Mountinq Brackets
38 Remote Controls (main box)
39 #8-32 x 1" Machine Screw (green bag)
40 Safety and Maintenance Guide (manual)
41 Wire Clips
42 1/4"-20 x 3/4" Self-drilling Screws
(orange bag)
44 #10-16 x 1-1/4" Phillips Hex Head Screw
(yellow bag)
46 5/16"-18 x 3/4"Hex Head Bolt
(orange bag)
47 5/16"-18 Hex Flange Nut (orange bag)
48 Mounting Straps (main box)
m
variesby
model
varies by
model
varies by
model
1
1
1
2
varies by
model
2
1
varies by
model
3
4
3
4
2
For Help, call 1-800-3S-GENIE or visit www.geniecompany.com 13
GarageDoorOpener AccessoriesOrder Form
Formulairedecommandodesaccessoirespourouvre-porte de garage
For additional accessories not shown, visit our website at www.geniecompany.com
pour lesaccessoires suppl4mentaires pas montr4, visiter notr_ site web _ www.geniecompany.com
(GKT-1-390) 1-ButtonCompactRemote-Allowsremoteoperationofgaragedoor.
1-BoutennerT_l_cornrnaadecornpacte- Permettreoperation_loign"deportedegarage.
P/N 36248R 536.50
(GiFT-I-390) 1-ButtonFlashlightTransmitter- RemoteControllerwithaFlashlight.
1-houtenner['_rnetteurde[arnpedepoche- Lecontr61eur_loign_avecdelampedepoche.
P/N 35657R 545.00
{GICT-3-390)3-Bu_enCornpactBernete-AIIowsremoteoperationof3garagedoors.
3=boutennerlaT_l_cornrnandecornpacte- Permettreoperation _loign'
troisportes de ara e. P/N 36223R 550.00
(GWC-2W) Deluxe Wall Console - OperatesGarageDoor.Independent light control. Securityvacation lock.
LaConsole dseluxe de Mur- Actionnela porte degarage.Commanded'_clairageind_pendante.
Interrupteurde verrouillagede s_curit&
P/N 35661R 535.00
(GWKPD)DualFrequencyWirelessKeypad-OperatesIntellicode'GarageDoorOpenerswithoutRemoteControl
orkey.
Syst_rned'ouvre-pertedegarage_ claviersansfil- Actionnelesouvre-portedegarageavec
Intellicode'sanst_l_commandenicl&
(GLU-3)
550.00
55.00
(Gw-2)
(6PS-5)
P/N 35691 R
3/4 oz. ScrewDrive Lubricant- Ensuresproper equipment wearprotection.
Laonza3/4 Lubricantde la vis- Garantircomponantexactparsyst_med_fenseversuser.
P/N 35218AS
Universal Wall Button- Providesadditional convenientinsideoperation of door.
Bouten mural universal - ActionneI'ouvre-portede I'int_rieurdu garage.
Perfect Step- Ensuresperfectparking.
Butoir Perfect Stop- Permetde stationner_ laperfectiondans legarage.
(GABXS)
P/N 35693R 53.75
P/N 35677R 54.00
BeltDriveExtensionKit-AnExtensionthatincreasesthe travelofa beltdrivenOpenerto
accommodateaneightfootdoor.
N_cessairede prolongernentdu coulisseau-Rallongedeprolongeantlacoursederouvre-porte
BeltDrivepouruneportede2,4m(8pi)dehauteur.
P/N 35663R
(LCGX-8) Chain Drive ExtensionKit- An Extensionthat increasesthe travelof a ChainDrivenOpenerto
accommodateaneight foot door.
N@cessairede prolongernent du coulisseau - Rallongedeprolongeantlacoursede rouvre-porte
du conduitdechain pour une portede2,4 m (8pi) dehauteur.
532.00
P/N 35679R 532.00
(GSX-8) ScrewDriven Extension Kit - AnExtensionto increasetravel of ascrewdriven Operatorto accommodate
an eight foot door.
N_cessairede taffonge du Screw Drive- Rallongede prolongeant la
coursedeI'ouvre-portepouruneporte de 2,4m (8pi) de hauteur.(GIRU-lT) _-e_
(60WATT)Enhanced/RoughServiceLightBulb-Ensuresproperequipmentcompatability.
(GER-2)
P/N 35678R
Eclairagede 50 WATT- Garantircomponantexactpar syst_me.
P/N 26210A.S
Emergency Release Kit - Provides access to garage from outside in the event of
an electrical power failure.
N6cessaires de D4clenchement de secours - Le n_cessaire de d_clenchement
de secours est con_upour vous permettre d'acc4der & votre garage depuis
I'ext_rieur en cas de panne de courant et Iorsqu'il.
P/N 35675R
532.00
52.73
520.00
STB Adapter Brackets (2) - Used in conjunction with standard STBBrackets. They
provide additional clearance and mounting options.
Crochets d'adaptateur (2) - Utilis_ conjointement avec STBstandard reenter
les crochets, ils fournissent le d_gagement suppl_mentaire avec monter d'options.
P/N 34439R.S 54.37
How many?
Comment
beaucoup?
Ordering Instructions
No C.O.D.shipments. Please include check or money order,
made payable to The Genie Company. Do not send cash.
Allow 3-4 weeks for delivery.
1-800-354-3643. Please have part number and credit
card ready. Mail Order Form to: Genie Company, 22790
Lake Park Blvd, Alliance, Ohio 44601. We accept Visa or
Mastercard on phone orders only.
Please add local sales tax if you reside in one of the states listed.
Californla, Connecticut, Florida, Georgia, Illinois, Indiana,
Maryland, Massachusetts, Michigan, New Jersey, New York,
Ohio, Tennessee, Virginia, Wisconsin
TOTAL ORDER $
SHIPPING & HANDLING $ 6.00
STATE SALESTAX $
GRAND TOTAL $
Instructions Commandant
Pasd'exp_dition centre remboursement.Veuillezinclure un cheque
ou un mandat bancaire,le payablefait aThe Genie Company.
N'envoyez pasd'argent comptant. Accordezde 3 _4 semaines
pour la livraison.1-800-354-3643.Ayezsousla main le num6rode la
pieceet celui de lacartede credit.Mettre _la paste learrngement
_:GenieCompany,22790 LakePark Bivd, Alliance, Ohio 44601.
Nousacceptonslescommandespar t_l@hone avec paiementpar
cartede creditVisaou Mastercard.
Veuillez indiquer les taxes de vente locales si vous r4sidez dans I'un des
_tats r4pertori4s ¢i-dessous.
California, Connecticut, Florida, Georgia, Illinois, Indiana,
Maryland, Massachusetts, Michigan, New Jersey, New York,
Ohio, Tennessee, Virginia, Wisconsin
COMMANDETOTALE $
MANUTENTIONETEXPEDITION $6.00
TAXEDEVENTE $
TOTALGLOBAL $
SHIP ORDER TO:
EXPEDIER MARCHANDISE POUR:
NAME /NOV
ADDRESS /ADRESSE
CITY /VILLE
STATE /ETAT
ZIP /CODE POSTAL
(Pricessubject to change without notice)
(Lesprix assujettissentpour changer sansla notification)
14 For Help, call 1=800=35=GENIEor visit www.geniecompany.com

Navigation menu
