Giving

Productivity

a Lift

GENIE MATERIAL LIFTS

G

Setting the Standard: Terex Aerial Work Platforms (AWP)

manufactures some of the most advanced, highest-valued lift

equipment in the industry. Distinctive blue Genie® lifts set the

standard for performance and durability — not to mention

support from people who understand your business.

Customers First

Always

Partnering for Success

Our dedication to taking you higher extends well beyond the

physical reach of our products. We thrive on building satisfying

customer relationships because you, our customer, are at the

center of everything we do.

Since 1966, we’ve been developing products to solve your

worksite challenges — and that process never ends. Our team of

product managers and engineers uses your input to design new

products, featuring the latest technology to meet your changing

needs. Then we manufacture those products to stringent

standards that help increase quality, lower costs and give you

exceptional value for years to come.

Providing Superior Value

Our commitment doesn’t end with the sale. Our dedicated service

teams are available 24 hours a day, 365 days a year to provide

support when you need it most. Our extensive parts network ships

most parts within 24 hours, too. Simply put, we’re always working

to help increase your uptime so you can be more successful.

Genie is driven by one goal: doing the right thing, at the right time

for our customers. That’s not just what we do; it’s who we are. So

tell us what you need. We’re listening.

Genie remains a world leader in lifts.

Portable

Productivity

Since the introduction of the original Genie® Hoist in 1966, we have been developing sound

lifting products for the workplace. Genie lightweight, low-cost material lifts are designed to

enhance your productivity with highly portable solutions for a wide variety of applications.

All Genie material lifts are easy for one person to set up, operate and transport in a

standard pickup or service truck. Plus, a wide variety of options and accessories make

them extremely adaptable to fi t your specifi c needs. With sturdy construction and reliable

performance, Genie material lifts are an excellent value for a virtually unlimited number of

indoor and outdoor uses.

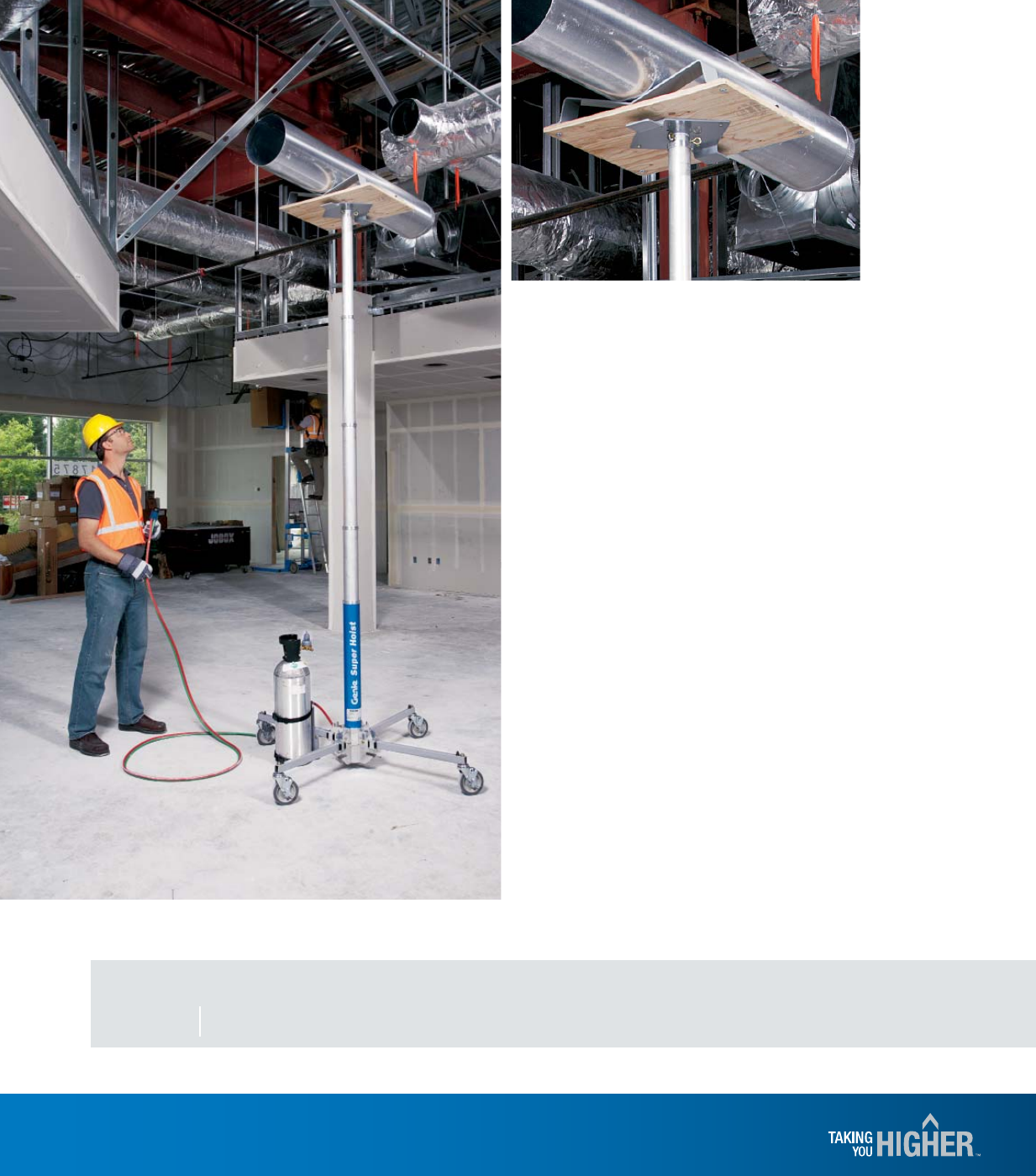

Lightweight, compact and portable, this telescoping pneumatic hoist allows an

individual to lift heavy loads into place for installation.

The Original

Portable Hoist

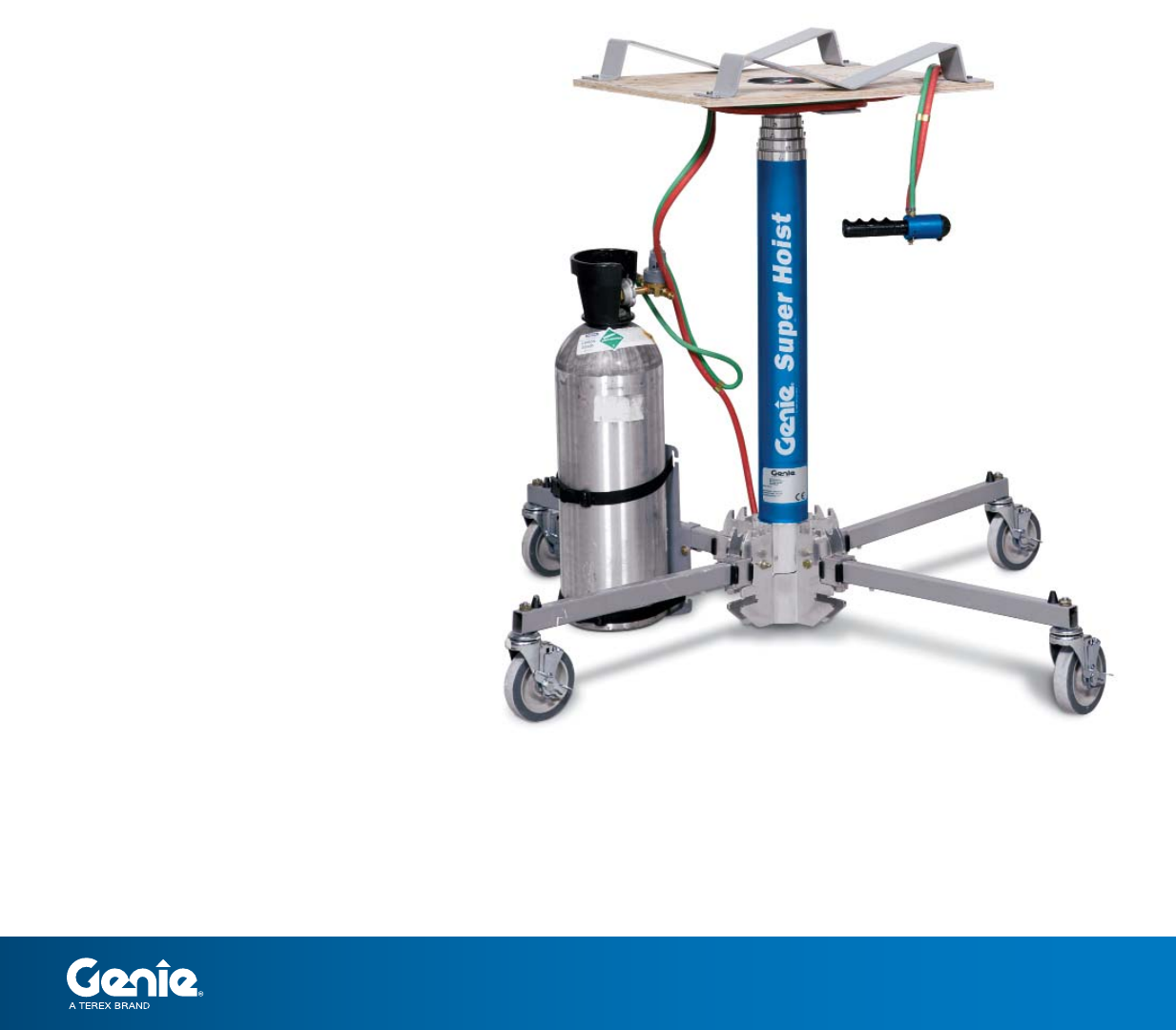

The Genie® brand was born in 1966 with the original Genie Hoist — a unique portable

pneumatic lift that was so successful, it launched the development of a full range of

material hoists and aerial work platforms. Today’s Genie Super Hoist™ lift continues the

legacy of innovation with an incredibly compact, easy-to-use design. This portable

telescoping pneumatic hoist uses CO2 or compressed air to lift up to 300 lbs (136 kg) to

heights of 12 ft 5.6 in (3.8 m) or up to 250 lbs (113 kg) up to 18 ft 4.5 in (5.6 m).

Flexible Power

The hoist is powered by either CO2 or

compressed air and provides

approximately 80 to 90 lifts from a

single tank of CO2. The “one size fi ts

all” bottle mounting bracket accepts

any common CO2 bottle size. A

20 lb (9 kg) CO2 tank is also available

as an accessory. The hose stretches

16 ft (4.87 m) for added mobility and

stores around brackets underneath

the platform when not in use.

Easy Operation

Up and down functions, including the

dump valve, can all be activated from

the pistol-grip control handle, which

clips to a storage button on the side of

the cylinder when not in use.

Material Lifts | GH

Genie® Super Hoist Models Available

GH 3.8 GH 5.6

Quick, Easy Setup

Sets up in seconds — no special tools required.

The one-piece platform attaches to the cylinder

with a twist of the wrist. Legs fold out from the

base, and the lock mechanism keeps each leg out

for use (or up for storage). Casters also lock in

place with the touch of a toe.

Lightweight, Compact Design

The compact size and weight allow one person to

lift and move heavy loads, yet quickly move from

job to job. The hoist is completely portable and

easy to store and transport. It’s so lightweight and

compact, it fi ts in the trunk of most cars.

Versatile Applications

Lift, position and install a wide variety of materials,

including metal and fi berboard air ducts, overhead

sprinklers/plumbing, drywall and ceiling panels,

and electrical fi xtures.

Platform Cradle Package

Available as an accessory to handle odd-

shaped items.

Routine Lifting

Made Easy

The compact choice for handling repetitive light-duty lifting.

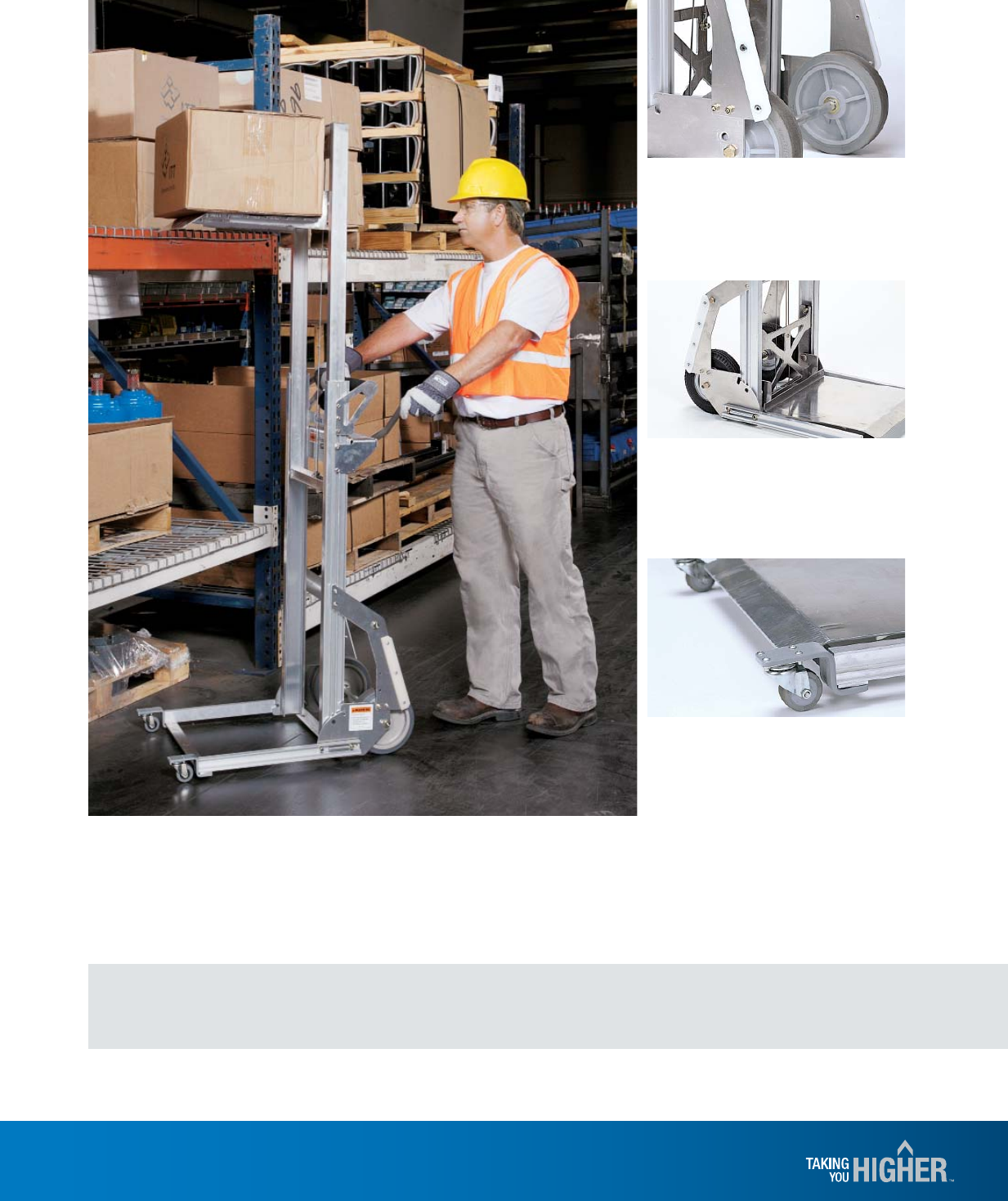

With the Genie® Load Lifter™ lift, one person can easily lift, move and position heavy loads —

helping to increase productivity. Compact and portable, it lifts up to 200 lbs (91 kg) to a height of

5 ft 7 in (1.7 m) and stores easily with dimensions of 45 x 15 x 20.5 in (1.1 m x 38 cm x 52 cm).

Use it to lift and move everything from computer and electronic equipment to small appliances

or manufactured parts. It can even function as a work table.

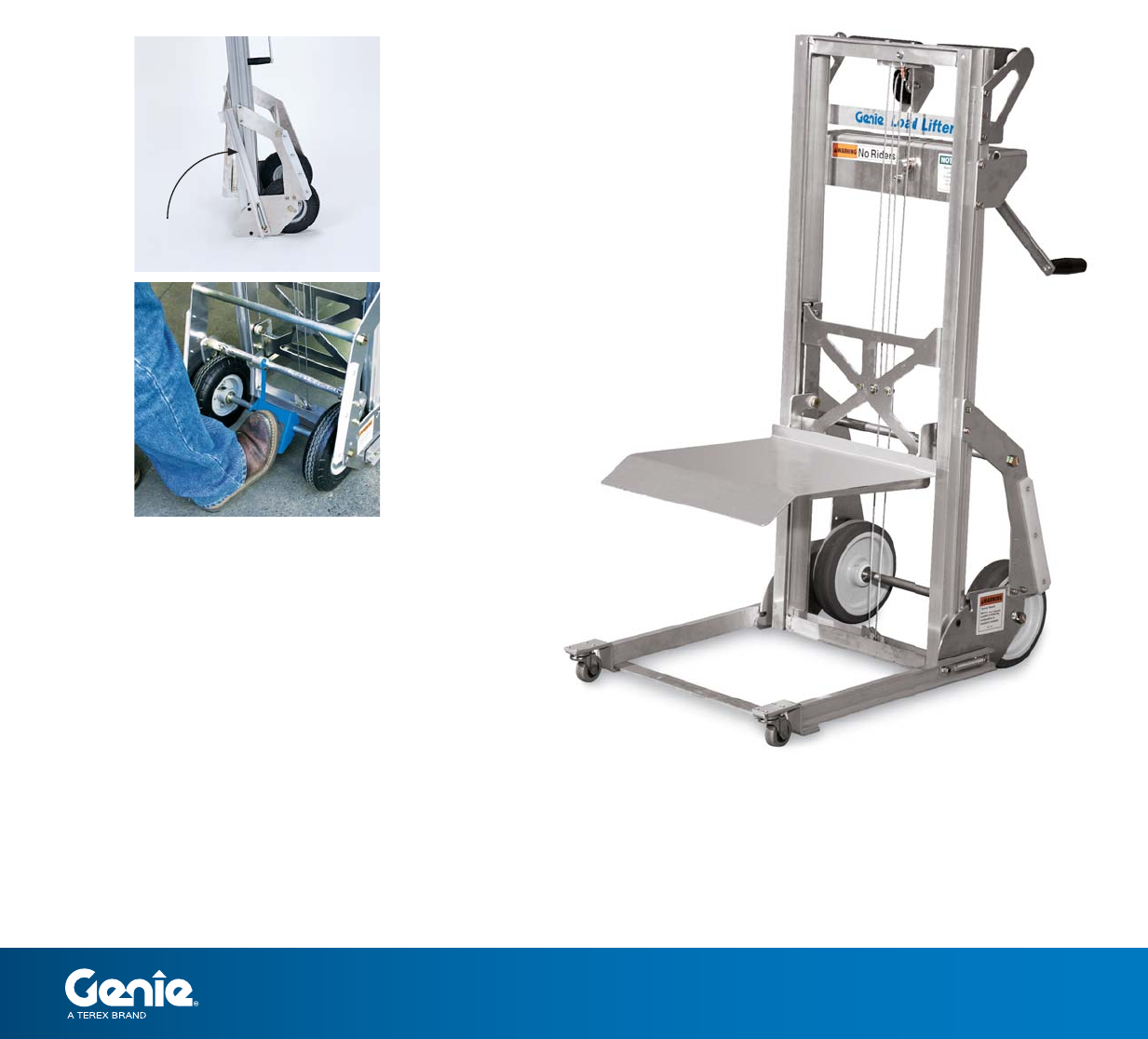

Portable Design

The Load Lifter unit folds for compact

storage — no tools required — and

loads easily into a pickup truck for

transport. Weighing in at 65 lbs (29 kg),

it features durable, lightweight

aluminum construction with a

corrosion-resistant fi nish and is easy

for one person to carry and maneuver.

Convenient Loading

The beveled aluminum platform

allows easy loading and

unloading, and fi eld-installable

foot brakes are available for

additional security.

Material Lifts | LL

Load Lifter Model Available

LL

Fast, Quiet Lift/Winch System

The quiet, high-speed, reversible winch quickly lifts and lowers heavy loads

to improve productivity and reduce work disruption. High-strength aircraft-

quality cable is vinyl-coated to prevent corrosion and fraying for longer life,

and the vinyl-coated crossbar helps keep hands clean when using the unit.

Non-Marking Wheels

Non-marking “mold-on” rear wheels

are standard to prevent marking or

damaging fl oors.

Easy Maneuvering

Optional front-swivel, non-marking

casters can also be attached to the

front of the base for easy maneuvering.

Stair Handling

Built-in stair glides above the rear

tires provide easy handling over stairs

and curbs.

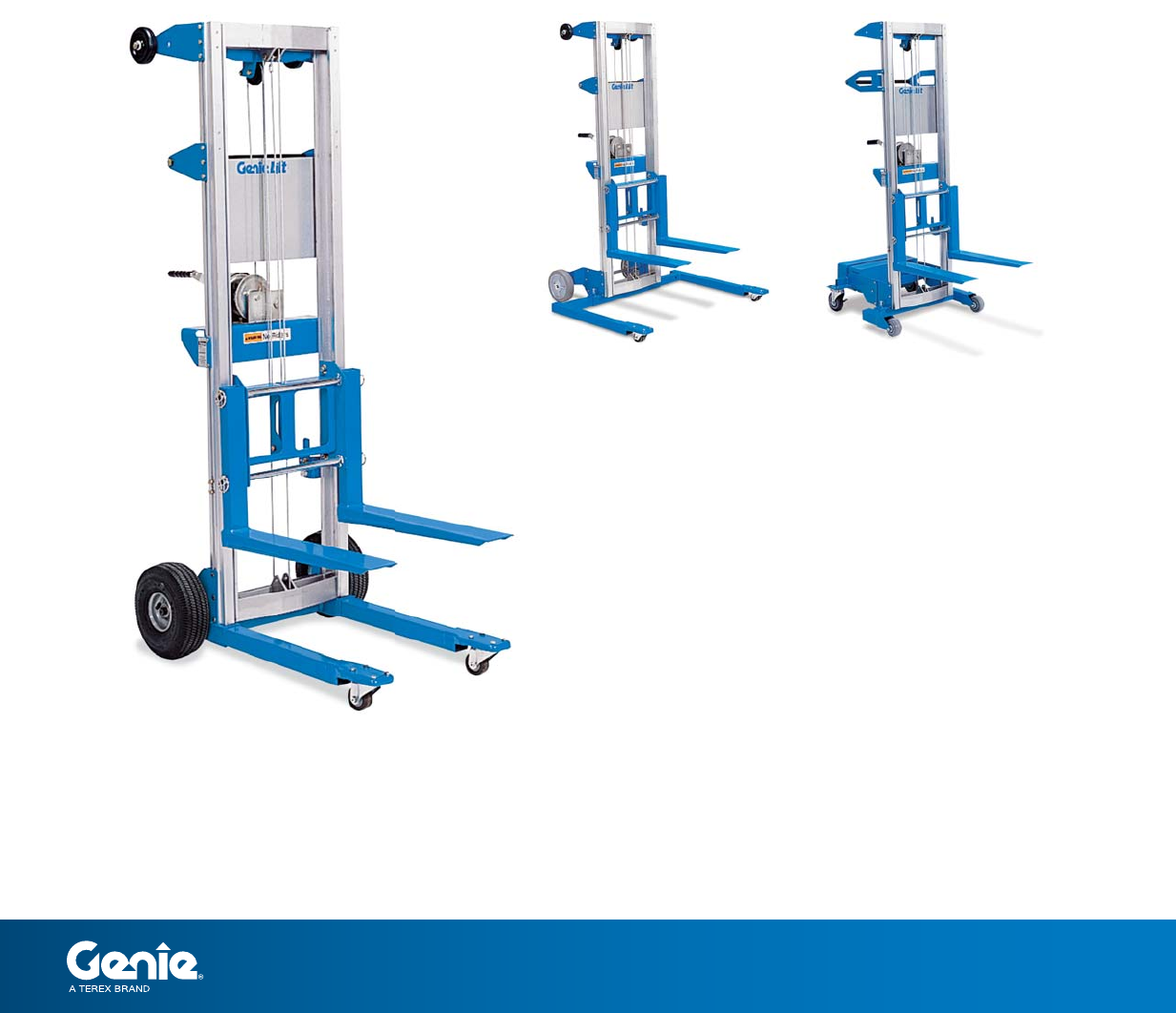

Customized

Versatility

Choose from three bases to customize the Genie Lift for your job — it can

be used as a hand truck, forklift or dolly for increased versatility and value.

Straddle Base

Adjustable base legs straddle

loads or fi xed objects up to

36 in (91 cm) wide. Perfect for

lifting small pallets, appliances

and other bulky objects.

(GL-4, GL-8, GL-10, GL-12)

Counterweight Base

Short leg length lets you get

close to your load. Excellent for

accessing loads on countertops

or shelves above fi xed objects.

Designed for use on level

surfaces. (GL-4, GL-8, GL-10)

Standard Base

Compact design allows you to lift and maneuver in congested work

areas. Great for general lifting and material delivery. Low loading

height. (GL-4, GL-8 shown here with optional pneumatic rear wheels)

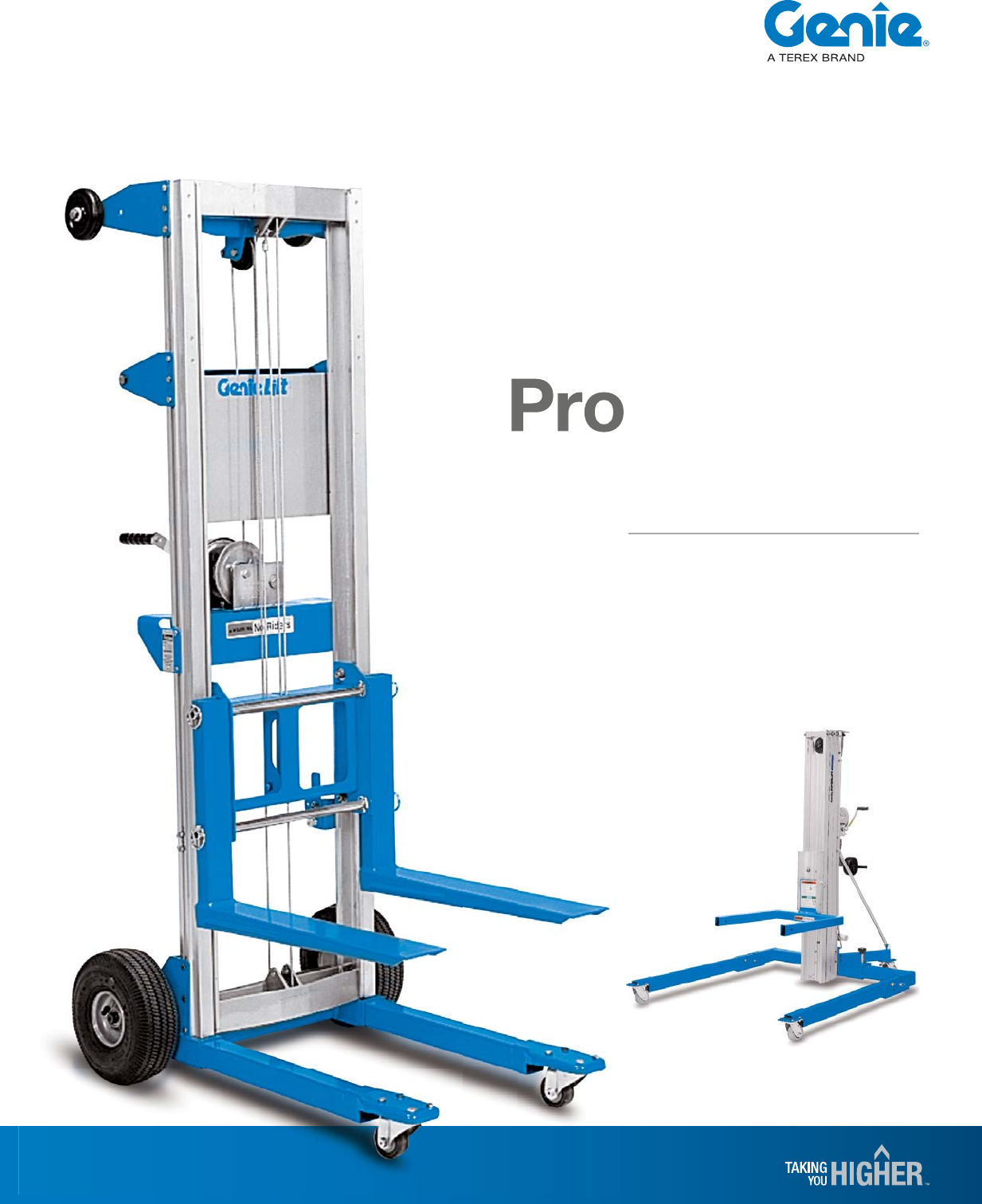

With three base models and many accessories to choose from, the Genie® Lift™ is ideal for all

your material handling needs. From the GL

™-4 that lifts up to 500 lbs (227 kg) to 5 ft 11 in (1.80

m) to the GL-12 that lifts up to 350 lbs (159 kg) to heights up to 13 ft 9.5 in (4.2 m), the Genie

Lift is perfect for a variety of jobs. The Genie Lift is well suited for shipping/receiving, lifting

heavy material to or from shelves, installing and repairing HVAC components, lifting and moving

automotive parts, and other manufacturing applications. Compact and versatile, this unit is also

easily loaded in a pickup truck for convenient transport.

Genie® Lift™ Models Available

GL-4 GL-8 GL-10 GL-12

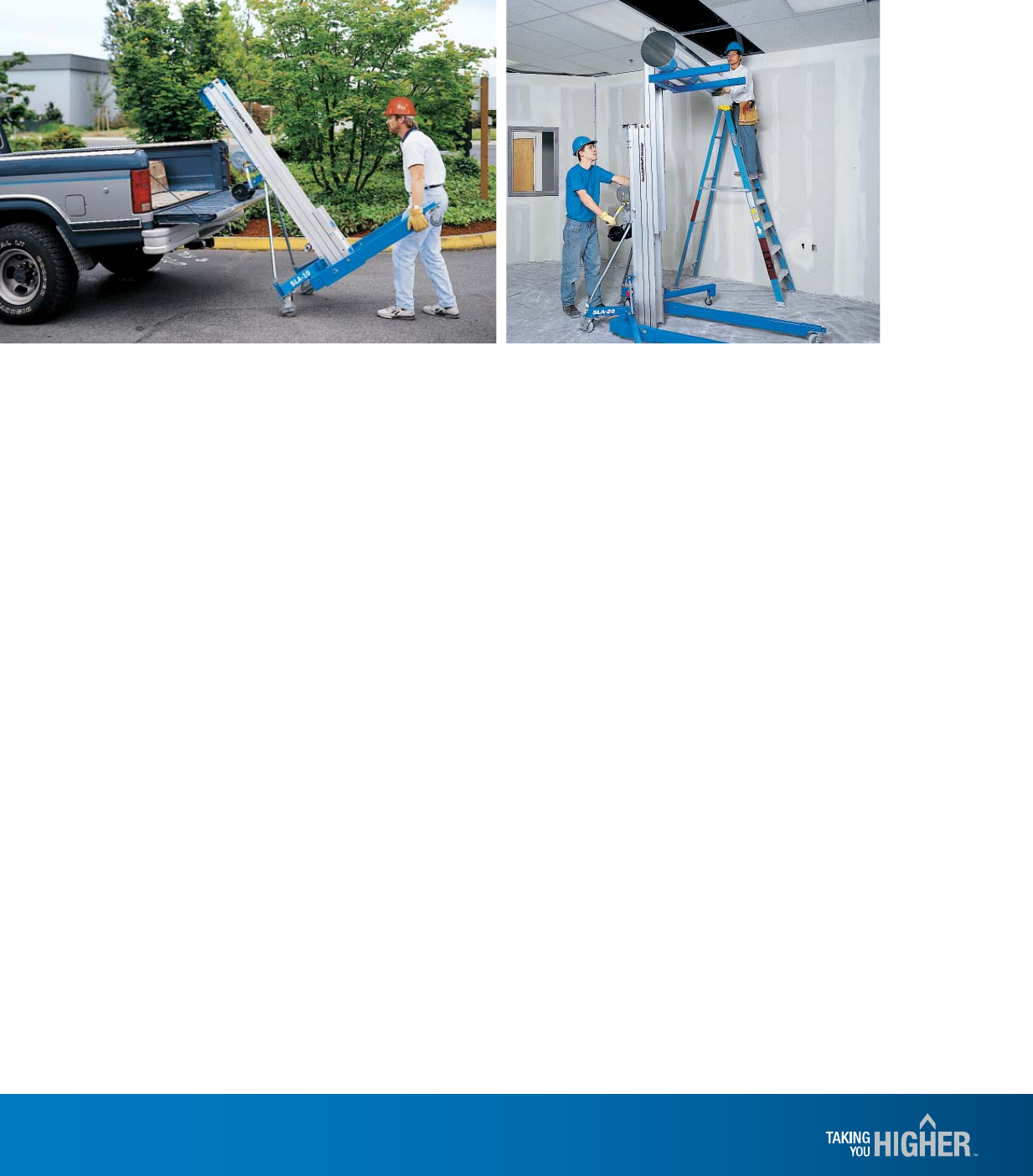

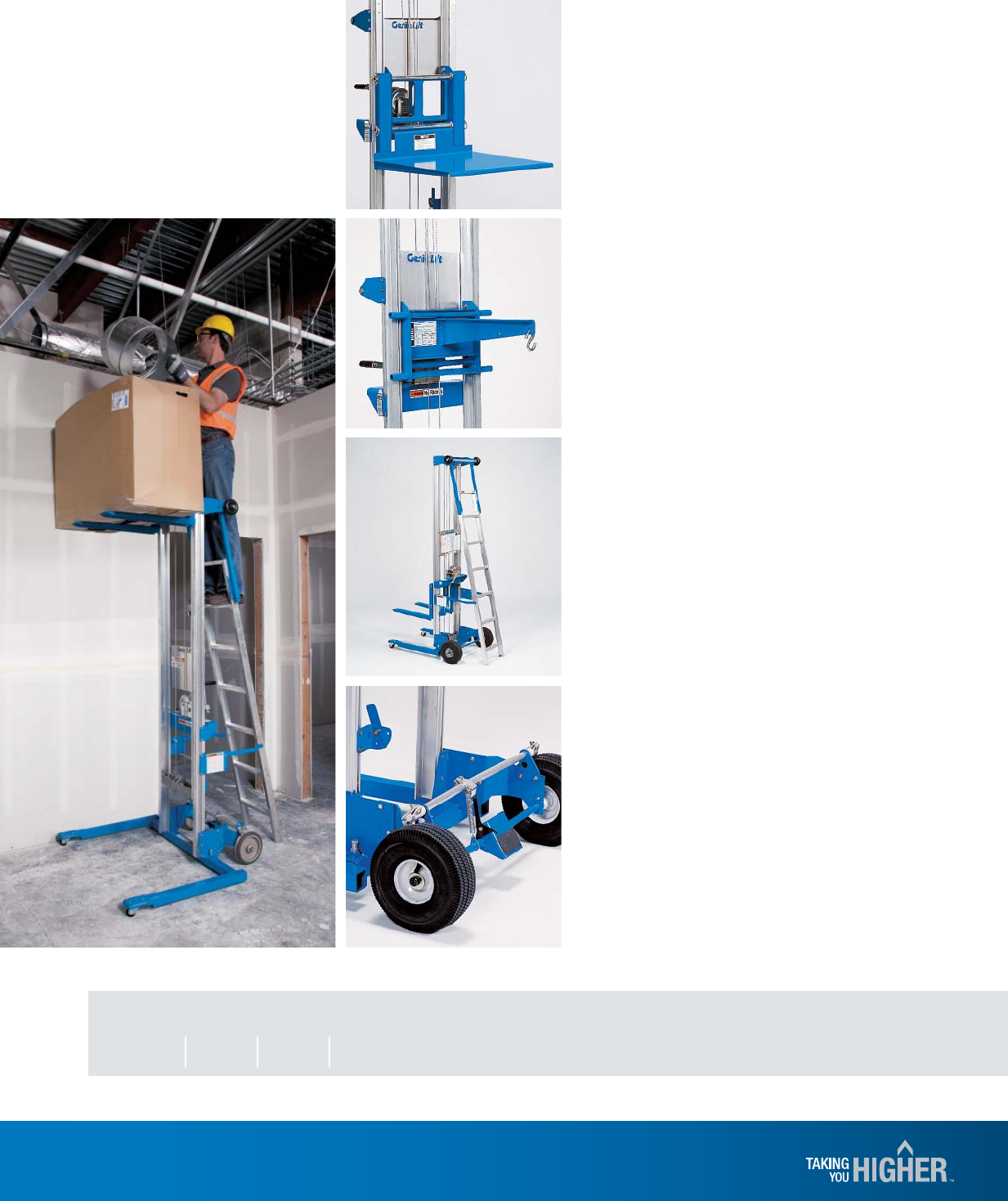

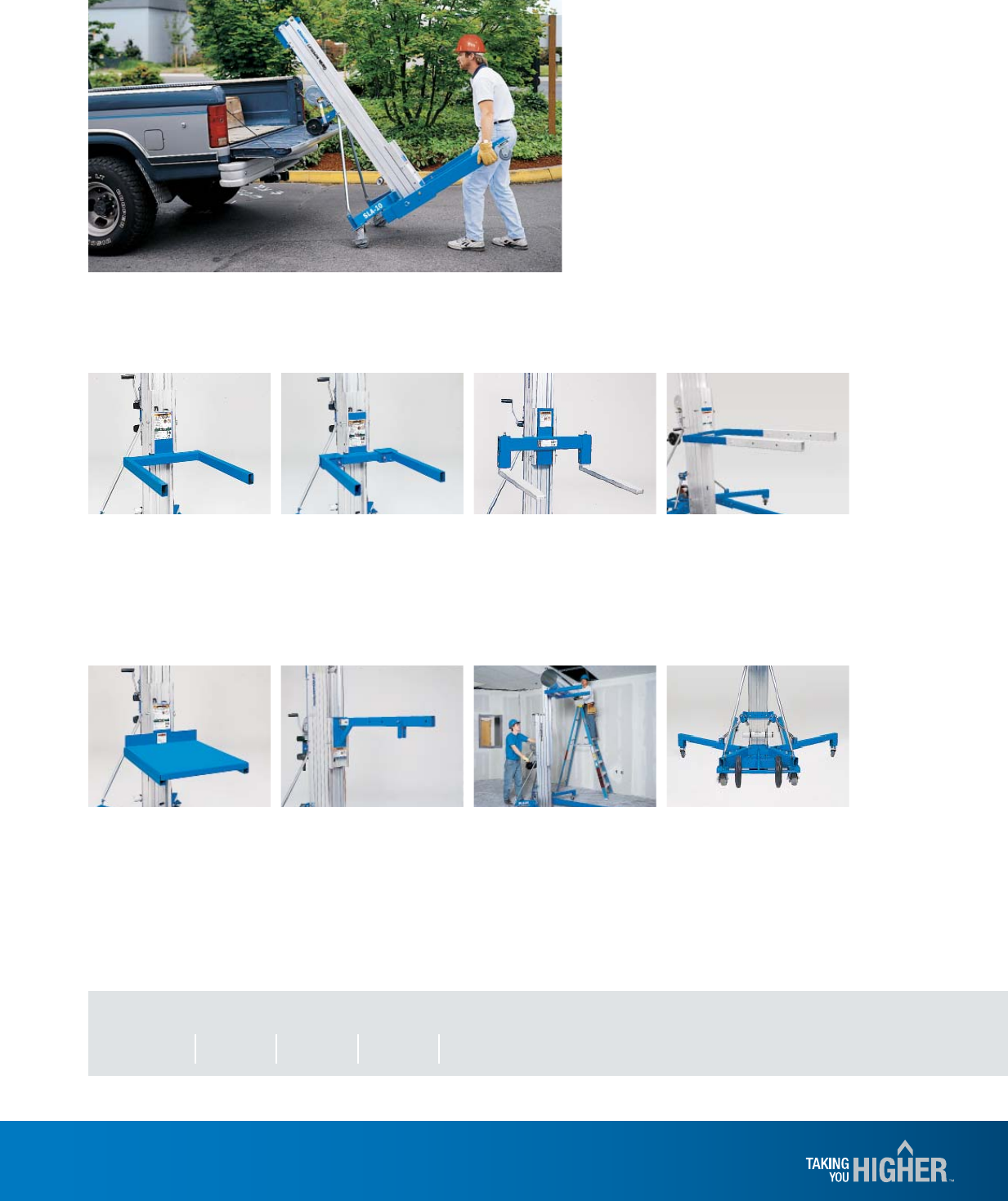

Ladder for Increased Access

Attaching the sturdy aluminum ladder

accessory makes your Genie Lift a

combination lift truck and stepladder

for increased access to lifting and

installation tasks. (Available on

standard and straddle base models).

The standard winch can be used while

the ladder is in use or stowed.

Compact,

Maneuverable Design

The telescoping aluminum frame design

makes the unit extremely compact. Plus,

the durable steel forks can be reversed for

greater fl exibility. In addition, the winch

handle is reversible, and a hold-down

mechanism secures the carriage for easy

transport and storage.

Wheels and Casters

8 in (20 cm) non-marking rear wheels

and 2 in (5 cm), front-swivel casters

are standard on the standard and

straddle base models. 5 in (12 cm)

rear-swivel casters with side brakes

and fi xed 4 in (10 cm) front wheels are

standard on the counterweight base

model. Optional pneumatic rear tires

and foot-release brake available

(standard and straddle base only).

Platform for Load Handling

The optional load platform fi ts easily

over forks to handle odd-shaped loads

and can also be used as a portable

work table.

Boom for Added Versatility

The boom option turns your Genie®

Lift™ into a vertical crane or hoist

capable of lifting up to 500 lbs (95

to 227 kg) with up to 20 in (51 cm)

of reach.

Material Lifts | GL

Extreme

Durability

Designed speci cally for the construction industry, these heavy-duty

units are extremely durable yet also lightweight and portable.

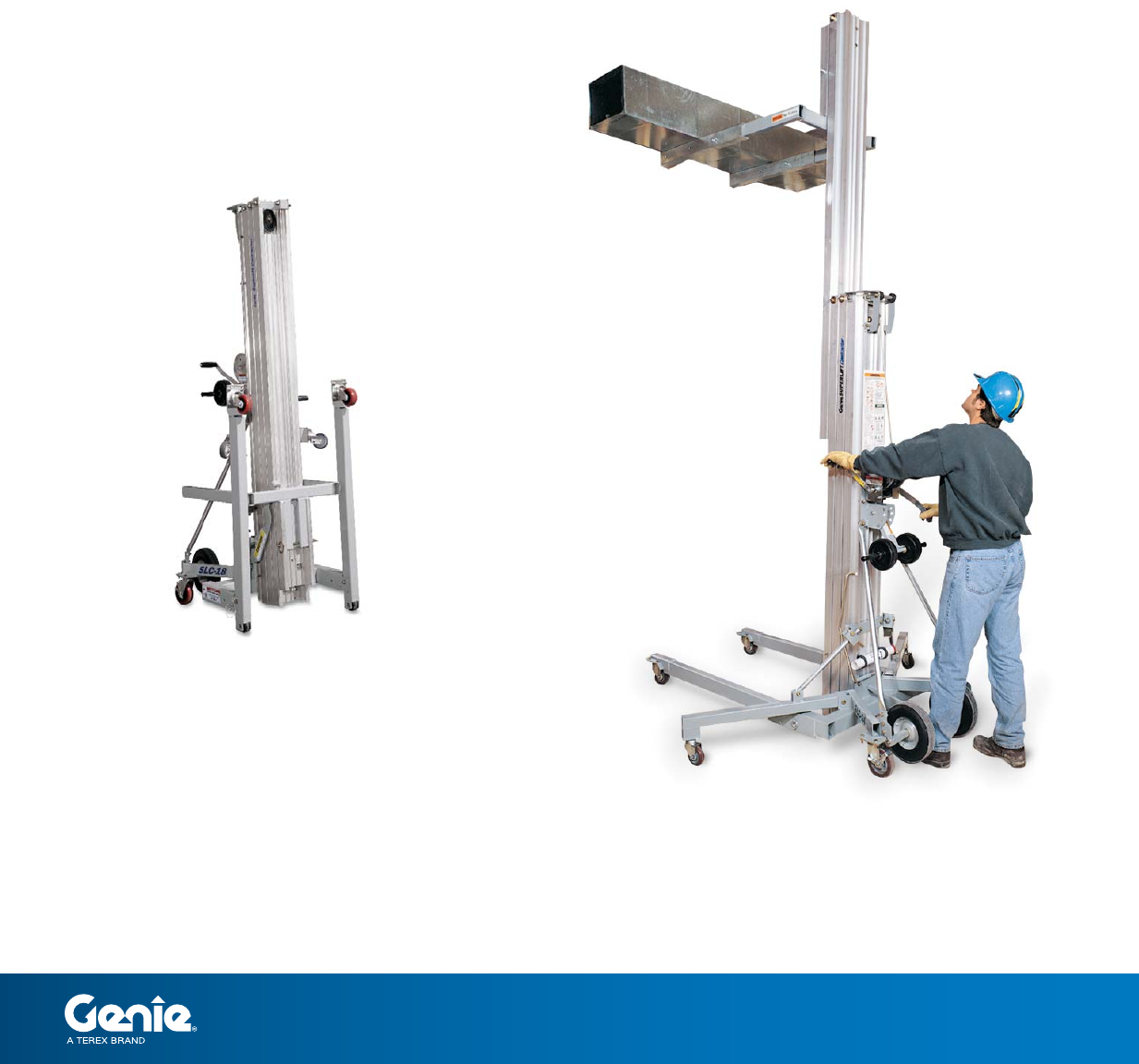

Ideal for construction fi rms and all types of contractors, the Genie® Superlift Contractor® lift is

well suited for industrial applications and HVAC installations. This unit can be easily operated

by one person and can lift, lower and move loads up to 650 lbs (295 kg) to heights of up to

24 ft (7.32 m).

Easy Transport and Setup

Glide rails allow one person to easily load or unload the

unit and lift it in or out of a pickup truck. Rear transport

wheel assembly also facilitates maneuvering on uneven

surfaces. Quick setup requires no tools.

Stowed Position

The heavy duty patented telescoping mast

system stows in a compact position. Legs

fold up and attachments are removable for

easy storage.

Superlift Contractor® Models Available

SLC-12 SLC-18 SLC-24

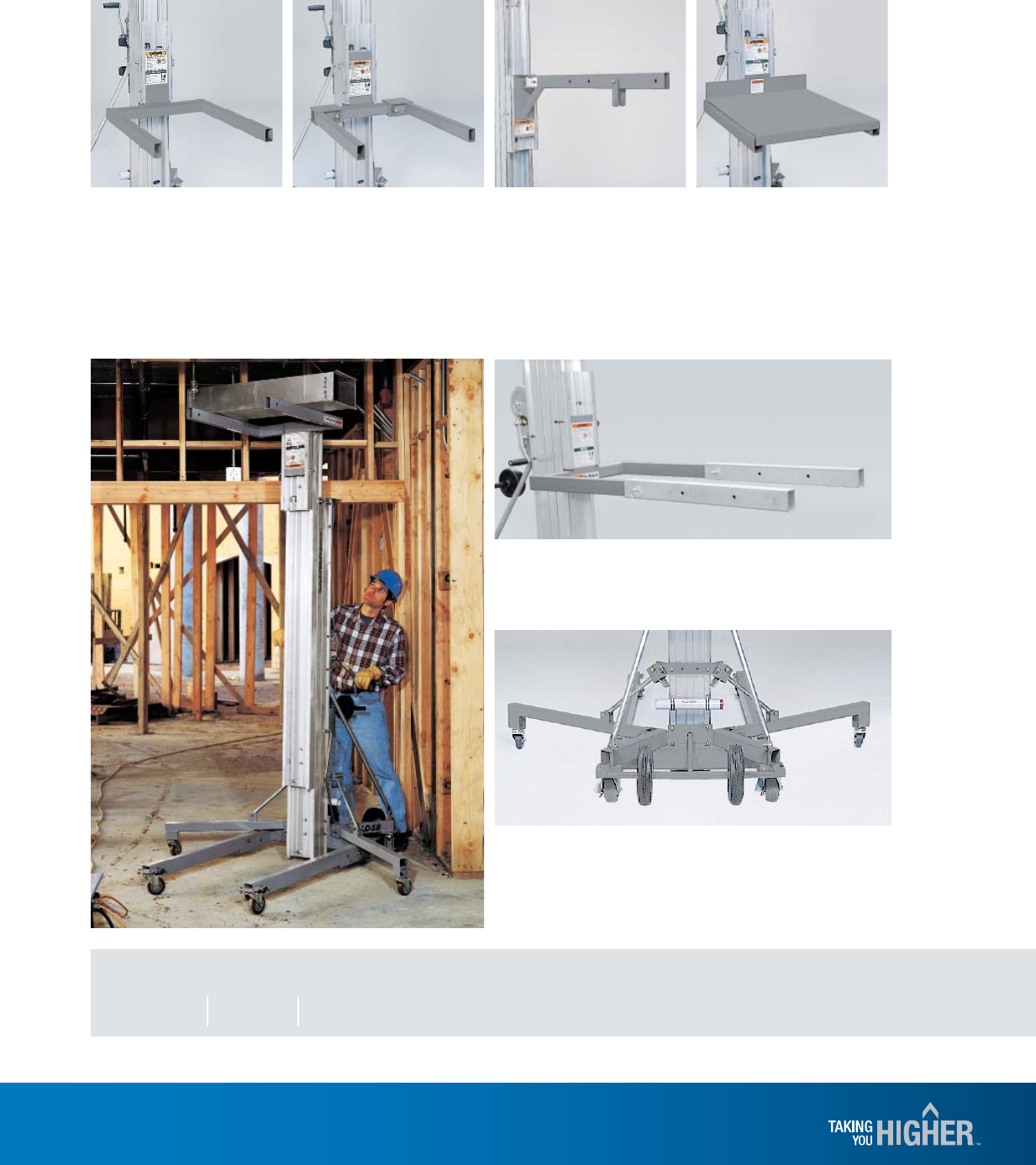

STANDARD FORKS

accommodate various loads

for versatile lifting. Get an

additional 20 in (51 cm) of

lift by turning over and

re-pinning the forks.

LOAD PLATFORM  ts over

the forks to handle odd-sized

or heavy objects — no tools

required for installation.

BOOM OPTION transforms

your lift into a mobile, vertical

crane or hoist to position

tooling  xtures, circuit

breakers, engines and more.

Five Interchangeable Accessories

A variety of load handling accessories make this unit extremely versatile.

ADJUSTABLE FORKS

widen from 11 to 30 in

(28 to 76 cm) to

accommodate diverse loads.

FORK EXTENSIONS insert onto standard forks for an

additional 25 in (64 cm) of length.

Support for Heavy Loads

The captive stabilizer with patented “locking system”

provides additional lateral support for heavy loads

(standard on SLC™

-18 and SLC-24).

Material Lifts | SLC

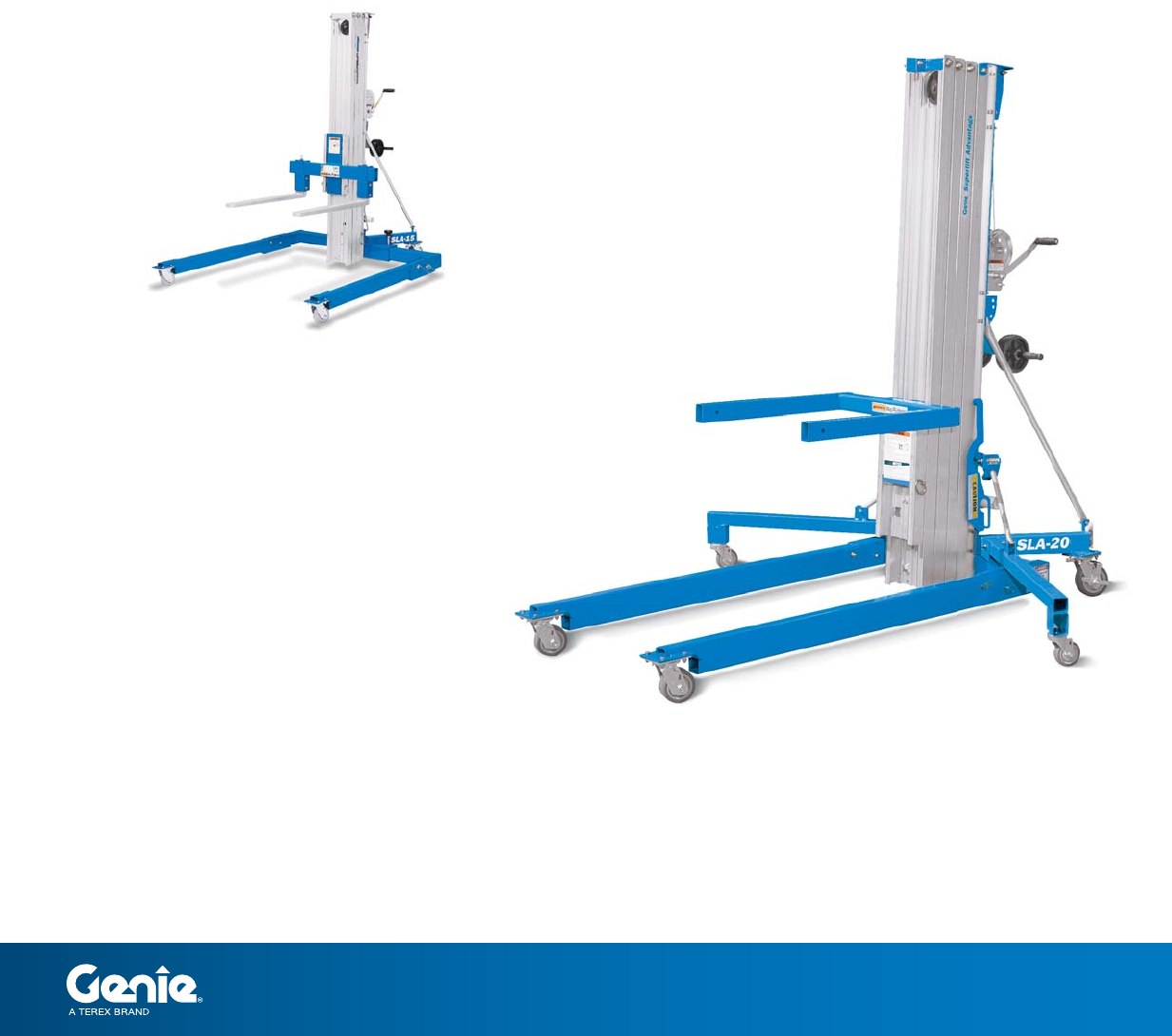

Powerful

Choices

The Genie® Superlift Advantage™ is a manually operated material lift with multiple base, winch

and load handling options to create just the lift you need. The compact, portable design rolls

through standard single doorways and loads easily into a pickup truck. It also lifts up to 1,000

lbs (454 kg) of material up to 11 ft 5.5 in (3.49 m) and up to 650 lbs (295 kg) to heights of up to

26 ft .5 in (7.94 m). With so many choices, the versatile Genie Superlift Advantage helps you

increase productivity and value for your money.

Choose base, mast height, winch speed and load handling attachments

to con gure the exact material lift for your worksite.

Straddle Base

Versatile and adjustable, this base is

perfect for wide loads and narrow

doorways. It straddles loads from 31.5

to 50 in (80 to 127 cm) wide and easily

handles pallets up to 48 in (122 cm)

wide. Flat forks allow ground level

loading. (SLA™-5, SLA-10, SLA-15)

Standard Base

This fi eld-proven design provides

dependable performance with a welded

steel base for extra support. Stabilizers are

standard on 20 and 25 ft (6.1 and 7.6 m)

models. There are no loose parts. (SLA-5,

SLA-10, SLA-15, SLA-20, SLA-25)

Superlift Advantage™ Models Available

SLA-5 SLA-10 SLA-15 SLA-20 SLA-25

Seven Load Handling Attachments

Interchangeable load handling attachments handle a large variety of workloads, so you can design your lift to meet

your needs.

Easy to Maneuver, Load and Store

The unit sets up quickly without any tools

and is ready to go to work in seconds. It rolls

through standard single doorways in the

upright position — no need to remove the

load or tilt back the lift. The optional rear

transport wheel assembly also allows

maneuverability on uneven surfaces. Legs fold

up and attachments are removable for easy

storage and loading, plus a hold-down bar

secures the mast assembly during transport.

STANDARD FORKS

accommodate a variety

of general loads. Get an

additional 20 in (51 cm)

of lift by turning over and

re-pinning the forks.

FORK EXTENSIONS insert

onto standard forks for an

additional 25 in (64 cm)

of length.

LOAD PLATFORM fi ts

over the forks to handle

odd-sized or heavy

objects — no tools

required for installation.

BOOM option transforms

your lift into a mobile,

vertical crane or hoist to

position tooling fi xtures,

circuit breakers, engines

and more.

PATENTED

TELESCOPING

MAST SYSTEM Heavy-

duty design provides

compactness, strength

and rigidity.

SUPPORT FOR HEAVY

LOADS The captive

stabilizer with patented

“locking system” provides

additional lateral support for

heavy loads (standard on

SLA™

-20 and SLA-25).

ADJUSTABLE FORKS

widen from 11.5 to

30 in (29 to 76 cm)

to accommodate

diverse loads.

FLAT FORKS, which

widen from 16 to 31 in

(41 to 79 cm) to provide

proper support, allow

you to easily lift your

load off of fl at surfaces.

Material Lifts | SLA

Excellent Supporting

Performance

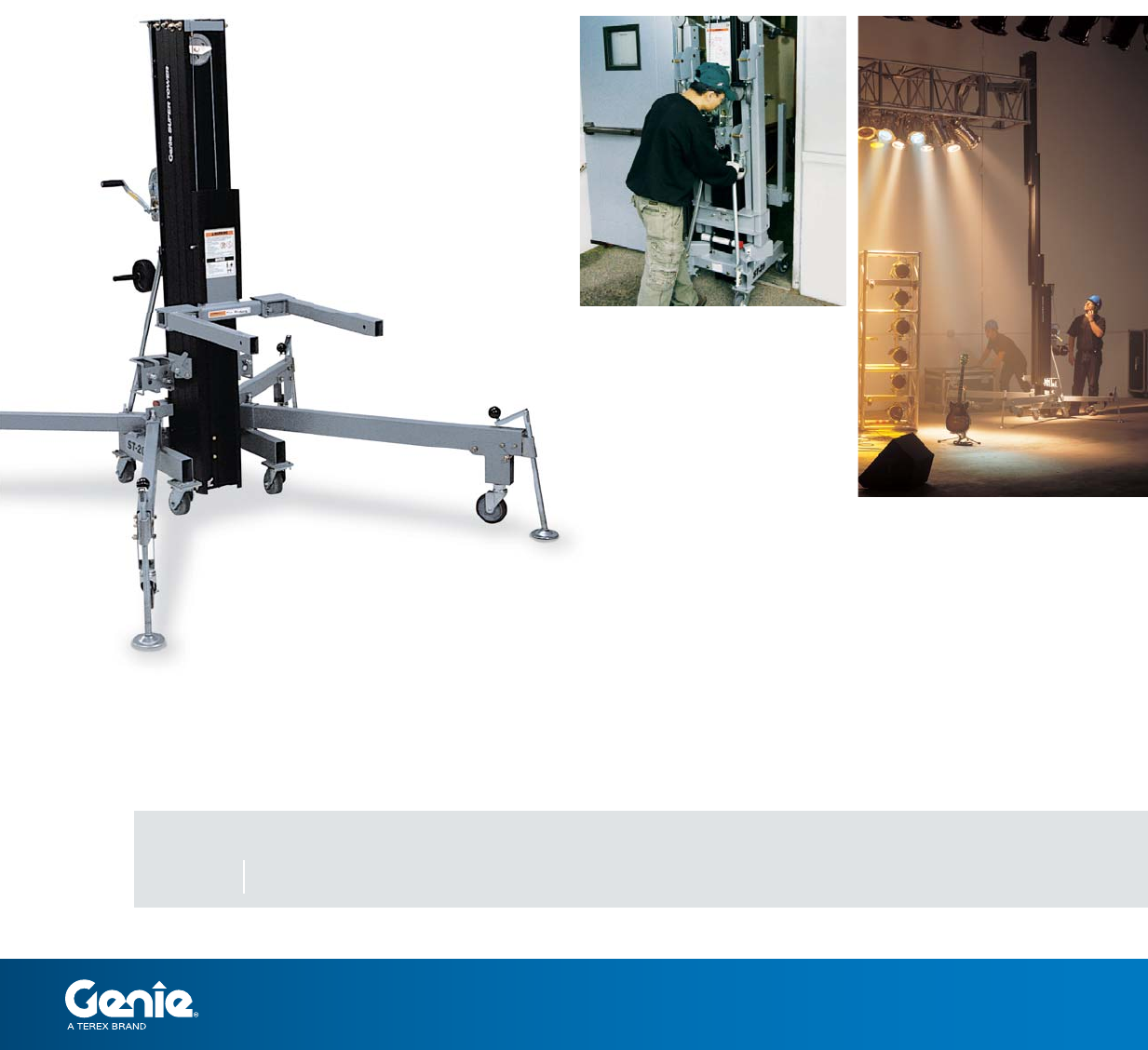

The Genie® Super Tower™ material lift is the industry standard for theatrical productions and

entertainment events. It telescopes lighting, sound systems and scenery weighing up to 800

lbs (363 kg) and can lift to heights up to 26 ft .5 in (7.94 m). And the standard fl at black

anodized fi nish blends in perfectly backstage, making it virtually invisible to audiences. It’s also

compact and portable for easy transport and storage.

The ideal choice for lifting and supporting

lighting/sound systems and stage

scenery while blending in backstage.

Quick, Simple Setup

Just install the outriggers

and set the leveling jacks.

Options and Accessories

Load platform  ts over standard forks

with no tools required to handle heavy

or odd-shaped objects.

Fork extensions insert onto standard

forks for an additional 25 in (64 cm)

of length.

Easy Transport and Storage

The compact stowed position makes

the Super Tower lift easy to move

through doors and load on trucks

with no bulky base to get in the way.

Stowed dimensions are 22 in (56

cm) by 25.25 in (64 cm).

Super Tower Models Available

ST™-20 ST-25

Material Lifts | ST

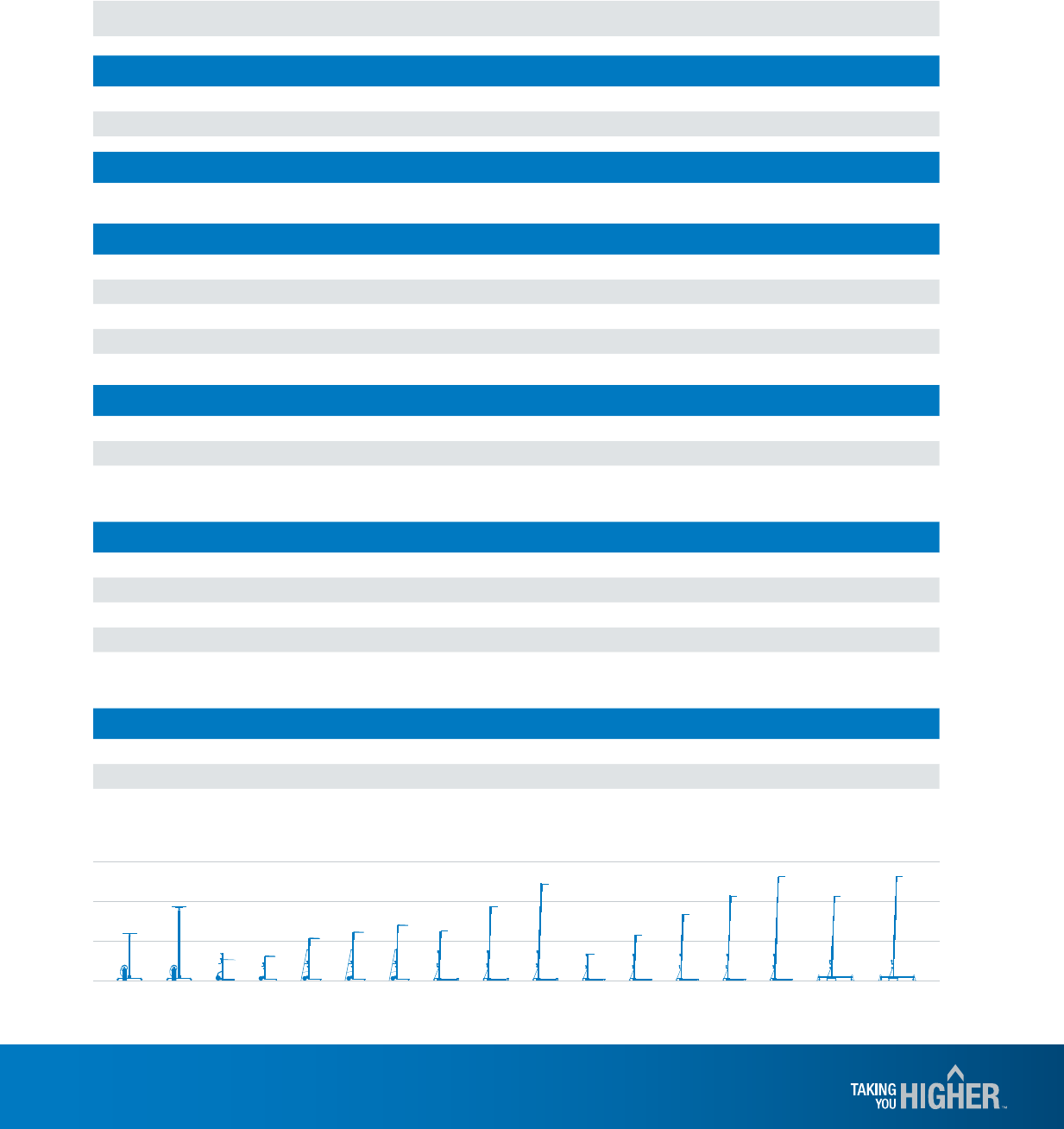

Specifications

Material Lifts

Material Lifts | Specifications

MODEL LIFTING

HEIGHT

LIFTING

CAPACITY

US METRIC US METRIC

Super Hoist™

GH 3.8 12 ft 5.6 in 3.80 m 300 lbs 136 kg

GH 5.6 18 ft 4.5 in 5.60 m 250 lbs 113 kg

Load Lifter™

LL 5 ft 7 in 1.70 m 200 lbs 91 kg

Genie® Lift™

GL-4 5 ft 11 in 1.80 m 500 lbs 227 kg

GL-8 10 ft .5 in 3.06 m 400 lbs 181 kg

GL-10 11 ft 8 in 3.56 m 350 lbs 159 kg

GL-12 13 ft 9.5 in 4.20 m 350 lbs 159 kg

Capacities listed are with a 12 in (30 cm) load center.

Superlift Contractor®

SLC-12 12 ft 11 in 3.94 m 650 lbs 295 kg

SLC-18 18 ft 6 in 5.64 m 650 lbs 295 kg

SLC-24 24 ft 7.32 m 650 lbs 295 kg

Capacities listed are with a 14 in (36 cm) load center.

Superlift Advantage®

SLA-5 6 ft 7 in 2.0 m 1,000 lbs 454 kg

SLA-10 11 ft 5.5 in 3.49 m 1,000 lbs 454 kg

SLA-15 16 ft 4 in 4.98 m 800 lbs 363 kg

SLA-20 21 ft 2.5 in 6.46 m 800 lbs 363 kg

SLA-25 26 ft .5 in 7.94 m 650 lbs 295 kg

Capacities listed are with a 18 in (46 cm) load center.

Super Tower™

ST-20 21 ft 2.5 in 6.46 m 800 lbs 363 kg

ST-25 26 ft .5 in 7.94 m 650 lbs 295 kg

Capacities listed are with a 18 in (46 cm) load center.

GH 3.8 GH 5.6 LL GL-4 GL-8 GL-10 GL-12 SLC-12 SLC-18 SLC-24 SLA-5 SLA-10 SLA-15 SLA-20 SLA-25 ST-20 ST-25

0 ft

10 ft

20 ft

30 ft

18340 NE 76th Street, P.O. Box 97030, Redmond, Washington 98073-9730

Toll Free in USA/Canada +1 (800) 536-1800 · Telephone +1 (425) 881-1800 · Fax +1 (425) 883-3475

www.genielift.com

Worldwide Manufacturing And Distribution

Australia · Brazil · Caribbean · Central America · China · France · Germany · Italy · Japan · Korea · Mexico

Southeast Asia · Spain · Sweden · United Arab Emirates · United Kingdom · United States

Effective Date: January, 2014. Product specifi cations and prices are subject to change without notice or obligation. The photographs and/or drawings in this

document are for illustrative purposes only. Refer to the appropriate Operator’s Manual for instructions on the proper use of this equipment. Failure to follow the

appropriate Operator’s Manual when using our equipment or to otherwise act irresponsibly may result in serious injury or death. The only warranty applicable

to our equipment is the standard written warranty applicable to the particular product and sale and we make no other warranty, express or implied. Products

and services listed may be trademarks, service marks or trade names of Terex Corporation and/or their subsidiaries in the USA and many other countries.

Genie and Taking You Higher are trademarks of Terex Corporation or its subsidiaries. © 2014 Terex Aerial Work Platforms. GPB 3K 0109M . Part No. 109306.
