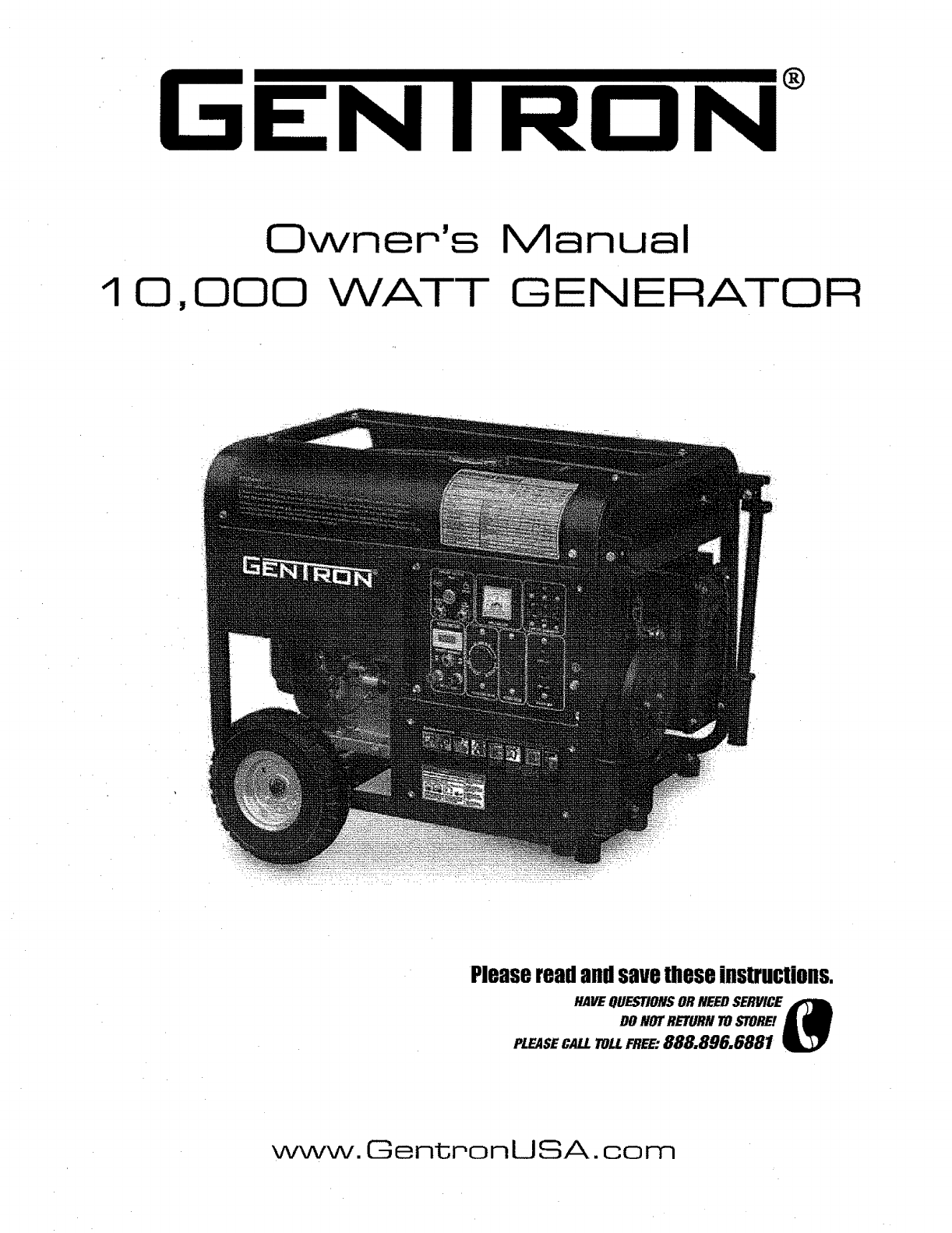

I EN! IZIN ®
Owner's
1 0,000
Please read and save those instructions.
HAVEqUESTIONSORNEEDSERVlCE,f_I h
-4._
DONOTRETURNTOSTORE!
PLEASECALLTOLLFREE:888.896.6881
www. GentronUSA. com
I

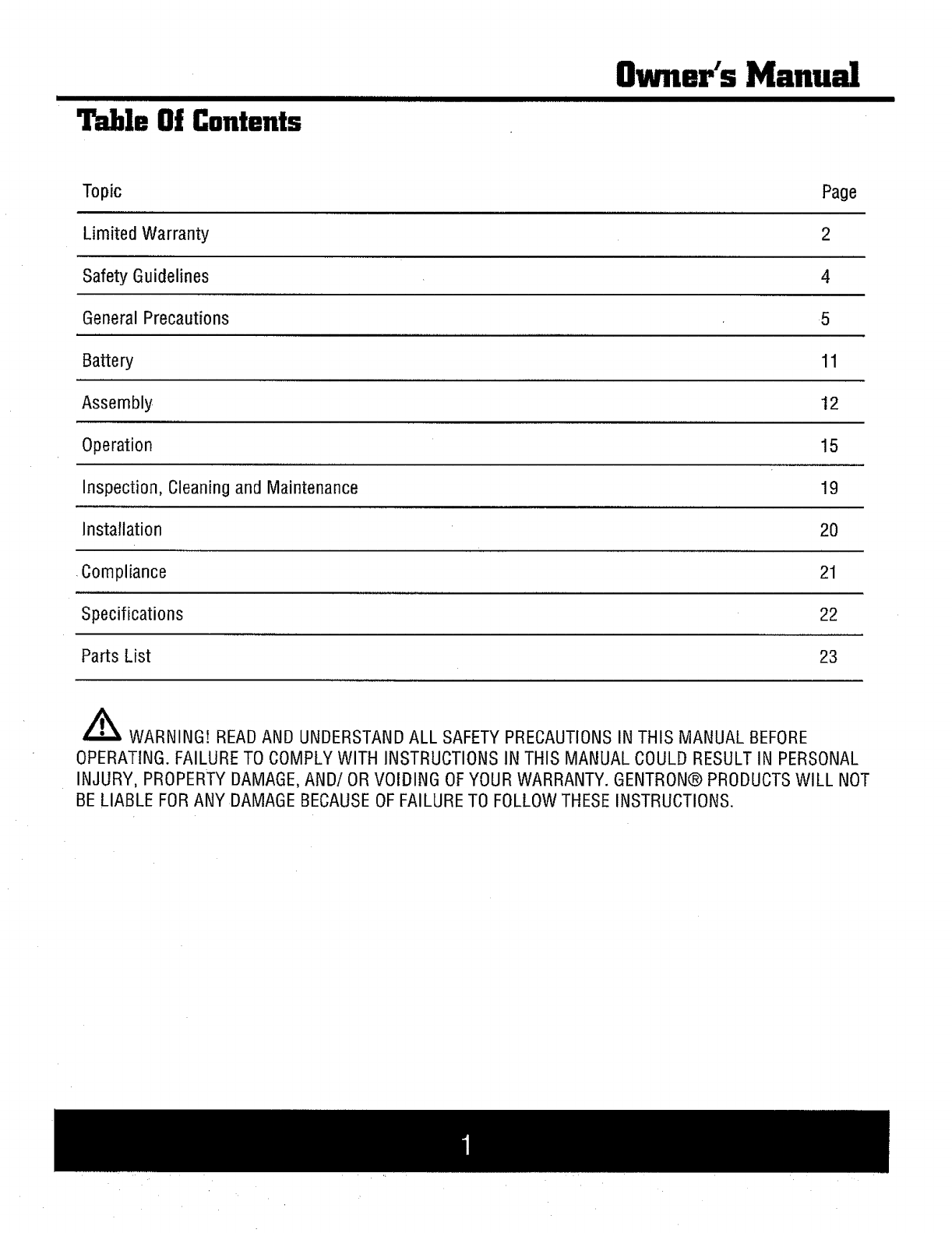

Table OfContents
Owner's Manual
Topic Page
Limited Warranty 2
Safety Guidelines 4
General Precautions

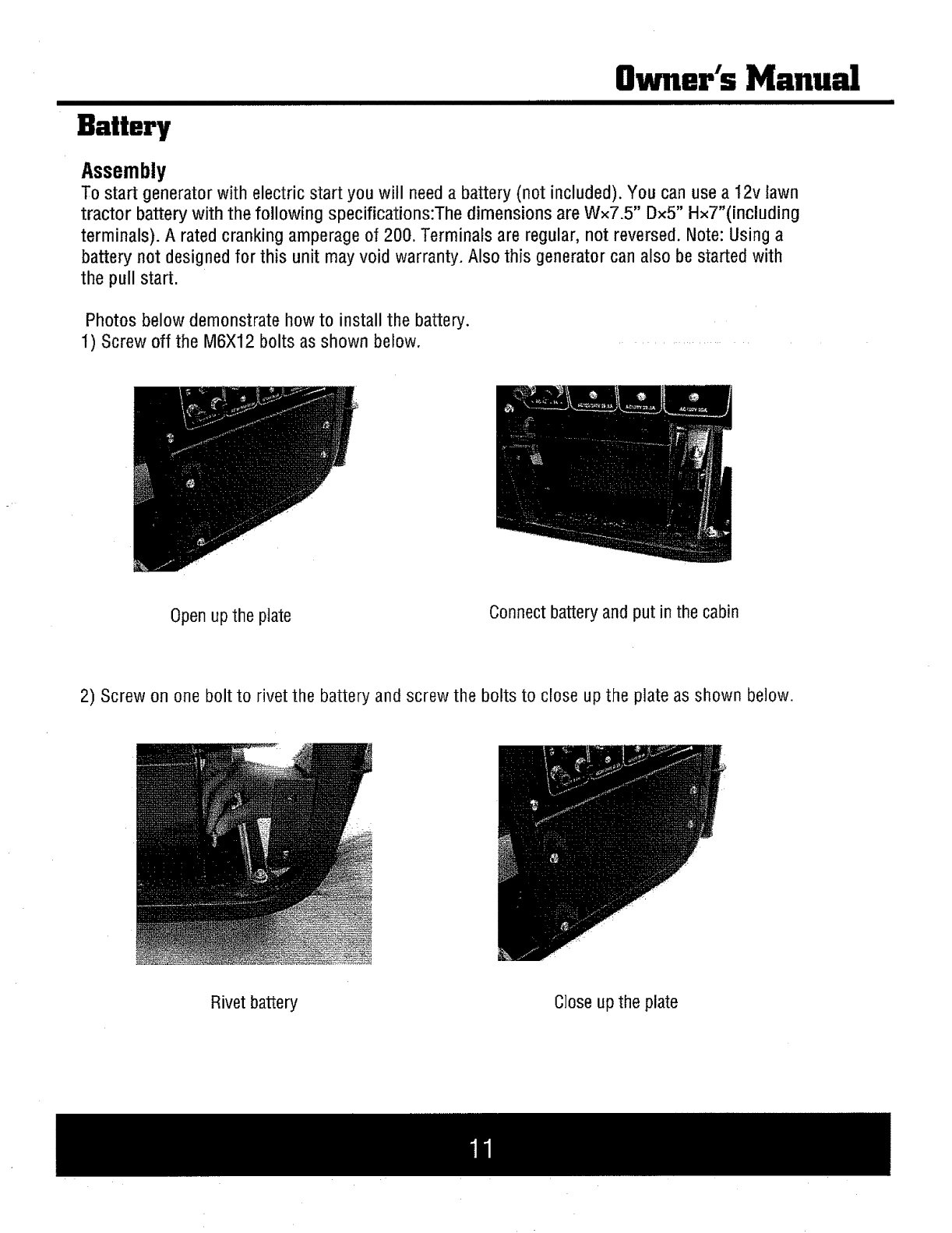

Battery 11

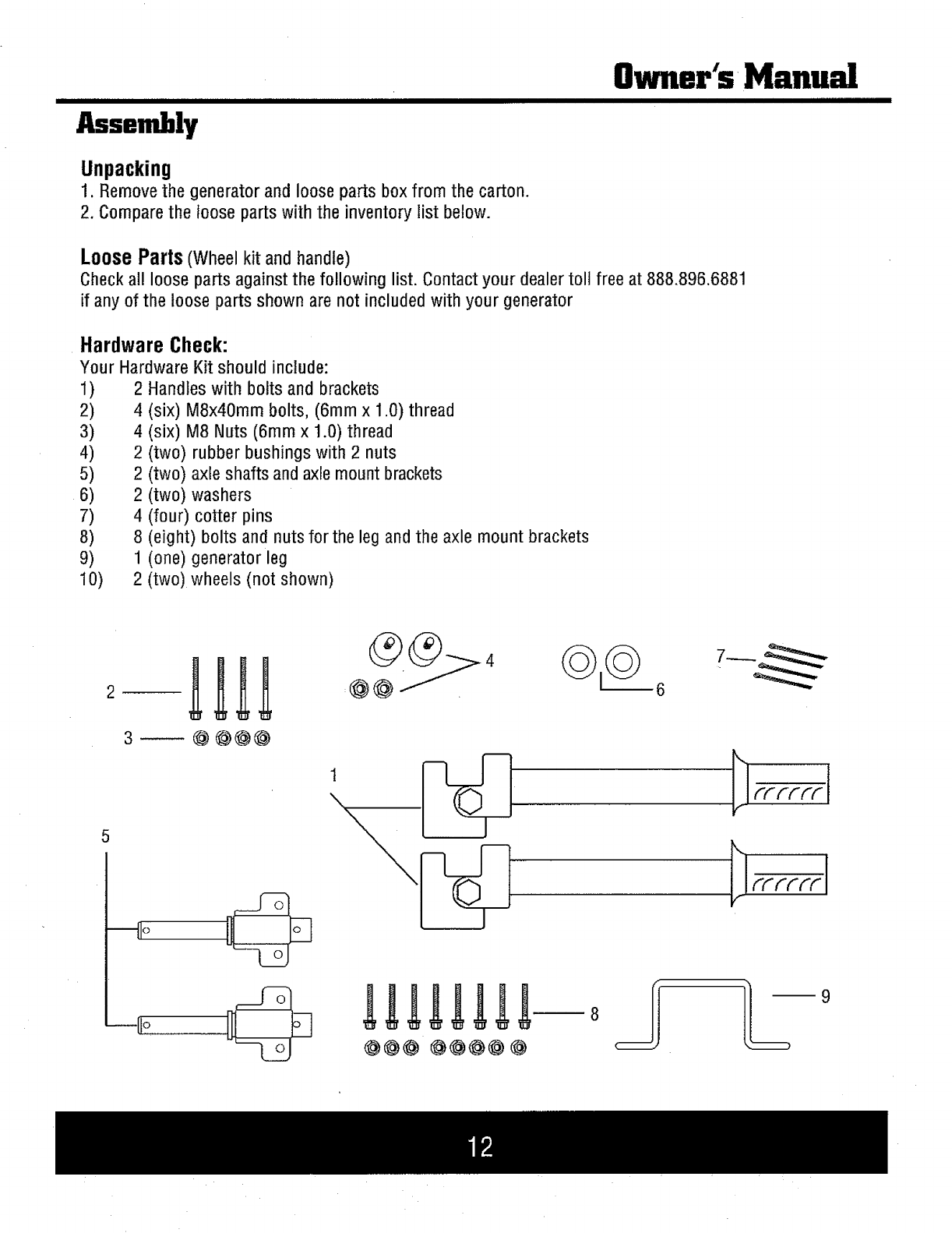

Assembly 12

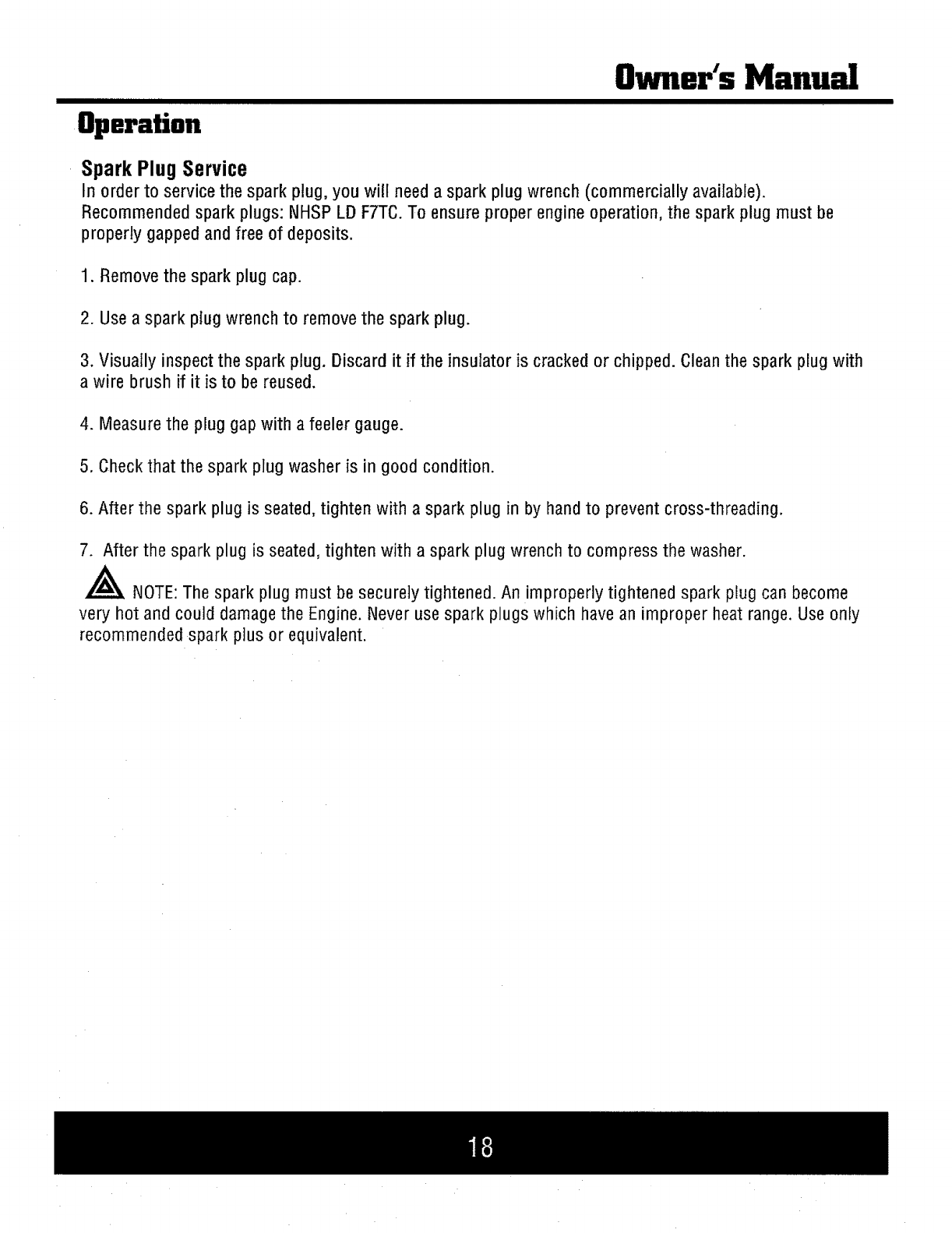

Operation 15

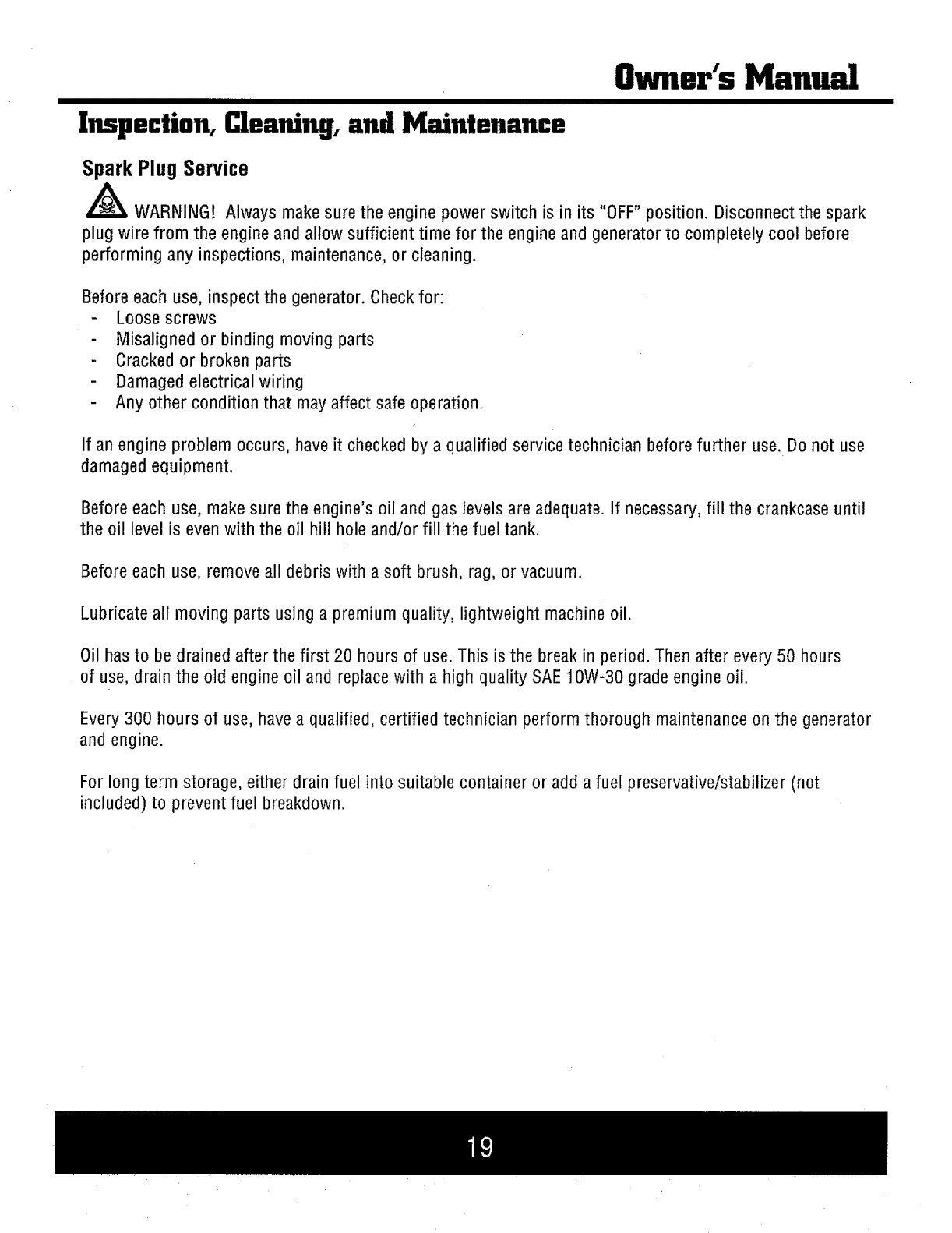

Inspection, Cleaning and Maintenance 19
Installation 20

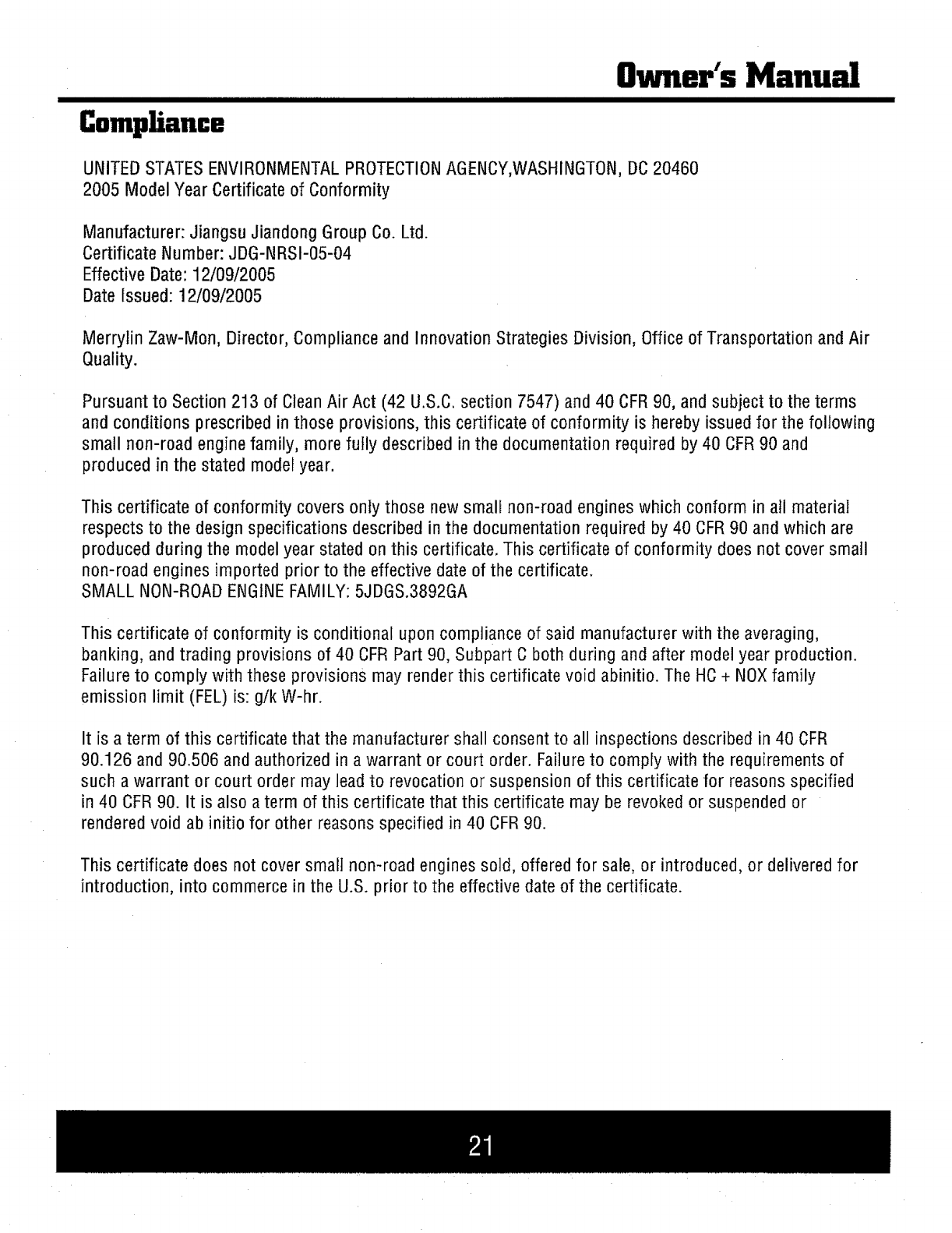

Compliance 21
Specifications 22

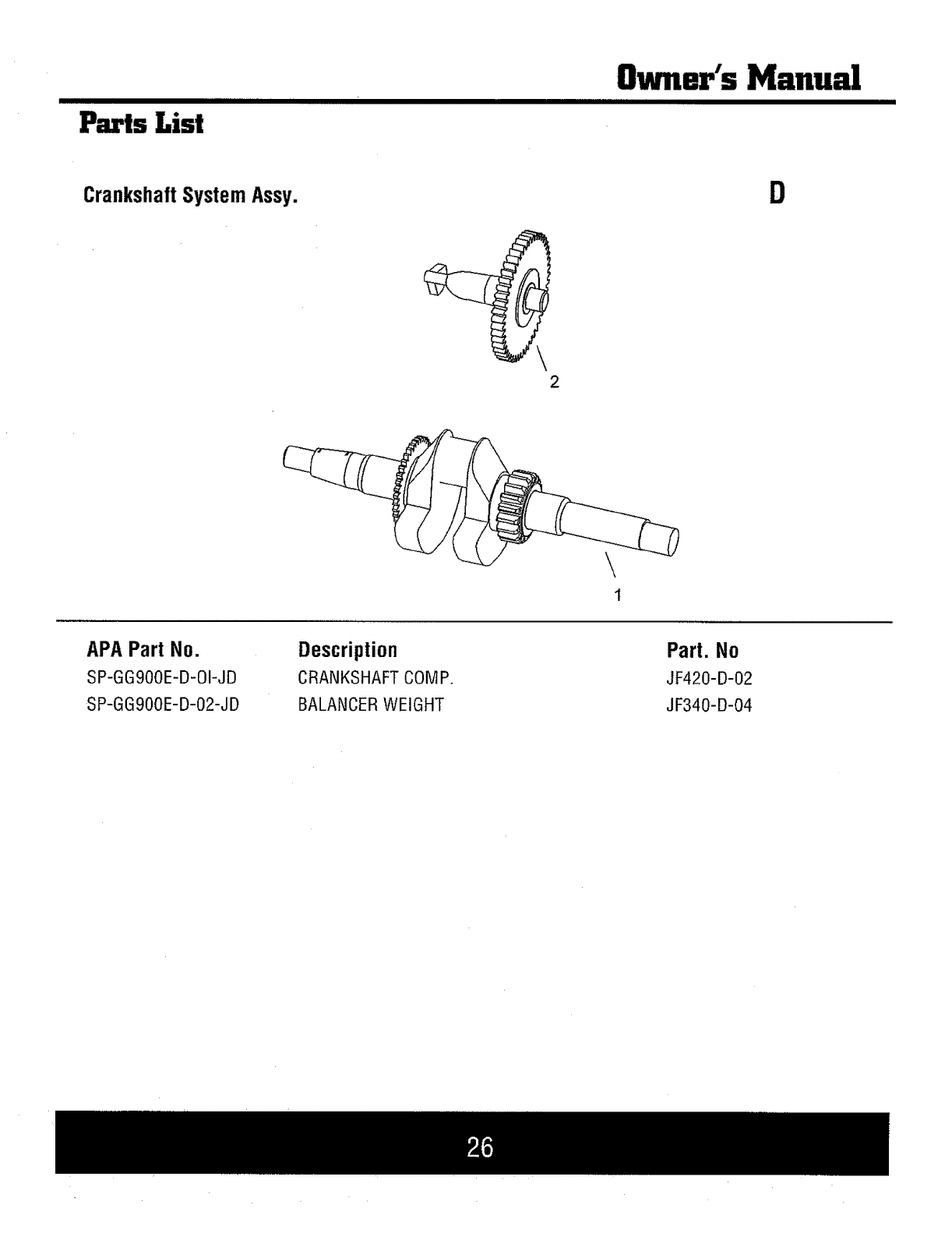

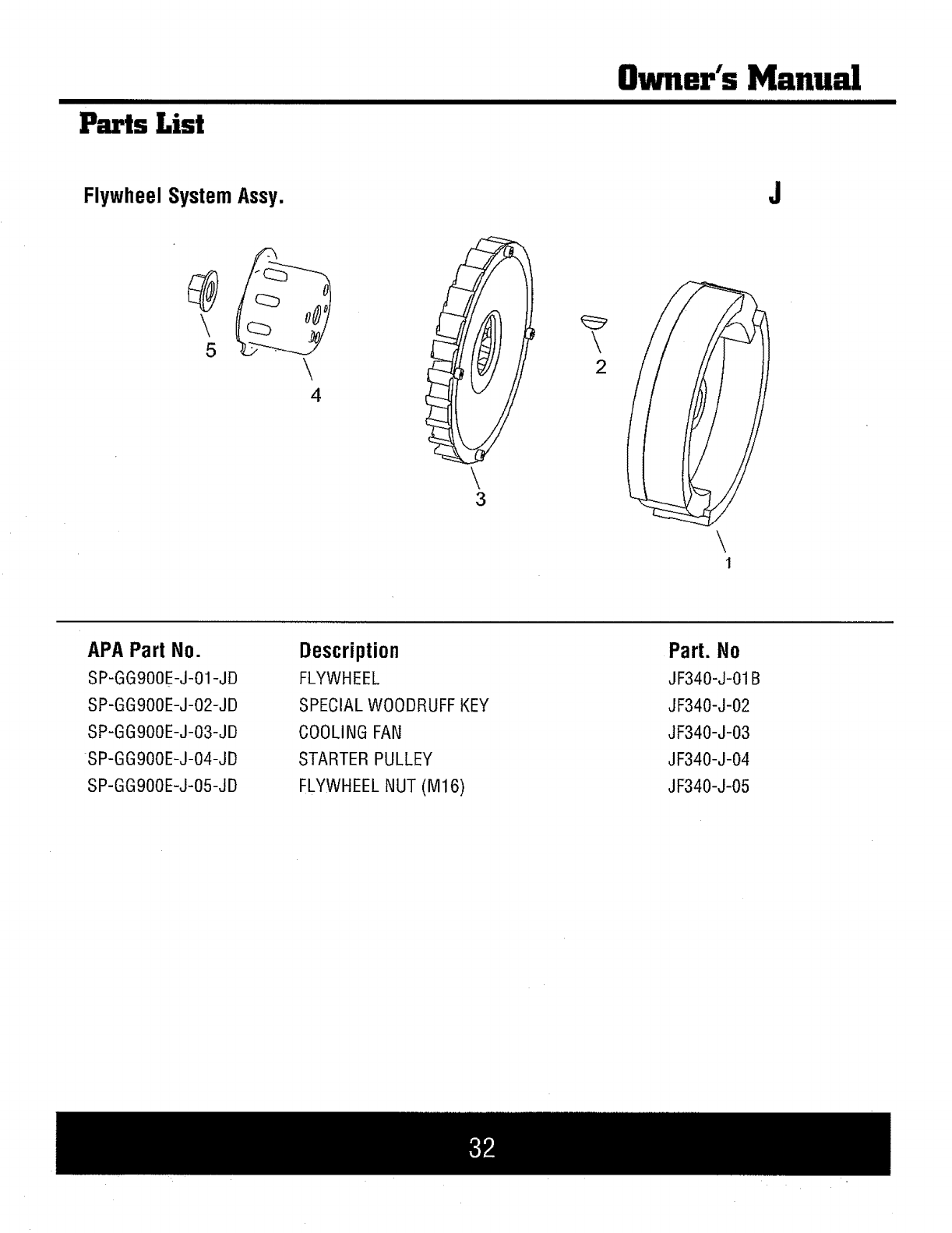

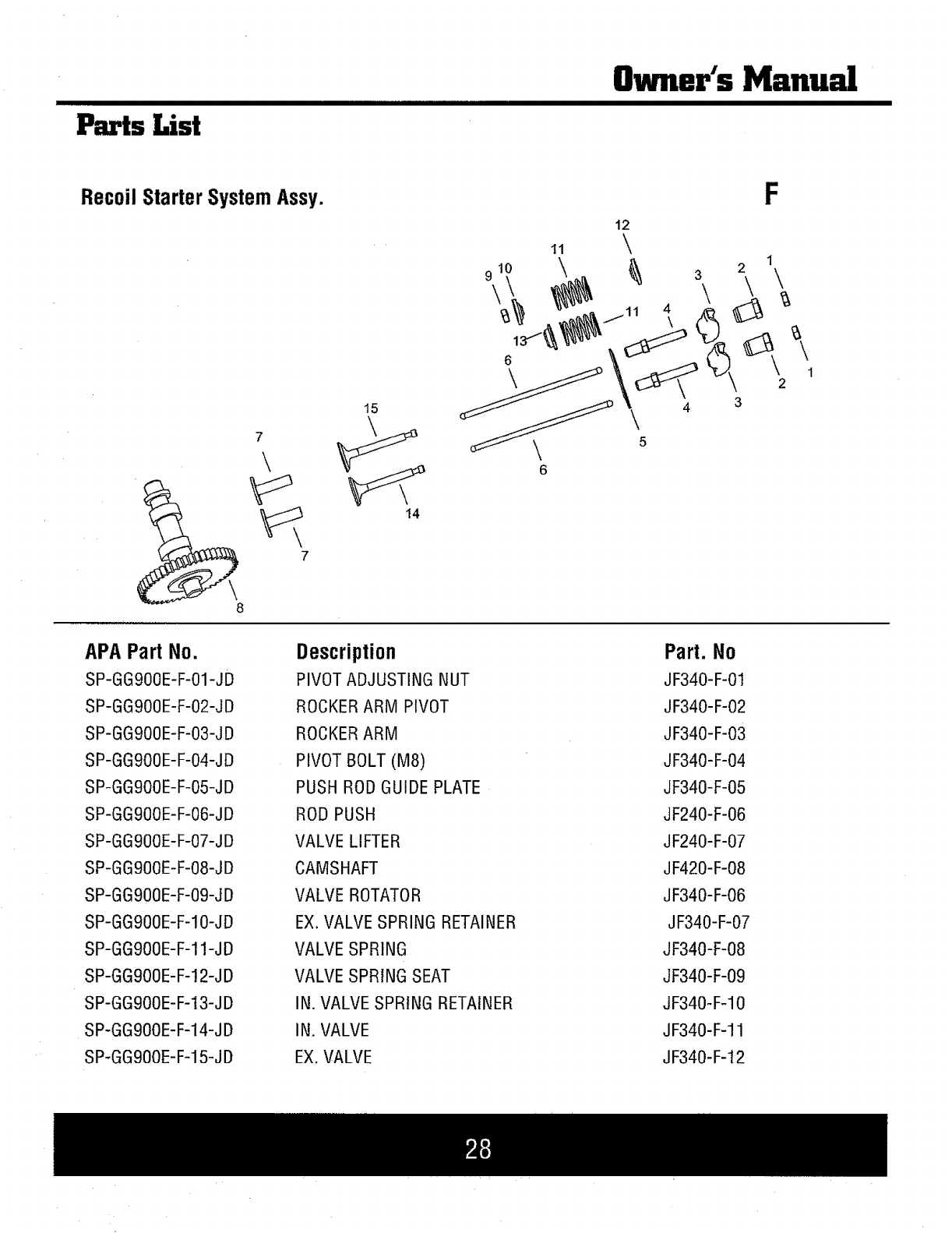

Parts List 23
Ilk WARNING! READAND UNDERSTANDALL SAFETYPRECAUTIONSIN THIS MANUAL BEFORE
OPERATING.FAILURE TO COMPLY WITH INSTRUCTIONS IN THIS MANUAL COULD RESULT IN PERSONAL
INJURY, PROPERTYDAMAGE,AND/OR VOIDING OFYOUR WARRANTY. GENTRON® PRODUCTSWILL NOT
BE LIABLE FORANY DAMAGE BECAUSEOFFAILURE TO FOLLOWTHESE INSTRUCTIONS.
Limited Warranty
Owner's Manual
IIIII III III III IIII IIIII I III IIIIIIIII II IIIII I IIII I IIIII II IIIII IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
Gentron® warrants to the original purchaser who uses the product in a consumer application (personal,
residential or household usage) that all products covered under this warranty are free from defects in
material and workmanship for one year from the date of purchase. All products covered by this limited
warranty which are used in commercial applications (i.e. income producing) are warranted to be free of
defects in material and workmanship for 90 days from the date of original purchase. Products covered under
this warranty include air compressors, air tools, service parts, pressure washers and generators.
Gentron® will repair or replace, at Gentron® sole option, products or components which have failed within the
warranty period. Service will be scheduled according to the normal work flow and business hours at the
service center location, and the availability of replacement parts. All decisions of Gentron® with regard to this
limited warranty shall be final.
This warranty gives you specific legal rights, and you may also have other rights which vary from state to
state.
RESPONSIBILITY OF ORIGINAL PURCHASER(initial User):
To process a warranty claim on this product, DO NOTreturn item to the retailer. The product must be
evaluated by an Authorized Warranty Service Center. For the location of the nearest Authorized Warranty
Service Center contact the retailer or place of purchase.
Retain original cash register sales receipt as proof of purchase for warranty to work.
Use reasonable care in the operation and maintenance of the product as described in the Owner's Manual(s).
Deliver or ship the product to the Authorized Warranty Service Center. Freight costs, if any must be paid by
the purchaser, tf the purchaser does not receive satisfactory results form the Authorized Warranty Service
Center, the purchaser should contact Gentron® toll free 888-896-6881.
THIS WARRANTY DOES NOT COVER:
Merchandise sold as reconditioned, used as rental equipment, or floor or display models.
Merchandise that has become damaged or inoperative because of ordinary wear, misuse, cold, heat, rain,
excessive humidity, freeze damage, use of improper chemicals, negligence, accident, failure to operate the
"product in accordance with the instructions provided in the Owner's Manual(s) supplied with the product,
improper maintenance, the use of accessories or attachments not recommended by Gentron®, or
unauthorized repair or alterations.
• Repair and transportation costs of merchandise determine not to be defective.
• Costs associated with assembly, required oil, adjustments or other installation and start-up costs.
Expendable parts or accessories supplied with the product which are expected to become inoperative or
unusable after a reasonable period of use.
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIlllllllll
Limited Warranty
Owner's Manual
IIIIIIIIIIIIIIIIII I II IIII I I l
Merchandise sold by Gentron® which has been manufactured by and identified as the product of another
company, such as gasoline engines. The product manufacturer's warranty, if any, will apply.
ANY INCIDENTAL, INDIRECT OR CONSEQUENTIALLOSS, DAMAGE, OR EXPENSETHAT MAY RESULT
FROM ANY DEFECTS,FAILURE OR MALFUNCTION OFTHE PRODUCT IS NOT COVEREDBY THIS
WARRANTY. Some states do not allow the exclusion, so it may not apply to you.
IMPLIED WARRANTIES, INCLUDINGTHOSE OFMERCHANTABILITY OR FITNESSFORA PARTICULAR
PURPOSE,ARE LIMITED TO ONEYEAR FROM THE DATEOF ORIGINAL PURCHASE.Some states do not
allow limitations on how long an implied warranty lasts, so the above limitations may not apply to you.
Owner's Manual
IIIIIIIIIIIIIIIIIIIIIIIIIIIIII iiiiiiiiilllllllmllll IIIII i Iii I I I
Safety Gnidefines - Definitions
This manual contains important information that you need to know and understand in order to keep YOU
SAFEand to PREVENTEQUIPMENT PROBLEMS. The following symbols help you recognize this information.
Please read the manual and pay attention to these sections.
Save These Important Safety Instructions! Read and understand all of these safety instructions. Be sure to
retain them for future use.
_. WARNING! Warnings indicate a certainty or strong possibility of personal injury or death if
instructions are not followed.
_k CAUTION: Cautions indicate a possibilit_j of equipment damage if instructions are not followed
NOTE:Notes give helpful information
_k WARNING! Improper operation or maintenance of this product could result in serious injury an
property damage. Read and understand all warnings and operating Instructions before using this equipment.
When using air tools, basic safety precautions should always be followed to reduce the risk of personal
injury.
Owner's Manual

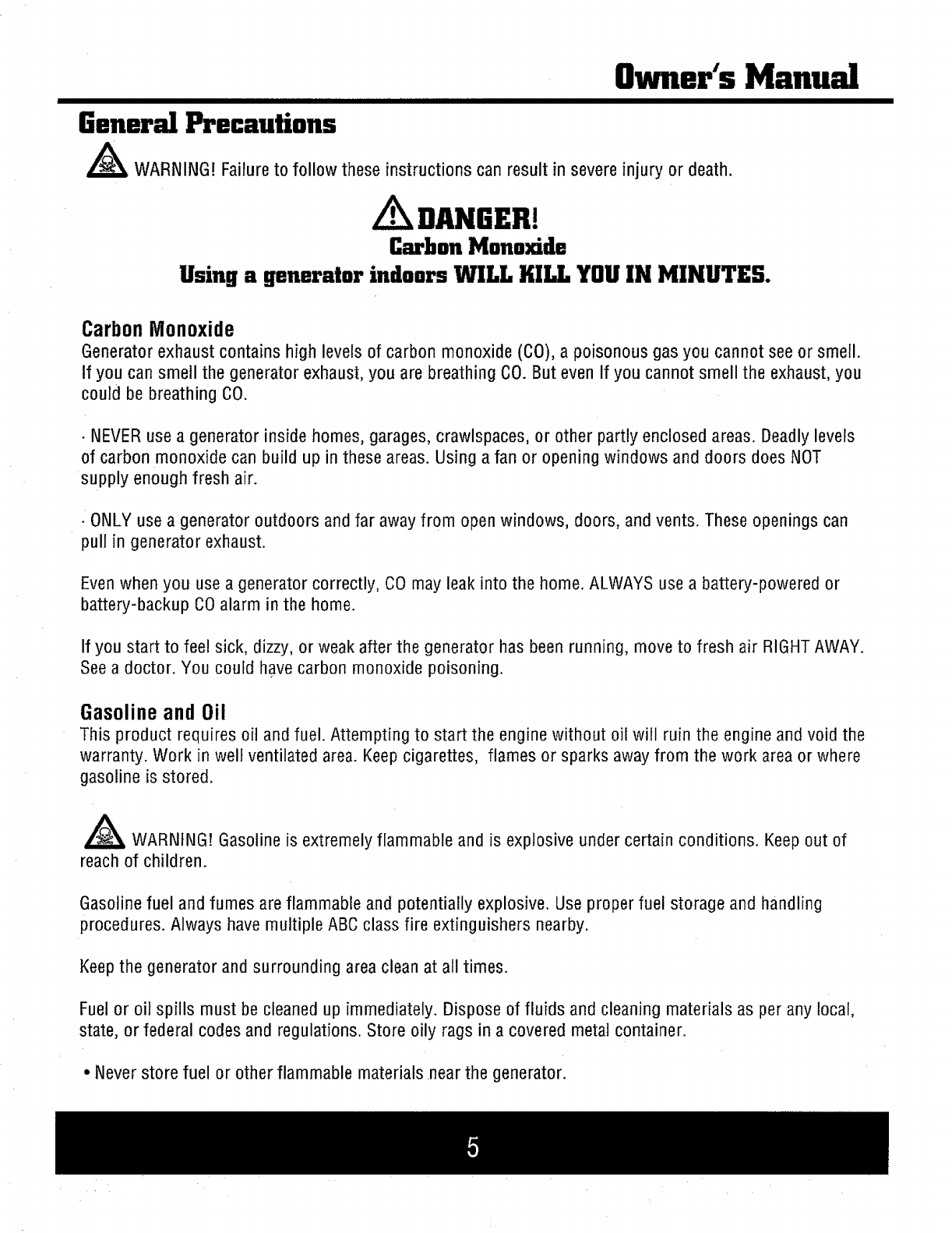

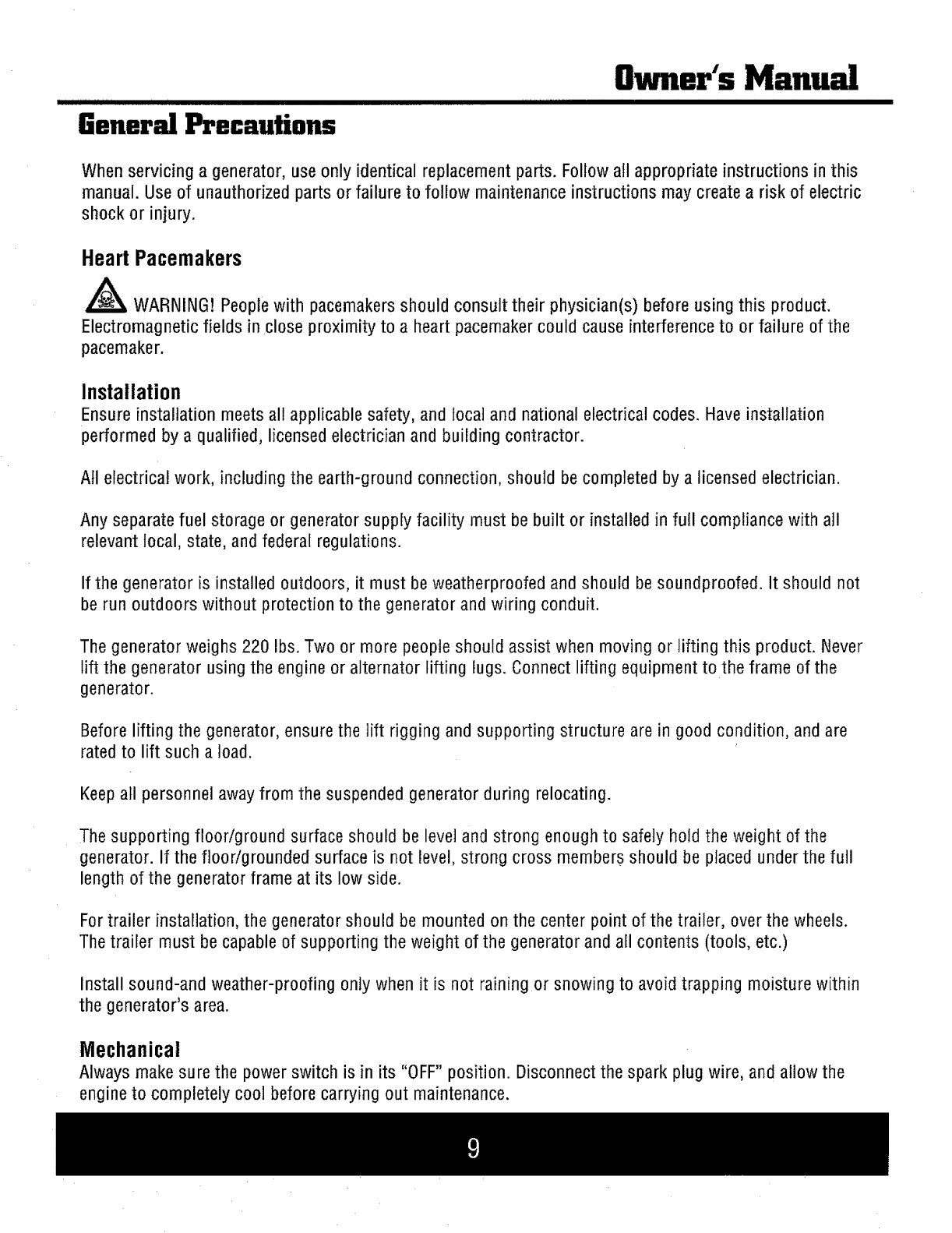

General Precautions
_k WARNING! Failure to follow these instructions can result in severe injury or death.
DANGER!
Carbon Monoxide
Using a generator indoors WILL HILLYOUIN MINUTES.
Carbon Monoxide
Generator exhaust contains high levels of carbon monoxide (CO), a poisonous gas you cannot see or smell.
if you can smell the generator exhaust, you are breathing CO. But even If you cannot smell the exhaust, you
could be breathing CO.
•NEVER use a generator inside homes, garages, crawlspaces, or other partly enclosed areas. Deadly levels
of carbon monoxide can build up in these areas. Using a fan or opening windows and doors does NOT
supply enough fresh air.
. ONLY use a generator outdoors and far away from open windows, doors, and vents. These openings can
pull in generator exhaust.
Even when you use a generator correctly, CO may leak into the home. ALWAYS use a battery-powered or
battery-backup COalarm in the home.
If you start to feel sick, dizzy, or weak after the generator has been running, move to fresh air RIGHT AWAY.
See a doctor. You could have carbon monoxide poisoning.
Gasoline and Oil
This product requires oil and fuel. Attempting to start the engine without oil will ruin the engine and void the
warranty. Work in well ventilated area. Keep cigarettes, flames or sparks away from the work area or where
gasoline is stored.
_ WARNfNG! Gasoline is extremely flammable and is explosive under certain conditions. Keep out of
reach of children.
Gasoline fuel and fumes are flammable and potentially explosive. Use proper fuel storage and handling
procedures. Always have multiple ABC class fire extinguishers nearby.
Keep the generator and surrounding area clean at all times.
Fuel or oil spills must be cleaned up immediately. Dispose of fluids and cleaning materials as per any local,
state, or federal codes and regulations. Store oily rags in a covered metal container.
• Never store fuel or other flammable materials near the generator.

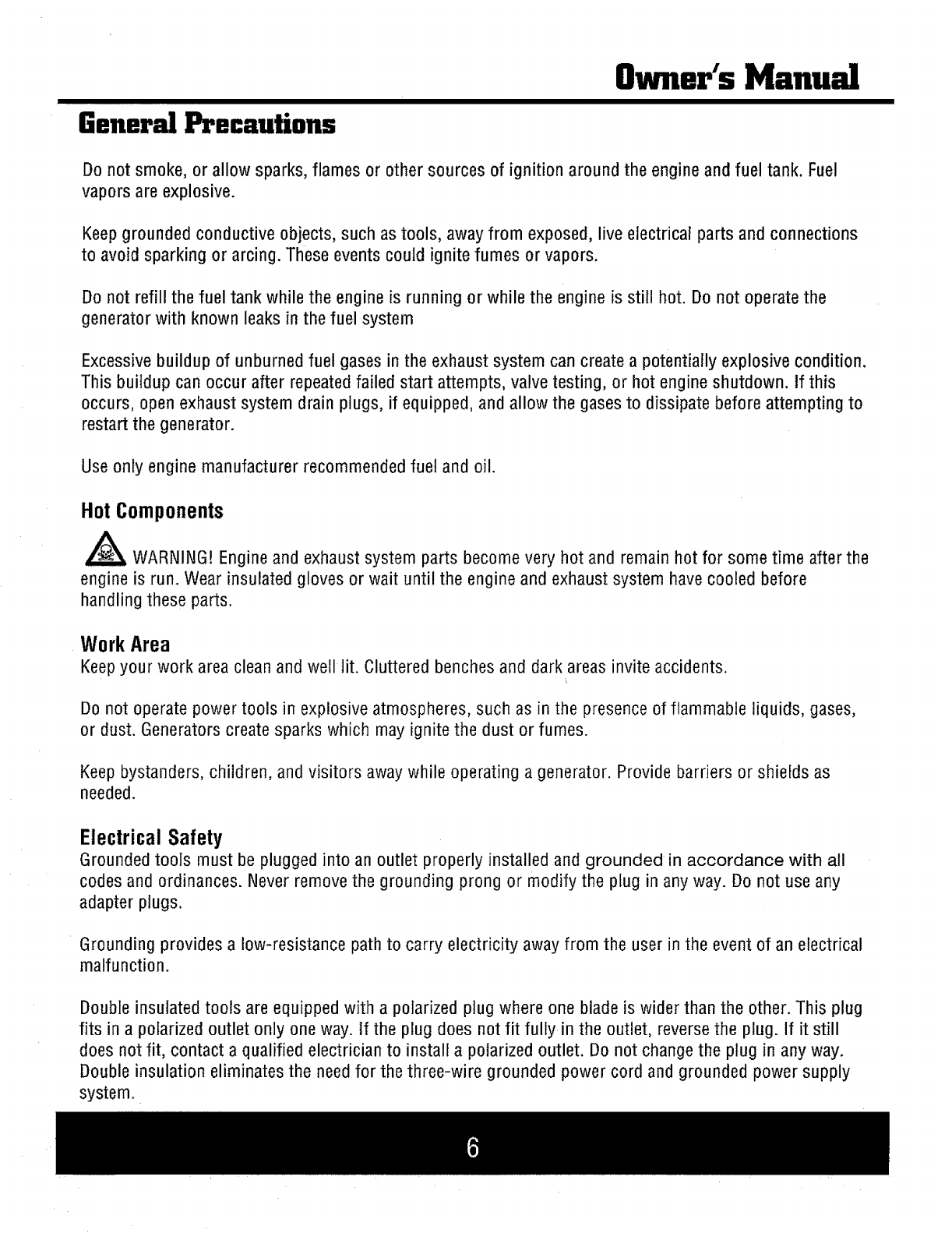

Genera] Precautions
Owner's Manual
Do not smoke, or allow sparks, flames or other sources of ignition around the engine and fuel tank. Fuel
vapors are explosive.
Keep grounded conductive objects, such as tools, away from exposed, live electrical parts and connections
to avoid sparking or arcing. These events could ignite fumes or vapors.
Do not refill the fuel tank while the engine is running or while the engine is still hot. Do not operate the
generator with known leaks in the fuel system
Excessive buildup of unburned fuel gases in the exhaust system can create a potentially explosive condition.
This buildup can occur after repeated failed start attempts, valve testing, or hot engine shutdown, tf this
occurs, open exhaust system drain plugs, if equipped, and allow the gases to dissipate before attempting to
restart the generator.
Use only engine manufacturer recommended fuel and oil.
Hot Components
_ WARNINGEEngine and exhaust system parts become very hot and remain hot for some time after the
engine is run. Wear insulated gloves or wait until the engine and exhaust system have cooled before
handling these parts.
Work Area
Keep your work area clean and well tit. Cluttered benches and dark areas invite accidents.
Do not operate power tools in explosive atmospheres, such as in the presence of flammable liquids, gases,
or dust. Generators create sparks which may ignite the dust or fumes.
Keep bystanders, children, and visitors away while operating a generator. Provide barriers or shields as
needed.

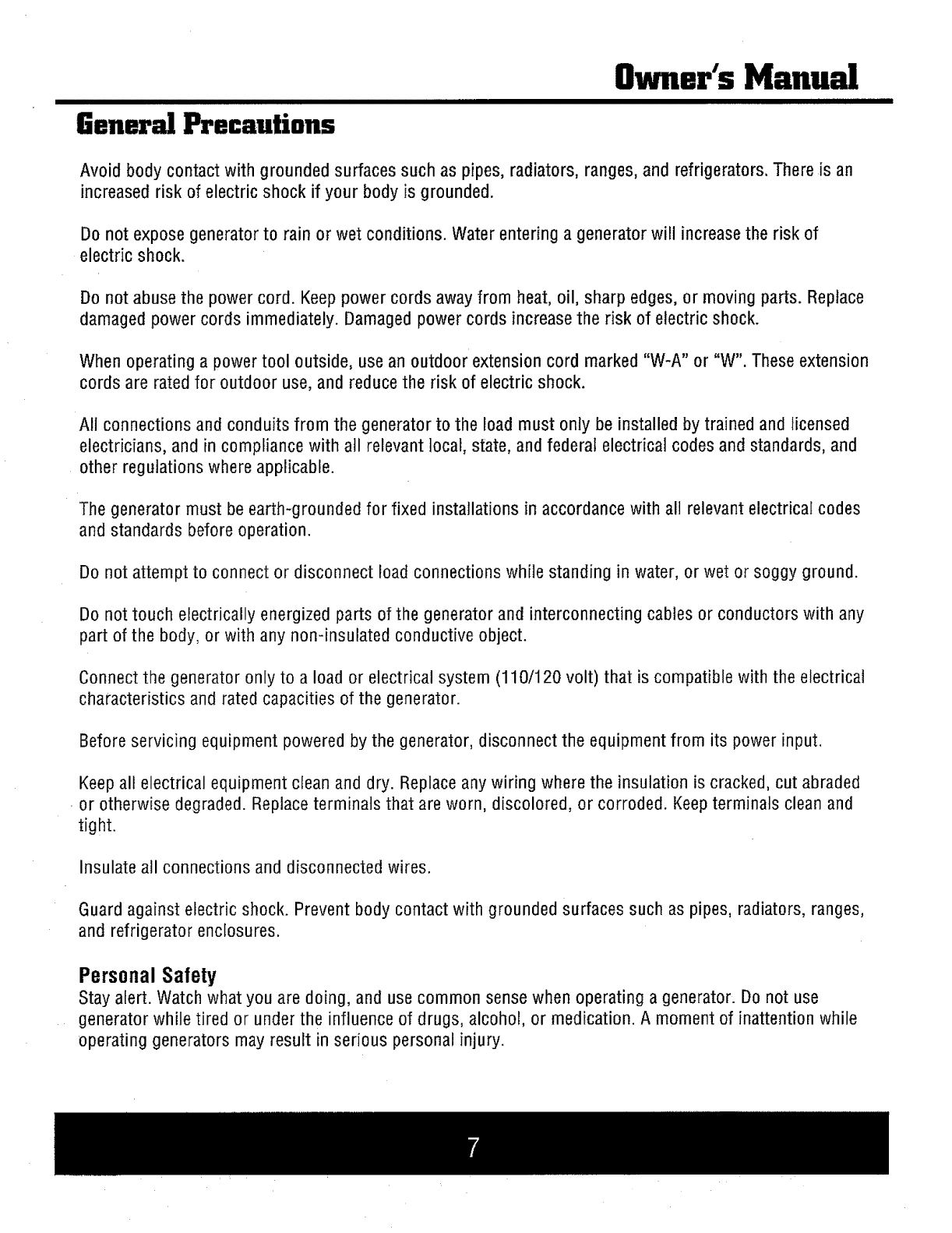

Electrical Safety
Grounded tools must be plugged into an outlet properly installed and grounded in accordance with all
codes and ordinances. Never remove the grounding prong or modify the plug in any way. Do not use any
adapter plugs.
Grounding provides a low-resistance path to carry electricity away from the user in the event of an electrical
malfunction.
Double insulated tools are equipped with a polarized plug where one blade is wider than the other. This plug
fits in a polarized outlet only one way. If the plug does not fit fulty in the outlet, reverse the plug. If it still
does not fit, contact a qualified electrician to install a polarized outlet. Do not change the plug in any way.
Double insulation eliminates the need for the three-wire grounded power cord and grounded power supply
system.
General Precautions
Owner's Manual
I IIIIIII I I II I IIIII IIII IIIIIIIIIIH
Avoid body contact with grounded surfaces such as pipes, radiators, ranges, and refrigerators. There is an
increased risk of electric shock if your body is grounded.
Do not expose generator to rain or wet conditions. Water entering a generator will increase the risk of
electric shock.
Do not abuse the power cord. Keep power cords away from heat, oil, sharp edges, or moving parts. Replace
damaged power cords immediately. Damaged power cords increase the risk of electric shock.
When operating a power tool outside, use an outdoor extension cord marked "W-A" or "W". These extension
cords are rated for outdoor use, and reduce the risk of electric shock.
All connections and conduits from the generator to the load must only be installed by trained and licensed
electricians, and in compliance with atl relevant local, state, and federal electrical codes and standards, and
other regulations where applicable.
The generator must be earth-grounded for fixed installations in accordance with all relevant electrical codes
and standards before operation.
Do not attempt to connect or disconnect load connections while standing in water, or wet or soggy ground.
Do not touch electrically energized parts of the generator and interconnecting cables or conductors with any
part of the body, or with any non-insulated conductive object.
Connect the generator only to a load or electrical system (110/120 volt) that is compatible with the electrical
characteristics and rated capacities of the generator.
Before servicing equipment powered by the generator, disconnect the equipment from its power input.
Keep all electrical equipment clean and dry. Replace any wiring where the insulation is cracked, cut abraded
or otherwise degraded. Replace terminals that are worn, discolored, or corroded. Keep terminals clean and
tight.
Insulate all connections and disconnected wires.
Guard against electric shock. Prevent body contact with grounded surfaces such as pipes, radiators, ranges,
and refrigerator enclosures.

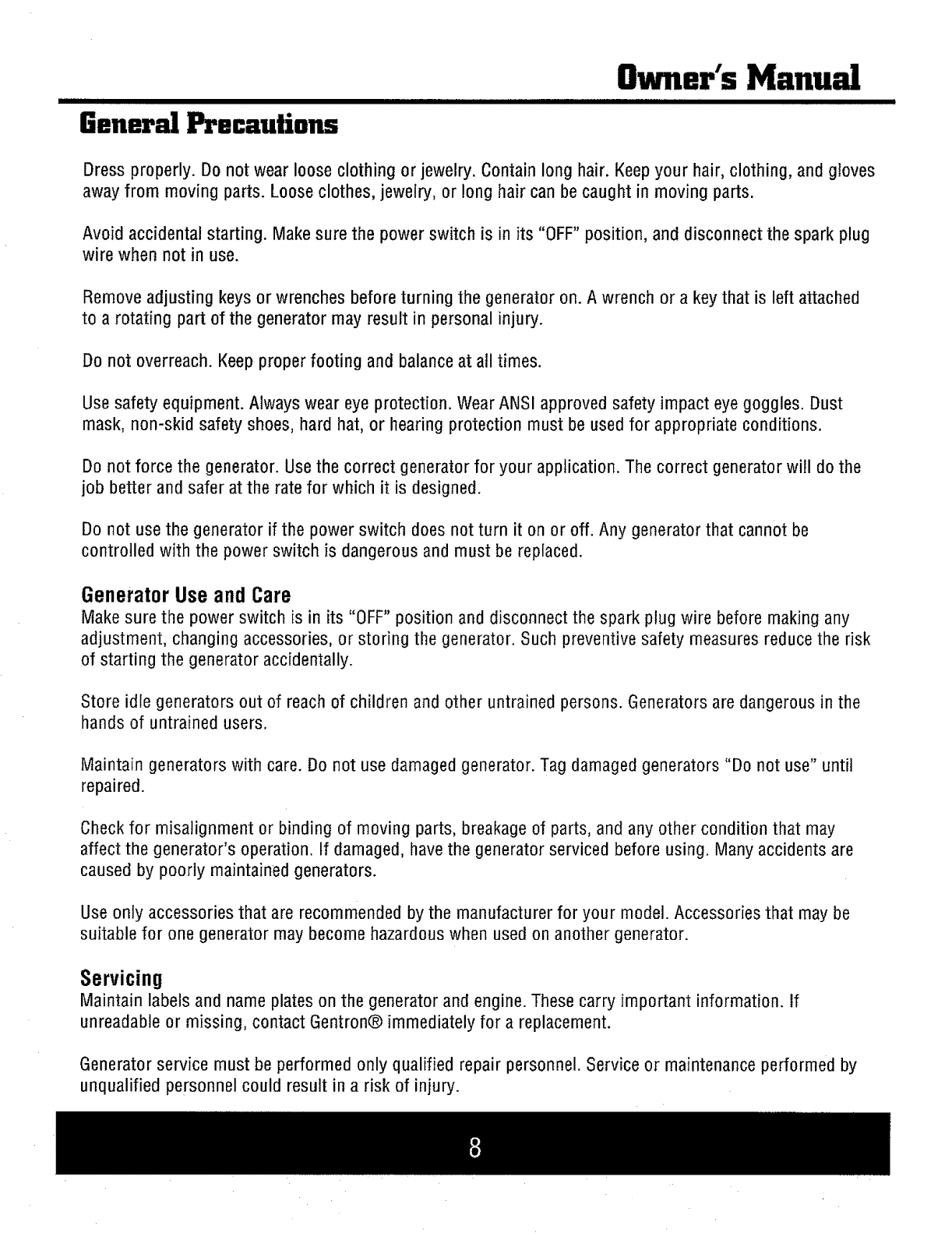

Personal Safety
Stay alert. Watch what you are doing, and use common sense when operating a generator. Do not use
generator while tired or under the influence of drugs, alcohol, or medication. A moment of inattention while
operating generators may result in serious personal injury.
G Precautions
Owner's Manual
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes, jewelry, or long hair can be caught in moving parts.
Avoid accidental starting. Make sure the power switch is in its "OFF" position, and disconnect the spark plug
wire when not in use.
Remove adjusting keys or wrenches before turning the generator on. A wrench or a key that is left attached
to a rotating part of the generator may result in personal injury.
Do not overreach. Keep proper footing and balance at all times.
Use safety equipment. Always wear eye protection. Wear ANSI approved safety impact eye goggles. Dust
mask, non-skid safety shoes, hard hat, or hearing protection must be used for appropriate conditions.
Do not force the generator. Use the correct generator for your application. The correct generator will do the
job better and safer at the rate for which it is designed.
Do not use the generator if the power switch does not turn it on or off. Any generator that cannot be
controlled with the power switch is dangerous and must be replaced.
Generator Use and Care
Make sure the power switch is in its "OFF" position and disconnect the spark plug wire before making any
adjustment, changing accessories, or storing the generator. Such preventive safety measures reduce the risk
of starting the generator accidentally.
Store idle generators out of reach of children and other untrained persons. Generators are dangerous in the
hands of untrained users.
Maintain generators with care. Do not use damaged generator. Tag damaged generators "Do not use" until
repaired.
Check for misatignment or binding of moving parts, breakage of parts, and any other condition that may
affect the generator's operation. If damaged, have the generator serviced before using. Many accidents are
caused by poorly maintained generators.
Use only accessories that are recommended by the manufacturer for your model. Accessories that may be
suitable for one generator may become hazardous when used on another generator.
Servicing
Maintain labels and name plates on the generator and engine. These carry important information. If
unreadable or missing, contact Gentron® immediately for a replacement.
Generator service must be performed only qualified repair personnel. Service or maintenance performed by
unqualified Personnel could result in a risk of injury.
II I I IIIIIII IIII IIII I I
General Precautions IIIIII II IIIIIIIIII
Owner's Manual
When servicing a generator, use only identical replacement parts. Follow all appropriate instructions in this
manual. Use of unauthorized parts or failure to follow maintenance instructions may create a risk of electric
shock or injury.
Heart Pacemakers
_ WARNING! People with pacemakers should consult their physician(s) before using this product.
Electromagnetic fields in close proximity to a heart pacemaker could cause interference to or failure of the
pacemaker.
Installation
Ensure installation meets al! applicable safety, and local and national electrical codes. Have installation
performed by a qualified, licensed electrician and building contractor.
All electrical work, including the earth-ground connection, should be completed by a licensed electrician.
Any separate fuel storage or generator supply facility must be built or installed in full compliance with all
relevant focal, state, and federal regulations.
If the generator is installed outdoors, it must be weatherproofed and should be soundproofed. It should not
be run outdoors without protection to the generator and wiring conduit.
The generator weighs 220 Ibs. Two or more people should assist when moving or lifting this product. Never
lift the generator using the engine or alternator lifting lugs. Connect lifting equipment to the frame of the
generator.
Before lifting the generator, ensure the lift rigging and supporting structure are in good condition, and are
rated to lift such a load.
Keep all personnel away from the suspended generator during relocating.
The supporting floor/ground surface should be level and strong enough to safely hold the weight of the
generator. If the floor/grounded surface is not level, strong cross members should be placed under the full
length of the generator frame at its low side.
For trailer installation, the generator should be mounted on the center point of the trailer, over the wheels.
The trailer must be capable of supporting the weight of the generator and all contents (tools, etc.)
Install sound-and weather-proofing only when it is not raining or snowing to avoid trapping moisture within
the generator's area.
Mechanical
Always make sure the power switch is in its "OFF" position. Disconnect the spark plug wire, and allow the
engine to completely cool before carrying out maintenance.
General Precautions
Owner's Manual
Check for damaged parts. Before using the generator, any part that appears damaged should be carefully
checked to determine that it will operate properly and perform its intended function. Check for alignment and
binding of moving parts, any broken parts or mounting fixtures, and any other condition that may affect
proper operation technician.
The generator is designed with guards for protection from moving parts. In any case, care must still be taken
to protect personnel and equipment from other mechanical hazards when working around the generator.
Do not operate the generator with safety guards removed. While the generator is running, do not attempt to
reach around the safety guard for maintenance or any other reason.
Keep hands, arms, long hair, loose clothing, and jewelry away from moving parts. Be aware that when engine
parts are moving fast they cannot be seen clearly.
Keep access doors on enclosures closed and locked when access is not required.
When working on or around the generator always wear protective clothing including ANSI approved safety
gloves, safety eye goggles, and safety hat.
Do not alter or adjust any part of the generator that is assembled and supplied by the manufacturer.
Always follow and complete scheduled engine and generator maintenance.
Chemicals
Avoid contact with hot fuel, oil, exhaust fumes, and hot solid surfaces.
Avoid body contact with fuels, oils, and lubricants used in the generator. If swallowed, seek medical
treatment immediately. Do not induce vomiting if fuel is swallowed. For skin contact, immediately wash with
soap and water. For eye contact, immediately flush eyes with clean water and seek medical attention.
Noise
Prolonged exposure to noise levels above 85 DBA is hazardous to hearing. Always wear ANSI approved ear
protection when operating or working around the generator when it is running.
ExtensionCord
If an extension cord (not included) is used, make sure to use only UL approved cords having the correct
gauge and length according to the following table:
Nameplate Amps _ Cord Lengths ,
(@full load) 0'-50' 20'-100' 100'-150' 150'-200'
0-5 16AWG 16AWG 12AWG 12AWG
5.1 - 8 16AWG 14AWG 10AWG
8.8 - 12 14AWG 12AWG
Battery
Owner's Manual
Assembly
To start generator with electric start you will need a battery (not included). You can use a 12v lawn
tractor battery with the following specifications:The dimensions are Wx7.5" Dx5" Hx7"(including
terminals). A rated cranking amperage of 200. Terminals are regular, not reversed. Note: Using a
battery not designed for this unit may void warranty. Also this generator can also be started with
the pull start.
Photos below demonstrate how to install the battery.
t) Screw off the M6X12 bolts as shown below.
Openup the plate Connect battery and put in the cabin
2) Screw on one bolt to rivet the battery and screw the bolts to close up the plate as shown below.
Rivet battery Close up the plate
illl
Owner's Manual
Unpacking
1, Remove the generator and loose parts box from the carton.
2. Compare the loose parts with the inventory list below.
Loose Parts (Wheel kit and handle)
Check at! loose parts against the following list. Contact your dealer tolt free at 888.896.6881
if any of the loose parts shown are not included with your generator
Hardware Check:
Your Hardware Kit should include:
1) 2 Handles with bolts and brackets
2) 4 (six) MSx4Ornm bolts, (6rnnrnx 1.0) thread
3) 4 (six) M8 Nuts (6rnrn x 1.0) thread
4) 2 (two) rubber bushings with 2 nuts
5) 2 (two) axle shafts and axle mount brackets
6) 2 (two) washers
7) 4 (four) cotter pins
8) 8 (eight) bolts and nuts for the leg and the axle mount brackets
9) 1 (one) generator leg
10) 2 (two)wheels (not shown)
__
@@@@
5
@@@ @@@@ @
('?.'+I+'7+','+I"I
Assembly
Owner's Manual

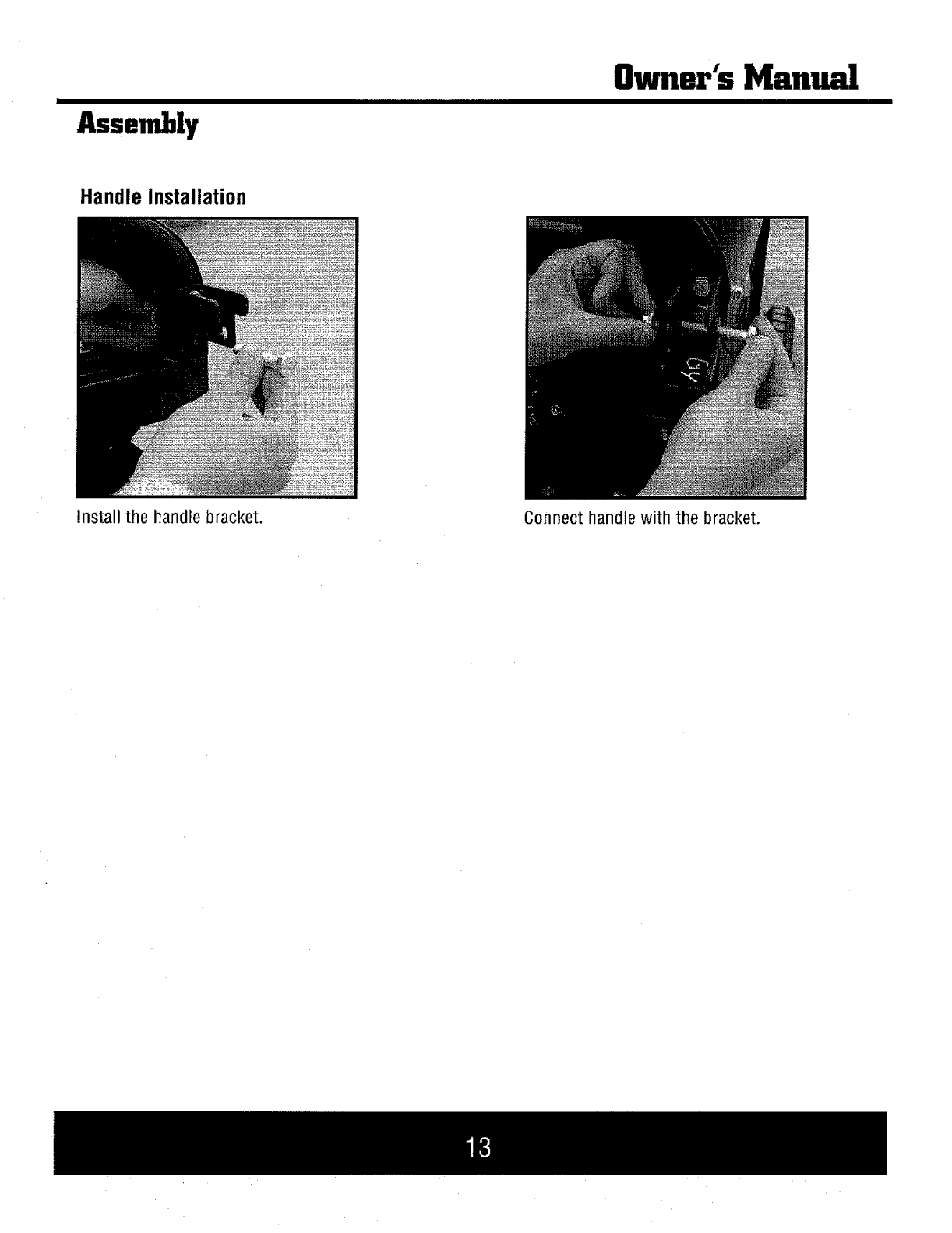

Handle Installation
Install the handle bracket. Connect handle with the bracket.
Assen ly
Wheel Kit Installation
Owner's Manuel
Start by installing the
rubberfloor mounts
onto the support leg
as shown.
Note: The leg should
be installed on the
sameside as the pull
handle.
Hereis the hardwarerequiredto install
the supportleg. Placea blockof wood
underthe generatorso thatyou don't
haveto hold it upwhiletrying to install
the leg. Placethe support legunderthe
frame. Pushthe bolt throughthe frameand
thru the leg.Threada nut onto the bolt.
Tightenwith a wrench.
This is whatthe leg
looks like when it is
installed.
Slide the wheels
onto the axle.
Placea washer
over the wheel
The wheelsshould be installed onthe
side oppositeto the handle.Placea
block of wood underthe generatorso
that you don't haveto bold it upwhile
trying to install the axle. Placethe axle
mount brackets.Threadtwo bolts through
the frameand through the axle mounting
plates. Threada nut onto the bolt and
tighten. Push the axleshaft into the axle
mount bracket.Then pushthe cotter pin
through the axle and bend it backwardsas
shown.
Push the cotter pin through the axleand
bend it backwardsas shown
Your generator is now mobile. Enjoy!
68
88
IIIIIII II III
Operation Electric Start
Owner's Manual
ANOTE:The parts listed above are
helpful for locating the controls mentioned
below.
ACAUTION: Prior to first using the generator, the
engine must be filled with a high quality sae 10w-30
grade engine oil. To do so unscrew and remove the
engine's oil dipstick located at the bottom of the
engine crankcase. Fill the engine's crankcase until the
oil level is level with the upper marked line on the
dipstick. Then, screw the dipstick back into the oil fill
hole.
IIIIIII I I I I
Tank
Control Panel
ENGINEOIL RECOMMENDATIONS
Oil is a major factor affecting performance and service life. Use 4-stroke automotive detergent oil.
SAE lOW 30 is recommended for general use. Other viscosities shown in the chart may be used when the
average temperature in your area is within the recommended range.
SAE Viscosity Grades
,,,j...........
rJ
-20 0 20 40 60 80 IO0°F
I I I II I I
-20 -10 0 I0 20 30 40°C
AMBIENT TEMPERATURE
Upper Level Oil Fill and
Dipstick
Before Starting the Generator
1. Check that the engine power switch is in its "OFF" position (see diagram on next page).
2. Before the first use, remove the fuel tank cap and fill the fuel tank with unleaded gasoline. When fueling,
be sure that the fuel strainer is in place. Replace the fuel tank cap. Thereafter, check the engine's fuel gauge
for the amount of unleaded gasoline in the fuel tank. If necessary, refill the fuel tank with unleaded gasoline.
The generator must be turned off and cooled down before refilling the fuel tank.
Owner's Manual
Operation
Starting
1. Turn the engine switch to the ON position. The engine switch enables and
disables the ignition system.
OFF:To stop the engine. RUN: To run the engine.
2. The fuel valve is located between the fuel tank and the carburetor.
When the valve lever is in the ON position, fuel is allowed to flow from
the fuel tank to the carburetor. Be sure to return the fuel valve lever to
the OFFposition after stopping the engine.
3. To start a cold engine, move the choke lever to the CLOSEDposition.
To restart a warm engine, leave the choke lever in the OPEN position.
The choke lever opens and closes the choke valve in the carburetor.
The CLOSEDposition enriches the fuel mixture from starting a cold engine.
The OPENposition provides the correct fuel mixture for operation after
starting, and for restarting a warm engine.
4. Operate the Recoil Starter: Turn the key to the "Run" position. Pull the
starter grip lightly until you feel resistance, then pull briskly. Return the
starter grip gently. Pulling the starter grip operates the recoil starter to
crank the engine.
ELECTRICSTART. For Electric Start just turn the key to start.
NOTE:Make sure correct battery is installed.
(see battery installation for details)
5. If the choke lever has been moved to the CLOSED
position to start the engine, gradually move it to the
OPEN position as the engine warms up.
StoppingEngine
Turn the engine switch to the OFFposition.
2. Turn the fuel valve lever to the OFFposition.
When the engine is not in use, leave the fuel valve lever in the OFFposition
to prevent carburetor flooding and to reduce the possibility of fuel leakage.
0
0
q
Ron
OFF
KeyStart
ChokeRod
Ope
....i¸ "-_ .................................. i _i •
Owner's Manual
Operation
Powering 120 Volt AC ToolsAnd Equipment:
1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity
(120V AC) is adequate to supply all electrical loads that the unit will power, if powering exceeds the
generator's capacity, it may be necessary to group one or more of the tools and/or equipment for connection
to a separate generator.
CAUTION:Attempting to power sensitive electronic equipment without the use of an approved
line conditioner may cause damage to the equipment. Gentron® is not responsible for any direct or indirect
damage caused by failure to use an approved line conditioner.
2. Once the generator is running, simply connect the power cords of 120 volt AC powered tools and
equipment into the 120 volt AC dual outlets.
NOTE:The generator features an AC non-fuse circuit breaker to protect the AC circuit in case of an
overload. Shoutd an overload occur, the breaker will "trip" to its "off" position, In this case, refer to above in
this position. Then, reset the circuitry system by turning the circuit breaker to its "on" position.
3. Disconnect all electrical powered tools and equipment from the generator's 120 volt AC duel outlets.
4. After the engine and generator have completely cooled, store generator in a safe, clean, dry location (if
not already installed).
Powering 12 Volt DCtools and Equipment:
1. Prior to powering tools and equipment, make sure the generator's rated voltage, and amperage capacity
(12V DC) is adequate to supply all electrical loads that the unit will power. If powering exceeds the
generator's capacity, it may be necessary to group one or more of the tools and/or equipment for connection
to a separate generator.
2. Connect the power cord of a 12V DC powered tool or equipment to the DC Terminals.
,_k CAUTION: Make sure to connect the positive (+) lead of the power cord to the positive (+) terminal on
the generator, and connect the negative (-) lead of the power cord to the negative (-) terminal on the
generator.
3. Start and run the engine as described above.
4. When finished using the generator, turn the engine power switch to its "OFF" position. Turn the fuel valve
to its "OFF" position.
5. Disconnect the electrical powered tools' power cord from the generator's DC terminals.
6. After the engine and generator have completely cooled, store the generator in a safe, clean, dry location
(if not already installed in one).
NOTE: The 12V DC is generally used for charging batteries.
Owner's Manual
Operation
Spark Plug Service
In order to service the spark plug, you will need a spark plug wrench (commercially available).
Recommended spark plugs: NHSP LD F7TC.To ensure proper engine operation, the spark plug must be
properly gapped and free of deposits.
1. Remove the spark plug cap.
2. Use a spark plug wrench to remove the spark plug.
3. Visually inspect the spark plug. Discard it if the insulator is cracked or chipped. Clean the spark plug with
a wire brush if it is to be reused.
4. Measure the plug gap with a feeler gauge.
5. Check that the spark plug washer is in good condition.
6. After the spark plug is seated, tighten with a spark plug in by hand to prevent cross-threading.
7. After the spark plug is seated, tighten with a spark plug wrench to compress the washer.
_ NOTE:The spark plug must be securely tightened. An improperly tightened spark plug can become
very hot and could damage the Engine. Never use spark plugs which have an improper heat range. Use only
recommended spark plus or equivalent.
IIIIIIIIIIIIIIIIIIIIIIII
Inspection, Cleamng, and Maintenance
Owner's Manual
SparkPlug Service
_ WARNING! Always make sure the engine power switch is in its "OFF" position. Disconnect the spark
plug wire from the engine and allow sufficient time for the engine and generator to completely cool before
performing any inspections, maintenance, or cleaning.
Before each use, inspect the generator. Check for:
- Loose screws
- Misaligned or binding moving parts
- Cracked or broken parts
- Damaged electrical wiring
- Any other condition that may affect safe operation.
If an engine problem occurs, have it checked by a qualified service technician before further use. Do not use
damaged equipment.
Before each use, make sure the engine's oil and gas levels are adequate. If necessary, fill the crankcase until
the oil level is even with the oil hill hole and/or fill the fuel tank.
Before each use, remove all debris with a soft brush, rag, or vacuum.
Lubricate all moving parts using a premium quality, lightweight machine oil.
Oil has to be drained after the first 20 hours of use. This is the break in period. Then after every 50 hours
of use, drain the old engine oil and replace with a high quality SAE 10W-30 grade engine oil.
Every 300 hours of use, have a qualified, certified technician perform thorough maintenance on the generator
and engine.
For long term storage, either drain fuel into suitable container or add a fuel preservativetstabilizer (not
included) to prevent fuel breakdown.
Installation
Owner's Manual
NOTE:Prior to powering tools and equipment make sure the generator's rated voltage, wattage and
amperage capacity is adequate to supply all electrical loads that the unit will power. If powering exceeds the
generator's capacity, it may be necessary to group one or more of the tools and/or equipment for
connection to a separate generator.
Electrical and other permits may be required for the installation of emergency power systems. Investigate
your local building and electrical codes before installing this unit. Installation must be completed by licensed
contractors.
,J_ WARNING! The generator weighs approximately 220 pounds. Use care and the proper lifting or
hoisting equipment when moving it to the installation location. Always connect hoist lines to the frame of the
generator.
General Location
Make sure to locate and install the generator outdoors where cooling air is readity available. Install the
generator so that the air inlets and outlets are not blocked by obstructions such as bushes, trees, or snow
drifts. Locating it in the path of heavy winds or snowdrifts may require the placement of a barrier for
protection. In normal weather conditions, the air vent should face the prevailing wind direction.
Install the generator on a concrete slab or other area where rain drainage or flood waters can not reach it.
Generator placement should allow four feet of access to all sides for maintenance.
Place the generator as close as possible to the electrical tools and equipment being powered to reduce the
length of extension cords.
Supportingand Mounting
Mount the generator on a concrete slab capable of supporting the weight of the generator. The slab must
extend on all sides beyond the frame by at least one foot. Contact a cement contract or for slab specifications
if necessary. Attach the frame to the concrete slab using 3/8" diameter expansion anchor bolts (not supplied).
Grounding
J_ NOTE:it is recommended that only a trained and licensed electrician perform this procedure.
Connect a #6 AWG grounding wire (not included) from the ground connector on the generator power panel
(picture below) to a grounding rod (picture below). It must be driven at least 24" deep into the soil). The
grounding rod must be an earth-driven copper or brass (electrode) which can adequately ground the generator.
Ground Connector
Owner's Manual
UNITED STATES ENVIRONMENTALPROTECTIONAGENCY,WASHINGTON,DC 20460
2005 Model Year Certificate of Conformity
Manufacturer: Jiangsu Jiandong Group Co. Ltd.
Certificate Number: JDG-NRSI-05-04
Effective Date: 12/09/2005
Date Issued: 12/09/2005
Merrylin Zaw-Mon, Director, Compliance and Innovation Strategies Division, Office of Transportation and Air
Quality.
Pursuant to Section 213 of Clean Air Act (42 U.S.C. section 7547) and 40 CFR90, and subject to the terms
and conditions prescribed in those provisions, this certificate of conformity is hereby issued for the following
small non-road engine family, more fully described in the documentation required by 40 CFR 90 and
produced in the stated model year.
This certificate of conformity covers only those new small non-road engines which conform in all material
respects to the design specifications described in the documentation required by 40 CFR90 and which are
produced during the model year stated on this certificate. This certificate of conformity does not cover small
non-road engines imported prior to the effective date of the certificate.
SMALL NON-ROAD ENGINE FAMILY: 5JDGS.3892GA
This certificate of conformity is conditional upon compliance of said manufacturer with the averaging,
banking, and trading provisions of 40 CFRPart 90, Subpart C both during and after model year production.
Failure to comply with these provisions may render this certificate void abinitio. The HC+ NOXfamily
emission limit (FEL) is: gik W-hr.
It is a term of this certificate that the manufacturer shall consent to all inspections described in 40 CFR
90.126 and 90.506 and authorized in a warrant or court order. Failure to comply with the requirements of
such a warrant or court order may lead to revocation or suspension of this certificate for reasons specified
in 40 CFR 90. It is also aterm of this certificate that this certificate may be revoked or suspended or
rendered void ab initio for other reasons specified in 40 CFR 90.
This certificate does not cover smalt non-road engines sold, offered for sale, or introduced, or delivered for
introduction, into commerce in the U.S. prior to the effective date of the certificate.
IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII
Specifications
ACElectrical
Current Output
Rated Wattage
PeakWattage
Outlet
Owner's Manual
120V/240V AC @ 60/30A 60Hz
7,200
10,000
2-120V outlets, 1-120V twistqock
1-120/240V twist-lock
DCElectrical
12V 8.3A
Gasoline Engine
Horsepower
Type
Displacement
Oil Capacity
EPA approved
15
4-cycle OHVair-cooled Recoil &
Electric Start
420cc
1.16 quart (1.1 liter)
Yes
:Fuel
Type
Capacity
Running Time
Fuel Gauge
Unleaded gasoline
6.6 gallons
8.5 hours (approx.) on 1/2 load
Included
Weight
Approximate Weight 220 Ibs.
Parts List
Owner's Manual
Cylinder Head assy. A
10 10
\ \
12 11
8
8
\5
\4
\
2
APAPart No.
SP-GG9OOE-A-OI-JD
SP-GGgOOE-A-()2-JD
SP-GG9OOE-A-O3-JD
SP-GG9OOE-A-O4-JD
SP-GGgOOE-A-O5-JD
SP-GG9OOE-A-OG-JD
SP-GGgOOE-A-O7-JD
SP-GG9OOE-A-OS-JD
SP-GG9OOE-A-Og-JD
SP-GG9OOE-A-IO-JD
SP-GG900E-A-11-JD
SP-GG900E-A-12-JD
Description
HEADCOVERCOMP. BOLT
HEADCOVERWASHER COMP.
TUBE
HEAD COVERCOMP.
HEAD COVERPACKING
FLANGEBOLT (M10X 80)
SPARK PLUG
EXHAUST PIPE STUD BOLT
CYLINDER HEADOOMP.
CARBURETORSTUD BOLT
CYLINDER HEAD SEALING PAD
DOWEL PIN (?10x?12x20)
Part. No
JF340-A-01
JF340-A-02
JF340-A-13
JF340-A-04
JF340-A-05
JF340-A-06
JF340-A-07
JF340-A-08B
JF390-A-09
JF340-A-10B
JF420-A-11
JF340-A-12
U IIIIUlII I
Parts List IIIIIIIIIII III I
Owner's Manual

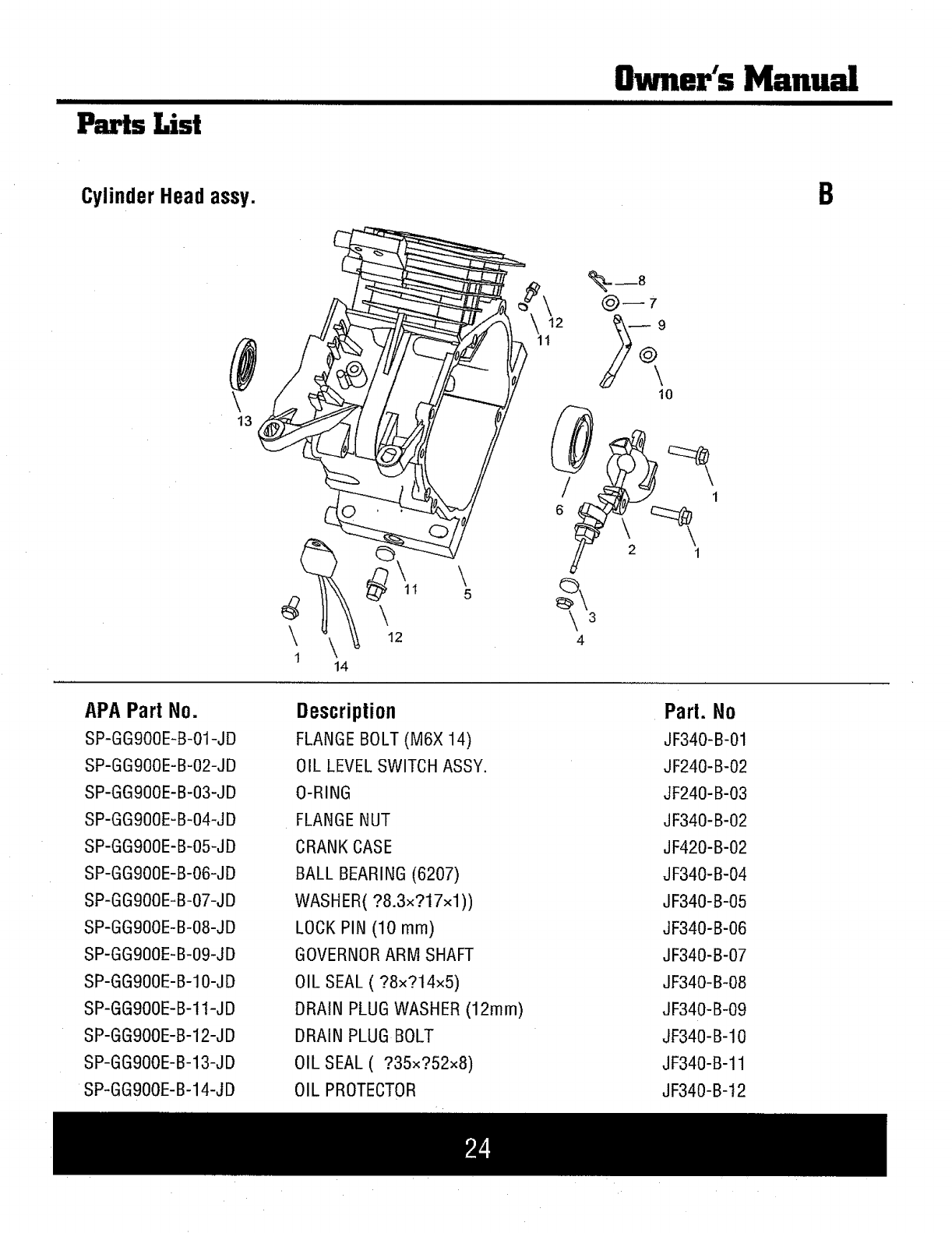

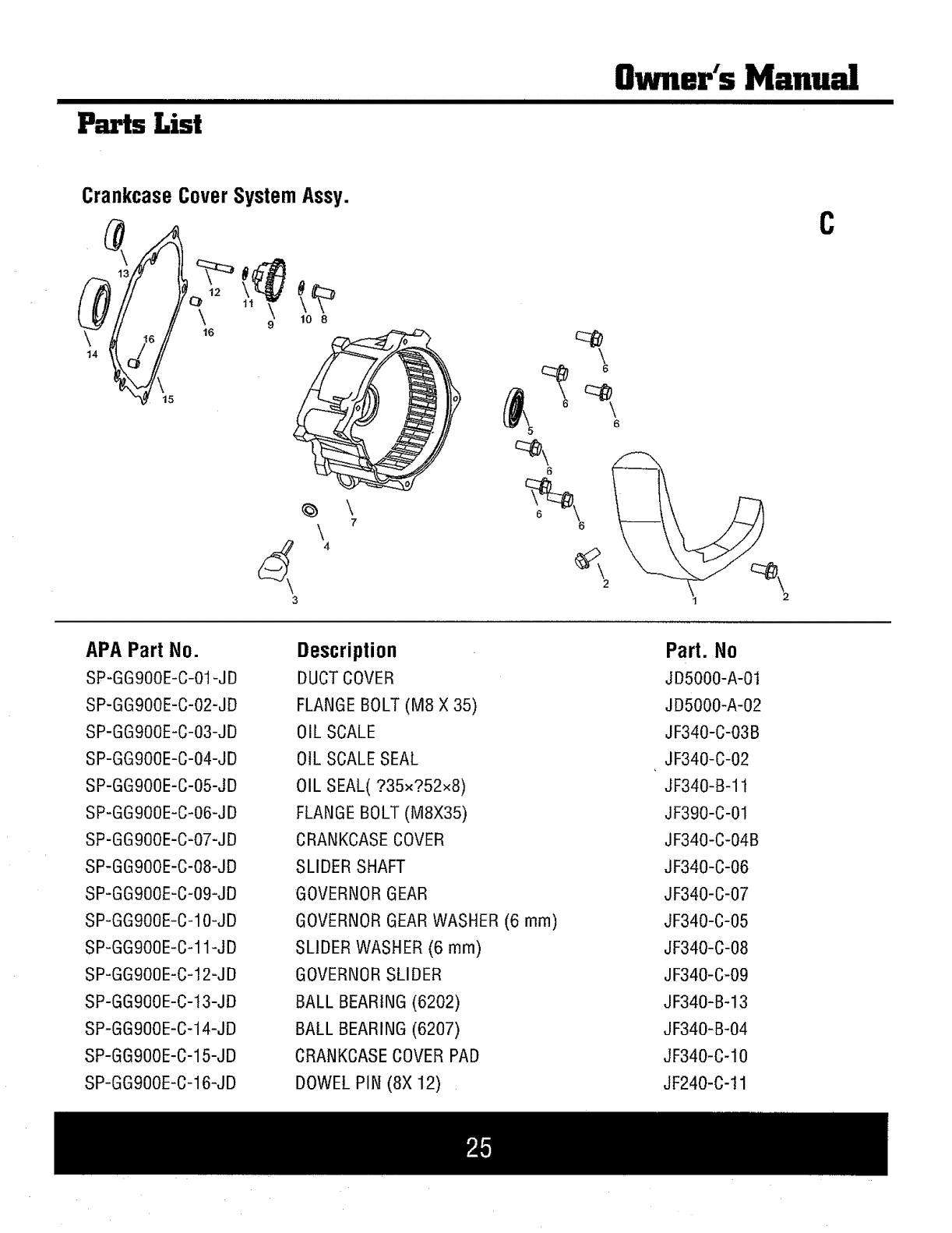

Cylinder Head assy. B
13
\
1
\ \
1t 5
\12
14
12
11
(_)_7
lO
4
APA Part No.
SP-GG9OOE-B-O1-JD
SP-GG9OOE-B-O2-JD
SP-GG9OOE-B-O3-JD
SP-GGgOOE-B-O4-JD
SP-GG9OOE-B-O5-JD
SP-GGgOOE-B-O6-JD
SP-GG9OOE-B-O7-JD
SP-GG9OOE-B-O8-JD
SP-GG9OOE-B-O9-JD
SP-GG9OOE-B-10-JD
SP-GGgOOE-B-!1-JD
SP-GG900E-B-12-JD
SP-GG900E-B-13-JD
SP-GG900E-B-14-JO
Description
FLANGEBOLT (M6X 14)
OIL LEVEL SWITCH ASSY.
O-RING
FLANGENUT
CRANKCASE
BALL BEARING(6207)
WASHER(?8.3x?17x1))
LOOKPIN (10 turn)
GOVERNORARM SHAFT
OIL SEAL(?8x?14x5)
DRAIN PLUG WASHER (12turn)
DRAIN PLUG BOLT
OIL SEAL (?35x?52x8)
OIL PROTECTOR
Part. No
JF340-B-01
JF240-B-02
JF240-B-03
JF340-B-02
JF420-B-02
JF340-B-04
JF340-B-05
JF340-B-06
JF340-B-07
JF340-B-08
JF340-B-09
JF340-B-10
JF340-B-11
JF340-B-12
Parts List
Owner's Manual
CrankcaseCover SystemAssy.
_16 9 10 8
\
3
\7
\
6
6
6
2
C
APA Part No.
SP-GG9OOE-C-Ot-JD
SP-GG9OOE-C-O2-JD
SP-GG9OOE-C-O3-JD
SP-GG9OOE-C-O4-JD
SP-GG9OOE-C-O5-JD
SP-GG9OOE-C-O6-JD
SP-GG9OOE-C-O7-JD
SP-GG9OOE-C-O8-JD
SP-GG9OOE-C-O9-JD
SP-GG9OOE-C-IO-JD
SP-GG900E-C-11-JD
SP-GG900E-C-12-JD
SP-GG900E-C-13-JD
SP-GG900E-C-14-JD
SP-GG900E-C-15-JD
SP-GG900E-C-16-JD
Description
DUCTCOVER
FLANGEBOLT (M8 X 35)
OIL SCALE
OIL SCALE SEAL
OIL SEAL(?35x?52x8)
FLANGEBOLT (M8X35)
CRANKCASECOVER
SLIDER SHAFT
GOVERNORGEAR
GOVERNORGEARWASHER (6 ram)
SLIDER WASHER (6 ram)
GOVERNORSLIDER
BALL BEARING (6202)
BALL BEARING (6207)
CRANKCASECOVERPAD
DOWELPIN (8X 12)
Part. No
JD5OOO-A-01
JD5OOO-A-02
JF340-C-O3B
JF340-C-02
JF340-B-11
JF390-C-01
JF340-C-O4B
JF340-C-06
JF340-C-07
JF340-C-05
JF340-C-08
JF340-C-09
JF340-B-13
JF340-B-04
JF340-C-10
JF240-C-11
Parts List IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII II
Owner's Manual
CrankshaftSystemAssy.
2
D
APAPart No.
SP-GG9OOE-D-OI-JD
SP-GG9OOE-D-O2-JD
Description
CRANKSHAFTCOMP.
BALANCERWEIGHT
Part. No
JF420-D-02
JF340-D-04
III I IIIIIII IIIIIIIII III
Parts List
Owner's Manual
III II IIIIIIIIIII II III II I

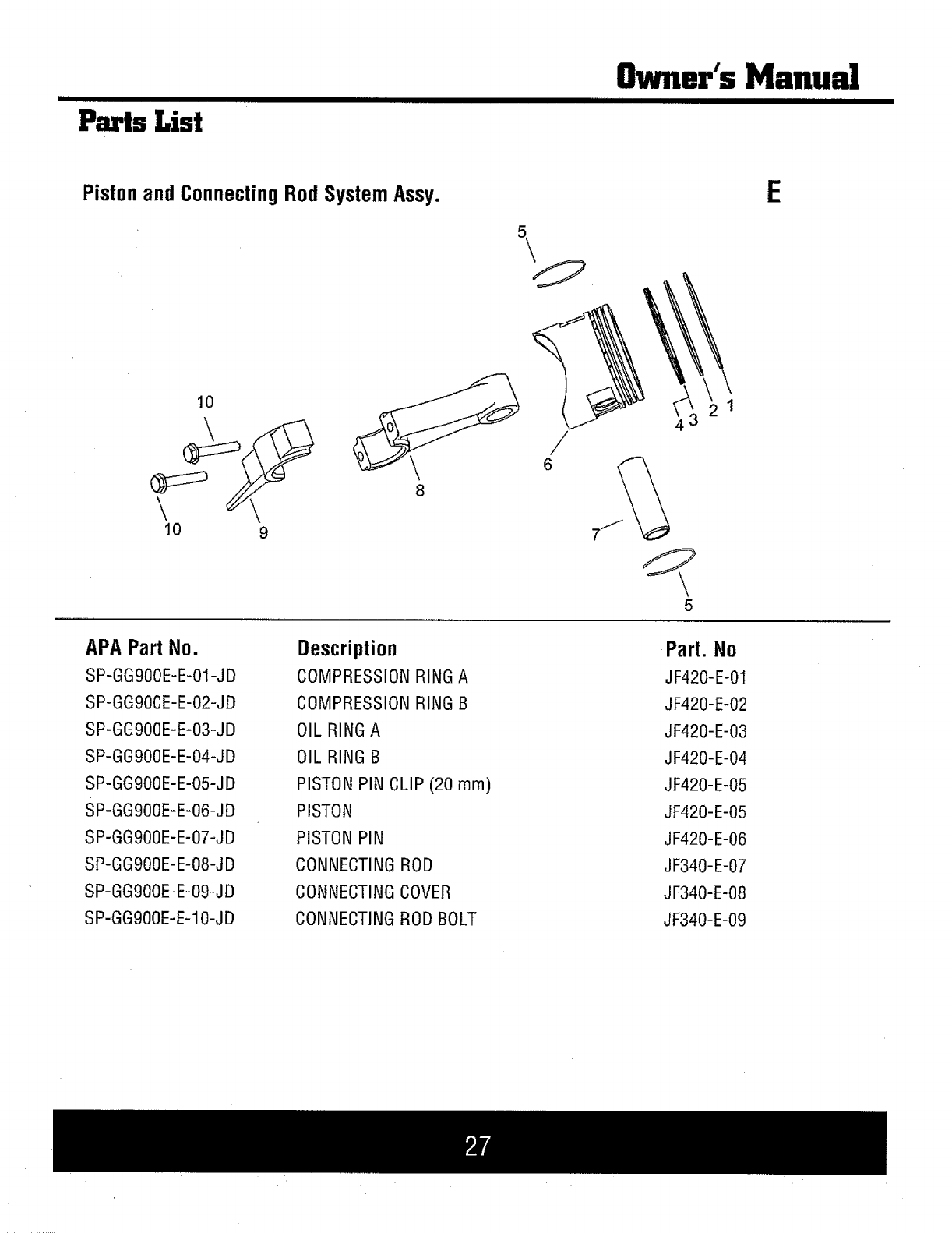

Piston and ConnectingRod SystemAssy.
\
E
lO
to 9
8
/
6
4
\1
5
APA Part No.
SP-GG9OOE-E-OI-JD
SP-GG9OOE-E-O2-JD
SP-GG9OOE-E-O3-JD
SP-GG9OOE-E-O4-JD
SP-GG9OOE-E-O5-JD
SP-GG9OOE-E-O6-JD
SP-GG9OOE-E-OT-JD
SP-GG9OOE-E-O8-JD
SP-GG9OOE-E-O9-JD
SP-GGgOOE-E-IO-JD
Description
COMPRESSION RING A
COMPRESSION RING B
OIL RING A
OIL RING B
PISTON PIN CLIP (20 turn)
PISTON
PISTON PIN
CONNECTINGROD
CONNECTINGCOVER
CONNECTINGROD BOLT
Part. No
JF420-E-01
JF420-E-02
JF420-E-03
JF420-E-04
JF420-E-05
JF420-E-05
jF420-E-06
JF340-E-07
JF340-E-08
JF340-E-09
IParts List
Owner's Manual
Recoil Starter SystemAssy.
8
7
\
15
14
F
12
!1 \
91° \ _ 3 2 1
6
APA Part No.
SP-GG9OOE-F-O1-JD
SP-GG9OOE-F-O2-JD
SP-GG9OOE-F-O3-JD
SP-GG9OOE-F-O4-JD
SP-GG9OOE-F-O5-JD
SP-GG9OOE-F-O6-JD
SP-GG9OOE-F-O7-JD
SP-GG9OOE-F-O8-JD
SP-GG9OOE-F-O9-JD
SP-GG9OOE-F-IO-JD
SP-GG9OOE-F-11-JD
SP-GG900E-F-12-JD
SP-GG900E-F-13-JD
SP-GG900E-F-14-JD
SP-GG900E-F-15-JD
Description
PIVOT ADJUSTING NUT
ROCKERARM PIVOT
ROCKERARM
PIVOT BOLT (M8)
PUSH ROD GUIDE PLATE
ROD PUSH
VALVE LIFTER
CAMSHAFT
VALVE ROTATOR
EX.VALVE SPRING RETAINER
VALVE SPRING
VALVE SPRING SEAT
IN. VALVE SPRING RETAINER
IN. VALVE
EX. VALVE
Part. No
JF340-F-01
JF340-F-02
JF340-F-03
JF340-F-04
JF340-F-05
JF240-F-06
JF240-F-07
JF420-F-08
JF340-F-06
JF340-F-07
JF340-F-08
JF340-F-09
JF340-F-10
JF340-F-11
JF340-F-12
Parts List
Owner's Manual

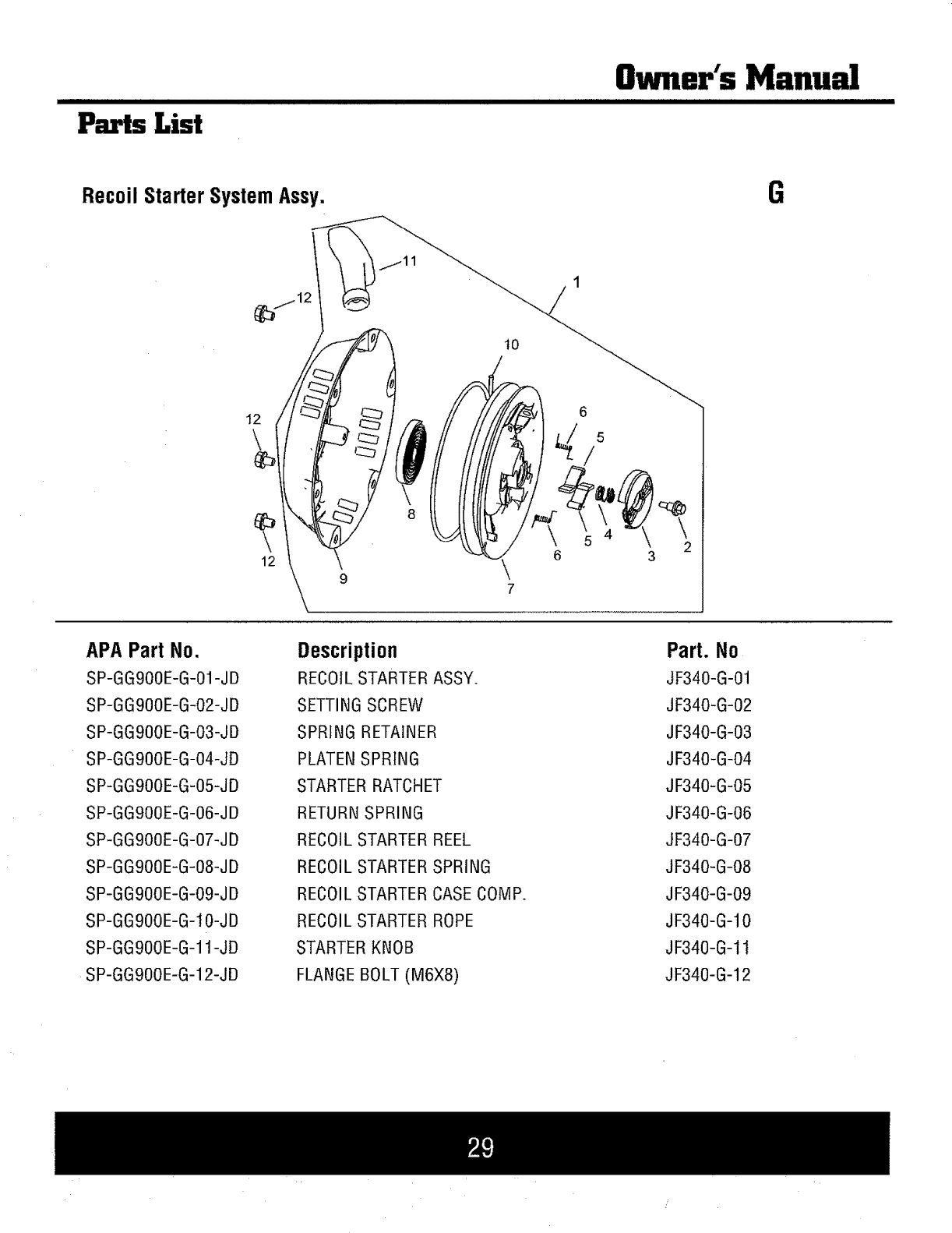

Recoil Starter SystemAssy. G
\
12
t0
6
5
6 3
APA Part No.
SP-GG9OOE-G-O1-JD
SP-GG9OOE-G-O2-JD
SP-GG9OOE-G-O3-JD
SP-GGgOOE-G-O4-jD
SP-GG9OOE-G-O5-JD
SP-GGgOOE-G-OG-JD
SP-GGgOOE-G-O7-JD
SP-GG9OOE-G-O8-JD
SP-GG9OOE-G-O9-JD
SP-GG9OOE-G-IO-JD
SP-GG900E-G-11-JD
SP-GG900E-G-12-JD
Description
RECOILSTARTERASSY.
SETTINGSCREW
SPRING RETAINER
PLATENSPRING
STARTER RATCHET
RETURNSPRING
RECOILSTARTER REEL
RECOILSTARTERSPRING
RECOILSTARTERCASE COMP.
RECOIL STARTER ROPE
STARTERKNOB
FLANGEBOLT (MGXS)
Part. No
JF340-G-01
JF340-G-02
JF340-G-03
JF340-G-04
JF340-G-05
JF340-G-06
JF340-G-07
JF340-G-08
JF340-G-09
JF340-G-10
JF340-G-11
JF340-G-12
Parts List IIIIIIIIIIIIIIIIIII IIII IIII II I
Owner's Manual
Fan Cover SystemAssy.
2
\2
H
\2
\2
\2
©
\3
APA Part No.
SP-GG9OOE-H-O1-JD
SP-GG9OOE-H-O2-JD
SP-GG9OOE-H-O3-JD
SP-GG9OOE-H-O4-JD
Description
SHROUD
FLANGEBOLT (M6 X 14)
FANCOVERCOMP.
WIRE HARNESS CLIP
Part. No
JF340-H-01
JF340-H-02
JF340-H-03
JF340-H-04
Parts List
Owner's Manual

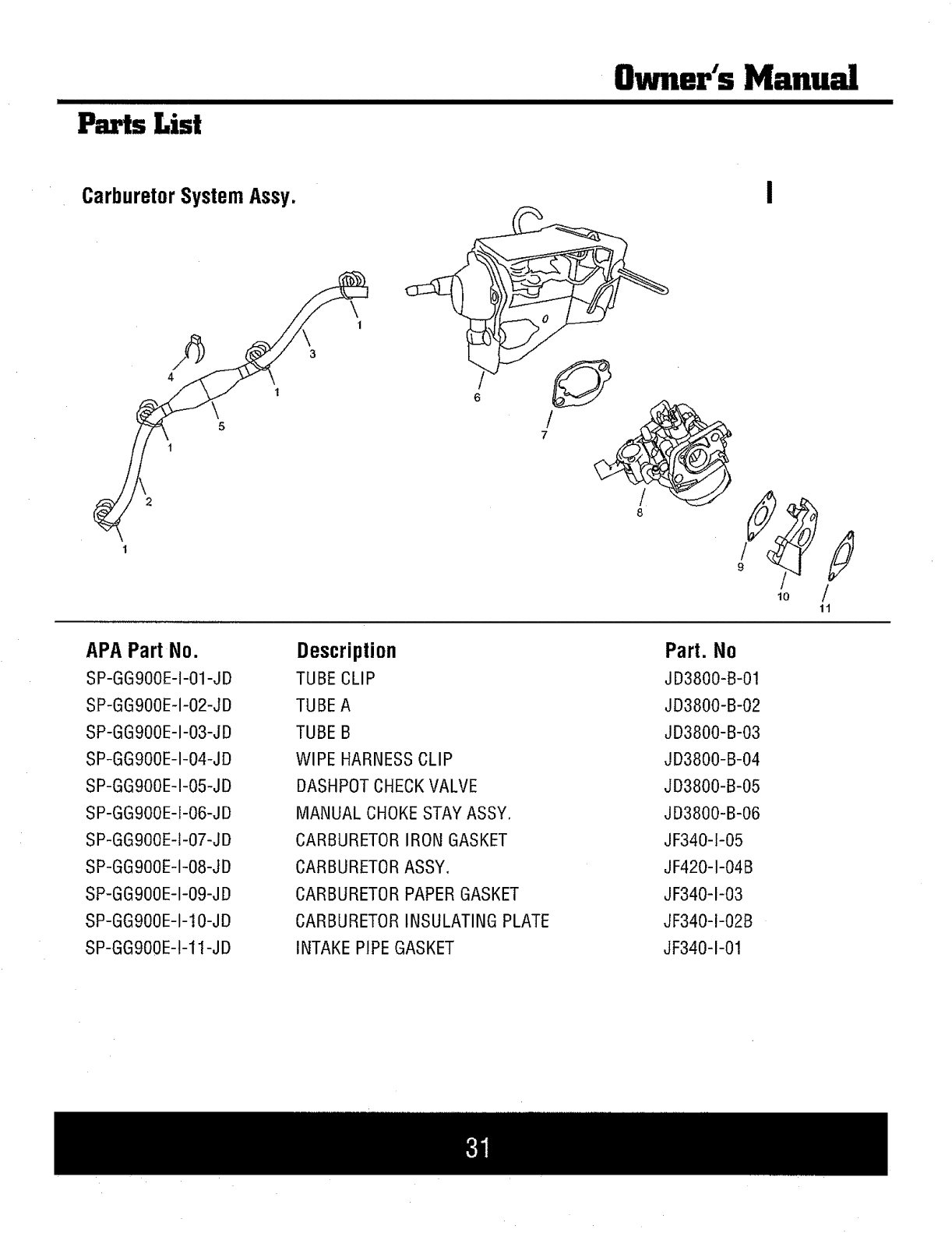

Carburetor SystemAssy.
\1
8
lo /
11
APAPart No.
SP-GG9OOE-FO1-JD
SP-GG9OOE-1-O2-jD
SP-GG9OOE-1-O3-JD
SP-GG9OOE-1-O4-JD
SP-GGgOOE-!-O5-JD
SP-GG9OOE-I-O6-JD
SP-GG9OOE-I-O7-JD
SP-GG9OOE-1-O8-JD
SP-GG9OOE-1-O9-JD
SP-GG9OOE-I-tO-JD
SP-GGgOOE-t-11-JD
Description
TUBE CLIP
TUBEA
TUBE B
WIPE HARNESSCLIP
DASHPOT CHECKVALVE
MANUAL CHOKESTAY ASSY.
CARBURETORIRON GASKET
CARBURETORASSY.
CARBURETORPAPERGASKET
OARBURETORINSULATING PLATE
INTAKE PIPE GASKET
Part. No
JD3800-B-01
JD3800-B-02
JD3800-B-03
JD3800-B-04
JD3800-B-05
JD3800-B-06
JF340-1-05
JF420-1-O4B
JF340-1-03
JF340-1-O2B
JF340-1-01
IIIIIIII
Parts List
Owner's Manual
Flywheel SystemAssy, J
\5\
4
\
\3
\1
APA Part No.
SP-GG9OOE-J-O1-JD
SP-GGgOOE-J-O2-JD
SP-GG9OOE-J-O3-JD
SP-GG9OOE-J-O4-JD
SP-GG9OOE-J-O5-JD
Description
FLYWHEEL
SPECIAL WOODRUFFKEY
COOLING FAN
STARTER PULLEY
FLYWHEELNUT (M16)
Part. No
JF340-J-01 B
JF340-J-02
JF340-J-03
JF340-J-04
JF340-J-05
IIIIII IIII II I III I
Parts List
Owner's Manual
Hill IIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIIII II II
Ignition SystemAssy. K
5
3
9
APAPart No.
SP-GG9OOE-K-O1-JD
SP-GG9OOE-K-O2-JD
SP-GGgOOE-K-O3-JD
SP-GGgOOE-K-O4-JD
SP-GG9OOE-K-OS-JD
SP-GGgOOE-K-OG-JD
SP-GGgOOE-K-O7-JD
SP-GG9OOE-K-OS-JD
SP-GG9OOE-K-Og-JD
SP-GG9OOE-K-IO-JD
Description
SPARK PLUG CAP ASSY.
INGITION COIL ASSY.
STOP SWITCH CORD
STOP SWITCH CORD HOLDER
FLANGEBOLT (M6 X 25)
CORD GROMMENT
CHARGECOIL ASSY.
FLANGEBOLT (M6 X 40)
CORDCLAMPER
FLANGEBOLT (MGX20)
Part. No
JF340-K-01
JF340-K-02
JF340-K-03
JF340-K-04
JF340-K-05
JF340-K-06
JF340-K-07
JF340-K-08
JF340-K-09
JF340-K-10
IIIIIIIIIIIIIIII IIIII I I
Parts List
Owner's Manual
Starter Motor SystemAssy.. L
3
\2
\1
APAPart No.
SP-GG9OOE-O1-JD
SP-GG9OOE-O2-JD
SP-GG9OOE-O3-JD
Description
STARTERMOTOR
SOLENOID
FLANGEBOLT (M8x35)
Part. No
JF340-L-01
JF340-L-02
JF340-L-03
1111111I Parts List IIIIIIIIIIIIIIIIIIIIIII I
Owner's Manual
IIIIIIIIIII III I I I

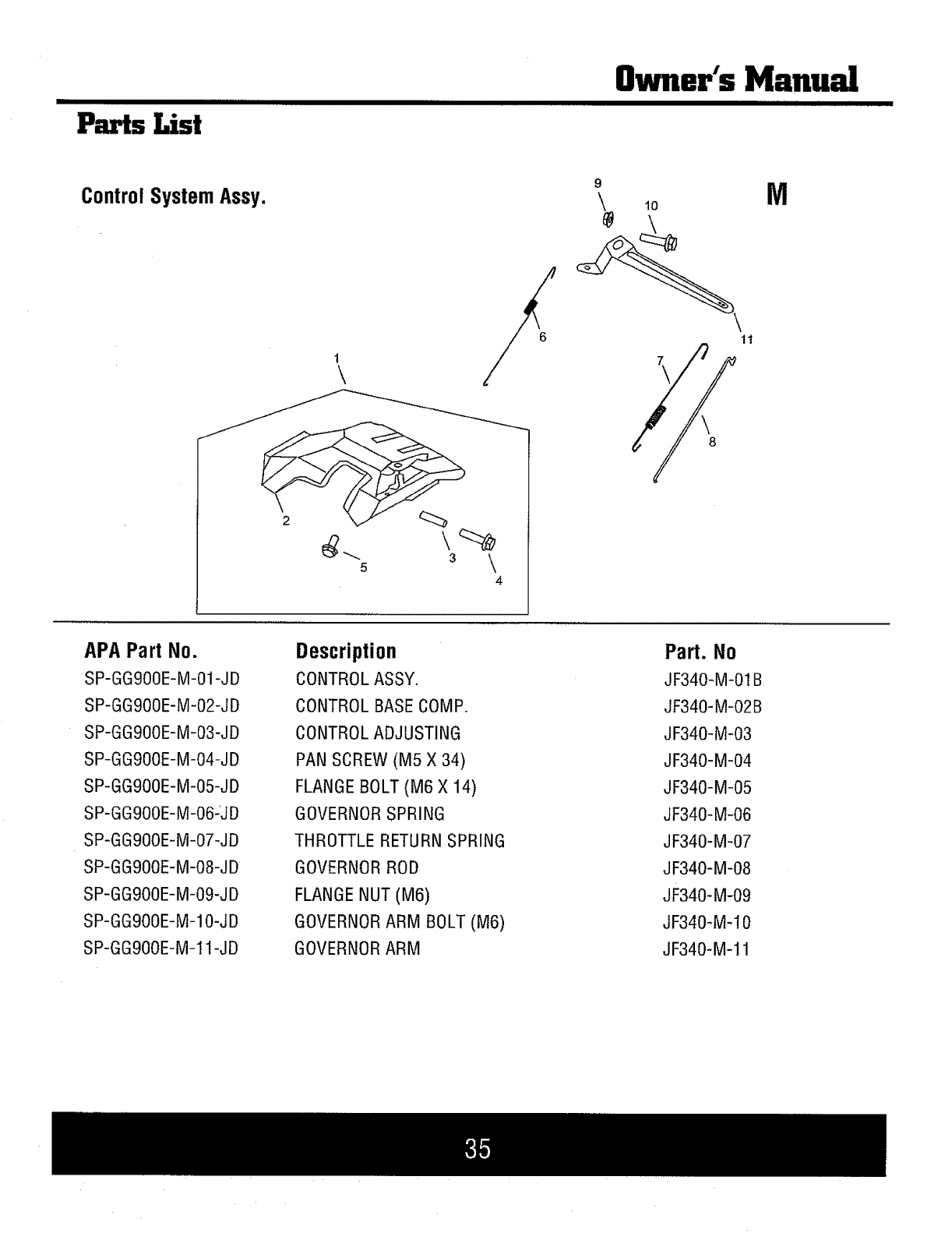

ControlSystem Assy.
1
\/
3
4
°M
\ 1o
11
APAPart No.
SP-GG9OOE-M-O1-JD
SP-GG9OOE-M-O2-JD
SP-GG9OOE-M-O3-JD
SP-GG9OOE-M-O4-JD
SP-GG9OOE-M-O5-JD
SP-GG9OOE-M-O6;JD
SP-GG9OOE-M-O7-JD
SP-GG9OOE-M-O8-JD
SP-GG9OOE-M-O9-JD
SP-GG9OOE-M-IO-JD
SP-GG900E-M-11-JD
Description
CONTROLASSY.
CONTROLBASECOMP.
CONTROLADJUSTING
PAN SCREW (M5 X 34)
FLANGEBOLT (M6 X 14)
GOVERNORSPRING
THROTTLE RETURNSPRING
GOVERNORROD
FLANGENUT (M6)
GOVERNORARM BOLT (M6)
GOVERNORARM
Part. No
JF340-M-O1B
JF340-M-O2B
JF340-M-03
JF340-M-04
JF340-M-05
JF340-M-06
JF340-M-07
JF340-M-08
JF340-M-09
JF340-M-10
JF340-M-11
Parts List IIIII I I I
Owner's Manual

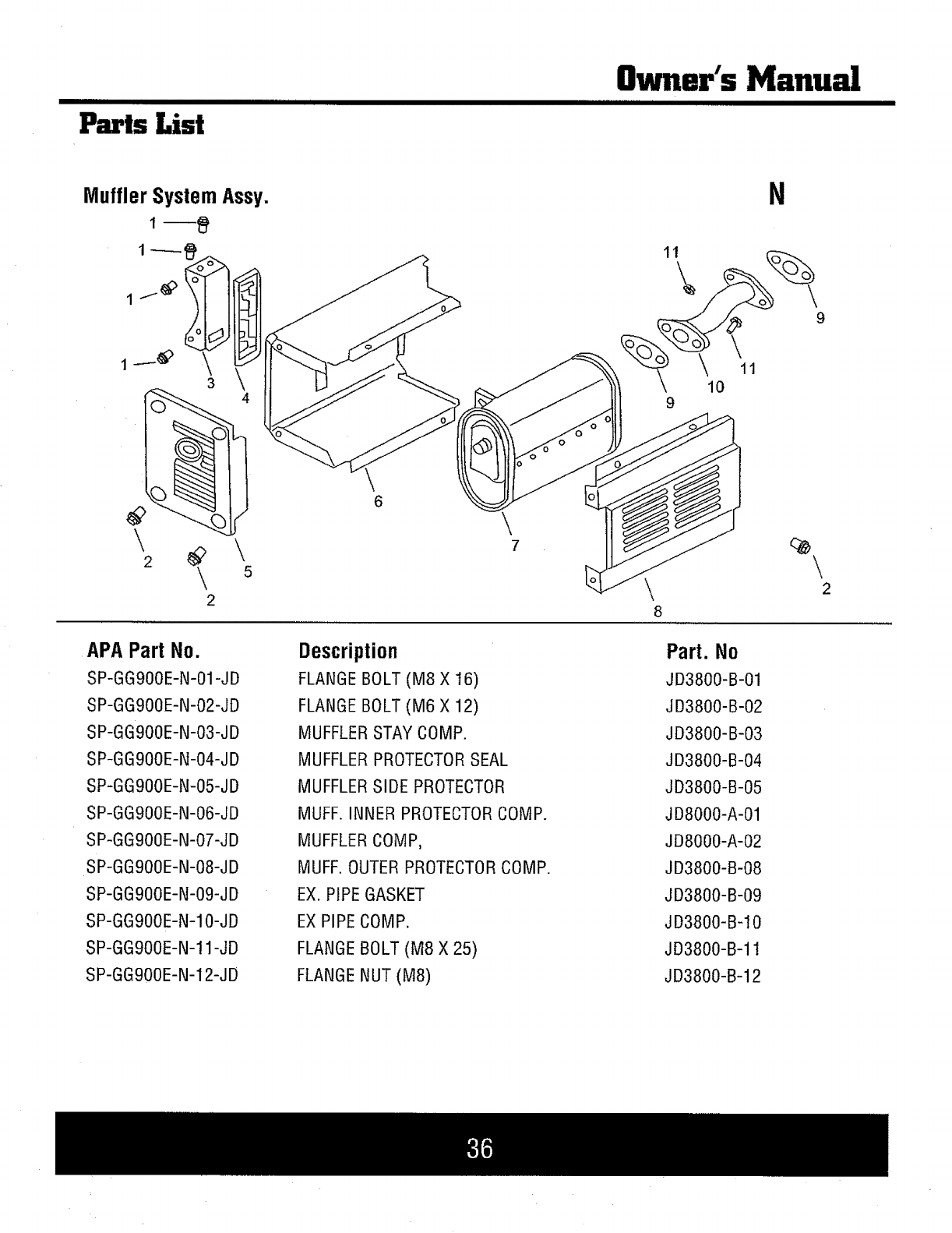

Muffler System Assy.
1--_
11
\
\2
34
\6
\9
\8
APA Part No.
SP-GG9OOE-N-O1-JD
SP-GG9OOE-N-O2-JD
SP-GG9OOE-N-O3-JD
SP-GG9OOE-N-O4-JD
SP-GG9OOE-N-O5-JD
SP-GG9OOE-N-O6-JD
SP-GG9OOE-N-O7-JD
SP-GG9OOE-N-O8-JD
SP-GG9OOE-N-O9-JD
SP-GG9OOE-N-IO-JD
SP-GG900E-N-11-JD
SP-GG900E-N-12-JD
Description
FLANGEBOLT (M8 X t6)
FLANGEBOLT (M6 X 12)
MUFFLERSTAY COMP.
MUFFLER PROTECTORSEAL
MUFFLERSIDE PROTECTOR
MUFF. INNER PROTECTORCOMP.
MUFFLERCOMP,
MUFF.OUTERPROTECTORCOMP.
EX. PIPE GASKET
EX PIPE COMP.
FLANGEBOLT (M8 X 25)
FLANGENUT (M8)
Part. No
JD3800-B-01
JD3800-B-02
JD3800-B-03
JD3800-B-04
JD3800-B-05
JD8OOO-A-01
JD8OOO-A-02
JD3800-B-08
JD3800-B-09
JD3800-B-10
JD3800-B-11
JD3800-B-12
N
9
\2
Parts List
Owner's Manual
Air Cleaner 0
\1\35
\6
\7
APAPart No.
SP-GG9OOE-O-O1-JD
SP-GG9OOE-O-O2-JD
SP-GG9OOE-O-O3-JD
SP-GG9OOE-O-O4-JD
SP-GG9OOE-O-O5-JD
SP-GG9OOE-O-OG-JD
SP-GG9OOE-O-O7-JD
Description
AIR CLEANERCOVER COMP
AIR CLEANER ELEMENT
FLANGENUT (M5)
AiR CLEANERSEPARATOR
AIR CLEANERSEAL
AIR CLEANERCASECOMP
GASKET
Part. No
JD3800-C-01
JD3800-C-02
JD3800-C-03
JD3800-C-04
JD3800-C-05
JD3800-C-06
JF340-A-13B
IIIIIIII II
Parts List imllllll iii i ii
Owner's Manual

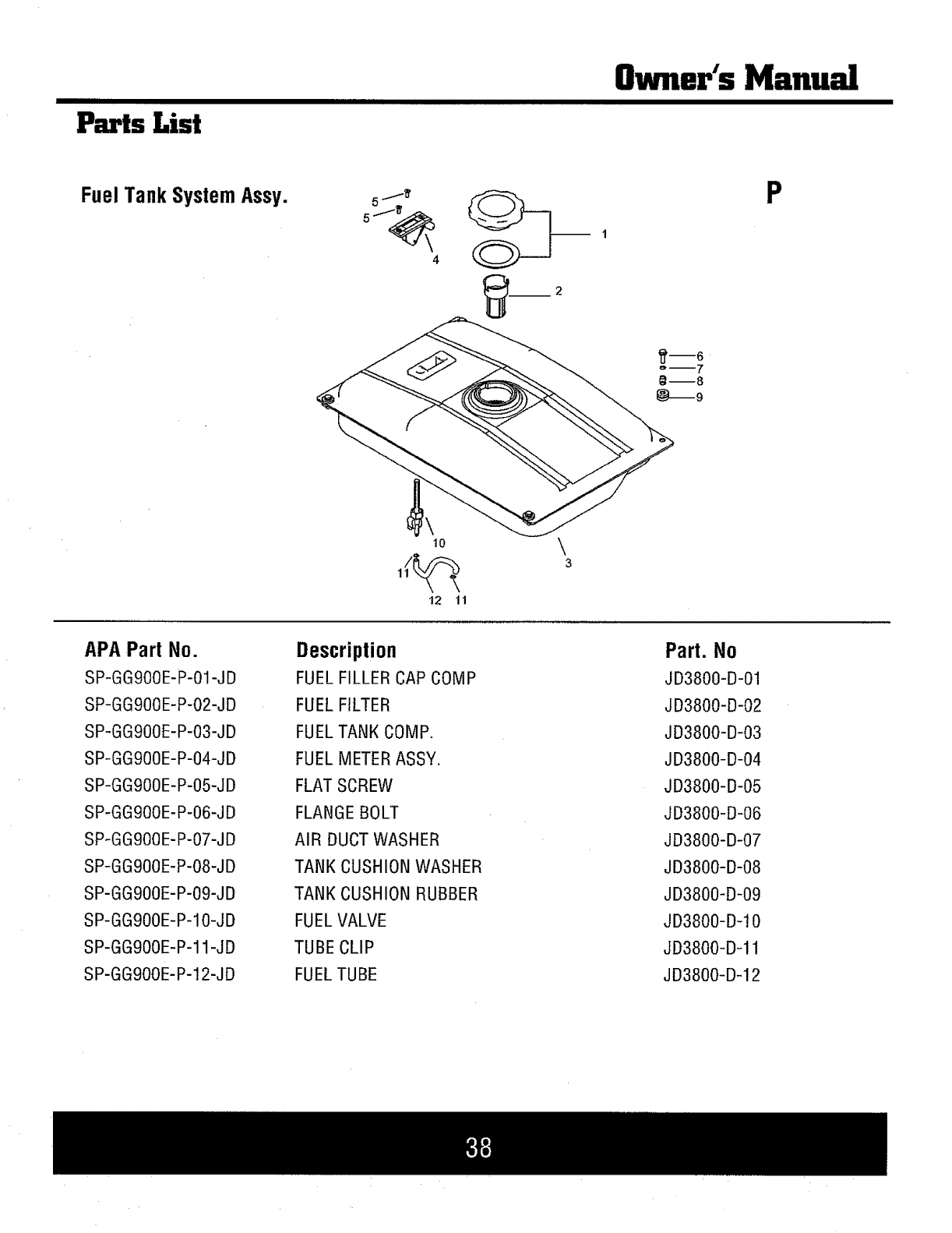

Fuel Tank SystemAssy. P
\10
12 11
\3
APAPart No.
SP-GG9OOE-P-O1-JD
SP-GGgOOE-P-O2-JD
SP-GGgOOE-P-O3-JD
SP-GG9OOE-P-O4-JD
SP-GG9OOE-P-O5-JD
SP-GGgOOE-P-O6-JD
SP-GGgOOE-P-O7-JD
SP-GG9OOE-P-O8-JD
SP-GG9OOE-P-Og-JD
SP-GG9OOE-P-IO-JD
SP-GG900E-P-11-JD
SP-GG900E-P-12-JD
Description
FUELFILLER CAP COMP
FUELFILTER
FUELTANK COMP.
FUELMETERASSY.
FLAT SCREW
FLANGEBOLT
AIR DUCTWASHER
TANK CUSHION WASHER
TANK CUSHION RUBBER
FUELVALVE
TUBE CLIP
FUELTUBE
Part. No
JD3800-D-01
JD3800-D-02
JD3800-D-03
JD3800-D-04
JD3800-D-05
JD3800-D-06
JD3800-D-07
JD3800-D-08
JD3800-D-09
JD3800-D-10
JD3800-D-11
JD3800-D-12
IIHIIIII I
Parts List IIII I I III
Owner's Manual

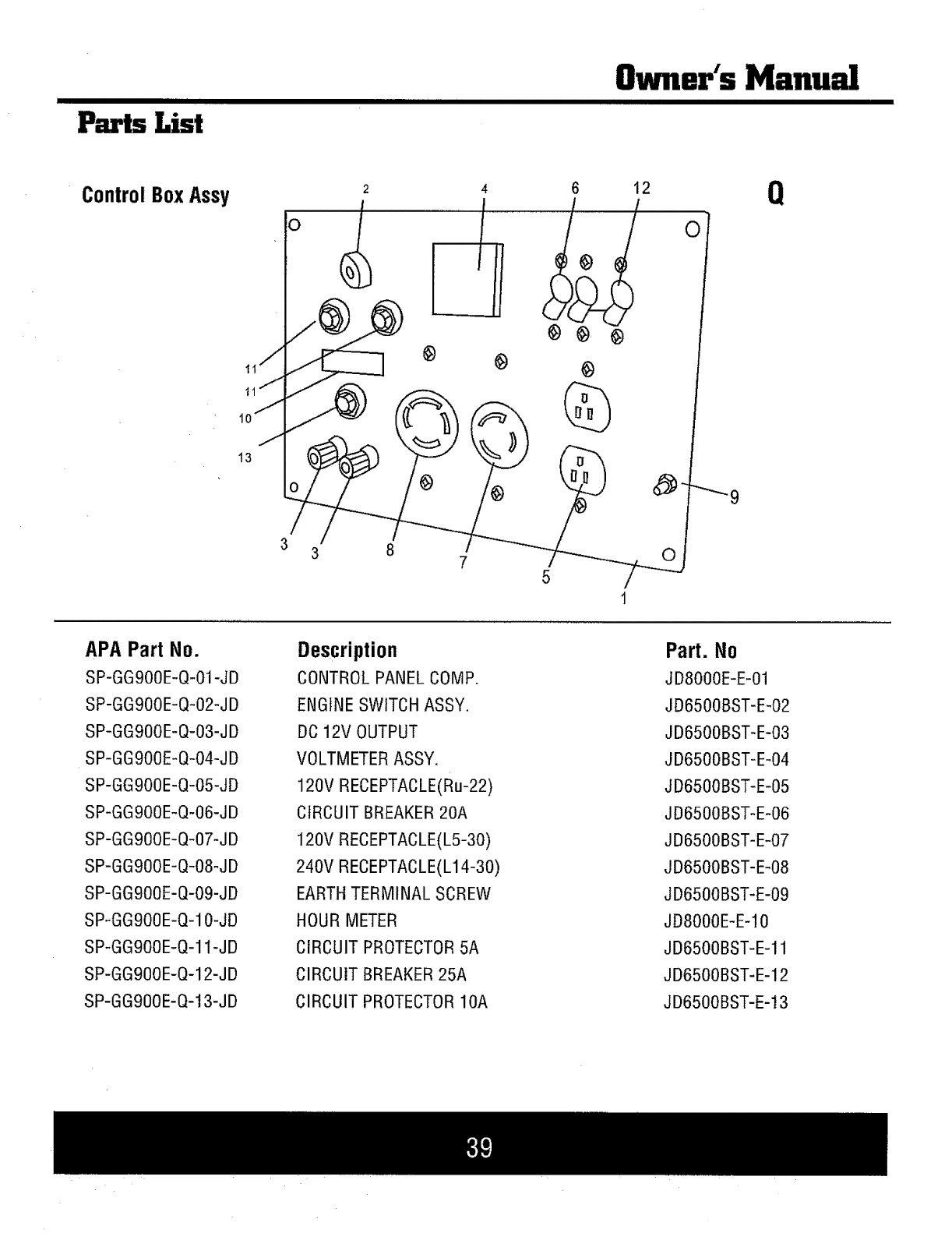

Control BoxAssy
1
13
0
2
@
12 O
/o
33 8
APA Part No.
SP-GG9OOE-Q-O1-JD
SP-GG9OOE-Q-O2-JD
SP-GG9OOE-Q-O3-JD
SP-GG9OOE-Q-O4-JD
SP-GG9OOE-Q-O5-JD
SP-GG9OOE-Q-O6-JD
SP-GG9OOE-Q-O7-JD
SP-GG9OOE-Q-O8-JD
SP-GG9OOE-Q-O9-JD
SP-GG9OOE-Q-IO-JD
SP-GG900E-Q-11-JD
SP-GG900E-Q-12-JD
SP-GG900E-Q-13-JD
Description
CONTROLPANEL COMP.
ENGINESWITCH ASSY.
DO12V OUTPUT
VOLTMETERASSY.
120V RECEPTACLE(Ru-22)
CIRCUIT BREAKER20A
120V RECEPTACLE(L5-30)
240V RECEPTACLE(L14-30)
EARTHTERMINAL SCREW
HOUR METER
CIRCUIT PROTECTOR5A
CIRCUIT BREAKER25A
CIRCUIT PROTECTORIOA
Part. N0
JD8OOOE-E-01
JD6500BST-E-02
JD6500BST-E-03
JD6500BST-E-04
JD6500BST-E-05
JD6500BST-E-06
JD6500BST-E-07
JD6500BST-E-08
JD6500BST-E-09
JD8OOOE-E-!O
JD6500BST-E-11
JD6500BST-E-12
JD6500BST-E-13
Parts List
Owner's Manual
Frame CompAssy. R
11 lO
I0_8
iO
IO
W
APAPart No.
SP-GG9OOE-R-O1-JD
SP-GG9OOE-R-O2-JD
SP-GG9OOE-R-O3-JD
SP-GG9OOE-R-O4-JD
SP-GG9OOE-R-O5-JD
SP-GG9OOE-R-OG-JD
SP-GG9OOE-R-O7-JD
SP-GGgOOE-R-O8-JD
SP-GG9OOE-R-Og-JD
SP-GGgOOE-R-IO-JD
SP-GGgOOE-R-11-JD
SP-GG900E-R-12-JD
SP-GG900E-R-13-JD
Description
FUELTANK MOUNTING BOLT
FRAME COMP.
FLANGEBOLT (MGX 12)
FLANGENUT (U8)
MOTOR MOUNT (LEFT)
MOTOR MOUNT (RIGHT)
FLANGENUT (MIO)
FLANGENUT (MIO)
RUBBERFOOT
FLANGEBOLT (MGX 12)
COVERBOARD
FLANGENUT (MG)
BATTERYBRACKET
Part. No
JD3800-F-01
JD8OOO-F-02
JO3800-F-03
JD3800-F-04
JD3800-F-05
JD3800-F-06
JD3800-F-07
JD3800-F-08
JD8OOO-F-09
JD3800-F-10
JD8000-F-11
JD8000-F-11
JD8000-F-11
Parts List IIIIIIIIIIIIIII
Owner's Manual
Illll I II I
Generator
\ \ 12
11
3
15
t7
=====+ f
=====+ 2 \
\ 1 7
15
S
4
1+
lO
APAPart No.
SP-GG9OOE-S-O1-JD
SP-GG9OOE-S-O2-JD
SP-GG9OOE-S-O3-JD
SP-GGgOOE-S-O4-JD
SP-GG9OOE-S-O5-JD
SP-GG9OOE-S-O6-JD
SP-GG9OOE-S-O7-JD
SP-GG9OOE-S-OB-JD
SP-GG9OOE-S-O9-JD
SP-GG9OOE-S-IO-JD
SP-GG900E-S-11-JD
SP-GG900E-S-12-JD
SP-GG900E-S-13-JD
SP-GG9OOE-S-t4-JD
SP-GG900E-S-15-JD
SP-GG900E-S-16-JD
SP-GG900E-S-17-JD
SP-GG900E-S-18-JD
SP-GG900E-S-19-JD
SP-GG9OOE-S-2GJD
Description
STATORCOVER
STATORASSY.
COOLING FAN
BRUSHASSY.
TAPPING SCREW
GENERATORSTAY
FLANGEBOLT (M6X197)
AUTO VOLTAGE REG.ASSY.
GENERATORCOVER
FLANGEBOLT
ROTORCOMP.
BEARINGASSY.
PLAIN WASHER
FLANGEBOLT (M10X283)
FLANGEBOLT (M5X232)
HEX.BOLT(M5 X 20)
VOLT CHANGETERMINAL BR-AC-W
PLAIN WASHER (5ram)
HEX. NUT (M5)
SPRING WASHER (5ram)
Part. No
JD6500-D-01
JD6500-D-02
JD6500-G-03
JD3800-G-04
JD3800-G-05
JD3800-G-06
JD8OOO--G-08
JD8OOO-G-09
JD3800-G-10
JD3800-G-12
JD8OOO-D-03
JD3800-G-14
JD3800-G-15
JD8OOO-D-04
JDBOOO-D-05
JD3800-G-18
JD3800-G-19
JD3800-G-20
JD3800-G-21
JD3800-G-22
IIII
Parts List
Owner's Manual

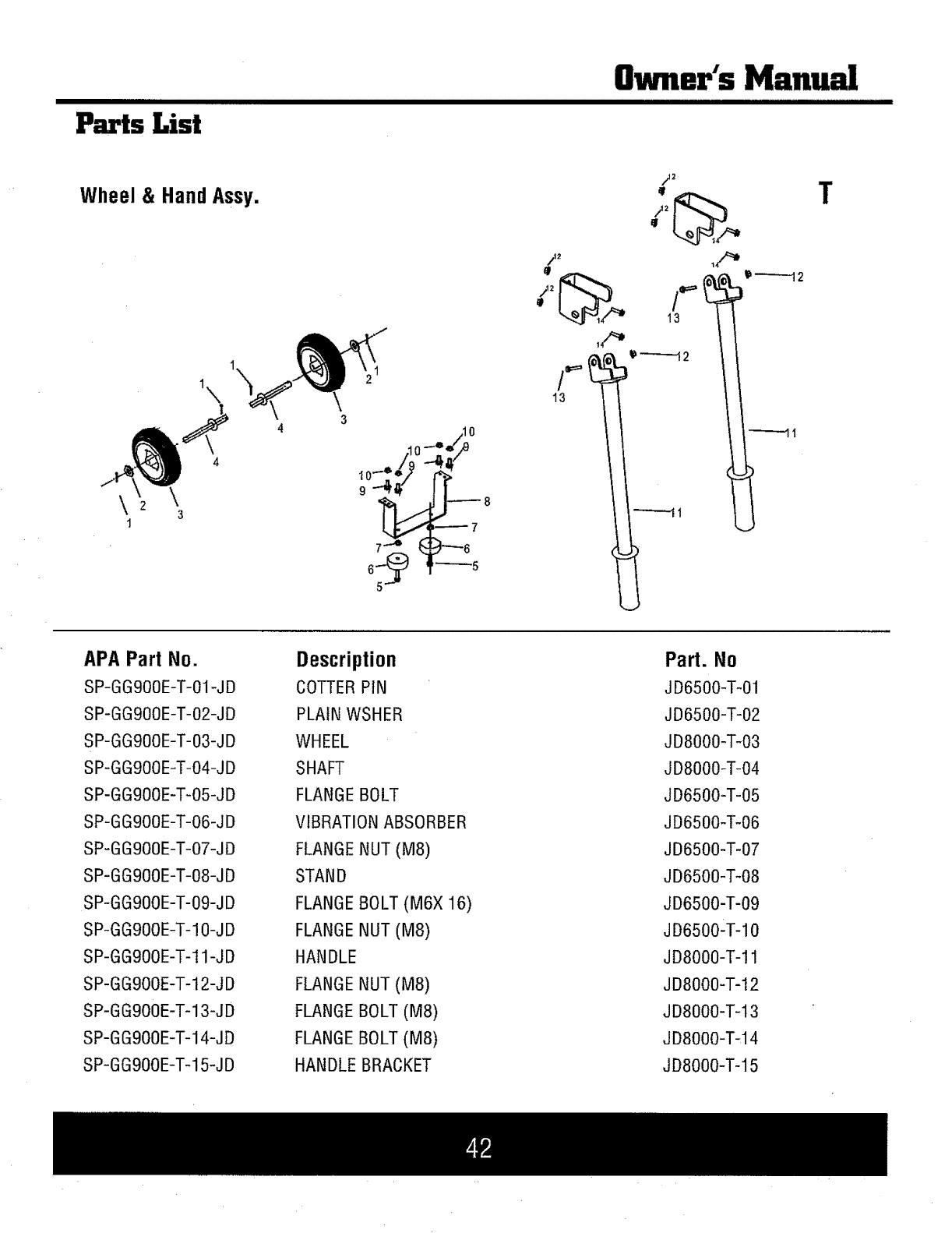

Wheei & Hand Assy.
\ \3
1
T
APAPart No.
SP-GG9OOE-T-Oi-JD
SP-GG9OOE-T-O2-JD
SP-GG9OOE-T-O3-JD
SP-GG9OOE-T-O4-JD
SP-GG9OOE-T-O5-JD
SP-GG9OOE-T-O6-JD
SP-GG9OOE-T-O7-JD
SP-GG9OOE-T-O8-JD
SP-GG9OOE-T-O9-JD
SP-GG9OOE-T-IO-JD
SP-GG9OOE-T-11-JD
SP-GG900E-T-12-JD
SP-GG900E-T-13-JD
SP-GG900E-T-14-JD
SP-GG900E-T-15-JD
Description
COTTERPEN
PLAIN WSHER
WHEEL
SHAFT
FLANGEBOLT
VIBRATION ABSORBER
FLANGENUT (M8)
STAND
FLANGEBOLT (M6X 16)
FLANGENUT (M8)
HANDLE
FLANGENUT (M8)
FLANGEBOLT (M8)
FLANGEBOLT (M8)
HANDLE BRACKET
Part. No
JD6500-T-01
JD6500-T-02
JD8OOO-T-03
JD8OOO-T-04
JD6500-T-05
JD6500-T-06
JD6500-T-07
JD6500-T-08
JD6500-T-09
JD6500-T-10
JD8000-T-11
JD8000-T-12
JD8000-T-13
JD8OOO-T-14
JD8000-T-15

Navigation menu
