Geophysical Survey Systems 270LL3P 270LL3 PLUS User Manual LifeLocator System
Geophysical Survey Systems, Inc. 270LL3 PLUS LifeLocator System
User manual
![](/img.php?id=1184542&img=bg1.png)
LifeLocator III+ System
®
User Guide
System Purpose ........................................................................ 1
Introduction ............................................................................... 1
Specifications ............................................................................ 2
Section 1: Getting Started ........................................................ 3
Section 2: Target Playback ...................................................... 5
Section 3: Expert Mode ............................................................ 6
Expert Mode – Target Playback ............................................... 6
Appendix A: Battery Use .......................................................... 7
Appendix B: File Maintenance ................................................. 7
Appendix C: Troubleshooting ................................................. 8
Appendix D: System Use ......................................................... 8

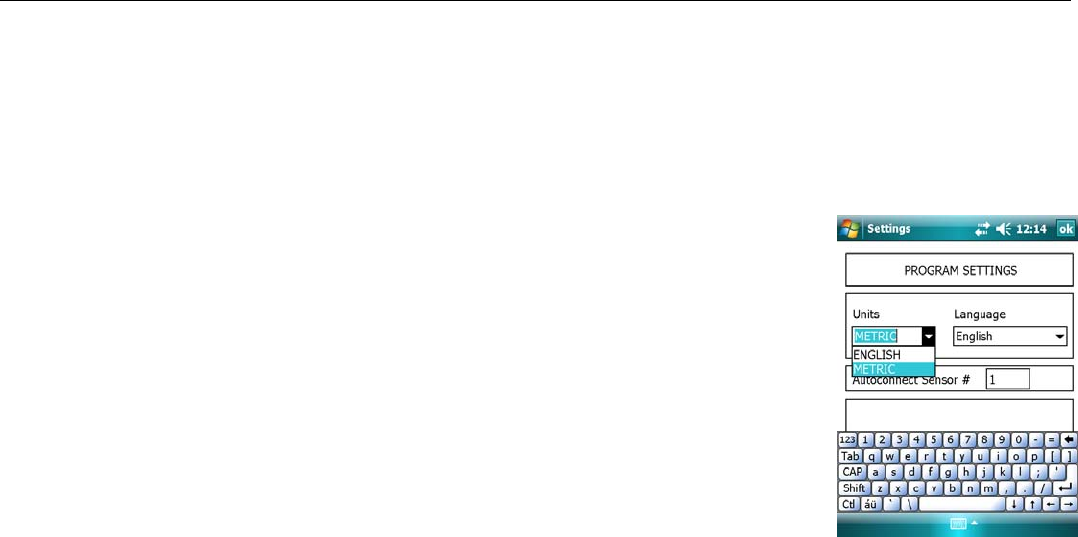

Appendix E: Scale, Language and Sensor Options ............. 9
UltraVision Security Systems, Inc. MN85-170 Rev -
Copyright © 2009 All Rights Reserved
Copyright © 2009 Geophysical Survey Systems, Inc.
All rights reserved
including the right of reproduction
in whole or in part in any form
Published by Geophysical Survey Systems, Inc.
12 Industrial Way
Salem, New Hampshire 03079 USA
Printed in the United States
GSSI is a registered trademarks of Geophysical Survey Systems, Inc.
![](/img.php?id=1184542&img=bg3.png)
Limited Warranty, Limitations Of Liability And Restrictions
Geophysical Survey Systems, Inc. hereinafter referred to as GSSI, warrants that for a period of
12 months from the delivery date to the original purchaser this product will be free from defects in
materials and workmanship. EXCEPT FOR THE FOREGOING LIMITED WARRANTY, GSSI
DISCLAIMS ALL WARRANTIES, EXPRESS OR IMPLIED, INCLUDING ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. GSSI's obligation is limited to
repairing or replacing parts or equipment which are returned to GSSI, transportation and insurance pre-
paid, without alteration or further damage, and which in GSSI's judgment, were defective or became
defective during normal use.
GSSI ASSUMES NO LIABILITY FOR ANY DIRECT, INDIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES OR INJURIES CAUSED BY PROPER OR IMPROPER OPERATION
OF ITS EQUIPMENT, WHETHER OR NOT DEFECTIVE.
Before returning any equipment to GSSI, a Return Material Authorization (RMA) number must be
obtained. Please call the GSSI Customer Service Manager who will assign an RMA number. Be sure to
have the serial number of the unit available
Regulatory Information
The use of GSSI antennas is governed by different regulatory agencies around the world. Specific
antenna models must be certified for legal operation in your country. Please read and understand the
following regulatory passages that pertain to your antenna. A listing of certified antennas by region can
be found www.geophysical.com/regulatoryinformation.htm.
Notice
Operation is subject to the following two conditions: (1) this device may not cause interference, and (2)
this device must accept any interference, including interference that may cause undesired operation of the
device.
Survey Wheels
All of GSSI’s antennas are designed to operate with survey wheels. Some antennas have built-in survey
wheels, including the 62000 Palm Antenna and the Mini-SIR. The series of concrete antennas, including
the 5100, 5101 and 52600, have survey wheels built in to their special carts, the 614 and 615. The larger
antennas, including the 3101D, 5103, 50400 and 5104 are used in the larger carts, the 623 and 643, which
have survey wheels built in to them. Various sizes of survey wheels can also be attached directly to these
antennas. This includes the 611, 620 and 622. For highway surveys we use the 630 Distance measuring
Instrument (DMI).
FCC Notice (for U.S. Customers):
This device complies with part 15, class F of the FCC Rules:
Operation is subject to the following conditions:
1. This device many not cause harmful interference, and
2. This device must accept any interference received, Including
interference that may cause undesired operation
Warning: Changes or modifications to this unit not expressly approved by the party responsible for
compliance could void the user’s authority to operate the equipment.
Operation of this device is restricted to law enforcement, fire and rescue officials, scientific research
institutes, commercial mining companies, construction companies and private parties operating on behalf
of these groups. Operation by any other party is a violation of 47 U.S.C. § 301 and could subject the
operator to serious legal penalties.
Coordination Requirements
(a) UWB imaging systems require coordination through the FCC before the equipment may be used. The
operator shall comply with any constraints on equipment usage resulting from this coordination.
(b) The users of UWB imaging devices shall supply detailed operational areas to the FCC Office of
Engineering and Technology who shall coordinate this information with the Federal Government through
the National Telecommunications and Information Administration. The information provided by the
UWB operator shall include the name, address and other pertinent contact information of the user, the
desired geographical area of operation, and the FCC ID number and other nomenclature of the UWB
device. This material shall be submitted to the following address:
Frequency Coordination Branch, OET
Federal Communications Commission
445 12th Street, SW
Washington, D.C. 20554
ATTN: UWB Coordination
(d) Users of authorized, coordinated UWB systems may transfer them to other qualified users and to
different locations upon coordination of change of ownership or location to the FCC and coordination
with existing authorized operations.
(e) The NTIA/FCC coordination report shall include any needed constraints that apply to day-to-day
operations. Such constraints could specify prohibited areas of operations or areas located near authorized
radio stations for which additional coordination is required before operation of the UWB equipment. If
additional local coordination is required, a local coordination contact will be provided.
Notice: Use of this device as a wall imaging system is prohibited by FCC regulations.
![](/img.php?id=1184542&img=bg5.png)
For U.S. Customers
Ground Penetrating Radar Coordination Notice And Equipment Registration
Note: This form is only for Domestic United States users. The Federal Communications Commission
(FCC) requires that all users of GPR who purchased antennas after July 15th, 2002 register their
equipment and areas of operation. It is required that you fill out this form and fax or mail to the FCC.
Failure to do this is a violation of Federal law.
1. Date:
2. Company name:
3. Address:
4. Contact Information [contact name and phone number]:
5. Area Of Operation [state(s)]:
---Continued on next page.
![](/img.php?id=1184542&img=bg6.png)
6. Equipment Identification:
Brand Name: Geophysical Survey Systems, Inc.
Antenna Model No. (center frequency): List all antennas being registered.
Model Frequency
FCC ID (QF7 followed by
Model #)
7. Receipt Date Of Equipment:
Fax this form to the FCC at: 202-418-1944
Or
Mail to:
Frequency Coordination Branch, OET
Federal Communications Commission
445 12th Street, SW
Washington, D.C. 20554
ATTN: UWB Coordination
Do not send this information to GSSI.
Canadian Requirements for RSS-220
Canadian Requirements of RSS-220 for Ground Antennas
This Ground Penetrating Radar Device shall be operated only when in contact with or within 1 m of the
ground.
This Ground Penetrating Radar Device shall be operated only by law enforcement agencies, scientific
research institutes, commercial mining companies, construction companies, and emergency rescue or
firefighting organizations.
Cet appareil de radar de sol (ou géoradar) ne doit être utilisé qu’en contact avec le sol ou à 1 m maximum
au dessus du sol.
Cet appareil de radar de sol ne doit être utilisé que par les forces de l’ordre, les instituts de recherche
scientifiques, les sociétés minières, les sociétés de construction, et les organisations de secours d’urgence
ou de combat du feu.
Canadian Requirements of RSS-220 for Hand-held Antennas
This In-wall Radar Imaging Device shall be operated where the device is directed at the wall and in
contact with or within 20 cm of the wall surface.
This In-wall Radar Imaging Device shall be operated only by law enforcement agencies, scientific
research institutes, commercial mining companies, construction compa
nies, and emergency rescue or firefighting organizations.
Cet appareil de radar de structure (murs, poutres, dalles…) ne doit être utilisé qu’en contact avec la
structure ou à 20 cm maximum décollé de cette structure.
Cet appareil de radar de sol ne doit être utilisé que par les forces de l’ordre, les instituts de recherche
scientifiques, les sociétés minières, les sociétés de construction, et les organisations de secours d’urgence
ou de combat du feu.
Canadian Requirements of RSS-220 for Search and Rescue Antennas
This Through-wall Radar Imaging Device shall be operated only by law enforcement agencies or
emergency rescue or firefighting organizations that are under a local, provincial or federal authority. The
equipment is to be operated only in providing services and for necessary training operations.
Cet appareil de radar au travers des murs ne doit être utilisé que par les forces de l’ordre ou les
organisations de secours d’urgence ou de combat du feu qui sont sous une autorité locale, provinciale ou
fédérale. Cet équipement ne doit être utilisé que dans le cadre de services et pour les opérations
d’entrainement nécessaires.
![](/img.php?id=1184542&img=bg8.png)
Declaration of CE Conformance
Geophysical Survey Systems, Inc. hereby confirms that the following named
products have been tested and meet the requirements of the European standards as
indicated:
Models: 3101A, 4105, 4108, 5103, 5103A, 5104, 5104A, 5106, 5106A, 5100B, 5101, 50400,
52600, 62000
Description: Ground Penetrating Radar Antennas
European Standards: ETSI EN 301 489-32 V1.1.1 (2005-09), ETSI EN 301 489-
V1.6.1 (2005-09), ETSI EN 302 066-1 V1.1.1(2005-09), ETSI
EN302 066-2 V1.1.1 (2005-09), ECC/DEC/(06)08
Place and Date of Issue: Intertek – ETL SEMCO 07.02.07, 03.11.09
Model: EMP-400 Profiler
Description: Electromagnetic Induction System
European Standards: EN61326:1997 + A1:1998 + A2:2001
Place and Date of Issue: Intertek – ETL SEMCO 08.29.06
Models: FGDC3000/1100, FGMOD5103
Description: Ground Penetrating Radar Data Acquisition System
European Standards: EN61000-6-2: 2001
Place and Date of Issue: Intertek – ETL SEMCO 03.16.04
Model: FGMF20/3000
Description: Two channel Ground Penetrating Radar data acquisition system
European Standards: EN61000-6-2: 2005, EN61000-6-4:2007
Place and Date of Issue: Intertek – ETL SEMCO 09.17.08
George Tetreault
Name of authorized person
![](/img.php?id=1184542&img=bg9.png)
User Guide LifeLocator®III+ System
System Purpose
The LifeLocator®III+ system has the potential to detect a living human
at a range up to 15 feet (5m) (breathing) and up to 30 feet (10 m) (motion)
through common structural wall materials and building rubble.

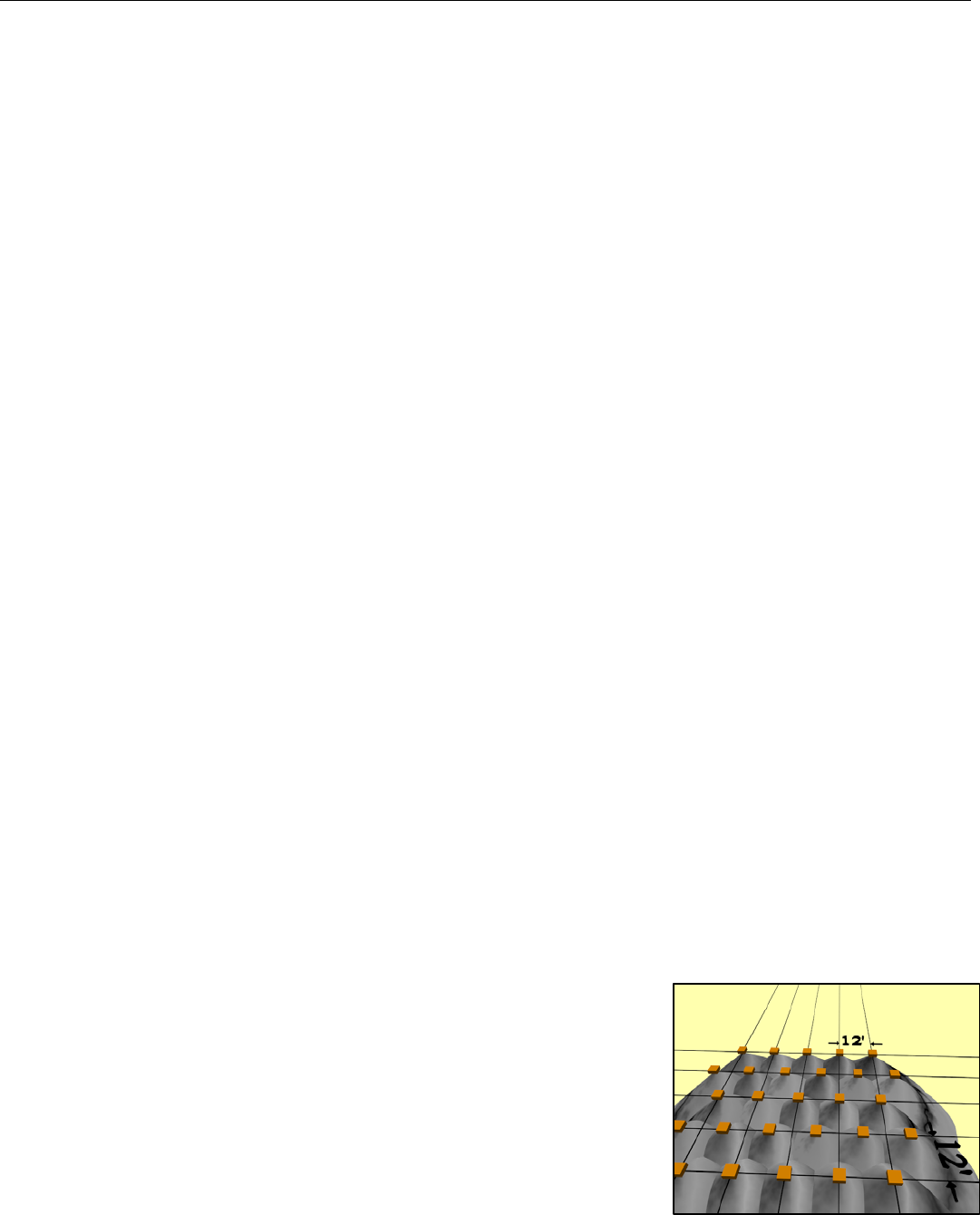

The system is able to search up to a 2100 cubic foot volume in
1 minute and provide locating information on victims for more detailed
assessments.
The system can provide an 80% confidence level when determining that the
search volume does not include any living human victims.
The large variation in people, their possible medical state and in the
materials comprising the debris pile makes testing under all circumstances
very difficult, if not impossible.
Introduction
This manual will help you with the field operation of the LifeLocator III+
System. It is designed to find victims trapped beneath debris by detecting
their motion or breathing patterns.
The LifeLocator III+ System consists of a wireless Sensor and PDA-based Control Unit. The Sensor emits 1/100th the
power of an ordinary cell phone and is powered by a Li-ion rechargeable battery. While using the System, make sure that
the Operator using the Control Unit is greater than 45 feet (15 meters), but less than 100 feet (30 meters) away from the
Sensor. Also, make sure that there is no other motion within 45 feet (15 meters) of the Sensor. Keep in mind that this may
include other rescue workers, wind blown vegetation and debris.
Sensor: Antenna Control Uni
t
: PDA
UltraVision Security Systems, Inc. 1
Copyright © 2009 All Rights Reserved
![](/img.php?id=1184542&img=bga.png)
User Guide LifeLocator®III+ System
Specifications
Sensor:
Size: 18” x 18” x 9” (45 x 45 x 23 cm)
Weight: 24 lbs. (11 kg.)
Battery Life: up to 5 hours
Battery Type: 10.8v, 8800 mAh Li ion
Water resistant

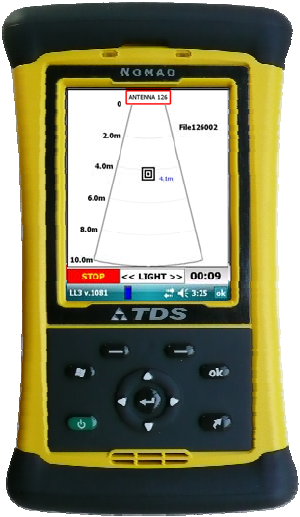

Control Unit (PDA):
Plots distance to victim when motion or breathing is detected
Water Resistant with Ruggedized Housing
Screen resolution: 480 x 640 pixel (VGA) with LED backlight
Operating System: Windows Mobile 6.0
Battery Life: up to 8 hours for Li-ion (up to 90 minutes if using AA Alkaline)
Battery Type: 5200 mAh Li-ion (or AA Alkaline can be used in emergencies)
UltraVision Security Systems, Inc. 2
Copyright © 2009 All Rights Reserved
![](/img.php?id=1184542&img=bgb.png)
User Guide LifeLocator®III+ System
Section 1: Getting Started
1. Insert a fully charged battery into the battery slot in the back of the Sensor and close the
cover.
When connected
• Make sure the Control Unit (PDA) is fully charged.
• If not already properly set, go to Start > Settings > System > Clock & Alarms to
set the correct time and date on the Control Unit.
2. Switch the Sensor power button to the ON position and push the Control Unit green
power button. On the Sensor, the blue power light appears followed, about 45 seconds
later, by a flashing red light when wireless is ready. will sa
y
LFGSSIAH

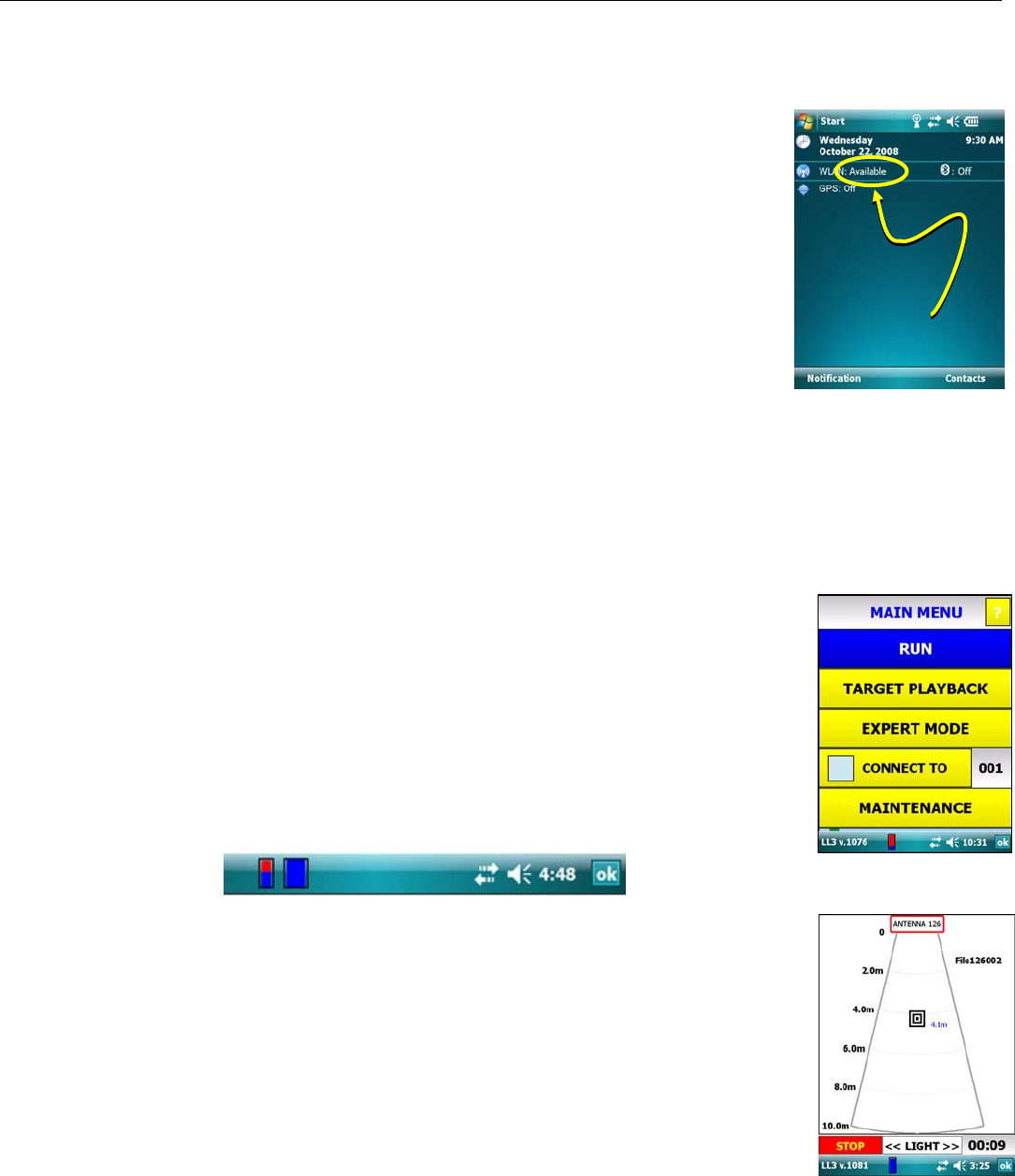

3. On the control Unit (Windows Mobile screen), make sure that LFGSSIAH appears next
to WLAN below the date and time.
• If it says Off, tap WLAN, then Wireless LAN on the next screen.
Make sure that Bluetooth is Off. When LFGSSIAH appears, press ok on the keypad to return to the Windows
Mobile screen .
4. To run the LL3 software press the Windows flag logo button á on the Control Unit or go to Start > LL3. The
MAIN menu appears. At the bottom of the screen, notice a small square moving back and forth. Wait for a few
seconds for it to turn from red to green, indicating that the Control Unit is ready to communicate with the Sensor.
5. If the ID number (ex., 001) that appears in the CONNECT TO box matches the ID number
of the Sensor being used, press the Enter button on the Control Unit or tap RUN. The
target screen appears and the run clock at the bottom right starts incrementing. The
filename is indicated in the upper right portion of the Control Unit screen. Red circles
(breathing) and black squares (motion) may be seen and grow larger as detection
confidence improves. The approximate distance of the detected motion is indicated on the
left margin of the screen.
• The appearance of both battery status indicators at the bottom of the screen (thin
indicator for PDA, wide indicator for Sensor) indicates successful communication
between the Control Unit and Sensor.
• Keypad buttons can control nearly all functions.
• Pressing ok on the Control Unit quits to a previous screen. From the MAIN menu, it
quits to the Windows Mobile screen. Pressing the green power button on the Control
Unit turns the PDA off. Do this only from Windows Mobile, not while in the
LifeLocator software.
• Control Unit backlight may be increased/decreased by use of the PDA's Left and Right
arrow buttons.
• To conclude a search press STOP on the Control Unit screen or the ok button.
UltraVision Security Systems, Inc. 3
Copyright © 2009 All Rights Reserved
![](/img.php?id=1184542&img=bgc.png)
User Guide LifeLocator®III+ System
Additional Details
1. If it is necessary to set the Sensor number for the Control Unit to connect to, access the Maintenance screen by
tapping MAINTENANCE on the Control Unit screen three times (hear three beeps) or use the Up/Down arrows to
highlight Maintenance then press Enter three times. Tap Yes on the screen when the dialog box appears confirming
Maintenance Operation. The Sensor ID number can be found on the white label affixed to the Sensor.
• Use either the Control Unit Up/Down arrows to highlight it or tap ANTENNA on the screen. Using the Left/Right
arrows, highlight the first digit. Then using the Up/Down arrows, increment (down) or decrement (up) as needed.
• Using the Left/Right arrows repeat the above procedure for the second and third Sensor ID digit. When finished,
press ok on the Control Unit or tap ok on the PDA screen to return to the MAIN menu.
• If the CONNECT TO box is not checked on the MAIN menu and RUN is selected, a Select Antenna screen will
appear showing all WiFi antennas in the area. Check the appropriate box next to the chosen Sensor, and then press
Select on the Control Unit screen. A search cycle will begin immediately. Pressing ok on the Control Unit will
send you back to the MAIN menu.
2. The red, green and blue LEDs on the sensor illuminate when communication is established. You will see a screen
like the one on the following page. The two power indicators and the incrementing timer/clock also indicates that the
system is working and that communication is established.
Note: If a dialog box saying Radar Time Out appears, (1) exit out of the LifeLocator program, (2) turn the sensor
OFF then ON and (3) rerun LifeLocator.
• The program will look for both breathing and motion. Motion above the alarm threshold produces a black
square. Breathing above threshold produces red concentric circles. Sustained motion or breathing will result in
larger squares or circles.
• A flashing ANTENNA box means that you have lost WiFi communication. Try to move closer within
10 seconds to recover.
Stop: Tap STOP only once. Tapping twice resumes the search. Tap ok to MAIN LifeLocator menu or press the
Enter button.
UltraVision Security Systems, Inc. 4
Copyright © 2009 All Rights Reserved
![](/img.php?id=1184542&img=bgd.png)
User Guide LifeLocator®III+ System
Section 2: Target Playback
1. To playback a file (an individual search cycle), select TARGET PLAYBACK from the MAIN menu. Select the file
you want to play by using the Up/Down arrows on the Control Unit or tapping the chosen file on the Control Unit
screen. The most recent searches appear on top. The file will play back to its conclusion in 2X real-time speed.
2. When the chosen search cycle file is finished, press the ok button on the Control Unit to return to the SELECT FILE
screen. Chose another file to play back or press ok once again to return to the MAIN menu.
3. While on the SELECT FILE screen, you may sort by File Number, Sensor (Antenna) Number or Date/Time by
tapping any of those column headers.
UltraVision Security Systems, Inc. 5
Copyright © 2009 All Rights Reserved
![](/img.php?id=1184542&img=bge.png)
User Guide LifeLocator®III+ System
Section 3: Expert Mode
Access the Expert Mode from the Main menu by using the Up/Down arrows to highlight EXPERT MODE then press the
Enter button or simply tap EXPERT MODE on the Control Unit screen.
WAVEFORM is a diagnostic screen. A properly functioning Sensor should show a waveform pattern (see below).
LINESCAN enables viewing radar data results in real time that may indicate breathing or motion as an alternative to the
basic Run screen (squares and circles). The screen is rotated 90 degrees in order to display data more effectively. The
margin on the right displays the approximate distance of any motion signals. The margin on the left permits several user
selected options:
• RESTART: terminates current search cycle and starts
another.
• COLOR: a display palette of five colors patterns are
available. Typically number 3 and 4 give best results.
• GAIN: may be adjusted from 1 to 256 depending on the
make up of the material being searched. Best results are
normally obtained at settings no higher than 32.
• LIGHT: the intensity of the backlight can be
increased/decreased.
Expert Mode – Target Playback
While in the Expert Mode, previous search cycles may be played back showing radar data
collected at the time. From the Expert Mode screen, use the Up/Down arrows on the Control
Unit to highlight Playback Data or simply tap PLAYBACK DATA on the Control Unit
screen.
As in normal Playback Mode, the SELECT FILE screen appears. Highlight or tap the chosen
search file.
• Similar to the normal Playback Mode, RESTART, COLOR, and GAIN are user
selectable choices. An additional choice allows the user to control the speed of
playback from 1
(slowest) to 5 (fastest).
• Search files performed in normal mode (circles and squares) but later
played back in Expert Mode have the ability to display the circle or
square icons overlaid on the radar data if
Target Playback (a choice on the left margin) is turned on. Search
files performed under Expert Mode cannot show the icons and the
Target On button will be grayed out.
• To return to the Expert Mode menu press OK. To return to the MAIN
menu, press ok once again.
UltraVision Security Systems, Inc. 6
Copyright © 2009 All Rights Reserved
![](/img.php?id=1184542&img=bgf.png)
User Guide LifeLocator®III+ System
Appendix A: Battery Use Viewing window
1. Checking Sensor Battery Life: There is a viewing window on the end of the battery near the pull tab. Columns
indicate the status of the battery: 5 columns – 100%, 4 columns 80%, 3 columns 60%, 2 columns 40%, 1 column
20% or less. Batteries showing 1 or 2 columns should be fully charged prior to use. Recharge time takes about
2 hours.
2. Recharging Sensor Battery: To recharge a battery, insert it into the charger. Make sure that the ends align correctly
into the slot.
3. Recharging Control Unit: Recharging the Control Unit Battery: To recharge the Control Unit (PDA), insert the
charging cord into the bottom of the Control Unit. Then plug the charger in. The wall charger is supplied with plug
ends for all international sources of power. (Use only the manufacturers supplied charger.) A vehicle charger cord
for the Control Unit is also supplied. When using the AA battery unit, be sure to use high quality, high mAh
capacity alkaline batteries. To remove the stock Li-ion battery and replace it with the AA battery unit, remove the
four screws holding the battery pack with one end of the supplied PDA stylus.
Appendix B: File Maintenance
1. Downloading Files: Initially all search data files are stored on the Sensor. To transfer them to the
Control Unit, you must first download them from the Sensor. To download a file:
1. Select MAINTENANCE from the Main menu by tapping it three times and answering Yes
to the pop up dialog box.
2. Select DOWNLOAD DATA FILE.
3. Check the desired files or select SELECT ALL then DOWNLOAD. This may take a few
moments depending on the size and number of files selected.
2. Transfer/Export Files to Laptop/Desktop: To see files on the Control Unit (PDA), exit the
LifeLocator program.
1. Tap Start > File Explorer.
2. Go to the file path My Device > LL3 > Download.
3. You will then need to transfer chosen files via ActiveSync through a USB cable to you
computer.
Note: This procedure is required for manufacturer analysis of search data.
3. Clear Storage: To delete files from Sensor storage after an exercise or many months of use in
training, make sure the Control Unit and Sensor are communicating.
1. Select Clear Storage from within the MAINTENANCE menu.
2. Select the file(s) you wish to delete or Select All.
3. Select Delete. When done the Control Unit will return to the MAINTENANCE menu.
UltraVision Security Systems, Inc. 7
Copyright © 2009 All Rights Reserved
![](/img.php?id=1184542&img=bg10.png)
User Guide LifeLocator®III+ System
Appendix C: Troubleshooting
• Check battery status on both units when there is a problem. Low battery power may cause data errors.
Error: Radar Time Out or Connection Abandoned error box appears.
Solution: Exit out of LifeLocator, reenter and try again. If same error appears, repeat the Startup Procedure including
turning the sensor Off then On again.
Error: Erratic detection of motion or breathing.
Solution: Check around the sensor. Make sure there is no other motion in the vicinity of the sensor. Check sensor and
control unit battery power. If problems persist, the environmental noise due to other communications equipment may be
overwhelming the sensor. These can be visualized in EXPERT mode.
Note: The internal 1GB card can store more than 50 hours of data on the sensor. Since the file system was never intended
to go beyond File 99, it will keep overwriting File 99 once it is reached. It is hard to imagine that one would collect all 99
files ½ hour long, but if the 1GB card is full, the system may hang. You would need to Clear Storage and delete all files to
recover. Periodically clear storage to avoid memory issues.
Error: High radio frequency noise/WiFi environment or nearby waving vegetation causes false positive indicators.
Solution: Enter Maintenance Mode (from Main menu press Maintenance three times then press Yes). On the Maintenance
screen press Sensitivity which will change the System setting to Low. Penetration range will not be affected. System
setting can be changed back to High by pressing Sensitivity again.
Appendix D: System Use
1. The user should place the sensor face down on the rubble and back away about 30 feet or more (up to 50 feet max).
The wireless control unit collects data for about three minutes and indicates the presence and distance to the victim.
Motion and breathing may be detected as early as twenty seconds. A longer period of time improves the confidence
level of detection. After three minutes, the sensor should be moved to the next point in the search grid.
2. A single sensor returns only the approximate distance to but not the exact position of the victim, since there is a
“solid viewing angle” that widens and narrows depending on the medium being penetrated.
For example, the victim might be six feet away from the sensor but not directly beneath it
In moist sand, the victim could be about 50 degrees away from perpendicular, whereas in dry sand or concrete
rubble, this angle might be wider.
3. Since it is impossible to know when disasters will strike, it is important that LifeLocator training be conducted
routinely so that users are skilled at System operation. It is equally important that the System batteries are fully
charged at all times and UVSS recommends a minimum of a
monthly inspection of all System batteries to maintain optimum
performance.
Although a user might get the victim’s position by moving a single sensor around
and triangulating the distances, it is likely to be more important to simply to make
the positive ID and start digging. A proposed search pattern is shown in the
diagram. It uses 12-foot (4m) spacing between search points with staggered lines
to minimize the area not searched close to the surface. Once areas are identified
(clear, suspect, etc), mark the area with paint, flags, etc.
UltraVision Security Systems, Inc. 8
Copyright © 2009 All Rights Reserved
![](/img.php?id=1184542&img=bg11.png)
User Guide LifeLocator®III+ System
UltraVision Security Systems, Inc. 9
Copyright © 2009 All Rights Reserved
Appendix E: Scale, Language and Sensor Options
LifeLocator III+ can be operated in either US-based foot (English) or international metric scale. The Control Unit user
interface can display in English, French, Japanese, Hebrew or Chinese. Default is US-based feet (English) and English
language.
To change either or both options:
1. From the Windows Desk Top on the Control Unit go to
Start > File Explorer > LL3 > Settings.
2. Use the Units drop down box to select ENGLISH or METRIC.
3. Use the Language drop down box to select the appropriate language
4. Tap Set to save the configuration, then ok to return to the Windows Mobile screen.
