GSX User Manual

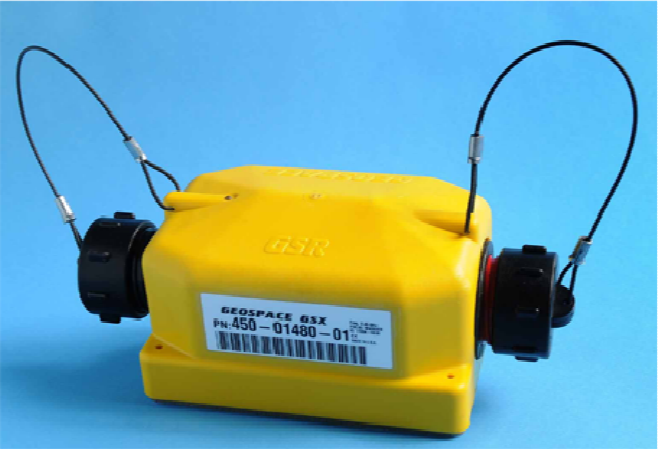

GSX MODULE
Deployment
The GSX should be deployed with the metal plate down. This provides sufficient earth grounding and
maximum cooling of the unit as well as providing the GPS receiver in the top to the unit with an ideal
“view” of the satellite constellation. The grounding spike should be fastened to the unit prior to
deployment to provide maximum earth coupling. The unit should be transported on its side in order to put
the unit into standby mode and minimize battery consumption prior to use. Once the unit is ready to be
deployed it should be flipped spike down and the GSX will immediately begin power on self-test.
The GSX will test all of its internal circuits followed immediately by an impedance test of the seismic
sensors. The LED that can be seen from the top of the GSX will flash codes to indicate the GSX’s
condition. The GSX will enable the Global Positioning System (GPD) receiver and begin to flash the
code that indicates that it is searching for satellites. Within a few seconds the GPS receiver will have
sufficient satellite information to obtain a 3 dimensional fix. The flash code will change to indicate this
condition and the GSX will now begin to acquire seismic data if it has been programmed to begin
recording immediately. See Programming below. After several minutes the internal GSX clock will be
sufficiently disciplined and the GPS receiver will be turned off. The flash code will again change to
indicate this state. See the flash codes below.
Radio Status Monitoring
A GSX may be connected to a laptop computer and used as a hub to monitor the status of any GSXs
within a 50m to 100m radius via a high frequency radio link. In this mode the laptop/hub monitors and
logs status information from all of the GSXs that it communicates with. The laptop stores the GPS
location, acquisition status, temperature, battery status and the nonvolatile memory status of each GSX.
By moving the hub throughout the seismic spread all of the GSXs in the survey may be monitored and
logged. This logging may take place during acquisition of seismic data with no adverse effect on the data
quality.
3 of 3
GSX User Manual
Flash Codes
GSX Start-up Error Codes
Critical GSX Error: LED flashes repeatedly on solid for 1 second followed by off for one second.
Critical Seis Input 1 Error: LED on solid for 1 second followed by 1 short pulse.
Critical Seis Input 2 Error: LED on solid for 1 second followed by 2 short pulses.
Critical Seis Input 3 Error: LED on solid for 1 second followed by 3 short pulses.
Critical Seis Input 4 Error: LED on solid for 1 second followed by 4 short pulses.
Critical Battery Error: LED on solid for 1 second followed by 5 short pulses.
Non-Volatile Memory Error: LED on solid for 1 second followed by 6 short pulses.
Non-Volatile Memory Full: LED on solid for 1 second followed by 7 short pulses.
GSX Run Time Codes
GPS on but no GPS fix: One LED flash per second.
GPS on with GPS fix: Two quick flashes once per second.
Recording with GPS off: One quick flash each 8 seconds.
Sleeping: Two quick flashes each 10 seconds.
Running geophone tests: LED flashes on for 10 ms 5 times per second.
Downloading
The GSX non-volatile memory may be read and cleared by removing the battery connection and
inserting the unit into one of the outlets in the GeoReaper. See the GeoReaper User Manual for
further instruction.
Programming
The GSX recording parameters such as sample rate, pre-amp gain, record mode, and testing, are
programmed and stored in non-volatile memory in the GSX by the GeoReaper. See the
GeoReaper User Manual for further instruction.
