Get The World Moving GCCP04 GCC Pulse 2.0 User Manual

Get The World Moving Pty Ltd GCC Pulse 2.0 Users Manual

Users Manual

1
TRACK
ACTIVITY ENTER VIA
GCC WEBSITE
OR APP
SYNC WITH
GCC iPHONE OR
ANDROID™ APP
2
89
YOUR GCC PULSE.
1
7
6
5
4
3
2
1. GCC PULSE BUTTON
a) Reset button for Standard mode
b) Pairing & syncing button for
Sync mode
2. ACTIVITY TRACKER /
CLOCK DISPLAY
Displays activity count or clock
3. BLUETOOTH ICON
Flashes when performing pairing
or syncing
4. LOW BATTERY ICON
Displays when battery falls to 25%
5. CLOCK ICON
Displays the time
6. ACTIVITY ICON
Displays when tracking your activity
7. LINK ICON
Displays for Sync mode
8. FACTORY RESET
Insert a fine point like a paperclip
and press to switch to Standard mode
9. BATTERY INSULATION STRIP
Remove to activate your GCC Pulse
 
3
SAY HELLO TO YOUR LITTLE FRIEND
Say hello to your GCC Pulse and get acquainted in preparation
for the GCC 100 Day Journey! Take your first step by removing
the clear plastic battery strip.
STANDARD OR SYNC MODE – YOU DECIDE
Your GCC Pulse has two modes. Choose between Standard or Sync:
STANDARD MODE
Enter your daily activity
via the GCC app or website.
Go to page 8 for Standard mode.
SYNC MODE
Sync your daily activity
with a press of a button using
Bluetooth® technology on
your Android or iPhone.
Go to page 4 for Sync mode.
OR
4
SYNC MODE
Pair it > Wear it > Sync it
Your GCC Pulse comes out of the box in Standard mode.
To switch to Sync mode so you can sync your steps using
Bluetooth wireless technology, follow these simple instructions:

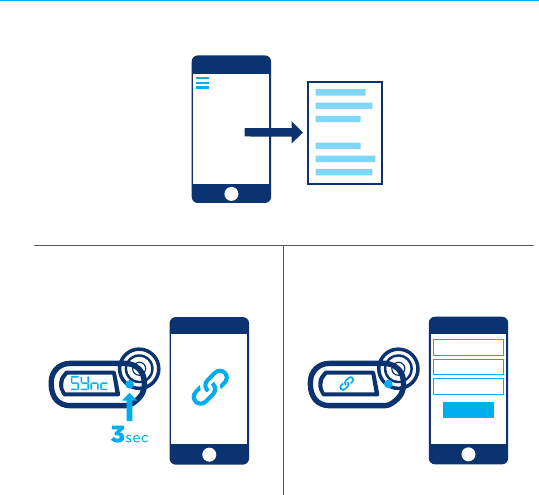

PAIR YOUR GCC PULSE WITH iPHONE OR ANDROID
1. Download the latest GCC app from:
gettheworldmoving.com/apps or search for
Global Corporate Challenge on the App Store for iPhone
or on Google Play™ for Android.
2. Open the GCC app > Menu > My GCC Pulse > Sync Mode.
3. Press the GCC Pulse button for up to 6 seconds, until
and the Bluetooth icon display on the GCC Pulse.
4. A successful connection message displays when the app
connects with your GCC Pulse. The Activity icon and
Link icon on your GCC Pulse show it is in Sync mode.*
To switch to Standard mode, see Factory Reset on page 2.
Please be aware that switching from Sync to Standard mode
will erase your current and saved activity on your GCC Pulse.
*Repeat if pairing is unsuccessful.
5
1. 2.
3. 4.
SUCCESS
My GCC Pulse SYNC
MODE
6
SYNC YOUR DAILY ACTIVITY
1. Open the GCC app > Menu > Step Entry.
2. Press the GCC Pulse button for 3 seconds or until the
Bluetooth icon and appear.
3. Your activity automatically appears in the GCC app. Add any
cycling or swimming distances and confirm your activity.
HELPFUL HINTS FOR SYNC MODE
• Your GCC Pulse resets to zero at midnight, ready for the
next day.
• Press the GCC Pulse button once to switch between the
clock and activity tracker. It will revert to the activity tracker
after 10 seconds. 
• Sync your activity each day to see how your activity levels
are tracking.
• The GCC Pulse has a 14 day memory. If it reaches capacity,
your oldest 24 hour activity period is deleted to make room
for your newest 24 hours of activity.
7
1.
2. 3.
STEPS
SWIM
CYCLE
SUBMIT
Step Entry
8
STANDARD MODE
Wear it > Track it > Enter it
The GCC Pulse comes out of the box in Standard mode,
so you’re ready to go.
USING STANDARD MODE
1. The Activity icon indicates the GCC Pulse is tracking
your activity.
2. Simply wear your GCC Pulse and manually enter your
activity each day via the GCC app or GCC website.
Add any cycling or swimming distances and confirm
your activity.
3. Each day, reset your GCC Pulse by pressing the button for
three seconds. You will see ‘0’ appear ready to start tracking
your new day’s activity.
To switch to Sync mode, see Page 4. Please be aware that
switching from Standard to Sync mode will erase your
current activity.
9
HOW TO WEAR YOUR
GCC PULSE.
Clip it. Strap it. Pocket it.
Simply clip your GCC Pulse to your clothing, ideally on your hip,
upper body or in your pocket. Avoid your arms, legs or feet to
ensure accurate activity tracking. The most important thing is
to wear your GCC Pulse at all times during the day, so put it on
first thing in the morning and take it o before you go to bed.
10
WILL MY SMARTPHONE WORK?
Your GCC Pulse in Sync mode is compatible with most iPhone
and Android devices.* For more information, visit:
gettheworldmoving.com/pulse-faq
*Windows Phone & Blackberry are not compatible.
DO YOU HAVE ANY OTHER QUESTIONS?
Need some help? Visit: gettheworldmoving.com/pulse-faq
GCC PULSE BATTERY REPLACEMENT
AND DISPOSAL
Your GCC Pulse is designed to last the duration of the Challenge.
If you need to change the battery, simply remove the screw
located at the top of the flexi-clip, open the casing carefully
and replace the battery. If you see an error message <ERR>,
insert a fine point like a paperclip into the hole on the rear of
your GCC Pulse to activate the factory reset.
The battery type is a lithium metal cell (CR2032H). Dispose of
this battery in an environmentally friendly way. Contact your
local government for the nearest battery recycling facility.
It is most important that this battery, and all batteries for that
matter, are kept away from children at all times. They represent
a choking hazard and can result in death if ingested.
11
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC
Rules Operation is subject to the following two
conditions:
(1) This device may not cause interference; and
(2) This device must accept any interference,
including interference that may cause
undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates uses
and can radiate radio frequency energy and, if
not installed and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or television
reception, which can be determined by turning
the equipment o and on, the user is encouraged
to try to correct the interference by one or more
of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the
equipment and receiver.
• Connect the equipment into an outlet on a
circuit dierent from that to which the receiver
is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
This device meets the FCC requirements for RF
exposure in public or uncontrolled environments.
CAUTION!
Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
IC COMPLIANCE STATEMENT
This device complies with Industry Canada’s
– exempt RSSs. Operation is subject to the
following two conditions:
1 This device may not cause interference; and
2 This device must accept any interference,
including interference that may cause
undesired operation of the device.
Le présent appareil est conforme aux CNR
d’Industrie Canada applicables aux appareils
radio exempts de licence. L’exploitation est
autorisée aux deux conditions suivantes :
1 l’appareil ne doit pas produire de brouillage;
2 l’utilisateur de l’appareil doit accepter tout
brouillage radioélectrique subi, même si le
brouillage est susceptible d’en compromettre
le fonctionnement
The device meets the exemption from the routine
evaluation limits in section 2.5 of RSS 102 and
compliance with RSS-102 RF exposure, users can
obtain Canadian information on RF exposure and
compliance.
Le dispositif rencontre l’exemption des limites
courantes d’évaluation dans la section 2.5 de RSS
102 et la conformité à l’exposition de RSS-102 rf,
utilisateurs peut obtenir l’information canadienne
sur l’exposition et la conformité de rf.
EU COMPLIANCE STATEMENT
GCC hereby declares that this wireless device is
in compliance with the essential requirements and
other relevant provisions of the R&TTE Directives
1999/5/EC.
THE LEGAL STUFF
12
GETTHEWORLDMOVING.COM
© Get the World Moving Limited 2016
The Bluetooth® word mark and logos are registered trademark owned by the Bluetooth SIG, Inc. and any use of such
marks by GCC is under license.
Android is a registered trademark of Google Inc. iPhone is a registered trademark of Apple Inc.
IOS is a registered trademark of Cisco in the U.S. and other countries and is used under license.
MADE IN CHINA
CR2032H
CR2032H
GCC-P04
