User manual
V100 Operation Manual
(This version is for Safety Approval only)
(October 2008)
TRADEMARKS
All brand and product names are trademarks or registered trademarks of their
respective companies.
NOTE
The information in this manual is subject to change without notice.
ENERGY STAR® is a government program that offers businesses and
consumers energy-efficient solutions, making it easy to save money while
protecting the environment for future generations.
Please reference ENERGY STAR® related information from
www.energystar.gov.
As an ENERGY STAR® Partner, MiTAC Technology Corporation has
determined that this product meets the ENERGY STAR® guidelines for
energy efficiency.
An ENERGY STAR® qualified computer uses 70 % less electricity than
computers without enabled power management features.
Earning the ENERGY STAR®
z When every home office is powered by equipment that has earned the
ENERGY STAR®, the change will keep over 289 billion pounds of
greenhouse gases out of the air.
z If left inactive, ENERGY STAR® qualified computers enter a
low-power mode and may use 15 watts or less. New chip
technologies make power management features more reliable,
dependable, and user-friendly than even just a few years ago.
z Spending a large portion of time in low-power mode not only saves
energy, but helps equipment run cooler and last longer.
z Businesses that use ENERGY STAR® enabled office equipment may
realize additional savings on air conditioning and maintenance.
z Over its lifetime, ENERGY STAR® qualified equipment in a single
home office (e.g., computer, monitor, printer, and fax) can save
enough electricity to light an entire home for more than 4 years.
z Power management (“sleep settings”) on computers and monitors can
result in much savings annually.
Remember, saving energy prevents pollution
Because most computer equipment is left on 24 hours a day, power
management features are important for saving energy and are an easy way
to reduce air pollution. By using less energy, these products help lower
consumers’ utility bills, and prevent greenhouse gas emissions.
i
Table of Contents
Table of Contents........................................................................i
Preface v
Notational Conventions.......................................................vi
Getting Started ........................................................................1-1
Getting the Computer Running ............................................ 1-2
Unpacking ........................................................................ 1-2
Connecting to AC Power ................................................. 1-2

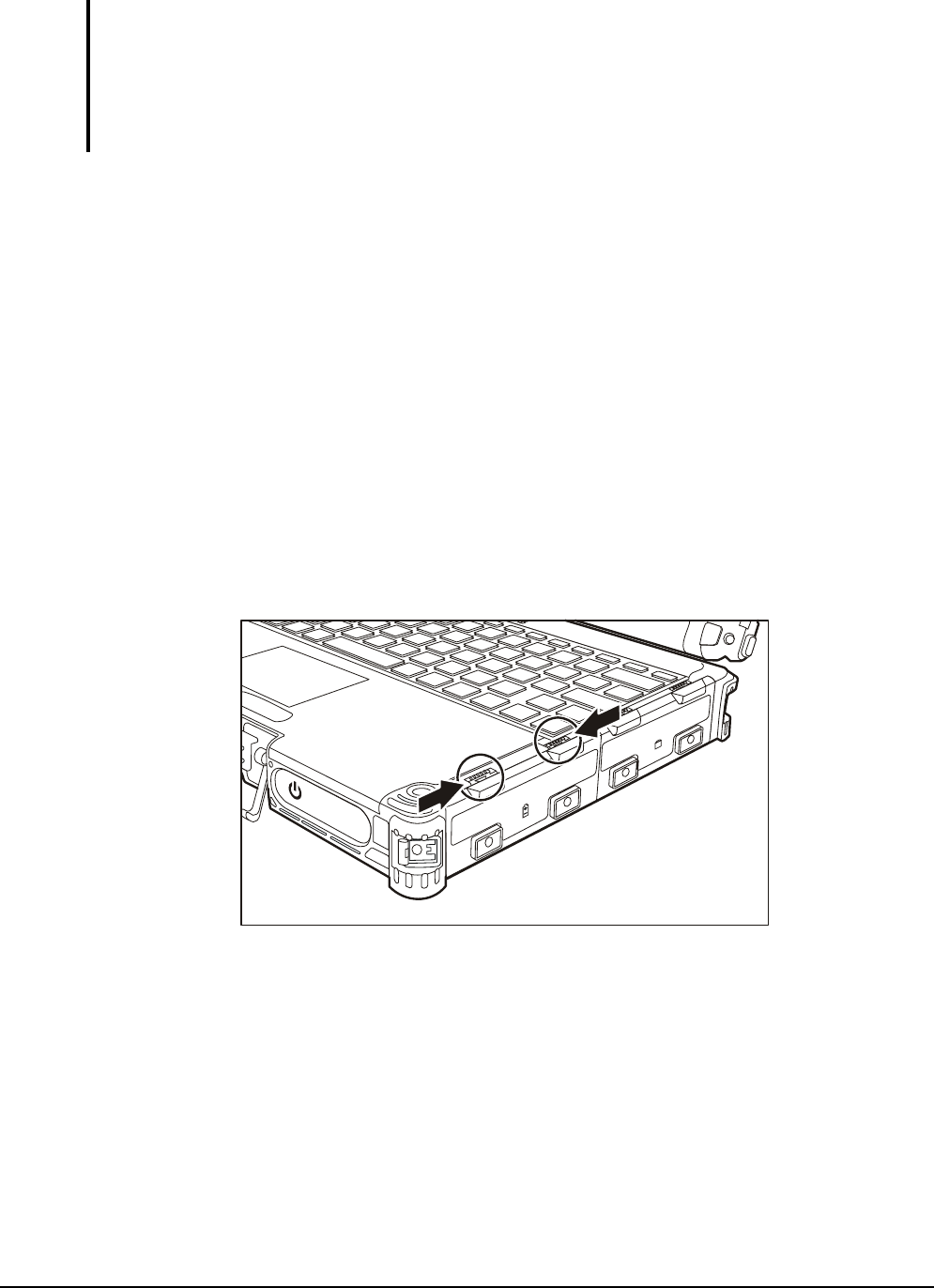

Opening and Closing the Cover ....................................... 1-4

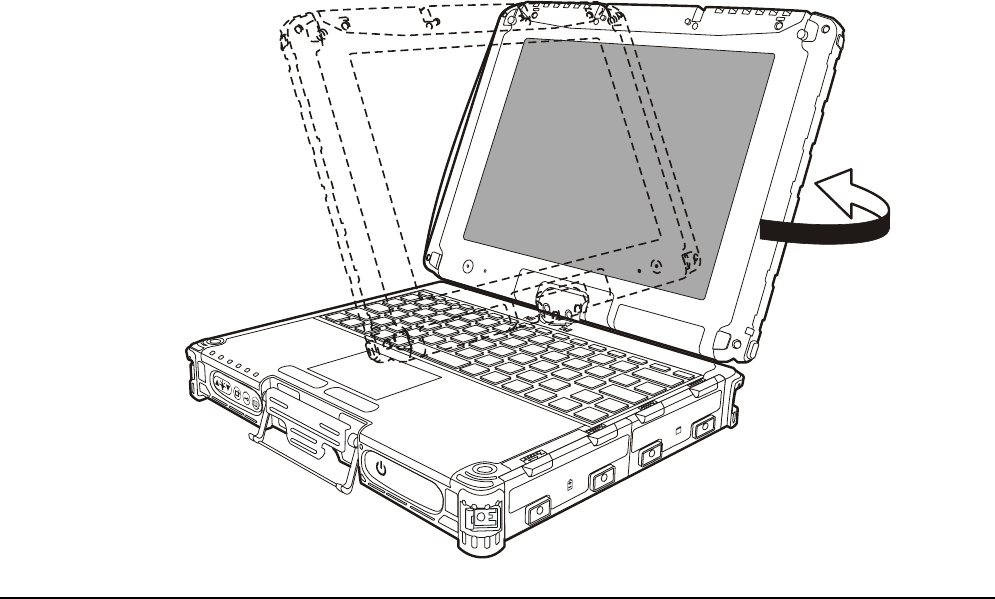

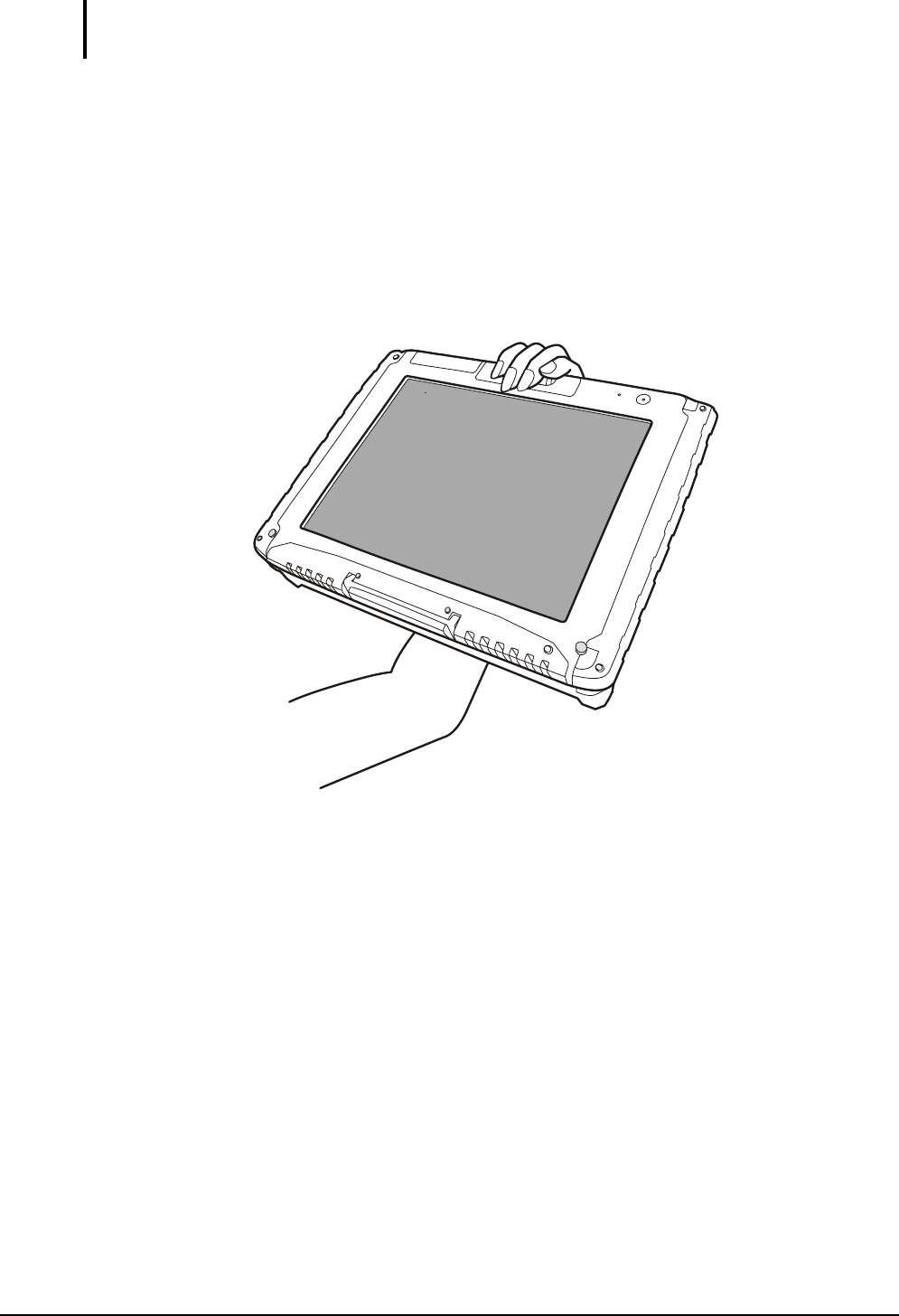

Operating in Tablet Mode ................................................ 1-4

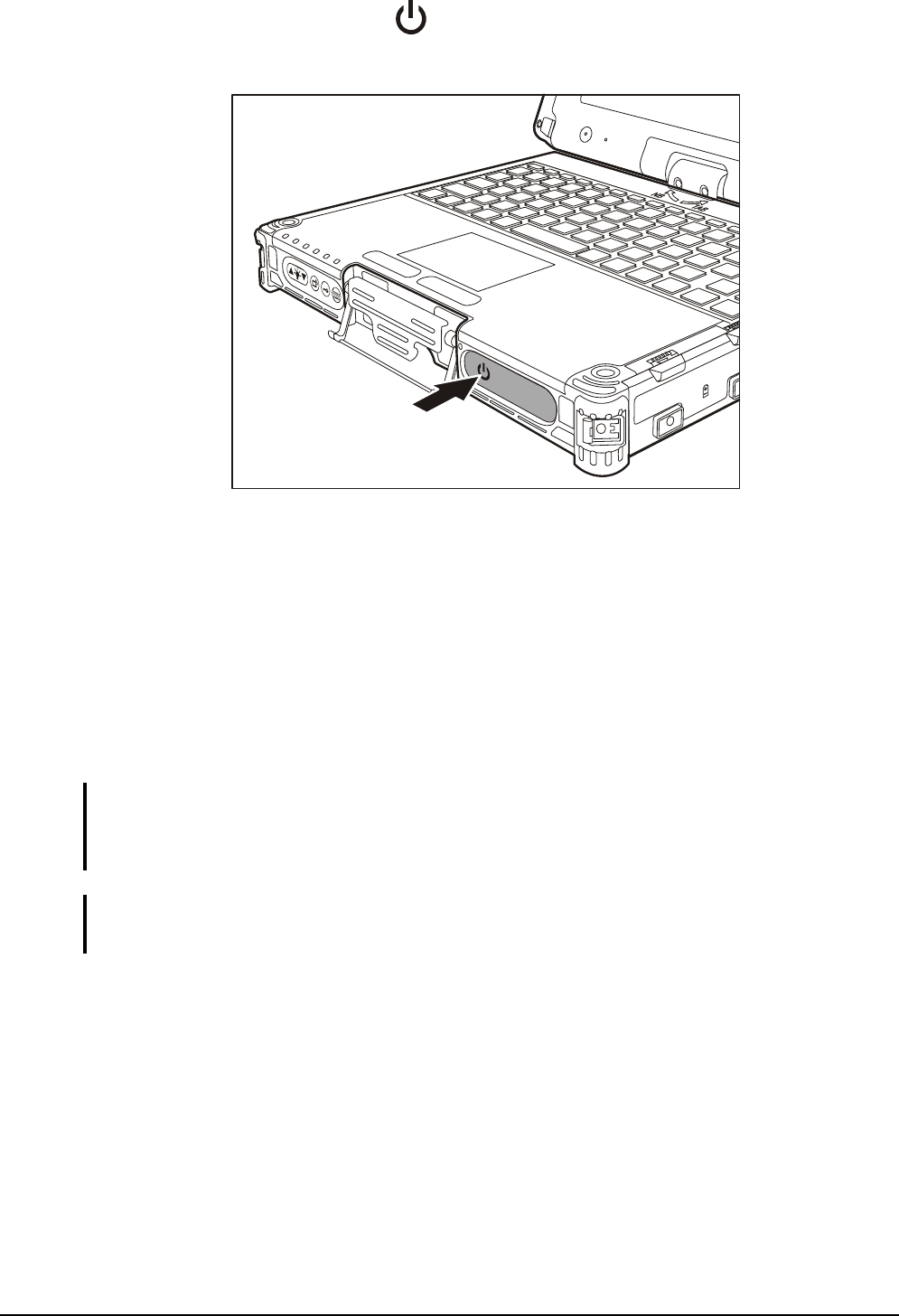

Turning On and Off the Computer................................... 1-5
Attaching the Hand Strap ................................................. 1-7

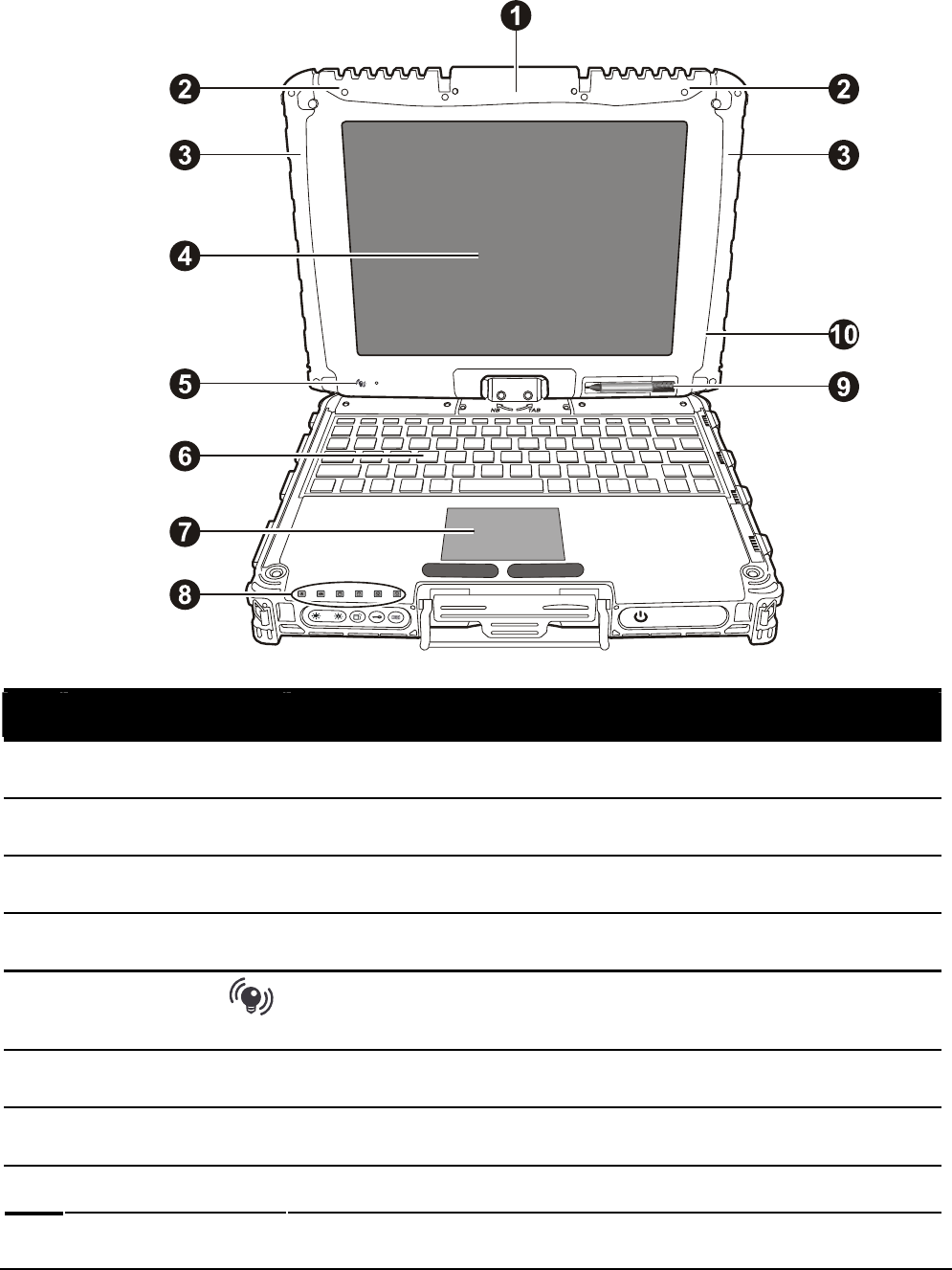

Taking a Look at the Computer............................................ 1-8
Right-Side Components ................................................... 1-8
Left-Side Components ..................................................... 1-9

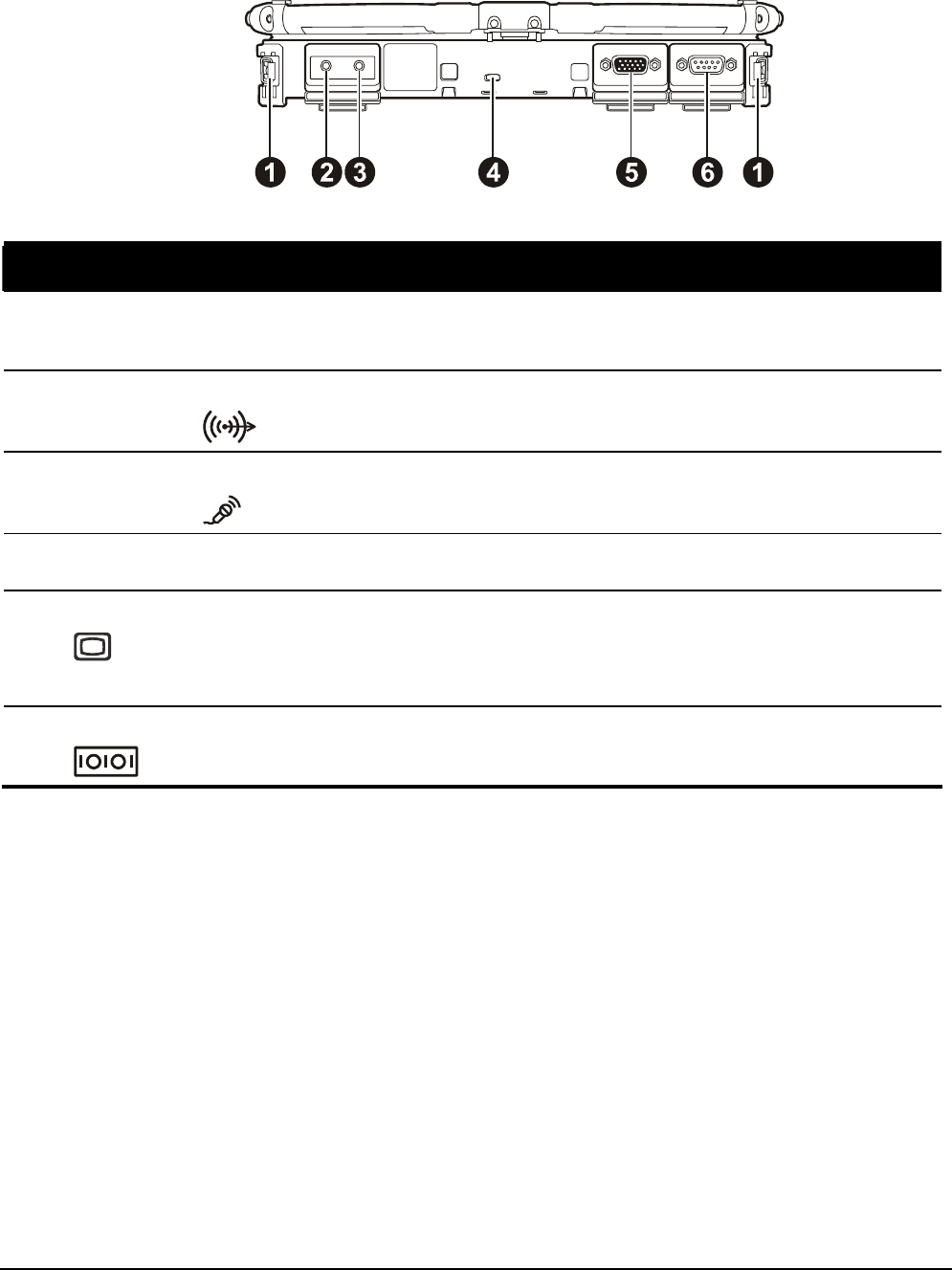

Rear Components ........................................................... 1-11
Front Components.......................................................... 1-12

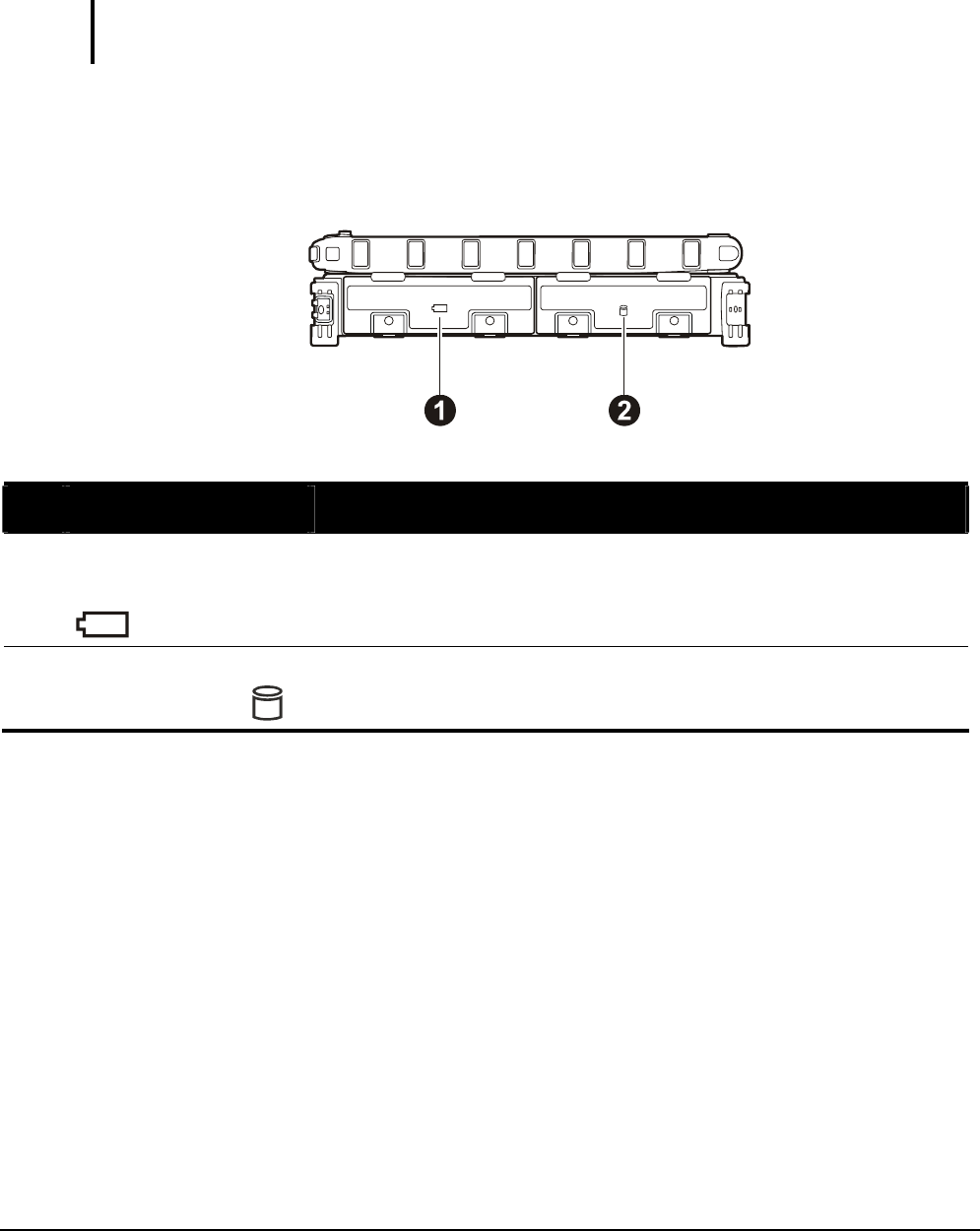

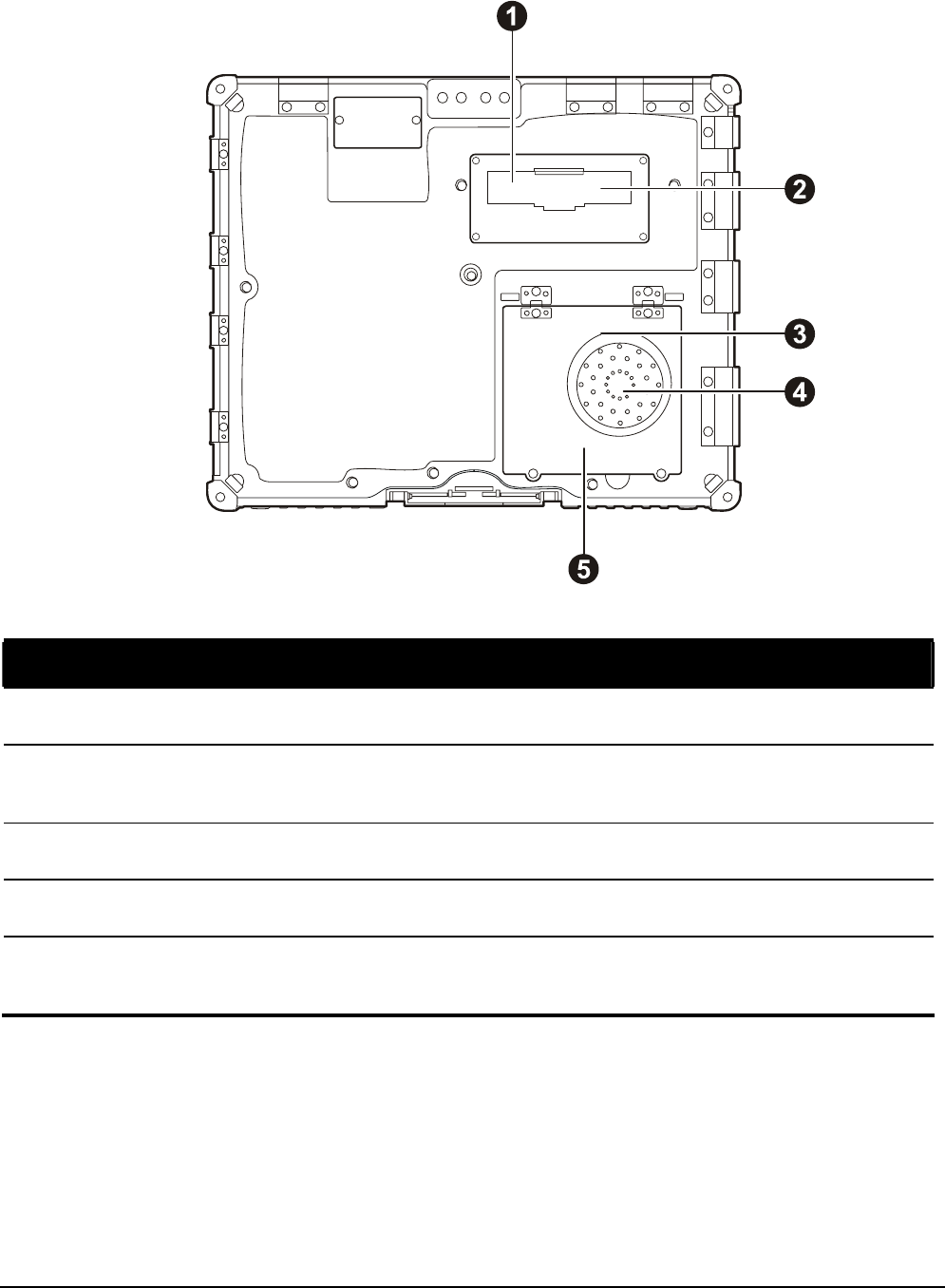

Bottom Components....................................................... 1-13
Top-open Components................................................... 1-14
Where to Go from Here...................................................... 1-17
Operating Your Computer......................................................2-1
Starting and Stopping the Computer .................................... 2-2
Starting the Computer ...................................................... 2-2
Stopping the Computer .................................................... 2-2
Using the Internal Keyboard ................................................ 2-5
Typewriter Keys............................................................... 2-5
Cursor-Control Keys ........................................................ 2-6
ii
Numeric Keypad .............................................................. 2-6
Function Keys .................................................................. 2-7
Fn Key.............................................................................. 2-7

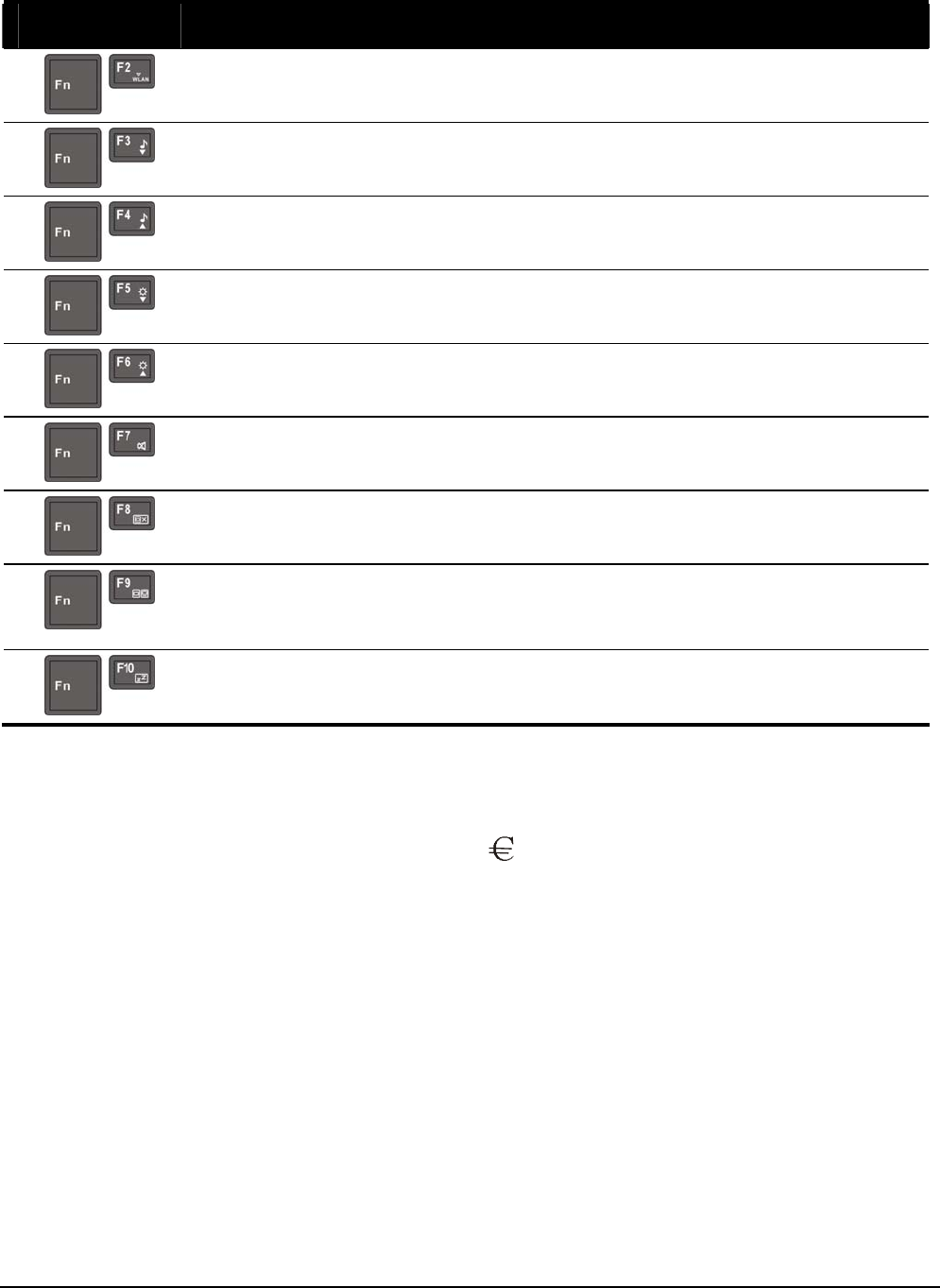

Hot Keys .......................................................................... 2-7

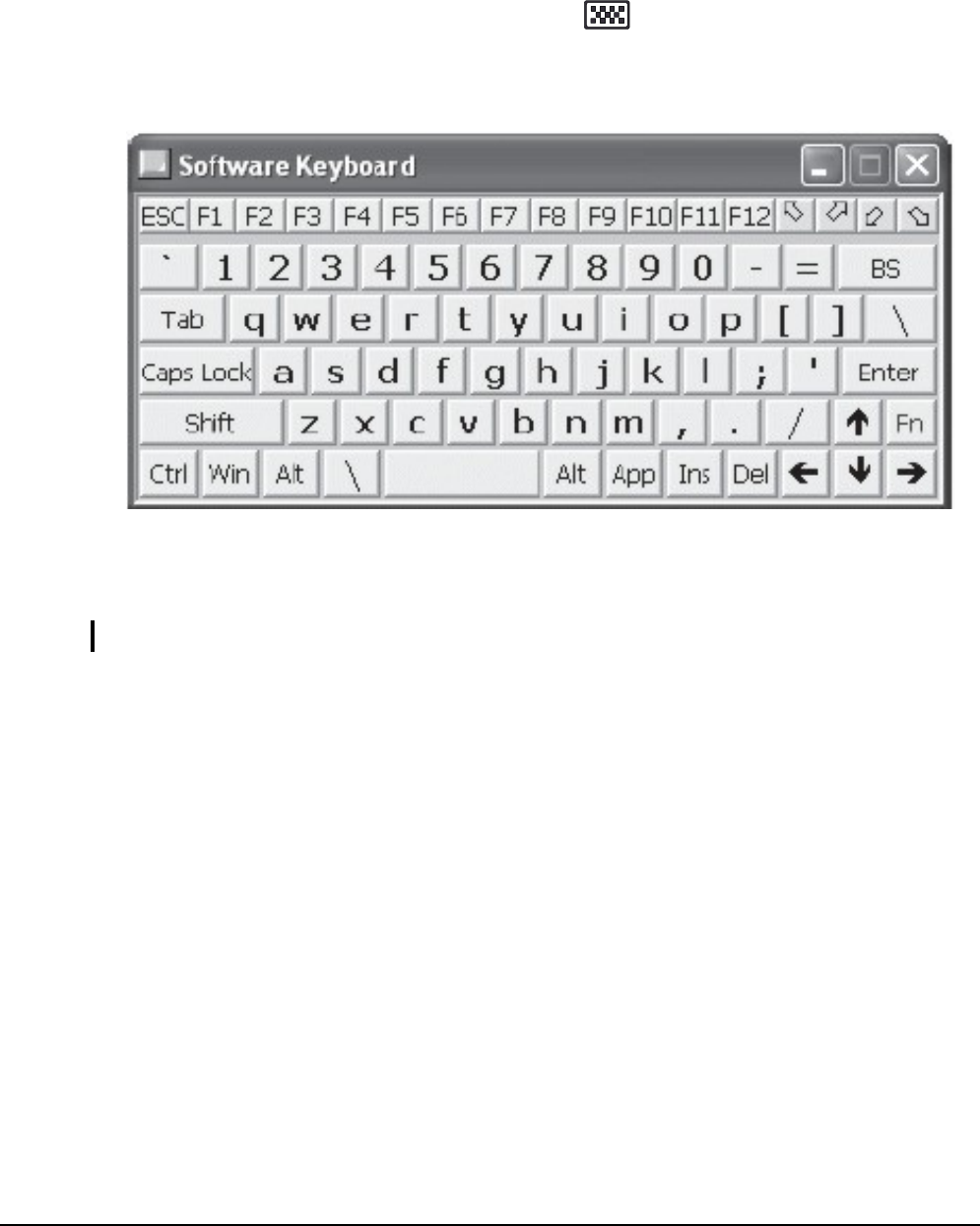

Using the Software Keyboard ............................................ 2-10
Using the Touchpad ........................................................... 2-11
Configuring the Touchpad ............................................. 2-12
Using the Touchscreen (Optional) ..................................... 2-13

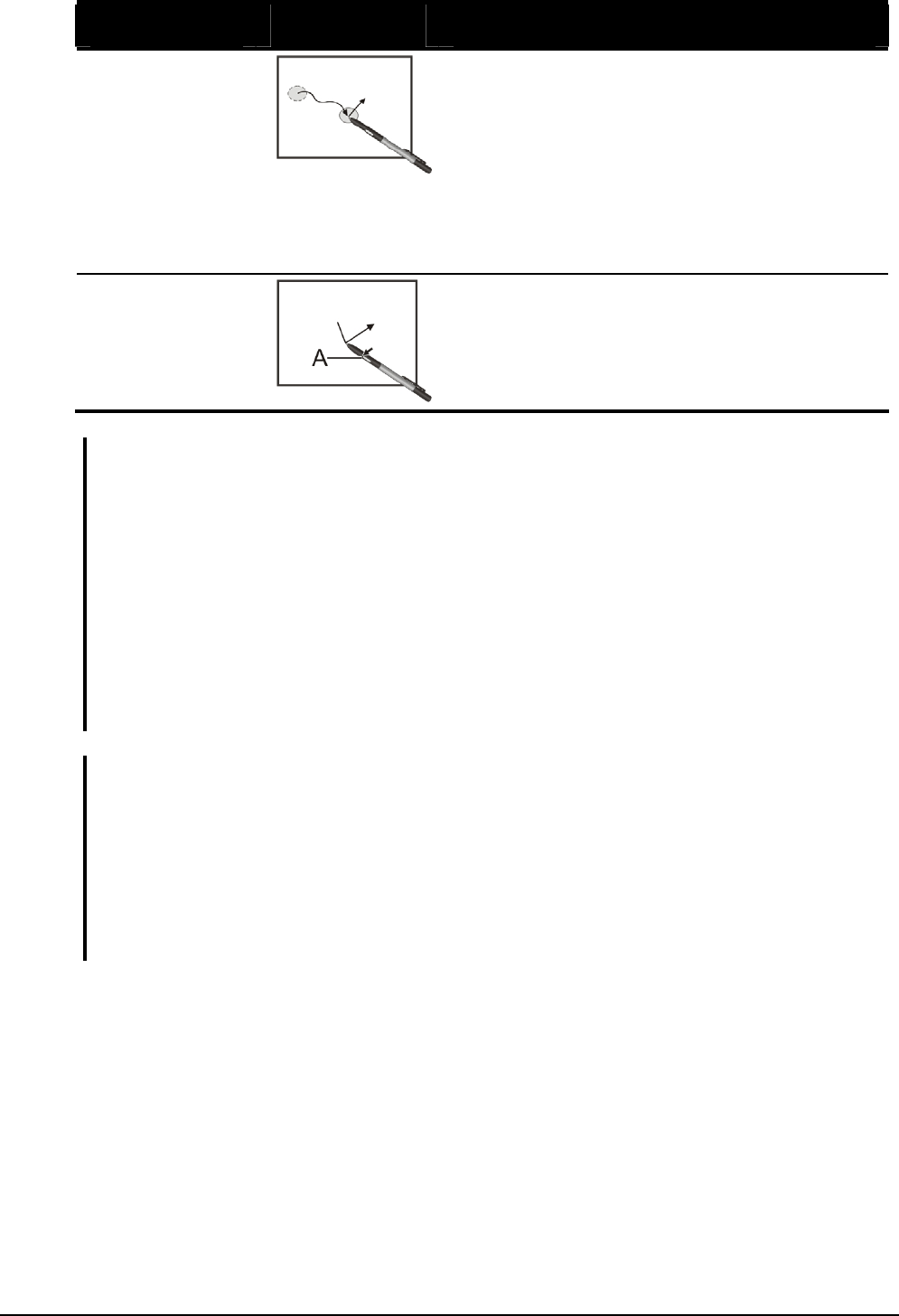

Using the Active Digitizer Feature (Optional) ................... 2-14
Using the Hard Disk Drive................................................. 2-16
Using the Video Features ................................................... 2-17
Configuring the Display Modes ..................................... 2-17
Using the Audio Features................................................... 2-19
Connecting Audio Devices ............................................ 2-19
Using the Communication Features ................................... 2-21
Using the Modem........................................................... 2-21

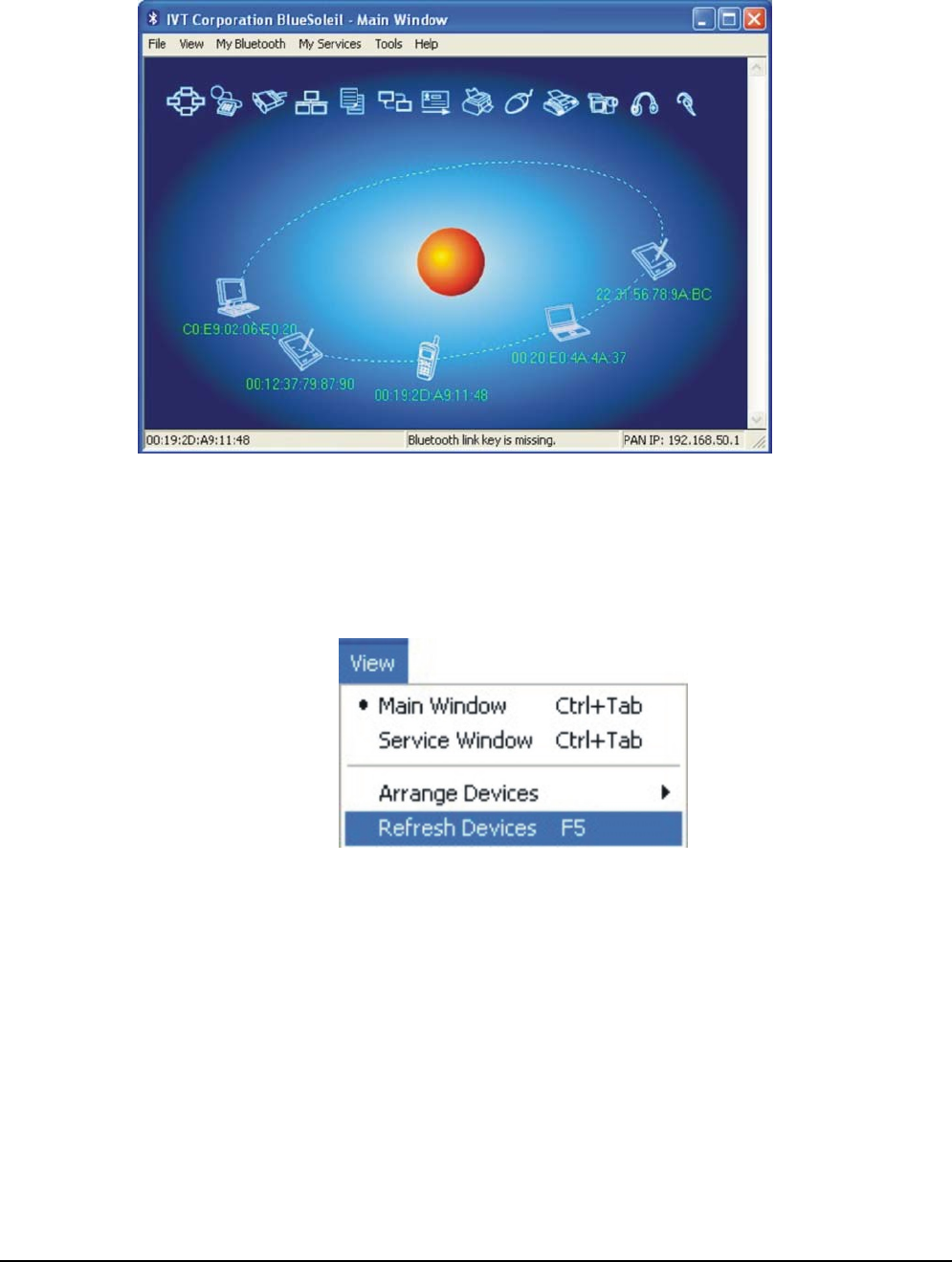

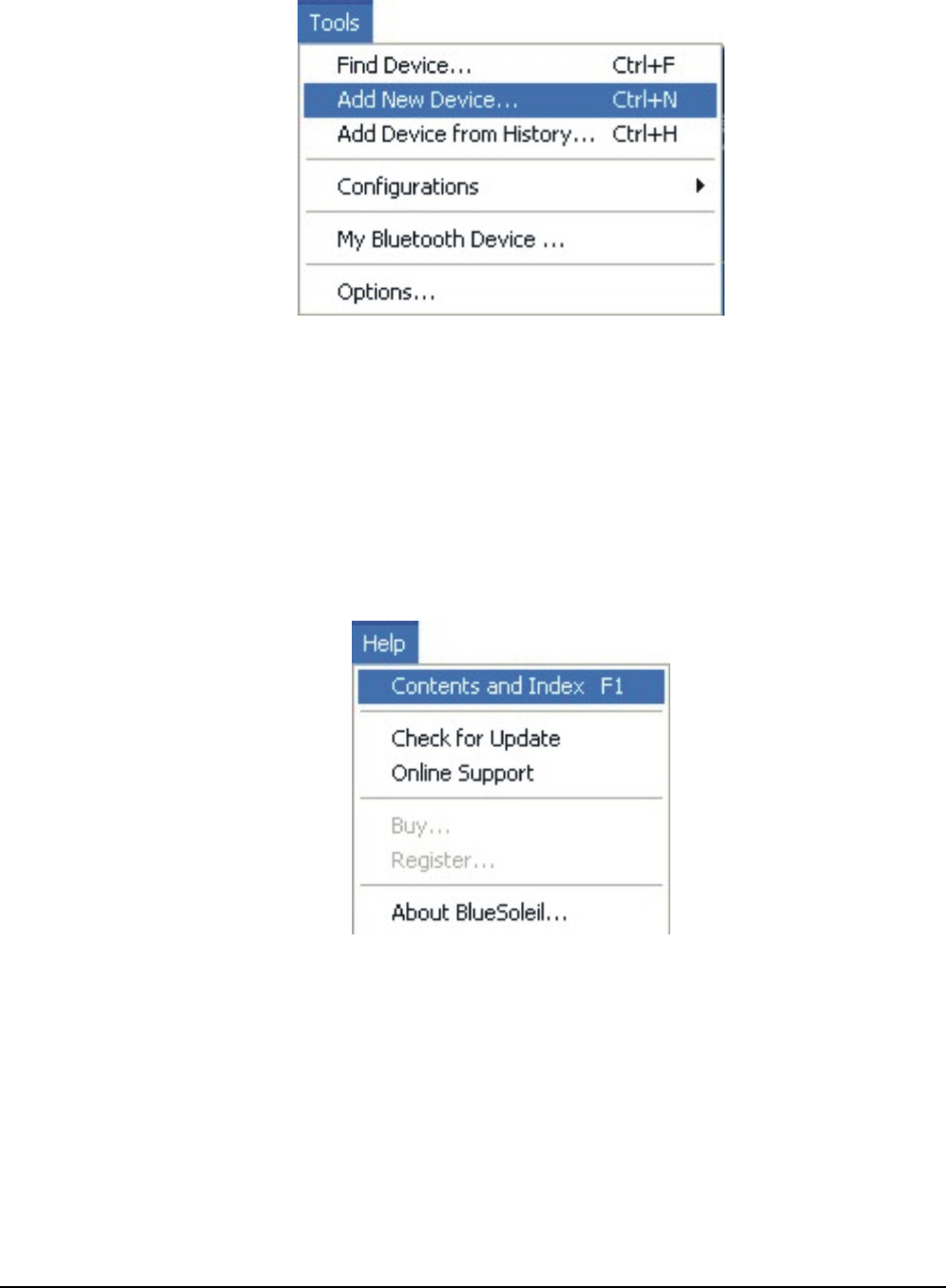

Using the Bluetooth Feature........................................... 2-22
Using the GPS................................................................ 2-25
Managing Power......................................................................3-1

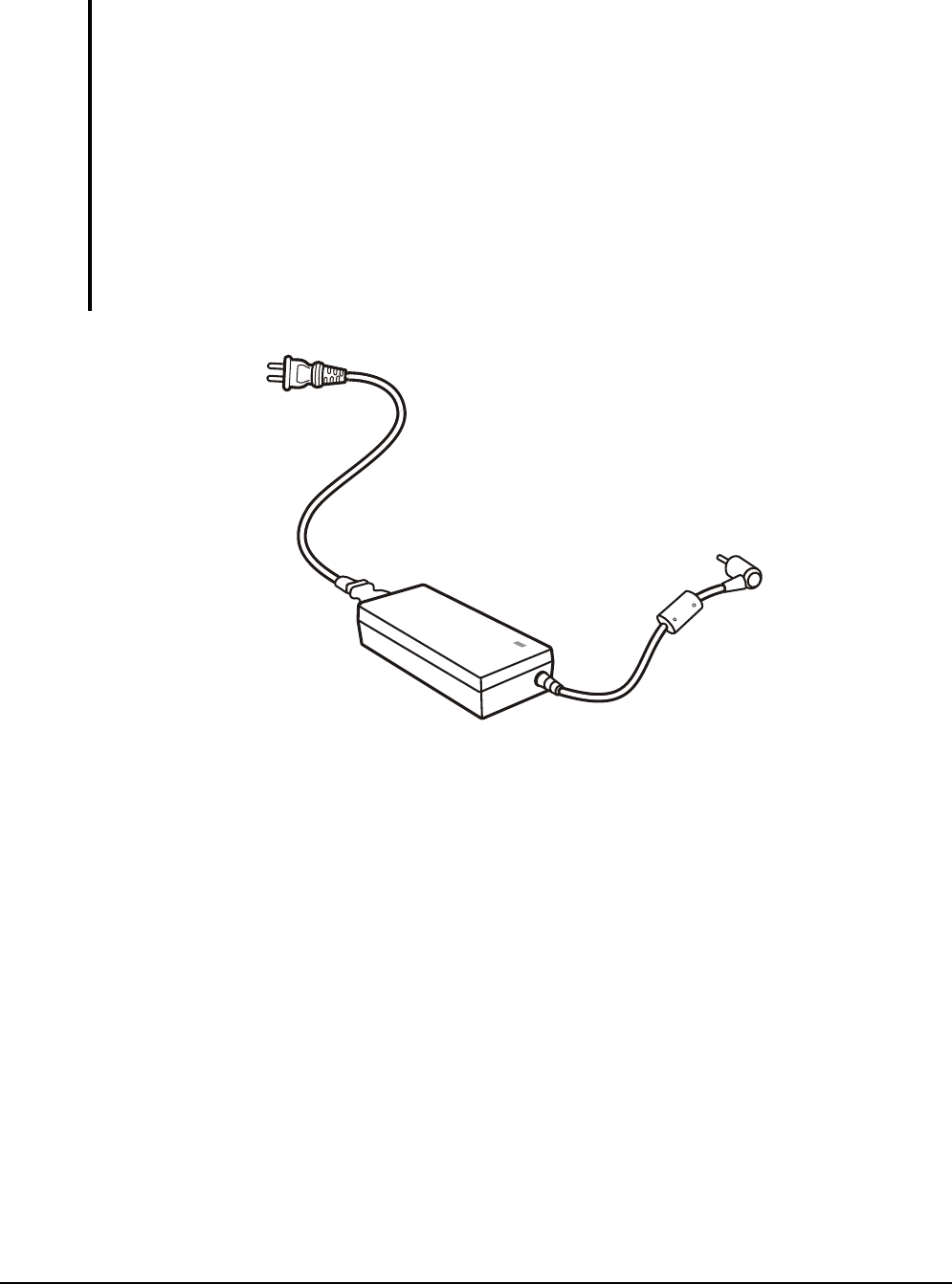

AC Adapter .......................................................................... 3-2
Battery Pack ......................................................................... 3-3
Charging the Battery Pack ............................................... 3-3

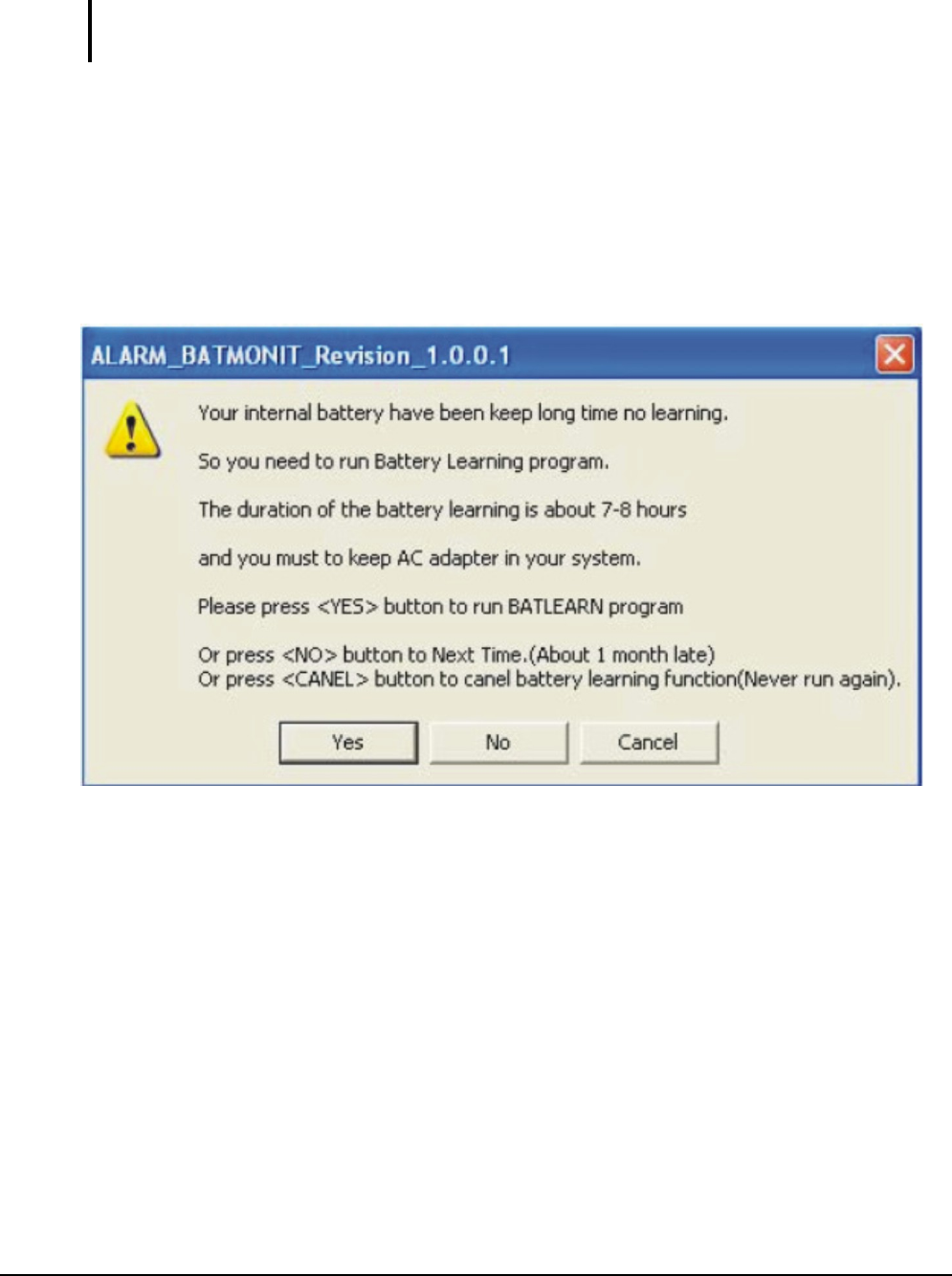

Battery Automatic Calibration Utility.............................. 3-5

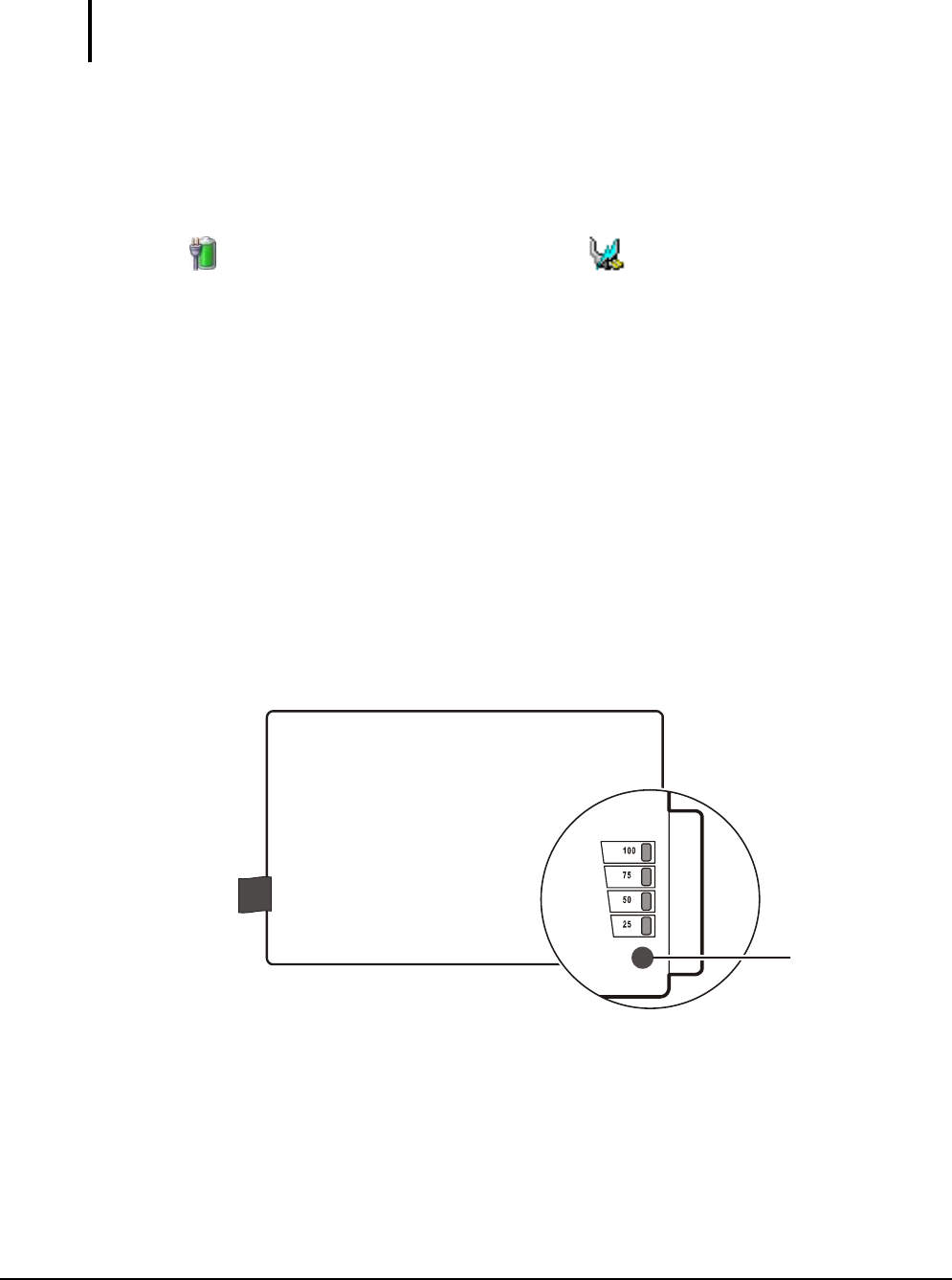

Checking the Battery Level.............................................. 3-7
Replacing the Battery Pack .............................................. 3-8
Battery Low Signals and Actions................................... 3-10
Power Management............................................................ 3-11
Hibernation..................................................................... 3-12
Power-Saving Tips ............................................................. 3-13
Expanding Your Computer.....................................................4-1
Connecting an External Monitor (Optional) ........................ 4-2
Connecting a Serial Device .................................................. 4-3
Connecting a USB Device.................................................... 4-4
iii
Using Smart Cards (Optional).............................................. 4-5
Inserting and Removing a Smart Card ............................. 4-5
Using PC Cards .................................................................... 4-6
Inserting and Removing a PC Card.................................. 4-6
Using ExpressCards (Optional)............................................ 4-7
ExpressCard Type ............................................................ 4-7
Inserting and Removing an ExpressCard ......................... 4-8
Using the Card Reader ......................................................... 4-9
Using the Port Replicator (Optional).................................. 4-11
System Memory Upgrade................................................... 4-12
Using BIOS Setup ...................................................................5-1
When to Use BIOS Setup..................................................... 5-2
When to Use..................................................................... 5-2
When and How to Use the System Recovery Feature.......... 5-3
When to Use..................................................................... 5-3

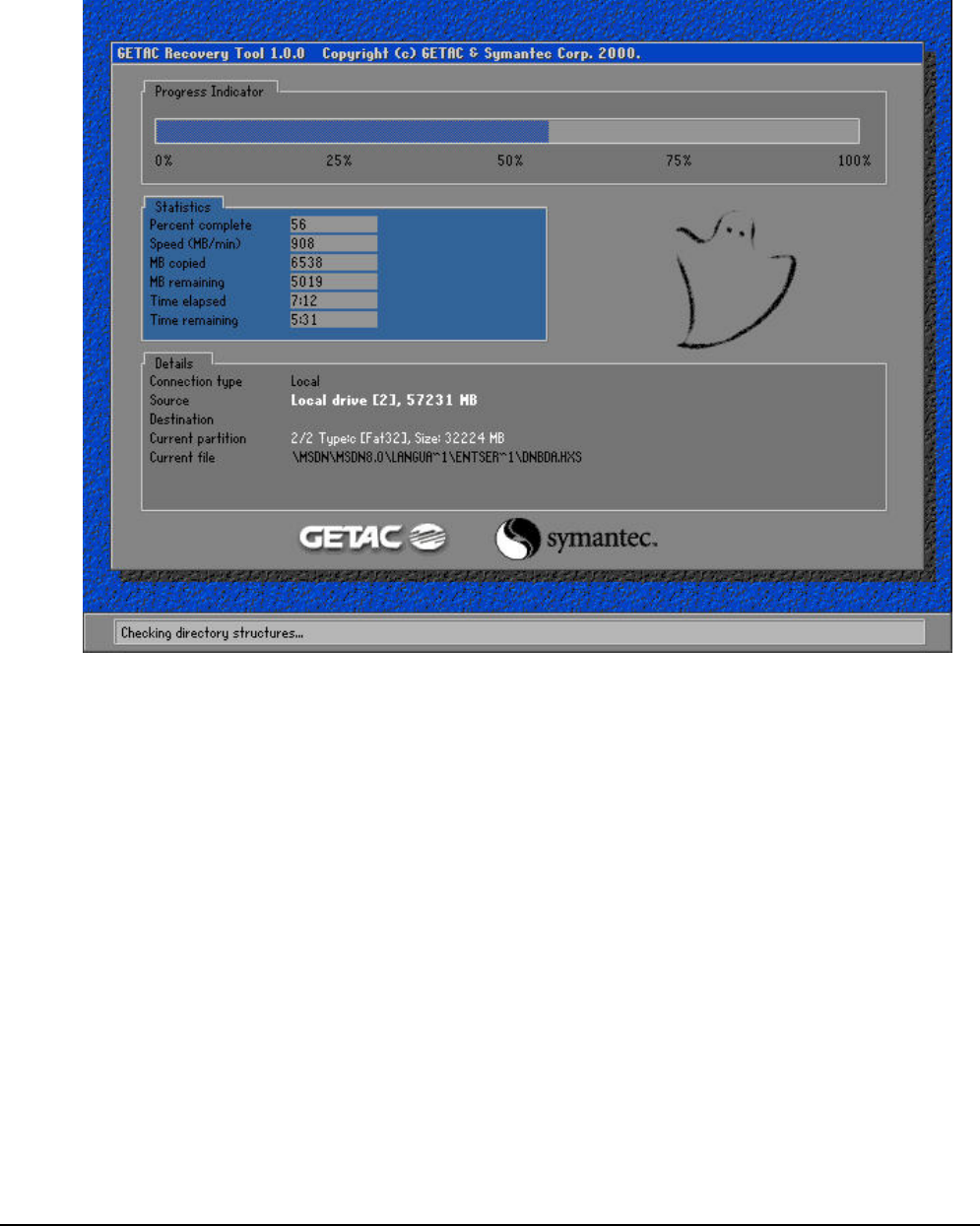

Starting System Recovery ................................................ 5-3

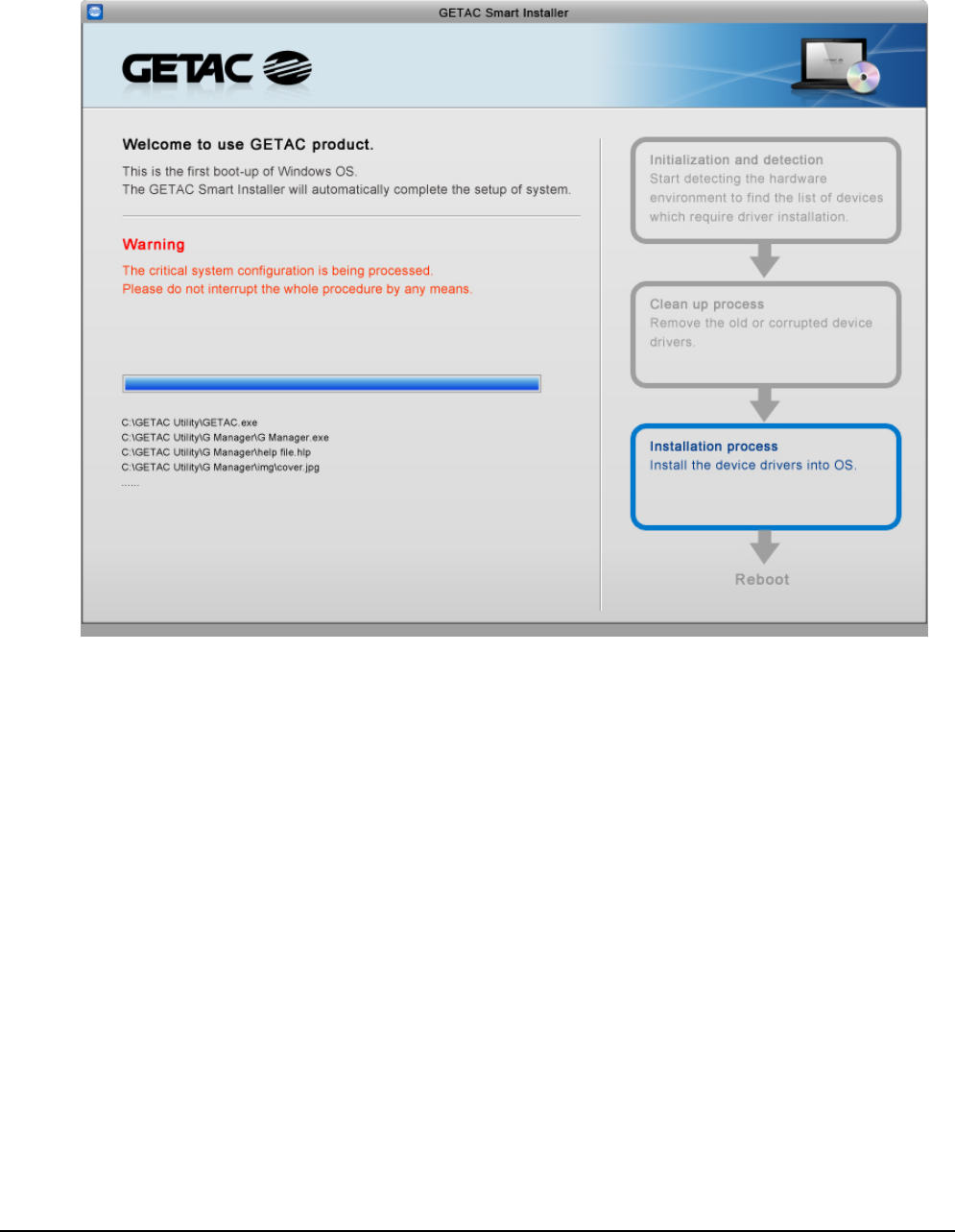

Installing Software Drivers.....................................................6-1
How to Use the Driver Disc ................................................. 6-2
Caring for the Computer.........................................................7-1
Protecting the Computer....................................................... 7-2
Using the Windows Security Center ................................ 7-2
Using the Cable Lock....................................................... 7-4
Taking Care of the Computer............................................... 7-5
Location Guidelines ......................................................... 7-5
General Guidelines........................................................... 7-5
Cleaning Guidelines ......................................................... 7-6
Battery Pack Guidelines................................................... 7-6
When Traveling.................................................................... 7-7
Troubleshooting......................................................................8-1
Preliminary Checklist........................................................... 8-2
Solving Common Problems.................................................. 8-3
Battery Problems.............................................................. 8-4
iv
Bluetooth Problems.......................................................... 8-4
Display Problems ............................................................. 8-5
Hardware Device Problems.............................................. 8-6
Hard Disk Drive Problems ............................................... 8-6
Keyboard, Mouse, and Touchpad Problems .................... 8-7
LAN Problems ................................................................. 8-8
Modem Problems ............................................................. 8-8
PC Card Problems ............................................................ 8-8
Power Management Problems.......................................... 8-9
Software Problems ......................................................... 8-10
Sound Problems ............................................................. 8-10
Startup Problems ............................................................ 8-11
Other Problems............................................................... 8-11
Resetting the Computer...................................................... 8-12
Specifications.........................................................................A-1
Regulatory Information..............................................................1
On the Use of the System.........................................................2
Class B Regulations .............................................................2
Safety Notices ......................................................................3
On the Use of the RF Device....................................................6
USA and Canada Safety Requirements and Notices............6
European Union CE Marking and Compliance Notices ......9
v
Preface
This manual contains information that will help you operate the
computer. It is divided into 8 chapters and 2 appendices.
z Chapter 1, Getting Started, takes you through the process of setting
up the computer and identifying its external components.
z Chapter 2, Operating Your Computer, tells you how to use the
computer’s components and features.
z Chapter 3, Managing Power, provides information on power.
z Chapter 4, Expanding Your Computer, provides information on
installing and using peripheral devices.
z Chapter 5, Using BIOS Setup, describes the BIOS Setup program
that configures the computer’s BIOS settings.
z Chapter 6, Installing Software Drivers, describes how to install the
drivers and utilities supplied with the computer.
z Chapter 7, Caring for the Computer, gives you tips in care and
maintenance.
z Chapter 8, Troubleshooting, gives solutions to common problems
you may encounter when using the computer.
z Appendix A, Specifications, gives a brief specification of the
computer.
z Appendix B, Regulatory Information, provides regulatory
statements and safety notices on your computer.
vi
Notational Conventions
Throughout this manual, the following conventions are used to
distinguish elements of text.
NOTE: identifies additional information that requires special attention.
CAUTION: identifies important information that, if not followed, may result in loss of
data or damage to the computer.
Keyboard keys are shown in a bold typeset. For example:
Press the Enter key to complete.
When keys are joined by a plus sign (+), press the first key, and, while
keeping the first key down, press the remaining keys, finally release all
the keys. When necessary, keys are also shown in graphics.
A title, command, setup item, or button that you can see on the screen is
shown in boldface. A value or an option that you can select for a setup
item is shown in italic. For example:
Select Power Schemes, set it to Portable/Laptop, and then click
the OK button.
Getting Started 1-1
Chapter 1
Getting Started
Congratulations on purchasing this rugged computer.
This chapter first tells you step by step how to get the computer up and
running. You will find instructions for these procedures:
z Unpacking
z Connecting to AC power
z Opening and closing the cover
z Turning on the computer
z Turning off the computer
z Attaching the grid-type hand strap
Then, you will find a section briefly introducing the external components
of the computer. And the last section navigates you to the information you
may need after the computer is ready for use.
CHAPTER
Getting Started 1-2
Getting the Computer Running
This section guides you through the procedures for getting the computer
ready for operation.
Unpacking
After unpacking the shipping carton, you should find these standard
items:
z Notebook computer
z Accessories:
− AC adapter
− AC power cord
− Grid-type hand strap
− Driver disc
− Stylus (option)
− Digitizer pen (option)
− Size “AAAA” battery (option)
Inspect all the items. If any item is damaged or missing, notify your dealer
immediately.
Keep the shipping carton and packing materials in case you need to ship
or store the computer in the future.
Connecting to AC Power
The computer operates either on the external AC power or internal battery
power. It is suggested that you use AC power when you start up the
computer for the very first time.
CAUTION: Use only the AC adapter included with your computer. Using other AC
adapters may damage the computer.
1. Make sure that the computer is turned off.
Getting Started 1-3
2. Plug the DC cord of the AC adapter to the power connector of the
computer (n).
3. Plug the female end of the AC power cord to the AC adapter and the
male end to an electrical outlet (o).
4. When the AC adapter is connected, power is being supplied from the
electrical outlet to the AC adapter and onto your computer. Now, you
are ready to turn on the computer.
CAUTION:
z When you disconnect the AC adapter, disconnect from the electrical outlet first and
then from the computer. A reverse procedure may damage the AC adapter or the
computer.
z When unplugging the connector, always hold the plug head. Never pull on the cord.
NOTE: When the AC adapter is connected, it also charges the battery pack. For
information on using battery power, see Chapter 3.
Getting Started 1-4
Opening and Closing the Cover
Open the top cover by pulling up on latch A and releasing latch B and
lifting up the cover. You can tilt the cover forward or backward for
optimal viewing clarity.
Close the top cover by closing the display. Then position latch B on the
display side and bring latch A down to fix the display in place.
Operating in Tablet Mode
In addition to being used as a regular notebook computer (Laptop mode),
your computer can also be operated in Tablet mode. In Tablet mode, the
computer can be operated using the touchscreen or active digitizer feature
with the software keyboard (see chapter 2), and the tablet buttons (see
later section on “Front Components”), instead of the internal keyboard
and the touchpad.
1. Open the top cover so that it is almost perpendicular with the
keyboard of the computer.
2. Turn the display counter-clockwise by 180o.
Getting Started 1-5
CAUTION: Do not rotate the display more than 180o, or attempt to rotate the display
clockwise.
3. Close the computer with the display facing up. Then pull up on the
latch A.
4. Position the latch B on the display side, then bring latch A down to fix
the display in place.
In Tablet mode, the computer can be operated while holding it as shown.
To return to Laptop mode, perform the steps for changing the computer
into Tablet mode in reverse order.
Turning On and Off the Computer
Turning On
1. Make sure that the computer is connected to AC power.
Getting Started 1-6
2. Press the power button ( ).
3. Each time the computer is turned on, it performs a Power-On Self
Test (POST), and the operating system such as Windows should start.
Turning Off
To turn off the computer power, use the “Shut Down” command of your
operating system.
NOTE: There are other ways you can stop the computer so that you will be back to
where you left off when you next turn on the computer. (See “Stopping the Computer” in
Chapter 2 for information.)
CAUTION: If you have to turn the computer on again immediately after turning it off,
wait for at least five seconds. Turning the computer off and on rapidly can damage it.
Getting Started 1-7
Attaching the Hand Strap
The hand strap can be attached to any two sides of the four (option)
corners of your computer.
Standard setup: two buckles on the left/right front side of your computer.
To release, press on the right spring latch first to detach the right side.
Then release the left side.
Optional setup: buckles on four corners of your computer.
CAUTION:
z The strap has been designed to carry only the weight of the computer. Therefore,
be sure that the strap does not carry a weight that exceeds the weight of the
computer. The strap may accidentally come loose from the computer.
z Do not use a strap that is damaged or about to tear.
Getting Started 1-8
Taking a Look at the Computer
This section identifies the external components of the computer and
briefly describes the function of each component.
NOTE: Depending on the model you purchased, the appearance of your computer may
not be exactly the same as those shown in this manual.
Right-Side Components
Ref Component Description
n Battery Pack
Compartment
Inside is the battery pack that supplies power to your
computer when external power is not connected.
o Hard Disk Drive
Compartment Inside is the hard disk drive.
Getting Started 1-9

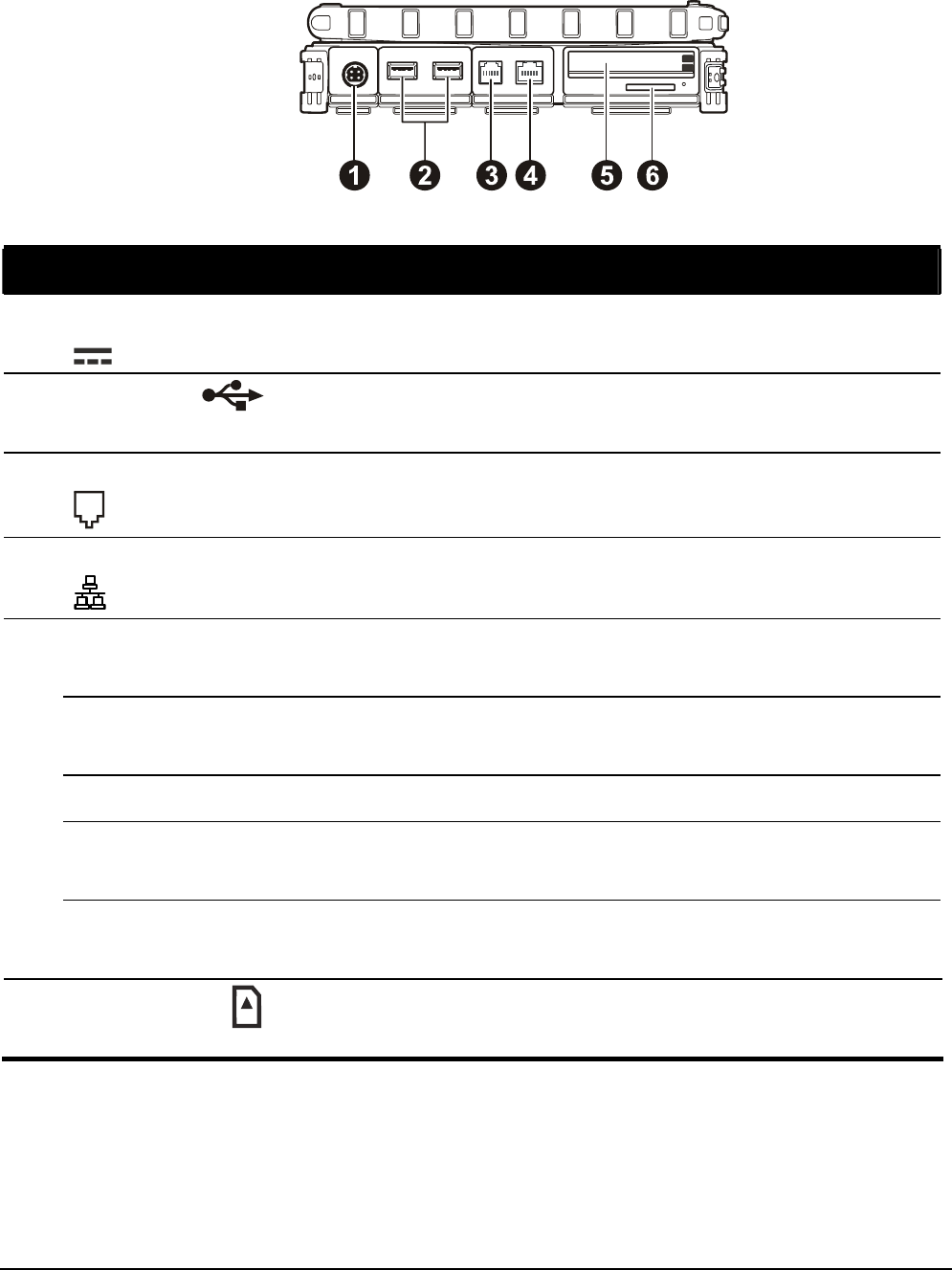

Left-Side Components
Ref Component Description
n Power Connector
Connects the AC adapter.
o USB Ports Each of the two ports connects a USB device, such as a
flash disk, printer, digital camera, joystick, and more.
p RJ-11 Connector
Connects the telephone line.
q RJ-45 Connector
Connects the LAN cable.
ExpressCard Slot
(upper) Accepts an ExpressCard for additional functions (option).
PCMCIA Slot
(lower)
Accepts a PC card for additional functions.
OR
PCMCIA Slot
(upper) Accepts a PC card for additional functions.
r
Smart Card
Reader (lower) Accepts a smart card for additional security feature
(option).
s Card Reader Accepts a SD (Secure Digital) card for removable storage
media.
Getting Started 1-10
Rear Components
Ref Component Description
n Hand Strap
Holder The hand strap can be attached to the two holders for
convenient handling of your computer.
o Audio Output
Connector Connects a set of headphones, external speakers with
amplifier, or an audio recording device.
p Microphone
Connector Connects an external microphone.
q Kensington Lock Locks the computer to a stationary object for security.
r VGA Connector
Connects an external display monitor.
NOTE: Depending on your model, this port could be a serial
connector.
s Serial Connector
Connects a serial mouse or serial communication device.
Getting Started 1-11
Front Components
Ref Component Description
n Hand Strap
Holder The hand strap can be attached to the two holders for
convenient handling of your computer.
o EasyTap Utility
Button Toggles the “EasyTap” utility ON and OFF.
p Sunlight-
readable Button Toggles the sunlight-readable function ON and OFF.
q Reset Button
Serves as the Ctrl+Alt+Del keyboard buttons.
r Software
Keyboard Button
Shows or hides the software keyboard on your LCD
display.
s RF Button Bluetooth® wireless power ON and OFF.
t Top Cover Latch Locks the top cover.
u Power Button Turns the computer power ON and OFF.
Getting Started 1-12
Bottom Components
Ref Component Description
n Antenna Connector Inside is the connector for using an external antenna.
o Expansion Bus
Connector Inside is the expansion bus connector for using a Port
Replicator.
p
q Speaker Sends out sound and voice from your computer.
r Memory Slot Inside is the memory slot for expanding the memory size
of your computer.
Getting Started 1-13
Top-open Components
Ref Component Description
n CMOS Camera Allows you to use your computer’s camera function.
o
p
q LCD Screen Displays the output of the computer.
r Light Sensor Adjusts the LCD brightness and optional keyboard
backlight automatically surrounding.
s Keyboard Serves as the data input device of the computer.
t Touchpad Serves as the pointing device of the computer.
u Indicators Show the current status of the computer’s devices.
Getting Started 1-14
Ref Component Description
AC Power indicator
Lights green when the computer is turned on and using AC
power.
Battery Charge indicator
Lights green when the battery is fully charged.
Lights yellow when the battery is being charged.
Blinks yellow when the battery’s capacity is below 10 %.
Blinks green when battery’s temperature is too high
(over 60 oC).
Hard disk drive in-use indicator
Lights green when computer is accessing the hard disk
drive.
Lights red when optional hard disk drive heater is on for
low temperature operation.
RF ( Bluetooth® wireless ) indicator
Num Lock indicator
Caps Lock indicator
v Stylus Provides a convenient way to use the touchscreen. Can be
stretched for better grip and handling.
w Bluetooth
Antenna (option) Inside is the antenna for optional Bluetooth feature
transmission.
Getting Started 1-15
Where to Go from Here
As your computer is ready for operation, you may want to do any of the
following now:
For this purpose... Do this...
To know more about the computer... Go on to the next chapter.
To install the operating system if your
dealer has not already done so...
See the operating system manual.
To know more about the operating
system...
Read the operating system manual.
To install the drivers if your dealer has
not already done so...
See Chapter 6.
To charge the battery pack for the first
time...
See “Charging the Battery Pack” in
Chapter 3.
Operating Your Computer 2-1
Chapter 2
Operating Your Computer
This chapter provides information about the use of the computer.
If you are new to computers, reading this chapter will help you learn the
operating basics. If you are already a computer user but are new to
notebook computers, you may choose to read only the parts containing
information unique to your computer.
Described in this chapter are the operating basics of these components:
z Keyboard
z Touchpad
z Touchscreen
z Active Digitizer (option)
z Hard disk drive
And these features:
z Starting and stopping the computer
z Video features
z Audio features
z Communication features
CHAPTER
Operating Your Computer 2-2
Starting and Stopping the Computer
There are a number of ways to start and stop the computer.
Starting the Computer
You always start the computer using the power button.
A computer starts up with an operating system (OS) existing on the
storage device such as the hard disk. The computer will automatically
load the OS after you turn it on. This process is called booting.
NOTE: An operating system is the platform for all your software application programs to
run on. Your computer uses the Microsoft Windows Vista operating system.
Stopping the Computer
When you finish a working session, you can stop the computer by turning
off the power or leaving the computer in Sleep or Hibernation mode:
To stop in
this mode... Do this... To start up or
resume again
Off Follow the shutdown procedure of your
operating system. This can prevent loss
of unsaved data or damage to your
software programs.
If the system is locked up because of
hardware or software problems, press the
power button to turn off the computer.
Press the power
button.
Sleep Depending on your settings in Windows,
you can place the computer in Sleep
mode by:
• Closing the display cover
• Pressing the Fn+F10 hot key
• Pressing the power button
Press any key.
Operating Your Computer 2-3
To stop in
this mode... Do this... To start up or
resume again
Hibernation Depending on your settings in Windows,
you can place the computer in
Hibernation mode by:
• Closing the display cover
• Pressing the power button
Press the power
button.
If you choose to stop in Sleep or Hibernation mode, you can return to
where you left off the next time you start up the computer. (See “Power
Management” in Chapter 3 for more information.)
Operating Your Computer 2-4
Using the Internal Keyboard
Your keyboard has all the standard functions of a full-sized computer
keyboard plus a Fn key added for specific functions.
The standard functions of the keyboard can be further divided into four
major categories:
z Typewriter keys
z Cursor-control keys
z Numeric keys
z Function keys
Typewriter Keys
Typewriter keys are similar to the keys on a typewriter. Several keys are
added such as the Ctrl, Alt, Esc, and lock keys for special purposes. When
the lock keys (Caps Lock and Num Lk) are pressed, their corresponding
indicators light up.
The Control (Ctrl) / Alternate (Alt) key is normally used in combination
with other keys for program-specific functions. The Escape (Esc) key is
usually used for stopping a process. Examples are exiting a program and
canceling a command. The function depends on the program you are
using.
Operating Your Computer 2-5
Cursor-Control Keys
NOTE: The word “cursor” refers to the indicator on the screen that lets you know
exactly where on your screen anything you type will appear. It can take the form of a
vertical or horizontal line, a block, or one of many other shapes.
Numeric Keypad
A 15-key numeric keypad is embedded in the typewriter keys as shown
next:
Operating Your Computer 2-6
Numeric keys facilitate entering of numbers and calculations. When Num
Lock is on, the numeric keys are activated; meaning you can use these
keys to enter numerals.
NOTE:
z When the numeric keypad is activated and you need to type the English letter in the
keypad area, you can turn Num Lock off or you can press Fn and then the letter
without turning Num Lock off.
z Some software may not be able to use the numeric keypad on the computer. If so,
use the numeric keypad on an external keyboard instead.
Function Keys
On the top row of the keys are the function keys: F1 to F12. Function keys
are multi-purpose keys that perform functions defined by individual
programs.
Fn Key
The Fn key, at the lower left corner of the keyboard, is used with another
key to perform the alternative function of a key. The letter “Fn” and the
alternative functions are identified by the color of blue on the keytop. To
perform a desired function, first press and hold Fn, then press the other
key.
Hot Keys
Hot keys refer to a combination of keys that can be pressed any time to
activate special functions of the computer. Most hot keys operate in a
cyclic way. Each time a hot key combination is pressed, it shifts the
corresponding function to the other or next choice.
Operating Your Computer 2-7
You can easily identify the hot keys with the icons imprinted on the
keytop. The hot keys are described next.
Key Description
Decreases the sound volume.
Increases the sound volume.
Decreases the LCD brightness (64 levels).
Increases the LCD brightness (64 levels).
Switches the system sound output off (mute) and on.
Switches LCD display on and off.
Switches the display output when external devices are connected.
NOTE: This function only applies to Plug & Play display devices.
Serves as the sleep button that you can define with Windows’
Power Options. (See the “Power Management” in Chapter 3.)
Euro Symbol
You can press the euro dollar sign on various keyboards.
z To press the euro sign on a United States-International keyboard, hold
down the Alt Gr key and press 5 (which has an euro sign on it).
z To press the euro sign on a standard United States keyboard, hold
down either of the Alt keys and type 0128 on the numeric keypad part
of your keyboard.
z To press the euro sign on an UK keyboard, hold down the Alt Gr key
and press 4 (which has an euro sign on it).
Operating Your Computer 2-8
Windows Keys
The keyboard has two keys that perform Windows-specific functions:
Windows Logo key and Application key.
The Windows Logo key opens the Start menu and performs
software-specific functions when used in combination with other keys.
The Application key usually has the same effect as a right mouse
click. (See your Windows manual for more information.)
Operating Your Computer 2-9
Using the Software Keyboard
When using the computer in Tablet mode, you can use the software
keyboard.
1. Press the software keyboard button ( ) and the software keyboard
will appear onscreen.
2. Enter the characters with the stylus.
NOTE: To protect the LCD display, use the stylus on your touchscreen.
Operating Your Computer 2-10
Using the Touchpad
CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so may
damage the touchpad surface.
NOTE: For optimal performance of the touchpad, keep your fingers and the pads clean
and dry. When tapping on the pad, tap lightly. Do not use excessive force.
The touchpad is a pointing device that allows you to communicate with
the computer by controlling the location of the pointer on the screen and
making selection with the buttons.
The touchpad consists of a rectangular pad (work surface) and a left and
right buttons. To use the touchpad, place your forefinger or thumb on the
pad. The rectangular pad acts like a miniature duplicate of your display.
As you slide your fingertip across the pad, the pointer (also called cursor)
on the screen moves accordingly. When your finger reaches the edge of
the pad, simply relocate yourself by lifting the finger and placing it on the
other side of the pad.
Here are some common terms that you should know when using the
touchpad:
Term Action
Point Move your finger on the pad until the cursor points to the
selection on the screen.
Click Press and release the left button.
–or–
Tap gently anywhere on the pad.
Double-click Press and release the left button twice in quick succession.
–or–
Tap twice on the pad rapidly.
Operating Your Computer 2-11
Term Action
Drag and
drop
Press and hold the left button, then move your finger until
you reach your destination (drag). Finally, release the
button (drop) when you finish dragging your selection to
the destination. The object will drop into the new location.
–or–
Gently tap twice on the pad and on the second tap, keep
your finger in contact with the pad. Then, move your
finger across the pad to drag the selected object to your
destination. When you lift your finger from the pad, the
selected object will drop into place.
Scroll To scroll is to move up and down or left and right in the
working area on the screen.
To move vertically, place your finger on the right or left
edge of the pad and slide your finger up and down along
the edge. To move horizontally, place your finger on the
top or bottom edge of the pad and slide your finger left and
right.
This function works only after you install the touchpad
driver supplied with the computer and it may not work for
all applications.
TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad
as an alternative method of pressing the left button will no longer be valid.
Configuring the Touchpad
You may want to configure the touchpad to suit your needs. For example,
if you are a left-handed user, you can swap the two buttons so that you can
use the right button as the left button and vice versa. You can also change
the size of the on-screen pointer, the speed of the pointer, and so on.
To configure the touchpad, go to Control Panel Æ Hardware and Sounds
Æ Mouse Properties.
Operating Your Computer 2-12
Using the Touchscreen (Optional)
NOTE:
z Your computer comes with either the touchscreen function or the Active Digitizer
feature.
z Make sure the touchscreen driver has been installed properly.
CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the
touchscreen. Doing so may damage the touchscreen surface. Use your finger or the
included stylus.
The touchscreen is a touch-sensitive device that allows you to easily use
the computer without a mouse or touchpad to communicate with the
computer by controlling the location of the pointer on the screen and
making selection with the buttons.
Here are some common terms that you should know when using the
touchscreen:
Term Action
Click/Point Tap gently on the touchscreen.
Double-click Tap twice on the touchscreen rapidly.
Drag and
drop
Press lightly on the touchscreen and move your finger
until you reach your destination (drag). Finally, release
your finger (drop) when you finish dragging your
selection to the destination. The object will drop into the
new location.
Operating Your Computer 2-13
Using the Active Digitizer Feature (Optional)
NOTE:
z Your computer comes with either the Active Digitizer feature or the touchscreen
function.
z Make sure the digitizer driver has been installed properly.
CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the LCD
display. Doing so may damage the display surface. Use your included digitizer pen
(option).
The active digitizer feature allows you to easily use the computer without
a mouse, keyboard, or touchpad to communicate with the computer by
using the optional digitizer pen.
When using the digitizer pen, be sure to install the included size “AAAA”
battery.
Here are some common terms that you should know when using the
active digitizer feature:
Term Action
Move Move the cursor pointed by the digitizer
pen.
Click/Point Tap gently on the display.
Double-click Tap twice on the display rapidly.
Operating Your Computer 2-14
Term Action
Drag and
drop
Press lightly on the display and move
your digitizer pen until you reach your
destination (drag). Finally, release your
digitizer pen (drop) when you finish
dragging your selection to the
destination. The object will drop into the
new location.
Right-click Press and hold down the digitizer pen
button (A), then tap gently the object.
CAUTION:
z When the LCD display is used alone or with an external display simultaneously, the
digitizer function cannot be used when the area of either display is set larger than
the default setting of the display resolution.
z Even when only an external display is in use, the cursor will move on the external
display if you touch the surface of the LCD display with the pen or bring the pen
close to the surface of the LCD display when the digitizer driver is active. Therefore,
do not touch the LCD display when only an external display is in use.
z The active digitizer feature cannot be used in the BIOS Setup program or when
using the full screen in DOS mode.
NOTE:
z You can move the cursor by bringing the digitizer pen close to the screen, without
actually touching the screen’s surface.
z Do not move the digitizer pen too quickly. If the pen moves too quickly, the cursor
may be unable to follow its movement.
z If you cannot click on the edge of the screen, hold the digitizer pen perpendicular to
the display and try clicking again.
Operating Your Computer 2-15
Using the Hard Disk Drive
WARNING: DO NOT replace the hard disk drive by yourself. Refer all servicing to
qualified personnel or your dealer.
Your computer comes with a removable hard disk drive as drive C. A
hard disk drive is a storage device with non-removable, rotating,
magnetic storage platters inside it. It is where your operating system and
application software programs are stored.
Your hard disk drive is a 2.5-inch SATA (serial ATA) hard disk drive.
This type of drive embodies the latest in fast, reliable mass storage by
integrating all the control circuitry necessary for operation directly onto
the drive itself.
You can enable the Advanced Host Controller Interface (AHCI), a
programming interface for SATA host controllers. AHCI defines
transactions between the SATA controller and software and enables
advanced performance and usability with SATA. When the SATA AHCI
mode is enabled, your system can support SATA native command
queuing, aggressive power management, and so on.
The system may come with an optional heater that automatically turns on
for low temperature operation.
CAUTION:
z Make regular backups of your data files from your hard disk drive to USB flash disks
or other storage media.
z Never turn off or reset the computer while the hard disk drive in-use indicator is on.
Operating Your Computer 2-16
Using the Video Features
The video subsystem of your computer features:
z 10.4-inch wide TFT (Thin-Film Transistor) color LCD display with
1024×768 XGA resolution or
z Simultaneous display on LCD and external monitor, which is useful
when you have a presentation as you can control the screen from your
computer and face the audience at the same time (option)
z Multi-display capability, which allows you to expand your desktop
on the screen to another display device so that you have more desktop
space to work on
z Built-in light sensor ( ) to automatically adjust the LCD
brightness and optional keyboard backlight
z Power Management
z Sunlight-readable LCD display (option)
NOTE:
z Before using the multi-display capability or taking advantage of the enhanced video
capabilities, the VGA driver supplied with your computer must be installed.
z The computer enters the Sleep or Hibernation mode when the LCD is closed. If you
want to use the computer with the LCD closed, set Do Nothing to the “When I Close
the lid” option in the Power Options Æ System Settings Properties. Thus the
computer does not enter the Sleep or Hibernation mode when the LCD is closed.
Configuring the Display Modes
NOTE: When using an external CRT monitor, the resolution depends on the CRT
monitor’s supported resolution.
Your computer has been set to a default resolution and number of colors
before shipment. You can view and change display settings through your
operating system. See your operating system documentation or online
help for specific information.
Operating Your Computer 2-17
For displaying in higher resolutions, you can connect an external monitor
that supports higher resolutions. (See “Connecting an External Monitor”
in Chapter 4 for more information.)
Operating Your Computer 2-18
Using the Audio Features
NOTE:
z To take advantage of the enhanced audio capabilities, the audio driver supplied
with your computer must be installed.
z If you experience interference while recording, try lowering the microphone
recording volume.
The audio subsystem of your computer features:
z Built-in sound system for recording and playing sound on your
computer
z Azalia interface (high density audio codec)
z Speaker (located on bottom side), and
z External audio connectors
Ways of playing and recording sound vary with the operating system
used. See your operating system documentation or online help for
specific information.
Connecting Audio Devices
For higher audio quality, you can send or receive sound through external
audio devices.
NOTE: After connecting an external audio device, make sure that you specify the use of
the correct audio device in Windows.
z Audio Output Connector ( ) can be connected to speakers,
headphones, or earphone set.
z Microphone Connector ( ) can be connected to an external
microphone for recording voice or sound.
NOTE: When using the external speakers/headphones or microphone, you cannot use
the internal one.
Operating Your Computer 2-19
Using the Communication Features
Using the Modem
NOTE: To take advantage of the modem feature, the modem driver supplied with your
computer must be installed.
The internal 56 K fax/data modem allows you to use the telephone line to
communicate with others by fax, email, or connect to an online service or
bulletin board.
To connect the telephone line to the modem, connect one end of the
modem cable to the RJ-11 connector on the computer and the other end to
the phone line.
NOTE:
z When using the communication software, you may have to disable power
management.
z Set the COM port of the modem to COM3.
z Set parameters such as modem speed (baud rate) and line type (pulse dialing or
tone dialing).
z Do not enter the Sleep mode when using the communication software.
Operating Your Computer 2-20
Using the Bluetooth Feature
NOTE: To take advantage of the Bluetooth feature, the Bluetooth driver supplied with
your computer must be installed.
Depending on your model, your computer may incorporate the Bluetooth
capability for short-range (about 10 meters) wireless communications
between devices without requiring a cable connection.
With Bluetooth, data can be transmitted through walls, pockets and
briefcases as long as two devices are within range. By default, your
computer’s Bluetooth feature is active (always ON) upon booting your
computer and is in the general discoverable and pairable mode.
The status of the Bluetooth connection is indicated by the Bluetooth icon
located in the system tray in the lower-right part of the screen.
Status Icon
On (blue with white logo).
Connected (blue with green logo)
You can use the Bluetooth Utility to configure Bluetooth connection
settings and transfer files.
Connecting to Another Bluetooth Device
1. Make sure that the target Bluetooth device is turned on, discoverable
and within close range. (See the documentation that came with the
Bluetooth device.)
2. Click Start and then Programs.
Operating Your Computer 2-21
3. Click IVT BlueSoleil and then BlueSoleil. The following screen
appears.
4. Click View, then Refresh Devices to check if any Bluetooth device is
detected.
Operating Your Computer 2-22
5. To connect to a new device, click Tools then click Add New Device.
6. Depending on the type of Bluetooth device that you want to connect
to, you will need to enter the pertinent information.
For detailed information on using the Bluetooth Utility, see the Bluetooth
Utility Help on your computer by clicking on Help, then Contents and
Index.
Operating Your Computer 2-23
Using the GPS
NOTE:
z To take advantage of the GPS feature, the GPS driver supplied with your computer
must be installed.
z You may need to install third-party software to fully take advantage of the GPS
feature.
Navigation and positioning are crucial to so many activities. To try to
figure out where you are and where you are going, you need GPS
technology. The Global Positioning System (GPS) is a worldwide
radio-navigation system.
Managing Power 3-1
Chapter 3
Managing Power
Your computer operates either on external AC power or on internal
battery power.
This chapter tells you how you can effectively manage power. To
maintain optimal battery performance, it is important that you use the
battery in the proper way.
The topics in this chapter include:
z What is an AC adapter
z How to charge the battery pack
z When and how to initialize the battery pack
z How to use the Battery Automatic Calibration Utility
z How to check the battery level
z How to replace the battery pack
z What happens when the battery is low and what actions to take
z What is Power Management
z How to save power
CHAPTER
Managing Power 3-2
AC Adapter
CAUTION:
z The AC adapter is designed for use with your computer only. Connecting the AC
adapter to another device can damage the adapter.
z The AC power cord supplied with your computer is for use in the country where you
purchased your computer. If you plan to go overseas with the computer, consult
your dealer for the appropriate power cord.
z When you disconnect the AC adapter, disconnect from the electrical outlet first and
then from the computer. A reverse procedure may damage the AC adapter or
computer.
z When unplugging the connector, always hold the plug head. Never pull on the cord.
The AC adapter serves as a converter from AC (Alternating Current) to
DC (Direct Current) power because your computer runs on DC power,
but an electrical outlet usually provides AC power. It also charges the
battery pack when connected to AC power.
The adapter operates on any voltage in the range of 100~240 V AC.
Managing Power 3-3
Battery Pack
The battery pack is the internal power source for the computer. It is
rechargeable using the AC adapter.
The operating time of a fully charged battery pack depends on how you
are using the computer. When your applications often access peripherals,
you will experience a shorter operating time.
NOTE: Care and maintenance information for the battery is provided in the “Battery
Pack Guidelines” section in Chapter 7.
Charging the Battery Pack
NOTE:
z Charging will not start if the battery’s temperature is below 0 °C (32 °F) or above
60 °C (140 °F).
z The charging process will stop and the Battery Charge Indicator flashes green
when the battery’s temperature gets above 60 °C (140 °F). If this happens, the
battery pack may be damaged. Please contact your dealer.
z During charging, do not disconnect the AC adapter before the battery has been fully
charged; otherwise you will get a prematurely charged battery.
To charge the battery pack, connect the AC adapter to the computer and
an electrical outlet. The Battery Charge Indicator ( ) on the computer
glows yellow to indicate that charging is in progress. You are advised to
keep the computer power off while the battery is being charged. When the
battery is fully charged, the Battery Charge Indicator is off.
It takes approximately 3 hours to fully charge the Li-Ion battery pack
when the computer is off, and approximately 6 hours to fully charge the
Li-Ion battery pack when the computer is on.
CAUTION: After the computer has been fully recharged, do not immediately disconnect
and reconnect the AC adapter to charge it again. Doing so may damage the battery.
NOTE: The battery level may automatically lessen due to the self-discharge process
(0.21 % per day), even when the battery pack is fully charged (100 %). This happens no
matter if the battery pack is installed in the computer.
Managing Power 3-4
Battery Automatic Calibration Utility
NOTE: To use the Battery Automatic Calibration Utility, the Battery Calibration driver
supplied with your computer must be installed.
After installing the Battery Pack Automatic Calibration Utility, the
Battery Monitor will call up the Battery Learning program every
month. Before running Battery Monitor, it will check if the battery
temperature is between 10 oC and 39 oC. When it is between 10 oC and
39 oC, the following screen appears.
Click Yes to run the Battery Learning program’s recalibration function
to fully charge the battery pack, discharge it completely, then fully charge
it again.
Click No if you do not wish to run the Battery Learning program’s
recalibration function now.
Click Cancel if you do not wish the Battery Monitor to call up the
Battery Learning program every month to run the Battery Learning
program’s recalibration function.
Managing Power 3-5
Error Messages
The battery’s performance would degrade as part of its normal wear-and-
tear after using it for a considerable length of time. The Battery Monitor
program would check the battery’s condition and may display the
following error messages. You are recommended to replace the battery.
Error Message What it means ...
The Battery is BAD !!
Battery Discharge FAIL,
Discharge Timer <= Minimum
Discharge Time
Battery’s performance has gradually
deteriorated. The discharge time is
quite short.
The Battery is BAD !!
Battery Charge FAIL,
Charge Timer over time
Battery’s performance has
deteriorated. It cannot be charged.
The Battery is BAD !!
Battery Charge FAIL,
Charge Timer <= Minimum
Charge time
Battery’s performance has gradually
deteriorated. Battery capacity is too
little.
The Battery is BAD !!
Battery Discharge FAIL,
Discharge Timer >= Maximum
Discharge Time
Battery's discharge circuit is bad. It
cannot discharge.
NOTE: Running the Battery Learning program does not increase the battery's capacity.
CAUTION: Performing Battery Learning at frequent intervals will degrade the battery
pack.
Managing Power 3-6
Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The actual operating time can
be different from the estimated time, depending on how you are using the computer.
By Operating System
You can check the approximate battery level using the battery meter
function of the operating system. To read the battery level in Windows,
click the icon on the taskbar. (Click the icon if the computer is
using AC power.)
By Gas Gauge
On the exterior side of the battery pack is a gas gauge for displaying the
estimated battery charge. When the battery pack is not installed in the
computer and you want to know the battery charge, you can press the
switch with a pointed device to see the corresponding value of indicator
segment that light green. The value of the corresponding green segment
indicates the relative percentage of the battery charge. The battery pack is
fully discharged when you see no segment glowing green.
Switch
Managing Power 3-7
Replacing the Battery Pack
CAUTION:
z There is danger of explosion if the battery is incorrectly replaced. Replace the
battery only with the computer manufacturer’s optional battery packs. Discard used
batteries according to the dealer’s instructions.
z Do not attempt to disassemble the battery pack.
If you often rely on battery power for a long period of time while
traveling, you may consider the purchase of an additional battery pack
from your dealer and keep it with you in a fully charged state as a backup.
To replace the battery pack, follow these steps:
1. Make sure that the computer is not turned on or connected to AC
power.
2. Locate the battery compartment on the right side of the computer.
3. Open the compartment cover by pressing on both sides of the release
latch using your thumb and index fingers.
Managing Power 3-8
4. Pull on the ribbon strip to remove the battery pack.
5. Slide the new battery pack all the way into the slot. Make sure to
observe the correct orientation (the ribbon strip must face outward for
future battery back removal).
6. Close the compartment cover to secure the battery pack.
Managing Power 3-9
Battery Low Signals and Actions
The battery icon changes appearance to display the current state of the
battery so that you can see how much charge remains (Windows default
setting). When the battery charge is above 25 % the battery icon is green.
When the battery charge reaches 25 % a yellow triangle with an
exclamation point (!) appears above the green battery icon. When the
charge reaches the low battery level a red circle with a white “X” appears
above the green icon. The computer’s Battery Charge Indicator ( )
blinks yellow to alert you to take actions.
Immediately save your data upon Battery Low. The remaining operating
time depends on how you are using the computer. If you are using the
audio subsystem, PC card, hard or USB flash disk, the battery might run
out of charge very quickly.
Always respond to Battery Low by placing your computer on Hibernation
mode, turning off the computer, or connecting the AC adapter.
CAUTION:
z If you are using a PC card, do not access the card during battery low periods. This
is because the access may take longer than the time it takes the battery to run out
of charge, thus making your access to the card unsuccessful.
z If you fail to save your data when the battery completely runs out of charge, then
you lose your data.
Managing Power 3-10
Power Management
Your computer supports ACPI (Advanced Configuration and Power
Interface) for power management. The power management feature allows
you to reduce the power consumption for energy saving.
With an ACPI-compliant operating system such as Windows Vista,
power supply to different computer components is controlled on an
as-needed basis. This allows maximum power conservation and
performance at the same time.
In general, Windows’ power management works in this way:
What... When...
Power to the hard disk is turned off When the hard disk has been idle for a
set period.
Power to the display is turned off When the display has been idle for a
set period.
When the entire system has been idle
for a set period.
When you press the Fn+F10 hot key. *
When you close the cover. *
The computer enters the Sleep mode.
The hard disk and display are turned
off and the entire system consumes
less power.
When you press the power button. *
When you press the Fn+F10 hot key. *
When you close the cover. *
The computer enters the Hibernation
mode. (See the next subsection for
more information.)
When you press the power button. *
* Depends on your settings in Windows.
For detailed information on power management, see Windows’ Help.
Managing Power 3-11
Hibernation
NOTE: Make sure that the hibernation feature is enabled in the “When I press the
power button,” “When I press the sleep button,” and “When I close the lid” of the Power
Options Æ System Settings Properties from the Control Panel Æ Mobile PC in
Windows Vista.
Hibernation is a very useful feature. People frequently open many
applications when they use computers. It takes some time to get all these
applications open and running, and normally they all have to be closed
before the computer can be turned off.
When you use the hibernation feature, you do not have to close the
applications. The computer stores the state of your computer to a file on
the hard disk and then shuts down. The next time you turn on your
computer, you return to exactly where you left off.
Managing Power 3-12
Power-Saving Tips
Aside from enabling your computer’s power saving mode (see previous
section), you can do your part to maximize the battery’s operating time by
following these suggestions.
z Do not disable Power Management. Choose a Windows power plan
that saves power. A power plan is a collection of hardware and
system settings that control how your computer manages power.
z Decrease the LCD brightness to the lowest comfortable level.
z Shorten the length of time before Windows turn off the display.
z Many USB devices use power just by being connected. If you use a
USB mouse, you can save power by disconnecting the mouse and
using the touchpad. If you use a USB flash drive, unplug it when you
are not using it.
z If you work with an application that uses a PC card, exit the
application when you finish using it.
z If you have a PC card installed, remove it when not in use. Some PC
cards drain power even while they are inactive.
z Deactivate the Bluetooth® wireless function if you are not using it
(see Chapter 2).
z Turn off the computer when you are not using it.
Expanding Your Computer 4-1
Chapter 4
Expanding Your Computer
You can expand the capabilities of your computer by connecting other
peripheral devices. When using a device, be sure to read the instructions
accompanying the device together with the relevant section in this
chapter.
This chapter gives guidelines on installing and using these devices:
z External monitor (option)
z Serial device
z USB device
z Smart Card
z PC card
z ExpressCard
z Card Reader
z Port Replicator
z System memory
CHAPTER
Expanding Your Computer 4-2
Connecting an External Monitor (Optional)
If you want the benefits of a larger display screen with higher resolution,
you can connect an external display monitor to your computer. Follow
this procedure to connect an external monitor:
1. Make sure that the computer is not turned on.
2. Plug the monitor’s D-type signal connector to the computer’s VGA
connector.
3. Plug one end of the monitor’s power cord into the power socket on
the monitor and the other end to an electrical outlet.
4. To use the monitor, turn on the monitor before turning on the
computer.
5. The monitor should respond by default. If not, you can switch the
display to the monitor or to both (simultaneous display), or to
multi-display by pressing the Fn+F9 hot key. In Windows, you can
also change the display through the Display Settings Properties.
6. You can change display settings through your operating system. See
your operating system documentation or online help for specific
information.
CAUTION: Do not disconnect the external monitor while the computer is in the Sleep
mode or Hibernation mode. If no external monitor is connected when the computer
resumes, the LCD might not display properly.
Expanding Your Computer 4-3
Connecting a Serial Device
Your computer has one or two serial port (depending on model) for
connecting a serial device such as a serial mouse or serial communication
device (modem).
Follow this procedure to connect a serial device:
1. Make sure the computer is not turned on
2. Plug the device cable to the serial port on the rear of the computer.
3. Turn on the computer.
NOTE: Portable modems that derive power through the serial port cannot be used with
the computer. Instead, use a modem that is powered by its own internal battery or
external AC power.
Expanding Your Computer 4-4
Connecting a USB Device
Your computer has two USB ports for connecting USB devices, such as a
digital camera, scanner, printer, modem, and mouse.
The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices
and 480 MB/s for USB 2.0 devices.
To connect a USB device, simply plug the device cable to one of the USB
ports.
Expanding Your Computer 4-5
Using Smart Cards (Optional)
Your computer may have a smart card slot for additional security feature,
providing tamper-proof storage of user and account identity. A smart card
is a type of plastic card embedded with a computer chip that stores and
transacts data between you (user) and the computer.
You need to install third-party smart card software to take advantage of
the smart card feature.
Inserting and Removing a Smart Card
To insert a smart card:
1. Locate the smart card slot.
2. Slide the smart card, with its label and embedded computer chip
facing up into the slot.
3. When a new card is seated, use the third-party smart card software to
allow your computer to read it.
To remove a smart card:
1. Make sure that the third-party smart card software is not accessing the
smart card.
2. Pull the card out of the slot.
Expanding Your Computer 4-6
Using PC Cards
Your computer has one or two PC card slots that support CardBus
specifications. The slots can accommodate a type II card. Typical type II
cards are flash memory, SRAM, modem, LAN, and SCSI cards.
Inserting and Removing a PC Card
NOTE:
z Some PC cards require additional system resources. Before using such PC card,
you may have to free other system resources for the PC card.
z Although some PC cards can be inserted and removed without turning off the
computer, you cannot remove or install PC cards during Sleep mode.
To insert a PC card:
1. Locate the PC card slot on the left side of the computer.
2. Slide the PC card, with its label facing up, into the slot until the eject
button pops out.
3. When a new card is seated, the computer will detect it and try to
install the appropriate driver. Follow the on-screen instructions to
complete the process.
To remove a PC card:
1. Double-click on the Safely Remove Hardware icon found on the
Windows taskbar and the Safely Remove Hardware window appears
on screen.
2. Select (highlight) the PC card from the list to disable the card.
3. Push the eject button and the card will slide out slightly.
4. Pull the card out of the slot.
Expanding Your Computer 4-7
Using ExpressCards (Optional)
NOTE:
z The ExpressCard interface is not compatible with the PC card interface.
z To take advantage of the ExpressCard interface, the ExpressCard driver supplied
with your system must be installed.
Your computer may have an ExpressCard slot.
ExpressCard supports the PCI Express and USB 2.0 serial data interfaces
(supporting speeds of up to 2.5 Gbps and 480 Mbps respectively),
improving speed in data transfer while conserving power usage.
ExpressCard Type
The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or
34 mm (ExpressCard/34) wide ExpressCard. Typical ExpressCards
support a very extensive range of applications including memory, wired
and wireless communication cards, and security devices.
Shown next are the appearances of ExpressCards for your reference.
ExpressCard/54 ExpressCard/34
Expanding Your Computer 4-8
Inserting and Removing an ExpressCard
To insert an ExpressCard:
1. Locate the ExpressCard slot on the left side of the computer.
2. Slide the ExpressCard, with its label facing up, all the way into the
slot until the rear connectors click into place.
3. When a new card is seated, the computer will detect it and try to
install the appropriate driver. Follow the on-screen instructions to
complete the process.
To remove an ExpressCard:
1. Double-click on the Safely Remove Hardware icon found on the
Windows Vista taskbar and the Safely Remove Hardware window
appears on screen.
2. Select (highlight) the ExpressCard from the list to disable the card.
3. Push the eject button and the card will slide out slightly.
4. Pull the card out of the slot.
Expanding Your Computer 4-9
Using the Card Reader
NOTE:
z To use the Card Reader, the SD Reader driver supplied with your computer must
be installed.
z If your hard disk is divided into several drives, make sure that all drives have been
formatted before using the Card Reader. Otherwise, you may encounter problems
when using the Card Reader.
z You can use only storage cards. Your Card Reader does not support cards with I/O
(input/output) functions such as a wireless network card or Bluetooth card.
Your computer has a Card Reader. The Card Reader is a small drive for
reading from and writing to removable storage cards (or called memory
cards). The Card Reader supports Secure Digital (SD) cards.
Shown next is the appearance and size of Secure Digital (SD) card type
for your reference.
24×32×2.1 (mm)
To insert a storage card:
1. Locate the Card Reader slot on the left side of the computer.
2. Align the card with its connector pointing to the slot and its label
facing up. Slide the card into the slot until it reaches the end.
3. Windows will detect the card and assign it a drive name (typically E).
To remove a storage card:
1. Double-click My Computer.
2. Right-click the drive with the card and select Eject.
3. Pull the card out of the slot.
Expanding Your Computer 4-10
Using the Port Replicator (Optional)
NOTE: To use the port replicator, the Vehicle Dock (1) and Vehicle Dock (2) driver
supplied with your computer must be installed.
A port replicator is available as an option. This device eliminates the
hassles of having you connect and disconnect the various cables when
carrying your computer around and allows a variety of peripherals to be
connected including a headphone or microphone, etc. The port replicator
connects to the expansion bus connector at the bottom of your computer.
1. Slide open the expansion bus connector cover.
2. Connect your port replicator to the expansion bus connector.
For more detailed information, refer to the Operating Instructions of the
port replicator.
CAUTION: Hot/warm docking and hot/warm undocking are not possible with the port
replicator.
Expanding Your Computer 4-11
System Memory Upgrade
You can upgrade your computer by changing system memory to a
maximum of 4 GB on the DDR2 SO-DIMM slot.
CAUTION: RAM modules are extremely sensitive to static electricity. There are cases
where static electricity generated by the human body has adversely affected such
modules. When inserting or removing a RAM module, do not touch the terminals or
internal components, insert objects other than the module, or allow foreign particles to
enter. Doing so has been known to cause damage, fire, or electrical shock.
To install the RAM module:
1. Remove the battery pack (see chapter 3) and make sure that the
computer is not connected to AC power.
2. Carefully place the notebook computer upside down.
3. Remove the two screws to open the compartment cover.
4. To install the RAM module, match the module's notched part with the
socket's projected part and firmly insert the module into the socket at
a 20-degree angle. Then push down until the retaining clips lock the
module into position.
CAUTION: If the RAM module is difficult to insert or difficult to push down, do not force
it. Check once more to ensure that the module is positioned correctly.
5. Close the compartment cover and secure with two screws.
Using BIOS Setup 5-1
Chapter 5
Using BIOS Setup
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/
Output System) settings of the computer.
BIOS is a layer of software, called firmware, that translates instructions
from other layers of software into instructions that the computer hardware
can understand. The BIOS settings are needed by your computer to
identify the types of installed devices and establish special features.
This chapter tells you how to use the BIOS Setup program.
CHAPTER
Using BIOS Setup 5-2
When to Use BIOS Setup
When to Use
You need to run BIOS Setup Utility when:
z You see an error message on the screen requesting you to run BIOS
Setup Utility.
z You want to restore the factory default settings.
z You want to modify some specific settings according to the hardware.
z You want to modify some specific settings to optimize the system
performance.
Using BIOS Setup 5-3
When and How to Use the System Recovery
Feature
When to Use
You need to run System Recovery when:
z Your computer does not start correctly.
z Your Windows operating system does not start at all.
z You want to restore the factory default Windows settings.
Starting System Recovery
WARNING: Using this feature will reinstall Windows to your system and configure it to the
system’s factory default settings. All data on the hard disk drive will be lost.
Using BIOS Setup 5-4
To run System Recovery:
1. During system startup when the following screen appears, press Ctrl +
Alt + F2 keys for four seconds or press Enter and select HDI Recovery
when a small window appears on the screen.
2. The message This will help you reinstall Windows to the whole
HDD to factory default. All data on HDD will be lost appears
on the screen to ask if you want to access System Recovery. Type 1 to
continue or type 0 to exit.
3. A warning message appears as follows:
****************************************
You must accept the following terms before performing the
recovery process:
1. The recovery software is solely the purpose of
reinstalling or restoring software associated with the hard
disk of this operating GETAC machine.
2. Except the above, no other use is granted hereunder.
****************************************
(1)Yes, I agree to the provisions of this agreement and wish
to continue.
(0)No, I do not agree to the provisions of this agreement
and do not wish to continue.
Type 1 to continue.
Using BIOS Setup 5-5
4. Type Y when the message Are you sure you want to recover now?
(Y)Yes (N)No appears onscreen. The following screen appears and
system will perform the recovery process and Windows operating
system will be re-installed to its default setting:
Using BIOS Setup 5-6
5. After the recovery process has been completed successfully, the GSI
(GETAC Smart Installer) screen is displayed at the first boot-up of
Windows operating system.
6. GSI will automatically perform system hardware detection and driver
installation. After GSI has completed the whole process successfully,
system will reboot.
Installing Software Drivers 6-1
Chapter 6
Installing Software Drivers
To take full advantage of the unique features of your computer, some
operating systems require custom software, known as drivers, to be
installed.
If you purchased the computer with Windows pre-installed, your dealer
may have already installed the drivers. If not, you need to install the
drivers using the disc supplied with your computer.
This chapter describes how to install the drivers.
CHAPTER
Installing Software Drivers 6-2
How to Use the Driver Disc
NOTE:
z The drivers may have been updated after this manual was published. For driver
upgrade, please contact your dealer.
z This disc supports Windows Vista.
z The available items may differ according to your computer model.
z Do not remove the driver disc when installing the driver.
An autorun program is provided on the driver disc to help you easily
install the drivers. As you insert the disc, the autorun program
automatically starts. If you need to start the program manually, run the
Autorun.exe program from the driver disc. The main screen appears.
Caring for the Computer 7-1
Chapter 7
Caring for the Computer
Taking good care of your computer will ensure a trouble-free operation
and reduce the risk of damage to your computer.
This chapter gives you guidelines covering these areas of maintenance:
z How to protect the computer
z What to note when using and storing the computer
z How to clean the computer
z What to note when using the battery pack
z What to note when traveling with the computer
CHAPTER
Caring for the Computer 7-2
Protecting the Computer
To safeguard the integrity of your computer data as well as the computer
itself, you can protect the computer in several ways as described in this
section.
Using the Windows Security Center
Windows Security Center protects your computer against intrusion.

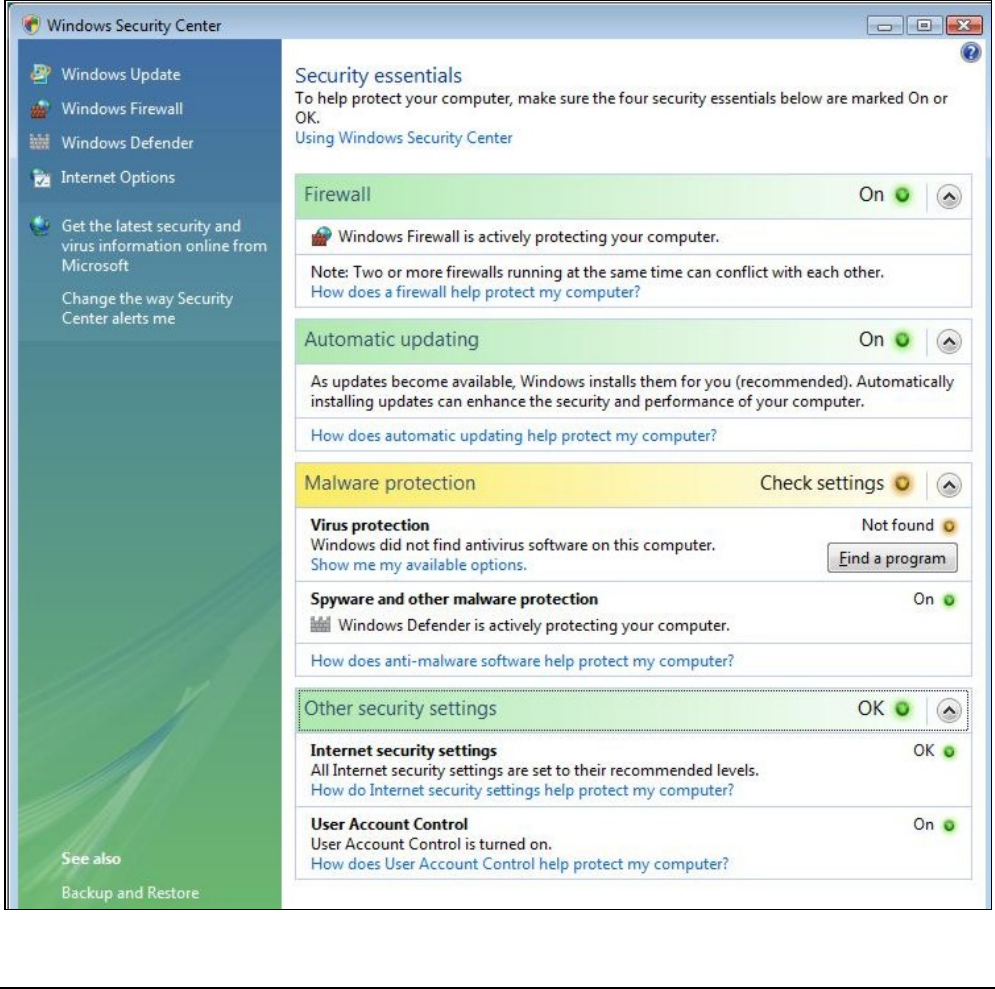

Caring for the Computer 7-3
Windows Security Center alerts you to take action on the following
security essentials:
z Windows Firewall
z Windows Update
z Malware Protection (anti-virus, anti-spyware)
z Others (Internet security, user account control)
For detailed information on Windows Security Center, see Windows’
Help.
Using the Cable Lock
You can use a Kensington-type cable lock to protect your computer
against theft. The cable lock is available in most computer stores.
To use the lock, loop the lock cable around a stationary object such as a
table. Insert the lock to the Kensington lock hole and turn the key to
secure the lock. Store the key in a safe place.
Caring for the Computer 7-4
Taking Care of the Computer
Location Guidelines
z Use the computer where the temperature is between 0 °C (32 °F) and
55 °C (131 °F).
z Avoid placing the computer in a location subject to high humidity,
extreme temperatures, mechanical vibration, direct sunlight, or heavy
dust.
z Do not cover or block any ventilation openings on the computer. For
example, do not place the computer on a bed, sofa, rug, or other
similar surface. Otherwise, overheating may occur that results in
damage to the computer.
z Keep the computer at least 13 cm (5 inches) away from electrical
appliances that can generate a strong magnetic field such as a TV,
refrigerator, motor, or a large audio speaker.
z Do not move the computer abruptly from a cold to a warm place. A
temperature difference of more than 10 °C (18 °F) will cause
condensation inside the unit, which may damage the storage media.
z Do not place the computer on an unsteady surface.
General Guidelines
z Do not place heavy objects on top of the computer when it is closed as
this may damage the display.
z The screen surface is easily scratched. Do not use paper towels to
clean the display. Avoid touching it with your fingers, pen, or pencil.
z To maximize the life of the backlight in the display, allow the
backlight to automatically turn off as a result of power management.
Avoid using a screen saver or other software that prevents the power
management from working.
Caring for the Computer 7-5
Cleaning Guidelines
z Never clean the computer with its power on.
z Use a soft cloth moistened with water or a non-alkaline detergent to
wipe the exterior of the computer.
z Gently wipe the display with a soft, lint-free cloth. Do not use alcohol
or detergent on the display.
z Dust or grease on the touchpad can affect its sensitivity. Clean the pad
by using adhesive tape to remove the dust and grease on its surface.
Battery Pack Guidelines
z Recharge the battery pack when it is nearly discharged. When
recharging, make sure that the battery pack is fully charged. Doing so
may avoid harm to the battery pack.
z Operate the computer with the battery pack installed even when using
external power. This ensures that the battery is fully charged.
z If you will not be using the computer for a long period of time (more
than two weeks), remove the battery pack from the computer.
z If you remove the battery pack, make sure that the battery terminals
do not contact any conductors such as metal objects or water.
Otherwise, the battery may become unusable as a result of a short
circuit.
z If you need to store the battery pack, store it in a cool, dry place.
Never allow the temperature to exceed 60 °C (140 °F).
z Do not leave the battery pack in storage for more than 6 months
without recharging it.
Caring for the Computer 7-6
When Traveling
z Before traveling with your computer, make a backup of your hard
disk data into flash disks or other storage devices. As an added
precaution, bring along an extra copy of your important data.
z Make sure that the battery pack is fully charged.
z Make sure that the computer is turned off and the top cover is
securely closed.
z Do not leave objects in between the keyboard and closed display.
z Disconnect the AC adapter from the computer and take it with you.
Use the AC adapter as the power source and as a battery-charger.
z Hand-carry the computer. Do not check it in as luggage.
z If you need to leave the computer in the car, put it in the trunk of the
car to avoid exposing the computer to excessive heat.
z When going through airport security, it is recommended that you
send the computer and flash disks through the X-ray machine (the
device you set your bags on). Avoid the magnetic detector (the device
you walk through) or the magnetic wand (the handheld device used
by security personnel).
z If you plan to travel abroad with your computer, consult your dealer
for the appropriate AC power cord for use in your country of
destination.
Troubleshooting 8-1
Chapter 8
Troubleshooting
Computer problems can be caused by hardware, software, or both. When
you encounter any problem, it might be a typical problem that can easily
be solved.
This chapter tells you what actions to take when solving common
computer problems. It is divided into three sections:
z Preliminary checklist
z Solving common problems
z Resetting the computer
CHAPTER
Troubleshooting 8-2
Preliminary Checklist
Here are helpful hints to follow before you take further actions when you
encounter any problem:
z Try to isolate which part of the computer is causing the problem.
z Make sure that you turn on all peripheral devices before turning on
the computer.
z If an external device has a problem, make sure that the cable
connections are correct and secure.
z Make sure that the configuration information is properly set in the
BIOS Setup program.
z Make sure that all the device drivers are correctly installed.
z Make notes of your observations. Are there any messages on the
screen? Do any indicators light? Do you hear any beeps? Detailed
descriptions are useful to the service personnel when you need to
consult one for assistance.
If any problem persists after you follow the instructions in this chapter,
contact an authorized dealer for help.
Troubleshooting 8-3
Solving Common Problems
For easy reference, the problems are divided into these categories.
Problem Type Go to
Battery Problems P. 8-4
Bluetooth Problems P. 8-4
Display Problems P. 8-5
Hardware Device Problems P. 8-6
Hard Disk Drive Problems P. 8-6
Keyboard, Mouse, and Touchpad Problems P. 8-7
LAN Problems P. 8-8
P. 錯誤! 尚
未定義書
籤。
Modem Problems P. 8-8
PC Card Problems P. 8-8
Power Management Problems P. 8-8
Software Problems P. 8-10
Sound Problems P. 8-10
Startup Problems P. 8-11
Other Problems P. 8-11
Troubleshooting 8-4
Battery Problems
The battery does not charge (Battery Charge indicator does not light
yellow).
z Make sure that the AC adapter is properly connected.
z Make sure that the battery is not too hot or cold. Allow time for the
battery pack to return to room temperature.
z Make sure that the battery pack is installed correctly.
z Make sure that the battery terminals are clean.
The operating time of a fully charged battery becomes shorter.
z If you often partially recharge and discharge, the battery might not be
charged to its full potential. Initialize the battery to solve the problem.
(See “Initializing the Battery Pack” in Chapter 3 for instructions.)
The battery operating time indicated by the battery meter does not
match the actual operating time.
z The actual operating time can be different from the estimated time,
depending on how you are using the computer. If the actual operating
time is much less than the estimated time, initialize the battery. (See
“Initializing the Battery Pack” in Chapter 3 for instructions.)
Bluetooth Problems
I cannot connect to another Bluetooth-enabled device.
z Make sure that the Bluetooth card is correctly installed.
z Make sure that the Bluetooth driver is correctly installed.
z Make sure that both devices have activated Bluetooth.
z Make sure that the distance between the two devices are not over 10
meters or that there are no walls or other obstructions between the
devices.
z Make sure that the other device is not in “Hidden” mode.
Troubleshooting 8-5
z Make sure that both devices are compatible.
Display Problems
Nothing appears on the screen.
z During operation, the screen may automatically turn off as a result of
power management. Press any key to see if the screen comes back.
z The brightness level might be too low. Increase brightness by
pressing the Fn+F6 hot key.
z The display output might be set to an external device. To switch the
display back to the LCD, press the Fn+F9 hot key or change the
display through the settings in Display Settings Properties.
The characters on the screen are dim.
z Adjust the brightness and/or contrast.
Bad dots appear on the display at all times.
z A small number of missing, discolored, or bright dots on the screen
are an intrinsic characteristic of TFT LCD technology. It is not
regarded as a LCD defect.
Resolution cannot be adjusted to desired setting.
z Make sure that the VGA driver is installed correctly.
The external monitor displays nothing.
z Make sure that the monitor is turned on.
z Make sure that the monitor’s signal cable is properly connected.
z Switch the display to the monitor by pressing the Fn+F9 hot key or
change the display through the settings in Display Settings Properties.
Simultaneous display/multi-display does not work.
z Make sure that you turn on the external monitor before turning on the
computer.
Troubleshooting 8-6
z Press the Fn+F9 hot key to toggle through the display options or
change the display through the settings in Display Settings Properties.
Hardware Device Problems
The computer does not recognize a newly installed device.
z The device may not be correctly configured in the BIOS Setup
program. Run the BIOS Setup program to identify the new type.
z Make sure if any device driver needs to be installed. (Refer to the
documentation that came with the device.)
z Make sure if the device needs any jumper or switch settings. (Refer to
the documentation that came with the device.)
z Check the cables or power cords for correct connections.
z For an external device that has its own power switch, make sure that
the power is turned on.
Hard Disk Drive Problems
The hard disk drive error message appears on the screen.
z The hard disk drive has defects. Ask your dealer for help.
The hard disk drive operations seem slow.
z The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.
The hard disk drive in-use indicator glows without blinking.
z The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.
Troubleshooting 8-7
Keyboard, Mouse, and Touchpad Problems
The keyboard does not respond.
z Try connecting an external keyboard. If it works, contact an
authorized dealer, as the internal keyboard cable might be loose.
The numeric keypad is disabled.
z Make sure that the Num Lock is switched on. (Check if the Num Lock
Indicator glows or not.)
The external keyboard does not work.
z Make sure that the keyboard cable is properly connected.
The USB mouse does not work.
z Make sure that the mouse cable is properly connected.
The touchpad does not work, or the pointer is difficult to control
with the touchpad.
z Make sure that the touchpad is clean.
LAN Problems
I cannot access the network.
z Make sure that the LAN driver is correctly installed.
z Make sure that the LAN cable is properly connected to the RJ-45
connector and the network hub.
z Make sure that the network configuration is appropriate.
z Make sure that the user name or password is correct.
Modem Problems
The modem does not work.
z Make sure that the modem driver is correctly installed.
Troubleshooting 8-8
z Make sure that the telephone line is properly connected.
z Make sure that the COM port in the communication software is
correctly set.
z Turn off power management.
PC Card Problems
The PC card does not work.
z Make sure that the PC card is correctly seated.
z If the card requires an IRQ (Interrupt ReQuest), make sure that there
is one available.
The PC card stops communicating properly.
z The application may have been reset when the computer is turned off
or in Sleep mode. Exit and restart the application.
Power Management Problems
The computer does not enter Sleep or Hibernation mode
automatically.
z If you have a connection to another computer, the computer does not
enter Sleep or Hibernation mode if the connection is actively in use.
z Make sure that the Sleep or Hibernation time-out is enabled.
The computer does not enter Sleep or Hibernation mode
immediately.
z If the computer is performing an operation, it normally waits for the
operation to finish.
The computer does not resume from Sleep or Hibernation mode.
z The computer automatically enters Sleep or Hibernation mode when
the battery pack is empty. Do any one of the following:
Troubleshooting 8-9
− Connect the AC adapter to the computer.
− Replace the empty battery pack with a fully charged one.
The computer does not enter Hibernation mode with the Fn+F10 hot
keys.
z Make sure that the Hibernation function is specified for the sleep
button.
z You might be using a PC card that prevents the computer from
entering Hibernation mode. To enter the mode, stop the
communication program and then remove the card or stop the card.
Software Problems
An application program does not work correctly.
z Make sure that the software is correctly installed.
z If an error message appears on the screen, consult the software
program’s documentation for further information.
z If you are sure the operation has stop, reset the computer. (See
“Resetting the Computer” later in this chapter.)
Sound Problems
No sound is produced.
z Make sure that the volume control is not set too low.
z Make sure that the audio driver is correctly installed.
z Make sure that the computer is not in Sleep mode.
z If using an external speaker, make sure that the speaker is properly
connected.
Troubleshooting 8-10
Distorted sound is produced.
z Make sure that the volume control is not set too high or too low. In
most cases, a high setting can cause the audio electronics to distort the
sound.
The sound system does not record.
z Adjust the playback or recording sound levels.
The external microphone or audio device does not work.
z Make sure that the microphone is connected to the proper connector
on the computer.
z Make sure that your computer is equipped with the driver needed.
z Click the speaker symbol on the taskbar and check the Windows
volume control.
z Check the volume control of your computer.
Startup Problems
When you turn on the computer, it does not respond and the Power
Indicator does not light green.
z If you are using an external AC power, make sure that the AC adapter
is correctly and securely connected. If so, make sure that the electrical
outlet works properly.
z If you are using the battery power, make sure that the battery is not
discharged.
When you turn on the computer, it stops after POST.
z Restart your computer.
Troubleshooting 8-11
Other Problems
The date/time is incorrect.
z Correct the date and time via the operating system or BIOS Setup
program.
z After you have performed everything as described above and still
have the incorrect date and time every time you turn on the computer,
the RTC (Real-Time Clock) battery is at the end of its life. Call an
authorized dealer to replace the RTC battery.
Troubleshooting 8-12
Resetting the Computer
You may have to reset (reboot) your computer on some occasions when
an error occurs and the program you are using hangs up.
If the computer operation seems to hang up, first wait. It is possible that
the computer is processing data. Periodically check the hard disk drive
in-use indicator, if it flashes irregularly, the program may be accessing
data and preventing you from using the keyboard. If you are sure the
operation has stopped and you cannot use the “restart” function of the
operating system, reset the computer.
Reset the computer by any one of these methods:
z Press Ctrl+Alt+Del on your built-in keyboard or press the Reset button
on the front panel.
z If the above action does not work, turn off the computer. Wait for at
least five seconds and turn it on again.
CAUTION: Resetting will cause any unsaved data to be lost.
Specifications A-1
Appendix A
Specifications
NOTE: Specifications are subject to change without any prior notice.
Parts Specifications
CPU Intel® SU9400 Core 2 Duo ULV 1.4 GHz processor
800 MHz FSB (Front Side Bus), Thermal specifications 10 W
Cache Memory 3 MB L2 cache
NorthBridge Intel® GS45 Chipset
SouthBridge ICH9M (small form factor)
BIOS 4 MB EEPROM, system and VGA BIOS, G-sensor support,
Plug-and-Play, ACPI 2.0 capability, boot from SATA/LAN/USB
devices (e.g., DVD Combo / DVD Dual / Flash / floppy drives),
light sensor for LCD panel and keyboard backlight brightness control
support, computrace
RAM (system) Up to 4 GB, 200-pin × 1, DDR2 SO-DIMM, 1.25-inch high
Turbo Memory (option) 4 GB
Panel 10.4-inch wide (4:3) TFT LCD, resolution up to 1024×768 XGA
Touchscreen function (with pen holder) or Active Digitizer feature
(option)
NOTE: Both Touchscreen and Active Digitizer feature cannot exist at
the same time.
Sunlight-readable (option), brightness > 1200 nits after touchscreen or
glass
Night vision (option), brightness < 1.7 nits after touchscreen or glass,
meets MIL-STD-3009
Video controller Integrated in Intel® GS45 chipset, DirectX® 10 support, dual view,
LCD/CRT simultaneous display capability, ECO mode support
Video memory UMA, 384 MB (default)
Display
Video port VGA
Replaced with serial port (RS-232) – option
Replaced with serial port (RS-422) – option
APPENDIX
Specifications A-2
Parts Specifications
Features Azalia interface, left/right-channel analog output for line-out
connector
Speaker One built-in
Audio
Ports Two audio ports for Line-out (green) / Mic-in (red)
Keyboard Standard keys with numeric pad keys, 12 function keys, special Fn
(Function) key and Windows keys
Water-proof and dust-proof membrane, large character printing,
water-proof rubber (option)
Pointing device Glide touchpad with 2 buttons, capacitance-type
Hard disk drive SATA interface, 5400 rpm support, 9.5 mm height 2.5-inch diameter
HDD heater for low temperature –20 °C, solid state disk (option)
PCMCIA Type II × 1 and ExpressCard/54/32
Type II × 1 and Smart Card Reader (option)
Card Reader (option) Secure Digital (SD), SDHC-support
I/O ports Two USB ports (USB 2.0 support), serial port (RS-232),
RJ-45 port, RJ-11 port
Bluetooth 2.4G 1 internal
Antenna
GPS 1.5G 1 internal
Modem Azalia interface, 56 Kbps, ITU V.90 MDC 1.5 internal fax modem
LAN IEEE 802.3i 10Base-T / IEEE 802.3u 100Base-T /
IEEE 802.3ab 1000Base-T Ethernet
Bluetooth (option) Specification 2.1 module plus EDR
Camera 1.3 M pixel
GPS RS232 interface
Security Kensington lock
TPM 1.2
Smart Card Reader (integrated) will occupy one Type II PCMCIA
slot – option
Docking 100-pin, engage with vehicle docking
Handle Grip and cross-type hand strap
Accessories (option) Stylus for touchscreen, active digitizer pen, vehicle docking (need to
combine with docking connector)
AC adapter Universal 60 W; input: 100∼240 V, 50/60 Hz; output: 19 V
Power
Battery Li-ion smart 6-cell battery 5200 mAH / 11.1 V (option)
Li-ion smart 9-cell battery 7800 mAH / 11.1 V
user-swappable, under –20 oC combined with hard drive low
temperature solution
Specifications A-3
Parts Specifications
Dimension (L×W×H) 289.68×227.77×59.4 mm (11.4×8.97×2.3 inch)
Weight Less than 2.5 kg (5.5 lb)
Temperature Operating: 0 °C (32 °F) to 55 °C (131 °F)
–20 °C (4 °F) to 55 °C (131 °F) – low temperature option
Non-operating: –40 °C (–40 °F) to 70 °C (158 °F)
Humidity 5 % to 95 % relative, non-condensing
Altitude Operating: 15,000 ft
Non-operating: 40,000 ft
Shock Operating: 15 g, 11 ms half-sine wave
Non-operating: 50 g, 11 ms half-sine wave
Vibration Sinusoidal wave vibration:
Operating: 10~55 Hz / 0.075, 55~500 Hz / 1 g
Non-operating: 10~55 Hz / 0.15, 55~500 Hz / 2 g
Random vibration:
Operating: MIL-STD-810F, 514.5C-1 – highway truck exposure
Non-operating: MIL-STD-810F, 514.5C-17
Drop 100 cm drop 26 times onto plywood plate surface
Enclosure IEC 529, MIL-STD-810F, IP54 / NEMA4
(with input/output doors closed)
Environment
ESD Air discharge: 0~8 KV (included) no error; 9~15 KV allow soft error
Contact discharge: 0~6 KV (included) no error; 7~8 KV allow soft
error
EMC FCC part 15, subpart B, class B
Safety CE, UL, TUV, TUV/CB
Regulation
Other WHQL, E-mark, WEEE, EPEAT
RoHS 6 European union banned materials, EPEAT silver Green Product
Coverage Other 12 universal GP product banned materials, ENERGY STAR
Regulatory Information B-1
Appendix B
Regulatory Information
This appendix provides regulatory statements and safety notices on your
computer.
NOTE: Marking labels located on the exterior of your computer indicate the regulations
that your model complies with. Please check the marking labels and refer to the
corresponding statements in this appendix. Some notices apply to specific models only.
APPENDIX
Regulatory Information B-2
On the Use of the System
Class B Regulations
USA
Federal Communications Commission Radio Frequency
Interference Statement
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with this equipment is
prohibited.
Regulatory Information B-3
Canada
Canadian Department of Communications
Radio Interference Regulations Class B Compliance Notice
This Class B digital apparatus meets all requirements of the Canada
Interference-Causing equipment regulations.
Cet appareil numérique de Classe B respecte toutes les exigences du
Règlement Canadien sur le matériel brouileur.
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe B
prescrites dans le Règlement sur le brouillage radioélectrique édicté par le
ministère des Communications du Canada.
Safety Notices
About the Battery
Caution Texts Concerning Lithium Batteries
DANISH
ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må
kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til
leverandøren.
NORWEGIAN
ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype
eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i
henhold til fabrikantens instruksjoner.
SWEDISH
VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en
ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion.
FINNISH
VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan
ohjeiden mukaisesti.
Regulatory Information B-4
ENGLISH
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the equipment manufacturer. Discard used
batteries according to manufacturer's instructions.
DEUTSCH
VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur
durch denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ.
Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
FRENCH
ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d’un type équivalent
recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux
instructions du fabricant.
Attention (for USA Users)
The product that you have purchased contains a rechargeable battery. The
battery is recyclable. At the end of its useful life, under various state and
local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in
your area for recycling options or proper disposal.
About the AC Adapter
z Use only the AC adapter supplied with your computer. Use of another
type of AC adapter will result in malfunction and/or danger.
z Do not use the adapter in a high moisture environment. Never touch
the adapter when your hands or feet are wet.
z Allow adequate ventilation around the adapter when using it to
operate the device or charge the battery. Do not cover the AC adapter
with paper or other objects that will reduce cooling. Do not use the
AC adapter while it is inside a carrying case.
z Connect the adapter to a proper power source. The voltage
requirements are found on the product case and/or packaging.
z Do not use the adapter if the cord becomes damaged.
z Do not attempt to service the unit. There are no serviceable parts
inside. Replace the unit if it is damaged or exposed to excess
moisture.
Regulatory Information B-5
About the Modem
Caution
z Never install telephone wiring during a lightning storm.
z Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
z Never touch non-insulated telephone wires or terminals unless the
telephone line has been disconnected at the network interface.
z Use caution when installing or modifying telephone lines.
z Avoid using the telephone function (other than a cordless type)
during an electrical storm. There may be a remote risk of electric
shock from lightning.
z Do not use the telephone function to report a gas leak in the vicinity
of the leak.
z Do not use this product near water, for example near a bathtub, wash
bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
Caution (for USA Users)
To reduce the risk of fire, use only No.26 AWG or larger
telecommunication line cord.
Regulatory Information B-6
On the Use of the RF Device
NOTE: The information in this section applies to models with the wireless LAN module.
USA and Canada Safety Requirements and Notices
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must
not be co-located or operating in conjunction with any other antenna or
transmitter.
Radio Frequency Interference Requirements and SAR
The FCC with its action in ET Docket 93-62 has adopted a safety standard
for human exposure to Radio Frequency (RF) electromagnetic energy
emitted by FCC certified equipment. The wireless LAN module meets the
Human Exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE
C95.1, 1992. Proper operation of this radio according to the instructions
found in this manual will result in exposure substantially below the
FCC’s recommended limits. The following safety precautions should be
observed:
z Do not touch or move antenna while the unit is transmitting or
receiving.
z Do not hold any component containing the radio such that the
antenna is very close or touching any exposed parts of the body,
especially the face or eyes, while transmitting.
z Do not operate the radio or attempt to transmit data unless the antenna
is connected; if not, the radio may be damaged.
Use in specific environments:
z The use of wireless devices in hazardous locations is limited by the
constraints posed by the safety directors of such environments.
z The use of wireless devices on airplanes is governed by the Federal
Aviation Administration (FAA).
Regulatory Information B-7
z The use of wireless devices in hospitals is restricted to the limits set
forth by each hospital.
Antenna use:
z In order to comply with FCC RF exposure limits, low gain integrated
antennas should be located at a minimum distance of 20 cm
(8 inches) or more from the body of all persons.
z High-gain, wall-mount, or mast-mount antennas are designed to be
professionally installed and should be located at a minimum distance
of 30 cm (12 inches) or more from the body of all persons. Please
contact your professional installer, VAR, or antenna manufacturer for
proper installation requirements.
Explosive Device Proximity Warning
WARNING: Do not operate a portable transmitter (such as a wireless
network device) near unshielded blasting caps or in an explosive
environment unless the device has been modified to be qualified for such
use.
Antenna Warning
WARNING: To comply with the FCC and ANSI C95.1 RF exposure limits,
it is recommended that the antenna for this device be installed so as to
provide a separation distance of at least 20 cm (8 inches) from all persons
and that the antenna must not be co-located or operating in conjunction
with any other antenna or radio transmitter. It is recommended that the
user limit exposure time if the antenna is positioned closer than 20 cm
(8 inches).
Use on Aircraft Caution
CAUTION: Regulations of the FCC and FAA prohibit airborne operation
of radio-frequency wireless devices because their signals could interfere
with critical aircraft instruments.
Regulatory Information B-8
EMC Requirements
This device uses, generates and radiates radio frequency energy. The
radio frequency energy produced by this device is well below the
maximum exposure allowed by the Federal Communications
Commission (FCC).
This device complies with the limits for a Class B digital device pursuant
to Part 15 subpart C of the FCC Rules and Regulations. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
The FCC limits are designed to provide reasonable protection against
harmful interference when the equipment is installed and used in
accordance with the instruction manual and operated in a commercial
environment. However, there is no guarantee that interference will not
occur in a particular commercial installation, or if operated in a residential
area.
If harmful interference with radio or television reception occurs when the
device is turned on, the user must correct the situation at the user’s own
expense. The user is encouraged to try one or more of the following
corrective measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
CAUTION: The Part 15 radio device operates on a non-interference basis
with other devices operating at this frequency. Any changes or
modification to said product not expressly approved by the manufacturer
could void the user’s authority to operate this device.
Regulatory Information B-9
Canada Radio Frequency Interference Requirements
To prevent radio interference to the licensed service, this device is
intended to be operated indoors and away from windows to provide
maximum shielding. Equipment (or its transmit antenna) that is installed
outdoors is subject to licensing.
Pour empêcher que cet appareil cause du brouillage au service faisant
l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé
loin des fenêtres afin de fournir un écran de blindage maximal. Si le
matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire
l'objet d'une licence.
European Union CE Marking and Compliance Notices
Statements of Compliance
English
This product follows the provisions of the European Directive
1999/5/EC.
Danish
Dette produkt er i overensstemmelse med det europæiske direktiv
1999/5/EC.
Dutch
Dit product is in navolging van de bepalingen van Europees Directief
1999/5/EC.
Finnish
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
French
Ce produit est conforme aux exigences de la Directive Européenne
1999/5/EC.
German
Dieses Produkt entspricht den Bestimmungen der Europäischen
Richtlinie 1999/5/EC.
Regulatory Information B-10
Greek
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας
1999/5/EC.
Icelandic
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
1999/5/EC.
Italian
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norwegian
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet
1999/5/EC.
Portuguese
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Spanish
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Swedish
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
