Getac Technology 320GOBI3 WWAN Module User Manual B320 English Manual
Getac Technology Corporation WWAN Module B320 English Manual
User Manual
Rugged Mobile Computing Solutions
B320
USER’S MANUAL
Oct. 2012
TRADEMARKS
The Bluetooth® word mark and logos are registered trademarks owned by
Bluetooth SIG, Inc.
All other brand and product names are trademarks or registered trademarks
of their respective owners.
NOTE
The information in this manual is subject to change without notice.
Most screens and operating instructions in this manual are based on
Windows 7. If you’re using a different version of Windows, the screens and
related operations may not be the same.
For the latest version of the manual, please visit the Getac website at
www.getac.com.
ENERGY STAR® is a government program that offers businesses and
consumers energy-efficient solutions, making it easy to save money while
protecting the environment for future generations.
Please reference ENERGY STAR® related information from
www.energystar.gov.
As an ENERGY STAR® Partner, Getac Technology Corporation has
determined that this product meets the ENERGY STAR® guidelines for
energy efficiency.
An ENERGY STAR® qualified computer uses 70 % less electricity than
computers without enabled power management features.
Earning the ENERGY STAR®
When every home office is powered by equipment that has earned the
ENERGY STAR®, the change will keep over 289 billion pounds of
greenhouse gases out of the air.
If left inactive, ENERGY STAR® qualified computers enter a low-power
mode and may use 15 watts or less. New chip technologies make power
management features more reliable, dependable, and user-friendly than
even just a few years ago.
Spending a large portion of time in low-power mode not only saves
energy, but helps equipment run cooler and last longer.
Businesses that use ENERGY STAR® enabled office equipment may
realize additional savings on air conditioning and maintenance.
Over its lifetime, ENERGY STAR® qualified equipment in a single home
office (e.g., computer, monitor, printer, and fax) can save enough
electricity to light an entire home for more than 4 years.
Power management (“sleep settings”) on computers and monitors can
result in much savings annually.
Remember, saving energy prevents pollution
Because most computer equipment is left on 24 hours a day, power
management features are important for saving energy and are an easy way
to reduce air pollution. By using less energy, these products help lower
consumers’ utility bills, and prevent greenhouse gas emissions.
i
Table of Contents
Chapter 1 Getting Started .................................................................. 1-1
Getting the Computer Running ............................................. 1-2
Unpacking ........................................................................... 1-2

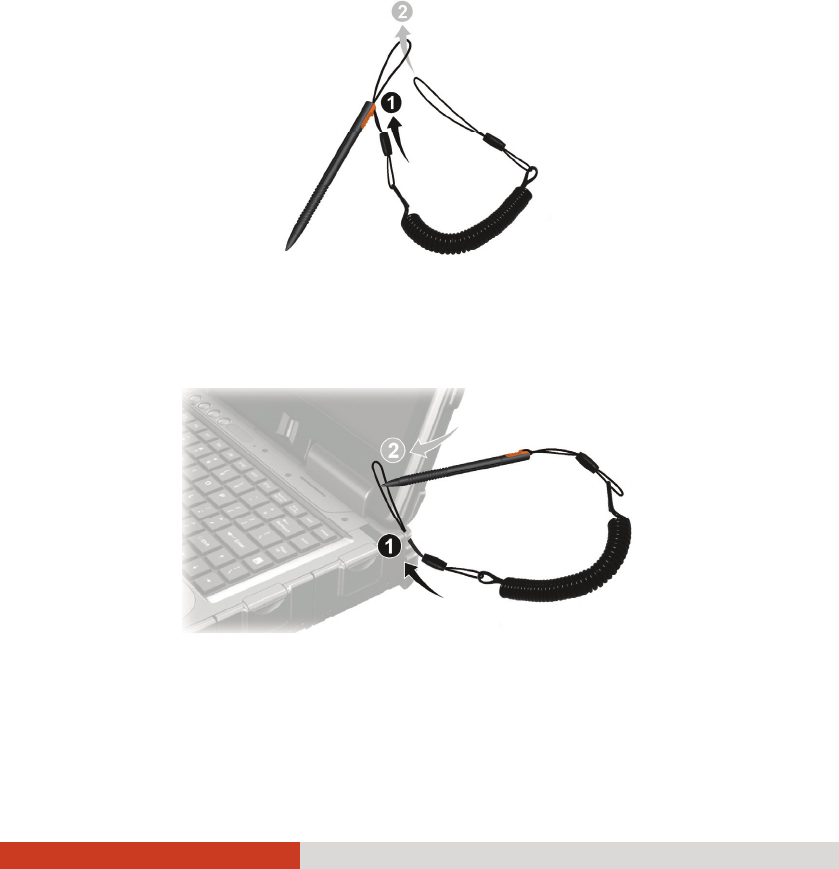

Using the Tether (Optional) ............................................... 1-3

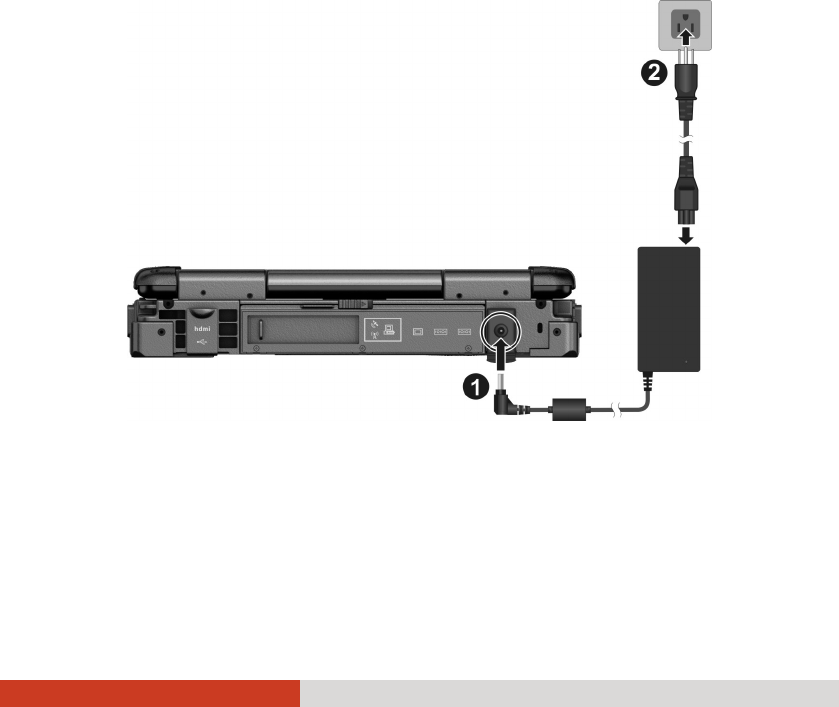

Connecting to AC Power .................................................... 1-4

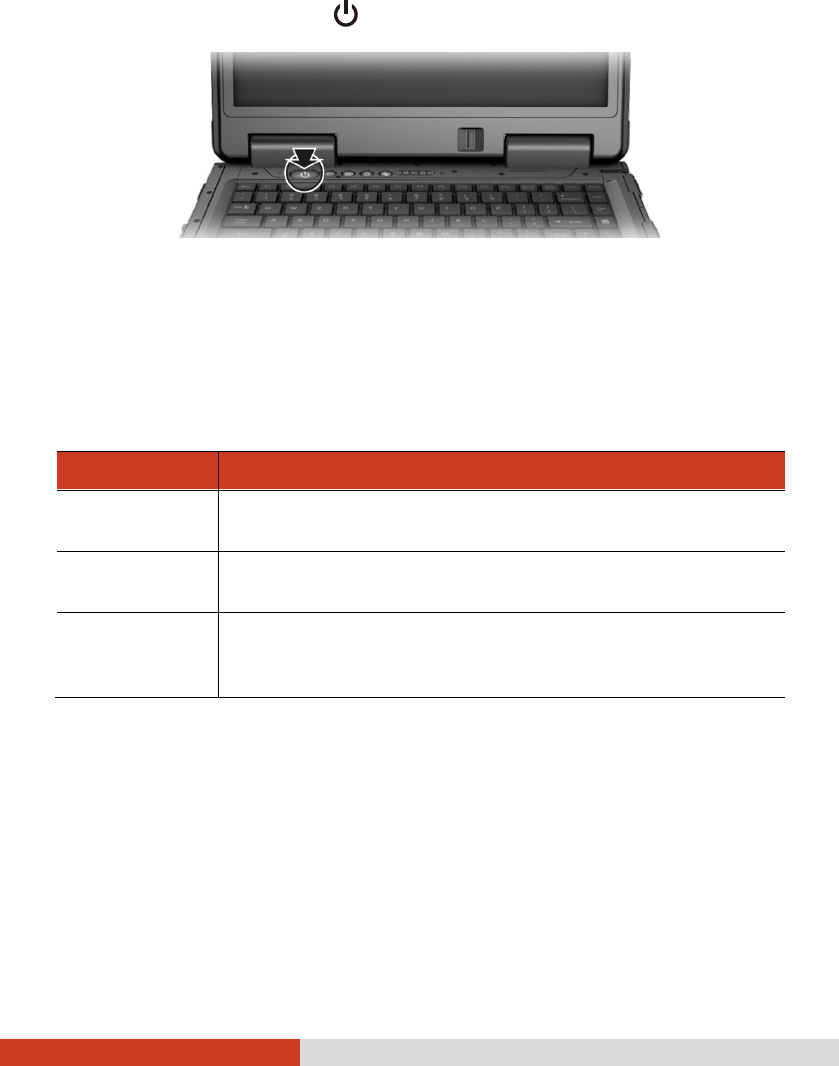

Turning On and Off the Computer ................................... 1-5
Taking a Look at the Computer ............................................. 1-7

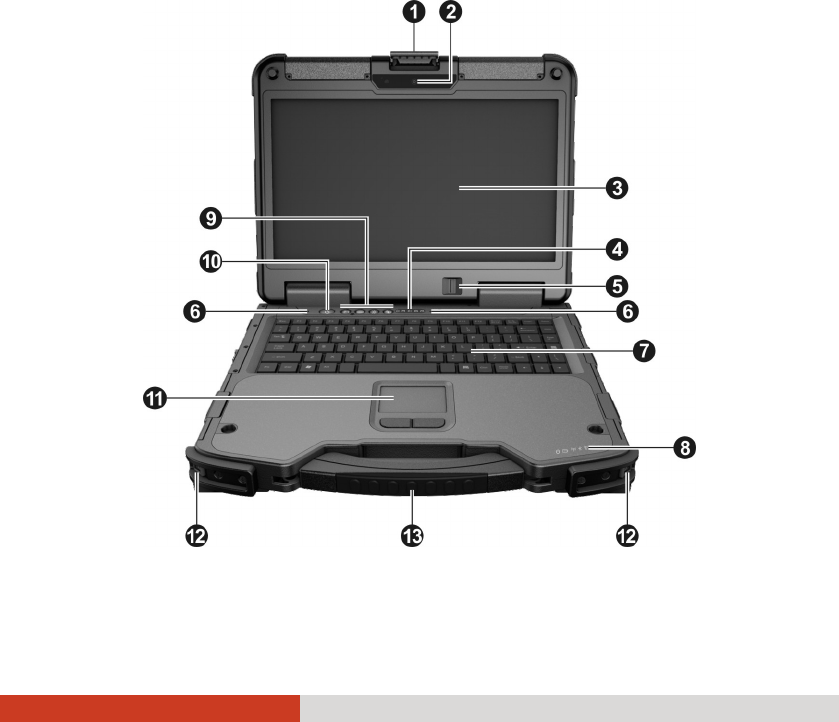

Top-open Components ....................................................... 1-7

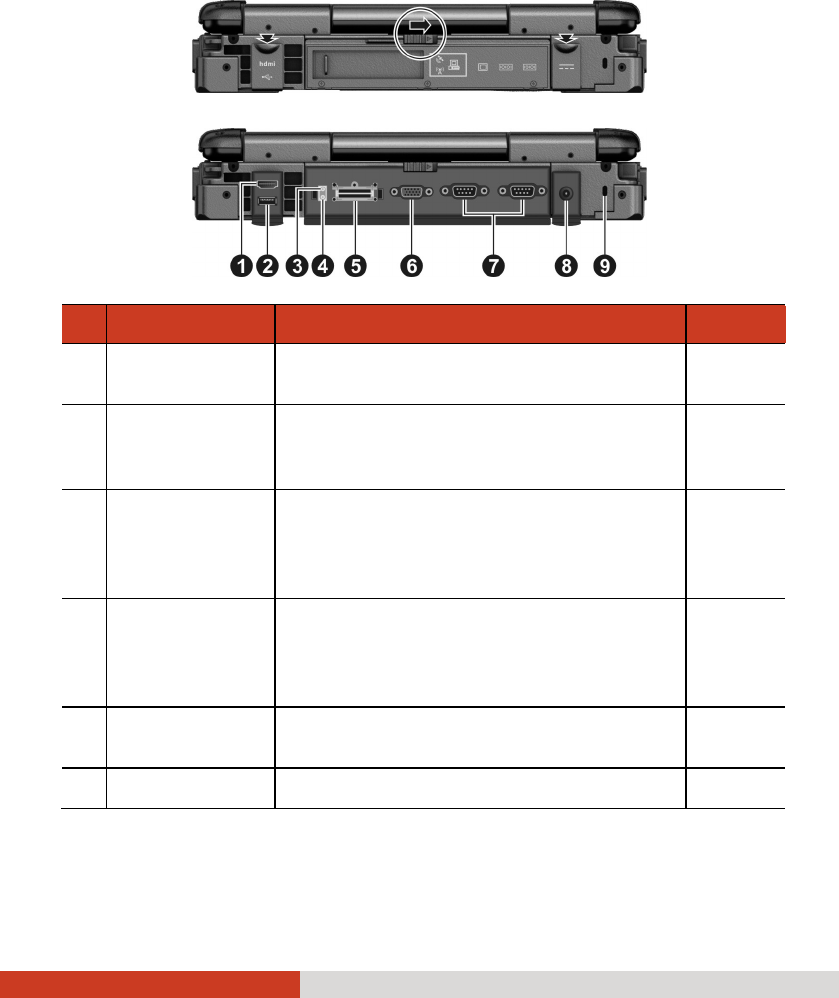

Rear Components ............................................................. 1-10
Right-Side Components .................................................... 1-11
Left-Side Components ...................................................... 1-13

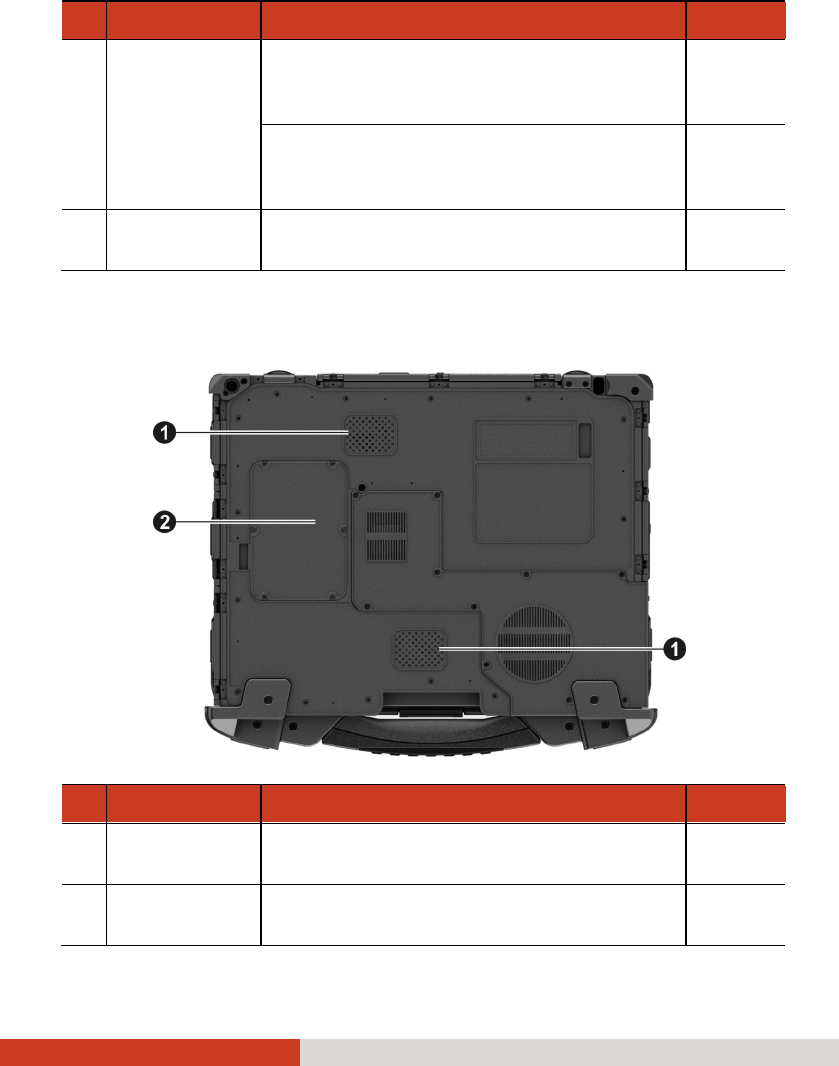

Bottom Components ........................................................ 1-14
Chapter 2 Operating Your Computer ................................................ 2-1
Using the Keyboard ................................................................ 2-2
Typewriter Keys .................................................................. 2-2

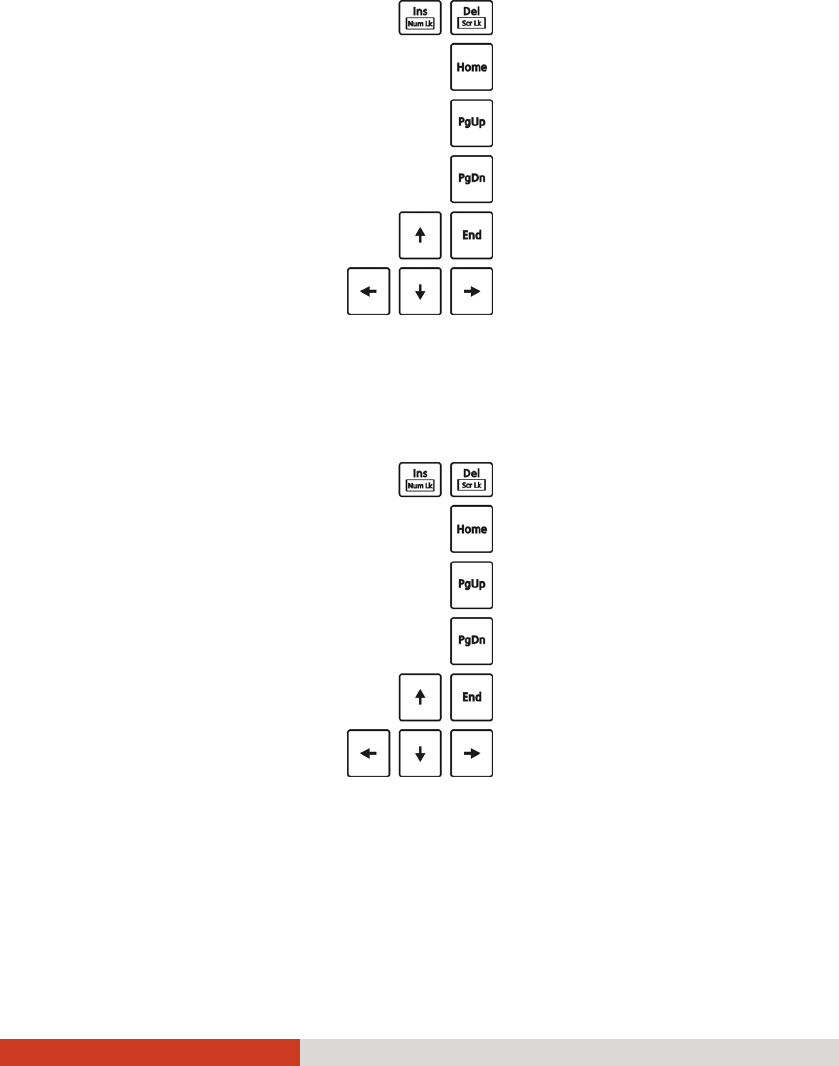

Cursor-Control Keys ............................................................ 2-2
Numeric Keypad ................................................................. 2-3
Function Keys ...................................................................... 2-4
Fn Key .................................................................................. 2-4

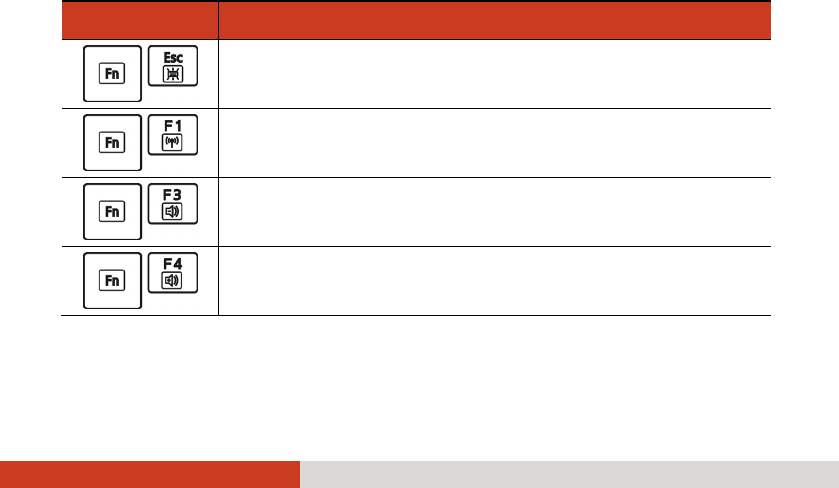

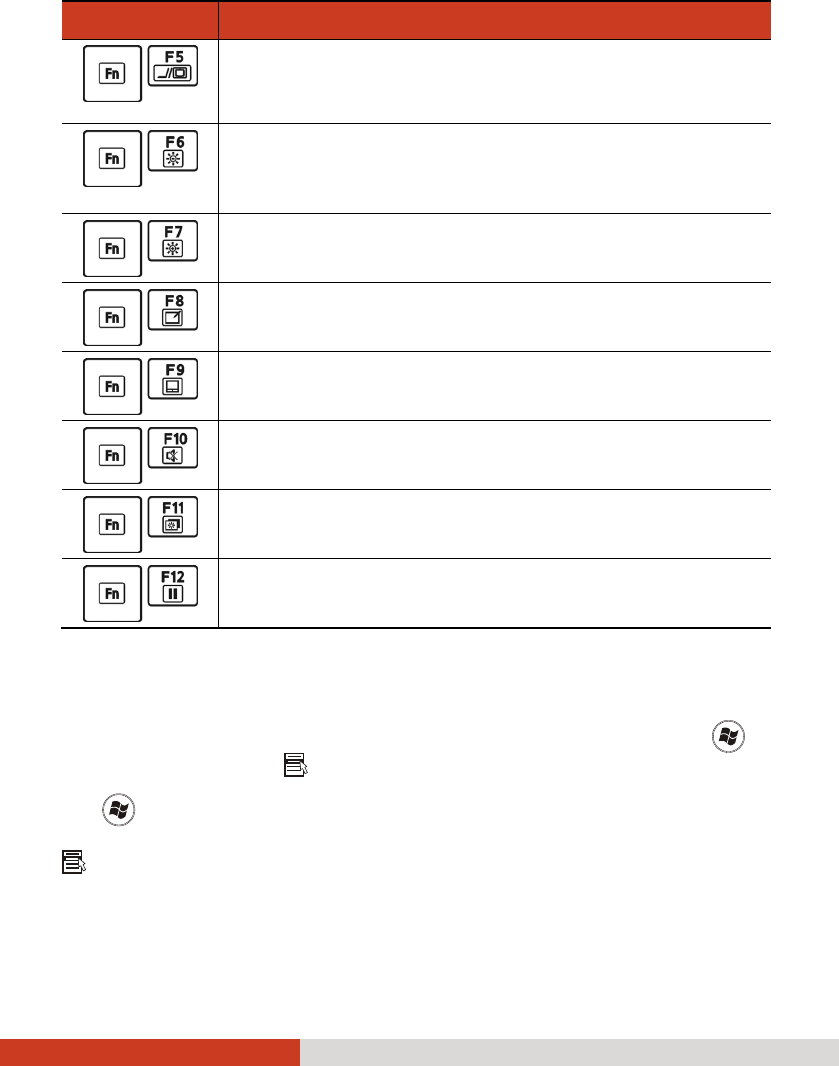

Hot Keys .............................................................................. 2-4
Using the Touchpad ................................................................ 2-6
Configuring the Touchpad ................................................. 2-8
Using the Touchscreen (Optional) ......................................... 2-9

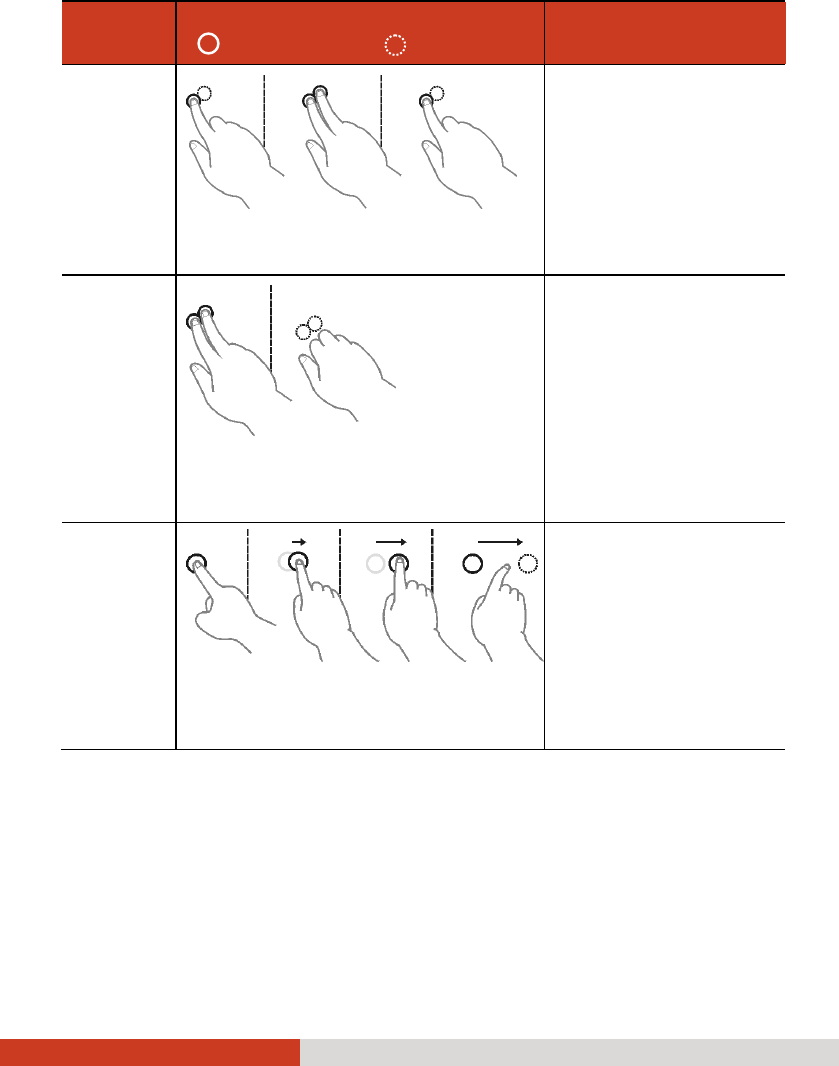

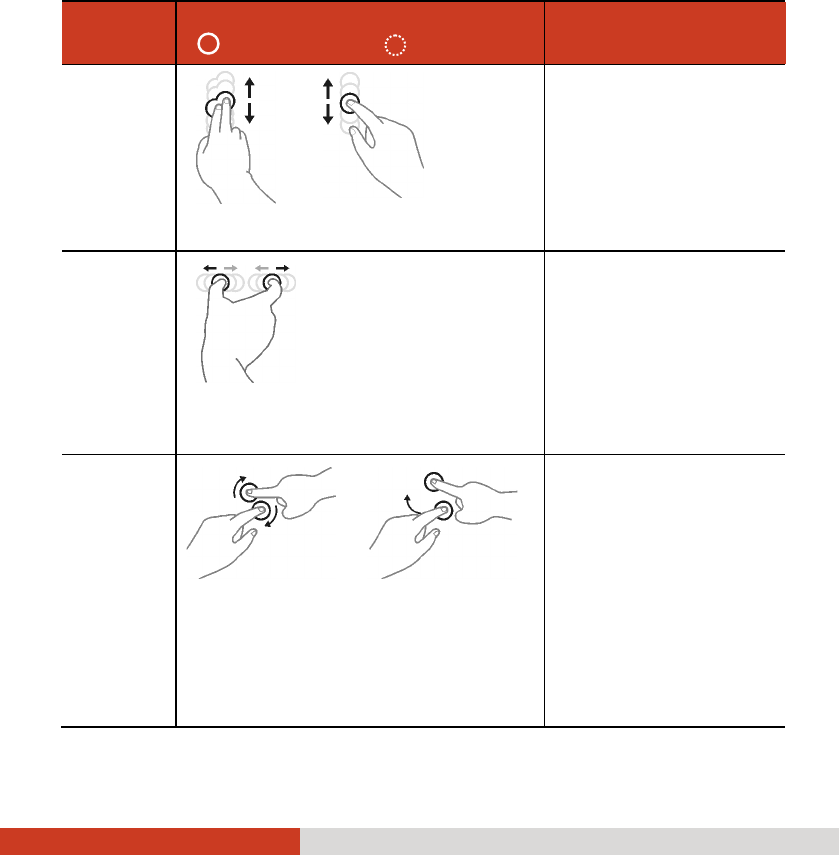

Using Multi-touch Gestures (Optional) ........................... 2-10

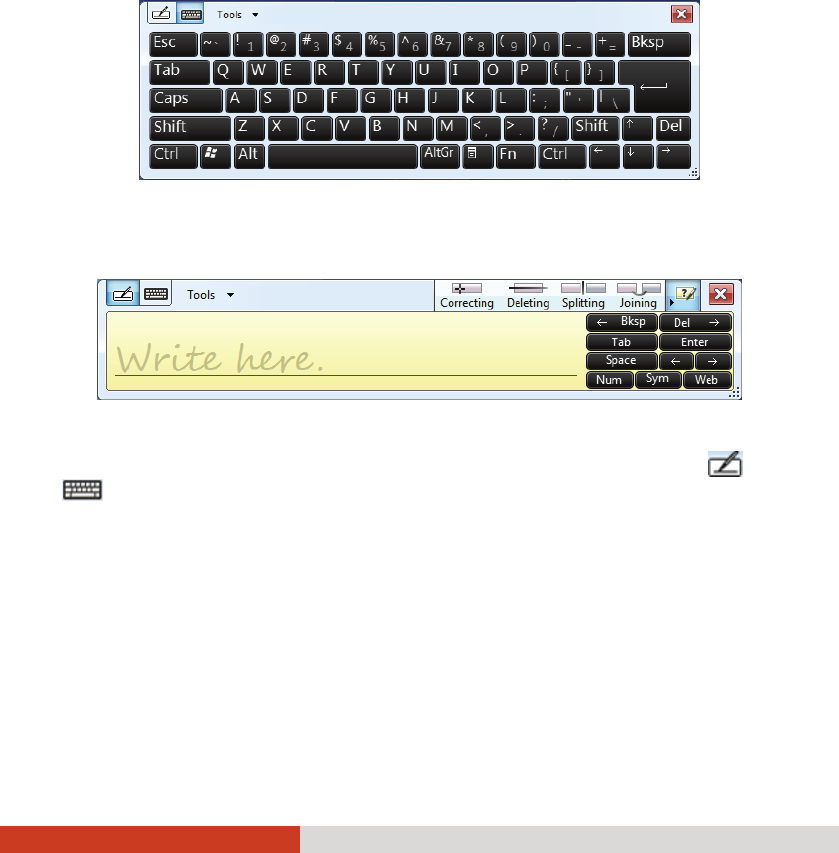

Using the Input Panel ........................................................... 2-12
Using the Quick Buttons ....................................................... 2-13

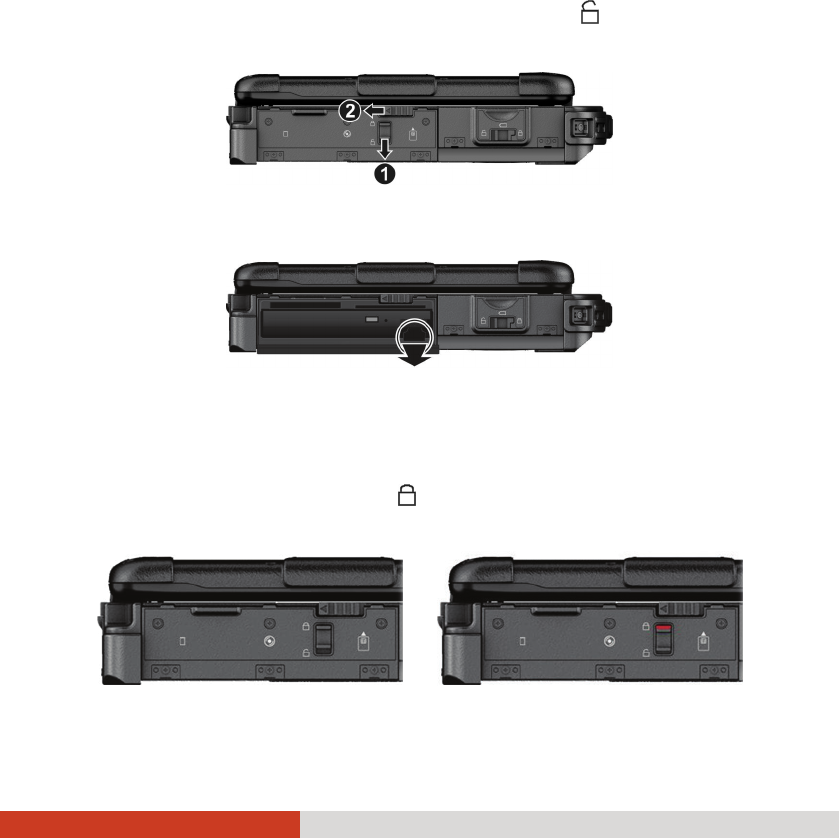

Using the DVD Drive ............................................................. 2-15
ii
Inserting and Removing a Disc ........................................ 2-16
Using the Network Features ................................................ 2-18

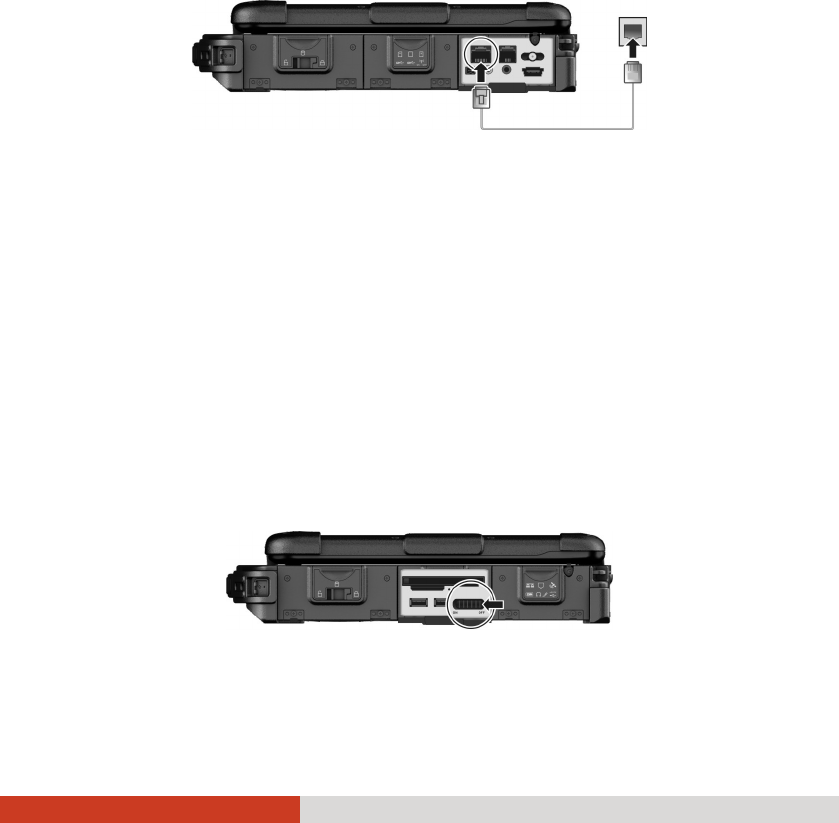

Using the Modem ............................................................. 2-18
Using the LAN ................................................................... 2-19

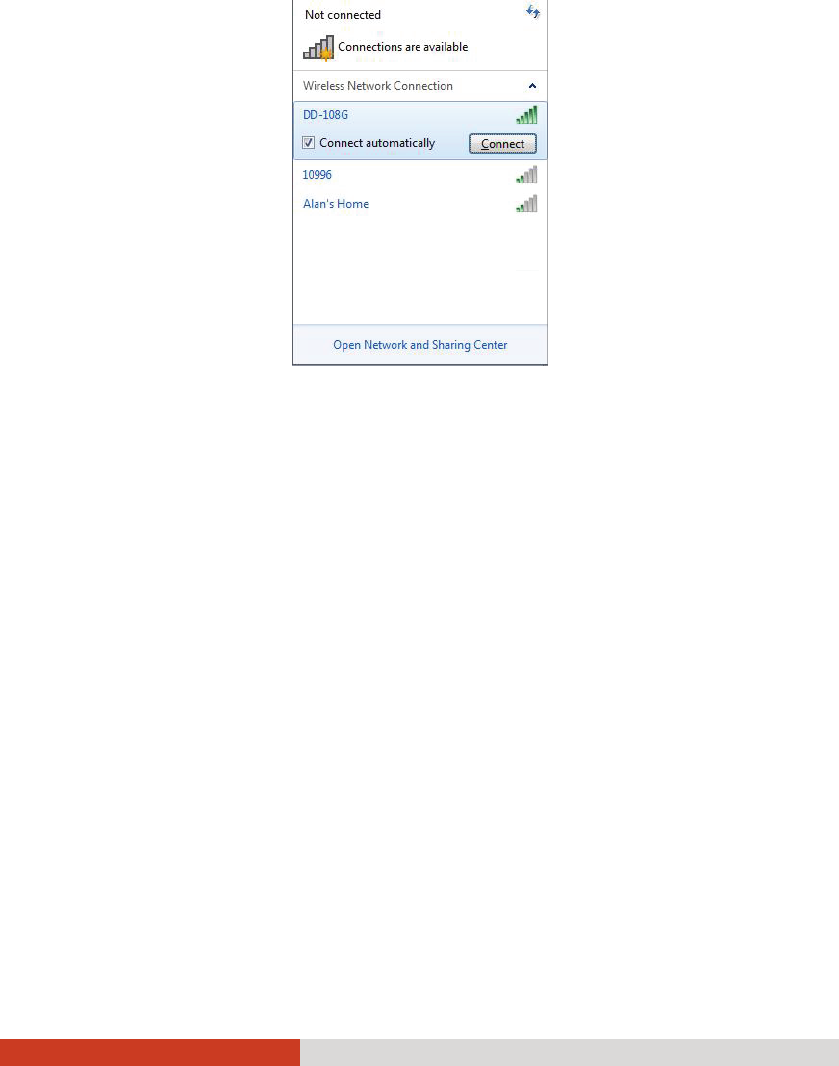

Using the Wireless LAN .................................................... 2-19
Using the Bluetooth Feature ................................................ 2-22

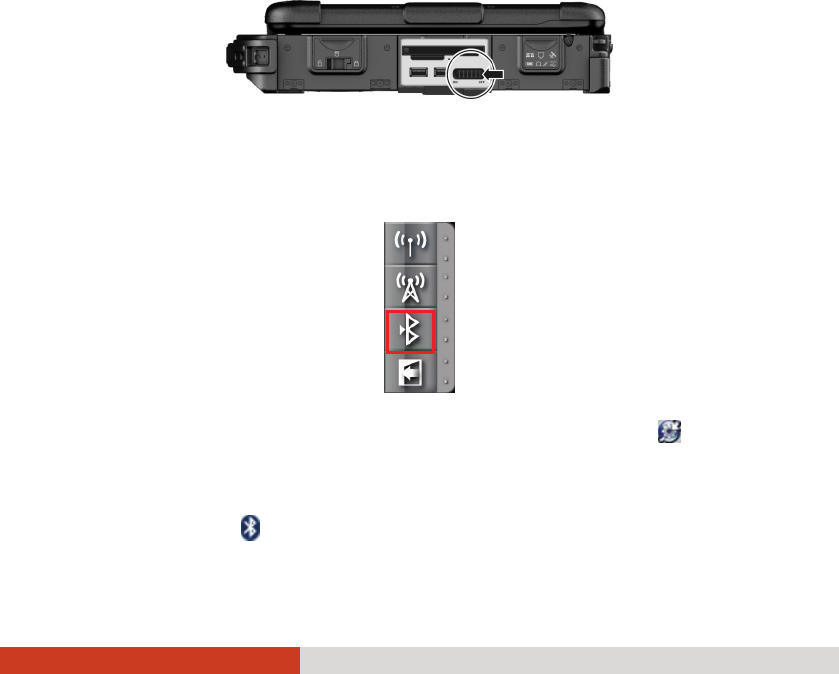

Turning On/Off the Bluetooth Radio .............................. 2-22

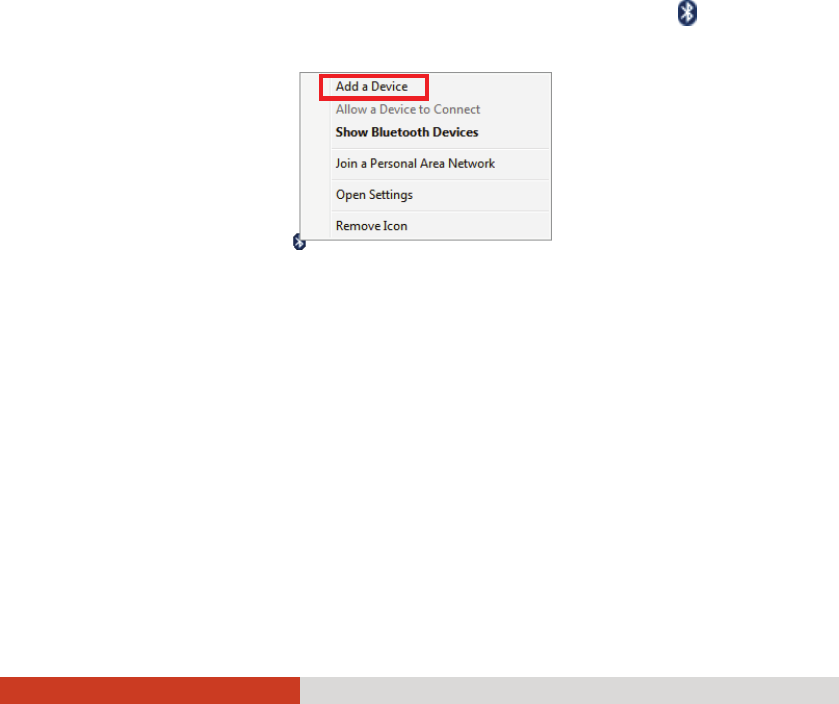

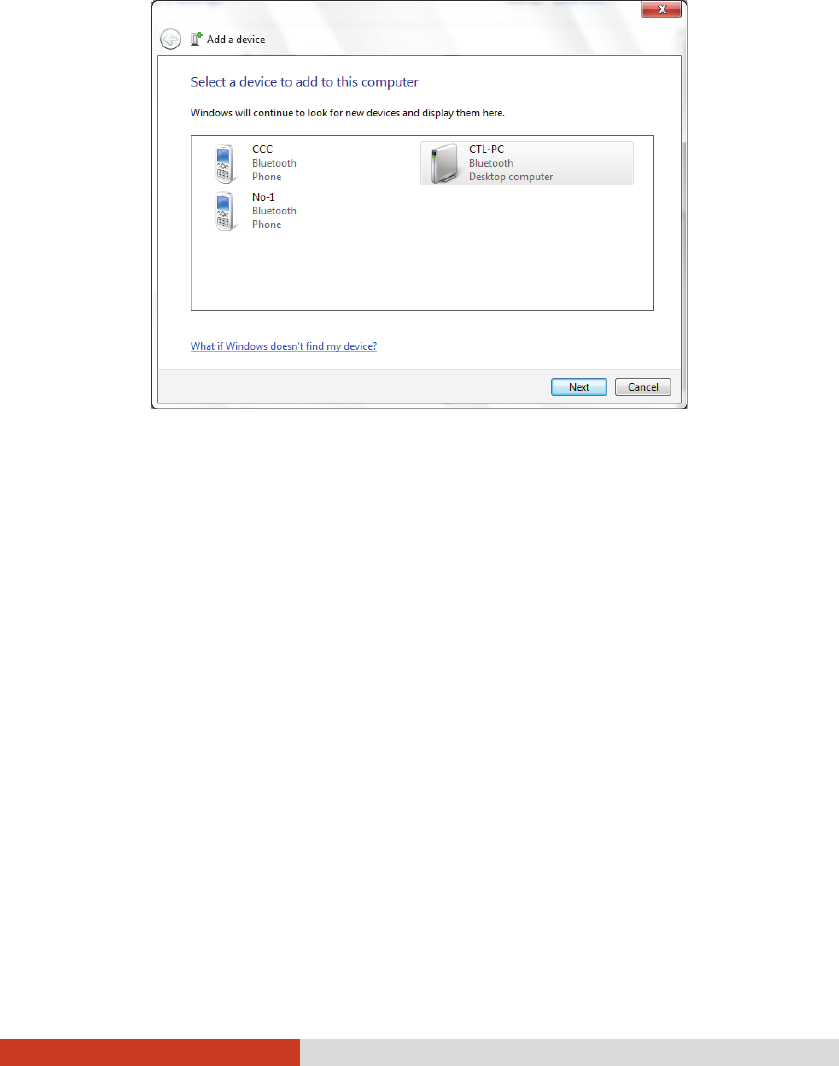

Connecting to another Bluetooth Device ....................... 2-23

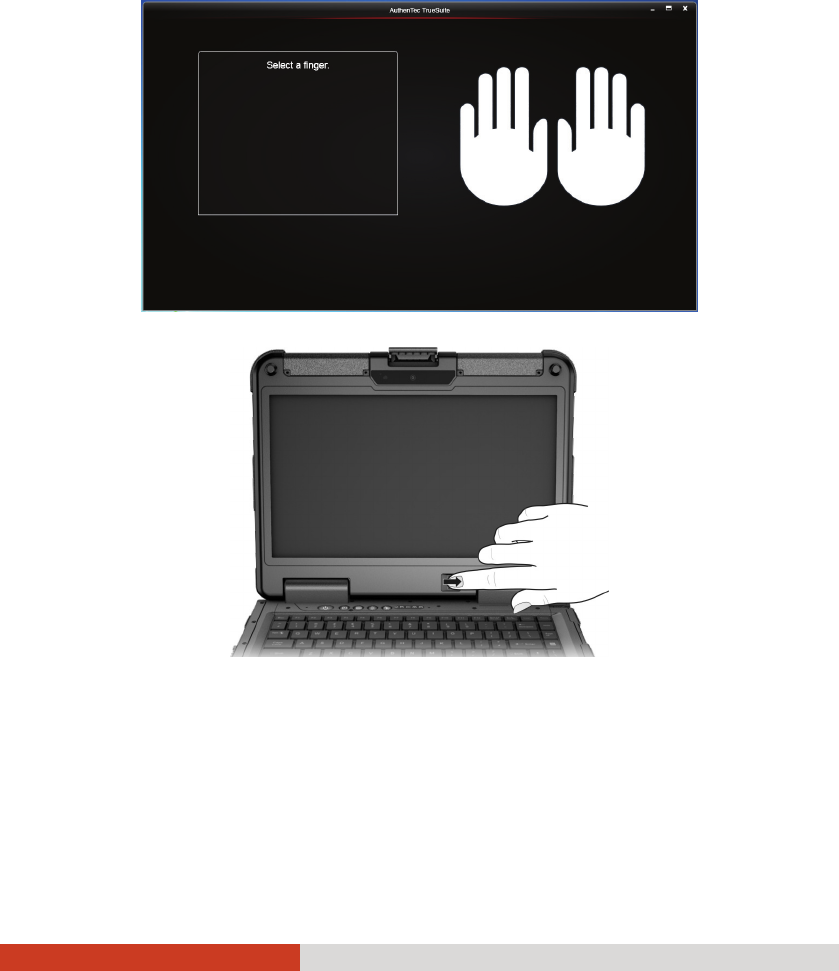

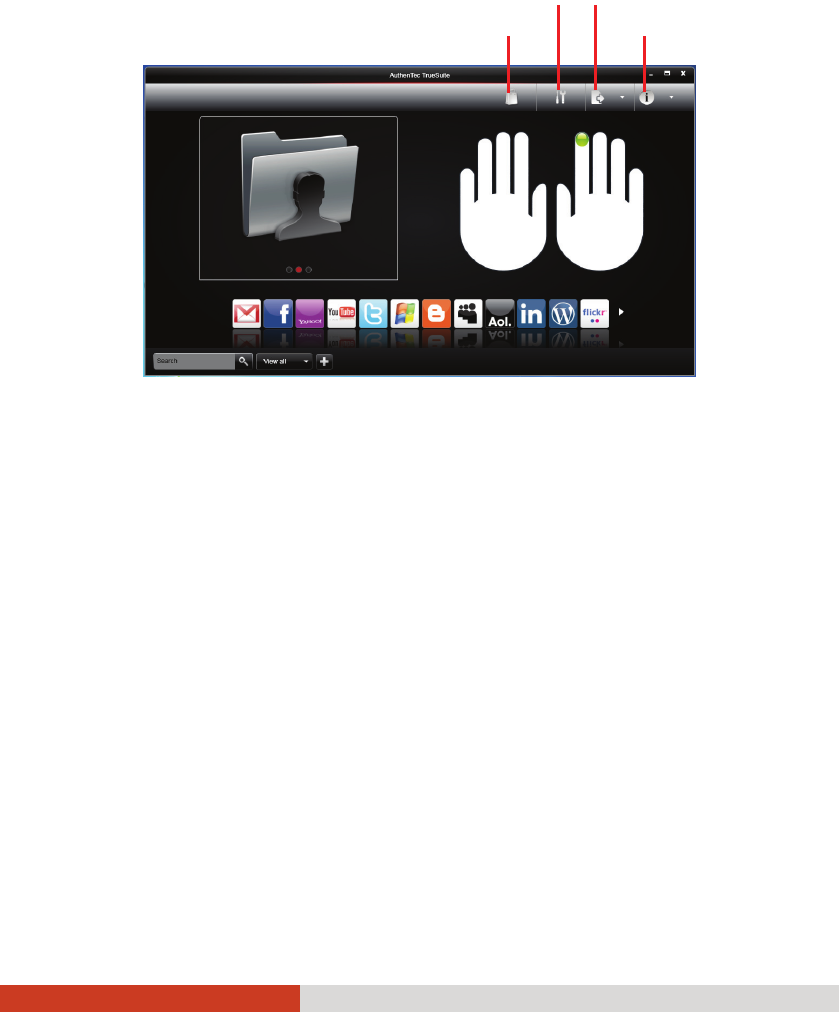

Using the Fingerprint Scanner ............................................. 2-25
Using the WWAN Feature (Optional) .................................. 2-28

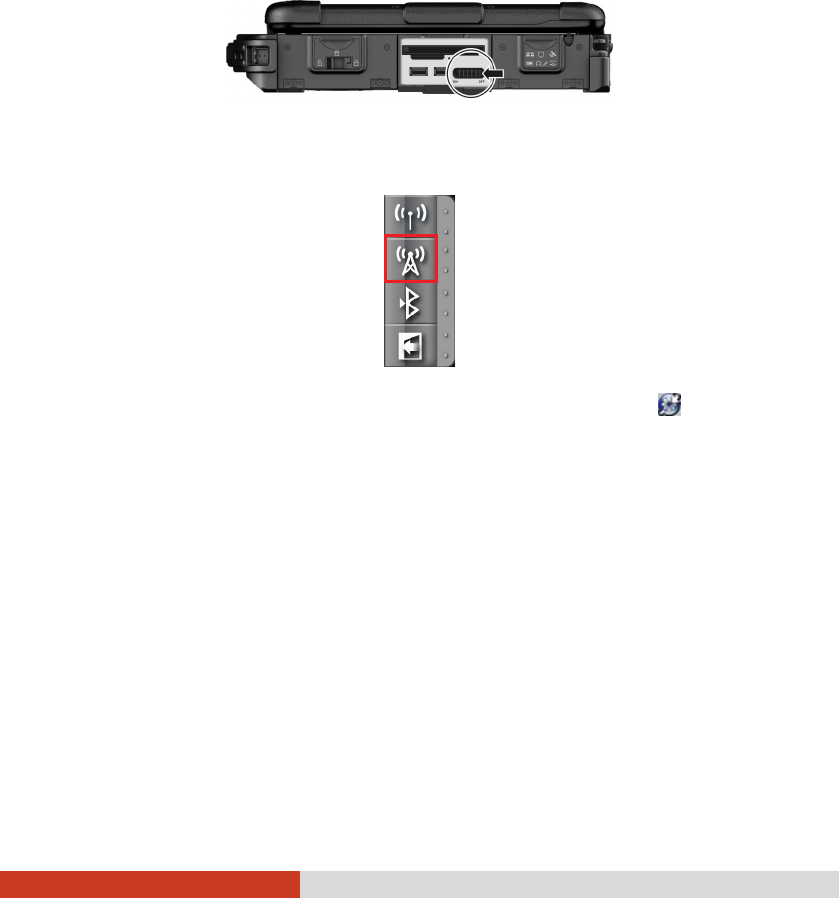

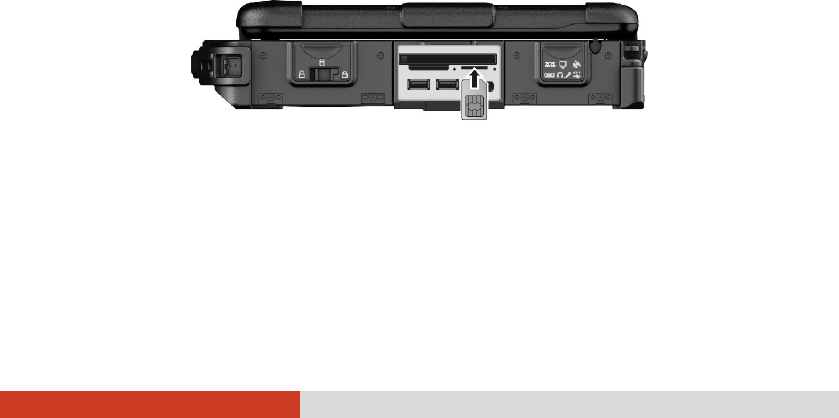

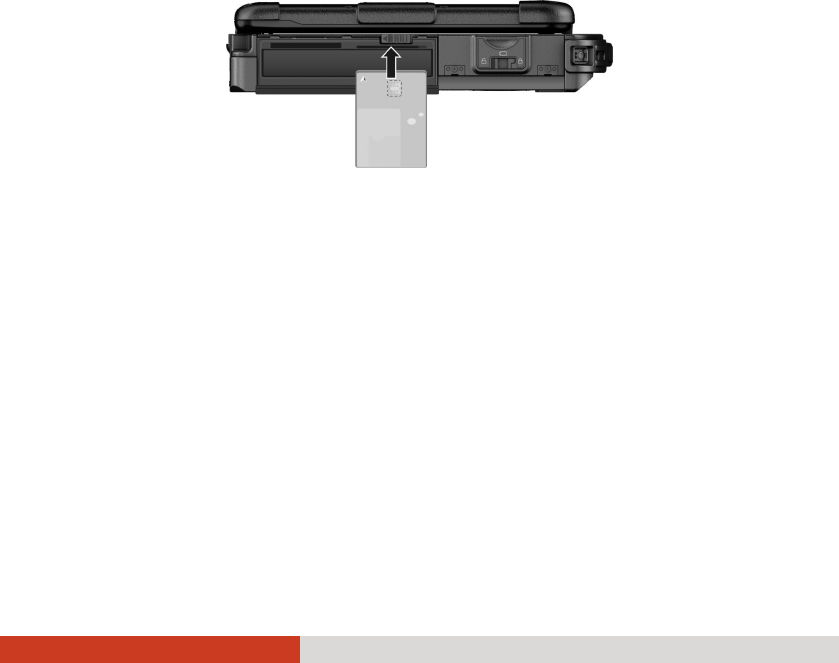

Installing a SIM Card ......................................................... 2-28
Turning On/Off the WWAN Radio .................................. 2-29
Setting up a WWAN Connection ..................................... 2-29
Chapter 3 Managing Power ............................................................... 3-1
AC Adapter .............................................................................. 3-2
Battery Pack ............................................................................. 3-3
Charging the Battery Pack ................................................. 3-3

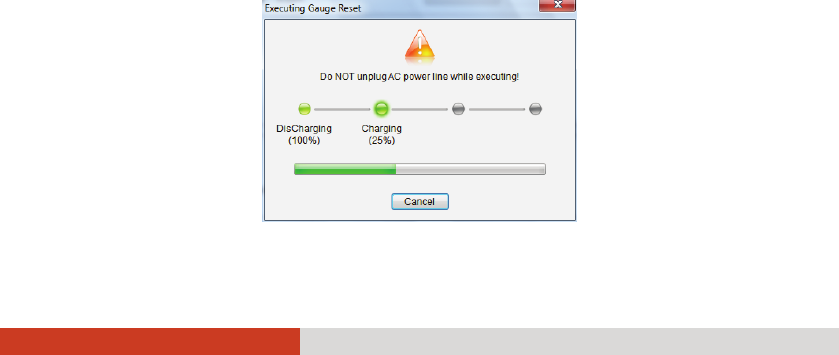

Initializing the Battery Pack ............................................... 3-4

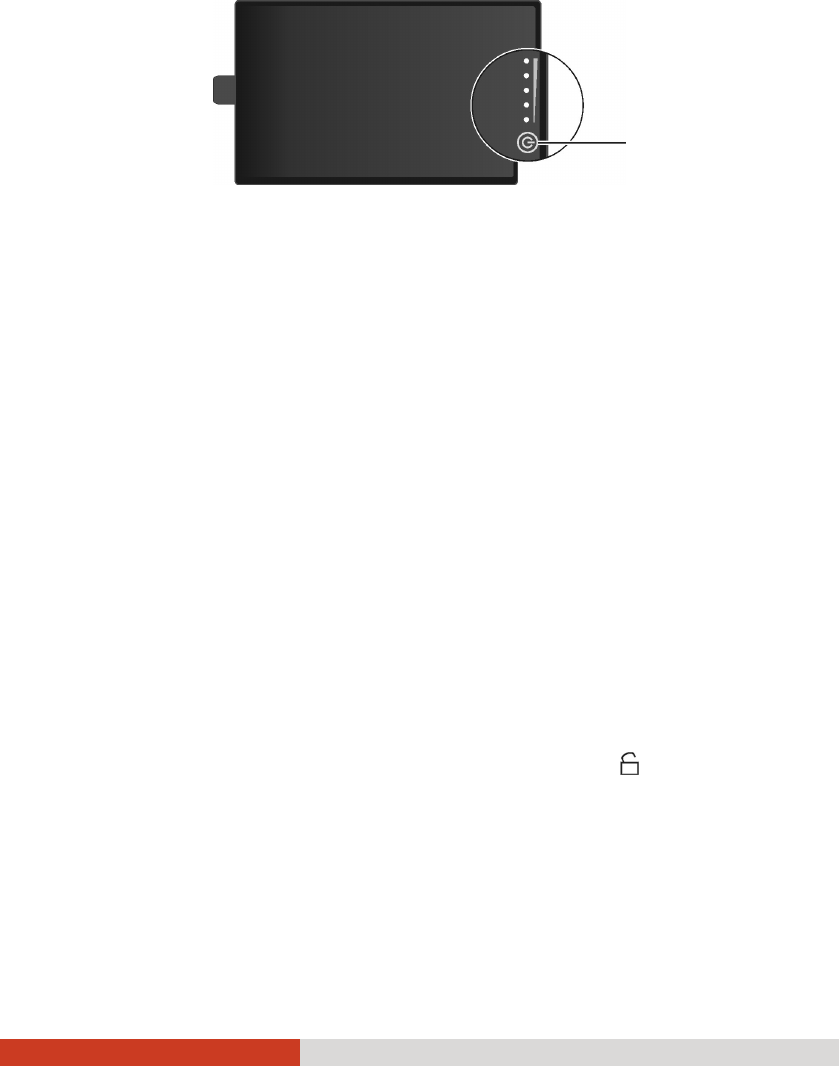

Checking the Battery Level ................................................ 3-4

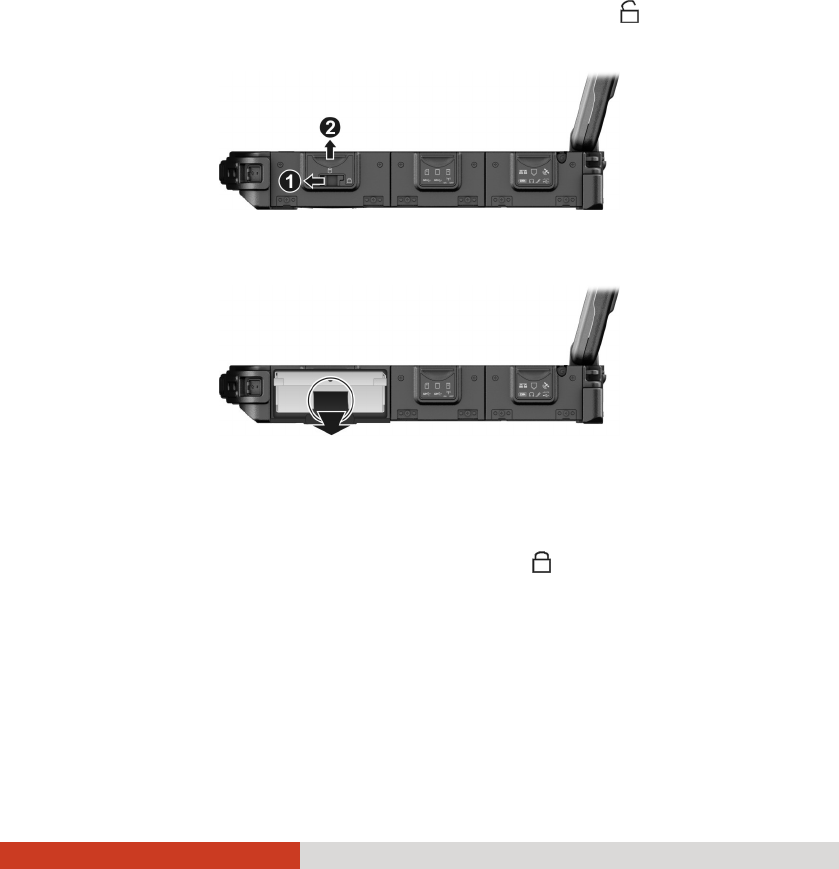

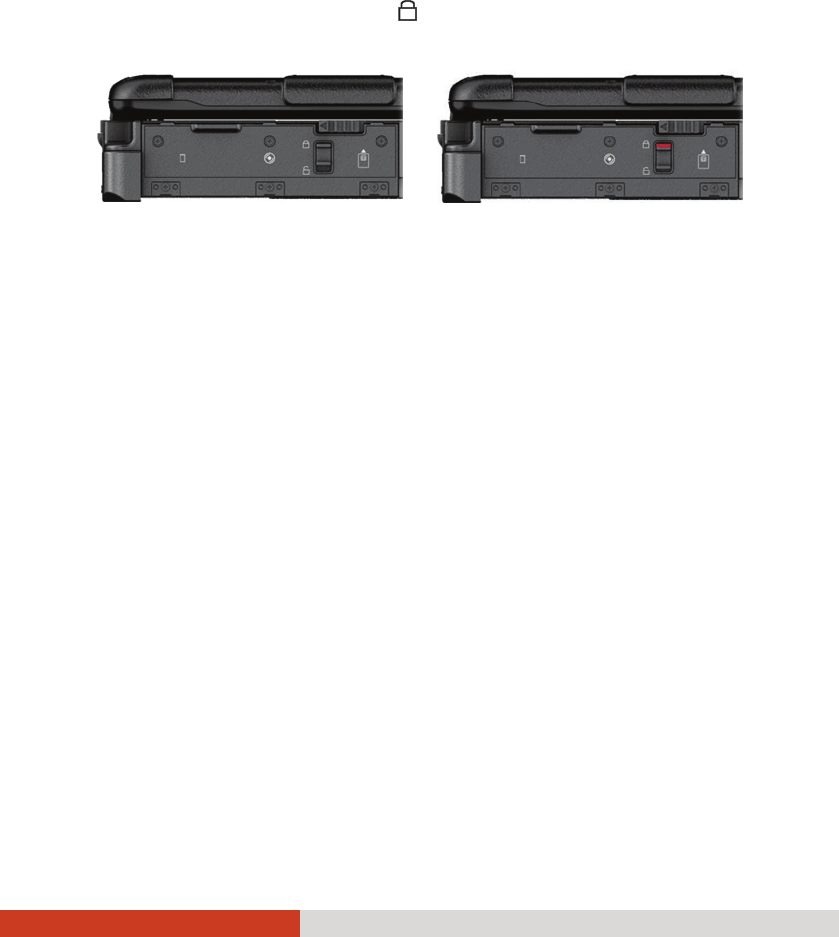

Replacing the Battery Pack ................................................ 3-5
Battery Low Signals and Actions ....................................... 3-7
Power Management ............................................................... 3-8
Hibernation ......................................................................... 3-9
Power-Saving Tips ................................................................. 3-10
Chapter 4 Expanding Your Computer ............................................... 4-1

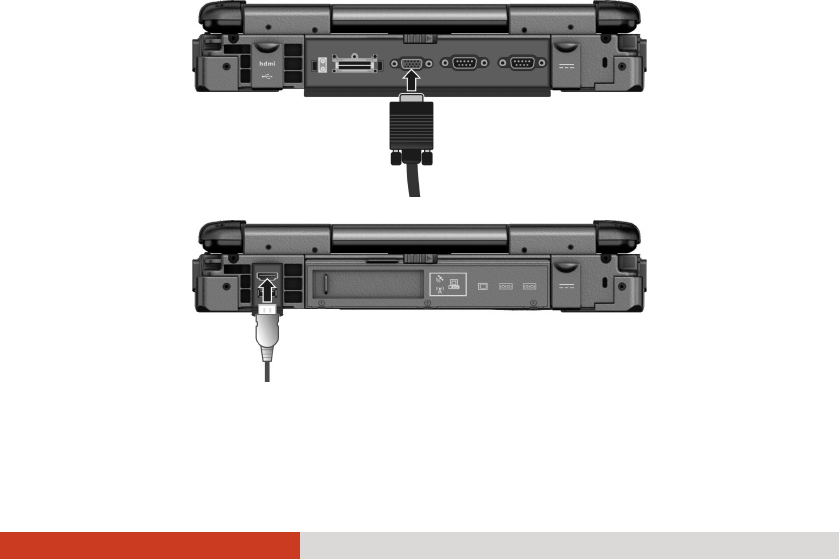

Connecting a VGA or HDMI Display Monitor ....................... 4-2

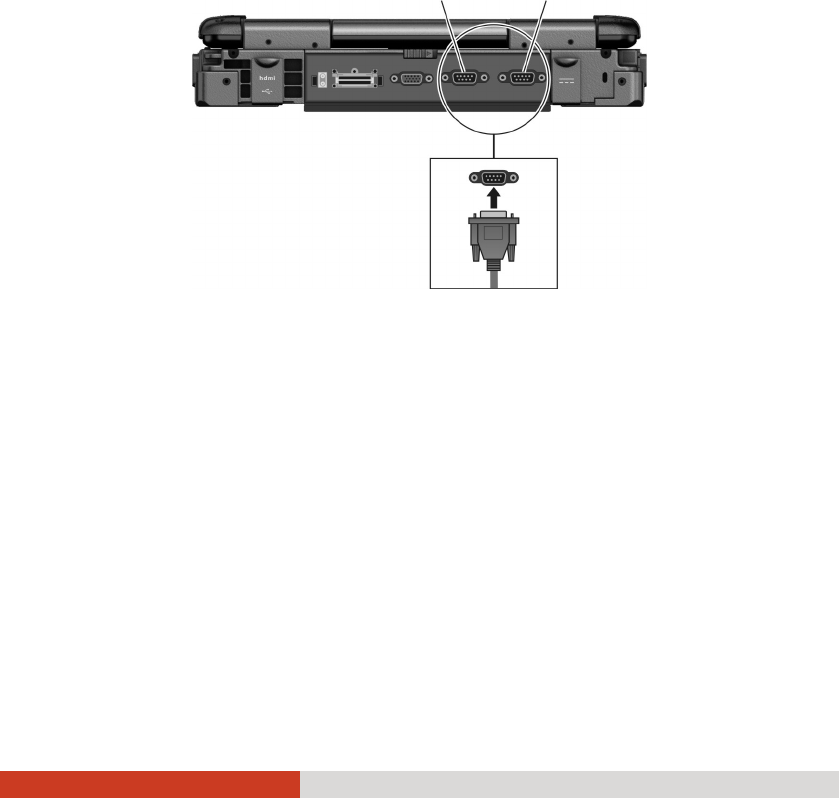

Connecting a Serial Device ..................................................... 4-4

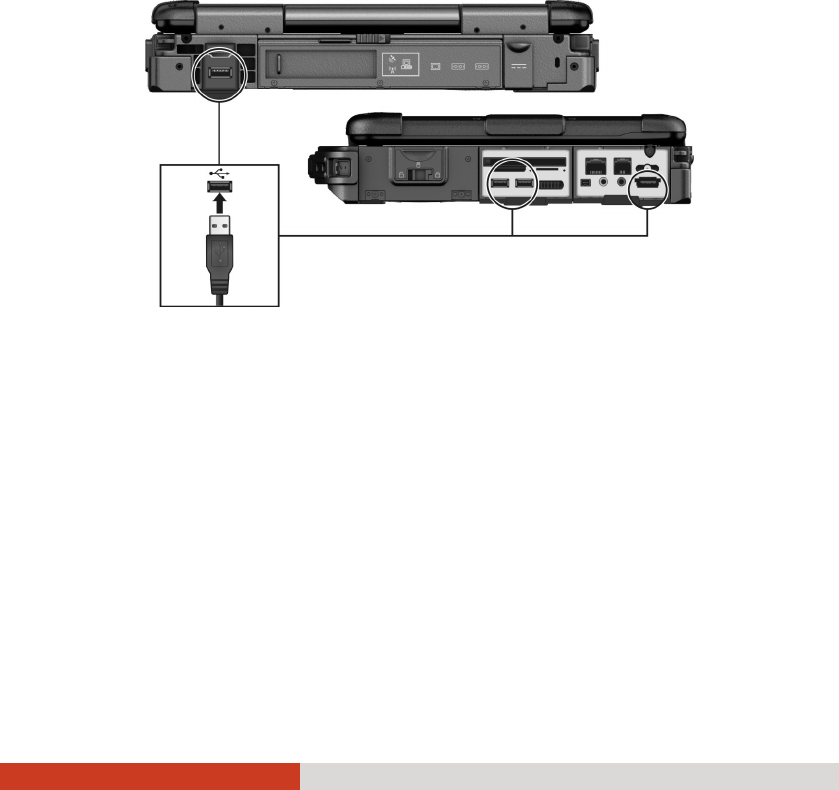

Connecting a USB Device ....................................................... 4-5
Connecting an eSATA Device ................................................. 4-6
Connecting an IEEE 1394 Device ............................................ 4-7

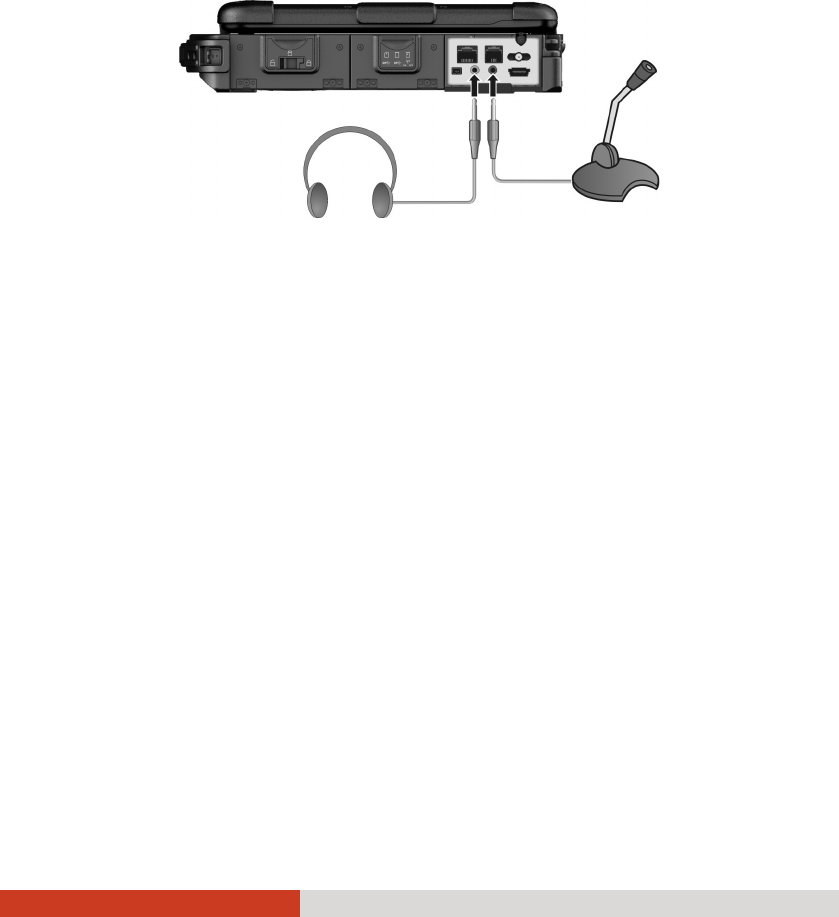

Connecting Audio Devices ..................................................... 4-8

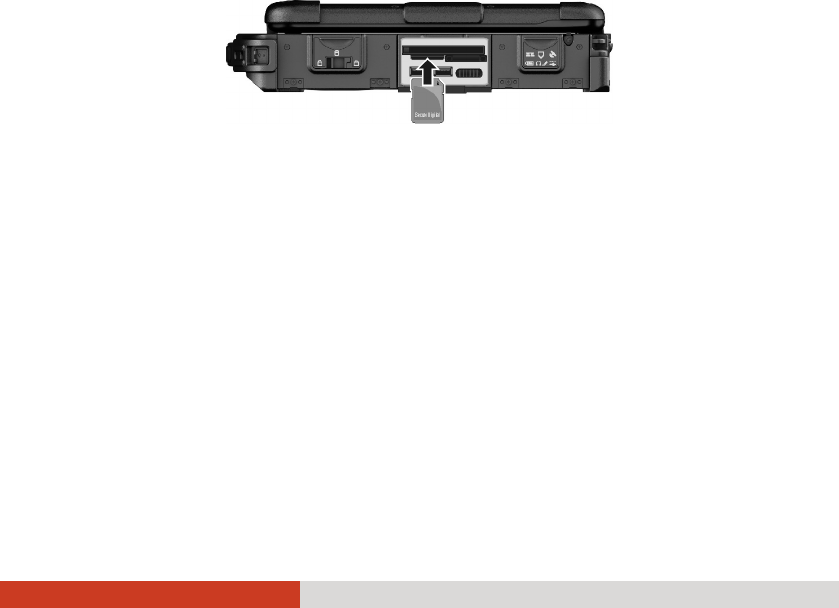

Using Smart Cards ................................................................... 4-9

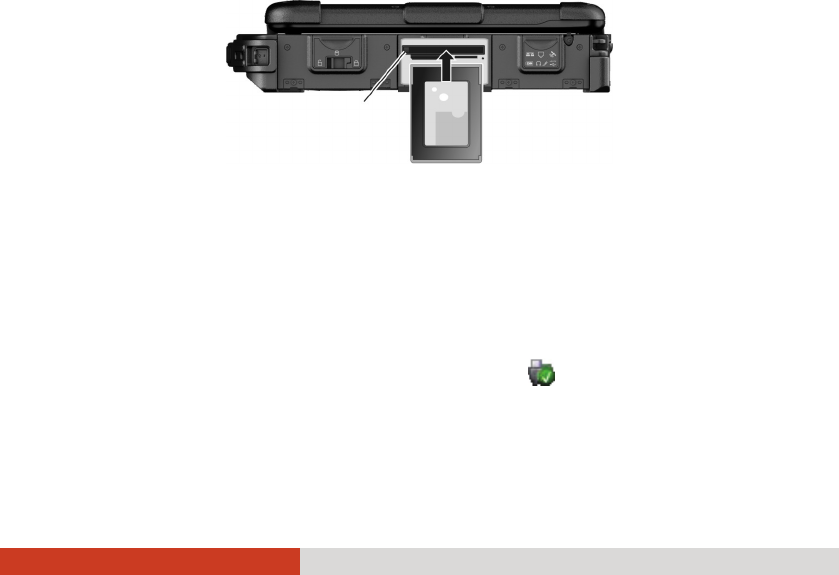

Using PC Cards ....................................................................... 4-10
Using ExpressCards ................................................................ 4-12
Using Storage Cards .............................................................. 4-14
iii

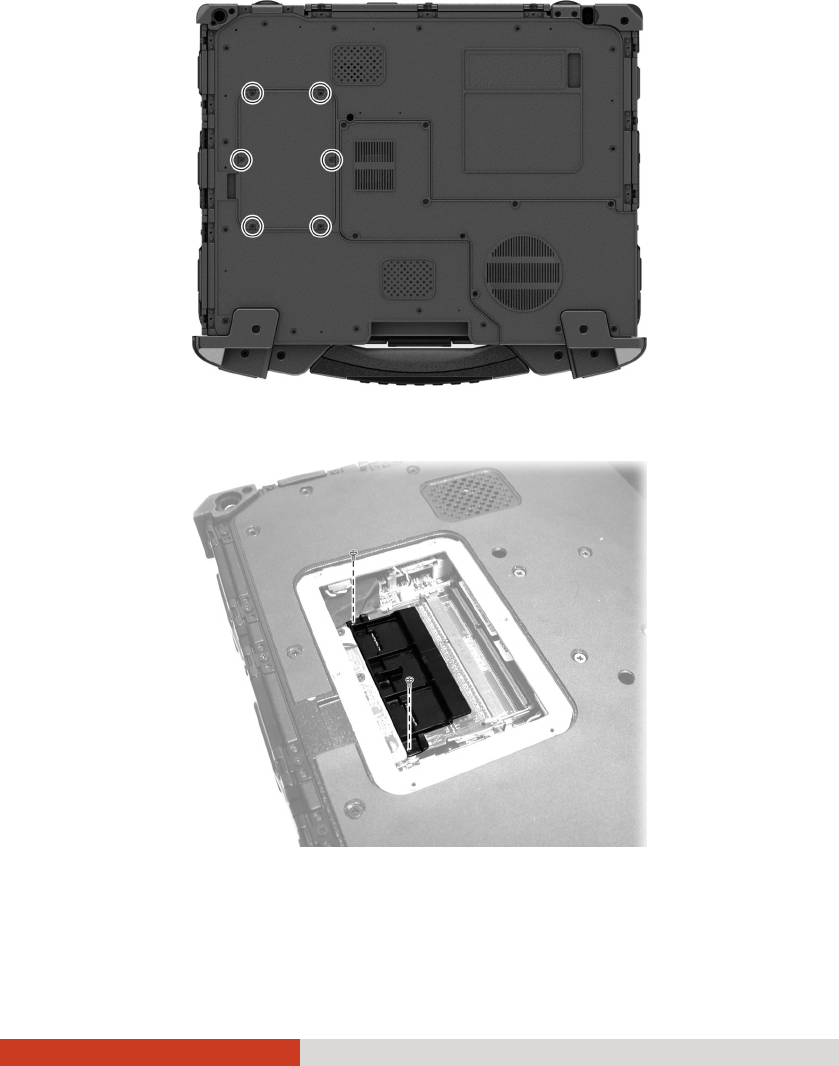

System Memory Upgrade ..................................................... 4-15
Replacing the Hard Disk Drive ............................................. 4-18
Installing a Secondary Battery Pack or Hard Disk Drive ..... 4-19
Chapter 5 Using BIOS Setup and System Recovery .......................... 5-1
BIOS Setup ............................................................................... 5-2
When and How to Use ....................................................... 5-2
Information Menu .............................................................. 5-3
Main Menu .......................................................................... 5-4
Advanced Menu .................................................................. 5-5
Security Menu ................................................................... 5-12
Boot Menu ........................................................................ 5-14
Exit Menu .......................................................................... 5-15

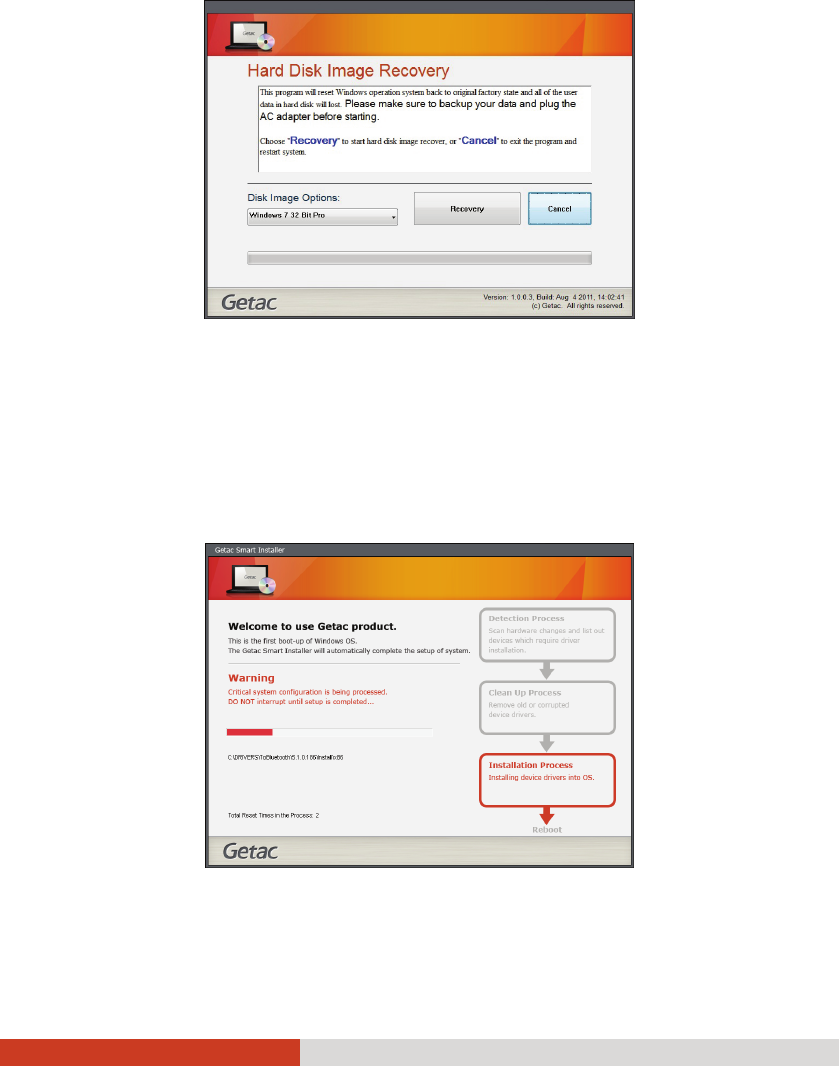

System Recovery .................................................................... 5-16
Chapter 6 Using Getac Software ....................................................... 6-1
Using G-Manager .................................................................... 6-2
Starting G-Manager ............................................................ 6-2

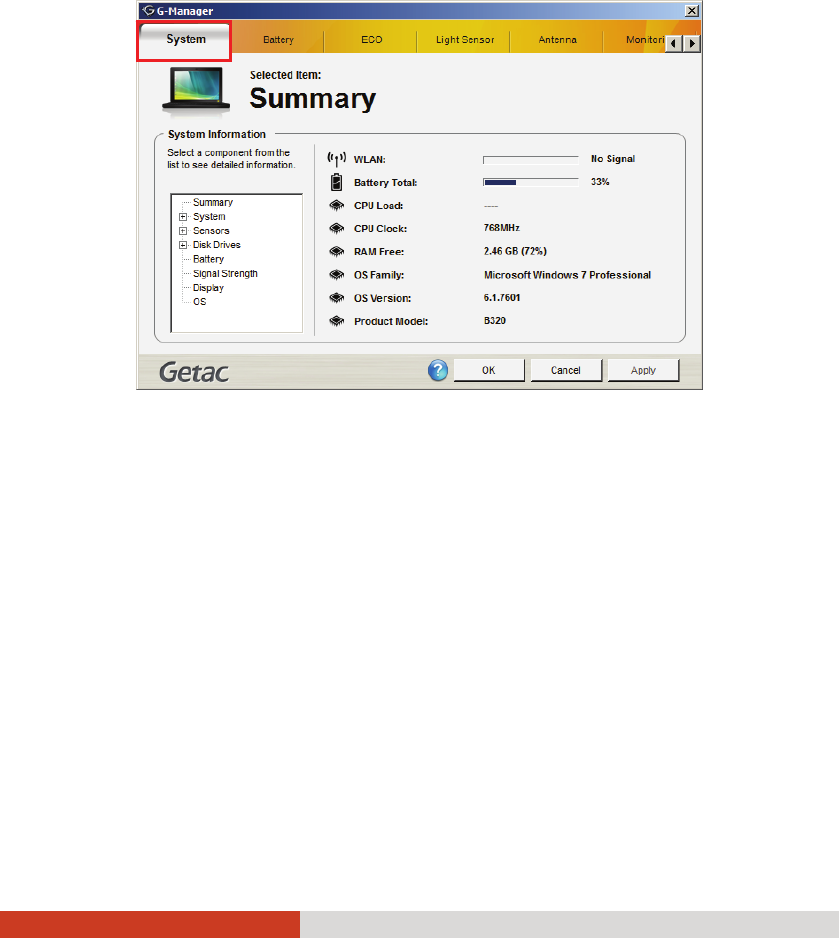

System Tab .......................................................................... 6-3

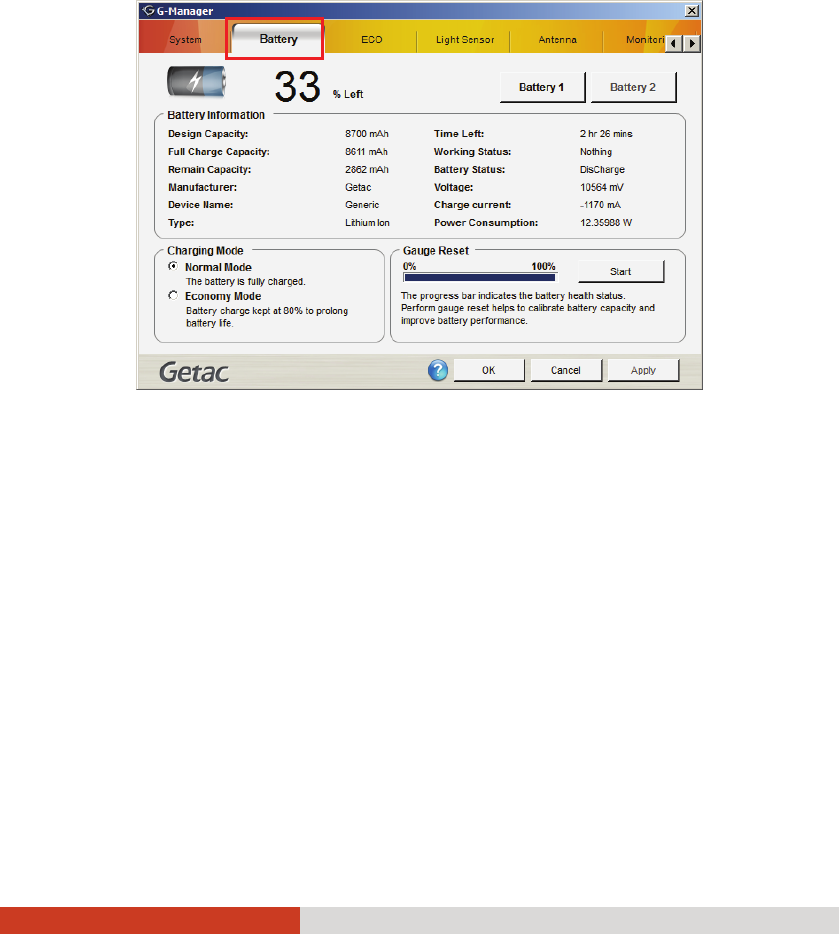

Battery Tab .......................................................................... 6-4

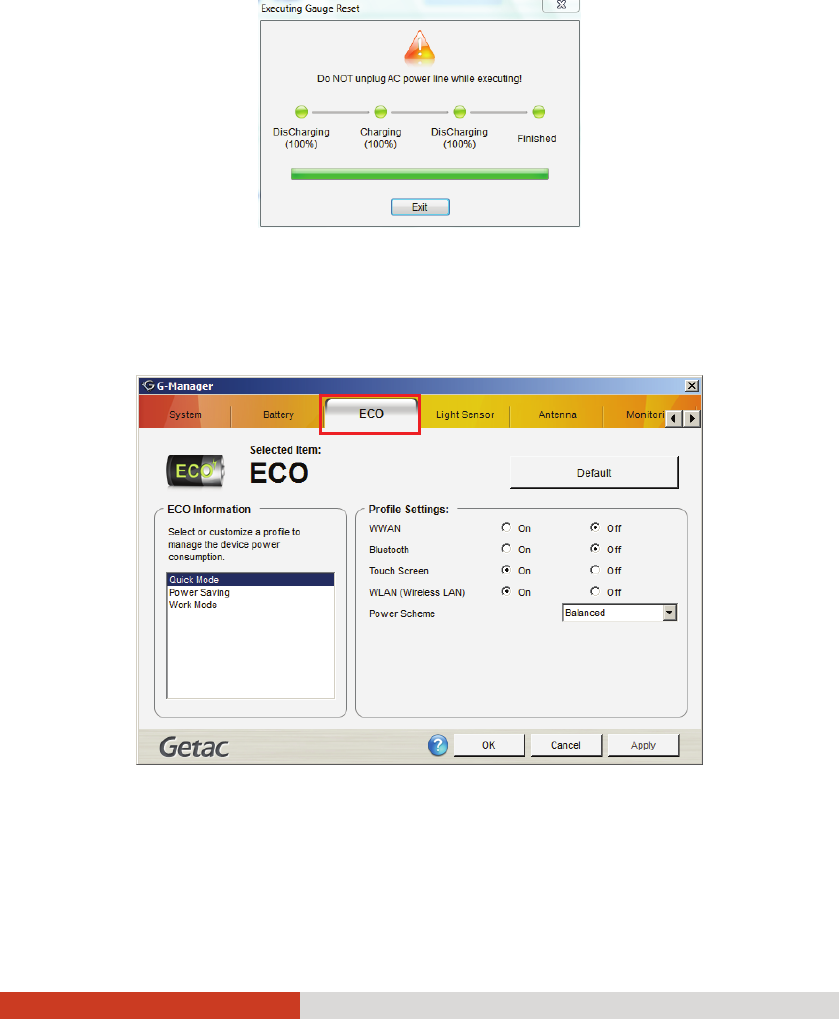

ECO Tab ............................................................................... 6-6
ECO Information ................................................................. 6-7

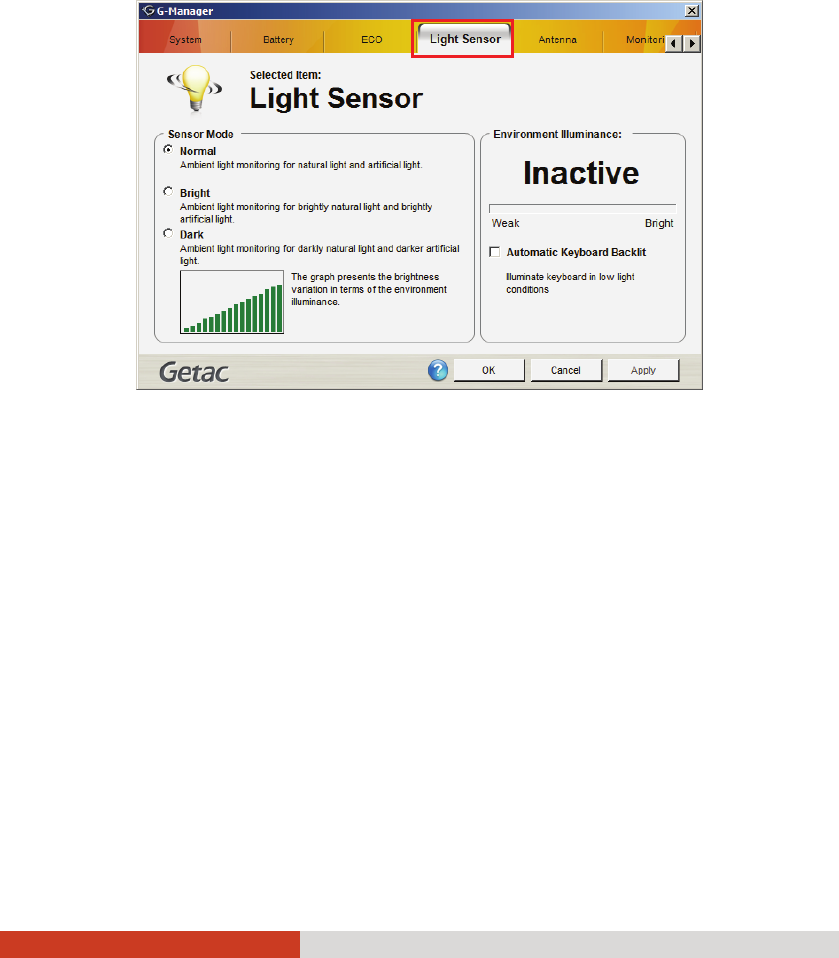

Light Sensor Tab ................................................................. 6-8

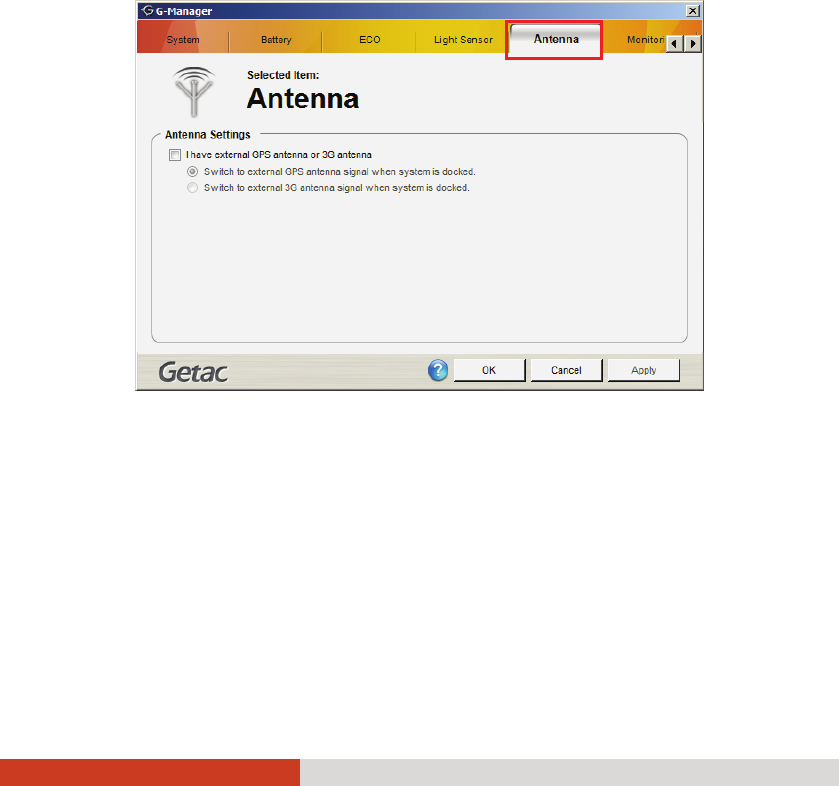

Antenna Tab ....................................................................... 6-9

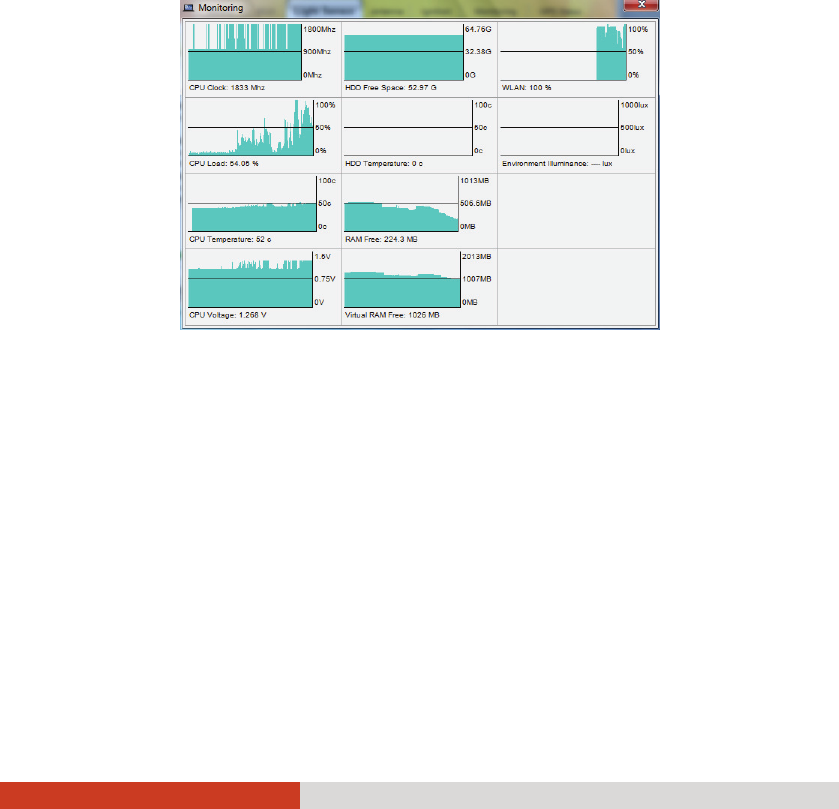

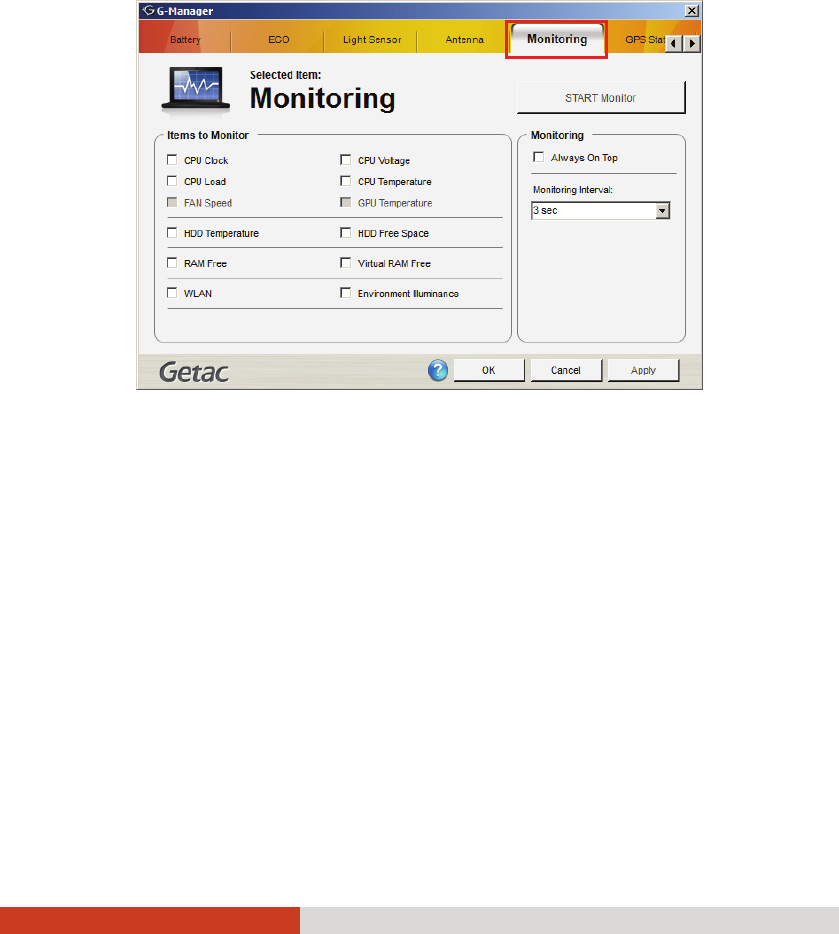

Monitoring Tab ................................................................. 6-10

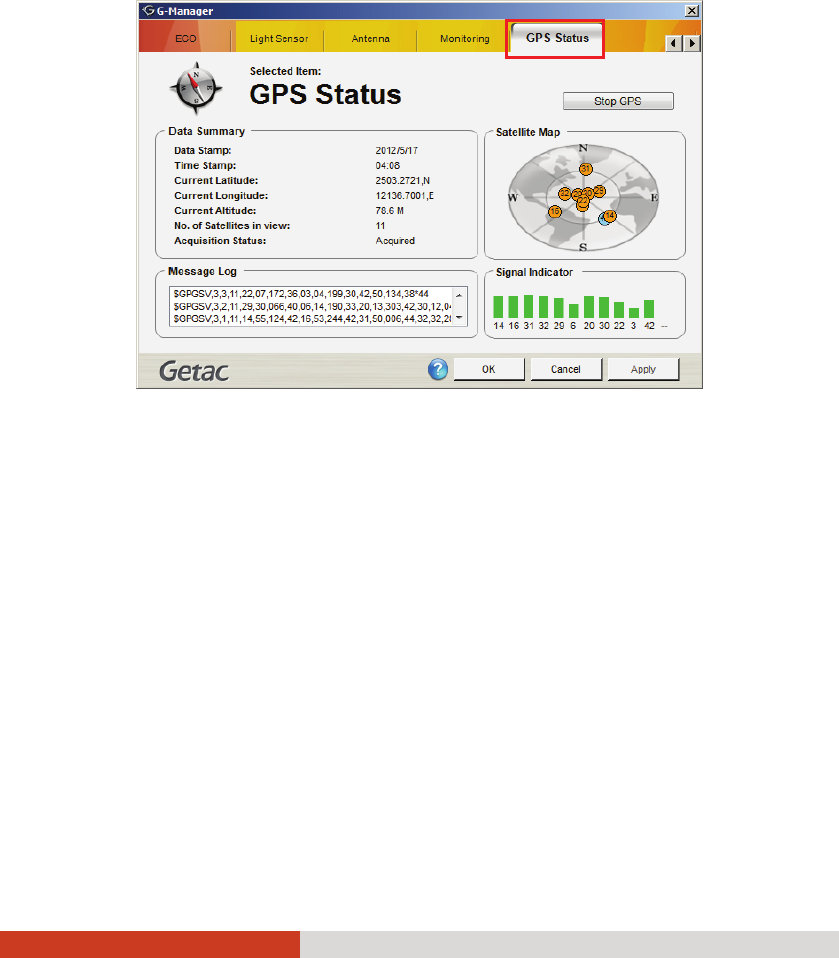

GPS Status Tab .................................................................. 6-12

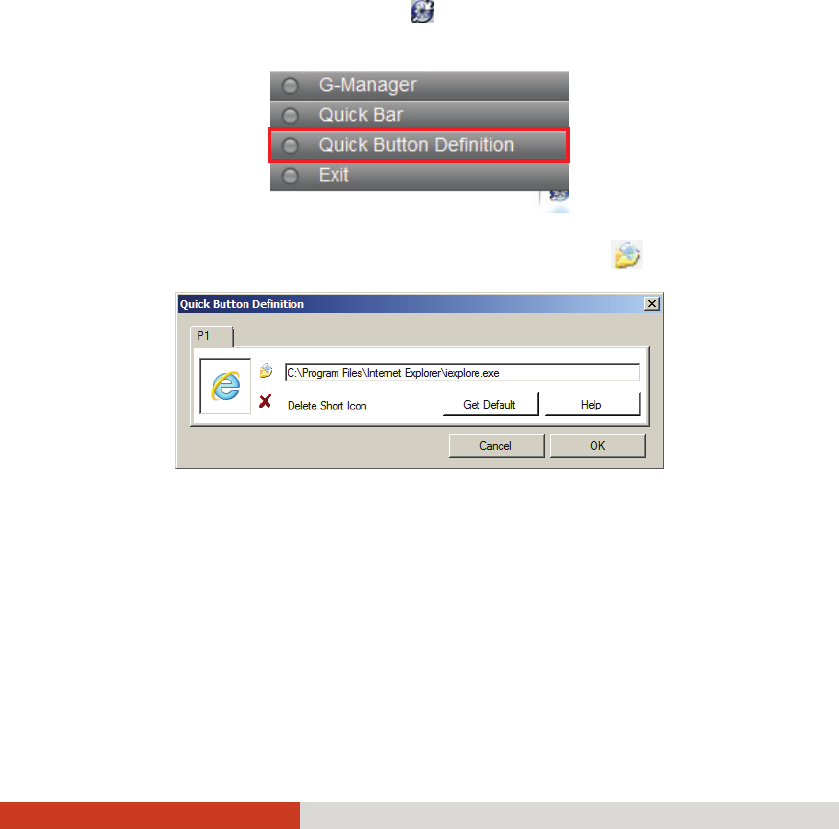

Quick Button Definition Utility ............................................ 6-13
Chapter 7 Caring for the Computer ................................................... 7-1
Protecting the Computer ....................................................... 7-2
Using an Anti-Virus Strategy ............................................. 7-2
Using Windows Action Center ........................................... 7-2
Using the Cable Lock .......................................................... 7-3
Taking Care of the Computer ................................................ 7-4
Location Guidelines ............................................................ 7-4
General Guidelines ............................................................. 7-4
Cleaning Guidelines ............................................................ 7-5
Battery Pack Guidelines ...................................................... 7-5
iv
Touchscreen Guidelines ...................................................... 7-7
When Traveling ....................................................................... 7-8
Chapter 8 Troubleshooting ................................................................ 8-1
Preliminary Checklist ............................................................... 8-2
Solving Common Problems .................................................... 8-3
Battery Problems ................................................................ 8-3
Bluetooth Wireless Transmission Problems ...................... 8-3
Display Problems ................................................................. 8-4
DVD Drive Problems ........................................................... 8-5
Hardware Device Problems ................................................ 8-5
Hard Disk Drive Problems ................................................... 8-6
Keyboard, Mouse, and Touchpad Problems ..................... 8-6
LAN Problems ...................................................................... 8-7
Power Management Problems .......................................... 8-7
Software Problems ............................................................. 8-8
Sound Problems .................................................................. 8-8
Startup Problems ................................................................ 8-9
WLAN Problems ................................................................ 8-10
Other Problems ................................................................. 8-11
Resetting the Computer ....................................................... 8-12
Appendix A Specifications .................................................................... A-1
Appendix B Regulatory Information ................................................... B-1
On the Use of the System ....................................................... B-2
Class B Regulations ............................................................. B-2
Safety Notices ..................................................................... B-3
On the Use of the RF Device .................................................. B-6
USA and Canada Safety Requirements and Notices ........ B-6
European Union CE Marking and Compliance Notices .... B-9
Getting Started 1-1
Chapter 1
Getting Started
Congratulations on purchasing this rugged computer.
This chapter first tells you step by step how to get the computer up and
running. Then, you will find a section briefly introducing the external
components of the computer.
1-2 Getting Started
Getting the Computer Running
This section guides you through the procedures for getting the computer
ready for operation.
Unpacking
After unpacking the shipping carton, you should find these standard items:
Rugged computer
Accessories:
AC adapter
AC power cord
Driver disc
Document(s)
Stylus and tether (depending on your model)
Inspect all the items. If any item is damaged or missing, notify your dealer
immediately.
Keep the shipping carton and packing materials in case you need to ship or
store the computer in the future.
Getting Started 1-3
Using the Tether (Optional)
A tether is provided for attaching the stylus to your computer.
1. Insert one of the tether’s loop ends through the hole of the stylus (as
indicated by below). Then, insert the other end through the first loop
(as indicated by below) and pull it tight.
2. Insert the other loop end to the tether hole on the computer (as
indicated by below). Then, insert the stylus end through the loop (as
indicated by below) and pull it tight.
1-4 Getting Started
Connecting to AC Power
The computer operates either on the external AC power or internal battery
power. It is suggested that you use AC power when you start up the
computer for the very first time.
CAUTION: Use only the AC adapter included with your computer. Using
other AC adapters may damage the computer.

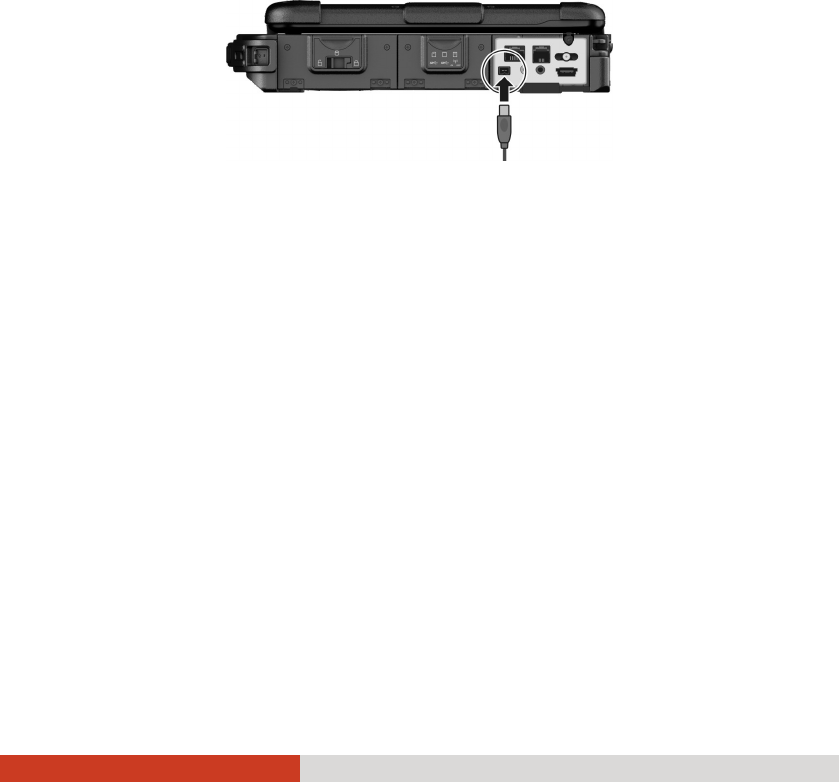

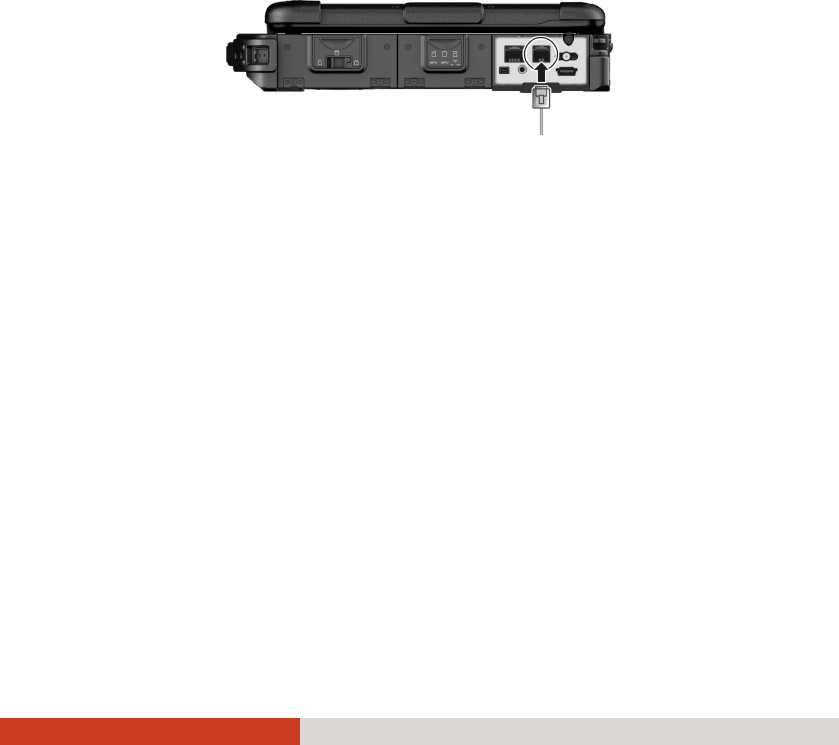

1. Plug the DC cord of the AC adapter to the power connector of the
computer ().
2. Plug the female end of the AC power cord to the AC adapter and the
male end to an electrical outlet ().
3. When the AC adapter is connected, power is being supplied from the
electrical outlet to the AC adapter and onto your computer. Now, you
are ready to turn on the computer.
Getting Started 1-5
CAUTION:
When you disconnect the AC adapter, disconnect from the electrical
outlet first and then from the computer. A reverse procedure may
damage the AC adapter or the computer.
When unplugging the connector, always hold the plug head. Never pull
on the cord.
NOTE: When the AC adapter is connected, it also charges the battery pack.
For information on using battery power, see Chapter 3.
Turning On and Off the Computer
Turning On
1. Open the top cover by pulling the cover latch and lifting up the cover.
You can tilt the cover forward or backward for optimal viewing clarity.
1-6 Getting Started
2. Press the power button ( ).

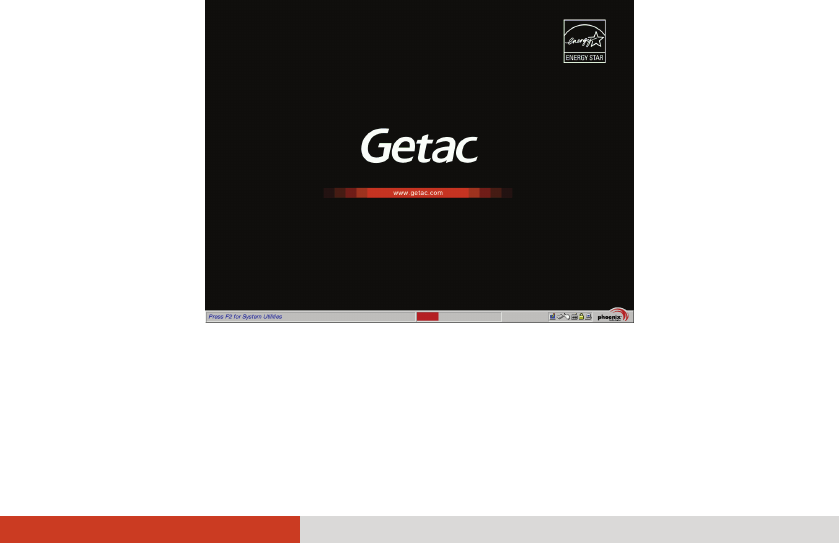

3. Each time the computer is turned on, it performs a Power-On Self Test
(POST), and the operating system such as Windows should start.
Turning Off
When you finish a working session, you can stop the system by turning off
the power or leaving it in Sleep or Hibernation mode:
To... Do this...
Power off
(Shutdown)
Use the Windows Start menu in the lower left and follow
the shutdown procedure.
Sleep Press the power button* or use the Windows Start menu
to put the computer in Sleep mode.
Hibernate Use the Windows Start menu to put the computer in
Hibernation mode. (See “Hibernation” in Chapter 3 for
more information.)
* “Sleep” is the default setting of the power button. You may change what
the power button does in Windows Control Panel.
Getting Started 1-7
Taking a Look at the Computer
NOTE: Depending on the model you purchased, the appearance of your
computer may not be exactly the same as those shown in this manual.
CAUTION: You need to open the protective covers to access the connectors
or devices inside. When not accessing a connector or device, make sure to
close the cover completely for water-, dust-, and fire-proof integrity of your
computer. (Engage the locking mechanism if existing.)

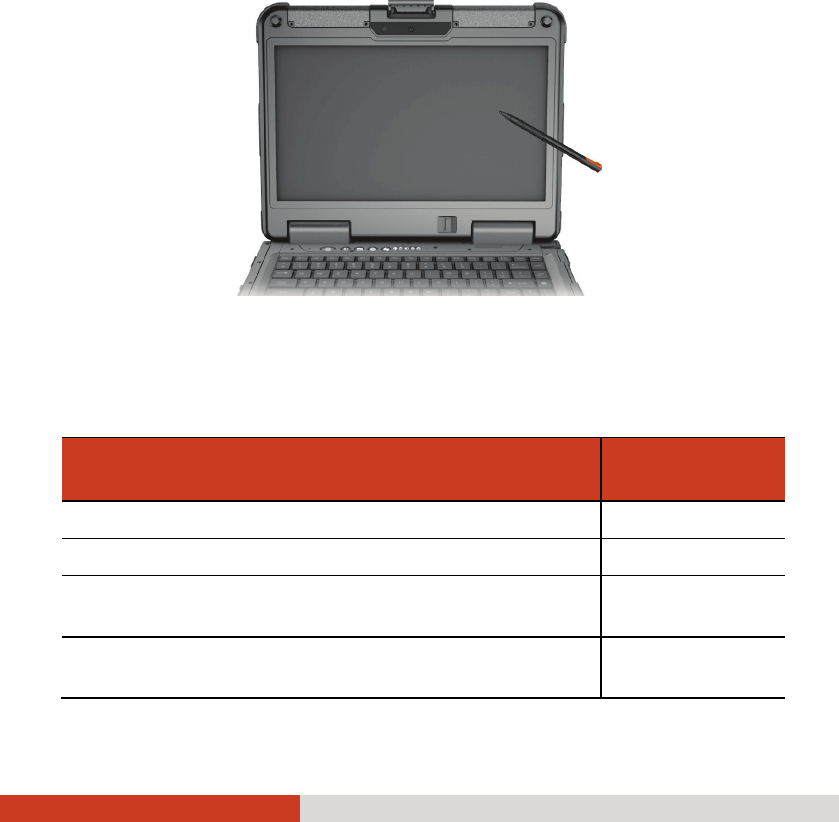

Top-open Components
1-8 Getting Started
Ref Component Description See Also
Top Cover Latch Locks the top cover. P. 1-5
Camera Lens
(optional)
Allows you to use the camera function.
LCD Screen Displays the output of the computer. May
include the optional touchscreen feature.
P. 2-9
Indicators
HDD Heater
(optional)
Lights amber when the optional hard disk
drive heater is on.
P. 8-9
Hard Disk
Drive
Blinks green when the computer is
accessing the hard disk.
Card
Reader
Blinks green when the computer is
accessing the storage card.
P. 4-14
Caps Lock Lights green when Caps Lock is on. P. 2-3
Num Lock Lights green when Num Lock is on. P. 2-3
Fingerprint
Scanner
Serves as the fingerprint verification,
preventing unauthorized access to your
computer.
P. 2-29
Microphone Receives sound and voice for the
computer.
Keyboard Serves as the data input device of the
computer.
P.2-2
Indicators
Power Lights green when the computer is on. P. 1-5
Lights amber when the computer is in
Sleep mode.
Getting Started 1-9
Ref Component Description See Also
Battery
Charge
Lights green when the battery is fully
charged.
P. 3-3
Lights amber when the battery is being
charged.
Blinks amber when the battery’s capacity
is below 10 %.
P. 3-7
Wireless
LAN
Lights green when the wireless LAN radio
is on.
P. 2-19
Bluetooth Lights green when the Bluetooth radio is
on.
P. 2-22
WWAN Lights green when the WWAN radio is on. P. 2-29

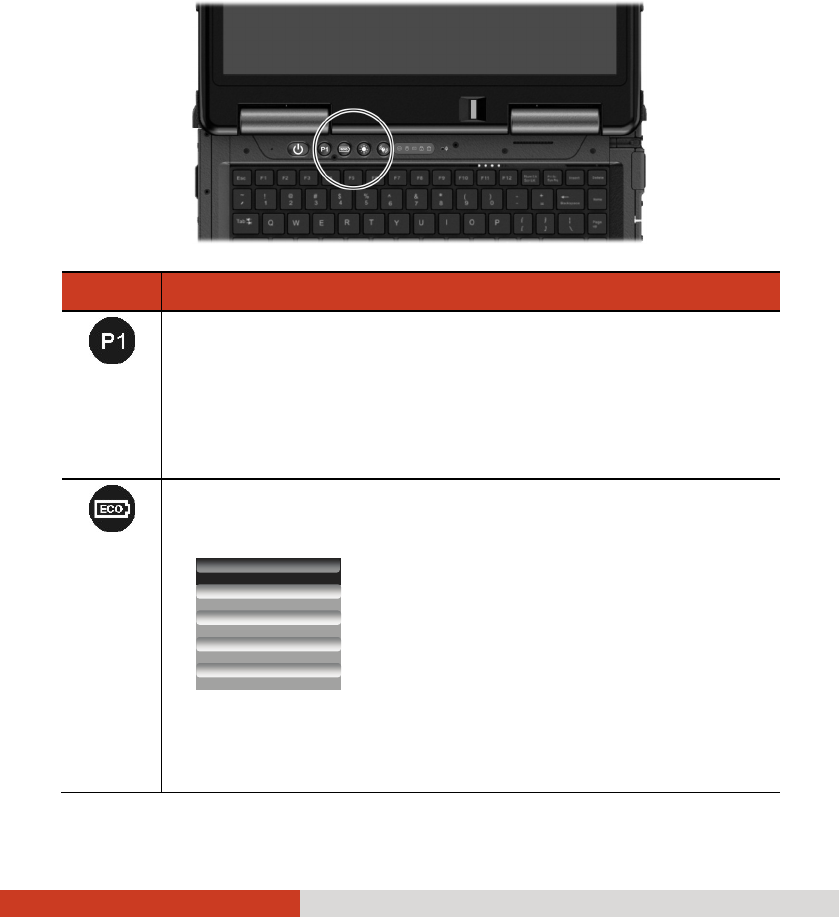

Quick Buttons P. 2-13
P1 Toggles Blackout mode on or off. (The
function can be redefined.)
Brings up the ECO menu for selecting a
power profile when using battery power.
Toggles the sunlight-readable mode on or
off.
Enables or disables the light sensor.
Power Button Turns the power on or off (Sleep mode by
default).
P. 1-5

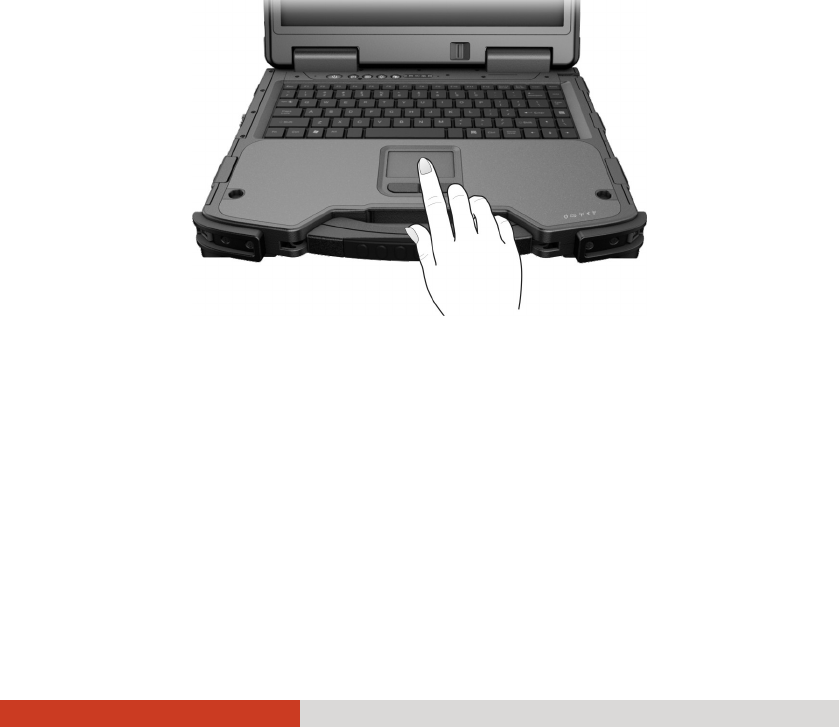

Touchpad Serves as the pointing device of the
computer.
P. 2-6
Strap Holder Two buckles hold the shoulder strap.
Handle Provides a convenient way to carry the
computer.
1-10 Getting Started
Rear Components
Ref Component Description See Also
HDMI
Connector
Connects a HDMI (High-Definition
Multimedia Interface) monitor or TV set.
P. 4-2
USB 2.0 Port Connects a USB device, such as a USB flash
disk, printer, digital camera, joystick, and
more.
P. 4-5
WLAN Pass-
through
Connector
(optional)
Connects the external antenna for WLAN
(wireless local area network) connectivity.
NOTE: Must be connected via docking.
WWAN Pass-
through
Connector
(optional)
Connects the external antenna for WWAN
(wide area network) transmission.
NOTE: Must be connected via docking.
Docking
Connector
Connects to the Vehicle Dock (purchased
separately).
VGA Connector Connects an external display monitor. P. 4-2
Getting Started 1-11
Ref Component Description See Also
Serial
Connector
Connects a serial device. The left one is
COM1 and the right one is COM2.
P. 4-4
Power
Connector
Connects the AC adapter. P. 1-3

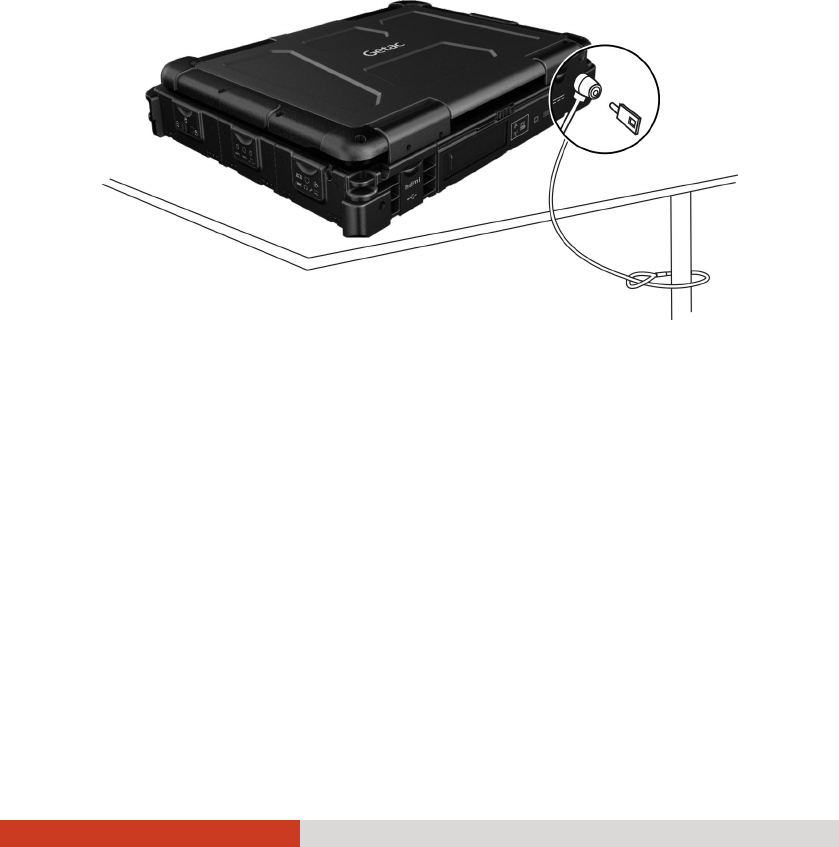

Kensington
Lock
Locks the computer to a stationary object
for security.
P. 7-2

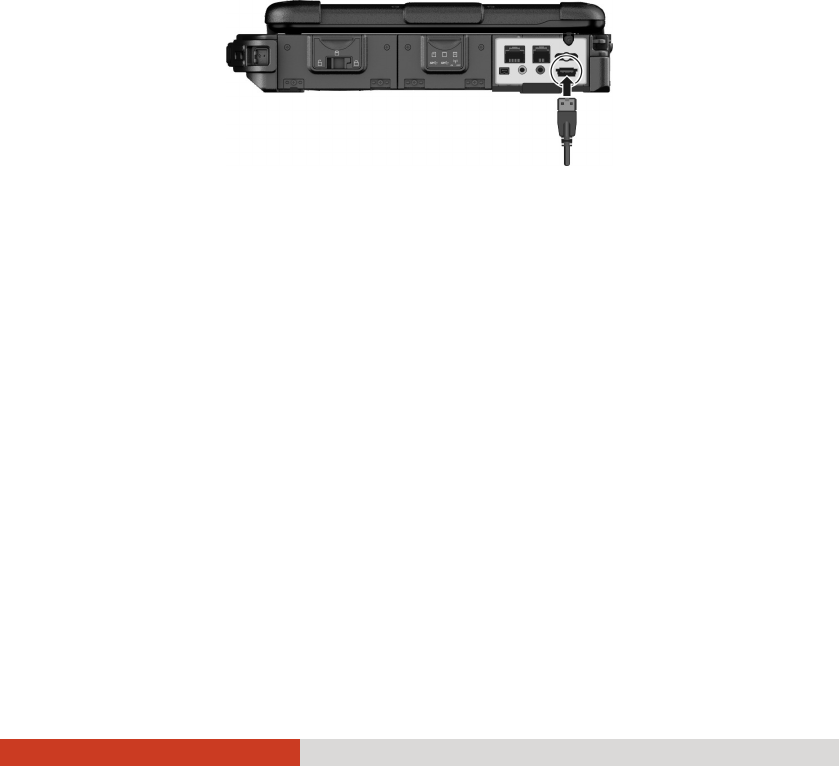

Right-Side Components
Ref Component Description See Also
PC Card Slot Accepts a PC card for additional functions.
There are two slots.
P. 4-9
SIM Card Slot Accepts a SIM card for models having the
WWAN module.
NOTE: The slot still exists but cannot be
used for models without the WWAN
module.
1-12 Getting Started
Ref Component Description See Also
RJ-45
Connector
Connects the LAN cable. The left one is
LAN1 and the right one is LAN2.
P. 2-18
RJ-11
Connector
Connects the telephone line. P. 2-18
Stylus
(optional)
Serves as the input device by tapping on the
touchscreen to make selections and enter
information.
P. 2-9
Tether Hole Stylus tethered to this hole. P. 1-3
Hard Disk
Drive
Inside is the hard disk drive.
MMC/SD Card
Reader
Accepts a MultiMediaCard (MMC) or Secure
Digital (SD) card for removable storage
media.
P. 4-14
USB 3.0 Port Connects a USB device, such as a USB flash
disk, printer, digital camera, joystick, and
more.
P. 4-5
RF (radio
frequency)
Switch
Serves as the master on/off control of the RF
radio.
When set to OFF, all wireless modules (such
as WLAN, Bluetooth, and WWAN) cannot be
used. When set to ON, individual settings of
the module work.
P. 2-19
P. 2-22
P. 2-29
Mini IEEE 1394
Port
Connects an IEEE 1394 device such as a
scanner, printer, DVCAM, and VCR.
P. 4-7
Audio Output
Connector
Connects a set of headphones or external
speakers with amplifier.
P. 4-8
Microphone
Connector
Connects an external microphone. P. 4-8
Getting Started 1-13
Ref Component Description See Also
eSATA II /USB
3.0 Combo
Port
Connects an eSATA device such as an
external hard drive or optical drive.
P. 4-6
Can also function as a USB port. P. 4-5
GPS Pass-
through
Connector
(optional)
Connects to the external antenna for GPS
signal reception.

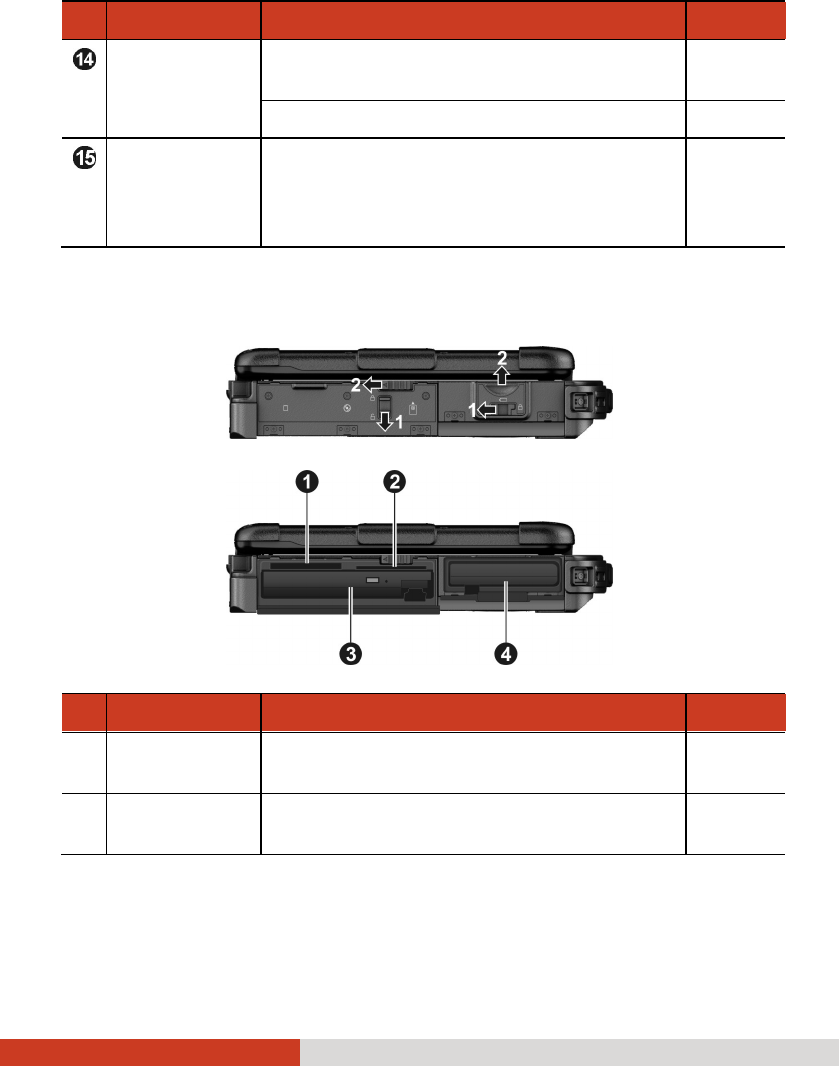

Left-Side Components
Ref Component Description See Also
ExpressCard
Slot
Accepts an ExpressCard/34 or
ExpressCard/54 for additional functions.
P. 4-12
Smart Card
Reader
Accepts a smart card for additional security
feature.
P. 4-9
1-14 Getting Started
Ref Component Description See Also

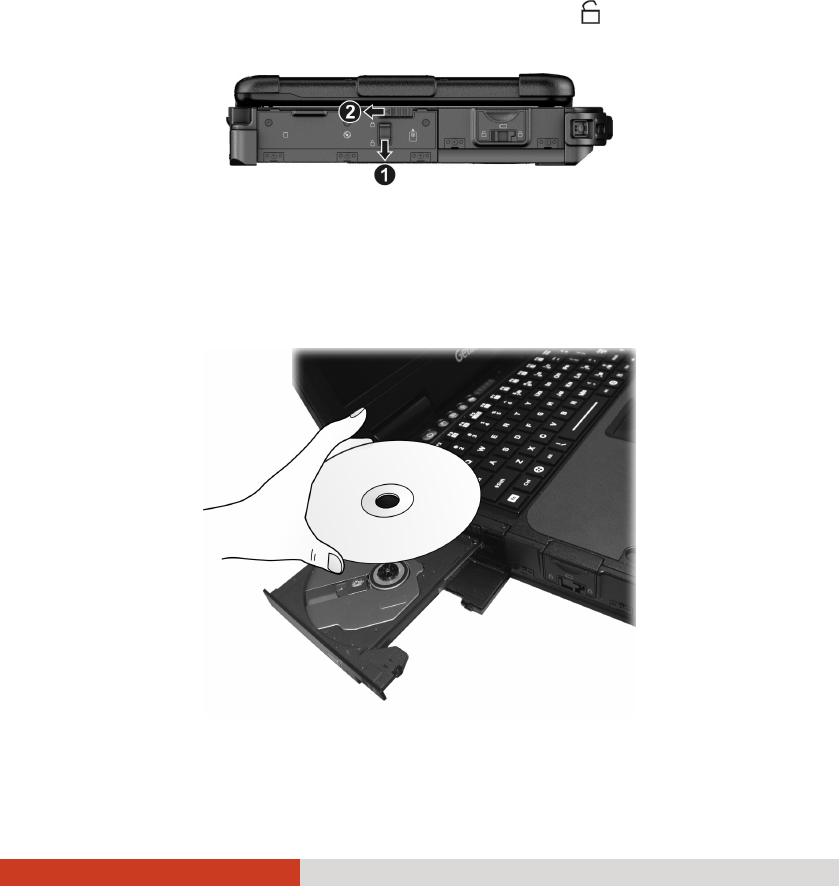

Super Multi
Drive
Accepts a compact disc for installing or
loading software, accessing data, and
playing music/video.
P. 2-15
Can be replaced by a secondary hard disk
drive or battery pack (purchased
separately).
P. 4-19
Battery Pack Supplies power to your computer when
external power is not connected.
P. 3-3
Bottom Components
Ref Component Description See Also
Stereo Speaker Sends out sound and voice from the
computer.
Memory Slots Inside are the memory slots for expanding
the memory size of your computer.
P. 4-15
Operating Your Computer 2-1
Chapter 2
Operating Your
Computer
This chapter provides information about the use of the computer.
If you are new to computers, reading this chapter will help you learn the
operating basics. If you are already a computer user, you may choose to read
only the parts containing information unique to your computer.
CAUTION:
Do not expose your skin to the computer when operating it in a very
hot or cold environment.
The computer can get uncomfortably warm when you use it in high
temperatures. As a safety precaution in such a circumstance, do not
place the computer on your lap or touch it with your bare hands for
extended periods of time. Prolonged body contact can cause discomfort
and potentially a burn.
2-2 Operating Your Computer
Using the Keyboard
Your keyboard has all the standard functions of a full-sized computer
keyboard plus an Fn key added for specific functions.
The standard functions of the keyboard can be further divided into four
major categories:
Typewriter keys
Cursor-control keys
Numeric keys
Function keys
Typewriter Keys
Typewriter keys are similar to the keys on a typewriter. Several keys are
added such as the Ctrl, Alt, Esc, and lock keys for special purposes. When the
lock keys (Caps Lock and Num Lk) are pressed, their corresponding indicators
light up.
The Control (Ctrl) / Alternate (Alt) key is normally used in combination with
other keys for program-specific functions. The Escape (Esc) key is usually
used for stopping a process. Examples are exiting a program and canceling a
command. The function depends on the program you are using.
Cursor-Control Keys
Cursor-control keys are generally used for moving and editing purposes.
NOTE: The word “cursor” refers to the indicator on the screen that lets you
know exactly where on your screen anything you type will appear. It can
take the form of a vertical or horizontal line, a block, or one of many other
shapes.
Operating Your Computer 2-3
Numeric Keypad
A 15-key numeric keypad is embedded in the typewriter keys as shown next:
Numeric keys facilitate entering of numbers and calculations. When Num
Lock is on, the numeric keys are activated; meaning you can use these keys
to enter numerals.
2-4 Operating Your Computer
Function Keys
On the top row of the keys are the function keys: F1 to F12. Function keys
are multi-purpose keys that perform functions defined by individual
programs.
Fn Key
The Fn key, at the lower left corner of the keyboard, is used with another
key to perform the alternative function of a key. The letter “Fn” and the
alternative functions are identified by the color of blue on the keytop. To
perform a desired function, first press and hold Fn, then press the other key.
Hot Keys
Hot keys refer to a combination of keys that can be pressed any time to
activate special functions of the computer. Most hot keys operate in a cyclic
way. Each time a hot key combination is pressed, it shifts the corresponding
function to the other or next choice.
You can easily identify the hot keys with the icons imprinted on the keytop.
The hot keys are described next.
Key Description
Switches the keyboard backlight on and off (option).
Switches the wireless LAN radio off or on.
Decreases the sound volume.
Increases the sound volume.
Operating Your Computer 2-5
Key Description
Switches the display output to one of the following
when an external monitor is connected through the
VGA port.
Decreases the LCD brightness.
The LCD still has 2 nits brightness when you reach the
lowest level.
Increases the LCD brightness.
Switches the touchscreen on and off (option).
Switches the touchpad off and on.
Switches the system sound output off (mute) and on.
Switches the display on and off.
Serves as the sleep button that you can define with
Windows’ Power Options.
Windows Keys
The keyboard has two keys that perform Windows-specific functions:
Windows Logo key and Application key.
The Windows Logo key opens the Start menu and performs
software-specific functions when used in combination with other keys. The
Application key usually has the same effect as a right mouse click. (See
your Windows manual for more information.)
2-6 Operating Your Computer
Using the Touchpad
CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing
so may damage the touchpad surface.
NOTE: For optimal performance of the touchpad, keep your fingers and the
pads clean and dry. When tapping on the pad, tap lightly. Do not use
excessive force.
The touchpad is a pointing device that allows you to communicate with the
computer by controlling the location of the pointer on the screen and
making selection with the buttons.
The touchpad consists of a rectangular pad (work surface) and a left and
right buttons. To use the touchpad, place your forefinger or thumb on the
pad. The rectangular pad acts like a miniature duplicate of your display. As
you slide your fingertip across the pad, the pointer (also called cursor) on the
screen moves accordingly. When your finger reaches the edge of the pad,
simply relocate yourself by lifting the finger and placing it on the other side
of the pad.
Here are some common terms that you should know when using the
touchpad:
Operating Your Computer 2-7
Term Action
Point Move your finger on the pad until the cursor points to
the selection on the screen.
Click Press and release the left button.
–or–
Tap gently anywhere on the pad.
Double-click Press and release the left button twice in quick
succession.
–or–
Tap twice on the pad rapidly.
Drag and
drop
Press and hold the left button, then move your finger
until you reach your destination (drag). Finally, release
the button (drop) when you finish dragging your
selection to the destination. The object will drop into
the new location.
–or–
Gently tap twice on the pad and on the second tap,
keep your finger in contact with the pad. Then, move
your finger across the pad to drag the selected object to
your destination. When you lift your finger from the
pad, the selected object will drop into place.
Scroll To scroll is to move up and down or left and right in the
working area on the screen.
To move vertically, place your finger on the right or left
edge of the pad and slide your finger up and down
along the edge. To move horizontally, place your finger
on the top or bottom edge of the pad and slide your
finger left and right.
This function works only after you install the touchpad
driver supplied with the computer and configure the
touchpad to enable the function. It may not work for all
applications.
2-8 Operating Your Computer
TABLE NOTE: If you swap the left and right buttons, “tapping” on the
touchpad
as an alternative method of pressing the left button will no longer
be valid.
Configuring the Touchpad
You may want to configure the touchpad to suit your needs. For example, if
you are a left-handed user, you can swap the two buttons so that you can
use the right button as the left button and vice versa. You can also change
the size of the on-screen pointer, the speed of the pointer, and so on.
To configure the touchpad, go to Control Panel Mouse Properties.
Operating Your Computer 2-9
Using the Touchscreen (Optional)
CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on
the touchscreen. Doing so may damage the touchscreen surface. Use your
finger or the included stylus.
The touchscreen is a touch-sensitive device that allows you to navigate on
the screen without using a keyboard, touchpad, or mouse.
Use the included stylus to select objects on the screen. The stylus can be
stretched for better grip and handling.
The following table shows how you use the touchscreen to obtain
equivalent mouse functions.
Term/Action Equivalent
Mouse Function
Tap: Touch the screen once. Click/Point
Double-tap: Touch the screen twice rapidly. Double-click
Tap and hold: Tap and hold until a popup menu
appears.
Right-click
Drag: Hold the stylus (or finger) on the screen and
drag across the screen until reaching your destination.
Drag
2-10 Operating Your Computer
Using Multi-touch Gestures (Optional)
If your computer model comes with multi-touch-capable screen and
Windows 7, you can interact with your computer by placing two fingers on
the screen. The movement of the fingers across the screen creates
“gestures,” which send commands to the computer.
Here are the multi-touch gestures that you can use:
Gestures Actions
( = finger down; = finger up)
Descriptions
Pan
(Scroll)
or
Drag 1 or 2 fingers up or down.
Use panning to see
another part of a page
that has scroll bars.
Zoom
(Pinch)
Move two fingers apart/toward each
other.
Use zooming to make
an item (a photo for
example) on the screen
larger or smaller. The
gesture works in
applications that
support mouse wheel
zooming.
Rotate
or
Move two fingers in opposing
directions.
-or-
Use one finger to pivot around
another.
Use rotating to move a
picture or other item
on the screen in a
circular direction
(clockwise or counter-
clockwise). The gesture
works in applications
that support the
specific gesture.
Operating Your Computer 2-11
Gestures Actions
( = finger down; = finger up)
Descriptions
Press and
Tap
Press on target and tap using a
second finger.
Use press and tap to
access the shortcut
menu.
Two-
finger
Tap
Tap two fingers at the same time
(where the target is in the midpoint
between the fingers).
The function is defined
by applications that
support the specific
gesture.
Flicks
Make quick drag gestures in the
desired direction.
Flick left or right to
navigate back and
forward in a browser
and other
applications. The
gesture works in most
applications that
support back and
forward.
2-12 Operating Your Computer
Using the Input Panel
Use the Input Panel to enter text and perform various keyboard functions.
There are two types of Input Panels for you to use in Windows 7:
Touch Keyboard allows you to enter text by tapping the keys with your
stylus, like pressing the keys on a standard keyboard.
Writing Pad allows you to write on the writing pad, like writing on a
piece of paper. Your handwriting will be converted into typed text.
To open the Input Panel, tap the Input Panel tab, which appears by default
on the left edge of the screen. To switch between the two types, tap or
at the upper left corner of the Input Panel.
NOTE: For more information on using the Input Panel, see Windows’ online
help.
Operating Your Computer 2-13
Using the Quick Buttons
The Quick Buttons allow you to quickly start a program or activate a
function.
Button Description
Toggles Blackout mode on or off.
In Blackout mode, the LCD backlight, keyboard/button
backlight, and LED indicators are all turned off; and the sound is
muted.
To bring the computer out of Blackout mode, press the same
button again or the power button.
NOTE: The button works only when using battery power.
Brings up the ECO menu as shown below:
Select a mode before the ECO menu disappears. You can select a
mode by pressing the ECO button or arrow key. The button
lights up when the mode is on.
ECO Menu
ECO Off
Quick Mode
Power Saving
Work Mode
2-14 Operating Your Computer
Button Description
The ECO mode will return to the OFF setting when AC power is
connected, any power related setting is changed, the computer
resumes from Sleep/Hibernation mode, or the computer is
restarted.
Each ECO mode is a combination of power settings that results in
different power consumptions. (For information on configuring
the ECO modes, see “ECO Tab” in Chapter 6.)
Toggles the sunlight-readable mode on or off. An OSD (On
Screen Display) pops up on the screen indicating the current
status. The button lights up when the mode is on.
In sunlight-readable mode, the LCD brightness is increased to
the highest level. The mode automatically ends when the
brightness setting is changed, the computer resumes from
Sleep/Hibernation mode, or the computer is restarted.
Toggles the light sensor on or off. An OSD (On Screen Display)
pops up on the screen indicating the current status. The button
lights up when the function is activated.
When set to On, the brightness will be automatically adjusted
according to the current ambient light.
The backlight will return to the default Off setting whenever the
computer resumes from Sleep/Hibernation mode or the
computer is restarted.
You can re-define the function of the button. (See “Quick
Button Definition Utility” in Chapter 6 for information.)
Operating Your Computer 2-15
Using the DVD Drive
Your computer comes with a Super Multi drive. The drive can read from and
write to CD, DVD+, DVD- and DVD-RAM media.
CAUTION:
When inserting a disc, do not use force.
Make sure that the disc is correctly inserted into the tray, and then close
the tray.
Do not leave the drive tray open. Also, avoid touching the lens in the
tray with your hand. If the lens becomes dirty, the drive may malfunction.
Do not wipe the lens using materials with rough surface (such as paper
towel). Instead, use a cotton swab to gently wipe the lens.
FDA regulations require the following statement for all laser-based devices:
“Caution, Use of controls or adjustments or performance of procedures
other than those specified herein may result in hazardous radiation
exposure.”
NOTE: The DVD drive is classified as a Class 1 laser product. This label is
located on the DVD drive.
NOTE: This product incorporates copyright protection technology that is
protected by method claims of certain U.S. patents and other intellectual
property rights owned by Macrovision Corporation and other rights owners.
Use of this copyright protection technology must be authorized by
Macrovision Corporation, and is intended for home and other limited
viewing uses only unless otherwise authorized by Macrovision Corporation.
Reverse engineering or disassembly is prohibited.
2-16 Operating Your Computer
Inserting and Removing a Disc
Follow this procedure to insert or remove a disc:
1. Turn on the computer.

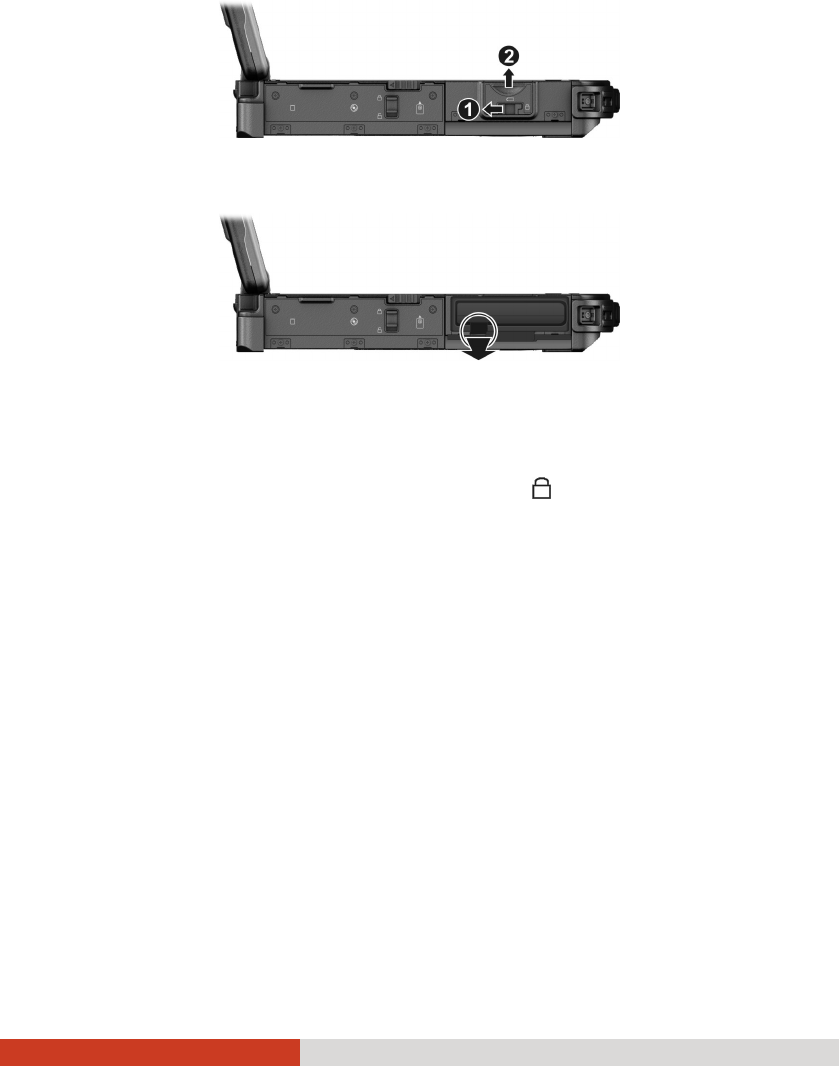

2. Locate the DVD drive on the left side of your computer.
Slide the lock downward to the unlocked position ( ) () and then
slide the latch toward the left () to open the protective cover.
3. Press the eject button and the DVD tray will slide out partially. Gently
pull it until it is fully extended.
4. To insert a disc, place down the disc in the tray with its label facing up.
Slightly press the center of the disc until it clicks into place.
Operating Your Computer 2-17
To remove a disc, hold the disc by its outer edge and lift it up from the
tray.
5. Gently push the tray back into the drive.
6. Close the cover. Make sure the latch is engaged and slide the lock
upward to the locked position ( ) completely, not revealing the
underneath red part.
Correct Incorrect (revealing red part)

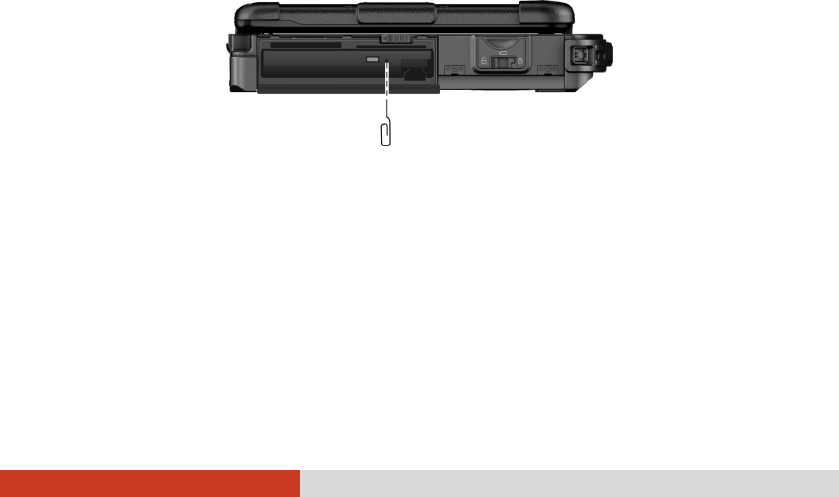

NOTE: In the unlikely event that you are unable to release the drive tray by
pressing the eject button, you can manually release the disc. (See “Optical
Drive Problems” in Chapter 8.)
2-18 Operating Your Computer
Using the Network Features
Using the Modem
The internal 56 K fax/data modem allows you to use the telephone line to
communicate with others by fax, email, or connect to an online service or
bulletin board.
To connect the telephone line to the modem, connect one end of the
modem cable to the RJ-11 connector on the computer and the other end to
the phone line.
NOTE:
When using the communication software, you may have to disable
power management.
Do not enter the Sleep mode when using the communication software.
Operating Your Computer 2-19
Using the LAN
The internal 10/100/1000Base-T LAN (Local Area Network) module allows
you to connect your computer to a network. It supports data transfer rate up
to 1000 Mbps.
To connect the network cable to the LAN module, connect one end of the
LAN cable to the RJ-45 connector on the computer and the other end to the
network hub.
Using the Wireless LAN
The WLAN module of your computer supports IEEE 802.11a/g/n.
Turning On/Off the WLAN Radio
NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate
wireless devices in aircraft as this may interfere with flight safety. Remember
to turn off wireless LAN when using your computer in the airplane.
To turn on the WLAN radio:
1. Make sure that the RF switch is at the ON position. (Open the cover to
access the switch.)
2-20 Operating Your Computer

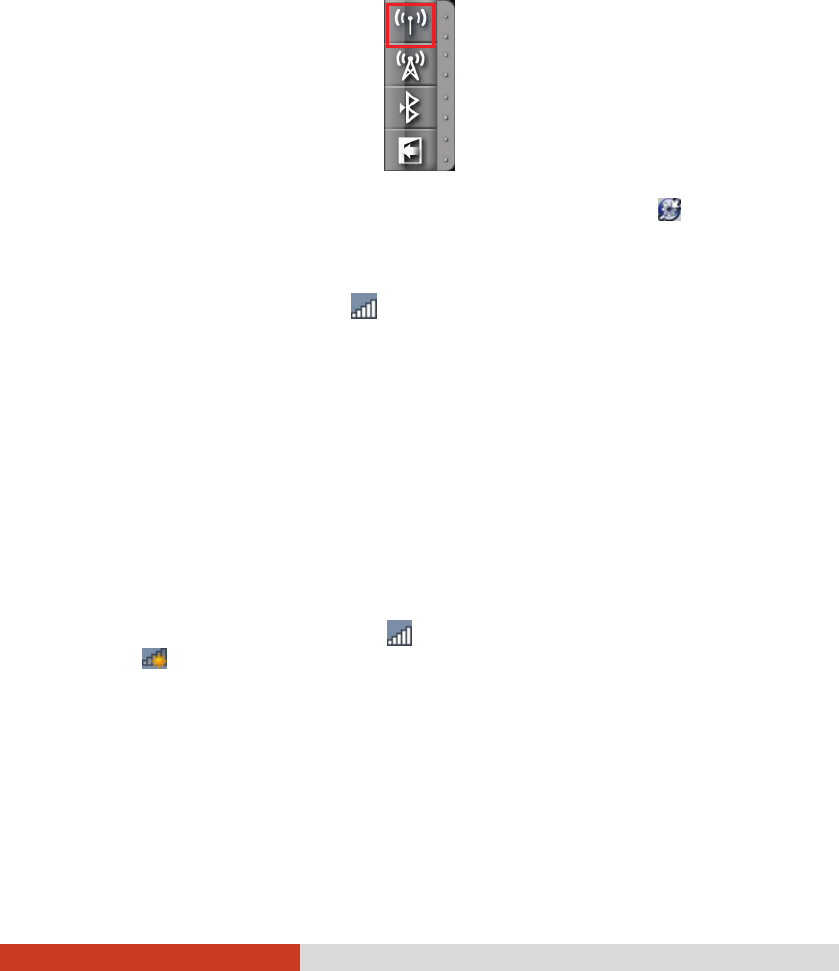

2. To turn on the WLAN radio, press Fn+F1 or click the WLAN button in the
Quick Bar as shown below (an X over the button means the radio is
currently off.)
NOTE: To open the Quick Bar, right-click the Getac Utility icon ( ) located
on Windows taskbar and select Quick Bar.
3. Windows Mobility Center has wireless network turned on by default.
The Wireless Network icon on the taskbar should appear without a
red X. (In case you have previously turned it off in Windows Mobility
Center, be sure to turn it on when using the function the next time.)
To turn off the WLAN radio:
You can turn off the WLAN radio by pressing Fn+F1 or using the Quick Bar.
If you want to turn off all wireless radio, slide the RF switch to the OFF
position.
Connecting to a Wireless Network
1. Make sure that the WLAN function is enabled (as described above).
2. Tap the Wireless Network icon on the taskbar. (An orange light in the
icon indicates connections are available.)
3. In the list of available wireless networks, tap a network, and then tap
Connect.
Operating Your Computer 2-21
4. Some networks require a network security key or passphrase. To connect
to one of those networks, ask your network administrator or Internet
service provider (ISP) for the security key or passphrase.
For more information on setting a wireless network connection, refer to
Windows online help.
NOTE: You can use Intel® PROSet Wireless to take full advantage of the
WiFi capabilities of your computer. See the Help of the utility for
instructions.
2-22 Operating Your Computer
Using the Bluetooth Feature
Depending on your model, your computer may incorporate the Bluetooth
4.0 capability for short-range (about 50 meters) wireless communications
between devices without requiring a cable connection. With Bluetooth
wireless technology, data can be transmitted through walls, pockets and
briefcases as long as two devices are within range.
Turning On/Off the Bluetooth Radio
To turn on the Bluetooth radio:
1. Make sure that the RF switch is at the ON position. (Open the cover to
access the switch.)
2. To turn on the Bluetooth radio, click the Bluetooth button in the Quick
Bar as shown below (an X over the button means the radio is currently
off.)
NOTE: To open the Quick Bar, right-click the Getac Utility icon ( ) located
on Windows taskbar and select Quick Bar.
3. The Bluetooth function is enabled by default, as indicated by the
Bluetooth icon on the Windows taskbar.
Operating Your Computer 2-23
To turn off the Bluetooth radio:
You can turn off the Bluetooth radio by using the Quick Bar or Bluetooth
utility.
If you want to turn off all wireless radio, slide the RF switch to the OFF
position.
Connecting to another Bluetooth Device
1. Make sure that the Bluetooth function is enabled (as described above).
2. Make sure that the target Bluetooth device is turned on, discoverable
and within close range. (See the documentation that came with the
Bluetooth device.
3. To search for Bluetooth devices, right click the Bluetooth icon and
select Add a Device.
4. Select the device you want to connect from the search results.
2-24 Operating Your Computer
5. Depending on the type of Bluetooth device that you want to connect to,
you will need to enter the pertinent information.
For detailed information on using the Bluetooth feature, see Windows’
online Help.
Operating Your Computer 2-25
Using the Fingerprint Scanner
WARNING:
We shall not be liable for any loss or damage whatsoever resulting from
your use of the fingerprint scanner or neglect of fingerprint scanner use,
or any data loss resulting from such developments as fingerprint
authentication malfunctioning.
It is not recommended that you use the fingerprint scanner in a
below-freezing temperature. The moisture on your finger can freeze to
the scanner’s metal surface when you touch it, resulting in a failed
operation.
The fingerprint scanner provides a strong authentication mechanism based
on fingerprint recognition. It features:
Website Log On
Logon to your web accounts like banks, webmail, and more with a
simple swipe of your finger.
Windows Log On
Logon to Microsoft® Windows® with a simple swipe of your finger
every time you turn on your computer or log onto your desktop.
QuickLaunch
Quickly launch all your favorite websites, open files and folders, and log
in to your accounts with a simple swipe of your finger.
KeepSafe
Protect your pictures, personal files, and folders using your fingerprint so
only you can access them.
NOTE: You can register a fingerprint only after creating a password for the
Windows user account.
2-26 Operating Your Computer
To register your fingerprint, click Start All Programs AuthenTec
TrueSuite AuthenTec TrueSuite. Click the finger you want to register and
follow the onscreen instructions to complete.
Operating Your Computer 2-27
You can then use the Fingerprint Software to set up how the fingerprint
authentication works.
For detailed information, click the Help button of the software.
A
pp Store
Setting
s
Option
s
Help
2-28 Operating Your Computer
Using the WWAN Feature
(Optional)
A WWAN (Wireless Wide Area Network) uses mobile telecommunication
cellular network technologies to transfer data. The WWAN module of your
computer supports 3G and 4G LTE.
NOTE: Your computer only supports data transmission; voice transmission is
not supported.
Installing a SIM Card
To use the WWAN feature to connect to the Internet, you need to subscribe
to WWAN service and acquire a SIM card from the service provider. To install
the SIM card, follow these steps:
1. Turn off the computer and disconnect the AC adapter.
2. Locate the SIM card slot on the left side of the computer.
Lift the latch to open the protective cover.
3. Insert the SIM card into the holder. Make sure the golden contact area
on the card is facing upward and the beveled corner on the SIM card
pointing toward the slot.
4. Close the cover. Push down the latch to lock the cover.
Operating Your Computer 2-29
Turning On/Off the WWAN Radio
To turn on the WWAN radio:
1. Make sure that the RF switch is at the ON position. (Open the cover to
access the switch.)
2. To turn on the WWAN radio, click the WWAN button in the Quick Bar as
shown below (an X over the button means the radio is currently off.)
NOTE: To open the Quick Bar, right-click the Getac Utility icon ( ) located
on Windows taskbar and select Quick Bar.
To turn off the WWAN radio:
You can turn off the WWAN radio by using the Quick Bar or WWAN utility.
If you want to turn off all wireless radio, slide the RF switch to the OFF
position.
Setting up a WWAN Connection
To set up a WWAN connection for the first time, follow these steps:
1. Make sure that the SIM card is inserted and the WWAN function is
enabled (as described above).
2-30 Operating Your Computer
2. On Windows desktop, double click the AirCard Watcher shortcut. The
screen as below appears.
3. If the radio is currently off, click Turn Radio On to turn on the radio.
4. Use AirCard Watcher to manage your broadband wireless network
connections such as:
Connect to the Internet
Configure user options
Send and receive SMS messages
Manage profiles
Use GPS to track your position (for models having the GPS module)
NOTE: For detailed information on using AirCard Watcher, see the
program’s online help.
Managing Power 3-1
Chapter 3
Managing Power
Your computer operates either on external AC power or on internal battery
power.
This chapter tells you how you can effectively manage power. To maintain
optimal battery performance, it is important that you use the battery in the
proper way.
3-2 Managing Power
AC Adapter
CAUTION:
The AC adapter is designed for use with your computer only.
Connecting the AC adapter to another device can damage the adapter.
The AC power cord supplied with your computer is for use in the
country where you purchased your computer. If you plan to go overseas
with the computer, consult your dealer for the appropriate power cord.
When you disconnect the AC adapter, disconnect from the electrical
outlet first and then from the computer. A reverse procedure may
damage the AC adapter or computer.
When unplugging the connector, always hold the plug head. Never pull
on the cord.
The AC adapter serves as a converter from AC (Alternating Current) to DC
(Direct Current) power because your computer runs on DC power, but an
electrical outlet usually provides AC power. It also charges the battery pack
when connected to AC power.
The adapter operates on any voltage in the range of 100~240 V AC.
Managing Power 3-3
Battery Pack
The battery pack is the internal power source for the computer. It is
rechargeable using the AC adapter.
The operating time of a fully charged battery pack depends on how you are
using the computer. When your applications often access peripherals, you
will experience a shorter operating time.
NOTE: Care and maintenance information for the battery is provided in the
“Battery Pack Guidelines” section in Chapter 7.
Charging the Battery Pack
NOTE:
Charging will not start if the battery’s temperature is below 0 C (32 F)
or above 40 C (104 F); the charging process will stop if the battery’s
temperature gets above 60 C (140 F). To avoid damaging the battery
under this situation, disconnect the AC adapter and wait for the battery
to return to room temperature before charging again.
During charging, do not disconnect the AC adapter before the battery
has been fully charged; otherwise you will get a prematurely charged
battery.
To charge the battery pack, connect the AC adapter to the computer and an
electrical outlet. The Battery Charge Indicator ( ) on the computer glows
amber to indicate that charging is in progress. You are advised to keep the
computer power off while the battery is being charged. When the battery is
fully charged, the Battery Charge Indicator lights green.
It takes approximately 3 ~ 6 hours to fully charge the Li-Ion battery pack
when the computer is off, and approximately 4 ~ 6 hours to fully charge the
battery pack when the computer is on.
CAUTION: After the computer has been fully recharged, do not
immediately disconnect and reconnect the AC adapter to charge it again.
Doing so may damage the battery.
3-4 Managing Power
NOTE: The battery level may automatically lessen due to the self-discharge
process (0.21 % per day), even when the battery pack is fully charged (100
%). This happens no matter if the battery pack is installed in the computer.
Initializing the Battery Pack
You need to initialize a new battery pack before using it for the first time or
when the actual operating time of a battery pack is much less than expected.
Initializing is the process of fully charging, discharging, and then charging. It
can take several hours.
A tool called “Gauge Reset” is provided for the purpose. See “Gauge Reset”
in Chapter 6 for information on using the tool.
Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The actual
operating time can be different from the estimated time, depending on
how you are using the computer.
By Operating System
You can check the approximate battery level using the battery meter
function of the operating system. To read the battery level in Windows, click
the battery icon ( when running on battery power or when running
on external power) on the taskbar.
By Gas Gauge
On the exterior side of the battery pack is a gas gauge for displaying the
estimated battery charge. When the battery pack is not installed in the
computer and you want to know the battery charge, you can press the
switch with a pointed device to see the corresponding value of indicator
segment that light green.
Managing Power 3-5
The value of the corresponding green segment indicates the relative
percentage of the battery charge. The battery pack is fully discharged when
you see no segment glowing green.
Replacing the Battery Pack
CAUTION:
There is danger of explosion if the battery is incorrectly replaced.
Replace the battery only with the computer manufacturer’s optional
battery packs. Discard used batteries according to the dealer’s
instructions.
Do not attempt to disassemble the battery pack.
If you often rely on battery power for a long period of time while traveling,
you may consider the purchase of an additional battery pack from your
dealer and keep it with you in a fully charged state as a backup.
To replace the battery pack, follow these steps:
1. Turn off the computer and disconnect the AC adapter.
2. Locate the battery compartment on the left side of the computer.
Slide the lock toward the left to the unlocked position ( ) () and then
lift the latch () to open the protective cover.
Switch
3-6 Managing Power
3. Pull the ribbon strip and slide the battery pack out of the compartment.
4. With the strip facing outward, insert the new battery pack all the way
into the compartment.
5. Close the cover, press the latch downward to engage, and then slide the
lock towards the right to the locked position ( ).
Managing Power 3-7

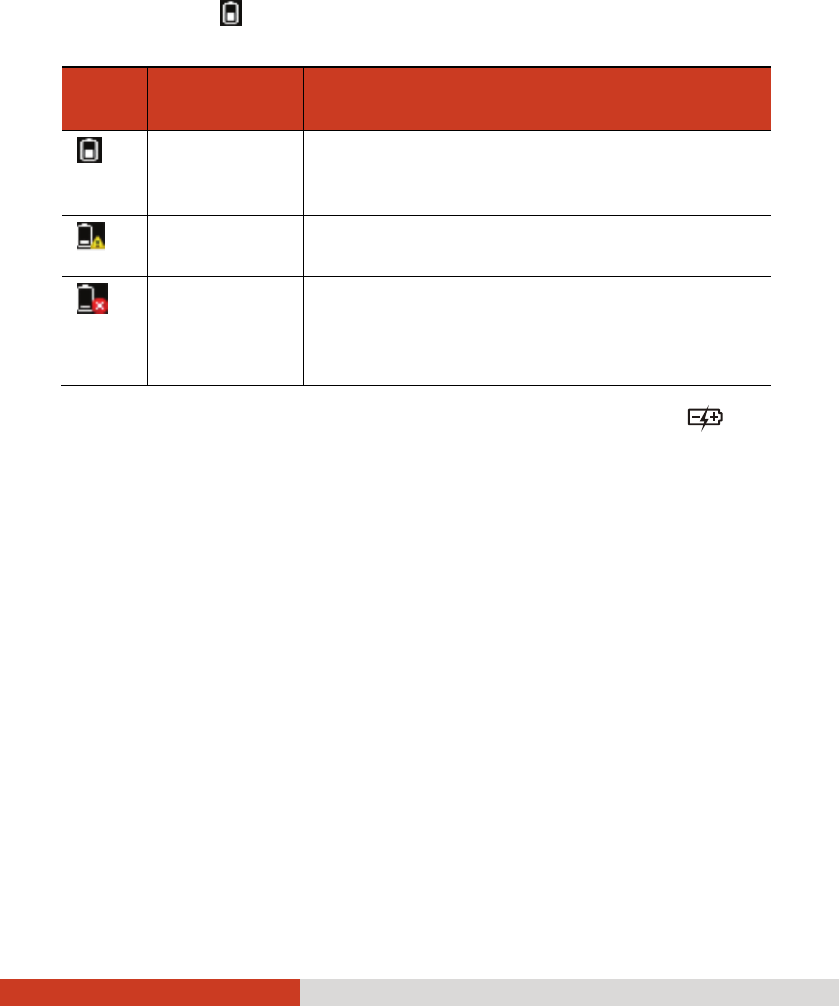

Battery Low Signals and Actions
The battery icon changes appearance to display the current state of the
battery.
Battery
Icon Battery Level Description
Discharging The icon shows the charge remaining in
10-percent increments until the charge reaches
the low-battery level.
Low The battery charge has reached the low-battery
level (10% by default).
Critically low The battery charge has reached the critical
battery level (5% by default). By default,
Windows will display a notification and put
your computer into Hibernation.
When the battery is low, the computer’s Battery Charge Indicator ( ) also
blinks red to alert you to take actions.
Always respond to low-battery by connecting the AC adapter, placing your
computer in Hibernation mode, or turning off the computer.
3-8 Managing Power
Power Management
Your computer supports ACPI (Advanced Configuration and Power
Interface) for power management. The power management feature allows
you to reduce the power consumption for energy saving.
With an ACPI-compliant operating system such as Windows, power supply to
different computer components is controlled on an as-needed basis. This
allows maximum power conservation and performance at the same time.
In general, Windows’ power management works in this way:
What... When...
Power to the hard disk is turned
off
When the hard disk has been idle for a
set period.
Power to the display is turned off When the display has been idle for a
set period.
The computer enters the Sleep
mode. The hard disk and display
are turned off and the entire
system consumes less power.
When the entire system has been idle
for a set period.
When you manually activate the mode.
The computer enters the
Hibernation mode. (See the next
subsection for more information.)
When the entire system has been idle
for a set period.
When you manually activate the mode.
For detailed information on power management, see Windows’ Help.
Managing Power 3-9
Hibernation
Hibernation is a very useful feature. People frequently open many
applications when they use computers. It takes some time to get all these
applications open and running, and normally they all have to be closed
before the computer can be turned off.
When you use the hibernation feature, you do not have to close the
applications. The computer stores the state of your computer to a file on the
hard disk and then shuts down. The next time you turn on your computer,
you return to exactly where you left off.
3-10 Managing Power
Power-Saving Tips
Aside from enabling your computer’s power saving mode (see previous
section), you can do your part to maximize the battery’s operating time by
following these suggestions.
Enter power saving mode when using battery power.
Do not disable automatic power management features.
Decrease the LCD brightness to the lowest comfortable level.
Shorten the length of time before Windows turn off the display.
Many USB devices use power just by being connected. If you use a USB
mouse, you can save power by disconnecting the mouse and using the
touchpad. If you use a USB flash drive, unplug it when you are not using
it.
Remove the card (such as PC card, ExpressCard, and Smart Card) if not
using it.
Turn off the wireless radio if you are not using the wireless module (such
as WLAN, Bluetooth, or WWAN).
Turn off the computer when you are not using it.
Expanding Your Computer 4-1
Chapter 4
Expanding Your
Computer
You can expand the capabilities of your computer by connecting other
peripheral devices. When using a device, be sure to read the instructions
accompanying the device together with the relevant section in this chapter.
4-2 Expanding Your Computer
Connecting a VGA or HDMI
Display Monitor
If you want the benefits of a larger display screen with higher resolution,
you can connect an external display monitor to your computer
Your computer supports a VGA connector and a HDMI connector. HDMI
(High-Definition Multimedia Interface) is an audio/video interface that
transmits uncompressed digital data and therefore delivers true HD quality.
As a home theater system most likely includes a widescreen HDTV and
surround-sound system, you can use the home theater system to view/play
media stored on your computer by connecting via the HDMI interface.
Follow this procedure to connect an external monitor:
1. Turn off the computer.
2. Depending on the type of your monitor, plug the monitor’s signal
connector to the computer’s VGA or HDMI connector.
VGA
HDMI
Expanding Your Computer 4-3
3. Plug one end of the monitor’s power cord into the power socket on the
monitor and the other end to an electrical outlet.
4. To use the monitor, turn on the monitor before turning on the
computer.
5. The connected device should respond by default. If not, you can switch
the display output by pressing the Fn+F5 hot keys. (You can also change
the display through Windows Control Panel Display Settings
Properties.)
CAUTION: Do not disconnect the external monitor while the computer is in
the Sleep mode or Hibernation mode. If no external monitor is connected
when the computer resumes, the LCD might not display properly.
4-4 Expanding Your Computer
Connecting a Serial Device
Your computer has two serial ports for connecting a serial device.
Follow this procedure to connect a serial device:
1. Turn off the computer.
2. Plug the device cable to the serial port on the rear of the computer.
3. Turn on the computer.
NOTE: Portable modems that derive power through the serial port cannot
be used with the computer. Instead, use a modem that is powered by its
own internal battery or external AC power.
CO
M
2
CO
M
1
Expanding Your Computer 4-5
Connecting a USB Device
Your computer has four USB ports (three USB 3.0 ports at the left side and
one USB 2.0 port at the back)) for connecting USB devices, such as a digital
camera, scanner, printer, modem, and mouse.
USB 3.0 supports a transfer rate up to 5 Gbit/s and USB 2.0 a transfer rate up
to 12 MB/s.
To connect a USB device, plug the device cable to a matching USB port.
4-6 Expanding Your Computer
Connecting an eSATA Device
Your computer has an eSATA/USB combo port for connecting eSATA devices
(such as an external hard drive and external optical drive) / USB 3.0 devices
(see previous section).
The port supports SATA II with transfer rate up o 3.0Gbit/s. It can provide 5V
power if a certified USB-eSATA combo cable is used.
To connect an external eSATA device, simply plug the device cable to the
eSATA port.
Expanding Your Computer 4-7
Connecting an IEEE 1394 Device
Your computer has a mini IEEE 1394 port for connecting IEEE 1394 devices
that include not only computer peripheral devices such as scanner, printer
and high-quality CCD, but also consumer electronic equipment such as
DVCAM and VCR.
To connect an IEEE 1394 device, prepare an IEEE 1394 cable. Plug the
appropriate end of the cable to the computer’s mini IEEE 1394 connector
and the other end to the device’s corresponding connector.
4-8 Expanding Your Computer
Connecting Audio Devices
For higher audio quality, you can send or receive sound through external
audio devices.
Audio Output Connector (green) can be connected to speakers,
headphones, or earphone set.
Microphone Connector (pink) can be connected to an external
microphone for recording voice or sound.
NOTE:
After connecting an external audio device, make sure that you specify
the use of the correct audio device in Windows.
When using the external speakers/headphones or microphone, you
cannot use the internal one.
Expanding Your Computer 4-9
Using Smart Cards
Your computer has a smart card slot.
With an embedded microcontroller, smart cards have the unique ability to
store large amounts of data, carry out their own on-card functions (e.g.,
encryption and mutual authentication), and interact intelligently with a
smart card reader.
To insert a smart card:
1. Locate the smart card slot on the left side of the computer and open the
protective cover.
2. Slide the smart card, with its label and embedded chip facing up into the
slot.
3. Close the cover.
4. When a new card is seated, use the third-party smart card software to
allow your computer to read it.
To remove a smart card:
1. Make sure that the third-party smart card software is not accessing the
smart card.
2. Pull the card out of the slot.
3. Close the cover.
4-10 Expanding Your Computer
Using PC Cards
NOTE:
Some PC cards require additional system resources. Before using such PC
card, you may have to free other system resources for the PC card.
Although some PC cards can be inserted and removed without turning
off the computer, you cannot remove or install PC cards during Sleep
mode.
Your computer has two PC card slots which support PCMCIA Type II and
CardBus specifications.
To insert a PC card:
1. Locate the PC card slot on the right side of the computer. Lift the latch to
open the protective cover.
2. Slide the PC card, with its label facing up, into the slot until the eject
button pops out.
3. Close the cover.
4. When a new card is seated, the computer will detect it and try to install
the appropriate driver. Follow the on-screen instructions to complete the
process.
To remove a PC card:
1. Double-click on the Safely Remove Hardware icon found on the
Windows taskbar and the Safely Remove Hardware window appears on
screen.
Eject button
Expanding Your Computer 4-11
2. Select (highlight) the PC card from the list to disable the card.
3. Push the eject button and the card will slide out slightly.
4. Pull the card out of the slot.
5. Close the cover.
4-12 Expanding Your Computer
Using ExpressCards
Your computer has an ExpressCard slot.
The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm
(ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very
extensive range of applications including memory, wired and wireless
communication cards, and security devices.
Shown next are the appearances of ExpressCards for your reference.
ExpressCard/54 ExpressCard/34
To insert an ExpressCard:
1. Locate the ExpressCard slot on the left side of the compute Lift the latch
to open the protective cover.
2. Slide the ExpressCard, with its label facing up, all the way into the slot
until the rear connectors click into place.
3. Close the cover.
Expanding Your Computer 4-13
4. When a new card is seated, the computer will detect it and try to install
the appropriate driver. Follow the on-screen instructions to complete the
process.
To remove an ExpressCard:
1. Double-click on the Safely Remove Hardware icon found on the
Windows taskbar and the Safely Remove Hardware window appears on
screen.
2. Select (highlight) the ExpressCard from the list to disable the card.
3. Slightly push the card to release and then pull it out of the slot.
4. Close the cover.
4-14 Expanding Your Computer
Using Storage Cards
NOTE: You can use only storage cards. Your Card Reader does not support
cards with I/O (input/output) functions such as a wireless network card or
Bluetooth card.
Your computer has a storage card reader. The card reader is a small drive for
reading from and writing to removable storage cards (or called memory
cards). The reader supports SD (Secure Digital), MMC (MultiMediaCard), and
MMC Plus cards.
To insert a storage card:
1. Locate the storage card reader on the right side of the computer. Lift the
latch to open the protective cover..
2. Align the card with its connector pointing to the slot and its label facing
up. Slide the card into the slot until it reaches the end.
3. Windows will detect the card and assign it a drive name.
To remove a storage card:
1. Double-click My Computer.
2. Right-click the drive with the card and select Eject.
3. Slightly push the card to release and then pull it out of the slot.
Expanding Your Computer 4-15
System Memory Upgrade
You can upgrade your computer by expanding system memory.
CAUTION:
It is not recommended that you buy and install RAM modules by
yourself. If you want to expand system memory, please ask Getac service
center to install DRAM modules for you so that full compatibility can be
guaranteed.
RAM modules are extremely sensitive to static electricity. There are cases
where static electricity generated by the human body has adversely
affected such modules. When inserting or removing a RAM module, do
not touch the terminals or internal components, insert objects other
than the module, or allow foreign particles to enter. Doing so has been
known to cause damage, fire, or electrical shock.
To install the RAM module:
1. Turn off the computer and disconnect the AC adapter.
2. Remove the battery pack (see chapter 3).
3. Carefully place the computer upside down.
4. Remove the 6 screws to open the compartment cover.
4-16 Expanding Your Computer
5. Remove the 2 screws to detach the fixing plate.
6. To install the RAM module, match the module's notched part with the
socket's projected part and firmly insert the module into the socket at a
Expanding Your Computer 4-17
20-degree angle.
Then push down until the retaining clips lock the
module into position.
CAUTION: If the RAM module is difficult to insert or difficult to push down,
do not force it. Check once more to ensure that the module is positioned
correctly.
7. Replace the fixing plate and secure with 2 screws.
8. Replace the compartment cover and secure with 6 screws.
9. Replace the battery pack.
4-18 Expanding Your Computer
Replacing the Hard Disk Drive
1. Turn off the computer and disconnect the AC adapter.
2. Remove the battery pack (see chapter 3).
3. Locate the hard disk drive on the right side of your computer.
Slide the lock toward the left to the unlocked position ( ) () and then
lift the latch () to open the protective cover.
4. Pull the strip and slide the hard disk drive out of the slot.
5. With the strip facing outward, insert the new hard disk drive all the way
into the slot.
6. Close the cover, press the latch downward to engage, and then slide the
lock towards the right to the locked position ( ).
Expanding Your Computer 4-19
Installing a Secondary Battery
Pack or Hard Disk Drive
You can purchase a secondary battery pack or hard disk drive to be installed
in the multi-purpose device bay.
1. Locate the multi-purpose device bay on the left side of your computer.
Slide the lock downward to the unlocked position ( ) () and then
slide the latch toward the left () to open the protective cover.
2. Pull the strip and slide the existing device out of the bay.
3. With the strip facing outward, insert the new device all the way into the
bay.
4. Close the cover. Make sure the latch is engaged and slide the lock
upward to the locked position ( ) completely, not revealing the
underneath red part.
Correct Incorrect (revealing red part)
Using BIOS Setup and System Recovery 5-1
Chapter 5
Using BIOS Setup and
System Recovery
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output
System) settings of the computer. BIOS is a layer of software, called
firmware, that translates instructions from other layers of software into
instructions that the computer hardware can understand. The BIOS settings
are needed by your computer to identify the types of installed devices and
establish special features.
System Recovery reinstalls Windows to your system and configures it to the
system’s factory default settings.
This chapter tells you how to use the BIOS Setup and System Recovery.
5-2 Using BIOS Setup and System Recovery
BIOS Setup
When and How to Use
You need to run BIOS Setup Utility when:
You see an error message on the screen requesting you to run BIOS
Setup Utility.
You want to restore the factory default BIOS settings.
You want to modify some specific settings according to the hardware .
You want to modify some specific settings to optimize the system
performance.
To run BIOS Setup Utility, press the F2 key when the prompt appears on the
screen during system startup. The prompt shows up on the screen for only a
few seconds. You must press F2 quickly. The BIOS Setup Utility main screen
appears as shown next.
Information Main Advanced Security Boot Exit
Model NO:
Serial NO:
Processor Info:
Installed System Memory:
SATA HDD:
SATA ODD:
BIOS Revision:
EC Revision:
LAN MAC Address:
IEEE 1394 GUID:
Operating Time:
B320
RC7XXB0019
Intel(R) Core(TM) i7-3517U CPU @ 1.90GHz
4096 MB
LITEONIT LAT-128M3S – 128.0 GB
PIORNEER DVD-RW DVRTD11RS - ATAPI
R0.52.070520A
R0.52a
00-22-20-0D-BF-3A
00-40-D0-01-00-49-11-E5
18 Hours
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Using BIOS Setup and System Recovery 5-3
In general, you can use the arrow keys to move around and + / – keys to
change the setup values. Keyboard information can be found at the bottom
of the screen.
NOTE:
The BIOS Setup Utility screens shown in this chapter are for your
reference only. The actual items or settings on your computer may
differ.
The BIOS Setup Utility program may have been updated after the
publication of this manual.
The settings you select in your operating system might override similar
settings in BIOS Setup Utility.
Information Menu
The Information menu contains the basic configuration information of the
system. There are no user-definable items in this menu.
Information Main Advanced Security Boot Exit
Model NO:
Serial NO:
Processor Info:
Installed System Memory:
SATA HDD:
SATA ODD:
BIOS Revision:
EC Revision:
LAN MAC Address:
IEEE 1394 GUID:
Operating Time:
B320
RC7XXB0019
Intel(R) Core(TM) i7-3517U CPU @ 1.90GHz
4096 MB
LITEONIT LAT-128M3S – 128.0 GB
PIORNEER DVD-RW DVRTD11RS - ATAPI
R0.52.070520A
R0.52a
00-22-20-0D-BF-3A
00-40-D0-01-00-49-11-E5
18 Hours
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
5-4 Using BIOS Setup and System Recovery
Main Menu
The Main menu contains the various system settings.
Information Main Advanced Security Boot Exit
System Date:
System Time:
Legacy USB Support:
Wireless LAN:
Bluetooth:
[06/29/2012]
[11:33:08]
[Enabled]
[Last State]
[Last State]
Item Specific Help
View or set system
date.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
System Date sets the system date.
System Time sets the system time.
Legacy USB Support enables or disables the system’s support for Legacy USB
device in DOS mode.
Wireless LAN specifies the on/off state of the wireless LAN radio when the
system starts up. When set to
Last
State
, the on/off state remains the same as
the last state before you turn off the system.
Bluetooth specifies the on/off state of the Bluetooth radio when the system
starts up. When set to
Last
State
, the on/off state remains the same as the
last state before you turn off the system.
06
Using BIOS Setup and System Recovery 5-5
Advanced Menu
The Advanced menu contains the advanced settings.
Information Main Advanced Security Boot Exit
Intel(R) Rapid Start Technology
CD/DVD Auto Power Control:
Wake Up Capability
System Policy:
AC Initiation:
SATA Mode:
AMT Configuration
Virtualization Technology Setup
Graphic Setup
Button Setup
Device Configuration
[ZPODD]
[Performance]
[Disabled]
[AHCI]
Item Specific Help
iRST – Intel (R) Rapid
Start Technology
Configuration
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Intel (R) Rapid Start Technology cofigures iRST. Press Enter to access the
submenu as shown below.
Advanced
Intel (R) Rapid Start Technology Item Specific Help
iRST Support:
[Disabled]
Enable iRST.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Disabled
5-6 Using BIOS Setup and System Recovery
iRST Support enables of disables iRST, which gets your system up and
running faster.
CD/DVD Auto Power Control sets if power to the CD/DVD drive is controlled
for energy saving. When set to
ZPODD
(Zero Power Optical Disc Drive),
power will not be supplied to the drive when there is no CD/DVD in the
drive. When set to
ODD Door
, power will not be supplied to the drive when
there is no CD/DVD in the drive and the protective door of the drive is
closed.
Wake Up Capability specifies events for waking up the system from S3
(Sleep) state. Press Enter to access the submenu as shown below.
Advanced
Wake Up Capability Item Specific Help
Any-key Wake Up From S3:
Ring Wake-Up From S3:
USB Wake-Up From S3:
[Disabled]
[Disabled]
[Disabled]
Allow any key to wake
up the system from S3
(Sleep) state.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Any-key Wake Up From S3 allows any key to wake up the system from
S3 (Sleep) state.
Ring Wake-Up From S3 allows a modem activity to wake up the system
from S3 (Sleep) state.
USB Wake-Up From S3 allow a USB device activity to wake up the
system from S3 (Sleep) state.
System Policy sets if the system always runs at full speed (
Performance
) or
lowers down when its temperature is too high (
Balance
).
Disabled
Using BIOS Setup and System Recovery 5-7
AC Initiation sets if connecting AC power will automatically start or resume
the system.
SATA Mode set to
AHCI
if your hard disk supports AHCI. AHCI allows you to
take advantage of Advanced Host Controller Interface features. The options
are
IDE
and
AHCI
.
CAUTION: Incorrect SATA mode settings can result in hard disk drive boot
failure.
AMT Configuration configures Active Management Technology parameters.
Press Enter to access the submenu as shown below.
Advanced
AMT Configuration Item Specific Help
Intel AMT:
Intel AMT Setup Prompt:
[Disabled]
[Disabled]
Enable/Disable
Intel(R) Active
Management Technology
BIOS Extension.
Note: iAMT H/W is
always enabled.
This option just
controls the BIOS
extension execution.
If enabled this
requires additional
firmware in the SPI
device
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Intel AMT enables or disables Intel® Active Management Technology
BIOS extension execution. AMT allows the system administrator to access
an AMT featured computer remotely.
Intel AMT Setup Prompt determines whether the prompt for entering
Intel AMT Setup appears or not during POST. If disabled, users cannot
enter Intel AMT Setup.
Enabled
5-8 Using BIOS Setup and System Recovery
Virtualization Technology Setup sets Virtualization Technology parameters.
Press Enter to access the submenu as shown below.
Advanced
Virtualization Technology Setup Item Specific Help
Intel(R) Virtualization Technology
Intel(R) VT for Directed I/O(VT-d)
[Disabled]
[Disabled]
When enabled, a VMM
can utilize the
additional hardware
virtualization
capabilities.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Intel(R) Virtualization Technology enables or disables Intel® VT (Intel
Virtualization Technology) feature which provides hardware support for
processor virtualization. When enabled, a VMM (Virtual Machine
Monitor) can utilize the additional hardware virtualization capabilities
provided by this technology.
Intel(R) VT for Directed I/O(VT-d) enables or disables VT-d (Intel®
Virtualization Technology for Directed I/O). When enabled, VT-d helps
enhance Intel platforms for efficient virtualization of I/O devices.
Disabled
Using BIOS Setup and System Recovery 5-9
Graphics Setup sets graphics related options. Press Enter to access the
submenu as shown below.
Advanced
Graphic Setup Item Specific Help
DVMT Pre-Allocated:
Total Graphics Memory:
[ ]
[256MB]
Select Pre-Allocated
Graphics Memory size
used by the Internal
Graphics Device.
This has no effect if
external graphics are
present.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
NOTE: Graphic Setup parameters apply to the internal graphics device only.
DVMT Pre-Allocated sets the amount of pre-allocated (fixed) graphics
memory for use by the internal graphics device.
Total Graphics Memory sets the amount of total graphics memory
(pre-allocated + fixed + DVMT) for use by the internal graphics device.
64MB
5-10 Using BIOS Setup and System Recovery
Button Setup sets hardware button related options. Press Enter to access the
submenu as shown below.
Information Main Advanced Security Boot Exit
Button Setup: Item Specific Help
P1 Function:
[Disable d]
Define P1 button as
Quick launch button
or Emergency button.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
P1 Function specifies the P1 quick button function. When set to
Blackout
, the P1 quick button allows you to turn off the LCD backlight
and LED indicator. When set to
Quick Btn
, the P1 quick button serves as a
user-defined quick launch key. When set to
Emergency Btn
,
the P1 quick
button serves as the Emergency button. “Emergency button” only works
with customized applications that support the specific button.
Quick Btn
Using BIOS Setup and System Recovery 5-11
Device Configuration enables or disables several hardware components.
Press Enter to access the submenu as shown below.
Advanced
Device Configuration Item Specific Help
Wireless LAN:
WWAN:
Bluetooth:
Media Card Reader:
Smart Card Reader:
HD Audio:
Modem:
Fingerprint Scanner:
1394 Port:
E-SATA Port:
[ ]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
Set WLAN device to
enable/disable.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
You can enable or disable the following items:
Wireless LAN
WWAN
Bluetooth
Media Card Reader (MMC/SD)
Smart Card Reader
HD Audio (High Definition Audio)
Modem
Fingerprint Scanner
1394 Port
E-SATA Port
Enable
d
5-12 Using BIOS Setup and System Recovery
Security Menu
The Security menu contains the security settings, which safeguard your
system against unauthorized use.
Information Main Advanced Security Boot Exit
Supervisor Password Is:
User Password Is:
Set Supervisor Password:
Set User Password
Password on Boot:
Set HDD 0 Password:
HDD 0 Password:
TPM Setup Menu
Cleared
Cleared
[Enter]
[Enter]
[Disabled]
[Enter]
Cleared
Item Specific Help
Set or clear the
Supervisor account’s
password.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
NOTE:
You can set the user password only when the supervisor password has
been set.
If both the administrator and user passwords are set, you can enter any
of them for starting up the system and/or entering BIOS Setup. But the
user password only allows you to view/change the settings of certain
items.
A password setting is applied right after it is confirmed. To cancel a
password, leave the password empty by pressing the Enter key.
Supervisor/User Password Is shows whether you have set the
supervisor/user password or not for the system.
Set Supervisor/User Password sets the supervisor/user password. When
typing the password, first make sure that Num Lock is off, and then type the
password in the entry fields and press Enter. Confirm your password by
Enter
Using BIOS Setup and System Recovery 5-13
typing it again and pressing Enter. You can set the supervisor/user password
to be required for starting up the system and/or entering BIOS Setup.
Password on Boot allows you to enable or disable the entering of password
for booting up your system. Once the password is successfully set and this
item is enabled, it is required for booting up the system.
Set HDD 0 Password sets the password for locking the Primary Master hard
disk drive. After setting a password, the hard disk drive can only be
unlocked by the password no matter where it is installed.
HDD 0 Password Is shows whether you have set the hard disk password.
TPM Setup Menu sets various TPM parameters. Press Enter to access the
submenu as shown below.
TPM Support enables or disables TPM (Trusted Platform Module) support.
TPM (Trusted Platform Module) is a component on your computer’s main-
board that is specifically designed to enhance platform security by providing
a protected space for key operations and other security critical tasks.
Current TPM State shows the current TPM state.
Change TPM State allows you to select between
No Change
,
Clear
,
Deactivate & Disable
, and
Enable & Activate
.
Security
TPM Setup Menu Item Specific Help
TPM Support:
Current TPM State:
Change TPM Status:
[ ]
[Enabled and Activated]
[No Change]
This is used to
decide whether TPM
support should be
enabled or disabled.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Enabled
5-14 Using BIOS Setup and System Recovery
Boot Menu
The Boot menu sets the sequence of the devices to be searched for the
operating system.
Information Main Advanced Security Boot Exit
Boot priority order:
1. SATA ODD: PIORNEER DVD-RW DVRTD11RS
2. SATA HDD: LITEONIT LAT-128M3S
3. USB HDD: USB DISK Pro
4. USB FDD: USB DISK Pro 1
5. PCI LAN: IBA GE Slot 00C8 v1365
6. USB ODD:
7. Other HDD:
Item Specific Help
Keys used to view or
configure devices:
and arrows Select a
device. ’+’ and ’-’
moves the device up or
down. ’Shift + 1’
enables or disables a
device. ’Del’ deletes
an unprotected device.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
The bootable devices will be automatically detected during POST and shown
here, allowing you to set the sequence that the BIOS uses to look for a device
from which to load the OS.
Below is a brief description of keyboard usage:
Key Function
, Selects (highlight) a boot device.
+, – Changes the boot sequence.
1 to 4 Loads the default boot sequence.
f or r Specifies if the boot device is fixed (f) or removable (r).
X Moves the highlighted boot device from the “Boot priority order”
list to the “Excluded from boot order” list, and vice versa.
Using BIOS Setup and System Recovery 5-15
Key Function
Shift+1 Deactivates/activates the highlighted boot device on the “Boot
priority order” list. When a device has been deactivated, an “!”
(exclamation) symbol appears beside the item and system will
bypass it when detecting boot device during POST.
Exit Menu
The Exit menu provides ways of exiting BIOS Setup. After finishing with your
settings, you must save and exit so that the changes can take effect.
Information Main Advanced Security Boot Exit
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Item Specific Help
Equal to F10, save
all changes of all
menus, then exit
setup configure
driver. Finally
resets the system
automatically.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Exit Saving Changes saves the changes you have made and exits BIOS Setup
Utility.
Exit Discarding Changes exits BIOS Setup Utility without saving the changes
you have made.
Load Setup Defaults loads the factory default values for all the items.
Discard Changes restores the previous values for all the items.
Saves Changes saves the changes you have made.
5-16 Using BIOS Setup and System Recovery
System Recovery
Use System Recovery when:
The Windows operating system does not start at all.
You want to restore the system to the factory state.
WARNING:
Using this feature will reinstall Windows to your system and configure it
to the system’s factory default settings. All data on the hard disk drive
will be lost.
Make sure that power is not interrupted during the recovery process. An
unsuccessful recovery may result in Windows startup problems.
To run System Recovery:
1. Connect the AC adapter.
2. Turn on the computer. During system startup when the following screen
appears, press Ctrl + Alt + F2 keys for four second.
3. In the screen that appears, select Recovery to start the recovery process.
Using BIOS Setup and System Recovery 5-17
4. The progress bar shows the percentage completed. When it reaches
100%, the system turns off.
5. Turn on the Tablet PC. The Windows setup wizard starts. Follow the
onscreen prompts to continue.
6. When the system restarts, the installer screen appears. The installer will
perform system hardware detection and driver installation.
7. When completed, the system restarts and displays Windows desktop.
Using Getac Software 6-1
Chapter 6
Using Getac Software
Getac software includes application programs for specific computer
components and utility programs for overall management.
This chapter describes how to use the programs.
6-2 Using Getac Software
Using G-Manager
G-Manager is a unified user interface utility that allows you to manage and
configure the following:
System
Battery
ECO (economic mode)
Light Sensor
Monitoring
GPS Status
Starting G-Manager
You can start up G-Manager by any of the following methods:
Click Start All Programs Getac Utility G-Manager, or
Click and hold the icon located on the taskbar until a ring appears.
From the small menu that pops up, click G-Manager.
The G-Manager window appears, containing 7 tabs as described later.
NOTE: Depending on your model, the actual items appearing on the screen
may differ from those shown in this manual.
Using Getac Software 6-3
System Tab
The System tab provides system information.
To view specific information, select the component from the list on the left
side of the screen. The information of the selected component will be
displayed on the right side of the screen.
6-4 Using Getac Software
Battery Tab
The Battery tab allows you to check the battery status and configure the
battery.
At most two batteries may be supported. Click Battery 1 or Battery 2 to view
the information of each battery (if your model has a second battery).
NOTE:
When the percentage % Left is less than 10% then the value will be
displayed in red.
When an abnormal battery condition is detected Battery Status value
will be displayed in red.
Battery Information
The upper portion of the screen displays the current status of the selected
battery.
Using Getac Software 6-5
Charging Mode
The lower left portion of the screen allows you to select the charging mode.
Normal Mode – The battery will be fully charged. When remaining
charge reaches below 95%, then charging will start until it is fully
charged.
Economy Mode – This mode helps prolong battery life by charging up to
80% of its total capacity only. It is highly recommended if you are using
AC power most of the time.
Gauge Reset
The lower right portion of the screen contains the battery health bar and
provides the battery calibration function.
The health bar shows the batter’s health by percentage. A low percentage
indicates poor health and therefore the need to perform a gauge reset to
calibrate the battery’s capacity and improve the battery’s performance. The
gauge reset process includes discharging and then fully recharging the
battery in two cycles. It can take several hours.
To perform a gauge reset:
1. Connect the AC adapter.
2. Click Start, located next to the health bar
3. In the pop-up dialog box, click Yes to start the process. The window as
below appears displaying the progress bar.
6-6 Using Getac Software
4. Wait till the process is completed. Click Exit when finished.
ECO Tab
The ECO tab allows you to configure ECO modes (or called power profiles).
To put the system into an ECO mode, use the ECO button. (See “Using the
Quick Buttons” in Chapter 2 for information.)
Using Getac Software 6-7
ECO Information
The left portion of the screen lists the available power profiles (Quick, Power
Saving, and Work). Each profile is a combination of power settings that
results in different power consumptions. To change the settings of a profile,
select (highlight) the profile name in the list.
Profile Settings
The right portion of the screen displays the settings of the current selected
profile. You can set up the following items:
WWAN, Bluetooth, and WLAN – can be on or off.
Power Scheme – can be Balanced, High Performance or Power Saver.
The settings here correspond to the settings in Windows. (See Windows
Help for the description to each of the power scheme.)
After changing the settings, click Apply or OK to save the changes. To
restore the settings to the default values, click Default.
6-8 Using Getac Software
Light Sensor Tab
The Light Sensor tab allows you configure how the light sensor works.
Sensor Mode
The left portion of the screen lists the sensor modes:
Normal – Light sensor sensitivity is set at normal environment lighting
condition.
Bright – Light sensor sensitivity is set at bright environment lighting
condition (e.g. outdoors).
Dark – Light sensor sensitivity is set at dark environment lighting
condition (e.g. indoors, storage warehouse, etc.).
Click to select a mode. Click Apply or OK to save the changes.
Using Getac Software 6-9
Environment Illuminance
To have the keypad backlight automatically turn on in poor lighting
environment, click the checkbox Automatic Keyboard Backlit. Click Apply or
OK to save the changes.
Antenna Tab
The Antenna tab allows you to set if your system will automatically use the
external GPS or WWAN antenna when connected to the Docking Station.
Select the checkbox(es) accordingly. Click Apply or OK to save the changes.
6-10 Using Getac Software
Monitoring Tab
The Monitoring tab allows you to configure the monitoring function of
G-Manager.
Items to Monitor
The left portion of the screen lists the items. Click the checkbox before an
item to include it as a monitored component. Click Apply or OK to save the
changes.
NOTE: Different models have different supported monitoring items;
non-supported items cannot be selected (grayed out items).
Monitoring Options
The right portion of the screen allows you to set how the monitored items
are displayed and how often the monitoring is updated.
Always On Top – allows the monitoring window to remain on top of
your display.
Using Getac Software 6-11
Monitoring Interval – sets the frequency of updates on the monitoring
window (1/3/5/10/30 seconds or 1/5/30 minutes).
Click Apply or OK to save the changes.
Starting and Stopping the Monitoring
To start monitoring, click START Monitor. The monitoring window similar to
the one below appears displaying requested information at specified
intervals.
To stop monitoring, click the Close button at the upper right corner of the
monitoring window or click Stop Monitor on the Monitoring tab page of
G-Manager.
6-12 Using Getac Software
GPS Status Tab
The GPS Status tab shows the GPS status for models having the GPS module.
To start GPS positioning, click Start GPS. The screen displays:
Ongoing raw data strings in the Message Log section
Overhead satellite positions in the Satellite Map section
Signal strength of the satellites in the Signal Indicator section
When GPS positioning is completed, the Data Summary section shows the
GPS information of the current location.
To stop GPS positioning, click Stop GPS.
Using Getac Software 6-13
Quick Button Definition Utility
The P1 button has a pre-assigned function. You can re-define the button
following this procedure:
NOTE: If you want to re-define P1, make sure the P1 Function item in the
BIOS Setup Utility is set to Quick Btn (default setting). (See “Advanced
Menu” in Chapter 5 for information.)
1. Right-click the Getac utility icon ( ) on the Windows taskbar and select
Quick Buttons Definition.
2. The following window appears. Click the Open button .
6-14 Using Getac Software

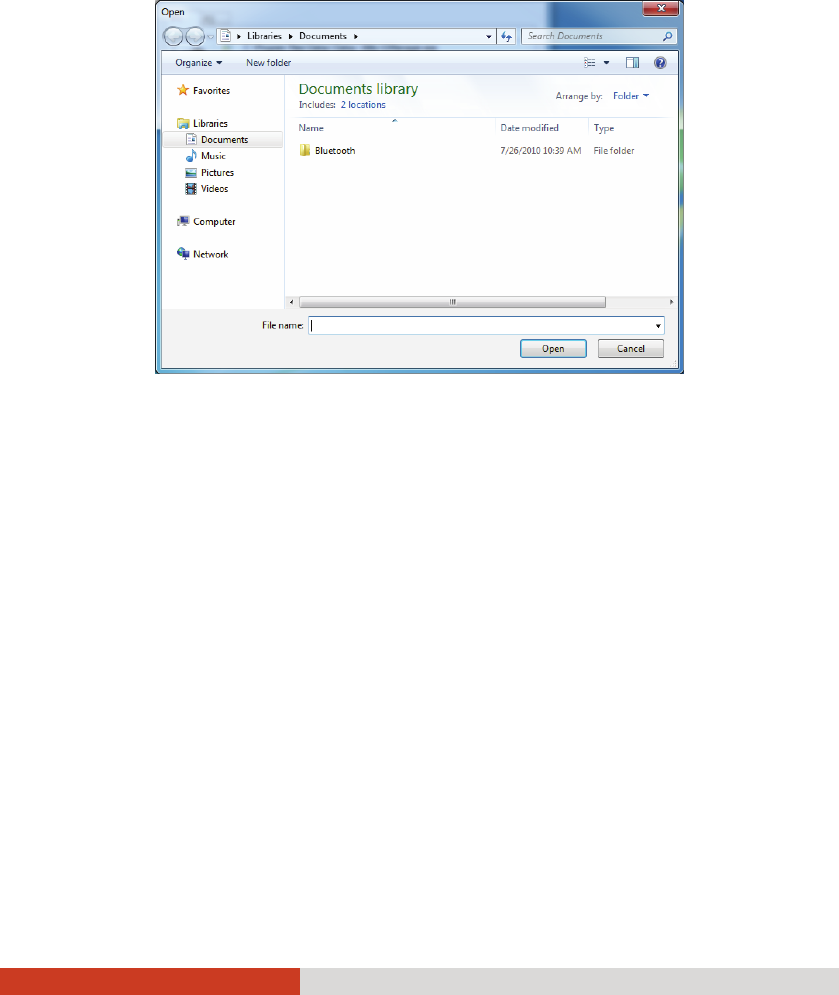

3. In the Open dialog box, browse to the destination folder and select the
desired program file. Then, click Open to complete.
4. A matching program icon will appear in the settings window.
NOTE: You can restore the quick buttons to the default settings by clicking
Get Default.
Caring for the Computer 7-1
Chapter 7
Caring for the
Computer
Taking good care of your computer will ensure a trouble-free operation and
reduce the risk of damage to your computer.
This chapter gives you guidelines covering areas such as protecting, storing,
cleaning, and traveling.
7-2 Caring for the Computer
Protecting the Computer
To safeguard the integrity of your computer data as well as the computer
itself, you can protect the computer in several ways as described in this
section.
Using an Anti-Virus Strategy
You can install a virus-detecting program to monitor potential viruses that
could damage your files.
Using Windows Action Center
Windows Action Center alerts you to take action on the following security
essentials:
Windows Firewall
Windows Update
Malware Protection (anti-virus, anti-spyware)
Others (Internet security, user account control)
For detailed information on Windows Security Center, see Windows’ Help.
Caring for the Computer 7-3
Using the Cable Lock
You can use a Kensington-type cable lock to protect your computer against
theft. The cable lock is available in most computer stores.
To use the lock, loop the lock cable around a stationary object such as a
table. Insert the lock to the Kensington lock hole and turn the key to secure
the lock. Store the key in a safe place.
7-4 Caring for the Computer
Taking Care of the Computer
Location Guidelines
For optimal performance, use the computer where the recommended
temperature is between 0 C (32 F) and 55 C (131 F).
Avoid placing the computer in a location subject to high humidity,
extreme temperatures, mechanical vibration, direct sunlight, or heavy
dust. Using the computer in extreme environments for long periods can
result in product deterioration and a shortened product life.
Operating in an environment with metallic dust is not allowed.
Place the computer on a flat and steady surface. Do not stand the
computer on its side or store it in an upside-down position. A strong
impact by dropping or hitting may damage the computer.
Do not cover or block any ventilation openings on the computer. For
example, do not place the computer on a bed, sofa, rug, or other similar
surface. Otherwise, overheating may occur that results in damage to the
computer.
As the computer can become very hot during operation, keep it away
from objects that are vulnerable to heat.
Keep the computer at least 13 cm (5 inches) away from electrical
appliances that can generate a strong magnetic field such as a TV,
refrigerator, motor, or a large audio speaker.
Avoid moving the computer abruptly from a cold to a warm place. A
temperature difference of more than 10 C (18 F) may cause
condensation inside the unit, which may damage the storage media.
General Guidelines
Do not place heavy objects on top of the computer when it is closed as
this may damage the display.
Caring for the Computer 7-5
The screen surface is easily scratched. Avoid touching it with a sharp
object such as a pen or pencil.
LCD image sticking occurs when a fixed pattern is displayed on the
screen for a prolonged period of time. You can avoid the problem by
limiting the amount of static content on the display. It is recommended
that you use a screen saver or turn off the display when it is not in use.
To maximize the life of the backlight in the display, allow the backlight
to automatically turn off as a result of power management.
Cleaning Guidelines
Never clean the computer with its power on.
Use a soft cloth moistened with water or a non-alkaline detergent to
wipe the exterior of the computer.
Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or
detergent on the display.
Dust or grease on the touchpad can affect its sensitivity. Clean the pad
by using adhesive tape to remove the dust and grease on its surface.
If water or liquid is split onto the computer, wipe it dry and clean when
possible. Though your computer is water-proof, do not leave the
computer wet when you can dry it.
If the computer gets wet where the temperature is 0C (32F) or below,
freeze damage may occur. Make sure to dry the wet computer.
Battery Pack Guidelines
Recharge the battery pack when it is nearly discharged. When
recharging, make sure that the battery pack is fully charged. Doing so
may avoid harm to the battery pack.
The battery pack is a consumable product and the following conditions
will shorten its life:
– when frequently charging the battery pack
7-6 Caring for the Computer
– when using, charging, or storing the battery in high temperature
condition
To avoid hastening the deterioration of the battery pack thereby
prolonging its useful life, minimize the number of times you charge it so
as not to frequently increase its internal temperature.
Charge the battery pack between 10 C ~ 30 C (50 F ~ 86 F)
temperature range.
A higher environment temperature will cause the battery pack’s
temperature to rise. Avoid charging the battery pack inside a closed
vehicle and in hot weather condition.
Also, charging will not start if the battery pack is not within the allowed
temperature range.
It is recommended that you do not charge the battery pack more than
once a day.
It is recommended that you charge the battery pack with the computer’s
power off.
To maintain the battery pack’s operating efficiency, store it in a cool
dark place removed from the computer and with 30 % ~ 40 % charge
remaining.
Important guidelines when using the battery pack.
When installing or removing the battery pack take note of the
following:
– avoid installing or removing the battery pack when the computer is
in Sleep mode. Abruptly removing the battery pack may cause loss
of data or the computer may become unstable.
– avoid touching the battery pack terminals or damage may occur,
thereby causing improper operation to it or the computer.
The computer’s input voltage and surrounding temperature will directly
affect the battery pack’s charge and discharge time:
– charging time will be prolonged when the computer is turned on.
To shorten the charging time, it is recommended that you place the
computer in sleep or hibernation mode.
– a low temperature will prolong the charging time as well as hasten
the discharge time.
Caring for the Computer 7-7
When using battery power in an extremely low temperature
environment, you may experience shortened operating time and
incorrect battery level reading. This phenomenon comes from the
chemical characteristics of batteries. The appropriate operating
temperature for the battery is -10 C ~ 50 C (14 F ~ 122 F).
Touchscreen Guidelines
Use the finger or the included touchscreen pen on the display. Using a
sharp or metallic object other than your finger or touchscreen pen may
cause scratches and damage the display, thereby causing errors.
Avoid using excessive force that may cause damage to the display.
Use a soft cloth to remove dirt on the display. The touchscreen surface
has a special protective coating that prevents dirt from sticking to it. Not
using a soft cloth may cause damage to the special protective coating on
the touchscreen surface.
Turn off the computer power when cleaning the display. Cleaning the
display with the power on may cause improper operation.
Do not use excessive force on the display. Avoid moving the computer
while holding the display or twisting the display. Avoid placing objects
on top of the display as this may cause the glass to break thereby
damaging the display.
Using the touchscreen during low temperature (less than 5oC) may cause
a slower response time, this is normal. A normal response time may be
restored upon returning to room temperature.
When there is a noticeable discrepancy in the placement of the stylus on
the screen and the indicated position of the onscreen pointer, use the
calibration utility to recalibrate the touchscreen display.
7-8 Caring for the Computer
When Traveling
Before traveling with your computer, make a backup of your hard disk
data into flash disks or other storage devices. As an added precaution,
bring along an extra copy of your important data.
Make sure that the battery pack is fully charged.
Make sure that the computer is turned off and the top cover is securely
closed.
Make sure that all the connector covers are closed completely to ensure
the waterproof integrity.
Do not leave objects in between the keyboard and closed display.
Disconnect the AC adapter from the computer and take it with you. Use
the AC adapter as the power source and as a battery-charger.
Hand-carry the computer. Do not check it in as luggage.
If you need to leave the computer in the car, put it in the trunk of the car
to avoid exposing the computer to excessive heat.
When going through airport security, it is recommended that you send
the computer and flash disks through the X-ray machine (the device you
set your bags on). Avoid the magnetic detector (the device you walk
through) or the magnetic wand (the handheld device used by security
personnel).
If you plan to travel abroad with your computer, consult your dealer for
the appropriate AC power cord for use in your country of destination.
Troubleshooting 8-1
Chapter 8
Troubleshooting
Computer problems can be caused by hardware, software, or both. When
you encounter any problem, it might be a typical problem that can easily be
solved.
This chapter tells you what actions to take when solving common computer
problems.
8-2 Troubleshooting
Preliminary Checklist
Here are helpful hints to follow before you take further actions when you
encounter any problem:
Try to isolate which part of the computer is causing the problem.
Make sure that you turn on all peripheral devices before turning on the
computer.
If an external device has a problem, make sure that the cable
connections are correct and secure.
Make sure that the configuration information is properly set in the BIOS
Setup program.
Make sure that all the device drivers are correctly installed.
Make notes of your observations. Are there any messages on the screen?
Do any indicators light? Do you hear any beeps? Detailed descriptions
are useful to the service personnel when you need to consult one for
assistance.
If any problem persists after you follow the instructions in this chapter,
contact an authorized dealer for help.
Troubleshooting 8-3
Solving Common Problems
Battery Problems
The battery does not charge (Battery Charge indicator does not light
amber).
Make sure that the AC adapter is properly connected.
Make sure that the battery is not too hot or cold. Allow time for the
battery pack to return to room temperature.
If the battery doesn't charge after it has been stored in very low
temperatures, try disconnecting and reconnecting the AC adapter to
solve the problem.
Make sure that the battery pack is installed correctly.
Make sure that the battery terminals are clean.
The operating time of a fully charged battery becomes shorter.
If you often partially recharge and discharge, the battery might not be
charged to its full potential. Initialize the battery to solve the problem.
(See “Initializing the Battery Pack” in Chapter 3 for instructions.)
The battery operating time indicated by the battery meter does not
match the actual operating time.
The actual operating time can be different from the estimated time,
depending on how you are using the computer. If the actual operating
time is much less than the estimated time, initialize the battery. (See
“Initializing the Battery Pack” in Chapter 3 for instructions.)
Bluetooth Wireless Transmission Problems
I cannot connect to another device with Bluetooth wireless
technology.
Make sure that both devices have activated Bluetooth feature.
8-4 Troubleshooting
Make sure that the distance between the two devices is within the limit
and that there are no walls or other obstructions between the devices.
Make sure that the other device is not in “Hidden” mode.
Make sure that both devices are compatible.
Display Problems
Nothing appears on the screen.
During operation, the screen may automatically turn off as a result of
power management. Press any key to see if the screen comes back.
The brightness level might be too low. Increase brightness.
The display output might be set to an external device. To switch the
display back to the LCD, press the Fn+F5 hot key or change the display
through the Display Settings Properties.
The characters on the screen are dim.
Adjust the brightness and/or contrast.
The display brightness cannot be increased.
As a protection, the display brightness will be fixed at a low level when
the surrounding temperature is too high or too low. It is not a
malfunction in this situation.
Bad dots appear on the display at all times.
A small number of missing, discolored, or bright dots on the screen are
an intrinsic characteristic of TFT LCD technology. It is not regarded as a
LCD defect.
The external monitor displays nothing.
Make sure that the monitor is turned on.
Make sure that the monitor’s signal cable is properly connected.
Switch the display to the monitor by pressing the Fn+F5 hot key or
change the display through the Display Settings Properties.
Troubleshooting 8-5
Simultaneous display/multi-display does not work.
Make sure that you turn on the external monitor before turning on the
computer.
ress the Fn+F5 hot key to toggle through the display options or change
the Display Settings Properties in Windows.
DVD Drive Problems
The DVD drive cannot read a disc.
Make sure that the disc is correctly seated in the tray, with the label
facing up.
Make sure that the disc is not dirty. Clean the disc with a disc cleaning
kit, available in most computer stores.
Make sure that the computer supports the disc or the files contained.
You cannot eject a disc.
The disc is not properly seated in the drive. Manually release the disc by
inserting a small rod, such as a straightened paperclip, into the drive’s
manual eject hole and pushing firmly to release the tray
Hardware Device Problems
The computer does not recognize a newly installed device.
The device may not be correctly configured in the BIOS Setup program.
Run the BIOS Setup program to identify the new type.
8-6 Troubleshooting
Make sure if any device driver needs to be installed. (Refer to the
documentation that came with the device.)
Make sure if the device needs any jumper or switch settings. (Refer to
the documentation that came with the device.)
Check the cables or power cords for correct connections.
For an external device that has its own power switch, make sure that the
power is turned on.
Hard Disk Drive Problems
The hard disk drive error message appears on the screen.
The hard disk drive has defects. Ask your dealer for help.
The hard disk drive operations seem slow.
The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.
The hard disk drive in-use indicator glows without blinking.
The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.
Keyboard, Mouse, and Touchpad Problems
The keyboard does not respond.
Try connecting an external keyboard. If it works, contact an authorized
dealer, as the internal keyboard cable might be loose.
Water or liquid is spilt into the keyboard.
Immediately turn off the computer and unplug the AC adapter. Then
turn the keyboard upside down to drain the liquid out of the keyboard.
Make sure to clean up any part of the spill you can get to. Though the
keyboard of your computer is spill-proof, liquid will remain in the
keyboard enclosure if you don’t remove it. Wait for the keyboard to air
dry before using the computer again.
Troubleshooting 8-7
The numeric keypad is disabled.
Make sure that the Num Lock is switched on. (Check if the Num Lock
Indicator glows or not.)
The external keyboard does not work.
Make sure that the keyboard cable is properly connected.
The USB mouse does not work.
Make sure that the mouse cable is properly connected.
The touchpad does not work, or the pointer is difficult to control
with the touchpad.
Make sure that the touchpad is clean.
LAN Problems
I cannot access the network.
Make sure that the LAN cable is properly connected to the RJ-45
connector and the network hub.
Make sure that the network configuration is appropriate.
Make sure that the user name or password is correct.
Power Management Problems
The computer does not enter Sleep or Hibernation mode
automatically.
If you have a connection to another computer, the computer does not
enter Sleep or Hibernation mode if the connection is actively in use.
Make sure that the Sleep or Hibernation time-out is enabled.
The computer does not enter Sleep or Hibernation mode
immediately.
If the computer is performing an operation, it normally waits for the
operation to finish.
8-8 Troubleshooting
The computer does not resume from Sleep or Hibernation mode.
The computer automatically enters Sleep or Hibernation mode when the
battery pack is empty. Do any one of the following:
Connect the AC adapter to the computer.
Replace the empty battery pack with a fully charged one.
The computer does not enter Hibernation mode with the Fn+F12 hot
keys.
Make sure that the Hibernation function is specified for the sleep
button.
You might be using a PC or other card that prevents the computer from
entering Hibernation mode. To enter the mode, stop the communication
program and then remove the card or stop the card.
Software Problems
An application program does not work correctly.
Make sure that the software is correctly installed.
If an error message appears on the screen, consult the software
program’s documentation for further information.
If you are sure the operation has stop, reset the computer. (See
“Resetting the Computer” later in this chapter.)
Sound Problems
No sound is produced.
Make sure that the volume control is not set too low.
Make sure that the computer is not in Sleep mode.
If using an external speaker, make sure that the speaker is properly
connected.
Troubleshooting 8-9
Distorted sound is produced.
Make sure that the volume control is not set too high or too low. In most
cases, a high setting can cause the audio electronics to distort the sound.
The sound system does not record.
Adjust the playback or recording sound levels.
The external microphone or audio device does not work.
Make sure that the microphone is connected to the proper connector on
the computer.
Click the speaker symbol on the taskbar and check the Windows volume
control.
Check the volume control of your computer.
Startup Problems
When you turn on the computer, it does not seem to respond.
Make sure that either the AC adapter is connected or the battery has
power.
For models with the hard disk drive heater option: When turning on the
computer in an extremely low temperature environment, the computer
will heat up the hard disk before starting up. The HDD Heater indicator
( ) lights amber to indicate the heater is on. Wait till the heating is
finished. However, if external AC power is not available and the
remaining battery power is too low for the heating to complete, the
computer may not start up. In case the computer fails to start up, turn
off the computer and leave it in room temperature for about an hour
before trying to turn it on again.
When you turn on the computer, it stops after POST.
Restart your computer.
8-10 Troubleshooting
WLAN Problems
I cannot use the WLAN feature.
Make sure that the mini PCI-E WLAN card is correctly installed.
Make sure that the WLAN feature is turned on.
Transmission quality is poor.
Your computer may be in an out-of-range situation. Move your computer
closer to the Access Point or another WLAN device it is associated with.
Check if there is high interference around the environment and solve the
problem as described next.
Radio interference exists.
Move your computer away from the device causing the radio
interference such as microwave oven and large metal objects.
Plug your computer into an outlet on a different branch circuit from that
used by the affecting device.
Consult your dealer or an experienced radio technician for help.
I cannot connect to another WLAN device.
Make sure that the WLAN feature is turned on.
Make sure that the SSID setting is the same for every WLAN device in the
network.
Your computer is not recognizing changes. Restart the computer.
Make sure that the IP address or subnet mask setting is correct.
I cannot communicate with the computer in the network when
Infrastructure mode is configured.
Make sure that the Access Point your computer is associated with is
powered on and all the LEDs are working properly.
If the operating radio channel is in poor quality, change the Access Point
and all the wireless station(s) within the BSSID to another radio channel.
Troubleshooting 8-11
Your computer may be in an out-of-range situation. Move your
computer closer to the Access Point it is associated with.
Make sure that your computer is configured with the same security
option (encryption) to the Access Point.
Use the Web Manager/Telnet of the Access Point to check whether it is
connected to the network.
Reconfigure and reset the Access Point.
I cannot access the network.
Make sure that the network configuration is appropriate.
Make sure that the user name or password is correct.
You have moved out of range of the network.
Turn off power management.
Other Problems
The date/time is incorrect.
Correct the date and time via the operating system or BIOS Setup
program.
After you have performed everything as described above and still have
the incorrect date and time every time you turn on the computer, the
RTC (Real-Time Clock) battery is at the end of its life. Call an authorized
dealer to replace the RTC battery.
8-12 Troubleshooting
Resetting the Computer
You may have to reset (reboot) your computer on some occasions when an
error occurs and the program you are using hangs up.
If the computer operation seems to hang up, first wait. It is possible that the
computer is processing data. Periodically check the hard disk drive in-use
indicator, if it flashes irregularly, the program may be accessing data and
preventing you from using the keyboard. If you are sure the operation has
stopped and you cannot use the “restart” function of the operating system,
reset the computer.
Reset the computer by any one of these methods:
Press Ctrl+Alt+Del on the keyboard.
If the above action does not work, press and hold the power button for
more than 5 seconds to force the system to turn off. Then turn on the
power again.
CAUTION: Resetting will cause any unsaved data to be lost.
Specifications A-1
Appendix A
Specifications
NOTE: Specifications are subject to change without any prior notice.
Parts Specifications
CPU Intel® Ivy Bridge 17W (BGA), without fan, 3MB L3 cach3
Intel® Ivy Bridge 35W (BGA), with fan, 4MB L3 cach3
Chipset Intel® QM77, dual channel support
BIOS 16 MB EEPROM, ACPI, TPM, vPro
RAM Up to 32GB, 2 × 204-pin SO-DIMM sockets for 4GB/8GB/16GB
DDRIII, 1333/1600 MHz, 1.25-inch height
Display Panel 13.3-inch (16:9) TFT LCD, resolution up to 1366×768 WXGA,
700nits with protection glass, with light sensor as default
feature, sunlight-readable (1200 nits) touchscreen (option)
Video controller Intel® HD Graphics 4000
Audio Features Azalia interface, 2 channel analog output, internal microphone
Speaker 2 watt (8 ohm) stereo × 2
Microphone Integrated microphone
Keyboard Standard keys with numeric pad keys, 12 function keys, special
Fn (Function) key and Windows keys, with water-proof
membrane or backlight (option)
Pointing device Glide touchpad with 2 buttons, scroll bar
Storage
device
Hard disk drive SATA 3 interface, 2.5-inch diameter, 7mm/9.5 mm height, 5400
rpm support, 500GB, G-sensor, shock-mounted, user-removable,
solid-state disk (option), automotive hard disk drive (option),
low temperature -20 oF (-29 oC) up to 140 oF (60 oC) (option)
DVD drive SATA interface, Super-Multi DVD drive, 12.7mm height,
Card slots Card Reader 3-in-1 (SD/ MMC/MMC Plus)
PCMCIA CardBus Type II
ExpressCard/34/54
Smart Card
A-2 Specifications
Parts Specifications
I/O ports USB 3.0 × 2, USB 2.0, eSATA II/ USB 3.0 combo, RS232 x 2, RJ-11,
RJ-45, mini IEEE 1394a, analog VGA, HDMI, headphone out,
microphone in, docking
Modem Azalia interface, 56 Kbps, V.90 MDC 1.5 internal fax modem
LAN Intel® 82579LM Gigabit Network , 10/100/1000 Mbps
Wireless LAN + Bluetooth Jason Peak 2 Advanced-N 6235 (BT4.0 combo), 802.11 a/g/n
GPS (option) GPS module, GPS pass-through
WWAN (option) 3G or 4G LTE, WWAN minicard, external accessible SIM card slot
Security Kensington lock
TPM 1.2
Fingerprint scanner
Smart Card Reader
Power AC adapter Universal AC adapter 90 W; input: 100240 V, output: 19 V
Battery Li-ion smart battery 9-cell 8700 mAH / 10.8 V
Dimension (LxW×H) 333×293×67.5 mm (13.11×11.54×2.66 inch) with handle
Weight 3.88 kg (8.55 lb)
Regulatory Information B-1
Appendix B
Regulatory
Information
This appendix provides regulatory statements and safety notices on your
computer.
NOTE: Marking labels located on the exterior of your computer indicate the
regulations that your model complies with. Please check the marking labels
and refer to the corresponding statements in this appendix. Some notices
apply to specific models only.
B-2 Regulatory Information
On the Use of the System
Class B Regulations
USA
Federal Communications Commission Radio Frequency Interference
Statement
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the
equipment off and on, the user is encouraged to try to correct the
interference by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with this equipment is prohibited.
Regulatory Information B-3
Canada
Canadian Department of Communications
Radio Interference Regulations Class B Compliance Notice
This Class B digital apparatus meets all requirements of the Canada
Interference-Causing equipment regulations.
Cet appareil numérique de Classe B respecte toutes les exigences du
Règlement Canadien sur le matériel brouileur.
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe B
prescrites dans le Règlement sur le brouillage radioélectrique édicté par le
ministère des Communications du Canada.
Safety Notices
About the Battery
Keep the battery pack out of the reach of children.
Caution Texts Concerning Lithium Batteries
DANISH
ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det
brugte batteri tilbage til leverandøren.
NORWEGIAN
ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme
batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte
batterier kasseres i henhold til fabrikantens instruksjoner.
SWEDISH
VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma
batterityp eller en ekvivalent typ som rekommenderas av
apparattillverkaren. Kassera använt batteri enligt fabrikantens instruktion.
B-4 Regulatory Information
FINNISH
VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda
paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty
paristo valmistajan ohjeiden mukaisesti.
ENGLISH
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace
only with the same or equivalent type recommended by the equipment
manufacturer. Discard used batteries according to manufacturer's
instructions.
DEUTSCH
VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie.
Ersatz nur durch denselben oder einen vom Hersteller empfohlenen
gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben des
Herstellers.
FRENCH
ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la
batterie. Remplacer uniquement avec une batterie du même type ou d’un
type équivalent recommandé par le constructeur. Mettre au rebut les
batteries usagées conformément aux instructions du fabricant.
Attention (for USA Users)
The product that you have purchased contains a rechargeable battery. The
battery is recyclable. At the end of its useful life, under various state and
local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your
area for recycling options or proper disposal.
About the AC Adapter
Use only the AC adapter supplied with your computer. Use of another
type of AC adapter will result in malfunction and/or danger.
Do not use the adapter in a high moisture environment. Never touch the
adapter when your hands or feet are wet.
Allow adequate ventilation around the adapter when using it to operate
the device or charge the battery. Do not cover the AC adapter with
Regulatory Information B-5
paper or other objects that will reduce cooling. Do not use the AC
adapter while it is inside a carrying case.
Connect the adapter to a proper power source. The voltage
requirements are found on the product case and/or packaging.
Do not use the adapter if the cord becomes damaged.
Do not attempt to service the unit. There are no serviceable parts inside.
Replace the unit if it is damaged or exposed to excess moisture.
Option UL1604 Instruction
INSTALLATION INSTURCTIONS:
Installation instructions are provided with each device and shall include the
following or equivalent wording:
This equipment is suitable for use in Class I, Division 2, Groups A, B, C and
D OR non-hazardous locations only.
WARNING – EXPLOSION HAZARD – Do not disconnect equipment unless
power has been removed or the area is known to be non-hazardous.
WARNING – EXPLOSION HAZARD - Substitution of components may
impair suitability for Class I, Division 2.
WARNING - EXPLOSION HAZARD - External Connections/Hubs are not to
be used in a Hazardous Location.
WARNING - EXPLOSION HAZARD - Notebook is to be only powered from
the battery pack while in Hazardous Locations.
B-6 Regulatory Information
On the Use of the RF Device
NOTE: The information in this section applies to models with the wireless
LAN module.
USA and Canada Safety Requirements and
Notices
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must not
be co-located or operating in conjunction with any other antenna or
transmitter.
Radio Frequency Interference Requirements and SAR
The FCC with its action in ET Docket 93-62 has adopted a safety standard for
human exposure to Radio Frequency (RF) electromagnetic energy emitted by
FCC certified equipment. The wireless LAN module meets the Human
Exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE C95.1, 1992.
Proper operation of this radio according to the instructions found in this
manual will result in exposure substantially below the FCC’s recommended
limits. The following safety precautions should be observed:
Do not touch or move antenna while the unit is transmitting or
receiving.
Do not hold any component containing the radio such that the antenna
is very close or touching any exposed parts of the body, especially the
face or eyes, while transmitting.
Do not operate the radio or attempt to transmit data unless the antenna
is connected; if not, the radio may be damaged.
Use in specific environments:
The use of wireless devices in hazardous locations is limited by the
constraints posed by the safety directors of such environments.
Regulatory Information B-7
The use of wireless devices on airplanes is governed by the Federal
Aviation Administration (FAA).
The use of wireless devices in hospitals is restricted to the limits set forth
by each hospital.
Antenna use:
In order to comply with FCC RF exposure limits, low gain integrated
antennas should be located at a minimum distance of 20 cm (8 inches) or
more from the body of all persons.
High-gain, wall-mount, or mast-mount antennas are designed to be
professionally installed and should be located at a minimum distance of
30 cm (12 inches) or more from the body of all persons. Please contact
your professional installer, VAR, or antenna manufacturer for proper
installation requirements.
Explosive Device Proximity Warning
WARNING: Do not operate a portable transmitter (such as a wireless
network device) near unshielded blasting caps or in an explosive
environment unless the device has been modified to be qualified for such
use.
Antenna Warning
WARNING: To comply with the FCC and ANSI C95.1 RF exposure limits, it is
recommended that the antenna for this device be installed so as to provide a
separation distance of at least 20 cm (8 inches) from all persons and that the
antenna must not be co-located or operating in conjunction with any other
antenna or radio transmitter. It is recommended that the user limit exposure
time if the antenna is positioned closer than 20 cm (8 inches).
Use on Aircraft Caution
CAUTION: Regulations of the FCC and FAA prohibit airborne operation of
radio-frequency wireless devices because their signals could interfere with
critical aircraft instruments.
B-8 Regulatory Information
EMC Requirements
This device uses, generates and radiates radio frequency energy. The radio
frequency energy produced by this device is well below the maximum
exposure allowed by the Federal Communications Commission (FCC).
This device complies with the limits for a Class B digital device pursuant to
Part 15 subpart C of the FCC Rules and Regulations. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
The FCC limits are designed to provide reasonable protection against
harmful interference when the equipment is installed and used in
accordance with the instruction manual and operated in a commercial
environment. However, there is no guarantee that interference will not
occur in a particular commercial installation, or if operated in a residential
area.
If harmful interference with radio or television reception occurs when the
device is turned on, the user must correct the situation at the user’s own
expense. The user is encouraged to try one or more of the following
corrective measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION: The Part 15 radio device operates on a non-interference basis with
other devices operating at this frequency. Any changes or modification to
said product not expressly approved by the manufacturer could void the
user’s authority to operate this device.
Regulatory Information B-9
Canada Radio Frequency Interference Requirements
To prevent radio interference to the licensed service, this device is intended
to be operated indoors and away from windows to provide maximum
shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
Pour empêcher que cet appareil cause du brouillage au service faisant l'objet
d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des
fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son
antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une
licence.
European Union CE Marking and Compliance
Notices
Statements of Compliance
English
This product follows the provisions of the European Directive 1999/5/EC.
Danish
Dette produkt er i overensstemmelse med det europæiske direktiv
1999/5/EC.
Dutch
Dit product is in navolging van de bepalingen van Europees Directief
1999/5/EC.
Finnish
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
French
Ce produit est conforme aux exigences de la Directive Européenne
1999/5/EC.
German
Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie
1999/5/EC.
B-10 Regulatory Information
Greek
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας 1999/5/EC.
Icelandic
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
1999/5/EC.
Italian
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norwegian
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet
1999/5/EC.
Portuguese
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Spanish
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Swedish
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
Local Restrictions of 802.11a/g/n Radio Usage
CAUTION: Due to the fact that the frequencies used by 802.11a/g/n wireless
LAN devices may not yet be harmonized in all countries, 802.11a/g/n
products are designed for use only in specific countries or regions, and is not
allowed to be operated in countries or regions other than those of
designated use. As a user of these products, you are responsible for ensuring
that the products are used only in the countries or regions for which they
were intended and for verifying that they are configured with the correct
selection of frequency and channel for the country or region of use. Any
deviation from permissible settings and restrictions in the country or region
of use could be an infringement of local law and may be punished as such.
The European variant is intended for use throughout the European
Economic Area. However, authorization for use is further restricted in
particular countries or regions within countries, as follows:
Regulatory Information B-11
General
European standards dictate maximum radiated transmit power of
100 mW Effective Isotropic Radiated Power (EIRP) and the frequency range
2400 – 2483.5 MHz.
Belgium and the Netherlands
In Belgium and the Netherlands, the product may not be used outdoors. See
the instructions next under the heading “Turning Off the Wireless LAN
Radio.”
France
Departments in Which the Wireless LAN Module Can Be Used (Indoors Only)
The wireless LAN module can currently be used indoors only in the following
38 departments of mainland France. Please turn off your wireless LAN radio
when operating the device in areas/places other than the 38 departments
listed:
01 Ain Orientales 36 Indre 66 Pyrénées
02 Aisne 37 Indre et Loire 67 Bas Rhin
03 Allier 41 Loir et Cher 68 Haut Rhin
05 Hautes Alpes 42 Loire 70 Haute Saône
08 Ardennes 45 Loiret 71 Saône et Loire
09 Ariège 50 Manche 75 Paris
11 Aude 55 Meuse 82 Tarn et Garonne
12 Aveyron 58 Nièvre 84 Vaucluse
16 Charente 59 Nord 88 Vosges
24 Dordogne 60 Oise 89 Yonne
25 Doubs 61 Orne 90 Territoire de Belfort
26 Drôme 63 Puy du Dôme 94 Val de Marne
32 Gers 64 Pyrénées Atlantique
B-12 Regulatory Information
Departments in Which the Wireless LAN Module’s Maximum EIRP Not Shown
in the Previous Table
Frequency Ranges (MHz) Indoors Outdoors
2400 – 2446.5 10 mW Not permitted
2446.5 – 2483.5 100 mW 100 mW on private property with
Ministry of Defense approval
Turning Off the Wireless LAN Radio
NOTE: Turning the wireless LAN radio off is not the same as disabling the
wireless LAN card. It is not necessary to disable the card to meet the
regulatory requirements.
While operating the computer in those French departments that do not
allow use of the wireless LAN equipment, the user of the equipment must
turn off the wireless LAN radio in order to comply with local regulations.
