Getac Technology 3X01 NOTEBOOK PC User Manual
Getac Technology Corporation NOTEBOOK PC Users Manual
Users Manual
Rugged Mobile Computing Solutions
B300
USER’S MANUAL
May. 2010
TRADEMARKS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc.
All other brand and product names are trademarks or registered trademarks of their
respective owners.
NOTE
The information in this manual is subject to change without notice.
For the latest version of the manual, please visit the Getac website at www.getac.com.
ENERGY STAR® is a government program that offers businesses and consumers
energy-efficient solutions, making it easy to save money while protecting the
environment for future generations.
Please reference ENERGY STAR® related information from
www.energystar.gov.
As an ENERGY STAR® Partner, Getac Technology Corporation has determined that
this product meets the ENERGY STAR® guidelines for energy efficiency.
An ENERGY STAR® qualified computer uses 70 % less electricity than computers
without enabled power management features.
Earning the ENERGY STAR®
When every home office is powered by equipment that has earned the ENERGY
STAR®, the change will keep over 289 billion pounds of greenhouse gases
out of the air.
If left inactive, ENERGY STAR® qualified computers enter a low-power mode
and may use 15 watts or less. New chip technologies make power management
features more reliable, dependable, and user-friendly than even just a few years
ago.
Spending a large portion of time in low-power mode not only saves energy,
but helps equipment run cooler and last longer.
Businesses that use ENERGY STAR® enabled office equipment may realize
additional savings on air conditioning and maintenance.
Over its lifetime, ENERGY STAR® qualified equipment in a single home office
(e.g., computer, monitor, printer, and fax) can save enough electricity to light
an entire home for more than 4 years.
Power management (“sleep settings”) on computers and monitors can result
in much savings annually.
Remember, saving energy prevents pollution
Because most computer equipment is left on 24 hours a day, power management
features are important for saving energy and are an easy way to reduce air pollution.
By using less energy, these products help lower consumers’ utility bills, and prevent
greenhouse gas emissions.
i
Table of Contents
Table of Contents........................................................................................................................................ i
Getting Started ......................................................................................................................................... 1-1
Getting the Computer Running ....................................... 1-2
Unpacking .............................................................. 1-2
Connecting to AC Power ........................................... 1-2
Opening the Cover ................................................... 1-4
Turning On and Off the Computer .............................. 1-5
Taking a Look at the Computer .................................. 1-6

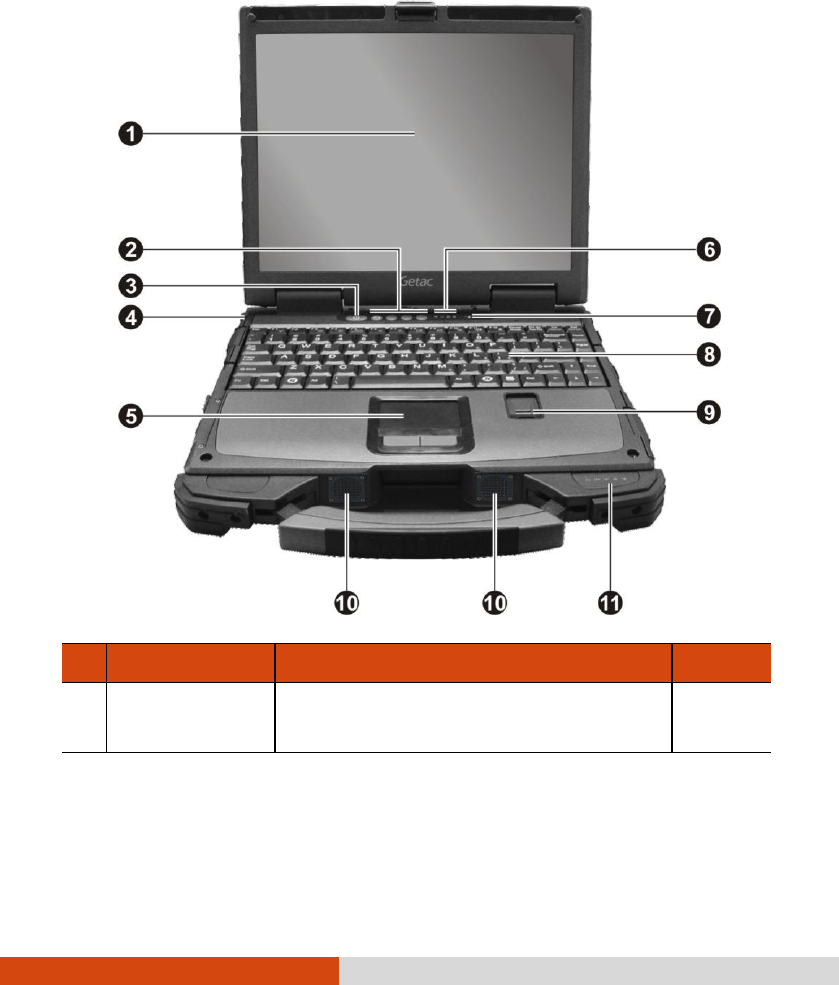

Front Components .................................................... 1-6
Rear Components .................................................... 1-7
Right-Side Components ............................................. 1-8
Left-Side Components .............................................. 1-10
Top-open Components ............................................. 1-11

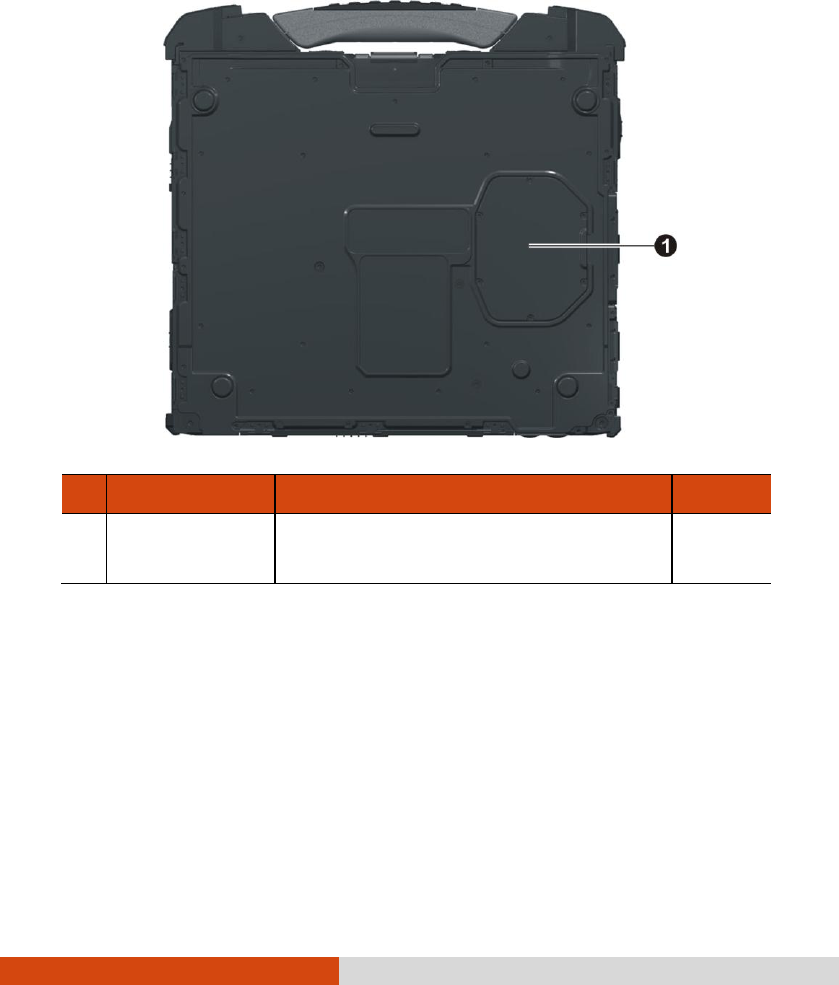

Bottom Components ................................................. 1-14
Closing Connector Covers ......................................... 1-15
Operating Your Computer ................................................................................................................. 2-1
Starting and Stopping the Computer ................................ 2-2
Starting the Computer ............................................... 2-2
Stopping the Computer .............................................. 2-2
Using the Keyboard ..................................................... 2-4
Typewriter Keys ....................................................... 2-4
Cursor-Control Keys ................................................. 2-4
Numeric Keypad ...................................................... 2-5
ii
Function Keys ......................................................... 2-6
Fn Key ................................................................. 2-6
Hot Keys ............................................................... 2-6
Using the Touchpad ..................................................... 2-9
Configuring the Touchpad ......................................... 2-11
Using the Touchscreen (Optional)................................ 2-12
Using the Quick Buttons ............................................. 2-14
Using the Hard Disk Drive .......................................... 2-16
Installing a Second Hard Disk Drive (Optional) ........... 2-16
Using the Optical Drive (Optional) ............................... 2-19
Inserting and Removing a Disc ................................. 2-20
Using the Video Features ........................................... 2-22
Configuring the Display Modes .................................. 2-22
Using the Audio Features ........................................... 2-23
Connecting Audio Devices ........................................ 2-24
Using the Communication Features ................................ 2-25
Using the Modem .................................................. 2-25
Using the LAN ...................................................... 2-26
Using the Wireless LAN .......................................... 2-27
Using the Bluetooth Feature ..................................... 2-31
Using the 3G Feature (Optional) ............................. 2-35
Using the Fingerprint Sensor ........................................ 2-40
Managing Power .................................................................................................................................... 3-1
AC Adapter ................................................................ 3-2
Battery Pack .............................................................. 3-3
Charging the Battery Pack ......................................... 3-3
Initializing the Battery Pack ........................................ 3-4
Checking the Battery Level ........................................ 3-5
Replacing the Battery Pack ........................................ 3-6
Installing a Second Battery Pack (Optional) ................. 3-7
Battery Low Signals and Actions ............................... 3-10
iii
Power Management ..................................................... 3-11
Hibernation ........................................................... 3-12
Power-Saving Tips .................................................... 3-13
Expanding Your Computer ................................................................................................................ 4-1
Connecting an External Monitor ...................................... 4-2
Connecting a Serial Device ........................................... 4-4
Connecting a USB Device ............................................. 4-6
Connecting an IEEE 1394 Device ................................... 4-7
Using Smart Cards (Optional) ...................................... 4-8
Inserting and Removing a Smart Card ......................... 4-8
Using PC Cards ....................................................... 4-10
Inserting and Removing a PC Card ........................... 4-10
Using ExpressCards (Optional) .................................... 4-12
ExpressCard Type .................................................. 4-12
Inserting and Removing an ExpressCard ..................... 4-13
Using the Card Reader .............................................. 4-14
Using the Port Replicator (Optional) ............................ 4-16
System Memory Upgrade ............................................ 4-17
Using BIOS Setup and System Recovery .................................................................................... 5-1
BIOS Setup ............................................................... 5-2
When and How to Use ............................................ 5-2
Information Menu ..................................................... 5-3
Main Menu ............................................................. 5-4
Advanced Menu ....................................................... 5-5
Security Menu ......................................................... 5-6
Boot Menu ............................................................. 5-8
Exit Menu .............................................................. 5-9
System Recovery ....................................................... 5-10
Using the TPM and P1 Utility ............................................................................................................. 6-1
Using TPM (Trusted Platform Module) ........................... 6-2
iv
P1 Quick Launch Key Utility .......................................... 6-3
Caring for the Computer ..................................................................................................................... 7-1
Protecting the Computer ................................................ 7-2
Using an Anti-Virus Strategy ...................................... 7-2
Using Windows Action Center ..................................... 7-2
Using the Cable Lock ............................................... 7-3
Taking Care of the Computer ........................................ 7-4
Location Guidelines ................................................... 7-4
General Guidelines ................................................... 7-4
Cleaning Guidelines .................................................. 7-5
Battery Pack Guidelines ............................................. 7-5
Touchscreen Guidelines ............................................. 7-7
When Traveling ........................................................... 7-8
Troubleshooting .................................................................................................................................... 8-1
Preliminary Checklist ..................................................... 8-2
Solving Common Problems ............................................ 8-3
Battery Problems ..................................................... 8-3
Bluetooth Wireless Transmission Problems ..................... 8-3
Display Problems ..................................................... 8-4
ExpressCard Problems ............................................... 8-5
Hardware Device Problems ......................................... 8-5
Hard Disk Drive Problems ......................................... 8-6
Keyboard, Mouse, and Touchpad Problems ................... 8-6
LAN Problems ......................................................... 8-7
Modem Problems ..................................................... 8-7
Optical Drive Problems .............................................. 8-7
PC Card Problems ................................................... 8-8
Power Management Problems ..................................... 8-9
Software Problems ................................................... 8-9
Sound Problems .................................................... 8-10
v
Startup Problems ................................................... 8-10
WLAN Problems ..................................................... 8-11
Other Problems ..................................................... 8-12
Resetting the Computer .............................................. 8-13
Specifications ............................................................................................................................................. 1
Regulatory Information .......................................................................................................................... 1
On the Use of the System .............................................. 2
Class B Regulations .................................................... 2
Safety Notices ............................................................ 3
On the Use of the RF Device ......................................... 7
USA and Canada Safety Requirements and Notices ........... 7
European Union CE Marking and Compliance Notices ........ 10
Getting Started 1-1
Chapter 1
Getting Started
Congratulations on purchasing this rugged computer.
This chapter first tells you step by step how to get the computer up and running.
Then, you will find a section briefly introducing the external components of the
computer.
1-2 Getting Started
Getting the Computer Running
This section guides you through the procedures for getting the computer ready for
operation.
Unpacking
After unpacking the shipping carton, you should find these standard items:
Rugged computer
Accessories:
AC adapter
AC power cord
Touchscreen pen (depending on your model)
Inspect all the items. If any item is damaged or missing, notify your dealer
immediately.
Keep the shipping carton and packing materials in case you need to ship or store
the computer in the future.
Connecting to AC Power
The computer operates either on the external AC power or internal battery power.
It is suggested that you use AC power when you start up the computer for the
very first time.
CAUTION: Use only the AC adapter included with your computer. Using other AC
adapters may damage the computer.
1. Make sure that the computer is turned off.
2. Plug the DC cord of the AC adapter to the power connector of the computer
().
Getting Started 1-3
3. Plug the female end of the AC power cord to the AC adapter and the male
end to an electrical outlet ().
4. When the AC adapter is connected, power is being supplied from the electrical
outlet to the AC adapter and onto your computer. Now, you are ready to turn
on the computer.
5. When the AC adapter is connected, it also charges the battery pack. The Battery
Charge Indicator on the computer glows amber to indicate that charging is in
progress. When the battery is fully charged, the Battery Charge Indicator
( ) glows green. (For information on using battery power, see Chapter
3.)
CAUTION:
When you disconnect the AC adapter, disconnect from the electrical outlet
first and then from the computer. A reverse procedure may damage the AC
adapter or the computer.
When unplugging the connector, always hold the plug head. Never pull on the
cord.
1-4 Getting Started
Opening the Cover
CAUTION: Be gentle when opening and closing the cover. Opening it vigorously
or slamming it shut could damage the computer.
Open the top cover by pushing on the cover latch () and lifting up the cover
(). You can tilt the cover forward or backward for optimal viewing clarity.
Getting Started 1-5
Turning On and Off the Computer
Turning On
1. Make sure that the computer is connected to AC power or battery is fully charged.
2. Open the top cover
3. Press the power button ( ).
4. Each time the computer is turned on, it performs a Power-On Self Test (POST),
and the operating system such as Windows should start.
Turning Off
To turn off the computer power, use the “Shut Down” command of your operating
system.
NOTE: There are other ways you can stop the computer so that you will be back
to where you left off when you next turn on the computer. (See “Stopping the
Computer” in Chapter 2 for information.)
CAUTION: If you have to turn the computer on again immediately after turning it
off, wait for at least five seconds. Turning the computer off and on rapidly can
damage it.
1-6 Getting Started
Taking a Look at the Computer
NOTE: Depending on the model you purchased, the appearance of your
computer may not be exactly the same as those shown in this manual.
Front Components
Ref
Component
Description
See Also
Top Cover Latch
Locks the top cover.
P. 1-4
3G Antenna
Serves as the antenna for wireless modem.
NOTE: For data transmission only.
P. 2-35
Handle
Provides a convenient way to carry the
computer.
Getting Started 1-7
Rear Components
NOTE: You need to open the covers to access the connectors.
Ref
Component
Description
See Also
Power Connector
Connects the AC adapter.
P. 1-2
USB Port
Connects a USB device, such as a USB flash
disk, printer, digital camera, joystick, and
more.
P. 4-6
Expansion Bus
Connector
Connects to a Port Replicator.
P. 4-16
VGA Connector
Connects an external display monitor.
P. 4-2
Serial Connector
Each of the two connectors connects a serial
mouse or serial communication device.
P. 4-4
Kensington Lock
Locks the computer to a stationary object for
security.
P. 7-2
1-8 Getting Started
Right-Side Components
NOTE: You need to open the covers to access the connectors.
Ref
Component
Description
See Also
Expansion Card
Slot
Depending on your model, the slot can be
any of the following:
ExpressCard Slot
Accepts an ExpressCard/34 or
ExpressCard/54 for additional functions.
P. 4-12
PCMCIA Slot
Accepts a PC card for additional functions.
P. 4-10
Mini IEEE 1394 Port
Connects an IEEE 1394 device such as a
scanner, printer, DVCAM, VCR, and more.
P. 4-7
RF (radio
frequency) On/Off
Switch
Serves as the master on/off control for all
the wireless modules (wireless LAN,
Bluetooth, and WWAN).
P. 2-29,
2-31,
2-35
Getting Started 1-9
Ref
Component
Description
See Also
NOTE: Available modules on your computer
depend on the configuration you purchased.
Card Reader
Accepts a MultiMediaCard (MMC), Secure
Digital (SD), Memory Stick (MS) or
Memory Stick PRO (MS PRO) card for
removable storage media.
P. 4-14
RJ-11 Connector
Connects the telephone line.
P. 2-25
Hard Disk Drive
Compartment
Inside is the hard disk drive.
P. 2-16
USB Ports
Each of the two ports connects a USB device,
such as a USB flash disk, printer, digital
camera, joystick, and more.
P. 4-6
Expansion Card
Slot
Depending on your model, the slot can be
any of the following:
Smart Card
Reader
Accepts a smart card for additional security
feature.
P. 4-8
PCMCIA Slot
Accepts a PC card for additional functions.
P. 4-10
GPS Antenna
pass-through
Connector
(option)
Connects to the optional antenna for GPS
receiver.
Audio Output
Connector
Connects a set of headphones, external
speakers with amplifier, or an audio recording
device.
P. 2-24
Microphone
Connector
Connects an external microphone.
P. 2-24
RJ-45 Connector
Connects the LAN cable.
P. 2-26
1-10 Getting Started
Left-Side Components
NOTE: You need to open the covers to access the connectors.
Ref
Component
Description
See Also
Battery Pack
Supplies power to your computer when
external power is not connected.
P. 3-3
Media Bay
Depending on your model, the media bay
may contain any of the following:
Combo Drive/
DVD Dual Drive/
Super Multi Drive
Accepts a compact disc for installing or
loading software, accessing data, and
playing music/video.
P. 2-19
Secondary Battery
Pack
Provides extra battery power.
P. 3-7
Secondary Hard
Disk Drive
Provides extra hard disk capacity.
P. 2-16
1-12 Getting Started
Ref
Component
Description
See Also
Quick Buttons
P1
Turns off/on the LCD display and LED
indicator by default.
P. 2-14
Enables/disables power saving when using
battery power.
P. 2-14
Enables/disables sunlight readable display.
P. 2-14
Enables/disables light sensor.
P. 2-14
Power Button
Turns the computer power ON and OFF.
P. 1-5
Touchscreen Pen
(option)
Provides a convenient way to use the
touchscreen.
P. 2-12
Touchpad
Serves as the pointing device of the computer.
P. 2-9
Indicators
Show the current status of the computer’s
devices.
Hard Disk Drive /
Optical Drive
Blinks green when computer is reading /
writing data to the hard disk or optical drive.
P. 2-16
Card Reader
Blinks green when computer is reading /
writing data to the storage card.
P. 4-14
Caps Lock
Lights green when Caps Lock is on.
P. 2-5
Num Lock / HDD
Heater (option)
Lights green when Num Lock is on.
P. 2-29
Lights amber when optional hard disk heater
is on (temperature is lower than 5oC when
booting your computer).
Microphone
Receives sound and voice for the computer.
P. 2-23
Keyboard
Serves as the data input device of the
P.2-4
Getting Started 1-13
Ref
Component
Description
See Also
computer.
Fingerprint
Sensor
Serves as the fingerprint verification,
preventing unauthorized access to your
computer.
P. 2-40
Stereo Speaker
Sends out sound and voice from the
computer.
P. 2-23
Indicators
Show the current status of the computer’s
devices.
Power
Lights green when computer is on.
P. 1-5
Blinks green when computer is on Sleep
mode.
Battery Charge
Lights green when the battery is fully charged.
P. 3-3
Lights amber when the battery is being
charged.
Blinks red when the battery’s capacity is
below 10 %.
Blinks amber when the battery is in an
abnormal condition.
WLAN
Lights green when WLAN is on.
P. 2-29
Bluetooth
Lights green when Bluetooth is on.
P. 2-31
3G
Lights green when 3G is on.
P. 2-35
Getting Started 1-15
Closing Connector Covers
It is important to close the connector covers completely to ensure the waterproof
integrity. When closing the covers, push the four corners and make sure that the
cover fits in completely.
Operating Your Computer 2-1
Chapter 2
Operating Your Computer
This chapter provides information about the use of the computer.
If you are new to computers, reading this chapter will help you learn the operating
basics. If you are already a computer user, you may choose to read only the parts
containing information unique to your computer.
CAUTION: The computer can get uncomfortably warm when you use it in high
temperatures. As a safety precaution in such a circumstance, do not place the
computer on your lap or touch it with your bare hands for extended periods of
time. Prolonged body contact can cause discomfort and potentially a burn.
2-2 Operating Your Computer
Starting and Stopping the Computer
There are a number of ways to start and stop the computer.
Starting the Computer
You always start the computer using the power button.
A computer starts up with an operating system (OS) existing on the storage device
such as the hard disk. The computer will automatically load the OS after you turn
it on. This process is called booting.
NOTE: An operating system is the platform for all your software application
programs to run on. Your computer uses the Microsoft Windows operating
system.
Stopping the Computer
When you finish a working session, you can stop the computer by turning off the
power or leaving the computer in Sleep or Hibernation mode:
To stop in this
mode...
Do this...
To start up or
resume again
Off
Click Start Shut Down … This can prevent
loss of unsaved data or damage to your
software programs.
If the system is locked up because of
hardware or software problems, press the
power button to turn off the computer.
Press the power
button.
Operating Your Computer 2-3
To stop in this
mode...
Do this...
To start up or
resume again
Sleep
Depending on your settings in Windows, you
can place the computer in Sleep mode by:
Closing the display cover
Pressing the Fn+F12 hot key
Pressing the power button
Press any key.
Hibernation
Depending on your settings in Windows, you
can place the computer in Hibernation mode
by:
Closing the display cover
Pressing the Fn+F12 hot key
Pressing the power button
Press the power
button.
If you choose to stop in Sleep or Hibernation mode, you can return to where you
left off the next time you start up the computer. (See “Power Management” in
Chapter 3 for more information.)
2-4 Operating Your Computer
Using the Keyboard
Your keyboard has all the standard functions of a full-sized computer keyboard plus
an Fn key added for specific functions.
The standard functions of the keyboard can be further divided into four major
categories:
Typewriter keys
Cursor-control keys
Numeric keys
Function keys
Typewriter Keys
Typewriter keys are similar to the keys on a typewriter. Several keys are added
such as the Ctrl, Alt, Esc, and lock keys for special purposes. When the lock keys
(Caps Lock and Num Lk) are pressed, their corresponding indicators light up.
The Control (Ctrl) / Alternate (Alt) key is normally used in combination with
other keys for program-specific functions. The Escape (Esc) key is usually used
for stopping a process. Examples are exiting a program and canceling a command.
The function depends on the program you are using.
Cursor-Control Keys
Cursor-control keys are generally used for moving and editing purposes.
NOTE: The word “cursor” refers to the indicator on the screen that lets you know
exactly where on your screen anything you type will appear. It can take the form of
a vertical or horizontal line, a block, or one of many other shapes.
Operating Your Computer 2-5
Numeric Keypad
A 15-key numeric keypad is embedded in the typewriter keys as shown next:
Numeric keys facilitate entering of numbers and calculations. When Num Lock is
on, the numeric keys are activated; meaning you can use these keys to enter
numerals.
NOTE:
When the numeric keypad is activated and you need to type the English letter
in the keypad area, you can turn Num Lock off or you can press Fn and then
the letter without turning Num Lock off.
Some software may not be able to use the numeric keypad on the computer.
If so, use the numeric keypad on an external keyboard instead.
2-6 Operating Your Computer
Function Keys
On the top row of the keys are the function keys: F1 to F12. Function keys are
multi-purpose keys that perform functions defined by individual programs.
Fn Key
The Fn key, at the lower left corner of the keyboard, is used with another key
to perform the alternative function of a key. The letter “Fn” and the alternative
functions are identified by the color of blue on the keytop. To perform a desired
function, first press and hold Fn, then press the other key.
Hot Keys
Hot keys refer to a combination of keys that can be pressed any time to activate
special functions of the computer. Most hot keys operate in a cyclic way. Each
time a hot key combination is pressed, it shifts the corresponding function to the
other or next choice.
You can easily identify the hot keys with the icons imprinted on the keytop. The
hot keys are described next.
Key
Description
Switches the wireless LAN radio on and off.
Switches the night vision feature on and off for viewing the
display when using night vision goggles (optional).
Decreases the sound volume.
Increases the sound volume.
Operating Your Computer 2-7
Key
Description
Switches the display output to one of the following when
external devices are connected.
Upon booting the system with CRT:
LCD CRT
LCD & CRT
NOTE: This function only applies to Plug & Play display
devices.
Decreases the LCD brightness.
Increases the LCD brightness.
Switches the touchscreen on and off (option).
Switches the touchpad off and on.
Switches the system sound output off (mute) and on.
Switches the display on and off.
Serves as the sleep button that you can define with Windows’
Power Options.
Switches the keyboard backlight on and off (option).
2-8 Operating Your Computer
Windows Keys
The keyboard has two keys that perform Windows-specific functions: Windows
Logo key and Application key.
The Windows Logo key opens the Start menu and performs software-specific
functions when used in combination with other keys. The Application key usually
has the same effect as a right mouse click. (See your Windows manual for more
information.)
Operating Your Computer 2-9
Using the Touchpad
CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so
may damage the touchpad surface.
NOTE:
Press Fn+F9 to toggle the touchpad on or off.
For optimal performance of the touchpad, keep your fingers and the pads
clean and dry. When tapping on the pad, tap lightly. Do not use excessive
force.
The touchpad is a pointing device that allows you to communicate with the computer
by controlling the location of the pointer on the screen and making selection with
the buttons.
The touchpad consists of a rectangular pad (work surface) and a left and right
buttons. To use the touchpad, place your forefinger or thumb on the pad. The
rectangular pad acts like a miniature duplicate of your display. As you slide your
fingertip across the pad, the pointer (also called cursor) on the screen moves
2-10 Operating Your Computer
accordingly. When your finger reaches the edge of the pad, simply relocate yourself
by lifting the finger and placing it on the other side of the pad.
Here are some common terms that you should know when using the touchpad:
Term
Action
Point
Move your finger on the pad until the cursor points to the
selection on the screen.
Click
Press and release the left button.
–or–
Tap gently anywhere on the pad.
Double-click
Press and release the left button twice in quick succession.
–or–
Tap twice on the pad rapidly.
Drag and drop
Press and hold the left button, then move your finger until
you reach your destination (drag). Finally, release the button
(drop) when you finish dragging your selection to the
destination. The object will drop into the new location.
–or–
Gently tap twice on the pad and on the second tap, keep
your finger in contact with the pad. Then, move your finger
across the pad to drag the selected object to your destination.
When you lift your finger from the pad, the selected object
will drop into place.
Operating Your Computer 2-11
Term
Action
Scroll
To scroll is to move up and down or left and right in the
working area on the screen.
To move vertically, place your finger on the right or left edge
of the pad and slide your finger up and down along the edge.
To move horizontally, place your finger on the top or bottom
edge of the pad and slide your finger left and right.
This function works only after you install the touchpad driver
supplied with the computer and it may not work for all
applications.
TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad
as
an alternative method of pressing the left button will no longer be valid.
Configuring the Touchpad
You may want to configure the touchpad to suit your needs. For example, if you
are a left-handed user, you can swap the two buttons so that you can use the
right button as the left button and vice versa. You can also change the size of
the on-screen pointer, the speed of the pointer, and so on.
To configure the touchpad, go to Control Panel Mouse Properties.
2-12 Operating Your Computer
Using the Touchscreen (Optional)
NOTE:
Make sure the touchscreen driver has been installed properly.
Press Fn+F8 to toggle the touchscreen on or off.
CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the
touchscreen. Doing so may damage the touchscreen surface. Use your finger or
the included touchscreen pen.
The touchscreen is a touch-sensitive device that allows you to navigate on the screen
without using a keyboard, touchpad, or mouse.
Operating Your Computer 2-13
Use the included touchscreen pen to select objects on the screen. The pen can
be stretched for better grip and handling.
Here are some common terms that you should know when using the touchscreen:
Term
Action
Click/Point
Tap gently on the touchscreen.
Double-click
Tap twice on the touchscreen rapidly.
Drag and drop
Press lightly on the touchscreen and move your finger until
you reach your destination (drag). Finally, release your finger
(drop) when you finish dragging your selection to the
destination. The object will drop into the new location.
2-14 Operating Your Computer
Using the Quick Buttons
Located on top of the keyboard are four quick buttons:
Button
Description
P1
Turns off/on the LCD display and LED indicators by default,
or
Starts a pre-defined program. (See “P1 Quick Launch Key Utility” in
Chapter 6 for information.)
NOTE: The function of P1 button depends on your setting in BIOS
Setup program under the Advanced menu (see chapter 5 for details).
Enables/disables power saving when using battery power. In power
saving mode, the system turns down the panel backlight and sacrifices
processing speed to gain more battery life. The button lights green when
power saving mode is enabled.
NOTE: The button works only when using battery power.
Enables/disables sunlight readable display. The button lights green while
sunlight readable mode is enabled.
Enables/disables light sensor. When enabled, your computer
automatically adjusts the LCD brightness based on the surrounding
Operating Your Computer 2-15
lighting condition. The button lights green while light sensor is enabled.
2-16 Operating Your Computer
Using the Hard Disk Drive
Your computer comes with a removable 2.5-inch PATA (parallel ATA) / SATA
(serial ATA) hard disk drive.
Select models come with a heater that automatically turns on for low temperature
operation.
CAUTION:
Make regular backups of your data files from your hard disk drive to USB flash
disks or other storage media.
Never try to remove or install the hard disk drive while the computer is
powered on. Doing so can result in loss of data, and can damage the
computer and the hard disk drive’s sensitive circuitry.
Never turn off or reset the computer while the hard disk drive in-use indicator
is on.
Installing a Second Hard Disk Drive (Optional)
You can install a second hard disk drive to your computer. To install a second
hard disk drive:
1. Make sure that system power is off.
2. Open the media bay cover by sliding the release latch towards the left.
Operating Your Computer 2-17
3. Press upward the optical drive release latch () and carefully pull on the ribbon
strip () to remove the optical drive.
4. Be careful to observe the correct orientation and slide the hard disk drive bracket
into the media bay until it reaches the end.
5. Close the media bay cover to secure the hard disk drive bracket.
NOTE: To remove the second hard disk drive, press upward the hard drive
release latch () and carefully pull on the ribbon strip () to remove the hard
drive.
2-18 Operating Your Computer
Operating Your Computer 2-19
Using the Optical Drive (Optional)
Your computer may come with an optical drive. Depending on your configuration,
the drive can be one of the following:
Combo drive can work both as a DVD drive (reading DVD discs in addition
to CDs, audio CDs and CD-R/-RW discs), and also as a CD recorder (writing
to CD-R/-RW discs).
DVD Dual drive besides the Combo drive function, can write to
DVD+R/+RW/-R/-RW discs.
Super Multi drive besides the Combo drive function, can write to
DVD+R/+RW/-R/-RW and DVD-RAM discs.
CAUTION:
When inserting a disc, do not use force.
Make sure that the disc is correctly inserted into the tray, and then close the
tray.
Do not leave the drive tray open. Also, avoid touching the lens in the tray with
your hand. If the lens becomes dirty, the optical drive may malfunction.
Do not wipe the lens using materials with rough surface (such as paper
towel). Instead, use a cotton swab to gently wipe the lens.
FDA regulations require the following statement for all laser-based devices:
“Caution, Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.”
NOTE: The optical drive is classified as a Class 1 laser product. This label is
located on the optical drive.
2-20 Operating Your Computer
NOTE: For DVD and Combo drives only.
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reverse engineering or disassembly is
prohibited.
Inserting and Removing a Disc
Follow this procedure to insert or remove a disc:
1. Turn on the computer.
2. Open the media bay cover by sliding the release latch towards the left.
3. Press the eject button and the DVD tray will slide out partially. Gently pull on
it until it is fully extended.
4. To insert a disc, place down the disc in the tray with its label facing up. Slightly
press the center of the disc until it clicks into place.
Operating Your Computer 2-21
To remove a disc, hold the disc by its outer edge and lift it up from the tray.
5. Gently push the tray back into the drive.
6. Close the media bay cover.
NOTE: In the unlikely event that you are unable to release the drive tray by
pressing the eject button, you can manually release the disc. (See “Optical Drive
Problems” in Chapter 8.)
Eject button
2-22 Operating Your Computer
Using the Video Features
The video subsystem of your computer features:
13.3-inch wide TFT (Thin-Film Transistor) color LCD display with 1024×768
XGA resolution
Multi-display capability, which allows you to expand your desktop on the screen
to another display device so that you have more desktop space to work on
Sunlight-readable LCD display by pressing sunlight readable quick button
( )
Automatically adjust the LCD brightness by pressing light sensor quick button
( )
Optional night vision display by pressing Fn + F2
Power Management
NOTE: If you want to use the computer with the LCD closed, make sure the
computer is not set to enter the Sleep or Hibernation mode when the LCD is
closed. Use Windows Control Panel Power Options to set up.
Configuring the Display Modes
NOTE: When using an external CRT monitor, the resolution depends on the CRT
monitor’s supported resolution.
Your computer has been set to a default resolution and number of colors before
shipment. You can view and change display settings through your operating system.
See your operating system documentation or online help for specific information.
For displaying in higher resolutions, you can connect an external monitor that supports
higher resolutions. (See “Connecting an External Monitor” in Chapter 4 for more
information.)
Operating Your Computer 2-23
Using the Audio Features
NOTE: If you experience interference while recording, try lowering the
microphone recording volume.
The audio subsystem of your computer features:
Azalia interface (high density audio codec)
2-channel analog output
Built-in microphone ()
External audio connectors ()
Set of speakers ()
Ways of playing and recording sound vary with the operating system used. See
your operating system documentation or online help for specific information.
2-24 Operating Your Computer
Connecting Audio Devices
For higher audio quality, you can send or receive sound through external audio
devices.
NOTE: After connecting an external audio device, make sure that you specify the
use of the correct audio device in Windows.
Audio Output Connector (green) can be connected to speakers, headphones, or
earphone set.
Microphone Connector (pink) can be connected to an external microphone for
recording voice or sound.
NOTE: When using the external speakers/headphones or microphone, you
cannot use the internal one.
Operating Your Computer 2-25
Using the Communication Features
Using the Modem
The internal 56 K fax/data modem allows you to use the telephone line to
communicate with others by fax, email, or connect to an online service or bulletin
board.
To connect the telephone line to the modem, connect one end of the modem cable
to the RJ-11 connector on the computer and the other end to the phone line.
NOTE:
When using the communication software, you may have to disable power
management.
Set the COM port of the modem to COM3.
Set parameters such as modem speed (baud rate) and line type (pulse dialing
or tone dialing).
Do not enter the Sleep mode when using the communication software.
2-26 Operating Your Computer
Using the LAN
The internal 10/100/1000Base-T LAN (Local Area Network) module allows you
to connect your computer to a network. It supports data transfer rate up to 1000
Mbps.
To connect the network cable to the LAN module, connect one end of the LAN
cable to the RJ-45 connector on the computer and the other end to the network
hub.
Operating Your Computer 2-27
Using the Wireless LAN
Depending on your model, an internal mini PCI-E wireless LAN (WLAN) card may
have been pre-installed by your computer manufacturer at the factory. This card
allows you to access corporate networks or the Internet in a wireless environment.
The WLAN features include:
WEP (Wired Equivalent Privacy) 64/128-bit data encryption
IEEE 802.11a/b/g/n standard compliance
Technology
Stated
Maximum
Throughput
(Mbps)
Data Rates
(Mbps)
Band (GHz)
Modulation Technology
802.11a
54
54, 48, 36,
24, 18, 12,
9, 6
5.15 ~
5.35
OFDM (Orthogonal
Frequency Division
Multiplexing)
802.11b
11
11, 5.5, 2, 1
2.412 ~
2.462
DSSS (Direct
Sequence Spread
Spectrum)
802.11g
54
54, 36, 18,
9
2.4
OFDM (Orthogonal
Frequency Division
Multiplexing)
802.11n
100 Mbps or
more
100 ~ 210
2.4 / 5
Spatial multiplexing,
uses MIMO
(multiple-input
multiple-output)
NOTE: 802.11g mode is backward compatible with 802.11b mode.
2-28 Operating Your Computer
If your WLAN card was provided by your dealer instead of the computer manufacturer,
contact your dealer for the correct driver to use.
Operating Your Computer 2-29
Turning Off/On the WLAN Radio
NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate
wireless devices in aircraft as this may interfere with flight safety. Remember to
turn off wireless LAN when using your computer in the airplane.
To turn on the WLAN radio:
1. Make sure that the RF switch is at the ON position.
2. Press Fn+F1 to turn on the WLAN radio (see “Hot Keys” in Chapter 2), indicated
by the WLAN indicator ( ) glowing in green when on.
If you need to temporarily turn off the radio, press Fn+F1. To resume network
connection, press Fn+F1 again.
It takes approximately 30 seconds for your computer to make a successful WLAN
connection and approximately 10 seconds to disconnect.
Connecting to a Wireless Network
To connect to a wireless network:
1. Make sure that the WLAN radio is on (as described in the previous section)
and Windows Mobility Center has Wireless Network turned on (accessed from
Windows Control Panel).
2. Tap the Wireless Network icon on the taskbar. (An orange light in the icon
indicates connections are available.)
2-30 Operating Your Computer
3. In the list of available wireless networks, tap a network, and then tap Connect.
4. Some networks require a network security key or passphrase. To connect to
one of those networks, ask your network administrator or Internet service provider
(ISP) for the security key or passphrase.
For more information on setting a wireless network connection, refer to Windows
online help.
Operating Your Computer 2-31
Using the Bluetooth Feature
Depending on your model, your computer may incorporate the Bluetooth capability
for short-range (about 10 meters) wireless communications between devices without
requiring a cable connection.
With Bluetooth wireless technology, data can be transmitted through walls, pockets
and briefcases as long as two devices are within range.
Turning On and Off the Bluetooth Feature
1. Make sure that the RF switch is at the ON position.
2. Right-click the GETAC Utility icon ( ) located on Windows taskbar and
select Quick Bar. (You need to tap on the taskbar to show the hidden
icons.)
2-32 Operating Your Computer
3. The following appears onscreen. To turn on the Bluetooth feature, click the
Bluetooth quick button.
The Bluetooth indicator ( ) will glow in green. By default, your computer
is in the general discoverable and pairable mode after the Bluetooth feature is
turned on.
4. To turn off the Bluetooth feature, click the Bluetooth quick button again.
The status of the Bluetooth connection is indicated by the Bluetooth icon located
in the taskbar. (You need to tap on the taskbar to show the hidden icons.)
Status
Icon
Off
(blue with red logo)
On
(blue with white logo).
Connected
(blue with green logo)
You can use the Bluetooth Utility to configure Bluetooth wireless connection settings
and transfer files.
Connecting to another Bluetooth Device
1. Make sure that the target Bluetooth device is turned on, discoverable and within
close range. (See the documentation that came with the Bluetooth device.)
Operating Your Computer 2-33
2. Double-click the Bluetooth icon on the taskbar and click New Connection.
Or, right-click the icon, and then click Add New Connection from the shortcut
menu.
3. The Add New Connection Wizard window appears. Select Express Mode
(Recommended), and then click Next.
2-34 Operating Your Computer
4. Select the device to connect to and click Next.
5. Depending on the type of Bluetooth device that you want to connect to, you
will need to enter the pertinent information.
For detailed information on using the Bluetooth Utility, right-click the icon and
then click Help from the shortcut menu.
Operating Your Computer 2-35
Using the 3G Feature
3G is the third generation of mobile phone standards and technology, after 2G.
It is based on the International Telecommunication Union (ITU) family of standards
under the International Mobile Telecommunications programme.
Unlike IEEE 802.11 networks, 3G networks are
wide area cellular telephone networks
.
IEEE 802.11 networks are short range, high-bandwidth networks primarily developed
for data.
NOTE:
Your model only supports data transmission, voice transmission is not
supported.
When using the wireless modem feature, pull out the 3G antenna.
2-36 Operating Your Computer
Installing a SIM Card
To use the 3G feature (GSM/UMTS/EDGE/GPRS/EVDO/HSUPA) on your
computer, you need to subscribe to 3G service and install the 3G SIM card from
your service provider, network operator, or other vendor.
To install the SIM card, follow these steps:
1. Make sure that the computer is not turned on or connected to AC power.
2. Open the media bay cover by sliding the release latch towards the left.
3. Press upward the optical drive release latch () and carefully pull on the ribbon
strip () to remove the optical drive from the media bay.
4. Carefully place your computer upside down and locate the SIM card slot.
Operating Your Computer 2-37
5. Insert the SIM card into the holder. Make sure the beveled corner on the SIM
card is facing towards the slot and that the golden contact area on the card
is facing downwards.
6. Replace the optical drive.
7. Close the media bay cover to secure the optical drive in place.
WARNING: Keep all SIM cards out of the reach of small children. For availability
and information on using SIM card services, contact your SIM card vendor. This
may be the service provider, network operator, or other vendor.
NOTE: To remove the SIM card, push inward to release and slide the SIM card
out of the slot.
2-38 Operating Your Computer
Turning On and Off the 3G Feature
1. Make sure that the RF switch is at the ON position.
2. Right-click the GETAC Utility icon ( ) located on Windows taskbar and
select Quick Bar. (You need to tap on the taskbar to show the hidden
icons.)
3. The following appears onscreen. To turn on the 3G feature, click the 3G quick
button.
The 3G indicator ( ) will glow in green.
4. To turn off the 3G feature, click the 3G quick button again.
Operating Your Computer 2-39
You can use the 3G software application to configure 3G connection settings.
2-40 Operating Your Computer
Using the Fingerprint Sensor
The fingerprint sensor provides a strong authentication mechanism based on fingerprint
recognition.
WARNING:
To protect the fingerprint sensor, be sure to slide close the cover when not
using the fingerprint reader.
We shall not be liable for any loss or damage whatsoever resulting from your
use of the fingerprint sensor or neglect of fingerprint sensor use, or any data
loss resulting from such developments as fingerprint authentication
malfunctioning.
To set up the fingerprint sensor:
1. Locate and slide open the fingerprint sensor cover.
NOTE: You can enroll fingerprints only after setting a password for the Windows
user account.
2. Go to Start menu Programs Protector Suite 2009.
Operating Your Computer 2-41
3. The following screen appears. Enter your Windows password and click Submit.
4. Use Control Center utility to enroll your fingerprints.
2-42 Operating Your Computer
5. Follow the onscreen instructions to complete enrolling your fingerprint(s).
NOTE: For detailed information, access the program’s online Help or Tutorial.
Managing Power 3-1
Chapter 3
Managing Power
Your computer operates either on external AC power or on internal battery power.
This chapter tells you how you can effectively manage power. To maintain optimal
battery performance, it is important that you use the battery in the proper way.
3-2 Managing Power
AC Adapter
CAUTION:
The AC adapter is designed for use with your computer only. Connecting the
AC adapter to another device can damage the adapter.
The AC power cord supplied with your computer is for use in the country
where you purchased your computer. If you plan to go overseas with the
computer, consult your dealer for the appropriate power cord.
When you disconnect the AC adapter, disconnect from the electrical outlet
first and then from the computer. A reverse procedure may damage the AC
adapter or computer.
When unplugging the connector, always hold the plug head. Never pull on the
cord.
The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct
Current) power because your computer runs on DC power, but an electrical outlet
usually provides AC power. It also charges the battery pack when connected to AC
power.
The adapter operates on any voltage in the range of 100~240 V AC.
Managing Power 3-3
Battery Pack
The battery pack is the internal power source for the computer. It is rechargeable
using the AC adapter.
The operating time of a fully charged battery pack depends on how you are using
the computer. When your applications often access peripherals, you will experience
a shorter operating time.
NOTE: Care and maintenance information for the battery is provided in the
“Battery Pack Guidelines” section in Chapter 7.
Charging the Battery Pack
NOTE:
Charging will not start if the battery’s temperature is below 0 C (32 F) or
above 30 C (86 F).
The charging process will stop and the Battery Charge Indicator flashes
green and yellow by turns when the battery’s temperature gets above 60 C
(140 F). If this happens, the battery pack may be damaged. Please contact
your dealer.
During charging, do not disconnect the AC adapter before the battery has
been fully charged; otherwise you will get a prematurely charged battery.
To charge the battery pack, connect the AC adapter to the computer and an electrical
outlet. The Battery Charge Indicator ( ) on the computer glows amber to
indicate that charging is in progress. You are advised to keep the computer power
off while the battery is being charged. When the battery is fully charged, the Battery
Charge Indicator lights green.
3-4 Managing Power
The charging times are as follows:
Battery Type
Charging Time
Computer is Off
Computer is On and
in Idle State
6-cell (4 A)
2.5~3.5 hours
3.0~4.3 hours
9-cell (4 A)
3.5~4.5 hours
4.0~6.0 hours
CAUTION: After the computer has been fully recharged, do not immediately
disconnect and reconnect the AC adapter to charge it again. Doing so may
damage the battery.
NOTE: The battery level may automatically lessen due to the self-discharge
process (0.21 % per day), even when the battery pack is fully charged (100 %).
This happens no matter if the battery pack is installed in the computer.
Initializing the Battery Pack
You need to initialize a new battery pack before using it for the first time or when
the actual operating time of a battery pack is much less than expected.
Initializing is the process of fully charging, discharging, and then charging. It can
take several hours.
1. Make sure that the computer power is turned off. Connect the AC adapter to
fully charge the battery pack.
2. After the battery pack is fully charged, turn on the computer. When the message
“Click mouse or press <Enter> for Menu” appears, click the touchpad’s
left button or press the Enter key to invoke the program.
3. A small window appears, select Launch System Setup.
4. Disconnect the AC adapter and leave the computer on until the battery is fully
discharged. The computer will shut down automatically.
Managing Power 3-5
5. Connect the AC adapter to fully charge the battery pack.
Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The actual operating
time can be different from the estimated time, depending on how you are using
the computer.
By Operating System
You can check the approximate battery level using the battery meter function of
the operating system. To read the battery level in Windows, click the battery icon
( when running on battery power or when running on external power)on
the taskbar.
By Gas Gauge
On the exterior side of the battery pack is a gas gauge for displaying the estimated
battery charge. When the battery pack is not installed in the computer and you want
to know the battery charge, you can press the switch with a pointed device to see
the corresponding value of indicator segment that light green. The value of the
corresponding green segment indicates the relative percentage of the battery charge.
The battery pack is fully discharged when you see no segment glowing green.
Switch
3-6 Managing Power
Replacing the Battery Pack
CAUTION:
There is danger of explosion if the battery is incorrectly replaced. Replace the
battery only with the computer manufacturer’s optional battery packs. Discard
used batteries according to the dealer’s instructions.
Do not attempt to disassemble the battery pack.
If you often rely on battery power for a long period of time while traveling, you
may consider the purchase of an additional battery pack from your dealer and keep
it with you in a fully charged state as a backup.
To replace the battery pack, follow these steps:
1. Make sure that the computer is not turned on or connected to AC power.
2. Locate the battery compartment on the left side of the computer.
3. Open the compartment cover by sliding the release latch to the left () then
upwards ().
4. Pull on the ribbon strip to remove the battery pack.
Managing Power 3-7
5. Slide the new battery pack all the way into the slot. Make sure to observe
the correct orientation (the ribbon strip must face outward for future battery pack
removal).
6. Close the compartment cover and slide the release latch downward, then towards
the right to secure the battery pack.
Installing a Second Battery Pack (Optional)
You can install a second battery pack to your computer for a longer operating time
when AC power is not available. To install a second battery pack:
1. Make sure that system power is off.
2. Open the media bay cover by sliding the release latch towards the left.
3. Press upwards the optical drive release latch () and carefully pull on the
ribbon strip () to remove the optical drive.
3-8 Managing Power
4. Slide the second battery pack all the way into the slot. Make sure to observe
the correct orientation (the ribbon strip must face outward for future battery pack
removal).
5. Close the media bay cover to secure the second battery pack.
NOTE: To remove the second battery pack, press upwards the battery release
latch () and carefully pull on the ribbon strip () to remove the battery pack.
On the exterior side of the second battery pack is a gas gauge for displaying the
estimated battery charge. When the battery pack is not installed in the computer
and you want to know the battery charge, you can press the switch with a pointed
device to see the corresponding value of indicator segment that light green. The
value of the corresponding green segment indicates the relative percentage of the
battery charge. The battery pack is fully discharged when you see no segment glowing
green.
Managing Power 3-9
Switch
3-10 Managing Power
Battery Low Signals and Actions
The battery icon changes appearance to display the current state of the battery.
Battery
Icon
Battery Level
Description
Discharging
The icon shows the charge remaining in 10-percent
increments until the charge reaches the low-battery
level.
Low
The battery charge has reached the low-battery level
(10% by default).
Critically low
The battery charge has reached the critical battery
level (5% by default). By default, Windows will
display a notification and put your computer into
Hibernation.
When the battery is low, the computer’s Battery Charge Indicator ( ) also
blinks red to alert you to take actions.
Always respond to low-battery by connecting the AC adapter, placing your computer
in Hibernation mode, or turning off the computer.
CAUTION: If you are using an ExpressCard, do not access the card during
battery low periods. This is because the access may take longer than the time it
takes the battery to run out of charge, thus making your access to the card
unsuccessful.
Managing Power 3-11
Power Management
Your computer supports ACPI (Advanced Configuration and Power Interface) for
power management. The power management feature allows you to reduce the power
consumption for energy saving.
With an ACPI-compliant operating system such as Windows, power supply to different
computer components is controlled on an as-needed basis. This allows maximum
power conservation and performance at the same time.
Windows comes with pre-defined power plans (Balanced, Power Saver, and High
Performance) for you to select. By default, your computer is in Balanced mode
which works in this way:
Action
When…
The display is dimmed.
The computer has been inactive for 2
minutes (on battery) or 5 minutes
(plugged in).
Power to the display is automatically
turned off.
The computer has been inactive for 5
minutes (on battery) or 10 minutes
(plugged in).
Power to the hard disk is turned off.
The hard disk has been inactive for 10
minutes (on battery) or 20 minutes
(plugged in).
The computer enters Sleep mode.
The hard disk and display are turned
off and the entire system consumes
less power.
The computer has been inactive for 15
minutes (on battery) or 30 minutes
(plugged in).
The computer enters Hibernation
mode. (See the next subsection for
more information.)
The computer has been inactive for 360
minutes.
3-12 Managing Power
For detailed information on power management, see Windows’ Help.
Hibernation
Hibernation is a very useful feature. People frequently open many applications when
they use computers. It takes some time to get all these applications open and running,
and normally they all have to be closed before the computer can be turned off.
When you use the hibernation feature, you do not have to close the applications.
The computer stores the state of your computer to a file on the hard disk and then
shuts down. The next time you turn on your computer, you return to exactly where
you left off.
Managing Power 3-13
Power-Saving Tips
Aside from enabling your computer’s power saving mode (see previous section),
you can do your part to maximize the battery’s operating time by following these
suggestions.
Press the power saving quick button ( ) to enter into power saving
mode when using battery power.
Do not disable Power Management. Choose a Windows power plan that saves
power. A power plan is a collection of hardware and system settings that control
how your computer manages power.
Decrease the LCD brightness to the lowest comfortable level.
Shorten the length of time before Windows turn off the display.
Many USB devices use power just by being connected. If you use a USB mouse,
you can save power by disconnecting the mouse and using the touchpad. If
you use a USB flash drive, unplug it when you are not using it.
If you work with an application that uses a PC card, exit the application when
you finish using it.
If you have a PC card installed, remove it when not in use. Some PC cards
drain power even while they are inactive.
Turn off the wireless radio if you are not using the wireless module.
Turn off the computer when you are not using it.
Expanding Your Computer 4-1
Chapter 4
Expanding Your
Computer
You can expand the capabilities of your computer by connecting other peripheral
devices. When using a device, be sure to read the instructions accompanying the
device together with the relevant section in this chapter.
4-2 Expanding Your Computer
Connecting an External Monitor
If you want the benefits of a larger display screen with higher resolution, you can
connect an external display monitor to your computer. Follow this procedure to connect
an external monitor:
1. Make sure that the computer is not turned on.
2. Slide the release latch towards the right to open the connector cover.
3. Plug the monitor’s D-type signal connector to the computer’s VGA connector.
4. Plug one end of the monitor’s power cord into the power socket on the monitor
and the other end to an electrical outlet.
5. To use the monitor, turn on the monitor before turning on the computer.
6. The monitor should respond by default. If not, you can switch the display to
the monitor or to both (simultaneous display), or to multi-display by pressing
the Fn+F5 hot key. In Windows, you can also change the display through the
Display Settings Properties.
Expanding Your Computer 4-3
7. You can change display settings through your operating system. See your
operating system documentation or online help for specific information.
CAUTION: Do not disconnect the external monitor while the computer is in the
Sleep mode or Hibernation mode. If no external monitor is connected when the
computer resumes, the LCD might not display properly.
4-4 Expanding Your Computer
Connecting a Serial Device
Your computer has two serial ports for connecting a serial device such as a serial
mouse or serial communication device (modem).
Follow this procedure to connect a serial device:
1. Make sure the “Serial Port COM1/COM2” item is set properly in the BIOS
Setup program. (See “Advanced Menu” in Chapter 5 for information.)
2. Make sure the computer is not turned on
3. Slide the release latch towards the right to open the port cover.
4. Plug the device cable to the serial port on the rear of the computer.
5. Turn on the computer.
Expanding Your Computer 4-5
NOTE: Portable modems that derive power through the serial port cannot be
used with the computer. Instead, use a modem that is powered by its own internal
battery or external AC power.
4-6 Expanding Your Computer
Connecting a USB Device
Your computer has three USB ports for connecting USB devices, such as a digital
camera, scanner, printer, modem, and mouse.
The USB ports support transfer rates up to 12 MB/s for USB 1.1 devices and 480
MB/s for USB 2.0 devices.
To connect a USB device, slide the release latch towards the right to open the
port cover and then simply plug the device cable to one of the USB ports.
Expanding Your Computer 4-7
Connecting an IEEE 1394 Device
Your computer has a mini IEEE 1394 port for connecting IEEE 1394 devices that
include not only computer peripheral devices such as scanner, printer and high-quality
CCD, but also consumer electronic equipment such as DVCAM and VCR.
To connect an IEEE 1394 device, prepare an IEEE 1394 cable. Slide the release
latch towards the right to open the connector cover. Then plug the appropriate end
of the cable to the computer’s mini IEEE 1394 connector and the other end to
the device’s corresponding connector.
4-8 Expanding Your Computer
Using Smart Cards (Optional)
Depending on the model, your computer has a smart card slot for additional security
feature, providing tamper-proof storage of user and account identity. A smart card
is a type of plastic card embedded with a computer chip that stores and transacts
data between you (user) and the computer.
You need to install third-party smart card software to take advantage of the smart
card feature.
Inserting and Removing a Smart Card
To insert a smart card:
1. Locate the smart card slot on the right of the computer and open the cover.
2. Slide the smart card, with its label and embedded computer chip facing down
into the slot.
3. When a new card is seated, use the third-party smart card software to allow
your computer to read it.
To remove a smart card:
1. Make sure that the third-party smart card software is not accessing the smart
card.
Computer
Chip
Expanding Your Computer 4-9
2. Pull the card out of the slot.
4-10 Expanding Your Computer
Using PC Cards
Depending on your model, your computer has one or two PC card slots which supports
type II card and CardBus specifications.
Inserting and Removing a PC Card
NOTE:
Some PC cards require additional system resources. Before using such PC
card, you may have to free other system resources for the PC card.
Although some PC cards can be inserted and removed without turning off the
computer, you cannot remove or install PC cards during Sleep mode.
To insert a PC card:
1. Locate the PC card slot(s) on the right side of the computer and open the
cover.
2. Slide the PC card, with its label facing up, into the slot until the eject button
pops out.
3. When a new card is seated, the computer will detect it and try to install the
appropriate driver. Follow the on-screen instructions to complete the process.
Eject button
Expanding Your Computer 4-11
To remove a PC card:
1. Double-click on the Safely Remove Hardware icon found on the Windows
taskbar and the Safely Remove Hardware window appears on screen.
2. Select (highlight) the PC card from the list to disable the card.
3. Push the eject button and the card will slide out slightly.
4. Pull the card out of the slot.
4-12 Expanding Your Computer
Using ExpressCards (Optional)
Depending on the model, your computer has an ExpressCard slot.
ExpressCard supports the PCI Express and USB 2.0 serial data interfaces (supporting
speeds of up to 2.5 Gbps and 480 Mbps respectively), improving speed in data
transfer while conserving power usage.
ExpressCard Type
The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm
(ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very extensive
range of applications including memory, wired and wireless communication cards,
and security devices.
Shown next are the appearances of ExpressCards for your reference.
ExpressCard/54 ExpressCard/34
Expanding Your Computer 4-13
Inserting and Removing an ExpressCard
To insert an ExpressCard:
1. Locate the ExpressCard slot on the right side of the computer and open the
cover.
2. Slide the ExpressCard, with its label facing up, all the way into the slot until
the rear connectors click into place.
3. When a new card is seated, the computer will detect it and try to install the
appropriate driver. Follow the on-screen instructions to complete the process.
To remove an ExpressCard:
1. Double-click on the Safely Remove Hardware icon found on the Windows
taskbar and the Safely Remove Hardware window appears on screen.
2. Select (highlight) the ExpressCard from the list to disable the card.
3. Push the eject button and the card will slide out slightly.
4. Pull the card out of the slot.
4-14 Expanding Your Computer
Using the Card Reader
NOTE:
If your hard disk is divided into several drives, make sure that all drives have
been formatted before using the Card Reader. Otherwise, you may encounter
problems when using the Card Reader.
You can use only storage cards. Your Card Reader does not support cards
with I/O (input/output) functions such as a wireless network card or Bluetooth
card.
Your computer has a Card Reader. The Card Reader is a small drive for reading
from and writing to removable storage cards (or called memory cards). The Card
Reader supports the MultiMediaCard (MMC), Secure Digital (SD), Memory Stick
(MS), and Memory Stick PRO (MS PRO) cards.
Shown next are the appearance and size of each card type for your reference.
Type
MMC Card
SD Card
MS / MS PRO Card
Appearance
Size
24×32×1.4
(mm)
24×32×2.1
(mm)
21.5×50×2.8
(mm)
Expanding Your Computer 4-15
To insert a storage card:
1. Locate the Card Reader slot on the right side of the computer and open the
cover.
2. Align the card with its connector pointing to the slot and its label facing down.
Slide the card into the slot until it reaches the end.
3. Windows will detect the card and assign it a drive name.
To remove a storage card:
1. Double-click My Computer.
2. Right-click the drive with the card and select Eject.
3. Pull the card out of the slot.
4-16 Expanding Your Computer
Using the Port Replicator (Optional)
A port replicator is available as an option. This device eliminates the hassles of
having you connect and disconnect the various cables when carrying your computer
around and allows a variety of peripherals to be connected including a headphone
or microphone, etc. The port replicator connects to the expansion bus connector
at the rear of your computer.
1. Slide open the expansion bus connector cover.
2. Connect your port replicator to the expansion bus connector ( ).
For more detailed information, refer to the Operating Instructions of the port replicator.
CAUTION:
Hot/warm docking and hot/warm undocking are not possible with the port
replicator.
Contact your dealer for the correct type of port replicator (docking input
device) to connect to the expansion bus connector of your computer.
Expanding Your Computer 4-17
System Memory Upgrade
You can upgrade your computer by changing system memory to a maximum of 4
GB on the two 533/667 MHz DDRII SO-DIMM slots.
CAUTION: RAM modules are extremely sensitive to static electricity. There are
cases where static electricity generated by the human body has adversely
affected such modules. When inserting or removing a RAM module, do not touch
the terminals or internal components, insert objects other than the module, or
allow foreign particles to enter. Doing so has been known to cause damage, fire,
or electrical shock.
To install the RAM module:
1. Remove the battery pack (see chapter 3) and make sure that the computer
is not connected to AC power.
2. Carefully place the computer upside down.
3. Remove the six screws to open the compartment cover.
4. To install the RAM module, match the module's notched part with the socket's
projected part and firmly insert the module into the socket at a 20-degree angle
4-18 Expanding Your Computer
().
Then push down until the retaining clips lock the module into position
().
CAUTION: If the RAM module is difficult to insert or difficult to push down, do not
force it. Check once more to ensure that the module is positioned correctly.
5. Close the compartment cover and secure with six screws.
Using BIOS Setup and System Recovery 5-1
Chapter 5
Using BIOS Setup and
System Recovery
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output
System) settings of the computer. BIOS is a layer of software, called firmware,
that translates instructions from other layers of software into instructions that the
computer hardware can understand. The BIOS settings are needed by your computer
to identify the types of installed devices and establish special features.
System Recovery reinstalls Windows to your system and configures it to the system’s
factory default settings.
This chapter tells you how to use the BIOS Setup and System Recovery.
5-2 Using BIOS Setup and System Recovery
BIOS Setup
When and How to Use
You need to run BIOS Setup Utility when:
You see an error message on the screen requesting you to run BIOS Setup
Utility.
You want to restore the factory default BIOS settings.
You want to modify some specific settings according to the hardware .
You want to modify some specific settings to optimize the system performance.
To run BIOS Setup Utility, press the F2 key when the prompt appears on the screen
during system startup. The prompt shows up on the screen for only a few seconds.
You must press F2 quickly. The BIOS Setup Utility main screen appears as shown
next.
Information
Main
Advanced
Security
Boot
Exit
Serial NO:
Processor Info:
Installed System Memory:
SATA HDD:
SATA ODD:
ESTAT Port:
BIOS Revision:
EC Revision:
LAN MAC Address:
IEEE 1394 GUID:
Operating Time:
00000000000000
Intel(R) Core(TM) i7 CPU L620@2.00GHz
2048MB
[SAMSUNG HM250HI] 250GB
[Optiarc DVD RW AD-7580S]
[None]
R0.05.070520S
R0.06F
00-22-20-0A-54-AE
00-40-D0-01-00-48-1A-F9
52 Hours
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Using BIOS Setup and System Recovery 5-3
Use the keyboard to move around and make selections. Keyboard information can
be found at the bottom of the screen.
NOTE:
The BIOS Setup Utility screens shown in this chapter are for your reference
only. The actual items or settings on your computer may differ.
The BIOS Setup Utility program may have been updated after the publication
of this manual.
The settings you select in your operating system might override similar
settings in BIOS Setup Utility.
Information Menu
The Information menu contains the basic configuration information of the system.
There are no user-definable items in this menu.
Information
Main
Advanced
Security
Boot
Exit
Serial NO:
Processor Info:
Installed System Memory:
SATA HDD:
SATA ODD:
ESTAT Port:
BIOS Revision:
EC Revision:
LAN MAC Address:
IEEE 1394 GUID:
Operating Time:
00000000000000
Intel(R) Core(TM) i7 CPU L620@2.00GHz
2048MB
[SAMSUNG HM250HI] 250GB
[Optiarc DVD RW AD-7580S]
[None]
R0.05.070520S
R0.06F
00-22-20-0A-54-AE
00-40-D0-01-00-48-1A-F9
52 Hours
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
5-4 Using BIOS Setup and System Recovery
Main Menu
The Main menu contains the various system settings.
Information
Main
Advanced
Security
Boot
Exit
System Time:
System Date:
Legacy USB Support:
Wireless LAN:
[ :33:08]
[05/14/2010]
[Enabled]
[Last State]
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
System Time sets the system time.
System Date sets the system date.
Legacy USB Support enables or disables the system’s support for Legacy USB device
in DOS mode.
Wireless LAN setting this item to
Off
will start the system with wireless radio off,
On
will start the system with the wireless radio on, and
Last
State
will start the
system based on the state of wireless radio during your last power off.
11
Using BIOS Setup and System Recovery 5-5
Advanced Menu
The Advanced menu contains the advanced settings.
Information
Main
Advanced
Security
Boot
Exit
P1 Function:
Any-key Wake Up from S3:
CD/DVD Auto Power Control:
Ring Wake-Up from S3
USB Wake-up from S3
AC Initiation
SATA Mode
[ ]
[Disabled]
[Enabled]
[Disabled]
[Disabled]
[Disabled]
[AHCI]
Item Specific Help
Select P1 button act as
Blackout ON/OFF ,
Quick launch button
or Emergency button.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
P1 Function allows you to specify the P1 quick button function. When set at
Blackout
the P1 quick button allows you to turn off the LCD backlight and LED indicator.
When set at
Quick Btn
the P1 quick button functions as a user customized quick
launch key.
CD/DVD Auto Power Control allows you to enable the optical drive’s automatic power
control when using battery power.
Ring Wake-up From S3 allows the system to wake up from Sleep mode via modem.
USB Wake-up From S3 allows the system to wake up from Sleep mode via USB
device.
AC Initiation sets if connecting AC power will automatically start or resume the system.
Blackout
5-6 Using BIOS Setup and System Recovery
SATA Mode set to
AHCI
if your hard disk supports AHCI. AHCI allows you to take
advantage of Advanced Host Controller Interface features. The options are
IDE
and
AHCI
.
Security Menu
The Security menu contains the security settings, which safeguard your system against
unauthorized use.
Information
Main
Advanced
Security
Boot
Exit
Set Supervisor Password
TPM Setup Menu:
Intel Trusted Execution
[Enter]
[Disabled]
Item Specific Help
Supervisor Password
controls access to the
Setup utility.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Set Supervisor Password sets the supervisor password. When typing the password,
first make sure that Num Lock is off, and then type the password in the entry fields
and press Enter. Confirm your password by typing it again and pressing Enter. When
set, the supervisor password is required for entering BIOS Setup.
Enter
Using BIOS Setup and System Recovery 5-7
TPM Setup Menu Press Enter to display the following screen.
TPM Support enables or disables TPM support (see chapter 6 for details).
Current TPM State shows the current TPM state.
Change TPM State allows you to select between
No Change
,
Clear
,
Deactivate
& Disable
, and
Enable & Activate
.
Intel Trusted Execution enables or disables utilization of additional hardware
capabilities provided by Intel Trusted Execution Technology.
Information
Main
Advanced
Security
Boot
Exit
TPM Setup Menu
Item Specific Help
TPM Support
Current TPM State:
Change TPM State
[Enter ]
Disabled & Deactivated
[No Change ]
Enable Trusted Platform
Module support
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Enabled
5-8 Using BIOS Setup and System Recovery
Boot Menu
The Boot menu sets the sequence of the devices to be searched for the operating
system.
Information
Main
Advanced
Security
Boot
Exit
Boot priority order:
1: USB FDC:
2: SATA ODD: Optiarc DVD RW AD-7580S-(S
3: SATA HDD: SAMSUNG HM250HI – (S1)
4: USB KEY:
5: USB HDD:
6: LAN BOOT: IBA GE Slot 00CB v1330
7:
8:
Excluded from boot order:
: Other USB:
: PCI:
Item Specific Help
Keys used to view or
configure devices:
Up and Down arrows select
a device.
<+> and <-> moves the
device up or down.
<x> exclude or include
the device to boot.
<Shift + 1> enables or
disables a device.
<1 – 4> Loads default
boot sequence.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
The bootable devices will be automatically detected during POST and shown here,
allowing you to set the sequence that the BIOS uses to look for a device from which
to load the OS. See the information on the right side of the menu for keyboard
usage.
Using BIOS Setup and System Recovery 5-9
Exit Menu
The Exit menu displays ways of exiting BIOS Setup Utility. After finishing with your
settings, you must save and exit so that the changes can take effect.
Information
Main
Advanced
Security
Boot
Exit
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Item Specific Help
Exit System Setup and
save your changes to
CMOS.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Exit Saving Changes saves the changes you have made and exits BIOS Setup Utility.
Exit Discarding Changes exits BIOS Setup Utility without saving the changes you have
made.
Load Setup Defaults loads the factory default values for all the items.
Discard Changes restores the previous values for all the items.
Saves Changes saves the changes you have made.
5-10 Using BIOS Setup and System Recovery
System Recovery
You need to run System Recovery when:
Your Windows operating system does not start at all.
You want to restore the factory default Windows settings.
WARNING: Using this feature will reinstall Windows to your system and configure it to the
system’s factory default settings. All data on the hard disk drive will be lost.
To run System Recovery:
1. During system startup when the following screen appears, press Ctrl + Alt + F2
keys for four seconds or press Enter and select HDI Recovery when a small window
appears on the screen.
2. The message This will help you reinstall Windows to the whole HDD
to factory default. All data on HDD will be lost appears on the screen
Using BIOS Setup and System Recovery 5-11
to ask if you want to access System Recovery. Type 1 to continue or type
0 to exit.
3. A warning message appears as follows:
****************************************
You must accept the following terms before performing the recovery
process:
1. The recovery software is solely the purpose of reinstalling or
restoring software associated with the hard disk of this operating
GETAC machine.
2. Except the above, no other use is granted hereunder.
****************************************
(1)Yes, I agree to the provisions of this agreement and wish to
continue.
(0)No, I do not agree to the provisions of this agreement and do
not wish to continue.
Type 1 to continue.
4. Type 1 again when the message Are you sure you want to recover now?
(1)Yes (0)No appears onscreen. The following screen appears:
5-12 Using BIOS Setup and System Recovery
5. Your system will start the recovery process and Windows operating system will
be re-installed to its default setting.
Using the TPM and P1 Utility 6-1
Chapter 6
Using the TPM and P1
Utility
Your computer comes with an added security feature known as the TPM (Trusted
Platform Module) – a component on your computer’s mainboard that is specifically
designed to enhance platform security above-and-beyond the capabilities of today’s
software by providing a protected space for key operations and other security critical
tasks.
Also, located on top of your keyboard is the P1 quick launch key. The quick launch
key utility allows you to re-define (customize) the P1 quick launch key according
to your needs.
This chapter describes how to use these utilities.
6-2 Using the TPM and P1 Utility
Using TPM (Trusted Platform Module)
TPM is a hardware-based security feature that can be used to create and manage
computer-generated digital certificates. When combined with security software, the
TPM enhances existing network and computer security by enabling features such
as file protection capabilities and protected e-mail.
NOTE:
Make sure you select Enable on the TPM Support item under the Security menu
of your BIOS Setup (see chapter 5 for details).
Make sure you select Enable & Activate on the Change TPM State item under
the Security menu of your BIOS Setup (see chapter 5 for details).
You only need to activate these items once.
You can use the certificates to:
Send and receive secure email from email clients like Microsoft Windows
Mail/Outlook Express, Microsoft Outlook or Netscape Messenger
Set up browser (e.g. Netscape Navigator or Internet Explorer) and web server
(e.g. Microsoft Internet Information Server) for Client Authentication
Sign Microsoft Word macros
Encrypt files and folders
Secure network connections
NOTE: For information on using the program and the different security features,
click Start All Programs Infineon Security Platform Solution Help.
Using the TPM and P1 Utility 6-3
P1 Quick Launch Key Utility
If you select
Quick Btn
in BIOS Setup program on the P1 Function item under the
Advanced menu (see chapter 5 for details), you can use the quick launch key
utility that allows you to define the P1 quick launch key.
To start the utility, right-click the GETAC utility icon ( ) and select Quick Buttons
Definition on the Windows taskbar. The Quick Button Definition window appears as
shown next.
Defining the buttons:
The box in the window represents the user-definable button.
To assign a program to a button, click the Open icon to pop up the Select
a File to Open dialog box as shown next and select the desired program. Then, click
Open to complete the process.
Box
Cancel
Open
6-4 Using the TPM and P1 Utility
The appropriate icon will then appear in the box. To launch the program, press
the P1 quick launch key, or, if the Quick Button Definition window is open, click the
box containing the icon.
Caring for the Computer 7-1
Chapter 7
Caring for the Computer
Taking good care of your computer will ensure a trouble-free operation and reduce
the risk of damage to your computer.
This chapter gives you guidelines covering areas such as protecting, storing, cleaning,
and traveling.
7-2 Caring for the Computer
Protecting the Computer
To safeguard the integrity of your computer data as well as the computer itself,
you can protect the computer in several ways as described in this section.
Using an Anti-Virus Strategy
You can install a virus-detecting program to monitor potential viruses that could
damage your files.
Using Windows Action Center
Windows Action Center alerts you to take action on the following security essentials:
Windows Firewall
Windows Update
Malware Protection (anti-virus, anti-spyware)
Others (Internet security, user account control)
For detailed information on Windows Security Center, see Windows’ Help.
Caring for the Computer 7-3
Using the Cable Lock
You can use a Kensington-type cable lock to protect your computer against theft.
The cable lock is available in most computer stores.
To use the lock, loop the lock cable around a stationary object such as a table.
Insert the lock to the Kensington lock hole and turn the key to secure the lock.
Store the key in a safe place.
7-4 Caring for the Computer
Taking Care of the Computer
Location Guidelines
For optimal performance, use the computer where the recommended temperature
is between 0 C (32 F) and 55 C (131 F) – actual operating temperature
depending on product specifications.
Avoid placing the computer in a location subject to high humidity, extreme
temperatures, mechanical vibration, direct sunlight, or heavy dust.
Do not cover or block any ventilation openings on the computer. For example,
do not place the computer on a bed, sofa, rug, or other similar surface.
Otherwise, overheating may occur that results in damage to the computer.
Keep the computer at least 13 cm (5 inches) away from electrical appliances
that can generate a strong magnetic field such as a TV, refrigerator, motor,
or a large audio speaker.
Avoid moving the computer abruptly from a cold to a warm place. A temperature
difference of more than 10 C (18 F) may cause condensation inside the
unit, which may damage the storage media.
Do not place the computer on an unsteady surface.
General Guidelines
