P470 User’s Manual
(March 2007)
TRADEMARKS
All brand and product names are trademarks or registered trademarks of their
respective companies.
NOTE
The information in this manual is subject to change without notice.
![](/img.php?id=813459&img=bg3.png)
i
Table of Contents
Preface .........................................................................................i
Notational Conventions.........................................................i
Chapter 1 Getting Started...................................................1-1
Getting the Computer Running ............................................ 1-1
Unpacking ........................................................................ 1-1
Connecting to AC Power ................................................. 1-1
Opening the Cover ........................................................... 1-1
Turning On and Off the Computer................................... 1-1
Taking a Look at the Computer............................................ 1-1

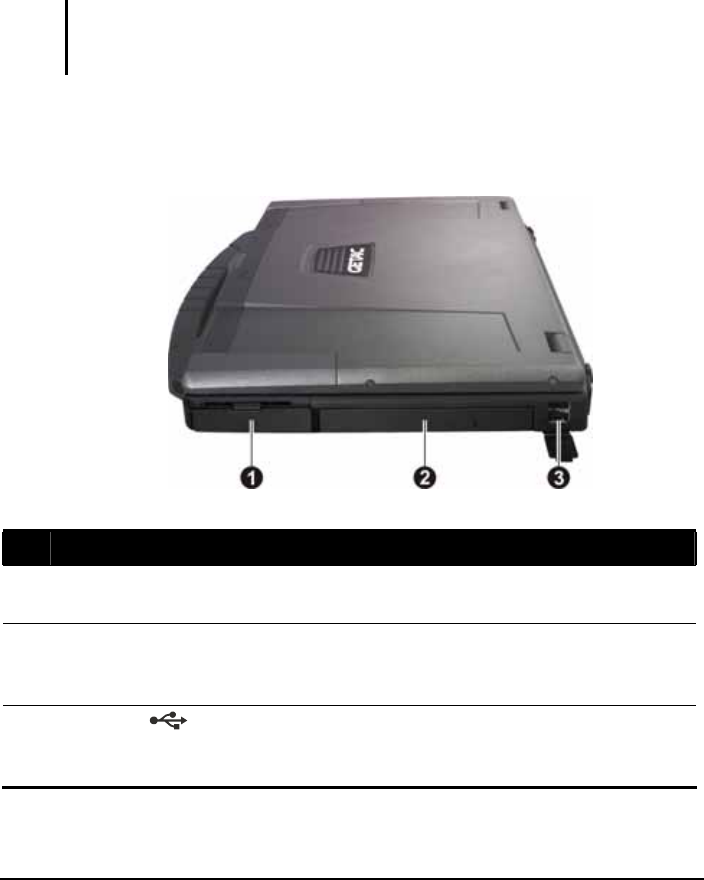

Right-Side Components ................................................... 1-1
Left-Side Components ..................................................... 1-1

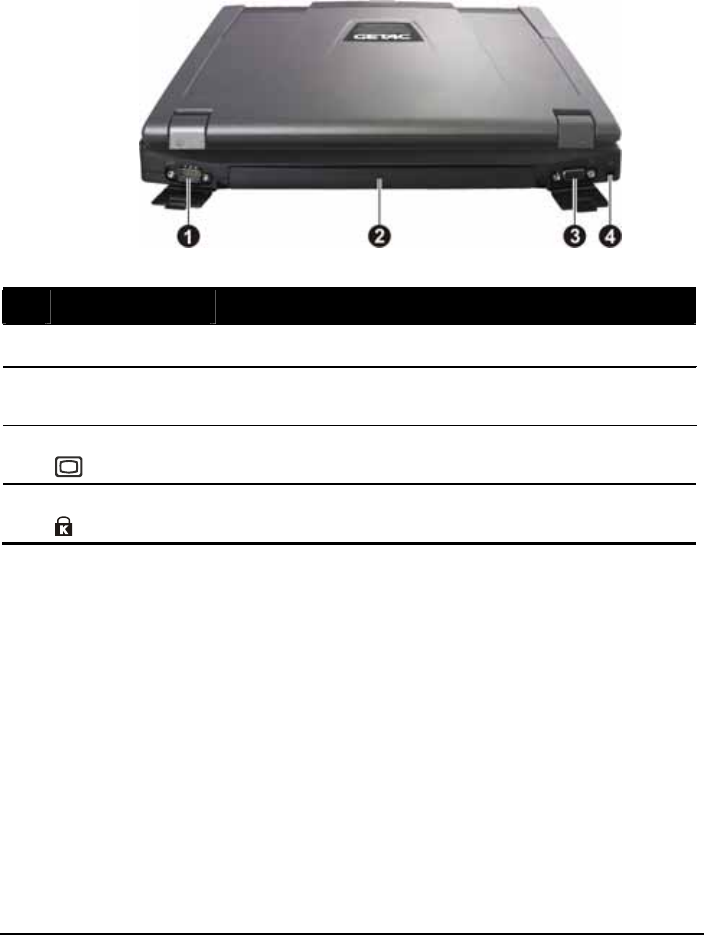

Rear Components ............................................................. 1-1
Front Components............................................................ 1-1

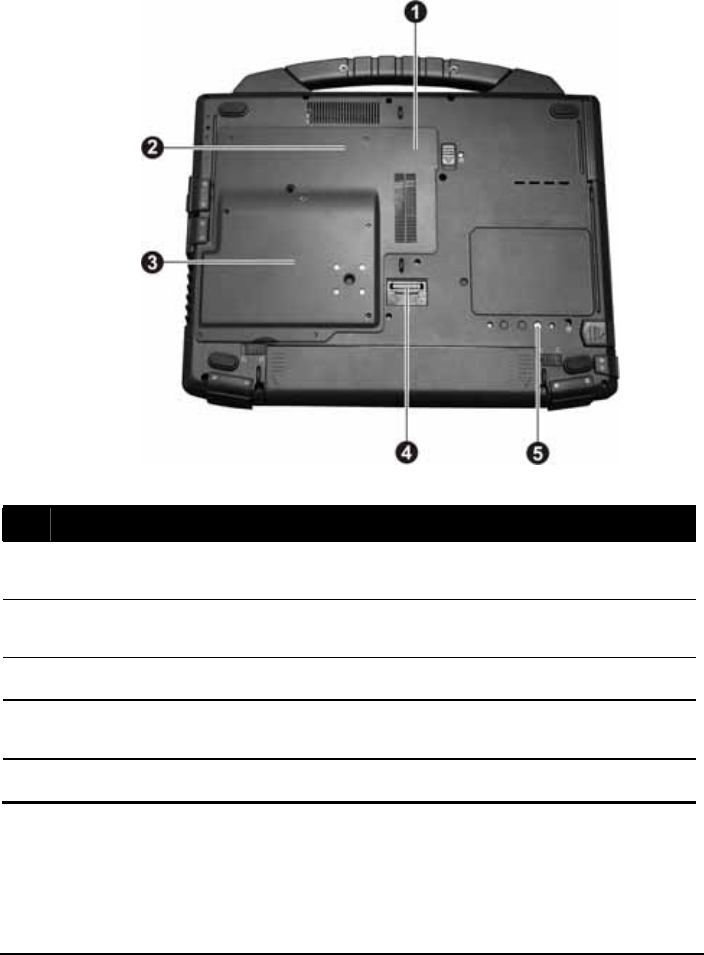

Bottom Components......................................................... 1-1
Top-open Components ..................................................... 1-1
Where to Go from Here........................................................ 1-1
Chapter 2 Operating Your Computer.................................2-1
Starting and Stopping the Computer .................................... 2-1
Starting the Computer ...................................................... 2-1
Stopping the Computer .................................................... 2-1
Using the Power Saving Quick Buttons............................... 2-1
Using the Internal Keyboard ................................................ 2-1
Typewriter Keys............................................................... 2-1
Cursor-Control Keys ........................................................ 2-1
Numeric Keypad .............................................................. 2-1
Function Keys .................................................................. 2-1
![](/img.php?id=813459&img=bg4.png)
ii
Fn Key.............................................................................. 2-1
Hot Keys .......................................................................... 2-1
Using the Touchpad ............................................................. 2-1
Configuring the Touchpad ............................................... 2-1
Using the Touchscreen (Optional) ....................................... 2-1
Using the Hard Disk Drive................................................... 2-1
Using the Video Features ..................................................... 2-1
Configuring the Display Modes ....................................... 2-1
Using the Audio Features..................................................... 2-1
Connecting Audio Devices .............................................. 2-1
Using the Communication Features ..................................... 2-1
Using the Modem............................................................. 2-1
Using the LAN ................................................................. 2-1
Using the Wireless LAN .................................................. 2-1

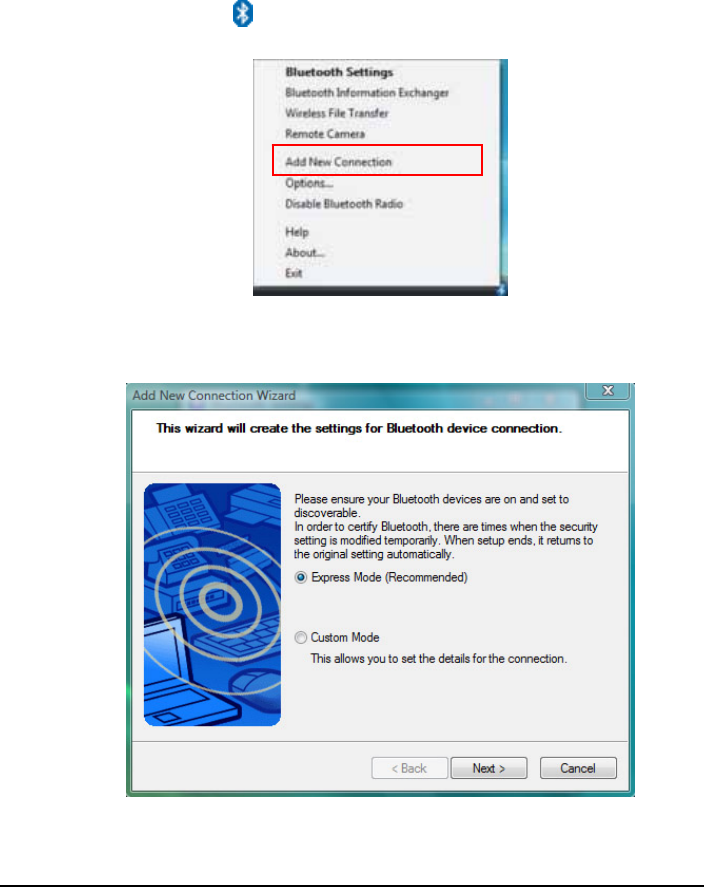

Using the Bluetooth Feature (Optional) ........................... 2-1
Using the GPS (Optional) ................................................ 2-1
Chapter 3 Managing Power ................................................3-1
AC Adapter .......................................................................... 3-1
Battery Pack ......................................................................... 3-1
Charging the Battery Pack ............................................... 3-1
Checking the Battery Level.............................................. 3-1
Replacing the Battery Pack .............................................. 3-1
Power Management.............................................................. 3-1
Hibernation....................................................................... 3-1
Power-Saving Tips ............................................................... 3-1
Chapter 4 Expanding Your Computer ...............................4-1
Connecting an External Monitor (Optional) ........................ 4-1
Chapter 5 Using BIOS Setup..............................................5-1
When and How to Use BIOS Setup ..................................... 5-1
When to Use..................................................................... 5-1
Starting BIOS Setup......................................................... 5-1
![](/img.php?id=813459&img=bg5.png)
iii
Chapter 6 Installing Software Drivers................................6-1
How to Use the Driver Disc ................................................. 6-1
Chapter 7 Caring for the Computer ...................................7-1
Protecting the Computer....................................................... 7-1
Using the Cable Lock....................................................... 7-1
Using an Anti-Virus Strategy........................................... 7-1
Taking Care of the Computer............................................... 7-1
Location Guidelines ......................................................... 7-1
General Guidelines........................................................... 7-1
Cleaning Guidelines ......................................................... 7-1
Battery Pack Guidelines................................................... 7-1
When Traveling.................................................................... 7-1
Chapter 8 Troubleshooting.................................................8-1
Preliminary Checklist........................................................... 8-1
Solving Common Problems.................................................. 8-1
Battery Problems.............................................................. 8-1
Bluetooth Problems.......................................................... 8-1
Display Problems ............................................................. 8-1
Hardware Device Problems.............................................. 8-1
Hard Disk Drive Problems ............................................... 8-1
Keyboard, Mouse, and Touchpad Problems .................... 8-1
LAN Problems ................................................................. 8-1
WLAN Problems.............................................................. 8-1
Modem Problems ............................................................. 8-1
PC Card Problems ............................................................ 8-1
Power Management Problems.......................................... 8-1
Software Problems ........................................................... 8-1
Sound Problems ............................................................... 8-1
Startup Problems .............................................................. 8-1
Other Problems................................................................. 8-1
Resetting the Computer........................................................ 8-1
![](/img.php?id=813459&img=bg6.png)
iv
Appendix A Specifications ................................................... A-1
Appendix B Regulatory Information ....................................B-1
On the Use of the System.....................................................B-1
Class B Regulations .........................................................B-1
Safety Notices ..................................................................B-1
On the Use of the RF Device................................................B-1
USA and Canada Safety Requirements and Notices........B-1
European Union CE Marking and Compliance Notices ..B-1
电子信息产品有毒有害物质或元素名称及含量标示......B-1
![](/img.php?id=813459&img=bg7.png)
v
Preface
This manual contains information that will help you operate the
computer. It is divided into 8 chapters and 2 appendices.
z Chapter 1, Getting Started, takes you through the process of setting
up the computer and identifying its external components.
z Chapter 2, Operating Your Computer, tells you how to use the
computer’s components and features.
z Chapter 3, Managing Power, provides information on power.
z Chapter 4, Expanding Your Computer, provides information on
installing and using peripheral devices.
z Chapter 5, Using BIOS Setup, describes the BIOS Setup program
that configures the computer’s BIOS settings.
z Chapter 6, Installing Software Drivers, describes how to install the
drivers and utilities supplied with the computer.
z Chapter 7, Caring for the Computer, gives you tips in care and
maintenance.
z Chapter 8, Troubleshooting, gives solutions to common problems
you may encounter when using the computer.
z Appendix A, Specifications, gives a brief specification of the
computer.
z Appendix B, Regulatory Information, provides regulatory
statements and safety notices on your computer.
![](/img.php?id=813459&img=bg8.png)
vi
Notational Conventions
Throughout this manual, the following conventions are used to
distinguish elements of text.
NOTE: identifies additional information that requires special
attention.
CAUTION: identifies important information that, if not followed,
may result in loss of data or damage to the computer.
Keyboard keys are shown in a bold typeset. For example:
Press the Enter key to complete.
When keys are joined by a plus sign (+), press the first key, and, while
keeping the first key down, press the remaining keys, finally release all
the keys. When necessary, keys are also shown in graphics.
A title, command, setup item, or button that you can see on the screen is
shown in boldface. A value or an option that you can select for a setup
item is shown in italic. For example:
Select When I press the power button, set it to Shut down, and
then click the Save changes button.
![](/img.php?id=813459&img=bg9.png)
Getting Started 1-1
Chapter 1
Getting Started
Congratulations on purchasing this semi-ruggedized computer.
Your computer incorporates desktop computer capabilities into a
notebook computer. It can greatly enhance your productivity either in the
office or at home. And, of course, wherever you need it, the computer is
ready and easy “to go.”
This chapter first tells you step by step how to get the computer up and
running. You will find instructions for these procedures:
z Unpacking
z Connecting to AC power
z Opening and closing the cover
z Turning on the computer
z Turning off the computer
Then, you will find a section briefly introducing the external components
of the computer. And the last section navigates you to the information you
may need after the computer is ready for use.
CHAPTER
![](/img.php?id=813459&img=bga.png)
Getting Started 1-2
Getting the Computer Running
This section guides you through the procedures for getting the computer
ready for operation.
Unpacking
After unpacking the shipping carton, you should find these standard
items:
z Notebook computer
z Accessories:
− AC adapter
− AC power cord
− Driver disc
− Touchscreen pen (option)
Inspect all the items. If any item is damaged or missing, notify your dealer
immediately.
Keep the shipping carton and packing materials in case you need to ship
or store the computer in the future.

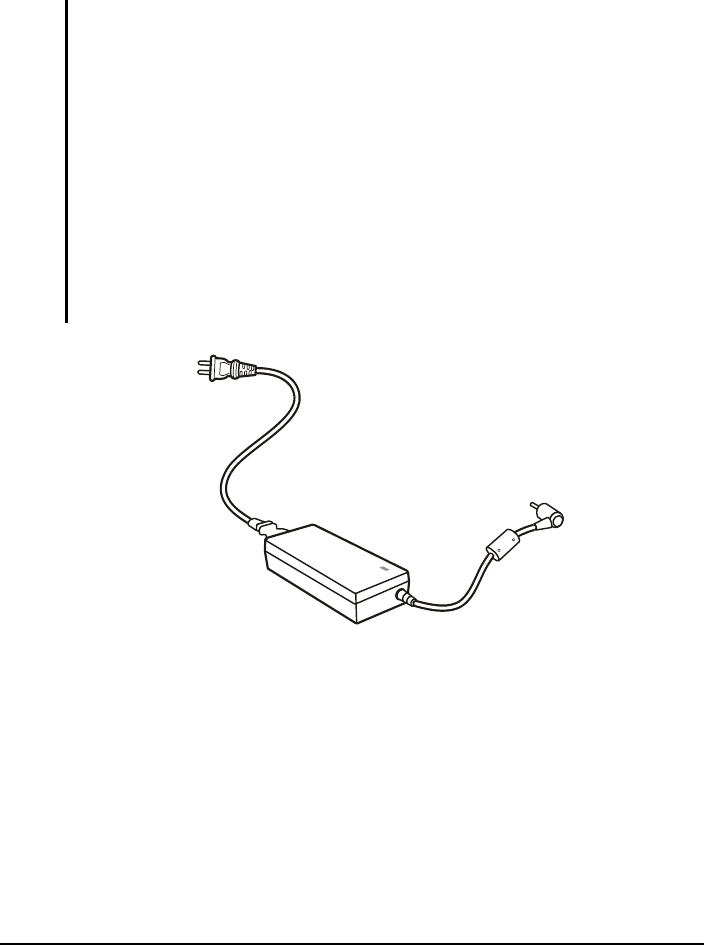

Connecting to AC Power
The computer operates either on the external AC power or internal battery
power. It is suggested that you use AC power when you start up the
computer for the very first time.
CAUTION: Use only the AC adapter included with your
computer. Using other AC adapters may damage the
computer.
1. Make sure that the computer is turned off.
2. Plug the DC cord of the AC adapter to the power connector of the
computer (n).
![](/img.php?id=813459&img=bgb.png)
Getting Started 1-3
3. Plug the female end of the AC power cord to the AC adapter and the
male end to an electrical outlet (o).
4. When the AC adapter is connected, power is being supplied from the
electrical outlet to the AC adapter and onto your computer. Now, you
are ready to turn on the computer.
CAUTION:
z When you disconnect the AC adapter, disconnect from the
electrical outlet first and then from the computer. A reverse
procedure may damage the AC adapter or the computer.
z When unplugging the connector, always hold the plug head.
Never pull on the cord.
NOTE: When the AC adapter is connected, it also charges the
battery pack. For information on using battery power, see
Chapter 3.
Opening the Cover
CAUTION: Be gentle when opening and closing the cover.
Opening it vigorously or slamming it shut could damage the
computer.
Open the top cover by pulling on the cover latch (n) and lifting up the
cover (o). You can tilt the cover forward or backward for optimal
viewing clarity.
![](/img.php?id=813459&img=bgc.png)
Getting Started 1-4
Turning On and Off the Computer
Turning On
1. Make sure that the computer is connected to AC power.
2. Press the power button ( ).
3. Each time the computer is turned on, it performs a Power-On Self
Test (POST), and the operating system such as Windows should start.
Turning Off
To turn off the computer power, use the “Shut Down” command of your
operating system.
NOTE: There are other ways you can stop the computer so that
you will be back to where you left off when you next turn on the
computer. (See “Stopping the Computer” in Chapter 2 for
information.)
CAUTION: If you have to turn the computer on again
immediately after turning it off, wait for at least five seconds.
Turning the computer off and on rapidly can damage it.
![](/img.php?id=813459&img=bgd.png)
Getting Started 1-5
Taking a Look at the Computer
This section identifies the external components of the computer and
briefly describes the function of each component.
NOTE: Depending on the model you purchased, the
appearance of your computer may not be exactly the same as
those shown in this manual.
Right-Side Components
Ref Component Description
n Hard Disk Drive
Compartment Inside is the hard disk drive.
o Combo Drive/
DVD Dual Drive/
Super Multi Drive
Accepts a compact disc for installing or loading software,
accessing data, and playing music/video.
p USB Ports Each of the two ports connects a USB device, such as a
USB flash disk, printer, digital camera, joystick, and
more.
![](/img.php?id=813459&img=bge.png)
Getting Started 1-6
Left-Side Components
Ref Component Description
n Microphone
Connector Connects an external microphone.
o Audio Output
Connector
Connects a set of headphones, external speakers with
amplifier, or an audio recording device.
p WLAN On/Off
Switch Turns the wireless LAN radio on/off.
q USB Port Connects a USB device, such as a USB flash disk, printer,
digital camera, joystick, and more.
r Mini IEEE 1394a
Port Connects an IEEE 1394 device such as a scanner, printer,
DVCAM, VCR, and more.
s PCMCIA Slot Accepts a PC card for additional functions.
t Touchscreen Pen Provides a convenient way to use the touchscreen. Can be
stretched for better grip and handling.
u Power Connector
Connects the AC adapter.
v RJ-11 Connector
Connects the telephone line.
![](/img.php?id=813459&img=bgf.png)
Getting Started 1-7
Ref Component Description
w RJ-45 Connector Connects the LAN cable.
Card Reader Accepts a MultiMediaCard (MMC), Secure Digital (SD),
Memory Stick (MS) or Memory Stick PRO (MS PRO) card
for removable storage media.
ExpressCard/54
Slot
Accepts an ExpressCard/34 or ExpressCard/54 for
additional functions.
![](/img.php?id=813459&img=bg10.png)
Getting Started 1-8
Rear Components
Ref Component Description
n Serial Connector Connects a serial mouse or serial communication device.
o Battery Pack Supplies power to your computer when external power is
not connected.
p VGA Connector
Connects an external display monitor.
q Kensington Lock
Locks the computer to a stationary object for security.
![](/img.php?id=813459&img=bg11.png)
Getting Started 1-9

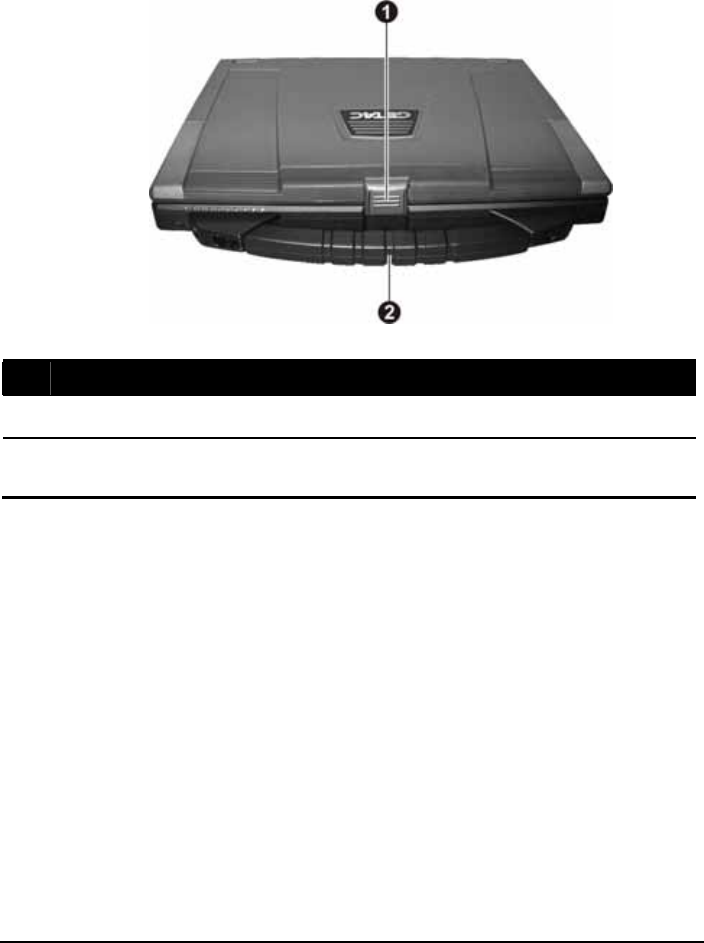

Front Components
Ref Component Description
n Top Cover Latch Locks the top cover.
o Handle Provides a convenient way to carry the computer
anywhere.
![](/img.php?id=813459&img=bg12.png)
Getting Started 1-10
Bottom Components
Ref Component Description
n Memory Slots Inside are the memory slots for expanding the memory
size of your computer.
o Wireless LAN
(WLAN) Card Slot Inside is the mini PCI-E slot for using a mini PCI-E
WLAN card.
p CPU Socket Inside is the CPU.
q Expansion Bus
Connector Connects to a Port Replicator.
r Antenna Connector Connects an external antenna.
![](/img.php?id=813459&img=bg13.png)
Getting Started 1-11

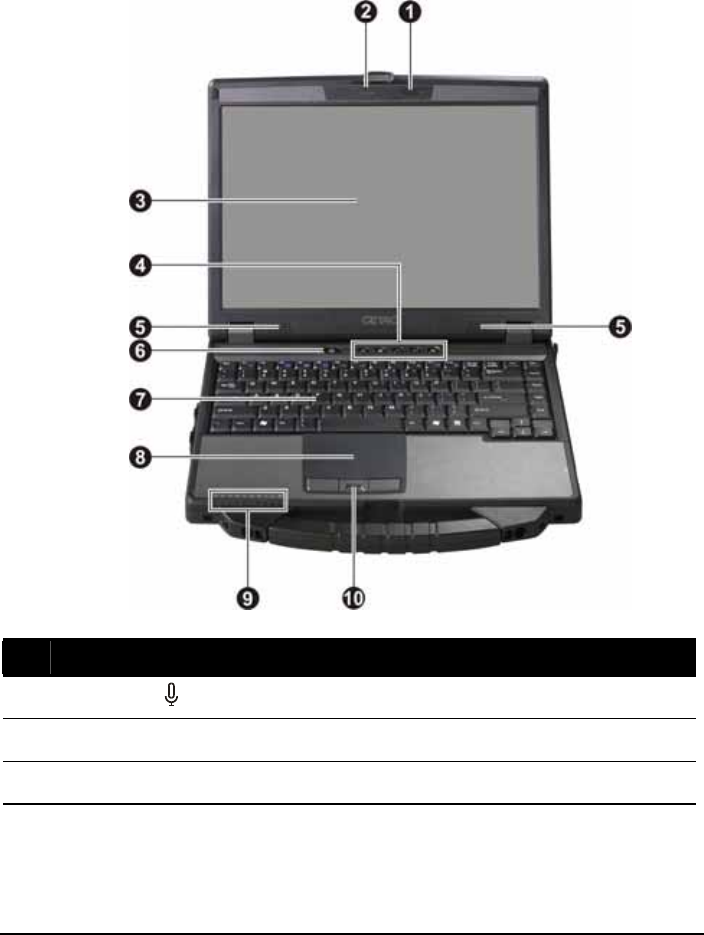

Top-open Components
Ref Component Description
n Microphone Receives sound and voice for the computer.
o CMOS Camera Allows you to use your computer’s camera function.
p LCD Screen Displays the output of the computer.
![](/img.php?id=813459&img=bg14.png)
Getting Started 1-12
Ref Component Description
Quick Buttons
Enables/disables sunlight readable display.
Enables/disables power saving mode when using battery
power.
P1 P1 (Program 1 – user customized) quick launch key.
P2 P2 (Program 2 – user customized) quick launch key.
q
Turns off/on power to the optical drive for power saving.
r Stereo Speaker Sends out sound and voice from the computer.
s Power Button Turns the computer power ON and OFF.
t Keyboard Serves as the data input device of the computer.
u Touchpad Serves as the pointing device of the computer.
Indicators Show the current status of the computer’s devices.
AC Power indicator
Lights green when computer is on and using AC power.
Battery Charge indicator
Lights green when the battery is fully charged.
Lights amber when the battery is being charged.
Blinks red when the battery’s capacity is below 10 %.
Hard disk drive in-use indicator
Optical drive in-use indicator
Num Lock indicator
Caps Lock indicator
ECO Power saving mode indicator
WLAN indicator
Bluetooth feature indicator
v
3G indicator
![](/img.php?id=813459&img=bg15.png)
Getting Started 1-13
Where to Go from Here
As your computer is ready for operation, you may want to do any of the
following now:
For this purpose... Do this...
To know more about the computer... Go on to the next chapter.
To install the operating system if your
dealer has not already done so...
See the operating system manual.
To know more about the operating
system...
Read the operating system manual.
To install the drivers if your dealer has
not already done so...
See Chapter 6.
To set a power-on password... Read the operating system manual.
To charge the battery pack for the first
time...
See “Charging the Battery Pack” in
Chapter 3.
![](/img.php?id=813459&img=bg16.png)
Operating Your Computer 2-1
Chapter 2
Operating Your Computer
This chapter provides information about the use of the computer.
If you are new to computers, reading this chapter will help you learn the
operating basics. If you are already a computer user but are new to
notebook computers, you may choose to read only the parts containing
information unique to your computer.
Described in this chapter are the operating basics of these components:
z Keyboard
z Touchpad
z Touchscreen (option)
And these features:
z Starting and stopping the computer
z Power saving features
z Video features
z Audio features
z Communication features
CHAPTER
![](/img.php?id=813459&img=bg17.png)
Operating Your Computer 2-2
Starting and Stopping the
Computer
There are a number of ways to start and stop the computer.
Starting the Computer
You always start the computer using the power button.
A computer starts up with an operating system (OS) existing on the
storage device such as the hard disk. The computer will automatically
load the OS after you turn it on. This process is called booting.
NOTE: An operating system is the platform for all your software
application programs to run on. Your computer uses the
Microsoft Windows Vista operating system.
Stopping the Computer
When you finish a working session, you can stop the computer by turning
off the power or leaving the computer in Sleep or Hibernation mode:
To stop in
this mode... Do this... To start up or
resume again
Off Follow the shutdown procedure of your
operating system. This can prevent loss
of unsaved data or damage to your
software programs.
If the system is locked up because of
hardware or software problems, press the
power button to turn off the computer.
Press the power
button.
Sleep Depending on your settings in Windows,
you can place the computer in Sleep
mode by:
• Closing the display cover
• Pressing the Fn+F12 hot key
Press any key.
![](/img.php?id=813459&img=bg18.png)
Operating Your Computer 2-3
• Pressing the power button
![](/img.php?id=813459&img=bg19.png)
Operating Your Computer 2-4
To stop in
this mode... Do this... To start up or
resume again
Hibernation Depending on your settings in Windows,
you can place the computer in
Hibernation mode by:
• Closing the display cover
• Pressing the power button
Press the power
button.
If you choose to stop in Sleep or Hibernation mode, you can return to
where you left off the next time you start up the computer. (See “Power
Management” in Chapter 3 for more information.)
![](/img.php?id=813459&img=bg1a.png)
Operating Your Computer 2-5
Using the Power Saving Quick
Buttons
Your computer features two power saving quick buttons:
z System power save quick button
z Optical drive power on/off quick button
Enabling/Disabling System Power Saving
Mode
1. Press the power saving quick button (??) to enter into power saving
mode when using battery power.
While entering into power saving mode, the system will turn down the
panel backlight and sacrifices processing speed to gain more battery
life.
2. Press the button once more to go back to normal mode (disable power
saving mode).
NOTE: The power saving quick button works only when using
battery power.
Turning On/Off Optical Drive Power
1. Press the optical drive power quick button (??).
The system will turn off power to the optical drive to gain more
battery life.
![](/img.php?id=813459&img=bg1b.png)
Operating Your Computer 2-6
2. Press the button once more to restore power to the optical drive.
![](/img.php?id=813459&img=bg1c.png)
Operating Your Computer 2-7
Using the Internal Keyboard
Your keyboard has all the standard functions of a full-sized computer
keyboard plus a Fn key added for specific functions.
The standard functions of the keyboard can be further divided into four
major categories:
z Typewriter keys

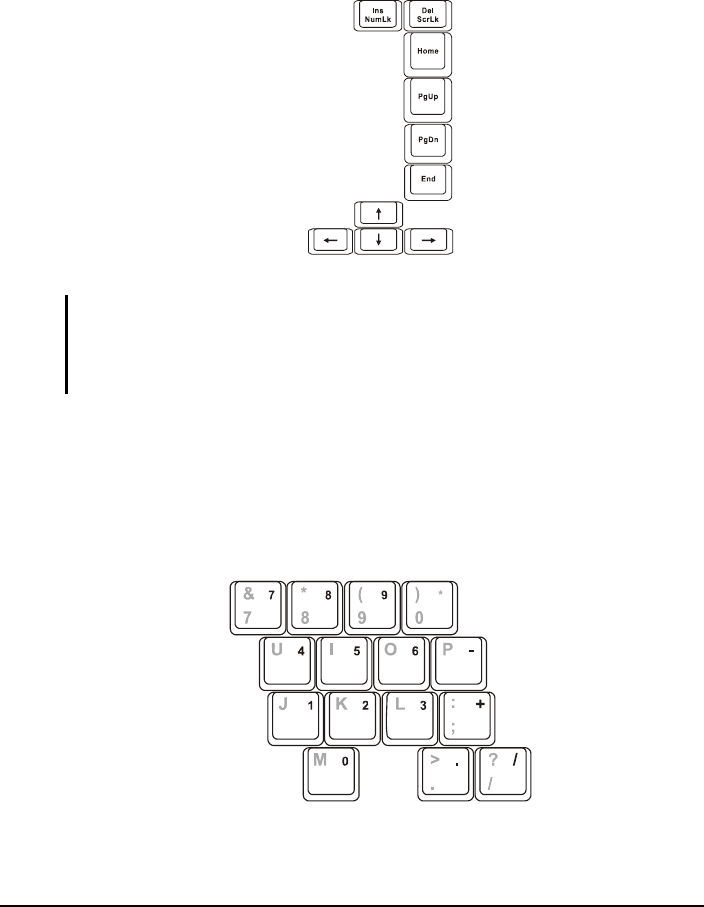

z Cursor-control keys
z Numeric keys
z Function keys
Typewriter Keys
Typewriter keys are similar to the keys on a typewriter. Several keys are
added such as the Ctrl, Alt, Esc, and lock keys for special purposes. When
the lock keys (Caps Lock, NumLk, and ScrLk) are pressed, their
corresponding indicators light up.
The Control (Ctrl) / Alternate (Alt) key is normally used in combination
with other keys for program-specific functions. The Escape (Esc) key is
usually used for stopping a process. Examples are exiting a program and
canceling a command. The function depends on the program you are
using.
![](/img.php?id=813459&img=bg1d.png)
Operating Your Computer 2-8
Cursor-Control Keys
NOTE: The word “cursor” refers to the indicator on the screen that
lets you know exactly where on your screen anything you type
will appear. It can take the form of a vertical or horizontal line, a
block, or one of many other shapes.
Numeric Keypad
A 15-key numeric keypad is embedded in the typewriter keys as shown
next:
![](/img.php?id=813459&img=bg1e.png)
Operating Your Computer 2-9
Numeric keys facilitate entering of numbers and calculations. When Num
Lock is on, the numeric keys are activated; meaning you can use these
keys to enter numerals.
NOTE:
z When the numeric keypad is activated and you need to type
the English letter in the keypad area, you can turn Num Lock
off or you can press Fn and then the letter without turning
Num Lock off.
z Some software may not be able to use the numeric keypad
on the computer. If so, use the numeric keypad on an
external keyboard instead.
Function Keys
On the top row of the keys are the function keys: F1 to F12. Function keys
are multi-purpose keys that perform functions defined by individual
programs.
Fn Key
The Fn key, at the lower left corner of the keyboard, is used with another
key to perform the alternative function of a key. The letter “Fn” and the
alternative functions are identified by the color of blue on the keytop. To
perform a desired function, first press and hold Fn, then press the other
key.
Hot Keys
Hot keys refer to a combination of keys that can be pressed any time to
activate special functions of the computer. Most hot keys operate in a
cyclic way. Each time a hot key combination is pressed, it shifts the
corresponding function to the other or next choice.
You can easily identify the hot keys with the icons imprinted on the
keytop. The hot keys are described next.
![](/img.php?id=813459&img=bg1f.png)
Operating Your Computer 2-10
Key Description
Fn + F1 Switches the wireless LAN radio on and off.
NOTE: This function works only if an optional mini PCI-E
wireless LAN card is installed.
Fn + F3 Decreases the sound volume.
Fn + F4 Increases the sound volume.
Fn + F5 Switches the display output to one of the following when
external devices are connected.
Upon booting the system with CRT:
LCD CRT
LCD & CRT
NOTE: This function only applies to Plug & Play display
devices.
Fn + F6 Decreases the LCD brightness.
Fn + F7 Increases the LCD brightness.
Fn + F8 Switches the touchscreen on and off (option).
Fn + F9 Switches the touchpad off and on.
Fn + F10 Switches the system sound output off (mute) and on.
Fn + F11 Switches LCD on and off.
Fn + F12 Serves as the sleep button that you can define with Windows’
Power Options. (See the “Power Management” in Chapter 3.)
Euro Symbol
You can press the euro dollar sign on various keyboards.
z To press the euro sign on a United States-International keyboard, hold
down the Alt Gr key and press 5 (which has an euro sign on it).
z To press the euro sign on a standard United States keyboard, hold
down either of the Alt keys and type 0128 on the numeric keypad part
of your keyboard.
z To press the euro sign on an UK keyboard, hold down the Alt Gr key
and press 4 (which has an euro sign on it).
![](/img.php?id=813459&img=bg20.png)
Operating Your Computer 2-11
Windows Keys
The keyboard has two keys that perform Windows-specific functions.
The Windows Logo key opens the Start menu and performs
software-specific functions when used in combination with other keys.
The Application key usually has the same effect as a right mouse
click. (See your Windows manual for more information.)
![](/img.php?id=813459&img=bg21.png)
Operating Your Computer 2-12
Using the Touchpad
CAUTION: Do not use a sharp object such as a pen on the
touchpad. Doing so may damage the touchpad surface.
NOTE:
z Press Fn+F9 to toggle the touchpad on or off.
z For optimal performance of the touchpad, keep your fingers
and the pads clean and dry. When tapping on the pad, tap
lightly. Do not use excessive force.
The touchpad is a pointing device that allows you to communicate with
the computer by controlling the location of the pointer on the screen and
making selection with the buttons.
The touchpad consists of a rectangular pad (work surface) and a left and
right buttons. To use the touchpad, place your forefinger or thumb on the
pad. The rectangular pad acts like a miniature duplicate of your display.
As you slide your fingertip across the pad, the pointer (also called cursor)
on the screen moves accordingly. When your finger reaches the edge of
the pad, simply relocate yourself by lifting the finger and placing it on the
other side of the pad.
Here are some common terms that you should know when using the
touchpad:
Term Action
Point Move your finger on the pad until the cursor points to the
selection on the screen.
Click Press and release the left button.
–or–
Tap gently anywhere on the pad.
![](/img.php?id=813459&img=bg22.png)
Operating Your Computer 2-13
Term Action
Double-click Press and release the left button twice in quick succession.
–or–
Tap twice on the pad rapidly.
Drag and
drop
Press and hold the left button, then move your finger until
you reach your destination (drag). Finally, release the
button (drop) when you finish dragging your selection to
the destination. The object will drop into the new location.
–or–
Gently tap twice on the pad and on the second tap, keep
your finger in contact with the pad. Then, move your
finger across the pad to drag the selected object to your
destination. When you lift your finger from the pad, the
selected object will drop into place.
Scroll To scroll is to move up and down or left and right in the
working area on the screen.
To move vertically, place your finger on the right or left
edge of the pad and slide your finger up and down along
the edge. To move horizontally, place your finger on the
top or bottom edge of the pad and slide your finger left and
right.
This function works only after you install the touchpad
driver supplied with the computer and it may not work for
all applications.
TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad
as an alternative method of pressing the left button will no longer be valid.
Configuring the Touchpad
You may want to configure the touchpad to suit your needs. For example,
if you are a left-handed user, you can swap the two buttons so that you can
use the right button as the left button and vise versa. You can also change
the size of the on-screen pointer, the speed of the pointer, and so on.
![](/img.php?id=813459&img=bg23.png)
Operating Your Computer 2-14
To configure the touchpad, go to Control Panel Æ Hardware and
Sounds Æ Mouse Properties. However, you can install the touchpad
driver supplied with your computer to take advantage of more powerful
features. (For information on installing the driver, see “How to Use the
Driver Disc” in Chapter 6.).
![](/img.php?id=813459&img=bg24.png)
Operating Your Computer 2-15
Using the Touchscreen (Optional)
NOTE:
z Make sure the touchscreen driver has been installed properly
(see chapter 6 for details).
z Press Fn+F8 to toggle the touchscreen on or off.
CAUTION: Do not use a sharp object such as a ballpoint pen or
pencil on the touchscreen. Doing so may damage the
touchscreen surface. Use your finger or the included
touchscreen pen (option).
The touchscreen is a touch-sensitive device that allows you to easily use
the computer without a mouse or touchpad to communicate with the
computer by controlling the location of the pointer on the screen and
making selection with the buttons.
Here are some common terms that you should know when using the
touchscreen:
Term Action
Click/Point Tap gently on the touchscreen.
Double-click Tap twice on the touchscreen rapidly.
Drag and
drop
Press lightly on the touchscreen and move your finger
until you reach your destination (drag). Finally, release
your finger (drop) when you finish dragging your
selection to the destination. The object will drop into the
new location.
![](/img.php?id=813459&img=bg25.png)
Operating Your Computer 2-16
Using the Hard Disk Drive
Your computer comes with a removable hard disk drive as drive C. A
hard disk drive is a storage device with non-removable, rotating,
magnetic storage platters inside it. It is where your operating system and
application software programs are stored.
Your hard disk drive is a 2.5-inch SATA (serial ATA) hard disk drive.
This type of drive embodies the latest in fast, reliable mass storage by
integrating all the control circuitry necessary for operation directly onto
the drive itself.
CAUTION:
z Make regular backups of your data files from your hard disk
drive to USB flash disks or other storage media.
z Never try to remove or install the hard disk drive while the
computer is powered on. Doing so can result in loss of data,
and can damage the computer and the hard disk drive’s
sensitive circuitry.
z Never turn off or reset the computer while the hard disk drive
in-use indicator is on.
![](/img.php?id=813459&img=bg26.png)
Operating Your Computer 2-17
Using the Video Features
The video subsystem of your computer features:
z 14.1-inch wide TFT (Thin-Film Transistor) color LCD display with
1280×800 WXGA resolution or 1440×900 WXGA+ resolution
z Multi-display capability, which allows you to expand your desktop
on the screen to another display device so that you have more desktop
space to work on
z Power Management
z Sunlight-readable LCD display by pressing sunlight readable quick
button
NOTE:
z Before using the multi-display capability or taking advantage
of the enhanced video capabilities, the device driver
supplied with your computer must be installed. (See chapter 6
for details.)
z The computer enters the Sleep or Hibernation mode when
the LCD is closed. If you want to use the computer with the
LCD closed, set Do Nothing to the “When I Close the lid”
option in the Power Options Æ System Settings Properties. Thus
the computer does not enter the Sleep or Hibernation mode
when the LCD is closed.
Configuring the Display Modes
NOTE: When using an external CRT monitor, the resolution
depends on the CRT monitor’s supported resolution.
Your computer has been set to a default resolution and number of colors
before shipment. You can view and change display settings through your
operating system. See your operating system documentation or online
help for specific information.
For displaying in higher resolutions, you can connect an external monitor
that supports higher resolutions. (See “Connecting an External Monitor”
in Chapter 4 for more information.)
![](/img.php?id=813459&img=bg27.png)
Operating Your Computer 2-18
![](/img.php?id=813459&img=bg28.png)
Operating Your Computer 2-19
Using the Audio Features
NOTE:
z To take advantage of the enhanced audio capabilities, the
device driver supplied with your computer must be installed.
(See chapter 6 for details.)
z If you experience interference while recording, try lowering
the microphone recording volume.
The audio subsystem of your computer features:
z Built-in sound system for recording and playing sound on your
computer
z Azalia interface (high density audio codec)
z Set of speakers (n)
z Built-in microphone (o) and
z External audio connectors (p)
Ways of playing and recording sound vary with the operating system
used. See your operating system documentation or online help for
specific information.
Connecting Audio Devices
For higher audio quality, you can send or receive sound through external
audio devices.
NOTE: After connecting an external audio device, make sure
that you specify the use of the correct audio device in Windows.
![](/img.php?id=813459&img=bg29.png)
Operating Your Computer 2-20
z Audio Output Connector ( ) can be connected to speakers,
headphones, or earphone set.
z Microphone Connector ( ) can be connected to an external
microphone for recording voice or sound.
NOTE: When using the external speakers/headphones or
microphone, you cannot use the internal one.
![](/img.php?id=813459&img=bg2a.png)
Operating Your Computer 2-21
Using the Communication
Features
Using the Modem
NOTE: To take advantage of the modem feature, the device
driver supplied with your computer must be installed. (See
chapter 6 for details.)
The internal 56 K fax/data modem allows you to use the telephone line to
communicate with others by fax, email, or connect to an online service or
bulletin board.
To connect the telephone line to the modem, connect one end of the
modem cable to the RJ-11 connector on the computer and the other end to
the phone line.
NOTE:
z When using the communication software, you may have to
disable power management.
z Set the COM port of the modem to COM3.
z Set parameters such as modem speed (baud rate) and line
type (pulse dialing or tone dialing).
z Do not enter the Sleep mode when using the communication
software.
Using the LAN
NOTE: To take advantage of the LAN feature, the device driver
supplied with your computer must be installed. (See chapter 6
for details.)
![](/img.php?id=813459&img=bg2b.png)
Operating Your Computer 2-22
The internal 10/100/1000Base-T LAN (Local Area Network) module
allows you to connect your computer to a network. It supports data
transfer rate up to 1000 Mbps.
To connect the network cable to the LAN module, connect one end of the
LAN cable to the RJ-45 connector on the computer and the other end to
the network hub.
Using the Wireless LAN
Depending on your model, an internal mini PCI-E wireless LAN
(WLAN) card may have been pre-installed by your computer
manufacturer at the factory. This card allows you to access corporate
networks or the Internet in a wireless environment.
The WLAN features include:
z Peer-to-Peer (Ad-Hoc) and Access Point (Infrastructure) modes
support
z WEP (Wired Equivalent Privacy) 64/128-bit data encryption
z IEEE 802.11a/b/g standard compliance
Technology 802.11a 802.11b 802.11g
Stated Maximum
Throughput (Mbps)
54 11 54
Data Rates (Mbps) 54, 48, 36, 24, 18,
12, 9, 6
11, 5.5, 2, 1 54, 36, 18, 9
Band (GHz) 5.15 ~ 5.35 2.412 ~ 2.462 2.4
Modulation
Technology
OFDM (Orthogonal
Frequency Division
Multiplexing)
DSSS (Direct
Sequence Spread
Spectrum)
OFDM (Orthogonal
Frequency Division
Multiplexing)
NOTE: 802.11g mode is backward compatible with 802.11b mode.
To take advantage of the WLAN feature, make sure that the WLAN
driver is installed correctly. (See chapter 6 for details.) If your WLAN
![](/img.php?id=813459&img=bg2c.png)
Operating Your Computer 2-23
card was provided by your dealer instead of the computer manufacturer,
contact your dealer for the correct driver to use.
![](/img.php?id=813459&img=bg2d.png)
Operating Your Computer 2-24
Turning Off/On the WLAN Radio
NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe
to operate wireless devices in aircraft as this may interfere with
flight safety. Remember to turn off wireless LAN when using your
computer in the airplane.
Your computer has a built-in Fn+F1 WLAN hot key to switch the WLAN
on/off (see “Hot Keys” in Chapter 2).
If you need to temporarily turn off the radio, press Fn+F1. To resume
network connection, press Fn+F1 again.
It takes approximately 30 seconds for your computer to make a successful
WLAN connection and approximately 10 seconds to disconnect.
Connecting to a Wireless Network
To connect to a wireless network:
1. Make sure that the WLAN radio is on (controlled by Fn+F1).
2. Right-click the Wireless Network Connection icon located
on the Windows system tray and select Connect to a network.
![](/img.php?id=813459&img=bg2e.png)
Operating Your Computer 2-25

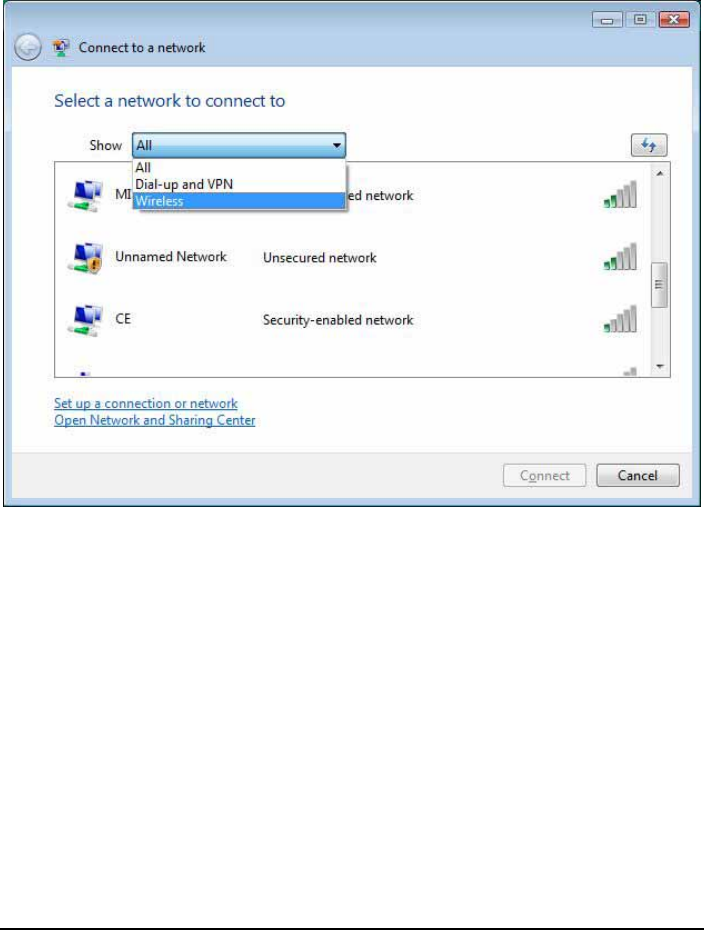

3. If any wireless network is detected, the following window appears on
screen. Click the Show drop down menu and select Wireless.
4. Select a wireless network to connect to by clicking a selection, then
click Connect.
5. Depending on the settings, you may be asked to enter a WEP key
(refer to your Windows online help for more information on setting a
wireless network connection).
![](/img.php?id=813459&img=bg2f.png)
Operating Your Computer 2-26
Using the Bluetooth Feature (Optional)
NOTE: To take advantage of the Bluetooth feature, the Bluetooth
driver supplied with your computer must be installed. (See
chapter 6 for details.)
Depending on your model, your computer may incorporate the Bluetooth
capability for short-range (about 10 meters) wireless communications
between devices without requiring a cable connection.
With Bluetooth, data can be transmitted through walls, pockets and
briefcases as long as two devices are within range. By default, your
computer’s Bluetooth feature is active (always ON) upon booting your
computer and is in the general discoverable and pairable mode.

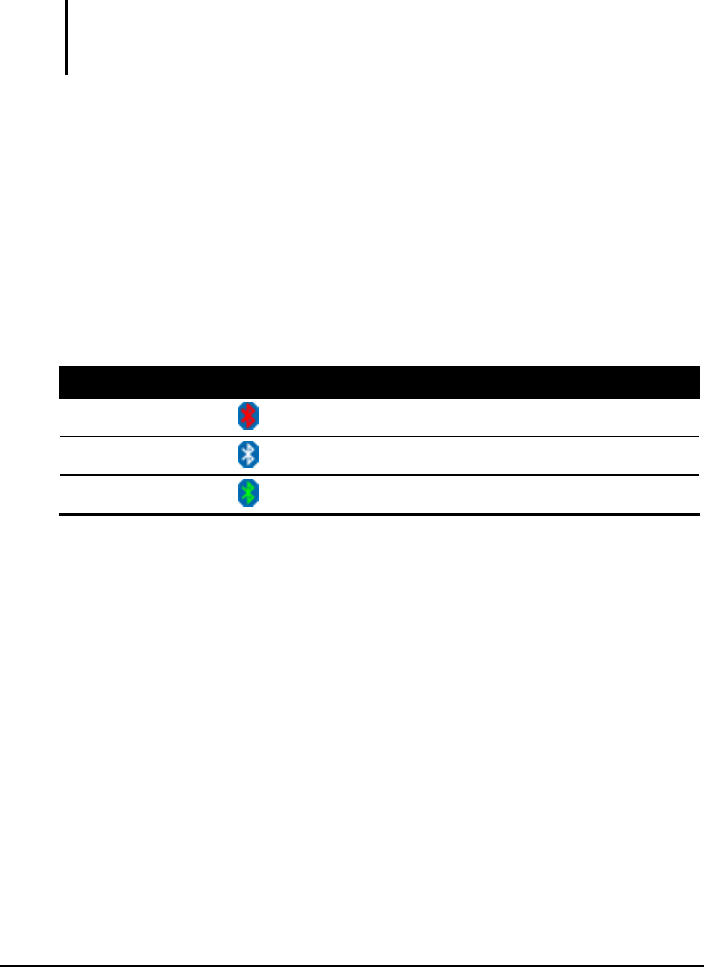

The status of the Bluetooth connection is indicated by the Bluetooth icon
located in the system tray in the lower-right part of the screen.
Status Icon
Off (blue with red logo)
On (blue with white logo).
Connected (blue with green logo)
You can use the Bluetooth Utility to configure Bluetooth connection
settings and transfer files.
![](/img.php?id=813459&img=bg30.png)
Operating Your Computer 2-27

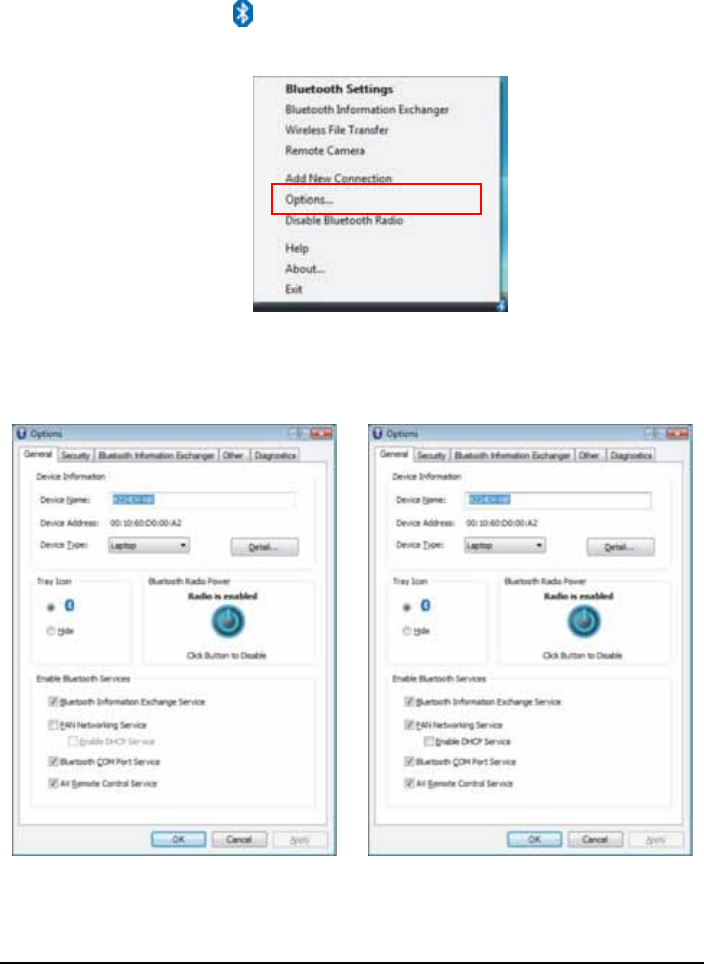

To make sure of smooth operations of the Bluetooth feature, you are
recommended to change the Service Properties:
1. Right-click the icon and then click Options.
2. Select to enable all items and then click OK to save the change.
Æ
![](/img.php?id=813459&img=bg31.png)
Operating Your Computer 2-28
Connecting to Another Bluetooth Device
1. Make sure that the target Bluetooth device is turned on, discoverable
and within close range. (See the documentation that came with the
Bluetooth device.)
2. Right-click the icon, and then click Add New Connection.
3. The Add New Connection Wizard window appears. Select
Express Mode (Recommended), and then click Next.
![](/img.php?id=813459&img=bg32.png)
Operating Your Computer 2-29
4. Select the device to connect to and click Next.
5. Depending on the type of Bluetooth device that you want to connect
to, you will need to enter the pertinent information.
Sending a File
1. Make sure that the target Bluetooth device is turned on, discoverable
and within close range. (See the documentation that came with the
Bluetooth device.)
2. Right-click the icon, and then click Wireless File Transfer.
![](/img.php?id=813459&img=bg33.png)
Operating Your Computer 2-30
3. In the Wireless File Transfer window, click Add to browse for the
file to send.
4. Click the target device from the list, and then click Send to start the
transfer procedure.
![](/img.php?id=813459&img=bg34.png)
Operating Your Computer 2-31
Using the GPS (Optional)
NOTE: To take advantage of the GPS feature, the GPS driver
supplied with your computer must be installed (see chapter 6 for
details).
Navigation and positioning are crucial to so many activities. To try to
figure out where you are and where you are going, you need GPS
technology. The Global Positioning System (GPS) is a worldwide
radio-navigation system.
![](/img.php?id=813459&img=bg35.png)
Managing Power 3-1
Chapter 3
Managing Power
Your computer operates either on external AC power or on internal
battery power.
This chapter tells you how you can effectively manage power. To
maintain optimal battery performance, it is important that you use the
battery in the proper way.
The topics in this chapter include:
z What is an AC adapter
z How to charge the battery pack
z When and how to initialize the battery pack
z How to use the Battery Automatic Calibration Utility
z How to check the battery level
z How to replace the battery pack
z What happens when the battery is low and what actions to take
z What is Power Management
z How to save power
CHAPTER
![](/img.php?id=813459&img=bg36.png)
Managing Power 3-2
AC Adapter
CAUTION:
z The AC adapter is designed for use with your computer only.
Connecting the AC adapter to another device can damage
the adapter.
z The AC power cord supplied with your computer is for use in
the country where you purchased your computer. If you plan
to go overseas with the computer, consult your dealer for the
appropriate power cord.
z When you disconnect the AC adapter, disconnect from the
electrical outlet first and then from the computer. A reverse
procedure may damage the AC adapter or computer.
z When unplugging the connector, always hold the plug head.
Never pull on the cord.
The AC adapter serves as a converter from AC (Alternating Current) to
DC (Direct Current) power because your computer runs on DC power,
but an electrical outlet usually provides AC power. It also charges the
battery pack when connected to AC power.
The adapter operates on any voltage in the range of 100~240 V AC.
![](/img.php?id=813459&img=bg37.png)
Managing Power 3-3
Battery Pack
The battery pack is the internal power source for the computer. It is
rechargeable using the AC adapter.
The operating time of a fully charged battery pack depends on how you
are using the computer. When your applications often access peripherals,
you will experience a shorter operating time.
NOTE: Care and maintenance information for the battery is
provided in the “Battery Pack Guidelines” section in Chapter 7.
Charging the Battery Pack
NOTE:
z Charging will not start if the battery’s temperature is below 0
°C (32 °F) or above
60 °C (140 °F).
z The charging process will stop and the Battery Charge
Indicator flashes green when the battery’s temperature gets
above 60 °C (140 °F). If this happens, the battery pack may
be damaged. Please contact your dealer.
z During charging, do not disconnect the AC adapter before
the battery has been fully charged; otherwise you will get a
prematurely charged battery.
CAUTION: After the computer has been fully recharged, do not
immediately disconnect and reconnect the AC adapter to
charge it again. Doing so may damage the battery.
NOTE: The battery level may automatically lessen due to the
self-discharge process
(0.21 % per day), even when the battery pack is fully charged
(100 %). This happens no matter if the battery pack is installed in
the computer.
![](/img.php?id=813459&img=bg38.png)
Managing Power 3-4
Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The
actual operating time can be different from the estimated time,
depending on how you are using the computer.
Replacing the Battery Pack
CAUTION:
z There is danger of explosion if the battery is incorrectly
replaced. Replace the battery only with the computer
manufacturer’s optional battery packs. Discard used
batteries according to the dealer’s instructions.
z Do not attempt to disassemble the battery pack.
If you often rely on battery power for a long period of time while
traveling, you may consider the purchase of an additional battery pack
from your dealer and keep it with you in a fully charged state as a backup.
![](/img.php?id=813459&img=bg39.png)
Managing Power 3-5
Power Management
Your computer supports ACPI (Advanced Configuration and Power
Interface) for power management. The power management feature allows
you to reduce the power consumption for energy saving.
With an ACPI-compliant operating system such as Windows Vista,
power supply to different computer components is controlled on an
as-needed basis. This allows maximum power conservation and
performance at the same time.
For detailed information on power management, see Windows’ Help.
Hibernation
Hibernation is a very useful feature. People frequently open many
applications when they use computers. It takes some time to get all these
applications open and running, and normally they all have to be closed
before the computer can be turned off.
When you use the hibernation feature, you do not have to close the
applications. The computer stores the state of your computer to a file on
the hard disk and then shuts down. The next time you turn on your
computer, you return to exactly where you left off.
![](/img.php?id=813459&img=bg3a.png)
Managing Power 3-6
Power-Saving Tips
Aside from enabling your computer’s power saving mode (see previous
section), you can do your part to maximize the battery’s operating time by
following these suggestions.
z Do not disable Power Management.
z Decrease the LCD brightness to the lowest comfortable level.
z If you work with an application that uses a PC card, exit the
application when you finish using it.
z If you have a PC card installed, remove it when not in use. Some PC
cards drain power even while they are inactive.
z Deactivate the WLAN function if you are not using it (see Chapter 2).
z Turn off the computer when you are not using it.
![](/img.php?id=813459&img=bg3b.png)
Expanding Your Computer 4-1
Chapter 4
Expanding Your Computer
You can expand the capabilities of your computer by connecting other
peripheral devices. When using a device, be sure to read the instructions
accompanying the device together with the relevant section in this
chapter.
This chapter gives guidelines on installing and using these devices:
z External monitor (option)
z Serial device
z USB device
z PC card
z Card Reader
z Port Replicator
CHAPTER
![](/img.php?id=813459&img=bg3c.png)
Expanding Your Computer 4-2
Connecting an External Monitor
(Optional)
![](/img.php?id=813459&img=bg3d.png)
Using BIOS Setup 5-1
Chapter 5
Using BIOS Setup
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/
Output System) settings of the computer.
BIOS is a layer of software, called firmware, that translates instructions
from other layers of software into instructions that the computer hardware
can understand. The BIOS settings are needed by your computer to
identify the types of installed devices and establish special features.
This chapter tells you how to use the BIOS Setup program.
CHAPTER
![](/img.php?id=813459&img=bg3e.png)
Using BIOS Setup 5-2
When and How to Use BIOS Setup
When to Use
You need to run BIOS Setup Utility when:
z You see an error message on the screen requesting you to run BIOS
Setup Utility.
z You want to restore the factory default settings.
z You want to modify some specific settings according to the hardware.
z You want to modify some specific settings to optimize the system
performance.
Starting BIOS Setup
NOTE:
z The BIOS Setup Utility screens shown in this chapter are for
your reference only. The actual items or settings on your
computer may differ.
z The BIOS Setup Utility program may have been updated after
the publication of this manual.
z The settings you select in your operating system might
override similar settings in BIOS Setup Utility.
![](/img.php?id=813459&img=bg3f.png)
Installing Software Drivers 6-1
Chapter 6
Installing Software Drivers
To take full advantage of the unique features of your computer, some
operating systems require custom software, known as drivers, to be
installed.
If you purchased the computer with Windows pre-installed, your dealer
may have already installed the drivers. If not, you need to install the
drivers using the disc supplied with your computer.
This chapter describes how to install the drivers.
CHAPTER
![](/img.php?id=813459&img=bg40.png)
Installing Software Drivers 6-2
How to Use the Driver Disc
NOTE: The drivers may have been updated after this manual was
published. For driver upgrade, please contact your dealer.
![](/img.php?id=813459&img=bg41.png)
Caring for the Computer 7-1
Chapter 7
Caring for the Computer
Taking good care of your computer will ensure a trouble-free operation
and reduce the risk of damage to your computer.
This chapter gives you guidelines covering these areas of maintenance:
z How to protect the computer
z What to note when using and storing the computer
z How to clean the computer
z What to note when using the battery pack
z What to note when traveling with the computer
CHAPTER
![](/img.php?id=813459&img=bg42.png)
Caring for the Computer 7-2
Protecting the Computer
To safeguard the integrity of your computer data as well as the computer
itself, you can protect the computer in several ways as described in this
section.
Using the Cable Lock
You can use a Kensington-type cable lock to protect your computer
against theft. The cable lock is available in most computer stores.
To use the lock, loop the lock cable around a stationary object such as a
table. Insert the lock to the Kensington lock hole and turn the key to
secure the lock. Store the key in a safe place.
Using an Anti-Virus Strategy
New viruses are always being developed nowadays and they are attacking
computers even more easily with emails so commonly used worldwide.
You can install a virus-detecting program to monitor potential viruses that
could damage your files.
![](/img.php?id=813459&img=bg43.png)
Caring for the Computer 7-3
Taking Care of the Computer
Location Guidelines
z Use the computer where the temperature is between 10 °C (50 °F) and
35 °C (95 °F).
z Avoid placing the computer in a location subject to high humidity,
extreme temperatures, mechanical vibration, direct sunlight, or heavy
dust.
z Do not cover or block any ventilation openings on the computer. For
example, do not place the computer on a bed, sofa, rug, or other
similar surface. Otherwise, overheating may occur that results in
damage to the computer.
z Keep the computer at least 13 cm (5 inches) away from electrical
appliances that can generate a strong magnetic field such as a TV,
refrigerator, motor, or a large audio speaker.
z Do not move the computer abruptly from a cold to a warm place. A
temperature difference of more than 10 °C (18 °F) will cause
condensation inside the unit, which may damage the storage media.
z Do not place the computer on an unsteady surface.
General Guidelines
z Do not place heavy objects on top of the computer when it is closed as
this may damage the display.
z The screen surface is easily scratched. Do not use paper towels to
clean the display. Avoid touching it with your fingers, pen, or pencil.
z To maximize the life of the backlight in the display, allow the
backlight to automatically turn off as a result of power management.
Avoid using a screen saver or other software that prevents the power
management from working.
![](/img.php?id=813459&img=bg44.png)
Caring for the Computer 7-4
Cleaning Guidelines
z Never clean the computer with its power on.
z Use a soft cloth moistened with water or a non-alkaline detergent to
wipe the exterior of the computer.
z Gently wipe the display with a soft, lint-free cloth. Do not use alcohol
or detergent on the display.
z Dust or grease on the touchpad can affect its sensitivity. Clean the pad
by using adhesive tape to remove the dust and grease on its surface.
Battery Pack Guidelines
z Recharge the battery pack when it is nearly discharged. When
recharging, make sure that the battery pack is fully charged. Doing so
may avoid harm to the battery pack.
z Operate the computer with the battery pack installed even when using
external power. This ensures that the battery is fully charged.
z If you will not be using the computer for a long period of time (more
than two weeks), remove the battery pack from the computer.
z If you remove the battery pack, make sure that the battery terminals
do not contact any conductors such as metal objects or water.
Otherwise, the battery may become unusable as a result of a short
circuit.
z If you need to store the battery pack, store it in a cool, dry place.
Never allow the temperature to exceed 60 °C (140 °F).
z Do not leave the battery pack in storage for more than 6 months
without recharging it.
![](/img.php?id=813459&img=bg45.png)
Caring for the Computer 7-5
When Traveling
z Before traveling with your computer, make a backup of your hard
disk data into flash disks or other storage devices. As an added
precaution, bring along an extra copy of your important data.
z Make sure that the battery pack is fully charged.
z Make sure that the computer is turned off and the top cover is
securely closed.
z Do not leave objects in between the keyboard and closed display.
z Disconnect the AC adapter from the computer and take it with you.
Use the AC adapter as the power source and as a battery-charger.
z Hand-carry the computer. Do not check it in as luggage.
z If you need to leave the computer in the car, put it in the trunk of the
car to avoid exposing the computer to excessive heat.
z When going through airport security, it is recommended that you
send the computer and flash disks through the X-ray machine (the
device you set your bags on). Avoid the magnetic detector (the device
you walk through) or the magnetic wand (the handheld device used
by security personnel).
z If you plan to travel abroad with your computer, consult your dealer
for the appropriate AC power cord for use in your country of
destination.
![](/img.php?id=813459&img=bg46.png)
Troubleshooting 8-1
Chapter 8
Troubleshooting
Computer problems can be caused by hardware, software, or both. When
you encounter any problem, it might be a typical problem that can easily
be solved.
This chapter tells you what actions to take when solving common
computer problems. It is divided into three sections:
z Preliminary checklist
z Solving common problems
z Resetting the computer
CHAPTER
![](/img.php?id=813459&img=bg47.png)
Troubleshooting 8-2
Preliminary Checklist
Here are helpful hints to follow before you take further actions when you
encounter any problem:
z Try to isolate which part of the computer is causing the problem.
z Make sure that you turn on all peripheral devices before turning on
the computer.
z If an external device has a problem, make sure that the cable
connections are correct and secure.
z Make sure that the configuration information is properly set in the
BIOS Setup program.
z Make sure that all the device drivers are correctly installed.
z Make notes of your observations. Are there any messages on the
screen? Do any indicators light? Do you hear any beeps? Detailed
descriptions are useful to the service personnel when you need to
consult one for assistance.
If any problem persists after you follow the instructions in this chapter,
contact an authorized dealer for help.
![](/img.php?id=813459&img=bg48.png)
Troubleshooting 8-3
Solving Common Problems
For easy reference, the problems are divided into these categories.
Problem Type Go to
Battery Problems P. 8-1
Bluetooth Problems P. 8-1
Display Problems P. 8-1
Hardware Device Problems P. 8-1
Hard Disk Drive Problems P. 8-1
Keyboard, Mouse, and Touchpad Problems P. 8-1
LAN Problems P. 8-1
WLAN Problems P. 8-1
Modem Problems P. 8-1
PC Card Problems P. 8-1
Power Management Problems P. 8-1
Software Problems P. 8-1
Sound Problems P. 8-1
Startup Problems P. 8-1
Other Problems P. 8-1
![](/img.php?id=813459&img=bg49.png)
Troubleshooting 8-4
Battery Problems
The battery does not charge (Battery Charge indicator does not light
amber).
z Make sure that the AC adapter is properly connected.
z Make sure that the battery is not too hot or cold. Allow time for the
battery pack to return to room temperature.
z Make sure that the battery pack is installed correctly.
z Make sure that the battery terminals are clean.
The operating time of a fully charged battery becomes shorter.
z If you often partially recharge and discharge, the battery might not be
charged to its full potential. Initialize the battery to solve the problem.
(See “Initializing the Battery Pack” in Chapter 3 for instructions.)
The battery operating time indicated by the battery meter does not
match the actual operating time.
z The actual operating time can be different from the estimated time,
depending on how you are using the computer. If the actual operating
time is much less than the estimated time, initialize the battery. (See
“Initializing the Battery Pack” in Chapter 3 for instructions.)
Bluetooth Problems
I cannot connect to another Bluetooth-enabled device.
z Make sure that the Bluetooth card is correctly installed.
z Make sure that the Bluetooth driver is correctly installed.
z Make sure that both devices have activated Bluetooth.
z Make sure that the distance between the two devices are not over 10
meters or that there are no walls or other obstructions between the
devices.
z Make sure that the other device is not in “Hidden” mode.
![](/img.php?id=813459&img=bg4a.png)
Troubleshooting 8-5
z Make sure that both devices are compatible.
Display Problems
Nothing appears on the screen.
z During operation, the screen may automatically turn off as a result of
power management. Press any key to see if the screen comes back.
The characters on the screen are dim.
z Adjust the brightness and/or contrast.
Bad dots appear on the display at all times.
z A small number of missing, discolored, or bright dots on the screen
are an intrinsic characteristic of TFT LCD technology. It is not
regarded as a LCD defect.
Resolution cannot be adjusted to desired setting.
z Make sure that the device driver is installed correctly.
The external monitor displays nothing.
z Make sure that the monitor is turned on.
z Make sure that the monitor’s signal cable is properly connected.
Simultaneous display/multi-display does not work.
z Make sure that you turn on the external monitor before turning on the
computer.
Hardware Device Problems
The computer does not recognize a newly installed device.
z The device may not be correctly configured in the BIOS Setup
program. Run the BIOS Setup program to identify the new type.
z Make sure if any device driver needs to be installed. (Refer to the
documentation that came with the device.)
![](/img.php?id=813459&img=bg4b.png)
Troubleshooting 8-6
z Make sure if the device needs any jumper or switch settings. (Refer to
the documentation that came with the device.)
z Check the cables or power cords for correct connections.
z For an external device that has its own power switch, make sure that
the power is turned on.
Hard Disk Drive Problems
The hard disk drive error message appears on the screen.
z The hard disk drive has defects. Ask your dealer for help.
The hard disk drive operations seem slow.
z The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.
The hard disk drive in-use indicator glows without blinking.
z The data files stored on the hard disk drive may be fragmented. Use a
tool such as Window’s Disk Defragmenter to defragment the files.
Keyboard, Mouse, and Touchpad
Problems
The keyboard does not respond.
z Try connecting an external keyboard. If it works, contact an
authorized dealer, as the internal keyboard cable might be loose.
The numeric keypad is disabled.
z Make sure that the Num Lock is switched on. (Check if the Num
Lock Indicator glows or not.)
The external keyboard does not work.
z Make sure that the keyboard cable is properly connected.
![](/img.php?id=813459&img=bg4c.png)
Troubleshooting 8-7
The USB mouse does not work.
z Make sure that the mouse cable is properly connected.
The touchpad does not work, or the pointer is difficult to control
with the touchpad.
z Make sure that the touchpad driver is correctly installed.
z Make sure that the touchpad is clean.
LAN Problems
I cannot access the network.
z Make sure that the LAN driver is correctly installed.
z Make sure that the LAN cable is properly connected to the RJ-45
connector and the network hub.
z Make sure that the network configuration is appropriate.
z Make sure that the user name or password is correct.
WLAN Problems
I cannot use the WLAN feature.
z Make sure that the mini PCI-E WLAN card is correctly installed.
z Make sure that the necessary driver(s) is correctly installed.
z Make sure that the WLAN feature is turned on.
Transmission quality is poor.
z Your computer may be in an out-of-range situation. Move your
computer closer to the Access Point or another WLAN device it is
associated with.
z Check if there is high interference around the environment and solve
the problem as described next.
![](/img.php?id=813459&img=bg4d.png)
Troubleshooting 8-8
Radio interference exists.
z Move your computer away from the device causing the radio
interference such as microwave oven and large metal objects.
z Plug your computer into an outlet on a different branch circuit from
that used by the affecting device.
z Consult your dealer or an experienced radio technician for help.
I cannot connect to another WLAN device.
z Make sure that the WLAN feature is turned on.
z Make sure that the SSID setting is the same for every WLAN device
in the network.
z Your computer is not recognizing changes. Restart the computer.
z Make sure that the IP address or subnet mask setting is correct.
I cannot communicate with the computer in the network when
Infrastructure mode is configured.
z Make sure that the Access Point your computer is associated with is
powered on and all the LEDs are working properly.
z If the operating radio channel is in poor quality, change the Access
Point and all the wireless station(s) within the BSSID to another radio
channel.
z Your computer may be in an out-of-range situation. Move your
computer closer to the Access Point it is associated with.
z Make sure that your computer is configured with the same security
option (encryption) to the Access Point.
z Use the Web Manager/Telnet of the Access Point to check whether it
is connected to the network.
z Reconfigure and reset the Access Point.
I cannot access the network.
z Make sure that the necessary driver(s) is correctly installed.
z Make sure that the network configuration is appropriate.
![](/img.php?id=813459&img=bg4e.png)
Troubleshooting 8-9
z Make sure that the user name or password is correct.
z You have moved out of range of the network.
z Turn off power management.
Modem Problems
The modem does not work.
z Make sure that the modem driver is correctly installed.
z Make sure that the telephone line is properly connected.
z Make sure that the COM port in the communication software is
correctly set.
z Turn off power management.
PC Card Problems
The PC card does not work.
z Make sure that the PC card is correctly seated.
z If the card requires an IRQ (Interrupt ReQuest), make sure that there
is one available.
The PC card stops communicating properly.
z The application may have been reset when the computer is turned off
or in Standby mode. Exit and restart the application.
Power Management Problems
The computer does not enter Hibernation mode with the Fn+F10 hot
keys.
z Make sure that the Hibernation function is specified for the sleep
button.
![](/img.php?id=813459&img=bg4f.png)
Troubleshooting 8-10
z You might be using a PC card that prevents the computer from
entering Hibernation mode. To enter the mode, stop the
communication program and then remove the card or stop the card.
Software Problems
An application program does not work correctly.
z Make sure that the software is correctly installed.
z If an error message appears on the screen, consult the software
program’s documentation for further information.
z If you are sure the operation has stop, reset the computer. (See
“Resetting the Computer” later in this chapter.)
Sound Problems
No sound is produced.
z Make sure that the volume control is not set too low.
z Make sure that the device driver is correctly installed.
z Make sure that the computer is not in Standby mode.
z If using an external speaker, make sure that the speaker is properly
connected.
Distorted sound is produced.
z Make sure that the volume control is not set too high or too low. In
most cases, a high setting can cause the audio electronics to distort the
sound.
The sound system does not record.
z Adjust the playback or recording sound levels.
The external microphone or audio device does not work.
z Make sure that the microphone is connected to the proper connector
on the computer.
![](/img.php?id=813459&img=bg50.png)
Troubleshooting 8-11
z Make sure that your computer is equipped with the driver needed.
z Click the speaker symbol on the taskbar and check the Windows
volume control.
z Check the volume control of your computer.
Startup Problems
When you turn on the computer, it does not respond and the Power
Indicator does not light green.
z If you are using an external AC power, make sure that the AC adapter
is correctly and securely connected. If so, make sure that the electrical
outlet works properly.
z If you are using the battery power, make sure that the battery is not
discharged.
When you turn on the computer, it stops after POST.
z Restart your computer.
Other Problems
The date/time is incorrect.
z Correct the date and time via the operating system or BIOS Setup
program.
z After you have performed everything as described above and still
have the incorrect date and time every time you turn on the computer,
the RTC (Real-Time Clock) battery is at the end of its life. Call an
authorized dealer to replace the RTC battery.
![](/img.php?id=813459&img=bg51.png)
Troubleshooting 8-12
Resetting the Computer
You may have to reset (reboot) your computer on some occasions when
an error occurs and the program you are using hangs up.
If the computer operation seems to hang up, first wait. It is possible that
the computer is processing data. Periodically check the hard disk drive
in-use indicator, if it flashes irregularly, the program may be accessing
data and preventing you from using the keyboard. If you are sure the
operation has stopped and you cannot use the “restart” function of the
operating system, reset the computer.
Reset the computer by any one of these methods:
z Press Ctrl+Alt+Del on your built-in keyboard.
z If the above action does not work, turn off the computer. Wait for at
least five seconds and turn it on again.
CAUTION: Resetting will cause any unsaved data to be lost.
![](/img.php?id=813459&img=bg52.png)
Specifications A-1
Appendix A
Specifications
NOTE: Specifications are subject to change without any prior
notice.
Parts Specifications
CPU Intel® Pentium® M processor (Yonah) single/dual core / Celeron
reserved for Merom (NAPA refresh)
400/533/667 MHz FSB (Front Side Bus), 1.66/1.83/2.0/2.16 GHz
thermal specifications 35 W
NorthBridge Intel® 945GM Chipset
SouthBridge Intel® ICH7-M
BIOS 1 MB EEPROM
RAM (system) Up to 2 GB DDRII 533/667 MHz, 2 × 200-pin SO-DIMM sockets
1.25-inch height
Panel 14.1-inch wide TFT LCD, resolution up to 1280×800 WXGA /
1440×900 WXGA+, dual LVDS, sunlight-readable (option),
touchscreen (option)
Video controller UMA / Discrete
VRAM GDDR II, 64/128/256 MB
Display
Video port VGA
Features Azalia interface, 2 channel analog output
Speaker 1.5 watt (8 ohm) × 2
Audio
Ports Two audio ports for Line-out / Mic-in
Keyboard Standard keys with numeric pad keys, 12 function keys, special Fn
(Function) key and Windows keys
Water-proof membrane
Pointing device Glide touchpad with 2 buttons, scroll bar, under platic, resistive-type
Hard disk drive SATA interface, 2.5-inch diameter (9.5 mm height), 5400 rpm support
G-sensor, shock-mounted
APPENDIX
![](/img.php?id=813459&img=bg53.png)
Specifications A-2
Parts Specifications
Card slots PCMCIA CardBus Type II
ExpressCard/34 / ExpressCard/54 support
Card Reader4-in-1 (MMC/SD/MS/MS PRO card) module
I/O ports USB ports × 3 (USB 2.0 support), serial port (RS-232), RJ-45 port,
RJ-11 port, mini IEEE 1394a port
Modem Azalia interface, 56 Kbps, ITU V.90 MDC 1.5 internal fax modem
LAN 10/100/1000 Mbps
Wireless LAN One mini PCI-E slot for wireless LAN card, compliant with
IEEE 802.11a/b/g, on/off slide switch
Bluetooth (option) Specification 2.0 module
Camera (option) Integrated 1.3 M pixel fixed-type
GPS (option) GPS module
3G (option) CDMA 2000 EVDO, GPRS/EVGS
Security Kensington lock
TPM 1.2 (availability may vary) – option
Smart Card Reader (integrated) will occupy Type II PCMCIA slot –
option
AC adapter Universal AC adapter 90 W; input: 100∼240 V, output: 19 V
Power
Battery Li-ion smart battery 6-cell (9-cell option) 4800 mAH / 11.1 V
Dimension (W×D) 333×295 mm (13.1×11.6 inch) with handle
Weight 2.8 kg (6.17 lb)
Regulation FCC, CE, CB, RoHS
![](/img.php?id=813459&img=bg54.png)
Regulatory Information B-1
Appendix B
Regulatory Information
This appendix provides regulatory statements and safety notices on your
computer.
NOTE: Marking labels located on the exterior of your computer
indicate the regulations that your model complies with. Please
check the marking labels and refer to the corresponding
statements in this appendix. Some notices apply to specific
models only.
APPENDIX
![](/img.php?id=813459&img=bg55.png)
Regulatory Information B-2
On the Use of the System
Class B Regulations
USA
Federal Communications Commission Radio
Frequency Interference Statement
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses,
and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the
manufacturer could void the user’s authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with this equipment is
prohibited.
![](/img.php?id=813459&img=bg56.png)
Regulatory Information B-3
Canada
Canadian Department of Communications
Radio Interference Regulations Class B
Compliance Notice
This Class B digital apparatus meets all requirements of the Canada
Interference-Causing equipment regulations.
Cet appareil numérique de Classe B respecte toutes les exigences du
Règlement Canadien sur le matériel brouileur.
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe B
prescrites dans le Règlement sur le brouillage radioélectrique édicté par le
ministère des Communications du Canada.
Safety Notices
About the Battery
Caution Texts Concerning Lithium Batteries
DANISH
ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må
kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til
leverandøren.
NORWEGIAN
ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype
eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i
henhold til fabrikantens instruksjoner.
SWEDISH
VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en
ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion.
FINNISH
VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan
ohjeiden mukaisesti.
![](/img.php?id=813459&img=bg57.png)
Regulatory Information B-4
ENGLISH
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the
same or equivalent type recommended by the equipment manufacturer. Discard used
batteries according to manufacturer's instructions.
DEUTSCH
VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur
durch denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ.
Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
FRENCH
ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d’un type équivalent
recommandé par le constructeur. Mettre au rebut les batteries usagées conformément aux
instructions du fabricant.
Attention (for USA Users)
The product that you have purchased contains a rechargeable battery. The
battery is recyclable. At the end of its useful life, under various state and
local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in
your area for recycling options or proper disposal.
About the AC Adapter
z Use only the AC adapter supplied with your computer. Use of another
type of AC adapter will result in malfunction and/or danger.
z Do not use the adapter in a high moisture environment. Never touch
the adapter when your hands or feet are wet.
z Allow adequate ventilation around the adapter when using it to
operate the device or charge the battery. Do not cover the AC adapter
with paper or other objects that will reduce cooling. Do not use the
AC adapter while it is inside a carrying case.
z Connect the adapter to a proper power source. The voltage
requirements are found on the product case and/or packaging.
z Do not use the adapter if the cord becomes damaged.
z Do not attempt to service the unit. There are no serviceable parts
inside. Replace the unit if it is damaged or exposed to excess
moisture.
![](/img.php?id=813459&img=bg58.png)
Regulatory Information B-5
About the Modem
Caution
z Never install telephone wiring during a lightning storm.
z Never install telephone jacks in wet locations unless the jack is
specifically designed for wet locations.
z Never touch non-insulated telephone wires or terminals unless the
telephone line has been disconnected at the network interface.
z Use caution when installing or modifying telephone lines.
z Avoid using the telephone function (other than a cordless type)
during an electrical storm. There may be a remote risk of electric
shock from lightning.
z Do not use the telephone function to report a gas leak in the vicinity
of the leak.
z Do not use this product near water, for example near a bathtub, wash
bowl, kitchen sink or laundry tub, in a wet basement or near a
swimming pool.
Caution (for USA Users)
To reduce the risk of fire, use only No.26 AWG or larger
telecommunication line cord.
![](/img.php?id=813459&img=bg59.png)
Regulatory Information B-6
On the Use of the RF Device
NOTE: The information in this section applies to models with the
wireless LAN module.
USA and Canada Safety Requirements
and Notices
IMPORTANT NOTE: To comply with FCC RF exposure compliance
requirements, the antenna used for this transmitter must be installed to
provide a separation distance of at least 20 cm from all persons and must
not be co-located or operating in conjunction with any other antenna or
transmitter.
Radio Frequency Interference Requirements
and SAR
The FCC with its action in ET Docket 93-62 has adopted a safety standard
for human exposure to Radio Frequency (RF) electromagnetic energy
emitted by FCC certified equipment. The wireless LAN module meets the
Human Exposure limits found in OET Bulletin 65, 2001, and ANSI/IEEE
C95.1, 1992. Proper operation of this radio according to the instructions
found in this manual will result in exposure substantially below the
FCC’s recommended limits. The following safety precautions should be
observed:
z Do not touch or move antenna while the unit is transmitting or
receiving.
z Do not hold any component containing the radio such that the
antenna is very close or touching any exposed parts of the body,
especially the face or eyes, while transmitting.
z Do not operate the radio or attempt to transmit data unless the antenna
is connected; if not, the radio may be damaged.
Use in specific environments:
![](/img.php?id=813459&img=bg5a.png)
Regulatory Information B-7
z The use of wireless devices in hazardous locations is limited by the
constraints posed by the safety directors of such environments.
z The use of wireless devices on airplanes is governed by the Federal
Aviation Administration (FAA).
z The use of wireless devices in hospitals is restricted to the limits set
forth by each hospital.
Antenna use:
z In order to comply with FCC RF exposure limits, low gain integrated
antennas should be located at a minimum distance of 20 cm
(8 inches) or more from the body of all persons.
z High-gain, wall-mount, or mast-mount antennas are designed to be
professionally installed and should be located at a minimum distance
of 30 cm (12 inches) or more from the body of all persons. Please
contact your professional installer, VAR, or antenna manufacturer for
proper installation requirements.
Explosive Device Proximity Warning
WARNING: Do not operate a portable transmitter (such as a wireless
network device) near unshielded blasting caps or in an explosive
environment unless the device has been modified to be qualified for such
use.
Antenna Warning
WARNING: To comply with the FCC and ANSI C95.1 RF exposure
limits, it is recommended that the antenna for this device be installed so as
to provide a separation distance of at least 20 cm (8 inches) from all
persons and that the antenna must not be co-located or operating in
conjunction with any other antenna or radio transmitter. It is
recommended that the user limit exposure time if the antenna is
positioned closer than 20 cm
(8 inches).
Use on Aircraft Caution
![](/img.php?id=813459&img=bg5b.png)
Regulatory Information B-8
CAUTION: Regulations of the FCC and FAA prohibit airborne operation
of radio-frequency wireless devices because their signals could interfere
with critical aircraft instruments.
For IEEE 802.11a Wireless LAN:
For operation within 5.15 ~ 5.25 GHz frequency range, it is
restricted to indoor usage environments, and the antenna of this
device must be integral.
![](/img.php?id=813459&img=bg5c.png)
Regulatory Information B-9
EMC Requirements
This device uses, generates and radiates radio frequency energy. The
radio frequency energy produced by this device is well below the
maximum exposure allowed by the Federal Communications
Commission (FCC).
This device complies with the limits for a Class B digital device pursuant
to Part 15 subpart C of the FCC Rules and Regulations. Operation is
subject to the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including
interference that may cause undesired operation.
The FCC limits are designed to provide reasonable protection against
harmful interference when the equipment is installed and used in
accordance with the instruction manual and operated in a commercial
environment. However, there is no guarantee that interference will not
occur in a particular commercial installation, or if operated in a residential
area.
If harmful interference with radio or television reception occurs when the
device is turned on, the user must correct the situation at the user’s own
expense. The user is encouraged to try one or more of the following
corrective measures:
z Reorient or relocate the receiving antenna.
z Increase the separation between the equipment and receiver.
z Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
z Consult the dealer or an experienced radio/TV technician for help.
CAUTION: The Part 15 radio device operates on a non-interference basis
with other devices operating at this frequency. Any changes or
modification to said product not expressly approved by the manufacturer
could void the user’s authority to operate this device.
![](/img.php?id=813459&img=bg5d.png)
Regulatory Information B-10
Canada Radio Frequency Interference
Requirements
To prevent radio interference to the licensed service, this device is
intended to be operated indoors and away from windows to provide
maximum shielding. Equipment (or its transmit antenna) that is installed
outdoors is subject to licensing.
Pour empêcher que cet appareil cause du brouillage au service faisant
l'objet d'une licence, il doit être utilisé à l'intérieur et devrait être placé
loin des fenêtres afin de fournir un écran de blindage maximal. Si le
matériel (ou son antenne d'émission) est installé à l'extérieur, il doit faire
l'objet d'une licence.
European Union CE Marking and
Compliance Notices
Statements of Compliance
English
This product follows the provisions of the European Directive
1999/5/EC.
Danish
Dette produkt er i overensstemmelse med det europæiske direktiv
1999/5/EC.
Dutch
Dit product is in navolging van de bepalingen van Europees Directief
1999/5/EC.
Finnish
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
French
Ce produit est conforme aux exigences de la Directive Européenne
1999/5/EC.
![](/img.php?id=813459&img=bg5e.png)
Regulatory Information B-11
German
Dieses Produkt entspricht den Bestimmungen der Europäischen
Richtlinie 1999/5/EC.
Greek
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας
1999/5/EC.
Icelandic
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
1999/5/EC.
Italian
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norwegian
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet
1999/5/EC.
Portuguese
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Spanish
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Swedish
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
Local Restrictions of 802.11a/b/g Radio
Usage
CAUTION: Due to the fact that the frequencies used by 802.11a/b/g wireless
LAN devices may not yet be harmonized in all countries, 802.11a/b/g products
are designed for use only in specific countries or regions, and is not allowed to be
operated in countries or regions other than those of designated use. As a user of
these products, you are responsible for ensuring that the products are used only
in the countries or regions for which they were intended and for verifying that
they are configured with the correct selection of frequency and channel for the
country or region of use. Any deviation from permissible settings and
restrictions in the country or region of use could be an infringement of local law
and may be punished as such.
![](/img.php?id=813459&img=bg5f.png)
Regulatory Information B-12
The European variant is intended for use throughout the European
Economic Area. However, authorization for use is further restricted in
particular countries or regions within countries, as follows:
![](/img.php?id=813459&img=bg60.png)
Regulatory Information B-13
General
European standards dictate maximum radiated transmit power of
100 mW Effective Isotropic Radiated Power (EIRP) and the frequency
range 2400 – 2483.5 MHz.
Belgium and the Netherlands
In Belgium and the Netherlands, the product may not be used outdoors.
See the instructions next under the heading “Turning Off the Wireless
LAN Radio.”
France
Departments in Which the Wireless LAN Module Can Be Used
(Indoors Only)
The wireless LAN module can currently be used indoors only in the
following 38 departments of mainland France. Please turn off your
wireless LAN radio when operating the device in areas/places other than
the 38 departments listed:
01 Ain Orientales 36 Indre 66 Pyrénées
02 Aisne 37 Indre et Loire 67 Bas Rhin
03 Allier 41 Loir et Cher 68 Haut Rhin
05 Hautes Alpes 42 Loire 70 Haute Saône
08 Ardennes 45 Loiret 71 Saône et Loire
09 Ariège 50 Manche 75 Paris
11 Aude 55 Meuse 82 Tarn et Garonne
12 Aveyron 58 Nièvre 84 Vaucluse
16 Charente 59 Nord 88 Vosges
24 Dordogne 60 Oise 89 Yonne
25 Doubs 61 Orne 90 Territoire de Belfort
26 Drôme 63 Puy du Dôme 94 Val de Marne
32 Gers 64 Pyrénées Atlantique
![](/img.php?id=813459&img=bg61.png)
Regulatory Information B-14
Departments in Which the Wireless LAN Module’s Maximum EIRP
Not Shown in the Previous Table
Frequency Ranges (MHz) Indoors Outdoors
2400 – 2446.5 10 mW Not permitted
2446.5 – 2483.5 100 mW 100 mW on private property with
Ministry of Defense approval
Turning Off the Wireless LAN Radio
NOTE: Turning the wireless LAN radio off is not the same as disabling
the wireless LAN card. It is not necessary to disable the card to meet the
regulatory requirements.
While operating the computer in those French departments that do not
allow use of the wireless LAN equipment, the user of the equipment must
turn off the wireless LAN radio in order to comply with local regulations
(see Chapter 2 for more information).
![](/img.php?id=813459&img=bg62.png)
Regulatory Information B-15
电子信息产品有毒有害物质或元素名
称及含量标示
有毒有害物质或元素
项目
部件名称 铅
(Pb) 镉
(Cd) 汞
(Hg) 六价铬
(Cr+6) 多溴联苯
(PBB) 多溴二苯醚
(PBDE)
1 金属机构件 X O O O O O
2 塑料机构件 O O O O O O
3 电路板组件 X X O O O O
4 液晶面板 X X X O O O
5 硬盘 X O O O O O
6 光驱 X O O O O O
7 键盘 X O O O O O
8 充电电池组件 X X O O O O
9 适配器 X X X O O O
10 电源线 X O O O O O
11 外部信号连接线 O O O O O O
12 钮扣电池 O O X O O O
13 风扇 X O O O O O
14 散热模块
(金属部分)
X O O O O O
15 喇叭 X O O O O O
O : 表示该有害物质在该部件所有均质材料中的含量均在 SJ/T 11363-2006 规定的限量
要求以下。
X : 表示该有害物质至少在该部件的某一均质材料中的含量超出 SJ/T 11363-2006 规定
的限量要求。
(本产品使用技术无法突破之 EU RoHS 除外项目,并于下方使用项目说明)。
![](/img.php?id=813459&img=bg63.png)
Regulatory Information B-16
使用除外项目如下:
1. 铅使用于部件、装置的内部连接用高融点锡焊上(铅为 85wt%
以上的有铅锡焊)。
2. 电子陶瓷部件(压电组件・陶瓷介质材料等)内的含铅量。
3. 电子部件的玻璃内的含铅量。
4. 两种以上元素组成之焊料,用 于 连接微处理器封装与针头且铅含
量超过 80wt% 并少于 85wt%。
5. 铅于覆晶集成电路封装内用于铸模与基板之电子接点之焊锡。
6. 于钢材、铝材、铜材中的含铅量。
7. 通孔盘状及平面数组陶瓷多层电容器焊料所含的铅。
8. 电子接点的电镀,其要求高可靠性,且没有替代性材料之镉。
9. 电池内的含铅量。
10. 电池内的含镉量。
11. 使用于钮扣电池之含汞量。
