User Manual
Rugged Mobile Computing Solutions
F110
USER MANUAL
i
Table of Contents
Chapter 1 Getting Started ................................................................. 1
Getting the Tablet PC Running ................................................. 2
Unpacking .............................................................................. 2
Installing the SIM Card (Optional) and Battery Packs ......... 3
Connecting to AC Power ....................................................... 5
Using the Tether .................................................................... 6
Turning On and Off the Tablet PC ....................................... 7
Taking a Look at the Tablet PC ................................................. 8
Front Components ................................................................. 8

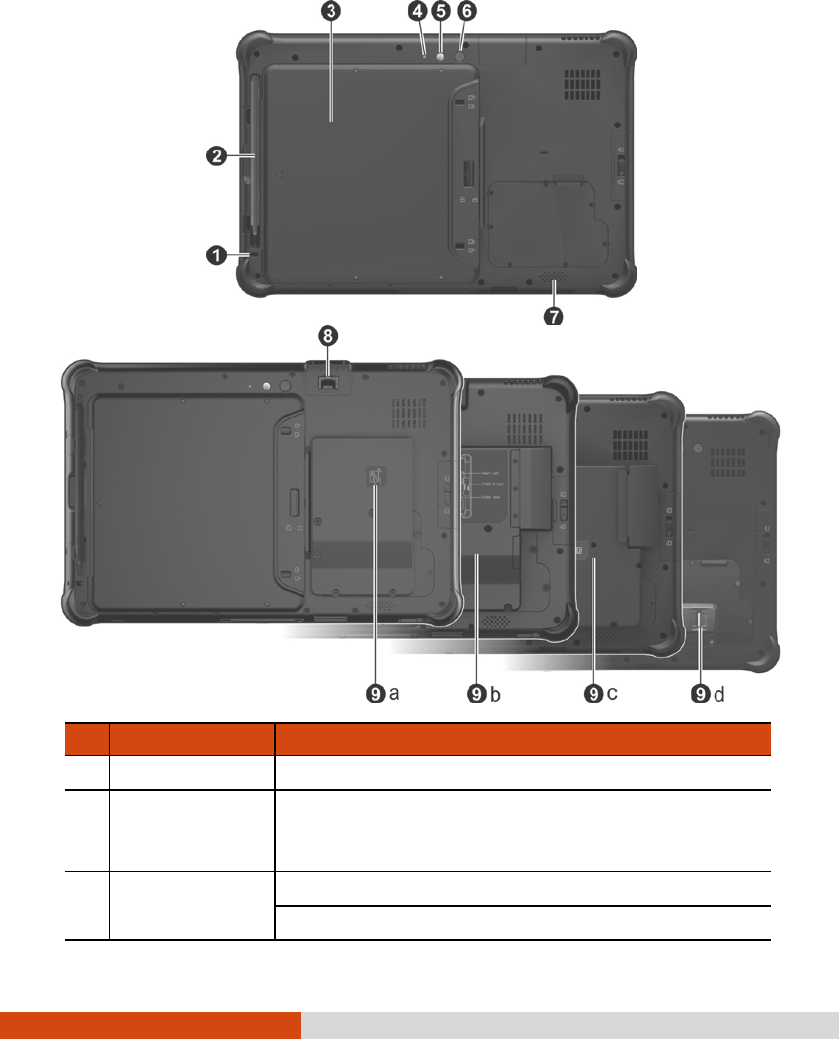

Rear Components ................................................................ 11
Left-Side Components ......................................................... 12

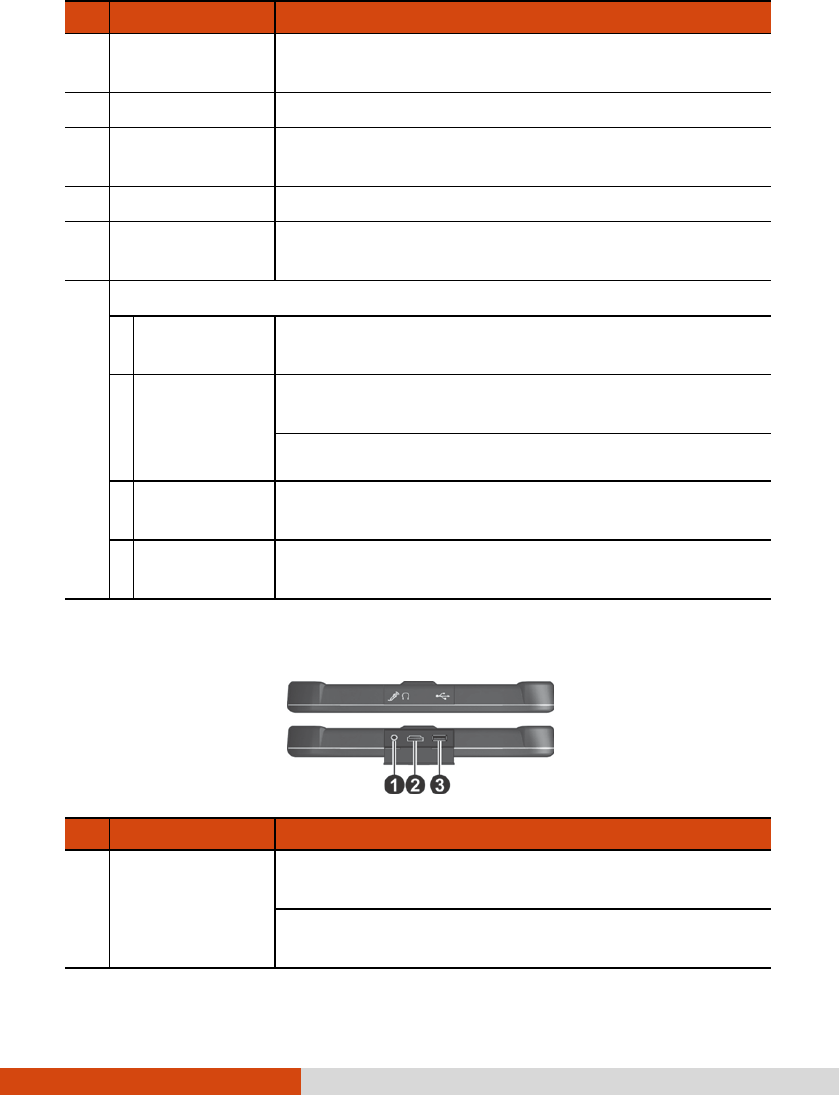

Top Components .................................................................. 13

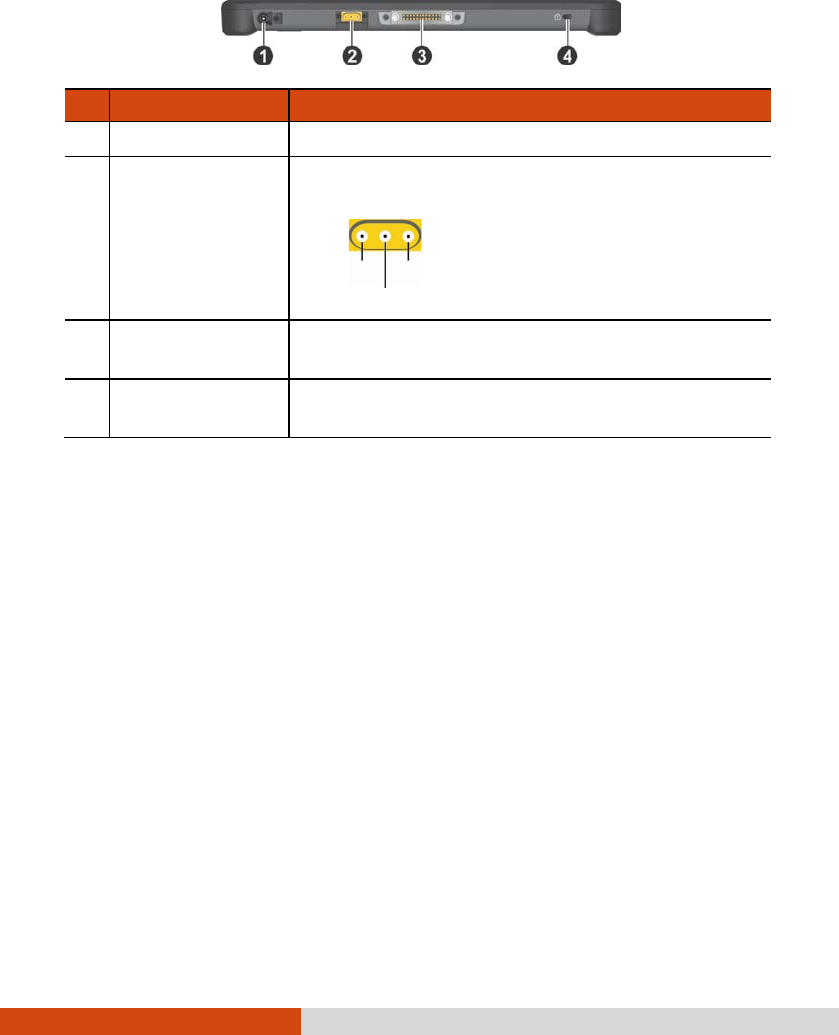

Bottom Components ........................................................... 14
Chapter 2 Operating Your Tablet PC .............................................. 15
Navigating on the Screen ........................................................ 16

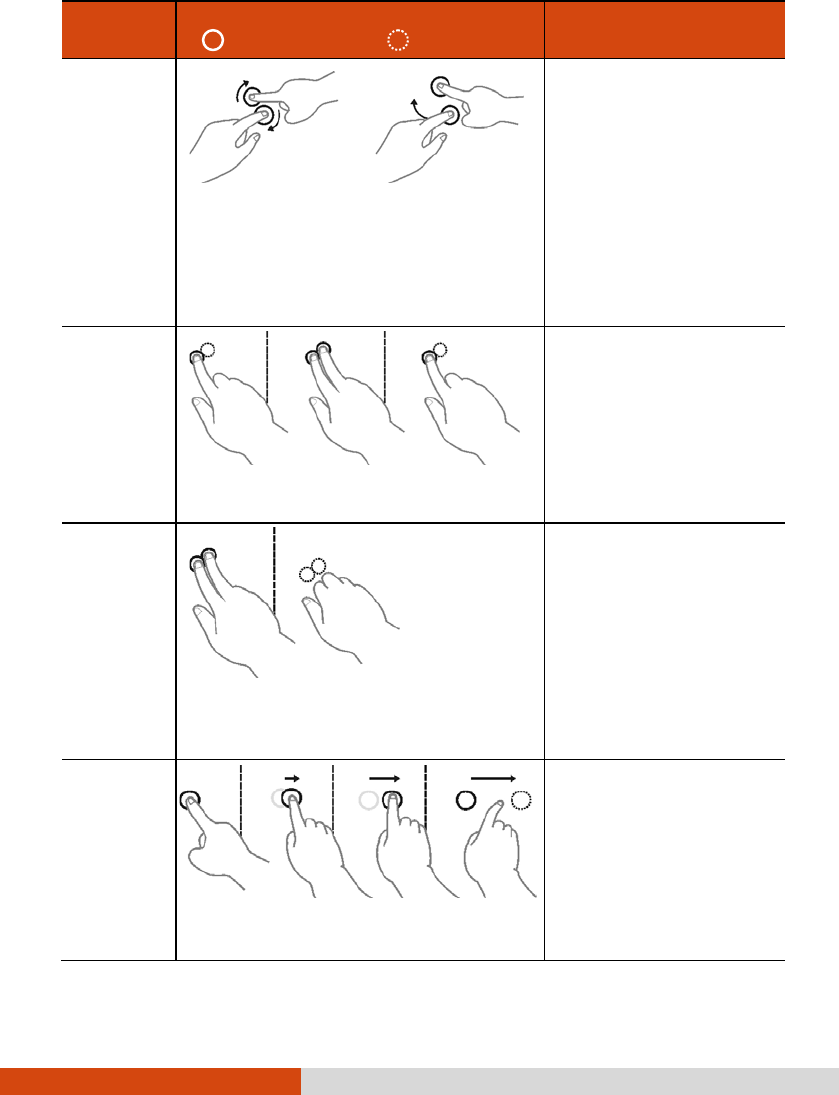

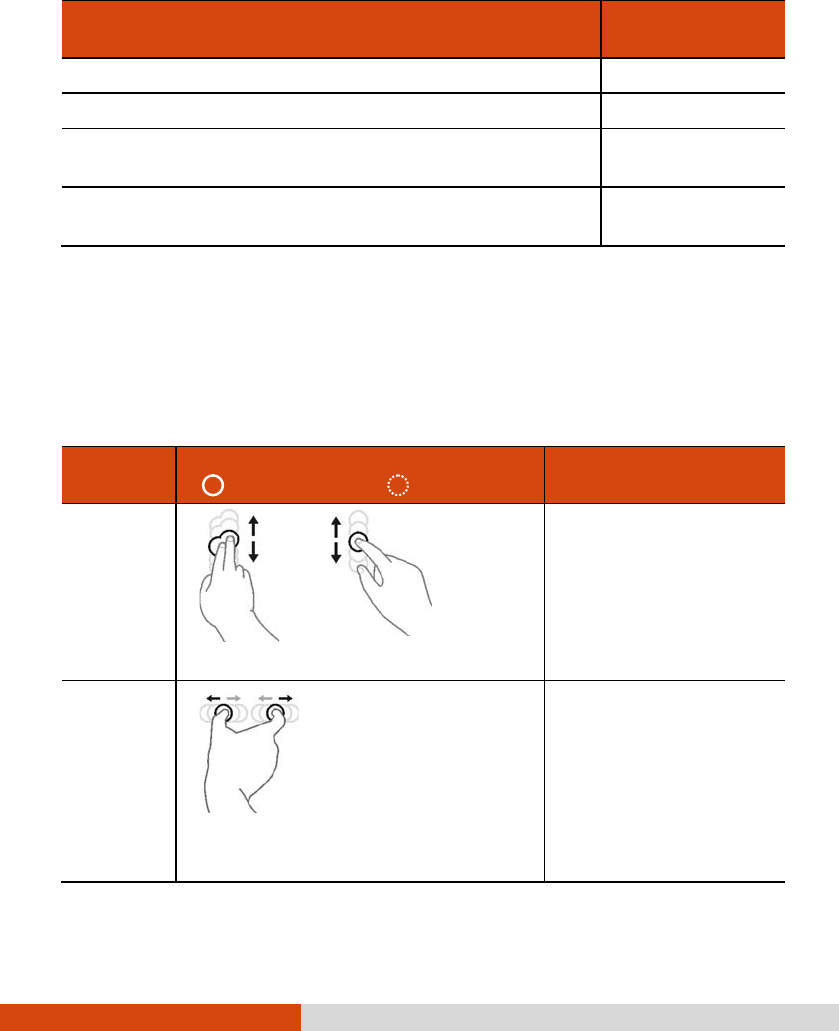

Using the Touchscreen ........................................................ 16
Using the Dual Mode Display (Optional) ........................... 19
Using Network and Wireless Connections ............................. 20
Using the LAN (Optional) .................................................... 20
Using the WLAN ................................................................... 21
Using the BT Feature ........................................................... 22
Using the WWAN Feature (Optional) ................................ 23

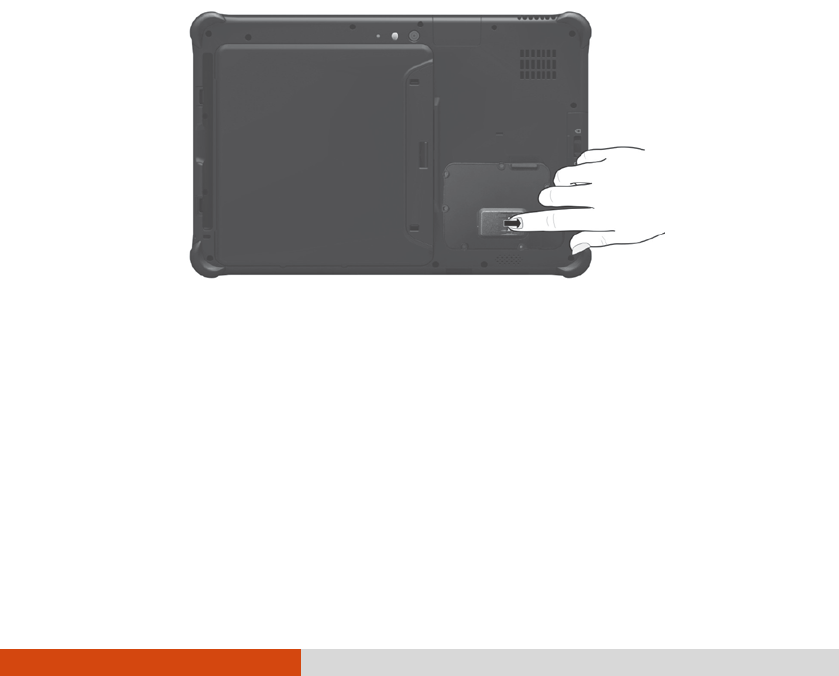

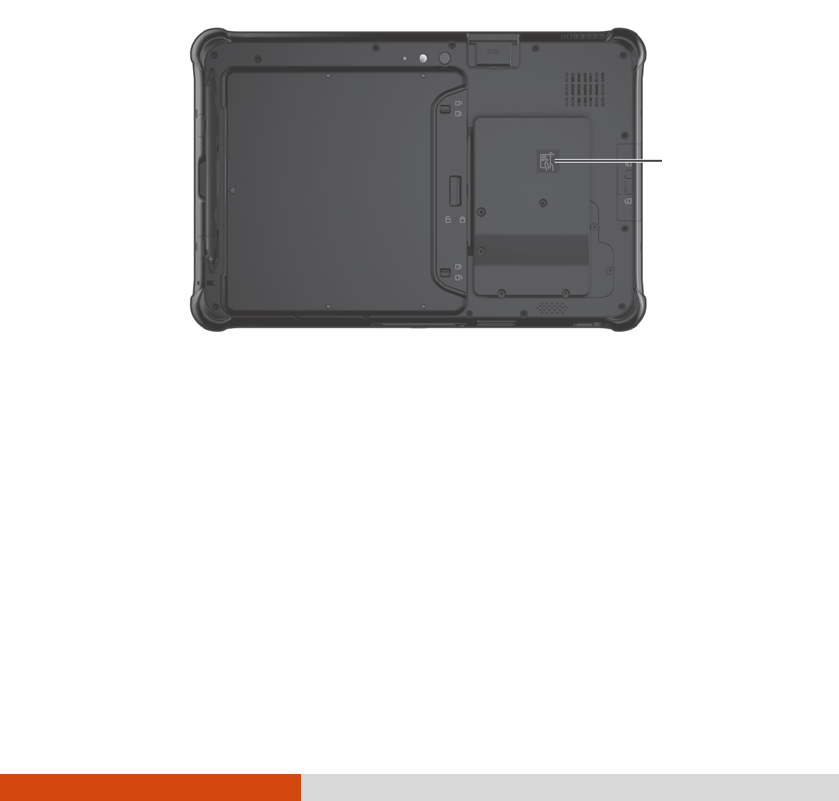

Using the Fingerprint Scanner (Optional) .............................. 24
Chapter 3 Managing Power ............................................................ 26
AC Adapter ............................................................................... 27
Battery Pack .............................................................................. 28
Charging the Battery Pack .................................................. 28
Initializing the Battery Pack ................................................ 29
Checking the Battery Level ................................................. 29
Battery Low Signals and Actions ........................................ 30
Replacing the Battery Pack ................................................. 30
ii
Power-Saving Tips .................................................................... 33
Chapter 4 Expanding Your Tablet PC ............................................. 34

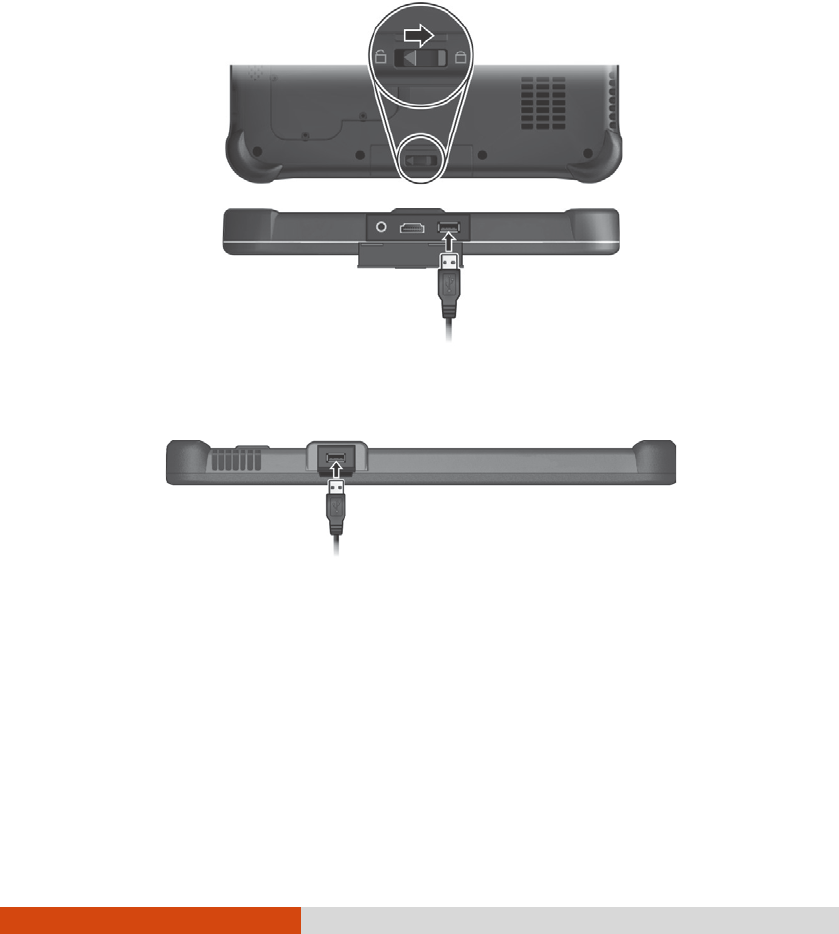

Connecting a USB Device ......................................................... 35
Connecting an Audio Device ................................................... 36

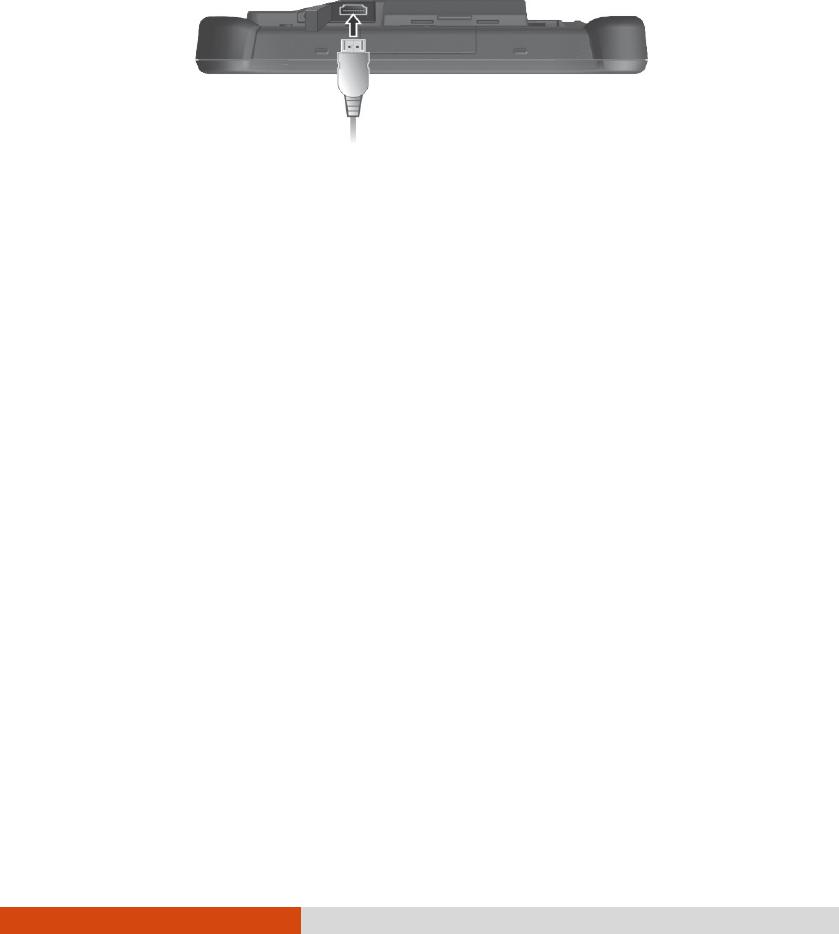

Connecting an HDMI Display Monitor ................................... 37

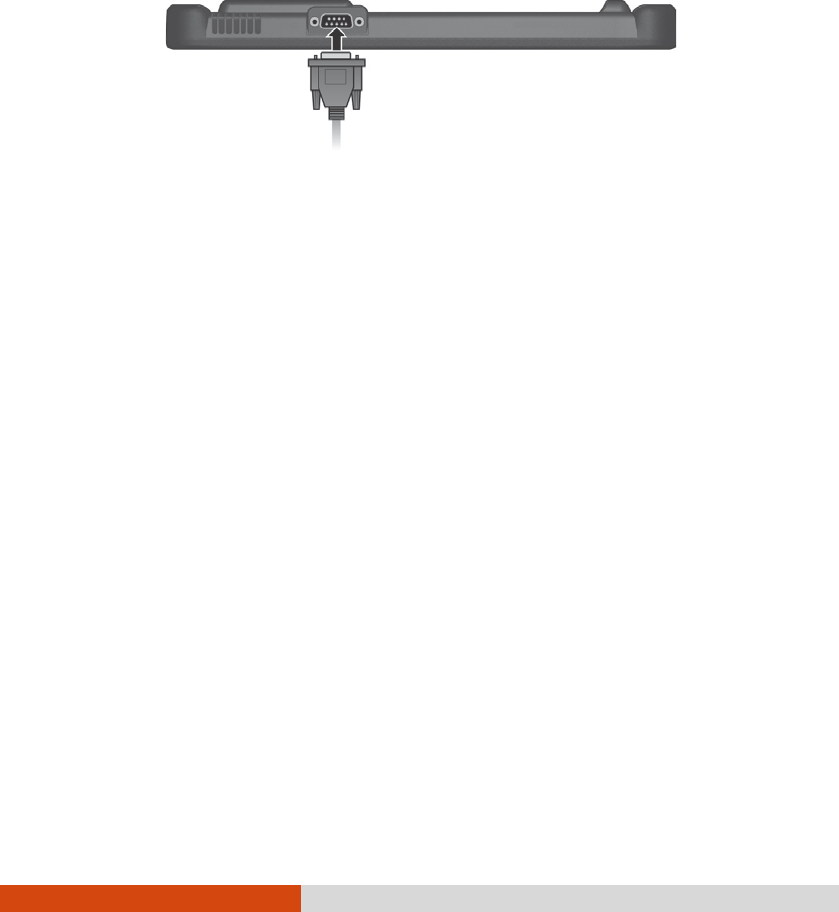

Connecting a Serial Device (Optional) .................................... 38
Using Smart Cards (Optional) .................................................. 39
Using HDMI-in Function (Optional) ........................................ 40
Using the NFC/RFID Reader (Optional) ................................... 41
Using MicroSD Cards (Optional) ............................................. 42
Chapter 5 Using BIOS Setup ............................................................ 43
When and How to Use ............................................................. 44
Menu Descriptions ................................................................... 45
Information Menu ............................................................... 45
Main Menu ........................................................................... 45
Advanced Menu ................................................................... 46
Security Menu ...................................................................... 47
Boot Menu ........................................................................... 48
Exit Menu ............................................................................. 48
Chapter 6 Using Getac Software .................................................... 49
OSD Control Panel ................................................................... 50

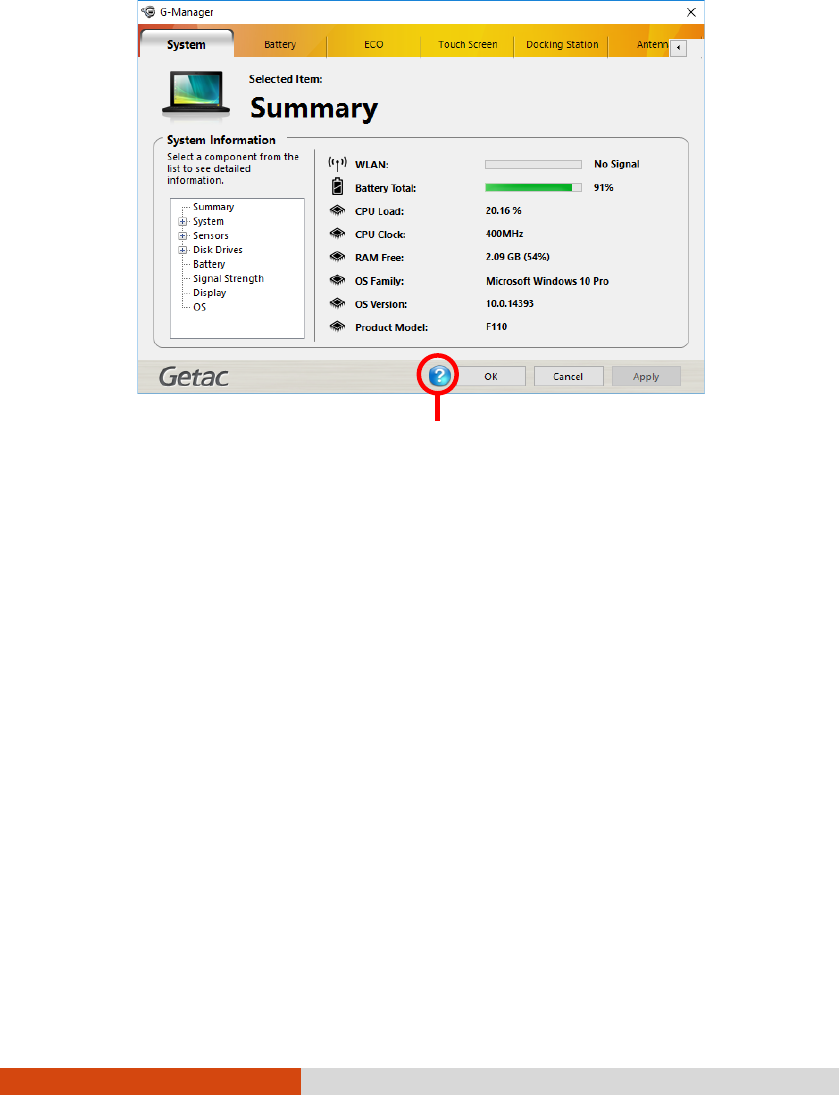

G-Manager ............................................................................... 51

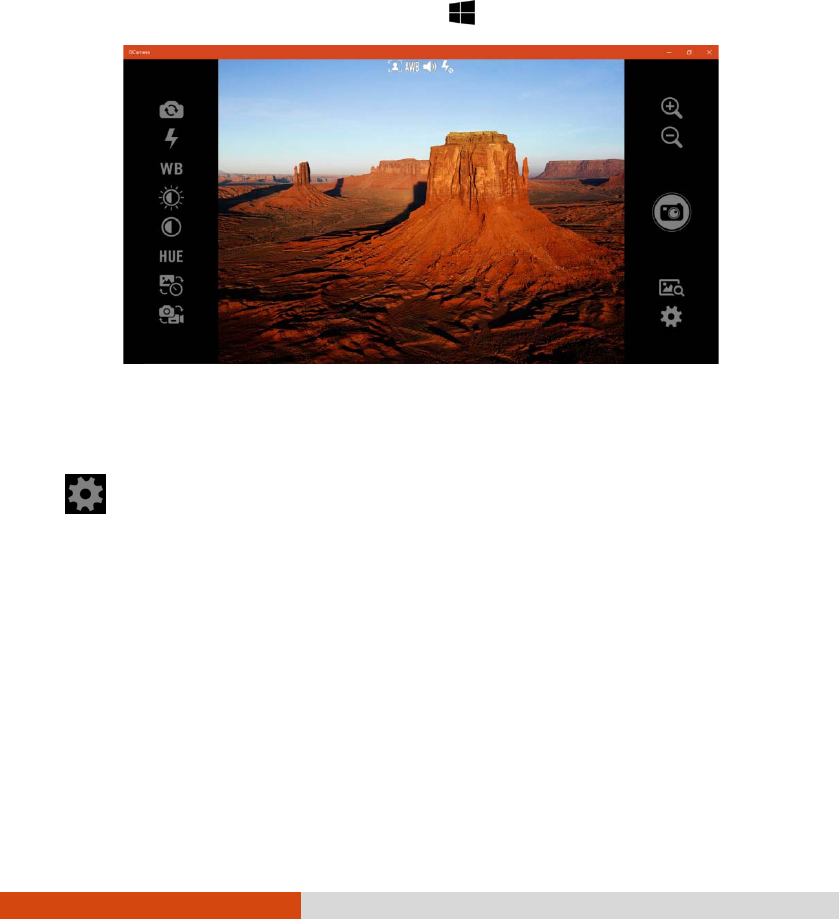

G-Camera .................................................................................. 53
Using the Barcode Reader (Optional) ..................................... 54
Chapter 7 Care and Maintenance ................................................... 56
Protecting the Tablet PC .......................................................... 57
Using an Anti-Virus Strategy ............................................... 57

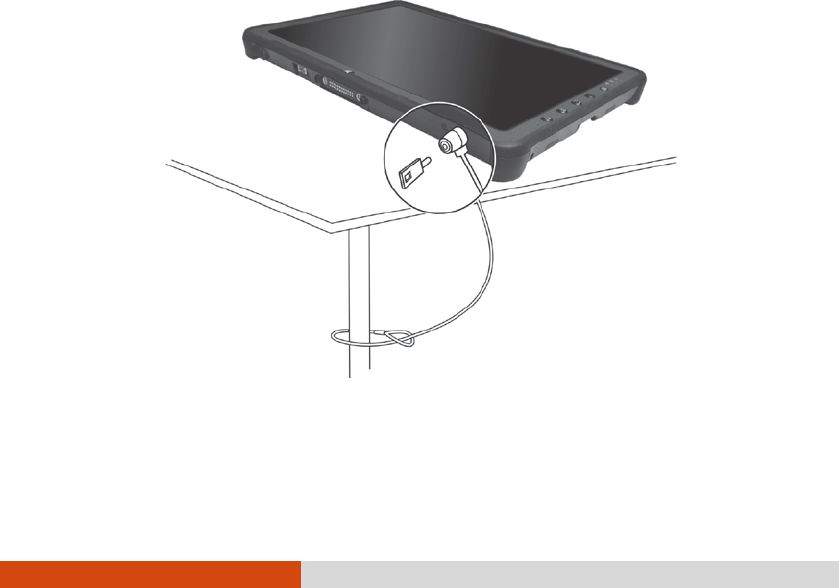

Using the Cable Lock ........................................................... 57
Taking Care of the Tablet PC .................................................. 58
Location Guidelines ............................................................. 58
General Guidelines .............................................................. 58
Cleaning Guidelines ............................................................. 59
Battery Pack Guidelines ....................................................... 59
Touchscreen Guidelines ....................................................... 60
When Traveling ........................................................................ 62
Chapter 8 Troubleshooting ............................................................. 63
Preliminary Checklist ................................................................ 64
Solving Common Problems ...................................................... 65
Battery Problems ................................................................. 65
iii
BT Wireless Transmission Problems .................................... 65
Display Problems .................................................................. 66
Hardware Device Problems ................................................. 66
Power Management Problems ........................................... 67

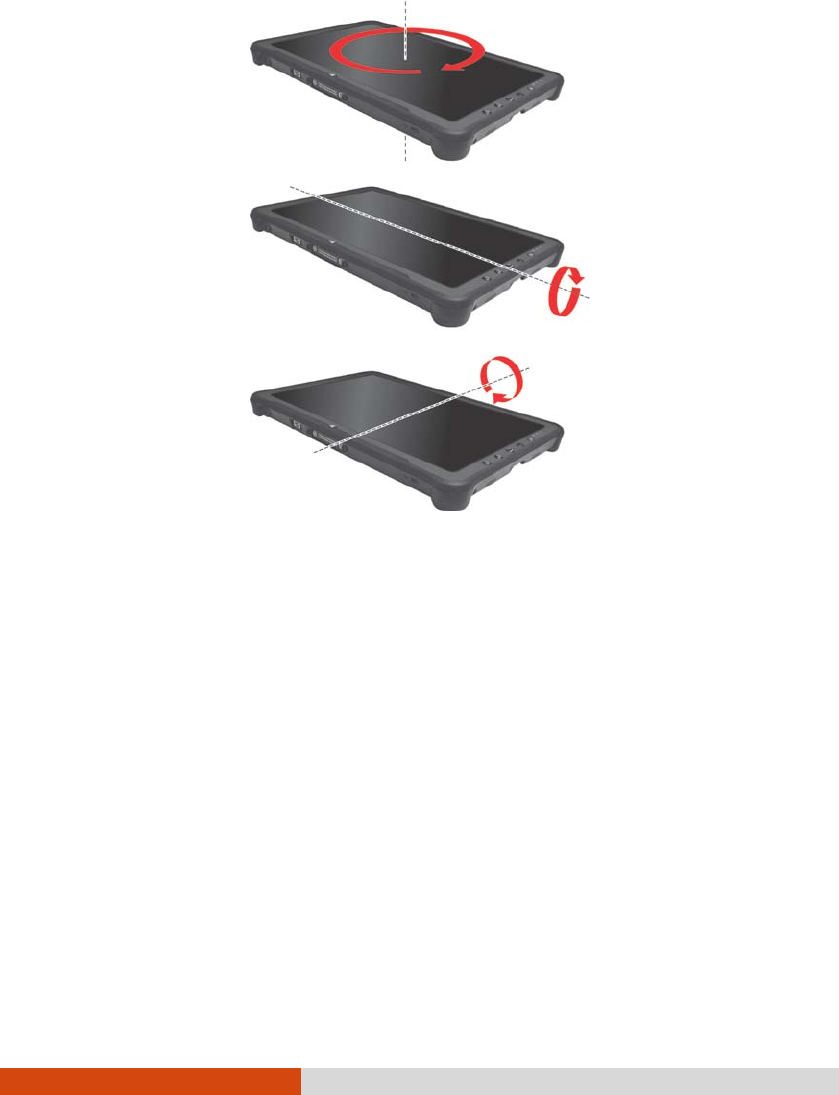

Sensor Problems ................................................................... 67
Software Problems .............................................................. 68
Sound Problems ................................................................... 68
Startup Problems ................................................................. 69
WLAN Problems ................................................................... 69
Other Problems .................................................................... 71
Resetting the Tablet PC ........................................................... 72
System Restore, Recovery, or Reset ........................................ 73
Using the Driver Disc (Optional) ............................................. 74
Appendix A Specifications ................................................................. 75
Appendix B Regulatory Information ................................................. 77
On the Use of the System ........................................................ 78
Class B Regulations .............................................................. 78
ANSI Warning ....................................................................... 79
Safety Notices ....................................................................... 80
On the Use of the RF Device .................................................... 82
USA and Canada Safety Requirements and Notices .......... 82
European Union CE Marking and Compliance Notices ..... 83
User Notification of Take-back Service ................................... 85
ENERGY STAR 6.1 ..................................................................... 86
Battery Recycling ...................................................................... 88
1
Chapter 1
Getting Started
Congratulations on purchasing this rugged Tablet PC.
This chapter first tells you step by step how to get the Tablet PC up and
running. Then, you will find a section briefly introducing the external
components of the Tablet PC.
2
Getting the Tablet PC Running

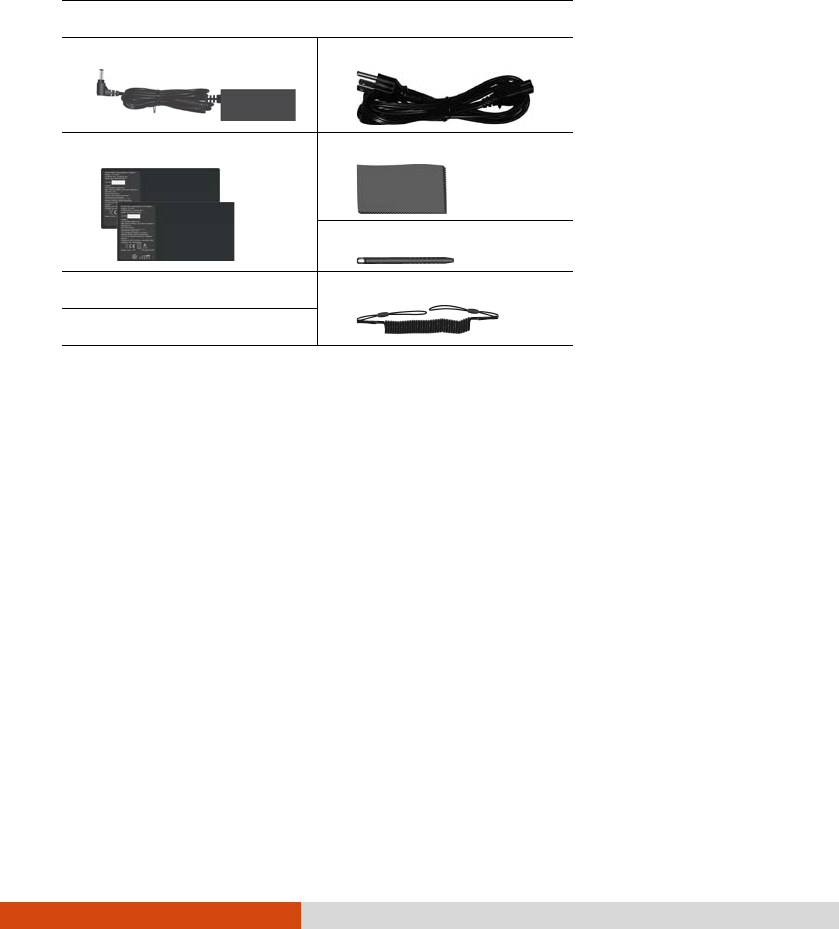

Unpacking
After unpacking the shipping carton, you should find these standard items:
F110 Tablet PC
AC adapter
AC power cord
Battery pack x 2
Screen cleaning cloth
Stylus
Document(s) Tether
Driver disc (optional)
Inspect all the items. If any item is damage or missing, notify your dealer
immediately.
3
Installing the SIM Card (Optional) and
Battery Packs

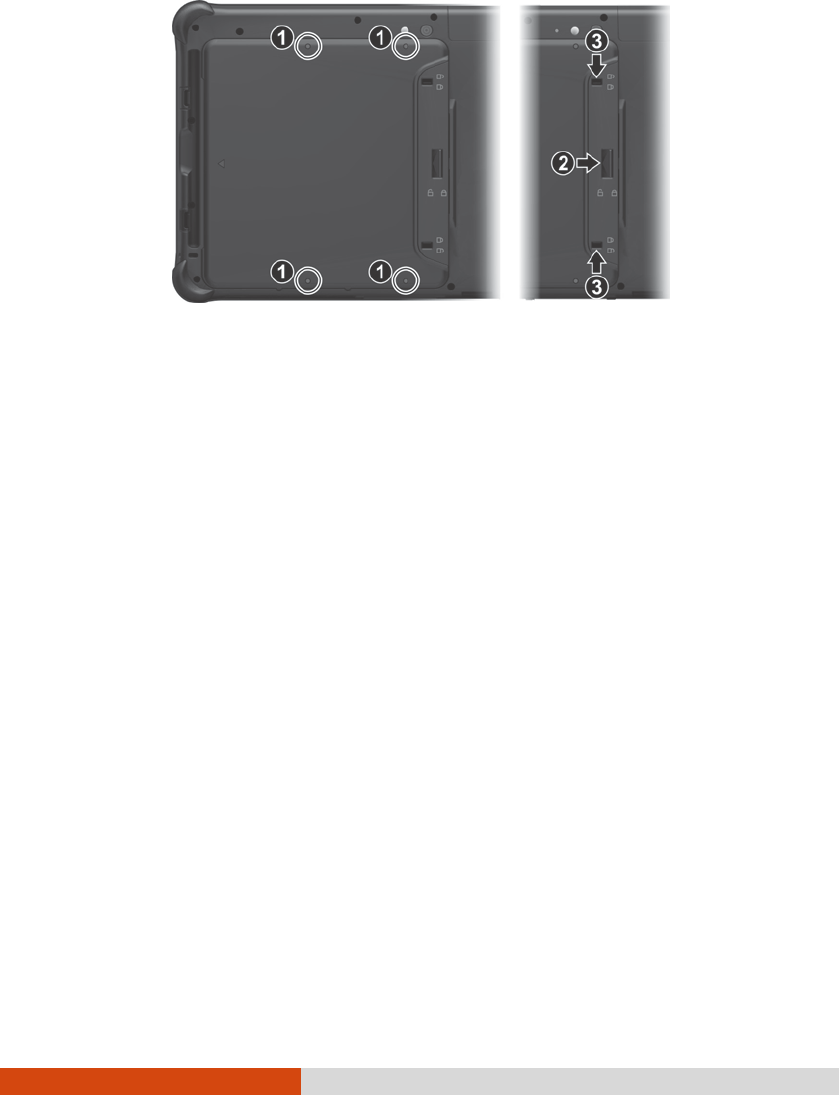

1. Locate the battery cover. Slide the two small locks outward to the
unlocked position ( ) () and then release the latch ( ) () to open
the battery cover.

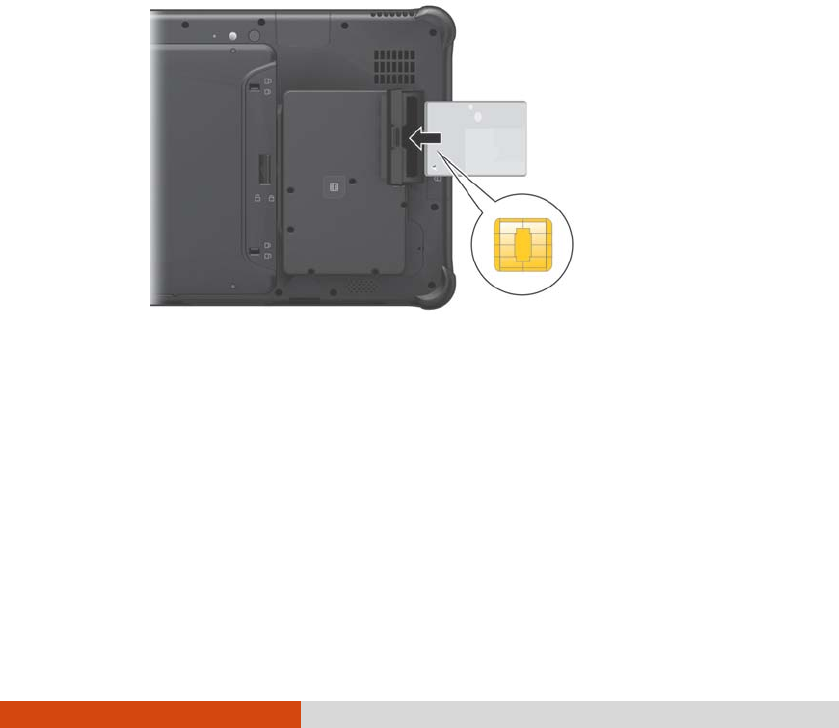

2. Select models only:
With the SIM card’s chip side facing up and the beveled corner pointing
to the slot, insert the card all the way into the slot.
NOTE: To remove the SIM card, just push in the SIM card to pop-out and
remove the card.
4
3. Note the orientation of the battery pack. Hold the battery pack at an
angle and insert its small tabs to the corresponding notches in the
battery compartment. Then, lift the yellow protection sheet in the
battery compartment and plug the battery connector.
4. Proceed with the other battery pack.
5. Hold the battery cover at an angle and insert the cover’s small tabs to the
corresponding notches on the Tablet PC; then close the cover. Press the
four small dots () so that the cover clicks into place. Engage the cover
latch ( ) () and slide the two small locks inward to the locked position
( ) ().
Battery 1
Battery 2
5

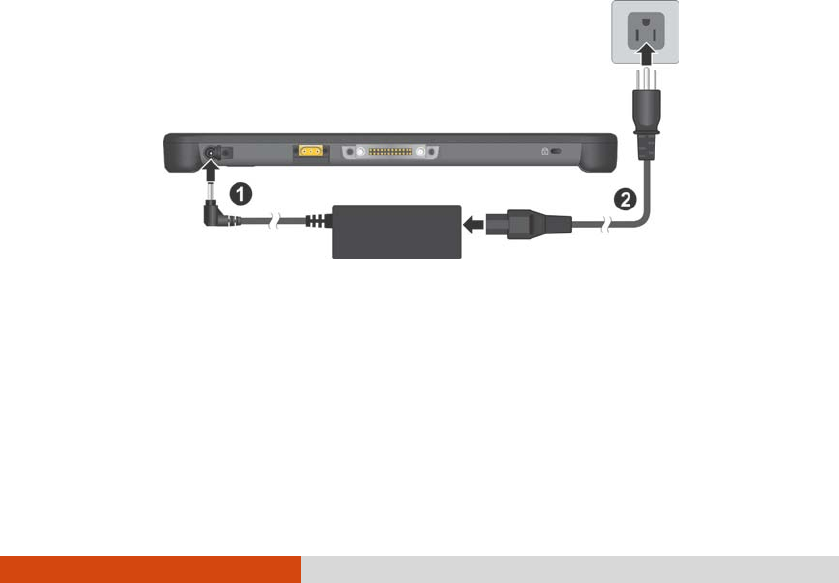

Connecting to AC Power
CAUTION: Use only the AC adapter included with your Tablet PC. Using
other AC adapters may damage the Tablet PC.
NOTE:
The battery pack is shipped to you in power saving mode that protects it
from charging/discharging. It will get out of the mode to be ready for
use when you install the battery pack and connect AC power to the
Tablet PC for the very first time.
When the AC adapter is connected, it also charges the battery pack. For
information on using battery power, see Chapter 3.
You must use AC power when starting up the Tablet PC for the very first
time.
1. Plug the DC cord of the AC adapter to the power connector of the Tablet
PC ().
2. Plug the female end of the AC power cord to the AC adapter and the
male end to an electrical outlet ().
3. Power is being supplied from the electrical outlet to the AC adapter and
onto your Tablet PC. Now, you are ready to turn on the Tablet PC.
6

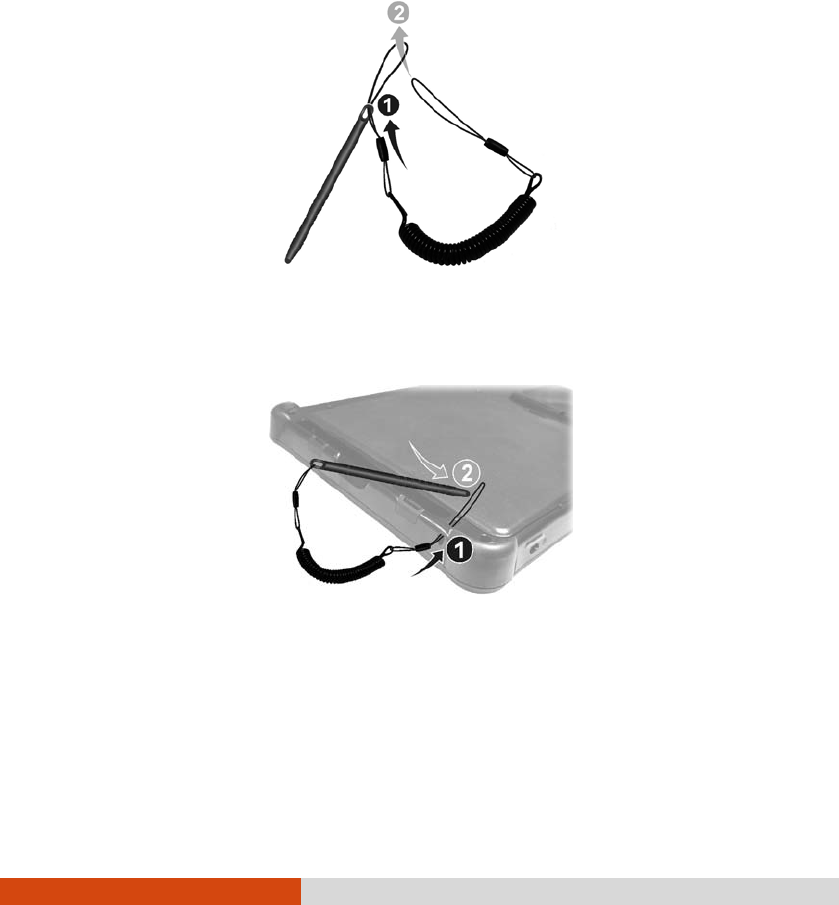

Using the Tether
A tether is provided for attaching the stylus to your Tablet PC.
1. Insert one of the tether’s loop ends through the hole of the stylus (as
indicated by below). Then, insert the other end through the first loop
(as indicated by below) and pull it tight.
2. Insert the other loop end to the tether hole on the Tablet PC (as
indicated by below). Then, insert the stylus end through the loop (as
indicated by below) and pull it tight.
7
Turning On and Off the Tablet PC
Turning On
Press the power button ( ). The Windows operating system should start.
NOTE: Tapping the screen during startup may invoke a pre-boot menu
(unless the default settings have been changed). If the menu appears, simply
select Continue.
Turning Off
When you finish a working session, you can stop the system by turning off
the power or leaving it in Sleep or Hibernation mode:
To... Do this...
Power off
(Shutdown)
Tap Power Shut down.
Sleep Press the power button.*
-or-
Tap Power Sleep.
Hibernate By default, this option is not shown in the Start menu. If
you want to use the feature, set up accordingly in Windows
settings.
* “Sleep” is the default setting of the power button. You may change what
the power button does in Windows settings.
8
Taking a Look at the Tablet PC
NOTE: Depending on the model you purchased, the appearance of your
Tablet PC may not be exactly the same as those shown in this manual.
CAUTION: You need to open the protective covers to access the connectors.
When not using a connector, make sure to close the cover completely for
water- , dust-, and fire-proof integrity. (Engage the locking mechanism if
existing.)

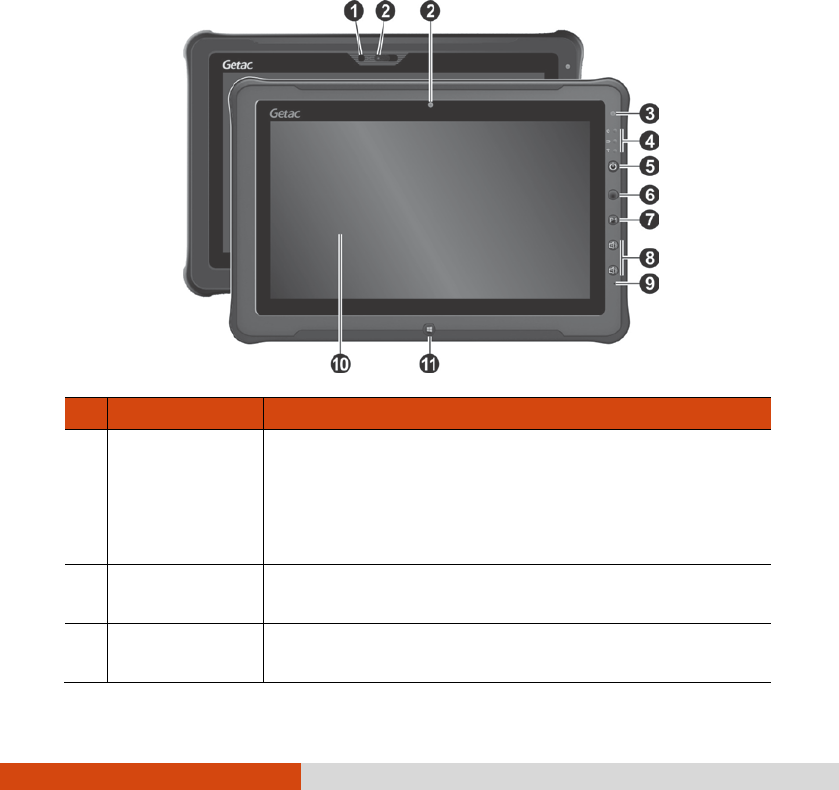

Front Components
Ref
Component Description
IR sensor
(optional)
Detects and measures the infrared energy of objects
to form an image. The sensor flashes red light when
in use.
The near infrared (IR) imaging capability allows you
to use Windows Hello face authentication.
Camera lens
(optional)
Allows you to use the camera function. When the
camera lens is in use, the indicator beside it lights up.
Light sensor Senses the ambient light for automatic adjustments
of the display backlight.
9
Ref
Component Description
Indicators
Power Lights blue when the power is on.
Blinks blue when the system is in Sleep mode.
Battery
Charge
Lights amber when the battery is being charged.
Lights green when battery charging is completed.
Blinks green to indicate the battery’s built-in high
temperature protection mechanism is activated.
CAUTION: Do not remove the battery during this
period.
Blinks red (once per second) when the battery’s
capacity is below 10%.
Blinks red rapidly (once per 0.5 second) when there is
a thermal protection problem. Ask for repair service
in case this happens.
Blinks amber when the battery charging is in an
abnormal state. Replace the battery in case this
happens.
RF (Radio
Frequency)
Lights blue when the RF radio of any RF feature
(WLAN/BT/WWAN) is on.
Power button Turns the power on or off. (The default “off” state is
“Sleep mode.”)
Extra button The default function is Camera or Trigger depending
on your model.
Camera Starts the G-Camera application.
Trigger Serves as the trigger button for the barcode
reader if your model has the module.
P1 button Starts G-Manager.
When pressed longer:
Serves as the Ctrl+Alt+Del keyboard keys.
Up/Down
button increases the sound volume.
decreases the sound volume.
10
Ref
Component Description
Microphone Receives sound and voice to record voice.
Touchscreen Displays and receives information for the Tablet PC.
Windows Logo
button
Opens or closes the Start menu.

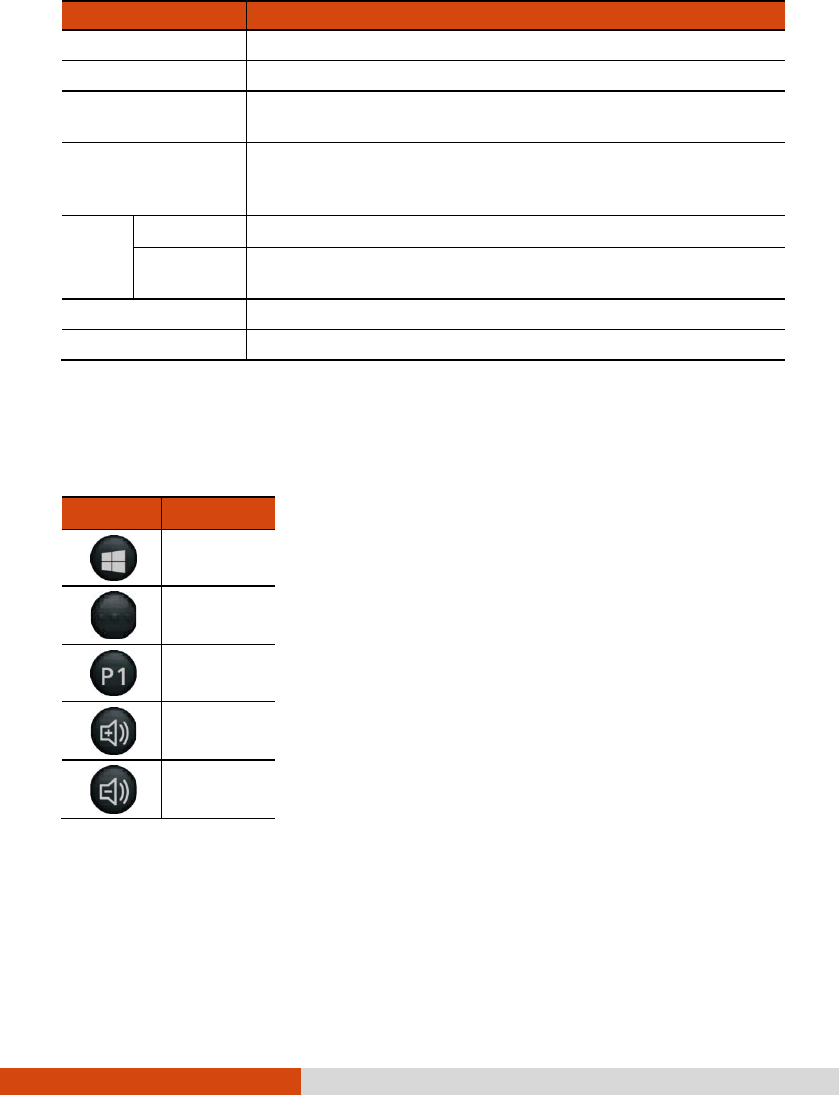

NOTE:
The hardware buttons (except the power button) can be re-defined
using G-Manager.
Some of the hardware buttons provide keyboard key functions on
“POST/BIOS Setup/Non-ACPI” occasions. (See “Button Functions on
Special Occasions” in Appendix A for information.)
11
Rear Components
Ref Component Description
Tether hole Stylus can be tethered to this hole.
Stylus/
digitizer pen
Serves as the input device by tapping on the
touchscreen to make selections and enter
information.
Battery pack
cover
Inside are two battery packs.
Inside is the SIM card slot (optional).
12
Ref Component Description
Camera i
ndicator
(optional)
Lights up when the camera lens beside it is in use.
Flash (optional) Provides extra light when taking pictures.
Camera lens
(optional)
Allows you to use the camera function.
Speaker Sends out sound and voice from your Tablet PC.
RJ-45 connector
(optional)
Connects the LAN cable.
Select models have one of the below components.
a NFC/RFID
reader
Reads data from NFC/RFID tags.
b HDMI-in and
smart card
reader
module
Connects an A/V device for audio and video inputs
through the HDMI interface.
Accepts a smart card for additional security feature.
c Smart card
reader
Accepts a smart card for additional security feature.
d Fingerprint
scanner
Serves as the fingerprint verification, preventing
unauthorized access to your Tablet PC.
Left-Side Components
Ref Component Description
Combo Audio
Connector
Connects a set of headphones or external speakers
with amplifier
Supports a headset microphone with 4-pole TRRS
3.5mm jack.
13
Ref Component Description
HDMI Connector
Connects a HDMI monitor or TV set.
USB 3.0 Port
Connects a USB device.

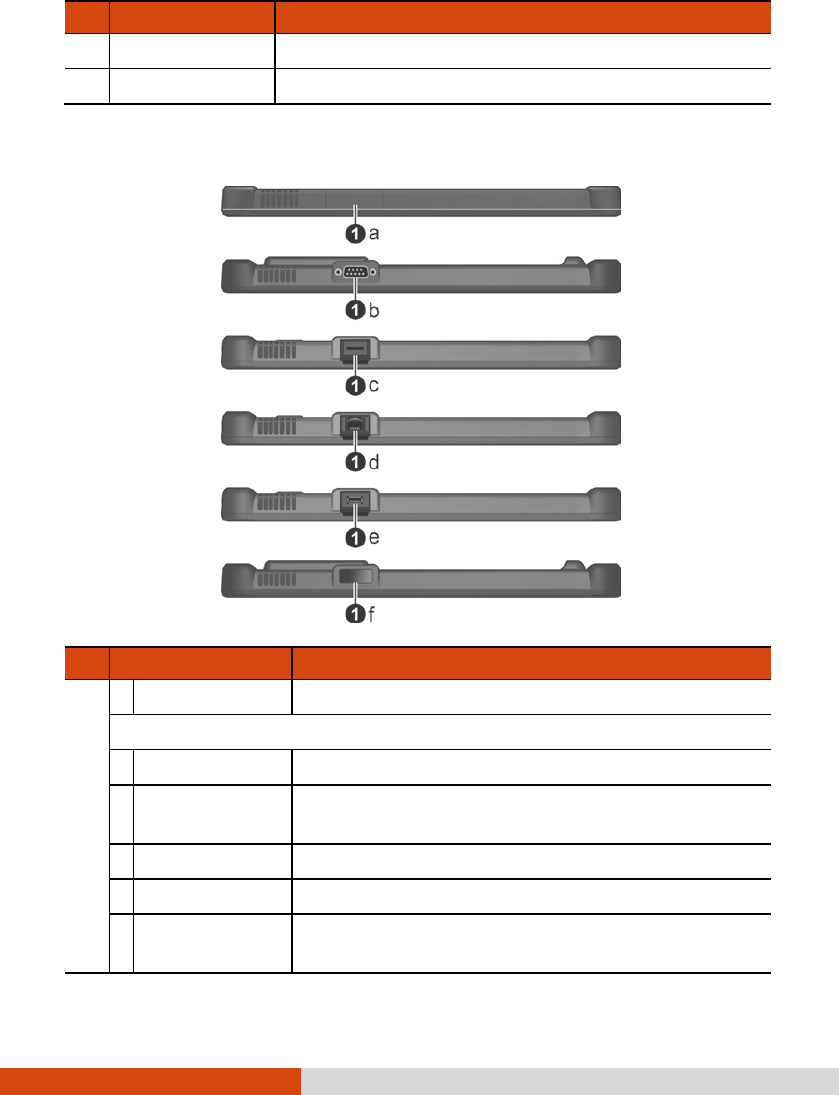

Top Components
Ref Component Description
a None
Or can be one of the below components depending on your model:
b Serial port Connects a serial device.

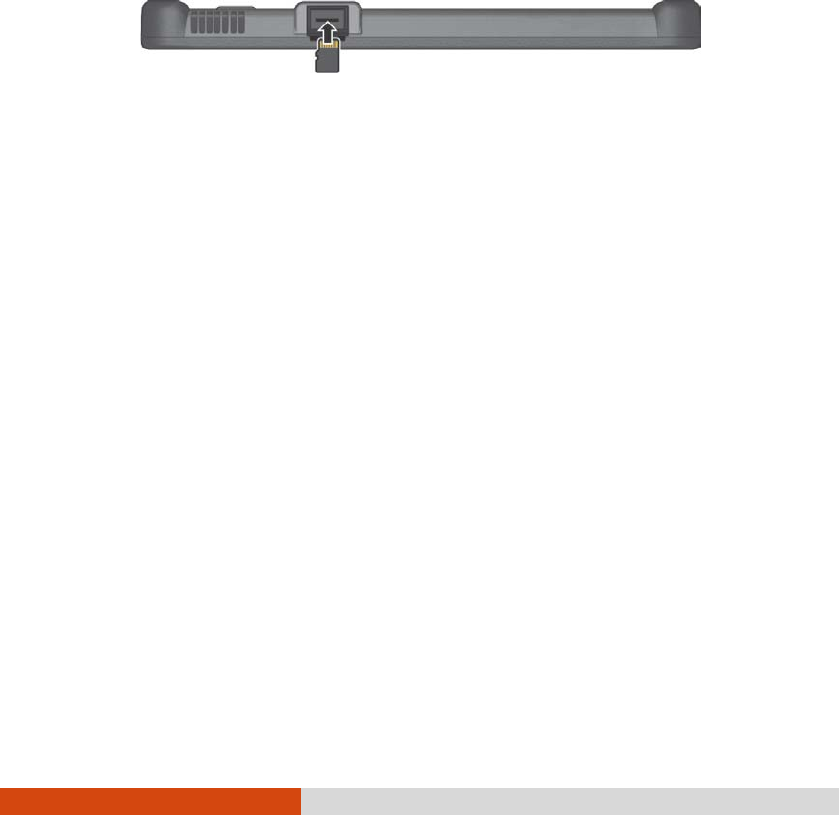

c MicroSD card
slot
Accepts a microSD card for removable storage
media.
d RJ-45 connector
Connects the LAN cable.
e USB 2.0 port Connects a USB device.

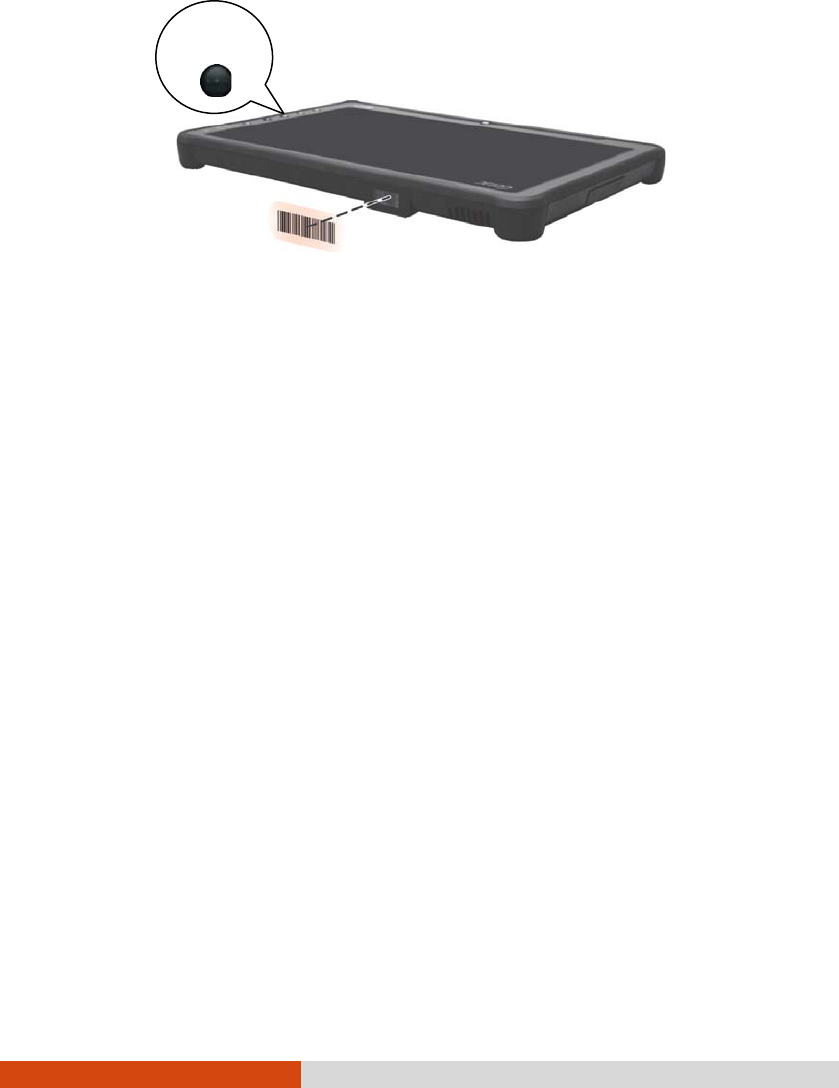

f Barcode reader
lens
Scans and reads barcodes.
14
Bottom Components
Ref Component Description
Power Connector
Connects the AC adapter.
Antenna Pass-
through
(optional)
Connects to the docking station for using external
GPS /WWAN/WLAN antenna.
Docking
Connector
Connects to the docking station (available as an
option).
Kensington Lock Locks the Tablet PC to a stationary object for
security.
WLAN
WWAN
GPS
15
Chapter 2
Operating Your
Tablet PC
This chapter provides information about the use of the Tablet PC.
If you are new to computers, reading this chapter will help you learn the
operating basics. If you are already a computer user, you may choose to read
only the parts containing information unique to your Tablet PC.
CAUTION:
Do not expose your skin to the Tablet PC when operating it in a very hot
or cold environment.
The Tablet PC can get uncomfortably warm when you use it in high
temperatures. As a safety precaution in such a circumstance, do not
place the Tablet PC on your lap or touch it with your bare hands for
extended periods of time. Prolonged body contact can cause discomfort
and potentially a burn.
16
Navigating on the Screen
The screen of your Tablet PC is touch-sensitive. You can control the location
of the cursor/pointer on the screen using the included stylus or your finger to
communicate with the Tablet PC.
CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the
touchscreen. Doing so may damage the touchscreen surface. Use the included
stylus or your finger.
NOTE: An optical film has been attached to the screen before shipment. The
film is a consumable, which will be worn out by possible scratches. You can
purchase a new one when replacement is required.
Using the Touchscreen
Your Tablet PC has a capacitive touchscreen. This type of touchscreen
responds to objects that have conductive properties, such as fingertips and a
capacitive-tipped stylus.

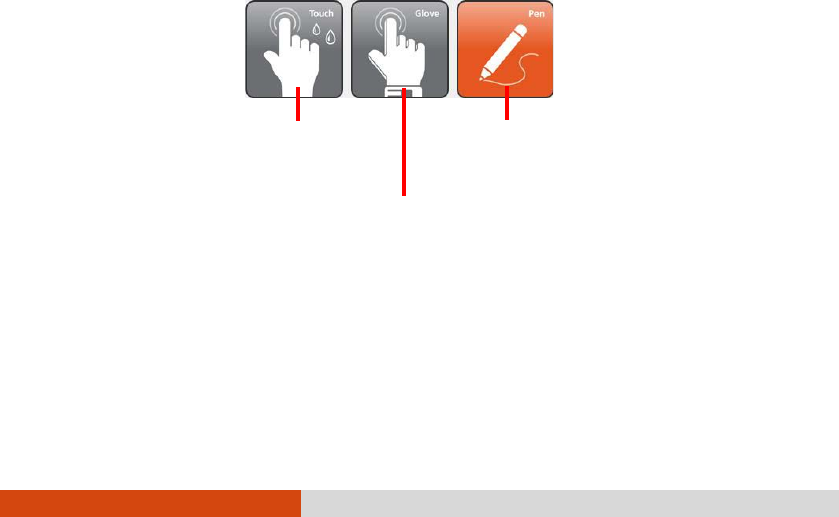

You can change the touchscreen sensitivity settings to suit your scenario.
Double-tap the Touch Screen Mode shortcut on Windows desktop to open
the settings menu and select one of the options (as shown below).
NOTE: If liquid is spilled on the touchscreen causing a wet area, the area will
stop responding to any inputs. For the area to function again, you must dry it.
Select this if you are using the
stylus. (You must use the one
supplied with your model.)
Select this if you are wearing gloves
(referring to warm gloves or work gloves,
not referring to touchscreen-capable gloves).
Select this if you prefer using
fingertips. Also, select this
when raindrops are falling
on the screen and should be
rejected as input.
17
The following table shows how you use the touchscreen to obtain equivalent
mouse functions.
Term/Action Equivalent
Mouse Function
Tap: Touch the screen once. Click/Point
Double-tap: Touch the screen twice rapidly. Double-click
Tap and hold: Tap and hold until a popup menu
appears.
Right-click
Drag: Hold the stylus (or finger) on the screen and drag
across the screen until reaching your destination.
Drag
Using Multi-touch Gestures
You can interact with your Tablet PC by placing two fingers on the screen.
The movement of the fingers across the screen creates “gestures,” which
send commands to the Tablet PC.
Here are the multi-touch gestures that you can use:
Gestures Actions
( = finger down; = finger up) Descriptions
Pan
(Scroll)
or
Drag 1 or 2 fingers up or down.
Use panning to see
another part of a page
that has scroll bars.
Zoom
(Pinch)
Move two fingers apart/toward each
other.
Use zooming to make
an item (a photo for
example) on the screen
larger or smaller. The
gesture works in
applications that
support mouse wheel
zooming.
18
Gestures Actions
( = finger down; = finger up) Descriptions
Rotate
or
Move two fingers in opposing
directions.
-or-
Use one finger to pivot around
another.
Use rotating to move a
picture or other item
on the screen in a
circular direction
(clockwise or counter-
clockwise). The gesture
works in applications
that support the
specific gesture.
Press and
Tap
Press on target and tap using a
second finger.
Use press and tap to
access the shortcut
menu.
Two-
finger
Tap
Tap two fingers at the same time
(where the target is in the midpoint
between the fingers).
The function is defined
by applications that
support the specific
gesture.
Flicks
Make quick drag gestures in the
desired direction.
Flick left or right to
navigate back and
forward in a browser
and other applications.
The gesture works in
most applications that
support back and
forward.
19
Using the Dual Mode Display (Optional)
Dual mode display (if your model has the feature) incorporates both
touchscreen and digitizer functions.
The display is set to Touchscreen mode by default. Touchscreen mode
provides all the functionalities that an ordinary touchscreen has. When the
Tablet PC receives signals from the digitizer pen, the display automatically
switches to Digitizer mode.
You can move the cursor by bringing the digitizer pen close to the screen,
without actually touching the screen’s surface.
20
Using Network and Wireless
Connections
Using the LAN (Optional)
To connect the network cable to the LAN module (if your model has the
feature, connect one end of the LAN cable to the RJ-45 connector on the
Tablet PC and the other end to the network hub. The location of the
connector depends on your model.
or
21
Using the WLAN
The WLAN (Wireless Local Area Network) module supports IEEE 802.11ac,
compatible with 802.11a/b/g/n.
Turning On/Off the WLAN Radio
To turn on the WLAN radio:
Tap Settings Network & Internet Wi-Fi. Slide the Wi-Fi switch to
the On position.
To turn off the WLAN radio:
You can turn off the WLAN radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on Airplane
mode. Tap Settings Network & Internet Airplane mode. Slide the
Airplane mode switch to the On position.
Connecting to a WLAN Network
1. Make sure that the WLAN function is enabled (as described above).
2. Tap the network icon in the lower right of the task bar.
3. In the list of available wireless networks, tap a network, and then tap
Connect.
4. Some networks require a network security key or passphrase. To connect
to one of those networks, ask your network administrator or Internet
service provider (ISP) for the security key or passphrase.
For more information on setting a wireless network connection, refer to
Windows online help.
22
Using the BT Feature
The BT technology allows short-range wireless communications between
devices without requiring a cable connection. Data can be transmitted through
walls, pockets and briefcases as long as two devices are within range.
Turning On/Off the BT Radio
To turn on the BT radio:
Tap Settings Devices BT. Slide the BT switch to the On position.
To turn off the BT radio:
You can turn off the BT radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on Airplane
mode. Tap Settings Network & Internet Airplane mode. Slide the
Airplane mode switch to the On position.
Connecting to another BT Device
1. Make sure that the BT function is enabled (as described above).
2. Make sure that the target BT device is turned on, discoverable and
within close range. (See the documentation that came with the BT
device.)
3. Tap Settings Devices BT.
4. Select the device you want to connect from the search results.
5. Depending on the type of BT device that you want to connect to, you
will need to enter the pertinent information.
For detailed information on using the BT feature, see Windows’ online Help.
23
Using the WWAN Feature (Optional)
A WWAN (Wireless Wide Area Network) uses mobile telecommunication
cellular network technologies to transfer data. The WWAN module of your
Tablet PC supports 3G and 4G LTE.
NOTE:
Your model only supports data transmission. Voice transmission is not
supported.
For instructions on installing the SIM card, see “Installing the SIM Card
(Optional) and Battery Packs” in Chapter 1.
Turning On/Off the WWAN Radio
To turn on the WWAN radio:
Tap Settings Network & Internet Airplane mode. Slide the
Cellular switch to the On position.
To turn off the WWAN radio:
You can turn off the WWAN radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on Airplane
mode. Tap Settings Network & Internet Airplane mode. Slide the
Airplane mode switch to the On position.
Setting up a WWAN Connection
Tap Settings Network & Internet Cellular. (For detailed
information on cellular settings in Windows 10, see Microsoft Support
website.)
24
Using the Fingerprint Scanner
(Optional)
WARNING:
We shall not be liable for any loss or damage whatsoever resulting from
your use of the fingerprint scanner or neglect of fingerprint scanner use,
or any data loss resulting from such developments as fingerprint
authentication malfunctioning.
It is not recommended that you use the fingerprint scanner in a below-
freezing temperature. The moisture on your finger can freeze to the
scanner’s metal surface when you touch it, resulting in a failed operation.
Besides, touching freezing metal with your finger can cause frostbite.
The fingerprint scanner (if your model has the feature) provides a strong
authentication mechanism based on fingerprint recognition.
NOTE:
You can enroll a fingerprint only after creating a password for the
Windows user account.
The fingerprint logon process can take a while. This is because the
system has to check hardware devices and security configuration before
initiating the fingerprint scanner.
25
To enroll your fingerprint:
1. Tap Settings Accounts Sign-in options.
2. On the right side under Fingerprint, tap Set up.
3. Follow the onscreen instructions to complete.
26
Chapter 3
Managing Power
Your Tablet PC operates either on external AC power or on internal battery
power.
This chapter tells you how you can effectively manage power. To maintain
optimal battery performance, it is important that you use the battery in the
proper way.
27
AC Adapter
CAUTION:
The AC adapter is designed for use with your Tablet PC only. Connecting
the AC adapter to another device can damage the adapter.
The AC power cord supplied with your Tablet PC is for use in the country
where you purchased your Tablet PC. If you plan to go overseas with the
Tablet PC, consult your dealer for the appropriate power cord.
When you disconnect the AC adapter, disconnect from the electrical outlet
first and then from the Tablet PC. A reverse procedure may damage the
AC adapter or Tablet PC.
When unplugging the connector, always hold the plug head. Never pull
on the cord.
The AC adapter serves as a converter from AC (Alternating Current) to DC
(Direct Current) power because your Tablet PC runs on DC power, but an
electrical outlet usually provides AC power. It also charges the battery pack
when connected to AC power.
The adapter operates on any voltage in the range of 100~240 V AC.
28
Battery Pack
Your Tablet PC has two battery packs. The battery pack is the internal power
source for the Tablet PC. It is rechargeable using the AC adapter.
NOTE: Care and maintenance information for the battery is provided in the
“Battery Pack Guidelines” section in Chapter 7.
Charging the Battery Pack
NOTE:
Charging will not start if the battery’s temperature is outside the
allowed range, which is between 0 °C (32 °F) and 50 °C (122 °F). Once
the battery’s temperature meets the requirements, charging
automatically resumes.
During charging, do not disconnect the AC adapter before the battery
has been fully charged; otherwise you will get a prematurely charged
battery.
The battery has a high temperature protection mechanism which limits
the maximum charge of the battery to 80% of its total capacity in the
event of high temperature conditions. In such conditions, the battery
will be regarded as fully charged at 80% capacity.
The battery level may automatically lessen due to the self-discharge
process (0.21% per day), even when the battery pack is fully charged
(100%). This happens no matter if the battery pack is installed in the
Tablet PC.
To charge the battery pack, connect the AC adapter to the Tablet PC and an
electrical outlet. The Battery Charge Indicator ( ) on the Tablet PC glows
amber to indicate that charging is in progress. You are advised to keep the
Tablet PC power off while the battery is being charged. When the battery is
fully charged, the Battery Charge Indicator glows green.
The two battery packs are charged in parallel. It takes approximately 5 hours
to fully charge the two battery packs when the power is off and approximately
6 hours when the power is on (may need a longer charging time at lower
temperatures).
CAUTION: After the Tablet PC has been fully recharged, do not immediately
disconnect and reconnect the AC adapter to charge it again. Doing so may
damage the battery.
29
Initializing the Battery Pack
You need to initialize a new battery pack before using it for the first time or
when the actual operating time of a battery pack is much less than expected.
Initializing is the process of fully charging, discharging, and then charging. It
can take several hours.
A software tool called “Gauge Reset” is provided for the purpose. Use the
G-Manager program and select the Battery tab to find the tool.
Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The actual
operating time can be different from the estimated time, depending on
how you are using the Tablet PC.
The operating time of a fully charged battery pack depends on how you are
using the Tablet PC. When your applications often access peripherals, you
will experience a shorter operating time.
The two battery packs are discharged in parallel.
By Operating System
You can check the approximate battery level using the battery meter
function of the operating system. To read the battery level in Windows, tap
the battery icon on the taskbar.

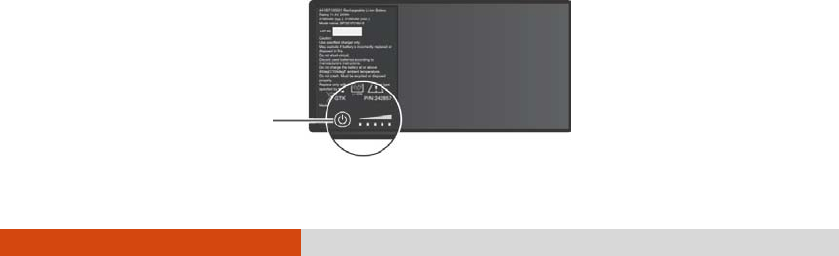

By Gas Gauge
On the exterior side of the battery pack is a gas gauge for displaying the
estimated battery charge. When the battery pack is not installed in the
Tablet PC and you want to know the battery charge, you can press the
push-button to see the number of LEDs that light up. Each LED represents
20% charge.
Push-button
30
Battery Low Signals and Actions
The battery icon changes appearance to display the current state of the
battery.
Battery Icon
Battery Level Description
Discharging The icon shows the charge remaining in
10-percent increments until the charge
reaches the low-battery level.
Low The battery charge has reached the low-
battery level.
Critically
low
The battery charge has reached the critical
battery level. By default, Windows will
display a notification and put your Tablet PC
into Hibernation.
When the battery is low, the Tablet PC’s Battery Charge Indicator ( ) also
blinks red to alert you to take actions.
Always respond to low-battery by connecting the AC adapter, placing your
Tablet PC in Hibernation mode, or turning off the Tablet PC.
Replacing the Battery Pack
CAUTION:
There is danger of explosion if the battery is incorrectly replaced.
Replace the battery only with the Tablet PC manufacturer’s battery
packs. Discard used batteries according to the dealer’s instructions.
Do not attempt to disassemble the battery pack.
NOTE: You can hot swap one battery pack while the other one is supplying
the power.
To replace the battery pack, follow these steps:
1. Locate the battery cover. Slide the two small locks outward to the
unlocked position ( ) () and then release the latch ( ) () to open
the battery cover.
31
2. Pull the ribbon strip to lift the battery pack off the compartment.
3. Fit another battery pack into place. Note the orientation of the battery
pack. Hold the battery pack at an angle and insert its small tabs to the
corresponding notches in the battery compartment. Then, lift the yellow
protection sheet in the battery compartment and plug the battery
connector.
4. Hold the battery cover at an angle and insert the cover’s small tabs to the
corresponding notches on the Tablet PC; then close the cover. Press the
four small dots () so that the cover clicks into place. Engage the cover
latch ( ) () and slide the two small locks inward to the locked
position ( ) ().
32
33
Power-Saving Tips
Aside from enabling your Tablet PC’s power saving mode, you can do your
part to maximize the battery’s operating time by following these
suggestions.
Do not disable Power Management.
Decrease the LCD brightness to the lowest comfortable level.
Shorten the length of time before Windows turn off the display.
When not using a connected device, disconnect it.
Turn off the wireless radio if you are not using the wireless module (such
as WLAN, BT, or WWAN).
Turn off the Tablet PC when you are not using it.
34
Chapter 4
Expanding Your
Tablet PC
You can expand the capabilities of your Tablet PC by connecting other
peripheral devices.
When using a device, be sure to read the instructions accompanying the
device together with the relevant section in this chapter.
35
Connecting a USB Device
Your Tablet PC has a USB 3.0 port for connecting USB devices, such as a
digital camera, scanner, printer, modem, and mouse. USB 3.0 supports a
transfer rate up to 5 Gbit/s.
Select models have a second USB port, which supports USB 2.0 (transfer rate
is 480 MB/s).
To unlock the left-
side cover:
36
Connecting an Audio Device
For higher audio quality, you can send sound through an external audio
device.
The audio combo connector is the “4-pole TRRS 3.5mm” type (Apple iPhone
Recessed) so you can connect a compatible headset microphone.
SAFETY WARNING:
To prevent possible hearing damage, do not listen at high volume levels for
long periods.
To unlock the left-side cover:
37

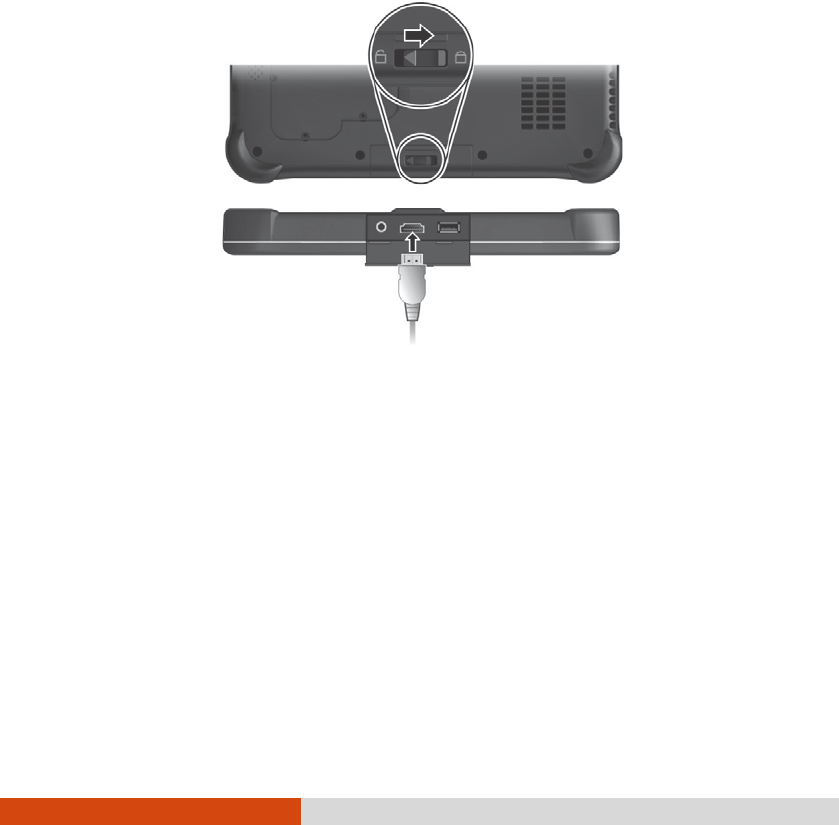

Connecting an HDMI Display
Monitor
If you want the benefits of a larger display screen with higher resolution,
you can connect an external display monitor to your Tablet PC.
Your Tablet PC has an HDMI connector. HDMI (High-Definition Multimedia
Interface) is an audio/video interface that transmits uncompressed digital
data and therefore delivers true HD quality.
To switch the display output, use Windows Control Panel or OSD Control
Panel.
To unlock the left-side cover:
38
Connecting a Serial Device
(Optional)
If your model has the RS232 serial port, you can connect a serial device such
as a serial mouse or serial communication device.
39
Using Smart Cards (Optional)
If your model has the smart card reader, you can use smart cards.
With an embedded microcontroller, smart cards have the unique ability to
store large amounts of data, carry out their own on-card functions (e.g.,
encryption and mutual authentication), and interact intelligently with a
smart card reader.
To insert a smart card:
1. Locate the smart card reader. Open the cover.
2. With the embedded computer chip facing front and near the slot, slide
the smart card into the slot.
3. Close the cover.
To remove a smart card:
1. Make sure that the software is not accessing the smart card.
2. Open the cover.
3. Pull the card out of the slot.
4. Close the cover.
Chip on the other
side of the card.
40
Using HDMI-in Function (Optional)
If your model has the HDMI-in connector, you can receive audio and video
data from the HDMI outputs of devices, such as Blu-ray players, game
consoles, and A/V receivers.
You can use the AverMedia Capture Studio program to play videos coming
from the connected device. For detailed information on the program, see
the online help by selecting the program icon at the top left corner and then
selecting Help.
41
Using the NFC/RFID Reader
(Optional)
The NFC/RFID reader can read data from NFC (Near Field Communication) and
RFID (Radio Frequency Identification) tags. The reader supports ISO 14443 A/B,
MIFARE, ISO 15693, and ISO 18000-3 standards.
For optimal results when reading an NFC/RFID tag, have the tag face the
antenna in the same orientation as indicated by the icon on the exterior of
the Tablet PC.
NOTE:
When not using an NFC/RFID card, do not leave it within or near the
antenna area.
For enhanced applications and customization of the module, contact
your authorized Getac dealer.
The NFC reader requires specialized applications. For further
information, ask your system administrator.
RFID antenna
42
Using MicroSD Cards (Optional)
If your model has the microSD card reader, you can use microSD cards for
removable storage media.
To insert a microSD card:
1. Locate the microSD card reader. Open the cover.
2. Align the card with its connector pointing to the slot and the connector
side facing back. Slide the card into the slot until it reaches the end.
3. Windows will detect the card and assign it a drive name.
4. Close the cover.
To remove a microSD card:
1. Open File Explorer and tap Computer.
2. Tap and hold the memory card icon and tap Eject.
3. Open the cover.
4. Slightly push the card to release and then pull it out of the slot.
5. Close the cover.
43
Chapter 5
Using BIOS Setup
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output
System) settings of the computer. BIOS is a layer of software, called
firmware, that translates instructions from other layers of software into
instructions that the computer hardware can understand. The BIOS settings
are needed by your computer to identify the types of installed devices and
establish special features.
This chapter tells you how to use the BIOS Setup Utility.
44
When and How to Use
NOTE:
The actual setting items on your model may differ from those described
in this chapter.
The availability of some setting items depends on the Windows version
your computer is running.
You need to run BIOS Setup Utility when:
You see an error message on the screen requesting you to run BIOS
Setup Utility.
You want to restore the factory default BIOS settings.
You want to modify some specific settings according to the hardware.
You want to modify some specific settings to optimize the system
performance.
To run BIOS Setup Utility:
Method 1
NOTE:
: During system startup when the logo screen appears, tap the
screen or press the Windows Logo button on your Tablet PC. In the pre-boot
menu that appears, select Setup Utility.
If you don’t want any accidental tapping to invoke the pre-boot menu,
you can disable this method by setting the “Screen Tapping for Boot
Options” item in the BIOS Setup Utility.
For Windows 10 models, the time period in which you can use the above
method is extremely short. You can use the other method as described
below.
Method 2
: Tap Settings Update & security Recovery. Under
Advanced startup, tap Restart now. In the boot options menu, tap
Troubleshoot Advanced options UEFI Firmware Settings. Tap Restart.
45
Menu Descriptions
Information Menu
The Information menu contains the basic configuration information of the
system. There are no user-definable items in this menu.
NOTE: The “Asset Tag” information appears when you have entered the
asset number for this Tablet PC using the asset management program. The
program is provided in the Asset tag folder of the Driver disc.
Main Menu
The Main menu contains the various system settings.
System Date sets the system date.
System Time sets the system time.
Boot Priority determines the first device that the system boots from.
Select Legacy First or UEFI First according to your needs.
Legacy USB Support enables or disables the system’s support for Legacy
USB.
CSM Support enables or disables CSM (Compatibility Support Mode).
You can set this item to Yes for backward compatibility with legacy BIOS
services.
PXE Boot sets the PXE boot to UEFI or Legacy. PXE (Preboot eXecution
Environment) is an environment to boot computers using a network
interface independently of data storage devices or installed operating
systems.
46
Advanced Menu
The Advanced menu contains the advanced settings.
Wake Up Capability
USB Wake-Up From S3 allow a USB device activity to wake up the system
from S3 (Sleep) state.
System Policy allows you to choose between Performance and Balance. If
battery life is your first priority, select Balance. If you need system
performance more than battery life, select Performance.
AC Initiation sets if connecting AC power will automatically start or
resume the system.
Screen Tapping for Boot Options sets if tapping the screen during
startup will invoke the boot options menu which provides access to some
pre-boot operations. If disabled, tapping the screen during startup has
no effect to the system’s booting process.
Active Management Technology Support (This item appears only on
models supporting vPro.)
Intel AMT Support enables or disables Intel® Active Management
Technology BIOS extension execution. AMT allows the system
administrator to access an AMT featured computer remotely.
Intel AMT Setup Prompt determines whether the prompt for entering
Intel MEBx Setup appears or not during POST.
Virtualization Technology Setup
Intel(R) Virtualization Technology enables or disables Intel® VT (Intel
Virtualization Technology) feature which provides hardware support for
processor virtualization. When enabled, a VMM (Virtual Machine
Monitor) can utilize the additional hardware virtualization capabilities
provided by this technology.
Intel(R) VT for Directed I/O (VT-d) enables or disables VT-d (Intel®
Virtualization Technology for Directed I/O). When enabled, VT-d helps
enhance Intel platforms for efficient virtualization of I/O devices.
SW Guard Extensions (SGX) can be set to Disabled, Enabled, or Software
Controlled. Intel® Software Guard Extensions (Intel® SGX) is an Intel
technology for increasing the security of application code. It is used by
application developers.
47
Graphics Setup
DVMT Pre-Allocated sets the amount of pre-allocated (fixed) graphics
memory for use by the internal graphics device.
Device Configuration enables or disables several hardware components.
The items available for setting depend on your model.
Diagnostics and System Tester
H20DST Tool ?????????????????
Security Menu
The Security menu contains the security settings, which safeguard your
system against unauthorized use.
NOTE:
You can set the user password only when the supervisor password has
been set.
If both the supervisor and user passwords are set, you can enter any of
them for starting up the system and/or entering BIOS Setup. However,
the user password only allows you to view/change the settings of certain
items.
A password setting is applied right after it is confirmed. To cancel a
password, leave the password empty by pressing the Enter key.
Set Supervisor/User Password sets the supervisor/user password. You can
set the supervisor/user password to be required for starting up the
system and/or entering BIOS Setup.
Strong Password enables or disables strong password. When enabled,
the password you set must contain at least one upper-case letter, one
lower-case letter, and one digit.
Password Configuration sets the minimum password length. Enter the
number in the input field and select [Yes]. The number should be
between 4 and 64.
Password on Boot allows you to enable or disable the entering of
password for booting up your system.
Set HDD 0 User Password sets the password for locking the Primary
Master hard disk drive. After setting a password, the hard disk drive can
only be unlocked by the password no matter where it is installed.
48
TPM Setup Menu
TPM Support enables or disables TPM (Trusted Platform Module) support.
TPM (Trusted Platform Module) is a component on your computer’s
mainboard that is specifically designed to enhance platform security by
providing a protected space for key operations and other security critical
tasks.
Change TPM Status allows you to select between No Change and Clear.
Intel Trusted Execution Technology enables utilization of additional
hardware capabilities provided by Intel® Trusted Execution Technology.
Boot Menu
The Boot menu sets the sequence of the devices to be searched for the
operating system.
Boot Type Order determines the boot order. You can rearrange the
order by dragging the boot device name up or down in the list.
Each boot device can be individually set to On or Off. If you want to
exclude a boot device from the boot order, set the device to Off.
Exit Menu
The Exit menu displays ways of exiting BIOS Setup Utility. After finishing
with your settings, you must save and exit so that the changes can take
effect.
Exit Saving Changes saves the changes you have made and exits BIOS
Setup Utility.
Exit Discarding Changes exits BIOS Setup Utility without saving the
changes you have made.
Load Setup Defaults loads the factory default values for all the items.
Discard Changes restores the previous values for all the items.
Saves Changes saves the changes you have made.
49
Chapter 6
Using Getac Software
Getac software includes application programs for specific computer
components and utility programs for overall management.
This chapter briefly introduces the programs.
50
OSD Control Panel
The OSD (On Screen Display) Control Panel provides a user-friendly interface
for you to quickly activate or operate certain functions on your Tablet PC
with a simple tap of the screen.
To open the OSD Control Panel, start the program named OSDC. If you have
a Windows 7 model, you can also press the Windows Logo button on your
Tablet PC to open it. The following screen appears.
For detailed information on the program, see the program’s online help.
Help
51
G-Manager
G-Manager is a unified user interface utility that allows you to view,
manage, or configure your computer features.
With G-Manager, you can perform all or some of the tasks listed below.
View system information.
Check the battery status and configure the battery.
Configure ECO modes (or called power profiles).
Set the touchscreen sensitivity mode.
Set if a warning message will appear when a connected docking station
is removed unexpectedly.
Enable the use of external GPS/WWAN/WLAN antenna signal.
Change the function of the hardware button.
Configure how your system works with the vehicle ignition.
Monitor the system.
View GPS information.
Tap and hold the Getac Utility icon located on Windows taskbar and
select G-Manager to start the program. The G-Manager window appears,
containing several tabs.
NOTE: Depending on your model, the actual items and information
appearing on the screen may differ from those shown in this manual.
52
For detailed information on the program, see the program’s online help.
Help
53
G-Camera
G-Camera is a geo-tagging camera application. Geographical information
can be embedded into JPEG files as EXIF 2.2 metadata.
NOTE: G-Camera uses the standard location service of Windows.
To start the G-Camera application, select G-Camera.
In the middle is the preview window with status display. At the two sides are
various buttons.
For detailed information on the program, see the program’s online help. Tap
Help. (Internet connection is required.)
54
Using the Barcode Reader
(Optional)
NOTE: For enhanced applications and customization of the module, contact
your authorized Getac dealer.
If your model has the barcode reader module, you can read barcodes of the
following types:
Code 39
Code 128
EAN/JAN/UPC
GS1 Databar
Interleaved 2 of 5
PDF417
QR Code
Data Matrix
OCR
To read barcodes:
1. Start your processing software and open a new or existing file. Place the
insertion point (or called cursor) where you want the data to be entered.
2. Press and hold the Trigger button of your Tablet PC while aiming the
scan light at the barcode. The light projected from the scanner consists
of a center marker and four corner markers. Make sure the barcode is
within the four corner markers.
Adjust the lens’ distance from the barcode, shorter for a smaller barcode
and farther for a larger one.
55
NOTE: If the code being scanned is highly reflective (e.g., laminated), it may
be necessary to tilt the code +5° to prevent unwanted reflection.
3. Upon a successful scan, the system beeps and the scan beam turns off.
The decoded barcode data will be entered into your processing software.
Trigger
button
56
Chapter 7
Care and Maintenance
Taking good care of your Tablet PC will ensure a trouble-free operation and
reduce the risk of damage to your Tablet PC.
This chapter gives you guidelines covering areas such as protecting, storing,
cleaning, and traveling.
57
Protecting the Tablet PC
To safeguard the integrity of your Tablet PC data as well as the Tablet PC
itself, you can protect the Tablet PC in several ways as described in this
section.
Using an Anti-Virus Strategy
You can install a virus-detecting program to monitor potential viruses that
could damage your files.
Using the Cable Lock
You can use a Kensington-type cable lock to protect your Tablet PC against
theft. The cable lock is available in computer stores.
To use the lock, loop the lock cable around a stationary object such as a
table. Insert the lock to the Kensington lock hole and turn the key to secure
the lock. Store the key in a safe place.
58
Taking Care of the Tablet PC
Location Guidelines
For optimal performance, use the Tablet PC where the recommended
temperature is between 0 °C (32 °F) and 55 °C (131 °F). (Actual operating
temperature depends on product specifications.)
Avoid placing the Tablet PC in a location subject to high humidity,
extreme temperatures, mechanical vibration, direct sunlight, or heavy
dust. Using in extreme environments for long periods can result in
product deterioration and a shortened product life.
Operating in an environment with metallic dust is not allowed.
Place the Tablet PC on a flat and steady surface. Do not stand the Tablet
PC on its side or store it in an upside-down position. A strong impact by
dropping or hitting may damage the Tablet PC.
Do not cover or block any ventilation openings on the Tablet PC. For
example, do not place the Tablet PC on a bed, sofa, rug, or other similar
surface. Otherwise, overheating may occur that results in damage to the
Tablet PC.
As the Tablet PC can become very hot during operation, keep it away
from objects that are vulnerable to heat.
Keep the Tablet PC at least 13 cm (5 inches) away from electrical
appliances that can generate a strong magnetic field such as a TV,
refrigerator, motor, or a large audio speaker.
Avoid moving the Tablet PC abruptly from a cold to a warm place.
A temperature difference of more than 10 °C (18 °F) may cause
condensation inside the unit, which may damage the storage media.
General Guidelines
Do not place heavy objects on top of the Tablet PC as this may damage
the display.
To avoid damaging the screen, do not touch it with any sharp object.
59
LCD image sticking occurs when a fixed pattern is displayed on the
screen for a prolonged period of time. You can avoid the problem by
limiting the amount of static content on the display. It is recommended
that you use a screen saver or turn off the display when it is not in use.
To maximize the life of the backlight in the display, allow the backlight
to automatically turn off as a result of power management.
Cleaning Guidelines
Never clean the Tablet PC with its power on.
Use a soft cloth moistened with water or a non-alkaline detergent to
wipe the exterior of the Tablet PC.
Gently wipe the display with a soft, lint-free cloth.
If water or liquid is split onto the Tablet PC, wipe it dry and clean when
possible. Though your Tablet PC is water-proof, do not leave the Tablet
PC wet when you can dry it.
If the Tablet PC gets wet where the temperature is 0° C (32° F) or below,
freeze damage may occur. Make sure to dry the wet Tablet PC.
Battery Pack Guidelines
Recharge the battery pack when it is nearly discharged. When recharging,
make sure that the battery pack is fully charged. Doing so may avoid
harm to the battery pack.
The battery pack is a consumable product and the following conditions
will shorten its life:
– when frequently charging the battery pack
– when using, charging, or storing the battery in high temperature
condition
To avoid hastening the deterioration of the battery pack thereby
prolonging its useful life, minimize the number of times you charge it so
as not to frequently increase its internal temperature.
Charge the battery pack between 10 °C ~ 30 °C (50 °F ~ 86 °F) temperature
range. A higher environment temperature will cause the battery pack’s
temperature to rise. Avoid charging the battery pack inside a closed
60
vehicle and in hot weather condition. Also, charging will not start if the
battery pack is not within the allowed temperature range.
It is recommended that you do not charge the battery pack more than
once a day.
It is recommended that you charge the battery pack with the Tablet PC’s
power off.
To maintain the battery pack’s operating efficiency, store it in a cool
dark place removed from the Tablet PC and with 30 % ~ 40 % charge
remaining.
Important guidelines when using the battery pack.
When installing or removing the battery pack take note of the following:
– avoid installing or removing the battery pack when the Tablet PC is
in Sleep mode. Abruptly removing the battery pack may cause
loss of data or the Tablet PC may become unstable.
– avoid touching the battery pack terminals or damage may occur,
thereby causing improper operation to it or the Tablet PC.
The Tablet PC’s input voltage and surrounding temperature will directly
affect the battery pack’s charge and discharge time:
– charging time will be prolonged when the Tablet PC is turned on.
To shorten the charging time, it is recommended that you place the
Tablet PC in Sleep or Hibernation mode.
– a low temperature will prolong the charging time as well as hasten
the discharge time.
When using battery power in an extremely low temperature
environment, you may experience shortened operating time and
incorrect battery level reading. This phenomenon comes from the
chemical characteristics of batteries. The appropriate operating
temperature for the battery is -10 °C ~ 50 °C (14 °F ~ 122 °F).
Do not leave the battery pack in storage for more than six months
without recharging it.
Touchscreen Guidelines
Use the finger or the included stylus on the display. Using a sharp or
metallic object other than your finger or stylus may cause scratches and
damage the display, thereby causing errors.
61
Use a soft cloth to remove dirt on the display. The touchscreen surface
has a special protective coating that prevents dirt from sticking to it. Not
using a soft cloth may cause damage to the special protective coating on
the touchscreen surface.
Turn off the Tablet PC power when cleaning the display. Cleaning the
display with the power on may cause improper operation.
Do not use excessive force on the display. Avoid placing objects on top of
the display as this may cause the glass to break thereby damaging the
display.
Using the touchscreen during low temperature (less than 5 oC) may cause
a slower response time, this is normal. A normal response time may be
restored upon returning to room temperature.
When there is noticeable discrepancy in the operation of the touchscreen
function (wrong location on intended operation or improper display
resolution), refer to the Windows online Help for instructions on
recalibrating the touchscreen display.
62
When Traveling
Before traveling with your Tablet PC, make a backup of your hard disk
data into flash disks or other storage devices. As an added precaution,
bring along an extra copy of your important data.
Make sure that the battery pack is fully charged.
Make sure that the Tablet PC is turned off.
Make sure that all the connector covers are closed completely to ensure
the waterproof integrity.
Disconnect the AC adapter from the Tablet PC and take it with you. Use
the AC adapter as the power source and as a battery-charger.
Hand-carry the Tablet PC. Do not check it in as luggage.
If you need to leave the Tablet PC in the car, put it in the trunk of the car
to avoid exposing the Tablet PC to excessive heat.
When going through airport security, it is recommended that you send
the Tablet PC and flash disks through the X-ray machine (the device you
set your bags on). Avoid the magnetic detector (the device you walk
through) or the magnetic wand (the handheld device used by security
personnel).
If you plan to travel abroad with your Tablet PC, consult your dealer for
the appropriate AC power cord for use in your country of destination.
63
Chapter 8
Troubleshooting
Computer problems can be caused by hardware, software, or both. When
you encounter any problem, it might be a typical problem that can easily be
solved.
This chapter tells you what actions to take when solving common computer
problems.
64
Preliminary Checklist
Here are helpful hints to follow before you take further actions when you
encounter any problem:
Try to isolate which part of the Tablet PC is causing the problem.
Make sure that you turn on all peripheral devices before turning on the
Tablet PC.
If an external device has a problem, make sure that the cable
connections are correct and secure.
Make sure that the configuration information is properly set in the BIOS
Setup program.
Make sure that all the device drivers are correctly installed.
Make notes of your observations. Are there any messages on the screen?
Do any indicators light? Do you hear any beeps? Detailed descriptions
are useful to the service personnel when you need to consult one for
assistance.
If any problem persists after you follow the instructions in this chapter,
contact an authorized dealer for help.
65
Solving Common Problems
Battery Problems
The battery does not charge (Battery Charge indicator does not light
amber).
Make sure that the AC adapter is properly connected.
Make sure that the battery is not too hot or cold. Allow time for the
battery pack to return to room temperature.
If the battery doesn't charge after it has been stored in very low
temperatures, try disconnecting and reconnecting the AC adapter to
solve the problem.
Make sure that the battery pack is installed correctly.
Make sure that the battery terminals are clean.
The operating time of a fully charged battery becomes shorter.
If you often partially recharge and discharge, the battery might not be
charged to its full potential. Initialize the battery to solve the problem.
The battery operating time indicated by the battery meter does not
match the actual operating time.
The actual operating time can be different from the estimated time,
depending on how you are using the Tablet PC. If the actual operating
time is much less than the estimated time, initialize the battery.
BT Wireless Transmission Problems
I cannot connect to another device with BT wireless technology.
Make sure that both devices have activated BT feature.
Make sure that the distance between the two devices is within the limit
and that there are no walls or other obstructions between the devices.
Make sure that the other device is not in “Hidden” mode.
Make sure that both devices are compatible.
66
Display Problems
Nothing appears on the screen.
During operation, the screen may automatically turn off as a result of
power management. Press any key to see if the screen comes back.
The brightness level might be too low. Increase the brightness.
The characters on the screen are dim.
Adjust the brightness and/or contrast.
The display brightness cannot be increased.
As a protection, the display brightness will be fixed at a low level when
the surrounding temperature is too high or too low. It is not a
malfunction in this situation.
Bad dots appear on the display at all times.
A small number of missing, discolored, or bright dots on the screen are
an intrinsic characteristic of TFT LCD technology. It is not regarded as a
LCD defect.
Clouding (or called “mura”) happens on the screen when you exert
forces on the left or right side of the LCD frame.
This is a normal phenomenon, not a defect.
Hardware Device Problems
The Tablet PC does not recognize a newly installed device.
The device may not be correctly configured in the BIOS Setup program.
Run the BIOS Setup program to identify the new type.
Make sure if any device driver needs to be installed. (Refer to the
documentation that came with the device.)
Make sure if the device needs any jumper or switch settings. (Refer to the
documentation that came with the device.)
Check the cables or power cords for correct connections.
67
For an external device that has its own power switch, make sure that the
power is turned on.
Power Management Problems
The Tablet PC does not enter Sleep or Hibernation mode
automatically.
If you have a connection to another computer, the Tablet PC does not
enter Sleep or Hibernation mode if the connection is actively in use.
Make sure that the Sleep or Hibernation time-out is enabled.
The Tablet PC does not enter Sleep or Hibernation mode
immediately.
If the Tablet PC is performing an operation, it normally waits for the
operation to finish.
The Tablet PC does not resume from Sleep or Hibernation mode.
The Tablet PC automatically enters Sleep or Hibernation mode when the
battery pack is empty. Do any one of the following:
− Connect the AC adapter to the Tablet PC.
− Replace the empty battery pack with a fully charged one.
Sensor Problems
The built-in digital compass doesn’t seem to be accurate.
Rotating the display can affect the accuracy of the digital compass. This is
normal, not a malfunction. The sensors for the compass require periodic
recalibration. Follow this method to recalibrate the sensors:
1. Make sure you are far away from any large metal objects or magnetic
fields.
2. Start an application that utilizes the digital compass.
3. Hold the Tablet PC level with the horizon, with the LCD side facing up.
4. Rotate the Tablet PC 360° at least three times around each axis (X, Y,
and Z) as shown below.
68
Software Problems
An application program does not work correctly.
Make sure that the software is correctly installed.
If an error message appears on the screen, consult the software
program’s documentation for further information.
If you are sure the operation has stop, reset the Tablet PC.
Sound Problems
No sound is produced.
Make sure that the volume control is not set too low. Increase the volume.
Make sure that the sound is not muted.
Make sure that the Tablet PC is not in Sleep mode.
69
If using an external speaker, make sure that the speaker is properly
connected.
Distorted sound is produced.
Make sure that the volume control is not set too high or too low. In most
cases, a high setting can cause the audio electronics to distort the sound.
Startup Problems
When you turn on the Tablet PC, it does not respond and the Power
Indicator does not light green.
If you are using an external AC power, make sure that the AC adapter is
correctly and securely connected. If so, make sure that the electrical
outlet works properly.
If you are using the battery power, make sure that the battery is not
discharged.
When the ambient temperature is below -20 °C (-4 °F), the Tablet PC will
start up only if both battery packs are installed.
When you turn on the Tablet PC, it stops after POST.
Reset your Tablet PC.
WLAN Problems
I cannot use the WLAN feature.
Make sure that the WLAN feature is turned on.
Transmission quality is poor.
Your Tablet PC may be in an out-of-range situation. Move your Tablet PC
closer to the Access Point or another WLAN device it is associated with.
Check if there is high interference around the environment and solve the
problem as described next.
Radio interference exists.
Move your Tablet PC away from the device causing the radio
interference such as microwave oven and large metal objects.
70
Plug your Tablet PC into an outlet on a different branch circuit from that
used by the affecting device.
Consult your dealer or an experienced radio technician for help.
I cannot connect to another WLAN device.
Make sure that the WLAN feature is turned on.
Make sure that the SSID setting is the same for every WLAN device in the
network.
Your Tablet PC is not recognizing changes. Restart the Tablet PC.
Make sure that the IP address or subnet mask setting is correct.
I cannot communicate with the computer in the network when
Infrastructure mode is configured.
Make sure that the Access Point your Tablet PC is associated with is
powered on and all the LEDs are working properly.
If the operating radio channel is in poor quality, change the Access Point
and all the wireless station(s) within the BSSID to another radio channel.
Your Tablet PC may be in an out-of-range situation. Move your Tablet PC
closer to the Access Point it is associated with.
Make sure that your Tablet PC is configured with the same security
option (encryption) to the Access Point.
Use the Web Manager/Telnet of the Access Point to check whether it is
connected to the network.
Reconfigure and reset the Access Point.
I cannot access the network.
Make sure that the network configuration is appropriate.
Make sure that the user name or password is correct.
You have moved out of range of the network.
Turn off power management.
71
Other Problems
The date/time is incorrect.
Correct the date and time via the operating system or BIOS Setup
program.
After you have performed everything as described above and still have
the incorrect date and time every time you turn on the Tablet PC, the
RTC (Real-Time Clock) battery is at the end of its life. Call an authorized
dealer to replace the RTC battery.
72
Resetting the Tablet PC
You may have to reset (reboot) your Tablet PC on some occasions when an
error occurs and the program you are using hangs up.
If you are sure the operation has stopped and you cannot use the “restart”
function of the operating system, reset the Tablet PC.
Reset the Tablet PC by any one of these methods:
Press and hold the P1 button for more than 2 seconds. This opens the
Ctrl-Alt-Del screen where you can select actions including Restart.
If the above action does not work, press and hold the power button for
more than 5 seconds to force the system to turn off. Then turn on the
power again.
73
System Restore, Recovery, or
Reset
Tap Settings Update & security. You have several options.
System Restore
This option allows you to restore Windows to an earlier point in time if
you have created a restore point.
Recover from a drive
If you have created a recovery drive on Windows 10, you can use the
recovery drive to reinstall Windows
Reset this PC
This option allows you to reinstall Windows with or without keeping
your files.
See Microsoft website for more information.
NOTE: System recovery for Windows 10 typically will take several hours to
complete.
74
Using the Driver Disc (Optional)
NOTE: You can download the latest drivers and utilities from Getac website
at http://www.getac.com Support.
The Driver disc contains drivers and utilities required for specific hardware in
your Tablet PC.
Since your Tablet PC comes with drivers and utilities pre-installed, you
normally do not need to use the Driver disc. In case you want to manually
install Windows, you will have to install the drivers and utilities one by one
after installing Windows.
To manually install drivers and utilities:
1. Start up the Tablet PC.
2. Prepare an external CD/DVD drive (with USB connection). Connect the
drive to your Tablet PC. Wait for the Tablet PC to recognize the drive.
3. Insert the Driver disc. Make sure you use the disc that matches the
Windows version of your Tablet PC.
4. The autorun program should automatically start. You will see the
installation menu. Tap NEXT to go to the next page if there is more than
one.
5. To install a driver or utility, just tap the particular button and follow the
onscreen instructions to complete the installation.
75
Appendix A
Specifications
NOTE: Specifications are subject to change without any prior notice.
Parts Specifications
CPU Kaby Lake U Platform
- Intel® Core™ i7-7500U Processor, 2.7GHz up to 3.5GHz, 4M
cache
- Intel® Core™ i5-7200U Processor, 2.5GHz up to 3.1GHz, 3M
cache
BIOS Insyde, Flash EEPROM, supporting UEFI, NIST, ACPI, TPM,
Computrace, Security Erase, AMT11, WMI, BIOS diagnostic
RAM 4/8/16GB DDR4 SO-DIMM
Video Controller UMA - Intel® HD Graphics 520
Display
Panel
11.6-inch (16:9) TFT LCD, HD 1366x768,
dimmer mode, blackout
mode, sunlight readable, 800 Nits maximum brightness
Touchscreen Capacitive multi-touch screen - 10 point
Audio Features Azalia, High Definition audio
Speaker 1.5W x 1
Microphone Integrated microphone
Hard disk drive 128GB /256GB /512GB/1TB SSD (Solid-State Drive)
I/O
ports
Standard USB 3.0, combo audio (4-pole TRRS 3.5mm type), HDMI,
Docking
Optional One of the below on the top side:
RS232 / RJ-45 / USB 2.0 / microSD / barcode reader
One of the blow at the rear :
HDMI-in + smart card reader / Smart card reader / NFC/RFID
reader + RJ-45 / fingerprint scanner
LAN (option) 10/100/1000 Mbps Ethernet
Wireless LAN + BT IEEE 802.11ac, compatible with 802.11a/b/g/n,
BT 4.2 + EDR
76
Parts Specifications
GPS (option) GlobalSat
WWAN (option) 3G/4G LTE
Camera (option) Front: FHD, IR sensor (option)
Rear: 8M pixel, autofocus, LED, video capture
Security Kensington lock
TPM 2.0
Fingerprint scanner (optional)
Power AC adapter Universal 65 W; input: 100∼240 V, 50/60 Hz; output: 19V
Battery
pack x 2
Lithium-ion Prismatic type, 3-cell
Dimension (LxW×D) 314 x 207 x 18mm (12.4 × 8.1 × 0.7 inch)
Weight 1.39 kg (3 lb)
Button Functions on Special Occasions
On “POST/BIOS Setup/Non-ACPI” occasions, the five hardware buttons
provide keyboard key functions as described below.
Button Function
Enter
Esc
Tab
↑
Up
↓
Down
77
Appendix B
Regulatory
Information
This appendix provides regulatory statements and safety notices on your
Tablet PC.
NOTE: Marking labels located on the exterior of your Tablet PC indicate the
regulations that your model complies with. Please check the marking labels
and refer to the corresponding statements in this appendix. Some notices
apply to specific models only.
78
On the Use of the System
Class B Regulations
USA
Federal Communications Commission Radio Frequency Interference
Statement
NOTE:
This equipment has been tested and found to comply with the limits for a
Class B digital device pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one or
more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the manufacturer
could void the user’s authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with this equipment is prohibited.
79
Canada
Canadian Department of Communications
Radio Interference Regulations Class B Compliance Notice
This Class B digital apparatus meets all requirements of the Canada
Interference-Causing equipment regulations.
Cet appareil numérique de Classe B respecte toutes les exigences du
Règlement Canadien sur le matériel brouileur.
This digital apparatus does not exceed the Class B limits for radio noise
emissions from digital apparatus set out in the Radio Interference
Regulations of the Canadian Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques
dépassant les limites applicables aux appareils numériques de la classe B
prescrites dans le Règlement sur le brouillage radioélectrique édicté par le
ministère des Communications du Canada.
ANSI Warning
Equipment approved for ANSI/ISA 12.12.01, Nonincendive Electrical
Equipment for use in Class 1, Division 2, Group A, B, C, and D.
Maximum ambient temperature: 40°C
WARNING: To prevent ignition of a hazardous atmosphere, batteries
must only be changed or charged in an area known to be non-hazardous.
EXPLOSION HARZARD WARNING: External connections/hubs through the
connectors as mentioned (USB connector, Ethernet connector, video port,
serial port, power supply connector, microphone jack, headphones jack,
and buttons/switches) are not to be used in a hazardous location.
Power adapter shall not be used in hazardous locations.
80
Safety Notices
About the Battery
Caution Texts Concerning Lithium Batteries
DANISH
ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering.
Udskiftning må kun ske med batteri af samme fabrikat og type. Levér det
brugte batteri tilbage til leverandøren.
NORWEGIAN
ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme
batteritype eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte
batterier kasseres i henhold til fabrikantens instruksjoner.
SWEDISH
VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp
eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera
använt batteri enligt fabrikantens instruktion.
FINNISH
VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda
paristo ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty
paristo valmistajan ohjeiden mukaisesti.
ENGLISH
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only
with the same or equivalent type recommended by the equipment
manufacturer. Discard used batteries according to manufacturer's
instructions.
DEUTSCH
VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie.
Ersatz nur durch denselben oder einen vom Hersteller empfohlenen
gleich-wertigen Typ. Entsorgung gebrauchter Batterien nach Angaben des
Herstellers.
FRENCH
ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la
batterie. Remplacer uniquement avec une batterie du même type ou d’un
type équivalent recommandé par le constructeur. Mettre au rebut les
batteries usagées conformément aux instructions du fabricant.
81
Attention (for USA Users)
The product that you have purchased contains a rechargeable battery. The
battery is recyclable. At the end of its useful life, under various state and
local laws, it may be illegal to dispose of this battery into the municipal
waste stream. Check with your local solid waste officials for details in your
area for recycling options or proper disposal.
About the AC Adapter
Use only the AC adapter supplied with your computer. Use of another
type of AC adapter will result in malfunction and/or danger.
Do not use the adapter in a high moisture environment. Never touch the
adapter when your hands or feet are wet.
Allow adequate ventilation around the adapter when using it to operate
the device or charge the battery. Do not cover the AC adapter with
paper or other objects that will reduce cooling. Do not use the AC
adapter while it is inside a carrying case.
Connect the adapter to a proper power source. The voltage requirements
are found on the product case and/or packaging.
Do not use the adapter if the cord becomes damaged.
Do not attempt to service the unit. There are no serviceable parts inside.
Replace the unit if it is damaged or exposed to excess moisture.
82
On the Use of the RF Device
USA and Canada Safety Requirements and
Notices
IMPORTANT NOTE: To comply with FCC RF exposure compliance requirements,
the antenna used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Radio Frequency Interference Requirements and SAR
This device meets the government’s requirements for exposure to radio
waves.
This device is designed and manufactured not to exceed the emission limits
for exposure to radio frequency (RF) energy set by the Federal Communications
Commission of the U.S. Government.
This device complies with FCC radiation exposure limits set forth for an
uncontrolled environment.
EMC Requirements
This device uses, generates and radiates radio frequency energy. The radio
frequency energy produced by this device is well below the maximum
exposure allowed by the Federal Communications Commission (FCC).
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference
that may cause undesired operation.
The FCC limits are designed to provide reasonable protection against
harmful interference when the equipment is installed and used in
accordance with the instruction manual and operated in a commercial
environment. However, there is no guarantee that interference will not
occur in a particular commercial installation, or if operated in a residential
area.
If harmful interference with radio or television reception occurs when the
device is turned on, the user must correct the situation at the user’s own
83
expense. The user is encouraged to try one or more of the following
corrective measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION: The Part 15 radio device operates on a non-interference basis with
other devices operating at this frequency. Any changes or modification to
said product not expressly approved by the manufacturer could void the
user’s authority to operate this device.
Canada Radio Frequency Interference Requirements
To prevent radio interference to the licensed service, this device is intended
to be operated indoors and away from windows to provide maximum
shielding. Equipment (or its transmit antenna) that is installed outdoors is
subject to licensing.
Pour empêcher que cet appareil cause du brouillage au service faisant l'objet
d'une licence, il doit être utilisé à l'intérieur et devrait être placé loin des
fenêtres afin de fournir un écran de blindage maximal. Si le matériel (ou son
antenne d'émission) est installé à l'extérieur, il doit faire l'objet d'une
licence.
European Union CE Marking and Compliance
Notices
Statements of Compliance
English
This product follows the provisions of the European Directive 1999/5/EC.
Danish
Dette produkt er i overensstemmelse med det europæiske direktiv
1999/5/EC.
84
Dutch
Dit product is in navolging van de bepalingen van Europees Directief
1999/5/EC.
Finnish
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
French
Ce produit est conforme aux exigences de la Directive Européenne
1999/5/EC.
German
Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie
1999/5/EC.
Greek
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας 1999/5/EC.
Icelandic
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer
1999/5/EC.
Italian
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norwegian
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet
1999/5/EC.
Portuguese
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Spanish
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Swedish
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
85
User Notification of Take-back
Service
To Institutional (B2B) Users in United States:
Getac believes in providing our institutional customers with easy-to-use
solutions to recycle your Getac-brand products for free. Getac understands
the institutional customers will likely be recycling multiple items at once and
as such. Getac wants to make the recycling process for these larger shipments
as streamlined as possible. Getac works with recycling vendors with the
highest standards for protecting our environment, ensuring worker safety,
and complying with global environmental laws. Our commitment to recycling
our old equipment grows out of our work to protect the environment in
many ways.
Please see the product type below for information on Getac product, battery
and packaging recycling in USA.
For Product Recycling:
Your portable Getac products contain hazardous materials. While they
pose no risk to you during normal use, they should never be disposed
with other wastes. Getac provides a free take-back service for recycling
your Getac products. Our electronics recycler will provide competitive
bids for recycling non-Getac products as well.
For Battery Recycling:
The batteries used to power your portable Getac products contain
hazardous materials. While they pose no risk to you during normal use,
they should never be disposed with other wastes. Getac provides a free
take-back service for recycling your batteries from Getac products.
For Packaging Recycling:
Getac has chosen the packaging materials used to transport our products
carefully, to balance the requirements of shipping the product to you
safely while minimizing the amount of material used. The materials used
in our packaging are designed to be recycled locally.
If you have the above for recycling, please contact our recycler, All Green
Electronics Recycling, LLC. For more information on recycling, visit the
website http://www.allgreenrecycling.com.
86
ENERGY STAR 6.1
ENERGY STAR® is a government program that offers businesses and consumers
energy-efficient solutions, making it easy to save money while protecting the
environment for future generations.
Please reference ENERGY STAR® related information
from http://www.energystar.gov.
As an ENERGY STAR® Partner, Getac Technology Corporation has determined
that this product meets the ENERGY STAR® guidelines for energy efficiency.
An ENERGY STAR® qualified computer uses 70 % less electricity than computers
without enabled power management features.
Earning the ENERGY STAR®
When every home office is powered by equipment that has earned the
ENERGY STAR®, the change will keep over 289 billion pounds of
greenhouse gases out of the air.
If left inactive, ENERGY STAR® qualified computers enter a low-power
mode and may use 15 watts or less. New chip technologies make power
management features more reliable, dependable, and user-friendly than
even just a few years ago.
Spending a large portion of time in low-power mode not only saves
energy, but helps equipment run cooler and last longer.
Businesses that use ENERGY STAR® enabled office equipment may realize
additional savings on air conditioning and maintenance.
87
Over its lifetime, ENERGY STAR® qualified equipment in a single home
office (e.g., computer, monitor, printer, and fax) can save enough
electricity to light an entire home for more than 4 years.
Power management (“sleep settings”) on computers and monitors can
result in much savings annually.
Remember, saving energy prevents pollution
Because most computer equipment is left on 24 hours a day, power
management features are important for saving energy and are an easy way
to reduce air pollution. By using less energy, these products help lower
consumers’ utility bills, and prevent greenhouse gas emissions.
Getac Product Compliance
All Getac products with ENERGY STAR® logo comply with the ENERGY STAR®
standard, and the power management feature is enabled by default. As
recommended by the ENERGY STAR® program for optimal energy savings,
the computer is automatically set to sleep after 15 minutes (in battery mode)
and 30 minutes (in AC mode) of user inactivity. To wake up the computer,
press the power button.
If you want to configure power management settings such as inactivity time
and ways to initiate/end Sleep mode, go to Power Options by right-clicking
the battery icon on the Windows taskbar and then selecting Power Options
in the pop-up menu.
Please visit http://www.energystar.gov/powermanagement for detail
information on power management and its benefits to the environment.
88
Battery Recycling
For the U.S. and Canada only:
To recycle the battery, please go to the RBRC Call2Recycle website or use the
Call2Recycle Helpline at 800-822-8837.
Call2Recycle® is a product stewardship program providing no-cost battery
and cellphone recycling solutions across the U.S. and Canada. Operated by
Call2Recycle, Inc., a 501(c)4 nonprofit public service organization, the
program is funded by battery and product manufacturers committed to
responsible recycling. See more at: http://www.call2recycle.org
