User manual
Rugged Mobile Computing
Solutions
T800
USER MANUAL
June 2014
TRADEMARKS
TRADEMARKSTRADEMARKS
TRADEMARKS
All brand and product names are trademarks or registered trademarks of their
respective companies.
NOTE
NOTENOTE
NOTE
The information in this manual is subject to change without notice.
For the latest version of the manual, please visit the Getac website at www.getac.com.
i
Table of Contents
Table of ContentsTable of Contents
Table of Contents
Chapter 1
Chapter 1Chapter 1
Chapter 1
Getting Started
Getting StartedGetting Started
Getting Started................................
................................................................
................................................................
................................................................
................................................................
................................................................
..................................................
....................................
..................
1
11
1
Getting the Tablet PC Running .......................................... 2
Unpacking .................................................................. 2
Installing the SIM Card (Optional) ................................. 3
Connecting to AC Power ............................................... 4
Using the Tether ......................................................... 5
Turning On and Off the Tablet PC ................................. 6
Taking a Look at the Tablet PC ........................................ 8
Front Components ........................................................ 8

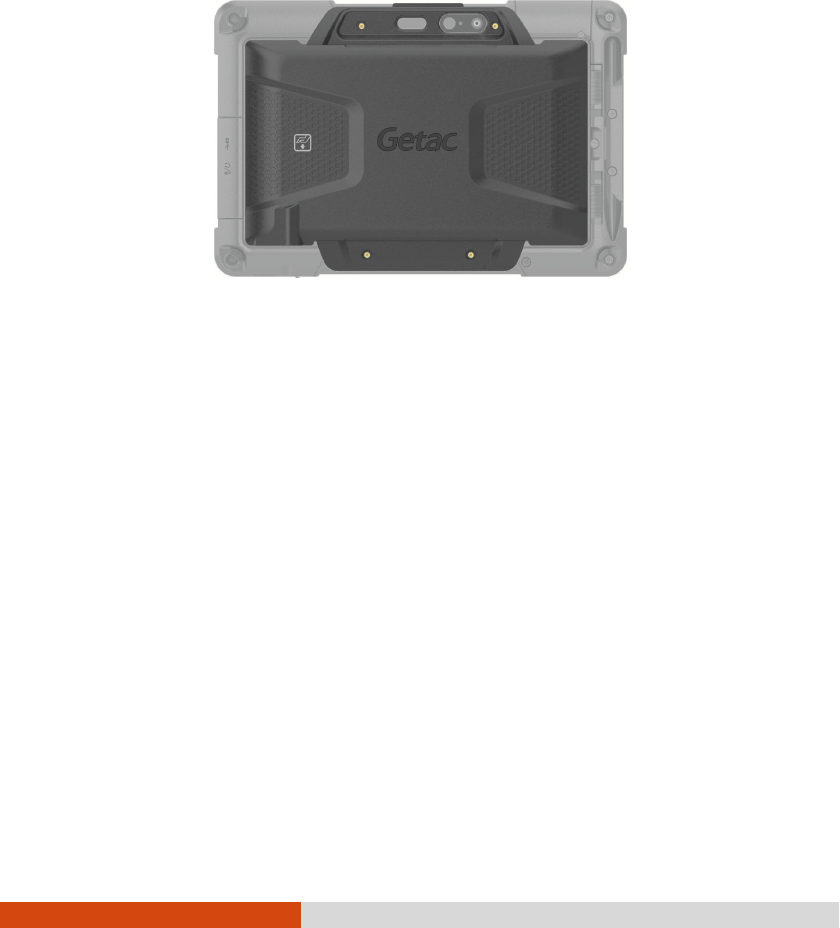

Rear Components ....................................................... 11
Top Components ......................................................... 12
Bottom Components ..................................................... 13
Right-Side Components ................................................ 13
Chapter 2
Chapter 2Chapter 2
Chapter 2
Operating Your Tablet PC
Operating Your Tablet PCOperating Your Tablet PC
Operating Your Tablet PC
................................
................................................................
................................................................
................................................................
...........................................................
......................................................
...........................
15
1515
15
Navigating on the Screen................................................. 16
Using the Touchscreen ................................................. 16
Using the Dual Mode Display (Optional) ........................ 19
Using the Network Features ............................................ 20

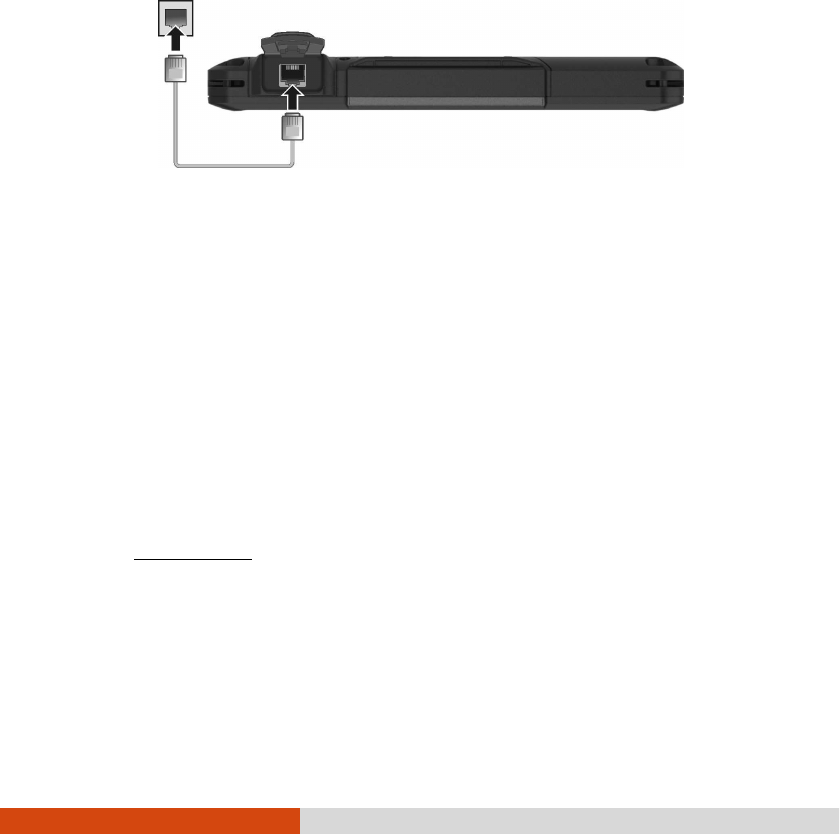

Using the LAN (Optional) .......................................... 20
Using the WLAN ....................................................... 20
Using the BT Feature .................................................... 23
Turning On/Off the BT Radio ...................................... 23
Connecting to another BT Device .................................. 24
Using the WWAN Feature (Optional) ............................... 25

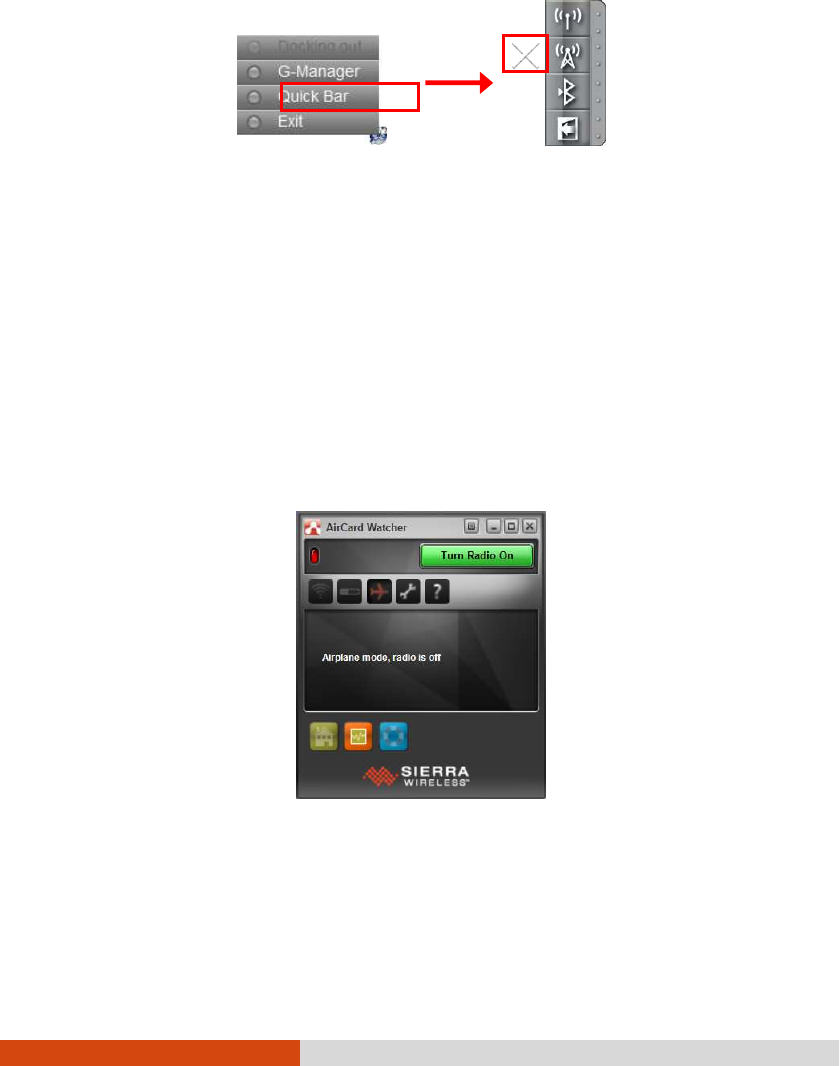

Turning On/Off the WWAN Radio ................................. 25

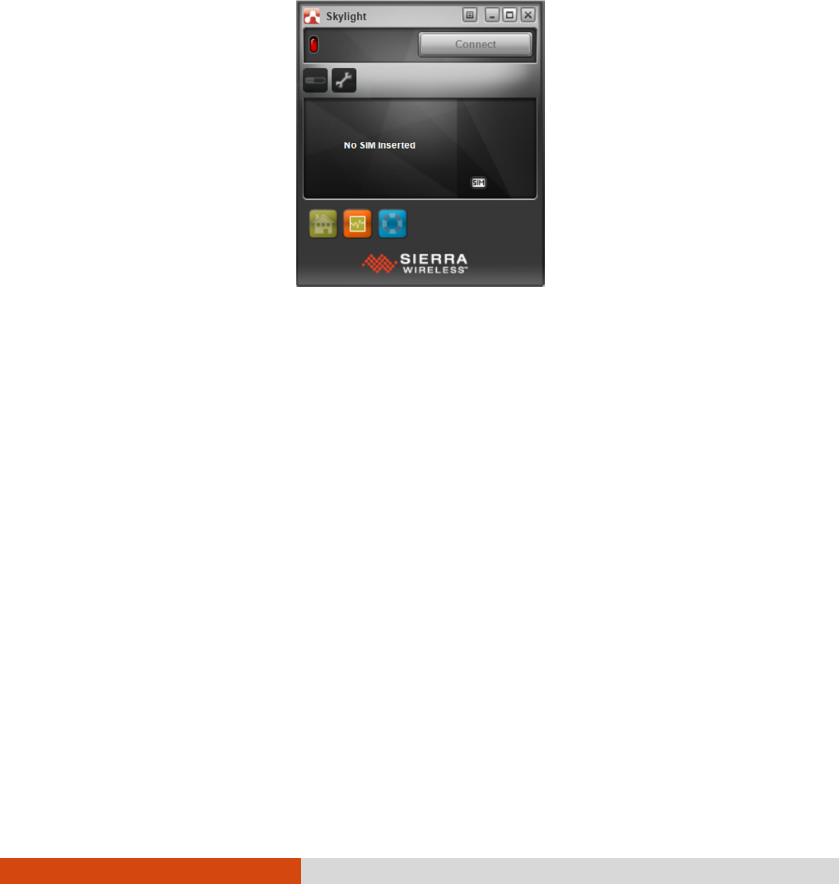

Setting up a WWAN Connection ................................... 26
ii
Chapter 3
Chapter 3Chapter 3
Chapter 3
Managing Power
Managing PowerManaging Power
Managing Power
................................
................................................................
................................................................
................................................................
................................................................
................................................................
............................................
........................
............
27
2727
27
AC Adapter .................................................................. 28
Battery Pack ................................................................ 30
Charging the Battery Pack ........................................... 30
Initializing the Battery Pack ........................................... 31
Checking the Battery Level ........................................... 31
Battery Low Signals and Actions ................................... 32
Replacing the Battery Pack .......................................... 33
Power-Saving Tips ........................................................ 35
Chapter 4
Chapter 4Chapter 4
Chapter 4
Expanding Your Tablet PC
Expanding Your Tablet PCExpanding Your Tablet PC
Expanding Your Tablet PC
................................
................................................................
................................................................
................................................................
.........................................................
..................................................
.........................
36
3636
36

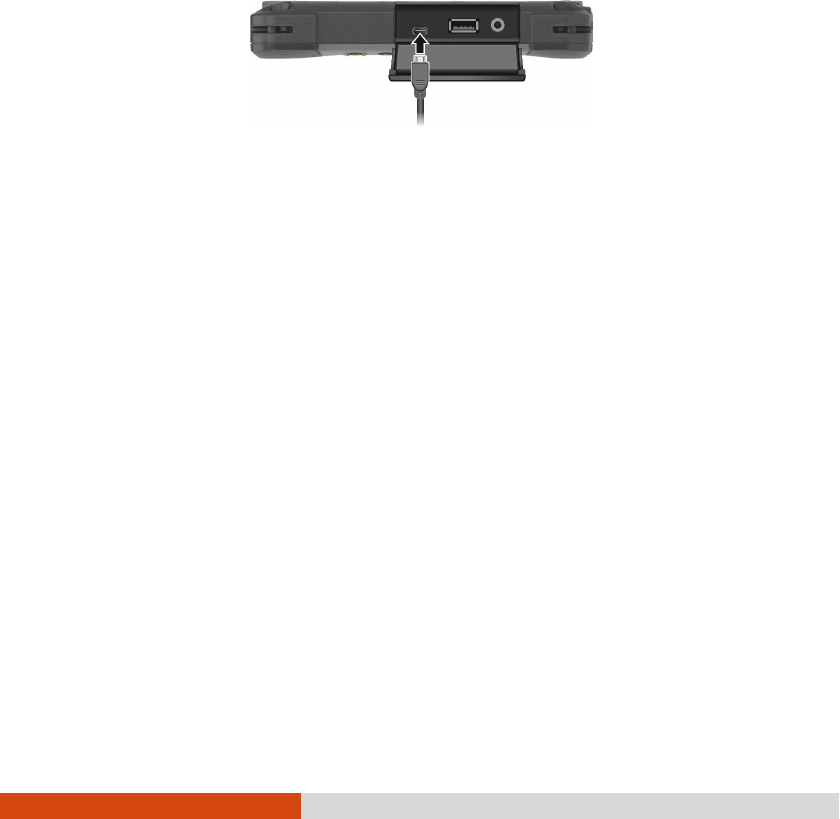

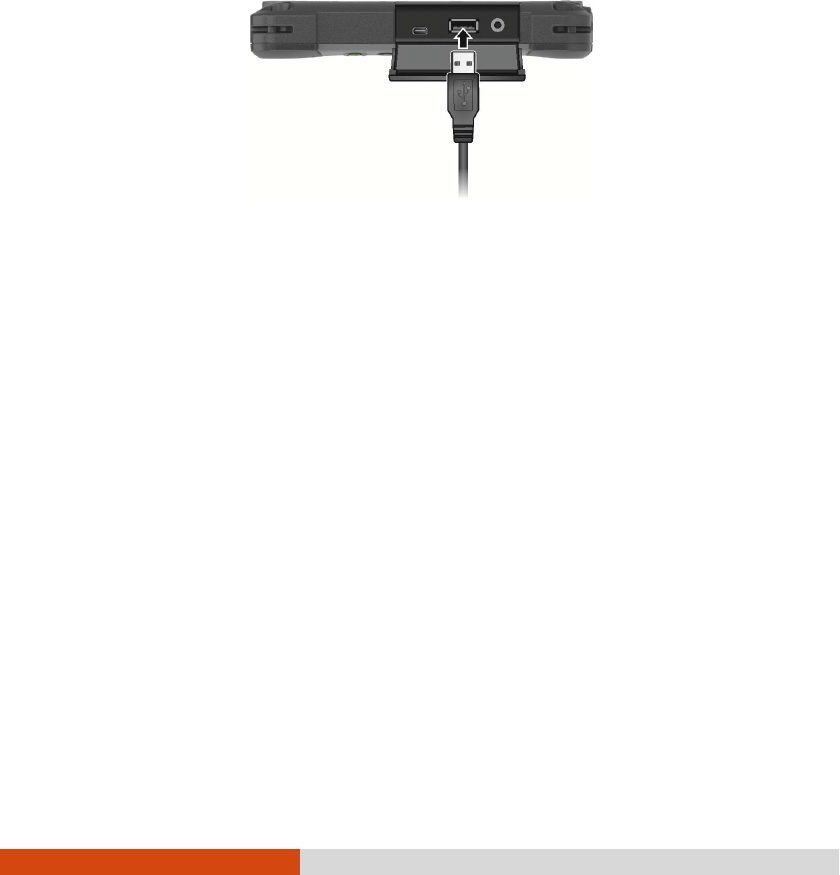

Connecting a USB Device ............................................... 37

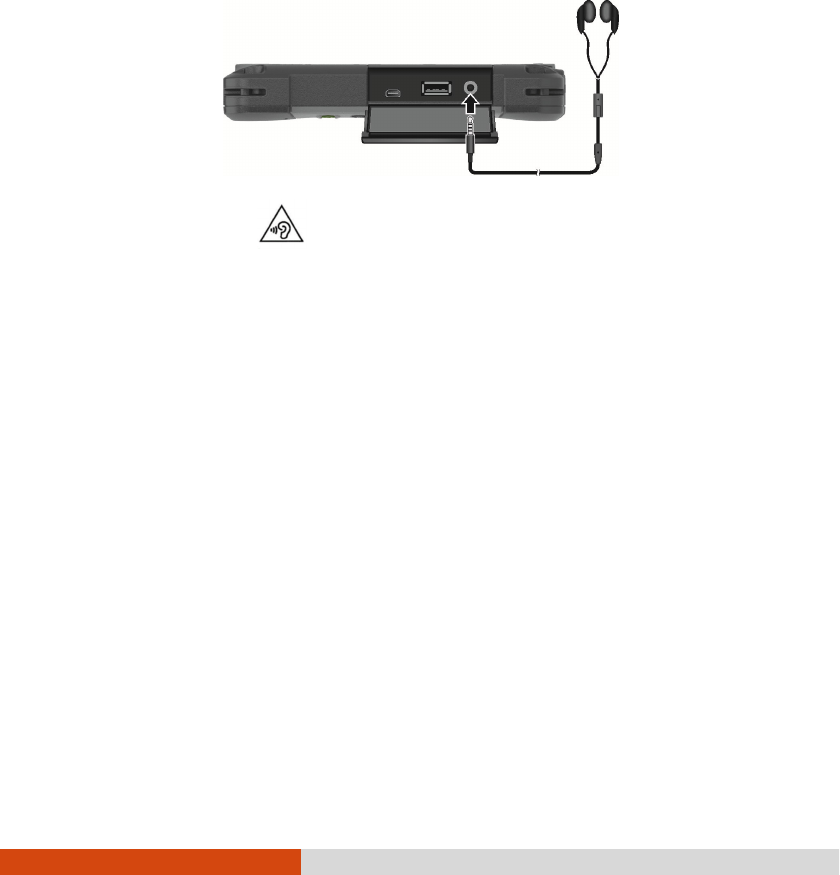

Connecting an Audio Device ............................................ 38
Connecting an HDMI Display Monitor ................................ 39

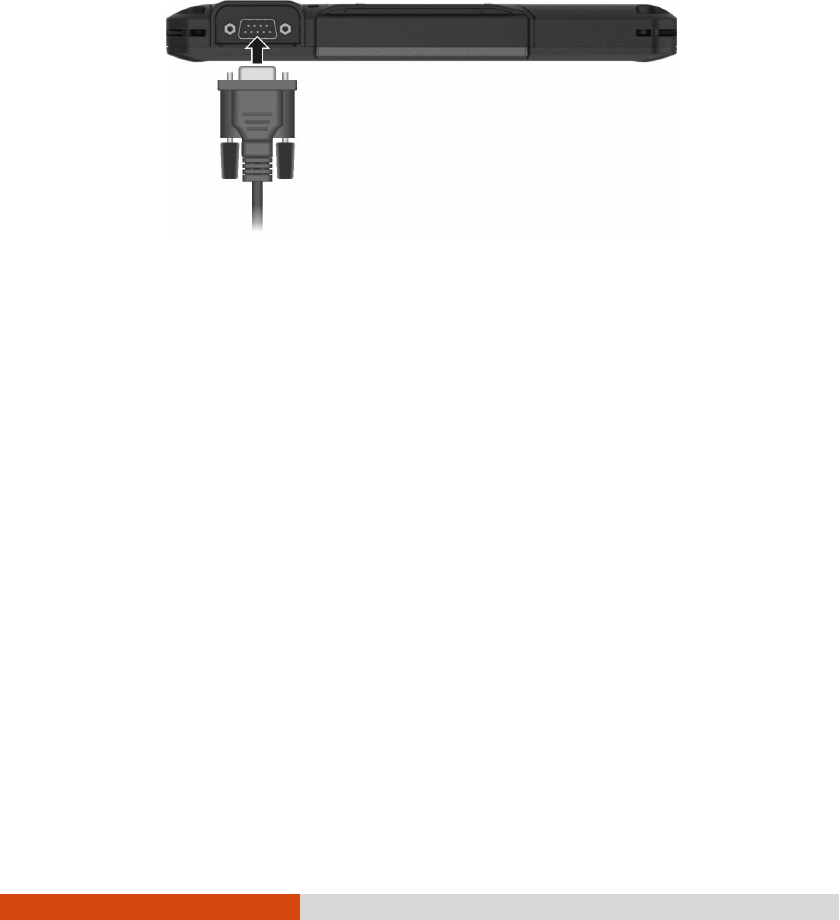

Connecting a Serial Device (Optional) ............................. 40
Using MicroSD Cards (Optional) ...................................... 41
Ch
ChCh
Chapter 5
apter 5apter 5
apter 5
Using BIOS Setup
Using BIOS SetupUsing BIOS Setup
Using BIOS Setup
................................
................................................................
................................................................
................................................................
................................................................
................................................................
..........................................
....................
..........
42
4242
42
When and How to Use .................................................. 43
Menu Descriptions ......................................................... 44
Information Menu ....................................................... 44
Main Menu ............................................................... 44
Advanced Menu ......................................................... 45
Security Menu ........................................................... 46
Boot Menu ............................................................... 47
Exit Menu ................................................................ 47
Chapter 6
Chapter 6Chapter 6
Chapter 6
Using Getac
Using Getac Using Getac
Using Getac Software
SoftwareSoftware
Software
................................
................................................................
................................................................
................................................................
................................................................
................................................................
.................................
..
.
48
4848
48

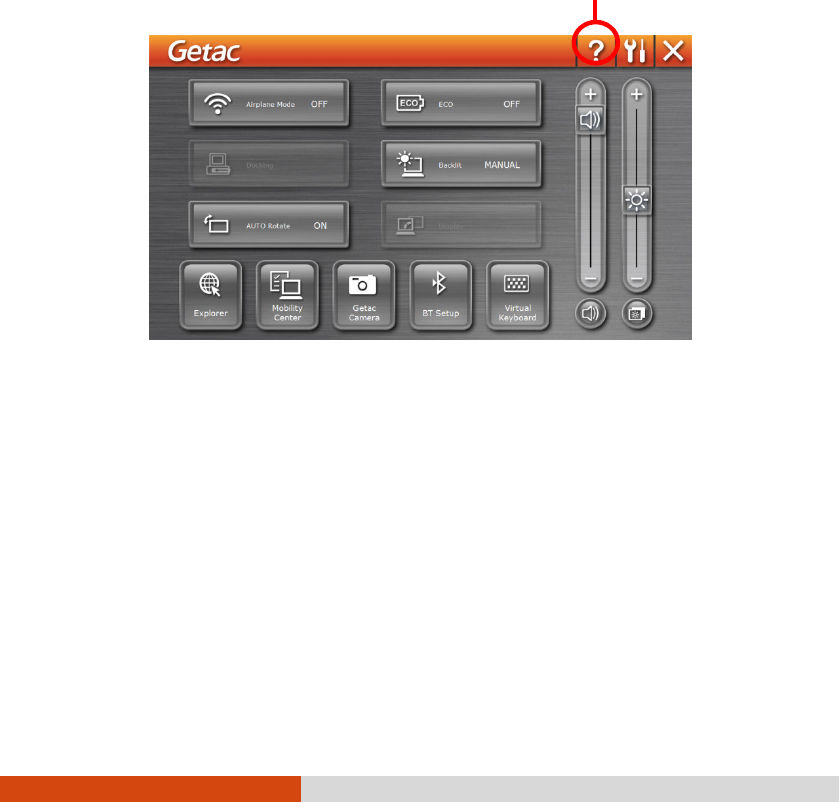

OSD Control Panel ........................................................ 49

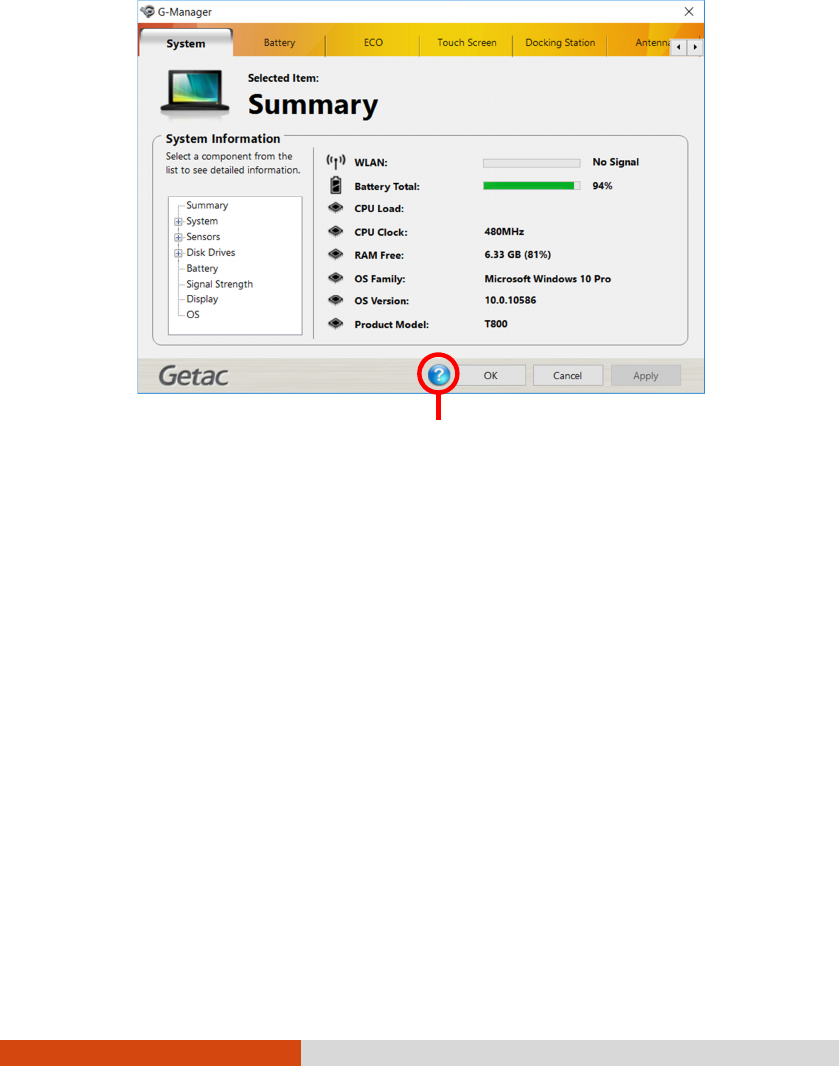

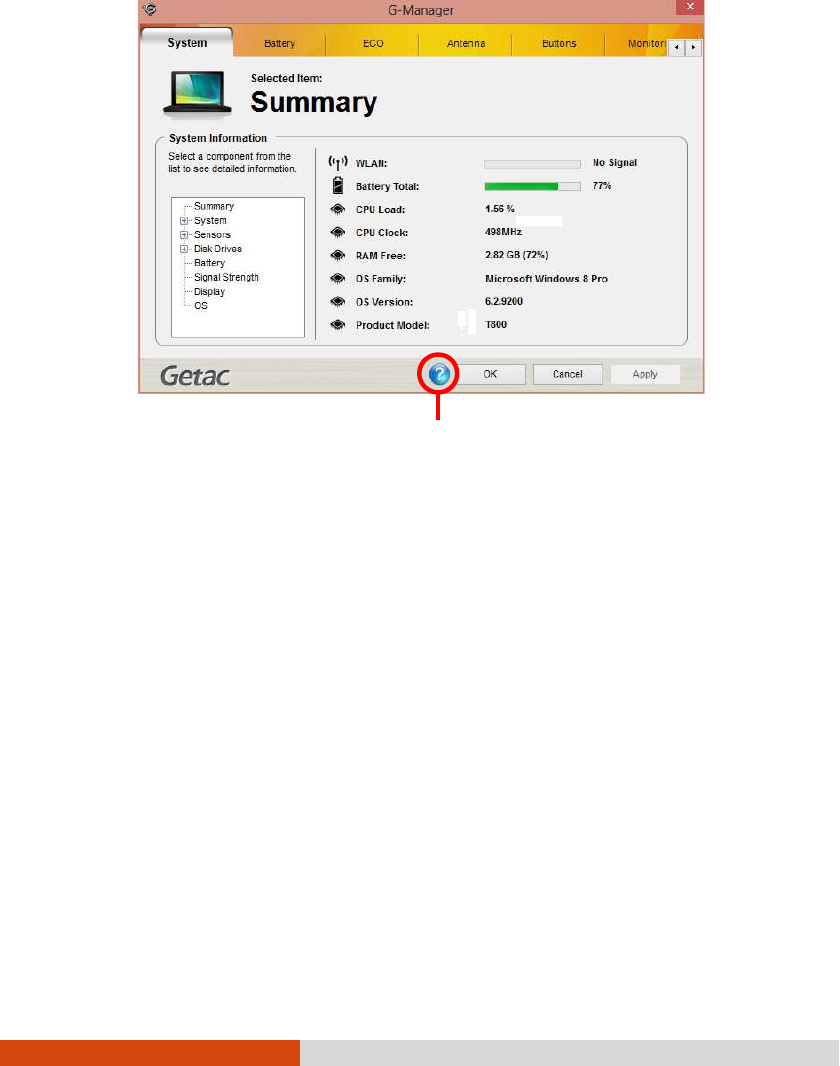

G-Manager .................................................................. 50
Getac Camera (Optional) .............................................. 52

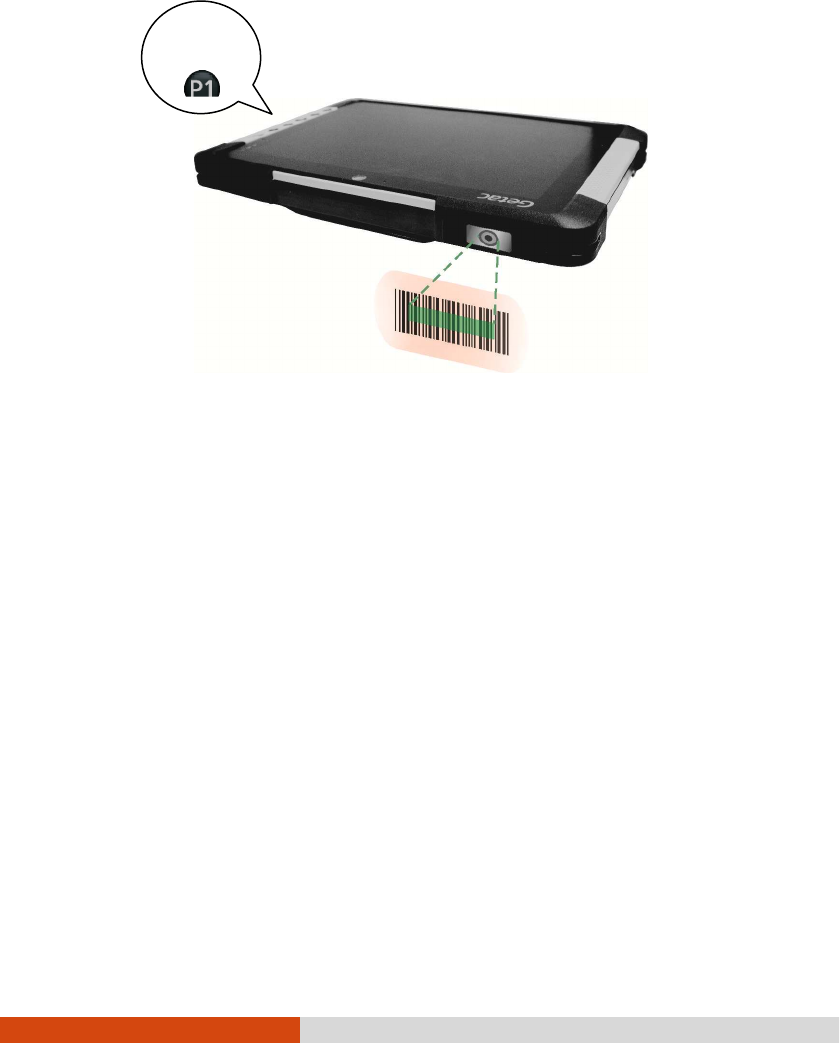

Using the Barcode Reader (Optional) .............................. 54
Chapter 7
Chapter 7Chapter 7
Chapter 7
Care and Maintenance
Care and MaintenanceCare and Maintenance
Care and Maintenance
................................
................................................................
................................................................
................................................................
...............................................................
..............................................................
...............................
56
5656
56
Taking Care of the Tablet PC ......................................... 57
Location Guidelines ..................................................... 57
iii
General Guidelines ..................................................... 58
Cleaning Guidelines .................................................... 58
Battery Pack Guidelines .............................................. 59
Touchscreen Guidelines ............................................... 60
When Traveling ............................................................. 62
Chapter 8
Chapter 8Chapter 8
Chapter 8
Troubles
TroublesTroubles
Troubleshooting
hootinghooting
hooting
................................
................................................................
................................................................
................................................................
................................................................
................................................................
...........................................
......................
...........
63
6363
63
Preliminary Checklist ....................................................... 64
Solving Common Problems .............................................. 65
Battery Problems ........................................................ 65
BT Wireless Transmission Problems ............................... 65
Display Problems ....................................................... 66
Hardware Device Problems .......................................... 66
Power Management Problems ....................................... 67

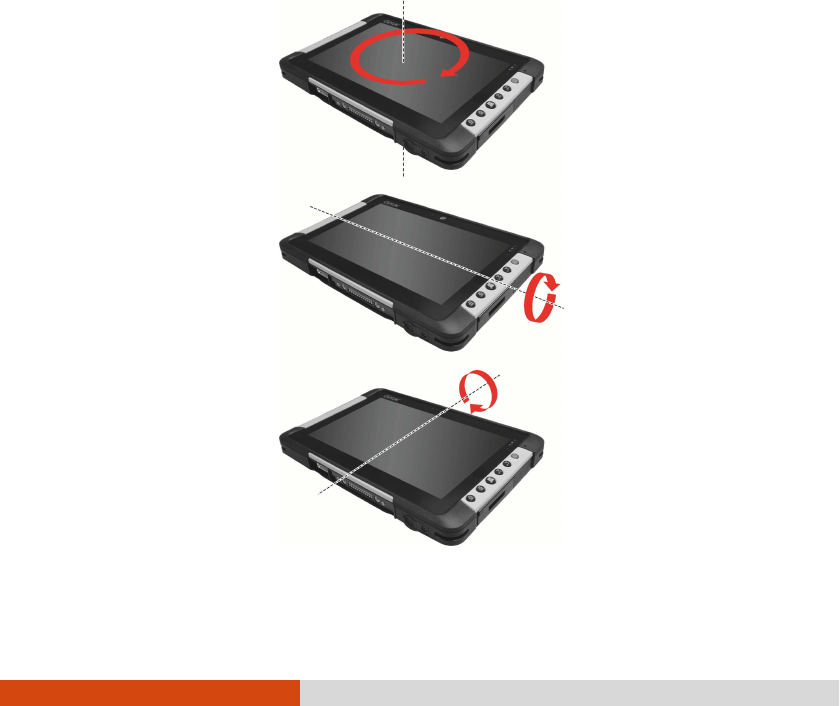

Sensor Problems (for Windows 8 Models Only) ............. 68
Software Problems ..................................................... 69
Sound Problems ........................................................ 69
Startup Problems ....................................................... 69
WAN Problems .......................................................... 70
Other Problems .......................................................... 71
Resetting the Tablet PC ................................................. 72

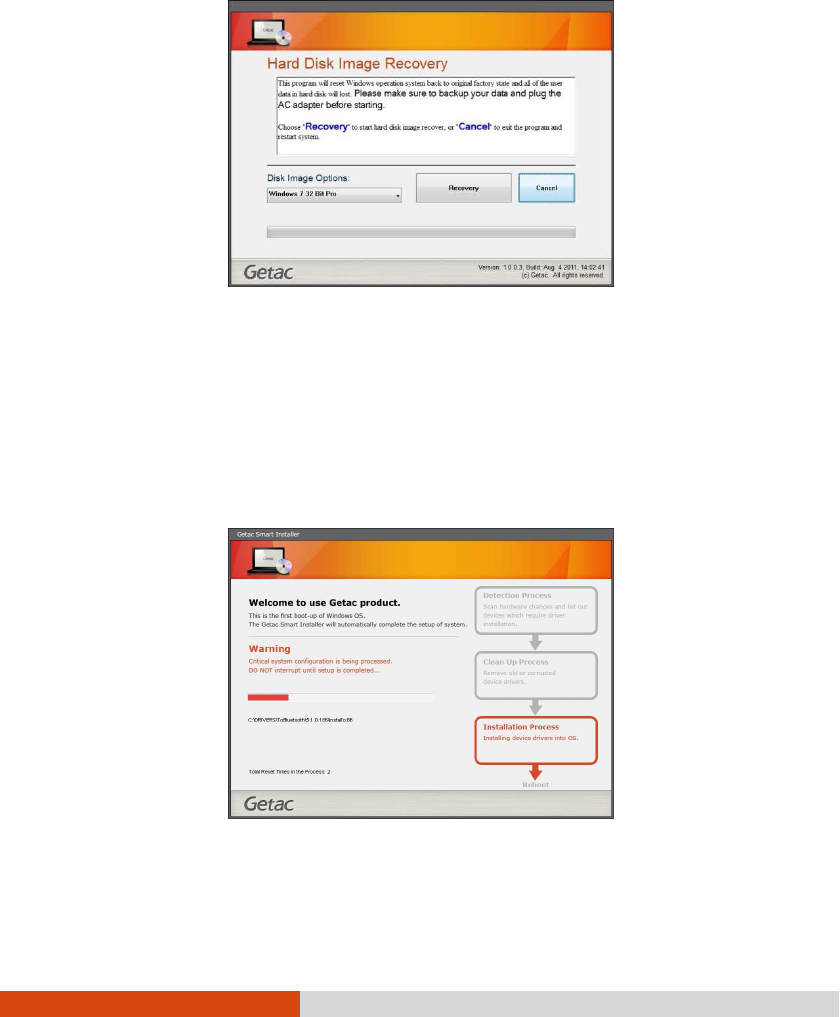

System Recovery ........................................................... 73
System Restore, Refresh, or Reset (for Windows 8
Models) .................................................................. 73
System Recovery (a Tool for Windows 7 Models) ......... 74
Appendix A
Appendix AAppendix A
Appendix A
Specifications
SpecificationsSpecifications
Specifications
................................
................................................................
................................................................
................................................................
................................................................
................................................................
.................................................
..................................
.................
77
7777
77
Append
AppendAppend
Appendix B
ix Bix B
ix B
Regulatory Information
Regulatory InformationRegulatory Information
Regulatory Information
................................
................................................................
................................................................
................................................................
..............................................................
............................................................
..............................79
7979
79
On the Use of the System ............................................. 80
Class B Regulations ................................................... 80
ANSI Warning ............................................................ 81
Safety Notices ........................................................... 82
On the Use of the RF Device ........................................ 85
USA and Canada Safety Requirements and Notices.......... 85
iv
European Union CE Marking and Compliance Notices ....... 87
User Notification of Take-back Service .............................. 89
ENERGY STAR ............................................................. 91
1
Chapter 1
Chapter 1Chapter 1
Chapter 1
Getting Started
Getting StartedGetting Started
Getting Started
Congratulations on purchasing this rugged Tablet PC.
This chapter first tells you step by step how to get the Tablet PC up and running.
Then, you will find a section briefly introducing the external components of the Tablet
PC.
2
Getting the
Getting the Getting the
Getting the Tablet PC
Tablet PCTablet PC
Tablet PC
Running
RunningRunning
Running
Unpacking
UnpackingUnpacking
Unpacking
NOTE: This packing list applies to standard models. Select
models may have different items.
After unpacking the shipping carton, you should find these standard items:
T800 Tablet PC
AC adapter
AC power cord
Stylus
Tether
Screen cleaning cloth
Driver disc
Document(s)
Inspect all the items. If any item is damaged or missing, notify your dealer
immediately.
3
Ins
InsIns
Installing the
talling the talling the
talling the SIM Card (Optional)
SIM Card (Optional)SIM Card (Optional)
SIM Card (Optional)

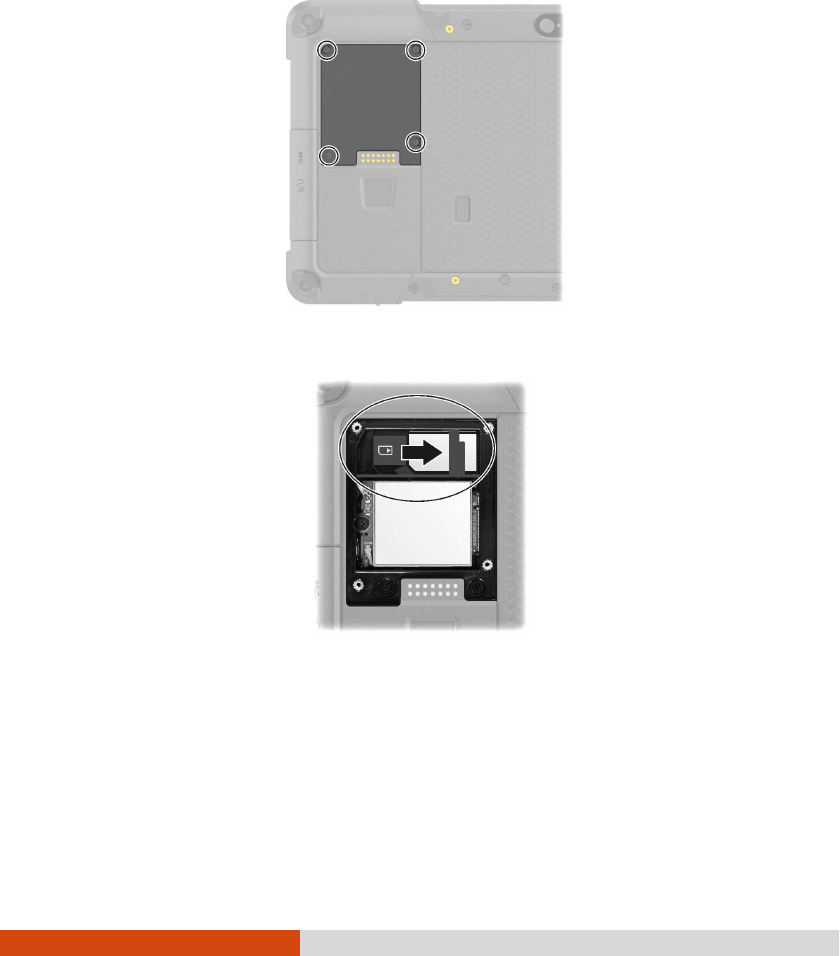

1. Locate the SIM card cover. Remove the cover by unfastening 4 screws.
2. Noting the orientation, slide the SIM card into place.
3. Replace the cover and secure with 4 screws.
4

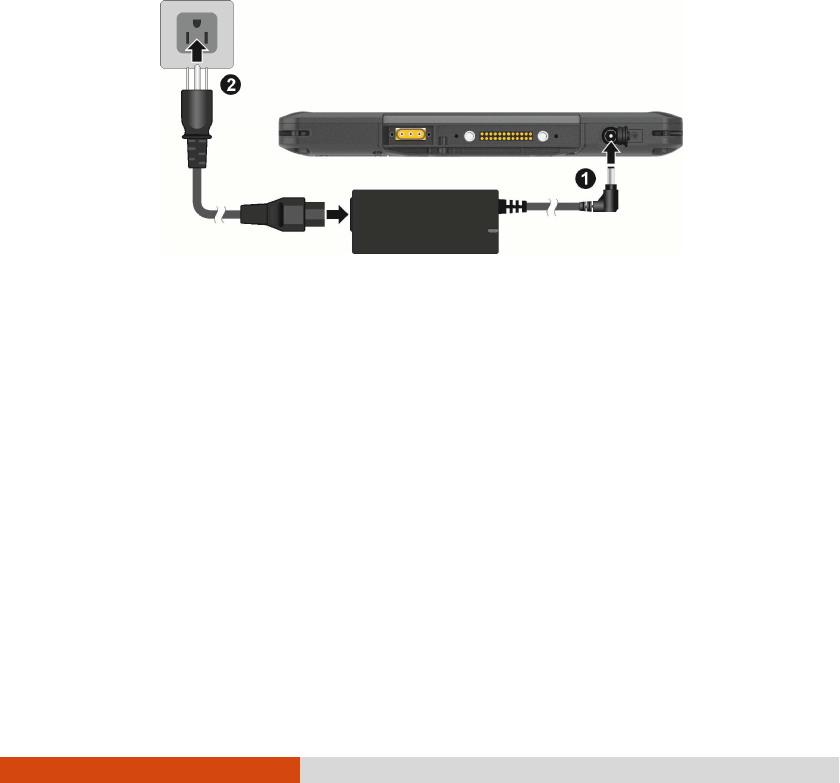

Connecting
Connecting Connecting
Connecting to AC Power
to AC Powerto AC Power
to AC Power
It is suggested that you use AC power when starting up the Tablet PC for the
very first time.
1. Plug the DC cord of the AC adapter to the power connector of the Tablet PC
(
).
2. Plug the female end of the AC power cord to the AC adapter and the male
end to an electrical outlet (
).
3. Power is being supplied from the electrical outlet to the AC adapter and onto
your Tablet PC. Now, you are ready to turn on the Tablet PC.
CAUTION: Use only the AC adapter included with your Tablet PC.
Using other AC adapters may damage the Tablet PC.
NOTE: When the AC adapter is connected, it also charges the
battery pack. For information on using battery power, see
Chapter 3.
5
Using the Tether
Using the TetherUsing the Tether
Using the Tether

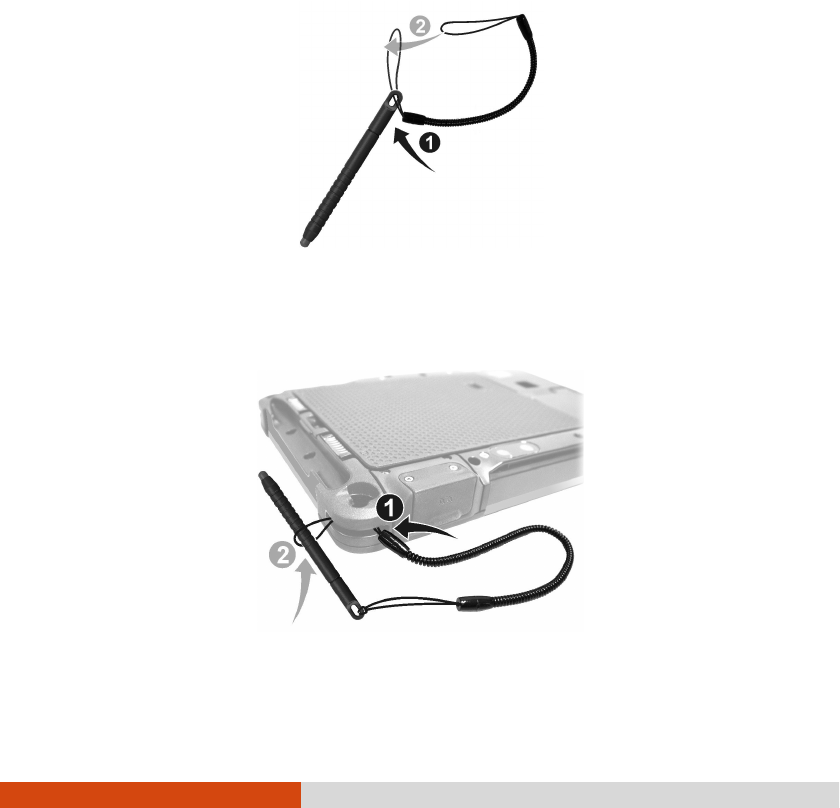

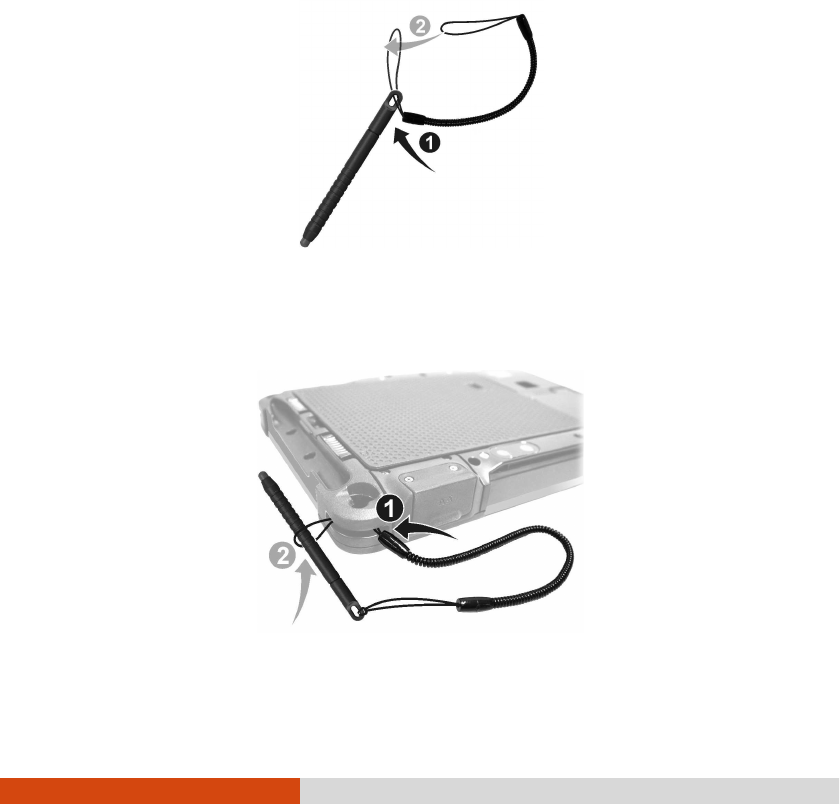

A tether is provided for attaching the stylus to your Tablet PC.
1. Insert one of the tether’s loop ends through the hole of the stylus (as indicated
by
below). Then, insert the other end through the first loop (as indicated
by
below) and pull it tight.
2. Insert the other loop end to the tether holder on the Tablet PC (as indicated
by
below). Then, insert the stylus end through the loop (as indicated by
below) and pull it tight.
6
Turning On and Off the
Turning On and Off the Turning On and Off the
Turning On and Off the Tablet PC
Tablet PCTablet PC
Tablet PC
Turning On
Turning OnTurning On
Turning On
Press the power button (
). The Windows operating system should start.
Turning Off
Turning OffTurning Off
Turning Off
When you finish a working session, you can stop the system by turning off the
power or leaving it in Sleep or Hibernation mode:
To...
To...To...
To...
Do this...
Do this...Do this...
Do this...
Windows 8
Windows 8Windows 8
Windows 8
Windows 7
Windows 7Windows 7
Windows 7
Power off
(Shutdown)
1. Open the Charms Bar of
Windows 8 by
swiping in from
the right side of the screen.
2. Tap Settings and then tap
(Power).
3. Tap Shut down in the Power
menu that pops up.
Use the Windows Start m
enu
in the lower left and follow the
shutdown procedure.
Sleep Press the power button*
or use the
Power menu to put the Tablet PC
in Sleep mode.
Press the power button* or
use the Windows Start m
enu
to put the Tablet PC in
Sleep
mode.
Hibernate By default, this option is not shown
in the Power menu. If you want to
use the feature, set up accordingly
in Windows Control Panel.
Use the Windows Start m
enu
to put the Tablet PC in
Hibernation mode.
* “Sleep” is the default setting of the power button. You may change what the
power button does in Windows Control Panel.
7
8

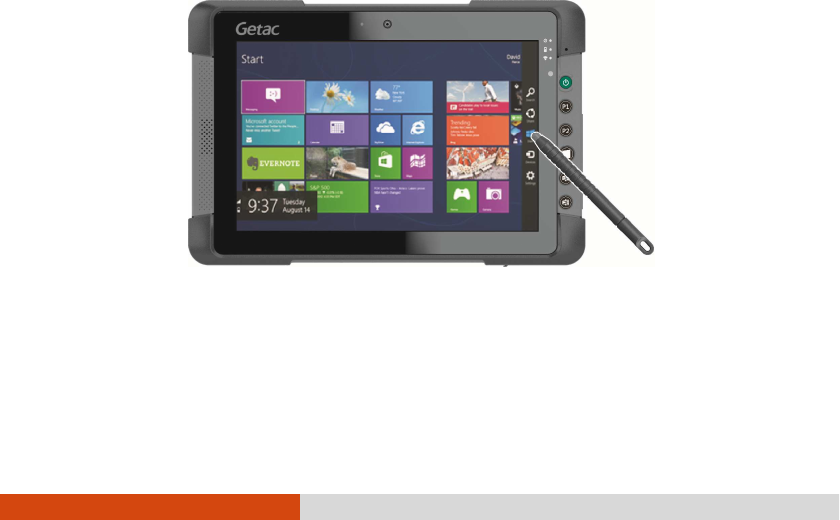

Taking a Look at the
Taking a Look at the Taking a Look at the
Taking a Look at the Tablet PC
Tablet PCTablet PC
Tablet PC
NOTE: Depending on the model you purchased, the appearance of
your Tablet PC may not be exactly the same as those shown in
this manual.
CAUTION: You need to open the protective covers to access the
connectors or devices inside. When not accessing a connector
or device, make sure to close the cover completely for water-,
dust-, and fire-proof integrity of your computer. (Engage the
locking mechanism if existing.)
Front Components
Front ComponentsFront Components
Front Components
Ref
RefRef
Ref
Component
ComponentComponent
Component
Description
DescriptionDescription
Description
See Also
See AlsoSee Also
See Also
Speaker
SpeakerSpeaker
Speaker
Sends out sound and voice from your Tablet PC.
Touchscreen
TouchscreenTouchscreen
Touchscreen
Displays and receives information for the
Tablet
PC.
P. 16
Camera Lens
Camera Lens Camera Lens
Camera Lens
Allows you to use the camera function. When the
P. 52
9
Ref
RefRef
Ref
Component
ComponentComponent
Component
Description
DescriptionDescription
Description
See Also
See AlsoSee Also
See Also
(optional)
camera lens is in use, the indicator
beside it lights
up.
Indicators
IndicatorsIndicators
Indicators
Power Lights blue when the power is on.
Blinks blue when the system is in Sleep mode.
Battery
BatteryBattery
Battery
Lights green when the battery is fully charged.
P. 30
Lights amber when the battery is being charged.
Blinks red (once per second) when the battery’
s
capacity is below 10%.
P. 32
Blinks red rapidly (once per 0.5 second) when
there is a thermal protection problem.
Ask for repair
service in case this happens.
Blinks amber when the battery charging is in an
abnormal state. Replace the battery in case this
happens.
RF (Radio
RF (Radio RF (Radio
RF (Radio
Frequency)
Frequency)Frequency)
Frequency)
Lights blue when the RF radio of any RF feature
(WLAN/BT/WWAN) is on.
Microphone
MicrophoneMicrophone
Microphone
Receives sound and voice to record voice.
Light Sensor
Light SensorLight Sensor
Light Sensor
Senses the ambient light
for automatic adjustments
of the display backlight.
Power Button
Power ButtonPower Button
Power Button
Turns the power on or off. (The default “off”
state
is “Sleep mode.”)
P. 6
P1 Button

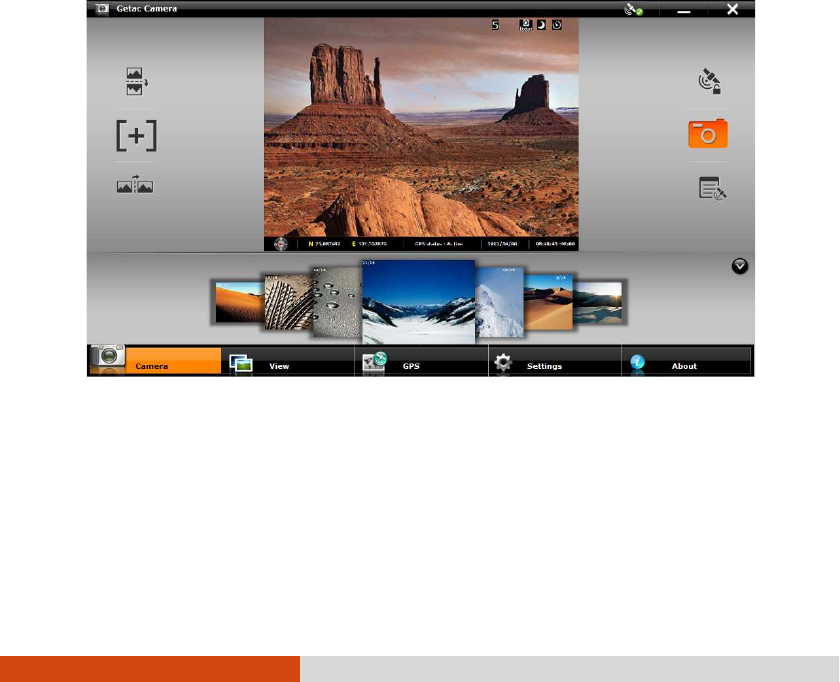

Starts the Getac
Camera program and serves as
the shutter release button.
– or –
Serves as the trigger button for the barcode reader
if your model has the barcode reader module.
P. 52
– or –
P. 54
10
Ref
RefRef
Ref
Component
ComponentComponent
Component
Description
DescriptionDescription
Description
See Also
See AlsoSee Also
See Also
Can be changed to another set of predefined
functions using G-Manager.
P. 50
Provides a keyboard key function for specific
occasions.
P. 78
P2 Button Opens or closes the OSD Control Panel.
NOTE (for Windows 8): To see the
result of the P2
button, you have to
go to Windows desktop.
P. 49
When pressed longer:
Serves as the Ctrl
CtrlCtrl
Ctrl+Alt
AltAlt
Alt+Del
DelDel
Del keyboard keys.
P. 72
Can be changed to another set of predefined
functions using G-Manager.
P. 50
Provides a keyboard key function for specific
occasions.
P. 78
Windows Logo
Windows Logo Windows Logo
Windows Logo
Button
ButtonButton
Button
For Windows 8:
Goes to the
Start screen. Or if you're already on
Start, pressing this button brings you
to the last
application you were in.
For Windows 7:
Opens or closes the Start menu.
Provides a keyboard key function for specific
occasions.
P. 78
Volume Up
Volume Up Volume Up
Volume Up
Button
ButtonButton
Button
Increases the sound volume.
Provides a keyboard key function for specific
occasions.
P. 78
Volume Down
Volume Down Volume Down
Volume Down
Button
ButtonButton
Button
Decreases the sound volume.
Provides a keyboard key function for specific
occasions.
P. 78
11
Rear Components
Rear ComponentsRear Components
Rear Components
Ref
RefRef
Ref
Component
ComponentComponent
Component
Description
DescriptionDescription
Description
See Also
See AlsoSee Also
See Also
Ex
ExEx
Expansion
pansion pansion
pansion
Connector
ConnectorConnector
Connector
Connect to a proprietary snap-
on module such
as:
- Second battery pack
- RFID and smart card reader
- Magnetic stripe card and smart card reader
SIM Card Cover
SIM Card CoverSIM Card Cover
SIM Card Cover
Inside is the SIM card slot (optional).
Flash
Flash Flash
Flash (optional)
Provides extra light when taking pictures.
Camera Lens
Camera LensCamera Lens
Camera Lens
(optional)
Allows you to use the camera function. When the
camera lens is in use,
the indicator beside it lights
up.
P. 52
Stylus/
Stylus/Stylus/
Stylus/
Digitizer pen
Digitizer penDigitizer pen
Digitizer pen
Serves as the input device by tapping
on the
touchscreen to make selections and enter
P. 16
12
information.

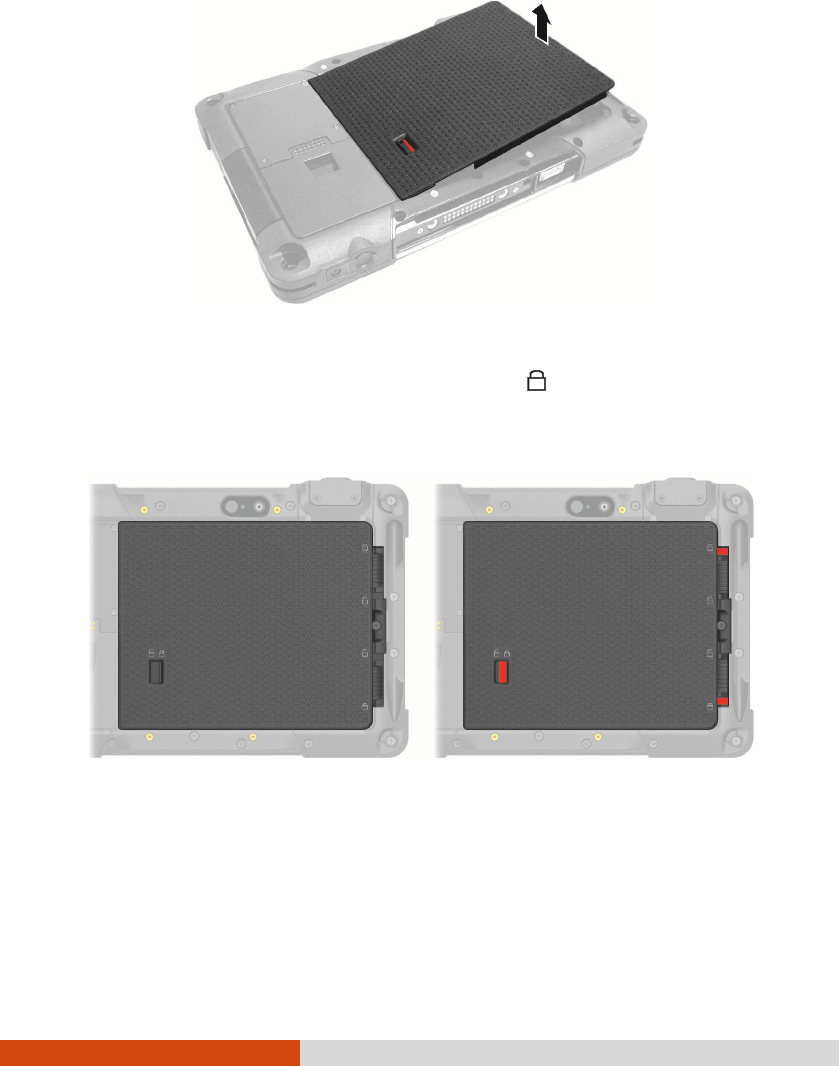

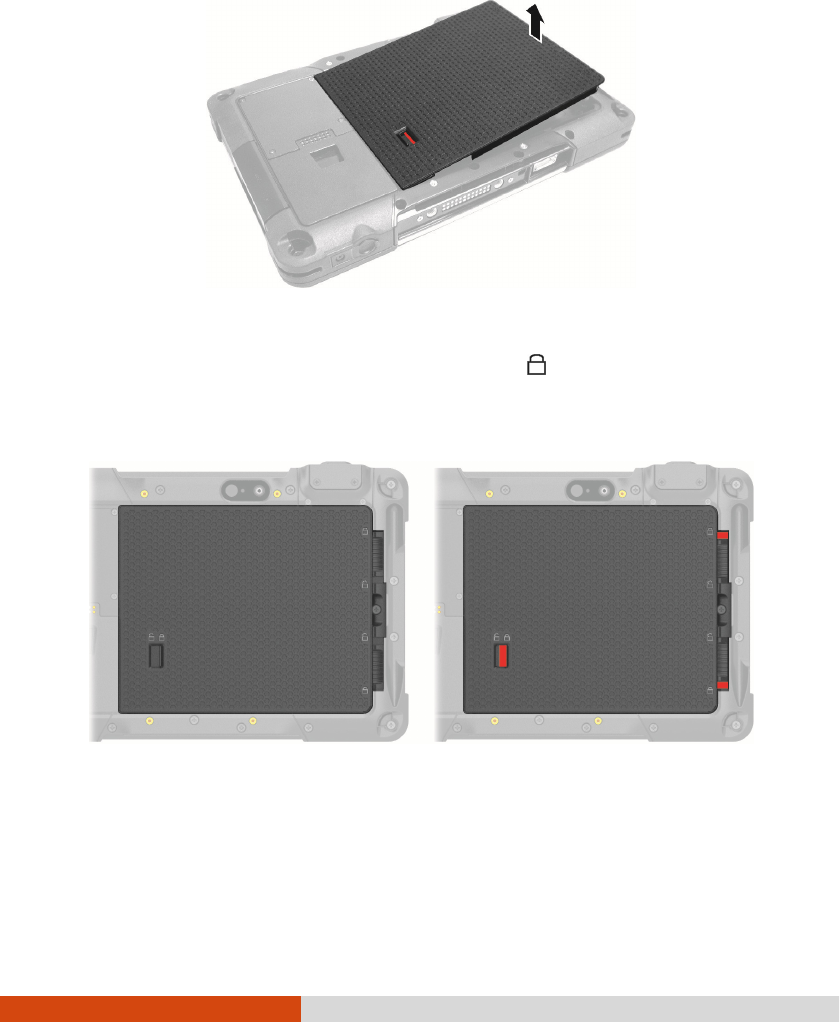

Battery Pack
Battery PackBattery Pack
Battery Pack
S
upplies power to your computer when external
power is not connected.
P. 30
Top
TopTop
Top
Components
ComponentsComponents
Components
Ref
RefRef
Ref
Component
ComponentComponent
Component
Description
DescriptionDescription
Description
See Also
See AlsoSee Also
See Also
Tether Holder
Tether HolderTether Holder
Tether Holder
For holding a tether (such as the stylus
tether). There is one holder at each corner of
the Tablet PC.
P. 5
None
NoneNone
None
Or can be one of the below components depending on your model:
Serial Port
Serial PortSerial Port
Serial Port
Connects a serial device. P. 40
MicroSD Card Slot
MicroSD Card SlotMicroSD Card Slot
MicroSD Card Slot
Accepts a microSD
card for removable storage
P. 41
13
media.
RJ
RJRJ
RJ-
--
-45
4545
45
Connector
ConnectorConnector
Connector
Connects the LAN cable. P. 20
Barcode Reader
Lens
Scans and reads barcodes. P. 54
Bottom
BottomBottom
Bottom
Components
ComponentsComponents
Components
Ref
RefRef
Ref
Component
ComponentComponent
Component
Description
DescriptionDescription
Description
See Also
See AlsoSee Also
See Also
Antenna
AntennaAntenna
Antenna
P
PP
Pass
assass
ass-
--
-
through
throughthrough
through
(optional)
Connects to the docking station for using
external GPS/WLAN/WWAN antenna.
Docking Connector
Docking ConnectorDocking Connector
Docking Connector
Connects to the docking s
tation (available as
an option).
Power Connector
Power ConnectorPower Connector
Power Connector Connects the AC adapter. P. 4
Righ
RighRigh
Right
tt
t-
--
-Side Components
Side ComponentsSide Components
Side Components
WWAN
WLAN
GPS
14
Ref
RefRef
Ref
Component
ComponentComponent
Component
Description
DescriptionDescription
Description
See Also
See AlsoSee Also
See Also
Micro HDMI
Micro HDMI Micro HDMI
Micro HDMI
Connector
ConnectorConnector
Connector
Connects a HDMI monitor or TV set. P. 39
USB
USB USB
USB 3.0
3.0 3.0
3.0 Port
PortPort
Port Connects a USB device. P. 37
Combo Audio
Combo AudioCombo Audio
Combo Audio
Connector
ConnectorConnector
Connector
Connects a set of headphones or external speakers
with amplifier
P. 38
Supports a headset microphone with 4-
pole TRRS
3.5mm jack.
15
Chapter 2
Chapter 2Chapter 2
Chapter 2
Operating Your
Operating Your Operating Your
Operating Your Tablet PC
Tablet PCTablet PC
Tablet PC
This chapter provides information about the use of the Tablet PC.
If you are new to Tablet PCs, reading this chapter will help you learn the operating
basics. If you are already a computer user, you may choose to read only the parts
containing information unique to your Tablet PC.
CAUTION:
Do not expose your skin to the Tablet PC when operating it
in a very hot or cold environment.
The Tablet PC can get uncomfortably warm when you use it in
high temperatures. As a safety precaution in such a
circumstance, do not place the Tablet PC on your lap or touch
it with your bare hands for extended periods of time.
Prolonged body contact can cause discomfort and potentially
a burn.
16
Nav
NavNav
Navigating on the Screen
igating on the Screenigating on the Screen
igating on the Screen
The screen of your Tablet PC is touch-sensitive. You can control the location of
the cursor/pointer on the screen using the included stylus or your finger to
communicate with the Tablet PC.
CAUTION: Do not use a sharp object such as a ballpoint pen or
pencil on the touchscreen. Doing so may damage the touchscreen
surface. Use the included stylus or your finger.
NOTE: An AG/AR film has been attached to the screen before
shipment. The film is a consumable, which will be worn out by
possible scratches. You can purchase a new one when replacement
is required.
Using the Touchscreen
Using the TouchscreenUsing the Touchscreen
Using the Touchscreen
NOTE: Instead of a hard tip, your stylus has a soft tip so that
it does not scratch the AG/AR film. It is normal for the soft
tip to wear out after a long period of use. You can purchase
a new one when needed.
The following table shows how you use the touchscreen to obtain equivalent mouse
functions.
17
Term/
Term/Term/
Term/Action
ActionAction
Action
E
EE
Equivalent
quivalentquivalent
quivalent
Mouse
Mouse Mouse
Mouse
Function
FunctionFunction
Function
Tap: Touch the screen once. Click/Point
Double-tap: Touch the screen twice rapidly. Double-click
Tap and hold: Tap and hold until a popup menu appears. Right-click
Drag: Hold the stylus (or finger)
on the screen and drag across
the screen until reaching your destination.
Drag
Using
Using Using
Using Multi
MultiMulti
Multi-
--
-touch Gestures
touch Gesturestouch Gestures
touch Gestures
You can interact with your Tablet PC by placing two fingers on the screen. The
movement of the fingers across the screen creates “gestures,” which send commands
to the Tablet PC.
Here are the multi-touch gestures that you can use:
Gestures
GesturesGestures
Gestures
Action
ActionAction
Actions
ss
s
( = finger down; = finger up)
( = finger down; = finger up)( = finger down; = finger up)
( = finger down; = finger up)
Descriptions
DescriptionsDescriptions
Descriptions
Pan
(Scroll)
or
Drag 1 or 2 fingers up or down.
Use panning to see
another part of a page that
has scroll bars.
Zoom
(Pinch)
Move two fingers apart/toward each
other.
Use zooming to make an
item (a photo for
example) on the screen
larger or smaller. The
gesture works in
applications that support
mouse wheel zooming.
18
Gestures
GesturesGestures
Gestures
Action
ActionAction
Actions
ss
s
( = finger down; = finger up)
( = finger down; = finger up)( = finger down; = finger up)
( = finger down; = finger up)
Descriptions
DescriptionsDescriptions
Descriptions
Rotate
or
Move two fingers in opposing directions.
-or-
Use one finger to pivot around another.
Use rotating to move a
picture or other item on
the screen in a circular
direction (clockwise or
counter-
clockwise). The gesture
works in applications that
support the specific
gesture.
Press and
Tap
Press on target and tap using a second
finger.
Use press and tap to
access the shortcut
menu.
Two-
finger Tap
Tap two fingers at the same time (where
the target is in the midpoint between the
fingers).
The function is defined by
applications that support
the specific gesture.
19
Gestures
GesturesGestures
Gestures
Action
ActionAction
Actions
ss
s
( = finger down; = finger up)
( = finger down; = finger up)( = finger down; = finger up)
( = finger down; = finger up)
Descriptions
DescriptionsDescriptions
Descriptions
Flicks
Make quick drag gestures in the desired
direction.
Flick left or right to
navigate back and forward
in a browser and other
applications. The gesture
works in most applications
that support back and
forward.
Using the
Using the Using the
Using the Dual Mode Display (Optional)
Dual Mode Display (Optional)Dual Mode Display (Optional)
Dual Mode Display (Optional)
Dual mode display (if your model has the feature) incorporates both touchscreen
and digitizer functions.
The display is set to Touchscreen mode by default. Touchscreen mode provides
all the functionalities that an ordinary touchscreen has. When the Tablet PC receives
signals from the digitizer pen, the display automatically switches to Digitizer mode.
You can move the cursor by bringing the digitizer pen close to the screen, without
actually touching the screen’s surface.
20
Using the
Using the Using the
Using the Network
NetworkNetwork
Network
Features
FeaturesFeatures
Features
Using the LA
Using the LAUsing the LA
Using the LAN
NN
N
(Optional)
(Optional)(Optional)
(Optional)
To connect the network cable to the LAN module (if your model has the feature),
connect one end of the LAN cable to the RJ-45 connector on the Tablet PC and
the other end to the network hub.
Using the WLAN
Using the WLANUsing the WLAN
Using the WLAN
The WLAN (Wireless Local Area Network) module supports IEEE 802.11ac,
compatible with 802.11a/b/g/n.
Turning O
Turning OTurning O
Turning On
nn
n/O
/O/O
/Off
ffff
ff
the WLAN
the WLANthe WLAN
the WLAN
Radio
RadioRadio
Radio
To turn on the WLAN radio:
1. Make sure that the Airplane mode is switched off. You can control the Airplane
mode using one of the below methods.
• Use the Airplane Mode button in the OSD Control Panel.
• For Windows 8: Open the Charms Bar, tap Settings Change PC Settings
Network Airplane mode. Slide the Airplane mode switch to the Off
position.
2. If you have previously turned off the WLAN radio, use one of the below methods
to turn it on.
21
• For Windows 8: Open the Charms Bar of Windows. Tap Settings Change
PC Settings Network Airplane mode. Slide the Wi-Fi switch to the On
position.
• For Windows 7: Use either Windows Mobility Center or Getac Quick Bar. To
open Getac Quick Bar, tap and hold the Getac Utility icon on Windows
taskbar and select Quick Ba
Quick BaQuick Ba
Quick Bar
rr
r. Tap the WLAN button in the Quick Bar (an
X over the button means the radio is currently off).
To turn off the WLAN radio:
You can turn off the WLAN radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on Airplane mode.
Connecting to a W
Connecting to a WConnecting to a W
Connecting to a WLAN
LANLAN
LAN
Network
NetworkNetwork
Network
1. Make sure that the WLAN function is enabled (as described above).
2. For Windows 8
For Windows 8For Windows 8
For Windows 8:
: :
: Open the Charms Bar of Windows. Tap Settings and then tap
.
For Windows 7
For Windows 7For Windows 7
For Windows 7:
::
:
Tap the Wireless Network icon on the taskbar. (An orange
light in the icon indicates connections are available.)
3. In the list of available wireless networks, tap a network, and then tap Connect
ConnectConnect
Connect.
4. Some networks require a network security key or passphrase. To connect to
one of those networks, ask your network administrator or Internet service provider
(ISP) for the security key or passphrase.
22
For more information on setting a wireless network connection, refer to Windows
online help.
NOTE: You can use Intel® PROSet Wireless to take full advantage
of the Wi-Fi capabilities of your Tablet PC. See the Help of
the utility for instructions.
23
Using
UsingUsing
Using
the
thethe
the
BT
BTBT
BT
Feature
FeatureFeature
Feature
The BT technology allows short-range wireless communications between devices
without requiring a cable connection. Data can be transmitted through walls, pockets
and briefcases as long as two devices are within range.
Turning
Turning Turning
Turning On/Off
On/Off On/Off
On/Off the
the the
the BT
BTBT
BT
Radio
RadioRadio
Radio
To turn on the BT radio:
1. Make sure that the Airplane mode is switched off. You can control the Airplane
mode using one of the below methods.
• Use the Airplane Mode button in the OSD Control Panel.
• For Windows 8: Open the Charms Bar, tap Settings Change PC Settings
Network Airplane mode. Slide the Airplane mode switch to the Off
position.
2. If you have previously turned off the BT radio, use one of the below methods
to turn it on.
• For Windows 8
For Windows 8For Windows 8
For Windows 8:
: :
: Open the Charms Bar of Windows. Tap Settings Change
PC Settings Network Airplane mode. Slide the BT switch to the On
position.
• For Windows 7
For Windows 7For Windows 7
For Windows 7:
::
: Use Getac Quick Bar. To open Getac Quick Bar, tap and
hold the Getac Utility icon on Windows taskbar and select Quick Ba
Quick BaQuick Ba
Quick Bar
rr
r.
Tap the BT button in the Quick Bar (an X over the button means the
radio is currently off).
24
To turn off the BT radio:
You can turn off the BT radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on Airplane mode.
Connecting to
Connecting to Connecting to
Connecting to a
aa
another
nother nother
nother BT
BTBT
BT
Device
DeviceDevice
Device
1. Make sure that the BT function is enabled (as described above).
2. Make sure that the target BT device is turned on, discoverable and within close
range. (See the documentation that came with the BT device.)
3. For Windows 8
For Windows 8For Windows 8
For Windows 8:
: :
: Open the Charms Bar of Windows. Tap Settings Change PC
Settings PC and devices Devices. Tap Add a device.
For Windows 7
For Windows 7For Windows 7
For Windows 7:
: :
: Tap and hold the BT icon on Windows taskbar. Tap Add a Device.
4. Select the device you want to connect from the search results.
5. Depending on the type of BT device that you want to connect to, you will need
to enter the pertinent information.
For detailed information on using the BT feature, see Windows’ online Help.
25
Using the
Using the Using the
Using the WWAN
WWAN WWAN
WWAN Feature
FeatureFeature
Feature
(
((
(Optional
OptionalOptional
Optional)
))
)
A WWAN (Wireless Wide Area Network) uses mobile telecommunication cellular
network technologies to transfer data. The WWAN module of your Tablet PC supports
3G and 4G LTE.
NOTE:
Your model only supports data transmission. Voice
transmission is not supported.
For instructions on installing the SIM card, see “Installing
the SIM Card (Optional)” in Chapter 1.
Turning
Turning Turning
Turning On/Off
On/Off On/Off
On/Off the WWAN Radio
the WWAN Radiothe WWAN Radio
the WWAN Radio
To turn on the WWAN radio:
1. Make sure that the Airplane mode is switched off. You can control the Airplane
mode using one of the below methods.
• Use the Airplane Mode button in the OSD Control Panel.
• For Windows 8: Open the Charms Bar, tap Settings Change PC Settings
Network Airplane mode. Slide the Airplane mode switch to the Off
position.
2. If you have previously turned off the WWAN radio, use one of the below methods
to turn it on.
• For Windows 8: Open the Charms Bar of Windows. Tap Settings Change
PC Settings Network Airplane mode. Slide the Mobile Broadband switch
to the On position.
• For Windows 7: Use the WWAN utility software or Getac Quick Bar. To open
Getac Quick Bar, tap and hold the Getac Utility icon on Windows taskbar
and select Quick Ba
Quick BaQuick Ba
Quick Bar
rr
r. Tap the WWAN button in the Quick Bar (an X over
the button means the radio is currently off).
26
To turn off the WWAN radio:
You can turn off the WWAN radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on
S
SS
Se
ee
etting up a WWAN Connection
tting up a WWAN Connectiontting up a WWAN Connection
tting up a WWAN Connection
1.
Make sure that the SIM card is inserted and the WWAN function is enabled
(as described above).
2. Start the WWAN utility software (AirCard Watcher
AirCard WatcherAirCard Watcher
AirCard Watcher)
. The screen as below
appears.
3. You can use the WWAN utility softw
are to configure and use WWAN connections.
See the online help for information.
You can turn off the WWAN radio the same way you turn it on.
If you want to quickly turn off all wireless radio, simply switch on
Airplane mode.
Make sure that the SIM card is inserted and the WWAN function is enabled
. The screen as below
are to configure and use WWAN connections.
27
Chapter 3
Chapter 3Chapter 3
Chapter 3
Managing Power
Managing PowerManaging Power
Managing Power
Your Tablet PC operates either on external AC power or on internal battery power.
This chapter tells you how you can effectively manage power. To maintain optimal
battery performance, it is important that you use the battery in the proper way.
28
AC Adapter
AC AdapterAC Adapter
AC Adapter
CAUTION:
The AC adapter is designed for use with your Tablet PC only.
Connecting the AC adapter to another device can damage the
adapter.
The AC power cord supplied with your Tablet PC is for use
in the country where you purchased your Tablet PC. If you
plan to go overseas with the Tablet PC, consult your dealer
for the appropriate power cord.
When you disconnect the AC adapter, disconnect from the
electrical outlet first and then from the Tablet PC. A
reverse procedure may damage the AC adapter or Tablet PC.
When unplugging the connector, always hold the plug head.
Never pull on the cord.
The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct
Current) power because your Tablet PC runs on DC power, but an electrical outlet
usually provides AC power. It also charges the battery pack when connected to AC
power.
The adapter operates on any voltage in the range of 100~240 V AC.
29
30
Battery Pack
Battery PackBattery Pack
Battery Pack
The battery pack is the internal power source for the Tablet PC. It is rechargeable
using the AC adapter.
NOTE: Care and maintenance information for the battery is
provided in the “Battery Pack Guidelines” section in Chapter
7.
Charging
ChargingCharging
Charging
the Battery Pack
the Battery Packthe Battery Pack
the Battery Pack
NOTE:
Charging will not start if the battery’s temperature is
outside the allowed range, which is between 0 °C (32 °F) and
50 °C (122 °F). Once the battery’s temperature meets the
requirements, charging automatically resumes.
During charging, do not disconnect the AC adapter before the
battery has been fully charged; otherwise you will get a
prematurely charged battery.
To charge the battery pack, connect the AC adapter to the Tablet PC and an electrical
outlet. The Battery Indicator ( ) on the Tablet PC glows amber to indicate that
charging is in progress. You are advised to keep the Tablet PC power off while
the battery is being charged. When the battery is fully charged, the Battery Indicator
glows green.
It takes approximately 3 hours to fully charge the battery pack when the power is
off and approximately 3.5 hours when the power is on (may need a longer charging
time at lower temperatures).
CAUTION: After the Tablet PC has been fully recharged, do not
immediately disconnect and reconnect the AC adapter to charge
it again. Doing so may damage the battery.
NOTE: The battery level may automatically lessen due to the
self-discharge process (0.21% per day), even when the battery
pack is fully charged (100%). This happens no matter if the
battery pack is installed in the Tablet PC.
31
Initializing the Battery Pack
Initializing the Battery PackInitializing the Battery Pack
Initializing the Battery Pack
You need to initialize a new battery pack before using it for the first time or when
the actual operating time of a battery pack is much less than expected. Initializing
is the process of fully charging, discharging, and then charging. It can take several
hours.
A software tool called “Gauge Reset” is provided for the purpose. Use the G-Manager
program and select the Battery tab to find the tool.
Checking the Battery Level
Checking the Battery LevelChecking the Battery Level
Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The
actual operating time can be different from the estimated time,
depending on how you are using the Tablet PC.
The operating time of a fully charged battery pack depends on how you are using
the Tablet PC. When your applications often access peripherals, you will experience
a shorter operating time.
By Operating System
By Operating SystemBy Operating System
By Operating System
You can check the approximate battery level using the battery meter function of the
operating system. To read the battery level in Windows, tap the battery icon on the
taskbar.
By Gas Gauge
By Gas GaugeBy Gas Gauge
By Gas Gauge
On the exterior side of the battery pack is a gas gauge for displaying the estimated
battery charge. When the battery pack is not installed in the Tablet PC and you
want to know the battery charge, you can press the switch with a pointed device
to see the corresponding value of indicator segment that light green.
32
The value of the corresponding green segment indicates the relative percentage of
the battery charge. The battery pack is fully discharged when you see no segment
glowing green.
Battery Low
Battery Low Battery Low
Battery Low Signals and Actions
Signals and ActionsSignals and Actions
Signals and Actions
The battery icon changes appearance to display the current state of the battery.
Battery
Battery Battery
Battery
Icon
IconIcon
Icon
Battery Level
Battery LevelBattery Level
Battery Level
Description
DescriptionDescription
Description
Discharging The icon shows the charge remaining in 10-
percent
increments until the charge reaches the low-
battery
level.
Low The battery charge has reached the low-
battery level
(10% by default).
Critically low
The battery charge has reached the critical battery
level (5% by default). By default, Windows will
display a notification and put your Tablet PC into
Hibernation.
When the battery is low, the Tablet PC’s Battery Indicator ( ) also blinks red
to alert you to take actions.
Switch
33
Always respond to low-battery by connecting the AC adapter, placing your Tablet
PC in Hibernation mode, or turning off the Tablet PC.
Replacing the Battery Pack
Replacing the Battery PackReplacing the Battery Pack
Replacing the Battery Pack
CAUTION:
There is danger of explosion if the battery is incorrectly
replaced. Replace the battery only with the Tablet PC
manufacturer’s battery. Discard used batteries according to
the dealer’s instructions.
Do not attempt to disassemble the battery pack.
1. Slide the three battery latches to the unlocked position ( ).
2. Lift the battery pack off the compartment.
34
3. Fit another battery pack into place.
4. Slide the three latches to the locked position ( ).
CAUTION: Make sure all the latches are correctly locked, not
revealing the underneath red part.
Correct Incorrect (revealing red
part)
35
Power
PowerPower
Power-
--
-Saving Tips
Saving TipsSaving Tips
Saving Tips
Aside from enabling your Tablet PC’s power saving mode, you can do your part
to maximize the battery’s operating time by following these suggestions.
Do not disable Power Management.
Decrease the LCD brightness to the lowest comfortable level.
Shorten the length of time before Windows turn off the display.
When not using a connected device, disconnect it.
Turn off the wireless radio if you are not using the wireless module (such as
WLAN, BT, or WWAN).
Turn off the Tablet PC when you are not using it.
36
Chapter 4
Chapter 4Chapter 4
Chapter 4
Expanding Your
Expanding Your Expanding Your
Expanding Your Tablet PC
Tablet PCTablet PC
Tablet PC
You can expand the capabilities of your Tablet PC by connecting other peripheral
devices. When using a device, be sure to read the instructions accompanying the
device together with the relevant section in this chapter.
37
Connecting a USB Device
Connecting a USB DeviceConnecting a USB Device
Connecting a USB Device
Your Tablet PC has a USB 3.0 port for connecting a USB device, such as a digital
camera, scanner, printer, modem, and mouse.
USB 3.0 supports a transfer rate up to 5 Gbit/s.
38
Connecting
Connecting Connecting
Connecting an
an an
an Audio Device
Audio DeviceAudio Device
Audio Device
For higher audio quality, you can send sound through an
external audio device
The audio combo connector is the “4-pole TRRS 3.5mm”
type
Recessed) so you can connect a c
ompatible headset microphone.
SAFETY WARNING:
To
prevent possible hearing damage, do not listen at high volume
levels for long periods.
external audio device
.
type
(Apple iPhone
ompatible headset microphone.
prevent possible hearing damage, do not listen at high volume
39
Connecting a
Connecting aConnecting a
Connecting an
nn
n
HDMI Display
HDMI DisplayHDMI Display
HDMI Display
Monitor
MonitorMonitor
Monitor
If you want the benefits of a larger display screen with higher resolution, you can
connect an external display monitor to your Tablet PC.
Your Tablet PC has a micro HDMI connector. HDMI (High-Definition Multimedia
Interface) is an audio/video interface that transmits uncompressed digital data and
therefore delivers true HD quality.
To switch the display output, use Windows Control Panel or OSD Control Panel.
40
Connecting a Serial Device
Connecting a Serial DeviceConnecting a Serial Device
Connecting a Serial Device
(Optional)
(Optional)(Optional)
(Optional)
If your model has the RS232 serial port, you can connect a serial device such
as a serial mouse or serial communication device.
41
Using
Using Using
Using M
MM
Micro
icroicro
icroSD
SD SD
SD Card
CardCard
Cards (Optional)
s (Optional)s (Optional)
s (Optional)
If your model has the microSD card reader, you can use microSD cards for removable
storage media.
To insert a microSD card:
1. Locate the microSD card reader. Open the cover.
2. Align the card with its connector pointing to the slot and the connector side
facing back. Slide the card into the slot until it reaches the end.
3. Windows will detect the card and assign it a drive name.
4. Close the cover.
To remove a microSD card:
1. Open File Explorer
File Explorer File Explorer
File Explorer and tap Computer
ComputerComputer
Computer.
2. Tap and hold the memory card icon and tap Eject
EjectEject
Eject.
3. Open the cover.
4. Slightly push the card to release and then pull it out of the slot.
5. Close the cover.
42
Chapter 5
Chapter 5Chapter 5
Chapter 5
Using
UsingUsing
Using
BIOS Setup
BIOS SetupBIOS Setup
BIOS Setup
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output
System) settings of the Tablet PC. BIOS is a layer of software, called firmware,
that translates instructions from other layers of software into instructions that the
computer hardware can understand. The BIOS settings are needed by your Tablet
PC to identify the types of installed devices and establish special features.
This chapter tells you how to use the BIOS Setup Utility.
43
When
When When
When and How
and How and How
and How to Use
to Useto Use
to Use
You need to run BIOS Setup Utility when:
You see an error message on the screen requesting you to run BIOS Setup
Utility.
You want to restore the factory default BIOS settings.
You want to modify some specific settings according to the hardware.
You want to modify some specific settings to optimize the system performance.
To run BIOS Setup Utility:
For Windows 8 models: Open the Charms Bar of Windows. Tap Settings
Change PC Settings Update and recovery Recovery. Under Advanced
startup, tap Restart now. In the boot options menu, tap Troubleshoot
Advanced options UEFI Firmware Settings. Tap Restart to restart the system
and enter UEFI (BIOS).
Method 1 for Windows 7 models: During system startup when the logo screen
appears, tap and hold the screen or press the Windows Logo button on your
device. This invokes a menu. Select Setup Utility in the menu.
Method 2 for Windows 7 models: If a keyboard is connected, press the F2
F2F2
F2 key
during system startup when the logo screen appears.
NOTE:
The actual setting items on your model may differ from those
described in this chapter.
If a setting item is not applicable to the current computer
configuration, the item may be grayed out or may not be
displayed in the menu.
44
Menu Descriptions
Menu DescriptionsMenu Descriptions
Menu Descriptions
Information
InformationInformation
Information
Menu
MenuMenu
Menu
The Information menu contains the basic configuration information of the system.
There are no user-definable items in this menu.
NOTE: The “Asset Tag” information appears when you have entered
the asset number for this Tablet PC using the asset management
program. The program is provided in the Asset tag folder of the
Driver disc.
Main Menu
Main MenuMain Menu
Main Menu
The Main menu contains the various system settings.
System Date
System DateSystem Date
System Date sets the system date.
System Time
System TimeSystem Time
System Time sets the system time.
UEFI Boot enables or disables booting using UEFI (Unified Extensible Firmware
Interface). UEFI is a new type of firmware after the BIOS firmware.
Legacy Boot enables or disables booting using legacy BIOS.
PXE Boot sets the PXE boot to
UEFI
or
Legacy
. PXE (Preboot eXecution
Environment) is an environment to boot computers using a network interface
independently of data storage devices or installed operating systems.
45
Advanced Menu
Advanced MenuAdvanced Menu
Advanced Menu
The Advanced menu contains the advanced settings.
Wake Up Capability
Wake Up CapabilityWake Up Capability
Wake Up Capability
RTC S4 wakeup enables or disables the RTC (Real Time Clock) wakeup from
S4 (Hibernation) feature when AC power is connected. Set this item to
Enabled
if you use Windows task scheduler to have the computer automatically perform
tasks at specific times.
USB Wake-Up From S3 allow a USB device activity to wake up the system from
S3 (Sleep) state.
Battery Mode allows you to choose between
Performance
and
Balance
. If battery
life is your first priority, select
Balance
. If you need system performance more
than battery life, select
Performance
.
AC Initiation
AC Initiation AC Initiation
AC Initiation sets if connecting AC power will automatically start or resume the
system.
Virtualization Technology
Virtualization Technology Virtualization Technology
Virtualization Technology Setup
SetupSetup
Setup
Intel(R) Virtualization
Intel(R) Virtualization Intel(R) Virtualization
Intel(R) Virtualization Technology
TechnologyTechnology
Technology enables or disables Intel® VT (Intel
Virtualization Technology) feature which provides hardware support for processor
virtualization. When enabled, a VMM (Virtual Machine Monitor) can utilize the
additional hardware virtualization capabilities provided by this technology.
Graphics Setup
Graphics SetupGraphics Setup
Graphics Setup
DVMT
DVMTDVMT
DVMT
Pre
PrePre
Pre-
--
-Allocated
AllocatedAllocated
Allocated
sets the amount of pre-allocated (fixed) graphics memory
for use by the internal graphics device.
Device Configuration enables or disables several hardware components. The
items available for setting depend on your model.
46
Security
SecuritySecurity
Security
Menu
MenuMenu
Menu
The Security menu contains the security settings, which safeguard your system against
unauthorized use.
NOTE:
You can set the user password only when the supervisor
password has been set.
If both the supervisor and user passwords are set, you can
enter any of them for starting up the system and/or entering
BIOS Setup. However, the user password only allows you to
view/change the settings of certain items.
A password setting is applied right after it is confirmed.
To cancel a password, leave the password empty by pressing
the Enter key.
Set
SetSet
Set
Supervisor/User
Supervisor/User Supervisor/User
Supervisor/User Password
PasswordPassword
Password sets the supervisor/user password. You can set
the supervisor/user password to be required for starting up the system and/or
entering BIOS Setup.
Power on
Power on Power on
Power on Password
PasswordPassword
Password allows you to enable or disable the entering of password
for booting up your system.
Set HDD
Set HDDSet HDD
Set HDD
0
0 0
0 User
User User
User Password
PasswordPassword
Password sets the password for locking the Primary Master hard
disk drive. After setting a password, the hard disk drive can only be unlocked
by the password no matter where it is installed.
Secure Boot Configuration
Secure Boot ConfigurationSecure Boot Configuration
Secure Boot Configuration
Secure Boot enables or disables Secure Boot. Secure Boot is a feature that helps
prevent unauthorized firmware, operating systems, or UEFI drivers from running
at boot time.
Delete all Security Boot keys deletes all secure boot variables.
Restore Factory Defaults resets secure boot variables to manufacturing defaults.
47
Boot Menu
Boot MenuBoot Menu
Boot Menu
The Boot menu sets the sequence of the devices to be searched for the operating
system.
Boot Device Priority determines the boot order. You can rearrange the order by
dragging the boot device name up or down in the list.
Each boot device can be individually set to
On
or
Off
. If you want to exclude
a boot device from the boot order, set the device to
Off
.
Exit Menu
Exit MenuExit Menu
Exit Menu
The Exit menu displays ways of exiting BIOS Setup Utility. After finishing with your
settings, you must save and exit so that the changes can take effect.
Exit
ExitExit
Exit
Saving Changes
Saving ChangesSaving Changes
Saving Changes
saves the changes you have made and exits BIOS Setup
Utility.
Exit Discarding Changes
Exit Discarding ChangesExit Discarding Changes
Exit Discarding Changes
exits BIOS Setup Utility without saving the changes you
have made.
Load Setu
Load SetuLoad Setu
Load Setup
p p
p Default
DefaultDefault
Defaults
ss
s loads the factory default values for all the items.
Discard Changes
Discard ChangesDiscard Changes
Discard Changes
restores the previous values for all the items.
Saves Changes
Saves Changes Saves Changes
Saves Changes saves the changes you have made.
48
Chapter 6
Chapter 6Chapter 6
Chapter 6
Using
Using Using
Using Getac Software
Getac SoftwareGetac Software
Getac Software
Getac software includes application programs for specific computer components and
utility programs for overall management.
This chapter briefly describes the programs.
49
OSD Control Panel
OSD Control PanelOSD Control Panel
OSD Control Panel
The OSD (On Screen Display) Control Panel provides a user-friendly interface for
you to quickly activate or operate certain functions on your Tablet PC with a simple
tap of the screen.
To open the OSD Control Panel, start the program named OSDC.
OSDC.OSDC.
OSDC. You can also press
the P2 button on your computer to open it. The following screen appears.
For detailed information on the program, see the program’s online help.
Help
50
G
GG
G-
--
-Manager
ManagerManager
Manager
G-Manager is a unified user interface utility that allows you to view, manage, or
configure your computer features.
With G-Manager, you can perform all or some of the tasks listed below.
View system information.
Check the battery status and configure the battery.
Configure ECO modes (or called power profiles).
View light sensor information (select models only).
Set if your system will switch to the external antenna when connected to the
docking station (select models only).
Change the function of the hardware button.
Configure how your system works with the vehicle ignition (select models only).
Monitor the system.
View GPS information (select models only).
Tap and hold the Getac Utility icon located on Windows taskbar and select
G-Manager to start the program. The G-Manager window appears, containing several
tabs.
NOTE: Depending on your model, the actual items and information
appearing on the screen may differ from those shown in this
manual.
51
For detailed information on the program, see the program’
s online help.
Help
s online help.
52
Getac Camera (Optional)
Getac Camera (Optional)Getac Camera (Optional)
Getac Camera (Optional)
Getac Camera is a geo-
tagging camera program, which allows you to stamp
geographical information on photos as watermarks and embed such information into
JPEG files as EXIF 2.2 metadata.
NOTE:
Getac Camera works with Virtual-
GPS (a separate
application program).
Before starting Getac Camera, close any other program that
uses the camera; otherwise, Getac Camera can only provide
limited functions.
Start Getac Camera. The Getac Camera win
dow appears as shown below.
The GPS positioning will be automatically
activated. When the GPS positioning
completed, you will see the geographical information in the
watermark area on the
image.
tagging camera program, which allows you to stamp
geographical information on photos as watermarks and embed such information into
GPS (a separate
Before starting Getac Camera, close any other program that
uses the camera; otherwise, Getac Camera can only provide
dow appears as shown below.
activated. When the GPS positioning
is
watermark area on the
53
For detailed information on the program, see the program’s online help. Tap
and then .
54
Using the
Using the Using the
Using the Barcode
Barcode Barcode
Barcode Reader (Optional)
Reader (Optional)Reader (Optional)
Reader (Optional)
NOTE: For enhanced applications and customization of the
module, contact your authorized Getac dealer.
If your model has the barcode reader module, you can read barcodes of the following
types:
Code 39
Code 128
EAN/JAN/UPC
GS1 Databar
Interleaved 2 of 5
PDF417
QR Code
Data Matrix
OCR
To read barcodes:
1. Start your processing software and open a new or existing file. Place the insertion
point (or called cursor) where you want the data to be entered.
2. Press and hold the Trigger button of your Tablet PC while aiming the green
scan beam at the barcode.
The beam should be centered over the barcode. Adjust the lens’ distance from
the barcode, shorter for a smaller barcode and farther for a larger one.
55
NOTE: If the code being scanned is highly reflective (e.g.,
laminated), it may be necessary to tilt the code +5° to prevent
unwanted reflection.
3. Upon a successful scan, the system beeps and the scan beam turns off. The
decoded barcode data will be entered into your processing software.
Trigger
button
56
Chapter 7
Chapter 7Chapter 7
Chapter 7
Car
CarCar
Care
ee
e
and
andand
and
Maintenance
MaintenanceMaintenance
Maintenance
Taking good care of your Tablet PC will ensure a trouble-free operation and reduce
the risk of damage to your Tablet PC.
This chapter gives you guidelines covering areas such as protecting, storing, cleaning,
and traveling.
57
Taking Care of the
Taking Care of the Taking Care of the
Taking Care of the Tablet PC
Tablet PCTablet PC
Tablet PC
Location
LocationLocation
Location
Guidelines
GuidelinesGuidelines
Guidelines
For optimal performance, use the Tablet PC where the recommended temperature
is between 0 °C (32 °F) and 50 °C (122 °F). (Actual operating temperature
depends on product specifications.)
Avoid placing the Tablet PC in a location subject to high humidity, extreme
temperatures, mechanical vibration, direct sunlight, or heavy dust. Using in
extreme environments for long periods can result in product deterioration and
a shortened product life.
Operating in an environment with metallic dust is not allowed.
Place the Tablet PC on a flat and steady surface. Do not stand the Tablet
PC on its side or store it in an upside-down position. A strong impact by dropping
or hitting may damage the Tablet PC.
Do not cover or block any ventilation openings on the Tablet PC. For example,
do not place the Tablet PC on a bed, sofa, rug, or other similar surface.
Otherwise, overheating may occur that results in damage to the Tablet PC.
As the Tablet PC can become very hot during operation, keep it away from
objects that are vulnerable to heat.
Keep the Tablet PC at least 13 cm (5 inches) away from electrical appliances
that can generate a strong magnetic field such as a TV, refrigerator, motor,
or a large audio speaker.
Avoid moving the Tablet PC abruptly from a cold to a warm place.
A temperature difference of more than 10 °C (18 °F) may cause condensation
inside the unit, which may damage the storage media.
58
General
GeneralGeneral
General
Guidelines
GuidelinesGuidelines
Guidelines
Do not expose your skin to the Tablet PC when operating it in a very hot or
cold environment.
Do not place heavy objects on top of the Tablet PC as this may damage the
display.
The screen surface is easily scratched. Avoid touching it with a sharp object
such as a pen or pencil.
LCD image sticking occurs when a fixed pattern is displayed on the screen for
a prolonged period of time. You can avoid the problem by limiting the amount
of static content on the display. It is recommended that you use a screen saver
or turn off the display when it is not in use.
To maximize the life of the backlight in the display, allow the backlight to
automatically turn off as a result of power management.
Cleaning
CleaningCleaning
Cleaning
Guidelines
GuidelinesGuidelines
Guidelines
Never clean the Tablet PC with its power on.
Use a soft cloth moistened with water or a non-alkaline detergent to wipe the
exterior of the Tablet PC.
Gently wipe the display with a soft, lint-free cloth.
If water or liquid is split onto the Tablet PC, wipe it dry and clean when possible.
Though your Tablet PC is water-proof, do not leave the Tablet PC wet when
you can dry it.
If the Tablet PC gets wet where the temperature is 0°C (32°F) or below,
freeze damage may occur. Make sure to dry the wet Tablet PC.
59
Battery
Battery Battery
Battery Pack
PackPack
Pack
Guidelines
GuidelinesGuidelines
Guidelines
Recharge the battery pack when it is nearly discharged. When recharging, make
sure that the battery pack is fully charged. Doing so may avoid harm to the
battery pack.
The battery pack is a consumable product and the following conditions will shorten
its life:
– when frequently charging the battery pack
– when using, charging, or storing the battery in high temperature
condition
To avoid hastening the deterioration of the battery pack thereby prolonging its
useful life, minimize the number of times you charge it so as not to frequently
increase its internal temperature.
Charge the battery pack between 10 °C ~ 30 °C (50 °F ~ 86 °F) temperature
range. A higher environment temperature will cause the battery pack’s temperature
to rise. Avoid charging the battery pack inside a closed vehicle and in hot weather
condition. Also, charging will not start if the battery pack is not within the allowed
temperature range.
It is recommended that you do not charge the battery pack more than once
a day.
It is recommended that you charge the battery pack with the Tablet PC’s power
off.
To maintain the battery pack’s operating efficiency, store it in a cool dark place
removed from the Tablet PC and with 30 % ~ 40 % charge remaining.
Important guidelines when using the battery pack.
When installing or removing the battery pack take note of the following:
– avoid installing or removing the battery pack when the Tablet PC is in
Sleep mode. Abruptly removing the battery pack may cause loss of
data or the Tablet PC may become unstable.
60
– avoid touching the battery pack terminals or damage may occur,
thereby causing improper operation to it or the Tablet PC.
The Tablet PC’s input voltage and surrounding temperature will directly affect
the battery pack’s charge and discharge time:
– charging time will be prolonged when the Tablet PC is turned on.
To shorten the charging time, it is recommended that you place the
Tablet PC in Sleep or hibernation mode.
– a low temperature will prolong the charging time as well as hasten
the discharge time.
When using battery power in an extremely low temperature environment, you
may experience shortened operating time and incorrect battery level reading. This
phenomenon comes from the chemical characteristics of batteries. The appropriate
operating temperature for the battery is -10 °C ~ 50 °C (14 °F ~ 122 °F).
Do not leave the battery pack in storage for more than six months without
recharging it.
Touchscreen
TouchscreenTouchscreen
Touchscreen
Guidelines
GuidelinesGuidelines
Guidelines
Use the finger or the included stylus on the display. Using a sharp or metallic
object other than your finger or stylus may cause scratches and damage the
display, thereby causing errors.
Use a soft cloth to remove dirt on the display. The touchscreen surface has
a special protective coating that prevents dirt from sticking to it. Not using a
soft cloth may cause damage to the special protective coating on the touchscreen
surface.
Turn off the Tablet PC power when cleaning the display. Cleaning the display
with the power on may cause improper operation.
Do not use excessive force on the display. Avoid placing objects on top of the
display as this may cause the glass to break thereby damaging the display.
61
Using the touchscreen during low temperature (less than 5
o
C) may cause
a slower response time, this is normal. A normal response time may be restored
upon returning to room temperature.
When there is noticeable discrepancy in the operation of the touchscreen function
(wrong location on intended operation or improper display resolution), refer to
the Windows online Help for instructions on recalibrating the touchscreen display.
62
When Traveling
When TravelingWhen Traveling
When Traveling
Before traveling with your Tablet PC, make a backup of your hard disk data
into flash disks or other storage devices. As an added precaution, bring along
an extra copy of your important data.
Make sure that the battery pack is fully charged.
Make sure that the Tablet PC is turned off.
Make sure that all the connector covers are closed completely to ensure the
waterproof integrity.
Disconnect the AC adapter from the Tablet PC and take it with you. Use the
AC adapter as the power source and as a battery-charger.
Hand-carry the Tablet PC. Do not check it in as luggage.
If you need to leave the Tablet PC in the car, put it in the trunk of the car
to avoid exposing the Tablet PC to excessive heat.
When going through airport security, it is recommended that you send the Tablet
PC and flash disks through the X-ray machine (the device you set your bags
on). Avoid the magnetic detector (the device you walk through) or the magnetic
wand (the handheld device used by security personnel).
If you plan to travel abroad with your Tablet PC, consult your dealer for the
appropriate AC power cord for use in your country of destination.
63
Chapter 8
Chapter 8Chapter 8
Chapter 8
Troubleshooting
TroubleshootingTroubleshooting
Troubleshooting
Computer problems can be caused by hardware, software, or both. When you
encounter any problem, it might be a typical problem that can easily be solved.
This chapter tells you what actions to take when solving common computer problems.
64
Preliminary Checklist
Preliminary ChecklistPreliminary Checklist
Preliminary Checklist
Here are helpful hints to follow before you take further actions when you encounter
any problem:
Try to isolate which part of the Tablet PC is causing the problem.
Make sure that you turn on all peripheral devices before turning on the Tablet
PC.
If an external device has a problem, make sure that the cable connections are
correct and secure.
Make sure that the configuration information is properly set in the BIOS Setup
program.
Make sure that all the device drivers are correctly installed.
Make notes of your observations. Are there any messages on the screen? Do
any indicators light? Do you hear any beeps? Detailed descriptions are useful
to the service personnel when you need to consult one for assistance.
If any problem persists after you follow the instructions in this chapter, contact an
authorized dealer for help.
65
Solving Common Problems
Solving Common ProblemsSolving Common Problems
Solving Common Problems
Battery Problems
Battery ProblemsBattery Problems
Battery Problems
The battery does not charge (Battery indicator does not light amber).
Make sure that the AC adapter is properly connected.
Make sure that the battery is not too hot or cold. Allow time for the battery
pack to return to room temperature.
If the battery doesn't charge after it has been stored in very low temperatures,
try disconnecting and reconnecting the AC adapter to solve the problem.
Make sure that the battery pack is installed correctly.
Make sure that the battery terminals are clean.
The operating time of a fully charged battery becomes shorter.
If you often partially recharge and discharge, the battery might not be charged
to its full potential. Initialize the battery to solve the problem.
The battery operating time indicated by the battery meter does not match the
actual operating time.
The actual operating time can be different from the estimated time, depending
on how you are using the Tablet PC. If the actual operating time is much less
than the estimated time, initialize the battery.
BT
Wireless Transmission
Wireless Transmission Wireless Transmission
Wireless Transmission Problems
ProblemsProblems
Problems
I cannot connect to another device with BT wireless technology.
Make sure that both devices have activated BT feature.
Make sure that the distance between the two devices is within the limit and
that there are no walls or other obstructions between the devices.
66
Make sure that the other device is not in “Hidden” mode.
Make sure that both devices are compatible.
Display Problems
Display ProblemsDisplay Problems
Display Problems
Nothing appears on the screen.
During operation, the screen may automatically turn off as a result of power
management. Press any key to see if the screen comes back.
The brightness level might be too low. Increase the brightness.
The characters on the screen are dim.
Adjust the brightness and/or contrast.
The display brightness cannot be increased.
As a protection, the display brightness will be fixed at a low level when the
surrounding temperature is too high or too low. It is not a malfunction in this
situation.
Bad dots appear on the display at all times.
A small number of missing, discolored, or bright dots on the screen are an
intrinsic characteristic of TFT LCD technology. It is not regarded as a LCD defect.
Clouding (or called “mura”) happens on the screen when you exert forces on
the left or right side of the LCD frame.
This is a normal
phenomenon
, not a defect.
Hardware Device Problems
Hardware Device ProblemsHardware Device Problems
Hardware Device Problems
The Tablet PC does not recognize a newly installed device.
The device may not be correctly configured in the BIOS Setup program. Run
the BIOS Setup program to identify the new type.
67
Make sure if any device driver needs to be installed. (Refer to the documentation
that came with the device.)
Make sure if the device needs any jumper or switch settings. (Refer to the
documentation that came with the device.)
Check the cables or power cords for correct connections.
For an external device that has its own power switch, make sure that the power
is turned on.
Power Management Proble
Power Management ProblePower Management Proble
Power Management Problems
msms
ms
The Tablet PC does not enter Sleep or Hibernation mode automatically.
If you have a connection to another computer, the Tablet PC does not enter
Sleep or Hibernation mode if the connection is actively in use.
Make sure that the Sleep or Hibernation time-out is enabled.
The Tablet PC does not enter Sleep or Hibernation mode immediately.
If the Tablet PC is performing an operation, it normally waits for the operation
to finish.
The Tablet PC does not resume from Sleep or Hibernation mode.
The Tablet PC automatically enters Sleep or Hibernation mode when the battery
pack is empty. Do any one of the following:
− Connect the AC adapter to the Tablet PC.
− Replace the empty battery pack with a fully charged one.
68
Sensor
SensorSensor
Sensor
Problems
ProblemsProblems
Problems
(for Windows 8 Models
(for Windows 8 Models(for Windows 8 Models
(for Windows 8 Models
Only
OnlyOnly
Only)
))
)
The built-in digital compass doesn’t seem to be accurate.
Rotating the display can affect the accuracy of the digital compass. This is normal,
not a malfunction. The sensors for the compass require periodic recalibration.
Follow this method to recalibrate the sensors:
1. Make sure you are far away from any large metal objects or magnetic fields.
2. Start an application that utilizes the digital compass.
3. Hold the Tablet PC level with the horizon, with the LCD side facing up.
4. Rotate the Tablet PC 360° at least three times around each axis (X, Y,
and Z) as shown below.
69
Software Problems
Software ProblemsSoftware Problems
Software Problems
An application program does not work correctly.
Make sure that the software is correctly installed.
If an error message appears on the screen, consult the software program’s
documentation for further information.
If you are sure the operation has stop, reset the Tablet PC.
Sound Problems
Sound ProblemsSound Problems
Sound Problems
No sound is produced.
Make sure that the volume control is not set too low. Increase the volume.
Make sure that the sound is not muted.
Make sure that the Tablet PC is not in Sleep mode.
If using an external speaker, make sure that the speaker is properly connected.
Distorted sound is produced.
Make sure that the volume control is not set too high or too low. In most cases,
a high setting can cause the audio electronics to distort the sound.
Startup Problems
Startup ProblemsStartup Problems
Startup Problems
When you turn on the Tablet PC, it does not respond and the Power Indicator
does not light green.
If you are using an external AC power, make sure that the AC adapter is correctly
and securely connected. If so, make sure that the electrical outlet works properly.
If you are using the battery power, make sure that the battery is not discharged.
70
When you turn on the Tablet PC, it stops after POST.
Reset your Tablet PC.
WAN Problems
WAN ProblemsWAN Problems
WAN Problems
I cannot use the WLAN feature.
Make sure that the WLAN feature is turned on.
Transmission quality is poor.
Your Tablet PC may be in an out-of-range situation. Move your Tablet PC
closer to the Access Point or another WLAN device it is associated with.
Check if there is high interference around the environment and solve the problem
as described next.
Radio interference exists.
Move your Tablet PC away from the device causing the radio interference such
as microwave oven and large metal objects.
Plug your Tablet PC into an outlet on a different branch circuit from that used
by the affecting device.
Consult your dealer or an experienced radio technician for help.
I cannot connect to another WLAN device.
Make sure that the WLAN feature is turned on.
Make sure that the SSID setting is the same for every WLAN device in the
network.
Your Tablet PC is not recognizing changes. Restart the Tablet PC.
Make sure that the IP address or subnet mask setting is correct.
71
I cannot communicate with the computer in the network when Infrastructure
mode is configured.
Make sure that the Access Point your Tablet PC is associated with is powered
on and all the LEDs are working properly.
If the operating radio channel is in poor quality, change the Access Point and
all the wireless station(s) within the BSSID to another radio channel.
Your Tablet PC may be in an out-of-range situation. Move your Tablet PC
closer to the Access Point it is associated with.
Make sure that your Tablet PC is configured with the same security option
(encryption) to the Access Point.
Use the Web Manager/Telnet of the Access Point to check whether it is connected
to the network.
Reconfigure and reset the Access Point.
I cannot access the network.
Make sure that the network configuration is appropriate.
Make sure that the user name or password is correct.
You have moved out of range of the network.
Turn off power management.
Other
OtherOther
Other
Problems
ProblemsProblems
Problems
The date/time is incorrect.
Correct the date and time via the operating system or BIOS Setup program.
After you have performed everything as described above and still have the
incorrect date and time every time you turn on the Tablet PC, the RTC
(Real-Time Clock) battery is at the end of its life. Call an authorized dealer
to replace the RTC battery.
72
Resetting
ResettingResetting
Resetting
the
the the
the Tablet PC
Tablet PCTablet PC
Tablet PC
You may have to reset (reboot) your Tablet PC on some occasions when an error
occurs and the program you are using hangs up.
If you are sure the operation has stopped and you cannot use the “restart” function
of the operating system, reset the Tablet PC.
Reset the Tablet PC by any one of these methods:
Press and hold the P
PP
P2
22
2 button for more than 2 seconds. This opens the Ctrl
CtrlCtrl
Ctrl-
--
-Alt
AltAlt
Alt-
--
-Del
DelDel
Del
screen where you can select actions including Restart
RestartRestart
Restart.
If the above action does not work, press and hold the power button for more
than 5 seconds to force the system to turn off. Then turn on the power again.
73
System Recovery
System RecoverySystem Recovery
System Recovery
System Restore, Refresh, or Reset (for Windows 8
System Restore, Refresh, or Reset (for Windows 8 System Restore, Refresh, or Reset (for Windows 8
System Restore, Refresh, or Reset (for Windows 8
Models)
Models)Models)
Models)
If you're having problems with your Windows 8 computer, you can try to restore,
refresh, or reset it.
To restore your computer to an earlier point in time:
1. Enter Recovery in the search box.
2. Tap Settings, and then tap Recovery.
3. Tap Open System Restore.
To refresh your computer without affecting your files:
1. Open the Charms Bar of Windows.
2. Tap Settings Change PC Settings Update and recovery Recovery.
3. Under Refresh your PC without affecting your files, tap Get started.
To remove everything and reinstall Windows:
1. Open the Charms Bar of Windows.
2. Tap Settings Change PC Settings Update and recovery Recovery.
3. Under Remove everything and reinstall Windows, tap Get started.
74
System Recovery
System RecoverySystem Recovery
System Recovery
(a Tool for Windows 7 Models)
(a Tool for Windows 7 Models)(a Tool for Windows 7 Models)
(a Tool for Windows 7 Models)
Use System Recovery when:
The Windows 7 operating system does not start at all.
You want to restore the system to the factory state.
WARNING:
Using this feature will reinstall Windows to your system and
configure it to the system’s factory default settings. All
data on the hard disk drive will be lost.
Make sure that power is not interrupted during the recovery
process. An unsuccessful recovery may result in Windows
startup problems.
To run System Recovery:
1. Connect the AC adapter.
2. Turn on the Tablet PC. During system startup when the logo screen appears,
tap and hold the screen or press the Windows Logo button on your device. This
invokes a menu. Select HDI Recovery in the menu.
Or, if a keyboard is connected, you can press Ctrl
Ctrl Ctrl
Ctrl + Alt
Alt Alt
Alt + F2
F2F2
F2 keys for four seconds
instead of tapping the screen.
75
3. In the screen that appears, select Recovery
RecoveryRecovery
Recovery to start the recovery process.
4. The progress bar shows the percentage completed. When it reaches 100%, the
system turns off.
5. Turn on the Tablet PC. The Windows setup wizard starts. Follow the onscreen
prompts to continue.
6. When the system restarts, the installer screen appears. The installer will perform
system hardware detection and driver installation.
7. When completed, the system restarts and displays Windows desktop.
76
77
Appendix A
Appendix AAppendix A
Appendix A
Specifications
SpecificationsSpecifications
Specifications
NOTE: Specifications are subject to change without any prior
notice.
Parts
PartsParts
Parts
Specifications
SpecificationsSpecifications
Specifications
CPU Intel® Bay Trail-M processor
BIOS Insyde, Flash EEPROM, supporting UEFI
RAM 2GB/4GB DDR3L 1066/1333MHz SO-DIMM
Video Controller UMA - Intel® HD Graphics
Display Panel
8.1-inch (16:10) TFT LCD, 1280 x 800 resolution,
sunlight readable, dimmer mode, blackout mode, 600 Nits
Touchscreen
Capacitive multi-touch screen - 5 points
Audio Features Azalia, High Definition audio
Speaker 1.5W x 1
Microphone Integrated microphone
Hard disk drive SATA 2.0, 64/128 GB SSD (Solid-State Disk)
I/O
ports
Standard USB 3.0, combo audio (4-pole TRRS 3.5mm type),
micro HDMI, Docking, Expansion
Optional One of the below options on the top side:
RS232 / RJ-45 / microSD / barcode reader
LAN (option) 10/100/1000 Mbps Ethernet
78
Parts
PartsParts
Parts
Specifications
SpecificationsSpecifications
Specifications
Wireless LAN + BT Integrated 802.11ac WLAN, IEEE 802.11a/b/g/n
compatible, BT 4.0 + EDR
GPS (option) NMEA0183
WWAN (option) 3G/4G LTE
Camera (option) Front: HD
Rear: 5M pixel, autofocus, LED, video capture
Power
AC adapter Universal 65 W; input: 100∼240 V, 50/60 Hz;
output:
19V
Battery pack
Lithium-ion Prismatic type, 4-cell
Dimension (LxW×D) 227 x 150 x 23.7 mm (8.93 × 5.90 × 0.93 inch)
Weight 950 g (2.09 lb)
Button
Button Button
Button Functions
Functions Functions
Functions on Special Occasions
on Special Occasionson Special Occasions
on Special Occasions
On “POST/BIOS Setup/Non-ACPI” occasions, the five hardware buttons provide
keyboard key functions as described below.
Button
ButtonButton
Button
Function
FunctionFunction
Function
Tab
Esc
Enter
↑
↑↑
↑
Up
↓
↓↓
↓
Down
79
Appendix B
Appendix BAppendix B
Appendix B
Regulatory
RegulatoryRegulatory
Regulatory
Information
InformationInformation
Information
This appendix provides regulatory statements and safety notices on your Tablet PC.
NOTE: Marking labels located on the exterior of your Tablet PC
indicate the regulations that your model complies with. Please
check the marking labels and refer to the corresponding
statements in this appendix. Some notices apply to specific
models only.
80
On the Use of the System
On the Use of the SystemOn the Use of the System
On the Use of the System
Class B Regulations
Class B RegulationsClass B Regulations
Class B Regulations
USA
USAUSA
USA
Federal Communications Commission Radio Frequency Interference Statement
NOTE:
NOTE:NOTE:
NOTE:
This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur
in a particular installation. If this equipment does cause harmful interference to radio
or television reception, which can be determined by turning the equipment off and
on, the user is encouraged to try to correct the interference by one or more of the
following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
Please note:
Please note:Please note:
Please note:
The use of a non-shielded interface cable with this equipment is prohibited.
81
Canada
CanadaCanada
Canada
Canadian Department of Communications
Radio Interference Regulations Class B Compliance Notice
This Class B digital apparatus meets all requirements of the Canada
Interference-Causing equipment regulations.
Cet appareil numérique de Classe B respecte toutes les exigences du Règlement
Canadien sur le matériel brouileur.
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe B prescrites dans le
Règlement sur le brouillage radioélectrique édicté par le ministère des Communications
du Canada.
ANSI Warning
ANSI WarningANSI Warning
ANSI Warning
Equipment approved for ANSI/ISA 12.12.01, Nonincendive Electrical Equipment for
use in Class 1, Division 2, Group A, B, C, and D.
Maximum ambient temperature: -25°C∼55°C
WARNING: To prevent ignition of a hazardous atmosphere, batteries must only
be changed or charged in an area known to be non-hazardous.
EXPLOSION HARZARD WARNING: External connections/hubs through the connectors
as mentioned (USB connector, Ethernet connector, serial port, power supply
connector, microphone jack, headphones jack, and buttons/
switches) are not to be used in a hazardous location.
Power adapter shall not be used in hazardous locations.
82
Safety Notices
Safety NoticesSafety Notices
Safety Notices
About the Battery
About the BatteryAbout the Battery
About the Battery
Caution Texts Concerning Lithium Batteries
DANISH
DANISHDANISH
DANISH
ADVARSEL! Lithiumbatteri – Eksplosionsfare ved fejlagtig håndtering. Udskiftning må
kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage
til leverandøren.
NORWEGIAN
NORWEGIANNORWEGIAN
NORWEGIAN
ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype
eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i
henhold til fabrikantens instruksjoner.
SWEDISH
SWEDISHSWEDISH
SWEDISH
VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en
ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion.
FINNIS
FINNISFINNIS
FINNISH
HH
H
VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan
ohjeiden mukaisesti.
ENGLISH
ENGLISHENGLISH
ENGLISH
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the equipment manufacturer. Discard
used batteries according to manufacturer's instructions.
DEUTSCH
DEUTSCHDEUTSCH
DEUTSCH
VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz nur
durch denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ.
Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
83
FRENCH
FRENCHFRENCH
FRENCH
ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d’un type équivalent
recommandé par le constructeur. Mettre au rebut les batteries usagées conformément
aux instructions du fabricant.
Attention (for USA Users)
The product that you have purchased contains a rechargeable battery. The battery
is recyclable. At the end of its useful life, under various state and local laws, it
may be illegal to dispose of this battery into the municipal waste stream. Check
with your local solid waste officials for details in your area for recycling options or
proper disposal.
About the AC Adapter
About the AC AdapterAbout the AC Adapter
About the AC Adapter
Use only the AC adapter supplied with your Tablet PC. Use of another type
of AC adapter will result in malfunction and/or danger.
Do not use the adapter in a high moisture environment. Never touch the adapter
when your hands or feet are wet.
Allow adequate ventilation around the adapter when using it to operate the device
or charge the battery. Do not cover the AC adapter with paper or other objects
that will reduce cooling. Do not use the AC adapter while it is inside a carrying
case.
Connect the adapter to a proper power source. The voltage requirements are
found on the product case and/or packaging.
Do not use the adapter if the cord becomes damaged.
Do not attempt to service the unit. There are no serviceable parts inside. Replace
the unit if it is damaged or exposed to excess moisture.
84
85
On the Use of
On the Use of On the Use of
On the Use of the
the the
the RF Device
RF DeviceRF Device
RF Device
USA and Canada Safety Requirements and Notices
USA and Canada Safety Requirements and NoticesUSA and Canada Safety Requirements and Notices
USA and Canada Safety Requirements and Notices
Radio Frequency
Radio FrequencyRadio Frequency
Radio Frequency
Interference Requirements and SAR
Interference Requirements and SARInterference Requirements and SAR
Interference Requirements and SAR
This device meets the government’s requirements for exposure to radio waves.
This device is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission of
the U.S. Government.
This device complies with FCC radiation exposure limits set forth for an uncontrolled
environment.
EMC Requirements
This device uses, generates and radiates radio frequency energy. The radio frequency
energy produced by this device is well below the maximum exposure allowed by
the Federal Communications Commission (FCC).
This device complies with the limits for a Class B digital device pursuant to Part
15 subpart C of the FCC Rules and Regulations. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
The FCC limits are designed to provide reasonable protection against harmful
interference when the equipment is installed and used in accordance with the
instruction manual and operated in a commercial environment. However, there is
no guarantee that interference will not occur in a particular commercial installation,
or if operated in a residential area.
86
If harmful interference with radio or television reception occurs when the device is
turned on, the user must correct the situation at the user’s own expense. The user
is encouraged to try one or more of the following corrective measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
CAUTION:
CAUTION: CAUTION:
CAUTION: The Part 15 radio device operates on a non-interference basis with other
devices operating at this frequency. Any changes or modification to said product
not expressly approved by the manufacturer could void the user’s authority to operate
this device.
Canada Radio Frequency Interference Requirements
Canada Radio Frequency Interference RequirementsCanada Radio Frequency Interference Requirements
Canada Radio Frequency Interference Requirements
To prevent radio interference to the licensed service, this device is intended to be
operated indoors and away from windows to provide maximum shielding. Equipment
(or its transmit antenna) that is installed outdoors is subject to licensing.
Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une
licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin
de fournir un écran de blindage maximal. Si le matériel (ou son antenne d'émission)
est installé à l'extérieur, il doit faire l'objet d'une licence.
87
European Union CE Marking and Compliance
European Union CE Marking and Compliance European Union CE Marking and Compliance
European Union CE Marking and Compliance
Notices
NoticesNotices
Notices
Statements of Compliance
Statements of ComplianceStatements of Compliance
Statements of Compliance
English
EnglishEnglish
English
This product follows the provisions of the European Directive 1999/5/EC.
Danish
DanishDanish
Danish
Dette produkt er i overensstemmelse med det europæiske direktiv 1999/5/EC.
Dutch
DutchDutch
Dutch
Dit product is in navolging van de bepalingen van Europees Directief 1999/5/EC.
Finnish
FinnishFinnish
Finnish
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
French
FrenchFrench
French
Ce produit est conforme aux exigences de la Directive Européenne 1999/5/EC.
German
GermanGerman
German
Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 1999/5/EC.
Greek
GreekGreek
Greek
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας
1999/5/EC.
Icelandic
IcelandicIcelandic
Icelandic
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 1999/5/EC.
Italian
ItalianItalian
Italian
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norwegian
NorwegianNorwegian
Norwegian
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/EC.
Portuguese
PortuguesePortuguese
Portuguese
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
88
Spanish
SpanishSpanish
Spanish
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Swedish
SwedishSwedish
Swedish
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
Restrictions
RestrictionsRestrictions
Restrictions
This device is restricted to indoor use when operating in the 5150 to 5350 MHz
frequency range.
89
User Notification of Take
User Notification of TakeUser Notification of Take
User Notification of Take-
--
-back Service
back Serviceback Service
back Service
To Institutional (B2B) Users in United States:
Getac believes in providing our institutional customers with easy-to-use solutions to
recycle your Getac-brand products for free. Getac understands the institutional
customers will likely be recycling multiple items at once and as such. Getac wants
to make the recycling process for these larger shipments as streamlined as possible.
Getac works with recycling vendors with the highest standards for protecting our
environment, ensuring worker safety, and complying with global environmental laws.
Our commitment to recycling our old equipment grows out of our work to protect
the environment in many ways.
Please see the product type below for information on Getac product, battery and
packaging recycling in USA.
For Product Recycling:
Your portable Getac products contain hazardous materials. While they pose no
risk to you during normal use, they should never be disposed with other wastes.
Getac provides a free take-back service for recycling your Getac products. Our
electronics recycler will provide competitive bids for recycling non-Getac products
as well.
For Battery Recycling:
The batteries used to power your portable Getac products contain hazardous
materials. While they pose no risk to you during normal use, they should never
be disposed with other wastes. Getac provides a free take-back service for
recycling your batteries from Getac products.
For Packaging Recycling:
Getac has chosen the packaging materials used to transport our products carefully,
to balance the requirements of shipping the product to you safely while minimizing
the amount of material used. The materials used in our packaging are designed
to be recycled locally.
90
If you have the above for recycling, please contact our recycler, All Green Electronics
Recycling, LLC. For more information on recycling, visit the website
http://www.allgreenrecycling.com.
91
ENERGY STAR
ENERGY STARENERGY STAR
ENERGY STAR
ENERGY STAR
®
is a government program that offers businesses and consumers
energy-efficient solutions, making it easy to save money while protecting the
environment for future generations.
Please reference ENERGY STAR
®
related information from
http://www.energystar.gov.
As an ENERGY STAR
®
Partner, Getac Technology Corporation has determined that
this product meets the ENERGY STAR
®
guidelines for energy efficiency.
An ENERGY STAR
®
qualified computer uses 70 % less electricity than computers without
enabled power management features.
Earning the
Earning the Earning the
Earning the E
EE
ENERGY
NERGY NERGY
NERGY S
SS
STAR
TARTAR
TAR
®
®®
®
When every home office is powered by equipment that has earned the ENERGY
STAR
®
, the change will keep over 289 billion pounds of greenhouse gases out
of the air.
If left inactive, ENERGY STAR
®
qualified computers enter a low-power mode
and may use 15 watts or less. New chip technologies make power management
features more reliable, dependable, and user-friendly than even just a few years
ago.
92
Spending a large portion of time in low-power mode not only saves energy,
but helps equipment run cooler and last longer.
Businesses that use ENERGY STAR
®
enabled office equipment may realize
additional savings on air conditioning and maintenance.
Over its lifetime, ENERGY STAR
®
qualified equipment in a single home office
(e.g., computer, monitor, printer, and fax) can save enough electricity to light
an entire home for more than 4 years.
Power management (“sleep settings”) on computers and monitors can result
in much savings annually.
Remember, saving energy prevents pollution
Remember, saving energy prevents pollutionRemember, saving energy prevents pollution
Remember, saving energy prevents pollution
Because most computer equipment is left on 24 hours a day, power management
features are important for saving energy and are an easy way to reduce air pollution.
By using less energy, these products help lower consumers’ utility bills, and prevent
greenhouse gas emissions.
Getac Product Compliance
Getac Product ComplianceGetac Product Compliance
Getac Product Compliance
All Getac products with ENERGY STAR
®
logo comply with the ENERGY STAR
®
standard, and the power management feature is enabled by default. The monitor
and computer are automatically set to sleep after 15 and 30 minutes of user inactivity.
To wake your computer, click the mouse or press any key on the keyboard. Please
visit http://www.energystar.gov/powermanagement for detail information on power
management and its benefits to the environment.
