Getac Technology MC7700 MC7700 MODEM User Manual

Getac Technology Corporation MC7700 MODEM Users Manual

Users Manual

S400
USERS MANUAL
Rugged Mobile Computing Solutions
Aug. 2012
TRADEMARKS
The Bluetooth® word mark and logos are registered trademarks owned by Bluetooth
SIG, Inc.
All other brand and product names are trademarks or registered trademarks of their
respective owners.
NOTE
The information in this manual is subject to change without notice.
Most screens and operating instructions in this manual are based on Windows 7.
If youre using a different version of Windows, the screens and related operations
may not be the same.
For the latest version of the manual, please visit the Getac website at www.getac.com.
ENERGY STAR® is a government program that offers businesses and consumers
energy-efficient solutions, making it easy to save money while protecting the
environment for future generations.
Please reference ENERGY STAR® related information from www.energystar.gov.
As an ENERGY STAR® Partner, Getac Technology Corporation has determined that
this product meets the ENERGY STAR® guidelines for energy efficiency.
An ENERGY STAR® qualified computer uses 70 % less electricity than computers
without enabled power management features.
Earning the ENERGY STAR®
When every home office is powered by equipment that has earned the ENERGY
STAR®, the change will keep over 289 billion pounds of greenhouse gases out
of the air.
If left inactive, ENERGY STAR® qualified computers enter a low-power mode
and may use 15 watts or less. New chip technologies make power management
features more reliable, dependable, and user-friendly than even just a few years
ago.
Spending a large portion of time in low-power mode not only saves energy,
but helps equipment run cooler and last longer.
Businesses that use ENERGY STAR® enabled office equipment may realize
additional savings on air conditioning and maintenance.
Over its lifetime, ENERGY STAR® qualified equipment in a single home office
(e.g., computer, monitor, printer, and fax) can save enough electricity to light
an entire home for more than 4 years.
Power management (“sleep settings”) on computers and monitors can result
in much savings annually.
Remember, saving energy prevents pollution
Because most computer equipment is left on 24 hours a day, power management
features are important for saving energy and are an easy way to reduce air pollution.
By using less energy, these products help lower consumers’ utility bills, and prevent
greenhouse gas emissions.
i
Table of Contents
Chapter 1 Getting Started ..................................................................................................... 1-1
Getting the Computer Running ......................................... 1-2
Unpacking ................................................................ 1-2

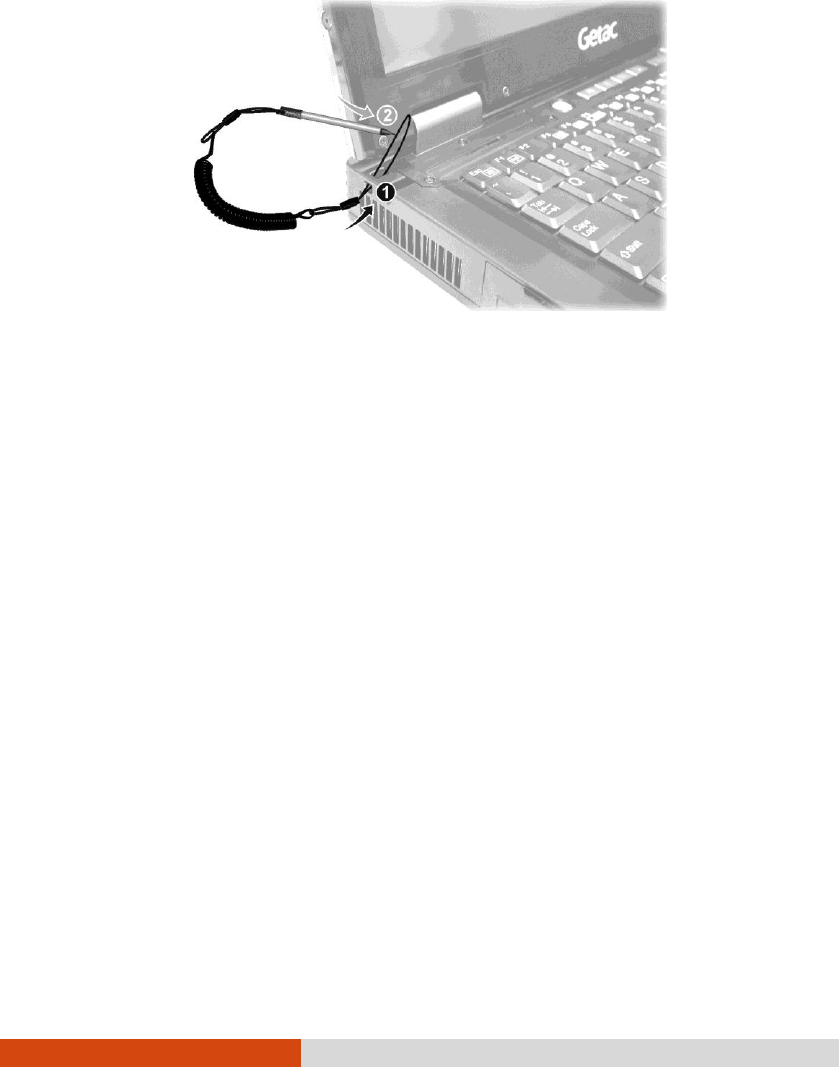

Using the Tether (Optional) ....................................... 1-3

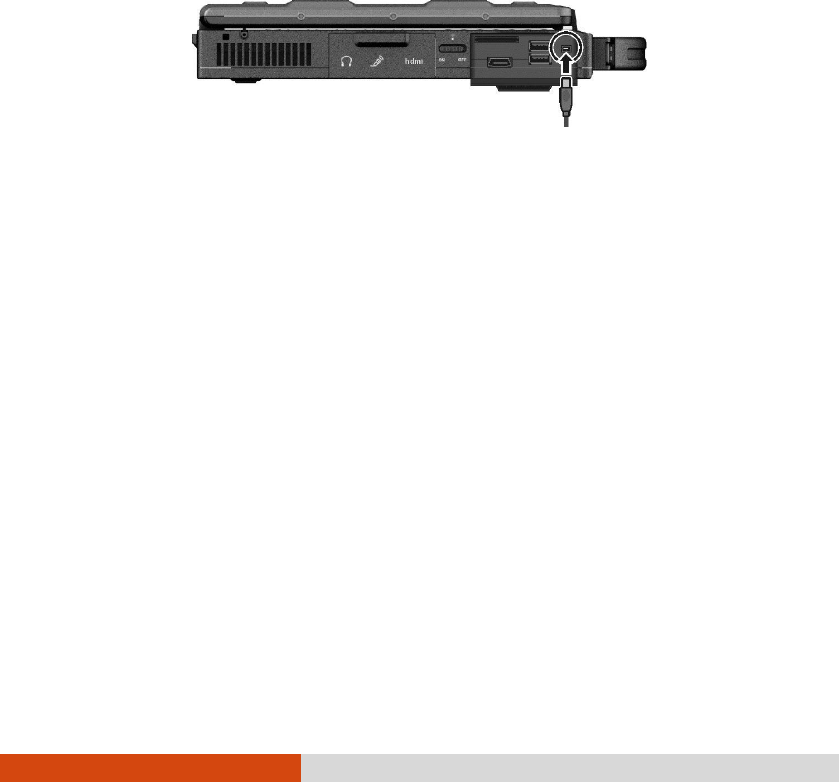

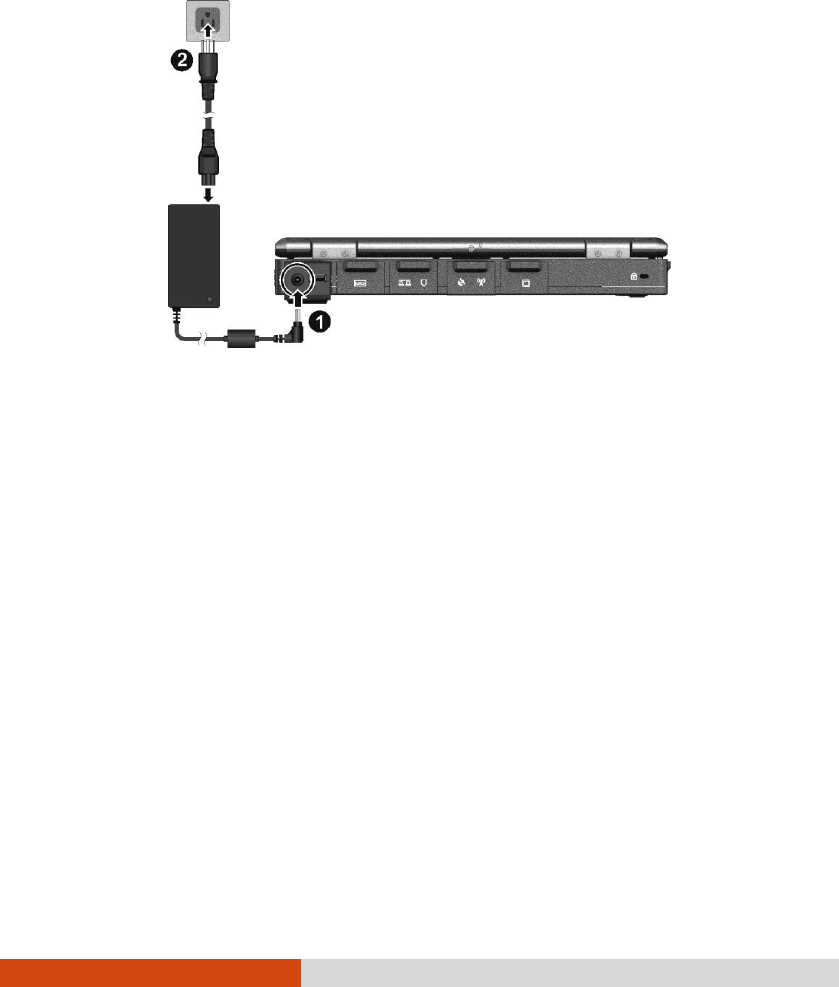

Connecting to AC Power ............................................ 1-4
Turning On and Off the Computer ............................... 1-6
Taking a Look at the Computer ...................................... 1-8

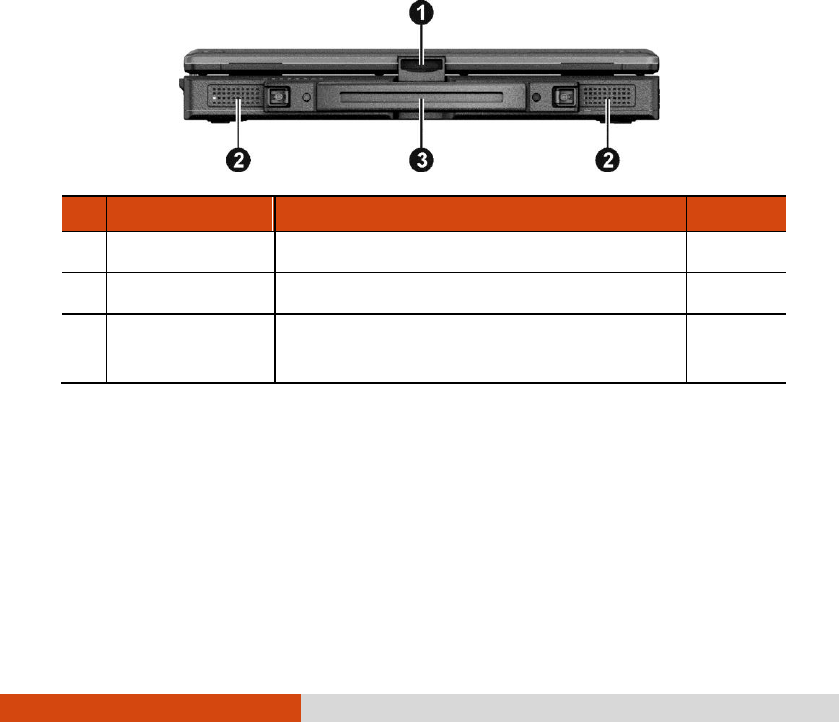

Front Components ..................................................... 1-8

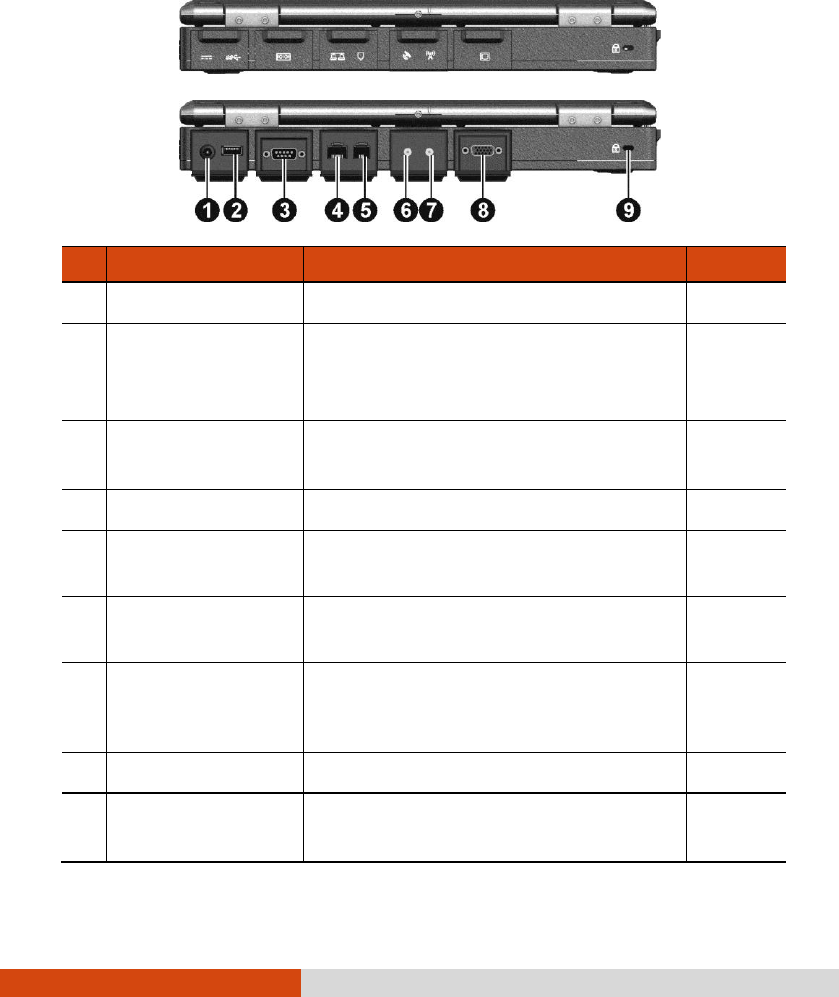

Rear Components ...................................................... 1-9
Right-Side Components ............................................. 1-10

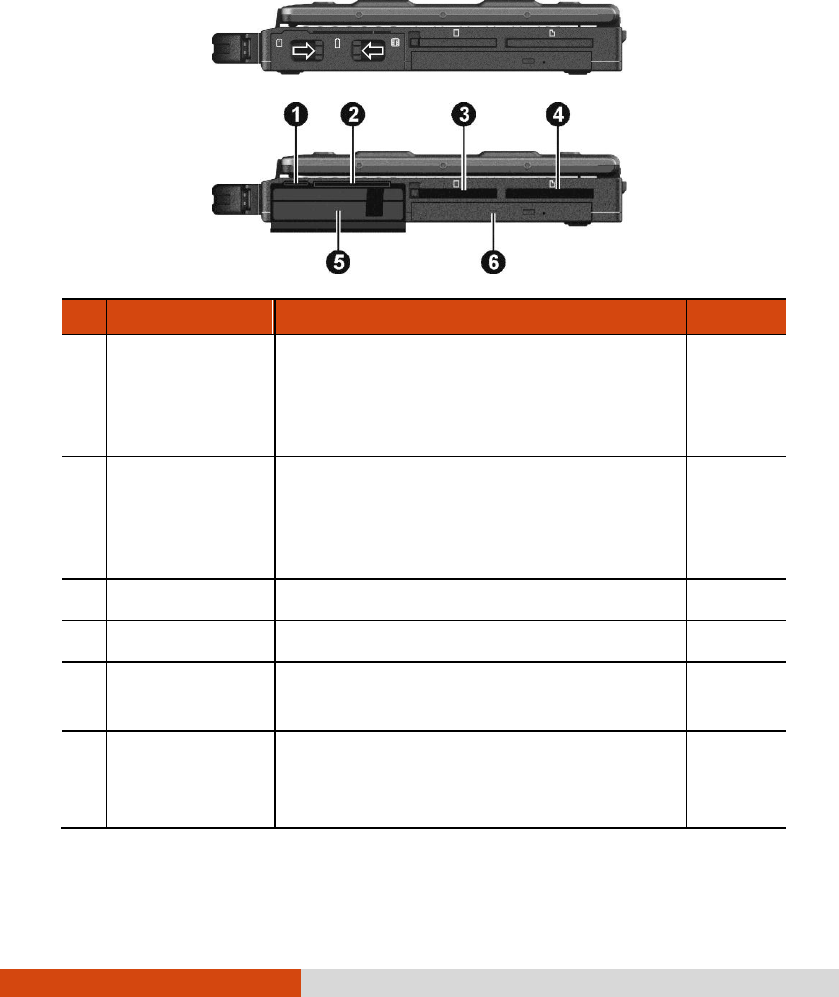

Left-Side Components ............................................... 1-11
Top-open Components .............................................. 1-13

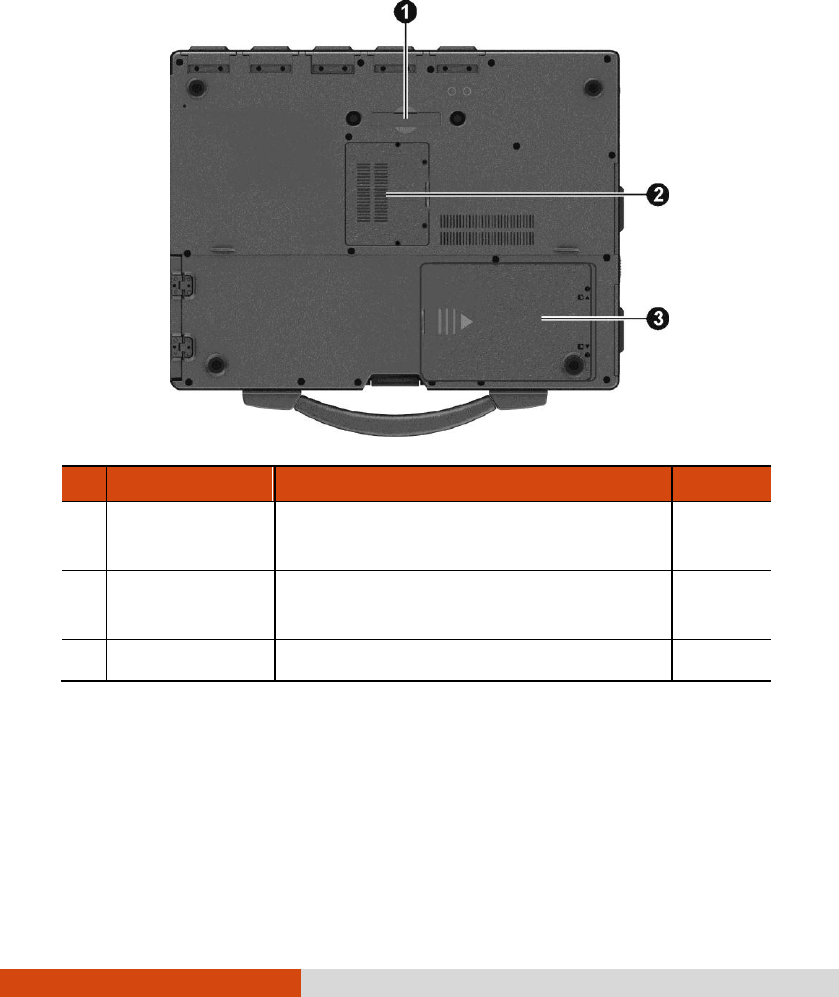

Bottom Components .................................................. 1-16
Chapter 2 Operating Your Computer .............................................................................. 2-1
Using the Keyboard ......................................................2-2
Typewriter Keys ........................................................2-2

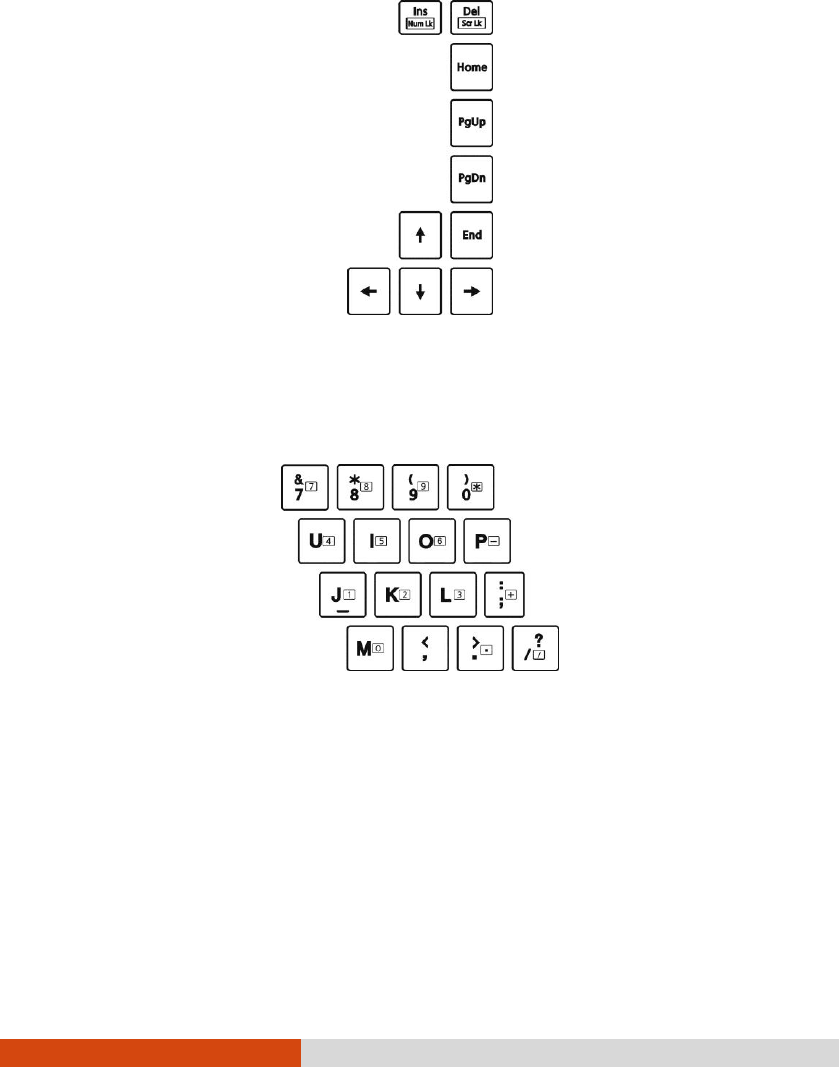

Cursor-Control Keys ..................................................2-2
Numeric Keypad .......................................................2-3
Function Keys ..........................................................2-4
Fn Key ...................................................................2-4

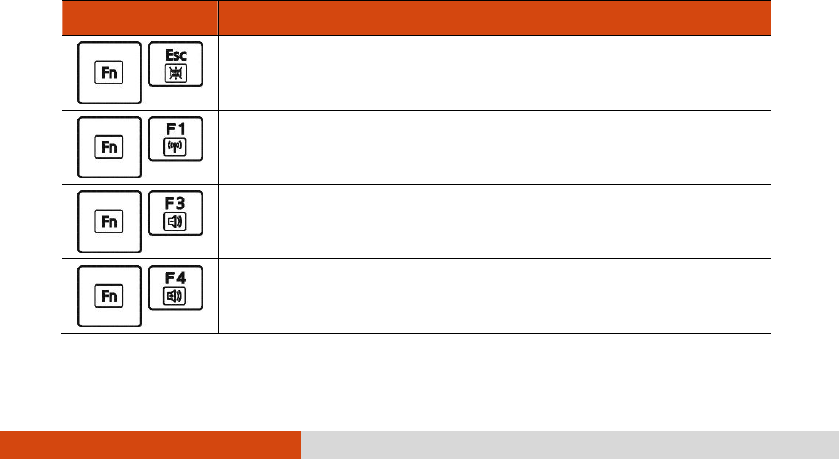

Hot Keys ................................................................2-4

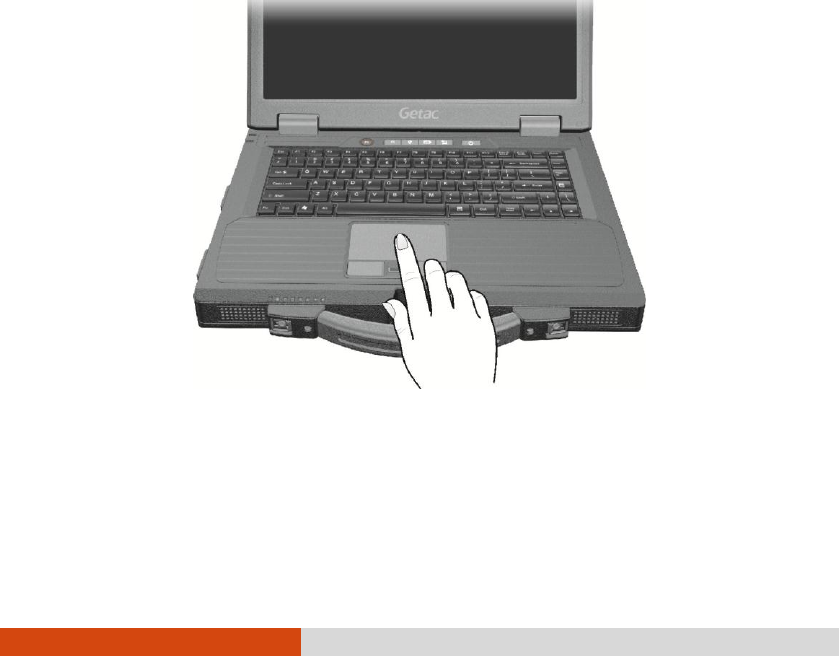

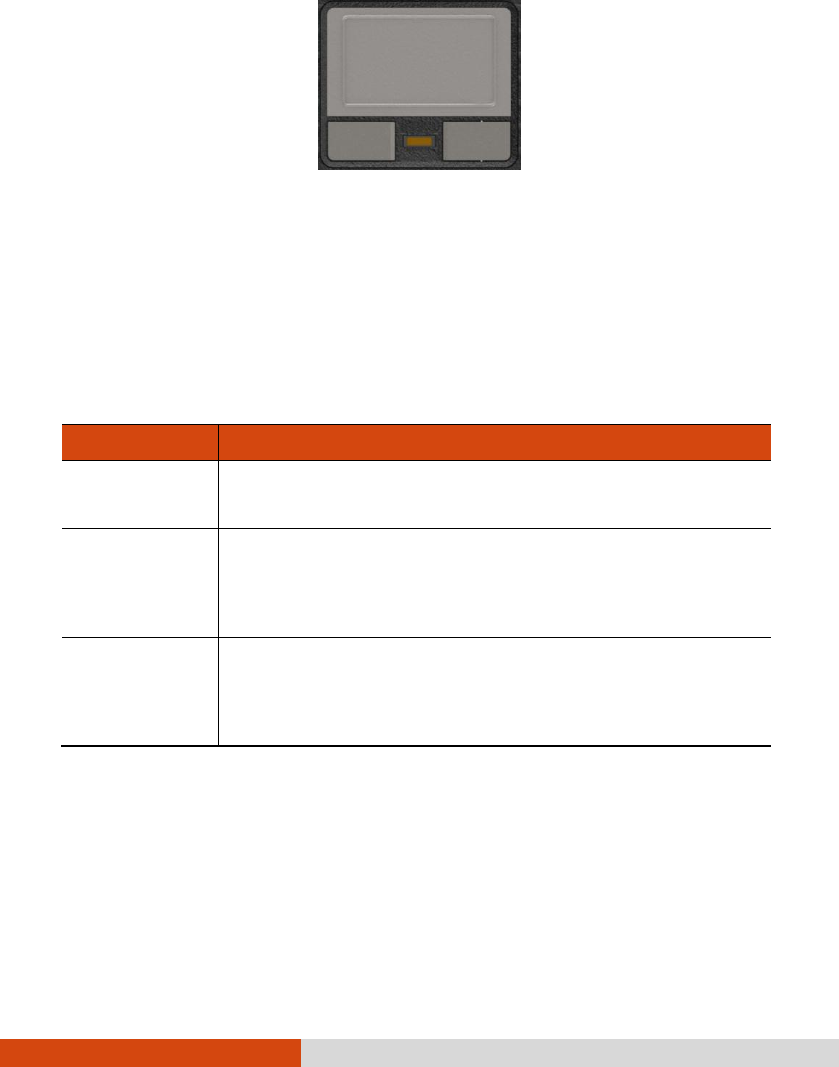

Using the Touchpad ......................................................2-7
Configuring the Touchpad ............................................2-9
Using the Touchscreen (Optional) ................................. 2-10
ii

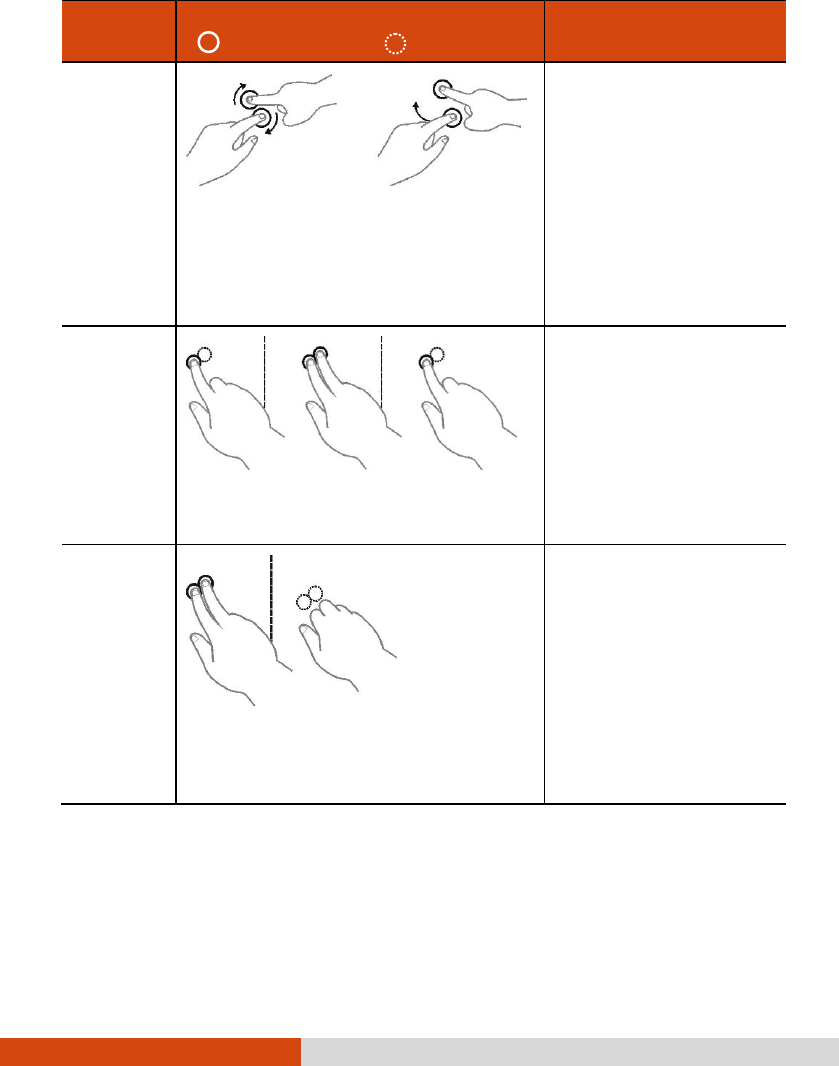

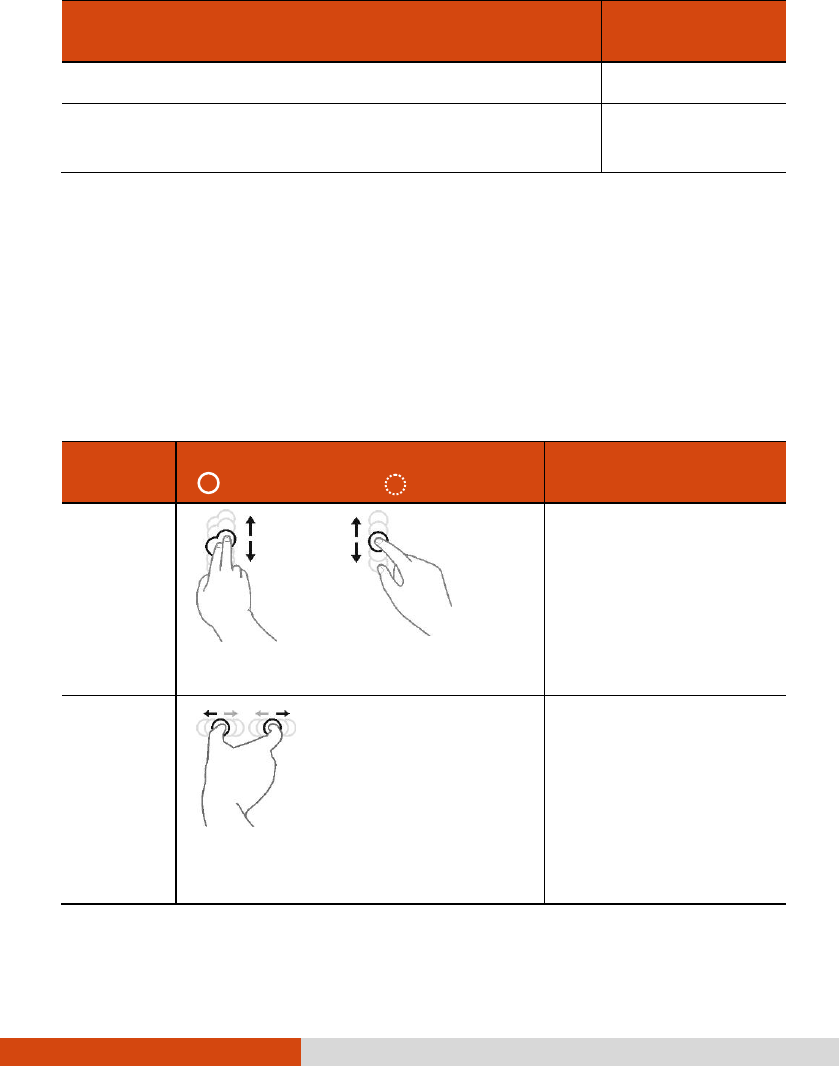

Using Multi-touch Gestures (Optional) ........................ 2-11

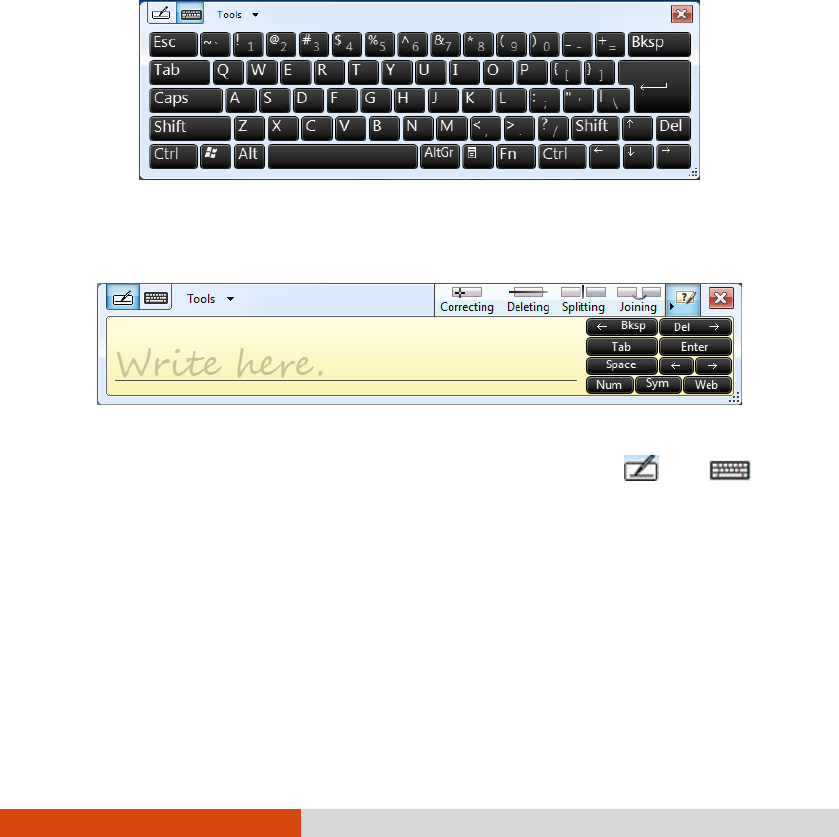

Using the Input Panel ................................................. 2-14

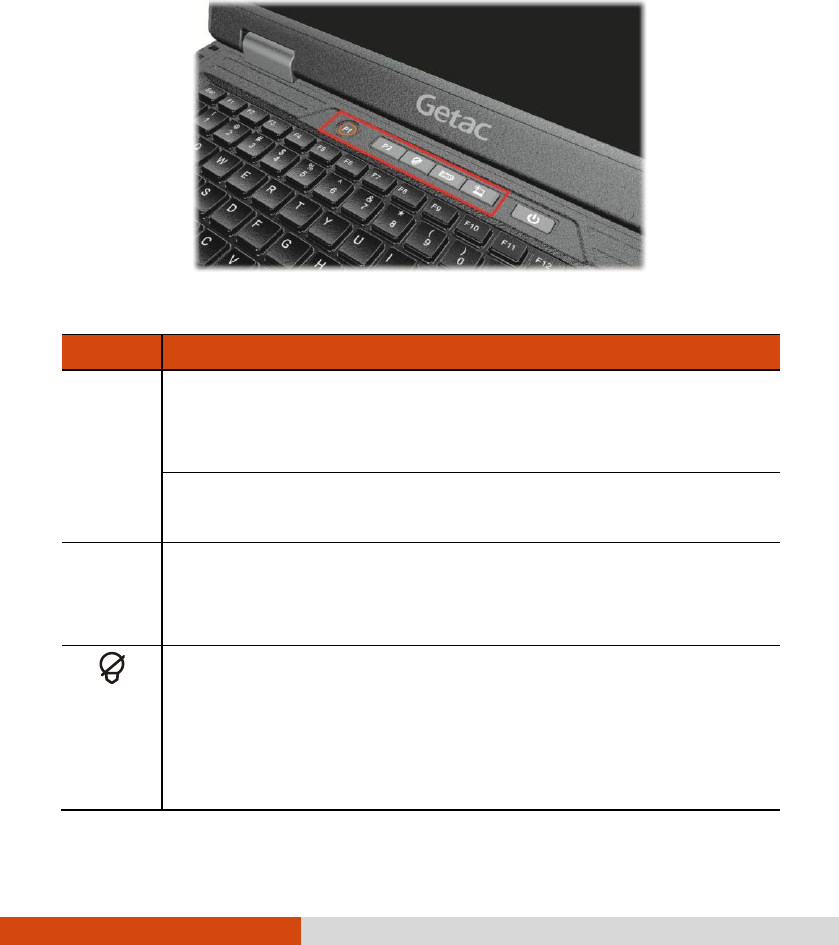

Using the Quick Buttons .............................................. 2-15
Using the DVD Drive .................................................. 2-17

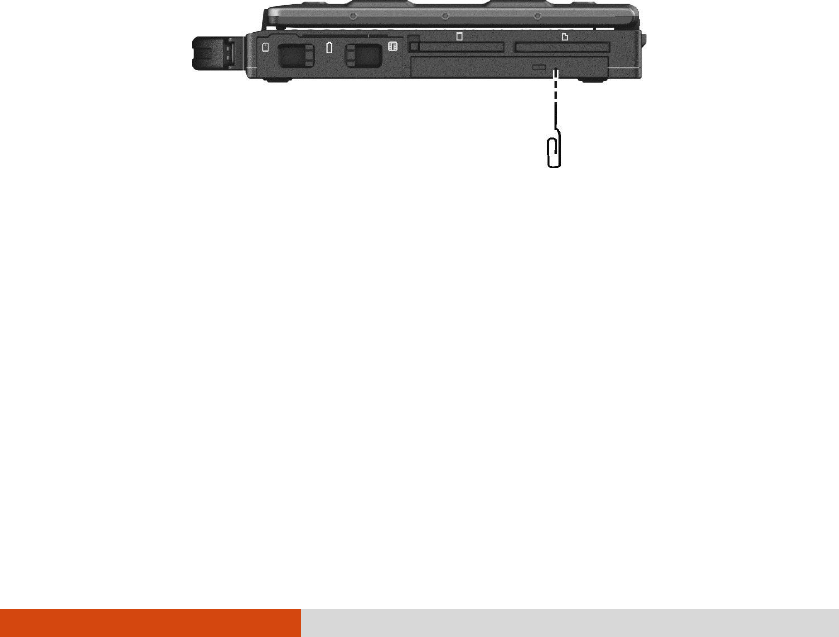

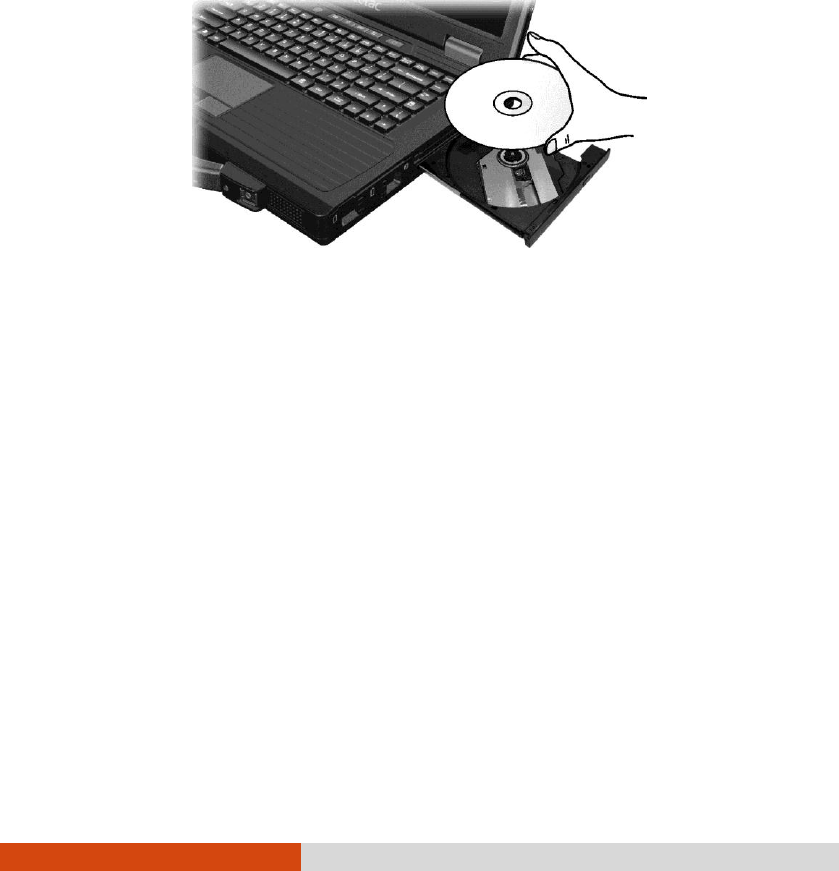

Inserting and Removing a Disc .................................. 2-17
Using the Network Features .......................................... 2-19

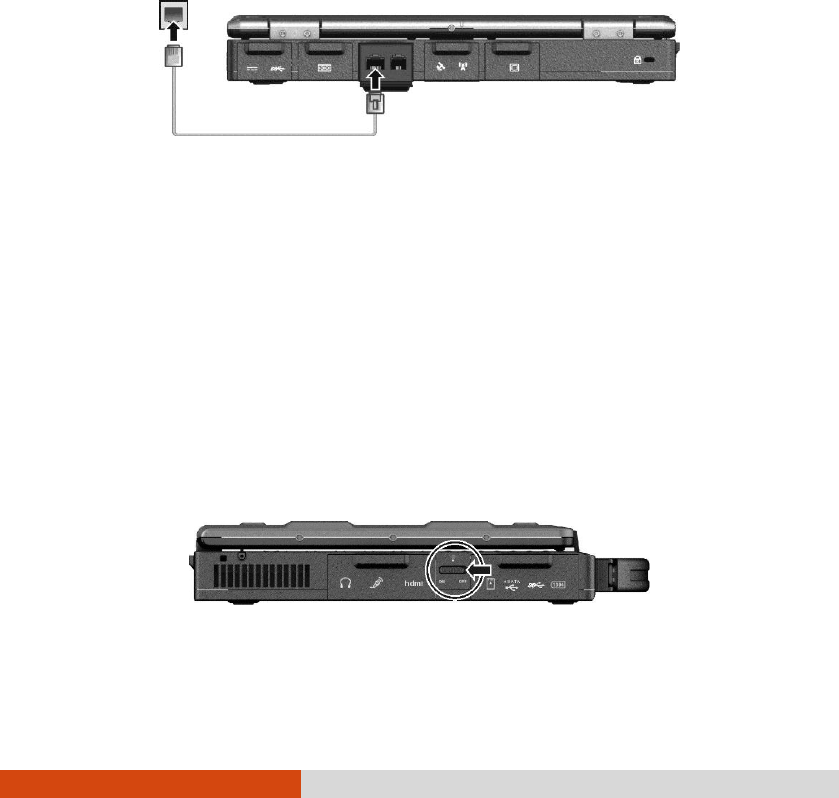

Using the Modem (Optional).................................... 2-19

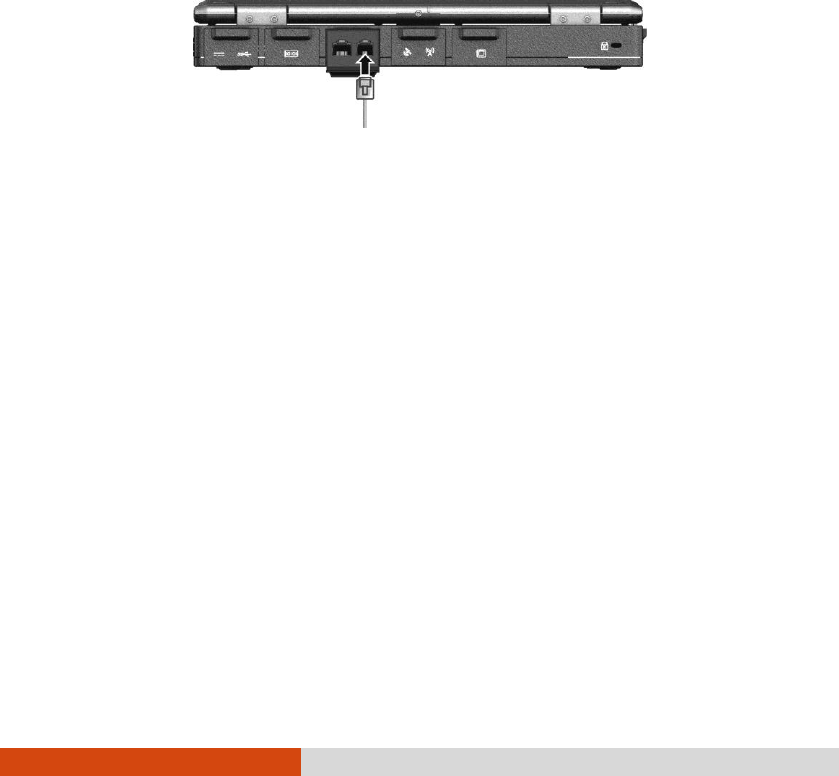

Using the LAN ....................................................... 2-20
Using the Wireless LAN ........................................... 2-20
Using the Bluetooth Feature (Optional) .......................... 2-23

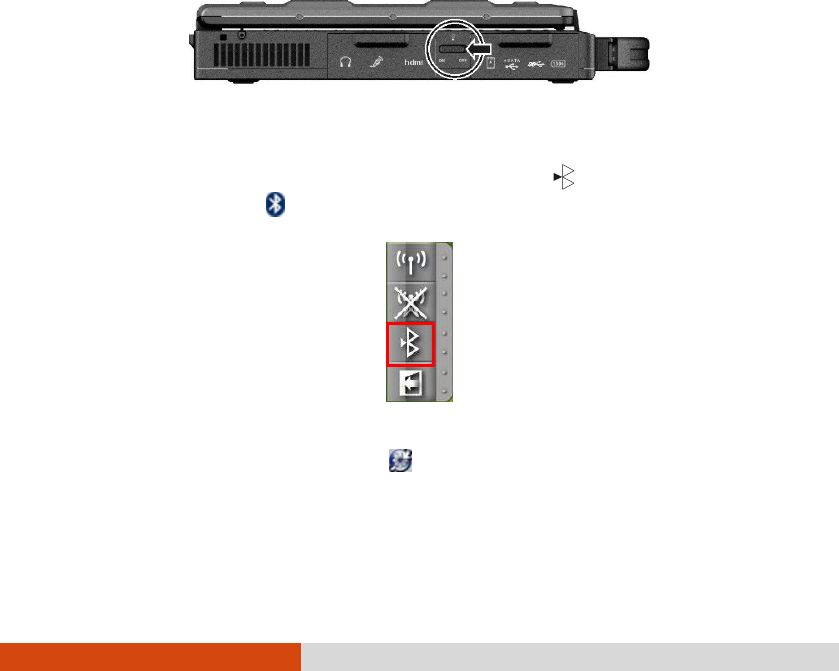

Turning On/Off the Bluetooth Radio ........................... 2-23

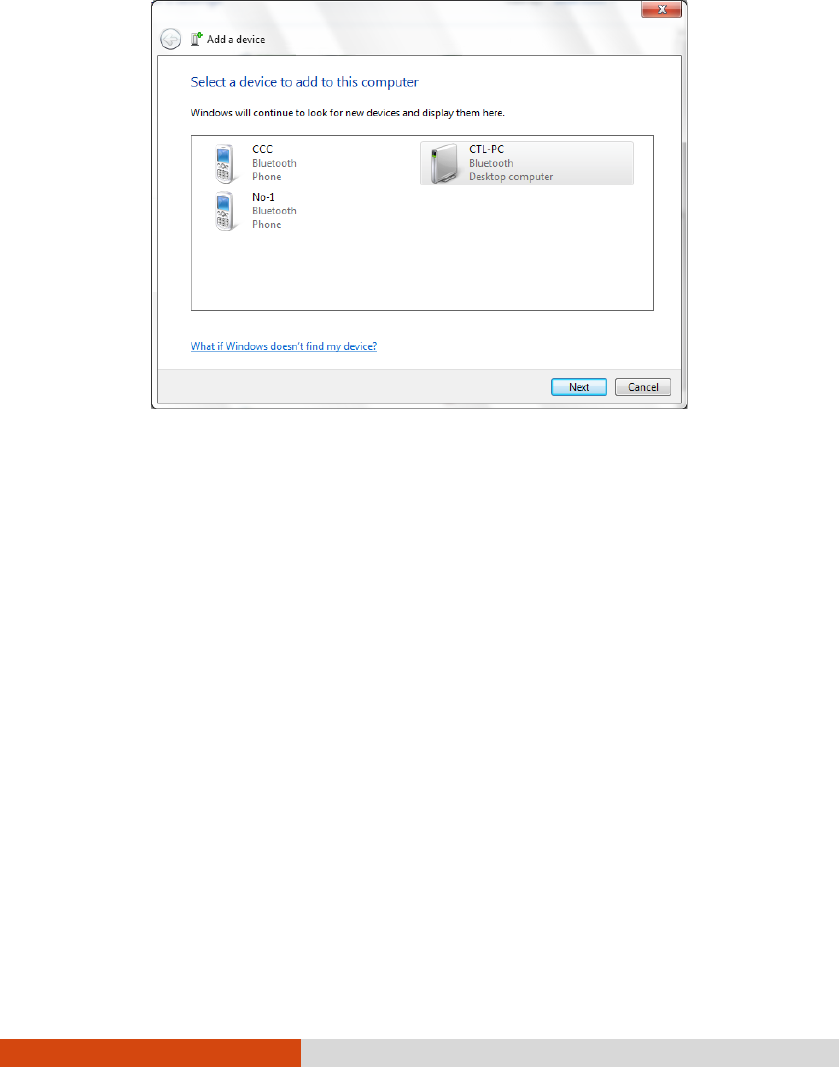

Connecting to another Bluetooth Device ....................... 2-24

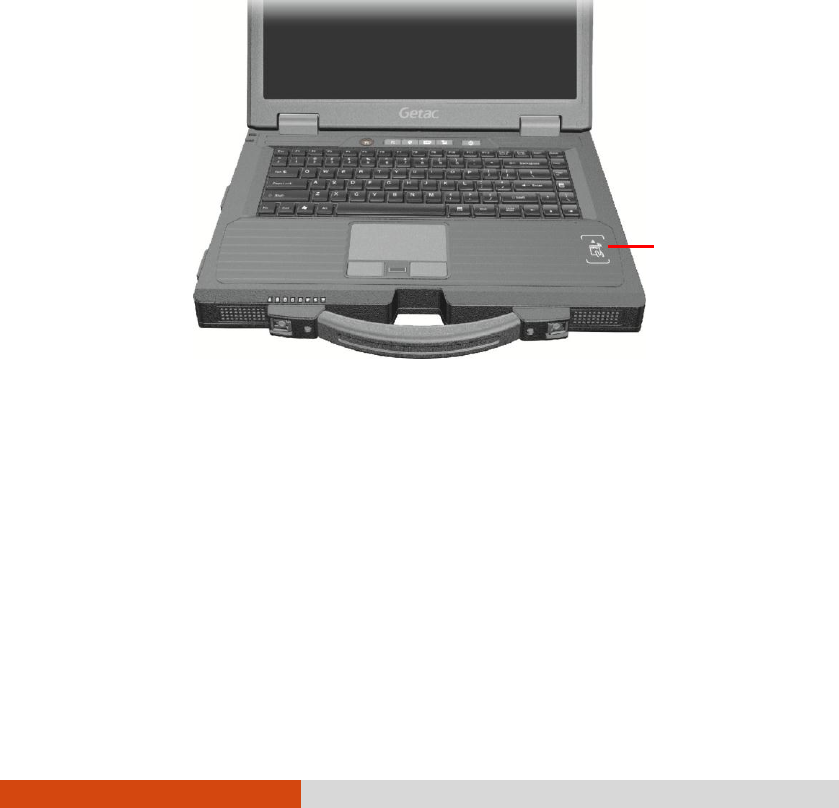

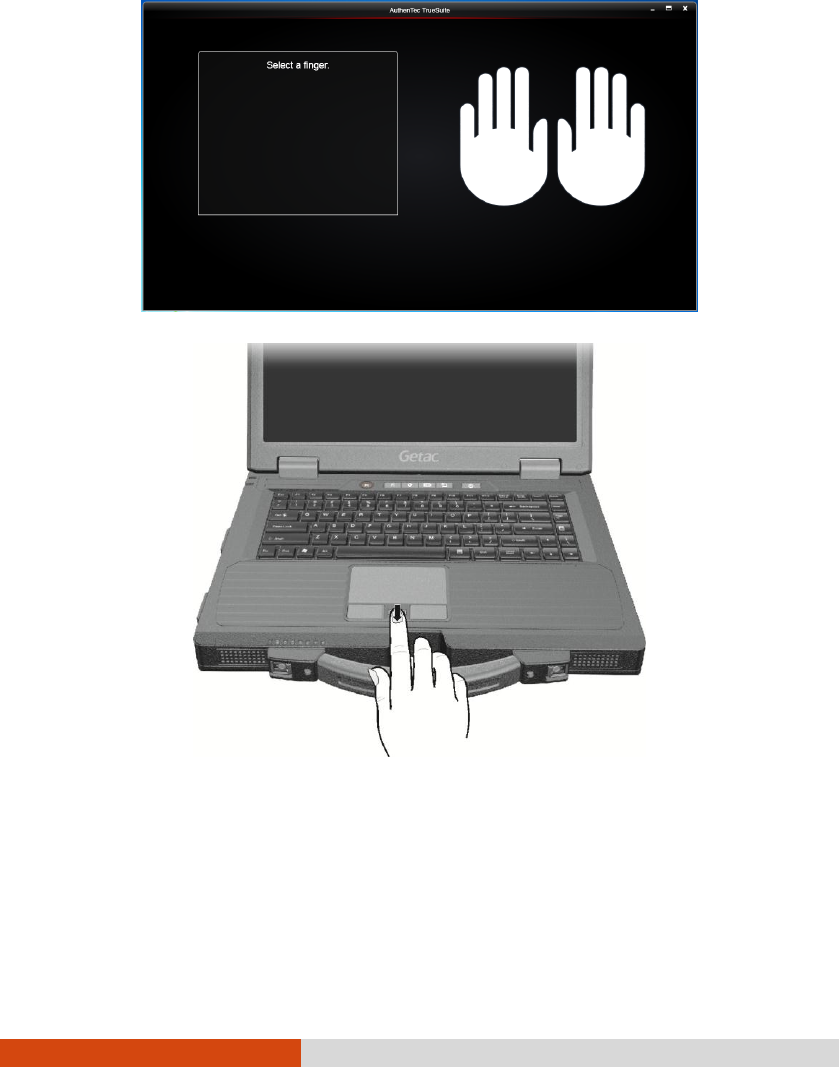

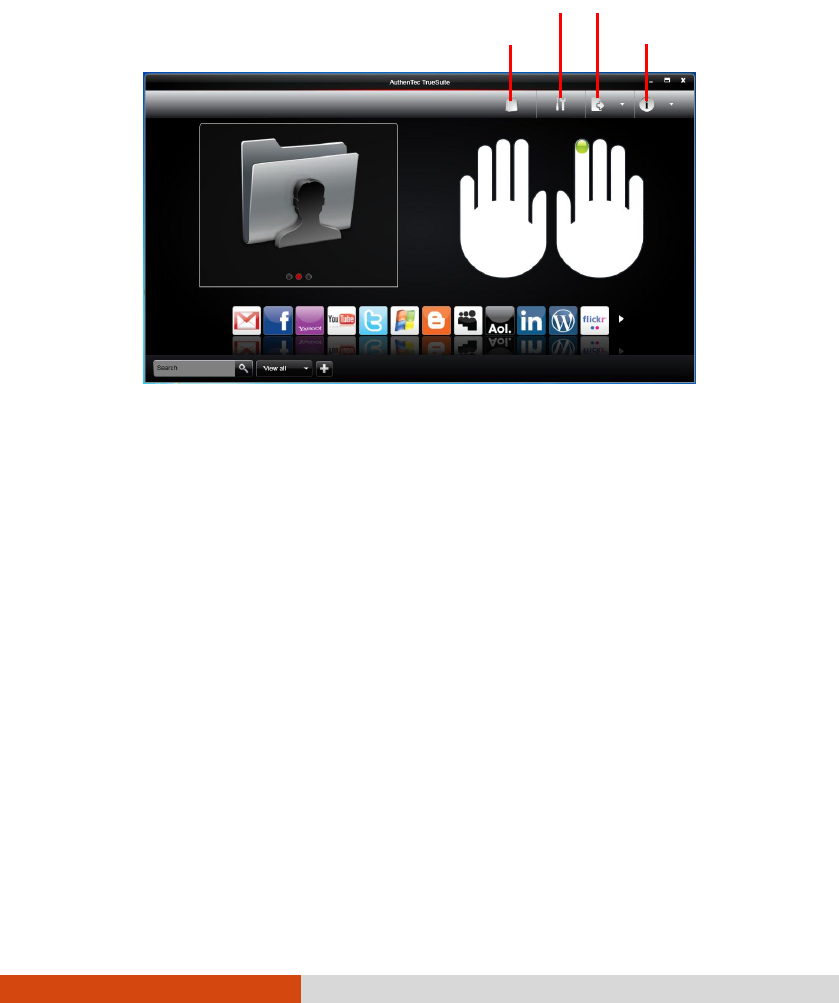

Using the Fingerprint Scanner ....................................... 2-26
Using the WWAN Feature (Optional) ............................ 2-29

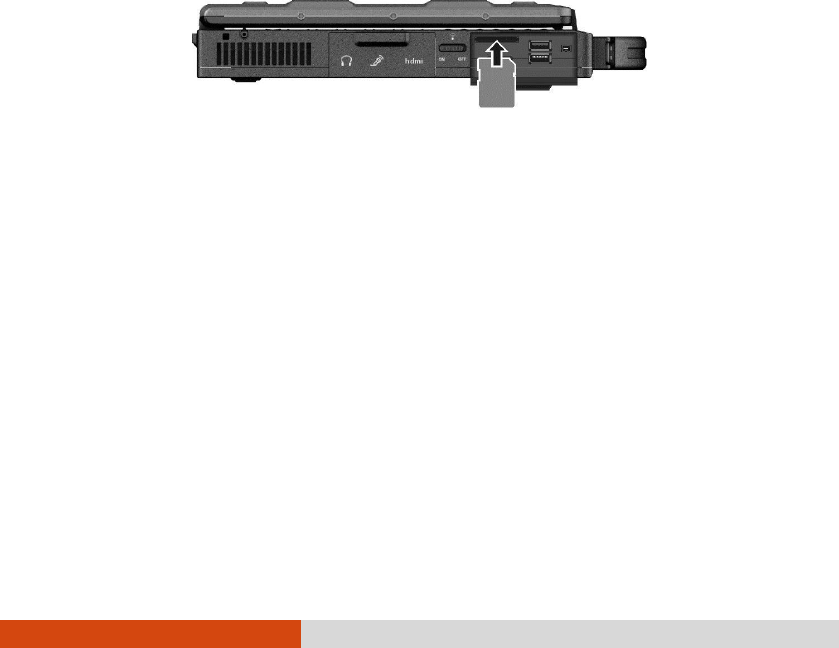

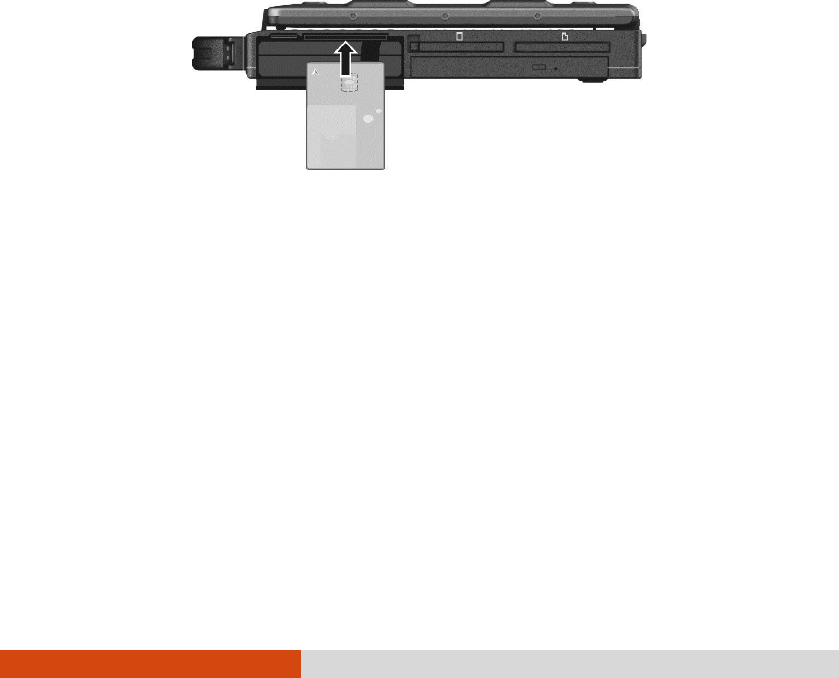

Installing a SIM Card .............................................. 2-29

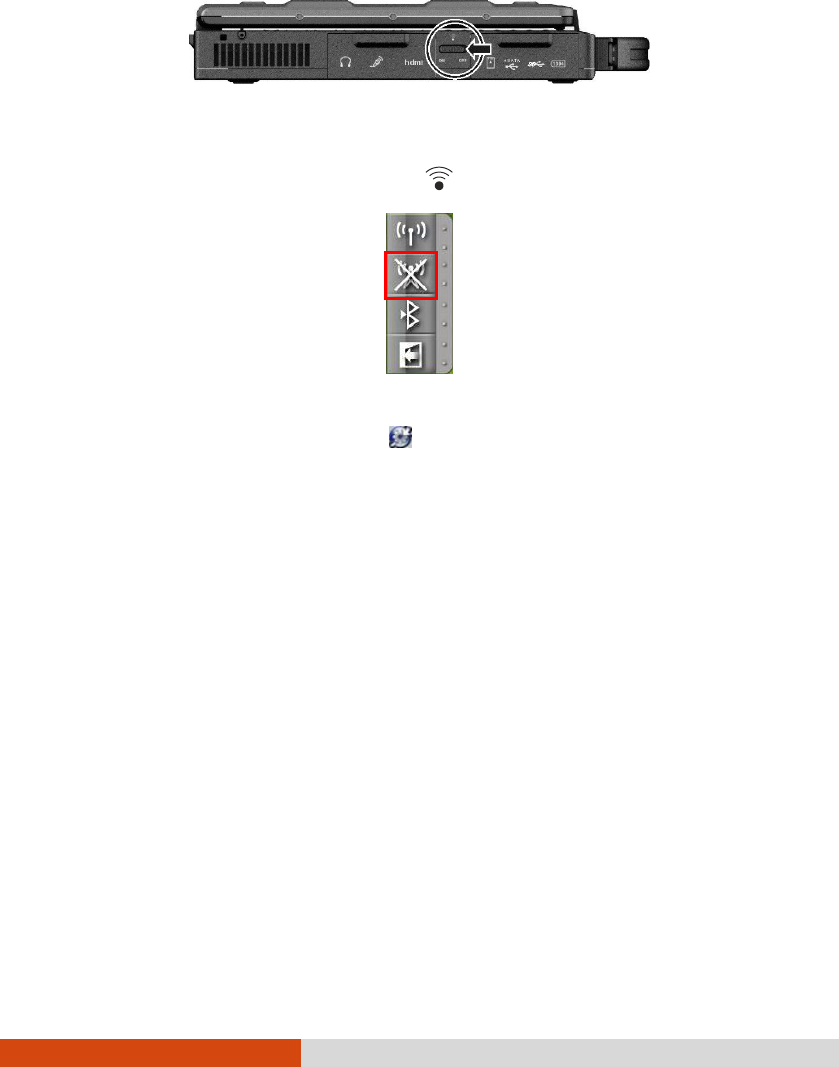

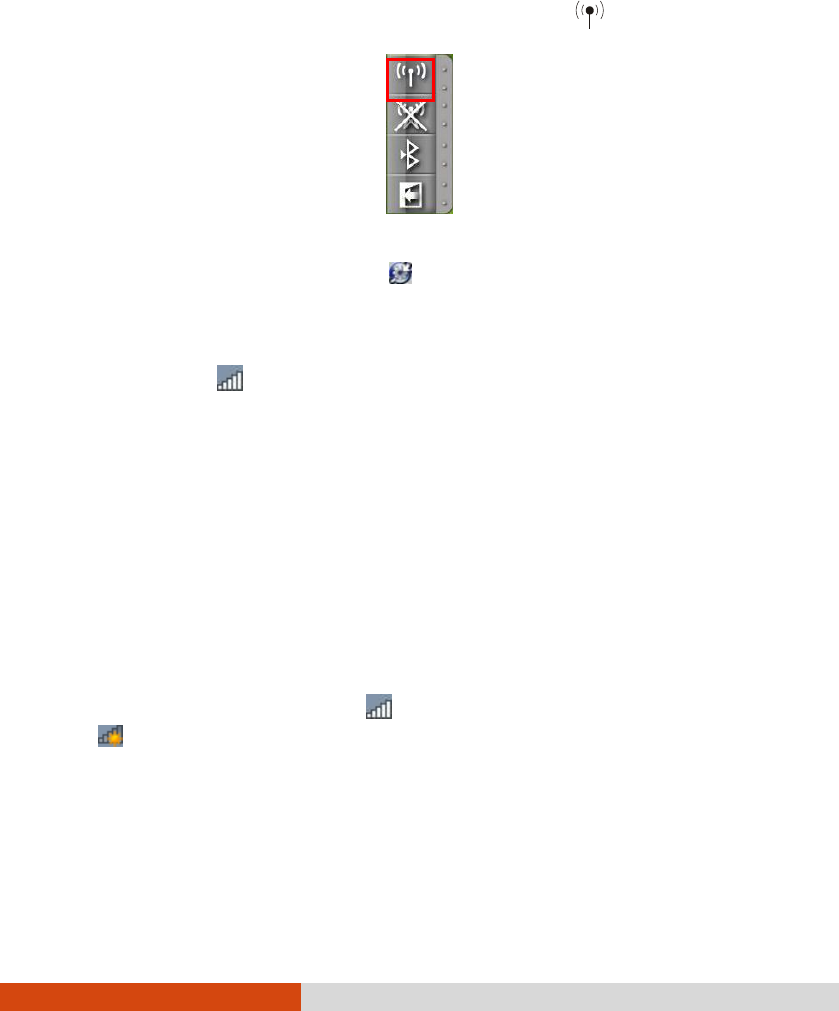

Turning On/Off the WWAN Radio .............................. 2-29
Setting up a WWAN Connection ................................ 2-30
Chapter 3 Managing Power ................................................................................................. 3-1
AC Adapter .................................................................3-2
Battery Pack ................................................................3-3
Charging the Battery Pack ..........................................3-3

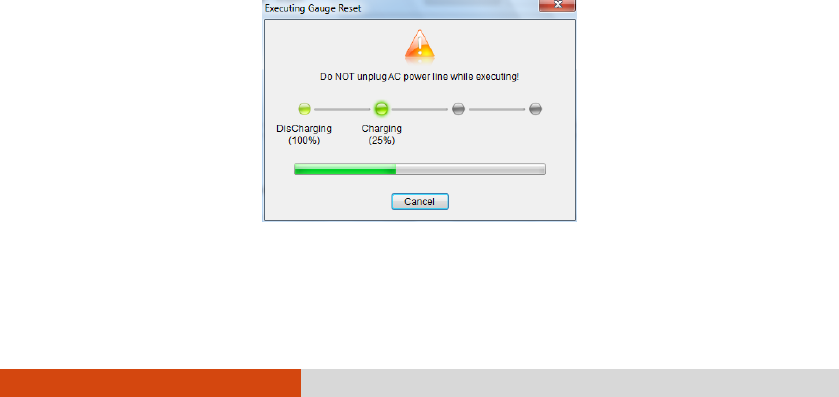

Initializing the Battery Pack .........................................3-4

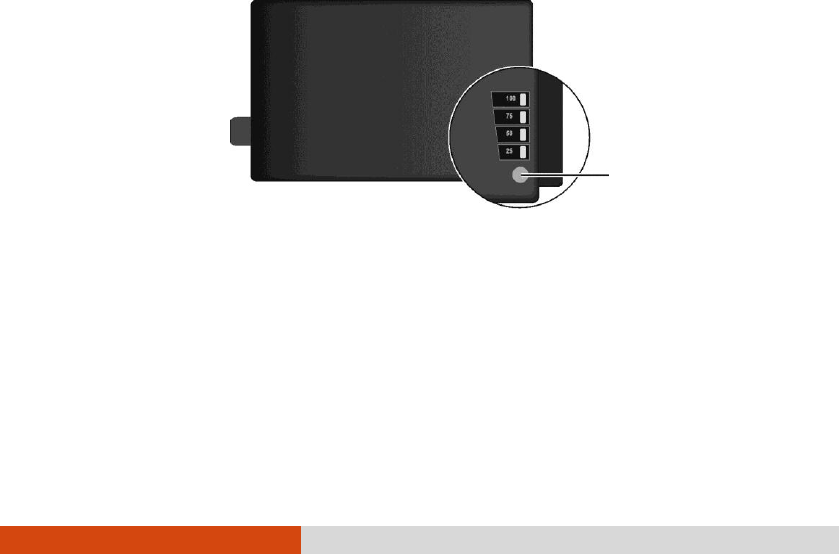

Checking the Battery Level .........................................3-5
Replacing the Battery Pack .........................................3-6
Battery Low Signals and Actions ..................................3-7
Power Management .......................................................3-8
Hibernation ...............................................................3-9
Power-Saving Tips ..................................................... 3-10
Chapter 4 Expanding Your Computer ............................................................................. 4-1

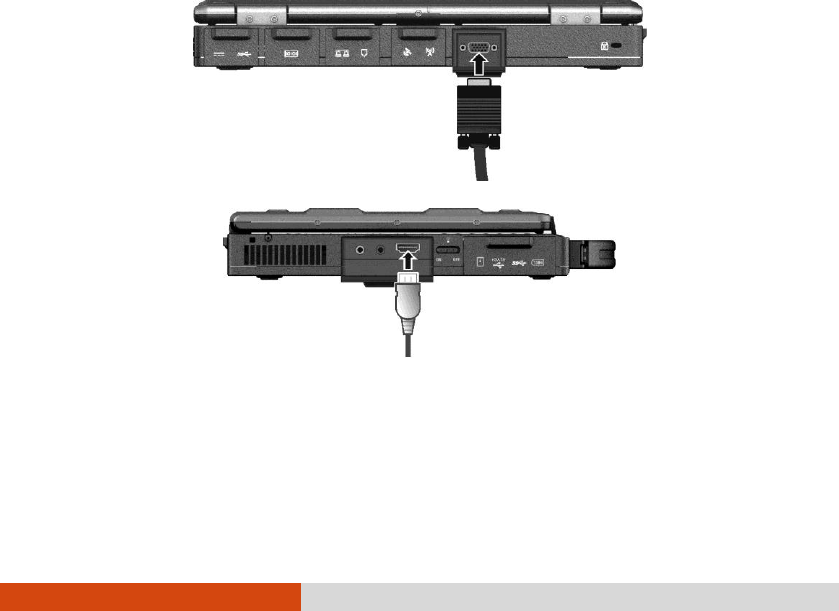

Connecting a VGA or HDMI Display Monitor ......................4-2

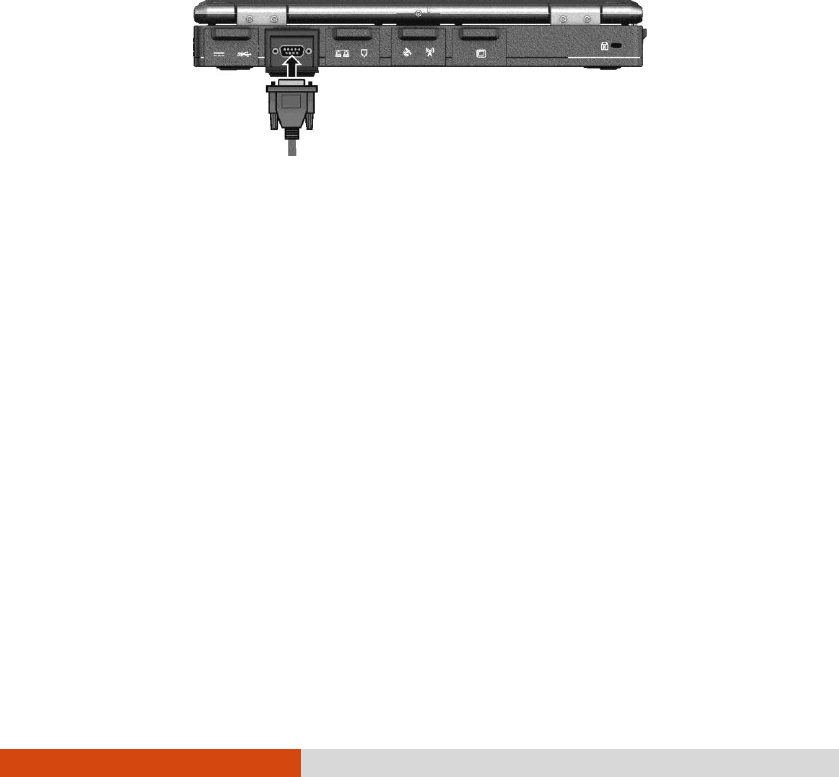

Connecting a Serial Device.............................................4-4
iii

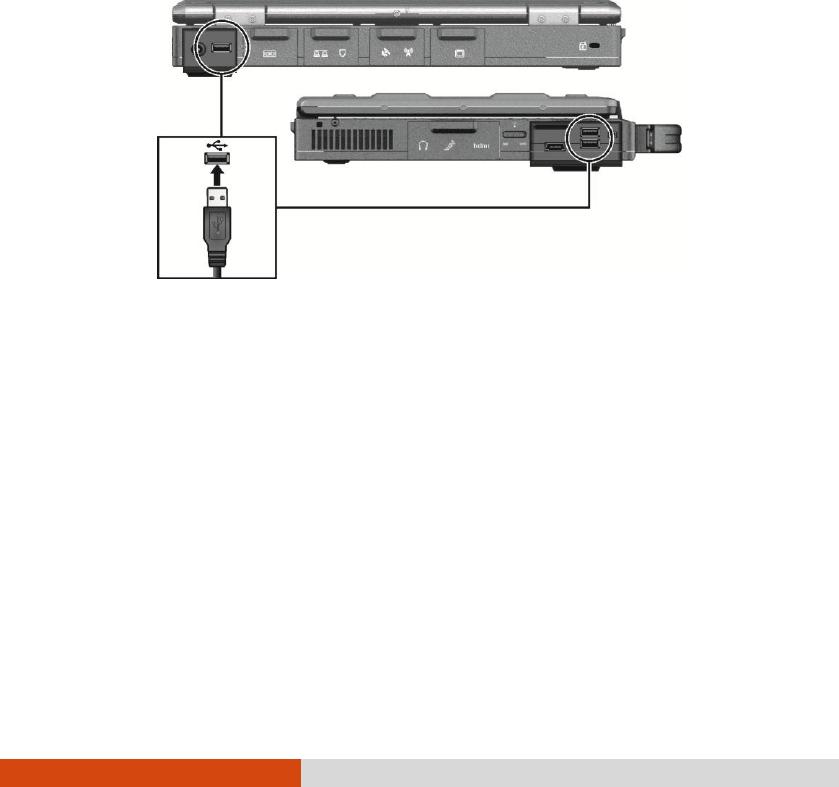

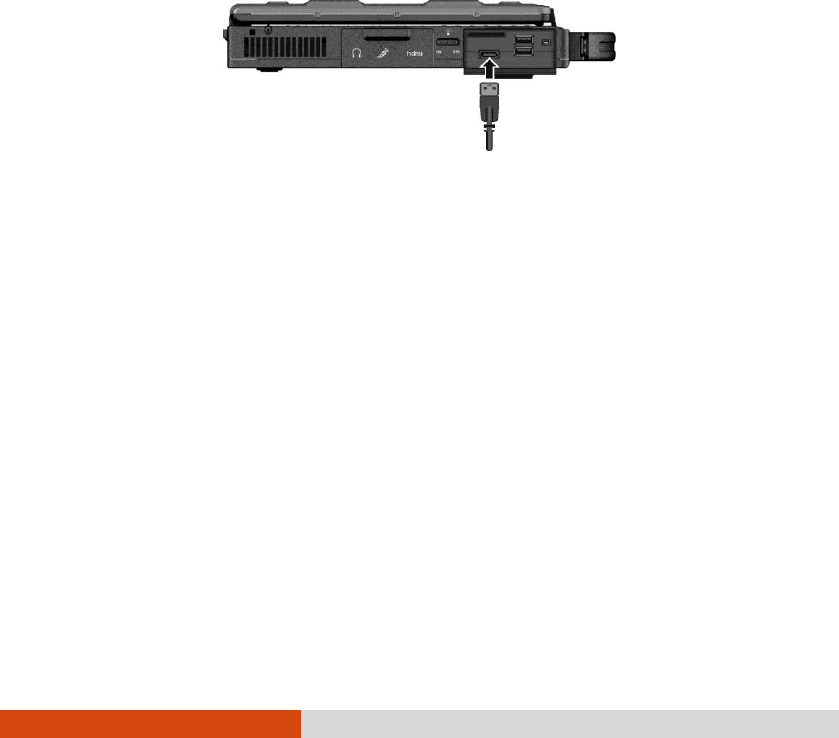

Connecting a USB Device ..............................................4-5
Connecting an eSATA Device .........................................4-6
Connecting an IEEE 1394 Device ....................................4-7
Connecting Audio Devices ..............................................4-8
Using Smart Cards .......................................................4-9
Using PC Cards......................................................... 4-10

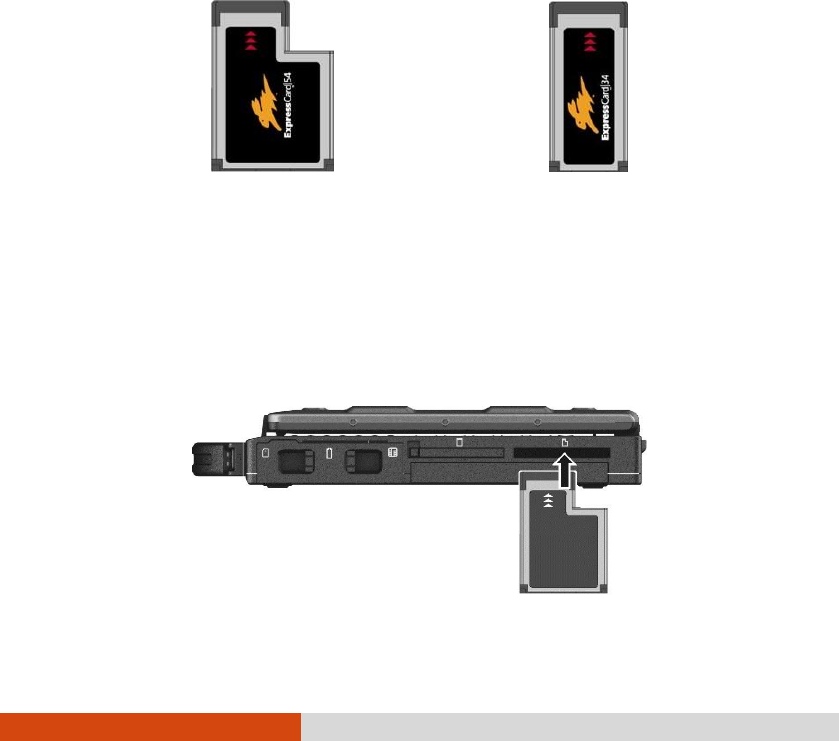

Using ExpressCards .................................................... 4-12
Using Storage Cards ................................................... 4-14

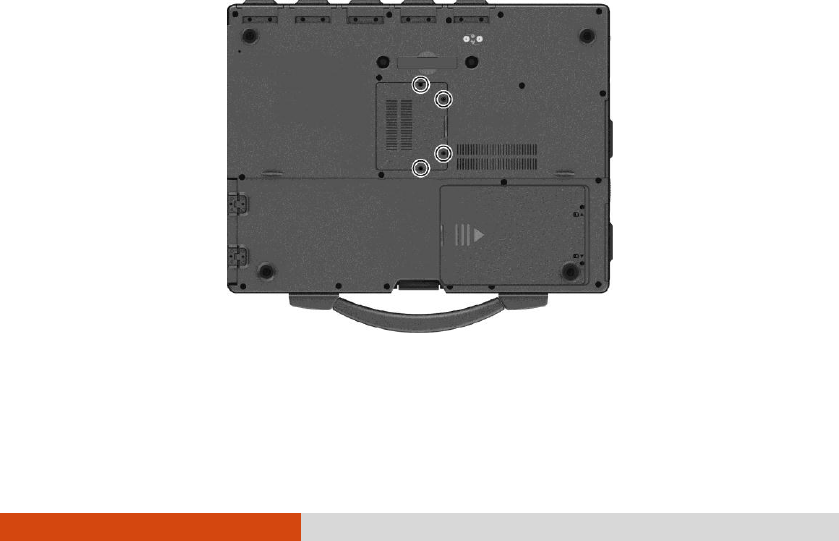

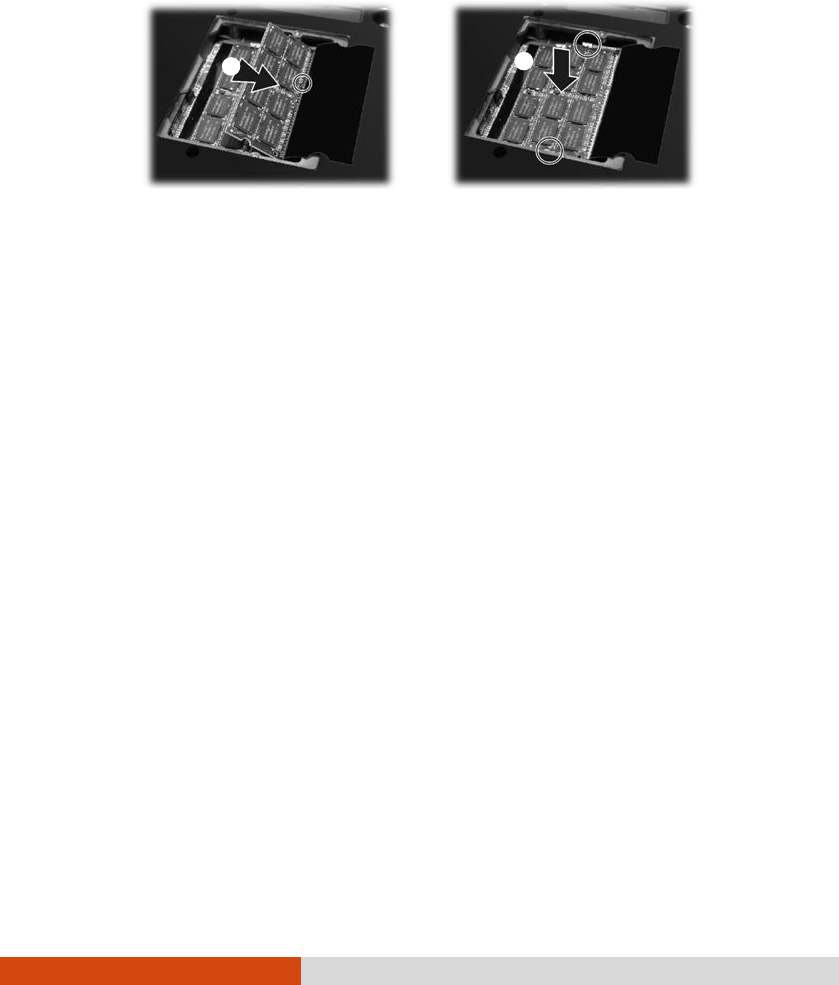

System Memory Upgrade.............................................. 4-15

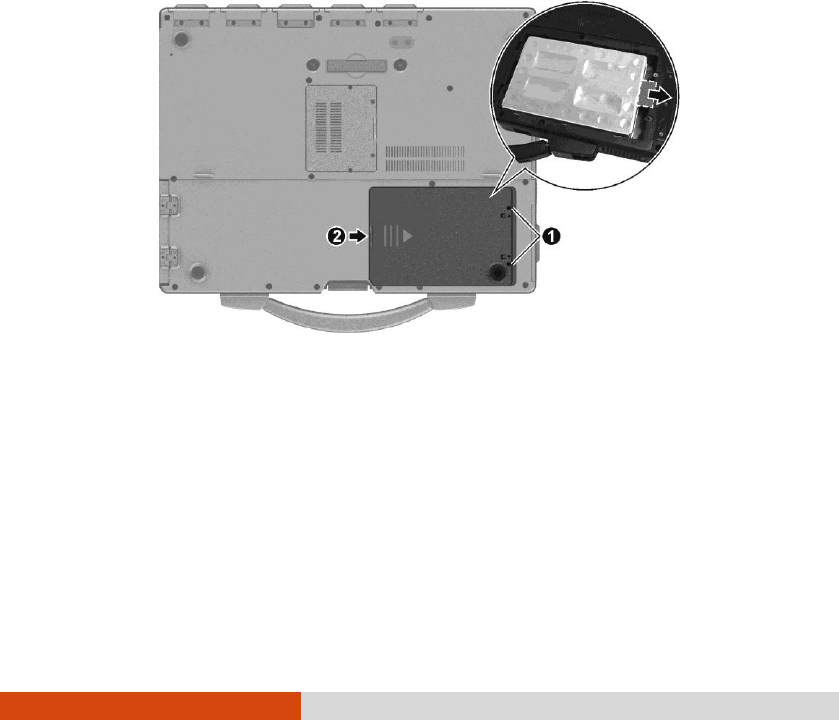

Replacing the Hard Disk Drive ...................................... 4-17
Chapter 5 Using BIOS Setup and System Recovery ................................................ 5-1
BIOS Setup .................................................................5-2
When and How to Use .............................................5-2
Information Menu ......................................................5-3
Main Menu ..............................................................5-4
Advanced Menu ........................................................5-5
Security Menu ........................................................ 5-12
Boot Menu ............................................................ 5-14
Exit Menu ............................................................. 5-15

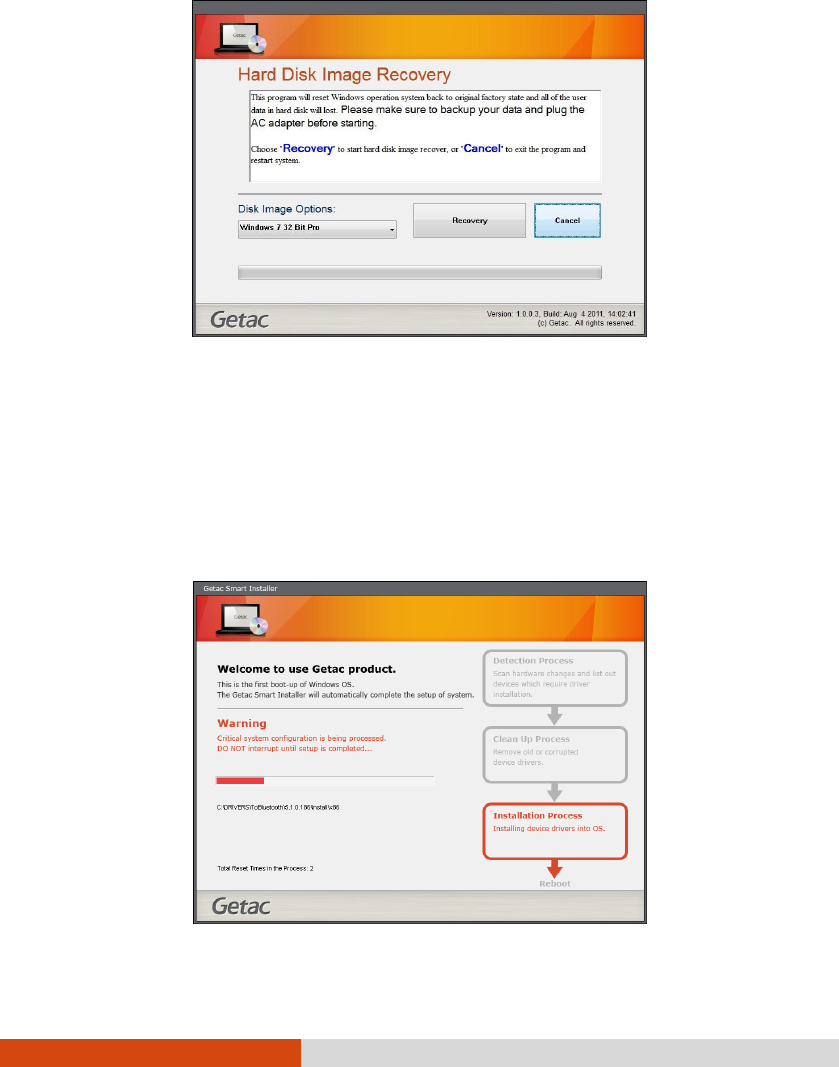

System Recovery ........................................................ 5-17
Chapter 6 Using Getac Software ...................................................................................... 6-1

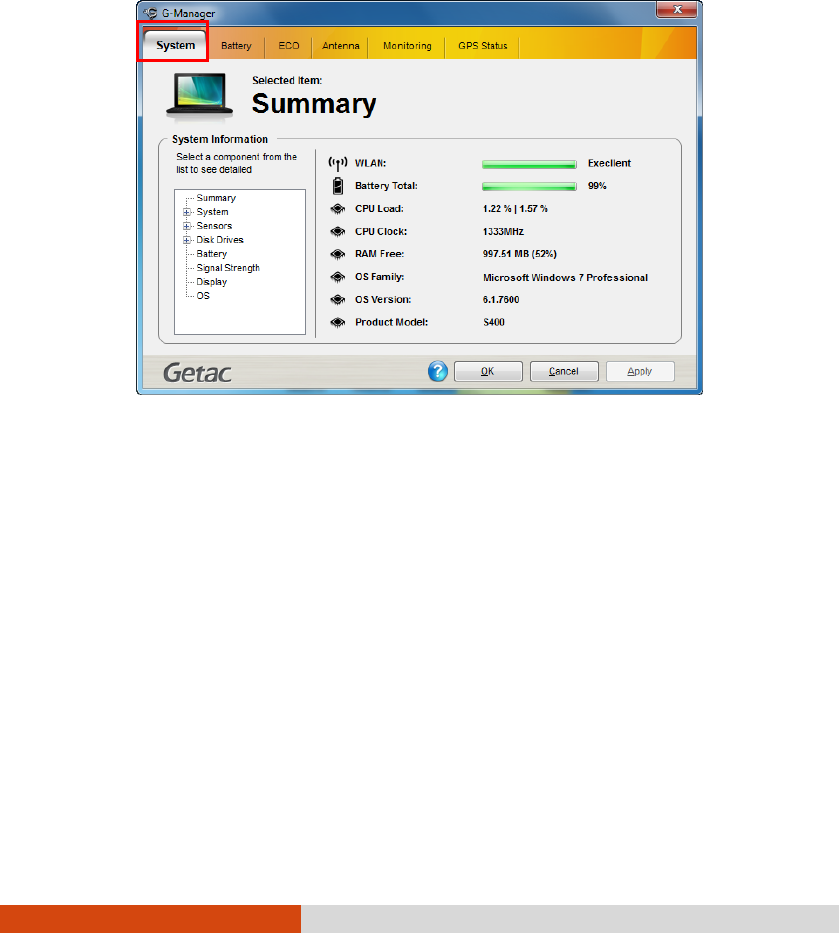

Using G-Manager .........................................................6-2
Starting G-Manager ...................................................6-2
System Tab .............................................................6-3
Battery Tab .............................................................6-4

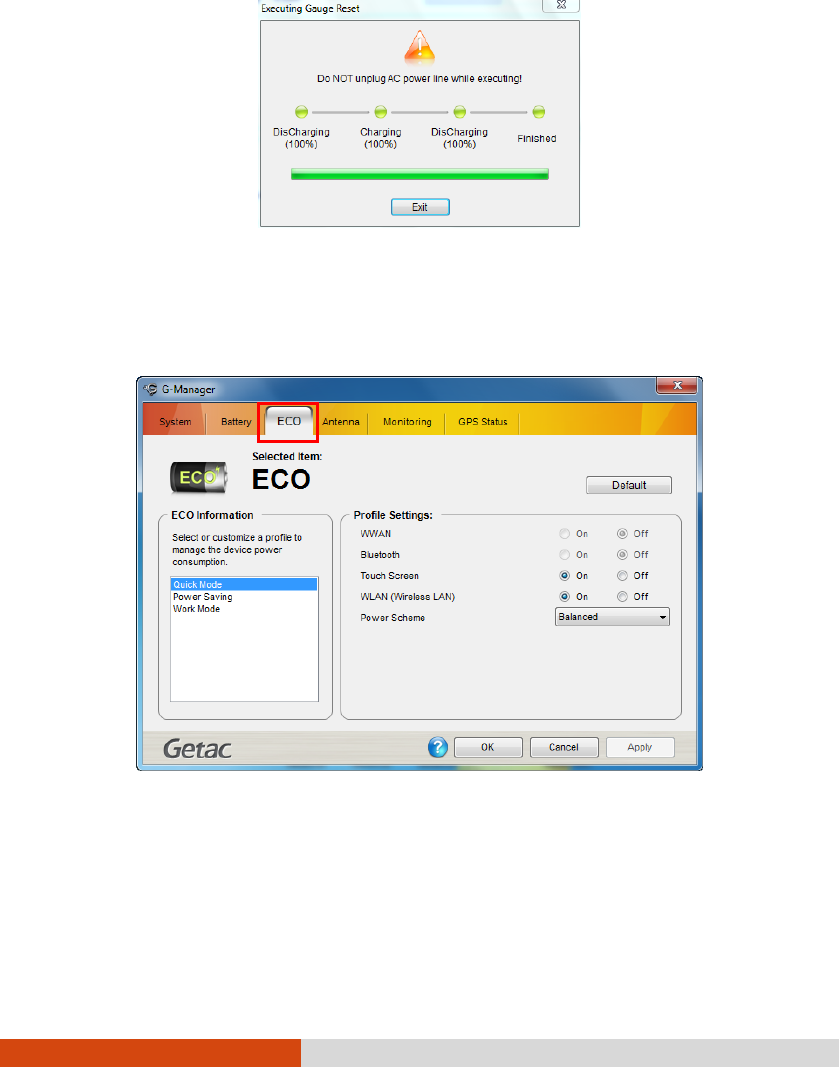

ECO Tab ................................................................6-6
ECO Information .......................................................6-7

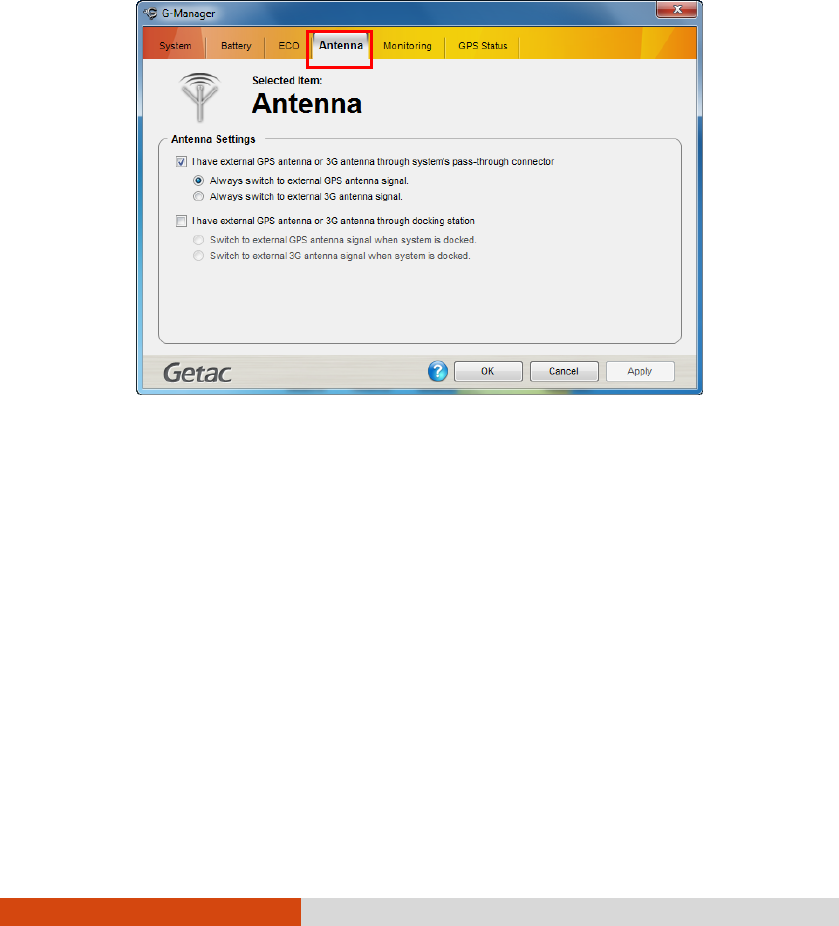

Antenna Tab ............................................................6-8

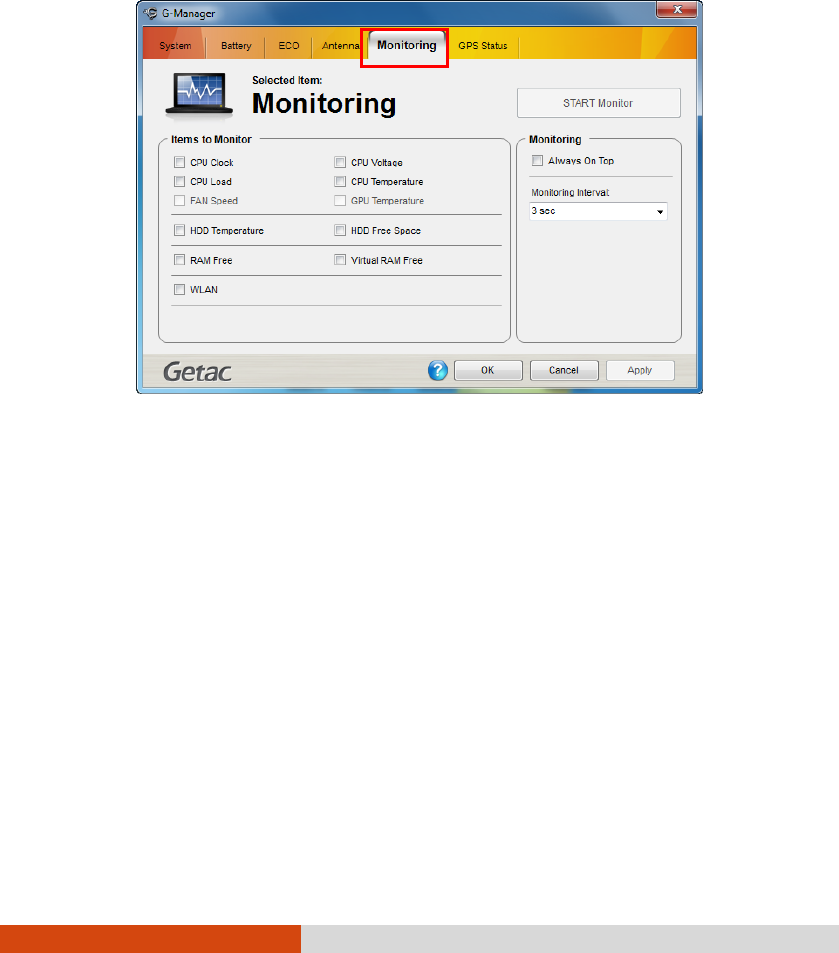

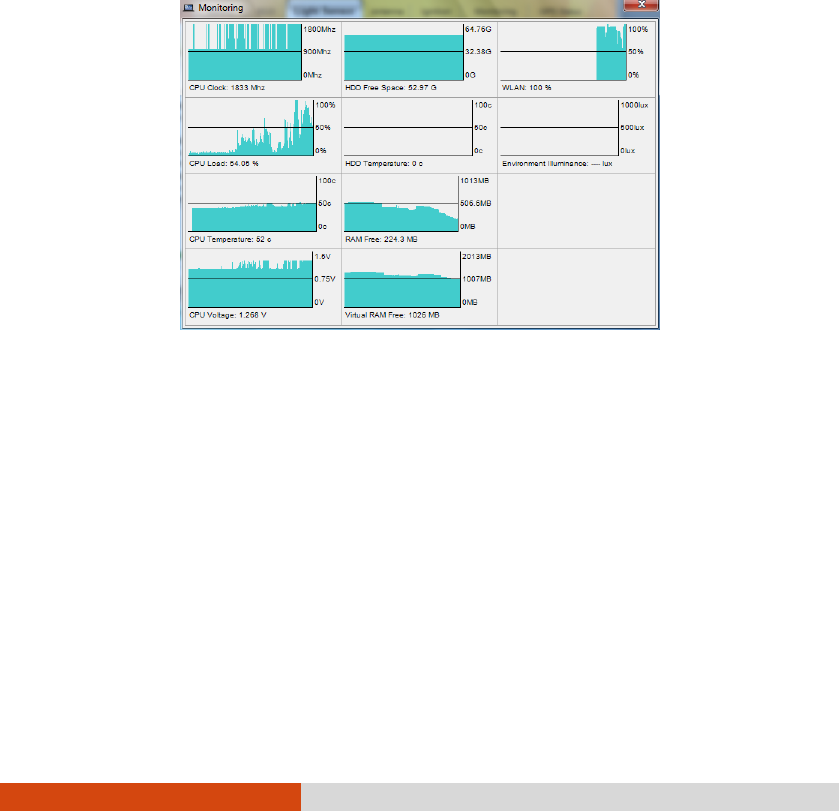

Monitoring Tab .........................................................6-9

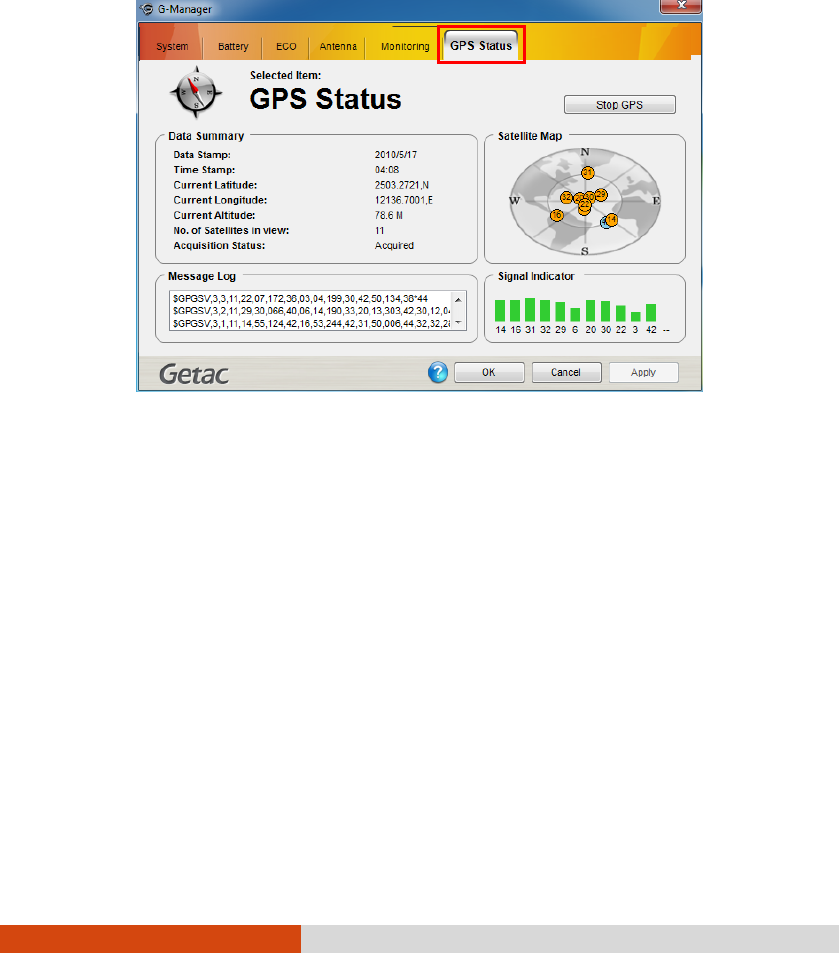

GPS Status Tab ...................................................... 6-11

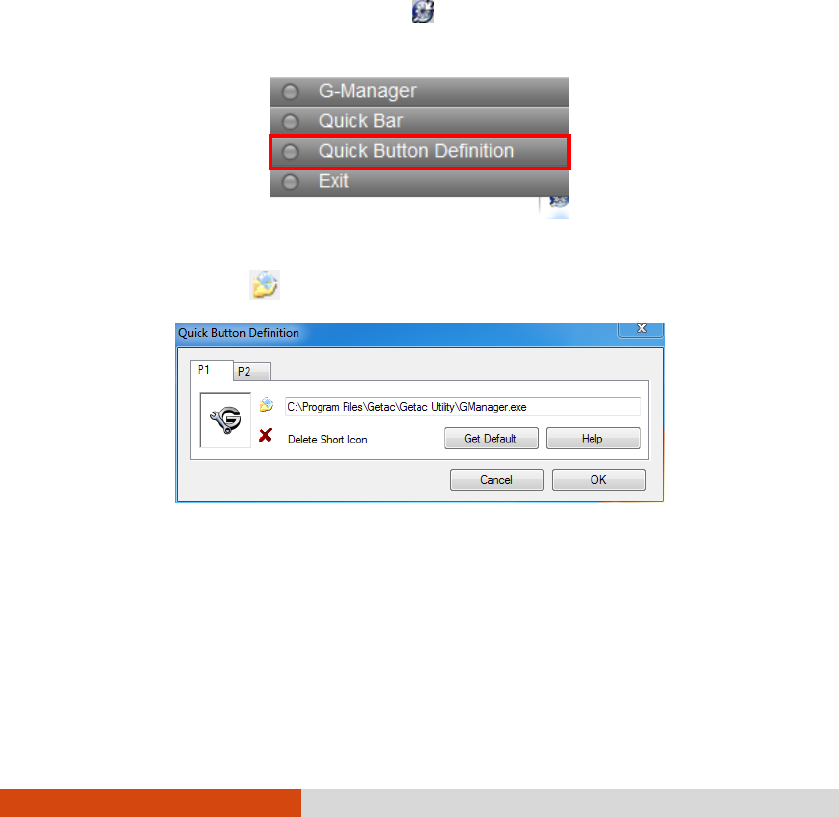

Quick Button Definition Utility ........................................ 6-13
iv
Using Getac Smart Tag (Optional) ............................... 6-15
Reading Tags ......................................................... 6-15

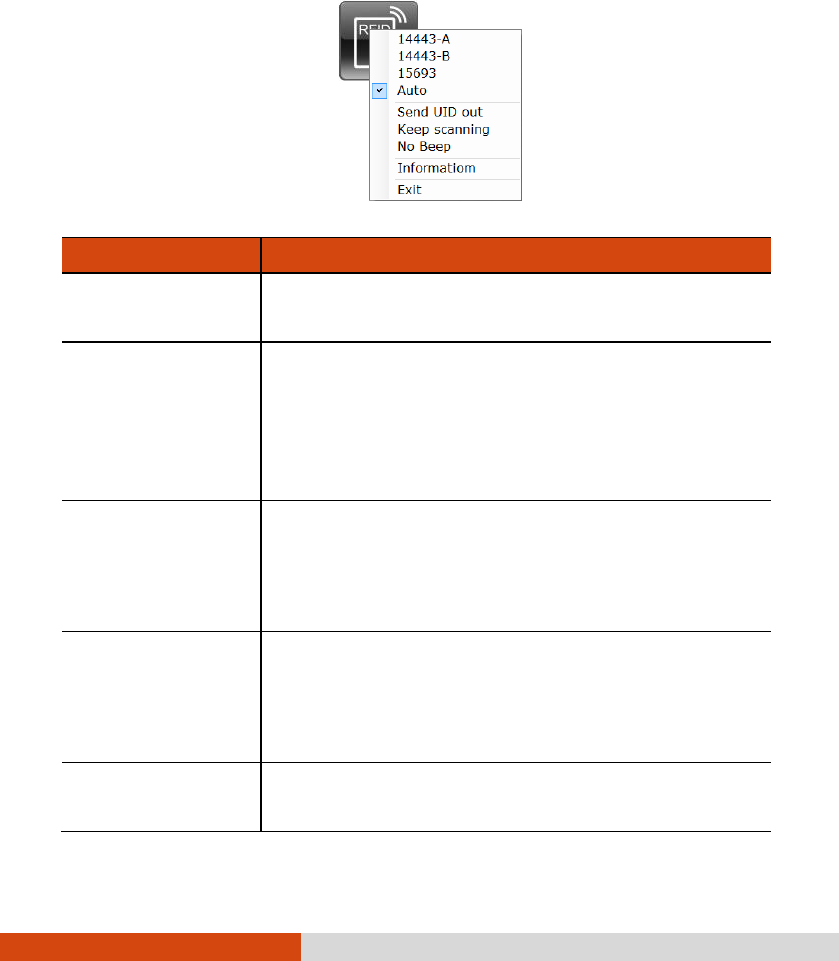

Options Menu ......................................................... 6-17
Chapter 7 Caring for the Computer.................................................................................. 7-1
Protecting the Computer .................................................7-2
Using an Anti-Virus Strategy .......................................7-2
Using Windows Action Center ......................................7-2

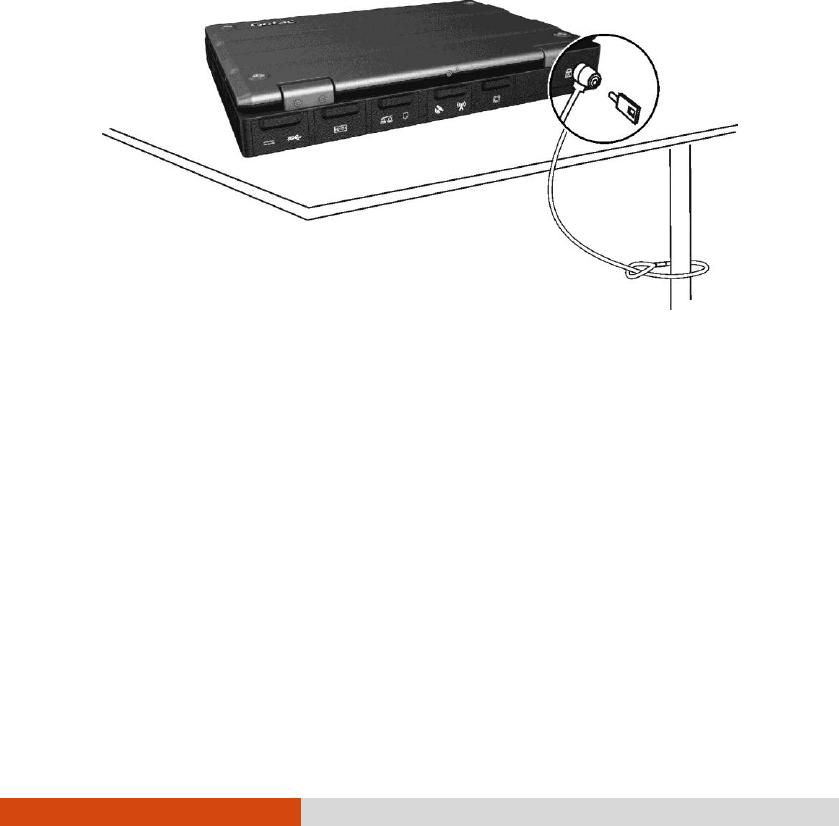

Using the Cable Lock ................................................7-3
Taking Care of the Computer .........................................7-4
Location Guidelines ....................................................7-4
General Guidelines ....................................................7-5
Cleaning Guidelines ...................................................7-5
Battery Pack Guidelines ..............................................7-6
Touchscreen Guidelines...............................................7-7
When Traveling ............................................................7-9
Chapter 8 Troubleshooting ................................................................................................. 8-1
Preliminary Checklist ......................................................8-2
Solving Common Problems .............................................8-3
Battery Problems .......................................................8-3
Bluetooth Wireless Transmission Problems ......................8-3
Display Problems ......................................................8-4
DVD Drive Problems .................................................8-5
Hardware Device Problems ..........................................8-5
Hard Disk Drive Problems ..........................................8-6
Keyboard, Mouse, and Touchpad Problems ....................8-6
LAN Problems ..........................................................8-7
Modem Problems ......................................................8-7
Power Management Problems ......................................8-7
Software Problems .....................................................8-8
Sound Problems .......................................................8-8
Startup Problems .......................................................8-9
v
WLAN Problems ..................................................... 8-10
Other Problems ....................................................... 8-11
Resetting the Computer ................................................ 8-13
Appendix A Specifications ..................................................................................................... A-1
Appendix B Regulatory Information .................................................................................. B-1
On the Use of the System ........................................... B-2
Class B Regulations ................................................. B-2
Safety Notices ......................................................... B-3
On the Use of the RF Device ...................................... B-7
USA and Canada Safety Requirements and Notices ........ B-7
European Union CE Marking and Compliance Notices ..... B-10
Getting Started 1-1
Chapter 1
Getting Started
Congratulations on purchasing this rugged computer.
This chapter first tells you step by step how to get the computer up and running.
Then, you will find a section briefly introducing the external components of the
computer.
1-2 Getting Started
Getting the Computer Running
This section guides you through the procedures for getting the computer ready for
operation.
Unpacking
After unpacking the shipping carton, you should find these standard items:
Rugged computer
Accessories:
AC adapter
AC power cord
Driver disc
Document(s)
Stylus and tether (depending on your model)
Inspect all the items. If any item is damaged or missing, notify your dealer immediately.
Keep the shipping carton and packing materials in case you need to ship or store
the computer in the future.
Getting Started 1-3
Using the Tether (Optional)
A tether is provided for attaching the stylus to your computer.
1. Insert one of the tethers loop ends through the hole of the stylus (as indicated
by below). Then, insert the other end through the first loop (as indicated
by below) and pull it tight.
2. Insert the other loop end to the tether hole on the computer (as indicated by
below). Then, insert the stylus end through the loop (as indicated by
below) and pull it tight.
1-4 Getting Started
Connecting to AC Power
The computer operates either on the external AC power or internal battery power.
It is suggested that you use AC power when you start up the computer for the
very first time.
CAUTION: Use only the AC adapter included with your computer. Using other AC
adapters may damage the computer.
1. Plug the DC cord of the AC adapter to the power connector of the computer
().
Getting Started 1-5
2. Plug the female end of the AC power cord to the AC adapter and the male
end to an electrical outlet ().
3. When the AC adapter is connected, power is being supplied from the electrical
outlet to the AC adapter and onto your computer. Now, you are ready to turn
on the computer.
CAUTION:
When you disconnect the AC adapter, disconnect from the electrical outlet first
and then from the computer. A reverse procedure may damage the AC
adapter or the computer.
When unplugging the connector, always hold the plug head. Never pull on the
cord.
NOTE: When the AC adapter is connected, it also charges the battery pack. For
information on using battery power, see Chapter 3.
1-6 Getting Started
Turning On and Off the Computer
Turning On

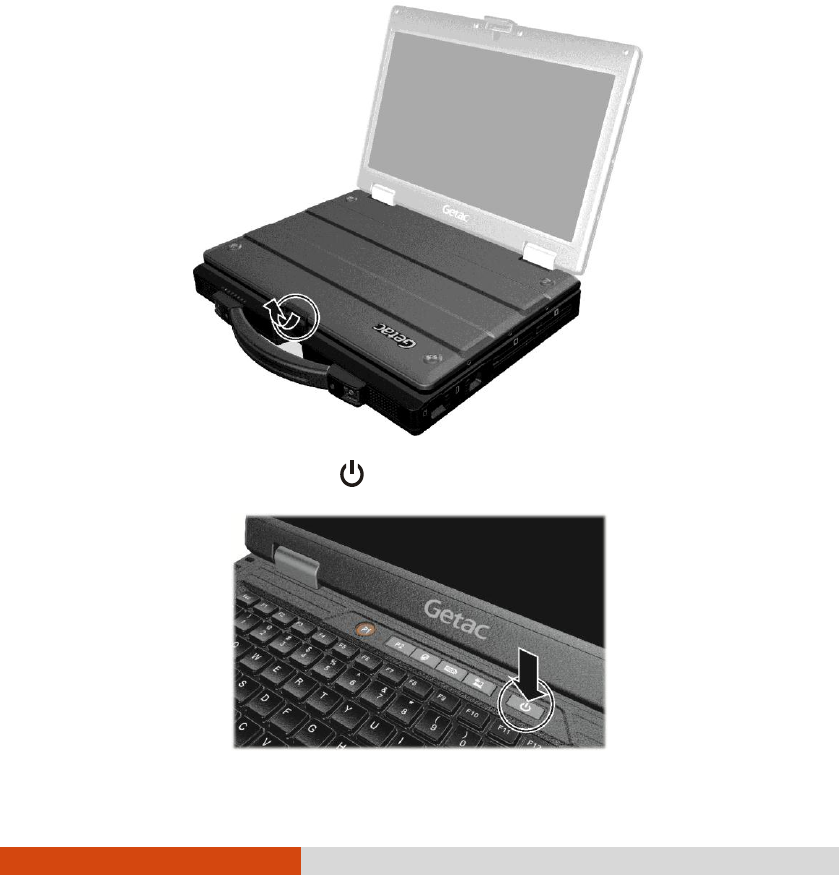

1. Open the top cover by pulling the cover latch and lifting up the cover. You can
tilt the cover forward or backward for optimal viewing clarity.
2. Press the power button ( ).
Getting Started 1-7

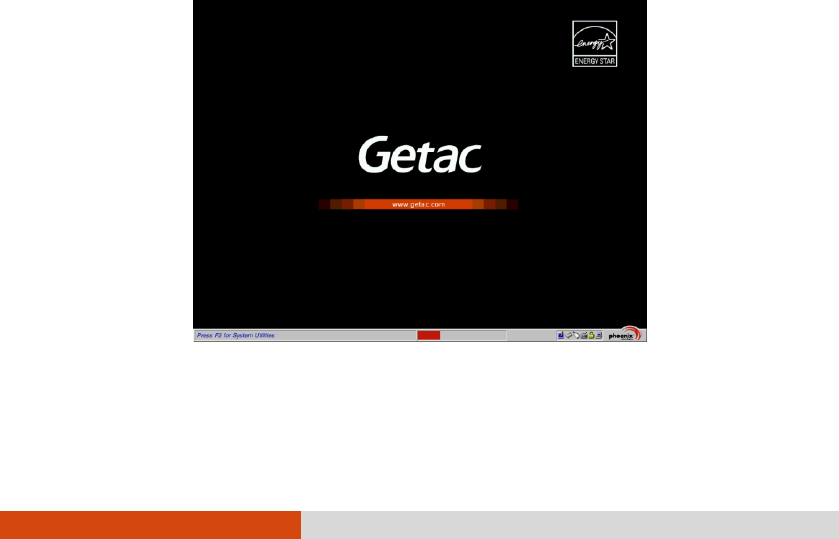

3. Each time the computer is turned on, it performs a Power-On Self Test (POST),
and the operating system such as Windows should start.
Turning Off
When you finish a working session, you can stop the system by turning off the power
or leaving it in Sleep or Hibernation mode:
To...
Do this...
Power off
(Shutdown)
Use the Windows Start menu in the lower left and follow the
shutdown procedure.
Sleep
Press the power button* or use the Windows Start menu to put
the computer in Sleep mode.
Hibernate
Use the Windows Start menu to put the computer in Hibernation
mode. (See Hibernation in Chapter 3 for more information.)
* Sleep is the default setting of the power button. You may change what the
power button does in Windows Control Panel.
1-8 Getting Started
Taking a Look at the Computer
NOTE: Depending on the model you purchased, the appearance of your computer
may not be exactly the same as those shown in this manual.
CAUTION: You need to open the protective covers to access the connectors.
When not using a connector, make sure to close the cover completely for water-
and dust-proof integrity. (Engage the locking mechanism if existing.)
Front Components

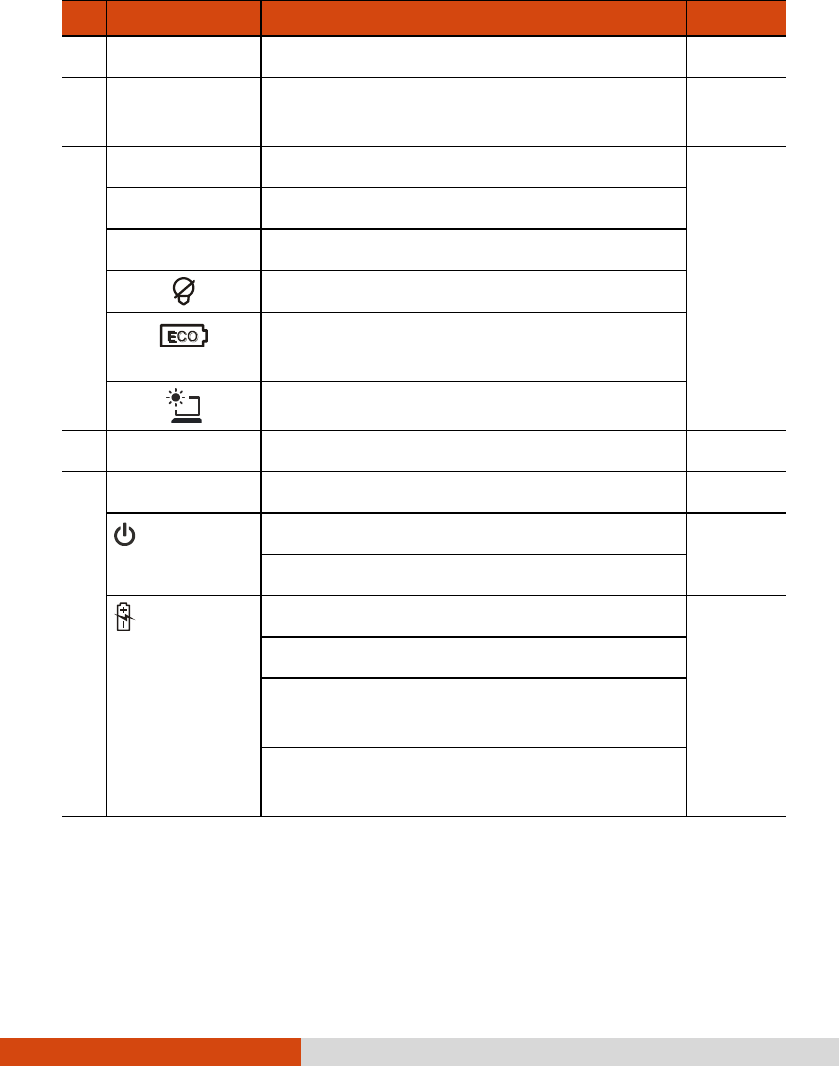

Ref
Component
Description
See Also
Top Cover Latch
Locks the top cover.
P. 1-5
Stereo Speaker
Sends out sound and voice from the computer.
Handle
Provides a convenient way to carry the
computer.
Getting Started 1-9
Rear Components
Ref
Component
See Also
Power Connector
P. 1-4
USB Port
P. 4-5
RS232 Serial
Connector
P. 4-4
RJ-45 Connector
P. 2-20
RJ-11 Connector
(optional)
P. 2-19
GPS Pass-through
Connector (optional)
WWAN Pass-
through Connector
(optional)
VGA Connector
P. 4-2
Kensington Lock
P. 7-3
1-10 Getting Started
Right-Side Components
Ref
Component
Description
See Also
SIM Card Slot
Accepts a SIM card for models having the
WWAN module.
NOTE: The slot still exists but cannot be used
for models without the WWAN module.
P. 2-29
Smart Card
Reader
Accepts a smart card for additional security
feature.
NOTE: There is no smart card reader if your
model has the RFID reader option.
P. 4-9
PC Card Slot
Accepts a PC card for additional functions.
P. 4-10
ExpressCard Slot
Accepts an ExpressCard for additional functions.
P. 4-12
Battery Pack
Supplies power to your computer when external
power is not connected.
P. 3-3
Super Multi Drive
Accepts a compact disc for installing or loading
software, accessing data, and playing
music/video.
P. 2-17
Getting Started 1-11

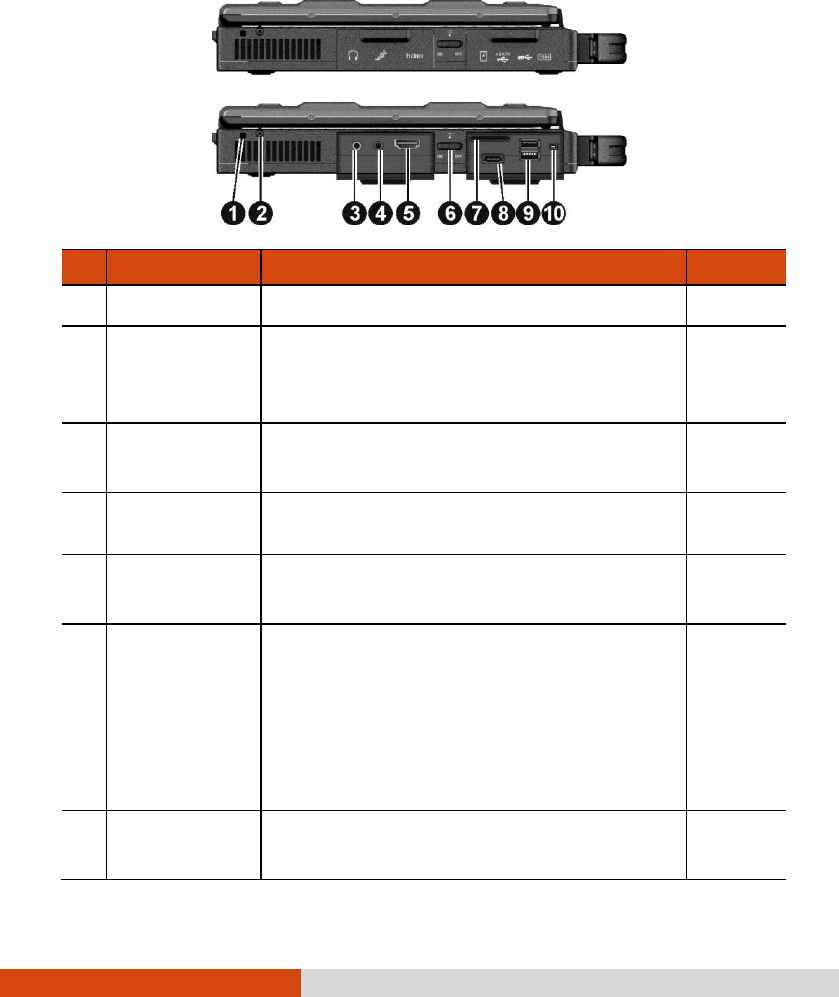

Left-Side Components
Ref
Component
Description
See Also
Tether Hole
Stylus tethered to this hole.
P. 1-3
Stylus
Serves as the input device by tapping on the
touchscreen to make selections and enter
information.
P. 2-10

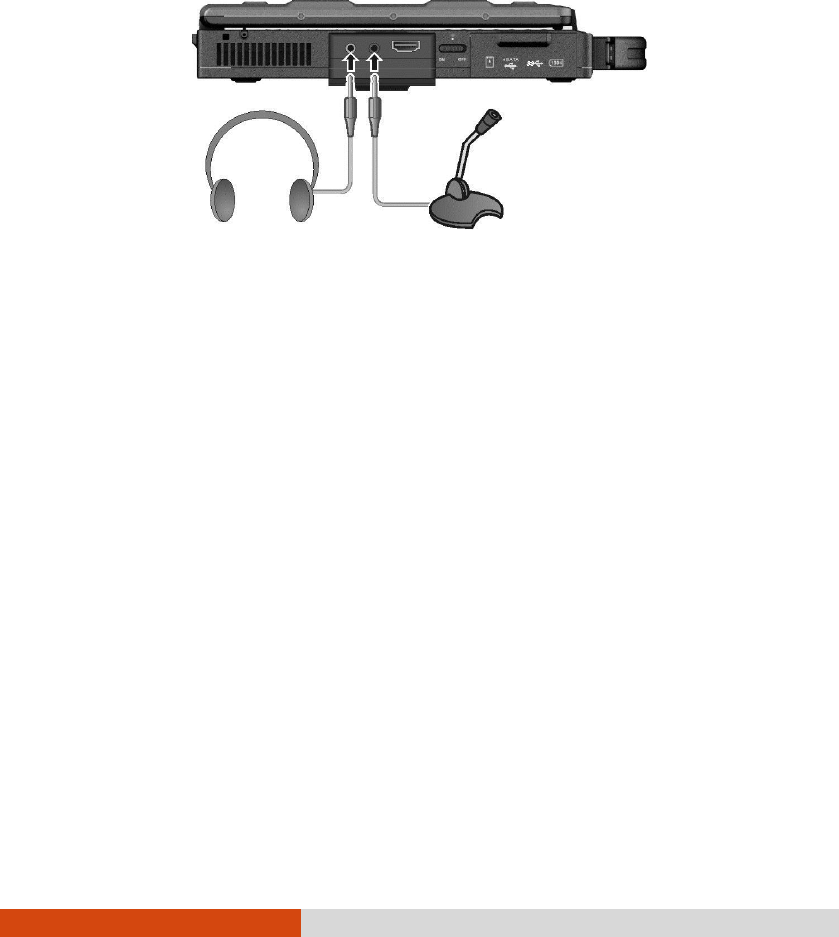

Audio Output
Connector
Connects a set of headphones or external
speakers with amplifier.
P. 4-8
Microphone
Connector
Connects an external microphone.
P. 4-8
HDMI Connector
Connects a HDMI (High-Definition Multimedia
Interface) monitor or TV set.
P. 4-2
RF (radio
frequency)
Switch
Serves as the master on/off control of the RF
radio.
When set to OFF, all wireless modules (such as
WLAN, Bluetooth, and WWAN) cannot be used.
When set to ON, individual settings of the module
work.
P. 2-20
P. 2-23
P. 2-29
Storage Card
Reader
Accepts a MMC, MMC Plus, or SD card for
removable storage media.
P. 4-14
1-12 Getting Started
Ref
Component
Description
See Also
eSATA/USB
Combo Port
Connects an eSATA device such as an external
hard drive or optical drive.
P. 4-6
Can also function as a USB port.
USB Port
Connects a USB device, such as a USB flash
disk, printer, digital camera, joystick, and more.
P. 4-5
Mini IEEE 1394
Port
Connects an IEEE 1394 device such as a
scanner, printer, DVCAM, and VCR.
P. 4-6
Getting Started 1-13
Top-open Components
Ref
Component
Description
See Also
Camera Lens
(optional)
Allows you to use the camera function.
LCD Screen
Displays the output of the computer. May include
the optional touchscreen feature.
P. 2-10
Power Button
Turns the power on or off (Sleep mode by
default).
P. 1-6
Keyboard
Serves as the data input device of the computer.
P.2-2
1-14 Getting Started
Ref
Component
Description
See Also
Microphone
Receives sound and voice for the computer.
RFID Antenna
(optional)
Scans and reads RFID (Radio-frequency
identification) tags.
P. 6-15
Quick Buttons
P. 2-15
P1
Starts G-Manager by default.
P2
Starts Microsoft Internet Explorer by default.
Toggles Blackout mode on or off.
Brings up the ECO menu for selecting a power
profile when using battery power.
Toggles the sunlight-readable mode on or off.
Touchpad
Serves as the pointing device of the computer.
P. 2-7
Indicators
Power
Lights green when computer is on.
P. 1-6
Blinks green when computer is in Sleep mode.
Battery
Charge
Lights green when the battery is fully charged.
P. 3-3
Lights amber when the battery is being charged.
Blinks red when the batterys capacity is below
10 %.
Blinks amber when the battery is in an abnormal
condition.
Getting Started 1-15

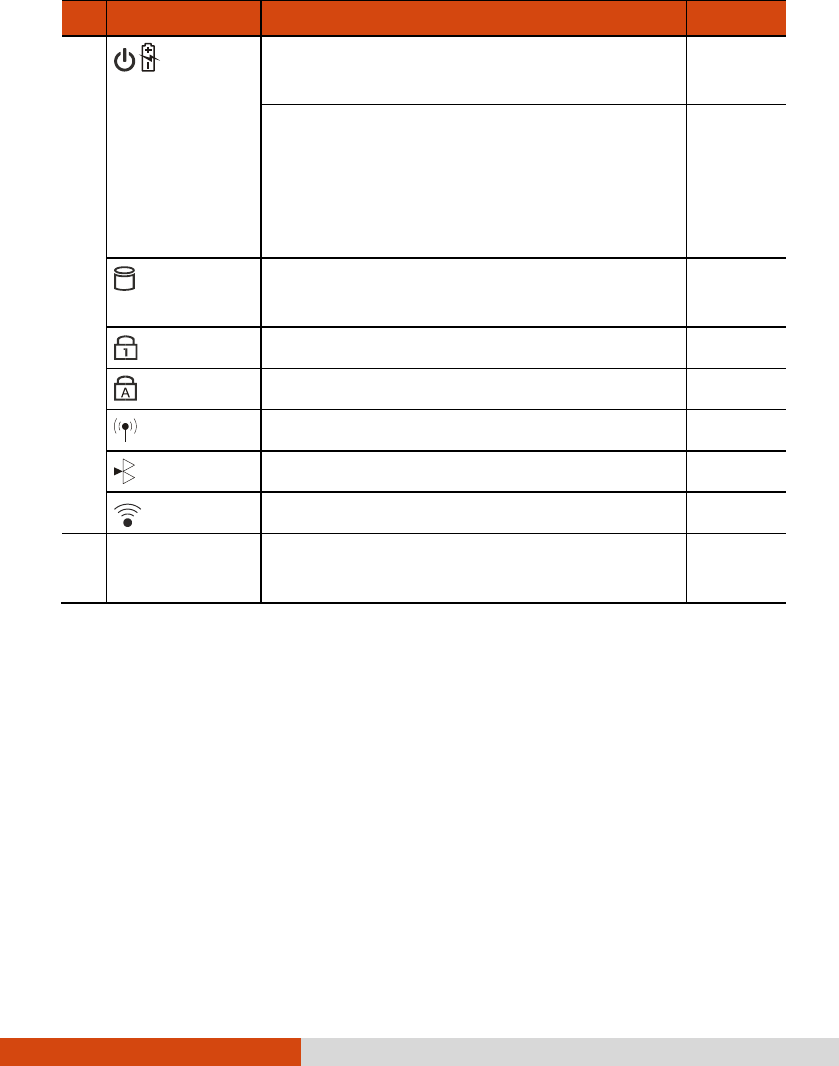

Ref
Component
Description
See Also
Both indicators blink green at the same time when
the optional hard disk drive heater is on.
P. 8-9
If you turn on the system when the temperature
is too high for operation, both indicators blink
green for 10 seconds to indicate the system will
remain off as a protection. Wait till the
temperature drops down.
P. 8-9
Hard Disk/
DVD Drive
Blinks green when computer is reading / writing
data to the hard disk or DVD drive.
Num Lock
Lights green when Num Lock is on.
P. 2-3
Caps Lock
Lights green when Caps Lock is on.
P. 2-3
WLAN
Lights green when WLAN radio is on.
P. 2-20
Bluetooth
Lights green when Bluetooth radio is on.
P. 2-23
WWAN
Lights green when WWAN radio is on.
P. 2-29
Fingerprint
Scanner
Serves as the fingerprint verification, preventing
unauthorized access to your computer.
P. 2-30
1-16 Getting Started
Bottom Components
Ref
Component
Description
See Also
Docking
Connector
Connects to the office or vehicle dock
(purchased separately).
Memory Slots
Inside are the memory slots for expanding the
memory size of your computer.
P. 4-15
Hard Disk Drive
Inside is the hard disk drive.
P.4-17
Operating Your Computer 2-1
Chapter 2
Operating Your Computer
This chapter provides information about the use of the computer.
If you are new to computers, reading this chapter will help you learn the operating
basics. If you are already a computer user, you may choose to read only the parts
containing information unique to your computer.
CAUTION:
Do not expose your skin to the computer when operating it in a very hot or cold
environment.
The computer can get uncomfortably warm when you use it in high
temperatures. As a safety precaution in such a circumstance, do not place the
computer on your lap or touch it with your bare hands for extended periods of
time. Prolonged body contact can cause discomfort and potentially a burn.
2-2 Operating Your Computer
Using the Keyboard
Your keyboard has all the standard functions of a full-sized computer keyboard plus
an Fn key added for specific functions.
The standard functions of the keyboard can be further divided into four major categories:
Typewriter keys
Cursor-control keys
Numeric keys
Function keys
Typewriter Keys
Typewriter keys are similar to the keys on a typewriter. Several keys are added
such as the Ctrl, Alt, Esc, and lock keys for special purposes. When the lock keys
(Caps Lock and Num Lk) are pressed, their corresponding indicators light up.
The Control (Ctrl) / Alternate (Alt) key is normally used in combination with other
keys for program-specific functions. The Escape (Esc) key is usually used for
stopping a process. Examples are exiting a program and canceling a command. The
function depends on the program you are using.
Cursor-Control Keys
Cursor-control keys are generally used for moving and editing purposes.
NOTE: The word “cursor” refers to the indicator on the screen that lets you know
exactly where on your screen anything you type will appear. It can take the form of
a vertical or horizontal line, a block, or one of many other shapes.
Operating Your Computer 2-3
Numeric Keypad
A 15-key numeric keypad is embedded in the typewriter keys as shown next:
Numeric keys facilitate entering of numbers and calculations. When Num Lock is on,
the numeric keys are activated; meaning you can use these keys to enter numerals.
NOTE:
When the numeric keypad is activated and you need to type the English letter
in the keypad area, you can turn Num Lock off or you can press Fn and then
the letter without turning Num Lock off.
Some software may not be able to use the numeric keypad on the computer. If
so, use the numeric keypad on an external keyboard instead.
2-4 Operating Your Computer
Function Keys
On the top row of the keys are the function keys: F1 to F12. Function keys are
multi-purpose keys that perform functions defined by individual programs.
Fn Key
The Fn key, at the lower left corner of the keyboard, is used with another key
to perform the alternative function of a key. The letter “Fn” and the alternative functions
are identified by the color of blue on the keytop. To perform a desired function,
first press and hold Fn, then press the other key.
Hot Keys
Hot keys refer to a combination of keys that can be pressed any time to activate
special functions of the computer. Most hot keys operate in a cyclic way. Each time
a hot key combination is pressed, it shifts the corresponding function to the other
or next choice.
You can easily identify the hot keys with the icons imprinted on the keytop. The
hot keys are described next.
Key
Description
Switches the keyboard backlight off or on (with 4-level
brightness). *
Switches the wireless LAN radio off or on.
Decreases the sound volume.
Increases the sound volume.
Operating Your Computer 2-5

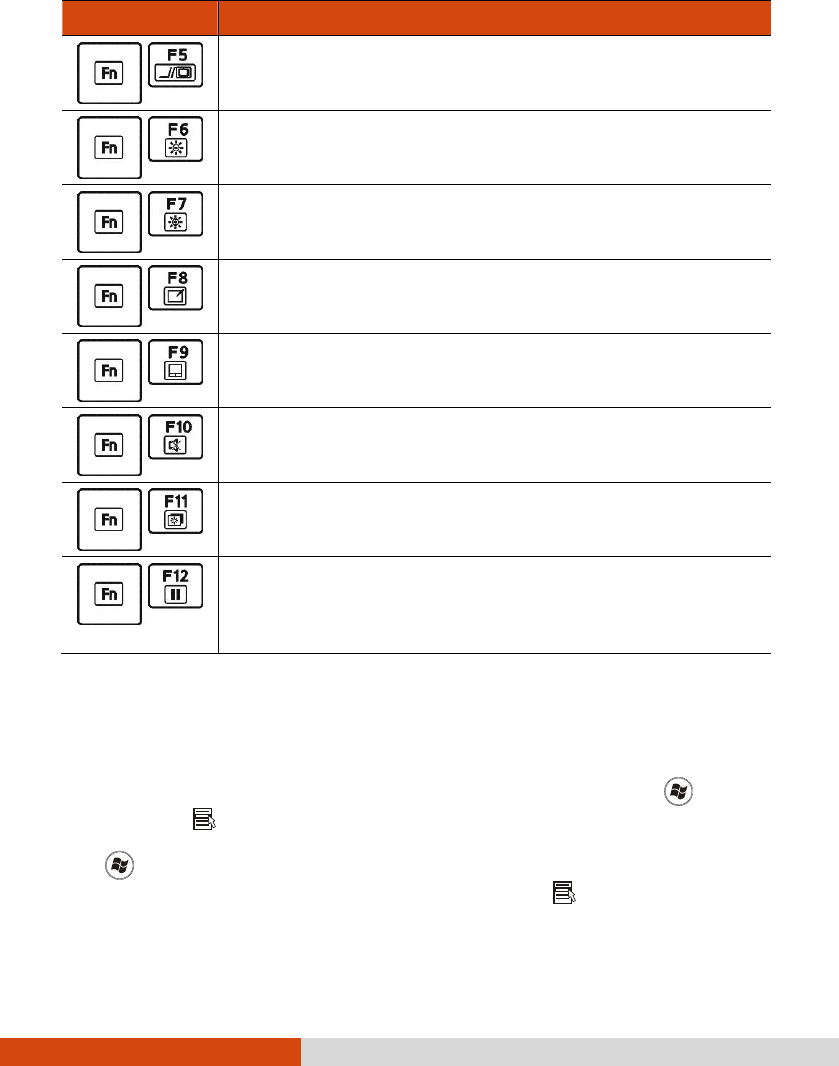

Key
Description
Switches the display output when external devices are
connected.
Decreases the LCD brightness.
Increases the LCD brightness.
Switches the touchscreen off or on. *
Switches the touchpad off or on.
Switches the system sound output off (mute) or on.
Switches LCD backlight off or on.
Serves as the sleep button that you can define with Windows’
Power Options. (See the “Power Management” in Chapter
3.)
TABLE NOTE: * means select models only.
Windows Keys
The keyboard has two keys that perform Windows-specific functions: Windows
Logo key and Application key.
The Windows Logo key opens the Start menu and performs software-specific
functions when used in combination with other keys. The Application key usually
2-6 Operating Your Computer
has the same effect as a right mouse click. (See your Windows manual for more
information.)
Operating Your Computer 2-7
Using the Touchpad
CAUTION: Do not use a sharp object such as a pen on the touchpad. Doing so
may damage the touchpad surface.
NOTE:
Press Fn+F9 to toggle the touchpad on or off.
For optimal performance of the touchpad, keep your fingers and the pads
clean and dry. When tapping on the pad, tap lightly. Do not use excessive
force.
The touchpad is a pointing device that allows you to communicate with the computer
by controlling the location of the pointer on the screen and making selection with
the buttons.
2-8 Operating Your Computer
The touchpad consists of a rectangular pad (work surface) and a left and right
buttons. To use the touchpad, place your forefinger or thumb on the pad. The
rectangular pad acts like a miniature duplicate of your display. As you slide your
fingertip across the pad, the pointer (also called cursor) on the screen moves
accordingly. When your finger reaches the edge of the pad, simply relocate yourself
by lifting the finger and placing it on the other side of the pad.
Here are some common terms that you should know when using the touchpad:
Term
Action
Point
Move your finger on the pad until the cursor points to the
selection on the screen.
Click
Press and release the left button.
or
Tap gently anywhere on the pad.
Double-click
Press and release the left button twice in quick succession.
or
Tap twice on the pad rapidly.
Work surface
within the inner
rectangle
Operating Your Computer 2-9
Term
Action
Drag and drop
Press and hold the left button, then move your finger until
you reach your destination (drag). Finally, release the button
(drop) when you finish dragging your selection to the
destination. The object will drop into the new location.
or
Gently tap twice on the pad and on the second tap, keep
your finger in contact with the pad. Then, move your finger
across the pad to drag the selected object to your destination.
When you lift your finger from the pad, the selected object
will drop into place.
Scroll
To scroll is to move up and down or left and right in the
working area on the screen.
To move vertically, place your finger on the right or left edge
of the pad and slide your finger up and down along the edge.
To move horizontally, place your finger on the top or bottom
edge of the pad and slide your finger left and right.
This function works only after you install the touchpad driver
supplied with the computer and configure the touchpad to enable
the function. It may not work for all applications.
TABLE NOTE: If you swap the left and right buttons, “tapping” on the touchpad
as
an alternative method of pressing the left button will no longer be valid.
Configuring the Touchpad
You may want to configure the touchpad to suit your needs. For example, if you
are a left-handed user, you can swap the two buttons so that you can use the
right button as the left button and vice versa. You can also change the size of
the on-screen pointer, the speed of the pointer, and so on.
To configure the touchpad, go to Control Panel Mouse Properties.
2-10 Operating Your Computer
Using the Touchscreen (Optional)
NOTE: Press Fn+F8 to toggle the touchscreen on or off.
CAUTION: Do not use a sharp object such as a ballpoint pen or pencil on the
touchscreen. Doing so may damage the touchscreen surface. Use your finger or
the included stylus.
The touchscreen is a touch-sensitive device that allows you to navigate on the screen
without using a keyboard, touchpad, or mouse.
Use the included stylus to select objects on the screen. The stylus can be stretched
for better grip and handling.
The following table shows how you use the touchscreen to obtain equivalent mouse
functions.
Term/Action
Equivalent Mouse
Function
Tap: Touch the screen once.
Click/Point
Double-tap: Touch the screen twice rapidly.
Double-click
Operating Your Computer 2-11
Term/Action
Equivalent Mouse
Function
Tap and hold: Tap and hold until a popup menu appears.
Right-click
Drag: Hold the stylus (or finger) on the screen and drag
across the screen until reaching your destination.
Drag
Using Multi-touch Gestures (Optional)
If your computer model comes with multi-touch-capable screen and Windows 7, you
can interact with your computer by placing two fingers on the screen. The movement
of the fingers across the screen creates gestures, which send commands to the
computer.
Here are the multi-touch gestures that you can use:
Gestures
Actions
( = finger down; = finger up)
Descriptions
Pan
(Scroll)
or
Drag 1 or 2 fingers up or down.
Use panning to see
another part of a page
that has scroll bars.
Zoom
(Pinch)
Move two fingers apart/toward each
other.
Use zooming to make an
item (a photo for
example) on the screen
larger or smaller. The
gesture works in
applications that support
mouse wheel zooming.
2-12 Operating Your Computer
Gestures
Actions
( = finger down; = finger up)
Descriptions
Rotate
or
Move two fingers in opposing directions.
-or-
Use one finger to pivot around another.
Use rotating to move a
picture or other item on
the screen in a circular
direction (clockwise or
counter-
clockwise). The gesture
works in applications that
support the specific
gesture.
Press and
Tap
Press on target and tap using a second
finger.
Use press and tap to
access the shortcut
menu.
Two-
finger Tap
Tap two fingers at the same time (where
the target is in the midpoint between the
fingers).
The function is defined by
applications that support
the specific gesture.
Operating Your Computer 2-13
Gestures
Actions
( = finger down; = finger up)
Descriptions

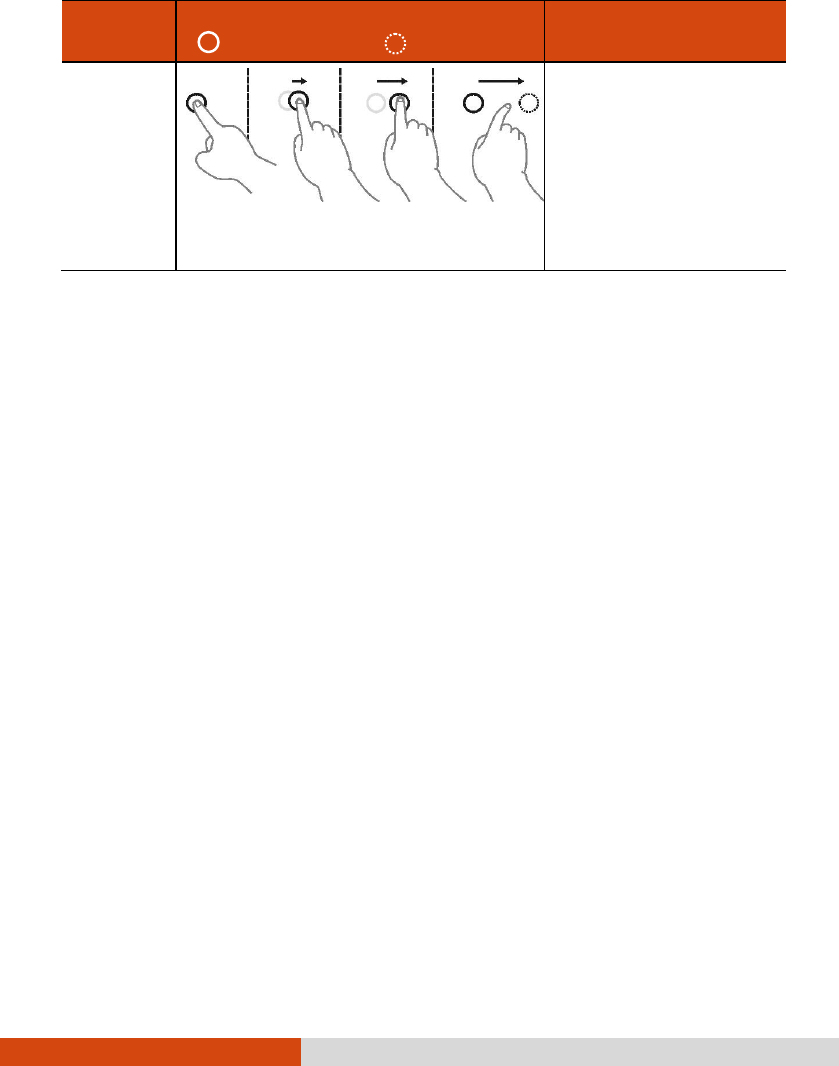

Flicks
Make quick drag gestures in the desired
direction.
Flick left or right to
navigate back and
forward in a browser and
other applications. The
gesture works in most
applications that support
back and forward.
2-14 Operating Your Computer
Using the Input Panel
Use the Input Panel to enter text and perform various keyboard functions. There
are two types of Input Panels for you to use in Windows 7:
Touch Keyboard allows you to enter text by tapping the keys with your stylus,
like pressing the keys on a standard keyboard.
Writing Pad allows you to write on the writing pad, like writing on a piece of
paper. Your handwriting will be converted into typed text.
To open the Input Panel, tap the Input Panel tab, which appears by default on the
left edge of the screen. To switch between the two types, tap or at
the upper left corner of the Input Panel.
NOTE: For more information on using the Input Panel, see Windows online help.
Operating Your Computer 2-15
Using the Quick Buttons
The Quick Buttons allow you to quickly start a program or activate a function.
The quick buttons are:
Button
Description
P1
Starts G-Manager by default.
You can re-define the function of the button. (See Quick Button
Definition Utility in Chapter 6 for information.)
Can also serve as Emergency button if set according in the BIOS
Setup program. (See Advanced Menu in Chapter 5 for information.)
P2
Starts Microsoft Internet Explorer by default.
You can re-define the function of the button. (See Quick Button
Definition Utility in Chapter 6 for information.)
Toggles Blackout mode on or off.
In Blackout mode, the LCD backlight, keyboard/button backlight, and
LED indicators are all turned off; and the sound is muted.
To bring the computer out of Blackout mode, press the same button
again or the power button.
2-16 Operating Your Computer
Button
Description
Brings up the ECO menu as shown below:
Select a mode before the ECO menu disappears. You can select a
mode by pressing the arrow key. Whenever you press the ECO button,
the setting always defaults to Off. The ECO mode will return to the
default Off setting when AC power is connected, any power related setting
is changed, the computer resumes from Sleep/Hibernation mode, or the
computer is restarted.
Each ECO mode (Quick, Power Saving, or Work) is a combination
of power settings that results in different power consumptions. (For
information on configuring the ECO modes, see ECO Tab in Chapter
6.)
NOTE: The button works only when using battery power.
Toggles the sunlight-readable mode on or off.
In sunlight-readable mode, the LCD brightness is increased to the highest
level. The mode automatically ends when the brightness setting is
changed, the computer resumes from Sleep/Hibernation mode, or the
computer is restarted.
ECO Menu
Off
Quick Mode
Power Saving
Work Mode
Operating Your Computer 2-17
Using the DVD Drive
Your computer comes with a Super Multi drive. The drive can read from and write
to CD, DVD+, DVD- and DVD-RAM media.
CAUTION:
When inserting a disc, do not use force.
Make sure that the disc is correctly inserted into the tray, and then close the
tray.
Do not leave the drive tray open. Also, avoid touching the lens in the tray with
your hand. If the lens becomes dirty, the drive may malfunction.
Do not wipe the lens using materials with rough surface (such as paper towel).
Instead, use a cotton swab to gently wipe the lens.
FDA regulations require the following statement for all laser-based devices:
“Caution, Use of controls or adjustments or performance of procedures other than
those specified herein may result in hazardous radiation exposure.”
NOTE: The DVD drive is classified as a Class 1 laser product. This label is located
on the DVD drive.
NOTE: This product incorporates copyright protection technology that is protected
by method claims of certain U.S. patents and other intellectual property rights
owned by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Inserting and Removing a Disc
Follow this procedure to insert or remove a disc:
2-18 Operating Your Computer
1. Turn on the computer.
2. Press the eject button and the DVD tray will slide out partially. Gently pull on
it until it is fully extended.
3. To insert a disc, place down the disc in the tray with its label facing up. Slightly
press the center of the disc until it clicks into place.
To remove a disc, hold the disc by its outer edge and lift it up from the tray.
4. Gently push the tray back into the drive.
NOTE: In the unlikely event that you are unable to release the drive tray by
pressing the eject button, you can manually release the disc. (See “Optical Drive
Problems” in Chapter 8.)
Operating Your Computer 2-19
Using the Network Features
Using the Modem (Optional)
The internal 56 K fax/data modem allows you to use the telephone line to communicate
with others by fax, email, or connect to an online service or bulletin board.
To connect the telephone line to the modem, connect one end of the modem cable
to the RJ-11 connector on the computer and the other end to the phone line.
NOTE:
When using the communication software, you may have to disable power
management.
Do not enter the Sleep mode when using the communication software.
2-20 Operating Your Computer
Using the LAN
The internal 10/100/1000Base-T LAN (Local Area Network) module allows you
to connect your computer to a network. It supports data transfer rate up to 1000
Mbps.
To connect the network cable to the LAN module, connect one end of the LAN
cable to the RJ-45 connector on the computer and the other end to the network
hub.
Using the Wireless LAN
The WLAN module of your computer supports IEEE 802.11a/b/g/n.
Turning On/Off the WLAN Radio
NOTE: The FAA (Federal Aviation Agency) has deemed it unsafe to operate
wireless devices in aircraft as this may interfere with flight safety. Remember to turn
off wireless LAN when using your computer in the airplane.
To turn on the WLAN radio:
1. Make sure that the RF switch is at the ON position.
Operating Your Computer 2-21
2. To turn on the WLAN radio, press Fn+F1 or click the WLAN button in the Quick
Bar as shown below (an X over the button means the radio is currently off.)
When the WLAN radio is on, the WLAN indicator ( ) glows in green.
NOTE: The Quick Bar appears on Windows desktop by default. If it is not open, you
can right-click the Getac Utility icon ( ) located on Windows taskbar and select
Quick Bar to open it.
3. Windows Mobility Center has wireless network turned on by default. The Wireless
Network icon on the taskbar should appear without a red X. (In case you
have previously turned it off in Windows Mobility Center, be sure to turn it on
when using the function the next time.)
To turn off the WLAN radio:
You can turn off the WLAN radio by pressing Fn+F1 or using the Quick Bar.
If you want to turn off all wireless radio, slide the RF switch to the OFF position.
Connecting to a Wireless Network
1. Make sure that the WLAN function is enabled (as described above).
2. Tap the Wireless Network icon on the taskbar. (An orange light in the icon
indicates connections are available.)

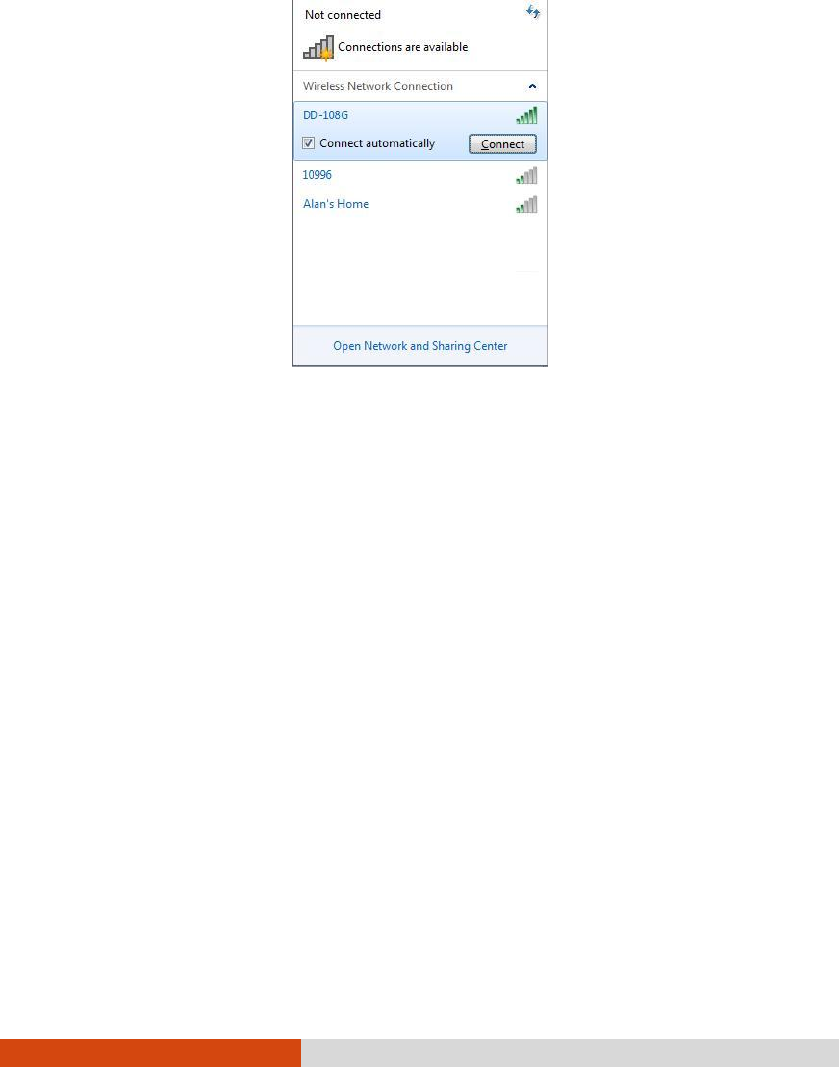

3. In the list of available wireless networks, tap a network, and then tap Connect.
2-22 Operating Your Computer
4. Some networks require a network security key or passphrase. To connect to one
of those networks, ask your network administrator or Internet service provider
(ISP) for the security key or passphrase.
For more information on setting a wireless network connection, refer to Windows online
help.
NOTE: You can use Intel® PROSet Wireless to take full advantage of the WiFi
capabilities of your computer. See the Help of the utility for instructions.
Operating Your Computer 2-23
Using the Bluetooth Feature (Optional)
Depending on your model, your computer may incorporate the Bluetooth 4.0 capability
for short-range (about 50 meters) wireless communications between devices without
requiring a cable connection. With Bluetooth wireless technology, data can be
transmitted through walls, pockets and briefcases as long as two devices are within
range.
Turning On/Off the Bluetooth Radio
To turn on the Bluetooth radio:
1. Make sure that the RF switch is at the ON position.
2. To turn on the Bluetooth radio, click the Bluetooth button in the Quick Bar as
shown below (an X over the button means the radio is currently off.) When
the Bluetooth radio is on, the Bluetooth indicator ( ) glows in green and
the Bluetooth icon appears on the Windows taskbar.
NOTE: The Quick Bar appears on Windows desktop by default. If it is not open, you
can right-click the Getac Utility icon ( ) located on Windows taskbar and select
Quick Bar to open it.
2-24 Operating Your Computer
To turn off the Bluetooth radio:
You can turn off the Bluetooth radio by using the Quick Bar.
If you want to turn off all wireless radio, slide the RF switch to the OFF position.
Connecting to another Bluetooth Device
1. Make sure that the Bluetooth function is enabled (as described above).
2. Make sure that the target Bluetooth device is turned on, discoverable and within
close range. (See the documentation that came with the Bluetooth device.)
3. To search for Bluetooth devices, right click the Bluetooth icon and select Add
a Device.
4. Select the device you want to connect from the search results.
Operating Your Computer 2-25

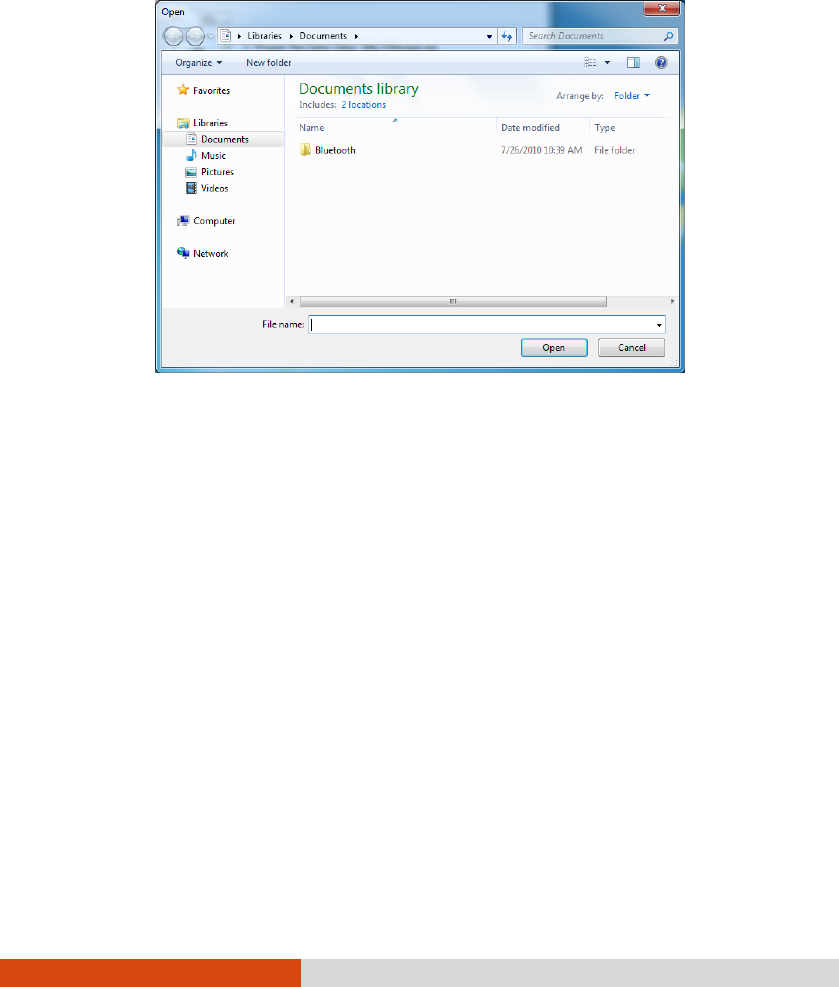

5. Depending on the type of Bluetooth device that you want to connect to, you
will need to enter the pertinent information.
For detailed information on using the Bluetooth feature, see Windows online Help.
2-26 Operating Your Computer
Using the Fingerprint Scanner
WARNING:
We shall not be liable for any loss or damage whatsoever resulting from your
use of the fingerprint scanner or neglect of fingerprint scanner use, or any data
loss resulting from such developments as fingerprint authentication
malfunctioning.
It is not recommended that you use the fingerprint scanner in a below-freezing
temperature. The moisture on your finger can freeze to the scanner’s metal
surface when you touch it, resulting in a failed operation.
The fingerprint scanner provides a strong authentication mechanism based on fingerprint
recognition. It features:
Website Log On
Logon to your web accounts like banks, webmail, and more with a simple swipe
of your finger.
Windows Log On
Logon to Microsoft® Windows® with a simple swipe of your finger every time
you turn on your computer or log onto your desktop.
QuickLaunch
Quickly launch all your favorite websites, open files and folders, and log in to
your accounts with a simple swipe of your finger.
KeepSafe
Protect your pictures, personal files, and folders using your fingerprint so only
you can access them.
NOTE: You can register a fingerprint only after creating a password for the
Windows user account.
To register your fingerprint, click Start All Programs AuthenTec TrueSuite
AuthenTec TrueSuite. Click the finger you want to register and follow the onscreen
instructions to complete.
Operating Your Computer 2-27
2-28 Operating Your Computer
You can then use the Fingerprint Software to set up how the fingerprint authentication
works.
For detailed information, click the Help button of the software.
App Store
Settings
Options
Help
Operating Your Computer 2-29
Using the WWAN Feature (Optional)
A WWAN (Wireless Wide Area Network) uses mobile telecommunication cellular
network technologies to transfer data. The WWAN module of your computer supports
3G and 4G LTE.
NOTE: Your model only supports data transmission; voice transmission is not
supported.

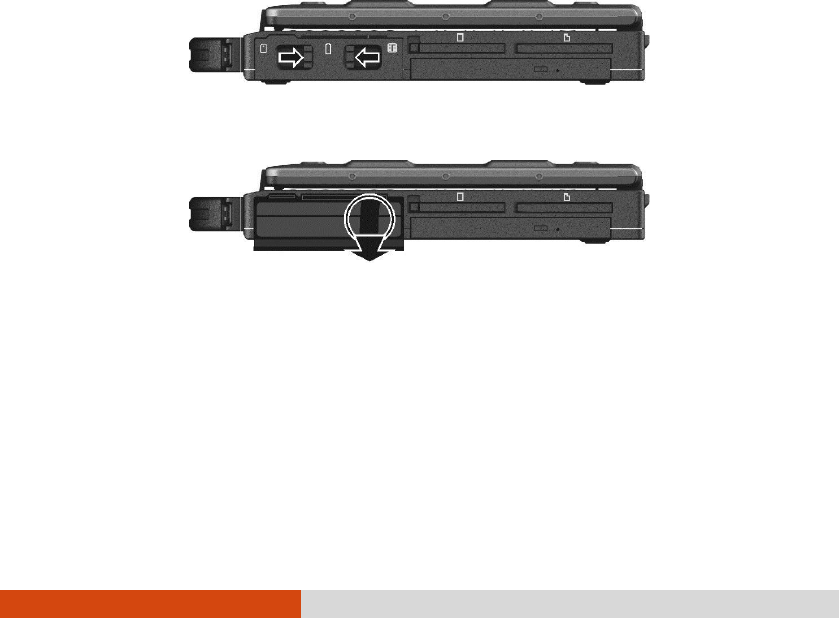

Installing a SIM Card
To use the WWAN feature to connect to the Internet, you need to subscribe to WWAN
service and acquire a SIM card from the service provider. To install the SIM card,
follow these steps:
1. Turn off the computer and disconnect the AC adapter.

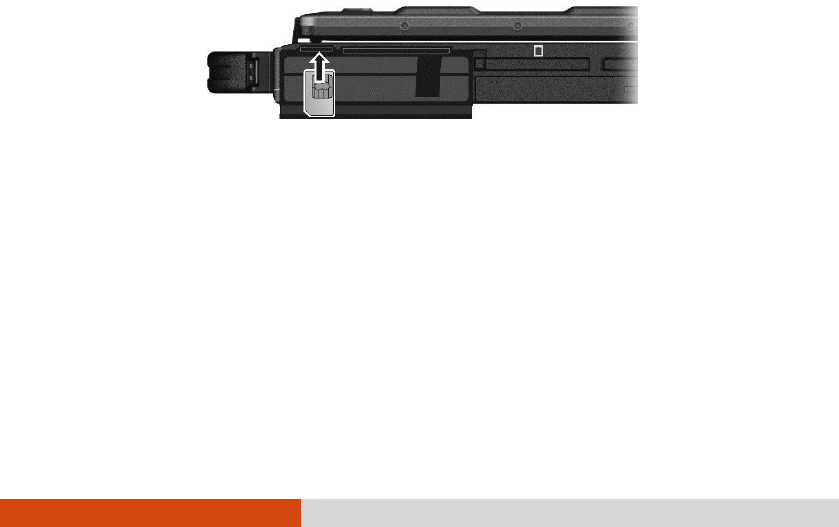

2. Insert the SIM card into the holder. Make sure the golden contact area on the
card is facing upward and the beveled corner on the SIM card facing outward.
NOTE: To remove the SIM card, push inward to release and slide the SIM card out
of the slot.
3. Close the cover. Make sure the latches are engaged.
Turning On/Off the WWAN Radio
To turn on the WWAN radio:
1. Make sure that the RF switch is at the ON position.
2-30 Operating Your Computer
2. To turn on the WWAN radio, click the WWAN button in the Quick Bar as shown
below (an X over the button means the radio is currently off.) When the WWAN
radio is on, the WWAN indicator ( ) glows in green.
NOTE: The Quick Bar appears on Windows desktop by default. If it is not open, you
can right-click the Getac Utility icon ( ) located on Windows taskbar and select
Quick Bar to open it.
To turn off the WWAN radio:
You can turn off the WWAN radio by using the Quick Bar or WWAN utility.
If you want to turn off all wireless radio, slide the RF switch to the OFF position.
Setting up a WWAN Connection
To set up a WWAN connection for the first time, follow these steps:
1. Make sure that the SIM card is inserted and the WWAN function is enabled
(as described above).
Operating Your Computer 2-31
2. On Windows desktop, double click the AirCard Watcher shortcut. The screen as
below appears.
3. If the radio is currently off, click Turn Radio On to turn on the radio.
4. Use AirCard Watcher to manage your broadband wireless network connections
such as:
Connect to the Internet
Configure user options
Send and receive SMS messages
Manage profiles
Use GPS to track your position (for models having the GPS module)
NOTE: For detailed information on using AirCard Watcher, see the programs
online help.
Managing Power 3-1
Chapter 3
Managing Power
Your computer operates either on external AC power or on internal battery power.
This chapter tells you how you can effectively manage power. To maintain optimal
battery performance, it is important that you use the battery in the proper way.
3-2 Managing Power
AC Adapter
CAUTION:
The AC adapter is designed for use with your computer only. Connecting the
AC adapter to another device can damage the adapter.
The AC power cord supplied with your computer is for use in the country where
you purchased your computer. If you plan to go overseas with the computer,
consult your dealer for the appropriate power cord.
When you disconnect the AC adapter, disconnect from the electrical outlet first
and then from the computer. A reverse procedure may damage the AC
adapter or computer.
When unplugging the connector, always hold the plug head. Never pull on the
cord.
The AC adapter serves as a converter from AC (Alternating Current) to DC (Direct
Current) power because your computer runs on DC power, but an electrical outlet
usually provides AC power. It also charges the battery pack when connected to AC
power.
The adapter operates on any voltage in the range of 100~240 V AC.
Managing Power 3-3
Battery Pack
The battery pack is the internal power source for the computer. It is rechargeable
using the AC adapter.
The operating time of a fully charged battery pack depends on how you are using
the computer. When your applications often access peripherals, you will experience
a shorter operating time.
NOTE: Care and maintenance information for the battery is provided in the
Battery Pack Guidelines” section in Chapter 7.
Charging the Battery Pack
NOTE:
Charging will not start if the battery’s temperature is below 0 C (32 F) or
above 40 C (104 F); the charging process will stop if the battery’s
temperature gets above 60 C (140 F). To avoid damaging the battery under
this situation, disconnect the AC adapter and wait for the battery to return to
room temperature before charging again.
During charging, do not disconnect the AC adapter before the battery has
been fully charged; otherwise you will get a prematurely charged battery.
To charge the battery pack, connect the AC adapter to the computer and an electrical
outlet. The Battery Charge Indicator ( ) on the computer glows amber to indicate
that charging is in progress. You are advised to keep the computer power off while
the battery is being charged. When the battery is fully charged, the Battery Charge
Indicator lights green.
3-4 Managing Power
The charging times are as follows:
Battery Type
Charging Time at 25 C (77 F)
Computer is Off
Computer is On and
in Video Playback State
6-cell
2.5~3 hours
3~3.5 hours
9-cell
4.5 hours
4.5 hours
CAUTION: After the computer has been fully recharged, do not immediately
disconnect and reconnect the AC adapter to charge it again. Doing so may
damage the battery.
NOTE: The battery level may automatically lessen due to the self-discharge
process (0.21 % per day), even when the battery pack is fully charged (100 %).
This happens no matter if the battery pack is installed in the computer.
Initializing the Battery Pack
You need to initialize a new battery pack before using it for the first time or when
the actual operating time of a battery pack is much less than expected. Initializing
is the process of fully charging, discharging, and then charging. It can take several
hours.
A tool called Gauge Reset is provided for the purpose. See Gauge Reset in
Chapter 6 for information on using the tool.
Managing Power 3-5
Checking the Battery Level
NOTE: Any battery level indication is an estimated result. The actual operating
time can be different from the estimated time, depending on how you are using the
computer.
By Operating System
You can check the approximate battery level using the battery meter function of the
operating system. To read the battery level in Windows, click the battery icon on
the taskbar.
By Gas Gauge
On the exterior side of the battery pack is a gas gauge for displaying the estimated
battery charge. When the battery pack is not installed in the computer and you want
to know the battery charge, you can press the switch with a pointed device to see
the corresponding value of indicator segment that light green.
The value of the corresponding green segment indicates the relative percentage of
the battery charge. The battery pack is fully discharged when you see no segment
glowing green.
Switch
3-6 Managing Power
Replacing the Battery Pack
CAUTION:
There is danger of explosion if the battery is incorrectly replaced. Replace the
battery only with the computer manufacturer’s optional battery packs. Discard
used batteries according to the dealer’s instructions.
Do not attempt to disassemble the battery pack.
If you often rely on battery power for a long period of time while traveling, you
may consider the purchase of an additional battery pack from your dealer and keep
it with you in a fully charged state as a backup.
To replace the battery pack, follow these steps:
1. Turn off the computer and disconnect the AC adapter.
2. Press the two latches toward each other to open the protection cover.
3. Pull the strip and slide the battery pack out of the slot.
4. With the strip facing outward, insert the new battery pack all the way into the
slot.
5. Close the cover. Make sure the latches are engaged.
Managing Power 3-7
Battery Low Signals and Actions
The battery icon changes appearance to display the current state of the battery.
Battery
Icon
Battery Level
Description
Discharging
The icon shows the charge remaining in 10-percent
increments until the charge reaches the low-battery
level.
Low
The battery charge has reached the low-battery level
(10% by default).
Critically low
The battery charge has reached the critical battery
level (5% by default). By default, Windows will
display a notification and put your computer into
Hibernation.
When the battery is low, the computer’s Battery Charge Indicator ( ) also blinks
red to alert you to take actions.
Always respond to low-battery by connecting the AC adapter, placing your computer
in Hibernation mode, or turning off the computer.
3-8 Managing Power
Power Management
Your computer supports ACPI (Advanced Configuration and Power Interface) for
power management. The power management feature allows you to reduce the power
consumption for energy saving.
With an ACPI-compliant operating system such as Windows, power supply to different
computer components is controlled on an as-needed basis. This allows maximum
power conservation and performance at the same time.
In general, Windows’ power management works in this way:
What...
When...
Power to the hard disk is turned off
When the hard disk has been idle for a set
period.
Power to the display is turned off
When the display has been idle for a set
period.
The computer enters the Sleep mode.
The hard disk and display are turned
off and the entire system consumes less
power.
When the entire system has been idle for
a set period.
When you manually activate the mode.
The computer enters the Hibernation
mode. (See the next subsection for
more information.)
When the entire system has been idle for
a set period.
When you manually activate the mode.
For detailed information on power management, see Windows’ Help.
Managing Power 3-9
Hibernation
Hibernation is a very useful feature. People frequently open many applications when
they use computers. It takes some time to get all these applications open and running,
and normally they all have to be closed before the computer can be turned off.
When you use the hibernation feature, you do not have to close the applications.
The computer stores the state of your computer to a file on the hard disk and then
shuts down. The next time you turn on your computer, you return to exactly where
you left off.
3-10 Managing Power
Power-Saving Tips
Aside from enabling your computer’s power saving mode (see previous section),
you can do your part to maximize the battery’s operating time by following these
suggestions.
Enter into power saving mode when using battery power.
Do not disable Power Management.
Decrease the LCD brightness to the lowest comfortable level.
Shorten the length of time before Windows turn off the display.
Many USB devices use power just by being connected. If you use a USB mouse,
you can save power by disconnecting the mouse and using the touchpad. If
you use a USB flash drive, unplug it when you are not using it.
Remove the card (such as PC card, ExpressCard, and Smart Card) if not using
it.
Turn off the wireless radio if you are not using the wireless module (such as
WLAN, Bluetooth, or WWAN).
Turn off the computer when you are not using it.
Expanding Your Computer 4-1
Chapter 4
Expanding Your
Computer
You can expand the capabilities of your computer by connecting other peripheral
devices.
When using a device, be sure to read the instructions accompanying the device together
with the relevant section in this chapter.
4-2 Expanding Your Computer
Connecting a VGA or HDMI Display
Monitor
If you want the benefits of a larger display screen with higher resolution, you can
connect an external display monitor to your computer
Your computer supports a VGA connector and a HDMI connector. HDMI
(High-Definition Multimedia Interface) is an audio/video interface that transmits
uncompressed digital data and therefore delivers true HD quality.
Follow this procedure to connect an external monitor:
1. Turn off the computer.
2. Depending on the type of your monitor, plug the monitor’s signal connector to
the computer’s VGA or HDMI connector.
3. Plug one end of the monitor’s power cord into the power socket on the monitor
and the other end to an electrical outlet.
4. To use the monitor, turn on the monitor before turning on the computer.
VGA
HDMI
Expanding Your Computer 4-3
5. The connected device should respond by default. If not, you can switch the display
output by pressing the Fn+F5 hot keys. (You can also change the display through
Windows Control Panel Display Settings Properties.)
CAUTION: Do not disconnect the external monitor while the computer is in the
Sleep mode or Hibernation mode. If no external monitor is connected when the
computer resumes, the LCD might not display properly.
4-4 Expanding Your Computer
Connecting a Serial Device
Your computer has one serial port for connecting a serial device such as a serial
mouse or serial communication device (modem).
Follow this procedure to connect a serial device:
1. Turn off the computer.
2. Plug the device cable to the serial port on the rear of the computer.
3. Turn on the computer.
NOTE: Portable modems that derive power through the serial port cannot be used
with the computer. Instead, use a modem that is powered by its own internal
battery or external AC power.
Expanding Your Computer 4-5
Connecting a USB Device
Your computer has three USB 3.0 ports for connecting USB devices, such as a
digital camera, scanner, printer, modem, and mouse. USB 3.0 supports a transfer
rate up to 5 Gbit/s.
NOTE: The eSATA/USB Combo port can also function as a USB 2.0 port.
To connect a USB device, plug the device cable to one of the USB ports.
4-6 Expanding Your Computer
Connecting an eSATA Device
Your computer has an eSATA/USB 2.0 combo port for connecting eSATA devices
(such as an external hard drive and external optical drive) / USB devices (see
previous section).
The port supports SATA II with transfer rate up o 3.0Gbit/s. It can provide 5V
power if a certified USB-eSata combo cable is used.
To connect an external eSATA device, simply plug the device cable to the eSATA
port.
Expanding Your Computer 4-7
Connecting an IEEE 1394 Device
Your computer has a mini IEEE 1394a port for connecting IEEE 1394 devices that
include not only computer peripheral devices such as scanner, printer and high-quality
CCD, but also consumer electronic equipment such as DVCAM and VCR.
To connect an IEEE 1394 device, prepare an IEEE 1394 cable. Plug the appropriate
end of the cable to the computer’s mini IEEE 1394 connector and the other end
to the device’s corresponding connector.
4-8 Expanding Your Computer
Connecting Audio Devices
For higher audio quality, you can send or receive sound through external audio devices.
Audio Output Connector (green) can be connected to speakers, headphones, or
earphone set.
Microphone Connector (pink) can be connected to an external microphone for
recording voice or sound.
NOTE:
After connecting an external audio device, make sure that you specify the use
of the correct audio device in Windows.
When using the external speakers/headphones or microphone, you cannot
use the internal one.
Expanding Your Computer 4-9
Using Smart Cards
The computer has a smart card slot (standard configuration).
With an embedded microcontroller, smart cards have the unique ability to store large
amounts of data, carry out their own on-card functions (e.g., encryption and mutual
authentication), and interact intelligently with a smart card reader.
To insert a smart card:
1. Locate the smart card slot on the right of the computer and open the cover.
2. Slide the smart card, with its label and embedded computer chip facing up into
the slot.
3. When a new card is seated, use the third-party smart card software to allow
your computer to read it.
To remove a smart card:
1. Make sure that the third-party smart card software is not accessing the smart
card.
2. Pull the card out of the slot.
4-10 Expanding Your Computer
Using PC Cards
NOTE:
Some PC cards require additional system resources. Before using such PC
card, you may have to free other system resources for the PC card.
Although some PC cards can be inserted and removed without turning off the
computer, you cannot remove or install PC cards during Sleep mode.
Your computer has one PC card slot which supports type II card and CardBus
specifications.
To insert a PC card:
1. Locate the PC card slot on the right side of the computer.
2. Press the eject button to remove the dummy card out of the slot.
3. Slide the PC card, with its label facing up, into the slot until the eject button
pops out.
4. When a new card is seated, the computer will detect it and try to install the
appropriate driver. Follow the on-screen instructions to complete the process.
Eject button
Expanding Your Computer 4-11
To remove a PC card:
1. Double-click on the Safely Remove Hardware icon found on the Windows
taskbar and the Safely Remove Hardware window appears on screen.
2. Select (highlight) the PC card from the list to disable the card.
3. Push the eject button and the card will slide out slightly.
4. Pull the card out of the slot.
5. Replace the dummy card.
4-12 Expanding Your Computer
Using ExpressCards
Your computer has an ExpressCard slot.
The ExpressCard slot can accommodate a 54 mm (ExpressCard/54) or 34 mm
(ExpressCard/34) wide ExpressCard. Typical ExpressCards support a very extensive
range of applications including memory, wired and wireless communication cards, and
security devices.
Shown next are the appearances of ExpressCards for your reference.
ExpressCard/54 ExpressCard/34
To insert an ExpressCard:
1. Locate the ExpressCard slot on the right side of the computer.
2. Slightly push the dummy card to release and then pull it out of the slot.
3. Slide the ExpressCard, with its label facing up, all the way into the slot until
the rear connectors click into place.
Expanding Your Computer 4-13
4. When a new card is seated, the computer will detect it and try to install the
appropriate driver. Follow the on-screen instructions to complete the process.
To remove an ExpressCard:
1. Double-click on the Safely Remove Hardware icon found on the Windows
taskbar and the Safely Remove Hardware window appears on screen.
2. Select (highlight) the ExpressCard from the list to disable the card.
3. Slightly push the card to release and then pull it out of the slot.
4. Replace the dummy card.
4-14 Expanding Your Computer
Using Storage Cards
NOTE: You can use only storage cards. Your Card Reader does not support cards
with I/O (input/output) functions such as a wireless network card or Bluetooth card.
Your computer has a storage card reader. The card reader is a small drive for reading
from and writing to removable storage cards (or called memory cards). The reader
supports SD (Secure Digital), MMC (MultiMediaCard), and MMC Plus cards.
To insert a storage card:
1. Locate the card reader on the left side of the computer and open the cover.
2. Align the card with its connector pointing to the slot and its label facing up.
Slide the card into the slot until it reaches the end.
3. Windows will detect the card and assign it a drive name.
To remove a storage card:
1. Double-click My Computer.
2. Right-click the drive with the card and select Eject.
3. Slightly push the card to release and then pull it out of the slot.
Expanding Your Computer 4-15
System Memory Upgrade
You can upgrade your computer by changing system memory to a maximum of 16
GB on the two 1333/1600 MHz DDR3 SO-DIMM slots.
CAUTION: RAM modules are extremely sensitive to static electricity. There are
cases where static electricity generated by the human body has adversely affected
such modules. When inserting or removing a RAM module, do not touch the
terminals or internal components, insert objects other than the module, or allow
foreign particles to enter. Doing so has been known to cause damage, fire, or
electrical shock.
To install the RAM module:
1. Remove the battery pack (see chapter 3) and make sure that the computer
is not connected to AC power.
2. Carefully place the computer upside down.
3. Remove the four screws to open the compartment cover.
4. To install the RAM module, match the module's notched part with the socket's
projected part and firmly insert the module into the socket at a 20-degree angle
4-16 Expanding Your Computer
().
Then push down until the retaining clips lock the module into position
().
CAUTION: If the RAM module is difficult to insert or difficult to push down, do not
force it. Check once more to ensure that the module is positioned correctly.
5. Replace the compartment cover and secure with four screws.
6. Replace the battery pack.
Expanding Your Computer 4-17
Replacing the Hard Disk Drive
1. Remove the battery pack (see chapter 3) and make sure that the computer
is not connected to AC power.
2. Carefully place the computer upside down.
3. Remove the two screws () and pry up () the compartment cover using
your finger.
NOTE: Some models use two locking latches instead of screws to secure the
compartment cover in place.
4. Pull the strip outward to unplug the connector. Lift the hard disk drive off the
compartment.
5. Put the new drive in the compartment following the correct orientation. Then push
the drives connector side forward to engage the connector.
6. Replace the compartment cover and secure with two screws.
7. Replace the battery pack.
4-18 Expanding Your Computer
Using BIOS Setup and System Recovery 5-1
Chapter 5
Using BIOS Setup and
System Recovery
BIOS Setup Utility is a program for configuring the BIOS (Basic Input/ Output
System) settings of the computer. BIOS is a layer of software, called firmware, that
translates instructions from other layers of software into instructions that the computer
hardware can understand. The BIOS settings are needed by your computer to identify
the types of installed devices and establish special features.
System Recovery reinstalls Windows to your system and configures it to the system’s
factory default settings.
This chapter tells you how to use the BIOS Setup and System Recovery.
5-2 Using BIOS Setup and System Recovery
BIOS Setup
When and How to Use
You need to run BIOS Setup Utility when:
You see an error message on the screen requesting you to run BIOS Setup
Utility.
You want to restore the factory default BIOS settings.
You want to modify some specific settings according to the hardware .
You want to modify some specific settings to optimize the system performance.
To run BIOS Setup Utility, press the F2 key when the prompt appears on the screen
during system startup. The prompt shows up on the screen for only a few seconds.
You must press F2 quickly. The BIOS Setup Utility main screen appears as shown
next.
Information
Main
Advanced
Security
Boot
Exit
Model NO:
Serial NO:
Processor Info:
Installed System Memory:
SATA HDD:
SATA ODD:
BIOS Revision:
EC Revision:
LAN MAC Address:
IEEE 1394 GUID:
Operating Time:
S400-G2
RC5XXS0068
Intel(R) Core(TM) i7-3520M CPU @ 2.90GHz
8192 MB
WDC WD5000BPVT-22A1YT0 - 500GB
PIORNEER DVD-RW DVRTD11RS - ATAPI
R0.52.070520F
R0.02c
00-22-20-0D-AF-49
00-40-D0-01-00-49-0A-F1
11 Hours
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Using BIOS Setup and System Recovery 5-3
In general, you can use the arrow keys to move around and + / keys to change
the setup values. Keyboard information can be found at the bottom of the screen.
NOTE:
The BIOS Setup Utility screens shown in this chapter are for your reference
only. The actual items or settings on your computer may differ.
The BIOS Setup Utility program may have been updated after the publication
of this manual.
The settings you select in your operating system might override similar
settings in BIOS Setup Utility.
Information Menu
The Information menu contains the basic configuration information of the system. There
are no user-definable items in this menu.
Information
Main
Advanced
Security
Boot
Exit
Model NO:
Serial NO:
Processor Info:
Installed System Memory:
SATA HDD:
SATA ODD:
BIOS Revision:
EC Revision:
LAN MAC Address:
IEEE 1394 GUID:
Operating Time:
S400-G2
RC5XXS0068
Intel(R) Core(TM) i7-3520M CPU @ 2.90GHz
8192 MB
WDC WD5000BPVT-22A1YT0 - 500GB
PIORNEER DVD-RW DVRTD11RS - ATAPI
R0.52.070520F
R0.02c
00-22-20-0D-AF-49
00-40-D0-01-00-49-0A-F1
11 Hours
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
5-4 Using BIOS Setup and System Recovery
Main Menu
The Main menu contains the various system settings.
Information
Main
Advanced
Security
Boot
Exit
System Date:
System Time:
Legacy USB Support:
Wireless LAN:
Bluetooth:
[06/29/2012]
[11:33:08]
[Enabled]
[Last State]
[Last State]
Item Specific Help
View or set system
date.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
System Date sets the system date.
System Time sets the system time.
Legacy USB Support enables or disables the systems support for Legacy USB device
in DOS mode.
Wireless LAN specifies the on/off state of the wireless LAN radio when the system
starts up. When set to
Last
State
, the on/off state remains the same as the last
state before you turn off the system.
Bluetooth specifies the on/off state of the Bluetooth radio when the system starts
up. When set to
Last
State
, the on/off state remains the same as the last state
before you turn off the system.
06
Using BIOS Setup and System Recovery 5-5
Advanced Menu
The Advanced menu contains the advanced settings.
Information
Main
Advanced
Security
Boot
Exit
Intel(R) Rapid Start Technology
Wake Up Capability
AC Initiation:
SATA Mode:
AMT Configuration
Virtualization Technology Setup
Graphic Setup
Button Setup
Device Configuration
[Disabled]
[AHCI]
Item Specific Help
iRST Intel (R) Rapid
Start Technology
Configuration
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Intel (R) Rapid Start Technology cofigures iRST. Press Enter to access the submenu
as shown below.
Advanced
Intel (R) Rapid Start Technology
Item Specific Help
iRST Support:
[Disabled]
Enable iRST.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Disabled
5-6 Using BIOS Setup and System Recovery
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
iRST Support enables of disables iRST, which gets your system up and running
faster.
Wake Up Capability specifies events for waking up the system from S3 (Sleep)
state. Press Enter to access the submenu as shown below.
Advanced
Wake Up Capability
Item Specific Help
Any-key Wake Up From S3:
Ring Wake-Up From S3:
USB Wake-Up From S3:
[Disabled]
[Disabled]
[Disabled]
Allow any key to wake
up the system from S3
(Sleep) state.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Any-key Wake Up From S3 allows any key to wake up the system from S3 (Sleep)
state.
Ring Wake-Up From S3 allows a modem activity to wake up the system from
S3 (Sleep) state.
USB Wake-Up From S3 allow a USB device activity to wake up the system from
S3 (Sleep) state. (This feature works for Windows 7 only.)
AC Initiation sets if connecting AC power will automatically start or resume the system.
SATA Mode set to
AHCI
if your hard disk supports AHCI. AHCI allows you to take
advantage of Advanced Host Controller Interface features. The options are
IDE
and
AHCI
.
Disabled
Using BIOS Setup and System Recovery 5-7
CAUTION: Incorrect SATA mode settings can result in hard disk drive boot failure.
AMT Configuration configures Active Management Technology parameters. Press
Enter to access the submenu as shown below.
Advanced
AMT Configuration
Item Specific Help
Intel AMT:
Intel AMT Setup Prompt:
[Disabled]
[Disabled]
Enable/Disable
Intel(R) Active
Management Technology
BIOS Extension.
Note: iAMT H/W is
always enabled.
This option just
controls the BIOS
extension execution.
If enabled this
requires additional
firmware in the SPI
device
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Intel AMT enables or disables Intel® Active Management Technology BIOS
extension execution. AMT allows the system administrator to access an AMT
featured computer remotely.
Intel AMT Setup Prompt determines whether the prompt for entering Intel AMT
Setup appears or not during POST. If disabled, users cannot enter Intel AMT
Setup.
Virtualization Technology Setup sets Virtualization Technology parameters. Press Enter
to access the submenu as shown below.
Enabled
5-8 Using BIOS Setup and System Recovery
Advanced
Virtualization Technology Setup
Item Specific Help
Intel(R) Virtualization Technology
Intel(R) VT for Directed I/O(VT-d)
[Disabled]
[Disabled]
When enabled, a VMM
can utilize the
additional hardware
virtualization
capabilities.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Intel(R) Virtualization Technology enables or disables Intel® VT (Intel
Virtualization Technology) feature which provides hardware support for processor
virtualization. When enabled, a VMM (Virtual Machine Monitor) can utilize the
additional hardware virtualization capabilities provided by this technology.
Intel(R) VT for Directed I/O(VT-d) enables or disables VT-d (Intel® Virtualization
Technology for Directed I/O). When enabled, VT-d helps enhance Intel platforms
for efficient virtualization of I/O devices.
Graphics Setup sets graphics related options. Press Enter to access the submenu
as shown below.
Disabled
Using BIOS Setup and System Recovery 5-9
Advanced
Graphic Setup
Item Specific Help
DVMT Pre-Allocated:
Total Graphics Memory:
[ ]
[256MB]
Select Pre-Allocated
Graphics Memory size
used by the Internal
Graphics Device.
This has no effect if
external graphics are
present.
F1 Help ↑↓ Select Item -/+ Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
NOTE: Graphic Setup parameters apply to the internal graphics device only.
DVMT Pre-Allocated sets the amount of pre-allocated (fixed) graphics memory
for use by the internal graphics device.
Total Graphics Memory sets the amount of total graphics memory (pre-allocated
+ fixed + DVMT) for use by the internal graphics device.
Button Setup sets hardware button related options. Press Enter to access the submenu
as shown below.
64MB
5-10 Using BIOS Setup and System Recovery
Information
Main
Advanced
Security
Boot
Exit
Button Setup:
Item Specific Help
P1 Function:
[Disable d]
Define P1 button as
Quick launch button
or Emergency button.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
P1 Function specifies the P1 quick button function. When set to
Quick Btn
, the
P1 quick button serves as a user-defined quick launch key. When set to
Emergency
Btn
,
the P1 quick button serves as the Emergency button. Emergency button
only works with customized applications that support the specific button.
HDD Preheat keeps the hard disk drives temperature above 5oC (41oF) during system
shutdown period as long as external AC power is connected. When set to
Enabled
,
the optional heater will automatically turn on if the hard disk drives temperature drops
below 5oC (41oF). (The availability of this item depends on your model.)
Quick Btn
Using BIOS Setup and System Recovery 5-11
Device Configuration enables or disables several hardware components. Press Enter
to access the submenu as shown below.
Advanced
Device Configuration
Item Specific Help
Wireless LAN:
WWAN:
Bluetooth:
Media Card Reader:
Smart Card Reader:
HD Audio:
Modem:
Fingerprint Scanner:
1394 Port:
E-SATA Port:
[ ]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
[Enabled]
Set WLAN device to
enable/disable.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
You can enable or disable the following items:
Wireless LAN
WWAN
Bluetooth
Media Card Reader (MMC/SD)
Smart Card Reader
HD Audio (High Definition Audio)
Modem
Fingerprint Scanner
Enabled
5-12 Using BIOS Setup and System Recovery
1394 Port
E-SATA Port
Security Menu
The Security menu contains the security settings, which safeguard your system against
unauthorized use.
Information
Main
Advanced
Security
Boot
Exit
Supervisor Password Is:
User Password Is:
Set Supervisor Password:
Set User Password
Password on Boot:
Set HDD 0 Password:
HDD 0 Password:
TPM Setup Menu
Intel Trusted Execution Technology
Cleared
Cleared
[Enter]
[Enter]
[Disabled]
[Enter]
Cleared
[Disabled]
Item Specific Help
Set or clear the
Supervisor accounts
password.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
NOTE:
You can set the user password only when the supervisor password has been
set.
If both the administrator and user passwords are set, you can enter any of
them for starting up the system and/or entering BIOS Setup. However, the
user password only allows you to view/change the settings of certain items.
A password setting is applied right after it is confirmed. To cancel a password,
leave the password empty by pressing the Enter key.
Supervisor/User Password Is shows whether you have set the supervisor/user
password or not for the system.
Enter
Using BIOS Setup and System Recovery 5-13
Set Supervisor/User Password sets the supervisor/user password. When typing the
password, first make sure that Num Lock is off, and then type the password in
the entry fields and press Enter. Confirm your password by typing it again and pressing
Enter. You can set the supervisor/user password to be required for starting up the
system and/or entering BIOS Setup.
Password on Boot allows you to enable or disable the entering of password for booting
up your system. Once the password is successfully set and this item is enabled,
it is required for booting up the system.
Set HDD 0 Password sets the password for locking the Primary Master hard disk
drive. After setting a password, the hard disk drive can only be unlocked by the
password no matter where it is installed.
HDD 0 Password Is shows whether you have set the hard disk password or not.
TPM Setup Menu sets various TPM parameters. Press Enter to access the submenu
as shown below.
TPM Support enables or disables TPM (Trusted Platform Module) support. TPM
(Trusted Platform Module) is a component on your computers mainboard that
Security
TPM Setup Menu
Item Specific Help
TPM Support:
Current TPM State:
Change TPM Status:
[ ]
[Disabled and Deactivated]
[No Change]
This is used to
decide whether TPM
support should be
enabled or disabled.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
Enabled
5-14 Using BIOS Setup and System Recovery
is specifically designed to enhance platform security by providing a protected space
for key operations and other security critical tasks.
Current TPM State shows the current TPM state.
Change TPM State allows you to select between
No Change
,
Clear
,
Deactivate
& Disable
, and
Enable & Activate
.
Intel Trusted Execution Technology enables utilization of additional hardware
capabilities provided by Intel® Trusted Execution Technology.
Boot Menu
The Boot menu sets the sequence of the devices to be searched for the operating
system.
Information
Main
Advanced
Security
Boot
Exit
Boot priority order:
1. SATA ODD: PIORNEER DVD-RW DVRTD11RS
2. SATA HDD: WDC WD5000BPVT-22A1YT0
3. mSATA HDD:
4. USB ODD:
5. USB HDD:
6. USB FDD:
7. ESATA HDD1:
8. ESATA HDD2:
9. Other HDD:
10. PCI LAN: IBA GE Slot 00C8 v1365
Item Specific Help
Keys used to view or
configure devices:
and arrows Select a
device. + and -
moves the device up or
down. Shift + 1
enables or disables a
device. Del deletes
an unprotected device.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
The bootable devices will be automatically detected during POST and shown here,
allowing you to set the sequence that the BIOS uses to look for a device from which
to load the OS.
Below is a brief description of keyboard usage:
Using BIOS Setup and System Recovery 5-15
Key
Function
,
Selects (highlight) a boot device.
+,
Changes the boot sequence.
1 to 4
Loads the default boot sequence.
Key
Function
f or r
Specifies if the boot device is fixed (f) or removable (r).
X
Moves the highlighted boot device from the Boot priority order list to
the Excluded from boot order list, and vice versa.
Shift+1
Deactivates/activates the highlighted boot device on the Boot priority
order list. When a device has been deactivated, an ! (exclamation)
symbol appears beside the item and system will bypass it when detecting
boot device during POST.
Exit Menu
The Exit menu provides ways of exiting BIOS Setup. After finishing with your settings,
you must save and exit so that the changes can take effect.
Information
Main
Advanced
Security
Boot
Exit
Exit Saving Changes
Exit Discarding Changes
Load Setup Defaults
Discard Changes
Save Changes
Item Specific Help
Equal to F10, save
all changes of all
menus, then exit
setup configure
driver. Finally
resets the system
automatically.
F1 Help ↑↓ Select Item +/- Change Values F9 Setup Defaults
Esc Exit ←→ Select Menu Enter Select Sub-Menu F10 Save and Exit
5-16 Using BIOS Setup and System Recovery
Exit Saving Changes saves the changes you have made and exits BIOS Setup Utility.
Exit Discarding Changes exits BIOS Setup Utility without saving the changes you have
made.
Load Setup Defaults loads the factory default values for all the items.
Discard Changes restores the previous values for all the items.
Saves Changes saves the changes you have made.
Using BIOS Setup and System Recovery 5-17
System Recovery
Use System Recovery when:
The Windows operating system does not start at all.
You want to restore the system to the factory state.
WARNING:
Using this feature will reinstall Windows to your system and configure it to the
system’s factory default settings. All data on the hard disk drive will be lost.
Make sure that power is not interrupted during the recovery process. An
unsuccessful recovery may result in Windows startup problems.
To run System Recovery:
1. Connect the AC adapter.
2. Turn on the computer. During system startup when the following screen appears,
press Ctrl + Alt + F2 keys for four second.
3. In the screen that appears, select Recovery to start the recovery process.
5-18 Using BIOS Setup and System Recovery
4. The progress bar shows the percentage completed. When it reaches 100%, the
system turns off.
5. Turn on the Tablet PC. The Windows setup wizard starts. Follow the onscreen
prompts to continue.
6. When the system restarts, the installer screen appears. The installer will perform
system hardware detection and driver installation.
Using BIOS Setup and System Recovery 5-19
7. When completed, the system restarts and displays Windows desktop.
Using 6-1
Chapter 6
Using Getac Software
Getac software includes application programs for specific computer components and
utility programs for overall management.
This chapter describes how to use the programs.
6-2 Using
Using G-Manager
G-Manager is a unified user interface utility that allows you to manage and configure
the following:
System
Battery
ECO (economic mode)
Antenna
Monitoring
GPS Status
Starting G-Manager
You can start up G-Manager by any of the following methods:
Click Start All Programs Getac Utility G-Manager, or
Click and hold the icon located on the taskbar until a ring appears. From
the small menu that pops up, click G-Manager.
The G-Manager window appears, containing 6 tabs as described later.
NOTE: Depending on your model, the actual items appearing on the screen may
differ from those shown in this manual.
Using 6-3
System Tab
The System tab provides system information.
To view specific information, select the component from the list on the left side of
the screen. The information of the selected component will be displayed on the right
side of the screen.
6-4 Using
Battery Tab
The Battery tab allows you to check the battery status and configure the battery.
At most two batteries may be supported. Click Battery 1 or Battery 2 to view the
information of each battery (if your model has a second battery).
NOTE:
When the percentage % Left is less than 10% then the value will be displayed in
red.
When an abnormal battery condition is detected Battery Status value will be
displayed in red.
Battery Information
The upper portion of the screen displays the current status of the selected battery.
Charging Mode
The lower left portion of the screen allows you to select the charging mode.
Using 6-5
Normal Mode The battery will be fully charged. When remaining charge reaches
below 95%, then charging will start until it is fully charged.
Economy Mode This mode helps prolong battery life by charging up to 80%
of its total capacity only. It is highly recommended if you are using AC power
most of the time.
Gauge Reset
The lower right portion of the screen contains the battery health bar and provides
the battery calibration function.
The health bar shows the batters health by percentage. A low percentage indicates
poor health and therefore the need to perform a gauge reset to calibrate the battery’s
capacity and improve the battery’s performance. The gauge reset process includes
discharging and then fully recharging the battery in two cycles. It can take several
hours.
To perform a gauge reset:
1. Connect the AC adapter.
2. Click Start, located next to the health bar
3. In the pop-up dialog box, click Yes to start the process. The window as below
appears displaying the progress bar.
4. Wait till the process is completed. Click Exit when finished.
6-6 Using
ECO Tab
The ECO tab allows you to configure ECO modes (or called power profiles).
To put the system into an ECO mode, use the ECO button. (See Using the Quick
Buttons in Chapter 2 for information.)
Using 6-7
ECO Information
The left portion of the screen lists the available power profiles (Quick, Power Saving,
and Work). Each profile is a combination of power settings that results in different
power consumptions. To change the settings of a profile, select (highlight) the profile
name in the list.
Profile Settings
The right portion of the screen displays the settings of the current selected profile.
You can set up the following items:
WWAN, Bluetooth, and WLAN can be on or off.
Power Scheme can be Balanced, High Performance or Power Saver. The settings
here correspond to the settings in Windows. (See Windows Help for the
description to each of the power scheme.)
After changing the settings, click Apply or OK to save the changes. To restore the
settings to the default values, click Default.
6-8 Using
Antenna Tab
The Antenna tab allows you to set if your system will automatically use the external
GPS or WWAN antenna when connected.
Select the checkbox(es) accordingly. Click Apply or OK to save the changes.
Using 6-9
Monitoring Tab
The Monitoring tab allows you to configure the monitoring function of G-Manager.
Items to Monitor
The left portion of the screen lists the items. Click the checkbox before an item
to include it as a monitored component. Click Apply or OK to save the changes.
NOTE: Different models have different supported monitoring items;
non-supported items cannot be selected (grayed out items).
Monitoring Options
The right portion of the screen allows you to set how the monitored items are displayed
and how often the monitoring is updated.
Always On Top allows the monitoring window to remain on top of your display.
6-10 Using
Monitoring Interval sets the frequency of updates on the monitoring window
(1/3/5/10/30 seconds or 1/5/30 minutes).
Click Apply or OK to save the changes.
Starting and Stopping the Monitoring
To start monitoring, click START Monitor. The monitoring window similar to the one
below appears displaying requested information at specified intervals.
To stop monitoring, click the Close button at the upper right corner of the monitoring
window or click Stop Monitor on the Monitoring tab page of G-Manager.
Using 6-11
GPS Status Tab
The GPS Status tab shows the GPS status for models having the GPS module.
To start GPS positioning, click Start GPS. The screen displays:
Ongoing raw data strings in the Message Log section
Overhead satellite positions in the Satellite Map section
Signal strength of the satellites in the Signal Indicator section
When GPS positioning is completed, the Data Summary section shows the GPS
information of the current location.
To stop GPS positioning, click Stop GPS.
6-12 Using
Using 6-13
Quick Button Definition Utility
The P1 and P2 buttons have pre-assigned functions. You can re-define the button
following this procedure:
NOTE: If you want to re-define P1, make sure the P1 Function item in the BIOS
Setup Utility is set to Quick Btn (default setting). (See Advanced Menu in Chapter
5 for information.)
1. Right-click the Getac utility icon ( ) on the Windows taskbar and select
Quick Buttons Definition.
2. The following window appears. Select the button you want to re-define and click
the Open button .
6-14 Using
3. In the Open dialog box, browse to the destination folder and select the desired
program file. Then, click Open to complete.
4. A matching program icon will appear in the settings window.
NOTE: You can restore the quick buttons to the default settings by clicking Get
Default.
Using 6-15
Using Getac Smart Tag (Optional)
NOTE: The Getac Smart Tag program is available for models with the RFID
module only.
Getac Smart Tag is a demo program that reads UID numbers from RFID tags. For
enhanced applications and customization of the RFID reader, contact your authorized
Getac dealer.
Reading Tags
NOTE: The procedure below is based on the default settings of Getac Smart Tag.
1. Double-click the Getac Smart Tag program icon on Windows desktop to start the
program.
The Getac Smart Tag floating button appears and is always on top of the screen.
You can drag the button to a location you want.
2. By default, Getac Smart Tag scans three tag types, once for each type.
Location of
internal RFID
antenna
6-16 Using
To change settings, use the options menu. (See “Options Menu” later for
information.)
3. Click the floating button to start scanning. While scanning is in progress, the
button’s color is orange.
Idle Scanning
4. The result window as below appears. The Card Type field shows which type of
tags are being scanned now. If a tag of the matching type is found, the Card
UID field shows its UID; otherwise the field is blank.
Click OK to close the window.
5. The program scans for 3 seconds for each tag type (14443-A, 14443-B, and
15693). The scanning stops after 9 seconds.
6. When you next start a scanning session, it begins with the last scanned card
type in the previous session.
Using 6-17
Options Menu
Right-click the floating button to open the options menu.
Menu Items
Descriptions
14443-A / 14443-B /
15693 / Auto
Check one of the three tag types for single type scanning.
Check Auto to scan all three types.
Send UID out
Check this item for the UID data to be entered to where
you have placed the insertion point (or called cursor) in
a processing software.
If unchecked (default setting), the result window appears
to display the UID data.
Keep scanning
Check this item for the scanning to go on until you stop
it by tapping the floating button.
If unchecked (default setting), the scanning stops
automatically after one cycle of scanning.
No Beep
Check this item so there is no beep sound upon each
scanned UID.
If unchecked (default setting), the system beeps to indicate
a scanned UID.
Information
Provides extra information such as hardware port, firmware
version, etc.
6-18 Using
Exit
Closes the program.
All the changes remain effective until you change them again.
Caring for the Computer 7-1
Chapter 7
Caring for the Computer
Taking good care of your computer will ensure a trouble-free operation and reduce
the risk of damage to your computer.
This chapter gives you guidelines covering areas such as protecting, storing, cleaning,
and traveling.
7-2 Caring for the Computer
Protecting the Computer
To safeguard the integrity of your computer data as well as the computer itself, you
can protect the computer in several ways as described in this section.
Using an Anti-Virus Strategy
You can install a virus-detecting program to monitor potential viruses that could damage
your files.
Using Windows Action Center
Windows Action Center alerts you to take action on the following security essentials:
Windows Firewall
Windows Update
Malware Protection (anti-virus, anti-spyware)
Others (Internet security, user account control)
For detailed information on Windows Security Center, see Windows’ Help.
Caring for the Computer 7-3
Using the Cable Lock
You can use a Kensington-type cable lock to protect your computer against theft.
The cable lock is available in most computer stores.
To use the lock, loop the lock cable around a stationary object such as a table.
Insert the lock to the Kensington lock hole and turn the key to secure the lock.
Store the key in a safe place.
7-4 Caring for the Computer
Taking Care of the Computer
Location Guidelines
For optimal performance, use the computer where the recommended temperature
is between 0 C (32 F) and 35 C (95 F). Select models support -20
C (-4 F) low temperature.
Avoid placing the computer in a location subject to high humidity, extreme
temperatures, mechanical vibration, direct sunlight, or heavy dust. Using the
computer in extreme environments for long periods can result in product
deterioration and a shortened product life.
Operating in an environment with metallic dust is not allowed.
Place the computer on a flat and steady surface. Do not stand the computer
on its side or store it in an upside-down position. A strong impact by dropping
or hitting may damage the computer.
Do not cover or block any ventilation openings on the computer. For example,
do not place the computer on a bed, sofa, rug, or other similar surface. Otherwise,
overheating may occur that results in damage to the computer.
As the computer can become very hot during operation, keep it away from objects
that are vulnerable to heat.
Keep the computer at least 13 cm (5 inches) away from electrical appliances
that can generate a strong magnetic field such as a TV, refrigerator, motor,
or a large audio speaker.
Avoid moving the computer abruptly from a cold to a warm place. A temperature
difference of more than 10 C (18 F) may cause condensation inside the unit,
which may damage the storage media.
Caring for the Computer 7-5
General Guidelines
Do not place heavy objects on top of the computer when it is closed as this
may damage the display.
The screen surface is easily scratched. Avoid touching it with a sharp object
such as a pen or pencil.
To maximize the life of the backlight in the display, allow the backlight to
automatically turn off as a result of power management. Avoid using a screen
saver or other software that prevents the power management from working.
Cleaning Guidelines
Never clean the computer with its power on.
Use a soft cloth moistened with water or a non-alkaline detergent to wipe the
exterior of the computer.
Gently wipe the display with a soft, lint-free cloth. Do not use alcohol or detergent
on the display.
Dust or grease on the touchpad can affect its sensitivity. Clean the pad by using
adhesive tape to remove the dust and grease on its surface.
If water or liquid is split onto the computer, wipe it dry and clean when possible.
Though your computer is water-proof, do not leave the computer wet when you
can dry it.
If the computer gets wet where the temperature is 0C (32F) or below, freeze
damage may occur. Make sure to dry the wet computer.
7-6 Caring for the Computer
Battery Pack Guidelines
Recharge the battery pack when it is nearly discharged. When recharging, make
sure that the battery pack is fully charged. Doing so may avoid harm to the
battery pack.
The battery pack is a consumable product and the following conditions will shorten
its life:
when frequently charging the battery pack
when using, charging, or storing the battery in high temperature
condition
To avoid hastening the deterioration of the battery pack thereby prolonging its
useful life, minimize the number of times you charge it so as not to frequently
increase its internal temperature.
Charge the battery pack between 10 C ~ 30 C (50 F ~ 86 F) temperature
range.
A higher environment temperature will cause the battery packs temperature to
rise. Avoid charging the battery pack inside a closed vehicle and in hot weather
condition.
Also, charging will not start if the battery pack is not within the allowed temperature
range.
It is recommended that you do not charge the battery pack more than once
a day.
It is recommended that you charge the battery pack with the computers power
off.
To maintain the battery packs operating efficiency, store it in a cool dark place
removed from the computer and with 30 % ~ 40 % charge remaining.
Important guidelines when using the battery pack.
When installing or removing the battery pack take note of the following:
Caring for the Computer 7-7
avoid installing or removing the battery pack when the computer is
in Sleep mode. Abruptly removing the battery pack may cause loss
of data or the computer may become unstable.
avoid touching the battery pack terminals or damage may occur,
thereby causing improper operation to it or the computer.
The computers input voltage and surrounding temperature will directly affect the
battery packs charge and discharge time:
charging time will be prolonged when the computer is turned on.
To shorten the charging time, it is recommended that you place the
computer in sleep or hibernation mode.
a low temperature will prolong the charging time as well as hasten
the discharge time.
When using battery power in an extremely low temperature environment, you may
experience shortened operating time and incorrect battery level reading. This
phenomenon comes from the chemical characteristics of batteries. The appropriate
operating temperature for the battery is -10 C ~ 50 C (14 F ~ 122 F).
Touchscreen Guidelines
Use the finger or the included stylus on the display. Using a sharp or metallic
object other than your finger or stylus may cause scratches and damage the
display, thereby causing errors.
Use a soft cloth to remove dirt on the display. The touchscreen surface has
a special protective coating that prevents dirt from sticking to it. Not using a
soft cloth may cause damage to the special protective coating on the touchscreen
surface.
Turn off the computer power when cleaning the display. Cleaning the display
with the power on may cause improper operation.
7-8 Caring for the Computer
Use the touchscreen within the intended area only. The display area and
touchscreen operating area is the same. Using it beyond the allowed area may
cause damage to the display and result in improper operation.
Do not use excessive force on the display. Avoid moving the computer while
holding the display or twisting the display. Avoid placing objects on top of the
display as this may cause the glass to break thereby damaging the display.
Using the touchscreen during low temperature (less than 5 oC) may cause a
slower response time; this is normal. A normal response time may be restored
upon returning to room temperature.
When there is noticeable discrepancy in the operation of the touchscreen function
(wrong location on intended operation or improper display resolution), refer to
the Windows online Help for instructions on recalibrating the touchscreen display.
Caring for the Computer 7-9
When Traveling
Before traveling with your computer, make a backup of your hard disk data into
flash disks or other storage devices. As an added precaution, bring along an
extra copy of your important data.
Make sure that the battery pack is fully charged.
Make sure that the computer is turned off and the top cover is securely closed.
Make sure that all the connector covers are closed completely to ensure the
waterproof integrity.
Do not leave objects in between the keyboard and closed display.
Disconnect the AC adapter from the computer and take it with you. Use the
AC adapter as the power source and as a battery-charger.
Hand-carry the computer. Do not check it in as luggage.
If you need to leave the computer in the car, put it in the trunk of the car
to avoid exposing the computer to excessive heat.
When going through airport security, it is recommended that you send the computer
and flash disks through the X-ray machine (the device you set your bags on).
Avoid the magnetic detector (the device you walk through) or the magnetic wand
(the handheld device used by security personnel).
If you plan to travel abroad with your computer, consult your dealer for the
appropriate AC power cord for use in your country of destination.
Troubleshooting 8-1
Chapter 8
Troubleshooting
Computer problems can be caused by hardware, software, or both. When you
encounter any problem, it might be a typical problem that can easily be solved.
This chapter tells you what actions to take when solving common computer problems.
8-2 Troubleshooting
Preliminary Checklist
Here are helpful hints to follow before you take further actions when you encounter
any problem:
Try to isolate which part of the computer is causing the problem.
Make sure that you turn on all peripheral devices before turning on the computer.
If an external device has a problem, make sure that the cable connections are
correct and secure.
Make sure that the configuration information is properly set in the BIOS Setup
program.
Make sure that all the device drivers are correctly installed.
Make notes of your observations. Are there any messages on the screen? Do
any indicators light? Do you hear any beeps? Detailed descriptions are useful
to the service personnel when you need to consult one for assistance.
If any problem persists after you follow the instructions in this chapter, contact an
authorized dealer for help.
Troubleshooting 8-3
Solving Common Problems
Battery Problems
The battery does not charge (Battery Charge indicator does not light amber).
Make sure that the AC adapter is properly connected.
Make sure that the battery is not too hot or cold. Allow time for the battery
pack to return to room temperature.
Make sure that the battery pack is installed correctly.
Make sure that the battery terminals are clean.
The operating time of a fully charged battery becomes shorter.
If you often partially recharge and discharge, the battery might not be charged
to its full potential. Initialize the battery to solve the problem. (See “Initializing
the Battery Pack” in Chapter 3 for instructions.)
The battery operating time indicated by the battery meter does not match the
actual operating time.
The actual operating time can be different from the estimated time, depending
on how you are using the computer. If the actual operating time is much less
than the estimated time, initialize the battery. (See “Initializing the Battery Pack”
in Chapter 3 for instructions.)
Bluetooth Wireless Transmission Problems
I cannot connect to another device with Bluetooth wireless technology.
Make sure that both devices have activated Bluetooth feature.
Make sure that the distance between the two devices is within the limit and
that there are no walls or other obstructions between the devices.
8-4 Troubleshooting
Make sure that the other device is not in “Hidden” mode.
Make sure that both devices are compatible.
Display Problems
Nothing appears on the screen.
During operation, the screen may automatically turn off as a result of power
management. Press any key to see if the screen comes back.
The brightness level might be too low. Increase brightness.
The display output might be set to an external device. To switch the display
back to the LCD, press the Fn+F5 hot key or change the display through the
Display Settings Properties.
The characters on the screen are dim.
Adjust the brightness and/or contrast.
Bad dots appear on the display at all times.
A small number of missing, discolored, or bright dots on the screen are an intrinsic
characteristic of TFT LCD technology. It is not regarded as a LCD defect.
The external monitor displays nothing.
Make sure that the monitor is turned on.
Make sure that the monitor’s signal cable is properly connected.
Switch the display to the monitor by pressing the Fn+F5 hot key or change the
display through the Display Settings Properties.
Simultaneous display/multi-display does not work.
Make sure that you turn on the external monitor before turning on the computer.
Press the Fn+F5 hot key to toggle through the display options or change the
Display Settings Properties in Windows.
Troubleshooting 8-5
DVD Drive Problems
The DVD drive cannot read a disc.
Make sure that the disc is correctly seated in the tray, with the label facing
up.
Make sure that the disc is not dirty. Clean the disc with a disc cleaning kit,
available in most computer stores.
Make sure that the computer supports the disc or the files contained.
You cannot eject a disc.
The disc is not properly seated in the drive. Manually release the disc by inserting
a small rod, such as a straightened paperclip, into the drive’s manual eject hole
and pushing firmly to release the tray
Hardware Device Problems
The computer does not recognize a newly installed device.
The device may not be correctly configured in the BIOS Setup program. Run
the BIOS Setup program to identify the new type.
Make sure if any device driver needs to be installed. (Refer to the documentation
that came with the device.)
Make sure if the device needs any jumper or switch settings. (Refer to the
documentation that came with the device.)
8-6 Troubleshooting
Check the cables or power cords for correct connections.
For an external device that has its own power switch, make sure that the power
is turned on.
Hard Disk Drive Problems
The hard disk drive error message appears on the screen.
The hard disk drive has defects. Ask your dealer for help.
The hard disk drive operations seem slow.
The data files stored on the hard disk drive may be fragmented. Use a tool
such as Window’s Disk Defragmenter to defragment the files.
The hard disk drive in-use indicator glows without blinking.
The data files stored on the hard disk drive may be fragmented. Use a tool
such as Window’s Disk Defragmenter to defragment the files.
Keyboard, Mouse, and Touchpad Problems
The keyboard does not respond.
Try connecting an external keyboard. If it works, contact an authorized dealer,
as the internal keyboard cable might be loose.
Water or liquid is spilt into the keyboard.
Immediately turn off the computer and unplug the AC adapter. Then turn the
keyboard upside down to drain the liquid out of the keyboard. Make sure to
clean up any part of the spill you can get to. Though the keyboard of your
computer is spill-proof, liquid will remain in the keyboard enclosure if you dont
remove it. Wait for the keyboard to air dry before using the computer again.
Troubleshooting 8-7
The numeric keypad is disabled.
Make sure that the Num Lock is switched on. (Check if the Num Lock Indicator
glows or not.)
The touchpad does not work, or the pointer is difficult to control with the
touchpad.
Make sure that the touchpad is clean.
LAN Problems
I cannot access the network.
Make sure that the LAN cable is properly connected to the RJ-45 connector
and the network hub.
Make sure that the network configuration is appropriate.
Make sure that the user name or password is correct.
Modem Problems
The modem does not work.
Make sure that the telephone line is properly connected.
Make sure that the COM port in the communication software is correctly set.
Turn off power management.
Power Management Problems
The computer does not enter Sleep or Hibernation mode automatically.
If you have a connection to another computer, the computer does not enter Sleep
or Hibernation mode if the connection is actively in use.
Make sure that the Sleep or Hibernation time-out is enabled.
8-8 Troubleshooting
The computer does not enter Sleep or Hibernation mode immediately.
If the computer is performing an operation, it normally waits for the operation
to finish.
The computer does not resume from Sleep or Hibernation mode.
The computer automatically enters Sleep or Hibernation mode when the battery
pack is empty. Do any one of the following:
Connect the AC adapter to the computer.
Replace the empty battery pack with a fully charged one.
The computer does not enter Hibernation mode with the Fn+F12 hot keys.
Make sure that the Hibernation function is specified for the sleep button.
You might be using a PC or other card that prevents the computer from entering
Hibernation mode. To enter the mode, stop the communication program and then
remove the card or stop the card.
Software Problems
An application program does not work correctly.
Make sure that the software is correctly installed.
If an error message appears on the screen, consult the software program’s
documentation for further information.
If you are sure the operation has stop, reset the computer. (See “Resetting
the Computer” later in this chapter.)
Sound Problems
No sound is produced.
Make sure that the volume control is not set too low.
Make sure that the computer is not in Sleep mode.
Troubleshooting 8-9
If using an external speaker, make sure that the speaker is properly connected.
Distorted sound is produced.
Make sure that the volume control is not set too high or too low. In most cases,
a high setting can cause the audio electronics to distort the sound.
The sound system does not record.
Adjust the playback or recording sound levels.
The external microphone or audio device does not work.
Make sure that the microphone is connected to the proper connector on the
computer.
Click the speaker symbol on the taskbar and check the Windows volume control.
Check the volume control of your computer.
Startup Problems
When you turn on the computer, it does not respond and the Power Indicator
does not light green.
If you are using an external AC power, make sure that the AC adapter is correctly
and securely connected. If so, make sure that the electrical outlet works properly.
If you are using the battery power, make sure that the battery is not discharged.
As a protection, the system will not start up if the temperature is too high. If
this happens, both the Power ( ) and Battery Charge ( ) indicators blink
green for 10 seconds. Wait till the temperature drops down before trying to turn
on the system again.
For models with the HDD heater option: When turning on the computer in an
extremely low temperature environment, the computer will heat up the hard disk
before starting up. Both the Power ( ) and Battery Charge ( ) indicators
blink green at the same time to indicate the heater is on. Wait till the heating
is finished. However, if external AC power is not available and the remaining
8-10 Troubleshooting
battery power is too low for the heating to complete, the computer may not start
up. In case the computer fails to start up, turn off the computer and leave it
in room temperature for about an hour before trying to turn it on again.
When you turn on the computer, it stops after POST.
Restart your computer.
WLAN Problems
I cannot use the WLAN feature.
Make sure that the mini PCI-E WLAN card is correctly installed.
Make sure that the WLAN feature is turned on.
Transmission quality is poor.
Your computer may be in an out-of-range situation. Move your computer closer
to the Access Point or another WLAN device it is associated with.
Check if there is high interference around the environment and solve the problem
as described next.
Radio interference exists.
Move your computer away from the device causing the radio interference such
as microwave oven and large metal objects.
Plug your computer into an outlet on a different branch circuit from that used
by the affecting device.
Consult your dealer or an experienced radio technician for help.
I cannot connect to another WLAN device.
Make sure that the WLAN feature is turned on.
Make sure that the SSID setting is the same for every WLAN device in the
network.
Troubleshooting 8-11
Your computer is not recognizing changes. Restart the computer.
Make sure that the IP address or subnet mask setting is correct.
I cannot communicate with the computer in the network when Infrastructure
mode is configured.
Make sure that the Access Point your computer is associated with is powered
on and all the LEDs are working properly.
If the operating radio channel is in poor quality, change the Access Point and
all the wireless station(s) within the BSSID to another radio channel.
Your computer may be in an out-of-range situation. Move your computer closer
to the Access Point it is associated with.
Make sure that your computer is configured with the same security option
(encryption) to the Access Point.
Use the Web Manager/Telnet of the Access Point to check whether it is connected
to the network.
Reconfigure and reset the Access Point.
I cannot access the network.
Make sure that the network configuration is appropriate.
Make sure that the user name or password is correct.
You have moved out of range of the network.
Turn off power management.
Other Problems
The date/time is incorrect.
Correct the date and time via the operating system or BIOS Setup program.
8-12 Troubleshooting
After you have performed everything as described above and still have the incorrect
date and time every time you turn on the computer, the RTC (Real-Time Clock)
battery is at the end of its life. Call an authorized dealer to replace the RTC
battery.
Troubleshooting 8-13
Resetting the Computer
You may have to reset (reboot) your computer on some occasions when an error
occurs and the program you are using hangs up.
If the computer operation seems to hang up, first wait. It is possible that the computer
is processing data. Periodically check the hard disk drive in-use indicator, if it flashes
irregularly, the program may be accessing data and preventing you from using the
keyboard. If you are sure the operation has stopped and you cannot use the “restart
function of the operating system, reset the computer.
Reset the computer by any one of these methods:
Press Ctrl+Alt+Del on the keyboard.
If the above action does not work, press and hold the power button for more
than 5 seconds to force the system to turn off. Then turn on the power again.
CAUTION: Resetting will cause any unsaved data to be lost.
Specifications A-1
Appendix A
Specifications
NOTE: Specifications are subject to change without any prior notice.
Parts
Specifications
CPU
Intel® Ivy Bridge Standard Voltage Duo Core, Turbo Boost Technology
Chipset
Intel® QM77 (vPro), dual channel support
BIOS
Phoenix, 16MB, supporting ACPI, TPM, and vPro
RAM
Up to 16GB DDR3 SDRAM, 2 slots, 1333/1600MHz
Display
Panel
14-inch (16:9) wide TFT LCD, resolution up to 1366×768 WXGA, default
220 nits (optional 800 nits), resistive multi-touch with AG/AR film
(option)
Controller
UMA - Intel® HD 4000 graphics
Audio
Microphone
Integrated
Speaker
Speaker × 2
Keyboard
Standard keys with numeric pad keys, 12 function keys, special Fn
(Function) key and Windows keys, with water-proof membrane or backlight
(option)
Pointing device
Glide touchpad with 2 buttons
Storage
device
Hard disk drive
SATA interface, 2.5-inch diameter, shock-mounted, user-removable,
solid-state disk (option), HDD heater (option)
DVD drive
SATA interface, Super-Multi DVD drive
Card slots
Card Reader 3-in-1 (SD/ MMC/MMC Plus)
PCMCIA CardBus Type II
ExpressCard/34/54
Smart Card
A-2 Specifications
Parts
Specifications
I/O ports
USB 3.0 x 3, eSATA/USB 2.0 combo, RS-232, RJ-45, mini IEEE 1394a,
analog VGA , HDMI, headphone out, microphone in, docking
Modem (option)
Azalia, v90 & 56K, MDC 1.5
LAN
Intel® 82579LM Gigabit Network Connection
Wireless LAN
Intel® 6235 (Jackson Peak 2) 2x2, IEEE 802.11a/b/g/n
Bluetooth
4.0 + EDR
GPS (option)
GPS module
WWAN (option)
3G or 4G LTE, WWAN minicard, external accessible SIM card slot
CMOS Web CAM (option)
CMOS 3M pixel Auto-focus
RFID Reader (option)
Contactless, UART, supporting ISO14443A/B and 15693
(There is no smart card reader if your model has the RFID reader option.)
Security
Kensington lock
TPM 1.2
Fingerprint scanner, slide type
Smart Card Reader
Power
AC adapter
Universal AC adapter 90 W; input: 100240 V, output: 19 V
Battery Pack
Li-ion smart battery 6-cell (5200mAH) or 9-cell (8700mAH)
Dimension (W×D×H)
348×258×49.2 mm (13.7×10.15×1.93 inch) (excluding rubber feet and
bumper)
Weight
2.9 kg (6.4 lb)
Regulatory Information B-1
Appendix B
Regulatory Information
This appendix provides regulatory statements and safety notices on your computer.
NOTE: Marking labels located on the exterior of your computer indicate the
regulations that your model complies with. Please check the marking labels and
refer to the corresponding statements in this appendix. Some notices apply to
specific models only.
B-2 Regulatory Information
On the Use of the System
Class B Regulations
USA
Federal Communications Commission Radio Frequency Interference Statement
NOTE:
This equipment has been tested and found to comply with the limits for a Class
B digital device pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency energy and, if not
installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference
to radio or television reception, which can be determined by turning the equipment
off and on, the user is encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Any changes or modifications not expressly approved by the manufacturer could void
the user’s authority to operate the equipment.
Please note:
The use of a non-shielded interface cable with this equipment is prohibited.
Regulatory Information B-3
Canada
Canadian Department of Communications
Radio Interference Regulations Class B Compliance Notice
This Class B digital apparatus meets all requirements of the Canada
Interference-Causing equipment regulations.
Cet appareil numérique de Classe B respecte toutes les exigences du Règlement
Canadien sur le matériel brouileur.
This digital apparatus does not exceed the Class B limits for radio noise emissions
from digital apparatus set out in the Radio Interference Regulations of the Canadian
Department of Communications.
Le présent appareil numérique n’émet pas de bruits radioélectriques dépassant les
limites applicables aux appareils numériques de la classe B prescrites dans le
Règlement sur le brouillage radioélectrique édicté par le ministère des Communications
du Canada.
Safety Notices
About the Battery
Caution Texts Concerning Lithium Batteries
DANISH
ADVARSEL! Lithiumbatteri Eksplosionsfare ved fejlagtig håndtering. Udskiftning
kun ske med batteri af samme fabrikat og type. Levér det brugte batteri tilbage til
leverandøren.
NORWEGIAN
ADVARSEL: Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype
eller en tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i
henhold til fabrikantens instruksjoner.
SWEDISH
VARNING: Explosionsfara vid felaktigt batteribyte. Använd samma batterityp eller en
B-4 Regulatory Information
ekvivalent typ som rekommenderas av apparattillverkaren. Kassera använt batteri enligt
fabrikantens instruktion.
FINNISH
VAROITUS: Paristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo
ainoastaan valmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan
ohjeiden mukaisesti.
ENGLISH
CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with
the same or equivalent type recommended by the equipment manufacturer. Discard
used batteries according to manufacturer's instructions.
DEUTSCH
VORSICHT: Explosionsgefahr bei unsachgemäßem Austausch der Batterie. Ersatz
nur durch denselben oder einen vom Hersteller empfohlenen gleich-wertigen Typ.
Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
FRENCH
ATTENTION: II y a danger d’explosion s’il y a remplacement incorrect de la batterie.
Remplacer uniquement avec une batterie du même type ou d’un type équivalent
recommanpar le constructeur. Mettre au rebut les batteries usagées conformément
aux instructions du fabricant.
Attention (for USA Users)
The product that you have purchased contains a rechargeable battery. The battery
is recyclable. At the end of its useful life, under various state and local laws, it
may be illegal to dispose of this battery into the municipal waste stream. Check
with your local solid waste officials for details in your area for recycling options or
proper disposal.
About the AC Adapter
Use only the AC adapter supplied with your computer. Use of another type of
AC adapter will result in malfunction and/or danger.
Regulatory Information B-5
Do not use the adapter in a high moisture environment. Never touch the adapter
when your hands or feet are wet.
Allow adequate ventilation around the adapter when using it to operate the device
or charge the battery. Do not cover the AC adapter with paper or other objects
that will reduce cooling. Do not use the AC adapter while it is inside a carrying
case.
Connect the adapter to a proper power source. The voltage requirements are
found on the product case and/or packaging.
Do not use the adapter if the cord becomes damaged.
Do not attempt to service the unit. There are no serviceable parts inside. Replace
the unit if it is damaged or exposed to excess moisture.
About the Modem
Caution
Never install telephone wiring during a lightning storm.
Never install telephone jacks in wet locations unless the jack is specifically designed
for wet locations.
Never touch non-insulated telephone wires or terminals unless the telephone line
has been disconnected at the network interface.
Use caution when installing or modifying telephone lines.
Avoid using the telephone function (other than a cordless type) during an
electrical storm. There may be a remote risk of electric shock from lightning.
Do not use the telephone function to report a gas leak in the vicinity of the
leak.
Do not use this product near water, for example near a bathtub, wash bowl,
kitchen sink or laundry tub, in a wet basement or near a swimming pool.
B-6 Regulatory Information
Caution (for USA Users)
To reduce the risk of fire, use only No.26 AWG or larger telecommunication line
cord.
Regulatory Information B-7
On the Use of the RF Device
NOTE: The information in this section applies to models with the wireless LAN
module.
USA and Canada Safety Requirements and Notices
Radio Frequency Interference Requirements and SAR
The FCC with its action has adopted a safety standard for human exposure to Radio
Frequency (RF) electromagnetic energy emitted by FCC certified equipment. The
wireless LAN module meets the Human Exposure limits found in OET Bulletin 65,
2001, and ANSI/IEEE C95.1, 1999. Proper operation of this radio according to the
instructions found in this manual will result in exposure substantially below the FCC’s
recommended limits. The following safety precautions should be observed:
Do not touch or move antenna while the unit is transmitting or receiving.
Do not hold any component containing the radio such that the antenna is very
close or touching any exposed parts of the body, especially the face or eyes,
while transmitting.
Do not operate the radio or attempt to transmit data unless the antenna is
connected; if not, the radio may be damaged.
This device is compliance with SAR for general population /uncontrolled exposure
limits in ANSI/IEEE C95.1-1999 and had been tested in accordance with the
measurement methods and procedures specified in OET Bulletin 65 Supplement
C.
This equipment complies with FCC RF radiation exposure limits set forth for an
uncontrolled environment. This device was tested for typical laptop operations with
the device contacted directly to the human body to the back side of the notebook
computer. To maintain compliance with FCC RF exposure compliance
requirements, avoid direct contact to the transmitting antenna during transmitting.
B-8 Regulatory Information
Use in specific environments:
The use of wireless devices in hazardous locations is limited by the constraints
posed by the safety directors of such environments.
The use of wireless devices on airplanes is governed by the Federal Aviation
Administration (FAA).
The use of wireless devices in hospitals is restricted to the limits set forth by
each hospital.
Antenna use:
In order to comply with FCC RF exposure limits, low gain integrated antennas
should be located at a minimum distance of 20 cm (8 inches) or more from
the body of all persons.
High-gain, wall-mount, or mast-mount antennas are designed to be professionally
installed and should be located at a minimum distance of 30 cm (12 inches)
or more from the body of all persons. Please contact your professional installer,
VAR, or antenna manufacturer for proper installation requirements.
Explosive Device Proximity Warning
WARNING: Do not operate a portable transmitter (such as a wireless network device)
near unshielded blasting caps or in an explosive environment unless the device has
been modified to be qualified for such use.
Antenna Warning
WARNING: To comply with the FCC and ANSI C95.1 RF exposure limits, it is
recommended that the antenna for this device be installed so as to provide a separation
distance of at least 20 cm (8 inches) from all persons and that the antenna must
not be co-located or operating in conjunction with any other antenna or radio
transmitter. It is recommended that the user limit exposure time if the antenna is
positioned closer than 20 cm (8 inches).
Regulatory Information B-9
Use on Aircraft Caution
CAUTION: Regulations of the FCC and FAA prohibit airborne operation of
radio-frequency wireless devices because their signals could interfere with critical
aircraft instruments.
EMC Requirements
This device uses, generates and radiates radio frequency energy. The radio frequency
energy produced by this device is well below the maximum exposure allowed by
the Federal Communications Commission (FCC).
This device complies with the limits for a Class B digital device pursuant to Part
15 subpart C of the FCC Rules and Regulations. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that
may cause undesired operation.
The FCC limits are designed to provide reasonable protection against harmful
interference when the equipment is installed and used in accordance with the instruction
manual and operated in a commercial environment. However, there is no guarantee
that interference will not occur in a particular commercial installation, or if operated
in a residential area.
If harmful interference with radio or television reception occurs when the device is
turned on, the user must correct the situation at the user’s own expense. The user
is encouraged to try one or more of the following corrective measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
B-10 Regulatory Information
CAUTION: The Part 15 radio device operates on a non-interference basis with other
devices operating at this frequency. Any changes or modification to said product not
expressly approved by the manufacturer could void the user’s authority to operate
this device.
Canada Radio Frequency Interference Requirements
To prevent radio interference to the licensed service, this device is intended to be
operated indoors and away from windows to provide maximum shielding. Equipment
(or its transmit antenna) that is installed outdoors is subject to licensing.
Pour empêcher que cet appareil cause du brouillage au service faisant l'objet d'une
licence, il doit être utilisé à l'intérieur et devrait être placé loin des fenêtres afin
de fournir un écran de blindage maximal. Si le matériel (ou son antenne d'émission)
est installé à l'extérieur, il doit faire l'objet d'une licence.
European Union CE Marking and Compliance
Notices
Statements of Compliance
English
This product follows the provisions of the European Directive 1999/5/EC.
Danish
Dette produkt er i overensstemmelse med det europæ iske direktiv 1999/5/EC.
Dutch
Dit product is in navolging van de bepalingen van Europees Directief 1999/5/EC.
Finnish
Tämä tuote noudattaa EU-direktiivin 1999/5/EC määräyksiä.
Regulatory Information B-11
French
Ce produit est conforme aux exigences de la Directive Européenne 1999/5/EC.
German
Dieses Produkt entspricht den Bestimmungen der Europäischen Richtlinie 1999/5/EC.
Greek
To προϊόν αυτό πληροί τις προβλέψεις της Ευρωπαϊκής Οδηγίας
1999/5/EC.
Icelandic
Þessi vara stenst reglugerð Evrópska Efnahags Bandalagsins númer 1999/5/EC.
Italian
Questo prodotto è conforme alla Direttiva Europea 1999/5/EC.
Norwegian
Dette produktet er i henhold til bestemmelsene i det europeiske direktivet 1999/5/EC.
Portuguese
Este produto cumpre com as normas da Diretiva Européia 1999/5/EC.
Spanish
Este producto cumple con las normas del Directivo Europeo 1999/5/EC.
Swedish
Denna produkt har tillverkats i enlighet med EG-direktiv 1999/5/EC.
Local Restrictions of 802.11a/g/n Radio Usage
CAUTION: Due to the fact that the frequencies used by 802.11a/g/n wireless LAN
devices may not yet be harmonized in all countries, 802.11a/g/n products are
designed for use only in specific countries or regions, and is not allowed to be operated
in countries or regions other than those of designated use. As a user of these products,
you are responsible for ensuring that the products are used only in the countries
or regions for which they were intended and for verifying that they are configured
with the correct selection of frequency and channel for the country or region of use.
Any deviation from permissible settings and restrictions in the country or region of
use could be an infringement of local law and may be punished as such.
B-12 Regulatory Information
The European variant is intended for use throughout the European Economic Area.
However, authorization for use is further restricted in particular countries or regions
within countries, as follows:
General
European standards dictate maximum radiated transmit power of
100 mW Effective Isotropic Radiated Power (EIRP) and the frequency range 2400
2483.5 MHz.
Belgium and the Netherlands
In Belgium and the Netherlands, the product may not be used outdoors. See the
instructions next under the heading “Turning Off the Wireless LAN Radio.”
France
Departments in Which the Wireless LAN Module Can Be Used (Indoors Only)
The wireless LAN module can currently be used indoors only in the following 38
departments of mainland France. Please turn off your wireless LAN radio when
operating the device in areas/places other than the 38 departments listed:
01
Ain Orientales
36
Indre
66
Pyrénées
02
Aisne
37
Indre et Loire
67
Bas Rhin
03
Allier
41
Loir et Cher
68
Haut Rhin
05
Hautes Alpes
42
Loire
70
Haute Saône
08
Ardennes
45
Loiret
71
Saône et Loire
09
Ariège
50
Manche
75
Paris
11
Aude
55
Meuse
82
Tarn et Garonne
12
Aveyron
58
Nièvre
84
Vaucluse
16
Charente
59
Nord
88
Vosges
24
Dordogne
60
Oise
89
Yonne
25
Doubs
61
Orne
90
Territoire de Belfort
26
Drôme
63
Puy du Dôme
94
Val de Marne
Regulatory Information B-13
32
Gers
64
Pyrénées Atlantique
Departments in Which the Wireless LAN Module’s Maximum EIRP Not Shown in the
Previous Table
Frequency Ranges (MHz)
Indoors
Outdoors
2400 2446.5
10 mW
Not permitted
2446.5 2483.5
100 mW
100 mW on private property with
Ministry of Defense approval
Turning Off the Wireless LAN Radio
NOTE: Turning the wireless LAN radio off is not the same as disabling the wireless
LAN card. It is not necessary to disable the card to meet the regulatory requirements.
While operating the computer in those French departments that do not allow use
of the wireless LAN equipment, the user of the equipment must turn off the wireless
LAN radio in order to comply with local regulations.
