Getac Technology MH132 SMARTPHONE User Manual

Getac Technology Corporation SMARTPHONE Users Manual

Users Manual

Rugged Mobile Computing Solutions
MH132
USER MANUAL
Dec. 2010
Trademarks
Microsoft, Windows, the Windows logo, Windows Media, Outlook and ActiveSync
are registered trademarks or trademarks of Microsoft Corporation in the United States
and/or other countries. Microsoft products are licensed to OEMs by Microsoft
Licensing, Inc., a wholly owned subsidiary of Microsoft Corporation.
The Bluetooth word mark and logos are owned by the Bluetooth SIG, Inc.
All other brand and product names are trademarks or registered trademarks of their
respective companies.
Disclaimer
Specifications and manuals are subject to change without notice. Getac assumes
no liability for damage incurred directly or indirectly from errors, omissions, or
discrepancies between the device and the manuals.
Notes
Depending upon the specific model purchased, the color and look of your device
and accessories may not exactly match the graphics shown in this document.
The screenshots and other presentations shown in this document are for reference
only. They may differ from the actual screens and presentations generated by the
actual product.
ENERGY STAR® is a government program that offers businesses and consumers
energy-efficient solutions, making it easy to save money while protecting the
environment for future generations.
Please reference ENERGY STAR® related information from
www.energystar.gov.
As an ENERGY STAR® Partner, Getac Technology Corporation has determined that
this product meets the ENERGY STAR® guidelines for energy efficiency.
An ENERGY STAR® qualified computer uses 70 % less electricity than computers
without enabled power management features.
Earning the ENERGY STAR®
When every home office is powered by equipment that has earned the ENERGY
STAR®, the change will keep over 289 billion pounds of greenhouse gases
out of the air.
If left inactive, ENERGY STAR® qualified computers enter a low-power mode
and may use 15 watts or less. New chip technologies make power management
features more reliable, dependable, and user-friendly than even just a few years
ago.
Spending a large portion of time in low-power mode not only saves energy,
but helps equipment run cooler and last longer.
Businesses that use ENERGY STAR® enabled office equipment may realize
additional savings on air conditioning and maintenance.
Over its lifetime, ENERGY STAR® qualified equipment in a single home office
(e.g., computer, monitor, printer, and fax) can save enough electricity to light
an entire home for more than 4 years.
Power management (‚sleep settings‛) on computers and monitors can result
in much savings annually.
Remember, saving energy prevents pollution
Because most computer equipment is left on 24 hours a day, power management
features are important for saving energy and are an easy way to reduce air pollution.
By using less energy, these products help lower consumers’ utility bills, and prevent
greenhouse gas emissions.
i
Table of Contents
Table of Contents ................................................................................... i
Getting Started ................................................................................... 1-1

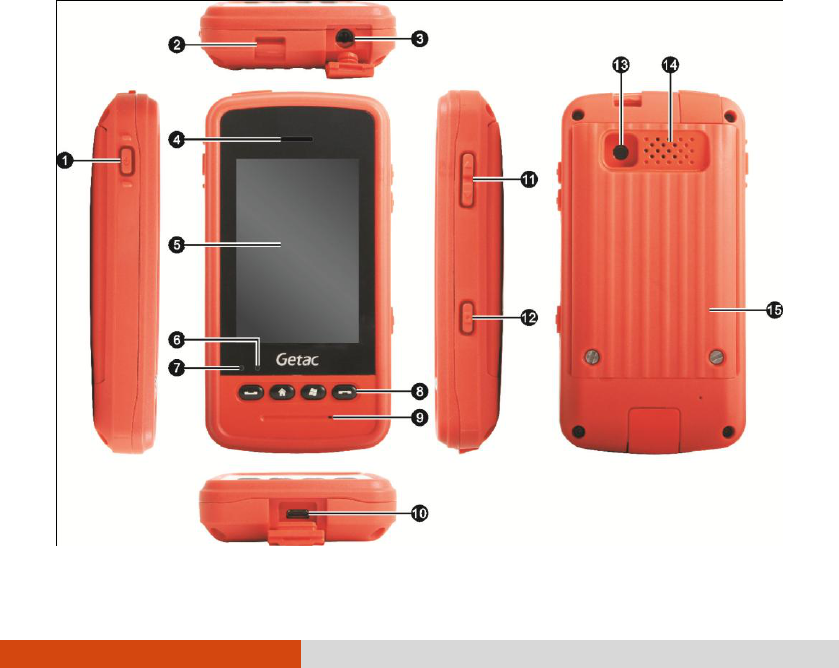

Identifying Hardware Components ..................................... 1-1
Getting Your Device Ready for Use ................................ 1-4
Installing the SIM Card and Battery ............................. 1-4
Connecting to AC Power and Charging the Battery ......... 1-6
Performing the Initial Startup ....................................... 1-8
Quick Help .............................................................. 1-8
Power Saving and Shutting Down ................................... 1-9
Backlight Off ............................................................ 1-9
Sleeping.................................................................. 1-9
Shutting Down .......................................................... 1-9
Synchronizing with Your Computer ................................... 1-9
Installing ActiveSync or WMDC ................................... 1-10

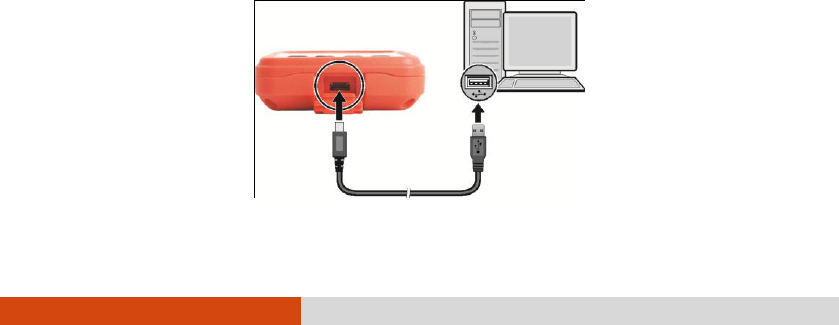

Connecting the USB Cable ........................................ 1-10
Using Options ............................................................. 1-11
Using a MicroSD Card ............................................. 1-11
Using the Headset ................................................... 1-12
Basic Skills 2-1
Using the Touchscreen .................................................. 2-1
Home Screen ............................................................. 2-2
Navigation Bar and Toolbar ........................................... 2-3
ii
Running Programs ....................................................... 2-4
Shortcut Menus ........................................................... 2-4
Notifications ................................................................ 2-5
Entering Information ..................................................... 2-5
Entering Text Using the Input Panel ........................... 2-5
Writing or Drawing on the Screen .............................. 2-7
Recording a Message ............................................... 2-8
Securing Your Device .................................................. 2-9
Locking the Screen .................................................. 2-9
Locking Your SIM Card ........................................... 2-10
Phone Operations ............................................................................... 3-1
About Phone ............................................................... 3-1
Switching On or Off the Phone Function ...................... 3-1
Starting the Phone Program ....................................... 3-2
Phone Status Icons .................................................. 3-2
Changing the Phone Profile ....................................... 3-3
Adjusting the Phone Volume during a Call ................... 3-3
Making a Call ............................................................ 3-4
Dialing a Call ......................................................... 3-4
Making a Call from the Onscreen List ........................ 3-5
Making a Call from Contacts ..................................... 3-5
Making a Call from the Call History List ..................... 3-7
Making a Call from Speed Dial ................................. 3-8
Responding to a Call .................................................. 3-9
Answering a Call ..................................................... 3-9
Rejecting a Call ...................................................... 3-9
Ending a Call ......................................................... 3-9
Operations during a Call ............................................. 3-10
Using the Mute Function .......................................... 3-10
iii
Using the Speakerphone .......................................... 3-10
Managing More Than One Call .................................. 3-11
Taking a Note during a Call .................................... 3-12
Using Call History ...................................................... 3-13
Viewing Call History ................................................ 3-13
Adding an Entry to Contacts Using Call History ........... 3-13
Using Speed Dial ....................................................... 3-14
Creating a Speed Dial Entry .................................... 3-14
Editing or Deleting a Speed Dial Entry ...................... 3-15
Additional Phone Operations ......................................... 3-15
Using Text Messages .............................................. 3-15
Setting up an Internet Connection .............................. 3-16
Checking Your Voice Mail ........................................ 3-16
Making an Emergency Call ....................................... 3-16
Dialing an International Call ...................................... 3-16
Customizing Your Phone .............................................. 3-17
Changing Sounds Settings ........................................ 3-17
Changing Security Settings ....................................... 3-18
Changing Services Settings ....................................... 3-18
Changing Network Settings ....................................... 3-19
Changing Band Settings ........................................... 3-19
Changing Others Settings ......................................... 3-20
Managing Your Device ........................................................................ 4-1
Managing Power .......................................................... 4-1
Customizing Your Device .............................................. 4-2
Working with Programs and Folders ............................... 4-6
Adding and Removing Programs ................................. 4-6
Searching and Organizing Information .......................... 4-6
iv
Microsoft Pocket Outlook.................................................................... 5-1
Calendar: Scheduling Appointments and Meetings ............... 5-1
Creating an Appointment ........................................... 5-2
Viewing Appointments ............................................... 5-3
Contacts: Tracking Friends and Colleagues ...................... 5-4
Creating a Contact ................................................... 5-4
Assigning a Ringtone and Picture ............................... 5-5
Tasks: Keeping a To Do List ....................................... 5-6
Creating a Task ...................................................... 5-6
Notes: Capturing Thoughts and Ideas.............................. 5-7
Creating a Note ...................................................... 5-7
E-mail and Text Messaging: Sending and Receiving Messages
............................................................................... 5-8
About Accounts ....................................................... 5-8
Reading and Sending E-mails ................................... 5-9
Reading and Sending Text Messages ......................... 5-10
More Programs .................................................................................. 6-1
Getac Camera ............................................................. 6-1
Taking Pictures ........................................................ 6-1
Status Bar and GPS Information ................................. 6-3
Control Buttons........................................................ 6-4
Pictures & Videos ....................................................... 6-6
Viewing Pictures and Videos ...................................... 6-7
Windows Media........................................................... 6-7
Internet Explorer .......................................................... 6-8
Internet Sharing .......................................................... 6-9
ActiveSync ................................................................ 6-10
Synchronizing Data ................................................... 6-11
Synchronizing Directly with Exchange Server ................ 6-12
v
Getting Connected .............................................................................. 7-1
Types of Connections.................................................... 7-1
Using Cellular Connection ............................................. 7-2
Setting up a Cellular (GPRS) Connection ................... 7-2
Setting up a Dial-up Connection ................................ 7-3
Using WiFi ................................................................ 7-4
Switching On or Off the Wi-Fi Radio ......................... 7-4
Connecting to a Wireless Network .............................. 7-5
Using the Bluetooth Function ......................................... 7-6
Switching On or Off the Bluetooth Radio ..................... 7-6

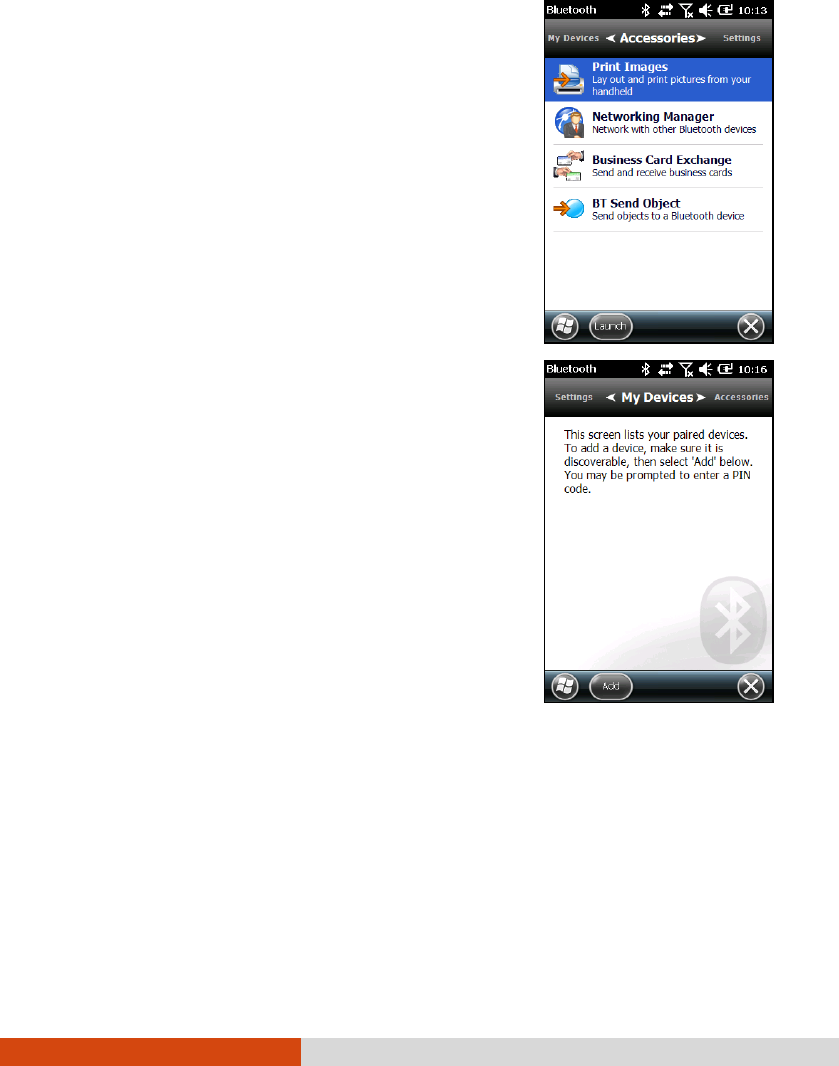

Using Bluetooth Manager ........................................... 7-7
Creating a Bluetooth Partnership ................................. 7-9

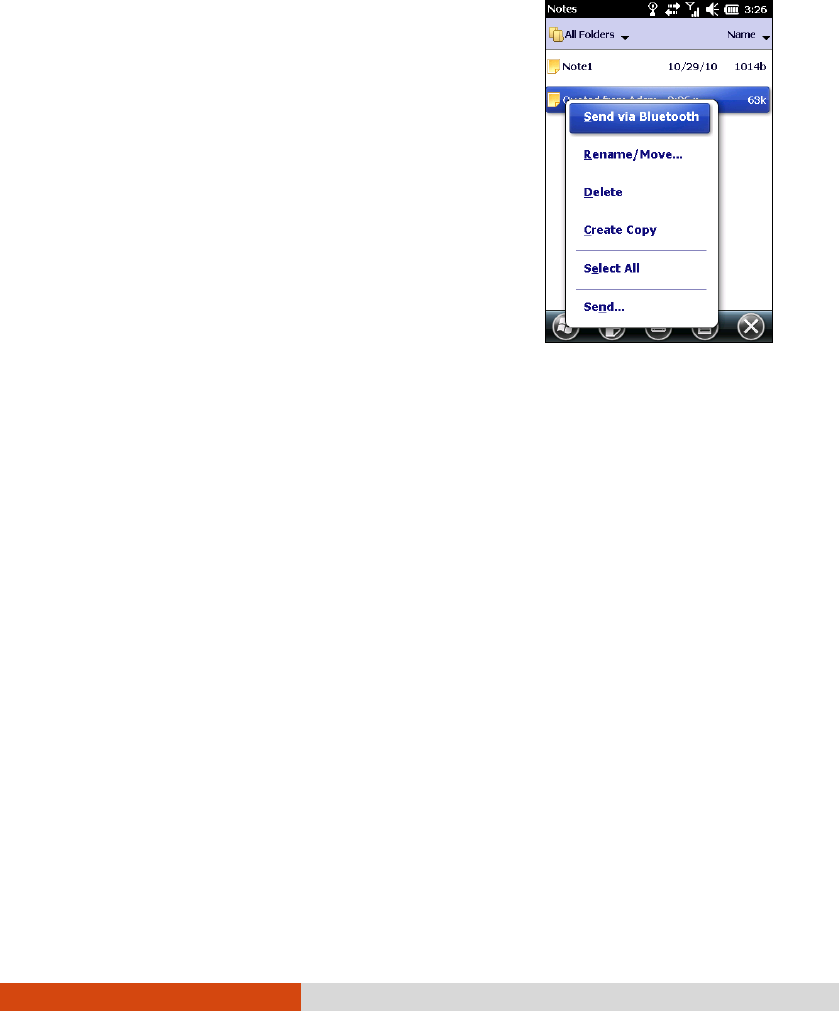

Sending Files via the Bluetooth Function..................... 7-10
Troubleshooting and Maintenance ...................................................... 8-1

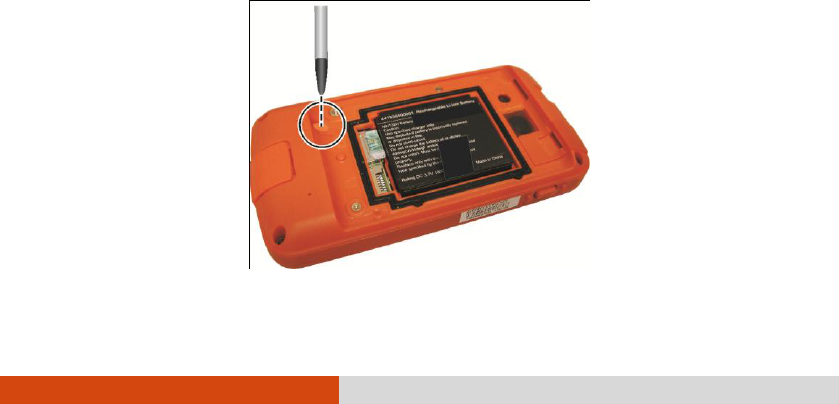

Resetting Your Device ................................................... 8-1
Restoring Factory Default State ...................................... 8-2
Troubleshooting ........................................................... 8-3
Caring for Your Device ................................................ 8-4
Regulatory Information ...................................................................... 9-1
Regulations Statements .................................................. 9-1
European Notice ....................................................... 9-1
FCC Regulations...................................................... 9-2
Safety Precautions ....................................................... 9-3
About Charging ....................................................... 9-3
About the Charger ................................................... 9-3
About the Battery .................................................... 9-4
About the Radio Frequency Exposure .......................... 9-4
Getting Started 1-1
Chapter 1
Getting Started
This chapter introduces you to the external components of your device and guides
you through the process of setting up your device for use.
Identifying Hardware Components
1-2 Getting Started
CAUTION: You need to open the protective covers to access the connectors.
When not using a connector, make sure to close the cover completely for water-
and dust-proof integrity.
Ref
Component
Description
Power Button
Starts up or shuts down the device when pressed and held.
Puts the device into sleep mode or wakes up the device
when pressed briefly.
Hand Strap
Holder
The hand strap attaches here.
Headphone
Connector
Connects to a pair of stereo headphones.
Earpiece
Serves as the phone earpiece during a call.
Touch Screen
Displays the output of your device and responds to your
tapping.
Charge Indicator
Glows in red to indicate that battery charging is in progress.
Glows in green to indicate that the battery is fully charged.
Blinks once every 8 seconds in red to indicate that the battery
power is critically low (10%).
Blinks twice quickly every 2 seconds in red to indicate that
the battery is in an abnormal state.
Notification
Indicator
Glows in white for 10 seconds to indicate that the device
is responding to a hardware button press.
Flashes once every 10 seconds in white to inform you of
a missed call, voice mail, or text message. The flashing
stops after you dismiss the notification or after one hour.
Getting Started 1-3
Ref
Component
Description
Hardware Buttons
Send
Dials or answers a call.
Opens the Phone screen from another application.
Home
Returns to the Home screen.
Start
Opens the Start menu.
End
Ends or rejects a call.
Returns to the previous screen.
Microphone
Serves as the mouthpiece during a call.
Records voices.
Micro-USB
Connector
Connects to the USB cable.
Volume Control
During a phone call:
Pressing the up or down button increases or decreases the
earpiece volume.
Not during a phone call:
Pressing the up or down button opens the volume control
window.
Camera Key
Starts the Camera program.
Serves as the shutter release button if the Camera program
is currently in use.
Camera Lens
Takes still pictures.
Speaker
Plays audio from your device; suitable for handsfree use.
Battery Cover
Inside are the battery, SIM card slot, and microSD card
slot.
1-4 Getting Started
Getting Your Device Ready for Use
Installing the SIM Card and Battery
1. Use the special screw driver (supplied with your device) to loosen the two
screws on the back of the device and then lift off the battery cover.
CAUTION: Never use the screw driver as a stylus to tap the touch screen.
Tapping the screen with a metallic object can damage the screen.
2. With the SIM card’s chip side facing down and the beveled corner pointing
to the slot, insert the card all the way into the slot.
Getting Started 1-5
3. If you have a microSD card to insert, insert it into the slot. (See ‚Using a
MicroSD Card‛ later for more information.)
4. Align the battery’s connectors with those at the side of the battery compartment
and then fit the battery into place.
5. Attach the upper side of the battery cover to the device at an angle and then
close the cover. Tighten the two screws to secure the cover.
1-6 Getting Started
Connecting to AC Power and Charging the Battery
Be sure to fully charge the battery before using your device for the first time.
1. Assemble the power plug (). The type of plug varies according to the region
of purchase. (The figure shows one of the types.)
2. Connect the USB end of the USB cable to the power plug () and the
micro-USB end to the bottom of your device ().
3. Plug into an electrical outlet ().
Getting Started 1-7
4. The charge indicator glows in red when charging is in progress. When the battery
is fully charged, the red indicator turns into green.
NOTE: Your device can also be charged when it is connected to a desktop
computer via the USB cable.
CAUTION: For optimal performance of the lithium battery, take note of the
following:
Use the included AC adapter only.
There is no need to fully discharge the battery before charging. You can
charge the battery before it is discharged.
Do not charge the battery where the temperature is high (e.g. in direct
sunlight).
Charge the battery in the recommended temperature range, i.e. 0 C ~ 40 C
(32 F ~ 104 F).
If you will not use the product for a long period of time, be sure to fully charge
the battery at least once every two weeks. Over discharge of the battery can
affect the charging performance.
1-8 Getting Started
Performing the Initial Startup
When turning on your device for the very first time, you will be guided through
a setup process.
1. Make sure that your device is either connected
to AC power or the battery has sufficient power.
2. Press and hold the power button until the device
vibrates.
3. The device powers up and you will see the
message ‚Tap the screen to set up your
Windows® Phone.‛
4. Follow the on-screen instructions to complete
the setup wizard.
5. After the setup is completed, the Home screen
appears. You can now use your device.
Quick Help
The Home screen provides a getting started item. You can quickly access
most-needed settings from here.
Tap getting started on the Home screen. Brush left or right to see available items
such as ringtone, e-mail, Bluetooth headset, and others. Tap the item you want
to set up. To obtain information on using the device, tap View All in the toolbar
and Online help & how-to. (Internet connection is required.)
Getting Started 1-9
Power Saving and Shutting Down
Backlight Off
The backlight of the screen dims out after a period of inactivity (default 30 seconds
on battery power).
To restore the backlight, tap the screen or press a button. Note that where you
tap or what you press also causes the related task to be performed.
Sleeping
Your device automatically sleeps after a period of inactivity (default 1 minute on
battery power). To manually put the device into sleep mode, briefly press the power
button.
To resume operation, press the power button. You will be back to where you left
off.
Shutting Down
To shut down the device, press and hold the power button for at least 3 seconds
until the device plays a notification sound and a message appears requesting for
confirmation. Tap Yes for the device to shut down.
To start up the device, press and hold the power button.
Synchronizing with Your Computer
ActiveSync and Windows Mobile Device Center (WMDC) provide an easy way to
synchronize data on a Windows-based computer with your device. ActiveSync works
on computers that have the Windows XP operating systems. WMDC works only
on computers that have Windows Vista or Windows 7.
1-10 Getting Started
ActiveSync and WMDC act as gateways between your device and your computer
for transferring Outlook e-mail, appointments, contacts, and tasks, and media such
as pictures, music, and videos. You can also use the Explore feature in either
program to move files or programs from your computer to your device.
Installing ActiveSync or WMDC
If you’re using Windows XP or earlier versions of Windows, download and install
the latest ActiveSync. If you’re using Windows Vista or Windows 7, download and
install the latest Windows Mobile Device Center. (Visit the Microsoft website to
download the program and to obtain operating instructions.)
NOTE:
Before installation, make sure that you have Microsoft Outlook installed on
your computer.
Connect your device to the computer AFTER Windows Mobile Device Center
or ActiveSync is installed.
ActiveSync connection problems may occur in some specific cases. They are
likely caused by interoperability with desktop firewall applications or
applications that manage network traffic. For troubleshooting information,
visit the Microsoft web site.
Connecting the USB Cable
1. After the software installation, connect your device to your computer with the
USB cable.
Getting Started 1-11
If the cable connection is for a different purpose such as using the device as a
microSD card reader or an external modem for your computer, tap one of the
other choices in the USB Mode Switch screen.
Using Options
Using a MicroSD Card
Your device has a microSD card slot where you can insert a microSD card for
removable extra storage. To insert a microSD card:
1. Remove the battery. (Refer to ‚Installing the SIM Card and Battery‛ earlier
in this chapter.)
2. With the microSD card’s connector facing down and the arrow pointing to the
slot, insert the card all the way into the slot.
1-12 Getting Started
To remove the microSD card, slightly push the card edge to release it and
then pull the card out of the slot.
3. Replace the battery and battery cover.
Using the Headset
A headset with built-in microphone is supplied with your device.
To use the heaset, connect the cable to the top of your device. You can press
the button on the microphone to answer an incoming call. To end the call, press
the button again.
Getting Started 1-13
CAUTION: Never raise the sound volume level too high when using earphones. An
excessive sound volume level could cause damage to your hearing.
Microphone
Button
Basic Skills 2-1
Chapter 2
Basic Skills
This chapter familiarizes you with the basic operations of your device.
Using the Touchscreen
Use your finger to navigate and select objects on the screen.
Tap
Touch the screen once with your finger to open items and select options.
Drag
Hold your finger on the screen and drag across the screen to select text and
images. Drag in a list to select multiple items.
Tap and hold
Tap and hold your finger on an item to see a list of actions available for that
item. On the shortcut menu that appears, tap the action you want to perform.
Screen-touch gestures make it easier to navigate your device. Gestures you can
use are:
Scroll
Brush up or down on the touch screen with your finger, and lift your finger
off when you reach the edge. To stop scrolling, tap the screen.
Pan
Place your finger on the screen and move it around for more controlled
navigation. To stop panning, tap the screen.
2-2 Basic Skills
NOTE: Not all applications support screen-touch gestures.
Home Screen
The Home screen appears whenever you turn on your device after shutting it down
or resume the operation after 4 hours of inactivity.
You can conveniently perform a task by tapping the active item or the soft button
in the toolbar.
The Home screen is accessible from anywhere by pressing the Home button
on your device or by tapping (at the left-bottom corner of the screen) and
then Home.
NOTE:
You can customize the Home screen by tapping Settings Home.
You can use your device in a landscape manner. To change the screen view,
tap Settings System Screen General Landscape or Portrait.
Basic Skills 2-3
Navigation Bar and Toolbar
The Navigation bar is located at the top of the screen. It displays the active program
name and indicators for connectivity, volume, power, time, and others. You can
tap this bar to set up related items.
An example of the Navigation bar:
Use the toolbar at the bottom of the screen to perform tasks in the active program.
The toolbar includes buttons such as the input panel button and Menu button.
An example of the toolbar:
Tap to set time zone,
date, and time.
Tap to adjust the volume.
Tap to zoom
in the screen.
Tap to set up various
connections.
Tap to set power
options.
Menu button
Input panel button
Tap to set up
phone.
2-4 Basic Skills
Running Programs
Shortcut Menus
With shortcut menus, you can quickly choose an action
for an item. For example, you can use the shortcut
menu in the contact list to quickly delete a contact,
make a copy of a contact or send an e-mail message
to a contact. The actions in the shortcut menus vary
from program to program.
To access a shortcut menu, tap and hold your finger
on the name of the item that you want to perform
the action on. When the menu appears, lift your finger
and tap the action you want to perform. Or tap
anywhere outside the menu to close the menu without
performing an action.
Basic Skills 2-5
Notifications
Your device reminds you in a variety of ways when you have something to do.
For example, if you have set up an appointment in Calendar, a task with a due
date in Tasks or an alarm in Clock, you will be notified in any of the following
ways:
A message appears on the screen.
A sound, which you can specify, is played.
The notification indicator flashes.
To choose reminder types and sounds for your device, tap Sounds &
Notifications.
Entering Information
You have several options for entering new information:
Use the Input panel to enter typed text, either by using the on-screen keyboard
or other input methods.
Write directly on the screen.
Draw pictures on the screen.
Speak into the microphone to record a message.
Entering Text Using the Input Panel
Use the Input panel to enter information in any program on your device. You can
either type using the on-screen keyboard or write using a recognizer. In any case,
the characters appear as typed text on the screen.
2-6 Basic Skills
To show or hide the Input panel, tap . By default, the soft keyboard appears.
To change to a different input mode, tap and hold and select from the popup
menu.
When you use the Input panel, your device anticipates the word you are typing
or writing and displays it above the Input panel. When you tap the displayed word,
it is inserted into your text at the insertion point. The more you use your device,
the more words it learns to anticipate.
Tap here if this is the right
word.
Select an input method.
Input panel button
Basic Skills 2-7
Recognizer
NOTE: The availability of recognizers depends on the region and the language
version you purchased.
With a recognizer, you can write letters using your finger just as you would use
a pen on paper.
When you write a letter, it is converted to typed text that appears on the screen.
Writing or Drawing on the Screen
In certain programs, such as Notes, you can write or draw on the screen as you
do on paper.
NOTE: Not all programs support the drawing mode.
1. Tap Draw to enable drawing mode. A check () appears before the
command.
2. To create a drawing, cross three ruled lines on your first stroke. A drawing
box appears. Subsequent strokes in or touching the drawing box become part
of the drawing.
Drawings that do not cross three ruled lines will be treated as writing.
2-8 Basic Skills
Recording a Message
You can quickly capture thoughts, reminders and phone numbers by recording a
message. In the Notes program, you can either create a stand-alone recording
or include a recording in a written note. If you want to include the recording in
a note, open the note first. In the E-mail program, you can add a recording to
an e-mail message.
To create a recording:
1. Tap Notes to switch to the program.
2. Tap View Recording Toolbar to show the Recording toolbar.
3. Hold the device’s microphone near your mouth or other source of sound.
4. Tap the Record button on the Recording toolbar to start recording.
5. To stop recording, tap the Stop button on the Recording toolbar. The new
recording appears in the note list or as an embedded icon.
To play a recording, tap it in the list or tap its icon in the note.
Indicates an
embedded recording.
Recording toolbar
Basic Skills 2-9
Securing Your Device
Locking the Screen
You can lock the screen at any time by tapping in the toolbar of the Start
menu. This will not affect the notification messages and incoming calls. To unlock
the screen, drag left or right.
Tap to lock.
Drag left or right to
unlock.
2-10 Basic Skills
To set a password for unlocking, tap Settings Lock. When a password
is set, you will be asked to enter your password whenever you want to use the
device.
NOTE: If you forget your password, you must clear memory so you can use your
device again. (See “Restoring Factory Default State” in Chapter 8 for
instructions.)
Locking Your SIM Card
You can set a PIN (Personal Identification Number) code to protect your SIM card
against unauthorized use. (Your mobile phone network operator may have already
set a PIN for the SIM card.)
By default, your device does not enable PIN security. To enable the security or
change the PIN, tap Settings Personal Phone Security.
When enabled, you will be asked to enter the SIM card’s PIN code when starting
up the device.
Phone Operations 3-1
Chapter 3
Phone Operations
This chapter tells you how to use the mobile phone function of your device.
About Phone
You device supports 3G/EDGE/GPRS/GSM/HSDPA/UMTS for mobile
communications.
Switching On or Off the Phone Function
The phone function is on by default. When needed (for example, on an airplane),
you can switch off the phone function without turning off your device.
1. Tap the navigation bar and . Then tap
Wireless Manager in the popup window.
– or –
Tap Settings Connections
Wireless Manager.
2. The Wireless Manager screen appears.
Tap Phone to switch it from on to off or the
other way around.
3. Tap .
3-2 Phone Operations
Starting the Phone Program
Start the Phone program by any of the three methods:
Press the Send button on the device.
Tap Phone.
Tap the phone item. Tap again if it displays ‚No
New Missed Calls.‛
NOTE: If the phone is currently off, you will be
asked to turn it on.
Whenever you start Phone, the Phone screen displays
the onscreen keypad. You can tap to hide it. To
show the keypad, tap .
You can use other programs during a call. To quickly switch back to Phone, press
the Send button on your device.
Phone Status Icons
Icons will be displayed in the navigation bar to indicate the status of the phone
functions. They are listed below.
Icon
Meaning
Icon
Meaning
Phone off (airplane mode)
EDGE in use
Signal strength
WCDMA/UMTS available
Call in progress
WCDMA/UMTS in use
Missed call
HSPA available
Call on hold
HSPA in use
GPRS available
New message
GPRS in use
Missing SIM card
Phone Operations 3-3
Icon
Meaning
Icon
Meaning
EDGE available
Changing the Phone Profile
To change the phone profile:
1. Press the volume up or down button on the side
of your device.
– or –
Tap the navigation bar and tap .
2. Tap On, Vibrate, or Off before the window
disappears.
3. Tap OK.
Adjusting the Phone Volume during a Call
To adjust the volume during a call, use one of the
below methods:
Press the volume up or down button on the side
of your device. Press once to increase or decrease
one level.
Tap the navigation bar and tap . Select a
volume level before the window disappears.
3-4 Phone Operations
Making a Call
There are several ways you can make a call.
Dialing a Call
1. Start the Phone program as described in ‚Starting
the Phone Program‛ earlier.
2. Tap the numbers on the onscreen keypad. As
soon you enter the first digit, the program searches
Contacts, Call History, and Speed Dial to find a
matching name and/or number. When you see
the name of the person to call listed, select it
and the desired phone number.
Or, you can continue entering the complete phone
number.
3. Press the Send button on your device or
tap on the onscreen keypad to make
the call.
NOTE:
If you enter a wrong number, use the Backspace key to erase individual
numbers one at a time.
If you are making an international call, tap and hold on the number key 0 until
the + sign appears. The + sign replaces the international prefix of the country
from where you are calling.
Phone Operations 3-5
Making a Call from the Onscreen List
The Phone screen lists recent calls, speed dials, and
contacts.
You can conveniently select an entry from the list and
press the Send button on your device to make
the call.
NOTE: To view a different list on the Phone screen,
tap View and select one of the options.
Making a Call from Contacts
Microsoft Contacts displays your contact information stored both in your device’s
memory and on your SIM card. (See ‚Contacts: Tracking Friends and Colleagues‛
in Chapter 5 for detailed information on the Contacts program.)
3-6 Phone Operations
1. Start the Contacts program.
2. Do one of the followings to call a phone number
in the contact list:
Tap the contact to call. Then tap the number
to call.
Tap and hold on the contact to call, and then
tap the number to call in the shortcut menu.
Phone Operations 3-7
Making a Call from the Call History List
The Call History list displays the calls you made, received or missed.
1. Tap Call History on the onscreen keypad of the
Phone program.
2. Do one of the followings to call a person in the
Call History list:
Select the number to call and then tap
or press the Send button on your
device.
Tap and hold on the number to call and then
tap Call in the shortcut menu.
Quickly Making a Call to the Last Missed Call
The Home screen displays the last missed call in the phone item. Tap phone to
view the caller information. To call back, tap again.
3-8 Phone Operations
NOTE: If you do not wish to call back, do not tap the caller information on the
Home screen. To cancel the caller information, tap Notification in the toolbar to
dismiss it.
Making a Call from Speed Dial
If you have created speed dial entries, you can call
a person quickly. (See ‚Using Speed Dial‛ in this
chapter for information.)
When in the Phone program, press and hold the
numeric key of the assigned speed dial number to
make the call.
Phone Operations 3-9
Responding to a Call
When an incoming call is received, your device rings
or vibrates according to the options you have set for
the phone. The name and number of the caller are
displayed on the pop-up window. If the name of the
caller is not in your contact list, only the caller’s phone
number is displayed.
Answering a Call
To answer an incoming call, press the Send
button on your device or tap in the toobar.
Rejecting a Call
To reject an incoming call, press the End button on your device or tap
in the toobar.
Ending a Call
To end a call, press the End button on your device or tap in the toobar.
3-10 Phone Operations
Operations during a Call
Using the Mute Function
During a call, you can mute your microphone so that
the person with whom you are speaking cannot hear
you, but you can still hear him or her.
On the Phone keypad, tap Mute to switch on the mute
function. The icon will appear on the upper-right
corner.
To switch off the mute function, tap Unmute.
Using the Speakerphone
You can switch on the speakerphone to use your
device as a hands-free solution.
On the Phone keypad, tap Speaker On to switch on
the speakerphone function. The icon will appear
in the navigation bar.
To switch off the speakerphone function, tap Speaker
Off.
Phone Operations 3-11
Managing More Than One Call
NOTE: You may need to register for the “call waiting” service with your mobile
phone network service and set your device accordingly. The exact number of
people you can talk at the same time depends on your mobile phone network
service.
During a call, you can make or take a second call while putting the current call
on hold. Then, you can choose to swap between the two callers or set up a
conference call between all three parties.
Holding a Call to Take a Second Call
1. If there is another incoming call when you are talking on your device, a pop-up
window appears to notify you.
2. Answer the second call.
3. When you end the second call, you will be back to the first call.
Placing a Call on Hold to Make a Second Call
1. During a call, tap Hold to place the first call on
hold.
2. Make the second call.
3. When you end the second call, you will be back
to the first call.
3-12 Phone Operations
Swapping between Calls
When you have put a call on hold and made or taken another call as described
earlier, you can swap between the two calls by tapping Swap.
Setting up a Conference Call
NOTE: You may need to consult your mobile phone network service for the
availability and subscription of the conference call function.
1. When you have put a call on hold and made or taken another call as described
earlier, you can set up conference calling by tapping Conference.
2. Follow the same way to add additional people to your conference.
3. If you want to talk to one of the parties privately during the call, tap
Private. Select a number, and tap Private.
To include everyone in the call again, tap Conference.
Taking a Note during a Call
You can take a note during a call.
1. Tap Note.
2. Enter your note and tap OK.
To access a note you created during a call:
1. While in the Phone program, tap Call History.
2. The icon indicates that the phone call entry contains a note. Tap and hold
the name or number for that entry, and tap View Note in the shortcut menu.
NOTE: You can also tap Notes, and access the note in the Calls folder.
Phone Operations 3-13
Using Call History
Call History provides the time and duration of all incoming, outgoing, and missed
calls, and a summary of total calls. Call History also provides easy access to any
notes taken during a call.
To access Call History while in the Phone program, tap Call History.
Viewing Call History
You can tap Filter to change the Call History
view (All Calls by default).
All Calls: Displays all calls made to and from your
device in a chronological order.
Missed ( ): Displays only calls that were not
answered.
Outgoing ( ): Displays only calls made from
your device.
Incoming ( ): Displays only calls made to
your device.
To see the time, date and duration of a call, tap the
item on the list to view details.
To clear all items on the list, tap Delete All Calls.
Adding an Entry to Contacts Using Call History
You can add a phone number in the Call History to Outlook Contacts or SIM Contact.
1. Tap and hold the entry you wish to transfer, and tap Save to Contacts in the
shortcut menu.
3-14 Phone Operations
2. Tap <New Contact> and select a contact type.
3. Enter the contact’s name, and select the proper number type.
4. Tap Save to save the entry.
Using Speed Dial
You can create Speed Dials for frequently-called phone numbers so you can dial
a number with a single key press.
Creating a Speed Dial Entry
Speed dials can only be created for numbers stored in Contacts.
1. While in the Phone program, tap Speed Dial.
2. Tap New.
3. Tap the desired contact.
4. In Name, accept the current name or change it
if you want to.
5. In Number, select the phone number if there is
more than one number for the contact.
6. If Location, accept the current speed dial number
or change the number if you want to.
7. Tap OK to save the setting.
The new Speed Dial entry is now on the Speed Dial list. The letter on the
lower-right corner of the entry indicates the assigned phone number. For
example, ‚m‛ indicates the mobile phone number.
NOTE: The first Speed Dial location is reserved for your voice mail.
Phone Operations 3-15
Editing or Deleting a Speed Dial Entry
1. While in the Phone program, tap Speed Dial.
2. Tap the desired entry and tap Delete.
– or –
Tap and hold on the desired entry, and tap Delete in the shortcut menu.
3. Tap Yes.
Additional Phone Operations
Using Text Messages
Text messages are automatically received when your phone function is switched
on. When your phone function is off, messages are held by your mobile operator
until the next time that the function is switched on.
The Home screen shows if there are new text messages. You can tap the section
to open the message list.
To send a text message, you can do one of the followings:
First select a phone number from a program such as Phone or Contacts. Then
select Send text message.
First start the Text messaging program. Then select the phone number.
See ‚Reading and Sending Text Messages‛ in Chapter 5 for more information.
3-16 Phone Operations
Setting up an Internet Connection
You can set up an Internet connection using the mobile network. See ‚Using Cellular
Connection‛ in Chapter 7 for information.
Checking Your Voice Mail
The first position in your speed dial list defaults as your voice mailbox. When you
insert your SIM card, your device automatically detects your voice mailbox number
and sets it to the first position in your speed dial list.
Making an Emergency Call
You can use your device to dial the international emergency number 112. This number
can normally be used to make an emergency call in any country with or without
a SIM card inserted, as long as you are within a mobile phone network.
Some mobile phone network services may require that a SIM card be inserted,
and in some cases that the PIN be entered.
There may be other emergency numbers available. Your mobile phone network
service may save additional local emergency numbers in the SIM card.
Dialing an International Call
When you are manually dialing a number, tap and hold on the number key 0 until
the + sign appears. The + sign replaces the international prefix of the country from
where you are calling.
Enter the full phone number you want to dial including country code, area code
(without the leading area code zero) and local phone number.
Phone Operations 3-17
Customizing Your Phone
To access the Phone settings, use one of the methods:
Switch to the Phone program and tap Options.
Tap Settings Personal Phone.
Changing Sounds Settings
Scroll left or right to the Sounds page.
You can customize phone settings, such as the ring
type and ringtone to be used for incoming calls, and
the keypad tone to be used when entering phone
numbers.
NOTE:
To use custom files (MP3, WMA, and WAV
formats) as ringtones for incoming calls, copy
the files to the \Application Data\Sounds folder
on your device. Then, select the sound from the
Ring Tone list.
To assign a specific ringtone to a contact for
easy identification, create the contact as an
Outlook contact and select a ringtone. (See
“Contacts: Tracking Friends and Colleagues” in
Chapter 5.)
3-18 Phone Operations
Changing Security Settings
Scroll left or right to the Security page.
You can protect your phone from unauthorized use.
You might be prompted to enter the PIN2 code for
specific functions (such as the pre-paid card’s
charging counters). Consult your mobile phone
network service to check if your SIM card supports
PIN2-related functions and services.
NOTE: Emergency calls can be placed at any time
without requiring a PIN code.
Changing Services Settings
Scroll left or right to the Services page.
You can access and configure settings for the phone
services you subscribed to through your mobile phone
network service. For example, you may want to block
certain types of incoming and/or outgoing calls,
forward incoming calls to a different phone number
based on your situation, be notified of incoming calls
when you are already in a call, or let others know
your identity when making calls. Services available to
you depend on your mobile phone network service and
the type of your subscription.
To view your services settings, tap a service and then
tap Get Settings.
Phone Operations 3-19
Changing Network Settings
Scroll left or right to the Network page.
You can view available wireless networks, determine
the order in which your phone accesses another
network if the current one is unavailable, and specify
whether you want to change networks manually or
automatically. The current network will remain active
until you change it, lose your signal, or change your
SIM card.
Changing Band Settings
Scroll left or right to the Band page.
The settings will be configured automatically according
to the SIM card inserted. You can manually change
the settings if needed.
3-20 Phone Operations
Changing Others Settings
Scroll left or right to the Others page.
The settings will be configured automatically according
to the SIM card inserted. You can manually change
the settings if needed.
Managing Your Device 4-1
Chapter 4
Managing Your Device
This chapter tells you how to effectively manage power, settings, data and programs
of your device.
Managing Power
Follow these suggestions to maximize the battery’s operating time, particularly when
you are relying solely on the battery power for extended time periods.
Suspend frequently.
By default, the screen backlight will automatically dim out and the device will
also suspend when it has been idle for a period of time. You can shorten
the length of the idle time using Settings System Power
Advanced to set up.
Press the power button to suspend your device when it is not in use, even
for a short time.
Turn off functions not needed or adjust settings.
Lower the volume.
Lower the brightness level.
Do not enable sounds or light flashing except for the most necessary
notifications. (Tap Settings Personal Sounds & Notifications
to set up.)
Avoid power-consuming situations such as:
4-2 Managing Your Device
Using a peripheral
Playing sound or music
Recording
Using or monitoring wireless signals
Customizing Your Device
NOTE: Incorrect settings may cause your system to malfunction. Make sure that
you fully understand the function of a certain item before any adjustment.
You can customize the settings of the device to your own preferences. Tap
Settings.
The items you can customize are described as follows:
Item
Description
Clock & Alarms
To change the time and date and to set alarms.
Home
To select the information you want displayed on the
Home screen and to select a desired theme for the
background.
Lock
To set a password for security.
Sounds & Notifications
To set the conditions and types of the sounds,
system volume and ways of notifications.
Connections
Connections
To set up or change connection information. (See
Chapter 7 for detailed information.)
CSD Type
To set CDS communications protocol and
transmission type.
Domain Enroll
To connect your device with company resources.
You will need the enrollment password provided by
your system administrator.
Managing Your Device 4-3
Item
Description
Connections
USB to PC
To enable advanced network functionality for USB
connection. In some specific cases, there can be
connection problems if this item is enabled. Disable
this item to resolve the problem.
Wi-Fi
To search for wireless networks and configure the
wireless network module. (See ‚Using Wi‛ in
Chapter 7 for detailed information.)
Wireless
Manager
To change the Wi-Fi, Bluetooth, and Phone radio
status.
Personal
Buttons
To assign programs to hardware buttons (not
supported by your device) and set the repeat rate
of the up/down control.
Owner
Information
To enter your personal information.
Phone
To customize the phone function. (See
‚Customizing Your Phone‛ in Chapter 3 for detailed
information.)
System
A-GPS
To fetch data by communicating with a mobile
network server to shorten the GPS start-up time.
Availability and cost depends on your mobile
operator.
About
To show the hardware information of your device
and to define the name that your device uses for
identifying itself to other computers.
Backlight
To adjust the brightness level of the display and
to set the automatic turnoff for power saving
purposes.
4-4 Managing Your Device
Item
Description
System
Certificates
To establish your identity or the identity of other
computers. This helps prevent unauthorized users
from accessing your device and information.
Customer
Feedback
To set if you want to send your feedback on using
the Windows Mobile software.
Encryption
To set if you want to encrypt files placed on storage
cards. The encrypted files will be readable only on
this device.
Error Reporting
To enable or disable error reporting. Error Reporting
sends information needed by technical support
groups to diagnose a program error for a device
running Windows Mobile software.
External GPS
To configure the GPS hardware settings and manage
GPS.
Managed
Programs
To manage the programs you installed.
Memory
To display the allocation between storage and
program memory, to view the memory on the storage
card (if installed) and to manually stop a program
if it becomes unstable or program memory is low.
Microphone
To adjust the microphone recording volume.
Power
To show the remaining battery power and to set the
time for the device to turn off automatically.
Regional
Settings
To specify the region of your location and the formats
of the number, currency, time and date.
Remove
Programs
To remove programs you added to the memory of
your device.
Managing Your Device 4-5
Item
Description
System
Screen
To set the orientation of the screen to portrait or
landscape.
To adjust the touch screen for accurate screen taps.
To enable the ClearType feature for easier reading
of text in programs that support ClearType.
To adjust the text size to see more content or
increase the readability in many programs.
System
Information
To display the system information.
Task Manager
To display the information about the system
performances and the detailed information of the
running programs on your device. You can also end
or manage the running programs in Task Manager.
Microsoft My Phone
To synchronize your phone’s various contents with
your My Phone account at Microsoft.
Bluetooth
To set up or change the Bluetooth connection. (See
‚Using the Bluetooth Function‛ in Chapter 7 for
detailed information.)
4-6 Managing Your Device
Working with Programs and Folders
Adding and Removing Programs
You can add programs compatible with Windows Mobile 6.5 to your device by
downloading or copying.
To manage programs you have installed, tap Settings System Managed
Programs.
To remove programs you have installed, tap Settings System Remove
Programs.
Searching and Organizing Information
The Search feature on your device helps you quickly locate information.
To search a file, tap Search Phone. Enter the text you want to find, select
a data type and then tap Search to start the search.
You can also use the File Explorer to find files on your device and to organize
these files into folders. Tap File Explorer.
NOTE: You can move files in File Explorer by tapping and holding the item you
want to move, tapping Cut or Copy on the shortcut menu, browsing to the new
location and then tapping Paste.
Microsoft Pocket Outlook 5-1
Chapter 5
Microsoft Pocket Outlook
Microsoft Pocket Outlook includes Calendar, Contacts, Tasks, Notes, and Messaging.
You can use these programs individually or together. For example, e-mail addresses
stored in Contacts can be used to address e-mail messages in Messaging.
Calendar: Scheduling Appointments
and Meetings
Use Calendar to schedule appointments, including meetings and other events. You
can check your appointments in one of several views (Agenda, Day, Week, Month
and Year), and set Calendar to remind you of appointments with a sound or other
methods. Appointments for the day can be displayed on the Home screen.
Tap Calendar to switch to the program.
5-2 Microsoft Pocket Outlook
Creating an Appointment
1. Tap calendar and New Appointment on the Home
screen.
– or –
Tap Calendar New
Appointment.
2. Enter appointment information.
3. Tap OK to save and return to Calendar.
Tap to go to today.
Tap to display or edit the
appointment details.
Tap to switch to another view.
Microsoft Pocket Outlook 5-3
Viewing Appointments
You can quickly check your future appointments on
the Home screen.
Tap the calendar item on the Home screen to see the
next appointment and brush left to see more
appointments (if existing).
Tap the appointment to view details.
5-4 Microsoft Pocket Outlook
Contacts: Tracking Friends and
Colleagues
Contacts maintains a list of your friends and colleagues
so that you can easily find the information you are
looking for, whether you are at home or on the road.
Tap Contacts soft button (if available) in the Home
screen toolbar or tap Contacts to switch to
the program. The contacts list appears. Contacts
stored in the SIM card are indicated by the icon .
Creating a Contact
1. In Contacts, tap .
2. Select a type.
3. Tap the first field for entering the name.
4. Use the Input panel to enter the information and
tap OK to complete.
5. Tap another field to enter other information such
as phone number and e-mail address.
NOTE: You can only set the contact’s name, phone
number, and e-mail address for a SIM contact.
6. Tap OK to save and return to the contact list.
Microsoft Pocket Outlook 5-5
Assigning a Ringtone and Picture
NOTE: To use custom files (MP3, WMA, and WAV formats) as ringtones for
incoming calls, copy the files to the \Application Data\Sounds folder on your
device.
You can assign a specific ringtone and picture to an Outlook contact for easy
identification when they call.
1. Select the contact you want to edit.
2. Tap Edit.
3. To assign a picture, tap and select an image.
4. To assign a ringtone to the contact, tap Info at the upper right of the screen.
Tap Set ringtone to select a ringtone from the list.
5-6 Microsoft Pocket Outlook
Tasks: Keeping a To Do List
Use Tasks to keep track of what you have to do.
Tap Tasks to switch to the program.
Creating a Task
1. In Tasks, tap New Task.
2. Using the Input panel, enter a description.
3. You can enter a start date and due date or enter
other information by first tapping the field.
4. Tap OK to save and return to the task list.
Microsoft Pocket Outlook 5-7
Notes: Capturing Thoughts and Ideas
Quickly capture thoughts, reminders, ideas, drawings
and phone numbers with Notes. You can create a
written note or an audio recording. You can also
include a recording in a note.
Tap Notes to switch to the program.
Creating a Note
1. In Notes, tap .
2. Create your note by writing, drawing, typing, or
recording.
3. Tap OK to save and return to the note list.
5-8 Microsoft Pocket Outlook
E-mail and Text Messaging: Sending
and Receiving Messages
About Accounts
Tap E-mail. The account selection screen appears.
You can use multiple services to send and receive messages. For different ways
of accessing messages, there are different types of account:
Text Messages
Outlook E-mail: This item appears if you have
synchronized directly with a Microsoft Exchange
Server account or with Microsoft Outlook on your
computer.
An Internet account: You have to manually set up
such an account. This type of account depends
on a service provider or a mobile operator to
provide the messaging services that enable you
to send and receive e-mail over the Internet.
Setting up an Internet E-mail Account
You can set up only one Outlook account on your device. However, you can set
up multiple Internet e-mail accounts.
1. Tap E-mail.
2. Tap Setup E-mail on the account selection screen.
3. Follow the on-screen instructions to complete the setup.
Microsoft Pocket Outlook 5-9
During setup, you can enable Auto Setup to search for and enter the settings
of the e-mail account with which you want your device to synchronize. If Auto
Setup does not find the settings, you may have to ask your ISP, mobile operator,
or system administrator for the correct settings, and then enter them yourself.
Reading and Sending E-mails
Reading E-mails
When you connect to your e-mail server or synchronize with your desktop computer
or server, by default, you will receive messages from the last three days only and
the first 2 KB of each new message, and not to sync file attachments. The original
messages remain on the server or your desktop computer.
To read E-mail messages:
1. Tap the e-mail account on the Home screen.
– or –
Tap E-mail and select the account.
2. Messages you receive are displayed in the
message list. Tap an item to open it.
Sending E-mails
1. Tap the e-mail account on the Home screen.
– or –
Tap E-mail and select the account.
2. Tap New.
5-10 Microsoft Pocket Outlook
NOTE: You can also send an e-mail message by selecting a contact with an
e-mail address from another program such as Contacts or Phone. Then select
Send e-mail from the shortcut menu or soft button.
3. Enter the e-mail address of one or more
recipients, separating them with a semicolon. To
access addresses from Contacts, tap To.
4. Enter your message and subject.
5. If you want to attach a file to the message, tap
Insert and select the desired file.
6. Tap when you have finished the message.
If you are working offline, the message is moved
to the Outbox folder and is sent the next time
you connect.
Reading and Sending Text Messages
Reading Text Messages
The Home screen shows if there are new text messages. You can tap the item
to view the message. You can also tap Text to open the message list.
Sending Text Messages
1. Tap text on the Home screen and tap Compose in the toolbar.
– or –
Tap Text. Tap New.
NOTE: You can also send a text message by selecting a phone number from
another program such as Contacts or Phone. Then select Send Text Message from
the shortcut menu or soft button.
Microsoft Pocket Outlook 5-11
2. Enter the phone number of one or more recipients,
separating them with a semicolon.
To select phone numbers from Contacts, tap To.
3. Enter your message.
4. Tap to send the message.
More Programs 6-1
Chapter 6
More Programs
In addition to Microsoft Pocket Outlook, there are other programs built into your
device. This chapter describes some of the programs.
Getac Camera
Getac Camera is a geo-tagging camera program, which embeds attributes such
as geographical information into JPEG files as EXIF 2.2 metadata.
NOTE: While the Camera program is in use, the Start button on your device does
not work and the volume up/down button serves as zoom out/in button.
Taking Pictures
1. To start Getac Camera, press the Camera button on your device or tap
Getac Camera.
6-2 More Programs
The screen displays the live preview image. At the upper right corner is the
status bar and at the lower right corner is the GPS information. (See ‚Status
Bar and GPS Information‛ later for detailed information.)
2. You can use the volume down button on the side of your device to zoom in
and up button to zoom out.
If you want to change other camera settings, tap the screen. Control buttons
will appear on the left side of the screen. (See ‚Control Buttons‛ later for
detailed information.) To hide the buttons, tap the preview image area.
3. Aim the camera lens at the subject. Press the Camera button on your device
to take the picture.
Camera button
Zoom out
Zoom in
More Programs 6-3
4. The message appears on the screen for a few seconds, meaning
the picture is saved to the predefined storage location.
NOTE: Always wait for the saving procedure to complete before giving the next
command.
5. If you want to view the picture, tap the button.
Status Bar and GPS Information
The status indicators are described below:
Indicators
Descriptions
Number of pictures already taken / Total number of pictures
allowed.
NOTE:
Total number of pictures allows varies with the picture size
setting.
Maximum number shown is 999 even if the storage capacity
allows for more.
/
Pictures saved to:
The device’s My Documents/My Pictures folder
Storage card
/ /
/
White balance mode:
Automatic
Sunshine
6-4 More Programs
Fluorescence
Incandescence.
/ /
/ /
Current zooming level.
GPS positioning is activated by default after the Camera program starts. The icon
at the lower right corner indicates if the GPS positioning is completed ( )
or not ( ). When completed, you will see longitude and latitude information
(such as ).
Control Buttons
Tap the screen to display the control buttons at the left side of the screen. Tap
a button to perform a specific task as below:
Buttons
Descriptions
Adjusts the brightness level.
Sets a white balance mode that matches the current light source:
Automatic (default), Sunshine, Fluorescence, or
Incandescence.
Adjusts the zoom level.
More Programs 6-5
Sets the image resolution to 640x480 (default), 1280x960,
1600x1200, or 2048x1536.
Switches to the picture browser. (See ‚Pictures & Videos‛ in this
chapter for detailed information.)
Opens the settings screen.
First page:
Filename Prefix By default, the filename is
xxxxx
(where
xxxxx
is
a sequential number). You can add a prefix to the filenames (default
is no prefix). Type the characters in the entry field. Maximum number
of characters allowed is 3.
Save To By default, the pictures are saved to the device’s My
Documents/My Pictures folder ( ). If you want to save the pictures
to the microSD card inserted, tap the other option ( ).
Buttons
Descriptions
Flicker Sets the frequency to match the local electrical system for
flicker free shooting under electric light. Choices are: 50Hz (default)
and 60Hz.
Second page:
By default, GPS positioning is enabled. You can disable the function
6-6 More Programs
if needed.
Closes the program.
Pictures & Videos
With Pictures & Videos, you can:
View pictures and video clips.
Send pictures and videos to others.
Set a picture as the background on the Home screen.
Play slide show.
Edit your pictures.
More Programs 6-7
Viewing Pictures and Videos
1. Tap pictures on the Home screen and All Photos
soft button or tap Pictures & Videos to
switch to the program.
NOTE: You can quickly view pictures by tapping
pictures on the Home screen. Brush left or right to
scroll through the pictures. Tap the current highlight
to view in full screen.
2. By default, the program displays thumbnails of the
pictures and videos in the My Pictures folder,
within the My Documents folder on your device.
You can tap one of them to view in full screen.
Windows Media
Use Microsoft Windows Media Player Mobile to play digital audio and video files
that are stored on your device or on a network, such as on a web site.
The supported file formats are:
Audio
WMA, WAV, and MP3.
Video
WMV and ASF
Tap music on the Home screen to directly play music. Or tap Windows
Media to switch to the program.
6-8 More Programs
Library Screen Playback Screen
Use Microsoft Windows Media Player on your computer to synchronize (if using
Windows Media Player 10) or copy (if using Windows Media Player 9) digital
audio and video files from your computer to your device.
Internet Explorer
NOTE: When surfing the Internet, your device uses the default Internet
connection in Settings Connections Connections My ISP settings. If you want
to surf the Internet through Wi-Fi, connect to the wireless network before starting
Internet Explorer. (See Chapter 7 for information.)
More Programs 6-9
Tap favorites Internet Explorer on the Home screen
or tap Internet Explorer to switch to the
program. The IE Mobile Home page appears.
Tap to display the Favorites list. Tap the page
that you want to view.
To visit web pages not included in Favorites, in the
address bar that appears at the top of the screen,
enter the web address you want to visit and then tap
. Or, tap the arrow to choose from previously
entered addresses.
The Internet Explorer screen automatically rotates 90
to the right or left when you hold the device in a
horizontal manner.
Internet Sharing
Using Internet Sharing, you can use your device as an external modem for the
computer via the USB or Bluetooth connection.
NOTE: The Internet Sharing function does not support Windows 98.
6-10 More Programs
1. Make sure that your device is not connected to another device, and that you
have set up the GPRS connection on your device. (See ‚Setting up a Cellular
(GPRS) Connection‛ in Chapter 7 for information.)
2. To use USB connection, connect your device to the computer with the USB
cable. When the USB Mode Switch screen appears, tap Internet Sharing and OK.
To use the Bluetooth connection, you must first initiate and complete the Bluetooth
Personal Area Network (PAN) partnership on the computer. (For more
information, refer to Windows Help and Support.)
3. Tap Internet Sharing.
4. In PC Connection, select USB if using USB
connection.
Select Bluetooth PAN if using Bluetooth
connection. When prompted to make your device
as visible in the Bluetooth settings, tap Yes.
5. In Network Connection, select your GPRS
setting.
6. Tap Connect for your device to connect to the
Internet.
Now your computer connects to the Internet via
your device.
7. To end the connection, tap Disconnect on your device.
ActiveSync
ActiveSync on your device works with ActiveSync on a Windows XP computer and
with Windows Mobile Device Center on a Windows Vista/Windows 7 computer.
More Programs 6-11
When you have established the connection between your device and your computer,
you can synchronize the information between the two with ActiveSync. Synchronization
compares the data on the two sides and updates both computers with the most
recent information. For example, you can:
Keep your Pocket Outlook Contacts, Calendar and Tasks databases up-to-date
by synchronizing your device with Microsoft Outlook data on your computer.
Synchronize e-mail messages in your device Outlook Inbox with e-mail
messages in Microsoft Outlook on your computer.
You can select which information types are synchronized and control how much
data is synchronized. (See the ActiveSync or Windows Mobile Device Center help
on your computer.)
With ActiveSync, you can also:
Copy (rather than synchronize) files between your device and computer.
Add and remove programs on your device.
Pass through your computer to a network or the Internet.
Synchronizing Data
Once you have created a synchronization relationship and completed the first
synchronization, you can initiate synchronization from your device.
1. Connect your device to your computer.
2. On your device, tap ActiveSync.
3. Tap Sync to begin synchronization.
NOTE: In addition to the USB cable, you can also synchronize by using Bluetooth.
(See the ActiveSync or Windows Mobile Device Center help on your computer.)
6-12 More Programs
Synchronizing Directly with Exchange Server
You can increase your productivity when you are away from the office by setting
up an account to access e-mail, voice mail, calendar, and contact information from
a Microsoft Exchange Server.
Exchange Server, the Microsoft messaging and collaboration server, lets you send
and receive your work e-mail, calendar updates, voice mail, and contact information
while traveling.
To set up the account, you must obtain the name of the Exchange Server and
the server domain from the wireless service provider or system administrator. You
must also know your Exchange user name and password.
1. Make sure your device is not connected to your computer.
2. On your device, tap ActiveSync.
3. Tap Add Server Source.
4. Follow the on-screen instructions to complete the setup.
5. Connect your device to the Internet for synchronization with Exchange Server.
NOTE:
If a message pops up asking you to accept security policies for
synchronization with Exchange Server, tap OK to proceed.
You may be prompted to set the password for device lock. You can set a
longer period of time (maximum of 24 hours) before your device prompts you
to enter the password again.
To disable the Direct Push feature, tap ActiveSync. Tap Options,
uncheck the E-mail item and then tap ok to save the changes.
Getting Connected 7-1
Chapter 7
Getting Connected
This chapter tells you how you can get your device connected through a variety
of ways.
Types of Connections
Your device can connect to the Internet, to your computer, and to other devices
and services.
Your device has two groups of connection settings: My ISP and My Work Network.
My ISP settings connect your device to the Internet, and My Work Network settings
connect to any private network, such as an intranet that you use at work.
The following types of connections are available on your device:
Cellular (GPRS) is a long-distance wireless data connection that is available
through some mobile service operators.
Dial-up lets you access the Internet or a corporate network by dialing a phone
number.
Wi-Fi lets you wirelessly connect your device to the Internet through access
points that can be up to 30 meters (about 100 feet) away.
Bluetooth lets you create a temporary wireless network that can link up to eight
devices that are within 10 meters (about 33 feet) of one another.
7-2 Getting Connected
USB is a wired connection between your device and a computer for synchronizing
data or surfing the Internet. (See ‚ActiveSync‛ in Chapter 6 for information.)
Using Cellular Connection
Models supporting mobile phone functions allow you to access the Internet using
the mobile network.
Setting up a Cellular (GPRS) Connection
NOTE: You must subscribe to GPRS service with your mobile operator.
In most cases, your cellular (GPRS) connection will be preconfigured by your cellular
service provider. You will not have to set up a GPRS connection or change your
GPRS settings.
If you do have to set up a GPRS connection, you must obtain the settings from
your mobile operator before you start this procedure.
1. Tap Settings Connections Connections.
2. In either group, tap Add a new modem connection.
3. In the Enter a name for the connection field, enter a name for the connection.
4. In the Select a modem field, select Cellular Line (GPRS), and then tap Next.
5. Enter the access point name provided by your mobile operator, and then tap
Next.
6. Enter your user name and password, and then tap Finish.
Getting Connected 7-3
Setting up a Dial-up Connection
NOTE: Depending on your wireless service provider, dial-up connections may not
be supported on your device.
With dial-up, your service provider gives you a phone number that you dial in
order to connect your device to the Internet.
1. Tap Settings Connections Connections.
2. In either group, tap Add a new modem connection.
3. In the Enter a name for the connection field, enter a name for the connection.
4. In the Select a modem field, select Cellular Line, and then tap Next.
5. Enter the phone number provided by your service provider, and then tap Next.
6. Enter your user name and password, and then tap Finish.
7-4 Getting Connected
Using WiFi
As long as you are in a wireless LAN (WLAN) environment, you can connect
to the network without physical cables.
Switching On or Off the Wi-Fi Radio
By default, the Wi-Fi radio is switched off. To switch on or off the Wi-Fi radio:
1. Tap Settings Connections Wireless
Manager.
2. In the Wireless Manager screen, tap Wi-Fi to
change the Wi-Fi radio status.
When switched on, your device will display the
word Available if wireless networks are detected.
The icon appears in the navigation bar.
If you have previously connected to a wireless
network, your device will try to connect to the
same network and display the name of the network
after the connection.
3. Tap .
Getting Connected 7-5
Connecting to a Wireless Network
1. Switch on the Wi-Fi radio. (See ‚Switching On or Off the Wi-Fi Radio‛
previously.)
2. Your device will detect available Wi-Fi networks.
When detected, the Notification soft button
appears in the toolbar. Tap Notification to see
the network list.
3. Select the network you want to connect to, and
tap OK.
4. Select to connect to the Internet or the private
network, and then tap Connect.
5. If the selected network requires a network key,
enter the key and tap Connect.
The icon appears in the navigation bar.
NOTE:
You can also search for a network to connect by tapping Settings
Connections Wi-Fi.
Once you have connected to a network, the shortcut is created in Settings. To
change the network settings, tap Settings Connections Wi-Fi. Tap
the desired network and change the settings.
When you have finished using the wireless network, end the Wi-Fi connection
by switching off its radio. Leaving the radio on will consume more power.
7-6 Getting Connected
Using the Bluetooth Function
NOTE:
Getac does not guarantee the product’s compatibilities with the Bluetooth
headsets/devices from all manufacturers.
To know the Bluetooth profiles that your device supports, tap Settings
Bluetooth About Profiles.
Your device incorporates the Bluetooth capability. Bluetooth technology is a
short-range wireless communications technology. Devices with Bluetooth capabilities
can exchange information over a distance of about 10 meters (30 feet) without
requiring a physical connection.
Switching On or Off the Bluetooth Radio
By default, the Bluetooth radio is switched off. To switch on or off the Bluetooth
radio:
1. Tap Settings Connections Wireless
Manager.
2. In the Wireless Manager screen, tap Bluetooth to
switch on or off the radio.
When switched on, the icon appears in the
navigation bar.
Getting Connected 7-7
3. For other devices to detect your device, tap Menu
Bluetooth Settings Discoverable and select
an option.
4. Tap .
NOTE: When not using the Bluetooth function, switch
off the Bluetooth radio. Leaving the radio on will
consume more power.
Using Bluetooth Manager
The Bluetooth Manager allows you to use and manage Bluetooth profiles of your
device. Tap Settings Bluetooth to access Bluetooth Manager.
Use the Settings page to add a device and set up
Bluetooth capabilities.
7-8 Getting Connected
Use the Accessories page to perform tasks as listed.
The My Devices page lists your paired devices. You
can quickly reconnect to a device.
Getting Connected 7-9
Creating a Bluetooth Partnership
A partnership is a relationship that you create between your device and another
device with Bluetooth capabilities to help exchange information in a secure manner.
Creating a partnership involves entering the same Bluetooth passcode on both
devices. Once a partnership is created, your devices need only have the Bluetooth
function switched on to exchange information; they do not need to be visible.
1. Make sure that the two devices are switched
on, visible, and within close range.
2. Tap Settings Bluetooth.
– or –
Tap the navigation bar and . Then tap
Bluetooth Manager in the popup window.
3. Tap Add a device
4. Select a device type and tap Continue.
5. Your device searches for Bluetooth devices and
displays the result on the screen.
Tap the device to connect.
6. Enter an alphanumeric passcode between 1 and
16 characters as the passkey, and tap OK.
7. Enter the same passkey on the other device.
8. Tap Done.
7-10 Getting Connected
Sending Files via the Bluetooth Function
1. Switch on the Bluetooth radio. (See ‚Switching
On or Off the Bluetooth Radio‛ previously.)
2. From the program, tap and hold the item you want
to beam, such as an appointment in Calendar,
a task in Tasks, a contact card in Contacts, or
a file in File Explorer.
3. Tap Send via Bluetooth in the shortcut menu.
4. Your device searches for other devices with
Bluetooth capabilities within close range, and
displays them in the list. Tap the device to which
you want to send the item.
Troubleshooting and Maintenance 8-1
Chapter 8
Troubleshooting and
Maintenance
This chapter gives solutions to common device problems you may encounter. It also
provides guidelines on taking care of your device.
Resetting Your Device
Occasionally, you may need to reset your device. For example, you should reset
your device when it stops responding; or appears to be ‚frozen‛ or ‚locked up.‛
To reset your device:
1. Remove the battery cover.
2. Firmly press the reset switch with a small rod. Your device should restart.
8-2 Troubleshooting and Maintenance
3. Replace the battery cover.
Restoring Factory Default State
In some cases, you may need to restore your device to the factory default state
by clearing the memory from your device. For example, you should clear the memory:
When your device does not respond after being restarted.
When you forget your password.
Clearing the memory means all data you have entered in your device’s memory,
including all files, system settings and additional programs you have installed, will
be erased. (Programs installed to ROM at the factory are not affected.)
CAUTION: To ensure the integrity of your data should it be necessary to clear the
memory, you are advised to regularly back up your data.
Follow this procedure to clear the memory from your device:
1. Remove the battery and then replace it.
2. Press and hold the Send and End buttons, and then press the power button.
Release all three buttons when the device vibrates.
3. Your device turns on. The words ‚Clean Boot‛ appears on the upper left corner
of the screen.
4. Tap the screen to set up your Windows® Phone.
Troubleshooting and Maintenance 8-3
Troubleshooting
NOTE: If you encounter a problem you cannot solve, contact your dealer for
assistance.
Problem
Solution
Power does not switch on when
using battery power.
The remaining battery power may be too low to
run your device. Charge the battery.
Screen responds slowly.
Make sure that your device is not running out of
battery power. If the problem still persists, restart
your device.
Screen freezes.
Restart your device.
Cannot establish a connection
with a computer via USB.
Make sure that your device and your computer
are both switched on before trying to establish a
connection.
Make sure that the cable is securely plugged into
the USB port on your computer and on your
device. Connect the USB cable directly to your
computer—do not run the cable through a USB
hub.
Restart your device before connecting the cable.
Always disconnect your device before you restart
your computer.
In some specific cases, your device may
experience connection problems when it is
connected to a Windows computer running
8-4 Troubleshooting and Maintenance
ActiveSync. To resolve the problems, please tap
Settings Connections USB to PC, and
then clear Enable advanced network functionality.
Problem
Solution
A warning message of not
enough memory appears.
Delete files you no longer need.
Remove programs you no longer need.
Delete all files and clear history in Internet
Explorer.
Stop programs you are not currently using. To
check the state of your active programs, tap
Settings System Task Manager.
Restart your device.
Caring for Your Device
Taking good care of your device will ensure trouble-free operation and reduce the
risk of damage to your device.
Keep your device away from excessive moisture and extreme temperatures.
Avoid exposing your device to direct sunlight or strong ultraviolet light for extended
periods of time.
Do not place anything on top of your device or drop objects on your device.
Do not drop your device or subject it to severe shock.
Troubleshooting and Maintenance 8-5
Do not subject your device to sudden and severe temperature changes. This
could cause moisture condensation inside the unit, which could damage your
device. In the event of moisture condensation, allow your device to dry out
completely before use.
The screen surface can easily be scratched. Avoid touching it with sharp objects.
Non-adhesive generic screen protectors designed specifically for use on portable
devices with LCD panels may be used to help protect the screen from minor
scratches.
Never clean your device with it powered on. Use a soft, lint-free cloth to wipe
the screen and the exterior of your device.
Do not use paper towels to clean the screen.
Never attempt to disassemble, repair or make any modifications to your device.
Disassembly, modification or any attempt at repair could cause damage to your
device and even bodily injury or property damage and will void the warranty.
Do not store or carry flammable liquids, gases or explosive materials in the
same compartment as your device, its parts or accessories.
Regulatory Information 9-1
Chapter 9
Regulatory Information
NOTE: Marking labels located on the exterior of your device indicate the
regulations that your model complies with. Please check the marking labels on
your device and refer to the corresponding statements in this chapter. Some
notices apply to specific models only.
Regulations Statements
European Notice
Products with the CE marking comply with Radio & Telecommunication Terminal
Equipment Directive (R&TTE) (1999/5/EEC), the Electromagnetic Compatibility
Directive (89/336/EEC) and the Low Voltage Directive (73/23/EEC) – as
amended by Directive 93/68/ECC – issued by the Commission of the European
Community.
Compliance with these directives implies conformity to the following European
Standards:
EN301489-1: Electronic compatibility and Radio spectrum Matters (ERM),
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 1: Common technical requirements
EN301489-17: Electronic compatibility and Radio spectrum Matters (ERM),
ElectroMagnetic Compatibility (EMC) standard for radio equipment and services;
Part 17: Specific conditions for 2.4 GHz wideband transmission systems and 5 GHz
high performance RLAN equipment
EN55022: Radio disturbance characteristics
9-2 Regulatory Information
EN55024: Immunity characteristics
EN6100-3-2: Limits for harmonic current emissions
EN6100-3-3: Limitation of voltage fluctuation and flicker in low-voltage supply system
EN60950 / IEC 60950: Product Safety
The manufacturer cannot be held responsible for modifications made by the User
and the consequences thereof, which may alter the conformity of the product with
the CE Marking.
FCC Regulations
This device complies with part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
This device has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed
to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiated radio frequency energy
and, if not installed and used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no guarantee that interference
will not occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and receiver.
Connect the equipment into an outlet on a circuit different from that to which
the receiver is connected.
Consult the dealer or an experienced radio/TV technician for help.
Regulatory Information 9-3
Changes or modifications not expressly approved by the party responsible for
compliance could void the user‘s authority to operate the equipment.
The antenna(s) used for this transmitter must not be co-located or operating in
conjunction with any other antenna or transmitter.
Safety Precautions
Prolonged listening of music in maximum volume can damage the ears.
The use of headphones other than those recommended/supplied can cause
hearing impairment due to excessive sound pressure.
About Charging
Use only the AC adapter supplied with your device. Use of another type of
AC adapter will result in malfunction and/or danger.
Use only the car charger supplied by the manufacturer. Use of another type
of car charger will result in malfunction and/or danger.
This product is intended to be supplied by a LISTED Power Unit marked with
‚LPS,‛ ‚Limited Power Source,‛ and output rated + 5 V dc / 1.0 A.
Use a specified cradle approved by the manufacturer.
Use a specified battery in the equipment.
About the Charger
Do not use the charger in a high moisture environment. Never touch the charger
when your hands or feet are wet.
Allow adequate ventilation around the charger when using it to operate the device
or charge the battery. Do not cover the charger with paper or other objects
9-4 Regulatory Information
that will reduce cooling. Do not use the charger while it is inside a carrying
case.
Connect the charger to a proper power source. The voltage and grounding
requirements are found on the product case and/or packaging.
Do not use the charger if the cord becomes damaged.
Do not attempt to service the unit. There are no serviceable parts inside. Replace
the unit if it is damaged or exposed to excess moisture.
About the Battery
Use a specified charger approved by the manufacturer.
Do not mutilate, puncture, or dispose of battery in fire. The battery can burst
or explode, releasing hazardous chemicals.
Important instructions
Caution: Risk of explosion if battery is replaced by an incorrect type. Dispose
of used batteries according to the instructions.
Replace only with the same or equivalent type recommended by the
manufacturer.
The battery must be recycled or disposed of properly.
Use the battery only in the specified equipment.
About the Radio Frequency Exposure
This device meets the government’s requirements for exposure to radio waves. This
device is designed and manufactured not to exceed the emission limits for exposure
to radio frequency (RF) energy set by the Federal Communications Commission
of the U.S. Government.
The exposure standard for wireless devices employs a unit of measurement known
as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6W/kg.
Regulatory Information 9-5
*Tests for SAR are conducted using standard operating positions accepted by the
FCC with the device transmitting at its highest certified power level in all tested
frequency bands. Although the SAR is determined at the highest certified power
level, the actual SAR level of the device while operating can be well below the
maximum value. This is because the device is designed to operate at multiple power
levels so as to use only the poser required to reach the network. In general, the
closer you are to a wireless base station antenna, the lower the power output.
The highest SAR value for the device as reported to the FCC when tested for use
at the ear is 0.588 W/kg and when worn on the body, as described in this user
guide, is 0.508 W/kg. (Body-worn measurements differ among device models,
depending upon available enhancements and FCC requirements.)
While there may be differences between the SAR levels of various devices and
at various positions, they all meet the government requirement.
The FCC has granted an Equipment Authorization for this device with all reported
SAR levels evaluated as in compliance with the FCC RF exposure guidelines. SAR
information on this device is on file with the FCC and can be found under the
Display Grant section of http://www.fcc.gov/oet/fccid after searching on FCC ID:
QYLMH132.
For body worn operation, this device has been tested and meets the FCC RF
exposure guidelines for use with an accessory that contains no metal and the positions
the handset a minimum of 1.5 cm from the body. Use of other enhancements may
not ensure compliance with FCC RF exposure guidelines.

Navigation menu
