Getron System GS-214T Transmitter User Manual GS 214T Users menual final Rev01

Getron System Co., Inc. Transmitter GS 214T Users menual final Rev01

GS-214T Users menual_final-Rev01

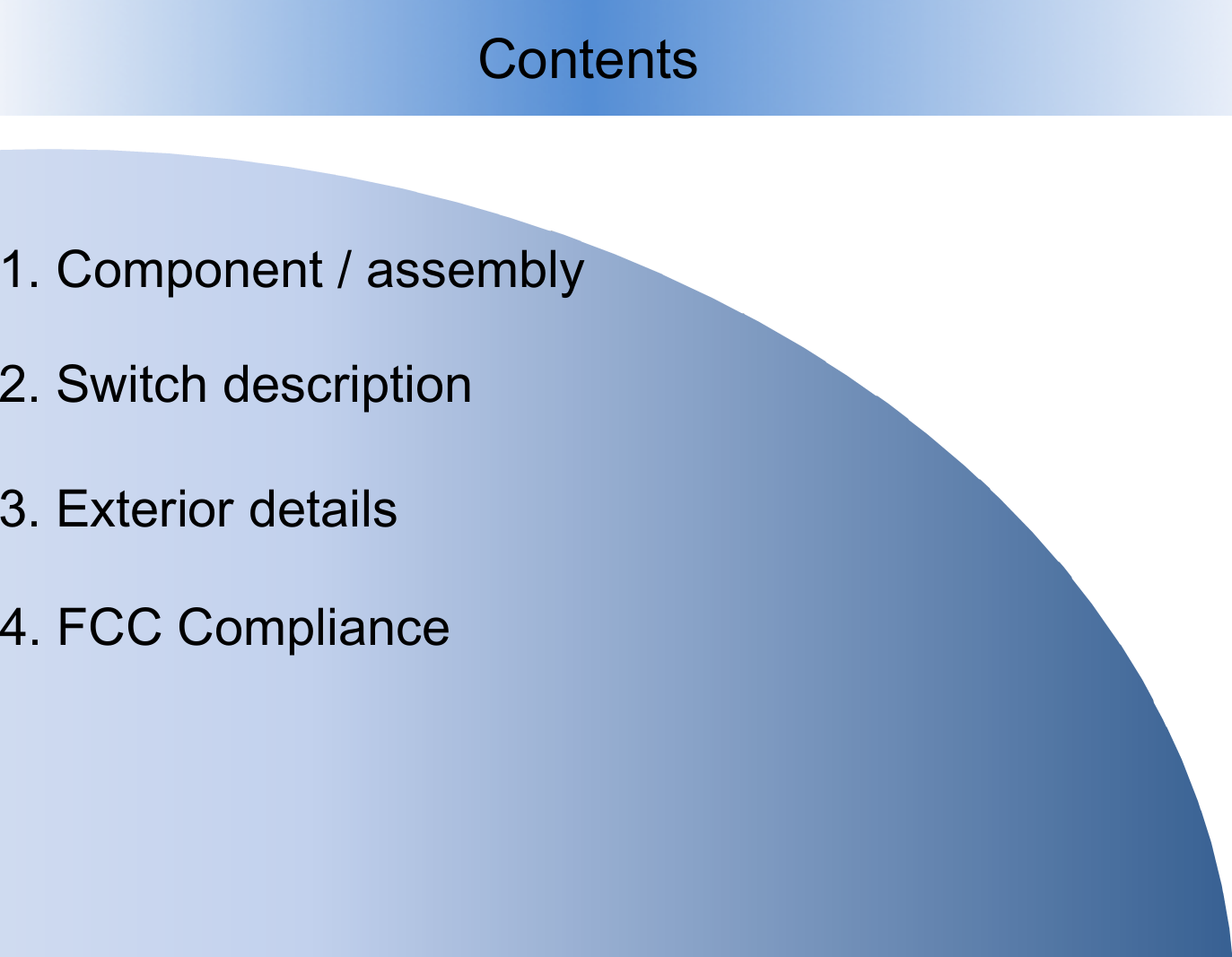

Contents 1. Component / assembly 2. Switch description 3. Exterior details 4. FCC Compliance

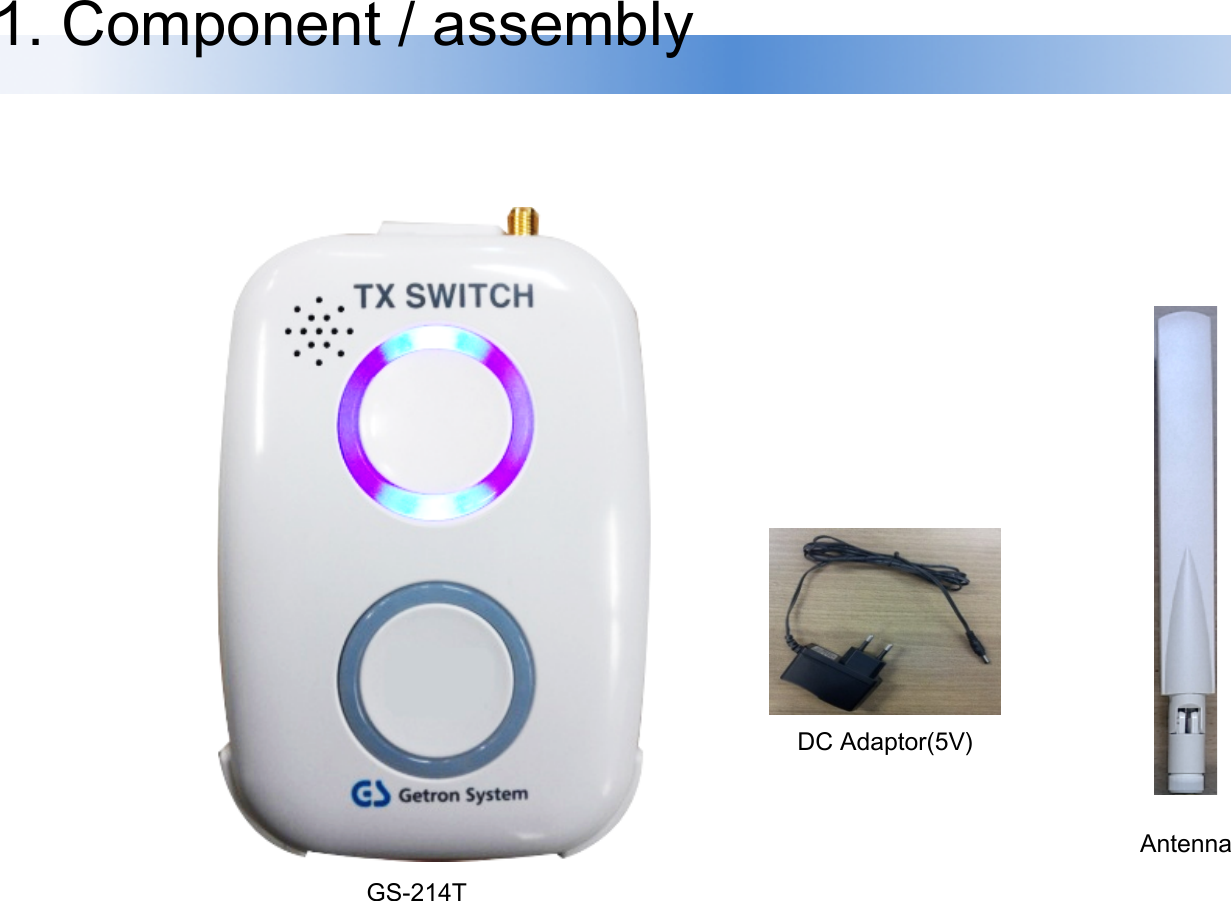

1. Component / assembly DC Adaptor(5V) Antenna GS-214T

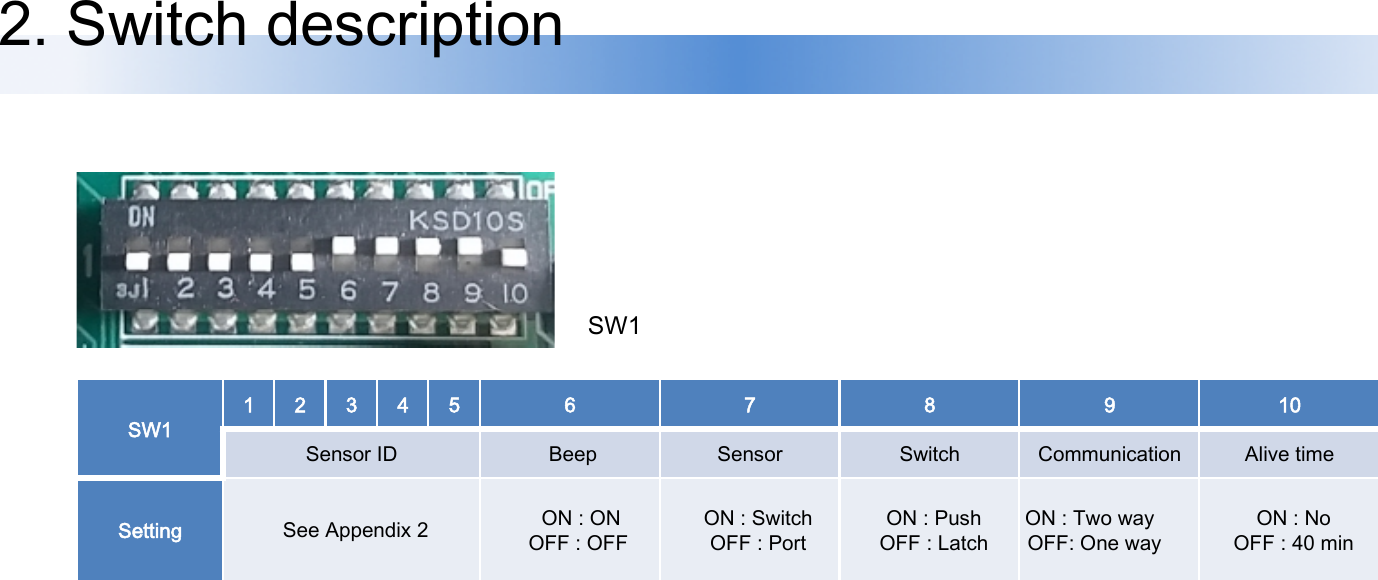

2. Switch description SW1 1 2 3 4 5 6 7 8 9 10 Sensor ID Beep Sensor Switch Communication Alive time Setting See Appendix 2 ON : ON OFF : OFF ON : Switch OFF : Port ON : Push OFF : Latch ON : Two way OFF: One way ON : No OFF : 40 min SW1

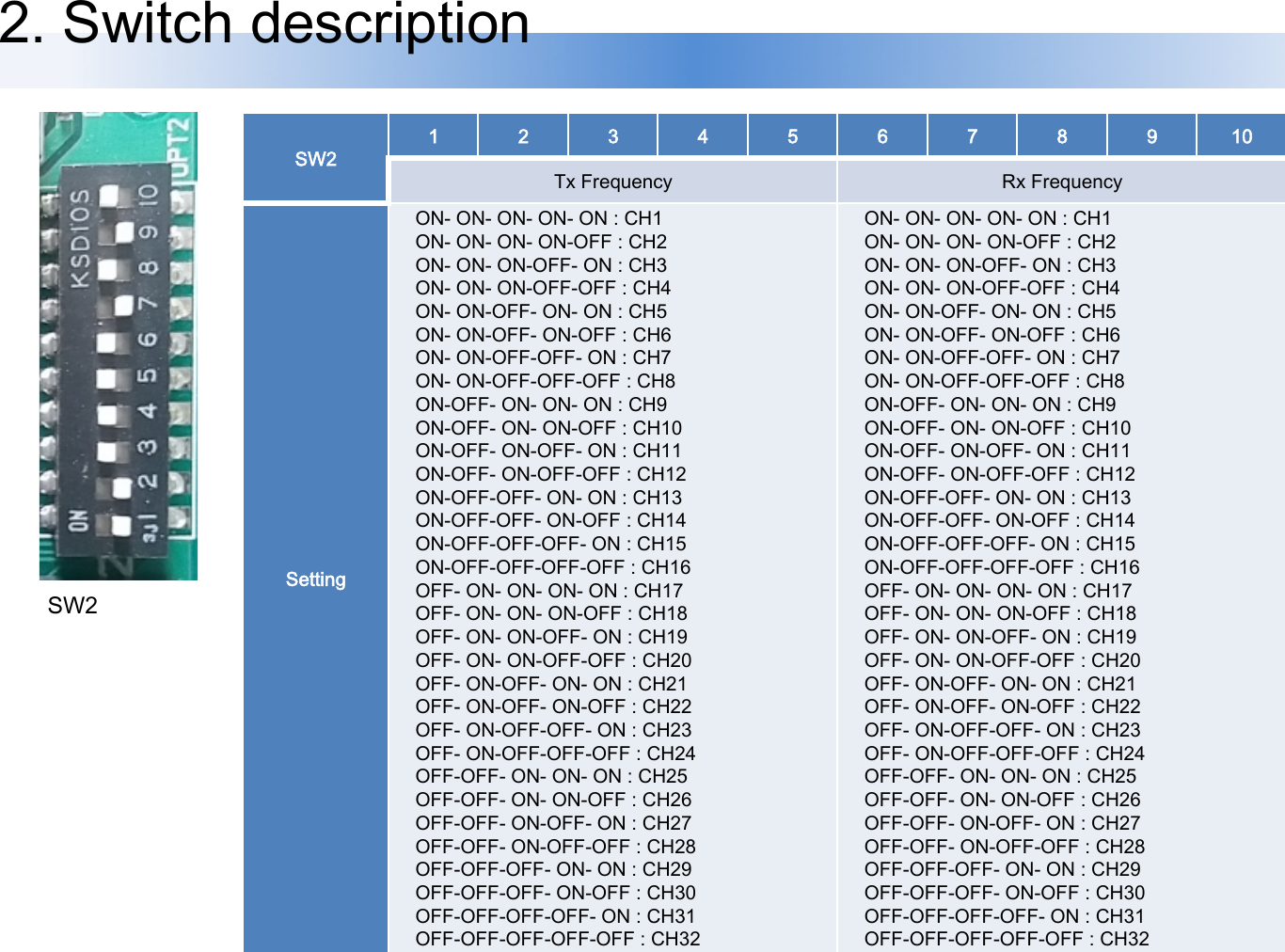

2. Switch description SW2 SW2 1 2 3 4 5 6 7 8 9 10 Tx Frequency Rx Frequency Setting ON- ON- ON- ON- ON : CH1 ON- ON- ON- ON-OFF : CH2 ON- ON- ON-OFF- ON : CH3 ON- ON- ON-OFF-OFF : CH4 ON- ON-OFF- ON- ON : CH5 ON- ON-OFF- ON-OFF : CH6 ON- ON-OFF-OFF- ON : CH7 ON- ON-OFF-OFF-OFF : CH8 ON-OFF- ON- ON- ON : CH9 ON-OFF- ON- ON-OFF : CH10 ON-OFF- ON-OFF- ON : CH11 ON-OFF- ON-OFF-OFF : CH12 ON-OFF-OFF- ON- ON : CH13 ON-OFF-OFF- ON-OFF : CH14 ON-OFF-OFF-OFF- ON : CH15 ON-OFF-OFF-OFF-OFF : CH16 OFF- ON- ON- ON- ON : CH17 OFF- ON- ON- ON-OFF : CH18 OFF- ON- ON-OFF- ON : CH19 OFF- ON- ON-OFF-OFF : CH20 OFF- ON-OFF- ON- ON : CH21 OFF- ON-OFF- ON-OFF : CH22 OFF- ON-OFF-OFF- ON : CH23 OFF- ON-OFF-OFF-OFF : CH24 OFF-OFF- ON- ON- ON : CH25 OFF-OFF- ON- ON-OFF : CH26 OFF-OFF- ON-OFF- ON : CH27 OFF-OFF- ON-OFF-OFF : CH28 OFF-OFF-OFF- ON- ON : CH29 OFF-OFF-OFF- ON-OFF : CH30 OFF-OFF-OFF-OFF- ON : CH31 OFF-OFF-OFF-OFF-OFF : CH32 ON- ON- ON- ON- ON : CH1 ON- ON- ON- ON-OFF : CH2 ON- ON- ON-OFF- ON : CH3 ON- ON- ON-OFF-OFF : CH4 ON- ON-OFF- ON- ON : CH5 ON- ON-OFF- ON-OFF : CH6 ON- ON-OFF-OFF- ON : CH7 ON- ON-OFF-OFF-OFF : CH8 ON-OFF- ON- ON- ON : CH9 ON-OFF- ON- ON-OFF : CH10 ON-OFF- ON-OFF- ON : CH11 ON-OFF- ON-OFF-OFF : CH12 ON-OFF-OFF- ON- ON : CH13 ON-OFF-OFF- ON-OFF : CH14 ON-OFF-OFF-OFF- ON : CH15 ON-OFF-OFF-OFF-OFF : CH16 OFF- ON- ON- ON- ON : CH17 OFF- ON- ON- ON-OFF : CH18 OFF- ON- ON-OFF- ON : CH19 OFF- ON- ON-OFF-OFF : CH20 OFF- ON-OFF- ON- ON : CH21 OFF- ON-OFF- ON-OFF : CH22 OFF- ON-OFF-OFF- ON : CH23 OFF- ON-OFF-OFF-OFF : CH24 OFF-OFF- ON- ON- ON : CH25 OFF-OFF- ON- ON-OFF : CH26 OFF-OFF- ON-OFF- ON : CH27 OFF-OFF- ON-OFF-OFF : CH28 OFF-OFF-OFF- ON- ON : CH29 OFF-OFF-OFF- ON-OFF : CH30 OFF-OFF-OFF-OFF- ON : CH31 OFF-OFF-OFF-OFF-OFF : CH32

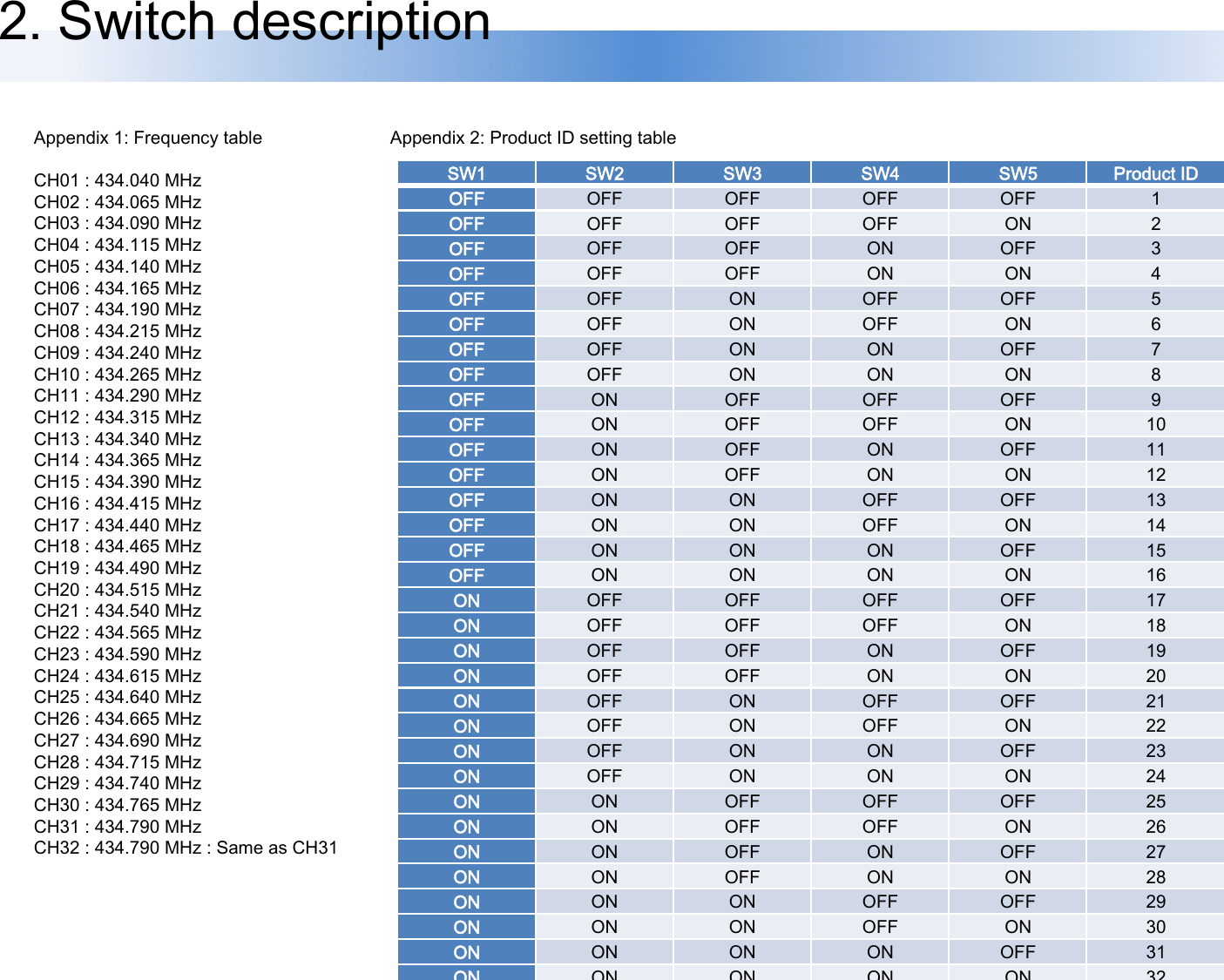

2. Switch description Appendix 1: Frequency table  CH01 : 434.040 MHz CH02 : 434.065 MHz CH03 : 434.090 MHz CH04 : 434.115 MHz CH05 : 434.140 MHz CH06 : 434.165 MHz CH07 : 434.190 MHz CH08 : 434.215 MHz CH09 : 434.240 MHz CH10 : 434.265 MHz CH11 : 434.290 MHz CH12 : 434.315 MHz CH13 : 434.340 MHz CH14 : 434.365 MHz CH15 : 434.390 MHz CH16 : 434.415 MHz CH17 : 434.440 MHz CH18 : 434.465 MHz CH19 : 434.490 MHz CH20 : 434.515 MHz CH21 : 434.540 MHz CH22 : 434.565 MHz CH23 : 434.590 MHz CH24 : 434.615 MHz CH25 : 434.640 MHz CH26 : 434.665 MHz CH27 : 434.690 MHz CH28 : 434.715 MHz CH29 : 434.740 MHz CH30 : 434.765 MHz CH31 : 434.790 MHz CH32 : 434.790 MHz : Same as CH31 SW1 SW2 SW3 SW4 SW5 Product ID OFF OFF OFF OFF OFF 1 OFF OFF OFF OFF ON 2 OFF OFF OFF ON OFF 3 OFF OFF OFF ON ON 4 OFF OFF ON OFF OFF 5 OFF OFF ON OFF ON 6 OFF OFF ON ON OFF 7 OFF OFF ON ON ON 8 OFF ON OFF OFF OFF 9 OFF ON OFF OFF ON 10 OFF ON OFF ON OFF 11 OFF ON OFF ON ON 12 OFF ON ON OFF OFF 13 OFF ON ON OFF ON 14 OFF ON ON ON OFF 15 OFF ON ON ON ON 16 ON OFF OFF OFF OFF 17 ON OFF OFF OFF ON 18 ON OFF OFF ON OFF 19 ON OFF OFF ON ON 20 ON OFF ON OFF OFF 21 ON OFF ON OFF ON 22 ON OFF ON ON OFF 23 ON OFF ON ON ON 24 ON ON OFF OFF OFF 25 ON ON OFF OFF ON 26 ON ON OFF ON OFF 27 ON ON OFF ON ON 28 ON ON ON OFF OFF 29 ON ON ON OFF ON 30 ON ON ON ON OFF 31 ON ON ON ON ON 32 Appendix 2: Product ID setting table

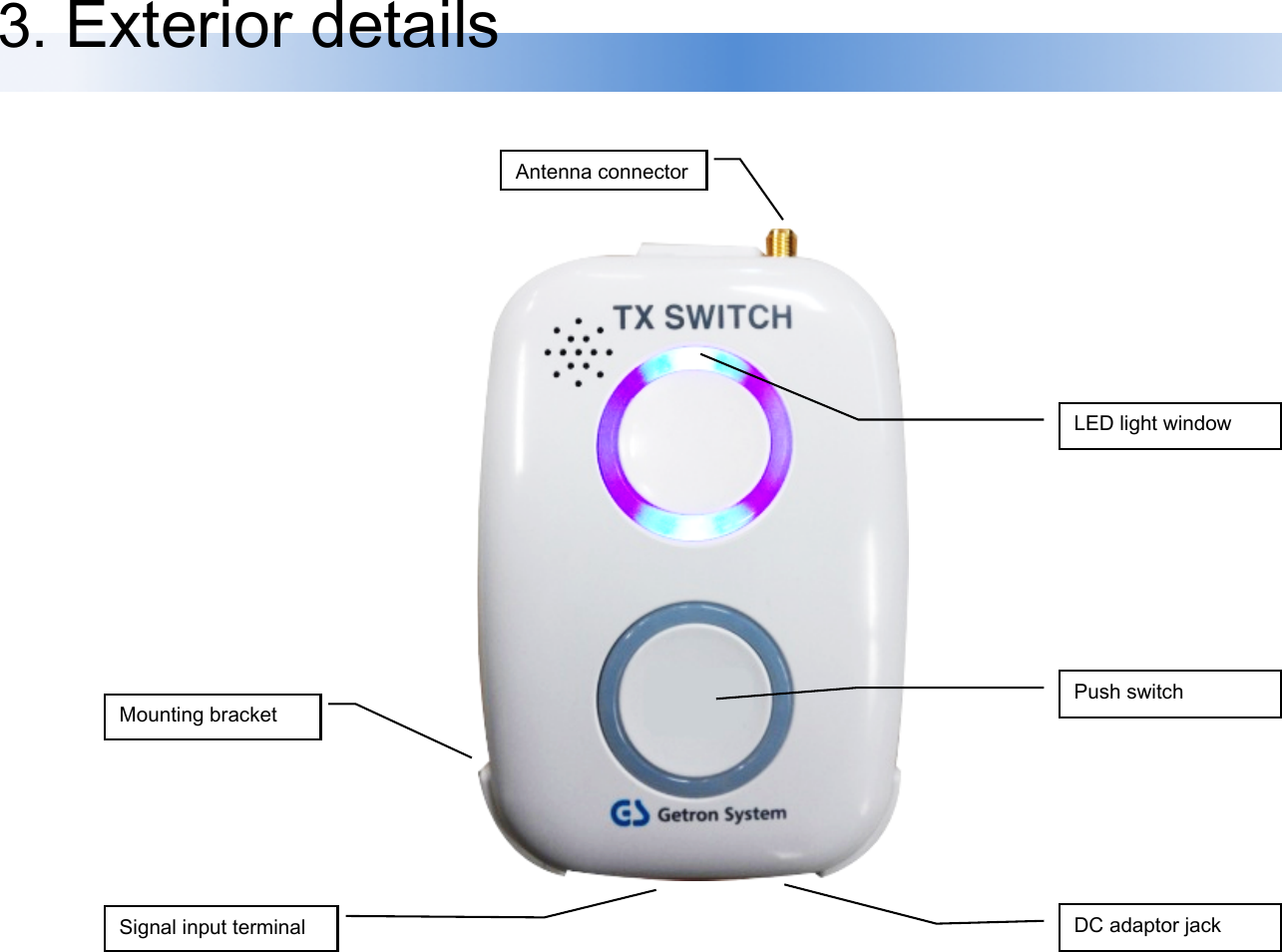

3. Exterior details Antenna connector Mounting bracket Signal input terminal LED light window Push switch DC adaptor jack

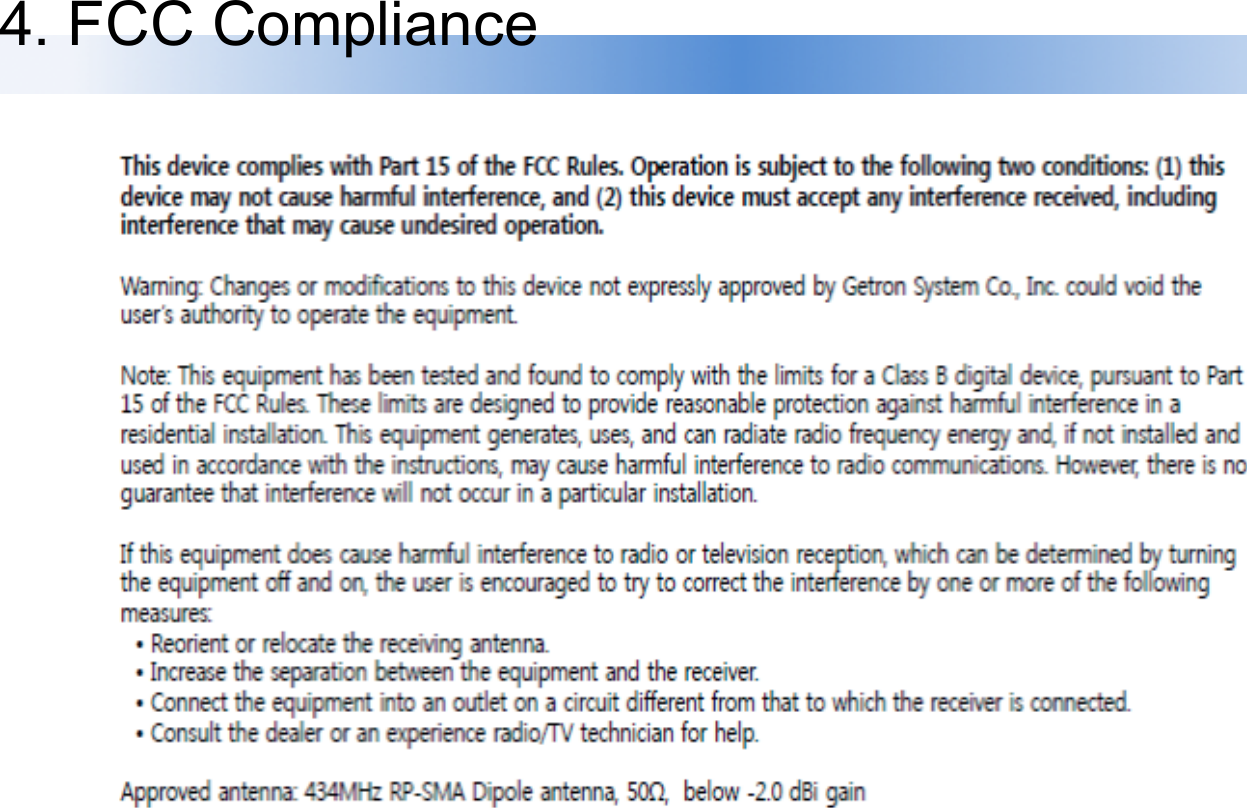

4. FCC Compliance
