RCEVO User Manual HTML Version

User manual

RideControlEVOIntroduction

Hardware:

 IntegratedwithBluetoothmodule(ChipisfromNordic)(PCBAantenna)

 StandardCANBUSprotocol

SymbolDescribtionSymbol Describtion

WWalkingpushbuttonGVelocityunit

UBoostermodeaddkeysEBoostermodeindication

DBoostermodereduces

keystrokes

LBatterycapacityindication

BLampswitchkeystroke/

indication

MBatterycapacitydigital

indicator

PSystemswitchkeyFRealtimespeed

AMessagemodeswitchkeyHridedataindication

CBluebudlineindicationSServicedemandindication

Giant

 Dotmatrixscreen

TheRideControlEVOwillcollectallthenecessaryinfofrome‐bikesystembyCANBUS,

Anditwillshowtheridinginfo(e.gtriptime,tripdistance,batterycapacity..)onthepanel,Compare

withthechargescreen,thedot‐matrixscreenisflexible,wecanshowthepicturewhateveryouwant,

Afterthat,theEVO,asamastercontrollerofthee‐bikesystem,itcansendthecommandtoe‐bike

systemtochangedifferentassistmodeandturnon/offlight

Externalintroduction:

TheRideControlEVOisupdatedwithnewandexcitingfunctionalitiestoenhancetheE‐bikeriding

experience.causeRideControlEVOintegratedwithNordicBluetoothchip,Itnowhasnavigation

features,soyoucanridewhereveryouwant,includingnewroutes,withoutgettinglost.Italsooffers

newheartratefunctionality,soyoucangetimmediatefeedbackwhileworkingout.Thisallowsyouto

makeadjustmentsandgainthegreatestbenefitfromyourexerciseregimewhenconnectedtothe

GiantE‐bikeApp.

All  E‐bikesinMY19canbesettoautomaticallyadjustthepedalsupporttoreach/keepyour

desiredheartrate.TheRideControlEVOallowsyoutomonitorthisprecisely.TheRideControlEVOis

connectedandletsyouupgradethroughawirelessconnection.Also,incomingmessages,phonecalls

andemailscanbeseenthroughanotificationontheRideControlEVOwhileriding.

EVOHardwareversion

number

20160331EVOsoftwareversion

number

20161020

1. Firstconnectthepowersupply,pressthekeytostartthedisplay

2. Bluetoothmodulefeatures,youneedtofirstdownloadanapp,asshowninthefollowingfigure

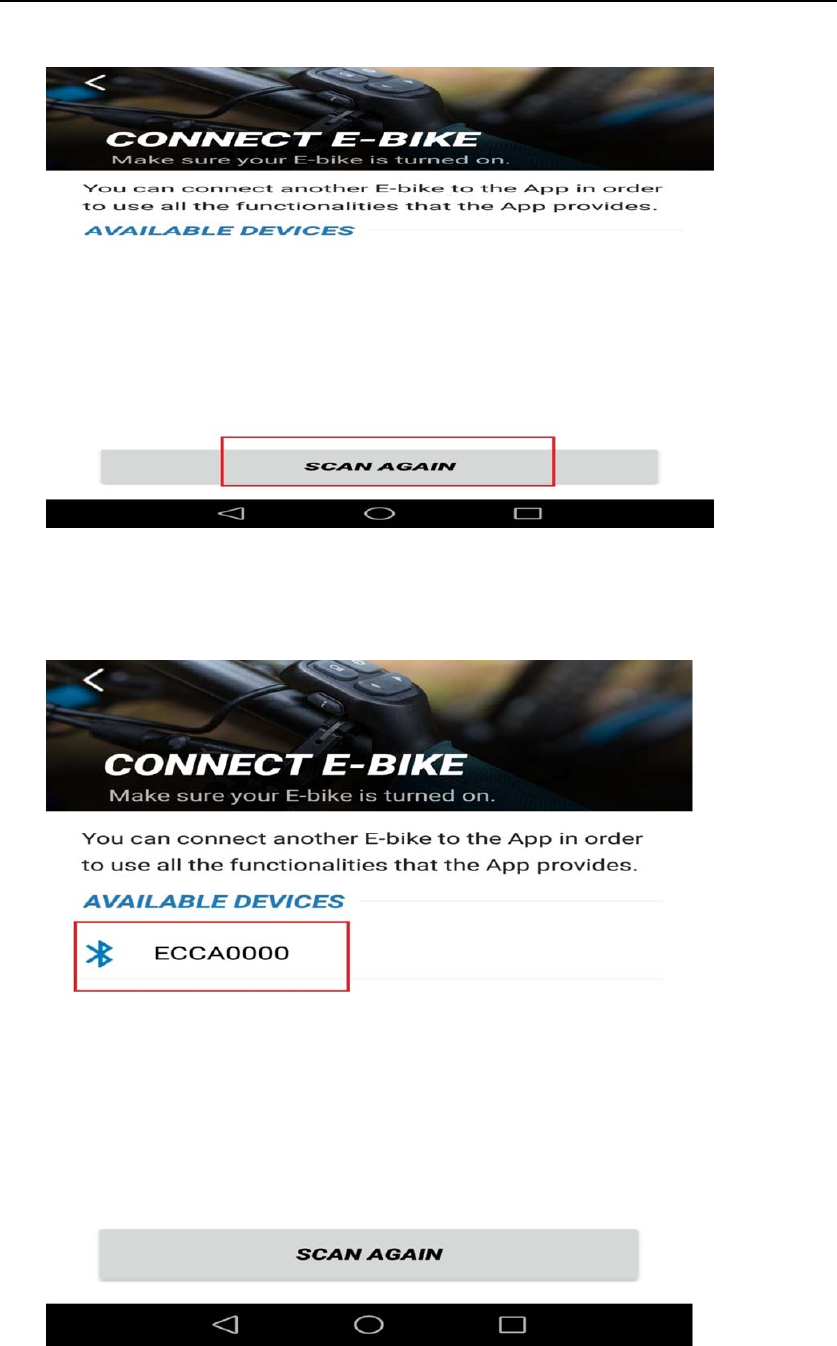

3. Whenyouclickin,yougooutthefollowinginterface,clickonthescaninthediagram,

andsearchthedisplaydevice

Giant E bikes

Add

How to use it

4. Thedisplaydeviceinthefigureissearchedfor

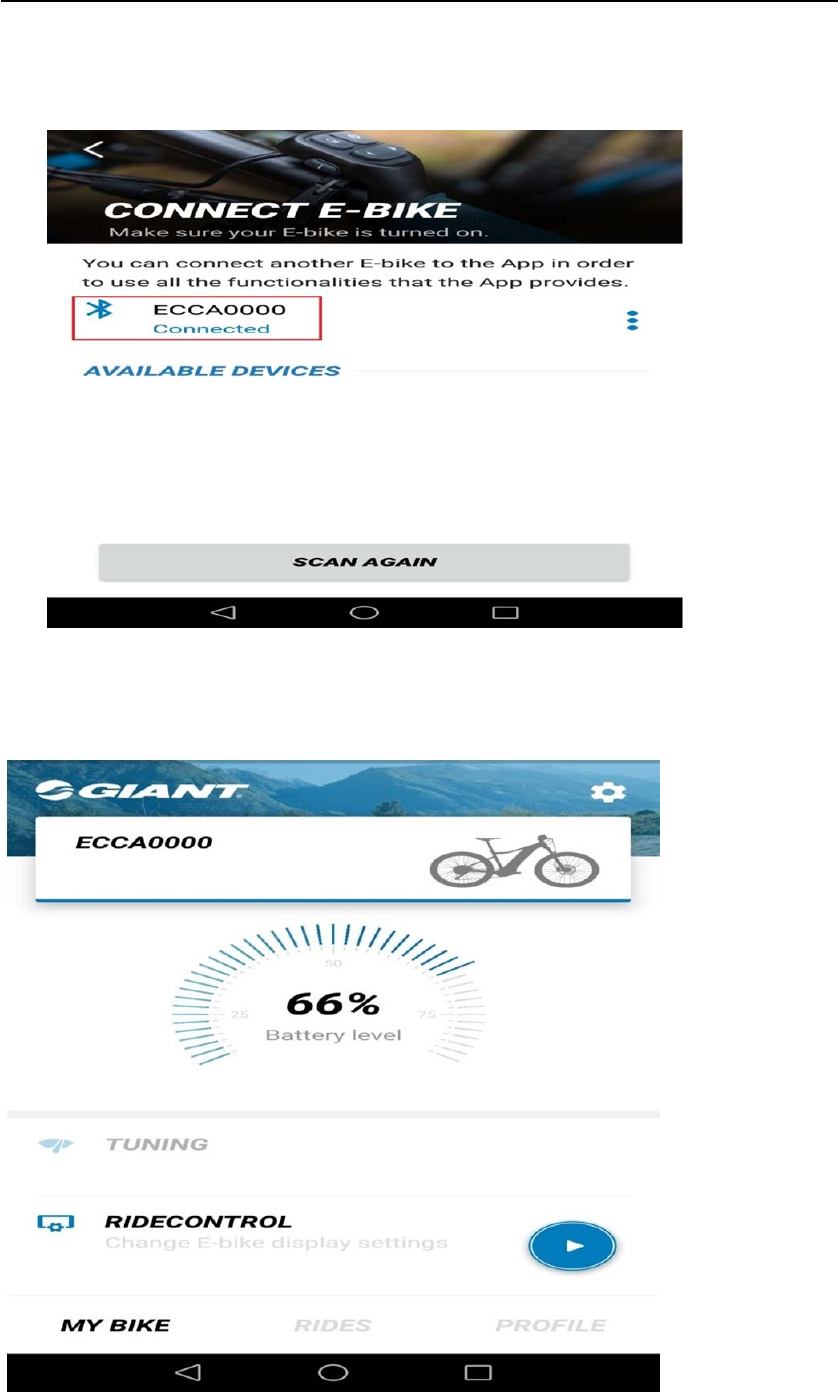

5. Clickonthedevice,youcanautomaticallyconnect,aftertheconnectionwillbethe

followingconnectwords

6. Thenreturntothemaininterface,sothatthephonecanconnecttothemonitorand

sharedata.
