Giant Electronics T6525 Two Way Radio with FRS User Manual
Giant Electronics Ltd Two Way Radio with FRS
User Manual
1 of 12
T6525
14
NiMH
2 of 12
3 of 12
4 of 12
5 of 12
This device complies with Part 15 of the FCC Rules. Operation is subject to the following
two conditions:
1． This device may not cause harmful interference, and
2．
This device must accept any interference received, including interference that may cause
undesired operation.
6 of 12
NiMH
NiMH
NiMH
T6525
NiMH
NiMH
NiMH
7 of 12

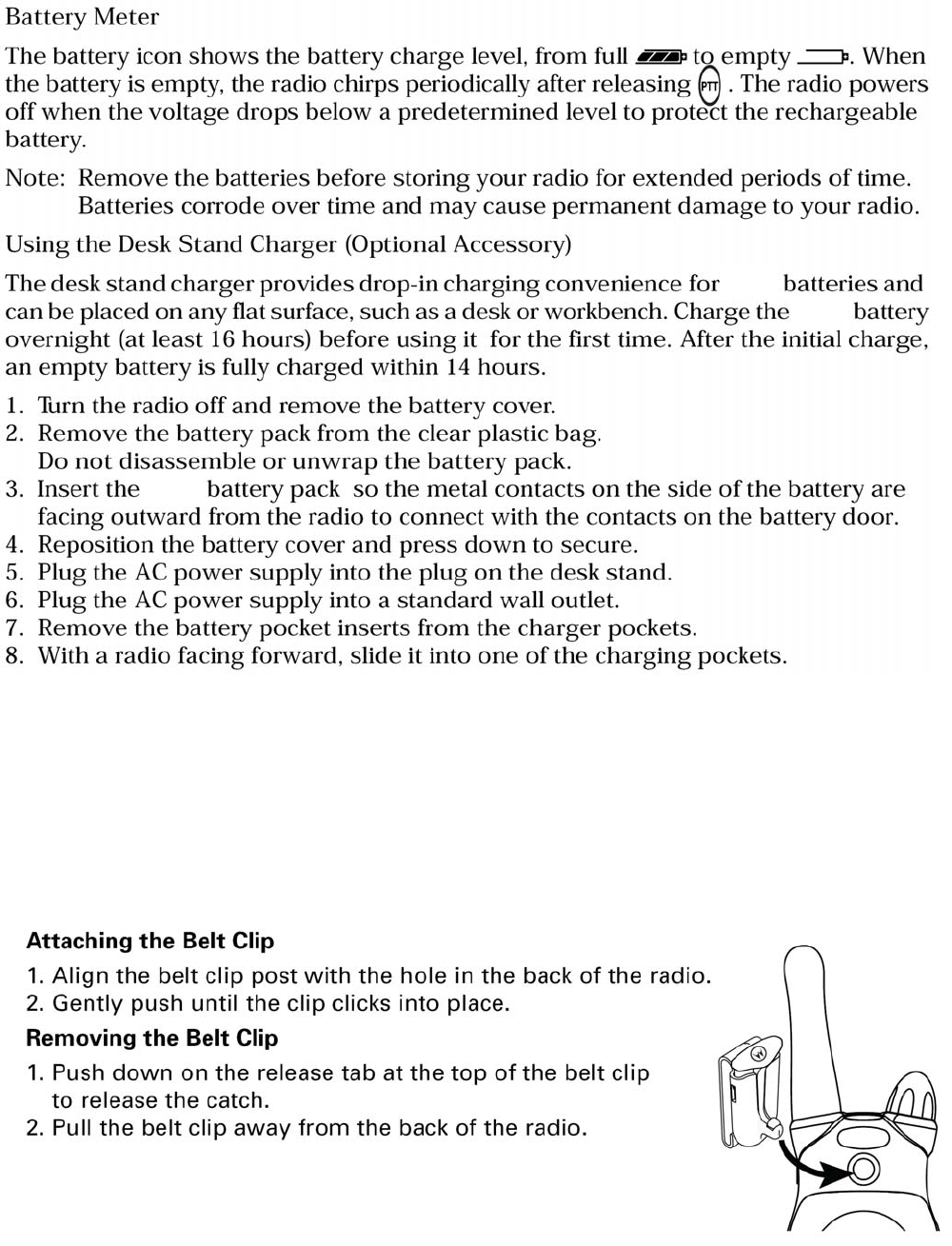

Note
The light on charging base will glow continuously when radio/battery is inserted.
When moving between hot and cold temperature, do not charge the battery until the
battery temperature acclimates (usually about 20 minutes).
For optimal battery life, remove the radio or battery from the charger within 16 hours. Do
not store the radio in the charger.
Turn off the radio while in the charging tray.
NiMH
NiMH
NiMH
8 of 12
Channel Frequency Channel Frequency
1 462.5625 MHz 8 467.5625 MHz
2 462.5875 MHz 9 467.5875 MHz
3 462.6125 MHz 10 467.6125 MHz
4 462.6375 MHz 11 467.6375 MHz
5 462.6625 MHz 12 467.6625 MHz
6 462.6875 MHz 13 467.6875 MHz
7 462.7125 MHz 14 467.7125 MHz
And all are FRS
(1-14)
14
When the radio is on the transmitting, the display have .
And all are FRS.
14
9 of 12
10 of 12
11 of 12
12 of 12
