Giant Telecom IV730B Digital Photo Frame with WIFI User Manual Manual

Giant Telecom Limited Digital Photo Frame with WIFI Manual

UserManual.wiki >

Giant Telecom >

IV730B User Manual HTML Version

Manual

Intouch

IT7350&IT7340

Version –B

User Guide Version 0. 1

Safety Precautions

Make sure to follow the directions below to prevent personal injury, accidents and damage to the product.

Warning: To reduce the risk of bodily injury, electrical shock, fire, and damage to the equipment, observe the following precautions:

h Make sure to insert the power plug until it is firmly in place.

h Do not use a damaged power plug, power cord, or plug into a damaged outlet.

h Do not use force to pull the power cord.

h Do not touch the power plug with wet hands.

h Do not connect more than one appliance to a single outlet.

h Do not place anything heavy on the power cord.

h Make sure to turn the power off and disconnect the power plug from the outlet before moving the product.

h Make sure to disconnect any connected cables from other devices as well.

Caution: Failure to follow the accompanying directions may lead to minor personal injury or property damage.

h Hold and pull out the plug by its body when disconnecting it from the outlet, as pulling the plug out by the cord may cause it to be damaged. Failing to do

so, may cause fire, or the product may not turn on normally.

h Ensure that the power plug is disconnected before cleaning the product. Failing to do so, may cause electric shock or fire.

h Do not let water come into contact with or enter the power adapter, as this may cause electric shock or fire.

h Do not use the product outdoors in snowy or rainy weather, or near any water.

h When cleaning the floor with water, avoid any water contact with the power adapter.

h Do not place the power adapter near a heater, as this may cause fire.

Installation

Warning: Failure to follow the accompanying directions may lead to serious injury or death.

Caution: Plug the adapter to the socket outlet that near the equipment and shall be easily accessible. Use only the E-TEK (Output: 5.0V / 3.0A,

Input: AC 100 -240V ~ 50 / 60 Hz 0.8A) power supply that came with this unit. Using other power supplies may damage the unit.

iii

h When installing the product on a cabinet or shelf, do not let the front end of the product project beyond its front edge. Failing to do so, may cause the

product to fall, resulting in a product malfunction or personal injury.

h Do not place the power cord near a heater, as the power cord may melt, causing electric shock or fire.

h Do not install the product in a car or a location exposed to oil, smoke, moisture, water, or rainwater. Any contact of these materials with the product may

cause electric shock or fire.

h Disconnect the power plug when there is thunder or lightning. Failing to do so, may cause electric shock or fire.

h For Pluggable Equipment, the socket-outlet shall be installed near the equipment and shall be easily accessible

IMPORTANT SAFETY INSTRUCTIONS

h When using your wireless internet frame and equipment, basic safety precautions should always be followed to reduce the risk of fire, electric shock and

injury to persons, including the following:

h Do not use this product near water, for example, near a bath tub, wash bowl, kitchen sink or laundry tub, in a wet basement or near a swimming pool.

h The socket-outlet shall be installed near the equipment and shall be easily accessible

h Use only the power cord and batteries indicated in this manual. Do not dispose of batteries in a fire. They may explode. Check with local codes for

possible special disposal instructions.

SAVE THESE INSTRUCTIONS

Caution: Failure to follow the accompanying directions may lead to minor personal injury or property damage.

h Place the product down gently when installing it. Failing to do so may cause product damage or personal injury.

h Do not install the product in a location easily reached by children. As the product may fall and cause personal injury.

DECLARATION OF CONFORMITY

Interference Information

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference,

and (2) This device must accept any interference received, including interference that may cause undesired operation.

Warning: Changes or modifications to this unit not expressly approved by the party responsible for compliance could void the user's

authority to operate the equipment.

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are

designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio

frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television

reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following

measures:

h Reorient or relocate the receiving antenna.

h Increase the separation between the equipment and receiver.

h Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

h Consult the dealer or an experienced radio/TV technician for help.

FCC RF Radiation Exposure Statement

This equipment complies with FCC RF radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated

with a minimum distance of 20 centimeters between the radiator and your body.

Shielded cables must be used with this unit to ensure compliance with the Class B FCC limits.

This class B digital apparatus complies with Canadian ICES-003.

Cet appareil numérique de la classe B est conforme à la norme NMB-003 du Canada.

Table of Contents

Getting Started....................................................................1

Package Contents..............................................................................1

Wireless Internet Frame Overview...................................................2

Front panel......................................................................................2

Back panel......................................................................................3

Left Panel........................................................................................4

Right Panel ..................................................................................... 4

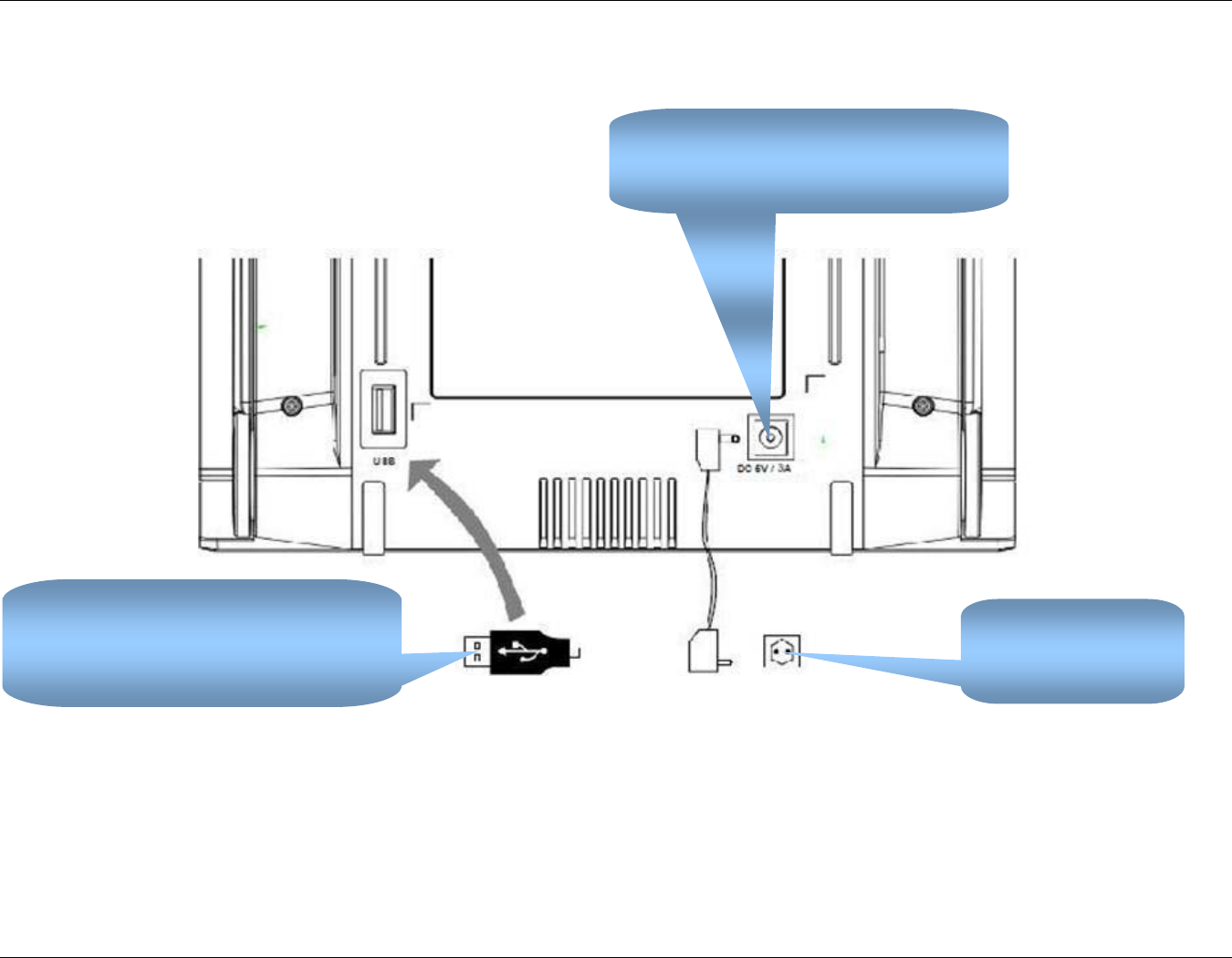

Connecting the AC/DC Power Adapter and USB cable .................5

General Button Description..............................................................6

Turning your Frame on ......................................................7

Standing the Frame up......................................................................7

Calibrate the Touch Screen ..............................................................7

Language Selection...........................................................................7

End User License Agreement (EULA) .............................................8

The Home Screen ...............................................................9

Home Screen Overview.....................................................................9

Home Settings Screen.....................................................................10

Additional Home Settings ............................................................. 11

Power Icon........................................................................................11

Wi-Fi icon..........................................................................................12

News Bar...........................................................................................12

Wallpaper Settings ..........................................................................13

For a still picture as wallpaper......................................................13

For a slide show as the wallpaper................................................ 14

Slide Show Control Buttons.......................................................... 15

Clock and Calendar ..........................................................16

Setting up the Calendar .................................................................. 16

Set the Date.................................................................................. 16

Set Date Format ........................................................................... 16

Calendar Preview............................................................................. 17

Using the Calendar preview ......................................................... 17

Setting up the Clock........................................................................ 17

Set the Time ................................................................................. 18

Select Time Format ...................................................................... 18

Select Internet Time Synchronization........................................... 18

Select Time Zone ......................................................................... 18

Setting up and using the Clock Alarm...........................................19

To set an Alarm ............................................................................ 19

To change an alarm...................................................................... 20

Alarm Control................................................................................ 20

Frame Tools ......................................................................21

Main Menu ........................................................................................21

Tools Screen .................................................................................... 21

Keyboard .......................................................................................... 22

On-Screen Display Bar.................................................................... 23

Open and close the On-Screen Display (OSD) Bar..................... 23

OSD Bar Description .................................................................... 23

Adjust LCD Brightness using OSD Bar ........................................24

Adjust Volume Level using OSD Bar............................................24

Lock / Unlock the screen using OSD Bar..................................... 24

Settings .............................................................................25

Network.............................................................................................26

Setup Wi-Fi Network - Access Point’s DHCP settings is On and the AP

SSID is not hidden........................................................................26

Setup Wi-Fi Network - Access Point’s DHCP settings is ON but the AP

SSID is hidden and no encryption key is needed.........................28

Manual Edit Wi-Fi Network Screen ..............................................29

Advanced Settings........................................................................30

Date / Time........................................................................................32

Display ..............................................................................................32

Screen Calibration........................................................................32

Brightness..................................................................................... 32

Auto Playback Demo Video..........................................................33

System Settings...............................................................................34

Language...................................................................................... 34

Firmware Upgrade........................................................................ 34

Factory Reset ............................................................................... 36

Show Details.................................................................................36

Motion Sensor (Model IT7350 only) ............................................. 37

Screen Taps Sound......................................................................37

Power Management.........................................................................38

Sleep Mode...................................................................................38

Interval Time (Sleep Interval Time) ..............................................38

Battery Profile ...............................................................................39

Photo / Content Service ...................................................40

Photo Player Main Page controls...................................................40

Photo................................................................................................. 41

Frame ................................................................................................ 41

Slide Show Control Buttons.......................................................... 41

Zoom Control Buttons................................................................... 42

Disk ................................................................................................... 43

Home Network.................................................................................. 43

Adding Photos to the Library ........................................................ 43

Checking Shared Photos.............................................................. 46

Sharing Settings for Accepting Connections from Your Frame.... 47

View for Sharing the Photos on your frame.................................. 48

Web ................................................................................................... 49

Photo Setup...................................................................................... 49

Slide Show.................................................................................... 49

Setup Web Photo Account ........................................................... 50

Content Service (Windows Live FrameIt)......................................52

Account......................................................................................... 52

Setup Windows Live FrameIt Account .........................................52

Content Service (Framechannel ) ..................................................54

Account......................................................................................... 55

Setup Framechannel Account...................................................... 55

Copy/ Delete Photos........................................................................56

Copy One ..................................................................................... 56

Copy All ........................................................................................ 57

Delete One ................................................................................... 57

Delete All ...................................................................................... 57

vii

RSS News Reader (RSS2.0) .............................................58

RSS News Feed screen...................................................................58

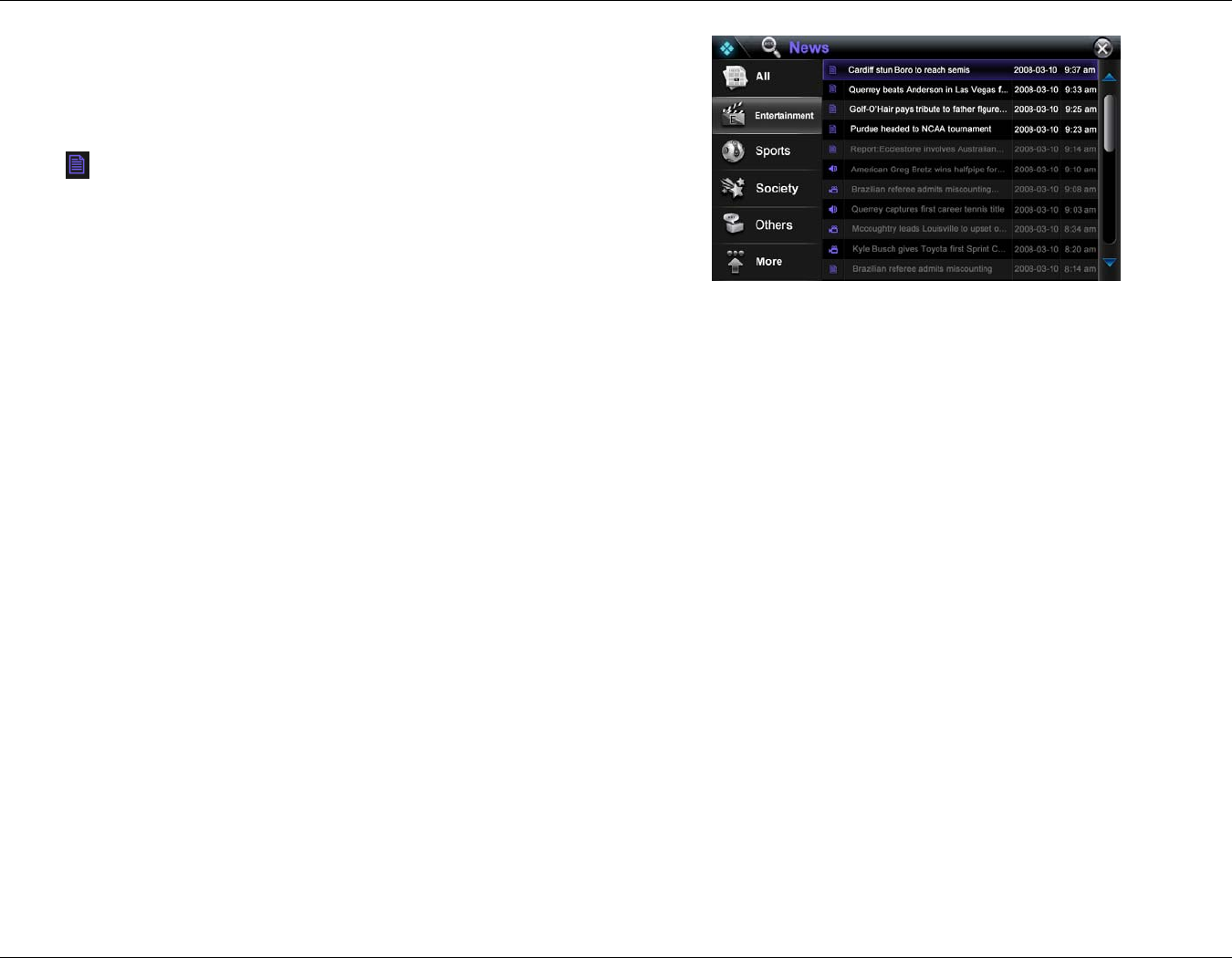

News Feed List screen....................................................................59

RSS News Reader............................................................................60

RSS News Reader Control Buttons / Icons.................................. 60

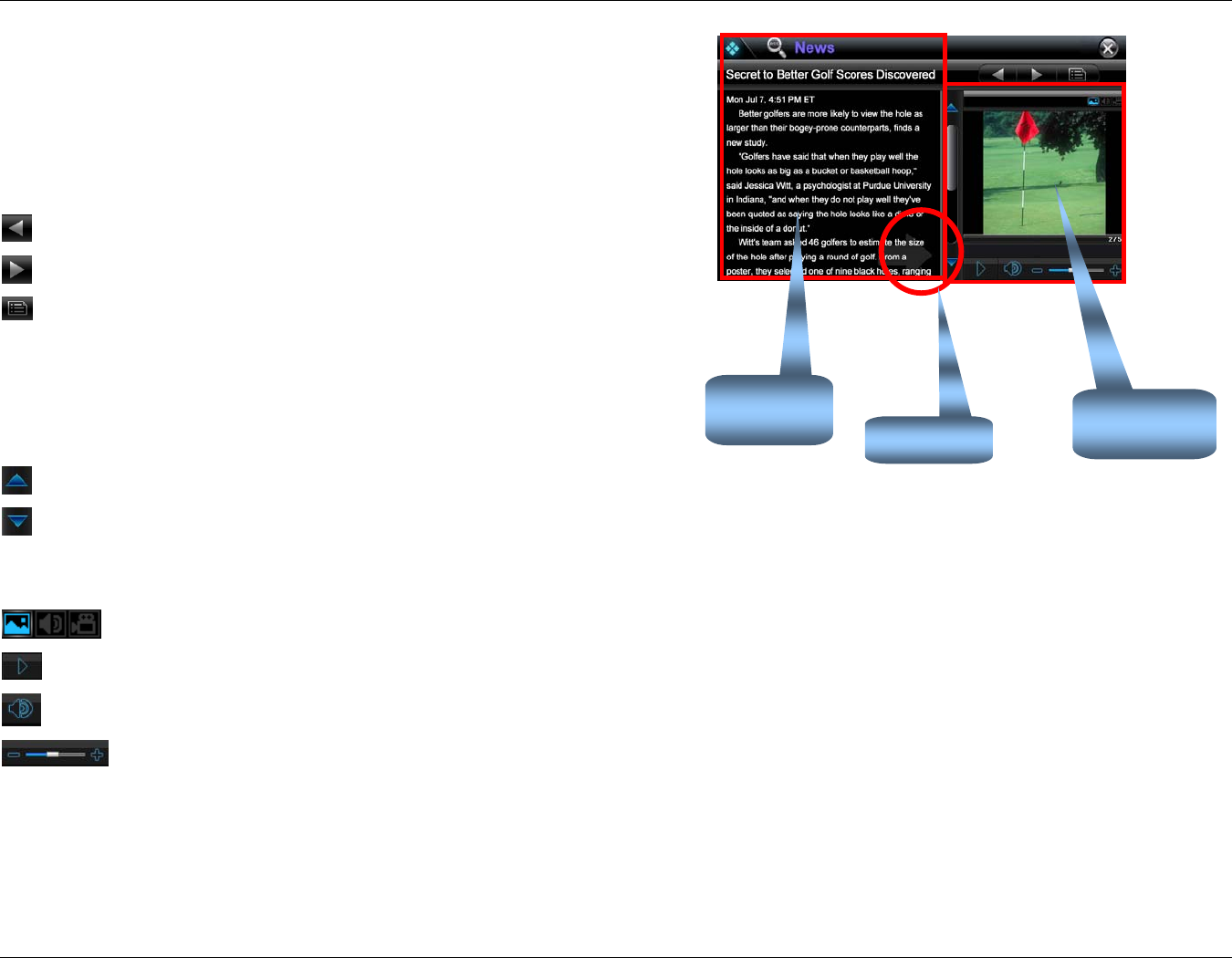

News Text Content....................................................................... 60

News Media Player.......................................................................60

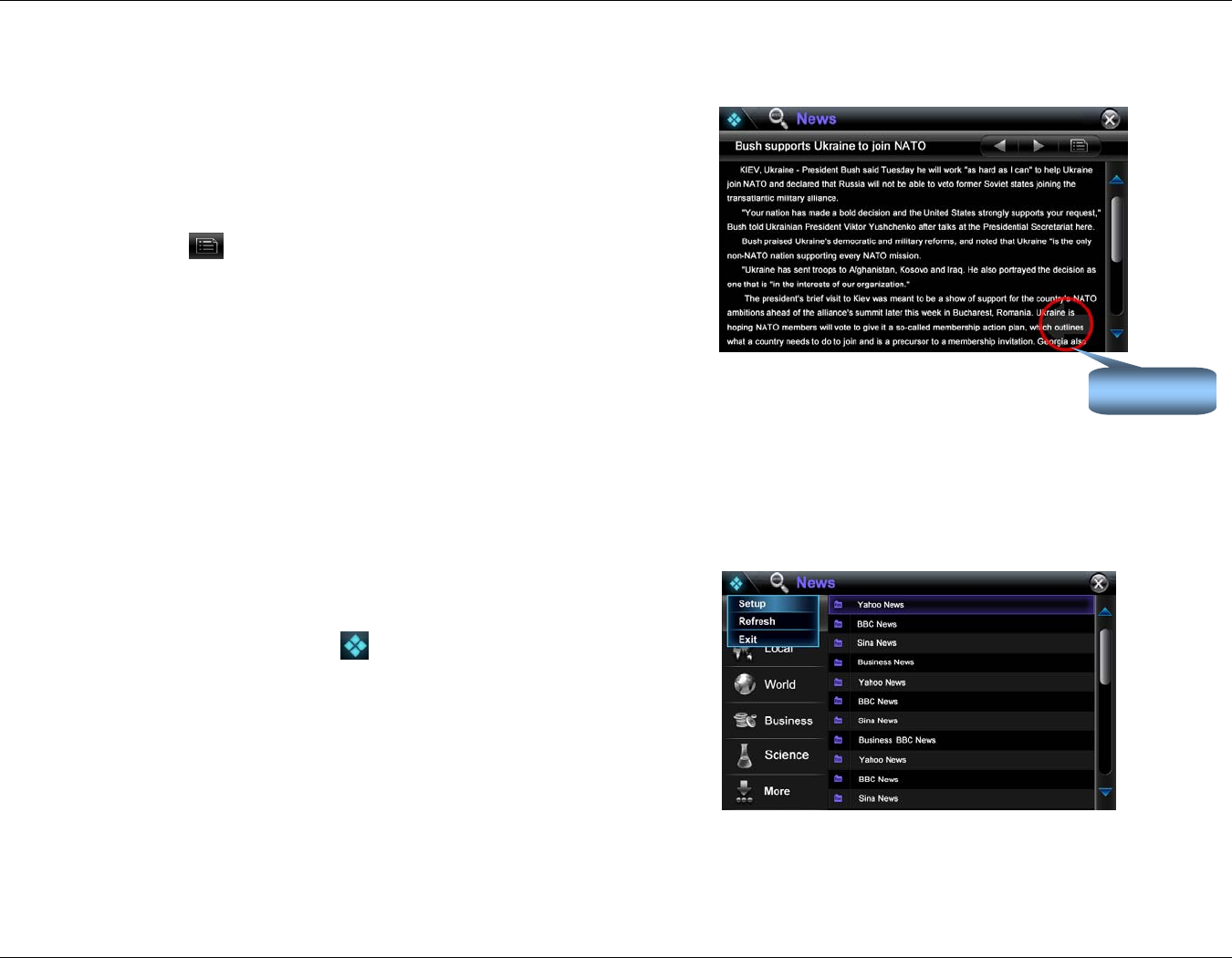

RSS News Reader > News Text Content..................................... 61

Refresh / Delete News .....................................................................61

Refresh RSS News Feed screen ................................................. 61

Delete One RSS News Headline.................................................. 62

Delete All RSS News Headlines................................................... 62

Delete All RSS News Read Headlines ......................................... 62

Delete One in RSS News Reader Screen....................................62

News Setup.......................................................................................63

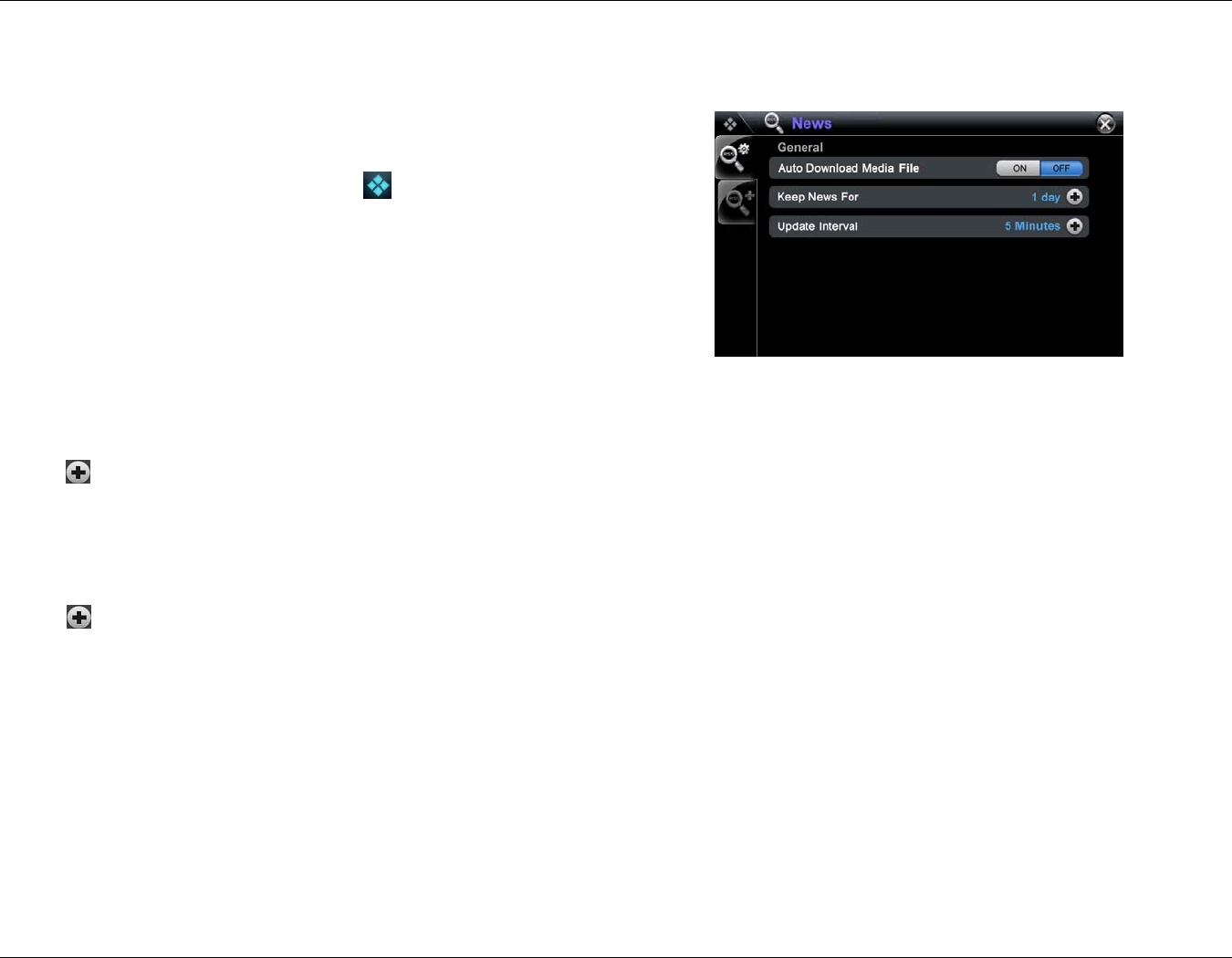

Set General Settings ....................................................................63

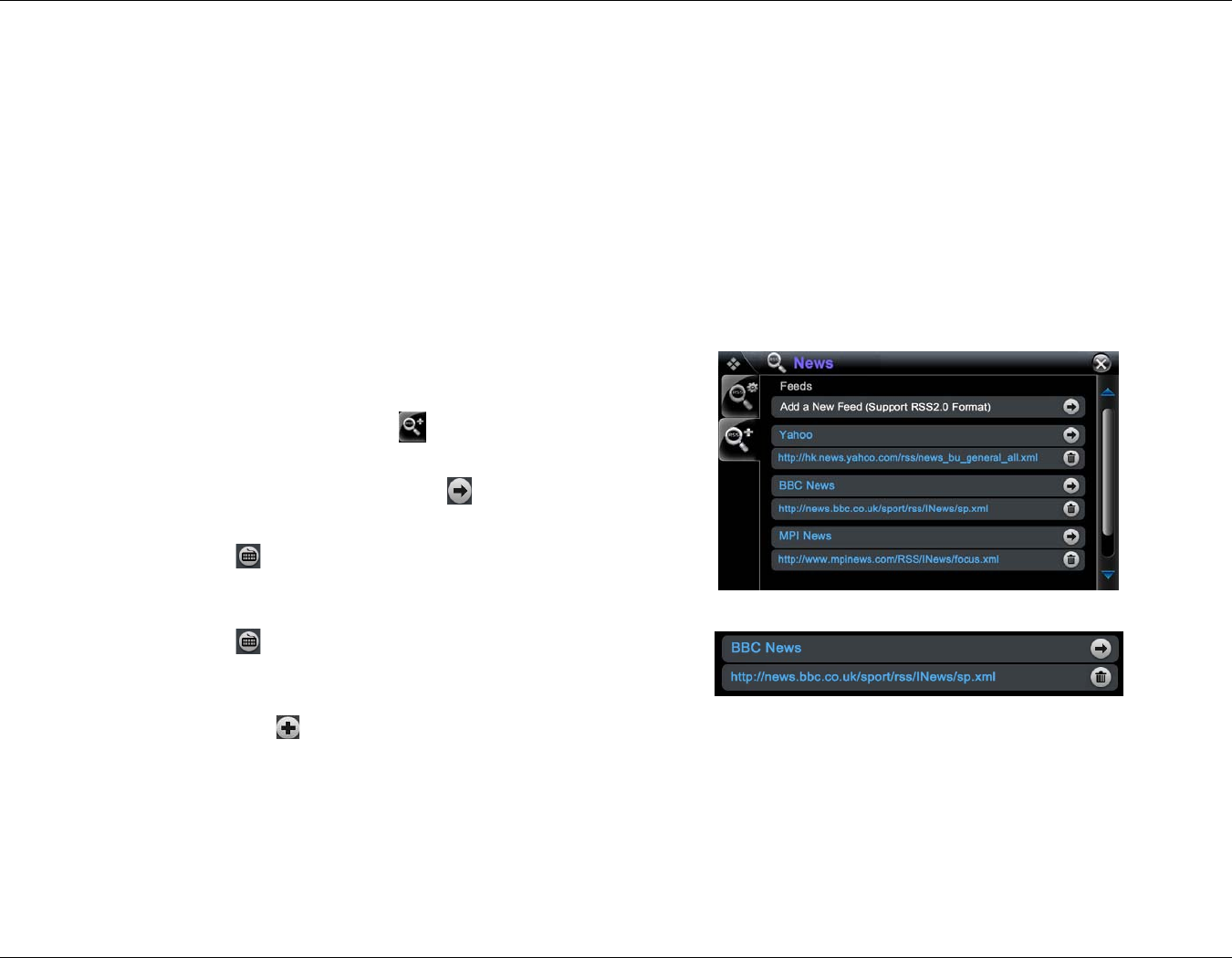

Add / Edit RSS News Feeds (Support RSS2.0 Format only) .......64

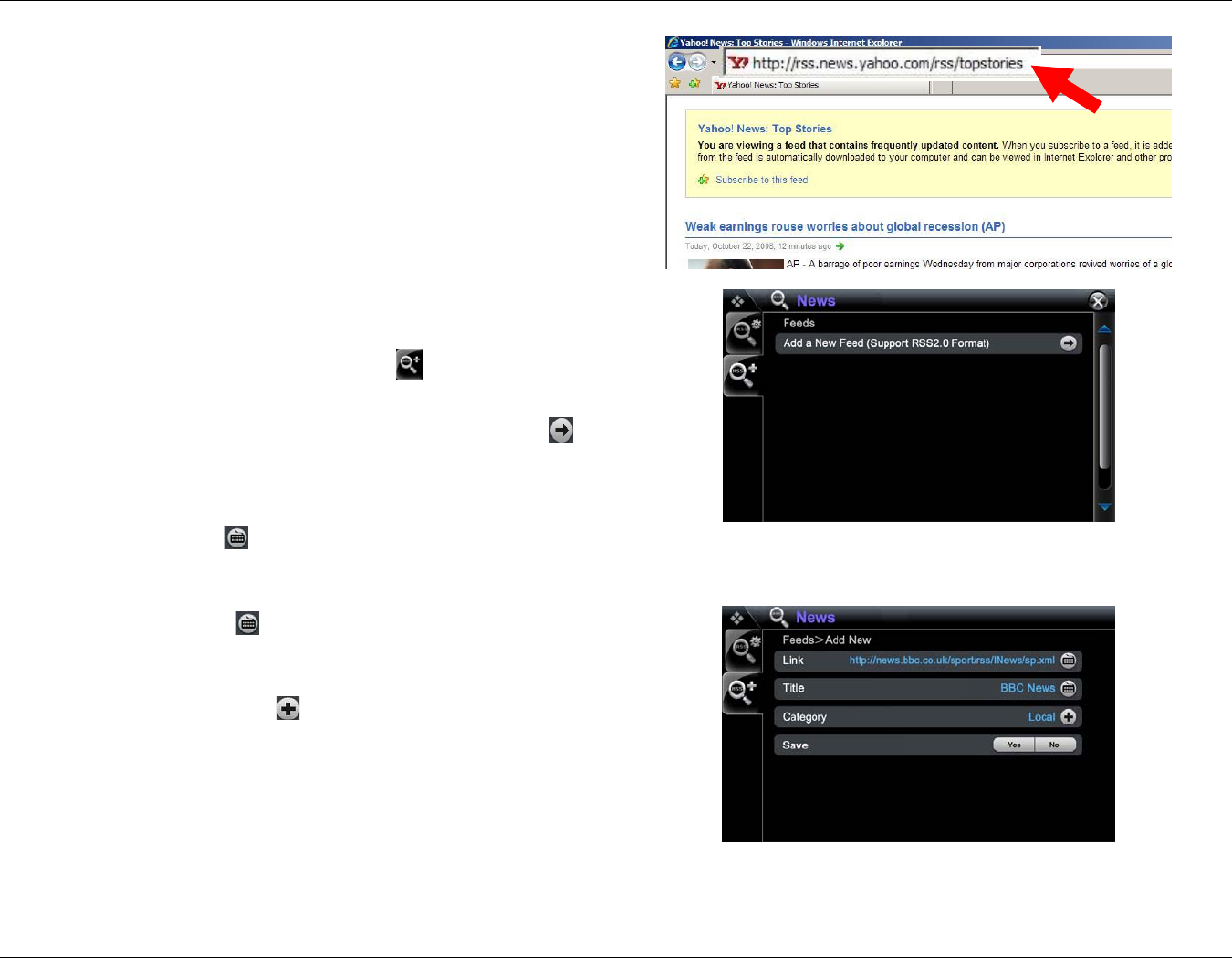

Get RSS News Feed Address from Internet ................................ 64

Add a new RSS News Feed......................................................... 65

Edit a RSS News Feed.................................................................66

Delete a RSS News Feed.............................................................67

Media Player......................................................................68

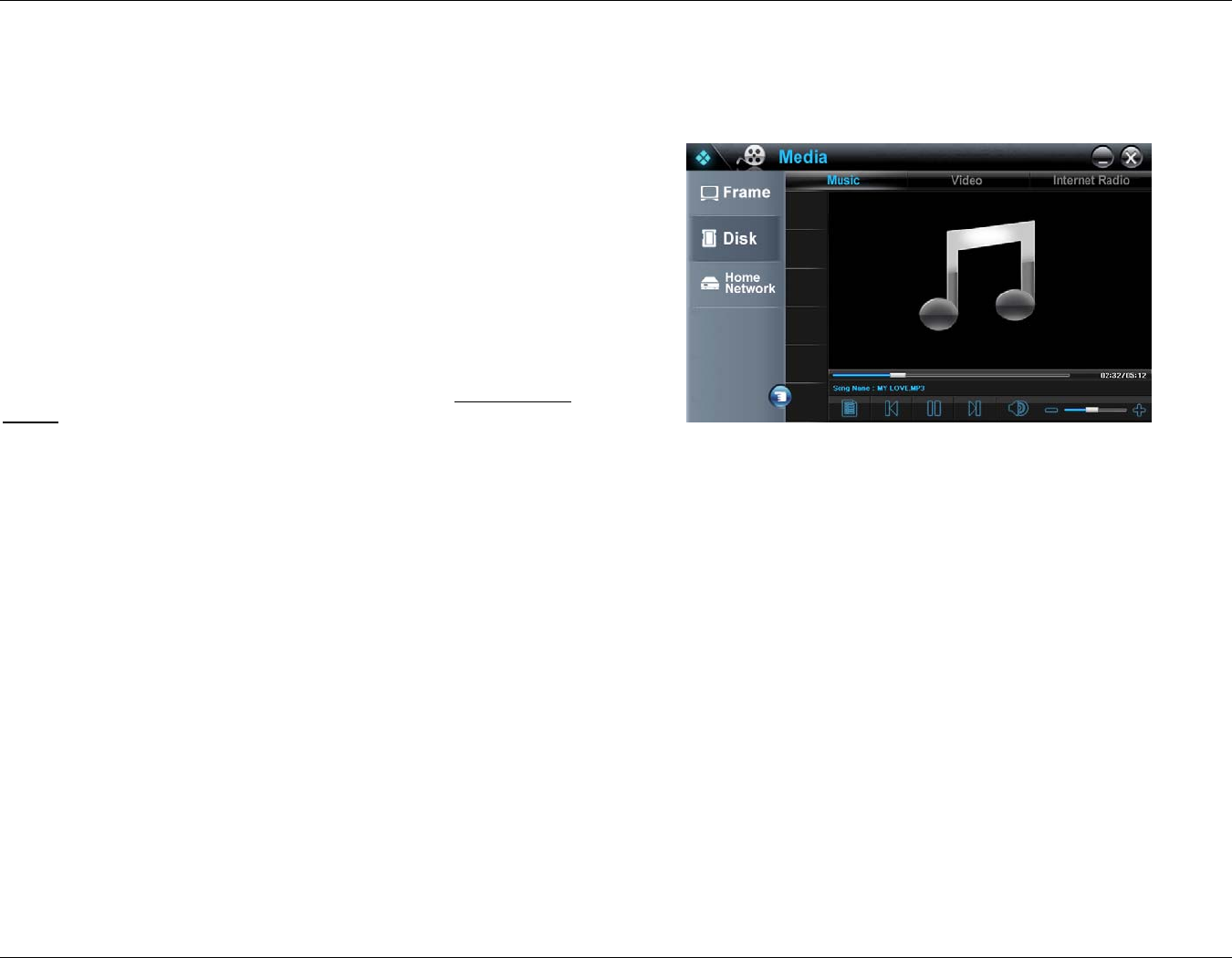

Music / Video....................................................................................69

Internet Radio and Web TV.............................................................70

Stations, Podcast or Web TV .......................................................70

More.............................................................................................. 70

Add to Favorites ...........................................................................71

Media Setup......................................................................................71

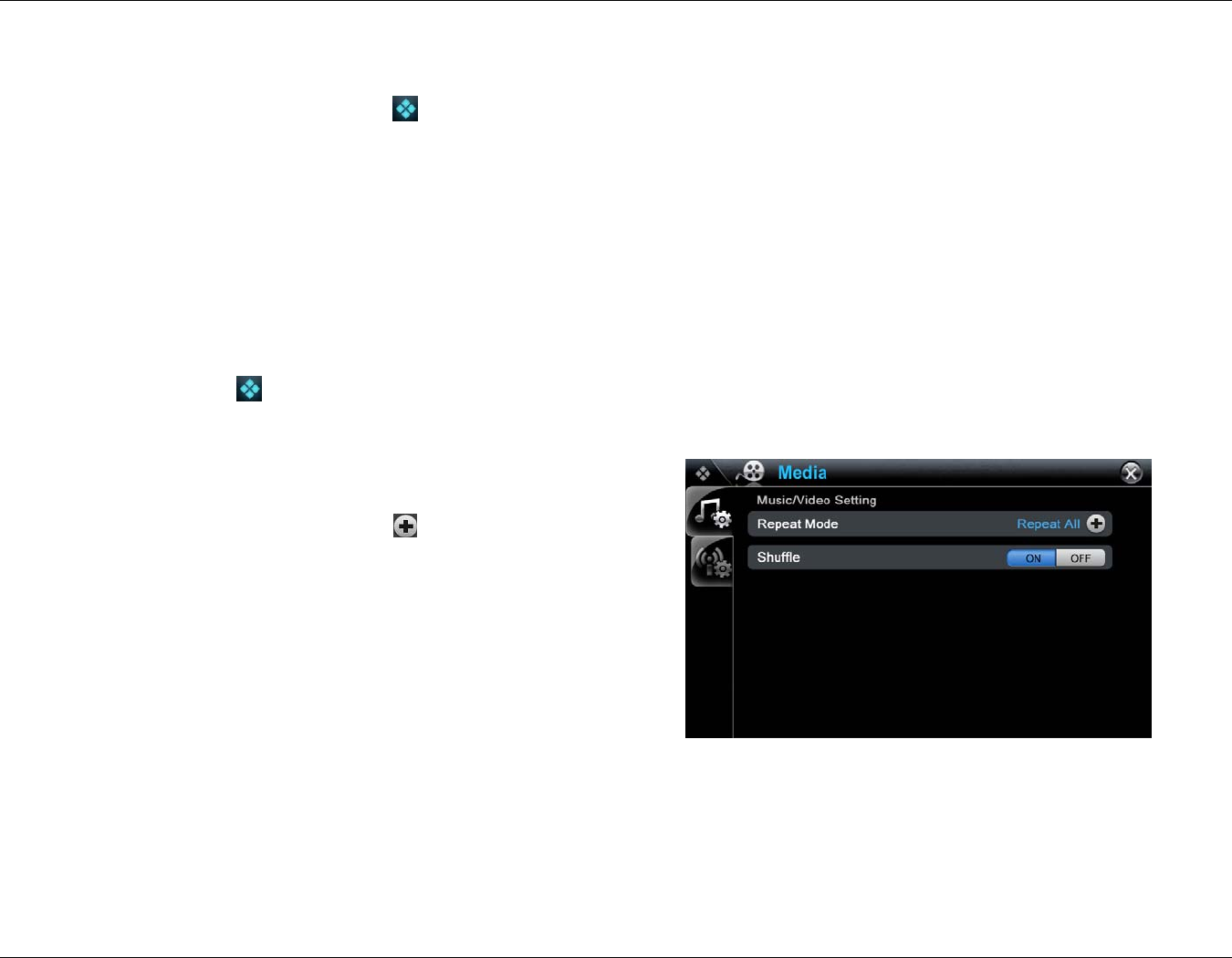

Setup Media Playback.................................................................. 71

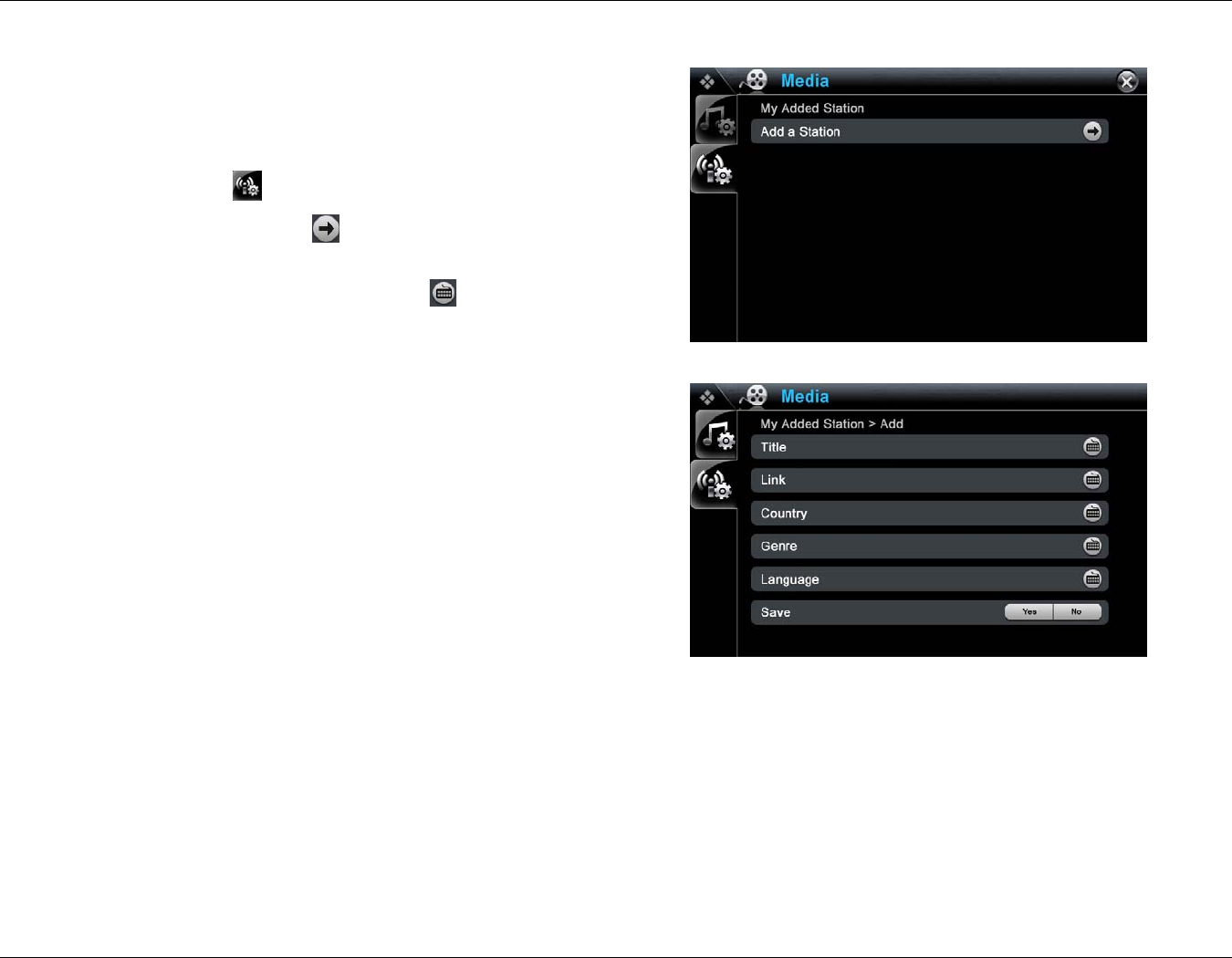

Add a Station................................................................................72

Edit an added Internet Radio Station ........................................... 73

Delete an added Internet Radio Station ....................................... 73

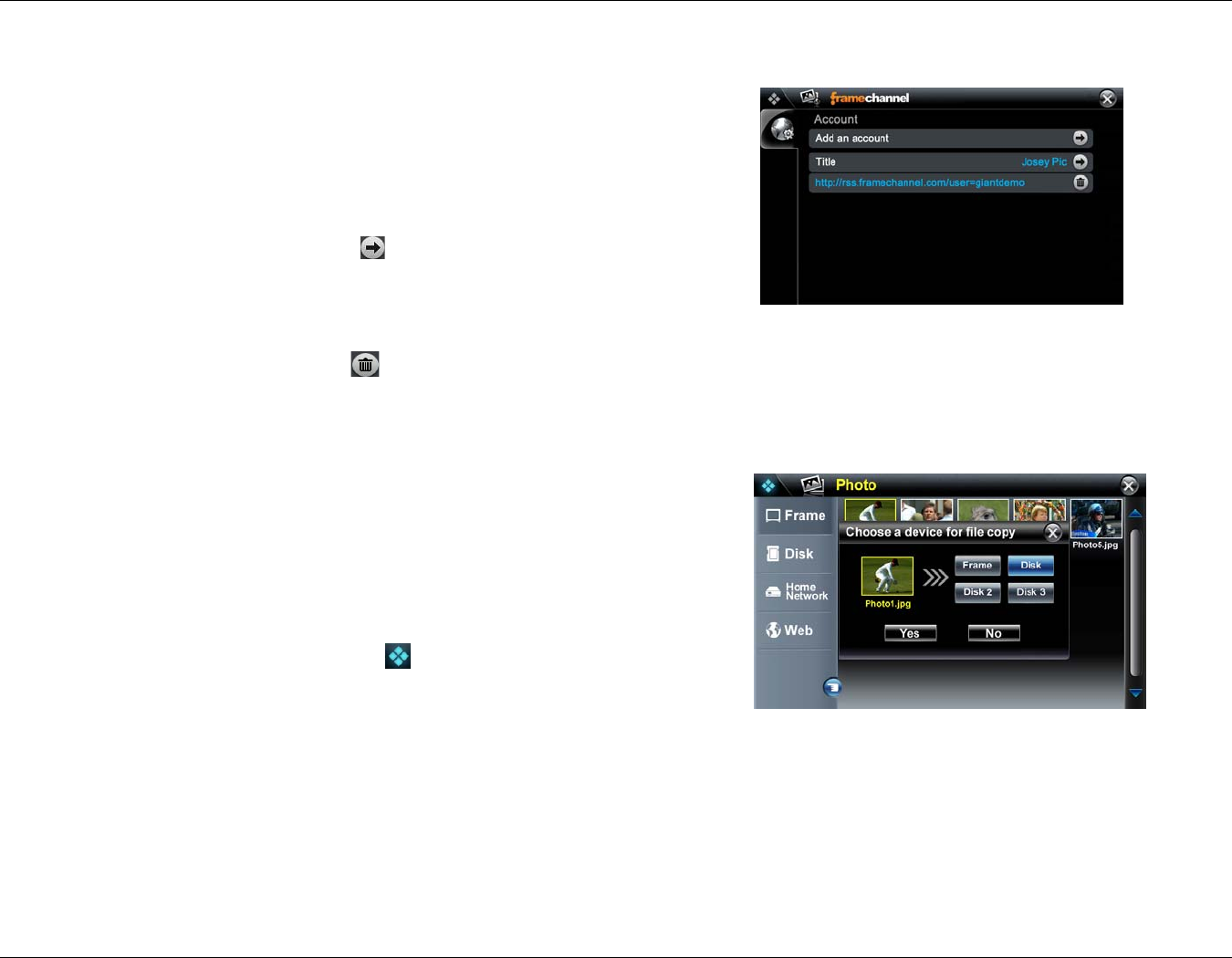

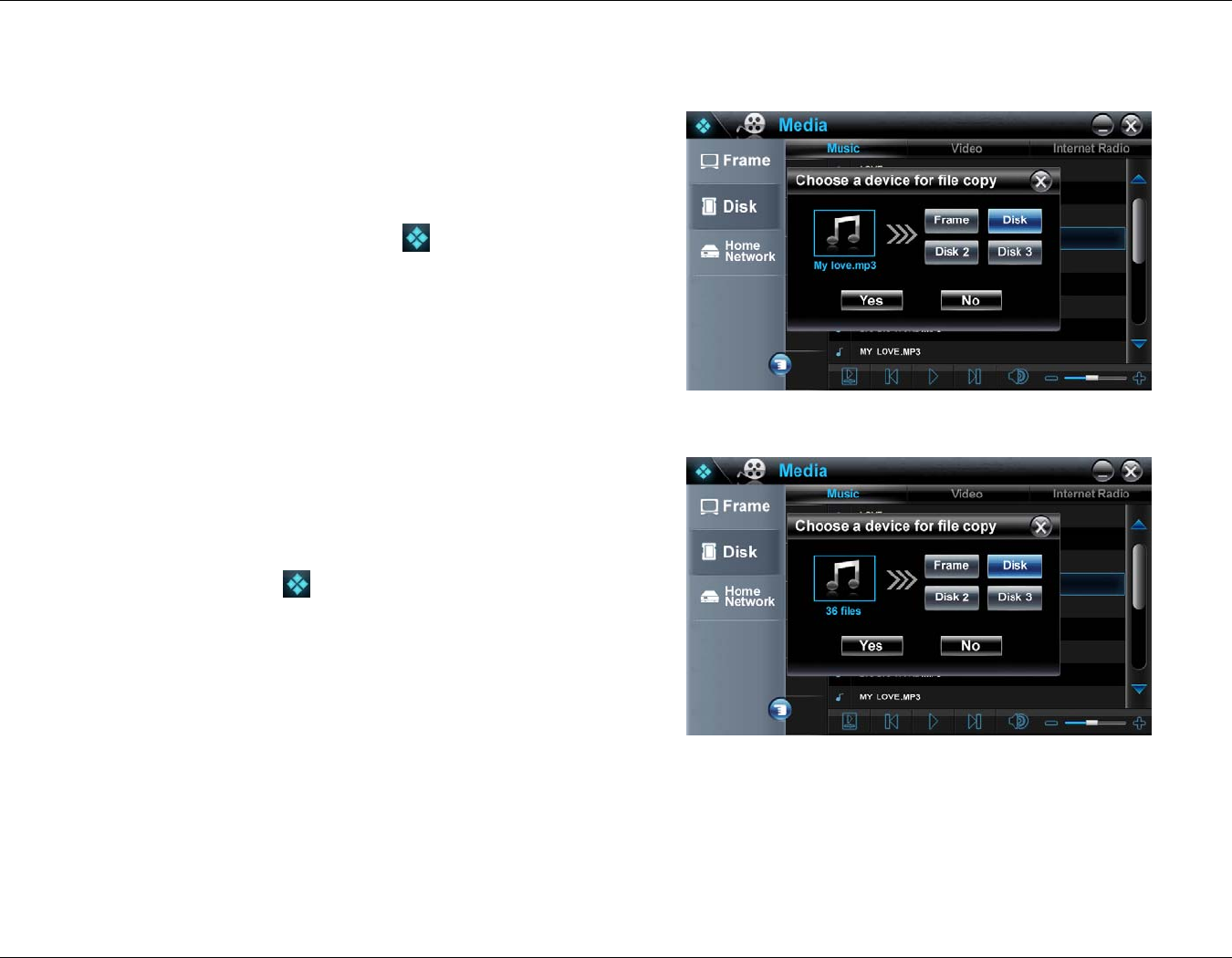

Copy / Delete Media Files................................................................ 74

Copy One ..................................................................................... 74

Copy All ........................................................................................ 74

Delete One ................................................................................... 75

Delete All ...................................................................................... 75

Specifications ...................................................................76

Troubleshooting ...............................................................78

Getting Started

Package Contents

Please check to make sure that the following items are included in the box:

Item Quantity

Wireless Internet Frame 1

AC/DC Power Adaptor 1

Quick Start Guide 1

Customer Support Contact Sheet 1

CD-ROM (includes User Guide and Warranty Information) 1

Wireless Internet Frame Overview

Front panel

Motion Sensor ON/OFF

indicator light

(

Onl

for

IT7350)

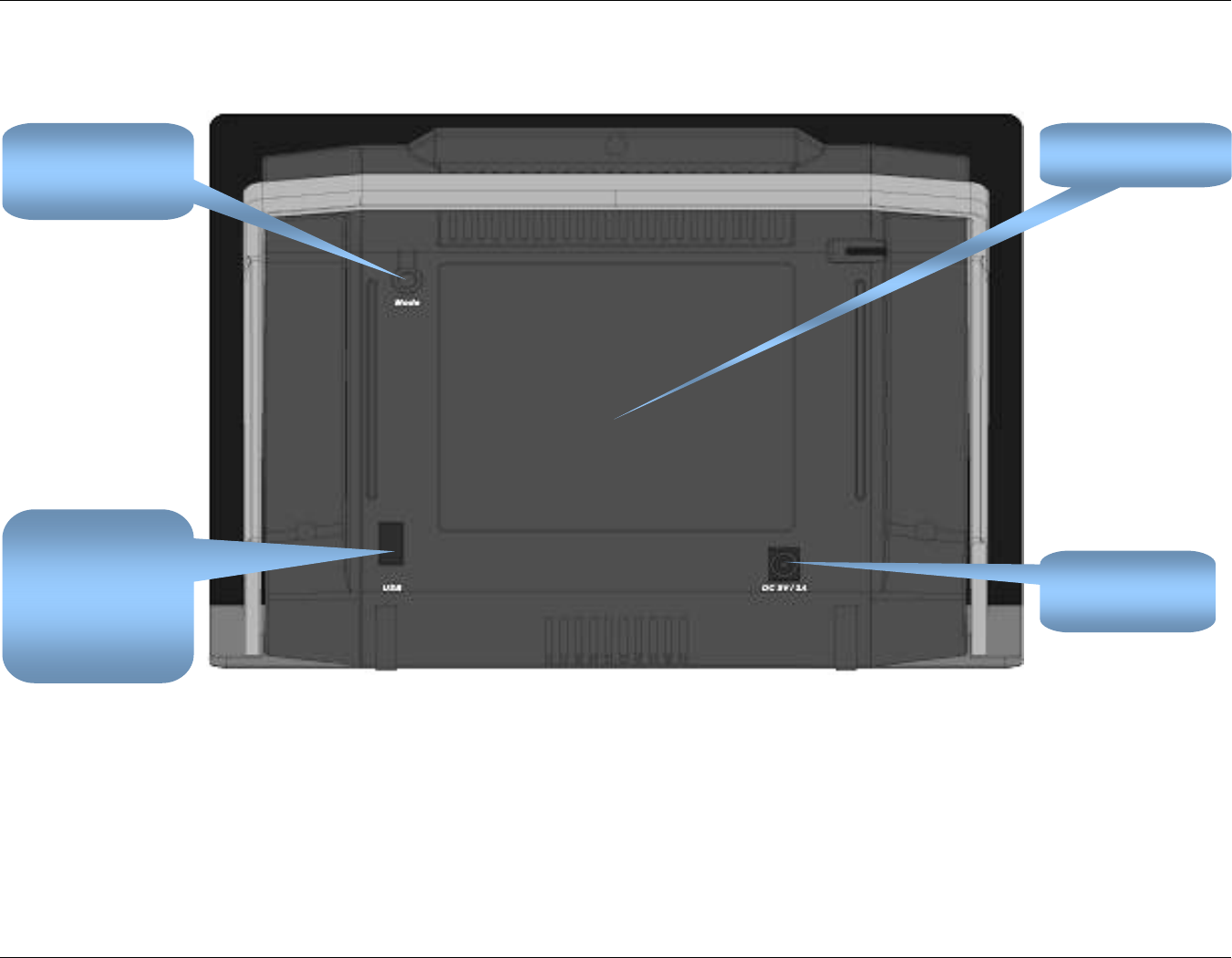

Back panel

DC power jack

DC 5V / 3.0A

Battery

Mode button

Press to display

On-Screen buttons.

USB port

Insert a USB flash

drive here that

contains stored

pictures, music and

video to access.

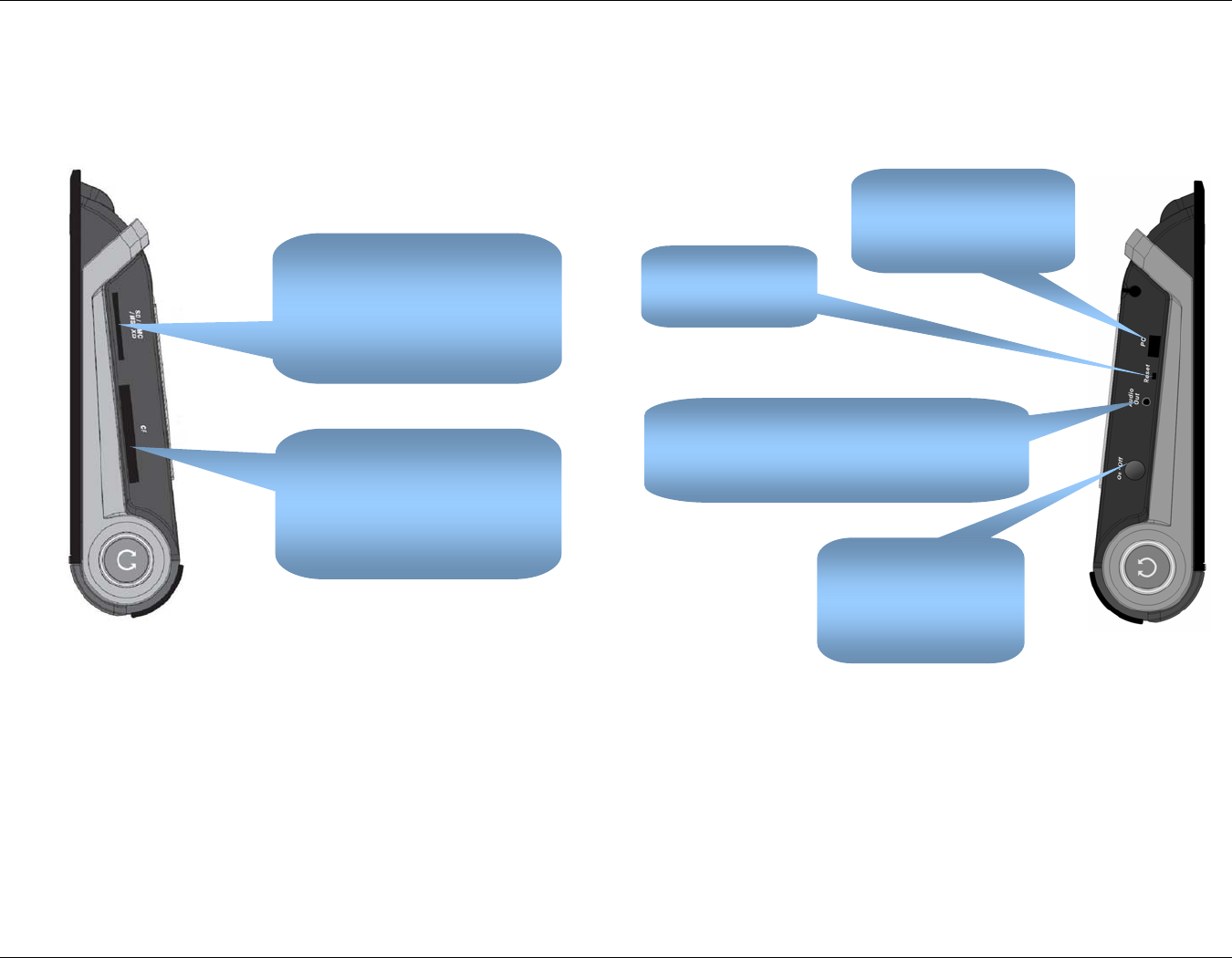

Left Panel Right Panel

4-in-1 card slot

Insert a memory card here that

contains stored pictures, music,

or video that you would like to

access.

CF (Compact Flash) card slot

Insert a compact flash here that

contains stored pictures, music

or video that you would like to

access.

PC (mini-USB) port

Connect to PC with

provided USB cable.

Reset button

Restart your frame

Audio output jack

Connect to external audio output (e.g.

earphones, headphones, speakers)

Soft Power switch

Press and hold this key

to turn power on and

off.

Connecting the AC/DC Power Adapter and USB cable

Notes:

1) When connecting an external device to the USB port, use the USB cable provided with the external device.

2) Some external devices provide a cable that does not meet USB standards, which may cause a malfunction.

3) If an external storage device does not work normally when connected to your digital photo frame, try to connect it to your PC. If it still does not work

normally after re-connecting to your PC, then contact a service center for that external device or your PC.

DC power adapter

Plug the DC power adapter end into the DC

5V/ 3.0A jack on the back of the frame.

AC power cord

Plug the AC power cord

into a nearby outlet.

Connecting USB

To connect an external USB supported device

to your frame, use an USB cable and plug it

into the USB jack on the back of the frame.

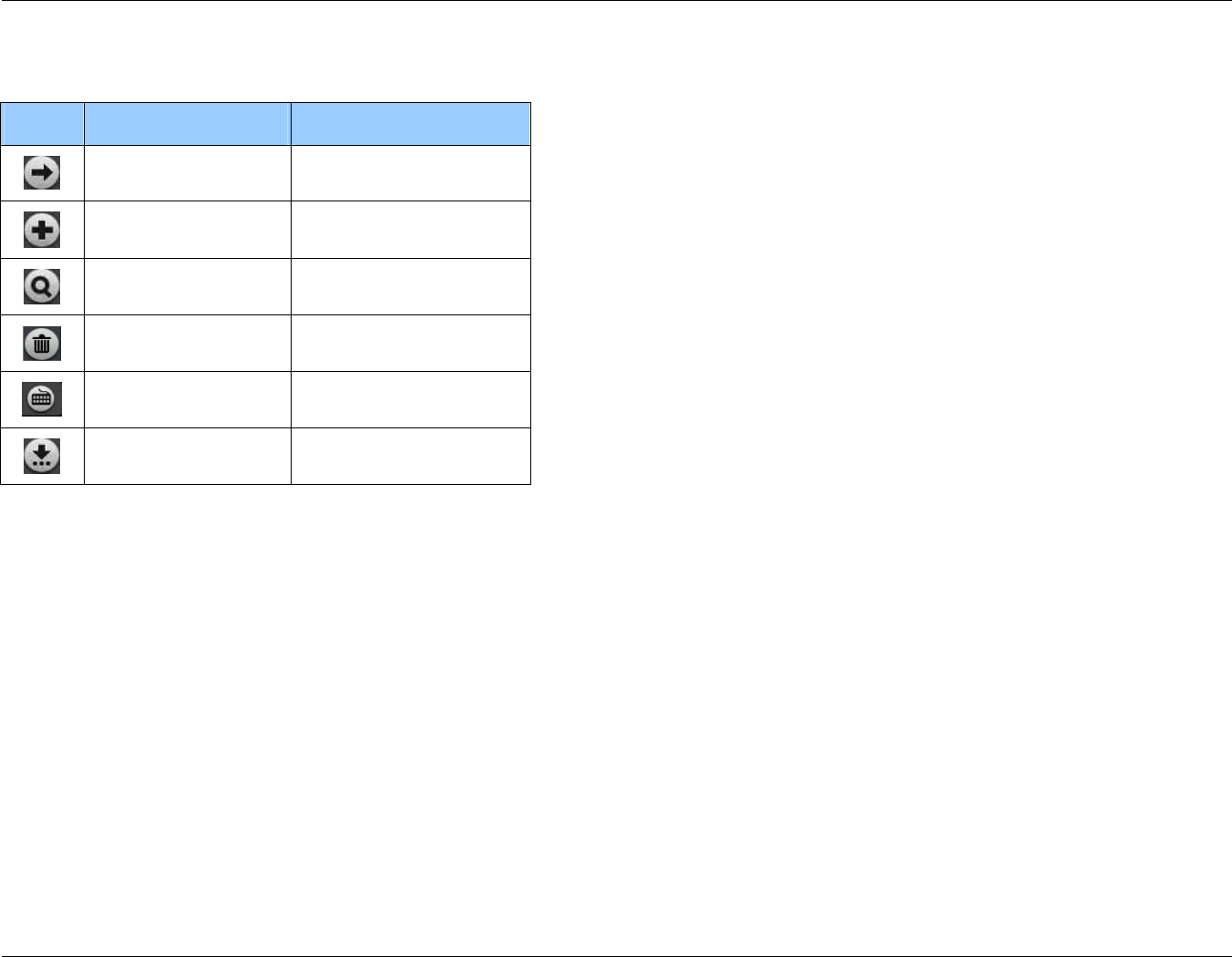

General Button Description

Icon Button Name Function

Submenu button Enter into submenu

Select option button Select option

Select file button Select file

Delete button Delete some setups

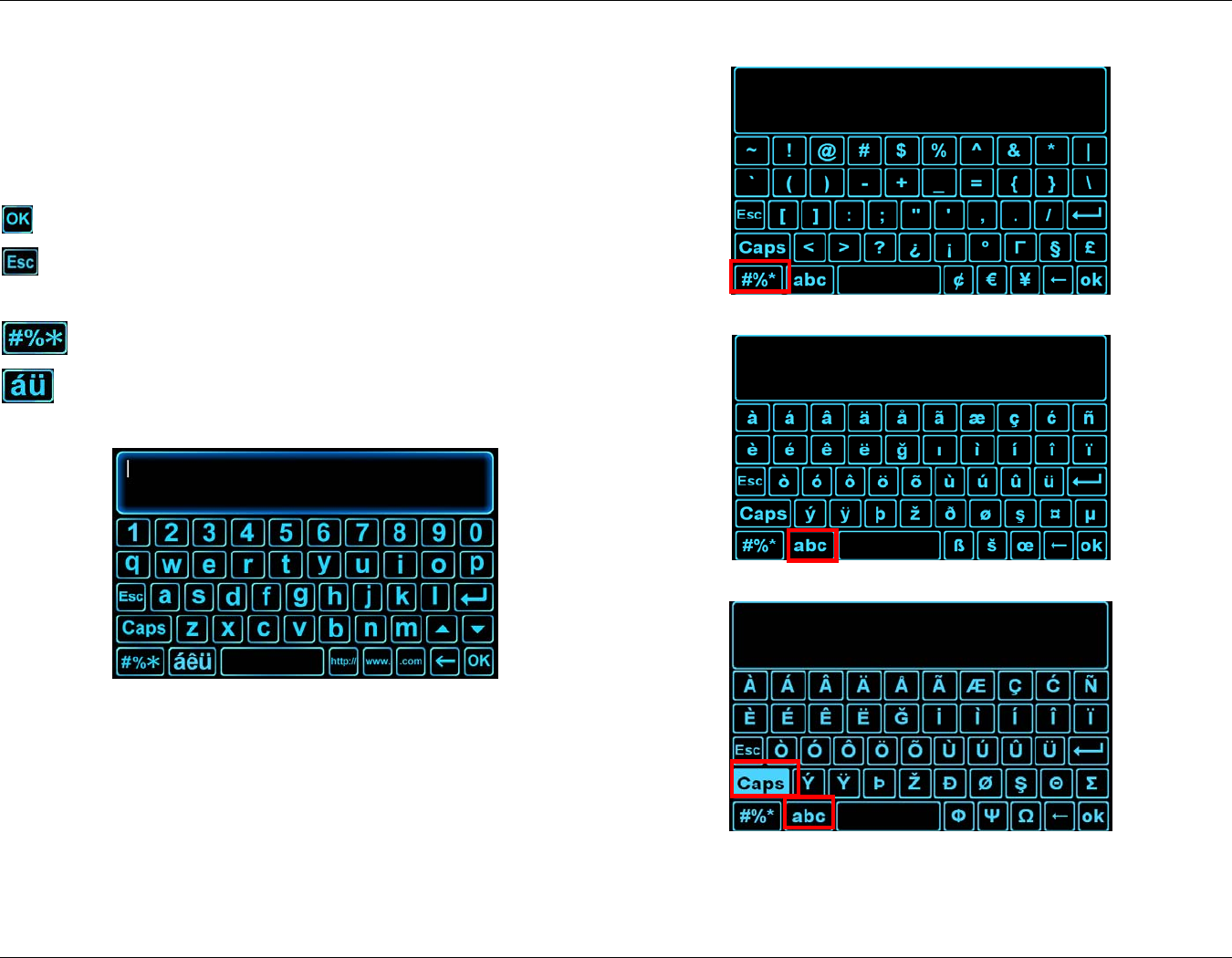

Keyboard button Input characters

More button View more details

Turning your Frame on

If it’s your first time turning on your frame, or you have reset the frame to factory presets, then you must calibrate the frame, select your language and accept

the End User License Agreement (EULA).

Standing the Frame up

Rotate the frame handle to the desired viewing angle. To release the handle, press on both ends at the same time to release the locking mechanism.

Calibrate the Touch Screen

1. Slide the OFF / ON switch to ON.

2. There are five (5) points (+) needed to tap to calibrate the touch screen. The first point (+) is in the center of the screen and there is one (1) point (+) in each

corner. Follow the on screen instructions to calibrate the frame.

3. After completing the calibration, the Language screen will appear.

Language Selection

1. On the Language screen, tap on the language you want.

2. Next, tap OK to accept the selected language.

Language pop-up menu

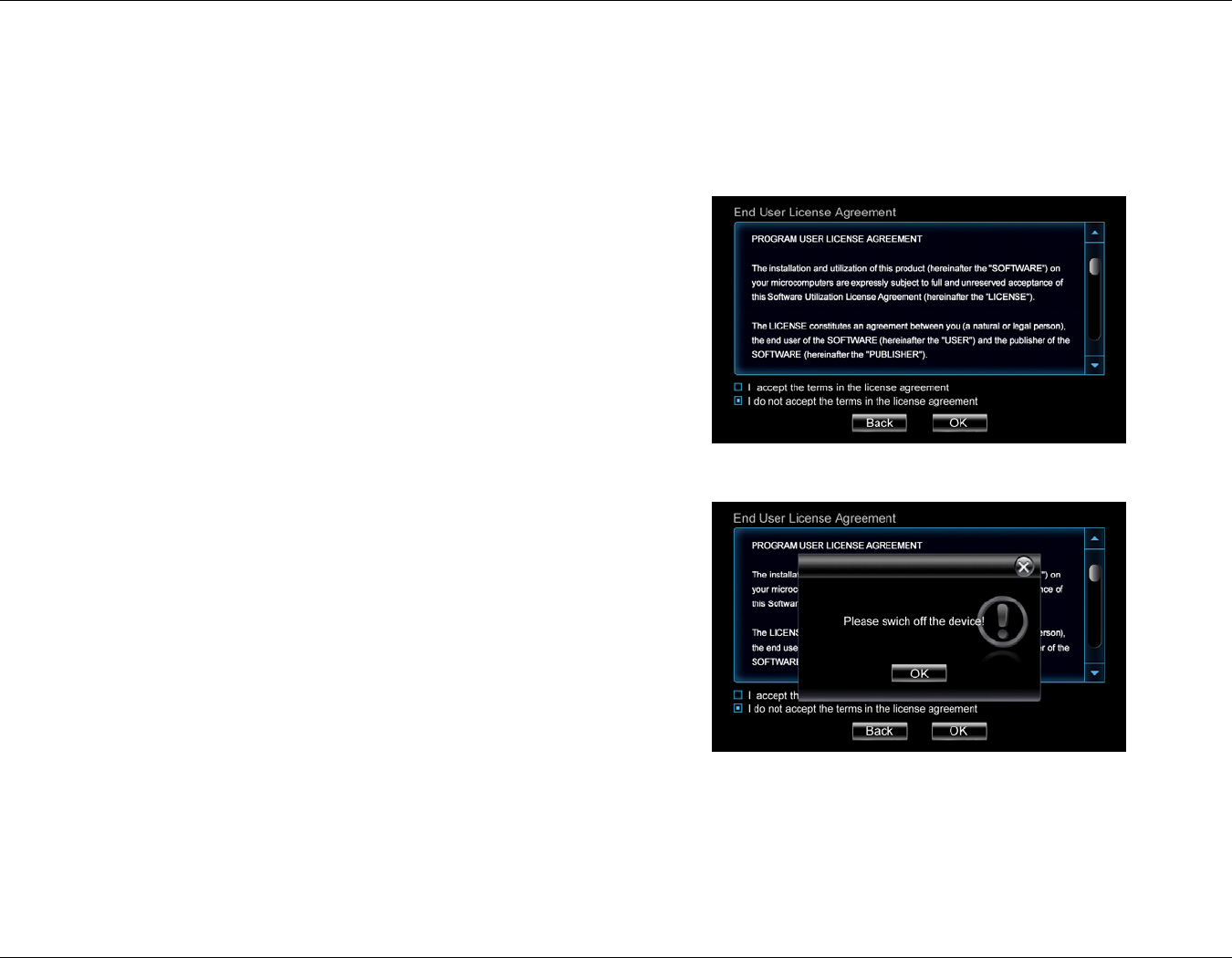

End User License Agreement (EULA)

After selecting the language, you must review the EULA

To accept the EULA:

1. To accept the EULA, tap the check box next to “I accept the terms in the

license agreement”.

2. Next, tap OK. The Home Screen will appear.

EULA

To not accept the EULA:

1. If you do not want to accept the terms of the EULA then tap the check box

next to “I do not accept the terms in the license agreement”.

2. Next, tap OK.

3. A pop-up screen will appear telling you to “Please switch off the device”.

If you tap OK on the pop-up screen you will be sent back to the EULA screen.

EULA – no acceptance pop-up

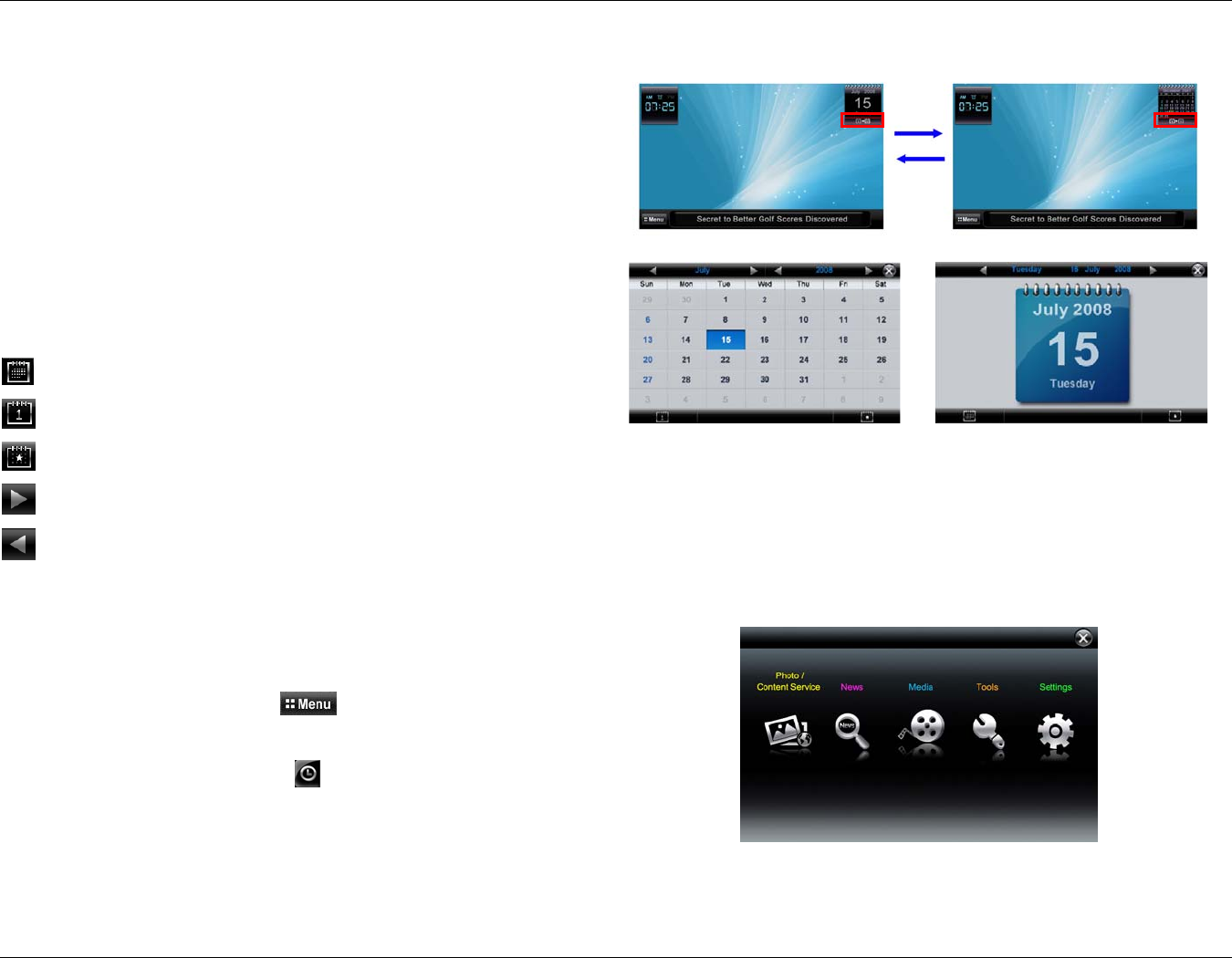

The Home Screen

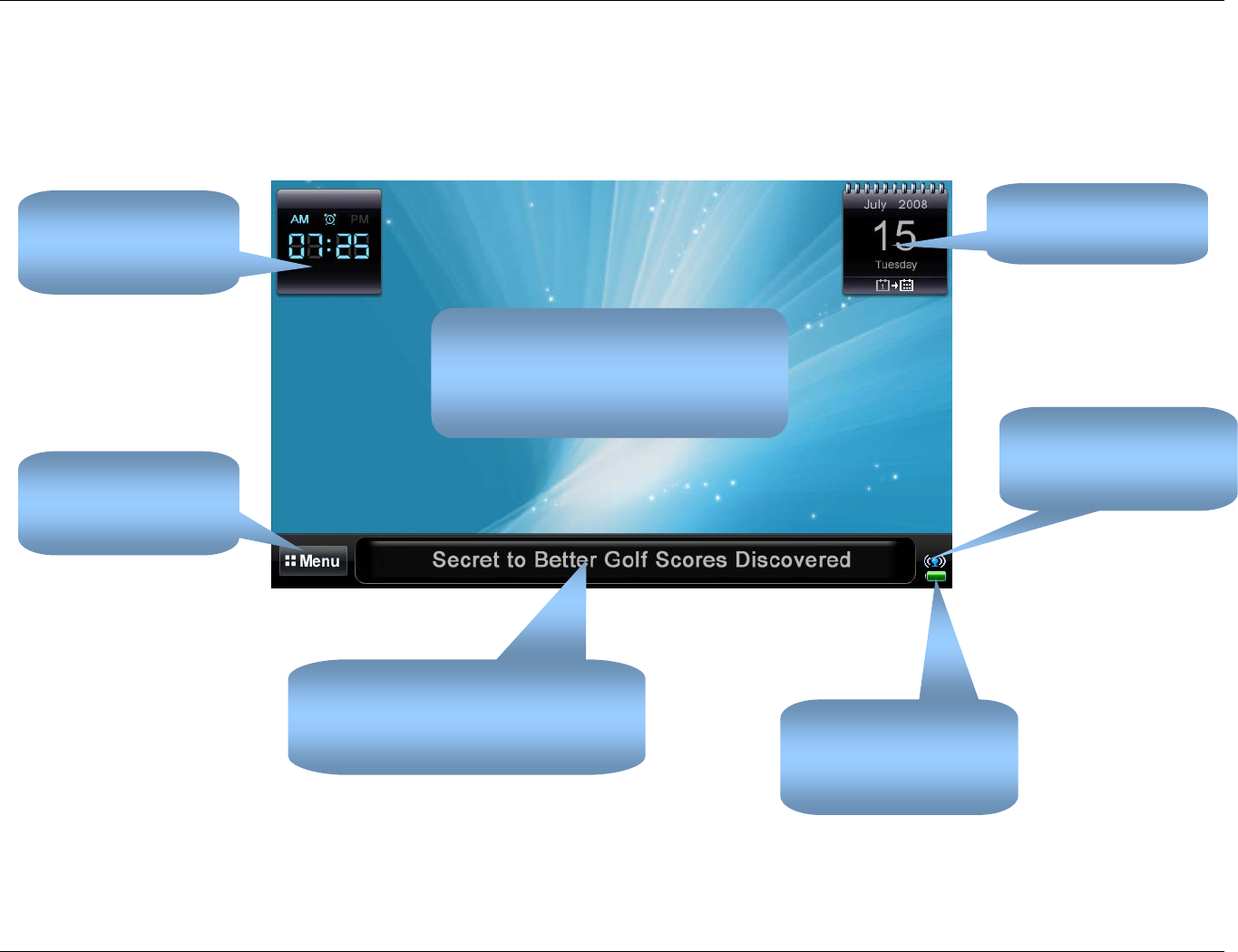

Home Screen Overview

Clock

Tap to set the clock’s

alarm.

Menu button

Tap to open the Main

Menu.

Calendar

Tap to view calendar.

WiFi indicator

Indicates the network

connection status.

News Bar

Tap to open the news article (works when

connected to the internet).

Wallpaper area

Tap to open the Home Settings screen to

change settings to the home display, e.g.

change background image or slideshow.

Power indicator

Indicates the rechargeable

battery power level.

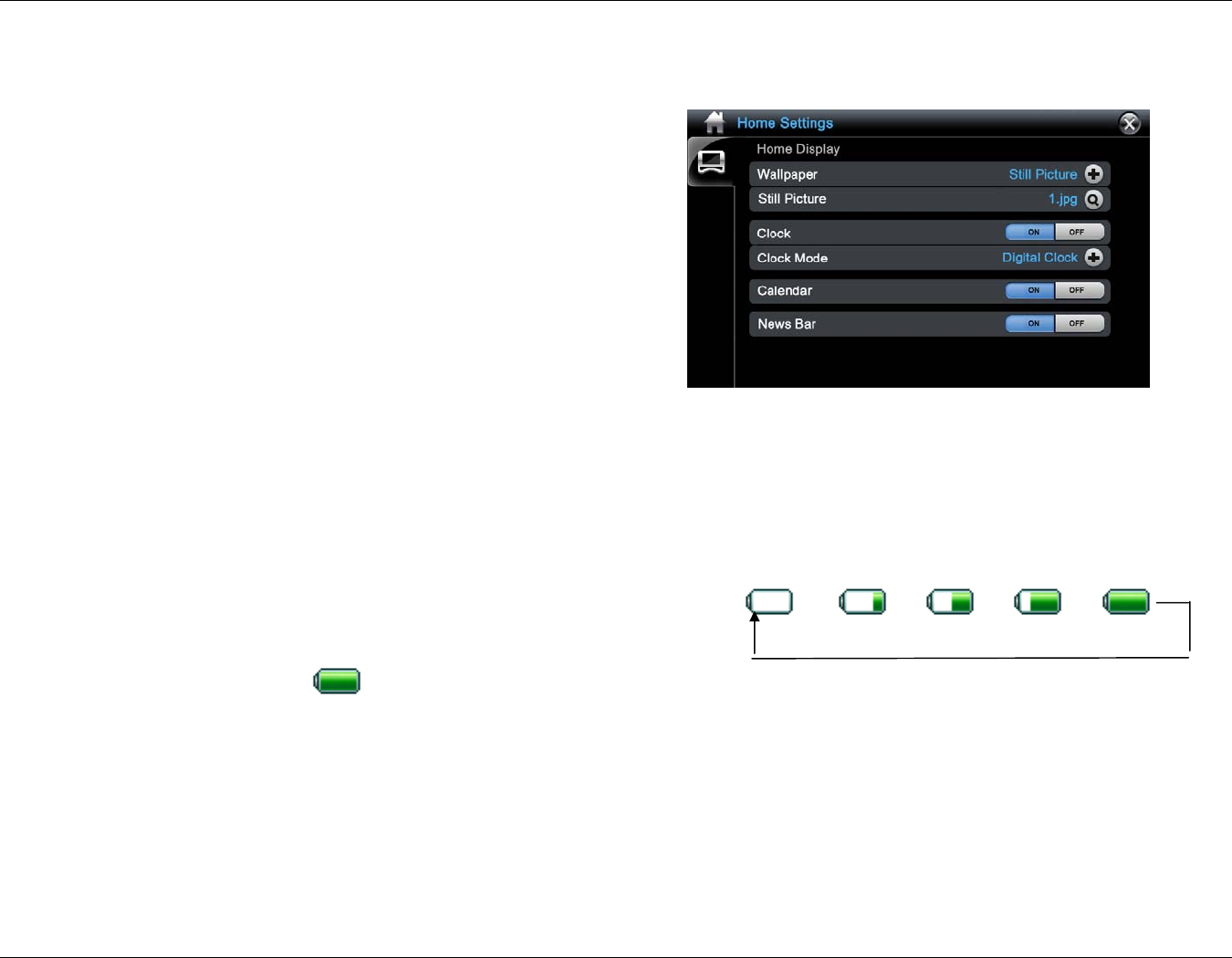

Home Settings Screen

Home Settings screen

Notes:

1) The wallpaper will default to the factory preset if you factory reset the frame.

2) The selected still picture used for the wallpaper is copied to internal memory. If you delete this picture in the Photo application, it will not be deleted

from the internal memory.

3) To add background music or change other settings for the slide show in the Home Screen, please go to the Photo Setup section.

4) User can play a slide show from internal memory or card only, Web or Home Network selection IS NOT enabled for the Home Screen.

Wallpaper

Choose a still picture or

slide show as wallpaper on

the Home Screen.

Clock

Choose between a digital or

analog clock on the Home

Screen, and turn it on or off.

Calendar

Turn the Home Screen

calendar on or off. News Bar

Turn it on or off on the Home

Screen.

Additional Home Settings

In addition to the wallpaper settings, you can also make additional Home

Screen settings:

Clock – Allows you to turn the Home Screen clock on or off.

Clock Mode – Lets you select the display clock mode (digital or analog) in the

Home Screen.

Clock Mode is disabled when slide show is selected or the clock is turned off.

Calendar – Allows you to turn the Home Screen calendar on or off.

News Bar – Allows you to turn the News Bar display on or off in the Home

Screen.

News Bar is disabled when slide show is selected.

Home Display screen

Power Icon

1. When the battery is empty, a pop-up screen will appear and the alarm will

sound.

2. When the battery is empty, connect the power adapter. The battery icon

will flash from empty to full repeatedly.

3. When the battery is full the battery icon will be displayed. When

the battery is not full it displays the current battery status.

Battery status pop-up

>>> >>> >>> >>> .

Wi-Fi icon

Icons Icon Name Description

Wi-Fi icon Connection to wireless access point is present.

The WiFi icon on the Home Screen displays the status of

your network connection.

If the Wi-Fi icon is tapped, the screen will jump to the Wi-Fi

setting screen.

No Wi-Fi icon Connection to wireless access point is not present.

News Bar

The News Bar lets you read news articles by tapping on the article. The News Bar works only when the frame is connected to the internet. Please refer to the

RSS News Reader section for more detailed instructions on how to set up the news feed.

The news feed on the Home Screen is pulled from the News Feeds listed in the RSS News Feeds screen (see News Feed Reader application). The News

Bar will begin with the first news feed listed and displays the news articles in that feed, and then proceeds to the next news feed and displays all of its articles,

then goes to the next news feed, and so forth. This sequence is continuously repeated. The selection of news feeds and their sequence can not be changed.

Wallpaper Settings

For a still picture as wallpaper

1. On the Home Screen, tap the wallpaper area. The Home Settings

screen will appear.

2. Tap the button on the Wallpaper line.

3. Tap Still Picture on the pop-up. Still Picture will appear on the

Wallpaper line.

4. Tap the button on the Still Picture line. The Photo Browser screen

will appear.

5. Tap Frame or Disk to select the picture location.

6. Double tap the picture you want. The picture you selected should appear

in the Still Picture line in the Home Settings screen.

7. Tap the button on the Home Setting screen.

8. On the Save Settings pop-up:

 Tap Yes to save the setting. The Home Screen will appear with your

selected picture as the wallpaper.

 Tap No to cancel the setting. The Home Screen will appear with

current picture or slide show as the wallpaper.

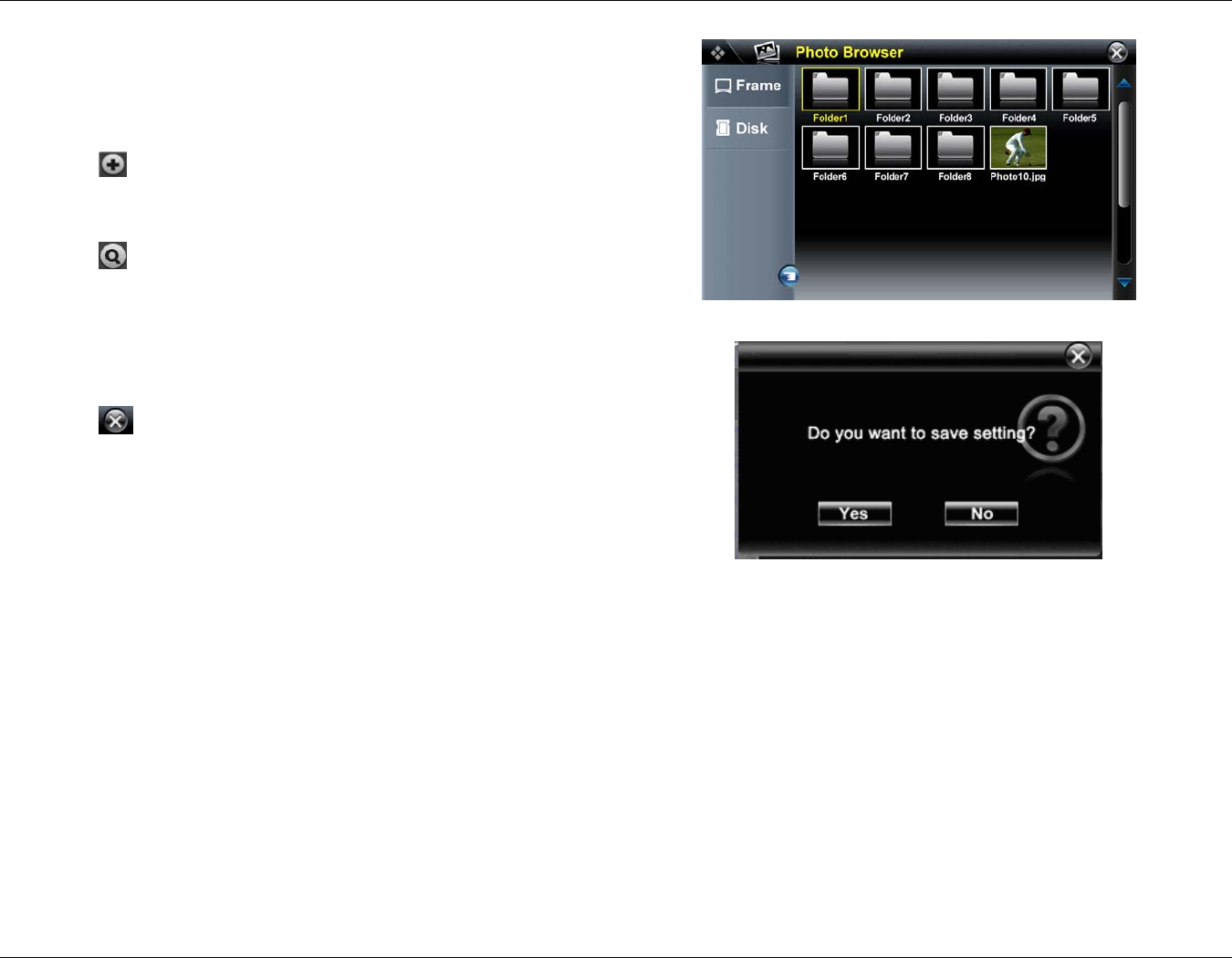

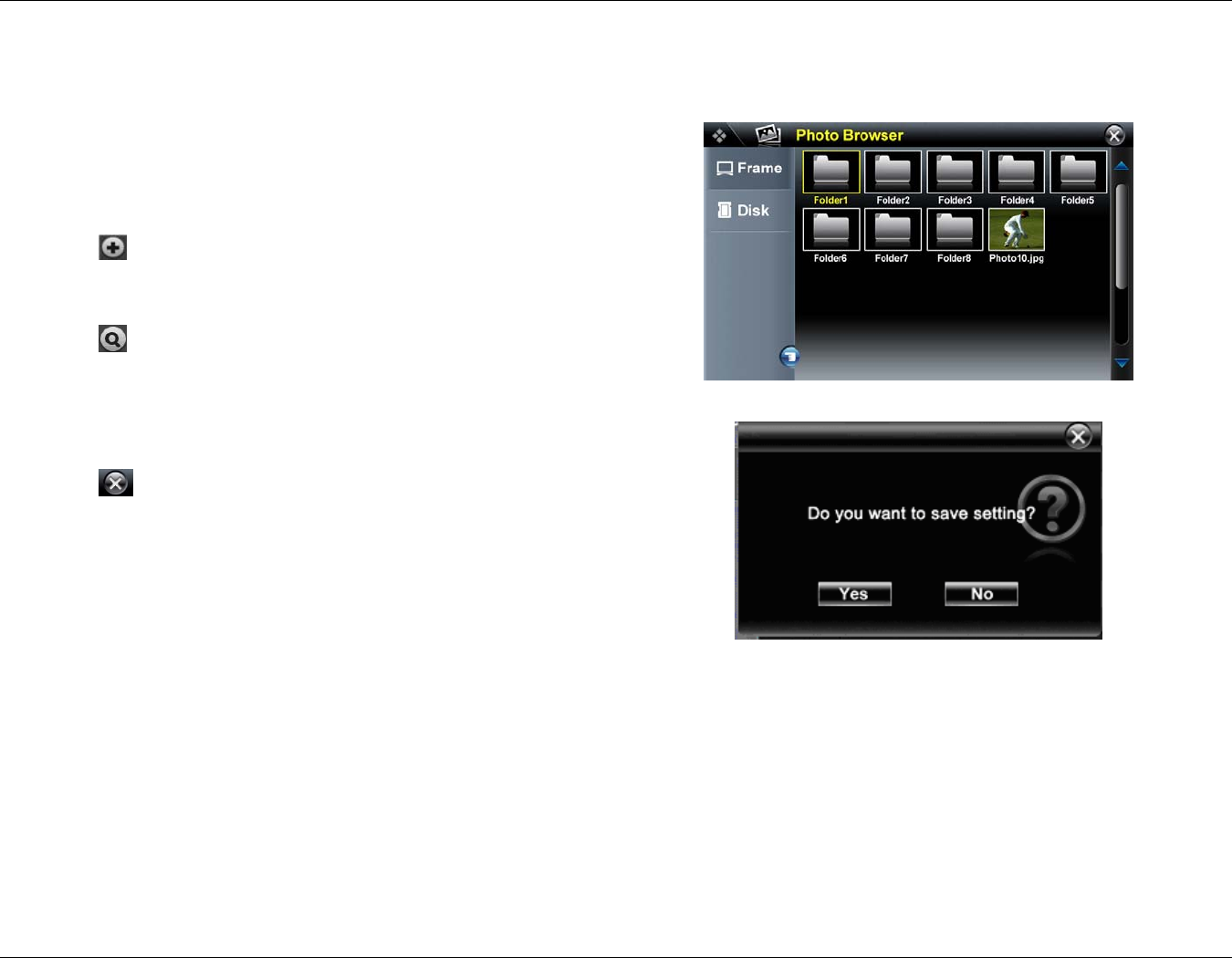

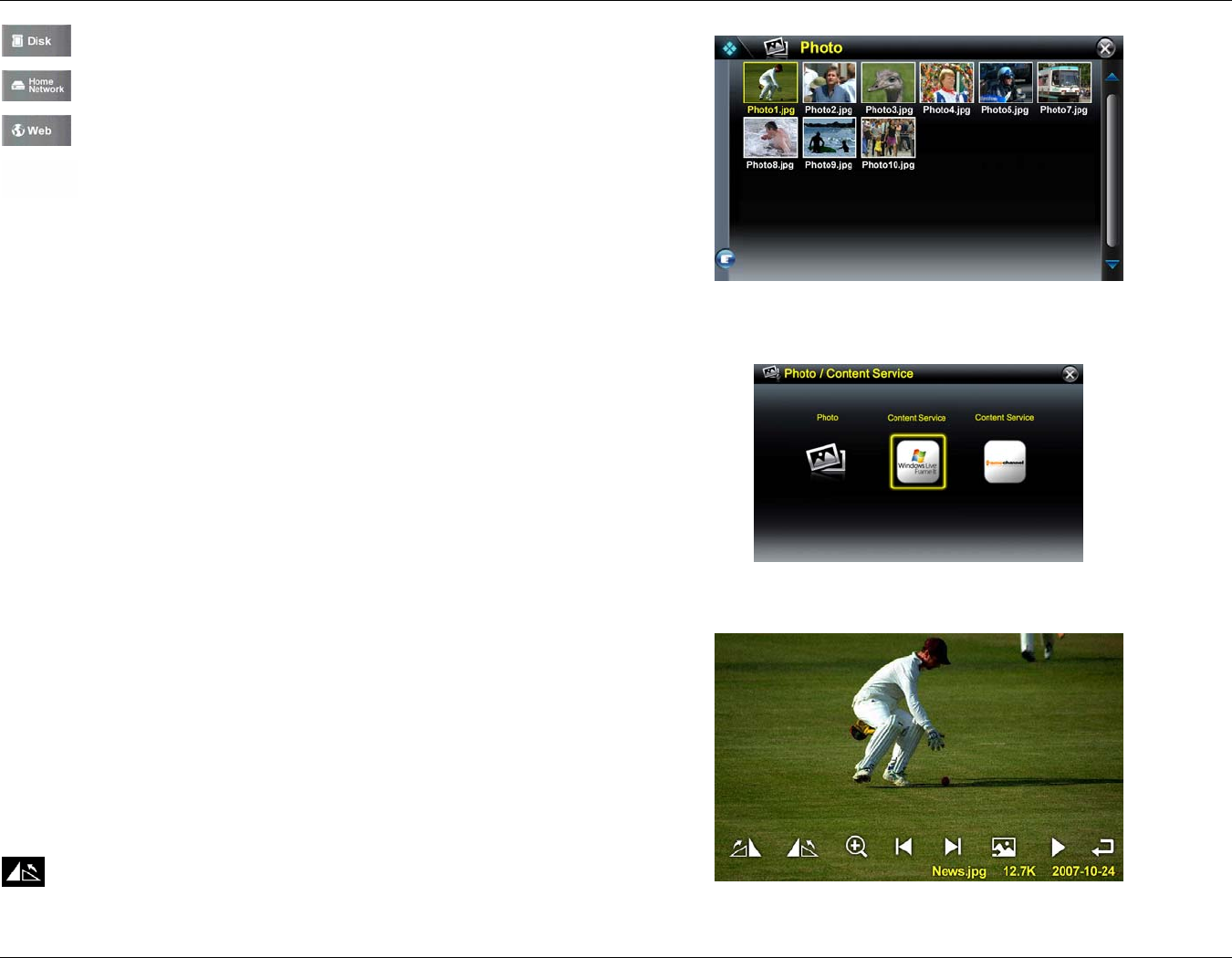

Photo Browser screen

Save pop-up box

For a slide show as the wallpaper

1. On the Home Screen, tap the wallpaper area. The Home Settings

screen will appear.

2. Tap the button on the Wallpaper line.

3. Tap Slide Show on the pop-up. Slide Show will appear on the

Wallpaper line.

4. Tap the button on the Play Slide Show from line. The Photo

Browser screen will appear.

5. Tap Frame or Disk to select location of pictures.

6. Double tap on one of the pictures in the photo display area. The picture

you selected should appear in the Play Slide Show from line in the Home

Settings screen.

7. Tap the button on the Home Setting screen. The picture and the

photo set that you selected will appear in the Home Screen.

8. On the Save Settings pop-up:

 Tap Yes to save the setting. The Home Screen will appear and the

slide show will play from the picture selected.

 Tap No to cancel the setting. The Home Screen will appear with

current picture or slide show as the wallpaper.

When Slide Show is selected as the wallpaper, the Home Screen will only

display the Clock and Calendar.

Photo Browser screen

Save pop-up box

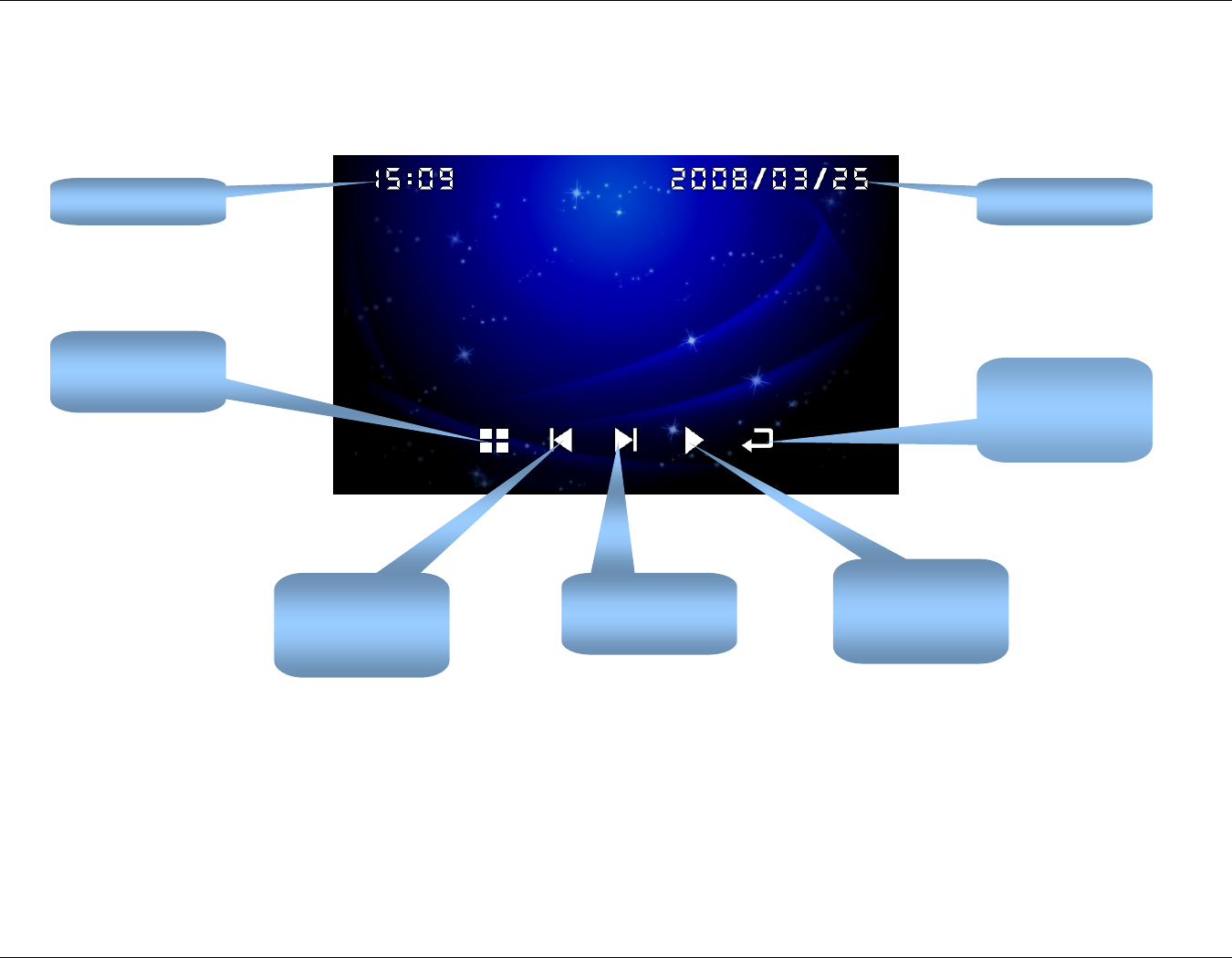

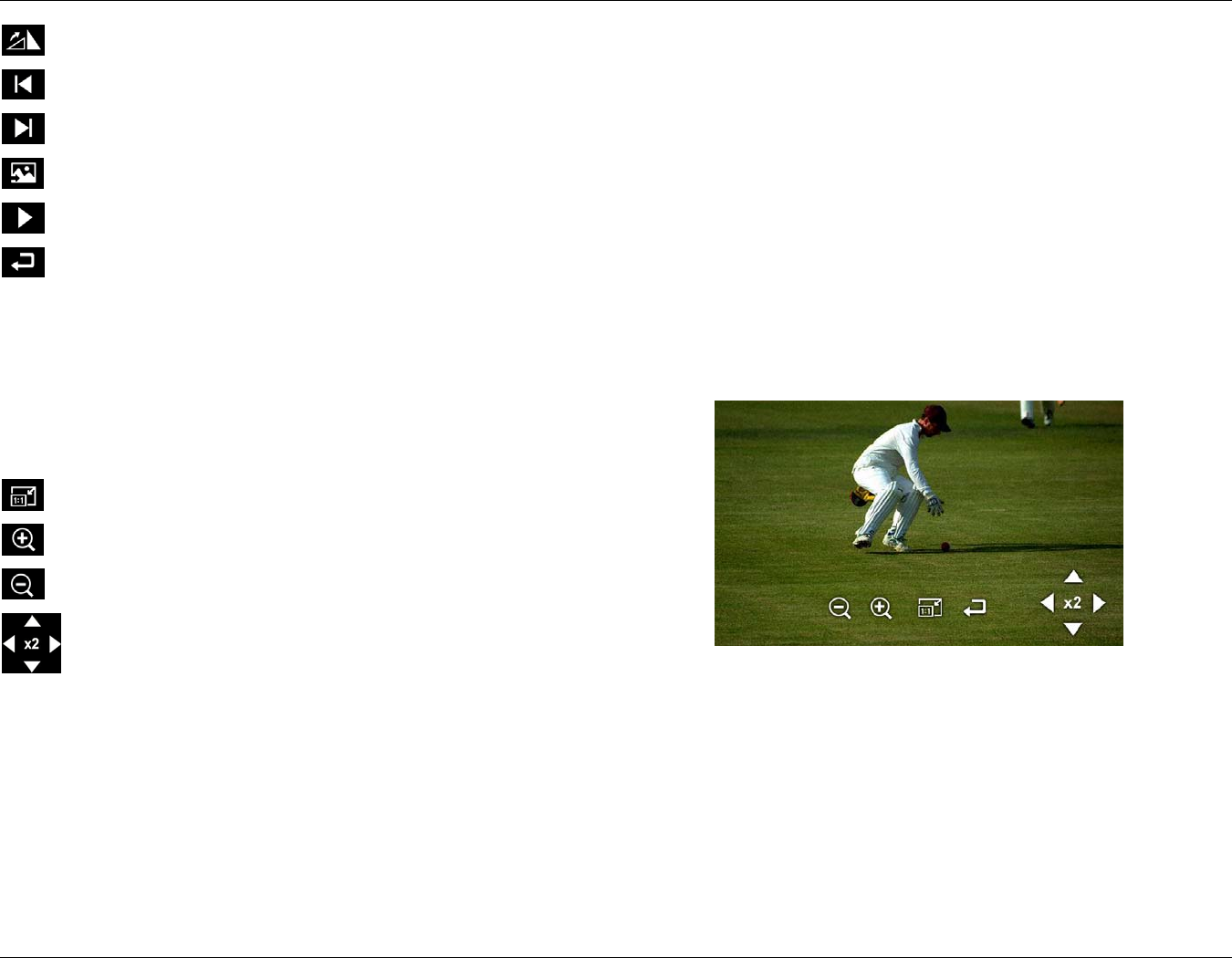

Slide Show Control Buttons

When using the slide show feature, tap the Home Screen wallpaper area to open the Slide Show Control Bar.

Note: When playing slide show in Home setting, user can control to move to next picture by shaking his hand in front of the sensor. Tap the screen, the

control button will appear. Motion sensor is effective either when slide show is being played or being paused (Only for IT7350).

Calendar

Back button

Go back to Home

Settings.

Next button

Go to next photo.

Clock

Menu button

Go to Main Menu.

Previous button

Go back to

previous photo.

Play button

Start slide show

playback.

Clock and Calendar

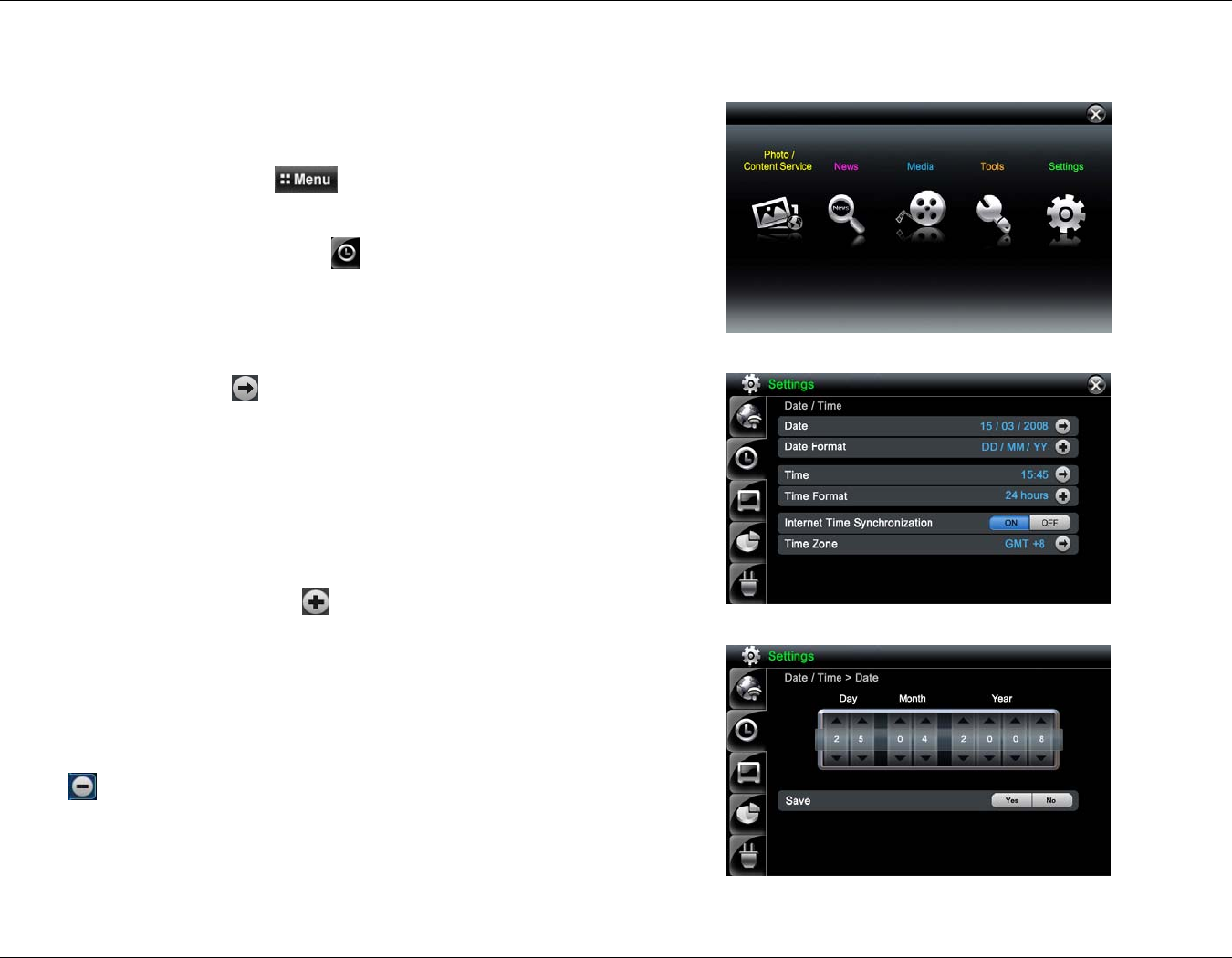

Setting up the Calendar

1. On the Home Screen, tap the button.

2. Next, on the Main Menu screen, tap the Settings icon.

3. Then on the Settings screen, tap the button.

4. The Settings > Date / Time screen will appear.

Set the Date

1. On the Date line, tap the button.

2. The Date / Time > Date screen appears.

3. Tap the up and down arrows to set the day, month, and year.

4. Tap Yes to save the settings or No to cancel the settings. You will be

returned back to the Settings > Date / Time screen.

Set Date Format

1. On the Date Format line, tap the button.

2. A pop-up will appear displaying the available date formats.

 MM / DD / YYYY

 DD / MM / YYYY

 YYYY / MM / DD

3. Tap the desired format. To exit the pop-up without selecting a format tap

the button.

4. You will be returned to the Settings > Date / Time screen.

5. The selected format will now be displayed on the Date Format line.

Main Menu screen

Settings > Date / Time screen

Date / Time > Date screen

Calendar Preview

On the Home Screen, you can tap the area outlined in red to switch between

the Date Display and the Month Display.

Using the Calendar preview

1. On the Home Screen, tap the Calendar to view in full screen.

2. The calendar will be displayed in the day or month mode depending on

how it is set in the Home Screen.

3. Use the buttons listed below to change the calendar view.

Month button - change to month display

Day button - change to day display

Today button - jump to today display

Next button - Go to next day, next month or next year

Previous button - Go to previous day, previous month or previous year

Calendar: Month Display

Calendar: Day Display

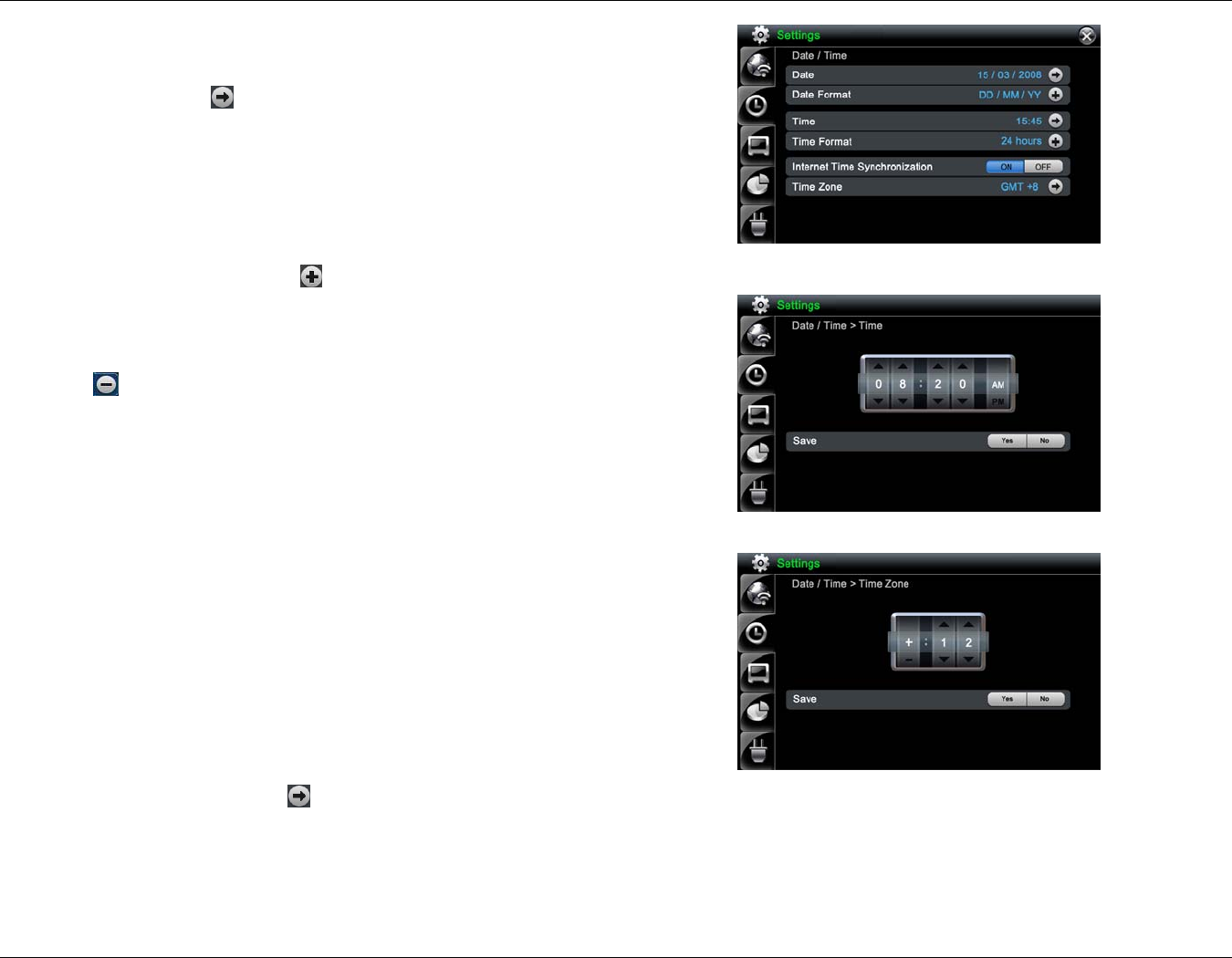

Setting up the Clock

1. On the Home Screen, tap the button.

2. On the Main Menu screen, tap the Settings icon.

3. On the Settings screen, tap the button.

4. The Settings > Date / Time screen will appear.

Main Menu screen

Settings > Date / Time screen

Set the Time

1. On the Time line, tap to open the Date / Time > Time screen.

2. Tap the up and down arrows to set the hour, minute, and AM / PM.

3. Tap Yes to save the settings or No to cancel the settings. You will be

returned back to the Settings > Date / Time screen.

Select Time Format

1. On the Time Format line, tap the button.

2. A pop-up will appear displaying the available time formats: 12 hours or 24

hours.

3. Tap on the desired format. To exit the pop-up without selecting a format,

tap the button.

4. You will be returned to the Settings > Date / Time screen.

6. The selected format will now be displayed on the Time Format line.

Select Internet Time Synchronization

h If you select ON, the system time of your device would be synchronized

with network GMT time. The network GMT time is from the internet.

h If you select OFF, this function will be disabled and the Clock will use local

settings.

Select Time Zone

You only need to set the Time Zone when Internet Time Synchronization is

set to ON. Your Time Zone setting is used for adjusting the GMT time over the

internet.

1. On the Time Zone line, tap the button.

2. The Date / Time > Time Zone screen appears.

3. Tap on the up and down arrows to select the available selections:

 GMT+00 to GMT+13 or GMT-01 to GMT-12

Date / Time > Time screen

Date / Time > Time Zone screen

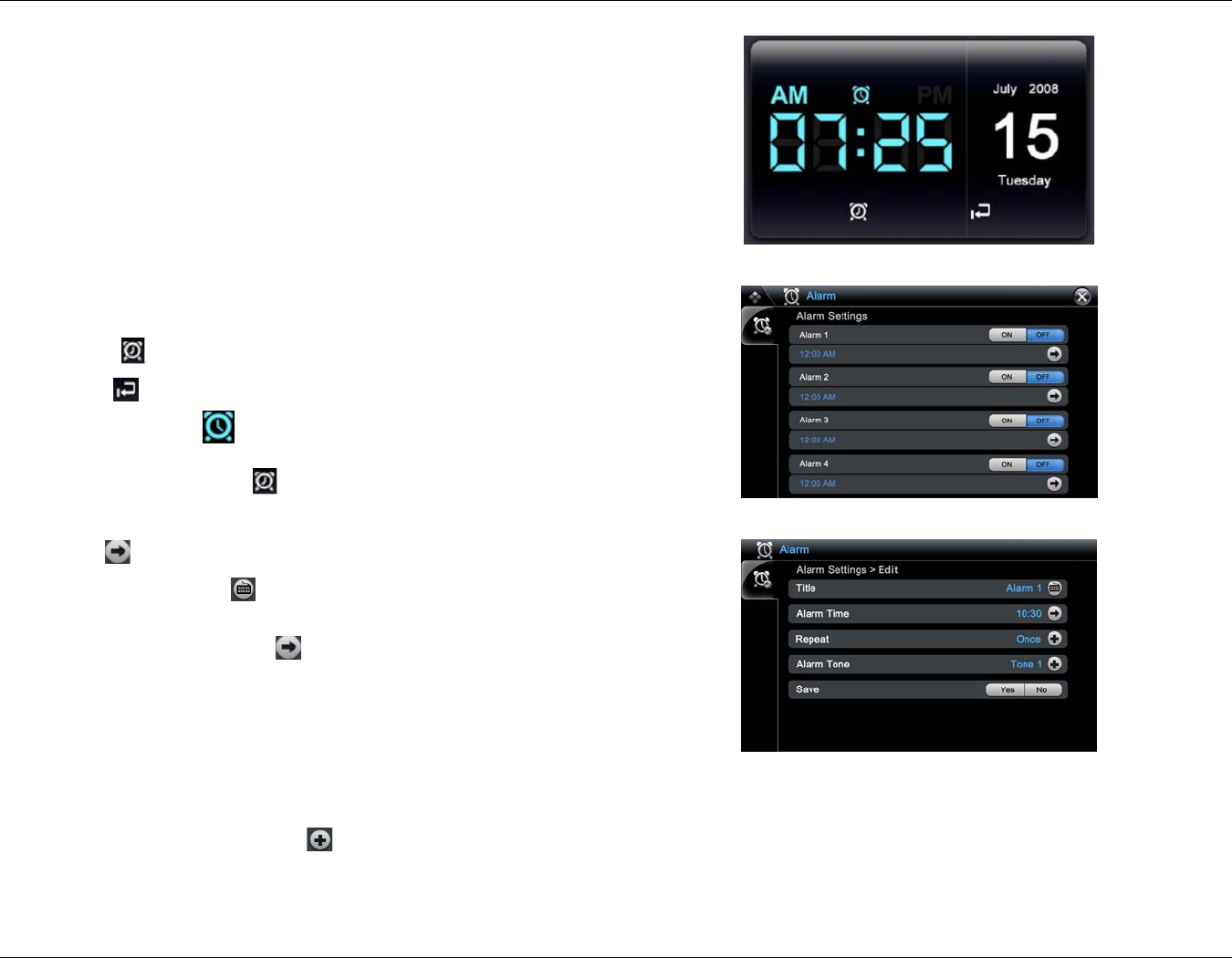

Setting up and using the Clock Alarm

To set an Alarm

You can set up to a maximum of four alarms.

1. Open the Clock

 On the Home Screen, tap the Clock to view in full screen.

 On the Home Screen, tap Menu. Main Menu screen appears. Tap

Tools icon. Tools screen appears. Tap Clock icon.

2. Tap the Clock screen to bring up the Alarm and Back button icons.

 Alarm icon - enter Alarm Settings.

 Back icon - go back to previous page.

Note: The Alarm On/Off icon is on when alarm is active.

3. On the Clock face, tap the icon to open the Alarm Settings screen.

4. Tap the ON/OFF button to select turn ON/OFF the alarm.

5. Tap the button to open the Alarm Settings > Edit screen.

6. On the Title line tap the button to open the Keyboard. Type in the

title of the alarm. Tap OK when you are finished.

7. To set the alarm time, tap the button on the Alarm Time line. The

Alarm Settings > Edit > Alarm Time screen appears.

8. Adjust the time by tapping the up or down arrow button.

If user selects 24 hours time format in Settings > Date/Time > Time

Format, AM / PM will not be displayed.

9. Tap the Yes button to save settings or No to cancel settings. When

finished you will be returned to the Alarm Settings > Edit screen.

10. To have the alarm repeat, tap the button on the Repeat Alarm line.

11. A pop-up will appear. Select how you want the alarm to be repeated.

Available settings are Once / Every Day / Weekdays.

Clock

Alarm Settings screen

Alarm Settings > Edit screen

12. To set the alarm tone, tap the button on the Alarm Tone line.

13. A pop-up will appear. Select which tone you want from a list of 5 alarm

tones.

14. Back on the Alarm Settings >Edit screen, tap Yes to save your alarm

settings or No to cancel settings. You will then be returned to the

larm

Settings screen.

15. To exit the Alarm Settings screen, tap the button.

16. To exit the Clock, tap the clock’s face and then tap the button.

To change an alarm

1. Tap the ON/OFF button to select turn ON/OFF the alarm.

2. To change an alarm’s settings, tap the button on the alarm line you

want to change. Repeat the above step to change the alarm settings.

3. To exit the Alarm Settings screen, tap the button.

4. To exit the Clock, tap the clock’s face and then tap the button.

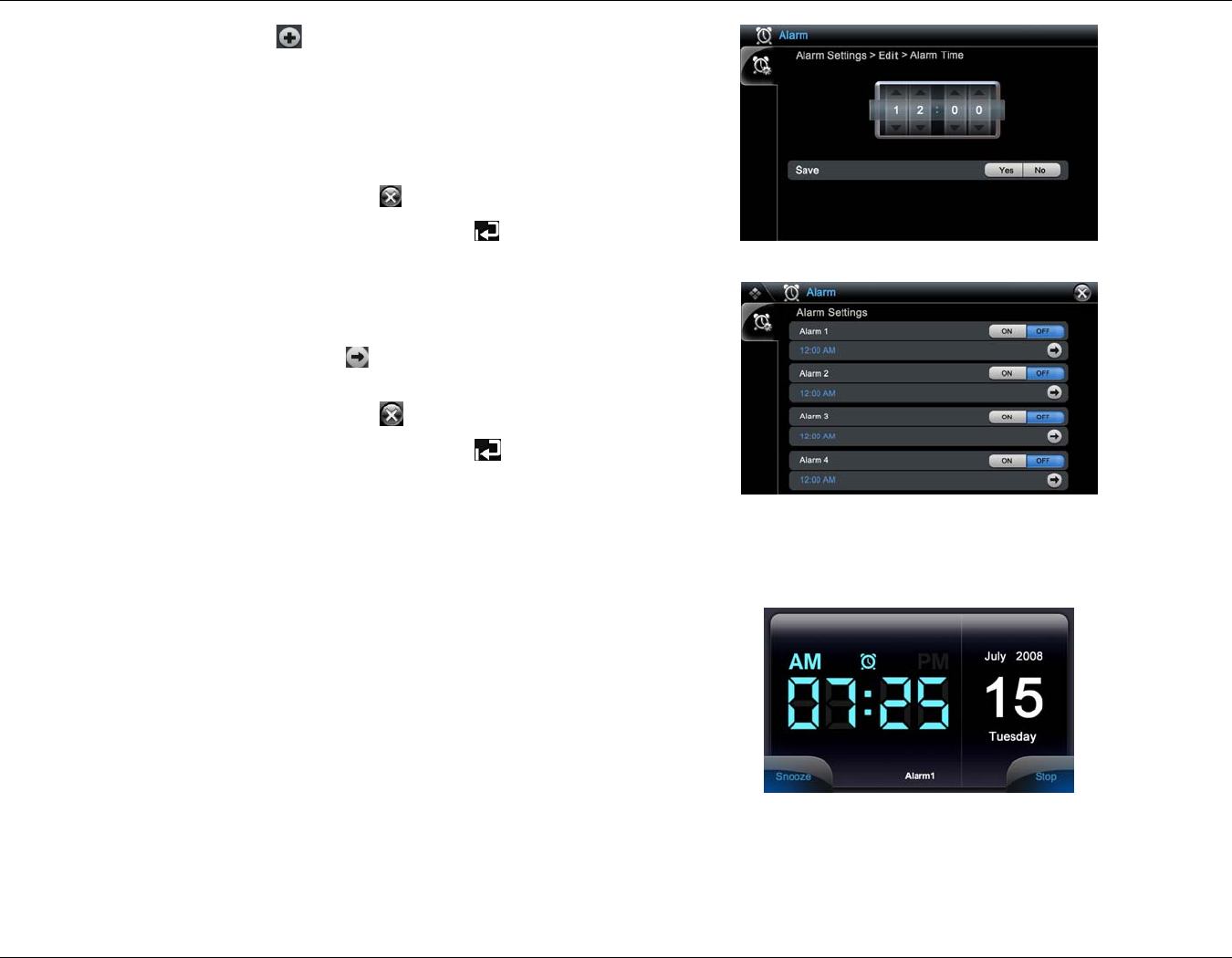

Alarm Settings > Edit > Alarm Time screen

Alarm Settings

Alarm Control

1. When the alarm time is reached, the selected alarm tone will be heard. At

the same time, the Alarm Control buttons are shown.

 Snooze button – Tap this button to snooze the alarm. The alarm tone

will stop and then turn on again after 5 minutes.

 Stop button – tap this button to turn the alarm off.

2. If you don't tap any control button, it will beep the alarm tone for 5

minutes and then stop. After 5 minutes, it will beep again. The alarm will

repeat this sequence for 40 minutes. Afterwards, it will turn off

automatically.

Clock with Alarm Controls

Frame Tools

Main Menu

1. On the Home Screen, tap the button.

2. The Main Menu screen appears. From here, you can enter the different

applications the frame has to offer.

 Photo – tap to open the Photo application.

 News – tap to open the RSS News Reader application.

 Media – tap to open the Media Player application.

 Tools – tap to go to the Tools application.

 Settings – tap to open the System Settings screen.

Main Menu screen

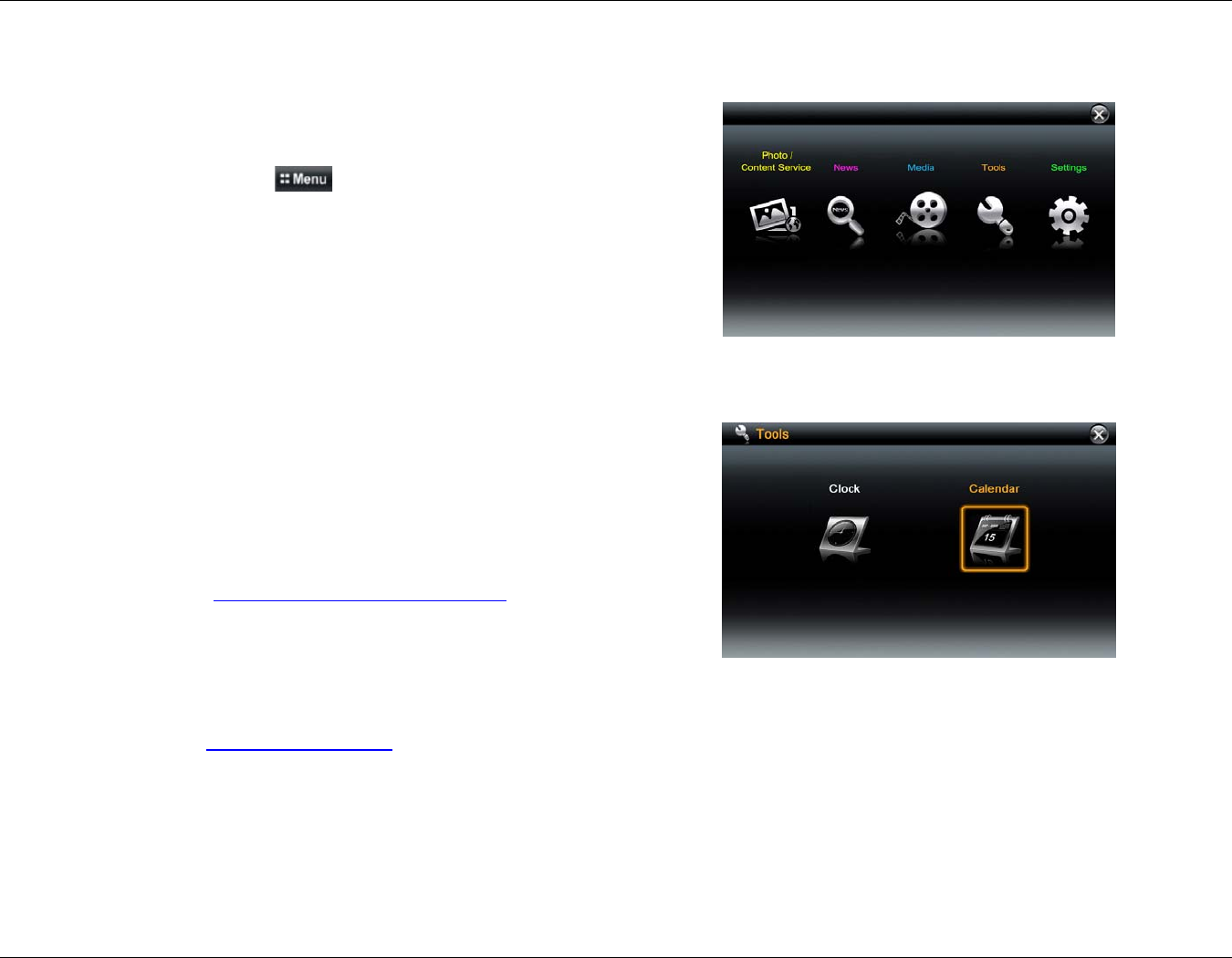

Tools Screen

In Main Menu, tap the Tools button to open the Tools screen. It includes two

applications:

h Clock – The clock application lets you add, change, delete and control an

alarm. You can set up a maximum of 4 alarms. For more details on using

the alarm function see Setting up and using the Clock Alarm section.

You cannot use this application to set up the Home Screen clock's time,

format, or time zone.

h Calendar – The Calendar application allows you to use the calendar to

preview future, or past dates. For more details on using the Calendar

preview function, see Setting up the Calendar section.

You can not use this application to set the Home Screen calendar's date.

Tools screen

Keyboard

The Keyboard is used throughout the frame as a means to enter information

such as titles, names, etc.

It is based on the QWERTY layout used on standard keyboards. As you type

in your information, it will be displayed in the top half of the keyboard.

button – tap to accept your input.

button – tap to exit the Keyboard without saving your input.

Additional keys:

Special / Additional Characters key

Accent / Special Characters for Latin alphabets

Keyboard

Keyboard – Special / Additional Characters

Keyboard - Accent / Special Characters (lower case)

Keyboard - Accent / Special Characters (upper case)

On-Screen Display Bar

Use the On-Screen Display bar to easily navigate between applications without closing a running application and to have easy access to key settings like

brightness, volume control and screen lock.

Open and close the On-Screen Display (OSD) Bar

1. Open the OSD Bar by pressing the MODE button on the back of the frame. The OSD Bar will appear on the Home Screen.

2. Press Mode button again or tap the Home Screen wallpaper area to close the OSD Bar.

Note: The OSB Bar can only be accessed in some applications.

OSD Bar Description

Home Screen with On-Screen Display (OSD) Bar

Brightness button

Adjust the LCD brightness.

Volume buttons or

Adjust volume level.

Screen Lock buttons or

Lock or unlock the touch screen.

Home button

Go back to Home Screen.

Main Menu button

Go to Main Menu screen.

Media button

If Media Player is hidden, user

can tap Media button to go to

the Media Player screen.

If the Media Player is not

hidden, the Media button is

disabled.

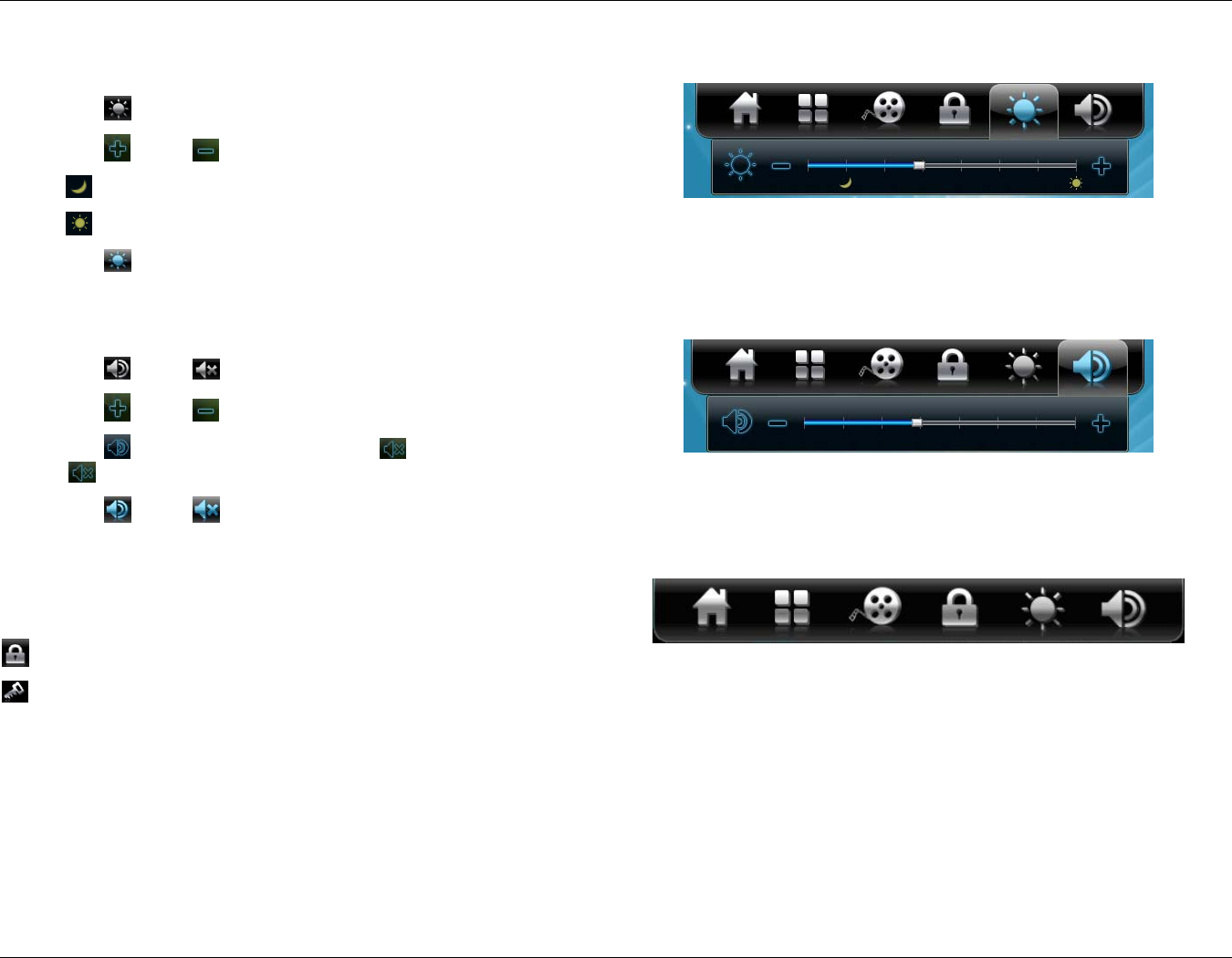

Adjust LCD Brightness using OSD Bar

1. Tap the icon once to open the LCD Brightness OSD buttons.

2. Tap the icon or icon to adjust the LCD brightness.

 Night icon: Adjust to this level for a darker environment.

 Sun icon: Adjust to this level for a brighter environment.

3. Tap the icon to close the LCD Brightness OSD.

OSD Bar – Brightness selected

Adjust Volume Level using OSD Bar

1. Tap the icon or icon once to open the Volume OSD buttons.

2. Tap the icon or icon to adjust the volume level.

3. Tap the icon to mute the speaker. The icon will be shown. Tap

the again to turn off mute.

4. Tap the icon or icon once again to close Volume OSD buttons.

OSD Bar – Volume Level selected

Lock / Unlock the screen using OSD Bar

Lock or unlock the screen by tapping the respective icon on the OSD Bar:

Lock icon - locks the touch screen

Key icon – unlocks the touch screen

OSD Bar – Lock

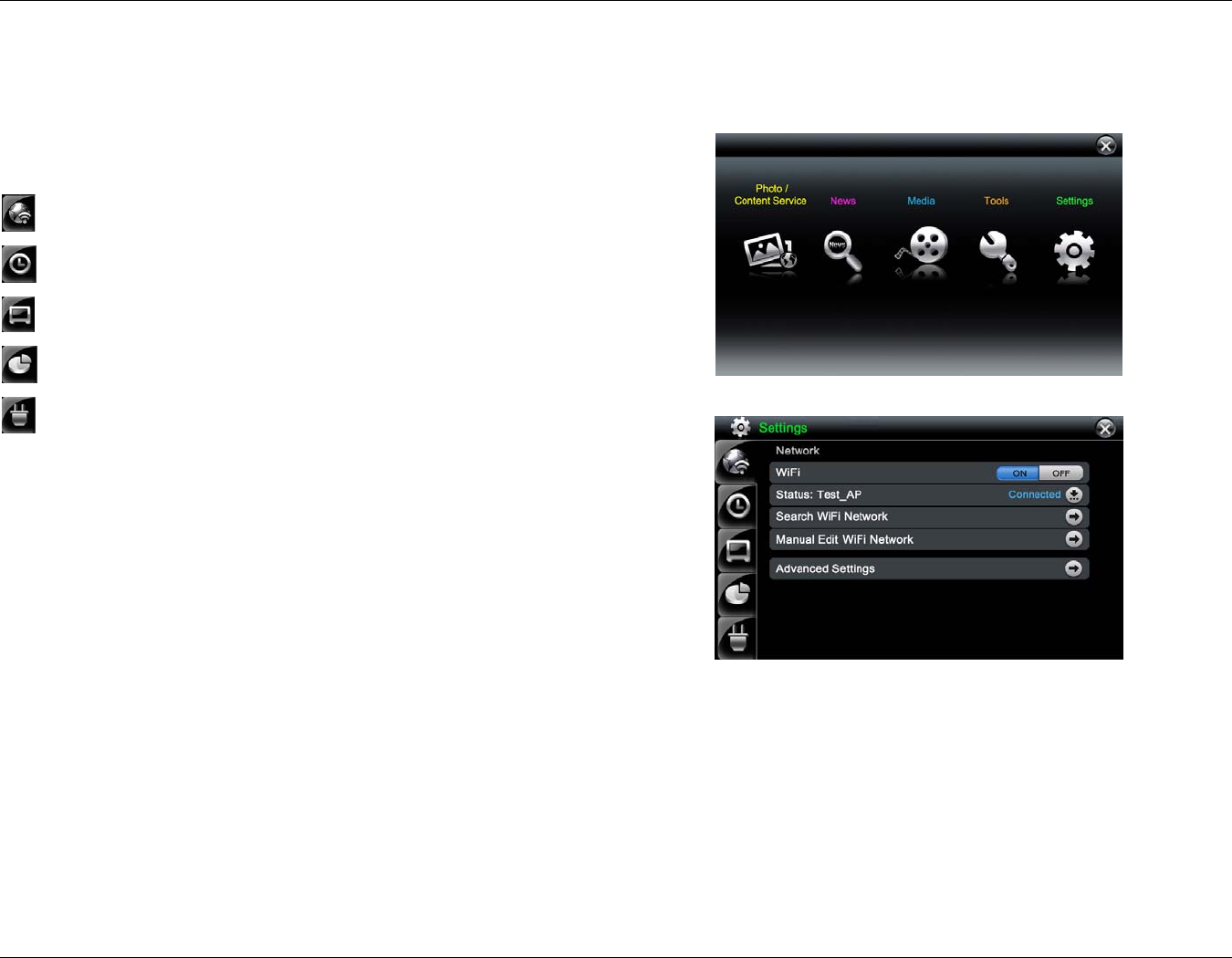

Settings

1. On the Home Screen, tap the Menu button.

2. The Main Menu screen appears. Tap on the Settings icon.

3. The Settings screen appears.

Network button – configure your wireless network

Date / Time button – configure the Home Screen clock and calendar

Display button – make screen settings

System button – make system settings

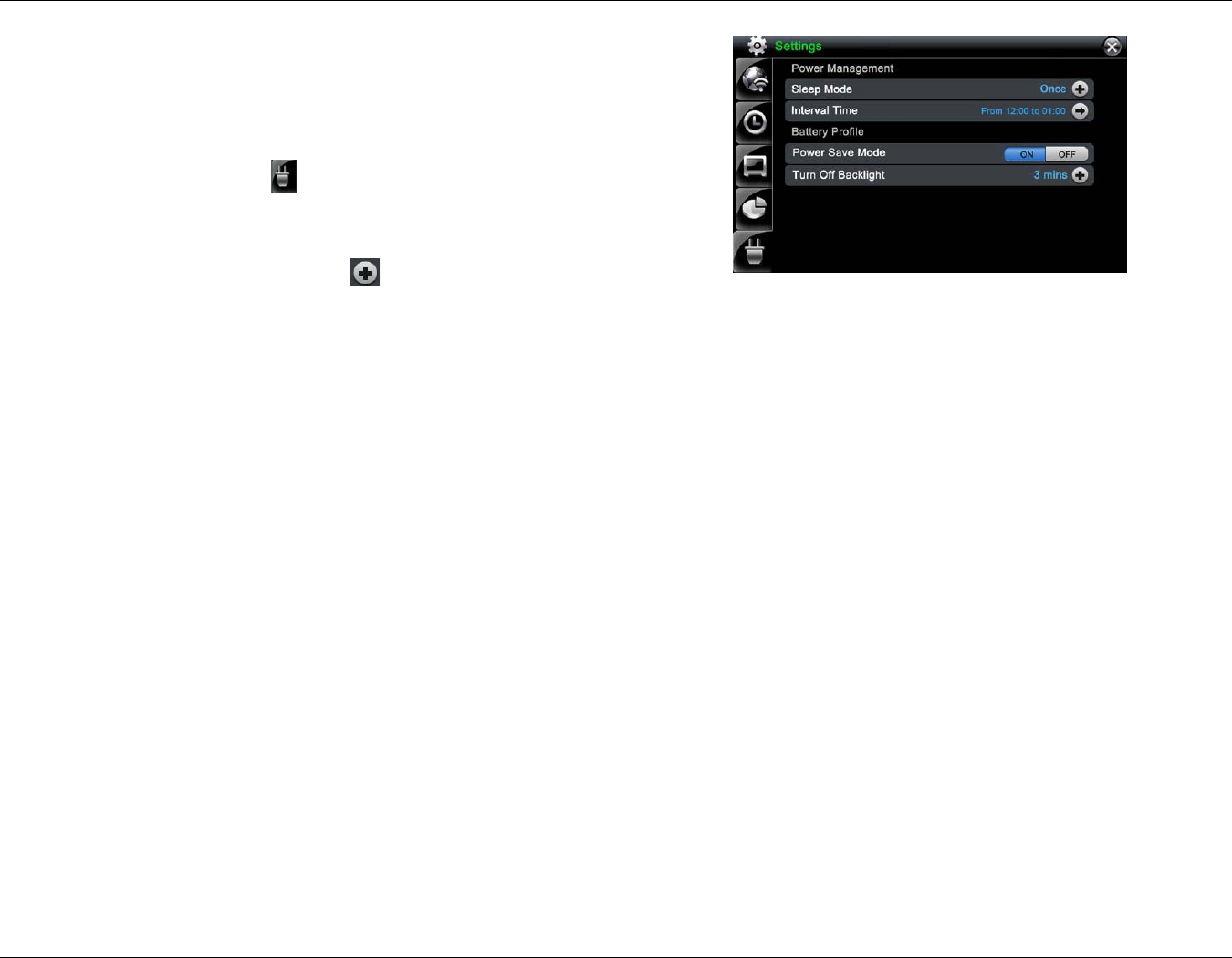

Power Management button – make power management settings

Main Menu screen

Settings screen (default view)

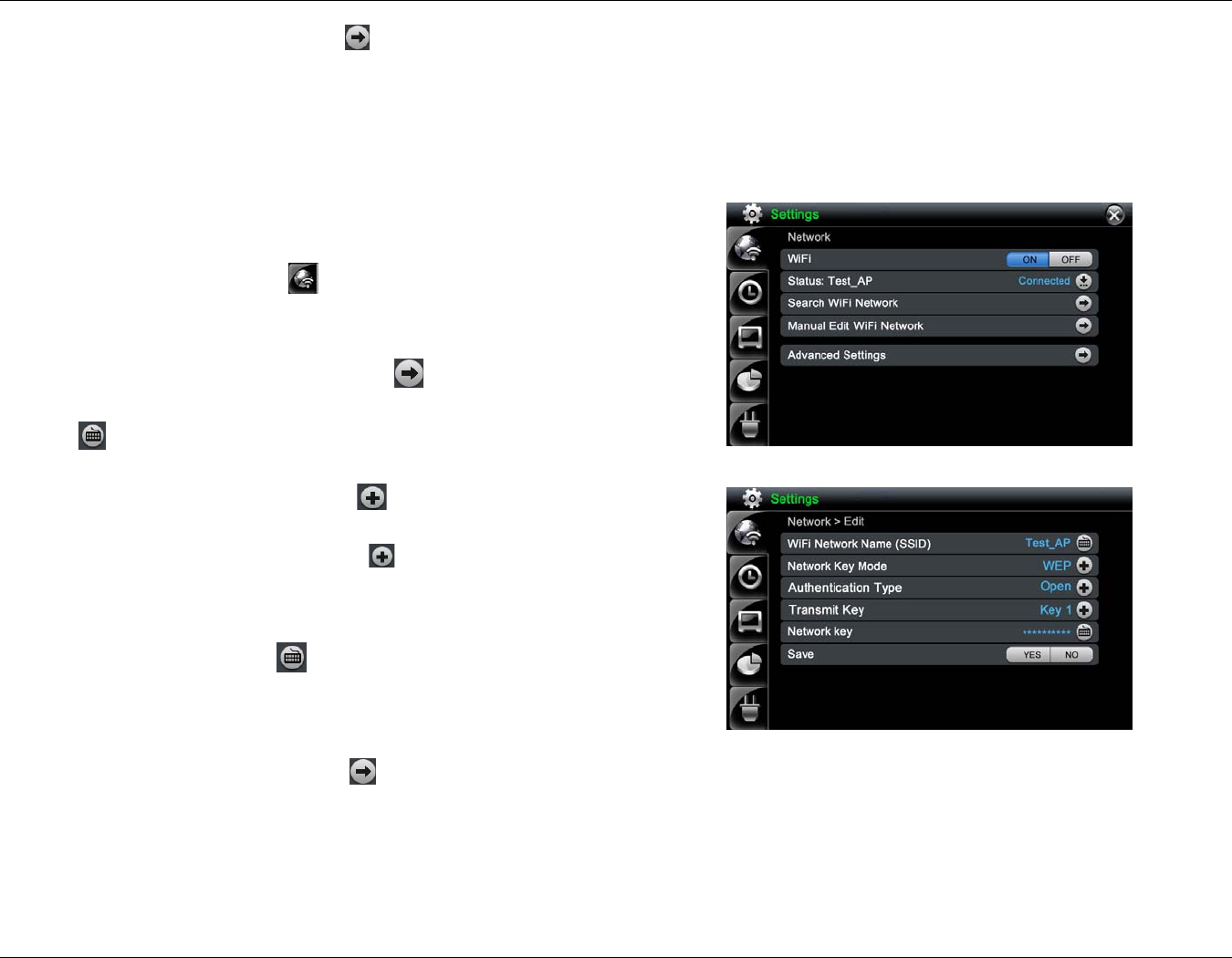

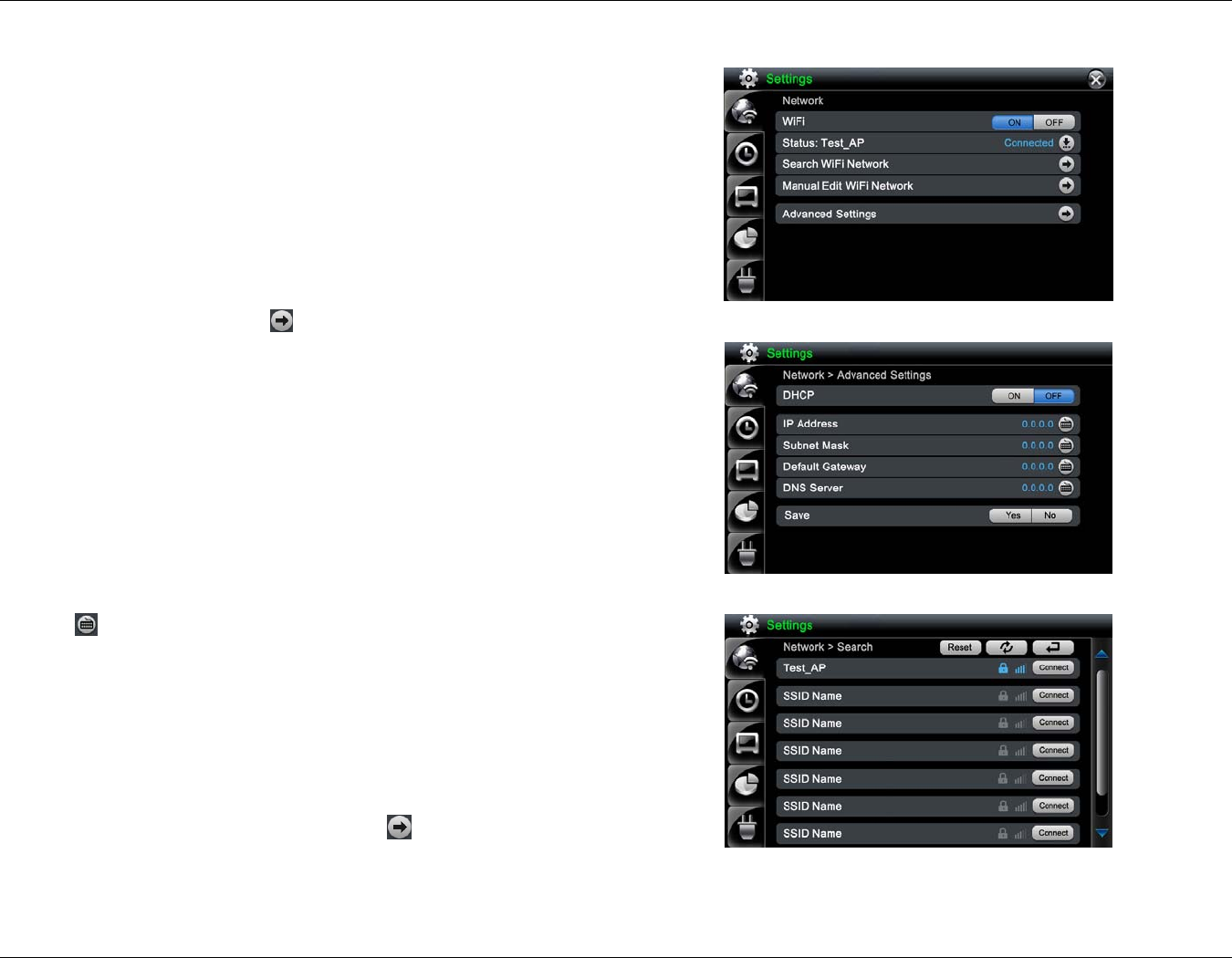

Network

Notes:

1) The frame does not support Hotspot login or web browser internet login.

2) Please make sure the Wi-Fi network is connected successfully before you use any network related applications, e.g. Web Photo, Internet Radio, or RSS

News Reader.

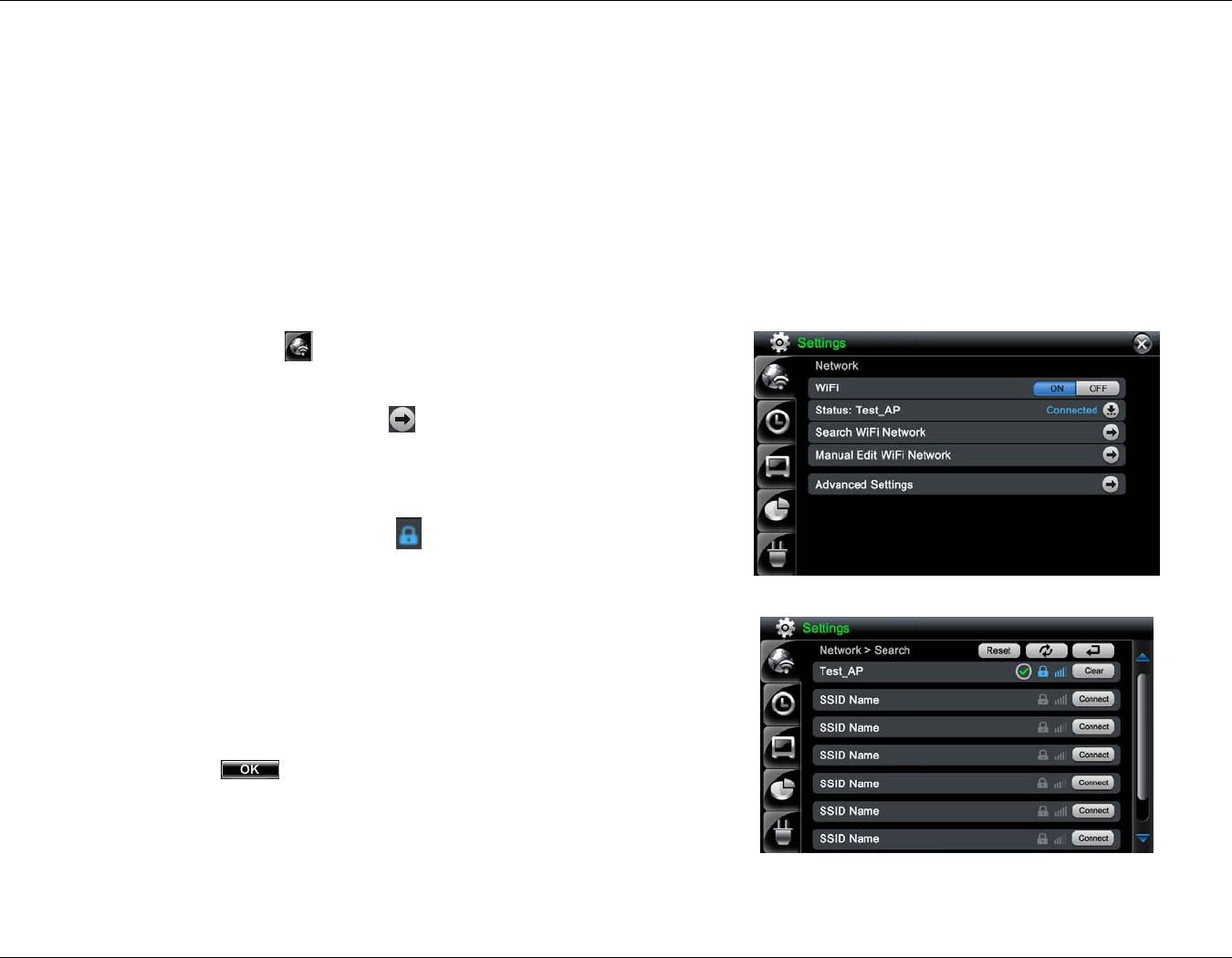

Setup Wi-Fi Network - Access Point’s DHCP settings is On and the AP SSID is not hidden

1. On the Setting screen, tap the button. The Network screen appears.

2. On the WiFi line, tap the On button to turn on WiFi.

3. Next, on the Search WiFi Network line, tap to begin searching for all

available Access Points (AP).

 All the available access points and their signal strength are listed in

Network > Search screen.

 If the access point has a network key, the icon will be displayed.

4. On the SSID Name line for the network you want to connect, tap Connect.

 If the access point has a network key, a screen will be prompt to remind

user to input the network key.

If you are using a Wi-Fi network other than your own, then you must consult the

Network Administrator for that network to get access (i.e. network key).

Note: If the AP Network Key Mode is WEP, a pop-up menu will appear after

tapping the Connect button. User must select the shared key or open key

and key 1.2.3.4. Tap to confirm.

Network screen

Network Search screen

5. Tap button to bring up the Keyboard and type in the network key.

Step 5 will be skipped if connecting to an unsecured network.

6. Tap to confirm.

7. A “Connecting…” dialog box appears.

8. After successfully connecting to the access point, you should see a green

checkmark icon next to AP SSID name.

9. Tap the button to refresh the Wi-Fi AP list or tap the button

to return to Network screen.

10. Tap Clear button to disconnect current AP connection and clear all of the

settings in current AP, including the network key.

11. If connection fails, a pop up message, “Network Connection Failed”, will

appear. Tap OK and try connecting to the access point again.

Note: If the WiFi network can not work, please tap the Reset button. A pop up

message "Do you want to reset WiFi settings?" will appear. Tap

button to reset the WiFi settings and user must restart the frame. WiFi Reset will

clear the network key contents. Tap button to cancel the reset the WiFi

settings.

Wi-Fi settings Reset

WEP Security Setting box

Network Key Input box

Wi-Fi Network Search Screen

Network Connection Failed

Setup Wi-Fi Network - Access Point’s DHCP settings is ON but the AP SSID is hidden and no encryption

key is needed

Note: 1) Follow these steps ONLY if your AP SSID name is hidden. If you are using a Wi-Fi network other than your own, then you must consult the Network

Administrator for that network to get access (i.e. network key).

2) Since your AP SSID is hidden, you can’t see your AP in Wi-Fi Network Search Screen. After you input your AP details in Manual Edit Wi-Fi Network

Screen, your AP can be shown in Wi-Fi Network Search Screen.

1. On the Setting screen, tap the button. The Network screen

appears.

2. On the WiFi line, tap the On button to turn on WiFi.

3. On the Manual Edit Wi-Fi Network line, tap button. The Network >

Edit screen appears.

4. Tap to open the Keyboard screen. Type in your Wi-Fi AP SSID name

and then tap OK to save.

5. On the Network Key Mode line tap the button. A pop-up list will

appear. Tap on the network key mode you want. Available modes are:

 No

 WEP

 WPA

 WPA2

6. On the Authentication Type line tap the button. A pop-up list will

appear. Tap the authentication type you want. If Network Key Mode is

WPA or WPA2, the Authentication Type and Transmit Key can not be

selected.

7. On the Network Key line tap to open the Keyboard screen. Type in

your network key and then tap OK to save.

8. On the Save line tap Yes to save or tap No to cancel. You will be returned

to the Network screen.

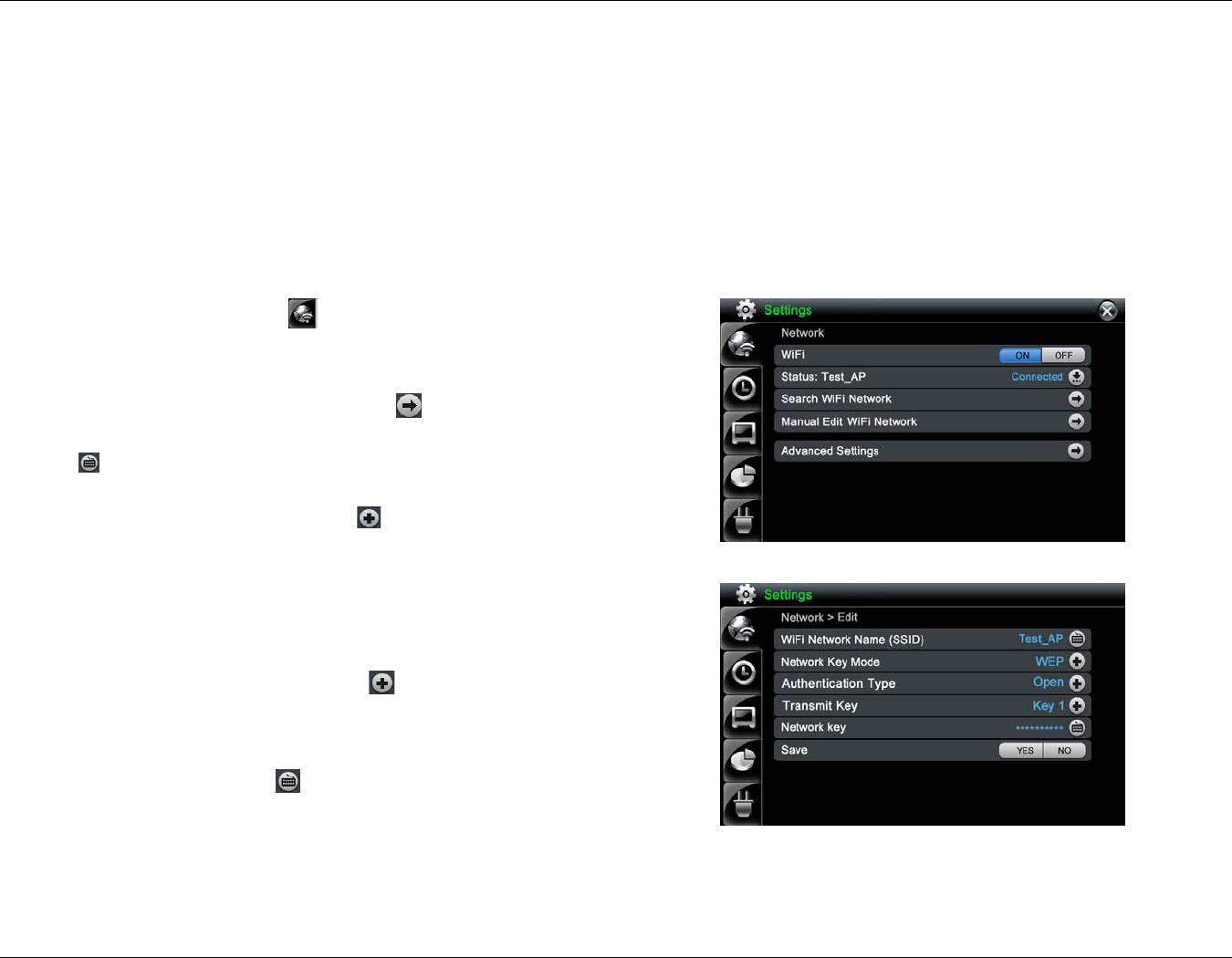

Network screen

Network Edit screen

9. On the Search WIFi Network line tap to open the Network Search

screen. You should see the newly entered Wi-Fi network name.

10. Tap Connect button to connect the newly added Wi-Fi network.

Manual Edit Wi-Fi Network Screen

1. On the Setting screen, tap the button. The Network screen

appears.

2. On the WiFi line, tap the On button to turn on WiFi.

3. On the Manual Edit Wi-Fi Network line, tap button. The Network >

Edit screen appears.

4. Tap to open the Keyboard screen. Type in your Wi-Fi AP SSID

name and then tap OK to save.

5. On the Network Key Mode line tap the button. A pop-up list will

appear. Tap on the network key mode you want.

6. On the Authentication Type line tap the button. A pop-up list will

appear. Tap on the Authentication Type you want. If Network Key

Mode is WPA or WPA2, the Authentication Type and Transmit Key

can not be selected.

7. On the Network Key line, tap to open the Keyboard screen. Type in

your network key and then tap OK to save.

8. On the Save line tap Yes to save or tap No to cancel. You will be

returned to the Network screen.

9. On the Search WIFi Network line, tap to open the Network Search

screen. You should see the newly entered Wi-Fi network name.

10. Tap Connect button to connect the newly added Wi-Fi network.

If you are using a Wi-Fi network other than your own, then you must consult

the Network Administrator for that network to get access (i.e. network key).

Network screen

Network Edit screen

Advanced Settings

Notes:

1) Follow the steps of Advanced Settings ONLY if your access point’s

DHCP setting is OFF. The frame needs to use a fixed IP address to

connect to the AP.

2) If you are using a Wi-Fi network other than your own, then you must

consult the Network Administrator for that network to get access (i.e.

network key).

1. On Network screen, tap the button on the Advanced Settings line.

The Advanced Settings screen will appear.

2. On the DHCP line, select On or Off. Normally the DHCP is ON and the

frame can get the IP address assigned by the access point. If the DHCP

is OFF, the frame will use a fixed IP address to connect to the access

point.

3. If the DHCP is OFF, then you need to input the following settings:

 IP Address

 Subnet Mask

 Default Gateway

 DNS Server

4. Tap to open the Keyboard and type in the required settings. Tap OK

to save your entries.

5. On the Save line:

 Tap Yes to save the advanced network settings and go back to the

Network screen.

 Tap No to cancel without saving and go back to the Network screen.

6. On the WiFi line, tap the On button to turn on WiFi.

7. Next, on the Search WiFi Network line, tap to begin searching for all

available Access Points (AP).

 All the available access points and their signal strength are listed in

Network > Search screen.

Advanced Settings screen (DHCP is OFF)

Network Settings screen

Wi-Fi Network Search screen

 If the access point has a network key, the icon will be displayed.

8. On the SSID Name line for the network you want to connect to, tap

Connect.

 If the access point has a network key, the user will be prompted by a

pop-up screen to input the network key.

Note: If the AP Network Key Mode is WEP, a pop-up menu will appear after

tapping the Connect button. User must select the shared key or open

key and key 1.2.3.4. Tap to confirm.

9. Tap button to bring up the Keyboard and type in the network key.

10. Tap to confirm.

11. A “Connecting…” dialog box appears.

12.

fter successfully connecting to the access point, you should see a green

checkmark icon next to AP SSID name.

13. If connection fails, a pop up message “Network Connection Failed” will

appear. Tap OK and try connecting to the access point again.

WEP Security Setting box

Network Key Input box

Wi-Fi Network Search screen

Notes:

1) If the connection is failed, the Status bar displays “Not Connected”

2) When the Status is showing “Connecting”, the device has just finished the association with AP and is trying to make connection. Please be patient

until it shows “Connected”.

3) Tap the button to view the network details, including IP Address, Subnet Mask, Default Gateway and DNS Server.

4) If you are using a Wi-Fi network other than your own then you must consult the Network Administrator for that network to get access (i.e. network key).

Date / Time

See the Clock and Calendar section for instructions on the Date / Time settings.

Display

On the Settings screen, tap button to enter the Display Screen.

Screen Calibration

You can calibrate the touch screen to have a greater sensitivity.

1. Tap the button to start calibrating the screen.

2. There are five (5) points (+) needed to tap to calibrate the touch screen. The

first point (+) is in the middle of the screen and there is one (1) point (+) in

each corner. Follow the on screen instructions to calibrate the frame.

Brightness

1. On the Brightness line, tap the button. A pop-up list will appear. There

are eight (8) levels of brightness you can select from.

2. Tap on the brightness level you want.

You can also set the LCD brightness using the On-Screen Display Bar. See

Adjust LCD Brightness using OSD section.

Display screen

Auto Playback Demo Video

1. On the Auto Playback Demo Video line, select ON or OFF.

 If the user turns OFF the Auto Playback Demo Video, operation of frame

is normal.

 If the user turns ON the Auto Playback Demo Video, the frame will

continuously play the demo video until the user touches the screen.

 If no one touches the device for 3 minutes, even during slide show, music

or video playback the device will automatically return to playing the demo

video repeatedly.

Note: When the demo video plays, all functions of the frame are disabled. For

example: Alarm, Sleep mode, Auto check firmware upgrade…won’t work.

2. When the demo video is played, tap the screen. The video will be paused and

will display two icons.

3. Tap the Play icon to resume demo video playback. Tap the Back icon return

to Home screen.

Note: If the user deletes the” Intouch Video Demo “in the media application, the

function of “Auto Playback Demo Video” will be disabled.

The application recognizes the” Intouch Video Demo “by file name. So if

the user deleted the preset” Intouch Video Demo “, and then added a new

video named” Intouch Video Demo “into the media application, this video

will also be automatically played repeatedly.

Demo Video Screen

System Settings

On the Settings screen, tap the button to enter System screen.

Language

1. On the Language line, tap the button to open the language pop-up.

2. Next, tap on the desired language. Available languages are:

 English

 French

 Spanish

 German

 Italian

 Dutch

 Portuguese

To exit the pop-up without selecting a language, tap the button.

3. You will be returned to the System screen and the selected language will

now be displayed on the Language line.

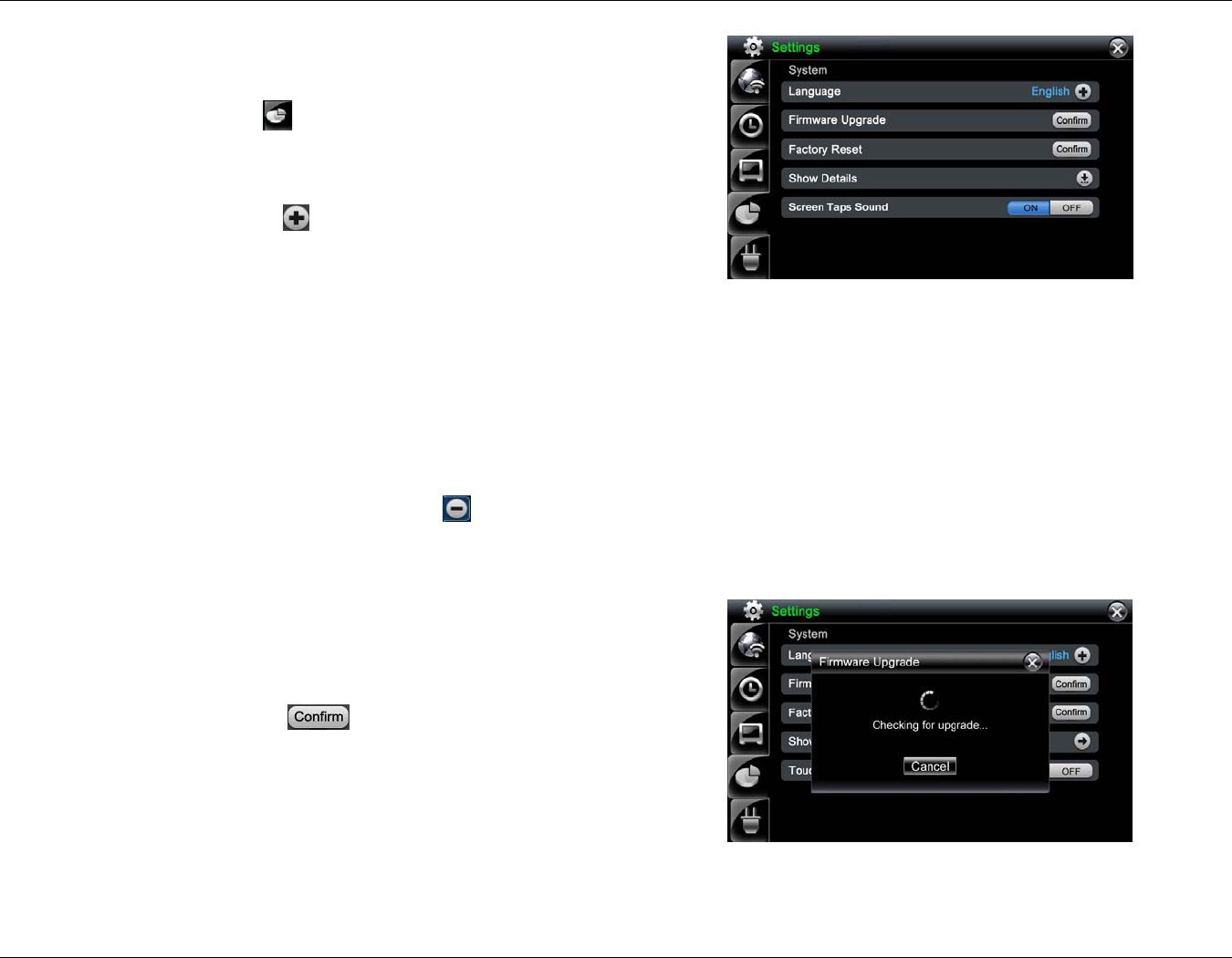

Firmware Upgrade

Manual Firmware Upgrade

1. On the System screen, tap the button on the Firmware Upgrade

line to start checking for an upgrade.

You must be connected to the internet to check for a firmware upgrade.

2. If your current firmware version is the most current available, then you do not

have to do anything.

System screen

Check for firmware upgrade dialog box

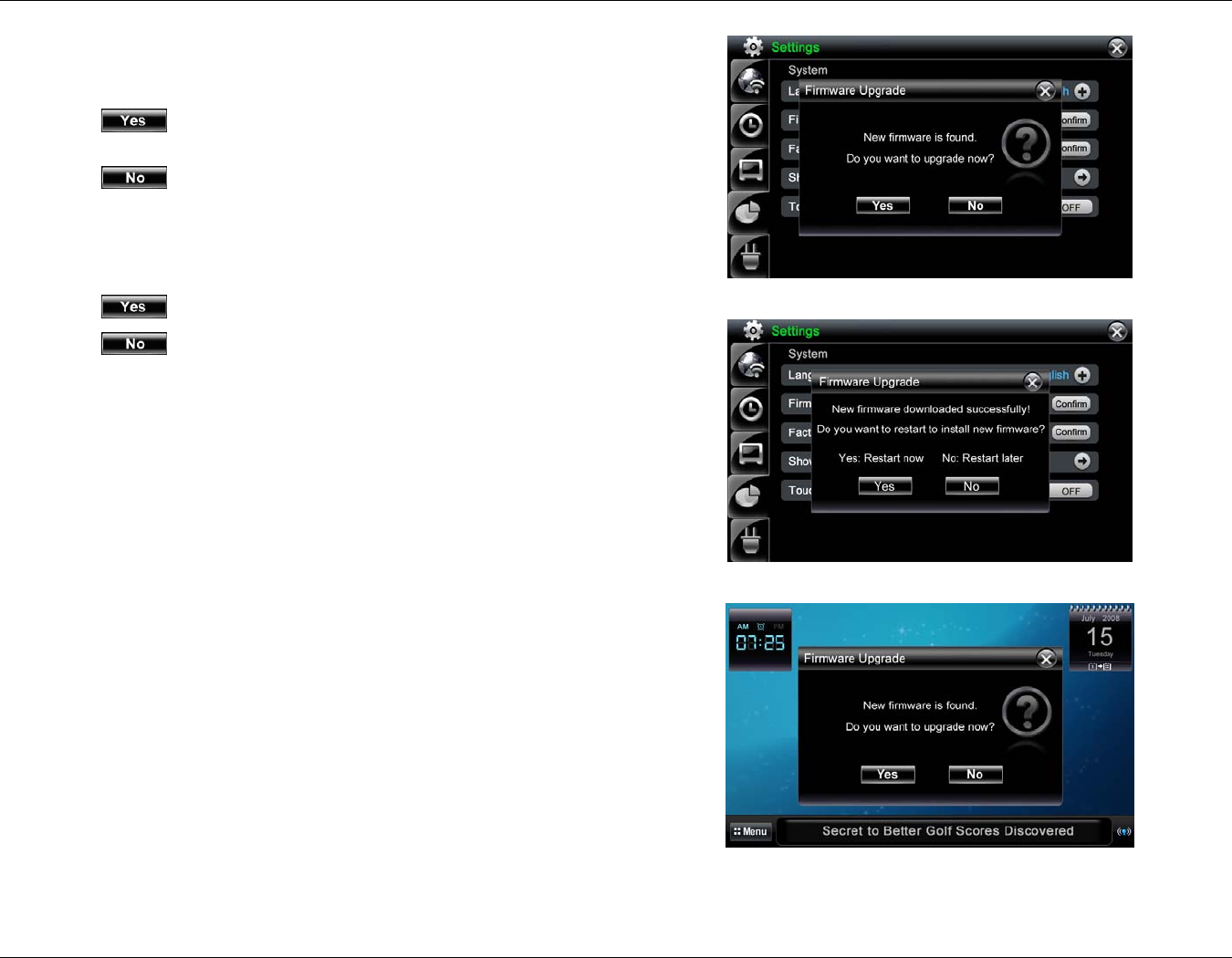

3. If there is a newer firmware version available, the dialog box appears asking

"Do you want to upgrade now?"

 Tap to download the new firmware and the frame will start

downloading the new firmware.

 Tap to cancel the download. You will be returned to the System

screen.

4. After downloading the firmware successfully, you will be required to restart

the frame. A dialog box will appear asking "New firmware downloaded

successfully! Do you want to restart to install new firmware?".

 Tap to restart now.

 Tap to restart later.

5. The new firmware will be automatically installed next time the frame is turned

on. Please wait while the firmware installs.

Warning: When the new firmware is installing, user can’t shut off the frame.

6. Tap OK to return to Home Screen after the upgrade process.

Note: In the process of upgrading, if the frame memory is not enough for

downloading the new firmware, a dialog box "No disk space!" will appear.

Auto Firmware Upgrade

The device automatically checks for firmware updates when connected to the

internet. If new firmware has been found, then please follow the on-screen

instructions to complete the upgrade.

Firmware Found acceptance dialog box

Firmware Upgrade acceptance dialog box

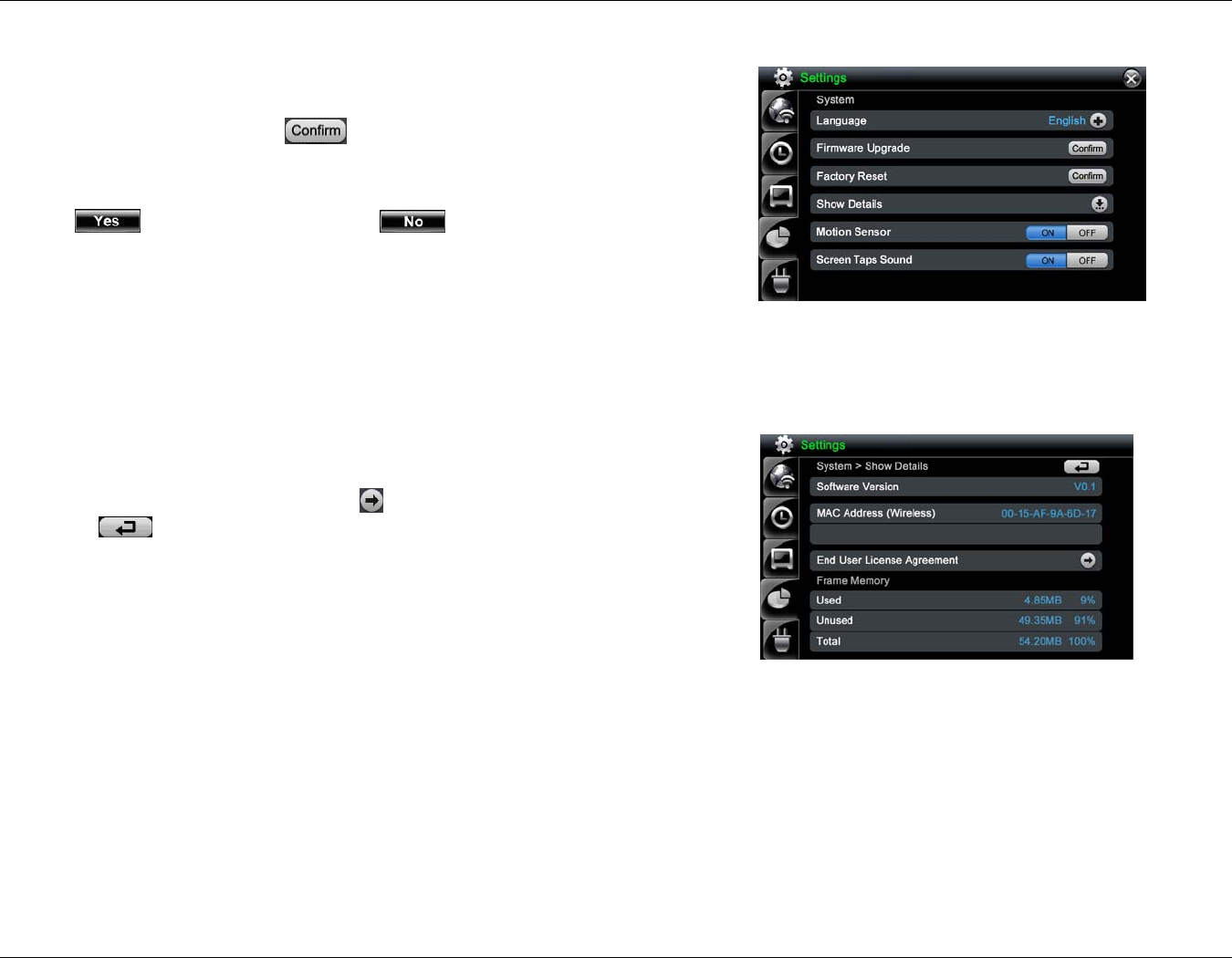

Factory Reset

1. On the Setting screen, tap the button.

2. A pop-up dialog box will appear asking "Do you want to reset factory

settings?"

3. Tap to reset the factory settings or to cancel the reset. You

will then be returned to the System screen.

Note: Please do not Power Off during factory resetting!

Show Details

You can review system details using the System > Show Details screen. Details

that can be displayed are:

h Software Version – displays the software version installed

h MAC Address (Wireless) – displays the MAC address of the wireless

network

h End User License Agreement – tap the button to open the EULA.

Tap the button to exit the EULA.

Frame Memory

 Used – displays amount of used memory

 Unused – displays amount of unused memory

 Total – total amount of frame memory

System screen

System > Show Details screen

Tap the button to return to the System screen.

Motion Sensor (Model IT7350 only)

You can turn the Motion Sensor on or off using the buttons on the Motion Sensor

line.

If user selects [ON]

In Home Slideshow and Photo Slide show:

When playing slide show in Home screen and Photo Application, user can switch

to next picture by shaking his hand in front of the sensor, and there will be a “tick”

sound if the motion is recognized successfully.

If user taps the screen, slide show will be paused and control bar will appear. User

can also switch to next picture by shaking his hand in front of the sensor, and there

will be a “tick” sound if the motion is recognized successfully.

Note: The sensor’s effective space is 10cm. The Motion Sensor indicator will be

on only when slide show is started.

If user selects [OFF].

Motion sensor will be turned off, and will not response to hand shaking.

Screen Taps Sound

You can turn the screen tap sound on or off using the buttons on the Screen Taps

Sound line on the Settings screen.

System screen

Power Management

The Power Management screen is where you can set the Sleep Mode and

Interval Time. During the sleep time, the frame will be turned off to save power.

The alarm is still active during sleep mode. To wake up the frame press the Mode

button on the frame's back panel.

Sleep Mode

1. On the Settings screen, tap the button.

2. Tap the button to select a sleep mode.

 Off – turns Sleep Mode off

 Once – activates Sleep Mode once

 Everyday - activates Sleep Mode every day

Interval Time (Sleep Interval Time)

This function is disabled when Sleep Mode is turned off.

1. On the Power Management screen, tap the button on the Interval Time

line to open the Interval Time Settings screen.

2. Use the up and down arrows to set the desired interval time.

Power Management Settings screen

Power Management > Interval Time Settings screen

Battery Profile

If the unit does not have a rechargeable battery, the unit will be powered by AC

adaptor.

1. On the Settings page, tap the button to open the Battery Profile Settings

screen.

2. On the Power Save Mode line select either ON or OFF.

3. On the Turn Off Backlight line, tap the button to set the time limit for the

screen's backlight to remain lit.

Battery Profile Settings screen

Photo / Content Service

The Photo Player application lets you view, add, delete, and configure your

photos. Photos can be viewed in a still picture or slide show configuration.

You can store photos internally to the frame, access them from an external

disk or flash drive, another PC on your home network, or from a photo

hosting/sharing web site.

1. To open the Photo Player application, on the Home Screen tap the

Menu button to open the Main Menu page.

2. Next, tap the Photo/Content Service icon to open the Photo /Content

Service application.

Photo Player Main Page controls

The following controls are used on the Photo Player Main screen.

closes the left sidebar

opens the left sidebar

opens the Photo Setup drop down menu

returns to the Main Menu screen

Slide bar – allows you to move up or down on the page

displays internally stored photos

Main Menu screen

Photo / Content Service screen

Photo Player Main screen (left side bar open)

displays photos stored on an external disk or flash drive

displays photos stored on another PC or server on your network

display photos stored on a photo hosting/sharing web site

Photo Player Main screen (left sidebar closed)


1. To open the Photo Player application, on the Home Screen tap the

Menu button to open the Main Menu page.

2. Next, tap the Photo/Content Service icon to open the Photo /Content

Service screen.

3. Tap the Photo icon to enter into the photo screen

Frame

The Frame is the internal memory of the device.

o manage your photo files in

internal memory, you can connect to PC, with the USB cable provided.

1. Tap on the photo you want to open in a full screen.

2. Tap the screen to open Slide Show Control buttons.

Slide Show Control Buttons

Rotate left button

Photo / Content Service screen

Slide Show Control Buttons

Rotate right button

Previous button – display the previous picture

Next button - display the next picture

Wallpaper button – sets current picture as the Home Screen wallpaper

Play button – start slide show playback

Back button – go back to Photo Player Screen

Note: If user selects the Motion Sensor on when playing slide show in Photo

application, user can also control to move to next picture by shaking his

hand in front of the sensor. Tap the screen, the control button will

appear. Motion sensor is effective either when slide show is being

played or being paused (Only for IT7350).

Zoom Control Buttons

Actual size button – display actual size of the picture

Zoom in button

Zoom out button

moves up, down, left, right on the picture

Zoom Control Buttons

Disk

1. On the Photo Main screen tap on Disk to display all external memory

cards or USB devices currently connected to the frame.

2. Double tap on the external device to display the photos or the photo files.

Photo screen

Home Network

Adding Photos to the Library

Notes:

The following procedure can be used for wireless networks.

1) For wireless connection, access to shared folders on the PC when

connected via the Wi-Fi network.

2) The procedure assumes you are using the Microsoft Windows

firewall. If you are using a different firewall application, please refer to

its documentation for setup. For additional information please go to:

http://www.microsoft.com/windows/windowsmedia/player/faq/sharing

.mspx

3) Windows Media Player v11 is recommended.

1. On your PC, open the Windows Media Player.

2. Click the Library tab at the top.

Windows Media Player

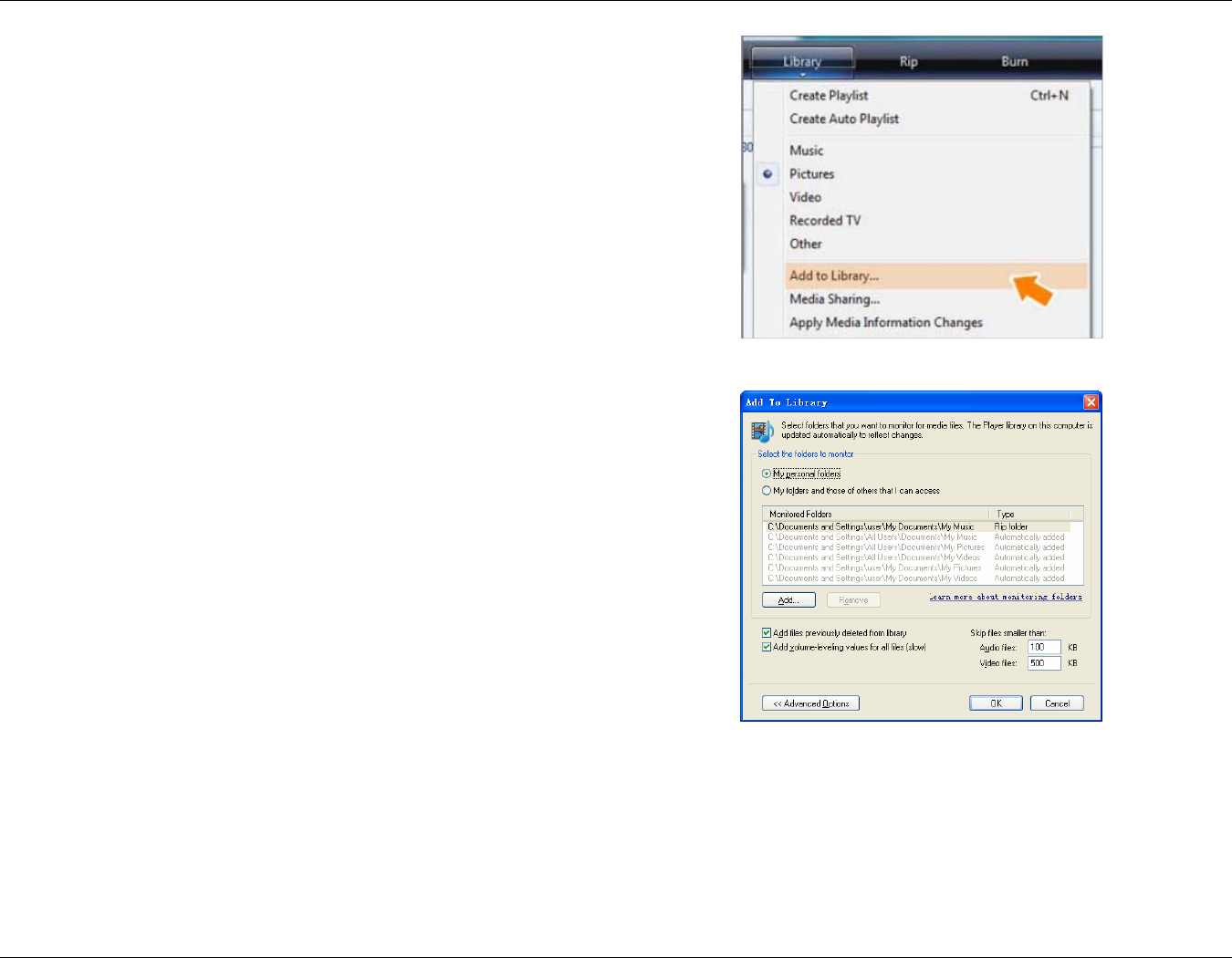

3. In the Library drop down menu, click Add to Library.

Windows Media Player – Library drop down menu

4. In the Add To Library screen, under the Select the folders to monitor

section, select My personal folders.

5. Click Add, a pop-up dialog "Add Folder" will appear.

Add to Library dialog box

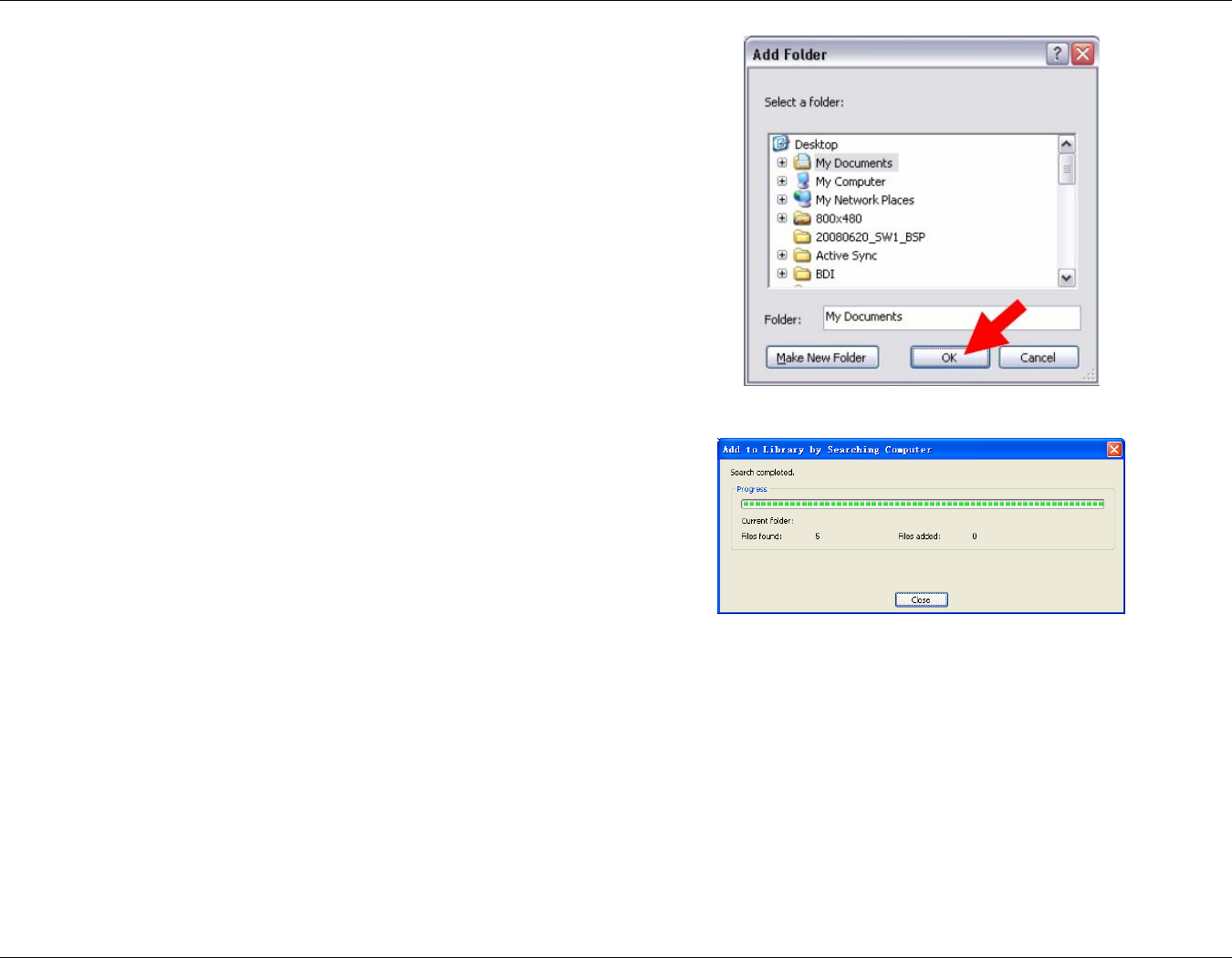

6. In the Add Folder dialog box select the folder you want to share and then

click OK to add it.

Add Folder dialog box

7. When user clicks OK, the Add To Library window will close and the

to Library by Searching Computer dialog box is displayed.

8. Wait until it finishes and then click Close.

Tip: To ensure that the frame can handle the amount of pictures you have

stored on your computer in a timely matter it is recommended that you

do the following:

1. On your computer in the My Documents folder, create a new folder with

only those pictures you would like to display.

2. Open Windows Media Player and go to the Add to Library dialog box.

Click the Add button.

3. Select the folder you just created.

4. Ignore all the other folders by highlighting the monitored folder and select

the ignore button on all but the one you want to display.

Add to Library by Searching Computer dialog box

Checking Shared Photos

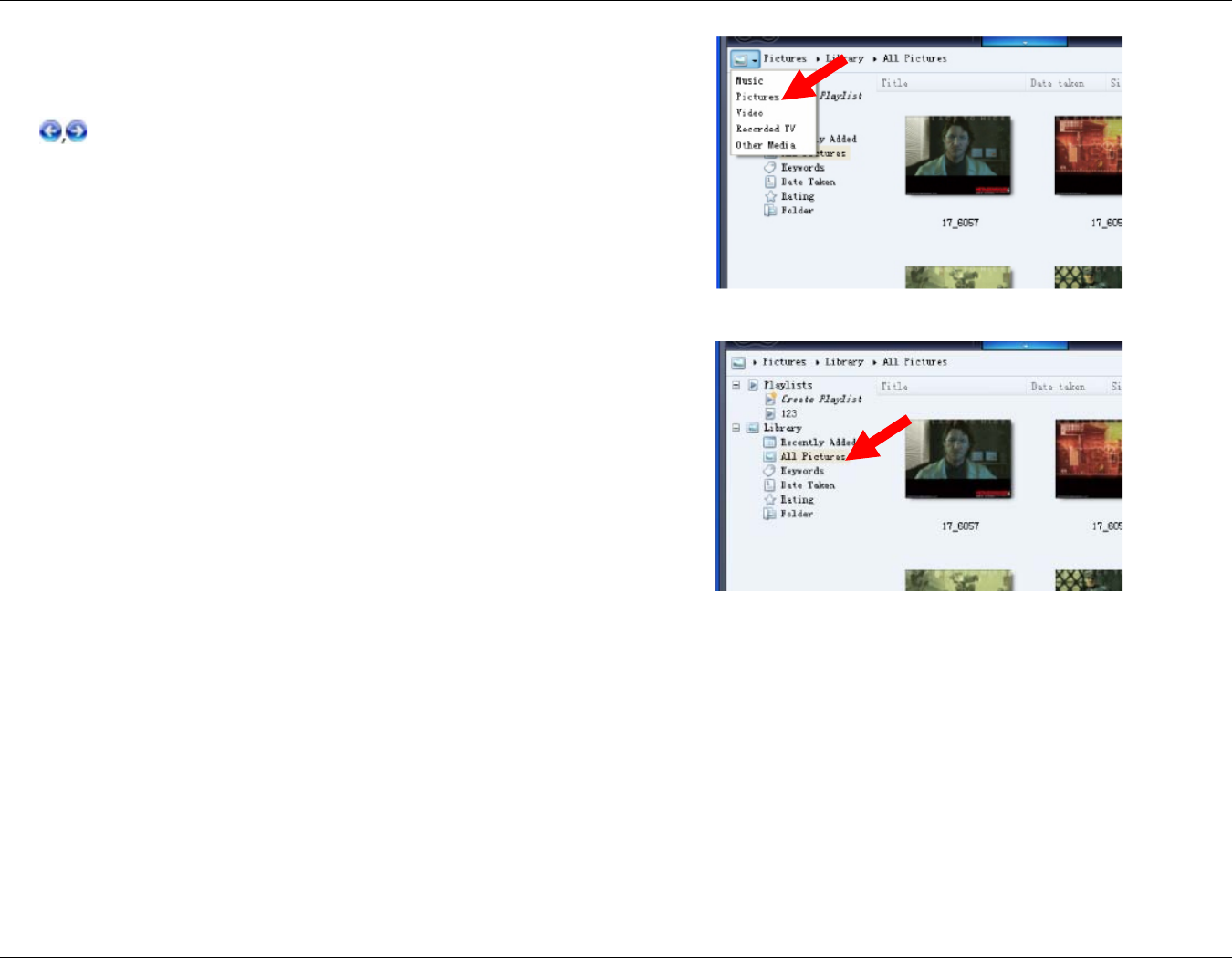

1. In the Window Media Player, set the Category, which is under the

symbol at the top left to Pictures.

Windows Media Player – Category drop down menu

2. Under Library, select All Pictures, Keywords, Date Taken, Rating,

Folder settings.

3. Check whether the added photos exist in the library.

Windows Media Player – Library drop down list

Sharing Settings for Accepting Connections from Your Frame

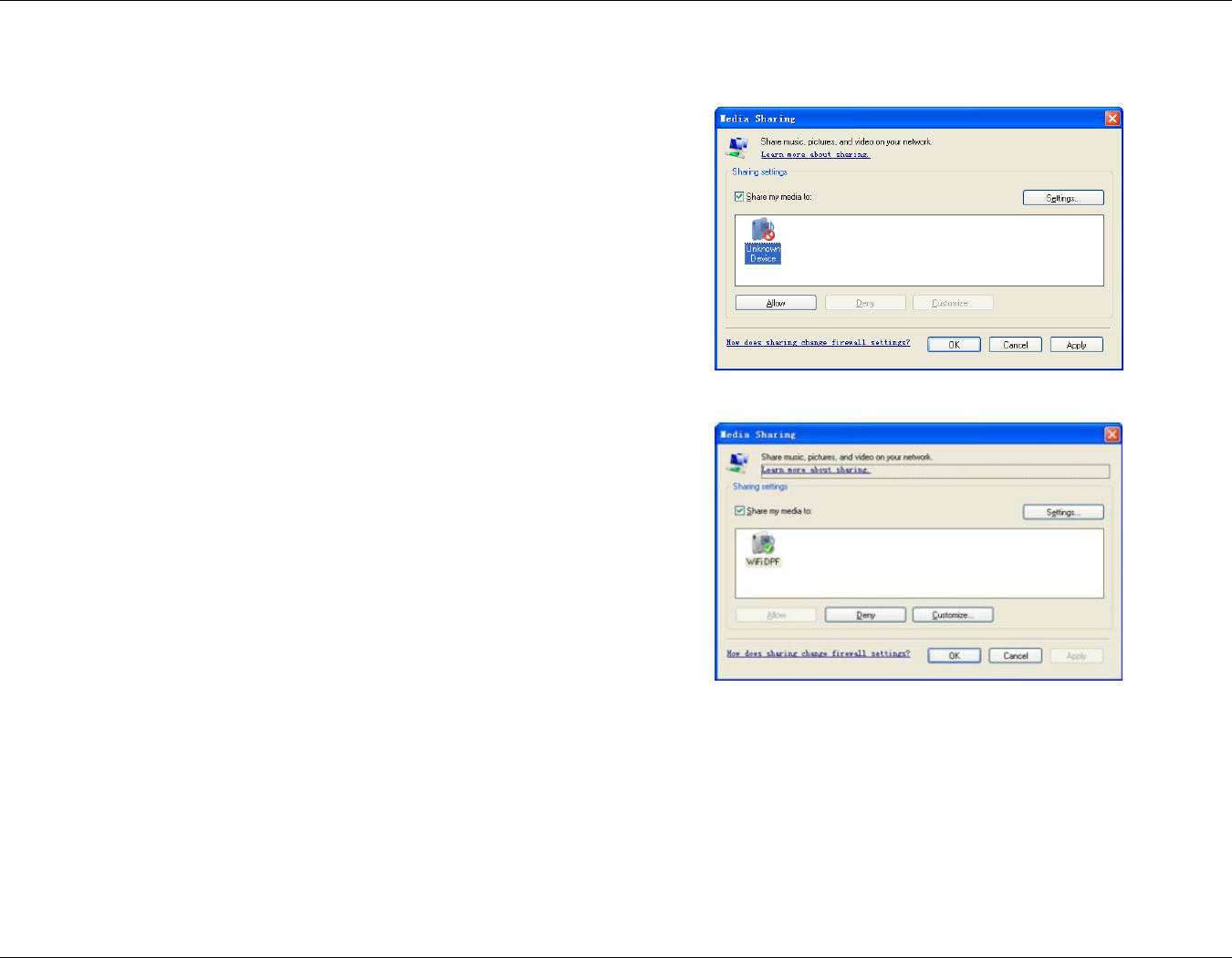

1. In the Library tab click on Media Sharing.

2. If your network is a Private network, then the Available Device list and

the Settings button will be displayed in the Library Sharing window.

Media Sharing dialog box

3. In the Available Device list, select WiFi DPF.

4. Click the Allow button.

Media Sharing dialog box

5. In the Library Sharing window, click on the Settings button. The

Library Sharing-Default Settings window appears.

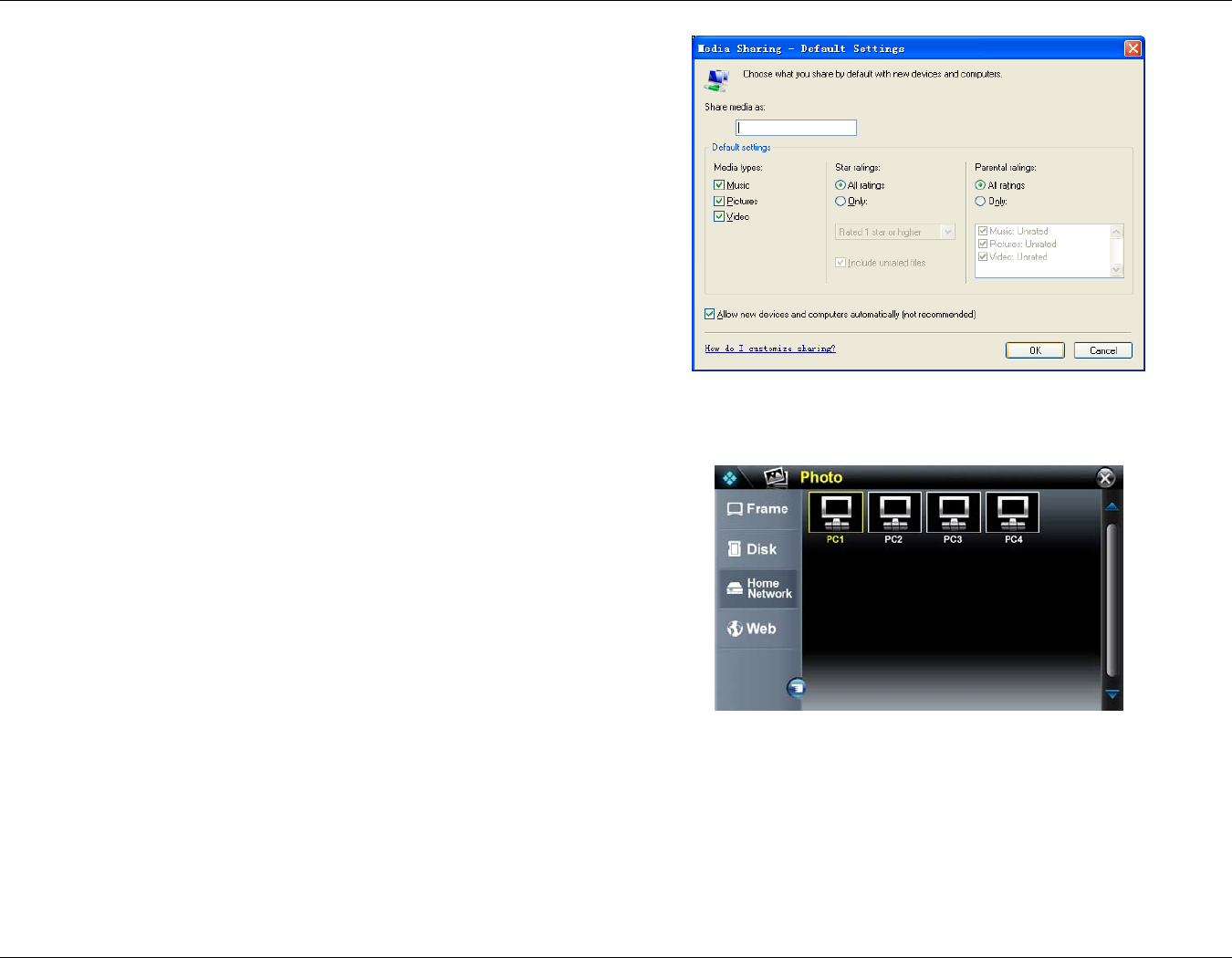

6. In the Library Sharing-Default Settings window:

 for Media Type select Pictures.

 for Star Ratings select both All ratings and Only.

 for Parental ratings select All ratings or a required rating under the

Default Settings section.

7. To add a device or computer to connect automatically to the library, check

the Allow new devices and computers automatically (not

recommended) checkbox.

Media Sharing – Default Settings

View for Sharing the Photos on your frame

1. Tap the Home Network button. You will see the PCs connected to your

home network.

2. Double tap the PC icon you want. You can view the photos in this PC just

like in Frame and Disk.

Photo screen – Home Network

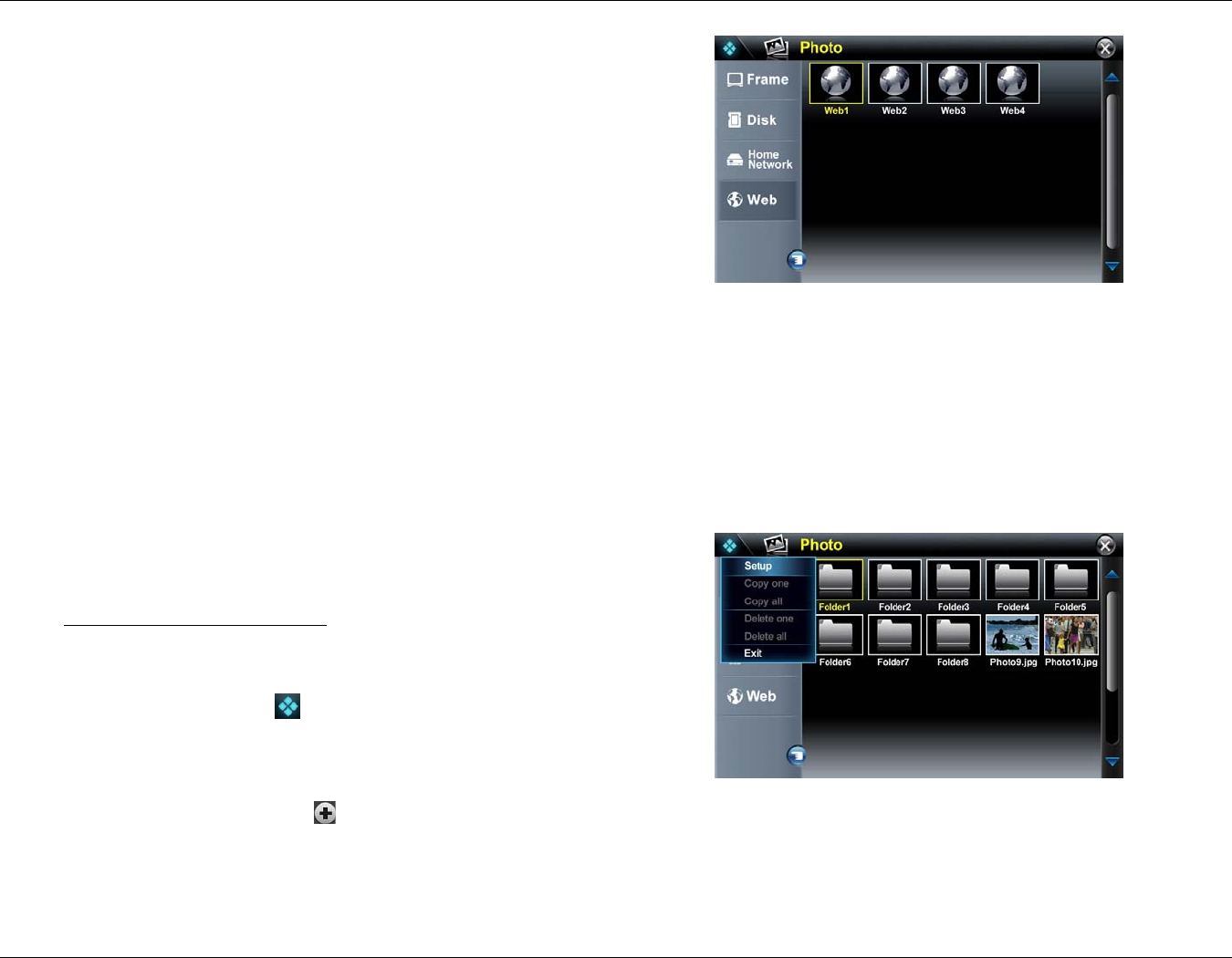

Web

1. On the Photo screen, tap the Web button.

2. Next, tap the Web icon you want. You can now view photos in it.

3. Supported web album account sites are:

 Picasa

 Windows Live Space

 other sites

4. For the other web album accounts, the device may not display perfectly.

Photo screen – Web

Photo Setup

Slide Show

You can show a slide show on the Home Screen or within the Photo

application. For detailed instructions on how to setup the slide show please

refer to For a slide show as the wallpaper.

Slide Show Settings

1. On the Photo screen, tap the button. The Setup drop down menu

appears.

2. Tap Setup. The Slide Show screen appears.

3. On the Display Mode line, tap the button. The Display Mode drop

down list appears.

4. Select which display mode you want. Available modes are Original,

Photo screen

Auto fit, Fit to width and Fit to screen.

5. On the Transition Type line, tap the button. The Transition Type

drop down list appears.

6. Select which transition type you want. Available types are: Dissolve,

Slide, Blind, Wipe, Random and None

7. On the Photo Interval line, tap the button. The Photo Interval drop

down list appears.

8. Select which interval you want. Available intervals are: 5 Seconds, 15

seconds, 30 Seconds and 1 Minute

9. On the Repeat line, tap ON to have all the photos in the current folder

play repeatedly. Tap OFF to turn off the Repeat feature.

10. On the Shuffle line, tap ON to have all the photos in the current folder

played randomly. Tap OFF to turn off the Shuffle feature.

11. On the Background Music line, tap ON to select a music file to use as

the background music for the slide show. Tap OFF to turn this feature off.

Slide Show screen

If you want to change the slide show background music (Music repeat / shuffle playback) please go to Media Setup to change the settings.

Setup Web Photo Account

Add Web Photo Account

1. On the Photo screen, tap the button. The Setup drop down menu

appears. Tap the Setup icon.

2. Tap Web Photo setup button The Web Photo screen appears.

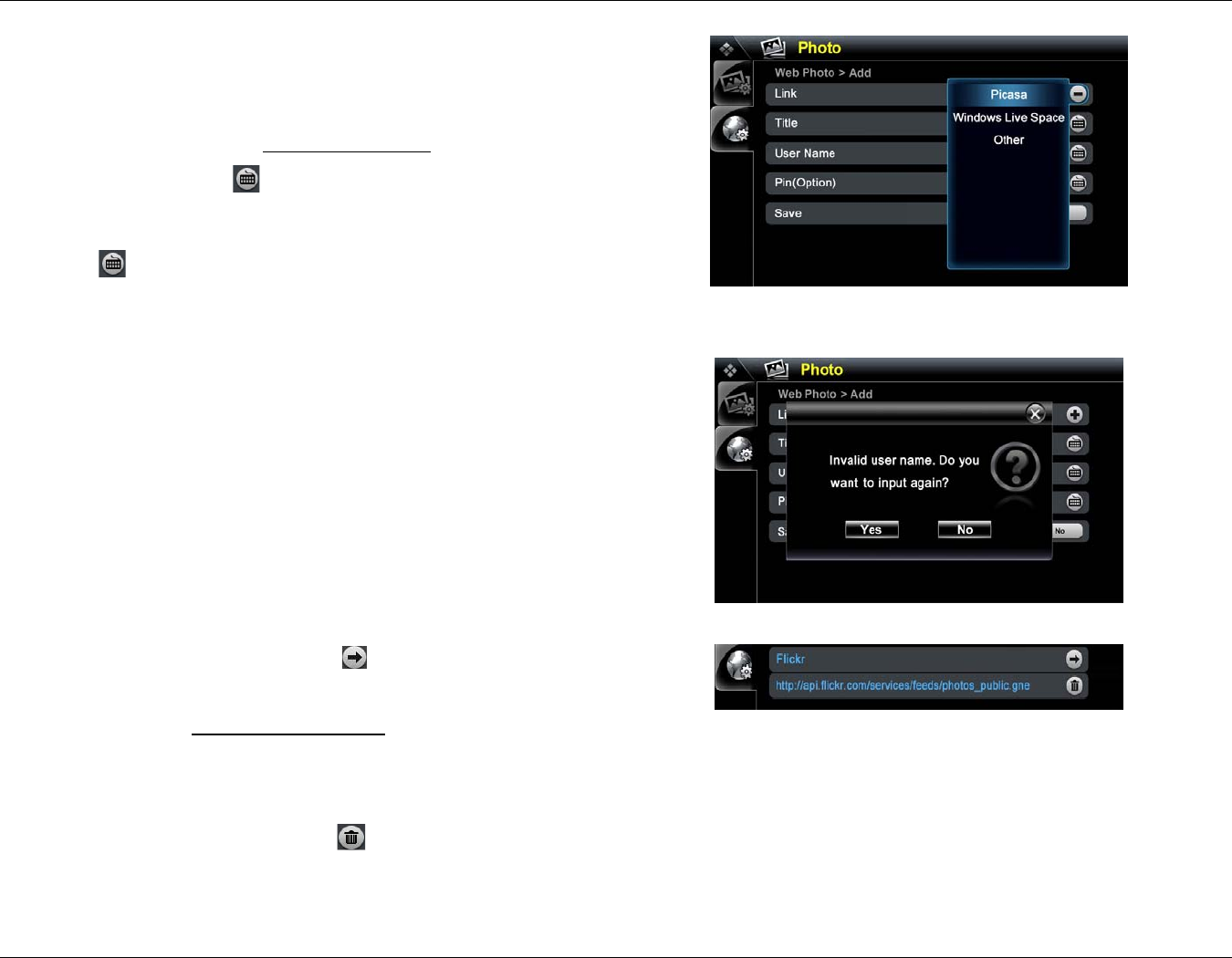

3. On the Web Photo > Add an account line, tap the button. The Link

drop down list appears.

Web Photo screen

Add Web Photo Account Screen

Invalid input pop-up

Photo account

4. Tap on the sharing site you want. Current selections are Picasa,

Windows Live Space and Other.

Note: If your account is not one of the above listed, then your web photos may

not be displayed accurately. To learn how to get the web photo RSS

address from internet see Add RSS News Feed.

5. On the Title line, tap the button to open the Keyboard. Type in your

desired Title and tap OK to save.

6. For both User Name (Option) and Pin (Option), on their respective line,

tap the button to open the Keyboard. Type in the User Name and

Pin code. Tap OK to save.

Note: For Picasa and Windows Live Space, user only needs to input

username. For Other, you need to input the whole RSS link in Link.

Note: If the User Name entered contains invalid characters, then a pop up

dialog will appear to prompt you re-enter the information.

7. The new created account will be displayed in Web photo setup screen,

like this:

8. On the Save line, tap Yes to save the web photo account settings or tap

No to cancel your settings. You will be returned to the Web Photo

screen.

Edit Web Photo Account

1. On the Photo account screen, tap the button in the account line that

you want to edit. The Web Photo > Add screen appears.

2. Follow the steps in Add Web Photo Account section to change current

settings.

Delete Web Photo Account

On the Photo account screen, tap the button. A pop-up dialog box

appears asking "Do you want to delete the link?". Tap Yes to delete or

No to cancel without deleting.

Content Service (Windows Live FrameIt)

1. To open the Photo Player application, on the Home Screen tap the Menu button

to open the Main Menu page.

2. Next, tap the Photo/Content Service icon to open the Photo /Content Service

screen.

3. Tap the Windows Live FrameIt icon to enter into the Windows Live FrameIt

screen.

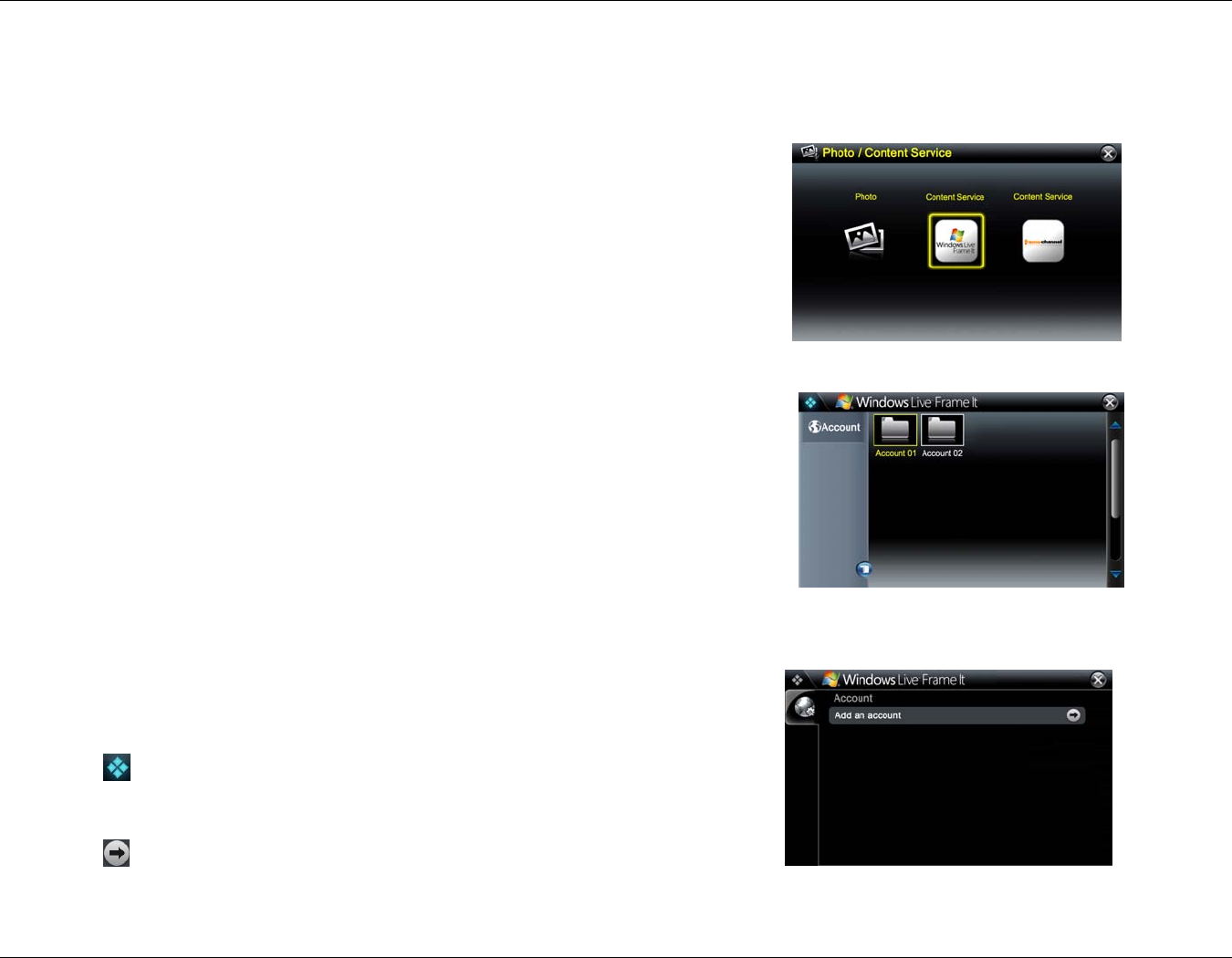

Photo / Content Service screen

Account

1. On the Windows Live FrameIt screen tap the Account button to display all

account folder currently registered to the frame.

2. Double tap the Account folder to display some folders about the photo category.

3. Select the category folder you want to display and tap the folder. The frame will

automatically slide show.

Windows Live FrameIt screen

Setup Windows Live FrameIt Account

1. Tap the button a drop down menu will appear.

2. Tap Setup to open the Add an account screen.

3. Tap the button on Add an account line.

Add an account screen

4. On the Account Name line tap to open the Keyboard screen. Type in your

account name and then tap OK to save.

5. Tap the Register button.

6. After Tap the Register button, server will send a token to the frame. If the Claim

Token invalid, tap the Start Over Button can request a fresh claim token. After

finish website sign in or sign up, tap the Continue button to continue.

7. Server will send a Device ID after user taps Continue button. If fail to get the

Device ID, the frame will appear a pop up screen “Failed to get Device ID, please

Start over again.” If succeed to get the Device ID, tap Yes to finish the account

settings or tap No to cancel your settings. You will be returned to the Add an

account screen.

Add the FrameIt account screen

8. After a new account is added, user can see the added account in Add an account

screen.

Edit the FrameIt Account

On the Add an account screen, tap the button in the Account Name line that

you want to edit the Account Name.

Delete the FrameIt Account

On the Add an account screen, tap the button. A pop-up dialog box appears

asking " Do you want to delete the link?". Tap Yes to delete or No to cancel

without deleting.

Add an account screen

Content Service (Framechannel )

1. To open the Photo Player application, on the Home Screen tap the Menu button

to open the Main Menu page.

2. Next, tap the Photo/Content Service icon to open the Photo /Content Service

screen.

3. Tap the Windows Live FrameIt icon to enter into the Windows Live FrameIt

screen

Photo / Content Service screen

Account

1. On the Framechannel screen tap the Account button to display all account

folder currently registered to the frame.

2. Double tap the Account folder to display the folder about the photo category.

3. Select the category folder you want to display and tap the folder. The frame will

display the photo thumbnail.

Note: If user taps the folder of Play All, the frame will automatically slide show.

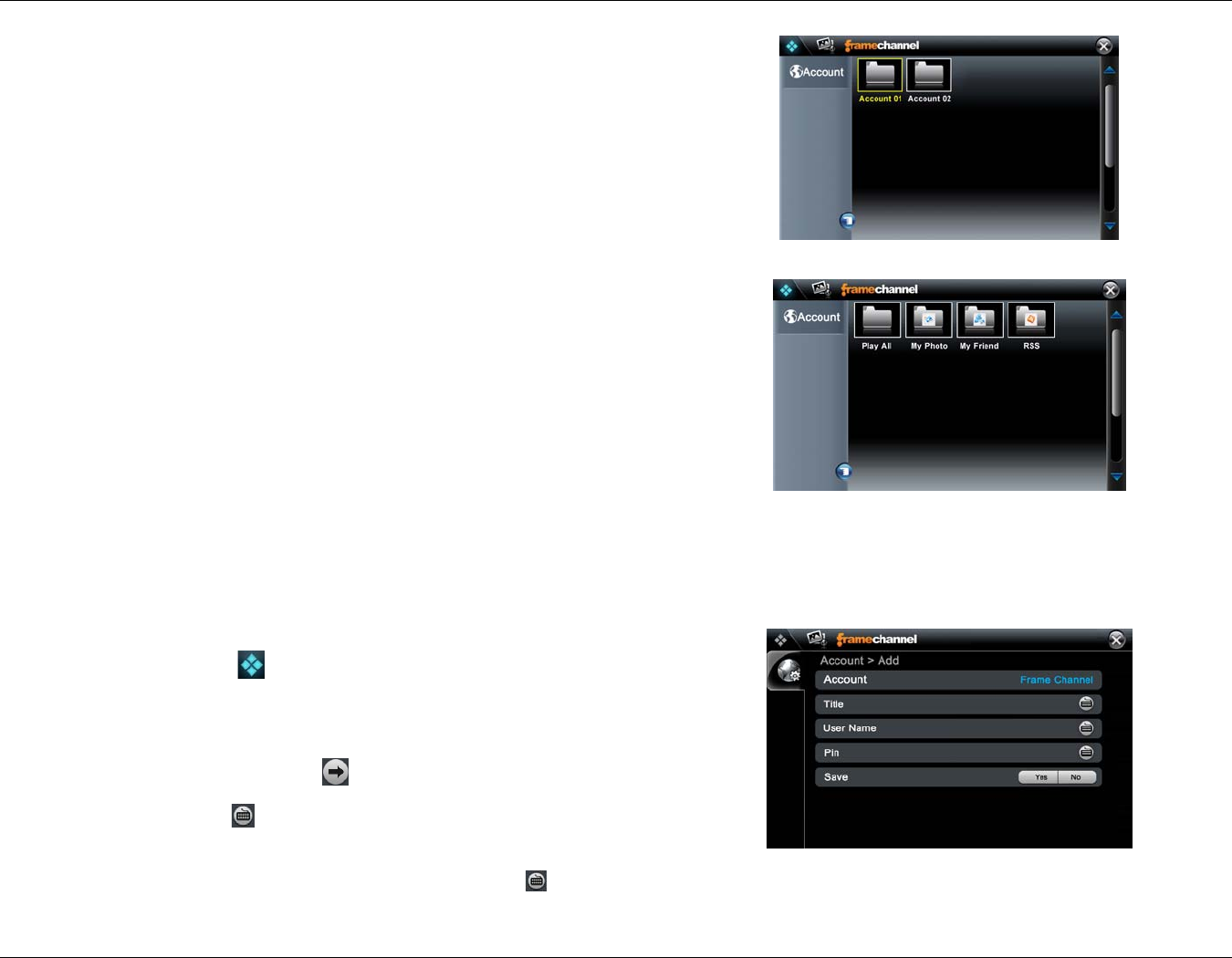

Framechannel screen

Framechannel account screen

Setup Framechannel Account

On the Photo screen, tap the button. The Setup drop down menu appears. Tap

the Setup icon.

1. Tap Setup to open the Add an account screen.

2. On the Add an account line, tap the button.

3. On the Title line, tap the button to open the Keyboard. Type in your desired

Title and tap OK to save.

4. For both User Name and Pin, on their respective line, tap the button to open

the Keyboard. Type in the User Name and Pin code. Tap OK to save.

Add the Framechannel account

Note: If the User Name entered contains invalid characters, then a pop up dialog will

appear to prompt you re-enter the information.

5. On the Save line, tap Yes to save the account settings or tap No to cancel your

settings. You will be returned to the Add an account screen.

6. The new created account will be displayed in Add an account screen, like this:

Edit the Framechannel Account

1. On the Add an account screen, tap the button in the account line that you

want to edit.

Delete the Framechannel Account

1. On the Add an account screen, tap the button. A pop-up dialog box appears

asking " Do you want to delete the link?". Tap Yes to delete or No to cancel

without deleting.

Add an account screen

Copy/ Delete Photos

Copy One

1. In the left side of the Photo screen, tap the location where the photo is that you

want to copy.

2. Select the photo you want to copy. Tap the button, a drop down menu will

appear.

3. Tap Copy One to copy the selected photo. A dialog box will appear asking you to

“Choose a device for file copy”.

4. Tap your destination memory.

5. Tap Yes to confirm the copy or No to cancel.

Choose a device for file copy dialog box – Copy One

Copy All

1. In the left side of the Photo screen, tap the location where the photos are that you

want to copy.

2. Select any photo. Tap the button, a drop down menu will appear.

3. Tap Copy All to copy the selected photos. A dialog box will appear asking you to

“Choose a device for file copy”.

4. Tap your destination memory.

5. Tap Yes to confirm the copy or No to cancel.

Choose a device for file copy dialog box – Copy All

Delete One

1. In the left side of the Photo screen, tap the location where the photo is that you

want to delete.

2. Select the photo you want to delete. Tap the button, a drop down menu will

appear.

3. Tap Delete One to delete your selected photo.

4. Tap Yes to confirm the deletion or No to cancel.

Delete All

1. In the left side of the Photo screen, tap the location where the photos are that you

want to delete.

2. Select any photo. Tap the button, a drop down menu will appear.

3. Tap Delete All to delete all the photo files in the selected directory.

4. Tap Yes to confirm the deletion or No to cancel.

5. In Home Network and Web, Delete One and Delete All buttons are disabled.

Do you want to delete this file? dialog box

RSS News Reader (RSS2.0)

Notes:

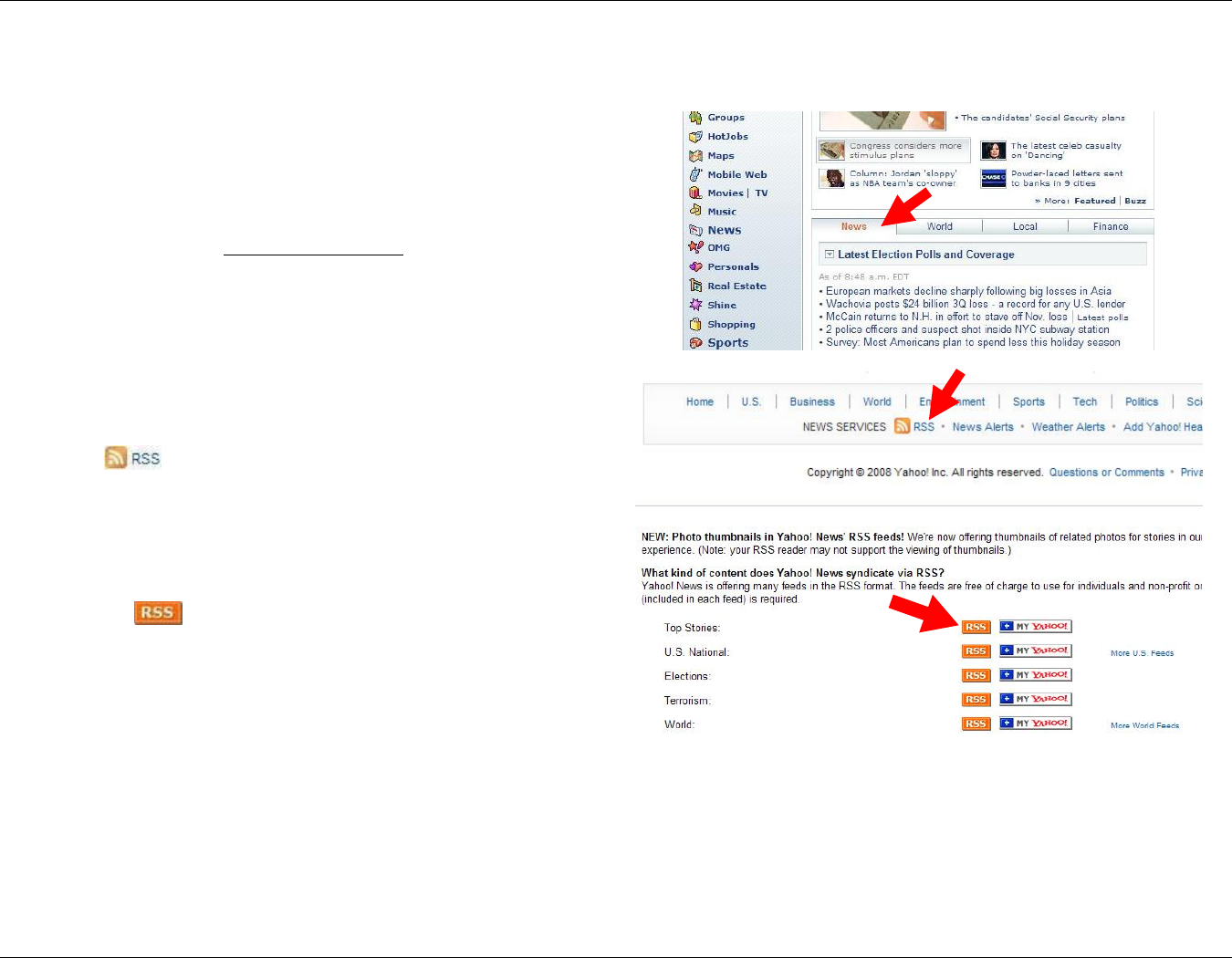

1. To ensure you can view RSS news normally, the feed you added should comply with the standard RSS 2.0 protocol. You can search a feed link on the

internet with your PC, and then add it to your RSS News Reader.

2. ATOM and KML format cannot be supported

RSS News Feed screen

1. On the Main Menu screen, tap the News icon. The RSS News Feed

screen appears.

By tapping different categories, the RSS News Feed is sorted in each

category. You can add a RSS feed to a specific category. See the News

Setup section.

RSS News Feed Control Buttons / Icons

 All button – shows all RSS News feeds.

 Local / World / Business / Science / Entertainment / Sports /

Society / Other buttons – these are the RSS News categories

provided with the frame.

 More button – shows additional categories that are not displayed in

the current page.

 RSS Feed icon - represents one news feed. The News Feed

name is shown next to News Feed icon.

2. Double tap the News Feed name to open a News feed. The RSS News

List screen appears.

RSS News Feed screen

News Feed

News

Categories

News Feed List screen

The RSS News List screen displays the news headlines of one feed. It

includes News Type icon, News Headlines, Date and Time of the news.

 News Type icon > Text icon - the RSS News is text based with

photo or without photo.

 The unread news is in white color. The read news is in grey color. If

it’s today news, it displays “Today” in date display. The time is from

the RSS News Feed, it represents the posted time of the news.

Double tap the news headline to read the details of the news in RSS News

Reader.

RSS News List screen

RSS News Reader

The RSS News Reader displays the news text content and the media files of

news.

RSS News Reader Control Buttons / Icons

Previous button – review previous news

Next button – review next news

News List button – return to RSS News List screen

News Text Content

Red Circle Area /Grey Arrow – This is an enlarge button that closes the

News Media Player area, which then enlarges the News Text Content to full

screen.

Up arrow button – page up the news content

Down arrow button – page down the news content

News Media Player

News Type icons – Supports news photo only.

Play button – plays the media file of news

Mute button – turns on / off mute

Volume level buttons – adjusts volume

Note: The device is only capable of showing photos with the news article.

Video and Audio are not functional.

RSS News Reader

News Media

Player

News Text

Content Grey Arrow

RSS News Reader > News Text Content

1. In RSS News Reader screen, tap the red circle area to close the News

Media Player area and display the News Text Content area full screen.

2. Tap the red circle area again to close the full screen News Text Content

area and open the News Media Player area.

3. Tap the News List button to go back to the RSS News List screen.

News Text Content – full screen

Refresh / Delete News

Note: If your RSS news can’t be refreshed successfully, it might be because the RSS feed is not in RSS 2.0 standard, or your RSS feed might be

experiencing technical difficulties.

Refresh RSS News Feed screen

1. On the RSS News List screen, tap the button to open the Setup drop

down menu.

2. Tap Refresh to refresh all of the RSS news feeds.

RSS News Feed screen

Grey Arrow

Delete One RSS News Headline

1. On the RSS News List screen, tap on the headline that you want to

delete.

2. Tap the button to open the drop down menu.

3. Tap on Delete One to remove the selected news headline.

Delete All RSS News Headlines

1. On the RSS News List screen, tap the button to open the drop down

menu.

2. Tap on Delete All to remove all news headlines of the one feed.

Delete All RSS News Read Headlines

1. On the RSS News List screen, tap the button to open the drop down

menu.

2. Tap on Delete All Read (in grey color) to remove all read news.

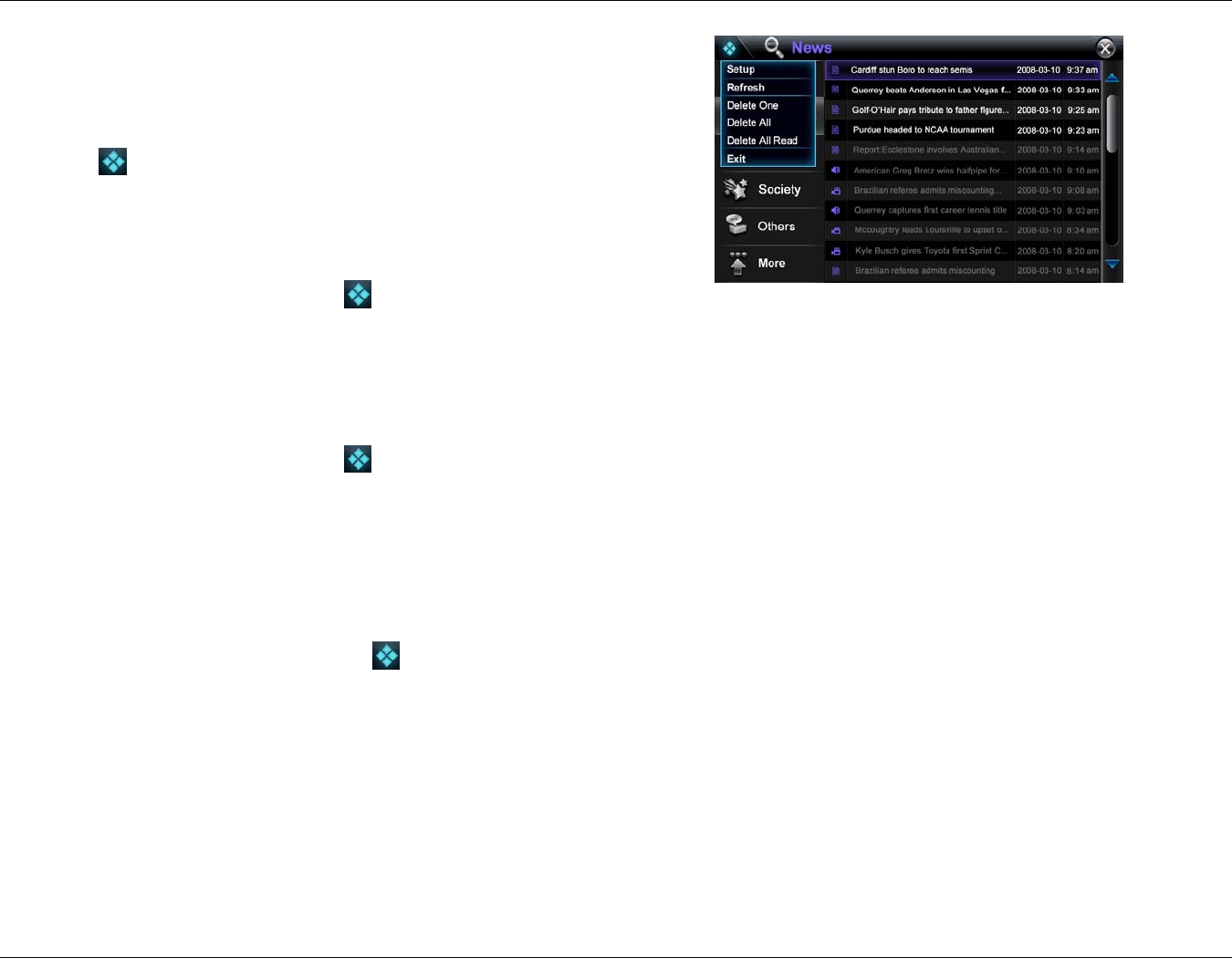

RSS News List Screen – drop down menu

Delete One in RSS News Reader Screen

1. On the RSS News Reader screen, tap the button to open drop down

menu.

2. Tap Delete One to delete the news current in the RSS News Reader.

Note: Refresh / Delete All / Delete All Read is not supported in the RSS

News Reader Screen.

News Setup

Set General Settings

1. In the RSS News Reader screen, tap the button to open the drop

down menu.

2. Tap on Setup. The News > General screen appears.

Auto Download Media File

You can select to turn on or off the automatic download media files feature

when reading the news.

Keeps News For

You can choose how many days you want to keep the news history.

Tap the button on the Keep News For line to open the drop down list. You

can select from one (1) to seven (7) days.

Update Interval

You can choose how often you want the news to be updated.

Tap the button to open the drop down list. You can select from the

following:

 Manually

 5 minutes

 10 minutes

 30 minutes

 1 Hour

 12 Hours

 24 Hours

News > General Screen

Add / Edit RSS News Feeds (Support RSS2.0 Format only)

Get RSS News Feed Address from Internet

Note: The Yahoo News website will be used for demonstrating how to add a

RSS News Feed.

1. On your PC, connect to http://www.yahoo.com/.

2. Click on News.

3. Scroll down to News Services (usually located near the bottom of the

page).

4. Click on .

5. The Yahoo News - RSS page will appear. All Yahoo news feeds will be

listed.

6. Click on the icon next to the news category you want.

7. The selected RSS news feed page (or XML page) appears.

8. Copy the RSS address displayed in the Internet Explorer Address box.

This is the RSS link you need to enter on the frame. Make sure this is

RSS2.0 format.

News > Feeds screen

Add a new RSS News Feed

1. On the RSS News > General screen, tap the button. The News >

Feeds screen will appear.

2. On the Add a News Feed (Support RSS2.0 format) line tap the

button. The Feeds > Add New screen appears.

Note: You can add up to 256 news feeds.

3. On the Link line, tap the button to open the Keyboard. Enter the RSS

news feed address link. Tap OK to save. The RSS news feed address

will now appear in the Link line.

4. On the Title line, tap the button to open the Keyboard. Enter a title

for the RSS news feed. Tap OK to save. The RSS news feed title will

now appear in the Title line.

5. On the Category line, tap the button. A drop down list will appear

containing the categories you can select from. They are: Local, World,

Business, Science, Entertainment, Sports, Society and Other.

6. Tap which category you want the RSS news feed to be located. The

selected category will now appear in the Category line.

7. When you are finished entering the information, tap the Yes button to

save or the No button to exit without saving.

Feeds > Add New screen

8. The newly created RSS news feed will now be displayed in News >

Feeds screen. It will be the last entry on the screen.

Edit a RSS News Feed

1. On the RSS News > General screen, tap the button. The News >

Feeds screen will appear.

2. On the news feeds line that you want to edit tap the button. The

Feeds > Edit screen appears.

3. On the Link line, tap the button to open the Keyboard. Make your

changes to the RSS news feed address link. Tap OK to save. The

updated RSS news feed address will now appear in the Link line.

4. On the Title line, tap the button to open the Keyboard. Make your

changes to the RSS news feed title. Tap OK to save. The updated RSS

news feed title will now appear in the Title line.

5. On the Category line, tap the button. A drop down list will appear

containing the categories you can select from. They are: Local, World,

Business, Science, Entertainment, Sports, Society and Other.

6. Tap which category you want the RSS news feed to be located. The

selected category will now appear in the Category line.

News > Feeds screen

News Feed items

7. When you are finished entering the information tap the Yes button to save

or the No button to exit without saving.

Delete a RSS News Feed

1. On the RSS News > General screen, tap the button. The News >

Feeds screen will appear.

2. On the news feeds line that you want to delete tap the button.

3. A pop-up dialog box will appear asking “Do you want to delete this

link?”.

4. Tap Yes to delete the link or No to exit without deleting. If you selected

Yes, then the link will be removed from the News > Feeds list.

Media Player

You can enjoy music and internet radio while using other applications.

The Media Player consists of three (3) features:

 Music – plays audio files

 Video – plays video files

 Internet Radio – plays internet radio stations

You can play audio and video files that are stored on the frame, from external disks,

or your home network.

1. To access the Media Player, from the Main Menu, tap the Media icon.

2. To hide the Media Player tap the button on the Media screen.

Playback Control Buttons

Search button – only the internet radio stations supplied by vTuner can be

searched

Now Playing button – switches from Play List screen to Now Playing screen

List button – switches from Now Playing screen to the Play List screen

Previous button – goes to previous media file or previous station

Next button – goes to next media file or next station

Play button – plays media file or internet radio station

Pause button – pauses the playback

Speaker button – tap once to mute

Silence button – tap once to cancel mute

Increase volume button – increases volume level

Decrease volume button – decreases volume level

Media Player

Playback Control Bar

Music / Video

Frame

Frame is the internal memory of the device. You can connect to a PC with the

provided mini-USB cable to manage your audio and video files. Once you

have successfully connected to your PC, you should see a new Removable

Disk under My Computer in your PC.

Disk

After you insert an external memory card or USB device into the frame, tap the

Disk button to display the external memory disk.

Home Network

For more detailed information on PC control, please see Home Network

section.

To access and play music or videos:

1. On the Media screen:

 Tap Music to open the Music screen.

 Tap Video to open the Video Screen.

2. Tap once on the file / disk / folder you want to open

3. Double tap again to open a disk / folder or start playback media file.

4. The Now Playing screen for the selected music or video file will appear.

Audio Now Playing screen

Notes:

1) When video file is playing, simply tap the video playback area once to scale to full screen. Tap anywhere again to exit full screen mode.

2) In order to provide the best video performance, the suggested video resolution is 320x240 or below and frame rate is 25fps or below.

Internet Radio and Web TV

Stations, Podcast or Web TV

1. On the Media Player screen, tap the WebTV / i. Radio tab. The WebTV

/ i.Radio screen appears.

2. Tap the Stations, Podcast or Web TV button to display a list of all

internet categories. This list is from the internet radio Server.

Note: Use the Scroll bar to move up or down to see additional listings.

1. Double tap on the category you want. It may take additional screens to

get to the actual program that you want to play. Make your selection

(double tap) on each screen until you get to the program to play.

2. Double tap on the station to begin play.

3. If the content does not load immediately, then a Loading prompt will

appear. Wait for the Loading prompt to close.

4. When you are connected to a station, the Now Playing Screen will be

displayed. You can monitor the connecting status message or buffering

status message on this screen.

5. If the program does not start playing it may be because the link is not

valid, the player might not support this format, or the network is busy at

the moment. Please select another program or try again later.

1. Tap the More button to show a list of your added stations.

2. Double tap a station to begin play.

Note: To add additional stations to the More category please refer to the

a Station section.

WebTV / i.Radio screen

Now Playing screen

Add to Favorites

1. Select a station, procast or Web TV. Tap the button and a drop down

menu will appear.

2. Tap the Add to My Favorite button to add the current radio station. This

radio station can now be found in My Favorite Stations.

Media Setup

Setup Media Playback

1. In Media screen, tap the button. A drop down menu will appear.

2. Tap Setup to open the Music/Video Setting screen.

Repeat Mode

1. On the Music/Video Setting screen, tap the button. A pop-up menu

will appear.

2. Select the repeat mode for media playback. Selection are:

 None

 Repeat One – repeats current music/video file repeatedly.

 Repeat All – repeats all songs/video in the current play list.

Shuffle

1. On the Music/Video Setting screen, on the Shuffle line:

2. Tap ON to play the media files randomly.

3. Tap OFF to play the media files in sequence. The playback sequence is

sorted by file name.

Music / Video Setting screen

Add a Station

Note: You can add up to a maximum of 256 stations.

1. In Media Setup, tap the button to open My Added Station screen.

2. On the Add a Station line, tap the button. The My Added Station >

Add screen appears.

3. On the My Added Station > Add screen, tap the button to open the

Keyboard. Using the Keyboard you can input the following internet

radio station information:

 Title

 Link

 Country

 Genre

 Language

4. Enter in the information you want then tap OK when you are finished.

5. To save the internet radio and it's information, on the Save line:

 Tap Yes to save the newly added internet radio stations.

 Tap No to exit without saving.

6. The newly added internet radio station(s) will be listed in My Added

Station screen.

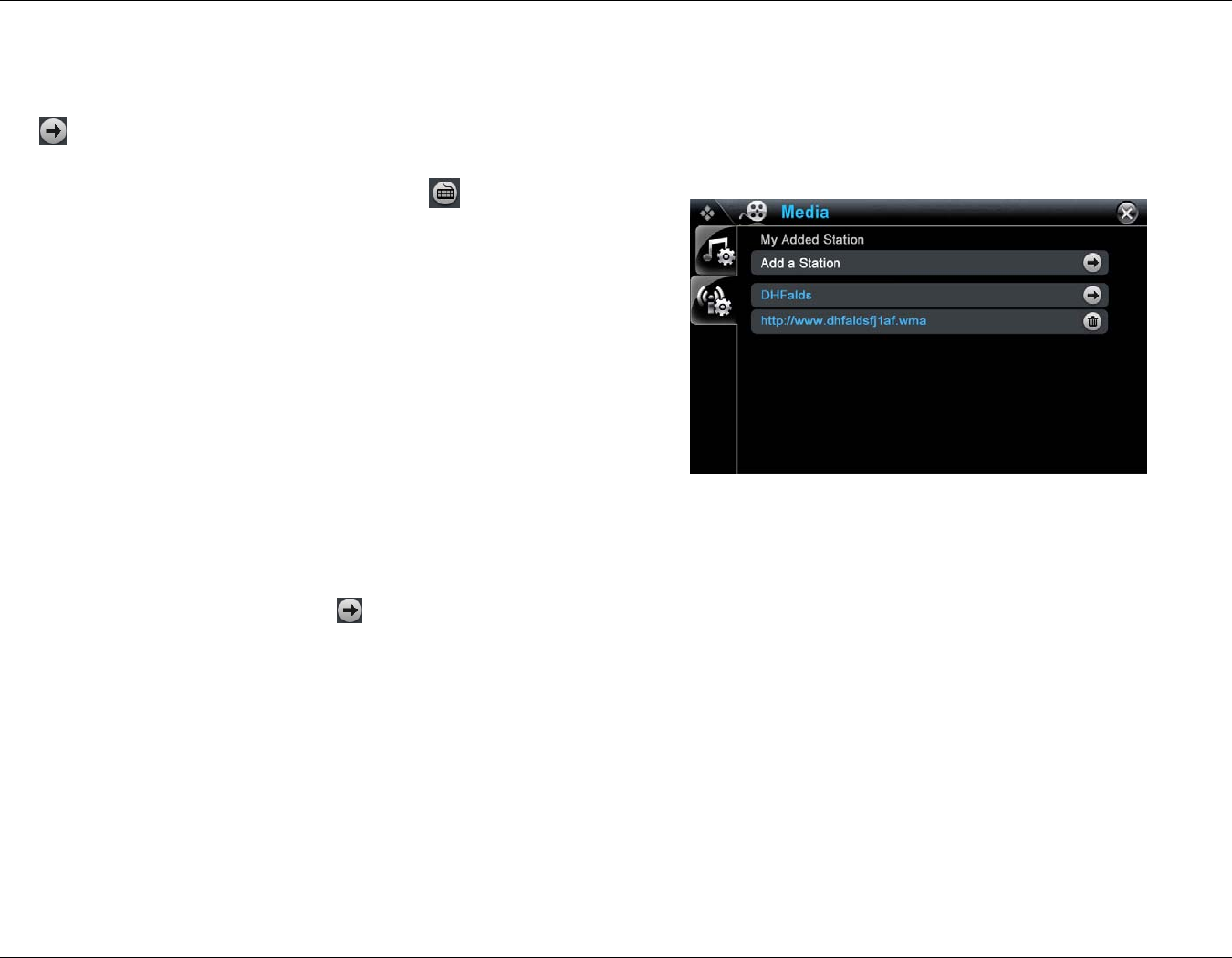

My Added Stations screen

My Added Stations > Add screen

Edit an added Internet Radio Station

1. To edit an internet radio station, on the My Added Station screen tap the

button on the radio station name line. The My Added Station >

Add screen appears.

2. On the My Added Station > Add screen, tap the button to open the

Keyboard. Using the Keyboard you can change the following internet

radio station information:

 Title

 Link

 Country

 Genre

 Language

3. Enter in the information you want, then tap OK when you are finished.

4. The updated information will be displayed in the My Added Station

screen.

Delete an added Internet Radio Station

On the My Added Station screen, tap the button on the radio link line.

The radio station will be deleted from the My Added Station screen list of

stations.

My Added Station screen

Copy / Delete Media Files

Copy One

1. In the left side of the Media screen, tap the location where the media file

is that you want to copy.

2. Select a media file you want to copy. Tap the button. A drop down

menu will appear.

3. Tap Copy One to copy the selected media file. A dialog box will appear

asking you to “Choose a device for file copy”.

4. Tap your destination memory.

5. Tap Yes to confirm the copy or No to cancel.

Copy One Media screen

Copy All

1. In the left side of the Media screen, tap the location where the media files

are that you want to copy.

2. Select any media file. Tap the button. A drop down menu will

appear.

3. Tap Copy All to copy all the media files in the current folder. A dialog box

will appear asking you to “Choose a device for file copy”.

4. Tap your destination memory.

5. Tap Yes to confirm the copy or No to cancel.

Copy All Media screen

Delete One

1. In the left side of the Media screen, tap the location where the media file

is that you want to delete.

2. Select a media file you want to delete. Tap the button. A drop down

menu will appear.

3. Tap Delete One to delete your selected media file.

4. Tap Yes to confirm the deletion or No to cancel.

Delete All

1. In the left side of the Media screen, tap the location where the media files

are that you want to delete.

2. Select any media file. Tap the button. A drop down menu will

appear.

3. Tap Delete All to delete all the media files in the selected directory.

4. Tap Yes to confirm the deletion or No to cancel.

Note: In Home Network and Web, the Delete One and Delete All buttons are

disabled.

Delete One Media screen

Specifications

Item Specification

Type 7’’ TFT display with touch panel

Panel

Resolution 800X480

Built-in memory 256 MB of internal memory (some is reserved for internal use)

Standard WiFi IEEE 802.11b/g, 2.4GHz, 54Mbps

Network Security Non, WEP, WPA, WPA2

Internet Protocol DHCP / Fixed IP

Network

Channels Support 1-14 channels, subject to country regulation

Standard USB2.0 (Full Speed)

USB

Port USB port (Host) and Mini USB port (Slave)

4 in 1 Card Slot Support SD, MMC, MS/MS Duo, XD

*Suggest to use 2GB or below

Memory

Card

CF Card Slot Support CF Card

*Suggest to use 2GB or below

Audio 1W x 2 built-in stereo speakers

Adaptor

Manufacture Name E-TEK Electronics Manufactory Ltd.

Model No. ZDA050300US

Output 5.0V / 3.0A

Power

Adaptor

Input AC 100 -240V ~ 50 / 60 Hz 0.8A

Item Specification

Battery model A0427-LF

Battery

Manufacturer Name EVE Energy CO., LTD.

Battery Capacity 2100mAh

Battery

Battery Voltage 3.7V

Language English, French, Spanish, German, Italian, Dutch and Portuguese.

Photo JPEG, BITMAP, GIF

Audio WMA

Internet Radio WMA

Video WMV, MPEG1(320x240, 25fps)

Format

RSS News RSS2.0 standard

Photo Slide Show Slide show with music / internet radio

Stream Photos/Music/Video from

PC Support Microsoft Windows Media Player 11

Troubleshooting

This section lists various problems and solutions encountered by users while using the Wireless Internet Frame. When encountering a problem, first check the

list below and follow the suggested action if one matches your problem. If the problem still persists, contact or visit the nearest service center.

Symptom Suggested Actions

The Wireless Internet Frame does not

turn on. Check the power connection between the Wireless Internet Frame and the power adapter.

The power turns on but the screen is

blank. The Wireless Internet Frame may be in sleep mode. Press [Mode] button to turn on the product

It takes some time to display an image. 1. Loading an image from an external memory disk may take several seconds depending on the file format and

photo resolution.

2. It is recommended that the maximum of one photo resolution is 12 Mega pixels. If the photo resolution is

larger than 12 Mega pixels, it takes more time to load.

In Home Network, nothing displayed in

“Home Network” of Photo Player / Media

Player.

1. Make sure your Wireless Internet Frame is connected to the same wireless network with your PC.

2. Make sure you have added some photos / Media files to your sharing center through Windows Media

Player11 and have allowed the Wireless Internet Frame to visit them.(see the Photo Player -> Home Network

part in the manual)

3. In Home Network, if the shared folders contain more files than the frame memory limit, it may not display the

files on frame or it will display “Too many ﬁles“. Please remove some files from shared folders.

I added a web photo account but the

photos cannot be displayed on the

Wireless Internet Frame.

1. Make sure your Wireless Internet Frame has been connected to a network which can access Internet.

2. Make sure the link you added is correct.

3. Check whether the web photo link you added is RSS 2.0 format and the account is Picasa/ /Windows Live

Space.

Some photos in my web account cannot

be displayed. 1. It may be related to your photo format and size.

2. We suggest the photo format is JPEG.

3. We suggest the maximum web photo resolution is 800 x 480 or below. If the resolution is larger than 800 x

480, it takes more time to download.

The Wireless Internet Frame cannot

detect the U disk or memory card I

inserted.

1. Restart the Wireless Internet Frame.

2. Reinsert the U disk / memory card.

Symptom Suggested Actions

3. Make sure your memory card is SD, MMC, MS, xD or CF.

4. Make sure the U disk or memory card has been inserted into the correct slot.

It takes some time to load the news 1. Confirm the network strength you connected is strong enough.

2. Close the News application and open again.

The news feed cannot be refreshed

successfully. 1. Confirm your WiFi network can access internet.

2. Try to refresh again by selecting “Refresh” in the drop down menu.

3. Check whether the feed can be visited normally in your computer, if not, the Wireless Internet Frame cannot

be displayed also, please contact the provider or wait for some time and try again.

The news feed I added can not be played. Make sure the feed is in RSS 2.0 format.

If the video can not play smoothly. Please make sure the video format is WMV or MPEG1 and the resolution less than or equal to 320X240, 25fps.

It may response slowly when connecting

to the internet radio. 1. Make sure the Wireless Internet Frame has been connected to a network which can access the internet, and

the network is in a good status.

2. Make sure the internet radio format is supported.

The internet radio station may stop

playing when network connection is good. 1. Try to pause the playing and play again.

2. The digital photo frame needs some time to buffering the audio source, please be patient.

3. The buffering status is subject to station provider’s server loading and network status.

4. Some radio stations do not broadcast 24 hours per day, and some stations are not always on-line. Please try

again later.

If the internet radio connect fails. 1. It may the internet radio server is shut down temporarily

2. Confirm your Wi-Fi network can access internet.

The internet radio I added cannot be

played. Make sure the format of the station is WMA, if not, the station cannot be supported.

In WiFi settings, when the user enter the

correct network Key, but the unit can not

be connected.

Check that your ﬁrewall is not blocking any outgoing ports. To conﬁgure the Access Port Control, you must read the

instructions supplied with the wireless access point.

Notes:

1. Under the influence of electrical fast transient phenomenon, the product may malfunction and require user to power reset.

2. Under the influence of electrostatic phenomenon, the product may malfunction and require user to power reset.

3. Under the environment with Voltage Dips and Interruptions, the communication link of the sample may loss and require user to reset the sample.
