Giant Telecom Limited 5.8GHz Digital Cordless Phone w/ CID & DAM
User Manual
MD7260 Series
5.8 GHz Digital
Expandable Cordless Telephone System
Users Guide
For a copy of a large-print version of this guide, or for product-
related questions, please visit us online:
www.motorola.com/cordless
Or contact us at:
1-800-353-2729 U.S.A.
1-800-461-4575 Canada
1-888-390-6456 TTY (Text Telephone)
Motorola reserves the right to revise this publication and to make changes in content from time to time without obligation
on the part of Motorola to provide notification of such revision or change. MOTOROLA PROVIDES THIS GUIDE WITHOUT
WARRANTY OF ANY KIND, EITHER IMPLIED OR EXPRESS, INCLUDING, BUT NOT LIMITED TO, THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. Motorola may make improvements
or changes in the product(s) described in this manual at any time.
MOTOROLA and the Stylized M logo are registered in the U.S. Patent and Trademark Office. All other product or service
names are the property of their respective owners.
© Motorola, Inc. 2006
MD7260 User Guide
i
Table of Contents
FCC Information ................................................................................... vi
FCC Compliance Class B Digital Device................................................................ vi
FCC Declaration of Conformity............................................................................. vii
Canadian Compliance............................................................................................ vii
Federal Communications Commission (FCC) Part 68 Statement...................... vii
Industry Canada CS-03 Declaration of Conformity.............................................. ix
Important Safety Instructions.............................................................. x
Welcome................................................................................................ 1
Handset Overview....................................................................................................2
Base Unit Overview .................................................................................................3
MD7260 User Guide
ii
Getting Started ..................................................................................... 4
Battery Safety Instructions..................................................................................... 4

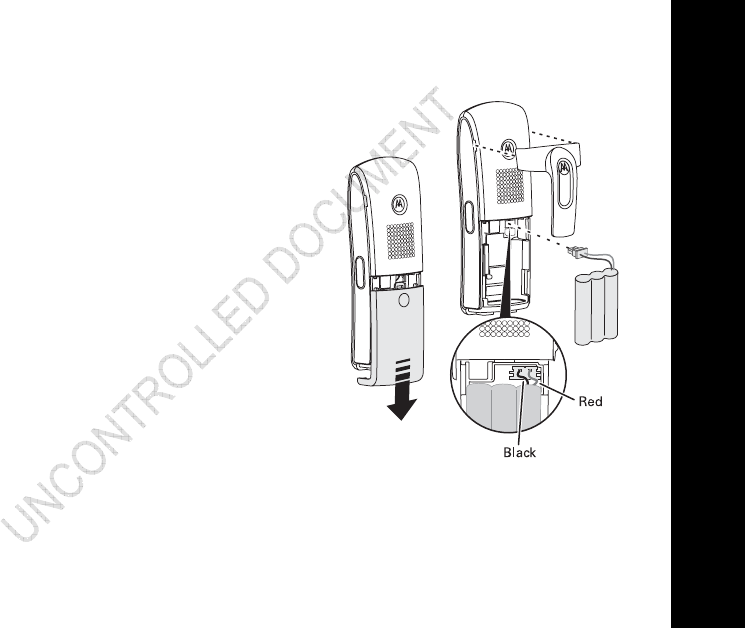

Installing the Battery............................................................................................... 5
Charging the Handset Battery ............................................................................... 6

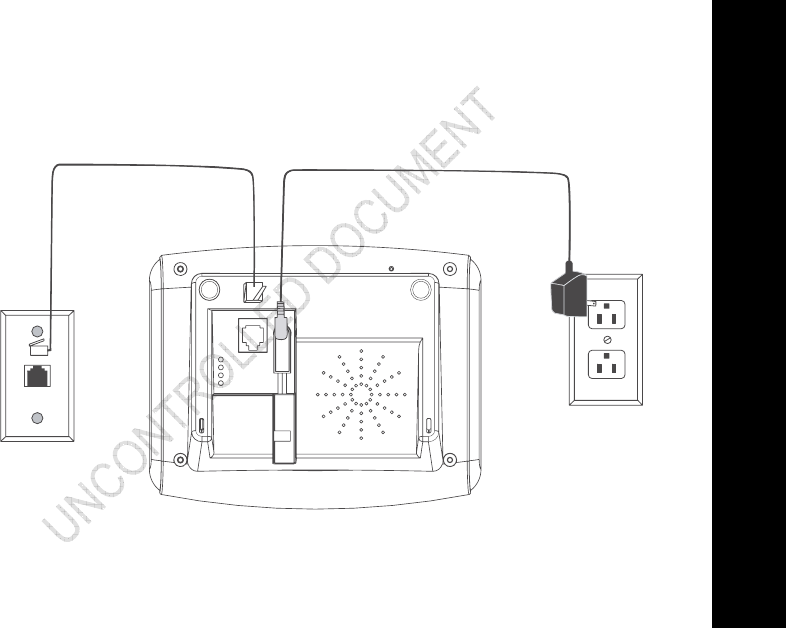

Installing the Base Unit ........................................................................ 7
Basic Operations................................................................................. 10
Handset Indicators ................................................................................................ 10
Base Unit LEDs .................................................................................................... 11
Making a Call......................................................................................................... 12
Answering Calls .................................................................................................... 13
Ending a Call ......................................................................................................... 13
Speakerphone Operation ..................................................................................... 13
Adjust Handset Volume........................................................................................ 14
MD7260 User Guide
iii
Temporary Ringer Adjustments............................ Error! Bookmark not defined.
Redial Function ......................................................................................................14
Deleting a Redial Listing ........................................ Error! Bookmark not defined.
Mute Function ........................................................................................................15
Locate a Misplaced Handset .................................................................................15
Phonebook Operations....................................................................... 16
Storing a New Entry ..............................................................................................17
Reviewing/Dialing from the Phonebook..............................................................19
Editing a Phonebook Entry ...................................................................................20
Delete a Single Phonebook Entry.........................................................................20
Caller ID/Call Waiting ID ........................................................................................21
Reviewing Caller ID Records.................................................................................22
Storing a Caller ID Entry in the Phonebook.........................................................23
MD7260 User Guide
iv
Dialing from the Caller ID Log ............................................................................. 24
Deleting a Caller ID Record .................................................................................. 24
Deleting All Caller ID Records.............................................................................. 24
Ringer Volume ...................................................................................................... 25
Ringer Tone ........................................................................................................... 26
Key Tone................................................................................................................ 27
Display Language ................................................................................................. 28
Dialing Method...................................................................................................... 29
Message Waiting Indicator .................................... Error! Bookmark not defined.
MD7260 User Guide
v
Special Features.................................................................................. 30
Intercom Calls ........................................................................................................30
Call Transfer ...........................................................................................................31
Conference Call ......................................................................................................32
In Case of Difficulty............................................................................. 33
Warranty.............................................................................................. 36
Technical Specifications..................................................................... 40
MD7260 User Guide
vi
FCC Information
FCC Compliance Class B Digital Device
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications. However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference by
one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
Privacy of communications may not be ensured when using this telephone.
Caution: Changes or modifications not expressly approved by Motorola for compliance could void the user’s
authority to operate the equipment.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
MD7260 User Guide
vii
FCC Declaration of Conformity
Motorola, Inc., Connected Home Solutions, 101 Tournament Drive, Horsham, PA 19044,
1-215-323-1000, declares that this cordless phone complies with 47 CFR Parts 2 and 15 of the FCC Rules as
Class B digital devices.
Canadian Compliance
This Class B digital apparatus complies with Canadian ICES-003. Cet appareil numérique de la classe B est
conforme á la norme NMB-003 du Canada.
Federal Communications Commission (FCC) Part 68 Statement
This Motorola cordless phone complies with Part 68 of the FCC rules and the requirements adopted by the
Administrative Council for Terminal Attachments (ACTA). On the bottom of this equipment is a label that
contains, among other information, a product identifier in format US: AAAEQ##TXXXX. If requested, this
information must be provided to the telephone company.
The Ringer Equivalence Number (REN) is used to determine the number of devices that may be connected
to the telephone line. Excessive RENs on the telephone line may result in the devices not ringing in
response to an incoming call. In most, but not all areas, the sum of the RENs should not exceed five (5.0).
To be certain of the number of devices that may be connected to the line, as determined by the total RENs,
contact the telephone company.
MD7260 User Guide
viii
For products approved after July 23, 2001, the REN for this product is part of the product identifier that has
the format US: AAAEQ##TXXXX. The digits represented by ## are the REN without a decimal point (e.g., 03
is a REN of 0.3). For earlier products, the REN is separately shown on the label.
This equipment uses the following USOC jack: RJ11C. A plug and jack used to connect this equipment to
the premises wiring and telephone network must comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant telephone cord and modular plug is provided with this
product. It is designed to be connected to a compatible modular jack that is also compliant. See installation
instructions for details.
Connection to Party Line Service is subject to state tariffs. Contact the state public utility commission, public
service commission, or corporation commission for information. If this equipment causes harm to the
telephone network, the telephone company will notify you in advance that the temporary discontinuance of
services may be required. If advance notice is not practical, the telephone company will notify the customer
as soon as possible. Also, you will be advised of your right to file a complaint with the FCC if you believe it is
necessary.
The telephone company may make changes in its facilities, equipment, operations, or procedures that could
affect the operation of the equipment. If this happens, the telephone company will provide advance notice in
order for you to make necessary modifications to maintain uninterrupted service.
If trouble is experienced with this equipment, for repair or warranty information, please contact Motorola,
Inc. at 1-877-466-8646. If the equipment is causing harm to the telephone network, the telephone company
may request that you disconnect the equipment from the network until the problem is solved.
This equipment is hearing aid compatible.
MD7260 User Guide
ix
If your home has specially wired alarm equipment connected to the telephone line, ensure the installation of
the cordless phone does not disable your alarm equipment. If you have questions about what will disable
alarm equipment, consult your telephone company or a qualified installer.
CAUTION: To maintain compliance with the FCC's RF exposure guidelines place the base unit at least 20
cm from nearby persons.
For body worn operation, this phone has been tested and meets the FCC RF exposure guidelines when
used with the belt clip supplied or designated for this product. Use of other accessories may not ensure
compliance with FCC RF exposure guidelines.
Industry Canada CS-03 Declaration of Conformity
This product meets the applicable Industry Canada technical specifications. The Ringer Equivalence Number
(REN) is an indication of the maximum number of devices allowed to be connected to a telephone interface.
The termination on an interface may consist of any combination of devices subject only to the requirement
that the sum of the RENs of all the devices does not exceed five.
If this equipment does cause harmful interference to radio or television reception, which can be determined
by turning the equipment on and off, the user is encouraged to try to correct the interference with one or
more of the following measures: Reorient or relocate the receiving antenna (that is, the antenna for the radio
or television that is "receiving" the interference).Reorient or relocate and increase the separation.
MD7260 User Guide
x
Important Safety Instructions
When using your telephone equipment, basic safety precautions should always be
followed to reduce the risk of fire, electric shock, and injury, including the following:
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid or
aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water (for example, near a bathtub, kitchen sink, or
swimming pool).
5. Do not place this product on an unstable surface, such as a table, shelf or stand.
The product may fall, causing serious damage.
6. Slots and openings in the back or bottom of the base unit and handset are
provided for ventilation. To protect them from overheating, these openings must
not be blocked by placing the product on a soft surface such as a bed, sofa, or rug.
This product should never be placed near or over a radiator or heat register. This
product should not be placed in any area where proper ventilation is not provided.
MD7260 User Guide
xi
7. This product should be operated only from the type of power source indicated on
the marking label. If you are not sure of the type of power supply in your home,
consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not install this product where
the cord may have anyone walking on it.
9. Never push objects of any kind into this product through slots in the base or
handset as they may touch dangerous voltage points or short out parts that could
result in a risk of fire or electric shock.
10. Never spill liquid of any kind on the product.
11. To reduce the risk of electric shock, do not disassemble this product, but take it to
an authorized service facility. Opening or removing parts of the base or handset
other than specified access doors may expose you to dangerous voltages or other
risks. Incorrect reassembling can cause electric shock when the product is
subsequently used.
12. Do not overload wall outlets and extension cords as this can result in the risk of
fire or electric shock.
13. Unplug this product from the wall outlet and refer servicing to an authorized
service facility under the following conditions:
• When the power supply cord or plug is damaged or frayed.
MD7260 User Guide
xii
• If liquid has been spilled onto the product.
• If the product has been exposed to rain or water.
• If the product does not operate normally by following the operating
instructions. Adjust only those controls that are covered by the operating
instructions, as improper adjustment of other controls may result in damage
and often requires extensive work by an authorized technician to restore the
product to normal operation.
• If the product has been dropped and the base and/or handset has been
damaged.
• If the product exhibits a distinct change in performance.
14. Avoid using a telephone (other than cordless) during an electrical storm. There is a
remote risk of electric shock from lightning.
15. Do not use the telephone to report a gas leak in the vicinity of the leak.
16. Only put the handset of your telephone next to your ear when it is in normal talk
mode.
MD7260 User Guide
1
Welcome
Congratulations on your purchase of a Motorola MD7260 series telephone. Check the
contents listing on the product packaging to ensure that your purchase includes each
of the items listed.
Product registration is an important step toward enjoying your new Motorola product.
Registering helps us facilitate warranty service, and permits us to contact you should
your Motorola product require an update or other service. Registration is not required
for warranty coverage.
To register your product online, visit:
http://broadbandregistration.motorola.com
Product registration is not available in Canada.
Please retain your original dated sales receipt for your records. For warranty service of
your Motorola product, you will need to provide a copy of your dated sales receipt to
confirm warranty status.
MD7260 User Guide
2
Handset Overview
1. Earpiece
2. LCD display
3. Caller ID/Scroll down
4. Phone On/Flash
5. Temporary tone dialing key
6. Mute/Delete
7. Intercom
8. Select/Menu
9. Phonebook/Scroll up
10. Headset jack (2.5 mm)
11. Phone Off/Cancel
12. Speakerphone
13. Change number format
14. Redial/Pause
15. Microphone
MD7260 User Guide
3
Base Unit Overview
1. Base unit speaker
2. Handset cradle
3. Handset page button
4. Menu options
5. Charging/Paging LED
6. Stop playback
7. In use/Voicemail LED
8. Mailboxes
9. Playback controls
10. Message delete
11. Memo record
12. Volume controls
For Placement Only
MD7260 User Guide
4
Getting Started
Battery Safety Instructions
• Do not burn, disassemble, mutilate, or puncture the battery. The battery contains
toxic materials that could be released, resulting in injury and/or explosion.
• CAUTION: There is a risk of explosion if you replace the battery with an incorrect
battery type. Use only the battery that came with your phone or an authorized
replacement recommended by the manufacturer.
• Keep batteries out of the reach of children.
• Remove batteries if storing over 30 days.
• The rechargeable batteries that power this product must be disposed of properly
and may need to be recycled. Refer to your battery’s label for battery type. Contact
your local recycling center for proper disposal methods.
MD7260 User Guide
5
Installing the Battery
1. Remove any stickers or inserts, if present.
2. Remove the battery door by pressing down on
the indentation and sliding downward.
3. Plug the battery connector into the receptacle.
(Make sure the black wire is on the left.)
4. Insert the battery into the battery compartment.
5. Replace the battery door.
6. Attach the belt clip (optional).
MD7260 User Guide
6
Charging the Handset Battery
The handset of your cordless telephone is powered by a rechargeable NiMH battery
pack. It charges automatically whenever the handset is in the base unit or charger.
The initial battery charge time is 10–12 hours. After the initial charge, a maintenance
charge of eight hours should be sufficient. Be sure to place the handset in its base
when not in use to insure maximum daily performance.
If your handset displays a LOW BATTERY message, or the handset seems completely
dead (the LCD is blank and does not activate when you press the keys), charge the
handset.
NOTE: When in LOW BATTERY mode, the keypad sounds, backlighting, and
speakerphone features will not work. The features are fully functional after you
recharge the battery.
MD7260 User Guide
7
Installing the Base Unit
IMPORTANT! FOR MAXIMUM PERFORMANCE OF YOUR CORDLESS TELEPHONE
SYSTEM:
• Choose a central location for your base unit.
• Install your base unit and extension handsets away from electronic equipment,
such as personal computers, television sets, and microwave ovens.
• In locations where there are multiple cordless telephones, install base units as far
apart as possible.
• Install your telephone equipment away from heat sources and sunlight.
• Avoid excessive moisture, dust, or extreme cold.
MD7260 User Guide
8
Selecting a Location for Your Base Unit
MD7260 User Guide
9
1. Plug the phone cord into the wall jack, and the power cord into an electrical outlet.
MD7260 User Guide
10
Basic Operations
Handset Indicators
Icon Description
MUTED Turns on when the microphone is muted
NEW Turns on when a new call is received and added to the call log
Turns on when the ringer is muted
E
Indicates battery charge status
MD7260 User Guide
11
Base Unit LEDs
LED Description
in use On when the phone is off-hook or when an
extension phone is off-hook
charge On when the handset is charging in its base
mailbox 1,
2, 3
Flashes when there are new messages in the
corresponding mailbox
Solid when only old messages are in the
corresponding mailbox
Turns on when the answering system is on
*The charge-only bases have only the Charge LED
MD7260 User Guide
12
Making a Call
Press the ON/FLASH key on the handset (or the v) key to use the speakerphone
feature). When you hear the dial tone, dial the number.
-OR-
Enter the phone number, and then press ON/FLASH. The phone number appears on the
display before it is dialed. Use the MUTE/DELETE key to make corrections. Press and
hold the OFF/CANCEL key to delete the entire number.
F.P.O.
F.P.O.
MD7260 User Guide
13
Answering Calls
Press ON/FLASH, v.
If you subscribe to call waiting:
Press the ON/FLASH key to answer the second call. Press ON/FLASH again to return to
the first call.
Auto Answer
1. Press the MENU softkey.
2. Scroll to and select Handset Setup.
3. Scroll to and select Auto Answer.
Ending a Call
Press the OFF/CANCEL key or place the handset in the base unit to end the call.
Speakerphone Operation
Each handset has a built-in speakerphone. This feature allows you to have hands-free
conversations.
To switch between speakerphone and the handset during a call, press the v key.
MD7260 User Guide
14
Adjust Handset Volume
Press the cid or pbk keys to adjust the listening vlolume to a comfortable level.
Redial Function
1. Press the REDIAL/PAUSE key to display the last telephone number dialed from the
handset (up to 32 digits).
2. Use the scroll keys to view the last 20 numbers dialed. A double beep will sound
when you reach the beginning or the end of the redial list.
3. Press the ON/FLASH or v key to dial the highlighted number. Press the
OFF/CANCEL key to exit the redial review list without dialing a number.
NOTE: If the redial memory is empty and REDIAL/PAUSE is pressed, a double beep will
sound.
F.P.O.
MD7260 User Guide
15
Mute Function
NOTE: The mute feature is only available during a call.
1. Press the MUTE/DELETE key. MUTED appears on the display, along with the MUTE
icon.
2. Press the MUTE/DELETE key again to return to normal two-way conversation.
Locate a Misplaced Handset
From the base unit, press the PAGE key to locate lost handsets. The handsets will beep
and PAGING appears on the display.
To end the page, press ON/FLASH, on the handset, or press PAGE again on the base
unit.
NOTE: Pressing OFF/CANCEL on a handset stops the paging for that handset only.
MD7260 User Guide
16
Phonebook Operations
Your handset can store up to 50 numbers with names. Each memory location holds up
to 32 digits for the number and 16 characters for the name.
NOTES: If you have multiple handsets registered to your base unit, the handsets share
a common phonebook stored in the base unit. This means that entries inserted by one
handset are available to all system handsets, and if you delete a phonebook entry, it
disappears from all of the handsets.
Only one handset can access the phonebook at one time. If a second handset
attempts to access the phonebook, NOT AVAILABLE AT THIS TIME appears on the handset
display.
MD7260 User Guide
17
Storing a New Entry
1. Press the SEL/MENU key.
2. Scroll to PHONEBOOK.
3. Press the SEL/MENU key.
4. Scroll to and select NEW ENTRY.
5. Enter the telephone number at the ENTER NUMBER prompt.
6. Use the MUTE/DELETE key to erase characters to the left of the cursor.
7. Press the SEL/MENU key to save the number.
8. Enter the name for the new contact at the ENTER NAME prompt. Use the
MUTE/DELETE key to erase characters to the left of the cursor. Use the cid or
pbk keys to move the cursor to the left or right.
9. Press SEL/MENU to save the entry. A confirmation tone will sound and OK briefly
appears on the display.
MD7260 User Guide
18
Use the table below to enter names and special characters into the phonebook.
1 23456789
1space 1
2
A
B C 2 a b c
3DEF3d e
f
4 G H I 4 g h i
5 J K L 5
j
k l
6MNO6mno
7 P Q R S 7 p q
r
s
8TUV 8 t u v
9WXYZ9
w
x y z
0 0
* * ? ! / ()
# # , - . &
KEY Number of Key Presses
‘
MD7260 User Guide
19
NOTES:
• If the phonebook is full, the handset will display PHONEBOOK FULL.
• While entering numbers, press and hold the PAUSE key to add pauses if necessary.
• If there is a duplicate number in the phonebook, DUPLICATE NUMBER appears.
Reviewing/Dialing from the Phonebook
When not on a call, press pbk, and the handset jumps directly into phonebook review
mode. The system list new entries first.
Scroll through the phonebook entries using the scroll keys or enter the first character
of the name (using the digit keys) and continue navigating.
NOTE: Scrolling through the list shows names only, if you want to see the number
associated with the number. Scroll to and select the entry you want to view, then scroll
to and select VIEW.
Press ON/FLASH or v to dial the number.
MD7260 User Guide
20
Editing a Phonebook Entry
1. Press the pbk key, scroll to the desired entry.
2. Press the SEL/MENU key. Scroll to and select EDIT. Use the MUTE/DELETE button to
edit the entry.
3. Press the SEL/MENU key to save the changes.
4. Follow the same steps to edit the name. A confirmation tone beeps and the
updated entry appears on the display briefly.
NOTE: To add a pause in the number, press and hold the REDIAL/PAUSE key.
Delete a Single Phonebook Entry
1. Press the pbk key, scroll to the desired entry.
2. Scroll to and select EDIT.
MD7260 User Guide
21
Caller ID/Call Waiting ID
Your handset is also capable of displaying caller ID information in conjunction with a
call waiting alert signal (Call Waiting/Caller ID).
With Call Waiting/Caller ID, the caller ID data is displayed so you can decide whether to
answer the incoming call, or continue with your current conversation. Your system
holds up to 50 caller ID entries.
NOTES:
• You must subscribe to Caller ID/Call Waiting service with your local telephone
company to use the feature.
• If no caller ID information is available from the phone company, or you do not
subscribe to the service, the display shows INCOMING CALL.
MD7260 User Guide
22
Reviewing Caller ID Records
When your systems stores new caller ID records, NEW appears on the display.
Press the cid scroll key to review the records.
- OR -
1. Press the SEL/MENU key.
2. Scroll to and select CALL ID LOG. Use the scroll keys to review the entries. A double
beep sounds when you reach the beginning or end of the log.
NOTE: As when accessing the phonebook, only one handset at a time can access the
call log. The other handsets cannot access it at the same time. If this is attempted,
NOT AVAILABLE AT THIS TIME will display on the second handset.
MD7260 User Guide
23
Storing a Caller ID Entry in the Phonebook
1. Press cid.
2. Scroll to the entry you wish to store. To view alternate phone number formats,
press the # key repeatedly. The display will cycle through the available dialing
options (1 + area code + number, area code + number, number only, etc.).
3. Press SEL/MENU to store the displayed number. A confirmation beep sounds and
ADDED TO PHONEBOOK appears.
NOTES:
• If the system is unable to detect a name or number, EDIT NAME or EDIT NUMBER
appears. You will then need to enter the name or the number.
• If the phonebook is full, PHONEBOOK FULL appears.
• DUPLICATE NUMBER appears on the display if the number is already in your
phonebook.
MD7260 User Guide
24
Dialing from the Caller ID Log
1. Press cid.
2. Scroll to the entry you wish to dial.
3. Press ON/FLASH or v to dial the number.
Deleting a Caller ID Record
1. Press cid.
2. Scroll to the entry you wish to delete.
3. Press the MUTE/DELETE key to delete the record. A confirmation beep sounds and
the previous caller ID record appears.
Deleting All Caller ID Records
1. Press cid.
2. Press and hold the MUTE/DELETE key. The handset prompts, DELETE ALL CALLS?
3. Press SEL/MENU to confirm, or OFF/CANCEL to exit without deleting.
MD7260 User Guide
25
Handset Options
Use the HANDSET SETUP menu to set system options.
• Ring volume
• Ringer tone
• Intercom tone
• Name handset
• Key tones
• Auto answer
There is also a BASE SETUP menu.
• Dial mode
• Deregister handset
Other menu options:
Date/time
• Time setting
• Date setting
• Date format
MD7260 User Guide
26
Ringer Volume
1. Press the SEL/MENU key.
2. Scroll to and select RINGER VOLUME. The current ringer volume appears on the
display.
3. Press the scroll keys or enter a digit (0 through 6) to the desired ringer volume.
The current ring tone plays and the volume bar increases or decreases each time
you adjust the setting. At the lowest setting, the display shows the ringer off icon.
4. Press the SEL/MENU key to save the setting.
Ringer Tone
1. Press the SEL/MENU key.
2. Scroll to and select RINGER TONE. The handset prompts you to select INTERCOM
CALL or OUTSIDE CALL.
3. Scroll to and select the desired option.
4. Press SEL/MENU. Use the scroll keys or enter a digit (0 through 9) to sample the
ring tones.
5. Press the SEL/MENU key to save the setting.
MD7260 User Guide
27
Key Tone
1. Press the SEL/MENU key.
2. Scroll to and select KEY TONE.
3. Select ON or OFF using the scroll keys.
4. Press the SEL/MENU key to save the setting.
MD7260 User Guide
28
Display Language
1. Press the SEL/MENU key.
2. Scroll to and select LANGUAGE.
3. Scroll to and select English, French, or Spanish.
4. Press SEL/MENU to save the setting.
NOTE:
If you accidentally change your language, follow these steps:
1. Press OFF/CANCEL until you are at the standby screen.
2. Press the SEL/MENU key.
3. Press pbk one time.
4. Press the SEL/MENU key.
5. Press pbk until you see your desired language.
6. Press the SEL/MENU key to save the setting.
MD7260 User Guide
29
Dialing Method
1. Press the SEL/MENU key.
2. Scroll to and select DIAL TYPE.
3. Scroll to TONE or PULSE.
4. Press SEL/MENU to save the setting.
NOTE: When the phone is set for pulse dialing, you may switch to temporary tone
dialing during a call by pressing *. Once pressed, tone will be used for rest of the call.
After you hang up, the phone will return to pulse dialing for the next call.
MD7260 User Guide
30
Special Features
If you have at least two handsets registered to your base unit, you can use the
intercom and call transferring features. The X represents the order (1, 2, 3, 4) in which
the handset was registered to the base unit. (See the user guide for the expansion
handset for more information.)
Intercom Calls
When not on a call, press the INT key on any handset. ENTER HANDSET # appears on the
display.
1. Enter the name of the handset you wish to page (e.g., to call PAUL2, press 2).
2. Press INTERCOM, ON/FLASH, v, on PAUL2 to answer the intercom call. The screen
on both handsets displays INTERCOM.
3. Press INT or OFF/CANCEL on either handset to end the call.
NOTE: If a handset is out of range, or you receive an outside call while attempting an
intercom call, the screen displays OUT OF RANGE.
MD7260 User Guide
31
Call Transfer
During an outside call, you can transfer the call from one handset to another.
1. Press the INT key on the handset with the outside call. ENTER HANDSET # is
displayed.
2. Enter the number of the handset to which you wish to forward the call. CALL
FORWARDED appears on the screen.
3. To answer the call, press the ON/FLASH button on the second handset.
NOTE: If the second handset does not respond after approximately 30 seconds, the
outside call returns to the first handset, and CALL BACK appears.
If the returned call is not answered within 60 seconds, the outside call ends
automatically.
MD7260 User Guide
32
Conference Call
Use the conference feature to enable two or more handsets to participate in the same
outside call.
1. While the first handset is on an outside call, the second handset can press
ON/FLASH or v.
2. A timer (e.g., CONF. 00:01:25) appears on the displays of both handsets showing the
length of the call.
MD7260 User Guide
33
In Case of Difficulty
The suggestions below should solve most problems you might encounter while using
your phone. If you still have difficulty after trying these suggestions, visit us on the
web at www.motorola.com/cordless.
The phone doesn't work at all
• Make sure the power cord is plugged firmly into the base unit and electrical outlet.
• Make sure the phone cord is plugged firmly into the base unit and the telephone
wall jack.
• Make sure the battery is properly inserted and fully charged. PLACE IN CHARGER on
the display indicates that the batteries need charging.
No dial tone
• First, try all the suggestions above.
• If you still don't hear a dial tone, disconnect the base unit from the telephone jack
and connect a different phone. If there is no dial tone on that phone, contact your
local telephone company.
MD7260 User Guide
34
You get noise, static, or a weak signal when you're away from the base unit
• You may be out of range. Either move closer to the base unit, or relocate it.
• The layout of your home may be limiting the range. Try moving the base unit to
another position. (See Installing the Base Unit on page 7.)
You get noise, static, or a weak signal even when you're near the base unit
• Household appliances plugged into the same circuit as the base unit can
sometimes cause interference. Try moving the appliance or the base unit to
another outlet.
The handset does not ring when you receive a call
• Make sure you have the ringer activated. (See Ringer Tone and Ringer Volume
sections.)
• Make sure the telephone line cord is plugged firmly into the base unit and the
telephone wall jack.
• Make sure the power cord is plugged into the base unit and an electrical outlet.
• Move closer to the base unit.
MD7260 User Guide
35
You hear other calls while using your phone
• Disconnect your base unit from the telephone jack, and plug in a different
telephone. If you still hear other calls, contact your local telephone company.
Common Troubleshooting Steps for Your Cordless Phone
If the handset or base unit does not seem to be responding normally, then try putting
the handset in its base. If it does not seem to respond, do the following (in the order
listed):
1. Disconnect the power to the base.
2. Disconnect the handset battery.
3. Wait a few minutes.
4. Connect power to the base unit.
5. Re-install the battery.
6. Wait approximately 60 seconds for the handset to re-establish its link with the
base.
MD7260 User Guide
36
Warranty
Motorola Limited Warranty for Consumer Products, Accessories, and Software Purchased in the United States or Canada
What Does this Warranty Cover?
Subject to the exclusions contained below, Motorola, Inc. warrants its cordless telephones ("Products"), Motorola-branded or
certified accessories sold for use with these Products ("Accessories"), and Motorola software contained on CD-ROMs or
other tangible media and sold for use with these Products ("Software") to be free from defects in materials and workmanship
under normal consumer usage for the period(s) outlined below. This limited warranty is a consumer's exclusive remedy, and
applies as follows to new Motorola Products, Accessories, and Software purchased by consumers in the United States or
Canada, which are accompanied by this written warranty:
Products and Accessories as defined above, unless otherwise provided for below. Length of coverage: one (1) year from
the date of purchase by the first consumer purchaser of the product unless otherwise provided for below.
• Decorative Accessories and Cases. Decorative covers, bezels, PhoneWrap® covers and cases. Length of
coverage: limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the product.
• Monaural Headsets. Ear buds and boom headsets that transmit mono sound through a wired connection.
Length of coverage: limited lifetime warranty for the lifetime of ownership by the first consumer purchaser of the
product.
• Products and Accessories that are Repaired or Replaced. Length of coverage: The balance of the original
warranty or for ninety (90) days from the date returned to the consumer, whichever is longer.
• Software. Applies only to physical defects in the media that embodies the copy of the software (e.g. CD-ROM, or
floppy disk). Length of coverage: ninety (90) days from the date of purchase.
MD7260 User Guide
37
Exclusions
Normal Wear and Tear. Periodic maintenance, repair, and replacement of parts due to normal wear and tear are excluded
from coverage.
Batteries. Only batteries whose fully charged capacity falls below 80% of their rated capacity and batteries that leak are
covered by this limited warranty.
Abuse & Misuse. Defects or damage that result from: (a) improper operation, storage, misuse or abuse, accident or neglect,
such as physical damage (cracks, scratches, etc.) to the surface of the product resulting from misuse; (b) contact with liquid,
water, rain, extreme humidity or heavy perspiration, sand, dirt or the like, extreme heat, or food; (c) use of the Products or
Accessories for commercial purposes or subjecting the Product or Accessory to abnormal usage or conditions; or (d) other
acts which are not the fault of Motorola, are excluded from coverage.
Use of Non-Motorola Products and Accessories. Defects or damage that result from the use of Non-Motorola branded or
certified Products,
Accessories, Software or other peripheral equipment are excluded from coverage.
Unauthorized Service or Modification. Defects or damages resulting from service, testing, adjustment, installation,
maintenance, alteration, or modification in any way by someone other than Motorola, or its authorized service centers, are
excluded from coverage.
Altered Products. Products or Accessories with (a) serial numbers or date tags that have been removed, altered, or
obliterated; (b) broken seals or that show evidence of tampering; (c) mismatched board serial numbers; or (d) nonconforming
or non-Motorola housings, or parts, are excluded from coverage.
Communication Services. Defects, damages, or the failure of Products, Accessories or Software due to any
communication service or signal you may subscribe to or use with the Products, Accessories or Software is excluded from
coverage.
MD7260 User Guide
38
Software Embodied in Physical Media. No warranty is made that the software will meet your requirements or will work in
combination with any hardware or software applications provided by third parties, that the operation of the software products
will be uninterrupted or error free, or that all defects in the software products will be corrected.
Software NOT Embodied in Physical Media. Software that is not embodied in physical media (e.g. software that is
downloaded from the internet), is provided "as is" and without warranty.
Who is Covered
This warranty extends to the first end-user purchaser, only.
What will Motorola Do?
Motorola, at its option, will at no charge repair, replace or refund the purchase price of any Products, Accessories or
Software that does not conform to this warranty. We may use functionally equivalent reconditioned/refurbished/pre-owned or
new Products, Accessories or parts. No data, software, or applications added to your Product, Accessory or Software,
including but not limited to personal contacts, games, and ringer tones, will be reinstalled. To avoid losing such data,
software and applications please create a back up prior to requesting service.
How to Get Warranty Service or Other Information
In the USA, call In Canada, call:
1-800-353-2729 1-800-461-4575
TTY 1-888-390-6456 TTY 1-888-390-6456
MD7260 User Guide
39
For accessories and software, please call the telephone number designated above for the product with which they are used.
You will receive instructions on how to ship the Products, Accessories, or Software, at your expense, to a Motorola
Authorized Repair Center. To obtain service, you must include: (a) a copy of your receipt, bill of sale or other comparable
proof of purchase; (b) a written description of the problem; (c) the name of your service provider, if applicable; (d) the name
and location of the installation facility (if applicable) and, most importantly; (e) your address and telephone number.
What Other Limitations Are There?
ANY IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE IMPLIED WARRANTIES OF MERCHANTABILITY
AND FITNESS FOR A PARTICULAR PURPOSE, SHALL BE LIMITED TO THE DURATION OF THIS LIMITED
WARRANTY, OTHERWISE THE REPAIR, REPLACEMENT, OR REFUND AS PROVIDED UNDER THIS EXPRESS
LIMITED WARRANTY IS THE EXCLUSIVE REMEDY OF THE CONSUMER, AND IS PROVIDED IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OF IMPLIED. IN NO EVENT SHALL MOTOROLA BE LIABLE, WHETHER IN CONTRACT OR
TORT (INCLUDING NEGLIGENCE) FOR DAMAGES IN EXCESS OF THE PURCHASE PRICE OF THE PRODUCT,
ACCESSORY OR SOFTWARE, OR FOR ANY INDIRECT, INCIDENTAL, SPECIAL OR CONSEQUENTIAL DAMAGES OF
ANY KIND, OR LOSS OF REVENUE OR PROFITS, LOSS OF BUSINESS, LOSS
OF INFORMATION OR DATA, SOFTWARE OR APPLICATIONS OR OTHER FINANCIAL LOSS ARISING OUT OF OR IN
CONNECTION WITH THE ABILITY OR INABILITY TO USE THE PRODUCTS, ACCESSORIES, OR SOFTWARE TO THE
FULL EXTENT THESE DAMAGES MAY BE DISCLAIMED BY LAW.
Some states and jurisdictions do not allow the limitation or exclusion of incidental or consequential damages, or limitation on
the length of an implied warranty, so the above limitations or exclusions may not apply to you. This warranty gives you
specific legal rights, and you may also have other rights that vary from state to state or from one jurisdiction to another.
Laws in the United States and other countries preserve for Motorola certain exclusive rights for copyrighted Motorola
software such as the exclusive rights to reproduce and distribute copies of the Motorola software. Motorola software may
only be copied into, used in, and redistributed with, the Products associated with such Motorola software. No other use,
including without limitation disassembly of such Motorola software or exercise of the exclusive rights reserved for Motorola,
is permitted.
MD7260 User Guide
40
Technical Specifications
FREQUENCY CONTROL
WEIGHT
Handset:
Base
Charge-only base
TRANSMIT FREQUENCY
Base:
Handset:
POWER REQUIREMENTS
Handset
Base:
Charge-only base:
RECEIVE FREQUENCY
Base:
Handset:
MEMORY
Phonebook:
CHANNELS
SPECIFICATIONS ARE TYPICAL AND MAY
CHANGE WITHOUT NOTICE
NOMINAL EFFECTIVE RANGE
SIZE
Handset:
Base:
MD7260
Expandable Cordless Telephone System
528212-001
02/06
