Giant Telecom X25Z55 2.4GHz FHSS Cordless Phone w/ CID & Speakerphone User Manual EX22438
Giant Telecom Limited 2.4GHz FHSS Cordless Phone w/ CID & Speakerphone EX22438
User Manual
22438
2.4GHz Digital Cordless Telephone
with Dual Mode Call ID
User manual
is a trademark of General Electric company used under license to Thomson Inc.
Indianapolis, IN 46290
Model: HWDCD3988(3)P/TSD
(Rev. 0 E)
06-21
Printed in China
Thomson Telecom
46, Quai Alphonse le Gallo,
92648 Boulogne Cedex, France
1
CONTENTS
IMPORTANT SAFETY INSTRUCTIONS..................................................................... 2
BATTERY SAFETY PRECAUTIONS............................................................................ 3
Installation.......................................................................................................................... 3
1. Inserting the batteries............................................................................................. 4
2. Connecting the Base Station and Power Plug ....................................................... 4

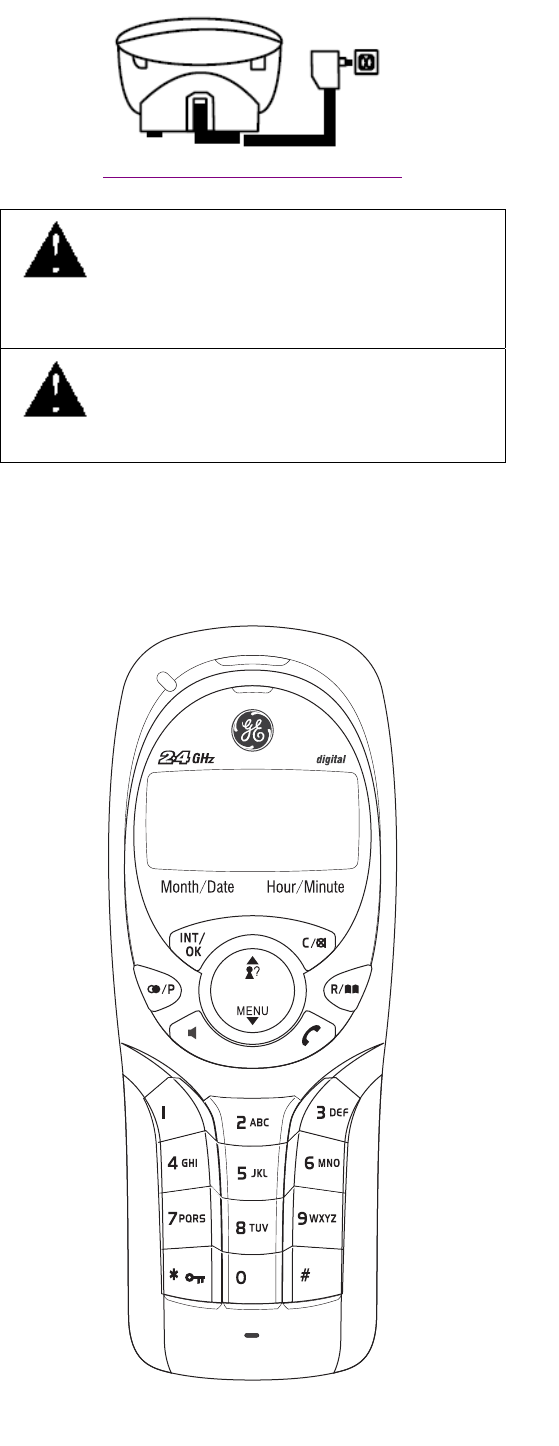

3. Connecting the charging station ........................................................................... 5
1 Handset and Base Layouts.................................................................................. 5
2 LCD Display ......................................................................................................... 6
3 Getting Started ..................................................................................................... 7
Install and Charge the Battery Pack.............................................................................. 7
4 Basic Telephone Operation .................................................................................7
Power on operation ....................................................................................................... 7
Making external calls.................................................................................................... 7
Normal dialing.......................................................................................................7
Pre-dialing ............................................................................................................. 8
Redialing................................................................................................................ 8
Recalling a number from the phone book directory .............................................. 8
Call log reply .........................................................................................................8
Temp tone dial........................................................................................................ 8
Receiving external Call................................................................................................. 9
Making internal calls .................................................................................................. 9
Receiving internal Call ............................................................................................... 9
Call transfer ................................................................................................................. 9
Call Toggle .................................................................................................................. 9
Three party conference ............................................................................................. 10
Mute conversation....................................................................................................... 10
Handset Speaker Phone .............................................................................................. 10
Changing Volume........................................................................................................ 10
Key lock ...................................................................................................................... 10
Low battery Warning .................................................................................................. 10
Out of range warning .................................................................................................. 10
Battery charging.......................................................................................................... 10
Paging function ........................................................................................................... 11
5 Menu functions................................................................................................... 11
General description ..................................................................................................... 11
Summary of all menu functions.................................................................................. 12
Browsing phone book ................................................................................................. 12
Storing number into the phone book .......................................................................... 12
Edit an entry in the phone book.................................................................................. 13
Deleting entries in the phone book ............................................................................. 13
Set distinctive melody for phone book entry.............................................................. 13
Changing handset ring tone melody & volume.......................................................... 13
Changing the name for the handset ............................................................................ 14
Setting tones on/off..................................................................................................... 14
Setting call timer on/off .............................................................................................. 14
Setting auto answer mode on/off ................................................................................ 14
Reset Handset Default setting..................................................................................... 14
Changing base ring tone melody & volume ............................................................... 14
Change DTMF/Pulse Dialing ..................................................................................... 15
Outgoing Call Barring ................................................................................................ 15
De-registration ............................................................................................................ 15
Change Flash Time ..................................................................................................... 15
Clear Message Waiting ............................................................................................... 15
Reset Base Default setting .......................................................................................... 15
Registration ................................................................................................................. 15
Change Language ....................................................................................................... 15
6 Caller ID operation............................................................................................ 16
Incoming call indication ............................................................................................. 16
Call log management .................................................................................................. 16
Message waiting management.................................................................................... 17
Off-Hook caller ID indication..................................................................................... 17
Reviewing caller ID number....................................................................................... 17
Operation on call log................................................................................................... 17
Dial back on call log ................................................................................................... 18
7 Technical Specifications..................................................................................... 18
8 Troubleshooting Tips .........................................................................................18
Caller ID Solutions ..................................................................................................... 18
No Display ........................................................................................................... 18
Caller ID incomplete............................................................................................ 19
Telephone Solutions.................................................................................................... 19
No dial tone.......................................................................................................... 19
Handset does not ring.......................................................................................... 19
Charge/In Use Indicator on the base flashes....................................................... 19
Phone dials in pulse with tone service.................................................................19
Phone won’t dial out with pulse service ..............................................................19
Change channels.................................................................................................. 19
Charge the battery................................................................................................ 19
Unit beeps ............................................................................................................19
Memory Dialing................................................................................................... 20
Cause of Poor Reception ............................................................................................ 20
9 General Product Care........................................................................................ 20
2
IMPORTANT SAFETY
INSTRUCTIONS
BEFORE USING YOUR TELEPHONE EQUIPMENT,
BASIC SAFETY PRECAUTIONS SHOULD ALWAYS BE
FOLLOWED TO REDUCE THE RISK OF FIRE,
ELECTRIC SHOCK AND INJURY TO PERSONS,
INCLUDING THE FOLLOWING
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the
product.
3. Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a
damp cloth for cleaning.
4. Do not use this product near water, for example, near a
bath tub, wash bowl, kitchen sink, laundry tub, in a wet
basement, or near a swimming pool.
5. Do not place this product on an unstable cart, stand or
table. The product may fall, causing serious damage to
the product.
6. Slots and openings in the cabinet and the back or bottom
are provided for ventilation. To protect it from
overheating, these openings must not be blocked or
covered. The openings should never be blocked by
placing the product on the bed, sofa, rug, or other similar
surface. This product should never be placed near or over
a radiator or heat register. This product should not be
placed in a built-in installation unless proper ventilation
is provided.
7. This product should be operated only from the type of
power source indicated on the marking label. If you are
not sure of the type of power supply to your home,
consult your dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not
locate this product where the cord will be damaged by
person walking on it.
9. Do not overload wall outlet extension cords, as this can
result in the risk of fire or electric shock.
10. Never push objects of any kind into this product through
cabinet slots as they may touch dangerous voltage points
or short out parts that could result in a risk of fire or
electric shock. Never spill liquid of any kind on this
product.
11. To reduce the risk of electric shock, do not disassemble
this product. Instead, when some repair work is required,
take the unit to a qualified technician. Opening or
removing covers may expose you to dangerous voltages
or other risks. Incorrect reassembly can cause electric
shock when the appliance is subsequently used.
12. Unplug this product from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
When the power supply cord or plug is damaged or
frayed.
If liquid has been spilled into the product.
If the product has been exposed to rain or water.
If the product does not operate normally by following the
operating instructions. Adjust only those controls that are
covered by the operating instructions because improper
adjustment of other controls may result in damage and
will often require extensive work by a qualified
technician to restore the product to normal operation.
If the product has been dropped or cabinet has be
damaged.
If the product exhibits a distinct change in performance.
3
13. Avoid using a telephone (other than a cordless type)
during an electrical storm. There may be a remote risk of
electrical shock from lightning.
Do not use the telephone to report a gas leak in the
vicinity of the leak.
IMPORTANT: Because cordless phones operate on
electricity, you should have one phone in your home that
isn’t cordless, in case the power in your home goes out.
WARNING:
TO PREVENT FIRE OR ELECTRICAL SHOCK
HAZARD, DO NOT EXPOSE
THIS PROCUCT TO RAIN OR MOISTURE
THE
LIGHTING
FLASH AND
ARROW
HEAD
WITHIN THE
TRIANGLE IS
A WARNING
SIGN
ALERTING
YOU OF
“DANGEROU
S VOLTAGE”
INSINDE THE
PRODUCT.
CAUTION: TO
REDUCE THE
RISK OF
ELECTRICAL
SHOCK, DO NOT
REMOVE COVER
(OR BACK). NO
USER
SERVICEABLE
PARTS INSIDE.
REFER
SERVICING TO
QUALIFIED
SERVICE
PERSONNEL.
THE
EXCLAMATION
WITHIN THE
TRIANGLE IS
WARNING SIGN
ALERTING YOU
OF IMPORTANT
INSTRUCTIONS
ACCOMPANYIN
G THE
PRODUCT.
SEE MARKING ON BOTTOM / BACK OF PRODUCT
BATTERY SAFETY
PRECAUTIONS
Do not burn, disassemble, mutilate, or puncture. Like
other batteries of this type, toxic materials could be
released which can cause injury.
To reduce the risk of fire or personal injury, use only the
battery listed in User’s Guide.
Keep batteries out of children.
Remove batteries if storing over 30 days.
CAUTION:
Danger of explosion if battery is incorrectly
replaced. Replace only with SANIK, type
no. : SN-AAA 60HJ rechargeable battery or equivalent.
Do not dispose of the battery in a fire. The cell may
explode. Check with local code for possible special
disposal instructions.
Installation
4
IMPORTANT:
Please make sure you completed the Handset battery
installation first, before you plug in the Base Adaptor.

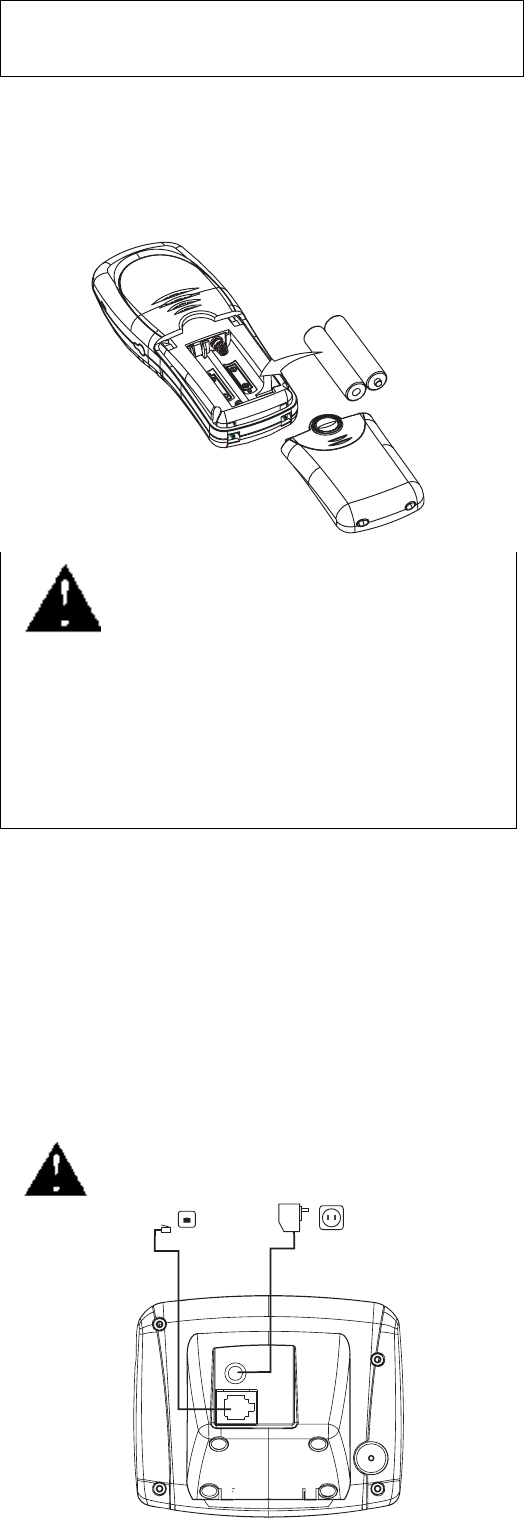

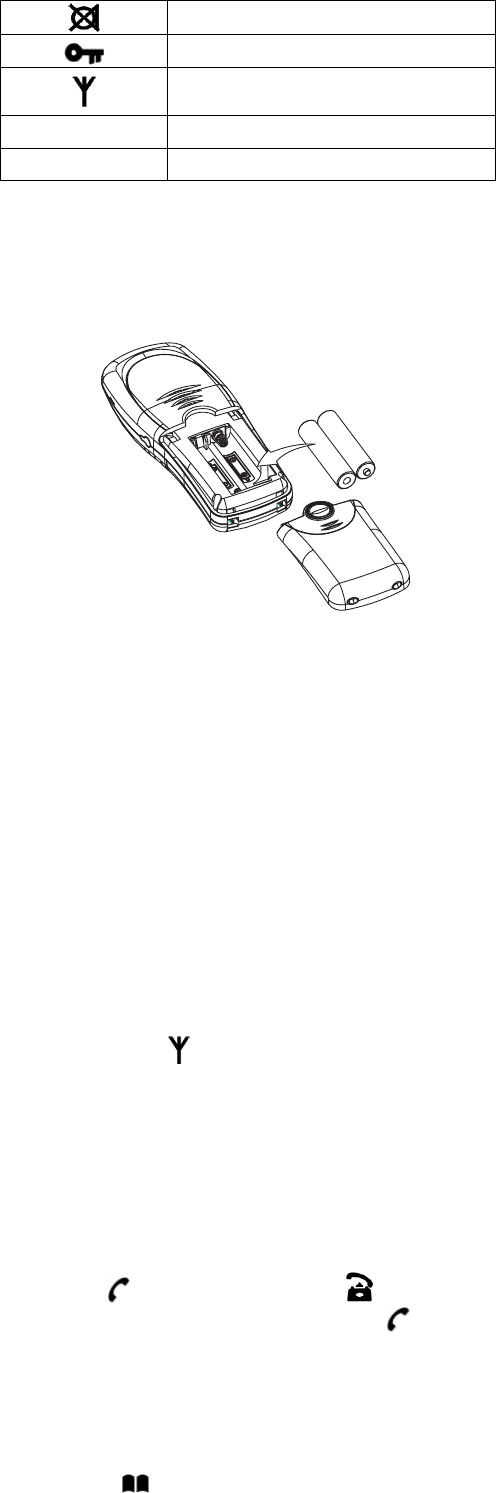

1. Inserting the batteries
Open the battery compartment by sliding the cover down.
Insert two AAA batteries in the compartment, ensuring
correct polarity.
The handset does not work if the wrong
batteries are inserted. It is also possible that
the handset could be damaged as a result.
Replace the cover on the battery compartment
and slide it on until it locks in place. Place the handset in the
base or charging station. An acoustic acknowledgement is
issued and the charging indicator signals the charging process
has started. Allow the batteries to be charged for 14 hours
without interruption the first time they are charged. When
possible, only remove the handset from the station when the
charging process has been completed. This ensures optimum
operation.
2. Connecting the Base Station and
Power Plug
Connecting the plugs to the corresponding sockets in the base
station (they can not be connected incorrectly because the
sockets and plugs are designed prevent reverse poling). Lay
the cable under the telephone to the rear. Plug the telephone
line in the telephone connection socket. Insert the power plug
at the other end in the power outlet. The base station in now
ready to operate.
Only use the connection cable supplied.
5
# This feature is onl
y
a
pp
licable with more than one handset
3. Connecting the charging station #
Insert the power plug in the socket on the rear side of the
charging station. Insert the power plug at the other end in
the power outlet. The charging station is now ready to
operate.
The base station and charging station have
no power switch. Ensure that a Mains
power outlet is close by and that the power
plug is easy to access. Check that the
voltage specified on the power plug corresponds with
that supplied by local power network.
CAUTION:
Use only the ATLINKS power supply that
came with this unit. Using other power
supplies may damage the unit.
1 Handset and Base Layouts
6
MENU / ▼ Menu / down key
/ ▲ CID key / Up key
INT / OK INT / OK key
C / Cancel / Mute key
Speaker key
/ P Redial / Pause key
External call key.
R / Flash /Memory key
* / Asterisk / lock key
# Hash key
Page key
In-use LED:
Steady: when handset is connected to a call in the
base station
Flash: when message waiting is received
2 LCD Display
Battery icon
Phone icon
EXT External call icon
INT Internal call icon
CLI icon
No ring icon
7
Mute icon
Key lock icon
Aerial icon
▲ Up arrow
▼ Down arrow
3 Getting Started
Install and Charge the Battery Pack
Open the battery cover by gently pressing down on
the top of the cover while sliding it down.
Plug the battery pack into the battery compartment
and close the compartment.
* Place the handset in the base station to charge for 14 hours
prior for first use. If you don’t properly charge the phone,
battery performance will be compromised.
4 Basic Telephone Operation
Power on operation
The handset is powered by plugging batteries or by
putting on cradle. After then, it will begin to search for a
base station that has been registered to that handset. The
‘Aerial’ icon will flash and “RANGE OUT” is
shown during searching.
After several seconds, the LCD will display “XX NEW
CALLS” if there are new calls existing or show the
handset number and the handset name.
Making external calls
Normal dialing
Press [ ] and the ‘Phone’ icon will be on. If
handset is not subscribed or out of range, [ ] key cannot
be used and pressing it will bring on an error tone.
The “EXT’ icon will be on after the PSTN line is
connected. (In case that one handset is connected with
the PSTN line, the “EXT’ icon on the other handset will
also be on indicating that the line is engaged.)
Dial the number as required.
Press [R/ ] to flash the line to perform some PABX
function and the LCD will be cleared waiting for new
input. The number dialed after the ‘Flash’ will not be
stored in the redial memory.
8
* Depending on the country and service availability and subscription to the operator.
If call timer has been set to ON, then after 8 seconds of
no further key press, the call timer counter will display. It
starts counting from ‘00: 01’ when off hook.
To terminate the call, press [ ]. The last call time will
remain for 2 seconds.
The call can also be terminated by putting the handset on
cradle. In that case, the call time will also be displayed
for 2 seconds.
Pre-dialing
A user may enter the number (up to 25 digits) before
seizing the line as shown;
Press [C/ ] to delete the last input digit. To add a pause
digit, press [ /P] and a letter ‘P’ will be shown. Long
Press the [C/ ] key can clear all digits at once.
After the desired number is entered, press [ ] to seize
line and the entered number will be dialed out.
Redialing
During standby mode, press [ /P] will show one of the
10 last dialed numbers.
If the number is longer than 12 digits, at first, the first
page will be shown aligning right, the digit number
equals to the total number minus 12.
2s later, the second page (the rest 12 digit) will be
displayed.
Press [ /P] to view another last dialed number in the
list. Or press [MENU/ ] [ /] to view the former or
later number.
Press [ ] to seize line and the selected number will be
redialed.
Recalling a number from the phone book
directory
To store a number into the directory, please refer to the
menu functions.
To retrieve the number stored in the phone book memory
during standby mode, press [R/ ] and the name for the
first number stored in a sorted listed in the directory will
be shown.
Users may like to press the keys [1] – [9] and [MENU/ ]
[/] key to locate the desired entry. For example,
press [8 TUV] to locate the entry with the name started
with ‘T’. Press [6 MNO] to locate the name started with
‘M’.
Press [ ] to dial out the number immediately.
If the phone book is empty, an error tone will be heard
following with an error message.
The error message will be displayed for 2 seconds before
reverting to standby mode.
Call log reply *
During standby mode, press [ /] to view unread
caller ID or through menu to browse call log list.
To call back to the caller, press [ ] and the viewed
number will be dialed out.
Temp tone dial
A user may like to change to DTMF dialing temporary
during the call if the call has been setup for pulse dialing.
This can be done by pressing [*/ ] key for more than
2 seconds during the call is active. A digit ‘d’ will be
9
shown on the display, indicating the ‘Change to DTMF’
command is sent out.
Adding the digit ‘d’ is also possible in pre-dial buffer.
Receiving external Call
When receiving an external call, all handsets will ring.
The “EXT’ icon and the handset LED will flash.
Base In-use LED will flash according to the ring
cadence.
If the network provider support caller ID, the caller’s
number or name will be shown. (See the section of Caller
ID operation for details.)
Press [ ] to seize line.
If auto-answer function is enabled, the line can also be
automatically connected after the handset is lifted up
from base. For preventing accidental line disconnection,
users cannot press [ ] to go on-hook within 3 seconds
after the handset is lifted up. To avoid handset dropping
from hand, handset will not go to on-hook when placing
handset onto cradle within 3 seconds too.
Making internal calls #
Press [INT/OK] key during standby mode to initiate the
internal connection and then press a digit to specify
which handset to call to.
The other handset will ring with the “INT’ icon flashing.
If the input handset number is wrong, number does not
display on the LCD, but the dial tone will be heard in
earpiece and allow correct number to enter again.
When the other handset answered the call, the internal
call is established. Press [ ] or [INT/OK] to release the
internal call.
Receiving internal Call #
When receiving an internal call, the handset will ring.
The “INT’ icon and the LED will flash. The handset
number of the calling handset will also be shown on the
left.
Press [ ] to answer the internal call and the flashing
icon stop flashing.
Call transfer #
When an external call is established, press [INT/OK] to
initiate the internal connection.
The external call will be on hold. “EXT’ and “INT” icon
will keep on.
Press a digit for handset number.
The other handset will ring. After an internal connection
is made, press [ ] to transfer the external call to another
handset (If internal call has been held after call toggle,
call transfer is also feasible).
If [ ] is pressed before another handset is answered, the
call transfer procedure will be cancelled and the external
call will be disconnected.
If [INT/OK] is pressed before another handset is
answered, the call transfer procedure will be cancelled
and the external call connection is regained.
Call Toggle #
A user may toggle between the external call and the
internal call when either is on hold. Press [INT/OK] key
to perform call toggling.
During internal call waiting, “INT” icon will flash.
10
Three party conference #
When an external call and an internal call are both
established at the same time and one of them is on hold,
the initiating handset can start a three-party conference
by pressing and holding [#] for 2 seconds.
When an external call has been established between
external caller and one handset, user can press [ ] on
another handset to join the call with a notification tone.
If one handset has pressed [ ] during the conference, it
will go on-hook with a notification tone and the other
handset will continue to establish the external call.
Mute conversation
During conversation, the microphone can be muted by
pressing [C/ ]. After the function is selected, the icon
will be on.
When the outgoing conversation is muted, a user may
press [C/ ] to un-mute the speech path. After that, the
icon will be cleared.
Handset Speaker Phone
Press key to activate or deactivate the handset
speaker.
Changing Volume
During conversation, the earpiece volume can be
adjusted by pressing [ /] or [MENU/ ].
The adjusted volume level is indicated by a volume bar.
The volume bar will appear for 2 seconds after the last
key press.
When press [ /] to increase volume if level is 5 or
press [MENU/ ] to decrease if it is 1, it will wrap to
level 1 or level 5.
Key lock
In standby mode, a user may press and hold the [*/ ]
key for 2 seconds to lock the keyboard. Once it is
locked, the icon will be shown and ‘* TO
UNLOCK’ message will be displayed;
All key input will be ignored when the keyboard is
locked. To unlock the keyboard, press and hold the
[*/ ] key for 2 seconds.
When the keyboard is locked, user can still accept the
incoming call by pressing the [ ] key. After the call,
keyboard is still locked.
Low battery Warning
When the battery low condition is detected during
standby mode, low-battery warning tone can be heard
and the empty battery sign is shown.
If user switches off the low battery warning tone through
menu tones item, the warning tone will be off.
Out of range warning
When a handset is being off-hook and it is too far away
from a base station, an out of range warning tone can be
heard and handset will go to on hook.
If user switches off the range out warning tone through
menu tones item, the tone will be off.
11
Battery charging
When a handset is initially started up (reloading the
batteries or charging up from empty batteries), the
battery will be fast charged for 3 hours.
During a normal usage scenario, when a handset is used
and is put on cradle, the battery will be fast charged for at
about 15 minutes.
If the battery level reaches 2 bars, the system will charge
for 3 hours.
While the battery is being charged, the following
animation on the battery icon can be seen.
After the charging period, fast charge cycle will stop and
the battery icon will be shown as full steadily.
An empty battery has to be charged for about 14 hours in
order to reach maximum capacity.
Paging function
If the [ ] key is pressed on base during standby mode,
base will beep once and the handset will output the
paging tone. ‘PAGING’ message will be shown on LCD;
Pressing the [ ] key or any key on handset can stop the
page tone and page display.
5 Menu functions
General description
The menu can only be accessed when the handset is in
standby mode.
All individual functions are listed in the form of a menu.
Pressing [MENU/ ] to enter the menu and the first
selectable item can be seen.
For example the first selectable item in menu is shown.
The next item can be chosen by pressing [/] or
[MENU/ ] until the desired item is shown on the
display. User may then press [INT/OK] to confirm the
selection.
Alternatively, a user may also press an index digit for the
desired item to directly select that item.
At any stage of menu function, user may like to go one
level up by pressing [C/ ] or press and hold [C/ ] to
completely leave the menu.
At any stage, user may like to connect to the base
immediately by pressing [ ].
For the sake of convenience, a list of selectable options
will be shown as following, although only one item will
be actually displayed on the LCD.
The previous selection will always be shown first and
user can change the selection by pressing [ /] or
[MENU/ ]. User may like to press [INT/OK] to
confirm the selection or cancel the selection and go back
on level up by pressing [C/ ].
Handset can exit from menu mode after no key pressing
for 20 seconds.
When entering into CALL LOG or BASE, a ‘WAITING’
will show to indicate that handset is asking for service
from base and waiting for base response.
12
Summary of all menu functions
All the selectable items are listed as follows:
(Note: at any time, only one item can be shown
on the display)
1 - C A L L LOG
0 1 - J ACK
1 - DELETE
2 - SAVE
3 - DELETE ALL
0 2 - B LOCK
. . . . ...
2 - P H O N E BOOK
1 - B R O
W
SE
2 - S T ORE
3 - E D IT
4 - D E LETE
5 - M E LODY
6 - D E LETE ALL
3 - H A N D SET
1 - V O LUME
2 - E X T RING
3 - I N T RING
4 - H S NAME
5 - T O NES
1 - KEY
2 - CONFIRM
3 - LO
W
BATT
4 - RANGE
6 - T I MER
7 - A U TO ANS
8 - D E FAULT
4 - B A S E
1 - M E LODY
2 - V O LUME
3 - D I AL MODE
4 C A LL BAR
5 - D E REG HS
6 - F L ASH
7 - C L EAR MSG
5 - R E G I STER
6 - L A N G UAGE
1 - E N GLISH
2 - P O RTUGUESE
3 - S P ANISH
Browsing phone book
See “Recalling a number from the phone book
directory” for details.
Storing number into the phone book
There are two ways to store a number into the phone
book directory.
The first way is to choose ‘STORE’ from the menu to
create a new phone book entry.
After selection, users will be prompted to enter the name
first.
After the first pressing, the entering display will appear
and the letter will blink once for 1 second, during this 1
second, the character can be entered by pressing a digit
‘1’ to ‘0’ for different times within 1 seconds.
After one second of no key press or another digit key is
pressed, the cursor will be advanced by one step as
shown, and blink to indicate the current entering
position.
Press [C/ ] to delete the current digit or press [INT/OK]
to complete the name entering procedure.
Name and number cannot be empty.
13
User may enter a name of up to 10 characters. During
name entering, user may press [C/ ] to clear the last
input character. Press [INT/OK] to confirm the name
entered. If no character is entered but press [INT/OK] to
confirm, a warning tone will prompt.
After entering the name and confirm, number entry will
prompt.
A user may enter a number of up to 16 digits. During
number entry, the user may press [C/ ] to clear the last
input digit.
Press [INT/OK] to complete the number entry and also
the procedure of storing an entry in the phone book. A
confirm tone will be heard and the storing can be
continued one by one.
The second way to store a number is to copy the call ID
number from the call log. The detail of the operation will
be described in the section ‘Caller ID operation’.
If the phone book is full before storing a new entry, an
error message will be displayed and an error tone can be
heard.
The error message will be shown for 2 second before
reverting to the up level menu.
Edit an entry in the phone book
After selecting ‘EDIT’, the first item on the sorted list
will be shown. Similar to recalling a number from the
phone book, user has to choose an entry to edit.
After pressing [INT/OK], the stored name will be
appeared for change followed by the number. The rest
of the procedure is the same as storing a number in the
phone book.
Deleting entries in the phone book
After selecting ‘DELETE’, a user can select the entry to
be deleted.
Press [INT/OK] and then that entry will be removed.
To delete all the phone book memory, choose ‘DELETE
ALL’ from the menu.
Confirmation will be required for deleting all entries.
Press [INT/OK] to confirm the delete procedure or press
[C/ ] to cancel.
Set distinctive melody for phone book
entry
After selecting ‘MELODY’, user can select a melody for
phone book entries. Similar to editing a number from the
phone book, user has to choose an entry to set.
Press [INT/OK] and then the melody for that entry will
be heard. If no distinctive melody is set to it, the default
melody same as the common one set in Ext Ring will be
assigned. (See the section of changing handset ring tone)
The selected ring tone will be heard if the caller ID
matches with the number for the entry during incoming
call.
Press [R/ ] to view phonebook entries, if the entry is
set to a distinctive melody, a ‘#’ will indicate before the
entry name.
Changing handset ring tone melody &
volume
To change the handset ringer volume, choose ‘Volume’
under ‘Handset’.
It is allowed to change the volume from 0 to 5 levels and
the ring tone for external call can be heard at the same
time.
14
If level 0 is selected, the ‘No Ring’ icon will be
shown.
Press [INT/OK] to confirm the selection.
To change the melody, choose either ‘EXT Ring’ or ‘INT
Ring’ for external or internal incoming call.
10 normal ring tone melodies can be selected.
User may change the ring melody by pressing
[MENU/ ] or [ / ].
The selected melody tone can be heard during selection.
Press [INT/OK] to confirm the selection.
Changing the name for the handset
User can change the handset’s name displayed during
standby by choosing ‘HS NAME’ from the menu.
If the handset name has been stored, the name will be
displayed and the user can change it.
Setting tones on/off
There are 4 kinds of tone can be set to on or off: key
tone, confirm tone (including error tone), low battery
tone and range out tone.
The key beep tone can be set to on or off by selecting
‘KEY’ from the menu ‘TONES’. The previous setting
‘On/Off’ can be seen.
Choose the desired setting and then press [INT/OK].
The other tones can be set as key tone.
Setting call timer on/off
The call timer display during a call can be set to on or off
by selecting ‘Timer’. Similar to setting key beep on/off,
the previous on/off setting will be shown after selection.
Choose the desired setting and then press [INT/OK].
Setting auto answer mode on/off
The auto answer function can be set to on or off by
selecting ‘Auto Ans’ from the menu. Similar to setting
key beep on/off, the previous on/off setting will be
shown after selection.
Choose the desired setting and then press [INT/OK].
Reset Handset Default setting
By choosing ‘Default’ under ‘Handset’, user will be
asked to confirm the resetting procedure.
Once confirmed, all the handset setting parameters will
be reset to default values.
Changing base ring tone melody &
volume
To change the melody, choose ‘Melody’ under ‘BASE’
and press [INT/OK].
10 normal ring tone melodies can be selected.
User may change the ring melody by pressing
[MENU/ ] or [ / ].
The selected melody tone can be heard during selection.
Press [INT/OK] to confirm the selection.
To change the base ringer volume, pressing [MENU/ ]
or [/] to choose ‘Volume’ under ‘Base’ and press
[INT/OK].
It is allowed to change the volume from 0 to 5 levels and
the base ring tone can be heard at the same time.
If level 0 is selected, the base ringer will be turned off.
Press [INT/OK] to confirm the selection.
15
Change DTMF/Pulse Dialing
The DTMF or pulse dialing mode can be selected by
choosing ‘Dial Mode’ from the base setting menu.
After selecting, the current dial mode is shown;
Press [ /] or [MENU/ ] to select DTMF or pulse
dial mode. Press [INT/OK] to confirm or press [C/ ] to
abort.
Outgoing Call Barring
External call barring: All external outgoing calls must be
barred.
Number: All outgoing calls begin with the specifically
number must be barred.
Disable: All calls are allowed.
De-registration
One of the registered handset is able to remove the
registration of another handset.
Select ‘DEREG HS’ from the menu, user will be asked
to enter the handset number to be deleted
For safety purpose, a handset cannot delete itself. So, the
handset number is shown for other handset. In case
that there is only one handset registered, the
de-registration procedure will be aborted.
Press [INT/OK] to proceed. That handset will no longer
be able to access the base. The ‘Aerial’ icon will
disappear and ‘NOT RGSTRD’ will appear.
Change Flash Time
The flash time can be changed so that the base can be
compatible to different PABX system. Choose ‘Flash
Time’ from the base setting menu and the current setting
is displayed.
Three different flash time can be selected (100ms,
300ms or 600ms) by pressing [MENU/ ] or [ /].
Press [INT/OK] to confirm the selection.
Clear Message Waiting *
Clear message waiting indicator on base and stop LED
flashing.
Reset Base Default setting
Similar to the resetting procedure for handset,
confirmation will be required.
Once confirmed, all the base setting parameters will be
reset to factory setting.
Registration
To register a handset to a base station, the base has to be
ready for registration. The base will be ready for
registration for 2 minute when [ ] key is pressed and
hold for 3 seconds.
After selecting ‘REGSTER’, the handset starts searching
for a base station that is available for registration. The
‘Aerial’ icon starts flashing.
If success, the registration procedure will be completed
with a confirm tone. If fail, after 60 seconds, the
registration procedure will be exited with an error tone.
Change Language
Select ‘Language’ from the manual and user will be
16
prompted to change the display language.
A total of 3 languages can be selected.
Press [MENU/ ] or [ /] to select the desired
language. Press [INT/OK] to confirm or press [C/ ] to
abort.
6 Caller ID operation
*
Incoming call indication
If the network provider sends out CLIP information,
some information will be shown
Sometimes, the service provider does not send out the
number but provide reason of absence.
The supported CID displays include: number absence,
number, name absence, name, message indication and
long distance indication.
1. When Caller ID is activated, the Telephone Company
sends the caller’s telephone number (and name, if
available) and the call’s date and time.
2. If the number is matched in phone book, the name will be
displayed instead of the number.
3. An “L” will be displayed ahead of the number or name
for the long distance indication.
4. The display also indicates “BLOCKED” if caller
information is not available or intentionally blocked by
the sender.
5. “MESSAGE” will be displayed when message waiting is
received.
6. If the call ID is with no number and name, blank will be
displayed.
Press [MENU/ ] to view the rest of the number/name
if the number/name is longer than 12/10 digits.
If the number is longer than 16 digits, only the first 16
digits are stored.
If a call with CLI information remained unanswered after
the call is gone for 3 seconds, the handset and base will
go back to standby mode. The ‘CLI’ icon will be on
and the number of unread caller ID number will be
shown.
Call log management
There are 20 calls log memories for storing the caller’s
number and the date-time information. If the caller’s
name and the date-time information are not available,
only the caller number will be stored.
There are 2 kinds of call log entries: MISSED and
RECEIVED.
If an incoming call with CLI is missed, it will be stored
as MISSED. Before user read them, the new call counter
will indicate how many new calls are missed. After user
read it, it will be changed to RECEIVED and the new
call count down.
If an incoming call with CLI is accepted, the caller
information will still be stored in the call log but it will
becomes as RECEIVED call.
Two category of call log are placed in one list and the
MISSED calls are read firstly.
The caller number and name will be arranged in the call
log such that the latest received call information will be
stored in the first location.
Every CLI comes in with the same number will be
considered as an identical one. The same CLI number
received will replace the other one.
If all the call log locations are occupied, further
reception of caller information will displace the earliest
‘received’ call. In case that there is no RECEIVED call
17
is left, the earliest MISSED call information will be
displaced.
Except for the number that can be stored, some ‘Absent
reason’ will also be stored in the call log.
Message waiting management
Two kinds of message waiting are considered: VWMI
ON and VWMI OFF.
Message waiting management is independent of call log.
MSG LED on base is flashing or not flashing to indicate
message waiting or no message waiting exist
Any type of CID with VWMI ON to activate MSG LED
flashing, whereas any type of CID with VWMI OFF to
deactivate it.
User can clear message waiting manually through
‘CLEAR MSG’ under ‘BASE’ menu.
Off-Hook caller ID indication
When the handset is connecting with the external line,
caller ID can also be indicated if off-hook caller ID
signal is detected from the telephone. The caller’s
number will be shown for 8 seconds.
The caller’s number will be saved to the call log and the
entry will become as unread call.
Reviewing caller ID number
The previous caller ID information can be read by
choosing ‘Call Log’ from the menu.
Alternatively, users can press the [ /] key during
standby to view the list.
If there is no caller ID information, the following screen
can be seen for 2 seconds before reverting back to
standby mode.
If there is caller ID information, the most recently
received caller’s number will be shown first. If the call
information has not been read before, the ‘CLI’ icon
will be on.
After the unread caller ID is read, it will become missed
call and be removed from unread list.
Phone book number matching will be performed on the
caller number in call log as well. If there is a match, the
name of the caller for that entry will be firstly shown.
If the name has more than 9 characters, the rest of the
name will be omitted. Press [MENU/ ] to view the
number or name in the next row.
Besides ‘0’-‘9’, only‘*’ and ‘#’ could be displayed in the
number field.
Apart from the number can be stored, some ‘Absent
reason’ will also be stored in the call log.
Press [MENU/ ] or [ /] to view the next or
previous caller ID information.
If the caller information for an entry has been read before,
the ‘CLI’ icon will not appear.
If caller ID name is not provided, the first page show
blank as,
If the caller’s number is too long to be seen at once,
pressing [MENU/ ] to show the unseen content on the
right.
If date-time information is available, user may press
[MENU/ ] to view the date-time information (MM/DD
hh:mm, 24 hour) located at the end of the current call log
entry.
Operation on call log
To operate the caller ID number from call log, choose
18
‘CALL LOG’ to enter the call log first.
During viewing any type of call log, press [ ] and the
viewed number will be dialed out.
During viewing ‘missed’ or ‘received’ caller ID, press
[INT/OK] to operate it. Three kinds of operations are
provided: ‘Delete’, ‘Save’ and ‘Delete All’.
Then, user could browse a sub-menu by pressing
[MENU/ ] or [ /]. Press [INT/OK] to execute the
selected operation.
If ‘DELETE’ is selected, after a confirm tone, the next
entry will come out. If no entry is to be deleted, LCD
shows ‘EMPTY’ and then returns to up level menu after
2 seconds.
If ‘SAVE’ is selected, if phone book space is full, a
warning tone will be heard with the below display and
then returns to up level menu after 2 seconds.
If phone book space is not full, the selected call log entry
will be saved to phone book.
Before saving to phonebook, user can edit the name and
number.
If the current call log entry matches phone book, it can’t
be saved to phone book with prompt of ‘EXISTED’. If
try to save some call logs without number, it will show
‘INVALID’.
If the current call log entry does not match phone book
and it has no name, the name field will be filled with
‘CID NAME’.
To delete all call logs, user can select ‘DELETE ALL’ in
the call log menu. Further confirmation is necessary
before the operation.
Saving the caller’s number is only possible if a matched
entry is not found in the phone book.
Dial back on call log
Use the [ /] or [MENU/ ] button to display the
Caller ID record you want to dial.
During viewing any type of call log, press [0-9] to add
digits before CID number. Press [#] to cancel all additive
digits.
Press [ ] or [ ] button, the number dials automatically.
7 Technical Specifications
AC/DC Adapter: Output: 6 V DC, 350mA
AC/DC Adapter #: (for
Handset charger)
Output: 6 V DC, 150mA
Rechargeable Battery: SN-AAA60HJ or equivalent
(Ni-MH, 1.2V, 600mAh)
8 Troubleshooting Tips
Caller ID Solutions
No Display
Is battery fully charged? Charge the battery for 14 hours
or replace the battery. Make sure the battery is properly
installed and connected.
If you are using AC (electrical) power, make sure that the
unit is connected to a non-switched electrical outlet.
Disconnect the unit from the plug and plug it in again.
Are you subscribed to caller ID service from your local
telephone company?
19
Caller ID incomplete
The unit displays this message if it detects anything other
data message than valid Caller ID information during the
silent period after the first ring. This message indicates
the presence of noise on the line.
Telephone Solutions
No dial tone
Check installation:
-- Is the base power cord connected to a working
electrical outlet?
-- Is the telephone line cord connected to the base unit
and wall phone jack?
Disconnect the base from wall phone jack and connect
another phone to the same jack. If there is no dial tone on
the second phone, the problem might be your wiring or
local service.
The handset might be out of range of the base. Move
closer to the base.
Make sure the battery is properly charged (for 14 hours).
Ensure the battery is installed correctly.
Did the handset beep when you pressed the talk/callback
button? Did the in use indicator come on? The battery
may need to be charged.
Dial tone is OK, but can’t dial out
Make sure the tone/pulse setting is programmed
correctly.
Handset does not ring
Make sure the RINGER switch on the handset is turned
to ON.
You may have too many extension phones on your line.
Try unplugging some phones.
See solutions for “No dial tone”.
Charge/In Use Indicator on the base flashes
Provided your phone company offers voice messaging
service and you subscribe to it, the charge/in use
indicator on the base flashes when the phone is not in use
to indicate there is message waiting. It stops flashing
after message has been reviewed.
Phone dials in pulse with tone service
Make sure the PHONE is in TONE dialing mode.
Phone won’t dial out with pulse service
Make sure the PHONE is in PULSE dialing mode.
You experience static, noise, or fading in and out
Change channels.
The handset maybe out of range. Move closer to the base.
Relocate the base.
Charge the battery.
Make sure base is not plugged into an electrical outlet
with another household appliance.
Unit beeps
Place handset in base cradle for 20 seconds reset the
security code. If that doesn’t work, charge the battery for
14 hours.
Clean the charging contacts on the handset and base with
20
a soft cloth or an eraser.
See solutions for “No dial tone”.
Replace the battery.
Memory Dialing
Did you program the memory location keys correctly?
Did you follow the proper dialing sequence?
Make sure the tone/pulse setting is programmed
correctly.
Did you reprogram numbers into memory after a power
outage or battery replacement?
Cause of Poor Reception
Aluminum siding.
Foil backing on insulation.
Heating ducts and other metal construction can shield
radio signals.
You’re too close to appliances such as microwaves,
stoves, computers, etc.
Atmospheric conditions, such as strong storm.
Base is installed in the basement or lower floor of the
house.
Baby monitor is using the same frequency.
Handset battery is low.
You’re out of range of the base.
9 General Product Care
To keep your telephone working and looking good,
follow these guidelines:
Avoid putting the phone near heating appliances and
devices that generate electrical noise (for example,
motors or fluorescent lamps).
DO NOT expose to direct sunlight or moisture.
Avoid dropping and other rough treatment to the phone.
Clean with a soft cloth.
Never use a strong cleaning agent or abrasive powder
because this will damage the finish.
Retain the original packaging in case you need to ship the
phone at later date.
