Gibson Innovations PHBT2600 Wireless Portable Speaker User Manual

Gibson Innovations Limited Wireless Portable Speaker Users Manual

Users Manual

www.philips.com/support
User manual
Always there to help you
Register your product and get support at
Question?
Contact
Philips
1EN
Contents
1 Safety 2
2 Your Portable Speaker 3
Introduction 3
What's in the box 3
Overview of the speaker 4
3 Get started 5
Charge the built-in battery 5
Turn on the speaker 5
4 Use Bluetooth devices 6
Connect a device 6
Play audio via Bluetooth 7
5 Listen to an external device 8
6 Adjust volume 9
7 Product information 10
General information 10
Bluetooth 10
Amplier 10
8 Troubleshooting 11
General 11
About Bluetooth device 11
9 Notice 12
Compliance 12
Care of the environment 12
Trademark notice 12
Copyright 12
2EN
1 Safety
• Do not use this apparatus near water.
• Do not place near any heat sources such
as radiators, heat registers, stoves, or
otherapparatus(includingampliers)that
produce heat.
• Onlyuseattachments/accessoriesspecied
by the manufacturer.
• The product shall not be exposed to
dripping or splashing.
• Do not place any sources of danger on the
product(e.g.liquidlledobjects,lighted
candles).
• Battery shall not be exposed to excessive
heatsuchassunshine,reorthelike.
• Danger of explosion if battery is incorrectly
replaced. Replace only with the same or
equivalent type.
• Batteries contain chemical substances, so
they should be disposed of properly.
Caution
•Removal of the built-in battery invalidates the warranty
and may destroy the product.
•Theseservicinginstructionsareforusebyqualied
service personnel only. To reduce the risk of electric
shock do not perform any servicing other than that
contained in the operating instructions unless you are
qualiedtodoso.
Always bring your product to a professional to
remove the built-in battery.
Note
•Rechargeable batteries have a limited number of charge
cycles. Battery life and number of charge cycles vary by
use and settings.
Warning
•Never remove the casing of this product.
•Never lubricate any part of this product.
•Never place this product on other electrical equipment.
•Keep this product away from direct sunlight, naked
amesorheat.
3EN
2 Your Portable
Speaker
Congratulations on your purchase, and
welcometoPhilips!Tofullybenetfromthe
support that Philips offers, register your product
at www.philips.com/welcome.
Introduction
With this speaker, you can
• listen to audio from an external device via
Bluetooth connection,
• listen to audio from an external device
through an audio input cable, and
• make phone calls.
What's in the box
Check and identify the contents of your
package:
• Main unit
• USB cable
• Short user manual
• Safety sheet
•
4EN
Overview of the speaker
a /MULTIPAIR
• In Bluetooth mode, press and hold to
enter pairing mode.
• Press to answer an incoming call.
• Press to end the current call.
• Pressandholdtorejectanincoming
call.
b
• Turn on the product.
c Bluetooth and power indicator
d AUDIO IN
• Connect external audio devices.
e DC IN
• Charge the speaker via USB cable.
a
b
c
d
e
5EN
3 Get started
Always follow the instructions in this chapter in
sequence.
Charge the built-in battery
The speaker is powered by a built-in
rechargeable battery.
Note
•Before use, fully charge the built-in battery.
•The micro USB socket is for charging only.
Connect the USB cable between
• the micro USB socket on the speaker, and
• a USB socket on your computer.
Battery indicator
The LED indicator indicates the battery status.
Indicator Battery
Solid red Under charging
Off Fully charged
Blinking red in Bluetooth
mode
Low power
Turn on the speaker
Rotate the knob to turn on or turn off this
speaker.
• Bluetooth mode: Listen to an external
Bluetooth device through Bluetooth
connection.
• OFF: Turn off this product.
ON
OFF
6EN
4 Use Bluetooth
devices
With this speaker, you can listen to audio from
a player and make a call through Bluetooth.
Note
•WOOX Innovations does not guarantee the
compatibility with all Bluetooth devices.
•Before pairing a device with this product, read its user
manual for Bluetooth compatibility. Make sure that the
connected Bluetooth device supports the Advanced
AudioDistributionProle(A2DP)andtheAudioVideo
RemoteControlProle(AVRCP).
•The product can memorize a maximum of 4 paired
devices.
•Make sure that Bluetooth function is enabled on your
device, and your device is set as visible to all other
Bluetooth devices.
•The operational range between this product and a
Bluetoothdeviceisapproximately10meters(30feet).
•Any obstacle between this product and a Bluetooth
device can reduce the operational range.
•Keep away from any other electronic device that may
cause interference.
Connect a device
1 Rotate the knob to turn on the speaker.
» TheBluetoothindicatorashesblue.
2 On your device, search for Bluetooth
devices.
3 In the device list, select Philips BT2600.
• If a message prompts for the
permission for Bluetooth connection
with Philips BT2600,conrmit.
• If a password is required, enter 0000
andthenconrm.
» The speaker beeps twice and the
Bluetooth indicator turns to solid blue
when the Bluetooth connection is
successful.
• If you fail to search for Philips BT2600,
press and hold /MULTIPAIR to enter
pairing mode.
Bluetooth indicator
The LED indicator on the top indicates the
status of Bluetooth connection.
Indicator Bluetooth connection
Flashing
blue
quickly
Pairing
Flashing
blue
slowly
Connecting or waiting for
connection
Solid blue Connected
Pair and connect a second device
You can pair and connect a maximum of two
Bluetooth-enabled devices to this product
actively at the same time.
1 Press and hold /MULTIPAIR to enter
pairing mode.
» TheBluetoothindicatorashesblue
quickly.
» The speaker beeps twice.
2 Pair and connect a second device to the
speaker.
• If two devices are connected with
speaker, you can play music from any of
the connected devices, music playback
from another device will be paused.
Note
•If you want to pair a third device, press and hold
/MULTIPAIR until you hear a double beep to
disconnecttherstconnecteddeviceandenterpairing
mode.
•If no music is played after 15 minutes, the speaker goes
to standby mode automatically for power saving.
7EN
Disconnect a device
• On your device, disable the Bluetooth
connection with this product.
• Or, on this product, press and hold
when it is not during a call.
Note
•Before connecting another Bluetooth device, disconnect
thecurrentdevicerst.
Reconnect a device
• For a paired Bluetooth device on which
the automatic reconnection is enabled,
this product reconnects with it once it is
detected.
• For a paired Bluetooth device that does
not support the automatic reconnection,
reconnect it with this product manually.
Play audio via Bluetooth
Note
•If there is an incoming call on the connected mobile
phone, audio play pauses.
After successful Bluetooth connection, play
audio on the Bluetooth device.
» Audio streams from your Bluetooth
device to the speaker
Control your phone call
After Bluetooth connection, you can control an
incoming call with this speaker.
Button Functions
Press to answer an incoming call.
During a call, press to end the current
call.
Pressandholdtorejectanincoming
call.
During a call, press and hold to
transfer the phone call to your mobile.
When there is another incoming call
during a call, you can
• press to end the current call and
answer the another call.
• presstwicetorejecttheanother
call.
• press and hold for two seconds to
hang on the current call and answer
the another call.
Note
•You can talk through the microphone of the speaker.
•Music play pauses when there is an incoming call, and
resumes when your phone call ends.
8EN
5 Listen to an
external device
You can also listen to an external audio device,
for example, MP3 player, through this product.
Note
•Make sure that no device is streaming audio to the
speaker via Bluetooth.
1 Rotate the knob to turn on the speaker.
2 Connect an audio input cable with 3.5mm
plug on both ends between
• the AUDIO IN socket on this product,
and
• the headphone socket on the external
device.
3 Play audio on the external device (refer to
itsusermanual).
9EN

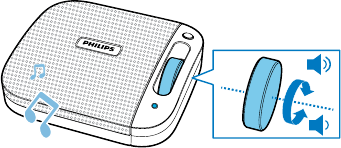

6 Adjust volume
Rotate the volume knob to increase or
decrease the volume.
10 EN
7 Product
information
Note
•Productinformationissubjecttochangewithoutprior
notice.
General information
Power Supply (through
USBsocket)
5V 1 A
Built-in Battery Lithium battery
(750mAh,3.7V)
Dimensions - Main Unit
(WxHxD)
101 X 34 X 101
mm
Weight - Main Unit 0.22 kg
Bluetooth
Bluetoothspecication V3.0
Supportedproles HFP, HSP, A2DP
Range 10m(Freespace)
Amplier
Rated Output Power 3 W RMS
Signal to Noise Ratio > 60 dBA
AUDIO IN 650mVRMS,22
kOhm
11EN
8 Troubleshooting
Warning
•Never remove the casing of this product.
To keep the warranty valid, never try to repair
the product yourself.
If you encounter problems when using this
device, check the following points before
requesting service. If the problem remains
unsolved, go to the Philips Web page (www.
philips.com/support).Whenyoucontactthe
Consumer Care, make sure that the product
is nearby and the model number and serial
number are available.
General
No power
• Recharge your speaker.
No sound
•Adjustvolumeonthisproduct.
•Adjustvolumeontheconnecteddevice.
•Make sure that your Bluetooth device is
within the effective operational range.
No response from the speaker
•Restart the speaker.
About Bluetooth device
The audio quality is poor after connection
with a Bluetooth-enabled device.
•The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
Cannot connect with the device.
•The Bluetooth function of the device is not
enabled. Refer to the user manual of the
device for how to enable the function.
•This product is already connected with
another Bluetooth-enabled device.
Disconnect that device and then try again.
The paired device connects and disconnects
constantly.
•The Bluetooth reception is poor. Move the
device closer to this product or remove
any obstacle between them.
•For some devices, Bluetooth connection
may be deactivated automatically as a
power-saving feature. This does not indicate
any malfunction of this product.
12 EN
9 Notice
Anychangesormodicationsmadetothis
device that are not expressly approved by
WOOX Innovations may void the user’s
authority to operate the equipment.
Compliance
This product complies with the radio
interference requirements of the European
Community.
Hereby, WOOX Innovations declares that this
product is in compliance with the essential
requirements and other relevant provisions
ofDirective1999/5/EC.Youcanndthe
Declaration of Conformity on www.philips.com/
support.
Care of the environment
Disposal of your old product and battery
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
This symbol on a product means that the
product is covered by European Directive
2012/19/EU.
This symbol means that the product contains
a built-in rechargeable battery covered by
European Directive 2013/56/EU which cannot
be disposed of with normal household waste.
We strongly advise you to take your product to
anofcialcollectionpointoraPhilipsservice
centre to have a professional remove the
rechargeable battery.
Inform yourself about the local separate
collection system for electrical and electronic
products and rechargeable batteries. Follow
local rules and never dispose of the product
and rechargeable batteries with normal
household waste. Correct disposal of old
products and rechargeable batteries helps
prevent negative consequences for the
environment and human health.
Environmental information
All unnecessary packaging has been omitted.
We have tried to make the packaging easy to
separateintothreematerials:cardboard(box),
polystyrenefoam(buffer)andpolyethylene
(bags,protectivefoamsheet.)
Your system consists of materials which can
be recycled and reused if disassembled by
a specialized company. Please observe the
local regulations regarding the disposal of
packaging materials, exhausted batteries and old
equipment.
Trademark notice
The Bluetooth® word mark and logos are
registered trademarks owned by Bluetooth
SIG, Inc. and any use of such marks by WOOX
Innovations is under license.
Copyright
2015 © WOOX Innovations Limited. All rights
reserved.
13EN
Philips and the Philips’ Shield Emblem are
registeredtrademarksofKoninklijkePhilipsN.V.
and are used by WOOX Innovations Limited
underlicensefromKoninklijkePhilipsN.V.”
Specicationsaresubjecttochangewithout
notice. WOOX reserves the right to change
products at any time without being obliged to
adjustearliersuppliesaccordingly.
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference
to radio communications. However, there is no guarantee that interference will not occur in a particular
installation.
If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
-- Reorient or relocate the receiving antenna.
-- Increase the separation between the equipment and receiver.
-- Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-- Consult the dealer or an experienced radio/TV technician for help.
ThisdevicecomplieswithIndustryCanadalicense‐exemptRSSstandard(s).Operationissubject
tothefollowingtwoconditions:(1)thisdevicemaynotcauseinterference,and(2)thisdevice
mustacceptanyinterference,includinginterferencethatmaycauseundesiredoperationofthe
device.
Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils
radio
exempts de licence. L'exploitation est autorisée aux deux conditions suivantes : (1)
l'appareil ne
doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage
radioélectrique subi, même si le brouillage est susceptible d'en compromettre le
fonctionnement.
2015 © WOOX Innovations Limited. All rights reserved.
Philips and the Philips’ Shield Emblem are registered
trademarks of Koninklijke Philips N.V. and are used
by WOOX Innovations Limited under license from
Koninklijke Philips N.V.
000000000000

Navigation menu
