Congratulations
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Congratulations.fm / 27.04.2006
Schablone 2005_07_27
Congratulations
Congratulations on your purchase of the Siemens Gigaset M34 USB Adapter!
Register now!
Register today for the world of Siemens mobile on „gigaset.siemens.com“ and stay current with
customized information on Siemens latest products and applications.
Please go to: http://www.siemenscordless.com/register/
DO NOT RETURN
THIS PRODUCT TO THE
STORE!
Please read the following important information.
For Siemens Customer Care, product operation
information, or for problem resolution, call toll-free
1-888-777-0211
9 a.m. to 8 p.m. Central Standard Time Monday-Saturday
www.siemens.com/gigaset
5
For your safety
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Sicherheitshinweise.fm / 27.04.2006
Schablone 2005_07_27
For your safety
ìBefore installing the Gigaset M34 USB PC adapter and software, carefully read the
following information:
"Notes on the operating instructions" on page 5
"Safety precautions" on page 6
Notes on the operating instructions
Online Help
uDuring installation, detailed descriptions appear on the screen.
uThere is also an online help for each component of the Gigaset M34 software.
Open the appropriate component and then either click on the Help icon in the tool-
bar or press the F1 key.
Operating instructions
You can also print out all the operating instructions, which can be found in *.pdf format
on the CD-ROM supplied. To read the instructions you will need the Adobe Acrobat
Reader program. You can install this directly from the Gigaset M34 software
Setup Wizard.
ìRead the instructions carefully before using for the first time.
Up to date information
The Gigaset M34 CD-ROM also includes the file readme.txt. This contains further
important information that only became available after the manual had been printed.
ìRead the additional information contained in the file readme.txt carefully.
ìAlso note the product information on the Internet at
http://www.siemens.com/gigaset.
6
For your safety
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Sicherheitshinweise.fm / 27.04.2006
Schablone 2005_07_27
Safety precautions
General safety precautions
uOnly give the Gigaset M34 USB to third parties with the installation instructions and
CD-ROM.
uDispose of CD-ROMs you no longer need in an environmentally friendly manner in
line with the statutory requirements.
uNot all of the functions described in this manual are available in all countries.
Installation information
uIn the Windows 2000 and Windows XP operating systems, you must be logged in as
a user with administration rights. Contact your system administrator for details if
necessary.
uBefore installing the Gigaset M34 software, read the information under "System
requirements" on page 8 to avoid loss of data.
uDuring installation, you are prompted to connect the Gigaset M34 USB to a free
USB port on your PC. This starts the Windows operating system's automatic hard-
ware recognition routine and installs the device drivers.
Safety precautions for the Gigaset M34 USB PC adapter
uThe operation of medical appliances may be affected.
uDo not operate the Gigaset M34 USB in bathrooms or shower areas.
The Gigaset M34 USB PC adapter is not splash proof.
uAvoid the immediate proximity of heat sources such as radiators and do not expose
the Gigaset M34 USB to direct sunlight.
uOnly use the USB extension cable supplied.
uDo not connect or disconnect the Gigaset M34 during a storm. This brings a risk of
electric shock.
uIf the Gigaset M34 USB comes into contact with liquid, do not use it.
– Allow the liquid to drain out of the device, and then pat all parts of the device dry.
– Store the Gigaset M34 USB in a warm, dry place for at least 72 hours. In many
cases, you will then be able to use it again.
The radio transmission between the base station and the portable parts is to DECT 6.0
standard. The Gigaset M34 USB PC adapter meets the appropriate US specifications.
Should there nevertheless be any picture and sound interference with satellite receiv-
ers, please consult your retailer to have your satellite receiver equipment tested for poor
shielding.
7
For your safety
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Sicherheitshinweise.fm / 27.04.2006
Schablone 2005_07_27
Trademarks
Windows 2000, Windows XP, Outlook, Windows Media Player and Windows Explorer are
registered trademarks of the Microsoft Corporation.
Acrobat is a registered trademark of Adobe Systems Incorporated.
Yahoo! is a registered trade mark of Yahoo! Communications USA Inc.
8
Installing the software and device drivers
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Installieren.fm / 27.04.2006
Schablone 2005_07_27
Installing the software and device drivers
The Setup Wizard for the Gigaset M34 software guides you through the installation of
all the associated software components.
Normally, the following steps are necessary to successfully install the
Gigaset M34 software:
1. Prepare base station for use, see "Preparing the base station" on page 9.
2. Insert Gigaset M34 CD and run the Setup Wizard, see "Installing the Gigaset M34
software" on page 10.
3. Reboot the PC.
4. Connect the Gigaset M34 USB PC adapter to the PC.
5. Install the device drivers for your Gigaset M34 USB PC adapter.
6. Set up further components as required.
After successful installation, you can start the Gigaset M34 software and configure it to
your own requirements.
System requirements
In order to be able to use the full range of functions, the following minimum require-
ments must be met for installation of the Gigaset M34 USB and software:
Gigaset products
Base station and handset
uA Gigaset S450 or S455base station.
uThe handset that belongs to the base station or a Gigaset S45 handset.
uThe base station is ready for use.
For details, refer to the operating instructions for your base station.
Gigaset M34 USB PC adapter
uThe Gigaset M34 USB should not be connected to the PC before installation.
iDo not plug in the unit until the software has been successfully
installed and when prompted to by the Setup Wizard.
9
Installing the software and device drivers
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Installieren.fm / 27.04.2006
Schablone 2005_07_27
Minimum PC requirements
Hardware
uIBM AT-compatible Pentium III with 500 MHz processor speed
u128 MB RAM main memory
u20 MB free hard disk memory
u1 free USB port
u1CD-ROM drive or 1 DVD drive
Software
uOperating system
Windows 2000 (Service pack 4) or Windows XP.
Have the installation CD for your Windows operating system to hand. During the
installation of the Gigaset M34 software, the Setup Wizard checks the configuration
of your operating system. You may be prompted to install certain additional
Windows components.
uUser rights
It is necessary that you are logged in as a user with administration rights. Contact
your system administrator for details if necessary.
Pack contents
u1 Gigaset M34 USB PC adapter
u1 USB extension cable
u1 CD-ROM containing software and comprehensive operating instructions
u1 set of installation instructions
Preparing the base station
ìRead the operating instructions for your base station.
ìConnect your base station.
– Connect your base station to your phone line or PABX using the telephone cable.
– Connect the base station to the power supply using the mains adapter.
Your base station is now ready for use.
i
Now that your base station is ready for use, you can make external calls
and also take incoming calls.
It is not necessary to install the Gigaset M34 software to do this.
ìYou can check that your base station is working properly by dialling an
external telephone number.
ìIf you cannot make the call, check your phone line or the settings for
your PABX.
You will find a detailed description in the operating instructions for
your phone line or PABX.
10
Installing the software and device drivers
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Installieren.fm / 27.04.2006
Schablone 2005_07_27
Installing the Gigaset M34 software
ìRead the information in "System requirements" on page 8 and the readme.txt file
before starting to install the Gigaset M34 software. You will find the readme.txt file
in the readme directory on the product CD. It contains current additional informa-
tion on installation and software.
ìClose all the programs running on your PC. This also includes those programs
(e. g. antivirus software), whose activity is only indicated by an icon in the status
area of the taskbar (next to the clock).
Starting the Setup Wizard
ìInsert the Gigaset M34 CD into your PC's CD-ROM drive.
The Setup Wizard for the Gigaset M34 software is started automatically.
The Setup Wizard guides you through the installation.
ìSelect the language in which you want to install the Gigaset M34 software.
ìClick on Next and then on Install software to start the InstallShield Wizard for the
Gigaset M34 software.
iWhen the software has been installed successfully please do not
plug in the device until the Setup Wizard prompts you to do so.
i
If the Setup Wizard for the Gigaset M34 software does not start automat-
ically:
ìOpen Windows Explorer.
ìSelect the CD-ROM drive.
ìDouble click start.exe.
11
Installing the software and device drivers
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Installieren.fm / 27.04.2006
Schablone 2005_07_27
Installing the software
Installation involves various steps in which you can select a number of options. After
each step confirm your selection with Next to continue the installation procedure. Use
Back to return to your previous selection.
This installation wizard guides you through the individual steps of the installation pro-
cedure.
ìClick on Next to start the installation.
The directory in which the software is to be installed is shown.
ìSelect the appropriate mode for installing device drivers. We recommend that you
do not change the Simple (Recommended) settings.
ìClick on Next.
ìSelect the folder where the selected software components are to be installed:
– Click Next to confirm the default installation directory.
Or
– Click Change to choose your own installation directory.
ìClick on Install.
ìAfter installation of the software components, click on Finish to confirm completion
of the installation procedure.
You then need to reboot your PC. You can only set up the Gigaset M34 USB
PC adapter after rebooting.
ìClick on Yes to reboot the PC.
iIf a dialog box appears during installation informing you about a missing
signature, click Yes to continue the installation.
12
Installing the software and device drivers
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Installieren.fm / 27.04.2006
Schablone 2005_07_27
Installing the device drivers
After restarting, installation is continued automatically.
You are prompted to connect the Gigaset M34 USB PC adapter to the PC and the driver
software is then installed. Later, you should register the Gigaset M34 USB PC adapter on
your base station and you can then use the full range of functions of the software.

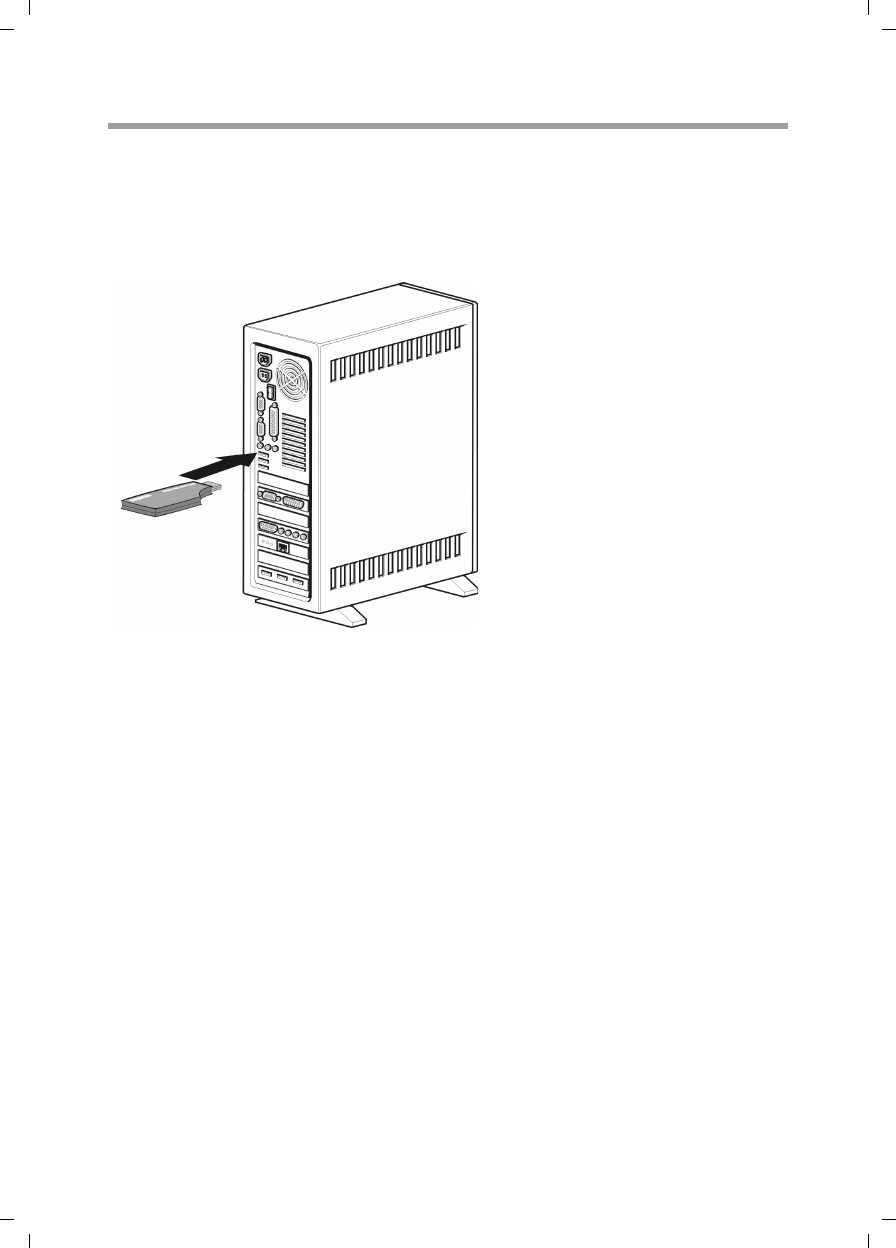

ìConnect the Gigaset M34 USB to a free USB port on your PC.
ìWhen you connect the Gigaset M34 USB, hardware recognition is started. This
feature monitors the installation of new device drivers. Depending on the previous
configuration of your PC, it may be necessary to install several drivers for you
Gigaset M34 USB PC adapter. Hardware recognition is started automatically for each
driver installation.
– Follow the hardware recognition instructions.
– On Windows XP, confirm the preset options with Next and then click on Finish.
If you cancel hardware recognition, the driver software cannot be correctly
installed.
ìWait until the hardware recognition procedure has completed installation of the
device drivers and you see a message to that effect. Once this message is displayed,
click on Next in the Setup Wizard.
ìClick on Finish in the Setup Wizard.
ìReboot your PC if you are prompted to do so.
ìA message will be displayed, informing you that the standard device settings for
recording and playback have been changed (see also section "Audio settings" on
page 14). Click on OK to complete the installation.
13
Installing the software and device drivers
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Installieren.fm / 27.04.2006
Schablone 2005_07_27
Possible problems during installation
On rare occasions it can happen that a program called up by the Gigaset M34 software
Setup Wizard does not respond:
ìClose the Setup Wizard and the program that is not responding and try again.
If the USB driver cannot be found even though it has been set properly:
ìDisconnect the Gigaset M34 USB PC adapter from your PC.
ìReboot your PC.
ìReconnect the Gigaset M34 USB to your PC.
ìRestart the Setup Wizard.
Checking successful installation
After rebooting the PC, the following things indicate that the Gigaset M34 USB and soft-
ware have been successfully installed:
uThe Start menu contains two new links:
–Start > Programs > Gigaset DECT > Gigaset M34 Software
–Start > Programs > Gigaset DECT > Gigaset M34 USB – Firmware update
uThe following items have been added to the Device Manager in your Windows
operating system (Start > Settings > Control Panel > System > Hardware > Device
Manager):
–Under DECT Devices: Cordless Internet Access
–Under Audio, Video and Game Controllers: USB Audio Device
–Under Universal Serial Bus Controllers: Cordless Device Configuration,
Cordless Device Line Access, Cordless Device Update, Cordless PC Control
uThe Software area in the Control Panel of the Windows operating system shows
the names of the installed software components:
–Gigaset M34 Software
i
uIf you want to use your Gigaset M34 USB PC adapter for Internet tele-
phony (VoIP), you must install Yahoo! Messenger with Voice on your
PC. The software is available on the Internet at
http://messenger.Yahoo.com. Reboot your PC after installation.
u
!
In some older PC systems, chipsets are fitted, which no longer correspond
to the valid USB standard. This can lead to problems with the USB connec-
tion.
Manufacturers of these hardware components normally supply a driver
update. Please contact the manufacturer of your PC.
14
Installing the software and device drivers
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Installieren.fm / 27.04.2006
Schablone 2005_07_27
–Gigaset M34 USB
Audio settings
Due to Microsoft Software Regulations the audio device driver USB Audio Device has
been installed onto your PC as your default device for recording and playback. This is
also necessary because it allows you to listen to music through your handset with
Windows Media Player or make phone calls via the Internet.
For example, if you wish to record or playback sound on your PC (e.g. through your PC's
loudspeaker/microphone or connected headphones) while playing a computer game,
you must change the settings of the device driver.
ìClick on Start > Settings > Control Panel > Sounds and Multimedia
(Windows 2000) or Sounds and Audio Devices (Windows XP), Audio tab.
ìFor sound playback and recording, select the default sound card driver of your PC as
the default device instead of the entry USB Audio Device
(List: Preferred Device/Default Device).
ìClick on OK to accept the setting.
Using PC loudspeaker/headset with your handset
In most Windows applications you can also give the audio device driver specific settings
irrespective of the settings in the Control Panel. This allows you to specify where sound
is recorded and played back (PC or handset) for specific applications.
For example, if you have set your PC's default soundcard driver, you can make a phone
call with your handset over the Internet while listening to music through your PC's loud-
speakers at the same time.
Please note: For Internet telephony with Yahoo! Messenger with Voice, the device
driver USB Audio Device is automatically set (temporarily) as soon as you telephone
with the handset.
i
uCertain entries are only displayed when a base station is connected.
uThe drivers may have different names depending on the Windows
operating system you are using and the voice packets installed.
15
Installing the software and device drivers
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Installieren.fm / 27.04.2006
Schablone 2005_07_27
Registering a base station
You can register your Gigaset M34 USB on up to 6 base stations. The registered base sta-
tions are saved in the software and you can then connect to one of the registered base
stations as required.
ìOpen the Gigaset M34 software via Start > Programs > Gigaset DECT > Gigaset
M34 Software.
ìIn the menu tree, select the M34 USB > Configuration entry.
ìUnder Base stations click on one of the <free base> options.
The Register button is activated.
ìSet the base station to registration mode.
– Press and hold the registration key for approx. 3 seconds (on the S455, hold until
you hear an acoustic signal).
– Refer to the operating instructions for your base station for more details.
ìClick on Register to begin registration.
This opens the Register dialog.
ìEnter the PIN for the base station (factory default "0000") and confirm your entry
with OK.
ìWait until registration has been completed.
The Register dialog is closed.
Once the connection between your base station and the M34 USB has been estab-
lished, you will see the base station data on your PC. The Name: field contains the
name under which the Gigaset M34 USB has been registered on the base station.
You will need this name to establish the connection between the handset and the
M34 USB.
i
Requirements:
uThere must be a free space in the list under Base stations.
uThere must be another free registration location for internal
subscribers on the base station.
uThe base station must be in registration mode before commencing
the registration procedure.
uThe base station PIN must be entered during registration.
For further information, refer to the operating instructions for the rele-
vant base station.
16
Installing the software and device drivers
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Installieren.fm / 27.04.2006
Schablone 2005_07_27

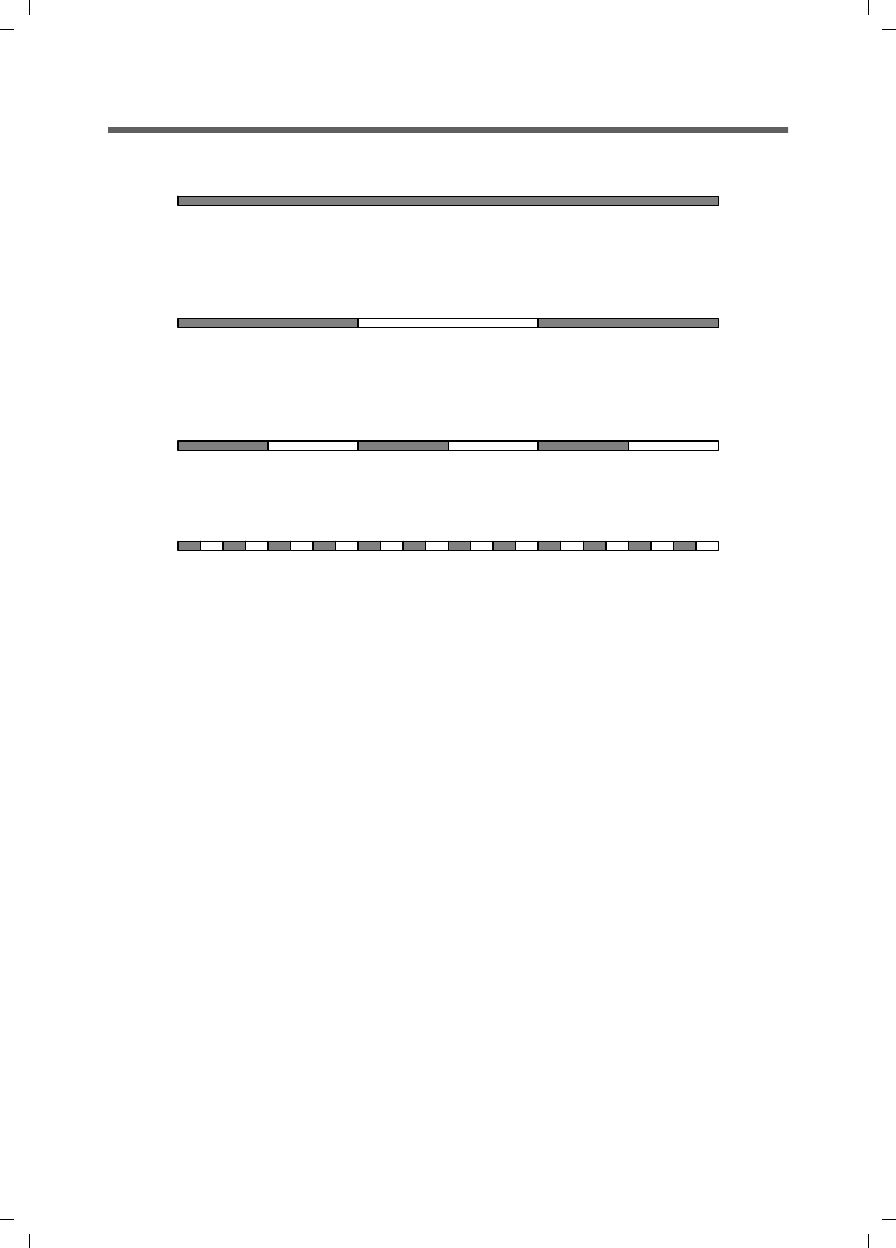

Status displays for the Gigaset M34 USB
LED is constantly illuminated: Base station found; Gigaset M34 USB is ready for use.
LED flashes slowly: Gigaset M34 USB is looking for the base station or no base station
has been registered.
LED flashes quickly: Data connection active between Gigaset M34 USB and base
station.
LED flickers: Gigaset M34 USB is in firmware update mode.
17
Operating information
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / HinweiseBetrieb.fm / 27.04.2006
Schablone 2005_07_27
Operating information

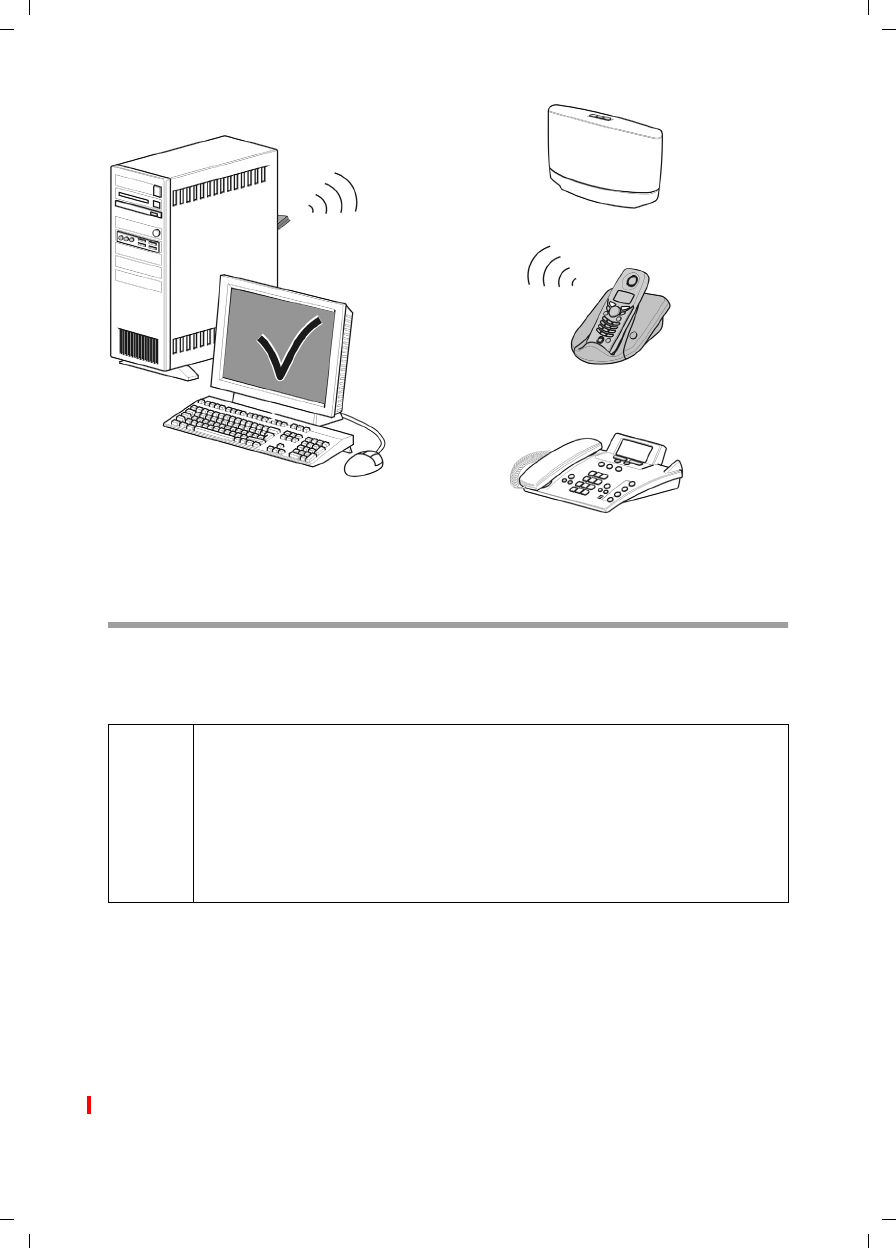

Your Gigaset M34 USB PC Adapter opens up a wide range of possibilities when used in
conjunction with your Gigaset base station and the Gigaset M34 software.
The Gigaset M34 USB is a PC adapter, which allows wireless communication between
your Gigaset base station and your PC. For example, you can transfer your PC directories
to the handset, make calls over the Internet or operate the PC remotely from the hand-
set.
You can use the Gigaset M34 software to configure the connection between your base
station and your PC. The software does not have to be started to use the basic functions
of your Gigaset M34 USB PC adapter; you only need the software for special functions
such as transferring directories.
Operation with multiple devices
You can register your Gigaset M34 USB PC adapter to up to 6 Gigaset base stations of
type S450 and S455. It is a precondition that there is a free registration location for
handsets on the base station.
18
Configuring the Gigaset M34 software
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Konfigurieren.fm / 27.04.2006
Schablone 2005_07_27
Configuring the Gigaset M34 software
With the Gigaset M34 USB, you can set up your PC for operation on up to 6 base stations.
Particularly when the location of the PC or laptop changes often, this provides the
advantage that you only need to enter the available base stations once in the configu-
ration to be able to establish a connection from those locations at any time. However,
you should note that a simultaneous connection to multiple base stations is not possi-
ble.
Use the M34 USB option in the menu tree to open up the configuration of the Gigaset
M34 software. The following configuration dialogs are available:
Checking the connection status
ìOpen the Gigaset M34 software and select the M34 USB > Status option in the
menu tree.
The working area displays up to date information about the connection to the base
station:
Connected base:
If a connection already exists, the name of the base station to which your PC is con-
nected via the Gigaset M34 USB is shown.
Field strength:
The signal strength of the wireless connection is indicated in the form of a bar.
Connection status:
The wireless connection can have the following operating statuses:
–Initialise
Connecting; searching for an available base station.
–No connection
No connection to base station or connection broken.
–Active
Your PC is connected to the base station displayed.
Menu tree Brief description
M34 USB
Status Display connected base station and quality of connec-
tion
Configuration Register and configure Gigaset M34 USB
Firmware update Update device software for your Gigaset M34 USB
19
Configuring the Gigaset M34 software
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Konfigurieren.fm / 27.04.2006
Schablone 2005_07_27
Configuring the Gigaset M34 software
You can make various settings in the Gigaset M34 software: change the names of your
devices, register or deregister base stations, connect devices to one another, control the
power management feature and update the firmware if necessary
Registering a base station
ìOpen the Gigaset M34 software and select the M34 USB > Configuration option in
the menu tree.
ìUnder Base stations click on one of the <free base> options.
The Register button is activated.
ìSet the base station to registration mode.
– Hold down the Registration key for a few seconds. Some base stations indicates
registration mode with an acoustic signal or a flashing LED.
– Refer to the operating instructions for your base station for more details.
ìClick on Register to begin registration.
This opens the Register dialog.
ìEnter the PIN for the base station (factory default "0000") and confirm your entry
with OK.
ìWait until registration has been completed.
The Register dialog is closed.
ìFor further information refer to "Registering a base station" on page 15.
Connecting the base station
When you register a base station, it is connected immediately. If several base stations
are registered, you can choose which one to connect to. The base stations that are not
connected do not need to be deregistered. This allows you to switch between different
base stations without having to set them to registration mode again.
ìOpen the Gigaset M34 software and select the M34 USB > Configuration option in
the menu tree.
ìUnder Base stations click on one of the base stations that is registered but not con-
nected.
The Connect button is activated.
ìClick on the base station you want to connect.
ìClick on Connect.
20
Configuring the Gigaset M34 software
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Konfigurieren.fm / 27.04.2006
Schablone 2005_07_27
Changing device names
When connected to a base station, your PC is uniquely identifiable by its device name.
You can change this device name as required. It is a precondition that your Gigaset M34
USB is connected to the base station.
ìOpen the Gigaset M34 software and select the M34 USB > Configuration option in
the menu tree.
The working area shows the current device name of the Gigaset M34 USB.
ìEnter the desired device name under Identification > Name:. The maximum length
of the device name is 10 characters.
ìConfirm your entry by pressing the return key (Return, Enter).
The new device name is sent to the connected base station.
Calling the Gigaset M34 USB
A connection between your handset and the Gigaset M34 USB allows you to access the
PC through your handset. The requirement for this connection is that your handset is
registered on the same base station as the Gigaset M34 USB. To create the connection
between your handset and the Gigaset M34 USB, make a free internal call from the
handset to the Gigaset M34 USB.
ìPress the INT key on your handset.
ìChoose the Gigaset M34 USB as the internal party. The internal name under which
it is registered on the base station can be seen in the Gigaset M34 software under
M34 USB > Configuration > Name:.
ìPress the Talk or Handsfree key on the handset to make the internal connection.
iIf you also want to change the device name of your PC for connections to
another registered base station, first of all connect to the desired base
station and then repeat this procedure.
!Note that your handset will be blocked to other calls for the duration of
the internal connection.
21
Configuring the Gigaset M34 software
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Konfigurieren.fm / 27.04.2006
Schablone 2005_07_27
When the connection is no longer required:
ìBreak the connection by pressing the End call key on your handset.
Deregistering a base station
For operation with the Gigaset M34 USB, a maximum of 6 base stations can be regis-
tered. If all spaces on the list are occupied, you must first deregister a base station
before you can register another base station.
ìOpen the Gigaset M34 software and select the M34 USB > Configuration option in
the menu tree.
The working area shows a list of the base stations already registered.
ìUnder Base stations, click on the registered and connected base station.
The De-register button is activated.
ìClick on the De-register button to deregister the selected base station.
The space in the list is released. The name of the base station is replaced by the entry
<free base>.
!
A base station can only be deregistered if the Gigaset M34 USB is con-
nected to it.
If there is no connection to this base station or the signal strength of the
connection is too low, the base station is only deregistered in the Gigaset
M34 software.
In this case, your PC must also be deregistered as an internal device in the
base station menu.
22
Configuring the Gigaset M34 software
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Konfigurieren.fm / 27.04.2006
Schablone 2005_07_27
Configuring power management
You do not have to do without the Gigaset M34 USB functions, even if your PC is in
standby mode. You can configure the Gigaset M34 software so that your PC is automati-
cally activated when an internal call is received.
ìOpen the Gigaset M34 software and select the M34 USB > Configuration option in
the menu tree.
The options for PC activation are shown in the working area.
ìUnder Wake-up, choose whether your PC is to be automatically activated for an
internal call.
Firmware update
The firmware is the device software stored in your Gigaset M34 USB. If your Gigaset
M34 USB no longer functions correctly or if you want to operate it with more recent
software, you can update the firmware. To do this, first check which firmware version is
currently being used. Then either download the most up to date version of the firmware
from the Internet or use the firmware on the CD.
Checking the firmware version
ìOpen the Gigaset M34 software and select the M34 USB > Configuration option
in the menu tree.
The version numbers of the installed hardware and software for your
Gigaset M34 USB are shown in the working area.
ìCompare the version numbers shown with the information you have received with
your new firmware.
i
uWe recommend that you activate the Enable wake-up with internal
call option if you want to use your Gigaset M34 USB for Internet tele-
phony.
uWhen the Gigaset M34 USB PC adapter is operating together with a
Gigaset base station of type S450 or S455, the PC is activated as soon
as you either select an entry from the Applications submenu on the
S45 handset, or press display key prgrammed with M34 service.
!
uNote that a firmware update does not eliminate any hardware faults.
uOnly update the firmware if
– your devices are not working properly or
– if the version number of your new firmware is higher.
23
Configuring the Gigaset M34 software
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Konfigurieren.fm / 27.04.2006
Schablone 2005_07_27
Updating firmware
ìClose all running applications except the Gigaset M34 software.
ìMake sure that your Gigaset M34 USB PC adapter is connected to the PC.
ìClick on the Firmware update option in the menu tree. The button to start the
firmware update is shown in the working area.
ìClick on Start firmware update.
The Gigaset M34 software is closed. The Wizard for downloading new firmware
program is opened.
ìClick on Continue.
An Explorer window is opened.
ìOpen the directory containing the current firmware (CD-ROM or firmware down-
loaded from the Internet, which must be unpacked).
ìSelect the setup file (*.dat) for the firmware update.
ìClick on Open.
The version of the selected firmware is compared with the current version.
ìClick on Next.
The firmware for your Gigaset M34 USB is updated.
ìAfter the firmware update, a message indicates whether the update was successful.
ìClick on Finish to close the Wizard for downloading new firmware program.
ìAfter completing the firmware update, reboot your PC if you are prompted to do so.
!
The update can take up to several minutes.
During the update, you may not start any other PC applications.
You may not cancel the firmware update.
24
Operating the Gigaset M34 software
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Bedienen.fm / 27.04.2006
Schablone 2005_07_27
Operating the Gigaset M34 software

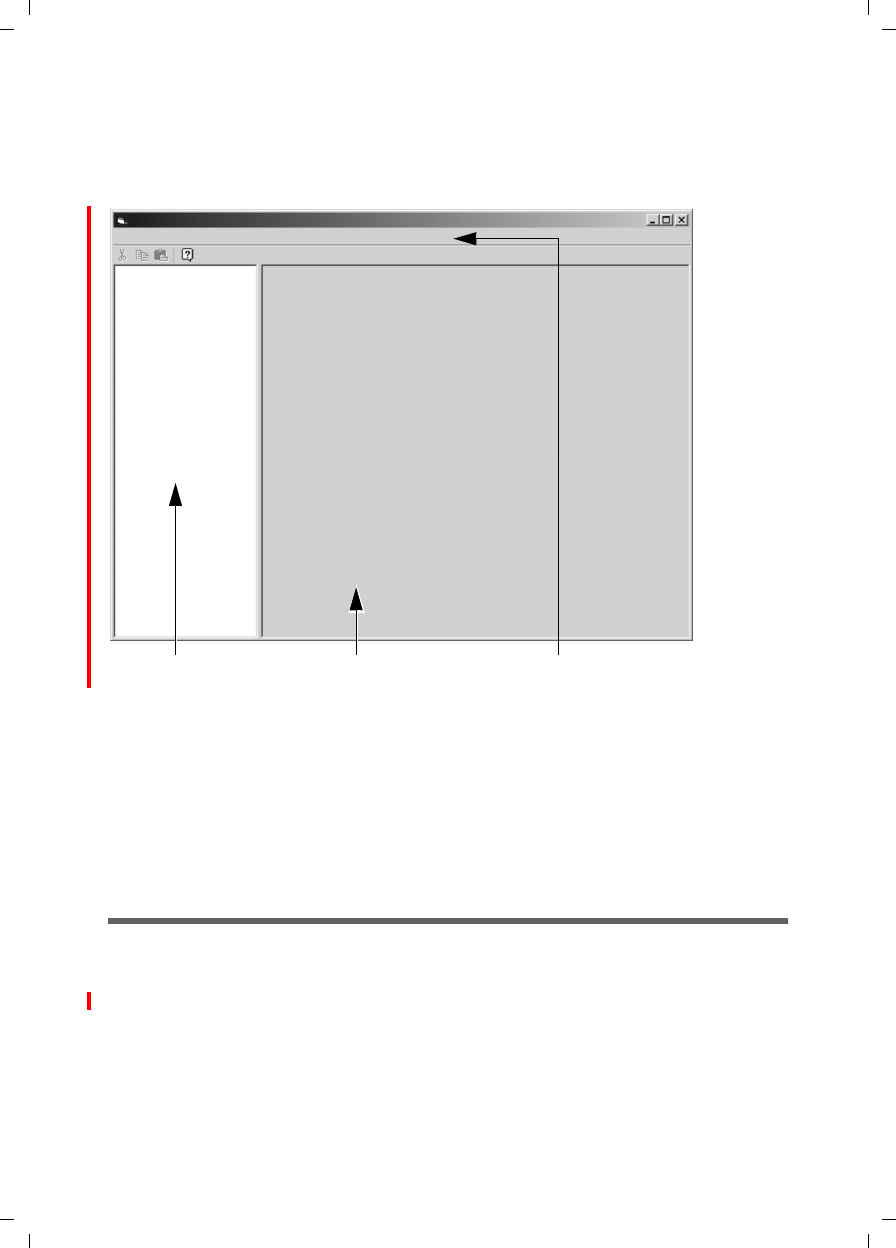

When started for the first time, the Gigaset M34 software is opened with the preset
view. This view is divided into the following sections:
uThe menu tree shows all software components that have been installed with the
Gigaset M34 software. This is where you can select the component you want to use.
The components are sorted alphabetically in the menu tree. If you install additional
components, the sorting of the entries therefore changes.
uThe working area shows the configuration dialog for the selected component. This
is where you configure the components and enter your data.
uAs well as the Help for the Gigaset M34 software, the menu bar and the toolbar con-
tain all commands available for the relevant components.
Changing and saving settings
Settings that you change in the Gigaset M34 software become effective immediately
when you exit the relevant option box.
With the Integrated Home Application and Idle SoftKey Programming components,
changes will only take effect on the handset once they have been successfully exported
to the handset. The export starts when you click on Apply.
Menu tree Working area Menu bar and toolbar
Gigaset M34 Software
Directories
Integrated Home Application
M34 USB
-- Status
-- Configuration
--
Firmware update
Messenger
PC control
Idle SoftKey Programming
Yahoo
File Edit entry Options Help
25
Operating the Gigaset M34 software
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Bedienen.fm / 27.04.2006
Schablone 2005_07_27
Opening Help
The Gigaset M34 software provides you with various forms of help:
uDuring installation, detailed descriptions appear on the screen.
uThere is also an online help for each component of the Gigaset M34 software.
Open the appropriate component and then either click on the Help icon in the tool-
bar or press the F1 key.
uYou can also print out all the operating instructions, which can be found in *.pdf for-
mat on the CD-ROM supplied. To read the instructions, you will need the Adobe
Acrobat Reader program. This can be installed directly from the Setup Wizard for the
Gigaset M34 software.
uThe Gigaset M34 CD-ROM also includes the file readme.txt. This contains further
important information that only became available after the instructions had been
printed.
Closing the program
ìSelect File > Exit in the menu bar.
The Gigaset M34 software is closed and all entries are saved. Manual saving is not
necessary.
26
Glossary
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Glossary.fm / 27.04.2006
Schablone 2005_07_27
Glossary
A
Access code
Can be set in the base station as the access code for all outgoing calls. This is necessary,
for example, on a PABX that expects 0 or 1 for opening an outside line.
Answering machine (AM)
An answering machine accepts calls and records voice messages. There are various
designs of answering machine: base stations can be equipped with an internal answer-
ing machine function. Analogue answering machines may be connected to a base sta-
tion. Some network provider offer an answering machine function on the public tele-
phone network.
B
Block dialling
You first of all enter the complete number and then correct it as necessary. Then press
the call key to dial the number.
C
Callback when the call is not answered
If a user does not respond when called, a caller can arrange an automatic callback. As
soon as the destination phone has completed a call and is free again the caller is rung
back. This service must be supported by the exchange. The callback request is automat-
ically cancelled after about 2 hours (depending on the network provider).
Callback when the number is busy
If a caller hears the busy tone, he or she can activate the callback function. As soon as
the connection is free the caller is rung back. As soon as the caller lifts his receiver the
connection is made automatically.
Call Forwarding, CF
Automatic redirecting of a call to a different telephone number.
There are three kinds of call forwarding:
CFU, Call Forwarding Unconditional
CFB, Call Forwarding Busy
CFNR, Call Forwarding No Reply
Call forwarding is set to the exchange. The network provider may charge an additional
fee.
27
Glossary
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Glossary.fm / 27.04.2006
Schablone 2005_07_27
Call Waiting (CW)
Feature provided by a network operator. An acoustic signal during a call indicates that
another caller is waiting. You can then decide whether to accept or reject the second
call.
Calls list
The Calls list stores all the incoming and outgoing calls for the base station. A Calls list
filter differentiated the call types (incoming, outgoing, missed). The list stores the
number called, date and time of the call and, in some cases, the duration of the call.
CF (Call Forwarding)
See "Call Forwarding"
CLIP (Calling Line Identification Presentation)
This permits transfer of your personal phone number. The person you are calling will see
your telephone number.
CLIR (Calling Line Identification Restriction)
This blocks transfer of your personal phone number. The person you are calling will not
see your telephone number.
CW (Call Waiting)
See "Call Waiting"
D
DECT 6.0 (Digital Enhanced Cordless Telecommunication)
Standard for wireless telecommunications enabling the exchange of voice and multi-
media data between a base station and up to 8 end devices. DECT is now accepted as
a standard in more than 70 countries. In conjunction with the GAP Standard, this allows
devices from various vendors to be combined.
Dial-up connections (remote data transfer)
A term for transmitting digital data over the telephone network. Well-know dial-up con-
nections are fax and Internet connections.
Dial-up network
Windows component for remote data transfer that connects a PC via a telephone line
with an external network, e. g. the Internet.
28
Glossary
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Glossary.fm / 27.04.2006
Schablone 2005_07_27
E
Enquiry call
You are making a call. An enquiry allows you to temporarily interrupt the call to connect
to a second external or internal party. If you terminate the connection to this user imme-
diately, then this was an enquiry call. If you switch to and fro between the first and sec-
ond user, it is called toggling.
Exchange
Node in a public telephone network via which external connections are set up and redi-
rected. A distinction is made between e. g. local exchanges and long-distance
exchanges.
F
Firmware
Device operating system. Comparable with the BIOS of a PC, it stores all the basic infor-
mation necessary for the functioning of a device. To correct errors or update the device
software, a new version of the firmware can be loaded into the device's memory
(firmware update).
G
GAP (Generic Access Profile)
Standard enabling the combined use of DECT products from different vendors.
GSM (Global System for Mobile Communications)
Originally, European standard for mobile networks. GSM can now be described as a
worldwide standard. In the USA and Japan national standards are now more frequently
supported than in the past.
H
Handset
General term for a cordless telephone that complies with international standards DECT
and GAP.
Headset
Combination of microphone and headphone. A headset makes handsfree calls more
comfortable. There are headsets which are connected by a cable to the handset and
wireless headsets that can be registered to a base station via Bluetooth.
Hold
Interrupts and re-instates an existing connection. In particular, it permits enquiry calls
and toggling between calls.
29
Glossary
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Glossary.fm / 27.04.2006
Schablone 2005_07_27
I
Internal calls
Free calls between devices connected to the base station.
Internal ringer
Special ring tone on PABXs to distinguish between internal and external calls.
M
Music on hold
Playing of music or a service announcement. With the enquiry call, toggling and redirect
features, the call is held. Music can be played while the caller is on hold.
P
PDA (Personal Digital Assistant)
Also known as hand-held PC. Mobile computer in wallet format offering not only organ-
iser functions but also communication via telephone, email, Bluetooth etc.
PIN (Personal Identification Number)
Protects against unauthorised use, e.g., system PIN, answering machine PIN, headset
PIN. When accessing a protected area, e. g. device configuration, when PIN protection
is activated a particular combination of numbers or characters has to be entered.
R
Reject
An incoming call is rejected on an internal device.
Repeater
A repeater increases the range of a handset connected to a base station. The device
receives the radio signal from the base station and broadcasts it further.
S
Set
An outline line is reserved when you pick up the telephone receiver or press the corre-
sponding key on your handset (call key).
Streaming
Streaming refers to the real time transfer of multimedia data via a network connection.
The data is not stored in the device used to play it but is downloaded at the time of
playing. This allows real time transfer, for example for the reception of Internet radio.
Streaming requires a continuous data flow; the server on which the files are located
must continuously send the data to the client.
30
Glossary
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Glossary.fm / 27.04.2006
Schablone 2005_07_27
T
Toggling
Toggling allows you to switch between two external callers without allowing the wait-
ing caller to listen in.
V
VoIP (Voice over Internet Protocol)
Telephone calls are no longer placed and transmitted over the telephone network but
over the Internet (or other IP networks).
31
Appendix
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Anhang.fm / 27.04.2006
Schablone 2005_07_27
Appendix
Service (Customer Care)
wird ergänzt
Guarantee Certificate
wird ergänzt
FCC Information
Warning: Changes or modifications to this unit not expressly approved by Siemens
Cordless Products could void the FCC authority to operate the equipment. This includes
the addition of any external antenna device.
If trouble is experienced with this equipment, for repair or warranty information, please
contact Siemens Customer Care, Tel. 1-888-777-0211. This equipment is of a type that
is not intented be repaired by the Customer (user).
This device has been tested and found to comply with the limits for Class B digital
device, pursuant to Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) This device must
accept any interference received, including interference that may cause undesired ope-
ration. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. Some devices operate at frequencies that may
cause interference to nearby TV’s and VCR’s; to minimize or prevent such interference,
the device should not be placed near or on top of a TV or VCR; and, if interference is
experienced, moving the device farther away from the TV or VCR will often reduce or
eliminate the interference.
However, there is no guarantee that interference will not occur in a particular installa-
tion. If this device does cause harmful interference to radio or television reception,
which can be determined by turning the system off and on, the user is encouraged to
try to correct the interference by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the device and receiver.
3. Connect the device into an outlet on a circuit different from that to which the recei-
ver is connected.
4. Consult the dealer or an experienced radio TV technician for help.
Power Outage: In the event of a power outage, your device will not operate. The device
requires electricity for operation.
For body worn operation, this device has been tested and meets FCC RF exposure gui-
delines when used with an accessory that contains no metal and that positions the
handset a minimum of (0,6 inch) from the body. Use of other accessories may not
32
Appendix
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Anhang.fm / 27.04.2006
Schablone 2005_07_27
ensure compliance with FCC RF exposure guidelines.
Industry Canada Information
This device meets the applicable Industry Canada technical specifications..
Operation is subject to the following two conditions: (1) this device may not cause
harmful interference, and (2) this device must accept any interference received, inclu-
ding interference that may cause undesired operation.
NOTICE: The Industry Canada label identifies certified equipment. This certification
means that the equipment meets certain protective, operational and safety require-
ments as prescribed in the appropriate Terminal Equipment Technical Requirements
document(s). The Department does not guarantee the equipment will operate to the
user’s satisfaction.
The equipment must also be installed using an acceptable method of connection. The
customer should be aware that compliance with the above conditions may not prevent
degradation of service in some situations.
Repairs to certified equipment should be coordinated by a representative designated by
the supplier. Any repairs or alterations made by the user to this equipment, or equip-
ment malfunctions, may give the telecommunications company cause to request the
user to disconnect the equipment.
Users should ensure for their own protection that the electrical ground connections of
the power utility, telephone lines and internal metallic water pipe system, if present, are
connected together.
This precaution may be particularly important in rural areas
NOTE: Users should not attempt to make such connections themselves, but should con-
tact the appropriate electric inspection authority, or electrician, as appropriate.
Safety precautions
Before using your product, basic safety instructions should always be followed to reduce
the risk of fire, electric shock and injury to persons.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the PC before cleaning. Do not use liquid cleaners or aero-
sol cleaners. Use damp cloth for cleaning.
4. Do not use this product near water, for example, near a bathtub, wash bowl, kitchen
sink, or laundry tub, in a wet basement or near a swimming pool.
5. This product should be operated only from the type of power source indicated on the
marking label. If you are not sure of the type of power supply to your home, consult
your dealer or local power company.
33
Appendix
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Anhang.fm / 27.04.2006
Schablone 2005_07_27
6. Never push objects of any kind into this product through cabinet slots as they may
touch dangerous voltage points or short out parts that could result in the risk of fire or
electric shock. Never spill liquid of any kind on this product.
7. To reduce the risk of electric shock or burns, do not disassemble this product. Take it
to a qualified service center when service is required. Opening or removing covers may
expose you to dangerous voltages, dangerous electrical current or other risks. Incorrect
reassembly can cause electric shock when the appliance is subsequently used.
8. Unplug the product from the PC and refer servicing to qualified service personnel
under the following conditions:
a.) If liquid has been spilled into the product. b.) If the product has been exposed to rain
or water. c.) If the product does not operate normally by following the operating instruc-
tions. Adjust only those controls that are covered by the operating instructions because
improper adjustment of other controls may result in damage and may require extensive
work by a qualified technician to restore the product to normal operation. d.) If the pro-
duct has been dropped or physically has been damaged. e.) If the product exhibits a dis-
tinct change in performance.
9. Do not contact the product during a thunderstorm. There may be a remote risk of
electrical shock from lightning. Therefore we suggest a surge arrestor.
10. Do not use the product to report a gas leak in the vicinity of the leak.
11. If you use the product for VoIP, it’s possible that the emergency numbers will not be
supported from your provider. Please contact your provider concerning this issue.
Customer Care Warranty for Cordless Products
To obtain Siemens Customer Care Warranty service,
product operation information, or for problem resolution, call:
Toll Free: 1-888-777-0211
9:00 a.m. – 8:00 p.m. Central Standard Time EVERY DAY
Limited Warranty
This limited, non-transferable warranty is provided to the original purchaser. The pro-
duct is warranted to be free from defects in materials and workmanship under normal
installation, use, and service for period of one (1) year from the date of purchase as
shown on the purchaser’s receipt.
Our obligation under this warranty is limited to repair or replacement (at our option) of
the product or any part(s), that are defective, provided that the product is returned to
Siemens during the warranty period. A copy of the dated purchase receipt must accom-
pany products returned. In the absence of a purchase receipt, the warranty period shall
be one (1) year from the date of manufacture. Repair or replacement of the product is
your sole and exclusive remedy.
34
Appendix
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Anhang.fm / 27.04.2006
Schablone 2005_07_27
If the product is repaired, reconditioned component parts or materials may be used. If
the product is replaced, we may choose to replace it with a new or reconditioned pro-
duct of the same or similar design. The repaired or replacement product will be warran-
ted for either (a) 90 days or (b) the remainder of the original one (1) year warranty
period, whichever is longer. Batteries are warranted to be free from defects at the time
of purchase.
EXCLUSIONS: This warranty does not cover (a) the adjustment of customer-operated
controls as explained in the appropriate model’s instruction manual, or (b) the repair of
any product, which has been altered or defaced. This warranty shall not apply to the
cabinet or cosmetic parts, antenna, buttons, batteries, or routine maintenance. This
warranty does not apply to repairs or replacements necessitated by any cause beyond
the control of SIEMENS including, but not limited to, any malfunction, defect or failure
caused by or resulting from unauthorized service or parts, improper maintenance,
damage from leaking batteries, operation contrary to furnished instructions, shipping
or transit accidents, modification or repair by the user, abuse, misuse, neglect, accident,
incorrect line voltage, fire, floor or other Acts of God, or normal wear and tear.
This warranty shall be void if the product is damaged as a result of defacement, misuse,
abuse, neglect, accidents, destruction, or alteration of the serial number, improper elec-
trical voltages or currents, repair, alteration or maintenance by any person or party
other than our authorized service facility or any violation of instructions furnished by us.
This warranty is also void if this product is removed from the country in which the origi-
nal purchaser purchased it, if it is used in a country, which it not registered for use, or if
it is used in a country for which it was not designed. Due to variations in telephone sys-
tems and communications laws, this product may be illegal for use in some countries.
We assume no responsibility for damages or penalties incurred resulting from the use of
this product in a manner or location other than that for which it is intended.
THIS ONE-YEAR LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES EXPRESS OR
IMPLIED. ANY IMPLIED WARRANTIES, INCLUDING BUT NOT LIMITED TO THE IMPLIED
WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR
PURPOSE, SHALL BE LIMITED IN DURATION TO THE ONE-YEAR DURATION OF THIS WRIT-
TEN LIMITED WARRANTY. EXCEPT AS EXPRESSLY SET FORTH HEREIN, WE DISCLAIM ANY
LIABILITY FOR DAMAGES ARISING FROM OWNERSHIP, USE, OR LOSS OF USE
OF THE PRODUCTS, LOSS OF TIME, INCONVENIENCE, INJURY TO CUSTOMER OR ANY
OTHER PERSON, OR DAMAGE TO CUSTOMER PROPERTY CAUSED BY THE PRODUCT, LOSS
OF REVENUE OR PROFIT, OR DAMAGES FOR ANY FAILURE TO PERFORM. IN NO EVENT
SHALL WE BE LIABLE FOR ANY SPECIAL, INCIDENTAL, PUNITIVE OR CONSEQUENTIAL
DAMAGES EVEN IF WE ARE ADVISED OF THE POSSIBILITY OF SUCH DAMAGES. IN NO
EVENT SHALL SIEMENS’ LIABILITY EXCEED THE COST OF REPAIRING OR REPLACING THE
DEFECTIVE PRODUCT AS PROVIDED HEREIN, AND ANY SUCH LIABILITIES WILL TERMI-
NATE UPON EXPIRATION OF THE WARRANTY PERIOD.
35
Appendix
M34 fuer USA LBA / USA EN / A31008-M403-R101-3-7619 / Anhang.fm / 27.04.2006
Schablone 2005_07_27
Some states do not allow limitations on how long an implied warranty lasts, or the
exclusion or limitation of incidental or consequential damages, so the above limitations
may not apply to you.
This limited warranty is the sole and exclusive warranty provided for the product. This
limited warranty is valid only in Canada and the United States (excluding all U.S. territo-
ries and protectorates). This limited warranty gives you specific legal rights, and you
may also have other rights, which vary from state to state or province to province.
If you want to learn more about Siemens Gigasets, or for technical assistance with your
Gigaset, visit our web site at http://www.siemens.com/gigaset or, please call
(888) 777-0211, or for TDD access (888) 777-0209.
Issued by Siemens Cordless Products
Siemens and Gigaset are registered trademarks of
Siemens Home and Office Communication Devices GmbH & Co. KG.
Siemens Cordless Products is a division of
Siemens Home and Office Communication Devices GmbH & Co. KG.
Product attributes subject to change. Siemens reserves the right, to make changes
without notice in equipment design and/or components.
Part Number: A31008-M403-R101-3-7619
© Copyright 2006 Siemens Home and Office Communication Devices GmbH & Co. KG.
All rights reserved.
36
Index
M34 fuer USA LBA/ USA EN / A31008-M403-R101-3-7619 / gigaset_manual_m34_eng_v1_0SIX.fm / 27.04.2006
Index
A
Access code. . . . . . . . . . . . . . . . . . . . 26
Answering machine (AM) . . . . . . . . . 26
Appendix. . . . . . . . . . . . . . . . . . . . . . 31
Audio settings . . . . . . . . . . . . . . . . . . 14
B
Base station
connect . . . . . . . . . . . . . . . . . . . . . 19
deregistering . . . . . . . . . . . . . . . . . 21
prepare for use. . . . . . . . . . . . . . . . . 9
preparing for installation . . . . . . . . . 9
register . . . . . . . . . . . . . . . . . . . . . 19
Block dialling . . . . . . . . . . . . . . . . . . . 26
C
Call forwarding CF . . . . . . . . . . . . . . . 26
Call Gigaset M34 USB . . . . . . . . . . . . 20
Call waiting . . . . . . . . . . . . . . . . . . . . 27
Callback
when the call is not
answered . . . . . . . . . . . . . . . . . . 26
when the number is busy . . . . . . . . 26
Calling up Help . . . . . . . . . . . . . . . . . 25
Calls list. . . . . . . . . . . . . . . . . . . . . . . 27
CF (Call Forwarding) . . . . . . . . . . . . . 27
Change device names . . . . . . . . . . . . 20
Check connection status . . . . . . . . . . 18
CLIP. . . . . . . . . . . . . . . . . . . . . . . . . . 27
CLIR. . . . . . . . . . . . . . . . . . . . . . . . . . 27
Close . . . . . . . . . . . . . . . . . . . . . . . . . 25
Close software. . . . . . . . . . . . . . . . . . 25
Configuration . . . . . . . . . . . . . . . 18, 19
call Gigaset M34 USB . . . . . . . . . . . 20
change device names. . . . . . . . . . . 20
check connection status . . . . . . . . . 18
configure power management . . . . 22
connect base station . . . . . . . . . . . 19
deregister base station . . . . . . . . . . 21
register base station. . . . . . . . . 15, 19
update firmware . . . . . . . . . . . . . . 22
Configure power management . . . . . 22
Control Panel, software . . . . . . . . . . . 13
Customer Care . . . . . . . . . . . . . . . . . . 31
CW (Call Waiting) . . . . . . . . . . . . . . . . 27
D
DECT . . . . . . . . . . . . . . . . . . . . . . . . . 27
Device drivers. . . . . . . . . . . . . . . . . . . . 8
installing. . . . . . . . . . . . . . . . . . . . . 12
Device Manager . . . . . . . . . . . . . . . . . 13
DFÜ . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Dial-up network . . . . . . . . . . . . . . . . . 27
E
Enquiry call . . . . . . . . . . . . . . . . . . . . 28
Exchange . . . . . . . . . . . . . . . . . . . . . . 28
F
Firmware . . . . . . . . . . . . . . . . . . . . . . 28
For your safety . . . . . . . . . . . . . . . . . . . 5
G
GAP (Generic Access Profile). . . . . . . . 28
Gigaset M34 software
calling up Help . . . . . . . . . . . . . . . . 25
close. . . . . . . . . . . . . . . . . . . . . . . . 25
configuration . . . . . . . . . . . . . . 18, 19
operating . . . . . . . . . . . . . . . . . . . . 24
Gigaset M34 USB PC Adapter . . . . . . . . 6
GSM. . . . . . . . . . . . . . . . . . . . . . . . . . 28
Guarantee Certificate . . . . . . . . . . . . . 31
H
Handset . . . . . . . . . . . . . . . . . . . . . . . 28
Headset . . . . . . . . . . . . . . . . . . . . . . . 28
Hold. . . . . . . . . . . . . . . . . . . . . . . . . . 28
I
Install software and device drivers . . . . 8
Installation. . . . . . . . . . . . . . . . . . . . . . 8
base station . . . . . . . . . . . . . . . . . . . 9
check installation success . . . . . . . . 13
device drivers . . . . . . . . . . . . . . . . . . 8
possible errors . . . . . . . . . . . . . . . . 13
sequence . . . . . . . . . . . . . . . . . . . . . 8
37
Index
M34 fuer USA LBA/ USA EN / A31008-M403-R101-3-7619 / gigaset_manual_m34_eng_v1_0SIX.fm / 27.04.2006
software. . . . . . . . . . . . . . . . . . . . . . 8
start Setup Wizard . . . . . . . . . . . . . 10
update firmware . . . . . . . . . . . . . . 22
Installing the Gigaset M34 software. . 10
Installing the software. . . . . . . . . . . . 11
Internal calls . . . . . . . . . . . . . . . . . . . 29
Internal ringer . . . . . . . . . . . . . . . . . . 29
M
Music on hold . . . . . . . . . . . . . . . . . . 29
N
Notes on the operating instructions. . . 5
O
Online help . . . . . . . . . . . . . . . . . . . . . 5
Operating information. . . . . . . . . . . . 17
Operating instructions. . . . . . . . . . . . . 5
online help. . . . . . . . . . . . . . . . . . . . 5
up to date information . . . . . . . . . . . 5
Operating software
changing and saving settings . . . . . 24
Operation with multiple devices . . . . 17
P
Pack contents . . . . . . . . . . . . . . . . . . . 9
PDA (Personal Digital Assistant) . . . . . 29
PIN . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Prepare for use . . . . . . . . . . . . . . . . . . 9
R
Readme file . . . . . . . . . . . . . . . . . . 5, 25
Register base station . . . . . . . . . . . . . 15
Reject . . . . . . . . . . . . . . . . . . . . . . . . 29
Repeater . . . . . . . . . . . . . . . . . . . . . . 29
S
Safety precautions . . . . . . . . . . . . . . . . 6
general . . . . . . . . . . . . . . . . . . . . . . . 6
installation . . . . . . . . . . . . . . . . . . . . 6
Service (Customer Care). . . . . . . . . . . 31
Set . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Settings
changing . . . . . . . . . . . . . . . . . . . . 24
saving. . . . . . . . . . . . . . . . . . . . . . . 24
Start menu. . . . . . . . . . . . . . . . . . . . . 13
Start Setup Wizard . . . . . . . . . . . . . . . 10
Status displays for the
Gigaset M34 USB. . . . . . . . . . . . . 16
Streaming . . . . . . . . . . . . . . . . . . . . . 29
System requirements . . . . . . . . . . . . . . 8
Gigaset products. . . . . . . . . . . . . . . . 8
operating system . . . . . . . . . . . . . . . 9
PC. . . . . . . . . . . . . . . . . . . . . . . . . . . 9
user rights . . . . . . . . . . . . . . . . . . . . 9
T
Toggling . . . . . . . . . . . . . . . . . . . . . . . 30
Trademarks . . . . . . . . . . . . . . . . . . . . . 7
U
Up to date information. . . . . . . . . . . . . 5
Update firmware . . . . . . . . . . . . . . . . 22
User interface, working area. . . . . . . . 24
W
Waiting melody (Music on hold). . . . . 29
M34 fuer USA LBA/ USA EN / A31008-M403-R101-3-7619 / Cover_hinten.fm / 27.04.2006
Issued by
Siemens Home and Office Communication Devices GmbH & Co. KG
Schlavenhorst 66
D-46395 Bocholt
© Siemens Home and Office Communication Devices GmbH & Co. KG 2006
All rights reserved. Subject to availability.
Rights of modification reserved.
www.siemens.com/gigaset
Ref.No.: A31008-M403-R101-3-7619
