User Manual

Gigaset S790/S795 – more than just a telephone

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / introduction.fm / 28.07.2009

Version 4, 16.09.2005

Gigaset S790/S795 – more than just a telephone

Your telephone sets new standards for the way you communicate at home. The

configuration and user interface of the cordless phone are excellent, providing

you with first-class voice quality in speaker mode, while the USB port offers you

enormous flexibility.

The large TFT display, user-friendly keypad and clearly laid out menu are very

simple to use.

Your phone can do a whole lot more:

uYou can synchronise the directories on your telephone, mobile phone and

PC via the USB port using the Gigaset QuickSync software (¢page 64).

uYou can save appointments (¢page 43) and anniversaries, e.g., birthdays

(¢page 33), in your phone and it will remind you of them in advance.

uYou can designate important people as VIPs to identify important calls from

the ringtone (¢page 31).

uYou can assign a picture to entries in the directory – in the future the picture

will appear every time you receive a call from this number (¢page 31).

uIf you do not want to take calls where the caller has withheld their number,

just set your handset to only ring if Calling Line Identification (CID) has not

been blocked (¢page 54).

uIf you do not wish to be disturbed, you can simply set up a time control so

that your phone will only ring when it is convenient (¢page 53). VIP calls

are still connected during this time.

uYou can assign important numbers to the number keys on your phone. The

number is then dialed by simply pressing a key (¢page 51).

uYou can set the display to large font to increase readability in particularly

important situations (e.g. the directory and lists) (¢page 52).

uYou can adapt the menu display to suit your individual requirements so that

only the most important functions (standard mode) or all functions (expert

mode) display (¢page 26).

uGigaset Green Home — Be environmentally aware when using your phone.

Details about our ECO DECT products can be found at www.gigaset.com/

customercare.

You can find additional information about your phone at www.gigaset.com/

gigasets790.

Have fun using your new phone!

The handset at a glance

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / overview.fm / 28.07.2009

Version 4, 16.09.2005

The handset at a glance 1Display in idle status

2Battery charge status (¢page 16)

3Side keys

Set call (¢page 53) or ringtone volume

(¢page 53)

4Display keys (¢page 21)

5Message key (¢page 35)

Access to call and message lists;

Flashes: new message or new call

6End call key, On/Off key

End call, cancel function, go back one menu

level (press briefly), back to idle status (press

and hold), activate/deactivate handset

(press and hold in idle status)

7Pound key

Keypad lock on/off (press and hold in idle

status);

toggles between upper/lower case and dig-

its

8MUTE key (¢page 30)

Mute the microphone

9Microphone

10 FLASH key

- Flashes: Consultation call

- Insert a dialing pause (press and hold)

11 Star key

Ringtone on/off (press and hold);

with an open connection: switch between

pulse dialing/tone dialing (press briefly);

text input: open table of special characters

12 Headset connection (¢page 18)

13 Key 1

Dial answering machine (S795 only)/

network mailbox (press and hold)

14 Talk key

Flashes: incoming call;

Accept a call; open redial list (press briefly);

start dialing (press and hold)

15 Speaker key

Switch between earpiece and speaker mode

16 Control key (¢page 20)

17 Signal strength (¢page 16)

Green: Eco Mode (¢page 43) activated

18 Answering machine symbol (S795 only)

Answering machine switched on;

Flashes: answering machine is recording a

message or is being operated by another

internal party

iÃV

07:15am

INT 1 Oct 14

INT Calls

Display symbols

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / overview.fm / 28.07.2009

Version 4, 16.09.2005

Display symbols

The following symbols may display, depending on the settings and the operating status of

your telephone:

Ø«Ú

Signaling

External call (¢page 29)

ØåÚØþÚ

Internal call (¢page 47)

answering machine is

recording (¢page 37)

i Ã ó˝

Û 08:00 07:15am

INT 1 Oct 14

Ã™

02 10 08

Calls

ØðÚ

Anniversary (¢page 44)

ØìÚ

Alarm (¢page 45)

Signal strength i(¢page 43)

Answering machine switched on (S795 only)(¢page 4)

Ringtone switched off (¢page 54)

Keypad lock switched on (¢page 23)

ØáÚ

Appointment (¢page 44)

Batteries are charged (¢page 16)

Charge status of the batteries (¢page 16)

Alarm switched on and wake-up time set (¢page 45)

Current time (¢page 15)

Current day and month (¢page 15)

Name of the handset (¢page 49)

Number of new messages:

uÃon the network mailbox (¢page 35)

u™in the list of missed calls (¢page 35)

uin the list of missed appointments (¢page 36)

The base at a glance

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / overview.fm / 28.07.2009

Version 4, 16.09.2005

The base at a glance

You can use the keys on the base to

handsets (paging) (¢page 47) and oper-

ate the integrated answering machine

(Gigaset S795 only).

Gigaset S795 base

1Registration/Paging button

Press briefly: search for handsets (paging)

(¢page 47).

Press and hold: register handsets and DECT

devices (¢page 46).

2On/Off button

Activating/deactivating the answering ma-

chine.

3Display

Lights up: answering machine is activated.

The number of saved messages displays.

00 flashes: the answering machine is

recording a new message.

Flashes slowly: there are new messages.

The number of new messages displays.

99 flashes quickly: the answering machine

is full.

During message playback:

4Play/Stop button

Play back new messages from answering

machine or cancel playback (press briefly).

Play back new and old messages (press and

hold).

5Skip to next message (press once) or skip

ahead two messages (press twice).

6Skip back five seconds (press briefly once),

skip back to the beginning of the message

(press and hold) or skip back to the previous

message (press twice).

7Delete current message.

8Adjust volume during message playback:

÷ = quieter; ø = louder.

While an external call is being signaled:

adjust ringtone volume.

Please note:

If the answering machine is being oper-

ated from a handset or if it is recording a

message (00 flashes), it cannot be oper-

ated from the base at the same time.

Gigaset S790 base

Registration/Paging button

–Press briefly: search for handsets

(paging) (¢page 47).

–Press and hold: register handsets

and DECT devices (¢page 46).

Contents

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / S795IVZ.fm / 28.07.2009

Version 4, 16.09.2005

Contents

Gigaset S790/S795 – more than just a telephone . . . . . . . . . . . . . 1

The handset at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Display symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

The base at a glance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8

First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

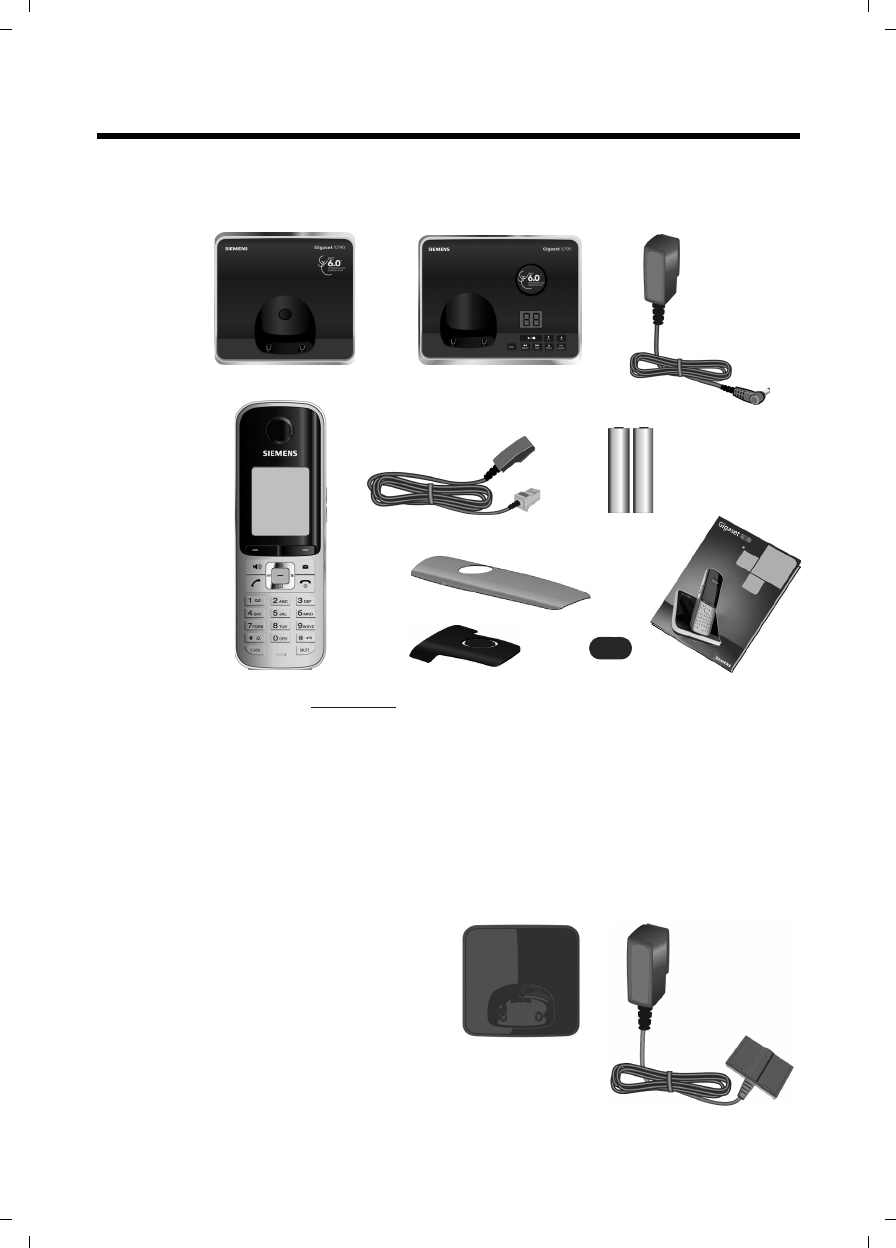

Checking the package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

Setting up the base and charger (if included) . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10

Connecting the charger (if included) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11

Setting up the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12

Setting the date and time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15

Setting up area codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17

Connecting the headset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

Connecting the USB data cable . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

What would you like to do next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19

Using the phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Control key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20

Display keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Keys on the keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Side keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Correcting incorrect entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21

Using the menus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

Activating/deactivating the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Activating/deactivating the keypad lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23

Using this guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24

Menu overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Making an external call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Ending a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Accepting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using Caller ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

Using the speaker mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Switching to mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30

Using the directory and lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31

Redial list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34

Answering machine list (Gigaset S795 only) . . . . . . . . . . . . . . . . . . . . . . . . 35

Call lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

Opening lists with the message key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

List of missed alarms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36

Contents

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / S795IVZ.fm / 28.07.2009

Version 4, 16.09.2005

Operating the Gigaset S795 base answering machine . . . . . . . 37

Operating via the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37

Activating/deactivating call screening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Setting the recording parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Resetting fast access for the answering machine using key 1 . . . . . . . . . . . 41

Operating when on the move (remote operation) . . . . . . . . . . . . . . . . . . . . 41

Using the network mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

Configuring fast access for the network mailbox . . . . . . . . . . . . . . . . . . . . . 42

Viewing the network mailbox message . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42

ECO DECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43

Setting an appointment (calendar) . . . . . . . . . . . . . . . . . . . . . . . 43

Displaying missed appointments, anniversaries . . . . . . . . . . . . . . . . . . . . . . 45

Setting the alarm clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

Using multiple handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Registering handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

De-registering handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46

Locating a handset ("Paging") . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Changing the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Making internal calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

Listening in to an external call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

Changing the name of a handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Changing a handset's internal number . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Using a handset as a room monitor . . . . . . . . . . . . . . . . . . . . . . . 49

Handset settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Quick access to numbers and functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 51

Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Setting the display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52

Activating/deactivating auto answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Changing the speaker/earpiece volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Changing ringtones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53

Resource Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 54

Activating/deactivating advisory tones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Setting long-distance and area codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55

Restoring the handset default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Setting the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Changing the Gigaset S795 base ringtones . . . . . . . . . . . . . . . . . . . . . . . . . 56

Activating/deactivating music on hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56

Protecting against unauthorized access . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Resetting the base to the factory settings . . . . . . . . . . . . . . . . . . . . . . . . . . . 57

Connecting the base to the PABX . . . . . . . . . . . . . . . . . . . . . . . . . 58

Dialing modes and recall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Setting pauses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 58

Switching temporarily to tone dialing (DTMF) . . . . . . . . . . . . . . . . . . . . . . . 58

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Contents

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / S795IVZ.fm / 28.07.2009

Version 4, 16.09.2005

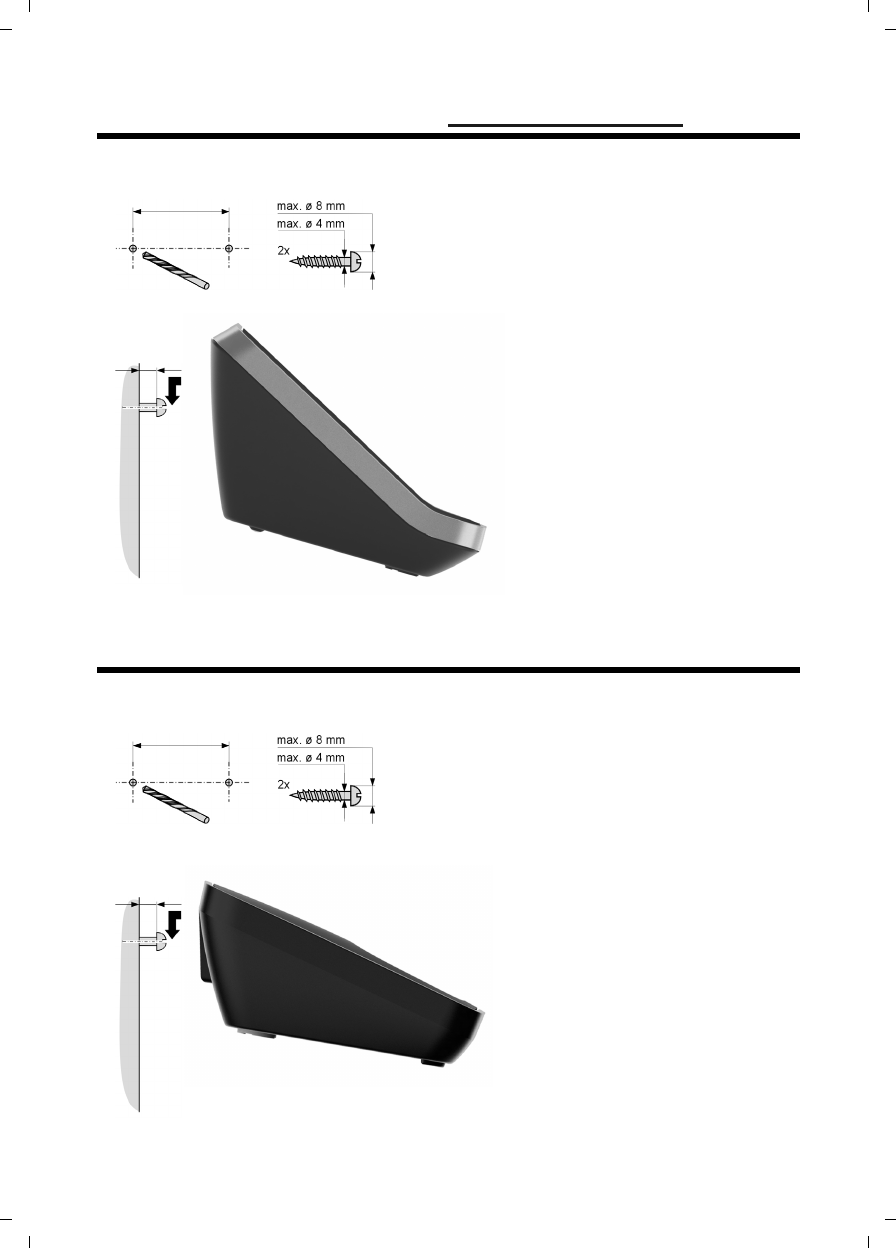

Mounting the base on the wall (Gigaset S790 only) . . . . . . . . . 60

Mounting the charger on the wall . . . . . . . . . . . . . . . . . . . . . . . . 60

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61

Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Caring for your telephone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Contact with liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63

Writing and editing text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

Additional functions via the PC interface . . . . . . . . . . . . . . . . . . 64

Industry Canada Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

FCC / ACTA Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68

Service (Customer Care) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

End-user limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 69

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 73

Safety precautions

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / security.fm / 28.07.2009

Version 4, 16.09.2005

Safety precautions

Warning

Be sure to read this user guide and the safety precautions before using your telephone.

Explain their content and the potential hazards associated with using the telephone to

your children.

Use only the power adapter supplied, as indicated on the underside of the base.

Use only rechargeable batteries that correspond to the specification pro-

vided on page 63, as this could otherwise result in significant health risks and

personal injury. Do not charge the handset in charging unit or base while the

headset is connected.

Using your telephone may affect nearby medical equipment. Be aware of the

technical conditions in your particular environment, e.g., doctor's surgery.

Do not hold the rear of the handset to your ear when it is ringing or when

speaker mode is activated. You risk serious and permanent damage to your

hearing.

Your Gigaset is compatible with the majority of digital hearing aids on the mar-

ket. However, perfect function with all hearing aids cannot be guaranteed.

The handset may cause an unpleasant humming or whistling noise in hearing

aids or cause them to overload. For assistance, please contact the hearing aid

supplier.

Do not install the base or charger in bathrooms or shower rooms. The base and

charger are not splashproof (¢page 62).

Do not use your phone in environments with a potential explosion hazard

(e.g., paint shops).

If you give your phone to a third party, make sure you also give them the user

guide.

Remove faulty bases from use or have them repaired by our Service department,

as they could interfere with other wireless services.

Please note

Not all of the functions described in this user guide are available in all countries.

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

First steps

Checking the package contents

1One Gigaset S790/S795 base

2One power adapter

3One Gigaset S79H handset

4One phone cord

5Two batteries

6One battery cover

7One belt clip

8One plastic headset connection cover

9One user guide

If you have purchased a

model with multiple

handsets the package

should contain one addi-

tional set of each of the

following items for each

handset: battery sets, bat-

tery cover, belt clip, hand-

set, and charging cradle 9

with power adapter J

345

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Setting up the base and charger (if included)

The base and charger are designed for use in dry rooms in a temperature range

of +41°F to +113°F.

¤Set up the base at a central point in the building on a level, non-slip surface

or mount the base (Gigaset S790 only) or charger on the wall (¢page 60).

The phone's feet do not usually leave any marks on surfaces. However, due to

the multitude of different varnishes and polishes used on today's furnishings,

the occurrence of marks on the surfaces cannot be completely ruled out.

Please note:

uNever expose the telephone to the influence of heat sources, direct sunlight

or other electrical devices.

uProtect your telephone from moisture, dust, corrosive liquids and fumes.

Connecting the base

¤First connect the

power adapter 1.

¤Then connect the

telephone jack 2

and insert the

cables into the

cable ducts.

Please note:

uThe power adapter must always be connected, as the phone will not oper-

ate without.

uUse only the power adapter and phone cord supplied. Pin connections on

telephone cables can vary (¢page 63).

Please note

Pay attention to the range of the base.

This is up to 984 feet in unobstructed outdoor areas and up to 165 feet

inside buildings. The range is reduced when Eco Mode (¢page 43) is

activated.

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

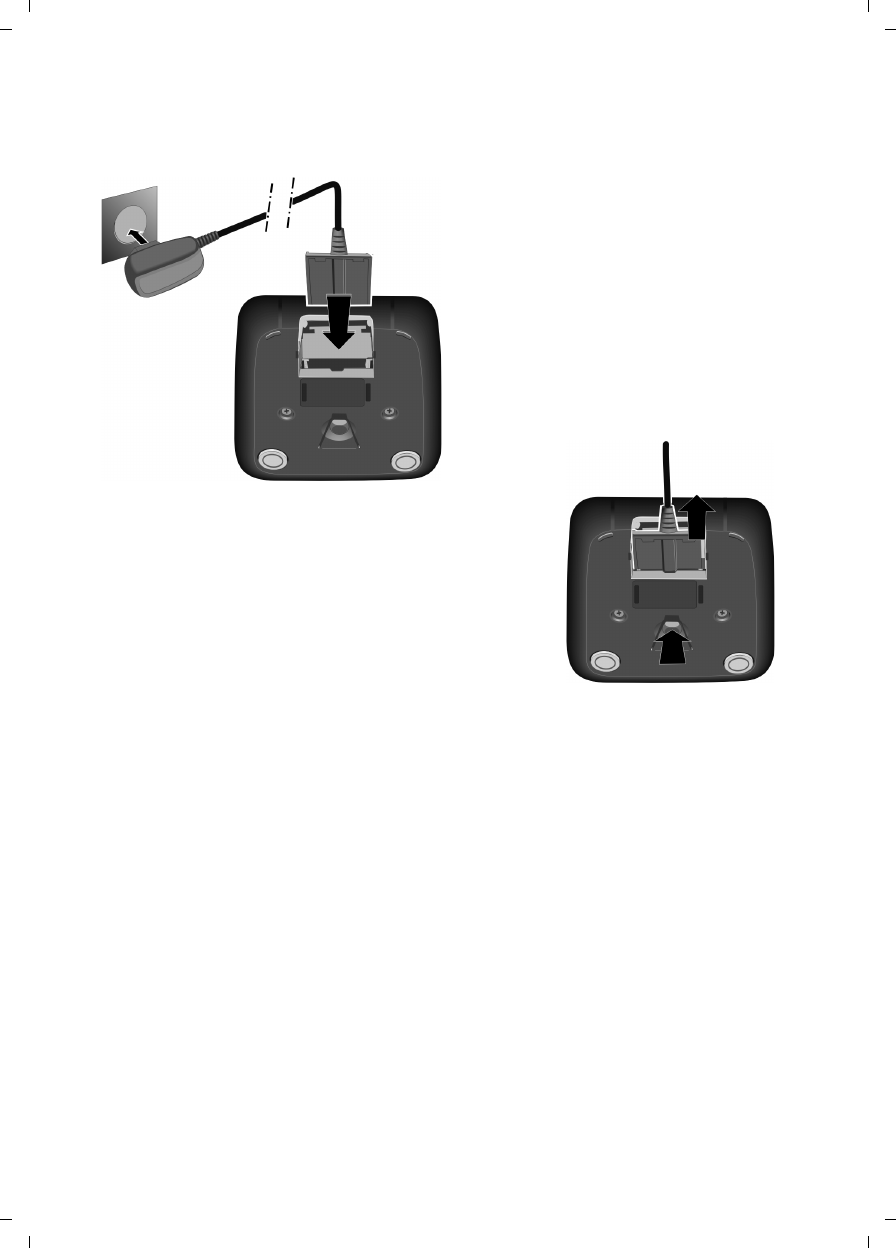

Connecting the charger (if included)

¤Plug the power adapter into the plug

socket 2.

¤Connect the flat plug from the power

adapter 1.

To disconnect the plug from the charger,

press the release button 1 and disconnect

the plug 2.

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Setting up the handset

The display and keypad are protected by plastic films.

Remove the protective films!

Inserting the batteries and closing the battery cover

Warning

Use only rechargeable nickel-metal hydride (NiMH) UL-approved AAA bat-

teries. Never use conventional (non-rechargeable) batteries, as this could

result in significant health risks and personal injury. For example, the outer

casing of the batteries could be damaged or the batteries could explode.

The phone could also malfunction or be damaged as a result of using bat-

teries that are not of the recommended type.

¤Insert the batteries

with the polarity in the

correct direction.

The polarity is indi-

cated in/on the battery

compartment.

¤First insert the battery

cover at the top a.

¤Then press the cover b

until it clicks into place.

To open the battery cover, for

instance to replace the batter-

ies, insert a coin into the cav-

ity on the left-hand side of the

casing, then pull the battery

cover in an upward direction.

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

¤Insert the plastic cover provided for the

headset socket to ensure optimum sound

in speaker mode.

Attaching the belt clip

The handset has notches on each side to attach the belt clip.

¤To attach — press the belt clip

onto the back of the handset so

that the protrusions on the belt

clip engage with the notches.

¤To remove — press the center

of the belt clip firmly with your

right thumb, push the fingernail

of your left index finger up

between the clip and the hous-

ing and pull the clip in an

upward direction.

Placing the handset in the base/charger

¤Place the handset in the base/charger with its display facing forward.

Each handset is registered with the base at the factory. You do not need to reg-

ister the handset again. If you wish to use your handset with a different base or

use further handsets with your base, register the handset manually

(¢page 46).

To charge the batteries, leave the handset in the base/charger.

Please note

Only place the handset in the designated base/charger included with the

handset.

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

First battery charge and discharge

The correct charge level can only display if the batteries are first fully charged

and discharged.

¤Charge the handset for 8.5 hours in the

base/charger.

¤Then remove the handset

from the base/charger and

do not replace it until the

batteries are fully dis-

charged.

8.5 hrs

Please note

uAfter the first battery charge and discharge, you may replace your hand-

set in the base/charger after every call.

uAlways repeat the charging and discharging procedure if you remove the

batteries from the handset and reinsert them.

uThe batteries may warm up during charging. This is not dangerous.

uAfter a while, the charge capacity of the batteries will decrease for tech-

nical reasons.

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Setting the date and time

Set the date and time so that the correct date and time can be assigned to

incoming calls, and so that the alarm can be used.

Date/Time

Date:

10/14/2009

Time:

00:00am

Back Save

¤Press the key below §Time§ on the dis-

play to open the input field.

If you have already set the time and

date, open the input field via the

menu (¢page 28.)

The Date/Time submenu displays.

¤The active input position flashes.

Enter the month, day and year as an

8-digit number via the keypad,

e.g., Q42Q

QO for 10/14/2009.

Date/Time

Date:

01/31/2009

Time:

00:00am

Back Save

Calls Time

Press the right or left control

key to change the input posi-

tion and correct an entry.

¤When you switch to time entry, the

Back display key turns to AM/PM.

Enter the hours and minutes in 4-digit

format via the keypad,

e.g., QM5for 07:15 am.

Change the input position with

the control key if necessary.

If necessary, press the AM/PM display

key to change the time setting from

AM to PM.

¤Press down on the control key to switch

to the time input field.

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Display in idle status

After registering the phone and setting the time, the idle display shows as in

this example. If the answering machine is activate, the answering machine icon

Ãdisplays in the header.

Displays

uReception between the base and the handset:

–Poor to good: ÒÑiÐ

–No reception: | flashes

Green: Eco Mode activated (¢page 43)

uCharge status of the batteries:

–yy{{ (empty to full)

–yflashes red: batteries almost empty

–xyx{x{(charging)

uINT 1

Internal name of the handset (¢page 49)

Your answering machine is set with a pre-recorded announcement.

Your phone is now ready to use!

¤Press the key below §Save§ on the dis-

play to confirm your entry.

The display shows Saved. You will hear

a confirmation tone and the handset

automatically returns to idle status.

Back Save

Date/Time

‰

Saved

ÐV

09:57 am

INT 1 22 Jul

INT Calls

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Setting up area codes

Before you can return a call from the Calls list (¢page 35), you must store the

local area code of the area in which your phone is being used. If your phone is

in a multiple area code area, you must also store the extra codes for that area.

Local Area Code

v ¢Ï ¢Telephony ¢Local Area Code

~Enter the local area code.

§Save§ Press the Display key.

a When the Saved message displays, press and hold to return to idle

status.

Extra Codes

v ¢Ï ¢Telephony ¢Extra Codes

~Enter the extra code.

§Save§ Press the Display key.

a When the Saved message displays, press and hold to return to idle

status.

Repeat the above steps until all the extra codes have been entered for your

area. A maximum of five (5) extra codes can be stored.

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Connecting the headset

After removing the plastic cover, you can connect a

headset to the left-hand side of your telephone with the

2.5 mm jack connector. HAMA and Plantronics M40,

MX100 and MX150 headsets are all suitable.

The headset volume corresponds to the settings for the

handset volume (¢page 53).

After using the headset, replace the plastic cover to

enable optimum sound in speaker mode.

A compatibility list of tested headsets can be found on

the Internet at:

www.plantronics.com/productfinder.

Connecting the USB data cable

You can connect a standard USB data cable with a mini-B connector to the back

of your handset to connect the handset to a PC (¢page 64).

¤Remove the belt clip (if attached)

(¢page 13).

¤Remove the battery cover

(¢page 12).

¤Connect the USB data cable to the USB

socket 1.

Warning

Do not charge the handset in charging unit or base while the headset is

connected.

First steps

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

What would you like to do next?

Now that you have successfully set up your phone, you will certainly want to

adapt it to your personal requirements. Use the following guide to quickly

locate the most important topics.

If you are unfamiliar with menu-driven devices such as other Gigaset tele-

phones, read the section entitled "Using the phone" (¢page 20) first.

If you have any questions about using your phone, please read the tips on

troubleshooting (¢page 61) or contact our Customer Care team (¢page 69).

Information about ... ... go to...

Setting the ringtone and volume page 53

Setting the earpiece volume page 53

Recording your own announcement for the answering

machine page 37

Setting Eco Mode page 43

Operating the telephone on a PABX page 58

Registering existing Gigaset handsets to a base page 46

Transferring directory entries from existing Gigaset

handsets to new handset(s) page 33

Connecting the phone to the PC page 64

Using the phone

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Using the phone

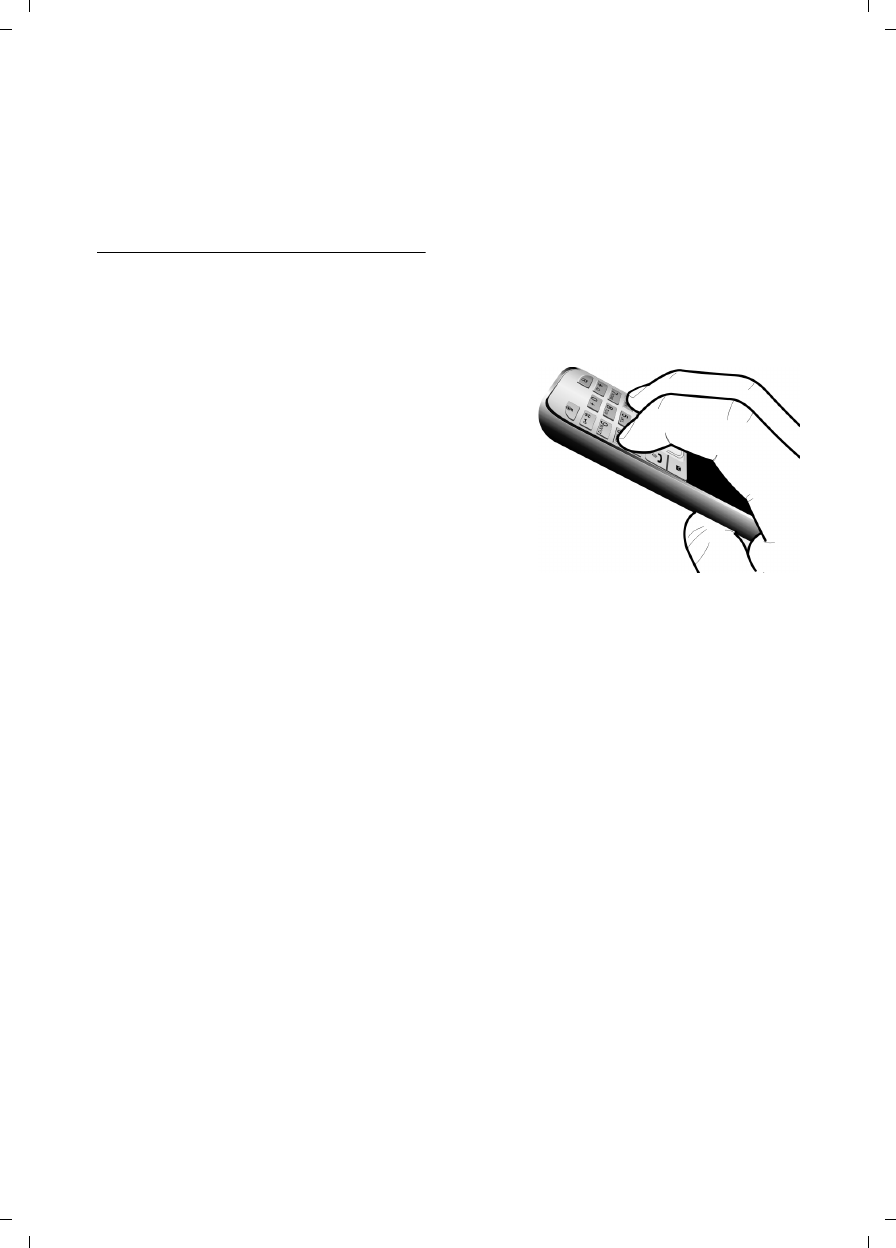

Control key

Below, the side of the control key that you must press in the

respective operating situation is marked in black (top, bot-

tom, right, left, center), e.g., v for "press right on the control

key" or w for "press the center of the control key".

The control key has a number of different functions:

When the handset is in idle status

s Open the directory.

v Open the main menu.

u Open the list of handsets.

tCall up the menu for setting the handset's call volume

(¢page 53).

In the main menu

t, s, v or u

Navigate to the required function.

In submenus and lists

t/ s Scroll up/down line by line.

In input fields

Use the control key to move the cursor up t, down s, right v or left u.

Press and hold v or u to move the cursor word by word.

During an external call

s Open the directory.

u Initiate an internal consultation call.

tAdjust the volume for earpiece and speaker mode.

Functions when pressing the middle of the control key

Depending on the operating situation, the key has different functions.

uIn idle status the key opens the main menu.

uIn submenus, selection and input fields, the key takes on the function of

the display keys §OK§, §Yes§, §Save§, §Select§ or §Change§.

Please note

These instructions demonstrate the main menu being opened by pressing

the right of the control key and functions being actuated by pressing the

appropriate display key. However, if you prefer, you can use the control key

as described above.

Using the phone

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Display keys

The functions of the display keys change depending on the particular operating

situation. Example:

Some important display keys:

Open a menu for further functions.

Confirm selection.

Delete key: delete character by character/word at a time from right

to left.

Go back one menu level or cancel operation.

Store entry.

Open the redial list.

Forward a call to the answering machine.

Keys on the keypad

c/ Q/ *etc.

Press the matching key on the handset.

~Enter digits or letters.

Side keys

ø / ÷Press the keys on the right of the handset to set the volume for the

handset, ringtone, speaker, alarm, signaling of appointments

and the headset depending on the situation.

Correcting incorrect entries

You can correct characters in the input fields by navigating to the incorrect

entry using the control key. You can then:

uDelete the character to the left of the cursor with the display key or delete

the entire word by pressing and holding Ñ

uInsert characters at the cursor position

uOverwrite the highlighted (flashing) character, e.g. when entering time and

date.

Back Save

Current display key functions.

Display keys

Options

Back

Save

Using the phone

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Using the menus

You can access your telephone's functions using a menu that has a number of

levels.

The menu display can be extended (expert mode) or restricted (standard

mode). Standard mode is the default setting.

Settings or functions that are only available in expert mode are marked in these

instructions by the • icon.

For more information regarding "switching" between standard mode/expert

mode and Menu Overview, please refer to page 26. (¢page 26).

Main menu (first menu level)

¤When the handset is in idle status press the right control key v to open the

main menu.

The main menu functions display with icons. The

icon for the selected function is highlighted in orange

and the name of the associated function appears in

the display header.

To access a function, i.e., to open the corresponding

submenu (next menu level):

¤Use the control key p to select the required func-

tion and press the display key §OK§.

Briefly press the display key §Back§ or the end call key

a to revert back to idle status.

Submenus

The functions in the submenus are displayed as lists

(as shown on the right).

To access a function:

¤Scroll to the function with the control key q and

press §OK§.

Briefly press the display key §Back§ or the end call key

a to return to the previous menu level/cancel the

operation.

Settings

×·É

ìÊÌ

á Â Ï

Back OK

Settings

Date/Time

Display

Language

Registration

Telephony

Back OK

Using the phone

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Reverting to idle status

You can revert to idle status from anywhere in the menu as follows:

¤Press and hold the end call key a.

or:

¤Do not press any key: after 2 minutes the display will automatically revert

to idle status.

Settings that have not been saved by selecting the display keys §OK§, §Yes§, §Save§

or §Change§ are lost.

An example of the display in idle status is shown on page 16.

Activating/deactivating the handset

aWith the phone in idle status, press and hold the end call key (con-

firmation tone) to switch off the handset.

Press and hold the end call key again to switch the handset on.

Activating/deactivating the keypad lock

The keypad lock prevents any unauthorized or accidental use of the phone.

#Press and hold the pound key in idle status to activate or deactivate

the keypad lock. You will hear the confirmation tone.

If the keypad lock is activate, you will see a message when you press a key.

The keypad lock deactivates automatically when you receive a call. It is reacti-

vated when the call is finished.

Please note

When the handset is switched on, an animation showing the Gigaset logo

displays for several seconds.

Please note

When the keypad lock is active, you cannot call emergency numbers.

Emergency numbers cannot be dialed if the keypad lock is activated!

Using the phone

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

Using this guide

The operating steps are shown in abbreviated form.

Example:

The illustration:

v ¢Ï ¢Display ¢Large Font (³=on)

means:

¤Press right on the control key v

to open the main menu.

¤Press right, left, down and up on

the control key p to navigate to

the Settings submenu.

¤Press the display key §OK§ to

confirm your selection.

¤Press down on the control key s

until the Display menu option

appears on the display.

¤Press the display key §OK§ to

confirm your selection.

Settings

Date/Time

Display

Language

Registration

Telephony

Back OK

Settings

×·É

ìÊÌ

á Â Ï

Back OK

Using the phone

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / starting.fm / 28.07.2009

Version 4, 16.09.2005

The change is effective immediately

and does not need to be confirmed.

¤Press down on the control key s

until the Large Font menu option

appears on the display.

¤Press the display key §Change§ to

activate/deactivate the function.

Display

Screensaver

Large Font ³

Color Schemes

Backlight

Back Change

Display

Screensaver

Large Font ´

Color Schemes

Backlight

Back Change

¤Press the key below §Back§ on the dis-

play to jump back to the previous

menu level.

Press and hold the end call key a

to return to idle status.

Menu overview

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / menuetree.fm / 28.07.2009

Version 4, 16.09.2005

Menu overview

Setting standard mode or expert mode

The menu display can be extended (expert mode) or restricted (standard mode).

To change these settings:

Select v ¢Ï ¢Menu View ¢Simplified (standard mode) or Complete (expert mode)

¢§Select§ (the active mode is marked with Ø)

Menu options that are only available in expert mode are marked with the • icon.

Open the main menu: Press v when the phone is in idle mode.

×Audio Settings Handset Volume ¢page 53

•Advisory Tones ¢page 55

Ringtones(Handset) ¢page 53

Ringtones (Base) ¢page 56

•Music on Hold ¢page 56

·Resource Directory

Screensavers ¢page 55

Caller Pictures ¢page 55

Sounds ¢page 55

Capacity ¢page 55

ÉAdditional Features

Room Monitor ¢page 49

ìAlarm Clock ¢page 45

ÊCall Lists

All Calls ¢page 35

Outgoing Calls ¢page 35

Accepted Calls ¢page 35

Missed Calls ¢page 35

Menu overview

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / menuetree.fm / 28.07.2009

Version 4, 16.09.2005

ÌVoice Mail

Play Messages Network Mailbox ¢page 42

Answering Machine * ¢page 37

Activation * ¢page 37

Announcements * Rec. Announcement * ¢page 37

Play Announcement * ¢page 37

Del. Announcement * ¢page 37

•Rec. Advisory Msg. * ¢page 37

•Play Advisory Msg. * ¢page 38

•Del. Advisory Msg. * ¢page 38

•Recordings * ¢page 40

•Call Screening * ¢page 40

•Network Mailbox ** ¢page 42

•Set Key 1 * Network Mailbox ¢page 42

Answering Machine ¢page 42

*Base with answering machine only

** Base without answering machine only

áOrganizer

Calendar ¢page 43

Missed Alarms ¢page 45

ÂDirectory ¢page 31

Menu overview

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / menuetree.fm / 28.07.2009

Version 4, 16.09.2005

ÏSettings

Date/Time ¢page 15

Display Screensaver ¢page 52

Large Font ¢page 52

Color Schemes ¢page 52

•Backlight ¢page 52

Language ¢page 52

Registration Register Handset ¢page 46

De-reg. Handset ¢page 46

Select Base ¢page 47

•Telephony Auto Answer ¢page 53

Area Codes ¢page 55

Listening In ¢page 48

Dialing Mode ¢page 58

Flash ¢page 58

Local Area Code

Extra Codes

•System Handset Reset ¢page 56

Base Reset ¢page 57

System PIN ¢page 57

Menu View Simplified ¢page 26

Complete ¢page 26

Eco Mode Eco Mode ¢page 43

Making calls

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / telefony.fm / 28.07.2009

Version 4, 16.09.2005

Making calls

Making an external call

External calls are calls using the public tel-

ephone network.

~c Enter the number and press

the talk key.

or:

c~ Press and hold the talk key c

and then enter the number.

You can cancel the dialing operation with

the end call key a.

You are shown the duration of the call

while the call is in progress.

Ending a call

aPress the end call key.

Accepting a call

The handset indicates an incoming call in

three ways: by ringing, by a display on the

screen and by the flashing talk key c.

Accept the call by:

¤Pressing the talk key c.

¤Pressing the speaker key d.

¤Gigaset S790: press the display key

§Accept§.

¤Gigaset S795: press the display key

Ô to divert the call to the answering

machine (¢page 39).

If the handset is in the base/charger and

the Auto Answer function is activated

(¢page 53), the handset automatically

answers the call when you remove it from

the base/charger.

To deactivate the ringtone, press the

§Silence§ display key. You can accept the call

as long as it displays on the screen.

Using Caller ID

Caller ID (CID) and Caller Name ID (CNID)

are optional subscription services pro-

vided by your telephone service provider.

These features supply incoming caller

identification information that displays on

your handset.

Call display with Caller ID/ Name

If the number of the caller is saved in your

directory, you will see their name, and

if you have assigned a caller picture

(CID picture) to that caller, this will also

be displayed.

1 Ringtone icon or CID picture

2 Number or name of caller

Please note

Dialing with the directory

(¢page 31), call list (¢page 35),

redial list (¢page 34) and automatic

redial (¢page 34) saves you from

repeatedly keying in phone numbers.

Ø«Ú

9725551234

Accept Silence

Gigaset S790

Gigaset S795

Ø«Ú

9725551234

àSilence

Making calls

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / telefony.fm / 28.07.2009

Version 4, 16.09.2005

The following displays in place of the

number:

uExternal, if no number is transmitted.

uUnavailable, if the caller has not

arranged Calling Line Identification.

Display with CID

If you have CID, then the name that is reg-

istered with your network provider for the

caller's number will also be displayed. If

the number of the caller is stored in your

directory, the CID display is replaced by

the corresponding directory entry.

1 Caller's number

2Name

The display shows:

uExternal, if no number is transmitted.

uUnavailable, if the caller has not

arranged Calling Line Identification.

Using the speaker mode

In speaker mode, instead of holding the

handset to your ear you can put it down,

for example on the table in front of you.

This allows others to participate in the call.

Activating/deactivating speaker mode

Activating while dialing

~d Enter the number and press

the speaker key.

¤Inform your caller before you use the

speaker function so that the caller

knows a third party may be listening.

Switching between earpiece and speaker

mode

dPress the speaker key.

During a call and when listening to the

answering machine (Gigaset S795 only),

activate or deactivate speaker mode.

To place the handset in the base/charger

during a call:

¤Press and hold the speaker key d

while placing the handset in the base/

charger and for a further 2 seconds.

For instructions on adjusting the speaker

volume (¢page 53).

Switching to mute

You can deactivate the microphone in

your handset during an external call.

hPress key to mute the handset.

The display shows Microphone

is off.

Press the key again to reacti-

vate the microphone.

Please note

The ringtone can be switched off for

unknown calls (calls with Calling Line

Identification (CID) blocked)

(¢page 54).

Ø«Ú

9725551234

Anna Lechner

Accept Silence

Please note

If you have a headset connected, you

can switch between the headset and

speaker mode.

Please note

uIf the telephone is muted, all keys

except the MUTE key h and the

end-call key a will not work.

uA connected headset will also be

muted.

Using the directory and lists

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / direct_charges.fm / 28.07.2009

Version 4, 16.09.2005

Using the directory and lists

The options are:

uDirectory

uRedial list

uCall lists

uList of missed appointments

uAnswering machine list

(Gigaset S795 only)

You can create a personalised directory for

your own handset. You can also send lists/

entries to other handsets (¢page 33).

directory

You can copy numbers displayed in a list,

e.g., the call list or the redial list, to the

directory.

If you have CID, the first 16 characters of

the transmitted name are also copied to

the Last Name line.

A number displays:

§Options§ ¢Copy to Directory

¤Complete the entry (¢page 31).

Gigaset S795: Message playback is inter-

rupted during the number transfer from

the answering machine list.

Copying a number or e-mail address

from the directory

In some operating situations, you can

open the directory to copy a number or e-

mail address, for example. Your handset

need not be in idle status.

¤Depending on the operating situation,

open the directory with s or Ó.

qSelect entry (¢page 32).

Storing an anniversary in the directory

For each number in the directory, you can

save an anniversary and specify a time at

which a reminder call should be made on

the anniversary (default setting: Anniver-

sary: Off).

s ¢s (Select entry)

§View§ §Edit§ Press display keys one after the

other.

sScroll to the Anniversary line.

vSelect On.

¤You can enter data in the following

fields:

Anniversary Date

Enter day/month/year in 8-digit format.

Anniv. (Time)

Enter the hour/minute for the reminder

call in 4-digit format.

Using the directory and lists

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / direct_charges.fm / 28.07.2009

Version 4, 16.09.2005

Anniv. (Signal)

Select the reminder type.

§Save§ Press the display key.

Deactivating anniversaries

s ¢s (Select entry)

§View§ §Edit§ Press display keys one after the

other.

sScroll to the Anniversary line.

vSelect Off.

§Save§ Press the display key.

Reminder call on an anniversary

In idle status, a reminder call is indicated

on the handset display and by the selected

ringtone and volume that has been set for

internal calls (¢page 53).

You can:

§Off§ Press the display key to

acknowledge and end the

reminder call.

During the reminder call, you can per-

manently change the volume by pressing

the side keys ø (louder) or ÷ (quieter).

When you are on the phone, a reminder

call is indicated on the handset with a sin-

gle advisory tone.

Anniversaries that are indicated during a

call and are not acknowledged are entered

in the Missed Alarms list (¢page 36).

Redial list

The redial list contains the twenty num-

bers last dialed with the handset (max. 32

digits). If one of the numbers is in the

directory, the corresponding name dis-

plays.

Manual redial

cPress the key briefly.

sSelect entry.

cPress the talk key again. The

number is dialed.

When a name displays, you can display the

corresponding phone number by pressing

the display key §View§.

Managing entries in the redial list

cPress the key briefly.

sSelect entry.

§Options§ Open menu.

The following functions can be selected

with q:

Copy to Directory

Copy an entry to the directory

(page 31).

Automatic Redial

The selected number is automatically

dialed at fixed intervals (at least every

20 seconds). The speaker key flashes

and "open listening" is activated.

– Party answers:

Press the talk key c. The function

is ended.

– Party does not answer:

The call is terminated after approx.

30 seconds. The function is ended

after pressing any key or after ten

unsuccessful attempts.

Display Number (as in the directory,

page 32)

Delete Entry (as in the directory, page 32)

Delete All (as in the directory, page 32)

Please note

You must specify a time for reminder

calls. The exception is when you select

a visual signal, which automatically

sets the time to 00.00.

ØðÚ

Miller,

Frank

Off

Using the directory and lists

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / direct_charges.fm / 28.07.2009

Version 4, 16.09.2005

Answering machine list

(Gigaset S795 only)

You can use the answering machine list

to listen to the messages that are on the

answering machine.

Call lists

Prerequisite: Caller ID service subscrip-

tion (CID, page 29)

Your telephone stores various types of

calls:

uAnswered calls

uOutgoing calls

uMissed calls

uCalls recorded by the answering

machine (Gigaset S795 only)

You can view each type of call separately

or gain an overview of all calls. Each call

record contains the last 20 numbers in its

category.

When in idle status, open the call lists by

selecting the §Calls§ display key or via the

menu:

v ¢Ê

List entry

New messages are displayed at the top.

Example of list entries:

uList type (in header)

uStatus of entry

Bold: New entry

uNumber or name of caller

uDate and time of call (if set, page 15)

uType of entry:

– Accepted calls ( › )

– Missed calls ( ™ )

– Outgoing calls ( š )

–Calls recorded by the answering

machine (Ã, Gigaset S795 only)

Press the talk key c to call the selected

caller back.

Press the §View§ display key to access addi-

tional information, including for example

the number linked to the name. If you

have CID, then the name and town that is

registered with your network provider for

this number displays. If the name and

town are not shown, it means that the

caller has not requested CID or that CID

has been withheld.

Select the §Options§ display key to select the

following options:

Copy to Directory

Copy the number to the directory.

Delete Entry

Delete selected entry.

Delete All

Delete all entries.

When you quit the call lists, all entries are

set to the status "old", i.e., the next time

you call up the list, they will no longer be

shown in bold.

Opening lists with the message

key

Use the message key f to open the fol-

lowing list selection:

uAnswering machine list (Gigaset S795

only) or network mailbox, if your net-

work provider supports this function

and fast access is set for the network

mailbox (¢page 42).

uList of missed calls

uList of missed alarms (¢page 36)

All Calls

™ Frank

10/14/09, 5:40pm

š 9725551234

10/14/09, 5:32pm

™ ...15125551234

10/14/09, 5:07pm

View Options

Using the directory and lists

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / direct_charges.fm / 28.07.2009

Version 4, 16.09.2005

An advisory tone sounds as soon as a new

message arrives in a list. The f key

flashes (it goes off when the key is

pressed). In idle status, the display shows

an icon for the new message:

The number of new entries displays under

the corresponding icon.

After pressing the message key f, you

can see all lists containing messages and

the network mailbox list.

Lists containing new messages are at the

top of the list and are marked in a bold

font.

Select a list with q. To open, press §OK§.

List of missed alarms

Missed (unacknowledged) appointments

from the calendar (¢page 43) and anni-

versaries (¢page 33) are saved in the

Missed Alarms list under the following

circumstances:

uYou do not accept an appointment/

anniversary.

uThe appointment/anniversary was sig-

naled during a phone call.

uThe handset is deactivated at the time

of the appointment/anniversary.

uAutomatic redial was activated at the

time of an appointment/anniversary

(¢page 34).

uOpen the list by pressing the message

key f (¢page 35).

Each entry displays with:

uNumber or name

uDate and time

The most recent entry is at the head of the

list.

Press the display key §Delete§, to delete the

selected entry.

If 10 entries are already stored in the list,

the next appointment reminder will delete

the oldest entry.

Icon New message...

Ã ... in the answering machine list

(Gigaset S795 only) or on the net-

work mailbox

™ ... in the missed calls list

 ... in the Missed Alarms list:

Please note

If calls are saved in the network mail-

box, you will receive a message if the

appropriate settings have been made

(see your network provider user

guide).

Ãœ 

02 10 08

Messages & Calls

Calls: (3)

Missed Alarms (1)

Back OK

Operating the Gigaset S795 base answering machine

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / answering_m.fm / 28.07.2009

Version 4, 16.09.2005

Operating the Gigaset S795

base answering machine

You can access the answering machine via

the handset, the buttons on the base

(¢page 4) or by remote operation (from

another phone/mobile phone). You can

record your own announcement message

or advisory message via the handset.

Answering machine mode

You can use the answering machine in

two different modes.

uIn Answer & Record mode, the caller

hears the announcement and can then

leave a message.

uIn Answer only mode, the caller hears

your announcement but cannot leave a

message.

Operating via the handset

The handset loudspeaker activates auto-

matically if you receive an acoustic

prompt or message while operating. You

can switch it off with the speaker key d.

Activating/deactivating and setting the

answering machine mode

You can choose between Answer & Record,

Answer only and Alternating. By using the

Alternating setting, you can activate

answer and record mode for a set period

of time, outside this period the caller will

only hear the announcement.

v ¢Ì ¢Activation (μ=on)

§Edit§ Press the display key.

¤You can enter data in the following

fields:

Activation:

Select On or Off to activate/deactivate

the answering machine.

Mode:

Select Answer & Record, Answer only or

Alternating.

If Alternating mode is selected:

Record from:

Enter hours/minutes for the start of

the period in 4-digit format.

(The time must be set on the phone

beforehand.)

Record until:

Enter hours/minutes for the end of

the period in 4-digit format.

If Answer & Record is not set, Answer only

mode applies.

§Save§ Press the display key.

If the messages memory is full and Activa-

tion: On has been selected, saving is inter-

rupted and you will receive an instruction

to delete old messages.

When you switch the answering machine

on, the remaining memory time is

announced. If the time has not yet been

set, an appropriate announcement is

made (set time ¢page 15). The Ã icon

appears in the display. The LED display on

the base lights up (¢page 4).

The phone is supplied with pre-recorded

announcements for Answer & Record mode

and for Announce only mode. If a personal

announcement has not been recorded,

the relevant pre-recorded announcement

is used.

Recording personal announcements/

advisory messages

v ¢Ì ¢Announcements

¢Rec. Announcement / Rec. Advisory Msg.

§OK§ Press the display key to start

the recording.

You hear the ready tone (short tone).

¤Now speak your announcement (at

least 3 secs.).

§End§ Press the display key to end

the recording.

Cancel recording with a or §Back§. Restart

the recording with §OK§.

•

Operating the Gigaset S795 base answering machine

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / answering_m.fm / 28.07.2009

Version 4, 16.09.2005

After recording, the announcement is

played back for you to check. You can re-

record the announcement with §New§.

Please note:

uRecording ends automatically if the

maximum recording time of 170 sec-

onds is exceeded or there is a break in

speech for more than 2 seconds.

uIf you cancel the recording, the pre-

recorded announcement is used again.

uIf the answering machine's memory is

full, it will switch to Answer only mode.

¤Delete old messages and the

answering machine will automati-

cally switch back to Answer & Record

mode. Repeat recording if required.

Playing back personal

announcements/ advisory

messages

v ¢Ì ¢Announcements

¢Play Announcement / Play Advisory Msg.

If you have not recorded a personal

announcement, the relevant pre-recorded

announcement is played.

Record a new announcement while play-

ing back the announcement:

§New§ Press the display key.

If the answering machine's memory is full,

it will switch to Answer only mode.

¤Delete old messages and the answering

machine will automatically switch back

to Answer & Record mode. Repeat

recording if required.

Deleting personal announcements/

advisory messages

v ¢Ì ¢Announcements

¢Del. Announcement / Del. Advisory Msg.

§Yes§ Press the display key to con-

firm the prompt.

Once you have deleted your announce-

ment, the relevant pre-recorded

announcement is used again.

Playing back messages

The date and time of each message is

logged (provided this has been set,

¢page 15) and displayed during the

playback. If Calling Line Identification is

activated, the caller's number or name dis-

plays. If the caller's number is saved in the

directory, their name displays.

Playing back new messages

New messages that have not yet been

played back are indicated on the display

with an icon and number:

The fkey on the handset and the display

on the base will flash. The number of new

messages displays on the base.

fPress the message key.

Ans. Machine:

Select and press §OK§.

If there are new messages, playback then

begins with the first new message. After

the last new message, you will hear the

end tone and an announcement stating

how much recording time remains.

If the message has been saved with the

date and time, you will hear an appropri-

ate announcement before playback

begins.

Playing back old messages

You can listen to old messages if there are

no more new messages. Begin playback as

described under "Playing back new mes-

sages".

•

Please note

Deleting announcements can take

some time.

Operating the Gigaset S795 base answering machine

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / answering_m.fm / 28.07.2009

Version 4, 16.09.2005

After the entry time and date have been

played back (after approx. 3 seconds) a

new message assumes the status "old".

Stopping and controlling playback

During message playback:

2 Pause playback. Press 2

again to resume.

§Options§ Open menu.

Pause Select and press §OK§.

To continue select Continue

and press §OK§.

t or

Go to the start of the current

message.

Press twice to go back to the

previous message.

s or 3Skip to next message.

Press twice to skip ahead two

messages.

If playback is interrupted for over a

minute, the answering machine returns to

idle status.

Marking a message as "new"

A previously played back "old" message

displays as a "new" message again.

During message playback:

*Press the star key.

or:

§Options§ Open menu.

Mark as New

Select and press §OK§.

An announcement informs you of the

message's new status.

Playback of the current message is can-

celled. Playback of next message starts, if

applicable.

The f key on the handset flashes.

Copying a phone number from a message

to the directory

During playback or pause:

§Options§ ¢Copy to Directory

¤Complete the entry (¢page 33).

Deleting messages

You can either delete all old messages

together or individually.

Deleting all old messages

During playback or pause:

§Options§ ¢Delete Old List

§OK§ Press the display key to con-

firm the prompt.

§Yes§ Press the display key to con-

firm the prompt.

Deleting individual old messages

During playback or pause:

§Delete§ Press the display key.

Picking up a call from the answering

machine

You can pick up a call while the answering

machine is recording or is being operated

via remote operation:

c/ §Accept§

Press the talk or display key.

Recording stops and you can speak to the

caller.

If two seconds of the call have already

been recorded when you pick it up, the

call displays as a new message. The f

key on the handset flashes.

You can answer the call, even if it is not

signaled on the handset.

Diverting an external call to the

answering machine

You can divert an incoming external call to

the answering machine, even if it is deac-

tivated.

Prerequisite: Sufficient memory space is

available on the answering machine.

Operating the Gigaset S795 base answering machine

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / answering_m.fm / 28.07.2009

Version 4, 16.09.2005

An external call is signaled on the handset:

ÔSelect display key.

The answering machine starts immedi-

ately in Answer & Record mode and records

the call. The set time for ring delay

(¢page 40) is ignored.

Activating/deactivating two-way

record

You can record an external call with the

answering machine.

¤Inform the caller that the call is being

recorded.

§Options§ Open menu.

Two-way Record

Select and press §OK§.

Two-way record is indicated on the display

by an advisory text and is added to the

answering machine list as a new message.

§End§ Press the display key to stop

two-way record.

The maximum recording time depends on

the memory available on the answering

machine. If the memory is full, you will

hear an end tone, the recording is

aborted, and the call recorded up to that

point is listed in the answering machine

list as a new message.

Activating/deactivating call

screening

While a message is recording, you can

screen calls via the base loudspeaker and

registered handsets.

Permanently activating/deactivating call

screening

v ¢Ì ¢Call Screening

¢Handset / Base (³=on)

§Change§ Select display key to activate/

deactivate the function.

Call screening can be simultaneously acti-

vated on the base and handset.

Deactivating call screening for the current

recording

You can deactivate the function for your

own handset during the recording.

§Silence§ Press the display key.

Setting the recording

parameters

The answering machine has already been

preset at the factory. Individual settings

can be adjusted using the handset.

v ¢Ì ¢Recordings

¤You can enter data in the following

fields:

Length:

Select maximum recording time 1 min.,

2 min., 3 min. or Maximum.

Quality:

Select Long Play or High recording qual-

ity. If the quality is higher, the maxi-

mum recording time is reduced.

Ring Delay:

Select when the answering machine

should accept a call:

Immediately, after 10 sec., 18 sec., 30 sec.

or Auto.

§Save§ Press the display key.

Information about ring delay

In Auto mode, the following applies for

ring delay:

uIf there are no new messages, the

answering machine answers a call after

18 seconds.

uIf there are new messages, the answer-

ing machine answers a call after 10 sec-

onds.

When operating remotely (¢page 41),

you can tell after approx. 15 seconds that

there are no new messages (otherwise the

answering machine would have already

accepted your call). There are no call

charges if you hang up now.

•

Operating the Gigaset S795 base answering machine

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / answering_m.fm / 28.07.2009

Version 4, 16.09.2005

Changing the language for voice

prompt and pre-recorded

announcement

v Open the main menu.

*#Q5#2

Enter digits and press

Q§OK§ To set English.

§OK§ To set French.

2§OK§ To set Spanish.

Resetting fast access for the

answering machine using key 1

By default, key  has been assigned for

fast access to the integrated answering

machine. However, if you have set the net-

work mailbox for fast access (¢page 42),

you can reset this setting.

v ¢Ì ¢Set Key 1

Answering Machine

Select and press §OK§.

Once you have selected the answering

machine, press and hold key . You are

connected directly.

The setting for fast access applies to all

registered handsets.

Operating when on the move

(remote operation)

You can check and activate your answer-

ing machine from any other telephone

(hotel, pay phone etc.),.

Prerequisites:

uYou have set a system PIN other than

0000 (¢page 57).

uThe phone you are using for remote

operation has tone dialing (DTMF), i.e.,

you hear different tones when you

press the keys. Alternatively, you can

use a code transmitter (available from

your mobile phone retailer).

Calling the answering machine and

playing back messages

~ Dial your own number.

9~ When you hear your

announcement, press 9 and

enter the system PIN.

You are informed whether any new mes-

sages have been recorded. The messages

are now played back. You can now operate

the answering machine with the keypad.

The following keys are used for operation:

A To return to the start of the

current message.

Press twice to go back to the

previous message.

B Stop playback. Press again to

resume.

3 Go to the next message.

0 Delete current message.

Activating the answering machine

¤Phone home and let the phone ring

until you hear: "Please enter PIN".

~ Enter system PIN.

Your answering machine is activated. It

tells you how much memory time is left.

The messages are now played back.

The answering machine cannot be deacti-

vated remotely.

•

Using the network mailbox

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / T-NetBox_SAG.fm / 28.07.2009

Version 4, 16.09.2005

Using the network mailbox

The network mailbox is your network pro-

vider's answering machine within the net-

work. You cannot use the network mail-

box unless you have requested it from

your network provider.

Configuring fast access for

the network mailbox

With fast access, you can dial the network

mailbox or the integrated answering

machine (Gigaset S795 only) directly.

Gigaset S790: Fast access is preset for the

network mailbox. You only need to enter

the number of the network mailbox.

Gigaset S795: The integrated answering

machine is preset for fast access. You can

configure the network mailbox instead.

Ask your network provider about this.

Configuring fast access for the network

mailbox and entering the network mailbox

number

Gigaset S790:

v ¢Ì ¢Set Key 1

Network Mailbox

Select and press §Network Mailbox§

(ØSelect= selected).

Gigaset S795:

v ¢Ì ¢Network Mailbox

To continue:

~Enter the number for the net-

work mailbox.

§Save§ Press the display key.

The setting for fast access applies to all

Gigaset S79H handsets.

Calling the network mailbox

Press and hold. You are con-

nected straight to the network

mailbox.

dPress speaker key d if

required. You will hear the net-

work mailbox announcement.

Viewing the network mailbox

message

When a message is recorded, you receive

a call from the network mailbox. If you

have requested Calling Line Identification,

the network mailbox number displays. If

you accept the call, the new messages are

played back. If you do not accept the call,

the network mailbox number is saved in

the missed call list and the message key

flashes (¢page 35).

•

Please note

Enter the network mailbox phone

number into your directory along with

the designation "Network mailbox";

the display and the call list will then

show this designation.

ECO DECT

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

ECO DECT

You are helping to protect the environ-

ment with your Gigaset S790/S795.

Reducing energy consumption

By using a power-saving adapter plug,

your telephone consumes less power.

Reducing radiation

The radiation from your telephone is

reduced automatically:

uThe handset's transmission power is

reduced depending on the distance to

the base.

uThe transmission power on the base is

reduced to virtually zero when only one

handset is registered and the handset is

placed in the base.

You can reduce the radiation from the

handset and base even more by using

Eco Mode.

uEco Mode

reduces the base's transmission power

by 80% in standby and talk mode.

Activate/deactivate Eco Mode

v ¢Ï ¢Eco Mode ¢Eco Mode

§Change§ Press the display key

(³=on).

Status displays

Setting an appointment

(calendar)

You can use your handset to remind your-

self of up to 30 appointments. Anniversa-

ries (¢page 33) entered in the directory

are automatically recorded in the calen-

dar.

Saving an appointment.

Prerequisite: The date and time have

already been set (¢page 15).

v ¢Í ¢ Calendar

uThe current day is selected (highlighted

in white).

uDays on which appointments have

already been saved are highlighted in

white.

r/q Select the required day in the

graphical calendar.

The selected day is highlighted in white.

The current day is no longer highlighted.

w Press the center of the control

key.

uIf appointments have already been

entered, this will open the list of saved

appointments on that day.

Select <New Entry> ¢§OK§ to open the

data input window.

uIf no appointments have been entered,

the data input window will open imme-

diately to add the new appointment.

Display icon

ÐiÑÒ

|(flashes)

Signal strength:

– good to poor

– no signal

Ðwhite Eco Mode deactivated

Ðgreen Eco Mode activated

Please note

Activating Eco Mode reduces the

range of the base.

Oct 2009

Back Options

Mo Tu We Th Fr Sa Su

01 02 03 04

05 06 07 08 09 10 11

12 13 14 15 16 17 18

19 20 21 22 23 24 25

26 27 28 29 30 31

Setting an appointment (calendar)

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

¤You can enter data in the following

fields:

Activation:

Select On or Off.

Date:

Enter day/month/year in 8-digit format.

Time:

Enter hours/minutes in 4-digit format,

then select AM/PM.

Text:

Enter text (max. of 16 characters). The

text appears as the appointment name

in the list and displays on the screen

during the appointment reminder. If

you do not enter any text, only the date

and time of the appointment are dis-

played.

Signal:

Select the reminder type.

§Save§ Press the display key.

Signaling appointments and

anniversaries

An appointment reminder is signaled in

idle status for 60 seconds with the

selected ringtone at the volume that has

been set for internal calls (¢page 53).

During the reminder call, you can per-

manently change the volume by pressing

the side keys ø (louder) or ÷ (quieter).

The name displays for anniversaries, while

the entered text displays for appointments

along with the date and time.

You can either deactivate or answer an

appointment reminder:

§§Off§§ Press the display key to deacti-

vate the appointment

reminder.

Managing appointments

v ¢Í ¢ Calendar

Editing individual appointments

r/q Select a day in the graphical

calendar and press the control

key w. (Days on which

appointments have already

been saved are highlighted in

white in the calendar).

q Select appointment for the

day.

You have the following options:

§§View§§ Press the display key and edit

or confirm the entry.

§Options§ Open the menu for editing,

deleting and activating/deacti-

vating.

Deleting all appointments

§Options ¢Delete All ¢§OK§

Confirm the security prompt with §Yes§. All

appointments are deleted.

Please note

If you have already saved thirty

appointments, you will have to first

delete an existing appointment before

adding a new one.

Please note

During a call, the appointment

reminder is signaled by a short tone.

ØáÚ

Meeting

11/03/09 9:38am

Off

Setting the alarm clock

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Displaying missed

appointments, anniversaries

Missed appointments/anniversaries

(¢page 33) are displayed in the Missed

Alarms list if:

uYou do not accept an appointment/

anniversary.

uThe appointment/anniversary was sig-

naled during a phone call.

uThe handset is deactivated at the time

of the appointment/anniversary.

uAutomatic redial was activated at the

time of an appointment/anniversary

(¢page 34).

The icon n and the number of new

entries are shown in the display. The most

recent entry is at the head of the list.

Open the list by pressing the message key

f(¢page 35) or via the menu:

v ¢Í ¢Missed Alarms

Select appointment/anniver-

sary.

Information about the

appointment/anniversary dis-

plays. A missed appointment

displays with the appointment

name and a missed anniver-

sary displays with the last

name and first name. The date

and time will also be given.

§Delete§ Delete appointment.

If 10 entries are already stored in the list,

the next appointment reminder will delete

the oldest entry.

Setting the alarm clock

Prerequisite: The date and time have

already been set (¢page 15).

Activating/deactivating and setting the

alarm clock

v ¢á ¢Alarm Clock

¤You can enter data in the following

fields:

Activation:

Select On or Off.

Time:

Enter the wake-up time in 4-digit for-

mat, then select AM/PM.

Occurrence:

Select Daily or Monday-Friday.

Volume:

Set the volume (1–6).

Melody:

Select melody.

§Save§ Press the display key.

In idle status, the ¼ icon and wake-up

time are displayed.

A wake-up call is signaled on the display

and with the selected ringtone

(¢page 3). The wake-up call sounds for

60 seconds. If no key is pressed, the wake-

up call is repeated twice at five minute

intervals and then switched off.

While the wake-up call sounds, you can

permanently change the volume by press-

ing the side keys ø (louder) or ÷ (qui-

eter).

During a call, the wake-up call is only sig-

naled by a short tone.

Using multiple handsets

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Deactivating the wake-up call/

repeating after a pause (snooze mode)

Prerequisite: A wake-up call is sounding.

§Off§ Press the display key. The

wake-up call is deactivated.

§Snooze§ Press the display key or any

key. The wake-up call is deacti-

vated and then repeated after

5 minutes. After the second

repetition the wake-up call is

deactivated completely.

Using multiple handsets

Registering handsets

You can register up to six handsets to your

base.

A Gigaset S79H handset can be registered

on up to four bases.

Manually registering a Gigaset S79H to

a Gigaset S790/S795

You must activate manual registration of

the handset on both the handset and the

base.

When the registration process has com-

pleted successfully, the handset returns to

idle status. The handset's internal number

is shown in the display e.g., INT 1. If not,

repeat the procedure.

On the handset

The handset is not registered to a base.

§Register§ Press the display key.

The handset is already registered to a

base:

v ¢Ï ¢Registration

¢Register Handset

If the handset is already registered to four

bases:

sSelect base, e.g., Base 3 and

press §OK§.

~If required, enter the system

PIN for the base and press §OK§.

A message appears stating that the hand-

set is searching for a base that is ready for

registration.

On the base

Within 60 seconds press and hold the reg-

istration/paging key on the base

(¢page 4) (approx. 3 seconds).

Registering other handsets

You can register other Gigaset handsets

and handsets for other devices with GAP

functionality as follows.

On the handset

¤Start to register the handset as

described in its user guide.

On the base

Press and hold the registration/paging key

on the base (¢page 4) (approx. 3 sec.).

De-registering handsets

You can de-register any other registered

handset from any registered Gigaset S79H

handset.

v ¢Ï ¢Registration

¢De-reg. Handset

sSelect the internal subscriber

you wish to de-register and

press §OK§.

(The handset you are currently

using is highlighted with <).

~Enter the current system PIN

and press §Save§.

§Yes§ Press the display key.

Using multiple handsets

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Locating a handset ("Paging")

You can locate your handset using the

base.

¤Briefly press the registration/paging

key on the base (¢page 4).

¤All handsets will ring simultaneously

("paging"), even if the ringtones are

deactivated.

Ending paging

¤Briefly press the registration/paging

key on the base or press the talk key c

on the handset.

Changing the base

If your handset is registered to more than

one base, you can set it to a particular

base or to the base that has the best

reception (Best Base).

v ¢Ï ¢Registration ¢Select Base

sSelect one of the registered

bases or Best Base and press

§Select§.

Making internal calls

Internal calls to other handsets registered

on the same base are free.

Calling a specific handset

uInitiate internal call.

~Enter the number of the hand-

set.

or:

uInitiate internal call.

s Select handset.

cPress the talk key.

Calling all handsets ("group call")

u Press and hold.

or:

u Initiate internal call.

*Press the star key.

Call All Select

cPress the talk key.

All handsets are called.

Ending a call

a Press the end call key.

Transferring a call to another handset

You can transfer an external call to

another handset (connect).

u Open the list of handsets.

The external participant hears

music on hold, if activated

(¢page 56).

sSelect a handset or Call All and

press §OK§.

When the internal participant answers:

¤If necessary, announce the external

call.

a Press the end call key.

The external call is transferred to the other

handset.

If the internal participant does not answer

or the line is busy, press the display key

§End§ to return to the external call.

When transferring a call, you can also

press the end call key a before the inter-

nal participant answers.

Then, if the internal participant does not

answer or the line is busy, the call will

automatically return to you.

Using multiple handsets

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Internal consultation/conference calls

When you are conducting an external

call, you can call an internal participant at

the same time for consultation or hold a

conference call between all 3 participants.

You are conducting an external call:

u Open the list of handsets.

The external participant hears

music on hold, if activated

(¢page 56).

sSelect handset and press §OK§.

The internal participant is

called.

If the participant picks up, you can either:

§End§ Press the display key.

You are reconnected with the

external participant.

or:

§Conference§ Press the display key.

All 3 participants are con-

nected with each other.

Ending a conference call

a Press the end call key.

If an internal participant presses the end

call key a, the other handset remains

connected to the external participant.

Accepting/rejecting call waiting

If you receive an external call during an

internal call, you will hear the call waiting

tone (short tone). With Calling Line Identi-

fication, the caller's number or name will

appear in the display.

Ending an internal call, accepting an

external call

§Accept§ Press the display key.

The internal call is ended. You are con-

nected to the external caller.

Rejecting the external call

§Reject§ Press the display key.

The call waiting tone is turned off. You

remain connected to the internal partici-

pant. The ringtone can still be heard on

other registered handsets.

Listening in to an external call

Prerequisite: The Listening In function

must be activated.

You are conducting an external call. An

internal participant can listen in on this

call and take part in the conversation. All

the participants are made aware of addi-

tional listeners by a signal tone.

Activating/deactivating listening

v ¢Ï ¢Telephony ¢Listening In

Press §Change§ to activate/deactivate the

function (³=on).

Internal listening in

The line is engaged with an external call.

Your screen displays information to that

effect. To listen in to the external call.

c Press and hold the talk key.

You can listen in to the call. All participants

hear a signal tone. During this time, this

handset displays the Conference message

and it is not possible to dial another

number from this handset.

Ending listening in

a Press the end call key.

All participants hear a signal tone.

If the first internal participant presses the

end call key a, the handset that has "lis-

tened in" remains connected to the exter-

nal participant.

Please note

uIf only two handsets are registered,

the other handset is called immedi-

ately by pressing the u key.

uPressing and holding the u key

calls all handsets immediately.

•

Using a handset as a room monitor

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Changing the name of a handset

The names "INT 1", "INT 2" etc. are

assigned automatically on registration.

You can change these names. The name

must be no more than 10 characters. The

changed name displays in every handset's

list.

uOpen the list of handsets. Your

own handset is indicated by f.

sSelect handset.

§Options§ Open menu.

Rename

~Enter name.

§Save§ Press the display key.

Changing a handset's internal

number

A handset is automatically assigned the

lowest free number when it is registered.

If all slots are occupied, number 6 is over-

written if this handset is in idle status. You

can change the internal number of all reg-

istered handsets (1–6).

uOpen the list of handsets. Your

own handset is indicated by f.

§Options§ Open menu.

Assign Handset No.

Select and press §OK§.

rSelect number. Only numbers

that have not been assigned

are displayed.

§Save§ Press the display key to save

the input.

Using a handset as a

room monitor

If the room monitor is activated, a previ-

ously saved destination number is called

as soon as a set noise level is reached. You

can save an internal or external number in

your handset as the destination number.

All of the handset keys are deactivated,

with the exception of the display keys.

The room monitor call to an external

number is terminated after approximately

90 seconds. The room monitor call to an

internal number (handset) is terminated

after approximately 3 minutes (depending

on the base). When the room monitor is

activated, all keys are locked except the

end call key. The handset's speaker is

muted.

When the room monitor is activated,

incoming calls to the handset are indi-

cated without a ringtone and are only

shown on the screen. The display and key-

pad are not illuminated and advisory

tones are also turned off.

If you accept an incoming call, the room

monitor is suspended for the duration of

the call, but the function remains acti-

vated.

If you deactivate then reactivate the hand-

set, the room monitor remains activated.

Using a handset as a room monitor

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Activating the room monitor and

entering the destination number

v ¢É ¢Room Monitor

¤You can enter data in the following

fields:

Activation:

Select On to activate.

Alarm to:

Select Internal or External.

External number: Select the number

from the directory (press display key

ö) or enter it manually.

Internal number: Select display key

§Change§ ¢. Select handset or Call All to

call all registered handsets ¢§OK§.

In idle status, the destination number

or the internal destination number dis-

plays.

Sensitivity:

Select noise level sensitivity (Low or

High).

¤Press §Save§ to save the settings.

When the room monitor function is acti-

vated, the idle display appears as shown

below:

Changing the set destination number

v ¢É ¢Room Monitor

¤Enter and save number as described in

"Activating the room monitor and

entering the destination number"

(¢page 50).

Cancel/deactivate room monitor

Press the end call key a to cancel the call

when the room monitor is activated.

In idle status, press the display key §Off§ to

deactivate room monitor mode.

Deactivating the room monitor

remotely

Prerequisites: The phone must support

tone dialing and the room monitor should

be set for an external destination number.

¤Accept the call from the room monitor

and press keys 9 ;.

The room monitor function will deactivate

after the call ends. There are no further

room monitor calls. The other room moni-

tor settings on the handset (e.g., no ring-

tone) will remain activated until you press

the display key §Off§ on the handset.

To reactivate the room function with the

same phone number:

¤Turn on the activation again and save

with §Save§ (¢page 50).

Warning!

uAlways check the operation of the

room monitor before use. For

example, test its sensitivity.

Check the connection if you are

diverting the room monitor to an

external number.

uWhen the function is switched on,

the handset's operating time is con-

siderably reduced. If necessary,

place the handset in the base/

charger. This ensures that the bat-

tery does not run down.

uIdeally the handset should be posi-

tioned 1 to 2 metres away from the

baby. The microphone must be

directed towards the baby.

uThe connection to which the room

monitor is diverted must not be

blocked by an activated answering

machine.

iÃV

07:15 am

INT 1 Oct 22

Room Monitor

9725551234

Off Options

Handset settings

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Handset settings

Your handset is preconfigured, but you

can change the settings to suit your indi-

vidual requirements.

Quick access to numbers and

functions

You can assign a number from the direc-

tory to each of the digit keys Q and

2to O.

The left and right display keys have a

default function. You can change the

assignment (¢page 51).

The number is then dialed or the function

started by simply pressing a key.

Assigning digit keys

Prerequisite: You have not yet assigned a

number to the digit key.

¤Press and hold the digit key

Press the digit key briefly and press the

display key §QuickDial§.

The directory opens.

¤Select an entry and press §OK§.

The entry is saved to the corresponding

digit key.

Selecting numbers/changing an

assignment

Prerequisite: The digit key already has a

number assigned to it.

When the handset is in idle status

¤Press and hold the digit key:

The number is dialed immediately.

¤Briefly press the digit key.

Press the display key with the number/

name (abbreviated if necessary) to

select the number or

press the display key §Change§ to change

the assignment or to delete the assign-

ment.

Changing display key assignments

¤Press and hold the left or right side of

the display key.

The list of possible key assignments is

opened. The following can be selected:

Room Monitor

Assign menu for setting and activating

the room monitor to a key

(¢page 49).

Alarm Clock

Assign menu for setting and activating

the alarm clock to a key (¢page 45).

Calendar

Display graphical calendar

(¢page 43).

Redial

Display the redial list.

More Functions...

More features are available:

Call Lists

Display call lists (¢page 35).

INT

Internal calls (¢page 47).

¤Select an entry and press §OK§.

Please note

If you delete or edit the entry in the

directory at a later date, this will not

affect the assignment to the number

key.

Handset settings

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Changing the display language

You can view the display texts in different

languages.

v ¢Ï ¢Language

The current language is indicated by a Ø.

sSelect language and

press §Select§.

If you accidentally choose a language you

do not understand:

v ¢Ï ¢ s ¢ s ¢ s

Press keys in sequence and

confirm by selecting §OK§.

sSelect the correct language

and press the right display

key.

Setting the display

Setting the screensaver

You can set a picture from the Resource

Directory (¢page 54) or the time to be

displayed as a screensaver when the hand-

set is in idle status. This will replace the

idle status display. It may conceal the cal-

endar, date, time and name.

The screensaver is not displayed in certain

situations, e.g., during a call or if the

handset is de-registered.

If a screensaver is activated, the Screen-

saver menu option is marked with μ.

v ¢Ï ¢Display ¢Screensaver

The current setting displays.

¤You can enter data in the following

fields:

Activation:

Select On (screensaver displays) or Off

(no screensaver).

Selection:

Select screensaver or

§View§ Press the display key. The

active screensaver displays.

s Select screensaver and press

§OK§.

§Save§ Press the display key.

If the screensaver conceals the display,

briefly press a to show the idle display.

Setting large font

You can increase the font size of print and

symbols in call lists and in the directory to

improve readability. Only one entry is

shown at a time on the display instead of

several entries and names are abbreviated

if necessary.

v ¢Ï ¢Display ¢Large Font

§Change§ Press display key (³=on).

Setting the colour scheme

You can set the display to be shown in var-

ious colour combinations.

v ¢Ï ¢Display ¢Color Schemes

Select Color Scheme (1 to 5) and press §OK§.

Setting the display backlight

Depending on whether or not the handset

is in the base/charger, you can activate or

deactivate the backlight. If it is activated,

the display is permanently dimmed.

v ¢Ï ¢Display ¢Backlight

The current setting displays.

¤You can enter data in the following

fields:

In Charger

Select On or Off.

Out of Charger

Select On or Off.

§Save§ Press the display key.

Please note

With the On setting, the standby

time of the handset can be signifi-

cantly reduced.

•

Handset settings

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Activating/deactivating auto

answer

If you activate this function, when you

receive a call you can simply lift the hand-

set out of the base/charger without having

to press the talk key c.

v ¢Ï ¢Telephony ¢Auto Answer

§Change§ Press display key (³=on).

Changing the speaker/earpiece

volume

You can set the speaker volume for

speaker mode and the earpiece volume to

five different levels.

During a conversation via the earpiece or

in speaker mode:

ø/ ÷Press the side key to call up the

Handset Volume menu.

Change the volume by press-

ing ø (louder) or ÷ (qui-

eter).

tPress the control key to call up

the Handset Volume menu.

Set the earpiece or speaker

volume by pressing r.

The setting will automatically be saved

after approximately 3 seconds, if not then

press the display key §Save§.

If t is assigned to another function:

§Options§ Open menu.

Volume Select and press §OK§.

Configure setting (see above).

Changing ringtones

uVolume:

You can choose between five volumes

(1–5; e.g., volume 3 = Š) and the

"crescendo" ringtone (6; volume

increases with each ring = ‡).

uRingtones:

You can select a ringtone from a list of

pre-loaded melodies.

You can select various ringtones, melo-

dies or any sound from the Resource

Directory (¢page 54).

You can set different ringtones for the fol-

lowing functions:

uIntrnl Calls

uExt. Calls

Setting volume/melodies

In idle status:

v ¢Ï ¢Audio Settings

¢Ringtones(Handset) ¢Volume/Melodies

rSetting volume/melodies for

internal calls and anniversa-

ries.

sScroll to the next line.

rSetting volumes/melodies for

external calls.

§Save§ Press the display key to save

the setting.

While the phone is ringing, you can per-

manently change the volume by pressing

the side keys ø (louder) or ÷ (quieter).

Additionally for external calls:

You can specify a time period when you do

not want the telephone to ring, e.g., dur-

ing the night.

v ¢Ï ¢Audio Settings

¢Ringtones(Handset) ¢Time Control

Time Control:

Select On or Off.

Please note

uThe settings for the earpiece also

apply to a connected headset.

uYou can also set the call volume

using the menu (¢page 26).

•

Handset settings

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

If the time control is activated:

Suspend ring from:

Enter the start of the period in 4-digit

format.

Suspend ring until:

Enter the end of the period in 4-digit

format.

Activating/deactivating the ringtone

for unknown calls.

You can set your phone not to ring for calls

where Calling Line Identification has been

withheld. The call will only be signaled on

the display.

In idle status:

v ¢Ï ¢Audio Settings

¢Ringtones(Handset) ¢Anon. Calls Silent

Press §Change§ to activate or deactivate the

function (³= on).

Activating/deactivating the ringtone

You can deactivate the ringtone on your

handset before you answer a call or when

the handset is in idle status; the ringtone

can be deactivated permanently or just for

the current call. The ringtone cannot be

re-activated while an external call is in

progress.

Deactivating the ringtone permanently

*Press and hold the star key.

The ó icon appears in the display.

Reactivating the ringtone

*Press and hold the star key.

Deactivating the ringtone for the current

call

§Silence§ Press the display key.

Activating/deactivating the alert tone

In place of the ringtone, you can activate

an alert tone. When you receive a call, you

will hear a short tone ("Beep") instead of

the ringtone.

*Press and hold the star key

and within 3 seconds:

§Beep§ Press the display key. A call will

now be signaled by one short

alert tone.

ñ appears in the display.

Resource Directory

The resource directory on the handset

manages sounds, which you can use as

ringtones, and pictures, which you can

use as caller pictures or as screensavers.

Prerequisite:

Caller ID service subscription (CID). The

resource directory can manage the follow-

ing media types:

Various mono and polyphonic sounds and

pictures are preconfigured on your hand-

set.

You can listen to the available sounds and

view the pictures.

You can download pictures and sounds

from a PC (¢page 64). If there is not

enough memory available, you must first

delete one or more pictures or sounds.

Please note

During this period, you will continue to

receive calls from numbers to which

you have assigned a personalized mel-

ody in the directory (VIP).

Type Format

Sound

Ringtones Internal

Monophonic Internal

Polyphonic Internal

Imported sounds WMA, MP3, WAV


– Caller picture

– Screensaver

BMP, JPG, GIF

128 x 86 pixels

128 x 160 pixels

Handset settings

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Playing back sounds/viewing caller

pictures

v ¢É ¢Resource Directory

¢Screensavers / Caller Pictures /

Sounds (select entry)

Pictures:

§View§ Press the display key. The

selected picture displays.

Switch between pictures using

the q key.

If you have saved a picture in an invalid file

format, you will see an error message

after selecting the entry.

Sounds:

The selected sound is played back immedi-

ately. Switch between the sounds using

the q key.

You can set the volume during playback.

§Options§ Open menu.

Volume Select and press §OK§.

rSet volume.

§Save§ Press the display key.

Deleting/renaming a picture/sound

You have selected an entry.

§Options§ Open menu.

If a picture/sound cannot be deleted (¯),

these options are not available. You can

select the following functions:

Delete Entry

The selected entry is deleted.

Rename

Change the name (max. 16 characters)

and press §Save§. The entry is stored with

the new name.

Checking the memory

You can check how much memory is avail-

able for screensavers and caller pictures.

v ¢É ¢Capacity

Activating/deactivating

advisory tones

Your handset uses advisory tones to tell

you about different activities and statuses.

The following advisory tones can be acti-

vated/deactivated independently of each

other:

uKey tone: every key press is confirmed.

uAcknowledge tones:

–Confirmation tone (ascending tone

sequence): at the end of an entry/

setting and when a new entry

arrives in the answering machine list

or call list

–Error tone (descending tone

sequence): when you make an

incorrect entry

–Menu end tone: when scrolling to

the end of a menu

uBattery low beep: the battery needs

charging.

In idle status:

v ¢Ï ¢Audio Settings

¢Advisory Tones

¤You can enter data in the following

fields:

Key Tones:

Select On or Off.

Confirmation:

Select On or Off.

Battery:

Select On or Off.

§Save§ Press the display key.

Setting long-distance and

area codes

To transfer phone numbers via USB phone

from your outlook (e.g., in vCards), it is

essential that your area code (interna-

tional and local area code) is saved on the

phone.

Some of these numbers are already pre-

set.

•

Setting the base

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

v ¢Ï ¢Telephony ¢Area Codes

Check that the preset area code is correct.

¤You can enter data in the following

fields:

qSelect/change input field.

rNavigate to the input field.

ÑIf necessary, delete number:

press the display key.

~Enter number.

§Save§ Press the display key.

Example:

Note:

If a long distance number is recorded in a

vCard without the national access code "1"

( i. e., 312 -555-1212 instead of 1-312-

555-1212), please add the "1" in front of

the telephone number before transferring

the number to the S79H handset via USB.

Restoring the handset

default settings

You can reset individual settings and

changes that you have made.

When you perform a reset, the settings

listed below are automatically retained.

uRegistration to the base

uDate and time

uEntries in the calendar

uEntries in the directory, the call lists and

the content of the resource directory

v ¢Ï ¢System ¢Handset Reset

§Yes§ Press the display key.

Setting the base

The base settings are changed using a reg-

istered Gigaset S79H handset.

Changing the Gigaset S795 base

ringtones

uVolume:

You can choose between five volumes

(1–5; e.g., volume 3 = Š) and the

"crescendo" ringtone (6; volume

increases with each ring = ‡).

uRingtones:

You can select a ringtone from a list of

pre-loaded melodies.

In idle status:

v ¢Ï ¢Audio Settings

¢Ringtones (Base)

¤You can enter data in the following

fields:

rSet volume.

sScroll to the next line.

rSet melody.

§Save§ Press the display key to save

the setting.

Activating/deactivating

music on hold

v ¢Ï ¢Audio Settings

¢Music on Hold

Press §Change§ to activate or deactivate the

music on hold (³ = on).

Area Codes

International code:

011- 1

Local access code:

1-972

ÛSave

•

Setting the base

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / registr_sett.fm / 28.07.2009

Version 4, 16.09.2005

Protecting against

unauthorized access

Protect the system settings of the base

with a PIN known only to yourself. The sys-

tem PIN must be entered when, for exam-

ple, registering/de-registering a handset

to/from the base or when restoring the

default settings.

Changing the system PIN

You can change the 4-digit system PIN set

on the base (default setting: 0000) to a 4-

digit PIN known only by you.

Gigaset S795: Setting a system PIN facili-

tates remote operation of the answering

machine (¢page 41).

v ¢Ï ¢System ¢System PIN

~Enter the current system PIN

and press §OK§.

~Enter your new system PIN

and press §OK§.

Resetting the system PIN

If you have forgotten your system PIN, you

can reset the base to the original code

0000:

1. Disconnect the power cable from the

base.

2. Hold down the registration/paging key

on the base while reconnecting the power

cable to the base.

3. Hold down the key for at least 5 sec-

onds.

4. The base has now been reset and the

system PIN set to 0000.

Resetting the base to the

factory settings

When the settings are restored:

uDate and time are retained

uHandsets are still registered

uEco Mode is activated deactivated,

uThe system PIN is not reset.

v ¢Ï ¢System ¢Base Reset

~Enter the system PIN and

press §OK§.

§Yes§ Press the display key.

Please note

All handsets are de-registered and

must be re-registered. All settings are

reset to the factory settings.

•

Connecting the base to the PABX

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / pabx.fm / 28.07.2009

Version 4, 16.09.2005

Connecting the base to the

PABX

The following settings are only necessary

if your PABX requires them; see the PABX

user guide.

Dialing modes and recall

The current setting is indicated by Ø.

Changing the dialing mode

The following dialing modes can be

selected:

uTone dialing (DTMF)

uPulse dialing (PD).

v ¢Ï ¢Telephony ¢Dialing Mode

sSelect dialing mode and press

§Select§ (Ø=selected).

Setting recall

Your phone is preset at the factory for

operation on the main connection. For

operation on a PABX, you may have to

change this value. Please refer to the user

guide for your PABX.

v ¢Ï ¢Telephony ¢Flash

sSelect recall and

press §Select§

(Ø = set value). Possible val-

ues are:

80 ms, 100 ms, 120 ms,

180 ms, 250 ms, 300 ms,

400 ms, 600 ms, 800 ms.

Setting pauses

Changing the pause after line seizure

You can change the length of the pause

that is inserted between pressing the talk

key c and sending the number.

v Open the main menu.

*#Q5#L

Press keys.

~Enter number for the length of

the pause (1= 1 sec.;

2=3secs.; 3= 7 secs.) and

press §OK§.

Change pause after recall key

You can change the length of the pause if

your PABX requires this (refer to the user

guide for your PABX).

v Open the main menu.

*#Q5#2

Press keys.

~Enter a number for the length

of the pause (1= 800 ms;

2=1600ms; 3=3200ms)

and press §OK§.

Switching temporarily to tone

dialing (DTMF)

If your PABX still operates with pulse dial-

ing (PD), but you need tone dialing for a

connection (e.g., to listen to the network

mailbox), you must switch to tone dialing

for the call.

Prerequisite: You are conducting a call or

have already dialed an external number.

*Press the star key.

After the call ends, pulse dialing is auto-

matically activated again.

•

Accessories

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / accessories_SAG.fm / 28.07.2009

Version 4, 16.09.2005

Accessories

Gigaset handsets

ADD MORE GIGASET HANDSETS TO YOUR CORDLESS TELEPHONE SYSTEM.

Gigaset S79H handset

uIlluminated graphic colour display (65k colours)

uIlluminated keypad

uSpeaker mode

uPolyphonic ringtones

uDirectory for approx. 500 entries

uCaller picture

uPC interface, e.g., for managing directory entries,

ringtones and screensavers

uHeadset socket

uRoom monitor

www.gigaset.com/gigasets79h

All accessories and batteries are available from your phone retailer.

Use only original accessories. This will avoid possible health risks and personal

injury, and also ensure that all the relevant regulations are complied with.

Mounting the base on the wall (Gigaset S790 only)

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / accessories_SAG.fm / 28.07.2009

Version 4, 16.09.2005

Mounting the base on the wall (Gigaset S790 only)

Mounting the charger on the wall

Approx. 5.5

41 mm

Approx. 4

23.5 mm

Troubleshooting

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

Troubleshooting

If you have any questions about the use of

your telephone, you can contact us at any

time at www.gigaset.com/customercare.

The table below contains a list of common

problems and possible solutions.

The display is blank.

1. The handset is not switched on.

¥Press and hold the end call key a.

2. The battery is empty.

¥Charge the battery or replace it

(¢page 12).

Not all menu items are displayed.

The menu display is restricted (standard

mode).

¥Activate extended menu display (expert

mode) (¢page 26).

No Base flashes on the display.

1. The handset is outside the range of the

base.

¥Move the handset closer to the base.

2. The base's range is reduced because Eco

Mode is activated.

¥Deactivate Eco Mode (¢page 43) or

reduce the distance between the hand-

set and the base.

3. The base is not switched on.

¥Check the base power adapter

(¢page 10).

Please registerhandset flashes on the display.

Handset has not been registered with the base

or has been deregistered.

¥Register the handset (¢page 46).

Handset does not ring.

1. The ringtone is deactivated.

¥Activate the ringtone (¢page 54).

2. The phone only rings if the phone number

has been transferred.

¥Switch on the ringtone for unknown

calls (¢page 54).

You cannot hear a ringtone/dialing tone

from the fixed line network.

The phone cord supplied has not been used or

has been replaced by a new cord with the

wrong pin connections.

¥Please always use the phone cord supplied

or ensure that the pin connections are cor-

rect when purchasing from a retailer

(¢page 10).

Error tone sounds after system PIN prompt.

You have entered the wrong system PIN.

¥Reset the system PIN to 0000

(¢page 57).

Forgotten the system PIN.

¥Reset the system PIN to 0000

(¢page 57).

The other party cannot hear you.

You have pressed the mute button h. The

handset is "muted".

¥Reactivate the microphone (¢page 30).

The number of the caller is not displayed

despite CID.

Calling Line Identification is not enabled (CID).

¥The caller should ask the network provider

to enable Calling Line Identification (CID).

You hear an error tone when keying an

input

(a descending tone sequence).

Action has failed/invalid input.

¥Repeat the operation.

Watch the display and refer to the user

guide if necessary.

You cannot listen to messages on the net-

work mailbox.

Your PABX is set for pulse dialing.

¥Set your PABX to tone dialing.

Appendix

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

Gigaset S795 only: Appendix

Caring for your telephone

¤Wipe the base, charger and handset

with a damp cloth (do not use solvent)

or an antistatic cloth.

Never use a dry cloth as this can cause

static.

Contact with liquid

If the handset should come into contact

with liquid:

1. Switch the handset off and remove

the battery immediately.

2. Allow the liquid to drain from the hand-

set.

3. Pat all parts dry, then place the handset

with the battery compartment open

and the keypad facing down in a dry,

warm place for at least 72 hours (not

in a microwave, oven etc.).

4. Do not switch on the handset again

until it is completely dry.

When it has fully dried out, you will usu-

ally be able to use it again.

No time is specified for a message in the call

list.

Date and time have not been set.

¥Set the date and time (¢page 15).

The answering machine announces "PIN is

incorrect" during remote operation.

1. You have entered the wrong system PIN.

¥Enter the system PIN again.

2. The system PIN is still set to 0000.

¥Set the system PIN to something other

than 0000 (¢page 57).

The answering machine is not recording

any messages/has switched over to answer

only.

Its memory is full.

¥Delete old messages.

¥Play back new messages and delete.

Exclusion of liability

Some displays may contain pixels (pic-

ture elements), which remain acti-

vated or deactivated. As a pixel is made

up of three sub-pixels (red, green,

blue), it is possible that pixel colours

may vary.

This is completely normal and does not

indicate an error.

Appendix

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

Specifications

Batteries

Technology:

Nickel-metal-hydride (NiMH)

Size: AAA (Micro, HR03)

Voltage: 1,2 V

Capacity: 550 - 1000 mAh

The handset is supplied with nickel-metal

hydride UL-approved AAA batteries.

Handset operating times/charging

times

This telephone can charge batteries up to

a capacity of 1000 mAh. The use of special

high-performance batteries or batteries

with high capacities is not recommended

for cordless phones.

The operating time of your telephone

depends on the capacity and age of the

batteries and the way they are used. (All

times are maximum possible times).

Due to the constant progression in battery

development, the list of recommended

batteries in the FAQ section of the Gigaset

Customer Care pages is regularly updated.

Base power consumption

In standby mode:

Gigaset S790: approx. 1,1 watt

Gigaset S795: approx. 1,2 watt

During the conversation:

Gigaset S790: approx. 1,0 watt

Gigaset S795: approx. 1,1 watt

General specifications

Pin connections on the telephone jack

Capacity (mAh) approx.

550 700 800 1000

Standby time

(hours)*

140/

165/

185/

230/

Talktime (hours)11121417

Operating time for

1.5 hrs of calls per

day (hours)**

85 95 110 135

Charging time in

base (hours)

7,5 8,5 10 12

Charging time in

charger (hours)

6,5 7,5 8,5 10,5

* with/without display backlight

** without display backlight

(Setting the display backlight ¢page 52)

DECT standard Is supported

GAP standard Is supported

No. of channels 60 duplex channels

Radio frequency range 1880–1900 MHz

Duplex method Time multiplex,

10 ms frame length

Channel grid 1728 kHz

Bit rate 1152 kbit/s

Modulation GFSK

Language code 32 kbit/s

Transmission power 10 mW, average power

per channel

Range Up to 984 feet out-

doors, up to 165 feet

indoors

Base power supply 120 V ~/60 Hz

Environmental condi-

tions in operation

+41°F to +113°F,

20% to 75% relative

humidity

Dialing mode DTMF (tone dialing)/

PD (pulse dialing)

1unused

2unused

5unused

6unused

Additional functions via the PC interface

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

Writing and editing text

The following rules apply when writing

text:

uEach key between Q and O is

assigned several letters and characters.

uControl the cursor with uvts.

Press and hold u or v to move the

cursor word by word.

uCharacters are inserted at the cursor

position.

uPress the star key * to display the

table of special characters. Select the

required character and press the dis-

play key §Insert§ to insert the character at

the cursor position.

uPress and hold Q to O to enter

digits.

uPress display key Ñ to delete the char-

acter to the left of the cursor. Press and

hold to delete the word to the left of

the cursor.

uThe first letter of the name of directory

entries is automatically capitalised, fol-

lowed by lower case letters.

Setting upper/lower case or digits

Repeatedly press the pound key # to

change the text input mode.

The active mode is indicated at the bottom

right of the screen.

Writing names

¤Enter the individual letters/characters

by pressing the corresponding key.

The characters assigned to the key are

shown in a selection line at the bottom left

of the screen. The selected character is

highlighted.

¤Briefly press the key several times in

succession to select the required letter/

character.

Standard characters

1) Space

2) Line break

Additional functions via the

PC interface

To enable your handset to communicate

with the PC, the "Gigaset QuickSync" pro-

gram must be installed on your PC (free to

download at www.gigaset.com/

gigasets790).

After installing "Gigaset QuickSync", con-

nect the handset to your computer using a

USB data cable (¢page 18).

Transferring data

Start the "Gigaset QuickSync" program.

You can now:

uSynchronise your handset directory

with Outlook. (period)

uDownload caller pictures (.bmp) from

the computer to the handset. (period)

uDownload pictures (.bmp) as a screen-

saver from the computer to the hand-

set.

uDownload sounds (ringtones) from the

computer to the handset.

123 Writing digits

Abc Upper case *

abc Lower case

* First letter in capitals, all others in lower case

1x 2x 3x 4x 5x 6x 7x 8x 9x 10x

1

2abc2äáàâãç

3def3ëéèê

4gh i4ïíìî

5jkl5

Lmno6öñóòôõ

Mpqr s7ß

Ntuv8üúùû

Owx y z 9 ÿ ýæø å

Q.,?!0

Additional functions via the PC interface

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

During the transfer of data between hand-

set and PC, you will see Data transferin

progress on the display. During this time

the keypad is disabled, and incoming calls

will be ignored.

Completing a firmware update

¤Connect you phone to your PC using a

USB data cable (¢page 18).

¤Start the "Gigaset QuickSync" program

on your PC.

¤Establish a connection to your handset.

¤Select [Settings] ¢[Device proper-

ties]to open the [Device properties]

tab.

¤Click on [Firmware update].

This launches the firmware update.

The update process can take up to 10 min-

utes (not including the download time).

Do not interrupt the process or remove

the USB data cable.

The data is initially loaded from the

update server on the Internet. The

amount of time required depends on the

speed of your Internet connection.

The display on your phone is switched off

and the message key f and the talk key

c start flashing.

When the update is complete, your phone

will automatically restart.

Procedure in case of an error

If the update procedure fails or your

phone does not work properly following

the update, repeat the update procedure

as follows:

¤Close the "Gigaset QuickSync" pro-

gram on the PC.

¤Remove the USB data cable from the

telephone.

¤Remove the battery (¢page 12).

¤Replace the battery.

¤Complete the firmware update as

described.

If the update procedure fails several times

or you can no longer connect to the PC,

proceed as follows:

¤Close the "Gigaset QuickSync" pro-

gram on the PC.

¤Remove the USB data cable from the

telephone.

¤Remove the battery (¢page 12).

¤Press and hold keys 4 and L with

the index and middle finger.

¤Replace the battery.

¤Release keys 4 and L. The mes-

sage key f and the talk key c will

flash alternately.

¤Complete the firmware update as

described.

FCC / ACTA Information

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

Industry Canada Certification

Operation is subject to the following two condi-

tions (1) this device may not cause interfer-

ence, and (2) this device must accept any inter-

ference, including interference that may cause

undesired operation of the device.

NOTICE: The Industry Canada label identifies

certified equipment. This certification means

that the equipment meets certain telecommu-

nications network, protective, operational and

safety requirements as prescribed in the appro-

priate Terminal Equipment Technical Require-

ments document(s). The Department does not

guarantee the equipment will operate to the

user’s satisfaction.

Before installing this equipment, users should

ensure that it is permissible to be connected to

the facilities of the local telecommunications

company. The equipment must also be installed

using an acceptable method of connection. The

customer should be aware that compliance

with the above conditions may not prevent

degradation of service in some situations.

Repairs to certified equipment should be coor-

dinated by a representative designated by the

supplier. Any repairs or alterations made by the

user to this equipment, or equipment malfunc-

tions, may give the telecommunications com-

pany cause to request the user to disconnect

the equipment.

Users should ensure for their own protection

that the electrical ground connections of the

power utility, telephone lines and internal

metallic water pipe system, if present, are

connected together.

This precaution may be particularly important

in rural areas

NOTE: Users should not attempt to make such

connections themselves, but should contact

the appropriate electric inspection authority,

or electrician, as appropriate.

This product meets the applicable Industry

Canada technical specifications.

The Ringer Equivalence Number is an indication

of the maximum number of devices allowed to

be connected to a telephone interface. The ter-

mination of an interface may consist of any

combination of devices subject only to the

requirement that the sum of the RENs of all

devices does not exceed five.

This Class B digital apparatus complies with

Canadian ICES-003.

Cet appareil numérique de la classe B est

conforme à la norme NMB-003 du Can-

ada.

FCC / ACTA Information

Warning: Changes or modifications to this

unit not expressly approved by Gigaset Commu-

nications USA LLC could void the FCC authority

to operate the equipment. This includes the

addition of any external antenna device.

This equipment complies with Part 68 of the

FCC rules and the requirements adopted by the

ACTA. On the bottom of the base station is a

label that contains, among other information,

a product identifier in the format

US:AAAEQ##TXXXX. If requested, this number

must be provided to the telephone company.

A plug and jack used to connect this equipment

to the premises wiring and telephone network

must comply with the applicable FCC Part 68

rules and requirements adopted by the ACTA.

A compliant telephone cord and modular plug

is provided with this product. It is designed to

be connected to a compatible modular jack that

is also compliant. See installation instructions

for details.

The REN is used to determine the number of

devices that may be connected to a telephone

line. Excessive RENs on a telephone line may

result in the devices not ringing in response to

an incoming call. In most but not all areas, the

sum of RENs should not exceed five (5.0). To be

certain of the number of devices that may be

connected to a line, as determined by the total

RENs, contact the local telephone company.

For products approved after July 23, 2001, the

REN for this product is part of the product iden-

tifier that has the format US:AAAEQ##TXXXX.

The digits represented by ## are the REN with-

out a decimal point (e.g., 03 is a REN of 0.3).

For earlier products, the REN is separately

shown on the label.

A copy of the supplier's Declaration of Conform-

ity (SDoC) is available at this Internet address:

www.gigaset.com/docs.

If this equipment causes harm to the telephone

network, the telephone company will notify you

in advance, that temporary discontinuance of

service may be required. But if advance notice

isn’t practical, the telephone company will

notify the customer as soon as possible. Also,

you will be advised of your right to file a com-

plaint with the FCC if you believe it is necessary.

FCC / ACTA Information

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

The telephone company may make changes in

its facilities, equipment, operations or proce-

dures that could affect the operation of the

equipment. If this happens the telephone com-

pany will provide advance notice in order for

you to make necessary modifications to main-

tain uninterrupted service. If you experience

trouble with this telephone system, disconnect

it from the network until the problem has been

corrected or until you are sure that the equip-

ment is not malfunctioning.

If trouble is experienced with this equipment,

for repair or warranty information, please con-

tact Support at 1-866-247-8758. If the equip-

ment is causing harm to the telephone net-

work, the telephone company may request that

you disconnect the equipment until the prob-

lem is resolved. This equipment is of a type that

is not intended to be repaired by the Customer

(user).

This telephone system may not be used on coin

service provided by the telephone company.

Connection to party line service is subject to

state tariffs. Contact the state public utility

commission, public service commission or cor-

poration commission for information. Privacy

of communications may not be ensured when

using this phone.

If your home has specially wired alarm equip-

ment connected to the telephone line, ensure

the installation of this equipment does not dis-

able your alarm equipment. If you have ques-

tions about what will disable alarm equipment,

consult your telephone company or a qualified

installer.

This telephone system equipment has been

tested and found to comply with the limits for

Class B digital device, pursuant to Part 15 of the

FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause

harmful interference, and (2) This device must

accept any interference received, including

interference that may cause undesired opera-

tion. These limits are designed to provide

reasonable protection against harmful interfer-

ence in a residential installation. Some cordless

telephones operate at frequencies that may

cause interference to nearby TV’s and VCR’s;

to minimize or prevent such interference, the

system base should not be placed near or on

top of a TV or VCR; and, if interference is expe-

rienced, moving the base farther away from

the TV or VCR will often reduce or eliminate

the interference.

However, there is no guarantee that interfer-

ence will not occur in a particular installation.

If this telephone system does cause harmful

interference to radio or television reception,

which can be determined by turning the system

off and on, the user is encouraged to try to

correct the interference by one or more of the

following measures:

1. Reorient or relocate the receiving antenna.

2. Increase the separation between the base

station and receiver.

3. Connect the base station into an outlet on a

circuit different from that to which the receiver

is connected.

4. Consult the dealer or an experienced radio

TV technician for help.

Notice for Direct Inward Dialing ("DID")

ALLOWING THIS EQUIPMENT TO BE OPERATED

IN SUCH A MANNER AS TO NOT PROVIDE FOR

PROPER ANSWER SUPERVISION IS A VIOLATION

OF PART 68 OF THE FCC‘S RULES.

Notice to Hearing Aid Wearers:

This phone system is compatible with induc-

tively coupled hearing aids.

Power Outage:

In the event of a power outage, your cordless

telephone will not operate. The cordless tele-

phone requires electricity for operation. You

should have a telephone that does not require

electricity available for use during power out-

ages.

Notice:

The installation of the base unit should allow

at least 8 inches between the base and persons

to be in compliance with FCC RF exposure

guidelines.

For body worn operation, the portable part

(handset) has been tested and meets FCC RF

exposure guidelines. Use with an accessory

that contains metal parts may not ensure com-

pliance with FCC RF exposure guidelines.

Notice to telephone company service:

If you need service from your telephone com-

pany, please provide them with the information

– Facility interface Code (FIC)

– Service Order Code (SOC)

– Universal Service Order Code (USOC)

as indicated on the label on the bottom side of

the base station.

FCC / ACTA Information

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

Safety precautions

Before using your telephone equipment, basic

safety instructions should always be followed to

reduce the risk of fire, electric shock and injury

to persons.

1. Read and understand all instructions.

2. Follow all warnings and instructions marked

on the product.

3. Unplug this product from the wall telephone

jack and power outlet before cleaning. Do not

use liquid cleaners or aerosol cleaners. Use

damp cloth for cleaning.

4. Do not use this product near water, for exam-

ple, near a bathtub, wash bowl, kitchen sink, or

laundry tub, in a wet basement or near a swim-

ming pool.

5. Place this product securely on a stable sur-

face. Serious damage and/or injury may result if

the unit falls.

6. Slots or openings in the cabinet and the back

and bottom are provided for ventilation, to pro-

tect it from overheating. These openings must

not be blocked or covered. This product should

never be placed near or over a radiator or heat

is not provided.

7. This product should be operated only from

the type of power source indicated on the

marking label. If you are not sure of the type of

AC line power to your home, consult your

dealer or local power company.

8. Do not place objects on the power cord.

Install the unit where no one can step or trip on

the cord.

9. Do not overload wall outlets and extension

cords as this can result in the risk of fire or elec-

tric shock.

10. Never push objects of any kind into this

product through cabinet slots as they may

touch dangerous voltage points or short out

parts that could result in the risk of fire or elec-

tric shock. Never spill liquid of any kind on this

product.

11. To reduce the risk of electric shock or burns,

do not disassemble this product. Take it to a

qualified service center when service is

required. Opening or removing covers may

expose you to dangerous voltages, dangerous

electrical current or other risks. Incorrect reas-

sembly can cause electric shock when the appli-

ance is subsequently used.

12. Unplug the product from the wall outlet and

refer servicing to qualified service personnel

under the following conditions:

a.) When the power cord is damaged or frayed.

b.) If liquid has been spilled into the product.

c.) If the product has been exposed to rain or

water.

d.) If the product does not operate normally by

ing the operating instructions. Adjust only

those controls

that are covered by the operating

instructions because improper adjustment of

other controls may result in damage and may

require extensive work by a qualified technician

to restore the product to normal operation.

e.) If the product has been dropped or physi-

cally has been damaged.

f.) If the product exhibits a distinct change in

performance.

13. Avoid using a telephone (other than a cord-

less type) during a thunderstorm. There may be

a remote risk of electrical shock from lightning.

Therefore we suggest a surge arrestor.

14. Do not use the telephone to report a gas

leak in the vicinity of the leak.

15. Emergency/911 numbers may not be dialed

if the keypad is locked.

16. Minimum No. 26 AWG telecommunication

line cord must be used with this phone.

BATTERY SAFETY PRECAUTIONS

To reduce the risk of fire, injury or electric

shock, and to properly dispose of batteries,

please read and understand the following

instructions.

CONTAINS NICKEL METAL HYDRIDE BATTERY.

BATTERY MUST BE RECYCLED OR DISPOSED OF

PROPERLY. DO NOT DISPOSE OF IN MUNICIPAL

WASTE.

1. Only use the batteries specified for use with

this product.

2. DO NOT USE NICKEL CADMIUM OR LITHIUM

BATTERIES, or mix batteries of different sizes or

from different manufacturers in this product.

DO NOT USE NONRECHARGEABLE BATTERIES.

3. Do not dispose of the batteries in a fire; the

cells may explode. Do not expose batteries to

water. Check with local codes for special dis-

posal instructions.

4. Do not open or mutilate the batteries.

Released electrolyte is corrosive and may cause

damage to the eyes or skin. The electrolyte may

be toxic if swallowed.

5. Exercise care in handling the batteries in

order not to short the batteries with conducting

materials such as rings, bracelets, and keys.

The batteries or conducting material may over-

heat and cause burns or fire.

Service (Customer Care)

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

6. Charge the batteries provided with, or identi-

fied for use with, this product only in accord-

ance with the instructions and limitations spec-

ified in the user’s manual. Do not attempt to

charge the batteries with any means other than

that specified in the users manual.

7. Periodically clean the charge contacts on

both the charger and handset.

Service (Customer Care)

Customer Care Warranty for Cordless Products

To obtain Customer Care Warranty service,

product operation information, or for problem resolution, call:

Toll Free: 1-866-247-8758

End-user limited warranty

This product is covered by a one year limited

warranty. Any repair replacement or warranty

service, and all questions about this product

should be directed to: 1-866-247-8758.

This limited, non-transferable warranty is pro-

vided to the original buyer/end-consumer

("you") for systems, handsets and accessories

(collectively, "Product") provided by Gigaset

Communications USA LLC or Gigaset Communi-

cations Canada Inc. (collectively "Gigaset

NAM"). Gigaset NAM warrants to you that at the

date of purchase, the Product is free of defects

in workmanship and materials and the software

included in the Product will perform in substan-

tial compliance to its program specifications.

1. WARRANTY PERIOD

The Product warranty period is one (1) year

from the original date of purchase by you. Proof

of purchase (e.g., sales slip or invoice) must be

provided with any Product returned during the

warranty period. Batteries supplied with the

Products are warranted to be free from defects

at the time of purchase only.

2. EXCLUSIVE REMEDY

Gigaset NAM's entire liability and your exclusive

remedy if the Product is defective in materials

or workmanship during the warranty period

and is returned shall be that the Product will be

repaired or replaced as set forth in Section 4

below. Reconditioned replacement compo-

nents, parts or materials may be used in the

replacement or repair. Data in the memory of

the Product may be lost during repair.

3. THIS LIMITED WARRANTY DOES NOT

COVER AND IS VOID WITH RESPECT

TO THE FOLLOWING:

– Cosmetic damage, physical damage to the

surface of the Product, including, without

limitation, breakage, cracks, dents,

scratches or adhesive marks on the LCD

screen or outside casing of the Product.

– Products which have been repaired, main-

tained or modified (including the antenna)

by anyone other than Gigaset NAM or a

Gigaset NAM-approved repair facility, or that

have been improperly installed.

– Cost of installation, removal or reinstalla-

tion.

– Damage due to any telephone, electronic,

hardware or software program, network,

Internet or computer malfunctions, failures,

or difficulties of any kind, including without

limitation, server failure or incomplete,

incorrect, garbled or delayed computer

transmissions.

Service (Customer Care)

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

– Equipment and components not manufac-

tured, supplied or authorized by Gigaset

NAM.

– Modification of the Product's components,

or operation of the Product in an unsuitable

environment or in a manner for which it is

not intended, including but not limited to

failures or defects caused by misuse, abuse,

accidents, physical damage, abnormal oper-

ation, improper handling or storage,

neglect, alterations, unauthorized installa-

tion, removal or repairs, failure to follow

instructions, problems caused by the car-

rier's network coverage, exposure to fire,

water or excessive moisture or dampness,

floods, or extreme changes in climate or

temperature, acts of God, riots, acts of ter-

rorism, spills of food or liquids, viruses or

other software flaws introduced into the

Product or other acts which are not the fault

of Gigaset NAM and which the Product is not

specified to tolerate, including damage

caused by mishandling or blown fuses.

– Products which have had warranty stickers,

electronic serial number and/or serial

number label removed, altered, rendered

illegible or fraudulently applied to other

equipment.

– Signal reception problems (unless caused by

defect in material or workmanship in the

Product).

– Products operated outside published maxi-

mum ratings.

– Performance of the Products when used in

combination with other products or equip-

ment not manufactured, supplied or author-

ized by Gigaset NAM.

– Consumables (such as batteries and fuses).

– Payments for labor or service to representa-

tives or service centers not authorized to

perform product maintenance by Gigaset

NAM.

–Loss of data.

– Testing and examination discloses that the

alleged defect or malfunction in the Product

does not exist.

This warranty does not cover customer educa-

tion, instruction, installation or removal, set up

adjustments, problems related to service(s)

provided by a carrier or other service provider,

and/or signal reception problems. Gigaset NAM

shall not be responsible for software, firmware,

information, or memory data contained in,

stored on, or integrated with any Products

returned for repair, whether under warranty or

not. This warranty is valid only in the country in

which it is purchased (i.e., the United States of

America or Canada respectively, but not both).

USE WITH ACCESSORIES NOT SUPPLIED BY

GIGASET NAM OR NOT OTHERWISE

EXPRESSLY AUTHORIZED BY GIGASET NAM

MAY VOID WARRANTY.

4. WARRANTY CLAIM PROCEDURE

All warranty claims must be made by notifying

Gigaset NAM prior to the expiration of the war-

ranty period. Gigaset NAM's obligation to pro-

vide warranty support shall not extend past the

end of the warranty period, except that any

product repaired or replaced during the war-

ranty period shall continue to be warranted for

the balance of such warranty period or thirty

(30) days, whichever is greater.

Support service will be provided for you by

accessing the toll free customer service num-

ber:

1-866-247-8758

5. LIMITATION OF WARRANTY

Gigaset NAM makes no warranty or representa-

tion that the software in the Products will meet

your requirements or will work in combination

with any hardware or applications software

products provided by third parties, that the

operation of the software will be uninterrupted

or error free, or that all defects in the software

products will be corrected.

Service (Customer Care)

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

6. LIMITATION ON REMEDIES; NO

CONSEQUENTIAL OR OTHER

DAMAGES

Your exclusive remedy for any breach of this

limited warranty is as set forth above. Except for

any refund elected by Gigaset NAM, YOU ARE

NOT ENTITLED TO ANY DAMAGES, INCLUD-

ING BUT NOT LIMITED TO CONSEQUENTIAL

DAMAGES, if the Product does not meet the

limited warranty , and, to the maximum extent

allowed by applicable law, even if any remedy

fails of its essential purpose. The terms below

("Exclusion of Incidental, Consequential and

Certain Other Damages") are also incorporated

into this limited warranty . Some states/jurisdic-

tions/provinces do not allow the exclusion or

limitation of incidental or consequential dam-

ages, so the above limitation or exclusion may

not apply to you. This limited warranty gives

you specific legal rights. You may have others

which vary from state/jurisdiction/province to

state/jurisdiction/province.

7. DISCLAIMER OF WARRANTIES

GIGASET NAM AND ITS SUPPLIERS PROVIDE THE

PRODUCT AND SUPPORT SERVICES (IF ANY) AS

IS AND WITH ALL FAULTS. THE LIMITED WAR-

RANTY IS IN LIEU OF ANY OTHER EXPRESS WAR-

RANTIES (IF ANY) CREATED BY ANY DOCUMEN-

TATION OR PACKAGING EXCEPT FOR THE LIM-

ITED WARRANTY, AND TO THE MAXIMUM

EXTENT PERMITTED BY APPLICABLE LAW IS IN

LIEU OF ANY IMPLIED OR STATUTORY WARRAN-

TIES, INCLUDING, BUT NOT LIMITED TO, THE

IMPLIED WARRANTIES OF MERCHANTABILITY

AND FITNESS FOR A PARTICULAR PURPOSE, OF

ACCURACY OR COMPLETENESS OR RESPONSES,

OF RESULTS, OF WORKMANLIKE EFFORT, OF

LACK OF VIRUSES AND OF LACK OF NEGLI-

GENCE, ALL WITH REGARD TO THE PRODUCT,

AND THE PROVISION OF OR FAILURE TO PRO-

VIDE SUPPORT SERVICES. ALSO, THERE IS NO

WARRANTY OR CONDITION OF TITLE, QUIET

ENJOYMENT, QUIET POSSESSION, OR CORRE-

SPONDENCE TO DESCRIPTION OR NONIN-

FRINGEMENT WITH REGARD TO THE PRODUCT.

Some states/jurisdictions/provinces do not

allow limitations on how long an implied war-

ranty lasts or the exclusion or limitation of inci-

dental or consequential damages, so the above

exclusions or limitations may not apply to you.

If an implied warranty or condition is created by

your state/province and federal or state/provin-

cial law prohibits disclaimer of it, you also have

an implied warranty or condition, BUT ONLY AS

TO DEFECTS DISCOVERED DURING THE PERIOD

OF THIS LIMITED WARRANTY (ONE YEAR).

AS TO ANY DEFECTS DISCOVERED AFTER THE

ONE YEAR PERIOD, THERE IS NO WARRANTY OR

CONDITION OF ANY KIND. This limited warranty

gives you specific legal rights, and you may also

have other rights which vary from state to state/

province to province. In no event shall Gigaset

NAM's liability exceed the cost of repairing or

replacing defective Products as provided

herein, and any such liabilities will terminate

upon expiration of the warranty period.

Any supplements or updates to the Product or

the software in the Product, including without

limitation, any (if any) software fixes or

upgrades or bug fixes provided to you after the

expiration of the one year limited warranty

period are not covered by any warranty or con-

dition, express, implied or statutory.

8. EXCLUSION OF INCIDENTAL,

CONSEQUENTIAL AND CERTAIN

OTHER DAMAGES

TO THE MAXIMUM EXTENT PERMITTED BY

APPLICABLE LAW, IN NO EVENT SHALL GIGASET

NAM, SELLER OR THEIR SUPPLIERS BE LIABLE

FOR ANY SPECIAL, INCIDENTAL, INDIRECT, OR

CONSEQUENTIAL DAMAGES WHATSOEVER

(INCLUDING, BUT NOT LIMITED TO, DAMAGES

FOR LOSS OF PROFITS OR CONFIDENTIAL OR

OTHER INFORMATION, FOR BUSINESS INTER-

RUPTION, FOR PERSONAL INJURY, FOR LOSS OF

PRIVACY, FOR FAILURE TO MEET ANY DUTY

INCLUDING OF GOOD FAITH OR OF REASON-

ABLE CARE, FOR NEGLIGENCE, AND FOR ANY

OTHER PECUNIARY OR OTHER LOSS WHATSO-

EVER) ARISING OUT OF OR IN ANY WAY

RELATED TO THE USE OF OR INABILITY TO USE

THE PRODUCT, THE PROVISION OF OR FAILURE

TO PROVIDE SUPPORT SERVICES, OR OTHER-

WISE UNDER OR IN CONNECTION WITH ANY

PROVISION OF THIS LIMITED WARRANTY, EVEN

IN THE EVENT OF THE FAULT, TORT (INCLUDING

NEGLIGENCE), STRICT LIABILITY, BREACH OF

CONTRACT OR BREACH OF WARRANTY OF

GIGASET NAM OR SELLER OR ANY SUPPLIER,

AND EVEN IF GIGASET NAM OR SELLER OR ANY

SUPPLIER HAS BEEN ADVISED OF THE POSSIBIL-

ITY OF SUCH DAMAGES. REPAIR OR REPLACE-

MENT, AS PROVIDED UNDER THE WARRANTY, IS

YOUR SOLE AND EXCLUSIVE REMEDY FOR

BREACH OF THE LIMITED WARRANTY.

Service (Customer Care)

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / appendix.fm / 28.07.2009

Version 4, 16.09.2005

9. LIMITATION OF LIABILITY AND

REMEDIES

NOTWITHSTANDING ANY DAMAGES THAT YOU

MIGHT INCUR FOR ANY REASON WHATSOEVER

(INCLUDING, WITHOUT LIMITATION, ALL DAM-

AGES REFERENCED ABOVE AND ALL DIRECT OR

GENERAL DAMAGES), THE ENTIRE LIABILITY OF

GIGASET NAM, SELLER AND ANY OF THEIR SUP-

PLIERS UNDER ANY PROVISION OF THIS LIMITED

WARRANTY AND YOUR EXCLUSIVE REMEDY FOR

ALL OF THE FOREGOING (EXCEPT FOR ANY

REMEDY OF REPAIR OR REPLACEMENT ELECTED

BY GIGASET NAM OR SELLER OR SUPPLIER WITH

RESPECT TO ANY BREACH OF THE LIMITED WAR-

RANTY) SHALL BE LIMITED TO THE GREATER OF

THE AMOUNT ACTUALLY PAID BY YOU FOR THE

PRODUCT OR FIVE DOLLARS ($5.00 USD/CAN).

THE FOREGOING LIMITATIONS, EXCLUSIONS

AND DISCLAIMERS SHALL APPLY TO THE MAXI-

MUM EXTENT PERMITTED BY APPLICABLE LAW,

EVEN IF ANY REMEDY FAILS ITS ESSENTIAL PUR-

POSE.

10. GOVERNING LAW

If this Product was purchased in the United

States of America this limited warranty will be

governed by the laws of Texas, and exclude the

United Nations Convention on Contracts for the

International Sale of Goods. If this Product was

purchased in Canada this limited warranty will

be governed by the laws of the Province of

Ontario and the federal laws of Canada applica-

ble therein, and exclude the United Nations

Convention on Contracts for the

International Sale of Goods.

If you want to learn more about Gigaset Service

or for Support on your Gigaset phone, visit our

web site at http://www.gigaset.com or please

call

1-866-247-8758.

Issued by

Gigaset Communications GmbH

Schlavenhorst 66, D-46395 Bocholt

Gigaset Communications GmbH is a licensee of

the Siemens trademark.

Subject to availability. Rights of modifications

reserved.

Product attributes subject to change.

We reserve the right, to make changes without

notice in equipment design and/or compo-

nents.

Part Number:A31008-M2009-XXXX-1-XX

Index

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / S795SIX.fm / 28.07.2009

Version 4, 16.09.2005

Index

Access protection . . . . . . . . . . . . . . . . 57

Accessories . . . . . . . . . . . . . . . . . . . . 59

Acknowledge tones . . . . . . . . . . . . . . 55

Activating

advisory tones . . . . . . . . . . . . . . . . 55

answering machine . . . . . . . . . . . . 37

answering machine

(remote operation). . . . . . . . . . 41

appointment . . . . . . . . . . . . . . . . . 43

handset . . . . . . . . . . . . . . . . . . . . . 23

keypad lock . . . . . . . . . . . . . . . . . . 23

listening in . . . . . . . . . . . . . . . . . . . 48

ring delay . . . . . . . . . . . . . . . . . . . . 53

room monitor . . . . . . . . . . . . . . . . . 50

two-way record . . . . . . . . . . . . . . . 40

Advisory tones . . . . . . . . . . . . . . . . . . 55

Alarm clock . . . . . . . . . . . . . . . . . . . . 45

Alert tone . . . . . . . . . . . . . . . . . . . . . 54

Anniversary . . . . . . . . . . . . . . . . . . . . 33

deactivating . . . . . . . . . . . . . . . . . .34

missed . . . . . . . . . . . . . . . . . . . 36, 45

saving in the directory. . . . . . . . . . . 33

Announcement (answering machine) .38

Answering machine

activating/deactivating . . . . . . . . . . 37

deleting messages . . . . . . . . . . . . . 39

playing back messages . . . . . . . . . . 38

recording a personal

announcement/advisory

message . . . . . . . . . . . . . . . . . 37

remote operation . . . . . . . . . . . . . . 41

scrolling back . . . . . . . . . . . . . . . . . 39

scrolling forward. . . . . . . . . . . . . . . 39

Answering machine list . . . . . . . . . . . 35

Answering machine, see also

Network mailbox

Appointment . . . . . . . . . . . . . . . . . . . 43

Appointment/anniversary

display missed . . . . . . . . . . . . . . . . 45

Appointments

activating/deactivating . . . . . . . . . . 44

deleting . . . . . . . . . . . . . . . . . . . . .44

managing. . . . . . . . . . . . . . . . . . . . 44

Area codes

extra codes . . . . . . . . . . . . . . . . . . 17

local area code . . . . . . . . . . . . . . . 17

setting own area code . . . . . . . . . . 55

Assigning a number key . . . . . . . . . . 51

Automatic

redial . . . . . . . . . . . . . . . . . . . . . . 34

ring delay . . . . . . . . . . . . . . . . 29, 53

Base

changing. . . . . . . . . . . . . . . . . . . . 47

connecting . . . . . . . . . . . . . . . . . . 10

connecting to PABX . . . . . . . . . . . . 58

restoring to factory settings . . . . . . 57

setting ringtone. . . . . . . . . . . . . . . 56

setting up . . . . . . . . . . . . . . . . . . . 10

settings . . . . . . . . . . . . . . . . . . . . . 56

system PIN . . . . . . . . . . . . . . . . . . 57

Battery

charging . . . . . . . . . . . . . . . . 2, 3, 14

display . . . . . . . . . . . . . . . . . . . . 2, 3

icon . . . . . . . . . . . . . . . . . . . . . . 2, 3

inserting . . . . . . . . . . . . . . . . . . . . 12

tone . . . . . . . . . . . . . . . . . . . . . . . 55

Best base . . . . . . . . . . . . . . . . . . . . . 47

Birthday, see Anniversary

Calendar. . . . . . . . . . . . . . . . . . . . . . 43

Call

accepting . . . . . . . . . . . . . . . . . . . 29

connect participant . . . . . . . . . . . . 48

ending . . . . . . . . . . . . . . . . . . . . . 29

external. . . . . . . . . . . . . . . . . . . . . 29

internal . . . . . . . . . . . . . . . . . . . . . 47

picking up from answering machine 39

transferring (connecting) . . . . . 47, 49

two-way record . . . . . . . . . . . . . . . 40

Call duration . . . . . . . . . . . . . . . . . . . 29

Call lists . . . . . . . . . . . . . . . . . . . . . . 35

Call screening during recording . . . . . 40

Call waiting

internal call . . . . . . . . . . . . . . . . . . 48

Caller ID . . . . . . . . . . . . . . . . . . . . . . 29

Caller Picture. . . . . . . . . . . . . . . . 31, 54

Calling

external. . . . . . . . . . . . . . . . . . . . . 29

internal . . . . . . . . . . . . . . . . . . . . . 47

Caring for your telephone . . . . . . . . . 62

Index

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / S795SIX.fm / 28.07.2009

Version 4, 16.09.2005

Changing

destination number (room monitor) 50

dialing mode . . . . . . . . . . . . . . . . . 58

display language. . . . . . . . . . . . . . . 52

earpiece volume . . . . . . . . . . . . . . . 53

internal number of a handset . . . . . 49

name of a handset . . . . . . . . . . . . . 49

pauses . . . . . . . . . . . . . . . . . . . . . . 58

ringtone. . . . . . . . . . . . . . . . . . 53, 56

speaker volume . . . . . . . . . . . . . . . 53

system PIN . . . . . . . . . . . . . . . . . . . 57

Changing the system PIN . . . . . . . . . . 57

Character set . . . . . . . . . . . . . . . . . . .64

Charge status display . . . . . . . . . . . . 2, 3

Colour scheme. . . . . . . . . . . . . . . . . . 52

Conference

internal . . . . . . . . . . . . . . . . . . . . .48

Confirmation tone . . . . . . . . . . . . . . . 55

Connecting the headset . . . . . . . . . . . 18

Connecting, base to PABX. . . . . . . . . . 58

Consultation call

internal . . . . . . . . . . . . . . . . . . . . .48

Control key . . . . . . . . . . . . . . . . . . 2, 20

Correcting incorrect entries . . . . . . . . 21

Customer Care. . . . . . . . . . . . . . . . . . 69

Deactivating

advisory tones . . . . . . . . . . . . . . . . 55

answering machine . . . . . . . . . . . . 37

appointment . . . . . . . . . . . . . . . . . 43

handset . . . . . . . . . . . . . . . . . . . . . 23

keypad lock . . . . . . . . . . . . . . . . . . 23

listening in . . . . . . . . . . . . . . . . . . . 48

ring delay . . . . . . . . . . . . . . . . . . . . 53

room monitor . . . . . . . . . . . . . . . . . 50

two-way record . . . . . . . . . . . . . . . 40

Delete key . . . . . . . . . . . . . . . . . . . . . 21

Deleting

announcement for answer

machine . . . . . . . . . . . . . . . . . 38

characters . . . . . . . . . . . . . . . . . . .21

message. . . . . . . . . . . . . . . . . . . . . 39

De-registering (handset). . . . . . . . . . .46

Destination number (room monitor) . . 50

Dialing

using quick dial. . . . . . . . . . . . . 33, 51

using the directory . . . . . . . . . . . . . 32

Dialing mode . . . . . . . . . . . . . . . . . . . 58

Directory . . . . . . . . . . . . . . . . . . . . . . 31

copying number from text . . . . . . . 33

managing entries. . . . . . . . . . . . . . 32

opening . . . . . . . . . . . . . . . . . . . . 20

order of entries . . . . . . . . . . . . . . . 31

saving anniversary . . . . . . . . . . . . . 33

saving entry . . . . . . . . . . . . . . . . . 31

sending entry/list to handset . . . . . 33

using to enter numbers . . . . . . . . . 33

Display

backlight . . . . . . . . . . . . . . . . . . . . 52

changing display language . . . . . . . 52

colour scheme . . . . . . . . . . . . . . . . 52

directory memory . . . . . . . . . . . . . 33

in idle status . . . . . . . . . . . . . . 16, 23

memory (resource directory) . . . . . 55

missed anniversaries . . . . . . . . . . . 36

missed

appointments/anniversaries. . . 45

network mailbox message . . . . . . . 42

number (Caller ID/Name) . . . . . . . . 29

screensaver . . . . . . . . . . . . . . . . . . 52

setting . . . . . . . . . . . . . . . . . . . . . 52

Display keys . . . . . . . . . . . . . . . . . 2, 21

assigning. . . . . . . . . . . . . . . . . . . . 51

Earpiece volume . . . . . . . . . . . . . . . . 53

ECO DECT . . . . . . . . . . . . . . . . . . . . . 43

Eco mode . . . . . . . . . . . . . . . . . . . . . 43

E-mail address

copying from

the directory . . . . . . . . . . . . . . 33

End call key. . . . . . . . . . . . . . . . . . 2, 29

Ending, call. . . . . . . . . . . . . . . . . . . . 29

Entry

selecting from directory . . . . . . . . . 32

Error tone . . . . . . . . . . . . . . . . . . . . . 55

Expert mode. . . . . . . . . . . . . . . . 26, 61

External call

forwarding to ans. mach. . . . . . . . . 39

Extra codes. . . . . . . . . . . . . . . . . . . . 17

Fast access

answering machine . . . . . . . . . . . . 41

network mailbox . . . . . . . . . . . . . . 42

Firmware update. . . . . . . . . . . . . . . . 65

Flash key . . . . . . . . . . . . . . . . . . . . . . 2

Index

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / S795SIX.fm / 28.07.2009

Version 4, 16.09.2005

Group call . . . . . . . . . . . . . . . . . . . . .47

Handset

activating/deactivating . . . . . . . . . . 23

advisory tones . . . . . . . . . . . . . . . . 55

changing internal number. . . . . . . . 49

changing name . . . . . . . . . . . . . . . 49

changing the number . . . . . . . . . . . 49

changing to a different base . . . . . . 47

changing to best reception . . . . . . . 47

colour scheme . . . . . . . . . . . . . . . . 52

contact with liquid . . . . . . . . . . . . .62

de-registering. . . . . . . . . . . . . . . . . 46

display backlight. . . . . . . . . . . . . . . 52

display language. . . . . . . . . . . . . . . 52

earpiece volume . . . . . . . . . . . . . . . 53

idle status . . . . . . . . . . . . . . . . . . . 23

large font . . . . . . . . . . . . . . . . . . . . 52

list . . . . . . . . . . . . . . . . . . . . . . . . . 20

locating . . . . . . . . . . . . . . . . . . . . . 47

muting. . . . . . . . . . . . . . . . . . . . . . 30

paging . . . . . . . . . . . . . . . . . . . . . . 47

registering . . . . . . . . . . . . . . . . . . .46

registering to a different base . . . . . 47

restoring to factory settings. . . . . . . 56

screensaver . . . . . . . . . . . . . . . . . .52

set up for use . . . . . . . . . . . . . . . . .12

setting . . . . . . . . . . . . . . . . . . . . . .51

speaker volume . . . . . . . . . . . . . . . 53

transferring a call . . . . . . . . . . . . . . 47

using multiple . . . . . . . . . . . . . . . . 46

using room monitor . . . . . . . . . . . . 49

Handset mode . . . . . . . . . . . . . . . . . . 30

Handset operating time

in room monitor mode . . . . . . . . . . 50

Headset socket. . . . . . . . . . . . . . . . . . 18

Hearing aids . . . . . . . . . . . . . . . . . . . .8

Icon

alarm clock. . . . . . . . . . . . . . . . . . .45

answering machine . . . . . . . . . 37, 40

for new messages . . . . . . . . . . . . . . 36

keypad lock . . . . . . . . . . . . . . . . . . 23

new message . . . . . . . . . . . . . . . . . 38

ringtone. . . . . . . . . . . . . . . . . . . . . 54

Idle status (display) . . . . . . . . . . . 16, 23

Idle status, returning to . . . . . . . . . . . 23

Incorrect entries (correction) . . . . . . . 21

Installing, base . . . . . . . . . . . . . . . . . 10

Internal

conference . . . . . . . . . . . . . . . . . . 48

consulting . . . . . . . . . . . . . . . . . . . 48

listening in . . . . . . . . . . . . . . . . . . 48

making calls . . . . . . . . . . . . . . . . . 47

Internal call. . . . . . . . . . . . . . . . . . . . 47

call waiting . . . . . . . . . . . . . . . . . . 48

Key

assigning to a function or

number . . . . . . . . . . . . . . . . . 51

Key 1 (fast access). . . . . . . . . . . . . 2, 41

Keypad lock . . . . . . . . . . . . . . . . . . . 23

Keys

control key . . . . . . . . . . . . . . . . 2, 20

delete key . . . . . . . . . . . . . . . . . . . 21

display keys . . . . . . . . . . . . . . . . 2, 21

end call key . . . . . . . . . . . . . . . . 2, 29

fast access. . . . . . . . . . . . . . . . . 2, 41

flash key . . . . . . . . . . . . . . . . . . . . . 2

message key . . . . . . . . . . . . . . . . . . 2

mute key . . . . . . . . . . . . . . . . . . . . . 2

on/off key . . . . . . . . . . . . . . . . . . . . 2

pound key . . . . . . . . . . . . . . . . . . . 23

quick dial. . . . . . . . . . . . . . . . . . . . 33

side keys . . . . . . . . . . . . . . . . . . . . . 2

speaker key . . . . . . . . . . . . . . . . . . . 2

star key . . . . . . . . . . . . . . . . . . . . . . 2

talk key . . . . . . . . . . . . . . . . . . . 2, 29

Language, display . . . . . . . . . . . . . . . 52

Large font. . . . . . . . . . . . . . . . . . . . . 52

List

answering machine . . . . . . . . . . . . 35

call lists . . . . . . . . . . . . . . . . . . . . . 35

handsets . . . . . . . . . . . . . . . . . . . . 20

missed calls . . . . . . . . . . . . . . . . . . 35

network mailbox . . . . . . . . . . . . . . 35

Listening in to a call . . . . . . . . . . . . . 48

Local area code. . . . . . . . . . . . . . . . . 17

Locating, handset . . . . . . . . . . . . . . . 47

Lock

activating/deactivating keypad lock. 23

Making calls

Index

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / S795SIX.fm / 28.07.2009

Version 4, 16.09.2005

accepting a call. . . . . . . . . . . . . . . . 29

external . . . . . . . . . . . . . . . . . . . . . 29

internal . . . . . . . . . . . . . . . . . . . . .47

Manual redial. . . . . . . . . . . . . . . . . . . 34

Medical equipment . . . . . . . . . . . . . . . 8

Memory

directory . . . . . . . . . . . . . . . . . . . . 33

resource directory. . . . . . . . . . . . . . 55

end tone . . . . . . . . . . . . . . . . . . . . 55

opening . . . . . . . . . . . . . . . . . . . . .20

overview . . . . . . . . . . . . . . . . . . . . 26

using . . . . . . . . . . . . . . . . . . . . . . . 22

Menu display

expert mode. . . . . . . . . . . . . . . 26, 61

standard mode . . . . . . . . . . . . . 26, 61

Message key

opening lists. . . . . . . . . . . . . . . . . . 35

Messages . . . . . . . . . . . . . . . . . . . . . 37

copying the number to the

directory . . . . . . . . . . . . . . . . . 39

deleting . . . . . . . . . . . . . . . . . . . . .39

key. . . . . . . . . . . . . . . . . . . . . . . . . . 2

marking as "new" . . . . . . . . . . . . . . 39

new message icon . . . . . . . . . . . . . 38

playing back . . . . . . . . . . . . . . . . . . 38

Microphone. . . . . . . . . . . . . . . . . . . . . 2

Missed

anniversary . . . . . . . . . . . . . . . . . . 45

appointment . . . . . . . . . . . . . . . . . 45

Missed calls . . . . . . . . . . . . . . . . . . . .35

Music on hold . . . . . . . . . . . . . . . . . .56

Mute key . . . . . . . . . . . . . . . . . . . . . . .2

Muting the handset . . . . . . . . . . . . . . 30

Name

of a handset . . . . . . . . . . . . . . . . . . 49

Network mailbox . . . . . . . . . . . . . . . . 42

Number

as destination for room monitor . . . 50

copying from directory . . . . . . . . . . 33

copying to the directory . . . . . . . . . 33

displaying caller’s number

(Caller ID) . . . . . . . . . . . . . . . . 29

entering with directory . . . . . . . . . . 33

saving in directory . . . . . . . . . . . . .31

On/Off key . . . . . . . . . . . . . . . . . . . . . 2

Operating remotely. . . . . . . . . . . . . . 41

Order in directory . . . . . . . . . . . . . . . 31

PABX

connecting base . . . . . . . . . . . . . . 58

pauses . . . . . . . . . . . . . . . . . . . . . 58

setting dialing mode . . . . . . . . . . . 58

setting recall . . . . . . . . . . . . . . . . . 58

switching to tone dialing . . . . . . . . 58

Package contents . . . . . . . . . . . . . . . . 9

Paging . . . . . . . . . . . . . . . . . . . . . . . 47

Pause

after line seizure . . . . . . . . . . . . . . 58

after recall key . . . . . . . . . . . . . . . . 58

PC interface . . . . . . . . . . . . . . . . . . . 64

PD (pulse dialing) . . . . . . . . . . . . . . . 58


Caller . . . . . . . . . . . . . . . . . . . 31, 54

deleting. . . . . . . . . . . . . . . . . . . . . 55

renaming . . . . . . . . . . . . . . . . . . . 55

PIN change

system PIN . . . . . . . . . . . . . . . . . . 57

Pin connections . . . . . . . . . . . . . . . . 63

Playing back

announcement (answering machine) .

message (answering machine) . . . . 38

Pound key. . . . . . . . . . . . . . . . . . . . . 23

Power adapter . . . . . . . . . . . . . . . . . . 8

Power consumption . . . . . . . . . . . . . 63

Protecting the phone against access. . 57

Pulse dialing . . . . . . . . . . . . . . . . . . . 58

Quick dial . . . . . . . . . . . . . . . . . . 31, 51

Range. . . . . . . . . . . . . . . . . . . . . . . . 10

Recall . . . . . . . . . . . . . . . . . . . . . . . . 58

Recall key . . . . . . . . . . . . . . . . . . . . . 58

Recording

two-way record . . . . . . . . . . . . . . . 40

Recording quality . . . . . . . . . . . . . . . 40

Recording time . . . . . . . . . . . . . . . . . 40

Redial . . . . . . . . . . . . . . . . . . . . . . . . 34

Registering (handset) . . . . . . . . . . . . 46

Reminder call . . . . . . . . . . . . . . . . . . 34

Resource directory . . . . . . . . . . . . . . 54

Index

Gigaset S790/S795 / USA-CAN EN / A31008-M2121-R301-1-3S19 / S795SIX.fm / 28.07.2009

Version 4, 16.09.2005

Ring delay . . . . . . . . . . . . . . . . . . 40, 53

Ringtone

changing . . . . . . . . . . . . . . . . . 53, 56

setting volume . . . . . . . . . . . . . 53, 56

Ringtone deactivated for unknown

call . . . . . . . . . . . . . . . . . . . . . . .54

Room monitor . . . . . . . . . . . . . . . . . . 49

Screensaver . . . . . . . . . . . . . . . . . . . .52

Search directory. . . . . . . . . . . . . . . . . 32

Sending

directory entry to handset. . . . . . . . 33

Sensitivity (room monitor) . . . . . . . . . 50

Service (Customer Care). . . . . . . . . . . 69

Setting the date . . . . . . . . . . . . . . 15, 28

Setting the time. . . . . . . . . . . . . . 15, 28

Setting up

handset . . . . . . . . . . . . . . . . . . . . . 12

Side keys . . . . . . . . . . . . . . . . . . . . . . . 2

Signal tone, see Advisory tones

Snooze mode. . . . . . . . . . . . . . . . . . . 46

Sound, see Ringtone

Speaker

key. . . . . . . . . . . . . . . . . . . . . . . . . . 2

Speaker mode . . . . . . . . . . . . . . . . . . 30

Special functions . . . . . . . . . . . . . . . . 58

Specifications . . . . . . . . . . . . . . . . . . 63

Standard mode . . . . . . . . . . . . . . 26, 61

Star key . . . . . . . . . . . . . . . . . . . . . . . .2

System settings . . . . . . . . . . . . . . . . . 57

Talk key . . . . . . . . . . . . . . . . . . . . . 2, 29

Telephone jack, pin connections . . . . . 63

Tone dialing. . . . . . . . . . . . . . . . . . . . 58

Troubleshooting. . . . . . . . . . . . . . . . .61

Update . . . . . . . . . . . . . . . . . . . . . . .65

USB connection . . . . . . . . . . . . . . . . . 18

Viewing the network mailbox

message . . . . . . . . . . . . . . . . . . .42

Volume

earpiece . . . . . . . . . . . . . . . . . . . . .53

handset speaker volume . . . . . . . . . 53

loudspeaker . . . . . . . . . . . . . . . . . .53

ringtone. . . . . . . . . . . . . . . . . . 53, 56

Warning tone, see Advisory tones

Writing and editing text. . . . . . . . . . . 64

Gigaset Communications S79H UPCS Phone User Manual Master BA SL565

Gigaset Communications GmbH UPCS Phone Master BA SL565

User Manual

Navigation menu

Namespaces

Views

Navigation
