Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / Cover_front.fm /
Congratulations
By purchasing a Gigaset, you have chosen a brand that is fully committed
to sustainability. This product’s packaging is eco-friendly!
To learn more, visit www.gigaset.com.
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / Cover_front.fm /
1

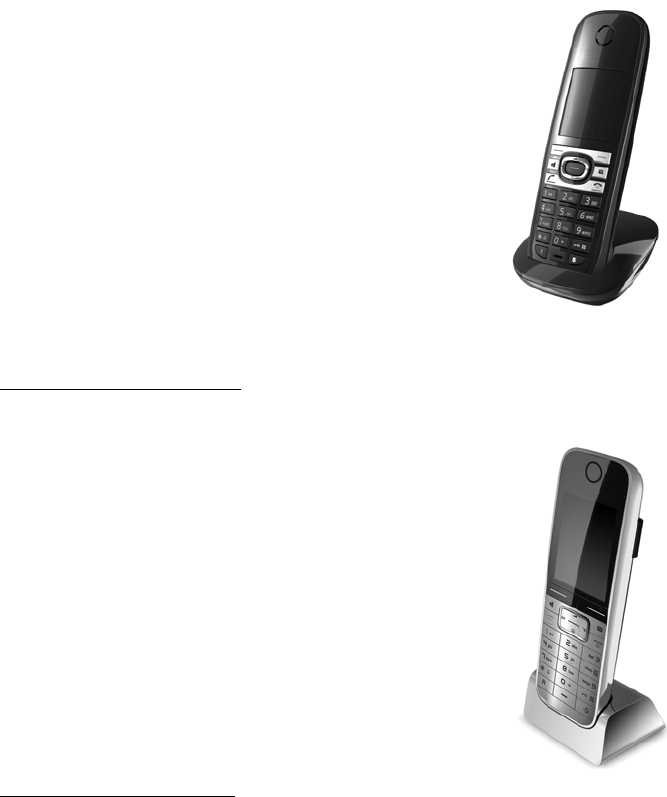

Gigaset A510/A510A – your high-quality accessory
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / introduction.fm / 19.10.2011
Version 4, 16.09.2005
Gigaset A510/A510A – your high-quality accessory
Congratulations on your purchase of this latest generation Gigaset.
Your Gigaset can do a lot more than just make calls:
For more information about your phone, visit www.gigaset.com/gigasetA510.
After purchasing your Gigaset phone, please register it at www.gigaset.com/service –
this will ensure that any questions you may have or warranty services you request are dealt
with even faster!
Have fun using your new phone!
Directory for 150 entries
Save phone numbers and names to the directory (¢page 30). You can designate important
entries as VIPs (Very Important Persons). VIP calls are then recognised by their ringtone and
their background colour (¢page 31).
If you don't (always) want it to ring
Use time control for calls (¢page 45) or ensure that all calls from a withheld number are not
signalled (¢page 46).
Other practical information
Transfer the directory from an existing Gigaset handset (¢page 31), use the shortcut func-
tion (¢page 31) and adjust the background colour and contrast of the display to your
requirements (¢page 44).
Environment
Gigaset Green Home – be environmentally aware when using your phone. For details of our
ECO DECT products, visit www.gigaset.com/service.
2
Overview
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / overview.fm / 19.10.2011
Version 4, 16.09.2005
Overview 1Signal strength (¢page 18)

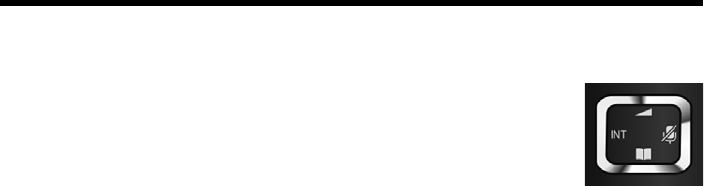

2Control key (¢page 20)
Mute microphone (¢page 29)
3Talk/Handsfree key
Flashing: incoming call;
Lights up: handsfree mode activated;
accept call; open redial list (press briefly);
start dialling (press and hold);
During a call: switch between earpiece and
handsfree mode (¢page 29)
4Key 1
Open answering machine (A510A only)/
network mailbox (press and hold)
5Star key
Activate/deactivate ringtones
(press and hold);
With an open connection: switch from pulse
dialling to tone dialling (press briefly)
6Message key (¢page 32)
Access to call and message lists;
Flashing: new message or new call
7Microphone
8Flash key
- Consultation call (flash)
- Insert a dialling pause (press and hold)
9Hash key
Keypad lock on/off (press and hold in
idle status);
toggles between upper/lower case and digits
10 End call key, On/Off key
End call; cancel function; go back one menu
level (press briefly); back to idle status
(press and hold); activate/deactivate handset
(press and hold in idle status)
11 Display keys (¢page 4)
12 Display in idle status
13 Charge status of the batteries (¢page 18)
14 Answering machine icon (A510A only)
Answering machine switched on;
Flashing: answering machine is recording
a message or is being operated by another
internal party
13
11
9
10
8
2
7
3
1
4
5
6
12
ÐÃ U
INT 1
04/23/
10:53a
Redial Menu
Please note
To change the display language, proceed as
described on page 15/page 44.
14
3
Overview
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / overview.fm / 19.10.2011
Version 4, 16.09.2005
Display icons
The following icons are displayed depending on the settings and the operating status of your
telephone:
—
1234567890
00:00:53
Menu
ÐØóÃ U
INT 1
04/23/
10:53a
Redial UMenu
à ™
03 01
INT 1
ë12:00
10:53a
Batteries are charged (¢page 18)
Charge status of the batteries (¢page 18)
Name of the handset (¢page 44)
Current day/current time (¢page 16)
Alarm clock switched on and wake-up time set (¢page 41)
Number of new messages:
uÃon the answering machine (A510A only)/network
mailbox (¢page 32)
u™in the missed calls list (¢page 32)
Display keys (¢page 4)
Signal strength ¨ (¢page 18)
Keypad locked (¢page 22)
Ringtone switched off (¢page 46)
Answering machine activated (A510A only)
Connection established
Number (or name) of caller (¢page 27)
Call duration
Display key (¢page 4)
uSet call volume (¢page 44)
uAccess service information
Display during external call:
4
Display keys
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / overview.fm / 19.10.2011
Version 4, 16.09.2005
Other display icons:
Display keys
The functions of the display keys change
depending on the particular operating situ-
ation. Examples:
Important display keys:
Open redial list.
Open a menu for further func-
tions.
Confirm selection.
Delete key: Delete character by
character from right to left.
Go back one menu level or can-
cel operation.
Main menu icons
Information on using the menus ¢page 21
Menu overview ¢page 25
ÛÀ
μ
Ð
ØÜÚØìÚ
z — ˜
ØþÚ
ØåÚ
Information Query
Please wait... Action failed
Action complete
Establishing a connection
External call (¢page 27) Alarm call (¢page 41)
Answering machine
is recording (¢page 35)
Connection established
Connection cannot be estab-
lished or connection interrupted
Internal call (¢page 42)
Redial Menu
1Current display key function
2Display keys
1
2
1
2
ìAlarm Clock
ÌVoice Mail
ÏSettings
ì
Alarm Clock
Back VOK
5
Base overview
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / overview.fm / 19.10.2011
Version 4, 16.09.2005

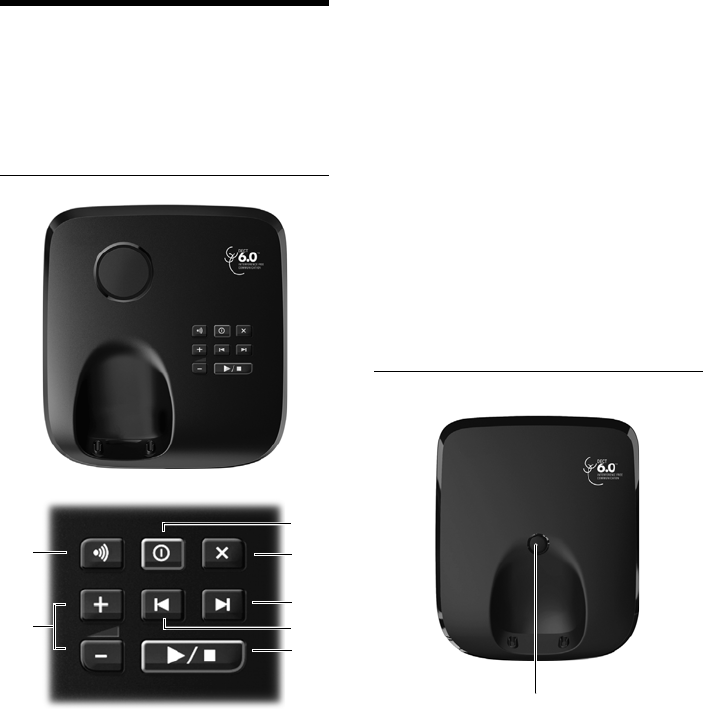

Base overview
You can use the keys on the base to operate
the integrated answering machine
(Gigaset A510A only), search for handsets
("paging" ¢page 42) and register handsets
to the base (¢page 42).
Gigaset A510A base
1Registration/paging key
Search for handsets (press briefly, paging
¢page 42).
Register handsets (press and hold ¢page 42).
2On/Off key
Activating/deactivating the answering ma-
chine.
Lights up: answering machine is activated.
Flashes: message is being played back
or recorded.
3Volume keys (÷ = quieter; ø = louder)
During message playback: adjust the speaking
volume.
While phone is ringing: adjust ringer volume.
4Play/stop key
Play back new message from answering
machine (press briefly), play back all messages
(press and hold) or cancel playback.
Flashes: at least one new message is present.
Flashes very quickly: memory is full.
During message playback:
5 Go to the next message.
6 Skip to the start of the current message (press
once) or go to the previous message (press
twice).
7 Delete current message.
Please note:
If the answering machine is being operated
from a handset or if it is recording a message
(On/Off key flashes), it cannot be operated
from the base at the same time.
Gigaset A510 base
Registration/paging key
– Press briefly: search for handsets
("paging") ¢page 42.
– Press and hold: register handsets and
DECT devices ¢page 42.
5
2
4
3
1
6
7
6
Contents
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / A510AIVZ.fm / 25.08.2011
Version 4, 16.09.2005
Contents
Gigaset A510/A510A – your high-quality accessory . . . . . . . . . . . . . . . . . . 1
Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Display icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Display keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Main menu icons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Base overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
First steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Checking the package contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Setting up the base and charging cradle (if included) . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting the base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting the charging cradle (if included) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Setting up the handset for use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Setting the date/time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
What would you like to do next? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Using the phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Control key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Keys on the keypad . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Correcting incorrect entries . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Menu guidance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Activating/deactivating the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Activating/deactivating the keypad lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Understanding the operating steps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Menu tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
Making calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Making an external call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Ending a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Accepting a call . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Caller ID (CID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Notes on phone number display (Caller ID) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
Handsfree operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Switching to mute . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
Using the directory and lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Redial list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Function of the message key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Answering machine list (Gigaset A510A only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Calls list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Setting up area codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
7
Contents
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / A510AIVZ.fm / 25.08.2011
Version 4, 16.09.2005
Operating the Gigaset A510A base answering machine . . . . . . . . . . . . . 35
Operation via the handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
Activating/deactivating call screening . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 37
Setting the recording parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Changing the language for the voice prompt and pre-recorded
announcement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Resetting fast access for the answering machine using key 1 . . . . . . . . . . . . . . . . . . 38
Operating when on the move (remote operation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Using the network mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Using fast access for the network mailbox . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
Viewing the network mailbox message . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40
ECO DECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Using the handset as an alarm clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Using multiple handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Registering handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
De-registering handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Locating a handset (paging) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Making internal calls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Listening in to an external call (conference) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
Changing the name of a handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Handset settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Changing the display language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Setting the display/screensaver . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Activating/deactivating auto answer . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Changing the handsfree/earpiece volume . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Changing ringtones . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
Restoring the handset default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Base settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Changing the ringtones for the Gigaset A510A base . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Activating/deactivating music on hold . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Protecting against unauthorised access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Resetting the base to the default settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
Connecting the base to the PABX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Dialling mode and Flash time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Setting pauses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Switching temporarily to tone dialling (DTMF) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
Industry Canada Certification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
FCC / ACTA Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49
Safety precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
Service (Customer Care) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
End-user limited warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Questions and answers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
8
Contents
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / A510AIVZ.fm / 25.08.2011
Version 4, 16.09.2005
Environment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Appendix . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Caring for your phone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Contact with liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
Writing and editing text . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60

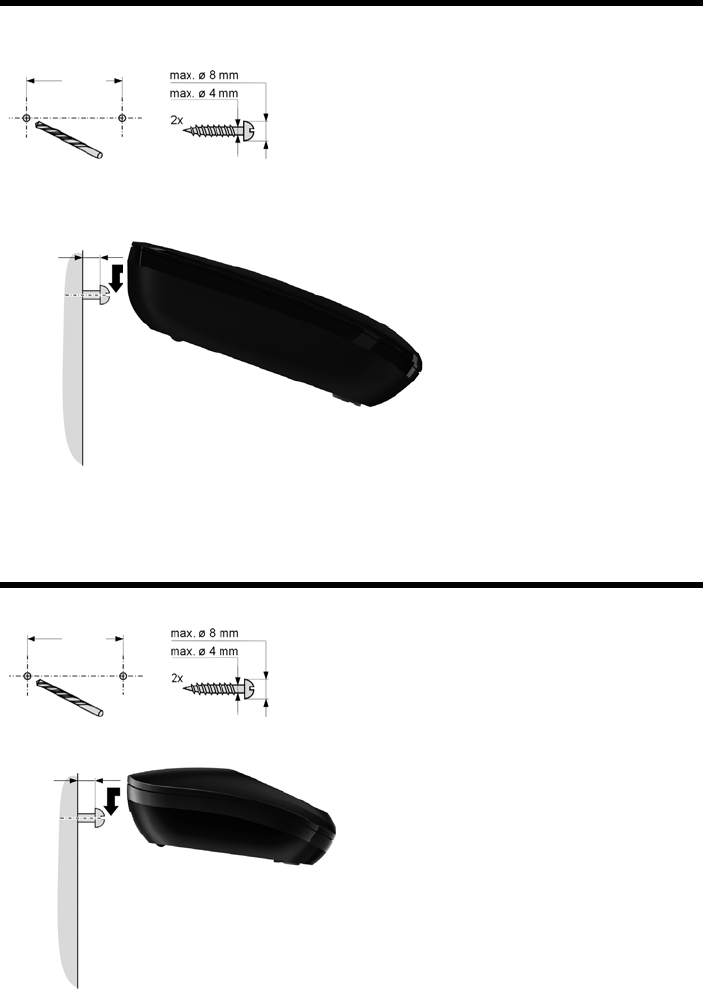

Mounting the base on the wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Mounting the charger on the wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 63
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64
9
Safety precautions
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / security.fm / 19.10.2011
Version 4, 16.09.2005
Safety precautions
Warning
Read the safety precautions and the user manual before use.
Explain their content and the potential hazards associated with using the telephone to your
children.
Use only the power adapter supplied, as indicated on the underside of the base.
Use only rechargeable batteries that correspond to the specification provided on
page 57, as this could otherwise result in significant health risks and personal injury.
Do not charge the handset in charging unit or base station while the headset is
connected.
Using your telephone may affect nearby medical equipment. Be aware of the
technical conditions in your particular environment, e.g., doctor's surgery.
If you use a medical device (e.g., a pacemaker), please contact the device manufac-
turer. They will be able to advise you regarding the susceptibility of the device to
external sources of high frequency energy. Please refer to the "Appendix" chapter for
the specifications of this Gigaset product.
Do not hold the rear of the handset to your ear when it is ringing or when speaker
mode is activated. Otherwise you risk serious and permanent damage to your
hearing.
Your Gigaset is compatible with the majority of digital hearing aids on the market.
However, perfect function with all hearing aids cannot be guaranteed.
The handset may cause interference in analogue hearing aids. If you require assist-
ance, please contact the hearing aid supplier.
Do not install the base or charger in bathrooms or shower rooms. The base and
charger are not splashproof (¢page 57).
Do not use your phone in environments with a potential explosion hazard (e.g., paint
shops).
If you give your phone to a third party, make sure you also give them the user
manual.
Remove faulty bases from use or have them repaired by our Service team, as these
could interfere with other wireless services.
Please note
uNot all of the functions described in this user guide are available in all countries.
uThe device cannot be used in the event of a power failure. It is also not possible to trans-
mit emergency calls.
$
ƒ
10
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
First steps
Checking the package contents
1One Gigaset A510/A510A base
2One power adapter for the base
3One Gigaset handset
4Two batteries
5One battery cover
6One phone cord
7One user guide
If you have purchased a
model with multiple hand-
sets, the package should
contain two batteries, a bat-
tery cover and a charging
cradle 8 with power
adapter 9 for each addi-
tional handset.
3
1
45
6
2
7
Or
89
11
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Setting up the base and charging cradle (if included)
The base and charging cradle are designed for use in dry rooms in a temperature
range of +5°C to +45°C.
¤Set up the base at a central point in the building on a level, non-slip surface or
mount the base or charger on the wall ¢page 63.
The phone's feet do not usually leave any marks on surfaces. However, due to the
multitude of different varnishes and polishes used on today's furnishings, the
occurrence of marks on the surfaces cannot be completely ruled out.
Please note:
uNever expose the telephone to the effects of heat sources, direct sunlight or
other electrical devices.
uProtect your Gigaset from moisture, dust, corrosive liquids and fumes.
Connecting the base
¤First connect the telephone jack 1
and insert the cables into the cable
ducts.
¤Then connect the power adapter 2.
Please note:
uThe power adapter must always be
connected, as the phone will not
operate without a mains connection.
uUse only the power adapter and
phone cord supplied. Pin connec-
tions on telephone cables can vary
(pin connections ¢page 58).
uThe answering machine is ready for
use approx. 15 seconds after the
base has been connected or reset.
Please note
Pay attention to the range of the base.
This is up to 300 m in unobstructed outdoor areas and up to 50 m inside build-
ings. The range is reduced when Eco Mode is activated (¢page 41).
21
12
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005

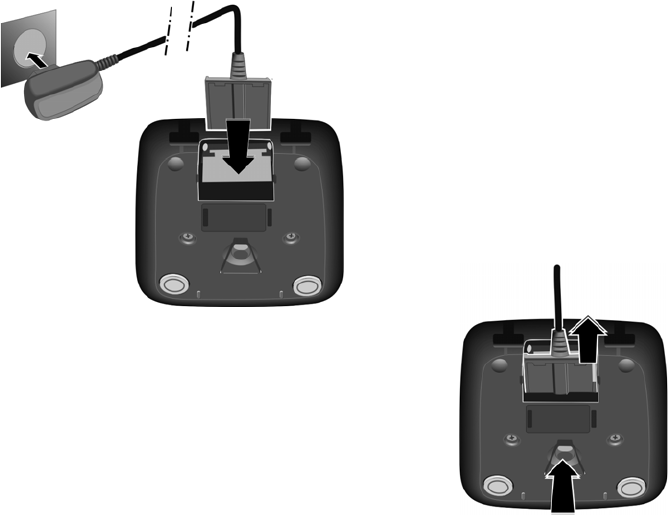

Connecting the charging cradle (if included)
¤Plug the power adapter into the
plug socket 2.
¤Connect the flat plug from the
power adapter 1.
To disconnect the plug from the charger,
press the release button 3 and disconnect
the plug 4.
1
2
3
4
13
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Setting up the handset for use
The display is protected by a plastic film.
Please remove the protective film!
Inserting the battery and closing the battery cover
Warning
Use only rechargeable batteries (¢page 57) recommended by Gigaset Com-
munications GmbH, as this could otherwise result in significant health risks and
personal injury. For example, the outer casing of the batteries could be
destroyed or the batteries could explode. The phone could also malfunction or
be damaged as a result of using batteries that are not of the recommended
type.
¤Insert the batteries with
the polarity in the cor-
rect direction.
The polarity is indicated
in the battery compart-
ment.
¤First insert the battery
cover at the top a.
¤Then press the cover b
until it clicks into place.
To open the battery cover, for
instance to replace the batteries,
insert a coin into the cavity on the
casing, then pull the battery cover
in an upward direction.
a
b
14
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Initial charging and discharging of the batteries
The correct charge status can only be displayed if the batteries are first fully
charged and discharged.
¤Charge the handset in the base for 6 hours.
¤After charging, remove the handset from the base and only replace it when the
batteries are fully discharged.
If you have any questions about using your phone, please read the tips
on troubleshooting (¢page 55) or contact our Customer Care team
(¢page 52).
Please note
The handset must only be placed in the designated Gigaset A510/A510A base
or charger.
6h
Please note
uThe handset is pre-registered with the base. If you have purchased a model
with multiple handsets, all handsets will already be registered with the
base. You do not need to register the handset again.
However, if a handset is not registered with the base (Register handset or
Place handset in base flashes on the display), please register the handset
manually ¢page 42.
uAfter the first battery charge and discharge, you may place your handset in
the charger after every call.
uAlways repeat the charging and discharging procedure if you remove the
batteries from the handset and reinsert them.
uThe batteries may warm up during charging. This is not dangerous.
uAfter a while, the charge capacity of the batteries will decrease for technical
reasons.
15
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Changing the display language
Change the display language if you do not understand the language currently set.
¤Press and hold the end call key a to return to idle status.
Francais
Back UOK
´
L4
English
³
English
³
x
Francais
³
¤Press right on the control key.
¤Press the keys L and4 slowly one
after the other.
The display for setting languages appears
and the current language (e.g., English) is
selected.
¤Press down on the control key s ...
... until the language you wish to use is
displayed e.g., French.
¤Press the key below §OK§ to select this
language.
The selection is marked with ³.
16
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Setting the date/time
Set the date and time so that the correct date and time can be assigned to incoming
calls, and so that the alarm clock can be used.
Please note
Depending on your network provider, the date and time may be displayed auto-
matically.
Enter Date:
[04/04/2011]
Redial Time
Back OK
Enter time:
[07:15 am]
Back OK
¤Press the key below §Time§ on the display
screen to open the input field.
(If you have already set the date/time,
open the input field via the menu
¢page 26.)
The Date/Time submenu is shown on the
display.
¤The active input position flashes.
Enter the month,day and year as an
8-digit number via the keypad,
e.g., Q4Q42Q11
for 4 April 2011.
To change the input position,
e.g., to correct an entry, press
right or left on the control key.
¤Enter the hours and minutes in 4-digit
format via the keypad, e.g., QM15
for 07:15 am.
Change the input position with the
control key if necessary.
¤Confirm with §OK§.
¤Press the key below §OK§ on the display
screen to save your entry.
17
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
μ
Saved
The display shows Saved. You will hear a
confirmation tone and the handset auto-
matically reverts to idle status, or returns
to the "Settings" menu if the setting was
made via the menu.
Please note
If your phone receives the date and time during calling line display (e.g., via your
network provider, a router or PABXs), you can specify whether this data should
be copied to your phone:
¤Press the following keys in sequence:
v ¤P#Q5#MI
You will see the following display and the current setting will flash:
¤Press one of the following keys to determine when the date should be
copied across:
QNever
Or 1Once, in case the date/time is not set on your phone
Or 2Always
Your selection is displayed (e.g., 2 for Always):
¤Press the display key §OK§.
973 SET: [0]
973 SET: [2]
18
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Display in idle status
Once the phone is registered and the time set, the screen display is as follows
(example).
Screen display
uReception between the base and the handset:
– Good to poor: Ш§¦
–No reception: ¥
uActivating the answering machine:
à Your answering machine is set with
a prerecorded announcement.
uCharge status of the batteries:
–Ucharged over 66%
–Vcharged between 34% and 66%
–echarged between 11% and 33%
–=charged to below 11%
–=flashes: battery almost empty (less than 10 minutes talktime)
– = e VVlit up: batteries charging
uINT 1
Internal name of the handset (¢page 44)
Your phone is now ready for use.
ÐÃ U
INT 1
04/23/ 10:53a
Redial Menu
19
First steps
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
What would you like to do next?
Now that you have successfully set up your Gigaset, you can immediately start call-
ing – or you can adapt it to your personal requirements. Use the following guide to
quickly locate the most important functions.
Information on ... ... is located here.
Using the phone page 20
Setting ringtones page 45
Recording your own announcement for the
answering machine
page 35
Registering existing Gigaset handsets to a base page 42
Transferring directory entries from existing Gigaset
handsets to new handset(s)
page 31
Setting Eco Mode page 41
Operating the telephone on a PABX page 48
Setting the earpiece volume page 44
g
g
g
g
g
g
g
g
20
Using the phone
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Using the phone
Control key
In the description below, the side of the control key (up, down,
right, left) which you have to press in the different operating situ-
ations is marked in black e.g., v for "press the right edge of the
control key".
The control key has a number of different functions:
When the handset is in idle status
v Open the main menu.
s Open the directory.
u Open the list of handsets.
tCall up the menu for setting the handset's call volume (¢page 44).
In menus and lists
t/s Scroll up/down line by line.
In input fields
You can use the control key to move the cursor up t, down s, right v or left u.
During an external call
vMute the microphone.
s Open the directory.
u Initiate an internal consultation call.
tAdjust the loudspeaker volume for earpiece and handsfree mode.
Keys on the keypad
c/Q/P etc.
Press the matching key on the handset.
~Enter digits or letters.
Correcting incorrect entries
You can correct incorrect characters in the input fields by navigating to the incor-
rect entry using the control key. You can then:
uUse the display key §Delete§ to delete the character to the left of the cursor
uInsert characters at the cursor position
uOverwrite the highlighted (flashing) character e.g., when entering time and
date.
21
Using the phone
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Menu guidance
Your telephone's functions are accessed via a menu consisting of several levels
(menu overview ¢page 25).
Main menu (first menu level)
¤With the handset in idle status, press the display key §Menu§ or right on the control
key v to open the main menu.
The functions in the main menu are displayed in the
form of a list with names and icons (example on the
right).
Selecting a function
¤You can scroll between functions using the control
key q. The selectable function is shown in the dis-
play.
¤Press the display key §OK§ or right on the control
key v to select the displayed function. This opens
the corresponding submenu and the first entry is
displayed.
If you press the display key §Back§ or briefly press the end call key a, the display
returns to idle status.
Submenus
The functions in the submenu are displayed with the corresponding names.
Selecting a function
¤You can scroll between functions using the control key q. The relevant function
is shown in the display.
¤Press the display key §OK§ to select the displayed function. This opens the corre-
sponding submenu and the first entry is displayed.
If you press the display key §Back§ or briefly press the end call key a, you return to
the previous menu level or cancel the operation.
Any settings you have not confirmed by pressing §OK§ will be discarded.
Reverting to idle status
From any point in the menu:
¤Press and hold the end call key a or
¤Do not press any key: after 2 minutes, the display will automatically revert to
idle status.
An example of the display in idle status is shown on page 18.
Ï
Settings
Back WOK
22
Using the phone
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Activating/deactivating the handset
aIn idle status, press and hold the end call key (confirmation tone).
Activating/deactivating the keypad lock
The keypad lock prevents any unwanted use of the phone.
#In idle status, press and hold the hash key (confirmation tone).
The keypad lock is activated or deactivated. When it is switched on,
the Ø icon appears in the display.
If the keypad lock is activated, a corresponding message is displayed when you
press a key.
The keypad lock deactivates automatically when you receive a call. It is reactivated
when the call is finished.
Please note
When the keypad lock is active, you cannot call emergency numbers.
23
Using the phone
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
Understanding the operating steps
The operating steps are shown in abbreviated form, for example:
§Menu§ ¤Settings ¤Eco Mode (³=on)
¤This means you should proceed as follows:
Ï
Settings
Back WOK
Redial Menu
¤Press the key below §Menu§ on the dis-
play screen to open the main menu.
¤Press down on the control key s ...
¤Press the key below §OK§ on the display
screen to confirm your selection.
... until the Settings menu item
appears.
¤Press down on the control key s ...
24
Using the phone
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / starting.fm / 19.10.2011
Version 4, 16.09.2005
¤Press the key below §Back§ on the display screen to jump back to the previous
menu level.
Or
Press and hold the end call key a to return to idle status.
Eco Mode
Back WOK
³
... until the Eco Mode menu item
appears.
¤Press the key below §OK§ on the display
screen to switch the function on or off
(³=on).
25
Menu tree
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / menuetree.fm / 19.10.2011
Version 4, 16.09.2005
Menu tree
The menu entries are partially subdivided. The page numbers refer to the rel-
evant description in the user guide.
To open the main menu: press the display key §Menu§ when the phone is in idle mode.
ìAlarm Clock
Activation ¢page 41
Wake up time ¢page 41
ÌVoice Mail
Play Messages Network Mailbox ** ¢page 40
Answering Machine ** ¢page 35
Answering Machine * ¢page 35
Call Screening * Handset ¢page 37
Base
Announcements * Record Announcement ¢page 35
Play Announcement ¢page 35
Delete Announcement ¢page 36
Message Length * Unlimited ¢page 38
1 Minute
2 Minutes
3 Minutes
Ring Delay * Immediately ¢page 38
10 sec
18 sec
30 sec
Auto
Network Mailbox ¢page 40
Set Key 1 * Network Mailbox ¢page 40
Answering Machine ¢page 40
*Base with answering machine only
** Base with answering machine and number of network mailbox is already entered
26
Menu tree
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / menuetree.fm / 19.10.2011
Version 4, 16.09.2005
ÏSettings
Date/Time ¢page 16
Audio Settings Call Volume ¢page 44
Ringer Volume ¢page 45
Advisory Tones ¢page 46
Battery Low ¢page 46
Ringtones (Handset) ¢page 45
Ringtones (Base) ¢page 47
Display Screensaver ¢page 44
Color Schemes ¢page 44
Contrast ¢page 44
Language ¢page 44
Registration Register Handset ¢page 42
De-register Handset ¢page 42
Telephony Auto Answer ¢page 44
Listening in ¢page 43
Calls List Type ¢page 34
Local Area Code ¢page 34
Extra Codes ¢page 34
Music on Hold ¢page 47
System Reset Handset ¢page 46
Base Reset ¢page 47
System PIN ¢page 47
Eco Mode ¢page 41
27
Making calls
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / telefony.fm / 19.10.2011
Version 4, 16.09.2005
Making calls
Making an external call
External calls are calls using the public
telephone network.
~c Enter the number and press the
talk key.
Or:
c~ Press and hold the talk key c
and then enter the number.
You can cancel the dialling process with the
end call key a.
You are shown the duration of the call while
the call is in progress.
Ending a call
aPress the end call key.
Accepting a call
The handset indicates an incoming call in
three ways: by ringing, by a display on the
screen and by the flashing talk key c.
To accept the call, press the talk key c.
Gigaset A510A: Instead of accepting the call,
you can also redirect it to the answering
machine:
§Menu§ ¤Divert to AM ¤§OK§
If the handset is in the charger and the Auto
Answer function is activated (¢page 44),
the handset automatically answers calls
when you remove it from the base/charger.
If the ringer is intrusive, you can deactivate
it:
§Menu§ ¤Silent ¤§OK§
You can accept the call as long as it is dis-
played on the screen.
Caller ID (CID)
When you receive a call, the caller's number
and/or name is displayed on the screen if the
following prerequisites are met:
uYour network provider supports Caller ID.
– CID number only: The caller's number
is displayed.
– CID name and number: The caller's
name is displayed.
uYou have requested Caller ID from your
network provider.
uThe caller has requested Caller ID from
the network provider.
Call display with Caller ID
If the caller's number is saved in your direc-
tory, the caller's name will be displayed.
1Ringer icon
2Number or name of caller
The following is displayed instead of the
number:
uExternal Call, if no number is transmitted.
uWithheld, if the caller has withheld
Caller ID.
uUnavailable, if the caller has not
arranged Caller ID.
Please note
Dialling with the directory (¢page 30),
calls list (¢page 33) and redial list
(¢page 32) saves you from repeatedly
keying in phone numbers.
ØÜÚ
1234567890
Menu
1
2
28
Making calls
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / telefony.fm / 19.10.2011
Version 4, 16.09.2005
Display with CID name and
number
If you have CID name and number, then the
name (town/city) that is registered with your
network provider for the caller's number will
also be displayed. If the number of the caller
is stored in your directory, the CID name and
number display is replaced by the corre-
sponding directory entry.
1Caller's number
2 Name and location
The display shows:
uExternal Call, if no number is transmitted.
uWithheld, if the caller has withheld
Caller ID.
uUnavailable, if the caller has not
arranged Caller ID.
Notes on phone number
display (Caller ID)
By default, the number of the caller is shown
in the display of your Gigaset telephone. You
do not have to make any other settings on
your Gigaset telephone.
However, if the caller's number is not
displayed, this can be due to the
following:
uYou have not ordered Caller ID from your
network provider
uYour telephone is connected via a PABX
or a router with an integrated PABX (gate-
way) that does not transmit all informa-
tion.
Is your telephone connected via a
PABX/gateway?
You can establish this by checking for an
additional device connected between your
telephone and home connection, e.g., a
PABX, gateway etc. In most cases, simply
resetting this device will remedy the situa-
tion:
¤Briefly disconnect the PABX power plug.
Re-insert the plug and wait for the device
to restart.
If the caller number is still not
displayed:
¤Check the phone number display set-
tings of your PABX and activate this func-
tion if necessary. In the user manual for
the device, search for the term "CID" (or
an alternative term such as "calling line
identification", "phone number transmis-
sion", "caller ID" etc.). If necessary, contact
the device manufacturer.
If this does not resolve the problem, it is pos-
sible that your network provider does not
provide the Caller ID service for this number.
Please note
The ringer can be switched off for
unknown calls (calls with Caller ID with-
held) (¢page 46).
1234567890
Anna Lechner,
London
Menu
1
2
29
Making calls
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / telefony.fm / 19.10.2011
Version 4, 16.09.2005
Have you requested the phone
number display service from your
network provider?
¤Check whether your provider supports
phone number display and that the func-
tion has been activated for you. If neces-
sary, contact your provider.
Additional information on this subject can
be found on the Gigaset website at:
www.gigaset.com/service
Handsfree operation
In handsfree mode, you activate the loud-
speaker so that you can hear the caller with-
out having to hold the handset to your ear.
You therefore have both hands free and
other people can listen in on the conversa-
tion.
Activating/deactivating handsfree
mode
During a call and when listening to the
answering machine (Gigaset A510A only),
activate or deactivate handsfree mode.
dPress the handsfree key.
Each key press switches
between earpiece and hands-
free mode. If handsfree mode is
activated, the key is lit up.
If you wish to place the handset in the
charger during a call:
¤Press and hold handsfree key d while
placing the handset in the base/charger
and for a further 2 seconds.
For instructions on adjusting the handsfree
volume, see page 44.
Switching to mute
You can deactivate your handset's micro-
phone during a call.
vPress right on the control key to
mute the handset. The display
shows Microphone is turned
off.
Press the key again to unmute
the microphone.
Please note
Inform your caller before you use the
handsfree function so that the caller
knows a third party may be listening.
30
Using the directory and lists
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / direct_charges.fm / 19.10.2011
Version 4, 16.09.2005
Using the directory and
lists
The options are:
uDirectory
uRedial list
uCalls lists
uAnswering machine list
(Gigaset A510A only)
You can create a personalised directory for
your own individual handset. You can also
send lists/entries to other handsets
(¢page 31).
Directory
You can save a total of 150 entries in the
directory.
In the directory, you can save
uNumbers and corresponding names
uVIP ringtones and colours.
You open the directory in idle status using
the s key.
Length of the entries
Number: max. 32 digits
Name: max. 16 characters
Saving the first number in the
directory
s ¤Dir. empty New entry?
~ Enter the number and press §OK§.
~ Enter the name and press §OK§.
Storing a number in the directory
s ¤§Menu§ ¤New Entry
~ Enter the number and press §OK§.
~ Enter the name and press §OK§.
Order of directory entries
Directory entries are generally sorted alpha-
betically by surname. Spaces and digits take
first priority.
The sort order is as follows:
1. Space
2. Digits (0–9)
3. Letters (alphabetical)
4. Other characters
To work round the alphabetical order of
entries, insert a space or a digit before the
first letter of the name. These entries will
then move to the beginning of the directory.
Selecting directory entries
s Open the directory.
You have the following options:
uUse s to scroll through the entries until
the required name is selected.
uEnter the first character of the name,
if necessary scroll to the entry with the
skey.
Dialling with the directory
s ¤s(Select entry)
cPress the talk key.
Please note
To quickly access a number from the
directory (shortcut), you can assign the
number to a key (¢ Using speed dial
keys, page 31).
31
Using the directory and lists
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / direct_charges.fm / 19.10.2011
Version 4, 16.09.2005
Managing directory entries
s ¤s(Select entry)
§Menu§ Press the display key.
The following functions can be selected
with q:
VIP Caller Melody
Mark a directory entry as a VIP (Very
Important Person) by assigning a specific
ringtone to it. The entry is flagged with
the Æ icon in the directory. You recognise
VIP calls by the ringtone.
VIP Caller Color
Mark a directory entry as a VIP (Very
Important Person) by assigning a specific
background colour to it. The entry is dis-
played with this background colour in
the address book and marked with the
Æicon. VIP calls are then recognised by
their background colour.
Edit Entry
Edit the number if required and press §OK§.
Edit the name if required and press §OK§.
Use Number
Edit or add to a saved number and then
dial it with c or save it as a new entry;
to do so, display the number and press:
§Menu§ ¤Copy to directory ¤§OK§
Delete Entry
Delete selected entry.
Send Entry
Send a single entry to a handset
(¢Transferring the directory to another
handset, page 31).
Delete List
Delete all directory entries.
Send List
Send the entire directory to a handset
(¢ Transferring the directory to another
handset, page 31).
Shortcut
Assign the current entry as a shortcut to
a selected key (¢ Using speed dial keys,
page 31).
Using speed dial keys
You can assign directory entries to the keys
Q and 2– O:
s ¤q (select entry) ¤ §Menu§
¤Shortcut ¤~ (press the key you
want to assign the number to)
To dial, press and hold the required speed
dial key.
Transferring the directory to
another handset
You can transfer directory entries from other
handsets to your new handset – even entries
from old handsets.
Prerequisites:
uThe sending and receiving handsets must
both be registered to the same base.
uThe other handset and the base can send
and receive directory entries.
s ¤s(Select entry) ¤§Menu§ (Open menu)
¤Send Entry / Send List
sSelect the internal number of
the receiving handset and
press §OK§.
You can transfer several individual entries
one after the other by responding to the
Entry copied. Next entry? prompt with §OK§.
A message appears on the display to confirm
a successful transfer. You will hear the confir-
mation tone.
Please note:
uEntries with identical numbers are not
overwritten on the receiving handset.
uThe transfer is cancelled if the phone
rings or if the memory of the receiving
handset is full.
uVIP melodies and colours assigned to
entries are not transferred.
32
Using the directory and lists
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / direct_charges.fm / 19.10.2011
Version 4, 16.09.2005
Adding a displayed number to
the directory
You can copy numbers displayed in a list,
e.g., the calls list or redial list, to the directory.
If you have CID name and number, the first
16 characters of the transmitted name are
also copied across.
A number is displayed:
§Menu§ ¤Copy to directory
¤Complete the entry (¢ Storing a number
in the directory, page 30).
Gigaset A510A: Message playback is inter-
rupted during the number transfer from the
answering machine list.
Copying a number from the
directory
In some operating situations you can open
the directory to copy a number (e.g., during
an external call or in pre-dialling mode). Your
handset need not be in idle status.
sOpen the directory.
qSelect an entry and press §OK§.
Redial list
The redial list contains the ten numbers last
dialled with the handset (max. 32 numbers).
If one of the numbers is in the directory, the
corresponding name will be displayed.
Manual redial
cPress the talk key briefly
Or
§Redial§ Press the display key.
sSelect entry.
cPress the talk key. The number is
dialled.
Managing entries in the redial list
cPress the talk key briefly
Or
§Redial§ Press the display key.
sSelect entry.
§Menu§ Open menu.
The following functions can be selected
with q:
Use Number
(As in the directory, ¢page 31)
Copy to directory (¢ Storing a number in
the directory, page 30)
Delete Entry
Delete selected entry.
Delete List
Delete all entries in the redial list.
Function of the message key
Opening lists
Use the message key f to open the follow-
ing lists:
uNetwork mailbox or answering machine
list (Gigaset A510A only), if your network
provider supports this function and fast
access is set for the network mailbox
(¢page 40).
uCalls list
An advisory tone sounds as soon as a new
entry arrives in a list.
Depending on the type of the new entry, an
icon appears in the display while in idle sta-
tus:
Icon New message ...
à ... in the answering machine list
(Gigaset A510A only) or on the net-
work mailbox
™ ... in the missed calls list
33
Using the directory and lists
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / direct_charges.fm / 19.10.2011
Version 4, 16.09.2005
The number of new entries is displayed
under the corresponding icon.
After pressing the message key f, you can
see all lists containing messages and the
network mailbox list.
The list is displayed with the number of new
entries (1) and the number of old, read
entries (2) (example):
Select a list with q. To open, press §OK§.
Activating/deactivating flashing
message key
You can specify whether you want the mes-
sage key f to flash for new messages
(default setting). Proceed as follows:
¤Press the following keys in sequence:
v ¤P#Q5#M
You will see:
¤Press one of the following keys to select
the type of message:
Your selection is displayed (e.g., 5 for
missed calls), the current setting flashes:
¤Press Q or 1 to determine the setting
for new messages:
Your selection is displayed (e.g., 1):
¤Press the display key §OK§.
Answering machine list
(Gigaset A510A only)
You can use the answering machine list to
listen to the messages that are on the
answering machine (¢page 36).
Calls list
Prerequisite: Caller ID (CID) (¢page 27)
Depending on the type of list, the calls list
contains the last 25 numbers of
uAll calls
– Accepted calls
– Unanswered calls
– Calls recorded by the answering
machine (Gigaset A510A only)
uMissed calls
– Unanswered calls and
– Calls not recorded by the answering
machine (Gigaset A510A only)
In idle status, you can open the calls list by
pressing the message key f.
Please note
If calls are saved in the network mailbox,
you will receive a message if the list type
has been set accordingly (see your net-
work provider user guide).
5for missed calls
Or Mfor messages on the answer-
ing machine (Gigaset A510A
only)/network mailbox
à ™
03 01
Calls List:
02+03
Back WOK
2
1
97
QThe message key flashes (it
goes off when the key is
pressed)
Or 1The message key does not
flash
975 SET: [0]
975 SET: [1]
34
Using the directory and lists
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / direct_charges.fm / 19.10.2011
Version 4, 16.09.2005
Setting the calls list type
§Menu§ ¤Settings ¤Telephony
¤Calls List Type
Missed Calls / All Calls
Select and press §OK§ (³=on).
aPress and hold (idle status).
The calls list entries are retained when you
change the list type.
List entry
Example of list entries:
uStatus of entry
–New Call: New missed call.
–Old Call: Entry already read.
–Call recv.: Call was answered.
–Ans Mach (Gigaset A510A): the
answering machine accepted the call.
A message was left.
uEntry number
uNumber or name of caller
uCall date and time (if set, ¢page 16).
Press the talk key c to call the selected
caller back.
Use the §Menu§ display key to select the fol-
lowing options:
Delete Entry
Delete selected entry.
Copy to directory (¢ Storing a number in
the directory, page 30)
Delete List
Delete all entries in the list.
After exiting the calls lists, all viewed entries
are assigned the status "old".
Setting up area codes
Before you can return a call from the Calls list
(¢page 33), you must store the local area
code of the area in which your phone is
being used. If your phone is in a multiple
area code area, you must also store the extra
codes for that area.
Local Area Code
§Menu§ ¤Settings ¤Telephony
¤Local Area Code
~Enter the local area code.
§OK§ Press the Display key.
aPress and hold (idle status).
Extra Codes
§Menu§ ¤Settings ¤Telephony
¤Extra Codes
~Enter the extra code.
§OK§ Press the Display key.
aPress and hold (idle status).
Repeat the above steps until all the extra
codes have been entered for your area.
A maximum of five (5) extra codes can be
stored.
New Call 02
1234567890
06/28/ 08:34a
Back WMenu
35
Operating the Gigaset A510A base answering machine
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / answering_m.fm / 19.10.2011
Version 4, 16.09.2005
Operating the
Gigaset A510A base
answering machine
You can operate the answering machine via
the handset, the buttons on the base
(¢page 5) or by remote control (from
another phone/mobile phone). You can
record your own announcements using the
handset.
Operation via the handset
The handset loudspeaker activates auto-
matically if you receive an acoustic prompt
or message while operating. You can switch
it off with the handsfree key d.
Switching the answering machine
on/off
§Menu§ ¤Voice Mail ¤Answering Machine
(³=on)
If the message memory is full, the answering
machine cannot be activated. You will
receive an instruction to delete old mes-
sages.
When you switch the answering machine
on, the remaining memory time is
announced. If the time has not yet been set,
a corresponding announcement is made
(set time ¢page 16). The à icon appears in
the display.
The telephone is supplied with a pre-
recorded announcement. This pre-recorded
announcement is used if no personal
announcement is available.
Recording an announcement
§Menu§ ¤Voice Mail ¤Announcements
¤Record Announcement
¤Press OK, talk after tone
§OK§ Press the display key to start the
recording.
You hear the ready tone (short tone).
¤Now say your announcement (at least
3secs.).
Just as if making a call via the earpiece,
place the telephone against your ear and
speak into the microphone at a normal
volume.
§OK§ Press the display key to end the
recording.
Cancel the recording with a or §Back§.
Restart the recording with §OK§.
After recording, the announcement is
played back for you to check.
Please note:
uRecording ends automatically if the max-
imum recording time of 170 seconds is
exceeded or there is a break in speech for
more than 2 seconds.
uIf you cancel the recording, the pre-
recorded announcement is used.
Playing back an announcement
§Menu§ ¤Voice Mail ¤Announcements
¤Play Announcement
If you have not recorded a personal
announcement, the pre-recorded
announcement is played.
36
Operating the Gigaset A510A base answering machine
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / answering_m.fm / 19.10.2011
Version 4, 16.09.2005
Deleting an announcement
§Menu§ ¤Voice Mail ¤Announcements
¤Delete Announcement
§OK§ Press the display key to confirm
the prompt.
The pre-recorded announcement is used
again after a personal announcement is
deleted.
Playing back messages
The date and time of each message is logged
(provided this has been set, ¢page 16) and
displayed during the playback. If Caller ID is
activated, the caller's number or name is dis-
played. If the caller's number is saved in the
directory, their name is displayed.
New messages that have not yet been
played back are indicated on the display
with an icon and number:
The message key f on the handset flashes.
To listen to messages:
fPress the message key.
Answ. Mach.:
Select as required and press §OK§.
If you have new messages, playback will
start with the first new message, otherwise
with the first old message.
If the message has been saved with the date
and time, you will hear an appropriate
announcement before playback begins.
After the entry time and date have been
played back (after approx. 3 seconds), a new
message assumes the status "old".
Stopping and controlling playback
During message playback:
2 Pause playback. Press 2 again
to resume.
Or
§Menu§ Stop playback.
To resume, press
Continue ¤§OK§
t or1 Go to the start of the current
message.
Press twice to go back to the
previous message.
s or IGo to the next message.
Press twice to skip ahead
two messages.
If playback is interrupted for over a minute,
the answering machine returns to idle sta-
tus.
Copying a phone number from a
message to the directory
During playback or pause:
§Menu§ ¤Copy to Directory
¤Complete the entry ¢page 32.
Deleting messages
You can either delete all old messages
together or individually.
Deleting all old messages
During playback or pause:
§Menu§ ¤Delete all
§OK§ Press the display key to confirm
the prompt.
Deleting individual old messages
During playback:
§Delete§ Press the display key.
Please note
Deleting announcements can take some
time.
Ã
03
Please note
Message playback can also be started via
the menu:
§Menu§ ¤Voice Mail ¤Play Messages
¤Answering Machine
37
Operating the Gigaset A510A base answering machine
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / answering_m.fm / 19.10.2011
Version 4, 16.09.2005
Accepting a call from the
answering machine
You can pick up a call while the answering
machine is recording or being operated via
remote operation:
§Accept§ Press the display key.
Recording stops and you can speak to the
caller.
If 3 seconds of the call have already been
recorded when you pick it up, the call will be
displayed as a new message. The f key on
the handset flashes.
You can answer the call even if it is not sig-
nalled on the handset.
Diverting an external call to the
answering machine
You can divert an incoming external call to
the answering machine, even if it is deacti-
vated.
Prerequisite: the answering machine has
available memory.
An external call is signalled on the handset:
§Menu§ ¤Divert to AM ¤§OK§
The answering machine starts immediately
in answer & record mode and records the
call. The set time for ring delay (¢page 38)
is ignored.
Activating/deactivating two-way
record
You can record an external call with the
answering machine.
¤Inform the caller that the call is being
recorded.
During the conversation:
§Menu§ Open menu.
Two-way Recording
Select and press §OK§.
Two-way record is indicated on the display
by an advisory text and is added to the
answering machine list as a new message.
§End§ Press the display key to stop
two-way record.
The maximum recording time depends on
the memory available on the answering
machine. If the memory is full, you will hear
an end tone, the recording is aborted, and
the call recorded up to that point is listed in
the answering machine list as a new mes-
sage.
Activating/deactivating call
screening
While the caller is leaving a message on the
answering machine, you can listen in via the
loudspeaker on the base or handset.
Permanently activating/deactivating
call screening
§Menu§ ¤Voice Mail ¤Call Screening
¤Handset / Base (³=on)
Call screening can be simultaneously acti-
vated on the base and handset.
Deactivating call screening for the
current recording
You can deactivate the function for your
own handset during the recording.
aPress the end call key.
38
Operating the Gigaset A510A base answering machine
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / answering_m.fm / 19.10.2011
Version 4, 16.09.2005
Setting the recording
parameters
The answering machine has already been
preset at the factory. You can configure indi-
vidual settings via the handset.
Setting the message length
You can set the maximum message length:
1 Minute, 2 Minutes, 3 Minutes or
Unlimited.
§Menu§ ¤Voice Mail ¤Message Length
q Select message length and
press §OK§ (³= selected).
Setting up ring delay
You can set when you want the answering
machine to accept a call:
Immediately, 10 sec, 18 sec, 30 sec or Auto.
§Menu§ ¤Voice Mail ¤Ring Delay
q Select time and press §OK§
(³= selected).
Information about ring delay
In Auto mode, the following applies for ring
delay:
uIf there are no new messages, the answer-
ing machine answers a call after 18 sec-
onds.
uIf there are new messages, the answering
machine answers a call after 10 seconds.
When operating remotely (¢page 39), you
can then tell after approx. 15 seconds that
there are no new messages (otherwise the
answering machine would have already
accepted your call). There are no call charges
if you hang up now.
Changing the language
for the voice prompt
and pre-recorded
announcement
§Menu§ Open main menu.
P#Q5#21
Enter digits and press
Q§OK§ To set English.
1§OK§ To set French.
2§OK§ To set Spanish.
Resetting fast access for the
answering machine using
key 1
To access the answering machine, simply
press and hold the 1 key – you do not have
to select it via the menu.
The integrated answering machine has
already been preset at the factory. However,
if you have set the network mailbox for fast
access (¢page 40), you can change this set-
ting.
§Menu§ ¤Voice Mail ¤Set Key 1
Answering Machine
Select and press §OK§.
The setting for fast access applies to all regis-
tered handsets.
39
Operating the Gigaset A510A base answering machine
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / answering_m.fm / 19.10.2011
Version 4, 16.09.2005
Operating when on the move
(remote operation)
You can check and activate your answering
machine from any other telephone (hotel,
pay phone etc.).
Prerequisites:
uYou have set a system PIN other than
0000 (¢page 47).
uThe phone you are using for remote oper-
ation has tone dialling (DTMF) i.e., you
hear different tones when you press the
keys. Alternatively, you can use a code
transmitter (available from retailers).
Calling the answering machine and
playing messages
~ Dial your own number.
9~ When you hear your announce-
ment, press 9 and enter the
system PIN.
You are informed whether any new mes-
sages have been recorded. The messages are
now played back. You can now operate the
answering machine with the keypad.
You use the following keys:
A To return to the start of the cur-
rent message.
Press twice to go back to the
previous message.
B Stop playback. Press again to
resume.
3 Go to the next message.
0 Delete current message.
Activating the answering machine
¤Phone home and let the phone ring until
you hear: "Please enter PIN".
~ Enter system PIN.
Your answering machine is activated. It tells
you how much memory is left.
The messages are played.
The answering machine cannot be deacti-
vated remotely.
40
Using the network mailbox
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / T-NetBox_SAG.fm / 19.10.2011
Version 4, 16.09.2005
Using the network
mailbox
The network mailbox is your provider's voice
mail feature within the network. More infor-
mation is available from your provider.
You cannot use the network mailbox unless
you have requested it from your provider.
Using fast access for the
network mailbox
To access the answering machine, simply
press and hold the 1 key – you do not have
to select it via the menu.
Gigaset A510: The network mailbox is pre-
configured for fast access. You only need to
enter the number of the network mailbox.
§Menu§ ¤Voice Mail ¤Network Mailbox
(³=selected)
~Enter the network mailbox
number and press §OK§.
Gigaset A510A: The integrated answering
machine is preconfigured for fast access. You
can switch to the network mailbox.
§Menu§ ¤Voice Mail ¤Network Mailbox
~Enter the network mailbox
number and press §OK§.
¤Set Key 1 ¤Network Mailbox
(³= selected)
The setting for fast access applies to all
handsets.
Calling the network mailbox
1Press and hold. You are con-
nected straight to the network
mailbox.
Viewing the network mailbox
message
When a message is recorded, you receive a
call from the network mailbox. If you have
requested Caller ID, the network mailbox
number is displayed. If you accept the call,
new messages are played back. If you do not
accept the call, the network mailbox number
is saved in the missed calls list and the mes-
sage key flashes (¢page 32).
Please note
You can also connect to the network
mailbox via the menu:
§Menu§ ¤Voice Mail ¤Play Messages
¤Network Mailbox (Gigaset A510A
only)
Please note
Enter the network mailbox phone
number into your directory along with
the designation "Network mailbox"; the
display and the calls list will then show
this designation.
41
ECO DECT
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / registr_sett.fm / 19.10.2011
Version 4, 16.09.2005
ECO DECT
You are helping to protect the environment
with your Gigaset.
Reducing energy consumption
Your telephone has a power-saving adapter
plug and uses less power.
Reducing radiation
The radiation from your telephone is
reduced automatically:
uHandset: The closer the handset is to the
base, the lower the radiation.
uBase: The radiation is reduced to virtually
zero when only one handset is registered
and the handset is placed in the base.
You can reduce the radiation from the
handset and base even more by using Eco
Mode:
Eco Mode
Reduces radiation from the base and hand-
set by 80% – whether you are making a call
or not. Eco Mode reduces the range of the
base by approx. 50%. Using Eco Mode
always makes sense when a reduced range is
sufficient.
Activate/deactivate Eco Mode:
§Menu§ ¤Settings ¤Eco Mode
§OK§ Press the display key.
(An advisory message appears
when Eco Mode is activated;
confirm with §OK§.) ³=on.
Status displays
Using the handset as an
alarm clock
Prerequisite: The date and time have
already been set (¢page 16).
Activating/deactivating the
alarm clock
§Menu§ ¤Alarm Clock ¤Activation (³=on)
After you activate the alarm clock, the menu
for setting the wake up time opens automat-
ically.
The ¼icon and wake up time are shown on
the display.
A wake-up call is signalled on the display
(¢page 3), with the selected ringer volume
and melody (¢page 45). The wake-up call
sounds for 60 seconds. If no key is pressed,
the wake-up call is repeated twice at five
minute intervals and then switched off.
During a call, the wake-up call is only sig-
nalled by a short tone.
Setting the wake-up time
§Menu§ ¤Alarm Clock ¤Wake up time
~Enter the wake up time in hours
and minutes, then press §OK§.
Deactivating the wake-up call/
repeating after a pause
(snooze mode)
Prerequisite: a wake-up call is sounding.
§Off§ Press the display key. The wake-
up call is deactivated.
Or
§Snooze§ Press the display key or any key.
The wake-up call is deactivated
and then repeated after 5 min-
utes. After the second repetition
the wake-up call is deactivated
completely.
Display icon
Ð¨§¦
¥
Reception strength:
– Good to poor
– No reception
Please note
Activating Eco Mode reduces the range
of the base.
42
Using multiple handsets
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / registr_sett.fm / 19.10.2011
Version 4, 16.09.2005
Using multiple handsets
Registering handsets
You can register up to four handsets on your
base. Each additional handset must be regis-
tered with the base in order for it to work
properly!
Registering a Gigaset handset to a
Gigaset A510/A510A
You must manually register the handset on
both the handset (1) and the base (2).
Once registration is complete, the handset
returns to idle status. The handset's internal
number is shown on the display, e.g., INT 1.
If not, repeat the procedure.
Registering other handsets
You can manually register other Gigaset
handsets and handsets for other devices
with GAP functionality as follows.
De-registering handsets
You can de-register all other registered
handsets from each of the registered
Gigaset handsets.
§Menu§ ¤Settings ¤Registration
¤De-register Handset
sSelect the internal number
you wish to de-register and
press §OK§.
(The handset you are currently
using is highlighted with <).
~Enter the current system PIN
and press §OK§.
§OK§ Press the display key.
Locating a handset (paging)
You can locate your handset using the base.
¤Briefly press the register/paging key on
the base (¢page 5).
¤All handsets will ring at the same time
("paging"), even if the ringtones are
switched off.
Ending paging
¤Briefly press the registration/paging key
on the base or press the talk key c or
end call key a on the handset.
Making internal calls
Internal calls are free calls between handsets
that are registered with the same base.
Calling a specific handset
uInitiate internal call.
~Enter the number of the hand-
set.
Or:
uInitiate internal call.
s Select handset.
cPress the talk key.
1) On the handset
§Menu§ ¤Settings ¤Registration
¤Register Handset
~If required, enter the system
PIN for the base (the default is
0000) and press §OK§.
The display shows Handset is registering.
2) On the base
¤Within 60 seconds, press and hold the
register/paging key on the base
(¢page 5) (for approx. 3 seconds).
1) On the handset
¤Start to register the handset as
described in its user guide.
2) On the base
¤Press and hold the register/paging key
on the base (¢page 5) (approx. 3 sec.).
43
Using multiple handsets
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / registr_sett.fm / 19.10.2011
Version 4, 16.09.2005
Calling all handsets ("group call")
u Press and hold.
Or:
u Initiate internal call.
PPress the star key.
Or:
uInitiate internal call.
Call All Select and
cPress the talk key.
All handsets are called.
Ending a call
a Press the end call key.
Transferring a call to another
handset/making an internal
consultation call
You are talking to an external participant
and can call an internal participant at the
same time to forward the call or to consult.
u Open the list of handsets.
The external participant hears
music on hold, if activated
(¢page 47).
sSelect a handset or Call All and
press §OK§.
When the internal participant answers:
¤If necessary, announce the external call.
Either
a Press the end call key. The exter-
nal call is transferred to the
other handset.
Or
§Back§ Press the display key. You are
reconnected with the external
participant.
When transferring a call, you can also press
the end call key a before the internal par-
ticipant answers.
If the internal participant does not answer or
the line is busy, the call will automatically
return to you.
Accepting a waiting call
If you receive an external call during an
internal call, you will hear the call waiting
tone (short tone). With Caller ID (CID), the
caller's number or name will appear in the
display.
a Press the end call key to end the
internal call.
c Press the talk key to accept the
external call.
Listening in to an external call
(conference)
Prerequisite: The Listening in function must
be activated.
You are conducting an external call. An inter-
nal participant can listen in on this call and
take part in the conversation. All the partici-
pants are made aware of additional listeners
by a signal tone.
Activating/deactivating
listening in
§Menu§ ¤Settings ¤Telephony
¤Listening in
Press §OK§ to activate/deactivate the function
(³=on).
Internal listening in
The line is engaged with an external call.
Your screen will display information to that
effect. To listen in to the external call.
c Press and hold the talk key.
You can listen in to the call. All participants
hear a signal tone. During this time, this
handset displays the Conference Call mes-
sage and it is not possible to dial another
number from this handset.
Ending listening in
a Press the end call key.
All participants hear a signal tone.
44
Handset settings
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / registr_sett.fm / 19.10.2011
Version 4, 16.09.2005
If the first internal participant presses the
end call key a, the handset that has "lis-
tened in" remains connected to the external
participant.
Changing the name of a
handset
The names "INT 1", "INT 2" etc. are assigned
automatically on registration. You can
change these names. The name must be no
more than 10 characters. The changed name
is displayed in every handset's list.
uOpen the list of handsets. Your
own handset is indicated by <.
sSelect handset.
§Menu§ Open menu.
Rename
~Enter the name.
§OK§ Press the display key.
Handset settings
Your handset comes with default settings,
but you can change the settings to suit your
individual requirements.
Changing the display
language
You can view the display texts in different
languages.
§Menu§ ¤Settings ¤Language
The current language is indicated by a ³.
sSelect a language and press §OK§.
If you accidentally choose a language you do
not understand:
v ¤L4
s Select the correct language and
press §OK§.
Setting the display/
screensaver
You have a choice of four colour schemes
and several different contrasts. You can also
configure a screensaver.
§Menu§ ¤Settings ¤Display
You have the following options:
Screensaver
In idle status a digital clock can be dis-
played as a screensaver. This replaces the
idle status display. You can choose
between No Screensaver and Digital
Clock.
The screensaver is not displayed in cer-
tain situations e.g., during a call or if the
handset is de-registered.
To show the display in idle status, briefly
press end call key a.
Color Schemes
You can view the display backlight in dif-
ferent colours. Four colour schemes are
available.
Contrast
Nine contrast settings are available.
Activating/deactivating auto
answer
If you activate this function, when you
receive a call you can simply lift the handset
out of the charging cradle without having to
press the talk key c.
§Menu§ ¤Settings ¤Telephony
¤Auto Answer
§OK§ Press the display key ³=on).
Changing the handsfree/
earpiece volume
You can set the volume for handsfree mode
and earpiece mode to five different levels.
In idle status:
t ¤Call Volume
45
Handset settings
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / registr_sett.fm / 19.10.2011
Version 4, 16.09.2005
Earpiece Volume / Handsfree Volume
Select and press §OK§.
qSet the volume
(e.g., volume 3 = ‰).
§OK§ Press the display key to save the
setting.
During a conversation via the earpiece or in
handsfree mode:
tPress the control key to open
the menu for setting the vol-
ume. Set the earpiece or hands-
free volume by pressing q.
The setting will automatically be saved after
approximately 3 seconds or press the display
key §OK§.
Changing ringtones
uVolume:
You can choose between five volumes
(e.g., volume 3 = ˆ) and the "cre-
scendo" ring (volume increases with each
ring 6 = ‡).
uRingtones:
You can select from a list of pre-loaded
ringtones and melodies.
You can set different ringtones for the fol-
lowing functions:
uInternal calls
uExternal calls
uAlarm clock
Setting the ringer volume
The ringer volume is the same for all types of
ring.
In idle status:
t ¤Ringer Volume
qSet the volume.
§OK§ Press the display key to save the
setting.
Setting ringtone
Set different ringtones for external calls,
internal calls and the alarm clock.
For internal calls and the alarm clock
In idle status:
t ¤Ringtones (Handset)
Internal Calls / Alarm Clock
Select and press §OK§.
qSelect melody and press §OK§
(³= selected).
For external calls:
In idle status:
t ¤Ringtones (Handset)
External Calls
Select and press §OK§.
q can be used for the following:
Melodies
You can set the ringtone as described
above.
Time Control
You can specify a time period when you
do not want the telephone to signal
external calls e.g., during the night.
Activation is switched on or off by press-
ing §OK§ (³=activated)
Settings
Ringer off from: /Ringer off until:
Enter time in 4-digit format.
Please note
You can also set the call volume using the
menu (¢page 26).
Please note
You can also adjust the ringer volume via
the menu (¢page 26).
Please note
During this period, you will con-
tinue to receive calls from num-
bers to which you have assigned a
personalised melody/background
colour in the directory (VIP).
46
Base settings
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / registr_sett.fm / 19.10.2011
Version 4, 16.09.2005
Anonymous Calls Silent
You can set your handset so that it does
not ring for calls where Caller ID (CID) has
been withheld (not answering machine).
The call will only be signalled on the dis-
play.
Switch the Anonymous Calls Silent func-
tion on or off by pressing §OK§
(³=activated).
Activating/deactivating the ringer
You can:
uPermanently deactivate the ringer in idle
status or when receiving a call
uDeactivate the ringer for the current call
only.
The ringer cannot be re-activated while a
call is in progress.
Deactivating the ringer permanently
PPress and hold the star key.
The ó icon appears in the display.
Reactivating the ringer
PPress and hold the star key.
Deactivating the ringer for the current
call
§Menu§ ¤Silent ¤§OK§
Activating/deactivating advisory
tones/battery warning tones
Your handset uses advisory tones to tell you
about different activities and statuses. These
can be activated and deactivated independ-
ently of each other:
uAdvisory Tones
–Confirmation tone: at the end of an
entry/setting and when a new entry
arrives in the answering machine list
or calls list.
–Error tone: when you make an incor-
rect entry.
–Key click: every key press is confirmed.
uBattery Low
The battery requires charging.
t ¤Advisory Tones / Battery Low
Select and press §OK§ to activate
or deactivate (³=activated).
The menu end tone when scrolling at the
end of a menu cannot be deactivated.
Restoring the handset
default settings
You can reset any individual settings and
changes that you have made.
The following settings are not affected by a
reset:
uRegistering the handset to the base
uDate/time
uEntries in the directory, calls lists
§Menu§ ¤Settings ¤System ¤Reset Handset
§OK§ Confirm prompt.
Base settings
The base settings are carried out using a reg-
istered Gigaset handset.
Changing the ringtones for
the Gigaset A510A base
uVolume:
You can choose between five volumes
and the "crescendo" ring, ¢page 45.
Select "0" to deactivate the base ringer.
uRingtones:
You can set a ringtone for external calls,
¢page 45.
uTime control:
You can specify when the base should
not ring (e.g., during the night).
Please note
You can also set the ringtones via the
menu (¢page 26).
47
Base settings
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / registr_sett.fm / 19.10.2011
Version 4, 16.09.2005
§Menu§ ¤Settings ¤Audio Settings
¤Ringtones (Base) ¤Ringer Volume /
Ringer Melody / Time Control
For more information on adjusting the set-
tings, see page 45.
Activating/deactivating
music on hold
§Menu§ ¤Settings ¤Telephony
¤Music on Hold
Press §OK§ to activate or deactivate music on
hold (³=on).
Protecting against
unauthorised access
Protect the system settings of the base sta-
tion with a PIN known only to yourself. The
system PIN must be entered when, for exam-
ple, registering/de-registering a handset to/
from the base or when restoring the default
settings.
Changing the system PIN
You can change the 4-digit system PIN set on
the base (default setting: 0000) to a 4-digit
PIN that only you know.
Gigaset A510A: setting a system PIN enables
remote operation of the answering machine
¢page 39.
§Menu§ ¤Settings ¤System ¤System PIN
~Enter the current system PIN
and press §OK§.
~Enter your new system PIN and
press §OK§.
Resetting the system PIN
If you have forgotten your system PIN, you
can reset the PIN to the original code 0000
using the button on the base. This will also
reset other settings; see the section enti-
tled "Resetting the base to the default set-
tings".
Resetting the base to the
default settings
When restoring default settings:
uIndividual settings are reset
uAll lists are deleted
uEco Mode is deactivated
The date and time are retained.
Resetting the base via the menu
When resetting via the menu
uHandsets are still registered
uThe system PIN is not reset.
§Menu§ ¤Settings ¤System ¤Base Reset
§OK§ Press the display key.
Resetting the base using the
button on the base
When resetting the base using the button on
the base
uAll handsets are de-registered and
uThe system PIN is reset to the original
code 0000
Carry out the following steps:
¤Remove the mains cable from the base
¤Hold down the registration/paging key
on the base (¢page 5) and reconnect
the power cable to the base at the same
time. Hold the key down for at least 5 sec-
onds.
Please note
The answering machine is ready for use
approx. 15 seconds after the base has
been connected or reset.
Please note
All handsets are de-registered and must
be re-registered. All settings are reset to
the default settings.
48
Connecting the base to the PABX
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / pabx.fm / 25.08.2011
Version 4, 16.09.2005
Connecting the base to
the PABX
The following settings are only necessary if
your PABX requires them; see the PABX user
manual.
Dialling mode and Flash time
Changing the dialling mode
The following dialling modes can be
selected:
uTone dialling (DTMF)
uPulse dialling (PD).
§Menu§ Open main menu.
P#Q5#11
Press keys.
~ 1 §OK§ Pulse dialling mode (DP).
Or:
~ Q §OK§ Tone dialling (DTMF).
Setting flash time
Your phone is preset for operation on the
main connection. For operation on a PABX,
you may have to change this value. Please
refer to the user guide for your PABX.
§Menu§ Open main menu.
P#Q5#12
Press keys.
~Enter number for the flash time
and press §OK§.
0=80ms; 1= 100 ms; 2=120ms;
3=400ms; 4=250ms; 5= 300 ms;
6= 600 ms; 7=800ms
Setting pauses
Changing the pause after line
seizure
You can change the length of the pause that
is inserted between pressing the talk key c
and sending the number.
§Menu§ Open main menu.
P#Q5#1O
Press keys.
~Enter number for the length of
the pause (1= 1 sec.; 2=3secs;
3= 7 secs) and press §OK§.
Changing the pause after flash key
You can change the length of the pause if
your PABX requires this (refer to the user
guide for your PABX).
§Menu§ Open main menu.
P#Q5#14
Press keys.
~Enter a number for the length of
the pause (1=800ms;
2=1600ms; 3= 3200 ms) and
press §OK§.
Switching temporarily to
tone dialling (DTMF)
If your PABX still operates with pulse dialling
(PD), but you need tone dialling for a con-
nection (e.g., to listen to the network mail-
box), you must switch to tone dialling for the
call.
Prerequisite: You are conducting a call or
have already dialled an external number.
PPress the star key.
After the call ends, pulse dialling is automat-
ically reactivated.
Please note
Tone dialling (DTMF) is now the most
common dialling mode. Pulse dialling
mode (PD) is used only for a few old
PABXs.
49
Industry Canada Certification
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
Industry Canada
Certification
Operation is subject to the following two condi-
tions (1) this device may not cause interference,
and (2) this device must accept any interference,
including interference that may cause undesired
operation of the device.
NOTICE: The Industry Canada label identifies certi-
fied equipment. This certification means that the
equipment meets certain telecommunications
network, protective, operational and safety
requirements as prescribed in the appropriate Ter-
minal Equipment Technical Requirements docu-
ment(s). The Department does not guarantee the
equipment will operate to the user’s satisfaction.
Before installing this equipment, users should
ensure that it is permissible to be connected to
the facilities of the local telecommunications
company. The equipment must also be installed
using an acceptable method of connection. The
customer should be aware that compliance with
the above conditions may not prevent
degradation of service in some situations.
Repairs to certified equipment should be coordi-
nated by a representative designated by the sup-
plier. Any repairs or alterations made by the user
to this equipment, or equipment malfunctions,
may give the telecommunications company cause
to request the user to disconnect the equipment.
Users should ensure for their own protection that
the electrical ground connections of the power
utility, telephone lines and internal metallic water
pipe system, if present, are connected together.
This precaution may be particularly important in
rural areas
NOTE: Users should not attempt to make such
connections themselves, but should contact the
appropriate electric inspection authority,
or electrician, as appropriate.
This product meets the applicable Industry
Canada technical specifications.
The Ringer Equivalence Number is an indication of
the maximum number of devices allowed to be
connected to a telephone interface. The termina-
tion of an interface may consist of any combina-
tion of devices subject only to the requirement
that the sum of the RENs of all devices does not
exceed five.
This Class B digital apparatus complies with Cana-
dian ICES-003.
Cet appareil numérique de la classe B est con-
forme à la norme NMB-003 du Canada.
FCC / ACTA Information
Warning: Changes or modifications to this unit
not expressly approved by Gigaset Communica-
tions USA LLC could void the FCC authority to
operate the equipment. This includes the addition
of any external antenna device.
This equipment complies with Part 68 of the FCC
rules and the requirements adopted by the ACTA.
On the bottom of the base station is a label that
contains, among other information, a product
identifier in the format US:AAAEQ##TXXXX. If
requested, this number must be provided to the
telephone company.
A plug and jack used to connect this equipment to
the premises wiring and telephone network must
comply with the applicable FCC Part 68 rules and
requirements adopted by the ACTA. A compliant
telephone cord and modular plug is provided
with this product. It is designed to be connected
to a compatible modular jack that is also compli-
ant. See installation instructions for details.
The REN is used to determine the number of
devices that may be connected to a telephone
line. Excessive RENs on a telephone line may result
in the devices not ringing in response to an
incoming call. In most but not all areas, the sum of
RENs should not exceed five (5.0). To be certain of
the number of devices that may be connected to
a line, as determined by the total RENs, contact
the local telephone company. For products
approved after July 23, 2001, the REN for this prod-
uct is part of the product identifier that has the
format US:AAAEQ##TXXXX. The digits repre-
sented by ## are the REN without a decimal point
(e.g., 03 is a REN of 0.3). For earlier products, the
REN is separately shown on the label.
A copy of the supplier's Declaration of Conformity
(SDoC) is available at this Internet address:
www.gigaset.com/docs.
If this equipment causes harm to the telephone
network, the telephone company will notify you
in
advance, that temporary discontinuance of serv-
ice may be required. But if advance notice isn’t
practical, the telephone company will notify the
customer as soon as possible. Also, you will be
advised of your right to file a complaint with the
FCC if you believe it is necessary.
The telephone company may make changes in its
facilities, equipment, operations or procedures
that could affect the operation of the equipment.
If this happens the telephone company will pro-
vide advance notice in order for you to make nec-
essary modifications to maintain uninterrupted
service. If you experience trouble with this tele-
phone system, disconnect it from the network
50
FCC / ACTA Information
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
until the problem has been corrected or until you
are sure that the equipment is not malfunction-
ing.
If trouble is experienced with this equipment, for
repair or warranty information, please contact
Support at 1-866 247-8758. If the equipment is
causing harm to the telephone network, the tele-
phone company may request that you disconnect
the equipment until the problem is resolved. This
equipment is of a type that is not intended to be
repaired by the Customer (user).
This telephone system may not be used on coin
service provided by the telephone company. Con-
nection to party line service is subject to state tar-
iffs. Contact the state public utility commission,
public service commission or corporation com-
mission for information. Privacy of communica-
tions may not be ensured when using this phone.
If your home has specially wired alarm equipment
connected to the telephone line, ensure the
installation of this equipment does not disable
your alarm equipment. If you have questions
about what will disable alarm equipment, consult
your telephone company or a qualified installer.
This telephone system equipment has been
tested and found to comply with the limits for
Class B digital device, pursuant to Part 15 of the
FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) This device must
accept any interference received, including inter-
ference that may cause undesired operation.
These limits are designed to provide reasonable
protection against harmful interference in a resi-
dential installation. Some cordless telephones
operate at frequencies that may cause interfer-
ence to nearby TV’s and VCR’s; to minimize or pre-
vent such interference, the system base should
not be placed near or on top of a TV or VCR; and, if
interference is experienced, moving the base far-
ther away from the TV or VCR will often reduce or
eliminate the interference.
However, there is no guarantee that interference
will not occur in a particular installation. If this tel-
ephone system does cause harmful interference
to radio or television reception, which can be
determined by turning the system off and on, the
user is encouraged to try to correct the interfer-
ence by one or more of the following measures:
1. Reorient or relocate the receiving antenna.
2. Increase the separation between the base sta-
tion and receiver.
3. Connect the base station into an outlet on a cir-
cuit different from that to which the receiver is
connected.
4. Consult the dealer or an experienced radio TV
technician for help.
Notice for Direct Inward Dialing
("DID")
ALLOWING THIS EQUIPMENT TO BE OPERATED IN
SUCH A MANNER AS TO NOT PROVIDE FOR
PROPER ANSWER SUPERVISION IS A VIOLATION
OF PART 68 OF THE FCC‘S RULES.
Notice to Hearing Aid Wearers:
This phone system is compatible with inductively
coupled hearing aids.
Power Outage:
In the event of a power outage, your cordless
telephone will not operate. The cordless tele-
phone requires electricity for operation. You
should have a telephone that does not require
electricity available for use during power outages.
Notice:
The installation of the base unit should allow
at least 8 inches between the base and persons to
be in compliance with FCC RF exposure guide-
lines.
For body worn operation, the portable part (hand-
set) has been tested and meets FCC RF exposure
guidelines. Use with an accessory that contains
metal parts may not ensure compliance with FCC
RF exposure guidelines.
Notice to telephone company service:
If you need service from your telephone company,
please provide them with the information
– Facility interface Code (FIC)
– Service Order Code (SOC)
– Universal Service Order Code (USOC)
as indicated on the label on the bottom side of the
base station.
Safety precautions
Before using your telephone equipment, basic
safety instructions should always be followed to
reduce the risk of fire, electric shock and injury to
persons.
1. Read and understand all instructions.
2. Follow all warnings and instructions marked on
the product.
3. Unplug this product from the wall telephone
jack and power outlet before cleaning. Do not use
liquid cleaners or aerosol cleaners. Use damp
cloth for cleaning.
4. Do not use this product near water, for example,
near a bathtub, wash bowl, kitchen sink, or laun-
dry tub, in a wet basement or near a swimming
pool.
51
FCC / ACTA Information
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
5. Place this product securely on a stable surface.
Serious damage and/or injury may result if the
unit falls.
6. Slots or openings in the cabinet and the back
and bottom are provided for ventilation, to pro-
tect it from overheating. These openings must not
be blocked or covered. This product should never
be placed near or over a radiator or heat register,
or in a place where proper ventilation is not pro-
vided.
7. This product should be operated only from the
type of power source indicated on the marking
label. If you are not sure of the type of AC line
power to your home, consult your dealer or local
power company.
8. Do not place objects on the power cord. Install
the unit where no one can step or trip on the cord.
9. Do not overload wall outlets and extension
cords as this can result in the risk of fire or electric
shock.
10. Never push objects of any kind into this prod-
uct through cabinet slots as they may touch dan-
gerous voltage points or short out parts that could
result in the risk of fire or electric shock. Never spill
liquid of any kind on this product.
11. To reduce the risk of electric shock or burns, do
not disassemble this product. Take it to a qualified
service center when service is required. Opening
or removing covers may expose you to dangerous
voltages, dangerous electrical current or other
risks. Incorrect reassembly can cause electric
shock when the appliance is subsequently used.
Disconnect TNV circuit connector before remov-
ing cover.
12. Unplug the product from the wall outlet and
refer servicing to qualified service personnel
under the following conditions:
a.) When the power cord is damaged or frayed.
b.) If liquid has been spilled into the product.
c.) If the product has been exposed to rain or
water.
d.) If the product does not operate normally by fol-
low
ing the operating instructions. Adjust only
those controls
that are covered by the operating
instructions because improper adjustment of
other controls may result in damage and may
require extensive work by a qualified technician to
restore the product to normal operation.
e.) If the product has been dropped or physically
has been damaged.
f.) If the product exhibits a distinct change in per-
formance.
13. Avoid using a telephone (other than a cordless
type) during a thunderstorm. There may be a
remote risk of electrical shock from lightning.
Therefore we suggest a surge arrestor.
14. Do not use the telephone to report a gas leak
in the vicinity of the leak.
15. Emergency/911 numbers may not be dialed if
the keypad is locked.
16. Minimum No. 26 AWG telecommunication line
cord must be used with this phone.
BATTERY SAFETY PRECAUTIONS
To reduce the risk of fire, injury or electric shock,
and to properly dispose of batteries, please read
and understand the following instructions.
CONTAINS NICKEL METAL HYDRIDE BATTERY. BAT-
TERY MUST BE RECYCLED OR DISPOSED OF PROP-
ERLY. DO NOT DISPOSE OF IN MUNICIPAL WASTE.
1. Only use the batteries specified for use with this
product.
2. DO NOT USE NICKEL CADMIUM OR LITHIUM
BATTERIES, or mix batteries of different sizes or
from different manufacturers in this product. DO
NOT USE NONRECHARGEABLE BATTERIES.
3. Do not dispose of the batteries in a fire; the cells
may explode. Do not expose batteries to water.
Check with local codes for special disposal instruc-
tions.
4. Do not open or mutilate the batteries. Released
electrolyte is corrosive and may cause damage to
the eyes or skin. The electrolyte may be toxic if
swallowed.
5. Exercise care in handling the batteries in order
not to short the batteries with conducting materi-
als such as rings, bracelets, and keys. The batteries
or conducting material may overheat and cause
burns or fire.
6. Charge the batteries provided with, or identi-
fied for use with, this product only in accordance
with the instructions and limitations specified in
the user’s manual. Do not attempt to charge the
batteries with any means other than that specified
in the users manual.
7. Periodically clean the charge contacts on both
the charger and handset.
52
FCC / ACTA Information
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
Service (Customer Care)
Customer Care Warranty for Cordless Products
To obtain Customer Care Warranty service,
product operation information, or for problem resolution, call:
Toll Free: 1-866 247-8758
End-user limited warranty
This product is covered by a one year limited war-
ranty. Any repair replacement or warranty service,
and all questions about this product should be
directed to: 1-866 247-8758.
This limited, non-transferable warranty is pro-
vided to the original buyer/end-consumer ("you")
for systems, handsets and accessories (collec-
tively, "Product") provided by Gigaset Communi-
cations USA LLC or Gigaset Communications Can-
ada Inc. (collectively "Gigaset NAM"). Gigaset NAM
warrants to you that at the date of purchase, the
Product is free of defects in workmanship and
materials and the software included in the Prod-
uct will perform in substantial compliance to its
program specifications.
1. WARRANTY PERIOD
The Product warranty period is one (1) year from
the original date of purchase by you. Proof of pur-
chase (e.g., sales slip or invoice) must be provided
with any Product returned during the warranty
period. Batteries supplied with the Products are
warranted to be free from defects at the time of
purchase only.
2. EXCLUSIVE REMEDY
Gigaset NAM's entire liability and your exclusive
remedy if the Product is defective in materials or
workmanship during the warranty period and is
returned shall be that the Product will be repaired
or replaced as set forth in Section 4 below. Recon-
ditioned replacement components, parts or mate-
rials may be used in the replacement or repair.
Data in the memory of the Product may be lost
during repair.
3. THIS LIMITED WARRANTY DOES NOT
COVER AND IS VOID WITH RESPECT
TO THE FOLLOWING:
– Cosmetic damage, physical damage to the sur-
face of the Product, including, without limita-
tion, breakage, cracks, dents, scratches or
adhesive marks on the LCD screen or outside
casing of the Product.
– Products which have been repaired, main-
tained or modified (including the antenna) by
anyone other than Gigaset NAM or a Gigaset
NAM-approved repair facility, or that have
been improperly installed.
– Cost of installation, removal or reinstallation.
– Damage due to any telephone, electronic,
hardware or software program, network, Inter-
net or computer malfunctions, failures, or diffi-
culties of any kind, including without limita-
tion, server failure or incomplete, incorrect,
garbled or delayed computer transmissions.
– Equipment and components not manufac-
tured, supplied or authorized by Gigaset NAM.
– Modification of the Product's components, or
operation of the Product in an unsuitable envi-
ronment or in a manner for which it is not
intended, including but not limited to failures
or defects caused by misuse, abuse, accidents,
physical damage, abnormal operation,
improper handling or storage, neglect, altera-
tions, unauthorized installation, removal or
repairs, failure to follow instructions, problems
caused by the carrier's network coverage,
exposure to fire, water or excessive moisture or
dampness, floods, or extreme changes in cli-
mate or temperature, acts of God, riots, acts of
terrorism, spills of food or liquids, viruses or
other software flaws introduced into the Prod-
uct or other acts which are not the fault of
Gigaset NAM and which the Product is not
specified to tolerate, including damage caused
by mishandling or blown fuses.
– Products which have had warranty stickers,
electronic serial number and/or serial number
label removed, altered, rendered illegible or
fraudulently applied to other equipment.
53
FCC / ACTA Information
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
– Signal reception problems (unless caused by
defect in material or workmanship in the Prod-
uct).
– Products operated outside published maxi-
mum ratings.
– Performance of the Products when used in
combination with other products or equip-
ment not manufactured, supplied or author-
ized by Gigaset NAM.
– Consumables (such as batteries and fuses).
– Payments for labor or service to representa-
tives or service centers not authorized to per-
form product maintenance by Gigaset NAM.
– Loss of data.
– Testing and examination discloses that the
alleged defect or malfunction in the Product
does not exist.
This warranty does not cover customer education,
instruction, installation or removal, set up adjust-
ments, problems related to service(s) provided by
a carrier or other service provider, and/or signal
reception problems. Gigaset NAM shall not be
responsible for software, firmware, information, or
memory data contained in, stored on, or inte-
grated with any Products returned for repair,
whether under warranty or not. This warranty is
valid only in the country in which it is purchased
(i.e., the United States of America or Canada
respectively, but not both).
USE WITH ACCESSORIES NOT SUPPLIED BY
GIGASET NAM OR NOT OTHERWISE EXPRESSLY
AUTHORIZED BY GIGASET NAM MAY VOID
WARRANTY.
4. WARRANTY CLAIM PROCEDURE
All warranty claims must be made by notifying
Gigaset NAM prior to the expiration of the war-
ranty period. Gigaset NAM's obligation to provide
warranty support shall not extend past the end of
the warranty period, except that any product
repaired or replaced during the warranty period
shall continue to be warranted for the balance of
such warranty period or thirty (30) days, which-
ever is greater.
Support service will be provided for you by
accessing the toll free customer service number:
1-866 247-8758
5. LIMITATION OF WARRANTY
Gigaset NAM makes no warranty or representa-
tion that the software in the Products will meet
your requirements or will work in combination
with any hardware or applications software prod-
ucts provided by third parties, that the operation
of the software will be uninterrupted or error free,
or that all defects in the software products will be
corrected.
6. LIMITATION ON REMEDIES; NO
CONSEQUENTIAL OR OTHER
DAMAGES
Your exclusive remedy for any breach of this lim-
ited warranty is as set forth above. Except for any
refund elected by Gigaset NAM, YOU ARE NOT
ENTITLED TO ANY DAMAGES, INCLUDING BUT
NOT LIMITED TO CONSEQUENTIAL DAMAGES,
if the Product does not meet the limited warranty
, and, to the maximum extent allowed by applica-
ble law, even if any remedy fails of its essential
purpose. The terms below ("Exclusion of Inciden-
tal, Consequential and Certain Other Damages")
are also incorporated into this limited warranty .
Some states/jurisdictions/provinces do not allow
the exclusion or limitation of incidental or conse-
quential damages, so the above limitation or
exclusion may not apply to you. This limited war-
ranty gives you specific legal rights. You may have
others which vary from state/jurisdiction/prov-
ince to state/jurisdiction/province.
7. DISCLAIMER OF WARRANTIES
GIGASET NAM AND ITS SUPPLIERS PROVIDE THE
PRODUCT AND SUPPORT SERVICES (IF ANY) AS IS
AND WITH ALL FAULTS. THE LIMITED WARRANTY
IS IN LIEU OF ANY OTHER EXPRESS WARRANTIES
(IF ANY) CREATED BY ANY DOCUMENTATION OR
PACKAGING EXCEPT FOR THE LIMITED WAR-
RANTY, AND TO THE MAXIMUM EXTENT PERMIT-
TED BY APPLICABLE LAW IS IN LIEU OF ANY
IMPLIED OR STATUTORY WARRANTIES, INCLUD-
ING, BUT NOT LIMITED TO, THE IMPLIED WARRAN-
TIES OF MERCHANTABILITY AND FITNESS FOR A
PARTICULAR PURPOSE, OF ACCURACY OR COM-
PLETENESS OR RESPONSES, OF RESULTS, OF
WORKMANLIKE EFFORT, OF LACK OF VIRUSES
AND OF LACK OF NEGLIGENCE, ALL WITH REGARD
TO THE PRODUCT, AND THE PROVISION OF OR
FAILURE TO PROVIDE SUPPORT SERVICES. ALSO,
THERE IS NO WARRANTY OR CONDITION OF TITLE,
QUIET ENJOYMENT, QUIET POSSESSION, OR COR-
RESPONDENCE TO DESCRIPTION OR NONIN-
FRINGEMENT WITH REGARD TO THE PRODUCT.
Some states/jurisdictions/provinces do not allow
limitations on how long an implied warranty lasts
or the exclusion or limitation of incidental or con-
54
FCC / ACTA Information
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
sequential damages, so the above exclusions or
limitations may not apply to you. If an implied
warranty or condition is created by your state/
province and federal or state/provincial law pro-
hibits disclaimer of it, you also have an implied
warranty or condition, BUT ONLY AS TO DEFECTS
DISCOVERED DURING THE PERIOD OF THIS LIM-
ITED WARRANTY (ONE YEAR). AS TO ANY DEFECTS
DISCOVERED AFTER THE ONE YEAR PERIOD,
THERE IS NO WARRANTY OR CONDITION OF ANY
KIND. This limited warranty gives you specific legal
rights, and you may also have other rights which
vary from state to state/province to province. In
no event shall Gigaset NAM's liability exceed the
cost of repairing or replacing defective Products
as provided herein, and any such liabilities will ter-
minate upon expiration of the warranty period.
Any supplements or updates to the Product or the
software in the Product, including without limita-
tion, any (if any) software fixes or upgrades or bug
fixes provided to you after the expiration of the
one year limited warranty period are not covered
by any warranty or condition, express, implied or
statutory.
8. EXCLUSION OF INCIDENTAL,
CONSEQUENTIAL AND CERTAIN
OTHER DAMAGES
TO THE MAXIMUM EXTENT PERMITTED BY APPLI-
CABLE LAW, IN NO EVENT SHALL GIGASET NAM,
SELLER OR THEIR SUPPLIERS BE LIABLE FOR ANY
SPECIAL, INCIDENTAL, INDIRECT, OR CONSEQUEN-
TIAL DAMAGES WHATSOEVER (INCLUDING, BUT
NOT LIMITED TO, DAMAGES FOR LOSS OF PROFITS
OR CONFIDENTIAL OR OTHER INFORMATION, FOR
BUSINESS INTERRUPTION, FOR PERSONAL INJURY,
FOR LOSS OF PRIVACY, FOR FAILURE TO MEET ANY
DUTY INCLUDING OF GOOD FAITH OR OF REA-
SONABLE CARE, FOR NEGLIGENCE, AND FOR ANY
OTHER PECUNIARY OR OTHER LOSS WHATSO-
EVER) ARISING OUT OF OR IN ANY WAY RELATED
TO THE USE OF OR INABILITY TO USE THE PROD-
UCT, THE PROVISION OF OR FAILURE TO PROVIDE
SUPPORT SERVICES, OR OTHERWISE UNDER OR IN
CONNECTION WITH ANY PROVISION OF THIS LIM-
ITED WARRANTY, EVEN IN THE EVENT OF THE
FAULT, TORT (INCLUDING NEGLIGENCE), STRICT
LIABILITY, BREACH OF CONTRACT OR BREACH OF
WARRANTY OF GIGASET NAM OR SELLER OR ANY
SUPPLIER, AND EVEN IF GIGASET NAM OR SELLER
OR ANY SUPPLIER HAS BEEN ADVISED OF THE
POSSIBILITY OF SUCH DAMAGES. REPAIR OR
REPLACEMENT, AS PROVIDED UNDER THE WAR-
RANTY, IS YOUR SOLE AND EXCLUSIVE REMEDY
FOR BREACH OF THE LIMITED WARRANTY.
9. LIMITATION OF LIABILITY AND
REMEDIES
NOTWITHSTANDING ANY DAMAGES THAT YOU
MIGHT INCUR FOR ANY REASON WHATSOEVER
(INCLUDING, WITHOUT LIMITATION, ALL DAM-
AGES REFERENCED ABOVE AND ALL DIRECT OR
GENERAL DAMAGES), THE ENTIRE LIABILITY OF
GIGASET NAM, SELLER AND ANY OF THEIR SUPPLI-
ERS UNDER ANY PROVISION OF THIS LIMITED
WARRANTY AND YOUR EXCLUSIVE REMEDY FOR
ALL OF THE FOREGOING (EXCEPT FOR ANY REM-
EDY OF REPAIR OR REPLACEMENT ELECTED BY
GIGASET NAM OR SELLER OR SUPPLIER WITH
RESPECT TO ANY BREACH OF THE LIMITED WAR-
RANTY) SHALL BE LIMITED TO THE GREATER OF
THE AMOUNT ACTUALLY PAID BY YOU FOR THE
PRODUCT OR FIVE DOLLARS ($5.00 USD/CAN).
THE FOREGOING LIMITATIONS, EXCLUSIONS AND
DISCLAIMERS SHALL APPLY TO THE MAXIMUM
EXTENT PERMITTED BY APPLICABLE LAW, EVEN IF
ANY REMEDY FAILS ITS ESSENTIAL PURPOSE.
10. GOVERNING LAW
If this Product was purchased in the United States
of America this limited warranty will be governed
by the laws of Texas, and exclude the United
Nations Convention on Contracts for the Interna-
tional Sale of Goods. If this Product was purchased
in Canada this limited warranty will be governed
by the laws of the Province of Ontario and the fed-
eral laws of Canada applicable therein, and
exclude the United Nations Convention on Con-
tracts for the International Sale of Goods.
If you want to learn more about Gigaset Service or
for Support on your Gigaset phone, visit our web
site at http://www.gigaset.com or please call
1-866 247-8758.
Issued by
Gigaset Communications GmbH
Frankenstr. 2a, D-46395 Bocholt
© Gigaset Communications GmbH 2011
All rights reserved.
Subject to availability. Rights of modifications
reserved.
Product attributes subject to change.
We reserve the right, to make changes without
notice in equipment design and/or components.
Part Number: A31008-M2202-R301-1-3S19
© Copyright 2011.
55
FCC / ACTA Information
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
Questions and answers
If you have any queries about the use of
your telephone, visit our website at
www.gigaset.com/service
for assistance 24/7.
The table below also lists steps for trouble-
shooting.
The display is blank.
1. The handset is not activated.
¥Press and hold the end call key a.
2. The battery is empty.
¥Charge the battery or replace it
(¢page 13).
"Base" flashes on the display.
1. The handset is outside the range of the base.
¥Move the handset closer to the base.
2. The base's range is reduced because
Eco Mode is activated.
¥Deactivate Eco Mode (¢page 41) or
reduce the distance between the handset
and the base.
3. The base is not activated.
¥Check the base power adapter
(¢page 11).
4. Handset has not been registered with the
base or has been de-registered.
¥Register the handset (¢page 42).
The handset does not ring.
1. The ringtone is switched off.
¥Activate the ringtone (¢page 46).
2. The phone only rings if the phone number has
been transferred.
¥Activate the ringtone for unknown calls
(¢page 46).
You cannot hear a ringtone/dialling tone from
the fixed line.
The phone cord supplied has not been used or
has been replaced by a new cord with the wrong
pin connections.
¥Please always use the phone cord supplied or
ensure that the pin connections are correct
when purchasing from a retailer (¢page 58).
Each incoming call resets the date/time incor-
rectly.
The date and time are sent via e.g., your network
provider, a router or PABXs during calling line dis-
play. This data may be incorrect.
¥Set the date/time correctly e.g., on the router
or PABX.
¥Do not automatically copy the date/time
¢page 17.
Error tone sounds after system PIN prompt.
You have entered the wrong system PIN.
¥Reset the system PIN to 0000 (¢page 47).
Forgotten system PIN.
¥Reset the system PIN to 0000 (¢page 47).
The other party cannot hear you.
You pressed the mute key v during a call. The
handset is "muted".
¥Unmute the microphone (¢page 29).
The number of the caller is not displayed
although Caller ID (CID) has been set.
Caller ID is not enabled.
¥The caller should ask the network provider to
enable Caller ID.
Refer to the notes on calling line display
¢page 28.
You hear an error tone when keying an input.
Action has failed/invalid input.
¥Repeat the process.
Watch the display and refer to the user man-
ual if necessary.
You cannot listen to messages on the network
mailbox.
Your PABX is set to pulse dialling.
¥Set your PABX to tone dialling.
56
Environment
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
Gigaset A510A only:
Environment
Our environmental mission
statement
We, Gigaset Communications GmbH, bear
social responsibility and are actively com-
mitted to a better world. Observing our eco-
logical responsibilities is paramount in every
aspect of our work – from product and proc-
ess design to production and sales or even
disposal.
Further information on environmentally
friendly products and processes is available
on the Internet at www.gigaset.com.
Environmental management
system
Gigaset Communications
GmbH is certified pursuant
to the international stand-
ards EN 14001 and
ISO 9001.
ISO 14001 (Environment): Certified since
September 2007 by TüV SÜD Management
Service GmbH.
ISO 9001 (Quality): Certified since 17/02/
1994 by TüV SÜD Management Service
GmbH.
Ecological energy consumption
The use of ECO DECT (¢page 41) saves
energy and makes an active contribution
towards protecting the environment.
Disposal
Batteries should not be disposed of in gen-
eral household waste. Observe the local
waste disposal regulations, details of which
can be obtained from your local authority or
the dealer you purchased the product from.
All electrical and electronic equipment must
be disposed of separately from general
household waste using the sites designated
by local authorities.
The appropriate disposal
and separate collection of
used equipment serve to
prevent potential harm to
the environment and to
health. They are a prerequi-
site for the re-use and recycling of used elec-
trical and electronic equipment.
For further information on disposing of your
used equipment, please contact your local
authority, your refuse collection service or
the dealer you purchased the product from.
No time is specified for a message in the
calls list.
Date and time have not been set.
¥Set the date/time (¢page 16).
The answering machine reports "Invalid PIN"
during remote operation.
1. You have entered the wrong system PIN.
¥Enter the system PIN again.
2. The system PIN is still set to 0000.
¥Set the system PIN to something other
than 0000 (¢page 47).
The answering machine is not recording any
messages/has switched to answer only mode.
Its memory is full.
¥Delete old messages.
¥Play back new messages and delete.
Exclusion of liability
Some displays may contain pixels (pic-
ture elements), which remain activated or
deactivated.
This is completely normal and does not
indicate a fault.
57
Appendix
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
Appendix
Caring for your phone
Wipe down the base station and handset
with a damp cloth (do not use solvent or a
microfiber cloth) or an antistatic cloth. Never
use a dry cloth. This can cause static.
Impairments in high-gloss finishes can be
carefully removed using display polishes for
mobile phones.
Contact with liquid
If the handset comes into contact with liq-
uid:
1. Switch the handset off and remove the
batteries immediately.
2. Allow the liquid to drain from the hand-
set.
3. Pat all parts dry, then with the battery
compartment open and the keypad fa-
cing down place the handset in a dry,
warm place for at least 72 hours (not in a
microwave, oven, etc.).
4. Do not switch on the handset again un-
til it is completely dry.
When it has fully dried out, you will normally
be able to use it again.
Specifications
Batteries
Technology:
Nickel-metal-hydride (NiMH)
Size: AAA (Micro, HR03)
Voltage: 1.2 V
Capacity: 550 - 1000 mAh
The device is supplied with two approved
batteries.
Handset operating times/charging
times
This Gigaset can charge batteries up to a
capacity of 1000 mAh. Using special high-
performance batteries or batteries with high
capacities is not recommended for cordless
phones.
The operating time of your Gigaset depends
on the capacity and age of the batteries and
the way it is used. (Standby times/talktimes/
operating times are maximum possible
times, charging times are typical values).
Due to the constant progression in battery
development, the list of recommended bat-
teries in the FAQ section of the Gigaset Cus-
tomer Care pages is updated regularly:
www.gigaset.com/service
!
Capacity (mAh) approx.
550 700 800 1000
Standby time (hours) 220 255 290 360
Talktime (hours) 20 23 27 33
Operating time for
1.5 h of calls per day
(hours)
- Without Eco Mode+
- With Eco Mode+
135
95
155
110
180
130
255
155
C hargi n g time i n base
(hours)
67810
Charging time in
charger (hours)
5.5 6.5 7 9
58
Appendix
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
Base power consumption
General specifications
Pin connections on the telephone
jack
A510 A510A
In standby mode * approx. 0.7 W approx. 0.7 W
Base in standby
mode **
< 0.4 W < 0.4 W
During a call approx. 0.5 W approx. 0.5 W
* Charged handset in base
** Handset not in base
DECT standard DECT 6.0
GAP standard Not relevant
No. of channels 30 duplex channels
Radio frequency range 1920–1930 MHz
Duplex method Time multiplex,
10 ms frame length
Repeat frequency of
the transmission pulse
100 Hz
Length of the transmis-
sion pulse
370 μs
Channel grid 1728 kHz
Bit rate 1152 kbit/s
Modulation GFSK
Language code 32 kbit/s
Transmission power 5 mW average power
per channel,
120 mW pulse power
Range up to 700 feet outdoors,
up to 100 feet indoors
Base power supply 120 V ~/60 Hz
Environmental condi-
tions for operation
+41°F to +113°F,, 20% to
75% relative humidity
Dialling mode DTMF (tone dialling)/
PD (pulse dialling)
1unused
2unused
3a
4b
5unused
6unused
3
2
1
4
5
6
59
Appendix
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / appendix.fm / 19.10.2011
Version 4, 16.09.2005
Writing and editing text
The following rules apply when writing text:
uMultiple letters and characters are
assigned to each key between Q and O
as well as P and #.
uControl the cursor with uvts.
uCharacters are inserted at the cursor posi-
tion.
uPress the display key §Delete§ to delete the
character to the left of the cursor.
uThe first letter of the name of directory
entries is automatically capitalised, fol-
lowed by lower case letters.
Setting upper/lower case or digits
Repeatedly press the hash key # to change
the text input mode.
When the mode is switched, the active
mode is indicated at the bottom left of the
screen.
Writing names
¤Enter the individual letters/characters by
pressing the corresponding key.
The characters assigned to the key are
shown in a selection line at the bottom left
of the screen. The selected character is high-
lighted.
¤Briefly press the key several times in suc-
cession to select the required letter/char-
acter.
Standard characters
1) Space
2) Line break
123 Digits
Abc Upper case *
abc Lower case
* First letter in capitals, all others in lower case
1x 2x 3x 4x 5x 6x 7x 8x 9x 10x11x12x13x14x15x16x
11€£$¥¤
2abc2äáàâãç
Idef3ëéèê
4gh i4ïíìî
5jkl5
Lmno6öñóòôõ
Mpqr s7ß
Ntuv8üúùû
Owx y z9 ÿýæøå
Q.,?! 0+-:¿¡“‘;_
P*/()<=>%
##@\ &§
1)
2)
60
Accessories
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / accessories_SAG.fm / 25.08.2011
Version 4, 16.09.2005
Accessories
Gigaset handsets
Upgrade your Gigaset to a cordless PABX:
Gigaset A510H handset
uHear whom the call is for with VIP ringtones
uHigh-quality keypad
u1.8" b/w display
uDirectory for 150 entries
uTalk/standby time of up to 18 h/260 h,
standard batteries
uBrilliant sound quality in handsfree mode
uScreensaver (digital clock)
uECO DECT
uAlarm clock
uNo interruptions from anonymous calls
www.gigaset.com/gigasetA510h
Gigaset C300H handset
uHear whom the call is for with VIP ringtones
uHigh-quality keypad with backlight
u1.7" CSTN colour display
uDirectory for 250 entries
uTalk/standby time of up to 20 h/300 h,
standard batteries
uBrilliant sound quality in handsfree mode
uScreensaver (digital clock or picture)
uECO DECT
uAlarm clock
uNo interruptions from anonymous calls
www.gigaset.com/gigasetc300h
61
Accessories
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / accessories_SAG.fm / 25.08.2011
Version 4, 16.09.2005
Gigaset C610H handset
uSocial life management with room monitor
and birthday reminders
uIndividual programming of ringers with 6 VIP groups
uHigh-quality keypad with backlight
u1.8" TFT colour display
uDirectory for up to 150 vCards
uTalk/standby time of up to 12 h/180 h,
standard batteries
uLarge font for calls lists and directory
uBrilliant sound quality in handsfree mode
uScreensaver (digital clock)
uECO DECT
uAlarm clock
uNight mode with time-controlled ringer deactivation
uNo interruptions from anonymous calls
uRoom monitor (baby alarm, Babyphone)
uDirect call
www.gigaset.com/gigasetc610h
Gigaset SL78H handset
uReal metal frame
uModern keypad with high-quality backlight
u2.2" TFT QVGA colour display
uBluetooth® and mini USB
uDirectory for up to 500 vCards
uTalk/standby time of up to 14 h/200 h
uBrilliant sound quality in handsfree mode
uCaller pictures, slide show and screensaver
(analogue and digital clock)
uDownload ringer melodies
uECO DECT
uAlarm clock
uCalendar with appointment scheduler
uNight mode with time-controlled ringer deactivation
uRoom monitor (baby alarm, Babyphone)
www.gigaset.com/gigasetsl78h
62
Accessories
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / accessories_SAG.fm / 25.08.2011
Version 4, 16.09.2005
L410 handsfree clip for cordless phones
uComplete freedom of movement when making calls
uPractical clip fastening
uPerfect sound quality in handsfree mode
uWeight approx. 30 g
uECO DECT
u5 volume settings
uLED status display
uTalk/standby time of up to 5 h/120 h
uIndoors: ranges of up to 50 m,
outdoors: up to 300 m
www.gigaset.com/gigasetl410
Compatibility
You can find more information about the handset functions in connection with the individual
Gigaset bases at:
www.gigaset.com/compatibility
All accessories and batteries are available from your phone retailer.
Use only original accessories. This will avoid possible health risks and personal
injury, and also ensure that all the relevant regulations are complied with.
63
Mounting the base on the wall
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / accessories_SAG.fm / 25.08.2011
Version 4, 16.09.2005
Mounting the base on the wall
Mounting the charger on the wall
A510A: 45 mm
A510: 30 mm
A510A: approx 8.5 mm
A510: approx. 7.4 mm
21.6 mm
approx.
3.3 mm
64
Index
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / A510ASIX.fm / 25.08.2011
Version 4, 16.09.2005
Index
A
Accepting a call . . . . . . . . . . . . . . . . . . . . . . . 27
Access protection . . . . . . . . . . . . . . . . . . . . . 47
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
Acknowledge tones . . . . . . . . . . . . . . . . . . . 46
Activating
answering machine . . . . . . . . . . . . . . . . . 35
answering machine
(remote operation). . . . . . . . . . . . . . 39
flashing message key. . . . . . . . . . . . . . . . 33
handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
keypad lock . . . . . . . . . . . . . . . . . . . . . . . . 22
ring delay . . . . . . . . . . . . . . . . . . . . . . . . . . 44
two-way recording . . . . . . . . . . . . . . . . . . 37
Alarm clock . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Announcement (answering machine) . . . 35
Answering machine . . . . . . . . . . . . . . . . . . . 35
activating/deactivating . . . . . . . . . . . . . . 35
deleting messages . . . . . . . . . . . . . . . . . . 36
icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
playing back messages . . . . . . . . . . . . . . 36
remote operation . . . . . . . . . . . . . . . . . . . 39
skipping back. . . . . . . . . . . . . . . . . . . . . . . 36
skipping forward. . . . . . . . . . . . . . . . . . . . 36
Answering machine list . . . . . . . . . . . . . 32, 33
Answering machine, see also
Network mailbox
Area codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
extra codes . . . . . . . . . . . . . . . . . . . . . . . . . 34
local area code. . . . . . . . . . . . . . . . . . . . . . 34
Automatic
ring delay . . . . . . . . . . . . . . . . . . . . . . . 27, 44
B
Base
connecting . . . . . . . . . . . . . . . . . . . . . . . . . 11
connecting to PABX . . . . . . . . . . . . . . . . . 48
restoring default settings . . . . . . . . . . . . 47
setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
setting up . . . . . . . . . . . . . . . . . . . . . . . . . . 11
system PIN . . . . . . . . . . . . . . . . . . . . . . . . . 47
Battery
charging . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 3
display . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 3
icon. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 3
inserting . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
C
Call
ending . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
external . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
participant listening in . . . . . . . . . . . . . . 43
picking up from ans. machine . . . . . . . . 37
transferring (connecting) . . . . . . . . . 43, 44
two-way recording. . . . . . . . . . . . . . . . . . 37
Call duration. . . . . . . . . . . . . . . . . . . . . . . . . . 27
Call screening during recording. . . . . . . . . 37
Call waiting
internal call. . . . . . . . . . . . . . . . . . . . . . . . . 43
Caller ID (CID) . . . . . . . . . . . . . . . . . . . . . . . . . 27
Calling
external . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
internally. . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Calls lists . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Care of the telephone . . . . . . . . . . . . . . . . . 57
Changing
dialling mode. . . . . . . . . . . . . . . . . . . . . . . 48
display language. . . . . . . . . . . . . . . . . 15, 44
earpiece volume . . . . . . . . . . . . . . . . . . . . 44
handsfree volume. . . . . . . . . . . . . . . . . . . 44
name of handset. . . . . . . . . . . . . . . . . . . . 44
pauses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
ringtone . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
system PIN . . . . . . . . . . . . . . . . . . . . . . . . . 47
Character set . . . . . . . . . . . . . . . . . . . . . . . . . 59
Charge status indicator . . . . . . . . . . . . . . . 2, 3
CID name and number . . . . . . . . . . . . . . . . 27
Colour scheme. . . . . . . . . . . . . . . . . . . . . . . . 44
Confirmation tone . . . . . . . . . . . . . . . . . . . . 46
Connecting the base to PABX . . . . . . . . . . 48
Contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Control key . . . . . . . . . . . . . . . . . . . . . . . . . 2, 20
Correcting incorrect entries . . . . . . . . . . . . 20
Customer Care . . . . . . . . . . . . . . . . . . . . . . . . 52
65
Index
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / A510ASIX.fm / 25.08.2011
Version 4, 16.09.2005
D
Date, setting . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Deactivating
answering machine . . . . . . . . . . . . . . . . . 35
flashing message key. . . . . . . . . . . . . . . . 33
handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
keypad lock . . . . . . . . . . . . . . . . . . . . . . . . 22
ring delay . . . . . . . . . . . . . . . . . . . . . . . . . . 44
two-way recording . . . . . . . . . . . . . . . . . . 37
Delete key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Deleting
announcement for ans. machine . . . . . 36
characters . . . . . . . . . . . . . . . . . . . . . . . . . . 20
message . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
De-registering (handset) . . . . . . . . . . . . . . . 42
Dialling
using quick dial . . . . . . . . . . . . . . . . . . . . . 31
with directory . . . . . . . . . . . . . . . . . . . . . . 30
Dialling mode. . . . . . . . . . . . . . . . . . . . . . . . . 48
Digital clock . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Directory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
copying number from text . . . . . . . . . . . 32
managing entries . . . . . . . . . . . . . . . . . . . 31
opening. . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
order of entries . . . . . . . . . . . . . . . . . . . . . 30
saving entry . . . . . . . . . . . . . . . . . . . . . . . . 30
saving the first number . . . . . . . . . . . . . . 30
sending entry/list to handset. . . . . . . . . 31
using to enter numbers. . . . . . . . . . . . . . 32
Display
changing display language . . . . . . . 15, 44
colour scheme . . . . . . . . . . . . . . . . . . . . . . 44
contrast . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
in idle status . . . . . . . . . . . . . . . . . . . . . 18, 21
network mailbox message . . . . . . . . . . . 40
number (CID) . . . . . . . . . . . . . . . . . . . . . . . 27
screensaver. . . . . . . . . . . . . . . . . . . . . . . . . 44
setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Display keys . . . . . . . . . . . . . . . . . . . . . . . . . 2, 4
Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
E
Earpiece volume . . . . . . . . . . . . . . . . . . . . . . 44
ECO DECT . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Eco mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
End call key . . . . . . . . . . . . . . . . . . . . . . . . . 2, 27
Ending a call . . . . . . . . . . . . . . . . . . . . . . . . . . 27
Entry
selecting from directory . . . . . . . . . . . . . 30
Environment. . . . . . . . . . . . . . . . . . . . . . . . . . 56
Error tone . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
External call
divert to ans. machine . . . . . . . . . . . . . . . 37
Extra codes . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
F
Fast access
answering machine . . . . . . . . . . . . . . . . . 38
network mailbox. . . . . . . . . . . . . . . . . . . . 40
Flash key . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 48
Flash time . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
G
General troubleshooting. . . . . . . . . . . . . . . 55
Group call . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
H
Handset
activating/deactivating. . . . . . . . . . . . . . 22
changing name . . . . . . . . . . . . . . . . . . . . . 44
contact with liquid . . . . . . . . . . . . . . . . . . 57
de-registering . . . . . . . . . . . . . . . . . . . 42, 47
display language. . . . . . . . . . . . . . . . . 15, 44
earpiece volume . . . . . . . . . . . . . . . . . . . . 44
handsfree volume. . . . . . . . . . . . . . . . . . . 44
idle status . . . . . . . . . . . . . . . . . . . . . . . . . . 21
list . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
locating . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
muting. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
registering . . . . . . . . . . . . . . . . . . . . . . . . . 42
restoring to default settings. . . . . . . . . . 46
setting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
setting up . . . . . . . . . . . . . . . . . . . . . . . . . . 13
transferring a call . . . . . . . . . . . . . . . . . . . 43
using multiple . . . . . . . . . . . . . . . . . . . . . . 42
Handsfree operation . . . . . . . . . . . . . . . . . . 29
Hash key . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 22
Hearing aids . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Help . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
66
Index
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / A510ASIX.fm / 25.08.2011
Version 4, 16.09.2005
I
Icon
alarm clock . . . . . . . . . . . . . . . . . . . . . . . . . 41
for new messages . . . . . . . . . . . . . . . . . . . 32
keypad lock . . . . . . . . . . . . . . . . . . . . . . . . 22
new message (answering machine). . . 36
ringtone. . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Idle status
display . . . . . . . . . . . . . . . . . . . . . . . . . . 18, 21
returning to . . . . . . . . . . . . . . . . . . . . . . . . 21
Incorrect entries (correction) . . . . . . . . . . . 20
Industry Canada Certification . . . . . . . . . . 49
Internal
listening in . . . . . . . . . . . . . . . . . . . . . . . . . 43
making calls . . . . . . . . . . . . . . . . . . . . . . . . 42
Internal call . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
call waiting . . . . . . . . . . . . . . . . . . . . . . . . . 43
K
Key 1 (quick dial) . . . . . . . . . . . . . . . . . . . . 2, 38
Keypad lock . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Keys
assigning directory entry . . . . . . . . . . . . 31
control key . . . . . . . . . . . . . . . . . . . . . . . 2, 20
delete key . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
display keys . . . . . . . . . . . . . . . . . . . . . . . 2, 4
end call key. . . . . . . . . . . . . . . . . . . . . . . 2, 27
flash key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
hash key . . . . . . . . . . . . . . . . . . . . . . . . . 2, 22
message key. . . . . . . . . . . . . . . . . . . . . . . . . .2
on/off key . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
quick dial. . . . . . . . . . . . . . . . . . . . . . 2, 31, 38
star key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
talk key. . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 27
L
Language, display . . . . . . . . . . . . . . . . . . 15, 44
Liquid . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 57
List
answering machine . . . . . . . . . . . . . . 32, 33
calls lists. . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
handsets . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
missed calls. . . . . . . . . . . . . . . . . . . . . . . . . 33
network mailboxes. . . . . . . . . . . . . . . . . . 32
Listening in to a call . . . . . . . . . . . . . . . . . . . 43
Local area code . . . . . . . . . . . . . . . . . . . . . . . 34
Locating, handset . . . . . . . . . . . . . . . . . . . . . 42
Lock
activating/deactivating keypad lock . . 22
M
Making calls
accepting a call . . . . . . . . . . . . . . . . . . . . . 27
external . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
internal . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Manual redial . . . . . . . . . . . . . . . . . . . . . . . . . 32
Medical equipment . . . . . . . . . . . . . . . . . . . . .9
Menu
end tone . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
tree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
using . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Message key
activating/deactivating flashing . . . . . . 33
opening lists. . . . . . . . . . . . . . . . . . . . . . . . 32
Message length (ans. mach.) . . . . . . . . . . . 38
Messages
copying number to directory. . . . . . . . . 36
deleting. . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
playing back. . . . . . . . . . . . . . . . . . . . . . . . 36
Microphone . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Missed calls. . . . . . . . . . . . . . . . . . . . . . . . . . . 33
Music on hold. . . . . . . . . . . . . . . . . . . . . . . . . 47
Muting
handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
N
Name
of a handset . . . . . . . . . . . . . . . . . . . . . . . . 44
Network mailbox. . . . . . . . . . . . . . . . . . . . . . 40
Night mode, see Time control
Number
copying to directory. . . . . . . . . . . . . . . . . 32
displaying caller’s number (Caller ID). . 27
entering with directory . . . . . . . . . . . . . . 32
saving in the directory. . . . . . . . . . . . . . . 30
O
On/Off key. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Operating remotely . . . . . . . . . . . . . . . . . . . 39
Order in directory . . . . . . . . . . . . . . . . . . . . . 30
67
Index
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / A510ASIX.fm / 25.08.2011
Version 4, 16.09.2005
P
PABX
connecting base . . . . . . . . . . . . . . . . . . . . 48
pauses . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
setting dialling mode. . . . . . . . . . . . . . . . 48
setting flash time . . . . . . . . . . . . . . . . . . . 48
switching to tone dialling. . . . . . . . . . . . 48
Package contents . . . . . . . . . . . . . . . . . . . . . 10
Paging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 42
Pause
after flash key. . . . . . . . . . . . . . . . . . . . . . . 48
after line seizure . . . . . . . . . . . . . . . . . . . . 48
PD (pulse dialling). . . . . . . . . . . . . . . . . . . . . 48
Phone number display, notes . . . . . . . . . . 28
PIN change
system PIN . . . . . . . . . . . . . . . . . . . . . . . . . 47
Pin connections . . . . . . . . . . . . . . . . . . . . . . . 58
Playing back
announcement (ans. machine) . . . . . . . 35
message (answering machine) . . . . . . . 36
Power adapter . . . . . . . . . . . . . . . . . . . . . . . . . .9
Power consumption . . . . . . . . . . . . . . . . . . . 58
Protecting phone against access. . . . . . . . 47
Pulse dialling . . . . . . . . . . . . . . . . . . . . . . . . . 48
Q
Questions and answers . . . . . . . . . . . . . . . . 55
R
Range. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Recording
two-way recording . . . . . . . . . . . . . . . . . . 37
Redial . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Registering (handset). . . . . . . . . . . . . . . . . . 42
Ring delay . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Ringtone
changing. . . . . . . . . . . . . . . . . . . . . . . . . . . 45
setting melody. . . . . . . . . . . . . . . . . . . 45, 46
setting volume. . . . . . . . . . . . . . . . . . . . . . 45
S
Screen protection, see Screensaver
Screensaver . . . . . . . . . . . . . . . . . . . . . . . . . . 44
Searching in directory . . . . . . . . . . . . . . . . . 30
Sending
directory entry to handset . . . . . . . . . . . 31
Service (Customer Care) . . . . . . . . . . . . . . . 52
Setting
melody. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
melody (ringer) . . . . . . . . . . . . . . . . . . . . . 45
wake-up time. . . . . . . . . . . . . . . . . . . . . . . 41
Setting up
area codes. . . . . . . . . . . . . . . . . . . . . . . . . . 34
base . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
handset . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Snooze mode . . . . . . . . . . . . . . . . . . . . . . . . . 41
Sound, see Ringtone
Special functions. . . . . . . . . . . . . . . . . . . . . . 48
Specifications. . . . . . . . . . . . . . . . . . . . . . . . . 57
Speed dial . . . . . . . . . . . . . . . . . . . . . . . . . 30, 31
Star key . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Switching off
internal listening in. . . . . . . . . . . . . . . . . . 43
Switching on
internal listening in. . . . . . . . . . . . . . . . . . 43
System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47
T
Talk key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2, 27
Telephone jack
pin connections . . . . . . . . . . . . . . . . . . . . 58
Time control (night mode) . . . . . . . . . . . . . 45
Time, setting. . . . . . . . . . . . . . . . . . . . . . . . . . 16
Tone dialling . . . . . . . . . . . . . . . . . . . . . . . . . . 48
U
Unknown caller . . . . . . . . . . . . . . . . . . . . . . . 27
V
Viewing network mailbox message . . . . . 40
Volume
earpiece. . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
handset handsfree volume. . . . . . . . . . . 44
ringtone . . . . . . . . . . . . . . . . . . . . . . . . . . . 45
speaker . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44
W
Writing and editing text . . . . . . . . . . . . . . . 59
Gigaset A510-A510A / USA en / A31008-M2202-R301-1-3S19 / Cover_back.fm / 25.08.2011

Navigation menu
