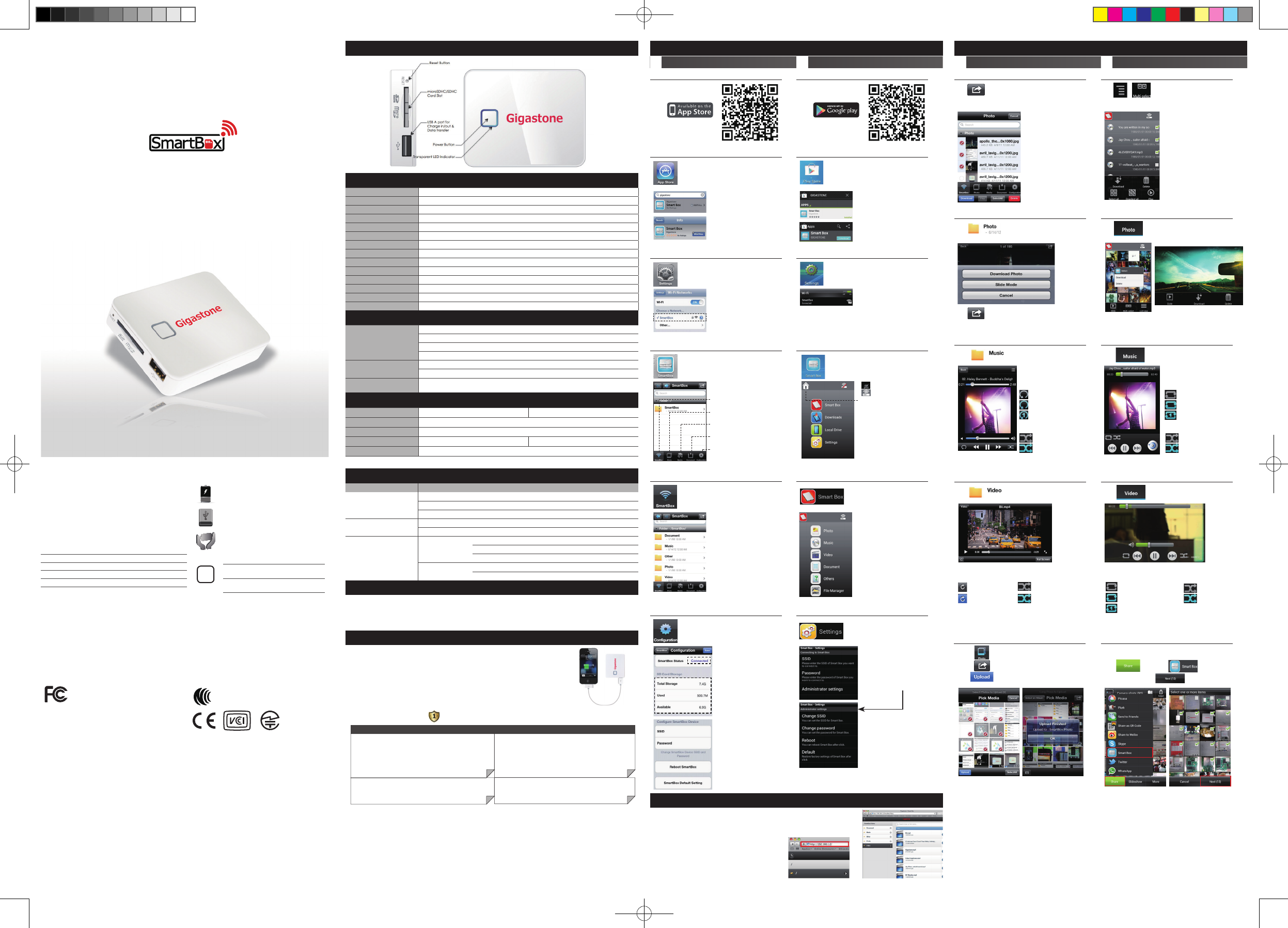

Gigastone WD2501 SmartBox User Manual

Gigastone Corp. SmartBox

User Manual

Copyright 2012 Gigastone Corporation. All Rights Reserved.
Gigastone®
Product Name Gigastone SmartBox
Part Number SmartBox A2
Dimension (mm) 75 x 60 x 16.1
weight (g) 75
Li-ion Battery 2500mAh
Charge In/Out DC 5V / 1000mA
Storage Memory SDHC card, up to 32GB
USB Port USB A for charge in/out and data
Wireless I/F Wi-Fi 802.11b/g/n (2.400GHz~2.4835GHz)
WiFi Outreach Approx. 10M
WiFi Operation time 8Hr
WiFi Standby time 16Hr
Operation Temp. -20°C ~ 60°C
Charging Temp. 0°C ~ 45°C
Operating system iOS Android
Photo JPG, JPEG, PNG, BMP
Audio MP3, WAV
Video MOV, M4V MP4
Document DOC, XLS, PPT, PDF, TXT
Wireless Portable Drive
Wireless le server
Wireless video/audio playback
Support up to 6 devices simultaneously
Wireless SD card reader
USB mass storage USB pen drive
USB SD card reader
Portable Power Bank DC 5V/500mA or
DC 5V/1000mA output
Wireless Portable Drive
User Manual
Thank you for purchasing the Gigastone SmartBox.
This manual describes the operating instructions
and safety precautions for using the SmartBox
Series. Ensure that you have read this manual before
using the product. After reading this manual, store it
somewhere safe for future reference.
Play Media Files in AndroidPlay Media Files in iPhone
Tap to access music in SmartBox.
Tap a music le to playback.
Tap to access music in SmartBox.
Tap a music le to playback.
Tap to access video in SmartBox.
Tap a video le to playback. Tap a video le to playback.
Tap to access Video in SmartBox.
Repeat play
Repeat play o
Repeat play all
Shue play
Shue play o
Shue play all
Shue play
Shue play o
Shue play all
Shue play
Shue play o
Shue play all
Repeat play
Repeat play o
Repeat play all
Repeat play selected one
Tap to access photo in SmartBox.
Tap to call out function keys for
download and sliede mode.
Tap to access photo in SmartBox.
Long press a thumbnail to download or delete.
Tap
to call out function keys for further operations.
Tap &
to call out function keys for further operations.
Open Gallery in Android device.
Tap and pick
Select photos and tap to upload.
Using SmartBox App
Setup SmartBox App in Android
Pick SmartBox (default) WiFi
network to join.
The default password:
123456789
Open the Google Play.
Search for the Key words:
Gigastone
Select Gigastone SmartBox app.
Tap "Download" button.
Search for the Key words:
Gigastone
Select Gigastone SmartBox app.
Tap "INSTALL" button.
Setup SmartBox App in iPhone
Photo:
Photo/image types of les.
Music:
Represents music or audio les.
Video:
Represents MP4 video type les.
Document:
Downloaded Documents.
Others:
Lists le types other than above.
File Manager:
Acts as a le browser.
Open WiFi network setting on Android
Tap the SmartBox App icon on Android to launch
WiFi connection status:
WiFi not connected to SmartBox
WiFi connected to SmartBox
Home Button
SmartBox:
Multimedia contents in SmartBox
Download:
Downloaded contents
Local drive:
Local contents on Android device
Settings:
Conguring SmartBox & WiFi
Tap SmartBox icon access media
contents in SmartBox
Tap conguration icon to open the
setting page.
Key in the WiFi SSID of SmartBox
Key in the WiFi password of SmartBox
Enter Administrator Setting
Password: 0000
Set the WiFi SSID & password of
SmartBox
Reboot the SmartBox
Reset SmartBox to default setting
SmartBox App Installation and Settings
Tap the SmartBox App icon on iphone to launch.
SmartBox:
Multimedia contents in SmartBox
Photo:
Camera Roll & downloaded photos
Media:
Downloaded Music & videos
Document:
Downloaded Documents
Conguration:
Conguring SmartBox
Open WiFi network setting on iPhone.
Pick SmartBox (default) WiFi
network to join.
The default password:
123456789
Open the App Store.
WiFi connection status:
WiFi successfully connected
SD card status
Customize
SmartBox SSID & password
Reboot the SmartBox
Reset SmartBox to default setting
Tap conguration icon to open the setting page.
Tap SmartBox icon access media contents
in SmartBox
Function key
Search function
Document:
Document types of les.
Music:
Represents music or audio les.
Others:
lists le types other than photo/image,
music, video, and document.
Photo:
Represents photo/image types of les.
Video:
Represents video les.
Open folder in SmartBox app.
Tap button to select photos.
Tap to upload.
Shue play
Shue play o
Shue play all
Battery factory prior to part of the charge
only for detection. It is recommended to
use after the battery fully charged.
CBA D
1 Multi-select & advanced option
> Scan QR code to get SmartBox App
> Search SmartBox on App Store
1 Connect to SmartBox over WiFi
2 Launching the SmartBox App
3 Access media contents in SmartBox
2 Launching the SmartBox App
> Scan QR code to get SmartBox App
> Search SmartBox on Google Play
1 Multi-select & advanced option
2 Photo
2 Photo
3 Music
4 Video
5 Upload Contents
5 Upload Contents
3 Music
Indication SmartBox Status LED Signal
Wi-Fi
Booting Up Solid Blue LED
Standby Blue LED ashes every 2 second
Transmitting Blue LED ashes every 0.5 second
Battery Low Power (<40%) Red LED ashes every 3 second
Low Power (<20%) Solid Red LED
Charging
Charging Battery
Low-Level ON/OFF 1sec/1sec
Middle-Level ON/OFF 3sec/2sec
High-Level ON/OFF 5sec/4sec
Charge Completed
SmartBox Power O Solid Purple LED
SmartBox Power On Blue LED ashes (WiFi Active signal)
Connecting to a PC
Charging the Smart Phone
1. Connect SmartBox to a PC.
2. Press power button to trigger card reader mode.
3. Wait 5 sec for PC to detect the disk drive.
4. Copy contents form PC to SmartBox.
SmartBox is power-o :
1. Plug smart phone to SmartBox
2. Press SmartBox power button to charge phone
SmartBox is power-on :
1. Plug smart phone to SmartBox
2. SmartBox start charging phone
3. SmartBox will turn o the WiFi automatically in 5 sec
(Blue LED ashing signal o)
• Connecting to SmartBox over WiFi
• Open a web browser and type "192.168.1.2" or gigastone.smartbox” in the URL eld
• Open the web page to access the contents in SmartBox
Access SmartBox Via Browsers
*URL mode doesn't support "multi-select"function
LED Denition
Getting to know SmatBox
Product Specications
Product Features
Support Media Type
Observe the following cautions carefully to avoid damage, re, or burst of the product:
• Do not attempt to dissemble, modify or repair the product by yourself.
• Do not drop or hit this product. Doing so may damage the product.
• Do not expose the product to any of the following environments:
- In a dusty place
- In a car exposed to sunlight, a place exposed to direct sunlight, or a place that becomes hot
- In a moist place or a place where condensation may occur
- In a place where a magnetic eld is generated
Caution
SmartBox pc
microSD Optional
microSD Adapter Optional
USB Cable pc
User Manual sheet
Package Contents
4 Video
Repeat play
Repeat play o
Repeat play all
Repeat play selected one
Repeat play
Repeat play o
Repeat play all
Repeat play selected one
1 Connect to SmartBox over WiFi
3 Access media contents in SmartBox
4 Conguring SmartBox and Its Status
4 Conguring SmartBox and Its Status
Quick Start References
*Shue Play option only enabled when play multiple les.
LED
Charge SmartBox Battery Solid RED
SmartBox charge complete
When Power O Solid Purple
SmartBox charging phone
(WiFi turn o) Extinguish
Power o automatically after 10 minutes of
inactivity to save energy.
Press power button to enable USB Drive
function when connected with PC.
Return Merchandise / Quality Assurance
Website
www.gigastone.com.tw/smartbox
e-mail
service@gigastone.com.tw
China
Room 811, China Academy of Science & Technology
Development Incubagtor Building, High-Tech South 1st Rd.,
NanShan Dist., Shen Zhen, China
Tel: +86-755-2693-5558 #807 or #809
Taiwan
12F-3. No. 100, Sec.1, Jiafong 11th Road, Zhubei City ,
Hsinchu County 302, Taiwan, R.O.C
Tel+886-3-6675098 #209 or #225
One Year Global Warranty
Certications
SRRC
CCAG12LP0150T0
FCC ID: PLE-WD2501
FCC Statement
Warning: Changes or modications to this unit not expressly approved by the party responsible for compliance could void the user
authority to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to part 15 of the
FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
F
1
t
2
Warranty policy
Gigastone provides replacement or repair services to our customers for defective products within the applicable warranty period.
Limitation of warranty
Please note that Gigastone is not responsible for providing free repairs if the product defect is caused by any of the following factors:
1. Damage caused by natural calamity or any inappropriate usage.
2. Product has been repaired or taken apart by unauthorized technicians.
3. The warranty label is altered, damaged or missing.
4. Product serial number does not conform to our original system or the label has been damaged.
5. Products purchased from unauthorized agents. This limited warranty covers only repairs or replacements of Gigastone products.
Gigastone is not liable for any loss of data or any cost incurred from determining the source of system problems, removing, servicing
or installing Gigastone products.
This device complies with Part 15 of the FCC Rules.
Operation is subject to the following two conditions:
(1) this device may not cause harmful interference,
and (2) this device must accept any interference
received, including interference that may cause
undesired operation.
