GiiNii Global SC-NH1-W GiiNii HOME MONITOR CAMERA User Manual Iprobot3W

GiiNii Global Limited GiiNii HOME MONITOR CAMERA Iprobot3W

User Manual

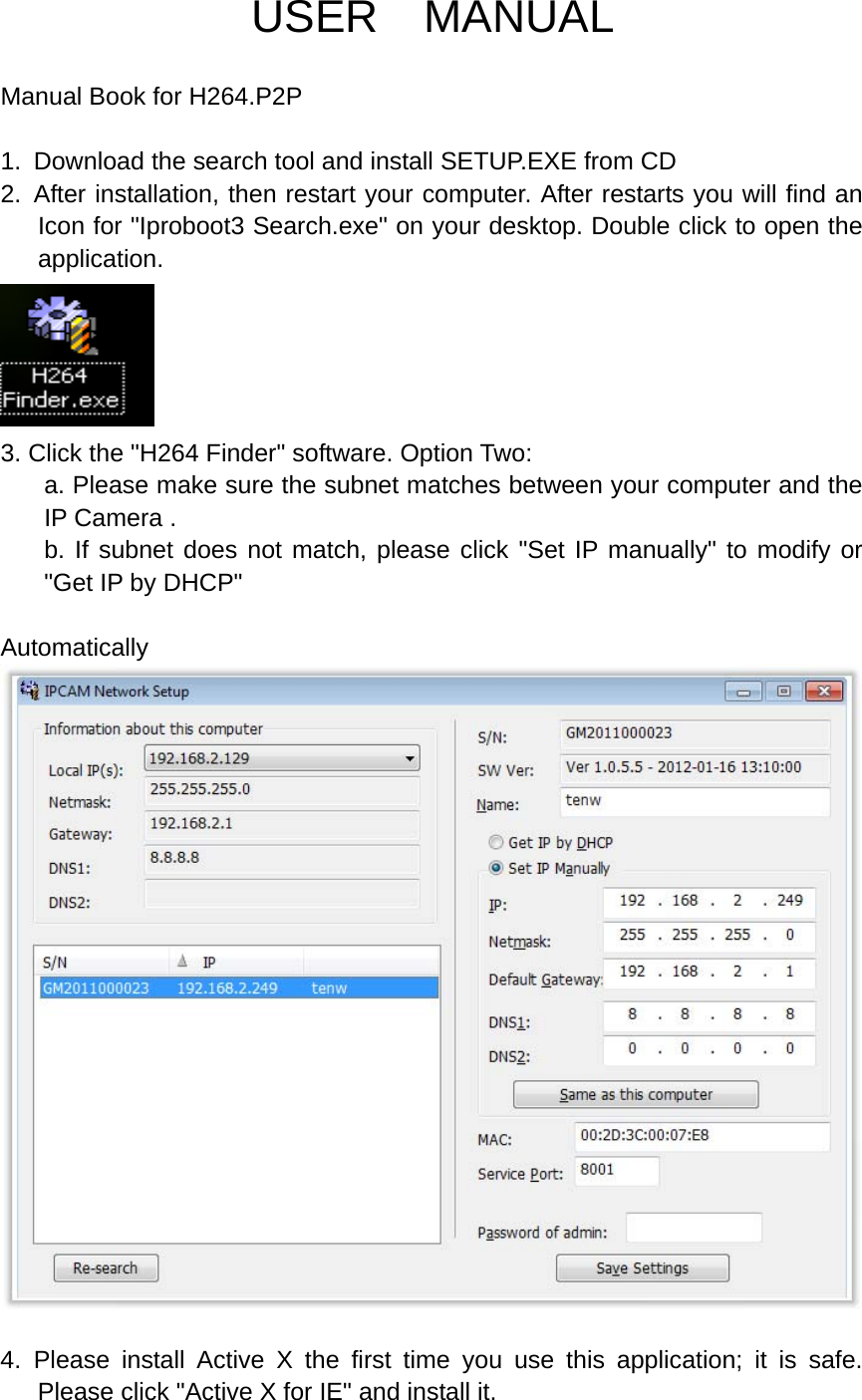

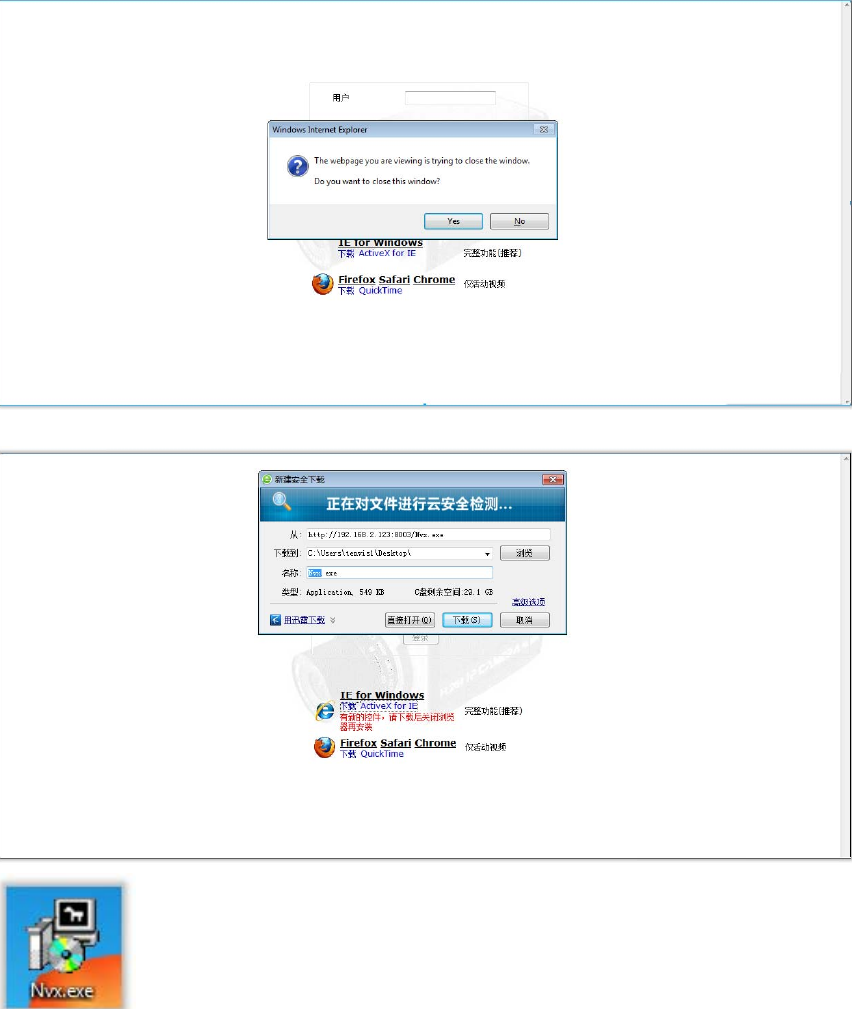

USER MANUAL Manual Book for H264.P2P 1. Download the search tool and install SETUP.EXE from CD 2. After installation, then restart your computer. After restarts you will find an Icon for "Iproboot3 Search.exe" on your desktop. Double click to open the application. 3. Click the "H264 Finder" software. Option Two: a. Please make sure the subnet matches between your computer and the IP Camera . b. If subnet does not match, please click "Set IP manually" to modify or "Get IP by DHCP" Automatically 4. Please install Active X the first time you use this application; it is safe. Please click "Active X for IE" and install it.

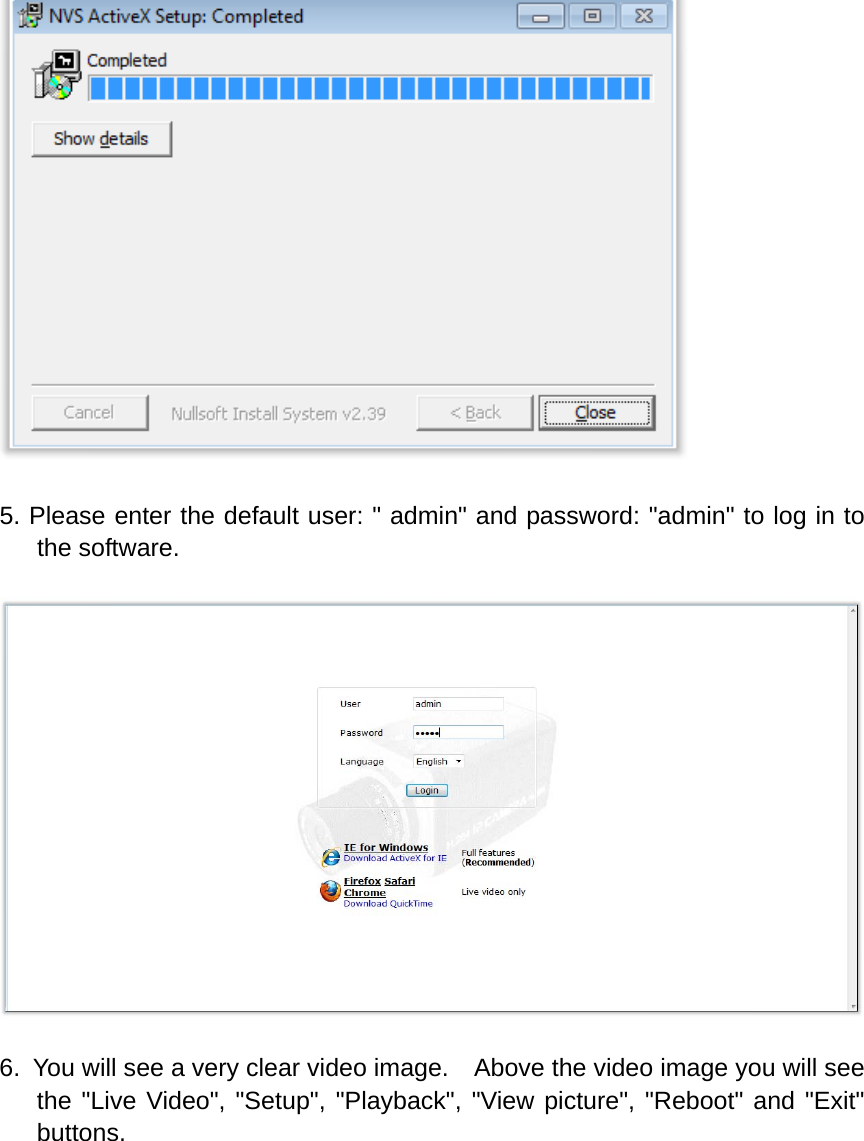

5. Please enter the default user: " admin" and password: "admin" to log in to the software. 6. You will see a very clear video image. Above the video image you will see the "Live Video", "Setup", "Playback", "View picture", "Reboot" and "Exit" buttons.

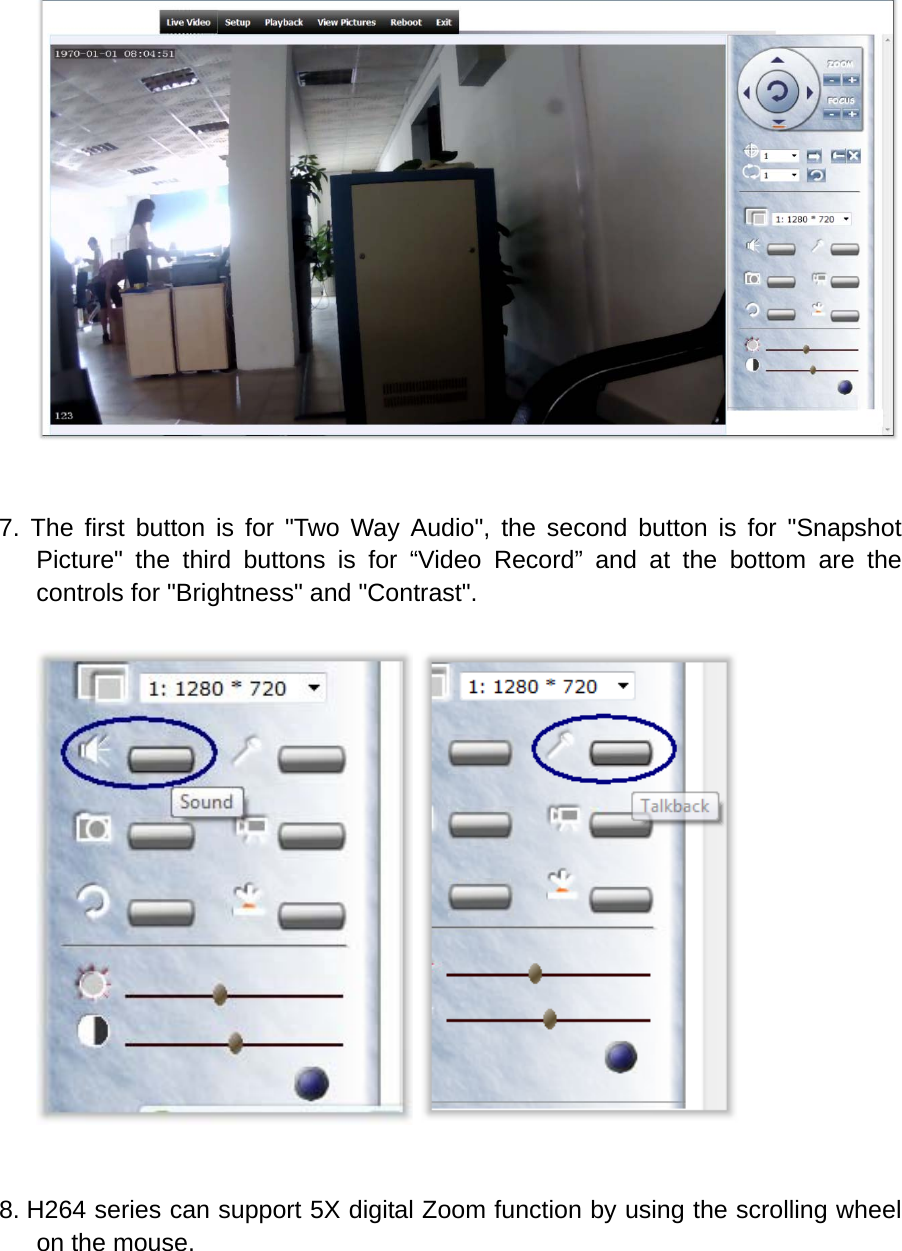

7. The first button is for "Two Way Audio", the second button is for "Snapshot Picture" the third buttons is for “Video Record” and at the bottom are the controls for "Brightness" and "Contrast". 8. H264 series can support 5X digital Zoom function by using the scrolling wheel on the mouse.

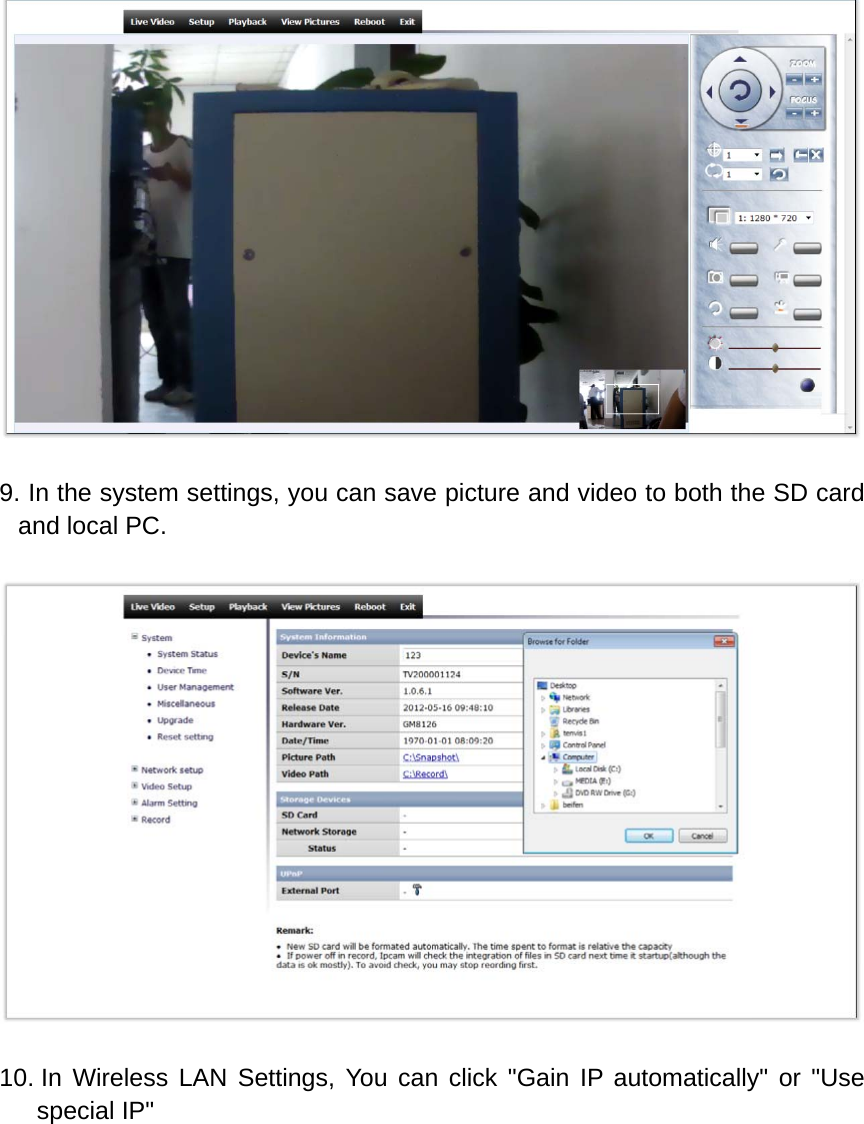

9. In the system settings, you can save picture and video to both the SD card and local PC. 10. In Wireless LAN Settings, You can click "Gain IP automatically" or "Use special IP"

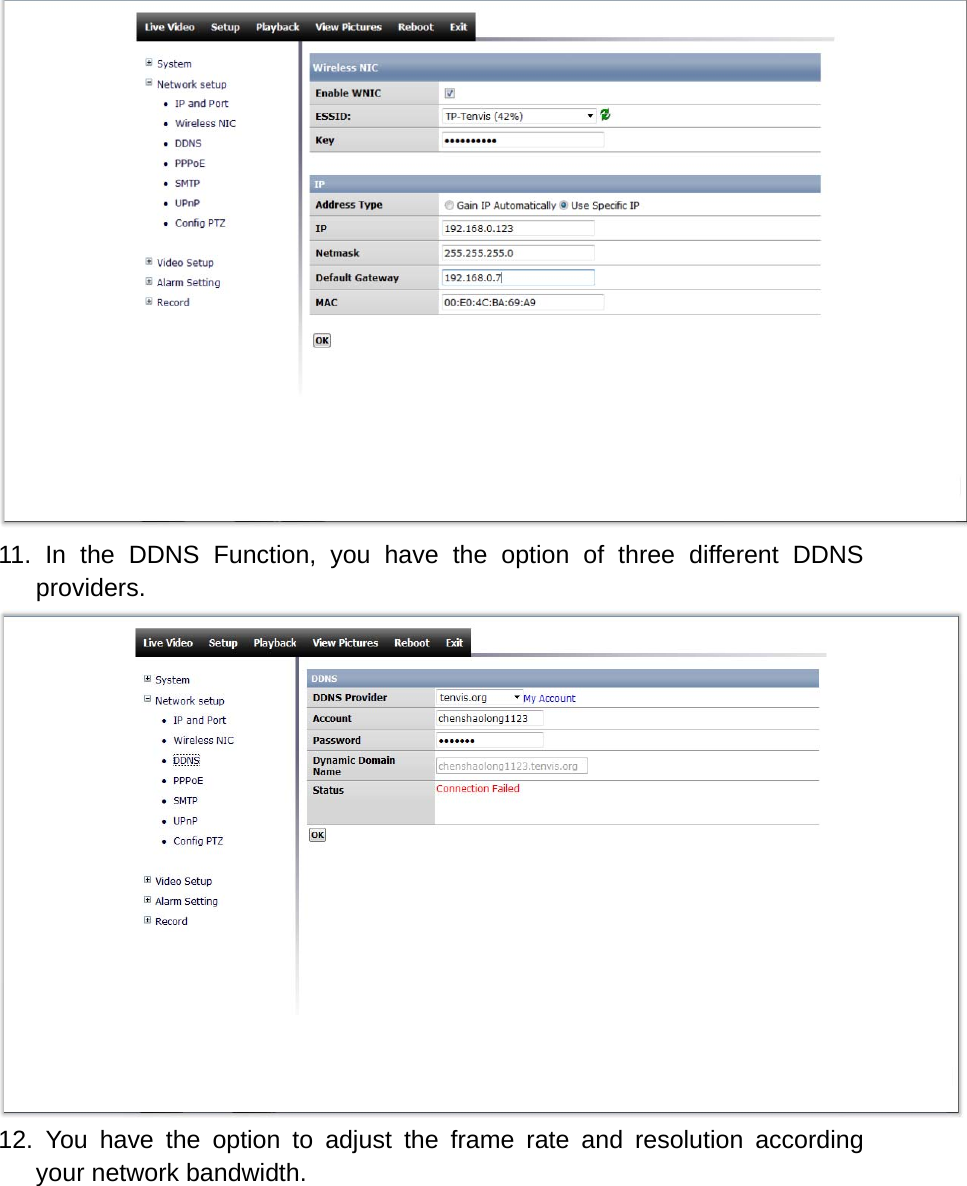

11. In the DDNS Function, you have the option of three different DDNS providers. 12. You have the option to adjust the frame rate and resolution according your network bandwidth.

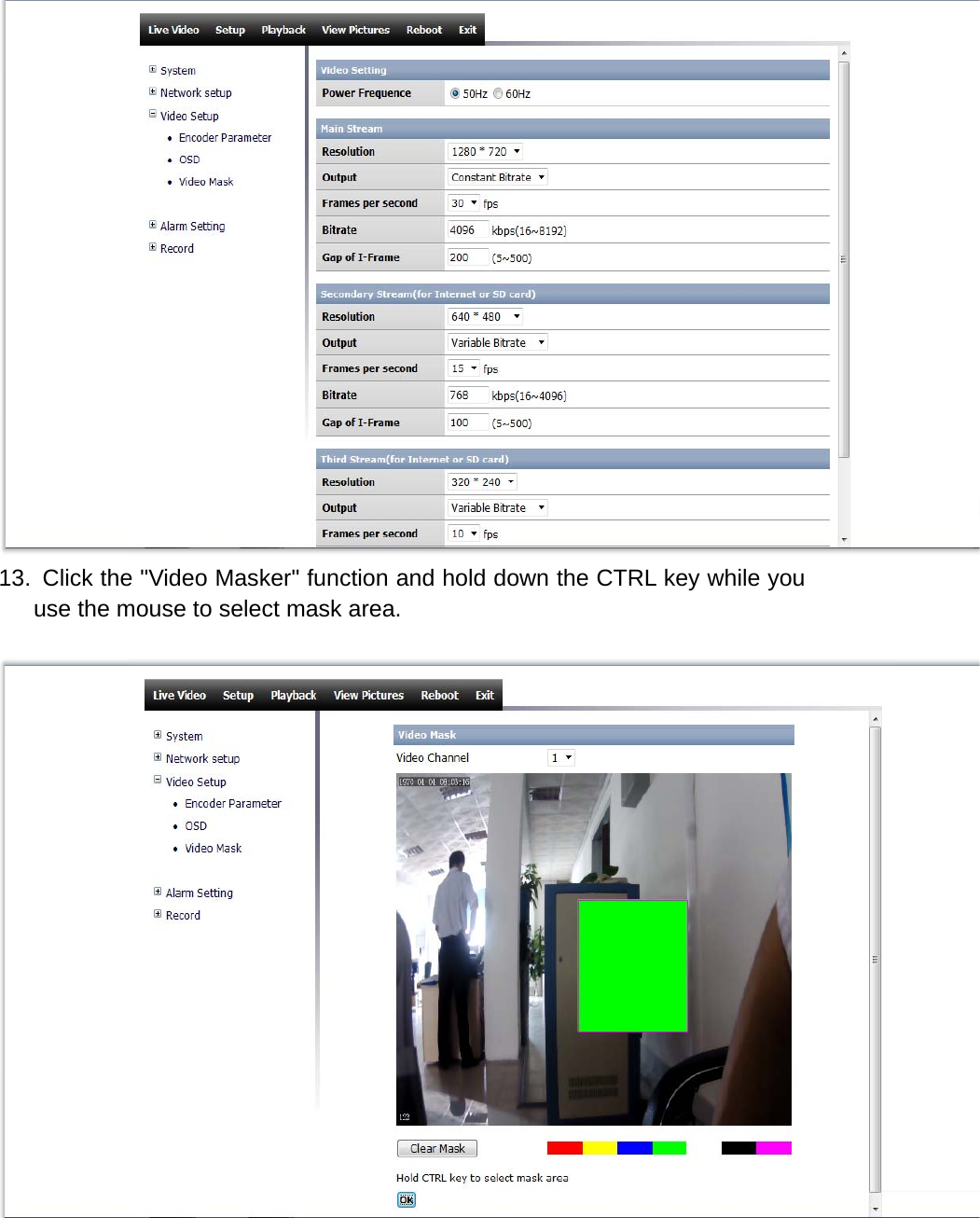

13. Click the "Video Masker" function and hold down the CTRL key while you use the mouse to select mask area.

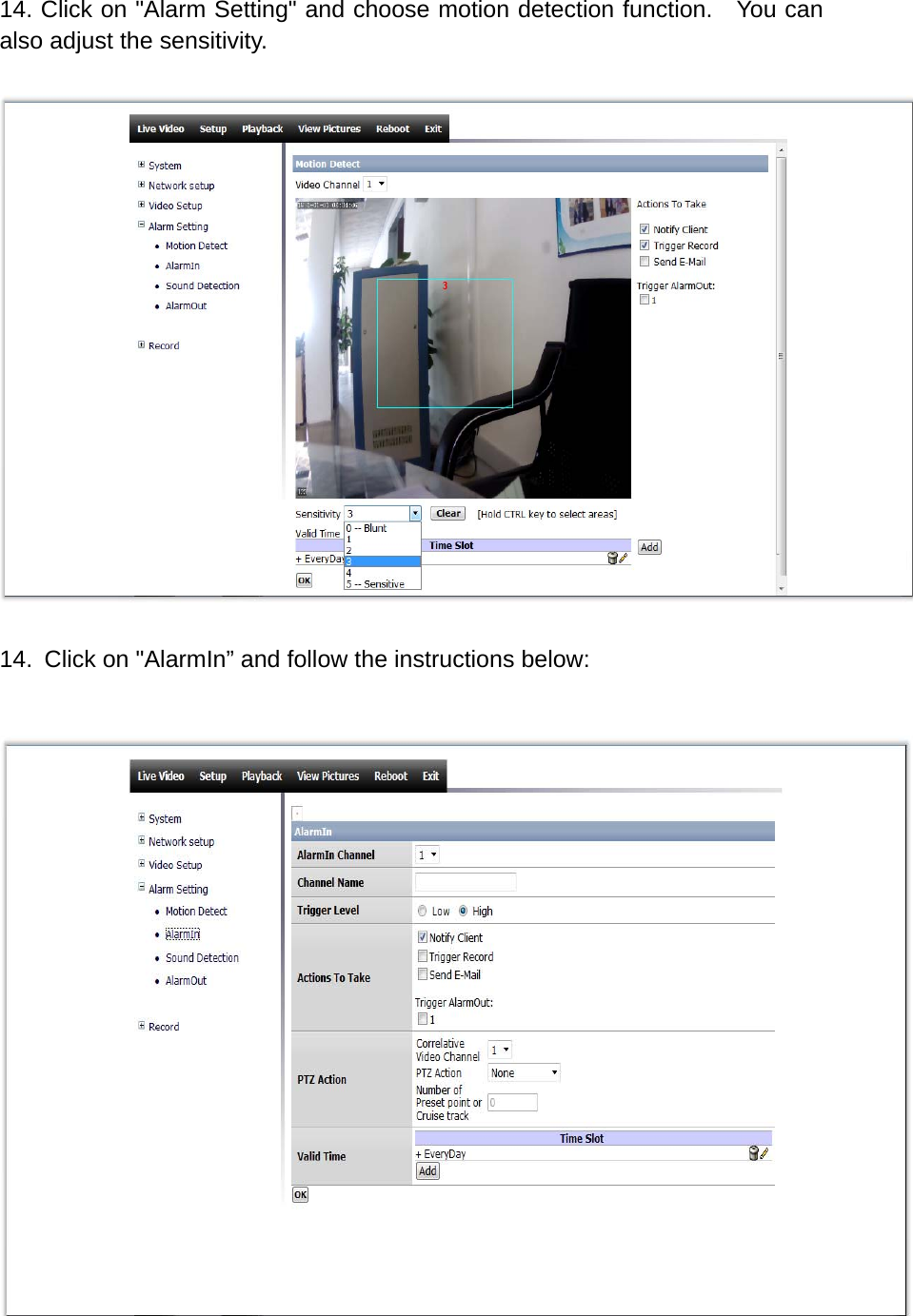

14. Click on "Alarm Setting" and choose motion detection function. You can also adjust the sensitivity. 14. Click on "AlarmIn” and follow the instructions below:

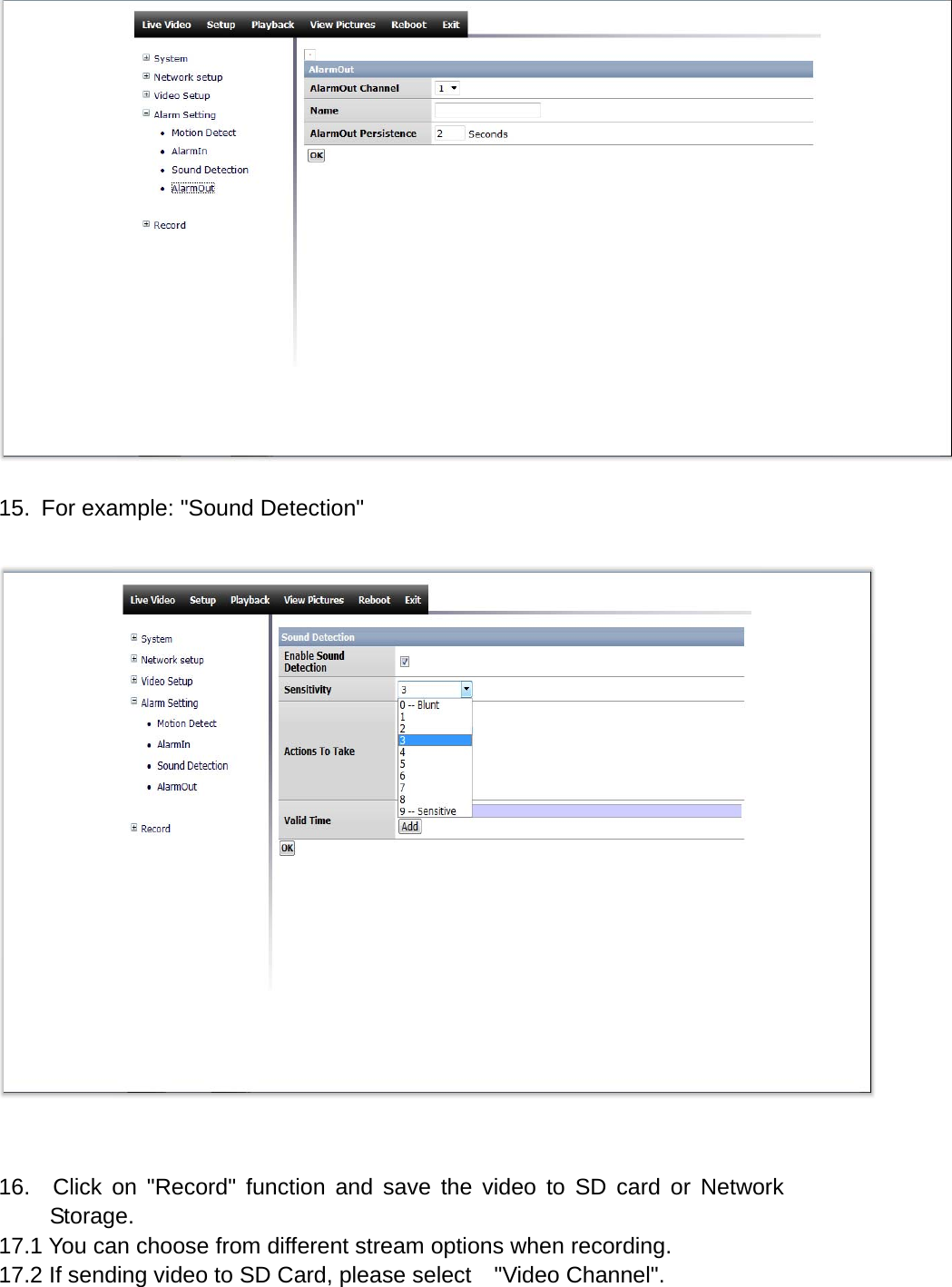

15. For example: "Sound Detection" 16. Click on "Record" function and save the video to SD card or Network Storage. 17.1 You can choose from different stream options when recording. 17.2 If sending video to SD Card, please select "Video Channel".

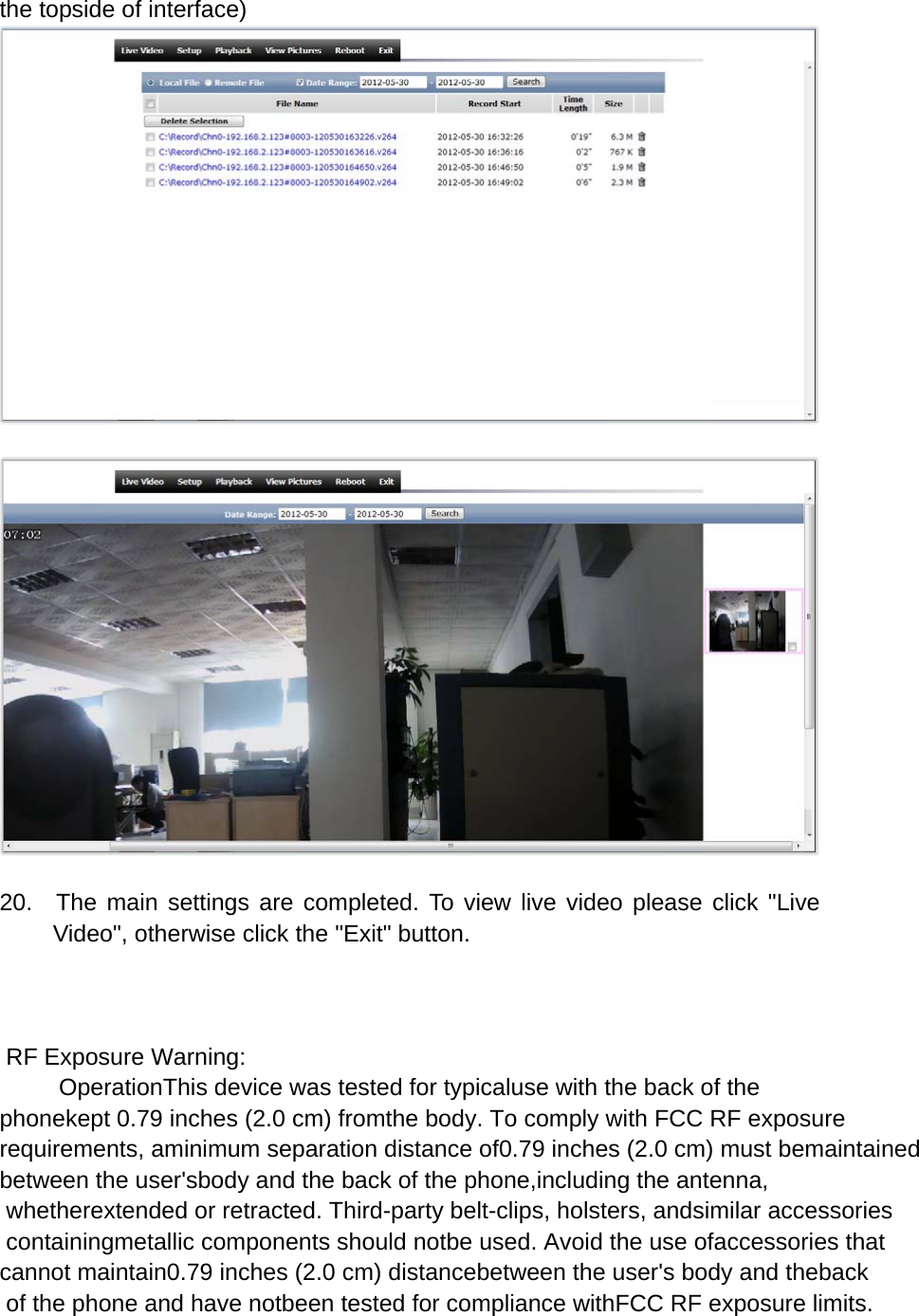

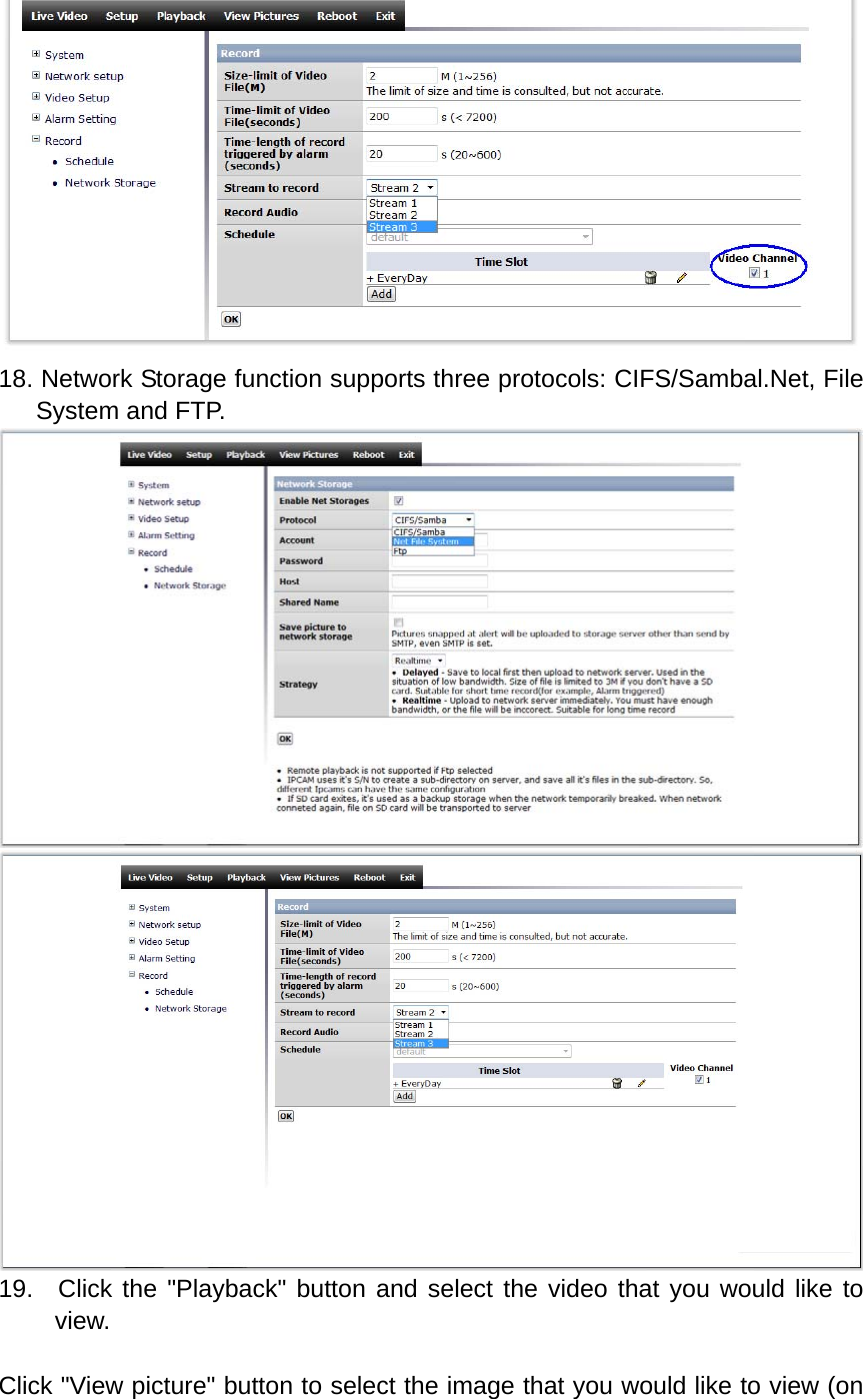

18. Network Storage function supports three protocols: CIFS/Sambal.Net, File System and FTP. 19. Click the "Playback" button and select the video that you would like to view. Click "View picture" button to select the image that you would like to view (on
the topside of interface) 20. The main settings are completed. To view live video please click "Live Video", otherwise click the "Exit" button. RF Exposure Warning: OperationThis device was tested for typicaluse with the back of the phonekept 0.79 inches (2.0 cm) fromthe body. To comply with FCC RF exposure requirements, aminimum separation distance of0.79 inches (2.0 cm) must bemaintained between the user'sbody and the back of the phone,including the antenna, whetherextended or retracted. Third-party belt-clips, holsters, andsimilar accessories containingmetallic components should notbe used. Avoid the use ofaccessories that cannot maintain0.79 inches (2.0 cm) distancebetween the user's body and theback of the phone and have notbeen tested for compliance withFCC RF exposure limits.
