1 - GENERAL INFORMATION
1.1 Product Description for Equipment Under Test (EUT)
The Global Assistive Devices, Inc., model O9QDBT300 or the "EUT" as referred to in this report is a door
beacon which measures 3 1/8” L x 2 ¼ ” W x 3 ¼ ” H.
1.2 Objective
This certification report is prepared on behalf of Global Assistive Devices, Inc. in accordance with Part 2,
Subpart J, and Part 15, Subparts A, B, and C of the Federal Communication Commissions rules.
The objective of the manufacturer is to demonstrate compliance with FCC rules, Part 15, Sec 205, 209, and
231 for conducted and radiated margin.
1.3 Related Submittal(s)/Grant(s)
No Related Submittals
1.4 Test Methodology
All measurements contained in this report were conducted with ANSI C63.4 –1992, American National
Standard for Methods of Measurement of Radio-Noise Emissions from Low-Voltage Electrical and
Electronic Equipment in the range of 9 kHz to 40 GHz. All radiated and conducted emissions
measurement was performed at Bay Area Compliance Laboratory, Corp. The radiated testing was
performed at an antenna-to-EUT distance of 3 meters.
1.5 Test Facility
The Open Area Test site used by Bay Area Compliance Laboratory Corporation to collect radiated and
conducted emission measurement data is located in the back parking lot of the building at 230 Commercial
Street, Suite 2, Sunnyvale, California, USA.
Test sites at Bay Area Compliance Laboratory Corporation has been fully described in reports submitted to
the Federal Communication Commission (FCC) and Voluntary Control Council for Interference (VCCI).
The details of these reports has been found to be in compliance with the requirements of Section 2.948 of
the FCC Rules on February 11 and December 10, 1997 and Article 8 of the VCCI regulations on
December 25, 1997. The facility also complies with the radiated and AC line conducted test site criteria
set forth in ANSI C63.4-1992.
The Federal Communications Commission and Voluntary Control Council for Interference has the reports
on file and is listed under FCC file 31040/SIT 1300F2 and VCCI Registration No.: C-674 and R-657. The
test sites has been approved by the FCC and VCCI for public use and is listed in the FCC Public Access
Link (PAL) database.
Global Assistive Devices, Inc. FCC ID: O9QDBT300
Report # User Manual Page 4 of 10 FCC Part 15 Test Report
Additionally, Bay Area Compliance Laboratory Corporation is a National Institute of Standards and
Technology (NIST) accredited laboratory, under the National Voluntary Laboratory Accredited Program
(NVLAP). The scope of the accreditation covers the FCC Method - 47 CFR Part 15 - Digital Devices,
IEC/CISPR 22: 1993, and AS/NZS 3548: Electromagnetic Interference - Limits and Methods of
Measurement of Information Technology Equipment test methods under NVLAP Lab Code 200167-0.
1.6 Test Equipment List
Manufacturer Description Model Serial
Number Cal. Due
Data
HP Spectrum
Analyzer 8568B 2610A02165 12/6/01
HP Spectrum
Analyzer 8593B 2919A00242 12/20/01
HP Amplifier 8349B 2644A02662 12/20/01
HP Quasi-Peak
Adapter 85650A 917059 12/6/01
HP Amplifier 8447E 1937A01046 12/6/01
A.H. System Horn Antenna SAS0200/571 261 12/27/01
Com-Power Log Periodic
Antenna AL-100 16005 11/2/01
Com-Power Biconical
Antenna AB-100 14012 11/2/01
Solar Electronics LISN 8012-50-R-24-BNC 968447 12/28/01
Com-Power LISN LI-200 12208 12/20/01
Com-Power LISN LI-200 12005 12/20/01
BACL Data Entry
Software DES1 0001 12/20/01
1.7 Equipment Under Test (EUT)
Manufacturer Description Model Serial
Number FCC ID
Global Assistive Devices, Inc. Door Beacon DBT300 N/A O9QDBT300
1.8 Power Supply and Line Filters
Manufacturer Description Model Serial
Number FCC ID
SANYO Battery 9V N/A N/A
Global Assistive Devices, Inc. FCC ID: O9QDBT300
Report # User Manual Page 5 of 10 FCC Part 15 Test Report
Appendix A – USER MANUAL
Global Assistive Devices, Inc. FCC ID: O9QDBT300
Report # User Manual Page 6 of 10 FCC Part 15 Test Report
Global Assistive Devices, Inc. FCC ID: O9QDBT300
Report # User Manual Page 7 of 10 FCC Part 15 Test Report
Global Assistive Devices, Inc. FCC ID: O9QDBT300
Report # User Manual Page 8 of 10 FCC Part 15 Test Report
Global Assistive Devices, Inc. FCC ID: O9QDBT300
Report # User Manual Page 9 of 10 FCC Part 15 Test Report

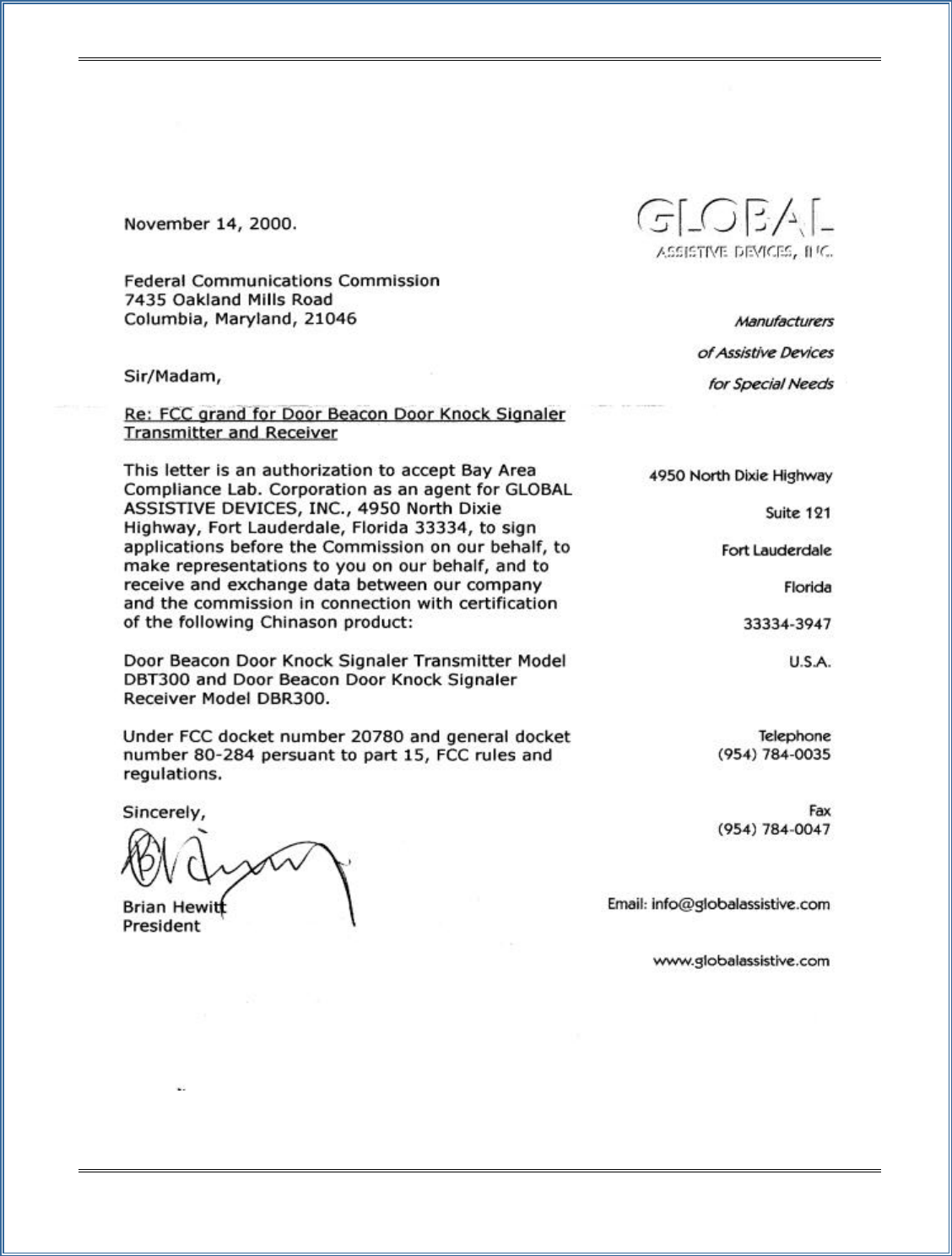

Appendix B –AUTHORIZATION LETTER
