Thank you for your purchase of the SwagCycle™ Folding Electric Device by SWAGTRON™!don’t be fooled. If you want real swag, you’re in the right place. To ensure your safety and the safety of others, please read and be sure to follow all instructions and safety recommendations in this User Manual prior to and when riding your SwagCycle™. If you have any questions regarding the SwagCycle™, contact us at 1-844-299-0625 for further assistance. WARNING - Risk of Fire and Electric Shock - No User Serviceable Part Happy Riding!-The SWAGTRON™ TeamUM.indd   3 10/25/2016   5:16:33 PM
UM.indd   2 10/25/2016   5:16:33 PM
Thank you for your purchase of the SwagCycle™ Folding Electric Device by SWAGTRON™!don’t be fooled. If you want real swag, you’re in the right place. To ensure your safety and the safety of others, please read and be sure to follow all instructions and safety recommendations in this User Manual prior to and when riding your SwagCycle™. If you have any questions regarding the SwagCycle™, contact us at 1-844-299-0625 for further assistance. WARNING - Risk of Fire and Electric Shock - No User Serviceable Parts Happy Riding!-The SWAGTRON™ TeamUM.indd   3 10/25/2016   5:16:33 PM
Table Of ContentsSection 1. General Information ....................................................................................................................................... 31.1 About the SwagCycle™ ........................................................................................................................................ 31.2 What’s In The Box? ............................................................................................................................................... 41.3 SwagCycle™ Diagram .......................................................................................................................................... 4Section 2. Assembling & Folding your SwagCycle™ ...........................................................................5Section 3. Charging Your SwagCycle™ ...........................................................................................7Section 4. How To Ride ................................................................................................................................................... 9Section 5. Safe Riding Techniques & Tips .....................................................................................................................10Section 6. Maintenance .................................................................................................................................................. 116.1 Cleaning ................................................................................................................................................................. 126.2 Storage ................................................................................................................................................................... 126.3 Transportation ....................................................................................................................................................... 12Section 7. SwagCycle™ Specifications.........................................................................................................................131 Year Limited Hardware Warranty ................................................................................................................................ 14UM.indd   1 10/25/2016   5:16:33 PM

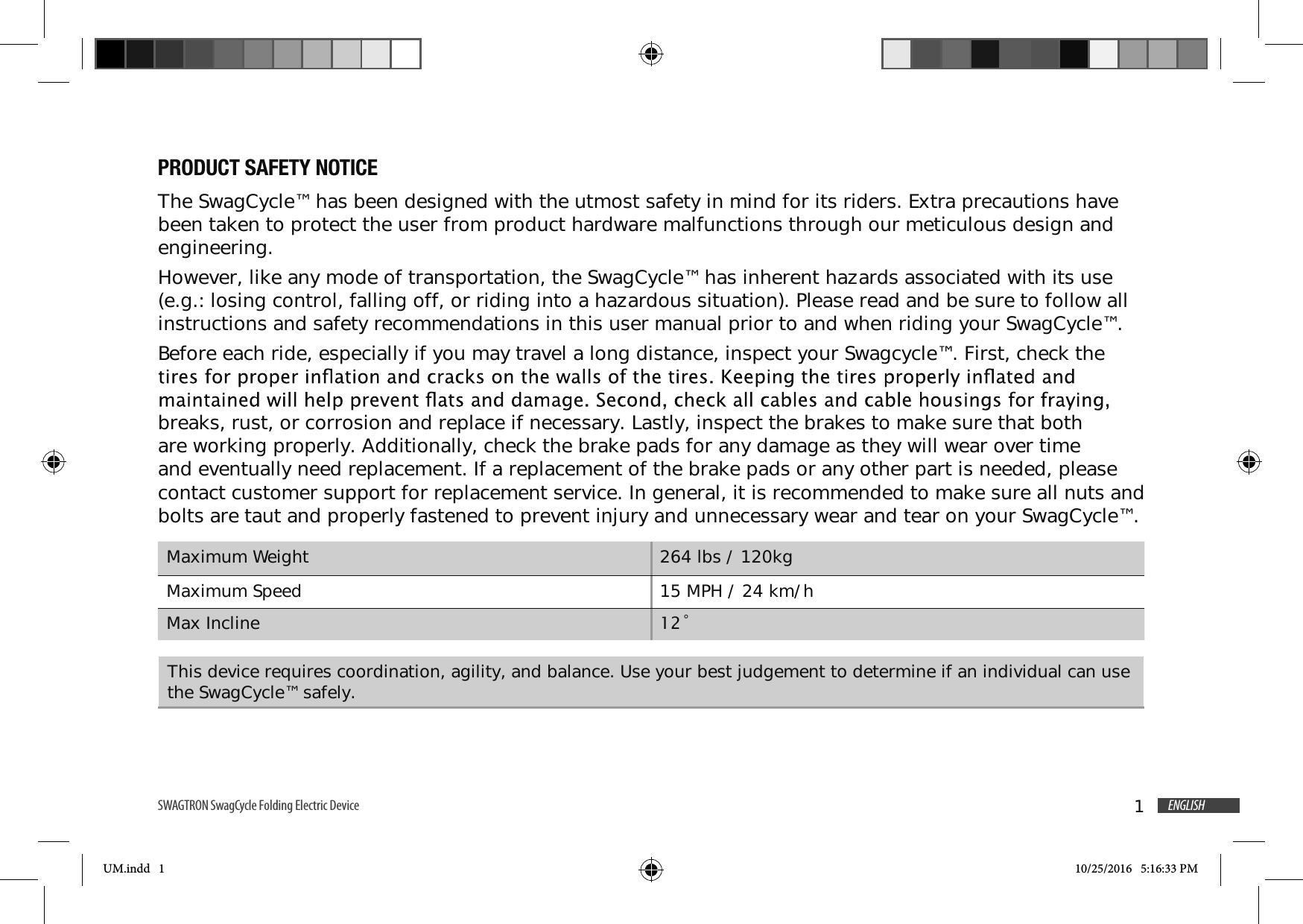

1ENGLISHSWAGTRON SwagCycle Folding Electric Device PRODUCT SAFETY NOTICEThe SwagCycle™ has been designed with the utmost safety in mind for its riders. Extra precautions have been taken to protect the user from product hardware malfunctions through our meticulous design and engineering. However, like any mode of transportation, the SwagCycle™ has inherent hazards associated with its use (e.g.: losing control, falling off, or riding into a hazardous situation). Please read and be sure to follow all instructions and safety recommendations in this user manual prior to and when riding your SwagCycle™.Before each ride, especially if you may travel a long distance, inspect your Swagcycle™. First, check the breaks, rust, or corrosion and replace if necessary. Lastly, inspect the brakes to make sure that both are working properly. Additionally, check the brake pads for any damage as they will wear over time and eventually need replacement. If a replacement of the brake pads or any other part is needed, please contact customer support for replacement service. In general, it is recommended to make sure all nuts and bolts are taut and properly fastened to prevent injury and unnecessary wear and tear on your SwagCycle™. Maximum Weight 264 lbs / 120kgMaximum Speed 15 MPH / 24 km/hMax Incline ÚThis device requires coordination, agility, and balance. Use your best judgement to determine if an individual can use the SwagCycle™ safely.UM.indd   1 10/25/2016   5:16:33 PM

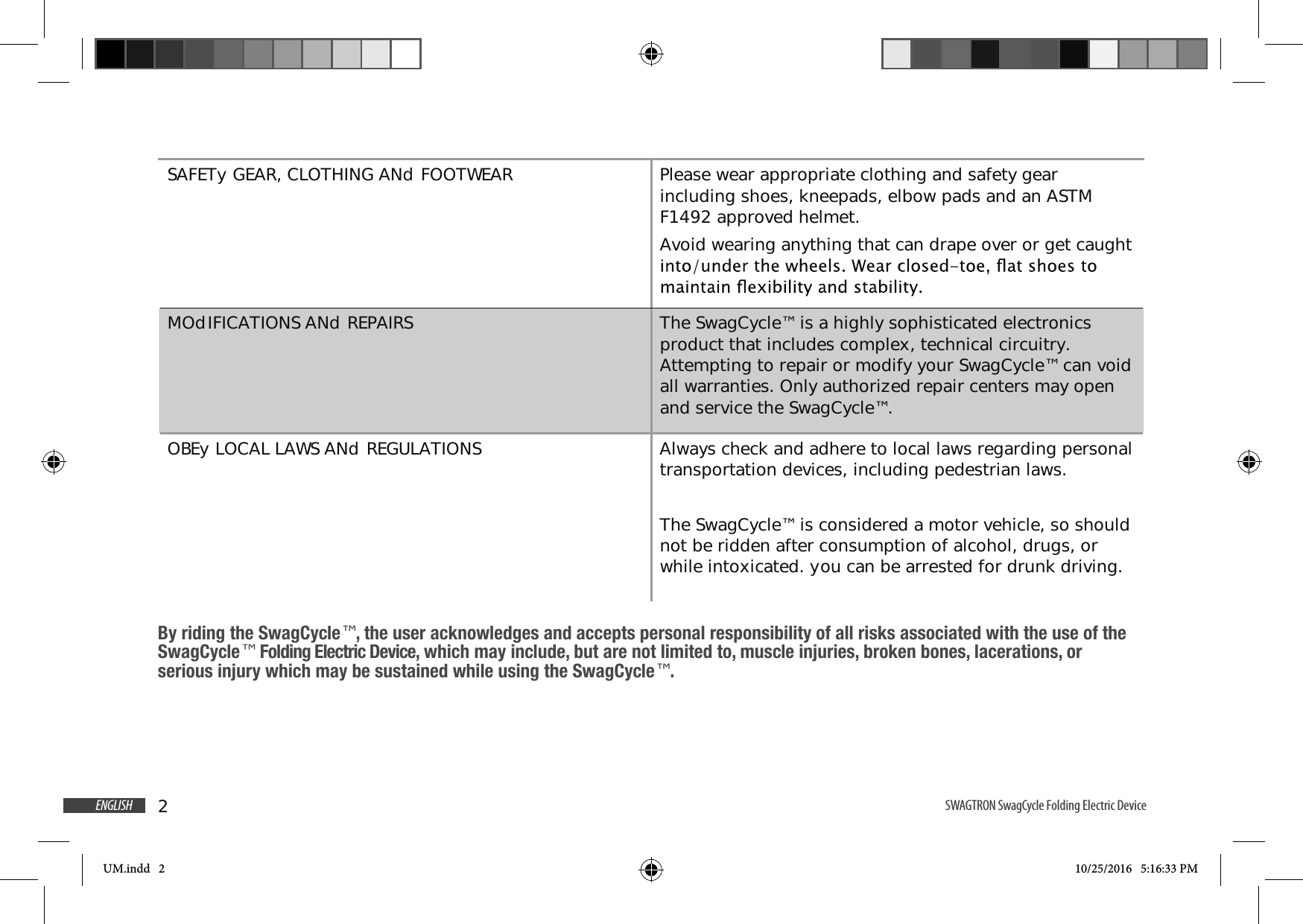

2ENGLISH SWAGTRON SwagCycle Folding Electric Device SAFETy GEAR, CLOTHING ANd FOOTWEAR Please wear appropriate clothing and safety gear including shoes, kneepads, elbow pads and an ASTM F1492 approved helmet.Avoid wearing anything that can drape over or get caught MOdIFICATIONS ANd REPAIRS The SwagCycle™ is a highly sophisticated electronics product that includes complex, technical circuitry. Attempting to repair or modify your SwagCycle™ can void all warranties. Only authorized repair centers may open and service the SwagCycle™.OBEy LOCAL LAWS ANd REGULATIONS Always check and adhere to local laws regarding personal transportation devices, including pedestrian laws.The SwagCycle™ is considered a motor vehicle, so should not be ridden after consumption of alcohol, drugs, or while intoxicated. you can be arrested for drunk driving.By riding the SwagCycle™, the user acknowledges and accepts personal responsibility of all risks associated with the use of the SwagCycle™ Folding Electric Device, which may include, but are not limited to, muscle injuries, broken bones, lacerations, or serious injury which may be sustained while using the SwagCycle™.UM.indd   2 10/25/2016   5:16:33 PM

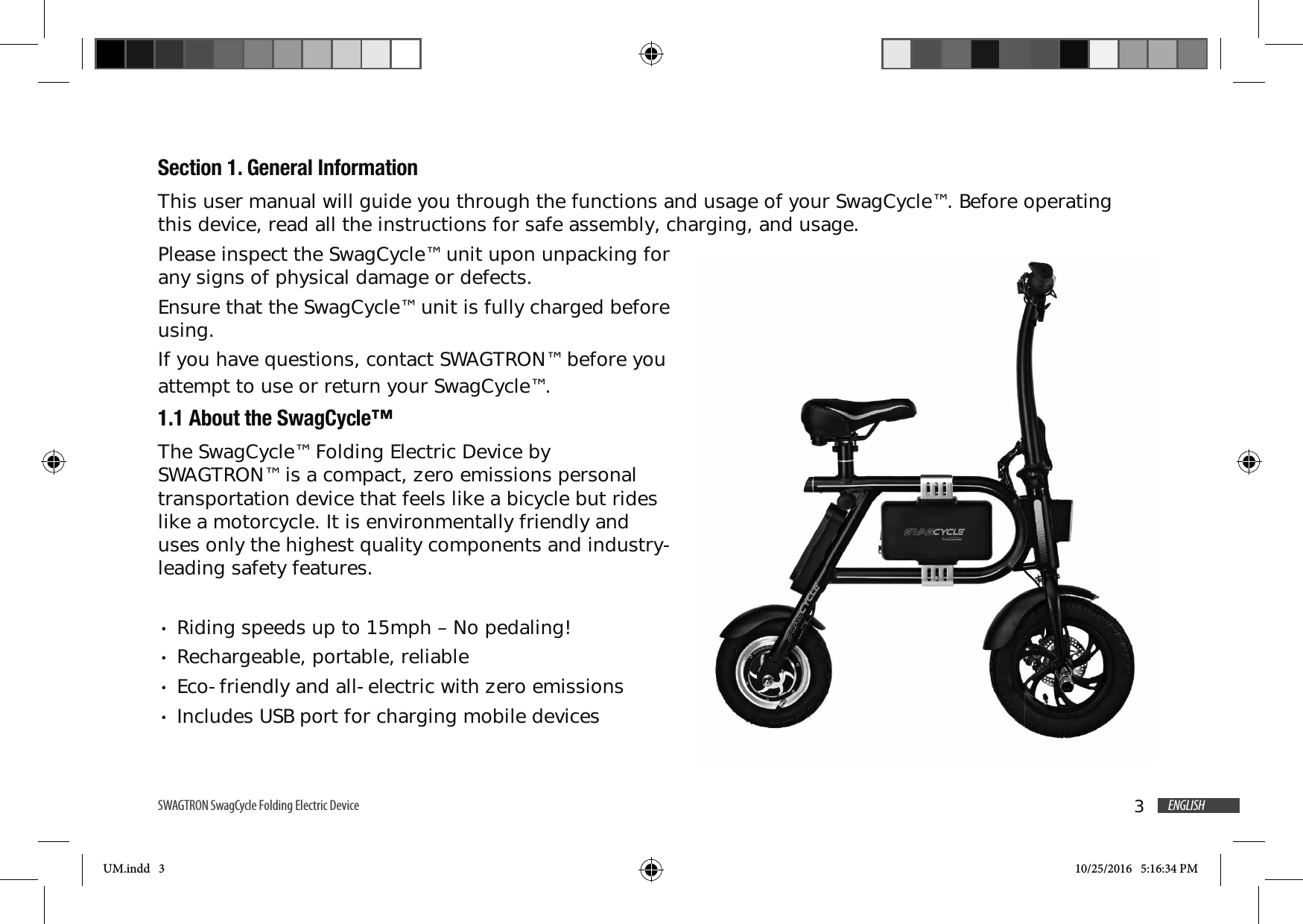

3ENGLISHSWAGTRON SwagCycle Folding Electric Device Section 1. General InformationThis user manual will guide you through the functions and usage of your SwagCycle™. Before operating this device, read all the instructions for safe assembly, charging, and usage.Please inspect the SwagCycle™ unit upon unpacking for any signs of physical damage or defects. Ensure that the SwagCycle™ unit is fully charged before using.If you have questions, contact SWAGTRON™ before you attempt to use or return your SwagCycle™.1.1 About the SwagCycle™The SwagCycle™ Folding Electric Device by SWAGTRON™ is a compact, zero emissions personal transportation device that feels like a bicycle but rides like a motorcycle. It is environmentally friendly and uses only the highest quality components and industry-leading safety features.Riding speeds up to 15mph – No pedaling!Rechargeable, portable, reliableEco-friendly and all-electric with zero emissionsIncludes USB port for charging mobile devicesUM.indd   3 10/25/2016   5:16:34 PM
4ENGLISH SWAGTRON SwagCycle Folding Electric Device1.2 What’s In The Box?SwagCycle™ Folding Electric Device1x Charging Adapter1x User Manual2x Foot Peg1.3 SwagCycle™ DiagramUM.indd   4 10/25/2016   5:16:34 PM

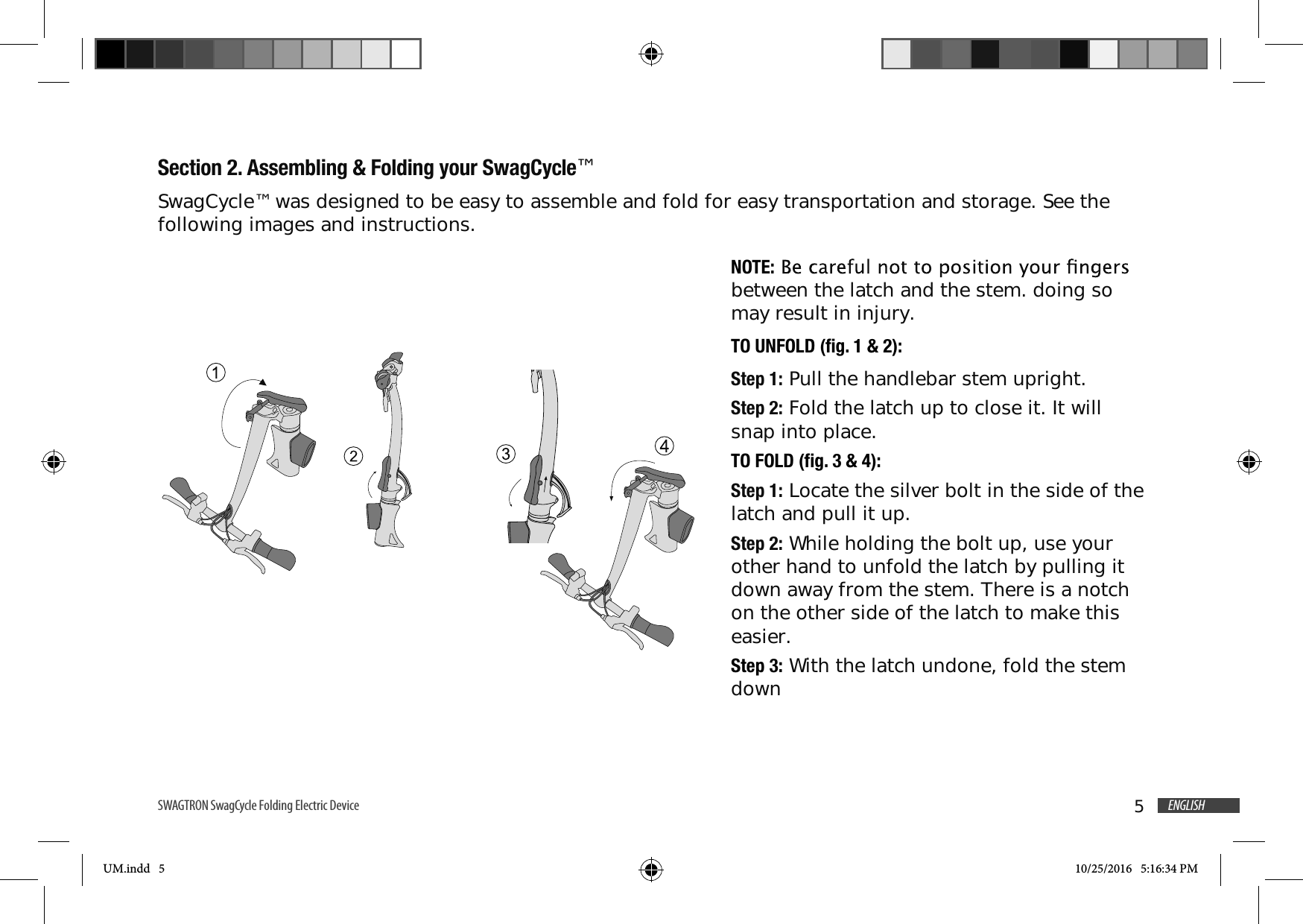

5ENGLISHSWAGTRON SwagCycle Folding Electric Device Section 2. Assembling & Folding your SwagCycle™SwagCycle™ was designed to be easy to assemble and fold for easy transportation and storage. See the following images and instructions. NOTE:between the latch and the stem. doing so may result in injury. TO UNFOLD (fig. 1 & 2):Step 1: Pull the handlebar stem upright.Step 2: Fold the latch up to close it. It will snap into place.TO FOLD (fig. 3 & 4):Step 1: Locate the silver bolt in the side of the latch and pull it up.Step 2: While holding the bolt up, use your other hand to unfold the latch by pulling it down away from the stem. There is a notch on the other side of the latch to make this easier.Step 3: With the latch undone, fold the stem downUM.indd   5 10/25/2016   5:16:34 PM

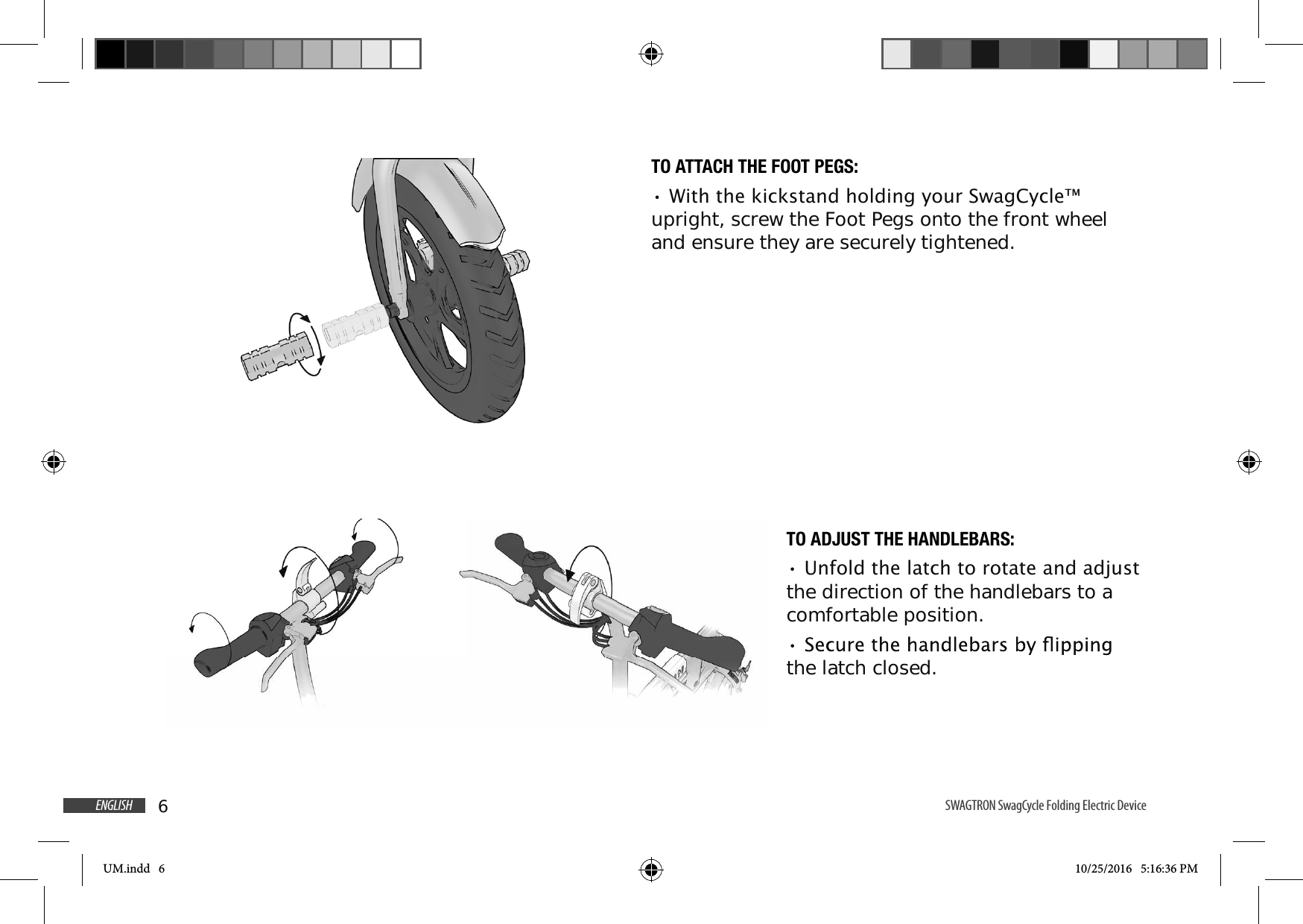

6ENGLISH SWAGTRON SwagCycle Folding Electric DeviceTO ATTACH THE FOOT PEGS::LWKWKHNLFNVWDQGKROGLQJ\RXU6ZDJ&\FOHupright, screw the Foot Pegs onto the front wheel and ensure they are securely tightened.TO ADJUST THE HANDLEBARS:8QIROGWKHODWFKWRURWDWHDQGDGMXVWthe direction of the handlebars to a comfortable position.the latch closed.UM.indd   6 10/25/2016   5:16:36 PM

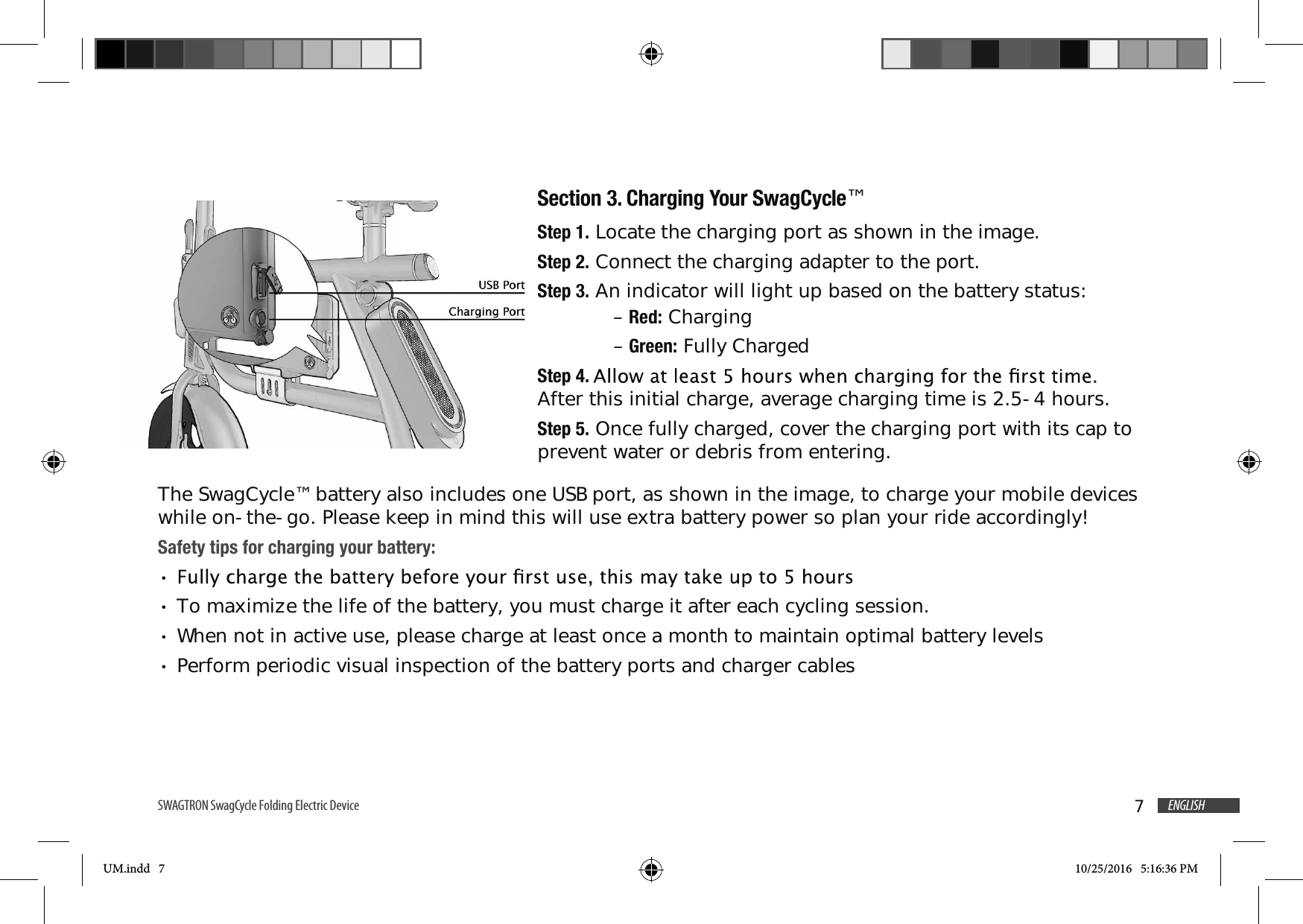

7ENGLISHSWAGTRON SwagCycle Folding Electric Device Section 3. Charging Your SwagCycle™Step 1. Locate the charging port as shown in the image.Step 2. Connect the charging adapter to the port.Step 3. An indicator will light up based on the battery status: – Red: Charging – Green: Fully ChargedStep 4. After this initial charge, average charging time is 2.5-4 hours.Step 5. Once fully charged, cover the charging port with its cap to prevent water or debris from entering.The SwagCycle™ battery also includes one USB port, as shown in the image, to charge your mobile devices while on-the-go. Please keep in mind this will use extra battery power so plan your ride accordingly!Safety tips for charging your battery:To maximize the life of the battery, you must charge it after each cycling session. When not in active use, please charge at least once a month to maintain optimal battery levelsPerform periodic visual inspection of the battery ports and charger cablesUM.indd   7 10/25/2016   5:16:36 PM

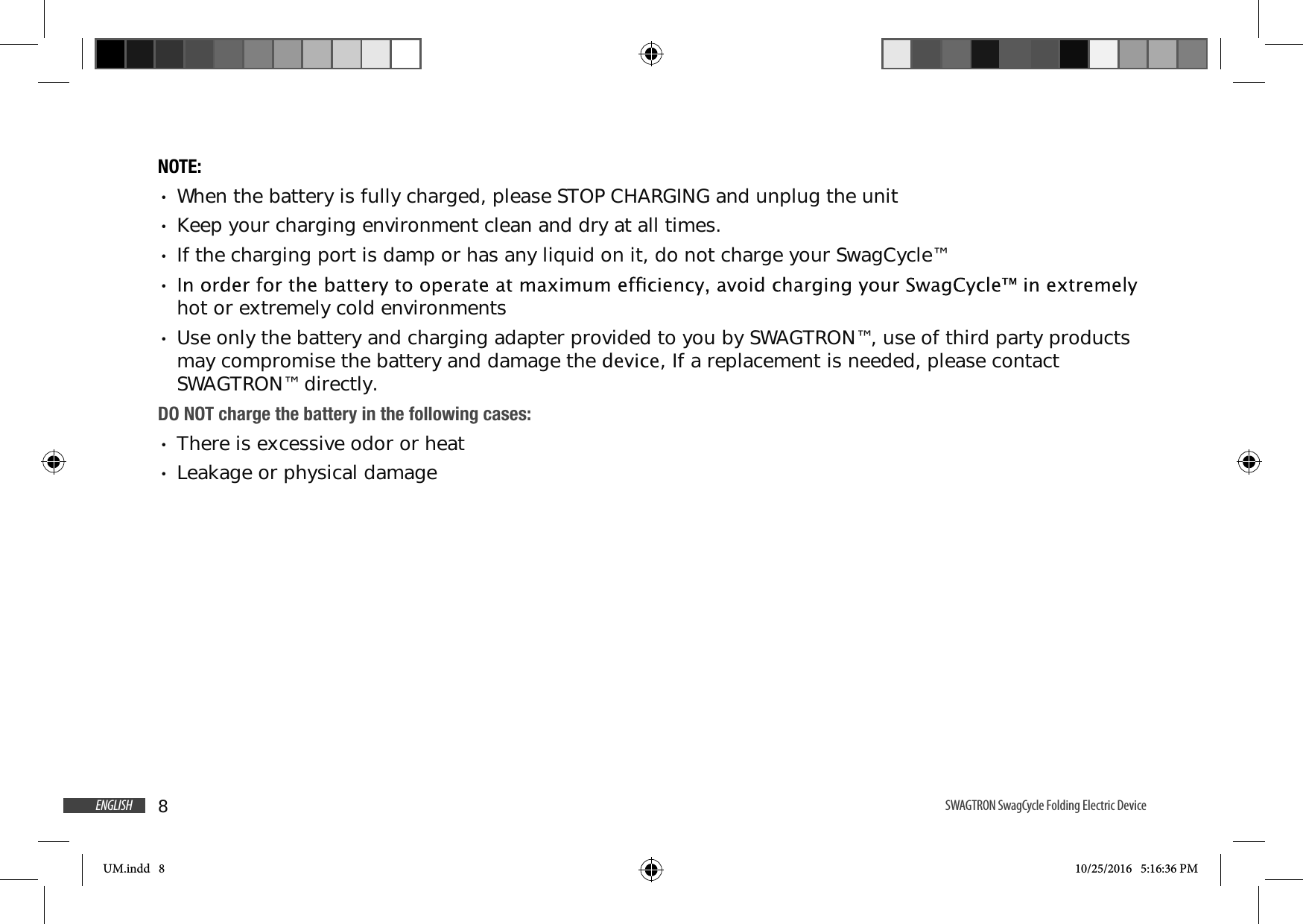

8ENGLISH SWAGTRON SwagCycle Folding Electric Device NOTE: When the battery is fully charged, please STOP CHARGING and unplug the unit Keep your charging environment clean and dry at all times. If the charging port is damp or has any liquid on it, do not charge your SwagCycle™ hot or extremely cold environments Use only the battery and charging adapter provided to you by SWAGTRON™, use of third party products may compromise the battery and damage the GHYLFH, If a replacement is needed, please contact SWAGTRON™ directly.DO NOT charge the battery in the following cases: There is excessive odor or heat Leakage or physical damageUM.indd   8 10/25/2016   5:16:36 PM

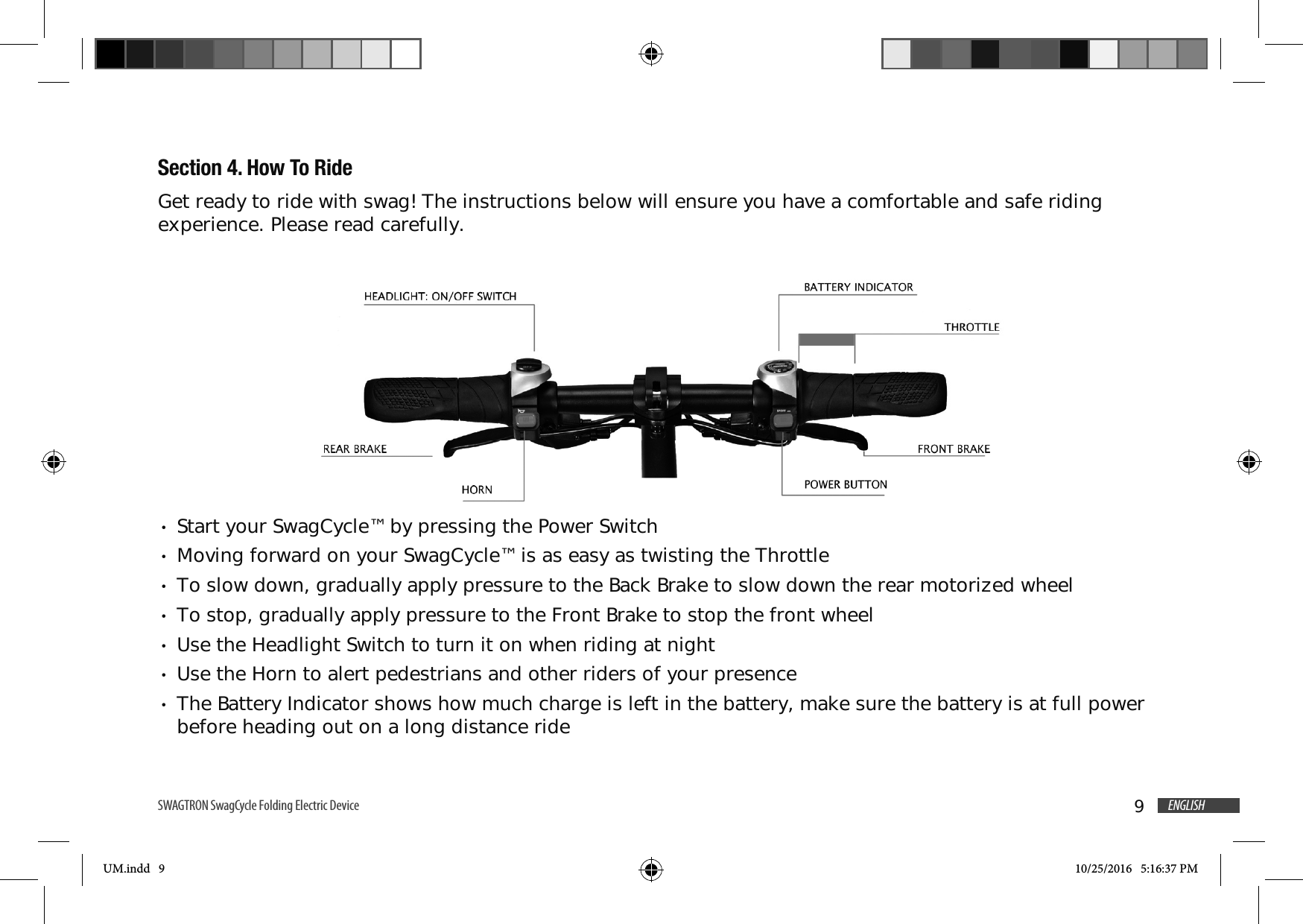

9ENGLISHSWAGTRON SwagCycle Folding Electric Device Section 4. How To RideGet ready to ride with swag! The instructions below will ensure you have a comfortable and safe riding experience. Please read carefully.Start your SwagCycle™ by pressing the Power SwitchMoving forward on your SwagCycle™ is as easy as twisting the ThrottleTo slow down, gradually apply pressure to the Back Brake to slow down the rear motorized wheelTo stop, gradually apply pressure to the Front Brake to stop the front wheelUse the Headlight Switch to turn it on when riding at nightUse the Horn to alert pedestrians and other riders of your presenceThe Battery Indicator shows how much charge is left in the battery, make sure the battery is at full power before heading out on a long distance rideUM.indd   9 10/25/2016   5:16:37 PM

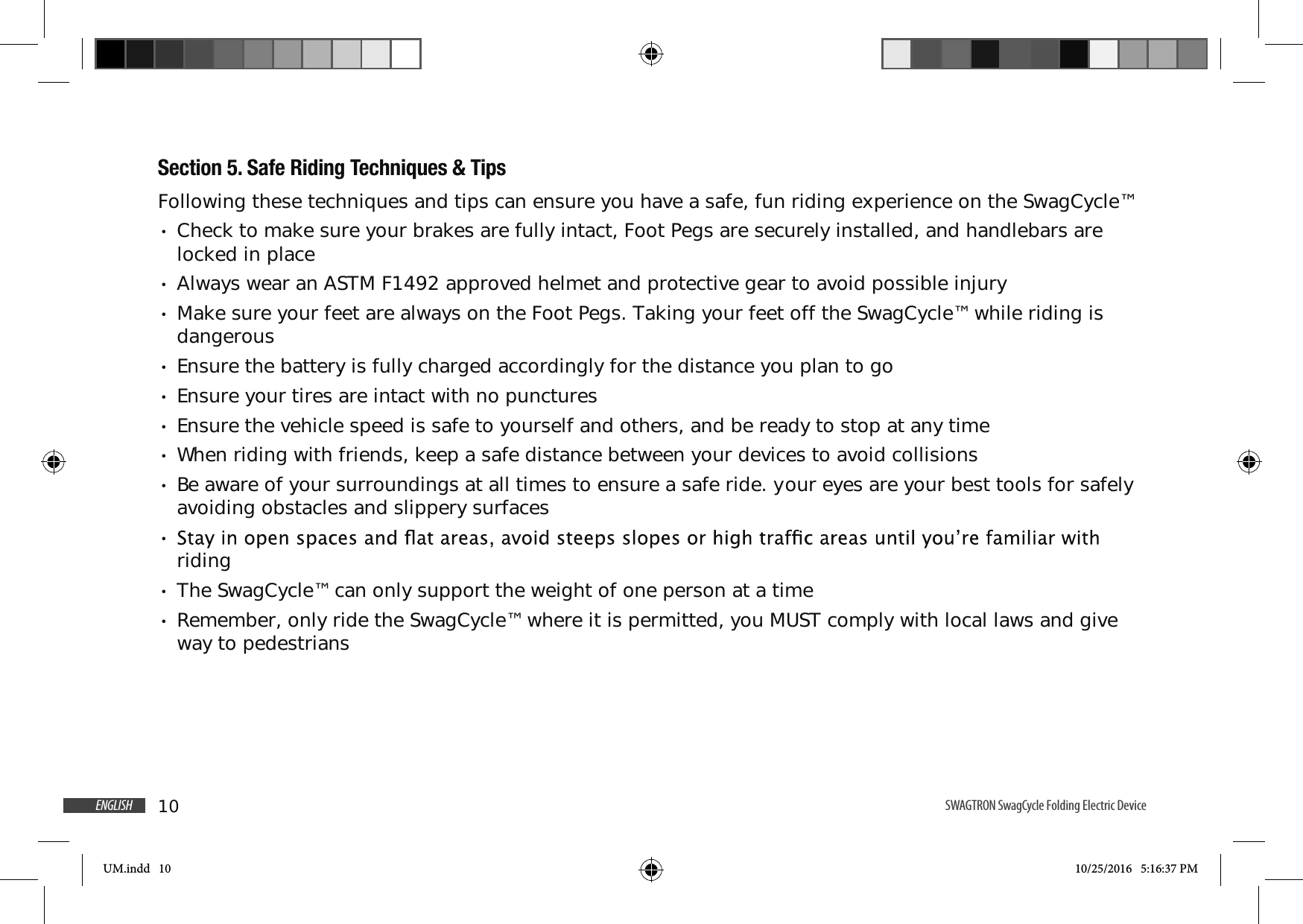

10ENGLISH SWAGTRON SwagCycle Folding Electric Device Section 5. Safe Riding Techniques & TipsFollowing these techniques and tips can ensure you have a safe, fun riding experience on the SwagCycle™ Check to make sure your brakes are fully intact, Foot Pegs are securely installed, and handlebars are locked in place Always wear an ASTM F1492 approved helmet and protective gear to avoid possible injury Make sure your feet are always on the Foot Pegs. Taking your feet off the SwagCycle™ while riding is dangerous Ensure the battery is fully charged accordingly for the distance you plan to go Ensure your tires are intact with no punctures Ensure the vehicle speed is safe to yourself and others, and be ready to stop at any time When riding with friends, keep a safe distance between your devices to avoid collisions Be aware of your surroundings at all times to ensure a safe ride. your eyes are your best tools for safely avoiding obstacles and slippery surfaces riding The SwagCycle™ can only support the weight of one person at a time Remember, only ride the SwagCycle™ where it is permitted, you MUST comply with local laws and give way to pedestriansUM.indd   10 10/25/2016   5:16:37 PM

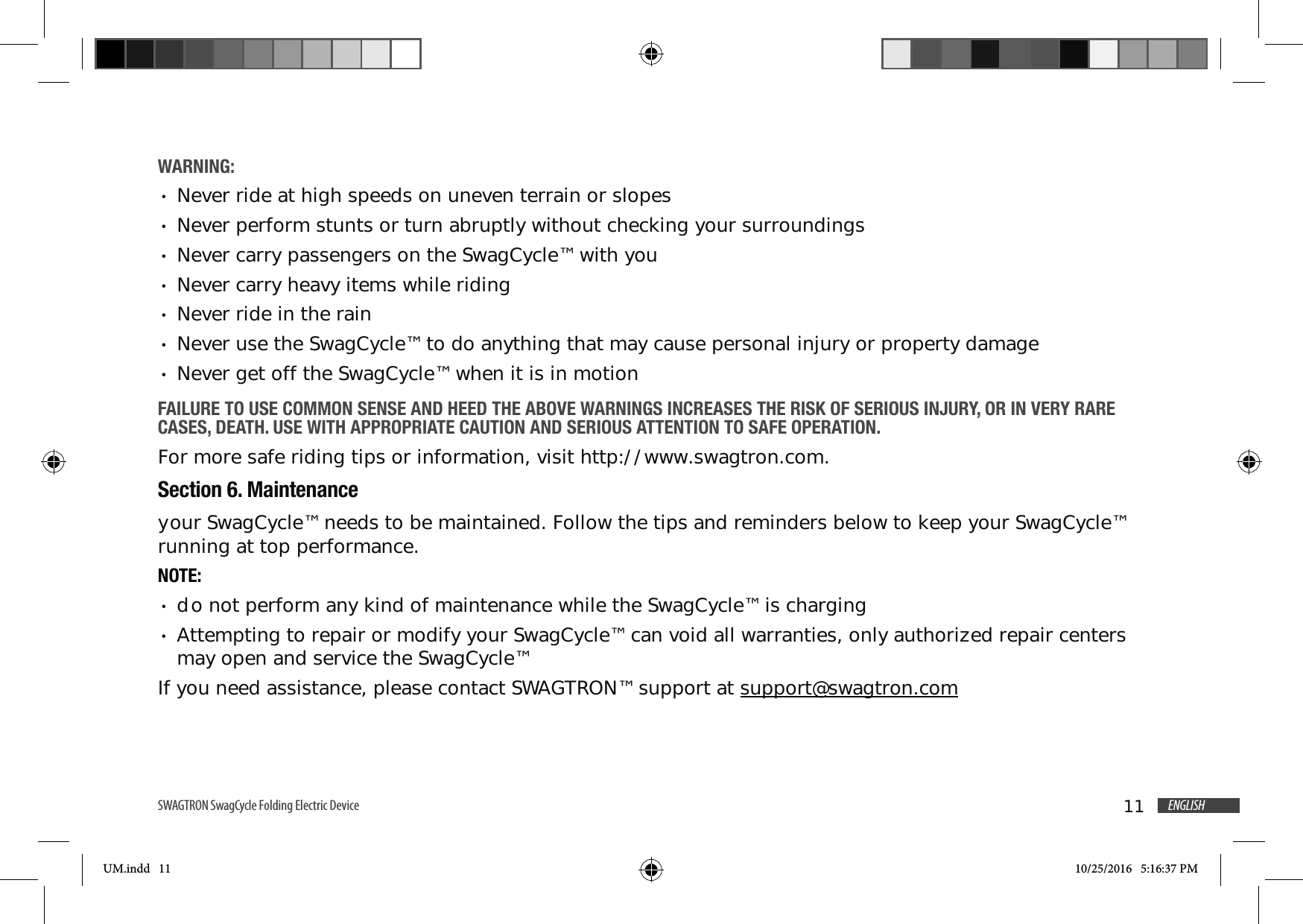

11 ENGLISHSWAGTRON SwagCycle Folding Electric Device WARNING: Never ride at high speeds on uneven terrain or slopes Never perform stunts or turn abruptly without checking your surroundings Never carry passengers on the SwagCycle™ with you Never carry heavy items while riding Never ride in the rain Never use the SwagCycle™ to do anything that may cause personal injury or property damage Never get off the SwagCycle™ when it is in motionFAILURE TO USE COMMON SENSE AND HEED THE ABOVE WARNINGS INCREASES THE RISK OF SERIOUS INJURY, OR IN VERY RARE CASES, DEATH. USE WITH APPROPRIATE CAUTION AND SERIOUS ATTENTION TO SAFE OPERATION.For more safe riding tips or information, visit http://www.swagtron.com.Section 6. Maintenanceyour SwagCycle™ needs to be maintained. Follow the tips and reminders below to keep your SwagCycle™ running at top performance.NOTE: do not perform any kind of maintenance while the SwagCycle™ is charging Attempting to repair or modify your SwagCycle™ can void all warranties, only authorized repair centers may open and service the SwagCycle™If you need assistance, please contact SWAGTRON™ support at support@swagtron.comUM.indd   11 10/25/2016   5:16:37 PM

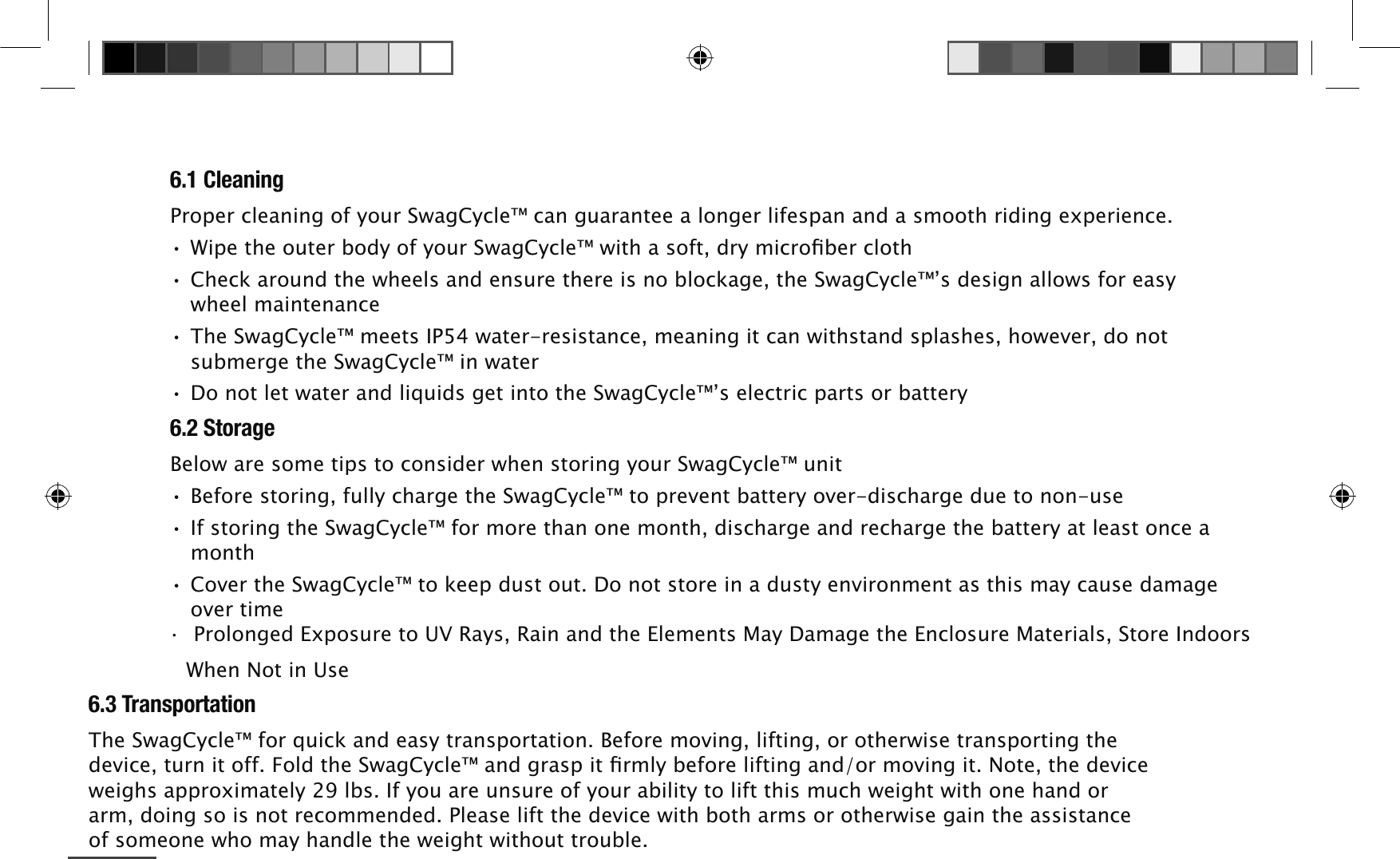

6.1 Cleaning3URSHUFOHDQLQJRI\RXU6ZDJ&\FOHFDQJXDUDQWHHDORQJHUOLIHVSDQDQGDVPRRWKULGLQJH[SHULHQFH:LSHWKHRXWHUERG\RI\RXU6ZDJ&\FOHZLWKDVRIWGU\PLFURۋEHUFORWK&KHFNDURXQGWKHZKHHOVDQGHQVXUHWKHUHLVQREORFNDJHWKH6ZDJ&\FOH·VGHVLJQDOORZVIRUHDV\ZKHHOPDLQWHQDQFH7KH6ZDJ&\FOHPHHWV,3ZDWHUUHVLVWDQFHPHDQLQJLWFDQZLWKVWDQGVSODVKHVKRZHYHUGRQRWVXEPHUJHWKH6ZDJ&\FOHLQZDWHU'RQRWOHWZDWHUDQGOLTXLGVJHWLQWRWKH6ZDJ&\FOH·VHOHFWULFSDUWVRUEDWWHU\6.2 Storage%HORZDUHVRPHWLSVWRFRQVLGHUZKHQVWRULQJ\RXU6ZDJ&\FOHXQLW%HIRUHVWRULQJIXOO\FKDUJHWKH6ZDJ&\FOHWRSUHYHQWEDWWHU\RYHUGLVFKDUJHGXHWRQRQXVH,IVWRULQJWKH6ZDJ&\FOHIRUPRUHWKDQRQHPRQWKGLVFKDUJHDQGUHFKDUJHWKHEDWWHU\DWOHDVWRQFHDPRQWK&RYHUWKH6ZDJ&\FOHWRNHHSGXVWRXW'RQRWVWRUHLQDGXVW\HQYLURQPHQWDVWKLVPD\FDXVHGDPDJHRYHUWLPHā3URORQJHG([SRVXUHWR895D\V5DLQDQGWKH(OHPHQWV0D\'DPDJHWKH(QFORVXUH0DWHULDOV6WRUH,QGRRUV:KHQ1RWLQ8VH6.3 Transportation7KH6ZDJ&\FOHIRUTXLFNDQGHDV\WUDQVSRUWDWLRQ%HIRUHPRYLQJOLIWLQJRURWKHUZLVHWUDQVSRUWLQJWKHGHYLFHWXUQLWRII)ROGWKH6ZDJ&\FOHDQGJUDVSLWۋUPO\EHIRUHOLIWLQJDQGRUPRYLQJLW1RWHWKHGHYLFHZHLJKVDSSUR[LPDWHO\OEV,I\RXDUHXQVXUHRI\RXUDELOLW\WROLIWWKLVPXFKZHLJKWZLWKRQHKDQGRUDUPGRLQJVRLVQRWUHFRPPHQGHG3OHDVHOLIWWKHGHYLFHZLWKERWKDUPVRURWKHUZLVHJDLQWKHDVVLVWDQFHRIVRPHRQHZKRPD\KDQGOHWKHZHLJKWZLWKRXWWURXEOH

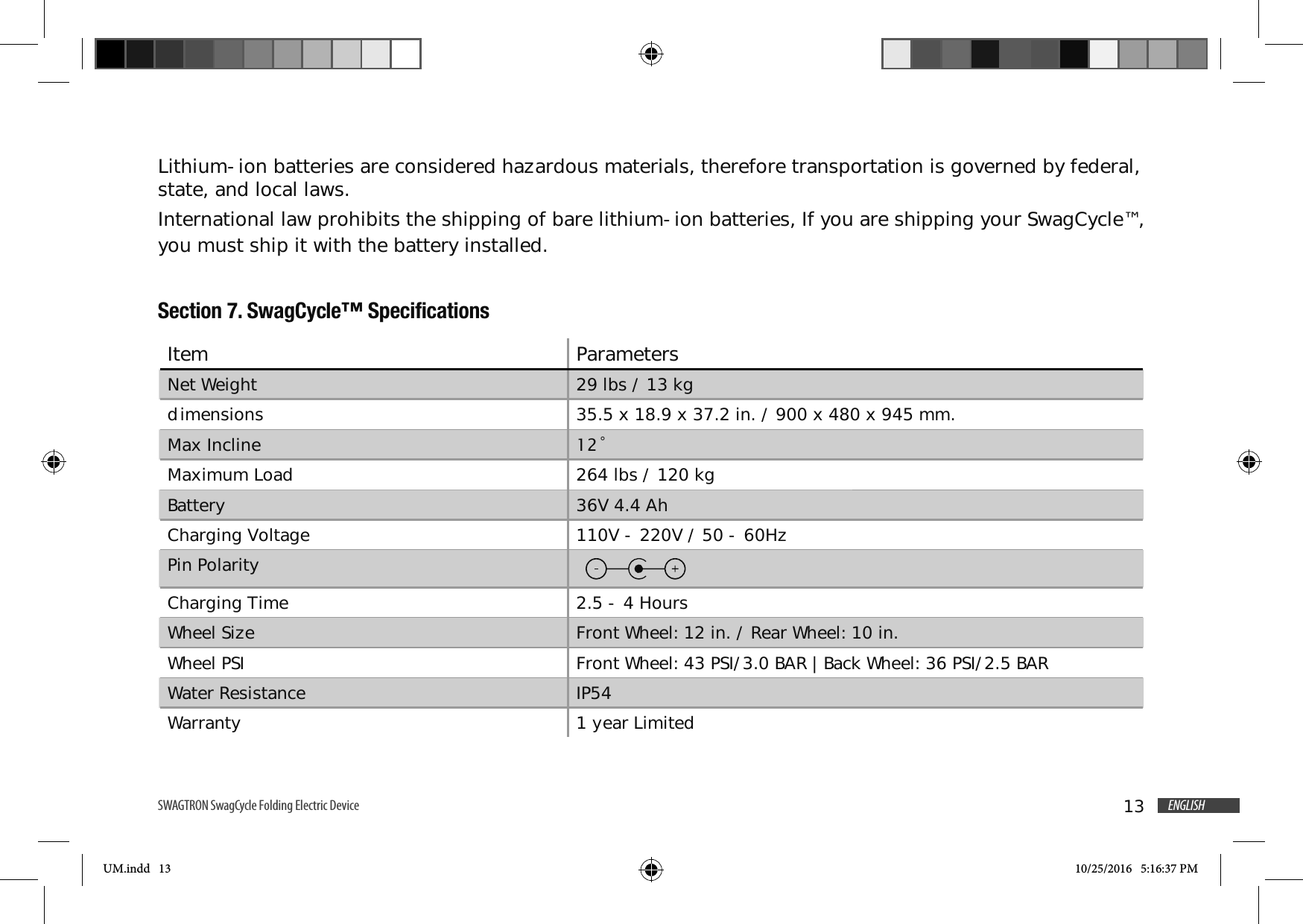

13 ENGLISHSWAGTRON SwagCycle Folding Electric Device Lithium-ion batteries are considered hazardous materials, therefore transportation is governed by federal, state, and local laws.International law prohibits the shipping of bare lithium-ion batteries, If you are shipping your SwagCycle™, you must ship it with the battery installed.Section 7. SwagCycle™ SpecificationsItem ParametersNet Weight 29 lbs / 13 kgdimensions 35.5 x 18.9 x 37.2 in. / 900 x 480 x 945 mm.Max Incline ÚMaximum Load 264 lbs / 120 kgBattery 36V 4.4 AhCharging Voltage 110V - 220V / 50 - 60Hz Pin PolarityCharging Time 2.5 - 4 HoursWheel Size Front Wheel: 12 in. / Rear Wheel: 10 in.Wheel PSI Front Wheel: 43 PSI/3.0 BAR | Back Wheel: 36 PSI/2.5 BARWater Resistance IP54Warranty 1 year LimitedUM.indd   13 10/25/2016   5:16:37 PM

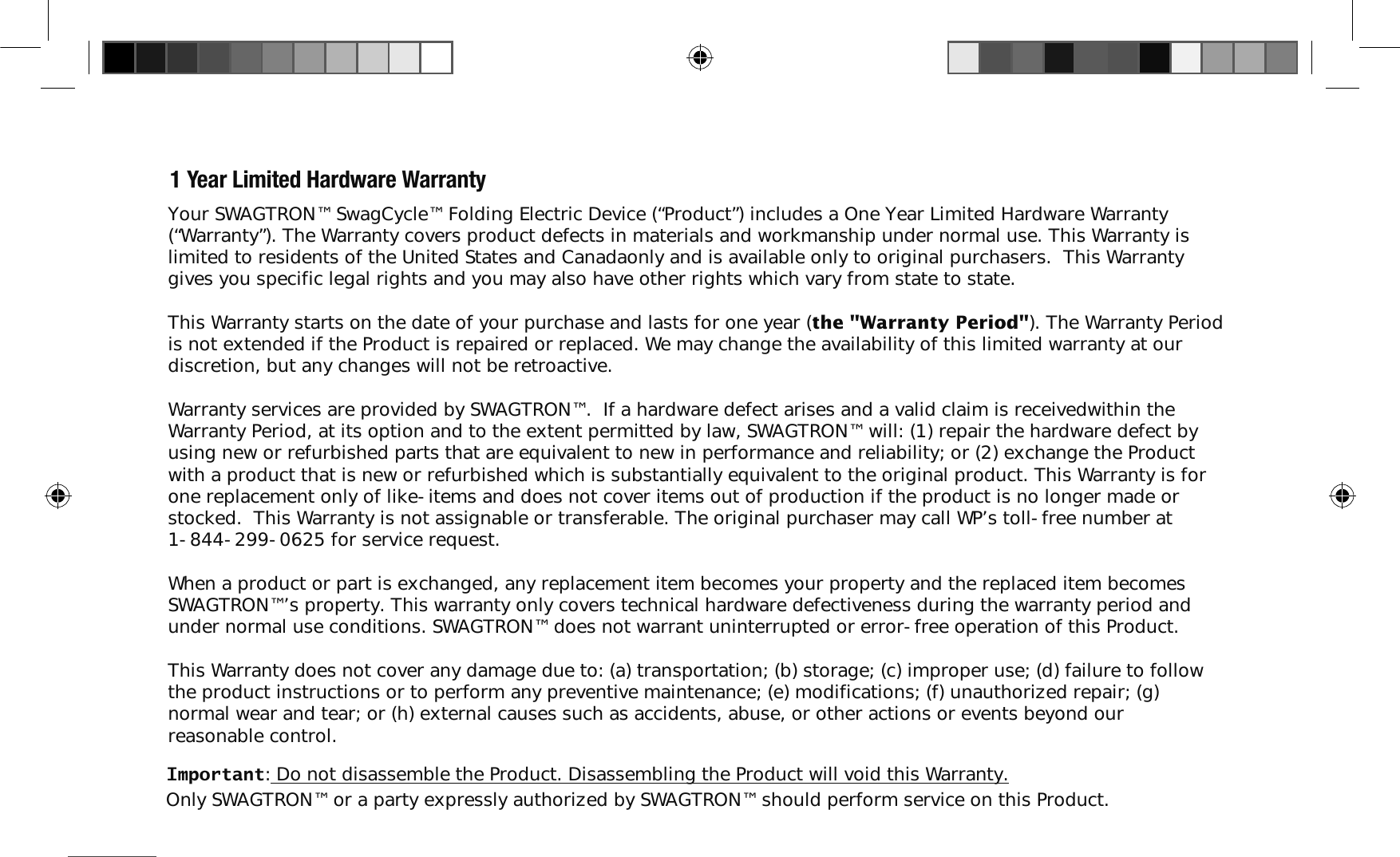

1 Year Limited Hardware WarrantyYour SWAGTRON™ SwagCycle™ Folding Electric Device (“Product”) includes a One Year Limited Hardware Warranty (“Warranty”). The Warranty covers product defects in materials and workmanship under normal use. This Warranty is limited to residents of the United States and Canadaonly and is available only to original purchasers.  This Warranty gives you specific legal rights and you may also have other rights which vary from state to state.This Warranty starts on the date of your purchase and lasts for one year (the "Warranty Period"). The Warranty Period is not extended if the Product is repaired or replaced. We may change the availability of this limited warranty at our discretion, but any changes will not be retroactive.Warranty services are provided by SWAGTRON™.  If a hardware defect arises and a valid claim is receivedwithin the Warranty Period, at its option and to the extent permitted by law, SWAGTRON™ will: (1) repair the hardware defect by using new or refurbished parts that are equivalent to new in performance and reliability; or (2) exchange the Product with a product that is new or refurbished which is substantially equivalent to the original product. This Warranty is for one replacement only of like-items and does not cover items out of production if the product is no longer made or stocked.  This Warranty is not assignable or transferable. The original purchaser may call WP’s toll-free number at 1-844-299-0625 for service request.When a product or part is exchanged, any replacement item becomes your property and the replaced item becomes SWAGTRON™’s property. This warranty only covers technical hardware defectiveness during the warranty period and under normal use conditions. SWAGTRON™ does not warrant uninterrupted or error-free operation of this Product. This Warranty does not cover any damage due to: (a) transportation; (b) storage; (c) improper use; (d) failure to follow the product instructions or to perform any preventive maintenance; (e) modifications; (f) unauthorized repair; (g) normal wear and tear; or (h) external causes such as accidents, abuse, or other actions or events beyond our reasonable control.Important: Do not disassemble the Product. Disassembling the Product will void this Warranty. Only SWAGTRON™ or a party expressly authorized by SWAGTRON™ should perform service on this Product.

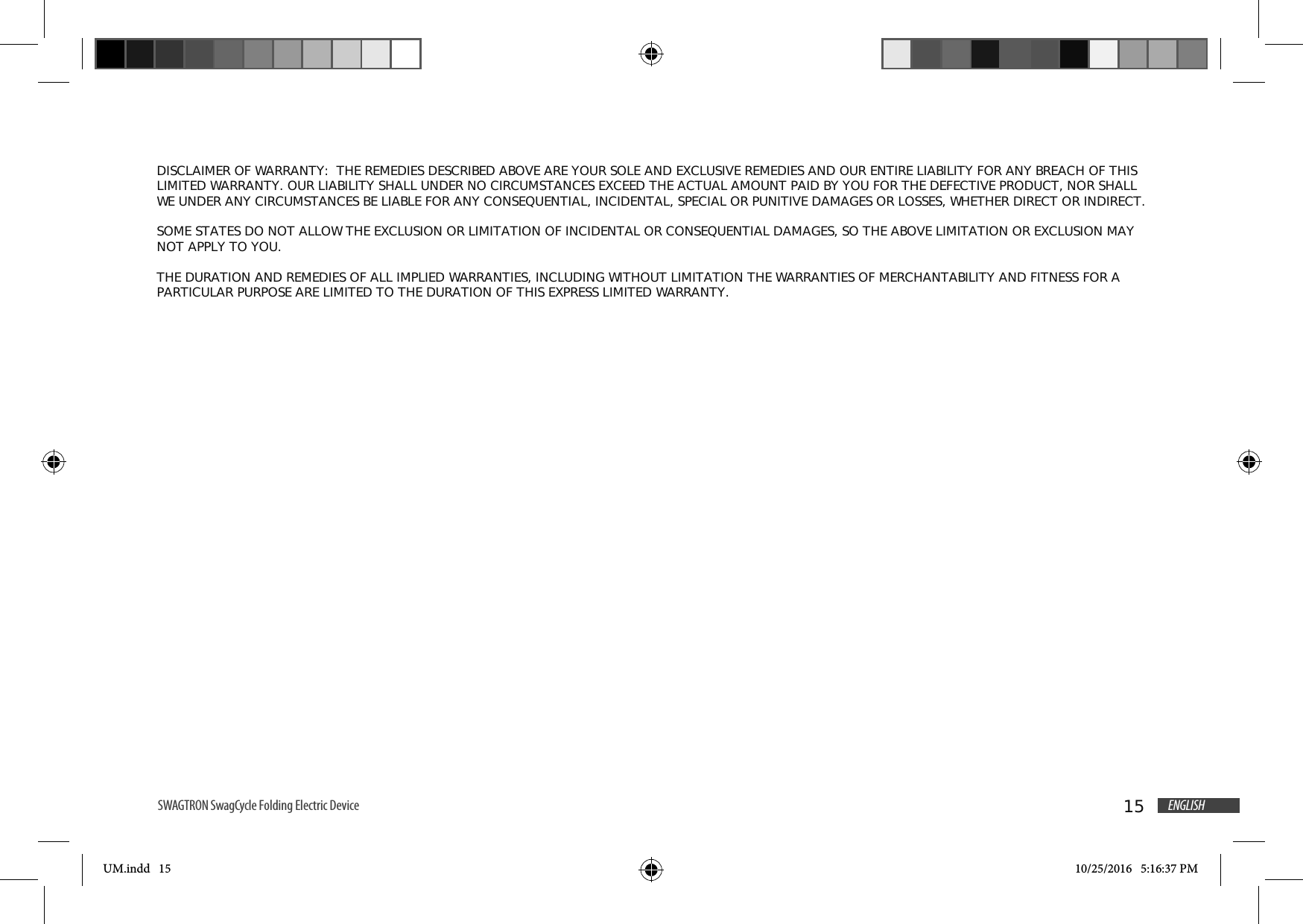

15 ENGLISHSWAGTRON SwagCycle Folding Electric Device  UM.indd   15 10/25/2016   5:16:37 PMDISCLAIMER OF WARRANTY:  THE REMEDIES DESCRIBED ABOVE ARE YOUR SOLE AND EXCLUSIVE REMEDIES AND OUR ENTIRE LIABILITY FOR ANY BREACH OF THIS LIMITED WARRANTY. OUR LIABILITY SHALL UNDER NO CIRCUMSTANCES EXCEED THE ACTUAL AMOUNT PAID BY YOU FOR THE DEFECTIVE PRODUCT, NOR SHALL WE UNDER ANY CIRCUMSTANCES BE LIABLE FOR ANY CONSEQUENTIAL, INCIDENTAL, SPECIAL OR PUNITIVE DAMAGES OR LOSSES, WHETHER DIRECT OR INDIRECT.SOME STATES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF INCIDENTAL OR CONSEQUENTIAL DAMAGES, SO THE ABOVE LIMITATION OR EXCLUSION MAY NOT APPLY TO YOU. THE DURATION AND REMEDIES OF ALL IMPLIED WARRANTIES, INCLUDING WITHOUT LIMITATION THE WARRANTIES OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE ARE LIMITED TO THE DURATION OF THIS EXPRESS LIMITED WARRANTY.

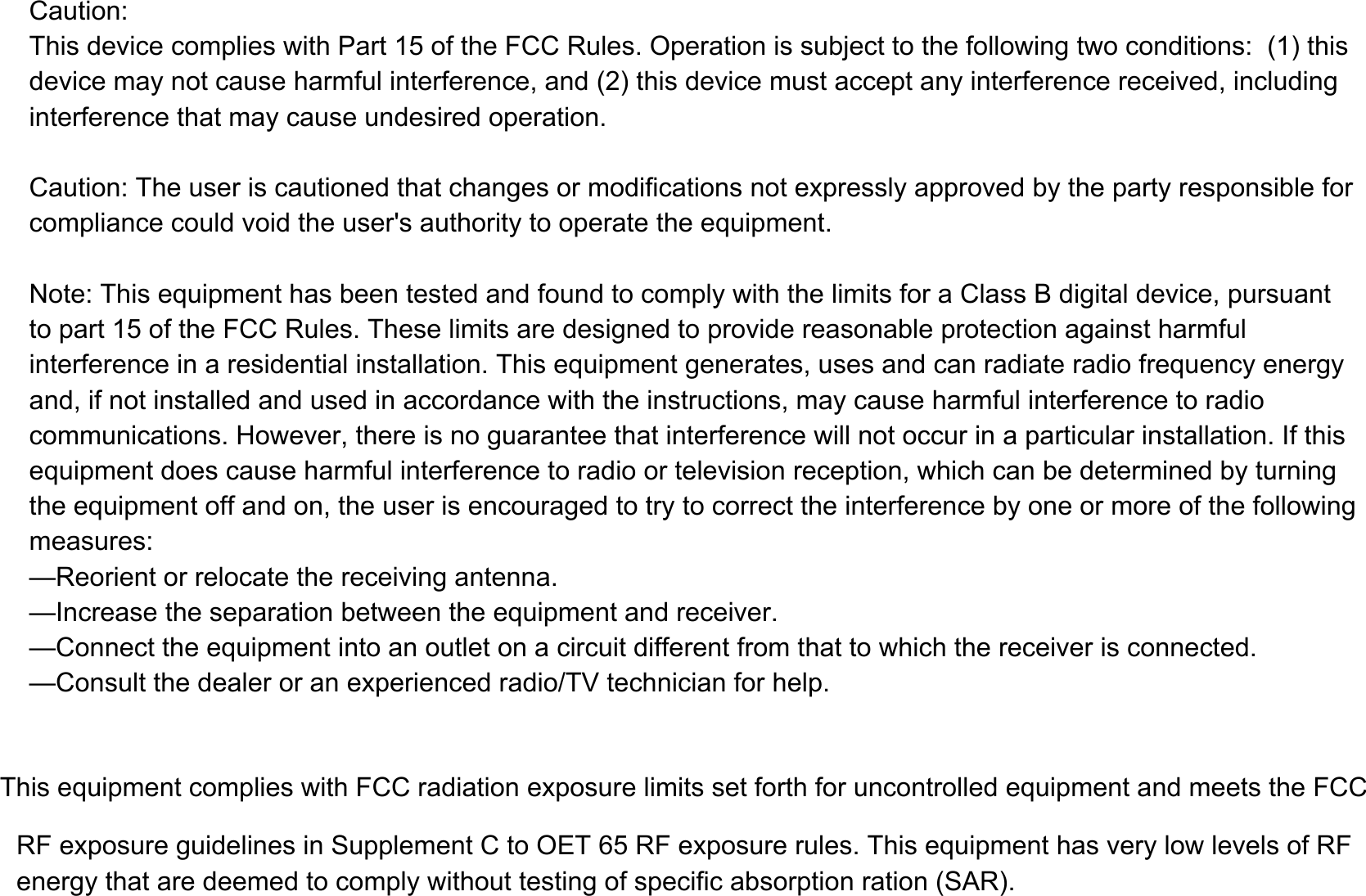

&DXWLRQ7KLVGHYLFHFRPSOLHVZLWK3DUWRIWKH)&&5XOHV2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQVWKLVGHYLFHPD\QRWFDXVHKDUPIXOLQWHUIHUHQFHDQGWKLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHUHFHLYHGLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQ&DXWLRQ7KHXVHULVFDXWLRQHGWKDWFKDQJHVRUPRGLILFDWLRQVQRWH[SUHVVO\DSSURYHGE\WKHSDUW\UHVSRQVLEOHIRUFRPSOLDQFHFRXOGYRLGWKHXVHUVDXWKRULW\WRRSHUDWHWKHHTXLSPHQW1RWH7KLVHTXLSPHQWKDVEHHQWHVWHGDQGIRXQGWRFRPSO\ZLWKWKHOLPLWVIRUD&ODVV%GLJLWDOGHYLFHSXUVXDQWWRSDUWRIWKH)&&5XOHV7KHVHOLPLWVDUHGHVLJQHGWRSURYLGHUHDVRQDEOHSURWHFWLRQDJDLQVWKDUPIXOLQWHUIHUHQFHLQDUHVLGHQWLDOLQVWDOODWLRQ7KLVHTXLSPHQWJHQHUDWHVXVHVDQGFDQUDGLDWHUDGLRIUHTXHQF\HQHUJ\DQGLIQRWLQVWDOOHGDQGXVHGLQDFFRUGDQFHZLWKWKHLQVWUXFWLRQVPD\FDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRFRPPXQLFDWLRQV+RZHYHUWKHUHLVQRJXDUDQWHHWKDWLQWHUIHUHQFHZLOOQRWRFFXULQDSDUWLFXODULQVWDOODWLRQ,IWKLVHTXLSPHQWGRHVFDXVHKDUPIXOLQWHUIHUHQFHWRUDGLRRUWHOHYLVLRQUHFHSWLRQZKLFKFDQEHGHWHUPLQHGE\WXUQLQJWKHHTXLSPHQWRIIDQGRQWKHXVHULVHQFRXUDJHGWRWU\WRFRUUHFWWKHLQWHUIHUHQFHE\RQHRUPRUHRIWKHIROORZLQJPHDVXUHV²5HRULHQWRUUHORFDWHWKHUHFHLYLQJDQWHQQD²,QFUHDVHWKHVHSDUDWLRQEHWZHHQWKHHTXLSPHQWDQGUHFHLYHU²&RQQHFWWKHHTXLSPHQWLQWRDQRXWOHWRQDFLUFXLWGLIIHUHQWIURPWKDWWRZKLFKWKHUHFHLYHULVFRQQHFWHG²&RQVXOWWKHGHDOHURUDQH[SHULHQFHGUDGLR79WHFKQLFLDQIRUKHOS7KLVHTXLSPHQWFRPSOLHVZLWK)&&UDGLDWLRQH[SRVXUHOLPLWVVHWIRUWKIRUXQFRQWUROOHGHTXLSPHQWDQGPHHWVWKH)&&5)H[SRVXUHJXLGHOLQHVLQ6XSSOHPHQW&WRO(75)H[SRVXUHUXOHV7KLVHTXLSPHQWKDVYHU\ORZOHYHOVRI5) HQHUJ\WKDWDUHGHHPHGWRFRPSO\ZLWKRXWWHVWLQJRIVSHFLILFDEVRUSWLRQUDWLRQ6$5

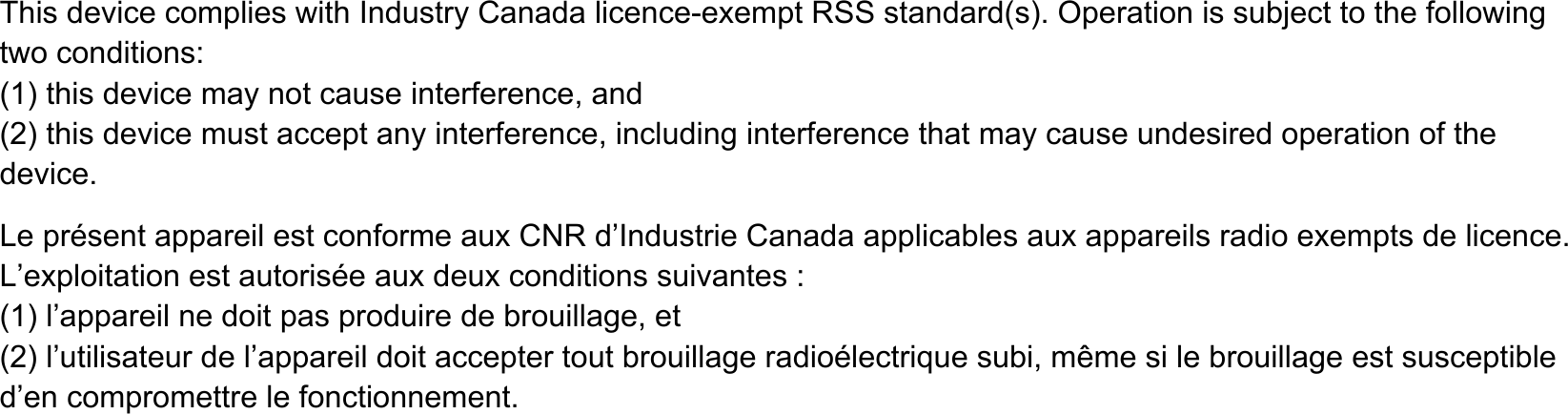

7KLVGHYLFHFRPSOLHVZLWK,QGXVWU\&DQDGDOLFHQFHH[HPSW566VWDQGDUGV2SHUDWLRQLVVXEMHFWWRWKHIROORZLQJWZRFRQGLWLRQVWKLVGHYLFHPD\QRWFDXVHLQWHUIHUHQFHDQGWKLVGHYLFHPXVWDFFHSWDQ\LQWHUIHUHQFHLQFOXGLQJLQWHUIHUHQFHWKDWPD\FDXVHXQGHVLUHGRSHUDWLRQRIWKHGHYLFH/HSUpVHQWDSSDUHLOHVWFRQIRUPHDX[&15G¶,QGXVWULH&DQDGDDSSOLFDEOHVDX[DSSDUHLOVUDGLRH[HPSWVGHOLFHQFH/¶H[SORLWDWLRQHVWDXWRULVpHDX[GHX[FRQGLWLRQVVXLYDQWHVO¶DSSDUHLOQHGRLWSDVSURGXLUHGHEURXLOODJHHWO¶XWLOLVDWHXUGHO¶DSSDUHLOGRLWDFFHSWHUWRXWEURXLOODJHUDGLRpOHFWULTXHVXELPrPHVLOHEURXLOODJHHVWVXVFHSWLEOHG¶HQFRPSURPHWWUHOHIRQFWLRQQHPHQW
