Global Sun Technology GL241101-MP 11Mbps WLAN PC Card User Manual Manual
Global Sun Technology Inc 11Mbps WLAN PC Card Manual
Manual
11Mbps Wireless
Network PC Card User
Manual
2
Manufacturer's Disclaimer Statement
The information in this document is subject to change without notice and does
not represent a commitment on the part of the vendor. No warranty or
representation, either expressed or implied, is made with respect to the quality,
accuracy or fitness for any particular purpose of this document. The
manufacturer reserves the right to make changes to the content of this document
and/or the products associated with it at any time without obligation to notify
any person or organization of such changes. In no event will the manufacturer
be liable for direct, indirect, special, incidental or consequential damages
arising out of the use or inability to use this product or documentation, even if
advised of the possibility of such damages. This document contains materials
protected by copyright. All rights are reserved. No part of this manual may
be reproduced or transmitted in any form, by any means or for any purpose
without expressed written consent of its authors. Product names appearing in
this document are mentioned for identification purchases only. All trademarks,
product names or brand names appearing in this document are registered
property of their respective owners.
Federal Communication Commission Interference Statement
!
This equipment has been tested and found to comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates,
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or television reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
!
!
Reorient or relocate the receiving antenna.
!
Increase the separation between the equipment and receiver.
!
Connect the equipment into an outlet on a circuit different from that to which the receiver
is connected.
!
Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two
conditions: (1) This device may not cause harmful interference, and (2) this device must accept
any interference received, including interference that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible
for compliance could void the user's authority to operate this equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled
environment. End users must follow the specific operating instructions for satisfying RF
exposure compliance.
This transmitter must not be co-located or operating in conjunction with any other antenna or
transmitter.
!
3
!
Table of Contents:
TABLE OF CONTENTS: 4
INTRODUCTION 5
P
RODUCT
F
EATURES
5
S
YSTEM
R
EQUIREMENTS
5
ONE CD-ROM DRIVEGETTING STARTED 5
GETTING STARTED6
G
ETTING
T
O
K
NOW
T
HE
11M
BPS
W
IRELESS
N
ETWORK
PC C
ARD
6
WIRELESS NETWORK PC Card’S LEDs 6
S
ETTING
U
P
T
HE
W
IRELESS
N
ETWORK
6
I
NSTALLING
Y
OUR
11M
BPS
W
IRELESS
N
ETWORK
PC C
ARD
8
CONFIGURING YOUR WIRELESS NETWORK PC CARD 13
Link Info. Page 13
Configuration Page 14
Security Page 16
SiteSurvey Page17
About Page 19
APPENDIX A: TROUBLESHOOTING 20
APPENDIX B: NETWORKING BASIS 25
APPENDIX C: 802.1X AUTHENTICATION SETUP 38
802.1
X
A
UTHENTICATION
I
NFRASTRUCTURE
39
S
UPPLICANT
: W
IRELESS
N
ETWORK
PC C
ARD
40
A
UTHENTICATOR
: W
IRELESS
N
ETWORK
A
CCESS
P
OINT
59
R
ADIUS
S
ERVER
: W
INDOW
2000 S
ERVER
61
APPENDIX D: GLOSSARY 84
APPENDIX E: TECHNICAL SPECIFICATION 89
4
INTRODUCTION
The 11Mbps Wireless Network Adapter delivers reliable and high-speed
wireless performance of 11Mbps
Product Features
- Full 2.4GHz IEEE 802.11b standard and Wi-Fi compliant
- High-Speed data transfer rate of up to 11Mbps with automatic fallback
under noisy environment or longer distance.
- Excellent distance coverage with reliable performance.
- Plug-and-Play setup and operation.
- Supports strong security of 802.1x, which is available in Windows XP,
and WEP 128 bit security.
- Supports software upgrade for Wi-Fi Access Protected (WPA) security
available in Q3 ‘03.
- Supports Ad-Hoc, Infrastructure and wireless roaming.
- Easy-to-use software client management utility for configuration.
System Requirements
" Windows 98, 98SE, Millennium Edition (ME), 2000 and XP
computers
" PC with Pentium III 600MHz system or above is recommended
" Equipped with at least one PC Cardbus socket or PC Cardbus adapter.
" One CD-ROM drive
5
GETTING STARTED
Getting To Know The 11Mbps Wireless Network PC Card
WIRELESS NETWORK PC Card’S LEDs
" Power LED
ON when the unit is powered up
" WLAN LED
ON indicates WLAN connection; blink indicates wireless activity
Setting Up The Wireless Network
There two wireless network topologies that you can setup your wireless
card with. One is called “Ad-Hoc”, and the other is “Infrastructure”.
On an Ad-Hoc network, two or more computers each has at least one
wireless network client device such as wireless PC Card installed,
establish point-to-point data communication with each other. While on an
Infrastructure network, every wireless station communicates through
Access Points.
Setting Up Ad-Hoc Network
The idea of Ad-Hoc Network is rather simple. All the wireless station are
set to use the same BSS ID and channel to establish communication
linkage with each other to form a point-to-point network for data
transmission and reception.
Setting Up Infrastructure Network
6
In order to setup an Infrastructure of a wireless network such as the
example shown above, you will need the following:
1. A broadband Internet connection.
2. ADSL or Cable modem provided by your ISP as part of the broadband
connection installation.
3. A Router that connects to the ADSL/Cable modem for internet
connection sharing.
4. An Access Point to connect with the Router to form a wireless
infrastructure network.
5. Wireless clients equipped with wireless networking devices such as
wireless PC Card for wireless connection.
In this case, all the wireless clients and Access Point operate under the
same channel with the same ESSID. The wireless clients are all
connected to the Access Point for data transmission.
7
Installing Your 11Mbps Wireless Network PC
Card
Installing Utility Program
Please note that the installation screens in this quick guide are captured from
WindowsXP. The other Windows systems will have similar screen for the installation
procedure.
8
9
The Utility Icon appears in your desktop.
- Turn off your computer
- Insert the 11Mbps Wireless Network PC Card into the CardBus slot in
your notebook
- Turn on your computer
- Continue with Driver Installation.
Starts Up PC Card for the First Time
10
Simply, double-click the icon to launch the utility.
Double-click on the utility icon in the system tray
again to launch the 11Mbps PC Card Utility.
11
CONFIGURING YOUR WIRELESS NETWORK PC
Card
Link
Info. Page
This is the default page when the utility starts up.
Status: Shows the BSSID associated, which can be used to identify
the wireless network.
SSID: Shows current SSID, which must be the same for the wireless
client and AP in order for communication to be established.
TxRate: Shows the current data rate used for transmitting.
Channel: Shows the current channel for communication.
Radio Off button: When clicked, you disable the radio signal, and
cut-off the wireless connection.
Link Quality: Shows the link quality of the 11Mbps wireless PC
Card with the Access Point when operating under Infrastructure
mode.
Signal Strength: Shows the wireless signal strength of the connection
between the 11mpbs wireless PC Card with the Access Point.
Data Rate: Shows the statistics of data transfer, and the calculation is
based on the number of packets transmitted and received.
12
Configuration Page
This is the page where you can change the basic settings of the
Access Point with the minimum amount of effort to adjust a secure
wireless network.
SSID: Service Set Identifier, which is a unique name shared among
all clients and nodes in a wireless network. The SSID must be
identical for each clients and nodes in the wireless network.
BSS Type: There are two types available for selection
!
Infrastructure – to establish wireless communication with LAN
and other wireless clients through the use the Access Points.
!
Ad-Hoc – to establish point-to-point wireless communication
directly with other wireless client devices such as wireless network
PC Card.
Channel: The value of channel that AP will operate in. You can select
the channel range of 1 to 11 for North America (FCC) domain, 1 to 13
for European (ETSI) domain and 1 to 14 for Japanese domain.
Tx Rate: Select the data rate for data transmission.
Preamble: Select Long or Short Preamble type. Preamble is a
sequence of bits transmitted at 1Mbps that allows the PHY circuitry
to reach steady-state demodulation and synchronization of bit clock
and frame start. Two different preambles and headers are defined: the
mandatory supported Long Preamble and header, which interoperates
with the 1 Mbit/s and 2 Mbit/s DSSS specification (as described in
IEEE Std 802.11), and an optional Short Preamble and header (as
described in IEEE Std 802.11b). At the receiver, the Preamble and
header are processed to aid in demodulation and delivery of the
PSDU. The Short Preamble and header may be used to minimize
overhead and, thus, maximize the network data throughput. However,
the Short Preamble is supported only from the IEEE 802.11b (High-
Rate) standard and not from the original IEEE 802.11. That means
that stations using Short-Preamble cannot communicate with stations
implementing the original version of the protocol.
Power Mode: There are 3 modes to choose from
!
Continuous Access Mode (default) – the PC Card is constantly
operating with full power and it consumes the most power
13
!
Maximum Power Save – the PC Card consumes the least power
and only operates when there is wireless network activity.
!
Power Save – the PC Card consumes the moderate level of power.
For the changes made to any of the items above to be effective, click
“Apply”. The screen will be changed back to Link Info. Page
14
Security Page
This is the page where you configure Security settings of your
11Mbps wireless PC Card.
Data Encryption: Click the box to enable Data Encryption feature.
Aut. Mode: There are three modes available to choose from.
!
Open Authentication – the sender and receiver do not share
secret Key for communication. Instead, each party generates its own
key-pairs and ask the other party to accept it. The key is regenerated
when the connection is established every time.
!
Shared Authentication – the sender and receiver shares the
common key for data communication, and the key is used for
extended length of time.
!
Auto – depend on the communication to establish, and
automatically use the proper authentication mode.
The following will only be activated to allow for configuration when
Data Encryption is enabled.
Default Key: select one of the 4 keys to use.
Network Key: enter values to these fields, either in HEX or ASCII
formats. You only have to enter the key that you will use
Key Length: select 64 or 128 bits as the length of the keys
Key Format: ASCII or HEX (Please refer to Appendix G: Glossary
for details about these two formats).
SiteSurvey Page
This page allows to utilize the SiteSurvey function to scan for the
available wireless network (wireless clients and Access Points) and
select one to establish wireless communication.
15
Available Network – displays the wireless networks (wireless clients
and Access Points) that are in your signal range. Select any one of
them and establish communication by simply mouse double-click or
a single click on the “Connect” button.
Click “Refresh” button to start scanning for available network again.
Profile – You can create and manage the created profiles for Home,
offices or public areas.
By double-clicking on one of the created profile, the setting will adapt
to the configuration such as SSID, channel, and WEP settings saved
by that particular profile.
Click to select any one of the profiles, and you can
Click on “Remove” button to remove the profile, or
Click on “Properties” button to view and change its settings. The
Properties is very similar to that of adding profile.
Click “Add” to add a profile, and the following screen would appear.
All the detail information about each settings and configuration item
are described in previous Configuration and Security Page sessions.
Please refer to those two sessions for more information.
16
When you finish enter the setting for this profile, click “OK” to add a
new profile.
17
About Page
This page displays some information about the 11mpbs PC Card
utility, which includes the version numbers for Driver, Firmware and
Utility.
When there is new version of software available for upgrade, you will
be able to identify by version numbers.
18
APPENDIX A: TROUBLESHOOTING
This chapter provides solutions to frequently encountered problems that can
occur during the installation and operation of the 11Mbps Wireless Network PC
Card. Please read through the following to solve your problems.
1. The wireless clients cannot access the network in the infrastructure
mode.

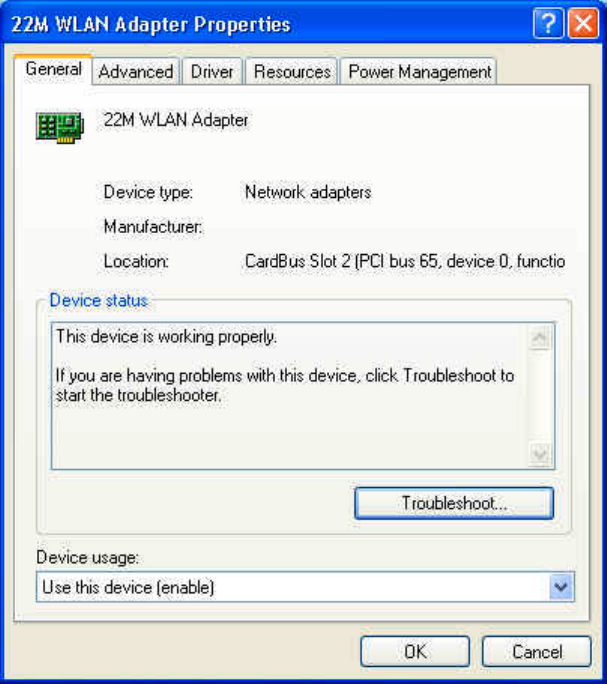

" Check that the wireless network device is being installed and working
properly.
19
20
21
2. What is the difference between 11Mbps and 11Mbps wireless products?
What’s the benefit of 11Mbps Wireless Access Point?
The 11Mbps is made possible by the new modulation method called PBCC
developed by TI, which is different from the current CCK modulation method
for 11Mbps. The 11Mbps Wireless Access Point offers double data rate than
that of 11Mbps with 20% more distance coverage. The 11Mbps wireless
products also operate in the 2.4GHz ISM band and they are backward
compatible with 11Mbps wireless products.
3. What is Roaming?
Roaming is the ability of portable computers, e.g., Packet PC and notebook, to
have consistent and continuous data transmission/reception throughout an area
covered by more than one Wireless Access Point. In order to achieve seamless
connectivity, all the wireless clients and Access Points must be set to use the
same SSID. When a user walked out of the coverage area of one AP into
another, the wireless client network device will automatically reestablish
connection with the new AP.
4. What is a MAC Address?
The Media Access Control (MAC) address is a unique number assigned by the
manufacturer to any Ethernet networking devices, e.g. a network adapter, that
allows the network to identify it at the hardware level. Unlike IP addresses,
which can be changed or dynamically assigned by the network, the MAC
address of a networking device is permanent.
5. What is WEP?
Wired Equivalent Privacy (WEP) is a type of data encryption mechanism
described in the IEEE 802.11 standard. The 11Mbps Wireless Access Point
supports 64/128/256 bit shared key for WEP.
6. Would the information be transmitted securely in the air?
WLAN offers two layers of protection for security. First layer is on the
hardware level. As with Direct Sequence Spread Spectrum (DSSS)
technology, it has the inherent security feature of scrambling. Second of all, on
the software level, the security control is made possible by Wired Equivalent
Privacy (WEP) for access control.
7. What is ISM band?
The FCC and their counterparts outside of the U.S. have set aside bandwidth for
unlicensed use in the ISM (Industrial, Scientific and Medical) band. The
2.4GHz unlicensed ISM band is available worldwide, which presents the
opportunity for the global market of 802.11b high speed wireless products.
8. What is 4X mode?
This is a proprietary wireless data transmission mode provided by TI, which
enhances TI’s 11Mbps PBCC speed to reach data throughput to over 12Mbps.
Since it is not IEEE 802.11b standard wireless data mode, in order to allow 4X
mode, both the receiving and transmitting parties must be using TI solution.
22
APPENDIX B: NETWORKING BASIS
This chapter will help you learn the basics of home networking.
Using the Windows XP Network Setup Wizard
23
24
25
26
!Note: Now you may use the Network Setup Disk you just created in any PCs
in your network that you wish to setup. Simply insert the Network Setup Disk
into the disk drive of a PC, and open to browse the content of the disk with “My
Computer” or “Windows File Manager”. Double-click and run the file
“netsetup” for the program to handle the rest.
27
Checking IP Address of Your Computer in Windows XP
Sometimes you will need to know the IP address of the computer that you are
using. For example, when you want to make sure that your computer is in the
same network domain as that of your Access Point for you can configure and
access the AP.
When the command prompt window appears, type command “ipconfig /all” and
press Enter. This command will display the IP addresses of all the network
adapters in your computer.
In this case, the IP address of your network adapter is 192.168.1.2, which
means your Access Point must have an IP address of 192.168.1.xxx in order for
you to be able to access it.
If the IP address is assigned by DHCP server on the network, there are chances
you might have to release the IP and acquire it from DHCP server again. Here
is how you do it.
Type command, “ipconfig /renew” in the command prompt window and press
28
Enter. This command releases the current IP address and acquire it from the
network, i.e. DHCP server, once more.
In this case, the IP address that we acquired is 192.168.1.3. However, it’s
often that the acquired IP address of the network adapter might would not be
the same.
!Note: To renew IP under Windows 98 and Windows ME, you will have to go
to the Start menu > Run > type winipcfg and click “OK”. The Windows IP
Configuration Menu window would appear, where you first click “release”
button to release the current IP address, followed by clicking of “Renew” to
acquire a new IP address from network.
If the above methods for IP renew fail, you will have to try and restart the
computer, which will reinitializes the network adapter settings during startup
including renewing IP address. If you still have problems getting an IP
address after computer restarts, you will have to consult with your MIS in your
office or call computer and network technicians.
29
Dynamic IP Address V.S. Static IP Address
By definition Dynamic IP addresses are the IP addresses that are being
automatically assigned to a network device on the network. These
Dynamically assigned IP addresses will expire and may be changed over time.
Static IP addresses are the IP addresses that users manually enter for each of the
network adapters.

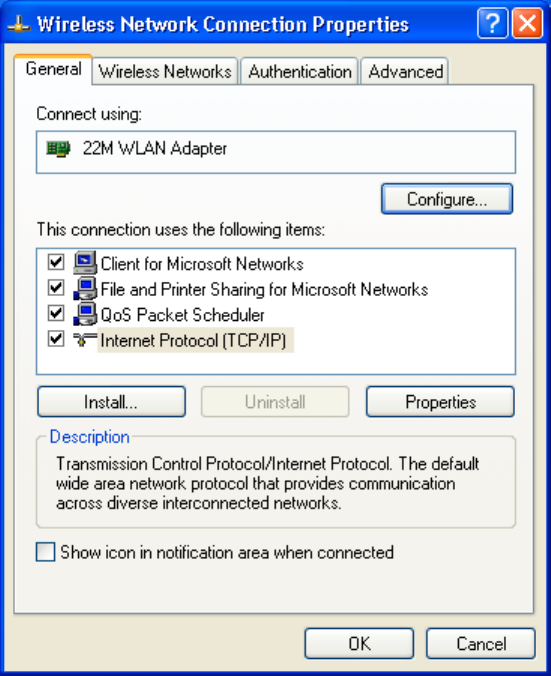

!Note: There might be two or more Local Area Connection to choose from. You
must select the one that you will use to connect to the network.
30
Dynamically Assigned IP Address
31
Static IP Address
!Note: The IP address must be within the same range as the wireless route or
Access Point.
Wireless Network in Windows 2000
32
33
Wireless Network In Windows 98 and Windows ME
34
35

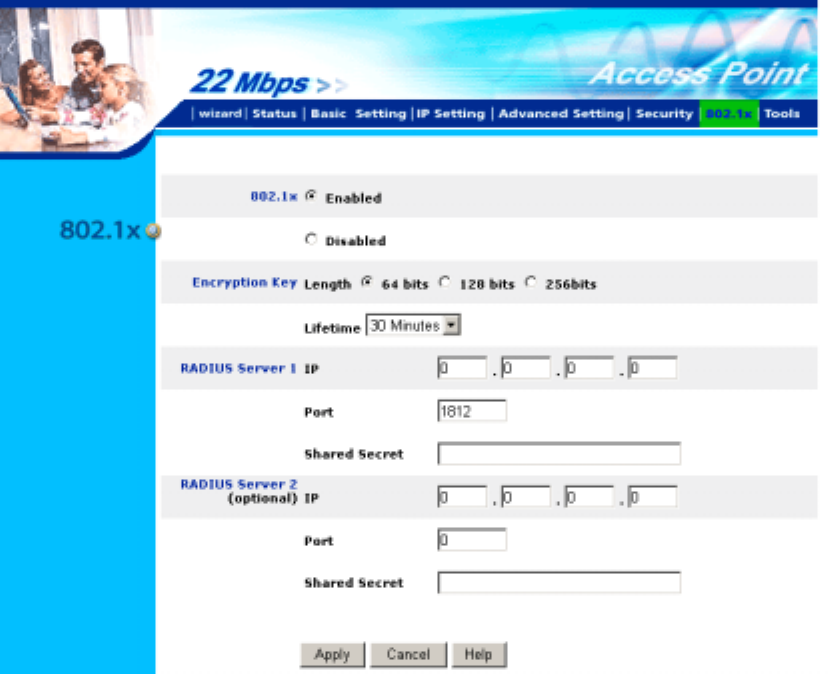

APPENDIX C: 802.1x Authentication Setup
There are three essential components to the 802.1x infrastructure: (1)
Supplicant, (2) Authenticator and (3) Server. The 802.1x security supports
both MD5 and TLS Extensive Authentication Protocol (EAP). The 802.1x
Authentication is a complement to the current WEP encryption used in wireless
network. The current security weakness of WEP encryption is that there is no
key management and no limitation for the duration of key lifetime. 802.1x
Authentication offers key management, which includes key per user and key
per session, and limits the lifetime of the keys to certain duration. Thus, key
decryption by unauthorized attacker becomes extremely difficult, and the
wireless network is safely secured. We will introduce the 802.1x
Authentication infrastructure as a whole and going into details of the setup for
each essential component in 802.1x authentication.
802.1x Authentication Infrastructure
The Infrastructure diagram showing above illustrates that a group of
802.11 wireless clients is trying to form a 802.11 wireless network with the
Access Point in order to have access to the Internet/Intranet. In 802.1x
authentication infrastructure, each of these wireless clients would have to
be authenticated by the Radius server, which would grant the authorized
client and notified the Access Point to open up a communication port to be
used for the granted client. There are 2 Extensive Authentication Protocol
(EAP) methods supported: (1) MD5 and (2) TLS.
MD5 authentication is simply a validation of existing user account and
password that is stored in the server with what are keyed in by the user.
Therefore, wireless client user will be prompted for account/password
validation every time when he/she is trying to get connected. TLS
authentication is a more complicated authentication, which involves using
certificate that is issued by the Radius server, for authentication. TLS
authentication is a more secure authentication, since not only the Radius
server authenticates the wireless client, but also the client can validate the
Radius server by the certificate that it issues. The authentication request
from wireless clients and reply by the Radius Server and Access Point
process can be briefed as follows:
1. The client sends an EAP start message to the Access Point
2. The Access Point replies with an EAP Request ID message
3. The client sends its Network Access Identifier (NAI) – its user name –
to the Access Point in an EAP Respond message.
4. The Access Point forwards the NAI to the RADIUS server with a
RADIUS Access Request message.
5. The RADIUS server responds to the client with its digital certificate.
6. The client validates the digital certificate, and replies its own digital
certificate to the RADIUS server.
7. The RADIUS server validates client’s digital certificate.
8. The client and RADIUS server derive encryption keys.
9. The RADIUS server sends the access point a RADIUS ACCEPT
message, including the client’s WEP key.
10. The Access Point sends the client an EAP Success message along with
36
the broadcast key and key length, all encrypted with the client’s WEP key.
Supplicant: Wireless Network PC Card
Here is the setup for the Wireless Network PC Card under Windows XP,
which is the only Operating System that our driver supports for 802.1x.
Microsoft is planning on supporting 802.1x security in all common
Windows Operating System including Win98SE/ME/2000 by releasing
Service Pack in 2003.
Please note that the setup illustration is based on our 11Mbps wireless PC
Card.
1. Go to Start > Control Panel
2. double-click on “Network Connections”
3. right-click on the Wireless Network Connection that you use with our
11Mbps wireless PC Card.
4. Click “Properties” to open up the Properties setting window.
37
5. Click on the “Wireless Network” tab.
38
6. Click “Properties” of the available wireless network, which you wish
to connect or configure.
Please note that if you are going to change to a different 802.1x
authentication EAP method, i.e. switch from using MD5 to TLS, , you
must remove the current existing wireless network from your Preferred
networks first, and add it in again.
To configure for using TLS authentication method, please follow steps 7 ~
25.
Please follow steps 26 ~ for using MD5 authentication method.
39
TLS Authentication
7. Select “The key is provided for me automatically” option
8. Click “OK” to close the Wireless Network Properties window.
9. Click “Authentication” tab
10. Select “Enable network access control using IEEE 802.1x” option to
enable 802.1x authentication.
11. Select “Smart Card or other Certificate” from the drop-down list
box for EAP type.
40
12. Click “OK” to close the Wireless Network Connection Properties
window, thus make the changes effective.
The wireless client configuration in the zero-configuration utility provided
in Windows XP is now completed for TLS configuration. Before you can
enable IEEE 802.1x authentication and have wireless client authenticated
by the Radius server, you have to download the certificate to your local
computer first.
41
TLS Authentication – Download Digital Certificate from
Server
In most corporations, it requires internal IT or MIS staff’s help to have the
certificated downloaded to your local computer. One of the main reasons
is that each corporation uses its own server systems, and you will need the
assistance from your IT or MIS for account/password, CA server location
and etc. The following illustration is based on obtaining a certificate
from Windows 2000 Server which can act as a CA server, assuming you
have a valid account/password to access the server.
13. Connect to the server and ask for access, and the server will prompt
you to enter your user name and password.
14. Enter your user name and password, then click “OK” to continue.
Please note that we use IP addresses for connection with the server for our
illustration, and the IP of the server is 192.168.1.10.
15. After successful login, open up your Internet Browser, and type the
following in the address field.
http://192.168.1.10/certsrv
This is how we connect to the Certificate Service installed in Windows
2000 server.
42
16. Now we are connected to the Certificate Service. Select “Request a
certificate”, and click “Next” to continue.
43
17. Select “User Certificate request”, and click “Next” to continue.
44
18. Click “Submit >” to continue.
45
19. The Certificate Service is now processing the certificate request.
46
20. The certificate is issued by the server, click “Install this certificate” to
download and store the certificate to your local computer.
21. Click “Yes” to store the certificate to your local computer.
47
22. Certificate is now installed.
All the configuration and certificate download are now complete. Let’s try
to connect to the Access Point using 802.1x TLS Authentication.
23. Windows XP will prompt you to select a certificate for wireless
network connection. Click on the network connection icon in the system
tray to continue.
48
24. Select the certificate that was issued by the server (WirelessCA), and
click “OK” to continue.
25. Check the server to make sure that it’s the server that issues certificate,
and click “OK” to complete the authentication process.
MD5 Authentication
26. Select “Data encryption (WEP enabled)” option, but leave other
option unselected.
27. Select the key format that you want to use to key in your Network
key.
ASCII characters: 0~9, a~z and A~Z
HEX characters: 0~9, a~f
28. Select the key length that you wish to use
40 bits (5 characters for ASCII, 10 characters for HEX)
104 bits (13 characters for ASCII, 26 characters for HEX)
49
29. After deciding the key format and key length that you wish to use for
network key. Enter the network key in “Network key” text box.
Please note that that value of Network key entered, and key format/length
used, must be the same as that used in the Access Point. Although there
are 4 set of keys can be set in the Access Point WEP configuration, it’s the
first set of key that must be the same as that we used by the supplicant
wireless client.
30. Click “OK” to close the Wireless Network Properties window, thus
make the changes effective.
50
31. Select “Authentication” tab.
32. Select “Enable network access control using IEEE 802.1X” to
enable 802.1x authentication.
33. Select “MD-5 Challenge” from the drop-down list box for EAP type.
34. Click “OK” to close Wireless Network Connection Properties window,
thus make all the changes effective.
51
Unlike TLS, which uses digital certificate for validation, the MD-5
Authentication is based on the user account/password. Therefore, you must
have a valid account used by the server for validation.
35. WindowsXP will prompt you to enter your user name and password.
Click on the network connection icon in the system tray to continue.
52
36. Enter the user name, password and the logon domain that your account
belongs if you have one or more network domain exist in your network.
37. Click “OK” to complete the validation process.
53
Authenticator: Wireless Network Access Point
This is the web page configuration in the Access Point that we use.
1. Enable 802.1x security by selecting “Enable”.
2. If MD5 EAP methods is used then you can skip step 3 and go to step 4.
3. Select the Encryption Key Length Size ranging from 64 to 256 Bits
that you would like to use.
Select the Lifetime of the Encryption Key from 5 Minutes to 1 Day. As
soon as the lifetime of the Encryption Key is over, the Encryption Key will
be renewed by the Radius server.
4. Enter the IP address of and the Port used by the Primary Radius
Server
Enter the Shared Secret, which is used by the Radius Server.
5. Enter the IP address of, Port and Shared Secret used by the
Secondary Radius Server.
6. Click “Apply” button for the 802.1x settings to take effect after Access
Point reboots itself.
Note!: As soon as 802.1x security is enabled, all the wireless client stations
that are connected to the Access Point currently will be disconnected.
The wireless clients must be configured manually to authenticate
themselves with the Radius server to be reconnected.
54
Radius Server: Window2000 Server
This section to help those who has Windows 2000 Server installed and
wants to setup Windows2000 Server for 802.1x authentication, which
includes setting up Certificate Service for TLS Authentication, and enable
EAP-methods.
1. Login into your Windows 2000 Server as Administrator, or account
that has Administrator authority.
2. Go to Start > Control Panel, and double-click “Add or Remove
Programs”
3. Click on “Add/Remove Windows components”
4. Check “Certificate Services”, and click “Next” to continue.
5. Select “Enterprise root CA”, and click “Next” to continue.
6. Enter the information that you want for your Certificate Service, and
click “Next” to continue.
55
7. Go to Start > Program > Administrative Tools > Certificate Authority
8. Right-click on the “Policy Setting”, select “new”
9. Select “Certificate to Issue”
10. Select “Authenticated Session” and “Smartcard Logon” by holding
down to the Ctrl key, and click “OK” to continue.
56
11. Go to Start > Program > Administrative Tools > Active Directory
Users and Computers.
12. Right-click on domain, and select ”Properties” to continue.
13. Select “Group Policy” tab and click “Properties” to continue.
57
14. Go to “Computer Configuration” > “Security Settings” > “Public Key
Policies”
15. Right-click “Automatic Certificate Request Setting”, and select
“New”
16. Click “Automatic Certificate Request ...”
58
17. The Automatic Certificate Request Setup Wizard will guide you
through the Automatic Certificate Request setup, simply click “Next”
through to the last step.
18. Click “Finish” to complete the Automatic Certificate Request Setup
19. Go to Start > Run, and type “command” and click “Enter” to open
Command Prompt.
20. Type “secedit/refreshpolicy machine_policy” to refresh policy.
Adding Internet Authentication Service
21. Go to Start > Control Panel > Add or Remove Programs
22. Select “Add/Remove Windows Components” from the panel on the
left.
23. Select “Internet Authentication Service”, and click “OK” to install.
59
Setting Internet Authentication Service
24. Go to Start > Program > Administrative Tools > Internet
Authentication Service
25. Right-click “Client”, and select “New Client”
60
26. Enter the IP address of the Access Point in the Client address text
field, a memorable name for the Access Point in the Client-Vendor text
field, the access password used by the Access Point in the Shared secret
text field. Re-type the password in the Confirmed shared secret text field.
27. Click “Finish” to complete adding of the Access Point.
61
28. In the Internet Authentication Service, right-click “Remote Access
Policies”
29. Select “New Remote Access Policy”.
30. Select “Day-And-Time-Restriction”, and click “Add” to continue.
62
31. Unless you want to specify the active duration for 802.1x
authentication, click “OK” to accept to have 802.1x authentication enabled
at all times.
32. Select “Grant remote access permission”, and click “Next” to
continue.
63
33. Click “Edit Profile” to open up
64
For TLS Authentication Setup (Steps 34 ~ 38)
34. Select “Authentication” Tab
35. Enable “Extensible Authentication Protocol”, and select “Smart
Card or other Certificate” for TLS authentication
65
36. Go to Start > Program > Administrative Tools > Active Directory
Users and Computers
37. Select “Users”, and double-click on the user that can be newly created
or currently existing, who will be configured to have the right to obtain
digital certificate remotely.
Please note that in this case, we have a user called, test, whose
account/password are used to obtain the digital certificate from server.
66
38. Go to the “Dial-in” tab, and check “Allow access” option for Remote
Access Permission and “No Callback” for Callback Options.
67
For MD5 Authentication (Steps 39 ~ 54)
39. Go to Start > Program > Administrative Tools > Active Directory
Users and Computers.
40. Right click on the domain, and select “Properties”
68
41. Select “Group Policy” tab, and click “Edit” to edit the Group Policy.
69
42. Go to “Computer Configuration” > “Windows Settings” > “Security
Settings” > “Account Policies” > “Password Policies”
43. Click “Define this policy setting”, select “Enabled”, and click “OK”
to continue.
70
44. Go to Start > Program > Administrative Tools > Active Directory
Users and Computers.
45. Go to Users. Right-click on the user that you are granting access, and
select “Properties”
71
46. Go to “Account” tab, and enable “Store password using reversible
encryption”
47. Click “OK” to continue.
72
48. Go to Start > Program > Administrative Tools > Internet
Authentication Service.
49. Go to Remote Access Policies
50. Make sure that MD5 is moved up to Order 1
51. Right-click “MD5”, and select “Properties”
73
52. Go to “Authentication” tab
53. Enable “Extensible Authentication Protocol”
54. Select “MD5-Challenge” for EAP type.
74
APPENDIX D: GLOSSARY
Access Point ― An internetworking device that seamlessly connects wired and
wireless networks.
Ad-Hoc ― An independent wireless LAN network formed by a group of
computers, each with an network adapter.
AP Client – One of the additional AP operating modes offered by 11Mbps
Access Point, which allows the Access Point to act as an Ethernet-to-Wireless
Bridge, thus a LAN or a single computer station can join a wireless ESS
network through it.
ASCII – American Standard Code for Information Interchange, ASCII, is one
of the two formats that you can use for entering the values for WEP key. It
represents English letters as numbers from 0 to 127.
Authentication Type ― Indication of an authentication algorithm which can
be supported by the Access Point:
1. Open System : Open System authentication is the simplest of the available
authentication algorithms. Essentially it is a null authentication algorithm. Any
station that requests authentication with this algorithm may become
authenticated if 802.11 Authentication Type at the recipient station is set to
Open System authentication.
2. Shared Key : Shared Key authentication supports authentication of stations
as either a member of those who knows a shared secret key or a member of
those who does not.
Backbone ― The core infrastructure of a network, which transports
information from one central location to another where the information is
unloaded into a local system.
Bandwidth ― The transmission capacity of a device, which is calculated by
how much data the device can transmit in a fixed amount of time expressed in
bits per second (bps).
Basic Rate ― the fixed transmitted and receiving data rate allowed by the AP
with the value 1,2,5.5, 11 and 11 Mbps for selection.
Beacon ― A beacon is a packet broadcast by the Access Point to keep the
network synchronized. Included in a beacon are information such as wireless
LAN service area, the AP address, the Broadcast destination addresses, time
stamp, Delivery Traffic Indicator Maps, and the Traffic Indicator Message
(TIM).
Bit ― A binary digit, which is either -0 or -1 for value, is the smallest unit for
data.
Bridge ― An internetworking function that incorporates the lowest 2 layers of
75
the OSI network protocol model.
Browser ― An application program that enables one to read the content and
interact in the World Wide Web or Intranet.
BSS ― BSS stands for “Basic Service Set”. It is an Access Point and all the
LAN PCs that associated with it.
Channel ― The bandwidth which wireless Radio operates is divided into
several segments, which we call them “Channels”. AP and the client stations
that it associated work in one of the channels.
CSMA/CA ― In local area networking, this is the CSMA technique that
combines slotted time-division multiplexing with carrier sense multiple
access/collision detection (CSMA/CD) to avoid having collisions occur a
second time. This works best if the time allocated is short compared to packet
length and if the number of situations is small.
CSMA/CD ― Carrier Sense Multiple Access/Collision Detection, which is a
LAN access method used in Ethernet. When a device wants to gain access to
the network, it checks to see if the network is quiet (senses the carrier). If it is
not, it waits a random amount of time before retrying. If the network is quiet
and two devices access the line at exactly the same time, their signals collide.
When the collision is detected, they both back off and wait a random amount of
time before retrying.
DHCP ― Dynamic Host Configuration Protocol, which is a protocol that lets
network administrators manage and allocate Internet Protocol (IP) addresses in
a network. Every computer has to have an IP address in order to communicate
with each other in a TCP/IP based infrastructure network. Without DHCP, each
computer must be entered in manually the IP address. DHCP enables the
network administrators to assign the IP from a central location and each
computer receives an IP address upon plugged with the Ethernet cable
everywhere on the network.
DSSS ― Direct Sequence Spread Spectrum. DSSS generates a redundant bit
pattern for each bit to be transmitted. This bit pattern is called a chip (or
chipping code). The longer the chip, the greater the probability that the original
data can be recovered. Even if one or more bits in the chip are damaged during
transmission, statistical techniques embedded in the radio can recover the
original data without the need for retransmission. To an unintended receiver,
DSSS appears as low power wideband noise and is rejected (ignored) by most
narrowband receivers.
Dynamic IP Address ― An IP address that is assigned automatically to a
client station in a TCP/IP network by a DHCP server.
Encryption ― A security method that uses a specific algorithm to alter the data
transmitted, thus prevent others from knowing the information transmitted.
76
ESS ― ESS stands for “Extended Service Set”. More than one BSS is
configured to become Extended Service Set. LAN mobile users can roam
between different BSSs in an ESS.
ESSID ― The unique identifier that identifies the ESS. In infrastructure
association , the stations use the same ESSID as AP’s to get connected.
Ethernet ― A popular local area data communications network, originally
developed by Xerox Corp., that accepts transmission from computers and
terminals. Ethernet operates on a 10/100 Mbps base transmission rate, using a
shielded coaxial cable or over shielded twisted pair telephone wire.
Fragmentation ― When transmitting a packet over a network medium,
sometimes the packet is broken into several segments, if the size of packet
exceeds that allowed by the network medium.
Fragmentation Threshold – The Fragmentation Threshold defines the number
of bytes used for the fragmentation boundary for directed messages. The
purpose of "Fragmentation Threshold" is to increase the transfer reliability thru
cutting a MAC Service Data Unit (MSDU) into several MAC Protocol Data
Units (MPDU) in smaller size. The RF transmission can not allow to transmit
too big frame size due to the heavy interference caused by the big size of
transmission frame. But if the frame size is too small, it will create the overhead
during the transmission.
Gateway
―
a device that interconnects networks with different, incompatible
communication protocols.
HEX – Hexadecimal, HEX, consists of numbers from 0 – 9 and letters from
A – F.
IEEE ― The Institute of Electrical and Electronics Engineers, which is the
largest technical professional society that promotes the development and
application of electrotechnology and allied sciences for the benefit of humanity,
the advancement of the profession. The IEEE fosters the development of
standards that often become national and international standards.
Infrastructure ― An infrastructure network is a wireless network or other
small network in which the wireless network devices are made a part of the
network through the Access Point which connects them to the rest of the
network.
ISM Band ― The FCC and their counterparts outside of the U.S. have set
aside bandwidth for unlicensed use in the ISM (Industrial, Scientific and
Medical) band. Spectrum in the vicinity of 2.4GHz, in particular, is being
made available worldwide.
MAC Address ― Media Access Control Address is a unique hex number
assigned by the manufacturer to any Ethernet networking device, such as a
network adapter, that allows the network to identify it at the hardware level.
77
Multicasting ― Sending data to a group of nodes instead of a single
destination.
Multiple Bridge – One of the additional AP operating modes offered by
11Mbps Access Point, which allows a group of APs that consists of two or more
APs to connect two or more Ethernet networks or Ethernet enabled clients
together. The way that multiple bridge setup is based on the topology of Ad-
Hoc mode.
Node ― A network junction or connection point, typically a computer or
workstation.
Packet ― A unit of data routed between an origin and a destination in a
network.
PLCP ― Physical layer convergence protocol
PPDU ― PLCP protocol data unit
Preamble Type ― During transmission, the PSDU shall be appended to a
PLCP preamble and header to create the PPDU. Two different preambles and
headers are defined as the mandatory supported long preamble and header
which interoperates with the current 1 and 2 Mbit/s DSSS specification as
described in IEEE Std 802.11-1999, and an optional short preamble and header.
At the receiver, the PLCP preamble and header are processed to aid in
demodulation and delivery of the PSDU. The optional short preamble and
header is intended for application where maximum throughput is desired and
interoperability with legacy and non-short-preamble capable equipment is not
consideration. That is, it is expected to be used only in networks of like
equipment that can all handle the optional mode. (IEEE 802.11b standard)
PSDU ― PLCP service data unit
Roaming ― A LAN mobile user moves around an ESS and enjoys a
continuous connection to an Infrastructure network.
RTS ― Request To Send. An RS-232 signal sent from the transmitting
station to the receiving station requesting permission to transmit.
RTS Threshold ― Transmitters contending for the medium may not be aware
of each other. RTS/CTS mechanism can solve this “Hidden Node Problem”. If
the packet size is smaller than the preset RTS Threshold size, the RTS/CTS
mechanism will NOT be enabled.
SSID ― Service Set Identifier, which is a unique name shared among all clients
and nodes in a wireless network. The SSID must be identical for each clients
and nodes in the wireless network.
Subnet Mask ― The method used for splitting IP networks into a series of
sub-groups, or subnets. The mask is a binary pattern that is matched up with
78
the IP address to turn part of the host ID address field into a field for subnets.
TCP/IP ― Transmission Control Protocol/ Internet Protocol. The basic
communication language or protocol of the Internet. It can also be used as a
communications protocol in a private network, i.e. intranet or internet. When
you are set up with direct access to the Internet, your computer is provided with
a copy of the TCP/IP program just as every other computer that you may send
messages to or get information from also has a copy of TCP/IP.
Throughput ― The amount of data transferred successfully from one point to
another in a given period of time.
WEP ― Wired Equivalent Privacy (WEP) is an encryption scheme used to
protect wireless data communication. To enable the icon will prevent other
stations without the same WEP key from linking with the AP.
Wireless Bridge – One of the additional AP operating modes offered by
11mpbs Access Point, which allows a pair of APs to act as the bridge that
connects two Ethernet networks or Ethernet enabled clients together.
79
APPENDIX E: TECHNICAL SPECIFICATION
Standard 802.11b compliant (wireless)
Data Rate 1 / 2 / 5.5 / 11 Mbps
Emission Type Direct Sequence Spread Spectrum (DSSS)
Data Modulation 1 Mbps – BPSK
2 Mbps – QPSK
5.5 / 11 Mbps – CCK
RF Frequency 2412 MHz – 2462 MHz (North America)
2412 MHz – 2472 MHz (General Europe)
2412 MHz – 2484 MHz (Japan)
Operating Channel 11 Channels (North America)
13 Channels (Europe)
14 Channels (Japan)
RF Output Power 16 dBm (typical)
Sensitivity 1, 2Mbps BPSK, QPSK -92 dBm
5.5Mbps CCK -88 dBm
11Mbps CCK -84 dBm
(
typically @PER < 8% packet size 1024 and @25ºC + 5ºC
)
Security Wired Equivalent Privacy (WEP) 64 / 128bit
Antenna Type Diversity Patch with 2.0 dBi max. Antenna
Gain.
Interface PC CardBus, PC Card Standard v7.2
Dimension 114 x 54 x 5 mm
Memory 8Kbytes EEPROM
Power Voltage 3.3V + 5%
Power Consumption Operation max. 650 mA by TX
350 mA by RX
