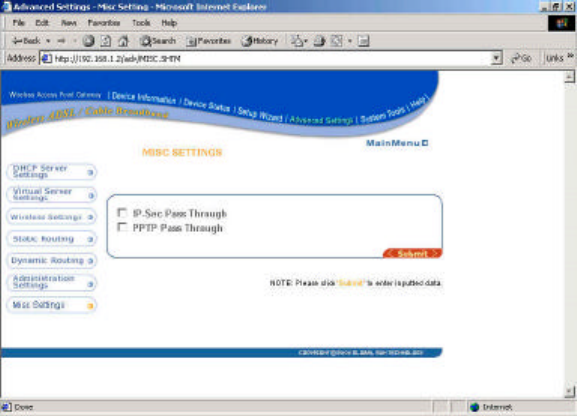

Misc. Settings
IP-Sec Pass Through: This feature lets you use IP Security Pass Through. Usually it
requires a 3rd party client software (VPN) on the workstations to be able to use the
function. Check the box and click “submit” if you want to enable the feature.
PPTP Pass Through: Point to Point Tunneling Protocol is the method used to enable
VPN (Virtual Private Networking) sessions. This encryption method is supported by all
Microsoft Operating System on the market. To enable this feature, please check the box
and click “submit”.
4-5 System tools
Detects the status of the Wireless Access Point Gateway.
Intruder Detection Log
29

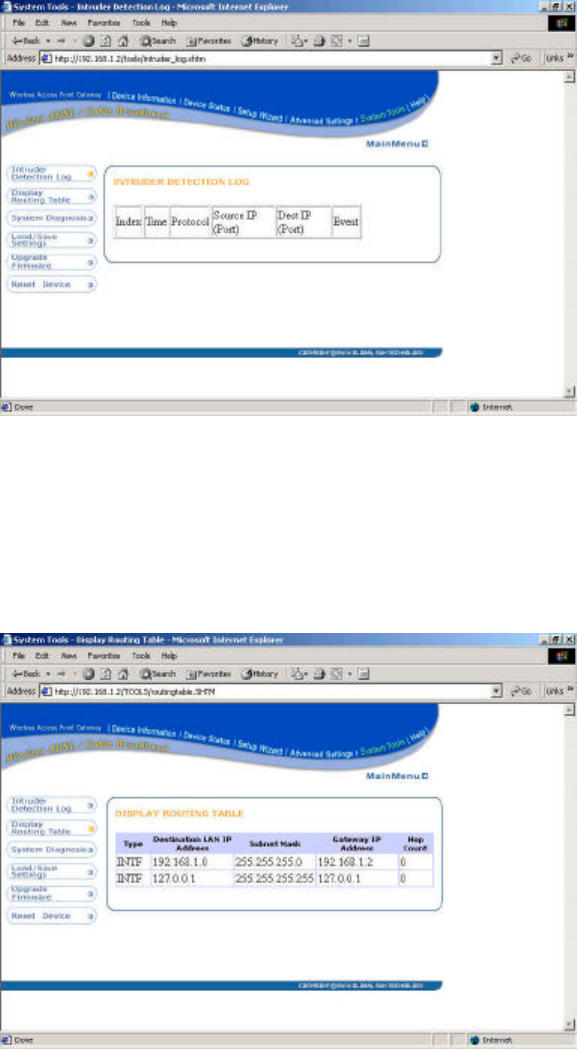

The event messages show the possible hacker attacks that have occurred on your internet
Gateway router. Up to 32 hacker attacks may be logged in this manner.
Display Routing Table
System diagnosis
30

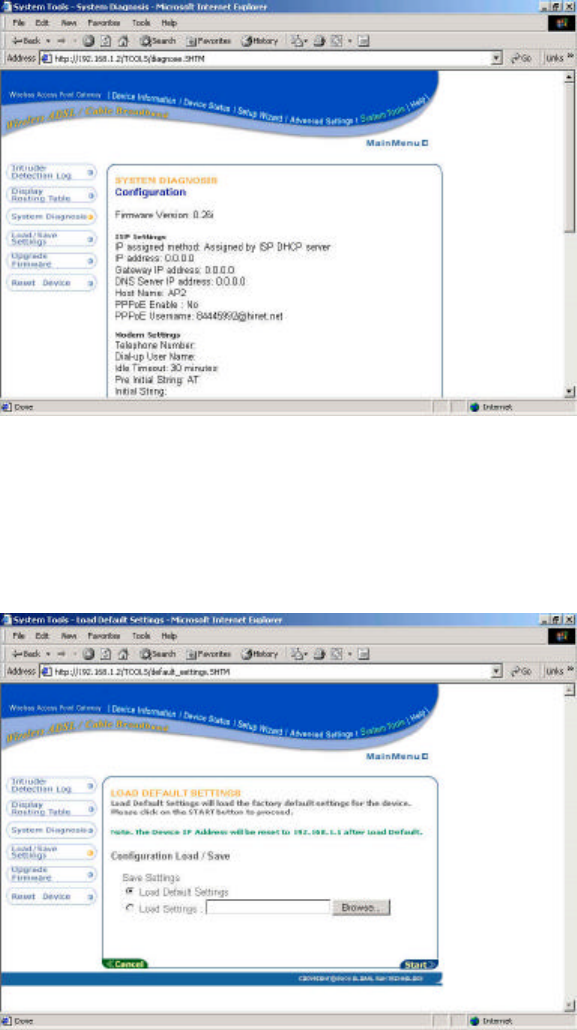

System diagnosis shows your internet gateway’s information. It will perform a check-up
on your internet gateway to make sure that everything is functioning properly.
Load Default settings
Load Default settings will lout the factory default settings for the device.
Upgrade Firmware
31

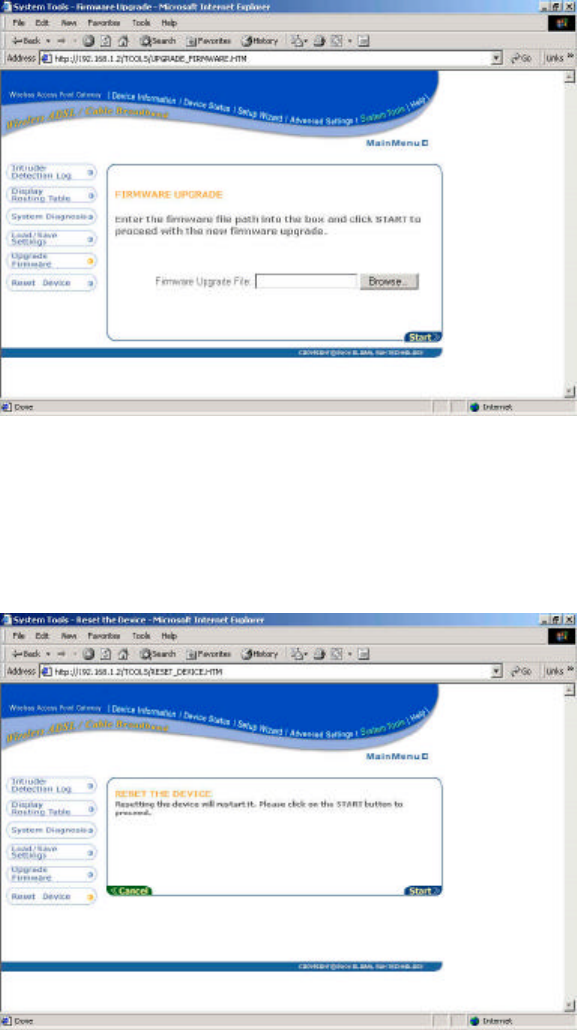

The upgrade firmware option allows you to upgrade the newest firmware to your
Wireless Access Point Gateway.
Reset device
Resetting the device will restart it. Click on the START button to restart.
32
Section 5 Configuring your Gateway Router with Telnet
session
You can start the telnet session by click “start” “run” and type in “telnet 192.168.1.1”
Type in “admin” as your login name and hit “enter” for default password.
33
The main menu.

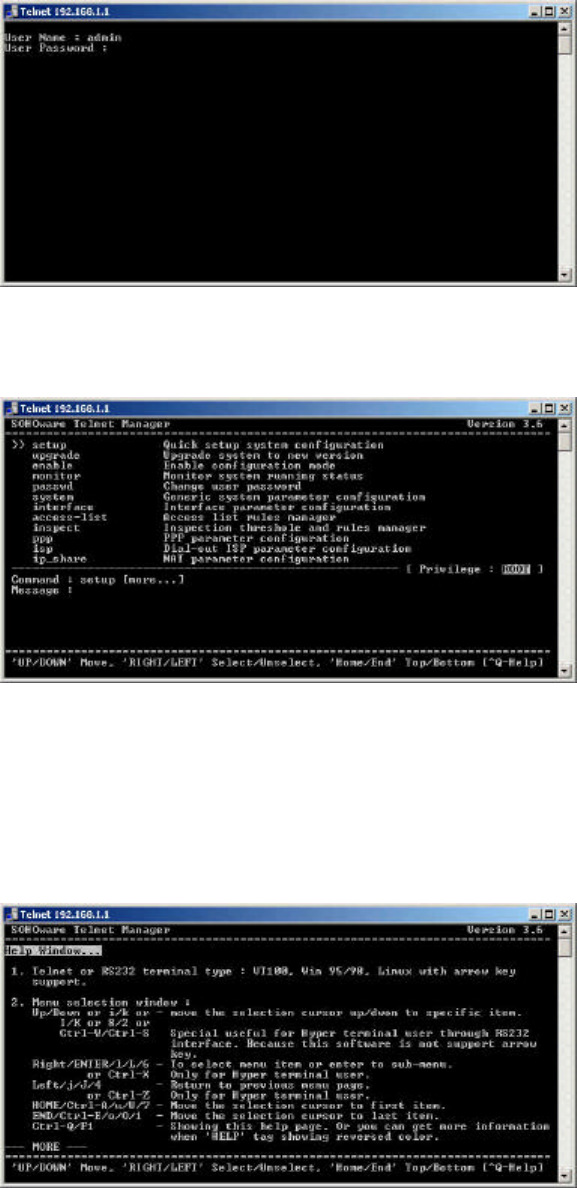

You can press “Ctrl-Q” to bring up the help screen and learn all the command in telnet
session. Press “Ctrl-C” to cancel the selection.
34
Setup
Hit “Enter” on setup and it will take you to the following menu.
In this menu, you may setup:
System – Setup generic system configuration.
LAN – Setup LAN interface configuration.
Wan – Setup first WAN interface profile.
PPP – Setup point-to-point protocol configuration.
ISP – Setup first ISP profile.
Configuration – Configuration user profile.

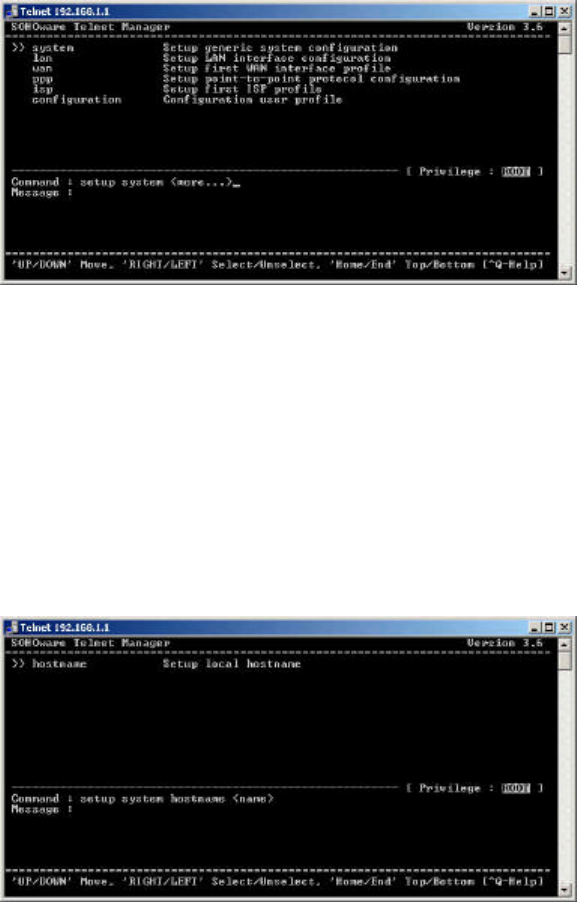

System
Hit “Enter”, it will take you to the screen to setup host name.
LAN

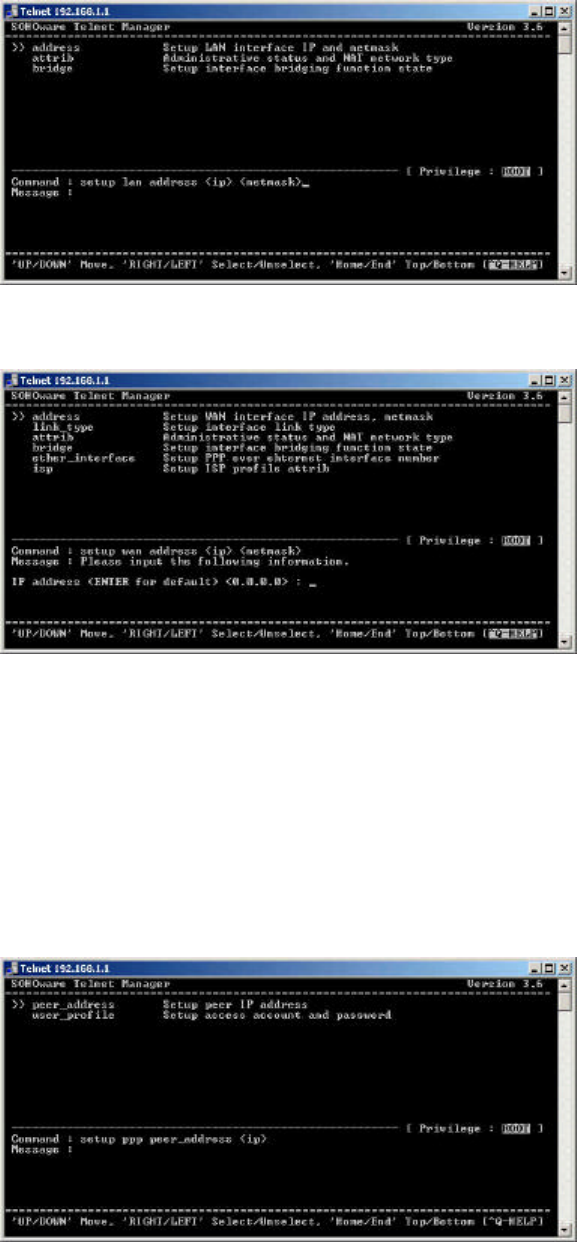

Hit “Enter” on LAN, it will take you to setup
Address – Setup LAN interface IP and network
Attrib – Administrative status and NAT network type.
Bridge – Setup interface bridging function state.
35
WAN
Hit “Enter” on WAN and it will take you to setup:
Address – Setup WAN interface IP address, Subnet Mask.
Link_type – Setup interface link type.
Attrib – Administrative status and NAT network type.
Bridge – Setup interface bridging function state.
Ether_interface – Setup PPP over Ethernet interface number.
ISP – Setup ISP profile attrib.
PPP
36
Hit “Enter” on PPP and you can setup:
Peer_address – Setup peer IP address.
User_Profile – Setup access account and password.
ISP
Hit “Enter” on ISP and you can setup:

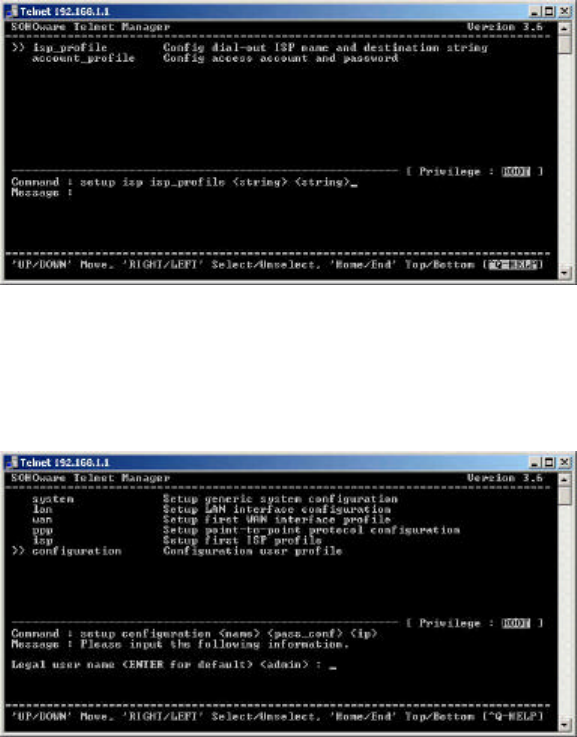

ISP_profile – Configure dial-out ISP name and destination string.
Account_profile – Configure access account and password.
Configuration
Hit “Enter” on configuration and it will prompt you for login ID and password, also you
may need to enter the client’s IP address.
Upgrade
37
Hit “Enter” on Upgrade and you can configure the following:
Image – Upgrade kernel image file.
Web_image – Upgrade web config image file.
Bootstrap2 – Upgrade boot strap.
Conf – Configuration file upgrade.
All these options require the server IP address and the file name to upgrade.
Enable
This function is to enable the configuration mode.
Monitor
38
Hit “Enter” on Monitor you can setup the following:
Route – List of routing table.
Netbios_pool – List NetBIOS name database.
Wan – List WAN interface status.
Config_access – Monitor configure access control.
Access-list – Monitor access control rules pool.
Inspect-TCP – Monitor inspecting TCP sessions.
Inspect-UDP – Monitor inspecting UDP sessions.
Syslog – Monitor system log generated by CBAC.
Password
You may reset the password on this option. Hit “Enter” and it will prompt you for user
name and to enter the new password.
System
39

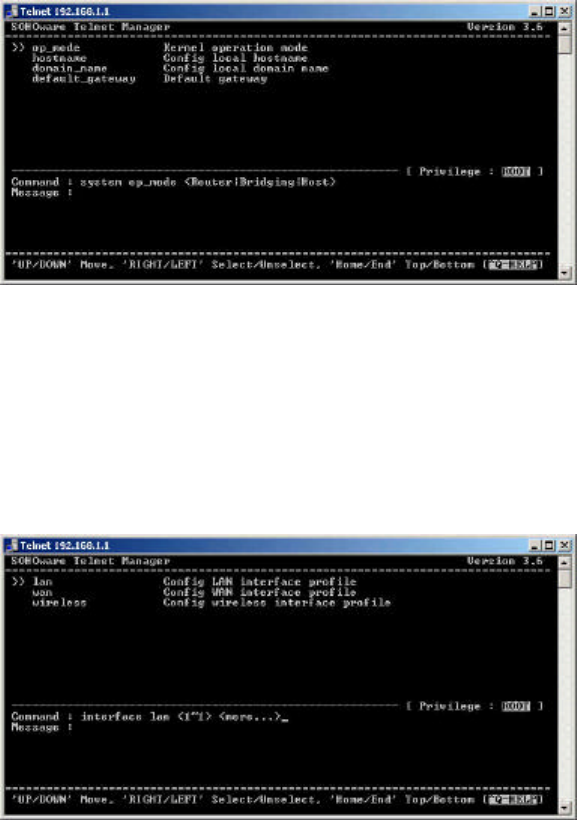

Hit “Enter” on system and you can setup the following:
Op_mode – Kernel operation mode.
Hostname – Config local hostname.
Domain _name – Config local domain name.
Default_gateway – Default gateway.
Interface
Hit “Enter” on interface and you can setup the following:
Lan – Config LAN interface profile.
Wan – Config WAN interface profile.
Wireless – Config wireless interface profile.
Access-List
40

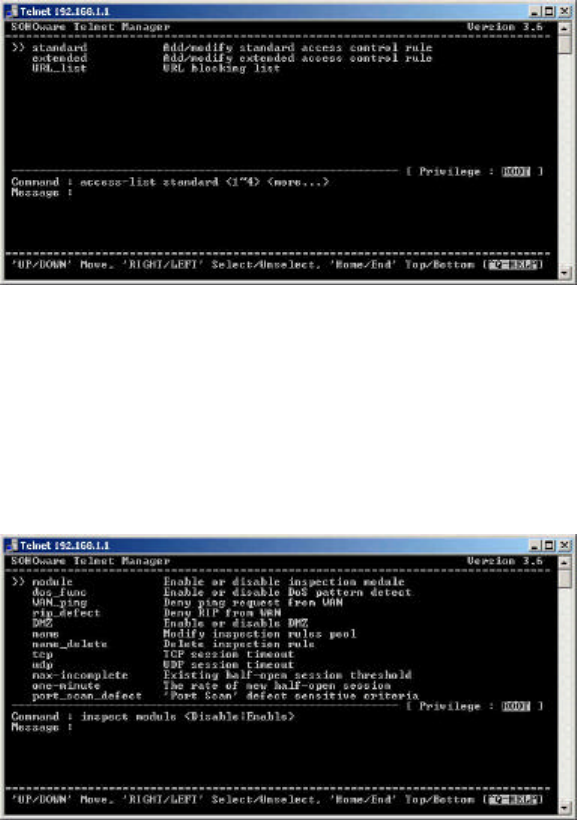

Hit “Enter” on access-list and you can setup the following:
Standard – Add/Modify standard access control rule.
Extended – Add/Modify extended access control rule.
URL_list – URL blocking list.
Inspect
Hit “Enter” on inspect and you can setup the following:
Module – Enable or disable inspection module.
Dos_Func – Enable or disable Dos pattern detect.
Wan_ping – Deny ping request from WAN.
Rip_defect – Deny RIP from WAN.
DMZ – Enable or disable DMZ.
Name – Modify inspection rules pool.
Name_delete – Delete inspection rule.
TCP – TCP session timeout.
UDP – UDP session timeout.
Max-incomplete – Existing half-open session threshold.
One-minute – The rate of new half-open session.
Port_scan_defect – “Port Scan” defect sensitive criteria.
PPP
