Instant Broadband™ Series

EtherFast®Wireless Access

Point + Cable/DSL Router

with 4-Port Switch

Use this Guide to install: BEFW11S4

User Guide

trademark of Linksys. Microsoft, Windows, and the Windows logo are registered trade-

marks of Microsoft Corporation. All other trademarks and brand names are the proper-

ty of their respective proprietors.

LIMITED WARRANTY

Linksys guarantees that every Instant Broadband EtherFast®Wireless Access Point +

Cable/DSL Router with 4-Port Switch is free from physical defects in material and work-

manship under normal use for one (1) year from the date of purchase. If the product

proves defective during this warranty period, call Linksys Customer Support in order to

obtain a Return Authorization number. BE SURE TO HAVE YOUR PROOF OF PUR-

CHASE ON HAND WHEN CALLING. When returning a product, mark the Return

Authorization number clearly on the outside of the package and include your original

proof of purchase. RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF

OF PURCHASE. All customers located outside of the United States of America and

Canada shall be held responsible for shipping and handling charges.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID FOR THE PROD-

UCT FROM DIRECT, INDIRECT, SPECIAL, INCIDENTAL, OR CONSEQUENTIAL DAM-

AGES RESULTING FROM THE USE OF THE PRODUCT, ITS ACCOMPANYING SOFT-

WARE, OR ITS DOCUMENTATION. LINKSYS OFFERS NO REFUNDS FOR ITS PROD-

UCTS. Linksys makes no warranty or representation, expressed, implied, or statutory,

with respect to its products or the contents or use of this documentation and all accom-

panying software, and specifically disclaims its quality, performance, merchantability,

or fitness for any particular purpose. Linksys reserves the right to revise or update its

products, software, or documentation without obligation to notify any individual or entity.

Please direct all inquiries to:

Linksys P.O. Box 18558, Irvine, CA 92623.

FCC STATEMENT

The Instant Broadband EtherFast®Wireless Access Point + Cable/DSL Router with 4-

Port Switch has been tested and found to comply with the limits for a Class B digital

device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide rea-

sonable protection against harmful interference in a residential installation. This equip-

ment generates, uses, and can radiate radio frequency energy and, if not installed and

used according to the instructions, may cause harmful interference to radio communi-

cations. However, there is no guarantee that interference will not occur in a particular

installation. If this equipment does cause harmful interference to radio or television

reception, which is found by turning the equipment off and on, the user is encouraged

to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna

• Increase the separation between the equipment or device

• Connect the equipment to an outlet other than the receiver’s

• Consult a dealer or an experienced radio/TV technician for assistance

UG-BEFW11S4-10116NC DG

Instant BroadbandTM Series

Table of Contents

Introduction 1

Linksys Wireless AP + Cable/DSL Router 1

Features 2

Package Contents 3

System Requirements 3

Getting to Know the Wireless Access Point +

Cable/DSL Router 3

The Wireless Access Point + Cable/DSL Router’s Rear Panel 3

The Reset Button 4

The Wireless Access Point + Cable/DSL

Router’s Front Panel LEDs 5

Connecting the Wireless Access Point +

Cable/DSL Router to Your Network 7

Overview 7

About Static & Dynamic IP Addresses 7

Connecting Your Hardware Together & Booting Up 8

Configuring Your PCs to Connect to the

Wireless Access Point + Cable/DSL Router 10

Configuring Your Network with the

Wireless Access Point + Cable/DSL Router 12

Configuring the Wireless AP + Cable/DSL Router 12

The Wireless Access Point +

Cable/DSL Router’s Web-based Utility 17

Quick and Easy Administration 17

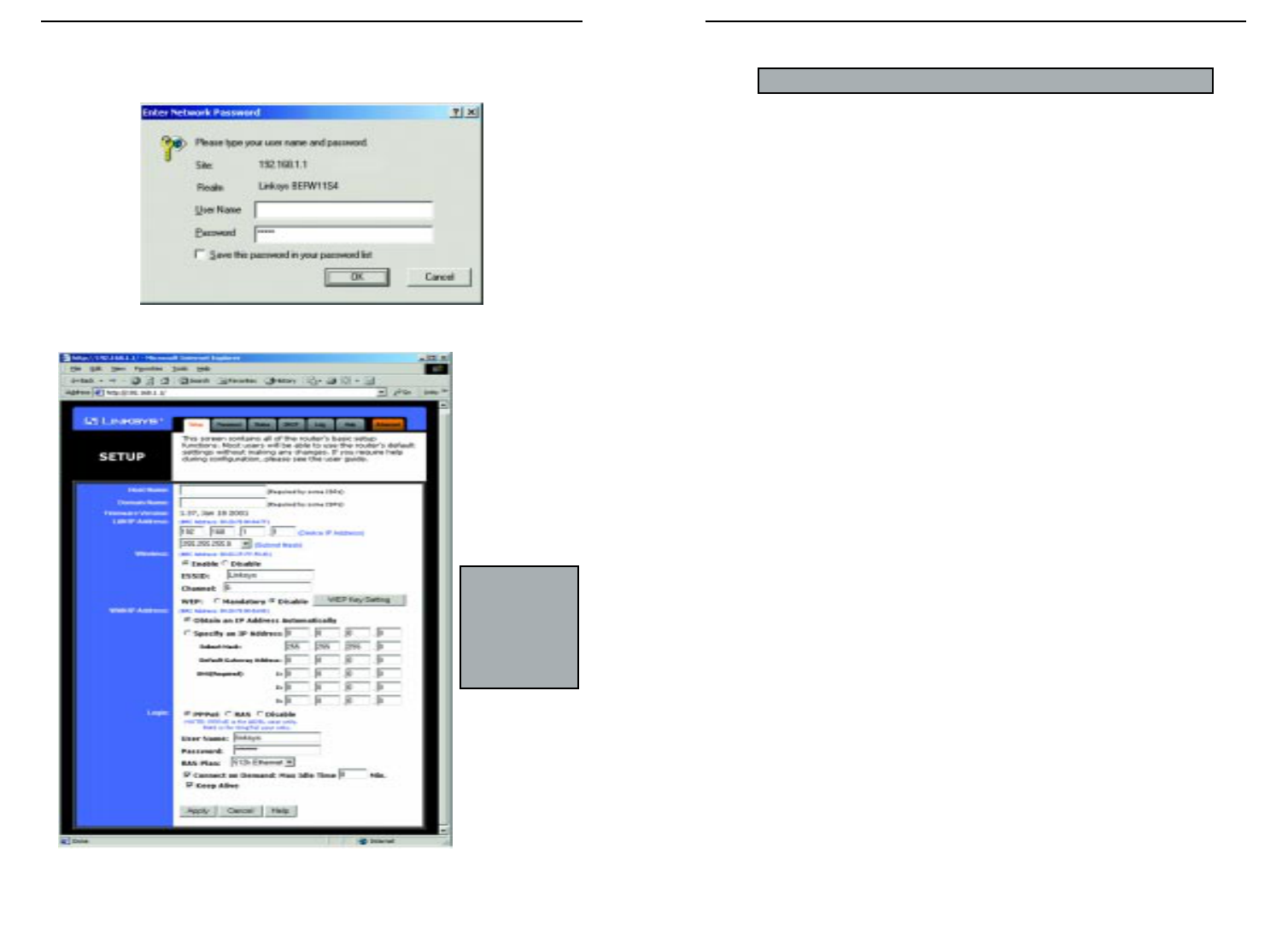

Setup 18

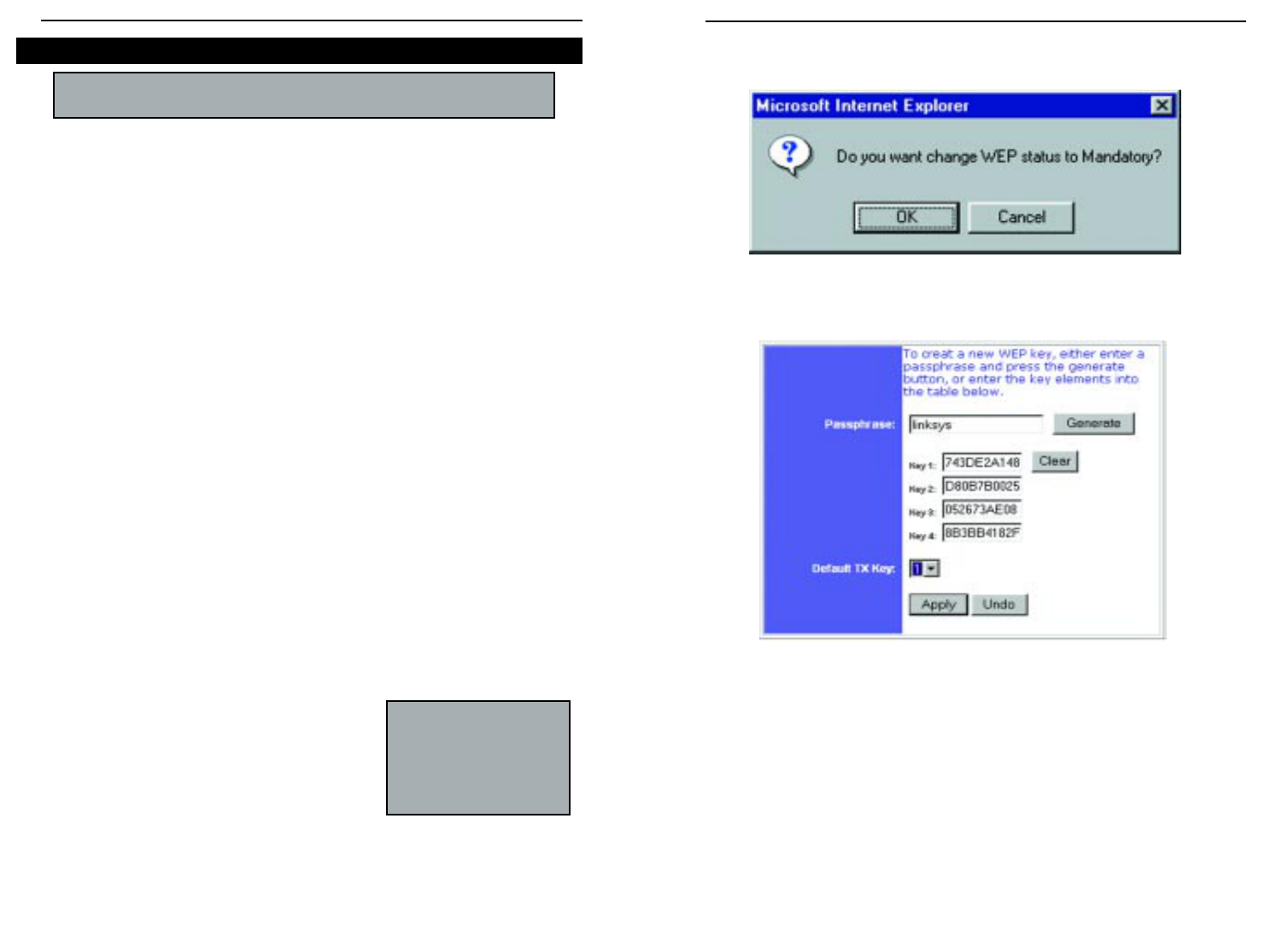

Setting WEP Encryption 21

Password 24

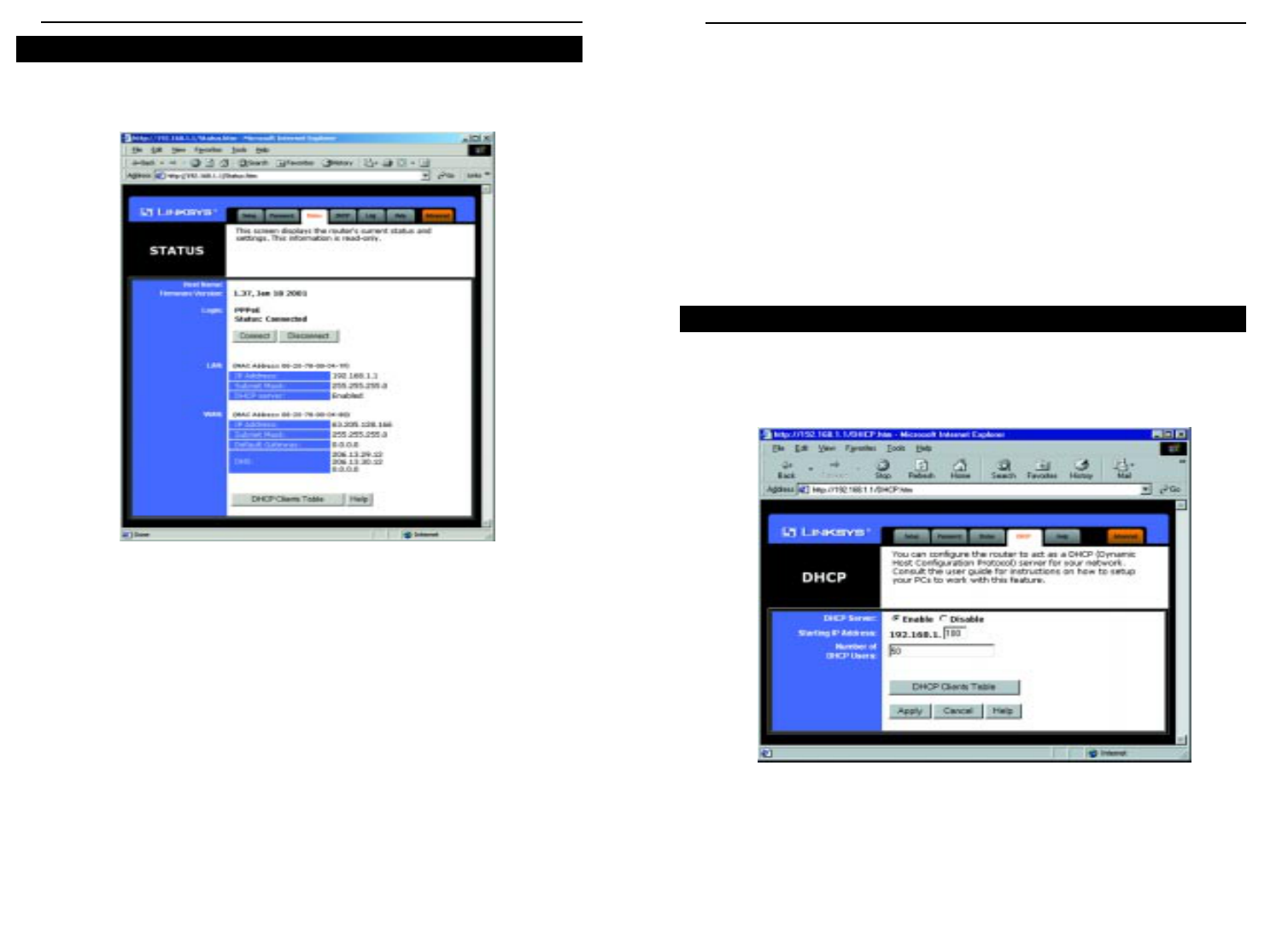

Status 25

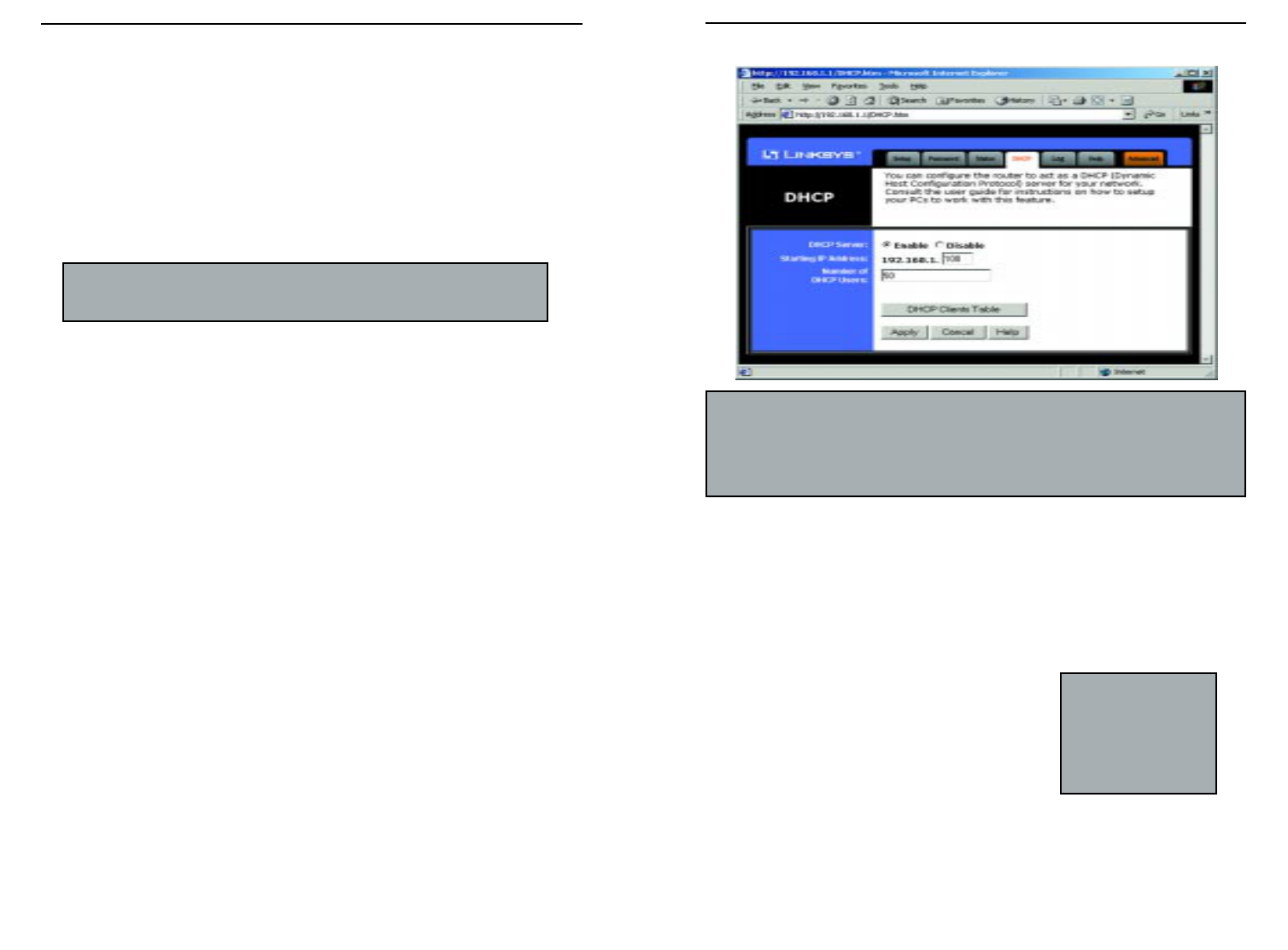

DHCP 26

Log 28

Help 29

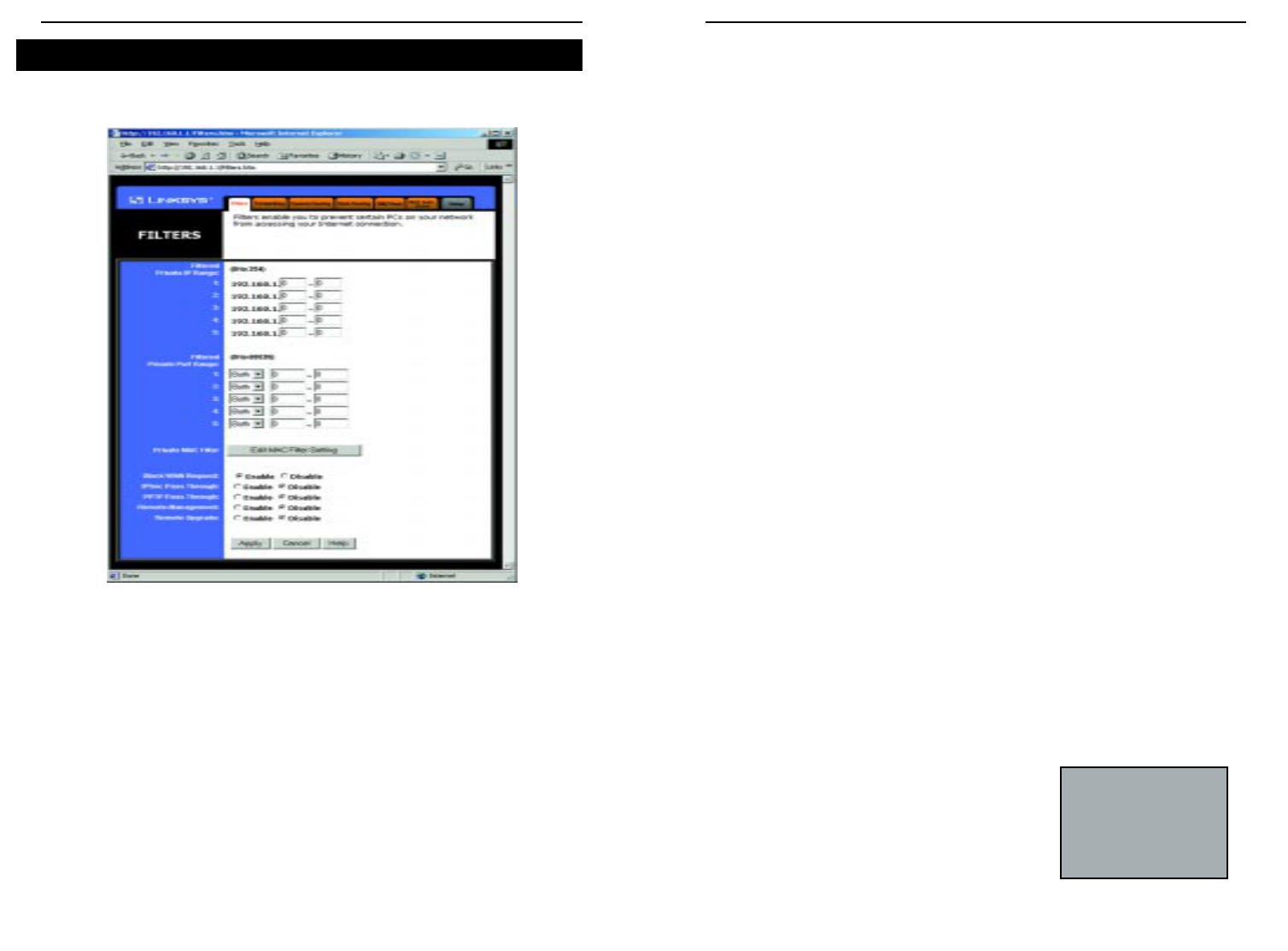

Filters 31

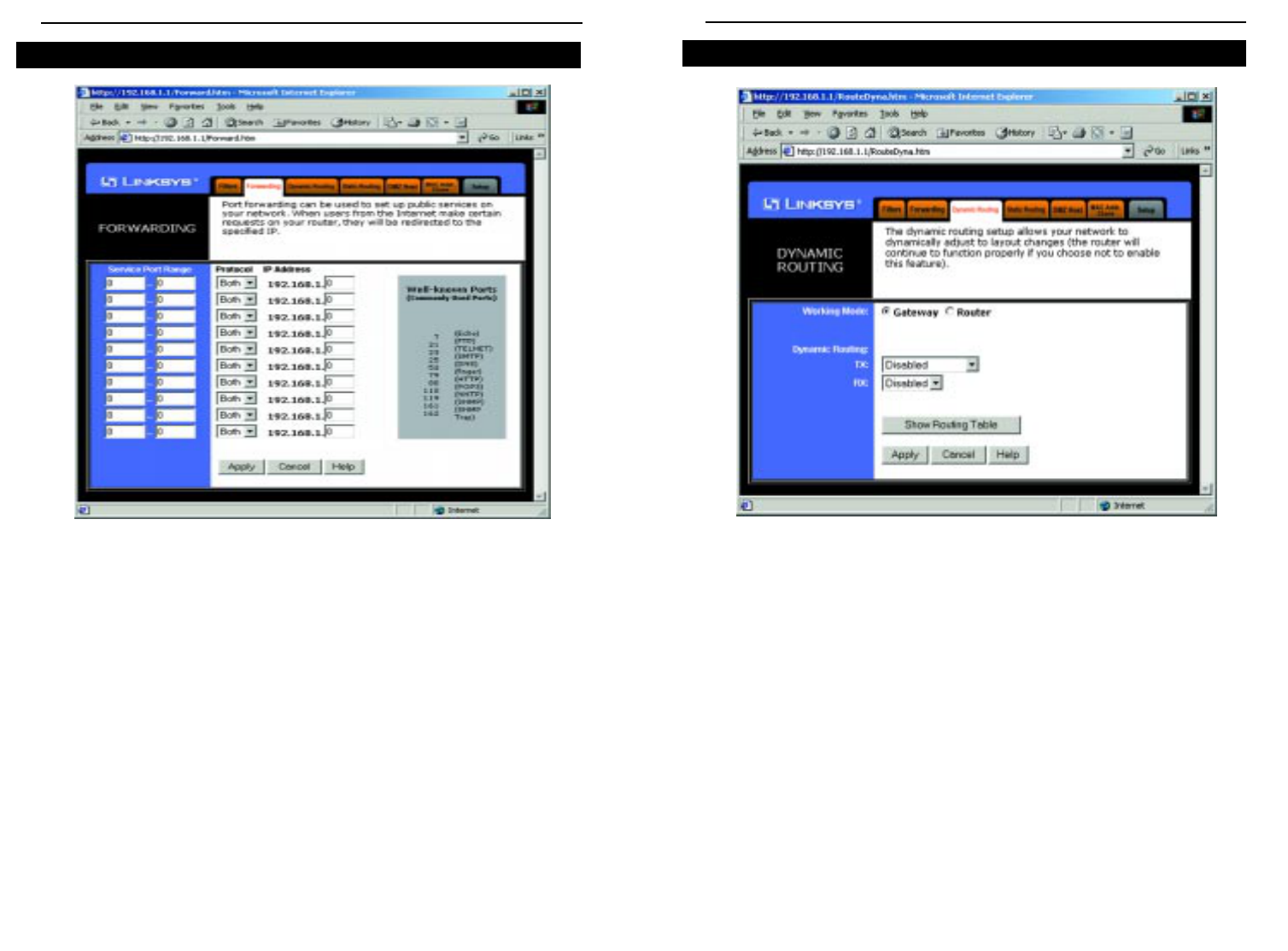

Forwarding 33

Dynamic Routing 34

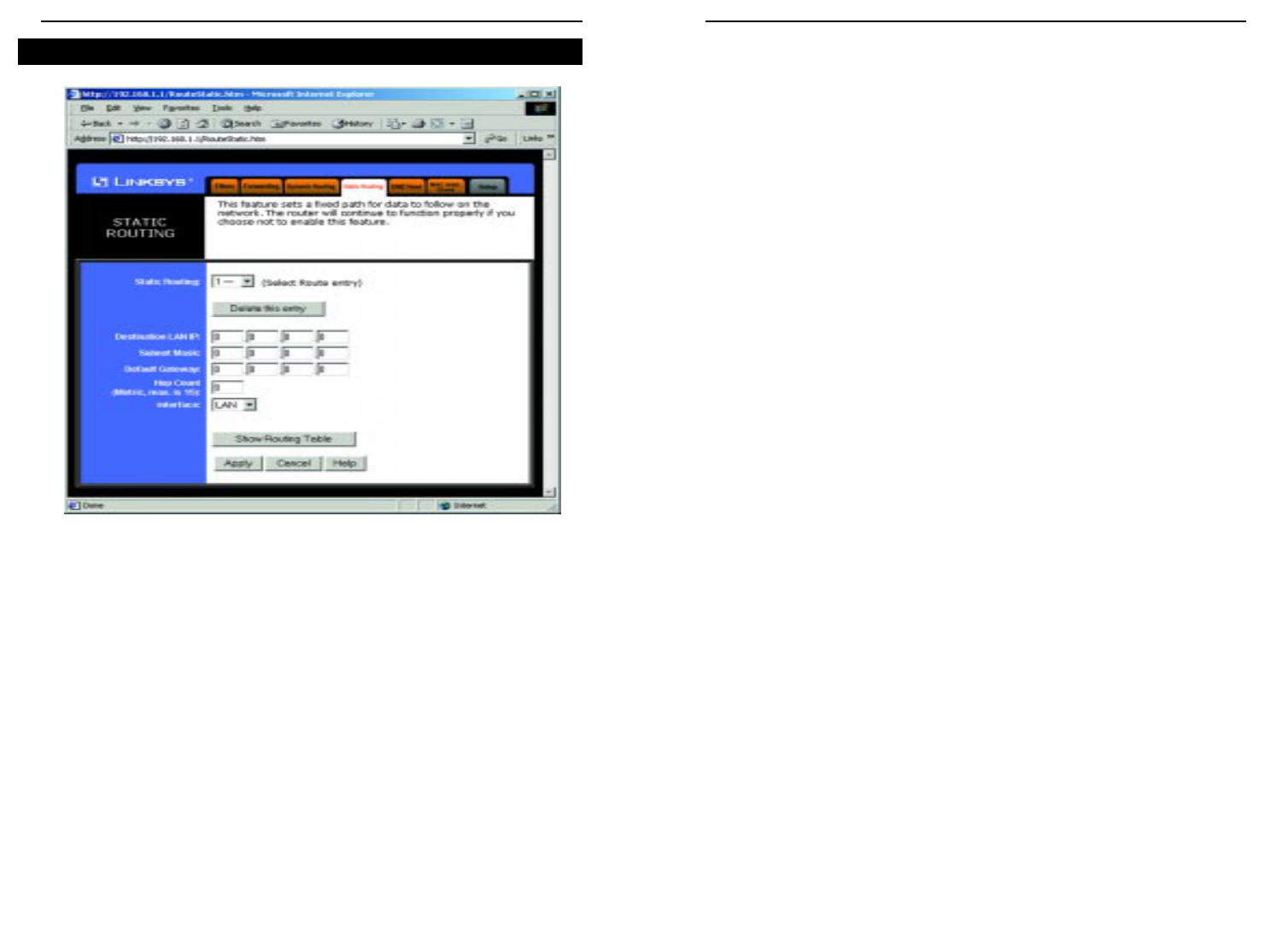

Static Routing 35

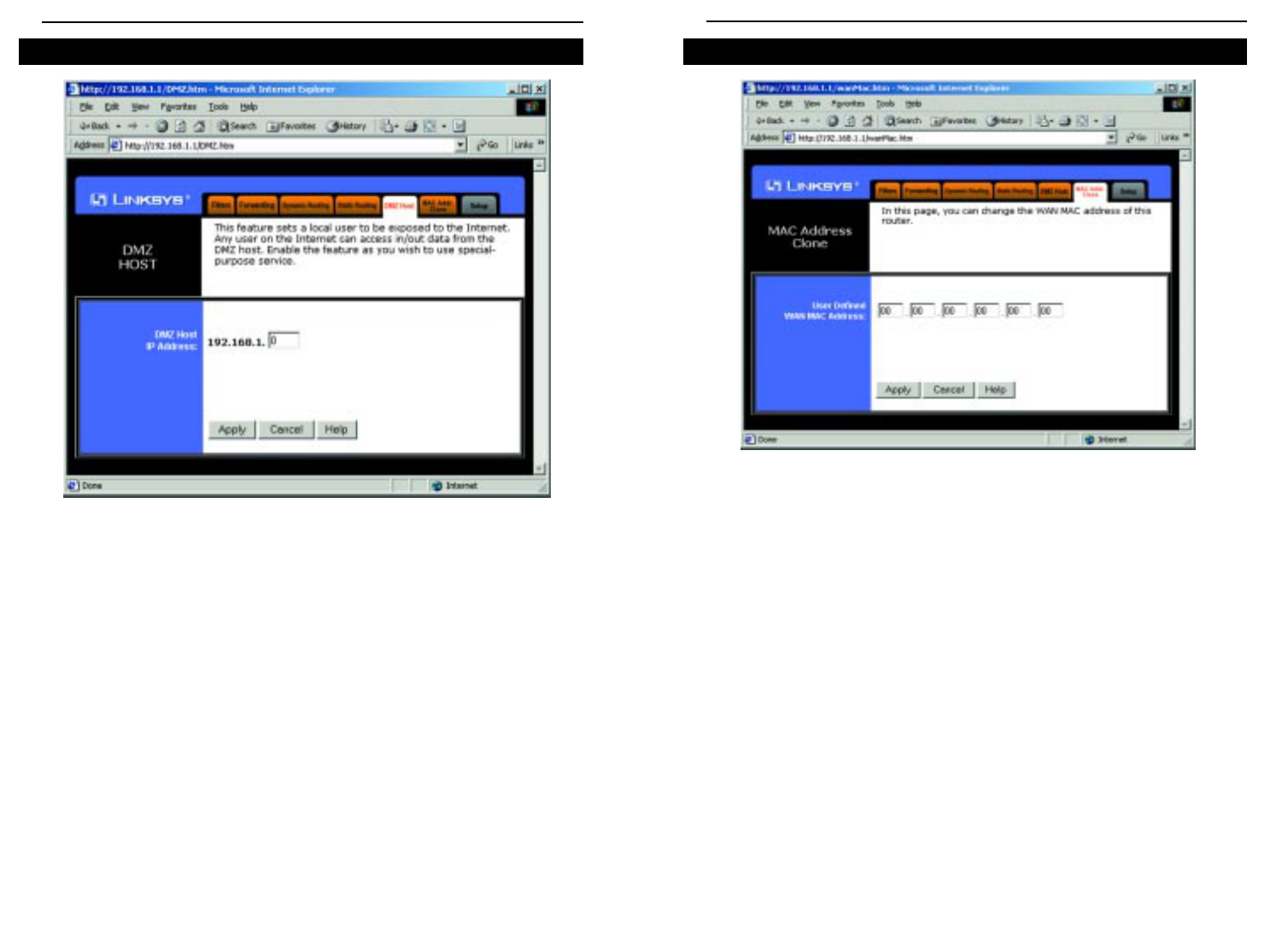

DMZ Host 37

MAC Address Cloning 38

Troubleshooting 39

Common Problems and Solutions 39

Frequently Asked Questions 41

Appendix 45

How to Ping Your ISP’s E-mail & Web Addresses 45

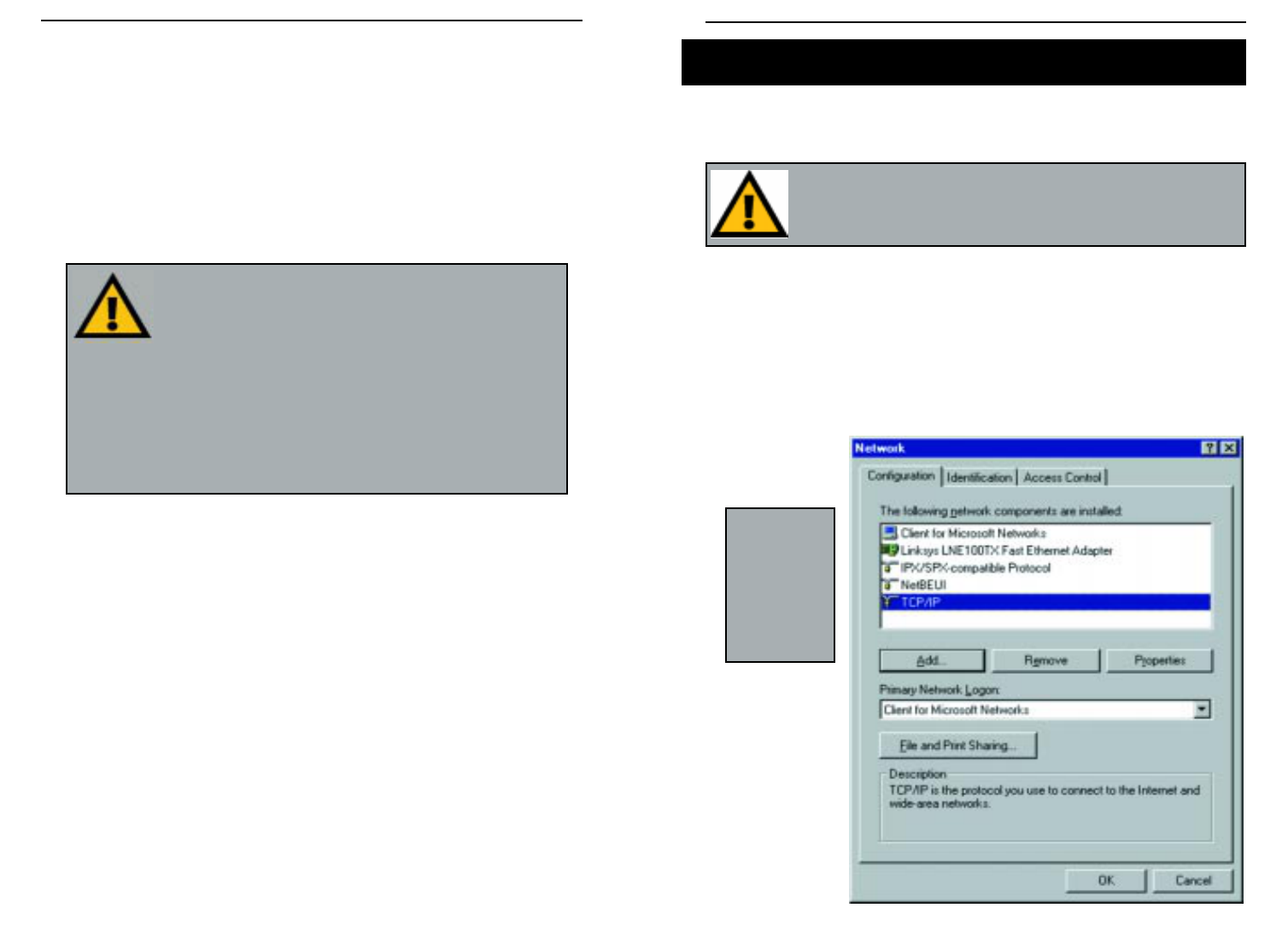

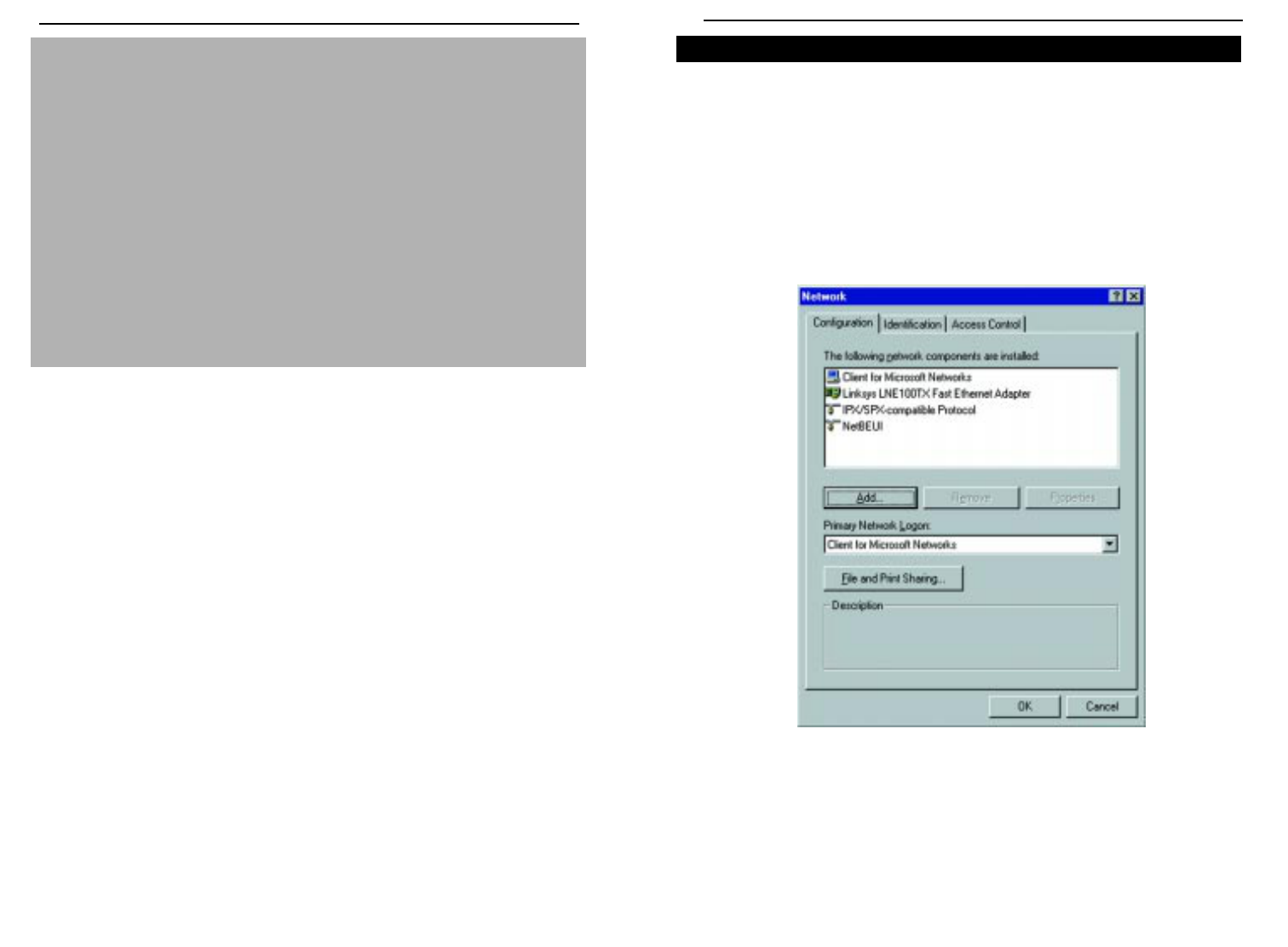

Installing the TCP/IP Protocol 48

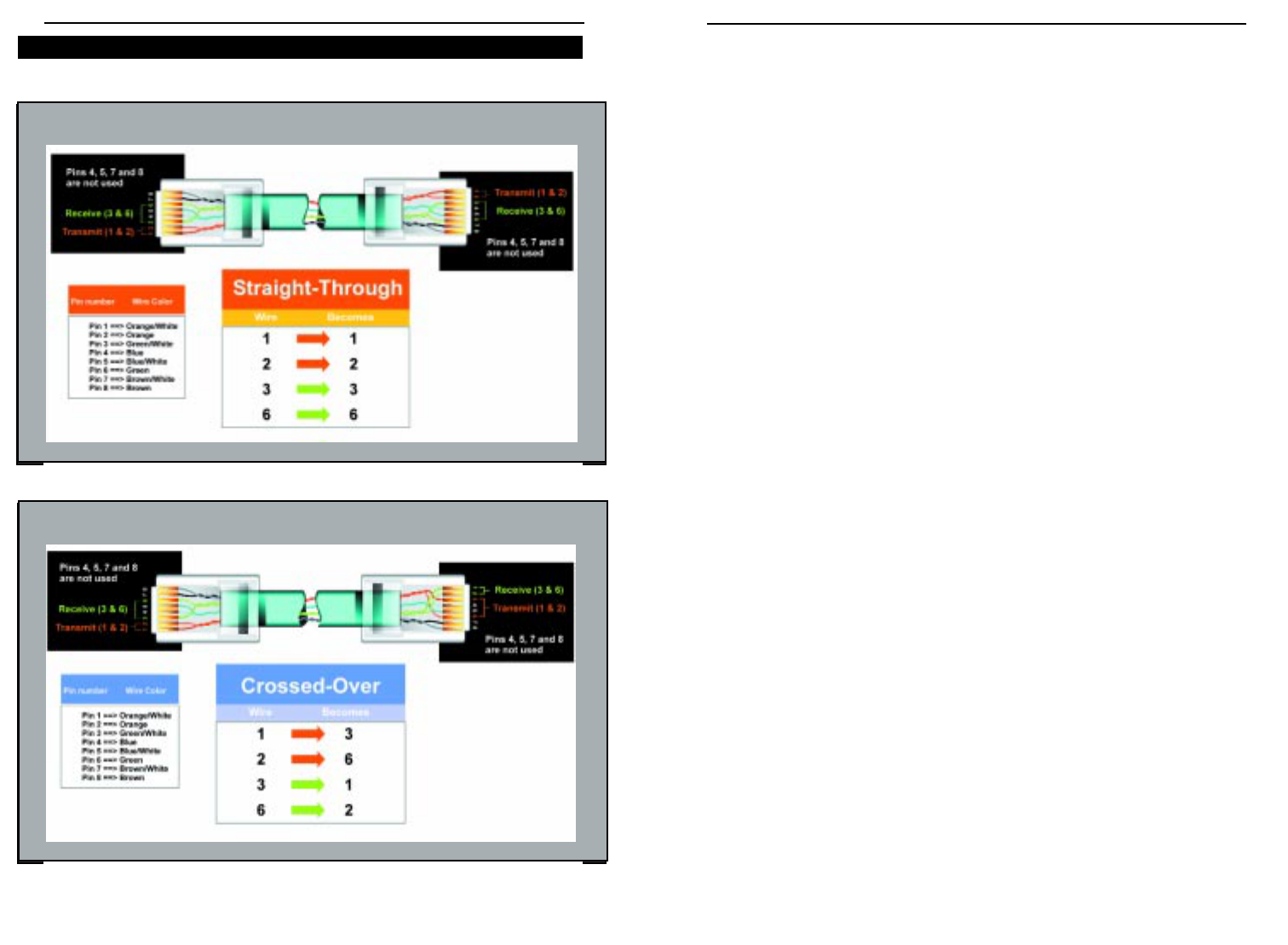

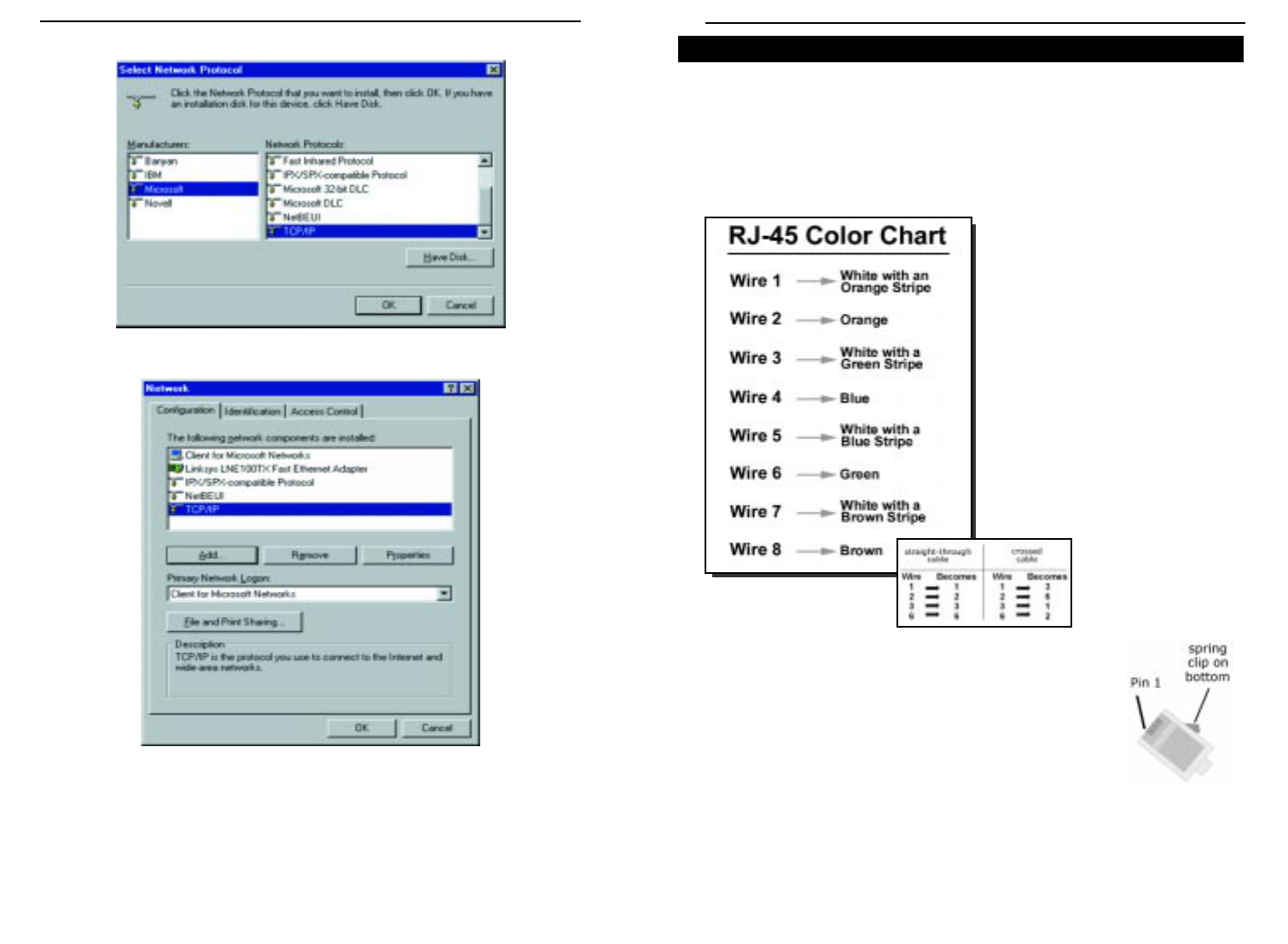

Twisted-Pair Cabling 50

Crimping Your Own Network Cables 51

Glossary 52

Specifications 58

Environmental 52

Warranty Information 60

Contact Information 61

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Introduction

The Linksys Wireless AP + Cable/DSL Router

Congratulations on your purchase of an EtherFast®Wireless AP + Cable/DSL

Router with 4-Port Switch. The EtherFast®Wireless AP + Cable/DSL Router

provides the ideal solution for connecting your wireless network to a high-

speed broadband Internet connection and a 10/100 Fast Ethernet backbone.

Configurable as a DHCP server for your existing network, the EtherFast®

Wireless AP + Cable/DSL Router acts as the only externally recognized

Internet gateway on your local area network (LAN) and serve as an Internet

NAT firewall against unwanted outside intruders. The Router can also be

configured to filter internal users’ access to the Internet.

A typical router relies on a hub or a switch to share its Internet connection,

but the Linksys EtherFast®Wireless AP + Cable/DSL Router channels this

connection through the blazing, full duplex speed of its built-in EtherFast®

10/100 4-Port Switch. This cutting-edge combination of wireless router and

switch technology eliminates the need to buy an additional hub or switch and

extends the range of your wireless network. Now your entire wireless net-

work can enjoy blazing broadband Internet connections supported by its

robust switched backbone. With the dual-function speed and power of the

EtherFast®Wireless AP + Cable/DSL Router, your network will take off at

speeds faster than you ever imagined possible.

• Share Internet Access With Others on the Network

• Interoperable with IEEE 802.11b (DSSS) 2.4GHz-Compliant Equipment

• Provides Roaming, Best Access Point Selection, Load Balancing, and

Network Traffic Filtering

• Long Operating Range Supports up to 91m (Indoors) and up to 457m

(Outdoors)

• Capable of up to 128-Bit WEP Encryption

• MAC Address and Internal Internet Access Filtering

• Connects to a Broadband Modem, a 10/100 Ethernet Backbone and a

Wireless Network

• Configurable Through Your Networked PC's Web Browser

• Supports IPSec Pass-Thru and PPTP

• Able to Act as a DHCP Server for Your Existing Network

• Free Technical Support—24 Hours a Day, 7 Days a Week for North

America Only

• 1-Year Limited Warranty 2

Features

Instant BroadbandTM Series

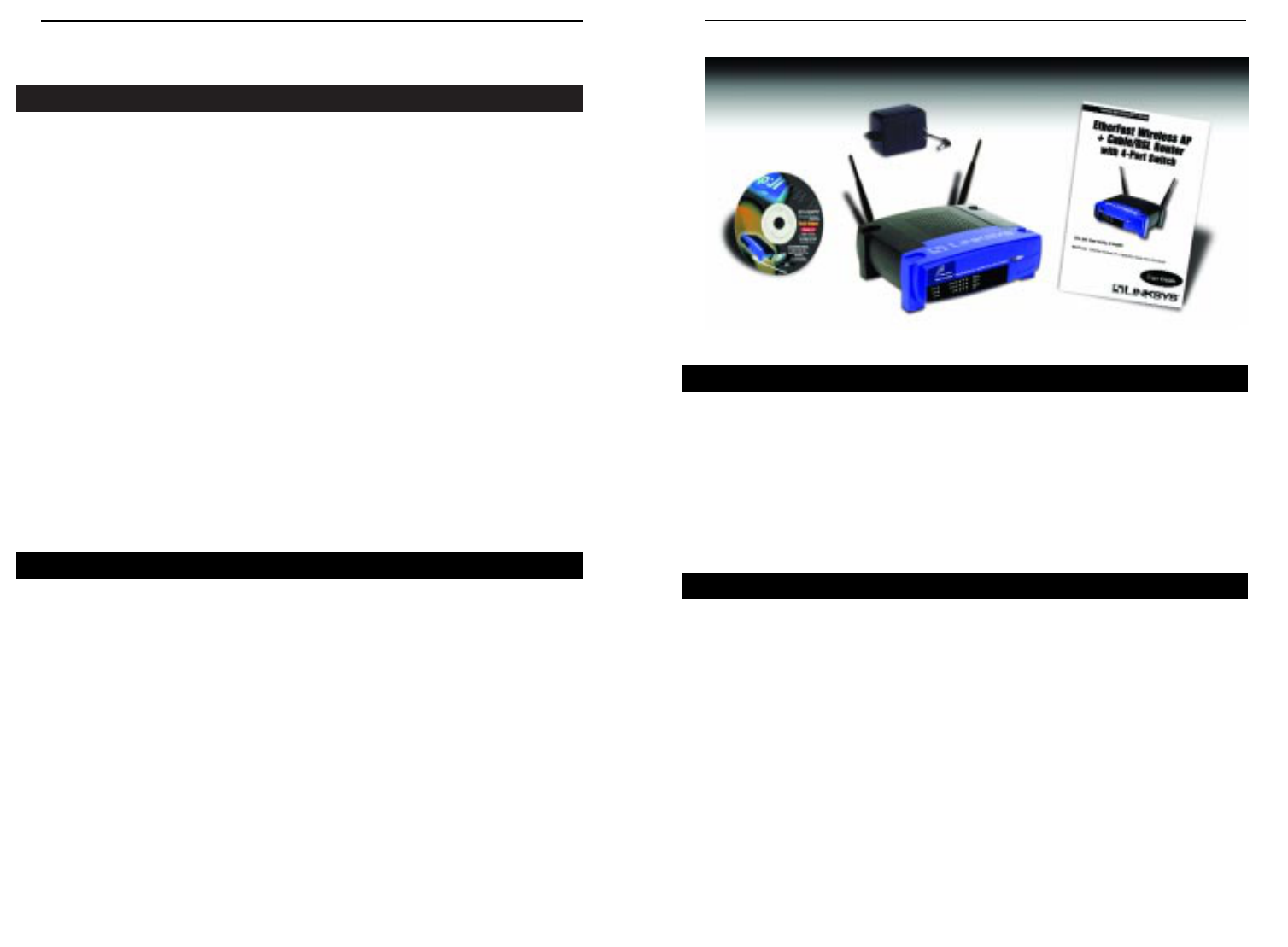

Package Contents

• One Linksys EtherFast®Wireless Access Point + Cable/DSL Router with 4-

Port Switch

• One power adapter

• One Tech Helper CD-ROM

• Two Antennas

• One user guide and registration card

System Requirements

• One Broadband Internet connection using an External Cable or DSL

Modem (if sharing an Internet connection)

• One PC with an installed 10Mbps, 100Mbps, or 10/100 Mbps Ethernet card

(for initial setup)

• TCP/IP network protocol for each PC

• UTP network cable with RJ-45 connector

• Internet Explorer 4.0 (Minimum) or higher (5.0 Recommended), or

Netscape Navigator 4.0 (Minimum) or higher (4.7 Recommended)

UG-BEFW11S4-10125NC DG

Uplink The Uplink Port is where you can expand your net-

work by connecting to another switch or hub. The

Uplink Port is shared with Port 4. Uplinking to

another switch or a hub is done by simply running

a cable from the Uplink Port to the other device. If

the Uplink port is being used, Port 4 will not work.

Power The Power Port is where you will connect the

included AC Power adapter.

Antenna Jacks The Antenna Jacks are where you will connect the

included antennas.

The Reset Button*

Briefly pressing the Reset Button will refresh the Router’s connec-

tions, potentially clearing any jammed links.

Pressing the Reset Button and holding it in for a few seconds will

clear all of the Router’s data and restore the factory defaults. This should be

done only if you are experiencing heavy routing problems, and only after you

have exhausted all of the other troubleshooting options. By resetting the Router,

you run the risk of creating conflicts between your PCs’ actual IP Addresses and

what the Router thinks their IP Addresses should be. You may be forced to

reboot the entire system(s).

If your router locks up, simply power it down for 3 to 5 seconds by removing the

power cable from the Router’s Power Port. Leaving the power off for too long

could result in the loss of network connections.

Getting to Know the Wireless

Access Point + Cable/DSL

Router

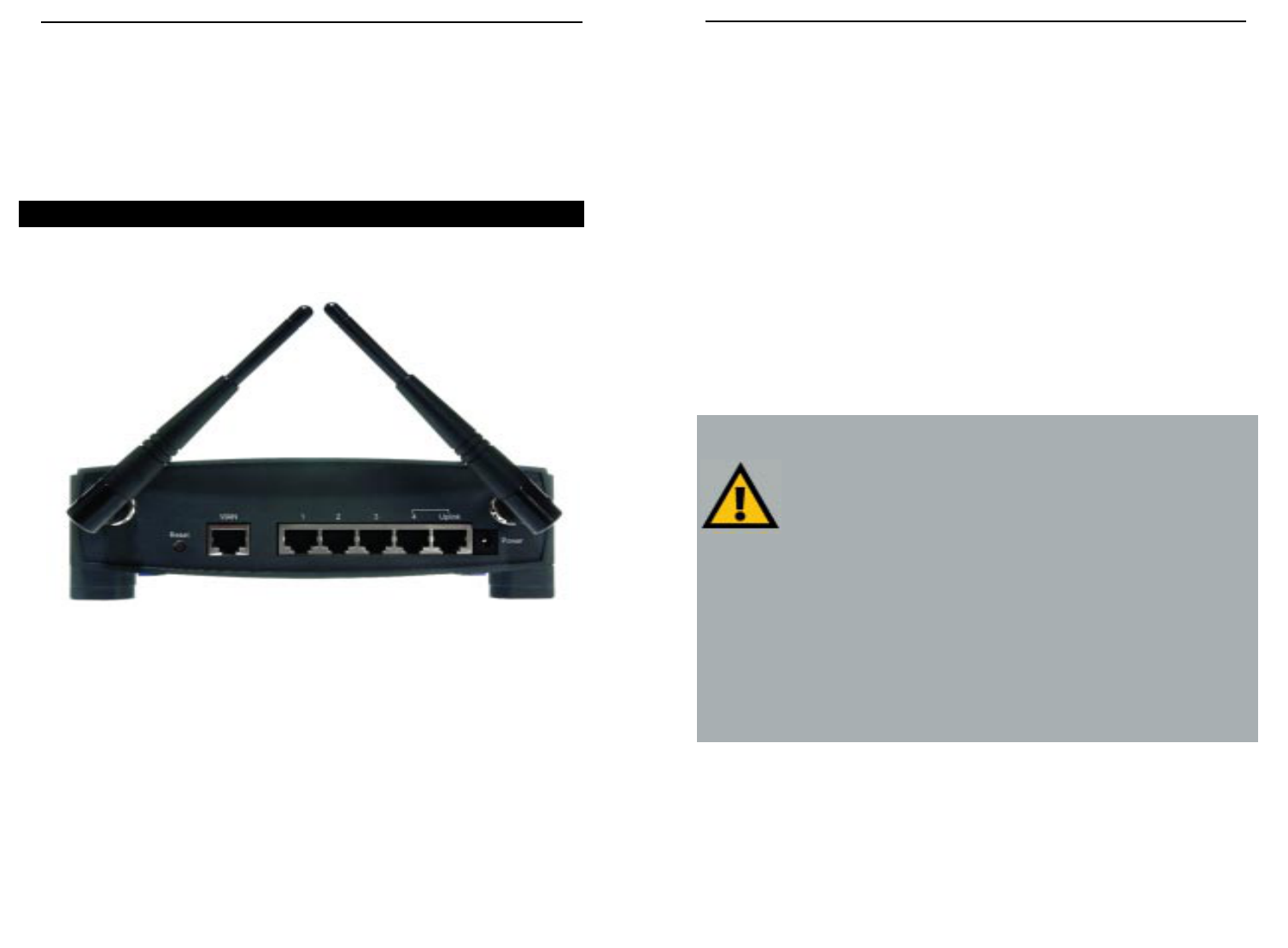

The Wireless AP + Cable/DSL Router’s Rear Panel

The rear panel of the Router is where all of the Router’s connections are

made.

WAN The WAN (Wide Area Network) Port is where you

will connect your cable or DSL modem.

Ports 1-4 These four LAN (Local Area Network) ports are

where you will connect networked devices, such as

PCs, print servers, and any other Ethernet devices

you want to put on your network. If Port 4 is being

used, the Uplink Port will not work.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

The WAN Indicators

Link Green. The Link LED illuminates when a successful con-

nection is made between the Router and your Broadband

device or network.

Act Green. The Act LED flickers when the Router is sending or

receiving data over the broadband port.

Diag Red. The Diag LED illuminates when the Router goes

through its self-diagnosis mode during boot-up and restart.

It will turn off upon successful completion of the diagnosis.

If this LED stays on for an abnormally long period of time,

refer to the Troubleshooting section.

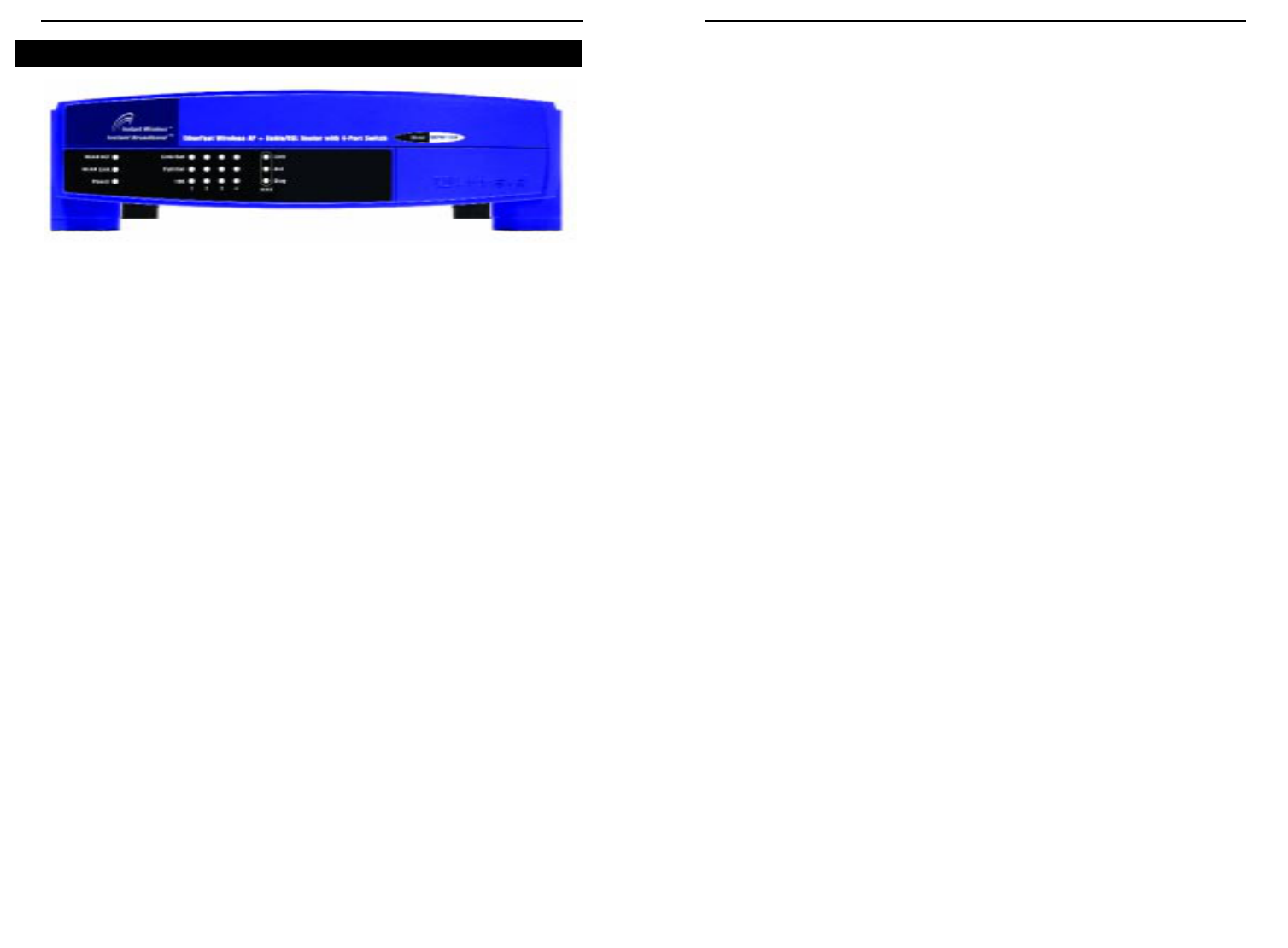

The Wireless AP + Cable/DSL Router’s Front Panel LEDs

The LAN Indicators

WLAN Act Green. The Link LED illuminates when there is wireless

activity.

WLAN Link Green. The Link LED illuminates when the wireless option

is enabled. When the wireless option is disabled (through

the Web-based utility), the LED is off.

Power Green. The Power LED illuminates when the Router is pow-

ered on.

Link/Act Green. The Link/Act LED serves two purposes. If the LED

is continuously illuminated, the Router is successfully con-

nected to a device through the corresponding port (1, 2, 3

or 4). If the LED is flickering, the Router is actively send-

ing or receiving data over that port.

Full/Col Green. The Full/Col LED also serves two purposes. If this

LED is continuously illuminated, the connection made

through the corresponding port is successfully running in

Full Duplex mode. If the LED is flickering, the connection

is experiencing collisions. Infrequent collisions are normal.

If this LED is flickering too often, there may be a problem

with your connection. Check the Troubleshooting section if

you think there is a problem.

100 Orange. The 100 LED illuminates when a successful

100Mbps connection is made through the corresponding

port.

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

A dynamic IP address may change every time your computer connects to the

network.

DHCP (Dynamic Host Configuration Protocol) DHCP is software that automati-

cally assigns IP addresses to client stations logging onto a TCP/IP network.

DHCP eliminates having to manually assign permanent IP addresses to every

device on your network. DHCP software typically runs in servers and is also

found in network devices such as Routers.

Connecting Your Hardware Together and Booting Up

Once you are sure that you have the above values on hand, you can begin the

Installation and Setup of your Wireless Access Point + Cable/DSL Router.

1. Power everything down, including your PCs, your Cable or DSL modem

and the Router.

2. Connect a Network cable from one of your PCs’ Ethernet ports to one of

the LAN Ports on the back of the Router. Do the same with all the PCs you

wish to connect to the Router. (LAN Port 4 will become inactive if you use

the Uplink port.)

3. Connect the network cable from your Cable or DSL modem to the WAN

port on the rear of the Router.

4. Connect the power-supply cable to the Power port on the rear of the

Router, then plug the supplied AC power cable into a power outlet.

• The Power LED will illuminate green as soon as the power adapter is

connected.

• The Diag LED will illuminate red for a few seconds while the Router

goes through its internal diagnostic test. The LED will turn off when the

self-test is complete.

5. Power on the Cable or DSL modem. Verify that the power is on by

checking the Link LED in the WAN column on the front of the Router.

The Link LED will be illuminated if the power is on and the modem is

ready.

Connecting the Wireless

Access Point + Cable/DSL

Router to Your Network

Overview

Unlike a simple hub or switch, the setup of the Wireless Access Point +

Cable/DSL Router consists of more than simply plugging everything together.

Because the Router acts as a DHCP server, you will have to set some values

within the Router, and also configure your networked PCs to accept the IP

Addresses the Router chooses to assign them.

You will need the following values from your ISP in order to install the

Wireless Access Point + Cable/DSL Router:

• Your broadband-configured PC’s fixed Internet IP Address (if applicable)

• Your broadband-configured PC’s Computer Name and Workgroup Name

• Your Subnet Mask

• Your Default Gateway

• Your Primary DNS IP address

Whoever installed your broadband access should have left this information

with you. If not, call your ISP and they will be able to supply you with it.

About Static & Dynamic IP Addresses

Static IP Addresses A static IP address is an IP address permanently assigned

to computer in a TCP/IP network. Static IP addresses are usually assigned to

networked devices, which are consistently accessed by multiple users, such as

Server PCs, or print server. If you are using your Router to share your cable

or DSL Internet connection, contact your ISP to see if they have assigned

your home a static IP address. You will need that address during your Router’s

configuration.

Dynamic IP Addresses A dynamic IP address is an IP address that is automati-

cally assigned to a client station (computer, printer, etc.) in a TCP/IP network.

Dynamic IP addresses are typically assigned by a DHCP server, which can be

a computer on the network or another piece of hardware, such as the Router.

}Only if applicable

Instant BroadbandTM Series

Now that your Router is physically installed, you will have to configure your

PCs to accept the IP addresses that your Router will provide.

1. Click the Start button, select Settings, then Control Panel.

2. Double-click the Network icon.

3. In the Configuration window, select the TCP/IP protocol line that has

been associated with your network card/adapter.

These instructions apply only to Windows 95, 98 and

Millennium machines. For TCP/IP setup under Windows NT or

Windows 2000, please refer to your Microsoft Windows NT or

Windows 2000 manual.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Configuring Your PCs to Connect to the Wireless Access

Point + Cable/DSL Router

NNoottee::

If the

TCP/IP protocol

is not config-

ured on your

PC, go to the

Appendix for

TCP/IP installa-

tion instructions

now.

6. Press the Reset button on the back of the router. Hold the button in for

three seconds, or until the Diag LED illuminates red. This restores the

router’s default settings.

7. Power on your PC.

The Hardware Installation is complete. Continue to the next page to con-

figure your PCs and Router.

NNoottee::Some ISPs—most notably some cable providers—configure

their networks so that you do not have to enter a full Internet

address into your web browser or e-mail application to reach your

home page or receive your e-mail. If your Internet home page

address is something very simple, such as “www”, rather than

“www.linksys.com”, or your e-mail server’s address is something similar to “e-

mail” or “pop3”, rather than “pop.mail.linksys.com”, you won’t be able to prop-

erly configure your Router until you determine the actual Internet addresses of

your Web and e-mail connections.

You mmuussttobtain this information prior to connecting the Router to your network.

You can obtain this information by contacting your ISP, or you can turn to the

section of the Appendix on HHooww ttoo PPiinngg YYoouurr IISSPP’’ss EE--mmaaiill && WWeebb AAddddrreesssseess..

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Configuring Your Network

with the Wireless Access Point

+ Cable/DSL Router

Configuring the Wireless AP + Cable/DSL Router

Now that your Wireless Access Point + Cable/DSL Router is wired into your

network, you can begin configuring your system.

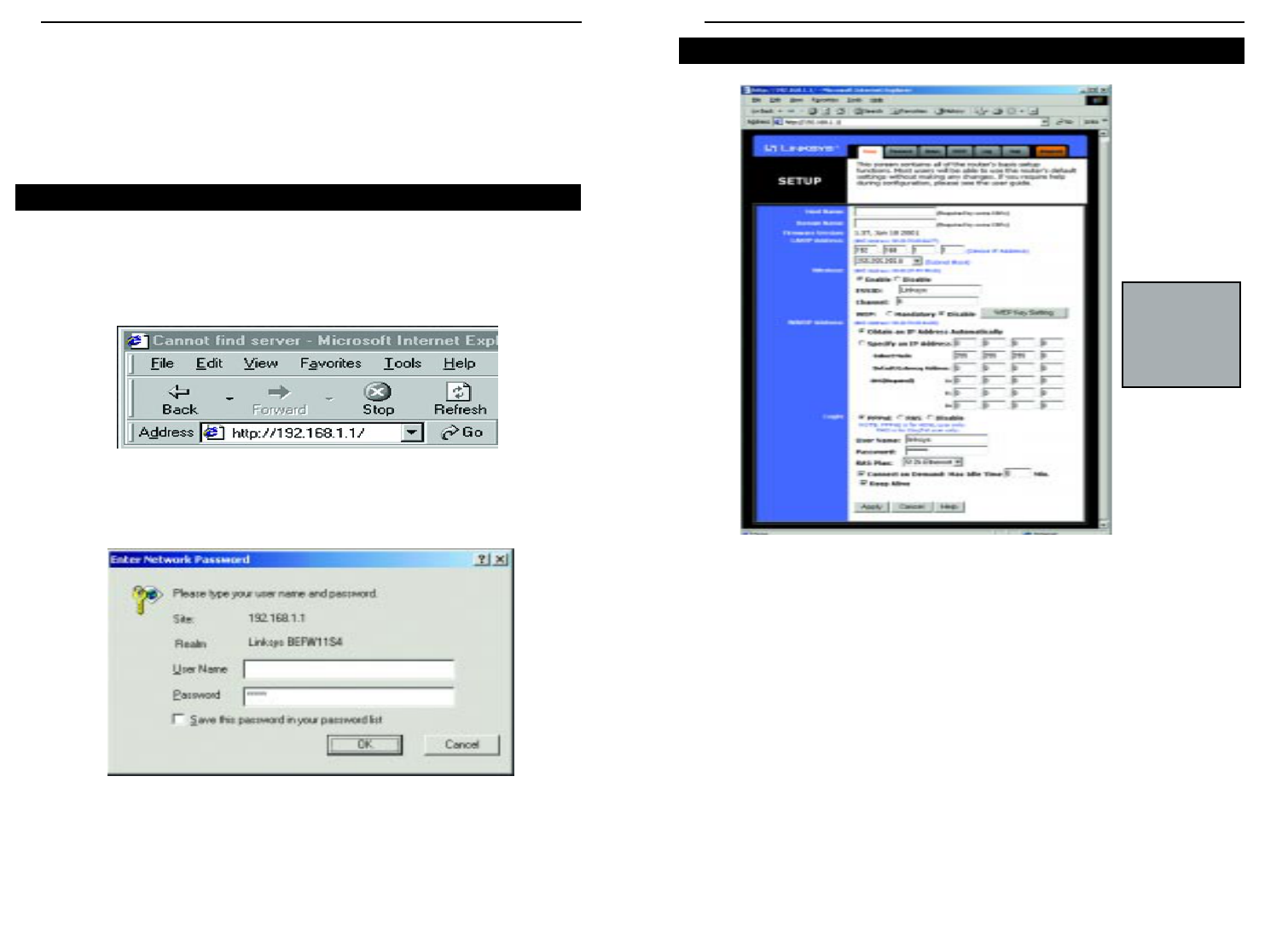

1. Open your web browser and type http://192.168.1.1 in the

browser’s Address box. This number is the default IP address of your

router. Press Enter.

NNoottee:: If you have previously enabled an Internet Sharing

Proxy Service on any of your PCs, you must disable it now.

• If you are running Netscape Navigator: Click EEddiitt>> PPrreeffeerreennccee>>

AAddvvaanncceedd>> PPrrooxxiieess> and click DDiirreecctt CCoonnnneeccttiioonn ttoo tthhee IInntteerrnneett.

• If you are running Internet Explorer v5 or better, click SSttaarrtt>>

SSeettttiinnggss>> CCoonnttrrooll PPaanneell>> IInntteerrnneett OOppttiioonnss>> CCoonnnneeccttiioonnss>>

LLAANN SSeettttiinnggss. Remove the checks from all three boxes. Click OOKKto

continue.

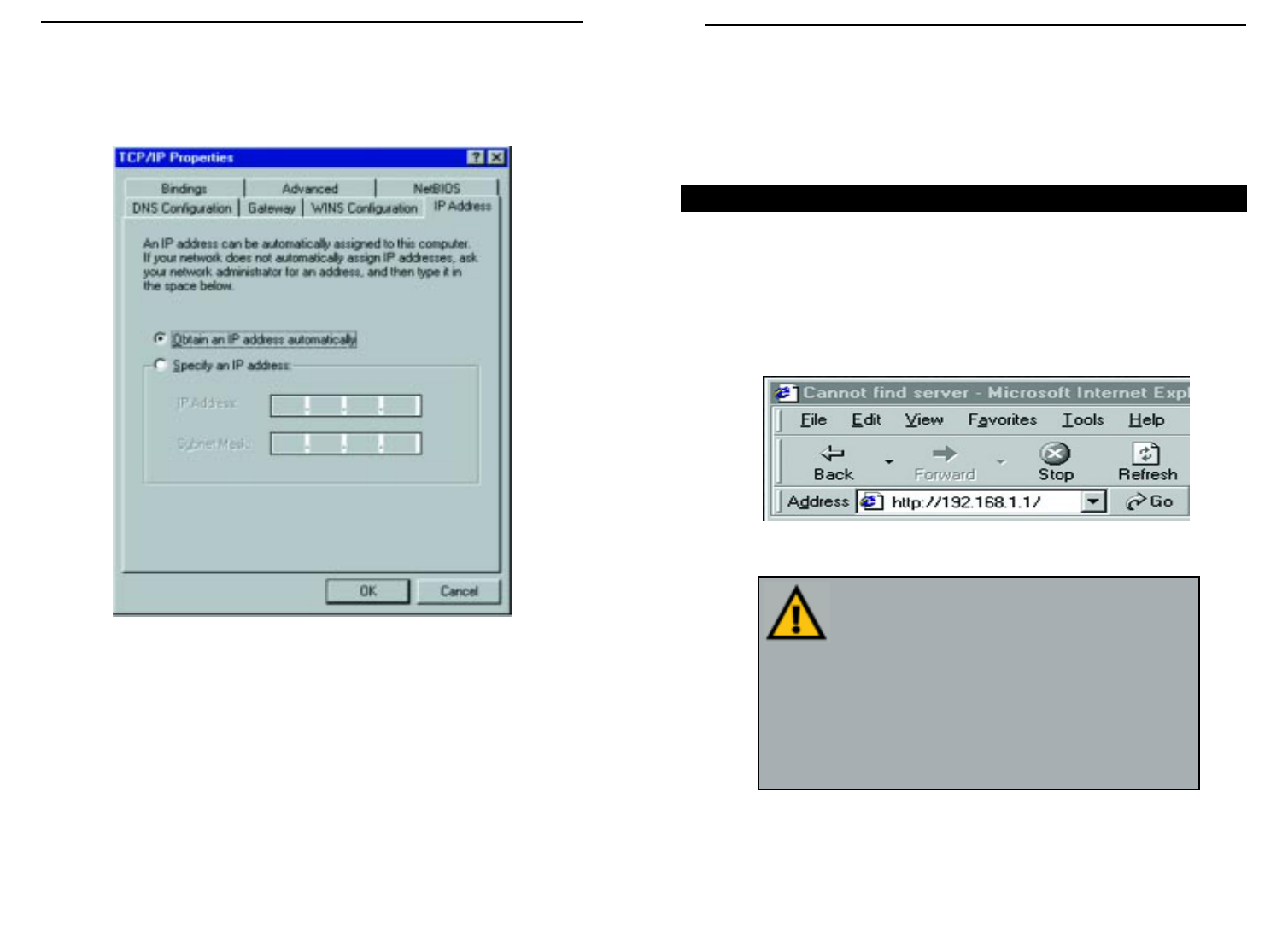

4. Click the Properties button, then choose the IP Address tab. Select

Obtain an IP address automatically. Click on the Gateway tab and make

sure that all fields there are empty.

5. Click OK. The Network Properties window will reappear. Click OK. All

client settings are complete. Windows may ask for original Windows

installation files, which can be found on your Windows CD-ROM (i.e.:

D:\win98, D:\win95, D:\ win9x - where “D” is the letter of your CD-ROM

drive) or possibly on your hard drive (c:\windows\options\cabs.)

6. Windows will ask you to restart the PC. Click Yes.

Repeat steps 1-6 for each PC on your network. When all of your PCs are

configured, continue on to set up the router using the router’s Web-

based Utility.

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

4. Configure the following values.

Host Name & Domain Name These fields allow you to supply a host and

domain name for the Router. Some ISPs require these names as identifi-

cation. You may have to check with your ISP to see if your Broadband

Internet service has been configured with a host and domain name. In

most cases, leaving these fields blank will work.

LAN IP Address These values refer to your internal network settings.

Unless you have specific internal needs, there should be no reason to

change these values. For the internal LAN, the default values are as fol-

lows.

• Private IP Address: 192.168.1.1

• Subnet Mask: 255.255.255.0

Wireless In this section, you can decide whether or not to use WEP

Encryption and configure the level of WEP Encryption. WEP

Encryption is not necessary for the operation of your Router. For more

information, see the section of this guide called Setting WEP

Encryption.

WAN IP Address These values refer to the outside network you connect to

every time you access your Broadband Internet connection. Most

Broadband ISPs assign their clients with a different IP address each time

they log on. If this is the case with your ISP, click Obtain an IP

Address Automatically and continue to step 5. If your ISP assigns you a

fixed IP address, click Specify an IP Address and enter the address into

the Subnet Mask, Default Gateway Address and DNS fields provided

by the ISP.

NNoottee::All of this information should be readily available from your ISP.

2. A username and password prompt will appear. Leave the User Name

box empty and type admin (the default password) in the Password box.

Click OK.

3. The Wireless AP + Cable/DSL Router’s Setup page will appear.

NNoottee::

Due to dif-

ferences in web

browsers, some

of the screens

shown may differ

from those seen

on your router.

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

6. Choose the DHCP tab.

7. Unless you already have a DHCP server on your internal network,

choose Enable from the DHCP Server field. By choosing Enable, you will

configure the Router to automatically assign IP addresses to each of your

PCs. In the Number of DHCP Users box, enter the number of PCs you plan

on networking to the Router. Don’t forget to change this number if, in the

future, you add more PCs to your network. In most cases, these values will

not have to be changed unless you have more than 50 computers on the

network.

8. Click Apply, then click Continue.

9. Reset the power on the cable or DSL modem,

then restart the computer so the computer can

obtain the new Router information.

Your Wireless Access Point + Cable/DSL Router is now configured to

your network. If you would like, you may continue on to learn more

about the Router’s Web-based Utility.

NNoottee::

Make sure that a

Network Card or

adapter has been suc-

cessfully installed into

each PC you plan on

configuring prior to

continuing.

NNoottee::

You cannot have two DHCP servers running on one LAN at the same time. If

you have an existing DHCP server on your LAN, you must decide which device will

act as server. If you choose this Router, you must disable the DHCP capabilities of the

other device, and vice versa. The device which is not the DHCP server must have a

static IP address, which must be compatible with your existing network in order to be

recognized.

PPPoE (Point-to-Point Protocol over Ethernet) Some DSL-based ISPs

use PPPoE to establish communications with an end-user. If you are

using a DSL line, check with your ISP to see if they use PPPoE. If they

do use PPPoE, you must enable it. If you do enable PPPoE, remember to

remove any existing PPPoE applications already on any of your PCs. To

enable PPPoE:

1. Click on the Enable option in the PPPoE section of the Setup screen.

2. Enter the User Name you use to log on to your Internet connection.

3. Enter your corresponding Password.

Connect on Demand (Only available if PPPoE is enabled) If you aren’t

actively using the Internet, you can configure your Router to cut your con-

nection with your ISP after a certain period of time. If you have been dis-

connected due to inactivity, Connect on Demand enables your Router to

automatically re-establish your connection as soon as you attempt to

access the Internet again. If you wish to activate Connect on Demand,

choose the Enable option.

Max Idle Time (Only available if PPPoE is enabled) Max Idle Time is the

number of minutes that passes before the Router drops your Internet con-

nection, due to inactivity. If you want your Internet connection to remain

on at all times, enter zero (0) in this field. Otherwise, enter in the number

of minutes you want to elapse before your Internet access disconnects.

Keep Alive Option (Only available if PPPoE is enabled) This option keeps

your PPPoE-enabled Internet access connected indefinitely, even when it

sits idle. It keeps the connection alive by sending out a few data packets

periodically, so your Internet service thinks that the connection is still

active. To use this option, click on the box next to Keep Alive to select it.

5. When you have properly configured the Setup page, click Apply, then

click Continue.

Instant BroadbandTM Series

NNoottee::

RAS Settings are for Singapore customers only. If you are a Singapore

customer, contact your ISP for RAS Settings before trying to complete this

screen.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Setup

The Basic Setup screen is the first screen you will see when you access the

Utility. If you have already installed and setup your router, you have already

seen this screen and have already properly configured all of the screen’s val-

ues.

• Host Name This entry is necessary for some ISPs. Ask your ISP.

• Domain Name This entry is necessary for some ISPs. Ask your ISP.

• Firmware Version This entry shows the version of the firmware you are

using. Future versions of the Router’s Firmware may become available on

the Linksys Website.

• LAN IP Address and Subnet Mask The IP Address and Subnet Mask of

the router as it is seen on the internal LAN. The default value is 192.168.1.1

for IP and 255.255.255.0 for Subnet Mask. Unless you already know your

settings, we recommend that you keep the defaults.

•Wireless (Enable/Disable). In order to utilize the wireless functions of the

Router, select Enable. If you do not wish do utilize any wireless functions,

make sure Disable is selected. (Note: No other wireless functions will be

available unless you enable this setting.)

NNoottee::

The Setup

page shown in

this graphic may

differ from the

one seen on your

router.

The Wireless Access Point +

Cable/DSL Router’s Web-based

Utility

Quick & Easy Administration

For your convenience, an administrative utility has been programmed into the

chipset of your router. All router-based administrative tasks are performed

through this web utility. The web utility can be accessed by any PC on the

network by typing http://192.168.1.1 into the PC’s web browser

address window.

Upon entering the address into the web browser, a password request page will

pop up.

Leave the User Name field empty, but type “admin” into the Password field.

On the following pages you will find brief descriptions of each utility web-

page and each page’s more important functions. More detailed explanations

and instructions can be found by clicking each page’s Help button. To clear

any values you’ve entered on any page, click Cancel and re-enter informa-

tion. To apply any settings you’ve altered on any page, click the Apply but-

ton. Once all settings are correct, click Continue.

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

• Connect on Demand (Only available if PPPoE is enabled) If you aren’t

actively using the Internet, you can configure your Router to cut your

connection with your ISP after a certain period of time. If you have been

disconnected due to inactivity, Connect on Demand enables your Router

to automatically re-establish your connection as soon as you attempt to

access the Internet again. If you wish to activate Connect on Demand,

choose the Enable option.

• Max Idle Time (Only available if PPPoE is enabled) The Max Idle Time

is the amount of time you would like to pass before the Router drops your

Internet connection due to inactivity. If you want your Internet connection

to remain on at all times, enter zero (0) in this field.

• Keep Alive Option (Only available if PPPoE is enabled) This option

keeps your PPPoE-enabled Internet access connected indefinitely, even

when it sits idle. It keeps the connection alive by sending out a few data

packets periodically, so your Internet service thinks that the connection is

still active. To use this option, click on the box next to Keep Alive to

select it.

Password

In order to have the changes that you have

made take affect, click the AAppppllyy button..

• ESSID The ESSID is the unique name shared among all points in a wire-

less network. The ESSID must be identical for all points in the network. It

is case sensitive and must not exceed 32 characters. Make sure that all

points in the network are the same. Verify that you’re using the correct

ESSID and click the Enable button to set it.

•Channel Select the appropriate channel from the list provided to corre-

spond with your network settings, between 1 and 11. All points in your

wireless network must use the same channel in order to function correctly.

Verify that the correct channel is selected and click the Enable button to set

it.

•WEP (Mandatory/Disable). In order to utilize WEP encryption, select

Enable. If you do not wish do utilize WEP encryption, make sure Disable

is selected.

•WEP Key Setting When WEP Encryption is Enabled, press this button to

modify the WEP Key Settings. See the Section on Setting WEP

Encryption for more information.

•WAN IP Address and Subnet Mask The IP Address and Subnet Mask

of the router as seen by external users on the Internet (including your

ISP). If set to Obtain an IP address automatically, these values are

assigned by your ISP.

• Default Gateway Address Your ISP will provide you with the Gateway IP

Address. If set to Obtain an IP address automatically, these values are

automatically assigned by your ISP.

• DNS (Domain Name Server) IP Address Your ISP will provide you

with at least one DNS IP Address. If set to Obtain an IP address automati-

cally, these values are automatically assigned by your ISP.

You can test and see if the above settings are correct by successfully connect-

ing to the Internet.

• PPPoE (Point-to-Point Protocol over Ethernet) Some DSL-based ISPs

use PPPoE to establish communications with an end-user. If you are using

a DSL line, check with your ISP to see if they use PPPoE. If they do use

PPPoE, you must enable it. If you do enable PPPoE, remember to remove

any existing PPPoE applications already on any of your PCs. To enable

PPPoE:

1. Click on the Enable option in the PPPoE section of the Setup screen.

2. Enter the User Name you use to log on to your Internet connection.

3. Enter your corresponding Password.

Instant BroadbandTM Series

NNoottee::

RAS Settings are for Singapore customers only. If you are a Singapore

customer, contact your ISP for RAS Settings before trying to complete this

screen.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

3. The following screen will appear, verifying that you are enabling WEP

Encryption. Press the OK button to continue.

4. The following screen will appear, where you will choose your WEP

Encryption settings.

WEP Encryption key can be generated in one of two ways:

1. You can create an encryption key by using a Passphrase. To generate

the encryption key using a passphrase, enter a text string in the Passphrase

box and press the Generate button. The Passphrase can be any text string

with a maximum of 31 alphanumeric characters.

Instant BroadbandTM Series

WEP (Wired Equivalent Privacy) Encryption is a method of encrypting data

that is transmitted over your wireless network to insure data security. In a

wired network, data security is maintained through the physical wire. WEP

Encryption provides the same level of security for your wireless data as if it

were being transmitted over standard network cabling (which is how the name

is derived). In order to duplicate wired network security levels, wireless data

is encrypted at its point of transmission. It is decoded by the receiving

device. This allows users to have the same amount of security over their

wireless network as they would over a wired network. This level of security

is above that already provided by the use of password protection by your net-

work operating system.

The present standard for this encryption, set by the IEEE (the Institute of

Electrical and Electronics Engineers), is defined as 40-bit (sometimes also

called 64-bit) encryption. Like many manufacturers, Linksys also includes a

higher level of encryption, identified as 128-bit. These numbers refer to the

complexity of the algorithms generated in order to code and decode the data

transmitted. The higher the bit number, the greater the complexity of the

algorithm, which is designed to provide a more secure the encryption. Be

aware, however, that higher levels of encryption often negatively affect net-

work data transmission rates. This encryption is not necessary for the

operation of your wireless network device. Your need for security can only

be determined by you. If your security needs are such that ordinary password

protection is sufficient, you may decide not to use the additional WEP

Encryption. However, should your security needs dictate it, the Wireless

Access Point + Cable/DSL Router can provide as secure a connection as is

available in wireless networking.

1. At the Setup Screen, if you choose to enable

WEP Encryption, select Mandatory under the

WEP section.

2. Press the WEP Key Setting button to set the

WEP Encryption type and level.

Setting WEP Encryption

Note: WEP Encryption is an additional data security measure and

not essential for Router operation.

NNoottee::

In order for WEP

Encryption to be enabled,

wireless functions must first

be enabled. Select EEnnaabbllee

under the Wireless section

before prcceeding.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

It is strongly recommended that you set a password for the router. When you

first power up the router, you will notice that the Password setting default is

“admin”. For security, we recommend that you change your password often.

To change your password, enter your new password in the Router Password

box. Enter it again in the box just below the Router Password box, exactly as

you typed it in the first box. When you are sure you have entered the pass-

word as you want it, press the Apply button.

Password

If you set the Restore Factory Default option and click Apply,

you will clear all of the router’s settings. Do not restore to the

factory defaults unless you want to completely set up the

Router again. Once the Router is reset, you will have to re-

enter your configuration.

2. You may enter the encryption key manually.

(The Passphrase method is recommended; however, you may need to enter

a manual key in order to meet the requirements of existing wireless equip-

ment on your network. If you are unsure, check with your System

Administrator.)

In either case, you should commit this Passphrase or Manual Key to memory.

You will probably need it for other wireless devices on the network.

Once you have chosen your key encryption method and entered either the

Passphrase or manual key, click the Apply button and the encryption portion of

the setup is complete.

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

• Channel Select the appropriate channel from the list provided to correspond

with your network settings, between 1 and 11. All points in your wireless net-

work must use the same channel in order to function correctly. Verify

that the correct channel is selected and click the Enable button to set

it.

• DHCP Server This field shows the status of the Router's DHCP server

function, which is either enabled or disabled.

•WANThese fields display the WAN IP Address, WAN Subnet Mask and

WAN Default Gateway IP address of the Router, as seen by external users

on the Internet.

• DNS (Domain Name System) IP Address These fields show the IP

Address(es) of the DNS currently used by the Router. Multiple DNS IP set-

tings are common. In most cases, the first available DNS entry is used.

DHCP

A DHCP (Dynamic Host Configuration Protocol) Server automatically

assigns IP addresses to each computer on your network. Unless you already

have one, it is highly recommended that your router be set up as a DHCP

server.

• DHCP Server Check the Enable option to enable the DHCP server

option of the router. If you already have a DHCP server on your network,

set the router's DHCP option to Disable.

DHCP

This tab displays the current status of the Router; it reflects data and selec-

tions you’ve entered under the setup tab.

All of the information provided on this screen is read-only. To make changes,

select the Setup tab.

• Host Name This field shows the name of your Router. This entry is neces

sary for some ISPs.

• Firmware Version This field shows the installed version and date of the

firmware. Version dates are slightly more accurate than version numbers.

• Login This field shows whether you have enabled the use of the Router’s

PPPoE support and the status.

• LAN These fields display the current IP Address and Subnet Mask of the

Router, as seen by users on your internal network.

• Wireless (Enable/Disable). In order to utilize the wireless functions of the

Router, select Enable. If you do not wish do utilize any wireless functions,

make sure Disable is selected. (Note: No other wireless functions will be

available unless you enable this setting.)

• ESSID The ESSID is the unique name shared among all points in a wire-

less network. The ESSID must be identical for all points in the network. It is

case sensitive and must not exceed 32 characters. Make sure that all points

in the network are the same. Verify that you’re using the correct ESSID and

click the Enable button to set it.

Status

Instant BroadbandTM Series

This tab shows the status of Logging on the Router. If you enable logging,

the Router will keep a record of all sites on the Internet (i.e., e-mail, ftp sites,

etc.) that have been accessed through the Router.

• Access Log: Here you will either Enable or Disable the logging

feature.

• Send Log To: Here you will specify the address that you would

like the log to be sent to.

• Incoming/Outgoing Access Log: Here you will specify whether

you want to make a record of Inernet sites that have been accessed

through the Router. Both outgoing or incoming addresses can be

recorded. (For instance, if you have web-server, you can keep a

record of the sites from which your web-server has been accessed.)

To view these logs, you need the Log Viewer software. You can download

the software from www.linksys.com.

Log

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Instant BroadbandTM Series

• Starting IP Address Enter a numerical value for the DHCP server to

start with when issuing IP addresses.

•Number of DHCP users Enter the maximum number of PCs that you

want the DHCP server to assign IP addresses to, with the absolute maxi-

mum being 253.

• DHCP Clients Table Click on the Clients Table button to show the cur-

rent DHCP Client information. (This information is stored in temporary

memory, so the list of clients could disappear, as in the following screen.)

3. Click Upgrade Firmware. A new page will appear.

4. Enter your Router’s administration password into the Password box.

5. Click the Browse button and find the firmware upgrade file that you

downloaded from the Linksys website. Double-click the upgrade file.

This will place the file into the “File Path:” box.

6. When the correct file is in the “File Path:” box, click the Upgrade button

and follow the instructions there. This will complete your firmware

upgrade.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Help

Here you will find links to all of the Utility’s internal support documentation,

a link to Linksys’s website, the application that upgrades the Router’s

firmware.

To upgrade the Router’s firmware:

1. Download the latest firmware version from the Linksys website

(www.linksys.com).

2. Go to the Help screen (above).

In order to upgrade the Router’s firmware, you must use

Internet Explorer 5.0 or higher, or Netscape Navigator 4.7 or

higher. Upgrading the firmware may cause the Router to be

reset to the factory defaults. Make a record of all settings

before attempting the upgrade.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Request feature also adds another measure of security to your network by

hiding your network ports. Both functions of the Block WAN Request fea-

ture make it more difficult for outside users to work their way into your

network.

Click the Apply button to save any changes.

Using IPSec Pass Through

•This feature lets you use IPSec Pass Through. To use this feature, click on

Enable next to “IPSec Pass Through,” then click on Apply.

•To disable IPSec Pass Through, click on Disable and then click on Apply.

Using PPTP Pass Through

•Point-to-Point Tunneling Protocol is the method used to enable VPN

(Virtual Private Networking) sessions. To enable this feature, click on

Enable next to PPTP Pass Through, and then click Apply.

•To disable this feature, click on Disable next to PPTP Pass Through, and

then click Apply.

Using Remote Management

•This feature allows you to manage your Router from a remote location, via

the Internet. To enable this feature, click on Enable, then click on Apply.

Using remote management is easy. Once you have enabled remote manage-

ment, enter http://<WAN IP Address>:8080 into the browser of any PC on

the network and press the Enter key. You will then be able to alter the Router

configuration settings.

•To disable Remote Management, click on Disable, then click on Apply.

Using Remote Upgrade

• This feature allows you to “flash,” or upgrade,

your Router’s firmware from a remote location.

To enable Remote Upgrade, click on Enable,

then click on Apply.

• To disable this feature, click on Disable, then click on Apply.32

NNoottee::Upgrading may

cause the Router to be

reset to the factory

defaults. Make a record of

all settings before attempt-

ing the upgrade.

Filters

Filters block specific internal users from accessing the Internet. You can set

up a filter through an IP address or a network Port number.

To Modify Filter Settings

•Enter the IP addresses you wish to filter into the IP address fields. The

users who have these IP addresses will not be able to access the Internet.

•You can also filter users by entering their network port number and proto-

col (UDP, TCP or both). Enter the port numbers and protocol you want to

filter into the port numbers fields. Users who are connected to the Router

will no longer be able to access any port number listed there.

Block WAN Request

•By enabling the Block WAN Request feature, you can prevent your network

from being pinged, or detected, by other Internet users. The Block WAN

Filters

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Dynamic Routing

With Dynamic Routing you can automatically adjust to physical changes in

the network's layout. The router, using the RIP protocol, determines the net-

work packets’ route based on the fewest number of hops between the source

and the destination. The RIP protocol regularly broadcasts routing informa-

tion to other routers on the network. To set up Dynamic Routing:

1. Choose the correct working mode. Gateway Mode should be used if your

Linksys router is hosting your network's connection to the Internet.

Router Mode should be selected if the router exists on a network with

other routers.

2. In the TX field, choose the protocol by which you transmit data on the

network.

3. In the RX field, choose the protocol by which the Router receives net-

work data.

4. Click the Apply button to save your changes.

Dynamic Routing

For

Port forwarding sets up public services on your network. When users from the

Internet make certain requests of your network, the router will forward those

requests to the appropriate computer. The router's DHCP function must be

disabled to use Forwarding.

Forwarding is generally used to set up a web server, ftp server, or e-mail serv-

er on your network. To add a server using Forwarding:

1. Enter the port number or range used by the server. On the same line,

select TCP, UDP or Both. Enter the IP Address of the server that you

want the Internet users to be able to access. Refer to your software docu-

mentation for more information concerning which service port settings

may need to be changed, if any.

2. Configure as many entries as you would like until all of the link entries

are filled.

3. Click Apply to save the settings.

Forwarding

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

2. Enter the following data to create a new static route:

Destination LAN IP The Destination LAN IP is the Address of the remote

network or host to which you want to assign a static route. Enter the IP

address of the host for which you wish to create a static route here. If you

are building a route to an entire network, be sure that the network portion

of the IP address is set to zero (0). For example, the Router’s standard IP

address is 192.168.1.1. Based on this address, the address of the network

to which the Router is connected is 192.168.1, with the last digit (1, in

this case) determining the Router’s place on the network. Therefore you

would enter the IP address 192.168.1.0 if you wanted to route to the

Router’s entire network, rather than just to the Router.

Network Mask The Network Mask (also known as the Subnet Mask)

determines which portion of an IP address is the network portion, and

which portion is the host portion. In the example above the Network

Mask is 255.255.255.0. This determines (by using the values 255) that the

first three numbers of an network IP address identify this particular net-

work, while the last digit (from 1 to 254) would identify the specific host.

Gateway IP This IP address should be the IP address of the gateway

device that allows for contact between the Router and the remote network

or host.

Hop Count This value gives the number of nodes that a data packet passes

through before reaching its destination. A node is any device

on the network, such as switches, PCs, etc.

Interface This interface tells you whether your network is on the internal

LAN or the WAN, or the external Internet. If you’re connecting to a sub-

network, select LAN. If you’re connecting to another network through

the Internet, select WAN.

3. Click the Apply button to save your changes.

Static Routing

If your Router is connected to more than one network, it may be necessary to

set up a static route between them. A static route is a pre-determined pathway

that network information must travel to reach a specific host or network.

Click the Show Routing Table button to view the current static routing con-

figuration.

To create a static route entry:

1. Select Static Route Entry from the drop down list. The Cable/DSL

Router supports up to 20 static route entries.

Static Routing

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

MAC Address Cloning allows you to assign the Router a MAC address,

which is a 12-digit code assigned to a unique piece of hardware for identifi-

cation, like a social security number. Some ISPs require that you register the

MAC address of your network card/adapter, which was connected to your

cable or DSL modem during installation. You can find your adapter's MAC

address by doing the following:

• If you are running Windows 95, 98 or Millennium:

Go to Start, Run, type in command, and press Enter. At the DOS

prompt, type winipcfg.

• If you are running Windows NT 4.0 or 2000:

Go to Start, Run, type in command, and press Enter. At the DOS

prompt, type ipconfig /all. The Physical Address with 12 digits is your

adapter’s MAC address.

Enter those 12 digits into the fields on this screen, and click Apply. This

“clones” your network adapter’s MAC address onto your Router, and prevents

you from having to call your ISP to change the registered MAC address to the

adapter’s MAC address. Z Host

MAC Address Cloning

The DMZ Host setting allows one local computer to be exposed to the

Internet to use a special-purpose service such as Internet gaming or video-

conferencing.

To expose one computer, enter the computer’s IP address and click the Apply

button. Inactivate DMZ by entering a zero (0). DMZ Host

DMZ Host

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

3. I can’t browse through the Wireless Access Point + Cable/DSL Router.

• Check if both ends of the network cable and power adapter are properly

connected. Check if the status LEDs on the front panel are functioning

properly.

• If using Windows 95 or Windows 98, check the TCP/IP setup on the

client side. Run winipcfg by clicking on the Start button, then select-

ing Run, and typing winipcfg in the Run box and press Enter. The

PC should have an IP address of 192.168.1.xxx ("xxx" is from 2 to

254.) Subnet Mask is 255.255.255.0, the default gateway IP should be

the Router’s IP Address, and DNS (in "More".)

• Same as above, check the same setup values in the Status Monitor page

of the Wireless AP + Cable/DSL Router.

4. When I enter a URL or IP address, I get a time out error.

• Check if other PCs work. If they do, ensure that your workstations IP

settings are correct (IP address, Subnet Mask, Default gateway and

DNS)

• If the PCs are configured correctly, but still not working, check the

Wireless Access Point + Cable/DSL Router. Ensure that it is connected

and ON. Connect to it and check its settings. (If you cannot connect to

it, check the LAN and power connections.)

• If the Cable/DSL Router is configured correctly, check your Internet

connection. (DSL/Cable modem etc.) to see that it is working correctly.

• Manually configure the TCP/IP with a DNS address provided by your

ISP.

5. I can’t obtain an IP address from my cable or DSL modem.

• Ensure that all of your cabling is properly connected and that all of the

router’s WAN and LAN LEDs are correctly illuminated.

• Power down your cable or DSL modem for a few seconds. Turn it back

on. After the modem goes through its self-test, check to see if you now

have an IP address.

• Ensure that your cable or DSL modem is DHCP-capable.

• You may have to enter the router or host name in the Setup page of the

Router’s web-based utility. Go to the Setup section of the Web-based

Utility for more information.

• Your ISP may require Mac Addresses. Check with your ISP. This

address can be obtained in the Status screen of the Router’s Web-based

Utility.

Frequently Asked Questions

Troubleshooting

Common Problems and Solutions

This section provides possible solutions to problems regarding the installation

and operation of the Wireless Access Point + Cable/DSL Router. If your situ-

ation is described here, the problem should be solved by applying the corre-

sponding solution. If you can’t find an answer here, check the Linksys web-

site at www.linksys.com.

1. I Can’t connect to the Wireless Access Point + Cable/DSL Router.

• The Wireless AP + Cable/DSL Router is properly installed, LAN con-

nections are OK, and it is powered ON.

• Ensure that your PC and the Wireless AP + Cable/DSL Voice Router

are on the same network segment. If you are not sure, initiate the

DHCP function, let the PC get the IP address automatically.

• Ensure that your PC is using an IP Address within the default range of

192.168.1.2 to 192.168.1.254 and thus compatible with the Wireless AP

+ Cable/DSL Router default IP Address of 192.168.1.1

• Also, the Subnet Mask should be set to 255.255.255.0 to match the

Wireless AP + Cable/DSL Router. In the Wireless AP + Cable/DSL

Router, you can check these settings by using Control Panel-Network to

check the Properties for the TCP/IP protocol.

2. The Diag LED stays lit when it shouldn’t.

• The Diag LED lights up when the device is first powered up.

Meantime, the system will boot up itself and check for proper opera-

tion. After finishing the checking procedure, the LED turns off to show

the system is working fine. If the LED remains lit after this time, the

device is not working properly. Try to re-flash the firmware by assign-

ing a static IP address to the computer, then upgrade the firmware

again. If that doesn’t help, contact your dealer for further inspection.

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Does the Wireless Access Point + Cable/DSL Router support any operating sys-

tem other than Windows 95,Windows 98,Windows 2000, or Windows NT? Yes,

but Linksys does not, at this time, provide technical support for setup, con-

figuration or troubleshooting of any non-Windows operating systems.

Does the Cable/DSL router support ICQ send file? Yes, with the following fix:

ICQ menu-> preference -> connections tab-> check "I am behind a firewall

or proxy", and set the firewall time-out to 80 seconds in firewall setting.

The Internet user can then send a file to a user behind the router.

How do I get Napster to work with the Router? Napster is fully compatible

with the Router, but you must make sure that, during installation, you select

“no idea” when asked about your firewall selection. Set your proxy settings

to “No Proxy Server” in your File>Preferences.

I setup an Unreal Tournament Server, but others on the LAN cannot join. What do

I need to do? If you have a dedicated Unreal Tournament server running,

you need to create a static IP for each of the LAN computers and forward

ports 7777, 7778, 7779, 7780, 7781, and 27900 to the IP address of the

server. If you want to use the UT Server Admin, forward another port (8080

usually works well), then in the [UWeb.WebServer] section of the server.ini

file, set the ListenPort to 8080 (to match the mapped port above) and

ServerName to the IP assigned to the router from your ISP.

Can multiple gamers on the LAN get on one game server and play simultaneous-

ly with just one public IP address? It depends on the which network game or

what kind of game server you are using. For example, Unreal Tournament

supports multi-login with one public IP.

How do I get

Half-Life:Team Fortress

to Work with the Router? The default

client port for Half-Life is 27005. The computers on your LAN need to

have "+clientport 2700x" to the HL shortcut command line; the x would be

6, 7, 8, and on up. This lets multiple computers connect to the same server.

One problem: version 1.0.1.6 won't let multiple computers with the same

CD key connect at the same time, even if on the same LAN (not a problem

with 1.0.1.3). As far as hosting games, the HL server does not need to be in

the DMZ. Just forward port 27015 to the local IP of the server computer.

There remains, however, a problem with people being booted after a few

minutes with an "illegible server message."

What is the maximum number of IP addresses that the Wireless Access Point +

Cable/DSL Router will support? The Router will support up to 253 IP address-

es.

Is IPSec Pass-Thru supported by the Router?Yes, it is a built-in feature that the

router automatically enables.

Where is the Wireless Access Point +Cable/DSL Router installed on the network?

In a typical environment, the Router is installed between the Cable/DSL

Modem and the LAN. Plug the Wireless AP +Cable/DSL Router into the

Cable/DSL Modem's Ethernet port.

Does the Wireless Access Point + Cable/DSL Router support IPX or AppleTalk?

No. TCP/IP is the only protocol standard for the Internet and has become

the global standard for communications. IPX, a NetWare communications

protocol used only to route messages from one node to another, and

AppleTalk, a communications protocol used on Apple and Macintosh net-

works, can be used from LAN to LAN connections, but those protocols can-

not connect from WAN to LAN.

Does the WAN connection of the Wireless Access Point + Cable/DSL Router sup-

port 100Mb Ethernet? Because of the speed limitations of broadband Internet

connections, the Cable/DSL Router’s current hardware design supports

10Mb Ethernet on its WAN port. It does, of course, support 100Mbps over

in the auto-sensing Fast Ethernet 10/100 switch on the LAN side of the

router.

What is Network Address Translation and what is it used for? Network

Address Translation (NAT) translates multiple IP addresses on the private

LAN to one public address that is sent out to the Internet. This adds a level

of security since the address of a PC connected to the private LAN is never

transmitted on the Internet. Furthermore, NAT allows the Cable/DSL Router

to be used with low cost Internet accounts, such as DSL or cable modems,

where only one TCP/IP address is provided by the ISP. The user may have

many private addresses behind this single address provided by the ISP.

Instant BroadbandTM Series

Frequently Asked Questions

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

If DMZ is used, does the exposed user share the public IP with the Router? No.

Does the Router pass PPTP packets or actively route PPTP sessions? The router

allows PPTP packets to pass through.

Is the Router cross-platform compatible? Any platform that supports Ethernet

and TCP/IP is compatible with the router.

Will the Router allow me to use my own public IPs and Domain, or do I have to

use the IPs provided by the router? The router mode allows for customiza-

tion of your public IPs and Domain.

How many ports can be simultaneously forwarded? Theoretically, the router

can establish 520 sessions at the same time, but you can only forward 10

ranges of ports.

Does the Router replace a modem? Is there a cable or DSL modem in the

router? No, this version of the router must work in conjunction with a cable

or DSL modem.

Which modems are compatible with the router? The router is compatible with

virtually any cable or DSL modem that supports Ethernet.

What are the advanced features of the router? The router's advanced features

include Filters, Forwarding, Dynamic Routing, Static Routing, and DMZ

host.

Does Linksys provide syslog support? No, Linksys does not currently provide

syslog support.

How can I check whether I have static DHCP IP Addresses? Consult your ISP to

confirm the information.

How do I get mIRC to work with the Router? Set port forwarding to 113 for the

computer on which you are using mIRC. If you are experiencing difficulty

after setting the port forwarding, try changing the Direct Client-to-Client

(DCC) settings to a range from 1024 to 1030 on the DCC option and

Forwarding page of the Web-based Setup Utility.

If your questions are not addressed here, refer to the contact information

on the last page of this manual.

Web page hangs, corrupt downloads, or nothing but junk characters are being

displayed on the screen. What do I need to do? Force your NIC to 10Mbps

or half duplex mode, and turn off the "Auto-negotiate" feature of your NIC

as a temporary measure. (Please look at the Network Control Panel, in your

Ethernet Adapter's Advanced Properties tab.). Make sure that your proxy

setting is disabled in the browser. Check our website at www.linksys.com

for more information.

If all else fails in the installation, what can I do? Reset the router by holding

down the reset button for at least three seconds and reset your cable or DSL

modem by powering the unit off and then on. Obtain and flash the latest

firmware release that is readily available on Linksys website,

www.linksys.com.

How will I be notified of new router firmware upgrades? All Linksys firmware

upgrades are posted on the Linksys website at www.linksys.com, where

they can downloaded for free. The router's firmware can be upgraded with

TFTP programs.

Does the Wireless Access Point + Cable/DSL Router support IPSec? Yes, but

only pass through IPSec is supported.

Will the router function in a Macintosh environment? Yes, but the router's setup

pages are accessible only through Internet Explorer v4.0 or Netscape

Navigator v4.0 or higher for Macintosh.

With which type of firewall is the router equipped? The Wireless AP +

Cable/DSL router uses NAT and TCP/IP port inspections.

Does the Router do Stateful packet inspection? No

I am not able to get the web configuration screen for the router. What can I do?

You may have to remove the proxy settings on your Internet browser, e.g.,

Netscape Navigator or Internet Explorer. Or remove the dial-up settings on

your browser. Check with your browser documentation.

What is DMZ? Demilitarized Zone (DMZ) allows one IP Address (computer)

to be exposed to the Internet. Some applications require multiple TCP/IP

ports to be open. It is recommended that you set your computer with a stat-

ic IP if you want to use DMZ.

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

3. At the DOS command prompt, type "ping mail" (assuming that the

location for which you’re trying to find an IP address is configured as

“mail”). Press Enter. Information such as the following data, taken from

a ping of Microsoft Network’s e-mail server, will be displayed.

4. Write down the IP address returned by the ping command. (In the

example above: 24.53.32.4.) This IP address is the actual IP address of the

server “mail”, or any other word or value you have pinged.

Step Two: Pinging for a Web Address

While the IP address returned above would work as your e-mail server

address, it may not be permanent. IP Addresses change all the time. Web

addresses, however, usually don’t. Because of this, you’re likely to have less

problems by configuring your system with web addresses rather than IP

addresses. Follow the instructions below to find the web address assigned to

the IP address you just pinged.

1. At the DOS command prompt, type “ping -a 24.53.32.4”, where

24.53.32.4 is the IP address you just pinged. Information such as the fol-

lowing data will be displayed.

C:\>ping mail

Pinging mail [24.53.32.4] with 32 bytes of data:

Reply from 24.53.32.4: bytes=32 time<10ms TTL=128

Ping statistics for 24.53.32.4:

Packets: Sent = 4, Received = 4, Lost = 0 (0%

loss),

Approximate round trip times in milli-seconds:

Minimum = 0ms, Maximum = 0ms, Average = 0ms

Appendix

How to Ping Your ISP’s E-mail & Web Addresses

Virtually all Internet addresses are configured with words or characters (i.e.,

www.linksys.com, www.yahoo.com, etc.) In actuality, however, these Internet

addresses are assigned to IP addresses, which are the true addresses on the

Internet. For example, www.linksys.com is actually 216.23.162.142. Type it

into your web browser and you will wind up at the Linksys home page every

time.

IP and web addresses, however, can sometimes be long and hard to remem-

ber. Because of this, certain ISPs will shorten their server addresses to single

words or codes on their users’ web browser or e-mail configurations. If your

ISP’s E-mail and Web server addresses are configured with single words

(“www”, “e-mail”, “home”, “pop3”, etc.) rather than whole Internet

Addresses or IP Addresses, your Router may have problems sending or

receiving mail and accessing the Internet. This happens because your Router

has not been configured by your ISP to accept their abbreviated server

addresses.

The solution is to determine the true web addresses behind your ISPs code

words. You can determine the IP and web addresses of your ISP’s servers by

“pinging” them.

If you don’t have your ISP’s web and e-mail IP Addresses, you

must either get them from your ISP or follow these steps prior

to connecting your Cable/DSL Router to your network.

Step One: Pinging an IP Address

The first step to determining your ISP’s web and e-mail server address is to

ping its IP Address.

1. Power on the computer and the cable or DSL modem, and restore the

network configuration set by your ISP if you have since changed it.

2. Click Start, then Run, and type "command". This will bring up the DOS

Window.

How to Ping Your ISP’s E-mail & Web Addresses

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Follow these instructions to install the TCP/IP Protocol on one of your PCs

only after a network card has been successfully installed inside the PC. These

instructions are for Windows 95, 98 or Milliennium. For TCP/IP setup under

Microsoft Windows NT or 2000, please refer to your Microsoft Windows NT

or 2000 manual.

1. Click the Start button. Choose Settings, then Control Panel.

2. Double-click the Network icon. Your Network window should pop up.

Select the Configuration tab.

3. Click the Add button.

4. Double-click Protocol.

5. Highlight Microsoft under the list of manufactures.

Installing the TCP/IP Protocol

2. Write down the web address returned by the ping command. (In the

example above: mail.msnv3.occa.home.com.) This web address is the web

address assigned to the IP address you just pinged. While the IP address

of “mail” could conceivably change, it is likely that this web address will

not.

3. Replace your ISP’s abbreviated server address with this extended web

address in the corresponding Internet application (web browser, e-mail

application, etc.).

Once you have replaced the brief server address with the true server address,

your Router should have no problem accessing the Internet through that

Internet application.

C:\>ping -a 24.53.32.4

Pinging mail.msnv3.occa.home.com [24.53.32.4] with 32

bytes of data:

Reply from 24.53.32.4: bytes=32 time<10ms TTL=127

Ping statistics for 24.53.32.4:

Packets: Sent = 4, Received = 4, Lost = 0 (0%

loss),

Approximate round trip times in milli-seconds:

Minimum = 0ms, Maximum = 0ms, Average = 0ms

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

There are different grades, or categories, of twisted-pair cabling. Category 5

is the most reliable and is highly recommended. Category 3 is a good second

choice. Straight-through cables are used for connecting computers to a hub.

Crossover cables are used for connecting a hub to another hub (there is an

exception: some hubs have a built-in uplink port that is crossed internally,

which allows you to link or connect hubs together with a straight-through

cable instead).

You can buy pre-made Category 5

cabling, or cut and crimp your own.

Category 5 cables can be purchased

or crimped as either straight-through

or crossover. Inside a Category 5

cable are 8 thin, color-coded wires

inside that run from one end of the

cable to the other. All 8 wires are

used. In a straight-through cable,

wires 1, 2, 3, and 6 at one end of the

cable are also wires 1, 2, 3, and 6 at

the other end. In a crossover cable,

the order of the wires change from

one end to the other: wire 1 becomes

3, and 2 becomes 6.

See the diagrams on the

next page for more

detailed information on

straight-through and

crossover cabling.

To determine which wire is wire number 1, hold the cable

so that the end of the plastic RJ-45 tip (the part that goes

into a wall jack first) is facing away from you. Face the clip

down so that the copper side faces up (the springy clip will

now be parallel to the floor).When looking down on the

copper side, wire 1 will be on the far left.

Twisted-Pair Cabling

6. Find and double-click TCP/IP in the list to the right (below).

7. After a few seconds you will be brought back to the main Network win-

dow. The TCP/IP Protocol should now be listed.

8. Click OK. Windows may ask for original Windows installation files.

Supply them as needed (i.e.: D:\win98, D:\win95,

c:\windows\options\cabs.)

9. Windows will ask you to restart the PC. Click Yes.

The TCP/IP Installation is complete.

Instant BroadbandTM Series

• Straight-Through Cabling

•Cross-Over Cabling

Crimping Your Own Network Cables

Instant BroadbandTM Series

Glossary

Ad-hoc Network - An ad-hoc network is a wireless network or other small net-

work in which some of the network devices are part of the network only for the

duration of a communications session while in some close proximity to the rest

of the network.

BSS (Basic Service Set) - A group of Instant WirelessTM Network PC Card

users and a Wireless AP + Cable/DSL Router.

Default Gateway - The router used to forward all traffic that is not addressed

to a station within the local subnet.

DHCP (Dynamic Host Configuration Protocol) - Aprotocol that lets network

administrators manage centrally and automate the assignment of Internet

Protocol (IP) addresses in an organization's network. Using the Internet's set of

protocol (TCP/IP), each machine that can connect to the Internet needs a

unique IP address. When an organization sets up its computer users with a con-

nection to the Internet, an IP address must be assigned to each machine.

Without DHCP, the IP address must be entered manually at each computer and,

if computers move to another location in another part of the network, a new IP

address must be entered. DHCP lets a network administrator supervise and dis-

tribute IP addresses from a central point and automatically sends a new IP

address when a computer is plugged into a different place in the network.

DHCP uses the concept of a "lease" or amount of time that a given IP address

will be valid for a computer. The lease time can vary depending on how long a

user is likely to require the Internet connection at a particular location. It's espe-

cially useful in education and other environments where users change fre-

quently. Using very short leases, DHCP can dynamically reconfigure networks

in which there are more computers than there are available IP addresses.

DHCP supports static addresses for computers containing Web servers that

need a permanent IP address.

DMZ - A DMZ (demilitarized zone) is a computer host or small network

inserted as a "neutral zone" between a company's private network and the out-

side public network. It prevents outside users from getting direct access to a

server that has company data.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

DNS - The domain name system (DNS) is the way that Internet domain name

are located and translated into Internet Protocol (IP) addresses. A domain name

is a meaningful and easy-to-remember "handle" for an Internet address.

DSSS - Also known as “Direct Sequence Spred Spectrum”, this is a variety of

radio transmission methods that continuously change frequencies or signal pat-

terns. Direct sequence spread spectrum (DSSS), which is used in CDMA, mul-

tiplies the data bits by a very fast pseudo-random bit pattern (PN sequence) that

"spreads" the data into a large coded stream that takes the full bandwidth of the

channel

Dynamic IP Address - An IP address that is automatically assigned to a client

station in a TCP/IP network, typically by a DHCP server. Network devices that

serve multiple users, such as servers and printers, are usually assigned static IP

addresses.

ESS - More than one BSS in a network.

FHSS - Also known as “Frequency Hopping Spread Spectrum”. Frequency

hopping spread spectrum (FHSS) continuously changes the center frequency of

a conventional carrier several times per second according to a pseudo-random

set of channels, while chirp spread spectrum changes the carrier frequency.

Because a fixed frequency is not used, illegal monitoring of spread spectrum

signals is extremely difficult, if not downright impossible depending on the

particular method.

Firewall - A firewall is a set of related programs, located at a network gateway

server, that protects the resources of a network from users from other networks.

(The term also implies the security policy that is used with the programs.) An

enterprise with an intranet that allows its workers access to the wider Internet

installs a firewall to prevent outsiders from accessing its own private data

resources and for controlling what outside resources to which its own users

have access.

Basically, a firewall, working closely with a router program, examines each

network packet to determine whether to forward it toward its destination.

Firmware - Programming that is inserted into programmable read-only mem-

ory (programmable read-only memory), thus becoming a permanent part of a

computing device.

IEEE - The Institute of Electrical and Electronics Engineers. The IEEE

describes itself as "the world's largest technical professional society -- promot-

ing the development and application of electrotechnology and allied sciences

for the benefit of humanity, the advancement of the profession, and the well-

being of our members."

The IEEE fosters the development of standards that often become national and

international standards. The organization publishes a number of journals, has

many local chapters, and several large societies in special areas, such as the

IEEE Computer Society.

Infrastructure - An infrastructure network is a wireless network or other small

network in which the wireless network devices are made a part of the network

through the Access Point which connects them to the rest of the network.

IP Address - In the most widely installed level of the Internet Protocol

(Internet Protocol) today, an IP address is a 32-binary digit number that identi-

fies each sender or receiver of information that is sent in packet across the

Internet. When you request an HTML page or send e-mail, the Internet

Protocol part of TCP/IP includes your IP address in the message (actually, in

each of the packets if more than one is required) and sends it to the IP address

that is obtained by looking up the domain name in the Uniform Resource

Locator you requested or in the e-mail address you're sending a note to. At the

other end, the recipient can see the IP address of the Web page requestor or the

e-mail sender and can respond by sending another message using the IP address

it received.

IPCONIFG - A utility that provides for querying, defining and managing IP

addresses within a network. A commonly used utility, under Windows NT and

2000, for configuring networks with static IP addresses.

IPSec - IPSec (Internet Protocol Security) is a developing standard for securi-

ty at the network or packet processing layer of network communication. A big

advantage of IPSec is that security arrangements can be handled without

requiring changes to individual user computers.

ISP - An ISP (Internet service provider) is a company that provides individuals

and companies access to the Internet and other related services such as Web site

building and virtual hosting.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Instant BroadbandTM Series

LAN - A local area network (LAN) is a group of computers and associated

devices that share a common communications line and typically share the

resources of a single processor or server within a small geographic area (for

example, within an office building).

MAC Address - The MAC (Media Access Control) address is your computer's

unique hardware number.

mIRC - mIRC runs under Windows and provides a graphical interface for log-

ging onto IRC servers and listing, joining and leaving channels.

NAT - NAT (Network Address Translation) is the translation of an Internet

Protocol address (IP address) used within one network to a different IP address

known within another network. One network is designated the inside network

and the other is the outside.

Network Mask - also known as the “Subnet Mask”.

Packet Filtering - Discarding unwanted network traffic based on its originat-

ing address or range of addresses or its type (e-mail, file transfer, etc.).

PCMCIA - The PCMCIA (Personal Computer Memory Card International

Association) is an industry group organized in 1989 to promote standards for a

credit card-size memory or I/O device that would fit into a personal computer,

usually a notebook or laptop computer.

Ping - (Packet INternet Groper) An Internet utility used to determine whether

a particular IP address is online. It is used to test and debug a network by send-

ing out a packet and waiting for a response.

PPPoE (Point to Point Protocol over Ethernet) - A method used mostly by DSL

providers for connecting personal computers to a broadband modem for

Internet access. It is similar to how a dial-up connection works but at higher

speeds and quicker access.

PPTP (Point-to-Point Tunneling Protocol) - A protocol (set of communication

rules) that allows corporations to extend their own corporate network through

private "tunnels" over the public Internet. Effectively, a corporation uses a

wide-area network as a single large local area network. A company no longer

needs to lease its own lines for wide-area communication but can securely use

the public networks. This kind of interconnection is known as a virtual private

network.

PrintServer - A hardware device that enables a printer to be located anywhere

in the network.

RJ-45 - A connector similar to a telephone connector that holds up to eight

wires, used for connecting Ethernet devices.

Roaming - The ability to use a wireless device and be able to move from one

access point’s range to another without losing the connection.

Static IP Address - A permanent IP address that is assigned to a node in a

TCP/IP network.

Subnet Mask - The method used for splitting IP networks into a series of sub-

groups, or subnets. The mask is a binary pattern that is matched up with the IP

address to turn part of the host ID address field into a field for subnets.

TCP (Transmission Control Protocol) - A method (protocol) used along with

the Internet Protocol (Internet Protocol) to send data in the form of message

units between computers over the Internet. While IP takes care of handling the

actual delivery of the data, TCP takes care of keeping track of the individual

units of data (called packet) that a message is divided into for efficient routing

through the Internet.

TCP/IP - Transmission Control Protocol/Internet Protocol (TCP/IP) is the

basic communication language or protocol of the Internet. It can also be used

as a communications protocol in a private network (either an intranet or an

extranet). When you are set up with direct access to the Internet, your comput-

er is provided with a copy of the TCP/IP program just as every other computer

that you may send messages to or get information from also has a copy of

TCP/IP.

UDP (User Datagram Protocol) - A communications method (protocol) that

offers a limited amount of service when messages are exchanged between com-

puters in a network that uses the Internet Protocol (IP). UDP is an alternative

to the Transmission Control Protocol (TCP) and, together with IP, is sometimes

referred to as UDP/IP. Like the Transmission Control Protocol, UDP uses the

Internet Protocol to actually get a data unit (called a datagram) from one com-

puter to another. Unlike TCP, however, UDP does not provide the service of

dividing a message into packets (datagrams) and reassembling it at the other

end. Specifically, UDP doesn't provide sequencing of the packets that the data

arrives in. This means that the application program that uses UDP must be able

to make sure that the entire message has arrived and is in the right order.

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Specifications

Model Number BEFW11S4

Standards IEEE 802.3 (10BaseT), IEEE 802.3u

(100BaseTX), IEEE 802.11b (Wireless)

Protocol CSMA/CD

Ports

WAN: One 10Base-T RJ-45 Port for Cable/DSL Modem

LAN: Four 10/100 RJ-45 Switched Ports,

One Shared Uplink Port

Speed WAN - 10Mbps, Switch - 10/100Mbps (Half

Duplex) 20/200 (Full Duplex) Wireless (See

Below)

Cabling Type 10BaseT: UTP/STP Category 3 or 5

100BaseTX: UTP/STP Category 5

Button Reset

Operating Range: (Wireless)

Indoors: up to 30M (100 ft.) @ 11 Mbps

up to 50M (165 ft.) @ 5.5 Mbps

up to 70M (230 ft.) @ 2 Mbps

up to 91M (300 ft.) @ 1 Mbps

Outdoors: up to 152M (500 ft.) @ 11 Mbps

up to 270M (885 ft.) @ 5.5 Mbps

up to 396M (1300 ft.) @ 2 Mbps

up to 457M (1500 ft.) @ 1 Mbps

Topology Star (Ethernet)

LED Indicators Power, WLAN Activity, WLAN Link

WAN Link/Activity, Diag for WAN

LAN Full Duplex/Collision, Link/Activity 100

Network applications that want to save processing time because they have very

small data units to exchange (and therefore very little message reassembling to

do) may prefer UDP to TCP.

UTP - Unshielded twisted pair is the most common kind of copper telephone

wiring. Twisted pair is the ordinary copper wire that connects home and many

business computers to the telephone company. To reduce crosstalk or electro-

magnetic induction between pairs of wires, two insulated copper wires are

twisted around each other. Each signal on twisted pair requires both wires.

Since some telephone sets or desktop locations require multiple connections,

twisted pair is sometimes installed in two or more pairs, all within a single

cable.

Virtual Server - Multiple servers that appear as one server, or one system

image, to the operating system or for network administration

WAN - A communications network that covers a wide geographic area, such as

state or country.

WEP (Wired Equivalent Privacy) - A data privacy mechanism based on a 64-

bit shared key algorithm, as described in the IEEE 802.11 standard.

WINIPCFG - Configuration utility based on the Win32 API for querying,

defining and managing IP addresses within a network. A commonly used util-

ity, under Windows 95, 98, and Millennium, for configuring networks with

static IP addresses.

Instant BroadbandTM Series

EtherFast® Wireless Access Point + Cable/DSL Router with 4-Port Switch

Warranty Information

BE SURE TO HAVE YOUR PROOF OF PURCHASE AND A BARCODE

FROM THE PRODUCT'S PACKAGING ON HAND WHEN CALLING.

RETURN REQUESTS CANNOT BE PROCESSED WITHOUT PROOF OF

PURCHASE.

IN NO EVENT SHALL LINKSYS’ LIABILITY EXCEED THE PRICE PAID

FOR THE PRODUCT FROM DIRECT, INDIRECT, SPECIAL, INCIDEN-

TAL, OR CONSEQUENTIAL DAMAGES RESULTING FROM THE USE

OF THE PRODUCT, ITS ACCOMPANYING SOFTWARE, OR ITS DOCU-

MENTATION. LINKSYS DOES NOT OFFER REFUNDS FOR ANY PROD-

UCT.

LINKSYS OFFERS CROSS SHIPMENTS, A FASTER PROCESS FOR PRO-

CESSING AND RECEIVING YOUR REPLACEMENT. LINKSYS PAYS

FOR UPS GROUND ONLY. ALL CUSTOMERS LOCATED OUTSIDE OF

THE UNITED STATES OF AMERICA AND CANADA SHALL BE HELD

RESPONSIBLE FOR SHIPPING AND HANDLING CHARGES. PLEASE

CALL LINKSYS FOR MORE DETAILS.

Instant BroadbandTM Series

Connectors 2 Antenna Connectors

Environmental

Dimensions 7.31” x 6.06” X 2.44” (186mm x 154mm x 62mm)

Unit Weight 19.2 oz. (0.56 Kg).

Power Input External, 5V DC, 3A

Certifications FCC Class B, CE Mark Commercial

Operating Temperature 0ºC to 40ºC (32ºF to 104ºF)

Storage Temperature -20ºC to 70ºC (-4ºF to 158ºF)

Operating Humidity 10% to 85%, Non-Condensing

Storage Humidity 5% to 90%, Non-CondensingCustomer

Support

Environmental

Contact Information

For help with the installation or operation of this product, contact Linksys

Customer Support at one of the phone numbers or Internet addresses below.

Information 800-546-5797 (LINKSYS)

Tech Support and RMA Issues 800-326-7114

Fax 949-261-8868

Email support@linksys.com

Web http://www.linksys.com

FTP Site ftp.linksys.com

Instant BroadbandTM Series

Printed in the USA.

http://www.linksys.com

Global Sun Technology GL2411RT-0C EtherFast WRLS AP+CBL/DSL Router w/4-port Switch User Manual befw11s4 ug

Global Sun Technology Inc EtherFast WRLS AP+CBL/DSL Router w/4-port Switch befw11s4 ug

users manual

Navigation menu

Namespaces

Views

Navigation
