Bluetooth Class1 Dongle Specification Preliminary
Product Name GST class 2 Bluetooth Dongle
Product ID GL2BDG92
Hardware Version Rev.01
FEATURE
Comply with Bluetooth Specification V1.1
Support Bluetooth Class2
Built-in Link controller and Link Manager Protocol
HCI interface over USB
USB interface fits desktop/laptop PCs
Compliant with USB 1.1 standard.
Built-in flash memory、system clock .
Easy to use-makes wireless networking simple.
Easy to follow-friendly user interface provides an easy way to connect other
Bluetooth devices .
APPLICATIONS:
Notebook、PCs
FCC Notices
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that
may cause undesired operation .
“FCC RF Exposure requirements:
This device and its antenna(s) must not be co-located or operation in conjunction
With any other antenna or transmitter.”
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR
TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS
EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY
TO OPERATE THE EQUIPMENT.
1
Hardware Specification
ITEMS SPECIFICATION
Standard Bluetooth V 1.1
Interface USB(Type A)
Link Mode ACL,SCO
Data Rate ACL:723.2kbps/SCO:57.6kbps
Frequency Band 2.4GHz
Compatible OS Microsoft Windows 98 / 2000 / ME / XP
Bluetooth Profile support GAP, SPP, FTP, DUN, LAP, OPP, GOEP,
SYNC, FAX, PAN, HCRP, Audio/Headset.
Receiving Signal Range Better than -75dBm @ 0.1%FER
Operation current 155mA(max)
Operating Distance Up to 10 meters
Output Interface USB
Operation Temperature -0 oC ~ +55oC
Storage Temperature -20 oC ~ +70oC
Operation Humidity 0% to 70%
Storage Temperature 0% to 95% Non-condensing
Modulation GFSK(Gaussian Frequency Shift Keying)
USB Specification Ver 1.1
Spectrum FHSS(Frequency Hopping Spread Spectrum)
Security Provided Pairing,Encryption,Authentication
Dimension 59.57mm x 19.83mm x 13.86
2

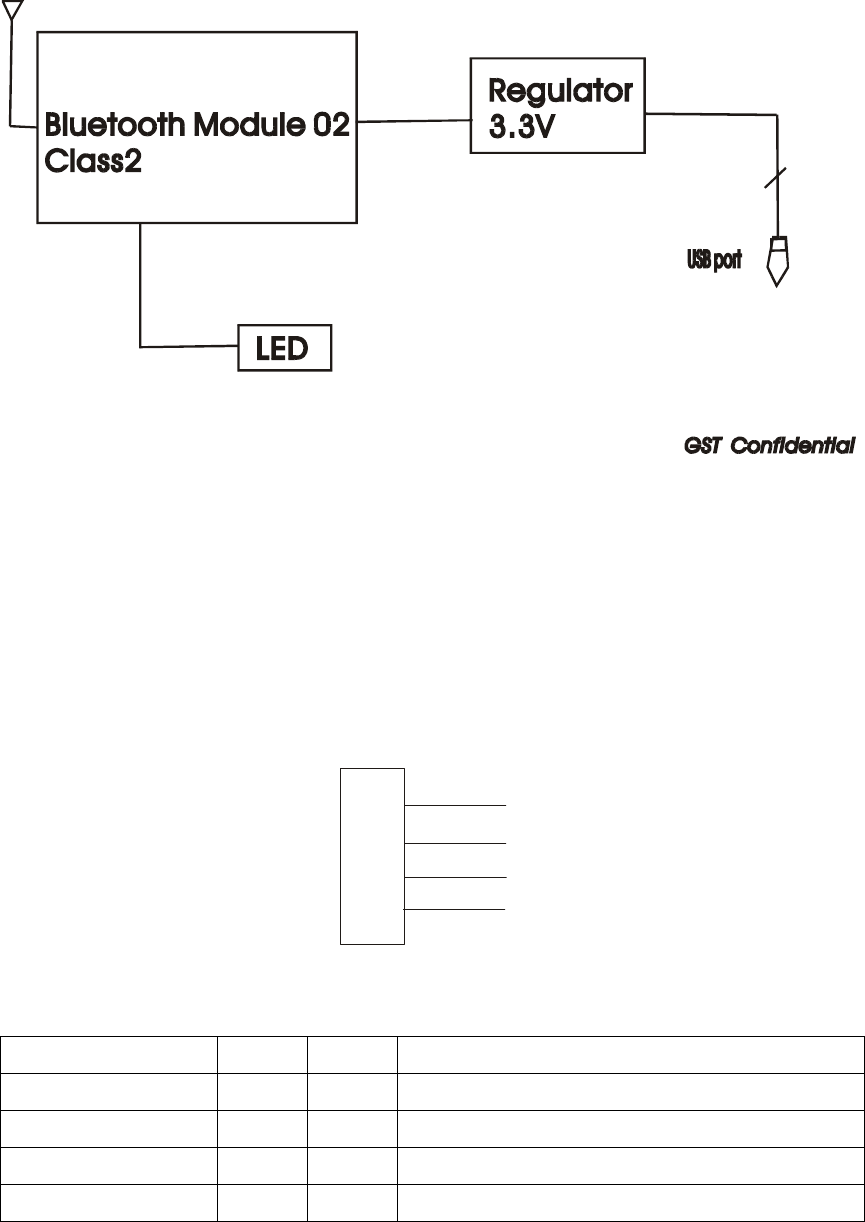

GL2BDG92 Block Diagram
Pin Description (Wire to Board connector)
1 + 5V
2 D-
3 D+
4 GND
Pin Name NO I/O Description
+5V 1 --- Vcc
USB_D- 2 I Asynchronous serial data RTS/USB Data+
USB_D+ 3 O Asynchronous serial data RTS/USB Data-
GND 4 --- Ground
