Global Sun Technology Inc 802.11g Wireless PCI Adapter
Users Manual
1
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
802.11g Wireless
PCI Adapter
USER MANUAL
Marketing Dept.
Editorial:
Jessica Yang
Approved By:
DOCUMENT
REV. 1.0
108Mbps Wireless Network PC Card
USER MANUAL
REV. DATA 11/26/2004
2
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
Version History
Version H/W Description Date Editor
V1.0 Johnny Lee Create the file 26, Nov, 2004 Jessica Yang
3
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
Contents
1. Overview ....................................................................................................4
1.1 Product Feature................................................................................4
1.2 System Requirement ........................................................................4
2. Getting Start...............................................................................................5
2.1 LED Indicators ..................................................................................5
2.2 Install the 108Mbps Wireless Network PCI Adapter..........................5
2.2.1 Utility Installation ....................................................................5
2.2.2 Driver Installation ...................................................................8
3. Configuration ...........................................................................................11
3.1 Link Information................................................................................... 11
3.2 Configuration .......................................................................................12
3.3 Advanced.............................................................................................14
3.4 Site Survey ..........................................................................................16
3.5 About US .............................................................................................18
4. Glossary ......................................................................................................19
5.Regulatory Section of User Manual …………………………………………. 24
4
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
1. Overview
1.1 Product Feature
● Compliance with IEEE 802.11g and 802.11b standards
● Highly efficient design mechanism to provide unbeatable performance
● Achieving data rate up to 54Mbps for 802.11g and 11Mps for 802.11b with
wide range coverage; high performance to deliver up to 108Mbps raw data
rate for 802.11g
● eXtended Range supported which provides users more than 500m
wireless connection ability.
● Strong network security with WEP and WPA support
● Auto-switch between the two standards, IEEE 802.11b and 802.11g
● Driver/Utility support most commonly used operating systems including
Windows 98SE/ME/2000/XP.
1.2 System Requirement
● Windows 98SE, Millennium Edition (ME), 2000 and XP operating systems
● PC with Pentium III 600MHz system or above is recommended
● Equipped with at least one PCI slot
● One CD-ROM drive
5
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
2. Getting Start
2.1 LED Indicators
The Power LED will be ON when the unit is powered up.
The Link LED will be Blinking indicates a WLAN connection.
2.2 Install the 108Mbps Wireless Network PCI Adaprte
2.2.1 Utility Installation
1. Before insert PCI adapter into the PCI slot of computer, please install the
Utility Program first. Make sure that the 108Mbps wireless Network PCI
adapter is NOT inserted into the PCI slot.
NOTE: all the snapped images of installation mentioned in this manual are
based on Windows XP. For other windows operating system, all the
procedures are the same but the screens are not the exactly same.

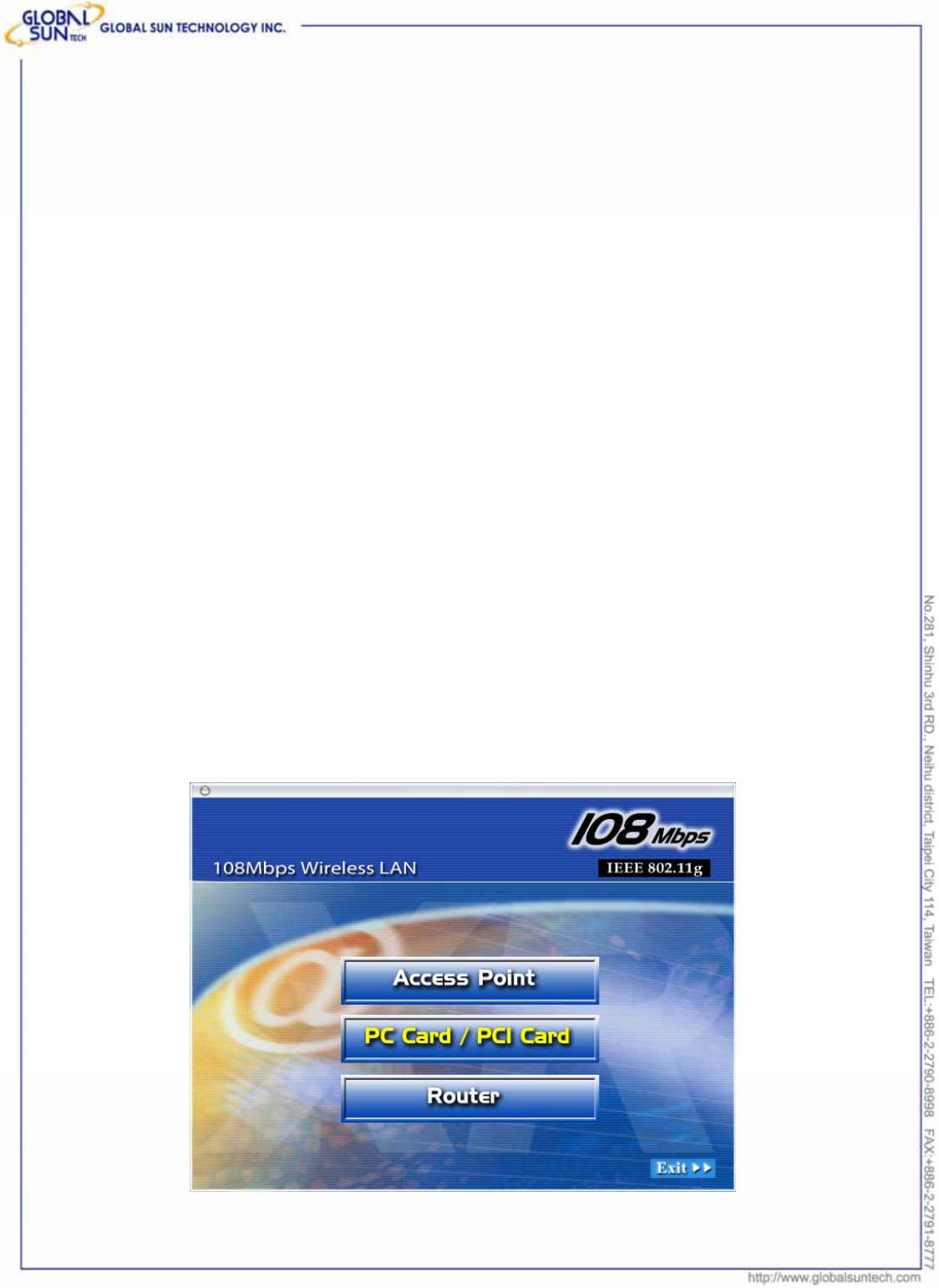

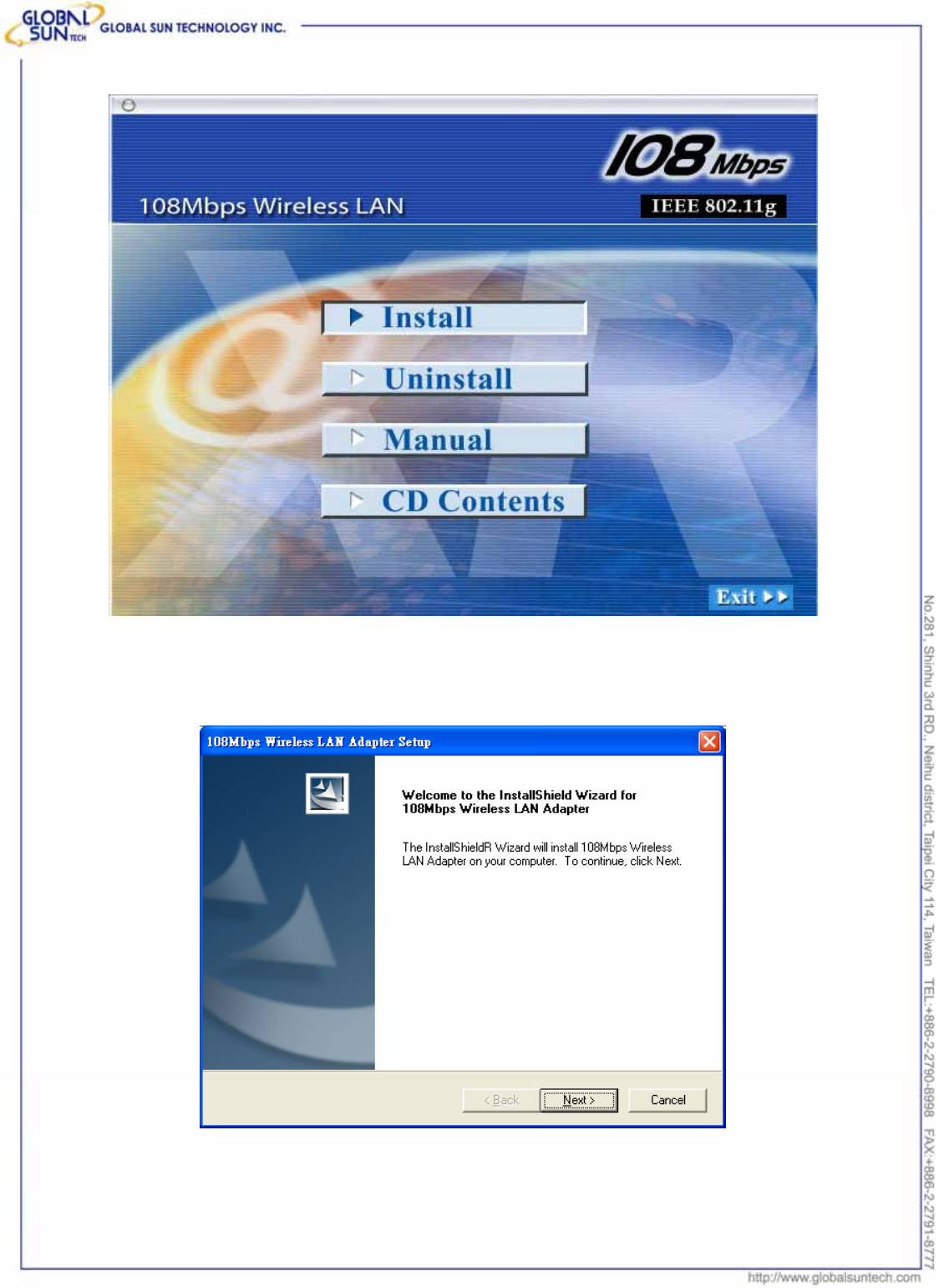

2. Turn on the computer. Insert the CD into the CD-ROM Drive. Please
select “PC Card/ PCI Card” and then click the “Install”.
6
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
3. Install-Shield Wizard will automatically start. Please click “Next” to
continue.
7
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

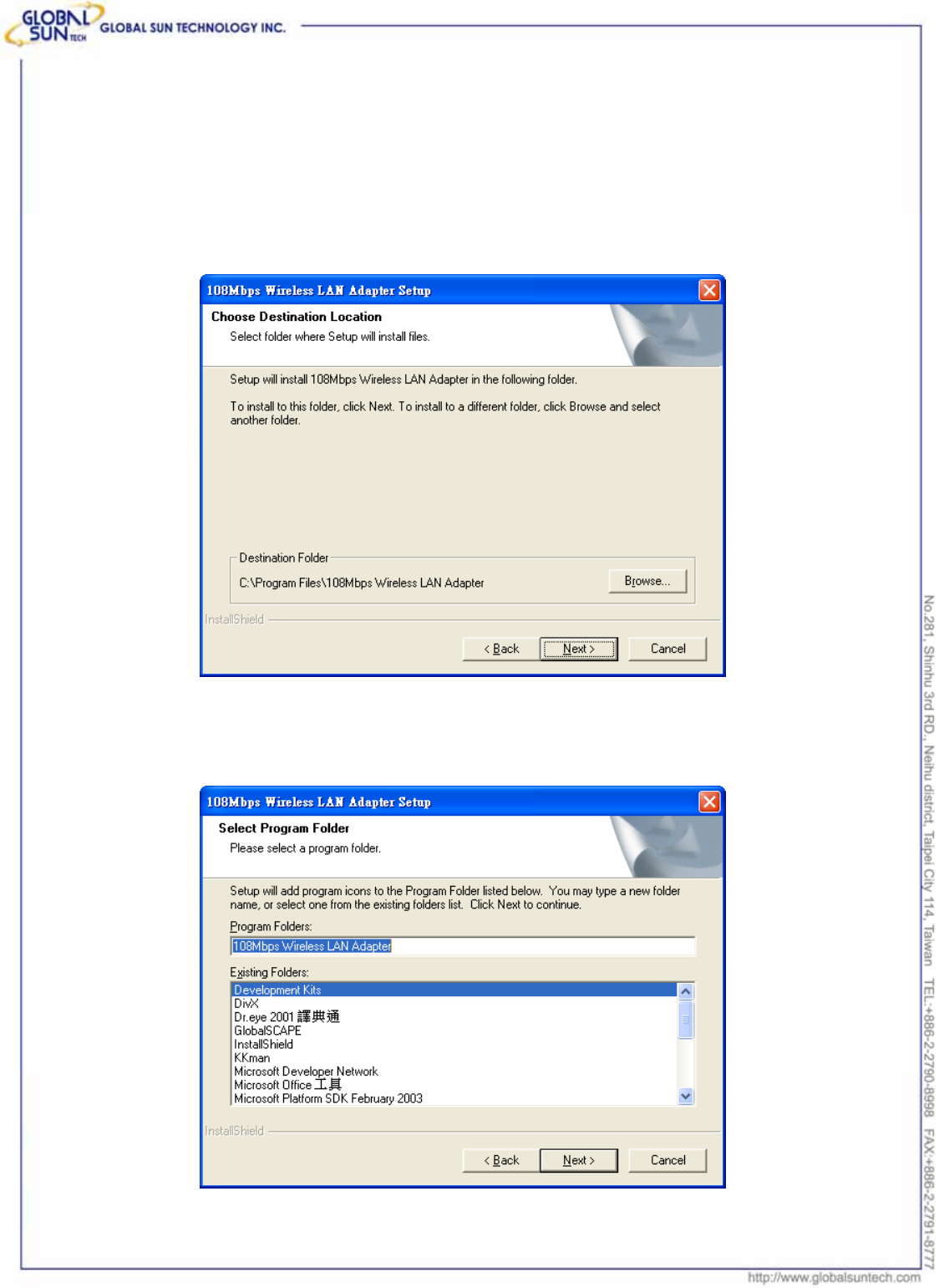

If user wants to change the installation folder, press “Brower”
to change the directory or press “Next” to continue.
Users can also rename the installation folder, type the
name in the column, or press “Next” to continue.
8
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

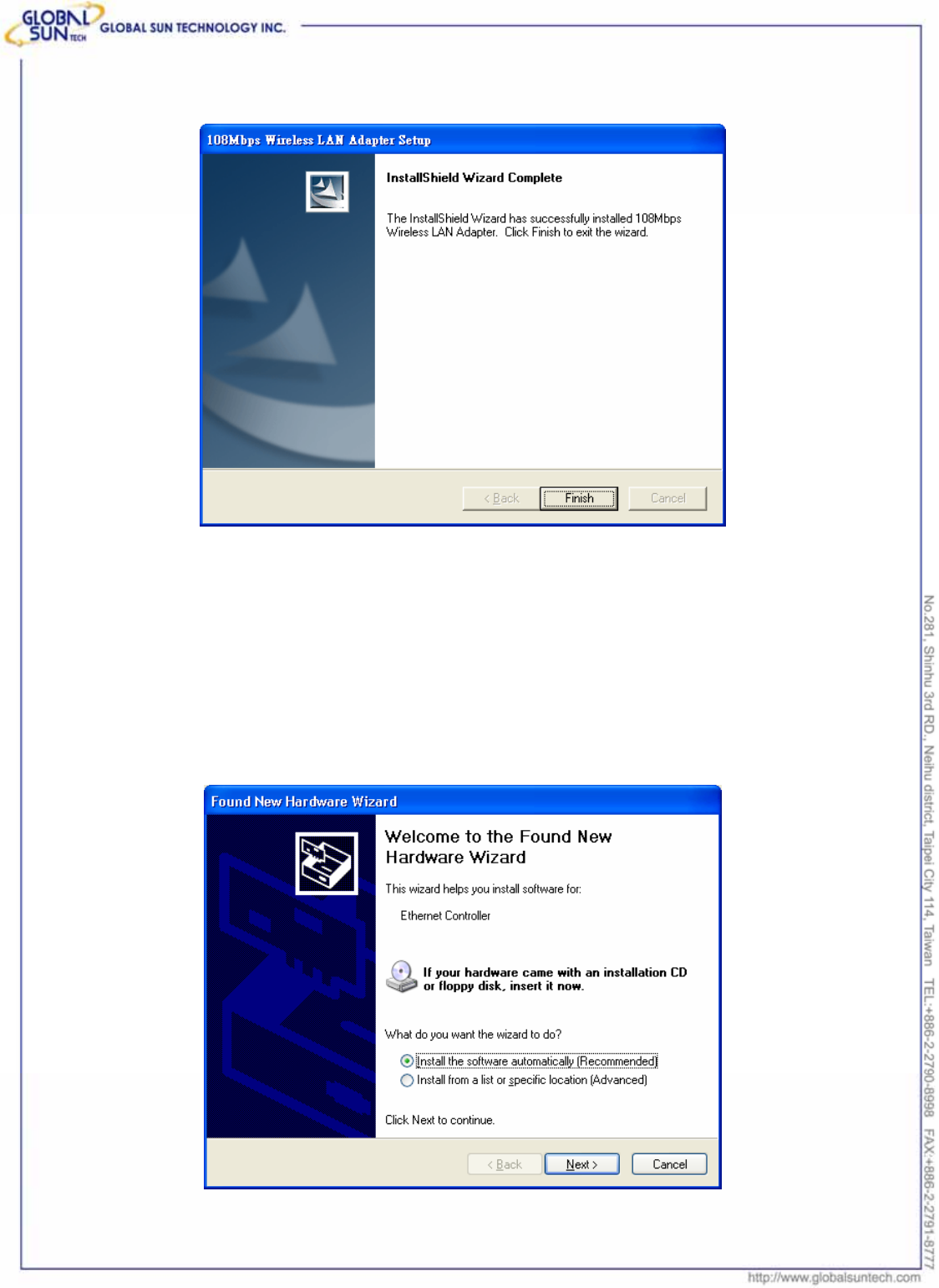

4. Click “Finish” to finish the installation.
5. Restart computer to make the settings effective.
2.2.2 Driver Installation
1. After restarting the computer, insert the PCI Adapter into PCI slot. Few
seconds later, there will be a window popup as the following picture.
9
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

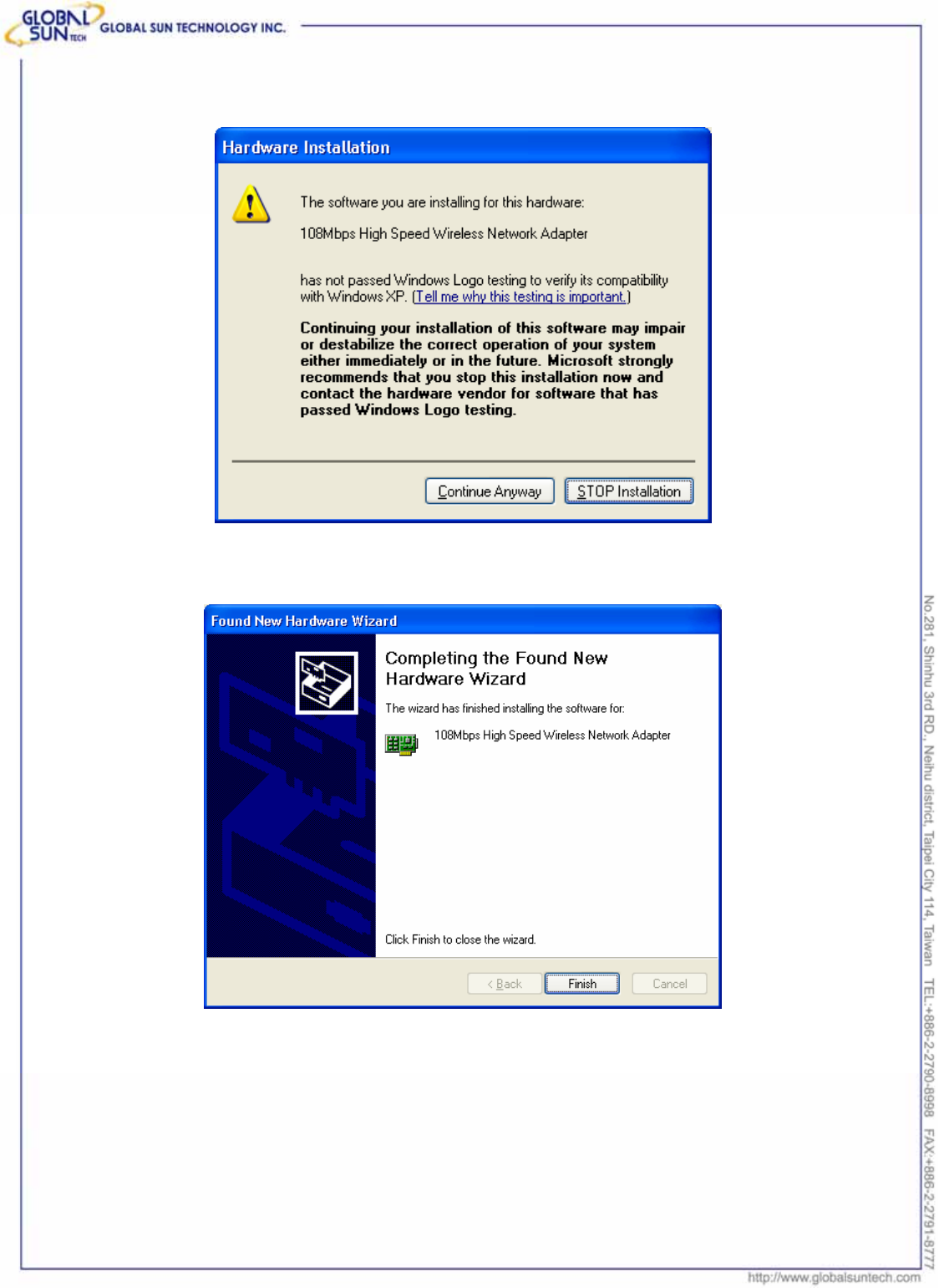

2. Click “Continue Anyway” to keep installation going.
3. Click “Finish” to finish the driver installation.
10
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

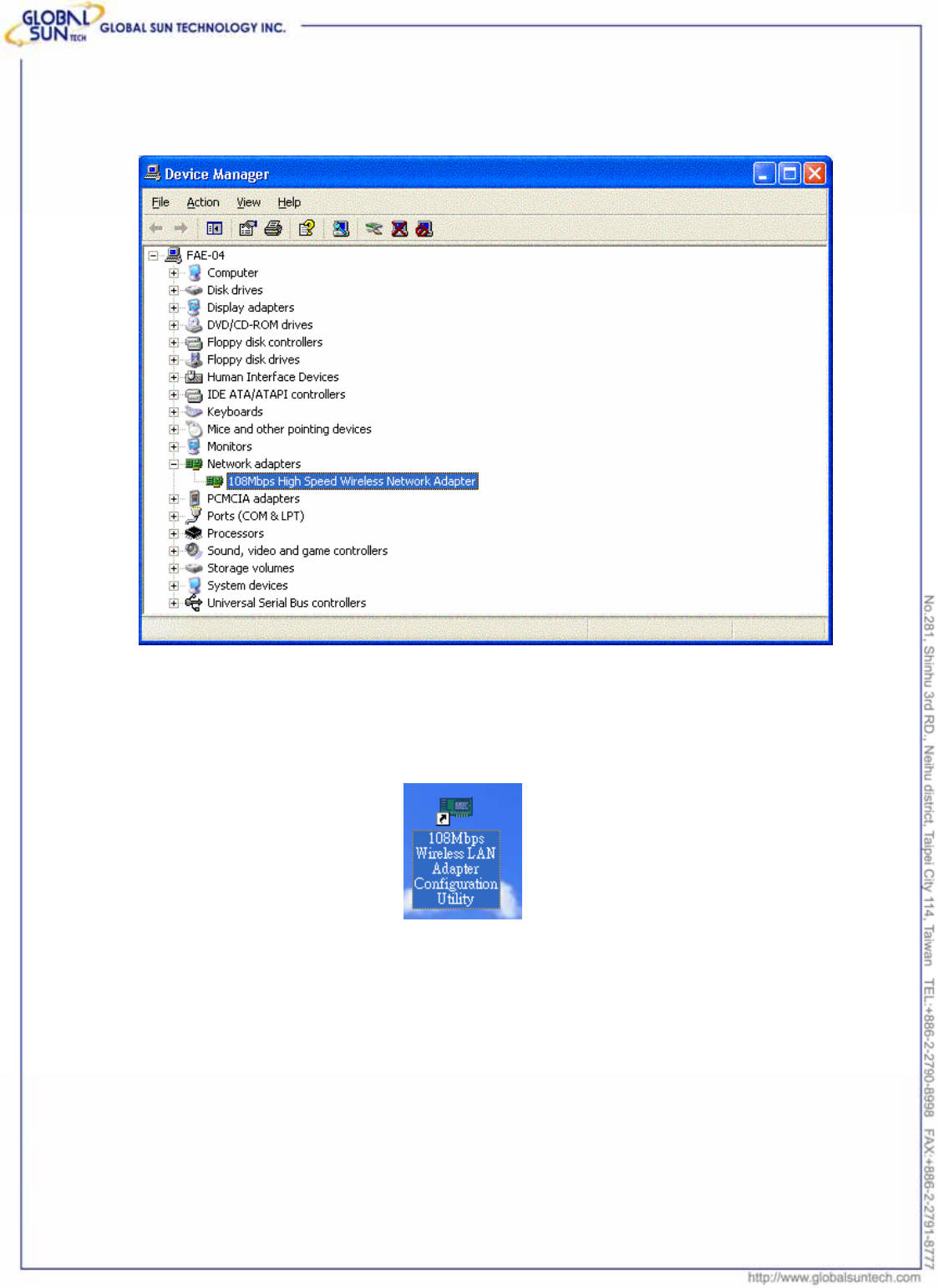

4. To make sure if the installation is successful, user could check it through the
device management as below.
5. Once the installation is successful, a utility program icon will show on the
desktop. To lunch the utility, just double click the icon.
11
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
3. Configuration
3.1 Link Information

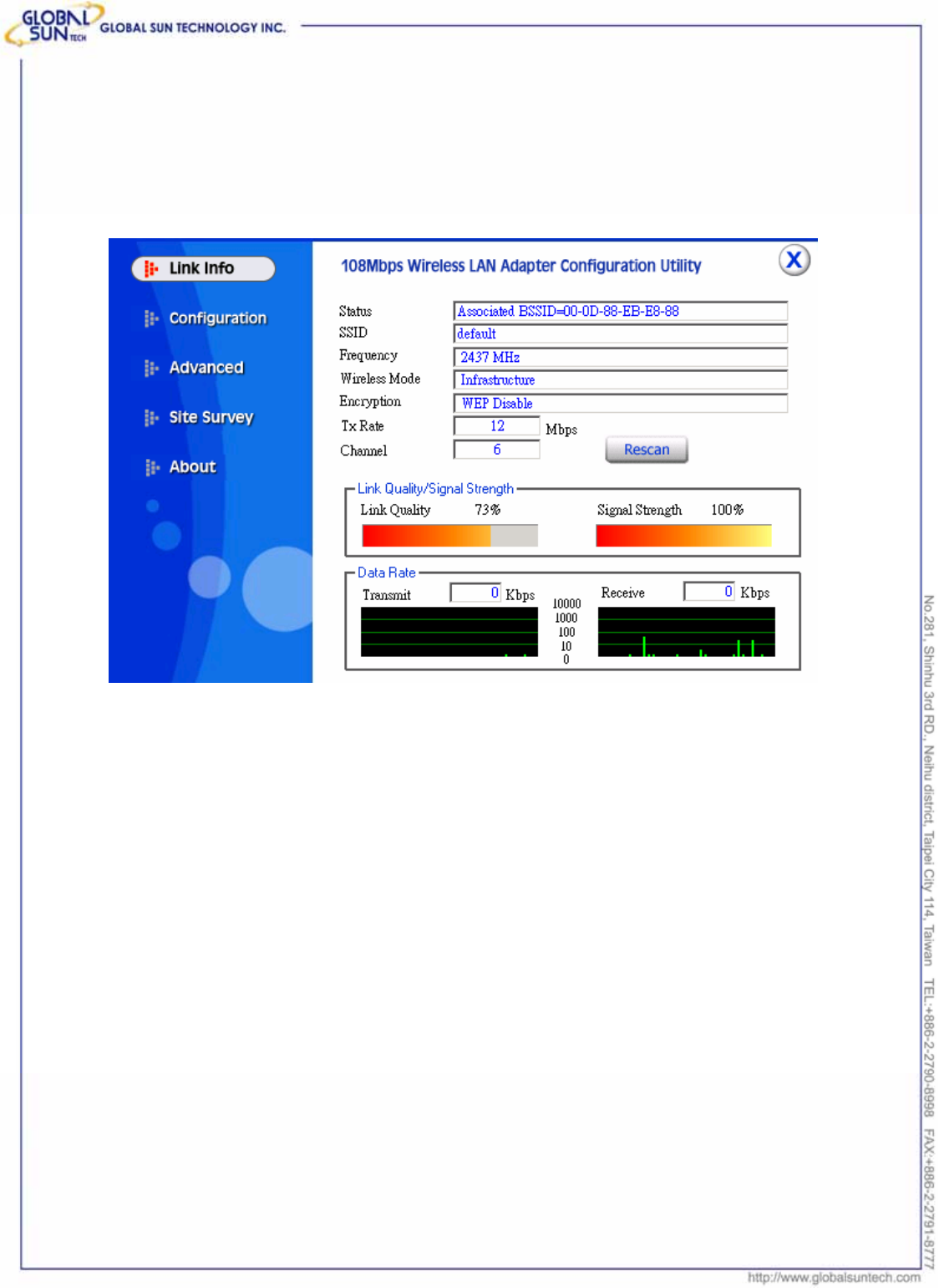

The default page is as below after launching the Utility program.
Status: Shows the BSSID associated, which can be used to identify the wireless
network.
SSID: Shows current SSID, which must be the same for the wireless client and
AP in order for communication to be established.
Frequency: Shows the current frequency used for wireless network.
Wireless Mode: Shows the current wireless mode used for wireless
communication.
Encryption: Shows the current encryption mode used for wireless network.
TxRate: Shows the current data rate used for transmitting.
Channel: Shows the current channel for communication.
Link Quality: Shows the link quality of the 108Mbps wireless LAN PC card with
the Access Point when operating under Infrastructure mode.
Signal Strength: Shows the wireless signal strength of the connection between
the 108Mbps wireless LAN PC card with the Access Point.
Data Rate: Shows the statistics of data transfer, and the calculation is based on
the number of packets transmitted and received.
12
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

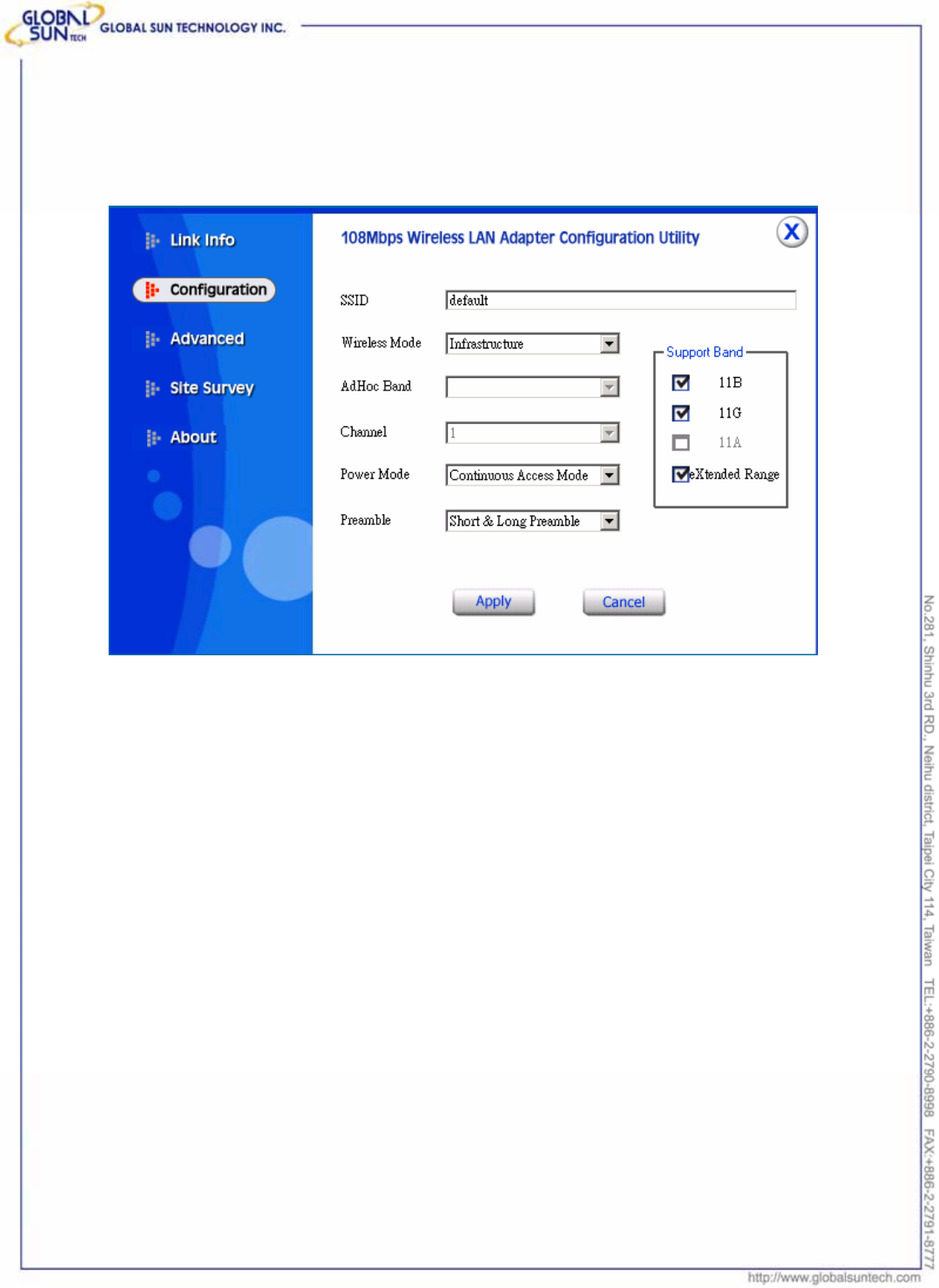

3.2 Configuration
This is the page where changes the basic settings of the PCI Adapter with the
minimum amount of effort to implement a secure wireless network environment.
SSID: Service Set Identifier, which is a unique name shared among all clients
and nodes in a wireless network. The SSID must be identical for each clients
and nodes in the wireless network.
Wireless Mode: There are two types available for selection
●Infrastructure – to establish wireless communication with LAN and other
wireless clients through the use the Access Points.
●Ad-Hoc – to establish point-to-point wireless communication directly with other
wireless client devices such as wireless network PCI Adapter.
AdHoc Band: There are two bands available for selection- 11B and 11G
Channel: The value of channel that AP will operate in. User can select the
channel range of 1 to 11 for North America (FCC) domain and 1 to 13 for
European (ETSI) domain and 1 to 14 for Japanese domain.
Tx Rate: Select the data rate for data transmission.
Power Mode: There are 3 modes to choose.
●Continuous Access Mode (default) – the PCI Adapter is constantly operating
with full power and it consumes the most power.
●Maximum Power Save – the PCI Adapter consumes the least power and only
operates when there is wireless network activity.
13
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
●Power Save – the PCI Adapter consumes the moderate level of power.
Preamble: Select Long or Short Preamble type. Preamble is a sequence of bits
transmitted at 1Mbps that allows the PHY circuitry to reach steady-state
demodulation and synchronization of bit clock and frame start. Two different
preambles and headers are defined: the mandatory supported Long Preamble
and header, which interoperates with the 1 Mbit/s and 2 Mbit/s DSSS
specification (as described in IEEE Std 802.11), and an optional Short Preamble
and header (as described in IEEE Std 802.11b). At the receiver, the Preamble
and header are processed to aid in demodulation and delivery of the PSDU. The
Short Preamble and header may be used to minimize overhead and, thus,
maximize the network data throughput. However, the Short Preamble is
supported only from the IEEE 802.11b (High- Rate) standard and not from the
original IEEE 802.11. That means that stations using Short-Preamble cannot
communicate with stations implementing the original version of the protocol.
Click “Apply” for the changes to take effect.
Support Band: There are three functions for users select, including 11B, 11G
and eXtended Range. The default setting is 11B, 11G and eXtended Range
enable, which is interoperable with both 11B and 11G devices, and provide more
than 500m connection ability.
Note: user must select one of 11B or 11G at least, otherwise the wireless
connection will not function.
14
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

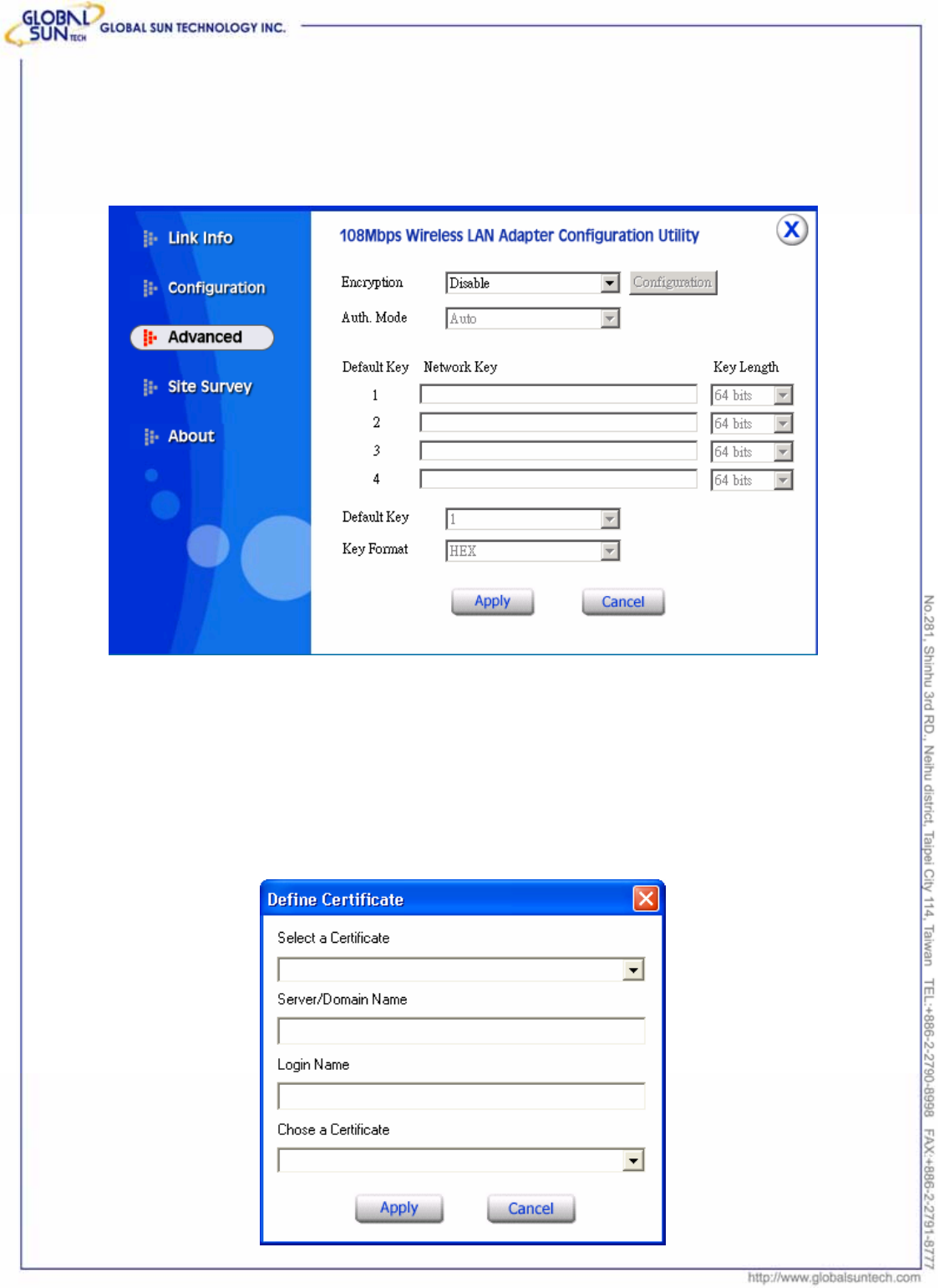

3.3 Advanced
This is the page to configure Security settings of 108Mbps wireless LAN PCI
Adapter.
Encryption: 4 options are available: Disable, Enable, WPA and WPA-PSK.
Select Enable or Disable for WEP data encryption feature. If one of the two
options is selected, it is required to select the Authentication mode from the
next dropping list. If WPA is selected, configuration is enabled. Please click
the “configuration”. The below window is pop up. Then, please select the
certificate that user wants to use and enter the server name and login name
15
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

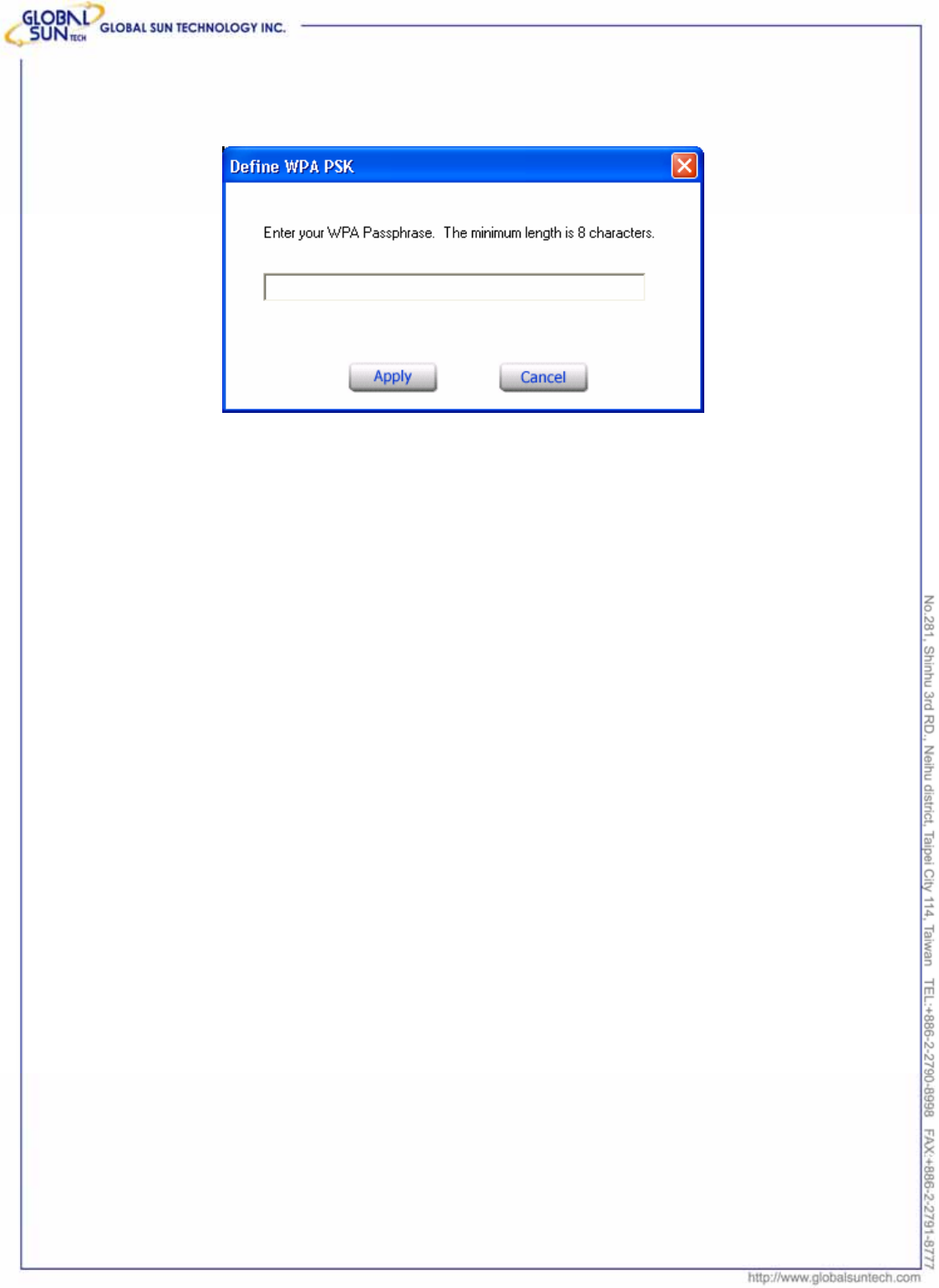

If WPA-PSK is selected, click the configuration button. The popping window is
as the below. Please enter the key.
Auth. Mode: There are three modes available to choose.
Open Authentication – the sender and receiver do not share secret Key for
communication. Instead, each party generates its own key-pairs and asks the
other party to accept it. The key is regenerated when the connection is
established every time.
Shared Authentication – the sender and receiver shares the common key for
data communication, and the key is used for extended length of time.
Auto – depend on the communication to establish, and automatically use the
proper authentication mode.
The following will only be activated to allow for configuration when Encryption is
enabled.
Default Key: select one of the 4 keys to use.
Network Key: choose the encryption way, either in HEX or ASCII formats, and
enter the password in the blank space.
Key Length: select 64 or 128 bits as the length of the keys
Key Format: ASCII or HEX
16
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

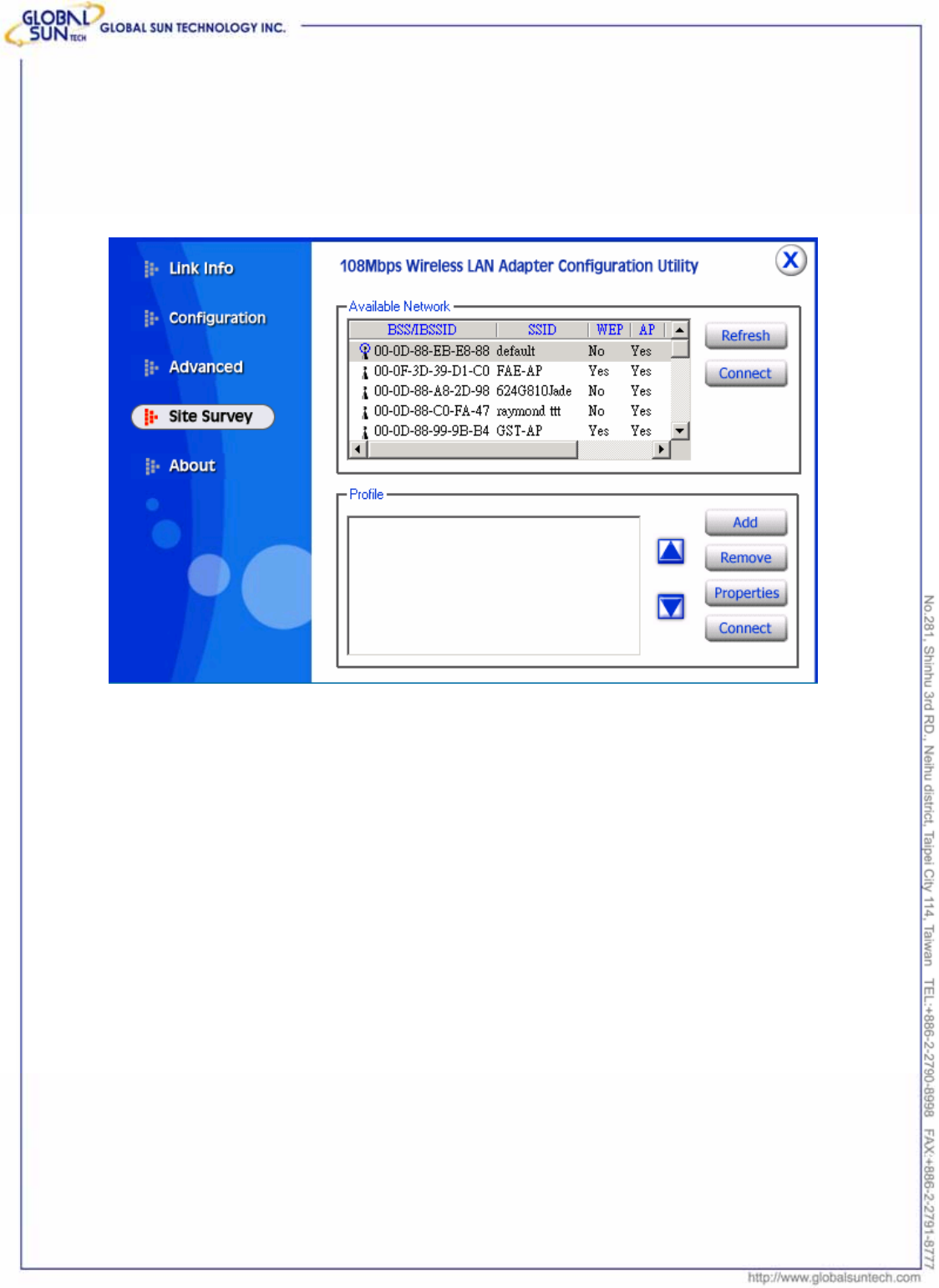

3.4 Site Survey
This page allows user to enable the Site Survey function to scan for the available
wireless network (wireless clients and Access Points) and establish wireless
communications with one.
Available Network – displays the wireless networks (wireless clients and
Access Points) that are in signal range.
Select any one of them to establish communications by simply mouse
double-click or click on the “Connect” button.
Click “Refresh” button to start scanning for available network again.
Profile – User can create and manage the created profiles for Home, offices or
public areas. By double-clicking on one of the created profile, the setting will
adapt to the configuration such as SSID, channel, and WEP settings saved by
that particular profile.
Remove: To remove the selected the profile
Properties: To view and change its settings of the profile.
17
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

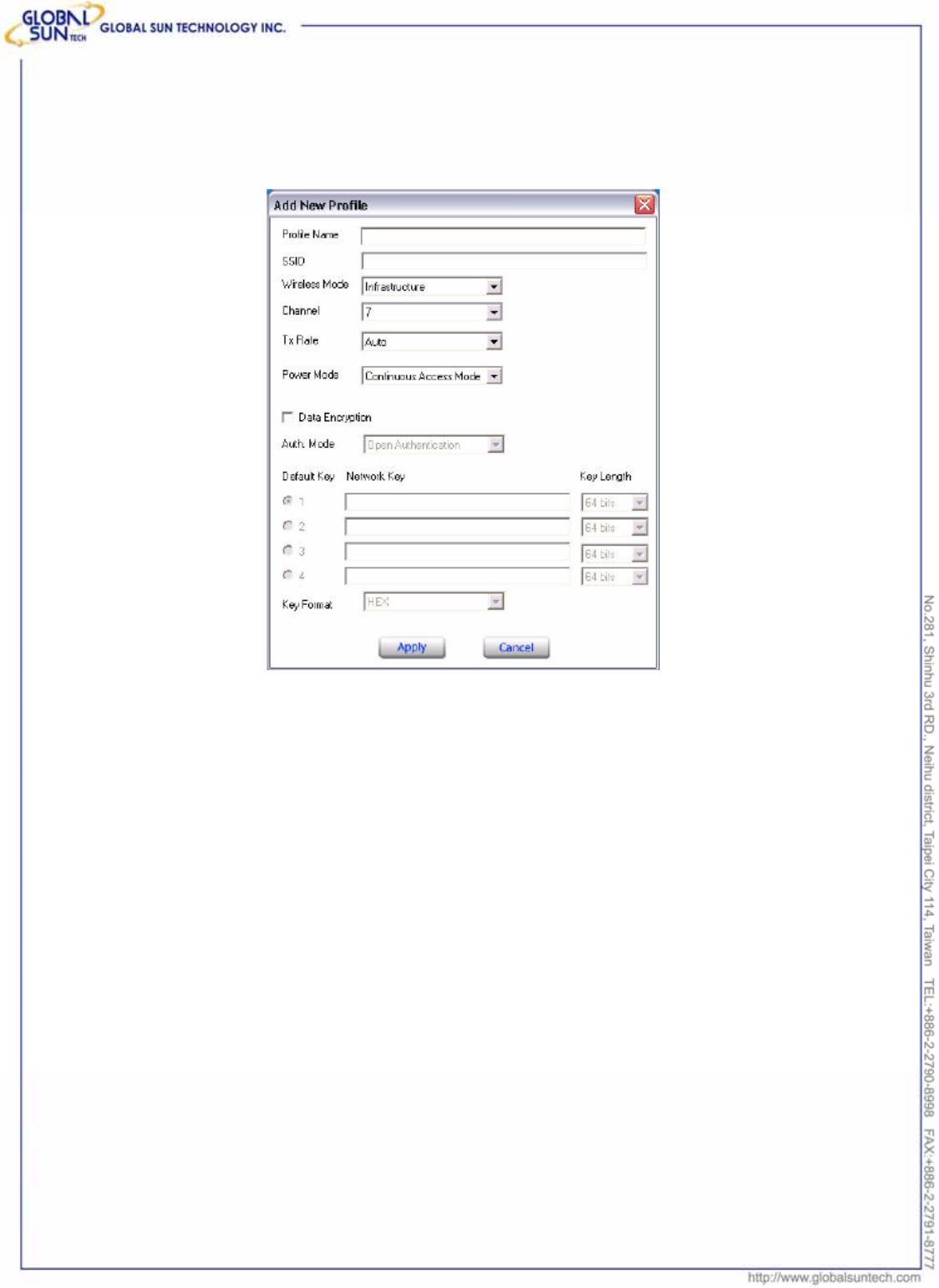

Add: To add a profile. Then, the following screen would appear. User can enter
the necessary information required for accessing Access Points or Wireless
Router.
18
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential

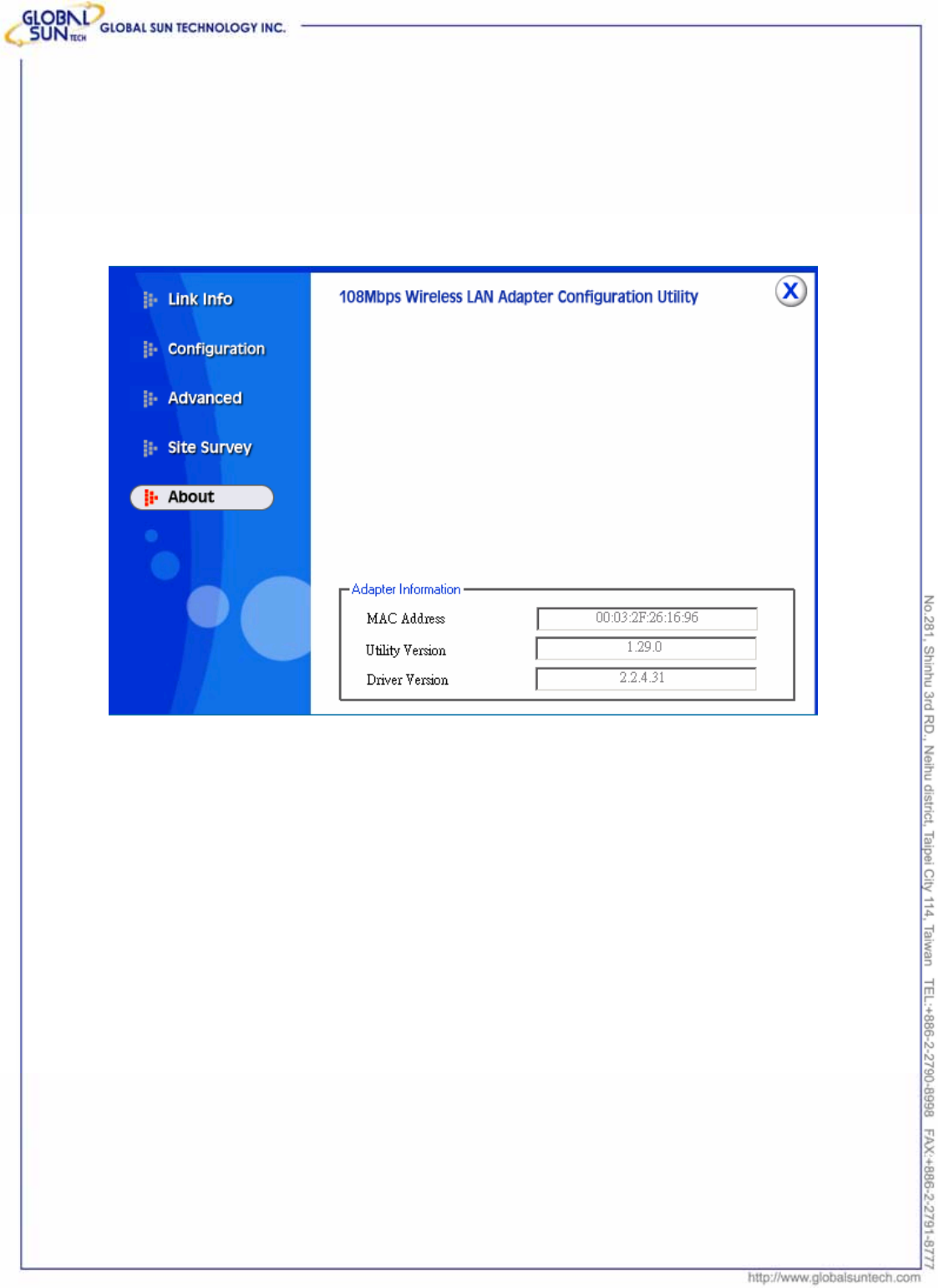

3.5 About US
This page displays some information about the 108Mpbs wireless LAN PCI
Adapter utility, which includes the version numbers for Driver, Firmware and
Utility. When there is new version of software available for upgrade, users will
be able to identify by version numbers.
19
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
4. Glossary
Access Point: An internetworking device that seamlessly connects wired and
wireless networks.
Ad-Hoc: An independent wireless LAN network formed by a group of computers,
each with a network adapter.
AP Client: One of the additional AP operating modes offered by 54Mbps Access
Point, which allows the Access Point to act as an Ethernet-to-Wireless Bridge,
thus a LAN or a single computer station can join a wireless ESS network through
it.
ASCII: American Standard Code for Information Interchange, ASCII, is one of
the two formats that users can use for entering the values for WEP key. It
represents English letters as numbers from 0 to 127.
Authentication Type: Indication of an authentication algorithm which can be
supported by the Access Point:
1. Open System: Open System authentication is the simplest of the available
authentication algorithms. Essentially it is a null authentication algorithm. Any
station that requests authentication with this algorithm may become
authenticated if 802.11 Authentication Type at the recipient station is set to
Open System authentication.
2. Shared Key: Shared Key authentication supports authentication of stations as
either a member of those who knows a shared secret key or a member of those
who does not.
Backbone: The core infrastructure of a network, which transports information
from one central location to another where the information is unloaded into a
local system.
Bandwidth: The transmission capacity of a device, which is calculated by how
much data the device can transmit in a fixed amount of time expressed in bits
per second (bps).
Beacon: A beacon is a packet broadcast by the Access Point to keep the
network synchronized. Included in a beacon are information such as wireless
LAN service area, the AP address, the Broadcast destination addresses, time
stamp, Delivery Traffic Indicator Maps, and the Traffic Indicator Message (TIM).
Bit: A binary digit, which is either -0 or -1 for value, is the smallest unit for data.
Bridge: An internetworking function that incorporates the lowest 2 layers of the
OSI network protocol model.
Browser: An application program that enables one to read the content and
interact in the World Wide Web or Intranet.
20
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
BSS: BSS stands for “Basic Service Set”. It is an Access Point and all the LAN
PCs that associated with it.
Channel: The bandwidth which wireless Radio operates is divided into several
segments, which we call them “Channels”. AP and the client stations that it
associated work in one of the channels.
CSMA/CA: In local area networking, this is the CSMA technique that combines
slotted time -division multiplexing with carrier sense multiple access/collision
detection (CSMA/CD) to avoid having collisions occur a second time. This works
best if the time allocated is short compared to packet length and if the number of
situations is small.
CSMA/CD: Carrier Sense Multiple Access/Collision Detection, which is a LAN
access method used in Ethernet. When a device wants to gain access to the
network, it checks to see if the network is quiet (senses the carrier). If it is not, it
waits a random amount of time before retrying. If the network is quiet and two
devices access the line at exactly the same time, their signals collide. When the
collision is detected, they both back off and wait a random amount of time before
retrying.
DHCP: Dynamic Host Configuration Protocol, which is a protocol that lets
network administrators manage and allocate Internet Protocol (IP) addresses in
a network. Every computer has to have an IP address in order to communicate
with each other in a TCP/IP based infrastructure network. Without DHCP, each
computer must be entered in manually the IP address. DHCP enables the
network administrators to assign the IP from a central location and each
computer receives an IP address upon plugged with the Ethernet cable
everywhere on the network.
DSSS: Direct Sequence Spread Spectrum. DSSS generates a redundant bit
pattern for each bit to be transmitted. This bit pattern is called a chip (or chipping
code). The longer the chip, the greater the probability that the original data can
be recovered. Even if one or more bits in the chip are damaged during
transmission, statistical techniques embedded in the radio can recover the
original data without the need for retransmission. To an unintended receiver,
DSSS appears as low power wideband noise and is rejected (ignored) by most
narrowband receivers.
Dynamic IP Address: An IP address that is assigned automatically to a client
station in a TCP/IP network by a DHCP server.
Encryption: A security method that uses a specific algorithm to alter the data
transmitted, thus prevent others from knowing the information transmitted.
ESS: ESS stands for “Extended Service Set”. More than one BSS is configured
21
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
to become Extended Service Set. LAN mobile users can roam between different
BSSs in an ESS.
ESSID: The unique identifier that identifies the ESS. In infrastructure association,
the stations use the same ESSID as AP’s to get connected.
Ethernet: A popular local area data communications network, originally
developed by Xerox Corp., that accepts transmission from computers and
terminals. Ethernet operates on a 10/100 Mbps base transmission rate, using
a shielded coaxial cable or over shielded twisted pair telephone wire.
Fragmentation: When transmitting a packet over a network medium,
sometimes the packet is broken into several segments, if the size of packet
exceeds that allowed by the network medium.
Fragmentation Threshold: The Fragmentation Threshold defines the number
of bytes used for the fragmentation boundary for directed messages. The
purpose of "Fragmentation Threshold" is to increase the transfer reliability thru
cutting a MAC Service Data Unit (MSDU) into several MAC Protocol Data Units
(MPDU) in smaller size. The RF transmission can not allow to transmit too big
frame size due to the heavy interference caused by the big size of transmission
frame. But if the frame size is too small, it will create the overhead during the
transmission.
Gateway: a device that interconnects networks with different, incompatible
communication protocols.
HEX: Hexadecimal, HEX, consists of numbers from 0 – 9 and letters from A – F.
IEEE: The Institute of Electrical and Electronics Engineers, which is the largest
technical professional society that promotes the development and application of
electrotechnology and allied sciences for the benefit of humanity, the
advancement of the profession. The IEEE fosters the development of standards
that often become national and international standards.
Infrastructure: An infrastructure network is a wireless network or other small
network in which the wireless network devices are made a part of the network
through the Access Point which connects them to the rest of the network.
ISM Band: The FCC and their counterparts outside of the U.S. have set aside
bandwidth for unlicensed use in the ISM (Industrial, Scientific and Medical) band.
Spectrum in the vicinity of 2.4GHz, in particular, is being made available
worldwide.
MAC Address: Media Access Control Address is a unique hex number
assigned by the manufacturer to any Ethernet networking device, such as a
network adapter, that allows the network to identify it at the hardware level.
Multicasting: Sending data to a group of nodes instead of a single destination.
22
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
Multiple Bridge – One of the additional AP operating modes offered by 54Mbps
Access Point, which allows a group of APs that consists of two or more APs to
connect two or more Ethernet networks or Ethernet enabled clients together.
The way that multiple bridge setups is based on the topology of Ad-Hoc mode.
Node: A network junction or connection point, typically a computer or
workstation.
Packet: A unit of data routed between an origin and a destination in a network.
PLCP: Physical layer convergence protocol
PPDU: PLCP protocol data unit
Preamble Type: During transmission, the PSDU shall be appended to a PLCP
preamble and header to create the PPDU. Two different preambles and headers
are defined as the mandatory supported long preamble and header which
interoperates with the current 1 and 2 Mbit/s DSSS specification as described in
IEEE Std 802.11-1999, and an optional short preamble and header. At the
receiver, the PLCP preamble and header are processed to aid in demodulation
and delivery of the PSDU. The optional short preamble and header is intended
for application where maximum throughput is desired and interoperability with
legacy and non-short-preamble capable equipment is not consideration. That is,
it is expected to be used only in networks of like equipment that can all handle
the optional mode. (IEEE 802.11b standard)
PSDU: PLCP service data unit
Roaming: A LAN mobile user moves around an ESS and enjoys a continuous
connection to an Infrastructure network.
RTS: Request To Send. An RS-232 signal sent from the transmitting station to
the receiving station requesting permission to transmit.
RTS Threshold: Transmitters contending for the medium may not be aware of
each other. RTS/CTS mechanism can solve this “Hidden Node Problem”. If the
packet size is smaller than the preset RTS Threshold size, the RTS/CTS
mechanism will NOT be enabled.
SSID: Service Set Identifier, which is a unique name shared among all clients
and nodes in a wireless network. The SSID must be identical for each clients
and nodes in the wireless network.
Subnet Mask: The method used for splitting IP networks into a series of
sub-groups, or subnets. The mask is a binary pattern that is matched up with the
IP address to turn part of the host ID address field into a field for subnets.
TCP/IP: Transmission Control Protocol/ Internet Protocol. The basic
communication language or protocol of the Internet. It can also be used as a
communications protocol in a private network, i.e. intranet or internet. When
23
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
users set up with direct access to the Internet, computer is provided with a copy
of the TCP/IP program just as every other computer that user may send
messages to or get information from also has a copy of TCP/IP.
Throughput: The amount of data transferred successfully from one point to
another in a given period of time.
WEP: Wired Equivalent Privacy (WEP) is an encryption scheme used to protect
wireless data communication. To enable the icon will prevent other stations
without the same WEP key from linking with the AP.
Wireless Bridge – One of the additional AP operating modes offered by 54mpbs
Access Point, which allows a pair of APs to act as the bridge that connects two Ethernet
networks or Ethernet enabled clients together.
24
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
(05) Regulatory Section of User
Manual
The following wording will appear in the user
manual provided with all products placed on the
market in the European Community:
Declaration of Conformity
Marking by the above symbol indicates compliance with the Essential Requirements of
the R&TTE Directive of the European Union (1999/5/EC). This equipment meets the
following conformance standards:
EN300 328, EN301 489-17, EN60950
Countries of Operation and Conditions of
Use in the European Community
This device is intended to be operated in all countries of the European Community.
Requirements for indoor vs. outdoor operation, license requirements and allowed
channels of operation apply in some countries as described in this document.
Note: The user must use the configuration utility provided with this product to
check the current channel of operation and confirm that the device is operating in
conformance with the spectrum usage rules for European Community countries as
described below. If operation is occurring outside of the allowable channels as
indicated in this guide, then the user must cease operating the product and consult with
the local technical support staff responsible for the wireless network.
25
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
This device may be operated indoors or outdoors in all countries of the
European Community using the 2.4GHz band: Channels 1 – 13, except where
noted below:
For private usage outside buildings across public grounds over less than 300m no
special registration with IBPT/BIPT is required. Registration to IBPT/BIPT is required
for private usage outside buildings across public grounds over more than 300m. For
registration and license please contact IBPT/BIPT.
Voor privé-gebruik buiten gebouw over publieke groud over afstand kleiner dan 300m
geen registratie bij BIPT/IBPT nodig; voor gebruik over afstand groter dan 300m is
wel registratie bij BIPT/IBPT nodig. Voor registratie of licentie kunt u contact
opnemen met BIPT.
België/
Belgique:
Dans le cas d’une utilisation privée, à l’extérieur d’un bâtiment, au-dessus d’un espace
public, aucun enregistrement n’est nécessaire pour une distance de moins de 300m.
Pour une distance supérieure à 300m un enregistrement auprès de I’IBPT est requise.
Pour les enregistrements et licences, veuillez contacter I’IBPT.
License required for outdoor installations. Check with reseller for procedure to follow. Deutschland:
Anmeldung im Outdoor-Bereich notwendig, aber nicht genehmigungspflichtig.Bitte
mit Händler die Vorgehensweise abstimmen.
Restricted frequency band: only channels 1 to 7 (2400 MHz and 2454 MHz
respectively) may be used outdoors in France. Please contact A.R.T.
(http://www.art-telecom.fr) for applicable procedures to follow.
France:
Bande de fréquence restreinte : seuls les canaux 1- 7 (2400 et 2454 MHz
respectivement) doivent être utilisés endroits extérieur en France. Vous pouvez
contacter I’Autorité de Régulation des Télécommuniations (http://www.art-telecom.fr)
pour la procédure à suivre.
License required for indoor use. Use with outdoor installations not allowed. Italia:
E’necessaria la concessione ministeriale anche per l’uso interno.
Verificare con i rivenditori la procedura da seguire.
License required for outdoor installations. Check with reseller for procedure to follow. Nederland
Licentie verplicht voor gebruik met buitenantennes. Neem contact op met verkoper
voor juiste procedure.
26
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
Declaration of Conformity in Languages of the European
Community
English Hereby, GLOBAL SUN Technology, INC., declares that this Radio LAN device is in
compliance with the essential requirements and other relevant provisions of Directive
1999/5/EC.
Finnish Valmistaja GLOBAL SUN Technology, INC. vakuuttaa täten että Radio LAN device
tyyppinen laite on direktiivin 1999/5/EY oleellisten vaatimusten ja sitä koskevien
direktiivin muiden ehtojen mukainen.
Hierbij verklaart GLOBAL SUN Technology, INC. dat het toestel Radio LAN device in
overeenstemming is met de essentiële eisen en de andere relevante bepalingen van
richtlijn 1999/5/EG
Dutch
Bij deze GLOBAL SUN Technology, INC. dat deze Radio LAN device voldoet aan de
essentiële eisen en aan de overige relevante bepalingen van Richtlijn 1999/5/EC.
Par la présente GLOBAL SUN Technology, INC. déclare que l'appareil Radio LAN device
est conforme aux exigences essentielles et aux autres dispositions pertinentes de la
directive 1999/5/CE
French
Par la présente, GLOBAL SUN Technology, INC.déclare que ce Radio LAN device est
conforme aux exigences essentielles et aux autres dispositions de la directive 1999/5/CE
qui lui sont applicables
Swedish Härmed intygar GLOBAL SUN Technology, INC. att denna Radio LAN device står I
överensstämmelse med de väsentliga egenskapskrav och övriga relevanta
bestämmelser som framgår av direktiv 1999/5/EG.
Danish Undertegnede GLOBAL SUN Technology, INC. erklærer herved, at følgende udstyr
Radio LAN device overholder de væsentlige krav og øvrige relevante krav i direktiv
1999/5/EF
German Hiermit erklärt GLOBAL SUN Technology, INC., dass sich dieser/diese/dieses Radio
LAN device in Übereinstimmung mit den grundlegenden Anforderungen und den
anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet". (BMWi)
27
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
Hiermit erklärt GLOBAL SUN Technology, INC. die Übereinstimmung des Gerätes Radio
LAN device mit den grundlegenden Anforderungen und den anderen relevanten
Festlegungen der Richtlinie 1999/5/EG. (Wien)
Greek ΜΕ ΤΗΝ ΠΑΡΟΥΣΑ GLOBAL SUN Technology, INC.. ∆ΗΛΩΝΕΙ ΟΤΙ Radio LAN device
ΣΥΜΜΟΡΦΩΝΕΤΑΙ ΠΡΟΣ ΤΙΣ ΟΥΣΙΩ∆ΕΙΣ ΑΠΑΙΤΗΣΕΙΣ ΚΑΙ ΤΙΣ ΛΟΙΠΕΣ ΣΧΕΤΙΚΕΣ
∆ΙΑΤΑΞΕΙΣ ΤΗΣ Ο∆ΗΓΙΑΣ 1999/5/ΕΚ
Italian Con la presente GLOBAL SUN Technology, INC. dichiara che questo Radio LAN device
è conforme ai requisiti essenziali ed alle altre disposizioni pertinenti stabilite dalla
direttiva 1999/5/CE.
Spanish Por medio de la presente GLOBAL SUN Technology, INC. declara que el Radio LAN
device cumple con los requisitos esenciales y cualesquiera otras disposiciones
aplicables o exigibles de la Directiva 1999/5/CE
Portuguese GLOBAL SUN Technology, INC..declara que este Radio LAN device está conforme com
o
requisitos essenciais e outras disposições da Directiva 1999/5/CE.
(End of User Manual Wording)
28
Product: 802.11g
W
ireless PCI Adapte
r
Model: WL VP 2454 26A0
GST Confidential
(06) Test Reports
The following reference Test Reports will be provided by Atheros
Communications, Inc. upon request:
Please contact: Michael Green, Regulatory Manager,
mgreen@atheros.com.
Atheros Communications, Inc., 529 Almanor Ave, Sunnyvale CA, 94085
USA
RF test report:
Filename: AR5BCB-00051 300 328 Report 04U2587-3.pdf
EMC test report:
Filename: AR5BCB-00051 301 489-17 Report 04U2587-5.pdf
LVD test report:
Filename: AR5BCB-00051 EN60950 Report 04U2587-6.pdf
EMF exposure:
Filenames: AR5BCB-00051 FCC SAR Report 04U2587-7_Revised 5-7-04.pdf
29
Product: 802.11g Wireless PCI Adapter
Model: WL VP 2454 26A0
GST Confidential
Federal Communication Commission Interference Statement
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to
radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try
to correct the interference by one of the following measures:
-Reorient or relocate the receiving antenna.
-Increase the separation between the equipment and receiver.
-Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
-Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device
may not cause harmful interference, and (2) this device must accept any interference received, including interference
that may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void
This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
This equipment should be installed and operated with minimum distance 20cm between the radiator & your body.
To maintain compliance with FCC RF exposure compliance requirements, please avoid direct contact to the transmitting
antenna during transmitting. This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.GLOBAL SUN declares that the WL VP 2454 26A0 (FCC ID: O7J-WLVP2454-26A) is
limited in CH1~CH11 by specified firmware controlled in the USA.
IMPORTANT NOTE: FCC Radiation Exposure Statement:
.
