GlobalSat WorldCom BT-821G Bluetooth Satellites Position Receiver User Manual
GlobalSat WorldCom Corporation Bluetooth Satellites Position Receiver
User Manual
![](/img.php?id=2220142&img=bg1.png)
Bluetooth
GPS+GLONASS (GNSS) Receiver
BT-821G
User Manual
Ver 1.0
__________________________________________________________________________________________
Page 1 of 11
Table of Content
1. Product Information .......................................................................................... 3
1.1 Product Description ........................................................................................ 3
1.2 Product Features ............................................................................................ 3
1.3 Product Specifications .................................................................................... 4
2. Hardware Description ....................................................................................... 5
2.1 Top View and Bottom View ............................................................................ 5
2.2 LED Behaviors ............................................................................................... 6
2.3 Power Button .................................................................................................. 6
2.4 Power-saving function .................................................................................... 6
3. Package Contents ............................................................................................ 7
4. Getting Started …………................................................................................... 8
Step 1: Charging Battery ………........................................................................... 8
Step 2: Turn on the power ………......................................................................... 9
Step 3: Wait for GNSS fixed ………...................................................................... 9
Step 4: Connect to your Bluetooth-enabled devices ……..................................... 9
Step 5: Start Navigation Software ……….............................................................. 9
5. Troubleshooting ……….................................................................................... 10
Bluetooth is unable to connect ............................................................................ 13
GNSS cannot be positioned ................................................................................ 13
__________________________________________________________________________________________
Page 2 of 11
1. Product Information
1.1 Product Description

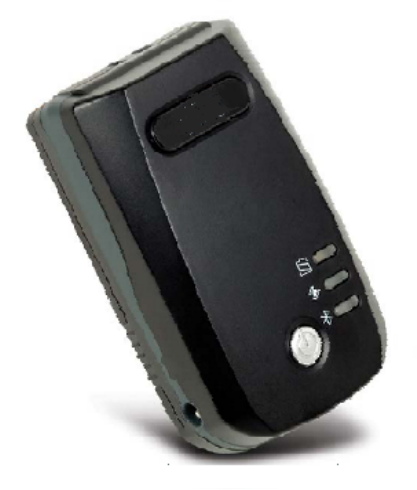

BT-821G is a high performance Bluetooth GNSS receiver. It uses MTK high
performance chipset that supports 99 search channels and 33 simultaneous
tracking channels. BT-821G build-in a high-performance antenna and ensures
excellent signal reception.
BT-821G takes advantage of the Bluetooth technology to offer hassle free
installation. It connects wirelessly to your Bluetooth enabled smart phone, laptop,
tablet PC, or other devices.
BT-821G uses a high capacity rechargeable lithium ion battery which can last for
up to 24 hours of continuous operation. BT-821G is the best companion of your
tablet PC, smart phone, or other portable devices for navigation purposes.
1.2 Product Features
ˇ MTK high performance chipset
ˇ Extreme fast TTFF at low signal level
ˇ Bluetooth enabled
ˇ High capacity rechargeable battery
ˇ NMEA-0183 compliant protocol (GGA, GSA, GSV, RMC) RTCM
ˇ GPS, GLONASS, SBAS (WAAS, EGNOS, GAGAN, and MSAS), QZSS supported
ˇ Satellite positioning indication(Green LED)
ˇ Battery status indication(Red/Amber LED)
ˇ Bluetooth connecting indication(Blue LED)
![](/img.php?id=2220142&img=bg4.png)
__________________________________________________________________________________________
Page 3 of 11
1.3 Product Specifications
GNSS chipset
Frequency GPS 1575.42 MHz & GLONASS 1608 MHz
Chipset MTK high performance chipset
Code C/A Code
Protocol NMEA 0183
(Default: GGA, GSA, GSV, RMC) RTCM
Available Baud Rate 38400
Channels 99 search channels and 33 simultaneous tracking
channels
Antenna Built-in Antenna
Sensitivity Acquisition:-148dBm(cold)/-163dBm(hot)
Tracking:-165dBm
Cold Start < 35 seconds
Warm Start < 35 seconds
Hot Start < 1 second
Reacquisition 0.1 second, average
Accuracy Position:3m (2D RMS) / 2.0m with DGPS
Velocity: < 0.1m/s
Maximum Altitude < 18,000 meter
Maximum Velocity < 515 meter/second
Maximum Acceleration
< 4G
Update Rate 1 Hz
DGPS WAAS, EGNOS, MSAS, GAGAN
Bluetooth
Version 2.0
Range 10 Meter (Class 2)
Support Profile SPP Profile
Physical Characteristics
Dimensions 43mm X 24.5mm X 73.6mm
Weight 80 g (battery included)
DC Characteristics
Power Supply 5.0Vdc
Battery Rechargeable Li-ion, 1100mAH 0r 1700mAH
Battery Life Up to 24 Hours
Environmental Range
Humidity Range 5% to 95% non-condensing
Operation
Temperature
-10°C to 60°C
0°C to 45°C while charging
Storage Temperature -20°C to 70°C
![](/img.php?id=2220142&img=bg5.png)
__________________________________________________________________________________________
Page 4 of 11
2. Hardware Description

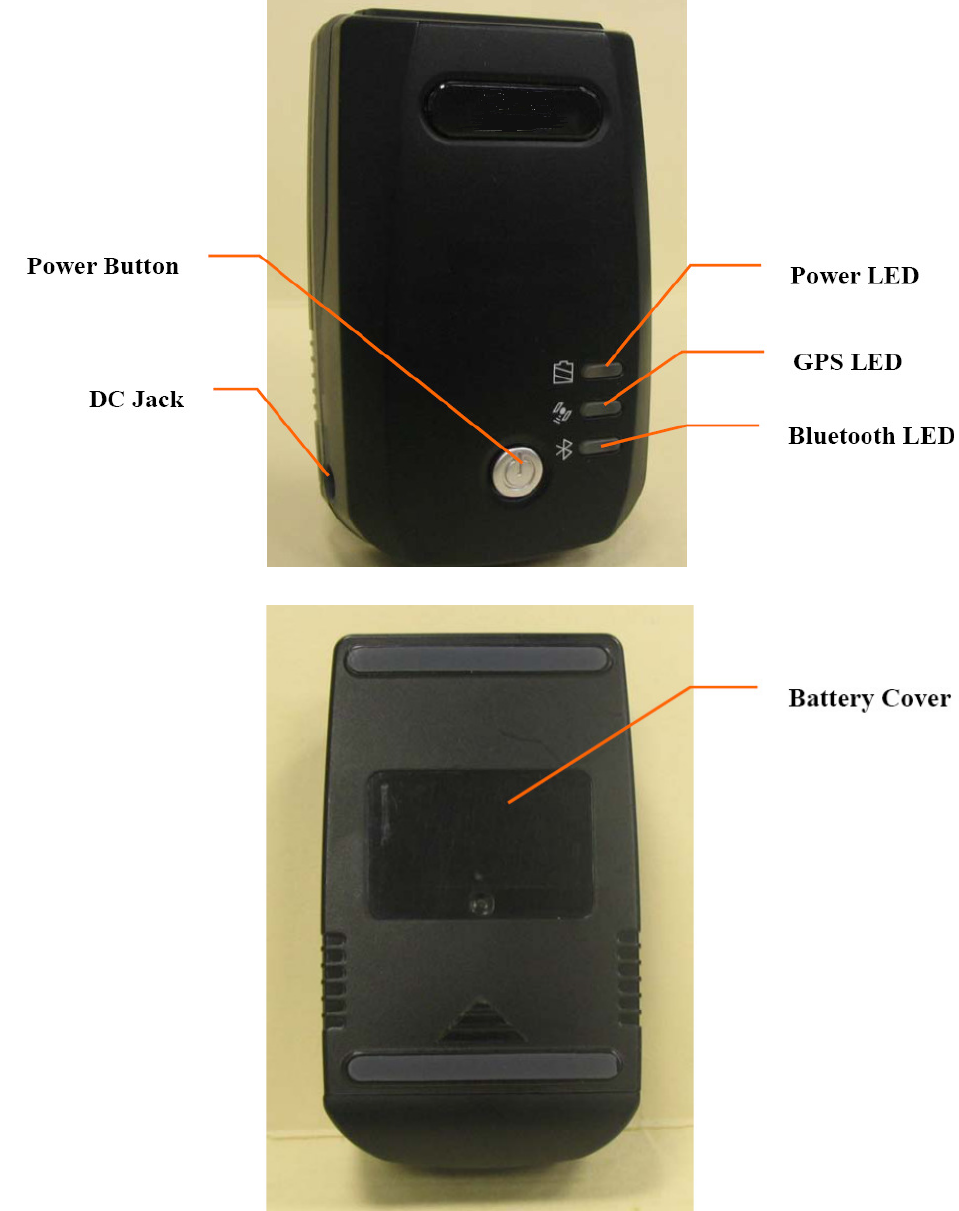

2.1 Top View and Bottom View
![](/img.php?id=2220142&img=bg6.png)
__________________________________________________________________________________________
Page 5 of 11
2.2 LED Behaviors
Bluetooth LED (Blue)
Status Description
Blink once per three seconds Not linked
Blink once per second Linked
GNSS LED (Green)
Status Description
Blink once per second Position fixed
Steady on Position not fixed
Power LED (Red/Amber)
Status Description
Red light steady on Battery low
Red light Off Battery good
Amber light steady on(charging) Battery charging
Amber light Off(charging) Battery charging finish
2.3 Power Button
Action Function
Press and hold the button for 1 second while off Power turned on
Press and hold the button for 1 second while on Power turned off
2.4 Power-saving function
When BT-821G doesn’t connect to charger and turning on, if the Bluetooth is not
connected to any devices within 10 minutes, BT-821G will turn off the power
automatically, and all the LED will go off simultaneously.
![](/img.php?id=2220142&img=bg7.png)
__________________________________________________________________________________________
Page 6 of 11
3. Package Contents
ˇ BT-821G
ˇ Li-Ion Battery

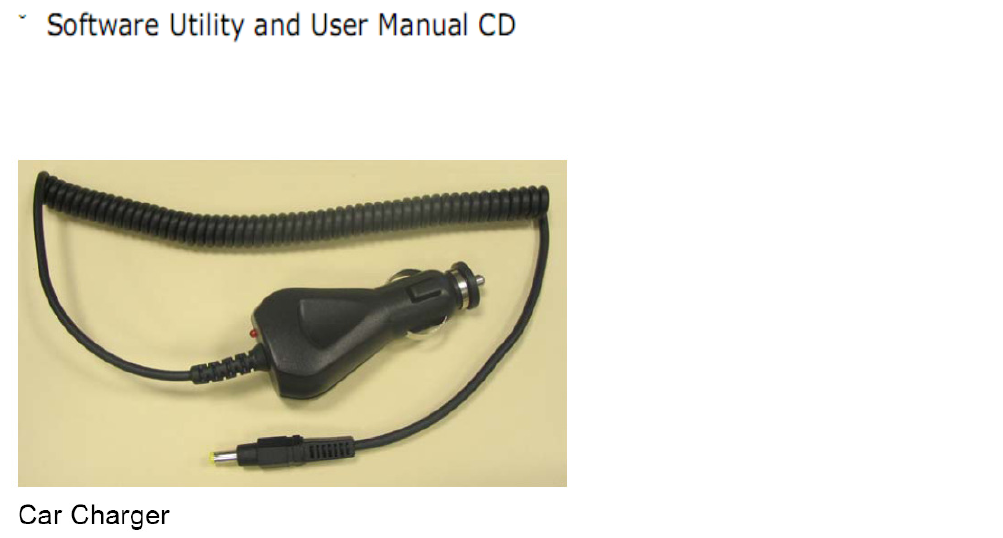

ˇ Car Charger
ˇ AC Charger (Optional)
ˇ Software Utility and User Manual CD
![](/img.php?id=2220142&img=bg8.png)
__________________________________________________________________________________________
Page 7 of 11
4. Getting Started
Step 1: Charging Battery
Please place the included battery in your BT-821G and charge it by the included
charger till the amber LED goes off before using BT-821G for the first time.

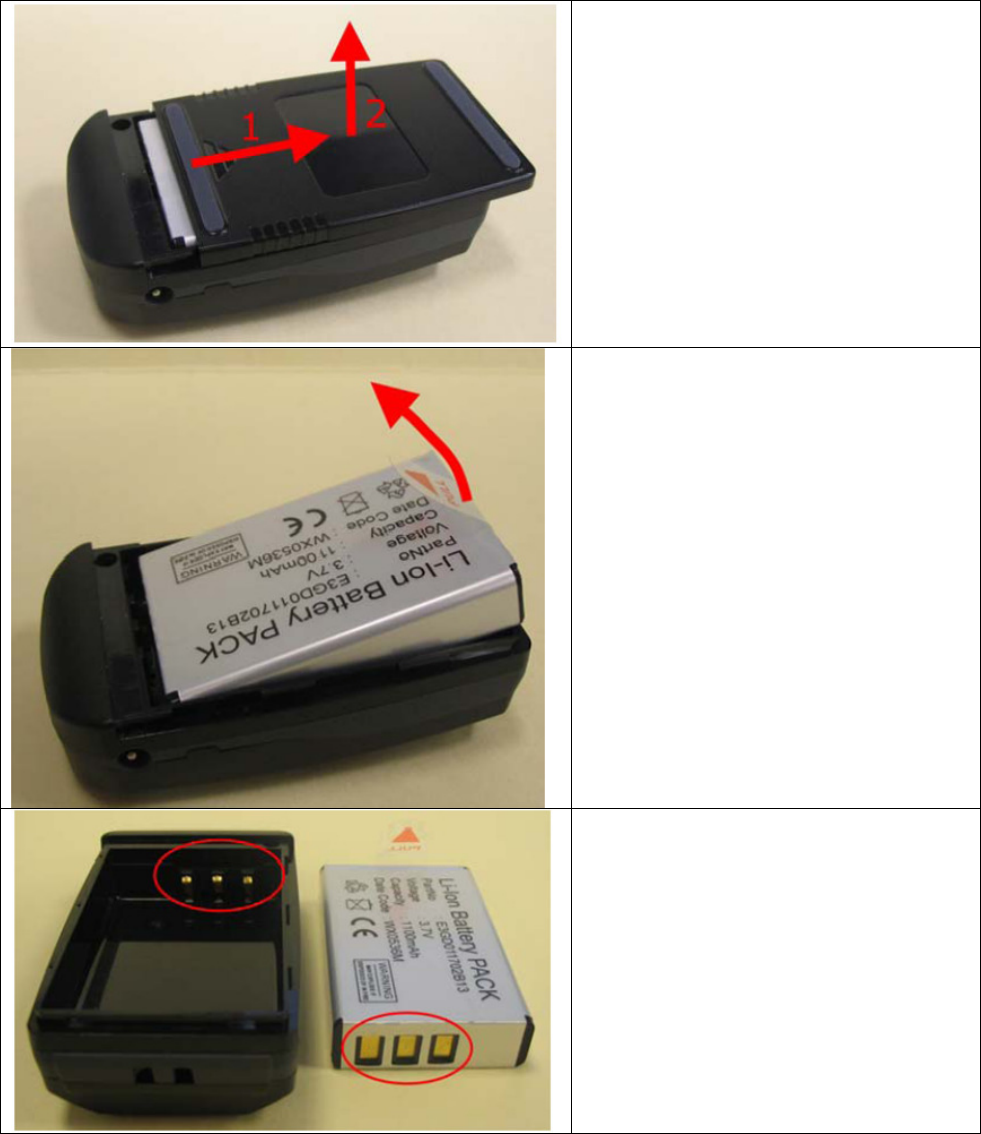

Push the battery cover toward
the direction shown as arrow
mark, and then lift it up.
Pull the plastic tab to remove the
battery.
While installing the battery, make
sure the metal contacts of
BT-821G and battery are aligned.
![](/img.php?id=2220142&img=bg9.png)
__________________________________________________________________________________________
Page 8 of 11

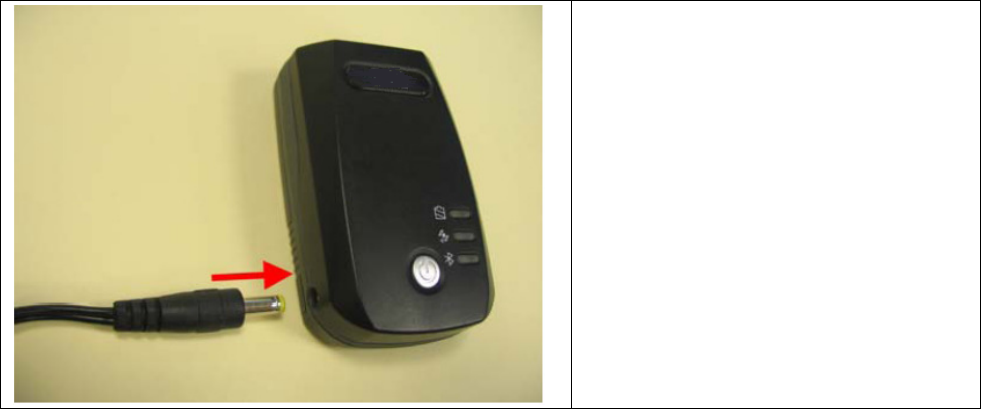

Insert one end of the charging
cable into BT-821G to charge the
battery.
Step 2: Turn on the power
Press and hold the power button for one second to turn on your BT-821G.
Step 3: Wait for GNSS fixed
Put your BT-821G in a place where can directly see the sky and check the GNSS
LED. If the GNSS LED starts blinking, your position is fixed.
Step 4: Connect to your Bluetooth-enabled devices
Run the Bluetooth manager from your Bluetooth enabled device, search Bluetooth
devices, select device BT-821G(BT-GPS-XXXXXX), and connect it to your BT-821G.
Once the Bluetooth LED is blinking once per second, the link is established
successfully. If a passkey is asked, please enter 0000.
Step 5: Start Navigation Software
Start the navigation software on your Bluetooth enabled device.
__________________________________________________________________________________________
Page 9 of 11
5. Troubleshooting
Bluetooth is unable to connect
A) Check if the GNSS Bluetooth indicator is flashing normally. That is, flash one per
each three second means the product is under standby mode; flash once per
second means Bluetooth has been online already.
B) Check if energy level is sufficient. If red LED is light up, then the battery level is
insufficient, please recharge it until the red indicator is off (recharge is complete).
GNSS cannot be positioned
A) Check if GNSS indicator operates normally or not. If the indicator is constantly
lid up, it means that GNSS is in operation; if the indicator is flashing, it means
GNSS is positioned already.
B) If GNSS cannot be positioned for long, apply GPS info software to make a Cold
Start first, and then move to an open space performing the positioning task.
C) Check if power level is sufficient. If the red LED lights up, it means the power is
insufficient, please recharge it until the amber LED is off (recharge is complete).
__________________________________________________________________________________________
Page 10 of 11
FCC Notices
Caution: Any changes or modifications in construction of this device which are not
expressly approved by the party responsible for compliance could void the user's authority
to operate the equipment.
This device complies with part 15 of the FCC Rules. Operation is subject to the following
two conditions: (1) This device may not cause harmful interference, and
(2) This device must accept any interference received, including interference that may
cause undesired operation.
