GlobalSat WorldCom BTH-808 Bluetooth Headset User Manual HeadSet ver 1 02

GlobalSat WorldCom Corporation Bluetooth Headset HeadSet ver 1 02

User Manual

BTH-808 USERS MANUAL ver 1.2
1 INTRODUCTION
The headset BTH-808 is the ultimate hands-free and wire-free solution that
connects your mobile phones to your headset via Bluetooth radio technology
instead of a wire. All calls and voices can be transmitted wirelessly to your
earpiece by this small and cute dolphin. It gives you an easy access to volume
controls and features LED indicators.
1.1 FEATURES
Operation range up to 10m
Talking time up to4.5 hours
Stand-by time up to 200hours
Mini weight about 11 grams
On/Off Switch, On/Off indicator
Rechargeable Li-ion, Low battery indicator
Complete accessories-for comfortable use
1.2 SPECIFICATIONS
Standard Bluetooth V1.1
Operation Range 10 meters (33 feet)
Audio Codec 15 bits resolution, S/N > 60 dB
Frequency 2.4 GHZ-2.4835 GHZ ISM Band
Dimension: (L) 75 mm*( W) 22.5 mm * (H) 9mm
Connection Point-to-point
Weight 11g (including battery)
Talk time 4.5 hrs
Standby time 200 hrs
Output Power 0 dBm (class II)
Security 128 bits encryption
Power Consumption 17mA working, 500uA standby
Battery Rechargeable Li-ion polymer 110mAh
Charging 5V DC, 100~240V AC adapter
Charging time 2~3 hrs
Operating Temperature -10 ~ 55 C
Storage Temperature -20 ~ 60 C
Certification CE, FCC, BQB
Headset passkey 1234.
2. HEADSET FUNCTIONS

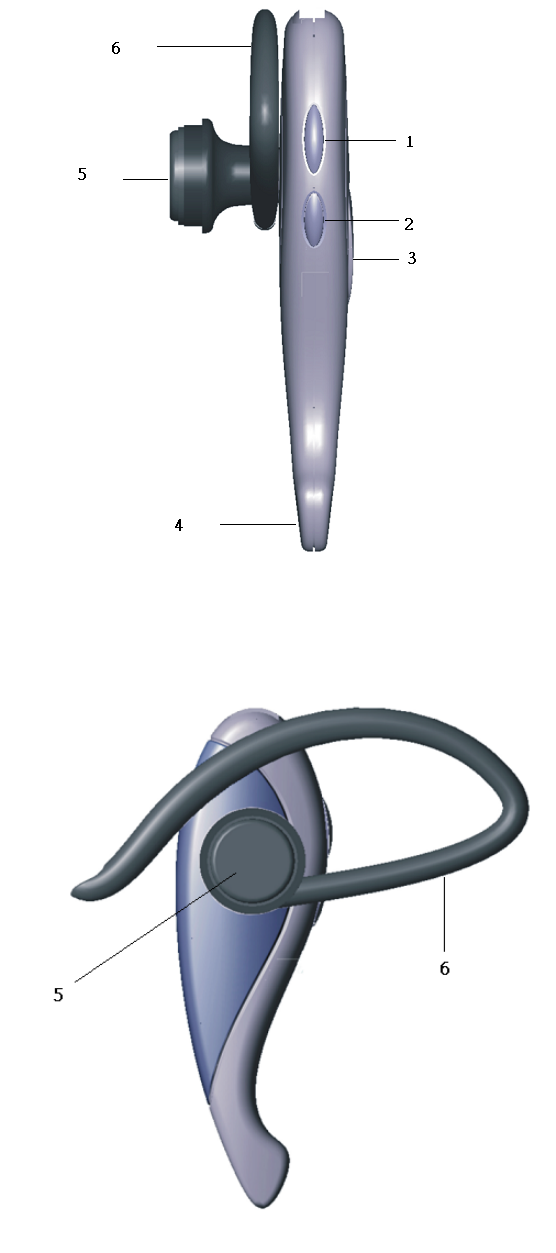

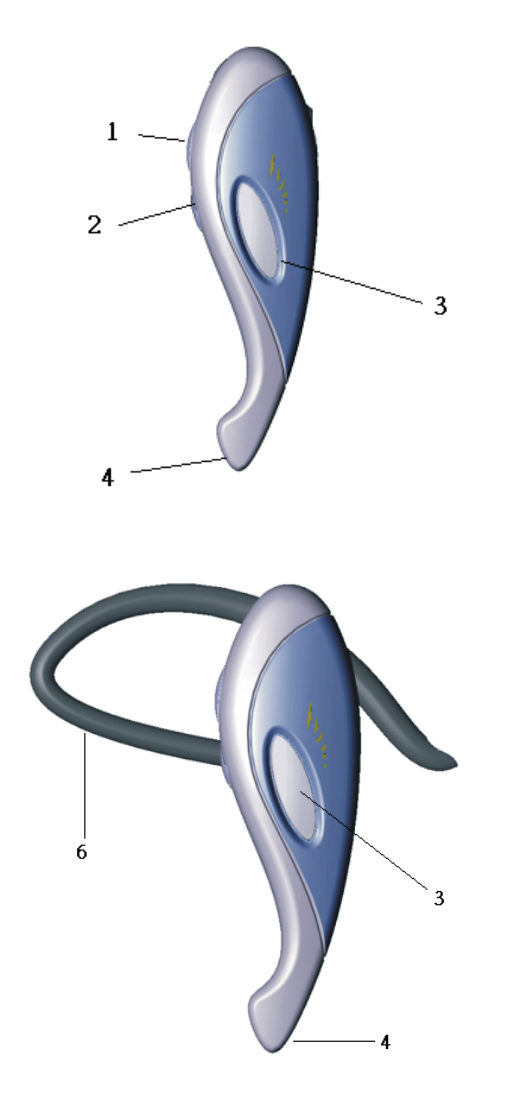

2.1 HEADSET APPEARANCE
Figure 2
Figure 1
Figure 3
Figure 4
1 Æ Volume Control (up) -Adjusts speaker(receive) volume up
2 Æ Volume Control (down) -Adjusts speaker(receive) volume down
3 Æ Multifunction button.-Controls several headset functions.
4 Æ Microphone -Picks up your voice input.
5 Æ Speaker -Plays the sound you receive on the call.
6 Æ Ear hook -Attaches headset to ear

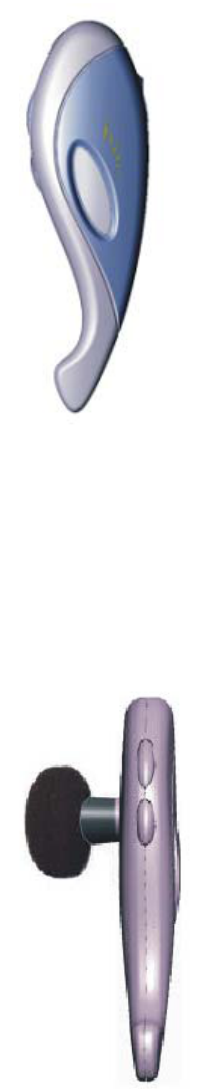

2.2 HOW TO USE BTH-808 WITHOUT EAR HOOK
Figure 5
Figure 6

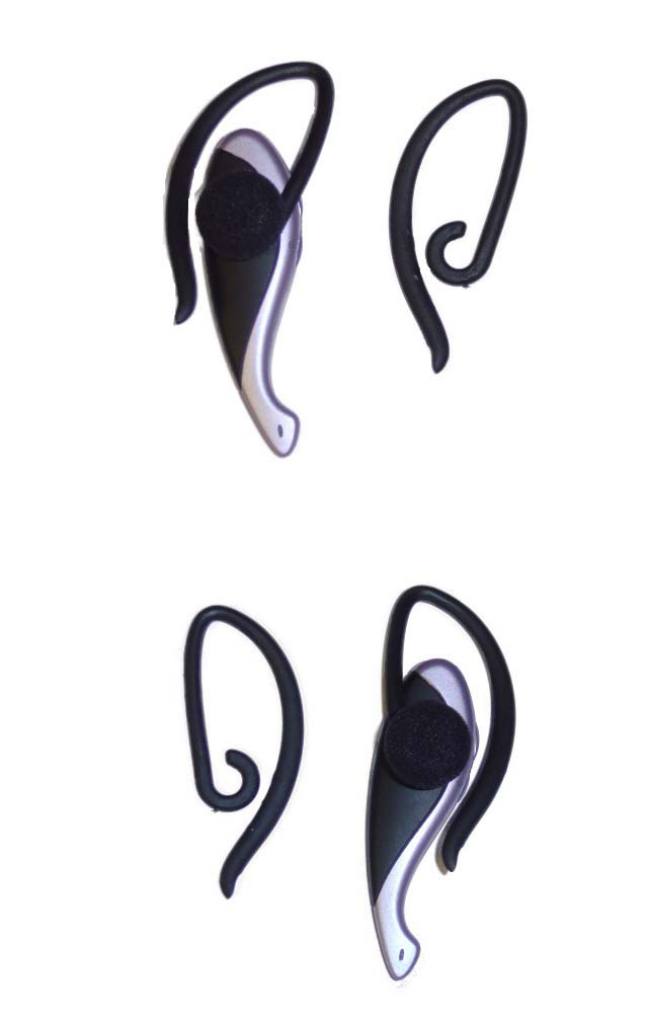

2.3 HOW TO USE BTH-808 WITH EAR HOOK
Figure 7
Figure 8
You need to adjust the ear hook for left-ear or right-ear use. The figure 7 is for left-ear
use and the figure 8 is for right-ear use.
2.4 WHEN TO CHARGE
GETTING STARTED
Before you can use your headset, you need to charge its self-contained battery for two
hours.
RECHARGING
When the red indicator light on the headset flashes and you hear high tones through
the headset speaker, the headset battery needs to be recharged.
HOW TO CHARGE
A fully charged headset battery provides approximately:
Talk time – 4.5 hours
Standby time – up to 200 hours
2.5 PAIRING THE HEADSET WITH A PHONE
You pair the headset with the phone by adding it to a list of paired devices in the
phone. The two devices then recognize each other when they connect. Once you have
paired your headset with the phone. You do not need to pair it again until you want to
use it with another device.
The BTH-808 can store pairing information for eight different Bluetooth devices.
TO PAIR THE HEADSET WITH PHONE (Bluetooth built in)
1. Prepare your phone according to the phone’s user documentation on pairing.
2. Press the multifunction button for up to 10 seconds until the blue and red indicator
lights on the headset flash alternately. The headset is now ready for pairing.
3. Continue according to the instructions in the phone’s user documentation. The
headset passkey is 1234.
Putting on the headset
1. Make sure the ear hook forms an angle of 90°.
2. Place the ear hook behind your ear.
3. Make sure the microphone is pointing towards your mouth.
2.6 HOW TO TURN ON/OFF HEADSET
To turn the headset on
Press and hold the Multifunction button until the headset indicator light flasheds blue
four times.
To turn the headset off
Press and hold the Multifunction button until the headet indicator light flasheds red
four times .
2.6 MAKING AND ANSWERING CALLS
Phone functionality is still available when the headset is connected. You can make
and answer calls using the buttons on the headset. or the keys on the phone, as usual.
To make a call using voice dialing
1. Make sure the phone and the headset are on and within range of each other. Press
the multifunction button.
2. It may take a while to set up the connection between the phone and the headset.
During this time, you might hear a repeated tone in the headset. After the beep,
voice dial as you normally would.
3. End the call by pressing the multifunction button.
To answer a call using the multifunction button
1. When the headset rings, press the multifunction button.
2. End the call by pressing the multifunction button.
To reject a call
When the headset rings, press and hold the multifunction button until you hear a long
beep.
USING VOICE COMMANDS
Voice commands are especially useful when you are using the headset. Examples of
voice commands are dialing, re-dialing, answering and rejecting calls. For more
information on voice commands, refer to the phone’s user documentation.
ADJUSTING THE VOLUME
You can adjust the headset speaker volume during a call, or the ring volume when you
are not engaged in a call.
To adjust the volume
To increase the volume, press (+) .
To decrease the volume, press (-).
To turn off the microphone
During a call, press and release both (+) and (-) at the same time to turn off the
microphone. A repeated beep is heard while the microphone is turn off.
Press and release both (+) and (-) again to resume the conversation.
TRANSFERRING SOUND FROM PHONE TO HEADSET
If you make a call with using your phone, you can transfer the sound to the headset if
the headset is on, paired with the phone, and within range.
To transfer the sound to the headset
During a call, press the multifunction button to transfer the sound to the headset. The
headset beeps until the sound has been transferred.
Note: To transfer the sound from the headset to the phone, refer to the phone’s user
documentation.
LOST CONNECTION TO HEADSET
If the connection to the headset is lost during an ongoing call, press the YES key on
the phone to transfer the call to the phone, otherwise the call is disconnected after 30
seconds.
3. TROUBLESHOOTING
No sound contact between headset and phone
The headset and the phone you are using with it have to be paired to recognize each
other.
They also have to be within range of each other.
The indicator light flashes red
This indicates that the headset has only limited talk and standby time left. Charge the
headset battery for approximately 1 to 1.5 hours.
The headset is automatically switched off
There are two reasons why the headset might be switched off automatically:
1. The battery is too low. The red indicator light on the headset flashes and you hear
high tones through the headset speaker . Charge the headset battery for
approximately 2 ~ 3 hours.
2. The headset has been in pairing mode for more than 1 minute.
FCC Notices
This device complies with part 15 of the FCC rules. Operation is subject to the
following two conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may
cause undesired operation .
FCC RF Exposure requirements:
This device and its antenna(s) must not be co-located or operation in conjunction with
any other antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR
TV INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO
THIS EQUIPMENT. SUCH MODIFICATIONS COULD VOID THE USER'S
AUTHORITY TO OPERATE THE EQUIPMENT.
