GlobalSat WorldCom BTH-818 BLUETOOTH Headset User Manual Manual
GlobalSat WorldCom Corporation BLUETOOTH Headset Manual
Manual
1
BTH-818 Bluetooth Earphone User Manual ver 1.04
1. BTH-818 feature and specification
1.1 Interpretation
BTH-818 is a Bluetooth earphone that has call-in number display and support HandsFree
Profile and HeadSet Profile. And this handbook is provided for Bluetooth cellular phone
that has both HandsFree Profile and HeadSet Profile.
1.2 Features
The operating distance is over 10m.
The operating time is over seven hours.
The standby time is 300 hours.
Use rechargeable lithium battery and can detect low-level voltage of battery.
Convenient operation interface.
Can store ten different call-in numbers.
Can store ten different phone book recordings.
Five call-in ring options.
Mute-call function.
Setup/time display.
Able to make pairing memory to five Bluetooth devices.
Complete parts, easy to operate.
1.3 Specification
Standard Bluetooth V1.1
Operation Range 10 meters (33 feet)
Audio Codec 15 bits resolution, S/N > 60dB
Frequency 2.4 GHZ-2.4835 GHZ ISM Band
Dimension: (L)72mm*(W)26mm * (H)16mm
Connection Point-to-point
Weight 35g (including battery)
Talk time 7hrs
Standby time 300 hrs
Output Power 0 Dbm (class II)
Security 128 bits encryption
Power Consumption 40mA working, 1mA standby
Battery Rechargeable Li-ion polymer 300mAh
Charging 5V DC, 100~240V AC adapter
Charging time 2~3 hrs
Operating Temperature -10~55℃
Storage Temperature -20~60℃
Certification CE, FCC, BQB
LCD 1/16 duty cycle 5V.
Headset passkey 0000
2

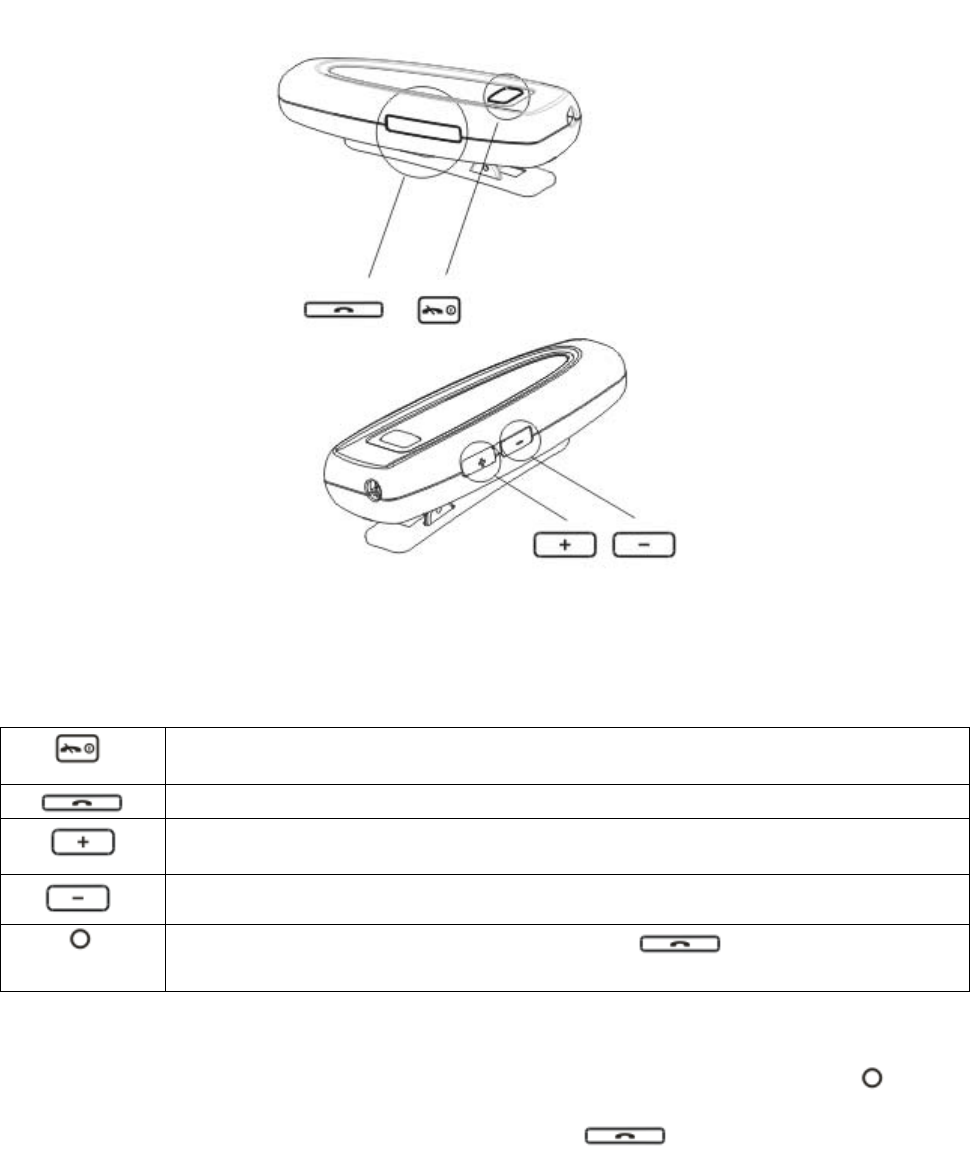

2. BTH-818 appearance and pushbutton descriptions:
2.1 Pushbutton descriptions
Figure 1
Switch key
Pickup and hang-up key
Volume increasing key
Volume decreasing key
Earphone switch operating key, identical to key in operating
function.

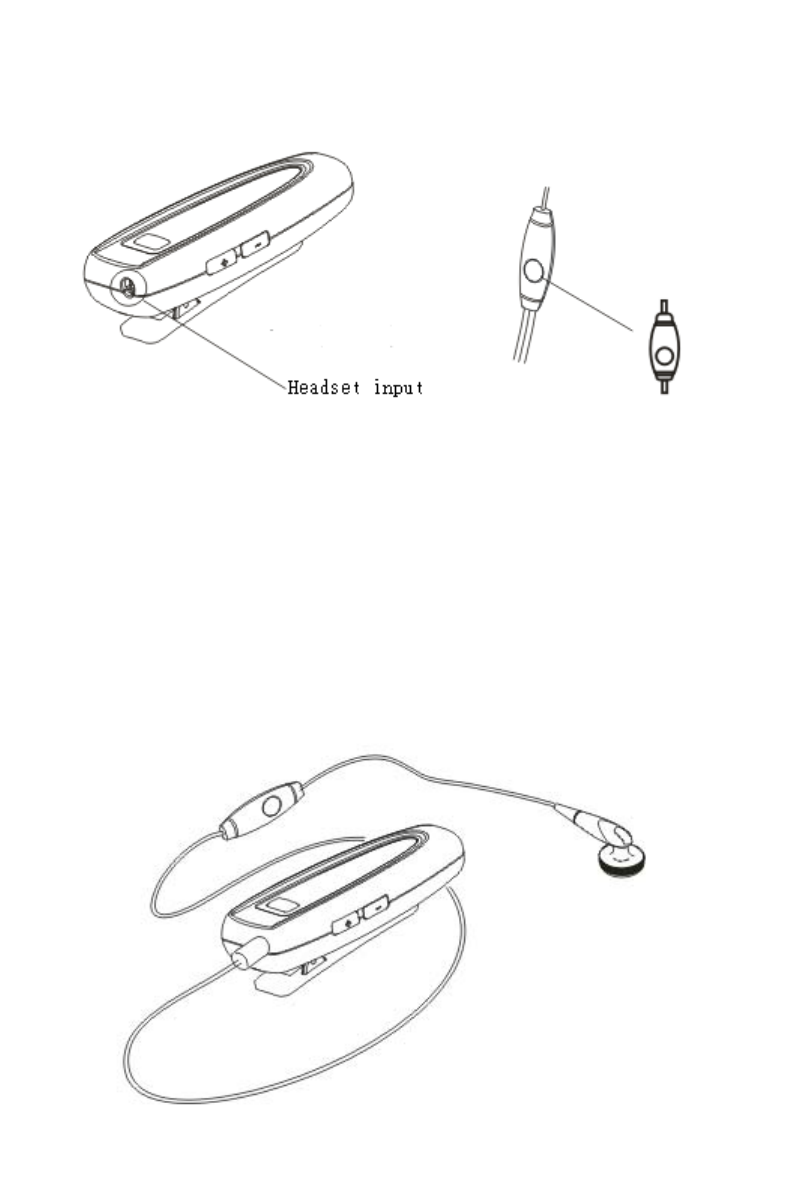

2.2 Outer connecting operation
Insert the outer connecting earphone from headset input plughole. There is a key in
the earphone line with operating function identical to key. Refer to Figure 2 and
Figure 3.
3
Figure 2
Figure 3
Headset button
4

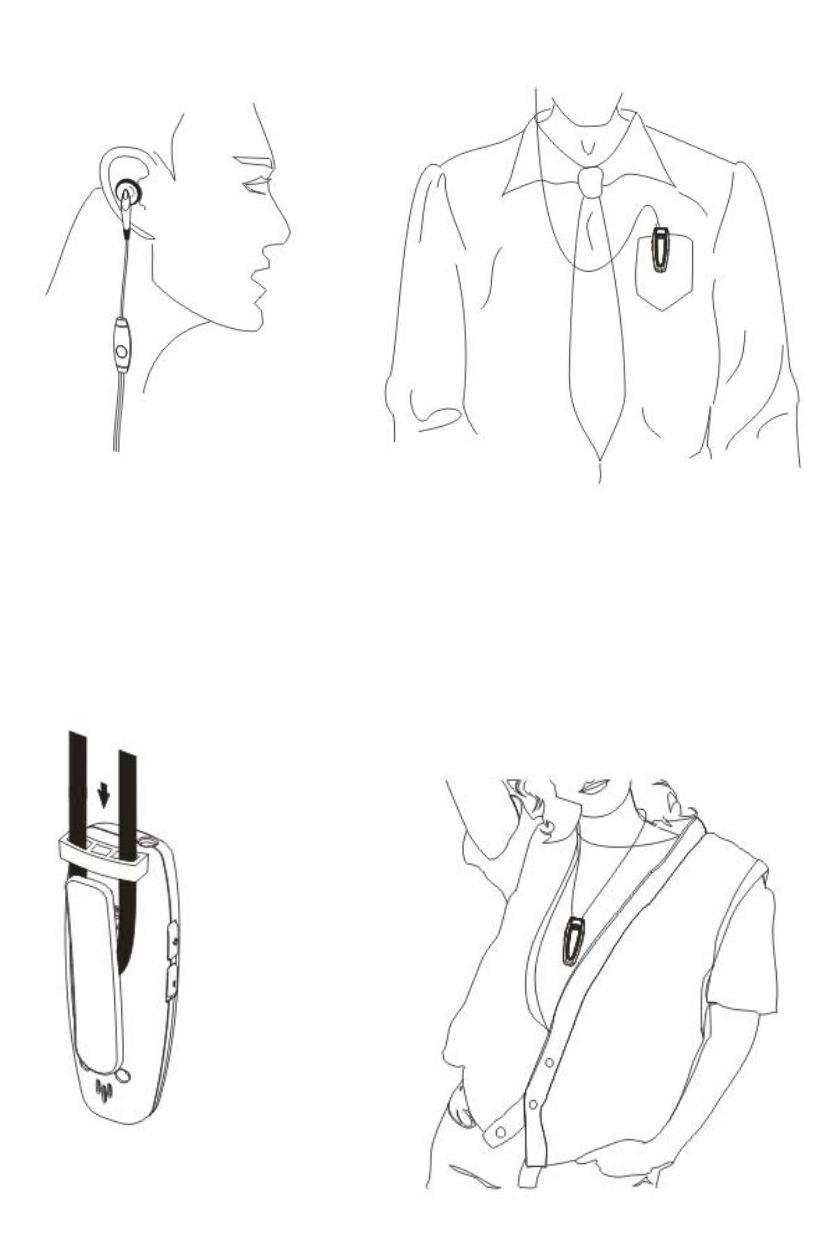

2.3 Load distribution method
Figure 4
Figure 5
5

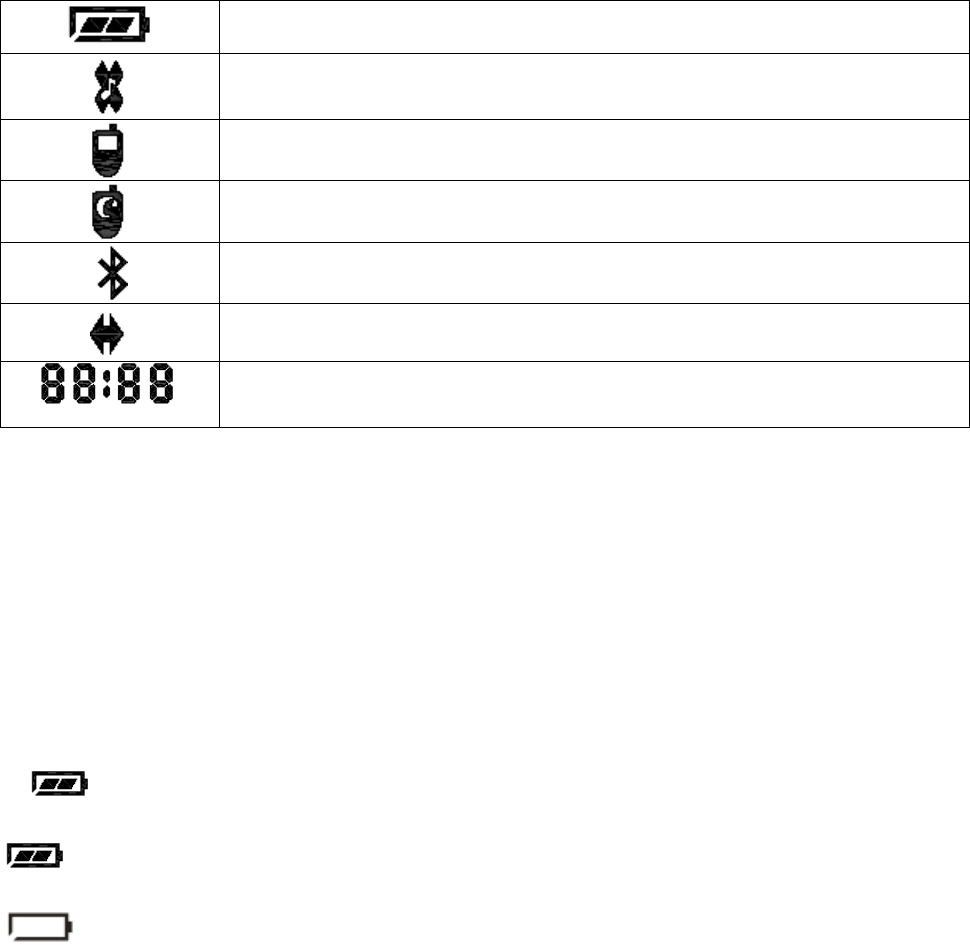

2.4 Symbols displayed
Meanings of symbols represented
Battery state
Turn off external ring voice.
Graphic display of calling and phone book.
Graphic display of unanswered call.
Turn on Bluetooth.
Bluetooth is online.
Graphic display of time
3. Operation method:
3.1 First time in use

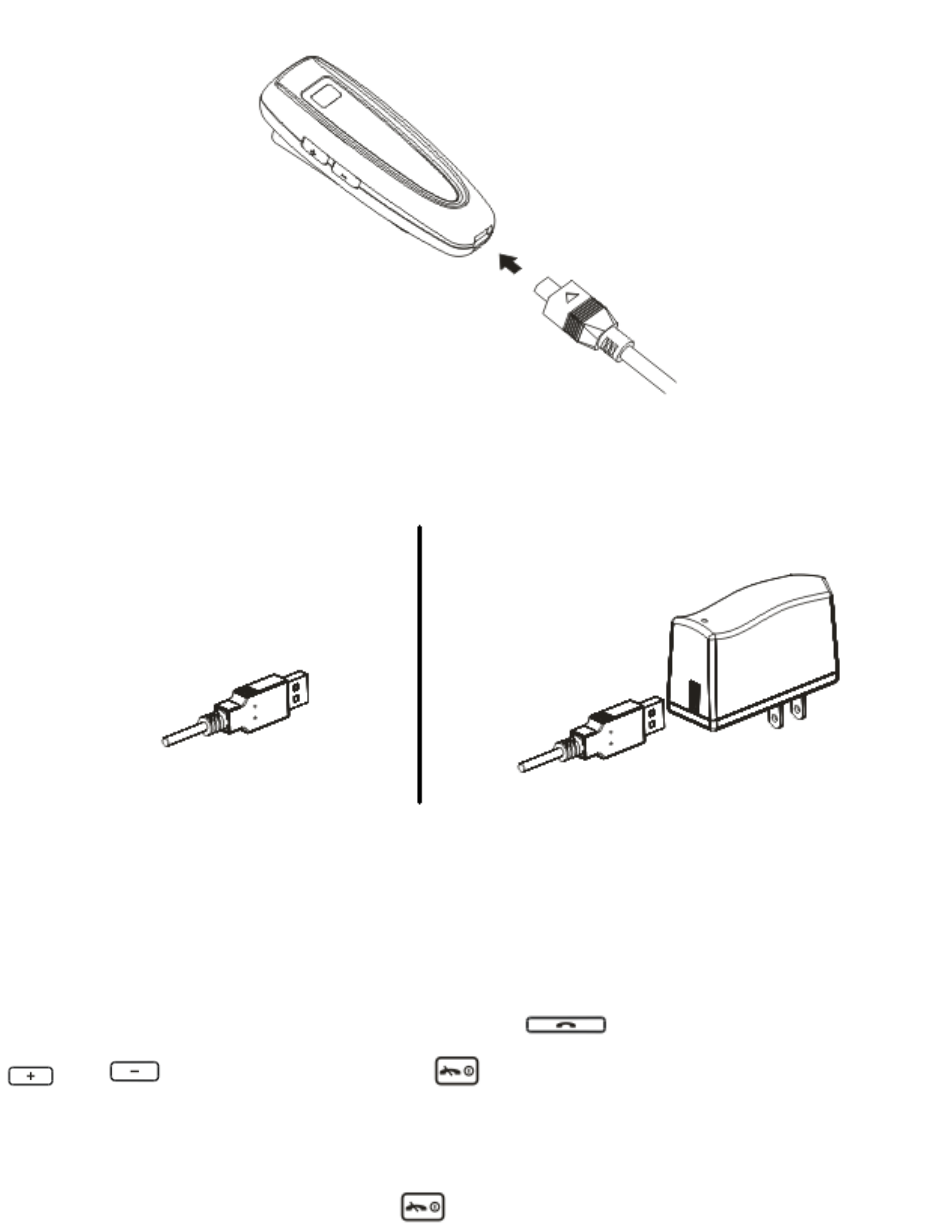

3.1.1 The first time to recharge the BTH-818
When initially using this product, charge the battery 2-3 hours. User can charge this
product over normal computer’s UBS interface or household recharger. Regarding the
recharging method refers to Figure 6 and Figure 7.
Battery symbol status:
If symbol is flashing, it means this product is in charging state.
means the battery is full in energy level.
means battery level is weak.
6
Figure 6
Figure 7
3.1.2 Time setup
Before using BTH-818 product, set up system time. The setting procedure is interpreted as
below:
Enter the menu Set System Time press to select time column press
or to modulate time and key to confirm time selected.

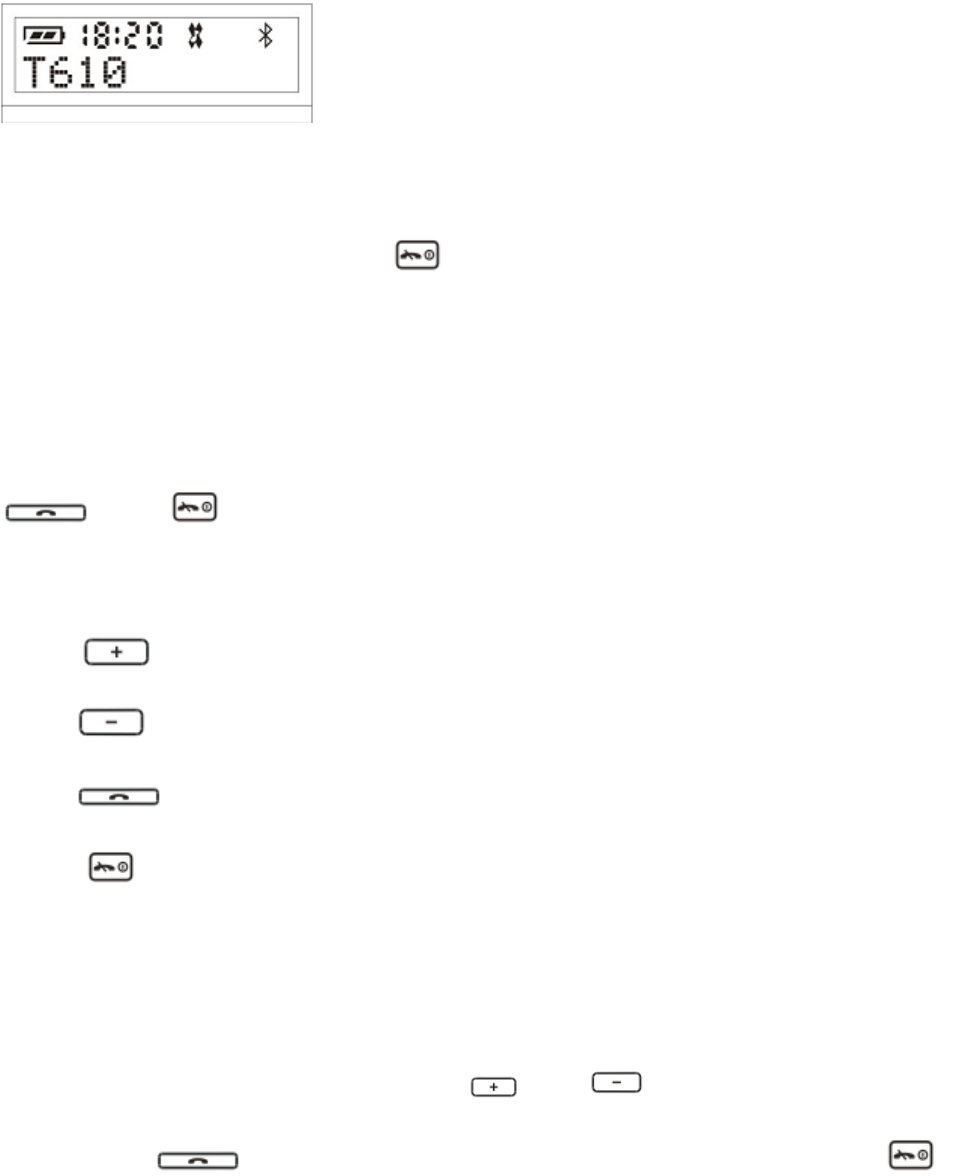

3.2 Booting
To boot up BTH-818 product, press for three seconds, and after hearing two
beeps the booting procedure is accomplished. After that, it will display the cellular phone
pattern number now has been under pair, such as the one displayed in Fig. 8 that is T610
cellular phone, which means the default cellular phone model is T610. And if there is no
any cellular phone under pair connection yet, it then will display “No Device” string.
7
Figure 8
3.3 Power off
To turn off BTH-818 product, press for three seconds, and after hearing two
beeps the power is turned off.
3.4 Option menu operation:
Option key operation
3.4.1 Enter the menu
Press both
and buttons concurrently to enter into the menu.
3.4.2 Menu operation
Press button to move up.
Press button to move down.
Press button to make sure it.
Press button to quit the option.
3.4.3 Menu configuration
There are three main options:
Set Ring, Device MGT and Set System;
After entering into each of the options, use and button to select specific
option. Press key and we can enter into one option among them; press
to quit this option.
Description:
SetRing: option to set up calling ring.
Device MGT: pairing management.
Set System: set up system parameter.
8
3.5 Pairing management
BTH-818 must incorporate with Bluetooth cellular phone in use. Before using it we must
make pair to Bluetooth cellular phone. The operation regarding Bluetooth cellular phone
refers to cellular user handbook.
3.5.1 Pairing
Step1.
Enter into pairing model
Enter option menu Device MGT select Pairing-HF or Pairing-HS option enter into
pairing model and the “Paring...“ string shows up, indicated in Figure 9.
Description: BTH-818 can support Headset and HandsFree profile Bluetooth. Most
cellular phones provided in the market can support HandsFree Profile; only small portion
of cellular phone products can support HeadSet profile. Before making pair, make sure
what the cellular profile BTH-818 is supported.
Figure 9
Step 2.
Use Bluetooth cellular phone to look for the paired BTH-818 Bluetooth earphone; the
paired PIN Code is “ 0000”. Regarding the details of operating Bluetooth cellular, please
see the Bluetooth user handbook.
Step 3.
After the pairing process is complete, there will be one “beep” arisen and system has
jumped out of the pairing model.
3.5.2 Set up default pairing device
Enter option menu Device MGT Management select the paired
devicesDefaultpress to complete the setup.
Description: BTH-818 will memorize the cellular after accomplishing the pairing process. It
can at most memorize five different devices. While applying this function we can set up the
default cellular phone to be connected. In anytime booting BTH-818 it will display the
default device pattern name. Refer to Section 3.2.
3.5.3 Delete pairing device
Enter option menu Device MGT Management select the paired devices Delete
press to complete the deleting process.
9

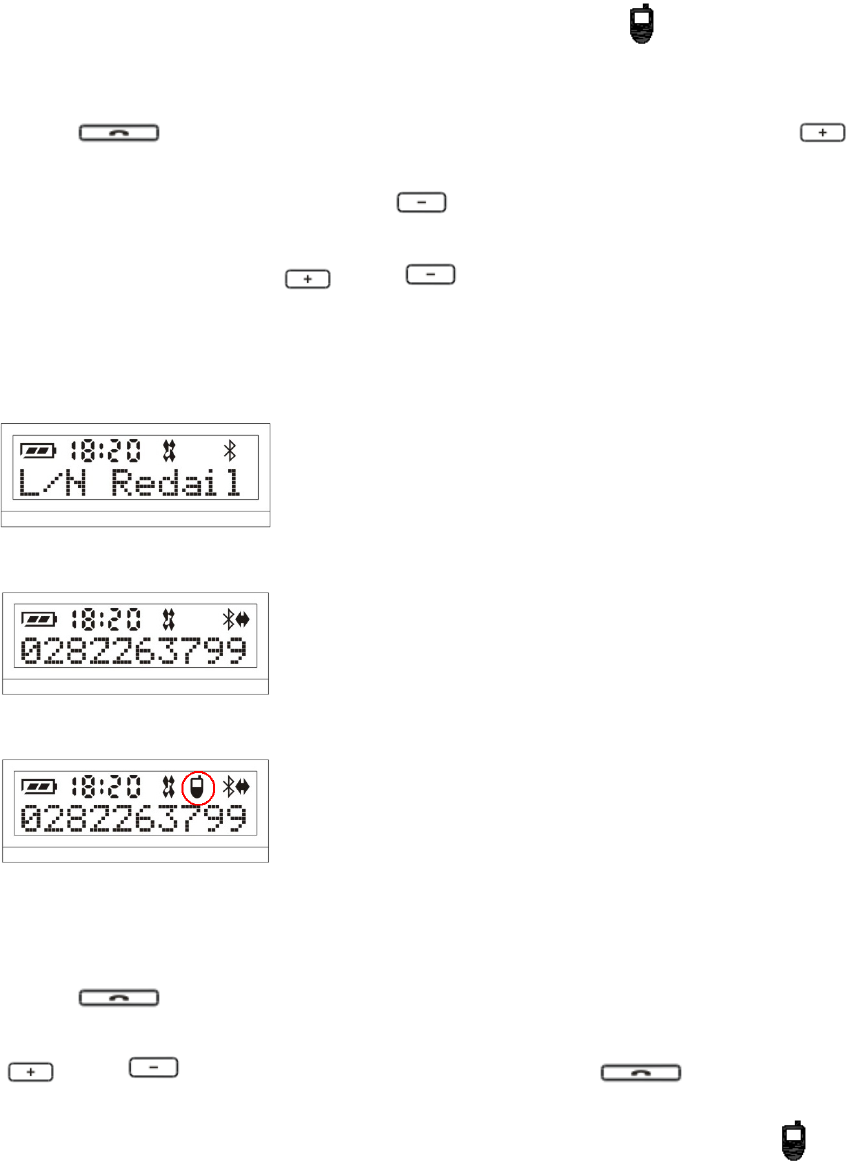

3.6 Use call list and phone book
Call list is the call-in numbers stored in BTH-818, displayed in Fig 11. There are total 10
memories applied to memorize the call numbers. While the recorded calls are over the
amount of ten, the last one will replace the first call number automatically. You can add the
call list record to phone book to make permanent record. Once the specific call record has
become part of the phone book record, system will display symbol shown in Fig 12.
Operation:
Press button once, system will display L/N Redial option. Press it jumps
to the start position of call list; press button it then jumps to the start position of
phone book. Then, press and to pick up call list or phone book. And let the
end of call list connect to the beginning of phone book, as well as connecting to the end of
phone book in front of the starting of call list to form a circulate operation.
Figure 10
Figure 11
Figure 12
3.6.1 Use call list to add into phone book
Press once, system shows “L/N Redial” and comes into call list model; use
and to select phone number. Long press and wait for one “beep”
arisen, the call number then is added to phone book already and there is symbol
displayed on the record of call number added to phone book.
10

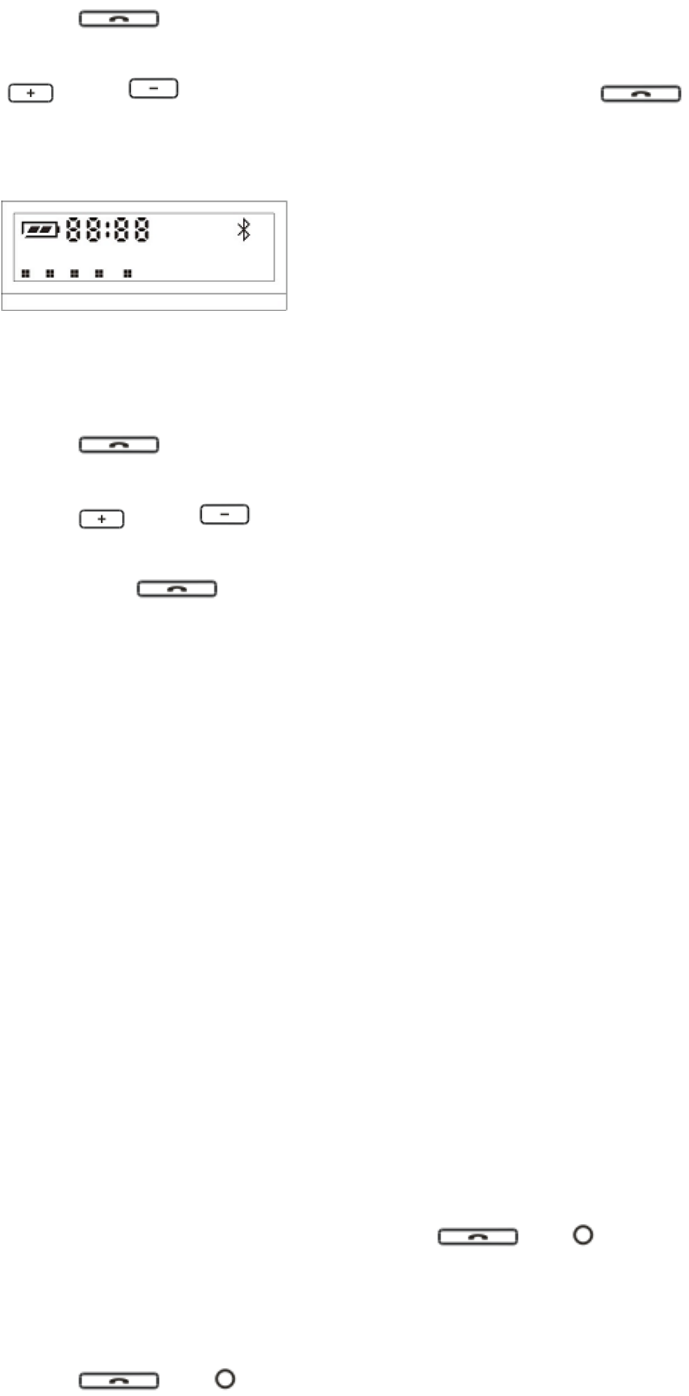

3.6.2 Use call list or phone book to make calls
Press once, system shows “L/N Redial” and comes into call list model; use
and to select phone number. Long press and dial out phone.
There will be …string appeared as shown in Fig 13.
Figure 13
3.7 Delete phone book information
Press once, system shows “L/N Redial” and comes into call list model; then
press and to come into phone book and stay at the selected call number.
Long press and wait for one “beep” arisen, the call number picked then is
deleted from phone book.
Description: The call list cannot be deleted; only the phone book can be erased off.
3.8 Use cellular phone to make calls
Directly dial phone call from cellular phone.
Description: some Bluetooth cellular phone will search for earphone automatically and
build up Bluetooth online while dialing out call.
3.9 Use vocal dialing instruction to make calls
Application procedure sees section 4.5. Since the vocal dialing is part of cellular phone’s
function, not any cell phone can support this function. Refer to cellular phone operation
handbook.
3.10 Answer calls
While receiving call-in phone call, press or on earphone to answer the
call-in call.
3.11 End calls
Press or in the earphone to hang up phone call.
11
3.12 Deny answering call
Press to refuse answering other call-in phone call.
4. Phone set settings

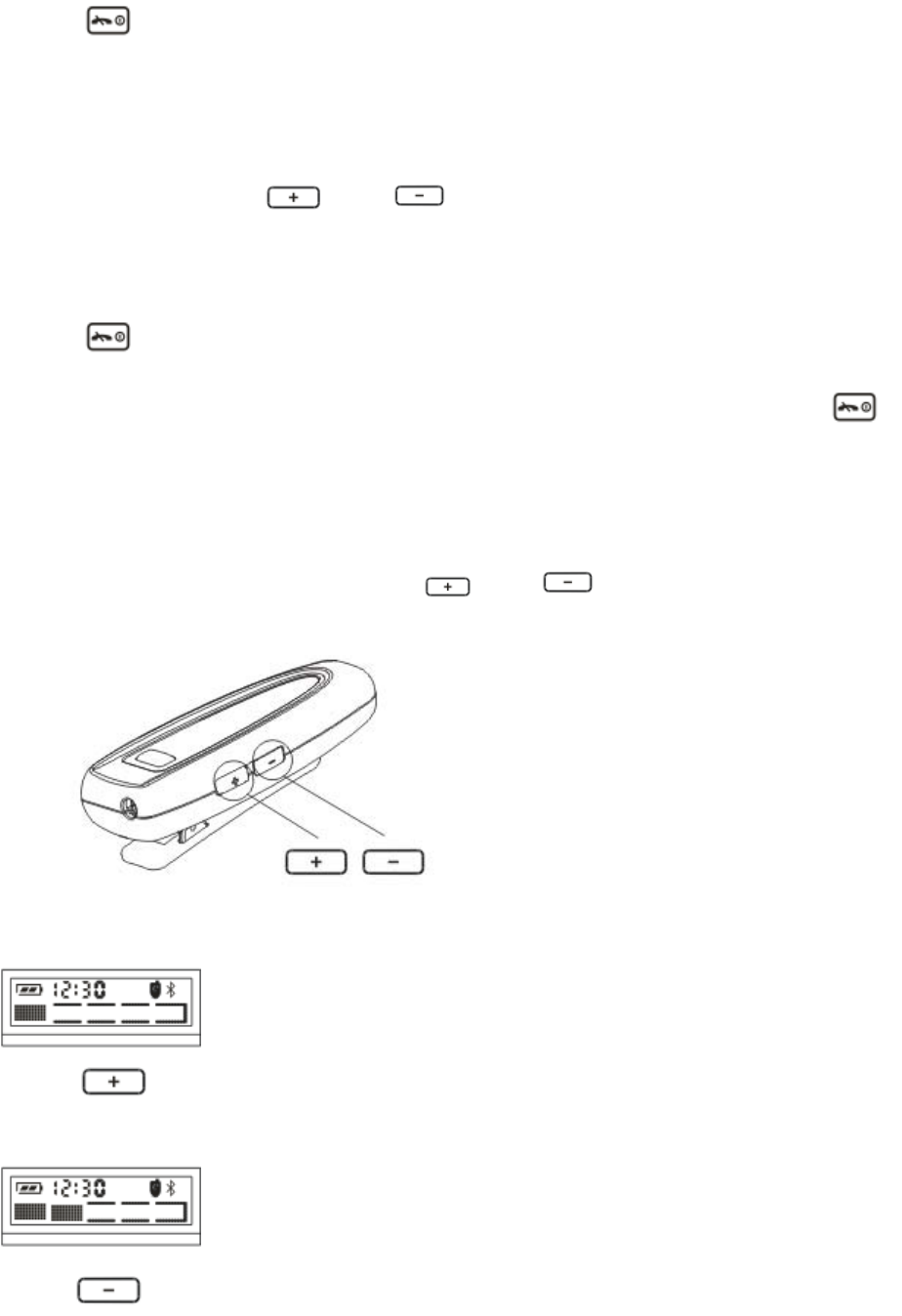

4.1 Modulate earphone volume
While having a call, use and to modulate earphone’s sound volume level.
4.2 Set up microphone to mute
Press while having a phone call and system will come to mute mode. It will show
up mute string and you now can hear the prompt sound from earphone. Press
button once again to close the mute function, the prompt mute then will cease off.

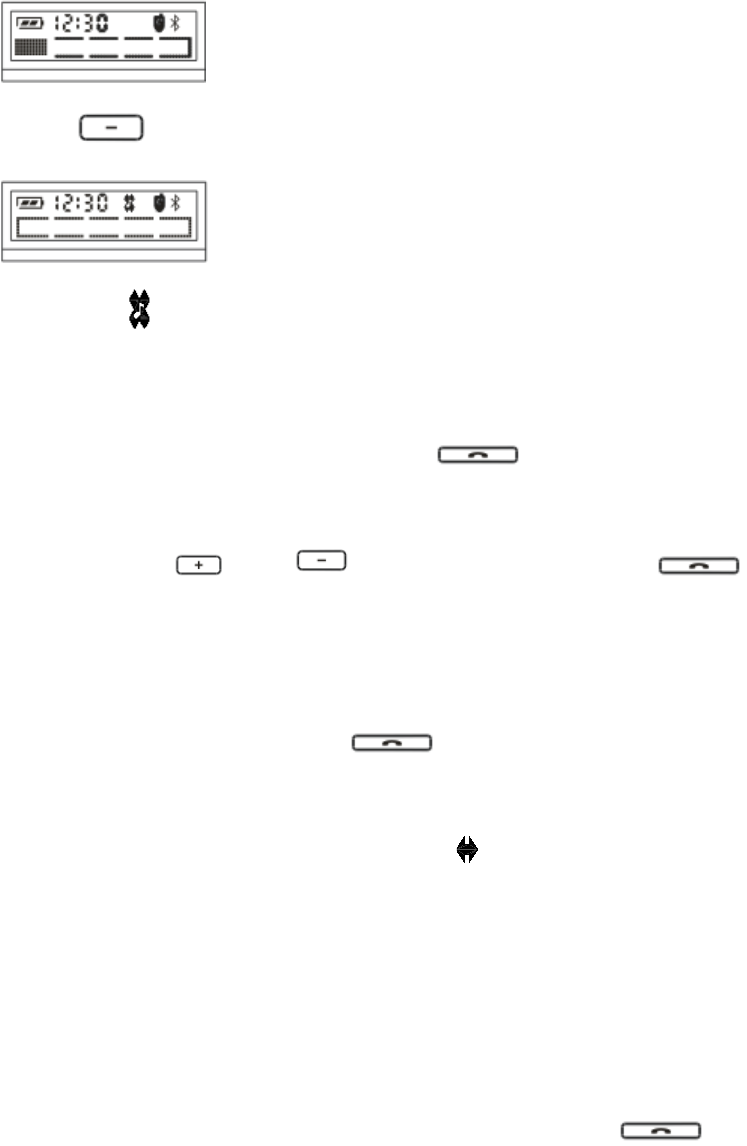

4.3 Modulate external ring volume
Modulate external ring’s volume by use and buttons. There are five levels in
total.
Press once and it will increase one level of sound volume and system will
make ”beep” sound in response.
Press once and it will decrease one level of sound volume and system also will
make ”beep” sound in response.
12
Press button to shut down external ring sound.
When icon displays, it means that the external ring is closed.
4.4 Modulate external ring sort
Enter option menu Set Ring press button. Now this product will play the
ring music being latest selected.
You can chose and buttons to select press button to make
sure the present selection; there are five different rings under selection.
4.5 Connect BTH-818 to cellular phone
While Bluetooth is offline, press button for over 3 sec and a “beep” is heard from
external ring, BTH-818 now will go connecting cellular being paired already. As soon as
the paired cellular phone is connected the icon will show up. Regarding the pair
management please refer to Section 3.5.
Description: If the Bluetooth can support vocal dialing service, user can apply it to
perform vocal dialing process.
4.6 Clean up call list and phone book data
Enter option menu Set System Data Clear press button; and now
screen will display “Data Clear” that will clean up data being saved and undo back to
default one.
4.7 Backlight operation
While operating any of BTH-818 function keys, the backlight will light up and maintains for
5 sec before it is off automatically.
13
4.8
Automatically call off Bluetooth setting
Enter option menu Set System Auto Disconnection if selecting “YES”, then
Bluetooth connection is to be offline after 30 sec automatically. And if selecting “NO”,
BTH-818 will maintain online.
Description: this function specified above cannot be applied to all Bluetooth cellular phone
products. Some cellular phones will sustain online once it is engaged.
4.9 Automatically add “+” in front of call number
Enter option menu Set System No. Form
The default “Normal” needs not to add “+”, and “ADD +” option needs to add “+”.
Description: some Bluetooth cellular phones have to add “+” in front of phone number
while using phone book or list function. The default “Normal” needs not to add “+”.
14
5. Trouble shooting
Unable to connect
a. Check if BTH-818 product has been fully charged and is within the effective distance
from Bluetooth cellular phone or not.
b. Check or set up cellular phone again. If no pairing is made yet, make pairing process. If
there is paired already, delete the former pairing setting and make new pairing setting
once again.
c. Check if battery capacity is sufficient.
d. Reboot cellular phone.
Silenced during making call
a. Check if BTH-818 is recharged and the Bluetooth cellular phone is within effective
distance.
b. Ensure if both earphone and Bluetooth are connected.
FCC Notices
This device complies with part 15 of the FCC rules. Operation is subject to the following two
conditions:
(1)This device may not cause harmful interference, and
(2)This device must accept any interference received, including interference that may
cause undesired operation .
FCC RF Exposure requirements:
This device and its antenna(s) must not be co-located or operation in conjunction with any other
antenna or transmitter.
NOTE: THE MANUFACTURER IS NOT RESPONSIBLE FOR ANY RADIO OR TV
INTERFERENCE CAUSED BY UNAUTHORIZED MODIFICATIONS TO THIS EQUIPMENT.
SUCH MODIFICATIONS COULD VOID THE USER'S AUTHORITY TO OPERATE THE
EQUIPMENT.
