GlobalSat WorldCom TR313 Personal Tracker User Manual TR 313 x
GlobalSat WorldCom Corporation Personal Tracker TR 313 x
User Manual.pdf
1
GlobalSat TR-313
User Manual
SecuraTrac ® LLC
703 Pier Avenue, Suite B313
Hermosa Beach, CA 90254
Tel: 888-9SECURA/ Fax: 888-973-2872
Email: support@securatrac.com
http://www.securatrac.com
2
TABLE OF CONTENTS
1. Warning ...........................................................................................................................................3
2. Welcome..........................................................................................................................................4
3. Introduction and Features..............................................................................................................5
3.1 Introduction.....................................................................................................................5
3.2 LED Indicators................................................................................................................7
4. Device Operation ............................................................................................................................8
4.1 Device charging...............................................................................................................8
4.2 SIM card Installation .......................................................................................................9
4.2 Power............................................................................................................................10
4.3 Emergency button.......................................................................................................... 11
5. Contact Information......................................................................................................................12
6. Safety Information ........................................................................................................................12
7. Limited Warranty...........................................................................................................................13
7. Limited Warranty (Continued) ......................................................................................................15
3
1. Warning
USE RESPONSIBLY. READ ALL INSTRUCTIONS AND
SAFETY INFORMATION BEFORE USE TO AVOID INJURY.
Globalsat Wordcom Corporation / USGlobalsat, Inc. will not accept any responsibility whatsoever for
accidents resulting from failure to observe common sense precautions. Your personal judgment, traffic
regulations, and common sense must always take precedence over any directions produced by GPS
receiver or the mapping software.
WARNING:
Be certain GPS receiver is secure and does not interfere with driving visibility and safety.
It is your responsibility as the vehicle operator to securely place the GPS unit and antenna so that they will not
interfere with driving and prevent operations of any safety device, i.e. vehicle’s airbag. Do not mount the
devices in a place where the driver or passengers may receive injury during vehicle operation or collision. For
your safety, take care to route all cables away from shifters, pedals, accessory controls and mechanisms.
WARNING:
Drive safely and use common sense.
It is your responsibility as the vehicle operator to drive safely, observe all traffic rules and above all use your own
personal judgment while driving. If you feel that a route suggested by the navigation software instructs you to
perform an unsafe or illegal maneuver, places you in an unsafe situation, or routes you into an area which you
consider unsafe, do not follow the instructions.
WARNING:
Keep your eyes on the road.
It is your responsibility as the vehicle operator to keep your eyes on the road and be an alert driver at all times,
especially when the vehicle is moving. The vehicle’s operator should not be distracted by the navigation
equipment or software. Should there be a distraction with the ability to drive responsibly, please turn off the
device. Should you want to look at the display for a prolonged time, park the car safely, while following all traffic
regulations before looking at the display.
WARNING:
TO REDUCE FIRE OR SHOCK HAZARDD RISK, DO NOT EXPOSE PRODUCT TO RAIN OR
MOISTURE. DO NOT REMOVE ENCLOSURE, THERE IS NO USER INTERNAL SERVICEABLE PARTS.
REFER SERVISING TO QUALIFIED PERSONNEL ONLY.
4
2. Welcome
Thank you for purchasing the SecuraTrac TR-313 MobileDefender. The MobileDefender
is a compact and portable tracking device. In addition to its tracking abilities, the unit
incorporates a wide array of custom configurations for users with unique needs. In result,
the MobileDefender’s versatility can be used for many tracking applications.
5
3. Introduction and Features
3.1 Introduction
MobileDefender is a personal tracking device with fast acquisition time. It is compact,
portable and stylish in design with GPS / GSM / GPRS / wireless network. Users can
easily remotely configure the MobileDefender and display GPS locations on Web Service
platforms.
6
3. Introduction and Features (Continued)

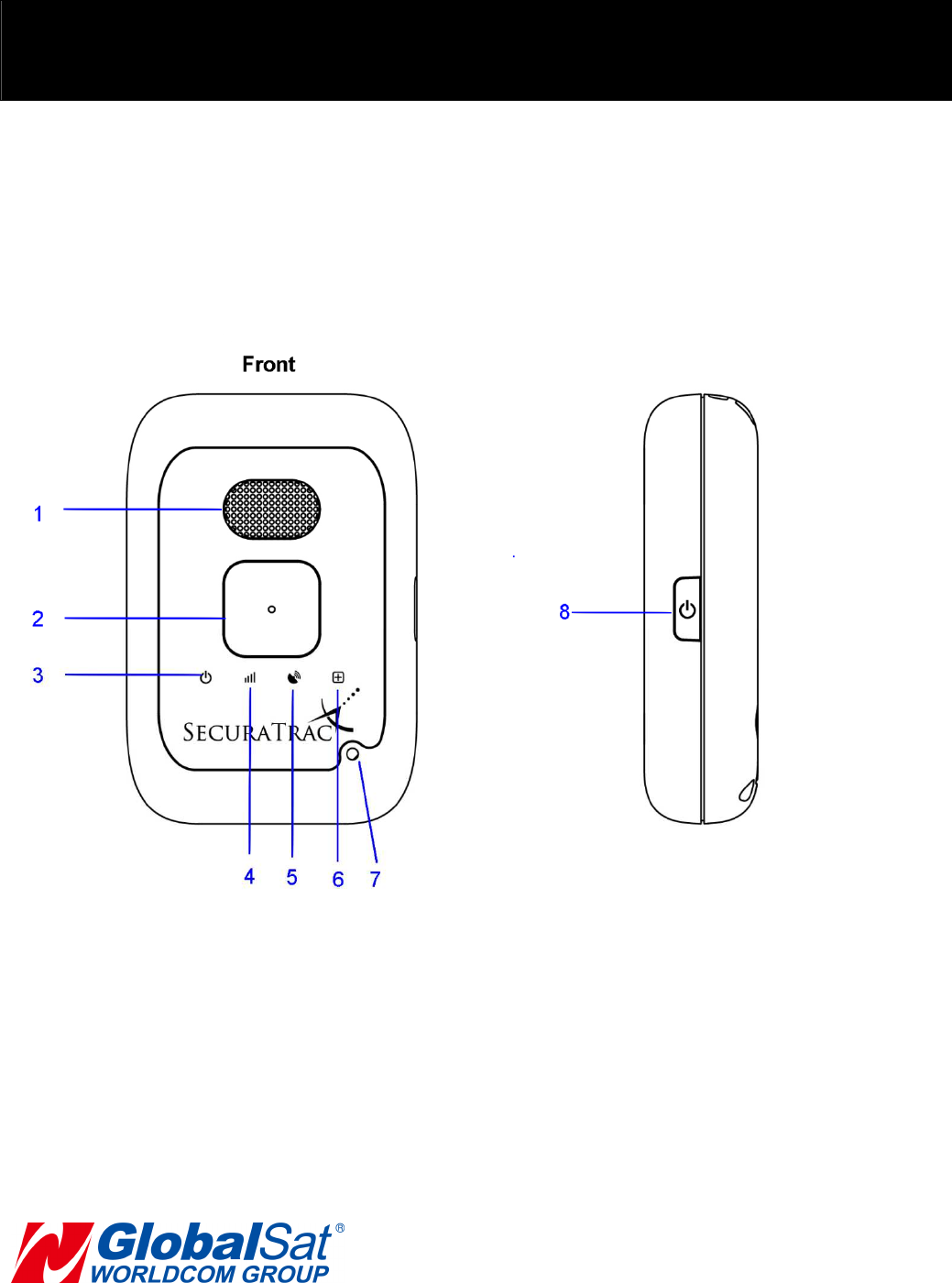

1 Speaker
2 Emergency button
3 Power status LED
4 GSM LED
5 GPS LED
6 Bluetooth LED (Optional function)
7 Microphone
8 Power button

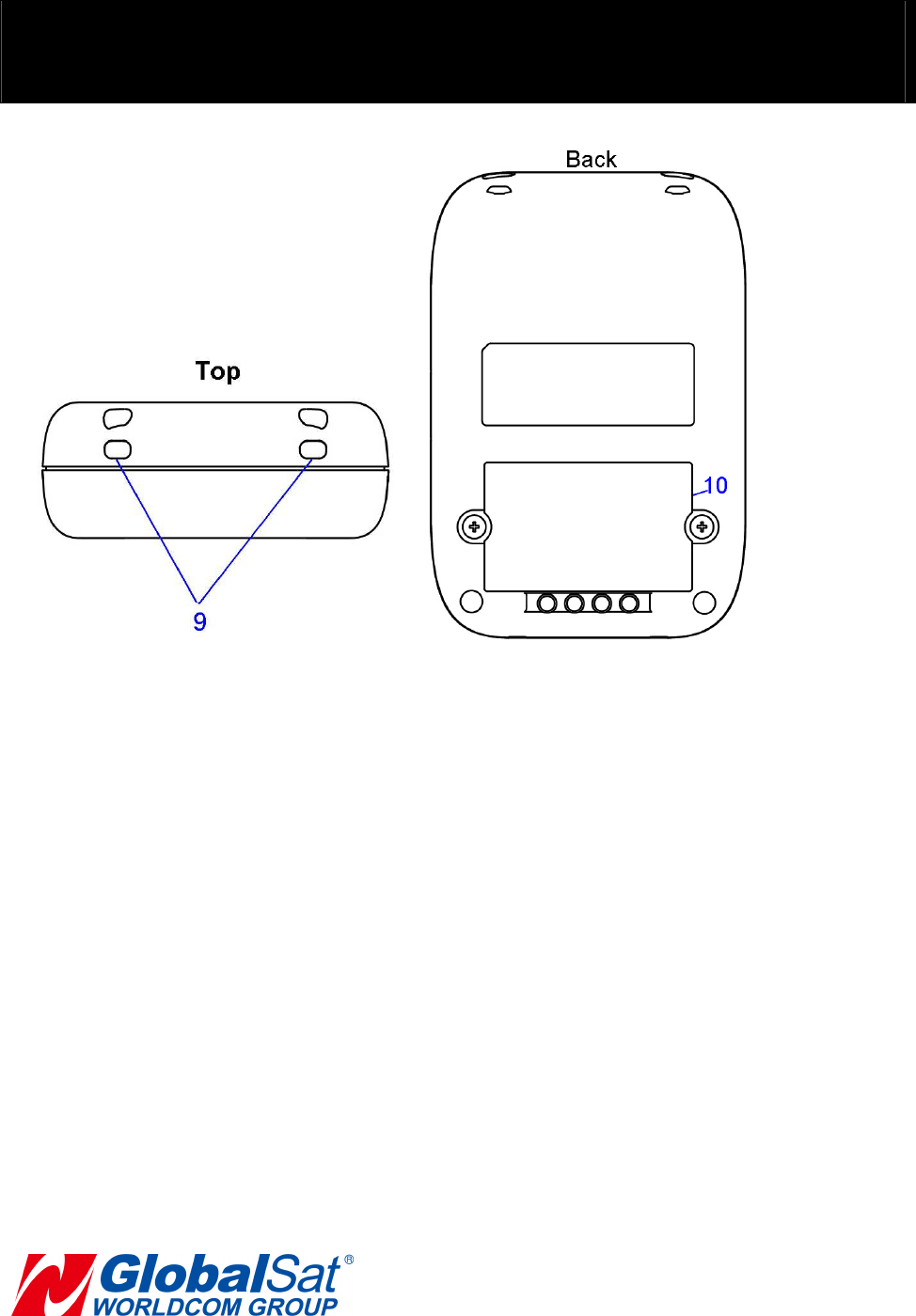

9 Lanyard hole
10 SIM card compartment
7
3. Introduction and Features (Continued)
3.2 LED Indicators
Power Status LED
LED Orange Constant Lit Red Constant Lit Red Blink Quickly
State TR-313 is being
charged. Battery power is low USB configuration
mode
GSM LED
LED Blink Quickly (Once
every 200 millisecond) Constant Lit Blink Slowly (Once
every 1 seconds)
State 1. Data transmitting. 1. TR-313 is
searching for GSM
network
2. No SIM card
inserted
1. In Standby Mode,
network already
registered.
GPS LED
LED Blink Quickly (Once per second)
Blink Slowly (Once every 3
seconds)
State TR-313 does not receive GPS fix TR-313 receives GPS fix
Bluetooth LED (Optional function)
LED Blink Quickly Blink Quickly (Once per second)
State Standby mode Connecting to Bluetooth device
8
4. Device Operation
4.1 Device charging
Using the device for the first time, rechargeable battery requires a complete charge before
MobileDefender is operable. To maximize your device’s battery life, proceed by
performing the steps listed below.

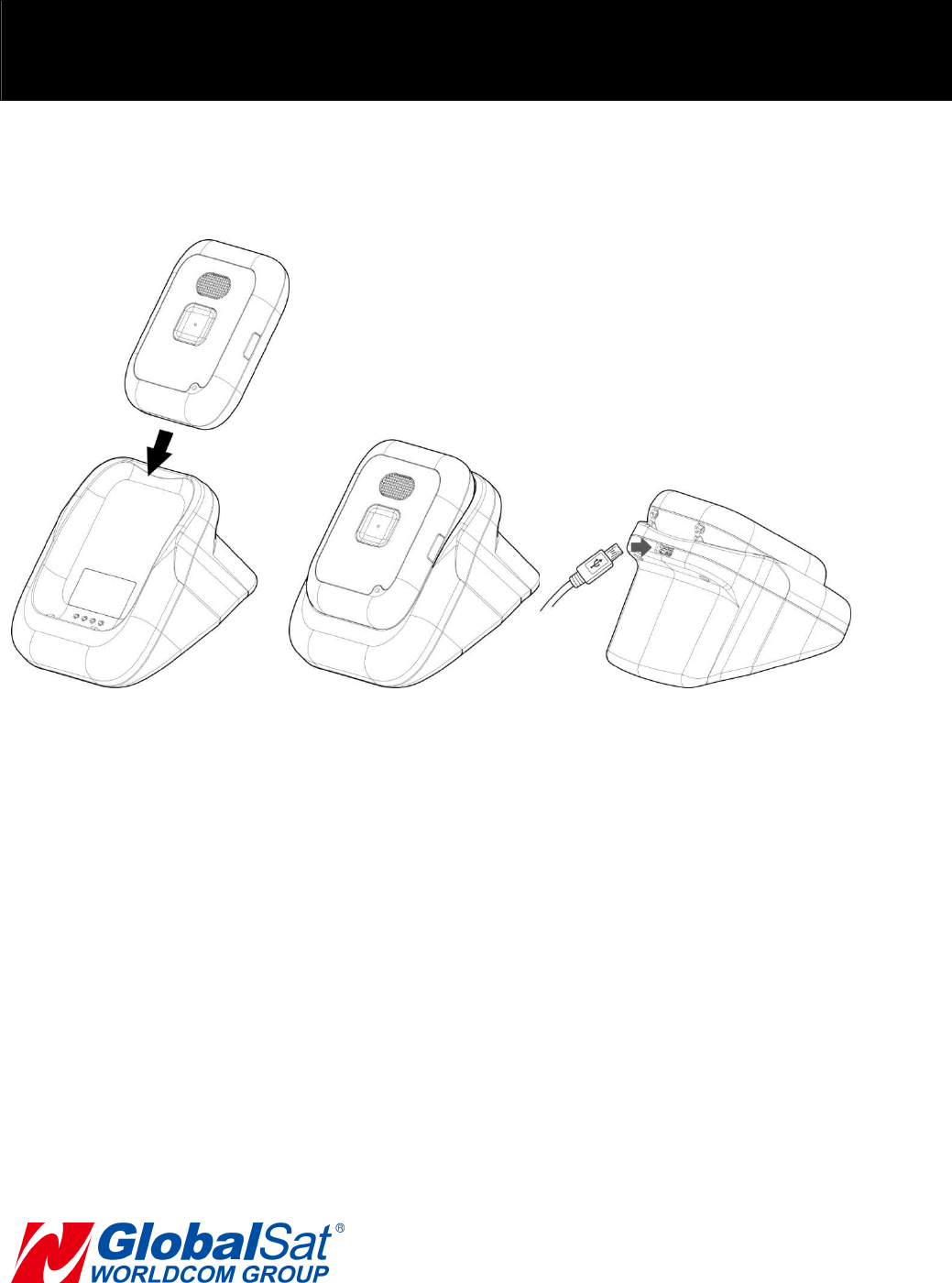

1. Place the device on the charging cradle.
2. Connect the Micro USB side of the cable to the cradle port and connect the other
end of the cable to the designated AC power source (USB/AC adaptor).
3. Allow at least a 4 hour battery charge time.
1 2 3
9
4. Device Operation (Continued)

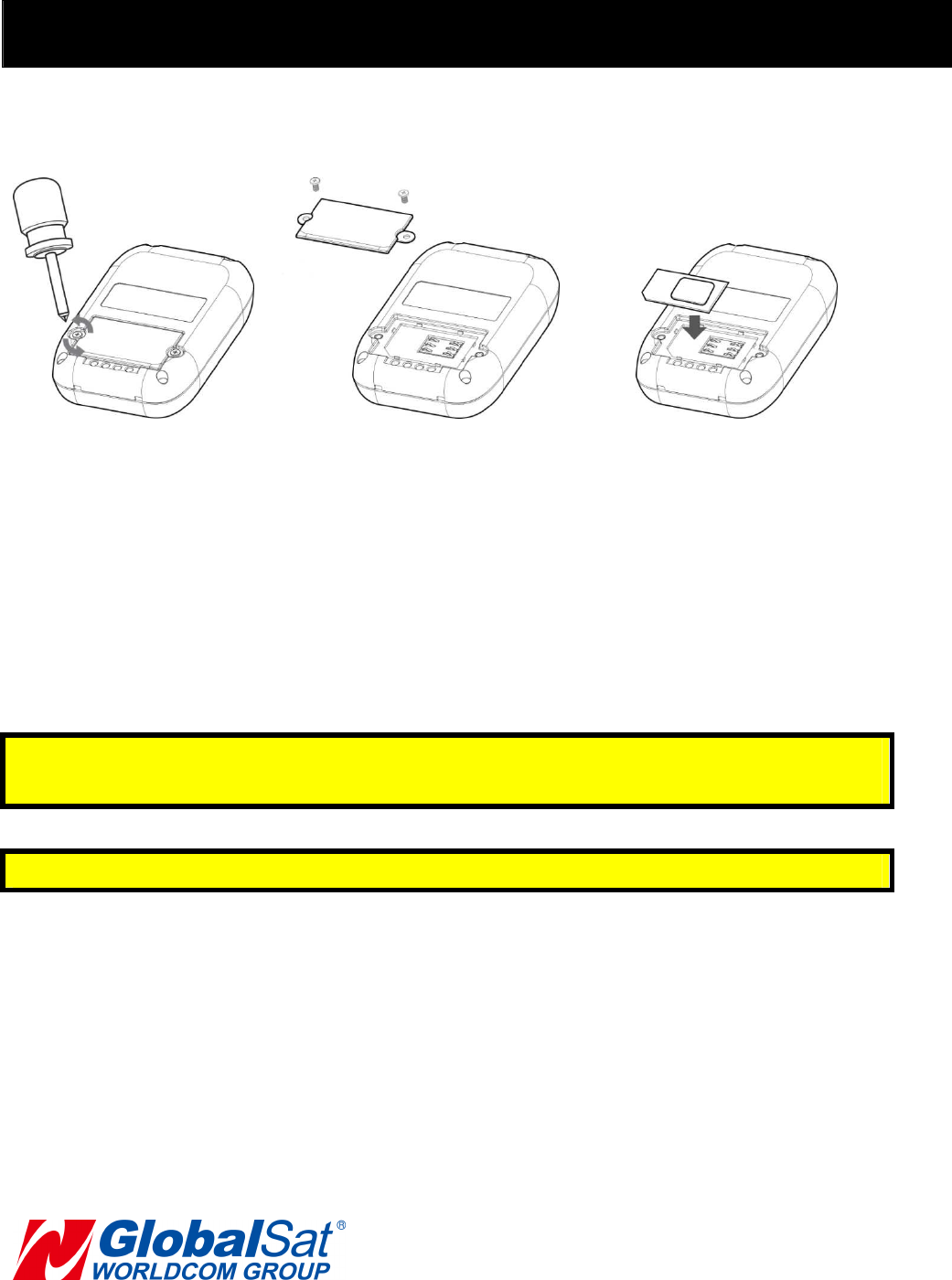

4.2 SIM card Installation
1. Unscrew the SIM card compartment cover.
2. Remove cover.
3. With the metal contacts facing down and the notch on the SIM card facing left,
place the SIM card onto the SIM card compartment.
4. Put back the cover and screw the cover.
Note: Refer to your mobile phone manual to disable the SIM PIN entry function by your
mobile phone .
Note: Before installing or taking out the SIM card, please power off the device.
1 2 3
10
4. Device Operation (Continued)
4.2 Power
1. To turn the device “ON”, press and hold the power button for 1 second.
2. To turn the device “OFF”, press and hold the power button for 3 seconds until the
device vibrates.
3. To perform a hard reset, press and hold the power button for 8 to 10 seconds.
11
4. Device Operation (Continued)
4.3 Emergency button

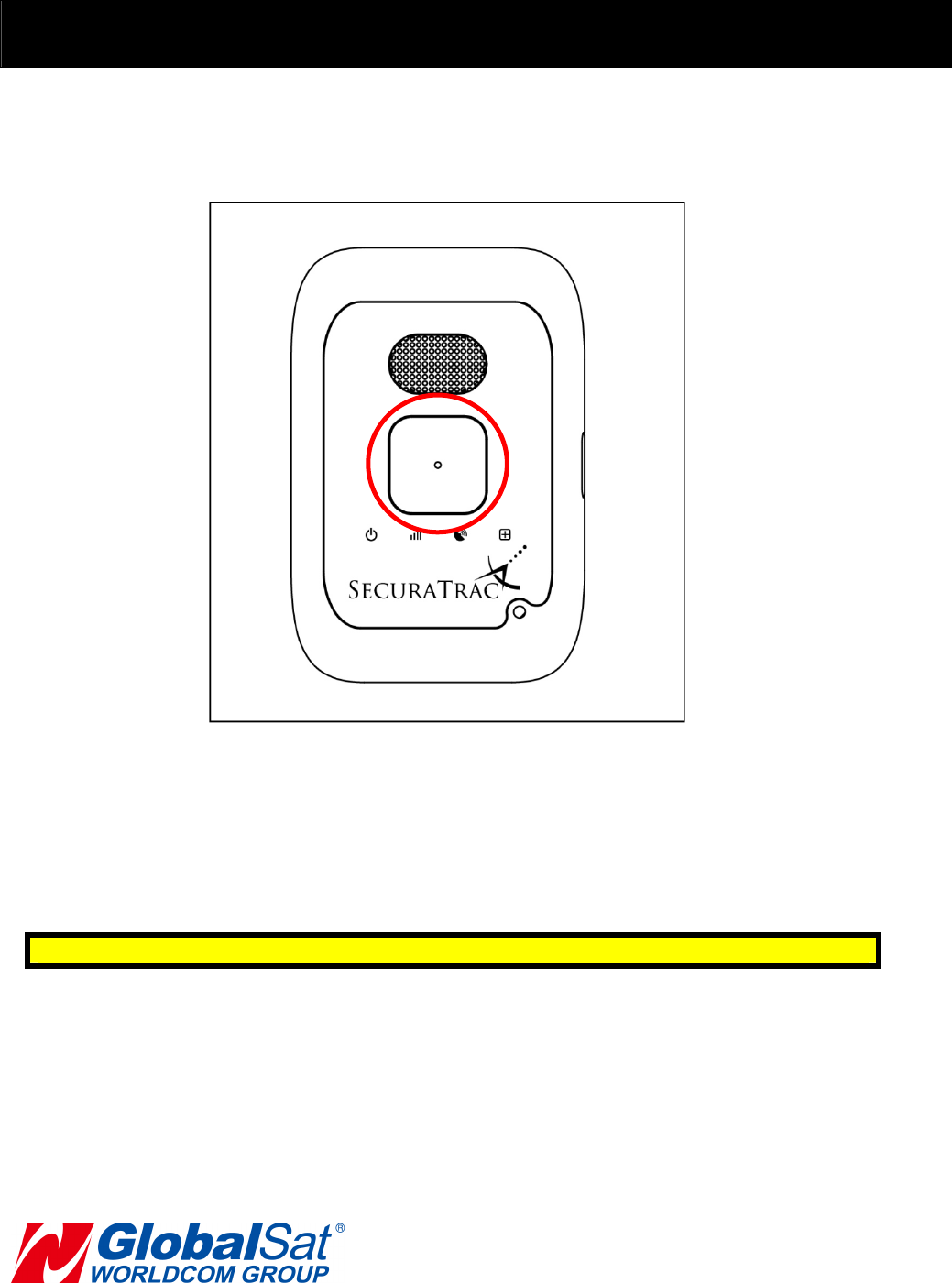

Press and hold the emergency button. MobileDefender will send the emergency SMS
messages to pre-programmed phone numbers and continuously make calls to these
phones numbers until one phone call is picked up.
Note:
.Please contact Technical Support for programming emergency phone numbers.
12
5. Contact Information
SecuraTrac ® LLC
703 Pier Avenue, Suite B313
Hermosa Beach, CA 90254
Tel: 888-9SECURA/ Fax: 888-973-2872
Email: support@securatrac.com
http://www.securatrac.com
Technical Support
Email: support@securatrac.com
6. Safety Information
• As for the operation of this product in the aircraft, please consult the aviation company first of all.
Special care should be taken when an electronics device is engaged during a flight.
• Never get closer to a place emitting intensive radio waves or radiation which could affect the
operation of this product.
• Never make the navigator fall down or clash with stiff objects to project it against any damage in
appearance, battery loose, data lose or other hardware mutilation.
• Never let this product expose to the humid environment or rain as the water leaked into could
disable it to the extent beyond reparation.
• Never switch on this product in the dusty environment.
• Over-voltage, power cable strain, bending or squeezing by heavy objects is not allowed to avoid
overheating or fire disaster.
• Never deploy any chemical or detergent to clean up the navigator to prevent erosion of the surface
or paintwork.
• In order to eliminate the risk of electric shock, do not touch the cable power plug with wet hands and
do plunge it into the socket completely.
13
6. Safety Information (Continued)
• Never charge the battery in a neither extreme cold nor hot place, which could damage the battery.
• Keep this product which is being charged out of the reach of children.
• Never put it under the direct baking sunshine or place it in a place with high temperature to avoid the
problem of over-heat to the battery or this product, which could trigger fault or danger.
• When any sort of fault comes into being, please contract with qualified maintenance personnel for
service rather than disassemble it at your own discretion.
• Keep all the wires in neat order to prevent damage-fostering tangling.
7. Limited Warranty
Globalsat/USGlobalsat (1) Year Limited Warranty
FOR CONSUMERS, WHO ARE COVERED BY CONSUMER PROTECTION LAWS OR
REGULATIONS IN THEIR COUNTRY OF PURCHASE OR, IF DIFFERENT, IN THEIR COUNTRY OF
RESIDENCE, THE BENEFITS CONFERRED BY THIS WARRANTY ARE IN ADDITION TO ALL
RIGHTS AND REMEDIES CONVEYED BY SUCH CONSUMER PROTECTION LAWS AND
REGULATIONS. THIS WARRANTY DOES NOT EXCLUDE, LIMIT OR SUSPEND ANY RITGHTS OF
CONSUMERS ARISING OUT OF NONCONFORMITY WITH A SALES CONTRACT. SOME
COUNTRIES, STATES AND PROVINCES DO NOT ALLOW THE EXCLUSION OR LIMITATION OF
INCIDENTAL OR CONSEQUENTIAL DAMAGES OR ALLOW LIMITATIONS ON HOW LONG AN
IMPLIED WARRANTY OR CONDITION MAY LAST, SO THE LIMITATIONS OR EXCLUSIONS
DESCRIBED BELOW MAY NOT APPLY TO YOU. THIS WARRANTY GIVES YOU SPECIFIC LEGAL
RIGHTS, AND YOU MAY ALSO HAVE OTHER RIGHTS THAT VARY BY COUNTRY, STATE OR
PROVIDENCE. THIS LIMITED WARRANTY IS GOVERNED BY AND CONSTRUED UNDER THE
LAWS OF THE COUNTRY IN WHICH PRODUCT PURCHASE TOOK PLACE. GLOBALSAT/
USGLOBALSAT, THE WARRANTOR UNDER THIS LIMITED WARRANTY, IS IDENTIFIED AT THE
END OF THIS DOCUMENT ACCORDING TO THE COUNTRY OR REGION IN WHICH THE
PRODUCT PURCHASE TOOK PLACE.
Globalsat/ USGlobalsat’s warranty obligations for this hardware product are limited to the terms set forth
below:
Globalsat/ USGlobalsat, as defined below, warrants this hardware product against defects in materials
product hardware against manufacturing defects in materials and workmanship under normal use for a
14
7. Limited Warranty (Continued)
period of ONE (1) year from the date of retail purchase by the original end-user purchaser and purchased
from a recognized “authorized dealer” (“Warranty Period”). Products purchased from any unauthorized
source, such as unauthorized e-Bay resellers, will not qualify for free warranty service/support and may
require the end-user to pre-pay fees associated with, but not limited to the support, repair, replacement and
shipping of the product to and from the service center. If a hardware defect arises and a valid claim is
received by Globalsat/ USGlobalsat within the Warranty Period, at its option and to the extent permitted by
law, Globalsat/ USGlobalsat will either (1) repair the product at no charge, using new parts or parts
equivalent to new in performance and reliability, (2) exchange the product with a product that is new or
equivalent to new in performance and reliability and is at least functionally equivalent to the original product
or, (3) refund the purchase price of the product. Globalsat/ USGlobalsat may request that you replace
defective parts with new or refurbished user-installable parts that Globalsat/ USGlobalsat provides in
fulfillment of its warranty obligation. A replacement product or part, including a user-installable part that has
been installed in accordance with instructions provided by Globalsat/ USGlobalsat, assumes the remaining
warranty of the original product or ninety (90) days from the date of replacement or repair, whichever
provides longer coverage for you. When a product or part is exchanged, any replacement item becomes
your property and the replaced items becomes Globalsat/ USGlobalsat’s property. Parts provide by
Globalsat/ USGlobalsat in fulfillment of its warranty obligation must be used in products for which warranty
service is claimed. When a refund is given, the product for which the refund is provided must be returned to
Globalsat/ USGlobalsat and becomes Globalsat/ USGlobalsat’s property.
If a defect arises and a valid claim is received by Globalsat/ USGlobalsat after the first one hundred and
eighty (180) days of Warranty period, a shipping and handling charge may apply to any repair or exchange
of the product undertaken by Globalsat/ USGlobalsat.
EXCLUSIONS AND LIMITATIONS
This Limited Warranty applies only to the hardware product manufactured by or for Globalsat that can be
identified by the “Globalsat” trademark, trade name, or logo annexed to it. The Limited Warranty does not
apply to any non-Globalsat hardware product or any software, even if packaged or sold with the Globalsat
hardware.
Manufacturers, suppliers, or publishers, other than Globalsat/ USGlobalsat, may provide their own
warranties to the end user purchaser, but Globalsat/ USGlobalsat, in so far as permitted by law, provides
their products “as-is”. Software distributed by Globalsat/ USGlobalsat with or without the Globalsat brand
name (including, but not limited to system software) is not covered under this Limited Warranty. Refer to the
licensing agreement accompanying the software for details of your rights with respect to its use. Globalsat/
USGlobalsat does not warrant that the operation of the product will be uninterrupted or error-free. Globalsat/
15
7. Limited Warranty (Continued)
USGlobalsat is not responsible for damage arising from failure to follow instructions relating to the product’s
use.
This warranty does not apply: (a) to consumable parts, such as batteries, unless damage has
occurred due to a defect in materials and workmanship; (b) to cosmetic damage, including but not
limited to scratches, dents, and broken plastic on ports; (c) to damage cause by use accident, abuse,
misuse, flood, fire, earthquake or other external causes; (e) to damage caused by operating the
product outside the permitted or intended uses described by Globalsat/ USGlobalsat; (f) to damage
caused by service (including upgrades and expansions) performed by anyone who is not a
representative of Globalsat/ USGlobalsat or an Globalsat/ USGlobalsat authorized service provider;
(g) to a product or part that has been modified to alter functionality or capability without the written
permission of Globalsat/ USGlobalsat; or (h) if any Globalsat/ USGlobalsat serial number has been
removed or defaced.
IMPORTANT: Do not open the hardware product. Opening the hardware product may cause damage
that is not covered by this warranty. Only Globalsat/ USGlobalsat or an authorized service provider
should perform service on this hardware product.
TO THE EXTENT PERMITTED BY LAW, THIS WARRANTY AND THE REMEDIES SET FORTH ABOVE
ARE EXCLUSIVE AND IN LIEU OF ALL OTHER WARRANTIES, REMEDIES AND CONDITIONS,
WHETHER ORAL OR WRITTEN, STATUTORY, EXPRESS OR IMPLIED. AS PERMITTED BY
APPLICABLE LAW, GLOBALSAT/ USGLOBALSAT SPECIFICALLY DISCLAIMS ANY AND ALL
STATUTORY OR IMPLIED WARRANTIES, INCLUDING, WITHOUT LIMITATION, WARRANTIES OF
MERCHANTIBILITY AND FITNESS FOR A PARTICULAR PURPOSE AND WARRANTIES AGAINST
HIDDEN OR LATENT DEFECTS. IF GLOBALSAT/ USGLOBALSAT CANNOT LAWFULLY DISCLAIM
STATUTORY OR IMPLIED WARRANTIES THEN TO THE EXTENT PERMITTED BY LAW, ALL SUCH
WARRANTIES SHALL BE LIMITED IN DURATION OF THE EXPRESS WARRANTY AND TO THE REPAIR
OF REPLACEMENT SERVICE AS DETERMINED BY GLOBALSAT/ USGLOBALSAT IN ITS SOLE
DISCRETION.
No Globalsat/ USGlobalsat reseller, agent, or employee is authorized to make any modifications, extension,
or addition to this warranty. If any term is held to be illegal or unenforceable, the legality or enforceability of
the remaining terms shall not be affected or impaired.
16
7. Limited Warranty (Continued)
EXCEPT AS PROVIDED IN THIS WARRANTY AND TO THE MAXIMUM EXTENT PERMITTED BY LAW,
GLOBALSAT/ USGLOBALSAT IS NOT RESPONSIBLE FOR DIRECT, SPECIAL, INCIDENTAL OR
CONSEQUENTIAL DAMAGES RESULTING FROM ANY BREACH OF WARRANTY OR CONDITION, OR
UNDER ANY OTHER LEGAL THEORY, INCLUDING BUT NOT LIMITED TO LOSS OF USE; LOSS OF
REVENUE; LOSS OF ACTUAL OR ANTICIPATED PROFITS (INCLUDING LOSS OF PROFITS ON
CONTRACTS); LOSS OF THE USE OF MONEY; LOSS OF ANTICIPATED SAVINGS; LOSS OF
BUSINESS; LOSS OF OPPORTUNITY; LOSS OF GOODWILL; LOSS OF REPUTATION; LOSS OF;
DAMAGE TO OR CORRUPTION OF DATA; OR ANY INDIRECT OR CONSEQUENTIAL LOSS OR
DAMAGE HOWSOEVER CAUSED INCLUDING THE REPLACEMENT OF EQUIPMENT AND
PROPERTY, ANY COSTS OF RECOVERING, PROGRAMMING OR REPRODUCING ANY PROGRAM OR
DATA STORED IN OR USED WITH THE GLOBALSAT/ USGLOBALSAT PRODUCT AND ANY FAILURE
TO MAINTAIN THE CONFIDENTIALITY OF DATA STORED ON THE PRODUCT. THE FOREGOING
LIMITATION SHALL NOT APPLY TO DEATH OR PERSONAL INJURY CLAIMS, OR ANY STATUTORY
LIABILITY FOR INTENTIONAL AND GROSS NEGLIGENT ACTS AND/OR OMISSIONS. GLOBALSAT/
USGLOBALSAT DISCLAIMS ANY RESPRESENTATION THAT IT WILL BE ABLE TO REPAIR ANY
PRODUCT UNDER THIS WARRANTY OR MAKE A PRODUCT EXCHANGE WITHOUT RISK TO OR
LOSS OF PROGRAMS OR DATA.
OBTAINING WARRANTY SERVICE
Please access and review the online help resources referred to in the documentation accompanying this
hardware product before seeking warranty service. If the product is still not functioning properly after making
use of these resources, access the online website www.usglobalsat.com for instructions on how to obtain
warranty service. You must follow Globalsat/ USGlobalsat warranty processes. Globalsat/ USGlobalsat may
provide warranty service (i) by sending the unit to Globalsat/ USGlobalsat location, where service is
performed at the location, or (ii) by sending the unit to an authorized Globalsat/ USGlobalsat supplier (iii)
by sending you new or refurbished customer-installable replacement product or parts to enable you to
service or exchange your own product (“RMA service”). Upon receipt of the replacement product or part, the
original product or part becomes the property of Globalsat/ USGlobalsat and you agree to follow instructions,
including, if requires, arranging the return of the product or part to Globalsat/ USGlobalsat in a timely manner.
When providing RMA service requiring the return of the original product or part, Globalsat/ USGlobalsat may
require credit card authorization as security for the retail price of the replacement product or part and
applicable shipping costs. If you follow the instructions, Globalsat/ USGlobalsat will cancel the credit card
authorization, so you will not be charged for the product or part and shipping costs. If you fail to return the
replace product or part as instructed, Globalsat/ USGlobalsat will charge the credit card for the authorized
amount. Service options, parts availability and response times may vary according to the country in which
17
7. Limited Warranty (Continued)
service is requested. Service options are subject to change at any time. You may be responsible for shipping
and handling charges if product cannot be serviced in the country in which service is requested. If you seek
service in a country that is not the country of purchase, you will comply with applicable export laws and
regulations and be responsible for all custom duties, V.A.T. and other associated taxes and charges. For
international service, Globalsat/ USGlobalsat may repair or exchange defective products and parts with
comparable products and parts that comply with local standards. In accordance with applicable law,
Globalsat/ USGlobalsat may require that you furnish proof of purchase details and/ or comply with the
registration requirements before receiving warranty service.
Please refer to the accompanying documentation for more details on this and other matters obtaining
warranty service.
Globalsat/ USGlobalsat will maintain and use customer information in accordance with the Globalsat/
USGlobalsat Privacy Policy.
If your product is capable of storing software programs, data and other information, you should make
periodic backup copies of the information contained on the product’s hard drive or other storage media to
protect the contents and as a precaution against possible operational failures. Before you deliver your
product for warranty service it is your responsibility to keep a separate backup copy of the contents, and
disable any security passwords. IT IS POSSIBLE THAT THE CONTENTS OF YOUR HARD DRIVE WILL
BE LOST OR REFORMATTED IN THE COURSE OF WARRANTY SERVICE, AND GLOBALSAT/
USGLOBALSAT AND ITS AGENTS ARE NOT RESPONSIBLE FOR ANY DAMAGE TO OR LOSS OF
PROGRAMS, DATA OR OTHER INFORMATION CONTAINED ON THE MEDIA OR ANY PART OF THE
PRODUCT SERVICED. Your product will be returned to you configured as originally purchased, subject to
applicable updates. You will be responsible for reinstalling all other software programs, data and passwords.
Recovery and reinstallation of service programs and user data are not covered under this Limited Warranty.
Federal Communication Commission Interference Statement
This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions: (1) This device may not cause harmful
interference, and (2) this device must accept any interference received,
including interference that may cause undesired operation.
This equipment has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or
television reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference by one of the
following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment and receiver.
- Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
- Consult the dealer or an experienced radio/TV technician for help.
FCC Caution: Any changes or modifications not expressly approved by the
party responsible for compliance could void the user's authority to operate this
equipment.
This transmitter must not be co-located or operating in conjunction with any
other antenna or transmitter.
Radiation Exposure Statement:
The product comply with the FCC portable RF exposure limit set forth for an
uncontrolled environment and are safe for intended operation as described in
this manual. The further RF exposure reduction can be achieved if the product
can be kept as far as possible from the user body or set the device to lower
output power if such function is available.
