GlobalSat WorldCom TR606 Tracker User Manual TR 606B UM
GlobalSat WorldCom Corporation Tracker TR 606B UM
User Manual
![](/img.php?id=1843148&img=bg1.png)

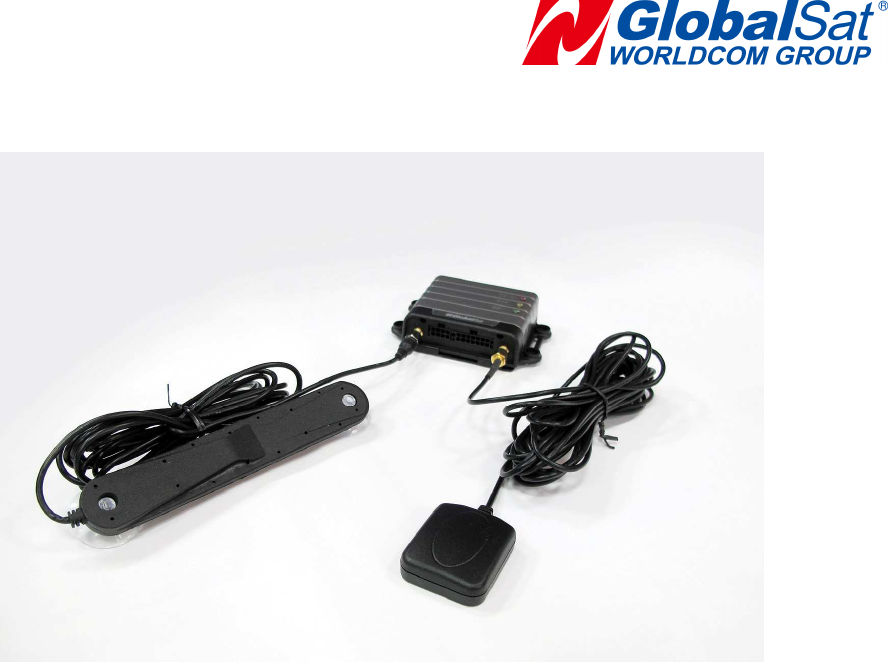

AVL Tracking System
TR-606B
GlobalSat WorldCom Corporation
16F., No. 186, Jian 1
st
Rd, Zhonghe Dist.,
New Taipei City 23553, Taiwan
Tel: 886.2.8226.3799/ Fax: 886.2.8226.3899
service@globalsat.com.tw
www.globalsat.com.tw
USGlobalSat Incorporated
14740 Yorba Court Chino, CA 91710
Tel: 888.323.8720 / Fax:
909.597.8532
sales@usglobalsat.com
www.usglobalsat.com
![](/img.php?id=1843148&img=bg2.png)
2
CONTENT
1. Introduction ....................................................................................................................................... 3
1.1 Introduction ............................................................................................................................. 3
1.2 Features .................................................................................................................................... 3
1.3 Hardware Architecture ........................................................................................................ 4
1.4 Hardware specification ........................................................................................................ 5
1.5 Appearance .............................................................................................................................. 6
1.6 LED indicator ........................................................................................................................... 7
1.7 Cable description ................................................................................................................... 8
1.8 Accessories ............................................................................................................................ 10
2 Operation ............................................................................................................................................ 11
2.1 Install the SIM card ............................................................................................................ 11
2.2 Install the GPS and GSM antenna ................................................................................ 12
2.3 Installing the Emergency button ................................................................................... 13
![](/img.php?id=1843148&img=bg3.png)
3
1. Introduction
1.1 Introduction
The TR-606B is a multi-functional and economically feasible communication platform for mobile
positioning applications. It integrates highly sensitive GPS module, dual-band UMTS/HSDPA
and quad-band GSM communication module with a powerful microcontroller that fits into a
compact enclosure. The TR-606B has a solid and rigid housing, for simple installation. It
provides real-time GPS positions anytime and anywhere with an open view to the sky, and
offers precise positioning, and reports vehicle status to the server with necessary information
shown on the map. Benefits such as enhanced fleet management, improved vehicle safety,
emergency response, are all accomplished through the implementation of the TR-606B system.
1.2 Features
Dual-Band UMTS/HSDPA 850/1900 MHz WCDMA system
Quad-band GSM/GPRS/EDGE 850/900/1800/1900 MHz system
Build in high sensitivity GPS system
Supports AT command via SMS/ TCP/UDP
Remote control via SMS/GPRS command
Real-time GPS position feedback and vehicle status monitoring
Built-in in digital outputs (3), digital inputs (3), an ACC input, 1 analog input, and 1 serial
port
Power supply for Li-ion battery and lead-acid battery
Supports multi geo-fence function
OTA (Over the air) firmware upgrade
Data buffer storage 3,000 points
Interval report depends on customization
Power low/lost detection alarm
Motion sensor
3 LED indicators for GSM, GPS, power status
![](/img.php?id=1843148&img=bg4.png)
4

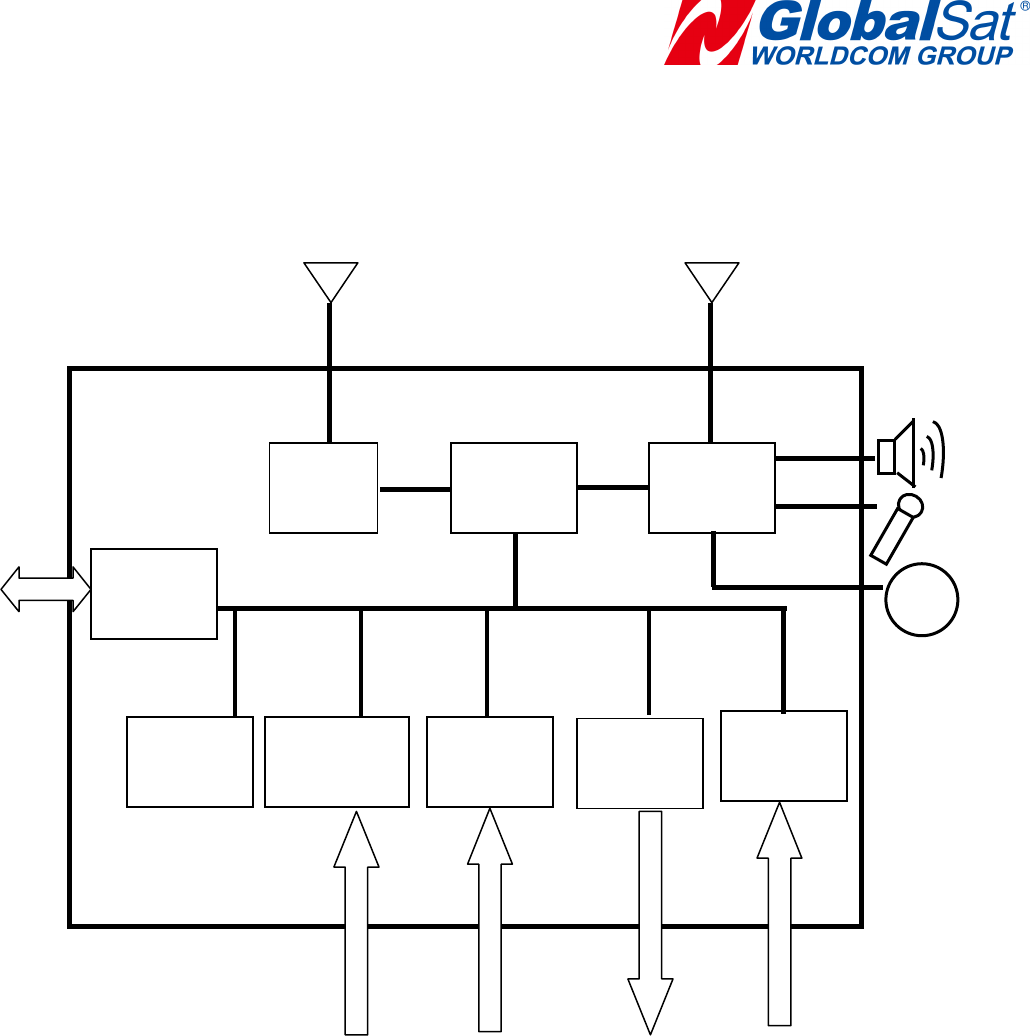

1.3 Hardware Architecture
GPS antenna GSM antenna
Speaker
Microphone
CPU
GPS
GSM
MODEM
Analog
Input
Digital
output
Digital
input
Li backup
Battery
USART/
RS-232
Motion
Sensor
SOS
![](/img.php?id=1843148&img=bg5.png)
5
1.4 Hardware specification
Item Description
Dimension 98 mm X 71 mm X 22 mm
CPU High performance line ARM-base 32-bit MCU
GPS receiver SiRF Star III high performance GPS chipset
Temperature Operation -30℃ ~ + 80℃
Storage -40℃ ~ + 85℃
GPS Antenna SMA Type connector. Active antenna ( 3.3~3.8V)
GSM Antenna SMA Type connector. Patch antenna
Communication UMTS/HSDPA 850/1900 MHz WCDMA
Quad-Band GSM/GPRS/EDGE 850/900/1800/1900 MHz
Protocol Voice/SMS/GPRS (TCP/UDP)
Built-in Memory 32 Mb
GPS logging capacity 3000 points (Cell ID 1,400 points)
Emergency Input Negative trigger 1
Ignition (ACC) Input Positive trigger 1
Digital Input Port Negative trigger 2
Positive trigger 1
Digital Output Port Negative trigger 3 (300 mA)
Analog Input Port Analog Input 1( 0~28V)
Serial Port 115200 bps
Backup battery Internal 820 mAh Lion battery
Support external Lead-acid battery (12V/24V)
Sensor Motion sensor
![](/img.php?id=1843148&img=bg6.png)
6

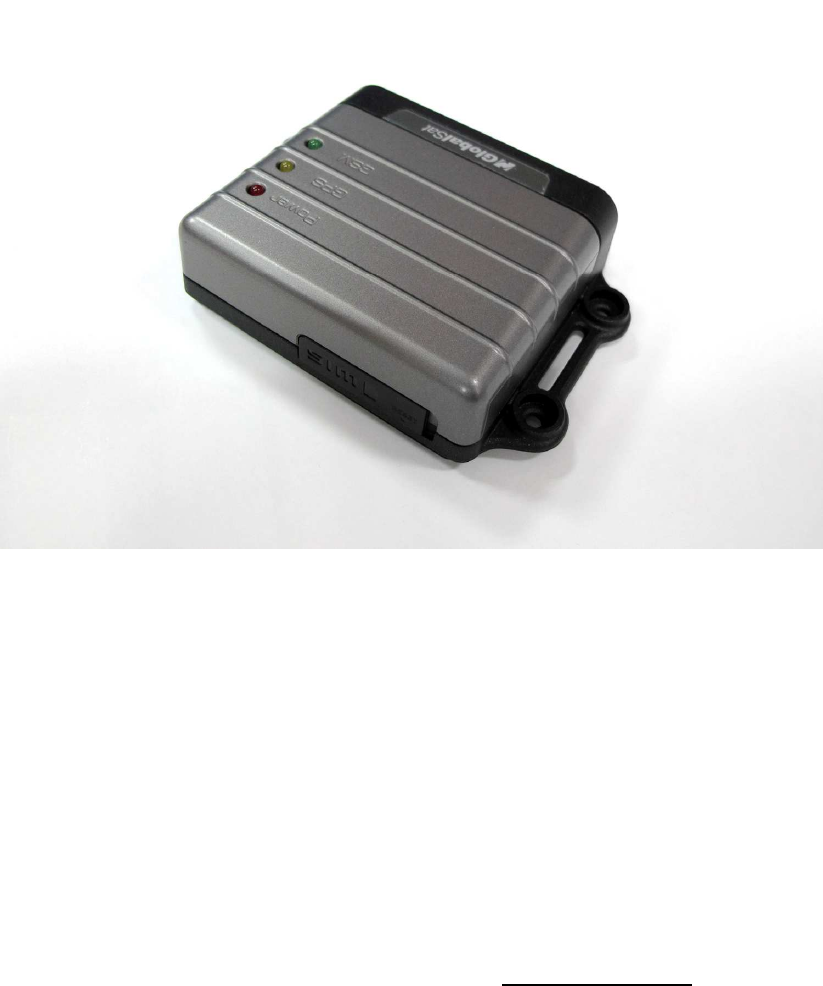

1.5 Appearance
1 Peripheral interface port
2 I/O port
3 Power Status LED
4 GPS LED
5 GSM LED
6 For fixing device with screws
7 GSM antenna connector
8 For fixing device with belt
9 GPS antenna connector
10 SIM card holder
1 2
3
4
5
6 6
7
8
9
10
8
6 6
![](/img.php?id=1843148&img=bg7.png)
7
1.6 LED indicator
Power Status LED (Red)
LED Permanently On
State Main power on, device on
GPS LED (Yellow)
LED Permanently off Fast blinking (Once
every 1 second) Slow blinking (Once
every 3 seconds)
State GPS off GPS not fix GPS fix
GSM LED (Green)
LED Permanently off Fast blinking (Once
every 1 second) Slow blinking (Once
every 3 seconds)
State GSM off 1. TR-606B is
searching GSM
network
2. SIM card is
registering to GSM
network
TR-606B is registered
full service
![](/img.php?id=1843148&img=bg8.png)
8
1.7 Cable description
14 Pin I/O Cable
Wire Color Description
Green/ White Analog Input_1
White Digital Output 3 (Negative Trigger)
Gray Digital Output 1 (Negative Trigger)
Purple Digital Input 3 (Positive Trigger)
Blue Digital Input 1 (Negative Trigger)
Black Ground
Red Main Power
X
Green Digital Output 2 (Negative Trigger)
Yellow ACC (Positive Trigger)
Orange Digital Input 2 (Negative Trigger)
Brown SOS (Negative Trigger)
Pink 12V/24V Backup Battery
Black Ground
![](/img.php?id=1843148&img=bg9.png)
9

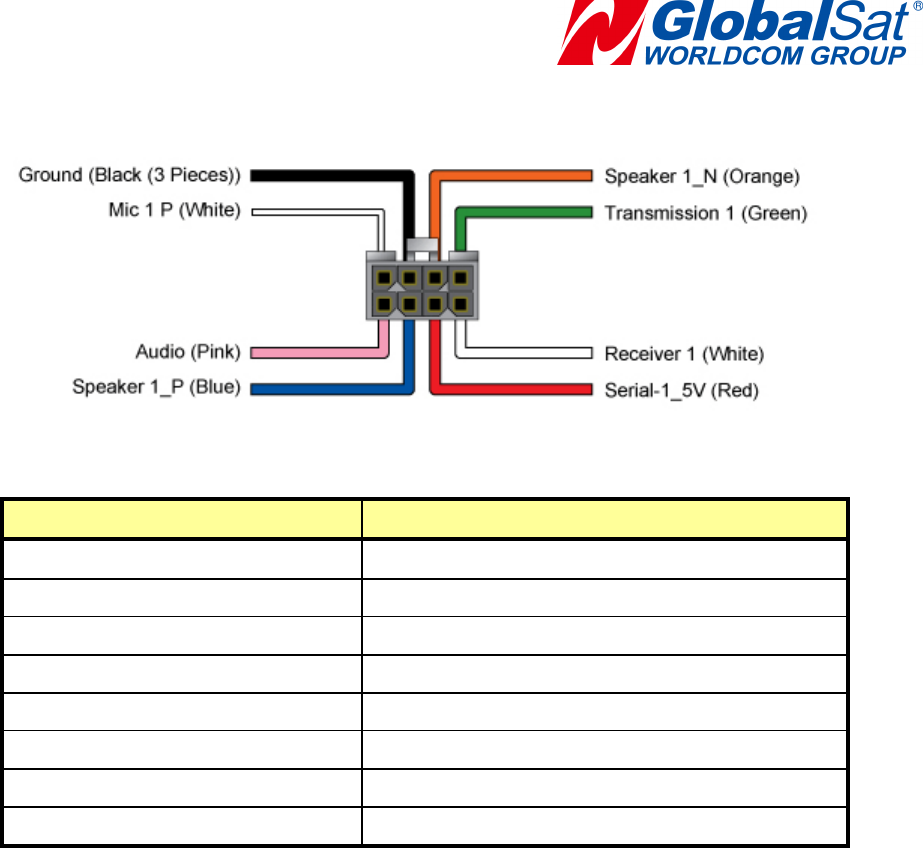

8 Pin Cable
Wire Color Description
Pink Audio_5V
Blue Speaker 1(Positive)
Red Serial-1_5V
White Receiver 1
White Microphone 1 P
Black (3 Pieces) Ground
Orange Speaker 1(Negative)
Green Transmission 1
![](/img.php?id=1843148&img=bga.png)
10

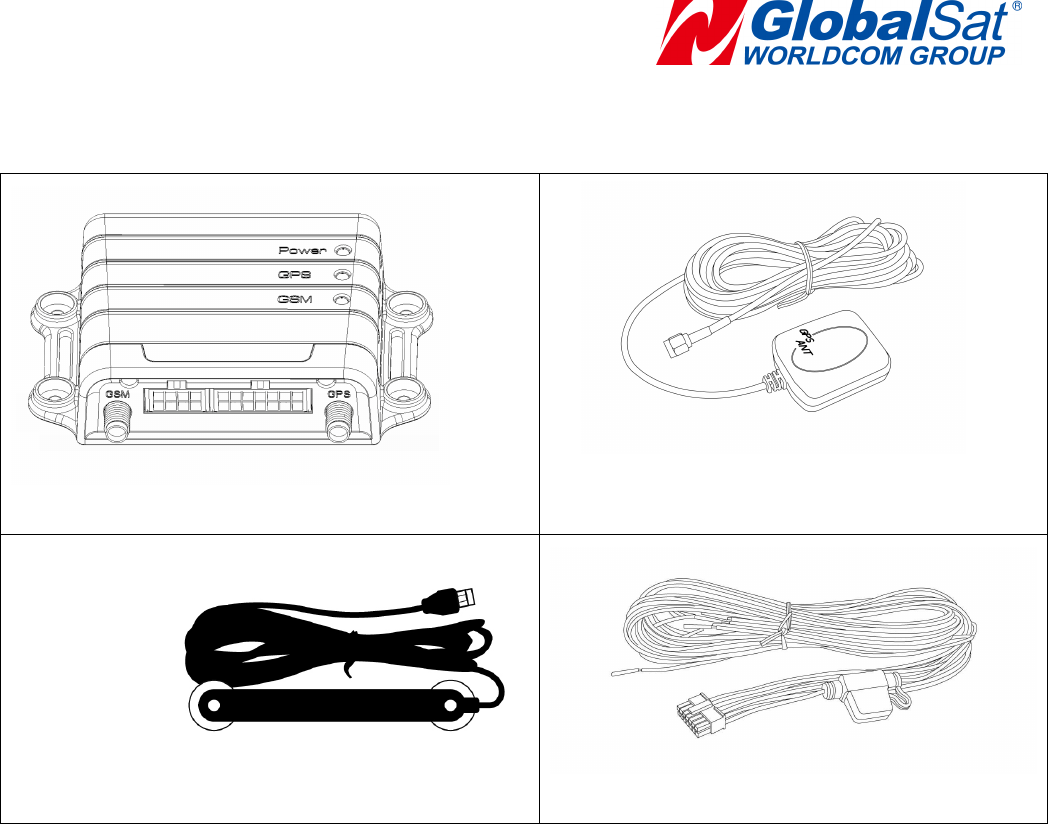

1.8 Accessories
Main Unit
GPS Antenna
GSM Antenna
14 Pin I/O Cable
![](/img.php?id=1843148&img=bgb.png)
11
2 Operation
For first time users, please follow the steps below to complete the pre-installation.

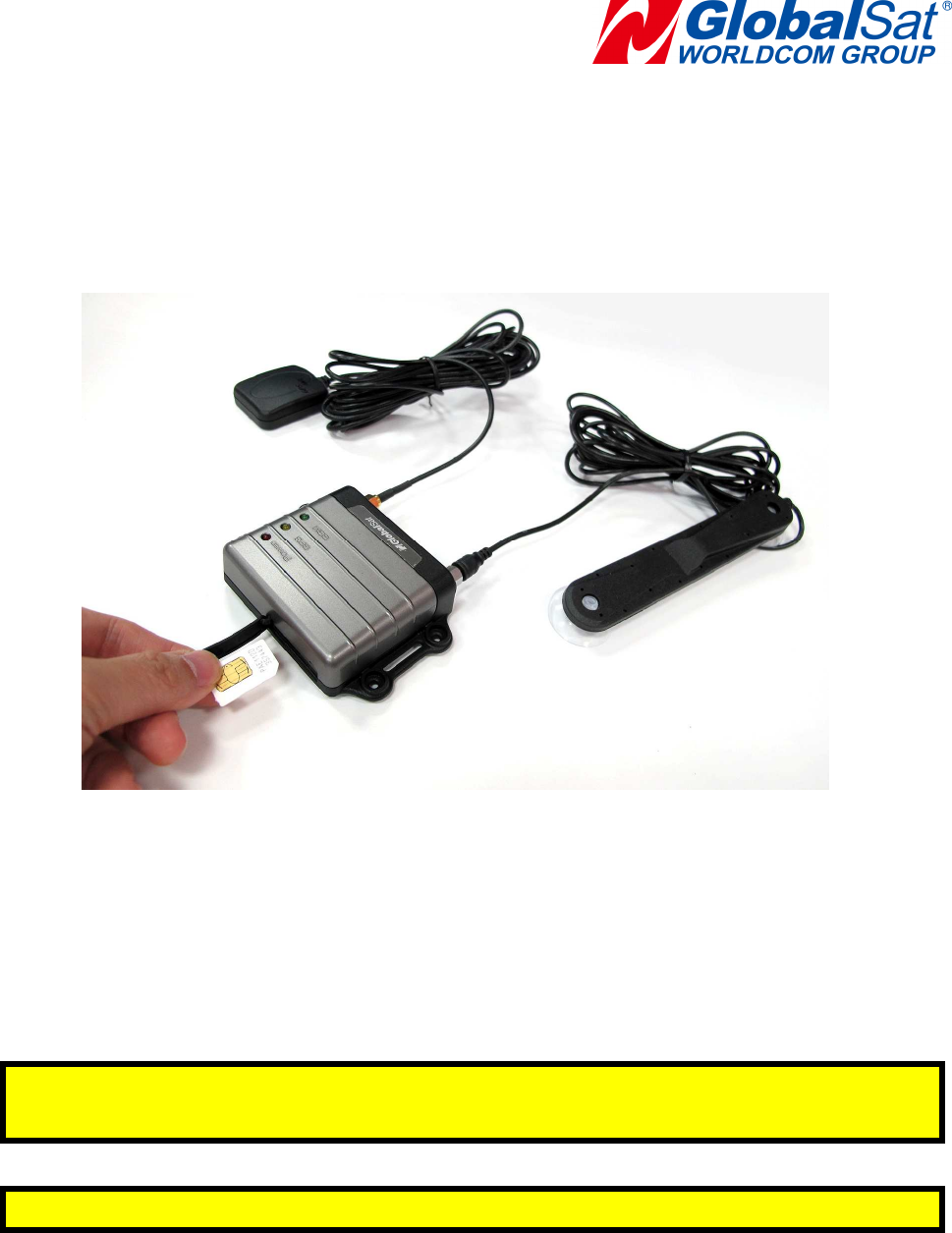

2.1 Install the SIM card
With the cooper contacts face-up, align the notch on the SIM card with the notch on the
SIM slot and insert the SIM card. If SIM is inserted correctly, you will not be able to see the
copper contacts after inserting the card. To eject SIM card, simply, use your finger nail and
apply slight pressure.
Note: Make sure to disable the SIM PIN entry function on the SIM card before inserting
your SIM card
Note: Before installing or taking out the SIM card, please power off the TR-606.
![](/img.php?id=1843148&img=bgc.png)
12
2.2 Install the GPS and GSM antenna
Install the GSM antenna to the GSM antenna port on the left side of the back of the
device and install the GPS antenna to the GPS antenna port on the right side of the
back of the device making sure both antennas tightly screwed in place. Please refer to
the photo above.
![](/img.php?id=1843148&img=bgd.png)
13

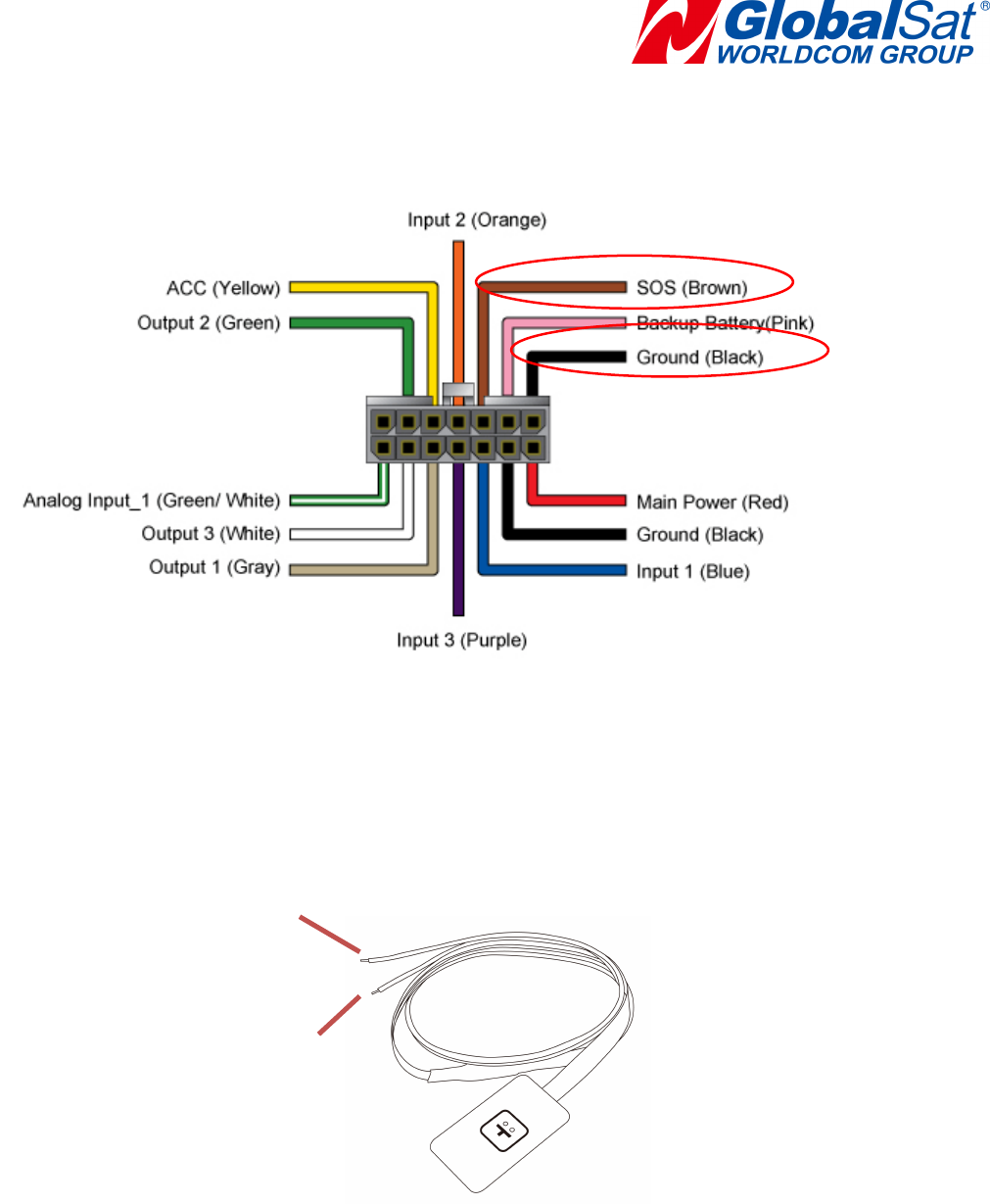

2.3 Installing the Emergency button
There is a line of the 14 pin IO cable for connecting push button for emergency help.
One end of the button must be connected to the SOS line and the other end must be connected
to the ground line.
SOS line
(red wire)
Ground line

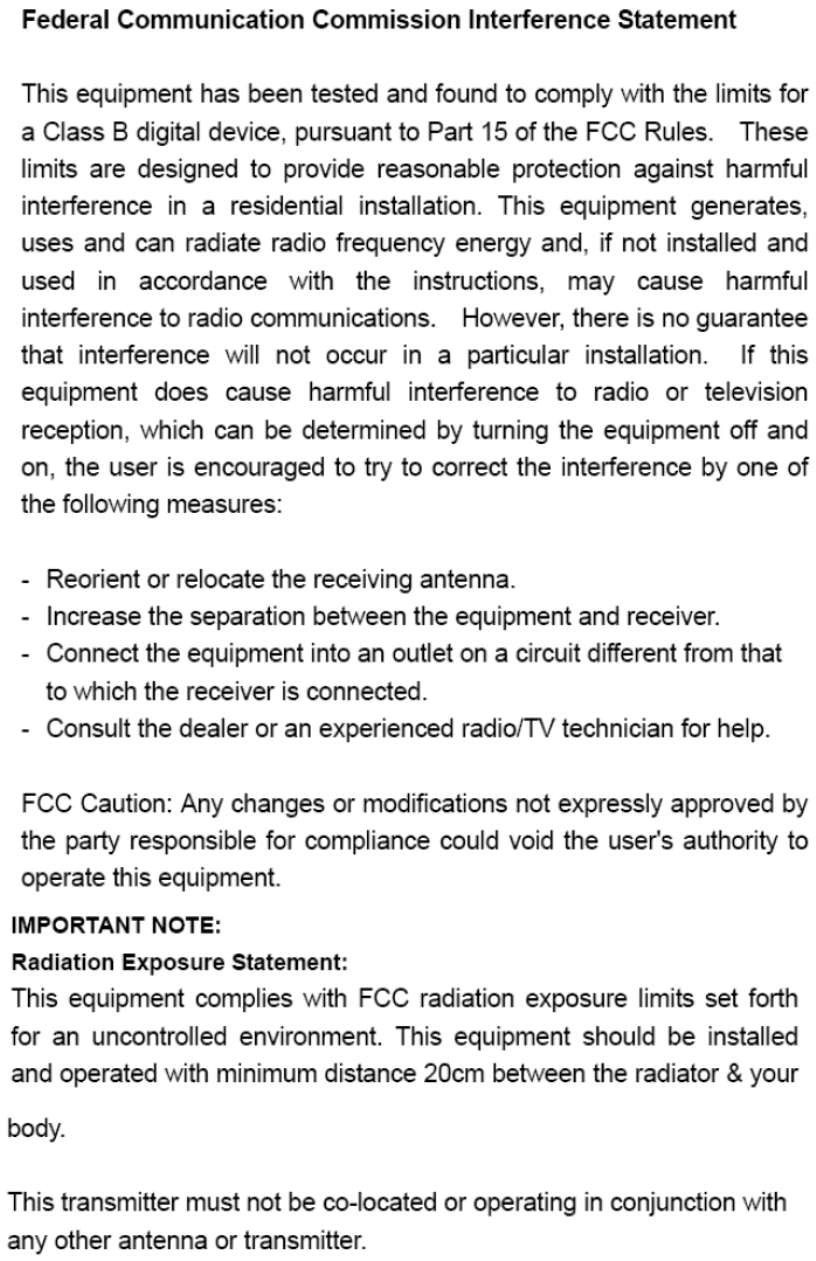

(Black wire)
