GoPro CHDHE301 Digital HD Camera User Manual Antenna Specification

GoPro, Inc. Digital HD Camera Antenna Specification

Contents

Antenna Specification

1
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology
HD3 Antenna Design
Amphenol 2012/08/03
2
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology
Revision History
NA2011/10/14First dummy evaluation A
NA2011/10/21
WIFI module in battery side with cable connect
to antenna evaluation
B
NA2011/10/24Front Cover is all metalC
NA2011/10/25
Different WIFI module position at front metal
cover fixture
D
NA2011/10/26Front metal cover comparisonE
NA2011/10/27With/ without metal column of lens F
NA2011/10/28Radiation pattern evaluationG
NA2011/11/0311/2 3D drawing antenna evaluationH
NA2011/11/0811/7 3D drawing antenna evaluationI
NA2011/11/10Increase PCB area evaluationJ
NA2011/11/11
11/7 3D drawing improve antenna radiation
pattern and efficiency evaluation
K
2011/11/18
Date
NAUse real battery to evaluateL
Drawing NO.Destitution Revision
3
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology
Revision History
NA2012/02/15
With/without water housing antenna
performance
V
NA2012/02/10Modify EVT unit to check antenna performanceU
NA2011/11/22
Add PCB area close to the feed point in main
board
M
NA2012/01/20Base on 1/17 mockup to evaluateN
NA2012/02/03Evaluate antenna base on EVT 1 deviceO
NA2012/02/03
Evaluate antenna base on Chicony support
grounding position
P
NA2012/02/04
Find grounding position to increase antenna
performance-1
Q
NA2012/02/06
Find grounding position to increase antenna
performance-2
R
NA2012/02/07
Battery without connect metal plate and real
board antenna evaluation
S
NA2012/02/10Used TCL and BYD battery to evaluate antennaT
Date Drawing NO.Destitution Revision
4
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology
Revision History
CY5324-12-001-C-FA002012/06/04Base on 4/25 EVT3 device with water housing Y
CY5324-12-001-C-FA002012/06/04Base on 4/25 EVT3 device to evaluate antenna X
2012/08/03
2012/07/04
2012/03/09
Date
CY5324-12-001-C-FA00Base on DVT1 unit to evaluate antennaZ
C-5324-12-001-C-TB00Base on 3/9 EVT2 device to evaluate antenna W
CY5324-12-001-C-FB00
Base on PVT1 unit to measure the antenna
performance
AA
Drawing NO.Destitution Revision
5
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology
Outline
• Test equipment introduction
• Antenna Placement
• Antenna Performance
• Conclusions
6
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology
Test equipment introduction
7
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology

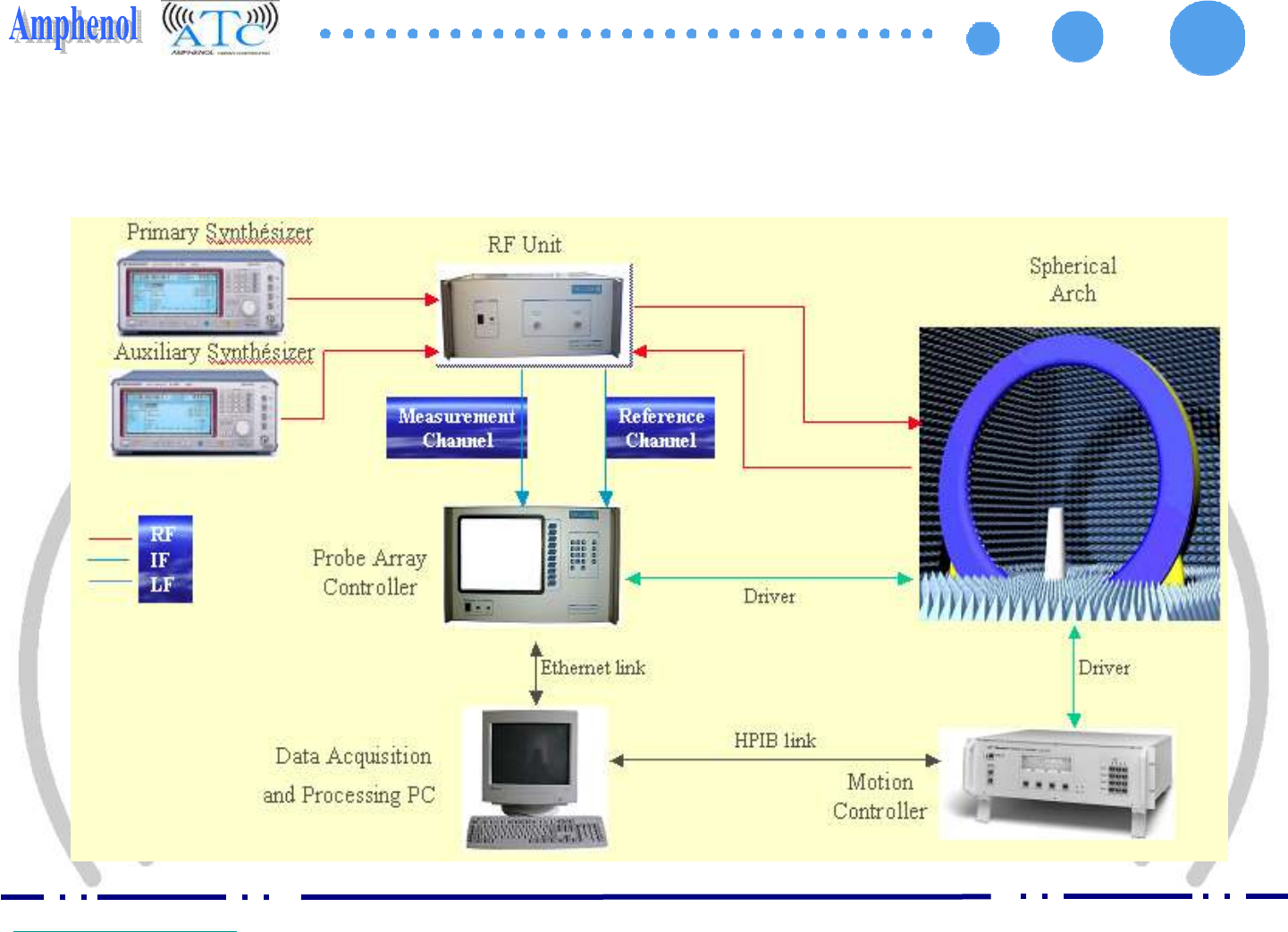

Configuration of Satimo Stargate 64
8
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology
Gain Measurement Accuracy of Satimo Stargate 64
9
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology

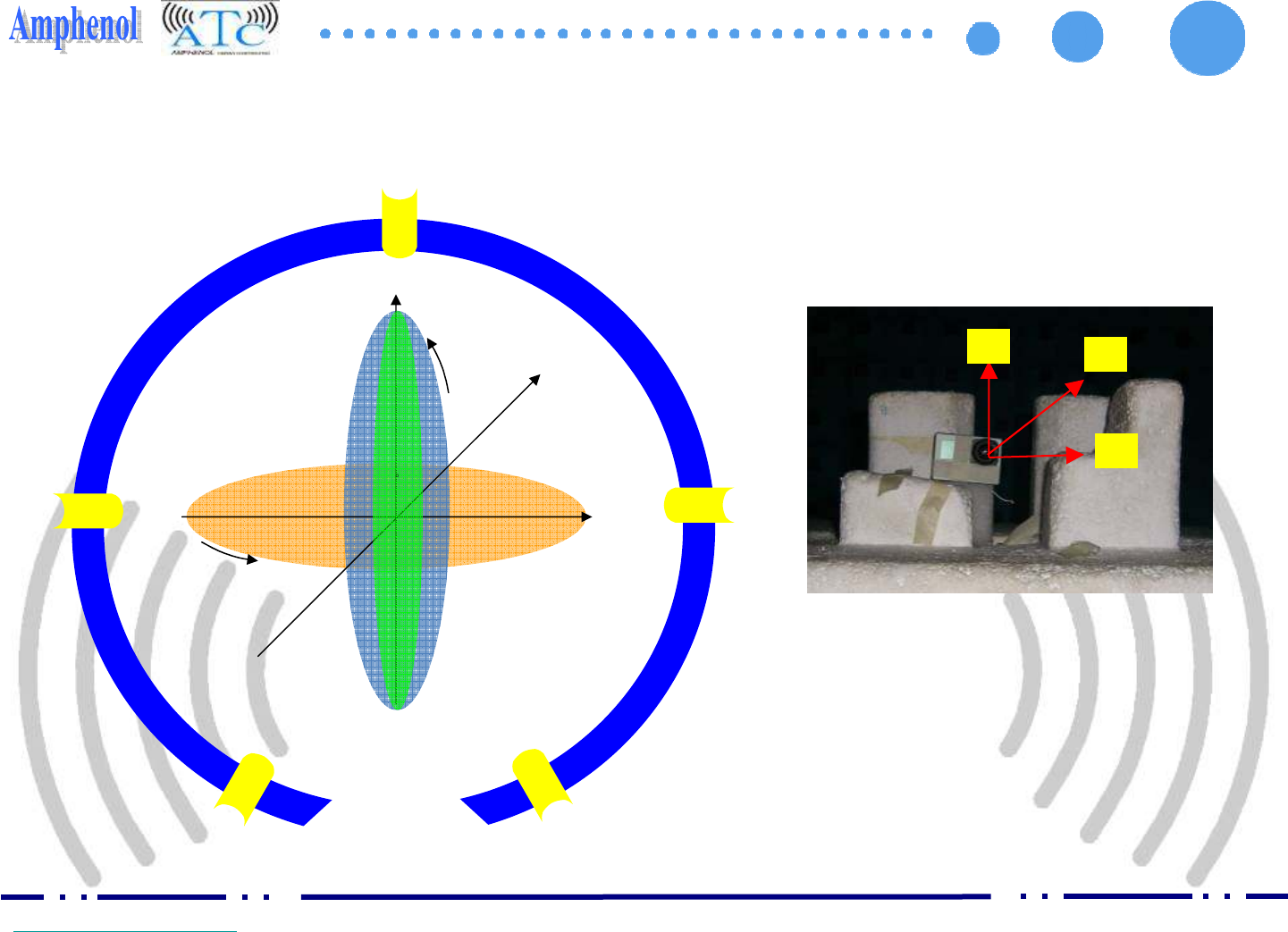

Satimo Stargate 64 coordinate system definitions
•+Z
•+X
•+Y
•Probe 1 •Probe 63
•Φ=90°
•θ=90°
•θ=0°
•Φ=180°
•θ=90°
•θ=180°
•AzimuthΦ
•Elevationθ
•Cutθ=-90°
•CutΦ=0°
•CutΦ=90°
•Cut Ø=90
•Probe 49
•Φ=0°
•θ=90°
•Probe 32
•Probe 15
ZY
X
10
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology

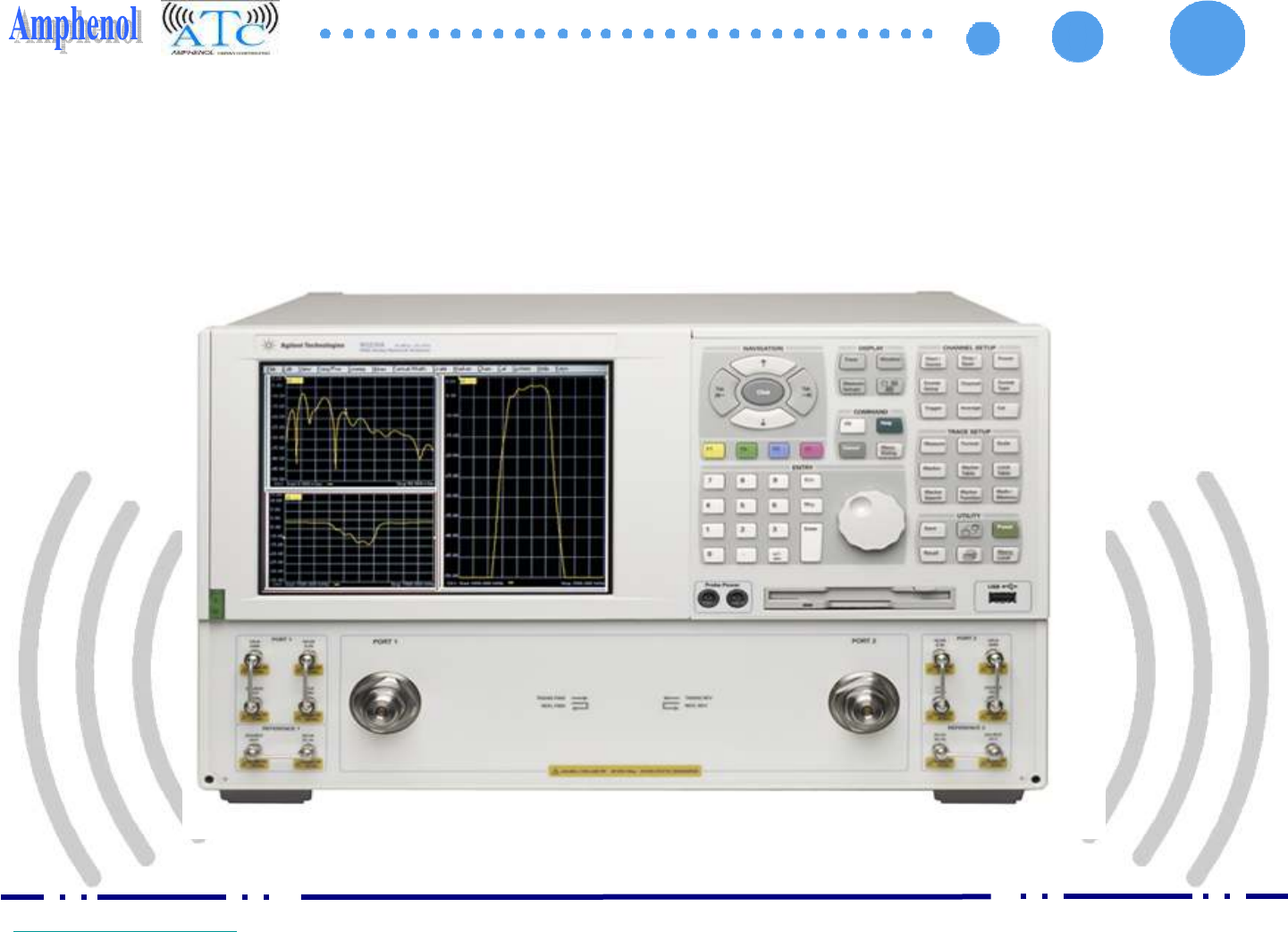

N5230A PNA-L
Microwave Network Analyzer
11
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology

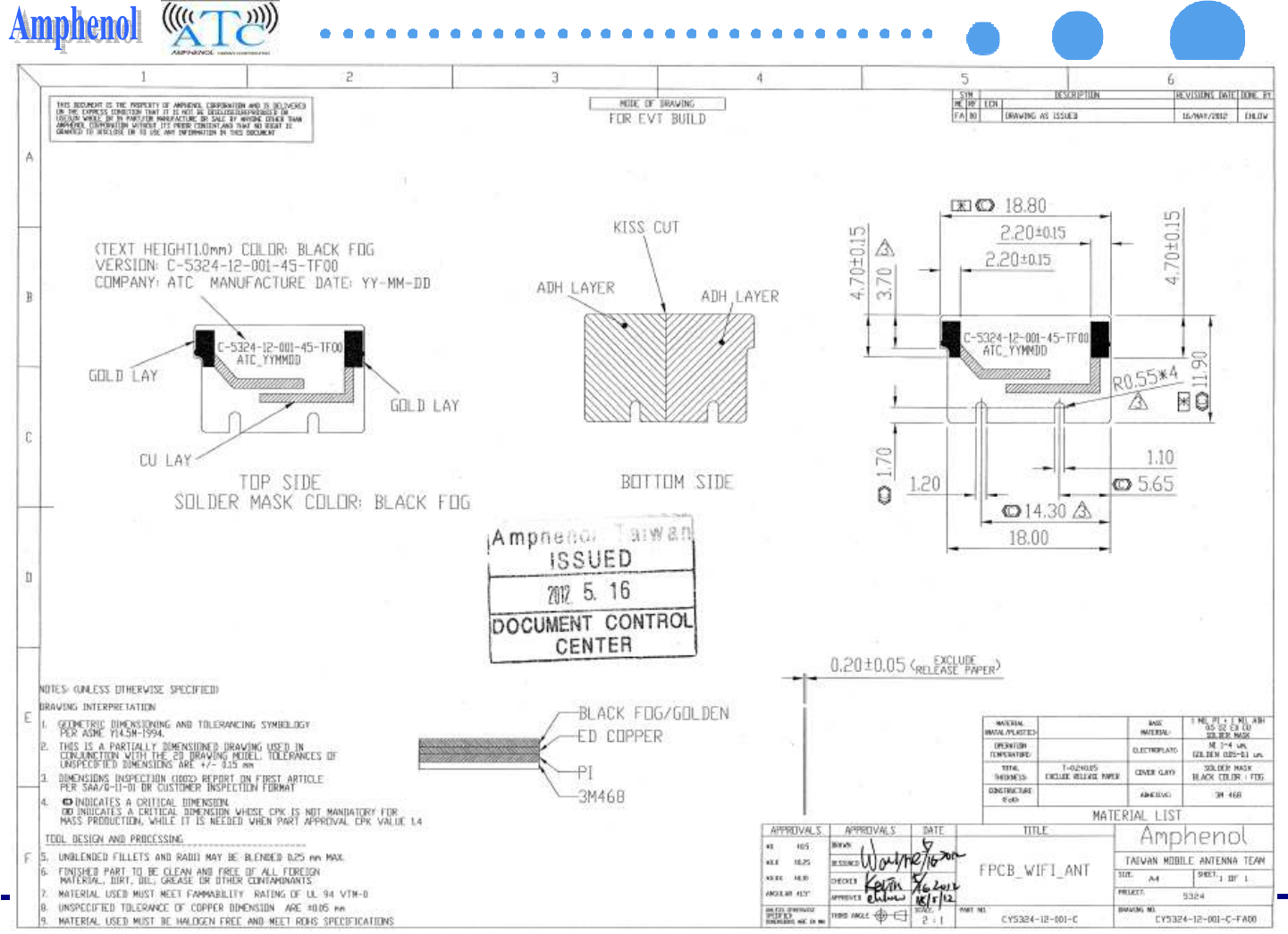

Antenna Placement
12
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology

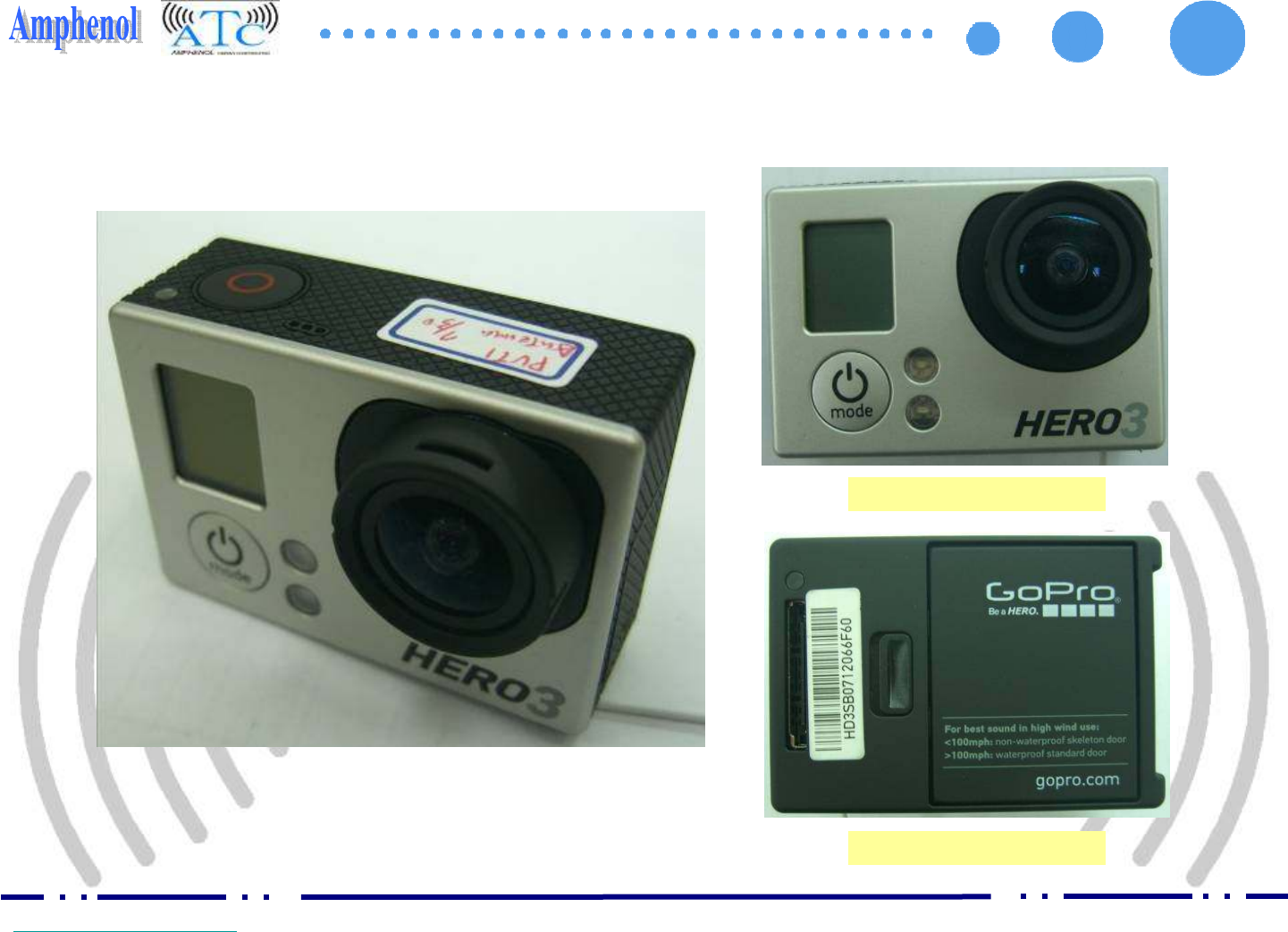

Base on 7/30 PVT1 unit
Front View
Back View
13
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology
Antenna Performance
14
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology

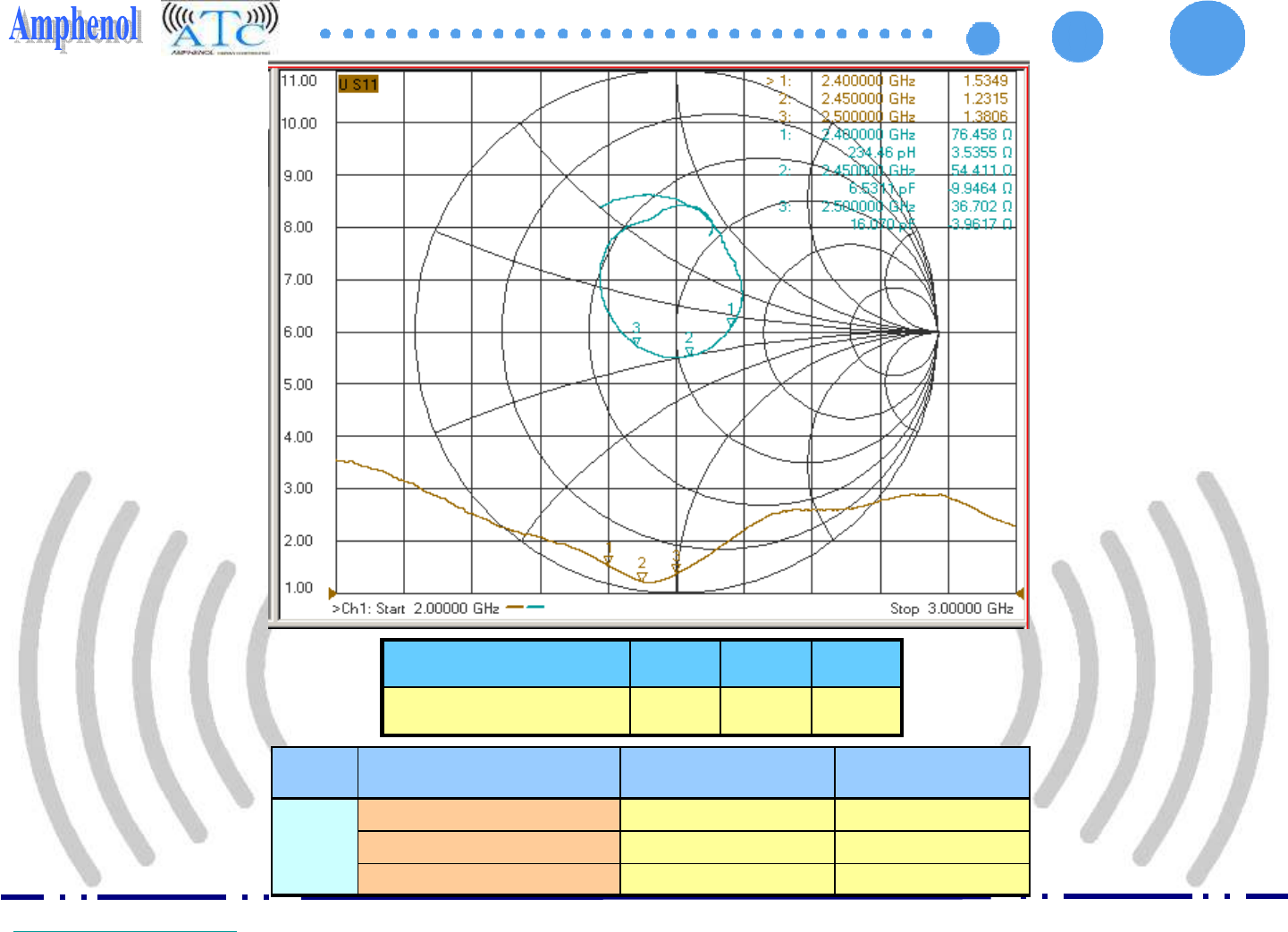

1.381.231.53VSWR
250024502400Frequency (MHz)
Sporton test result
2400
46.28
-3.35
2450 50.45 -2.97
2500
51.34
-2.90
3D Gain (dB)
WIFI
Band Frequency (MHz) Efficiency (%)
15
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology

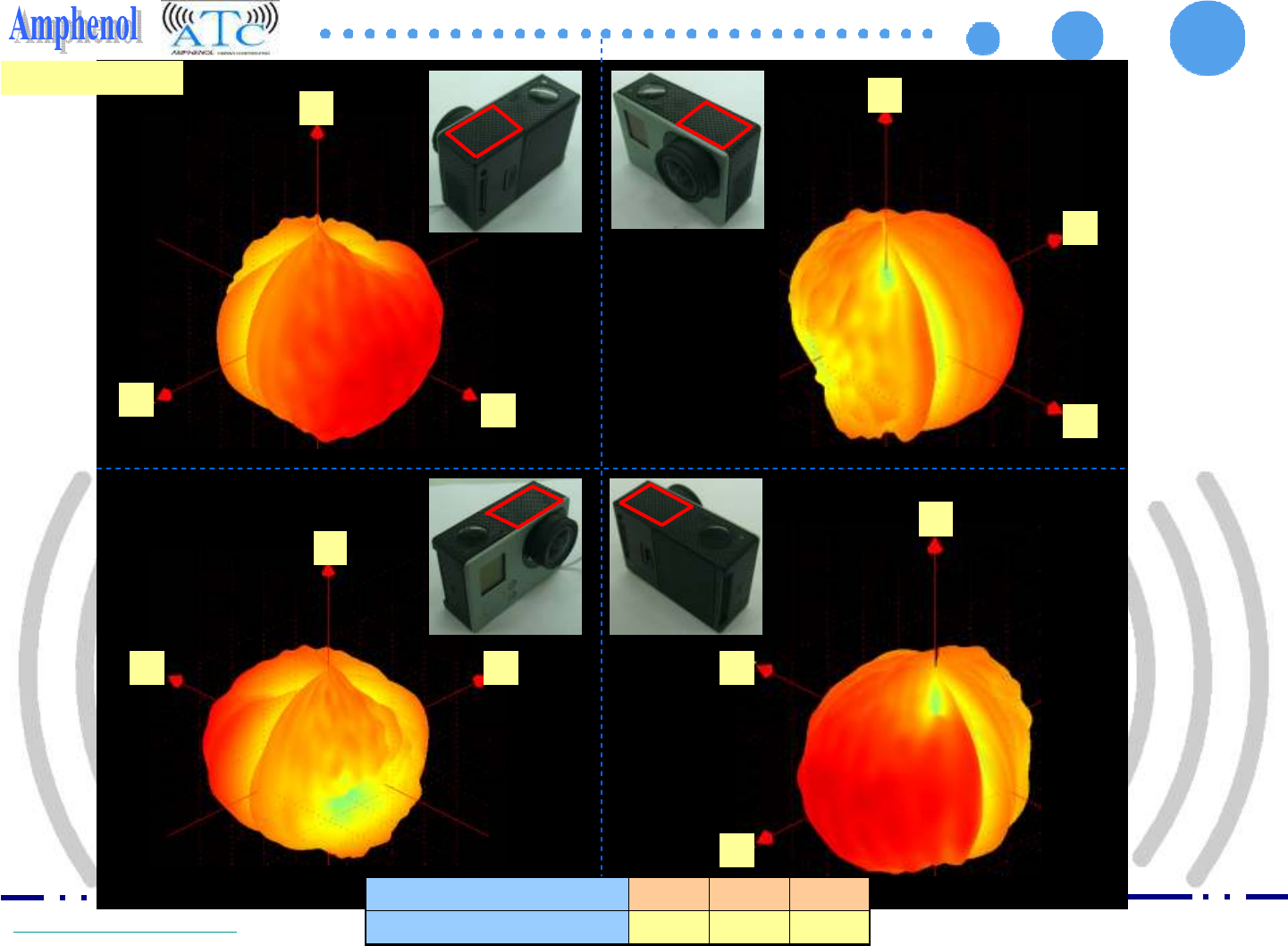

•3D Pattern
Sporton test result
X Y
Z
X
Y
Z
X Y
Z
X
Y
Z
Frequency (MHz) 2400 2450 2500
Peak Gain (dB) 1.41 1.85 2.18
16
Materials including information and pictures presented in this document are confidential and intended solely for the person or organization to whom it is presented. It may
contain privileged and confidential information. If you are not the intended audience or recipient, you should not copy, distribute or take any action in reliance on it.
All rights, including information and pictures presented in this presentation are sole properties of Amphenol Taiwan Corporation
www.amphenol-saa.com
Connecting people with technology
Conclusions
1. The antenna efficiency had 46~51% base on 7/30 PVT1 unit.
