Users Manual

Table of contents

Function button instructions

Description of the icons on the remote LCD screen

Basic Function

Sound & Light Arming

Mute Arming

Disarming

2.Emergency A lert

3.Stop A lert

4.Emergency Disarming

5.Alarming Memory

Remind Arming Reminder & Automatic Arming

utomatic back to arming mode(avoid mistaken disarming).

3. Close Door Reminder

Central Control Door Lock Automation

The Selection Of Dynamo Electronic / Pneumatic Lock

6.Open Doors and Parking Light Flash Selection

Automatic Closing Window Selection

. Auto-arming On/ Off

10. Remote Vibration On /Off

11.Remo te Button Lock

12.Turn On Remote Back Light

The Busy Tone Reminder Of Remote ...............

15.Remote Battery Low Reminder

16. Remote Turn On / Off Engine and Air-condition (Optional Feature)

setting

Technical Parameter

Troubleshooting

Special reminder 12

Attention to the use of the remote .......... 12

..........................................................................................1

....................................................2

....................................................................................................................3

1. ...................................................................................................3

2. ....................................................................................................................3

3. .......................................................................................................................3

4.Remote Trunk Release....................................................................................................3

5.Sound & Light Searching Car.........................................................................................3

6.Anti-hijacking mode...........................................................................................................4

Alarming Function............................................................................................................5

1.Shock Alert........................................................................................................................5

................................................................................................................5

...........................................................................................................................5

.......................................................................................................5

..............................................................................................................5

Additional Function..........................................................................................................6

1. ..............................................................6

2.A .........................................6

......................................................................................................6

4. ............................................................................6

5. ...................................................6

.............................................................7

7. .............................................................................7

8. Door Positive / Negative Trigger Selection .......................................................................7

9 ........................................................................................................7

.................................................................................................7

...................................................................................................8

.........................................................................................8

.Signal Indication...........................................................................................................8

14. ...........................................................8

...................................................................................8

.............................8

Parameter ...............................................................................................................9

Remote code learning & deleting..................................................................................10

........................................................................................................10

.....................................................................................................11

.............................................................................................................

......................................................................

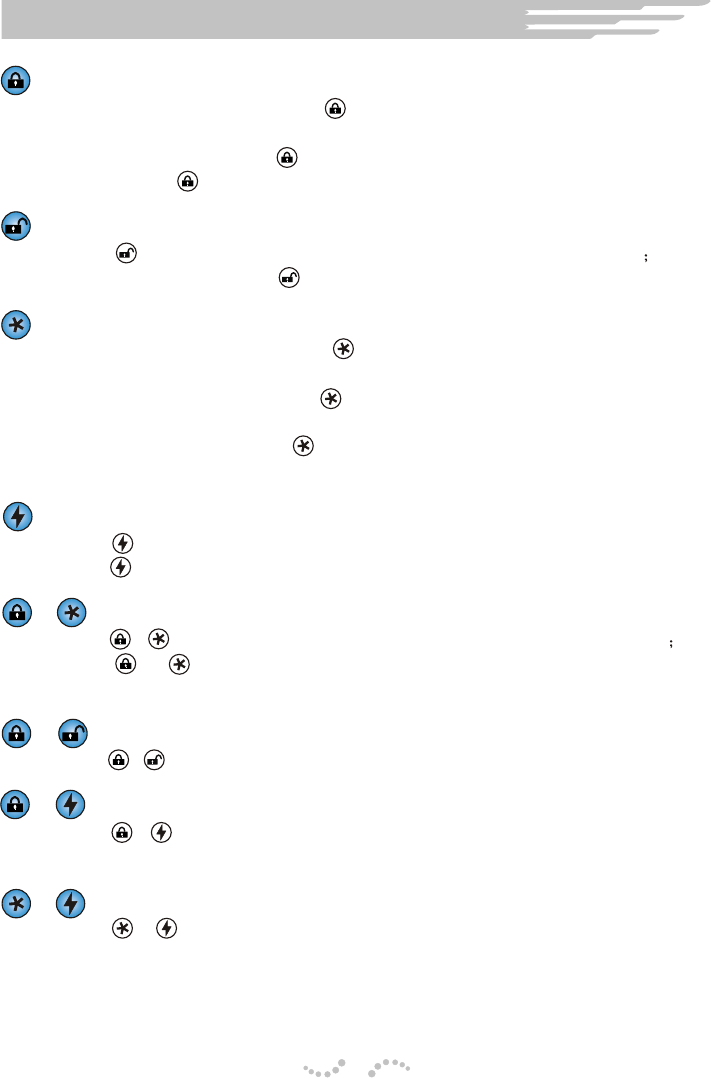

Function Button Instructions

Arming Button

Ø After vehicle is parked, press button shortly to lock the door and enter

into sound & light arming mode;

Ø During the driving, press button shortly to lock the door;

Ø Hold to press button for 2 seconds, the remote buttons will be locked.

Disarming Button

Ø Press button shortly to disarm the system, door will be unlocked

Ø During the driving, press button shortly to unlock the door.

Mute arming

Ø After vehicle is parked, press button shortly, door will be locked and

enter into mute arming mode;

Ø After vehicle is parked, press button for 2 seconds, remote engine start

and air-condition on;

Ø During the driving, press button for 2 seconds, enter into anti-hijack

mode.

Car finding

Ø Press button shortly, enter into sound & light searching car mode;

Ø Press button for 2 seconds, enter into light flash searching car mode.

+ Trunk open

Ø Press + button for 2 seconds simultaneously, trunk will be opened

ØPress + button shortly simultaneously, remote back light will be

illumined.

+ Setting mode

Ø Press + button for 1 second simultaneously, enter into setting mode.

+ Vibration function setting shortcut button

Ø Press + button for 1 second simultaneously, remote control vibration

function turn on/off.

+ Auto rearming function setting shortcut button

Ø Press + button for 1 second simultaneously, auto rearming function

turned on/off.

Trunk opened

LED

Batttery life

Mute Arming

Arming

Shock Alert

Disarming

Auto rearming

Door opened

Parking lights

Engine started

Vibration

Clock

Alarm clock

Signal Indication

Unlock/lock button

SETSET

Setting mode

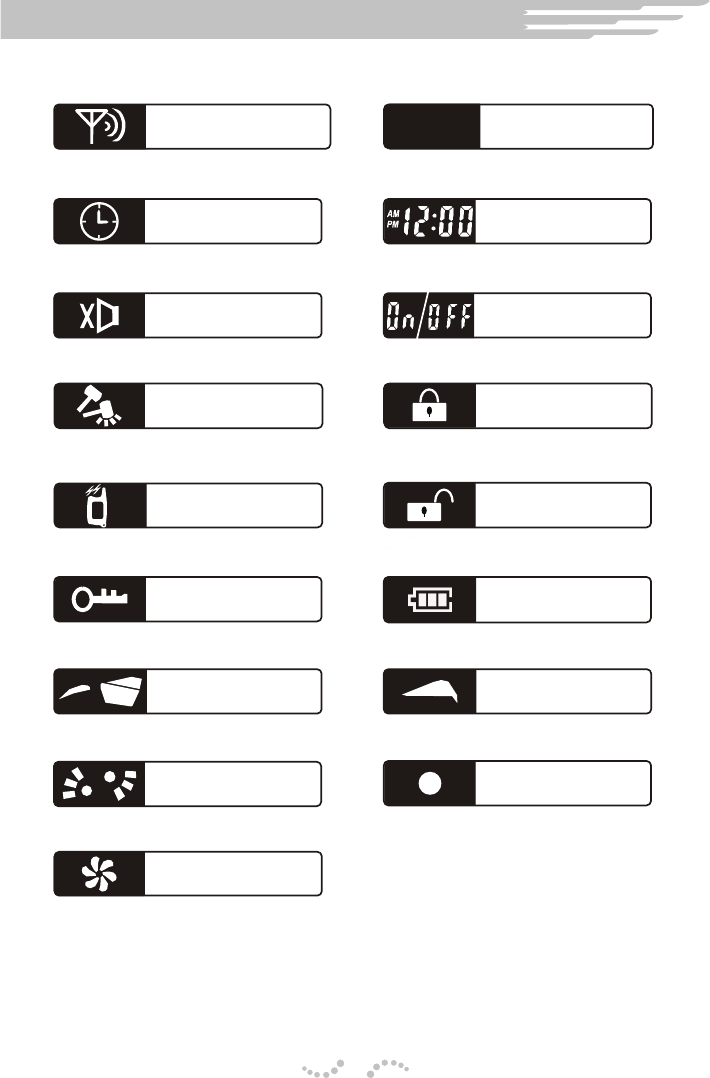

Description of the icons on the remote LCD screen

FCC Statement

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

Changes or modifications not expressly approved by the party responsible for

two conditions: (1) this device may not cause harmful interference, and

(2) this device must accept any interference received, including interference

that may cause undesired operation.

compliance could void the user's authority to operate the equipment.

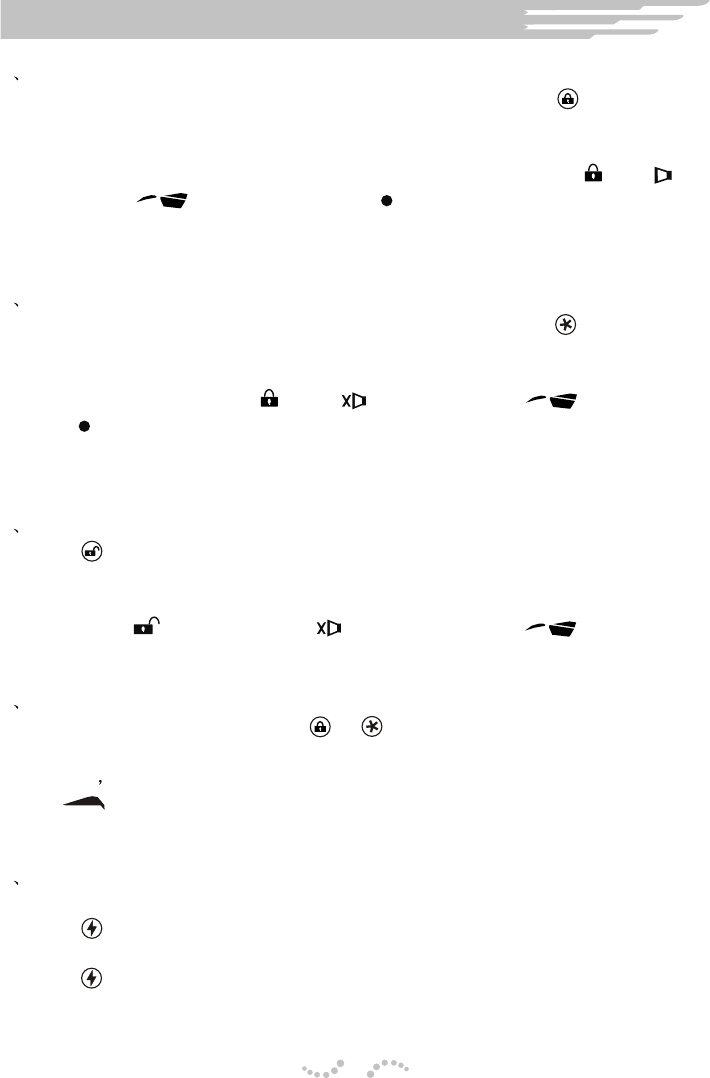

1 Sound & Light Arming

hAfter parked the vehicle and closed the door properly, press button shortly,

door will be locked automatically, main unit siren will beep once, the parking

lights will flash once and status indicator LED will be flashing, Remote

responds a sound and illumines back light simultaneously. Icon and will

appear, icon will flash once, icon will be flashing on the remote LCD

screen, system enter into sound and light arming mode, at the same time,

remote will show the corresponding vehicle information.

2 Mute Arming

hAfter parked the vehicle and closed the door properly, press button shortly,

door will be locked automatically, the parking lights will flash once and status

indicator LED will be flashing, Remote responds a sound and illumines back

light simultaneously. Icon and will appear, icon will flash once,

icon will be flashing on the remote LCD screen, system enter into mute

arming mode, at the same time, remote will show the corresponding vehicle

information.

3 Disarming

hPress button shortly in arming mode, door will be unlocked, main unit siren

will beep twice(the siren will not respond in the mute arming mode), parking

lights will flash twice, LED off, the system is disarmed. Remote responds a

sound, icon will appear, icon will disappear, icon will flash twice

on the remote LCD screen.

4 Remote Trunk Release

hAfter parked the vehicle, press + button over 2 seconds, trunk will be

unlocked (this function only for the vehicle had been installed motor of trunk

release) remote responds a sound and illumines back light simultaneously.

Icon will flash for 5 seconds on the remote LCD screen to indicate the trunk

is already opened.

5 Sound & Light Searching Car

hAfter stopped engine and parked the vehicle :

Press button shortly, siren will sound for 15 seconds and parking lights will

flash simultaneously, press any button could stop this function.

Press button over 2 seconds, parking lights will flash for 15 seconds to find

vehicle by light, press any button could stop flash.

Basic Function

6 Anti-hijacking mode

hThis function will protect your vehicle in the event that there is an attempt to Hi-jack

the vehicle. Alternative Remote Anti-hijack or Auto Anti-hijack is available by

programming, when user need Remote Anti-hijack function, please select jumper

JP5 in the main unit which is in the position of Remote Anti-hijack (details in the

main unit installation guide); when user need Auto Anti-hijack function, please

select jumper JP5 in the main unit which is in the position of Auto Anti-hijack

(details in the main unit installation guide). While trigger anti-hijack mode, parking

lights will flash once and the LED will flash quickly to show the system is entering anti-

hijacking mode.

1). Remote Anti-hijack:

If user select this mode, Turn ignition to ON position in disarming status,

press button for 3 seconds, the parking lights will flash once and the LED will flash

quickly to show the system is entering anti-hijack mode.

Exit: Within 15 seconds after enter this mode, press button or press reset

switch for 1 seconds, LED will OFF to confirm exit this anti-hijacking mode; If pass 15

seconds, press reset switch for 1 seconds, parking lights flash once,siren chirps once

and LED will OFF to confirm exit this anti-hijacking mode.

2). Auto Anti-hijack:

If user select this mode,Turn ignition to ON position or when driving the car, if

the door is forced to open, the system will activate anti-hijack immediately. The

parking lights will flash once and the LED will flash quickly to show the system is

entering anti -hijack mode.

EXIT: Within 15 seconds after enter this mode, press button or press reset

switch for 1 seconds, LED will OFF to confirm exit this anti-hijacking mode; If pass 15

seconds, press reset switch for 1 seconds, parking lights flash once, siren chirps

once and LED will OFF to confirm exit this anti car-jacking mode.

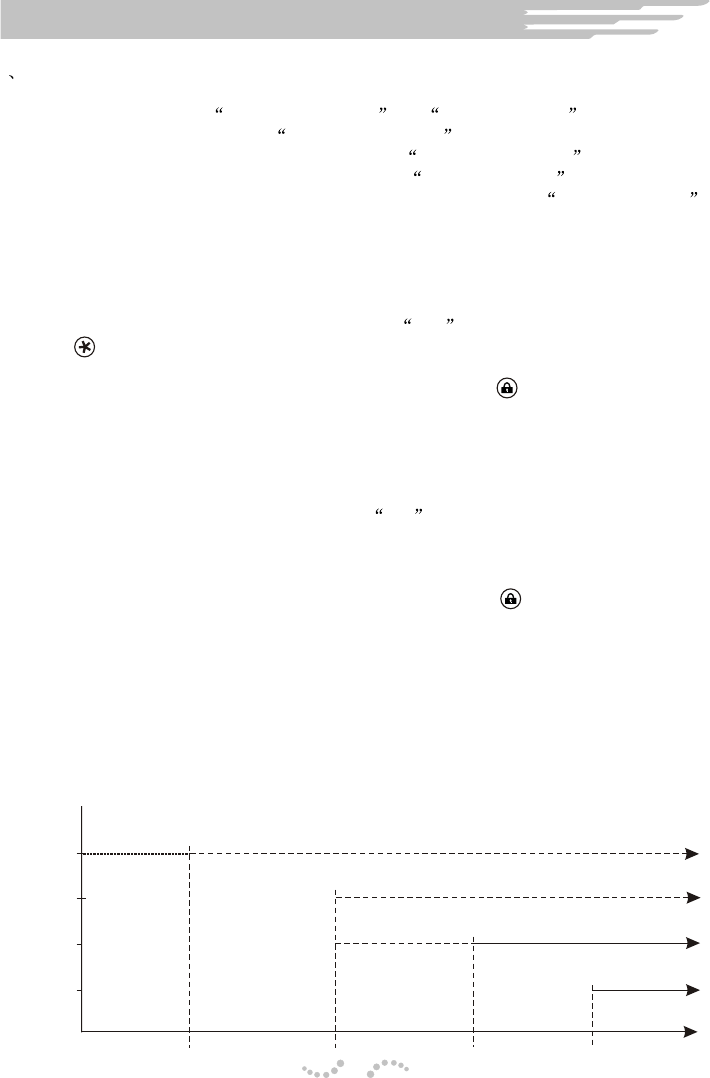

hWhen the system enter into anti-hijacking:

From beginning to 15 secnods, LED flash quickly, 16seconds, LED flash slowly, from

45 seonds to 75 seconds, parking lights flash and siren chirps intermittently, after 75

seconds, parking lights flashing and siren keeps chirping, the engine will be disabled

after 90 seconds.

Basic Function

0sec.

Timer

Engine stopper

Siren chirp

Lights flash

LED flash

LED flash quickly

One flash

LED flash slowly

Parking lights flashing twice per second

Siren chirps intermittently

Siren keeps chirping

Engine stopper

15sec. 45sec. 75sec. 90sec.

1 Shock Alert

hDuring arming mode, if your vehicle’s shock sensor is triggered at first time, siren will

beep 5 times (siren has not respond in mute arming mode), parking lights will flash 5

times simultaneously, this time the vehicle can’t start, remote will send out Bi...Bi

sound 5 times and vibrate twice, illumine back light simultaneously. Icon & will

be flashing on the remote LCD screen.

hWhen the vehicle is triggered by second time within 15 seconds, main unit siren keep

long beep for 30 seconds, parking lights flash , vehicle can not start. Remote will send

out shock alarming sound and vibrate, back light turn on, icon

& will flash on the remote LCD screen.

hDuring mute arming mode if your vehicle’s shock sensor is triggered , main unit

siren will not sound, only parking lights flash, remote alarm responds the same as

sound & light arming’s.

2 Emergency Alert

hDuring arming mode, if door/trunk is opened, step the foot brake or turn the ignition

key to ON position, main unit siren will alarm for 30 seconds, parking lights will flash,

this time the vehicle can’t start-up. Remote send out emergency alarming music for

30 seconds and vibrate, back light flash. Icon Flash.

hDuring emergency alarming, if the main unit has detected that shock sensor is

triggered, the remote LCD screen shall show the corresponding shock alarm icon

simultaneously.

3 Stop Alert

hDuring arming mode, if you need to cancel alarming, press one of or

button will stop the alert, the system will return to the previous arming status.

4 Emergency disarming

hProvided the remote is lost, damaged accidently, if user needs to disarm the vehicle,

two method as follows:

1. Open the door by the car key and keep the door opening, the siren chirps at this

moment, step the foot brake and insert the key, turn ACC from OFF to ON 10 times,

the last time should keep ON position over 2 seconds, vehicle is disarmed. This

time, only press button to disarm the status or it will auto disarm this status after

learn code to the new remote.

2. Open the door by the car key and keep the door opening, the siren chirps at this

moment, then turn ACC to ON position, step the foot brake and then press the

reset switch for 3 times continuously, vehicle is disarmed. This time, only press

button to disarm the status or it will auto disarm this status after learn code to the

new remote.

5 Alarming Memory

hIf the vehicle has been triggered and alarmed in arming mode, when you disarm the

system and open the door, it sounds the voices:

1). If the shock sensor has been triggered , main unit siren will beep twice.

2). If the door, trunk, foot brake and ACC have been triggered, main unit siren will

beep 4 times.

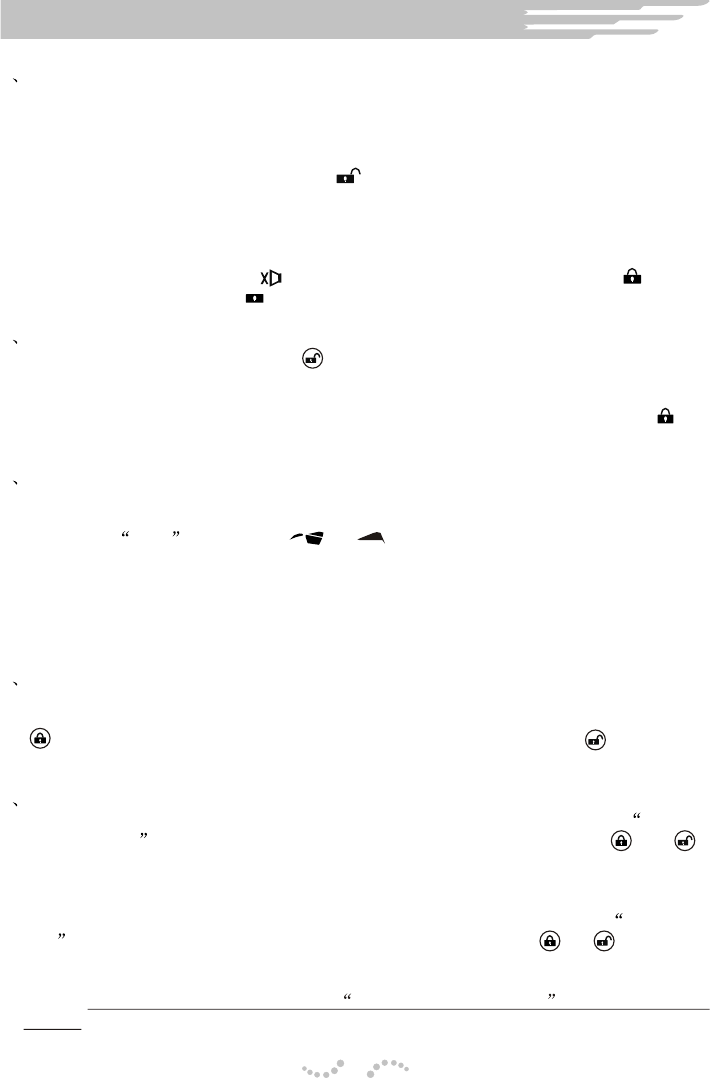

Alarming Function

1 Remind Arming Reminder & Automatic Arming

hAfter turned off the engine and closed the door, if the owner did not set alarm within

10 seconds, the parking lights will flash simultaneously to remind owner to set alarm.

hAfter owner get off the vehicle for 20 seconds without setting alarm, the main unit will

notify the remote on which the back lights will turn on and sound with the remind

arming chord at the same time , icon will flash 5 seconds on the remote LCD

screen to remind the owner to arm the system.

hProvided owner still leave the vehicle without setting alarm after 1 minutes, if the auto-

arming functions were turned on and the alarming system might transfer into the

situation of mute alarming automatically, remote back light will flash and send out a

long chord, meanwhile icon will appeared on the LCD screen, icon flash 5

seconds then turn into icon to remind owner the door is still unlocked.

2 Automatic back to arming mode(avoid mistaken disarming )

hbutton

turn on

with setting the alarming system, icon

will display on the LCD screen.

hAfter armed the system, if door or trunk are not closed, the main unit siren will beep 3

times, and parking lights flash simultaneously. Remote back light will turn on, vibrate

and sound Bi-Bi twice, icon or on the LCD screen will flash to remind

owner to close the door. If owner leave the door opening after 15 seconds, the main

unit siren will chirp and remote alerts.

hIf owner continue driving and leaving the door opened after 15 seconds, and step foot

brake, the parking lights flash twice, if leave the door open after 15 seconds, the main

unit will remind one more time only.

hWhen closed door, and continue driving for 15 seconds and step on the foot brake,

the door will be locked; then when turn off the engine, door lock will unlocked, press

button door lock will be locked when you are driving, and press button door

will be unlocked.

hWhen select the jumper JP1 in the main unit which is in the position of dynamo

electronic lock (details in the main unit installation guide), press remote or

button, the time for locking or unlocking is less, when the vehicle is using dynamo

electronic lock may apply this mode.

hWhen select the jumper JP1 in the main unit which is in the position of pneumatic

lock (details in the main unit installation guide), press remote or button, the

time for locking or unlocking is longer, when the car is using pneumatic lock may

apply this mode, it needs to select when installing the car alarm system.

When in the arming mode, press would disarm the system, if the door is

not opened within 25 seconds, the arming system might taken as mistaken disarming

and back to the arming status automatically. Remote back light will and send

out a respond chord which is the same

3 Closing door reminder

4 Central Control Door Lock Automation

5 The Selection of Dynamo Electronic/ Pneumatic lock

Notice: this product has been set as dynamo electronic lock before leave the

factory.

Additional Function

6 Open Door and Parking Light Flash Selection

Notice: this product has been set as before leave

the factory.

7 Automatic Closing Window Selection

Attention: this function is suitable for the vehicle which have the Auto closing window

function, it can close the windows with the key turn in a twisting or spinning way, such as

Passat, Bora, Golf and so on, if the condition is not available and do not try to operate this

function ,otherwise it would made some damage to the central control lock.

Notice: this product has been set as without automatic closing window before leave

the factory.

8 Door Positive /Negative Trigger Selection

Notice: this product has been set as before leave the factory, you

can select according to the type of the automobiles.

9 Auto-arming On/Off

Notice: the auto arming function for this product has been turned on before leave the

factory.

10 Remote Vibration On/Off

hWhen select the jumper JP2 in the main unit which is in the position of open door

and parking light flash (details in the main unit installation guide), while you open the

door, the parking lights flash 15 seconds at once to remind the cars behind.

hWhen select the jumper JP2 in the main unit which is in the position of open door

and parking light OFF (details in the main unit installation guide). While you open the

doors, the parking lights shall not flash.

hopen door and parking light flash

hAfter enter into arming mode then operate this function, the alarm system could control

the auto window machine to close the window. When need auto-closing window

function, select jumper JP3 in the main unit which is in the position of Automatic

closing window (details in the main unit installation guide), it could operate this

function successfully when you are setting the arming system; select jumper JP3 in the

main unit which is in the position of Without automatic closing window (details in the

main unit installation guide), this function has been cancelled.

hWhen select the jumper JP4 in the main unit which is in the position of Door negative

trigger (details in the main unit installation guide),it is in the door negative trigger

mode.

hWhen select the jumper JP4 in the main unit which is in the position of Door positive

trigger (details in the main unit installation guide),it is in the door positive trigger mode.

Door negative trigger

hWhen disabled the engine starter, hold to press + button for 1 second simultaneity,

main unit siren chirp 5 times and the parking lights flash simultaneously, it means the

auto arming function has been turned on, the icon shows on the LCD screen, you

can terminate this operation with the same way, the siren chirps 3 times and parking

light flash simultaneously, icon will disappear from the LCD screen. Repeat this

operation, the auto arming function shall switch between on and off.

hHold to press + button for 1 second, icon disappear from the remote LCD

screen which shows the vibration function has been turned off; you can turn it on in the

same way, the icon shows on the LCD screen and remote vibrates twice at this time.

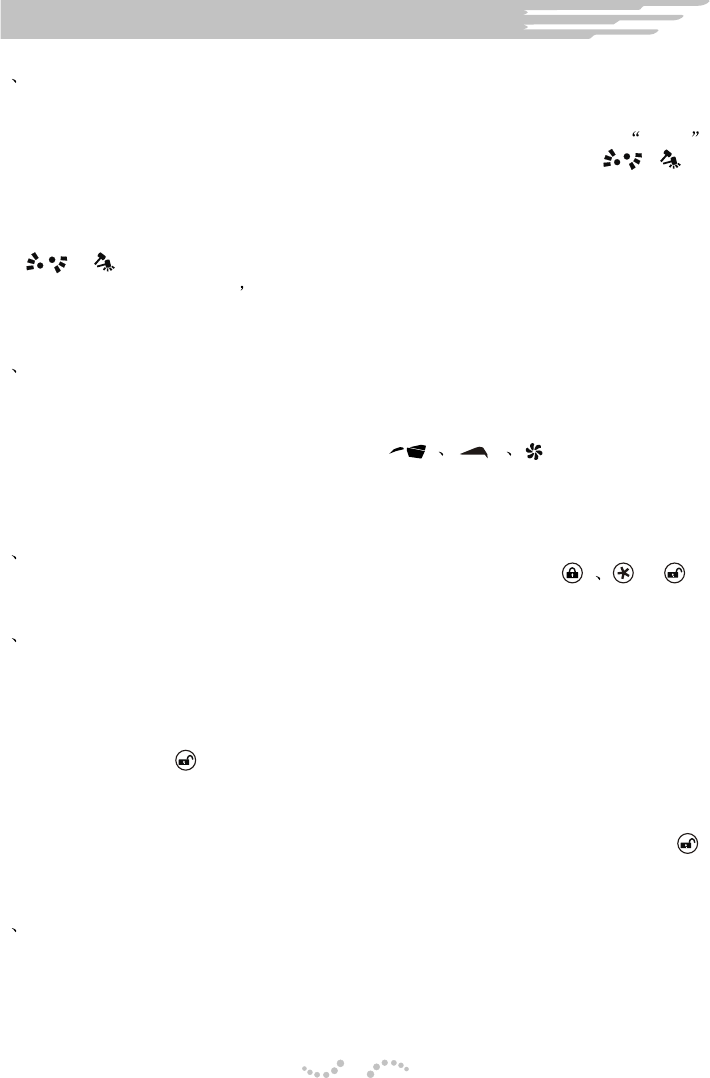

Additional Function

11 Remote Button Lock

12 Turn On Remote Back Light

Notice: You can continue operating this function after locked the button.

13 Signal Indication

14 The Busy Tone Reminder of Remote uch as the main unit is

sending the signal to the remote which will sound busy tone means this channel has

been occupied(about 3 seconds), please try this operation later.

15 Remote Battery Low Reminder

16 Remote Turn On/Off the Engine & Air-condition (Optional Feature)

Notice: when the door is opened. ACC is turned to ON position or even step the foot

brake, all could not turn on the engine effectively .

Notice: Before remote starts the engine, owner have to make sure that the car is in

neutral and parking brake(you may fail if without pulling parking brake), otherwise it might

incur danger. If you would like to switch on the air-condition with remote control, make

sure the air-condition was turned on after the last parking, otherwise you may fail to fulfill

this operation. After remote engine started, engine will be off after 15 minutes. In this

period, if the vehicle has foot brake or ignition key turned, the engine will be off

immediately.

hHold to press button for 2 seconds, remote will sound Bi-Bi , icon OFF in

the right corner of the LCD shows remote has been locked, press button 2

seconds again to release button lock, and the remote sound Bi-Bi-Bi , you can

see ON in the right corner. Only you can press button to release button lock

or press + button to turn on the back light in button lock status, other buttons will

not be function. In the operation when the clock display changed to OFF and flash

6 times, to remind remote button lock on, and then will change to display clock again.

hHold to press + button at the same time, the remote back light will be on for

3seconds, it is convenient to check the time in the night.

hIf the remote fail to receive the signal of the main unit in 2.5 minutes, the signal

strength indication icon on the LCD will disappear, only the antenna icon shows

that the remote has go beyond the service range; after remote control has return to

the service scope within 2 minutes, the signal strength indication icon on the LCD

will display again, which reminds that the remote is in the service scope.

hWhen manipulate the remote provided encounter a problem s

hWhen the remote is battery low, when pressing any buttons will sound Bi-Bi 5

times to remind battery low. When icon flash, you should exchange the battery in

time.

hTurn on: hold to press button for 2 seconds , the remote will receive the respond

music, engine has been turned on, then icon rotates on the LCD screen.

hTurn off: press button or button could turn off the engine and enter into the

arming status.

hTurn on/off air-condition: after the engine was turned on successfully, perform the

same operation to turn on/off the air-condition; when switch on the air-condition,

starter icon on the LCD screen will flash speedily; when switch off the air-condition,

icon turn into rotate.

Additional Function

hHold to press + button for 1 second, remote will sound a remind tone, back

light will be turned on, icon SET flash and enter into setting mode.

hThen press button,it will circulate exchange and select among time/minute

time/hour (alarm clock)ON/OFF (alarm clock)/minute (alarm

clock)/hour (vibration)ON/OFF (auto-arming)ON/OFF EXIT, the

corresponding icon will flash with icon SET simultaneously.

hPress button you can set the corresponding parameter of the flashing icon,

ON means turn on the function, OFF means turn off the function. After set

the present parameter, press button to select next one and perform the same

operation, when you are setting the time and alarm clock’s parameters, hold to

press button parameters shall change speedily.

hDuring the course of setting the parameters, hold to press + button for 1

second any time, icon SET and EXIT flash simultaneously, you can save

the parameters and the present status you have set and exit from the operation,

the remote control send out a remind tone meanwhile.

hWhen you press button select item to icon EXIT , hold to press +

button for 1 second at the same time, you can save the parameters and the

present status you have set and exit from the operation, press button you

can exit from the present operation directly and without saving the modifications.

hWhen reached the alarm clock time you have set, remote control will sends out

Bi-Bi remind tone and vibrates, icon flash at one time for 30 seconds.

press any key could stop the alarm clock.

Reminder:About setting vibrate function ON/OFF, auto-arming function ON/OFF .

The user could via parameter setting, also could via double button operation to set

quickly according to additional function description.

Parameter Setting

Remote code learning

hWhen the vehicle is not in the alarming mode, hold to press the Learning

button on the main unit, the main unit siren sounds Du 1 time, and the

parking lights flash once simultaneously, the LED indicator light on, then you

can press any key on the remote once, the remote sounds respond chord music

3 times after you have finished it successfully, the main unit siren sounds Du

3 times, and parking lights flashes 3 times. Pay attention not to release the

Learning button , continue pressing any key from the 2nd to the 4th on the

remote once and to learn, LED off indicates the learning code was finished.

Method two:

hWhen in disarming mode, step the foot brake, turning the key from OFF ON 8

times, leave the key from OFF ON and maintain ON when it is the 8th times,

the main unit siren sounds Du once and the parking lights flash once

simultaneously, LED indicator light on, then you can press any key on the

remote once, the remote control beeps 3 times with the respond chord music,

the main unit siren sounds Du 3 times, and the parking lights flash 3 times.

Attention do not release the foot brake, continue pressing any key from the 2nd

to the 4th on the remote control once and to learn, LED off indicates the learning

code was finished.

hHold to press Learning button on the main unit, LED indicator light of the

main unit will be off after 10 seconds, the siren voices out a long tone, and the

parking lights keep on once indicates the remote which code had been learnt

has been deleted.

Method one:

Remote code deleting:

Remote code learning & deleting

Technical parameter

MAIN UNIT:

Working voltage 12V 3V

Quiescent current 10mA

Working frequency 433.92MHz

Siren sound level 110~125dB

Working temperature -20 ~+85

REMOTE CONTROL

Working voltage 1.1V 1.5V

Quiescent current 0.1mA

Working frequency 433.92MHz

Transmitting power 10mW

Working temperature -20 ~+60

Problem Solution

1.The continuous beeps of the

siren can not be stopped by the

remote control after the

installation of the main unit.

2.After disarming the system,

parking lights do not flash or

after set the arming, it does

not alarm when open doors by

force.

3.After set the sound & light

arming, it alarms if with slight

touch or when the heavy

vehicle passes by .

Check the door switch pin in stalled in a

correct way;

Check whether the sensitivity of the door

switch is cut or in disconnection.

This phenomenon caused by highly

sensitivity of the shock sensor, adjust the

knob for regulating the sensitivity of the

shock sensor to reduce the sensitivity, if

you fail to solve it then change a sensor.

The plug is improperly inserted or not;

The line is improperly connected or not;

The fuse of the main unit is broken or not;

The codes of the remote control and the

main unit are identical or not.

4.Remote control set arming

system successfully, but

failed to the central lock.

Check whether the wiring of the central

control lock has been destroyed, cut or in

short circuit: the installation of the wiring

is in a correct way;

Check whether the wiring fuse of the

central control lock has been cut, if you

can see the wire has been burned, which

shows the mistakes in installation, please

recheck the connection wire;

Plese reread the central control lock

installation manual and the wiring

installation manual in details.

5.The vehicle could not operate

with remote or it is still in

ignition mode after started

successfully.

The manual brake checking line hasn't

connecting properly;

The engine oil lamp checking line haven't

connecting properly.

Troubleshooting

hThe system could realize the maximum distance for wireless sending and

receiving between remote control and vehicle, and show the vehicle situation

clearly, but it will affected by the factor of building, geographical environments or

weather condition, The radio wave propagation might be hampered, and affect

the sending and receiving distances.

hBefore the installation, please make sure that whether the car you are desired to

install is in dynamo electronic mode or pneumatic mode, and you also have to

confirm the type of trigger, and set the correct jumper line position on the main

unit (this product has set in a dynamo electronic position mode before leaves the

factory), and standard the operation, wiring, installation stringently which in

accordance with the automobiles technical standard of the country. Please have

the experiential and skilled technician whom hold the automobiles electrician

qualified certificate installed .

hThe remote is precision electronic product. Don't make it broken and soggy.

hThe system is intended mainly to alarming, intimidating the robbery, increasing

the stealing difficulty and reminding the owner. Owner have to still keep your

alert.

hThe user manual has covered all the detailed information which the owner need

to know, suggesting you read the manual in details before you install or use the

product.

hDo not break it heavily or put it in a moist circumstance, do not touch the screen

of the liquid surface with your hands.

hDo not try to disassembly or maintain it, forbid using the remote when you are on

the air-craft.

hAvoiding keep close to the high-frequency electric waves or place it in a

circumstance in which the temperature is above 60 degrees.

hWhen the remote is in power shortage time, please exchange the battery.

hWhen use the remote in the car which have pasted the explosion-proof

membrane, the remote control’s distance might be affected to some extent.

Attention to the Use of the Remote

Special reminder

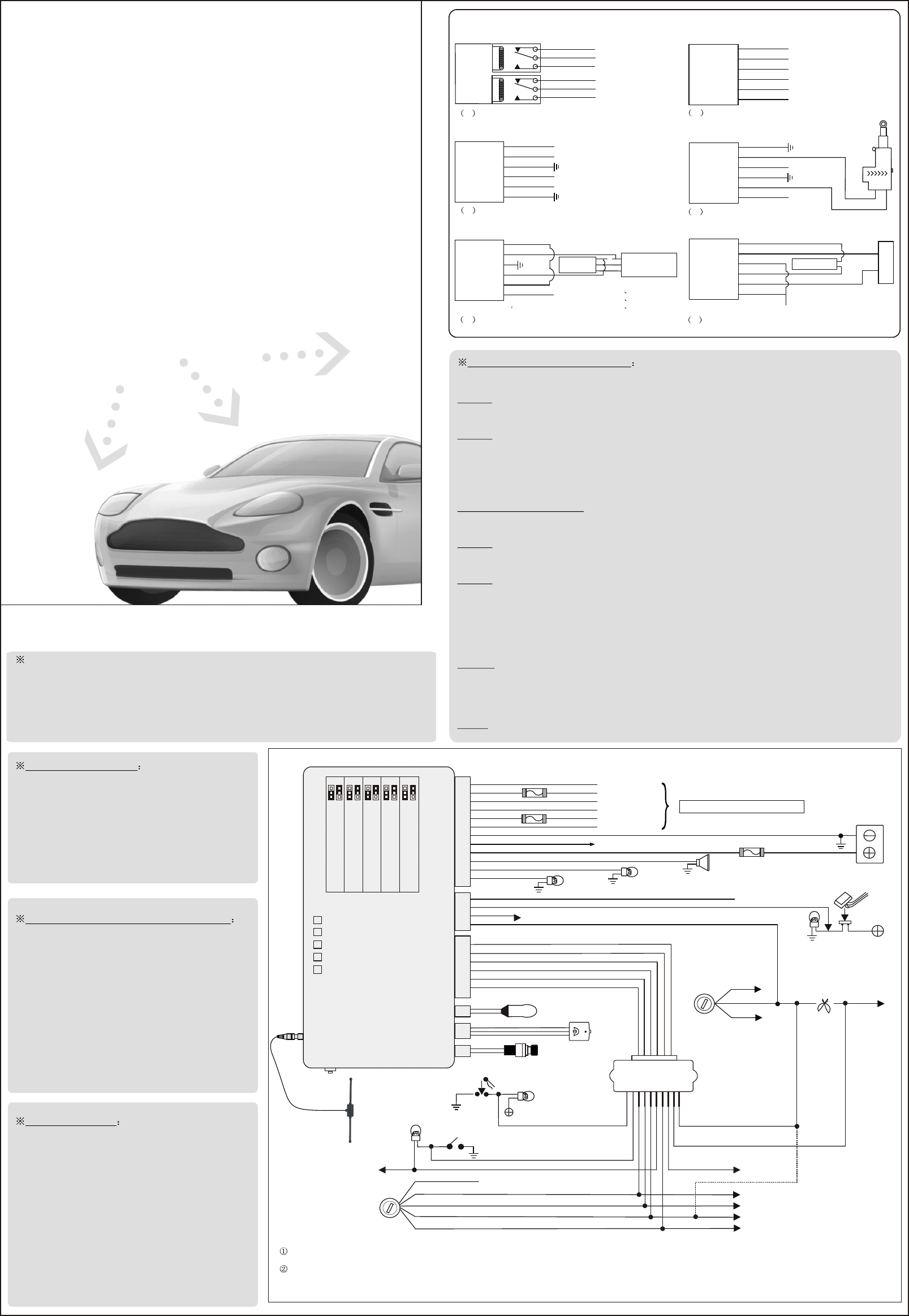

Central Lock Installation Diagram

A WIRE OF CENTRAL LOCK

Lock

Unlock

White/Black

Yellow/Black

Orange/Black

Yellow

Orange

White

White/Black

Yellow/Black

Orange/Black

Yellow

Orange

White

COM

B -PULSES

LOCK

GROUND

UNLOCK

GROUND

COLORS

1 GREEN/BLUE

2 BROWN

3 RED/BLUE

Ground

Central Lock

+12V

ELECTRIC

VACUUM PUMP

PS THE WIRE1 CHANGE THE POLARITY

C VACUUM PUMP TYPE

FOR MERCEDES. BENZ.AND.AUDI.ETC

E +/-PULSES OUTPUT

GROUND

+12V

GROUND

+12V

CENTRAL LOCK

F CARS EQUIPPED WITH CENTRAL LOCK

LOCK

UNLOCK

ACTUATOR

D +12V PULSES

LOCK

+12V

UNLOCK

+12V

Central Lock Installation Guide

This system can control several common central locks without any other additional parts.

Type A :

For vehicles equipped with central lock, first recommendation. (FIG. B)

Type B :

For vehicles equipped with central lock but no motor on driver's side, add a master motor

and rod into the driver side door. (FIG. E)

This type of installation is applicable to vehicles equipped with factory central lock unit

such as some Ford, Mitsubishi, Mazda,and Nissan models.

INSTALLATION NOTICE : First, install the actuator near the door's manual latch, and

then fix the rod of the actuator on themanual latch.

Type C :

For vehicles equipped with central lock and with motor on driver's side. (FIG.D)

Type D :

For vehicles equipped with electrical-activated vacuum-pump controlled door locks.

(FIG. C) The timing of actuator mechanism can be set as shorter(dynamo electronic lock)

longer(pneumatic lock).

This type of installation is applicable for some Mercedes-Benz and Audi models.

Type E :

For some GM vehicles equipped with factory central lock unit.(FIG. F)

For some vehicles not mentioned above, please consult professional installers.

NOTE: Type B installation method (FIG. E) is suitable for most vehicles.

Warning :

1. Please ask the experienced automobile electrician to install this product.

2. The connection wires avoid the high temperature, the high- Pressured nstallation.

3.The broken wiring place must insulate wraps up .

Main Unit Installation

The main unit is placed under the vehicle control

panel. Afterfixing the main unit in a suitable

place, start connecting all the wiring according

to the Wire Connection Diagram. Before putting

back all the parts, simply test system functions

first.

Sensitivity adjustment of shock sensor

It is recommended to mount the shock sensor

under the dashboard and stick it closely to inner

wall of car body without any shock pad.

Please remember the place where the shock

sensor is mounted.

It will cause false alarm if it is too sensitive, or it

will miss alarm, if it is too insensitive. The

sensitivity of shock sensor can be adjusted

moderately according to the environment and

user’s demand to make it work availably.

Antenna Position

The ideal position for the antenna is in the top

corner of the front windscreen right up of the

wheel side. Please keep the antenna free from

any obstructions to prevent reception

interference.

NOTICE:

If the vehicle is parked in urban area with many

buildings around,or under a strong electric field

environment, the receiving and dispatching

distance will be affected.

Dynamo electronic lock

JP1

Pneumatic lock

Open door and parking light flash

JP2

Open door and parking light OFF

Without automatic closing window

JP3

Automatic closing window

Door negative trigger

Remote Anti-hijack

Door positive trigger

Auto Anti-hijack

JP4JP5

Remark:

When partial vehicle types enable the engine starter, Not only the third gear to start the ignition wire and output +12V, but also the another wire to output +12V

simultaneously. Thus, the yellow wire of engine starter relay should connect with it.

Partial vehicle types there are two air condition control wires, just connecting the black wire and the brown wire of the air condition relay separately, do not connect

the black wire to +12V. The majority of vehicle types connect the black wire with +12V, the brown one connect with the air condition control wire of the lock.

Yellow/Black

Red/Black +Trunk release

Blue Door pin switch

White/Black

Orange/Black

Yellow

White

Orange

12V VDD

Car Battery

FUSE 10A

FUSE 20A

LED

Reset switch

Switch

Oil pump

+12V/Air-conditioner control wire

Air-conditioner control

Ignition

Engine start

Black Start motor

Yellow Engine stopper

Gray Ignition

Purple Air conditioner

Hand brake input

Blue

Purple

Red

Hand brake input

Detecting of engine starter

Red

Green Detecting of engine starter

+12V

Shock sensor

Red/VDD

Siren

Foot brake switch

Foot brake light

Orange

Yellow no connecting

White

ACC

STR

Engine cut off

+12V

Pink

Black/Ground

12P

Learning button

PISCIS PLUS

Brown

Brown Parking light Parking light

Oil light

Brake light

Oil light switch

Antenna

ACC

+12V

STR

Brown

White

Yellow

Green

Central Door Lock Connector

Main Unit

Default factory setting:

Dynamo electronic lock

Jumper

Open door and parking light flash

Without automatic closing window

Door negative trigger

Remote Anti-hijack

Max Min

Remote engine

starter module

TWO WAY VEHICLE SECURITYTWO WAY VEHICLE SECURITY

ALARM SYSTEM ALARM SYSTEM

Main Unit Installation GuideMain Unit Installation Guide

Gobiz Electronics CA-788 Two way car alarm system - main unit User Manual PISCISPLUS B52 Manual for FCC

Gobiz Electronics Ltd. Two way car alarm system - main unit PISCISPLUS B52 Manual for FCC

Users Manual

Navigation menu

Namespaces

Views

Navigation
