Golden Unions 290 2G feature phone User Manual

Golden Unions Limited 2G feature phone

User manual

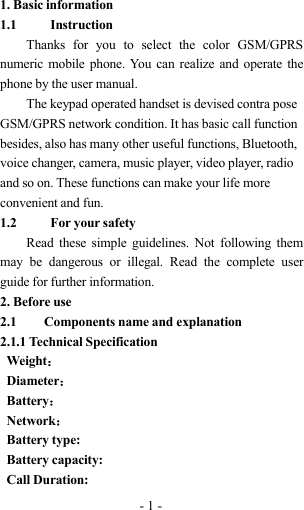

-1-1. Basic information1.1 InstructionThanks for you to select the color GSM/GPRSnumeric mobile phone. You can realize and operate thephone by the user manual.The keypad operated handset is devised contra poseGSM/GPRS network condition. It has basic call functionbesides, also has many other useful functions, Bluetooth,voice changer, camera, music player, video player, radioand so on. These functions can make your life moreconvenient and fun.1.2 For your safetyRead these simple guidelines. Not following themmay be dangerous or illegal. Read the complete userguide for further information.2. Before use2.1 Components name and explanation2.1.1 Technical SpecificationWeight：Diameter：Battery：Network：Battery type:Battery capacity:Call Duration:

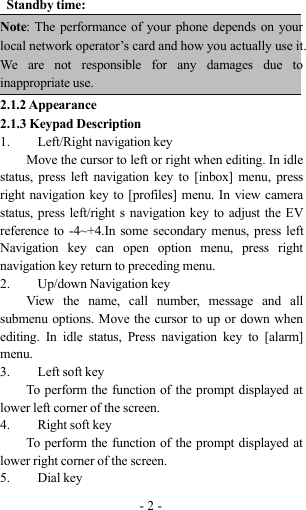

-2-Standby time:Note: The performance of your phone depends on yourlocal network operator’s card and how you actually use it.We are not responsible for any damages due toinappropriate use.2.1.2 Appearance2.1.3 Keypad Description1. Left/Right navigation keyMove the cursor to left or right when editing. In idlestatus, press left navigation key to [inbox] menu, pressright navigation key to [profiles] menu. In view camerastatus, press left/right s navigation key to adjust the EVreference to -4~+4.In some secondary menus, press leftNavigation key can open option menu, press rightnavigation key return to preceding menu.2. Up/down Navigation keyView the name, call number, message and allsubmenu options. Move the cursor to up or down whenediting. In idle status, Press navigation key to [alarm]menu.3. Left soft keyTo perform the function of the prompt displayed atlower left corner of the screen.4. Right soft keyTo perform the function of the prompt displayed atlower right corner of the screen.5. Dial key

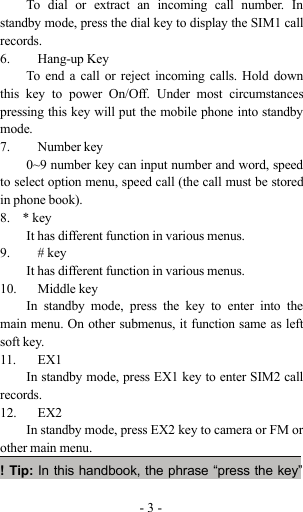

-3-To dial or extract an incoming call number. Instandby mode, press the dial key to display the SIM1 callrecords.6. Hang-up KeyTo end a call or reject incoming calls. Hold downthis key to power On/Off. Under most circumstancespressing this key will put the mobile phone into standbymode.7. Number key0~9 number key can input number and word, speedto select option menu, speed call (the call must be storedin phone book).8. * keyIt has different function in various menus.9. # keyIt has different function in various menus.10. Middle keyIn standby mode, press the key to enter into themain menu. On other submenus, it function same as leftsoft key.11. EX1In standby mode, press EX1 key to enter SIM2 callrecords.12. EX2In standby mode, press EX2 key to camera or FM orother main menu.!Tip:In this handbook, the phrase “press the key”

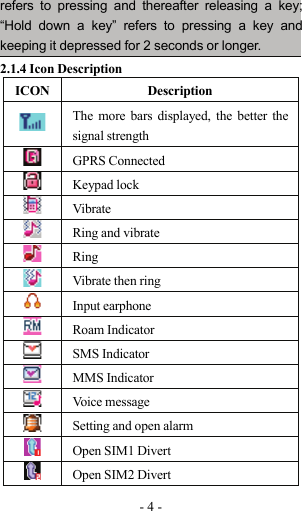

-4-refers to pressing and thereafter releasing a key;“Hold down a key” refers to pressing a key andkeeping it depressed for 2 seconds or longer.2.1.4 Icon DescriptionICON DescriptionThe more bars displayed, the better thesignal strengthGPRS ConnectedKeypad lockVibrateRing and vibrateRingVibrate then ringInput earphoneRoam IndicatorSMS IndicatorMMS IndicatorVo i c e m e s s a g eSetting and open alarmOpen SIM1 DivertOpen SIM2 Divert

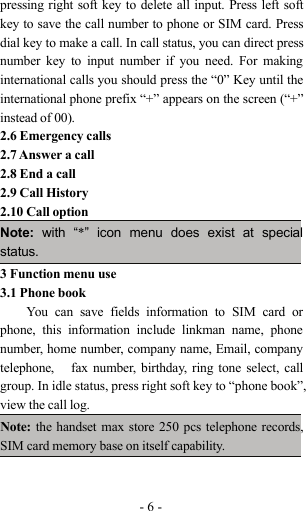

-6-pressing right soft key to delete all input. Press left softkey to save the call number to phone or SIM card. Pressdial key to make a call. In call status, you can direct pressnumber key to input number if you need. For makinginternational calls you should press the “0” Key until theinternational phone prefix “+” appears on the screen (“+”instead of 00).2.6 Emergency calls2.7 Answer a call2.8 End a call2.9 Call History2.10 Call optionNote: with “*” icon menu does exist at specialstatus.3 Function menu use3.1 Phone bookYou can save fields information to SIM card orphone, this information include linkman name, phonenumber, home number, company name, Email, companytelephone, fax number, birthday, ring tone select, callgroup. In idle status, press right soft key to “phone book”,view the call log.Note: the handset max store 250 pcs telephone records,SIM card memory base on itself capability.

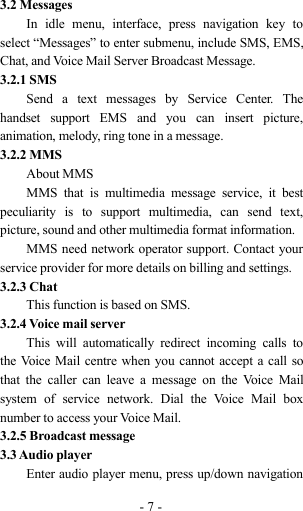

-7-3.2 MessagesIn idle menu, interface, press navigation key toselect “Messages” to enter submenu, include SMS, EMS,Chat, and Voice Mail Server Broadcast Message.3.2.1 SMSSend a text messages by Service Center. Thehandset support EMS and you can insert picture,animation, melody, ring tone in a message.3.2.2 MMSAbout MMSMMS that is multimedia message service, it bestpeculiarity is to support multimedia, can send text,picture, sound and other multimedia format information.MMS need network operator support. Contact yourservice provider for more details on billing and settings.3.2.3 ChatThis function is based on SMS.3.2.4 Voice mail serverThis will automatically redirect incoming calls tothe Voice Mail centre when you cannot accept a call sothat the caller can leave a message on the Voice Mailsystem of service network. Dial the Voice Mail boxnumber to access your Voice Mail.3.2.5 Broadcast message3.3 Audio playerEnter audio player menu, press up/down navigation

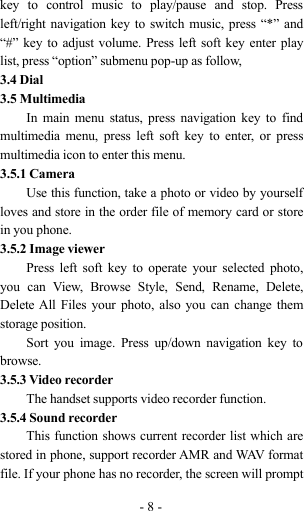

-8-key to control music to play/pause and stop. Pressleft/right navigation key to switch music, press “*” and“#” key to adjust volume. Press left soft key enter playlist, press “option” submenu pop-up as follow,3.4 Dial3.5 MultimediaIn main menu status, press navigation key to findmultimedia menu, press left soft key to enter, or pressmultimedia icon to enter this menu.3.5.1 CameraUse this function, take a photo or video by yourselfloves and store in the order file of memory card or storein you phone.3.5.2 Image viewerPress left soft key to operate your selected photo,you can View, Browse Style, Send, Rename, Delete,Delete All Files your photo, also you can change themstorage position.Sort you image. Press up/down navigation key tobrowse.3.5.3 Video recorderThe handset supports video recorder function.3.5.4 Sound recorderThis function shows current recorder list which arestored in phone, support recorder AMR and WAV formatfile. If your phone has no recorder, the screen will prompt

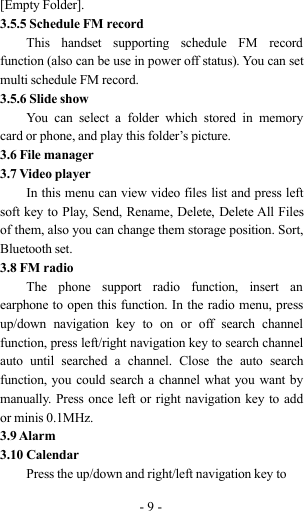

-9-[Empty Folder].3.5.5 Schedule FM recordThis handset supporting schedule FM recordfunction (also can be use in power off status). You can setmulti schedule FM record.3.5.6 Slide showYou can select a folder which stored in memorycard or phone, and play this folder’s picture.3.6 File manager3.7 Video playerIn this menu can view video files list and press leftsoft key to Play, Send, Rename, Delete, Delete All Filesof them, also you can change them storage position. Sort,Bluetooth set.3.8 FM radioThe phone support radio function, insert anearphone to open this function. In the radio menu, pressup/down navigation key to on or off search channelfunction, press left/right navigation key to search channelauto until searched a channel. Close the auto searchfunction, you could search a channel what you want bymanually. Press once left or right navigation key to addor minis 0.1MHz.3.9 Alarm3.10 CalendarPress the up/down and right/left navigation key to

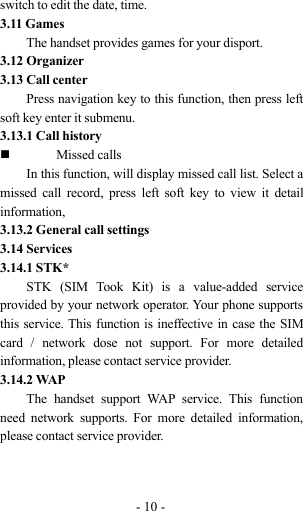

-10-switch to edit the date, time.3.11 GamesThe handset provides games for your disport.3.12 Organizer3.13 Call centerPress navigation key to this function, then press leftsoft key enter it submenu.3.13.1 Call historyMissed callsIn this function, will display missed call list. Select amissed call record, press left soft key to view it detailinformation,3.13.2 General call settings3.14 Services3.14.1 STK*STK (SIM Took Kit) is a value-added serviceprovided by your network operator. Your phone supportsthis service. This function is ineffective in case the SIMcard / network dose not support. For more detailedinformation, please contact service provider.3.14.2 WAPThe handset support WAP service. This functionneed network supports. For more detailed information,please contact service provider.

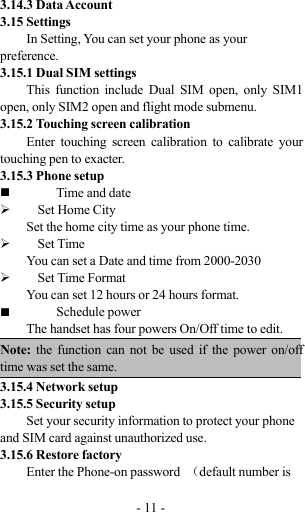

-11-3.14.3 Data Account3.15 SettingsIn Setting, You can set your phone as yourpreference.3.15.1 Dual SIM settingsThis function include Dual SIM open, only SIM1open, only SIM2 open and flight mode submenu.3.15.2 Touching screen calibrationEnter touching screen calibration to calibrate yourtouching pen to exacter.3.15.3 Phone setupTime and date¾Set Home CitySet the home city time as your phone time.¾Set TimeYou can set a Date and time from 2000-2030¾Set Time FormatYou can set 12 hours or 24 hours format.Schedule powerThe handset has four powers On/Off time to edit.Note: the function can not be used if the power on/offtime was set the same.3.15.4 Network setup3.15.5 Security setupSet your security information to protect your phoneand SIM card against unauthorized use.3.15.6 Restore factoryEnter the Phone-on password （default number is

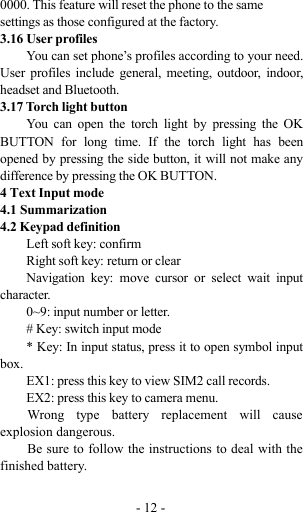

-12-0000. This feature will reset the phone to the samesettings as those configured at the factory.3.16 User profilesYou can set phone’s profiles according to your need.User profiles include general, meeting, outdoor, indoor,headset and Bluetooth.3.17 Torch light buttonYou can open the torch light by pressing the OKBUTTON for long time. If the torch light has beenopened by pressing the side button, it will not make anydifference by pressing the OK BUTTON.4 Text Input mode4.1 Summarization4.2 Keypad definitionLeft soft key: confirmRight soft key: return or clearNavigation key: move cursor or select wait inputcharacter.0~9: input number or letter.# Key: switch input mode* Key: In input status, press it to open symbol inputbox.EX1: press this key to view SIM2 call records.EX2: press this key to camera menu.Wrong type battery replacement will causeexplosion dangerous.Be sure to follow the instructions to deal with thefinished battery.

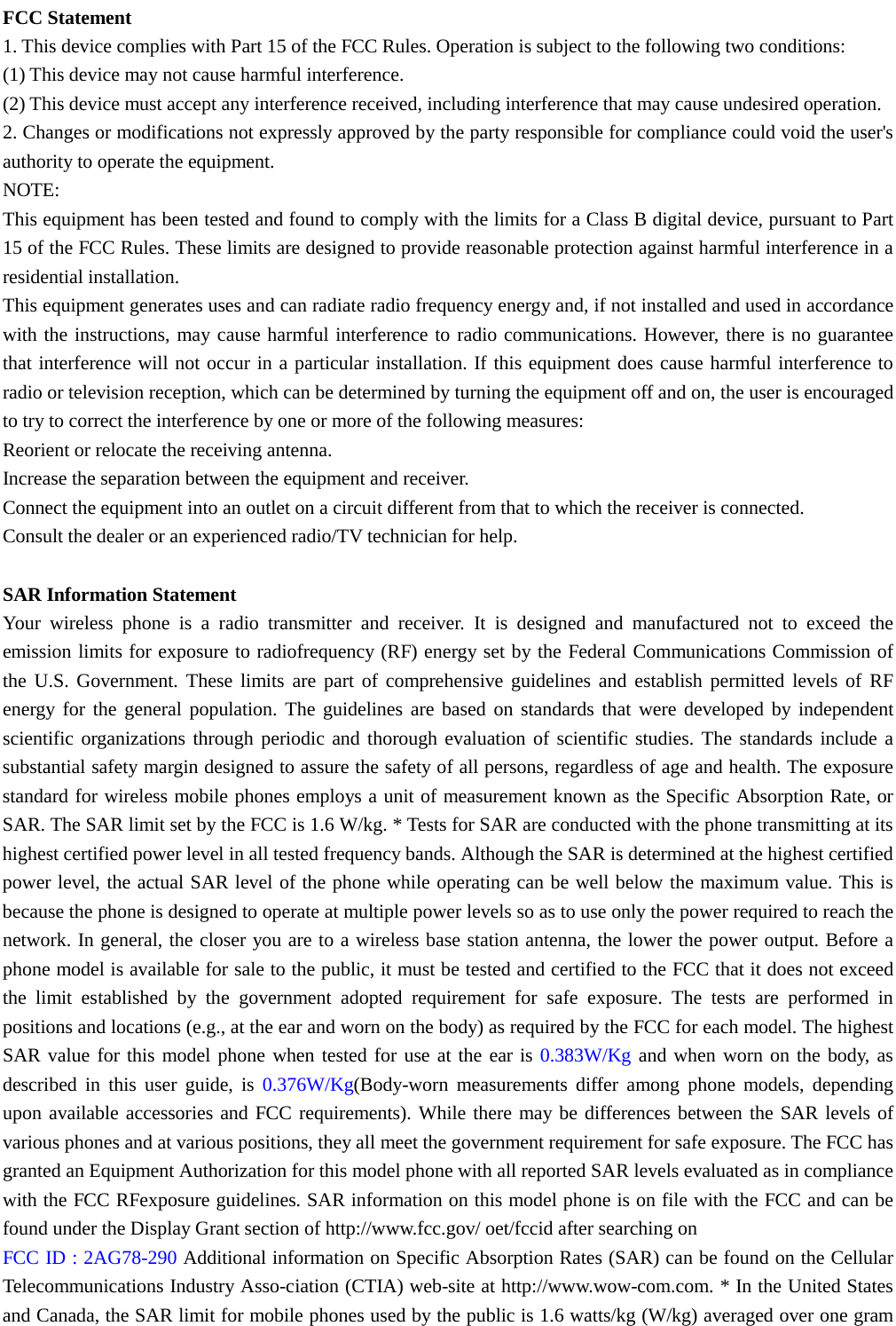

FCC Statement 1. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference. (2) This device must accept any interference received, including interference that may cause undesired operation. 2. Changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna. Increase the separation between the equipment and receiver. Connect the equipment into an outlet on a circuit different from that to which the receiver is connected. Consult the dealer or an experienced radio/TV technician for help. SAR Information Statement Your wireless phone is a radio transmitter and receiver. It is designed and manufactured not to exceed the emission limits for exposure to radiofrequency (RF) energy set by the Federal Communications Commission of the U.S. Government. These limits are part of comprehensive guidelines and establish permitted levels of RF energy for the general population. The guidelines are based on standards that were developed by independent scientific organizations through periodic and thorough evaluation of scientific studies. The standards include a substantial safety margin designed to assure the safety of all persons, regardless of age and health. The exposure standard for wireless mobile phones employs a unit of measurement known as the Specific Absorption Rate, or SAR. The SAR limit set by the FCC is 1.6 W/kg. * Tests for SAR are conducted with the phone transmitting at its highest certified power level in all tested frequency bands. Although the SAR is determined at the highest certified power level, the actual SAR level of the phone while operating can be well below the maximum value. This is because the phone is designed to operate at multiple power levels so as to use only the power required to reach the network. In general, the closer you are to a wireless base station antenna, the lower the power output. Before a phone model is available for sale to the public, it must be tested and certified to the FCC that it does not exceed the limit established by the government adopted requirement for safe exposure. The tests are performed in positions and locations (e.g., at the ear and worn on the body) as required by the FCC for each model. The highest SAR value for this model phone when tested for use at the ear is 0.383W/Kg and when worn on the body, as described in this user guide, is 0.376W/Kg(Body-worn measurements differ among phone models, depending upon available accessories and FCC requirements). While there may be differences between the SAR levels of various phones and at various positions, they all meet the government requirement for safe exposure. The FCC has granted an Equipment Authorization for this model phone with all reported SAR levels evaluated as in compliance with the FCC RFexposure guidelines. SAR information on this model phone is on file with the FCC and can be found under the Display Grant section of http://www.fcc.gov/ oet/fccid after searching on FCC ID : 2AG78-290 Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Asso-ciation (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile phones used by the public is 1.6 watts/kg (W/kg) averaged over one gram

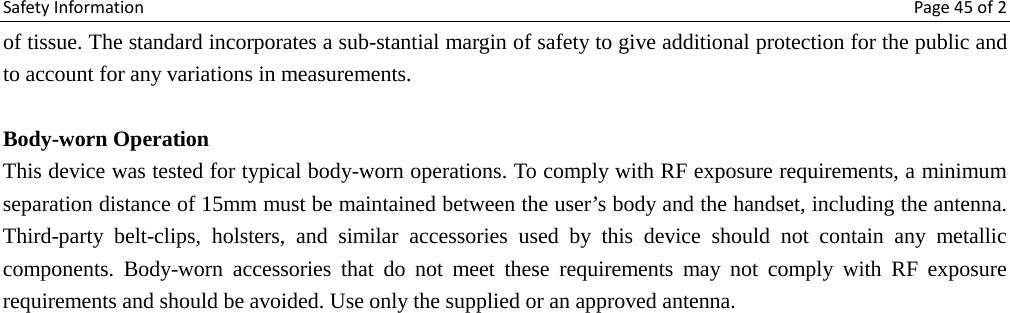

Safety Information Page 45 of 2 of tissue. The standard incorporates a sub-stantial margin of safety to give additional protection for the public and to account for any variations in measurements. Body-worn Operation This device was tested for typical body-worn operations. To comply with RF exposure requirements, a minimum separation distance of 15mm must be maintained between the user’s body and the handset, including the antenna. Third-party belt-clips, holsters, and similar accessories used by this device should not contain any metallic components. Body-worn accessories that do not meet these requirements may not comply with RF exposure requirements and should be avoided. Use only the supplied or an approved antenna.
