CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manu-

alfor future reference.

Model No. GGBE1486.1

Serial No.

Write the serial number in the

space above for future reference.

QUESTIONS?

As a manufacturer, we are com-

mitted to providing complete

customer satisfaction. If you

have questions, or if a part is

damaged or missing, PLEASE

CONTACT OUR CUSTOMER

SERVICE DEPARTMENT

DIRECTLY.

CALL TOLL-FREE:

1-877-776-4777

Mon.–Fri., 6 a.m.–6 p.m. MST

ON THE WEB:

www.goldsgympowerflex.com

USER’S MANUAL

Serial Number Decal

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4

PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

ADJUSTMENTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13

PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

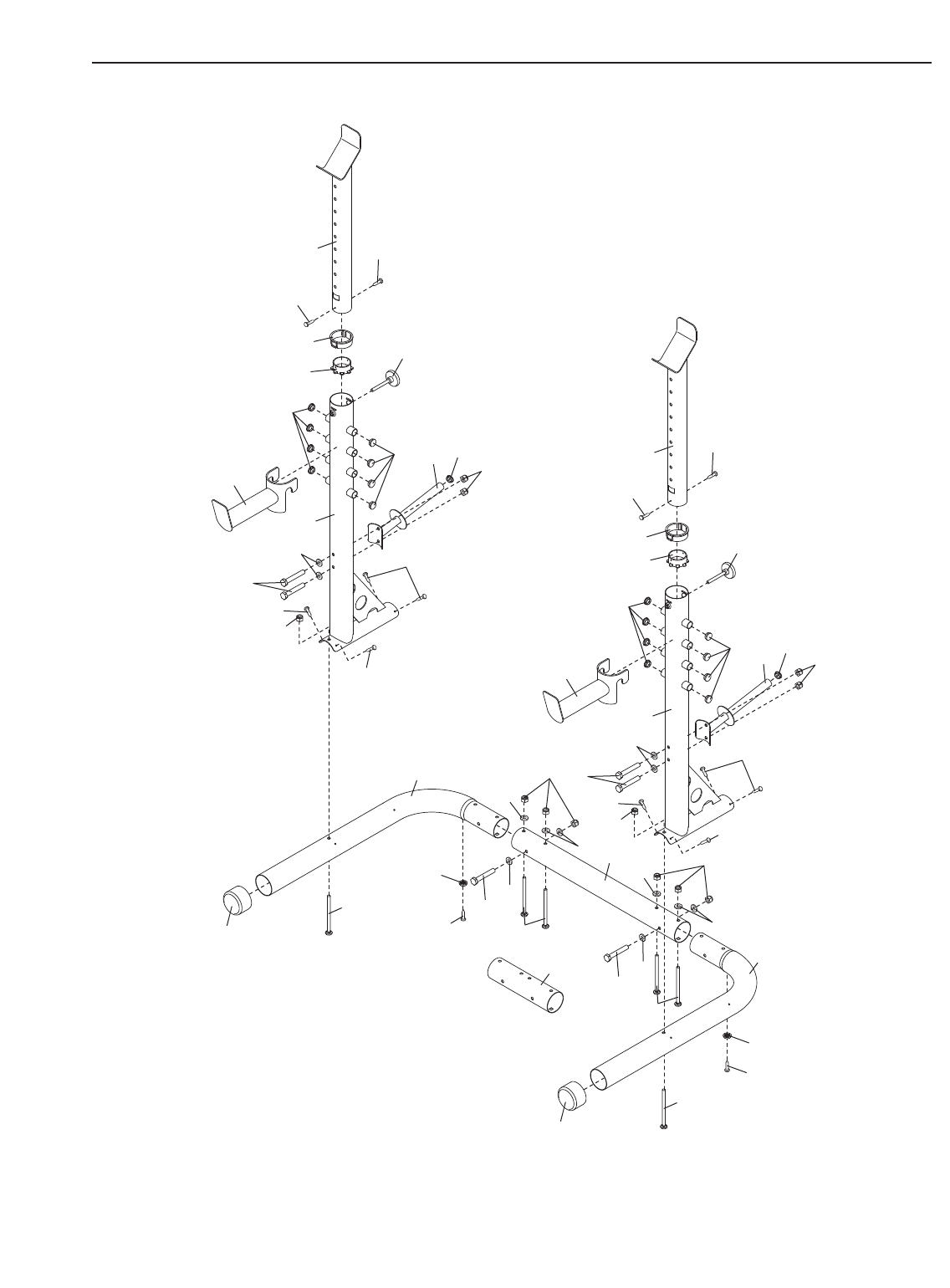

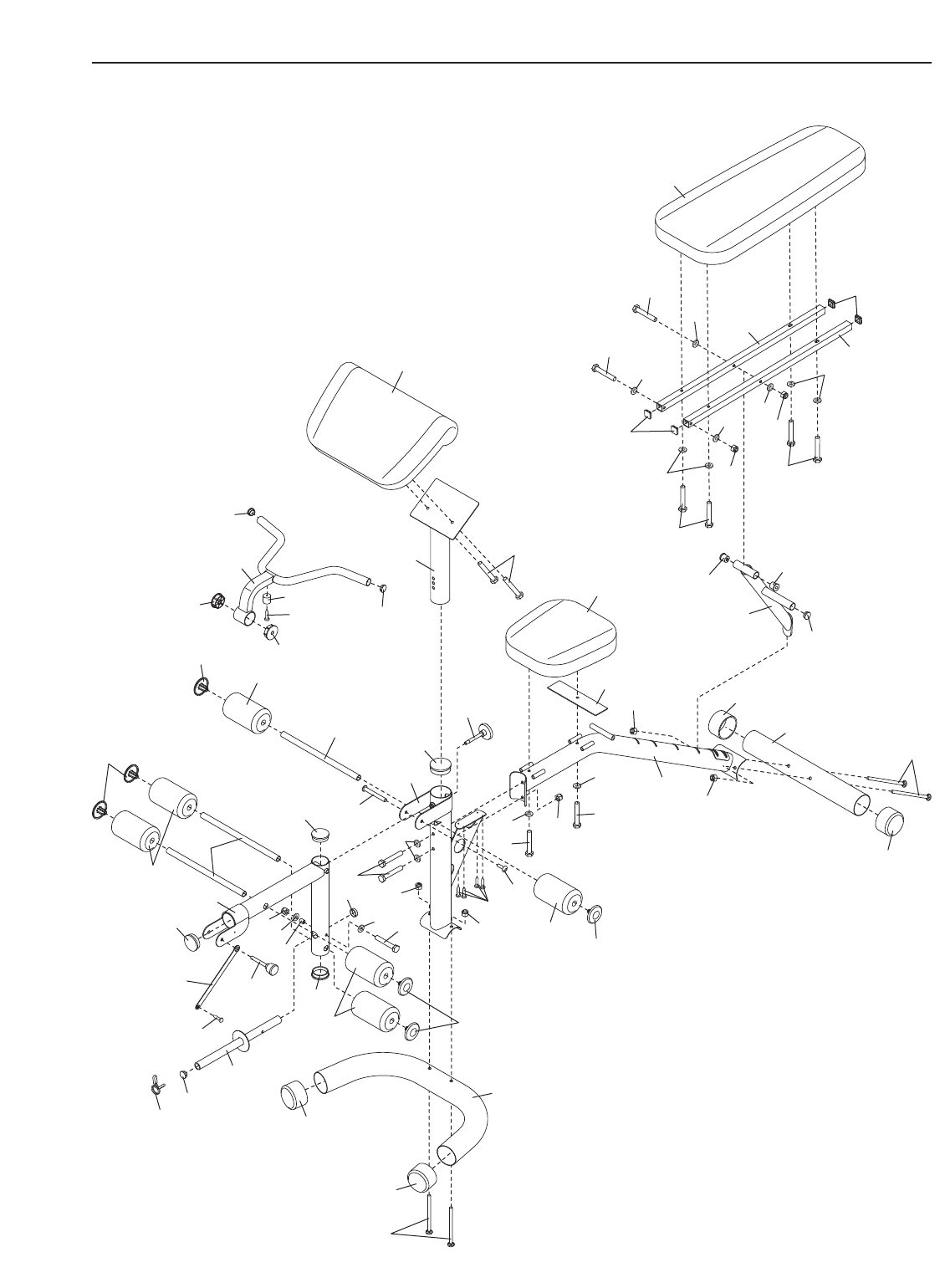

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

TABLE OF CONTENTS

GOLD'S GYM is a registered trademark of Gold's Gym International, Inc. This product is manufactured and

distributed under license from Gold's Gym International, Inc.

1. Read all instructions in this manual

and all

warnings on the weight bench

before using

the weight bench. Use the weight bench only

as described in this manual.

2. It is the responsibility of the owner to ensure

that all users of the weight bench are ade-

quately informed of all precautions.

3. The weight bench is intended for home use

only. Do not use the weight bench in any

commercial, rental, or institutional setting.

Keep the weight

bench

indoors, away from

moisture and dust. Place the weight

bench

alevel surface, with a mat beneath it to pro-

tect the floor or carpet. Make sure that there is

enough clearance around the weight

bench

mount, dismount, and use it.

5. Keep children under 12 and pets away from

the weight bench at all times.

Inspect and properly tighten all parts regular-

ly. Replace any worn parts immediately.

Always make sure that the backrest post is

fully engaged in a slot in the frame before

using the backrest.

Wear appropriate clothes while exercising.

Always wear athletic shoes for foot protec-

tion while exercising.

The weight bench is designed to support a

maximum user weight of 300 pounds and a

maximum total weight of 610 pounds. Do not

use the weight bench with more than 310

pounds of weight. Do not place more than

150 pounds on the leg lever. Note: The weight

bench does not include weights.

10.

If you feel pain or dizziness at any time while

exercising, stop immediately and begin cool-

ing down.

11.

The decals shown below have been placed

on the weight bench. If a decal is missing or

illegible, call the toll-free telephone number

on the front cover of this manual and order a

free replacement decal. Apply the decal in the

location shown.

WARNING: Before beginning this or any exercise program, consult your physician. This

isespecially important for persons over the age of 35 or persons with pre-existing health problems.

Read all instructions before using. ICON assumes no responsibility for personal injury or property

damage sustained by or through the use of this product.

WARNING: Toreduce the risk of serious injury,read the following important precautions

before using the weight bench.

IMPORTANT PRECAUTIONS

Seat

Curl Pad

Leg Lever

Curl Bar

Safety Spotter

Weight Rest

Curl Pin

Weight Tube

Backrest

Adjustment Knob

Upright

Backrest Post

Storage Tube

BEFORE YOU BEGIN

Thank you for selecting the versatile GOLD’S GYM®

XRS 20 weight bench. The weight bench offers a

selection of exercise stations designed to develop the

major muscle groups of the body. Whether your goal is

to tone your body, build dramatic muscle size and

strength, or improve your cardiovascular system, the

weight bench will help you to achieve the specific

results you want.

For your benefit, read this manual carefully before

using the weight bench. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, please note the product

model number and serial number before contacting us.

The model number is GGBE1486.1. The serial number

can be found on a decal attached to the weight bench

(see the front cover of this manual).

To avoid a registration fee for any service needed

under warranty, you must register the weight bench

at www.iconservice.com/registration.

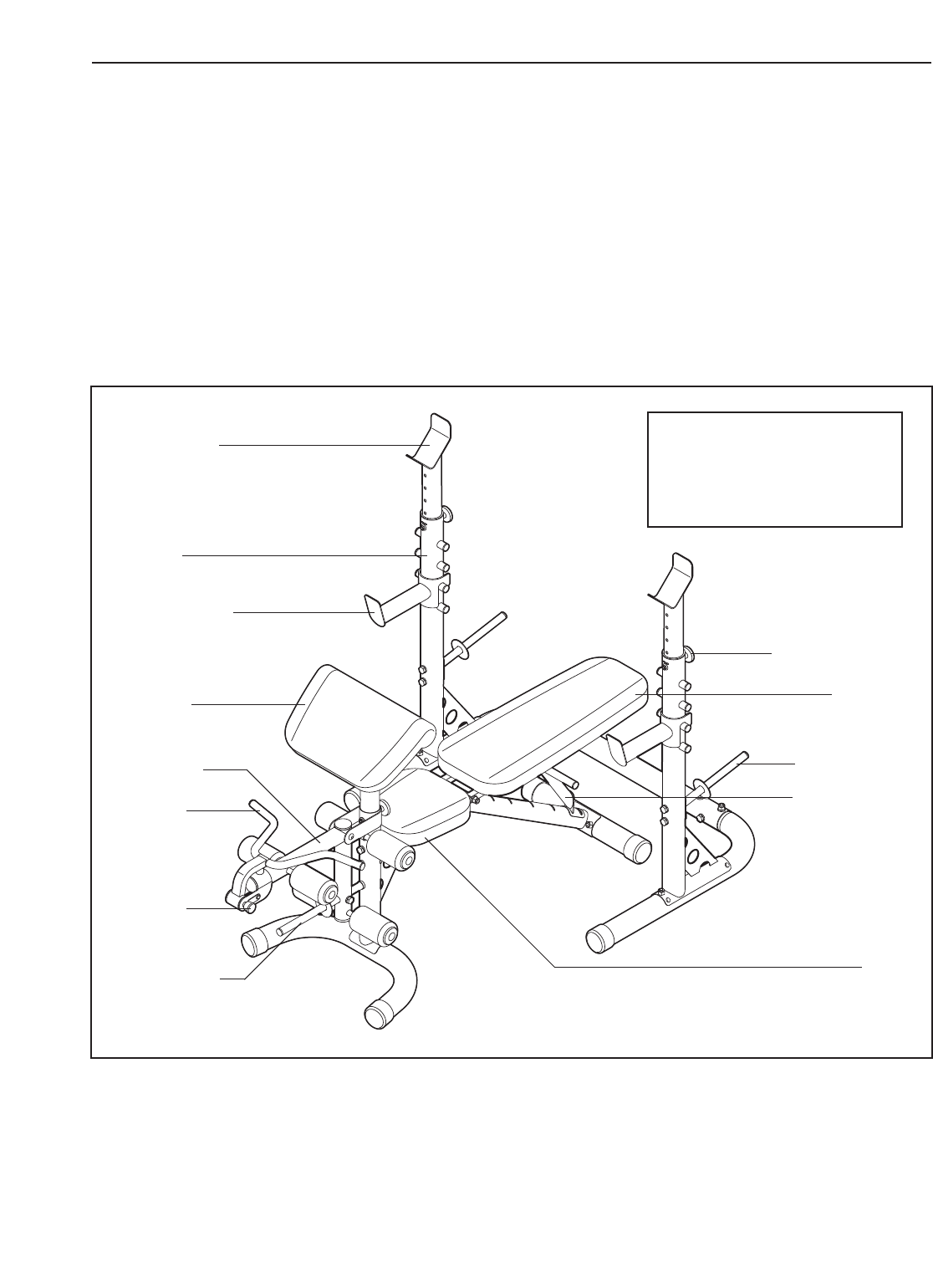

Before reading further, please review the drawing below

and familiarize yourself with the parts that are labeled.

ASSEMBLED DIMENSIONS:

Height: 62 in. (157 cm)

Width: 48 in. (122 cm)

Depth: 73 in. (185 cm)

M6 Washer (53)

M10 Nylon

Locknut (57)

M10 x 170mm Bolt (49)

M8 x 70mm Bolt (44)

M10 Washer (52)

M8 Nylon

Locknut (58)

M10 x 90mm Carriage Bolt (40)

M10 x 95mm Bolt (42)

M10 x 85mm Bolt (43)

M6 x 80mm Screw (46)

M6 x 40mm Screw (48)

M10 x 77mm Bolt Set (45)

M5 x 16mm

Screw (50)

M4 x 16mm

Screw (51)

M8 Washer (54)

M6 x 16mm

Screw (47)

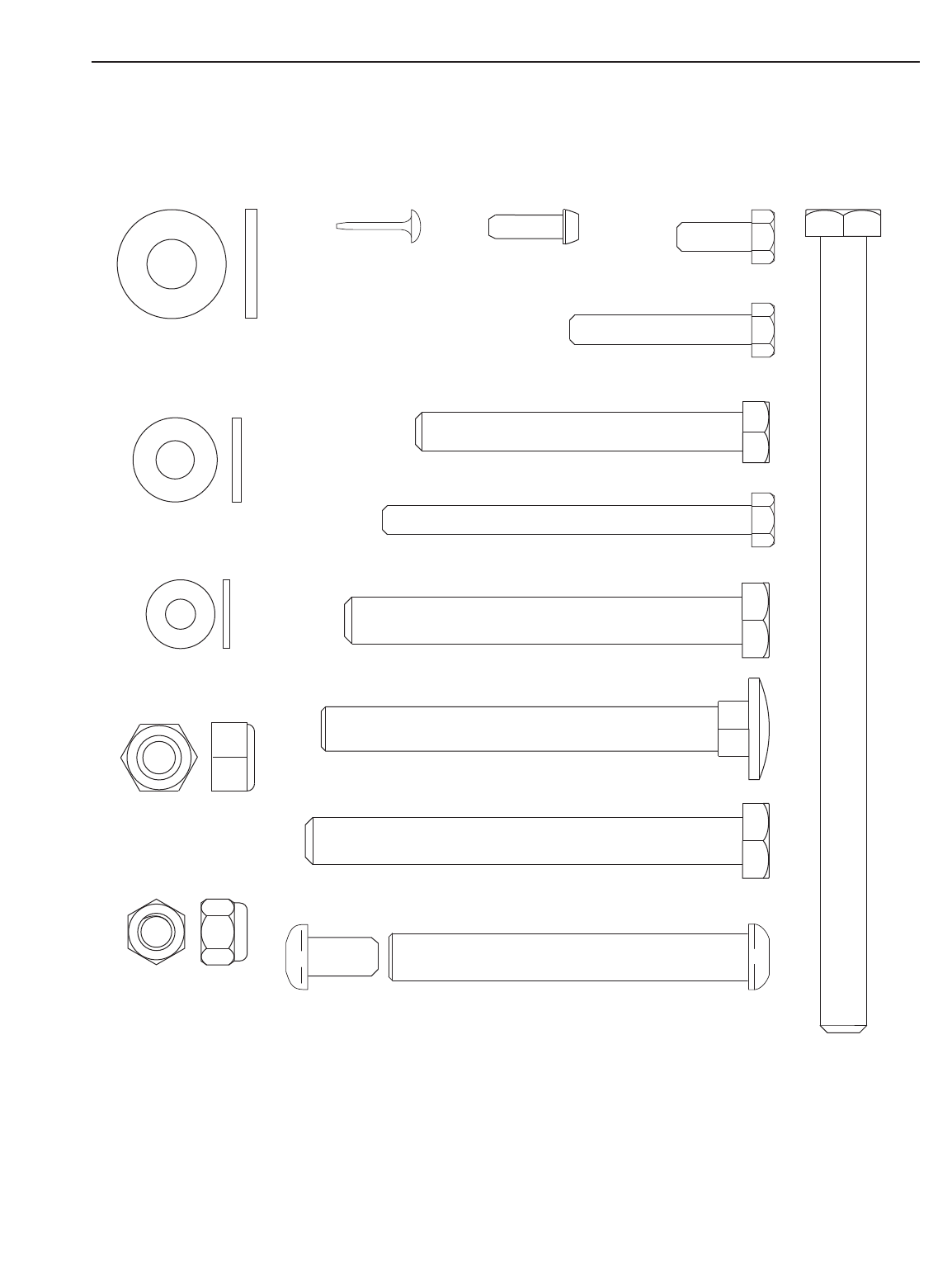

PART IDENTIFICATION CHART

See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is

the key number of the part, from the PART LIST on page 17. Note: Some small parts may have been pre-

attached. If a part is not in the parts bag, check to see if it has been preattached.

ASSEMBLY

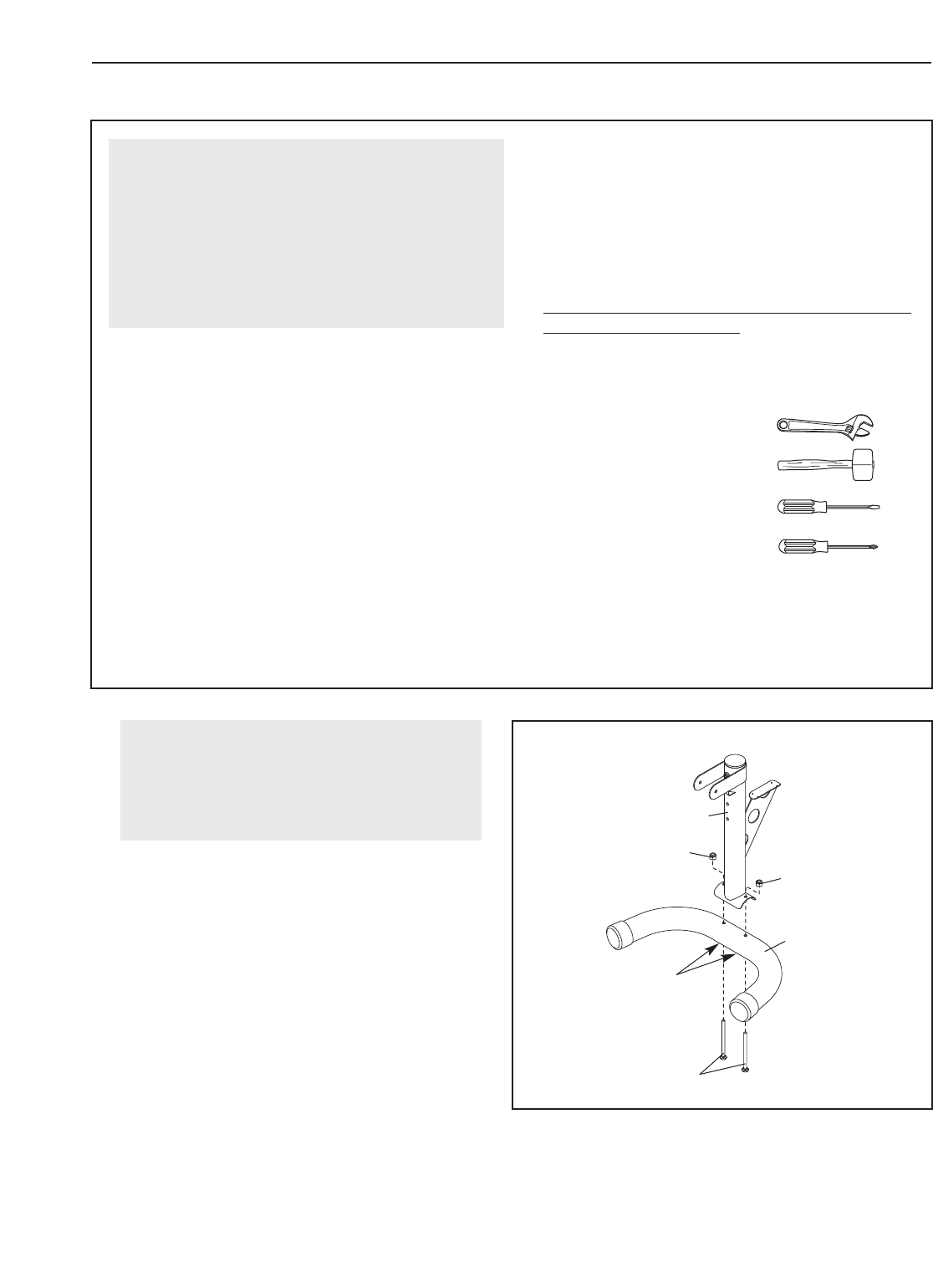

Orient the Front Stabilizer (2) with the square

holes toward the floor.Attach the Front

Stabilizer (2) to the Front Leg (4) with two M10

x90mm Carriage Bolts (40) and two M10 Nylon

Locknuts (57). Do not tighten the Nylon

Locknuts yet.

Square

Holes

Before beginning assembly,make sure

that you have read and understand the

information in the box above. See the

PART IDENTIFICATION CHART on page 5

for help identifying small parts.

To hire an authorized service technician to

assemble the weight bench, call toll-free

1-800-445-2480.

Before beginning assembly, carefully read the

following information and instructions:

•Because of its weight and size, the weight bench

should be assembled in the location where it will

be used. Make sure that there is enough clear-

ance to walk around the weight bench as you

assemble it.

•Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materials until assembly is completed.

•Tighten all parts as you assemble them, unless

instructed to do otherwise.

•As you assemble the weight bench, make sure all

parts are oriented as shown in the drawings.

•Assembly requires two persons.

• For help identifying small parts, use the PART

IDENTIFICATION CHART on page 5.

In addition to the included grease, assembly

may require the following tools (not included):

• two adjustable wrenches

• one rubber mallet

• one standard screwdriver

• one Phillips screwdriver

Assembly may be more convenient if you have a

socket set, a set of open-end or closed-end

wrenches, or a set of ratchet wrenches.

Make Assembly Easier

Everything in this manual is designed to ensure

that the weight bench can be assembled suc-

cessfully by almost anyone. However, the weight

bench has many parts and the assembly

process will take time. By setting aside plenty of

time, assembly will go smoothly.

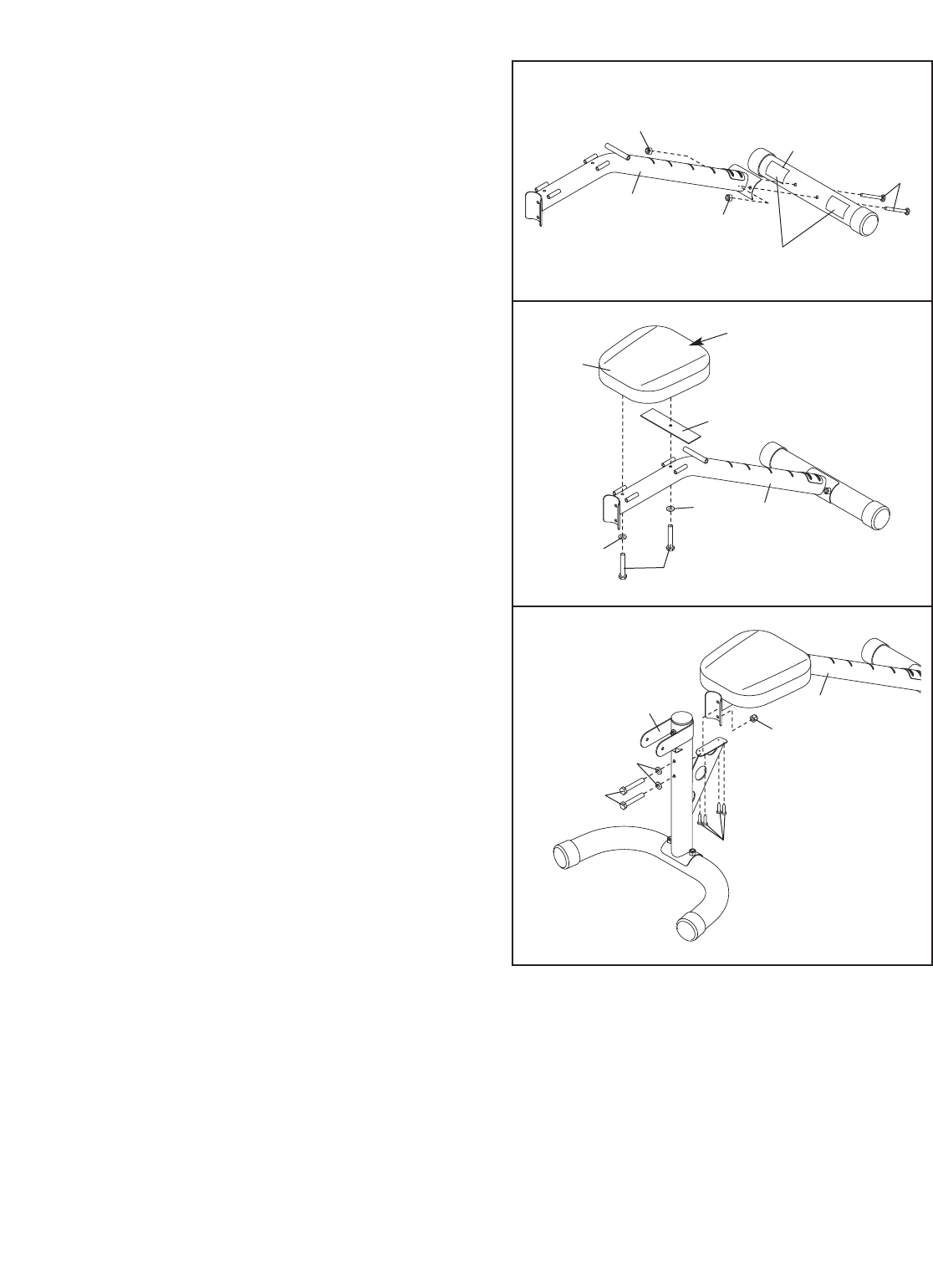

2. Attach the Rear Stabilizer (3) to the Frame (1)

with two M10 x 90mm Carriage Bolts (40) and

two M10 Nylon Locknuts (57). Do not tighten

the Nylon Locknuts yet.

3. Attach the Seat (18) and the Seat Bracket (59)

to the Frame (1) with two M6 x 80mm Screws

(46) and two M6 Washers (53).

Warning

Decals

4. Attach the Frame (1) to the Front Leg (4) with

two M10 x 85mm Bolts (43), two M10 Washers

(52), and an M10 Nylon Locknut (57). Do not

tighten the Nylon Locknut yet.

Finish attaching the Front Leg (4) to the Frame

(1) with four M5 x 16mm Screws (50). Tighten

the Nylon Locknuts (57) used in steps 1, 2,

and 4.

Wide End

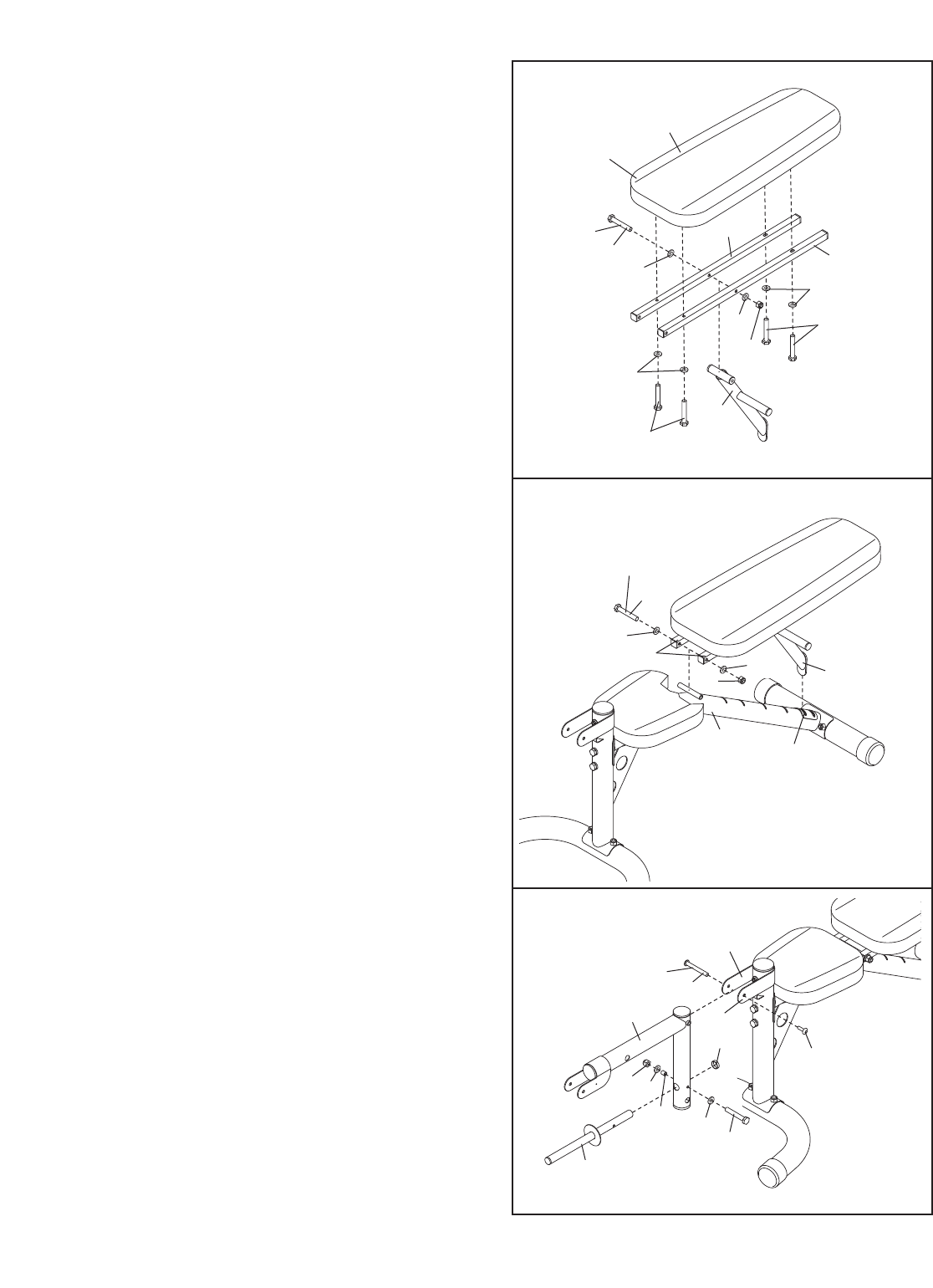

5. Apply a portion of the included grease to an

M10 x 170mm Bolt (49). Attach the Backrest

Post (15) to the Backrest Frames (16) with the

Bolt, two M10 Washers (52), and an M10 Nylon

Locknut (57). Donot tighten the Nylon

Locknut yet.

Attach the Backrest (19) to the Backrest

Frames (16) with four M6 x 40mm Screws (48)

and four M6 Washers (53). Do not tighten the

Screws yet.

6. Apply a portion of the included grease to an

M10 x 170mm Bolt (49). Attach the Backrest

Frames (16) to the Frame (1) with the Bolt, two

M10 Washers (52), and an M10 Nylon Locknut

(57). Set the end of the Backrest Post (15) in

one of the slots in the Frame. Do not over-

tighten the Nylon Locknut; the Backrest

Frames must pivot easily.

See step 5. Tighten the M10 Nylon Locknut

(57) and the four M6 x 40mm Screws (48).

Do not overtighten the Nylon Locknut; the

Backrest Post (15) must pivot easily.

7. Attach the Weight Tube (24) to the Leg Lever

(5) with an M8 x 70mm Bolt (44), a 13mm x

16mm Spacer (55), two M8 Washers (54), and

an M8 Nylon Locknut (58). Next, press a 25mm

Outer Cap (56) onto the end of the Weight

Tube.

Apply grease to the barrel of an M10 x 77mm

Bolt Set (45). Attach the Leg Lever (5) to the

Front Leg (4) with the Bolt Set. Make sure that

the barrel of the Bolt Set is inserted through

both sides of the bracket on the Front Leg.

52 15

Slot

Grease

Bracket

58 54

54 44

Grease

Wide End

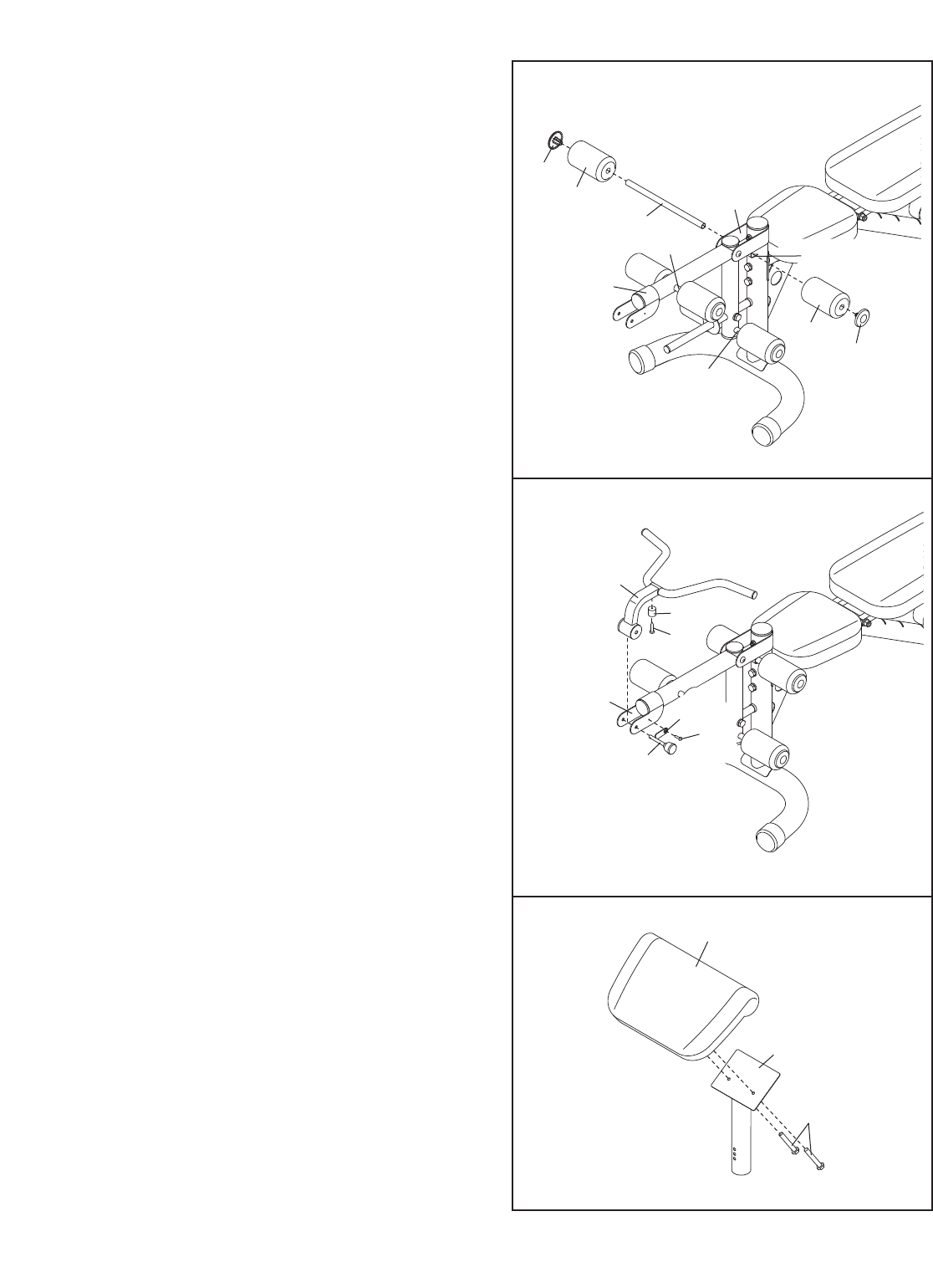

8. Insert the Long Pad Tube (36) into the bracket

on the Front Leg (4). Slide two Foam Pads (22)

onto the Pad Tube, and press two Pad Caps

(23) into the ends of the Foam Pads.

Repeat this step with the two Short Pad

Tubes (21) and the Leg Lever (5).

9. Attach the Bumper (30) to the Curl Bar (17)

with an M4 x 16mm Screw (51).

Attach the Curl Bar (17) to the Leg Lever (5)

with the Curl Bar Pin (33). Then, attach the

Tether (34) on the Curl Bar Pin to the Leg Lever

with an M4 x 16mm Screw (51).

10. Attach the Curl Pad (20) to the Curl Post (6)

with two M6 x 16mm Screws (47).

21 Bracket

11. Note: If you have Olympic weights, use the Long

Base (7) in this step; if you do not have Olympic

weights, use the Short Base (8). For simplicity,

the Long Base is shown in all drawings in this

manual.

Attach a Foot (39) to the Left Upright Base (9)

with an M5 x 16mm Screw (50). Insert an M10 x

90mm Carriage Bolt (40) up into the Upright Base.

Attach the Left Upright Base (9) to the Long

Base (7) with two M10 x 90mm Carriage Bolts

(40), an M10 x 95mm Bolt (42), four M10

Washers (52), and three M10 Nylon Locknuts

(57). Do not tighten the Nylon Locknuts yet.

Repeat this step for the Right Upright Base

(10).

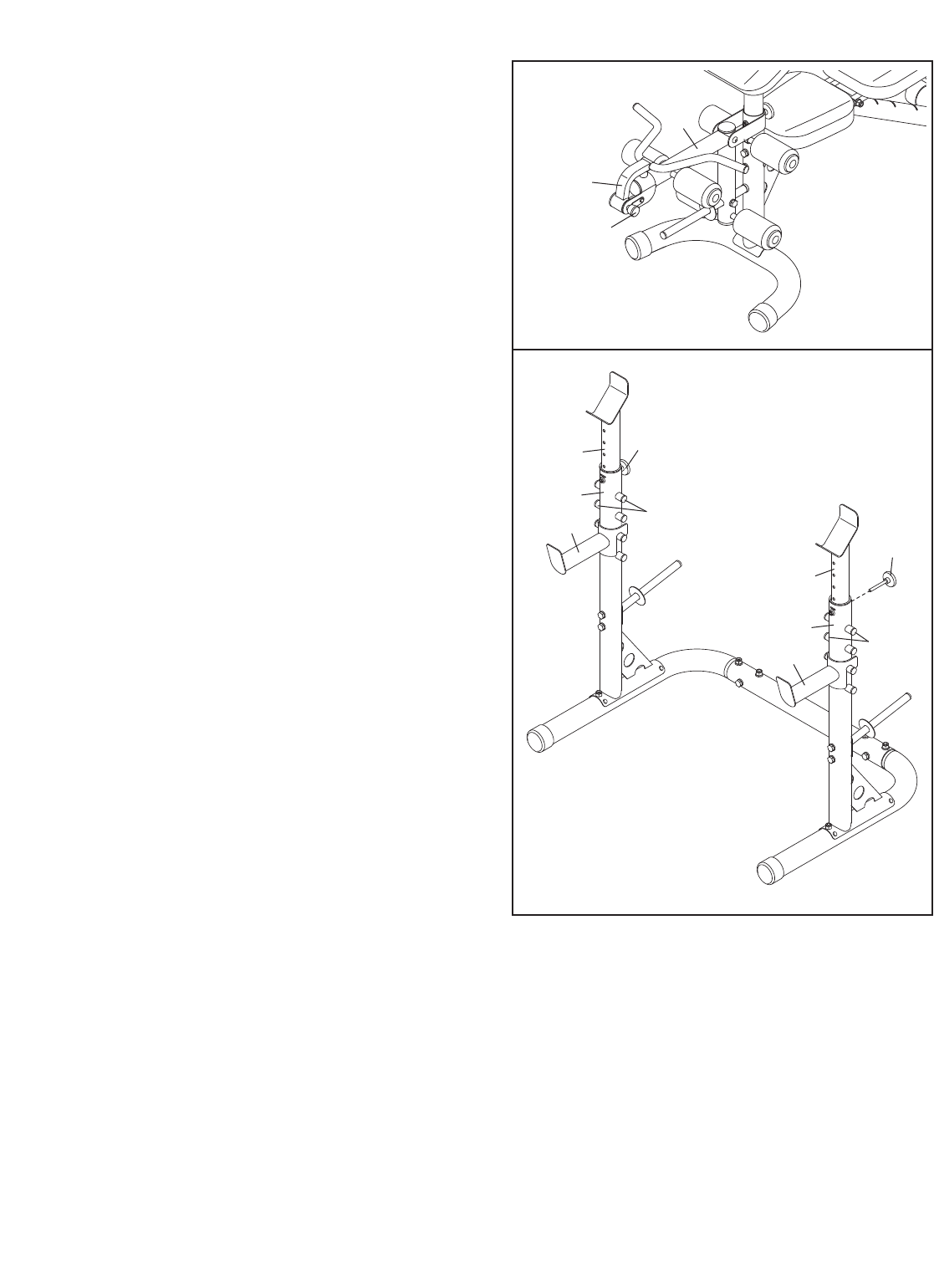

12. Attach a Storage Tube (14) to an Upright (11)

with two M10 x 95mm Bolts (42), two M10

Washers (52), and two M10 Nylon Locknuts

(57).

Attach the Upright (11) to the Left Upright Base

(9) with the M10 x 90mm Carriage Bolt (40),

four M5 x 16mm Screws (50), and an M10

Nylon Locknut (57).

Repeat this step for the other Upright (11)

and the Right Upright Base (10).

See step 11. Tighten all of the M10 Nylon

Locknuts (57) used in step 11.

13. Set a Safety Spotter (13) on a set of pegs on

the left Upright (11).

Set the other Safety Spotter (13) on a set of

pegs on the right Upright (11). Make sure that

both Safety Spotters are at the same height.

14. Make sure that all parts are properly tight-

ened before you use the weight bench. The

use of all remaining parts will be explained

in ADJUSTMENTS on pages 11and 12.

Pegs

This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 13 for impor-

tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying

exercise guide to see the correct form for each exercise.

Make sure all parts are properly tightened each time you use the weight bench. Replace any worn parts immediate-

ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent. Do not use solvents.

ADJUSTING THE BACKREST

To adjust the position of the Backrest (19), lift the

indicated handle on the Backrest Post (15). Raise

or lower the Backrest, and set the Backrest Post in

one of the slots in the Frame (1). Make sure that

the Backrest Post is fully inserted into one of

the slots. 15

1Slot

Handle

ADJUSTMENTS

635

Weight

USING THE CURL PAD

To use the Curl Pad (20), remove the indicated

70mm Round Inner Cap (26) and insert the Curl

Post (6) into the Front Leg (4). Tighten an

Adjustment Knob (35) into the Front Leg. Make

sure that the Adjustment Knob passes through a

hole in the Curl Post.

When performing exercises that do not require the

Curl Pad (20), remove the Curl Pad and reinsert the

70mm Round Inner Cap (26) into the Front Leg (4).

USING THE LEG LEVER

The Leg Lever (5) can be used with standard

weights or Olympic weights. Touse the Leg Lever,

slide a weight plate (not shown) onto the Weight

Tube (24) and secure it with a 1" Weight Clip (41).

Note: When using the Leg Lever,remove the

Curl Bar (17) (see REMOVING THE CURL BAR

on page 12).

ADJUSTING THE WEIGHT RESTS AND THE

SAFETY SPOTTERS

To adjust the height of the Weight Rests (12), raise

the Weight Rests to the desired height and tighten

an Adjustment Knob (35) into each Upright (11).

Make sure that the Weight Rests are at the same

height and that the Adjustment Knobs are fully

tightened into the Uprights.

To adjust the position of the Safety Spotters (13),

move the Safety Spotters to a different set of pegs

on the Uprights (11). Make sure that the Safety

Spotters are at the same height.

REMOVING THE CURL BAR

When performing exercises that do not require the

Curl Bar (17), pull the Curl Bar Pin (33) out of the

Leg Lever (5) and remove the Curl Bar.

When attaching the Curl Bar (17), insert the Curl

Bar Pin (33) completely through the Leg Lever (5).

13 Pegs

Pegs

EXERCISE GUIDELINES

THE FOUR BASIC TYPES OF WORKOUTS

Muscle Building

Toincrease the size and strength of your muscles,

push them close to their maximum capacity. Your mus-

cles will continually adapt and grow as you progres-

sively increase the intensity of your exercise. You can

adjust the intensity level of an individual exercise in

two ways:

•by changing the amount of resistance used

•by changing the number of repetitions or sets per-

formed. (A “repetition” is one complete cycle of an

exercise, such as one sit-up. A “set” is a series of

repetitions.)

The proper amount of resistance for each exercise

depends upon the individual user. You must gauge

your limits and select the amount of resistance that is

right for you. Begin with 3 sets of 8 repetitions for each

exercise you perform. Rest for 3 minutes after each

set. When you can complete 3 sets of 12 repetitions

without difficulty, increase the amount of resistance.

Toning

You can tone your muscles by pushing them to a mod-

erate percentage of their capacity. Select a moderate

amount of resistance and increase the number of rep-

etitions in each set. Complete as many sets of 15 to

20 repetitions as possible without discomfort. Rest for

1minute after each set. Work your muscles by com-

pleting more sets rather than by using high amounts of

resistance.

Weight Loss

To lose weight, use a low amount of resistance and

increase the number of repetitions in each set.

Exercise for 20 to 30 minutes, resting for a maximum

of 30 seconds between sets.

Cross Training

Cross training is an efficient way to get a complete and

well-balanced fitness program. An example of a bal-

anced program follows:

•Plan strength training workouts on Monday,

Wednesday, and Friday.

•Plan 20 to 30 minutes of aerobic exercise, such as

running on a treadmill or riding on an elliptical exer-

ciser or exercise cycle, on Tuesday and Thursday.

•Rest from both strength training and aerobic exercise

for at least one full day each week to give your body

time to regenerate.

The combination of strength training and aerobic exer-

cise will reshape and strengthen your body, plus devel-

op your heart and lungs.

PERSONALIZING YOUR EXERCISE PROGRAM

Determining the exact length of time for each workout,

as well as the number of repetitions or sets completed,

is an individual matter. It is important to avoid overdo-

ing it during the first few months of your exercise pro-

gram. You should progress at your own pace and be

sensitive to your body’ssignals. If you experience pain

or dizziness at any time while exercising, stop immedi-

ately and begin cooling down. Find out what is wrong

before continuing. Remember that adequate rest and a

proper diet are important factors in any exercise pro-

gram.

WARMING UP

Begin each workout with 5 to 10 minutes of stretching

and light exercise to warm up. Warming up prepares

your body for more strenuous exercise by increasing

circulation, raising your body temperature and deliver-

ing more oxygen to your muscles.

WORKING OUT

Each workout should include 6 to 10 different exercis-

es. Select exercises for every major muscle group,

emphasizing areas that you want to develop most. To

give balance and variety to your workouts, vary the

exercises from session to session.

Schedule your workouts for the time of day when your

energy level is the highest. Each workout should be

followed by at least one day of rest. Once you find the

schedule that is right for you, stick with it.

EXERCISE FORM

Maintaining proper form is an essential part of an

effective exercise program. This requires moving

through the full range of motion for each exercise, and

moving only the appropriate parts of the body.

Exercising in an uncontrolled manner will leave you

feeling exhausted. On the exercise guide accompany-

ing this manual you will find photographs showing the

correct form for several exercises, and a list of the

muscles affected. Refer to the muscle chart on the

next page to find the names of the muscles.

The repetitions in each set should be performed

smoothly and without pausing. The exertion stage of

each repetition should last about half as long as the

return stage. Proper breathing is important. Exhale

during the exertion stage of each repetition and inhale

during the return stroke. Never hold your breath.

Rest for a short period of time after each set. The

ideal resting periods follow:

•Rest for three minutes after each set for a muscle

building workout.

•Rest for one minute after each set for a toning work-

out.

•Rest for 30 seconds after each set for a weight loss

workout.

Plan to spend the first couple of weeks familiarizing

yourself with the equipment and learning the proper

form for each exercise.

COOLING DOWN

End each workout with 5 to 10 minutes of stretching.

Include stretches for both your arms and legs. Move

slowly as you stretch and do not bounce. Ease into

each stretch gradually and go only as far as you can

without strain. Stretching at the end of each workout

is an effective way to increase flexibility.

STAYING MOTIVATED

For motivation, keep a record of each workout. List the

date, the exercises performed, the resistance used,

and the numbers of sets and repetitions completed.

Make copies of the exercise logs found on pages 15

and 16. Use the logs to record your weight and key

body measurements at the end of every month.

Remember, the key to achieving the greatest results is

to make exercise a regular and enjoyable part of your

everyday life.

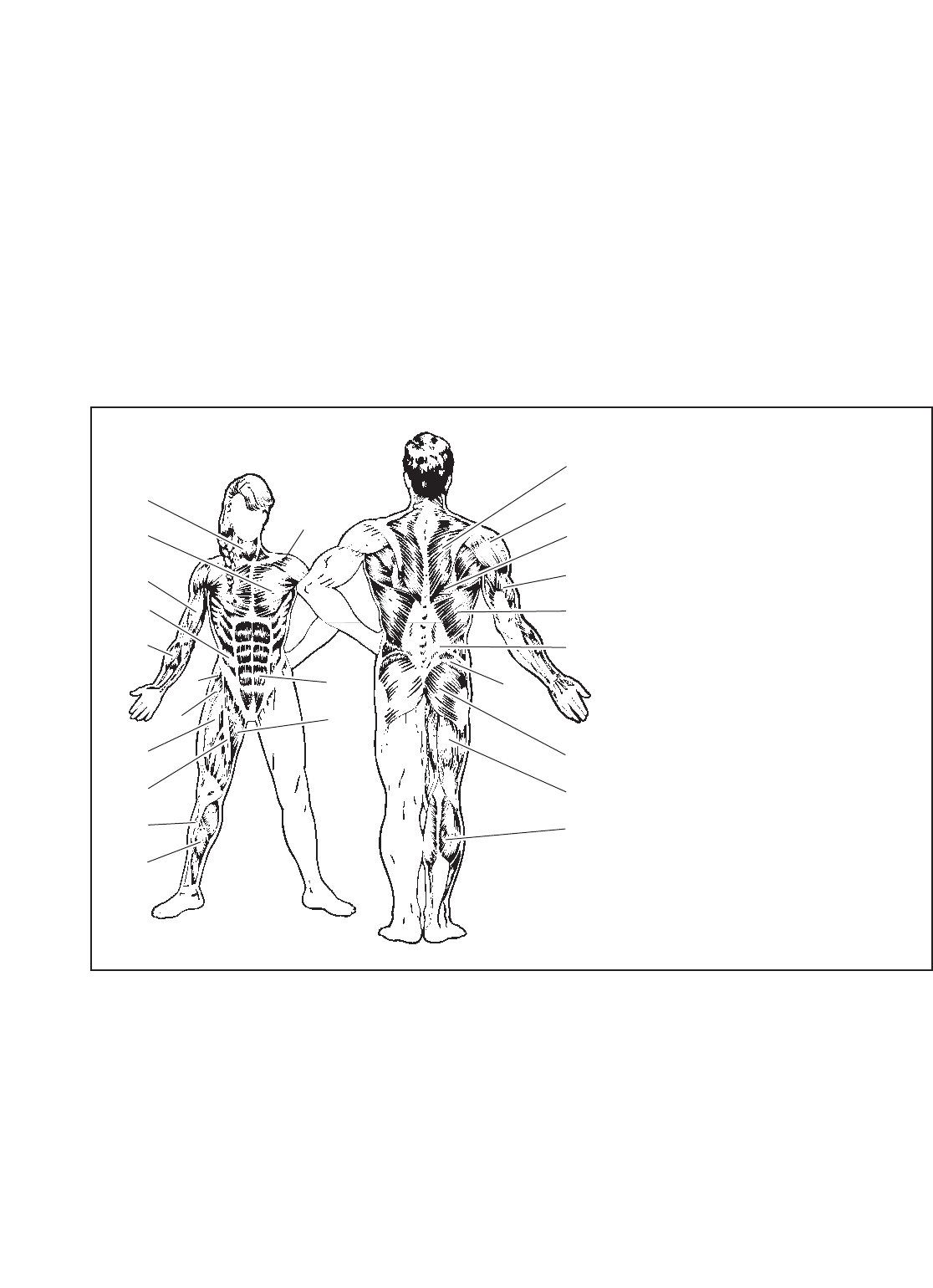

MUSCLE CHART

A. Sternomastoid (neck)

B. Pectoralis Major (chest)

C. Biceps (front of arm)

D. Obliques (waist)

E. Brachioradials (forearm)

F. Hip Flexors (upper thigh)

G. Abductor (outer thigh)

H. Quadriceps (front of thigh)

I. Sartorius (front of thigh)

J. Tibialis Anterior (front of calf)

K. Soleus (front of calf)

L. Anterior Deltoid (shoulder)

M. Rectus Abdominus (stomach)

N. Adductor (inner thigh)

O. Trapezius (upper back)

P. Rhomboideus (shoulder)

Q. Posterior Deltoid (Upper Back)

R. Triceps (back of arm)

S. Latissimus Dorsi (mid back)

T. Spinae Erectors (lower back)

U. Gluteus Medius (hip)

V. Gluteus Maximus (buttocks)

W. Hamstring (back of leg)

X. Gastrocnemius (back of calf)

MONDAY

Date:

/ /

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

FRIDAY

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

MONDAY

Date:

EXERCISE WEIGHT SETS REPS

AEROBIC EXERCISE

TUESDAY

Date:

/ /

WEDNESDAY

Date:

/ /

THURSDAY

Date:

/ /

FRIDAY

Date:

/ /

Make photocopies of this page for scheduling and recording your workouts.

Note: “#” indicates a non-illustrated part. Specifications are subject to change without notice. See the back cover

of this manual for information about ordering replacement parts.

Key No. Qty. Description Key No. Qty. Description

1 1 Frame

2 1 Front Stabilizer

3 1 Rear Stabilizer

4 1 Front Leg

5 1 Leg Lever

6 1 Curl Post

7 1 Base

8 1 Short Base

9 1 Left Upright Base

10 1 Right Upright Base

11 2 Upright

12 2 Weight Rest

13 2 Safety Spotter

14 2 Storage Tube

15 1Backrest Post

16 2 Backrest Frame

17 1 Curl Bar

18 1 Seat

19 1 Backrest

20 1 Curl Pad

21 2 Short Pad Tube

22 6 Foam Pad

23 6 Pad Cap

24 1 Weight Tube

25 676mm Round Outer Cap

26 1 70mm Round Inner Cap

27 3 57mm Round Inner Cap

28 22 25mm Round Inner Cap

29 4 25mm Square Inner Cap

30 1 Bumper

31 2 Curl Bushing

32 2 Backrest Bushing

33 1 Curl Bar Pin

34 1 Tether

35 3 Adjustment Knob

36 1 Long Pad Tube

37 2 Upright Bushing

38 2 Upright Spacer

39 2 Foot

40 10 M10 x 90mm Carriage Bolt

41 1 1" Weight Clip

42 6 M10 x 95mm Bolt

43 2 M10 x 85mm Bolt

44 1 M8 x 70mm Bolt

45 1 M10 x 77mm Bolt Set

46 2 M6 x 80mm Screw

47 2M6 x 16mm Screw

48 4 M6 x 40mm Screw

49 2 M10 x 170mm Bolt

50 14 M5 x 16mm Screw

51 6 M4 x 16mm Screw

52 18 M10 Washer

53 6 M6 Washer

54 2 M8 Washer

55 1 13mm x 16mm Spacer

56 1 25mm Outer Cap

57 19 M10 Nylon Locknut

58 1 M8 Nylon Locknut

59 1 Seat Bracket

# – User’s Manual

# – Exercise Guide

# – Grease Packet

# – Hex Key

PART LIST—Model No. GGBE1486.1 R0806A

EXPLODED DRAWING—Model No. GGBE1486.1 R0906A

47 48

56 57

EXPLODED DRAWING—Model No. GGBE1486.1 R0906A

28 28

42 52

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information:

•the MODEL NUMBER of the product (GGBE1486.1)

•the NAME of the product (GOLD’S GYM XRS 20 weight bench)

• the SERIAL NUMBER of the product (see the front cover of this manual)

• the KEY NUMBER and DESCRIPTION of the part(s) (see the PART LIST and the EXPLODED DRAWING on

pages 17, 18, and 19)

ORDERING REPLACEMENT PARTS

LIMITED WARRANTY

ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and

material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-

chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-

ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. For

in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend

to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,

improper or abnormal usage or repairs not provided by an ICON authorized service center; products used

for commercial or rental purposes; or products used as store display models. No other warranty beyond

that specifically set forth above is authorized by ICON.

ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-

nection with the use or performance of the product or damages with respect to any economic loss, loss

of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other

consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-

dental or consequential damages. Accordingly, the above limitation may not apply to you.

The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of

merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth

herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly,the above

limitation may not apply to you.

This warranty gives you specific legal rights. You may also have other rights which vary from state to state.

ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813

Golds Gym Ggbe14861 Owners Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
