Model No. GGBE2557.0
Serial No.
Write the serial number in the
space above for future reference.
Serial Number Decal (under seat)
QUESTIONS?
As a manufacturer, we are com-
mitted to providing complete
customer satisfaction. If you
have questions, or if a part is
damaged or missing, PLEASE
CONTACT OUR CUSTOMER
SERVICE DEPARTMENT
DIRECTLY.
CALL TOLL-FREE:
1-877-776-4777
Mon.–Fri. 6 a.m.–6 p.m. MST
Sat. 8 a.m.–4 p.m. MST
ON THE WEB:
www.goldsgympowerflex.com
USER’S MANUAL
CAUTION
Read all precautions and instruc-
tions in this manual before using
this equipment. Save this manual
for future reference.
2
WARNING DECAL PLACEMENT
WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
PART IDENTIFICATION CHART . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

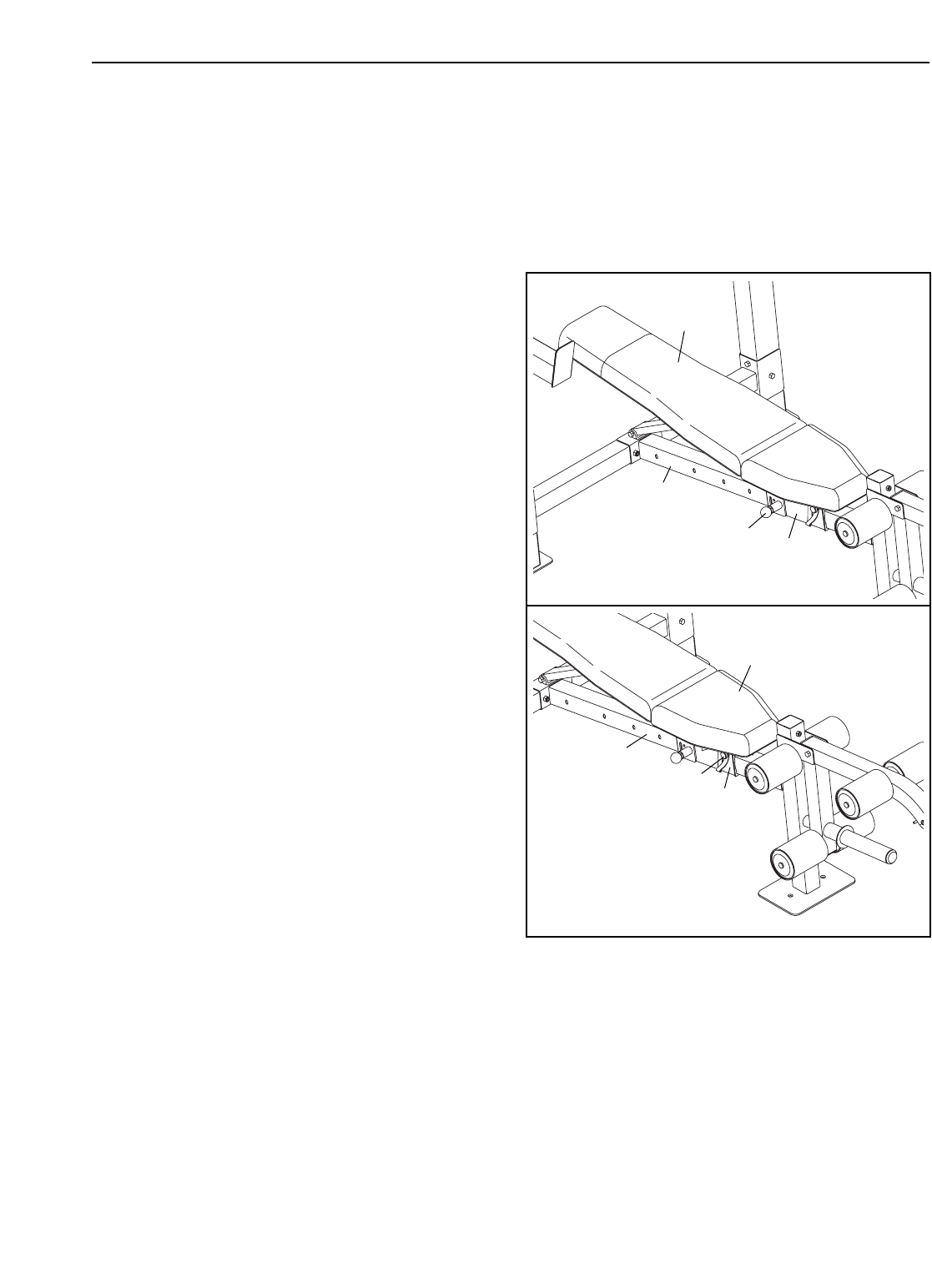

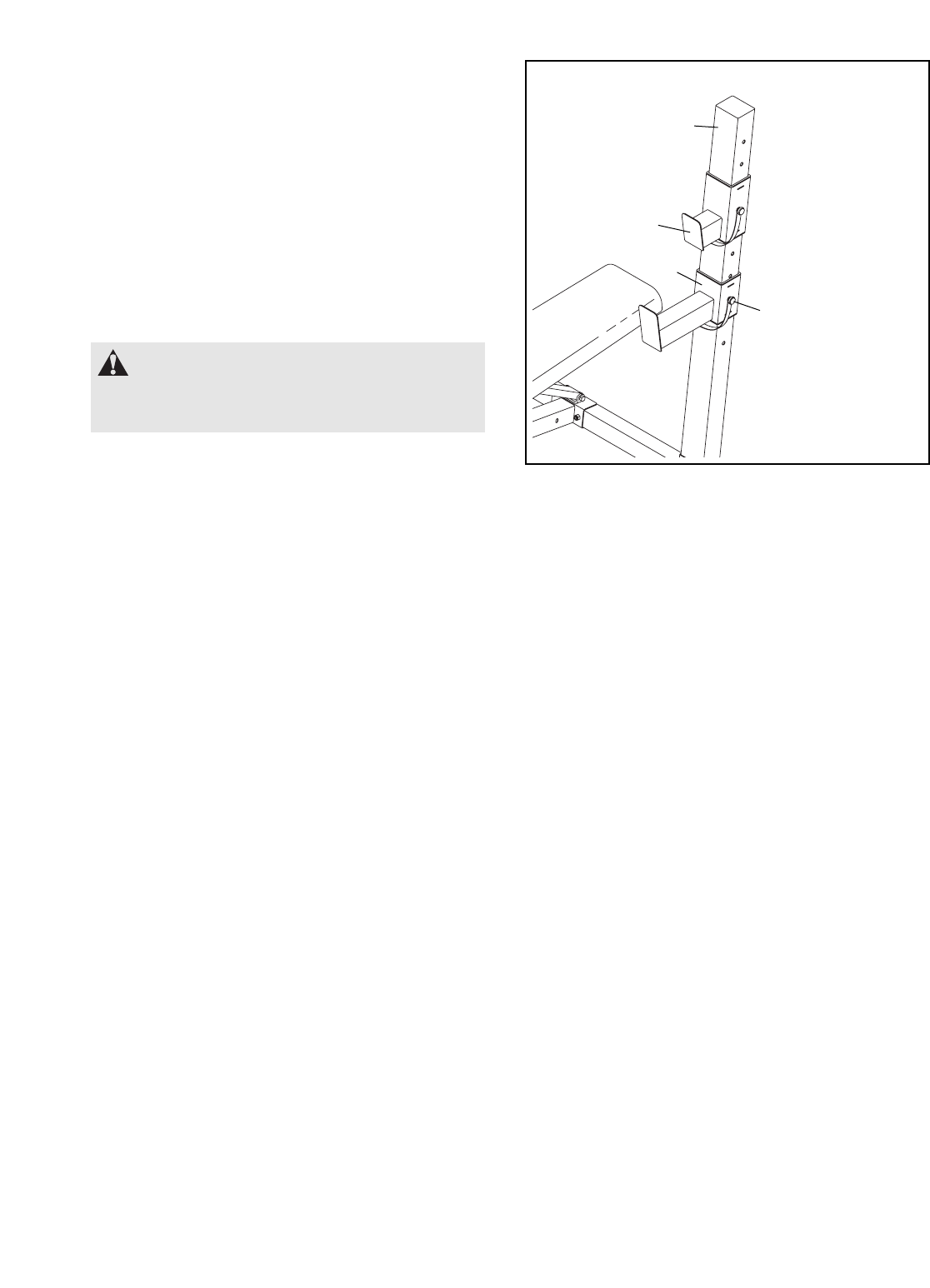

ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

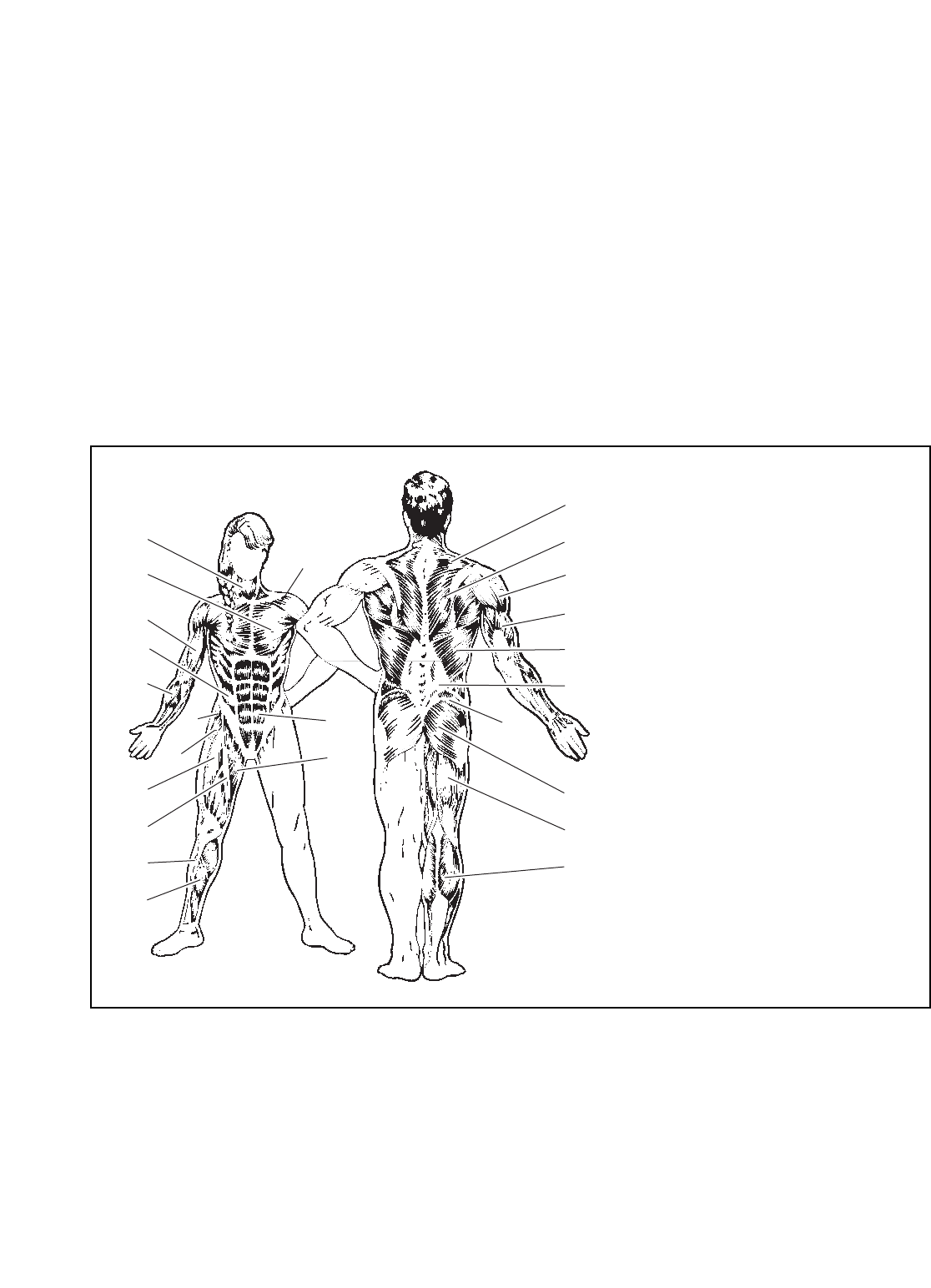

EXERCISE GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
PART LIST . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

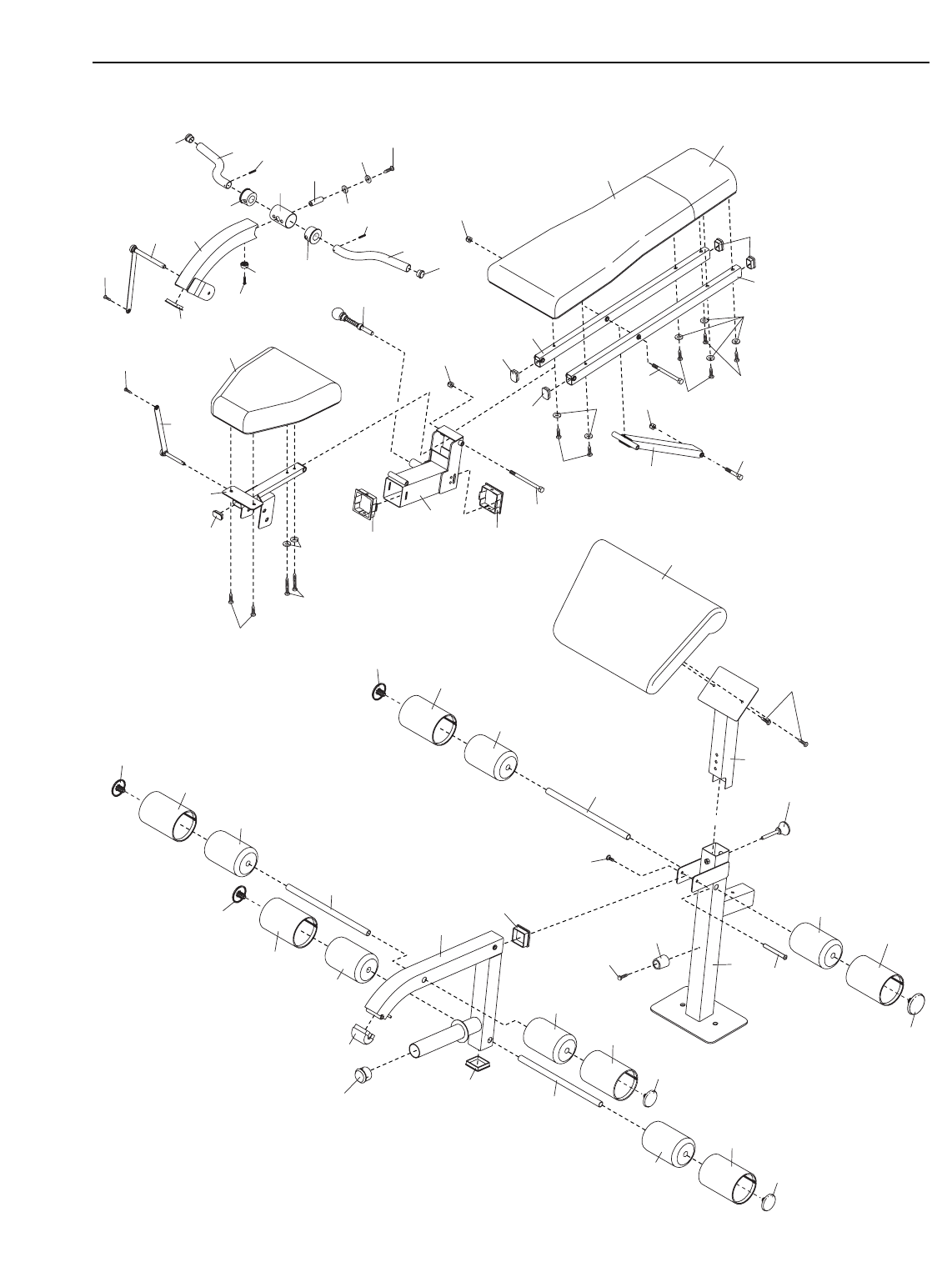

EXPLODED DRAWING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover
LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover
TABLE OF CONTENTS
The decals shown here have been applied to the
weight bench. If a decal is missing or illegible, call
the telephone number on the front cover of this
manual and request a free replacement decal.
Apply the decal in the location shown. Note: The
decals may not be shown actual size.
GOLD'S GYM is a registered trademark of Gold's Gym International, Inc. This product is manufactured and
distributed under license from Gold's Gym International, Inc.
3
WARNING: To reduce the risk of serious injury, read all important precautions and
instructions in this manual and all warnings on the weight bench before using the weight bench.
ICON assumes no responsibility for personal injury or property damage sustained by or through
the use of the weight bench.
IMPORTANT PRECAUTIONS
1. Before beginning any exercise program, con-
sult your physician. This is especially impor-
tant for persons over the age of 35 or per-
sons with pre-existing health problems.
2. Read all instructions in this manual
and all
warnings on the weight bench
before using
the weight bench.
3. It is the responsibility of the owner to ensure
that all users of the weight bench are ade-
quately informed of all precautions.
4. The weight bench is intended for home use
only. Do not use the weight bench in a com-
mercial, rental, or institutional setting.
5.
Keep the weight
bench
indoors, away from
moisture and dust. Place the weight
bench
on a level surface, with a mat beneath it to
protect the floor or carpet. Make sure that
there is enough clearance around the weight
bench
to mount, dismount, and use it.
6. Keep children under age 12 and pets away
from the weight bench at all times.
7.
Inspect and properly tighten all parts regular-
ly. Replace any worn parts immediately.
8. Make sure that the pins and knobs are fully
engaged before the weight bench is used.
9.
Wear appropriate clothes while exercising.
Always wear athletic shoes for foot protec-
tion while exercising.
10.
The weight bench is designed to support a
maximum user weight of 300 lbs. (136 kg)
and a maximum total weight of 610 lbs (277
kg). Do not place more than 310 lbs (141 kg),
including a barbell, on the weight rests. Do
not place more than 150 lbs (68 kg) on the
leg lever. Note: The weight bench does not
include a barbell or weights.
11.
If you feel pain or dizziness while exercising,
stop immediately and cool down.
12. Use the weight bench only as described in
this manual.
4
Seat
Curl Pad
Safety Spotter
Right Side
Left Side
Note: The terms “right side” and “left side” are determined relative to a person sitting with his
back to the backrest; they do not correspond to right and left on the drawings in the manual.
Backrest
Seat Carriage
Leg Lever
Curl Bar
Headrest
Upright
Pin
Weight Rest
BEFORE YOU BEGIN
Thank you for selecting the versatile GOLD’S GYM®
PRO SERIES GB 2000 weight bench. The weight
bench offers a selection of exercise stations designed
to develop every major muscle group of the body.
Whether your goal is to tone your body, build dramatic
muscle size and strength, or improve your cardiovas-
cular system, the weight bench will help you to
achieve the specific results you want.
For your benefit, read this manual carefully before
using the weight bench. If you have questions after
reading this manual, please see the front cover of this
manual. To help us assist you, note the product model
number and serial number before contacting us. The
model number and the location of the serial number
decal are shown on the front cover of this manual.
To avoid a registration fee for any service needed
under warranty, you must register the weight bench
at www.iconservice.com/registration.

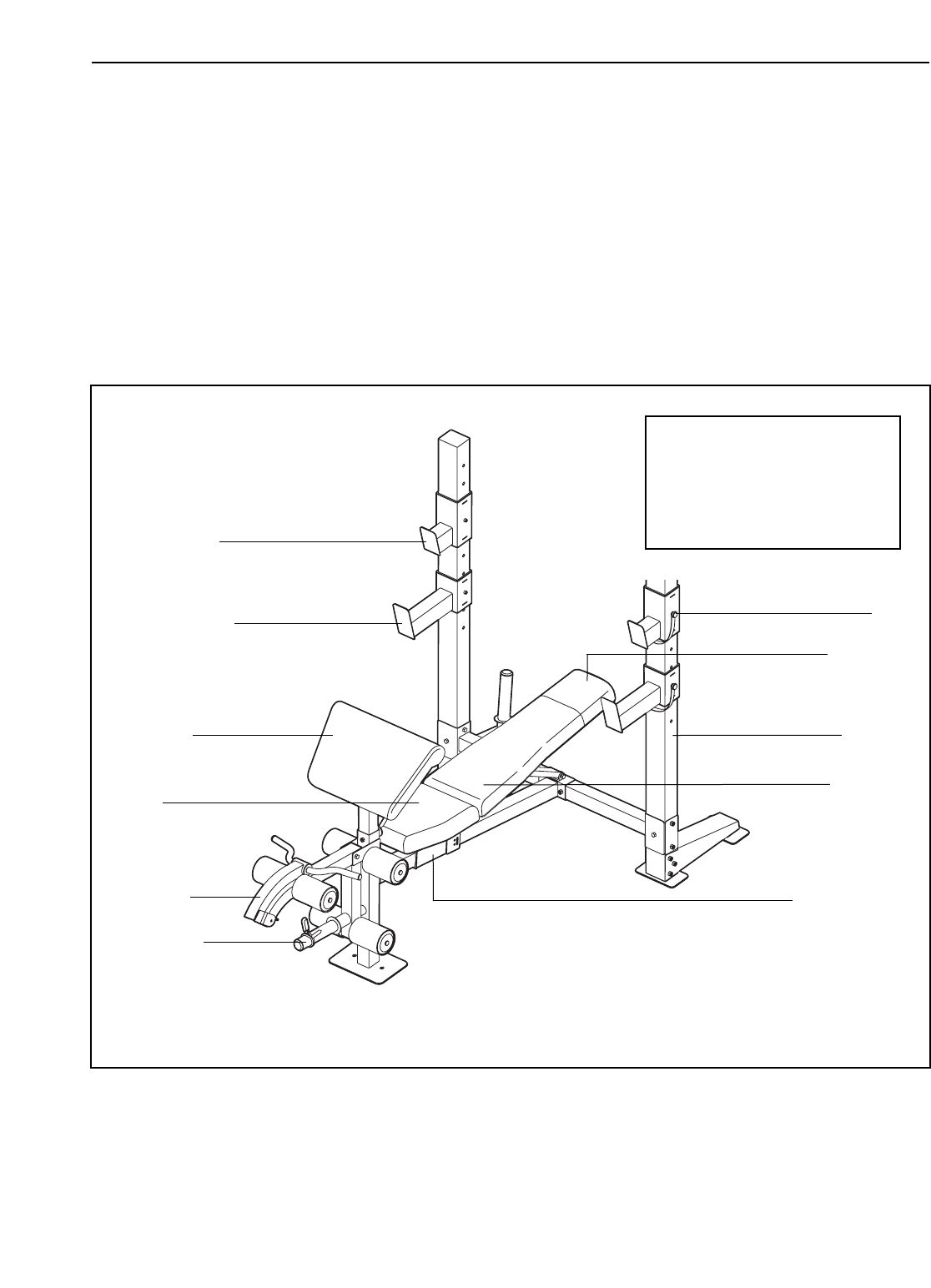

Before reading further, please review the drawing below
and familiarize yourself with the parts that are labeled.
ASSEMBLED DIMENSIONS:
Height: 62 in. (158 cm)
Width: 52 in. (132 cm)
Depth: 86 in. (219 cm)
Weight: 158 lbs. (72 kg)
5
M6 Washer (68)
M10 x 95mm Button Bolt (52)
M10 x 80mm Button Bolt (54)
M10 Split Washer (55)
M10 x 90mm Hex Bolt (19)
M6 x 55mm Screw (67)
M10 Washer (64)
M10 x 117mm Button Bolt (46)
M6 x 16mm Screw (61)
M6 x 35mm Screw (56)
M10 x 70mm Button Screw (60)
M10 x 75mm Hex Bolt (57)
M10 x 80mm Hex Bolt (24)
M4 x 16mm Screw (58)
M10 x 70mm Bolt Set (59)
M10 x 185mm Hex Bolt (63)
M10 Nylon Locknut (66)

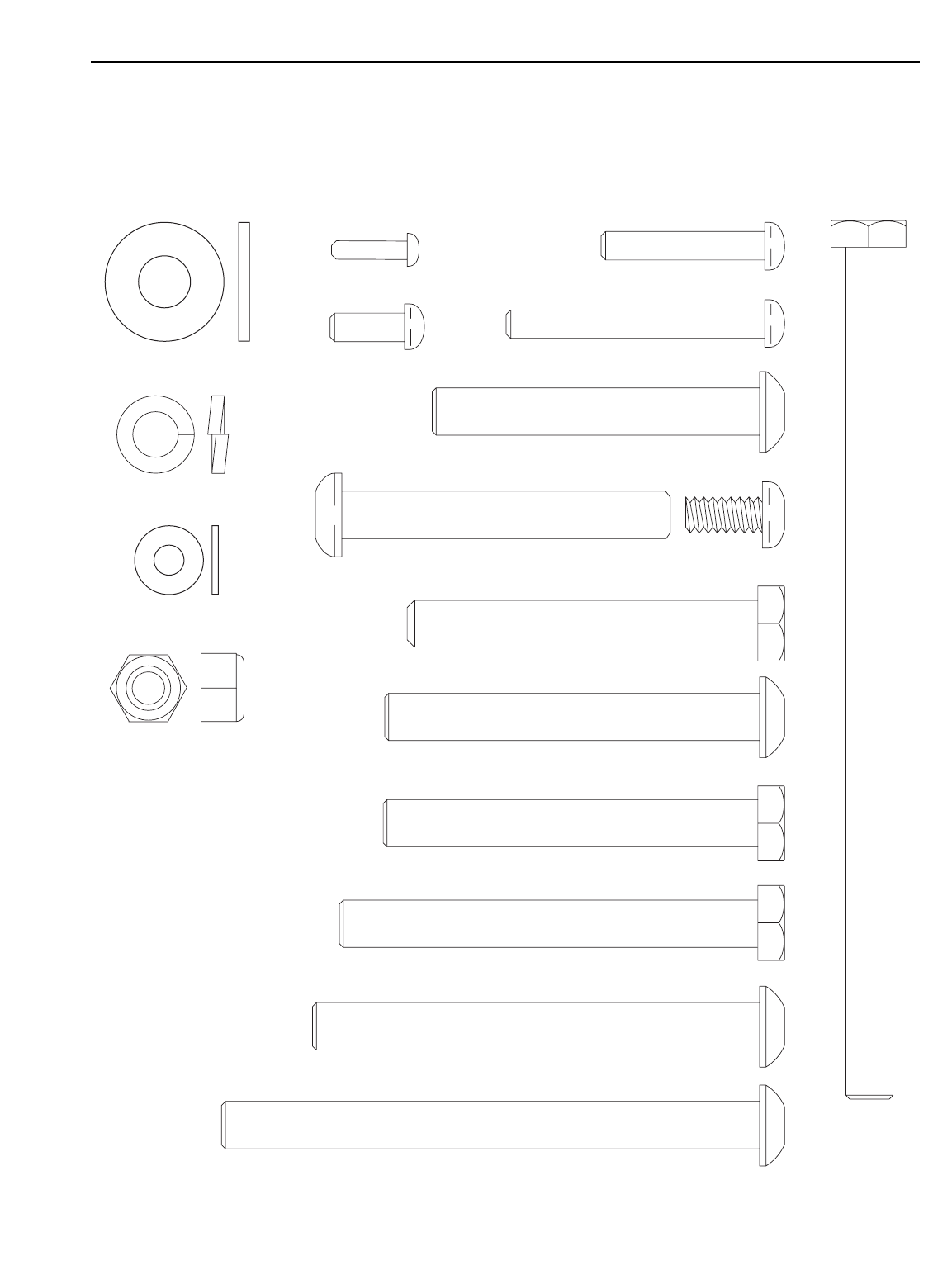

See the drawings below to identify small parts used in assembly. The number in parentheses by each drawing is
the key number of the part, from the PART LIST on page 17. Note: Some small parts may have been preat-
tached. If a part is not in the parts bag, check to see if it has been preattached.
PART IDENTIFICATION CHART
16
61
8
6
Before beginning assembly, carefully read the fol-
lowing information and instructions:
To hire an authorized service technician to
assemble the weight bench, call 1-800-445-2480.
Assembly requires two persons.
Because of its size, the weight bench should be
assembled in the location where it will be used.
Make sure that there is enough clearance to walk
around the weight bench as you assemble it.
Place all parts in a cleared area and remove the
packing materials. Do not dispose of the packing
materials until assembly is completed.
Tighten all parts as you assemble them, unless
instructed to do otherwise.
As you assemble the weight bench, make sure all
parts are oriented as shown in the drawings.
For help identifying small parts, use the PART
IDENTIFICATION CHART on page 5.
Assembly requires the included hex key(s)
and the following tools (not included):
two adjustable wrenches
one rubber mallet
one standard screwdriver
one Phillips screwdriver
Assembly may be more convenient if you have a
socket set, a set of open-end or closed-end
wrenches, or a set of ratchet wrenches.
ASSEMBLY

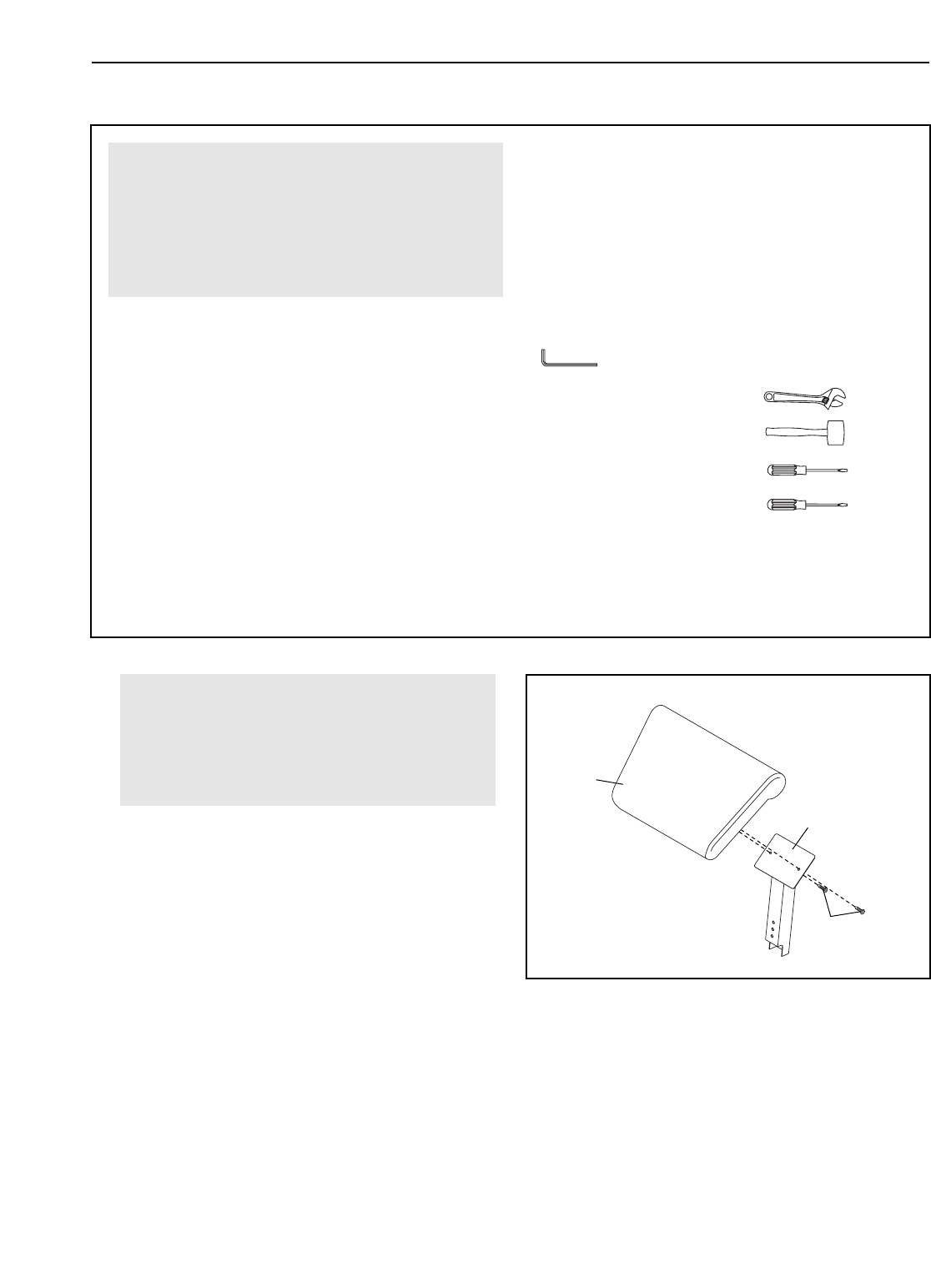

1.
Attach the Curl Pad (16) to the Curl Post (8) with
two M6 x 16mm Screws (61).
1
Before beginning assembly, make sure that
you have read and understand the informa-
tion in the box above. See the PART IDENTI-
FICATION CHART on page 5 for help identi-
fying small parts.
Make Assembly Easier
Everything in this manual is designed to ensure
that the weight bench can be assembled suc-
cessfully by almost anyone. By setting aside
plenty of time, assembly will go smoothly.
7

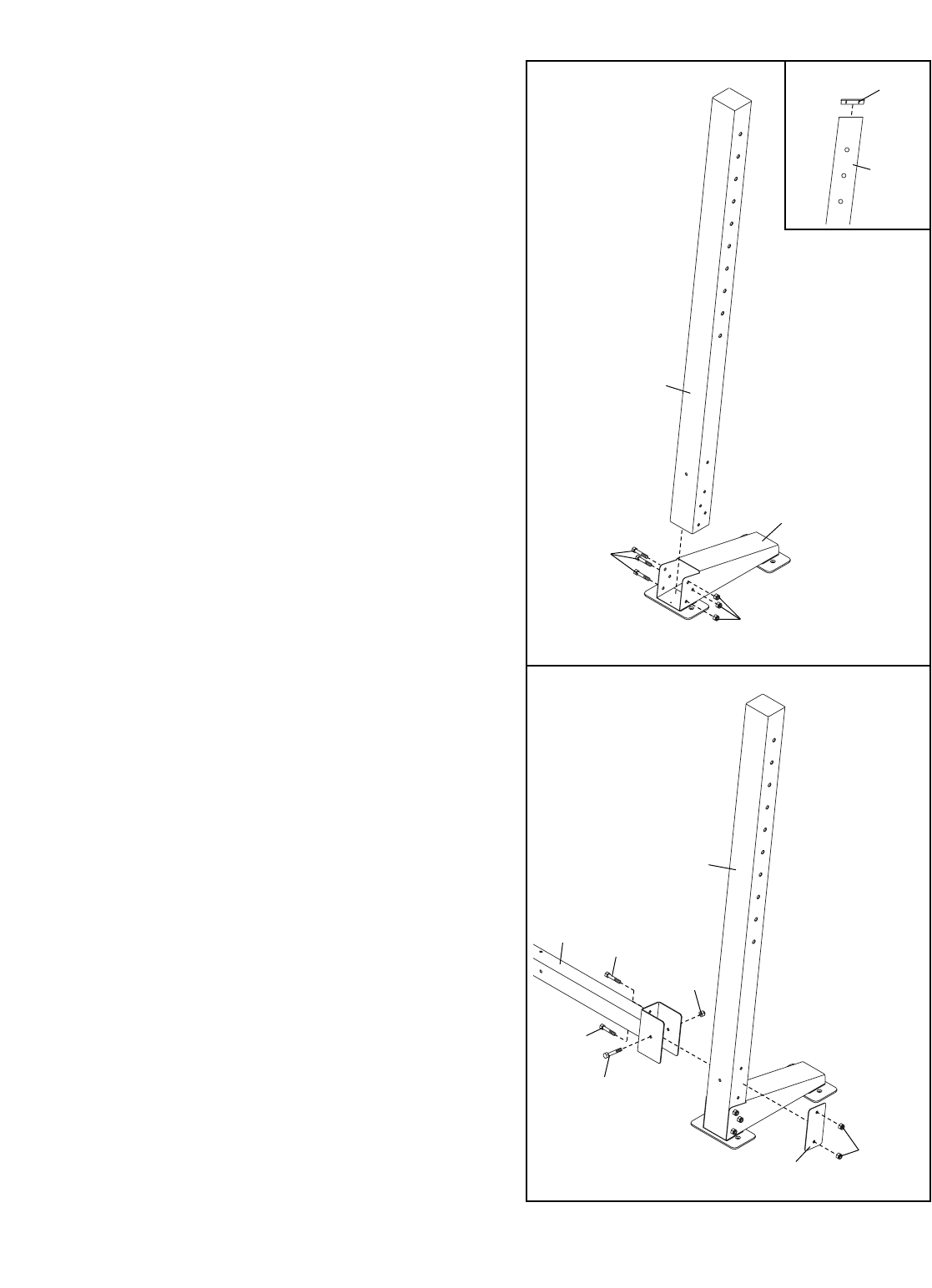

2. Press a 70mm x 100mm Cap (34) into the top of
an Upright (5) as shown in the inset drawing.
Attach the Upright (5) to the Base (1) with three
M10 x 115mm Button Bolts (46) and three M10
Nylon Locknuts (66). Do not tighten the Nylon
Locknuts yet.
Repeat this step with the other Upright (not
shown) and the Storage Base (not shown).
2
52
27 66
66
46
46
5
4

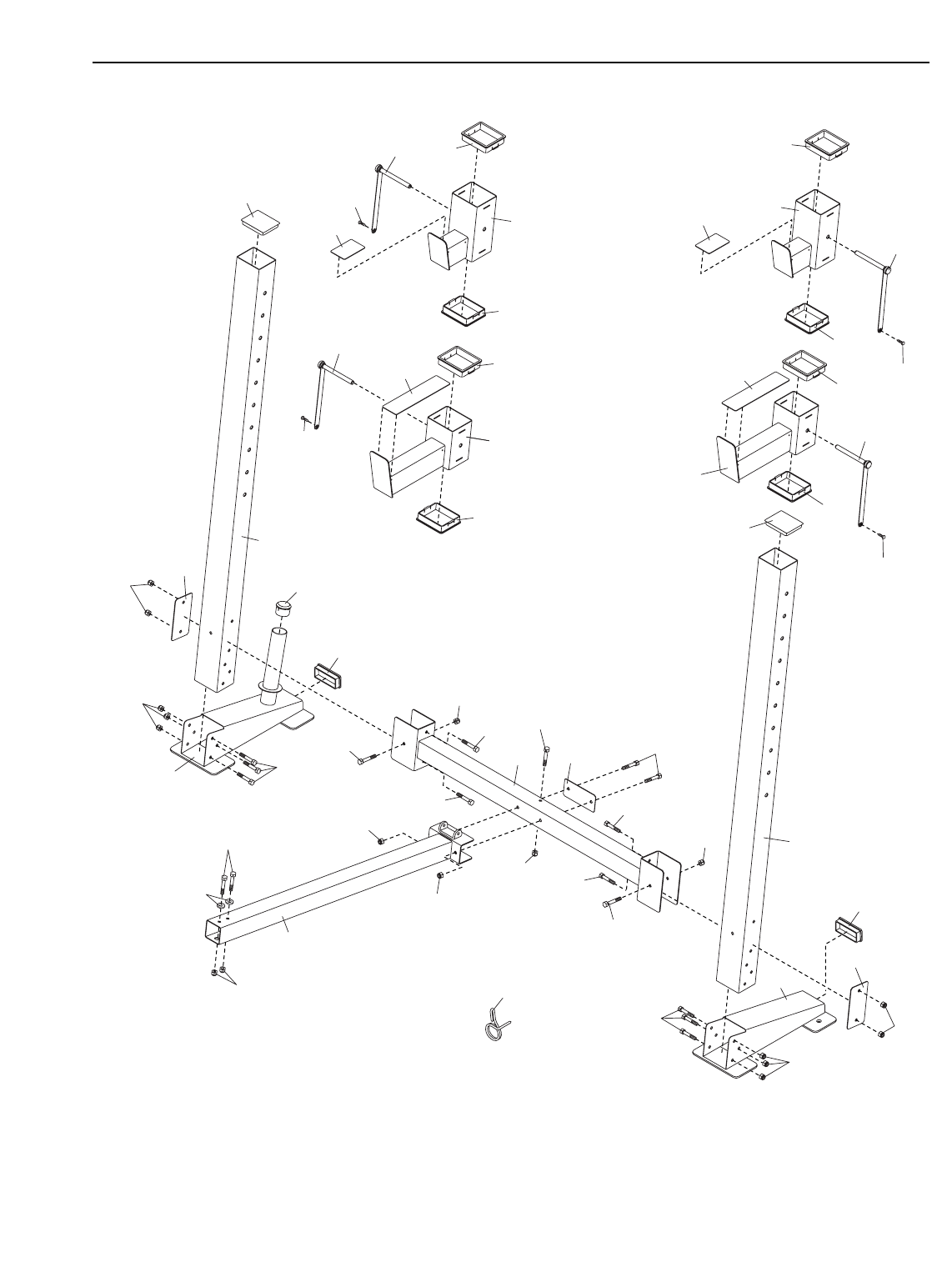

3. Orient the Center Frame (4) so that the warning
decals are in the positions shown on page 2.
Attach the Center Frame (4) to the indicated
Upright (5) with an M10 x 95mm Button Bolt (52),
two M10 x 115mm Button Bolts (46), a Large
Support Plate (27), and three M10 Nylon
Locknuts (66). Do not tighten the Nylon
Locknuts yet.
Attach the Center Frame (4) to the other
Upright (not shown) in the same way.
46
66
5
1
3
5
34
8
6. Attach the Bench Frame (3) to the Center Frame
(4) with two M10 x 80mm Button Bolts (54), an
M10 x 90mm Hex Bolt (19), a Small Support
Plate (21), and three M10 Nylon Locknuts (66).
Tighten the M10 Nylon Locknuts (66) used in
steps 2–6.
21
19
54
6
66
66
66
4
3

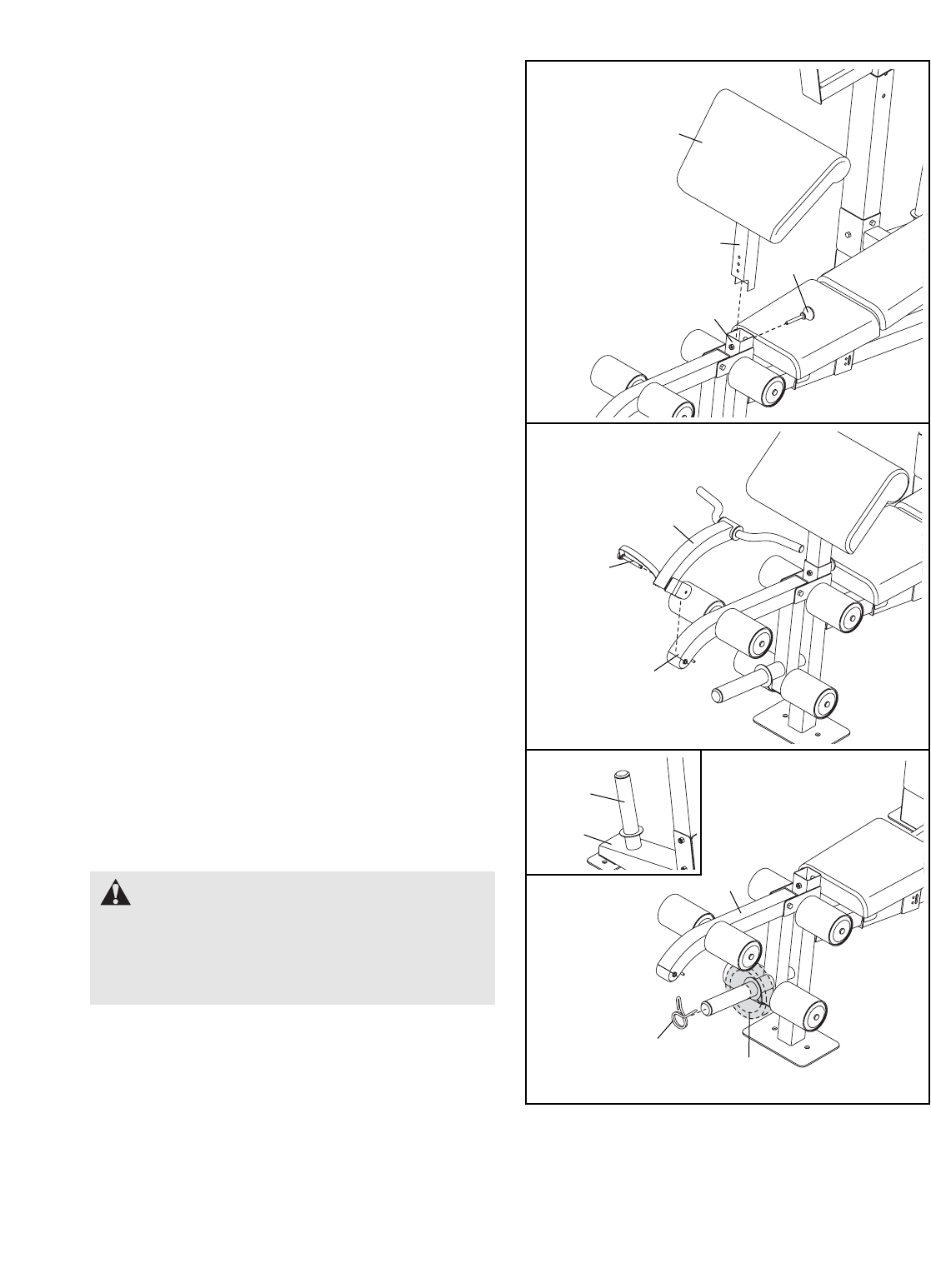

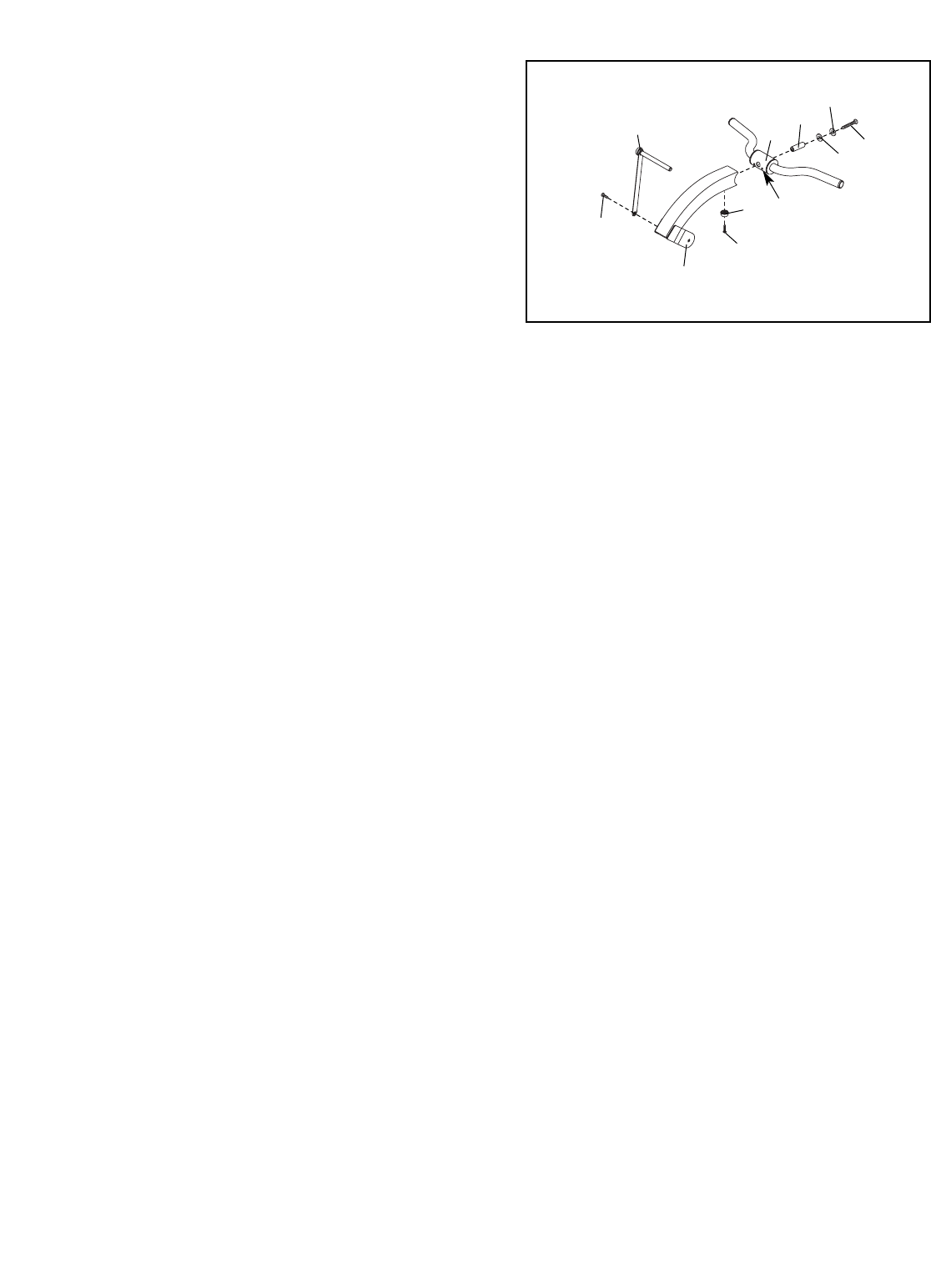

4. Attach the Front Leg Bumper (40) to the Front Leg
(9) with an M4 x 16mm Screw (58).
5. Orient the Seat Carriage (22) and the Bench
Frame (3) as shown. Pull the Knob (43) and slide
the Seat Carriage onto the Bench Frame. Engage
the Knob into a hole in the Bench Frame.
Attach the Bench Frame (3) to the Front Leg (9)
with two M10 x 75mm Hex Bolts (57), two M10
Washers (64), and two M10 Nylon Locknuts (66).
Make sure that the Nylon Locknuts are inside
the hexagonal holes in the bottom of the
Bench Frame. Do not tighten the Nylon
Locknuts yet.
4
58
40 9
3
43
57
22 66
Hexagonal
Holes
64
64
9
5
9

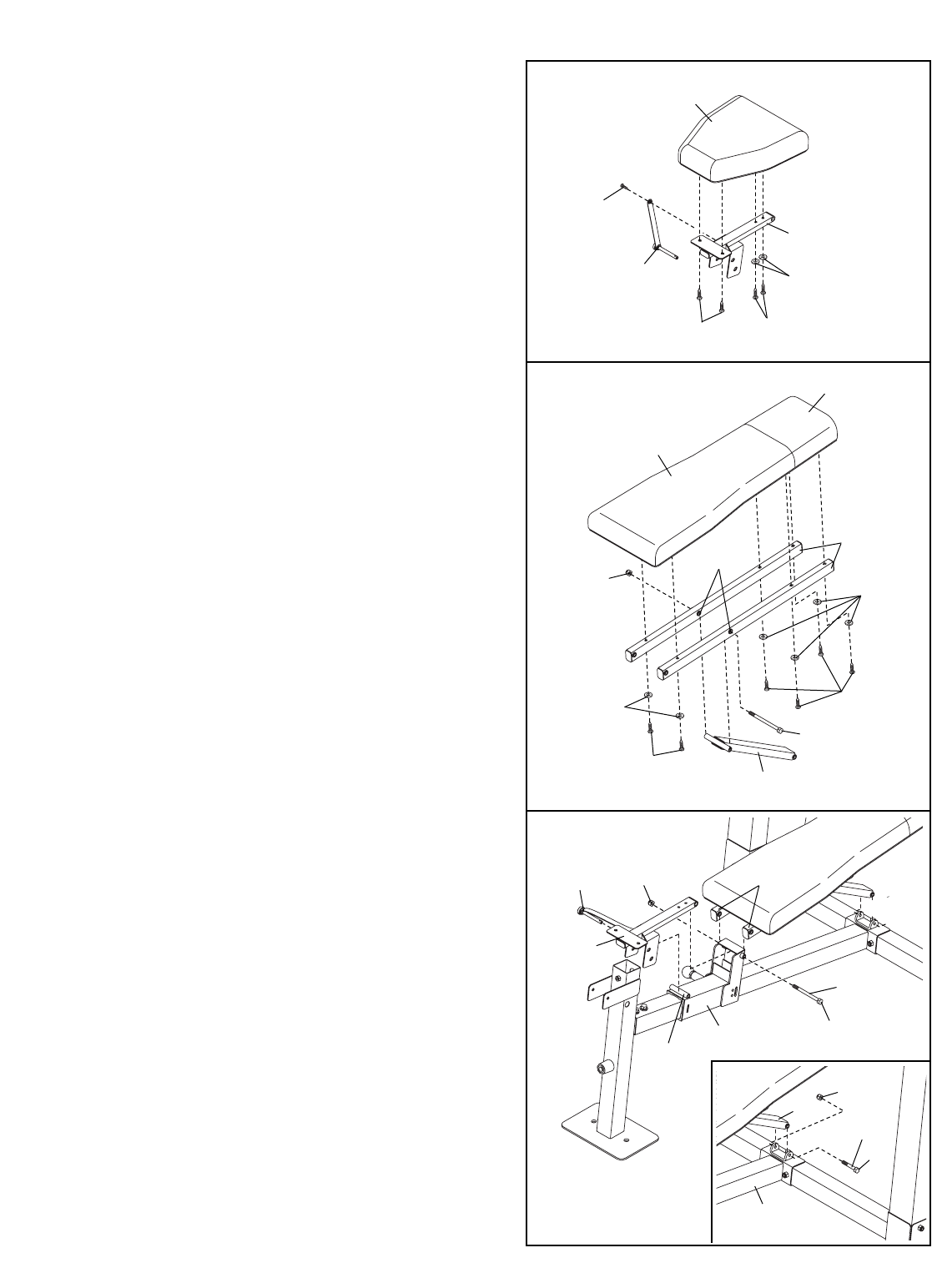

7. Attach the Medium Pin (45) to the Seat Frame
(11) with an M4 x 16mm Screw (58).
Attach the Seat (14) to the Seat Frame (11) with
two M6 x 35mm Screws (56) and two M6
Washers (68).
9. Note: For clarity, the seat is not shown in this step.
Grease an M10 x 185mm Hex Bolt (63). Attach
the Seat Frame (11) and the Backrest Frames (12)
to the Seat Carriage (22) with the Hex Bolt and
an M10 Nylon Locknut (66). Do not overtighten
the Nylon Locknut; the Seat Frame and the
Backrest Frames must pivot easily.
Insert the Medium Pin (45) through a hole in the
Seat Frame (11) and the tube on the Seat
Carriage (22).
See the inset drawing. Grease an M10 x 80mm
Hex Bolt (24). Attach the Backrest Support (13) to
the Bench Frame (3) with the Hex Bolt and an
M10 Nylon Locknut (66). Do not overtighten the
Nylon Locknut; the Backrest Support must
pivot easily.
See step 8. Tighten the M6 x 47mm Screws (67).
8. Orient the Backrest Frames (12) so that the indi-
cated holes are closer to the tops of the Frames.
Apply some of the included grease to an M10 x
185mm Hex Bolt (63). Attach the Backrest
Support (13) between the Backrest Frames (12)
with the Hex Bolt and an M10 Nylon Locknut (66).
Do not overtighten the Nylon Locknut; the
Backrest Support must pivot easily.
Next, attach the Backrest (29) and the Headrest
(23) to the Backrest Frames (12) with six M6 x
55mm Screws (67) and six M6 Washers (68). Do
not tighten the Screws yet.
61 56
45
58
14
68
11
7
29
23
12
68
13
66
67
63—Grease
8
68
Holes
67
22
12
45
11
Tube
Grease
66
63
9
66
13
3
24
Grease
10
10. Grease the outside of the barrel of an M10 x
70mm Bolt Set (59). Attach the Leg Lever (10) to
the Front Leg (9) with the Bolt Set. Do not over-
tighten the Bolt Set; the Leg Lever must pivot
easily.
11. Insert the Long Pad Tube (28) into the Front Leg
(9). Slide two Round Pads (17) with Pad Covers
(39) onto the Long Pad Tube. Then, press two
Pad Caps (38) into the Long Pad Tube.
Assemble the two Short Pad Tubes (18) to the
Leg Lever (10) in the same way.
12. Attach a Long Pin (32) to a Safety Spotter (6)
with an M4 x 16mm Screw (58). Next, attach a
Long Pin (32) to a Weight Rest (7) with an M4 x
16mm Screw (58).
Slide the Safety Spotter (6) onto an Upright (5) as
shown. Insert the Long Pin (32) into the Safety
Spotter and a hole in the Upright. Next, slide the
Weight Rest (7) onto the Upright. Insert the Long
Pin (32) into the Weight Rest and a hole in the
Upright. Make sure that the heads of the Long
Pins are on the outside of the weight bench.
Repeat this step on the other side of the
weight bench. Always set both Safety Spotters
(6) and both Weight Rests (7) at the same
height.
59
10
59
9
10
11
12
17
28
10
9
7
6
58
32
58
32
18
18
39
38
38 39
17
Grease
5
53 Hole
37
58
58
15
65
26
55
60
64
11
13. Attach the Short Pin (37) to the Curl Bar Frame
(15) with an M4 x 16mm Screw (58).
Attach the Curl Bar Bumper (53) to the Curl Bar
Frame (15) with an M4 x 16mm Screw (58).
Attach the Curl Bar Tube (26), with the small
holes toward the bottom, to the Curl Bar Frame
(15) with an M10 x 70mm Button Screw (60), an
M10 Split Washer (55), an M10 Washer (64), and
a 50mm Spacer (65).
13
14. Make sure all parts are properly tightened before you use the weight bench. The use of the remaining parts
will be explained in ADJUSTMENT, beginning on page 12.
12
This section explains how to adjust the weight bench. See the EXERCISE GUIDELINES on page 15 for impor-
tant information about how to get the most benefit from your exercise program. Also, refer to the accompanying
exercise guide to see the correct form for several exercises.
Make sure all parts are properly tightened each time the weight bench is used. Replace any worn parts immediate-
ly. The weight bench can be cleaned with a damp cloth and a mild, non-abrasive detergent; do not use solvents.
ADJUSTING THE BACKREST
To adjust the position of the Backrest (29), first pull
the Knob (43) on the Seat Carriage (22). Slide the
Seat Carriage along the Bench Frame (3) until the
Backrest is in the desired position, and then engage
the Knob into a hole in the Bench Frame.
3
29
43 22
ADJUSTMENT
3
45
11
14
ADJUSTING THE SEAT
To adjust the position of the Seat (14), first remove
the Medium Pin (45). Raise or lower the Seat, and
then engage the Medium Pin into the Seat Frame (11)
and the tube on the Bench Frame (3).
13
37
10
69
10
2
Weight
Storage
Tube
15
ATTACHING THE CURL BAR
Attach the Curl Bar Frame (15) to the Leg Lever (10)
with the Short Pin (37).
USING YOUR WEIGHTS
To use the Leg Lever (10), slide the desired weights
(not included) onto the Leg Lever. Secure the weights
with the Weight Clip (69).
See the inset drawing. Unused weights can be stored
on the tube on the Storage Base (2).
WARNING: Do not put more than
150 lbs (68 kg) on the Leg Lever (10). Do not
put more than 310 lbs (141 kg) on the Weight
Rests (7) or the Safety Spotters (6). Always
secure weights with the Weight Clip (69).
8
47
16
9
ATTACHING THE CURL PAD
To use the Curl Pad (16), insert the Curl Post (8) into
the Front Leg (9) and secure the Curl Post with the
Curl Knob (47). Firmly tighten the Curl Knob.
14
5
7
6
32
ADJUSTING THE SAFETY SPOTTERS
Before using your barbell (not included), set the
Safety Spotters (6) at the lowest point to which you
want your barbell to move.
To do this, hold a Safety Spotter (6) and pull out the
Long Pin (32). Move the Safety Spotter to the desired
height, and reengage the Long Pin into the Safety
Spotter and the Upright (5).
Adjust the other Safety Spotter (not shown) and
the two Weight Rests (7) in the same way.
WARNING: Always adjust both
Safety Spotters (6) and both Weight Rests (7)
to the same height.
15
THE FOUR BASIC TYPES OF WORKOUTS
Muscle Building
To increase the size and strength of your muscles,
push them close to their maximum capacity. Your mus-
cles will continually adapt and grow as you progres-
sively increase the intensity of your exercise. You can
adjust the intensity level of an individual exercise in
two ways:
• by changing the amount of resistance used
• by changing the number of repetitions or sets per-
formed. (A “repetition” is one complete cycle of an
exercise, such as one sit-up. A “set” is a series of
repetitions.)
The proper amount of resistance for each exercise
depends upon the individual user. You must gauge
your limits and select the amount of resistance that is
right for you. Begin with 3 sets of 8 repetitions for each
exercise you perform. Rest for 3 minutes after each
set. When you can complete 3 sets of 12 repetitions
without difficulty, increase the amount of resistance.
Toning
You can tone your muscles by pushing them to a mod-
erate percentage of their capacity. Select a moderate
amount of resistance and increase the number of rep-
etitions in each set. Complete as many sets of 15 to
20 repetitions as possible without discomfort. Rest for
1 minute after each set. Work your muscles by com-
pleting more sets rather than by using high amounts of
resistance.
Weight Loss
To lose weight, use a low amount of resistance and
increase the number of repetitions in each set.
Exercise for 20 to 30 minutes, resting for a maximum
of 30 seconds between sets.
Cross-training
Cross-training is an efficient way to get a complete
and well-balanced fitness program. An example of a
balanced program is:
• Plan strength training workouts on Monday,
Wednesday, and Friday.
• Plan 20 to 30 minutes of aerobic exercise, such as
running on a treadmill or riding on an exercise cycle,
on Tuesday and Thursday.
• Rest from both strength training and aerobic exercise
for at least one full day each week to give your body
time to regenerate.
The combination of strength training and aerobic exer-
cise will reshape and strengthen your body, plus devel-
op your heart and lungs.
PERSONALIZING YOUR EXERCISE PROGRAM
Determining the appropriate length of time for each
workout, and the numbers and repetitions or sets to
complete, is an individual matter. Avoid overdoing it
during the first few months of your exercise program.
Progress at your own pace and be sensitive to your
body’s signals. If you experience pain or dizziness
while exercising, stop immediately and cool down.
Find out what is wrong before continuing. Remember
that adequate rest and a proper diet are important fac-
tors in any exercise program.
WARMING UP
Begin each workout with 5 to 10 minutes of stretching
and light exercise to warm up. Warming up prepares
your body for more strenuous exercise by increasing
circulation, raising your body temperature and deliver-
ing more oxygen to your muscles.
WORKING OUT
Each workout should include 6 to 10 different exercis-
es. Select exercises for every major muscle group,
emphasizing areas that you want to develop most. To
give balance and variety to your workouts, vary the
exercises from session to session.
Schedule your workouts for the time of day when your
energy level is the highest. Each workout should be
followed by at least one day of rest. Once you find the
schedule that is right for you, stick with it.
EXERCISE FORM
Maintaining proper form is an essential part of an
effective exercise program. This requires moving
through the full range of motion for each exercise, and
moving only the appropriate parts of the body.
Exercising in an uncontrolled manner will leave you
feeling exhausted. On the exercise guide accompany-
ing this manual you will find photographs showing the
correct form for several exercises, and a list of the
muscles affected. See the muscle chart on page 16 to
find the names of the muscles.
EXERCISE GUIDELINES
16
The repetitions in each set should be performed
smoothly and without pausing. The exertion stage of
each repetition should last about half as long as the
return stage. Proper breathing is important. Exhale
during the exertion stage of each repetition and inhale
during the return stroke. Never hold your breath.
Rest for a short period of time after each set. The
ideal resting periods are:
• Rest for three minutes after each set for a muscle
building workout.
• Rest for one minute after each set for a toning work-
out.
• Rest for 30 seconds after each set for a weight loss
workout.
Plan to spend the first couple of weeks familiarizing
yourself with the equipment and learning the proper
form for each exercise.
COOLING DOWN
End each workout with 5 to 10 minutes of stretching.
Include stretches for both your arms and legs. Move
slowly as you stretch and do not bounce. Ease into
each stretch gradually and go only as far as you can
without strain. Stretching at the end of each workout
is an effective way to increase flexibility.
STAYING MOTIVATED
For motivation, keep a record of each workout. List the
date, the exercises performed, the resistance used,
and the numbers of sets and repetitions completed.
Record your weight and key body measurements at
the end of every month. The key to achieving the
greatest results is to make exercise a regular and
enjoyable part of your everyday life.
O
P
Q
R
S
T
U
V
X
W
N
M
J
G
F
H
I
K
E
C
D
B
A
L
MUSCLE CHART
A. Sternomastoid (neck)
B. Pectoralis Major (chest)
C. Biceps (front of arm)
D. Obliques (waist)
E. Brachioradials (forearm)
F. Hip Flexors (upper thigh)
G. Abductor (outer thigh)
H. Quadriceps (front of thigh)
I. Sartorius (front of thigh)
J. Tibialis Anterior (front of calf)
K. Soleus (front of calf)
L. Anterior Deltoid (shoulder)
M. Rectus Abdominus (stomach)
N. Adductor (inner thigh)
O. Trapezius (upper back)
P. Rhomboideus (upper back)
Q. Posterior Deltoid (shoulder)
R. Triceps (back of arm)
S. Latissimus Dorsi (mid back)
T. Spinae Erectors (lower back)
U. Gluteus Medius (hip)
V. Gluteus Maximus (buttocks)
W. Hamstring (back of leg)
X. Gastrocnemius (back of calf)
17
Note: Specifications are subject to change without notice. See the back cover of the users manual for informa-
tion about ordering replacement parts. *These parts are not illustrated.
Key No. Qty. Description Key No. Qty. Description
1 1 Base
2 1 Storage Base
3 1 Bench Frame
4 1 Center Frame
5 2 Upright
6 2 Safety Spotter
7 2 Weight Rest
8 1 Curl Post
9 1 Front Leg
10 1 Leg Lever
11 1 Seat Frame
12 2 Backrest Frame
13 1 Backrest Support
14 1 Seat
15 1 Curl Bar Frame
16 1 Curl Pad
17 6 Round Pad
18 2 Short Pad Tube
19 1 M10 x 90mm Hex Bolt
20 2 Handlebar
21 1 Small Support Plate
22 1 Seat Carriage
23 1 Headrest
24 1 M10 x 80mm Hex Bolt
25 2 Handlebar Bushing
26 1 Curl Bar Tube
27 2 Large Support Plate
28 1 Long Pad Tube
29 1 Backrest
30 2 Spotter Plate
31 2 Rest Plate
32 4 Long Pin
33 8 Upright Bushing
34 2 75mm x 100mm Cap
35 2 57mm Square Cap
36 1 Leg Lever Cap
37 1 Short Pin
38 6 Pad Cap
39 6 Pad Cover
40 1 Front Leg Bumper
41 4 25mm x 38mm Cap
42 2 Carriage Bushing
43 1 Knob
44 1 48mm Thin Round Cap
45 1 Medium Pin
46 10 M10 x 117mm Button Bolt
47 1 Curl Knob
48 1 50mm Square Cap
49 2 25mm Round Cap
50 1 20mm x 40mm Cap
51 1 48mm Round Cap
52 2 M10 x 95mm Button Bolt
53 1 Curl Bar Bumper
54 2 M10 x 80mm Button Bolt
55 1 M10 Split Washer
56 2 M6 x 35mm Screw
57 2 M10 x 75mm Hex Bolt
58 8 M4 x 16mm Screw
59 1 M10 x 70mm Bolt Set
60 1 M10 x 70mm Button Screw
61 4 M6 x 16mm Screw
62 2 Roll Pin
63 2 M10 x 185mm Hex Bolt
64 3 M10 Washer
65 1 50mm Spacer
66 20 M10 Nylon Locknut
67 6 M6 x 55mm Screw
68 8 M6 Washer
69 1 Weight Clip
70 2 33mm x 100mm Cap
* Users Manual
* Exercise Guide
* Hex Key
* Grease Packet
PART LIST—Model No. GGBE2557.0 R0907B
18
49
49
20
20
25
62
62
65
58
45
14
50
61
56
11
58
42 42
22
39
17
39
17
36
51 35
18
28
38
38
39
17
17
39
10
35
18
17
39
9
58
40
59
16
59
17
39
8
61
47
12
12
13
60
66
66
63
41
41
41
68
67
63
67
68 66
24
29
68
64
55
48
43
25
26
15
37
58
53
67
23
38
38
38
38
EXPLODED DRAWING A—Model No. GGBE2557.0 R0907B
19
1
2
3
4
5
5
66
57
64
66
66
46
44
34
58
32
58
32
31
6
33
33
33
7
33
7
6
30
27
52
66
66
46
46
66
46
46
52
66
54
21
66
46
27
66
34
58
30
32
32
58
33
33
33
33
6
66
19
69
31
70
70
EXPLODED DRAWING B—Model No. GGBE2557.0 R0907B
Part No. 253373 R0907B Printed in China © 2007 ICON IP, Inc.
To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to pro-
vide the following information when contacting us:
• the model number and serial number of the product (see the front cover of the manual)
• the name of the product (see the front cover of this manual)
• the key number and description of the part(s) (see the PART LIST and the EXPLODED DRAWING near the
end of this manual)
LIMITED WARRANTY
ICON Health & Fitness, Inc. (ICON) warrants this product to be free from defects in workmanship and
material, under normal use and service conditions, for a period of ninety (90) days from the date of pur-
chase. This warranty extends only to the original purchaser. ICON's obligation under this warranty is lim-
ited to replacing or repairing, at ICON's option, the product through one of its authorized service centers.
All repairs for which warranty claims are made must be pre-authorized by ICON. If the product is shipped
to a service center, freight charges to and from the service center will be the customers responsibility. For
in-home service, the customer will be responsible for a minimal trip charge. This warranty does not extend
to any product or damage to a product caused by or attributable to freight damage, abuse, misuse,
improper or abnormal usage or repairs not provided by an ICON authorized service center; products used
for commercial or rental purposes; or products used as store display models. No other warranty beyond
that specifically set forth above is authorized by ICON.
ICON is not responsible or liable for indirect, special or consequential damages arising out of or in con-
nection with the use or performance of the product or damages with respect to any economic loss, loss
of property, loss of revenues or profits, loss of enjoyment or use, costs of removal or installation or other
consequential damages of whatsoever nature. Some states do not allow the exclusion or limitation of inci-
dental or consequential damages. Accordingly, the above limitation may not apply to you.
The warranty extended hereunder is in lieu of any and all other warranties and any implied warranties of
merchantability or fitness for a particular purpose is limited in its scope and duration to the terms set forth
herein. Some states do not allow limitations on how long an implied warranty lasts. Accordingly, the above
limitation may not apply to you.
This warranty gives you specific legal rights. You may also have other rights which vary from state to state.
ICON HEALTH & FITNESS, INC., 1500 S. 1000 W., LOGAN, UT 84321-9813
ORDERING REPLACEMENT PARTS

Navigation menu
