Serial Number Decal

(under frame)

Model No. GGCCEX61612.2

Serial No.

Write the serial number in the

space above for reference.

USER’S MANUAL

www.workoutwarehouse.com

CAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Keep this manual

for future reference.

To register your product and

activate your warranty today,

contact Customer Service.

Call toll-free 1-888-936-4266

Mon.–Fri. 7:30 a.m.–4:30 p.m. ET

(excluding holidays)

or email us at

customerservice@iconcanada.ca

Please do not contact the store.

ACTIVATE YOUR

WARRANTY

CUSTOMER SERVICE

WARNING DECAL PLACEMENT

TABLE OF CONTENTS

GOLD’S GYM is a registered trademark of Gold’s Gym International, Inc.

This product is manufactured and distributed under license from Gold’s Gym Merchandising, Inc.

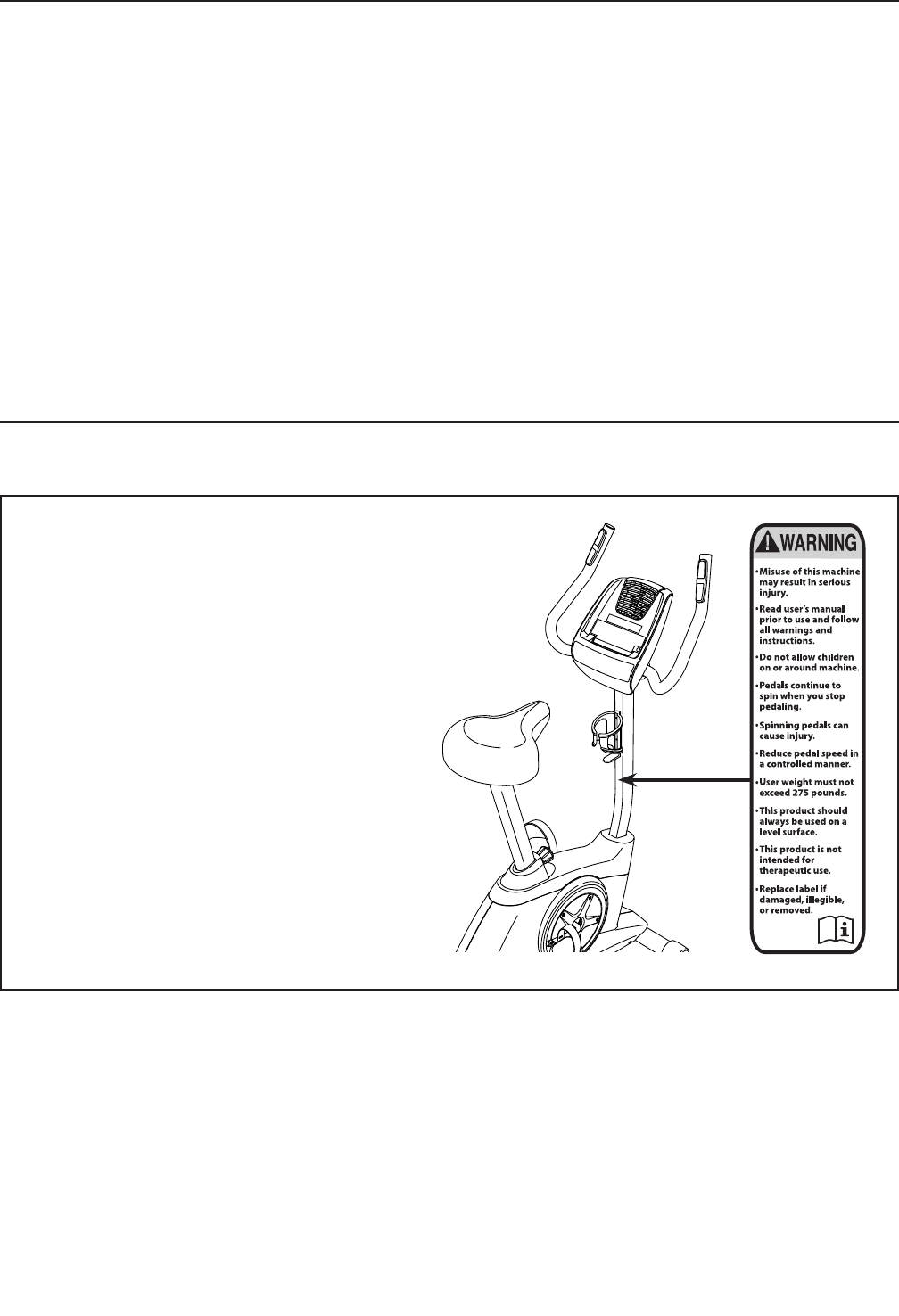

This drawing shows the location(s) of the

warning decal(s). If a decal is missing

or illegible, see the front cover of this

manual and request a free replacement

decal. Apply the decal in the location

shown. Note: The decal(s) may not be

shown at actual size.

WARNING DECAL PLACEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

IMPORTANT PRECAUTIONS ..................................................................3

BEFORE YOU BEGIN. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

PART IDENTIFICATION CHART. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO USE THE EXERCISE BIKE. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

MAINTENANCE AND TROUBLESHOOTING .....................................................22

EXERCISE GUIDELINES ....................................................................24

PART LIST. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

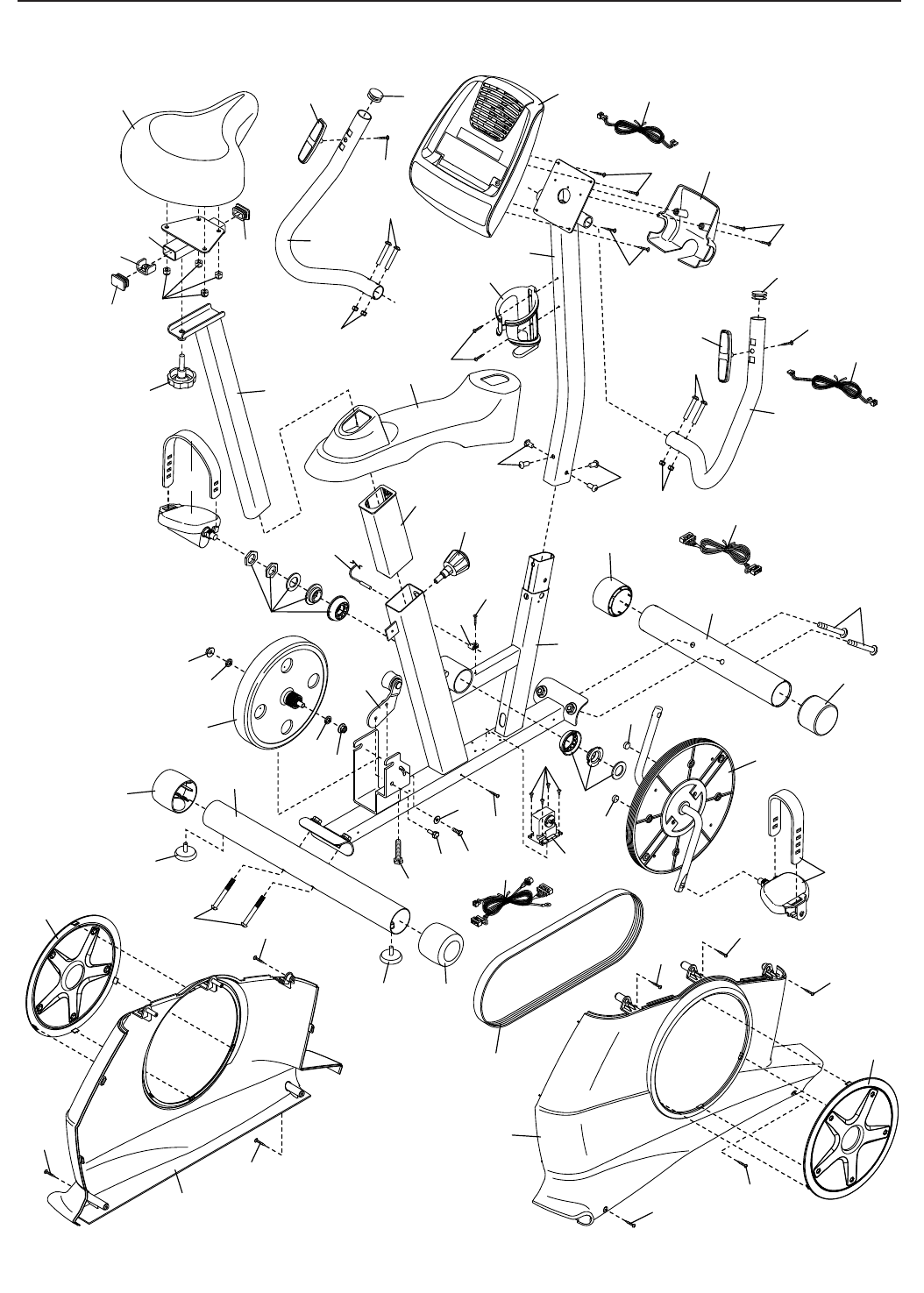

EXPLODED DRAWING. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

ORDERING REPLACEMENT PARTS .................................................. Back Cover

LIMITED WARRANTY. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Back Cover

IMPORTANT PRECAUTIONS

WARNING: To reduce the risk of serious injury, read all important precautions and

instructions in this manual and all warnings on your exercise bike before using your exercise bike.

ICON assumes no responsibility for personal injury or property damage sustained by or through the

use of this product.

1. Before beginning any exercise program,

consult your physician. This is especially

important for persons over age 35 or per-

sons with pre-existing health problems.

2. Use the exercise bike only as described in

this manual.

3. It is the responsibility of the owner to ensure

that all users of the exercise bike are ade-

quately informed of all precautions.

4. The exercise bike is intended for home use

only. Do not use the exercise bike in a com-

mercial, rental, or institutional setting.

5. Keep the exercise bike indoors, away from

moisture and dust. Do not put the exercise

bike in a garage or covered patio, or near

water.

6. Place the exercise bike on a level surface,

with a mat beneath it to protect the floor or

carpet. Make sure that there is at least 2 ft.

(0.6 m) of clearance around the exercise bike.

7. Inspect and properly tighten all parts regu-

larly. Replace any worn parts immediately.

8. Keep children under age 12 and pets away

from the exercise bike at all times.

9. Wear appropriate clothes while exercising;

do not wear loose clothes that could become

caught on the exercise bike. Always wear

athletic shoes for foot protection.

10. The exercise bike should not be used by

persons weighing more than 275 lbs.

(125 kg).

11. Always keep your back straight while using

the exercise bike; do not arch your back.

12. Be careful when mounting and dismounting

the exercise bike.

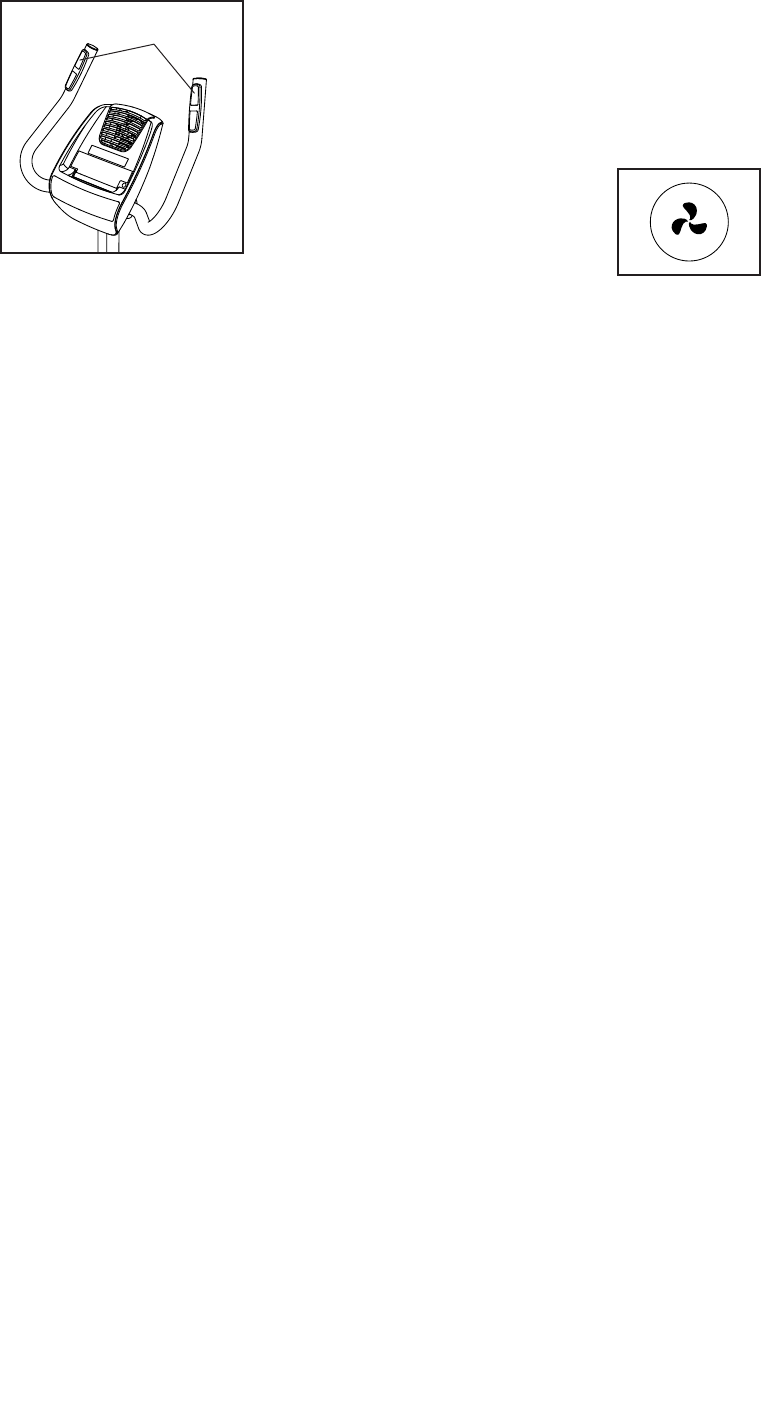

13. The heart rate monitor is not a medical

device. Various factors may affect the accu-

racy of heart rate readings. The heart rate

monitor is intended only as an exercise aid

in determining heart rate trends in general.

14. The exercise bike does not have a freewheel;

the pedals will continue to move until the

flywheel stops. Reduce your pedaling speed

in a controlled way.

15. Over exercising may result in serious injury

or death. If you feel faint or if you experience

pain while exercising, stop immediately and

cool down.

16. This Class [B] digital apparatus complies

with Canadian ICES-003.

17. Dispose of batteries in accordance with all

local codes and ordinances.

Your new tness equipment represents a signicant investment

in your health. Protect your investment now from unexpected

mechanical or electrical failures for up to ve years.

PLAN FEATURES

• Protection for one to ve years

• Over 100 authorized repair centers

• Highly trained repair technicians

• A national toll-free repair hotline

• Simple repair claim procedure

• No claim forms

• Easy enrollment

• Fast, ecient repair anywhere in Canada

• In-home repairs covered

• Parts and labour covered

• Mechanical and electrical failures covered

To protect your tness equipment today, please

call Customer Care at 1-888-936-4266

Or, email us at customerservice@iconcanada.ca

™

Thank you for selecting the new GOLD’S GYM®

CYCLE TRAINER 290 C exercise bike. Cycling is an

effective exercise for increasing cardiovascular fitness,

building endurance, and toning the body. The CYCLE

TRAINER 290 C exercise bike provides an impressive

selection of features designed to make your workouts

at home more effective and enjoyable.

For your benefit, read this manual carefully before

you use the exercise bike. If you have questions after

reading this manual, please see the front cover of this

manual. To help us assist you, note the product model

number and serial number before contacting us. The

model number and the location of the serial number

decal are shown on the front cover of this manual.

Before reading further, please familiarize yourself with

the parts that are labeled in the drawing below.

Handgrip Heart

Rate Monitor

Seat

Seat Post

Seat Knob

Leveling Foot

Wheel

Pedal/Strap

Console

Handlebar

Post Knob

Water Bottle Holder*

*Water bottle is not included

BEFORE YOU BEGIN

Length: 2 ft. 8 in. (81 cm)

Width: 2 ft. (61 cm)

M8 Locknut

(37)–8

M4 x 22mm

Screw (54)–2

M4 x 16mm

Screw (40)–6

M10 x 75mm

Screw (36)–4

M8 x 38mm

Bolt (53)–4

M8 x 18mm

Screw (35)–4

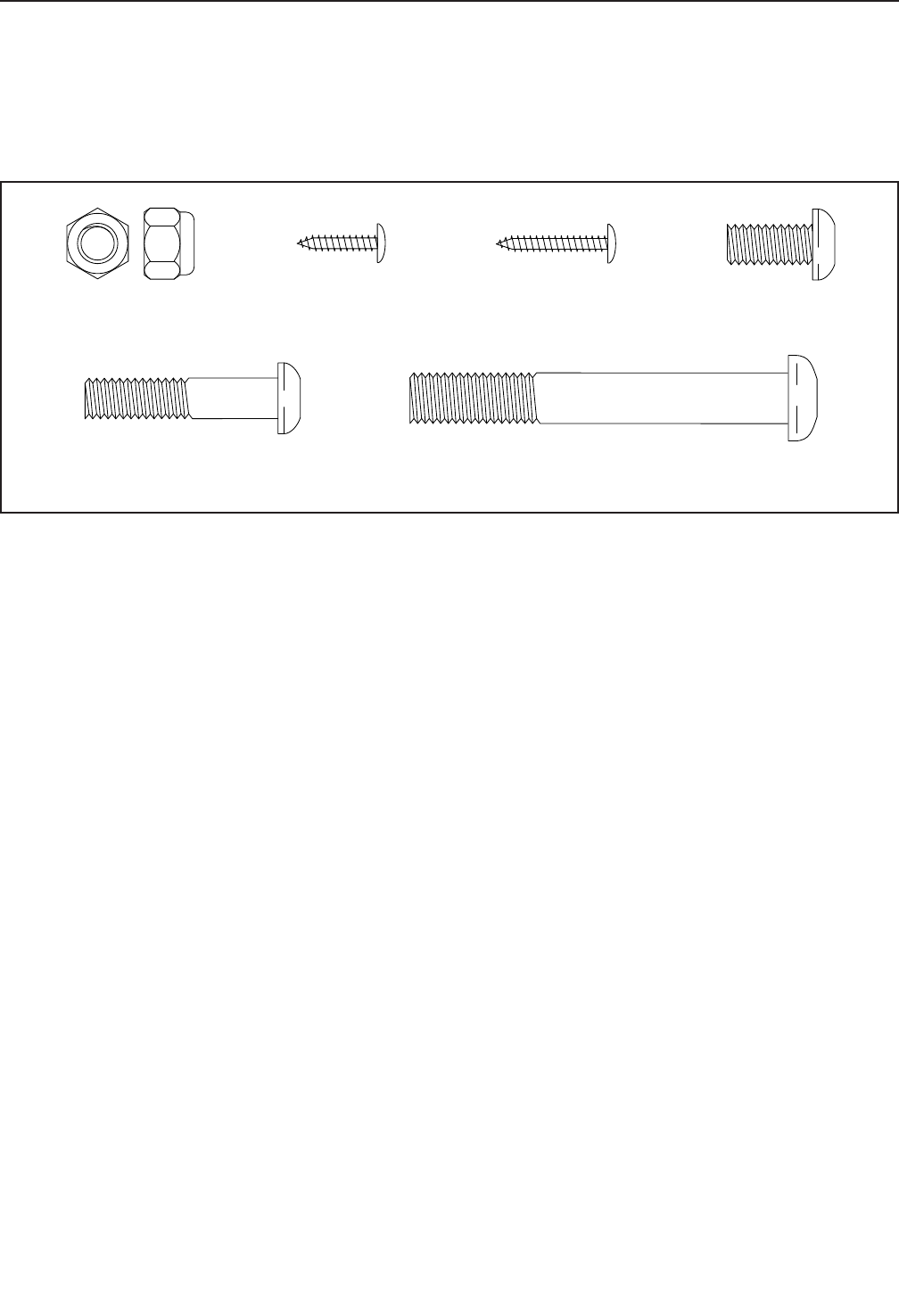

PART IDENTIFICATION CHART

Use the drawings below to identify the small parts needed for assembly. The number in parentheses below each

drawing is the key number of the part, from the PART LIST near the end of this manual. The number following the

key number is the quantity needed for assembly. Note: If a part is not in the hardware kit, check to see if it

has been preassembled. Extra parts may be included.

ASSEMBLY

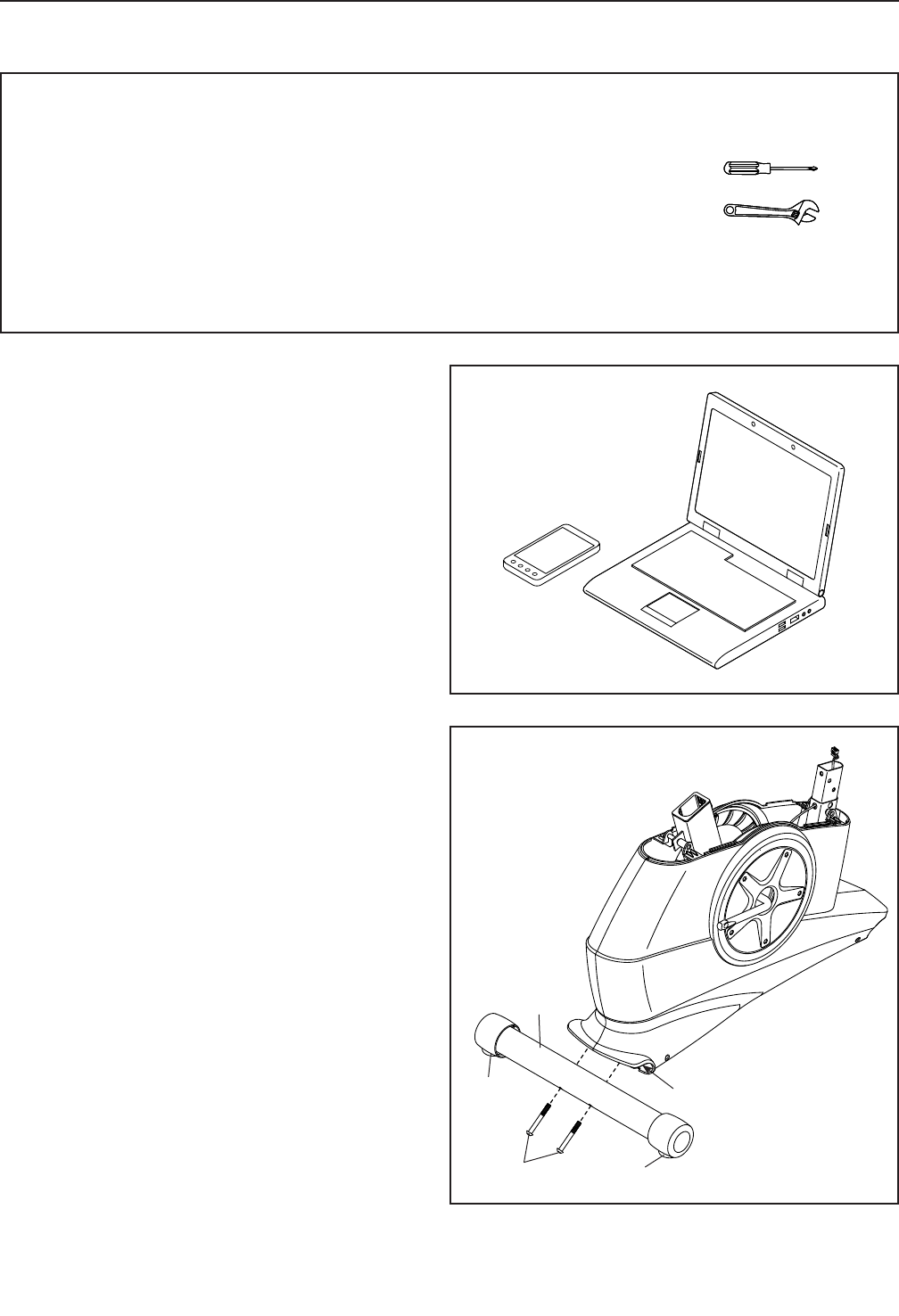

2. Identify the Rear Stabilizer (14), which has a

Leveling Foot (43) near each end.

Set a sturdy piece of packing material under the

rear of the Frame (1). Have a second person

hold the Frame to prevent it from tipping

while you complete this step.

Attach the Rear Stabilizer (14) to the Frame (1)

with two M10 x 75mm Screws (36).

Remove the packing material.

• Assembly requires two persons.

• Place all parts in a cleared area and remove the

packing materials. Do not dispose of the packing

materialsuntilyounishallassemblysteps.

• Left parts are marked “L” or “Left” and right parts

are marked “R” or “Right.”

• To identify small parts, see page 6.

In addition to the included tool(s), assembly

requires the following tools:

one Phillips screwdriver

one adjustable wrench

Assembly may be easier if you have a set of

wrenches. To avoid damaging parts, do not use

power tools.

1. Call or email Customer Service (see the front

cover of this manual) today and register your

product.

 • activatesyourwarranty

 • savesyoutimeifyoueverneedtocontact

Customer Service

 • allowsustonotifyyouofupgradesandoffers

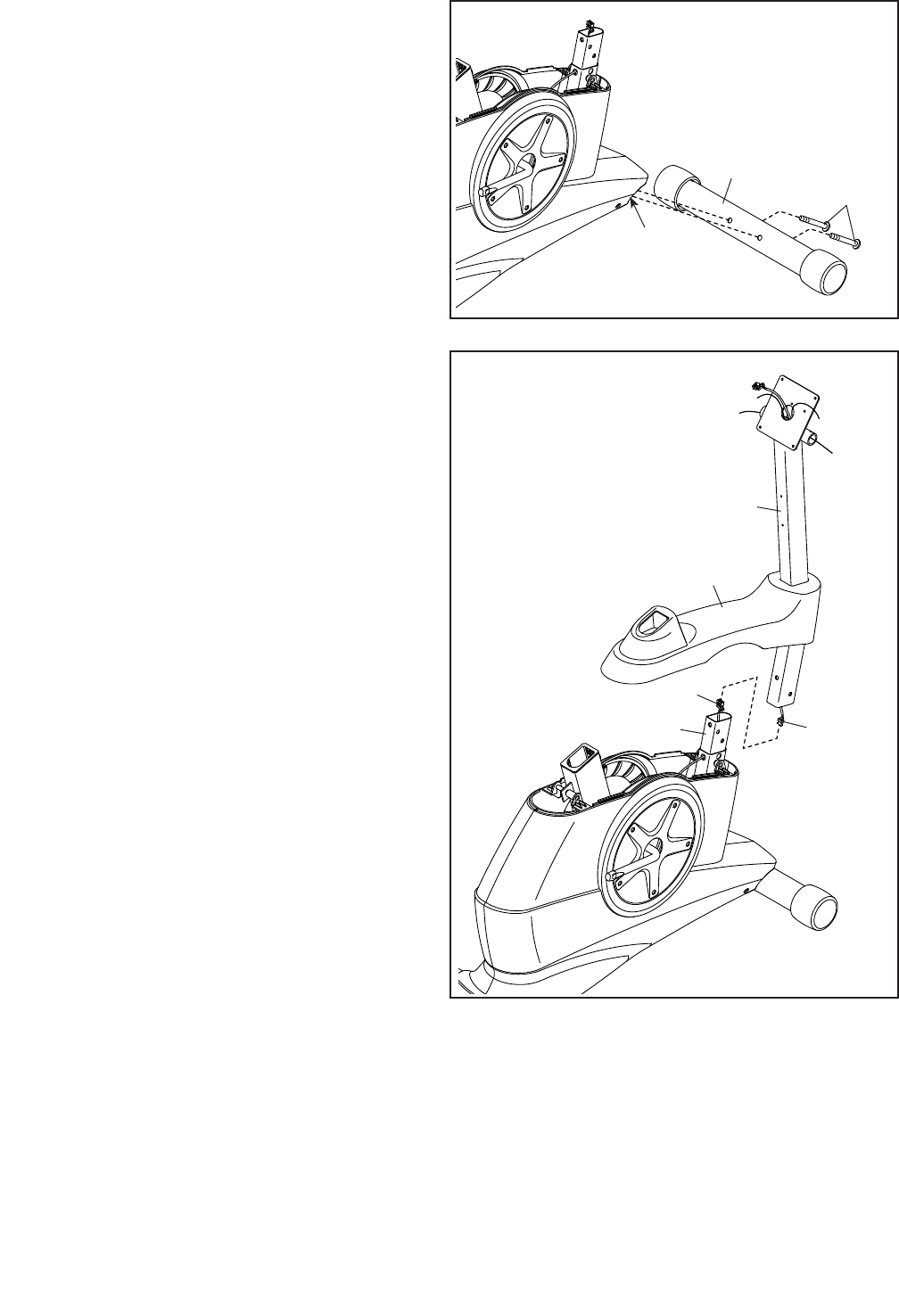

3. Set a sturdy piece of packing material under the

front of the Frame (1). Have a second person

hold the Frame to prevent it from tipping

while you complete this step.

Attach the Front Stabilizer (2) to the Frame (1)

with two M10 x 75mm Screws (36).

Remove the packing material.

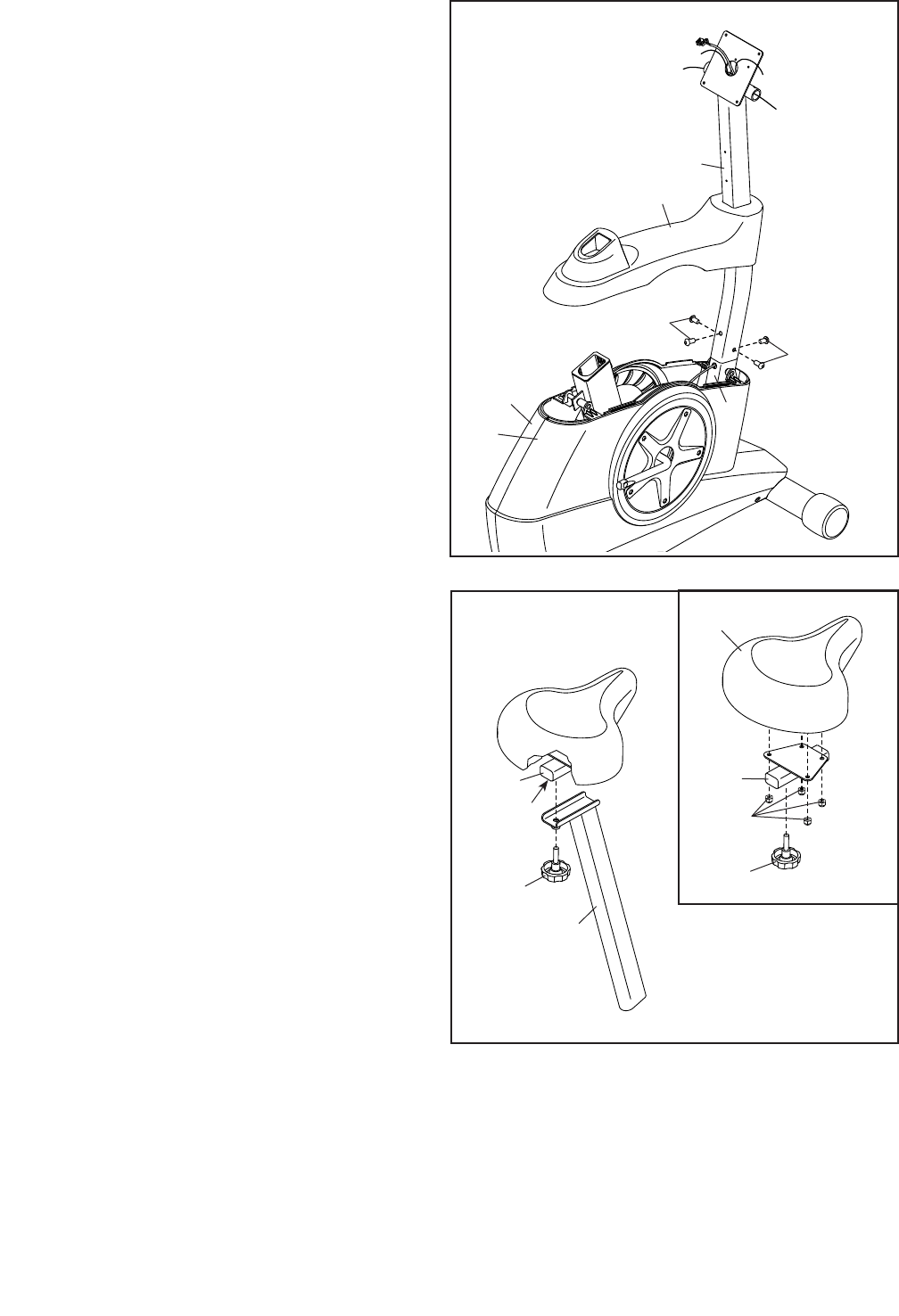

4. Orient the Upright (3) and the Top Shield (9) as

shown.

Have a second person hold the Upright (3) and

the Top Shield (9) near the Frame (1) until you

complete step 5.

Connect the Upper Wire (32) to the Lower Wire

(31). Then, pull the excess Upper Wire out of the

top of the Upright.

Avoid pinching

the wires

5. Tip: Avoid pinching the wires. Slide the

Upright (3) onto the Frame (1).

Attach the Upright (3) with four M8 x 18mm

Screws (35).

Slide the Top Shield (9) downward and press it

onto the Left and Right Shields (17, 18).

6. See the inset drawing. Remove the Seat Knob

(8) from the Seat Carriage (56). Next, attach

the Seat (12) to the Seat Carriage (56) with four

M8 Locknuts (37). Note: The Locknuts may be

preattached to the underside of the Seat.

Next, orient the Seat Carriage (56) and the Seat

Post (5) as shown. Set the Seat Carriage on the

Seat Post and hold it in place.

Insert the Seat Knob (8) upward into the Seat

Post (5), and tighten the Seat Knob into the

Carriage Clamp (57) inside the Seat Carriage (56).

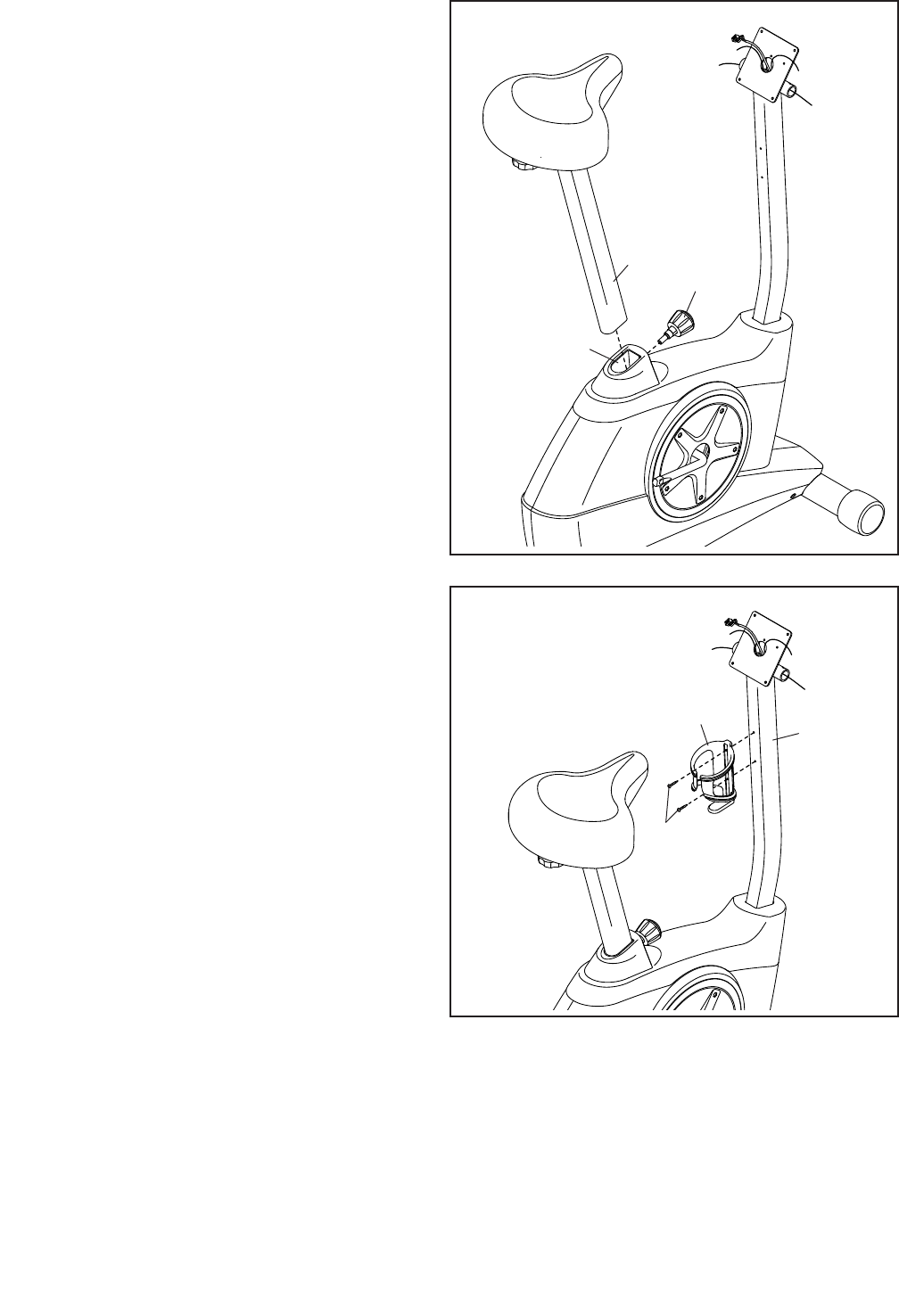

7. Using an adjustable wrench, tighten the

Adjustment Knob (11) into the Frame (1).

Next, loosen the Adjustment Knob (11) a few

turns, pull it outward, and insert the Seat Post (5)

into the Frame (1).

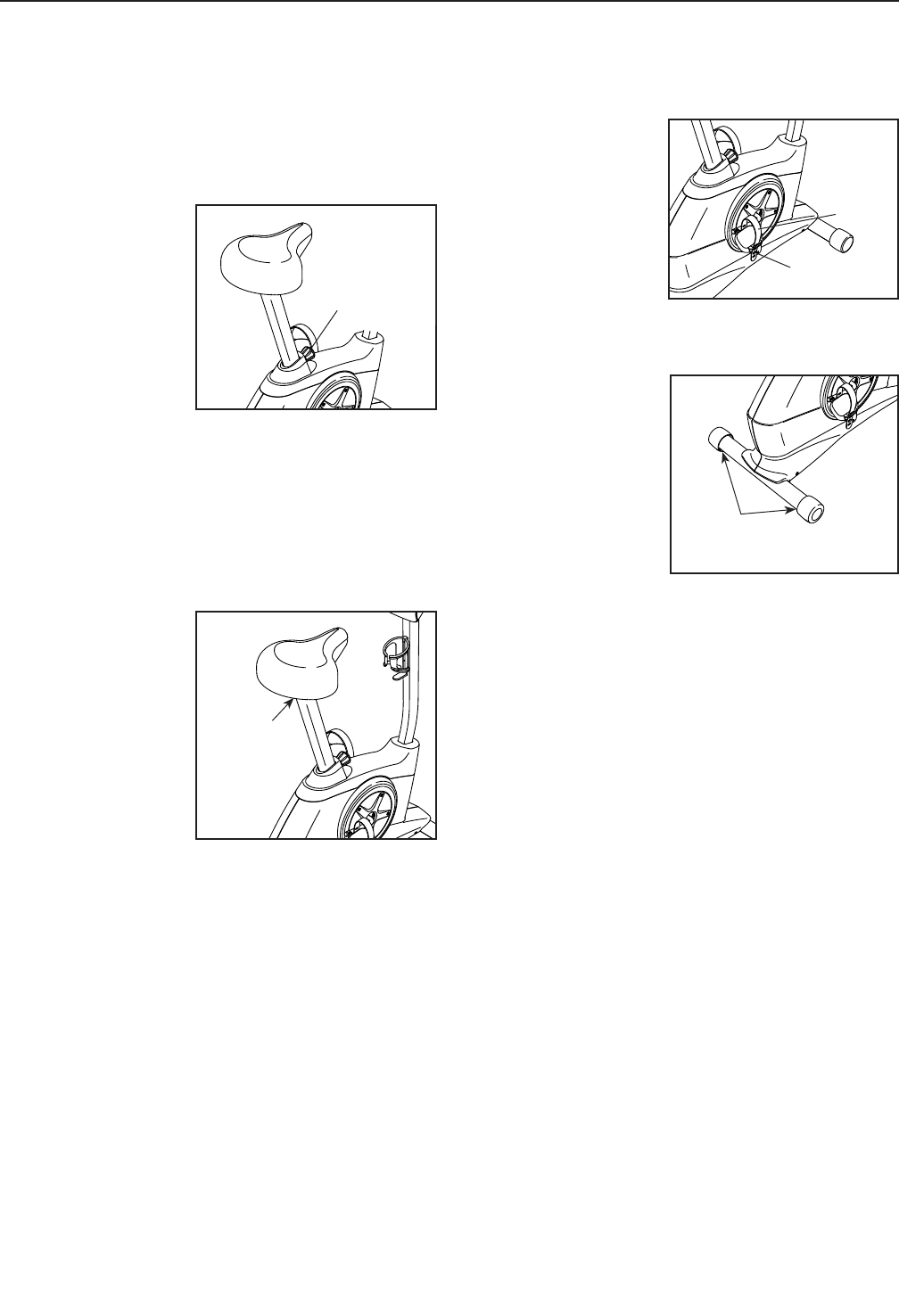

Slide the Seat Post (5) upward or downward to

the desired position, and release the Adjustment

Knob (11) into one of the adjustment holes in

the Seat Post. Move the Seat Post upward

or downward slightly to make sure that the

Adjustment Knob is engaged in one of the

adjustment holes in the Seat Post. Then,

tighten the Adjustment Knob.

8. Attach the Water Bottle Holder (49) to the

Upright (3) with two M4 x 22mm Screws (54).

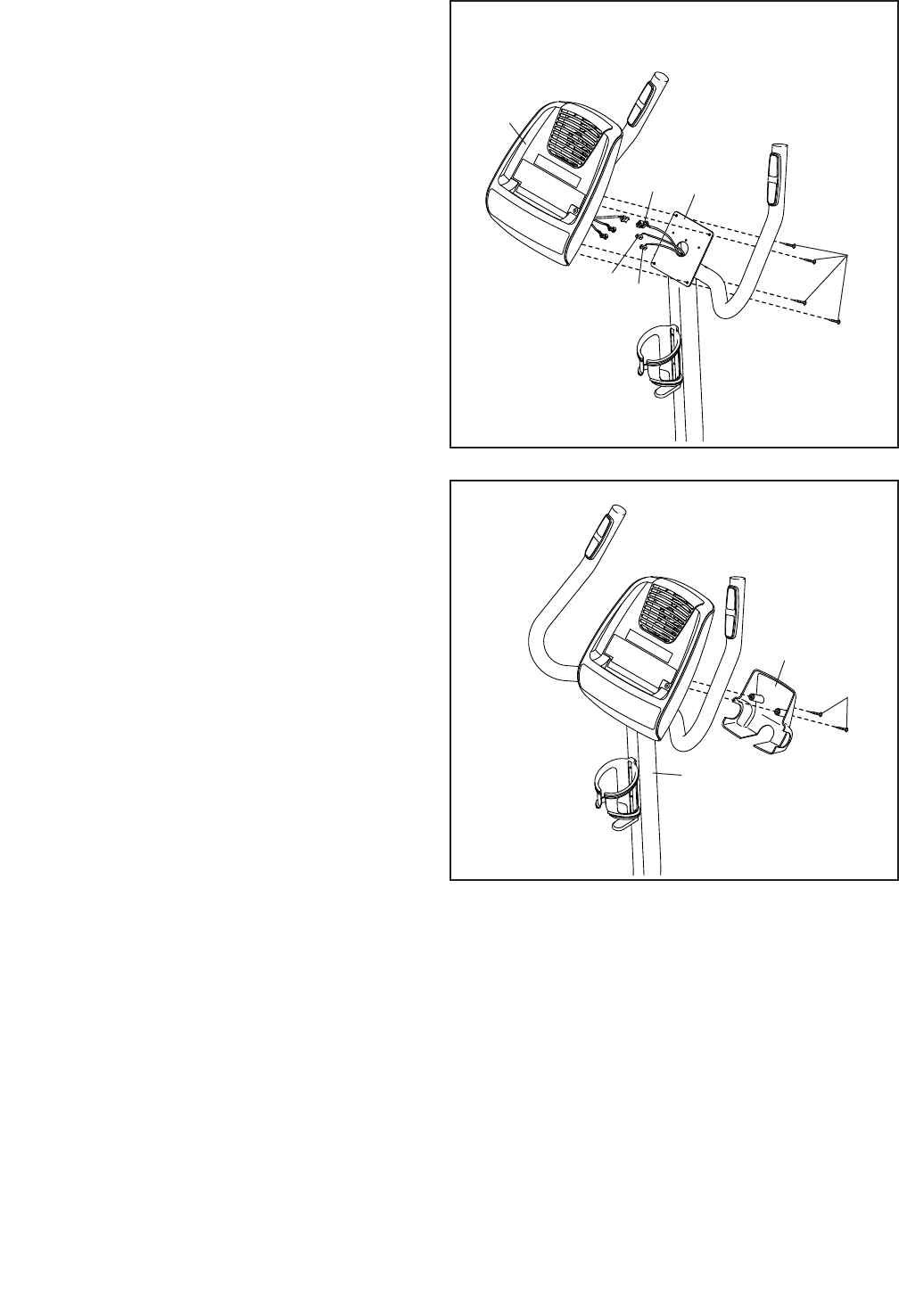

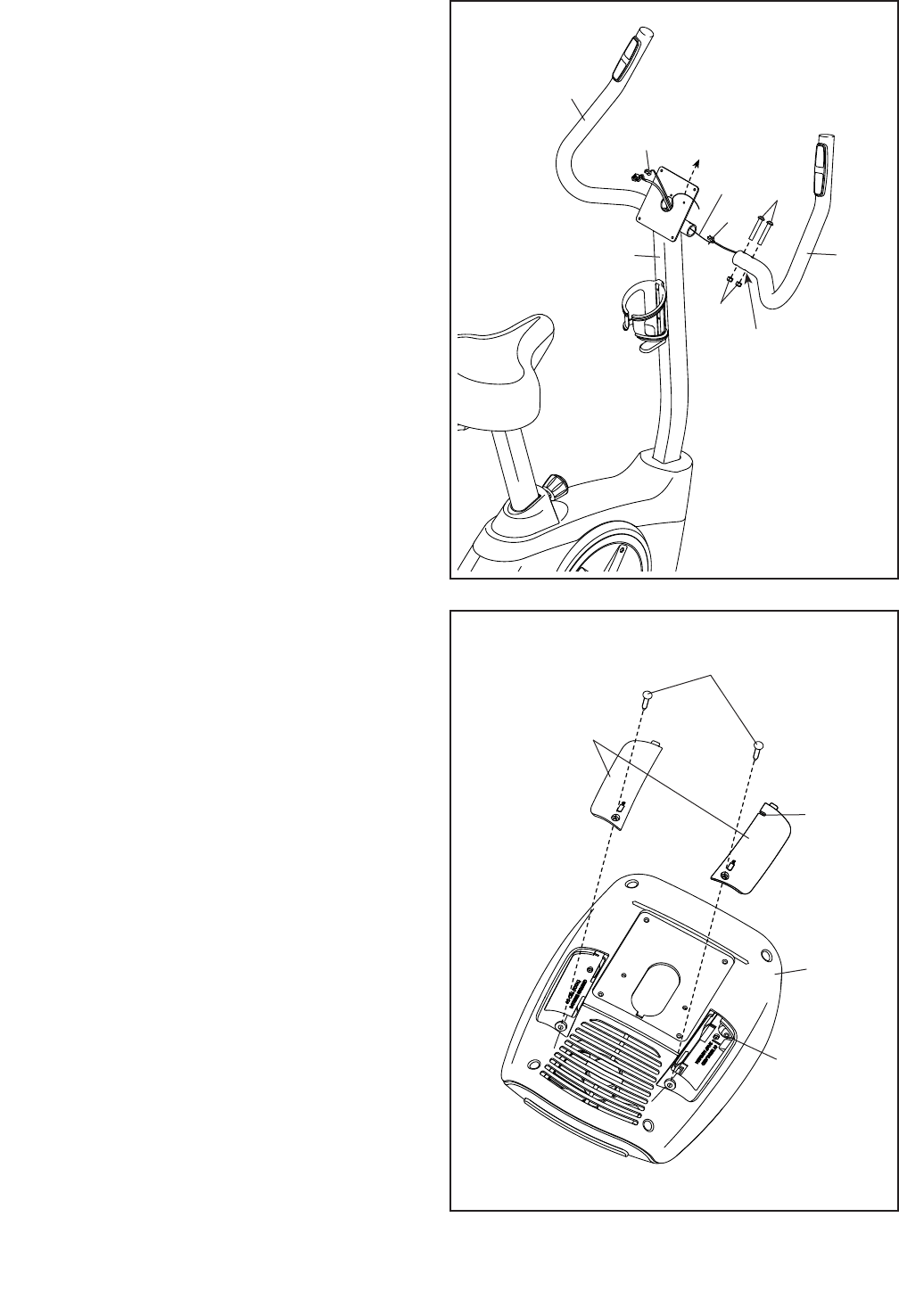

9. Identify the Right Handlebar (48) and orient it as

shown.

While a second person holds the Right

Handlebar (48) near the Upright (3), tie the indi-

cated wire tie to the Right Pulse Wire (42). Then,

pull the other end of the wire tie upward out of

the top of the Upright.

Tip: Avoid pinching the wire. Slide the Right

Handlebar (48) onto the Upright (3).

Attach the Right Handlebar (48) with two M8

x 38mm Bolts (53) and two M8 Locknuts (37).

Make sure that the Locknuts are in the hex-

agonal holes.

Attach the Left Handlebar (47) in the same

way.

Avoid pinching

the wire

Hexagonal

Holes

Wire

Tie 53

Screws

Battery

Covers

10. The Console (6) can use four D batteries (not

included); alkaline batteries are recommended.

Do not use old and new batteries together or

alkaline, standard, and rechargeable batter-

ies together. IMPORTANT: If the Console has

been exposed to cold temperatures, allow it

to warm to room temperature before insert-

ing batteries. Otherwise, you may damage

the console displays or other electronic

components. Remove the screws and the

battery covers, insert batteries into the battery

compartments, and then reattach the battery

covers. Make sure to orient the batteries as

shown by the diagrams inside the battery

compartments.

To purchase an optional power adapter, call

the telephone number on the front cover of

this manual. To avoid damaging the console,

use only a manufacturer-supplied power

adapter. Plug one end of the power adapter into

the receptacle inside the indicated battery com-

partment; route the power adapter through the

notch in the battery cover. Then, plug the other

end into an outlet installed in accordance with all

local codes and ordinances.

Notch

Receptacle

11. While a second person holds the Console (6)

near the Upright (3), connect the wires on the

Console to the Upper Wire (32) and to the Right

and Left Pulse Wires (42, 28).

Insert the excess wire into the Upright (3).

Tip: Avoid pinching the wires. Attach the

Console (6) to the Upright (3) with four M4 x

16mm Screws (40).

12. Attach the Handlebar Cover (19) to the Upright

(3) with two M4 x 16mm Screws (40).

42 28

Avoid pinching

the wire

13. Identify the Right Pedal (26).

Using an adjustable wrench, firmly tighten the

Right Pedal (26) clockwise into the right arm of

the Crank (13).

Tighten the Left Pedal (not shown) counter-

clockwise into the left arm of the Crank (not

shown).

Adjust the strap on the Right Pedal (26) to the

desired position, and press the end of the strap

onto the tab on the Right Pedal. Adjust the

strap on the Left Pedal (not shown) in the

same way.

14. After the exercise bike is assembled, inspect it to make sure that it is assembled correctly and that it

functions properly. Make sure that all parts are properly tightened before you use the exercise bike.

Note: After assembly is completed, some extra parts may be left over. Place a mat beneath the exercise bike

to protect the floor.

Strap

Tab

HOW TO ADJUST THE HEIGHT OF THE SEAT

For effective exercise, the seat should be at the proper

height. As you pedal, there should be a slight bend in

your knees when the pedals are in the lowest position.

To adjust the height

of the seat, first

loosen the post

knob a few turns.

Next, pull the knob

outward, slide the

seat post upward

or downward to the

desired position,

and then release the

knob into one of the

adjustment holes in the seat post. Move the seat post

upward or downward slightly to make sure that the

knob is engaged in one of the adjustment holes in

the seat post. Then, tighten the knob.

HOW TO ADJUST THE HORIZONTAL POSITION OF

THE SEAT

To adjust the hori-

zontal position of

the seat, first loosen

the seat knob a few

turns. Then, move

the seat forward

or backward to the

desired position,

and firmly tighten

the knob.

HOW TO ADJUST THE PEDAL STRAPS

To adjust the pedal

straps, first pull the

ends of the straps

off the tabs on the

pedals. Then, adjust

the straps to the

desired position, and

press the ends of the

straps onto the tabs.

HOW TO LEVEL THE EXERCISE BIKE

If the exercise bike

rocks slightly on your

floor during use, turn

one or both of the

leveling feet under

the rear stabilizer

until the exercise bike

is level.

Tab

Strap

HOW TO USE THE EXERCISE BIKE

Leveling

Feet

Post

Knob

Seat

Knob

FEATURES OF THE CONSOLE

The advanced console offers an array of features

designed to make your workouts more effective and

enjoyable.

When you use the manual mode of the console, you

can change the resistance of the pedals with the touch

of a button. As you exercise, the console will provide

continuous exercise feedback. You can even measure

your heart rate using the handgrip heart rate monitor.

Lose unwanted pounds with the progressive 8-week

weight-loss program. Each workout in the program

controls the resistance of the pedals as it guides you

through an effective workout designed to help you

achieve the results you want.

The console also offers a selection of preset work-

outs. Each preset workout automatically changes the

resistance of the pedals as it guides you through an

effective workout.

You can even connect your MP3 player or CD player

to the console sound system and listen to your favorite

music or audio books while you exercise.

To use the manual mode, see page 16. To use an

8-week weight-loss workout, see page 18. To use

a preset workout, see page 20. To use the sound

system, see page 21. To use the user mode, see

page 21.

Note: Before using the console, make sure that batter-

ies are installed (see assembly step 10 on page 11).

If there is a sheet of plastic on the display, remove the

plastic.

Slider

EBGG61612

GGEX61612.0

CONSOLE DIAGRAM

HOW TO USE THE MANUAL MODE

1. Turn on the console.

Press any button or begin pedaling to turn on the

console.

When you turn on the console, the display will turn

on. A tone will sound and the console will be ready

for use.

2. Select the manual mode.

When you turn on the console, the manual mode

will be selected.

If you have selected a workout, reselect the manual

mode by pressing the Aerobic or Performance but-

ton repeatedly until a track appears in the center

display.

3. Begin pedaling and change the resistance of

the pedals as desired.

As you pedal, change the

resistance of the pedals by

pressing the Digital Resistance

increase and decrease

buttons.

Note: After you press the buttons, it will take a

moment for the pedals to reach the selected resis-

tance level.

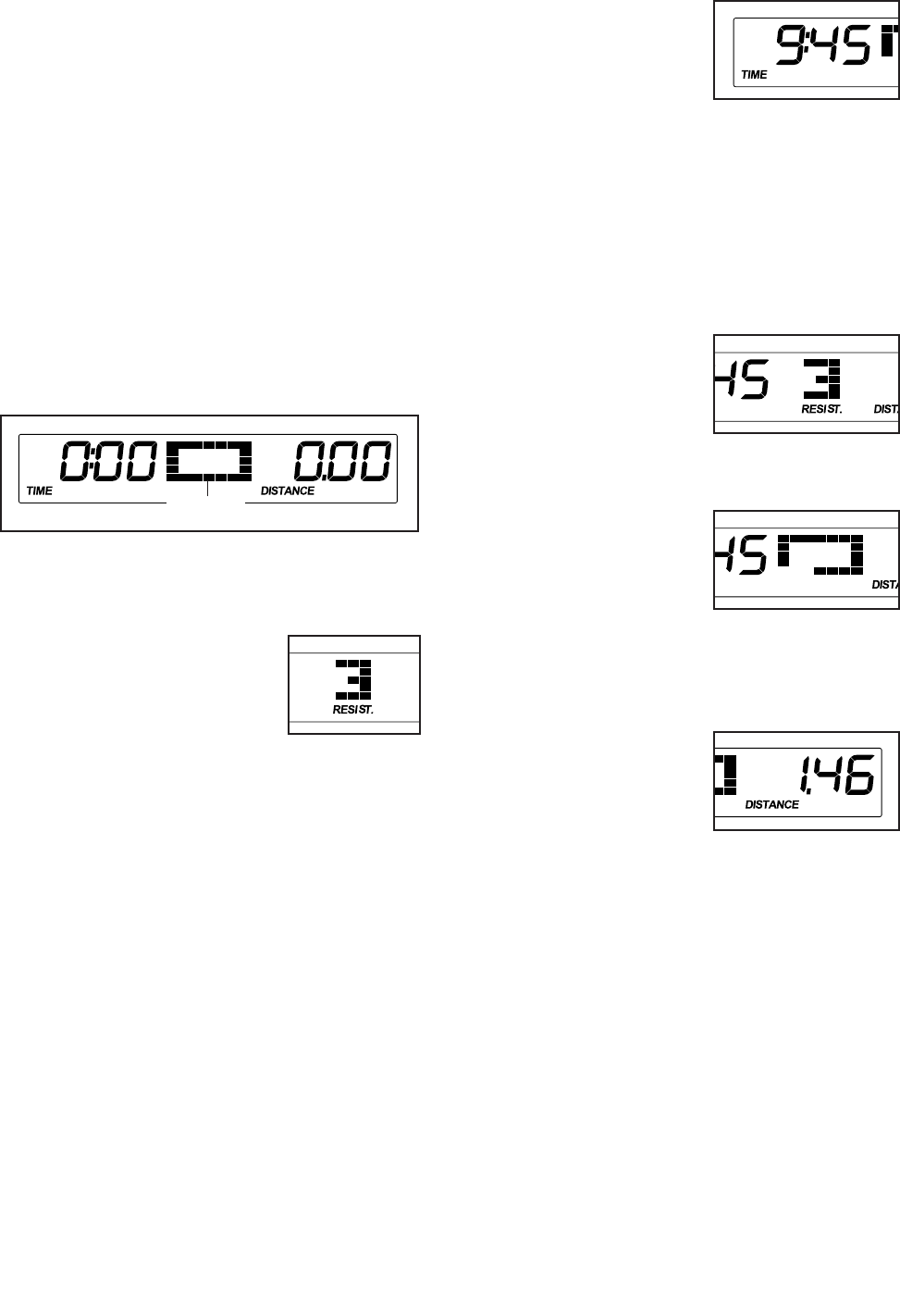

4. Follow your progress with the display.

The left display–This

display can show the

elapsed time and the

approximate number

of calories you have

burned. The display will

change modes every few seconds.

Note: During a preset workout, the display will

show the time remaining in the workout.

The left display will also show your heart rate

when you use the handgrip heart rate monitor (see

step 5).

The center display–

This display will show

the resistance level of

the pedals for a few

seconds each time

the resistance level

changes.

This display will also

show a track represent-

ing 1/4 mile (400 m). As

you exercise, indicators

will appear in succes-

sion around the track

until the entire track appears. The track will then

disappear and the indicators will again begin to

appear in succession.

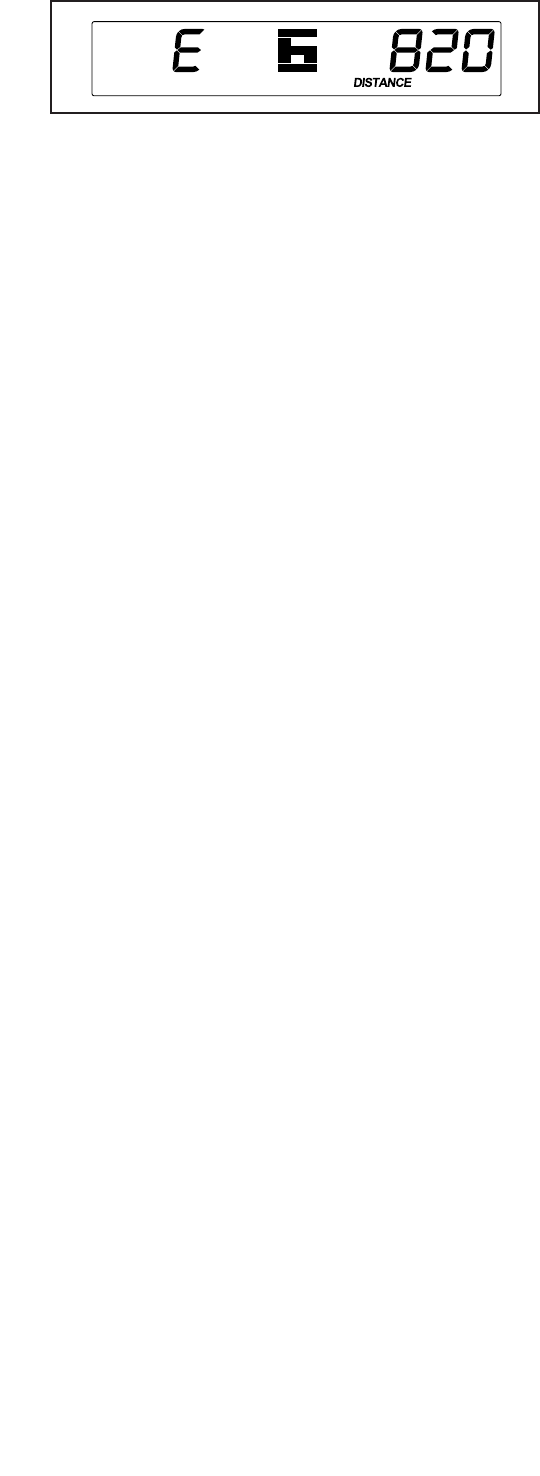

The right display–This

display can show the

distance you have

pedaled in miles or

kilometers and your

pedaling speed in miles

per hour or kilometers per hour. The display will

change modes every few seconds.

Track

5. Measure your heart rate if desired.

If there are sheets

of plastic on the

metal contacts

on the handgrip

heart rate monitor,

remove the plas-

tic. In addition,

make sure that

your hands are

clean. To measure

your heart rate,

hold the handgrip

heart rate monitor with your palms resting against

the contacts. Avoid moving your hands or grip-

ping the contacts tightly.

When your pulse is detected, a heart-shaped

symbol will flash in the display and then your heart

rate will be shown. For the most accurate heart

rate reading, hold the contacts for at least 15

seconds.

If your heart rate is not shown, make sure that your

hands are positioned as described. Be careful not

to move your hands excessively or to squeeze the

contacts tightly. For optimal performance, clean

the contacts using a soft cloth; never use alcohol,

abrasives, or chemicals to clean the contacts.

6. Turn on the fan if desired.

The fan has high and low

speed settings. Press the fan

button repeatedly to select a

fan speed or to turn off the fan.

Note: If the pedals do not move for about thirty

seconds, the fan will turn off automatically.

7. When you are finished exercising, the console

will turn off automatically.

If the pedals do not move for several seconds, a

series of tones will sound, the console will pause,

and the time will flash in the display.

If the pedals do not move for several minutes, the

console will turn off and the display will be reset.

Contacts

HOW TO USE AN 8-WEEK WEIGHT-LOSS

WORKOUT

1. Turn on the console.

Press any button or begin pedaling to turn on the

console.

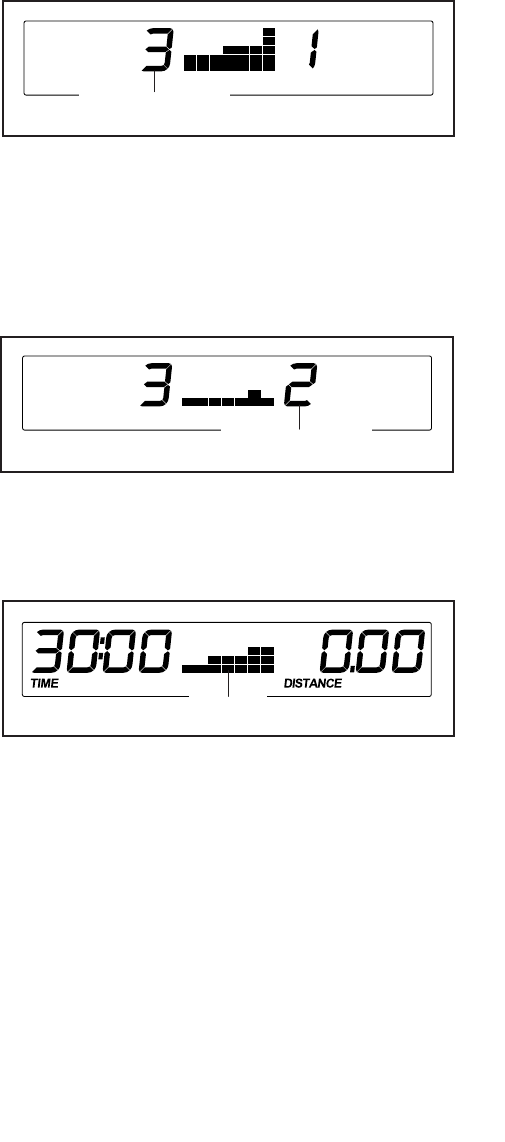

2. Select the desired week of the program.

To select the desired week of the program, press

the Select Week button repeatedly until the number

of the desired week appears in the display.

3. Select the desired day of the program.

There are three day workouts for each week of the

program. To select the desired day of the program,

press the Select Day button repeatedly until the

number of the desired day appears in the display.

Then, the duration of the workout will appear in the

left display and a profile of the resistance levels of

the workout will scroll across the center display.

4. Start the workout.

Press the Go button and begin pedaling to start the

workout.

Each workout is divided into one-minute segments.

One resistance level and one target speed are

programmed for each segment. Note: The same

resistance level and/or target speed may be pro-

grammed for consecutive segments.

During the workout, the workout profile will show

your progress. The flashing segment of the profile

represents the current segment of the workout. The

height of the flashing segment indicates the resis-

tance level for the current segment.

At the end of each segment of the workout, a

series of tones will sound and the next segment of

the profile will begin to flash.

The resistance level for the next segment will

appear in the center display for a few seconds to

alert you. The resistance of the pedals will then

change.

The target speed for the next segment will appear

in the right display for a few seconds to alert you.

As you exercise, keep your pedaling speed

near the target speed for the current segment.

IMPORTANT: The target speed is intended only

to provide motivation. Your actual pedaling

speed may be slower than the target speed.

Make sure to pedal at a speed that is comfort-

able for you.

Week Number

Day Number

Profile

If the resistance level for the current segment is

too high or too low, you can manually override the

setting by pressing the Digital Resistance buttons.

IMPORTANT: When the current segment of the

workout ends, the pedals will automatically

adjust to the resistance level programmed for

the next segment.

If you stop pedaling for several seconds, a series of

tones will sound and the workout will pause.

To restart the workout, simply resume pedaling.

The workout will continue until the last segment

of the profile flashes and the last segment of the

workout ends.

5. Follow your progress with the display.

See step 4 on page 16.

6. Measure your heart rate if desired.

See step 5 on page 17.

7. Turn on the fan if desired.

See step 6 on page 17.

8. When you are finished exercising, the console

will turn off automatically.

See step 7 on page 17.

HOW TO USE A PRESET WORKOUT

1. Turn on the console.

Press any button or begin pedaling to turn on the

console.

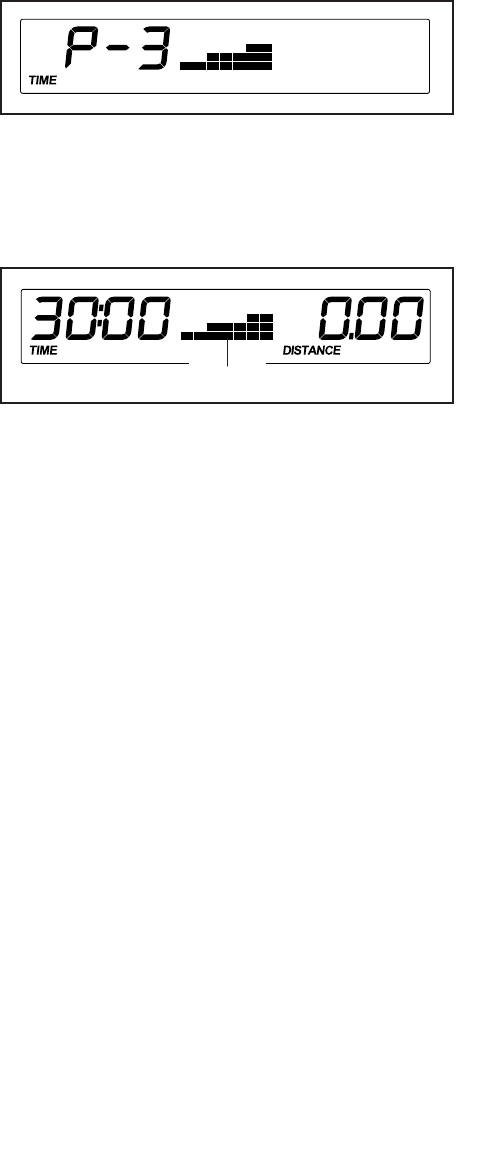

2. Select a preset workout.

To select a preset workout, press the Aerobic or

Performance button repeatedly until the number of

the desired workout appears in the left display.

When you select a preset workout, the duration of

the workout will appear in the left display and a pro-

file of the resistance levels of the workout will scroll

across the center display.

Note: Complete profiles of the preset workouts are

printed on the sides of the console.

3. Begin pedaling to start the workout.

Each workout is divided into one-minute segments.

One resistance level and one target speed are

programmed for each segment. Note: The same

resistance level and/or target speed may be pro-

grammed for consecutive segments.

During the workout, the workout profile will show

your progress. The flashing segment of the profile

represents the current segment of the workout. The

height of the flashing segment indicates the resis-

tance level for the current segment.

At the end of each segment of the workout, a

series of tones will sound and the next segment of

the profile will begin to flash.

The resistance level for the next segment will

appear in the center display for a few seconds to

alert you. The resistance of the pedals will then

change.

The target speed for the next segment will appear

in the right display for a few seconds to alert you.

As you exercise, keep your pedaling speed

near the target speed for the current segment.

IMPORTANT: The target speed is intended only

to provide motivation. Your actual pedaling

speed may be slower than the target speed.

Make sure to pedal at a speed that is comfort-

able for you.

If the resistance level for the current segment is

too high or too low, you can manually override the

setting by pressing the Digital Resistance buttons.

IMPORTANT: When the current segment of the

workout ends, the pedals will automatically

adjust to the resistance level programmed for

the next segment.

If you stop pedaling for several seconds, a series of

tones will sound and the workout will pause.

To restart the workout, simply resume pedaling.

The workout will continue until the last segment

of the profile flashes and the last segment of the

workout ends.

4. Follow your progress with the display.

See step 4 on page 16.

5. Measure your heart rate if desired.

See step 5 on page 17.

6. Turn on the fan if desired.

See step 6 on page 17.

7. When you are finished exercising, the console

will turn off automatically.

See step 7 on page 17.

Profile

HOW TO USE THE SOUND SYSTEM

To play music or audio books through the console

sound system while you exercise, plug your audio

cable into the jack on the console and into a jack on

your MP3 player or CD player; make sure that your

audio cable is fully plugged in.

Next, press the play button on your MP3 player or CD

player. Adjust the volume level using the volume con-

trol on your MP3 player or CD player.

THE USER MODE

The console features a user mode that allows you to

select a unit of measurement for the console, to select

the volume level for the console, and to view console

usage information.

To select the user mode, press and hold down the

Performance button for a few seconds until the user

mode information appears in the display.

The console can show pedaling speed and distance in

either miles or kilometers.

The left display will show the selected unit of mea-

surement. An E for English miles or an M for metric

kilometers will appear in the display. To change

the unit of measurement, press the Aerobic button

repeatedly.

Note: When you replace the batteries, it may be neces-

sary to reselect the unit of measurement.

The center display will show the volume level of the

console. To change the volume level, press the Digital

Resistance increase and decrease buttons.

The right display will show the total distance that the

exercise bike has been pedaled.

To exit the user mode, press the Performance button.

Inspect and tighten all parts of the exercise bike regu-

larly. Replace any worn parts immediately.

To clean the exercise bike, use a damp cloth and a

small amount of mild soap. IMPORTANT: To avoid

damage to the console, keep liquids away from

the console and keep the console out of direct

sunlight.

CONSOLE TROUBLESHOOTING

Most console problems are the result of low batter-

ies. See assembly step 10 on page 11 for battery

replacement instructions.

If the console does not display your heart rate when

you use the handgrip heart rate monitor, see step 5 on

page 17.

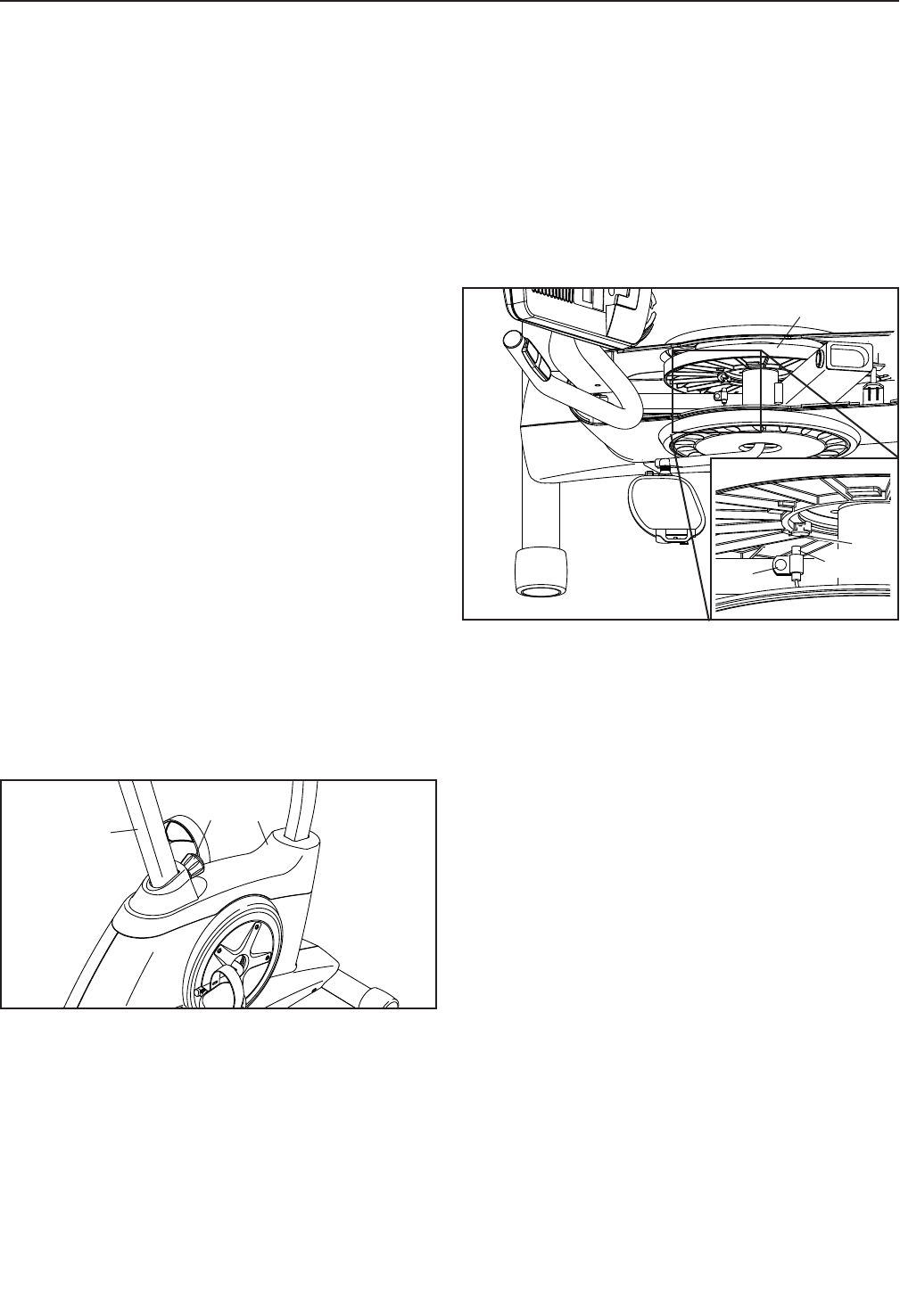

HOW TO ADJUST THE REED SWITCH

If the console does not display correct feedback, the

reed switch should be adjusted.

To adjust the reed switch, you must remove the seat

post, the post knob, and the top shield (see the instruc-

tions below).

To remove the Seat Post (5), loosen the Post Knob (11)

a few turns, pull the Post Knob outward, and remove

the Seat Post. Then, using an adjustable wrench,

remove the Post Knob.

Using a flat screwdriver, release the tabs along the bot-

tom edge of the Top Shield (9) and slide the Top Shield

upward.

Locate the Reed Switch (21). Turn the Pulley (13) until

a Pulley Magnet (16) is aligned with the Reed Switch.

Loosen, but do not remove, the indicated M4 x 16mm

Screw (40). Slide the Reed Switch slightly closer to or

away from the Magnet, and then retighten the Screw.

Turn the Pulley (13) for a moment. If necessary, repeat

the step above until the console displays correct

feedback.

When the reed switch is correctly adjusted, reattach

the shield cover, the post knob, and the seat post.

MAINTENANCE AND TROUBLESHOOTING

40 21

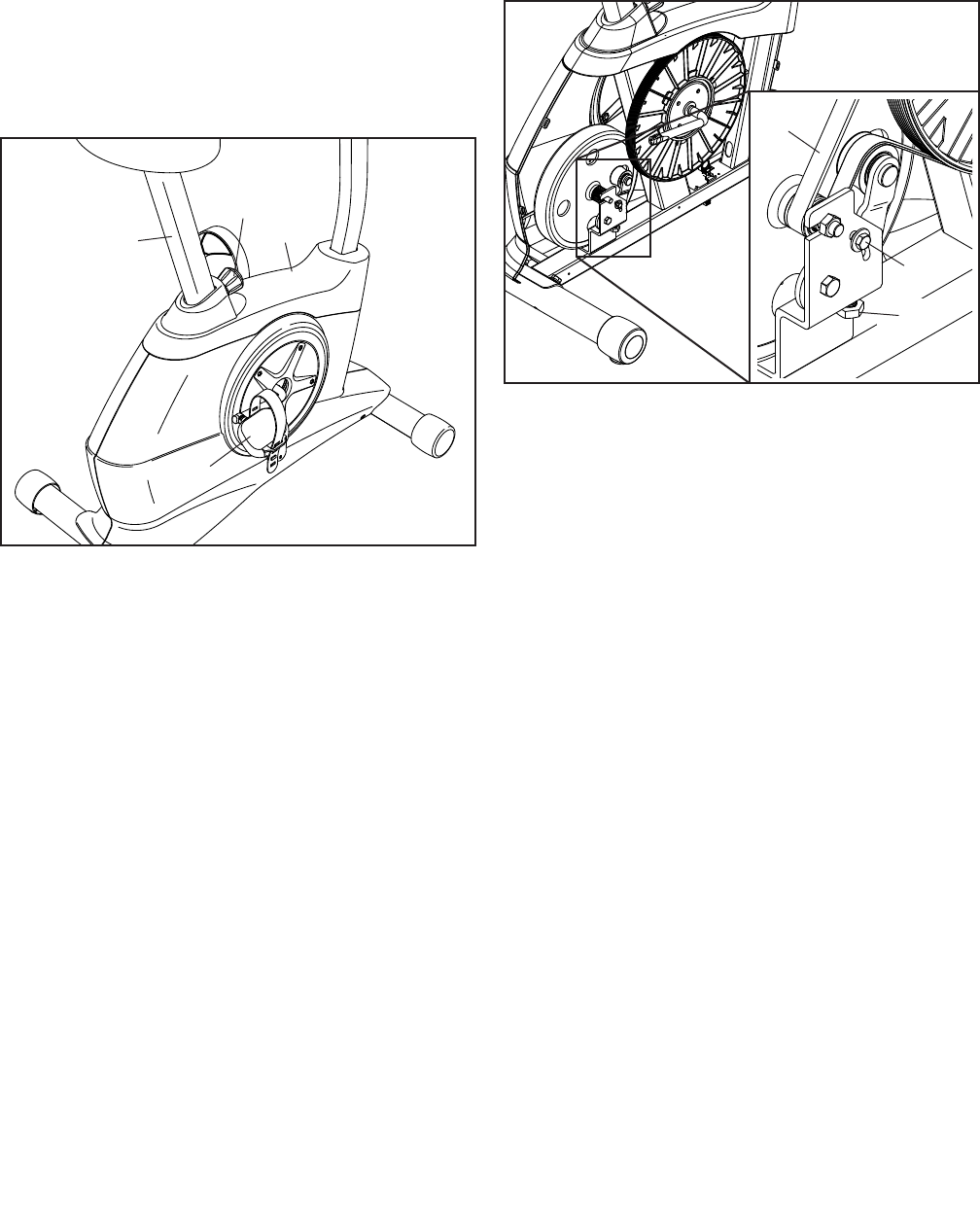

HOW TO ADJUST THE DRIVE BELT

If the pedals slip while you are pedaling, even while

the resistance is adjusted to the highest level, the drive

belt may need to be adjusted.

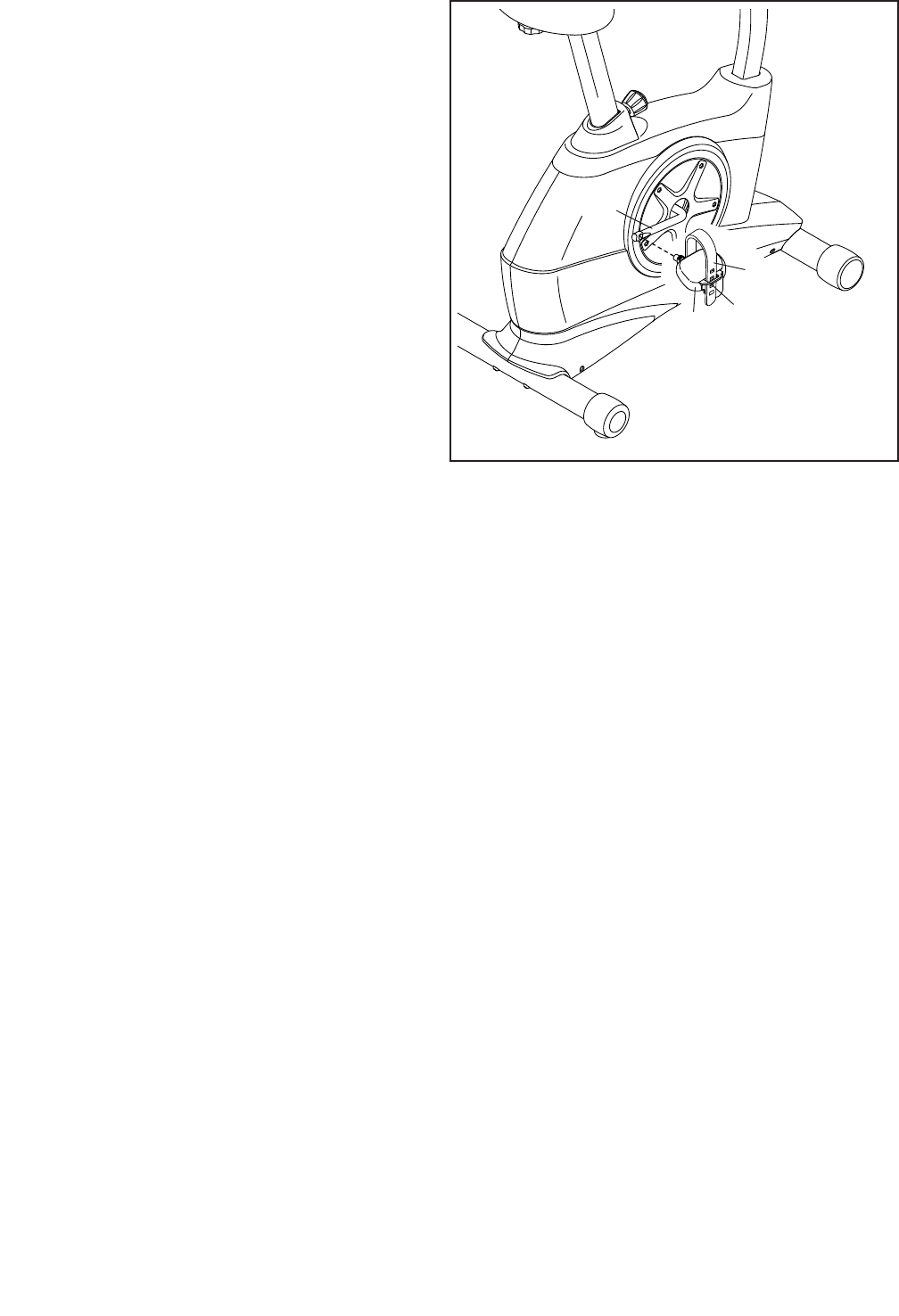

To adjust the drive belt, you must remove the seat

post, the post knob, the top shield, the right pedal, and

the right shield (see the instructions below).

To remove the Seat Post (5), loosen the Post Knob (11)

a few turns, pull the Post Knob outward, and remove

the Seat Post. Then, using an adjustable wrench,

remove the Post Knob.

Using a flat screwdriver, release the tabs along the bot-

tom edge of the Top Shield (9) and slide the Top Shield

upward. Then, using an adjustable wrench, turn the

Right Pedal (26) counterclockwise and remove it.

Remove all the screws from the left and right shields;

there are two sizes of screws in the shields—note

which size of screw you remove from each hole.

Then, gently pull the right shield away from the frame.

Loosen the M6 x 20mm Hex Screw (46). Then, tighten

the M10 x 50mm Hex Screw (33) until the Drive Belt

(23) is tight.

When the Drive Belt (23) is tight, tighten the M6 x

20mm Hex Screw (46).

Then, reattach the left and right shields, the right pedal,

the top shield, the post knob, and the seat post.

EXERCISE GUIDELINES

These guidelines will help you to plan your exercise

program. For detailed exercise information, obtain a

reputable book or consult your physician. Remember,

proper nutrition and adequate rest are essential for

successful results.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your

cardiovascular system, exercising at the proper inten-

sity is the key to achieving results. You can use your

heart rate as a guide to find the proper intensity level.

The chart below shows recommended heart rates for

fat burning and aerobic exercise.

To find the proper intensity level, find your age at the

bottom of the chart (ages are rounded off to the near-

est ten years). The three numbers listed above your

age define your “training zone.” The lowest number is

the heart rate for fat burning, the middle number is the

heart rate for maximum fat burning, and the highest

number is the heart rate for aerobic exercise.

Burning Fat—To burn fat effectively, you must exer-

cise at a low intensity level for a sustained period of

time. During the first few minutes of exercise, your

body uses carbohydrate calories for energy. Only after

the first few minutes of exercise does your body begin

to use stored fat calories for energy. If your goal is to

burn fat, adjust the intensity of your exercise until your

heart rate is near the lowest number in your training

zone. For maximum fat burning, exercise with your

heart rate near the middle number in your training

zone.

Aerobic Exercise—If your goal is to strengthen your

cardiovascular system, you must perform aerobic

exercise, which is activity that requires large amounts

of oxygen for prolonged periods of time. For aerobic

exercise, adjust the intensity of your exercise until your

heart rate is near the highest number in your training

zone.

WORKOUT GUIDELINES

Warming Up—Start with 5 to 10 minutes of stretch-

ing and light exercise. A warm-up increases your body

temperature, heart rate, and circulation in preparation

for exercise.

Training Zone Exercise—Exercise for 20 to 30 min-

utes with your heart rate in your training zone. (During

the first few weeks of your exercise program, do not

keep your heart rate in your training zone for longer

than 20 minutes.) Breathe regularly and deeply as you

exercise ; never hold your breath.

Cooling Down—Finish with 5 to 10 minutes of stretch-

ing. Stretching increases the flexibility of your muscles

and helps to prevent post-exercise problems.

EXERCISE FREQUENCY

To maintain or improve your condition, complete three

workouts each week, with at least one day of rest

between workouts. After a few months of regular exer-

cise, you may complete up to five workouts each week,

if desired. Remember, the key to success is to make

exercise a regular and enjoyable part of your everyday

life.

WARNING: Before beginning this

or any exercise program, consult your physi-

cian. This is especially important for persons

over age 35 or persons with pre-existing

health problems.

The heart rate monitor is not a medical device.

Various factors may affect the accuracy of

heart rate readings. The heart rate monitor is

intended only as an exercise aid in determin-

ing heart rate trends in general.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown at the right. Move slowly as you stretch; never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from

your hips. Allow your back and shoulders to relax as you reach down

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward

you and rest it against the inner thigh of your extended leg. Reach

toward your toes as far as possible. Hold for 15 counts, then relax.

Repeat 3 times for each leg. Stretches: Hamstrings, lower back and

groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your

hands against a wall. Keep your back leg straight and your back foot

flat on the floor. Bend your front leg, lean forward and move your

hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times

for each leg. To cause further stretching of the achilles tendons,

bend your back leg as well. Stretches: Calves, achilles tendons and

ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one

foot with your other hand. Bring your heel as close to your buttocks

as possible. Hold for 15 counts, then relax. Repeat 3 times for each

leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.

Pull your feet toward your groin area as far as possible. Hold for 15

counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip

muscles.

1 1 Frame

2 1 Front Stabilizer

3 1 Upright

4 2 Stabilizer Cap

5 1 Seat Post

6 1 Console

7 1 Flywheel/Mechanism

8 1 Seat Knob

9 1 Top Shield

10 2 Access Disc

11 1 Post Knob

12 1 Seat

13 1 Pulley/Crank

14 1 Rear Stabilizer

15 2 Wheel

16 2 Pulley Magnet

17 1 Left Shield

18 1 Right Shield

19 1 Handlebar Cover

20 1 Seat Post Bushing

21 1 Reed Switch/Wire

22 1 Clamp

23 1 Drive Belt

24 1 Left Pedal/Strap

25 1 Idler

26 1 Right Pedal/Strap

27 1 Crank Bearing Set

28 1 Left Pulse Wire

29 1 Resistance Motor

30 2 M4 x 19mm Screw

31 1 Lower Wire

32 1 Upper Wire

33 1 M10 x 50mm Hex Screw

34 2 M4 x 25mm Screw

35 4 M8 x 18mm Screw

36 4 M10 x 75mm Screw

37 8 M8 Locknut

38 2 Carriage Cap

39 2 M10 Flange Nut

40 13 M4 x 16mm Screw

41 4 M4 x 12mm Screw

42 1 Right Pulse Wire

43 2 Leveling Foot

44 1 M4 x 13mm Screw

45 2 Contact

46 1 M6 x 20mm Hex Screw

47 1 Left Handlebar

48 1 Right Handlebar

49 1 Water Bottle Holder

50 1 M6 Washer

51 2 Handlebar Cap

52 1 M6 x 15mm Shoulder Screw

53 4 M8 x 38mm Bolt

54 2 M4 x 22mm Screw

55 2 M10 Washer

56 1 Seat Carriage

57 1 Carriage Clamp

* – User’s Manual

* – Assembly Tool

Key No. Qty. Description Key No. Qty. Description

Note: Specifications are subject to change without notice. For information about ordering replacement parts, see

the back cover of this manual. *These parts are not illustrated.

PART LIST Model No. GGCCEX61612.2 R1212A

52 46

35 35

EXPLODED DRAWING Model No. GGCCEX61612.2 R1212A

To order replacement parts, please see the front cover of this manual. To help us assist you, be prepared to

provide the following information when contacting us:

•themodelnumberandserialnumberoftheproduct(seethefrontcoverofthismanual)

•thenameoftheproduct(seethefrontcoverofthismanual)

•thekeynumberanddescriptionofthereplacementpart(s)(seethePARTLISTandtheEXPLODED

DRAWING near the end of this manual)

ORDERING REPLACEMENT PARTS

ICON of Canada, Inc. (ICON) warrants this product to be free from defects in workmanship and material,

undernormaluseandserviceconditions.Theframeiswarrantedforve(5)yearsfromthedateofpur-

chase. Parts and labor are warranted for ninety (90) days from the date of purchase.

This warranty extends only to the original purchaser (customer). ICON’s obligation under this warranty is

limited to repairing or replacing, at ICON’s option, the product through one of its authorized service centers.

All repairs for which warranty claims are made must be preauthorized by ICON. If the product is shipped

to a service center, freight charges to and from the service center will be the customer’s responsibility. If

replacement parts are shipped while the product is under warranty, the customer will be responsible for a

minimal handling charge. For in-home service, the customer will be responsible for a minimal trip charge.

This warranty does not extend to freight damage to the product. This warranty will automatically be voided

if the product is used as a store display model, if all instructions in this manual are not followed, if the prod-

uct is abused or improperly or abnormally used, or if the product is used for commercial or rental purposes.

NootherwarrantybeyondthatspecicallysetforthaboveisauthorizedbyICON.

ICON is not responsible or liable for indirect, special, or consequential damages arising out of or in con-

nection with the use or performance of the product; damages with respect to any economic loss, loss of

property,lossofrevenuesorprots,lossofenjoymentoruse,orcostsofremovalorinstallation;orother

consequential damages of any kind. Some provinces do not allow the exclusion or limitation of incidental

or consequential damages. Accordingly, the above limitation may not apply to the customer.

The warranty extended hereunder is in lieu of any and all other warranties, and any implied warranties of

merchantabilityortnessforaparticularpurposearelimitedintheirscopeanddurationtothetermsset

forth herein. Some provinces do not allow limitations on how long an implied warranty lasts. Accordingly,

the above limitation may not apply to the customer.

Thiswarrantyprovidesspeciclegalrights;thecustomermayhaveotherrightsthatvaryfromprovince

to province.

ICON of Canada, Inc., 900 de l’Industrie, St. Jérôme, QC J7Y 4B8

LIMITED WARRANTY

IMPORTANT: To protect your fitness equipment with an extended service plan, see page 4.

Golds Gym Ggccex616122 Owners Manual

Navigation menu

Versions of this User Manual:

Views

Navigation
